USER GUIDE
CSLM30
LAVALIER MICROPHONE
WITH EARPHONE

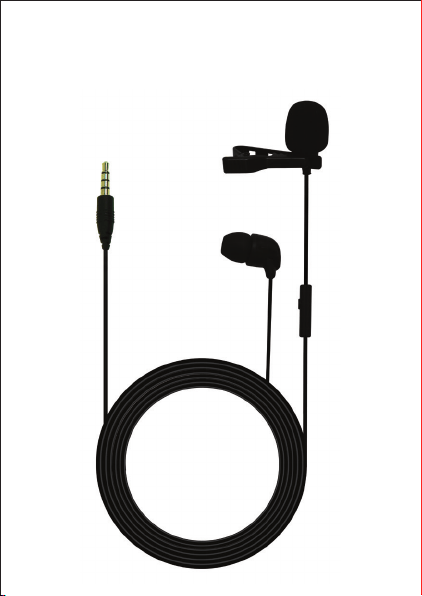

CSLM30
LAVALIER MICROPHONE
WITH EARPHONE
CONNECTING THE MICROPHONE TO
SMARTPHONES/LAPTOPS
i. Plug the 3.5mm TRRS connector into the
headphone jack of the smartphone/laptop.
Audio-out will be played from the earphone & the
lavalier microphone will be used as the default
microphone for calls.
BOX INCLUDES
i. CSLM30 lavalier microphone with earphone
ii. Carry pouch
iii. Tie-clip
iv. Windshield
USING THE MICROPHONE
i. In Line One Button Remote lets you Receive & End
calls by a short press. Long Press Can activate
Voice Assistant like Google Now on your
smartphone.
ii. The benefit of a microphone attached to the user's
clothes is that the microphone will maintain a constant
working distance independently of the user's
movements and thus ensure a constant output level.
Also, a clip-on microphone allows the user to move
about freely and keeps their hands free.
iii. Hold the lavalier microphone firmly & attach the
tie-clip to the microphone at a point just below the
microphone body, as shown. Attach the windshield
on the microphone.
FEATURES
CLEANING
i. To clean the microphone case, use a soft cloth
moistened with water.
iv. Attach the microphone to the user’s upper body,
placing it as close as possible to his/her mouth.
i. Omnidirectional lavalier microphone with earphone
ii. Long press on remote to activate Voice Assistant
like Google Now
iii. Lower sensitivity for better audio output
iv. Strong cable for better longevity
v. In-line one button remote for hands-free calling
vi. Compatible with laptops & most smartphones
vii. Comfortable earphone for monitoring, video &
conference calls
MICROPHONE SPECIFICATION
Polar pattern Omnidirectional
Audio frequency 60Hz to 18KHz
bandwidth
Sensitivity -42dB±3dB
(0dB=1V/Pa at 1KHz)
Max. sound 110 dB
pressure level
Output impedance 2.2 K ohms
Length 1.5 meters
Weight 14.6 g
Speaker impedance 16 ±20% Ohms
All product images shown are for illustration purpose only and may
not be an
exact
representation of the product. Actual product may
vary in colour, size and finishing. ©2021 HARMAN International
Industries, Inc. All rights reserved.
