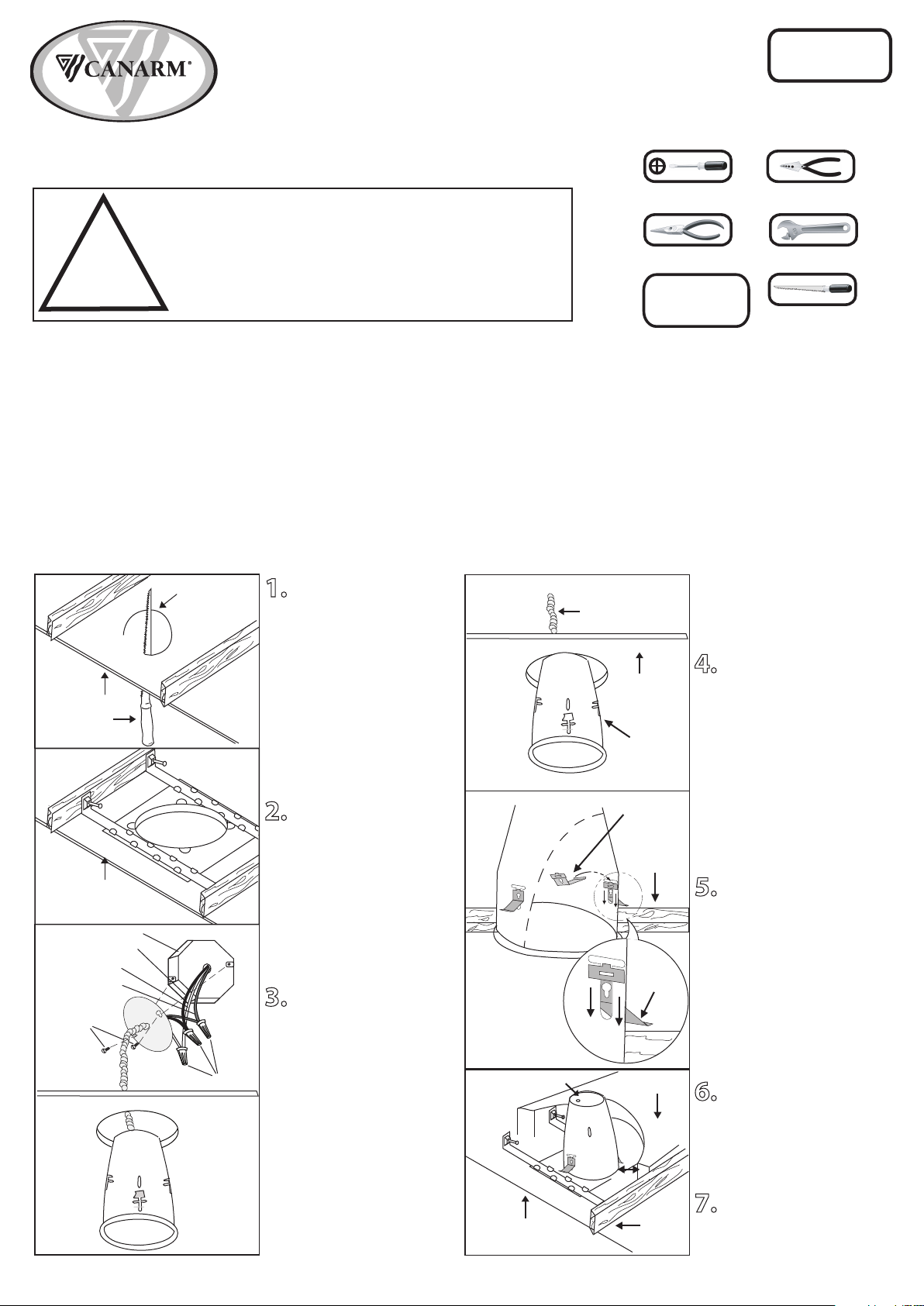

1. Using 4.7 “ template on
the box, mark the
openings and cut the
openings with a drywall
saw where you intend to
install the lights. (Fig.1)
2.Spread the mounting
bars(sold separately). Align
the housing to the lower
edge of the joists and
hammer in place. (Fig.2)
3. Connect the incoming
and outgoing wires by
matching white to white,
black to black and green to
ground wire and twist on.
Install the joint box plate
to the electrical outlet box
with the outlet box screws.
(Fig.3)
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (613) 342-8437
RL-13
12/08
INSTALLATION:
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.
4. KEEP INSULATION AT LEAST 3 INCHES AWAY FROM HOUSING. (FIG.6)
5. CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
NOTE: Product May Not Look Exactly As Shown In Figures.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
RECESSED LIGHT
(NON INSULATING)
drywall saw
ceiling
(Fig.1)
4.7”
diameter hole
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French) 1-800-267-4427 (USA)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Wiring supplies
as required by
electrical code
Pliers Wrench
Saw
!
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
INSTRUCTIONS”
“SAVE THESE INSTRUCTIONS”
ceiling
(Fig.2)
4. Lift the housing onto the
drywall. (Fig.4)
5. Push to lock the three
remodel clips to hold the can
against the ceiling. (Fig.5)
6. Do not install insulation
within 76 mm (3 in) of any
part of the luminaire. (Fig.6)
7. Install the bulb.
(Fig.5)
ceiling
housing/can
remodel
spring clip
1. Using 3.7” or 4.7 “
template on the box, mark
the openings and cut the
openings with a drywall
saw where you intend to
install the lights. (Fig.1)
2.
3. Spread the mounting
bars(sold separately). Align
the housing to the lower
edge of the joists and
hammer in place. (Fig.3)
4. Unscrew the electrical
box. Pull wiring through
hole cut out. Using the
wire-nut, connect the
incoming and outgoing
wires by matching white to
white, black to black and
green to ground wire and
twist on. Tighten the
electrical box after wiring
connections. (Fig.4)
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (613) 342-8437
RL-13
12/08
INSTALLATION:
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.
4. CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
5. CAUTION : RISK OF FIRE, ONLY USE CANARM TRIM.
NOTE: Product May Not Look Exactly As Shown In Figures.
INSTALLATION : Follow one of the following steps for your trim.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
RECESSED LIGHT
(NON INSULATING)
drywall saw
ceiling
(Fig.1)
3.7” or 4.7”
diameter hole
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French) 1-800-267-4427 (USA)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Wiring supplies
as required by
electrical code
Pliers Wrench
Saw
!
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
INSTRUCTIONS”
“SAVE THESE INSTRUCTIONS”
ceiling
(Fig.3)
(Fig.4)
(Fig.2)
white
black
ceiling
flex with
supply wires
housing
(Fig.5)
5. Lift the housing onto the
drywall. (Fig.5)
6. Push to lock the four
remodel clips to hold the can
against the ceiling. (Fig.6)
7. Install the bulb and trim.
(Fig.7)
(Fig.6)
(Fig.7)
ceiling
housing/can
remodel
spring clip
white
marrette
black
green ground
outlet box
screws
insulation
ceiling
housing
(Fig.6)
joist
3” (min.)
ceiling
flex with
supply wires
housing
remodel
spring clip
ceiling
(Fig.3)
(Fig.4)
white
black
(Fig.4)
green ground
green
ground
trim
bulb
outlet box
