Model Number: DL-4-9ER
Page 1
INSTALLATION INSTRUCTIONS
Made in China
Please read these instructions carefully before attempting to
install this product. It is advisable to keep these instructions in a
safe place for further reference.
WARNING: All electrical connections must be in accordance
with local and National Electrical Code (N.E.C.) standards. If
you are unfamiliar with proper electrical wiring connections
obtain the services of a qualified electrician.
WARNING: RISK OF SHOCK electric current can cause
painful shock or serious injury unless
A. Turn off the power Supply at the fuse or circuit breaker box
before you install the fixture.
B. Ground the fixture to avoid potential electric shocks and to
ensure reliable starting.
C. Double-check all connections to be sure they are tight and
correct.
D. Wear rubber soled shoes and work on a sturdy wooden
ladder.
WARNING: Risk of fire. Use only on 120 volt 60Hz circuits.
Suitable for wet locations. Before installing your lighting fixture,
thoroughly review enclosed installation manual.
CAUTION: TURN OFF THE MAIN POWER AT THE CIRCUIT
BREAKER BEFORE INSTALLING THE FIXTURE, IN ORDER
TO PREVENT POSSIBLE SHOCK.
This fixture is designed for use in a circuit protected by a fuse
or circuit breaker. It is also designed to be installed in accor-
dance with local electrical codes. If you are unsure about your
wiring, consult a qualified electrician or local electrical
inspector, and check your local electrical code.
WARNING: RISK OF CUTS Some metal parts in the fixture
may have sharp edges. To prevent cuts and scrapes, wear
gloves when handling the parts.
CAUTION: FOR WET LOCATION INSTALLATION ON
UNEVEN SURFACE, ADD GASKET OR CAULKING COM-
POUND ON BACK OF FIXTURE FOR SEAL AGAINST
MOUNTING SURFACE.
Components
LED Recessed Downlight 1 x Installation Instruction
Important Safety Information
Maintenance & Care
1. Ensure that the power is disconnected prior to cleaning.
2. To keep the finish of this product, wipe over with soft cloth periodically.
3. Do not use harsh chemical solvents, it may dis-color or damage the finish.
Preparation for Installation
1. Read these instructions carefully before attempting to install this product.
2. Disconnect electrical power before installing or servicing any part of this fixture.
3. Place fixture on a clean flat surface.
Tel: (613) 342-5424, Fax: (800) 263-4598
Page 2

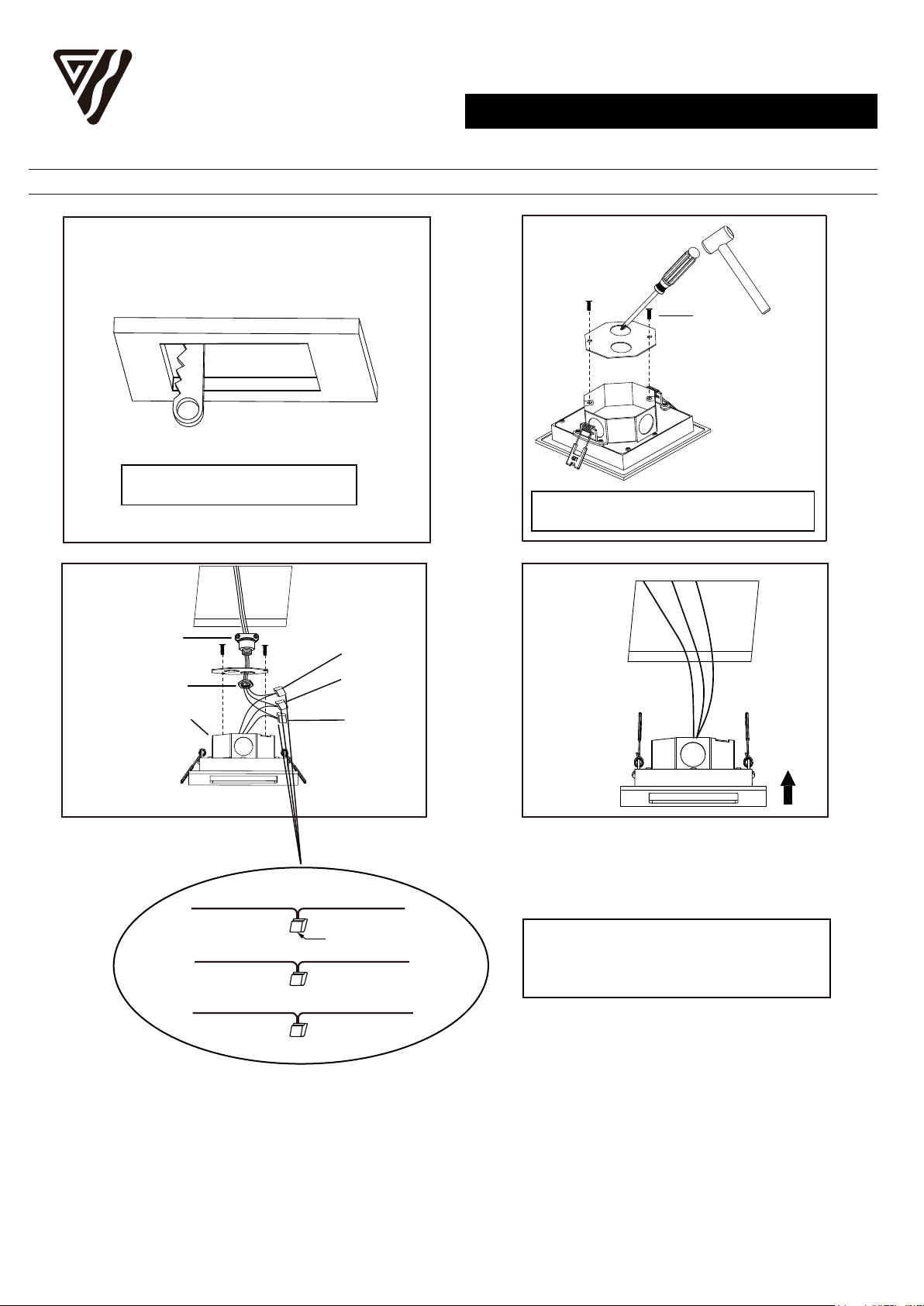

Step 3
Step 1
Step 2
Step 4
INSTALLATION INSTRUCTIONS
Model Number: DL-4-9ER
Made in China
(NOTE: Product may not look exactly as shown in figures.)
hole diameter:
DL-4-9ER: 110*110mm (4 3/8 x 4 3/8 in)
Screw
Unscrew the two screws to remove the top panel.
Remove the knock-out.
Romex connector
(not included)
Black
Ground
White
Junction box
Hex nut
(not included)
(NEUTRAL)
SUPPLY WIRE
WHITE
SUPPLY WIRE
FIXTURE WIRE
CONNECTOR
BLACK
BLACK (HOT)
FIXTURE WIRE
GREEN/YELLOW GREEN/YELLOW
GROUND WIRE
FROM SUPPLY
FIXTURE GROUND
CAUTION:
MAKE SURE THAT NO WIRES ARE
PINCHED BETWEEN J-BOX MOUNTING
PLATE AND FIXTURE BODY.
Installation
CAUTION
WARNING: Risk of fire. Use only on 120 volt 60Hz circuits. Suitable for wet locations. Before installing your lighting fixture,
thoroughly review enclosed installation manual. If you do not have sufficient electrical wiring experience, please have your fixture
installed by a qualified licensed electrician. All electrical connections must be in accordance with Local and National Electrical
Code (NEC) Standards. Reliable operating temperature is 0°F–120°F. If flickering occurs in low level dimming, increase light
level.
