ceiling

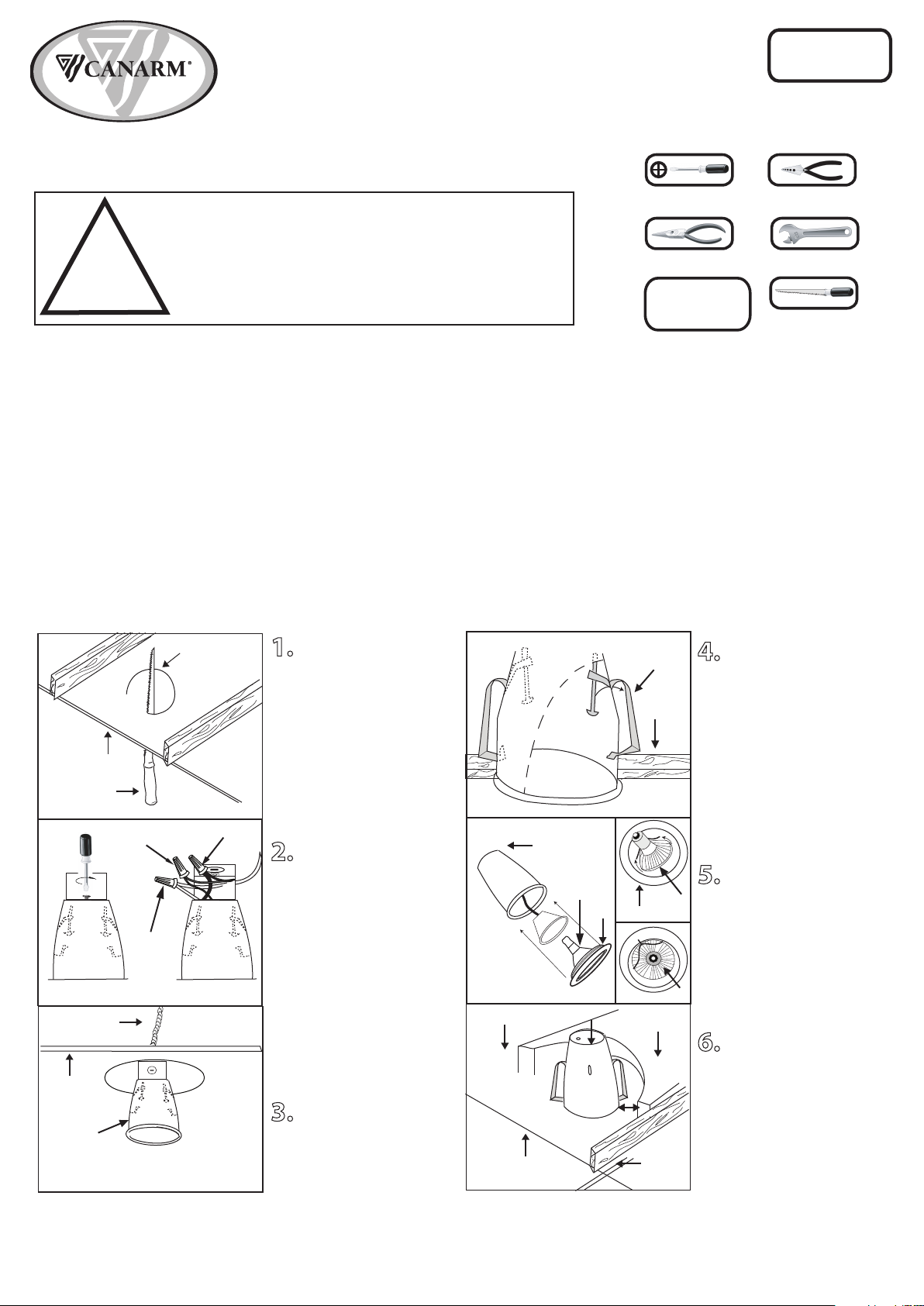

1. Using 3.2” template on
the box, mark the
openings and cut the
openings with a drywall
saw where you intend to
install the lights. (Fig.1)
2. Unscrew the electrical
box. Pull wiring through
hole cut out. Using the
wire-nut, connect the
incoming and outgoing
wires by matching white to
white, black to black and
green to ground wire and
twist on. Tighten the
electrical box after wiring
connections. (Fig.2)
3. Lift the housing onto
the drywall. (Fig.3)
4. Screw the long screws
against the back of the can.
(Fig.4)
5. Install the proper
bulb - Max 50 w GU10
Shielded and Canarm Trim as
specifed above. (Fig.5)
6. Do not install insulation
within 76 mm (3 in) of any
part of the luminaire. (Fig.6)
RL-7
10/12
INSTALLATION:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.
4. DO NOT INSTALL INSULATION WITHIN 76 mm (3 in) OF ANY PART OF THE LUMINAIRE. (FIG.6)
5. CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
6. CAUTION : RISK OF FIRE, ONLY USE CANARM 3" TRIM.
CANARM MODEL NUMBER : T3TX01(3-9).
NOTE: Product May Not Look Exactly As Shown In Figures.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
RECESSED LIGHT
(NON INSULATING)
3” (min.)
insulation
junction box
ceiling
drywall saw
trim
bulb
bulb
white
black
green
ground
housing
ceiling
flex with
supply wires
housing
housing
housing/can
long screw
(Fig.2)
(Fig.6)
ceiling
(Fig.1)
(Fig.4)
(Fig.5)
(Fig.3)
joist
3.2”
diameter hole
trim
bulb
remodel
spring clip
SAFETY PRECAUTIONS:
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) 1-800-567-2513 (French) 1-800-267-4427 (USA)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Wiring supplies
as required by
electrical code
Pliers Wrench
Saw
!
“INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS”
“READ ALL INSTRUCTIONS”
“IMPORTANT SAFETY
INSTRUCTIONS”
“SAVE THESE INSTRUCTIONS”
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
