French Door Refrigerator
Réfrigérateur à porte à double battant
THANK YOU for purchasing this high-quality product. Register your new refrigerator at www.kitchenaid.com.
In Canada, register your refrigerator at www.kitchenaid.ca.
For future reference, please make a note of your product model and serial numbers.
These can be located on the inside wall of the refrigerator compartment.
Nous vous REMERCIONS d’avoir acheté ce produit de haute qualité. Enregistrer votre nouveau réfrigérateur
sur le site internet www.kitchenaid.ca.
Pour référence ultérieure, consigner par écrit les numéros de modèle et de série de votre produit.
Ceux-ci sont situés sur la paroi interne du compartiment de réfrigération.
Model Number/Numéro de modèle____________________________ Serial Number/Numéro de série ___________________________
Para obtener acceso a “Instrucciones para el usuario del refrigerador” en español, o para obtener información adicional acerca de
su producto, visite: www.kitchenaid.com.
Necesitará su número de modelo y de serie, ubicado en el interior del compartimiento del refrigerador.
W10815169D
User Guide
Guide de l’utilisateur
Loading page 2...
Loading page 3...
Loading page 4...
Loading page 5...
Loading page 6...
Loading page 7...
Loading page 8...
Loading page 9...
Loading page 10...
Loading page 11...
Loading page 12...
Loading page 13...
Loading page 14...
Loading page 15...
Loading page 16...
Loading page 17...
Loading page 18...
Loading page 19...
Loading page 20...
Loading page 21...
Loading page 22...
Loading page 23...
Loading page 24...
Loading page 25...
Loading page 26...
Loading page 27...
Loading page 28...
Loading page 29...
Loading page 30...
Loading page 31...
Loading page 32...
Loading page 33...
Loading page 34...
Loading page 35...
Loading page 36...
Loading page 37...
Loading page 38...

User Manual - Transcript

  • Page 1 - French - : French Door Refrigerator Réfrigérateur à porte à double battant THANK YOU for purchasing this highquality product Register your new refrigerator at wwwkitchenaidcom In Canada register your refrigerator at wwwkitchenaidca For future reference please make a note of your product model and serial numbers These can be located on the inside wall of the refrigerator compartment Nous vous REMERCIONS davoir acheté ce produit de haute qualité Enregistrer votre nouveau réfrigérateur sur le site internet wwwkitchenaidca Pour référence ultérieure consigner par écrit les numéros de modèle et de série de votre produit Ceuxci sont situés sur la paroi interne du compartiment de réfrigération Model NumberNuméro de modèle Serial NumberNuméro de série Para obtener acceso a Instrucciones para el usuario del refrigerador en español o para obtener información adicional acerca de su producto visite wwwkitchenaidcom Necesitará su número de modelo y de serie ubicado en el interior del compartimiento del refrigerador W10815169D User Guide Guide de lutilisateur
  • Page 2 - French - : TABLE OF CONTENTSTABLE DES MATIÈRES REFRIGERATOR SAFETY 3 PARTS AND FEATURES 4 Whats New Behind the Doors 5 GETTING STARTED 6 INSTALLATION INSTRUCTIONS 8 Unpack the Refrigerator 8 Location Requirements 8 Remove and Replace Refrigerator Doors 9 Remove and Replace Freezer Drawer Fronts 12 Electrical Requirements 13 Water Supply Requirements 13 Connect the Water Supply 13 Handle Installation and Removal 15 Refrigerator Leveling and Door Closing 16 FILTERS AND ACCESSORIES 17 Water Filtration System 17 Install Air Filter 18 Install Produce Preserver on some models 18 Accessories 19 REFRIGERATOR USE 19 Opening and Closing Doors 19 Using the Controls 20 External Dispenser Controls 21 Lighting the Refrigerator 22 Water and Ice Dispensers 22 Ice Maker and Storage Bin 25 Shelves Bins and Drawers 25 Freezer Drawers 28 Audio Reference 28 REFRIGERATOR CARE 29 Cleaning 29 Lights 30 Vacation and Moving Care 30 TROUBLESHOOTING 31 PERFORMANCE DATA SHEET 37 WARRANTY 38 SÉCURITÉ DU RÉFRIGÉRATEUR39 PIÈCES ET CARACTÉRISTIQUES 40 Quoi de neuf en coulisse 41 MISE EN PLACE 42 INSTRUCTIONS DINSTALLATION 44 Déballage du réfrigérateur44 Exigences demplacement 44 Retrait et réinstallation des portes du réfrigérateur 45 Retrait et réinstallation de lavant du tiroir de congélation 48 Spécications électriques 49 Spécications de lalimentation en eau 49 Raccordement à la canalisation deau 49 Installation et retrait des poignées 50 Nivellement du réfrigérateur et fermeture de la porte 52 FILTRES ET ACCESSOIRES 53 Système de ltration deau 53 Installation du ltre à air 54 Installation du conservateur de produits frais sur certains modèles 54 Accessoires 55 UTILISATION DU RÉFRIGÉRATEUR 55 Ouverture et fermeture des portes 55 Utilisation des commandes 56 Commandes de distributeur externe 57 Éclairage du réfrigérateur 58 Distributeurs deau et de glaçons 58 Machine à glaçons et bac dentreposage 61 Tablettes balconnets et tiroirs 62 Tiroirs du congélateur 64 Référence audio 64 ENTRETIEN DU RÉFRIGÉRATEUR 65 Nettoyage 65 Lampes 66 Précautions à prendre pour les vacances ou le déménagement 66 DÉPANNAGE 67 FICHE DE DONNÉES RELATIVES AU RENDEMENT74 GARANTIE 75
  • Page 3 - English - : You can be killed or seriously injured if you dont immediately You can be killed or seriously injured if you dont follow All safety messages will tell you what the potential hazard is tell you how to reduce the chance of injury and tell you what can happen if the instructions are not followed Your safety and the safety of others are very important We have provided many important safety messages in this manual and on your appliance Always read and obey all safety messages This is the safety alert symbol This symbol alerts you to potential hazards that can kill or hurt you and others All safety messages will follow the safety alert symbol and either the word DANGER or WARNING These words mean follow instructions instructions DANGER WARNING REFRIGERATOR SAFETY State of California Proposition 65 Warnings WARNING This product contains one or more chemicals known to the State of California to cause cancer WARNING This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire electric shock or injury when using your refrigerator follow these basic precautions SAVE THESE INSTRUCTIONS Plug into a grounded earthed outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Disconnect power before servicing Replace all parts and panels before operating Remove doors from your old refrigerator Use nonflammable cleaner Do not store or use petrol flammable liquids or gas in the vicinity of this or other electrical appliances The fumes can cause fires or explosions Do not store explosive substances such as aerosol cans with a flammable propellant in this refrigerator Do not use or place electrical devices inside the refrigerator compartments if they are not of the type expressly authorized by the manufacture Use two or more people to move and install refrigerator Disconnect power before installing ice maker on ice maker kit ready models only A qualified service technician must install the water line and ice maker Connect to a potable water supply only Use a sturdy glass when dispensing ice on some models This appliance is not intended for use by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety Children should be supervised to ensure that they do not play with the appliance To avoid the risk of children becoming trapped and suffocating do not allow them to play or hide inside the refrigerator If the power supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person

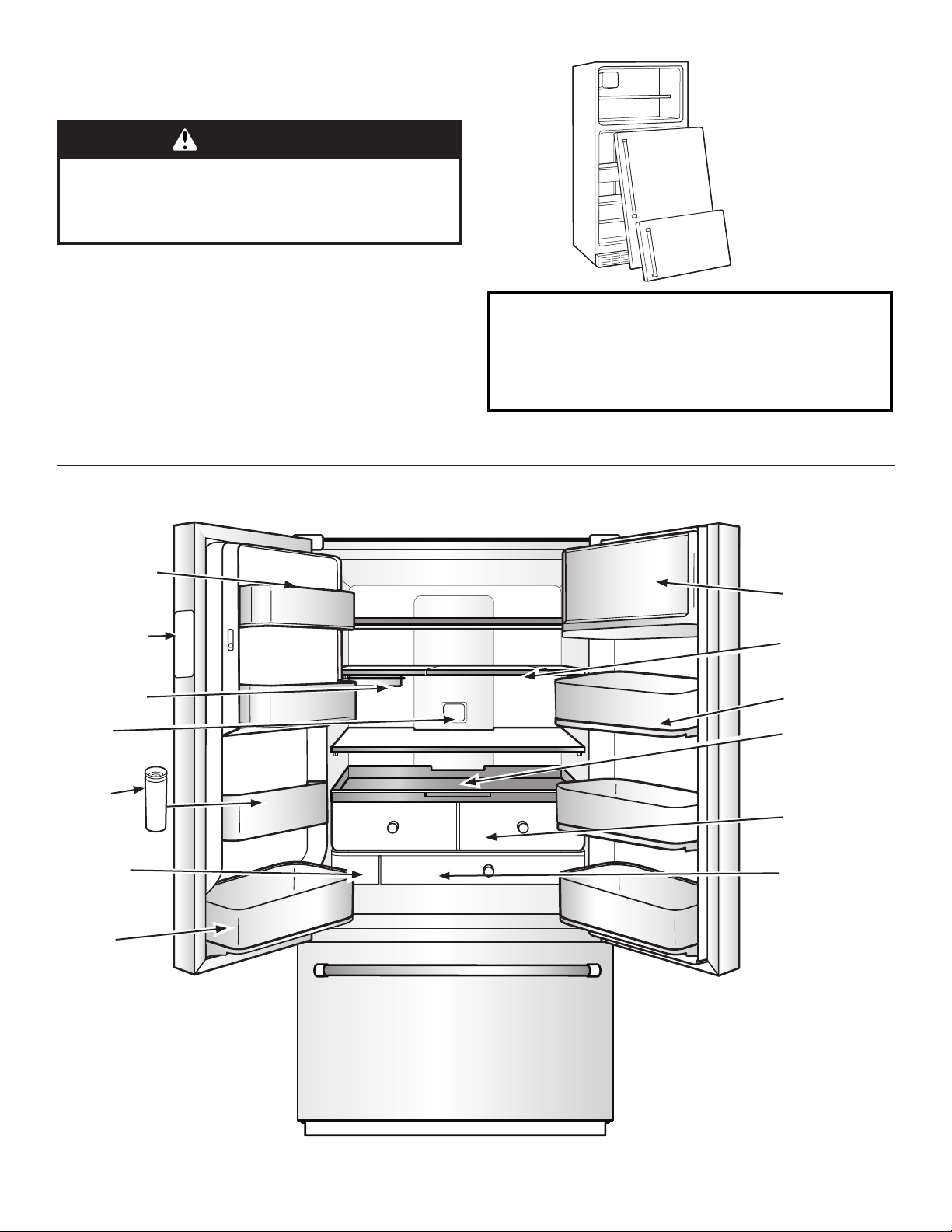

  • Page 4 - English - : PARTS AND FEATURES Air filter Water filter FreshSeal crispers Temperature controlled pantry drawer Pullout tray InDoorIce ice storage Slideaway split shelf Removable bin Undershelf storage on some models Herb bin storage Proper Disposal of Your Old Refrigerator WARNING Suffocation Hazard Remove doors from your old refrigerator Failure to do so can result in death or brain damage IMPORTANT Child entrapment and suffocation are not problems of the past Junked or abandoned refrigerators are still dangerouseven if they will sit for just a few days If you are getting rid of your old refrigerator please follow these instructions to help prevent accidents Before You Throw Away Your Old Refrigerator or Freezer Take off the doors Leave the shelves in place so that children may not easily climb inside Important information to know about disposal of refrigerants Dispose of refrigerator in accordance with Federal and Local regulations Refrigerants must be evacuated by a licensed EPA certified refrigerant technician in accordance with established procedures Temperature Control UI FreshSeal dairy bin Dual gallon storage
  • Page 5 - English - : Your KitchenAid French door bottommount refrigerator comes equipped with various innovative storage and energy efcient features Energy and Normal Operating Sounds Your new French door bottommount refrigerator has been designed with a linear compressor to optimize energy efciency and better regulate temperatures to match cooling demand You may notice that it operates differently than your previously owned refrigerator It is normal for the highefciency compressor to run for extended periods of time at varying speeds in order to consume only the energy necessary for optimum efciency In addition during various stages of the cooling cycle you may hear normal operating sounds that are unfamiliar to you InDoorIce Ice Dispensing System The ice maker and ice storage bin are located in the door for easy access to ltered ice while freeing up valuable shelf space inside Dual Evaporator The refrigerator and freezer compartments have separate evaporators to provide fresh food and frozen food with optimal storage climates cool and humid in the fresh food cold and dry in the freezer no mixing of air between the compartments to reduce the transfer of food odors and tastes from refrigerator and allow freezer air to remain dry to control frost and reduce freezer burn Air Filter An air lter is 15 times more powerful than baking soda at reducing common food odors inside the refrigerator Replace your air lter every 6 months for maximum odor reduction Produce Preserver Ethylene is a natural gas produced by fruits and vegetables to promote ripening The Produce Preserver absorbs ethylene to delay the overripening of fresh produce As a result certain produce items will stay fresh longer EveryDrop Water Filter EveryDrop water lters are NSF Certied to reduce most contaminants including chlorine taste and odor lead pesticides and trace amounts of pharmaceuticals EveryDrop brand lters are the only lters tested and certied for your refrigerator system Replace your EveryDrop lter every 6 months for maximum contaminant reduction Water Dispenser with Measured Fill The Measured Fill feature allows you to dispense a desired amount of ltered water in handy increments 8 16 or 24 oz Water Dispenser with Favorite Fill The Favorite Fill feature allows you to save 2 custom presets that can be programmed for favorite items that are frequently lled like a coffee pot or a water bottle SlideAway Split Shelf This shelf features a versatile design that allows threequarters of the shelf to retract to accommodate taller items up to 1675 inches This exibility helps maximize storage space and optimize organization Removable Door Bins Door bins that can be easily removed from the metal nish base they sit on making them ideal for carrying condiments or items from refrigerator to table The bins are dishwasher safe for easy cleaning FreshSeal Dairy Bin A dedicated dairy bin with the FreshSeal gasket to help extend the freshness and preserve the avor of butter and other dairy items FreshSeal Crispers These upgraded crisper drawers use a gasket seal to maintain the ideal temperature and humidity levels to keep produce fresh longer These drawers also feature premium softclose glides that provide the best extension for easy access and maximum visibility to your produce items PullOut Tray The tray fully extends for easy access and visibility The tray also features soft selfclose glides that provide effortless movement even when fully loaded The tray is removable making cleaning easy Herb Storage Bin This is a cylinder with FreshSeal to keep sensitive items like herbs fresh longer The container allows water to be added to keep stems wet without covering leaves It can be placed anywhere in the refrigerator and accommodates tall items like parsley cilantro and rosemary in addition to herbs like oregano thyme and mint Under Shelf Storage on some models Utilizes typically empty space beneath the shelf to create a prep zone ideal for dough desserts casseroles or marinating meats The slideout pan is oven and dishwasher safe and easily transitions from fridge to oven Adjustable Shelves on Flipper System Shelves that can be adjusted up or down easily with the ip of a lever allowing them to be adjusted without having to unload them The shelves are easy to clean and let you use the whole shelf edge to edge for full visibility and accessibility Temp Control Pantry Four temperature presets are available on the interior control to keep items at the optimal temperature You can choose from meatsh cold drinks delicheese and wine Pantry slides opens effortlessly even when fully loaded with soft selfclose glides and features the best extension in freestanding refrigeration 3Tier Freezer Drawer with ExtendFreeze Setting A drawer system that organizes items on 3 levels making them easier to store and nd The lower drawer includes a divider Theres also an indoor pizza pocket a pullout drawer for smaller items and third level glass shelf for small at items The ExtendFreeze setting takes the entire freezer to its coldest setting to help reduce freezer burn and extend the life of frozen items Whats New Behind the Doors NSF is a registered trademark of NSF International
  • Page 6 - English - : GETTING STARTED INSTALLATION CHECKLIST Electrical Power Plug refrigerator into a grounded 3 prong outlet Doors If doors need to be removed during installation see the Remove and Replace Doors section in the instructions Check that handles are secure and installed according to the instructions Doors seal completely Refrigerator is level Remove base grille and adjust leveling feet so they are snug against the oor Doors are even across the top Use door alignment feature if necessary Base grille is properly attached to the refrigerator Ice and Water System on some models Connect refrigerator to a cold water supply with 20120 psi water pressure as specied in the instructions Make sure the household water supply is connected and turned on Check that the water supply line behind refrigerator is not kinked Only use recommended water supply tubing copper or PEX as specied in the instructions Install water lter according to the instructions Flush water system with 3 gallons 114 L of water as specied in the instructions Check for water leaks at all connections Turn on ice maker if refrigerator is connected to water supply If not connected to water supply turn off ice maker Electrical Shock Hazard Plug into a grounded 3 prong outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Failure to follow these instructions can result in death fire or electrical shock WARNING Final Checks Install air lter and Produce Preserver according to instructions in corresponding packaging Remove all shipping material Set temperature controls to the recommended setting Save instructions and other literature Send in registration card or register your product online WATER FILTER INSTALLATION Locate the water lter compartment in the lower lefthand side of the refrigerator compartment Push on the right side of the lter door to open Align the arrow on the water lter cap with the cutout notch in the lter housing and insert lter Once the lter is inserted turn the lter clockwise 90 ¼ turn until it locks into the housing Push water lter door closed to latch Flush 3 gallons 114 L of water through the water system to clear air from the water line and to keep the dispenser from dripping andor avoiding decreased dispenser ow NOTE If the lter is not installed correctly water may dispense at a lower ow rate and there will be slower ice production Improper lter installation may also cause the water lter housing to leak To view videos on door removal replacement door adjustment water filter installation air filter installation shelf adjustment or removal and WiFi if applicable connectivity scan the code to the left with your mobile device FingerprintResistant Steel and Black Stainless Steel on some models A specialized coating for stainless steel that resists smudges ngerprints and water marks It is easy to clean with just water and a towel LED Lighting There is bright LED strip lighting for maximum illumination LED lights do not require replacement Door Alarm A helpful alarm sounds when the refrigerator door or freezer drawer is left ajar Power Outage Indicator If the power should go out while you are away from home this indicator will let you know that the refrigerator has been without power
  • Page 7 - English - : ENERGY SAVER MODE AND NORMAL OPERATING SOUNDS Your new French Door BottomMount refrigerator has been designed to optimize energy efciency and better regulate temperatures to match cooling demand You may notice that it operates differently from your previously owned refrigerator It is normal for the highefciency compressor to run for extended periods of time at varying speeds in order to consume only the energy necessary for optimum efciency In addition during various stages of the cooling cycle you may hear normal operating sounds that are unfamiliar to you Energy Saver Mode Turns off the antisweat heaters to save the customer power When the icon is bright the function is activated heaters OFF icon off means that it is inactive heaters ON The user can toggle the feature by pressing the button If the user lives in a climate with high humidity Energy Saver mode is not recommended DOOR ALIGNMENT Tools Required Depending on the width of the door opening the following tools may be required to remove replace and align the refrigerator doors Tools Needed 14quot hex nut driver base grille freezer drawer screws and brakeleveling feet Tools Provided 18quot hex key handle setscrews and door alignment Door alignment tool instructions Features Creates an even horizontal gap between the refrigerator doors Solves door alignment issues during installation and improves door seal Align Refrigerator Doors If doors are uneven Ensure the refrigerator is level Keeping both refrigerator doors closed pull out the freezer drawer Locate the bottom hinge pin of the righthand refrigerator door The alignment screw is inside the bottom hinge pin Insert the short end of the 18quot hex key wrench packed with the Door Handle Installation Instructions into the bottom hinge pin until it is fully engaged in the alignment screw To raise the refrigerator door turn the hex key to the right To lower the door turn the hex key to the left Continue to turn the alignment screw until the tops of the doors are aligned A B Shelf Height Adjustment Shelf height can be adjusted by changing the adjustable shelf mounts between their vertical and horizontal positions Carefully lift the shelf off the shelf mounts and turn the ipper to the desired orientation Repeat for remaining shelf mounts Ensure the shelf is properly seated on the shelf mounts A Bottom hinge pin B ¹ quot hex key wrench
  • Page 8 - English - : INSTALLATION INSTRUCTIONS Unpack the Refrigerator WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator Failure to do so can result in back or other injury Remove the Packaging Remove tape and glue residue from surfaces before turning on the refrigerator Rub a small amount of liquid dish soap over the adhesive with your ngers Wipe with warm water and dry Do not use sharp instruments rubbing alcohol ammable uids or abrasive cleaners to remove tape or glue These products can damage the surface of your refrigerator Dispose ofrecycle all packaging materials Clean Before Using After you remove all of the packaging materials clean the inside of your refrigerator before using it See the cleaning instructions in the Refrigerator Care section Important information to know about glass shelves and covers Do not clean glass shelves or covers with warm water when they are cold Shelves and covers may break if exposed to sudden temperature changes or impact such as bumping Tempered glass is designed to shatter into many small pebblesize pieces This is normal Glass shelves and covers are heavy Use both hands when removing them to avoid dropping Location Requirements IMPORTANT This appliances is intended to be used in household and similar applications such as Staff kitchen areas in shops ofce and other working environments Farm houses and by clients in hotels motels and other residential type environments Bed and breakfast type environments Catering and similar nonretail applications To ensure proper ventilation for your refrigerator allow for a 12quot 125 cm space on each side and at the top Allow for a 1quot 254 cm space behind the refrigerator If your refrigerator has an ice maker allow extra space at the back for the water line connections When installing your refrigerator next to a xed wall leave a 3³ quot 95 cm minimum space between the refrigerator and wall to allow the door to swing open NOTE This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55F 13C to a maximum of 110F 43C The preferred room temperature range for optimum performance which reduces electricity usage and provides superior cooling is between 60F 15C and 90F 32C It is recommended that you do not install the refrigerator near a heat source such as an oven or radiator WARNING Explosion Hazard Keep flammable materials and vapors such as gasoline away from refrigerator Failure to do so can result in death explosion or fire 3³ quot 95 cm 12quot 125 cm Refrigerator Delivery A minimum door opening of 33quot 838 mm is required If door opening is 36quot 914 mm or less then removal of doors drawer and hinges is required Cart the refrigerator from the side for all door openings When Moving Your Refrigerator Your refrigerator is heavy When moving the refrigerator for cleaning or service be sure to cover the floor with cardboard or hardboard to avoid floor damage Always pull the refrigerator straight out when moving it Do not wiggle or walk the refrigerator when trying to move it as floor damage could occur

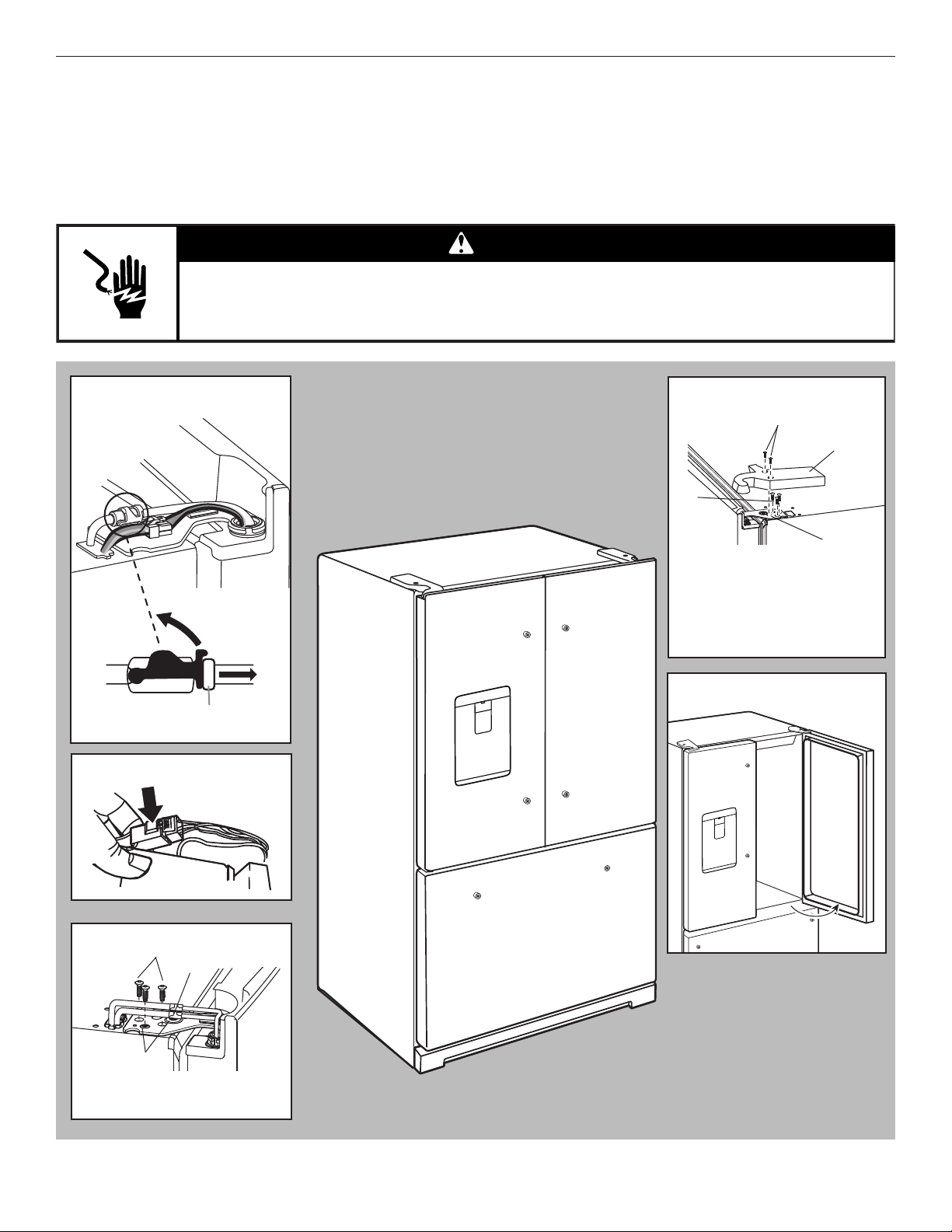

  • Page 9 - English - : Remove and Replace Refrigerator Doors NOTE Measure the width of your door opening to see whether or not you need to remove the refrigerator doors to move the refrigerator into your home If door removal is necessary see the following instructions IMPORTANT If the refrigerator was previously installed and you are moving it out of the home before you begin turn the refrigerator control off Unplug the refrigerator or disconnect power Remove food and adjustable door or utility bins from doors Gather the required tools and read all instructions before removing doors TOOLS NEEDED TORX T25 screwdriver and a 2 Phillips screwdriver WARNING Electrical Shock Hazard Disconnect power before removing doors Failure to do so can result in death or electrical shock Water Dispenser Tubing Connection Wiring Plug Top Right Hinge Top Left Hinge A A Outer ring C B A A TORX T25 screws B Ground wire Do not remove C Do not remove screws 90 Door at 90 Angle to Cabinet A TORX T25 screws B Hinge cover screw C Top hinge cover D Top hinge A B C D TORX and T25 are trademarks of Acument Intellectual Properties LLC
  • Page 10 - English - : Bottom Door Hinge For your convenience the refrigerator doors have bottom hinges with door closers These closers allow the doors to swing fully closed with just a gentle push IMPORTANT So that the closers feature will operate properly the doors must be removed only when open to a 90 angle to the front of the cabinet If one or both doors were not at a 90 angle when removed the bottom door hinge must be reset 90 Reset the Door Hinge 1 Lift the door from the bottom hinge pin and place it on a at surface 2 Using a TORX T25 screwdriver remove the bottom hinge with the bushing from the cabinet A Bushing B Hinge base 3 Insert the bottom hinge and bushing into the corresponding slot in the bottom of the door NOTE Make sure that the base of the hinge is parallel to the bottom of the door A Hinge base parallel to the bottom edge of the door 4 Turn the hinge until the hinge base is at a 90 angle to the bottom edge of the door A Hinge base turned to a 90 angle with the bottom edge of the door 5 Remove the hinge from the door Using a driver with a 2 square bit reattach the bottom hinge to the refrigerator cabinet 6 The hinge is now reset and prepared for the door to be replaced See Replace Refrigerator Doors later in this section A B A 90 A Remove Refrigerator Doors WARNING Electrical Shock Hazard Disconnect power before removing doors Failure to do so can result in death or electrical shock Remove RightHand Door 1 Unplug refrigerator or disconnect power 2 Keep the refrigerator doors closed until you are ready to lift them free from the cabinet NOTE Provide additional support for the refrigerator door while the hinges are being removed Do not depend on the door gasket magnets to hold the door in place while you are working 3 Using a Phillips screwdriver remove the cover from the top hinge 4 Using the TORX T25 screwdriver remove the 3 screws from the top hinge and set aside WARNING Excessive Weight Hazard Use two or more people to move and install refrigerator Failure to do so can result in back or other injury

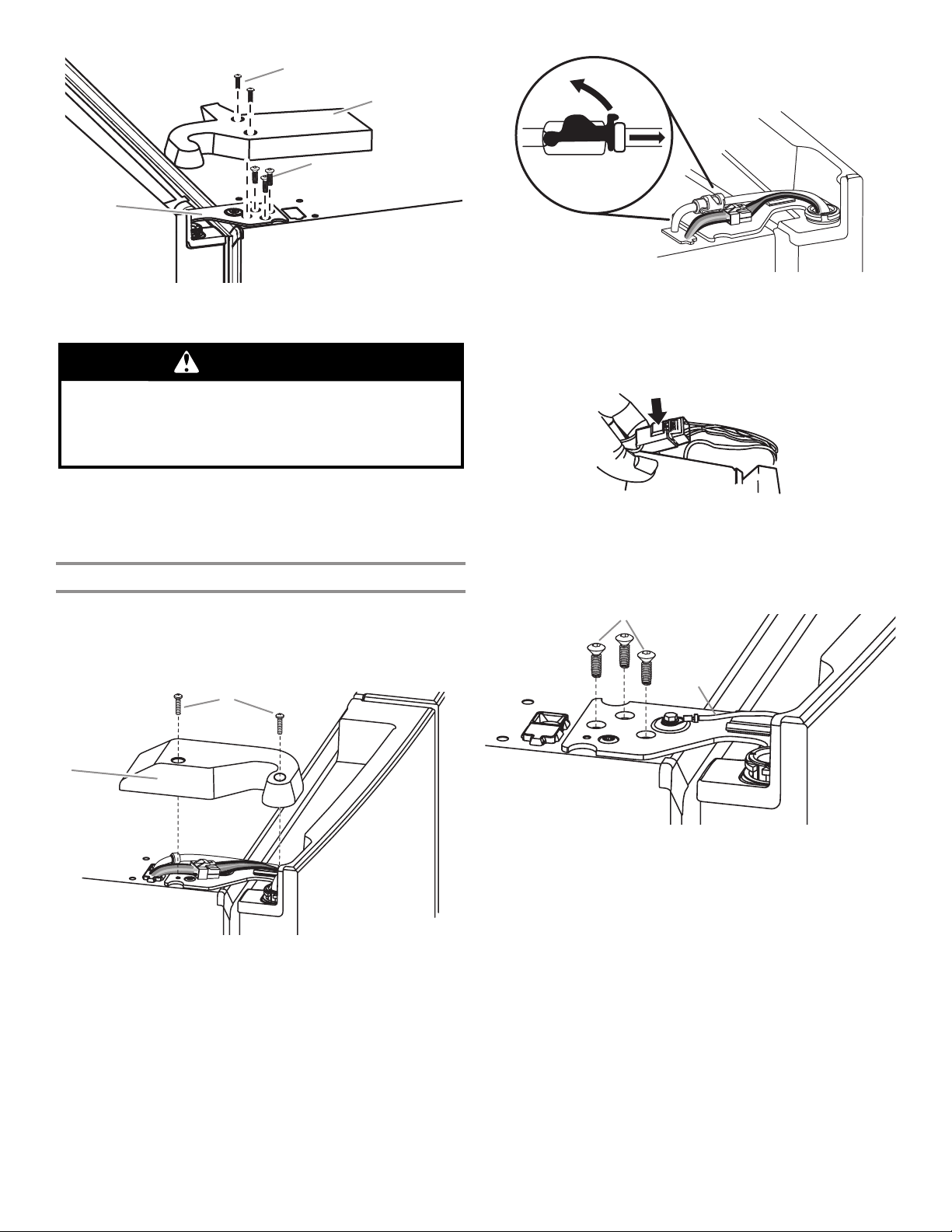

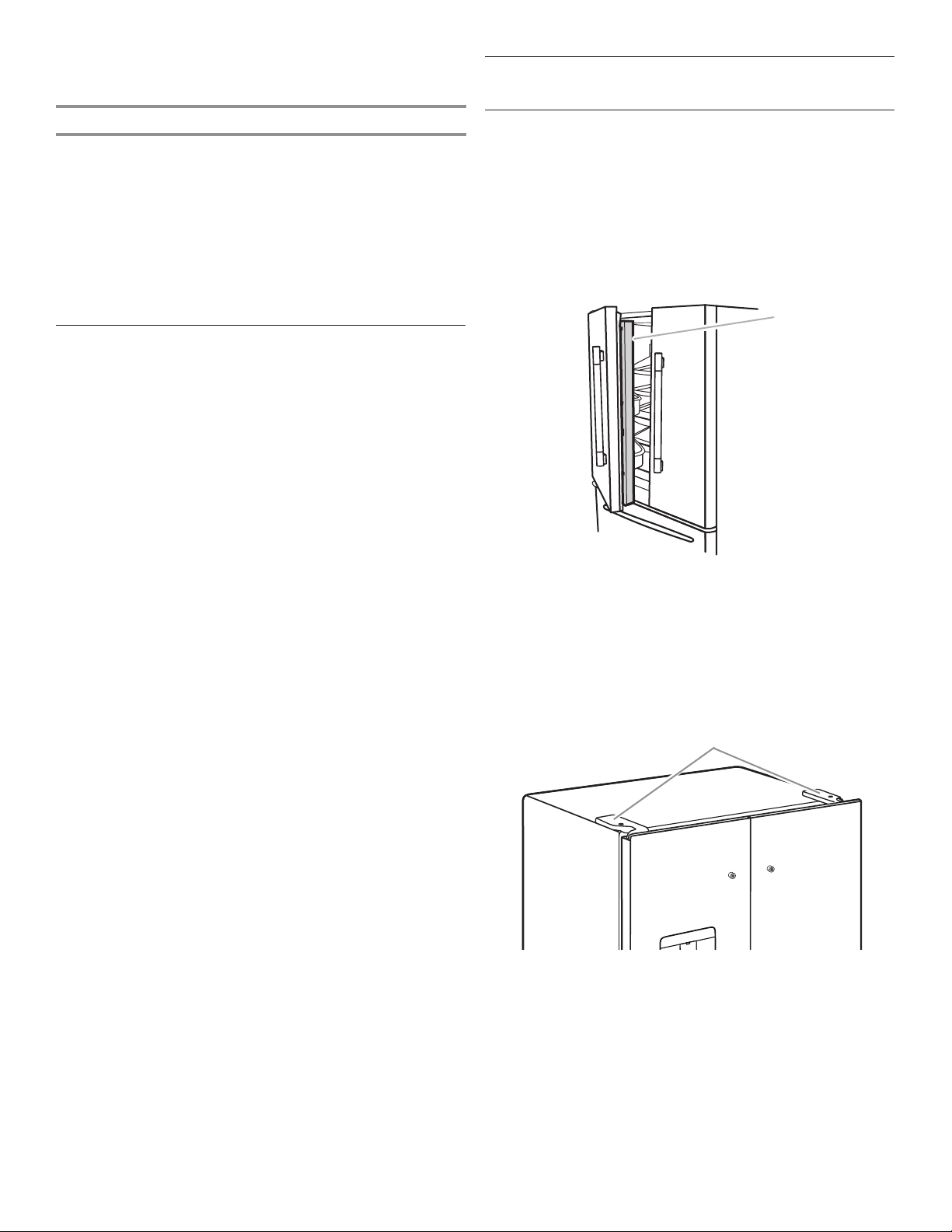

  • Page 11 - English - : A Top hinge cover screw B Top hinge cover C TORX T25 screws D Top hinge WARNING Excessive Weight Hazard Use two or more people to lift the refrigerator door Failure to do so can result in back or other injury 5 Open the door until it is at a 90 angle to the front of the cabinet 6 Lift the refrigerator door from the bottom hinge pin The top hinge will come away with the door Remove LeftHand Door IMPORTANT The tubing and wiring for the water dispenser run through the lefthand door hinge so they must be disconnected before removing the door 1 Using a Phillips screwdriver remove the cover from the top hinge A Top hinge cover screw B Top hinge cover 2 Disconnect the water dispenser tubing located on top of the door hinge Firmly pull up on the clasp Then pull the tubing out of the fitting NOTE The water dispenser tubing remains attached to the lefthand refrigerator door 3 Disconnect the wiring plug located on top of the door hinge Grasp each side of the wiring plug With your left thumb press down to release the catch and pull the sections of the plug apart NOTE Do not remove the green ground wire It should remain attached to the door hinge A TORX T25 screws B Ground wire Do not remove 4 Using the TORX T25 screwdriver remove the 3 internal screws from the top hinge and set aside NOTE Provide additional support for the refrigerator door while the hinges are being removed Do not depend on the door gasket magnets to hold the door in place while you are working A B 5 Lift the refrigerator door from the bottom hinge pin The top hinge will come away with the door NOTE It may not be necessary to remove the bottom hinges and brake feet assemblies to move the refrigerator through a doorway Only if necessary use a TORX T25 screwdriver to remove the bottom hinges and brake feet screws A B A B C D

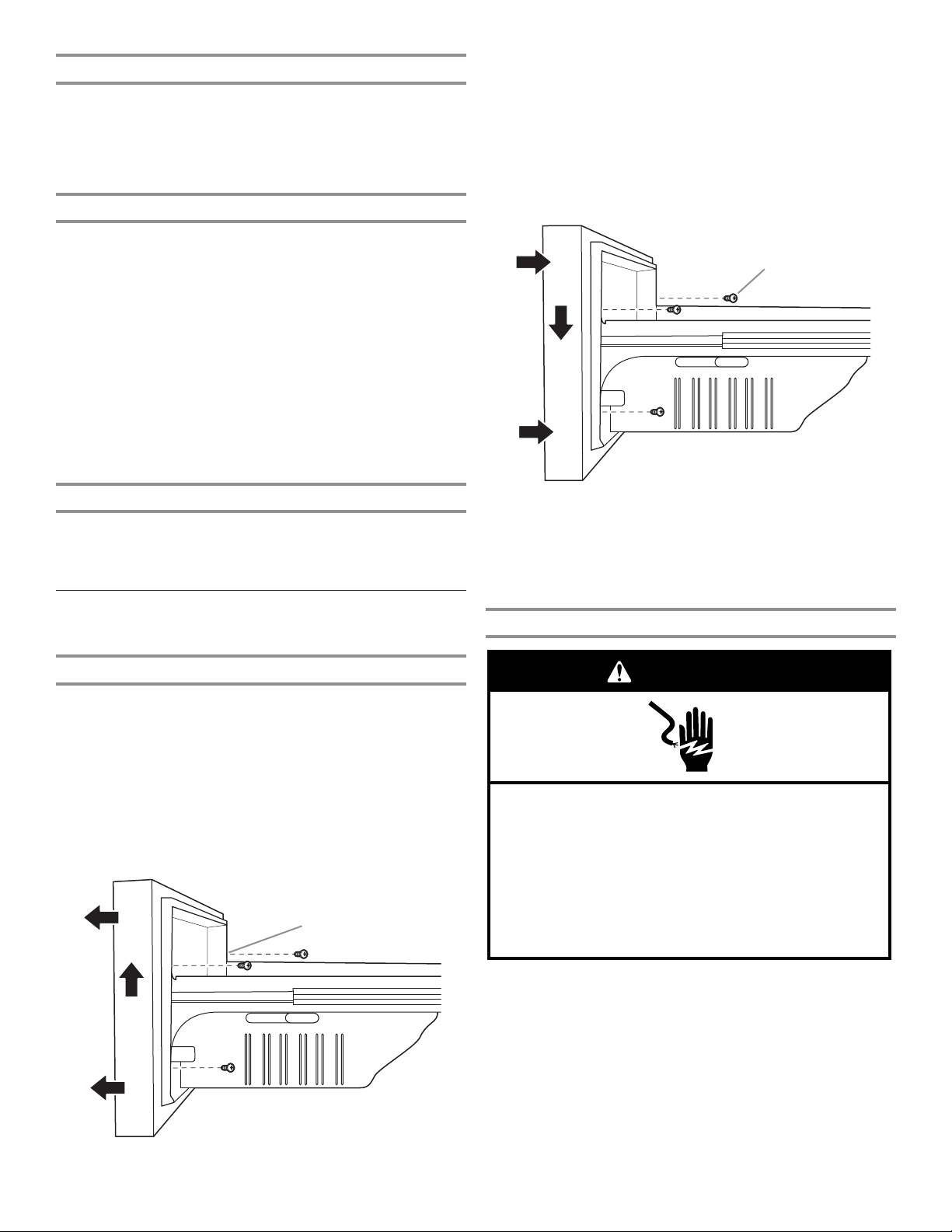

  • Page 12 - English - : Replace RightHand Refrigerator Door 1 Set the righthand door onto the bottom hinge pin 2 Insert the top hinge pin into the open hole in the top of the refrigerator door 3 Using the 3 TORX T25 screws fasten the hinge to the cabinet Do not tighten the screws completely Replace LeftHand Refrigerator Door IMPORTANT Do not intertwine the water tubing and wiring bundles when reconnecting them 1 Set the lefthand door onto the bottom hinge pin 2 Using the 3 TORX T25 screws fasten the hinge to the cabinet Do not tighten the screws completely 3 Reconnect the water dispenser tubing Insert the tubing rmly into the tting until it stops Close the clasp around the tubing The clasp snaps into place between the tting and the collar Connect blue female side with blue male side and clasp Repeat with gray female and gray male side 4 Reconnect the electrical wiring Push together the 2 sections of the wiring plug Final Steps 1 Completely tighten the 5 internal TORX T25 screws 3 on the righthand door hinge and 2 on the lefthand door hinge 2 Replace both top hinge covers Remove and Replace Freezer Drawer Fronts Freezer Drawer Remove Drawer Front 1 Open the freezer drawer to its full extension 2 Loosen the 2 top screws that fasten the drawer front to the drawer glides The 2 screws 1 on the lefthand side and 1 on the righthand side are located inside the drawer front 3 Remove the 2 screws at the bottom inside the drawer front that fasten the drawer front to the drawer glides 4 Lift up on the drawer front to release the screws from the drawer glide bracket slot A Drawer glide bracket slots Replace Drawer Front 1 Pull out the freezer drawer glides to their full extension 2 Holding the drawer front by its sides align the top screws located at the bottom inside of the drawer front with the drawer glide bracket slots NOTE It helps if one person holds the drawer glides steady while another person aligns the drawer front and inserts the studs into the slots A Drawer front screw 3 Tighten the 2 screws at the top of the drawer front 1 on the lefthand side and 1 on the righthand side and replace the 2 screws on the bottom A Final Steps 1 Plug into a grounded 3 prong outlet 2 Reset the controls See Using the Controls section 3 Return all removable parts and food to the drawers Electrical Shock Hazard Plug into a grounded 3 prong outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Failure to follow these instructions can result in death fire or electrical shock WARNING A
  • Page 13 - English - : Electrical Requirements Electrical Shock Hazard Plug into a grounded 3 prong outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Failure to follow these instructions can result in death fire or electrical shock WARNING Before you move your refrigerator into its nal location it is important to make sure you have the proper electrical connection Recommended Grounding Method A 115 Volt 60 Hz AC only 15 or 20 A fused grounded electrical supply is required It is recommended that a separate circuit serving only your refrigerator and approved accessories be provided Use an outlet that cannot be turned off by a switch Do not use an extension cord If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualied person Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end IMPORTANT If this product is connected to a GFCI Ground Fault Circuit Interrupter protected outlet nuisance tripping of the power supply may occur resulting in loss of cooling Food quality and avor may be affected If nuisance tripping has occurred and if the condition of the food appears poor dispose of it NOTE Before performing any type of installation or cleaning turn off cooling then disconnect the refrigerator from the electrical source When you have nished reconnect the refrigerator to the electrical source and turn on cooling See Using the Controls section Water Supply Requirements A cold water supply with water pressure between 35 and 120 psi 241 and 827 kPa is required to operate the water dispenser and ice maker If you have questions about your water pressure call a licensed qualied plumber NOTE If the water pressure is less than what is required the ow of water from the water dispenser could decrease or ice cubes could be hollow or irregular shaped Reverse Osmosis Water Supply IMPORTANT The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 35 and 120 psi 241 and 827 kPa If a reverse osmosis water ltration system is connected to your cold water supply the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi 276 to 414 kPa Check to see whether the sediment lter in the reverse osmosis system is blocked Replace the lter if necessary Allow the storage tank on the reverse osmosis system to rell after heavy use The tank capacity could be too small to keep up with the requirements of the refrigerator NOTE Faucetmounted reverse osmosis systems are not recommended If your refrigerator has a water lter it may further reduce the water pressure when used in conjunction with a reverse osmosis system Remove the water lter See Water Filtration System section If you have questions about your water pressure call a licensed qualied plumber Connect the Water Supply Read all directions before you begin IMPORTANT Plumbing must be installed in accordance with the International Plumbing Code and any local codes and ordinances Copper and PEX tubing connections from the household water line to the refrigerator are acceptable and will help avoid offtaste or odor in your ice or water Check for leaks If PEX tubing is used instead of copper we recommend the following Part Numbers W10505928RP 7 ft 214 m jacketed PEX 8212547RP 5 ft 152 m PEX or W10267701RP 25 ft 762 m PEX Install tubing only in areas where temperatures will remain above freezing Connect to a potable water supply only Tools Needed Gather the required tools and parts before starting installation Flatblade screwdriver 716quot and 12quot openend wrenches or 2 adjustable wrenches 12quot nut driver NOTE Do not use a piercingtype or ³ quot 476 mm saddle valve which reduces water ow and clogs easier Connect to Water Line IMPORTANT If you turn the refrigerator on before the water is connected turn off the ice maker 1 Unplug refrigerator or disconnect power 2 Turn off main water supply Turn on nearest faucet long enough to clear line of water 3 Use a quarterturn shutoff valve or the equivalent served by a 12quot household supply line NOTE To allow sufcient water ow to the refrigerator a minimum 12quot 127 mm size household supply line is recommended Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts

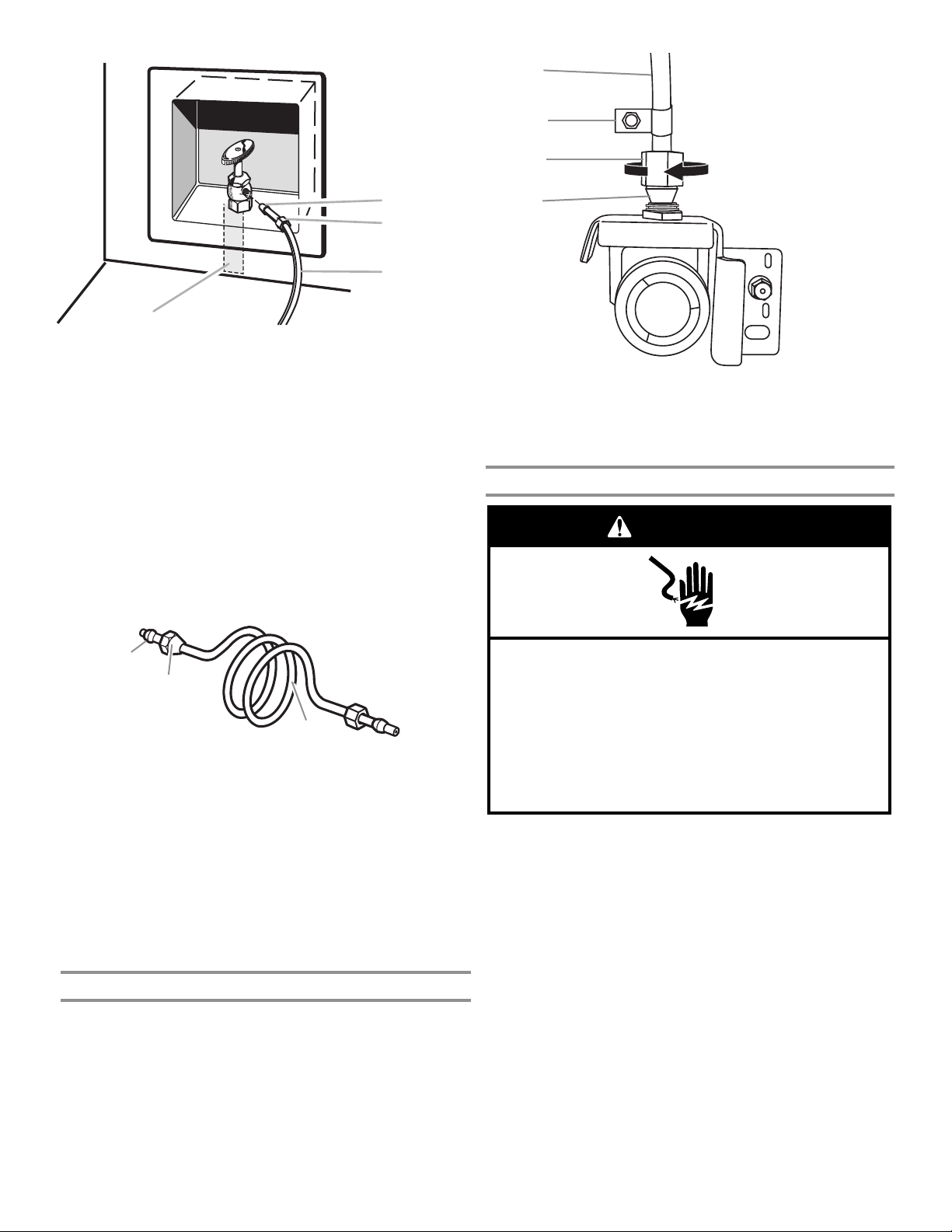

  • Page 14 - English - : 4 Now you are ready to connect the copper tubing to the shutoff valve Use quot 635 mm OD outside diameter soft copper tubing to connect the shutoff valve and the refrigerator Ensure that you have the proper length needed for the job Be sure both ends of the copper tubing are cut square Slip compression sleeve and compression nut onto copper tubing as shown Insert end of tubing into outlet end squarely as far as it will go Screw compression nut onto outlet end with adjustable wrench Do not overtighten A Compression sleeve B Compression nut C Copper tubing 5 Place the free end of the tubing into a container or sink and turn on main water supply to ush out tubing until water is clear Turn off shutoff valve on the water pipe NOTE Always drain the water line before making the nal connection to the inlet of the water valve to avoid possible water valve malfunction 6 Bend the copper tubing to meet the water line inlet which is located on the back of the refrigerator cabinet as shown Leave a coil of copper tubing to allow the refrigerator to be pulled out of the cabinet or away from the wall for service Connect to Refrigerator Follow the connection instructions specic to your model 1 Remove plastic cap from water valve inlet port Attach the copper tubing to the valve inlet using a compression nut and sleeve as shown Tighten the compression nut Do not overtighten Conrm copper tubing is secure by pulling on copper tubing 2 Create a service loop with the copper tubing Avoid kinks when coiling the copper tubing Secure copper tubing to refrigerator cabinet with a P clamp A C B A Copper tubing B P clamp C Compression nut D Compression sleeve Complete the Installation 1 Plug into a grounded 3 prong outlet 2 Flush the water system See Water and Ice Dispensers section NOTE Allow 24 hours to produce the rst batch of ice Discard the rst 3 batches of ice produced Allow 3 days to completely ll the ice storage bin Electrical Shock Hazard Plug into a grounded 3 prong outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Failure to follow these instructions can result in death fire or electrical shock WARNING A B C D 3 Turn on water supply to refrigerator and check for leaks Correct any leaks A B C D A Sleeve B Nut C Copper tubing to refrigerator D Household supply line 12quot 127 mm minimum
  • Page 15 - English - : A Shoulder screws B Setscrews inside the handle Handle Installation and Removal Parts Included refrigerator door handles 2 refrigerated drawer handles 2 freezer drawer handle 1 18quot hex key spare setscrews NOTE The freezer drawer handle is shorter than the refrigerator door handles Handle style may vary by model Install Handles Refrigerator Doors NOTE Handle mounting setscrews are preinstalled inside the handle 1 Remove the handles from the packaging inside the refrigerator and place them on a soft surface 2 Open a refrigerator compartment door On the closed door place a handle onto the shoulder screws so that the setscrews are facing the adjacent door A B 3 Firmly push the handle toward the door until the handle base is ush against the door 4 While holding the handle insert the short end of the hex key into the upper hole and slightly rotate the hex key until it is engaged in the setscrew 5 Using a clockwise motion tighten the setscrew just until it begins to contact the shoulder screw Do not fully tighten 6 Repeat steps 4 and 5 to fasten the lower setscrew 7 Once both setscrews have been partially tightened as instructed in the previous steps fully tighten both setscrews IMPORTANT When the screws feel tight tighten them an additional quarter turn The handle is not properly installed without this extra tightening 8 Repeat steps 2 through 7 to install the other handle onto the adjacent refrigerator door Freezer Drawer 1 With the drawer closed place the handle onto the shoulder screws so that the setscrews are facing down toward the oor A Shoulder screw B Setscrews inside the handle 2 Firmly push the handle toward the drawer until the handle base is ush against the drawer 3 Insert the short end of the hex key into the lefthand hole and slightly rotate the hex key until it is engaged in the setscrew A B 4 Using a lefttoright motion tighten the setscrew a quarter turn at a time just until it begins to contact the shoulder screw Do not fully tighten 5 Repeat steps 3 and 4 to fasten the righthand setscrew to the shoulder screw 6 Once both setscrews have been partially tightened as instructed in the previous steps fully tighten both setscrews IMPORTANT When the screws feel tight tighten them an additional quarter turn The handle is not properly installed without this extra tightening 7 Save the hex key and all instructions
  • Page 16 - English - : Remove the Handles 1 While holding the handle insert the short end of the hex key into a setscrew hole and slightly rotate the hex key until it is engaged in the setscrew 2 Using a righttoleft motion loosen the setscrew a quarter turn at a time 3 Repeat steps 1 and 2 for the other setscrew Slowly pull the handle away from the door or drawer 4 If necessary use a Phillips screwdriver to remove the shoulder screws from the door Remove and Replace Handle Medallions optional The handles for your model have red medallions on the ends Replacement medallions are available for purchase See Accessories to order 1 Using a 18quot hex key remove the medallion from the end of the handle 2 Replace medallion 3 Using the fastener removed in Step 1 attach the medallion to the handle A A Handle medallion Refrigerator Leveling and Door Closing The base grille covers the adjustable brake feet and roller assemblies located at the bottom of the refrigerator below the freezer drawer Before making any adjustments remove the base grille and move the refrigerator to its nal location Tools Needed 14quot hex driver Tools Provided 14quot hex key 1 Use a 14quot hex nut driver to remove both screws in base grille 2 Remove the base grille Using both hands grasp the grille rmly and pull it toward you Open the freezer drawer to access the brake feet NOTE To allow the refrigerator to roll easier raise the brake feet by turning them counterclockwise The front rollers will be touching the oor 7 Make sure the refrigerator is steady If the refrigerator seems unsteady or rolls forward when a door or drawer is pulled open adjust the brake feet To Steady the Refrigerator Open the freezer drawer Using a 14quot hex driver turn both brake feet clockwise the same amount until the brake feet are snug against the oor Check again If not satised continue to adjust the brake feet by half turns of the screw until the refrigerator does not roll forward when the drawer is opened NOTE Having someone push against the top of the refrigerator takes some weight off the brake feet This makes it easier to turn the screws 8 Replace the base grille by aligning the ends of the grille with the leveling assemblies on each side and snapping the grille into place Use a 14quot hex nut driver to reinstall screws A Bottom hinge pin B 18quot hex key wrench 3 Move the refrigerator to its nal location 4 Using the quot hex driver lower the brake feet Turn them clockwise until the rollers are off the oor and both brake feet are snug against the oor This keeps the refrigerator from rolling forward when opening the refrigerator doors or freezer drawer IMPORTANT If you need to make further adjustments involving the brake feet you must turn both brake feet the same amount to keep the refrigerator level 5 Use a level to make sure the refrigerator is level from side to side and front to back 6 Make sure the doors are even at the top and that the space between the bottom of the refrigerator doors and the top of the freezer drawer is even If necessary align the doors A B To Align the Doors Keeping both refrigerator doors closed pull out the freezer drawer Locate the bottom hinge pin of the righthand refrigerator door The alignment screw is inside the bottom hinge pin Insert the short end of the 18quot hex key wrench packed with the Door Handle Installation Instructions into the bottom hinge pin until it is fully engaged in the alignment screw To raise the refrigerator door turn the hex key to the right To lower the door turn the hex key to the left Continue to turn the alignment screw until the doors are aligned

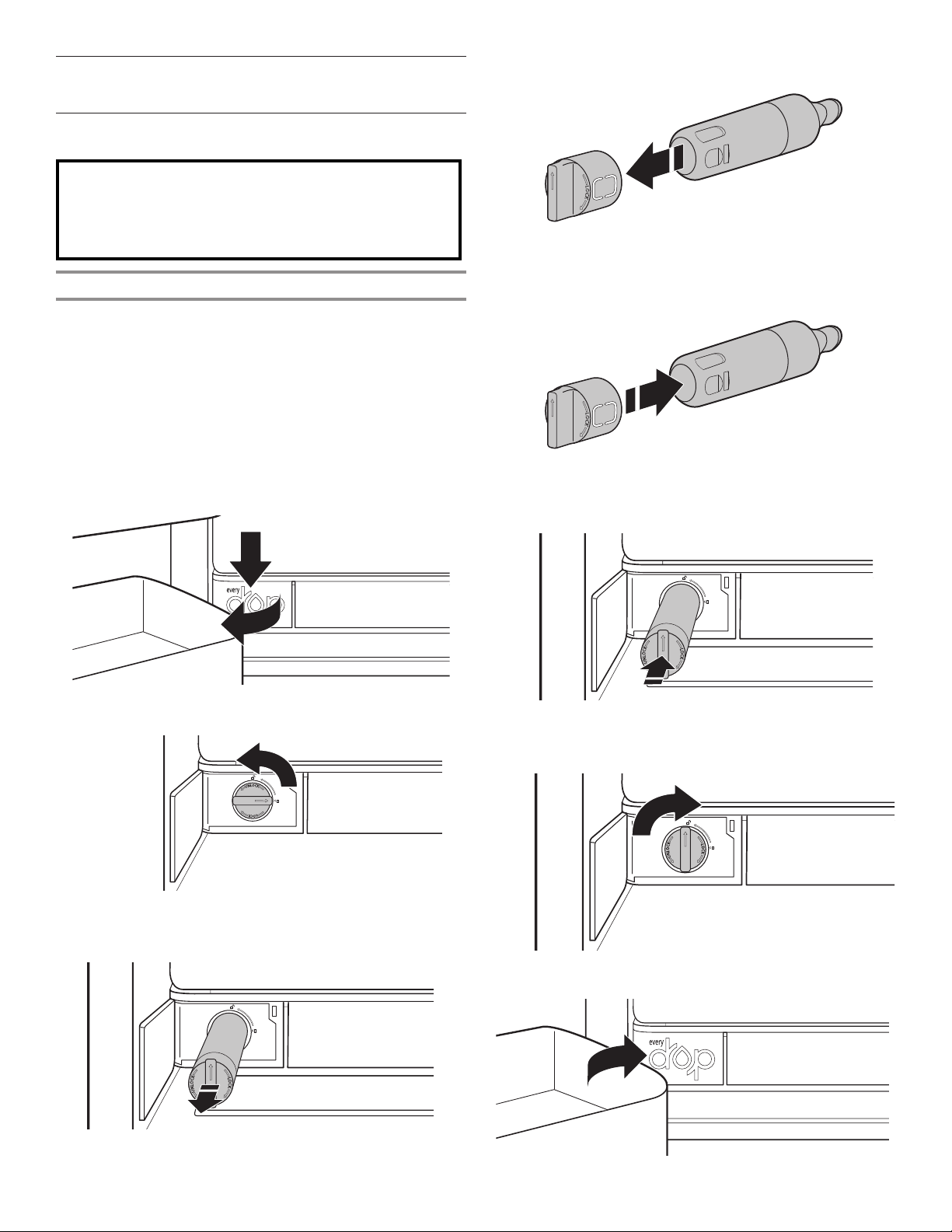

  • Page 17 - English - : Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts Replace and Install the Water Filter The water lter should be replaced every 6 months based on a ow rate of 50 gpm60 gpm 189 lpm 227 lpm that lters 200 gallons 7571 liters of water To order a replacement lter contact us See Accessories section in the User Guide for information on ordering NOTE If the lter is not installed correctly water may dispense at a lower ow rate and there will be slower ice production Improper lter installation may also cause the water lter housing to leak 1 Push the water lter door to open located bottom left of refrigerator compartment 2 Twist the water lter and turn 90 counterclockwise to unlock 3 Pull the lter out of the housing 4 Remove the water lter cap from the water lter 5 Install the water lter cap onto the new lter Be sure to align the arrows so the groves in lter align with ribs in lter cap 6 Insert the lter into the housing 7 Twist the water lter and turn 90 clockwise until it locks into place and that arrows are aligned 8 Push the water lter door closed FILTERS AND ACCESSORIES Water Filtration System

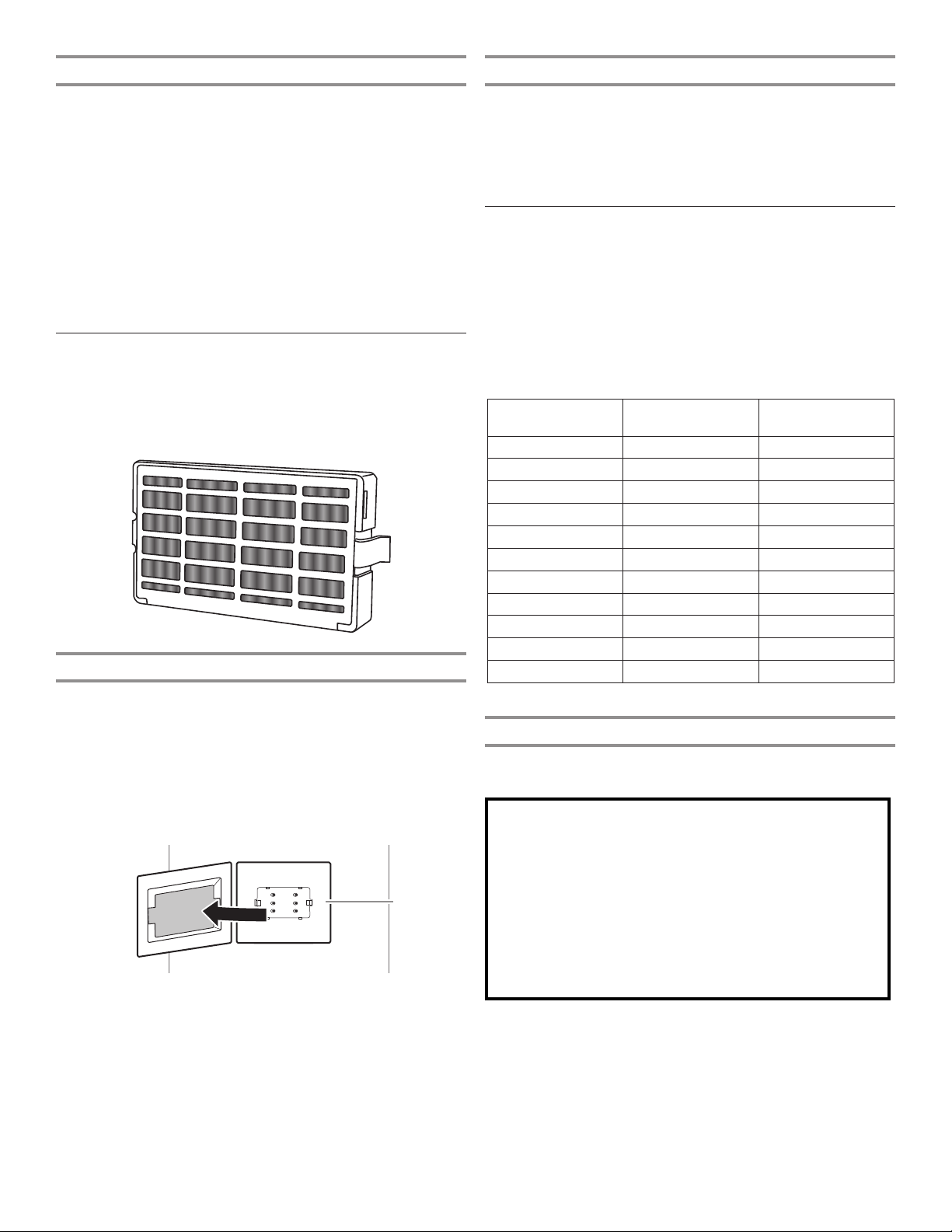

  • Page 18 - English - : Install Air Filter An air lter is 15 times more powerful than baking soda at reducing common food odors inside the refrigerator On some models your refrigerators accessory packet includes an air lter which must be installed prior to use Installing the Air Filter Install the air lter behind the vent cover located on the rear wall near the middle of the refrigerator 1 Remove the air lter from its packaging 2 Pull out plastic cover over the vented cover NOTE When cover is removed for the rst time a small foam part the size of the lter will need to be discarded 3 Snap the lter into place A Air filter Replacing the Air Filter The disposable air lter should be replaced every 6 months To order a replacement air lter contact us See Accessories section in the User Guide for information on ordering 1 Remove the used air lter by squeezing in on the side tabs 2 Install the new air lter following the instructions in the previous sections Install Produce Preserver on some models The produce preserver absorbs ethylene to slow the ripening process of many produce items As a result certain produce items will stay fresh longer Ethylene production and sensitivity varies depending on the type of fruit or vegetable To preserve freshness it is best to separate produce with sensitivity to ethylene from fruits that produce moderatetohigh amounts of ethylene Sensitivity to Ethylene Ethylene Production Apples High Very High Asparagus Medium Very Low Berries Low Low Broccoli High Very Low Cantaloupe Medium High Carrots Low Very Low Citrus Fruit Medium Very Low Grapes Low Very Low Lettuce High Very Low Pears High Very High Spinach High Very Low A The Water Filter Status Light The water lter status lights will help you know when to change your water lter ORDER FILTER yellow It is almost time to change the water lter Order Filter display is ON all of the time but OFF in Showroom mode and Sabbath mode REPLACE FILTER red Replace the water lter While you are dispensing water Replace Filter icon will ash constantly from the beginning to the end of dispensing After 14 days without replacing the Water Filter the Replace Filter icon will blink 7 times and an alert tone will sound 3 times at the end of dispensing RESET FILTER Touch MAX COOL and MAX ICE together for 3 seconds to reset water lter The display will do a 3second countdown then ash the icon and play a tone Installing the Produce Preserver For your convenience the suctionmounted produce preserver can be installed in either the crisper or the refrigerated drawers CAUTION IRRITANT MAY IRRITATE EYES AND SKIN DANGEROUS FUMES FORM WHEN MIXED WITH OTHER PRODUCTS Do not mix with cleaning products containing ammonia bleach or acids Do not get in eyes on skin or clothing Do not breathe dust Keep out of reach of children FIRST AID TREATMENT Contains potassium permanganate If swallowed call a Poison Control Center or doctor immediately Do not induce vomiting If in eyes rinse with water for 15 minutes If on skin rinse with water 1 Wash the interior of a drawer with a solution of mild dish soap and warm water and dry thoroughly
  • Page 19 - English - : Accessories The following accessories are available for your refrigerator To order an accessory contact us and ask for the part number In the USA visit our website wwwkitchenaidcom or call 18004221230 In Canada visit our webpage wwwkitchenaidca or call 18008076777 Affresh Stainless Steel Cleaner In USA order Part W10355016 In Canada order Part W10355016B Affresh Stainless Steel Wipes In USA order Part W10355049 In Canada order Part W10355049B Affresh Kitchen amp Appliance Cleaner In USA order Part W10355010 In Canada order Part W10355010B Water Filter In USA order Part EDR2RXD1 In Canada order Part EDR2RXD1B Air Filter Order Part W10311524 or AIR1 Produce Preserver Starter kit Order Part P1UB6S1 Produce Preserver Rell kit Order Part P1KC6R1 Door Handle Medallions Order Part W10762987 Black Order Part W10762993 Chrome REFRIGERATOR USE Opening and Closing Doors There are 2 refrigerator compartment doors The doors can be opened and closed either separately or together There is a vertically hinged seal on the left refrigerator door When the leftside door is opened the hinged seal automatically folds inward so that it is out of the way When both doors are closed the hinged seal automatically forms a seal between the 2 doors A A Hinged seal 2 Find the package containing the Produce Preserver inside the refrigerator and install the Produce Preserver into the drawer according to the instructions provided in the package Replacing the Produce Preserver The disposable packets should be replaced every 6 months or when the status indicator changes completely from white to red To order replacements contact us See Accessories section for information on ordering 1 Remove the used packets from the produce preserver housing 2 Remove the used status indicator 3 Install the replacement packets and status indicator using the instructions included in the package The refrigerator compartment door switch is located in the top left and right hinge cover The door switch uses magnet to sense door openingclosing Ensure there are no magnet or electronic devices Speaker CoolVox etc within 3 inches of the hinge cap NOTE The light and internal user interface UI will not turn on if the door opening is not detected A A Hinge cover
  • Page 20 - English - : Using the Controls Viewing and Adjusting Temperature Set Points For your convenience your refrigerator and freezer controls are preset at the factory When you rst install your refrigerator make sure that the controls are still set to the recommended set points The factory recommended set points are 37F 3C for the refrigerator and 0F 18C for the freezer IMPORTANT Wait 24 hours before you put food into the refrigerator If you add food before the refrigerator has cooled completely your food may spoil NOTE Adjusting the set points to a colderthan recommended setting will not cool the compartments any faster If the temperature is too warm or too cold in the refrigerator or freezer rst check the air vents to be sure they are not blocked before adjusting the controls The recommended settings should be correct for normal household use The controls are set correctly when milk or juice is as cold as you like and when ice cream is rm NOTE Areas such as a garage basement or porch may have higher humidity or extreme temperatures You may need to adjust the temperature away from the recommended settings to accommodate for these conditions Wait at least 24 hours between adjustments Recheck the temperatures before other adjustments are made View Temperature Set Points 1 Touch for Refrigerator or for Freezer and toggle through temperature set points NOTE To view temperature in degrees Celsius touch and hold the FC button for 3 seconds and the temperature display will change To return to Fahrenheit touch and hold the FC for 3 seconds and the temperature display will change To activate Temperature mode for Drawer touch DRAWER and toggle through 4 optional temperature settings Meats Fish Cold Drinks Deli Cheese and Wine The display will show the temperature set point of the selected setting for the Drawer Recommended Refrigerator Temperature Recommended Freezer Temperature Adjust Temperature Set Points Refrigerator setpoint range 33F to 45F 1C to 7C Freezer set point range 6F to 5F 22C to 15C 1 Touch to adjust the Refrigerator zone The display will show the temperature set point of the selected compartment as shown 2 When the temperature in is the range of ExtendFreeze the display will light up ExtendFreeze is activated at the coldest Freezer set point When adjusting temperature set points use the following chart as a guide REFRIGERATOR too cold REFRIGERATOR setting 1 higher REFRIGERATOR too warm REFRIGERATOR setting 1 lower FREEZER too cold FREEZER setting 1 higher FREEZER too warm too little ice FREEZER setting 1 lower ExtendFreeze This feature acts on the mostrelevant storage parameters that must be controlled to minimize moisture migration from frozen food This in turn reduces the freezer burn occurrence To turn on the ExtendFreeze feature toggle to the coldest Freezer temperature set point To turn off the ExtendFreeze feature toggle from the coldest freezer set point to any other temperature The Temperature Control UI is located above the external dispenser and on the side of the left refrigerator door
  • Page 21 - English - : Max Cool The Max Cool feature assists with periods of high refrigerator use full grocery loads or temporarily warm room temperatures To turn on the Max Cool feature press the Max Cool button When the button is pressed the icon will blink 3 times and appear on the display screen To manually turn off the Max Cool feature press the Max Cool button and the display will blink 3 times and turn off The Max Cool feature will remain ON for 24 hours unless manually turned off Adjusting the refrigerator temperature will automatically turn off the Max Cool feature NOTE Setting the freezer to a colder temperature may make some foods such as ice cream harder Max Ice The Max Ice feature assists with increasing the cooling for the freezer compartment in order to increase ice production To turn on or off the Max Ice feature press the Max Ice button When the button is pressed to turn the feature on the icon will blink 3 times and appear on the display screen To manually turn off the Max Ice feature press the Max Ice button and the display will blink 3 times and turn off The Max Ice feature will remain ON for 24 hours unless manually turned off Adjusting the freezer temperature will automatically turn off the Max Ice feature NOTE Setting the freezer to a colder temperature may make some foods such as ice cream harder Water Filter Reset Displays the status of the water filter To reset the water filter press MAX ICE and MAX COOL for 3 seconds After countdown the Good icon will blink 3 times and remain lit NOTE The water lter status lights on the internal controls will let you know when to change your water lter ORDER FILTER Yellow Order a replacement water lter REPLACE FILTER Red Replace the water lter While you are dispensing water Replace Filter icon will ash constantly from beginning to the end of dispensing After 14 days without replacing the Water Filter the Replace Filter icon will blink 7 times and an alert tone will sound 3 times at the end of dispensing See Water Filtration System section NOTE REPLACE FILTER will remain illuminated if a lter reset is not done RESET FILTER Touch MAX ICE and MAX COOL at the same time on the temperature control display for 3 seconds to reset water lter The display will do a 3second countdown and then ash the icon and play a tone Energy Saver Your refrigerator will turn off the vertical mullion heater and dispenser heater when Energy Saver is enabled To turn Energy Saver on press and hold the Energy Saver button for 3 seconds The Energy Saver icon will blink 3 times and then remain lit as shown IMPORTANT When Energy Saver is enabled and the LED is ON the dispenser heater and vertical mullion heater will be turned off Press and hold ENERGY SAVER for 3 seconds again to turn the heaters back on Sound OnOff The Sound button allows the customer to turn the sound on and off To turn on the Sound feature press the Sound button When the button is pressed the Sound icon will blink 3 times and appear on the display screen To manually turn off the Sound feature press the Sound button and the display will blink 3 times and turn off Power Outage The Power Outage indicator lets you know if the power supply to the refrigerator has been OFF and the freezer temperature has risen The control panel display will read Power Outage and an alert tone will sound 3 times Touch any button to stop the tone and turn off the Power Outage icon Once the power outage has been conrmed Power Outage will disappear Showroom Mode This mode is used when the refrigerator is on display in a retail store or if you want to turn the cooling off and deactivates all other functions except interior lighting Showroom mode can be used when going on vacation see Vacation and Moving Care section for proper steps on leaving your refrigerator in this mode for long periods of time If you turn on Showroom mode the word Showroom will light up on the display Enter or Exit Showroom mode by pressing and holding FC and DRAWER at the same time for 3 seconds NOTE Empty ice maker if refrigerator is going to be turned off for an extended period of time Sabbath Mode Sabbath mode is designed to have all the benets of saving even more energy yet maintaining food freshness The freezer and refrigerator user set points remain unchanged while in this mode If you unintentionally turn on Sabbath mode the word Sabbath will light up on the display Enter and exit Sabbath mode by pressing and holding FC and SOUND at the same time for 3 seconds NOTE You will be unable to dispense or change temperature set points in Sabbath mode Your interior lighting and control panels will all be inactive in Sabbath mode External Dispenser Controls The Dispenser UI is located above the external dispenser of the refrigerator IMPORTANT The display screen on the dispenser control panel will turn off automatically and enter sleep mode when the control buttons and dispenser paddles have not been used for 2 minutes or more Touch any control button to reactivate the display screen
  • Page 22 - English - : Additional Features Door Ajar Alarm The Door Ajar Alarm feature sounds an alarm when the refrigerator doors or freezer drawer is open for 5 minutes and cooling is turned on The alarm will repeat every 2 minutes Close all doors and drawer to turn it off NOTE To mute the audible alarm while keeping the doors open such as while cleaning the inside of the refrigerator touch any button on the control panel The alarm sound will be temporarily turned off but the Door Ajar icon will still be displayed on the dispenser control panel Water and Ice Dispensers IMPORTANT Allow 3 hours for the refrigerator to cool down and chill water Allow 24 hours to produce the rst batch of ice Discard the rst 3 batches of ice produced The dispensing system will not operate if the lefthand refrigerator door is open Calibration Door Ajar Replace Filter quot ampquot Order Filter a1 oz b1 L a2 oz b2 L a3 oz b3 L Dispense Flush the Water System Air in the water dispensing system can cause the water dispenser to drip After connecting the refrigerator to a water source or replacing the water lter ush the water system Flushing the water dispensing system forces air from the water line and lter and prepares the water lter for use Additional ushing may be required in some households NOTE As air is cleared from the system water may spurt out of the dispenser 1 Using a sturdy container depress and hold the water dispenser paddle for 5 seconds Calibrate Measured Fill Household water pressure may affect the accuracy of the Measured Fill feature So for optimum performance of your water dispenser you must rst calibrate Measured Fill IMPORTANT Flush the water system before calibrating Measured Fill For best results calibration should be performed when water is not being used in the house 1 Place a sturdy measuring cup 1cup 237 mL size on the dispenser tray centered in front of the icewater dispenser paddle NOTE Depending on your model a measuring cup may be provided Calibration Door Ajar Replace Filter quot ampquot Order Filter a1 oz b1 L a2 oz b2 L a3 oz b3 L Dispense A Water dispenser paddle B Ice dispenser paddle C Measuring cup 1 cup Ensure that you do not have any Measured Fill preset selected 2 Touch and hold the Measured Fill button for 3 seconds to enter into Calibration mode The Calibration and Measured Fill icons will illuminate and remain lit while the Measured Fill feature is being calibrated NOTE You may touch MEASURED FILL to exit at any time in Calibration mode The Calibration icon will disappear and the display will return to the Home screen 3 Press and hold the water dispenser paddle as needed to dispense water to the 1cup ll line in the measuring cup NOTE If overlling or spilling occurs discard the water and restart the calibration process 4 When 1 cup of water has been correctly dispensed into the measuring cup touch MEASURED FILL to conrm the calibration 5 When Measured Fill calibration has been conrmed the Calibration icon will disappear and the display will return to the home screen B A A Water dispenser paddle B Ice dispenser paddle B A C Lighting the Refrigerator The refrigerator has an interior light that comes on any time the door is opened NOTE The light is an LED which does not need to be replaced If the LED does not illuminate when the door is opened call Service to replace the light See Assistance or Service in Warranty section for contact information 2 Release the dispenser paddle for 5 seconds Repeat steps 1 and 2 until water begins to ow 3 Once water begins to ow continue depressing and releasing the dispenser pad 5 seconds on 5 seconds off until a total of 3 gal 12 L has been dispensed

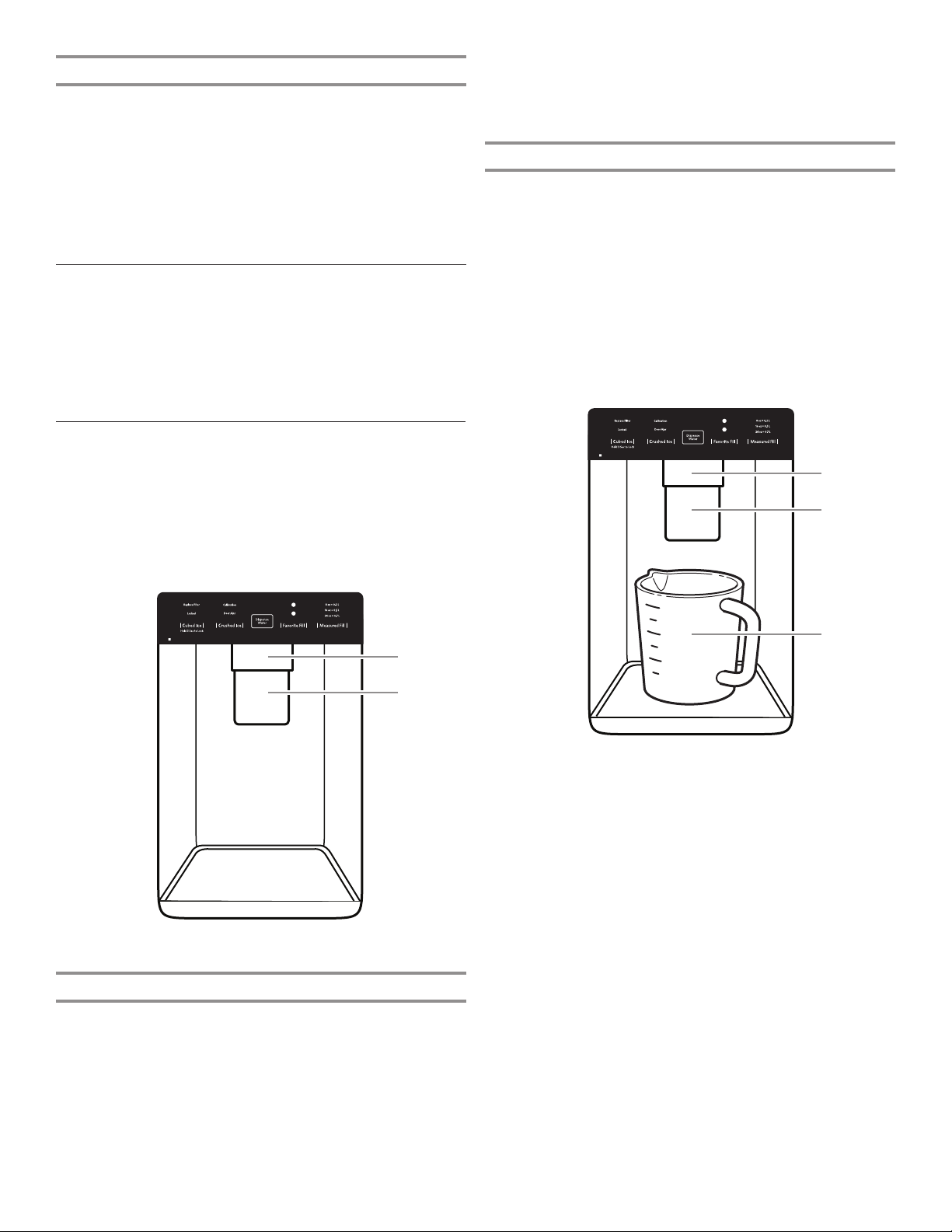

  • Page 23 - English - : Save Favorite Fill Household water pressure may affect the accuracy of the Favorite Fill feature So for optimum performance of your water dispenser you must rst calibrate Measured Fill See Measured Fill section NOTE Water will not be dispensed using the Favorite Fill feature unless your preferred Favorite Fill amount is saved rst IMPORTANT Flush the water system before Favorite Fill For best results calibration should be performed when water is not being used in the house 1 Place a preferredsize cup on the dispenser tray centered in front of the icewater dispenser paddle 2 Select either Favorite 1 or Favorite 2 and then touch and hold the Favorite Fill button for 3 seconds to enter into Saving mode The Favorite Fill icon will illuminate and remain lit while the Favorite Fill feature is being saved NOTE You may touch FAVORITE FILL to exit at any time in Saving mode and the display will return to the Home screen 3 Press and hold the water dispenser paddle as needed to dispense water to the preferredsize cup NOTE If overlling or spilling occurs discard the water and restart the saving process 4 When the preferred amount of water has been correctly dispensed into the cup touch the Favorite Fill button to conrm the favorite amount 5 When Favorite Fill amount has been conrmed the display will return to the home screen Dispensing Touch CUBED ICE or CRUSHED ICE for your ice selection NOTES For crushed ice cubes are crushed before being dispensed This may cause a slight delay when dispensing crushed ice Noise from the ice crusher is normal and pieces of ice may vary in size When changing from crushed to cubed a few ounces of crushed ice will be dispensed along with the rst cubes Dispensing Water IMPORTANT Dispense at least 1 qt 1 L of water every week to maintain a fresh supply If the ow of water from the dispenser decreases it could be caused by low water pressure With the water lter removed dispense 1 cup 237 mL of water If 1 cup 237 mL of water is dispensed in 8 seconds or less the water pressure to the refrigerator meets the minimum requirement If it takes longer than 8 seconds to dispense 1 cup 237 mL of water the water pressure to the refrigerator is lower than recommended See Water Supply Requirements and Troubleshooting sections for suggestions To Dispense Water Standard 1 Press a sturdy glass against the water dispenser paddle 2 Remove the glass to stop dispensing NOTE The Dispense Water button does not enable standard dispensing It only functions in Measured Fill mode To Dispense Water Measured Fill Measured Fill allows you to dispense a specied amount of water with the touch of a few buttons 1 Put a sturdy glass under waterspout Touch MEASURED FILL to activate NOTE The amount of water you select will be dispensed Make sure the container can hold the entire volume If ice is in the container you may need to adjust your selection 2 Touch MEASURED FILL to turn on then touch to select 8 oz 02 L 16 oz 05 L or 24 oz 07 L Touch the fourth time to exit Measured Fill display 3 Touch DISPENSE WATER center button or press paddle and the selected amount of water will be dispensed NOTES The Measured Fill dispenser will automatically time out after 1 minute of inactivity You can rell several glasses with the same measurement by continuing to touch DISPENSE WATER center button after each glass ll Measured Fill options are listed in the following chart Ounces 8 16 24 Cups 1 2 3 Liters 02 05 07 NOTE Most coffee cups commonly 4 to 6 oz 118 to 177 mL per cup are not the same size as a measuring cup 8 oz 237 mL You may need to recalibrate Measured Fill to underll or to avoid unintentionally overlling coffee cups 4 Dispense water NOTE While dispensing water the ow of water will automatically stop once the desired volume has been dispensed Press a sturdy glass against the dispenser paddle below the waterspout OR Place the glass below the waterspout and touch DISPENSE WATER for handsfree dispensing 5 To pause dispensing before the selected volume has been dispensed touch DISPENSE WATER a second time or touch the water dispenser paddle Touch DISPENSE WATER or paddle again to resume dispensing remaining amount NOTE If you stop dispensing before the desired volume has been dispensed the display will turn off after 1 minute If you have not resumed by then it will reset back to the original amount 6 To select a new volume or start dispensing the same volume again you must rst nish dispensing the selected volume or turn off the Measured Fill feature either by waiting 1 minute so it will automatically turn off or by touching CUBED ICE or CRUSHED ICE to manually turn it off and then select Measured Fill again To Dispense Water Favorite Fill Favorite Fill allows you to dispense a preferred amount of water with the touch of a few buttons 1 Put a sturdy glass under waterspout Touch FAVORITE FILL to activate NOTE The amount of water you select will be dispensed Make sure the container can hold the entire volume If ice is in the container you may need to adjust your selection 2 Touch FAVORITE FILL to turn on then touch to select Favorite 1 or Favorite 2 Touch the third time to exit Favorite Fill display
  • Page 24 - English - : The Ice Dispenser IMPORTANT If the ice cubes are hollow or have an irregular shape it could be because of low water pressure See Water Supply Requirements section Ice travels from the ice storage bin through the dispenser chute to the dispenser To turn off the ice maker see Ice Maker and Storage Bin section The dispenser may continue to make noise and ice may continue to dispense for several seconds after releasing the dispenser button or paddle To Clean the Ice Dispenser Chute Humidity causes ice to naturally clump together Ice particles can build up until the ice dispenser chute becomes blocked If ice is not dispensed regularly it may be necessary to empty the ice storage bin and clean the ice delivery chute the ice storage bin and the area beneath the storage bin every 2 weeks If necessary remove the ice clogging the storage bin and delivery chute using a plastic utensil Clean the ice delivery chute and the bottom of the ice storage bin using a warm damp cloth and then dry thoroughly To Dispense Ice Paddle Dispensing 1 Select the desired type of ice by pressing CUBED ICE or CRUSHED ICE Cut Hazard Use a sturdy glass when dispensing ice Failure to do so can result in cuts WARNING 2 Press a sturdy glass against the dispenser paddle Hold the glass close to the dispenser opening so ice does not fall outside of the glass IMPORTANT You do not need to apply a lot of pressure to the paddle to activate the ice dispenser Pressing hard will not make the ice dispense faster or in greater quantities 3 Remove the glass to stop dispensing NOTE Ice may continue to dispense for several seconds after removing the glass from the dispenser paddle The dispenser may continue to make noise for a few seconds after dispensing The Dispenser Drip Tray The drip tray can be removed to carry to the sink to empty or clean Lift up on the front edge of the tray and pull forward to remove The drip tray can also slide out to assist in MeasuredFavorite Fill Calibration Door Ajar Replace Filter quot ampquot Order Filter a1 oz b1 L a2 oz b2 L a3 oz b3 L Dispense The Dispenser Light 1 When you use the dispenser the light will automatically turn on 2 The dispenser light also serves as an automatic nightlight Once the ambient light in the room is reduced the auto sensor will cause the dispenser light to illuminate The Dispenser Lock The dispenser can be locked for easy cleaning or to avoid unintentional dispensing by small children and pets NOTE The lock feature does not shut off power to the refrigerator or the dispenser light It simply deactivates the controls and dispenser levers To turn off the ice maker see Ice Maker and Storage Bin section Touch and hold CUBED ICE for 3 seconds to lock the dispenser 3 Touch DISPENSE WATER center button or press paddle and the selected amount of water will be dispensed NOTES The Favorite Fill dispenser will automatically time out after 1 minute of inactivity You can rell several glasses with the same measurement by continuing to touch DISPENSE WATER center button after each glass ll 4 Dispense water NOTE While dispensing water the ow of water will automatically stop once the desired volume has been dispensed Press a sturdy glass against the dispenser paddle below the waterspout OR Place the glass below the waterspout and touch DISPENSE WATER for handsfree dispensing 5 To pause dispensing before the selected volume has been dispensed touch DISPENSE WATER a second time or touch the water dispenser paddle Touch DISPENSE WATER or paddle again to resume dispensing remaining amount NOTE If you stop dispensing before the desired volume has been dispensed the display will turn off after 1 minute If you have not resumed by then it will reset back to the original amount 6 To select a new volume or start dispensing the same volume again you must rst nish dispensing the selected volume or turn off the Favorite Fill feature either by waiting 1 minute so it will automatically turn off or by touching CUBED ICE or CRUSHED ICE to manually turn it off and then select Favorite Fill again
  • Page 25 - English - : Ice Maker and Storage Bin IMPORTANT To avoid low ice production and poor quality ice ush the water system before turning on the ice maker See Water Dispenser section Following installation allow 24 hours to produce the rst batch of ice Discard the rst 3 batches of ice produced Allow 2 to 3 days to ll the ice storage bin The quality of your ice will be only as good as the quality of the water supplied to your ice maker Avoid connecting the ice maker to a softened water supply Water softener chemicals such as salt can damage parts of the ice maker and lead to poor quality ice If a softened water supply cannot be avoided make sure the water softener is operating properly and is wellmaintained If the ice in the storage bin clumps together break up ice using a plastic utensil and discard ice Do not use anything sharp to break up the ice This can cause damage to the ice bin and the dispenser mechanism Do not store anything in the ice storage bin Ice Maker in the Refrigerator The ice maker is located on the left door behind the bins Ice cubes are ejected into the ice storage bin located on the left hand refrigerator door Turn the Ice Maker OnOff 1 Push up on the latch on the lefthand side of the ice compartment to open the door 2 Turn on the ice maker by moving the switch to the On I position NOTES To manually turn off the ice maker move the control to the Off O position Your ice maker has an automatic shutoff The sensor will automatically stop ice production if the storage bin is full if the door is open or the storage bin is removed The control will remain in the On up position 3 Close the ice compartment door Remove and Replace the Ice Storage Bin Remove the ice storage bin by inserting your ngers into the hole at the base of the bin and pulling the latch to release the bin from the compartment Lift the storage bin up and pull it straight out Replace the storage bin inside the ice compartment and push down to make sure it is rmly in place Ice Production Rate The ice maker should produce approximately 3 lbs 14 kg of ice per day under normal operation To increase ice production select the Fast Ice feature from the control panel See Using the Controls section Shelves Bins and Drawers SlideAway Split Shelf Some shelves will tuck away to create room for taller objects 1 To retract the front section of the shelf push the adjustable portion of the shelf as far back as needed toward the rear of the refrigerator 2 Extend the front glass and front trim of the shelf by pulling the retracted portion of the shelf outward until it is fully extended Touch and hold CUBED ICE for 3 seconds to unlock the dispenser The display screen indicates when the dispenser is locked

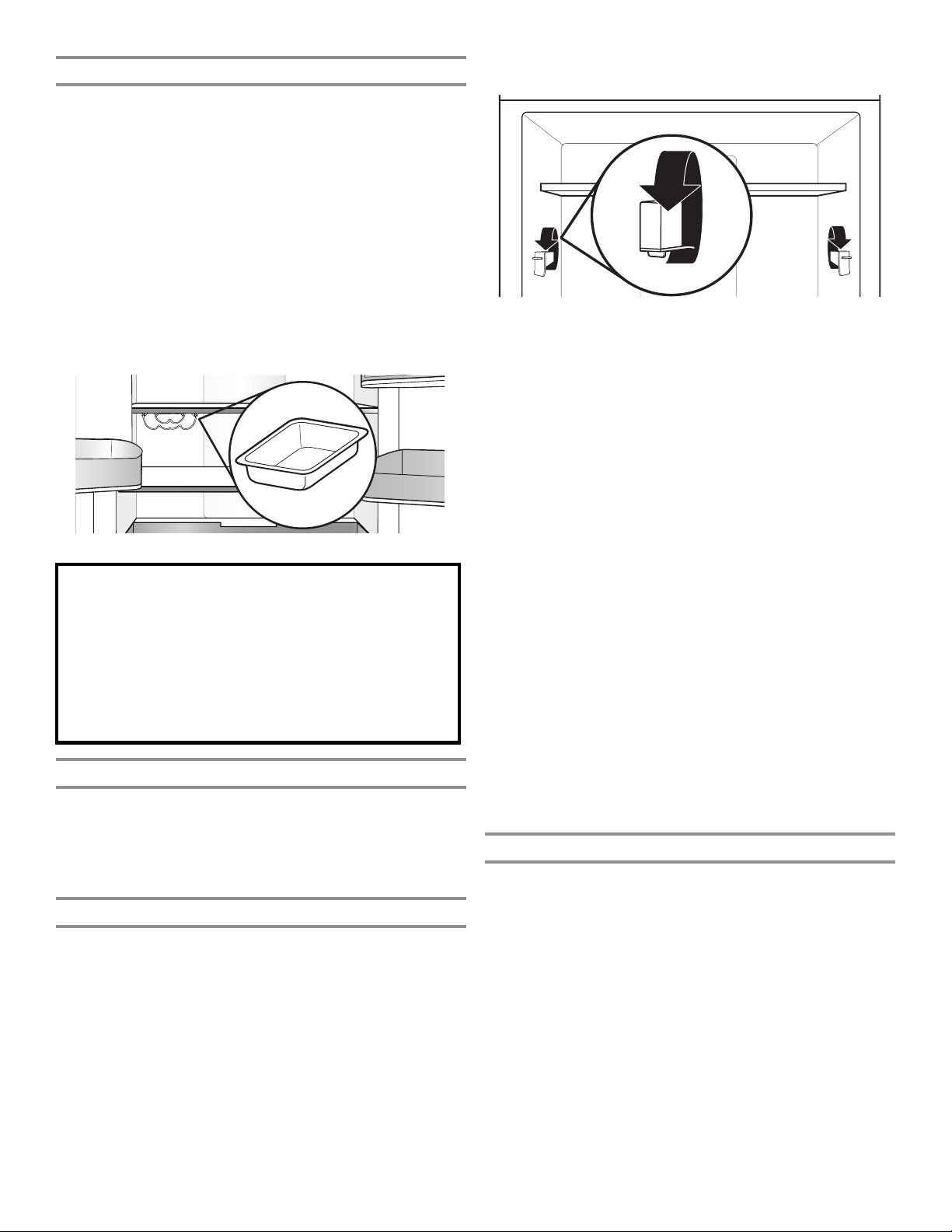

  • Page 26 - English - : Important information to know about glass shelves and covers Do not clean glass shelves or covers with warm water when they are cold Shelves and covers may break if exposed to sudden temperature changes or impact such as bumping Tempered glass is designed to shatter into many small pebblesize pieces This is normal Glass shelves and covers are heavy Use both hands when removing them to avoid dropping Shelves and Shelf Frames The shelves in your refrigerator are adjustable to meet your individual storage needs Storing similar food items together in your refrigerator and adjusting the shelves to t different heights of items will make nding the exact item you want easier It will also reduce the amount of time the refrigerator door is open and save energy Shelf Height Adjustment Shelf height can be adjusted by changing the adjustable shelf mounts between their vertical and horizontal positions 1 Carefully lift the shelf off the shelf mounts and turn the ipper to the desired orientation 2 Repeat for remaining shelf mounts 3 Apply pressure to the top of the shelf to ensure the shelf is properly seated on the shelf mounts To remove and replace shelves 1 Make sure adjustable shelf mounts are in the lower position before removing shelves Also doors will need to be open at a 90 angle If open wider it will make it harder to remove the shelves 2 Remove the middle shelf or top shelf by lifting it up and out of the shelf supports Then pull the shelf forward and tilt down to a vertical position Turn the shelf at an angle and pull out of the refrigerator NOTE Remove middle shelf rst before removing top shelf Innity slide glass shelves should be pushed back in When tilted up make sure glass does not slide to front 3 Remove the bottom shelf by lifting it up and out of the shelf supports Then pull the shelf forward and tilt up to a vertical position Turn the shelf at an angle and pull out of the refrigerator 4 Replace the middle and top shelves by putting the shelf in the refrigerator at an angle with the shelf front down Lift the front of the shelf up and slide in until rear shelf drops into the shelf supports Lower the front of the shelf and make sure that the shelf is in position 5 Replace the bottom shelf by putting the shelf in the refrigerator at an angle with the shelf up Lift the front of the shelf down and slide in until rear shelf drops into the shelf supports Lower the front of the shelf and make sure that the shelf is in position Shelves with undershelf lighting on some models By moving LED lighting to a new spot under the shelves this leadingedge technology improves interior refrigerator lighting and aids in locating storage items PullOut Tray To remove and replace the pullout tray 1 Pull the tray to the fully open position or when it stops 2 Lift up and out of gliders toward the front of the refrigerator Wine Rack andor Under Shelf Storage Pan Under one shelf there are brackets installed to the supports one bracket on each support The wine rack or undershelf storage rests in these brackets To remove and replace the wine rack or pan 1 Remove the wine rackpan by lifting it up off the brackets Press the righthand side of the rack inward until it is free of its bracket Lower the righthand side slightly and disengage the lefthand side from its bracket 2 Replace the wine rackpan by inserting the lefthand side into its bracket Press inward on the righthand side until it will slide past the bracket edge and set it into its bracket NOTE Under shelf storage pan utilizes typically empty space beneath the shelf to create a prep zone ideal for doughs desserts casseroles or marinating meats The slideout pan is oven and dishwasher safe and easily transitions from fridge to oven
  • Page 27 - English - : 3 Replace the tray by placing it on the bottom tray guide and pushing it past the tray stop into position FreshSeal Crisper Drawers These upgraded crisper drawers use a gasket seal to maintain the ideal temperature and humidity levels to keep produce fresh longer These drawers also feature premium softclose glides that provide the best extension for easy access and maximum visibility to your produce items To remove and replace the drawers 1 Grasp the handle at the bottom of the drawer and slide the drawer straight out to the stop Lift the drawer off the bottom guide 2 Replace the drawer by placing it on the bottom drawer guide and pushing it past the drawer stop into position To remove the crispers cover can remove only if platter pocket is removed rst 1 Remove the platter pocket rst 2 Holding the glass insert rmly with one hand press up in center of glass insert until it rises above the plastic frame Gently slide the glass insert forward to remove To replace crispers covers 1 Remove the crisper pan platter pocket and crisper glass before removing the crisper 2 Fit back of cover frame into supports on side walls of the refrigerator and lower the front of the cover frame into place 3 Slide rear of glass insert into cover frame and lower front into place Refrigerator Door Bins The bins on your refrigerator door are adjustable to meet your individual storage needs FreshSeal Herb Bin This is a cylinder with a FreshSeal to keep sensitive items like herbs fresh longer The container allows water to be added to keep stems wet without covering leaves It can be placed anywhere in the refrigerator and accommodates tall items like parsley cilantro and rosemary in addition to herbs like oregano thyme and mint

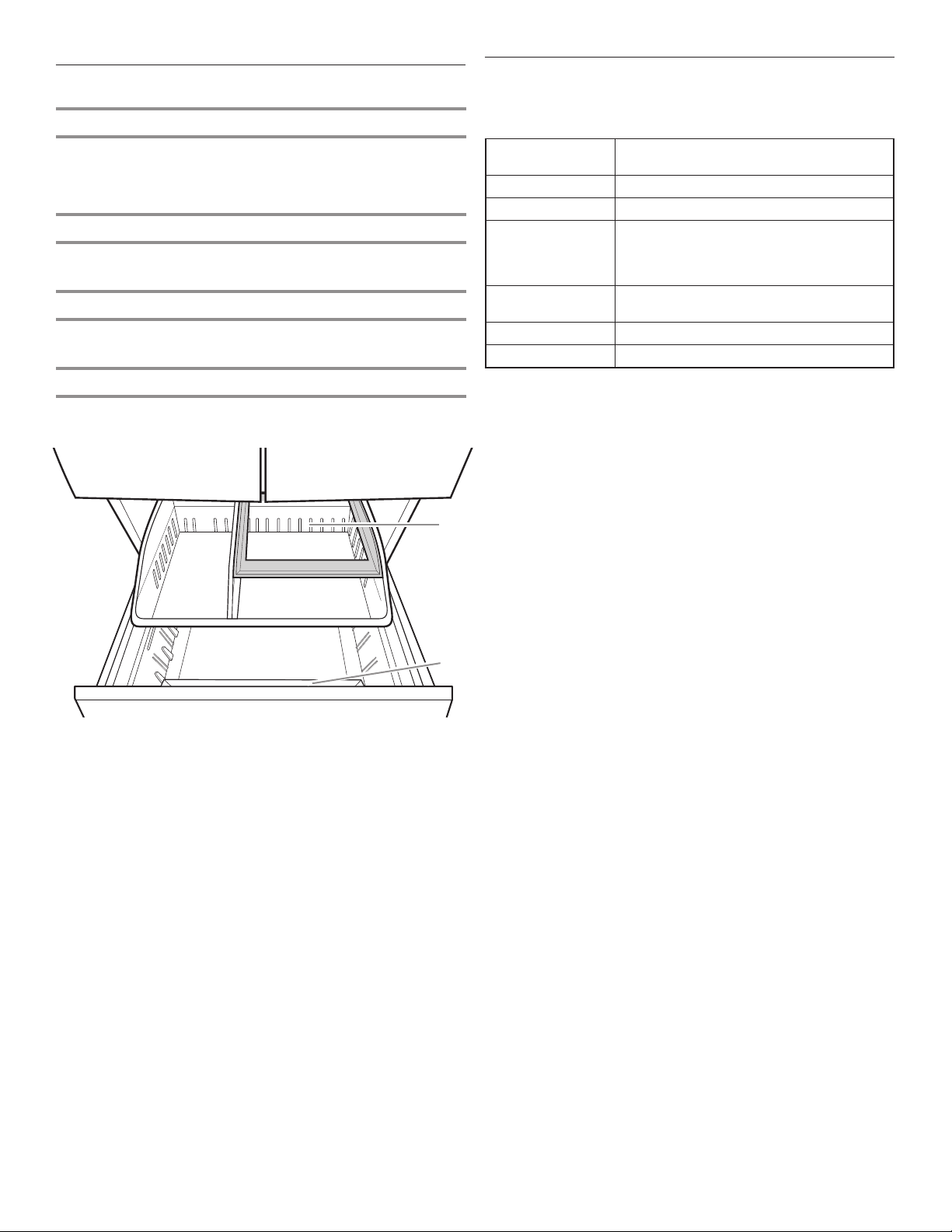

  • Page 28 - English - : Freezer Drawers Small Items Bin on some models This drawer divider is not removable and is for small delicate items For storage exibility the drawer bin can move forward and back allowing you to store larger items in one section of the freezer Pizza Pocket Space at the front of the drawer allows vertical storage of additional pizza boxes Third Tier This shelf is not removable To allow access the third tier is able to move backward allowing access to items in the area below Ice Bin on some models Ice storage for second ice maker Audio Reference Tone Assignment POWER ON Cooling system is turned on every time the product is powered on POWER OFF Cooling system is turned off KEY PRESS User presses a valid button INVALID ERROR User presses 2 or more valid buttons at the same time Countdown interruption for pressandhold buttons User presses pad when dispensing is not allowed ENGAGE Acknowledgment of entry into any mode or completion of dispensing DISENGAGE Acknowledgment of exit from any mode ALERT Power Outage alert Door Ajar alert This table is for quick reference only See corresponding sections for details In case of inconsistency section details will prevail A Pizza pocket B Third tier B A
  • Page 29 - English - : REFRIGERATOR CARE Cleaning WARNING Explosion Hazard Use nonflammable cleaner Failure to do so can result in death explosion or fire Both the refrigerator and freezer sections defrost automatically However clean both sections about once a month to avoid buildup of odors Wipe up spills immediately Exterior Cleaning Please see the exterior cleaning information specic to your model Style 1 Smooth Door IMPORTANT Damage to smooth nish due to improper use of cleaning products or using nonrecommended cleaning products is not covered under the warranty Sharp or blunt instruments will mark the nish Soft clean cloth Abrasive cloths Paper towels or newsprint Steelwool pads Warm soapy water with a mild detergent Abrasive powders or liquids Window sprays Ammonia Acidic or vinegarbased cleaners Oven cleaners Flammable uids NOTE Paper towels scratch and may dull the clear coat of the painted door To avoid possible damage use only soft clean clothes to polish and wipe the doors Style 2 Stainless Steel IMPORTANT Use recommended stainless steel cleaners and cloths only Damage to stainless steel nish due to improper use of cleaning products or using nonrecommended cleaning products is not covered under the warranty Avoid exposing stainless steel appliances to caustic or corrosive elements such as highsalt highmoisture or highhumidity environments Damage due to exposure to these elements is not covered under the warranty DO USE DO NOT USE Soft clean cloth Abrasive cloths Paper towels or newsprint Steelwool pads Warm soapy water with a mild detergent Abrasive powders or liquids Ammonia Citrusbased cleaners Acidic or vinegarbased cleaners Oven cleaners For heavy soil use ONLY a stainless steel cleaner designed for appliances To order the cleaner see Accessories section Stainless steel cleaner is for stainless steel parts only Do not allow the stainless steel cleaner and polish to come into contact with any plastic parts such as the trim pieces dispenser covers or door gaskets Style 3 FingerprintResistant Stainless and FingerprintResistant Black Stainless IMPORTANT Avoid exposing stainless steel appliances to caustic or corrosive elements such as highsalt highmoisture or highhumidity environments Damage due to exposure to these elements is not covered under the warranty Soft clean cloth Abrasive cloths Paper towels or newsprint Steelwool pads Warm soapy water with a mild detergent Abrasive powders or liquids Window sprays Ammonia Acidic or vinegarbased cleaners Oven cleaners Flammable uids NOTES If unintentional contact does occur clean plastic part with a sponge and mild detergent in warm water Dry thoroughly with a soft cloth Just because a cleaner is a liquid does not mean it is nonabrasive Many liquid cleansers formulated to be gentle on tile and smooth surfaces still damage stainless steel Citric acid permanently discolors stainless steel To avoid damaging the nish of your stainless steel refrigerator Do not allow these substances to remain on the nish Mustard Citrusbased sauces Tomato juice Citrusbased products Marinara sauce Interior Cleaning
  • Page 30 - English - : IMPORTANT Refrigerator shelves with undershelf LED lighting are not dishwasher safe 1 Unplug refrigerator or disconnect power 2 Hand wash rinse and dry removable parts and interior surfaces thoroughly Use a clean sponge or soft cloth and a mild detergent in warm water NOTE Do not use abrasive or harsh cleaners such as window sprays scouring cleansers ammable uids cleaning waxes concentrated detergents bleaches or cleansers containing petroleum products on plastic parts interior and door liners or gaskets 3 Plug in refrigerator or reconnect power Condenser Cleaning There is no need for routine condenser cleaning in normal home operating environments If the environment is particularly greasy or dusty or there is signicant pet trafc in the home the condenser should be cleaned every 6 months to ensure maximum efciency If you need to clean the condenser please call for service Lights The lights in both the refrigerator and freezer compartments are LEDs which do not need to be replaced If the lights do not illuminate when the door or drawer is opened call for assistance or service In the USA call 18002531301 In Canada call 18008076777 Vacation and Moving Care Vacations If You Choose to Leave the Refrigerator On While Youre Away 1 Use up any perishables and freeze other items 2 If your refrigerator has an automatic ice maker and is connected to the household water supply turn off the water supply to the refrigerator Property damage can occur if the water supply is not turned off 3 If you have an automatic ice maker turn off the ice maker Press the switch to OFF for the door ice maker 4 Empty the ice bin If You Choose to Turn Off the Refrigerator Before You Leave NOTE Put refrigerator in Showroom Mode while on Vacation See Using the Controls section 1 Remove all food from the refrigerator 2 If your refrigerator has an automatic ice maker Turn off the water supply to the ice maker at least 1 day ahead of time When the last load of ice drops press the switch to OFF for display to be unlit on the top inside of the refrigerator depending on your model 3 Empty the ice bin 4 Turn off the temperature controls See Using the Controls section 5 Clean refrigerator wipe it and dry well 6 Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in This stops odor and mold from building up Moving When you are moving your refrigerator to a new home follow these steps to prepare it for the move 1 If your refrigerator has an automatic ice maker Turn off the water supply to the ice maker at least 1 day ahead of time Disconnect the water line from the back of the refrigerator When the last load of ice drops press the switch to OFF either on the ice maker or the control depending on your model 2 Remove all food from the refrigerator and pack all frozen food in dry ice 3 Empty the ice bin 4 Unplug refrigerator 5 Clean wipe and dry thoroughly 6 Take out all removable parts wrap them well and tape them together so they dont shift and rattle during the move 7 Depending on the model raise the front of the refrigerator so it rolls more easily OR raise the leveling screws so they dont scrape the oor See Adjust the Doors or Refrigerator Leveling and Door Closing section 8 Tape the doors closed and tape the power cord to the back of the refrigerator When you get to your new home put everything back and refer to the Installation Instructions section for preparation instructions Also if your refrigerator has an automatic ice maker remember to reconnect the water supply to the refrigerator
  • Page 31 - English - : Refrigerator Operation First try the solutions suggested here or visit our website at wwwkitchenaidcusthelpcom Electrical Shock Hazard Plug into a grounded 3 prong outlet Do not remove ground prong Do not use an adapter Do not use an extension cord Failure to follow these instructions can result in death fire or electrical shock WARNING If you experience Possible Causes Solution The refrigerator will not operate Check electrical supply Plug the power cord into a grounded 3 prong outlet Do not use an extension cord Make sure there is power to the outlet Plug in a lamp to see if the outlet is working Reset a tripped circuit breaker Replace any blown fuses NOTE If problems continue contact an electrician Check controls Make sure the controls are turned on See Using the Controls section New installation Allow 24 hours following installation for the refrigerator to cool completely NOTE Adjusting the temperature controls to the coldest setting will not cool either compartment more quickly Refrigerator control is in Showroom mode on some models If the refrigerator is in Showroom mode cooling is turned off and Showroom will be illuminated on the control panel See Using the Controls section for more information The motor seems to run too much Highefciency compressor and fans Larger more efcient refrigerators run longer at lower more energy efcient speeds The room or outdoor temperature is hot It is normal for the refrigerator to work longer under these conditions For optimum performance place the refrigerator in an indoor temperaturecontrolled environment See Location Requirements section A large amount of warm food has been recently added Warm food will cause the refrigerator to run longer until the air cools to the desired temperature TROUBLESHOOTING First try the solutions suggested here If you need further assistance or more recommendations that may help you avoid a service call refer to the warranty page in this manual visit wwwkitchenaidcusthelpcom or call 18002531301 In Canada visit wwwkitchenaidca Contact us by mail with any questions or concerns at the address below In the USA KitchenAid Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor MI 490222692 In Canada KitchenAid Brand Home Appliances Customer eXperience Centre 200 6750 Century Ave Mississauga Ontario L5N 0B7 Please include a daytime phone number in your correspondence
  • Page 32 - English - : If you experience Possible Causes Solution The motor seems to run too much cont The doors are opened too frequently or for too long Warm air entering the refrigerator causes it to run more Open the door less often The refrigerator door or freezer drawer is ajar Make sure the refrigerator is level See Refrigerator Leveling and Door Closing section Keep food and containers from blocking the door The refrigerator control is set too cold Adjust the refrigerator control to a lesscold setting until the refrigerator temperature is as desired The door or drawer gasket is dirty worn or cracked Clean or change the gasket Leaks in the door seal will cause the refrigerator to run longer in order to maintain desired temperatures The lights do not work Your refrigerator is equipped with LED lighting which does not need to be replaced If there is power to the refrigerator and the lights do not illuminate when a door or drawer is opened call for service or assistance Doors have been open longer than 10 minutes Close the doors and drawer to reset and open to resume lighted task The door switch is not sensing the door opening Ensure there are no magnets or electronic devices within 3quot 76 cm of the hinge cover The Temperature Control UI does not turn on The door switch is not sensing the door opening Ensure there are no magnets or electronic devices within 3quot 76 cm of the hinge cover Unusual Noise To listen to normal refrigerator sounds go to the Product HelpFAQ section of the brand website and search for normal sounds Below are listed some normal sounds with explanations The refrigerator seems noisy The compressor in your new refrigerator regulates temperature more efciently while using less energy and operates quietly Due to this reduction in operating noise you may notice unfamiliar noises that are normal Sound of the compressor running longer than expected Highefciency compressor and fans Larger moreefcient refrigerators run longer at lower more energy efcient speeds PulsatingWhirring Fanscompressor adjusting to optimize performance during normal compressor operation This is normal Popping Contractionexpansion of inside walls especially during initial cooldown This is normal HissingDripping Flow of refrigerant or ow of oil in the compressor This is normal Vibration The refrigerator may not be steady Adjust the leveling screws and lower the leveling foot rmly against the oor See Refrigerator Leveling and Door Closing section RattlingBanging Movement of the water lines against the refrigerator cabinet or of items placed on top of the refrigerator cabinet Move excess water line away from the refrigerator cabinet or fasten excess tubing to the cabinet See Connect the Water Supply section or remove items from the top of the refrigerator Sizzling Water dripping on the heater during Defrost cycle This is normal Water runningGurgling May be heard when ice melts during the Defrost cycle and water runs into the drain pan This is normal Buzzing and clicking Heard when the water valve opens and closes to dispense water andor ll the ice maker If the refrigerator is connected to a water line this is normal If the refrigerator is not connected to a water line turn off the ice maker Repetitive clicking Dual evaporator valve regulating the cooling operation You may hear rapid repetitive clicking sounds as the unit switches from cooling one compartment to cooling the other This sound is normal First try the solutions suggested here or visit our website at wwwkitchenaidcusthelpcom TROUBLESHOOTING
  • Page 33 - English - : If you experience Possible Causes Solution Unusual Noise cont CreakingCracking Grinding May be heard as ice is being ejected from the ice maker mold This is normal Clatter May be heard when the ice falls into the ice storage bin This is normal Temperature and Moisture Temperature is too warm The refrigerator has just been installed Allow 24 hours following installation for the refrigerator to cool completely The controls are not set correctly for the surrounding conditions Adjust the controls a setting colder Check the temperature in 24 hours See Using the Controls section The doors are opened often or not closed completely Allows warm air to enter refrigerator Minimize door openings and keep doors fully closed A large load of food was recently added Allow several hours for refrigerator to return to normal temperature Temperature is too cold in the refrigeratorcrisper The refrigerator air vents are blocked If the air vent located in the middle rear of the refrigerator compartment is blocked by items placed directly in front of it the refrigerator will get too cold Move items away from the air vent The controls are not set correctly for the surrounding conditions Adjust the controls a setting warmer Check the temperature in 24 hours See Using the Controls section The ice storage bin is not in the correct position See Ice Maker and Ice Storage Bin section Temperature is too cold in the pantry drawer The control is not set correctly for the items stored in drawer Adjust the temperature setting See Using the Controls in the Refrigerator Use section There is interior moisture buildup NOTE Some moisture buildup is normal The room is humid A humid environment contributes to moisture buildup The doors are opened often or not closed completely Allows humid air to enter the refrigerator Minimize door openings and close doors completely The doors are blocked open Move food packages away from door A bin or shelf is in the way Push bin or shelf back into the correct position Storing liquid in open containers This adds humidity to the refrigerator interior Keep all containers tightly covered There is frostice buildup in the freezer compartment The drawer is opened often or left open Minimize drawer openings and close drawer completely after use Poor door seal Ensure door seals are making full contact with the refrigerator cabinet to allow for an adequate seal Temperature controls are not set correctly See Using the Controls section for recommended temperature settings Ice and Water The ice maker is not producing ice or is not producing enough ice The refrigerator is not connected to a water supply or the water supply shutoff valve is not turned on Connect refrigerator to water supply and turn water shutoff valve fully open There is a kink in the water source line A kink in the line can reduce water ow Straighten the water source line The ice maker is not turned on Make sure the ice maker is ON See Ice Maker and Ice Storage Bin section The refrigerator has just been installed Wait 24 hours after ice maker installation for ice production to begin Wait 3 days for full ice production The refrigerator door is not closed completely Close the door rmly If it does not close completely see The doors will not close completely in this table A large amount of ice was recently removed Allow sufcient time for ice maker to produce more ice See Ice Maker and Ice Storage Bin section for ice production rates First try the solutions suggested here or visit our website at wwwkitchenaidcusthelpcom TROUBLESHOOTING
  • Page 34 - English - : First try the solutions suggested here or visit our website at wwwkitchenaidcusthelpcom If you experience Possible Causes Solution Ice and Water cont The ice maker is not producing ice or is not producing enough ice cont An ice cube is jammed in the ice maker Remove ice from ice maker with a plastic utensil A water lter is installed on the refrigerator Remove the water lter and operate the ice maker If ice volume improves then the lter may be clogged or incorrectly installed Replace lter or reinstall it correctly A reverse osmosis water ltration system is connected to the cold water supply This can decrease water pressure See Water Supply Requirements section The ice cubes are hollow or small NOTE This is an indication of low water pressure The water shutoff valve is not fully open Turn the water shutoff valve to fully open There is a kink in the water source line A kink in the line can reduce water ow Straighten the water source line A water lter is installed on the refrigerator Remove lter and operate ice maker If ice quality improves then the lter may be clogged or incorrectly installed Replace lter or reinstall it correctly A reverse osmosis water ltration system is connected to the cold water supply This can decrease water pressure See Water Supply Requirements section Questions remain regarding water pressure Call a licensed qualied plumber Offtaste odor or gray color in the ice or water Newly installed refrigerator requires ush of water system Flush the water system See Water and Ice Dispensers section for water system ushing instructions Recently installed or replaced plumbing connections New plumbing connections can cause discolored or offavored ice and water Discard the ice and wash the ice storage bin Flush the water system with 3 gal 12 L of water Allow 24 hours for the ice maker to make new ice and discard the rst 3 batches of ice produced Using a water supply connection type other than recommended It is recommended to use copper tubing or KitchenAid supply line Part Number 8212547RP See Connect to Water Line section The ice has been stored too long Discard ice and wash ice storage bin Allow 24 hours for ice maker to make new ice The water has been stored too long Dispense at least 1 qt 1 L of water per week to maintain a fresh supply Odor from stored food has transferred to the ice Use airtight moistureproof packaging to store food There are minerals such as sulfur in the water A water lter may need to be installed to remove the minerals There is a water lter installed on the refrigerator Gray or dark discoloration in ice may indicate that the water ltration system needs additional ushing Flush the water system after installing and before using a new water lter See Water and Ice Dispensers section for water lter ushing instructions The water lter needs to be replaced Replace the disposable water lter at least every 6 months or when indicated See Water Filtration System section The water and ice dispenser will not operate properly The refrigerator is not connected to a water supply or the water supply shutoff valve is not turned on Connect the refrigerator to the water supply and turn the water shutoff valve fully open There is a kink in the water source line A kink in the water line can reduce water ow from the water dispenser and result in hollow or irregular shaped ice Straighten the water source line The refrigerator has just been installed Flush and ll the water system See Water and Ice Dispensers section The water pressure to the house is not at or above 35 psi 241 kPa The water pressure to the house determines the ow from the dispenser See Water Supply Requirements section TROUBLESHOOTING
  • Page 35 - English - : If you experience Possible Causes Solution Ice and Water cont The water and ice dispenser will not operate properly cont A reverse osmosis water ltration system is connected to the cold water supply A reverse osmosis water ltration system can decrease water pressure See Water Supply Requirements section The water lter may be clogged Remove the water lter and operate dispenser If water ow increases your lter is clogged and needs to be replaced See Water Filtration System section The water lter is installed incorrectly Remove the water lter and reinstall See Water Filtration System section The refrigerator door or freezer drawer is not closed completely Close the door or drawer rmly If it does not close completely see The doors will not close completely section The refrigerator doors were recently removed Make sure the water dispenser wiretube assembly has been properly reconnected at the top of the refrigerator door See Refrigerator Leveling and Door Closing section Ice is clogged in the ice storage bin or ice is blocking the ice delivery chute Remove the ice clogging the storage bin and delivery chute using a plastic utensil if necessary Clean the ice delivery chute and the bottom of the ice storage bin using a warm damp cloth then dry both thoroughly To avoid clogging and to maintain a fresh supply of ice empty the storage bin and clean both the storage bin and delivery chute every 2 weeks Ice bin is difcult to remove from door Ice level in bin may be high and uneven from normal ice production and augering of ice during dispensing Dispense 23 glasses of ice then try removing the ice bin The ice dispenser jams while dispensing crushed ice Crushed ice is blocking the ice delivery chute Switch from crushed ice to cubed ice to clear the ice dispenser Then switch back to crushed ice Water is leaking or dripping from the dispenser system NOTE A few drops of water after dispensing are normal The glass was not held under the dispenser long enough Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever Ice continues to ow from the dispenser NOTE A few cubes dispensed after releasing the dispenser lever is normal The glass was not held under the dispenser long enough Hold the glass under the dispenser 2 to 3 seconds after releasing the dispenser lever Water continues to drip from the dispenser beyond the rst few drops The refrigerator has just been installed Flushing the water system removes air from the lines which causes the water dispenser to drip Flush the water system See Water and Ice Dispensers section The water lter was recently installed or replaced Flushing the water system removes air from the lines which causes the water dispenser to drip Flush the water system See Water and Ice Dispensers section There may be a loose water connection Check for water in bottom of refrigerator compartment hinge area or by household connection in back of product Water is leaking from the back of the refrigerator The water line connections were not fully tightened See Connecting the Water section Recently removed the doors and did not fully tighten water line connection See Refrigerator Leveling and Door Closing section Crushed or cubed ice misses the glass when dispensing ice The glass is not held close enough to where the ice exits the chute Hold the glass close to where the ice exits the chute First try the solutions suggested here or visit our website at wwwkitchenaidcusthelpcom TROUBLESHOOTING
  • Page 36 - English - : First try the solutions suggested here or visit our website at wwwkitchenaidcusthelpcom The doors will not close completely The door is blocked open Move food packages away from door A bin or shelf is in the way Push bin or shelf back into the correct position Recently installed Remove all packaging materials The doors are difcult to open The door gaskets are dirty or sticky Clean gaskets and contact surfaces with mild soap and warm water Rinse and dry with soft cloth The doors appear to be uneven The doors need to be aligned or the refrigerator needs to be leveled See Refrigerator Leveling and Door Closing section The refrigerator is unsteady or it rolls forward when opening and closing doors The refrigerator brake feet are not snug against the oor Remove the base grille Turn both brake feet 1 on each side clockwise the same amount until they are snug against the oor See Refrigerator Leveling and Door Closing section WARNING Explosion Hazard Use nonflammable cleaner Failure to do so can result in death explosion or fire To view an animation showing how to adjust and align the doors refer to the Product HelpFAQ section of the brand website and search for Door Closing and Door Alignment TROUBLESHOOTING If you experience Possible Causes Solution Water from the dispenser is warm Water from the dispenser is chilled to 50F 10C This is normal The refrigerator has just been installed Allow 24 hours after installation for the water supply to cool completely A large amount of water was recently dispensed Allow 3 hours for the water supply to cool completely Water has not been recently dispensed The rst glass of water may not be cool Discard the rst glass of water dispensed The refrigerator is not connected to a cold water pipe Make sure the refrigerator is connected to a cold water pipe See Water Supply Requirements section Doors
  • Page 37 - English - : PERFORMANCE DATA SHEET PERFORMANCE DATA SHEET Water Filtration System Model P9WB2LP9RFWB2L Capacity 200 Gallons 757 Liters This system has been tested according to NSFANSI Standards 42 53 401 and CSA B4831 for the reduction of the substances listed below The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSFANSI Standards 42 53 401 and CSA B4831 Test Parameters pH 75 05 unless otherwise noted Flow 075 gpm 284 Lpm Pressure 60 psig 4137 kPa Temp 68F to 716F 20C to 22C Rated service capacity 200 gallons 757 liters The compounds certified under NSF 401 have been deemed as emerging compoundsincidental contaminants Emerging compoundsincidental contaminants are those compounds that have been detected in drinking water supplies at trace levels While occurring at only trace levels these compounds can affec t the public acceptanceperception of drinking water quality It is important that operational maintenance and filter replacement requirements be carried out for the product to perform as advertised Property damage can occur if all instructions are not followed The disposable cartridge must be changed at least every 6 months Use replacement filter P9RFWB2L part EDR2RXD1EDR2RXD1B 2015 suggested retail price of 4999 USA4999 Canada Prices are subject to change without notice The filter monitor system measures the amount of water that passes through the filter and alerts you when it is time to replace the filter Refer to the Using the Controls or Water Filtration System section in the User Instructions or User Guide to learn how to check the water filter status After changing the water filter flush the water system See Water and Ice Dispensers or Water Dispenser in the User Instructions or User Guide These contaminants are not necessarily in your water supply While testing was performed under standard laboratory conditions actual performance may vary The product is for cold water use only The water system must be installed in compliance with state and local laws and regulations Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts EPA Est No 082047TWN001 Refer to the Warranty section in the User Instructions or User Guide for the Manufacturers limited warranty name and telephone number Application GuidelinesWater Supply Parameters System tested and certified by NSF International against NSFANSI Standard 42 Standard 53 Standard 401 and CSA B4831 for the reduction of contaminants specified on the Performance Data Sheet Substance Reduction Aesthetic Effects Influent Challenge Concentration Maximum Permissable Product Water Concentration Average Reduction 01 Lgm 02rodOetsaT enirolhC 079 noitcuder 05 Particulate Class I At least 10000 particle 999gtnoitcuder 58Lms Contaminant Reduction Influent Challenge Concentration Maximum Permissable Product Water Concentration Avera ge Reduction 689399gtLgm 010001 Lgm 51058 Hp 56 Hp daeL 839Lgm 500001 Lgm 5100enezneB 899Lgm 570001 Lgm 5220enezneborolhciDp 918Lgm 040001 Lgm 800narufobraC 59gtLgm 300001 5100enehpaxoT 078Lgm 300001 Lgm 9000enizartA 01sotsebsA to 10 fibersL 99gt99 Live Cysts 9999gt5999 nim L00005 969UTN 50 01 UTN 11ytidibruT 299gtLgm 2000001 200 0enadniL 669Lgm 500001 Lgm 5100enelyhteorolhcarteT 329Lgm 06001 Lgm 81enezneborolhciDO 968Lgm 07001 Lgm 12enezneblyhtE 899gtLgm 70001 Lgm 0120enezneborolhcirT421 588Lgm 70001 Lgm 0120D 42 699Lgm 1001 Lgm 02enerytS 539Lgm 0101 Lgm 03eneuloT 718Lgm 200001 Lgm 6000nirdnE 759Lgn 0302 002lolonetA 169Lgn 0202 041mirpohtemirT 369Lgn 0202 041noruniL 359Lgn 0202 041enortsE 559Lgn 00202 0041lonehplynoN Water Supply Water Pressure Water Temperature Service Flow Rate Potable City or Well 30 120 psi 207 827 kPa 33 100F 06 378C 075 gpm 284 Lmin 60 psi Class I particle size gt05 to lt1 um Based on the use of Cryptosporidium parvum oocysts Fibers greater than 10 um in length NSF is a registered trademark of NSF International
  • Page 38 - English - : 0417 IF YOU NEED SERVICE 1 Before contacting us to arrange service please determine whether your product requires repair Some questions can be addressed without service Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelpkitchenaidcom 2 All warranty service is provided exclusively by our authorized KitchenAid Service Providers IntheUSand Canada direct all requests for warranty service to KitchenAid Customer eXperience Center In the USA call 18004221230 In Canada call 18008076777 If outside the 50 United States or Canada contact your authorized KitchenAid dealer to determine whether another warranty applies KITCHENAID REFRIGERATION LIMITED WARRANTY ATTACH YOUR RECEIPT HERE PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE Please have the following information available when you call the Customer eXperience Center Name address and telephone number Model number and serial number A clear detailed description of the problem Proof of purchase including dealer or retailer name and address TEN YEAR LIMITED WARRANTY WHAT IS COVERED WHAT IS NOT COVERED ONE YEAR LIMITED WARRANTY PARTS AND LABOR For one year from the date of purchase when this major appliance is installed operated and maintained according to instructions attached to or furnished with the product KitchenAid brand of Whirlpool Corporation or Whirlpool Canada LP hereafter KitchenAid will pay for factory specied replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or at its sole discretion replace the product In the event of product replacement your appliance will be warranted for the remaining term of the original units warranty period SECOND THROUGH FIFTH YEAR LIMITED WARRANTY ON CAVITY LINER AND SEALED REFRIGERATION SYSTEM PARTS AND LABOR In the second through fth years from the date of original purchase when this major appliance is installed operated and maintained according to the instructions attached to or furnished with the product KitchenAid will pay for factory specied replacement parts and repair labor for the following components to correct noncosmetic defects in materials or workmanship in this part that prevent function of the refrigerator and that existed when this major appliance was purchased Refrigeratorfreezer cavity liner if the part cracks due to defective materials or workmanship Sealed refrigeration system includes compressor evaporator condenser dryer and connecting tubing SIXTH THROUGH TENTH YEAR LIMITED WARRANTY ON SEALED REFRIGERATION SYSTEM PARTS ONLYLABOR NOT INCLUDED In the sixth through tenth year from the date of purchase when this major appliance is installed operated and maintained according to instructions attached to or furnished with the product KitchenAid will pay for factory specied replacement parts to correct defects in materials or workmanship in the sealed refrigeration system includes compressor evaporator condenser dryer and connecting tubing that existed when this major appliance was purchased YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN Service must be provided by a KitchenAid designated service company This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased This limited warranty is effective from the date of original consumer purchase Proof of original purchase date is required to obtain service under this limited warranty 1 Commercial nonresidential or multiplefamily use or use inconsistent with published user operator or installation instructions 2 Inhome instruction on how to use your product 3 Service to correct improper product maintenance or installation installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing eg house wiring fuses or water inlet hoses 4 Consumable parts eg light bulbs batteries air or water lters preservation solutions 5 Defects or damage caused by the use of nongenuine KitchenAid parts or accessories 6 Damage from accident misuse abuse re oods acts of God or use with products not approved by KitchenAid 7 Repairs to parts or systems to correct product damage or defects caused by unauthorized service alteration or modication of the appliance 8 Cosmetic damage including scratches dents chips and other damage to the appliance nishes unless such damage results from defects in materials and workmanship and is reported to KitchenAid within 30 days 9 Discoloration rust or oxidation of surfaces resulting from caustic or corrosive environments including but not limited to high salt concentrations high moisture or humidity or exposure to chemicals 10 Food or medicine loss due to product failure 11 Pickup or delivery This product is intended for inhome repair 12 Travel or transportation expenses for service in remote locations where an authorized KitchenAid servicer is not available 13 Removal or reinstallation of inaccessible appliances or built in xtures eg trim decorative panels ooring cabinetry islands countertops drywall that interfere with servicing removal or replacement of the product 14 Service or parts for appliances with original modelserial numbers removed altered or not easily determined The cost of repair or replacement under these excluded circumstances shall be borne by thecustomer DISCLAIMER OF IMPLIED WARRANTIES IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO TEN YEARS OR THE SHORTEST PERIOD ALLOWED BY LAW Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or tness so this limitation may not apply to you This warranty gives you specic legal rights and you also may have other rights that vary from state to state or province to province DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY KitchenAid makes no representations about the quality durability or need for service or repair of this major appliance other than the representations contained in this warranty If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance you should ask KitchenAid or your retailer about buying an extended warranty LIMITATION OF REMEDIES EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN KITCHENAID SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages so these limitations and exclusions may not apply to you This warranty gives you specic legal rights and you also may have other rights that vary from state to state or province to province W10815169D 518
