Operator Hanuan
HZ6128 / 96650230
HZ28ZT BF / 96658250
FD52H / 96658260
FD61H / 96658270
Please read the operator's manual carefully and make sure
you understand the instructions before using the machine_
English

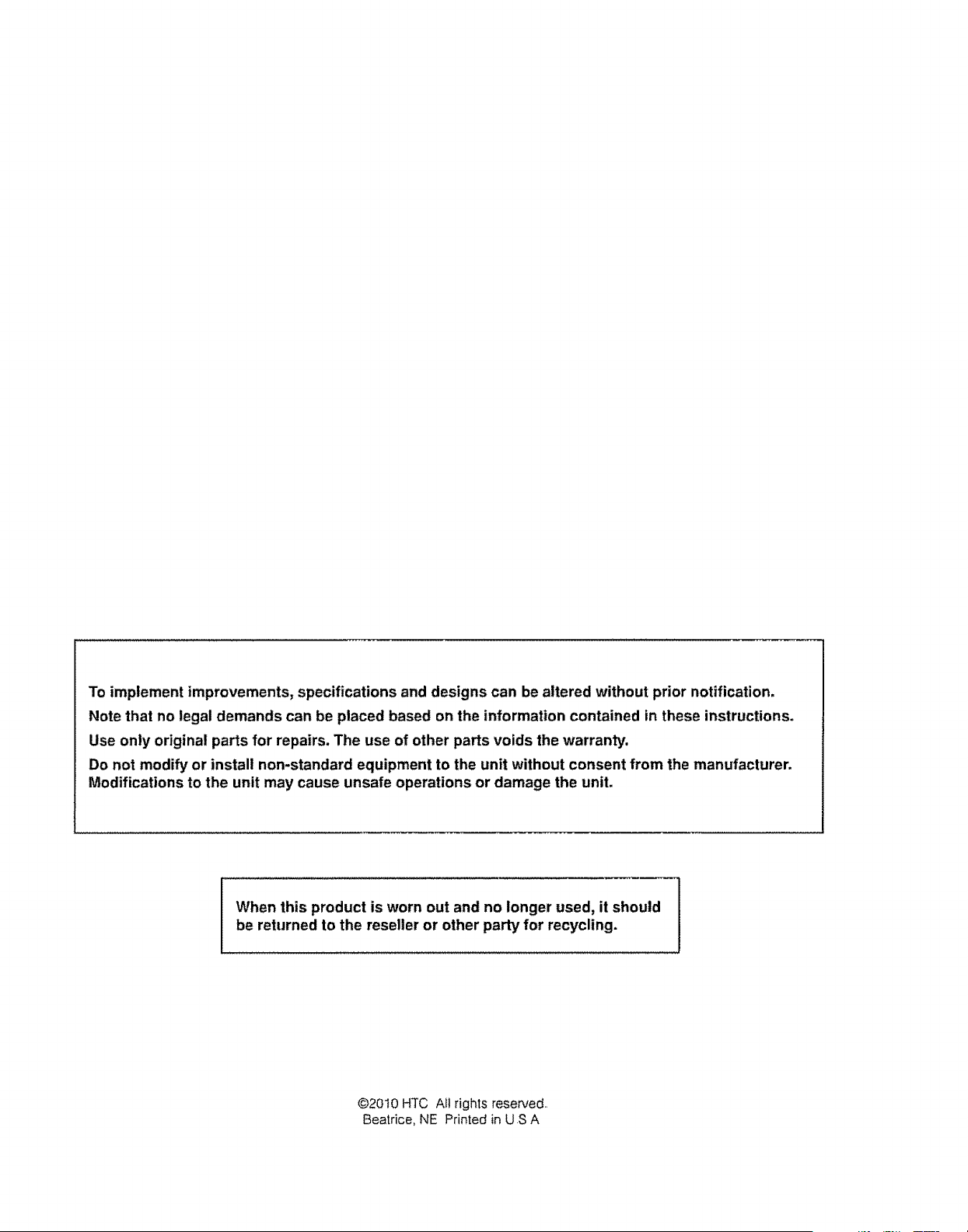

To implement improvements, specifications and designs can be altered without prior notification.
Note that no legal demands can be placed based on the information contained in these instructions.
Use only original parts for repairs. The use of other parts voids the warranty.
Do not modify or install non-standard equipment to the unit without consent from the manufacturer.
Modifications to the unit may cause unsafe operations or damage the unit.
When this product is worn out and no longer used, it should
be returned to the reseller or other party for recycling.
@20t0 HTC AJl rights reserved_
Beatrice, NE Printed in U S A

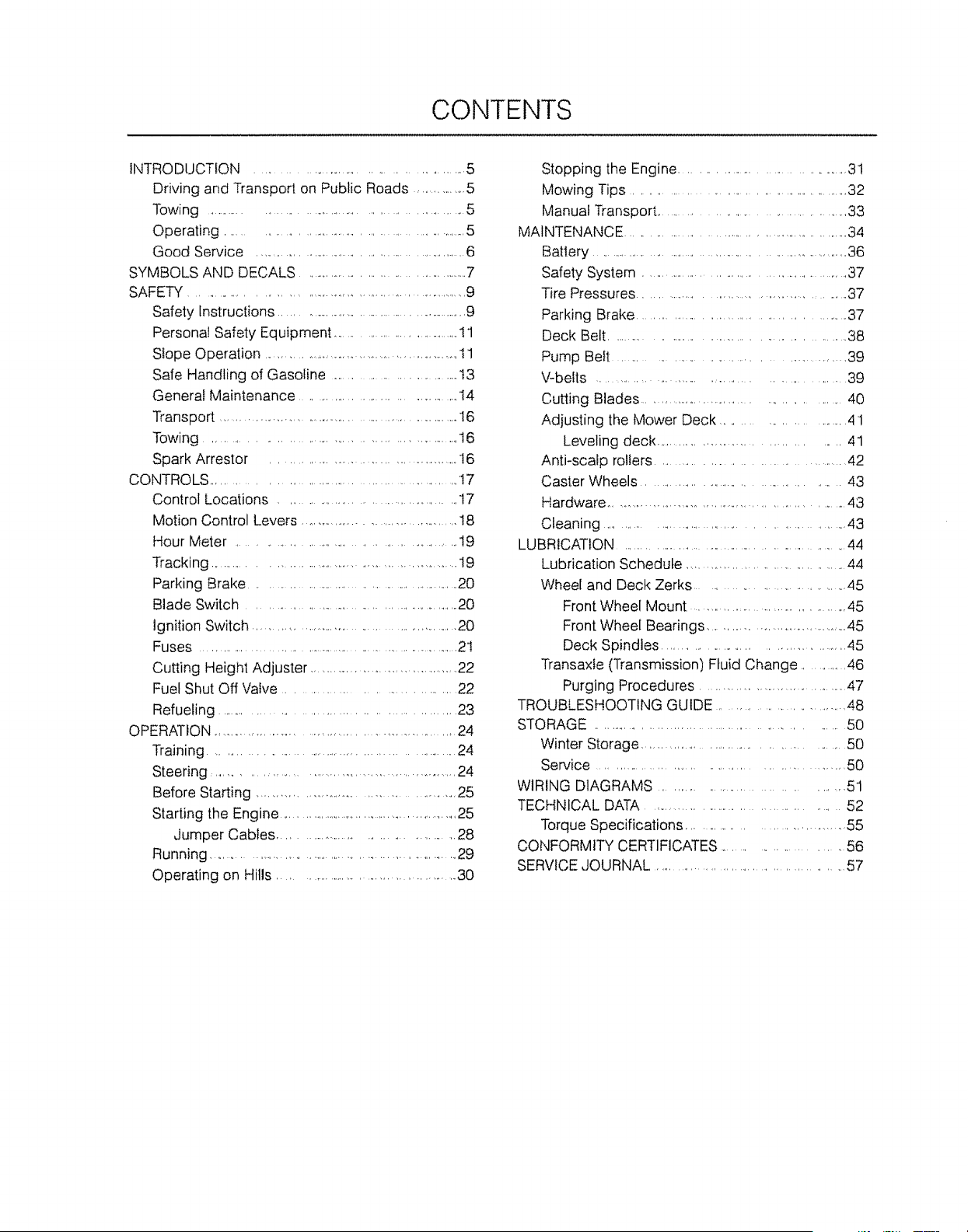

CONTENTS
INTRODUCTION ................................................... 5
Driving and Transport on Public Roads ..................5
Towing ...................................................................5
Operating ............................................................ 5
Good Service ..................................................... 6
SYMBOLS AND DECALS ................................................7
SAFETY
.....................................................................
9
Safety Instructions .........................................................9
Personal Safety Equipment ........................................I1
Slope Operation .....................................................11
Safe Handling of Gasoline ............................. t3
General Maintenance ................................... 14
Transport ..................................................................16
Towing ......................................................... 16
Spark Arrestor ..................................................16
CONTROLS ..................................................... 17
Control Locations ......................................... 17
Motion Control Levers ..................................... 18
Hour Meter ................................................. 19
Tracking ................................................................19
Parking Brake ................................................... 20
Blade Switch ............................................................20
Ignition Switch .................................................... 20

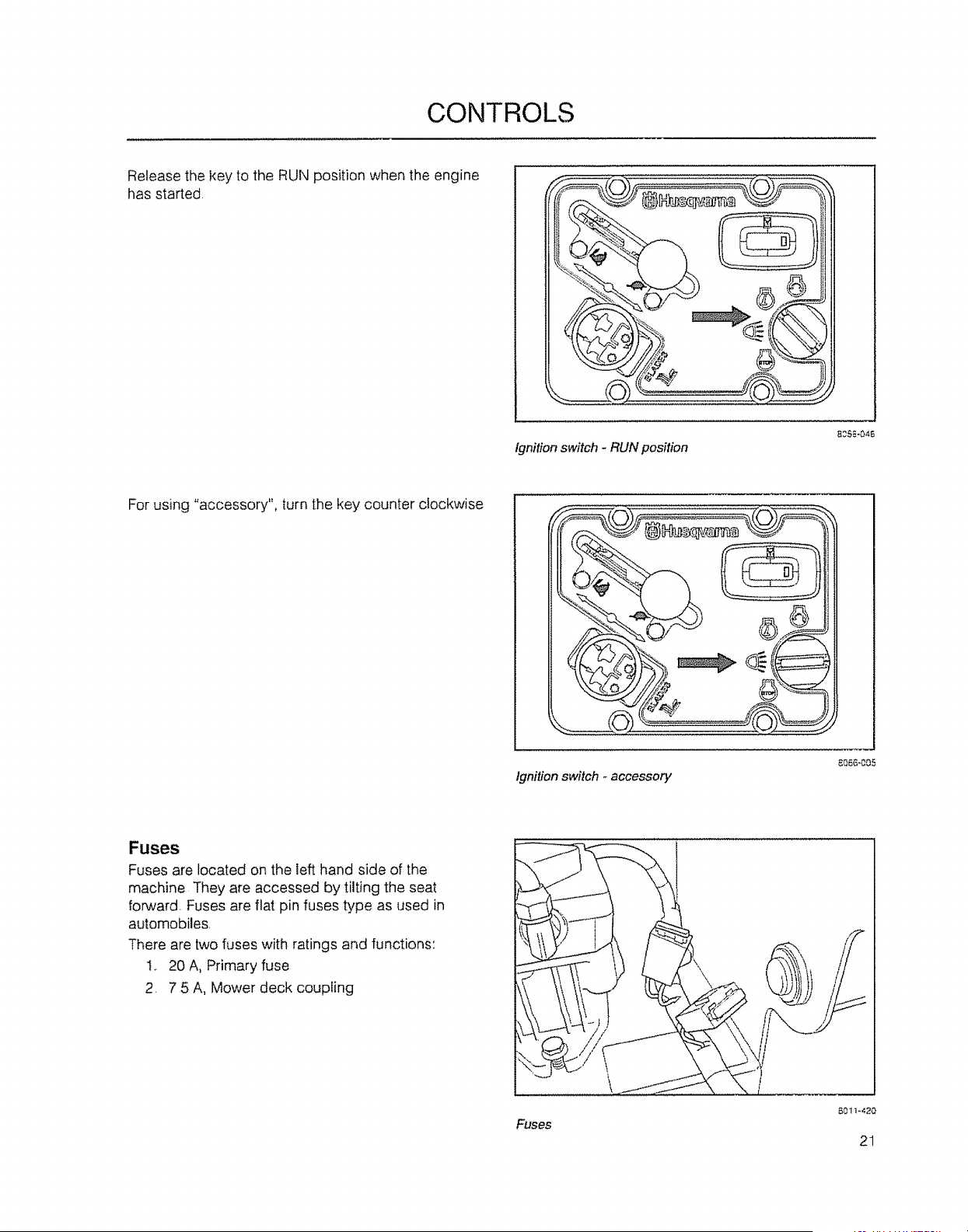

Fuses ................................................................................2t
Cutting Height Adjuster .................................... 22
Fuel Shut Off Valve ..................................... 22
Refueling ..................................................... 23
OPERATION ............................................................ 24
Training ............................................................... 24
Steering .......................................................................24
Before Starting ................................................ 25
Starting the Engine ....................................................25
Jumper Cables ........................................... 28
Running ................................................................29

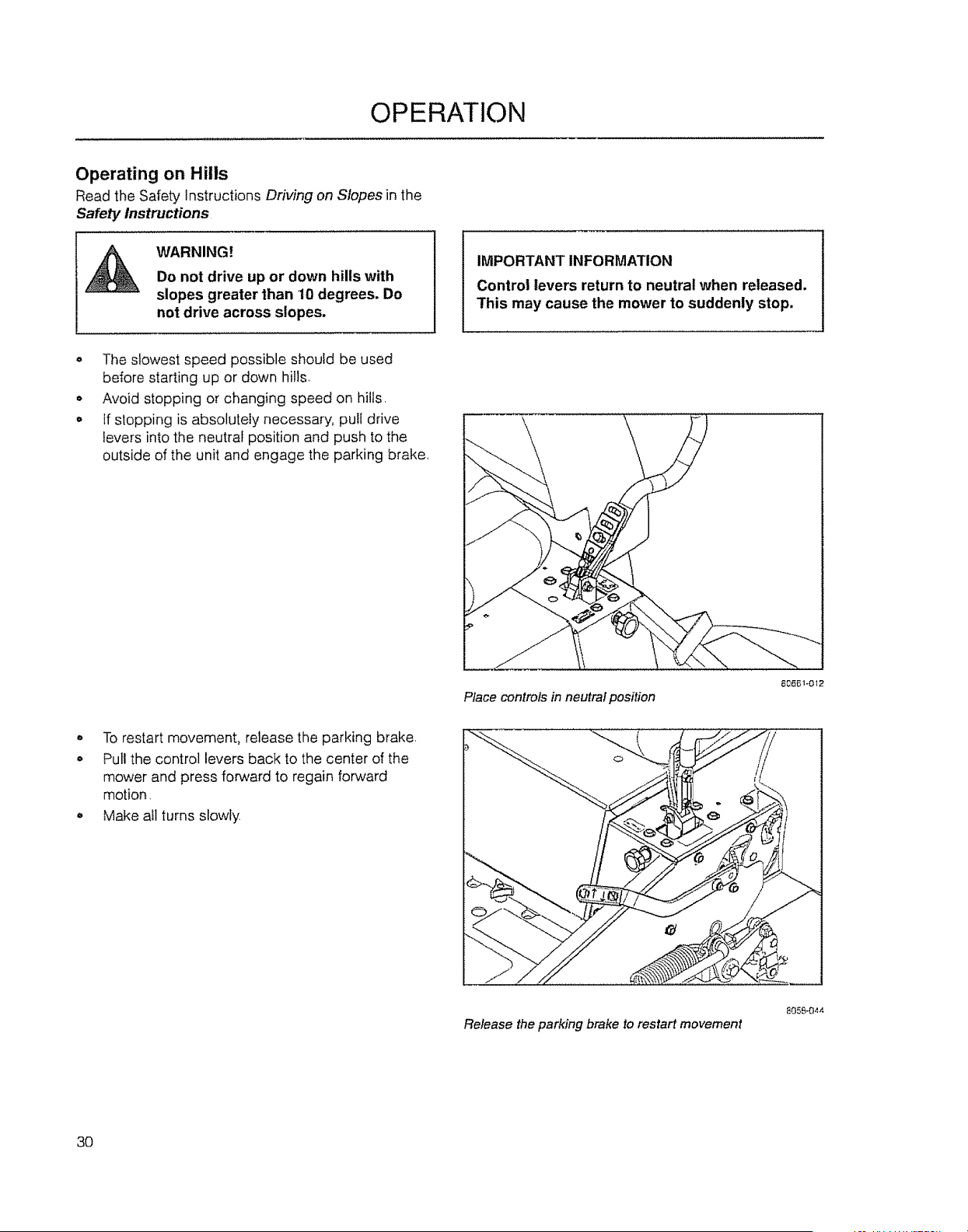

Operating on Hills .......................................... 30
Stopping the Engine ......................................... 3!
Mowing Tips ............................................... 32
Manual Transport ...................................... 33
MAINTENANCE ......................................................... 34
Battery ............................................................... 36
Safety System ................................................... 37
Tire Pressures ...........................................................37
Parking Brake ........................................................37
Deck Belt ...................................................... 38
Pump Belt ........................................... 39
V-belts ........................................... 39
Cutting Blades ......................................... 40
Adjusting the Mower Deck ............................. Zl1
Leveling deck ......................................... 41
Anti-scalp rollers ............................................ 42
Caster Wheels ................................................ 43
Hardware ........................................................... 43
Cleaning ............................................................ 43
LUBRICATION ...................................................... 44
Lubrication Schedule ........................................ 44
Wheel and Deck Zerks ................................... 45
Front Wheel Mount ........................................45
Front Wheel Bearings .......................................45
Deck Spindles ............................................. 45
Transaxte (Transmission) Fluid Change .......... 46
Purging Procedures ................................... 47
TROUBLESHOOTING GUIDE ............................. 48
STORAGE .......................................................... 50
Winter Storage ............................................... 50
Service ....................................................... 50
WIRING DIAGRAMS ....................................... 51
TECHNICAL DATA ...................................... 52
Torque Specifications ................................. 55
CONFORMITY CERTIFICATES.................. 56
SERVICE ,JOURNAL ............................................... 57

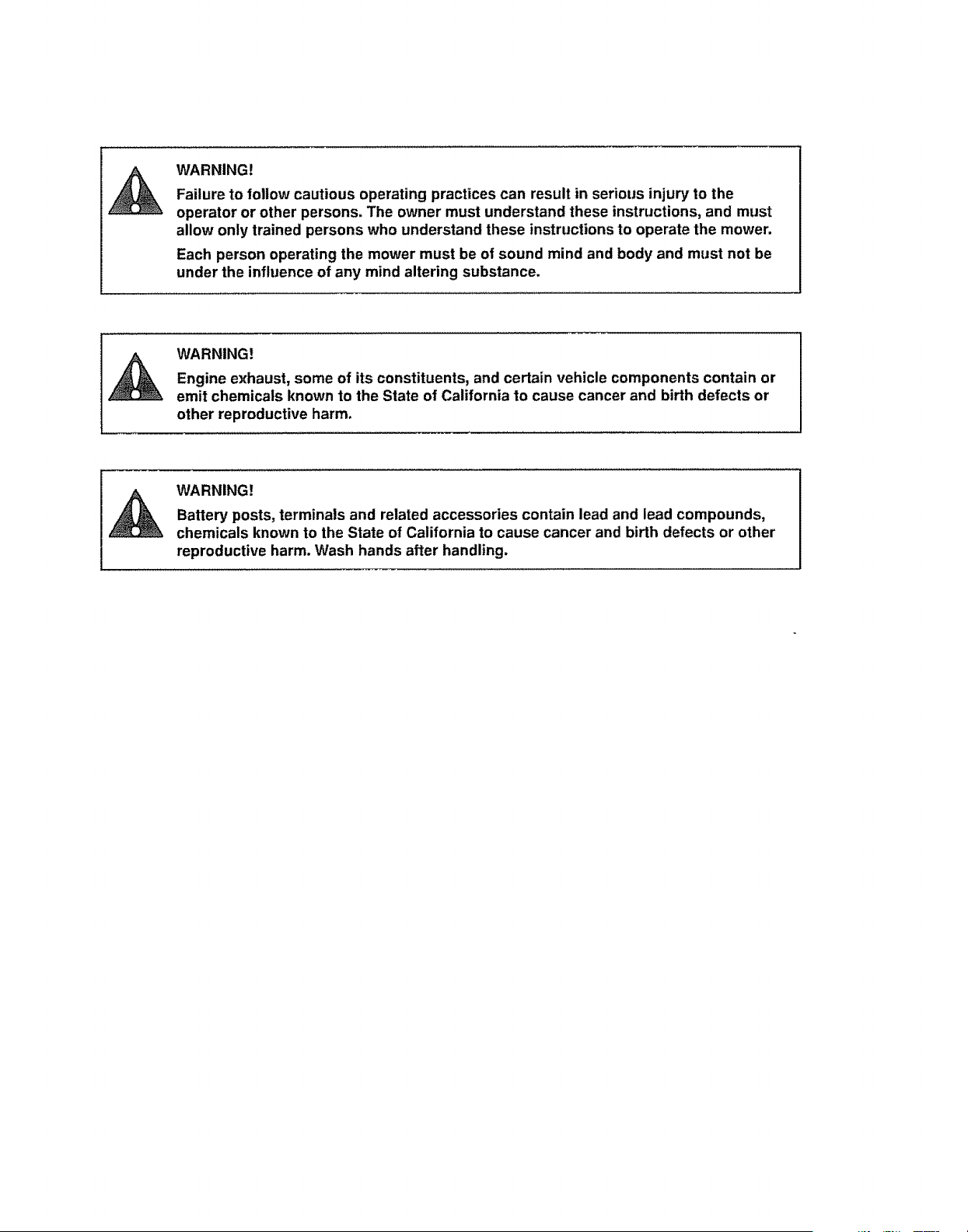

WARNING!
Failure to follow cautious operating practices can result in serious injury to the
operator or other persons. The owner must understand these instructions, and must
allow only trained persons who understand these instructions to operate the mower.
Each person operating the mower must be of sound mind and body and mr,st not be
under the influence of any mind altering substance.
WARNING!
Engine exhaust, some of its constituents, and certain vehicle components contain or
emit chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.
WARNING!
Battery posts, terminals and related accessories contain lead and lead compounds,
chemicals known to the State of California to cause cancer and birth defects or other
reproductive harm. Wash hands after handling.

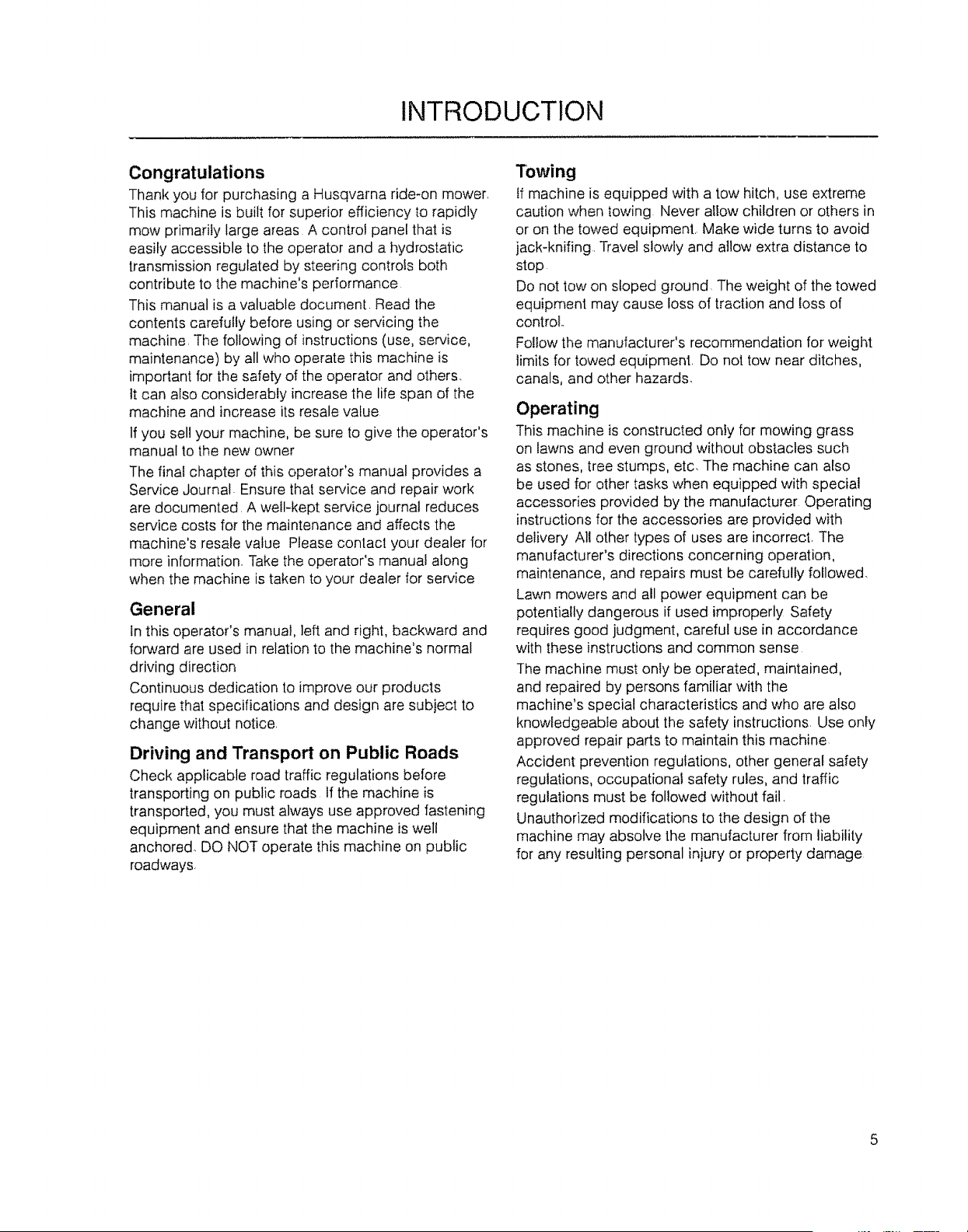

INTRODUCTION
Congratulations
Thank you for purchasing a Husqvarna ride_on mower,
This machine is built for superior efficiency to rapidly
mow primarily large areas A control panel that is
easily accessible to the operator and a hydrostatic
transmission regulated by steering controls both
contribute to the machine's performance
This manual is a valuable document. Read the
contents carefully before using or servicing the
machine, The following of instructions (use, service,
maintenance) by all who operate this machine is
impodant for the safety of the operator and others.,
It can also considerably increase the life span of the
machine and increase its resale value
If you sell your machine, be sure to give the operator's
manual to the new owner
The final chapter of this operator's manual provides a
Service Journal, Ensure that service and repair work
are documented. A welt-kept service journal reduces
service costs for the maintenance and affects the
machine's resale value Please contacl your dealer for
more information, Take the operator's manual along
when the machine is taken to your dealer for service
General
tn this operator's manual left and right, backward and
forward are used in relation to the machine's normal
driving direction
Continuous dedication to improve our products
require that specifications and design are subject to
change without notice,
Driving and Transport on Public Roads
Check applicable road traffic regulations before
transporting on public roads If the machine is
transported, you must always use approved fastening
equipment and ensure that the machine is well
anchored,. DO NOT operate this machine on public
roadways,
Towing
If machine is equipped with a tow hitch, use extreme
caution when towing Never allow children or others in
or on the towed equipment, Make wide turns to avoid
jack-knifing, Travel slowly and allow extra distance to
stop
Do not tow on sloped ground The weight of the towed
equipment may cause loss of traction and loss of
control,,
Follow the manufacturer's recommendation for weight
limits for towed equipment, Do not tow near ditches,
canals, and other hazards,
Operating
This machine is constructed only for mowing grass
on lawns and even ground without obstacles such
as stones, tree stumps, etc, The machine can also
be used for other tasks when equipped with special
accessories provided by the manufacturer Operating
instructions for the accessories are provided with
delivery All other types of uses are incorrect, The
manufacturer's directions concerning operation,
maintenance, and repairs must be carefully followed,
Lawn mowers and all power equipment can be
potentially dangerous if used improperly Safety
requires good judgment, careful use in accordance
with these instructions and common sense
The machine must only be operated, maintained,
and repaired by persons familiar with the
machine's special characteristics and who are also
knowledgeable about the safety instructions, Use only
approved repair parts to maintain this machine
Accident prevention regulations, other general safety
regulations, occupational safety rules, and traffic
regulations must be followed without fail,
Unauthorized modifications to the design of the
machine may absolve the manufacturer from liability
for any resulting personal injury or property damage
INTRODUCTION

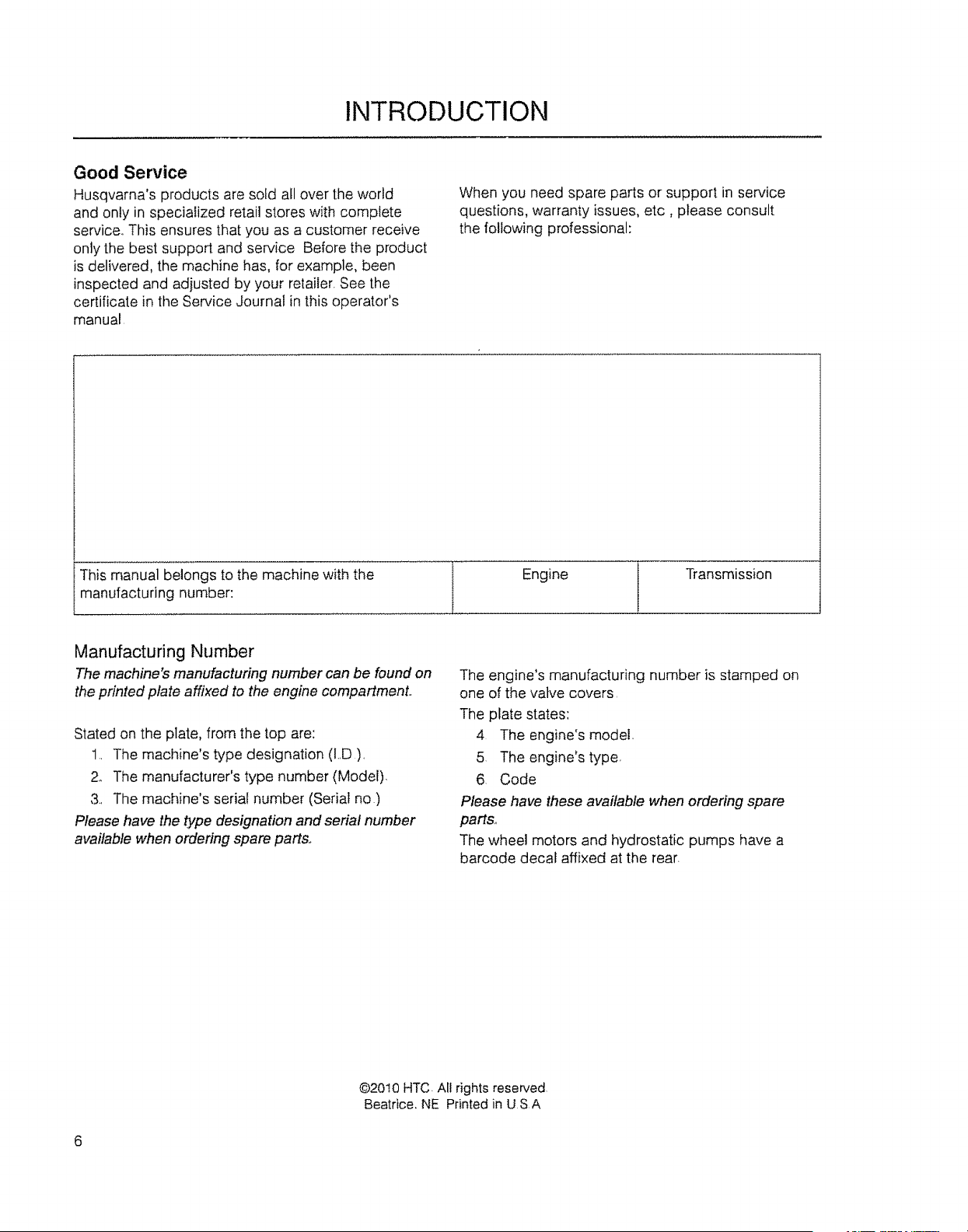

Good Service
Husqvarna's products are sold all over the world
and only in specialized retail stores with complete
servicer This ensures that you as a customer receive
only the best support and service Before the product
is delivered, the machine has, for example, been
inspected and adjusted by your retailer. See the
certificate in the Service Journal in this operator's
manual
When you need spare parts or support in service
questions, warranty issues, etc, please consult
the following professional:
This manual belongs to the machine with the Engine Transmission
manufacturing number:
Manufacturing Number
The machine's manufacturing number can be found on
the printed plate affixed to the engine compartment.,
Stated on the plate, from the top are:
1., The machine's type designation (LD),
2o The manufacturer's type number (Model),
3, The machine's serial number (Serial no )
Please have the type designation and serial number
available when ordering spare parts.
The engine's manufacturing number is stamped on
one of the valve covers,
The plate states:
4 The engine's model_
5 The engine's type,
6 Code
Please have these available when ordering spare
parts,,
The wheel motors and hydrostatic pumps have a
barcode decal affixed at the rear.
@20t0 HTC All rights reserved
Beatrice. NE Printed in U S A
6

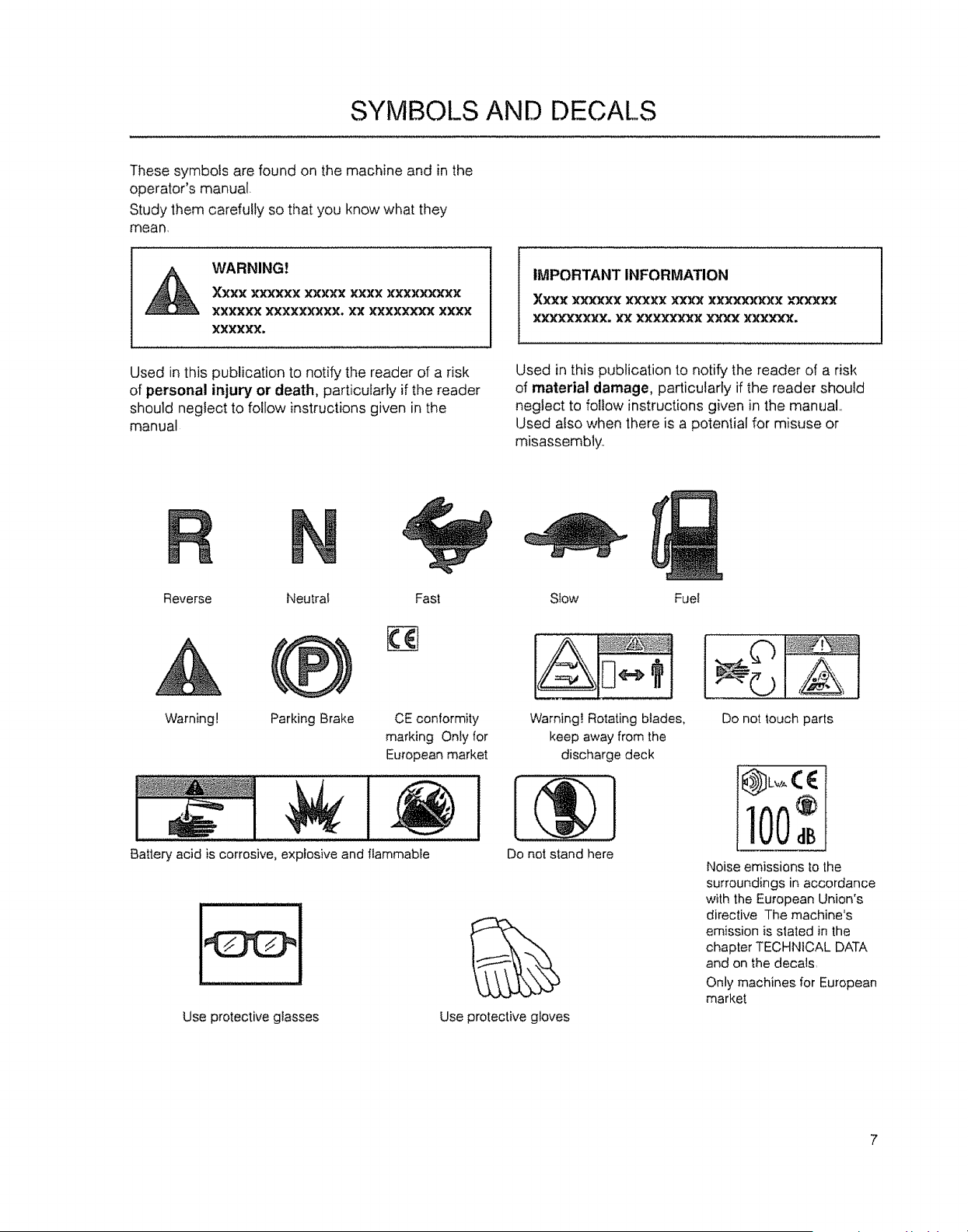

SYMBOLS AND DECALS
These symbols are found on the machine and in the
operator's manual.
Study them carefully so that you know what they
mean,
WARNING!
XXXXXXXXXX xxxxxxxxx xxxxxxxxx
XXXXXXXXXXXXXXX. XXXXXXXXXXXXXX
XXXXXX.
IMPORTANT INFORMATION
Xxxx xxxxxx xxxxx xxxx xxxxx_xx xxxxxx
XXXXXXXXX= XX XXXXXXXX XXXX XXXXXX.
Used in this publication to notify the reader of a risk
of personal injuw or death, particularly if the reader
should neglect to follow instructions given in the
manual
Used in this publication to notify the reader of a risk
of material damage, particularly if the reader should
neglect to follow instructions given in the manual,,
Used also when there is a potential for misuse or
misassembly,,
Reverse Neutral Fast Slow Fuel
Warning! Parking Brake CE conformity
marking Only for
European market
Battery acid is corrosive, explosive and flammable
Use protective glasses
Warning! Rotating blades,
keep away from the
discharge deck
Do not stand here
Use protective gloves
/" 'X,
Do not touch parts
Noise emissions to the
surroundings in accordance
with the European Union's
directive The machine's
emission is slated in the
chapter TECHNICAL DATA
and on the decals,
Only machines for European
market

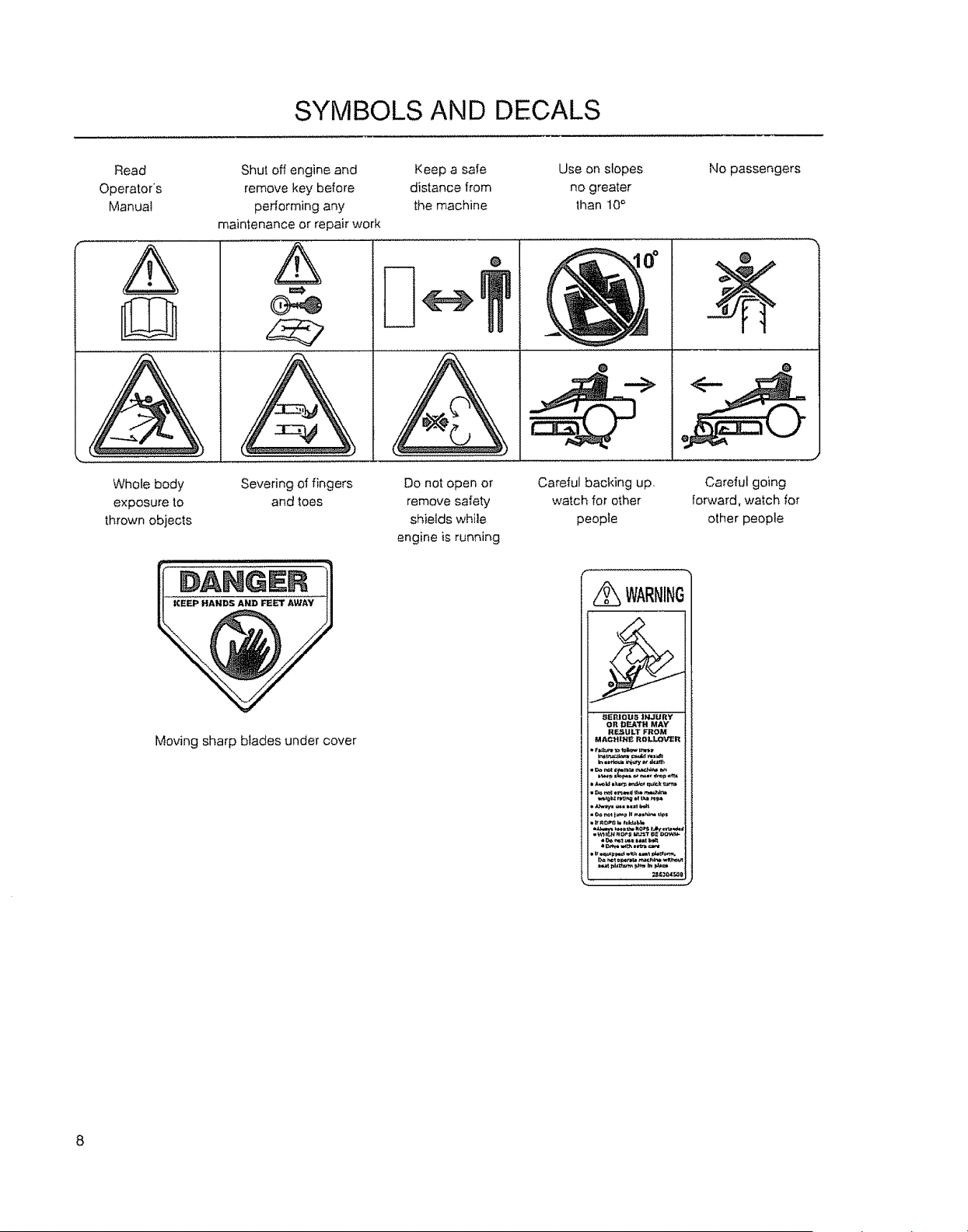

SYMBOLS AND DECALS
Read
Operator's
Manual
Whole body
exposure to
thrown objects
Shut off engine and
remove key before
periorming any
maintenance or repair work
Keep a safe Use on slopes
distance from no greater
the machine than 10°
@
-..>
Severing of fingers
and toes
Do not open or
remove safety
shields while
engine is running
Careful backing up.
watch for other
people
Moving sharp blades under cover
/_ WARNING
_EnlOUO _I_IJURY
OR DF..ATH MAY
RF_SULT FROM
MACHIHE RO_l_
No passengers
Careful going
forward, watch for
other people
SAFETY

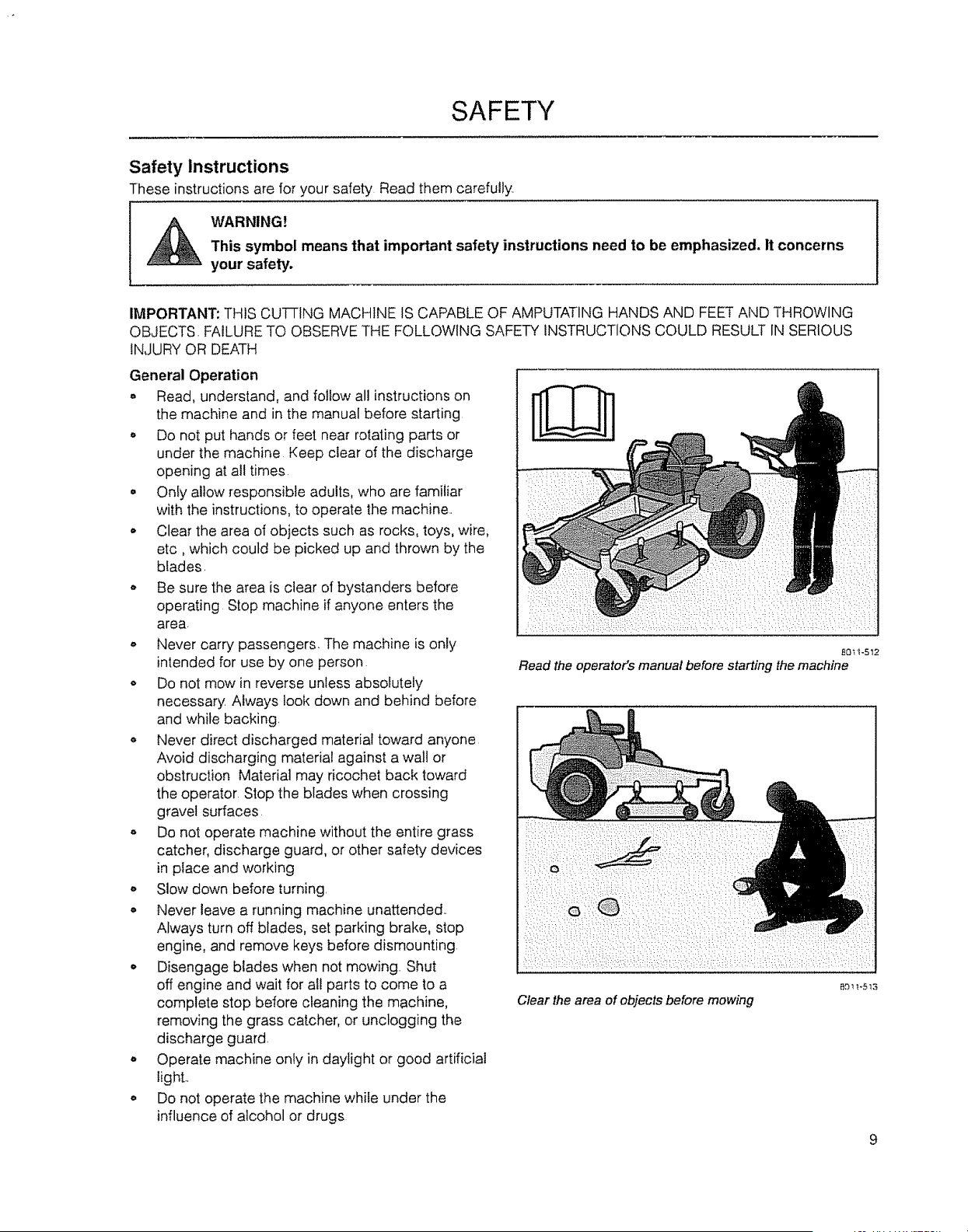

Safety Instructions
These instructions are for your safety Read them carefully
A WARNING!
This symbol means that important safety instructions need to be emphasized. It concerns
your safety.
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING
OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS
INJURY OR DEATH
General Operation
= Read, understand, and follow all instructions on
the machine and in the manual before starting
= Do not put hands or feet near rotating parts or
under the machine Keep clear of the discharge
opening at all times
= Only allow responsible adults, who are familiar
with the instructions, to operate the machine..
= Clear the area of objects such as rocks, toys, wire,
etc, which could be picked up and thrown by the
blades.
o Be sure the area is clear of bystanders before
operating Stop machine if anyone enters the
area.
o Never carry passengers. The maci_ine is only
intended for use by one person
o Do not mow in reverse unless absolutely
necessary Always look down and behind before
and while backing.
o Never direct discharged material toward anyone
Avoid discharging material against a wall or
obstruction Material may ricochet back toward
the operator Stop the blades when crossing
gravel surfaces.
= Do not operate machine without the entire grass
catcher, discharge guard, or other safety devices
in place and working
• Slow down before turning.
= Never leave a running machine unattended..
Always turn off blades, set parking brake, stop
engine, and remove keys before dismounting
• Disengage blades when not mowing. Shut
off engine and wait for all parts to come to a
complete stop before cleaning the machine,
removing the grass catcher, or unclogging the
discharge guard.
o Operate machine only in daylight or good artificial
light..
,, Do not operate the machine while under the
influence of alcohol or drugs
80_1-512
Read the operator's manual before starting the machine
Clear the area of objects before mowing
B0_1_5_3
SAFETY

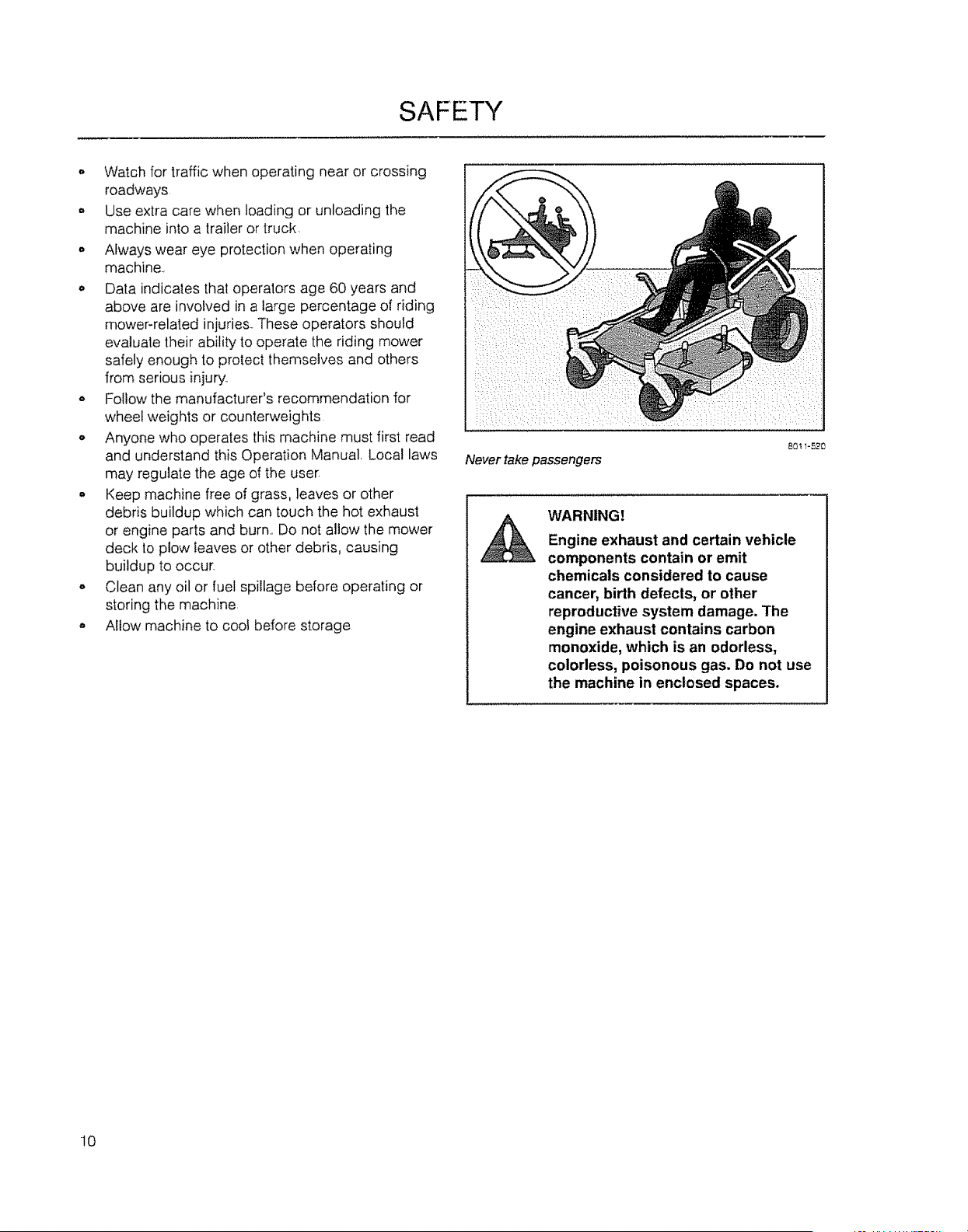

Watch for traffic when operating near or crossing
roadways
Use extra care when loading or unloading the
machine into a trailer or truck
Always wear eye protection when operating
machine..
Data indicales that operalors age 60 years and
above are involved in a large percentage of riding
mower-related injuries..These operators should
evaluate their ability to operate the riding mower
safely enough to protect themselves and others
from serious injury..
Follow the manufacturer's recommendation for
wheel weights or counterweights
Anyone who operates this machine must first read
and understand this Operation Manual. Local laws Nevertakepassengers
may regulate the age of the user.
Keep machine free of grass, leaves or other
debris buildup which can touch the hot exhaust
,&
or engine parts and burn.. Do not allow the mower ,_
deck to plow leaves or other debris, causing
buildup to occur.
Clean any oil or fuel spillage before operating or
storing the machine
Allow machine to cool before storage
8011-520
WARNING!
Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects, or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is an odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
10
SAFETY

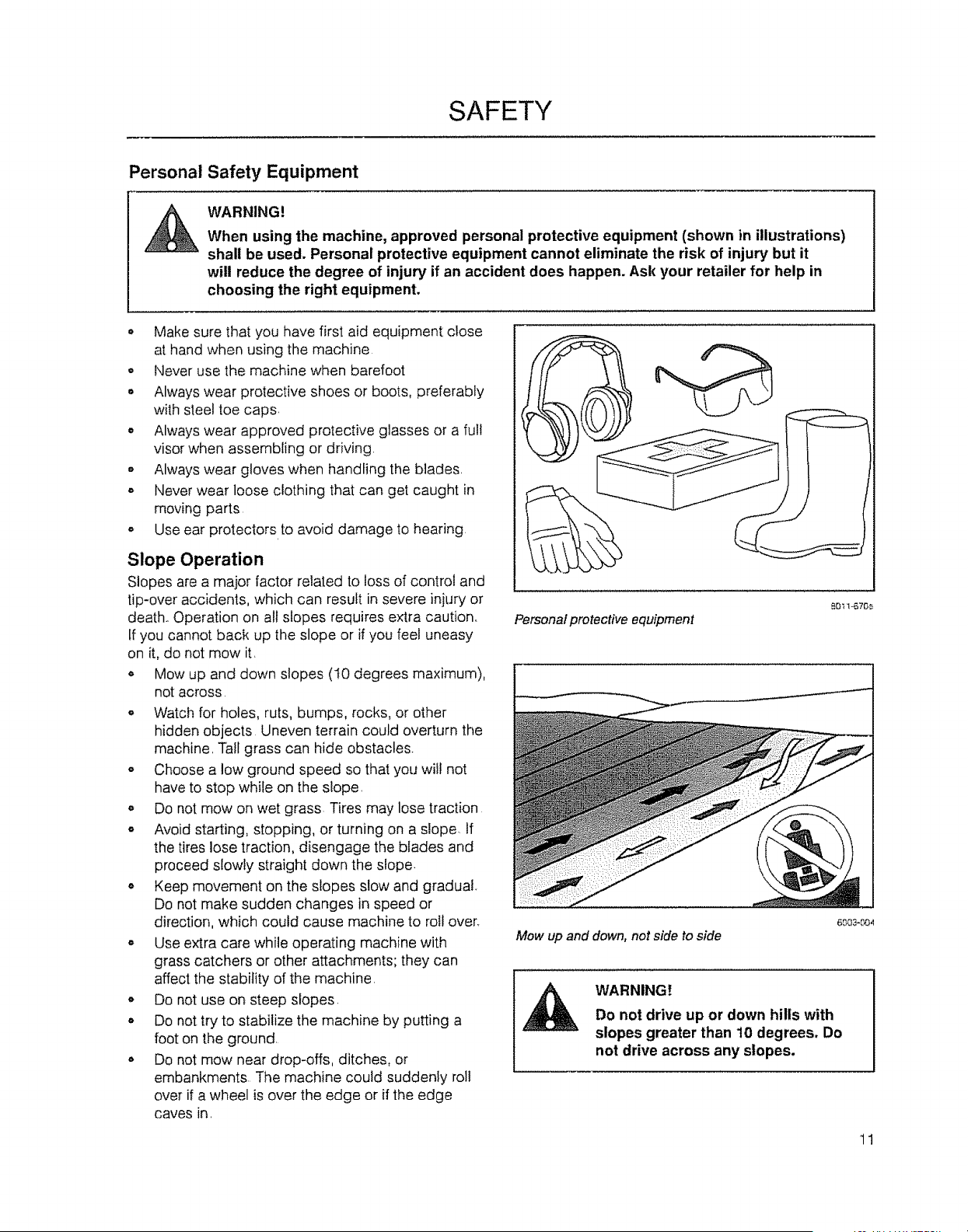

Personal Safety Equipment
WARNING!
When using the machine, approved personal protective equipment (shown in illustrations)
shall be used, Personal protective equipment cannot eliminate the risk of injury but it
will reduce the degree of injury if an accident does happen. Ask your retailer for help in
choosing the right equipment,
o Make sure that you have first aid equipment close
at hand when using the machine
° Never use the machine when barefoot
= Always wear protective shoes or boots, preferably
with steel toe caps,
= Always wear approved protective glasses or a full
visor when assembling or driving.
o Always wear gloves when handling the blades,
o Never wear loose clothing that can get caught in
moving parts
= Use ear protectors, to avoid damage to hearing.
Slope Operation
Slopes are a major factor related to loss of control and
tip-over accidents, which can result in severe injury or
death. Operation on all slopes requires extra caution°
If you cannot back up the slope or if you feel uneasy
on it, do not mow it.
° Mow up and down slopes (I0 degrees maximum),
not across
= Watch for holes, ruts, bumps, rocks, or other
hidden objects Uneven terrain could overturn the
machine. Tall grass can hide obstacles.
= Choose a low ground speed so that you will not
have to stop while on the slope.
° Do not mow on wet grass Tires may lose traction
= Avoid starting, stopping, or turning on a slope. If
the tires lose traction, disengage the blades and
proceed slowly straight down the slope.
o Keep movement on the slopes slow and gradual.
Do not make sudden changes in speed or
direction, which could cause machine to roll over.
= Use extra care while operating machine with
grass catchers or other attachments; they can
affect the stability of the machine.
o Do not use on steep slopes.
o Do not try to stabilize the machine by putting a
foot on the ground
= Do not mow near drop-offs, ditches, or
embankments The machine could suddenly roll
over if a wheel is over the edge or if the edge
caves in.
Personal protective equipment
Mow up and down, not side to side
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees, Do
not drive across any slopes,
8D_-676_
6003-004
11
SAFETY

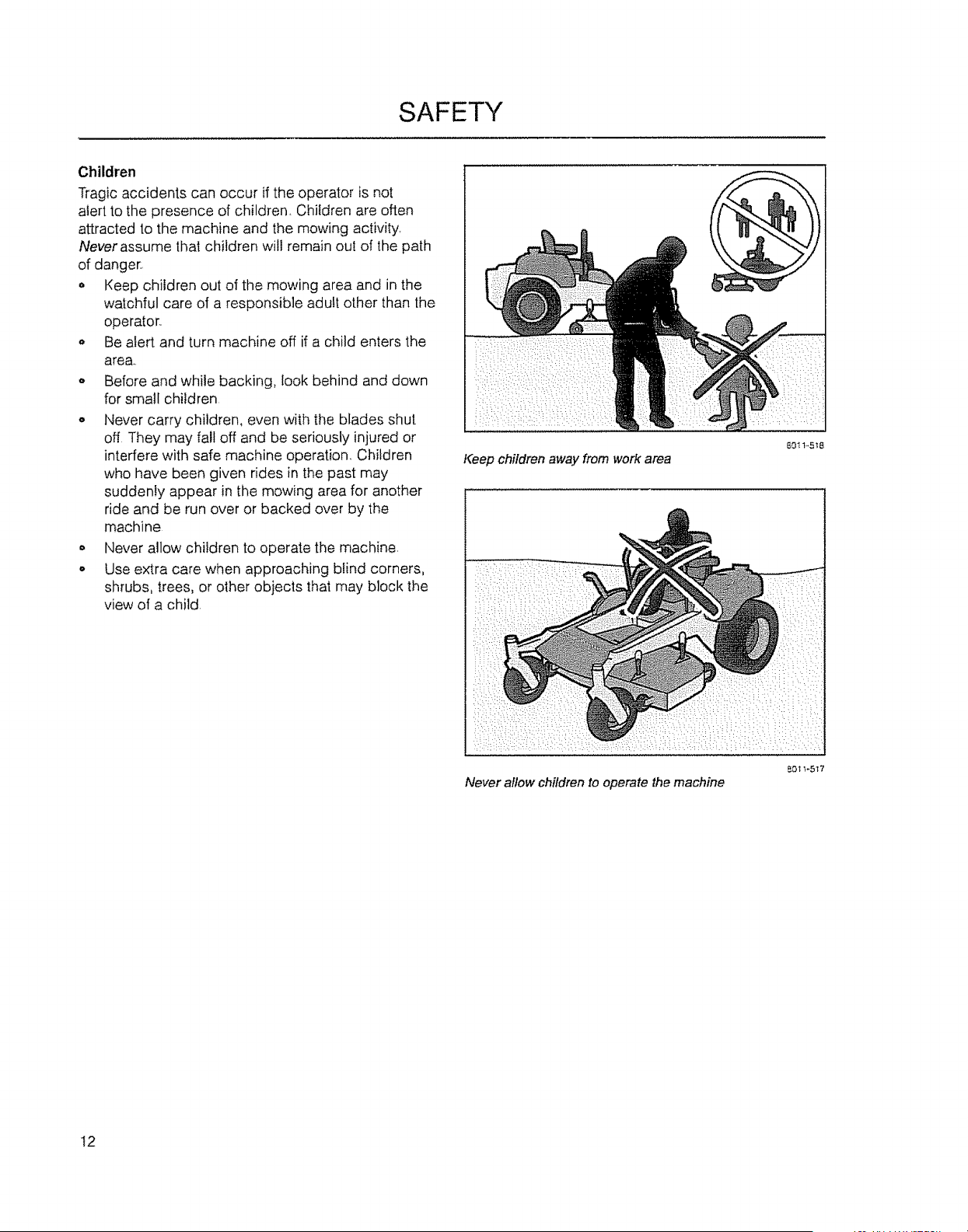

Children
Tragic accidents can occur if the operator is not
alert to the presence of children, Children are often
attracted to the machine and the mowing activity,
Never assume that children will remain out of the path
of danger,
= Keep children out of the mowing area and in the
watchful care of a responsible adult other than the
operator,,
_, Be alert and turn machine off if a child enters the
area,,
o Before and while backing, look behind and down
for small children :::i::: :i::::i ::: :::i:i:i
• Never carry children, even with the blades shut
off They may fall off and be seriously injured or
interfere with safe machine operation., Children
who have been given rides in the past may
suddenly appear in the mowing area for another
ride and be run over or backed over by the
machine
,, Never allow children to operate the machine.
o Use extra care when approaching blind corners, :,:::::__,::i :,_ .........
shrubs, trees, or other objects that may block the
view of a child
Keep children away from work area
Never aflow children to operate the machine
t2
SAFETY
_ WARNING!The engine must not be started when the driver's floor plate or any protective plate for the
mower deck's drive belt is removed.

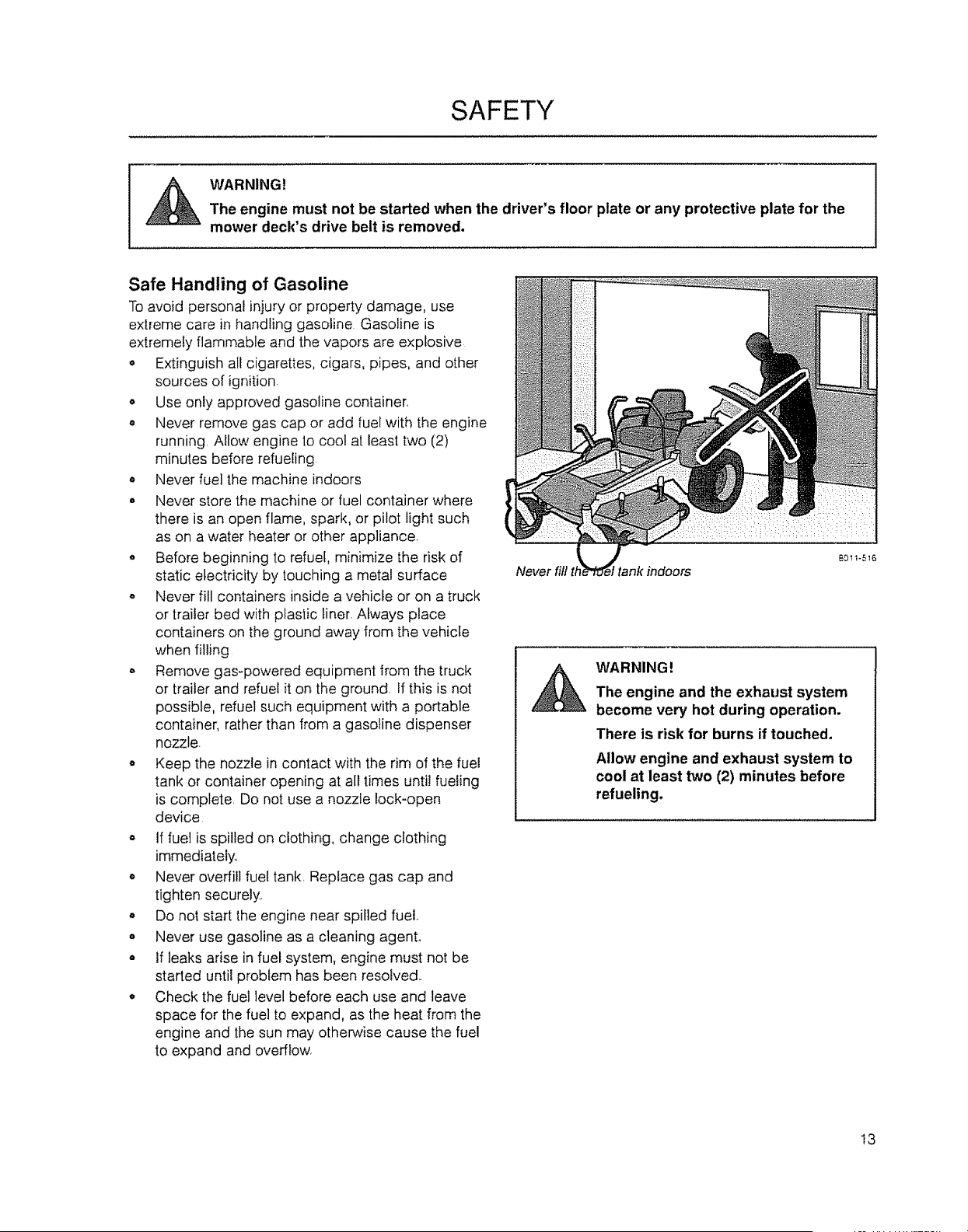

Safe Handling of Gasoline
To avoid personal injury or property damage, use
extreme care in handling gasoline Gasoline is
extremely flammable and the vapors are explosive
• Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
o Use only approved gasoline container_
• Never remove gas cap or add fuel with the engine
running Allow engine 10cool at least two (2)
minutes before refueling
o Never fuel the machine indoors
o Never store the machine or fuel container where
there is an open flame, spark, or pilot light such
as on a water heater or other appliance.
o Before beginning to refuel, minimize the risk of
static electricity by touching a metal surface
° Never fill containers inside a vehicle or on a truck
or trailer bed with plastic liner. Always place
containers on the ground away from the vehicle
when filling
o Remove gas-powered equipment from the truck
or trailer and refuel it on the ground. If this is not
possible, refuel such equipment with a portable
container, rather than from a gasoline dispenser
nozzle.
° Keep the nozzle in contact with the rim of the fuet
tank or container opening at all times until fueling
is complete Do not use a nozzle lock-open
device
- if fuel is spilled on clothing, change clothing
immediately.,
o Never overfill fuet tank, Reptace gas cap and
tighten securely.
o Do not start the engine near spilled fuel
o Never use gasoline as a cleaning agenL
- if leaks arise in fuel system, engine must not be
started until problem has been resolved.
° Check the fuel level before each use and leave
space for the fuel to expand, as the heat from the
engine and the sun may otherwise cause the fuel
to expand and overflow,
Never fill tank indoors
,_ WARNING!
The engine and the exhaust system
become very hot during operation.
There is risk for burns if touched.
Allow engine and exhaust system to
cool at least two (2) minutes before
refueling.
t3
SAFETY

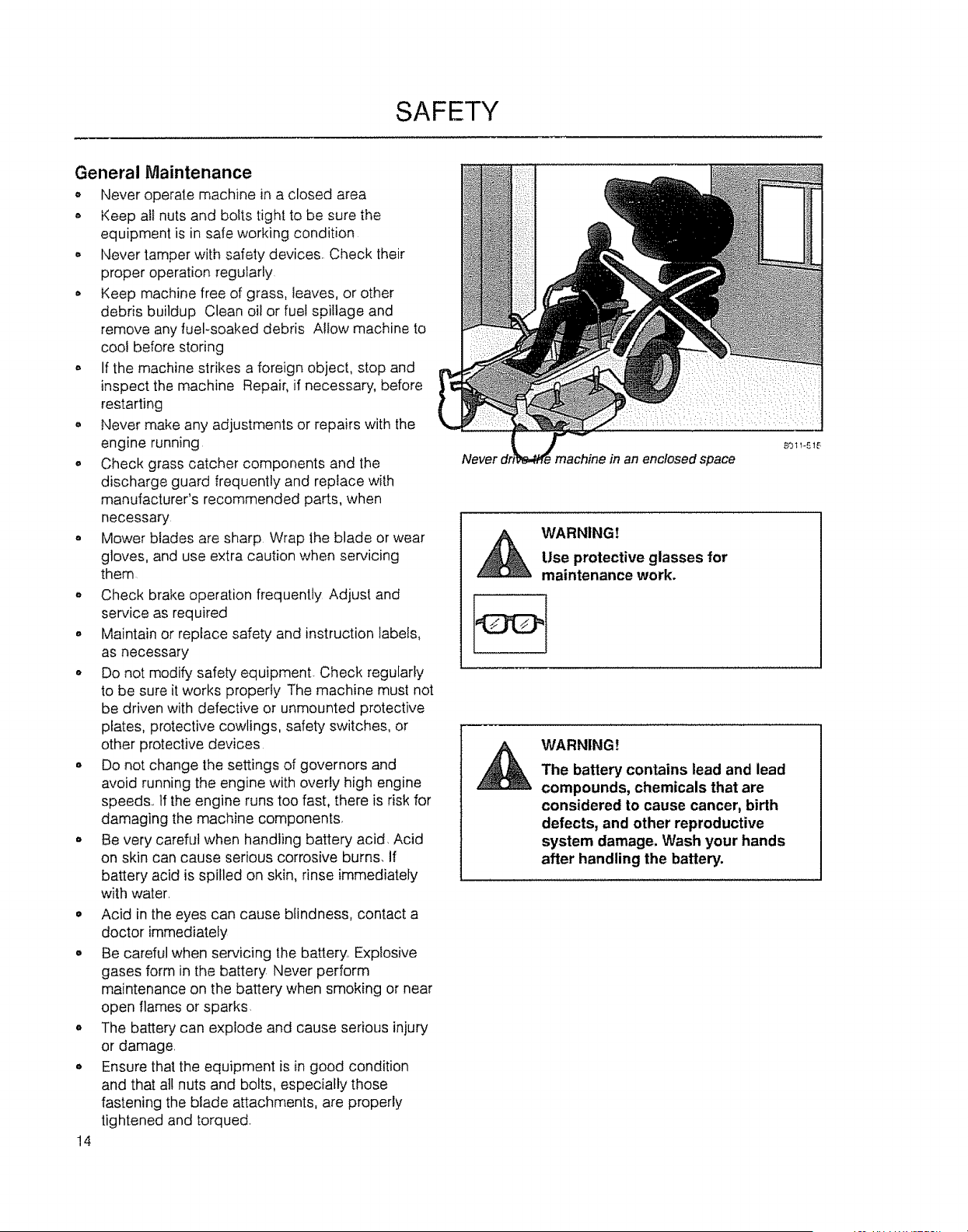

General Maintenance
o Never operate machine in a closed area
o Keep all nuts and bolts tight to be sure the
equipment is in safe working condition
o Never tamper with safety devices, Check their
proper operation reguIarly
• Keep machine free of grass, leaves, or other
debris buildup Clean oil or fuel spillage and
remove any fuel-soaked debris Allow machine to
cool before storing
° If the machine strikes a foreign object, stop and
inspect the machine Repair, if necessary, before
restarting
o Never make any adjustments or repairs with the
engine running
= Check grass catcher components and the
discharge guard frequently and replace with
manufacturer's recommended parts, when
necessary.
= Mower blades are sharp Wrap the blade or wear
gloves, and use extra caution when servicing
them
o Check brake operation frequently Adjust and
service as required
o Maintain or replace safety and instruction labels,
as necessary
• Do not modify safety equipment. Check regularly
to be sure it works properly The machine must not
be driven with defective or unmounted protective
plates, protective cowlings, safety switches, or
other protective devices
o Do not change the settings of governors and
avoid running the engine with overly high engine
speeds., If the engine runs too fast, there is risk for
damaging the machine components,
o Be very careful when handling battery acid. Acid
on skin can cause serious corrosive burns. If
battery acid is spilled on skin, rinse immediately
with water.
o Acid in the eyes can cause blindness, contact a
doctor immediately
• Be careful when servicing the battery. Explosive
gases form in the battery Never perform
maintenance on the battery when smoking or near
open flames or sparks.
• The battery can explode and cause serious injury
or damage.
o Ensure that the equipment is in good condition
and that at! nuts and bolts, especially those
fastening the blade attachments, are properly
tightened and torqued.
14
,machine in an enclosed space
_ WARNING!
Use protective glasses for
maintenance work.
<DIZ
WARNING!
The battery contains lead and lead
compounds, chemicals that are
considered to cause cancer, birth
defects, and other reproductive
system damage. Wash your hands
after handling the battery.
SAFETY

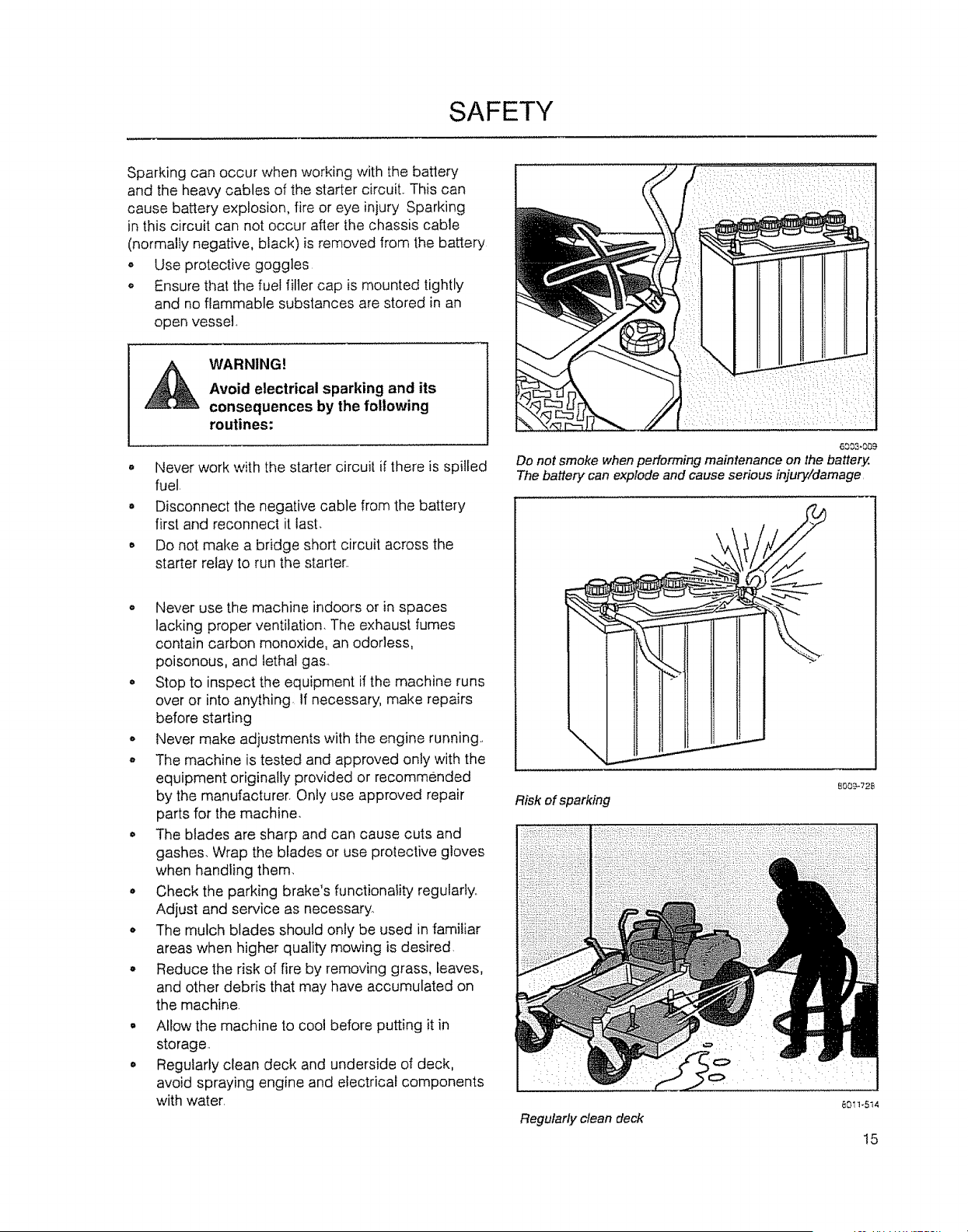

Sparking can occur when working with the battery
and the heavy cables of the starter circuit. This can
cause battery explosion, fire or eye injury Sparking
in this circuit can not occur after the chassis cable
(normally negative, black) is removed from the battery
° Use protective goggles
o Ensure that the fuel filler cap is mounted tightly
and no flammable substances are stored in an
open vessel,
WARNING!
Avoid electrical sparking and its
consequences by the following
routines:
,, Never work with the starter circuil if there is spilled
fuel,
= Disconnect the negative cable from the battery
first and reconnect it last.
o Do not make a bridge short circuit across the
starter relay to run the starter..
° Never use the machine indoors or in spaces
lacking proper ventilation. The exhaust fumes
contain carbon monoxide, an odorless,
poisonous, and lethal gas.,
o Stop to inspect the equipment if the machine runs
over or into anything, If necessary, make repairs
before starting
o Never make adjustments with the engine running.,
• The machine is tested and approved only with the
equipment originally provided or recommended
by the manufacturer. Only use approved repair
parts for the machine.
= The blades are sharp and can cause cuts and
gashes. Wrap the blades or use protective gloves
when handling them
° Check the parking brake's functionality regularly,,
Adjust and service as necessary.
o The mulch blades should only be used in familiar
areas when higher quality mowing is desired.
o Reduce the risk of fire by removing grass, leaves,
and other debris that may have accumulated on
the machine.
. Allow the machine to cool before putting it in
storage,
• Regularly clean deck and underside of deck,
avoid spraying engine and electrical components
with water,
,50"33.0,09
De not smoke whenperformingmaintenanceon the battery.
Thebattery can explodeand cause seriousinjury/damage,
Risk of sparldng
B009-728
Regularlyclean deck
SAFETY
Transport

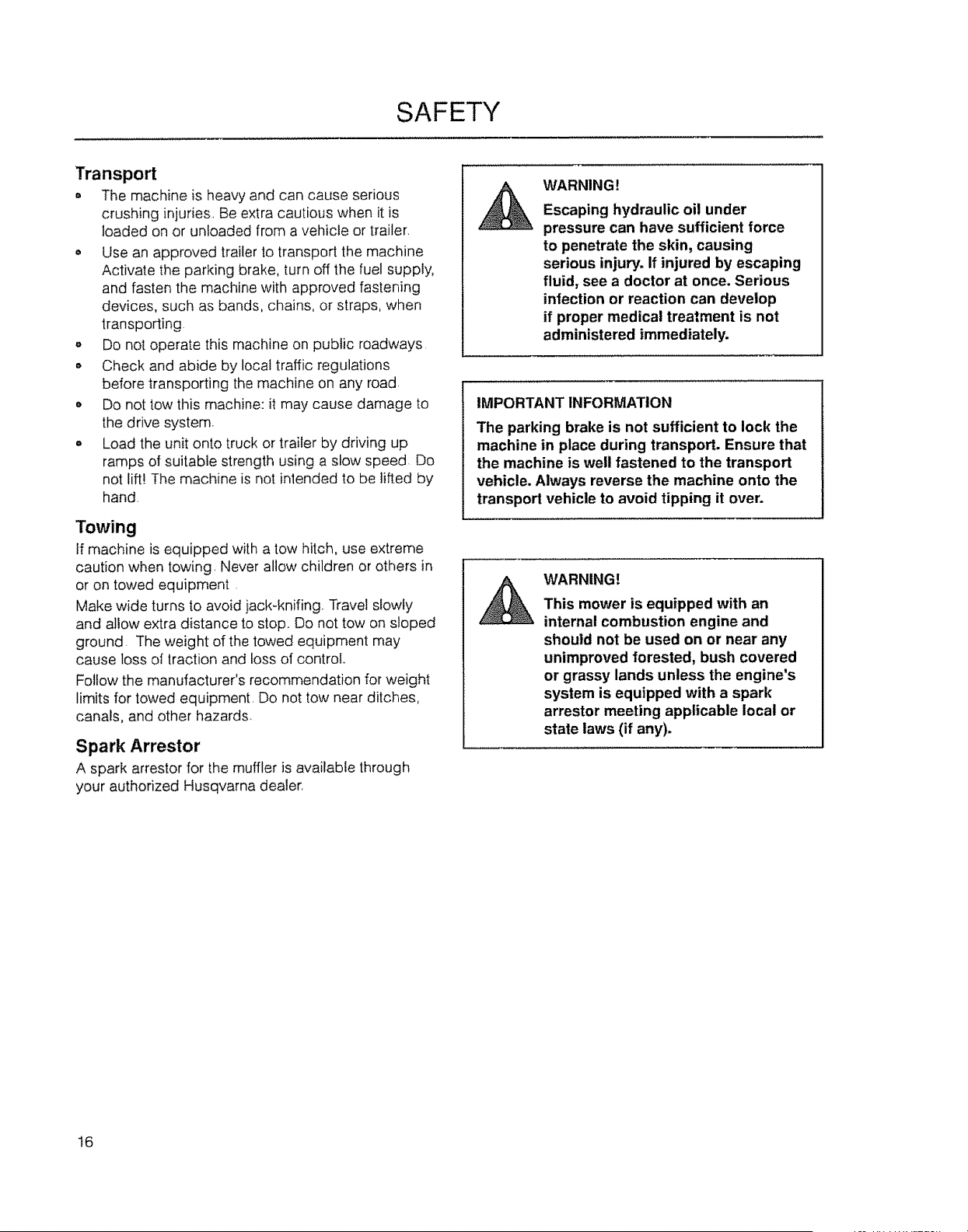

° The machine is heavy and can cause serious
crushing injuries. Be extra cautious when it is
loaded on or unloaded from a vehicle or trailer.
° Use an approved trailer to transport the machine
Activate the parking brake, turn off the fuel supply,
and fasten the machine with approved fastening
devices, such as bands, chains, or straps, when
transporting
o Do not operate this machine on public roadways
• Check and abide by local traffic regulations
before transporting the machine on any road.
o Do not tow this machine: it may cause damage to
the drive system.
o Load the unit onto truck or trailer by driving up
ramps of suitable strength using a stow speed Do
not lift! The machine is not intended to be lifted by
hand.
Towing
if machine is equipped with a tow hitch, use extreme
caution when towing. Never allow children or others in
or on towed equipment
Make wide turns to avoid jack-knifing Travel slowly
and allow extra distance to stop.. Do not tow on sloped
ground The weight of the towed equipment may
cause loss of traction and toss of control+
Follow the manufacturer's recommendation for weight
limits for towed equipment. Do not tow near ditches,
canals, and other hazards.
Spark Arrestor
A spark arrestor for the muffler is available through
your authorized Husqvarna dealer.
WARNING!
Escaping hydraulic oil under
pressure can have sufficient force
to penetrate the skin, causing
serious injury. If injured by escaping
fluid, see a doctor at once. Serious
infection or reaction can develop
if proper medical treatment is not
administered immediately.
IMPORTANT INFORMATION
The parking brake is not sufficient to lock the
machine in place during transport. Ensure that
the machine is well fastened to the transport
vehicle. Always reverse the machine onto the
transport vehicle to avoid tipping it over.
WARNING[
This mower is equipped with an
internal combustion engine and
should not be used on or near any
unimproved forested, bush covered
or grassy lands unless the engine's
system is equipped with a spark
arrestor meeting applicable local or
state laws (if any).
16
CONTROLS

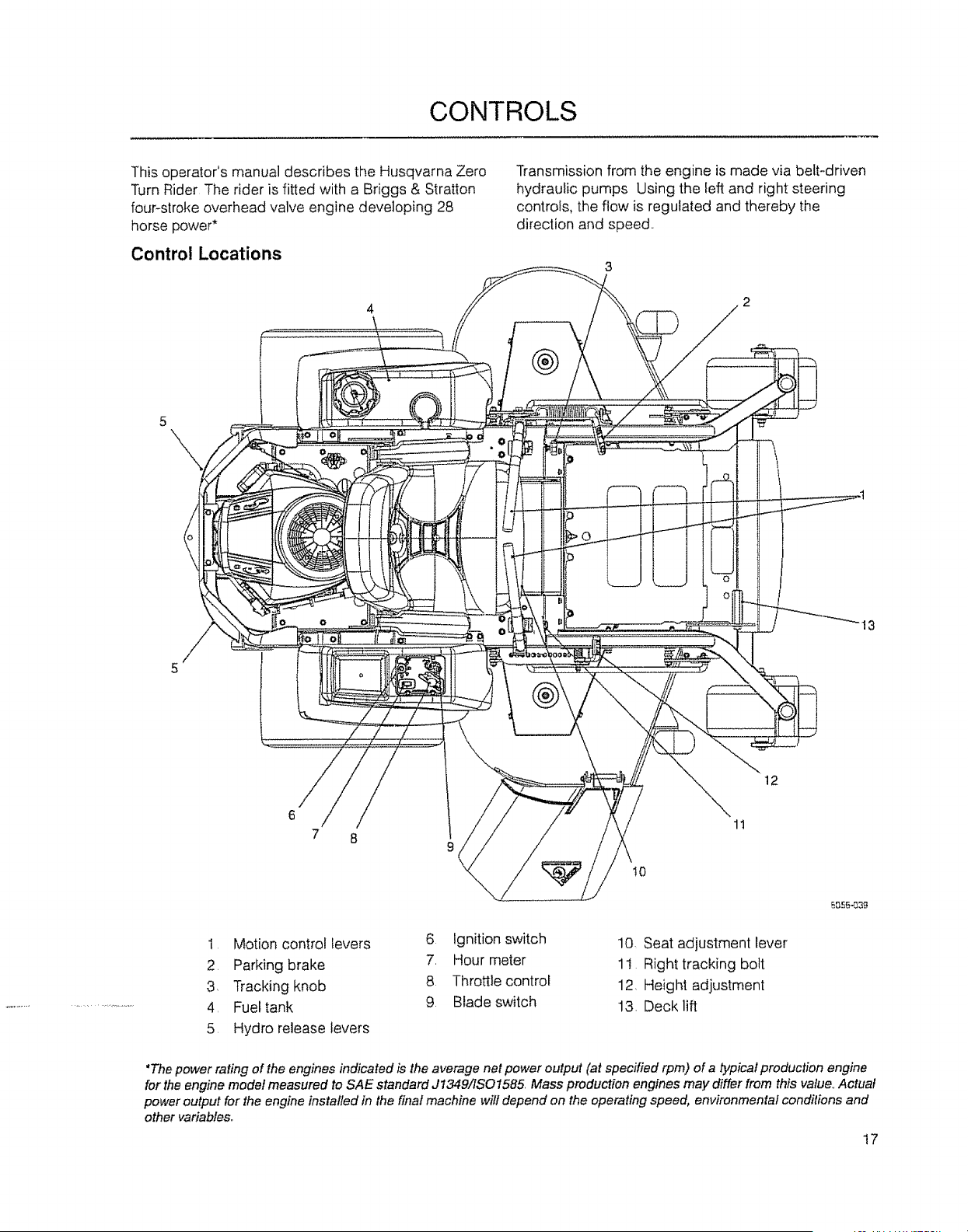

This operator's manual describes the Husqvarna Zero
Turn Rider The rider is fitted with a Briggs & Stratton
four-stroke overhead valve engine developing 28
horse power*
Control Locations
Transmission from the engine is made via beltodriven
hydraulic pumps Using the left and right steering
controls, the flow is regulated and thereby the
direction and speed,,
®
13
12
!0
11
1. Motion control tevers 6 ignition switch
2. Parking brake 7, Hour meter
3 Tracking knob 8 Throttle control
4, Fuettank 9 Blade switch
5. Hydro release levers
10, Seat adjustment lever
1t Right tracking bolt
12, Height adjustment
13, Deck lift
"The power rating of the engines indicated is the average net power output (at specified rpm) of a typical production engine
for the engine model measured to SAE standard J1349/IS01585, Mass production engines may differ from this value, Actual
power output for the engine installed in the final machine will depend on the operating speed, environmental conditions and
other variables,
17
CONTROLS

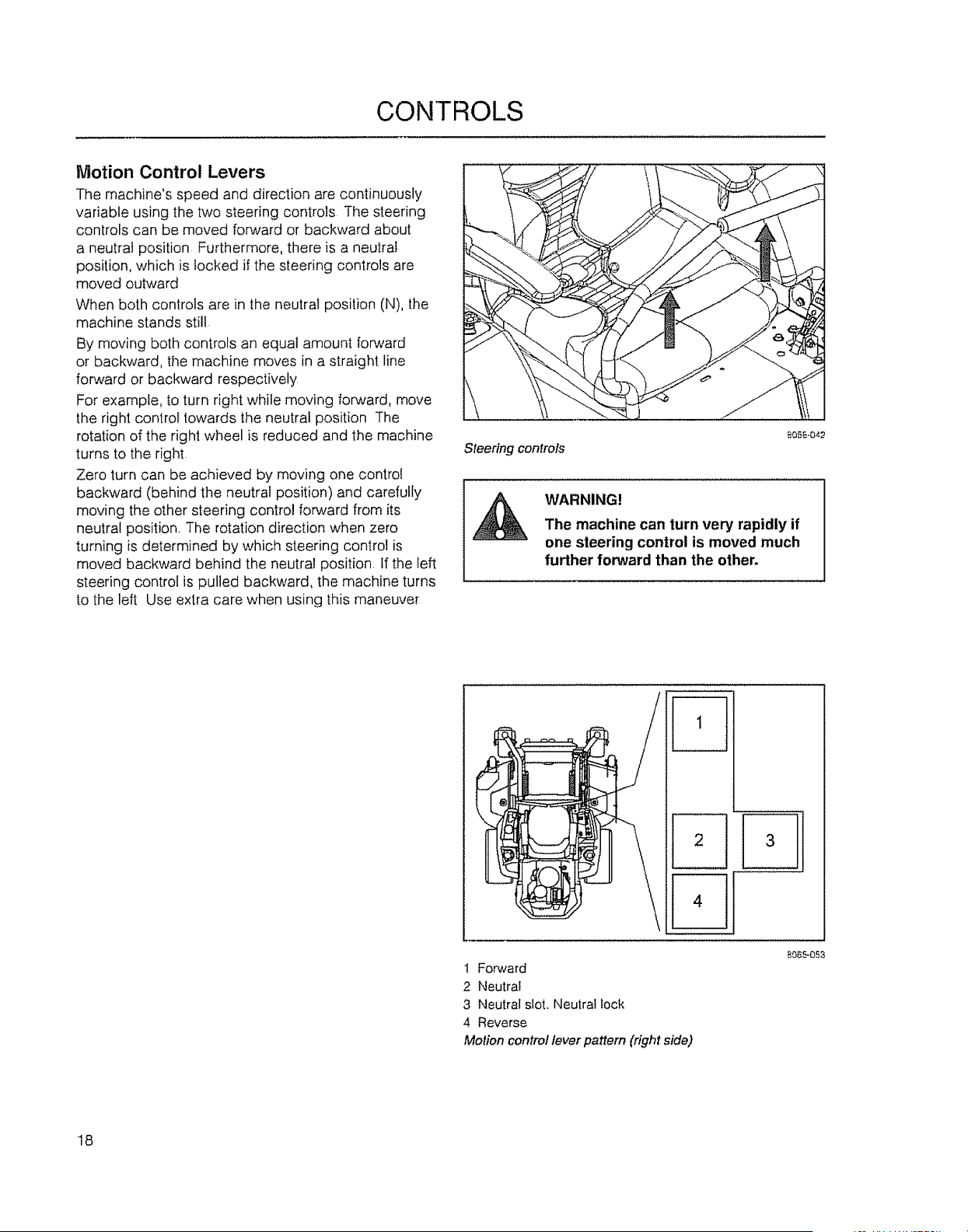

Motion Control Levers
The machine's speed and direction are continuously
variable using the two steering controls The steering
controls can be moved forward or backward about
a neutral position Furthermore, there is a neutral
position, which is locked if the steering controls are
moved outward
When both controls are in the neutral position (N), the
machine stands still
By moving both controls an equal amount forward
or backward, the machine moves in a straight line
forward or backward respectively
For example, to turn right while moving forward, move
the right control towards the neutral position The
rotation of the right wheel is reduced and the machine
turns to the right
Zero turn can be achieved by moving one control
backward (behind the neutral position) and carefully
moving the other steering control forward from its
neutral position, The rotation direction when zero
turning is determined by which steering control is
moved backward behind the neutral position. If the left
steering control is pulled backward, the machine turns
to the left Use extra care when using this maneuver
Steering controls
8055-042
WARNING!
The machine can turn very rapidly if
one steering control is moved much
further forward than the other.
2
1 Forward
2 Neutral
3 Neutral slot. Neutral lock
4 Reverse
Motion control lever pattem (right side)
8065-053
18
CONTROLS

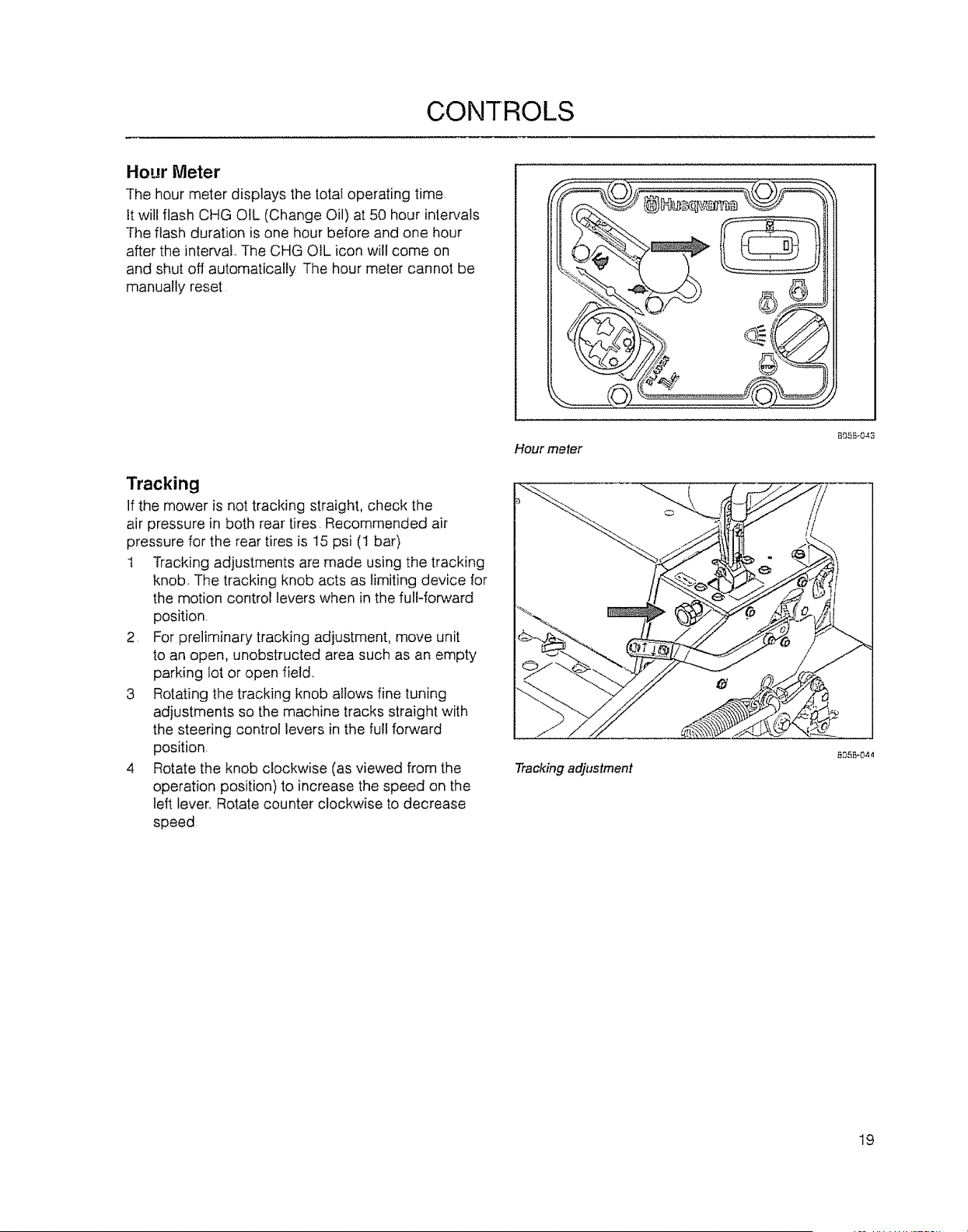

Hour Meter
The hour meter displays the total operating time
It wilt flash CHG OIL (Change Oil) at 50 hour intervals
The flash duration is one hour before and one hour
after the interval., The CHG OIL icon will come on
and shut off automatically The hour meter cannot be
manually reset
Tracking
If the mower is not tracking straight, check the
air pressure in both rear tires. Recommended air
pressure for the rear tires is !5 psi (1 bar)
1 Tracking adjustments are made using the tracking
knob, The tracking knob acts as limiting device for
the motion control levers when in the full-forward
position.
2 For preliminary tracking adjustment, move unit
to an open, unobstructed area such as an empty
parking lot or open field,,
3 Rotating the tracking knob allows fine tuning
adjustments so the machine tracks straight with
the steering control levers in the full forward
position.
4 Rotate the knob clockwise (as viewed from the
operation position) to increase the speed on the
left lever, Rotate counter clockwise to decrease
speed
Hour meter
Tracking adjustment
5055-043
5055,_4a
19
CONTROLS

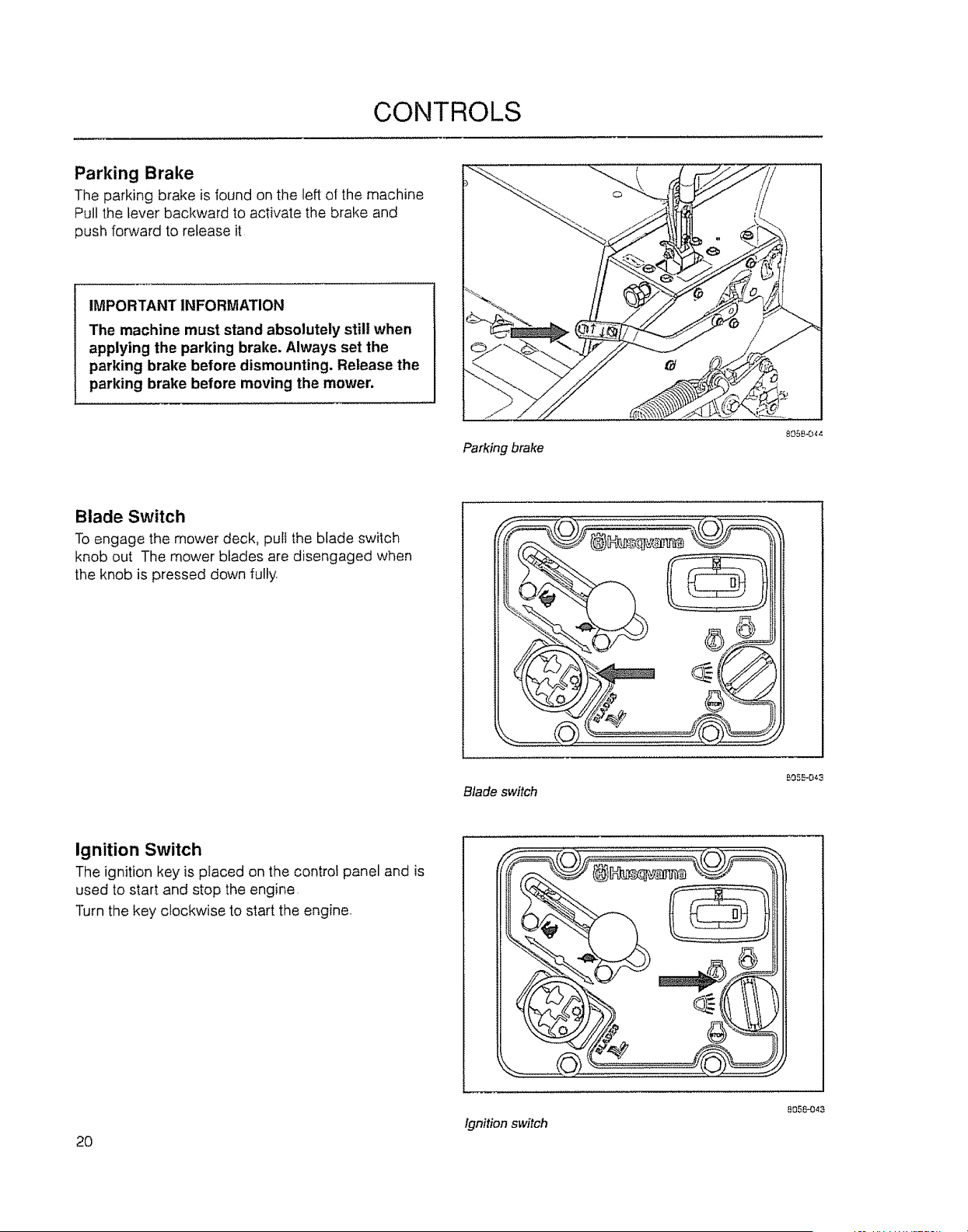

Parking Brake
The parking brake is found on the left of the machine
Pull the lever backward to activate the brake and
push forward to release it
IMPORTANT INFORMATION
The machine must stand absolutely still when
applying the parking brake, Always set the
parking brake before dismounting, Release the
parking brake before moving the mower.
Parking brake
8058-0,14
Blade Switch
To engage the mower deck, pull the blade switch
knob out The mower blades are disengaged when
the knob is pressed down fully.
t
Blade switch
805£-043
Ignition Switch
The ignition key is placed on the control panel and is
used to start and stop the engine
Turn the key clockwise to start the engine,
2O
Ignition switch
8056-043
CONTROLS
Release the key to the RUN position when the engine
has started
Ignitionswitch - RUN position
For using "accessory", turn the key counter clockwise
8{356-005
Ignitionswitch - accessory
Fuses are located on the left hand side of the
machine They are accessed by tilting the seat
forward Fuses are flat pin fuses type as used in
automobiles.
There are two fuses with ratings and functions:
1.. 20 A, Primary fuse
2. 7 5 A, Mower deck coupling
Fuses
8011-420
21
CONTROLS

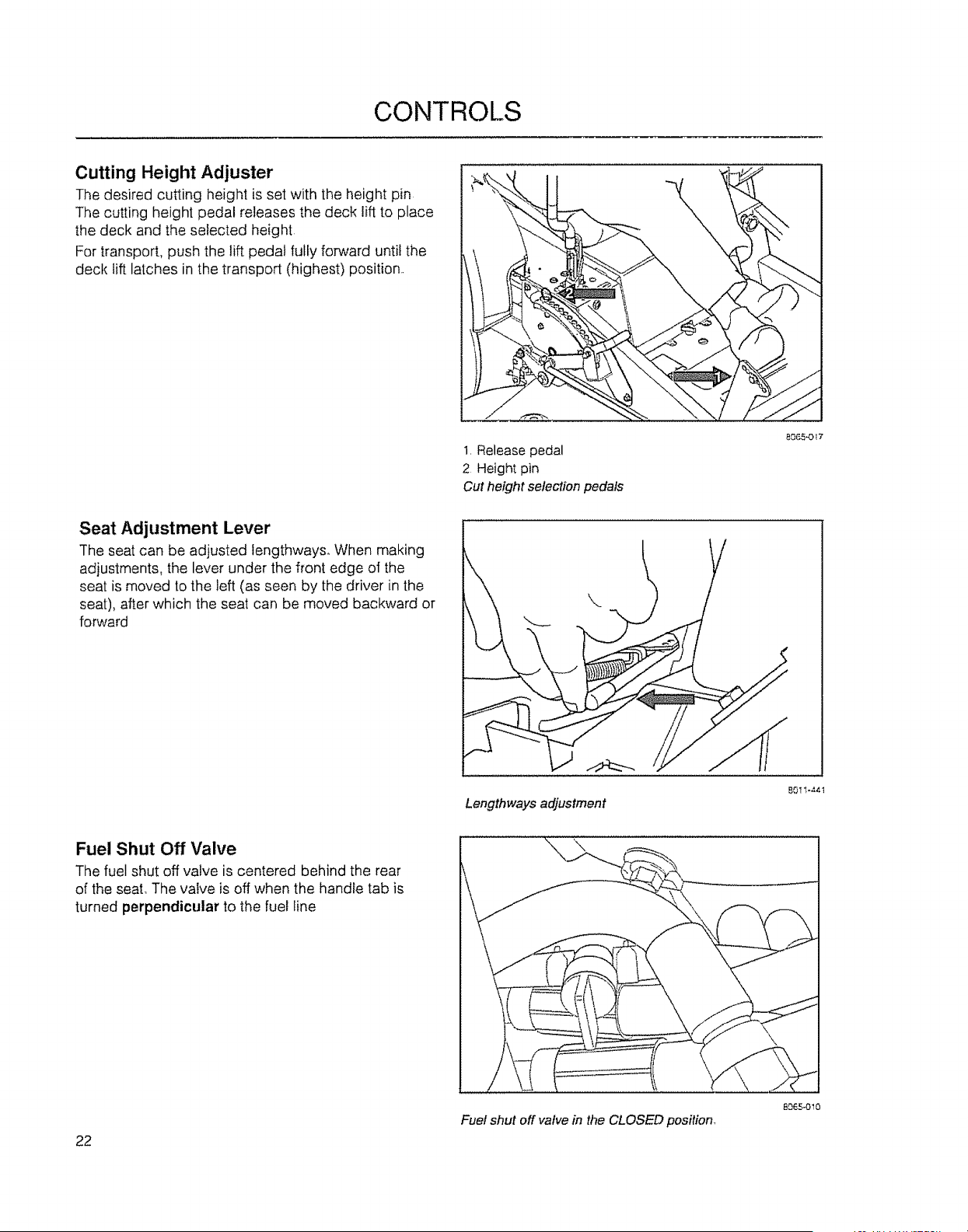

Cutting Height Adjuster
The desired cutting height is set with the height pin
The cutting height pedal releases the deck lift to place
the deck and the selected height.
For transport, push the lift pedal fully forward until the
deck lifl latches in the transport (highest) position..
Seat Adjustment Lever
The seat can be adjusted lengthways.. When making
adjustments, the lever under the front edge of the
seat is moved to the left (as seen by the driver in the
seat), after which the seat can be moved backward or
forward
Fuel Shut Off Valve
The fuel shut off valve is centered behind the rear
of the seal The valve is off when the handle tab is
turned perpendicular to the fuel line
1, Release pedal
2 Height pin
Cut height selection pedals
\
Lengthwaysadjustment
8055*O 17
8011-44t
22
Fuel shut off valve in the CLOSED position_
8055-010
CONTROLS

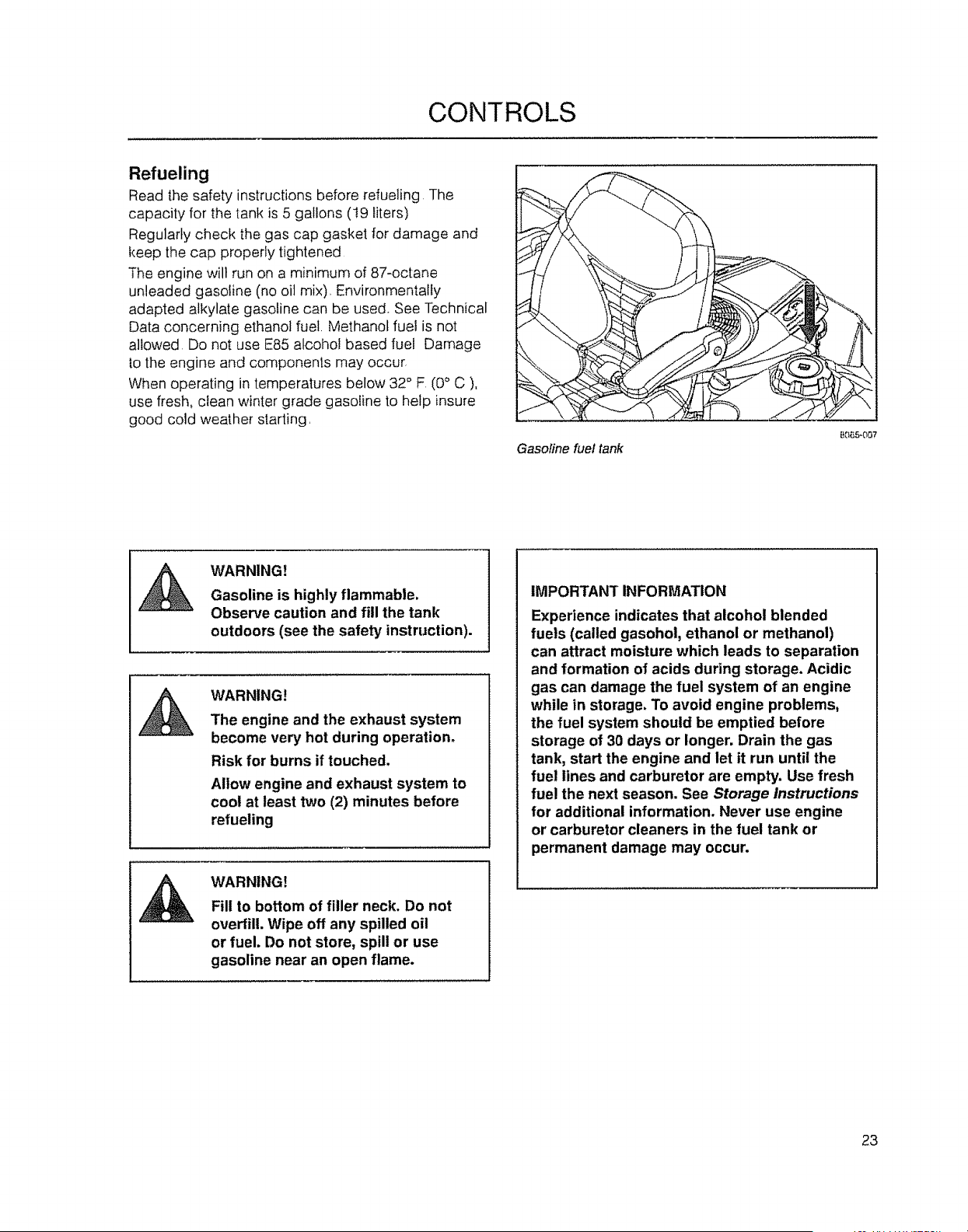

Refueling
Read the safeb,/instructions before refueling The
capacity for the tank is 5 gallons (19 liters)
Regularly check the gas cap gasket for damage and
keep the cap properly tightened
The engine will run on a minimum of 87-octane
unleaded gasoline (no oil mix), Environmentally
adapted alkylate gasoline can be used See Technical
Data concerning ethanol fuel. Methanol fuel is not
allowed Do not use E85 alcoho! based fuel Damage
to the engine and components may occur_
When operating in temperatures below 32° F (0° C ),
use fresh, clean winter grade gasoline to help insure
good cold weather starting,
B_q,35-OO7
Gasolinefuel tank
WARNING!
Gasoline is highly flammable,
Observe caution and fill the tank
outdoors (see the safety instruction).
WARNING!
The engine and the exhaust system
become very hot during operation.
Risk for burns if touched.
Allow engine and exhaust system to
cool at least two (2) minutes before
refueling
WARNING!
Fill to bottom of filler neck. Do not
overfill. Wipe off any spilled oil
or fuel. Do not store, spill or use
gasoline near an open flame.
IMPORTANT INFORMATION
Experience indicates that alcohol blended
fuels (called gasohol, ethanol or methanol)
can attract moisture which leads to separation
and formation of acids during storage. Acidic
gas can damage the fuel system of an engine
while in storage. To avoid engine problems,
the fuel system should be emptied before
storage of 30 days or longer. Drain the gas
tank, start the engine and let it run until the
fuel lines and carburetor are empty. Use fresh
fuel the next season. See Storage Instructions
for additional information. Never use engine
or carburetor cleaners in the fuel tank or
permanent damage may occur.
23

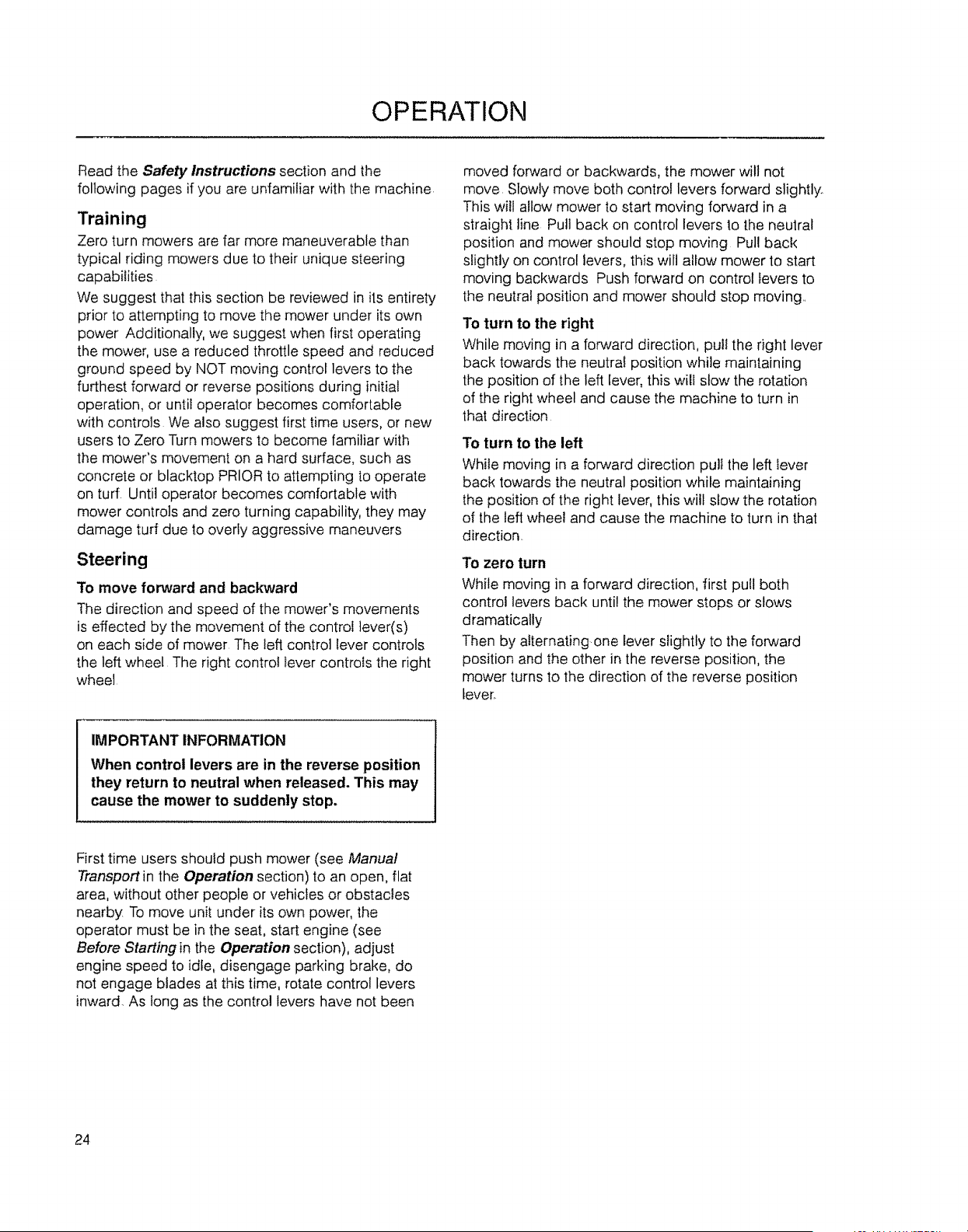

OPERATION
Read the Safety Instructions section and the
following pages if you are unfamiliar with the machine
Training
Zero turn mowers are far more maneuverable than
typical riding mowers due to their unique steering
capabilities
We suggest that this section be reviewed in its entirety
prior to attempting to move the mower under its own
power Additionally, we suggest when first operating
the mower, use a reduced throttle speed and reduced
ground speed by NOT moving control levers to the
furthest forward or reverse positions during initial
operation, or until operator becomes comfortable
with controls We also suggest first time users, or new
users to Zero Turn mowers to become familiar with
the mower's movement on a hard surface, such as
concrete or blacktop PRIOR to attempting to operate
on turf Until operator becomes comfortable with
mower controls and zero turning capability, they may
damage turf due to overly aggressive maneuvers
Steering
To move forward and backward
The direction and speed of the mower's movements
is eflected by the movement of the control lever(s)
on each side of mower The left control lever controls
the left wheel The right control lever controls the right
wheel
moved forward or backwards, the mower will not
move, Slowly move both control levers forward slightly,
This will allow mower to start moving forward in a
straight line Pull back on control levers to the neulral
position and mower should stop moving Pull back
slightly on control levers, this will allow mower to start
moving backwards Push forward on control levers to
the neutral position and mower should stop moving,,
To turn to the right
While moving in a forward direction, pull the right lever
back towards the neutra! position while maintaining
the position of the left lever, this will stow the rotation
of the right wheel and cause the machine to turn in
that direction
To turn to the left
While moving in a forward direction pull the left lever
back towards the neutral position while maintaining
the position of the right lever, this will slow the rotation
of the left wheel and cause the machine to turn in that
direction..
To zero turn
While moving in a forward direction, first pull both
contro! levers back until the mower stops or slows
dramatically
Then by alternating one lever slightly to the forward
position and the other in the reverse position, the
mower turns to the direction of the reverse position
lever,
IMPORTANT INFORMATION
When control levers are in the reverse position
they return to neutral when released. This may
cause the mower to suddenly stop.
First time users should push mower (see Manual
Transport in the Operation section) to an open, flat
area, without other people or vehicles or obstacles
nearby To move unit under its own power, the
operator must be in the seat, start engine (see
Before Starting in the Operation section), adjust
engine speed to idle, disengage parking brake, do
not engage blades at this time, rotate control levers
inward, As long as the control levers have not been
24
OPERATION

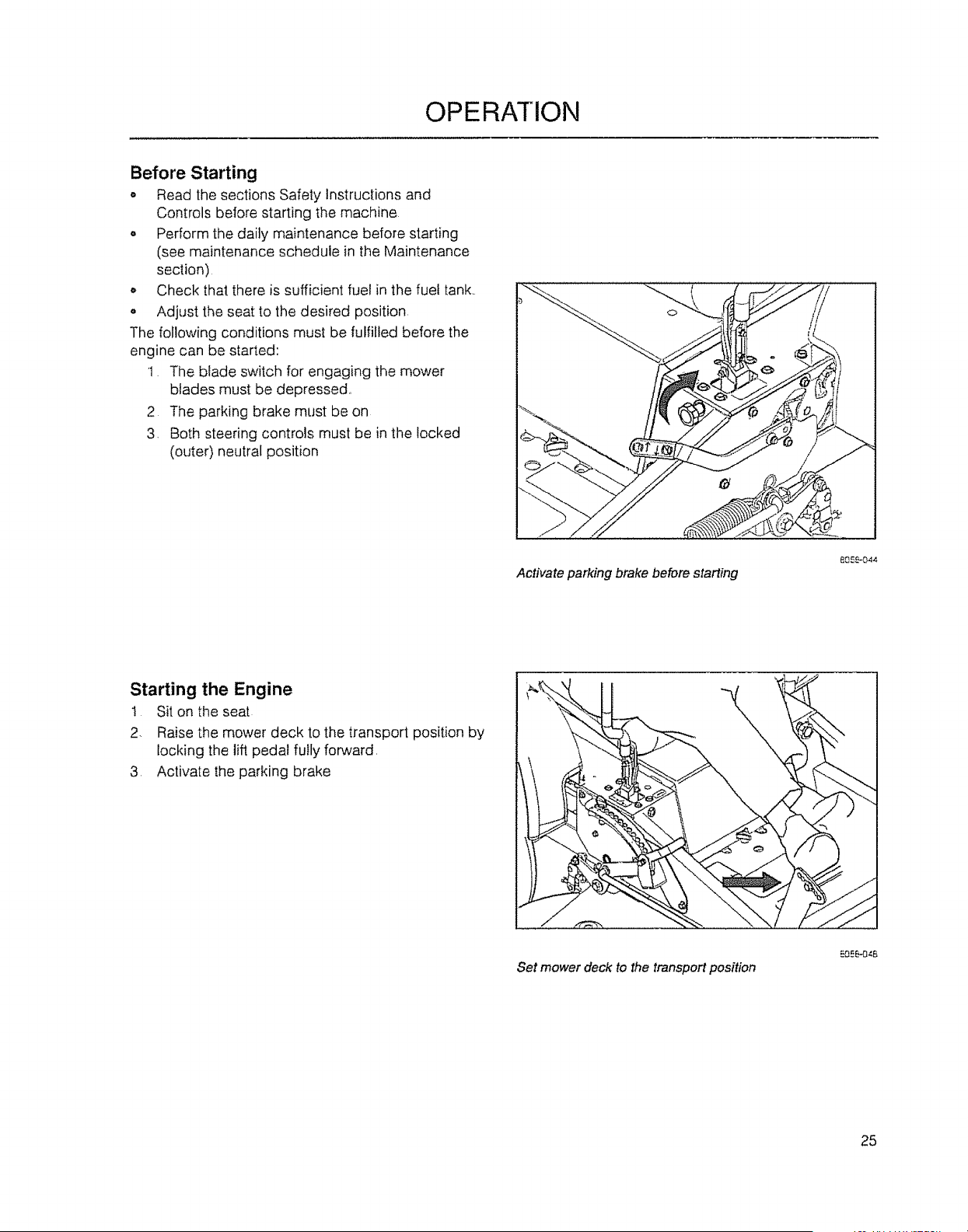

Before Starting
o Read the sections Safety Instructions and
Controls before starting the machine.
. Performthe daily maintenance before starting
(see maintenance schedule in the Maintenance
section)
o Check that there is sufficient fuel in the fuei tank..
o Adjust the seat to the desired position.
The following conditions must be fulfilled before the
engine can be started:
1 The blade switch for engaging the mower
blades must be depressed.,
2 The parking brake must be on
3. Both steering controls must be in the locked
(outer) neutral position
Activate parking brake before starting
805_-044
Starting the Engine
t Sit on the seat
2. Raise the mower deck to the transport position by
{ockingthe lift pedal fu!ty forward,
3 Activate the parking brake
Set mower deck to the transport position
e05e-046
25
OPERATION

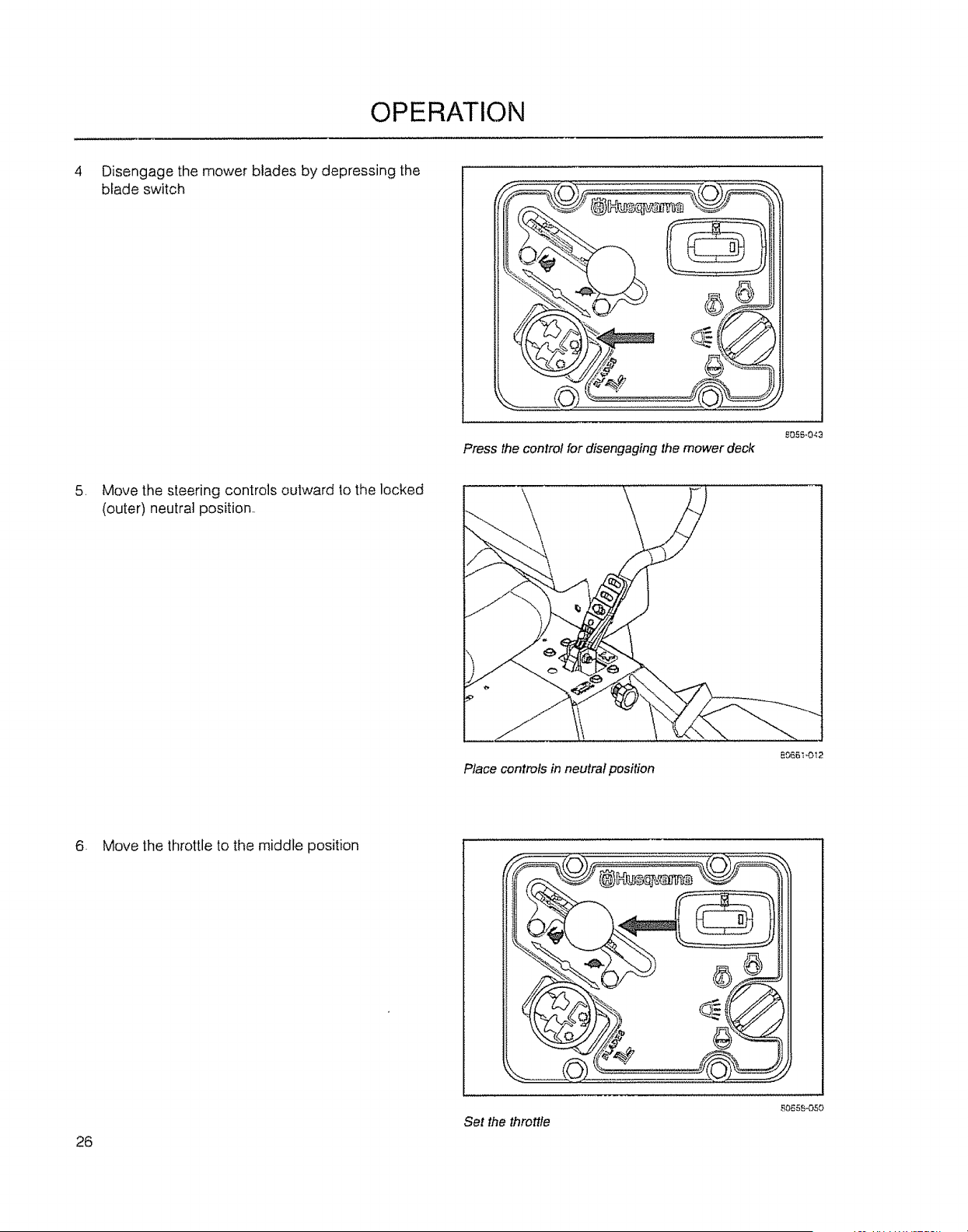

4
,
Disengage the mower blades by depressing the
blade switch
Move the steering controls outward to the locked
(outer) neutral position,,
_055_043
Press the control for disengaging the mower deck
Place controls in neutral position
B066_-012
6- Move the throttle to the middle position
26
£,3658-050
Set the throttle
OPERATION

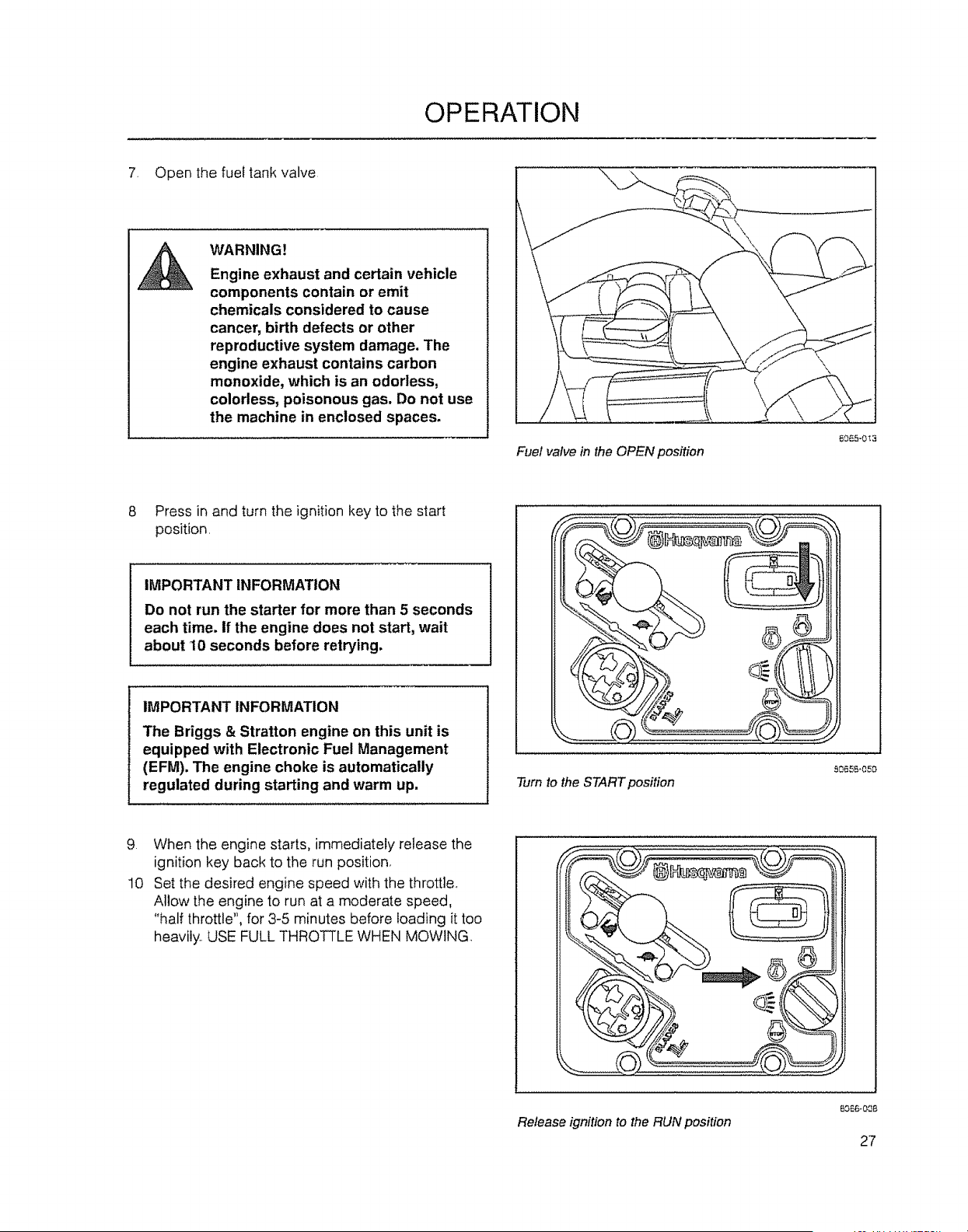

7. Open the fuel tank valve
A
WARNING!
Engine exhaust and certain vehicle
components contain or emit
chemicals considered to cause
cancer, birth defects or other
reproductive system damage. The
engine exhaust contains carbon
monoxide, which is an odorless,
colorless, poisonous gas. Do not use
the machine in enclosed spaces.
\
Fuel valve in the OPEN position
_065-0t3
8 Press in and turn the ignition key to the start
position,
IMPORTANT INFORMATION
Do not run the starter for more than 5 seconds
each time. If the engine does not start, wait
about 10 seconds before retrying.
IMPORTANT INFORMATION
The Briggs & Stratton engine on this unit is
equipped with Electronic Fuel Management
(EFM). The engine choke is automatically
regulated during starting and warm up.
7Drn to the START position
80658,050
g
10
When the engine starts, immediately release the
ignition key back to the run position,
Set the desired engine speed with the throttle..
Allow the engine to run at a moderate speed,
"half throttle", for 3-5 minutes before loading it too
heavily..USE FULL THROTTLE WHEN MOWING.
.....................
Release ignition to the RUN position
OPERATION
Weak Battery
_ WARNING!
Lead-acid batteries generate
explosive gases. Keep sparks, flame
and smoking materials away from
batteries. Always wear eye protection
when around batteries.
IMPORTANT INFORMATION
The mower is equipped with a 12-volt negative
grounded system. The other vehicle must also
be a 12-volt negative grounded system. Do not
use the mower to start other vehicles.
IMPORTANT INFORMATION
Refer to the EFM Information Sheet from the
unit literature packet for specific jump starting
instructions.
If "jumper cables" are used for emergency starting,
follow this procedure;

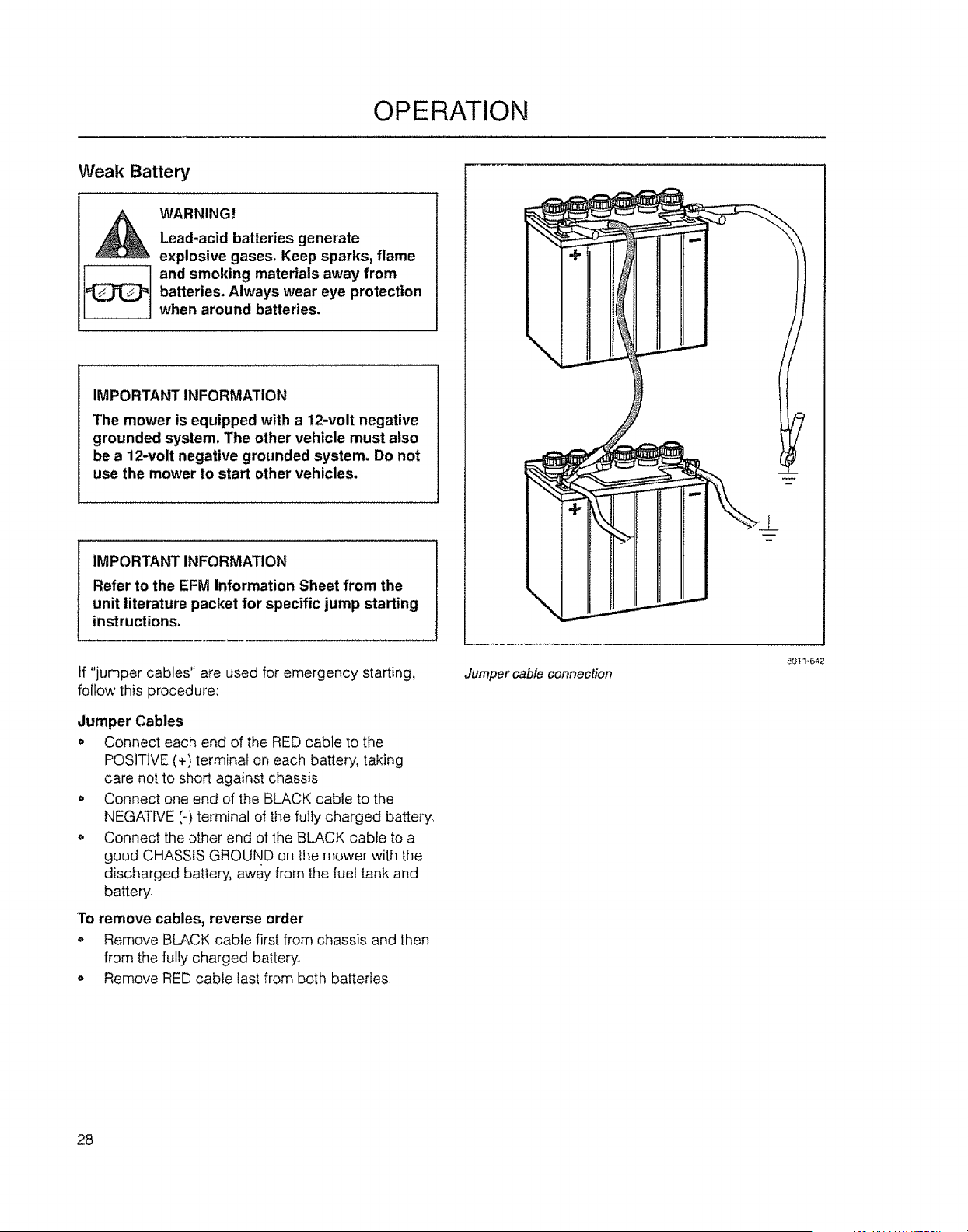

Jumper Cables
= Connect each end of the RED cable to the
POSITIVE (+) terminal on each battery, taking
care not to short against chassis.
• Connect one end of the BLACK cable to the
NEGATIVE (-) terminal of the fully charged battery.
,, Connect the other end of the BI_,CK cable to a
good CHASSIS GROUND on the mower with the
discharged battery, away from the fuel tank and
battery
To remove cables, reverse order
o Remove BLACK cable first from chassis and then
from the fully charged battery..
= Remove RED cable last from both batteries
Jumper cable connection
8011-642
28
OPERATION

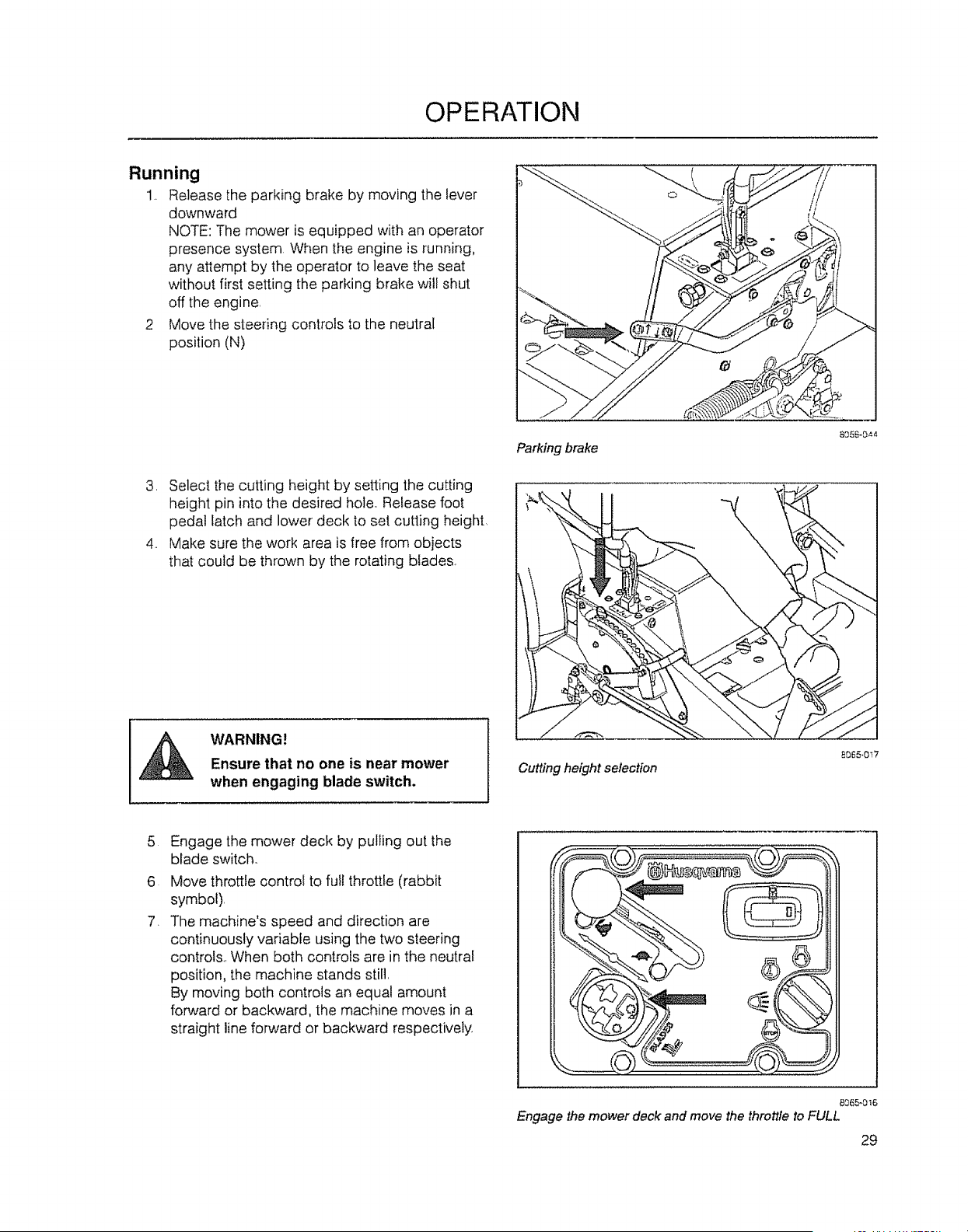

Running
1_. Release the parking brake by moving the lever
downward
NOTE: The mower is equipped with an operator
presence system When the engine is running,
any attempt by the operator to leave the seat
without first setting the parking brake will shut
off the engine.
2 Move the steering controls to the neutral
position (N)
3. Select the cutting height by setting the cutting
height pin into the desired hole. Release foot
pedal latch and lower deck to set cutting height,
4.. Make sure the work area is flee from objects
that could be thrown by the rotating blades
Parking brake
805_044
WARNING!
Ensure that no one is near mower
when engaging blade switch.
Cutting height selection
8065,017
6
7.
Engage the mower deck by pulling out the
blade switch.
Move throttle control to full throttle (rabbit
symbol).
The machine's speed and direction are
continuously variable using the two steering
controls.. When both controls are in the neutral
position, the machine stands still.
By moving both controls an equal amount
forward or backward, the machine moves in a
straight line forward or backward respectively.
8065÷016
Engagethe mowerdeckand movethe throttle to FULL
29
OPERATION
Operating on Hills
Read the Safety Instructions Driving on Slopes in the
Safety Instructions
WARNING!
Do not drive up or down hills with
slopes greater than 10 degrees. Do
not drive across slopes,
IMPORTANT INFORMATION
Control levers return to neutral when released.
This may cause the mower to suddenly stop.
o The slowest speed possible should be used
before starting up or down hills_
• Avoid stopping or changing speed on hills,
. If stopping is absolutely necessary, pull drive
levers into the neutral position and push to the
outside of the unit and engage the parking brake,,
,, To restart movement, release the parking brake,
. Pull the control levers back to the center of the
mower and press forward to regain forward
motion,
o Make all turns slowly
Place controls in neutral position
80561-0t2
Release the parking brake to restart movement
8055-044
3O
OPERATION

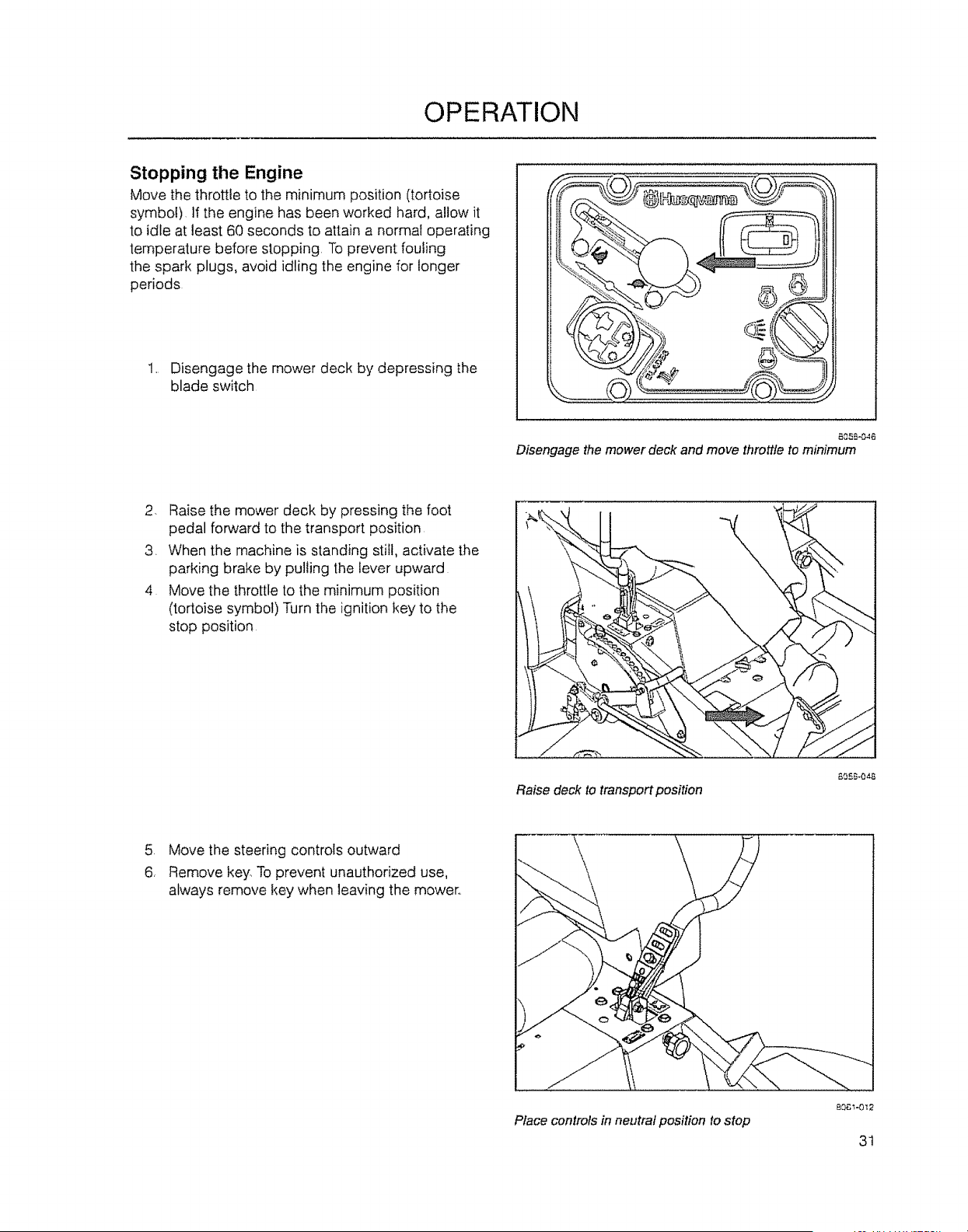

Stopping the Engine
Move the throttle to the minimum position (tortoise
symbol) If the engine has been worked hard, allow it
to idle at least 60 seconds to attain a normal operating
temperature before stopping To prevent fouling
the spark plugs, avoid idling the engine for longer
periods
1. Disengage the mower deck by depressing _he
blade switch
_Q58-_.46
Disengagethe mowerdeck andmove throttle to minimum
2. Raise the mower deck by pressing the foot
pedal forward to the transport position
3. When the machine is standing still, activate the
parking brake by pulling the lever upward
4 Move the throttle to the minimum position
(tortoise symbol) Turn the ignition key to the
stop position
Raise deck to transport position
6'35B-048
5 Move the steering controls outward
6, Remove key, To prevent unauthorized use,
always remove key when leaving the mower,.
Place controls in neutral position to stop

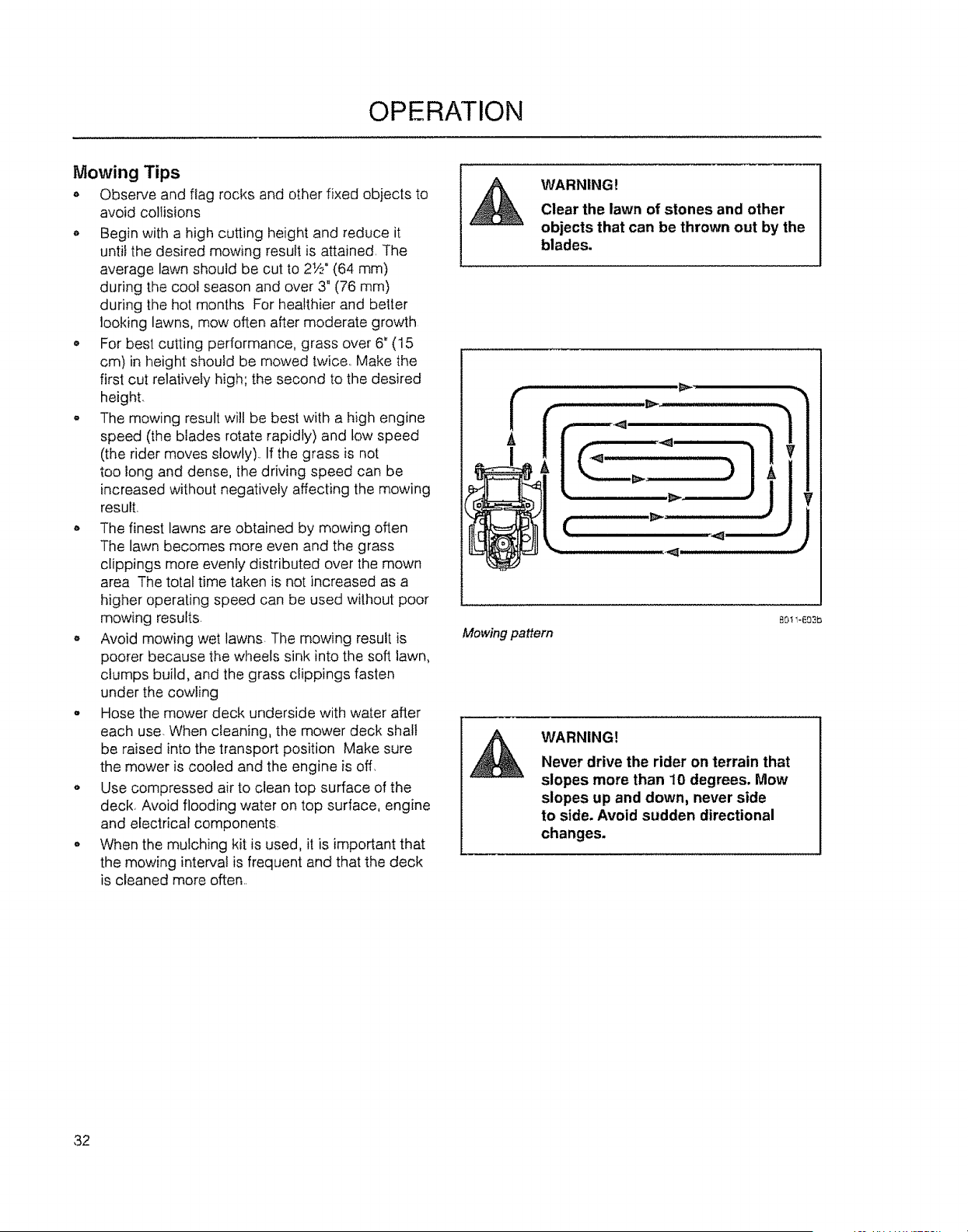

OPERATION
Mowing Tips
o Observe and flag rocks and other fixed objects to
avoid collisions
o Begin with a high cutting height and reduce it
until the desired mowing result is attained, The
average lawn should be cut to 2t/2° (64 mm)
during the cool season and over 3' (76 mm)
during the hot months For healthier and better
looking lawns, mow often after moderate growth
• For best cutting performance, grass over 6" (15
cm) in height should be mowed twice,, Make the
first cut relatively high; the second to the desired
height.
. The mowing result will be best with a high engine
speed (the blades rotate rapidly) and low speed
(the rider moves slowly), If the grass is not
too long and dense, the driving speed can be
increased without negatively affecting the mowing
result.
o The finest lawns are obtained by mowing often
The lawn becomes more even and the grass
clippings more evenly distributed over the mown
area The total time taken is not increased as a
higher operating speed can be used wilhout poor
mowing results.
o Avoid mowing wet lawns. The mowing result is
poorer because the wheels sink into the soft lawn,
clumps build, and the grass clippings fasten
under the cowling
- Hose the mower deck underside with water after
each use, When cleaning, the mower deck shall
be raised into the transport position Make sure
the mower is cooled and the engine is off,
o Use compressed air to clean top surface of the
deck, Avoid flooding water on top surface, engine
and electrical components
o When the mulching kit is used, it is important that
the mowing interval is frequent and that the deck
is cleaned more often,,
WARNING!
Clear the lawn of stones and other
objects that can be thrown out by the
blades.
Mowing pattern
8011-693b
WARNING!
Never drive the rider on terrain that
slopes more than 10 degrees. Mow
slopes up and down, never side
to side. Avoid sudden directional
changes.
32

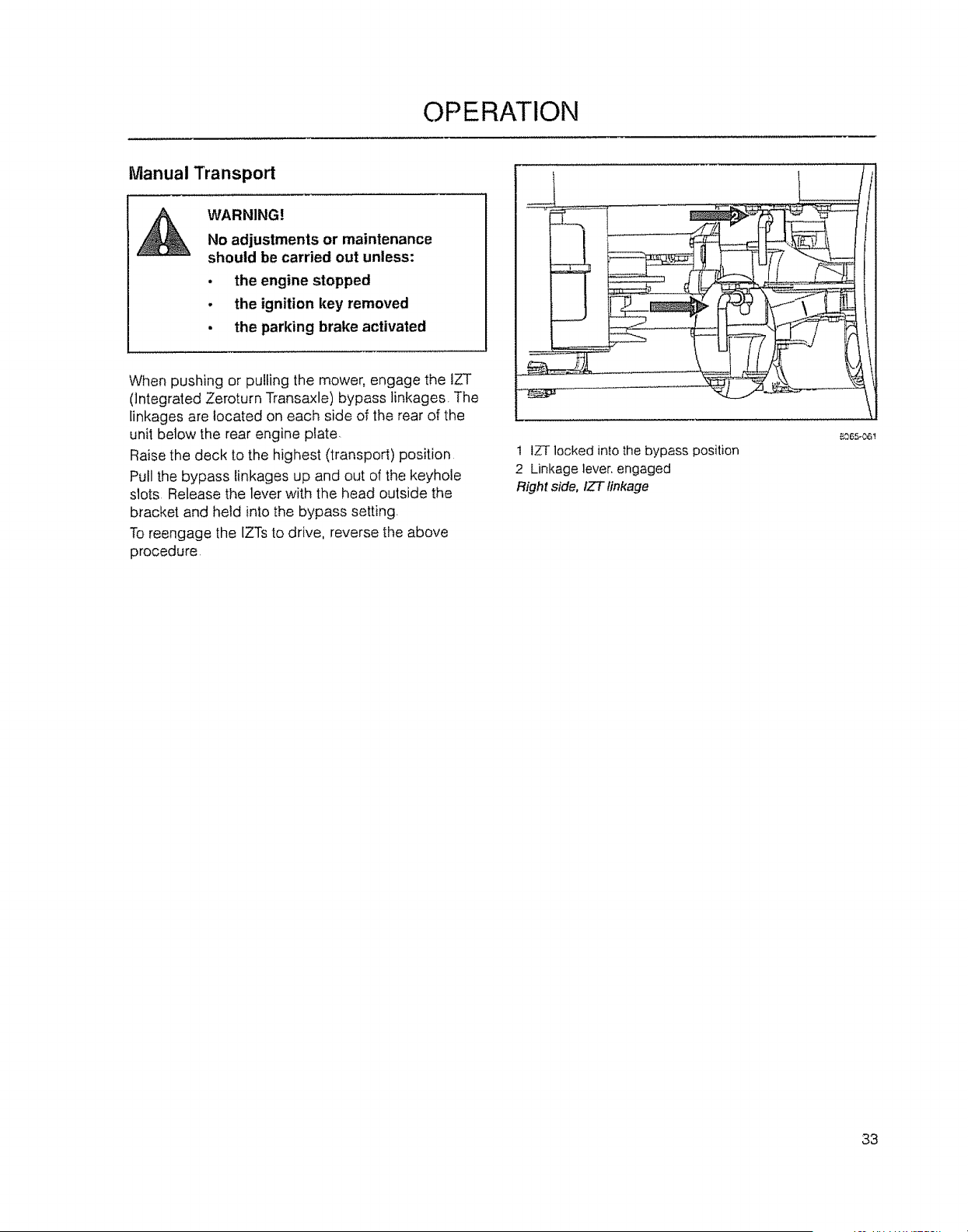

OPERATION
Manual Transport
WARNING!
No adjustments or maintenance
should be carried out unless:
• the engine stopped
• the ignition key removed
• the parking brake activated
When pushing or pulling the mower, engage the tZT
(Integrated Zeroturn Transaxle) bypass linkages. The
linkages are located on each side of the rear of the
unit below the rear engine plate.
Raise the deck to the highest (transport) position
Pull the bypass linkages up and out of the keyhole
slots Release the lever with the head outside the
bracket and held into the bypass setting.
To reengage the IZTsto drive, reverse the above
procedure
1 IZT locked into the bypass position
2 Linkage lever, engaged
Right side, IZT linkage
_Q65-061
33

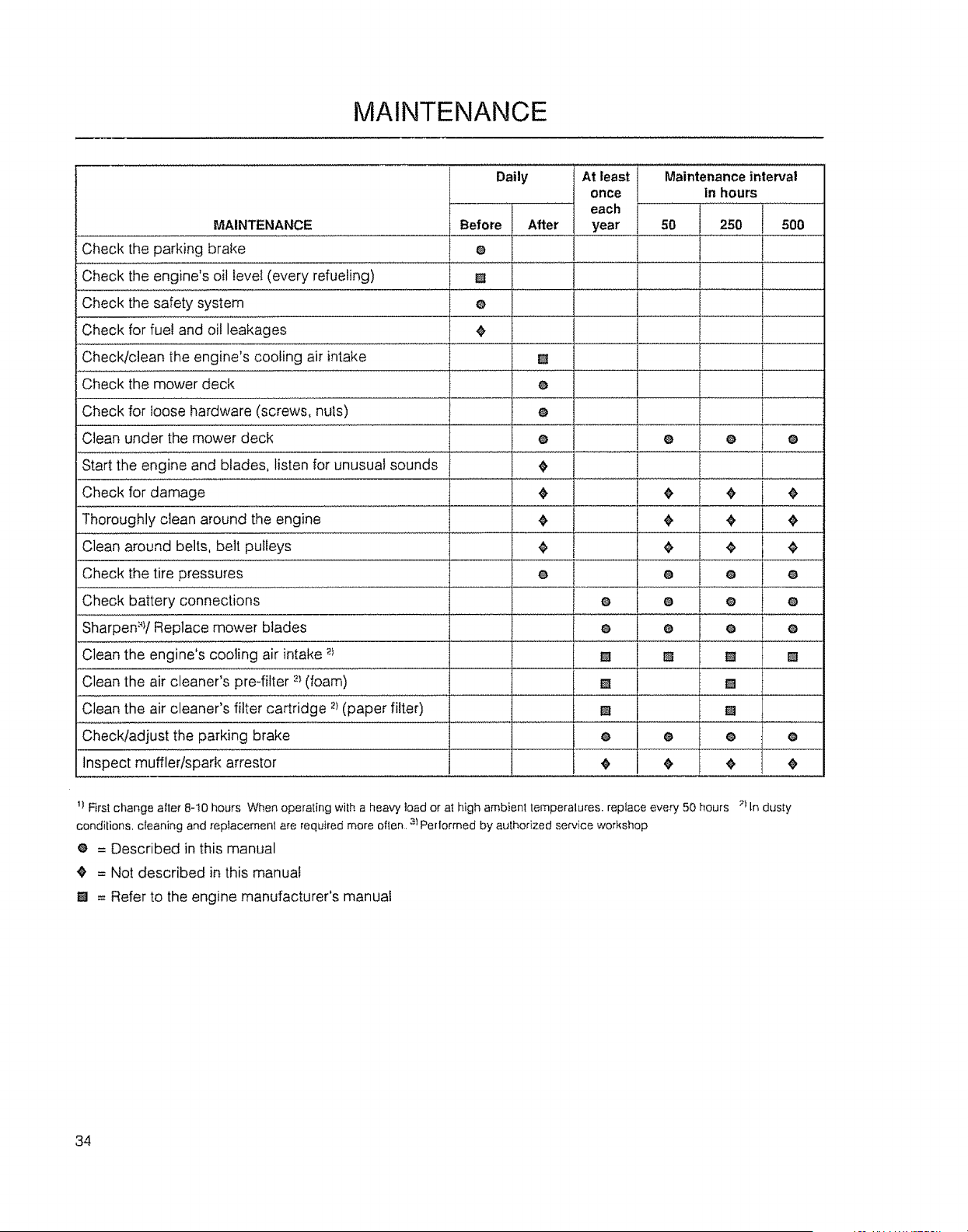

MAINTENANCE
MAINTENANCE
Check the parking brake
Check the engine's oil Leve_(every refueling)
Check the safety system
Check for fuel and oil leakages
Check!dean the engine's cooling air intake
Check the mower deck
Check for loose hardware (screws, nuts)
Clean under the mower deck
Start the engine and blades, listen for unusual sounds
Check for damage
Thoroughly clean around the engine
Clean around belts, be]t puifeys
Check the tire pressures
Check battery connections
Sharpen:_VReplace mower blades
Clean the engine's cooling air intake 2_
Clean the air cleaner's pre-filter _ (foam)
Clean the air cleaner's filter cartridge 2t(paper filter)
Check/adjust the parking brake
Inspect muffler/spark arrestor
Daily
Before
O
Atleast
once
each 1
After year
la
! m
o
! ° t
t
O
O
m
[]
m
o
Maintenance interval
in hours
5O 25O 5OO
O
O
O
O O
O O
Q O
o I o o
m
°I: °
!) First change after 8-I0 hours When operating with a heaw load or at high ambient temperatures, replace every 50 hours 71In dusty
condilions, cleaning and repIacemen| are required more often. 3t Perlormed by authorized service workshop
e = Described in this manual
_' = Not described in this manuat
U = Refer to the engine manufacturer's manual
34

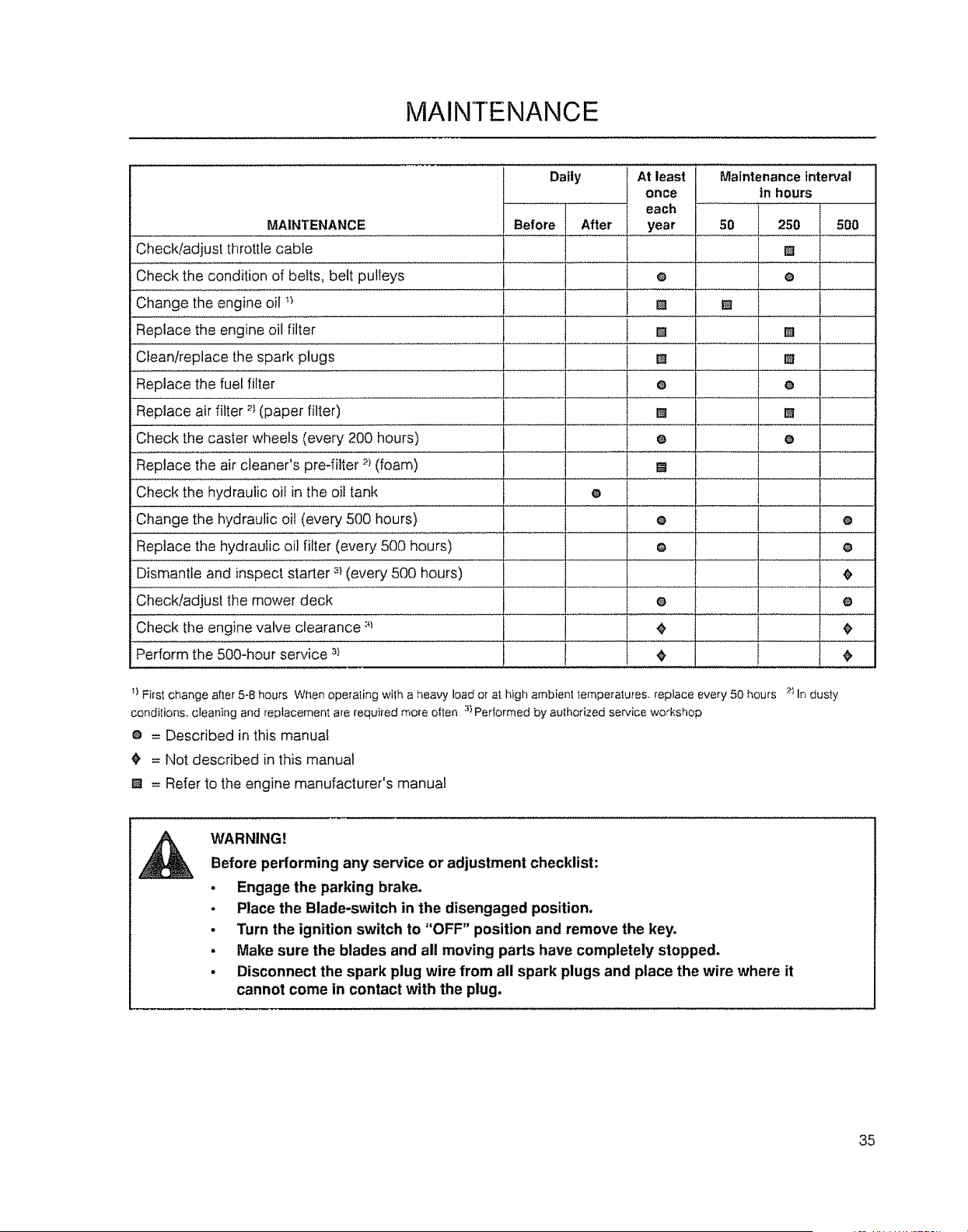

MAINTENANCE
Daily
MAINTENANCE
Check/adjust tt_rottlecable
Check the condition of belts, belt pulleys
Change the engine oil _')
Replace the engine oii filter
Cfean!replace the spark plugs
Replace the fuel filter
Replace air filter _ (paper filter)
Check the caster wheels (every 200 hours)
Replace the air cleaner's pre-filter _-_(foam)
Check the hydraulic oil in the oit tank
Change the hydraulic oil (every 500 hours)
Before After
At least
once
each
year
@
Maintenanceinterval
in hours
50 250 l, 500
[]
Q
m _a
[]
o o
m m
G O
u
O
O O
Replace the hydraulic oil filter (even.7500 hours)
Dismantle and inspect starter _ (every 500 hours)
Check!adjust the mower deck
"Check tile engine valve clearance :*_
Perform the 500-hour service 31
O Q
,e
O @
I) First change after 5-8 hours When operating with a heaw load or at high ambient temperatures, replace every 50 hours 2I In dusty
conditions, cleaning and replacement are required more often 3) Performed by aulhofized service workshop
e = Described in this manual
¢" = Not described in this manual
El = Refer to the engine manufacturer's manual
WARNING!
Before performing any service or adjustment checklist:
• Engage the parking brake.
• Place the Blade-switch in the disengaged position.
, Turn the ignition switch to "OFF" position and remove the key.
, Make sure the blades and all moving parts have completely stopped.
, Disconnect the spark plug wire from all spark plugs and place the wire where it
cannot come in contact with the plug.
35
MAINTENANCE

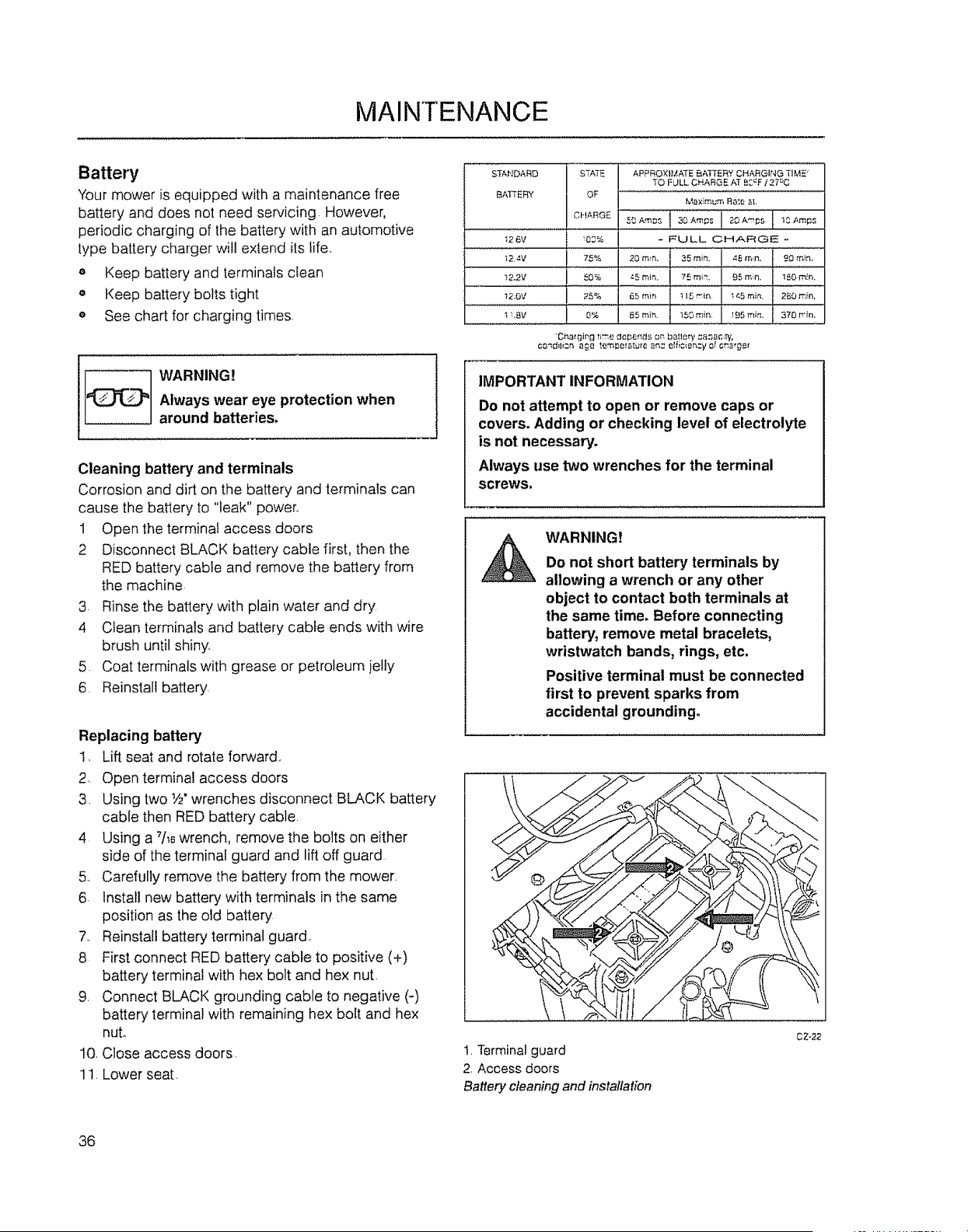

Battery
Your mower is equipped with a maintenance free
battery and does not need sere'icing However,
periodic charging of the battery with an automotive
type battery charger wilt extend its life.,
_' Keep battery and terminals ctean
e Keep battery bolts tight
o See chart for charging times
WARNING!
Always wear eye protection when
around batteries,
Cleaning battery and terminals
Corrosion and dirt on the battery and terminals can
cause the battery to "leak" power.,
1 Open the terminal access doors
2 Disconnect BLACK battery cable first, then the
RED battery cable and remove the battery from
the machine
3 Rinse the battery with plain water and dry
4 Clean terminals and battery cable ends with wire
brush until shiny,
5 Coat terminals with grease or petroleum jelly
6 Reinstall battery,
Replacing battery
I, Lift seat and rotate forward,
2, Open terminal access doors
3, Using two 1/2"wrenches disconnect BLACK battery
cable then RED battery cable.
4 Using a 7/,6wrench, remove the bolts on either
side of the terminal guard and lift off guard
5, Carefully remove the battery from the mower.
6. Install new battery with terminals in the same
position as the old battery
7,. Reinstall battery terminal guard,,
8 First connect RED battery cable to positive (+)
battery terminal with hex bolt and hex nut
9, Connect BLACK grounding cable to negative (-)
battery terminal with remaining hex bolt and hex
nut.,
10, Close access doors.
11. Lower seat.
IMPORTANT INFORMATION
Do not attempt to open or remove caps or
covers. Adding or checking level of electrolyte
is not necessary.
Always use two wrenches for the terminal
screws.
A WARNING!
Do not short battery terminals by
allowing a wrench or any other
object to contact both terminals at
the same time. Before connecting
battery, remove metal bracelets,
wristwatch bands_ rings, etc.
Positive terminal must be connected
first to prevent sparks from
accidental grounding.
CZ_2,2
1,Terminalguard
2, Access doors
Batterycleaningand installation
36
MAINTENANCE

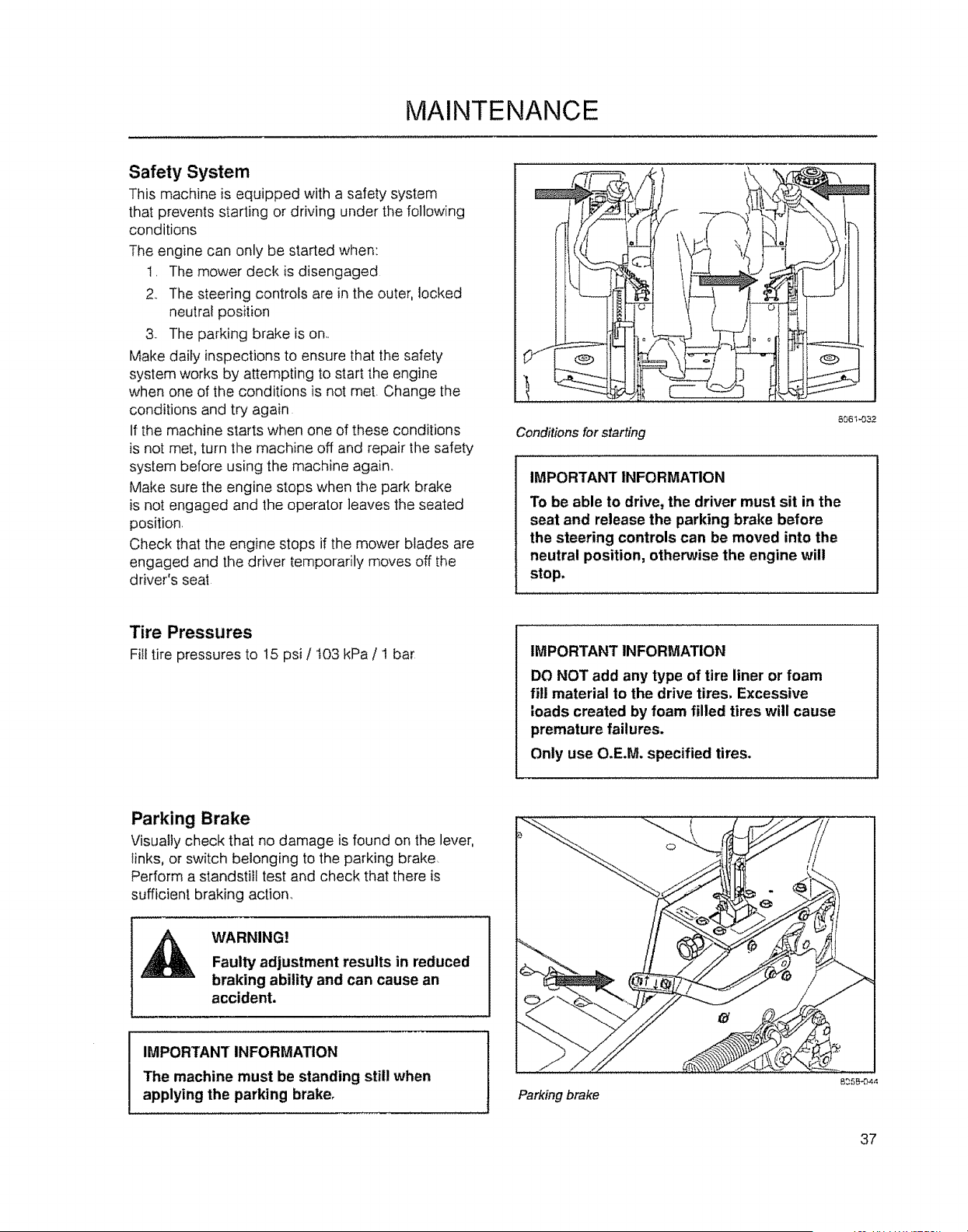

Safety System
This machine is equipped with a safety system
that prevents starting or driving under the following
conditions
The engine can only be started when:
1. The mower deck is disengaged
2.. The steering controls are in the outer, locked
neutral position
3. The parking brake is on..
Make daily inspections to ensure that the safety
system works by attempting to start the engine
when one of the conditions is not met. Change the
conditions and to7 again
If the machine starts when one of these conditions
is not met, turn the machine off and repair the safety
system before using the machine again.,
Make sure the engine stops when the park brake
is not engaged and the operator leaves the seated
position.
Check that the engine stops if the mower blades are
engaged and the driver temporarily moves off the
driver's seat
I
Conditions for starting
5C4_t_32
IMPORTANT INFORMATION
To be able to drive, the driver must sit in the
seat and release the parking brake before
the steering controls can be moved into the
neutral position, otherwise the engine will
stop,
Tire Pressures
Fill tire pressures to 15 psi / t03 kPa / 1 bar
IMPORTANT INFORMATION
DO NOT add any type of tire liner or foam
fill material to the drive tires, Excessive
loads created by foam filled tires will cause
premature failures.
Only use O.E.M. specified tires.
Parking Brake
Visually check that no damage is found on the lever,
links, or switch belonging to the parking brake.
Perform a standstill test and check that there is
sufficient braking action_
WARNING]
Faulty adjustment results in reduced
braking ability and can cause an
accident.
IMPORTANT INFORMATION
The machine must be standing still when
applying the parking brake. Parking brake
0
625_044
37

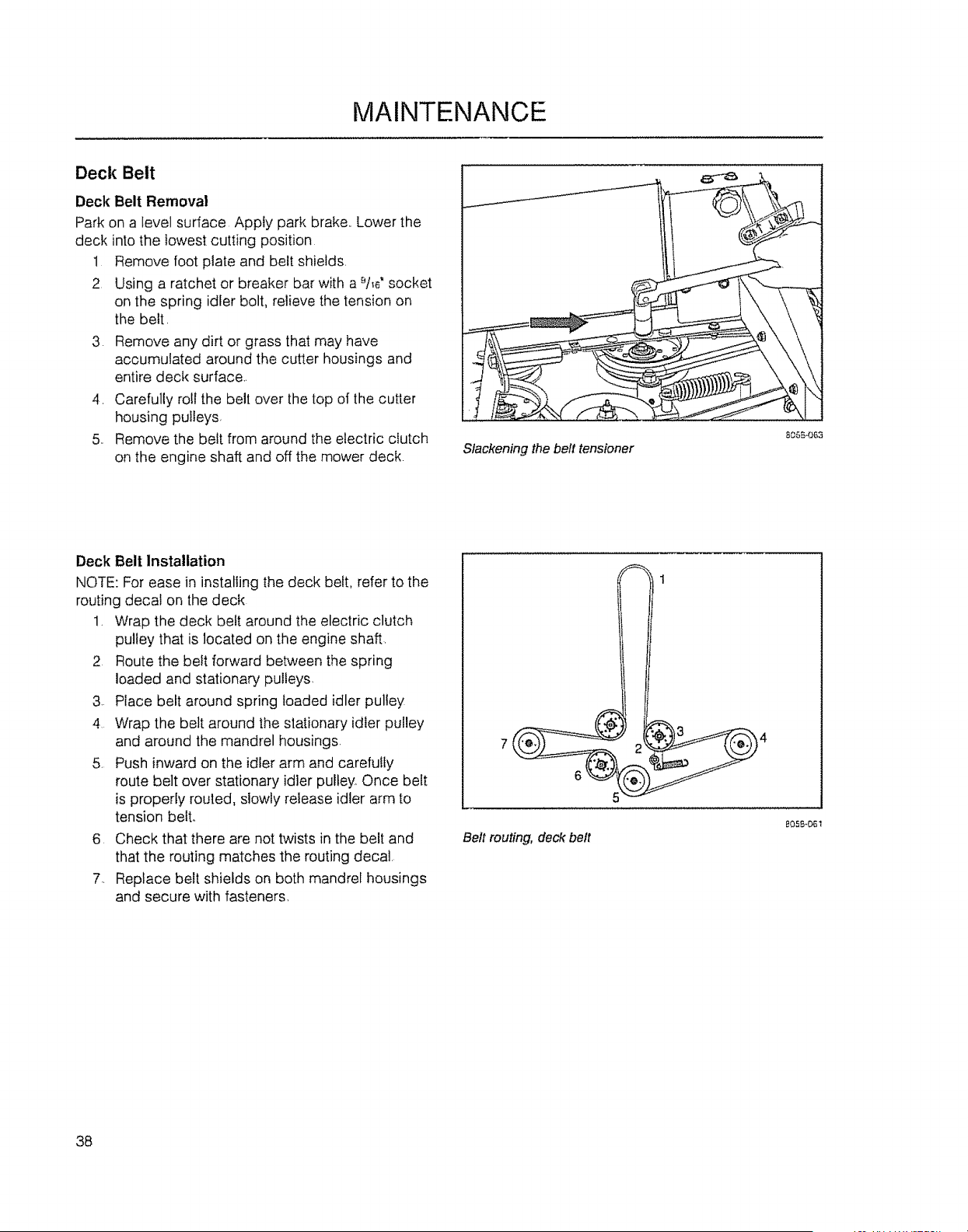

MAINTENANCE
Deck Belt
Deck Belt Removal
Park on a level surface Apply park brake,, Lower the
deck into the lowestcutting position
1 Remove foot plate and belt shields.
2 Using a ratchet or breaker bar with a £/_e'socket
on the spring idler bolt, relieve the tension on
the belt.
3 Remove any dirt or grass that may have
accumulated around the cutter housings and
entire deck surface.
4, Carefully roll the belt over the top of the cutter
housing pulleys,
5. Remove the belt from around the electric clutch
on the engine shaft and off the mower deck.
Slackening the belt tensioner
805B-063
Deck Belt Installation
NOTE: For ease in installing the deck belt, refer to the
routing decal on the deck
1, Wrap the deck belt around the electric clutch
pulley that is located on the engine shaft,
2 Route the belt forward between the spring
loaded and stationary pulleys,
3. Place belt around spring loaded idler pulley
4 Wrap the belt around the stationary idler pulley
and around the mandrel housings.
5, Push inward on the idler arm and carefully
route belt over stationary idler pulley. Once belt
is properly routed, slowly release idler arm to
tension belt.,
6 Check that there are not twists in the belt and
that the routing matches the routing decal,
7., Replace belt shields on both mandrel housings
and secure with fasteners,
i 4
Belt muting, deck belt
8055-O61
38

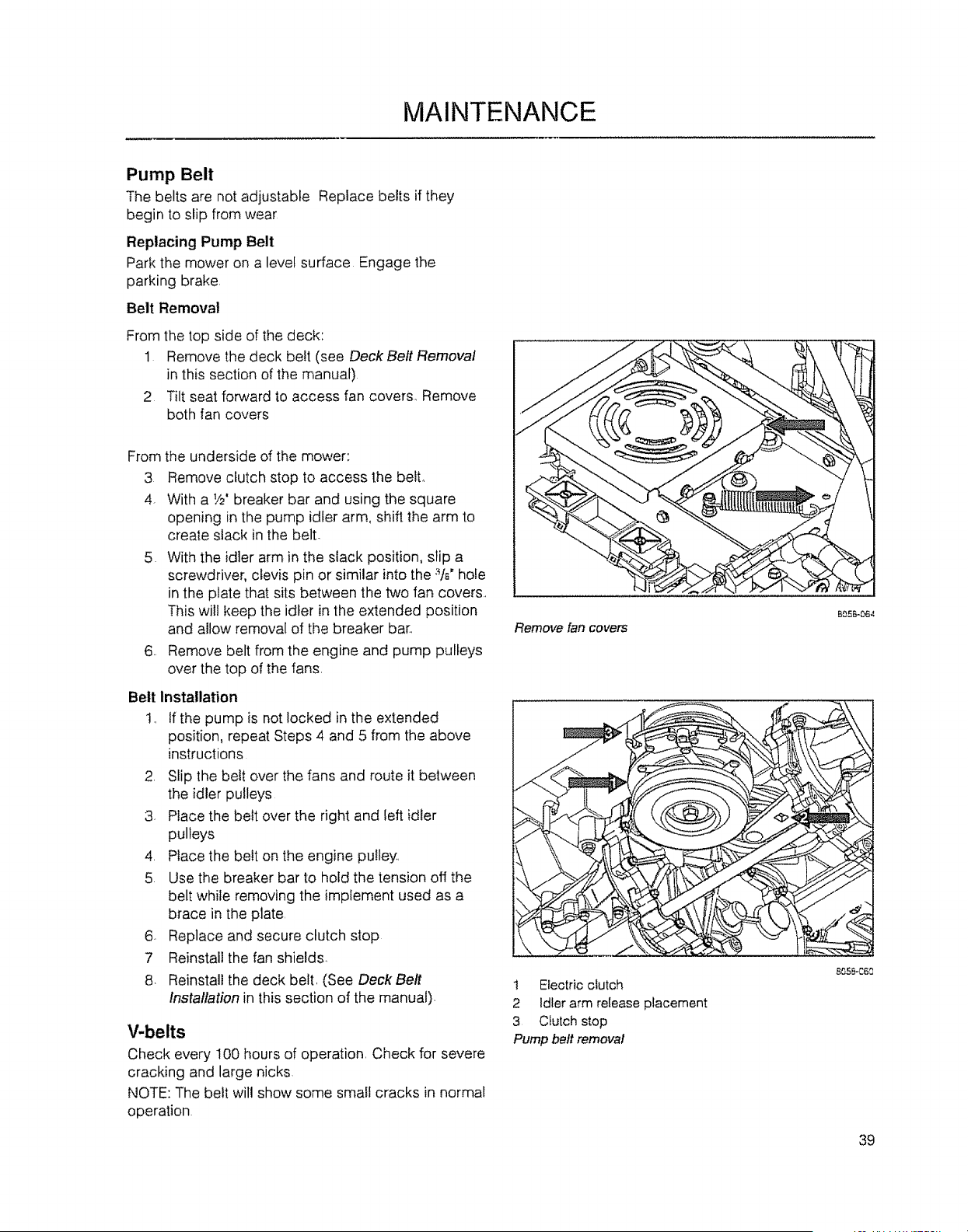

MAINTENANCE
Pump Belt
The belts are not adjustable Replace belts if they
begin to slip from wear
Replacing Pump Belt
Park the mower on a level surface Engage the
parking brake.
Belt Removal
From the top side of the deck:
1 Remove the deck belt (see Deck Belt Removal
in this section of the manual)
2 Tilt seat forward to access fan covers_ Remove
both fan covers
From
3
4
,,
the underside of the mower:
Remove clutch stop to access the belto
With a Y2'breaker bar and using the square
opening in the pump idler arm, shift the arm to
create slack in the belt.
With the idler arm in the slack position, slip a
screwdriver, clevis pin or similar into the "_/8"hole
in the plate that sits between the two fan covers..
This wilt keep the idler in the extended position
and allow removal of the breaker bar..
Remove belt from the engine and pump pulleys
over the top of the fans.
Belt Installation
!. If the pump is not locked in the extended
position, repeat Steps 4 and 5 from the above
instructions
2. Slip the belt over the fans and route it between
the idler pulleys
3. Place the belt over the right and left idler
pulleys
4. Place the belt on the engine pulley.
5 Use the breaker bar to hold the tension off the
belt while removing the implement used as a
brace in the plate.
6. Replace and secure clutch stop
7 Reinstall the fan shields.
8. Reinstall the deck belt. (See Deck Belt
Installation in this section of the manual).
V-belts
Check every 100 hours of operation. Check for severe
cracking and large nicks
NOTE: The belt will show some small cracks in normal
operation
Remove fan covers
t Electric clutch
2 Idler arm release placement
3 Clutch stop
Pump belt removal
BOSB-064
8058-C6D
39

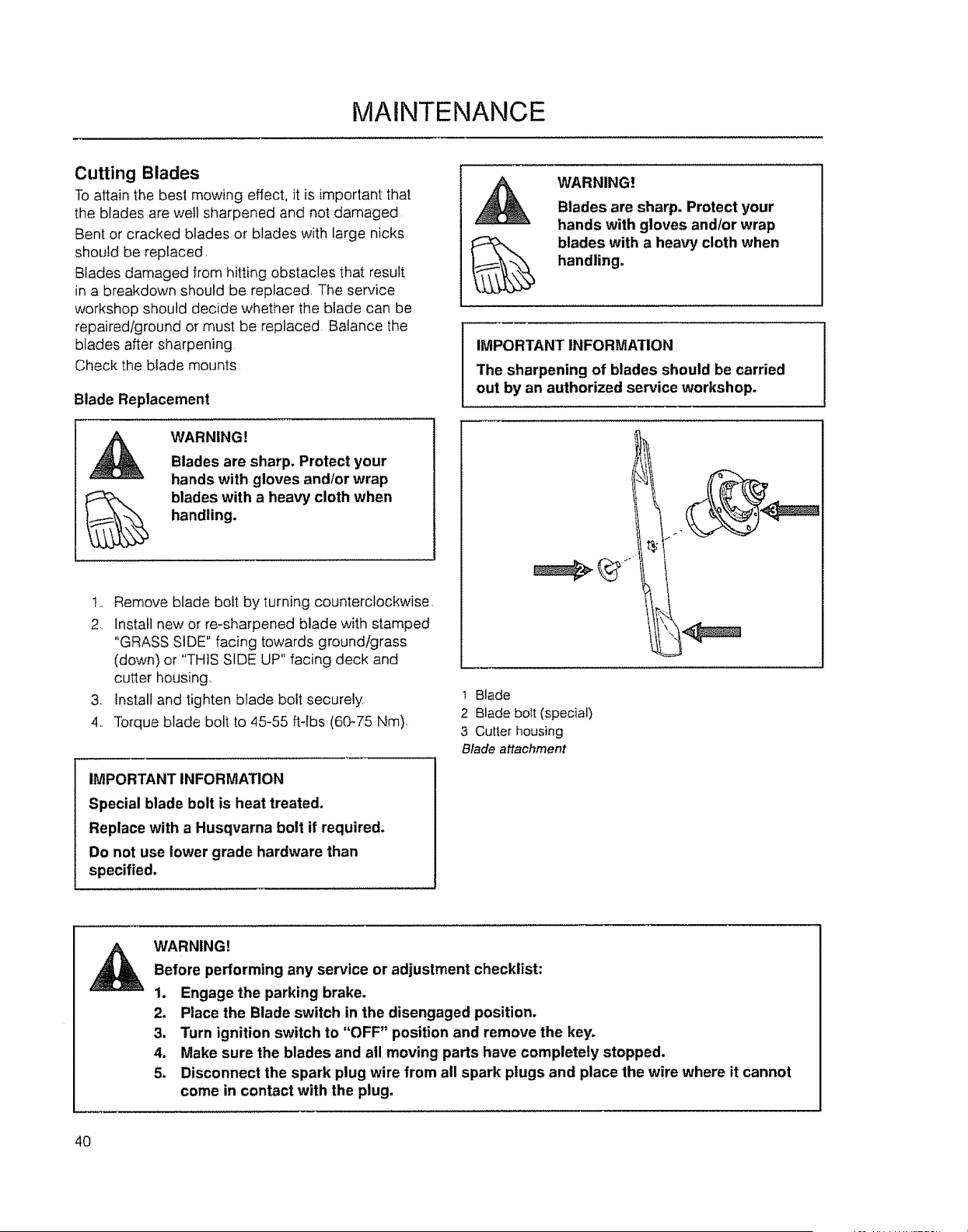

MAINTENANCE
Cutting Blades
To attain the best mowing effect, it is important that
the blades are well sharpened and not damaged
Bent or cracked blades or blades with large nicks
should be replaced.
Blades damaged from hitting obstacles that result
in a breakdown should be replaced. The service
workshop should decide whether the blade can be
repaired!ground or must be replaced Balance the
blades after sharpening
Check the blade mounts
Blade Replacement
WARNING!
Blades are sharp, Protect your
hands with gloves andlor wrap
blades with a heavy cloth when
handling.
t.. Remove blade bolt by turning counterclockwise.
2. Install new or re-sharpened blade with stamped
"GRASS SIDE" facing towards ground/grass
(down) or "THIS SIDE UP" facing deck and
cutter housing.
3. Install and tighten blade bolt securely
4., Torque blade bolt to 45-55 ft-lbs (60W5 Nm).
IMPORTANT INFORMATION
Special blade bolt is heat treated.
Replace with a Husqvarna bolt if required.
Do not use lower grade hardware than
specified.
WARNING!
Blades are sharp. Protect your
hands with gloves andfor wrap
blades with a heavy cloth when
handling.
IMPORTANT INFORMATION
The sharpening of blades should be carried
out by an authorized service workshop.
1 Blade
2 Bladebolt (special)
3 Cutter housing
Blade attachment
WARNING!
Before performing any service or adjustment checklist:
1. Engage the parking brake.
2. Place the Blade switch in the disengaged position.
3, Turn ignition switch to "OFF" position and remove the key.
4. Make sure the blades and all moving parts have completely stopped.
5. Disconnect the spark plug wire from all spark plugs and place the wire where it cannot
come in contact with the plug,
4O

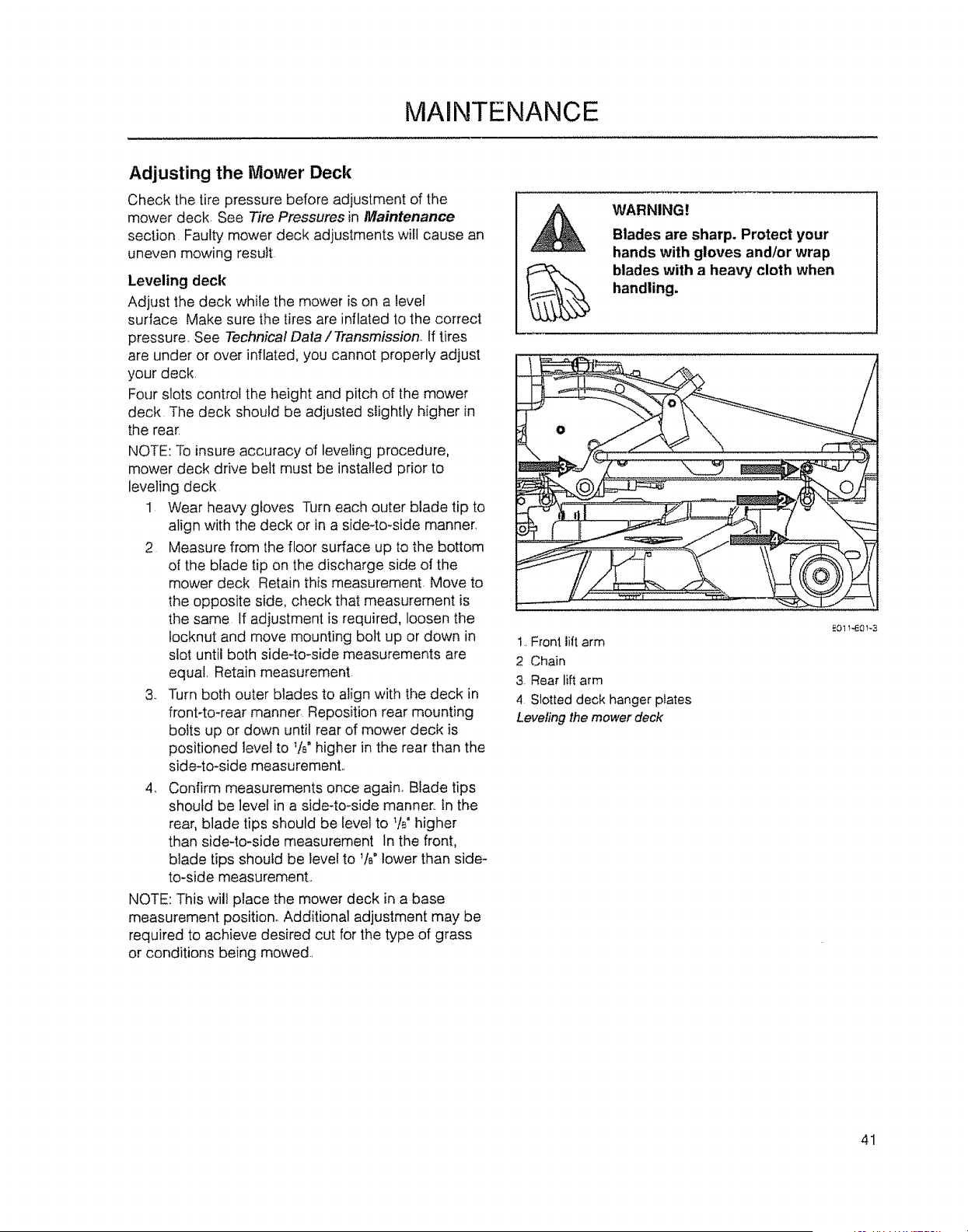

MAINTENANCE
Adjusting the Mower Deck
Check the tire pressure before adjustment of the
mower deck, See Tire Pressures in Maintenance
section Faulty mower deck adjustments will cause an
uneven mowing result
Leveling deck
Adjust the deck while the mower is on a tevel
surface Make sure the tires are inflated to the correct
pressure, See Technical Data!Transmission_ If tires
are under or over inflated, you cannot properly adjust
your deck.
Four slots control the height and pitch of the mower
deck The deck should be adjusted slightly higher in
the rear
NOTE: To insure accuracy of leveling procedure,
mower deck drive belt must be installed prior to
leveling deck
1 Wear heaw gloves Turn each outer blade tip to
align with the deck or in a side4o-side manner.
2 Measure from the floor surface up to the bottom
of the blade tip on the discharge side of the
mower deck Retain this measurement Move to
the opposite side, check that measurement is
the same If adjustment is required, loosen the
locknut and move mounting bolt up or down in
slot until both side-to-side measurements are
equal. Retain measurement
3.. Turn both outer blades to align with the deck in
front-to-rear manner Reposition rear mounting
bolts up or down until rear of mower deck is
positioned level to t/B' higher in the rear than the
side4o-side measurement..
4. Confirm measurements once again. Blade tips
should be level in a side-to-side manner., in the
rear, blade tips should be level to t/¢ higher
than side-to-side measurement In the front,
blade tips should be level to _iB° lower than side-
to-side measurement..
NOTE: This will place the mower deck in a base
measurement position.. Additional adjustment may be
required to achieve desired cut for the type of grass
or conditions being mowed..
WARNING!
Blades are sharp. Protect your
hands with gloves and/or wrap
blades with a heavy cloth when
handling.
1, Front Jilt arm
2 Chain
3. Rear lift arm
4 Slotted deck hanger plates
Leveling the mower deck
41
MAINTENANCE

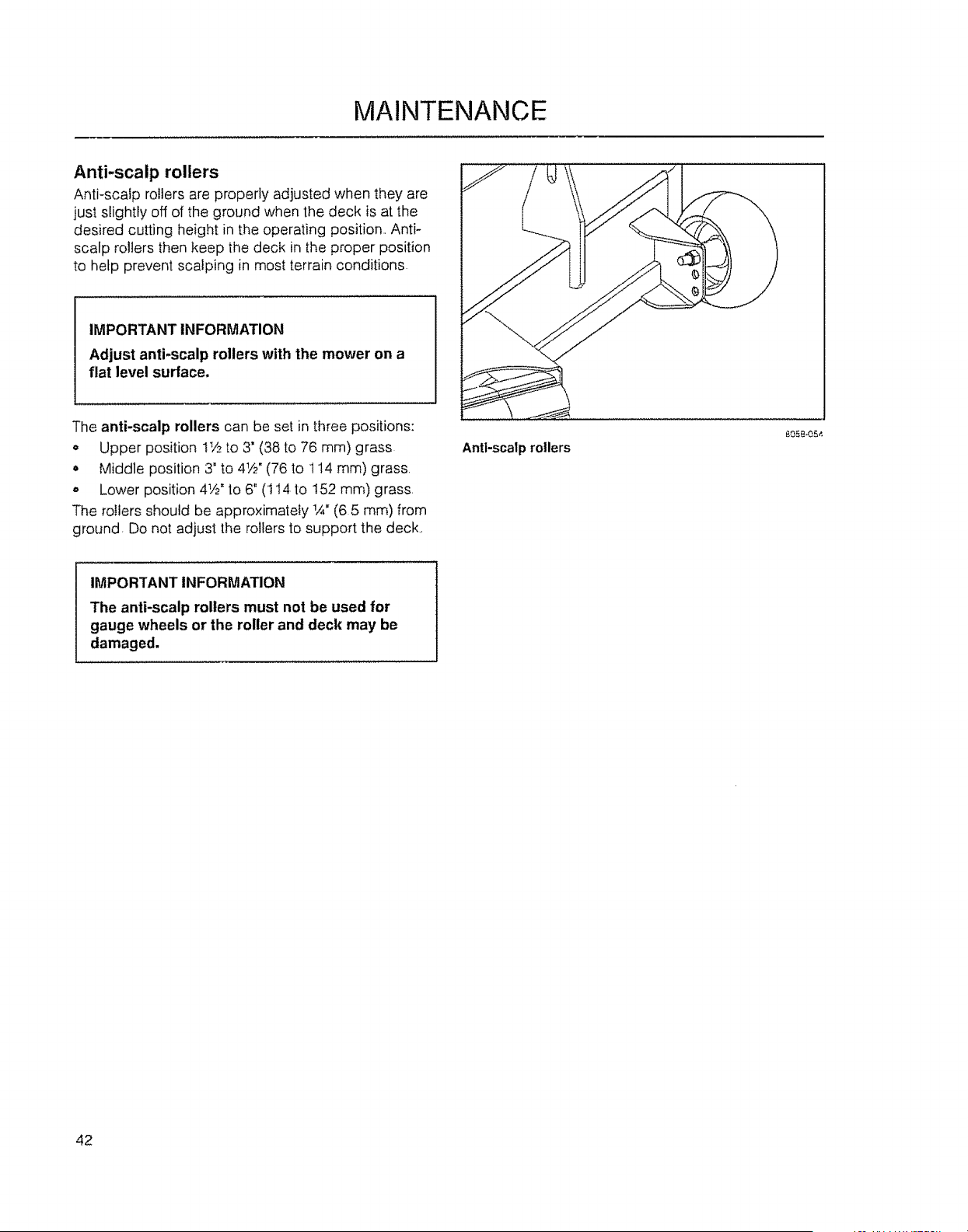

Anti-scalp rollers
Anti-scalp rollers are properly adjusted when they are
just slightly off of the ground when the deck is at the
desired cutting height in the operating position., Anti-
scalp rollers then keep the deck in the proper position
to help prevent scalping in most terrain conditions
IMPORTANT INFORMATION
Adjust anti-scalp rollers with the mower on a
flat level surface.
The anti-scalp rollers can be set in three positions:
o Upper position 11/2to 3" (38 to 76 mm) grass
• Middle position 3' to 41/2"(76 to 1 14 ram) grass.
,, Lower position 41/2, to 6" (! 14 to !52 mm) grass,
The rollers should be approximately 1A'(6 5 mm) from
ground Do not adjust the rollers to support the deck,,
Anti-scalp rollers
8058454
IMPORTANT INFORMATION
The anti-scalp rollers must not be used for
gauge wheels or the roller and deck may be
damaged.
42
MAINTENANCE

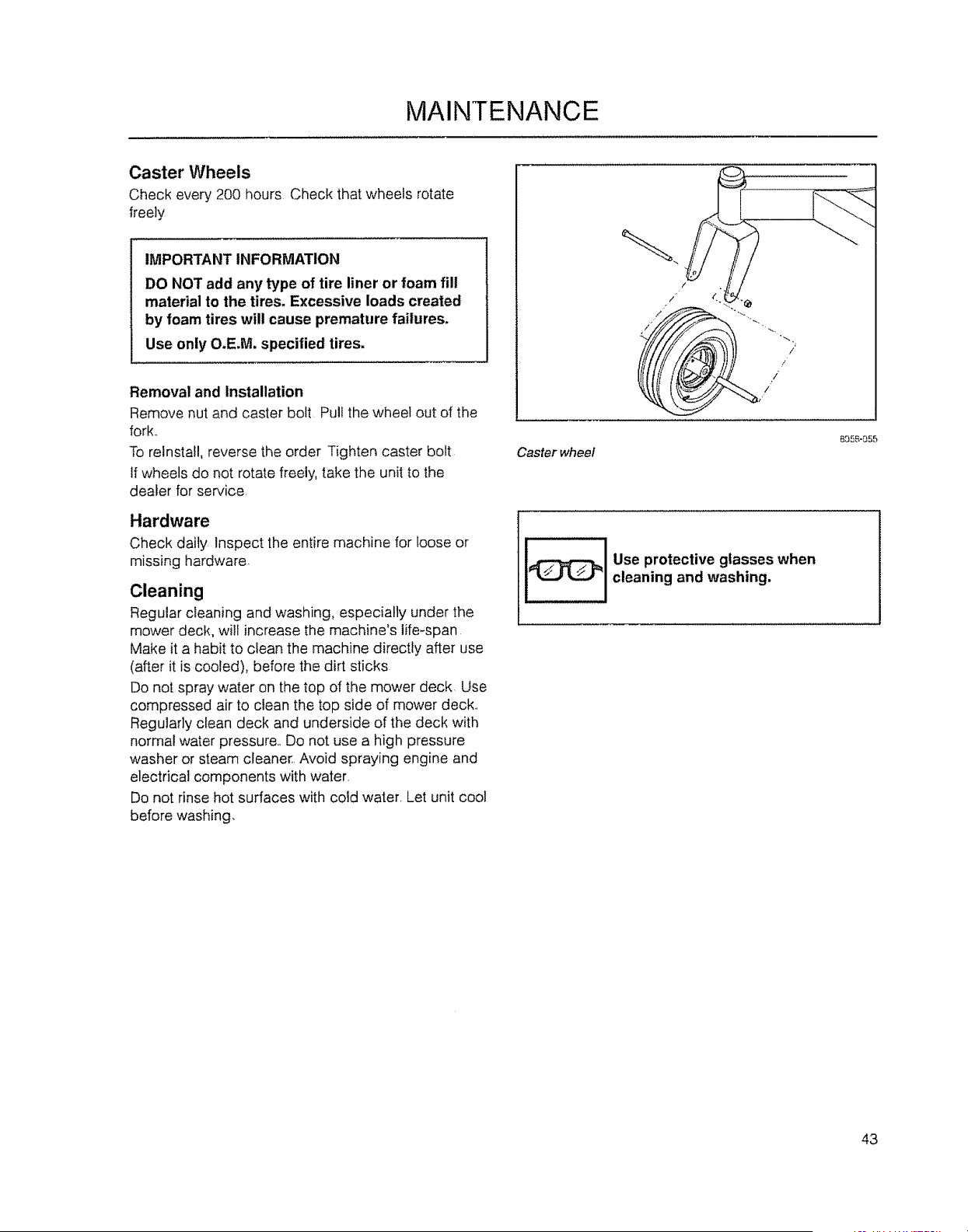

Caster Wheels
Check every 200 hours Check that wheels rotate
freely
IMPORTANT INFORMATION
DO NOT add any type of tire liner or foam fill
material to the tires. Excessive loads created
by foam tires will cause premature failures.
Use only O.E.M. specified tires=
Removal and Installation
Remove nut and caster bolt Pull the wheel out of the
fork,.
To reinstall, reverse the order Tighten caster bolt
If wheels do not rotate freely, take the unit to the
dealer for service
Hardware
Check daily Inspect the entire machine for loose or
missing hardware.
Cleaning
Regular cleaning and washing, especially under the
mower deck, will increase the machine's life-span
Make it a habit to clean the machine directly after use
(after it is cooled), before the dirt sticks
Do not spray water on the top of the mower deck Use
compressed air to clean the top side of mower deck..
Regularly clean deck and underside of the deck with
normal water pressure, Do not use a high pressure
washer or steam cleaner. Avoid spraying engine and
electrical components with water.
Do not rinse hot surfaces with cold water. Let unit cool
before washing,
Caster wheel
Use protective glasses when
cleaning and washing.
B955-955
43

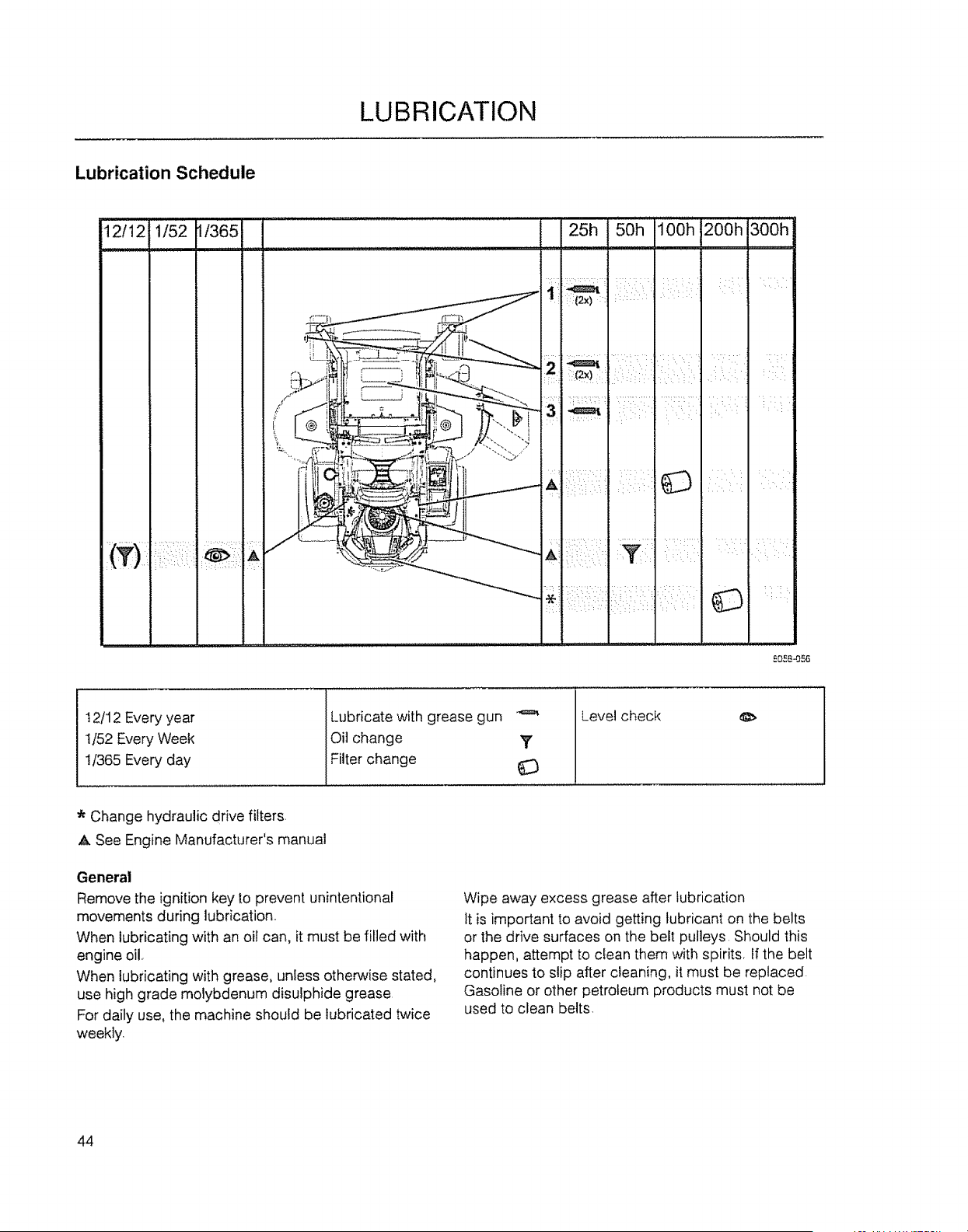

LUBRICATION
Lubrication Schedule
12/12 1/52
(7):
1/365
25h 50h 100h 200hi300h
! t I 1 I
....
_0_B.-"J56
12112Every year
1/52 Every Week
t/365 Every day
Lubricate with grease gun "=="
Oil change y
Filter change
Levelcheck
Change hydraulic drive filters,
A See Engine Manufacturer's manual
General
Remove the ignition key to prevent unintentional
movements during lubrication°
When lubricating with an oil can, it must be filled with
engine oi!,
When lubricating with grease, unless other,vise stated,
use high grade molybdenum disulphide grease
For daily use, the machine should be lubricated twice
weekly,
Wipe away excess grease after lubrication
It is important to avoid getting lubricant on the belts
or the drive surfaces on the belt pulleys Should this
happen, attempt to clean them with spirits, If the belt
continues to slip after cleaning, it must be replaced
Gasoline or other petroleum products must not be
used to clean belts,
44

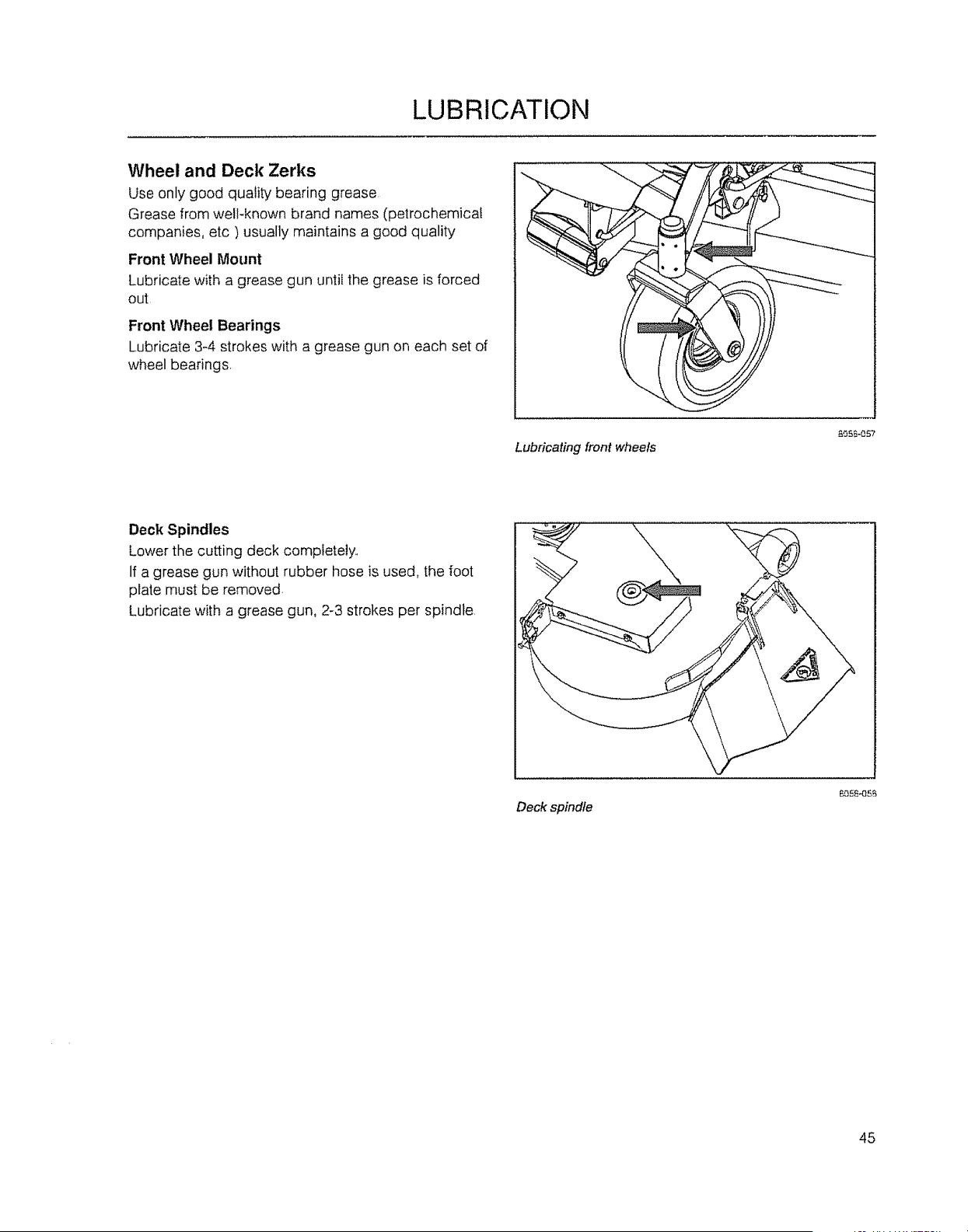

LUBRICATION
Wheel and Deck Zerks
Use only good quality bearing grease
Grease from welFknown brand names (petrochemical
companies, etc ) usually maintains a good quality
Front Wheel Mount
Lubricate with a grease gun untit the grease is forced
out
Front Wheel Bearings
Lubricate 3-4 strokes with a grease gun on each set of
wheel bearings.
Lubricating front wheels
£_5_-057
Deck Spindles
Lower the cutting deck completely..
If a grease gun without rubber hose is used, the foot
plate must be removed
Lubricate with a grease gun, 2-3 strokes per spindle.
Deck spindle
45

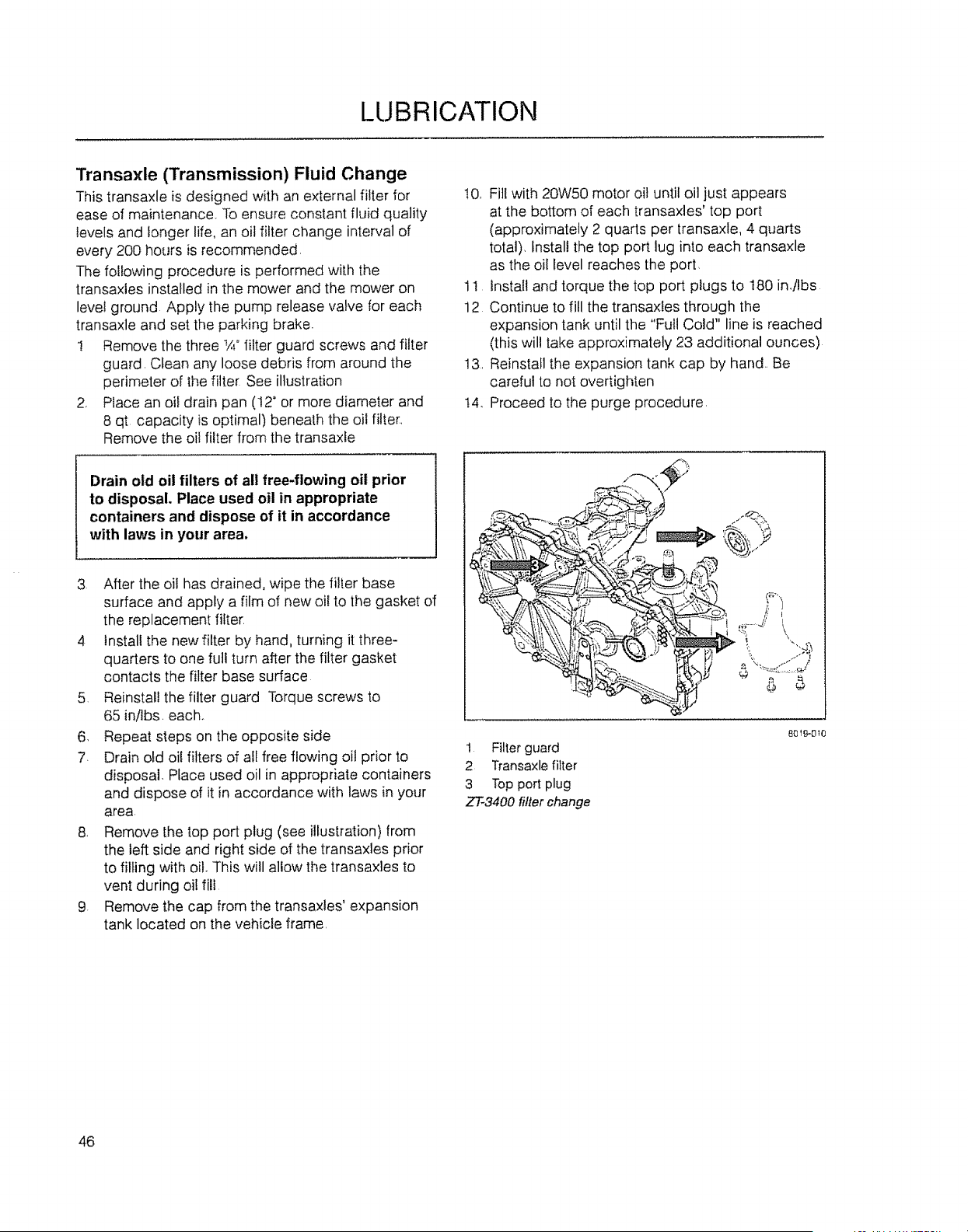

LUBRICATION
Transaxle (Transmission) Fluid Change
This transaxle is designed with an external filter for
ease of maintenance To ensure constant fluid quality
levels and longer life, an oil filter change interval of
every 200 hours is recommended,
The following procedure is performed with the
transaxles installed in the mower and the mower on
levet ground Apply the pump release valve for each
transaxle and set the parking brake..
1 Remove the three t/¢ filter guard screws and filter
guard, Clean any loose debris from around the
perimeter of the filter See illustration
2, Place an oil drain pan (12" or more diameter and
8 qt capacity is optimal) beneath the oil filter.,
Remove the oil filter from the transaxfe
t0, Fill with 20W50 motor oil until oil just appears
at the bottom of each transaxles' top port
(approximately 2 quarts per transaxle, 4 quarts
total), Install the top port lug into each transaxle
as the oil level reaches the port
11 install and torque the top port plugs to I80 in Jibs
12 Continue to fill the transaxles through the
expansion tank until the "Full Cold" line is reached
(this will take approximately 23 additional ounces)
13, Reinstall the expansion tank cap by hand. Be
careful to not overtighten
t4_ Proceed to the purge procedure,
Drain old oil filters of all free-flowing oil prior
to disposal. Place used oil in appropriate
containers and dispose of it in accordance
with laws in your area.
3 After the oil has drained, wipe the filter base
surface and apply a film of new oi! to the gasket of
the replacement filter.
4 Install the new filter by hand, turning it three-
quarters to one full turn after the filter gasket
contacts the filter base surface
5, Reinstall the filter guard Torque screws to
65 inilbs, each°
6, Repeat steps on the opposite side
7. Drain old oil filters of atf free flowing oil prior to
disposal, Place used oil in appropriate containers
and dispose of it in accordance with laws in your
area,
8 Remove the top port plug (see illustration) from
the left side and right side of the transaxles prior
to filling with oil, This will allow the transaxles to
vent during oil fill
9, Remove the cap from the transaxles' expansion
tank located on the vehicle frame,
1 Filter guard
2 Transaxle filter
3 Top port plug
ZT.3400 filter change
8019,.0t0
46

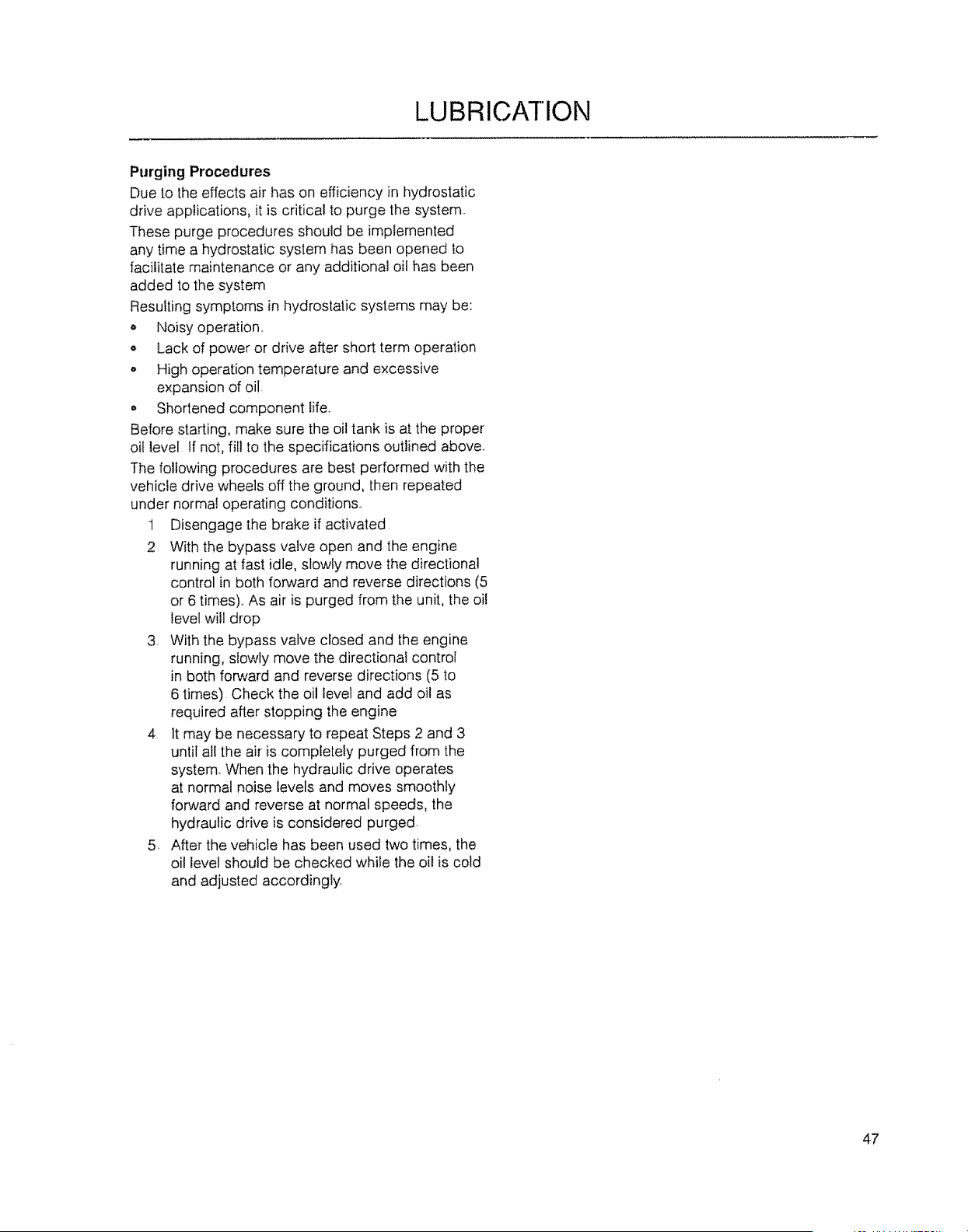

LUBRICATION
Purging Procedures
Due to the effects air has on efficiency in hydrostatic
drive applications, it is critical to purge the system..
These purge procedures should be impiemented
any time a hydrostatic system has been opened to
facilitate maintenance or any additional oil has been
added to the system
Resulting symptoms in hydrostatic systems may be:
_, Noisy operation.,
o Lack of power or drive after short term operation
o High operation temperature and excessive
expansion of oil
o Shortened component life.
Before starting, make sure the oil tank is at the proper
oil level tf not, fill to the specifications outlined above..
The following procedures are best performed with the
vehicle drive wheels off the ground, then repeated
under normal operating conditions.,
1 Disengage the brake if activated
2 With the bypass valve open and the engine
running at fast idle, slowly move the directional
control in both forward and reverse directions (5
or 6 times).. As air is purged from the unit, the oil
level will drop
3. With the bypass valve closed and the engine
running, slowly move the directional control
in both forward and reverse directions (5 to
6 times) Check the oil level and add oi! as
required after stopping the engine
4 It may be necessary to repeat Steps 2 and 3
until all the air is completely purged from the
system. When the hydraulic drive operates
at normal noise levels and moves smoothly
forward and reverse at normal speeds, the
hydraulic drive is considered purged.
5, After the vehicle has been used two times, the
oi! level should be checked while the oil is cold
and adjusted accordingly,
47

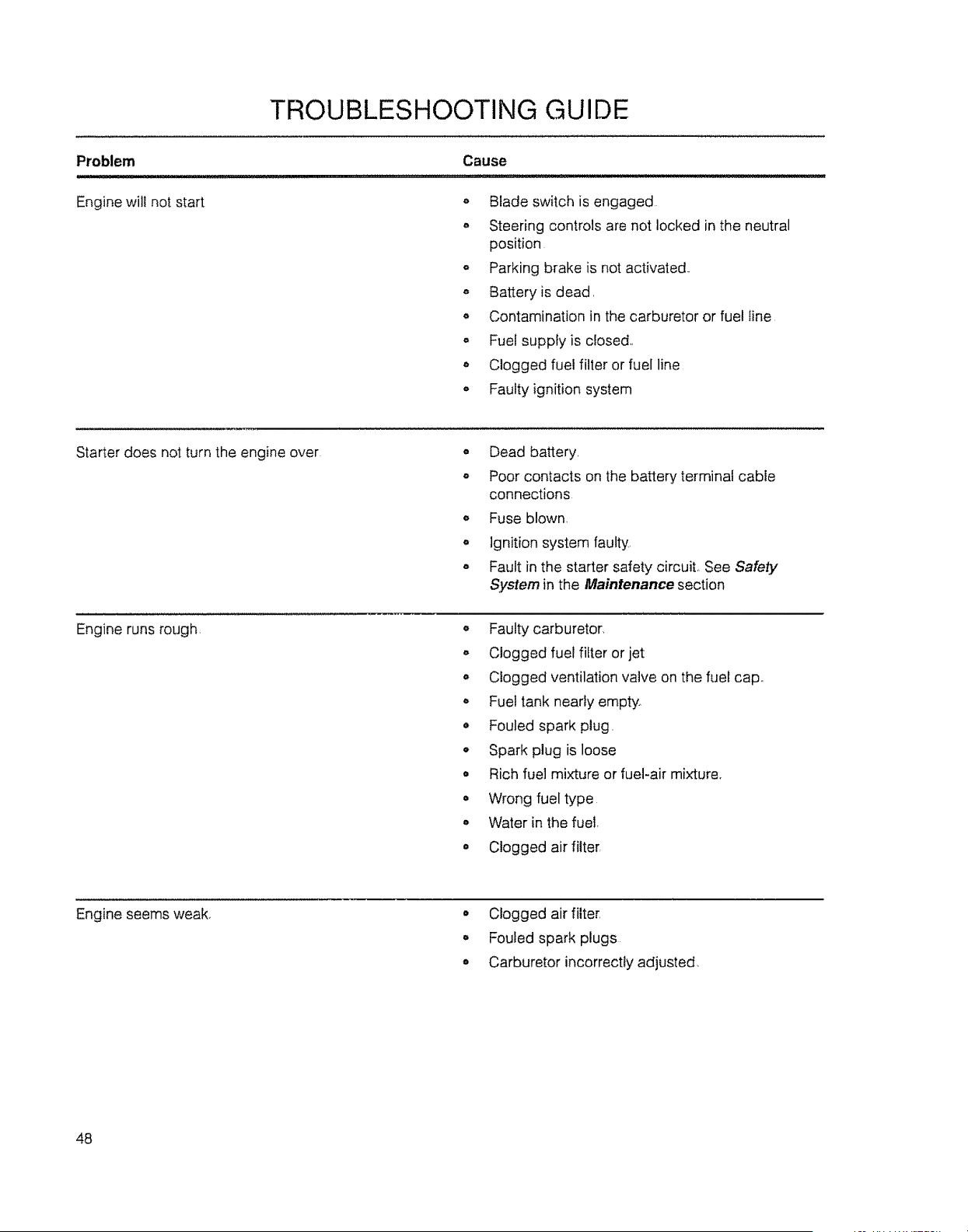

Problem
Enginewillnotstart
TROUBLESHOOTING GUIDE
Cause
o Blade switch is engaged
, Steering controls are not locked in the neutral
position
o Parking brake is not activated,.
o Batteryis dead,
o Contamination in the carburetor or fuel line
o Fuel supplyis closed,,
o Clogged fuel filter or fuel line
o Faulty ignition system
Starter does not turn the engine over
Engine runs rough,
o Dead battery,
° Poor contacts on the battery terminal cable
connections
° Fuse blown,
o Ignition system faulty
o Fault in the starter safety circuit, See Safety
System in the Maintenance section
o Faulty carburetor,
° Clogged fuel filter or jet
o Clogged ventilation valve on the fuel cap,,
o Fuel tank nearly empty.,
o Fouled spark plug,
o Spark plug is loose
° Rich fuel mixture or fuel-air mixture,
. Wrong fueltype
o Water in the fuel,
. Clogged air filter
Engine seems weak, o Clogged air filter
= Fouled spark plugs
• Carburetor incorrectly adjusted,
48

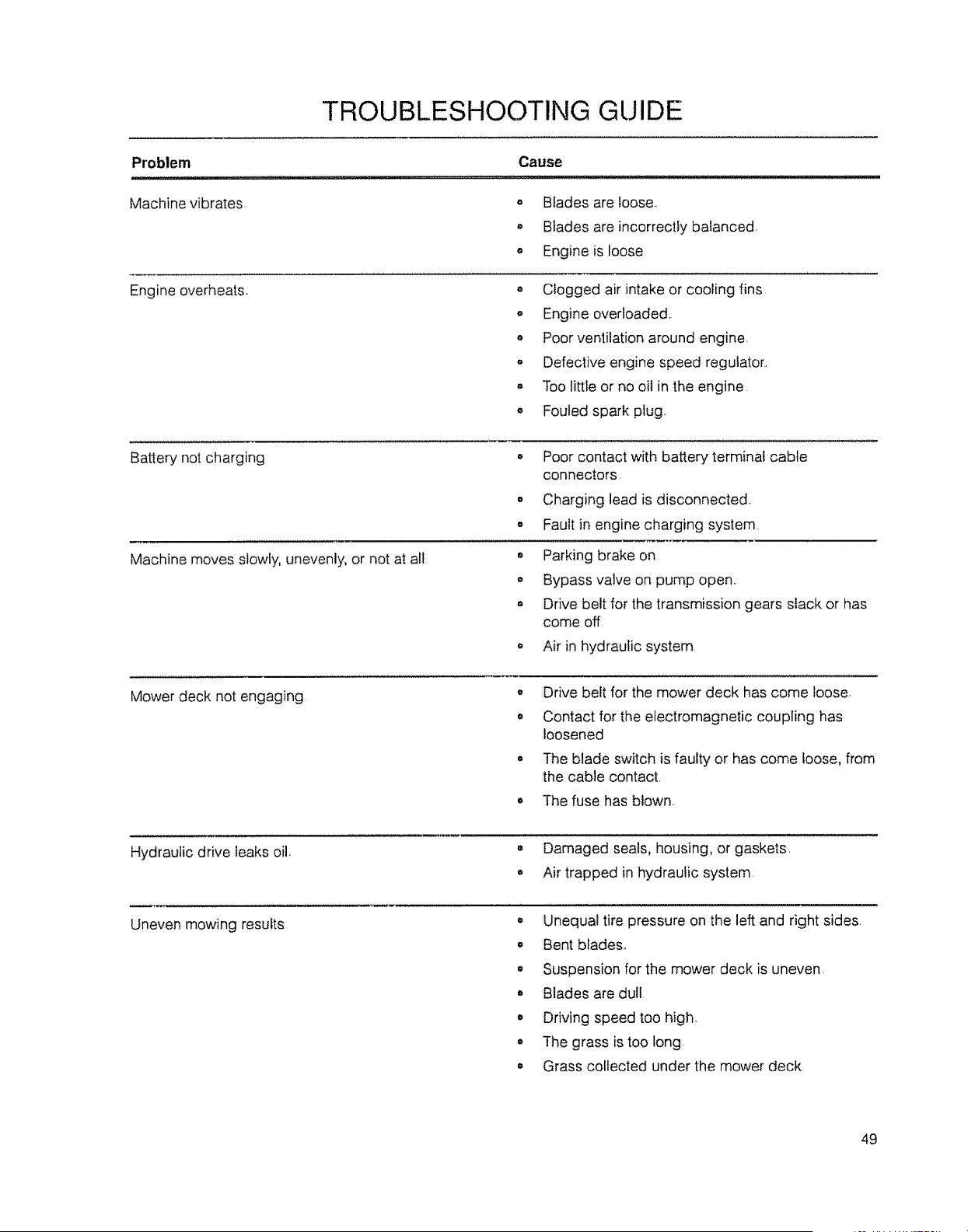

TROUBLESHOOTING GUIDE
Problem Cause
Machine vibrates
Engine overheats°
° Blades are loose,,
o Blades are incorrectly balanced,
o Engine is loose
= Clogged air intake or cooling fins
° Engine overloaded.
o Poor ventilation around engine,
o Defective engine speed regulator.
° Too little or no oil in the engine
o Fouled spark plug_
Battery not charging
Machine moves slowly, unevenly, or not at all
o Poor contact with battery terminal cable
connectors,
• Charging lead is disconnected,,
= Fault in engine charging system
. Parking brake on
. Bypass valve on pump open,
o Drive belt for the transmission gears slack or has
come off
. Air in hydraulic system
Mower deck not engaging
€, Drive belt for the mower deck has come loose,
,, Contact for the electromagnetic coupling has
loosened
= The blade switch is faulty or has come loose, from
the cable contact.
• The fuse has blown,
Hydraulic drive leaks oil.
• Damaged seals, housing, or gaskets.
a Air trapped in hydraulic system
Uneven mowing results
• Unequal tire pressure on the left and right sides.
° Bent blades_
= Suspension for the mower deck is uneven
., Blades are dull
. Driving speed too high,
• The grass is too long
. Grass collected under the mower deck
49

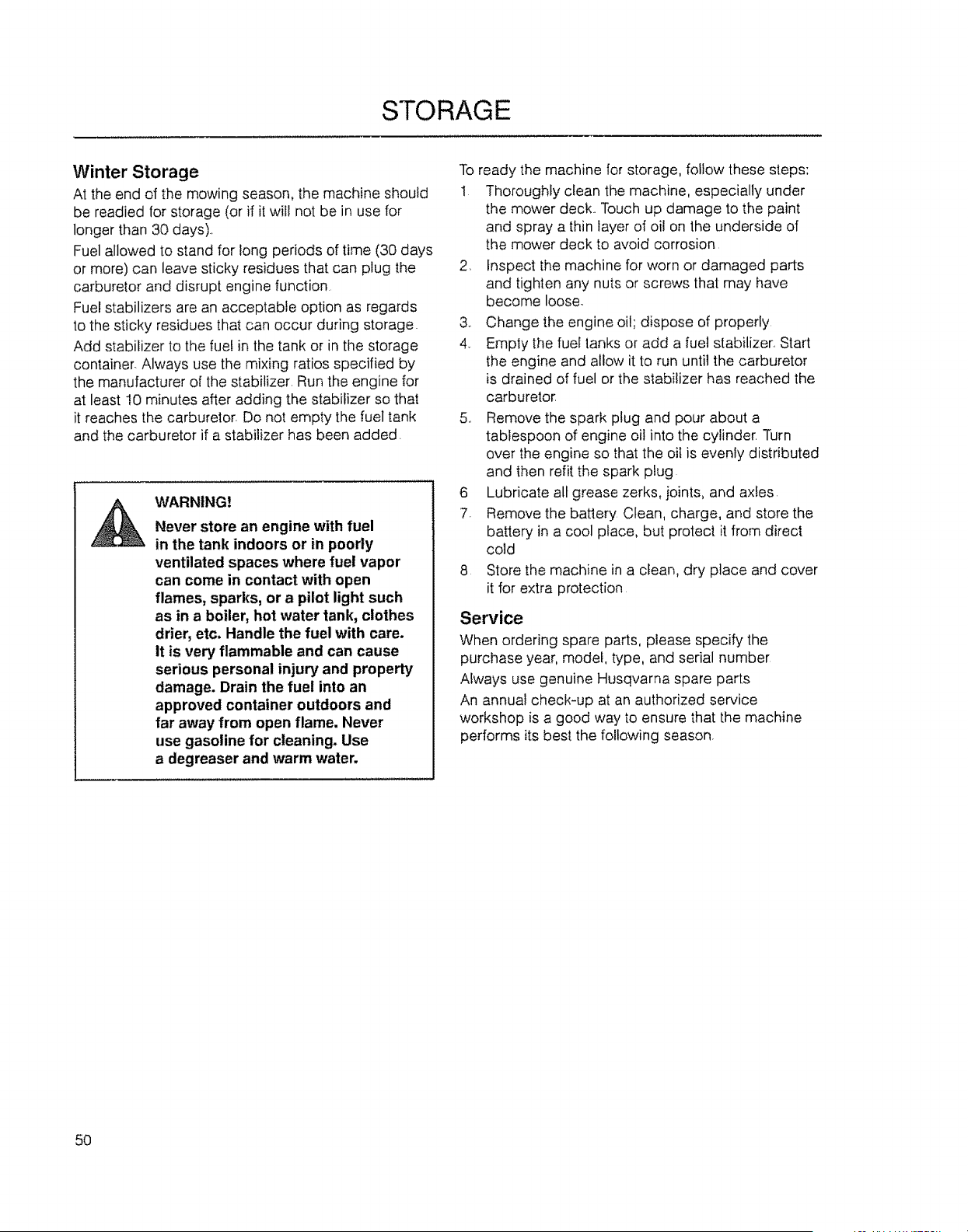

STORAGE
Winter Storage
At the end of the mowing season, the machine should
be readied for storage (or if it will not be in use for
longer than 30 days).,
Fuel allowed to stand for long periods of time (30 days
or more) can leave sticky residues that can plug the
carburetor and disrupt engine function
Fuel stabilizers are an acceptable option as regards
to the sticky residues that can occur during storage.
Add stabilizer to the fuel in the tank or in the storage
container. Always use the mixing ratios specified by
the manufacturer of the stabilizer. Run the engine for
at least t0 minutes after adding the stabilizer so that
it reaches the carburetor Do not empty the fuel tank
and the carburetor if a stabilizer has been added.
WARNING!
Never store an engine with fuel
in the tank indoors or in poorly
ventilated spaces where fuel vapor
can come in contact with open
flames, sparks, or a pilot light such
as in a boiler, hot water tank, clothes
drier, etc. Handle the fuel with care.
It is very flammable and can cause
serious personal injury and property
damage. Drain the fuel into an
approved container outdoors and
far away from open flame. Never
use gasoline for cleaning. Use
a degreaser and warm water.
To ready the machine for storage, follow these steps:
1 Thoroughly clean the machine, especially under
the mower deck.. Touch up damage to the paint
and spray a thin layer of oil on the underside of
the mower deck to avoid corrosion
2, Inspect the machine for worn or damaged parts
and tighten any nuts or screws that may have
become loose.
3.. Change the engine oil; dispose of properly
4. Empty the fuel tanks or add a fuel stabilizer, Start
the engine and allow it to run until the carburetor
is drained of fuel or the slabilizer has reached the
carburetor
5. Remove the spark plug and pour about a
tablespoon of engine oil into the cylinder. Turn
over the engine so that the oil is evenly distributed
and then refit the spark plug
6 Lubricate all grease zerks, joints, and axles
7. Remove the batlery Clean, charge, and store the
battery in a cool place, but protect it from direct
cold
8 Store the machine in a clean, dry place and cover
it for extra protection
Service
When ordering spare parts, please specify the
purchase year, model, type, and serial number
Always use genuine Husqvarna spare parts
An annuai check-up at an authorized service
workshop is a good way to ensure that the machine
performs its best the following season,
5O

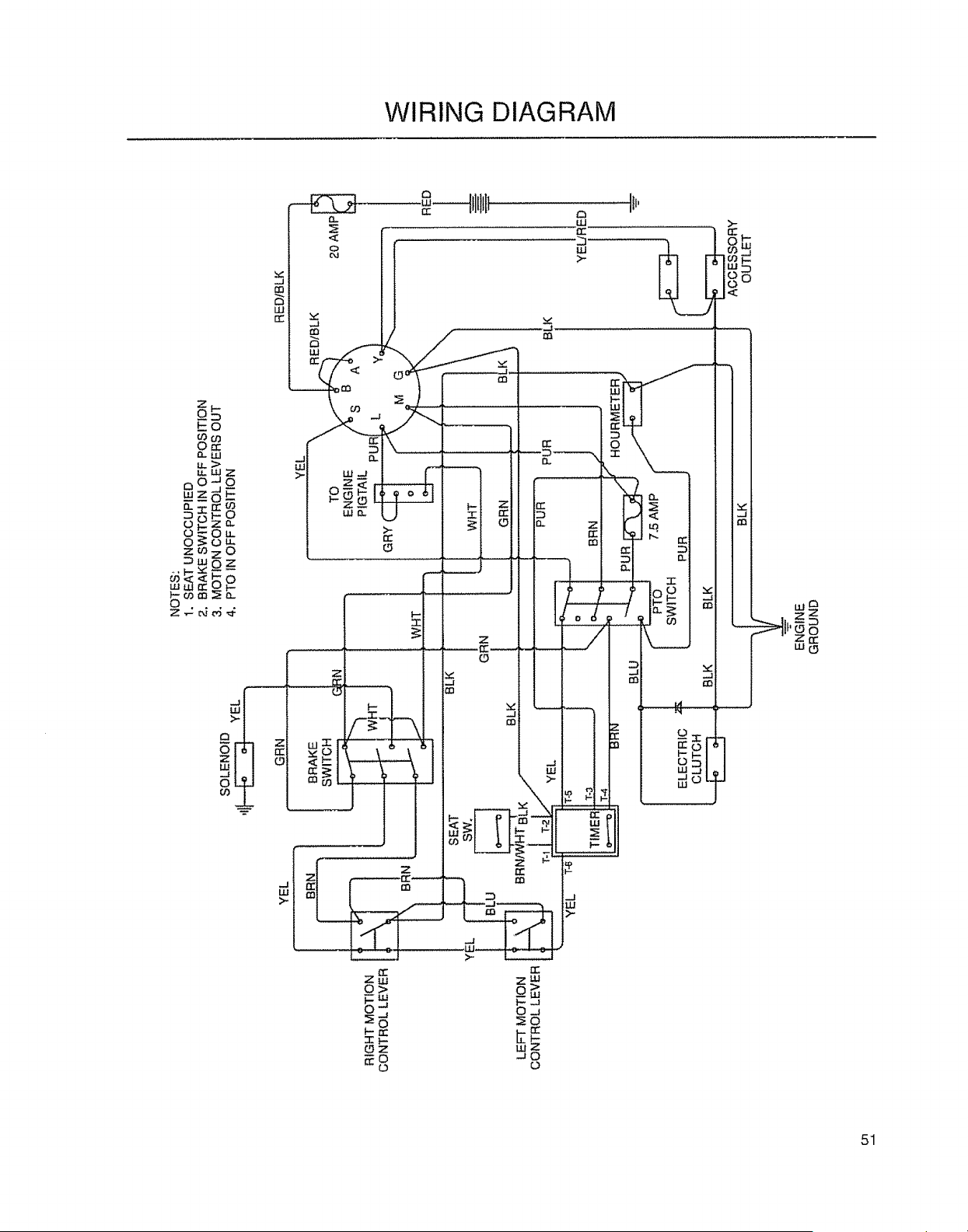

WIRING DIAGRAM
Lo
coco
O_
o...w
LL>
_ U,,IZ
O..JO
_o_-0
0 __z o_
O-- O u,.
O _: o u-.
ZCOzO
=_oz
_ <_o
S (D m :> fi.
o z
m
m
rr
W
Z
m
Ztlt
O>
_Z
--W
b.-.J
O.J
_O
wz
.,JO
0
w _
,Z
51

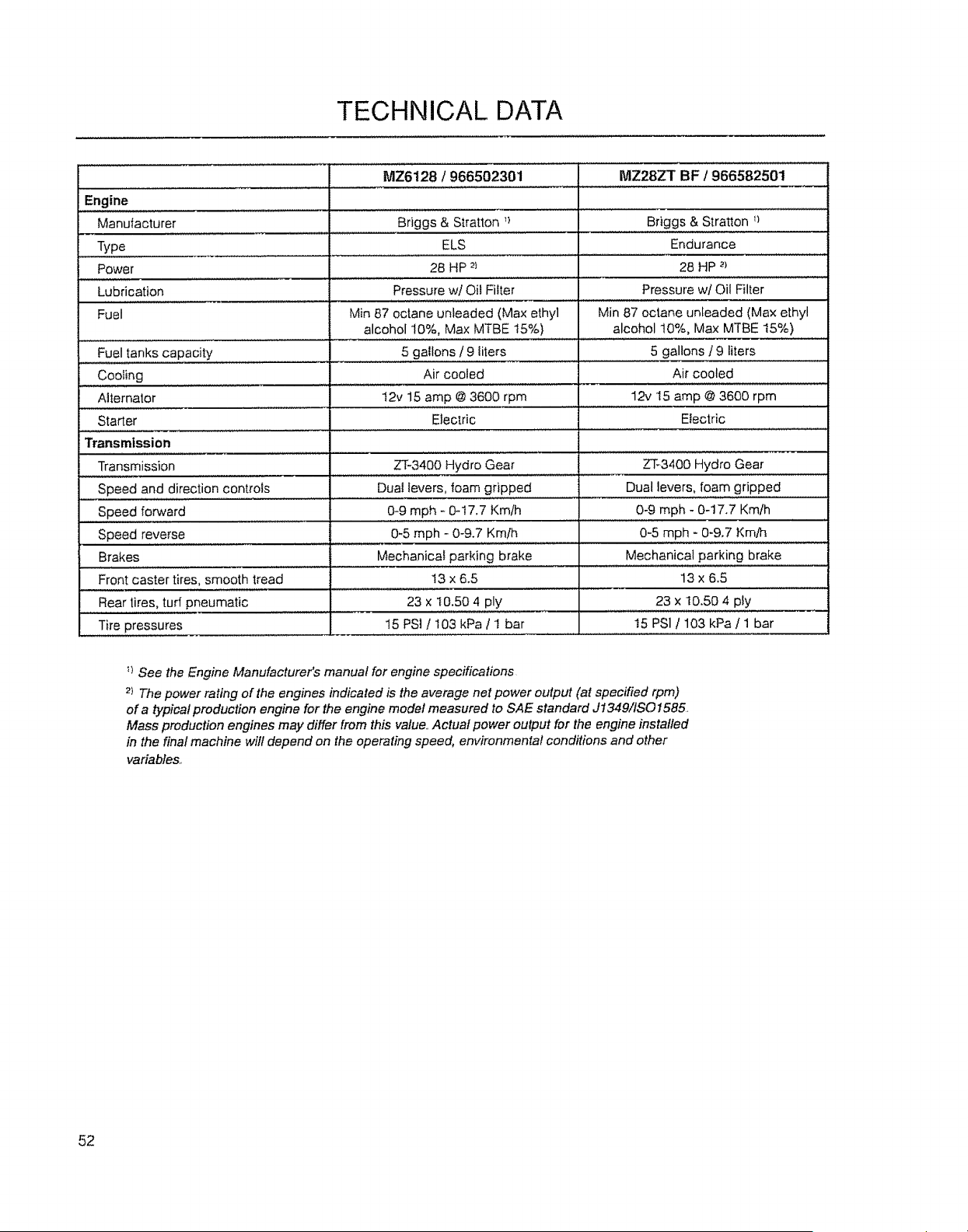

TECHNICAL DATA
Engine
Manufacturer
Type
Power
Lubrication
Fuel
Fuel tanks capacity
Cooiing
,,,,,,,,,,.....
Alternator
Starter
Transmission
Transmission
Speed and direction controls
Speed forward
,, , ,,,,,.,,,.,,,,,,,,,,,,,,,,,
Speed reverse
Brakes
Front caster tires, smooth tread
, , ,,,,,,,,,,,,,,,,,,,,,,
Rear tires, turf pneumatic
Tire pressures
MZ6128 / 966502301
Briggs & S_ratton _)
ELS
28 HP 2_
Pressure w/Oi! Filter
Min 67 octane unleaded (Max ethyl
alcohol 10%, Max MTBE 15%)
5 gallons / 9 titers
Air cooled
, ,,. , ,,,,,,,,,,,,,,,,,,,,,
12v 15 amp @3600 rpm
Electric
ZT-3400 Hydro Gear
Dual levers, foam gripped
0-9 mph - 0-I7.7 Kmih
0-5 mph - 0-9.7 Km/h
Mechanical parking brake
13 x6.5
23 x t0.50 4 ply
15 PSI 1103 kPa / t bar
MZ28ZT BF / 966582501
Briggs & Stratton _)
Endurance
28 HP _)
Pressure wl Oil Filter
Min 87 octane unleaded (Max ethyl
alcohol !0%, Max MTBE t5%)
5 gallons / 9 liters
Air cooled
12v 15 amp @ 3600 rpm
Electric
ZT-3400 Hydro Gear
Dual levers, foam gripped
0-9 mph - 0-17.7 Km/h
0-5 mph - 0-9,7 Km/h
Mechanical parking brake
13 x 6.5
23 x 10.50 4 ply ....
15 PS1/ 103 kPa / 1 bar
;) See the Engine Manufacturer's manual for engine specifications
21 The power rating of the engines indicated is the average net power output (at specified rpm)
of a typical production engine for the engine model measured to SAE standard J1349/IS01585,
Mass production engines may differ from this value, Actual power output for the engine installed
in the final machine will depend on the operating speed, environmental conditions and other
variables,
52

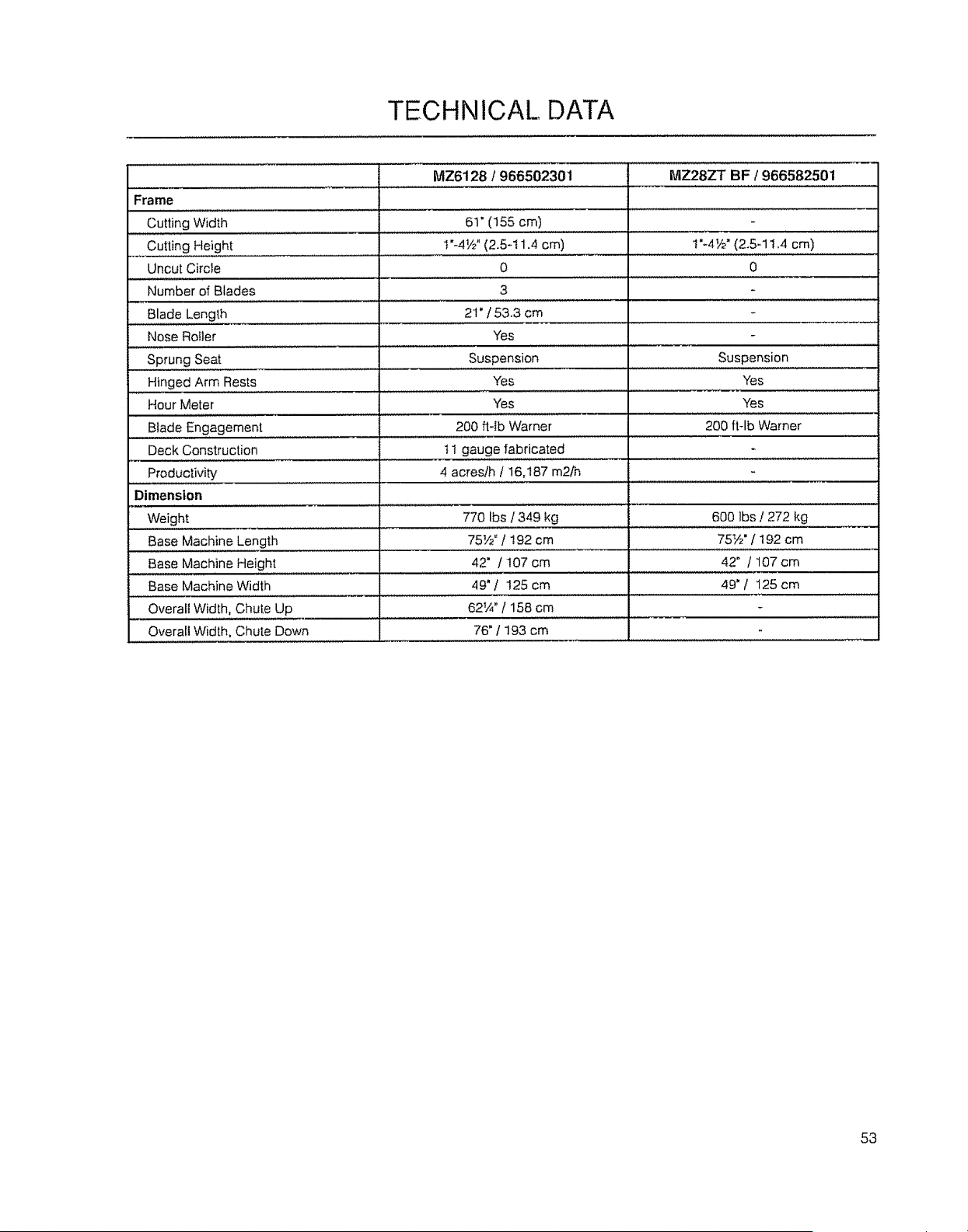

TECHNICAL DATA
Frame
Cutting Width
Cutting Height
Uncut Circle
Number of Blades
Blade Length .....................
Nose Roller
, , , ,, ,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,,...........
Sprung Seat
Hinged Arm Rests
Hour Meter
Blade Engagement
Deck Construction
Productivity
Dimension
Weight
Base Machine Length
Base Machine Height
Base Machine Width
Overall Width, Chute Up
Overall Width, Chute Down
MZ6128 / 966502301
61" (I55 cm)
t"-4W' (2.5-I 1.4 cm)
0
MZ28ZT BF / 966582501
t "-41/2"(2.5-1 t .4 cm)
0
3
21' / 53.3 cm
Yes
Suspension
Yes
Yes
200 ft-lb Warner
tt gauge fabricated
4 acres/h t 16,t87 m2ih
770 Ibs / 349 kg
751/2" / I92 cm
42" / 107 cm
49' / 125 cm
62_.4"/ 158 cm
76" / 193 cm
Suspension
Yes
Yes
200 ft-lb Warner
600 lbs / 272 kg
751/2"/ 192 cm
42" / 107 cm
49" / 125 cm
, , , ,,
53

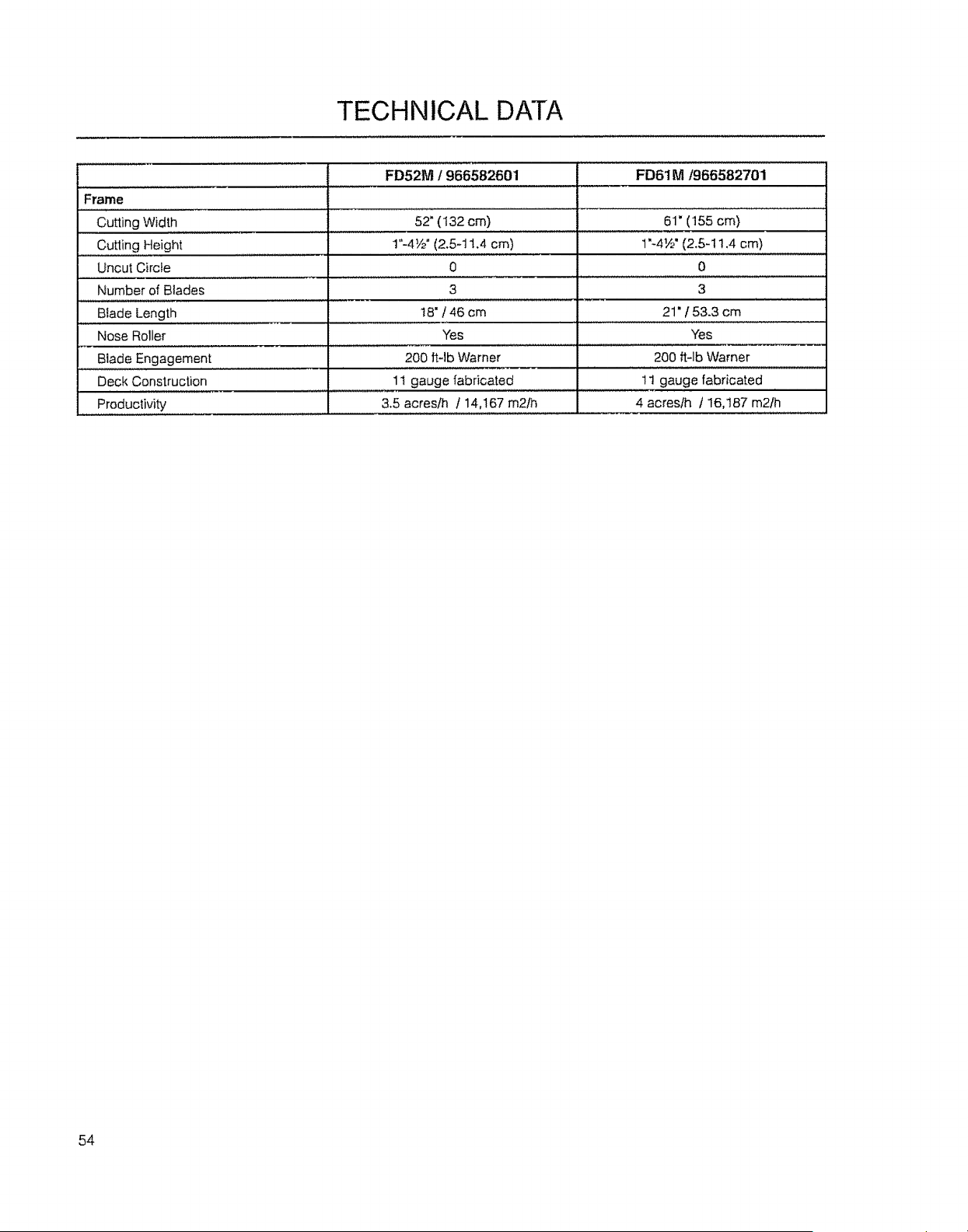

TECHNICAL DATA
FD52M t 966582601 FD61M t966582701
Frame
Cutting Width 52" (132 cm) 61" (155 cm)
Curling Height 1"-4V2"(2.5-11.4 cm) 1'-417Z(2.5-11.4 ore)
Uncut Circle 0 0
..................................
Number of Blades 3 3
Biade Length I8" / 46 cm 21" 153.3 cm
Nose Roller Yes "Yes
Btade Engagement 200 ft-tb Warner 200 ft-lb Warner
Deck Construction ......................... 11 gauge fabricated 11 gauge fabricated
Productivity 3.5 acres/h / 14,167 m2/h 4 acres/h / 16,187 m2/h
54

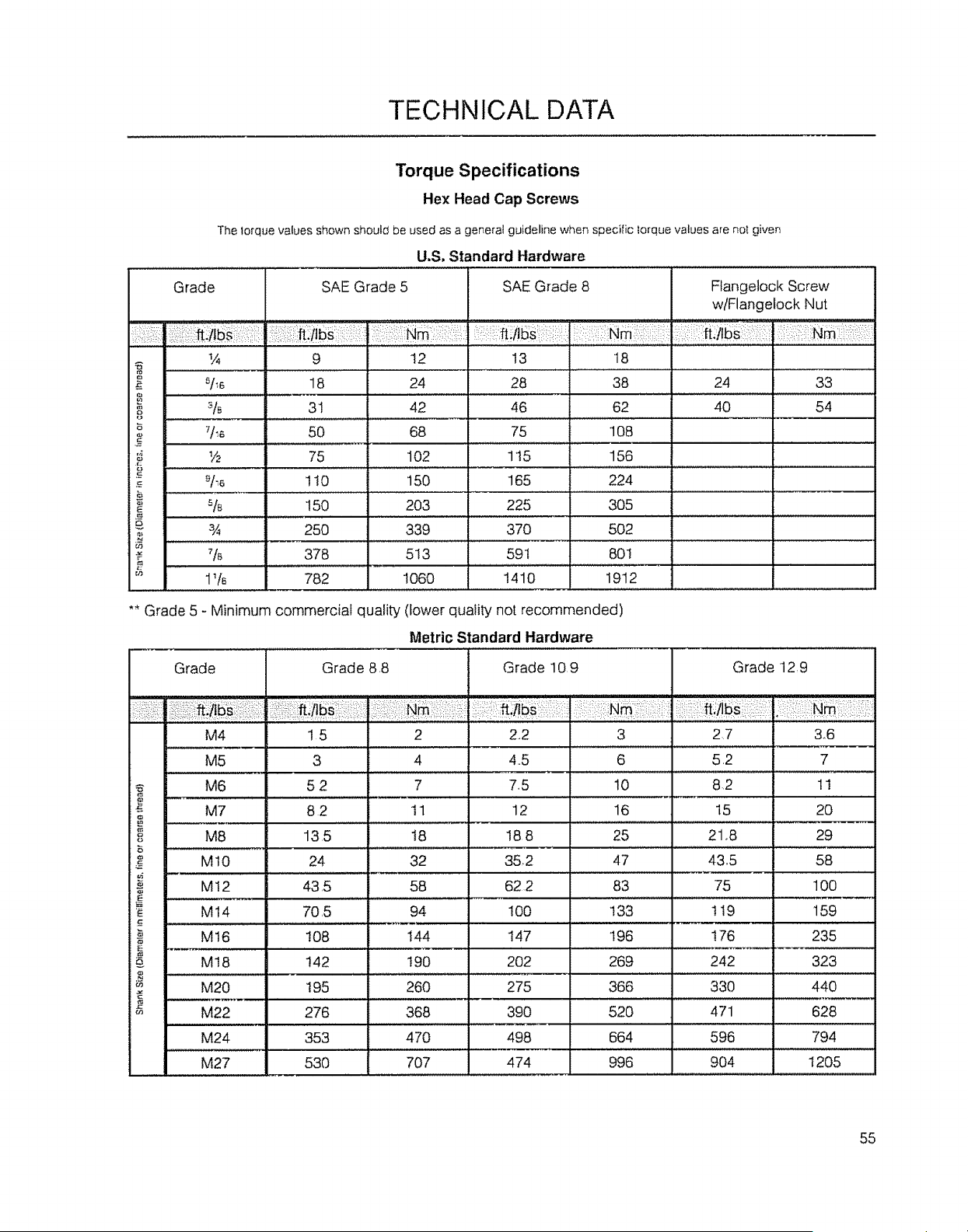

TECHNICAL DATA
Torque Specifications
Hex Head Cap Screws
The torque values shown should be used as a general guideline when specific torque values are not given
U.S, Standard Hardware
Grade SAE Grade 5 SAE Grade 8 Flangelock Screw
w/Flangelock Nut
::::::_::::::::_i116_::::::::::. :::::::::::::fl::i!b:s:::::::::::::,:::::::;:::::::::::::: ::::::::::::::::::::::::::::_ft:.:/I5S:::::::: ::::::::::::::::Nm:::::::::::::::::::::: ::::::: ::fiJlbs :::::::::::::: ::::::::::::_:!:::It m::::::::::::::
,I
#
t_
2
¼ 9
5/1-6 18
3/6
7/16
1/2 75 102 1t5
_1_6 1t0 150 165
s!B 150 203
3,4 250 339
.....................
7/B 378 5!3
1I/6 782 1060
12 13 18
24 28 38 24 33
3I 42 46 62 40 54
50 68 75 108
156
224
225 305
370 502
591 80t
1410 1912
** Grade 5 - Minimum commercial quality (lower quality not recommended)
Grade
M4
M5
M6
M7
M8
o
Mt0
;,=
M12
M14
_' M16
£ M18
M20
#
M22
M24
M27
Metric Standard Hardware
Grade 8,8 Grade 109 Grade 129
................."_ .............. , ,, ,,,,,,,,,,,,,,,,,,,,,,,,,,
2
4
7
tl
18
32
15
3
52
82
13,5
24
58
94
!44
I90
260
368
470
707
2,,2
4,,5
7,5
12
188
35,2
622
100
147
202
275
390
498
474
3 27 &6
6 52 7
10 82 11
16 15 20
25 21,8 29
47 43,,5 58
; ..... L '' ' '
83 75 100
133 t19 159
196 I76 235
269 242 323
366 330 440
520 471 628
664 596 794
996 904 I205
43,5
70,5
t08
!42
t95
276
353
530
55
CONFORMITY CERTIFICATES
USA requirements
Labels are placed on the engine and/or in the engine
compartment stating that the machine wilt fulfill the
requirements, This is also applicable to special
requirements for any of the states, (California emission
rules etc ) Do not remove any of these labels
Certificates can also be supplied with the machine at
delivery or written in the Engine manual, Take care of
them as they are valuable documents,
CE requirements
The Declaration of Conformity is included in the
literature packet,
56

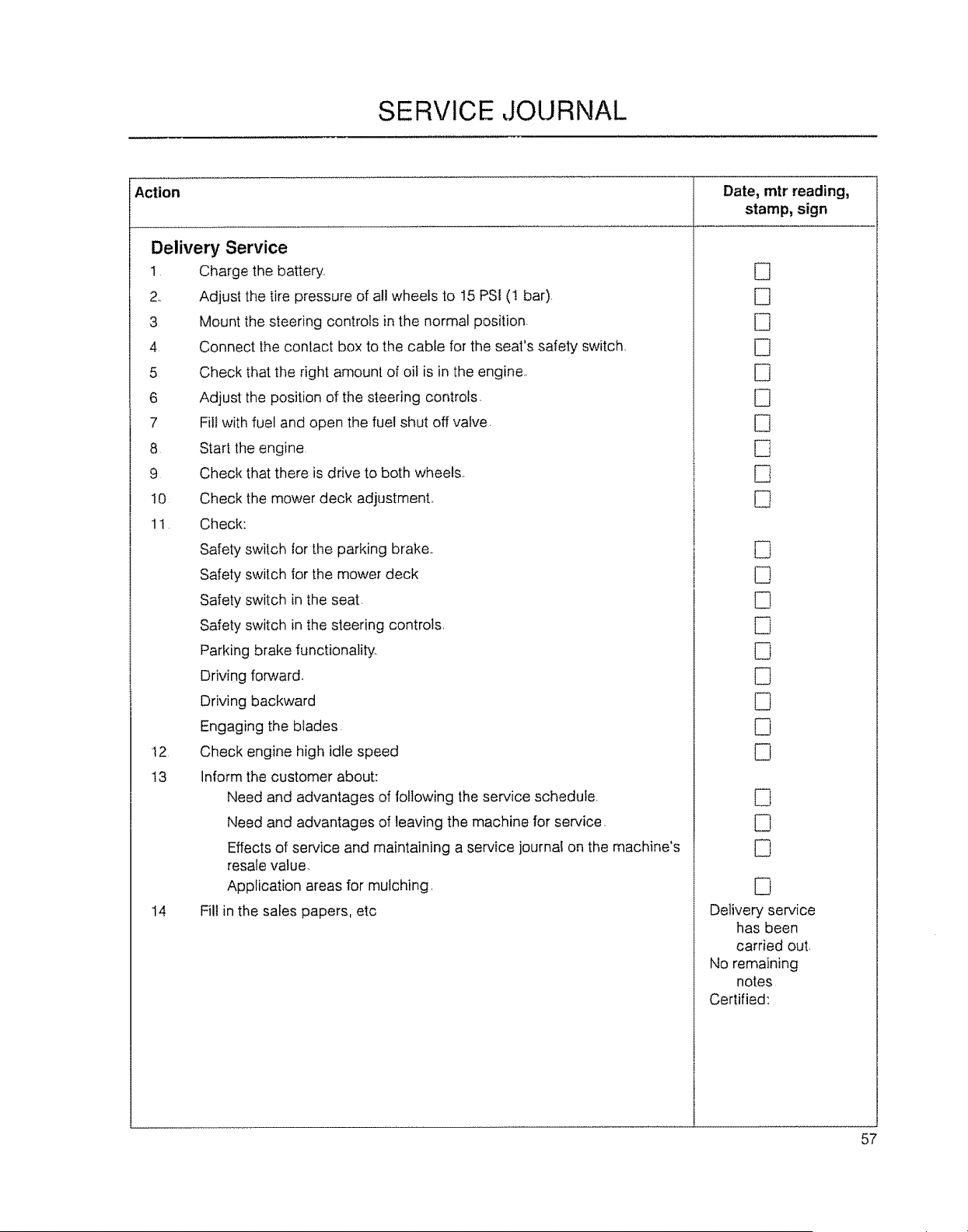

SERVICE ,JOURNAL
Action Date, mtr reading,
stamp, sign
Delivery Service
1_ Charge the battery,
2. Adjust the tire pressure of all wheels to 15 PSI (! bar),
3 Mount the steering controls in the normal position.
4 Connect the contact box to the cable for the seat's safety switch
5 Check that the right amount of oil is in the engine,,
6 Adjust the position of the steering controls.
7 Fill with fuel and open the fuel shut off valve.
8 Start the engine
9 Check that there is drive to both wheels.
10 Check the mower deck adjustmenL
1t Check:
Safety switch lot [he parking brake,.
Safety switch for the mower deck
Safety switch in lhe seat.
Safety switch in the steering controls
Parking brake functionality,,
Driving forward.
Driving backward
Engaging the blades.
12 Check engine high idle speed
13 Inform the customer about:
Need and advantages of following the service schedule.
Need and advantages of leaving the machine for service,
Effects of service and maintaining a service journal on the machine's
resale value,
Application areas for mulching,
[]
[]
[]
D
[]
[]
[]
D
[]
[3
5
[]
Q
[3
[]
[]
[]
[]
D
[]
[]
[]
[]
14
Fil! in the sales papers, etc
Delivery service
has been
carried out.
No remaining
notes
Certified:
57

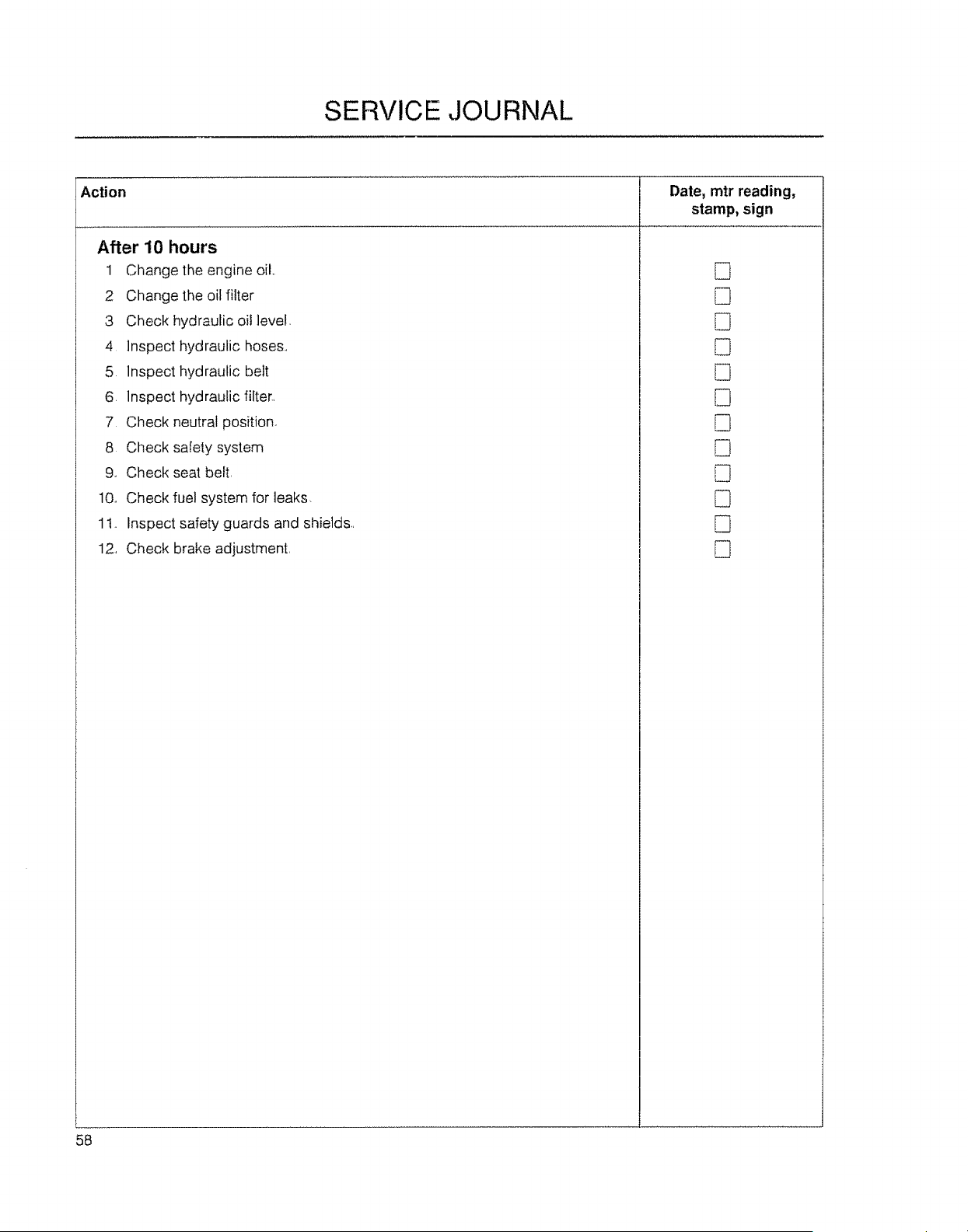

SERVICE JOURNAL
Action Date, mtr reading,
stamp, sign
After 10 hours
1 Change the engine oil.,
2 Change the oil filter
3 Check hydraulic oil level.
4 Inspect hydraulic hoses.,
5 Inspect hydraulic belt
6, Inspect hydraulic filter.,
7 Check neutral position.
8 Check safety system
9,, Check seat belt,
10,, Check fuel system for leaks.
1t,, Inspect safety guards and shields,
12, Check brake adjustment,
D
D
[]
5
©
D
Q
[]
[]
[]
58

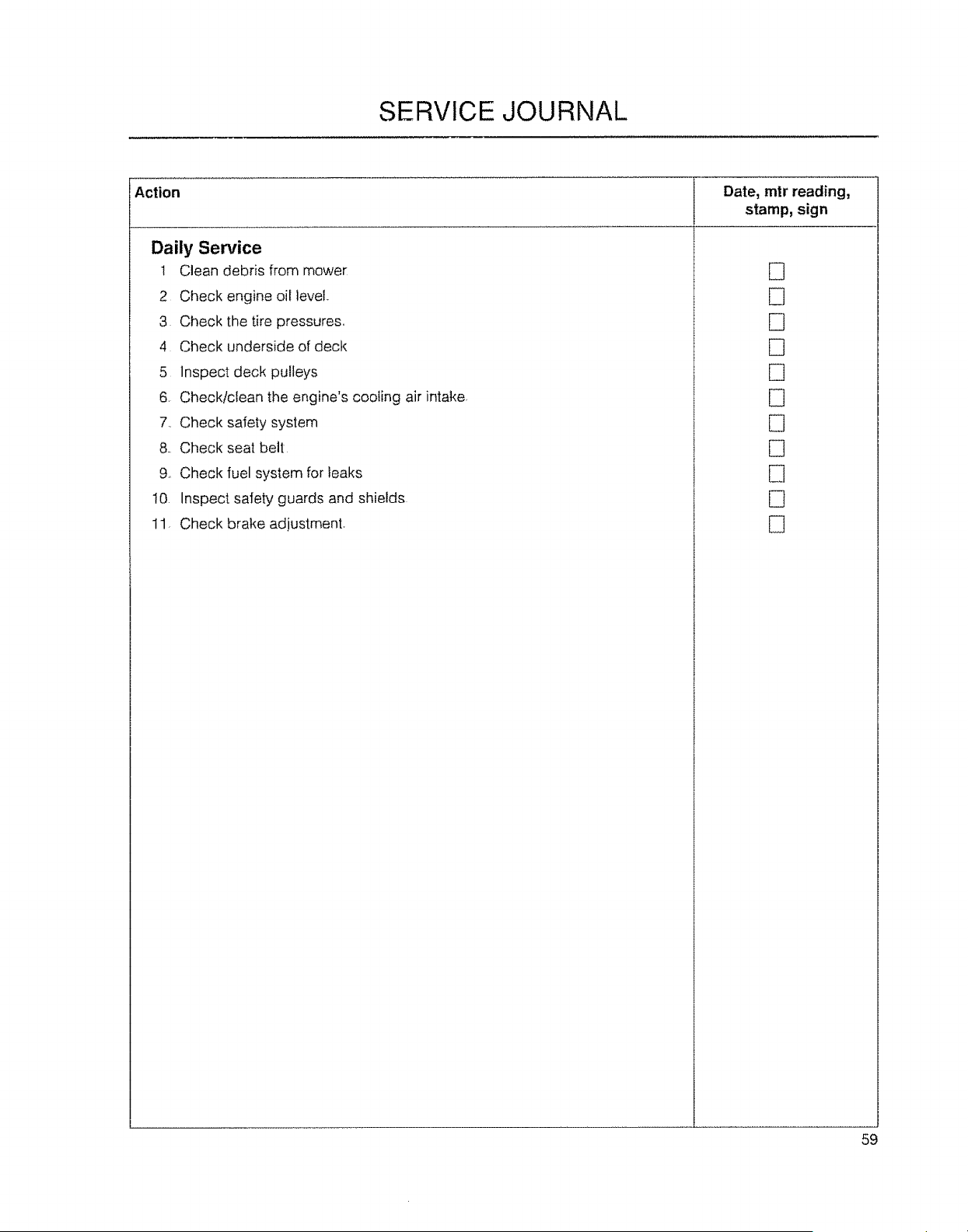

SERVICE JOURNAL
Action Date, mtr reading,
stamp, sign
Daily Service
1 Clean debris from mower
2 Check engine oil tevei.
3 Check the tire pressures_
4 Check underside of deck
5 Inspect deck pulleys
6, Check!clean the engine's cooIing air intake,
[]
[]
[]
[]
[]
[]
7,, Check safety system
8,, Check seat belt
9,, Check fuel system for ieaks
10, Inspect safety guards and shields
11, Check brake adjustment.
[]
[]
[]
D
[]
59

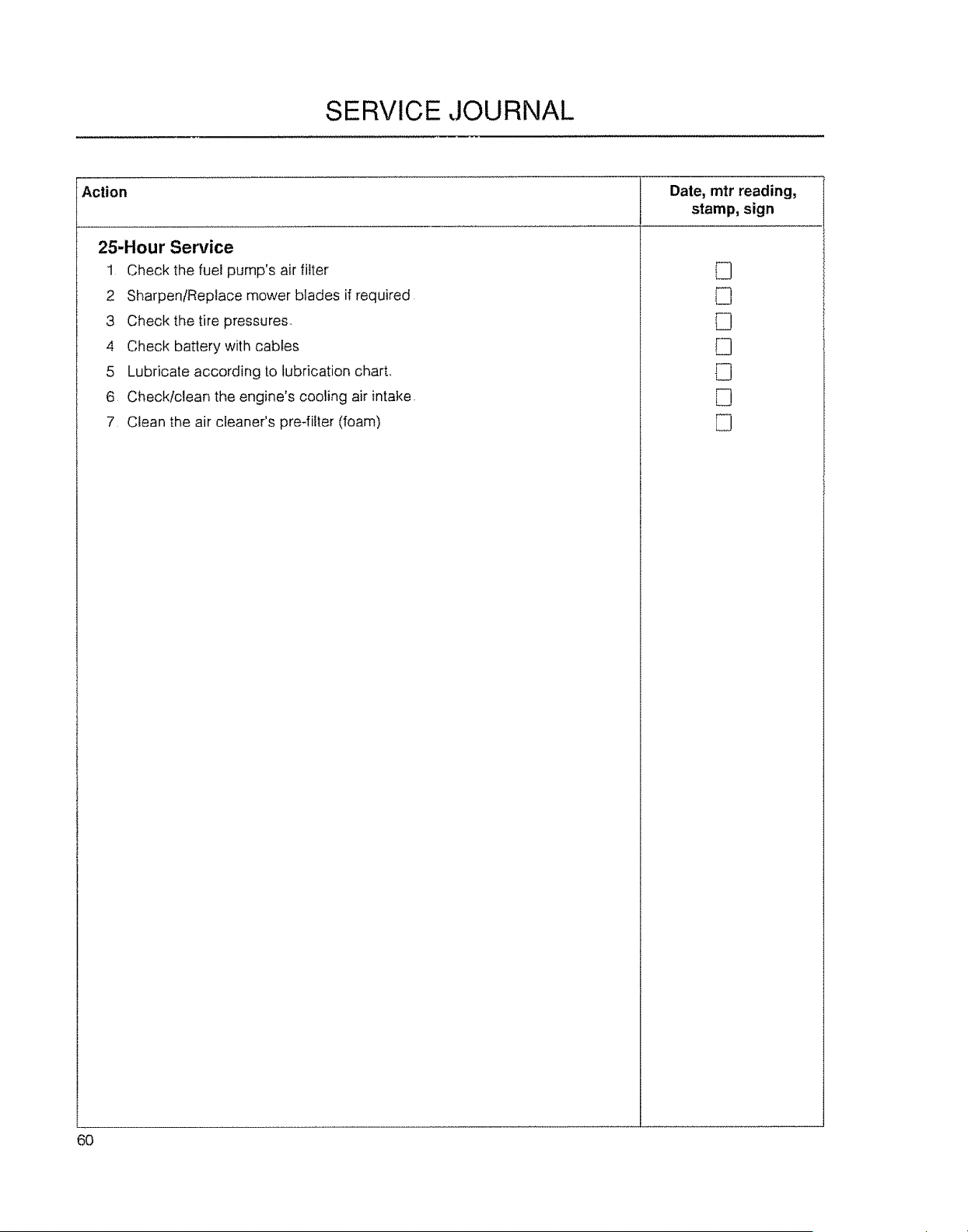

SERVICE ,JOURNAL
Action Date, mtr reading,
stamp, sign
25-Hour Service
1 Check the fuel pump's air fitter
2 SharpentReplace mower blades if required
3 Check the tire pressures,
4 Check battery with cables
5 Lubricate according to lubrication chart,,
6 Check/clean the engine's cooling air intake.
7 Clean the air cleaner's pre4ilter (foam)
[]
[]
[]
[]
[]
[]
[]
6O

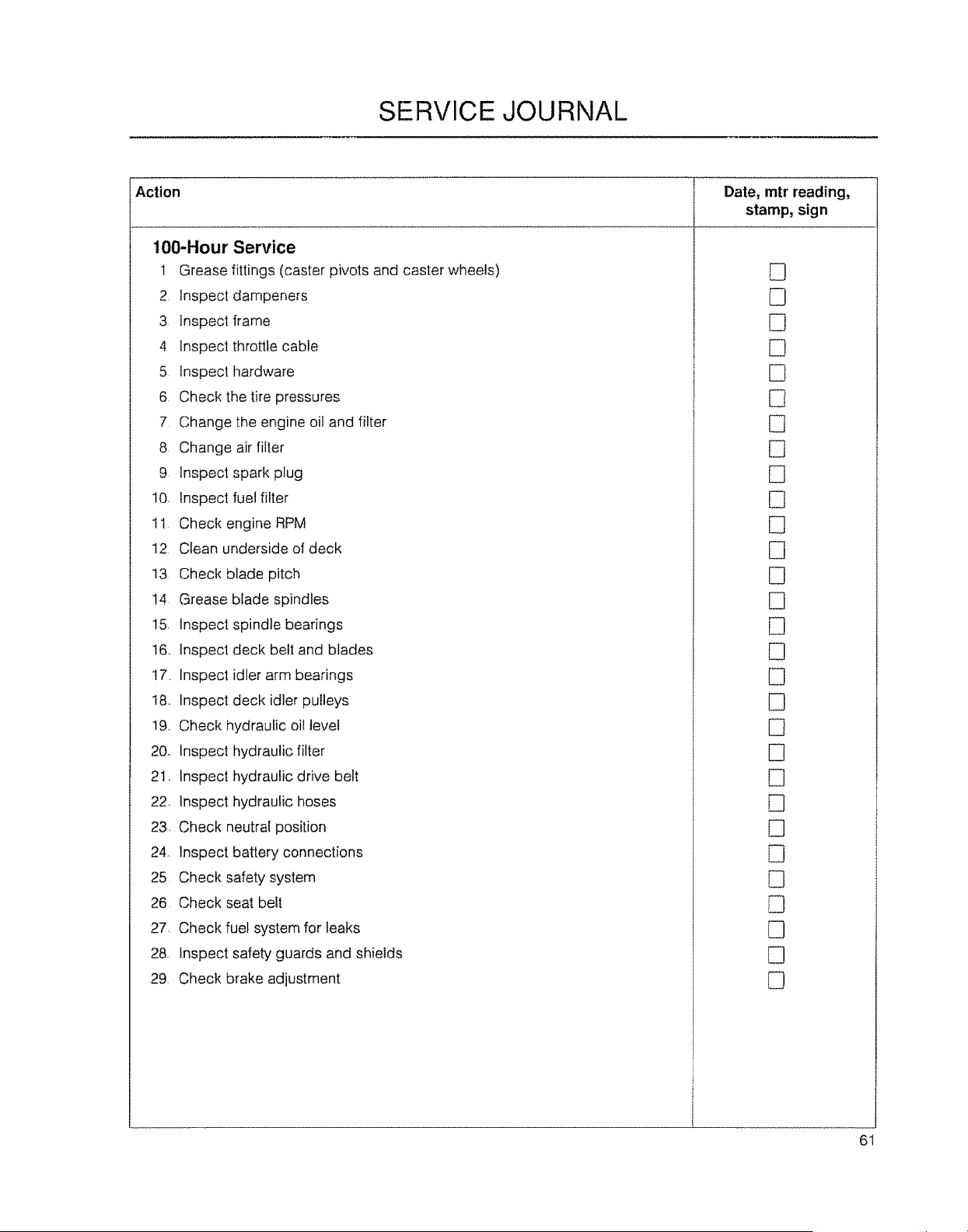

SERVICE JOURNAL
Action Date, mtr reading,
stamp, sign
100-Hour Service
I
2
3
4
5
6
7
8
9
10,
11
12
13
I4
15.
16,
17,
l&
19,.
20.
21.
22
23.
24,
25
26
27,
28.
29
Grease fittings (caster pivots and caster wheels)
Inspect dampeners
Inspect frame
Inspect throttle cable
Inspect hardware
Check the tire pressures
Change the engine oil and filter
Change air filter
Inspect spark plug
Inspect fuel filter
Check engine RPM
Clean underside of deck
Check blade pitch
Grease blade spindles
Inspect spindle bearings
Inspect deck belt and blades
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
Inspect idler arm bearings
Inspect deck idler pulleys
Check hydraulic oil level
Inspect hydraulic filter
Inspect hydraulic drive belt
Inspect hydraulic hoses
Check neutral position
Inspect battery connections
Check safety system
Check seat belt
Check fuel system for leaks
Inspect safety guards and shields
Check brake adjustment
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
[]
61

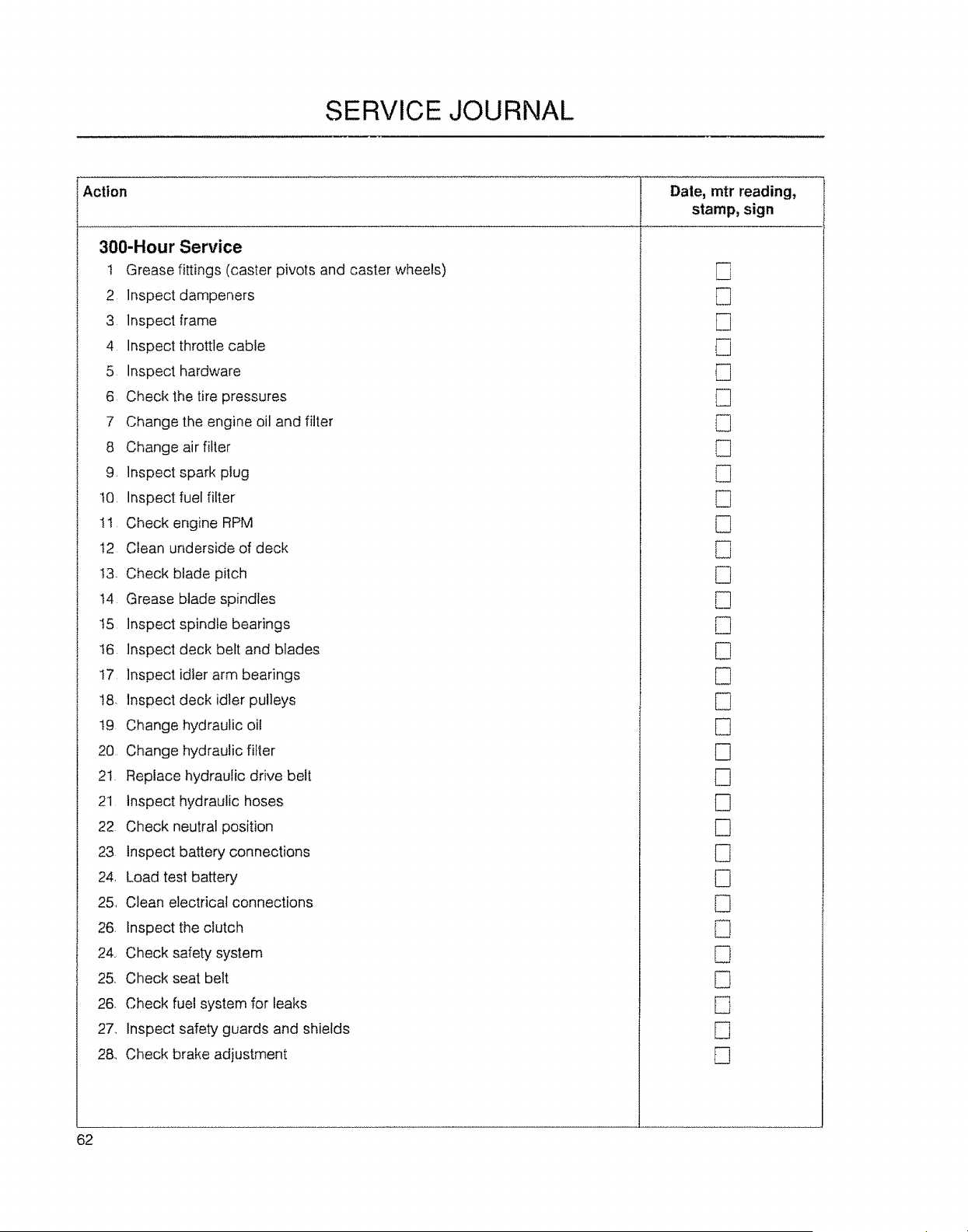

SERVICE JOURNAL
Action
300-Hour Service
t Grease fittings (caster pivots and caster wheels)
Date, mtr reading,
stamp, sign
[]
2
3
4
5
6
7
8
9
I0
1t
t2
t3.
t4
15
t6
!7
!8.
t9
20
21
21
22
23
24,
25,
26.
24
25
26
27,
2&
Inspect dampeners
Inspect frame
Inspect throttle cable
Inspect hardware
Check the tire pressures
Change the engine oil and filter
Change air filter
Inspect spark plug
Inspect fuel filter
Check engine RPM
Clean underside of deck
Check blade pitch
Grease blade spindles
Inspect spindle bearings
Inspect deck belt and blades
Inspect idler arm bearings
Inspect deck idler pulleys
Change hydraulic oi!
Change hydraulic filter
Replace hydraulic drive belt
Inspect hydraulic hoses
Check neutral position
inspect battery connections
Load test battery
Clean electrical connections
Inspect the clutch
Check safety system
Check seat belt
Check fuel system for leaks
Inspect safety guards and shields
Check brake adjustment
[]
[]
C]
[]
[]
C]
C]
Q
[]
5
D
@
O
O
[]
[]
[]
[]
[]
[]
D
[]
[]
[]
©
[]
[]
[]
[]
[]
D
62

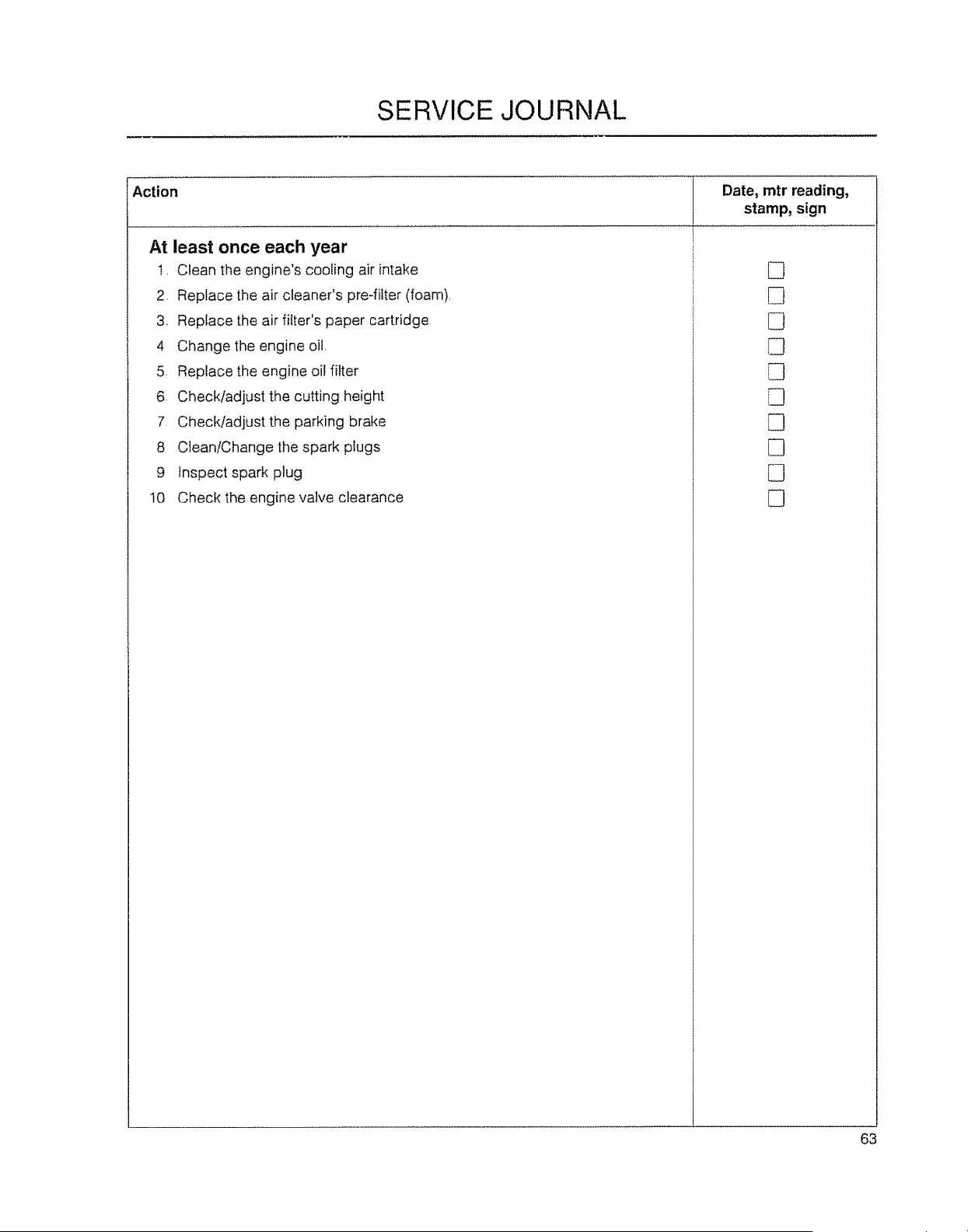

SERVICE JOURNAL
Action Date, mtr reading,
stamp, sign
At least once each year
t. Clean the engine's cooling air intake
2, Replace the air cleaner's pre-fitter (foam).
3. Replace the air filter's paper cartridge
4 Change the engine oil,
5. Replace the engine oil filter
6 Checkladjust the cutting height
7 Check!adjust the parking brake
8 Clean/Change the spark plugs
9 Inspect spark plug
10 Check the engine valve clearance
©
[]
[]
[]
[]
[]
[]
[]
[]
[]
63
P/N ! 15 361027R1 02!25/I0
