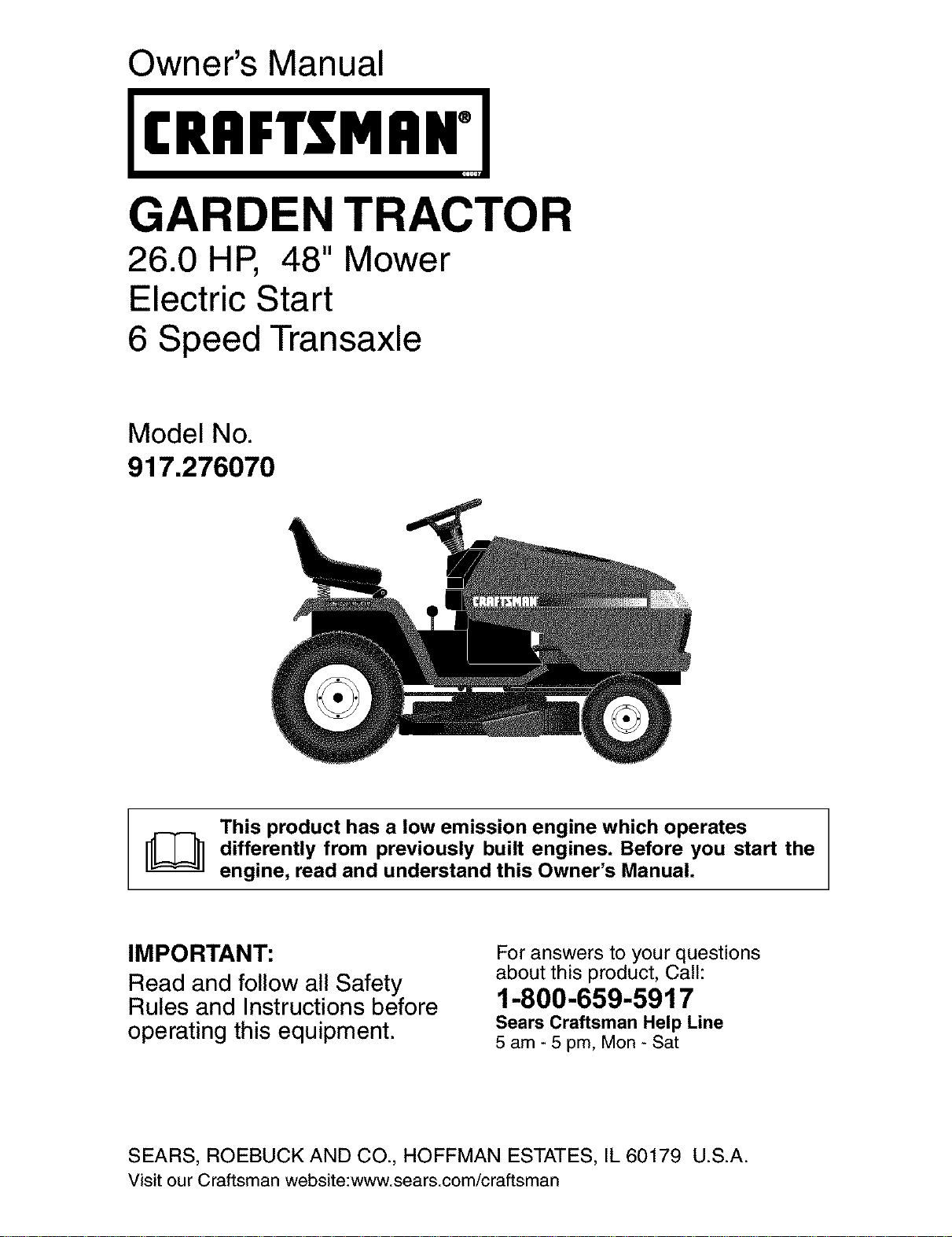

Owner's Manual

ICHFTSMeN I

GARDEN TRACTOR

26.0 HP, 48" Mower

Electric Start

6 Speed Transaxle

Model No.

917.276070

This product has a low emission engine which operates

differently from previously built engines. Before you start the

engine, read and understand this Owner's Manual.

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

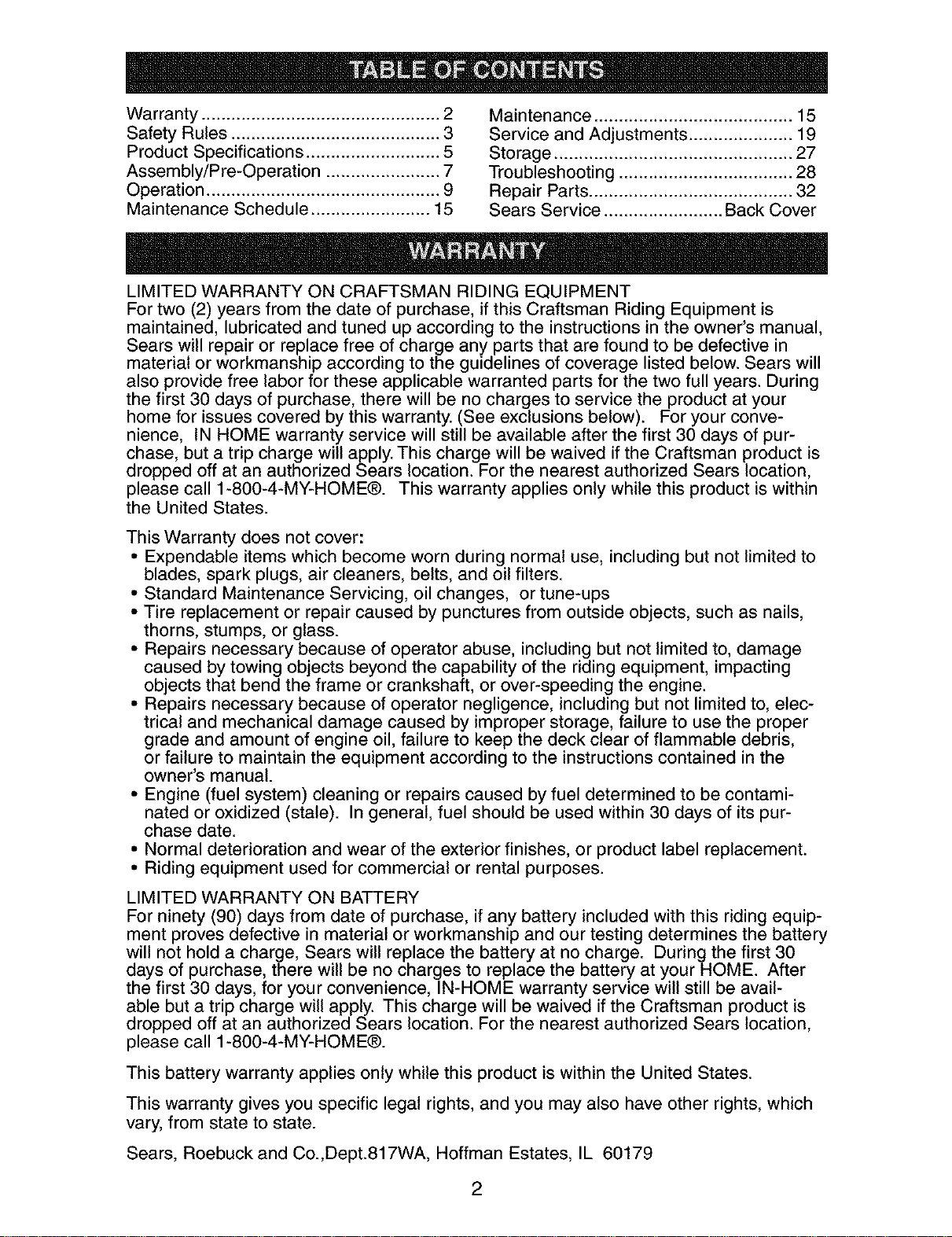

Warranty................................................2 Maintenance........................................15

SafetyRules..........................................3 ServiceandAdjustments.....................19

ProductSpecifications...........................5 Storage................................................27

Assembly/Pre-Operation.......................7 Troubleshooting...................................28

Operation...............................................9 RepairParts.........................................32

MaintenanceSchedule........................15 SearsService........................BackCover

LIMITEDWARRANTYON CRAFTSMANRIDINGEQUIPMENT

Fortwo(2)yearsfromthedate of purchase,ifthisCraftsmanRidingEquipmentis

maintained,lubricatedandtunedupaccordingto theinstructionsinthe owner'smanual,

Searswillrepairor replacefreeofchargeany partsthatarefoundto bedefectivein

materialorworkmanshipaccordingtothe guidelinesof coveragelistedbelow.Searswill

alsoprovidefreelaborfor theseapplicablewarrantedpartsfor thetwofull years.During

thefirst30 daysof purchase,therewillbe no chargesto servicetheproductatyour

homefor issuescoveredbythiswarranty.(Seeexclusionsbelow). Foryourconve-

nience, IN HOMEwarrantyservicewill still beavailableafterthe first30 daysof pur-

chase,buta tripchargewillapply.Thischargewillbe waivedif theCraftsmanproductis

droppedoff atan authorizedSearslocation.Forthe nearestauthorizedSearslocation,

pleasecall1-800-4-MY-HOME®.Thiswarrantyappliesonlywhilethisproductis within

theUnitedStates.

ThisWarrantydoesnotcover:

• Expendableitemswhichbecomewornduringnormaluse,includingbutnotlimitedto

blades,sparkplugs,air cleaners,belts,andoilfilters.

• StandardMaintenanceServicing,oilchanges, ortune-ups

• Tire replacementor repaircausedbypuncturesfromoutsideobjects,suchas nails,

thorns,stumps,or glass.

• Repairsnecessarybecauseof operatorabuse,includingbutnotlimitedto, damage

causedbytowingobjectsbeyondthecapabilityof theridingequipment,impacting

objectsthat bendtheframeor crankshaft,or over-speedingtheengine.

• Repairsnecessarybecauseof operatornegligence,includingbutnotlimitedto,elec-

trical andmechanicaldamagecausedbyimproperstorage,failureto usetheproper

gradeand amountofengineoil,failureto keepthedeckclearofflammabledebris,

orfailureto maintaintheequipmentaccordingto theinstructionscontainedin the

owner'smanual.

• Engine(fuelsystem)cleaningor repairscausedbyfuel determinedto be contami-

natedoroxidized(stale). Ingeneral,fuel shouldbe usedwithin30 daysof its pur-

chasedate.

• Normaldeteriorationandwearof theexteriorfinishes,or productlabel replacement.

• Ridingequipmentusedforcommercialor rentalpurposes.

LIMITEDWARRANTYON BATTERY

Forninety(90)daysfrom dateof purchase,ifany batteryincludedwiththis ridingequip-

mentprovesdefectivein materialor workmanshipandour testingdeterminesthe battery

willnotholda charge,Searswillreplacethe batteryat nocharge. Duringthefirst30

daysof purchase,therewill be nochargesto replacethe batteryatyour HOME. After

thefirst30 days,foryourconvenience,IN-HOMEwarrantyservicewillstill beavail-

ablebutatrip chargewillapply.This chargewill be waivedif theCraftsmanproductis

droppedoff atan authorizedSearslocation.Forthe nearestauthorizedSearslocation,

pleasecall1-800-4-MY-HOME®.

Thisbatterywarrantyappliesonlywhilethisproductis withintheUnitedStates.

Thiswarrantygivesyouspecificlegalrights,andyou mayalso haveotherrights,which

vary,from stateto state.

Sears,Roebuckand Co.,Dept.817WA,HoffmanEstates,IL 60179

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IbWARNING: In order to prevent

accidental starting when setting up,

transporting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

,_WARNING: Do not coast down a

hill in neutral, you may lose control of the

tractor.

_WARNING: Tow only the attach-

ments that are recommended by and

comply with specifications of the man-

ufacturer of your tractor. Use common

sense when towing. Operate only at the

lowest possible speed when on a slope.

Too heavy of a load, while on a slope, is

dangerous. Tires can lose traction with

the ground and cause you to lose control

of your tractor.

_WARNING: Engine exhaust, some

of its constituents, and certain vehicle

components contain or emit chemicals

known to the State of California to cause

cancer and birth defects or other repro-

ductive harm.

_WARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all instruc-

tions in the manual and on the machine

before starting.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as rocks,

toys, wire, etc., which could be picked

up and thrown by the blade.

• Be sure the area is clear of other people

before mowing. Stop machine if anyone

enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Be aware of the mower discharge direc-

tion and do not point it at anyone. Do

not operate the mower without either

the entire grass catcher or the guard in

place.

• Slow down before turning.

• Never leave a running machine unat-

tended. Always turn off blades, set

parking brake, stop engine, and remove

keys before dismounting.

• Turn off blades when not mowing.

• Stop engine before removing grass

catcher or unclogging chute.

• Mow only in daylight or good artificial

light.

• Do not operate the machine while under

the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Data indicates that operators, age 60

years and above, are involved in a large

percentage of riding mower-related in-

juries. These operators should evaluate

their ability to operate the riding mower

safely enough to protect themselves and

others from serious injury.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn. Do

not allow the mower deck to plow leaves

or other debris which can cause build-

up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

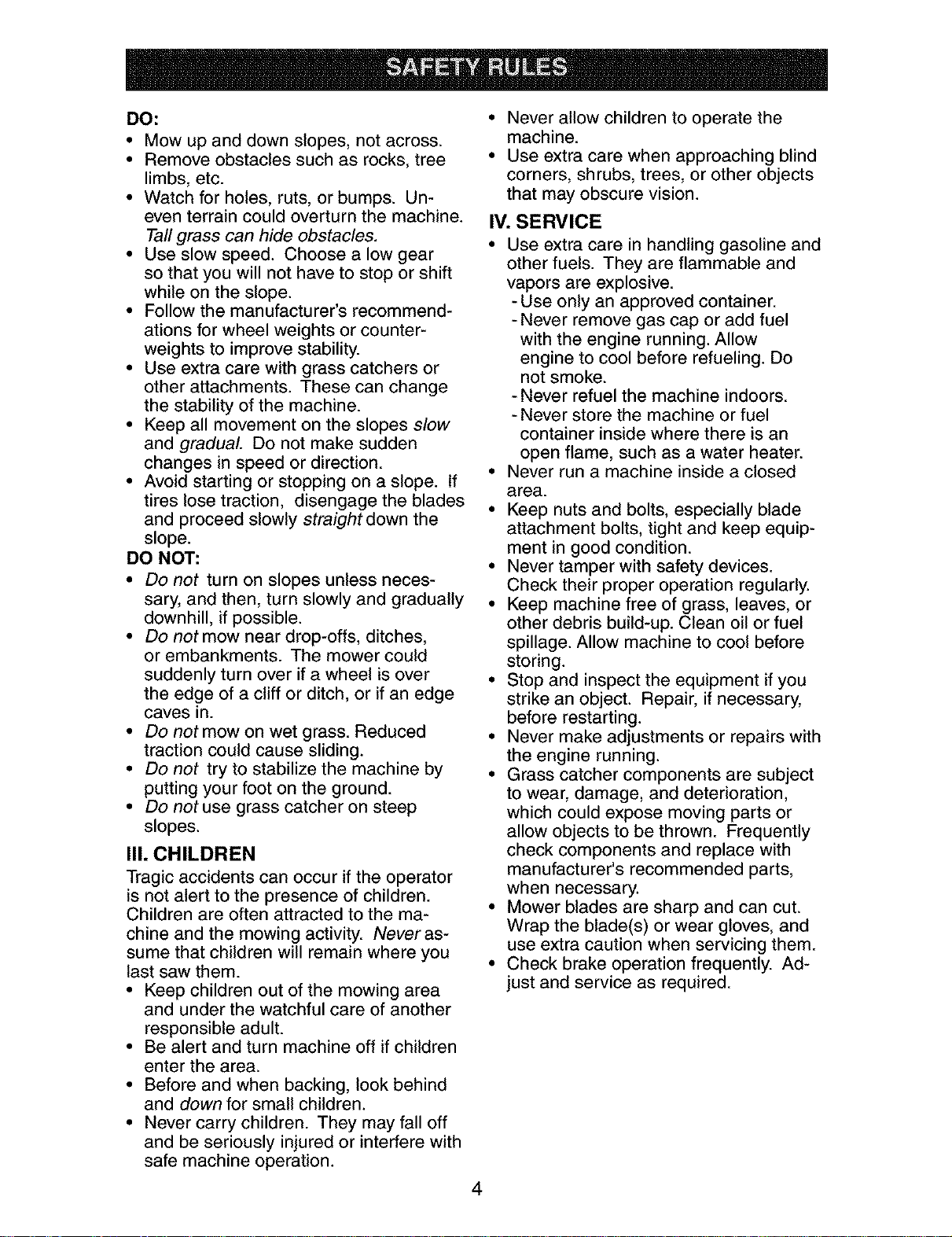

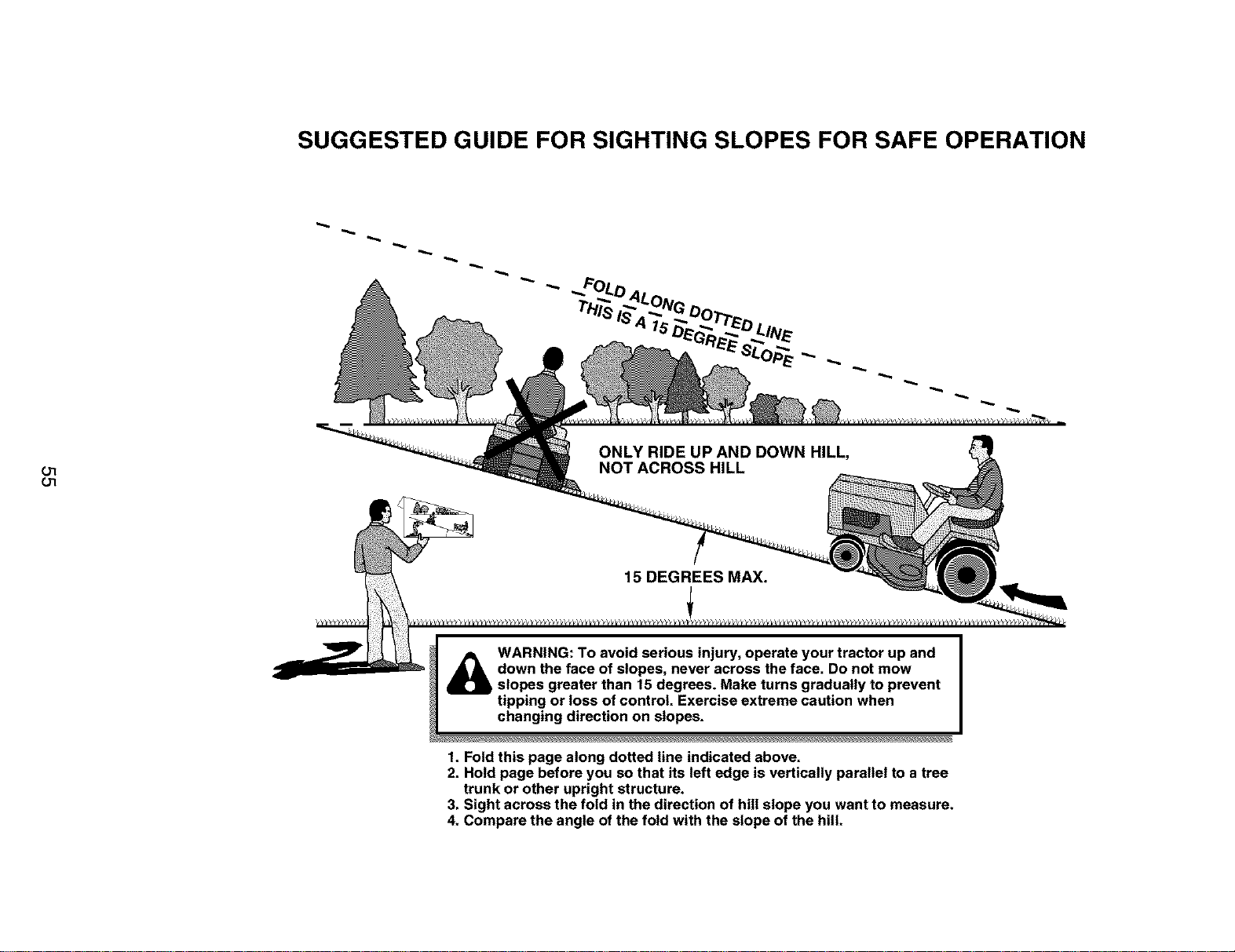

II. SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tipover accidents, which can

result in severe injury or death. All slopes

require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do

not mow it.

DO:

• Mow up and down slopes, not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Un-

even terrain could overturn the machine.

Tallgrass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Follow the manufacturer's recommend-

ations for wheel weights or counter-

weights to improve stability.

• Use extra care with grass catchers or

other attachments. These can change

the stability of the machine.

• Keep all movement on the slopes slow

and gradual Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradually

downhill, if possible.

• Do not mow near drop-offs, ditches,

or embankments. The mower could

suddenly turn over if a wheel is over

the edge of a cliff or ditch, or if an edge

caves in.

• Do not mow on wet grass. Reduced

traction could cause sliding.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not use grass catcher on steep

slopes.

III. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the ma-

chine and the mowing activity. Neveras-

sume that children will remain where you

last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Never carry children. They may fall off

and be seriously injured or interfere with

safe machine operation.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may obscure vision.

IV. SERVICE

• Use extra care in handling gasoline and

other fuels. They are flammable and

vapors are explosive.

- Use only an approved container.

- Never remove gas cap or add fuel

with the engine running. Allow

engine to cool before refueling. Do

not smoke.

- Never refuel the machine indoors.

- Never store the machine or fuel

container inside where there is an

open flame, such as a water heater.

• Never run a machine inside a closed

area.

• Keep nuts and bolts, especially blade

attachment bolts, tight and keep equip-

ment in good condition.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow machine to cool before

storing.

• Stop and inspect the equipment if you

strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running.

• Grass catcher components are subject

to wear, damage, and deterioration,

which could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

• Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

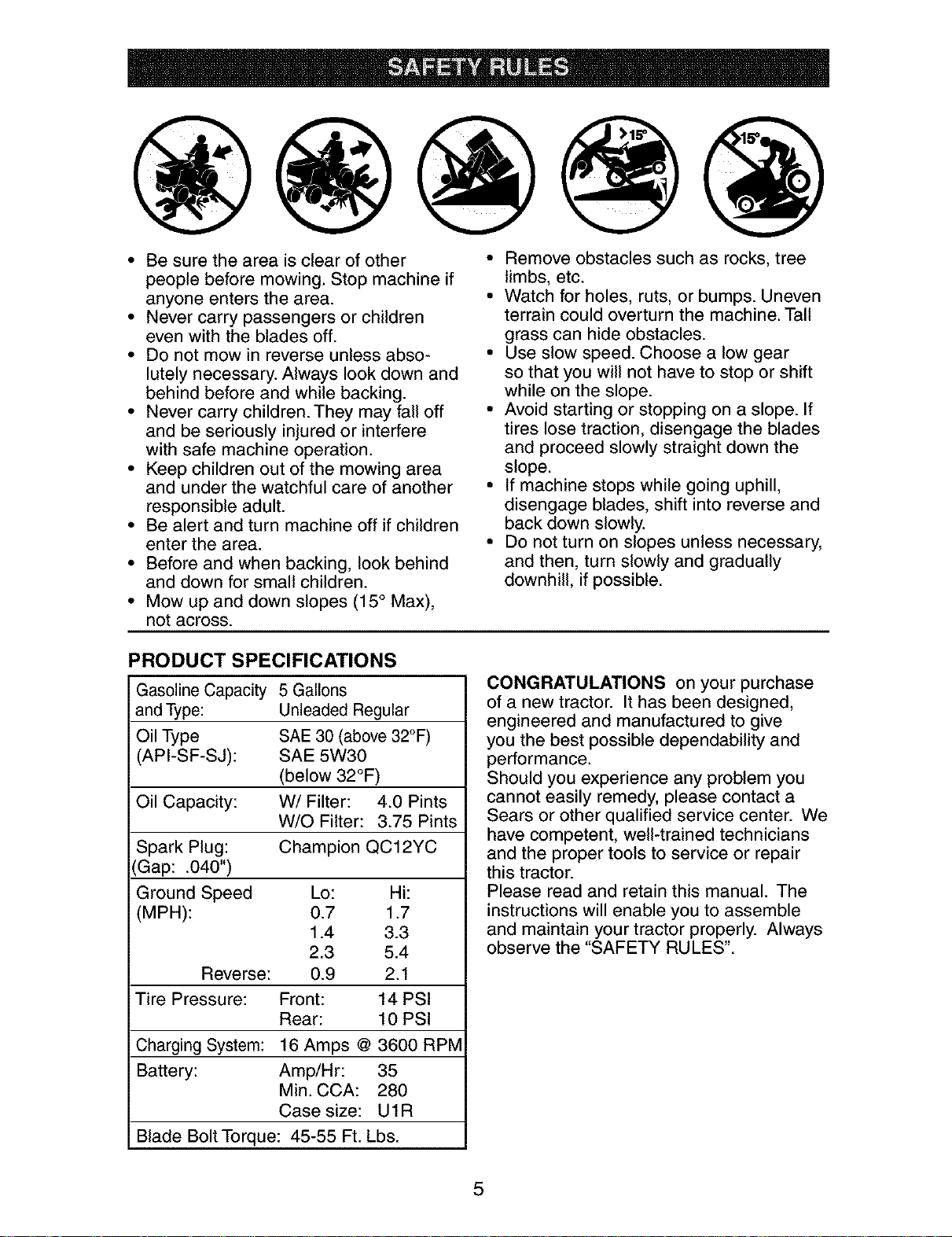

• Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

• Never carry passengers or children

even with the blades off.

• Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

• Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

• Be alert and turn machine off if children

enter the area.

• Before and when backing, look behind

and down for small children.

• Mow up and down slopes (15° Max),

not across.

• Remove obstacles such as rocks, tree

limbs, etc.

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machine. Tall

grass can hide obstacles.

• Use slow speed. Choose a low gear

so that you will not have to stop or shift

while on the slope.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and proceed slowly straight down the

slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Be not turn on slopes unless necessary,

and then, turn slowly and gradually

downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 5 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

(API-SF-SJ): SAE 5W30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed Lo: Hi:

(MPH): 0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: UIR

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center. We

have competent, well-trained technicians

and the proper tools to service or repair

this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

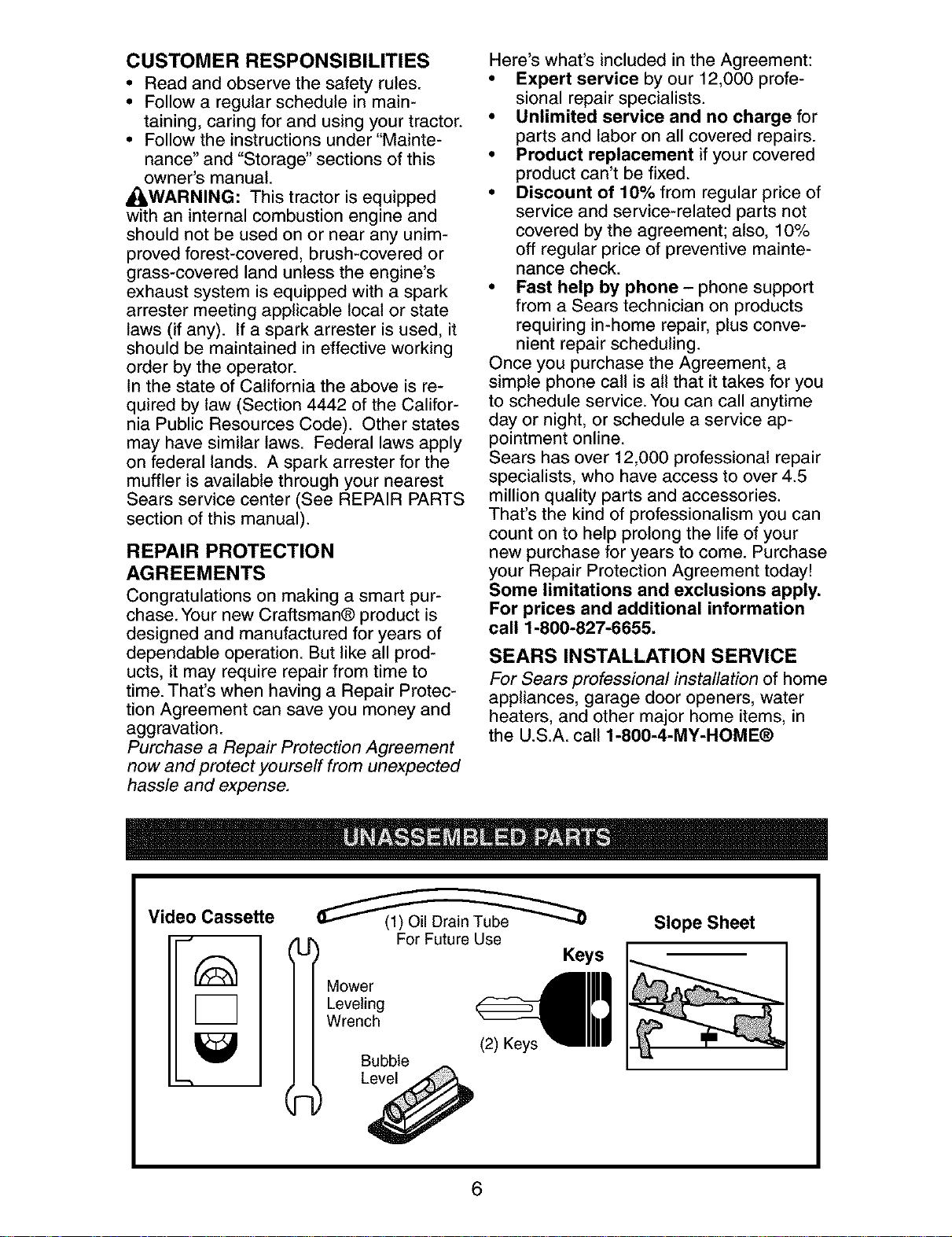

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual.

A(_WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all prod-

ucts, it may require repair from time to

time. That's when having a Repair Protec-

tion Agreement can save you money and

aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement ifyour covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Video Cassette

"-'t

Mower

Leveling

Wrench

For Future Use

Keys

Bubble

Slope Sheet

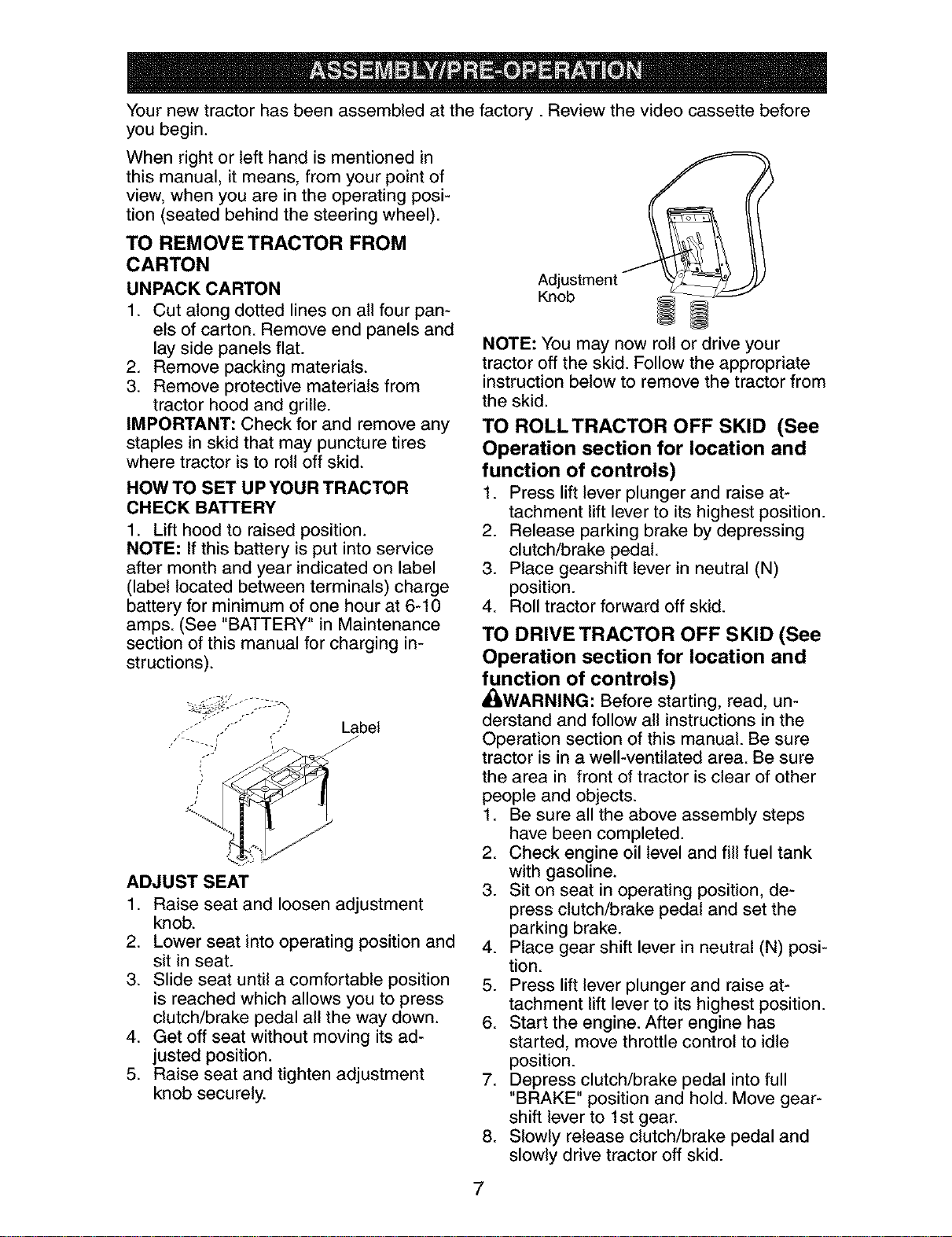

Your new tractor has been assembled at the factory. Review the video cassette before

you begin.

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

2. Remove packing materials.

3. Remove protective materials from

tractor hood and grille.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

HOW TO SET U P YOUR TRACTOR

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging in-

structions).

Label

ADJUST SEAT

1. Raise seat and loosen adjustment

knob.

2. Lower seat into operating position and

sit in seat.

3. Slide seat until a comfortable position

is reached which allows you to press

clutch/brake pedal all the way down.

4. Get off seat without moving its ad-

justed position.

5. Raise seat and tighten adjustment

knob securely.

Adjustment

Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor from

the skid.

TO ROLLTRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise at-

tachment lift lever to its highest position.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position, de-

press clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N) posi-

tion.

5. Press lift lever plunger and raise at-

tachment lift lever to its highest position.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move gear-

shift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

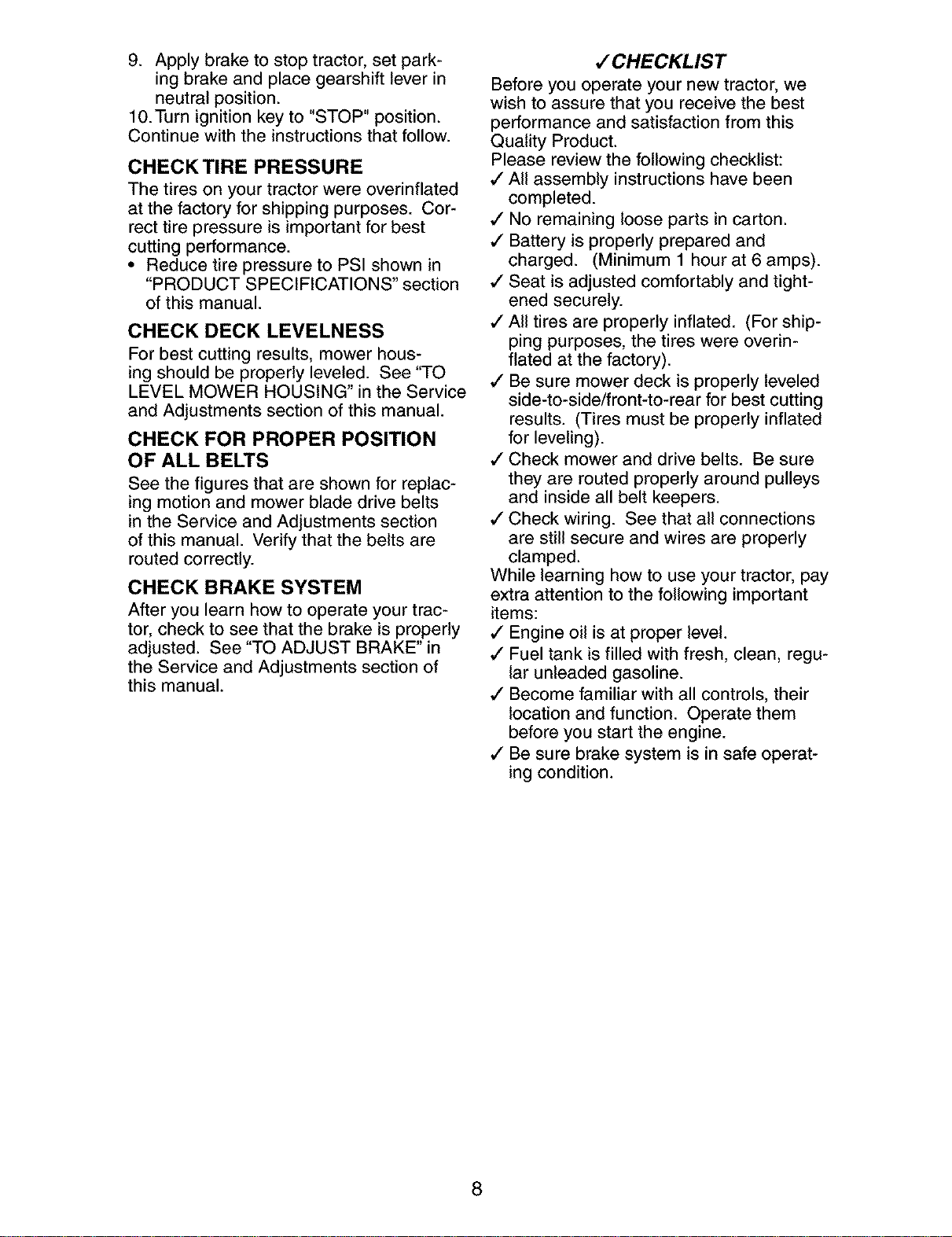

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

J CHECKLIST

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

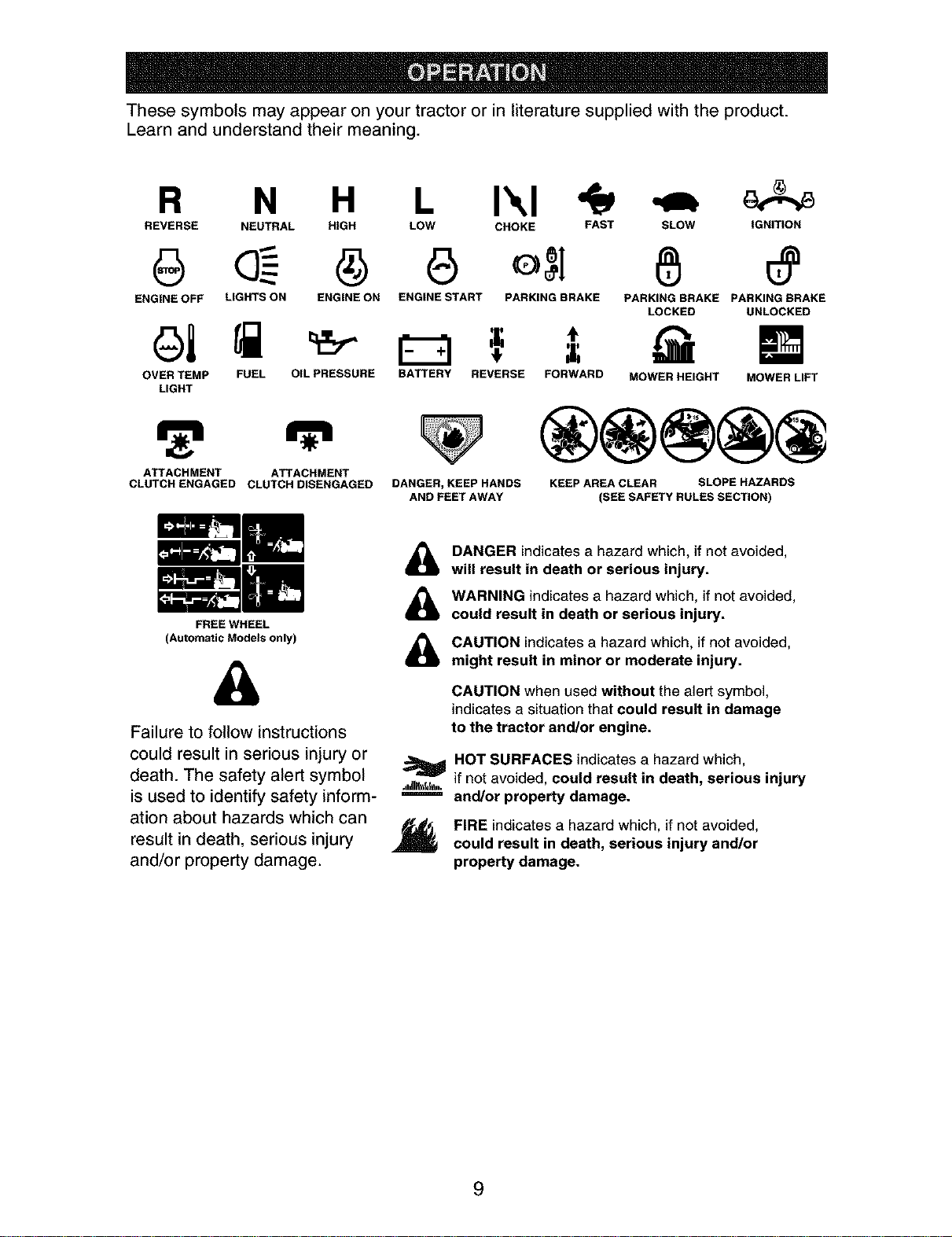

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H L I'.,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST SLOW IGNITION

ENGINE OFF LIGHTS ON ENGINE ON ENGINE START PARKING BRAKE PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

OVER TEMP FUEL OIL PRESSURE BATTERY REVERSE FORWARD

LIGHT

ATTACHMENT ATTACHMENT

CLUTCH ENGAGED CLUTCH DISENGAGED

FREE WHEEL

(Automatic Models only)

MOWER HEIGHT MOWER LIFT

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicatesa hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

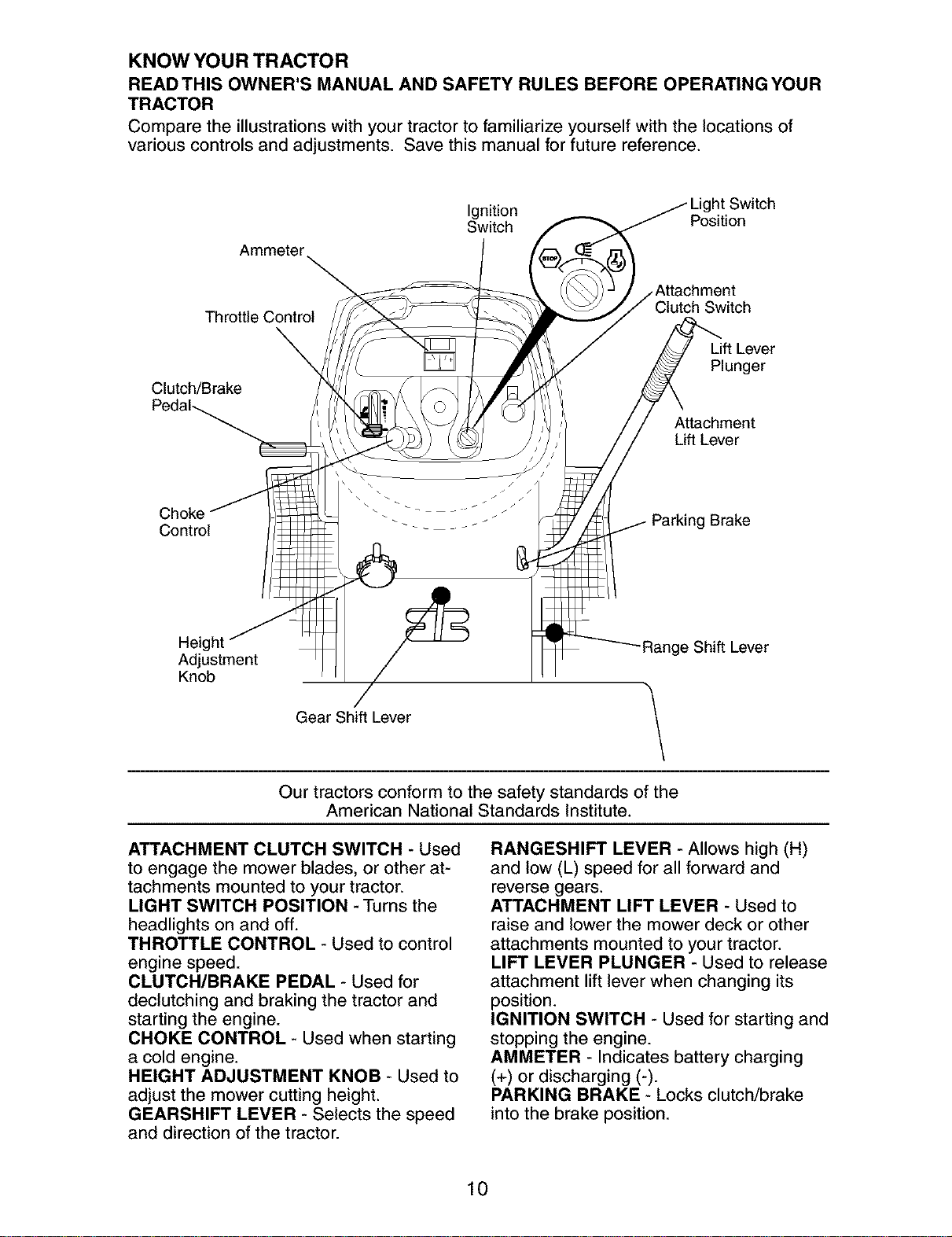

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Ignition ht Switch

Switch Position

Throttle Control

Clutch/Brake

Clutch Switch

Lift Lever

Plunger

Attachment

Lift Lever

Choke

Control

Parking Brake

Height

Adjustment

Knob

Gear Shift Lever

-Range Shift Lever

Our tractors conform to the safety standards of the

American National Standards Institute.

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

LIGHT SWITCH POSITION - Turns the

headlights on and off.

THROTTLE CONTROL - Used to control

engine speed.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

CHOKE CONTROL - Used when starting

a cold engine.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

GEARSHIFT LEVER - Selects the speed

and direction of the tractor.

RANGESHIFT LEVER - Allows high (H)

and low (L) speed for all forward and

reverse gears.

ATTACHMENT LIFT LEVER - Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

IGNITION SWITCH - Used for starting and

stopping the engine.

AMMETER - Indicates battery charging

(+) or discharging (-).

PARKING BRAKE - Locks clutch/brake

into the brake position.

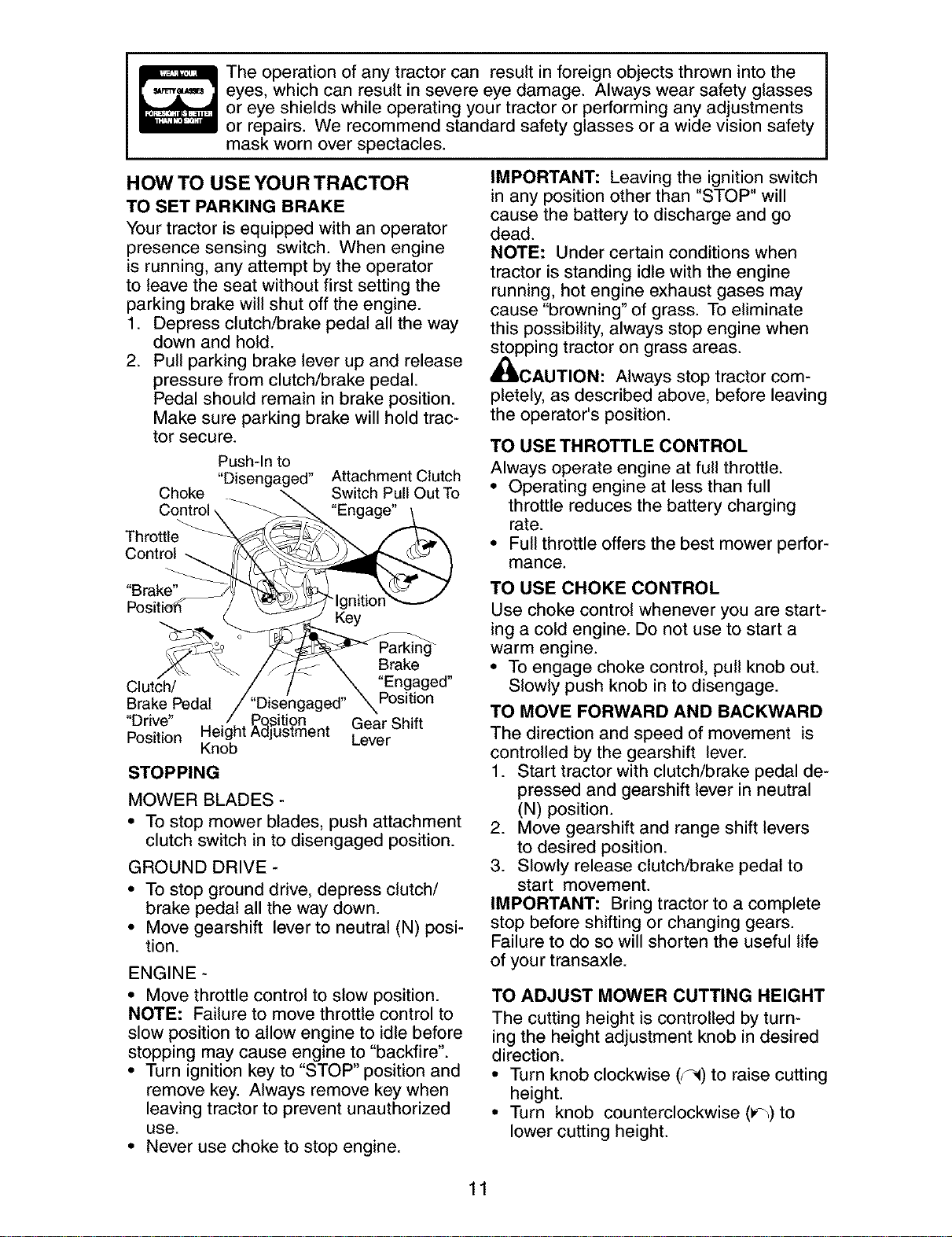

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Push-In to

"Disengaged" Attachment Clutch

Choke Switch Pull Out To

cobol\

Throttle

Control

"Brake"

Key

Brake

Clutch/ "Engaged"

Brake Pedal "Disengaged" Position

"Drive" , / Position Gear Shift

Position Height Adjustment Lever

Knob

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N) posi-

tion.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to

slow position to allow engine to idle before

stopping may cause engine to "backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

_ILCAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower perfor-

mance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift and range shift levers

to desired position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turn-

ing the height adjustment knob in desired

direction.

• Turn knob clockwise (J_l) to raise cutting

height.

• Turn knob counterclockwise (v-_)to

lower cutting height.

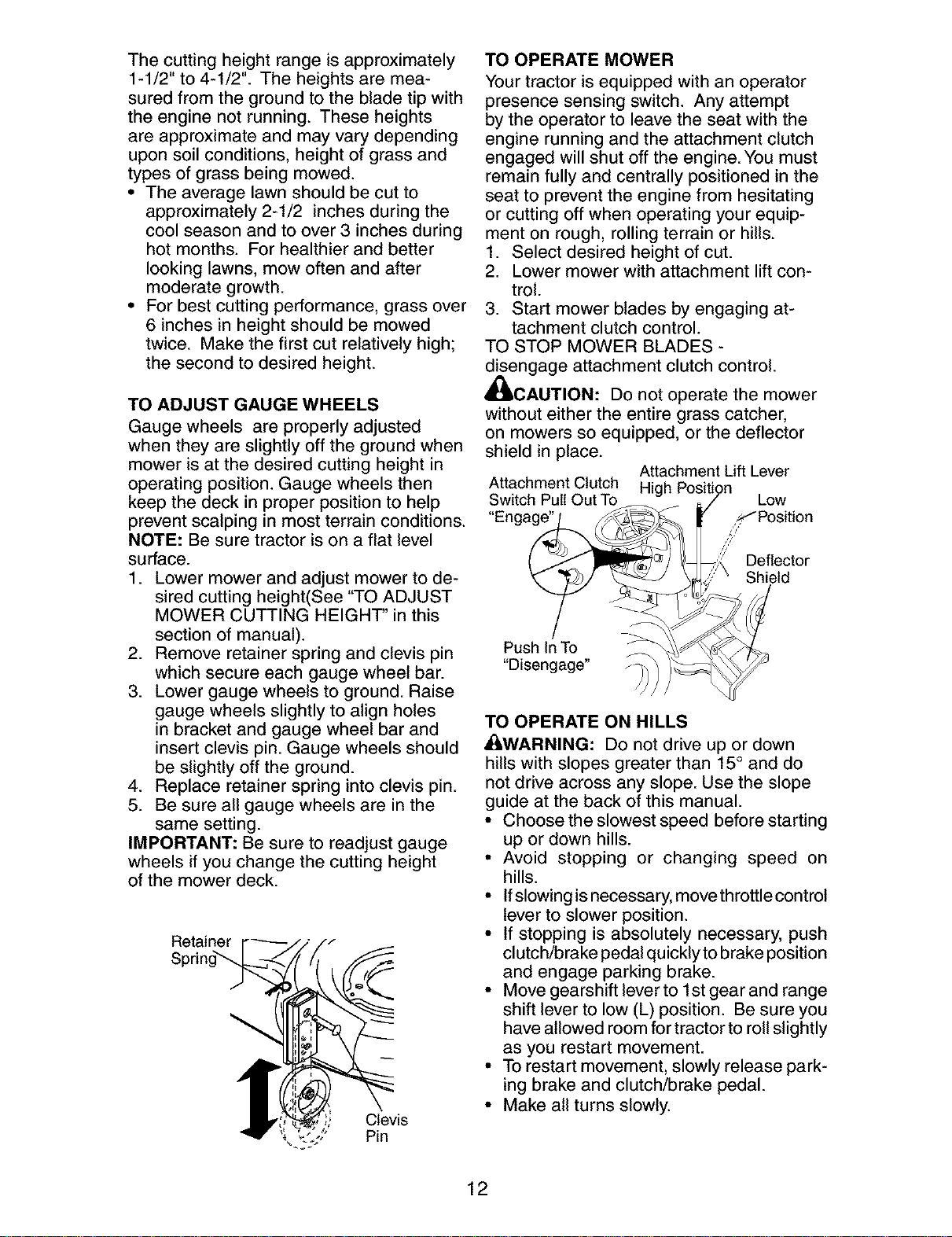

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass over

6 inches in height should be mowed

twice. Make the first cut relatively high;

the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT' in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes

in bracket and gauge wheel bar and

insert clevis pin. Gauge wheels should

be slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Retainer

Clevis

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine.You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_IuLCAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Lift Lever

_ttatCchmpe_ClL_tCTh High Positio/on Low

"Enga_ _/ 9"_/Position

__ !_,'_"_ Deflector

Shiele

"D,sengage" __

TO OPERATE ON HILLS

=t'_WARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before starting

up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle control

lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake position

and engage parking brake.

• Move gearshift lever to 1st gear and range

shift lever to low (L) position. Be sure you

have allowed room for tractor to roll slightly

as you restart movement.

• To restart movement, slowly release park-

ing brake and clutch/brake pedal.

• Make all turns slowly.

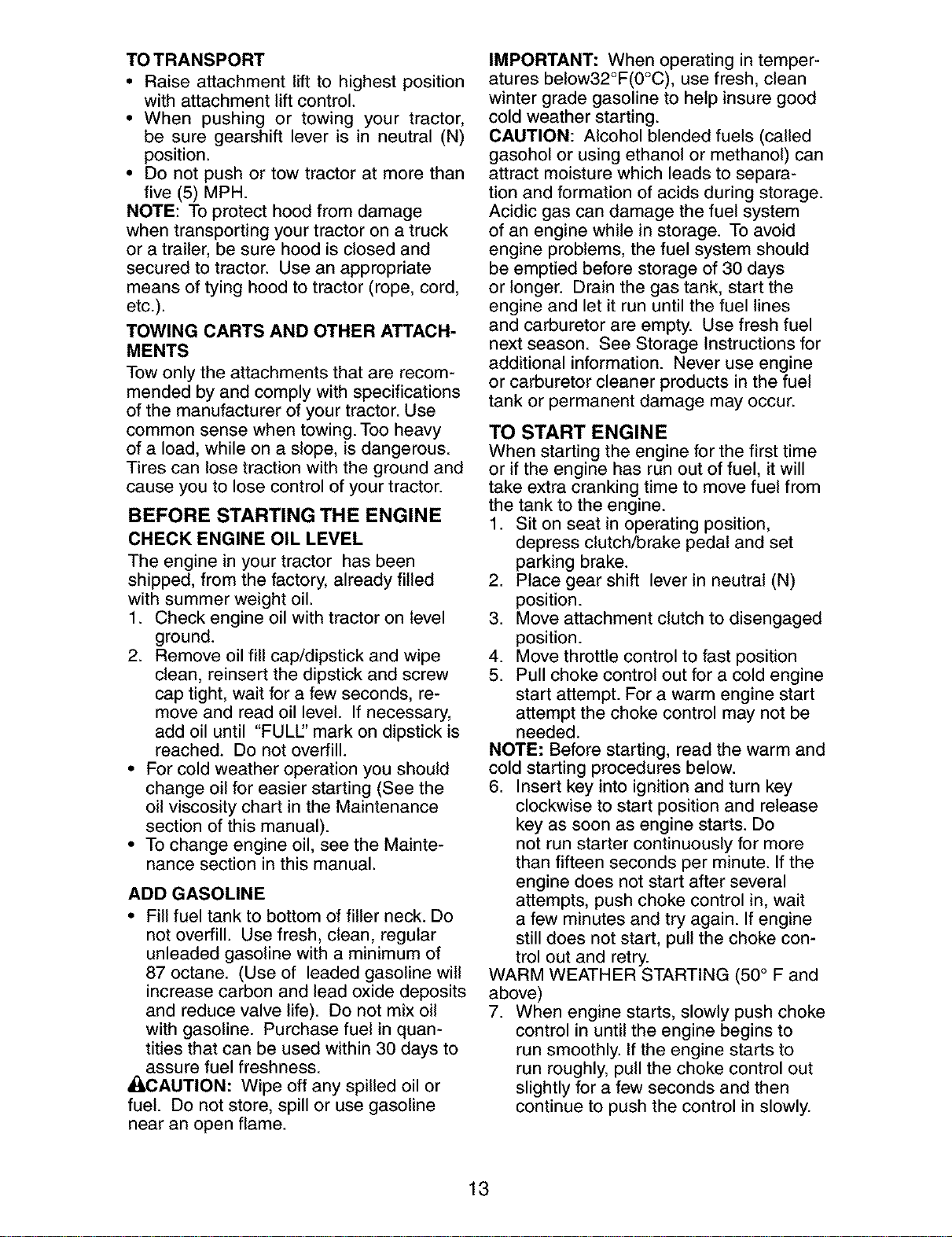

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULL' mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

tank or permanent damage may occur.

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for a

few seconds and then continue to push

the control in slowly. This may require

an engine warm-up period from several

seconds to several minutes, depending

on the temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet.

Wet grass will plug mower and leave

undesirable clumps. Allow grass to dry

before mowing.

• Always operate engine at full throttle

when mowing to assure better mowing

performance and proper discharge of

material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

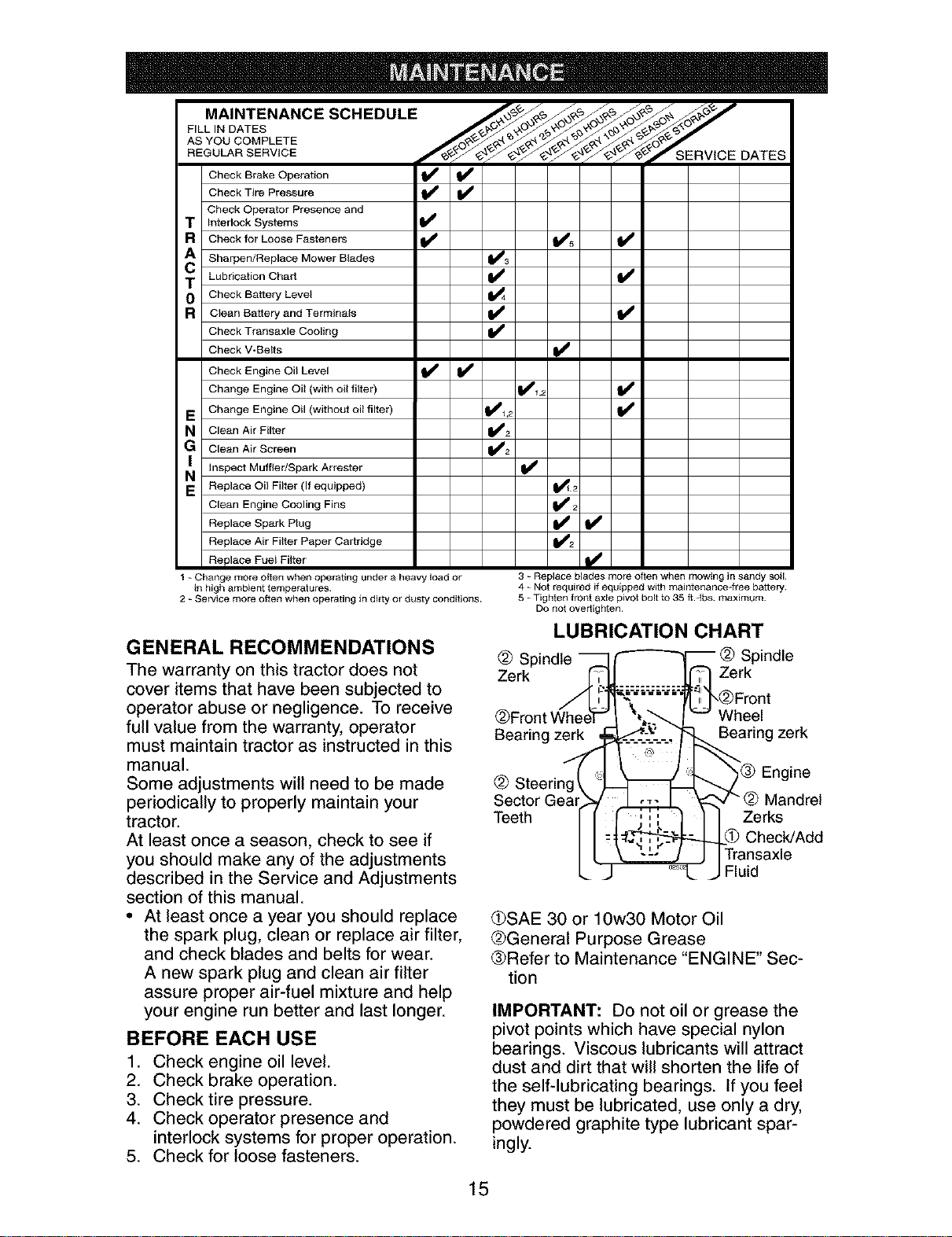

MAINTENANCE SCHEDULE ._*_._._ _._ ,_£-_ o_ o_. ,_/_

AS YOU COMPLETE

RB O RSBR IOE DATES

C hh:; kkTB_raek;eOsPe_:i°n _

Check Operator Presence and

T Interlock Systems II_

R Check for Loose Fasteners _ Ks V e

Sharpen/Replace Mower Blades _3

T Lubrication Chart

0 Check Battery Level

a Clean Battery and Terminals _

Check Transaxle Cooling

Check V-Befts

Check Engine Oil Level _

Change Engine Oil (with oil filter) _,_

E ChangeEngineOil(withoutoitfilter) _i 2

N Clean Air Filter

G Clean Air Screen

Inspect Muffter/Spark Attester

E Replace Oil Filter (If equipped) I_;

Clean Engine Cooling Fins I_'

Replace Spark Plug _

Replace Air Filter Paper Cartridge

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 _ Selvice more otten when operating in dirty or dusty conditions.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.=tbs, maximum.

Do not ovedighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

interlock systems for proper operation.

5. Check for loose fasteners.

LUBRICATION CHART

@ Spindle _ _ @ Spindle

Zerk ._ _.}_,_ Zerk_,T,-"_-"_-"_'_ " lX@Front

@Front Wheel-- \%."'-,,, I _J Wheel

Bearing z_ ___._.__:._,"_Bearing zerk

@Steering\ _ _'_@ Engine

Sector Gear_ _ _@ Mandrel

Teeth I I l il I I I Zerks

__ (_ Check/Add

TTransaxle

_0% _1 Fluid

(_SAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Sec-

tion

IMPORTANT: Do not oil or grease the

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of

the self-lubricating bearings. If you feel

they must be lubricated, use only a dry,

powdered graphite type lubricant spar-

ingly.

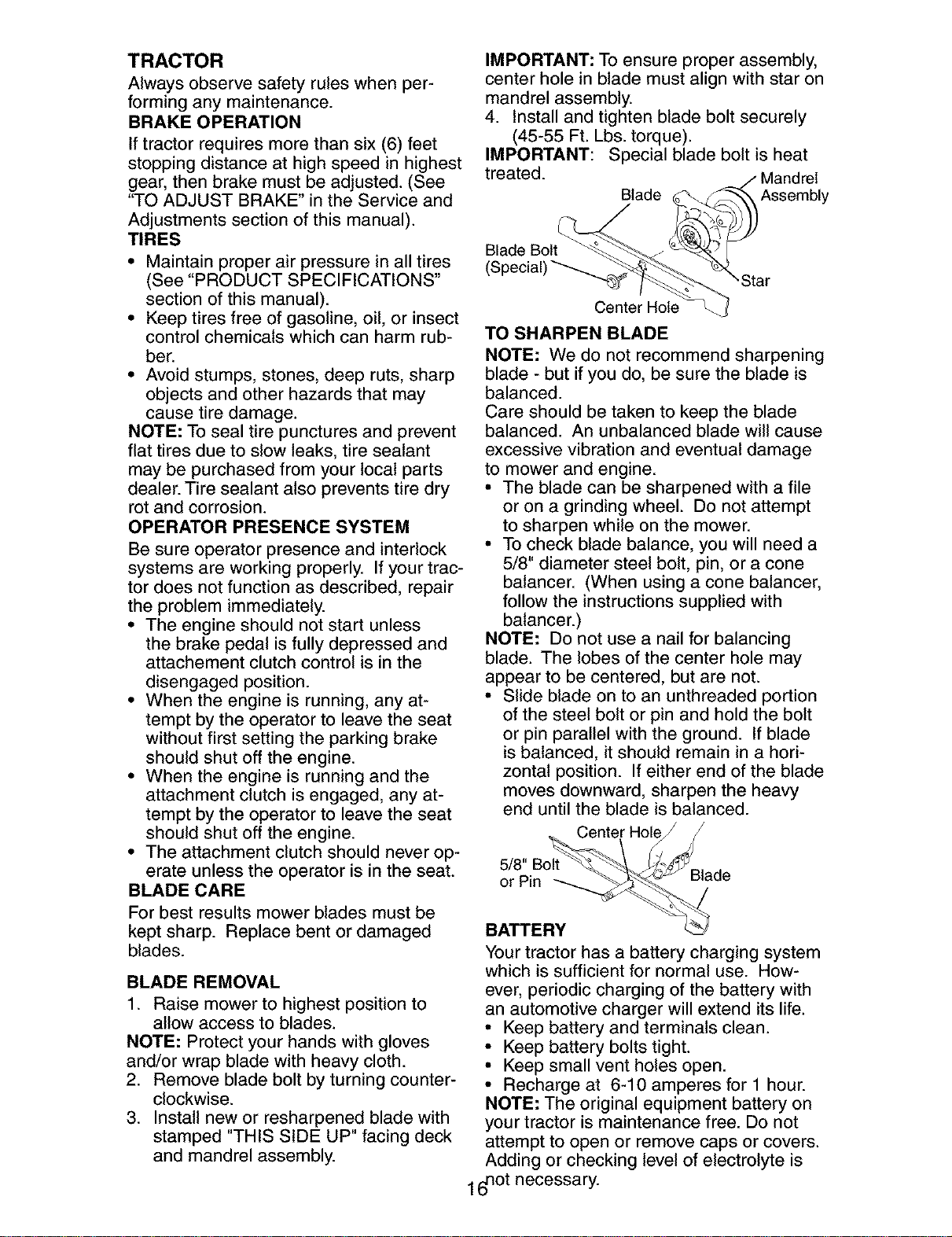

TRACTOR

Always observe safety rules when per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at high speed in highest

gear, then brake must be adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and interlock

systems are working properly. If your trac-

tor does not function as described, repair

the problem immediately.

• The engine should not start unless

the brake pedal is fully depressed and

attachement clutch control is in the

disengaged position.

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

BLADE REMOVAL

1. Raise mower to highest position to

allow access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star on

mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated. Mandrel

Blade Assembly

Blade

Center Hole

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade - but ifyou do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel with the ground. If blade

is balanced, it should remain in a hori-

zontal position. If either end of the blade

moves downward, sharpen the heavy

end until the blade is balanced.

Center Hole

or Pin

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

16n°t necessary.

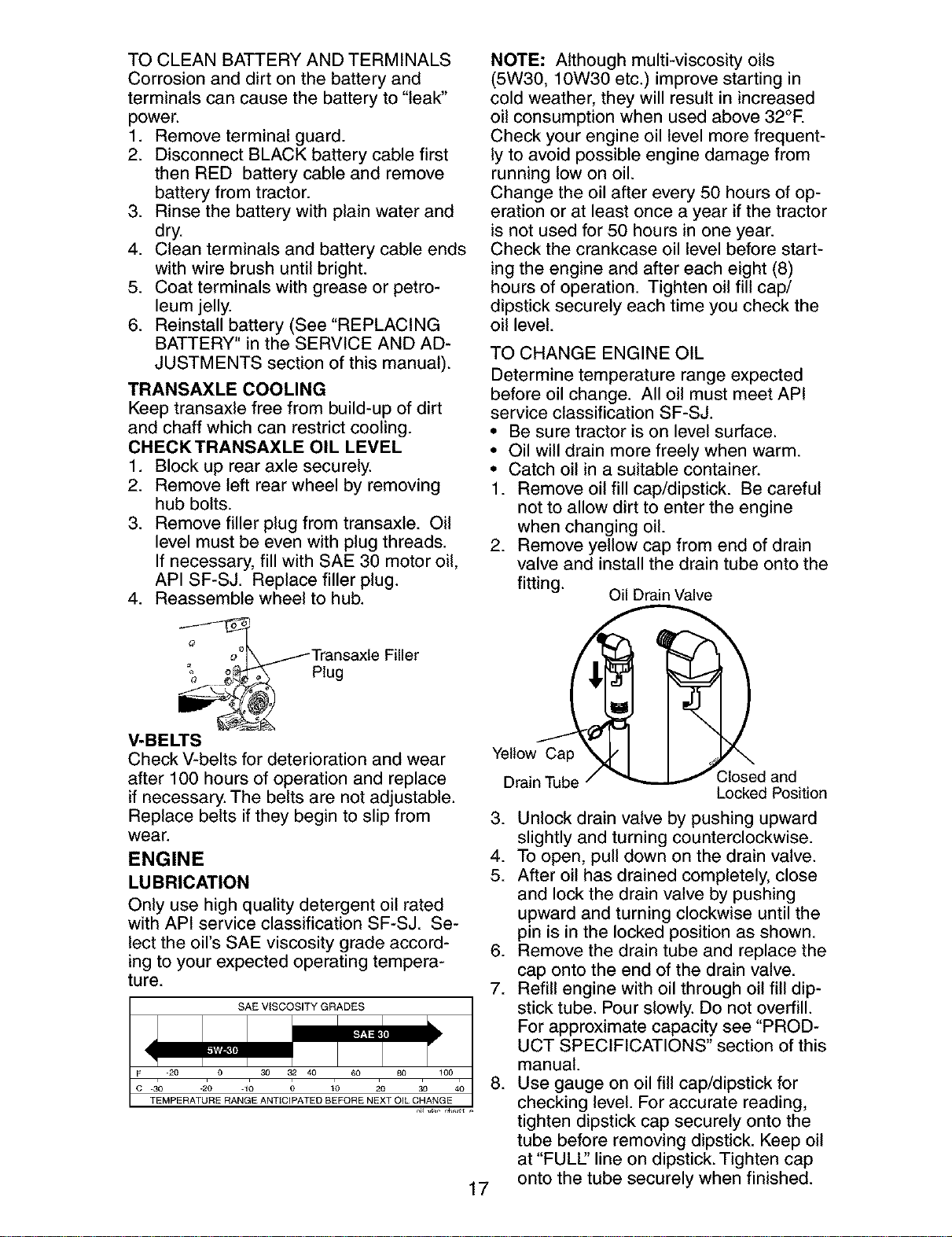

TOCLEANBATTERYANDTERMINALS

Corrosionand dirton thebatteryand

terminalscancausethebatteryto"leak"

power.

1. Removeterminalguard.

2. DisconnectBLACKbatterycablefirst

then RED batterycableand remove

batteryfromtractor.

3. Rinsethe batterywithplainwaterand

dry.

4. Cleanterminalsandbatterycableends

with wirebrushuntilbright.

5. Coatterminalswithgreaseor petro-

leumjelly.

6. Reinstallbattery(See"REPLACING

BATTERY"in theSERVICEANDAD-

JUSTMENTSsectionofthis manual).

TRANSAXLECOOLING

Keeptransaxlefreefrom build-upofdirt

andchaffwhichcan restrictcooling.

CHECKTRANSAXLEOIL LEVEL

1. Blockup rearaxlesecurely.

2. Removeleftrearwheelby removing

hubbolts.

3. Removefillerplugfromtransaxle. Oil

levelmustbe evenwithplugthreads.

Ifnecessary,fill with SAE30 motoroil,

API SF-SJ. Replacefiller plug.

4. Reassemblewheelto hub.

o° \_Transaxle Filler

t. o_ &Plug

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SF-SJ. Se-

lect the oil's SAE viscosity grade accord-

ing to your expected operating tempera-

ture.

SAE VISCOSITY GRADES

F -20 0 30 32 40 60 80 100

c -3o -2o -1; ; _; _o 3o 4;

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.) improve starting in

cold weather, they will result in increased

oil consumption when used above 32°E

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF-SJ.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Remove yellow cap from end of drain

valve and install the drain tube onto the

fitting. Oil Drain Valve

Yellow_

DrainTube / "_ Closed and

Locked Position

3. Unlock drain valve by pushing upward

slightly and turning counterclockwise.

4. To open, pull down on the drain valve.

5. After oil has drained completely, close

and lock the drain valve by pushing

upward and turning clockwise until the

pin is in the locked position as shown.

6. Remove the drain tube and replace the

cap onto the end of the drain valve.

7. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

8. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl.:' line on dipstick. Tighten cap

onto the tube securely when finished.

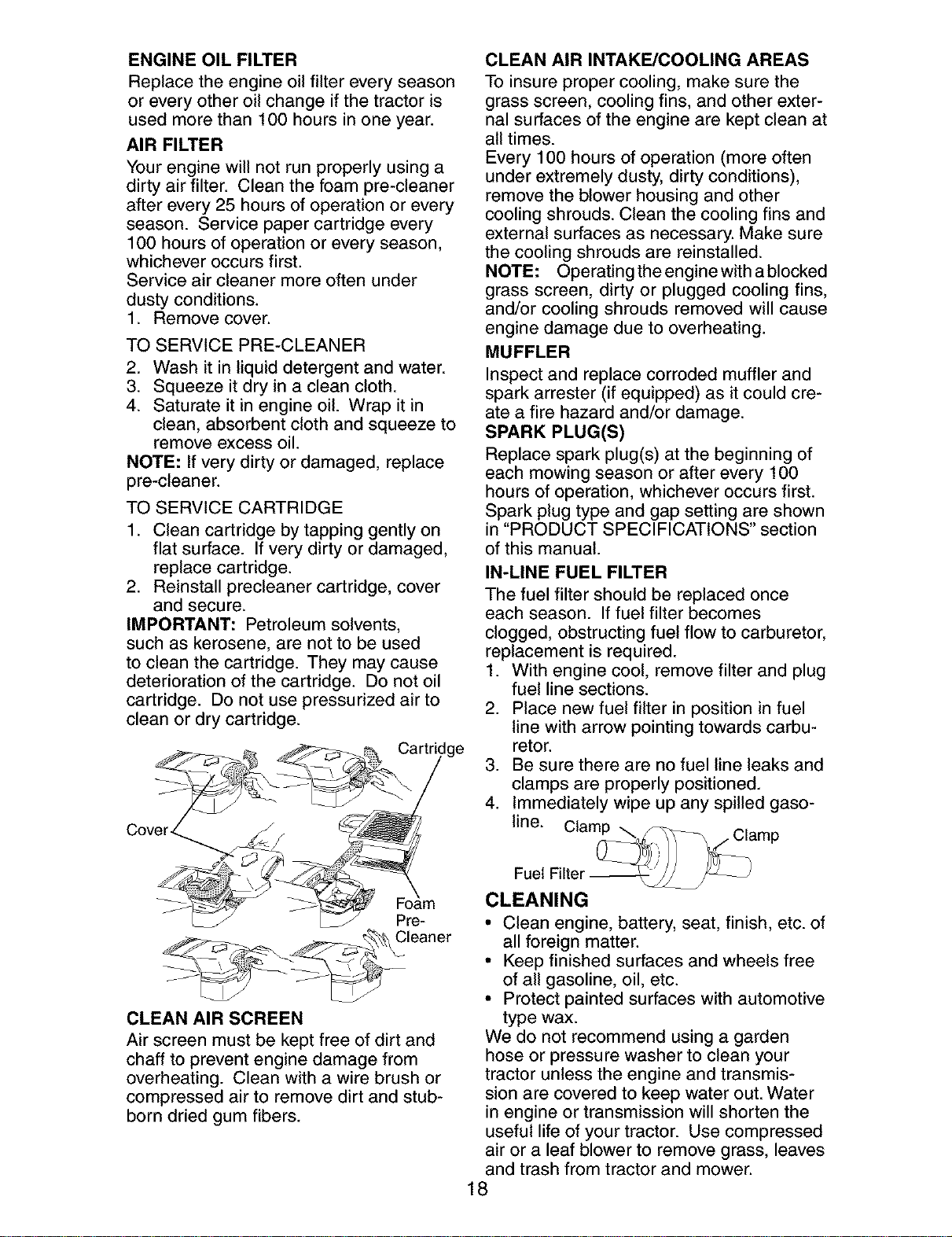

ENGINEOIL FILTER

Replacetheengineoil filtereveryseason

oreveryotheroil changeifthetractoris

usedmorethan 100hoursinoneyear.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure.

IMPORTANT: Petroleum solvents,

such as kerosene, are not to be used

to clean the cartridge. They may cause

deterioration of the cartridge. Do not oil

cartridge. Do not use pressurized air to

clean or dry cartridge.

Pre-

_leaner

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean at

all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the engine with a blocked

grass screen, dirty or plugged cooling fins,

and/or cooling shrouds removed will cause

engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are shown

in "PRODUCT SPECIFICATIONS" section

of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carburetor,

replacement is required.

1. With engine cool, remove filter and plug

fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line. Clamp

Fuel Filter --

CLEANING

° Clean engine, battery, seat, finish, etc. of

all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automotive

type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass, leaves

and trash from tractor and mower.

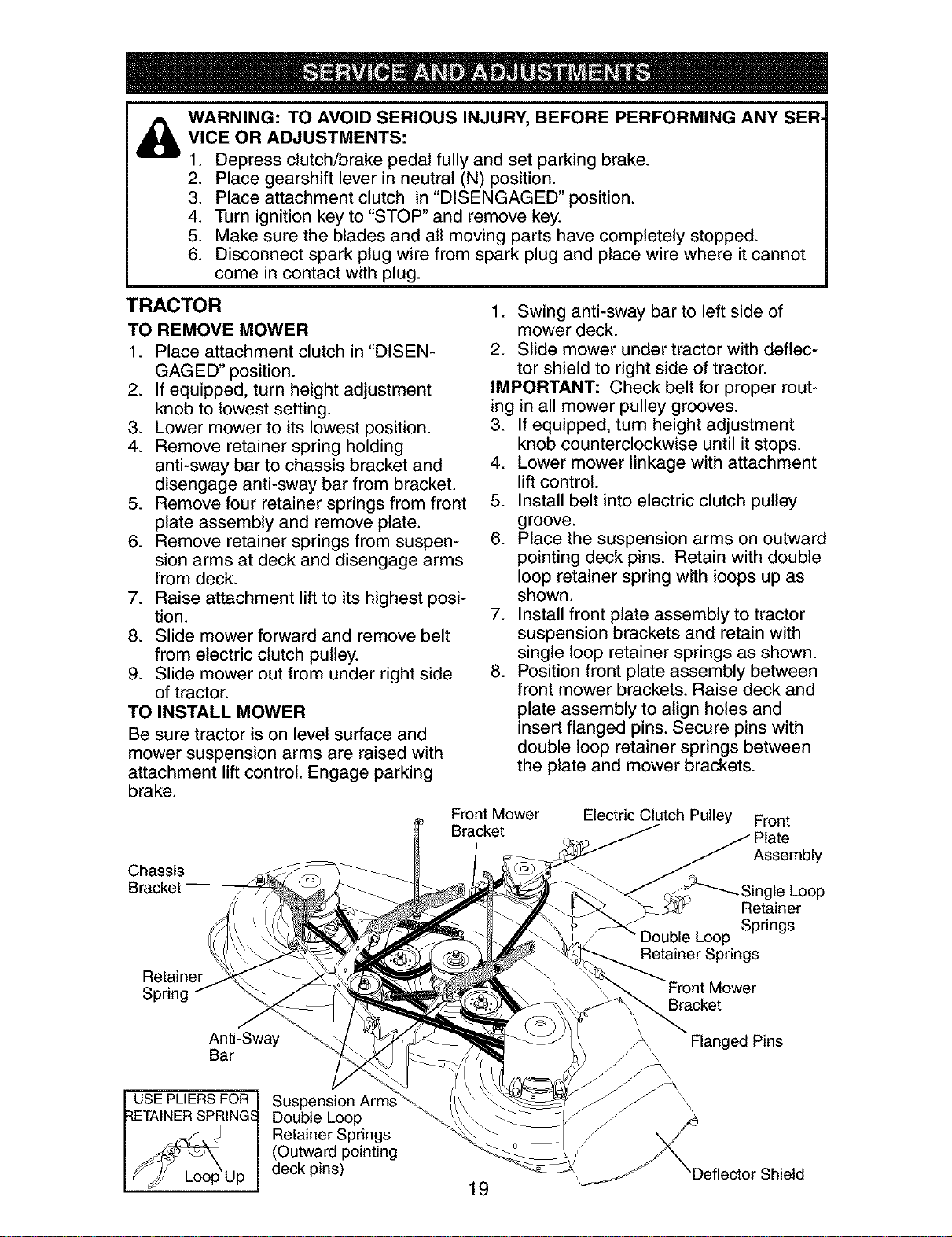

WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. If equipped, turn height adjustment

knob to lowest setting.

3. Lower mower to its lowest position.

4. Remove retainer spring holding

anti-sway bar to chassis bracket and

disengage anti-sway bar from bracket.

5. Remove four retainer springs from front

plate assembly and remove plate.

6. Remove retainer springs from suspen-

sion arms at deck and disengage arms

from deck.

7. Raise attachment lift to its highest posi-

tion.

8. Slide mower forward and remove belt

from electric clutch pulley.

9. Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

Chassis

Retainer

Spring

1. Swing anti-sway bar to left side of

mower deck.

2. Slide mower under tractor with deflec-

tor shield to right side of tractor.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. If equipped, turn height adjustment

knob counterclockwise until it stops.

4. Lower mower linkage with attachment

lift control.

5. Install belt into electric clutch pulley

greeve.

6. Place the suspension arms on outward

pointing deck pins. Retain with double

loop retainer spring with loops up as

shown.

7. Install front plate assembly to tractor

suspension brackets and retain with

single loop retainer springs as shown.

8. Position front plate assembly between

front mower brackets. Raise deck and

plate assembly to align holes and

insert flanged pins. Secure pins with

double loop retainer springs between

the plate and mower brackets.

Front Mower Electric Clutch Pulley Front

Bracket

Assembly

_""---_ Single Loop

Retainer

Springs

' Double Loop

Retainer Springs

Bracket

Anti-Sway

Bar

Flanged Pins

USE PLIERS FOR

:{ETAtNER SPRING_

Suspension Arm

Double Loop

Retainer Springs

(Outward pointing

deck pins)

'Deflector Shield

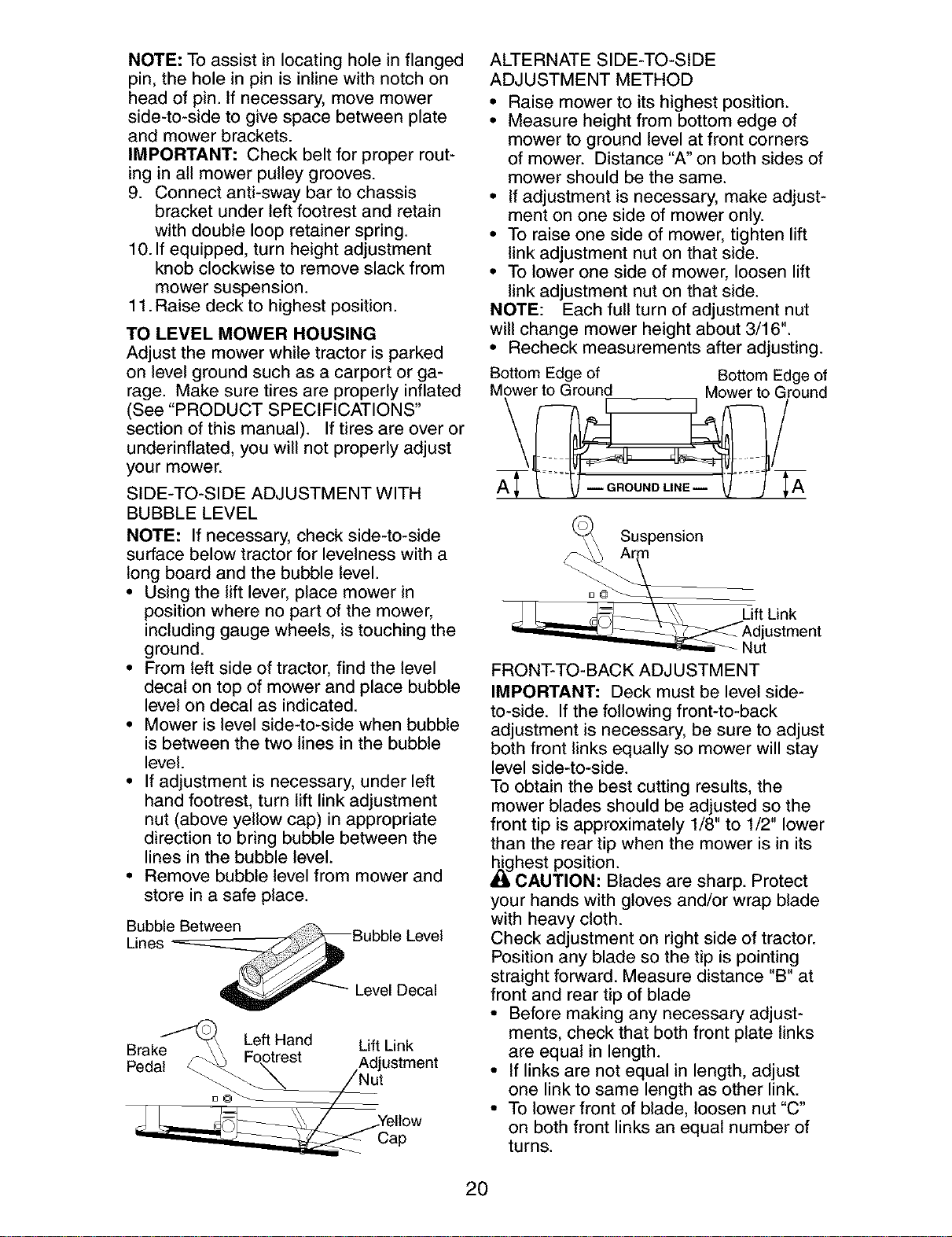

NOTE: To assist in locating hole in flanged

pin, the hole in pin is inline with notch on

head of pin. If necessary, move mower

side-to-side to give space between plate

and mower brackets.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

9. Connect anti-sway bar to chassis

bracket under left footrest and retain

with double loop retainer spring.

10. If equipped, turn height adjustment

knob clockwise to remove slack from

mower suspension.

11. Raise deck to highest position.

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground such as a carport or ga-

rage. Make sure tires are properly inflated

(See "PRODUCT SPECIFICATIONS"

section of this manual). If tires are over or

underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT WITH

BUBBLE LEVEL

NOTE: If necessary, check side-to-side

surface below tractor for levelness with a

long board and the bubble level.

• Using the lift lever, place mower in

position where no part of the mower,

including gauge wheels, is touching the

ground.

• From left side of tractor, find the level

decal on top of mower and place bubble

level on decal as indicated.

• Mower is level side-to-side when bubble

is between the two lines in the bubble

level.

• If adjustment is necessary, under left

hand footrest, turn lift link adjustment

nut (above yellow cap) in appropriate

direction to bring bubble between the

lines in the bubble level.

• Remove bubble level from mower and

store in a safe place.

Bubble Between

Lines

Level Decal

Brake_ Left Hand Lift Link

Pedal _ Fo,.otrest ,Adjustment

J e,Iow

Cap

ALTERNATE SIDE-TO-SIDE

ADJUSTMENT METHOD

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

\ /

Suspension

J jL ftLink

_ AdJtustment

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-

to-side. If the following front-to-back

adjustment is necessary, be sure to adjust

both front links equally so mower will stay

level side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

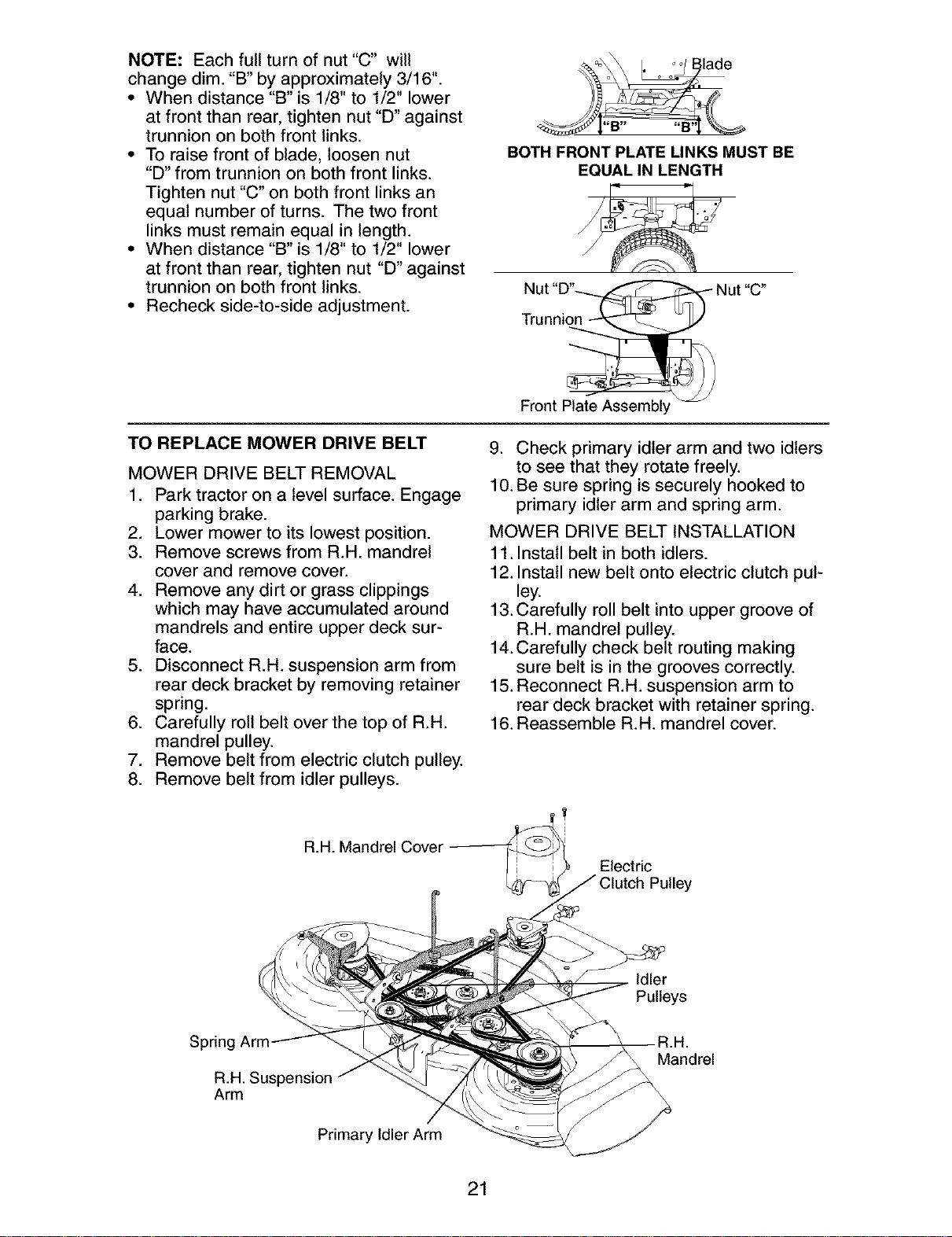

NOTE: Each full turn of nut "C" will

change dim. "B" by approximately 3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• Recheck side-to-side adjustment.

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

Front Plate Assembl

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower mower to its lowest position.

3. Remove screws from R.H. mandrel

cover and remove cover.

4. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

5. Disconnect R.H. suspension arm from

rear deck bracket by removing retainer

spring.

6. Carefully roll belt over the top of R.H.

mandrel pulley.

7. Remove belt from electric clutch pulley.

8. Remove belt from idler pulleys.

9. Check primary idler arm and two idlers

to see that they rotate freely.

10. Be sure spring is securely hooked to

primary idler arm and spring arm.

MOWER DRIVE BELT INSTALLATION

11. Install belt in both idlers.

12. Install new belt onto electric clutch pul-

ley.

13.Carefully roll belt into upper groove of

R.H. mandrel pulley.

14. Carefully check belt routing making

sure belt is in the grooves correctly.

15. Reconnect R.H. suspension arm to

rear deck bracket with retainer spring.

16. Reassemble R.H. mandrel cover.

R.H. Mandrel Cover

Electric

Pulley

Idler

Pulleys

Spring Arm

R.H. Suspension

Arm

Mandrel

Primary Idler Arm

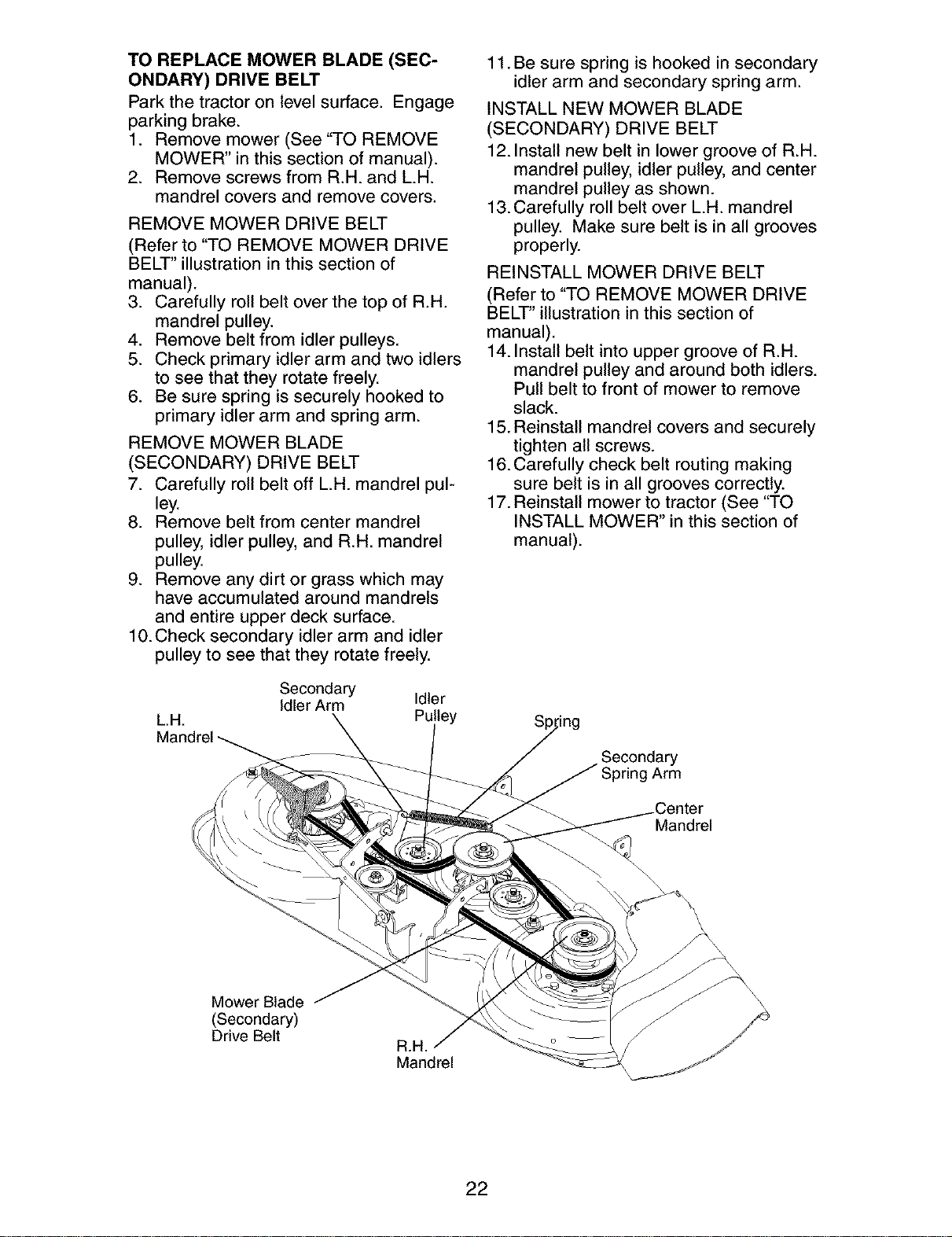

TO REPLACE MOWER BLADE (SEC-

ONDARY) DRIVE BELT

Park the tractor on level surface. Engage

parking brake.

1. Remove mower (See "TO REMOVE

MOWER" in this section of manual).

2. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

REMOVE MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT" illustration in this section of

manual).

3. Carefully roll belt over the top of R.H.

mandrel pulley.

4. Remove belt from idler pulleys.

5. Check primary idler arm and two idlers

to see that they rotate freely.

6. Be sure spring is securely hooked to

primary idler arm and spring arm.

REMOVE MOWER BLADE

(SECONDARY) DRIVE BELT

7. Carefully roll belt off LH. mandrel pul-

ley.

8. Remove belt from center mandrel

pulley, idler pulley, and R.H. mandrel

pulley.

9. Remove any dirt or grass which may

have accumulated around mandrels

and entire upper deck surface.

10.Check secondary idler arm and idler

pulley to see that they rotate freely.

L.H.

Mandrel

Secondary

Idler Arm

Idler

Pulley

11. Be sure spring is hooked in secondary

idler arm and secondary spring arm.

INSTALL NEW MOWER BLADE

(SECONDARY) DRIVE BELT

12. Install new belt in lower groove of R.H.

mandrel pulley, idler pulley, and center

mandrel pulley as shown.

13.Carefully roll belt over L.H. mandrel

pulley. Make sure belt is in all grooves

properly.

REINSTALL MOWER DRIVE BELT

(Refer to "TO REMOVE MOWER DRIVE

BELT' illustration in this section of

manual).

14. Install belt into upper groove of R.H.

mandrel pulley and around both idlers.

Pull belt to front of mower to remove

slack.

15. Reinstall mandrel covers and securely

tighten all screws.

16. Carefully check belt routing making

sure belt is in all grooves correctly.

17. Reinstall mower to tractor (See "TO

INSTALL MOWER" in this section of

manual).

Secondary

Arm

Mandrel

Mower Blade

(Secondary)

Drive Belt

R.H.

Mandrel

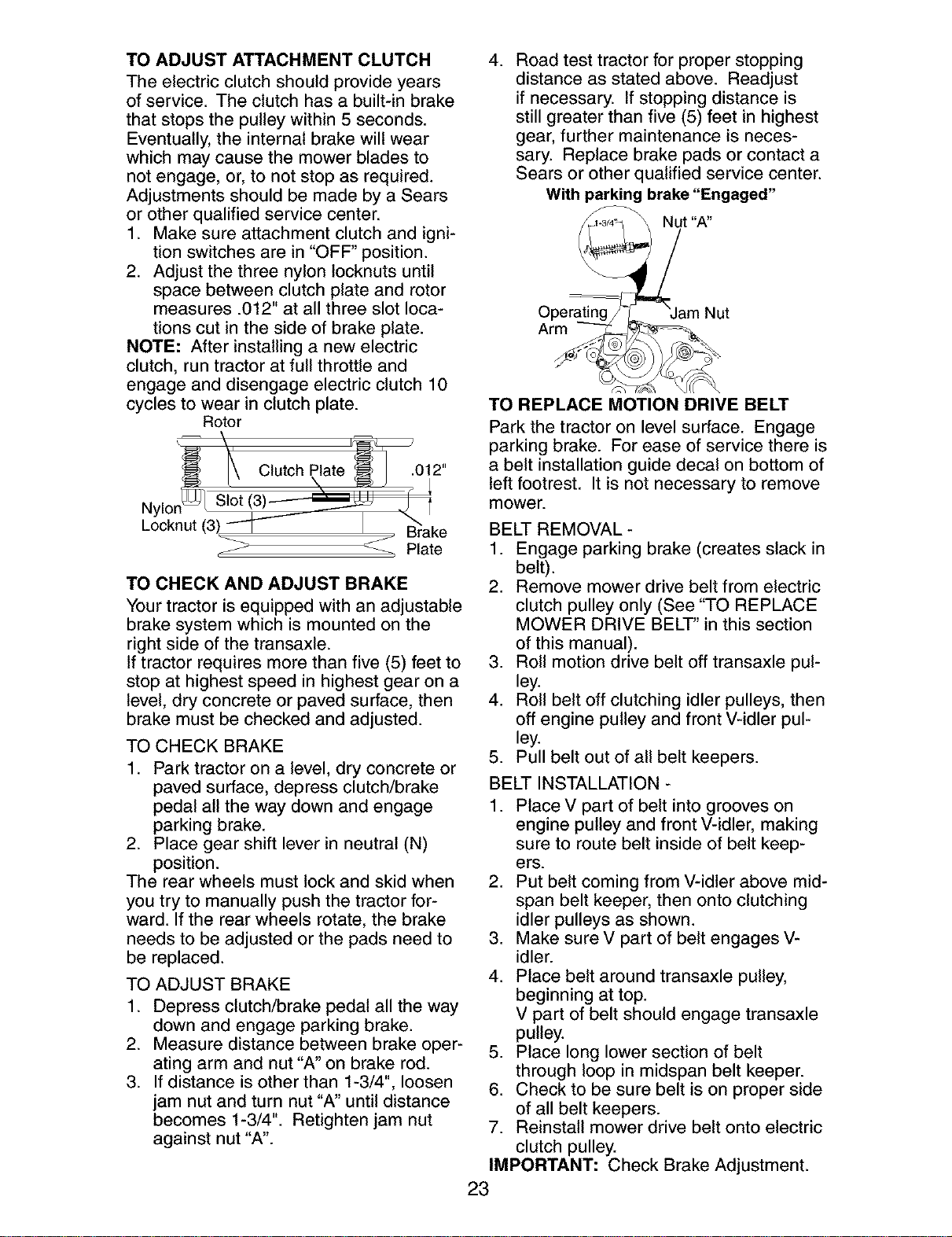

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012"at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rotor

Clutch .012"

Locknut

_ Plate

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

Operating

Arm

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest. It is not necessary to remove

mower.

BELT REMOVAL -

I. Engage parking brake (creates slack in

belt).

2. Remove mower drive belt from electric

clutch pulley only (See "TO REPLACE

MOWER DRIVE BELT" in this section

of this manual).

3. Roll motion drive belt off transaxle pul-

ley.

4. Roll belt off clutching idler pulleys, then

off engine pulley and front V-idler pul-

ley.

5. Pull belt out of all belt keepers.

BELT INSTALLATION -

1. Place V part of belt into grooves on

engine pulley and front V-idler, making

sure to route belt inside of belt keep-

ers.

2. Put belt coming from V-idler above mid-

span belt keeper, then onto clutching

idler pulleys as shown.

3. Make sure V part of belt engages V-

idler.

4. Place belt around transaxle pulley,

beginning at top.

V part of belt should engage transaxle

pulley.

5. Place long lower section of belt

through loop in midspan belt keeper.

6. Check to be sure belt is on proper side

of all belt keepers.

7. Reinstall mower drive belt onto electric

clutch pulley.

IMPORTANT: Check Brake Adjustment.

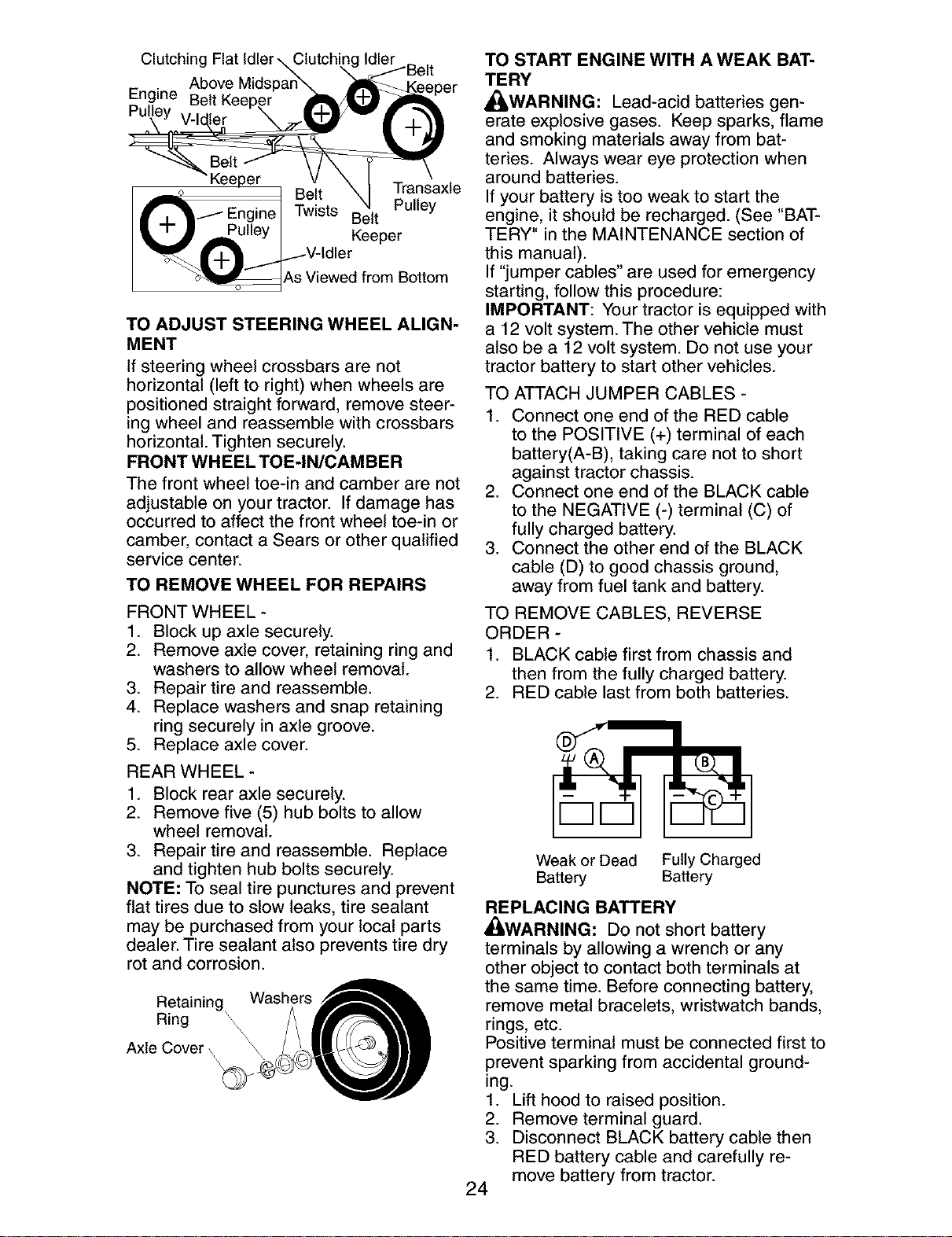

Clutching Clutchin{

Above Mids

Engine Belt Kee

Transaxle

Pulley

Twists Belt

Keeper

Bottom

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL-

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Retaining Washers

Ring \

Axle Cover \

TO START ENGINE WITH AWEAK BAT-

TERY

_L,WARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with

a 12 volt system. The other vehicle must

also be a 12 volt system. Do not use your

tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

REPLACING BATTERY

,/ILWARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected first to

prevent sparking from accidental ground-

ing.

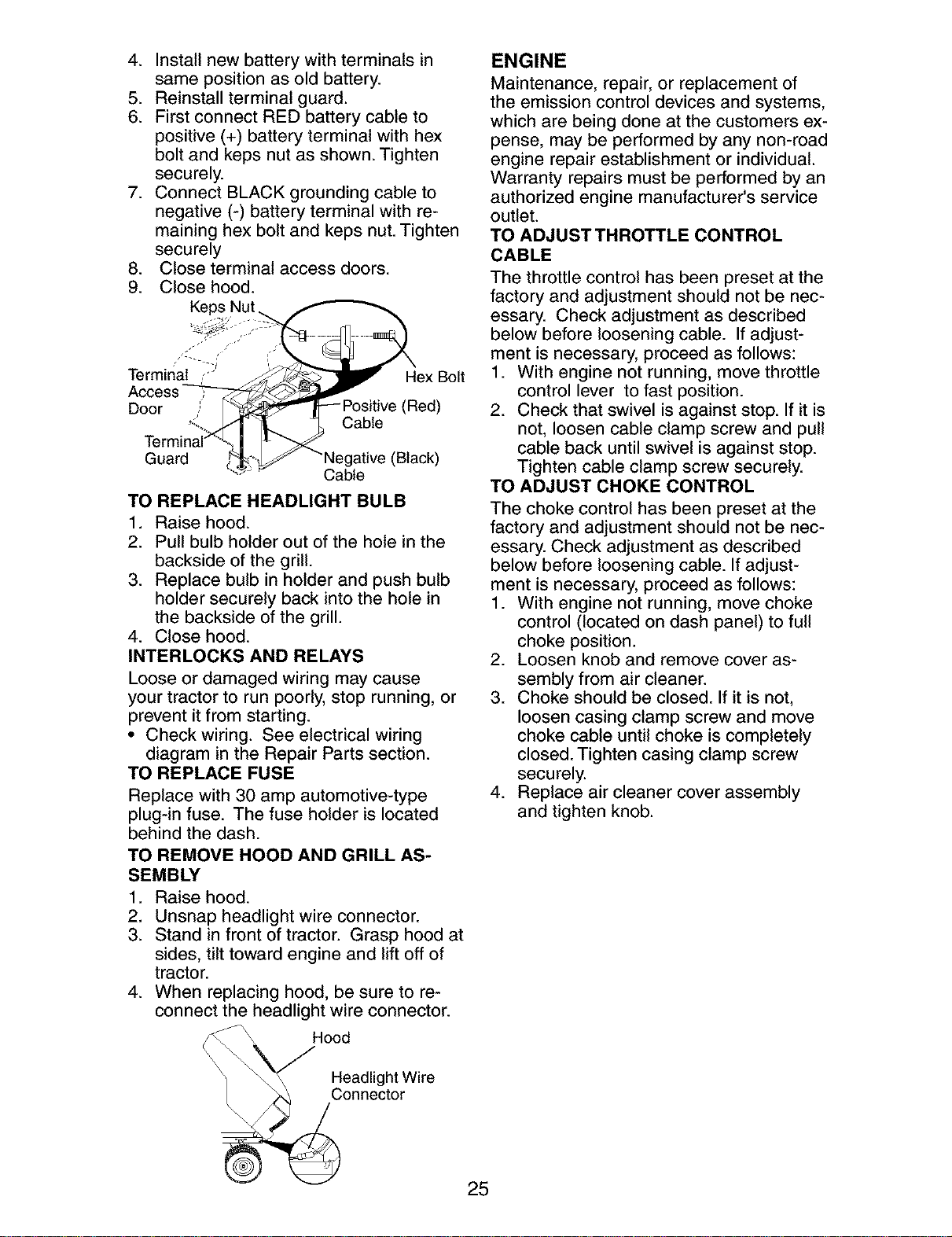

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully re-

move battery from tractor.

4. Installnewbatterywithterminalsin

samepositionasoldbattery.

5. Reinstallterminalguard.

6. FirstconnectREDbatterycableto

positive(+)batteryterminalwith hex

boltand kepsnutasshown.Tighten

securely.

7. ConnectBLACKgroundingcableto

negative(-) batteryterminalwith re-

maininghex boltand kepsnut.Tighten

securely

8. Closeterminalaccessdoors.

9. Close hood.

Terminal ""

Door

Cable

Hex Bolt

_,Red)

Guard gative (Black)

Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

_ _HO_deadlight Wire

onnector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUSTTHROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover as-

sembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

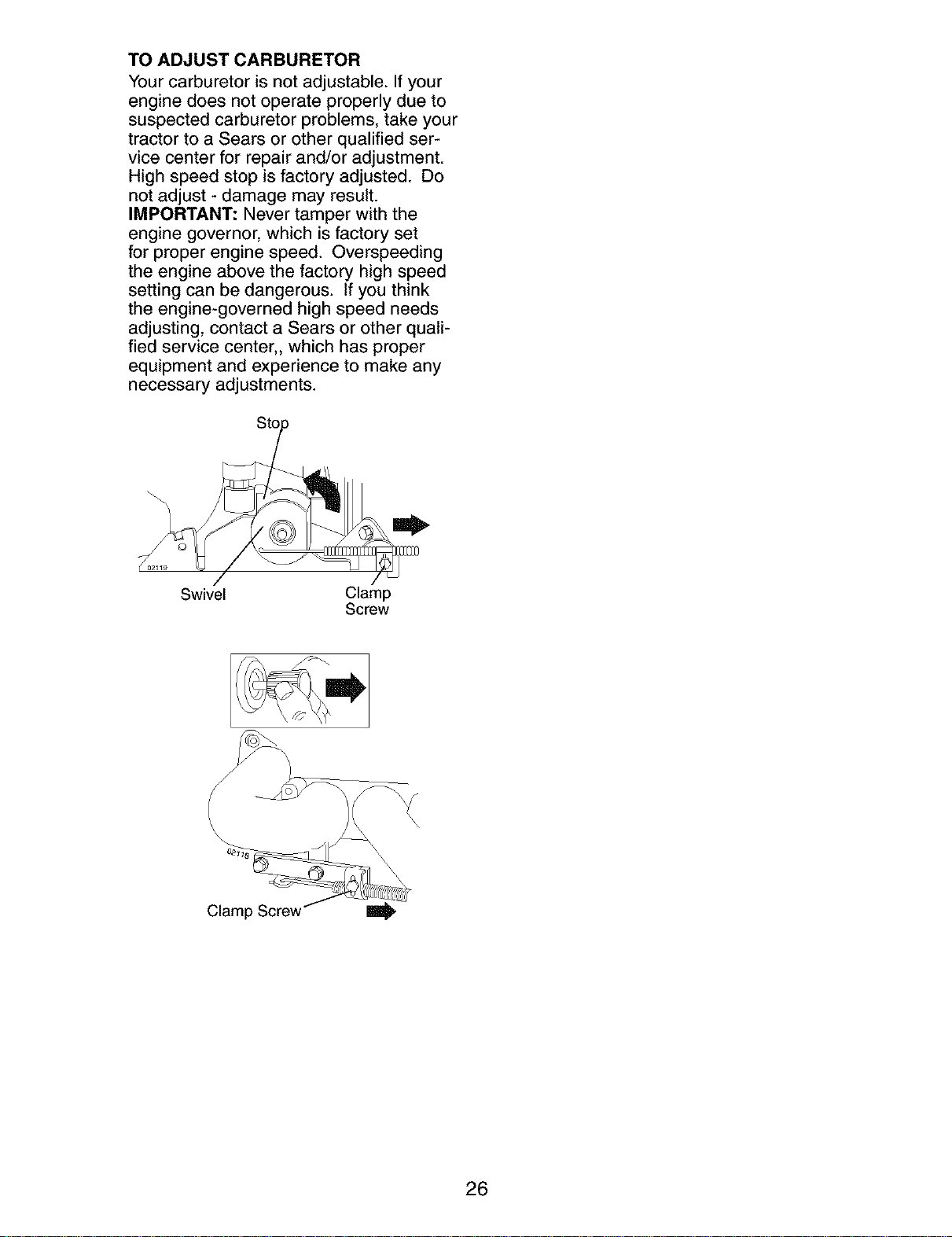

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to a Sears or other qualified ser-

vice center for repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeeding

the engine above the factory high speed

setting can be dangerous. If you think

the engine-governed high speed needs

adjusting, contact a Sears or other quali-

fied service center,, which has proper

equipment and experience to make any

necessary adjustments.

Swivel Clamp

Screw

Clamp Screw I_

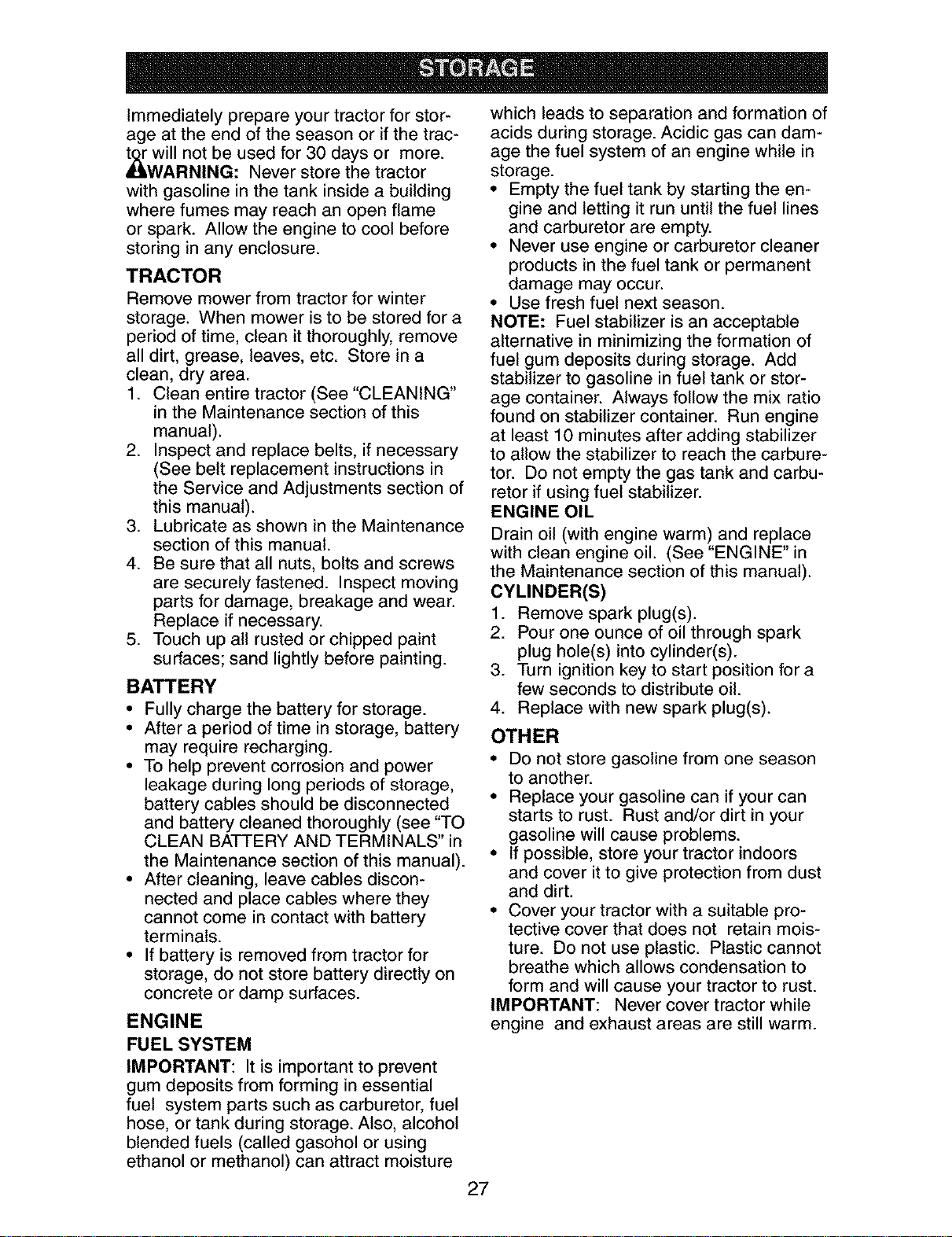

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

_will not be used for 30 days or more.

WARNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean itthoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See"CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not empty the gas tank and carbu-

retor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s) into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

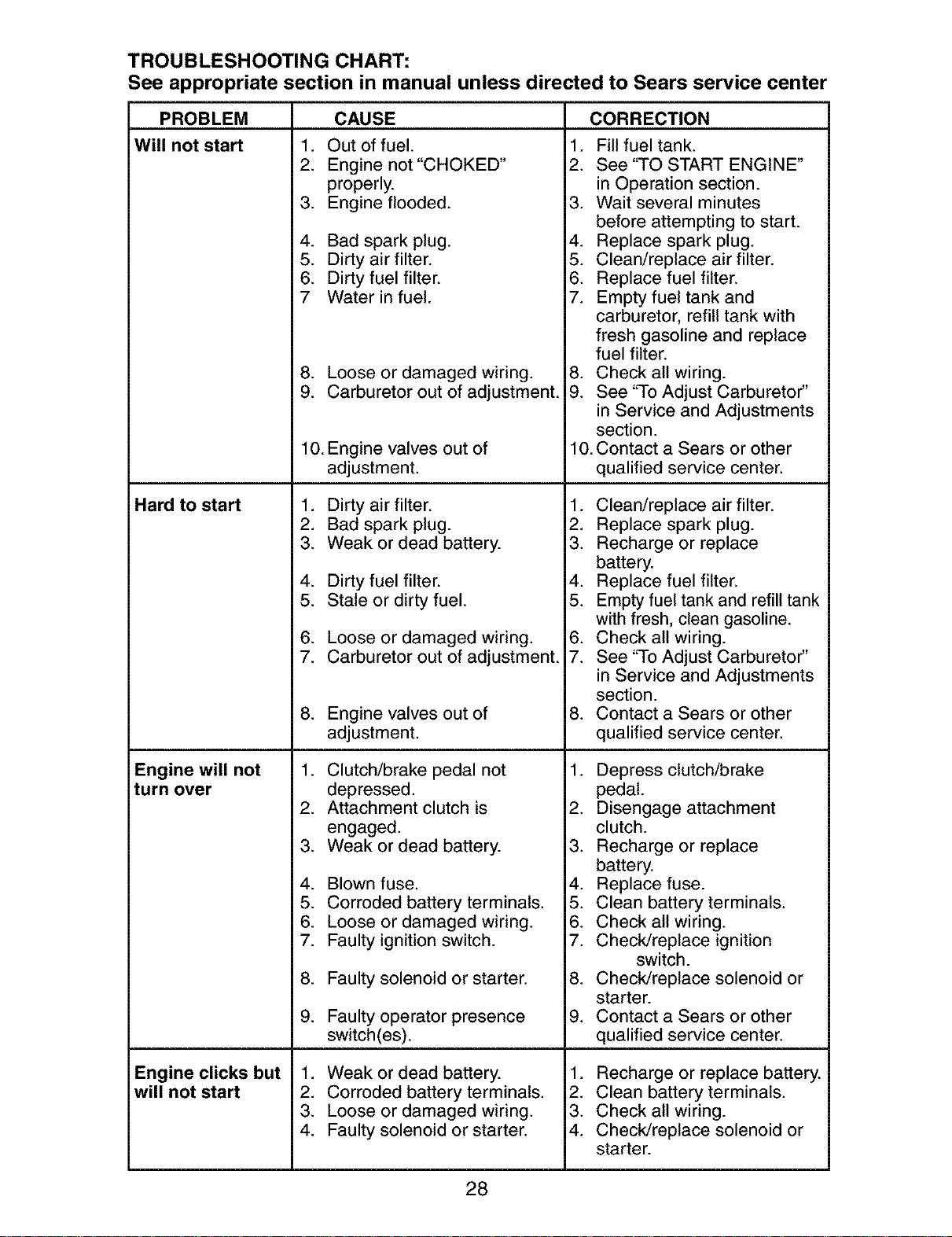

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded. 3.

4. Bad spark plug. 4.

5. Dirty air filter. 5.

6. Dirty fuel filter. 6.

7 Water in fuel. 7.

8. Loose or damaged wiring. 8.

9. Carburetor out of adjustment. 9.

10. Engine valves out of

adjustment.

1. Dirty air filter. 1.

2. Bad spark plug. 2.

3. Weak or dead battery. 3.

4. Dirty fuel filter. 4.

5. Stale or dirty fuel. 5.

6. Loose or damaged wiring. 6.

7. Carburetor out of adjustment. 7.

8. Engine valves out of 8.

adjustment.

1. Clutch/brake pedal not 1.

depressed.

2. Attachment clutch is 2.

engaged.

3. Weak or dead battery. 3.

4. Blown fuse. 4.

5. Corroded battery terminals. 5.

6. Loose or damaged wiring. 6.

7. Faulty ignition switch. 7.

8. Faulty solenoid or starter. 8.

9. Faulty operator presence 9.

switch(es).

1. Weak or dead battery. 1.

2. Corroded battery terminals. 2.

3. Loose or damaged wiring. 3.

4. Faulty solenoid or starter. 4.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

Wait several minutes

before attempting to start.

Replace spark plug.

Clean/replace air filter.

Replace fuel filter.

Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

Clean/replace air filter.

Replace spark plug.

Recharge or replace

battery.

Replace fuel filter.

Empty fuel tank and refill tank

with fresh, clean gasoline.

Check all wiring.

See "To Adjust Carburetor"

in Service and Adjustments

section.

Contact a Sears or other

qualified service center.

Depress clutch/brake

pedal.

Disengage attachment

clutch.

Recharge or replace

battery.

Replace fuse.

Clean battery terminals.

Check all wiring.

Check/replace ignition

switch.

Check/replace solenoid or

starter.

Contact a Sears or other

qualified service center.

Recharge or replace battery.

Clean battery terminals.

Check all wiring.

Check/replace solenoid or

starter.

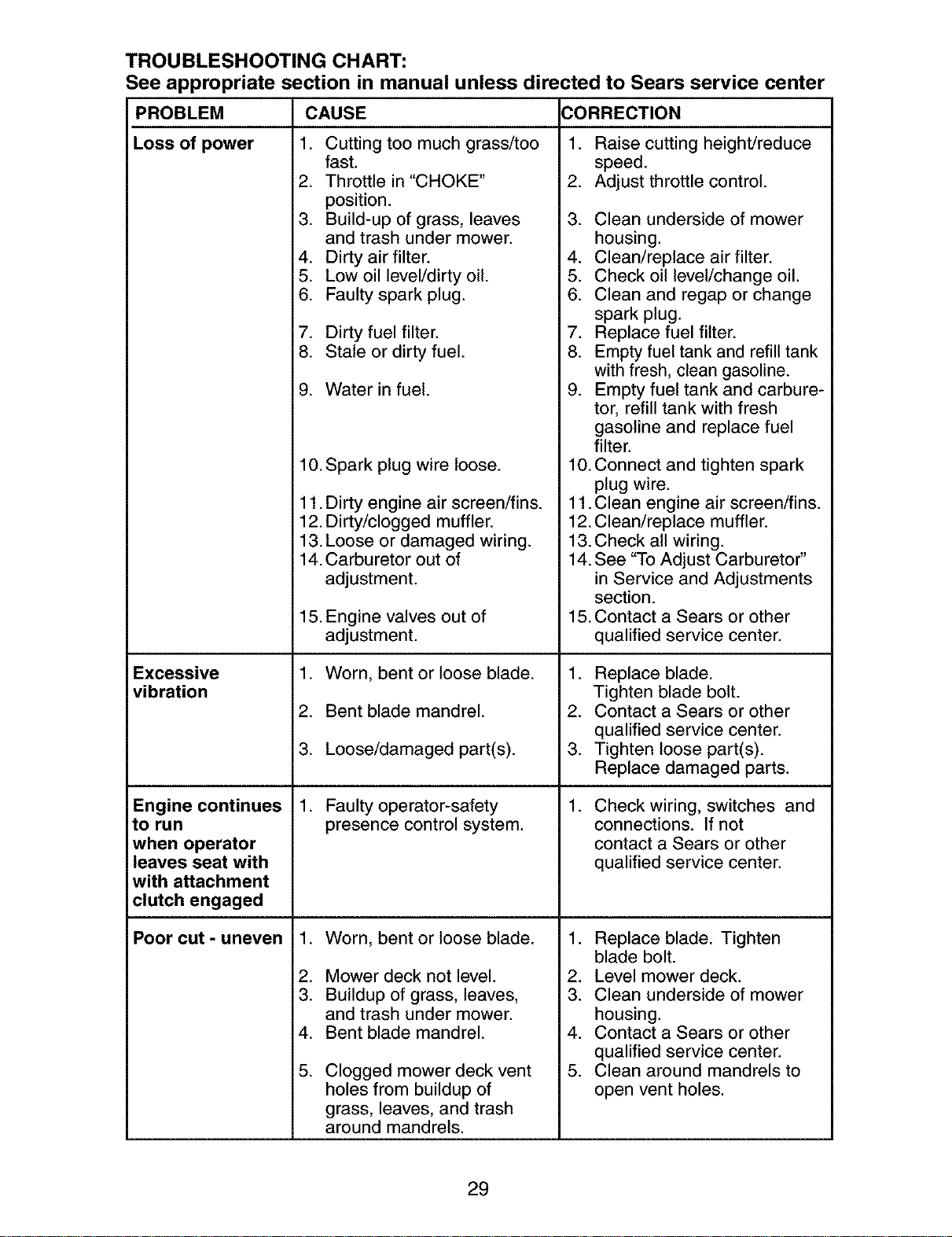

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

Loss of power 1. Cutting too much grass/too 1. Raise cutting height/reduce

fast.

2. Throttle in "CHOKE"

position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

9. Water in fuel.

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and carbure-

tor, refill tank with fresh

gasoline and replace fuel

filter.

Excessive

vibration

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

10. Spark plug wire loose.

11. Dirty engine air screen/fins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

14. Carburetor out of

adjustment.

15. Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

1. Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

10. Connect and tighten spark

plug wire.

11.Clean engine air screen/fins.

12. Clean/replace muffler.

13.Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections. If not

contact a Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

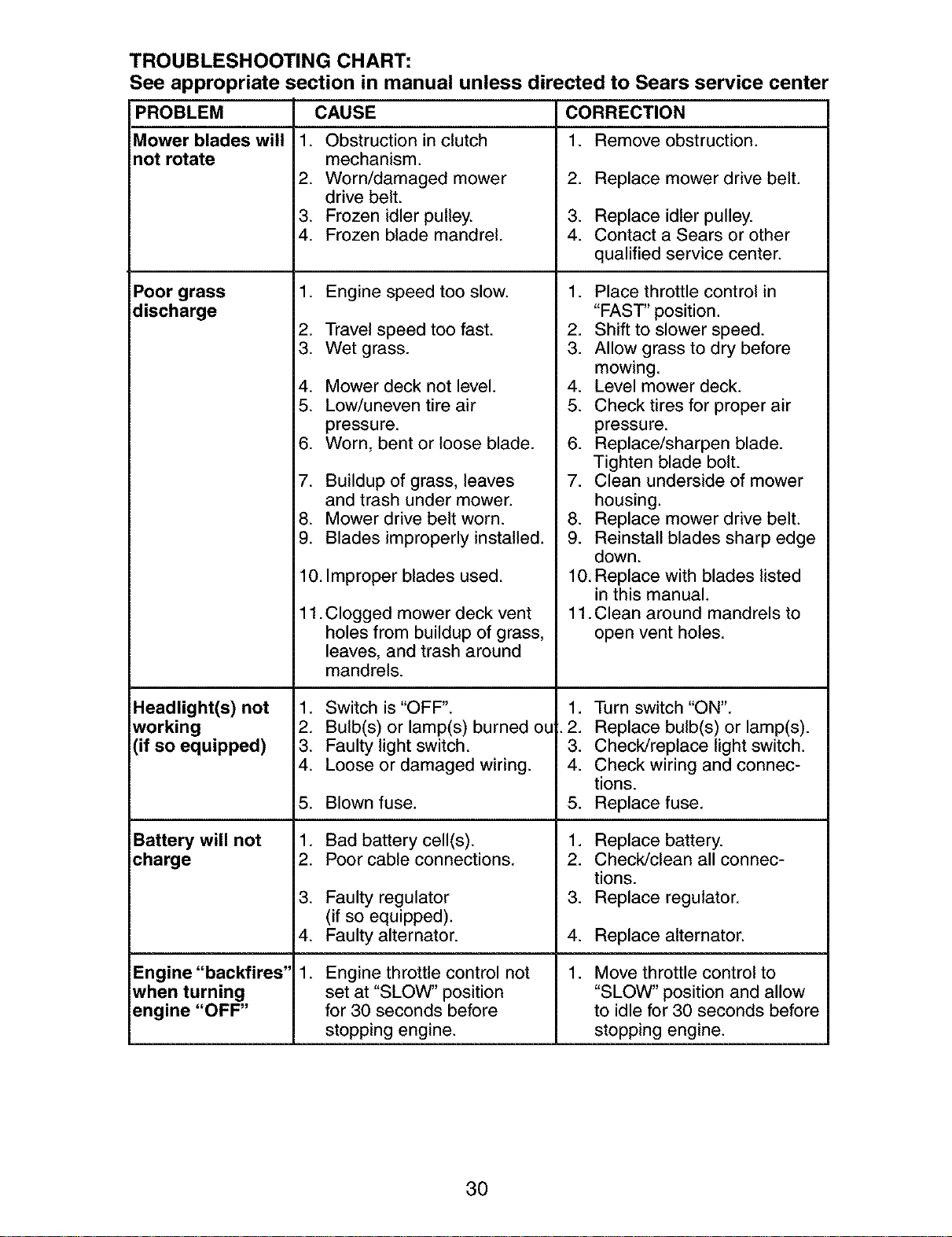

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

CAUSE CORRECTION

1. Remove obstruction.1. Obstruction in clutch

mechanism.

2. Worn/damaged mower

drive belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves

and trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Switch is "OFF".

2. Bulb(s) or lamp(s) burned ou

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not

set at "SLOW" position

for 30 seconds before

stopping engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11.Clean around mandrels to

open vent holes.

1. Turn switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connec-

tions.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connec-

tions.

3. Replace regulator.

4. Replace alternator.

Move throttle control to

"SLOW" position and allow

to idle for 30 seconds before

stopping engine.

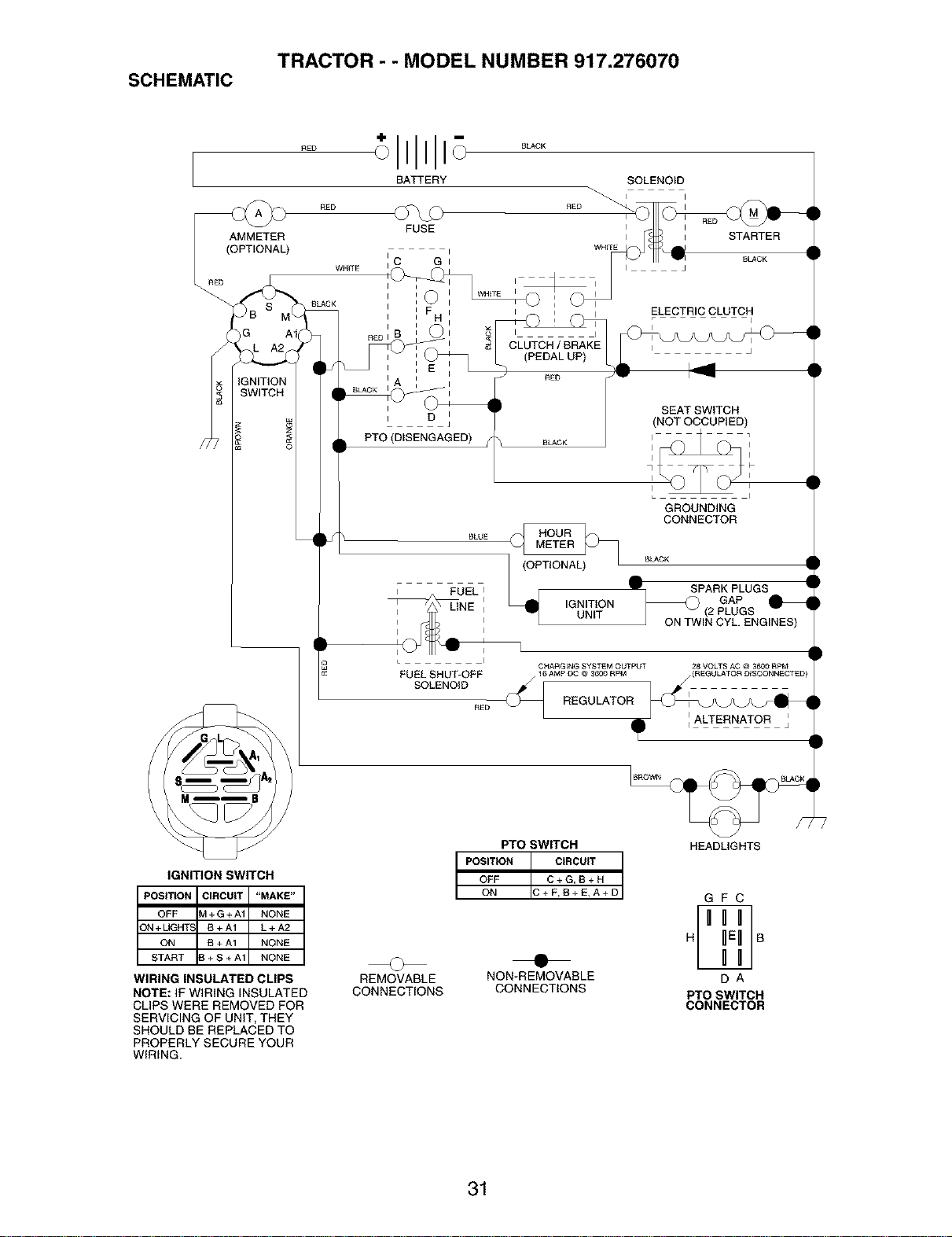

TRACTOR - - MODEL NUMBER 917.276070

SCHEMATIC

RED

,.1.

BATTERY

BLACK

SOLENOID

FUEL SHUT-OFF

SOLENOID

RED

GHAAG_NG SYSTEM OUTPUT 28 VOLTS AG @ 3600 RPM

1_6AMPREGULATORDe_ 3_00 RpM _ALT_JT_O jR_/(REGULATOR DISCONNECTE[

I J

IGNITION SWITCH

POSITION CIRCUIT "MAKE"

OFF M+G+AI NONE

_'N + [JGHTS B+A1 L+A2

ON B + A1 NONE

START B + S + A1 NONE

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR

WIRING.

REMOVABLE

CONNECTIONS

PTO SWITCH

POSITION CIRCUIT

OFF C+G,B+H

ON 3+F,B+E,A+D

HEADLIGHTS

G F C

H_B

NON-REMOVABLE D A

CONNECTIONS PTO SWITCH

CONNECTOR

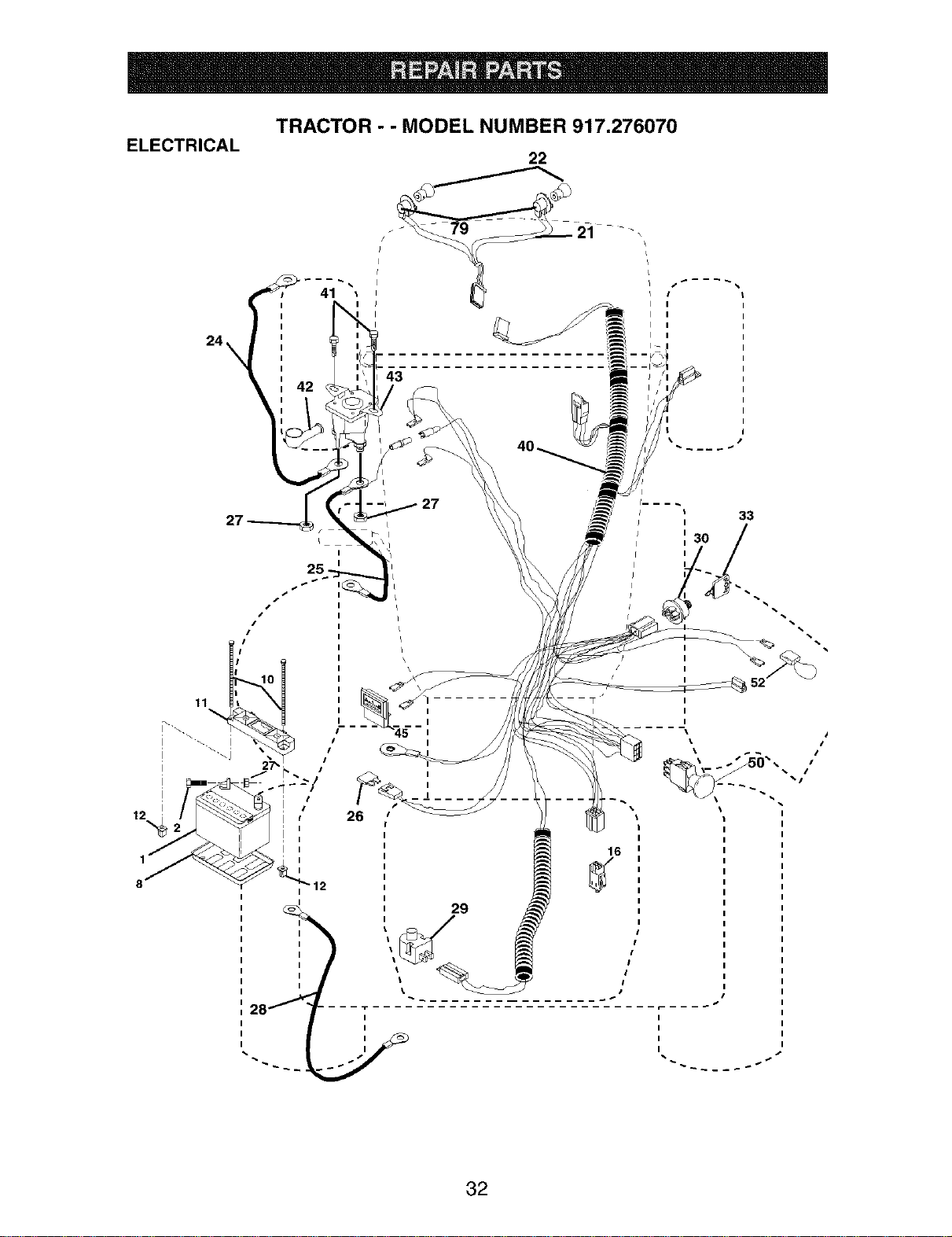

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.276070

I I

25~

281--_.

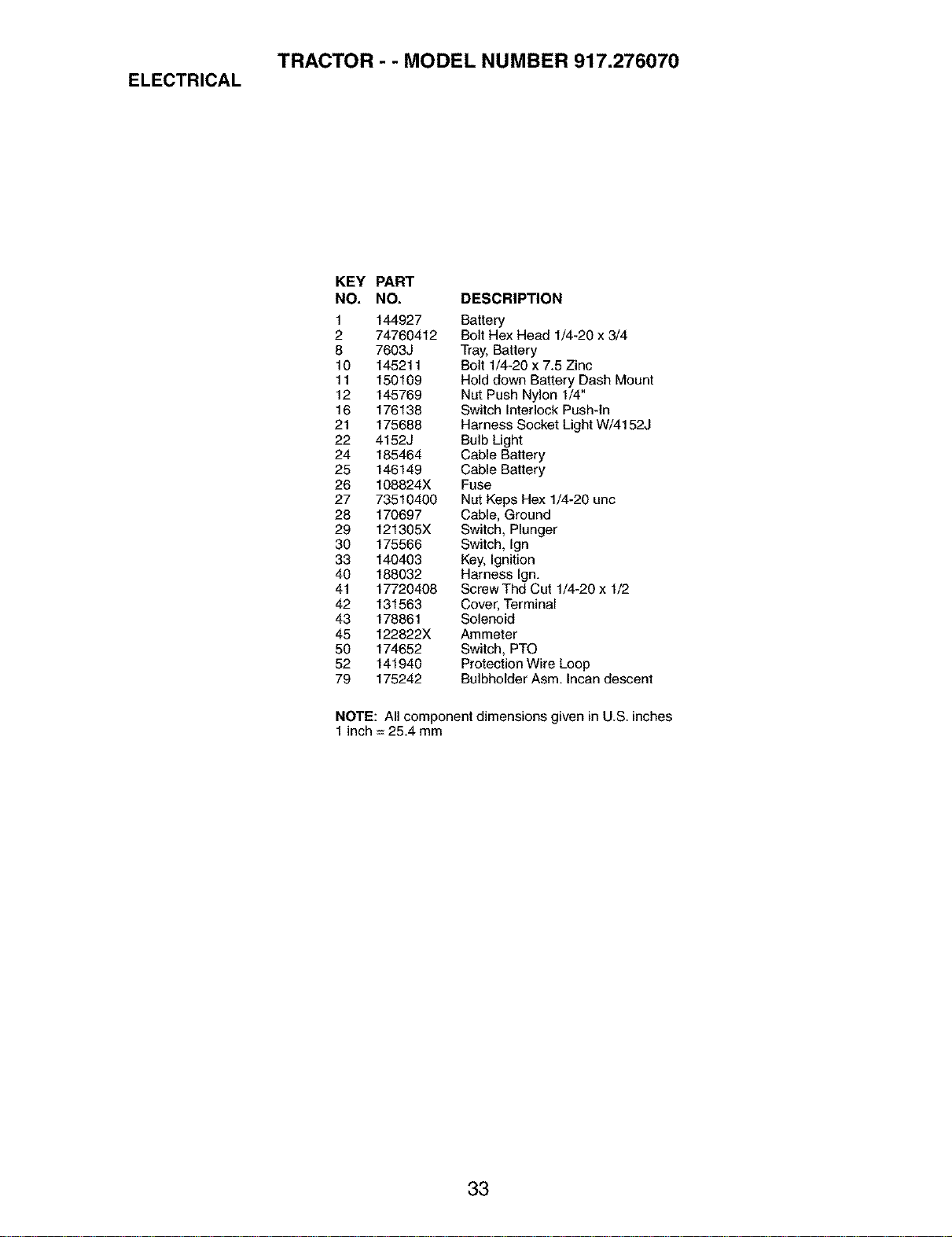

TRACTOR - - MODEL NUMBER 917.276070

ELECTRICAL

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Interlock Push4n

21 175688 Harness Socket Light W/4152J

22 4152J Bulb Light

24 185464 Cable Battery

25 146149 Cable Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 uric

28 170697 Cable, Ground

29 121305X Switch, Plunger

30 175566 Switch, Ign

33 140403 Key, Ignition

40 188032 Harness Ign.

41 17720408 Screw Thd Cut 1/4-20 x 1/2

42 131563 Cover, Terminal

43 178861 Solenoid

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Protection Wire Loop

79 175242 Bulbholder Asm. Incan descent

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

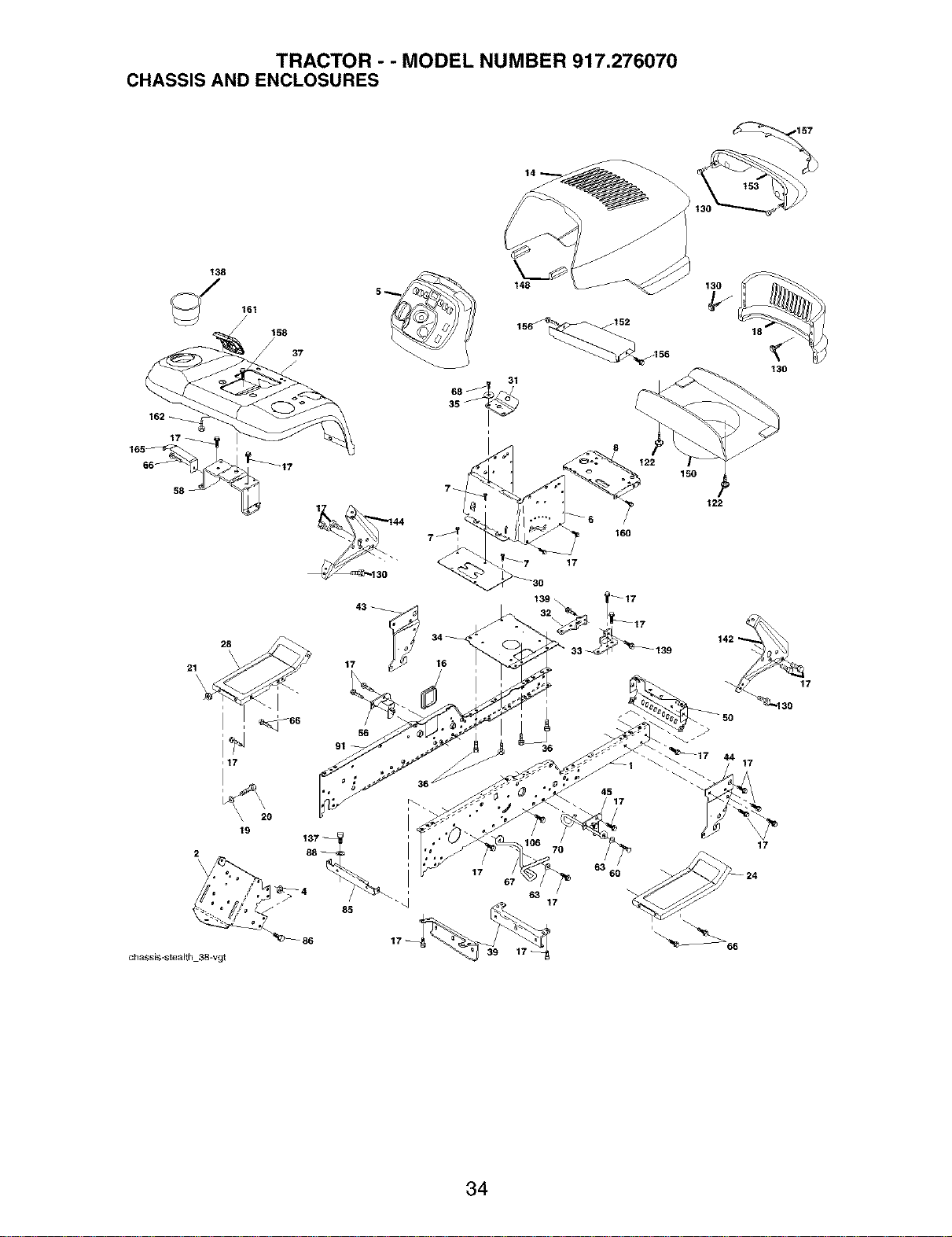

TRACTOR - - MODEL NUMBER 917.276070

CHASSIS AND ENCLOSURES

162

158

_7 17

160

11156

122

150

122

,17

chassis-stealth 38=vgt

17 16

139

_17 44 17

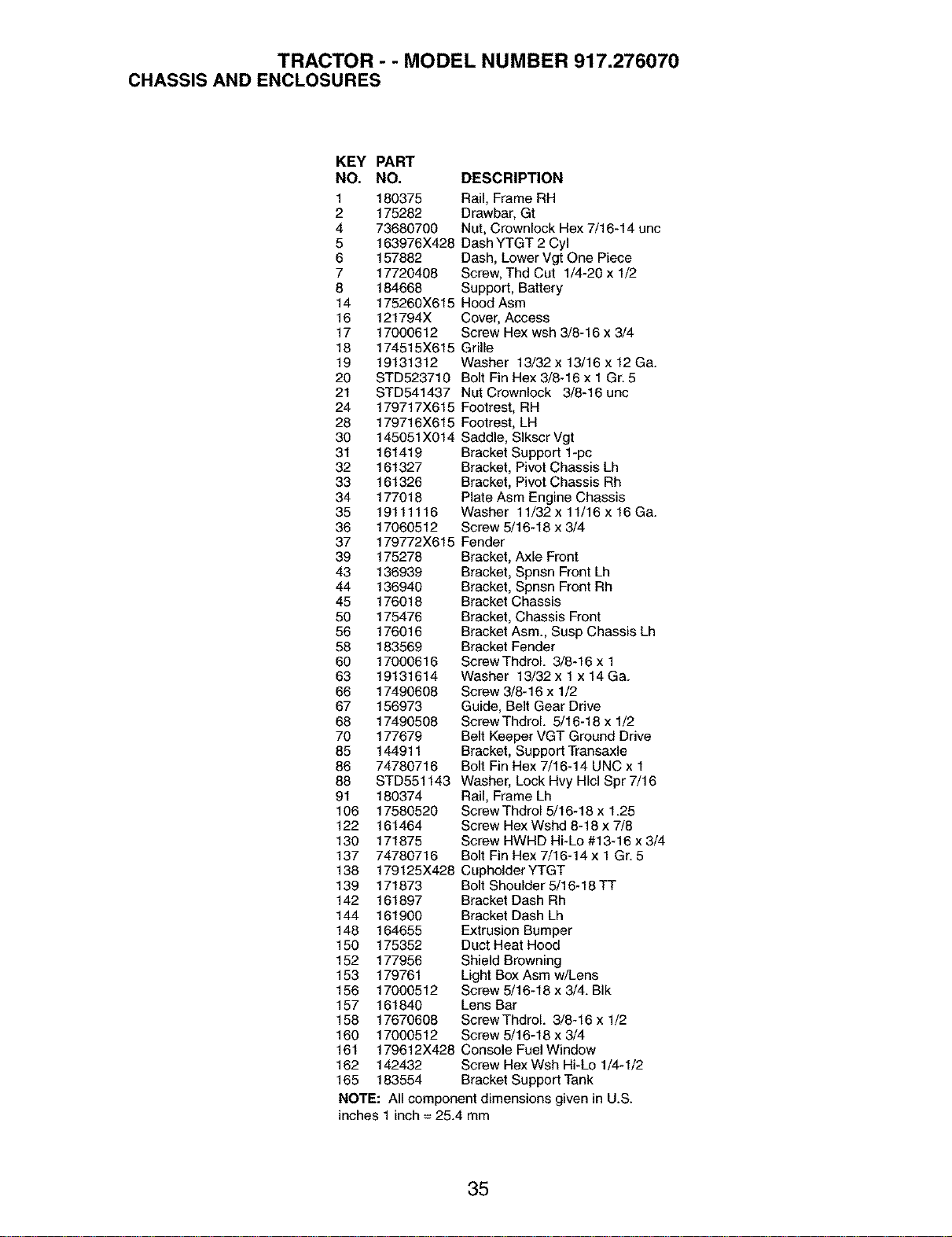

TRACTOR - - MODEL NUMBER 917.276070

CHASSIS AND ENCLOSURES

PART

NO. DESCRIPTION

175278

136939

13694O

176018

175476

176016

183569

17000616

19131614

17490608

156973

17490508

177679

144911

74780716

STD551143

180374

17580520

161464

171875

74780716

KEY

NO.

1 180375 Rail, Frame RH

2 175282 Drawbar, Gt

4 73680700 Nut, Crownlock Hex 7/16-14 unc

5 163976X428 Dash YTGT 2 Cyl

6 157882 Dash, Lower Vgt One Piece

7 17720408 Screw, Thd Cut 1/4-20 x 1/2

8 184668 Support, Battery

14 175260X615 Hood Asm

16 121794X Cover, Access

17 17000612 Screw Hex wsh 3/8-16 x 3/4

18 174515X615 Grille

19 19131312 Washer 13/32 x 13/16 x 12 Ga.

20 STD523710 Bolt Fin Hex 3/8-16 x 1 Gr. 5

21 STD541437 Nut Crownlock 3/8-16 uric

24 179717X615 Footrest, RH

28 179716X615 Footrest, LH

30 145051X014 Saddle, SIkscr Vgt

31 161419 Bracket Support 1-pc

32 161327 Bracket, Pivot Chassis Lh

33 161326 Bracket, Pivot Chassis Rh

34 177018 Plate Asm Engine Chassis

35 19111116 Washer 11/32 x 11/16 x 16 Ga.

36 17060512 Screw 5/16-18 x 3/4

37 179772X615 Fender

39 Bracket, Axle Front

43 Bracket, Spnsn Front Lh

44 Bracket, Spnsn Front Rh

45 Bracket Chassis

50 Bracket, Chassis Front

56 Bracket Asm., Susp Chassis Lh

58 Bracket Fender

60 ScrewThdroL 3/8-16 x 1

63 Washer 13/32 x 1 x 14 Ga.

66 Screw 3/8-16 x 1/2

67 Guide, Belt Gear Drive

68 ScrewThdroL 5/16-18 x 1/2

70 Belt Keeper VGT Ground Drive

85 Bracket, Support Transaxle

86 Bolt Fin Hex 7/16-14 UNC x 1

88 Washer, Lock Hvy HIcl Spr 7/16

91 Rail, Frame Lh

106 Screw Thdrol 5/16-18 x 1.25

122 Screw Hex Wshd 8-18 x 7/8

130 Screw HWHD HFLo #13-16 x 3/4

137 Bolt Fin Hex 7/16-14 x 1 Gr. 5

138 179125X428 CupholderYTGT

139 171873 Bolt Shoulder 5/16-18 TT

142 161897 Bracket Dash Rh

144 161900 Bracket Dash Lh

148 164655 Extrusion Bumper

150 175352 Duct Heat Hood

152 177956 Shield Browning

153 179761 Light Box Asm w/Lens

156 17000512 Screw 5/16-18 x 3/4. BIk

157 161840 Lens Bar

158 17670608 ScrewThdroL 3/8-16 x 1/2

160 17000512 Screw 5/16-18 x 3/4

161 179612X428 Console FueIWindow

162 142432 Screw HexWsh Hi-Lo 1/4-1/2

165 183554 Bracket Support Tank

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

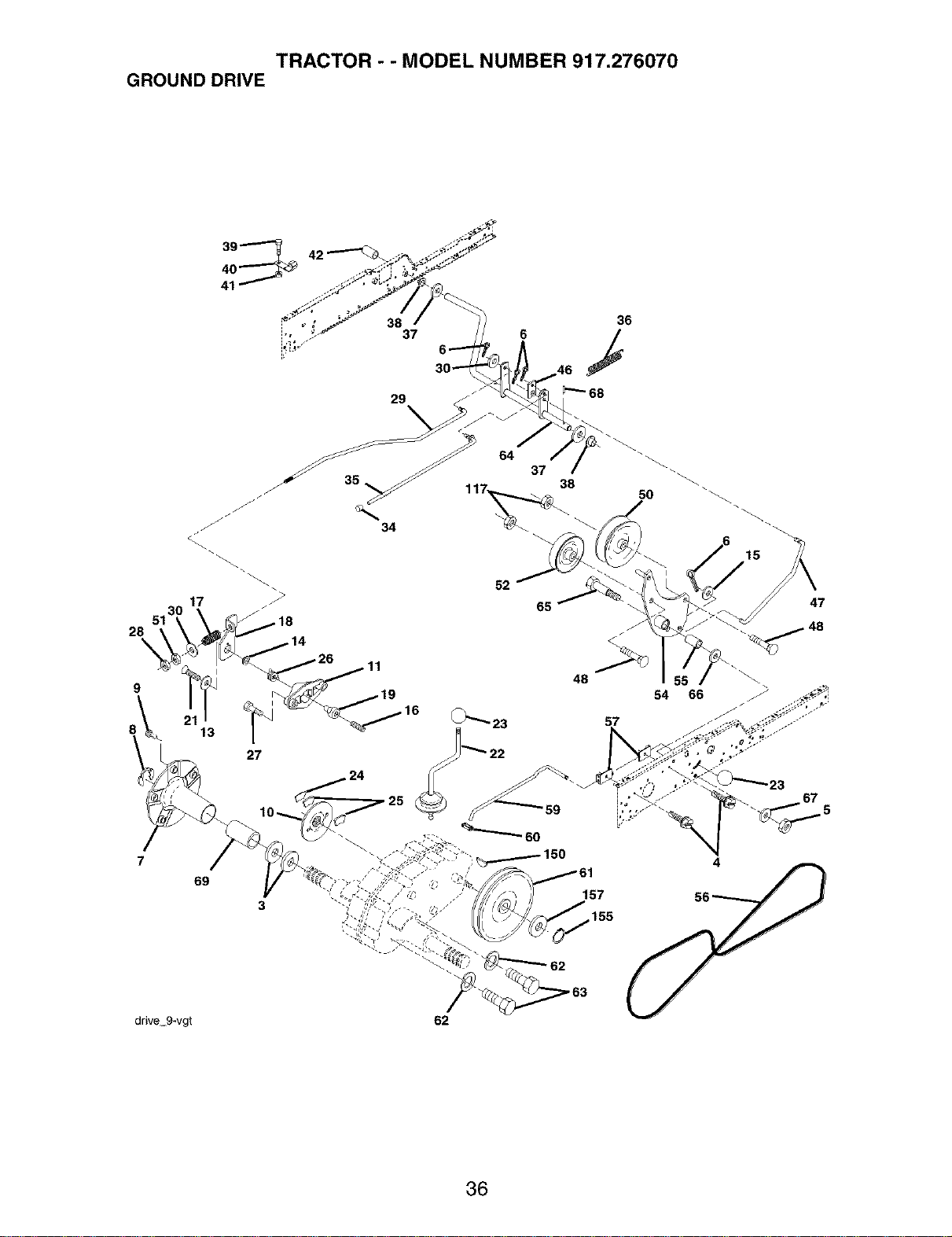

TRACTOR - - MODEL NUMBER 917.276070

GROUND DRIVE

42"----"_

10._.

157

155

"23

drive 9-vg

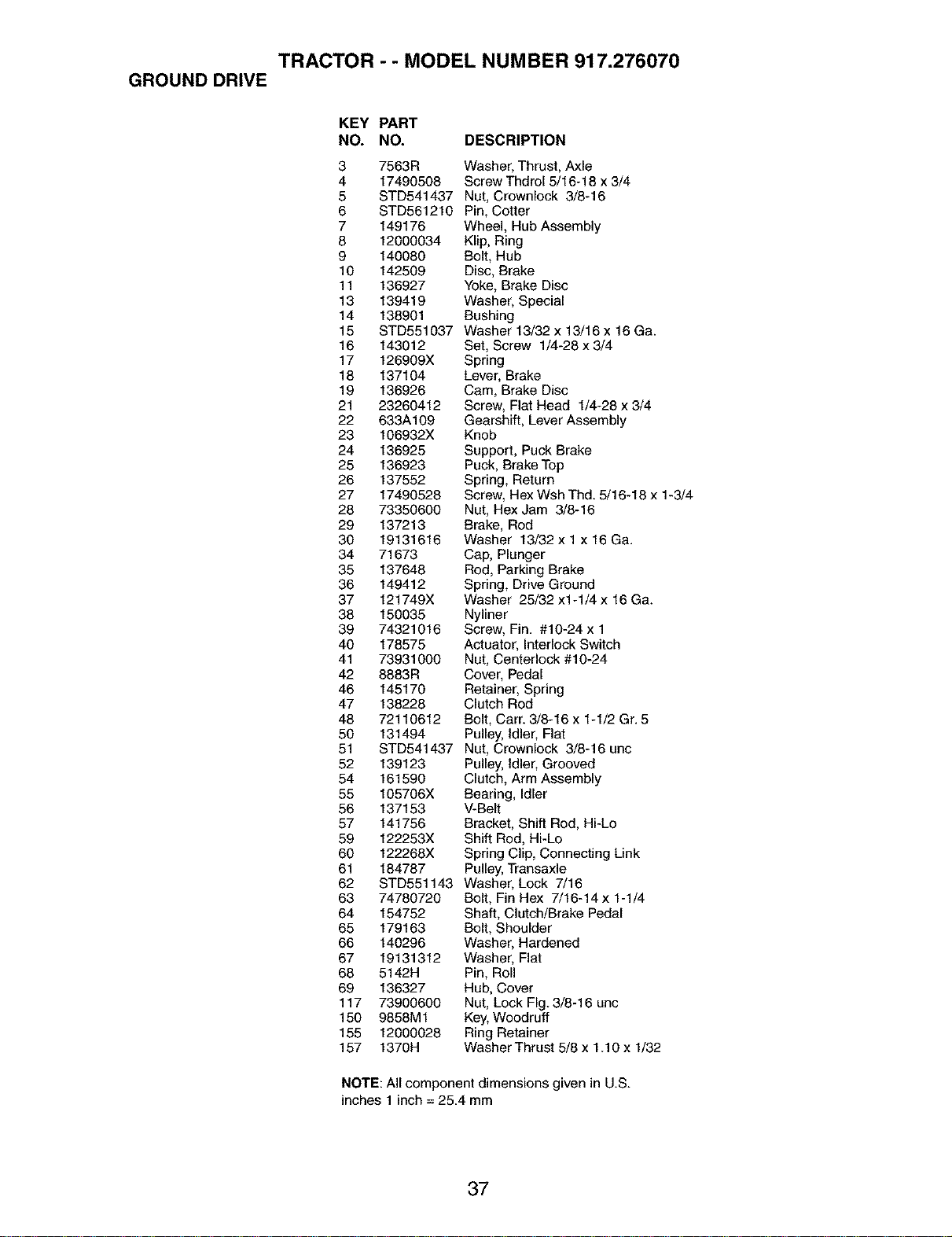

TRACTOR - - MODEL NUMBER 917.276070

GROUND DRIVE

KEY PART

NO. NO. DESCRIPTION

3 7563R Washer, Thrust, Axle

4 17490508 Screw Thdrol 5/16-18 x 3/4

5 STD541437 Nut, Crownlock 3/8-16

6 STD561210 Pin, Cotter

7 149176 Wheel, Hub Assembly

8 12000034 Klip, Ring

9 140080 Bolt, Hub

10 142509 Disc, Brake

11 136927 Yoke, Brake Disc

13 139419 Washer, Special

14 138901 Bushing

15 STD551037 Washer 13/32 x 13/16 x 16 Ga.

16 143012 Set, Screw 1/4-28 x 3/4

17 126909X Spring

18 137104 Lever, Brake

19 136926 Cam, Brake Disc

21 23260412 Screw, Flat Head 1/4-28 x 3/4

22 633A109 Gearshift, Lever Assembly

23 106932X Knob

24 136925 Support, Puck Brake

25 136923 Puck, Brake Top

26 137552 Spring, Return

27 17490528 Screw, Hex Wsh Thd. 5/16-18 x 1-3/4

28 73350600 Nut, Hex Jam 3/8-16

29 137213 Brake, Rod

30 19131616 Washer 13/32 x 1 x 16 Ga.

34 71673 Cap, Plunger

35 137648 Rod, Parking Brake

36 149412 Spring, Drive Ground

37 121749X Washer 25/32 x1-1/4 x 16 Ga.

38 150035 Nyliner

39 74321016 Screw, Fin. #10-24 x 1

40 178575 Actuator, Interlock Switch

41 73931000 Nut, Centerlock #10-24

42 8883R Cover, Pedal

46 145170 Retainer, Spring

47 138228 Clutch Rod

48 72110612 Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

50 131494 Pulley, Idler, Flat

51 STD541437 Nut, Crownlock 3/8-16 uric

52 139123 Pulley, Idler, Grooved

54 161590 Clutch, Arm Assembly

55 105706X Bearing, Idler

56 137153 V-Belt

57 141756 Bracket, Shift Rod, Hi-Lo

59 122253X Shift Rod, Hi-Lo

60 122268X Spring Clip, Connecting Link

61 184787 Pulley, Transaxle

62 STD551143 Washer, Lock 7/16

63 74780720 Bolt, Fin Hex 7/16-14 x 1-1/4

64 154752 Shaft, Clutch/Brake Pedal

65 179163 Bolt, Shoulder

66 140296 Washer, Hardened

67 19131312 Washer, Flat

68 5142H Pin, Roll

69 136327 Hub, Cover

117 73900600 Nut, Lock Fig. 3/8-16 uric

150 9858M1 Key, Woodruff

155 12000028 Ring Retainer

157 1370H WasherThrust 5/8 x 1.10 x 1/32

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

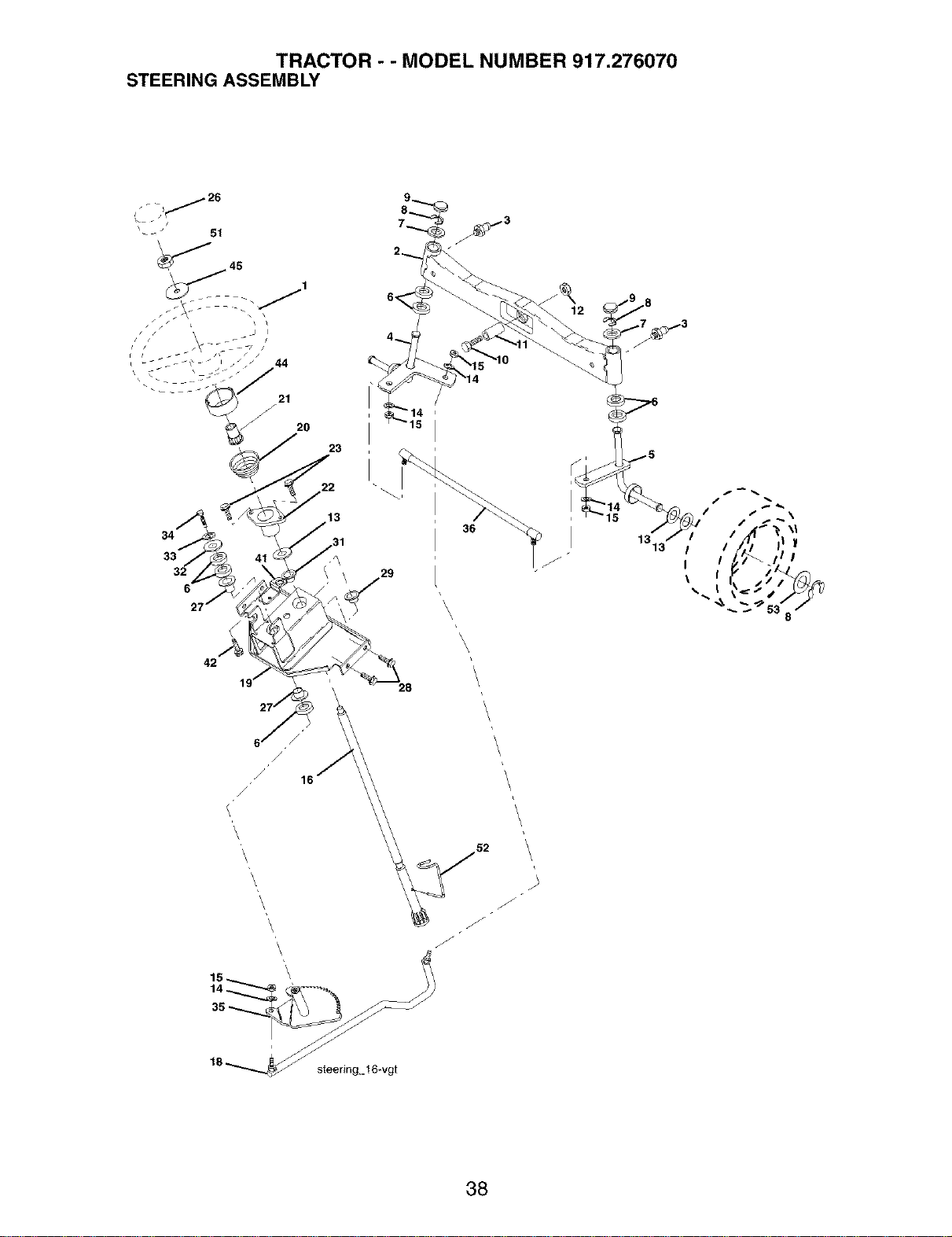

TRACTOR - - MODEL NUMBER 917.276070

STEERING ASSEMBLY

i _ i I

J I

18_ steering 16wgt

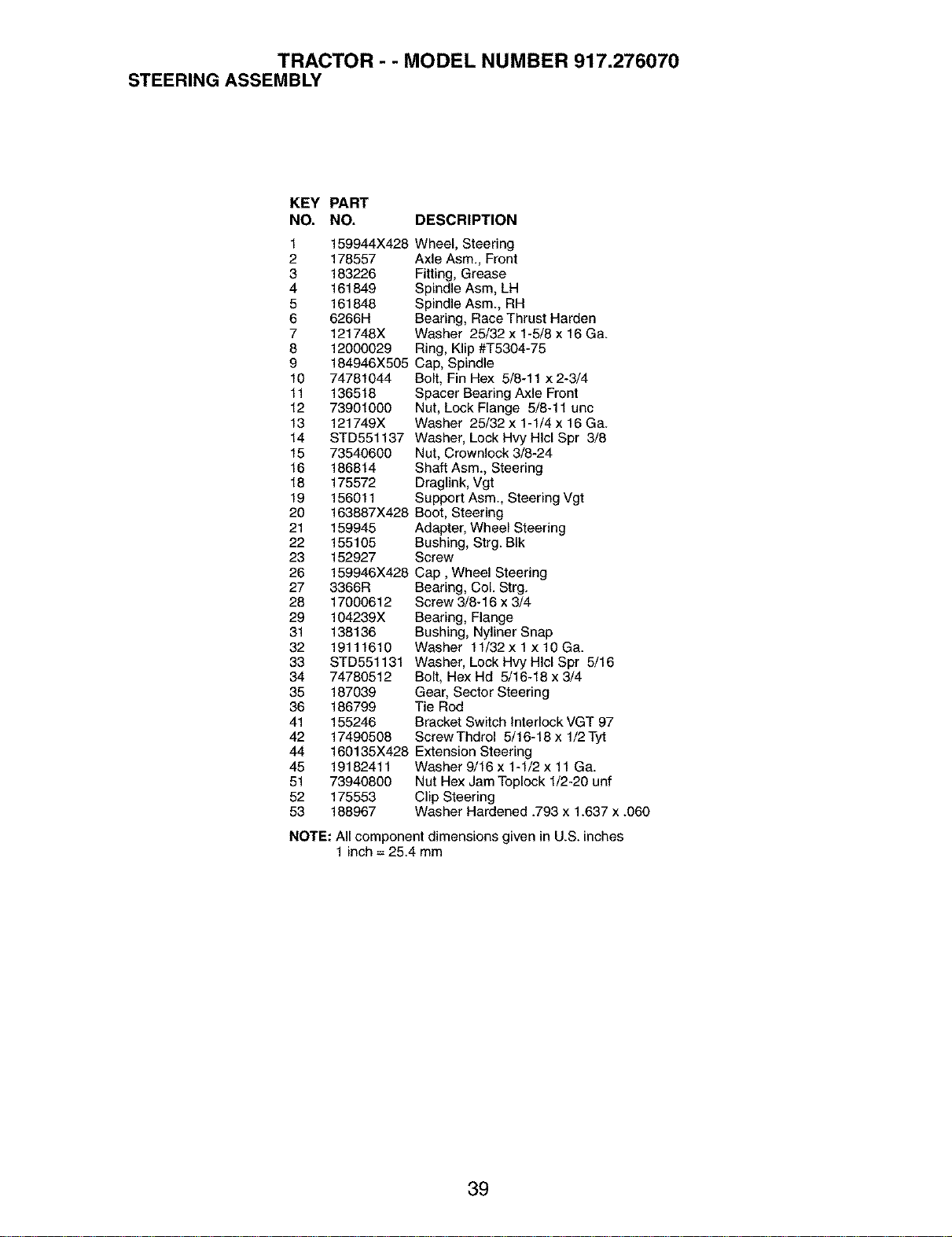

TRACTOR - - MODEL NUMBER 917.276070

STEERINGASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 159944X428 Wheel, Steering

2 178557 Axle Asm., Front

3 183226 Fitting, Grease

4 161849 Spindle Asm, LH

5 161848 Spindle Asm., RH

6 6266H Bearing, Race Thrust Harden

7 121748X Washer 25/32 x 1-5/8 x 16 Ga.

8 12000029 Ring, Klip #T5304-75

9 184946X505 Cap, Spindle

10 74781044 Bolt, Fin Hex 5/8-11 x 2-3/4

11 136518 Spacer Bearing Axle Front

12 73901000 Nut, Lock Flange 5/8-11 unc

13 121749X Washer 25/32 x 1-1/4 x 16 Ga.

14 STD551137 Washer, Lock Hvy Hlcl Spr 3/8

15 73540600 Nut, Crownlock 3/8-24

16 186814 Shaft Asm., Steering

18 175572 Draglink, Vgt

19 156011 Support Asm, Steering Vgt

20 163887X428 Boot, Steering

21 159945 Adapter, Wheel Steering

22 155105 Bushing, Strg. BIk

23 152927 Screw

26 159946X428 Cap, Wheel Steering

27 3366R Bearing, Col. Strg.

28 17000612 Screw 3/8-16 x 3/4

29 104239X Bearing, Flange

31 138136 Bushing, Nyliner Snap

32 19111610 Washer 11/32 x lx 10 Ga.

33 STD551131 Washer, LeckHvyHIclSpr 5/16

34 74780512 Bolt, Hex Hd 5/16-18 x 3/4

35 187039 Gear, Sector Steering

36 186799 Tie Red

41 155246 Bracket Switch Interlock VGT 97

42 17490508 ScrewThdrol 5/16-18 x 1/2Tyt

44 160135X428 Extension Steering

45 19182411 Washer 9/16 x1-1/2 x11Ga.

51 73940800 Nut Hex Jam Toplock 1/2-20 unf

52 175553 Clip Steering

53 188967 Washer Hardened .793 x 1.637 x .060

NOTE: All component dimensions given in U.S. inches

1 inch= 25.4 mm

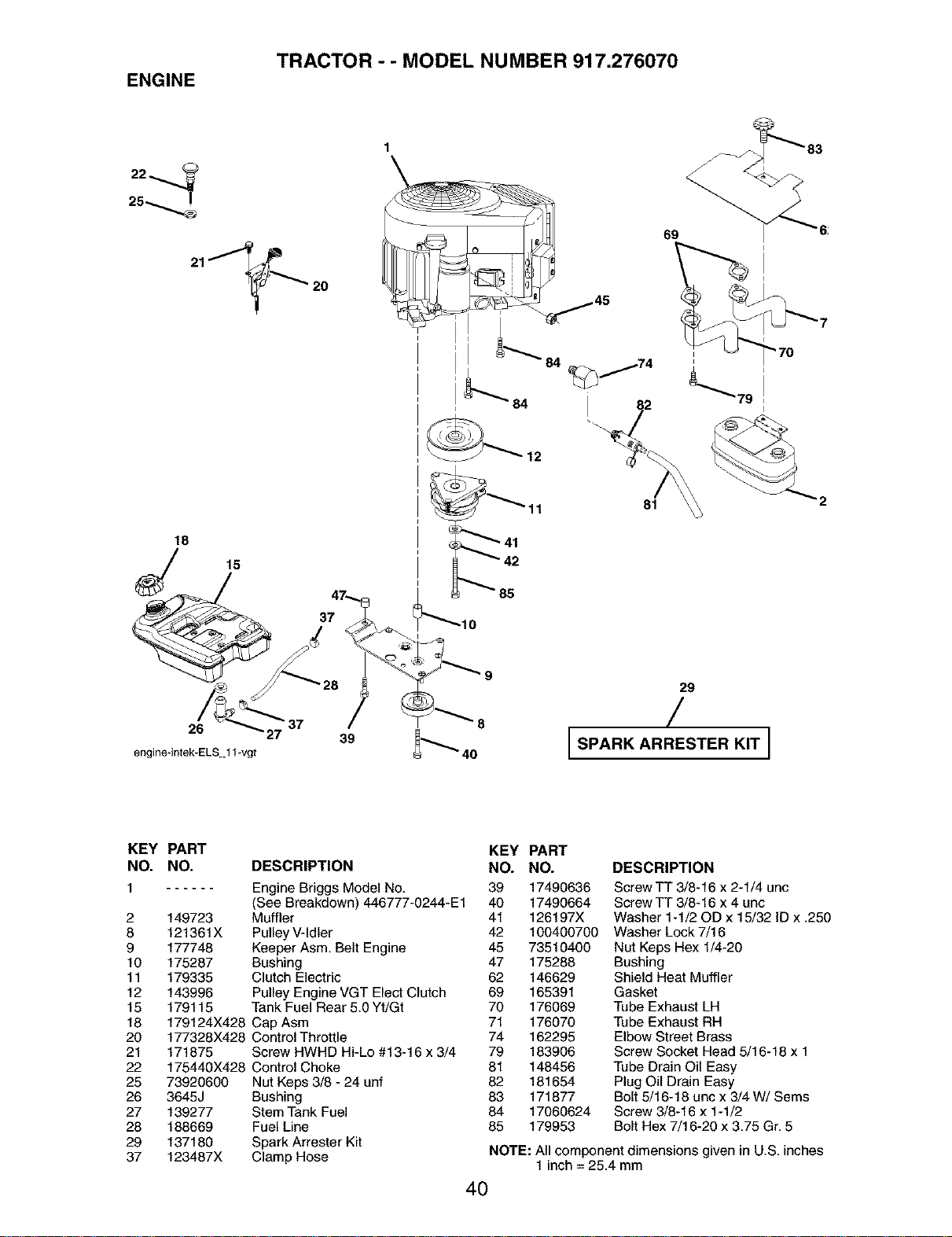

TRACTOR - - MODEL NUMBER 917.276070

ENGINE

engine*intek*ELS 11 -vgt

1SPARK ARRESTER KIT J

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO.

1 Engine Briggs Model No. 39 17490636

(See Breakdown) 446777-0244-E1 40 17490664

2 149723 Muffler 41 126197X

8 121361X Pulley V-Idler 42 100400700

9 177748 Keeper Asm. Belt Engine 45 73510400

10 175287 Bushing 47 175288

11 179335 Clutch Electric 62 146629

12 143996 Pulley Engine VGT Elect Clutch 69 165391

15 179115 Tank Fuel Bear 5.0 Yt/Gt 70 176069

18 179124X428 Cap Asm 71 176070

20 177328X428 Control Throttle 74 162295

21 171875 Screw HWHD Hi-Lo #13-16 x 3/4 79 183906

22 175440X428 Control Choke 81 148456

25 73920600 Nut Keps 3/8 - 24 unf 82 181654

26 3645J Bushing 83 171877

27 139277 Stem Tank Fuel 84 17060624

28 188669 Fuel Line 85 179953

29 137180 Spark Attester Kit

37 123487X Clamp Hose

DESCRIPTION

Screw TT 3/8-16 x 2-1/4 unc

Screw TT 3/8-16 x 4 uric

Washer 1-1/20D x 15/32 ID x .250

Washer Lock 7/16

Nut Keps Hex 1/4-20

Bushing

Shield Heat Muffler

Gasket

Tube Exhaust LH

Tube Exhaust RH

Elbow Street Brass

Screw Socket Head 5/16-18 x 1

Tube Drain Oil Easy

Plug Oil Drain Easy

Bolt 5/16-18 uric x 3/4W/Sems

Screw 3/8-16 x 1-1/2

Bolt Hex 7/16-20 x 3.75 Gr. 5

NOTE: All component dimensions given in U.S. inches

1 inch= 25.4 mm

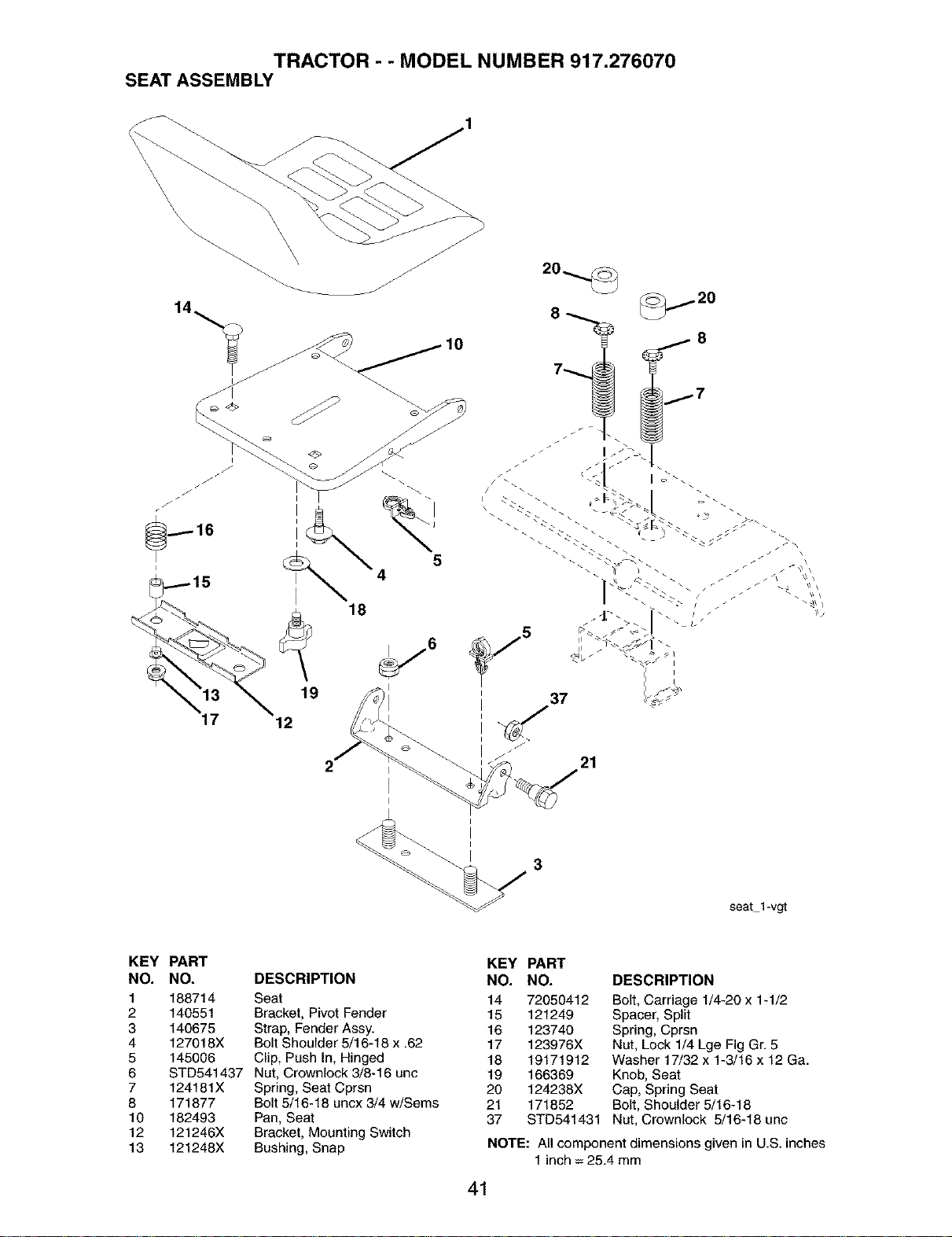

TRACTOR - - MODEL NUMBER 917.276070

SEAT ASSEMBLY

7 7

/ 21

seat 1-vgt

KEY PART

NO. NO.

1 166714

2 140551

3 140675

4 127018X

5 145006

6 STD541437

7 124181X

8 171877

10 182493

12 121246X

13 121248X

DESCRIPTION

Seat

Bracket, Pivot Fender

Strap, Fender Assy.

Bolt Shoulder 5/16-18 x .62

Clip, Push In, Hinged

Nut, Crewnleck 3/8-16 uric

Spring, Seat Cprsn

Bolt 5/16-18 uncx 3/4 w/Sems

Pan, Seat

Bracket, Mounting Switch

Bushing, Snap

KEY PART

NO. NO. DESCRIPTION

14 72050412 Bolt, Carriage 1/4-20 x 1-1/2

15 121249 Spacer, Split

16 123740 Spring, Cprsn

17 123976X Nut, Lock 1/4 Lge Fig Gr. 5

18 19171912 Washer17/32 x1-3/16 x12 Ga.

19 166369 Knob, Seat

20 124238X Cap, Spring Seat

21 171852 Bolt, Shoulder 5/16-18

37 STD541431 Nut, Crownleck 5/16-18 unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

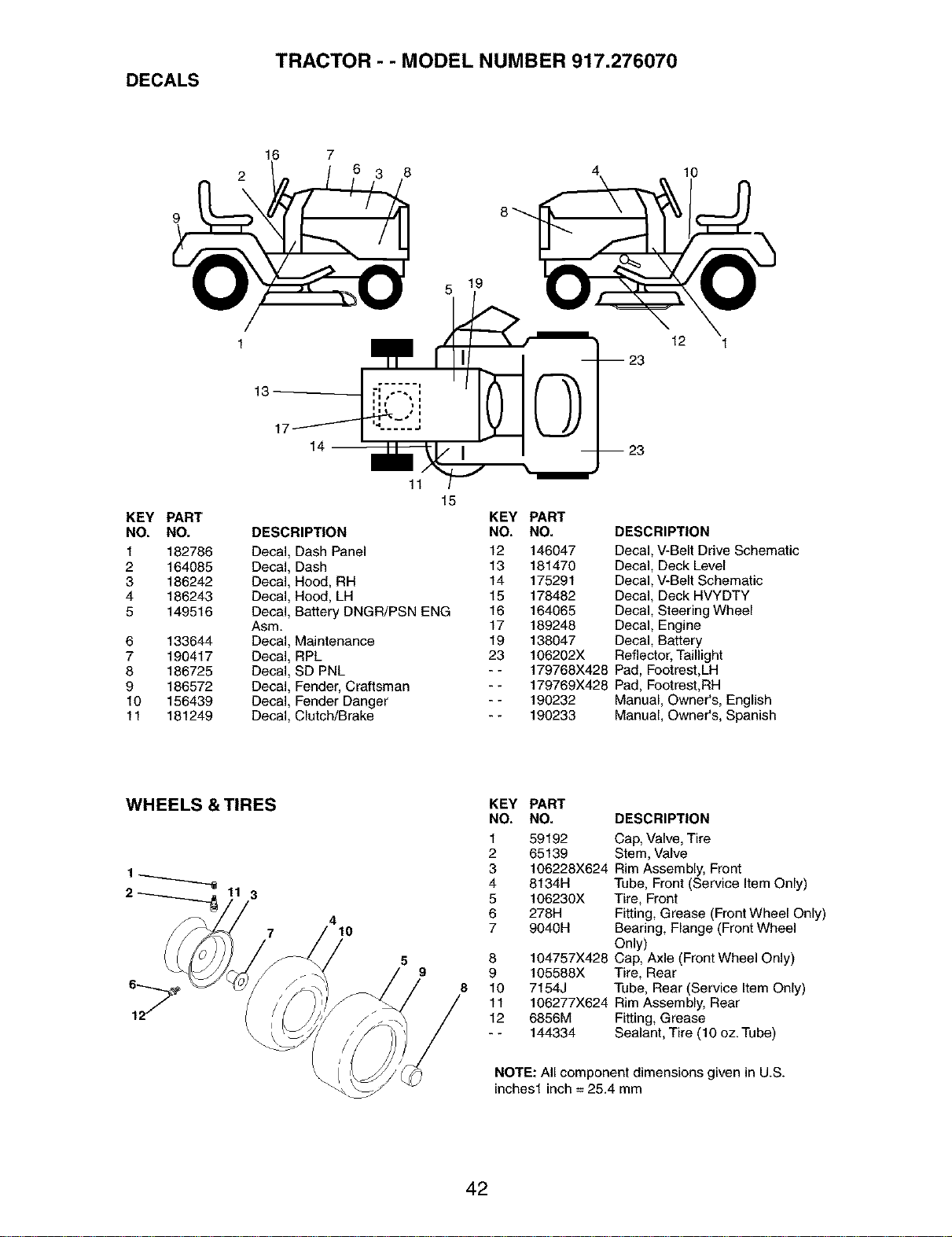

TRACTOR - - MODEL NUMBER 917.276070

DECALS

5 19

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 182786 Decal, Dash Panel 12 146047

2 164085 Decal, Dash 13 181470

3 186242 Decal, Hood, RH 14 175291

4 186243 Decal, Hood, LH 15 178482

5 149516 Decal, Battery DNGR/PSN ENG 16 164065

Asm. 17 189248

6 133644 Decal, Maintenance 19 138047

7 190417 Decal, RPL 23 106202X

8 186725 Decal, SD PNL - -

9 186572 Decal, Fender, Craftsman

10 156439 Decal, Fender Danger

11 181249 Decal, Clutch/Brake

DESCRIPTION

Decal, V-Belt Drive Schematic

Decal, Deck Level

Decal, V-Belt Schematic

Decal, Deck HVYDTY

Decal, Steering Wheel

Decal, Engine

Decal, Battery

Reflector, Taillight

179768X428 Pad, Footrest,LH

- - 179769X428 Pad, Footrest,RH

- - 190232 Manual, Owner's, English

- - 190233 Manual, Owner's, Spanish

WHEELS & TIRES

KEY

NO.

8 10

PART

NO. DESCRIPTION

59192 Cap, Valve, Tire

65139 Stem, Valve

106228X624 Rim Assembly, Front

8134H Tube, Front (Service Item Only)

106230X Tire, Front

278H Fitting, Grease (Front Wheel Only)

9040H Bearing, Flange (Front Wheel

Only)

104757X428 Cap, Axle (Front Wheel Only)

105588X Tire, Rear

7154J Tube, Rear (Service Item Only)

106277X624 Rim Assembly, Rear

6856M Fitting, Grease

144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S.

inches1 inch = 25.4 mm

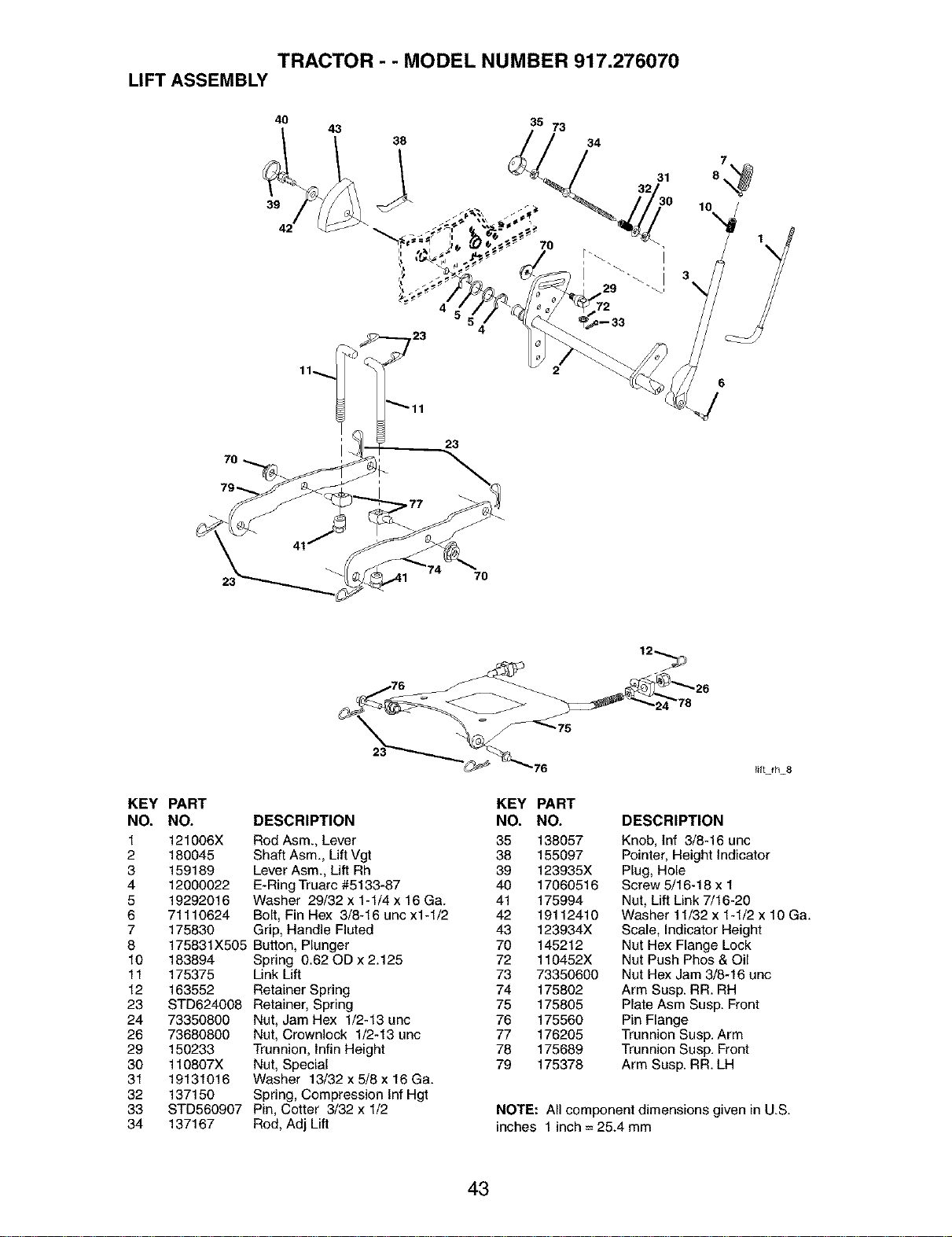

TRACTOR - - MODEL NUMBER 917.276070

LIFT ASSEMBLY

"_ 26

KEY PART

NO. NO. DESCRIPTION

1 121006X Rod Asm., Lever

2 180045 Shaft Asm., Lift Vgt

3 159189 Lever Asm., Lift Rh

4 12000022 E-Ring Truarc #5133-87

5 19292016 Washer 29/32 x 1-1/4 x 16 Ga.

6 71110624 Bolt, Fin Hex 3/8-16 unc x1-1/2

7 175830 Grip, Handle Fluted

8 175831X505 Button, Plunger

10 183894 Spring 0.62 OD x 2.125

11 175375 Link Lift

12 163552 Retainer Spring

23 STD624008 Retainer, Spring

24 73350800 Nut, Jam Hex 1/2-13 unc

26 73680800 Nut, Crownlock 1/2-13 unc

29 150233 Trunnion, lnfin Height

30 110807X Nut, Special

31 19131016 Washer 13/32 x 5/8 x 16 Ga.

32 137150 Spring, Compression lnf Hgt

33 STD560907 Pin, Cotter 3/32 x 1/2

34 137167 Rod, Adj Lift

tiftjh 8

KEY PART

NO. NO. DESCRIPTION

35 138057 Knob, lnf 3/8-16 uric

38 155097 Pointer, Height Indicator

39 123935X Plug, Hole

40 17060516 Screw 5/16-18 x 1

41 175994 Nut, Lift Link 7/16-20

42 19112410 Washer 11/32 x 1-1/2 x 10 Ga.

43 123934X Scale, Indicator Height

70 145212 Nut Hex Flange Lock

72 110452X Nut Push Phos & Oil

73 73350600 Nut Hex Jam 3/8-16 unc

74 175802 Arm Susp. RR. RH

75 175805 Plate Asm Susp. Front

76 175560 Pin Flange

77 176205 Trunnion Susp. Arm

78 175689 Trunnion Susp. Front

79 175378 Arm Susp. RR. LH

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

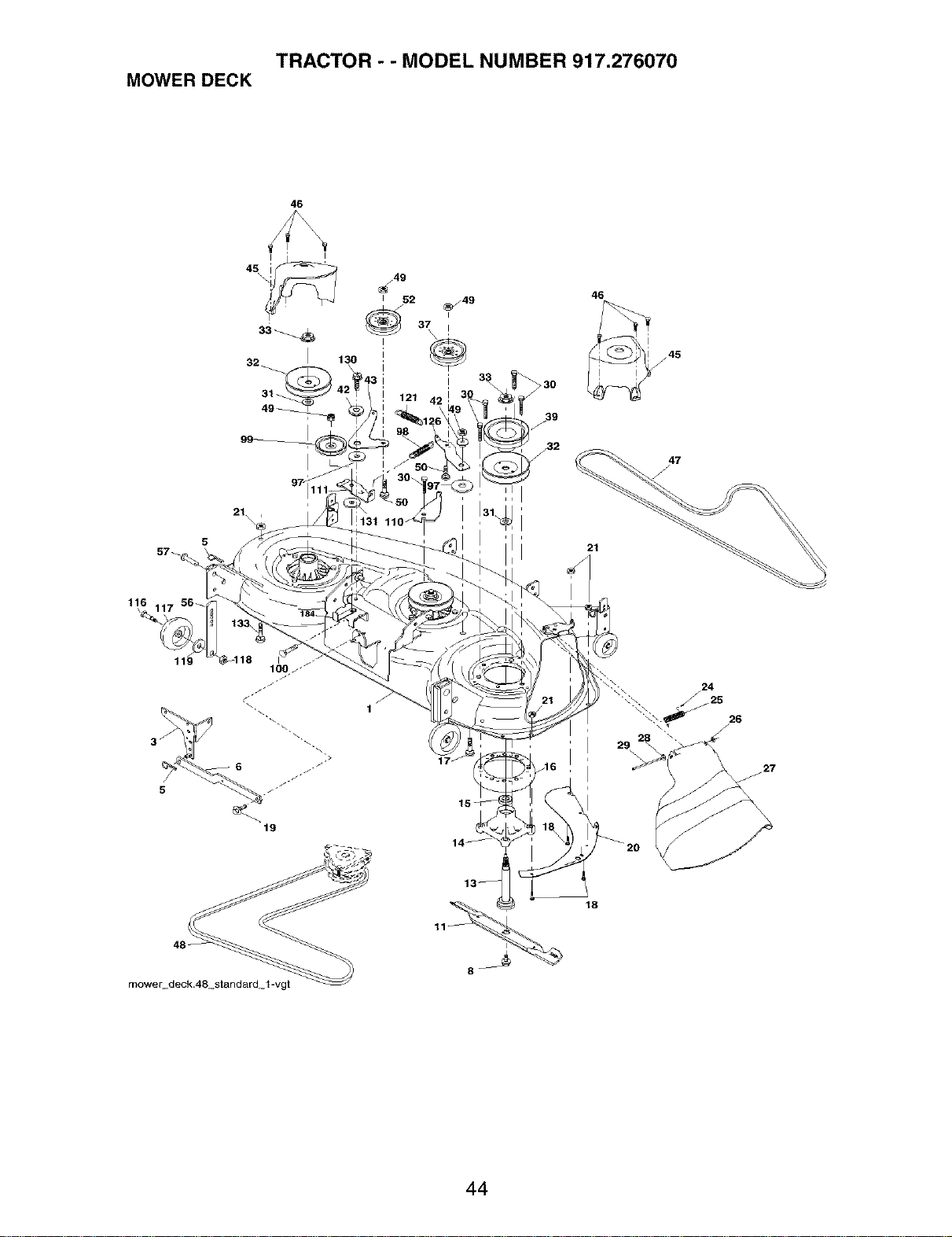

TRACTOR - - MODEL NUMBER 917.276070

MOWER DECK

, ,'!1

116

j25

mower deck.48 standard 1-vgt

TRACTOR - - MODEL NUMBER 917.276070

MOWER DECK

KEY PART

NO. NO.

1 180358

3 178915

5 4939M

6 178024

8 174365

11 180054

13 174360

14 174358

15 110485X

16 174493

17 72110610

18 72140505

19 132827

20 174378

21 73680500

24 105304X

25 178102

26 110452X

27 180655X428

28 19111016

29 131491

30 173984

31 187690

32 177865

33 178342

37 177968

39 174375

42 165723

43 174373

45 180806

46 137729

47 180808

48 174368

49 73900600

50 72110612

52 175820

56 155986

57 156941

97 178515

98 179479

99 184058

100 72110616

110 175016

111 174610

116 184219

117 174873

118 73930600

119 19121414

121 174371

126 174372

130 17000616

131 19131606

133 72110506

184 173979

-- 174356

-- 186353

DESCRIPTION

Deck Weldment Mower 48

Bracket Asm., Sway Bar

Retainer Spring

Arm, Suspension, Rear (Sway Bar)

Bolt 7/16 Asm. Blade

Blade, 48" Hi-lift (For bagging and discharging)

Shaft Asm. w/Lower Bearing

Housing Mandrel

Bearing, Ball, Mandrel

Stripper Mandrel Deck

Bolt RDHD Sq Neck 3/8-16 x 1.25

Bolt, Carriage 5/16-18 x 5/8

Bolt, Hex Hd, Shoulder 5/16-18

Baffle, Vortex Mower

Nut, Crownleck 5/16-18 unc

Cap, Sleeve

Spring, Torsion

Nut, Push

Deflector Shield

Washer 11/32 x 5/8 x 16 Ga.

Rod, Hinge

Screw, Thdroll

Washer, Spacer

Pulley, Mandrel

Nut, Fig. Top Lock Cntr. 9/16

Pulley, Idler, 48" Primary

Pulley, Idler, Driven

Spacer, Retainer

Arm, Idler Secondary

Cover, Mandrel Deck

Screw, ThdrolL 1/4-20 x 5/8

V-Belt, Mower, Secondary

V-Belt, Mower, Primary

Nut, Lock Fig 3/8-16 unc

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley Idler Flat

Bar Pnt Adj.

Pin Head Rivet

Washer Hardened

Spring Primary Drive

Pulley Idler"V"

Bolt RDHD Sqnk 3/8-16 unc x 2

Arm Spring Secondary

Arm Spring Fixed Tension

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 unc

Washer 3/8 x 7/8 x 14 Ga.

Spring Secondary Drive

Arm, Idler, Primary Deck

Screw 3/8-16 x 1.0.BIk

Washer 13/32 x 1/4 x 16 Ga.

Bolt 5/16-18 x 3/4

Keeper Belt Idler

Mandrel Asm. Service (Includes Key Nos. 13-15)

Replacement Mower, Complete

NOTE: All component dimensions given in U. S.

inches 1 inch= 25.4 mm

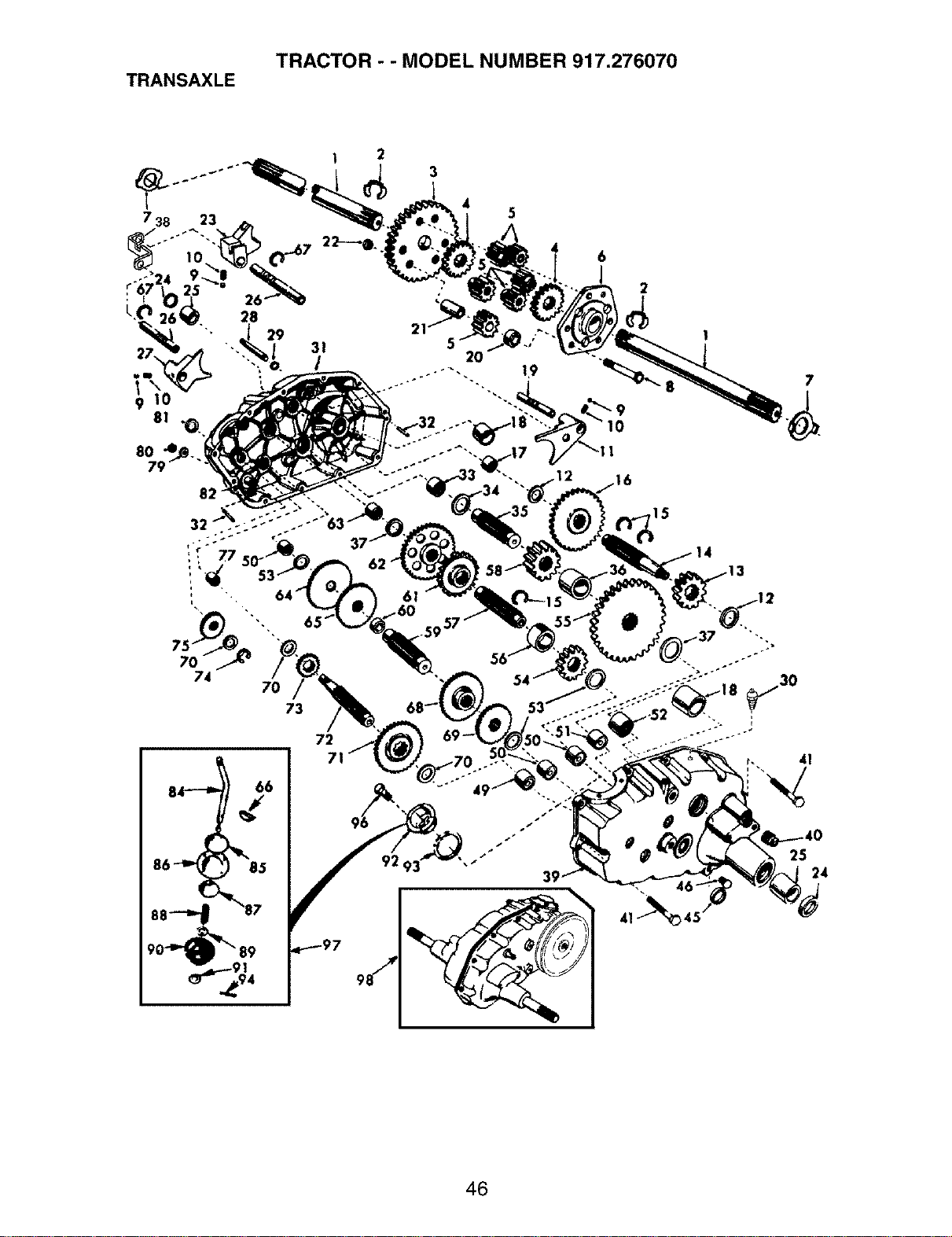

TRACTOR - - MODEL NUMBER 917.276070

TRANSAXLE

70 _ _

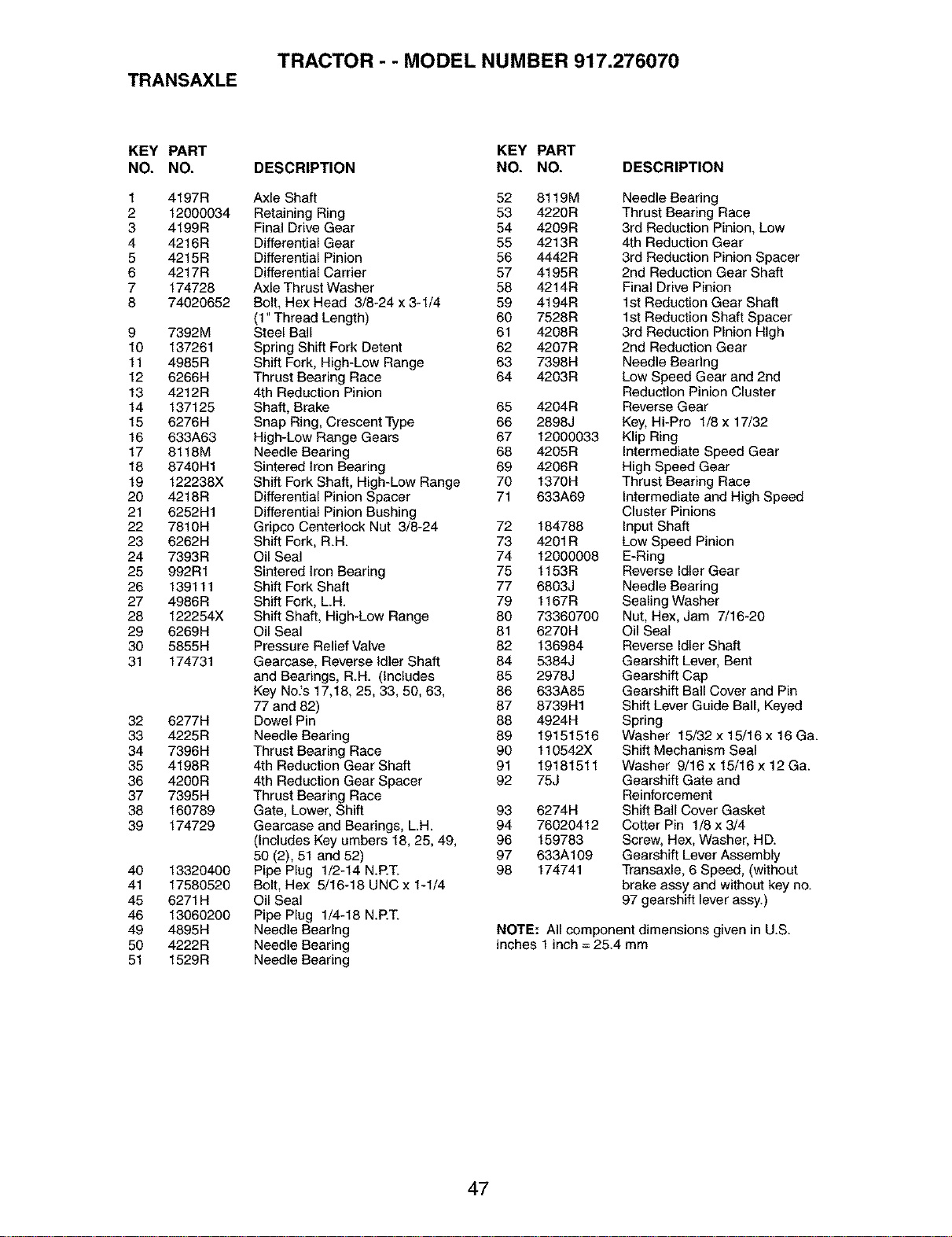

TRACTOR - - MODEL NUMBER 917.276070

TRANSAXLE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 4197R

2 12000034

3 4199R

4 4216R

5 4215R

6 4217R

7 174728

8 74020652

9 7392M

10 137261

11 4985R

12 6266H

13 4212R

14 137125

15 6276H

16 633A63

17 8118M

18 8740H1

19 122238X

20 4218R

21 6252H1

22 781OH

23 6262H

24 7393R

25 992R1

26 139111

27 4986R

28 122254X

29 6269H

30 5855H

31 174731

32 6277H

33 4225R

34 7396H

35 4198R

36 4200R

37 7395H

38 160789

39 174729

40 13320400

41 17580520

45 6271H

46 13060200

49 4895H

50 4222R

51 1529R

Axle Shaft 52 8119M

Retaining Ring 53 4220R

Final Drive Gear 54 4209R

Differential Gear 55 4213R

Differential Pinion 56 4442R

Differential Carrier 57 4195R

Axle Thrust Washer 58 4214R

Bolt, Hex Head 3/8-24 x 3-1/4 59 4194R

(1" Thread Length) 60 7528R

Steel Ball 61 4208R

Spring Shift Fork Detent 62 4207R

Shift Fork, High-Low Range 63 7398H

Thrust Bearing Race 64 4203R

4th Reduction Pinion

Shaft, Brake 65 4204R

Snap Ring, Crescent Type 66 2898J

High-Low Range Gears 67 12000033

Needle Bearing 68 4205R

Sintered Iron Bearing 69 4206R

Shift Fork Shaft, High-Low Range 70 1370H

Differential Pinion Spacer 71 633A69

Differential Pinion Bushing

Gripco Centerlock Nut 3/8-24 72 184788

Shift Fork, R.H. 73 4201R

Oil Seal 74 12000008

Sintered Iron Bearing 75 1153R

Shift Fork Shaft 77 6803J

Shift Fork, LH. 79 1167R

Shift Shaft, High-Low Range 80 73360700

Oil Seal 81 6270H

Pressure Relief Valve 82 136984

Gearcase, Reverse Idler Shaft 84 5384J

and Bearings, R.H. (Includes 85 2978J

Key No:s 17,18, 25, 33, 50, 63, 86 633A85

77 and 82) 87 8739H1

Dowel Pin 88 4924H

Needle Bearing 89 19151516

Thrust Bearing Race 90 110542X

4th Reduction Gear Shaft 91 19181511

4th Reduction Gear Spacer 92 75J

Thrust Bearing Race

Gate, Lower, Shift 93 6274H

Gearcase and Bearings, L.H. 94 76020412

(Includes Key umbers 18, 25, 49, 96 159783

50 (2), 51 and 52) 97 633A109

Pipe Plug 1/2-14 N.P.T. 98 174741

Bolt, Hex 5/16-18 UNC x 1-1/4

Oil Seal

Pipe Plug 1/4-18 N.P.T.

Needle Bearing

DESCRIPTION

Needle Bearing

Thrust Bearing Race

3rd Reduction Pinion, Low

4th Reduction Gear

3rd Reduction Pinion Spacer

2nd Reduction Gear Shaft

Final Drive Pinion

1st Reduction Gear Shaft

1st Reduction Shaft Spacer

3rd Reduction Pinion High

2nd Reduction Gear

Needle Bearing

Low Speed Gear and 2rid

Reduction Pinion Cluster

Reverse Gear

Key, Hi-Pro 1/8 x 17/32

Klip Ring

Intermediate Speed Gear

High Speed Gear

Thrust Bearing Race

Intermediate and High Speed

Cluster Pinions

Input Shaft

Low Speed Pinion

E-Ring

Reverse Idler Gear

Needle Bearing

Sealing Washer

Nut, Hex, Jam 7/16-20

Oil Seal

Reverse Idler Shaft

Gearshift Lever, Bent

Gearshift Cap

Gearshift Ball Cover and Pin

Shift Lever Guide Ball, Keyed

Spring

Washer 15/32 x 15/16 x 16 Ga.

Shift Mechanism Seal

Washer 9/16 x 15/16 x 12 Ga.

Gearshift Gate and

Reinforcement

Shift Ball Cover Gasket

Cotter Pin 1/8 x 3/4

Screw, Hex, Washer, HD.

Gearshift Lever Assembly

Transaxle, 6 Speed, (without

brake assy and without key no.

97 gearshift lever assy.)

NOTE: All component dimensions given in U.S.

inches 1 inch = 25.4 mm

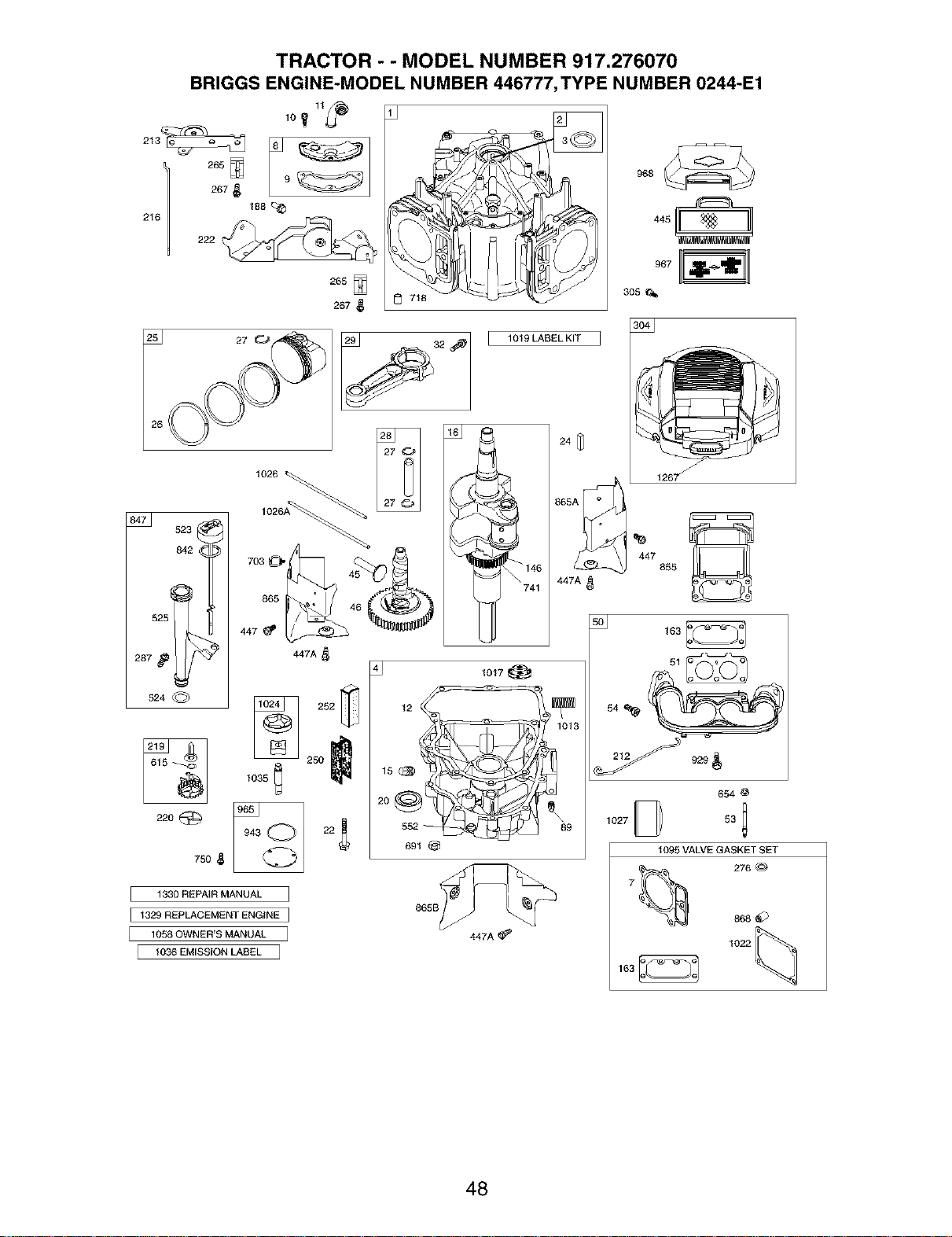

TRACTOR - - MODEL NUMBER 917.276070

BRIGGS ENGINE-MODEL NUMBER 446777,TYPE NUMBER 0244-E1

447A

1330 REPAIR MANUAL

[ 1329 REPLACEMENT ENGINE 1

1058 OWNER'S MANUAL

1036 EMISSION LABEL

1019 LABEL KIT

447A

691

1017_

968

445

305

30.J

186_

447

855

865B_

447A_

50J 163_

_> 9895

654@

1027 53 1

1095 VALVE GASKET SET

7_ 276@

868,_

163_ 1022_

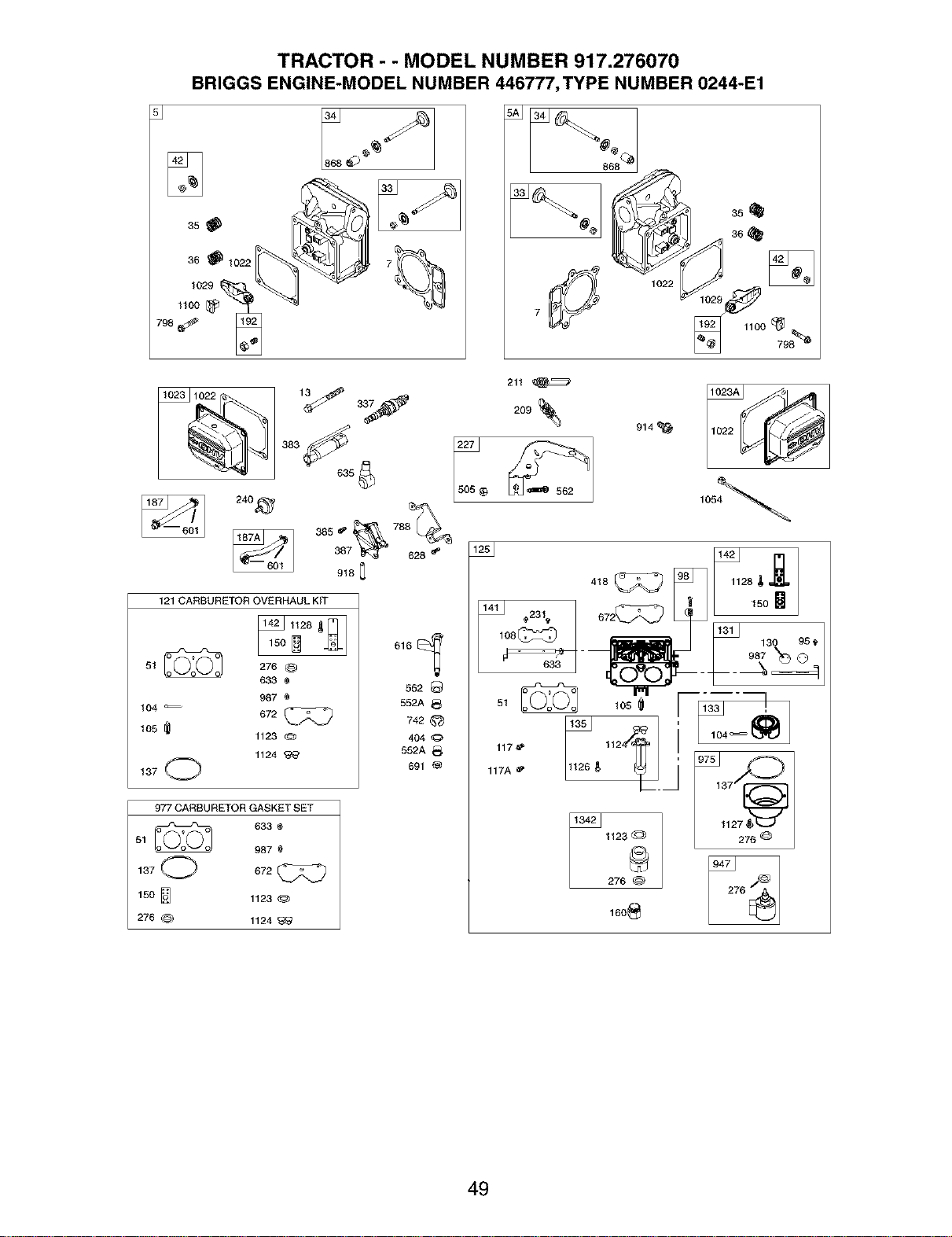

TRACTOR - - MODEL NUMBER 917.276070

BRIGGS ENGINE-MODEL NUMBER 446777,TYPE NUMBER 0244-E1

36 _ 1022

1029

1100

798_

1022

24o_ 335.._7°_

o180

121 CARBURETOR OVERHAUL KfT

51 _ 276 @

633

987

104

672 _

105

1123

1124

137 O

o16_

_52

552A

742 @

404

552A

691

977CARBURETOR GASKET SET

633

987

137CC> o_2_

150

1123

276 @ 1124 _

211

209 _

562

914,z_

105_

41o_::___

"_ o23,I °_2_L4J _

1oo_ _1 I_ 13o95.1

117A_ 1_26g 97sJ _

112o _lj 1j,

- 1127[_

1123 @ 276 @

276 @ _6 _

160_

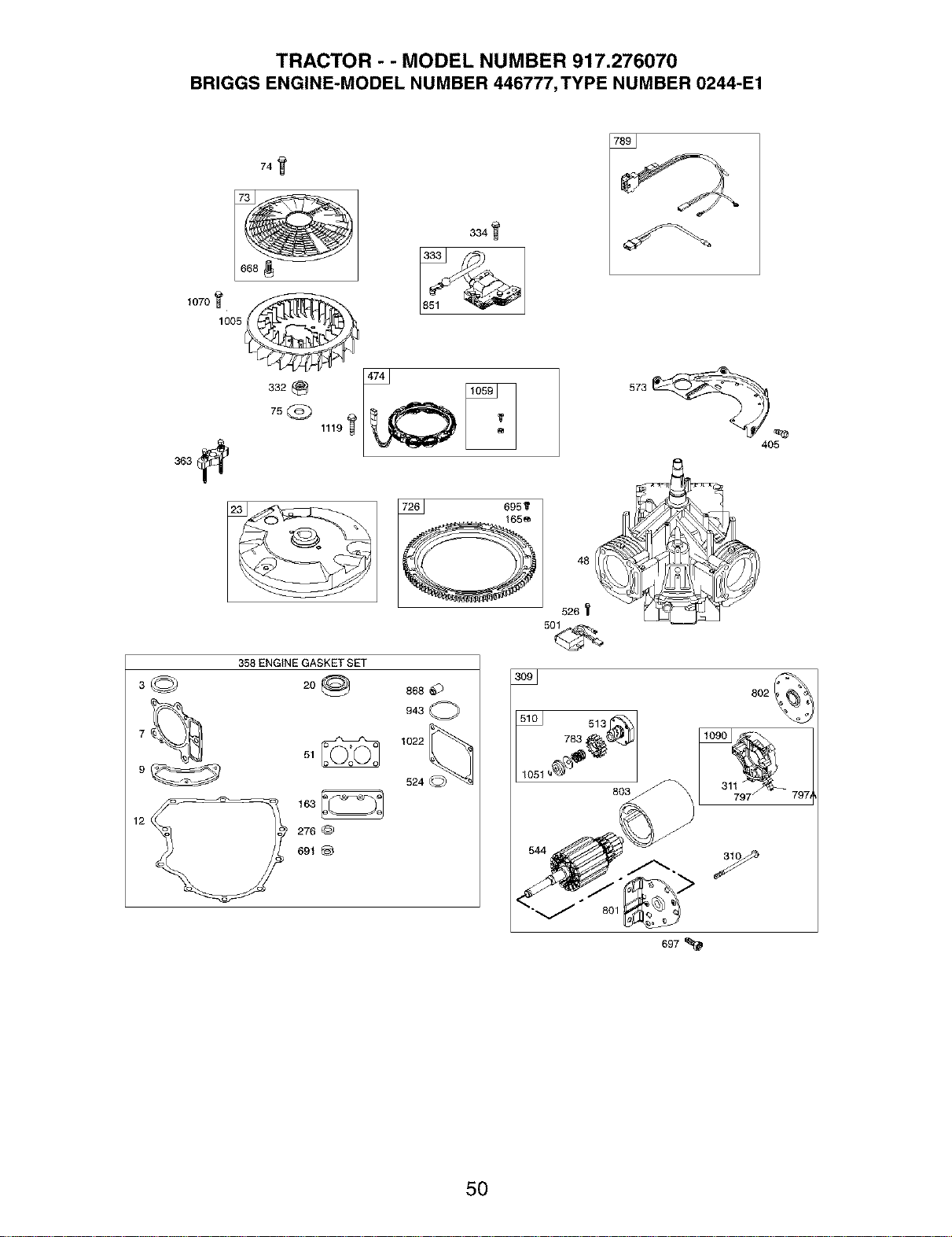

TRACTOR - - MODEL NUMBER 917.276070

BRIGGS ENGINE-MODEL NUMBER 446777,TYPE NUMBER 0244-E1

3©

358 ENGINE GASKET SET

2o@

868

943 @

524

163

276 @

691

573 _

4O5

513_

697

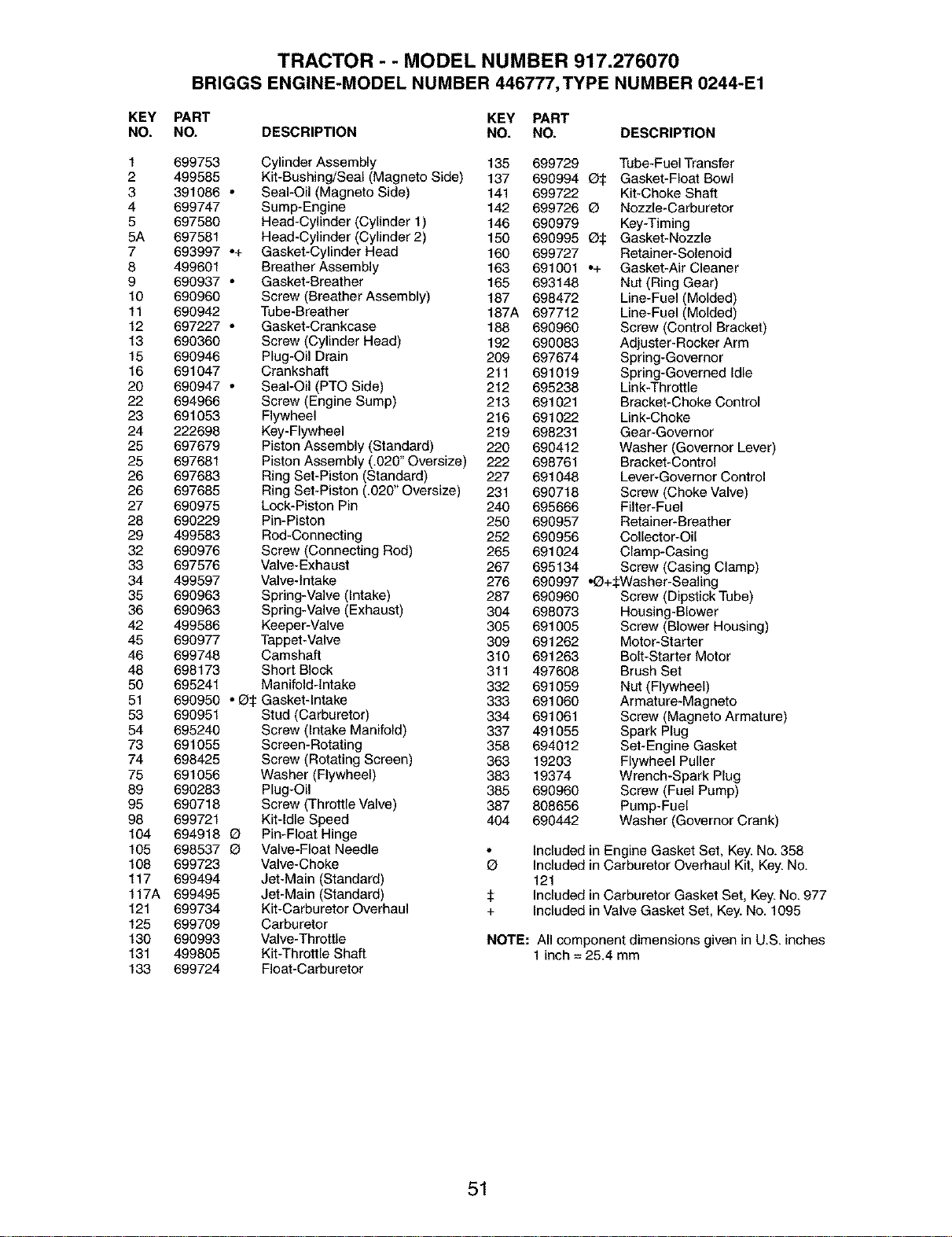

TRACTOR - - MODEL NUMBER 917.276070

BRIGGS ENGINE-MODEL NUMBER 446777,TYPE NUMBER 0244-E1

KEY PART

NO. NO.

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

1 699753

2 499585

3 391086

4 699747

5 697580

5A 697581

7 693997

8 499601

9 690937

10 690960

11 690942

12 697227

13 690360

15 690946

16 691047

20 690947

22 694966

23 691053

24 222698

25 697679

25 697681

26 697683

26 697685

27 690975

28 690229

29 499583

32 690976

33 697576

34 499597

35 690963

36 690963

42 499586

45 690977

46 699748

48 698173

50 695241

51 690950

53 690951

54 695240

73 691055

74 698425

75 691056

89 690283

95 690718

98 699721

104 694918

105 698537

108 699723

117 699494

117A 699495

121 699734

125 699709

130 690993

131 499805

133 699724

Cylinder Assembly 135 699729 Tube-Fuel Transfer

Kit-Bushing/Seal (Magneto Side) 137 690994 O$ Gasket-Float Bowl

• Seal-Oil (Magneto Side) 141 699722 Kit-Choke Shaft

Sump-Engine 142 699726 O Nozzle-Carburetor

Head-Cylinder (Cylinder 1) 146 690979 Key-Timing

Head-Cylinder (Cylinder 2) 150 690995 O$ Gasket-Nozzle

•+ Gasket-Cylinder Head 160 699727 Retainer-Solenoid

Breather Assembly 163 691001 •+ Gasket-Air Cleaner

• Gasket-Breather 165 693148 Nut (Ring Gear)

Screw (Breather Assembly) 187 698472 Line-Fuel (Molded)

Tube-Breather 187A 697712 Line-Fuel (Molded)

• Gasket-Crankcase 188 690960 Screw (Control Bracket)

Screw (Cylinder Head) 192 690083 Adjuster-Rocker Arm

Plug-Oil Drain 209 697674 Spring-Governor

Crankshaft 211 691019 Spring-Governed Idle

• Seal-Oil (PTO Side) 212 695238 Link-Throttle

Screw (Engine Sump) 213 691021 Bracket-Choke Control

Flywheel 216 691022 Link-Choke

Key-Flywheel 219 698231 Gear-Governor

Piston Assembly (Standard) 220 690412 Washer (Governor Lever)

Piston Assembly (.020" Oversize) 222 698761 Bracket-Control

Ring Set-Piston (Standard) 227 691048 Lever-Governor Control

Ring Set-Piston (.020" Oversize) 231 690718 Screw (Choke Valve)

Lock-Piston Pin 240 695666 Filter-Fuel

Pin-Piston 250 690957 Retainer-Breather

Rod-Connecting 252 690956 Collector-Oil

Screw (Connecting Rod) 265 691024 Clamp-Casing

Valve-Exhaust 267 695134 Screw (Casing Clamp)

Valve-Intake 276 690997 •Q+$Washer-Sealing

Spring-Valve (Intake) 287 690960 Screw (Dipstick Tube)

Spring-Valve (Exhaust) 304 698073 Housing-Blower

Keeper-Valve 305 691005 Screw (Blower Housing)

Tappet-Valve 309 691262 Motor-Starter

Camshaft 310 691263 Bolt-Starter Motor

Short Block 311 497608 Brush Set

Manifold-Intake 332 691059 Nut (Flywheel)

• Q$ Gasket-Intake 333 691060 Armature-Magneto

Stud (Carburetor) 334 691061 Screw (Magneto Armature)

Screw (Intake Manifold) 337 491055 Spark Plug

Screen-Rotating 358 694012 Set-Engine Gasket

Screw (Rotating Screen) 363 19203 Flywheel Puller

Washer (Flywheel) 383 19374 Wrench-Spark Plug

Plug-Oil 385 690960 Screw (Fuel Pump)

Screw (Throttle Valve) 387 808656 Pump-Fuel

Kit-Idle Speed 404 690442 Washer (Governor Crank)

Q Pin-Float Hinge

Q Valve-Float Needle • Included in Engine Gasket Set, Key. No. 358

Valve-Choke Q Included in Carburetor Overhaul Kit, Key. No.

Jet-Main (Standard) 121

Jet-Main (Standard) $ Included in Carburetor Gasket Set, Key. No. 977

Kit-Carburetor Overhaul + Included in Valve Gasket Set, Key. No. 1095

Carburetor

Valve-Throttle NOTE: All component dimensions given in U.S. inches

Kit-Throttle Shaft 1 inch = 25.4 mm

Float-Carburetor

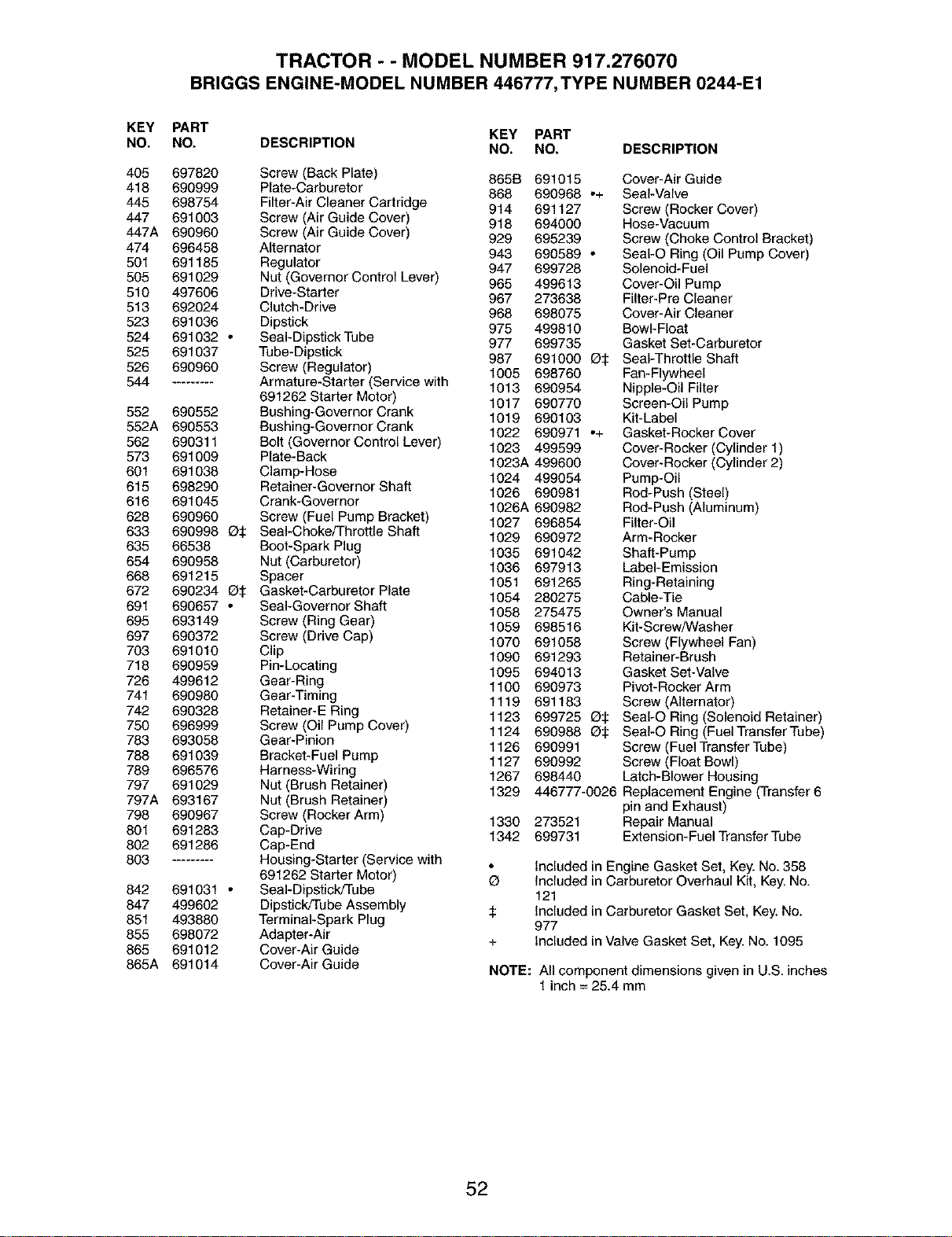

TRACTOR - - MODEL NUMBER 917.276070

BRIGGS ENGINE-MODEL NUMBER 446777,TYPE NUMBER 0244-E1

KEY PART

NO. NO.

405 69782O

418 690999

445 698754

447 691003

447A 690960

474 696458

501 691185

505 691029

510 497606

513 692024

523 691036

524 691032

525 691037

526 690960

544 .........

552 690552

552A 690553

562 690311

573 691009

601 691038

615 698290

616 691045

628 690960

633 690998

635 66538

654 690958

668 691215

672 690234

691 690657

695 693149

697 690372

703 691010

718 690959

726 499612

741 690980

742 690328

750 696999

783 693058

788 691039

789 696576

797 691029

797A 693167

798 690967

801 691283

802 691286

803 .........

842 691031

847 499602

851 493880

855 698072

865 691012

865A 691014

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Screw (Back Plate) 865B 691015 Cover-Air Guide

Plate-Carburetor 868 690968 •+ Seal-Valve

Filter-Air Cleaner Cartridge 914 691127 Screw (Rocker Cover)

Screw (Air Guide Cover) 918 694000 Hose-Vacuum

Screw (Air Guide Cover) 929 695239 Screw (Choke Control Bracket)

Alternator 943 690589 • SeaI-O Ring (Oil Pump Cover)

Regulator 947 699728 Solenoid-Fuel

Nut (Governor Control Lever) 965 499613 Cover-Oil Pump

Drive-Starter 967 273638 Filter-Pre Cleaner

Clutch-Drive 968 698075 Cover-Air Cleaner

Dipstick 975 499810 Bowl-Float

• Seal-Dipstick Tube 977 699735 Gasket Set-Carburetor

Tube-Dipstick 987 691000 Q_ Seal-Throttle Shaft

Screw (Regulator) 1005 698760 Fan-Flywheel

Armature-Starter (Service with 1013 690954 Nipple-Oil Filter

691262 Starter Motor) 1017 690770 Screen-Oil Pump

Bushing-Governor Crank 1019 690103 Kit-Label

Bushing-Governor Crank 1022 690971 •+ Gasket-Rocker Cover

Bolt (Governor Control Lever) 1023 499599 Cover-Rocker (Cylinder 1)

Plate-Back 1023A 499600 Cover-Rocker (Cylinder 2)

Clamp-Hose 1024 499054 Pump-Oil

Retainer-Governor Shaft 1026 690981 Rod-Push (Steel)

Crank-Governor 1026A 690982 Rod-Push (Aluminum)

Screw (Fuel Pump Bracket) 1027 696854 Filter-Oil

Q$ Seal-Choke/Throttle Shaft 1029 690972 Arm-Rocker

Boot-Spark Plug 1035 691042 Shaft-Pump

Nut (Carburetor) 1036 697913 Label-Emission

Spacer 1051 691265 Ring-Retaining

Q$ Gasket-Carburetor Plate 1054 280275 Cable-Tie

• Seal-Governor Shaft 1058 275475 Owner's Manual

Screw (Ring Gear) 1059 698516 Kit-Screw/Washer

Screw (Drive Cap) 1070 691058 Screw (Flywheel Fan)

Clip 1090 691293 Retainer-Brush

Pin-Locating 1095 694013 Gasket Set-Valve

Gear-Ring 1100 690973 Pivot-Rocker Arm

Gear-Timing 1119 691183 Screw (Alternator)

Retainer-E Ring 1123 699725 Q_ SeaI-O Ring (Solenoid Retainer)

Screw (Oil Pump Cover) 1124 690988 Q$ SeaI-O Ring (FueITransferTube)

Gear-Pinion 1126 690991 Screw (FueITransfer Tube)

Bracket-Fuel Pump 1127 690992 Screw (Float Bowl)

Harness-Wiring 1267 698440 Latch-Blower Housing

Nut (Brush Retainer) 1329 446777-0026 Replacement Engine (Transfer 6

Nut (Brush Retainer) pin and Exhaust)

Screw (Rocker Arm) 1330 273521 Repair Manual

Cap-Drive 1342 699731 Extension-Fuel Transfer Tube

Cap-End

Housing-Starter (Service with

691262 Starter Motor) _ Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.

• Seal-Dipstick/Tube 121

Dipstick!Tube Assembly $ Included in Carburetor Gasket Set, Key. No.

Terminal-Spark Plug 977

Adapter-Air

Cover-Air Guide + Included inValve Gasket Set, Key. No. 1095

Cover-Air Guide NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

_IL ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

1. Fold this page along dotted line indicated above.

2. Hold page before you so that its left edge is vertically parallel to a tree

trunk or other upright structure.

3. Sight across the fold in the direction of hill slope you want to measure.

4. Compare the angle of the fold with the slope of the hill.

Your Home

For repair - in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessories and

owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME _ Anytime, day or night

(1-800-4694663) (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

www.sears=com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparaciSn

a domicilio, y para ordenar piezas:

1-888-SU-HOGAR sM

Au Canada pour service en fran_,ais:

1-800-LE-FOYER Mc

(t-800-533_937)

www.sears.ca

SEARS

® Registered Trademark / TMTrademark / SMService Mark of Sears, Roebuck and Co.

® Marca Registrada / TMMarca de F_brica / SMMarca de Servicio de Sears, Roebuck and Co.

MCMarque de commerce / MDMarque d_pos_e de Sears, Roebuck and Co.

190232 Rev. 1 3.18.04 MH Printed in U.S.A.

Craftsman 917276070 tractor

Product's Documents

User Manual

Specifications

Craftsman 917276070 Questions and Answers
