VU500 12 EU - VU500 15 EU
Instructions for use
107418430 A (05. 2017)
2
Operating instructions .................................................................................................... 6
Bedienungsanweisungen ............................................................................................. 12
Instructions de fonctionnement ................................................................................... 18
Gebruiksaanwijzingen ................................................................................................... 25
Istruzioni per l’uso ......................................................................................................... 32
Bruksanvisning .............................................................................................................. 39
Bruksanvisning .............................................................................................................. 45
Betjeningsvejledning .................................................................................................... 51
Käyttöohje ...................................................................................................................... 57
Instruccciones de funcionamiento .............................................................................. 63
Instruções de Funcionamento ..................................................................................... 69
Οδηγίες λειτουργίες ...................................................................................................... 76
Kullanma Talimatları ...................................................................................................... 83
Navodila za delovanje .................................................................................................... 90
Upute za uporabu .......................................................................................................... 96
Návod na obsluhu ........................................................................................................ 102
Návod k obsluze .......................................................................................................... 108
Instrukcje dotyczące obsługi ......................................................................................114
Használati útmutató .................................................................................................... 121
Instrucţiuni de utilizare ................................................................................................ 127
Указания за експлоатация ........................................................................................ 133
Руководство по эксплуатации ................................................................................. 140
Tööjuhised ................................................................................................................... 147
Norādījumi par ekspluatāciju ...................................................................................... 153
Naudojimo instrukcija ................................................................................................. 159
3

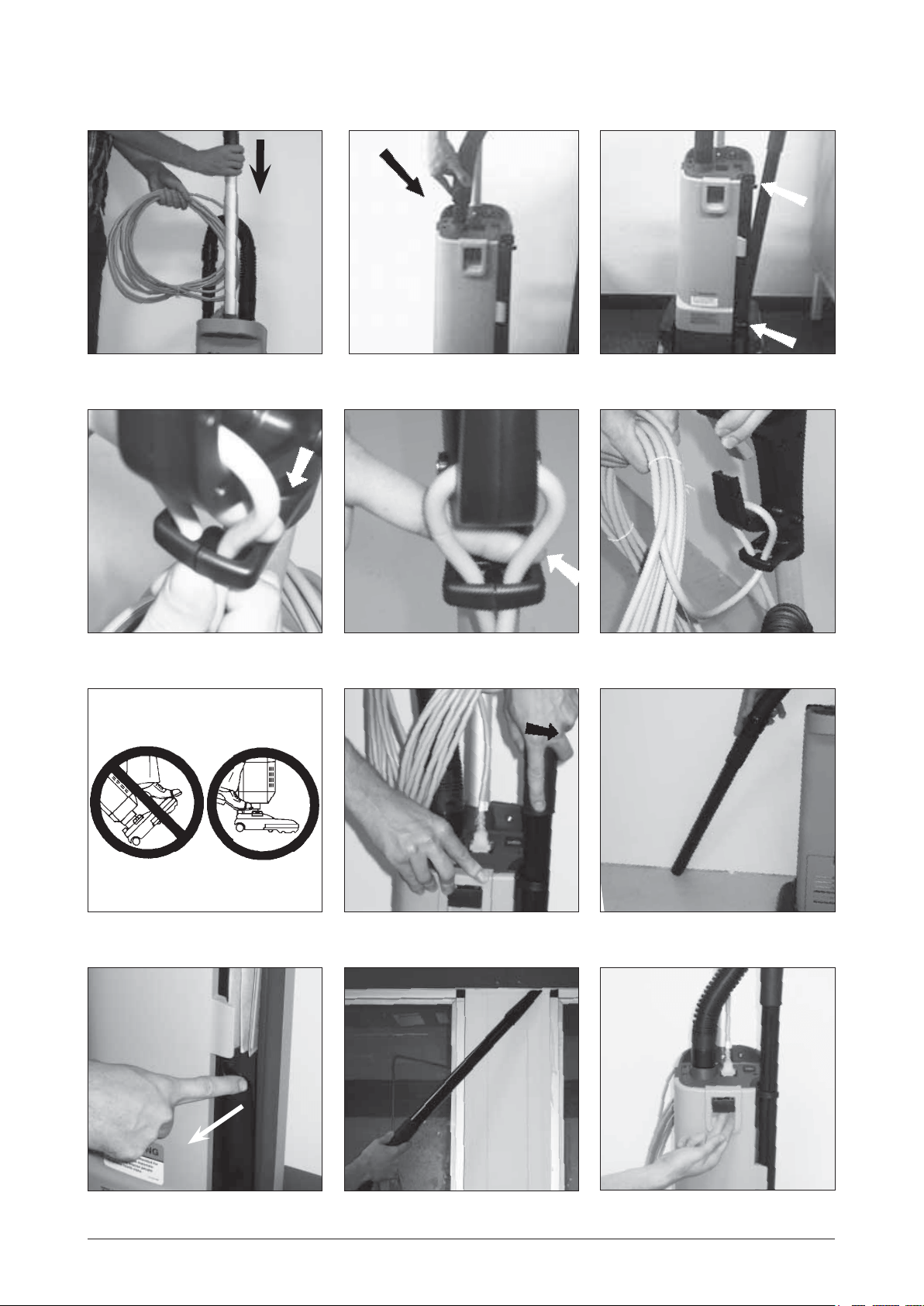

Setup and operation
Optional accessories - Wand

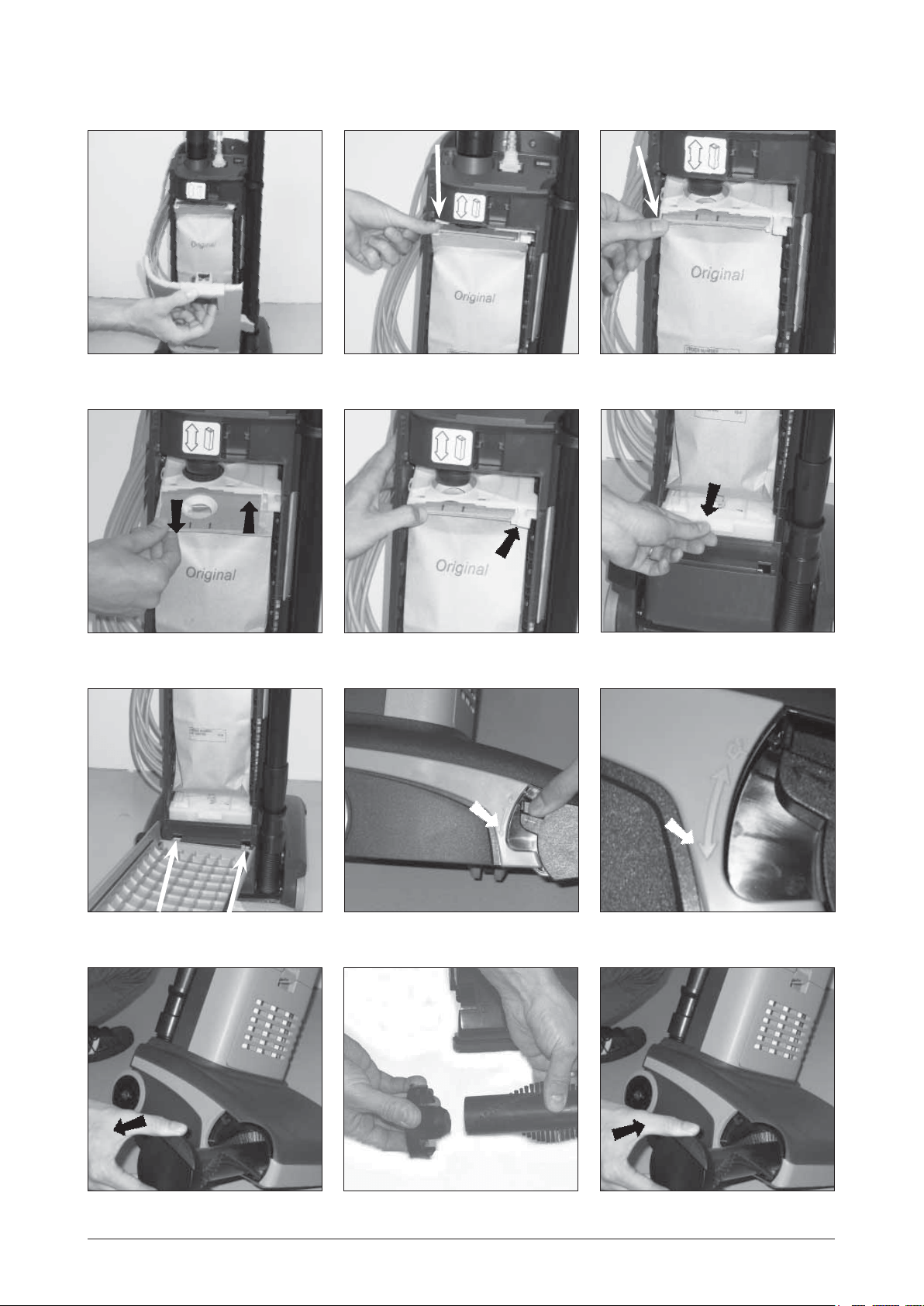

Optional accessories - Tools Changing the paper dust bag
4
Changing or cleaning of the
brush
5

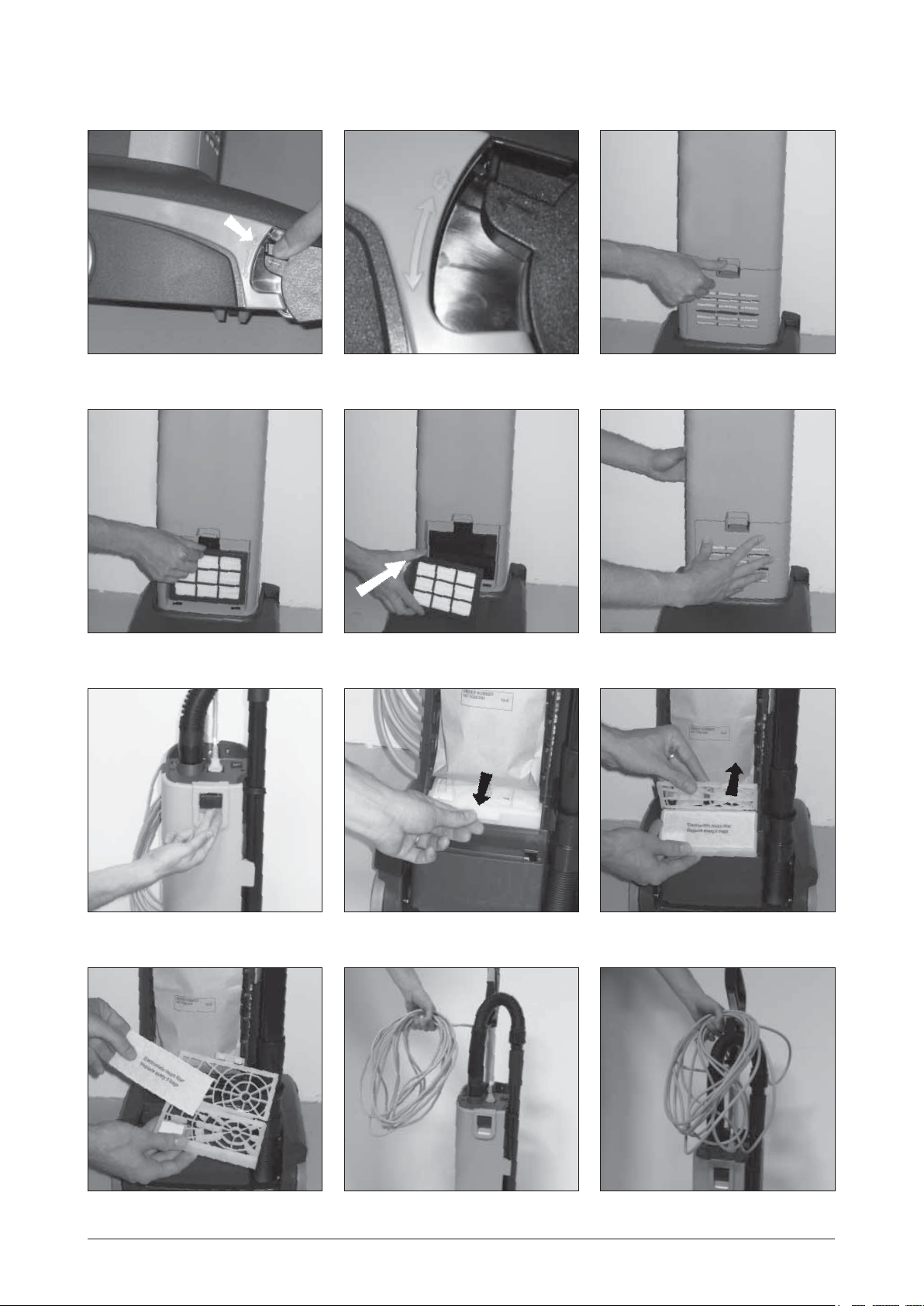

Changing the HEPA filter
Changing or cleaning the pre
filter
After using the machine
Original instruction6
1 Important safety instructions
1.2 Instructions for use
Besides the operating instructions and the binding accident prevention regulations valid in
the country of use, observe recognised regulations for safety and proper use.
1.3 Purpose and intended use
This machine is for commercial use, for example in hotels, schools, hospitals, factories,
shops and offices other than normal residential housekeeping purposes. Accidents due to
misuse can only be prevented by those using the machine.
READ AND FOLLOW ALL SAFETY INSTRUCTIONS.
This machine is suitable for picking up dry, non-flammable dust.
Any other use is considered as improper use. The manufacturer accepts no liability for any
damage resulting from such use. The risk for such use is borne solely by the user. Proper
use also includes proper operation, servicing and repairs as specified by the manufacturer.
WARNING
Danger that can lead to serious injuries or even death.
DANGER
Danger that leads directly to serious or irreversible inju-
ries, or even death.
CAUTION
Danger that can lead to minor injuries and damage.
1.1 Symbols used to mark instructions
1.4 Important warnings
Before starting up your vacuum cleaner for the first time, this instruction manual
must be read through carefully. Save the instructions for later use.
WARNING
• To reduce the risk of fire, electric shock, or injury, please
read and follow all safety instructions and caution markings
before use. This vacuum cleaner is designed to be safe
when used for cleaning functions as specified. Should dam-
age occur to electrical or mechanical parts, the cleaner and
/ or accessory should be repaired by a competent service
station or the manufacturer before use in order to avoid fur-
ther damage to the machine or physical injury to the user.
• To reduce the risk of electric shock – Do not use outdoor or
on wet surfaces.
• This machine is for indoor use only.
• This machine shall only be stored indoors.
• Only use outlet socket for its intended use.
• Do not leave the machine when it is plugged in. Unplug
Original instruction 7
from the socket when not in use and before maintenance.
• Do not use with damaged cord or plug. To unplug grasp the
plug, not the cord. Do not handle plug or cleaner with wet
hands. Turn off all controls before unplugging.
• Do not pull or carry by cord, use cord as a handle, close a
door on cord, or pull cord around sharp edges or cor ners.
Do not run cleaner over cord. Keep cord away from heated
surfaces.
• Keep hair, loose clothing, fingers and all parts of the body
away from ope nings and moving parts. Do not put any
objects into openings or use with opening blocked. Keep
openings free of dust, lint, hair, and anything else that could
re du ce the flow of air.
• This machine is not suitable for picking up hazardous dust.
• Do not use to pick up flammable or combustible liquids
such as gasoline, or use in areas where they may be
pre sent.
• Do not pick up anything that is burning or smoking, such as
cigarettes, mat ches or hot ashes.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge.
• Children shall be supervised to make sure that they do not
play with the appliance.
• Cleaning and user maintenance shall not be made by chil-
dren without supervision.
• Use extra care when cleaning on stairs.
• Do not use unless filters are fitted.
• If the cleaner is not working properly or has been dropped,
da ma ged, left out doors, or dropped into water, re turn it to a
service center or dealer.
• If foam or liquid escapes from the machine, switch off im-
mediately.
• Operators shall be adequately instructed on the use of
these machines.
• This machine is for dry use only.
Original instruction8
In a double-insulated appliance, two systems of insulation are provided instead of ground-
ing. No grounding means is provided on a double-insulated appliance, nor should a mean
for grounding be added to the appliance. Servicing a double-insulated appliance requires
extreme care and knowledge of the system, and should be done only by qualified service
personnel. Replacement parts for a double-insulated appliance must be identical to the
parts they replace. A double insulated appliance is marked with the words “DOUBLE IN-
SULATION” or “DOUBLE INSULATED.” The symbol (square within a square) may also be
used on the product.
The machine is equipped with a specially designed cord which if damaged, must be re-
placed by a cord of the same type. This is available at authorised service centres and
dealers and must be installed by trained personnel.
1.5 Double-insulated appliances
1.6 Electrical connection
1.7 Hazardous materials
CAUTION
• Use only as described in this manual and only with the
manufacturer’s re com men ded attachments.
• BEFORE YOU PLUG IN YOUR CLEANER, check the rat-
ing plate at the cleaner to see if the rated vol ta ge agrees
within 10% of the voltage available.
• This appliance is provided with double insu la tion. Use only
identical re pla ce ment parts. See instructions for ser vi cing
double insulated appliances.
WARNING
• The vacuum cleaner must not be used if the electrical ca-
ble or plug show any sign of damage. Regularly inspect the
cable and the plug for damage. If this becomes damaged,
it should be repaired only by Nilfisk or an authorised Nilfisk
Service Dealer, in order to avoid a hazard.
• Do not handle the electrical cable or plug with wet hands.
• Do not unplug by pulling on cable. To unplug, grasp the
plug, not the cable. The plug must always be removed from
the socket outlet before starting any service or repair work
of the machine or the cable.
WARNING
Vacuuming up hazardous materials can lead to serious or even
fatal injuries.
The following materials must not be picked up by the vacuum
cleaner:
• Hazardous dust
Original instruction 9
• Hot materials (burning cigarettes, hot ash, etc.)
• Flammable, explosive, aggressive liquids (e.g. petrol, sol-
vents, acids, alkalis, etc.)
• Flammable, explosive dust (e.g. magnesium or aluminum
dust, etc.)
1.8 Maintenance
Always keep the cleaner in a dry place. The cleaner is designed for continuous heavy
work. Depending on the number of running hours – the dust filters should be renewed.
Keep the container clean with a dry cloth, and a small amount of spray polish.
For details of after sales service contact Nilfisk directly.
1.9 Warranty
Our general conditions of business are applicable with regard to the guarantee.
Unauthorised modifications to the appliance, the use of incorrect brushes in addition to us-
ing the appliance in a way other than for the intended purpose exempt the manufacturer
from any liability for the resulting damage.
As specified in European Directive 2012/19/EU on old electrical and electronic appli-
ances, used electrical goods must be collected separately and recycled ecologically.
Contact your local authorities or your nearest dealer for further information.
Original instruction10
Emptying the cloth/paper filter
bag
1. Disconnect the power cord from the electrical outlet. Pull the Dust
lid button and drag the Dust lid outwards to remove it from the
cleaner.
2. Push downwards at the edge to the left of the plastic holder, so that
the bag inlet loosens from the vacuum inlet of the machine.
3. Grasp at the plastic flange of the bag and gently pull the bag out-
wards - away from cleaner.
4. Remove bag clip and shake out bag contents.
5. Put the bag clip back on the bag.
6. Insert the cleaned/new cloth/paper bag into the slot of the bag hold-
er and push the bag in place so that bag is secured.
7. Push the bag holder with the new bag upwards, so that the bag
inlet fasten to the inlet of the machine. Make sure that the bag is
unfold and will fit in place at the bag housing. Also check that the
”no bag” clip is placed to the left so that the lid will be able to close.
8. Fit the two notches of the back cover to the two slots at the lower
part of the bag housing, and push the back cover back in place at
the housing.
WARNING
Do not allow the supply cord to come into contact with
the rotating brushes.
Cleaning the pre filter
Deodorizer pad
The pre filter may be washed in warm water. Let the filter dry complete-
ly before putting it back into the filter holder.
This machine is equipped with a deodorizer pad. It’s located in the pre
filter holder. Replace it when the function begins to fade.
Specifications
VU500 12 EU VU500 15 EU
Rated power W 810 810
Protection grade (moist., dust) V IP 20 IP 20
Protection class (electrical) W II II
Airflow with hose and tube litres/sec 26 26
Suction power with hose and tube
W 135 135
Sound power level L
WA
(IEC 60335-2-69) dB(A) 80 ± 2 80 ± 2
Vibration ISO 5349 a
h
m/s
2
≤ 2,5 ≤ 2,5
HEPA filter, surface area cm
2
2400 2400
Dust bag capacity
litres 3,5 3,5
Weight kg 8 8,5
Specifications and details are subject to change without prior notice.
Original instruction 11
EU Declaration of conformity
Nilfisk A/S
Kornmarksvej 1
DK-2605 Broendby
DENMARK
Hereby solely declare, that the product:
Product: VAC - Commercial - Dry
Description: 220-240V, 50/60Hz, IPX0
Type: VU500 12 EU, VU500 15 EU
Are in compliance with the following standards:
EN 60335-1:2012+A11:2014
EN 60335-2-69:2012
EN 55014-1:2006+A1:2009+A2:2011
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 60312-1:2013
Following the provisions of:
2006/42/EC
2014/30/EU
2009/125/EC
666/2013/EC
Hadsund 27-1-2017
Anton Sørensen
Senior Vice President – Global R&D
HEAD QUARTER
DENMARK
Nilfi sk A/S
Kornmarksvej 1
DK-2605 Broendby
Tel.: (+45) 4323 8100
www.nilfi sk.com
SALES COMPANIES
ARGENTINA
Nilfi sk srl.
Edifi cio Central Park
Herrera 1855, 6th fl oor/604
Ciudad de Buenos Aires
Tel.: (+54) 11 6091 1571
www.nilfi sk.com.ar
AUSTRALIA
Nilfi sk Pty Ltd
Unit 1/13 Bessemer Street
Blacktown NSW 2148
Tel.: (+61) 2 98348100
www.nilfi sk.com.au
AUSTRIA
Nilfi sk GmbH
Metzgerstrasse 68
5101 Bergheim bei Salzburg
Tel.: (+43) 662 456 400 90
www.nilfi sk.at
BELGIUM
Nilfi sk n.v-s.a.
Riverside Business Park
Boulevard Internationalelaan 55
Bâtiment C3/C4 Gebouw
Bruxelles 1070
Tel.: (+32) 14 67 60 50
www.nilfi sk.be
BRAZIL
Nilfi sk do Brasil
Av. Eng. Luis Carlos Berrini, 550
40 Andar, Sala 03
SP - 04571-000 Sao Paulo
Tel.: (+11) 3959-0300 / 3945-4744
www.nilfi sk.com.br
CANADA
Nilfi sk Canada Company
240 Superior Boulevard
Mississauga, Ontario L5T 2L2
Tel.: (+1) 800-668-8400
www.nilfi sk.ca
CHILE
Nilfi sk S.A. (Comercial KCS Ltda)
Salar de Llamara 822
8320000 Santiago
Tel.: (+56) 2684 5000
www.nilfi sk.cl
CHINA
Nilfi sk
4189 Yindu Road
Xinzhuang Industrial Park
201108 Shanghai
Tel.: (+86) 21 3323 2000
www.nilfi sk.cn
CZECH REPUBLIC
Nilfi sk s.r.o.
VGP Park Horní Počernice
Do Čertous 1/2658
193 00 Praha 9
Tel.: (+420) 244 090 912
www.nilfi sk.cz
DENMARK
Nilfi sk Danmark A/S
Industrivej 1
Hadsund, DK-9560
Tel.: 72 18 21 20
www.nilfi sk.dk
FINLAND
Nilfi sk Oy Ab
Koskelontie 23 E
02920 Espoo
Tel.: (+358) 207 890 600
www.nilfi sk.fi
FRANCE
Nilfi sk SAS
26 Avenue de la Baltique
Villebon sur Yvette
91978 Courtabouef Cedex
Tel.: (+33) 169 59 87 00
www.nilfi sk.fr
GERMANY
Nilfi sk GmbH
Guido-Oberdorfer-Straße 2-10
89287 Bellenberg
Tel.: (+49) (0)7306/72-444
www.nilfi sk.de
GREECE
Nilfi sk A.E.
Αναπαύσεως 29
Κορωπί Τ.Κ. 194 00
Tel.: (30) 210 9119 600
www.nilfi sk.gr
HOLLAND
Nilfi sk B.V.
Versterkerstraat 5
1322 AN Almere
Tel.: (+31) 036 5460760
www.nilfi sk.nl
HONG KONG
Nilfi sk Ltd.
2001 HK Worsted Mills
Industrial Building
31-39, Wo Tong Tsui St.
Kwai Chung, N.T.
Tel.: (+852) 2427 5951
www.nilfi sk.com
HUNGARY
Nilfi sk Kft.
II. Rákóczi Ferenc út 10
2310 Szigetszentmiklós-Lakihegy
Tel.: (+36) 24 475 550
www.nilfi sk.hu
INDIA
Nilfi sk India Limited
Pramukh Plaza, ‘B’ Wing, 4th fl oor, Unit
No. 403
Cardinal Gracious Road, Chakala
Andheri (East) Mumbai 400 099
Tel.: (+91) 22 6118 8188
www.nilfi sk.in
IRELAND
Nilfi sk
1 Stokes Place
St. Stephen’s Green
Dublin 2
Tel.: (+35) 3 12 94 38 38
www.nilfi sk.ie
ITALY
Nilfi sk SpA
Strada Comunale della Braglia, 18
26862 Guardamiglio (LO)
Tel.: (+39) (0) 377 414021
www.nilfi sk.it
JAPAN
Nilfi sk Inc.
1-6-6 Kita-shinyokohama, Kouhoku-ku
Yokohama, 223-0059
Tel.: (+81) 45548 2571
www.nilfi sk.com
MALAYSIA
Nilfi sk Sdn Bhd
Sd 33, Jalan KIP 10
Taman Perindustrian KIP
Sri Damansara
52200 Kuala Lumpur
Tel.: (60) 3603 627 43 120
www.nilfi sk.com
MEXICO
Nilfi sk de Mexico, S. de R.L. de C.V.
Pirineos #515 Int.
60-70 Microparque
Industrial WSantiago
76120 Queretaro
Tel.: (+52) (442) 427 77 00
www.nilfi sk.com
NEW ZEALAND
Nilfi sk Limited
Suite F, Building E
42 Tawa Drive
0632 Albany Auckland
Tel.: (+64) 9 414 1996
Website: www.nilfi sk.com
NORWAY
Nilfi sk AS
Bjørnerudveien 24
1266 Oslo
Tel.: (+47) 22 75 17 80
www.nilfi sk.no
PERU
Nilfi sk S.A.C.
Calle Boulevard 162, Of. 703, Lima 33-
Perú
Lima
Tel.: (511) 435-6840
www.nilfi sk.com
POLAND
Nilfi sk Sp. Z.O.O.
Millenium Logistic Park
ul. 3 Maja 8, Bud. B4
05-800 Pruszków
Tel.: (+48) 22 738 3750
www.nilfi sk.pl
PORTUGAL
Nilfi sk Lda.
Sintra Business Park
Zona Industrial Da Abrunheira
Edifi cio 1, 1° A
P2710-089 Sintra
Tel.: (+351) 21 911 2670
www.nilfi sk.pt
RUSSIA
Nilfi sk LLC
Vyatskaya str. 27, bld. 7/1st
127015 Moscow
Tel.: (+7) 495 783 9602
www.nilfi sk.ru
SINGAPORE
Den-Sin
22 Tuas Avenue 2
639453 Singapore
Tel.: (+65) 6268 1006
www.densin.com
SLOVAKIA
Nilfi sk s.r.o.
Bancíkovej 1/A
SK-821 03 Bratislava
Tel.: (+421) 910 222 928
www.nilfi sk.sk
SOUTH AFRICA
Nilfi sk (Pty) Ltd
Kimbult Offi ce Park
9 Zeiss Road
Laser Park
Honeydew
Johannesburg
Tel: +27118014600
www.nilfi sk.co.za
SOUTH KOREA
Nilfi sk Korea
3F Duksoo B/D, 317-15
Sungsoo-Dong 2Ga
Sungdong-Gu, Seoul
Tel.: (+82) 2497 8636
www.nilfi sk.co.kr
SPAIN
Nilfi sk S.A.
Torre d’Ara,
Passeig del Rengle, 5 Plta. 10
a
08302 Mataró
Tel.: (34) 93 741 2400
www.nilfi sk.es
SWEDEN
Nilfi sk AB
Taljegårdsgatan 4
431 53 Mölndal
Tel.: (+46) 31 706 73 00
www.nilfi sk.se
SWITZERLAND
Nilfi sk AG
Ringstrasse 19
Kircheberg/Industri Stelz
9500 Wil
Tel.: (+41) 71 92 38 444
www.nilfi sk.ch
TAIWAN
Nilfi sk Ltd
Taiwan Branch (H.K)
No. 5, Wan Fang Road
Taipei
Tel.: (+88) 6227 00 22 68
www.nilfi sk.tw
THAILAND
Nilfi sk Co. Ltd.
89 Soi Chokechai-Ruammitr
Viphavadee-Rangsit Road
Ladyao, Jatuchak, Bangkok 10900
Tel.: (+66) 2275 5630
www.nilfi sk.co.th
TURKEY
Nilfi sk A.S.
Serifali Mh. Bayraktar Bulv. Sehit Sk. No:7
Ümraniye, 34775 Istanbul
Tel.: +90 216 466 94 94
www.nilfi sk.com.tr
UNITED ARAB EMIRATES
Nilfi sk Middle East Branch
SAIF-Zone
P.O. Box 122298
Sharjah
Tel.: (+971) (0) 655-78813
www.nilfi sk.com
UNITED KINGDOM
Nilfi sk Ltd.
Nilfi sk House, Bowerbank Way
Gilwilly Industrial Estate, Penrith
Cumbria CA11 9BQ
Tel: (+44) (0) 1768 868995
www.nilfi sk.co.uk
UNITED STATES
Nilfi sk, Inc.
9435 Winnetka Ave N,
Brooklyn Park
MN- 55445
www.nilfi sk.com
VIETNAM
Nilfi sk Vietnam
No. 51 Doc Ngu Str.
P. Vinh Phúc, Q.Ba Dinh
Hanoi
Tel.: (+84) 761 5642
www.nilfi sk.com
