QUICK START UP / SHUTDOWN GUIDE
Items Needed: (not included)
8 mm, 10 mm, 13 mm. 16 mm, 19 mm wrenches
Items Included:
© 2017 Briggs & Stratton Corporation. All rights reserved.
Every effort has been made to ensure that the information in this document is accurate and correct. However, we reserve the right to alter or otherwise improve the product and this document at any time without prior notice and without incurring obligation.
The quick start up/shutdown guide
is not a substitute for reading the
manual; the manual contains
detailed information and instructions
that you must be aware of and follow in order
to maintain the equipment properly and use it
safely. Remember to record the date of
purchase and model number in your manual.
s
Choke On
6
7
Turn Key Start
8
Choke Run
11
Turn Key O
12
Fuel O
Outdoor
Use Only
To Temporarily Restore Power Using Extension CordsTo Temporarily Restore Power Using Extension Cords
Use Outlets
9
Remove Plugs
10
Shutdown Shutdown
1. Only use cords marked for outdoor use rated for your loads.
2. Follow cord safety instructions.
3. Extension cords running directly into the home increase your risk of carbon
monoxide poisoning through openings. Install carbon monoxide alarm(s).
4. Before your next home power outage, install a listed* transfer switch.
* Certified by a Nationally Recognized Testing Laboratory that the product complies to appropriate
product safety test standards.
120V
OUTLET

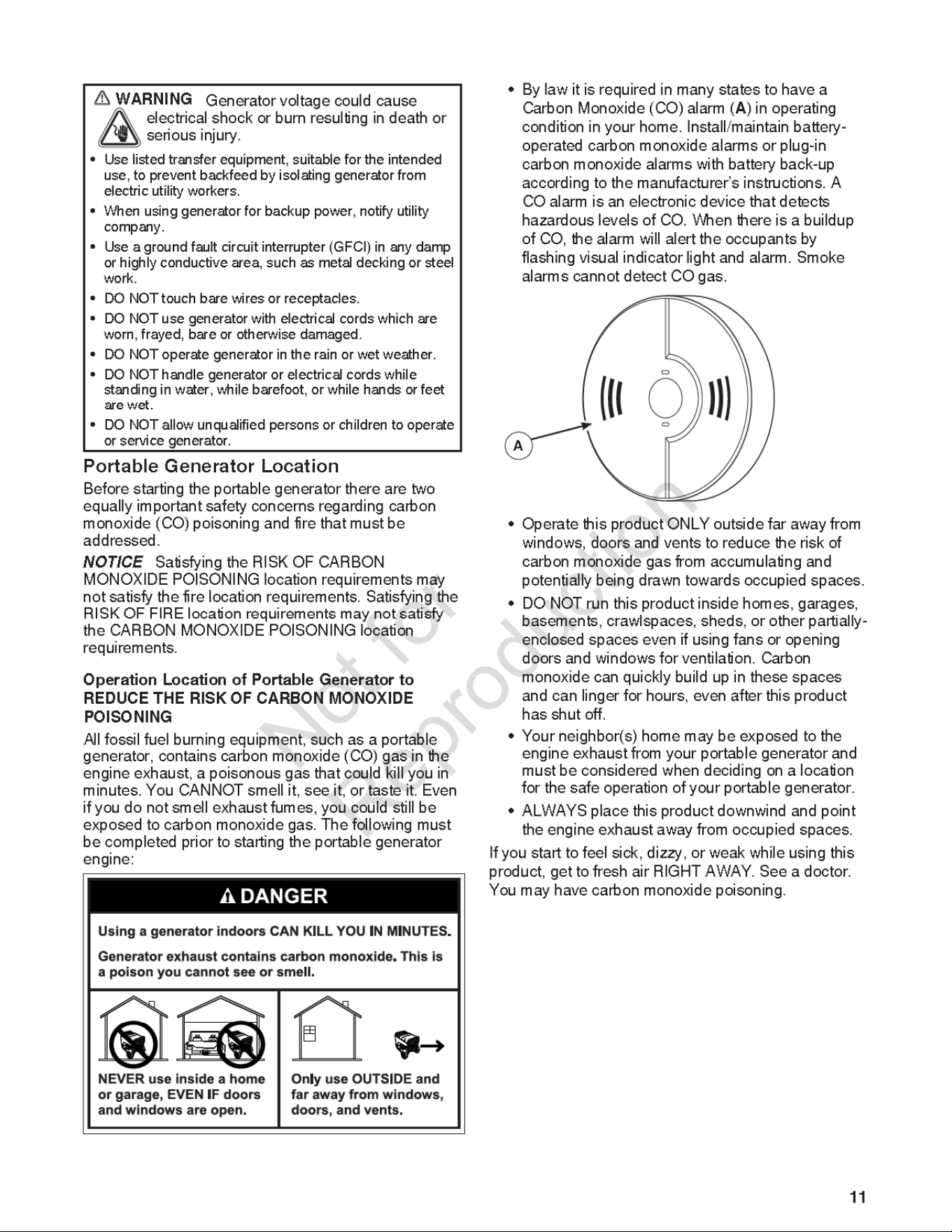

Install carbon monoxide alarms inside
your home. Without working carbon
monoxide alarms, you will not realize
you are getting sick and dying from
carbon monoxide poisoning.
CARBON MONOXIDE ALARM(S)

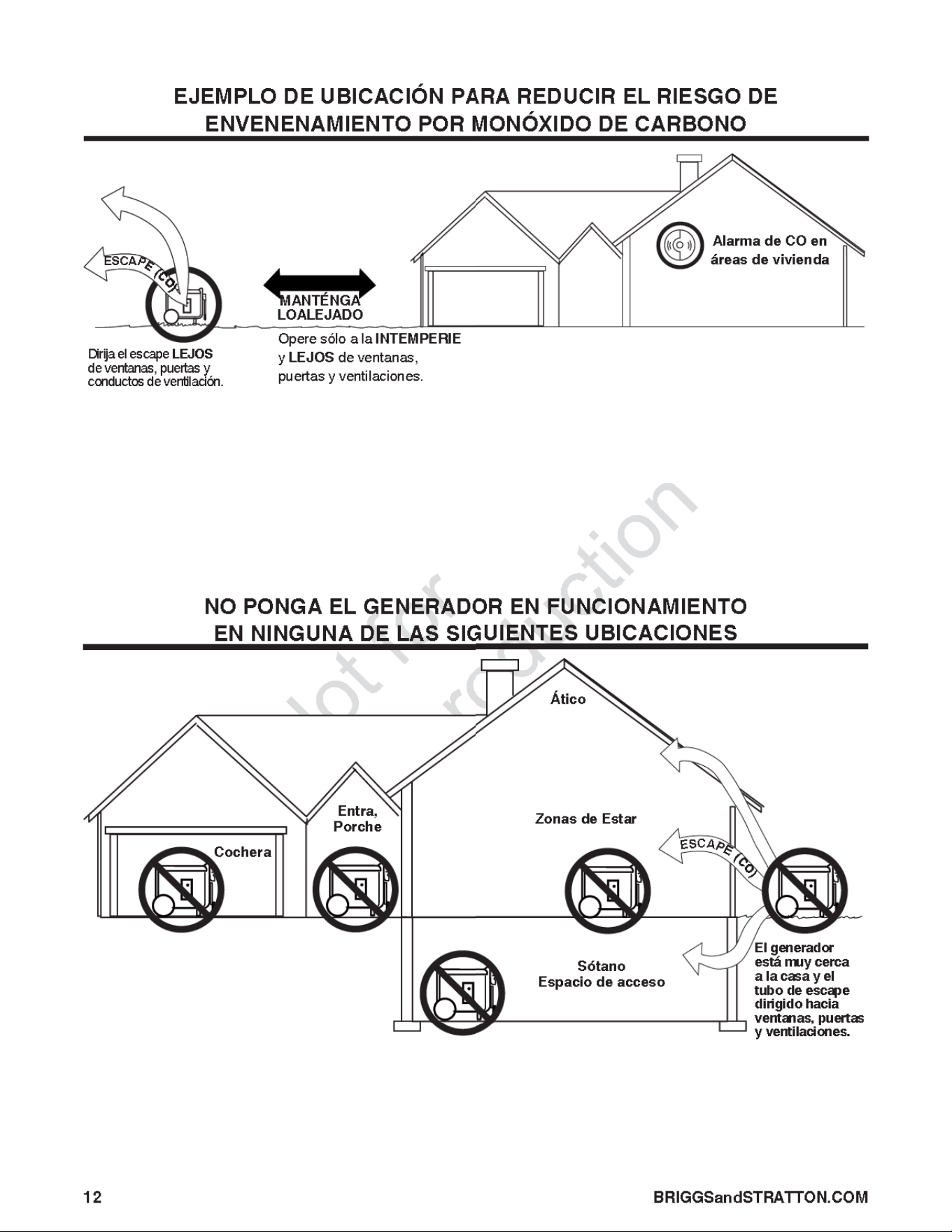

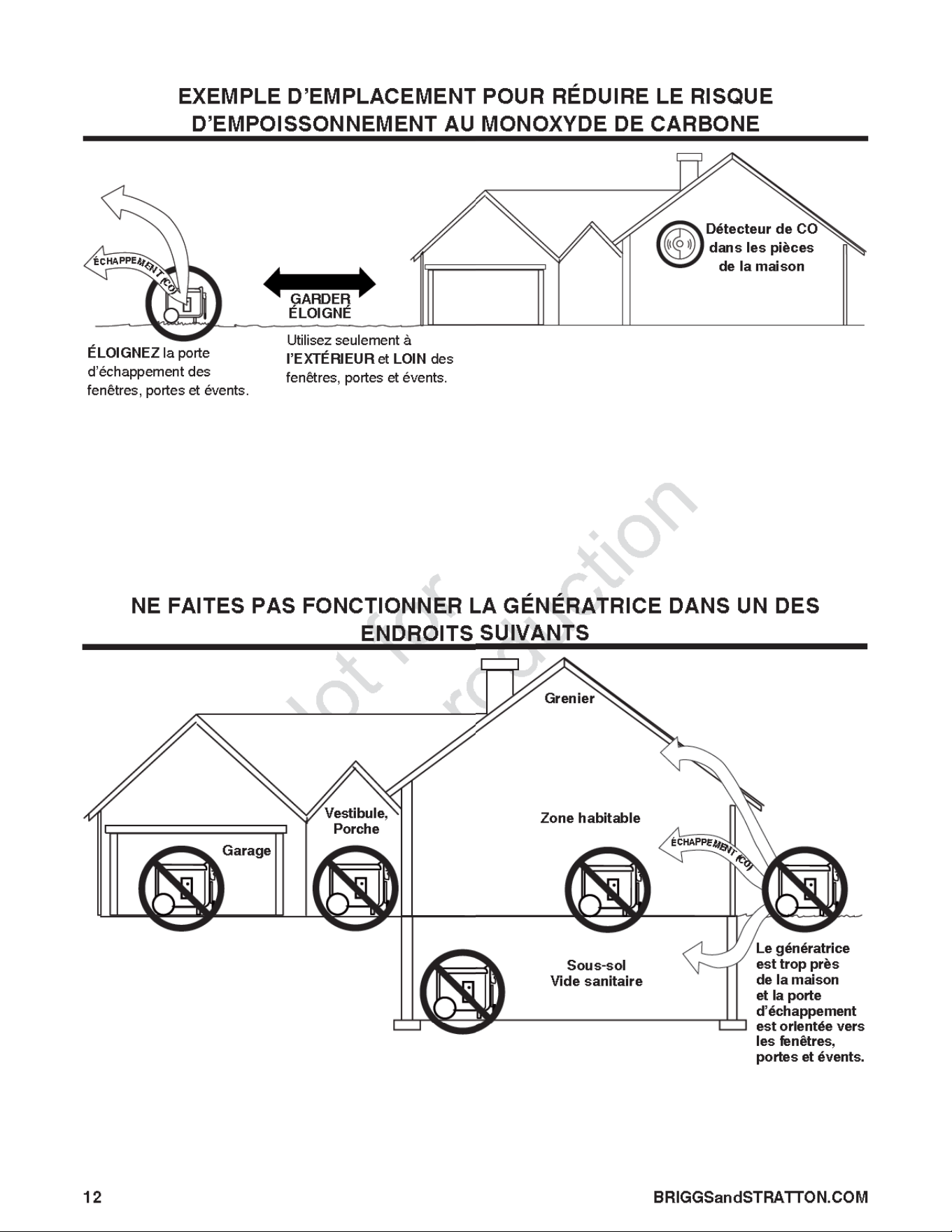

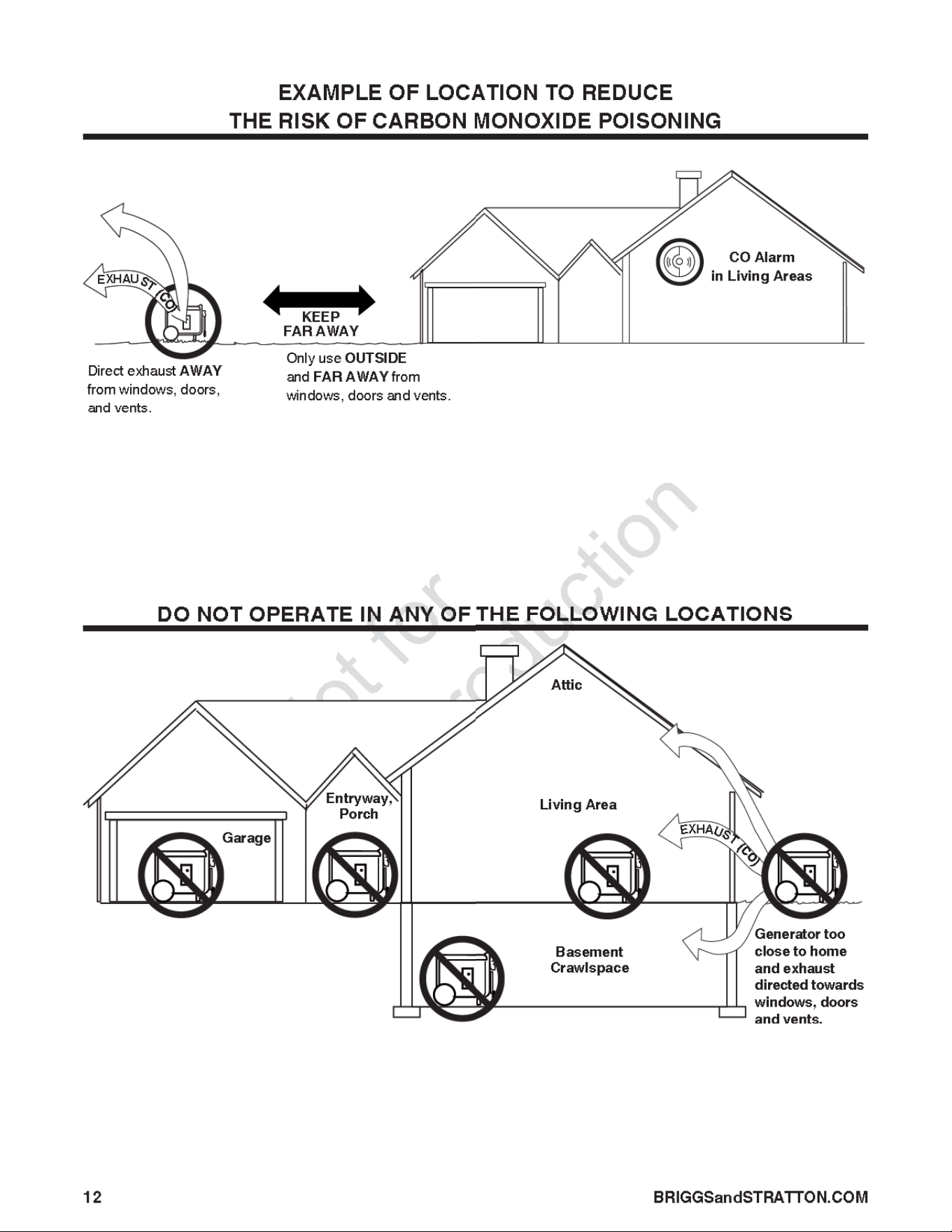

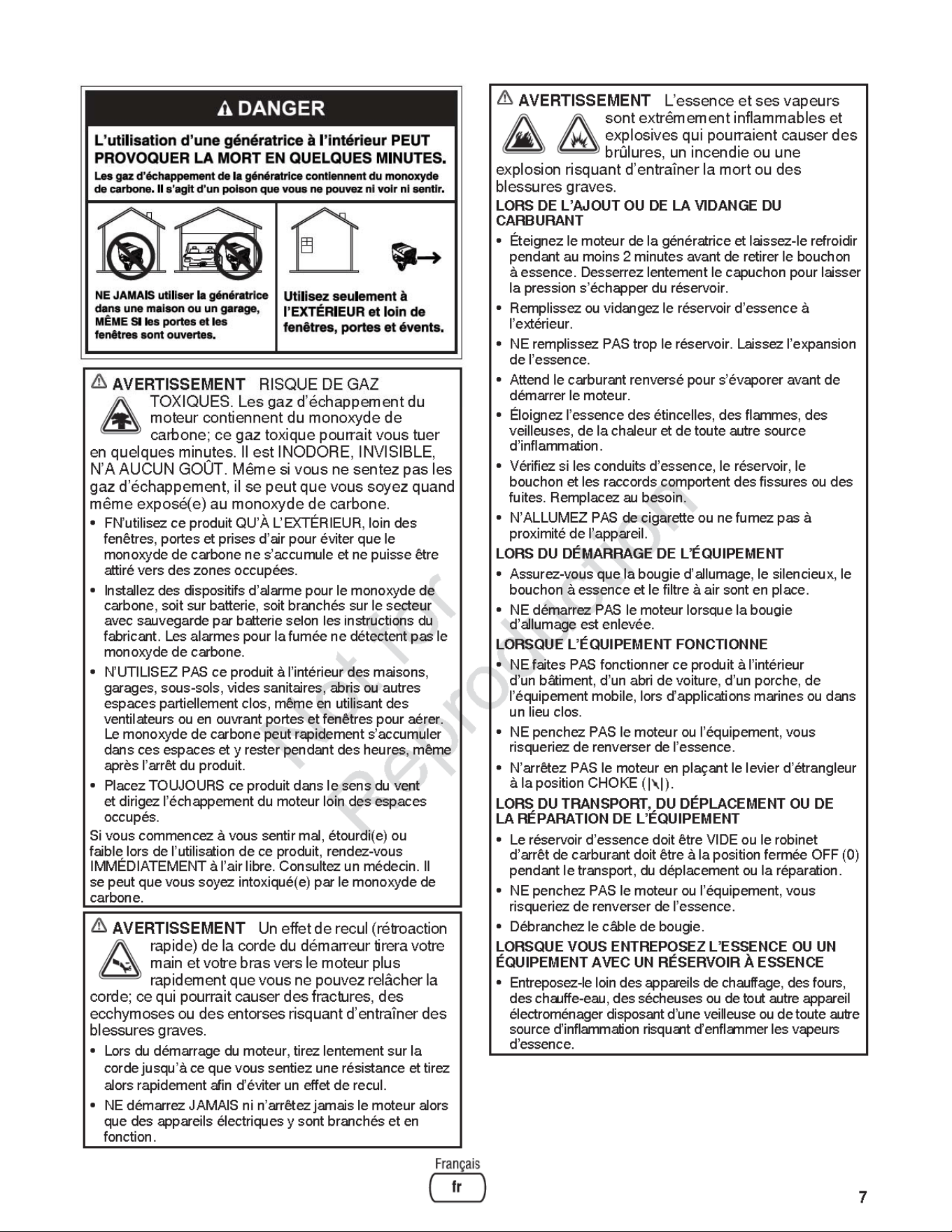

USE OUTDOORS - AVOID CARBON MONOXIDE POISONING
point away
from home
MUFFLER
point away from home
MUFFLER
USE OUTDOORS - AVOID CARBON MONOXIDE POISONING - See Manual
CARBON MONOXIDE ALARM(S)
Install carbon monoxide alarms inside
your home. Without working carbon
monoxide alarms, you will not realize
you are getting sick and dying from
carbon monoxide poisoning.

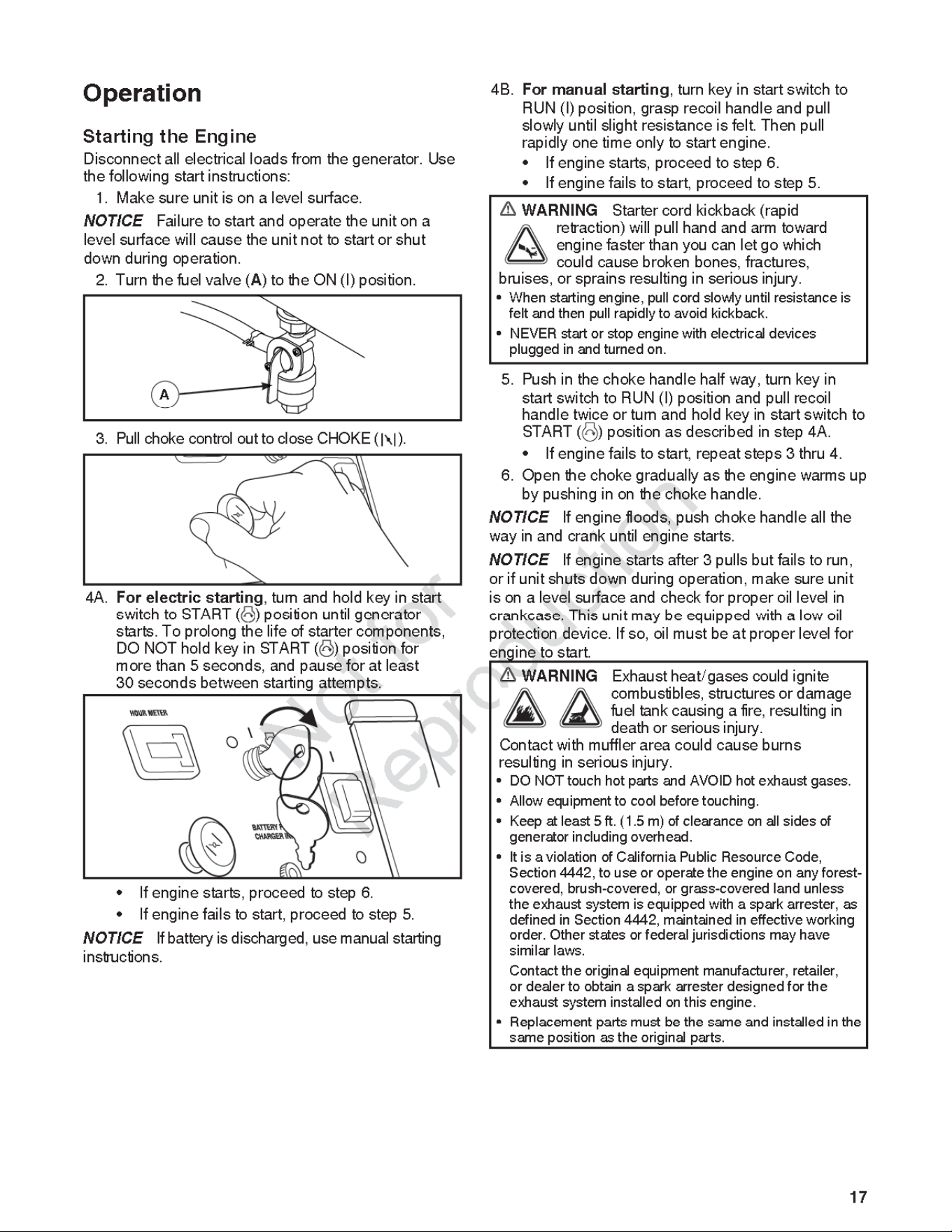

Start Up Start Up
1
Place
Outdoors
2
Working CO
Alarms
4
Fresh Gas
5
Fuel On
3

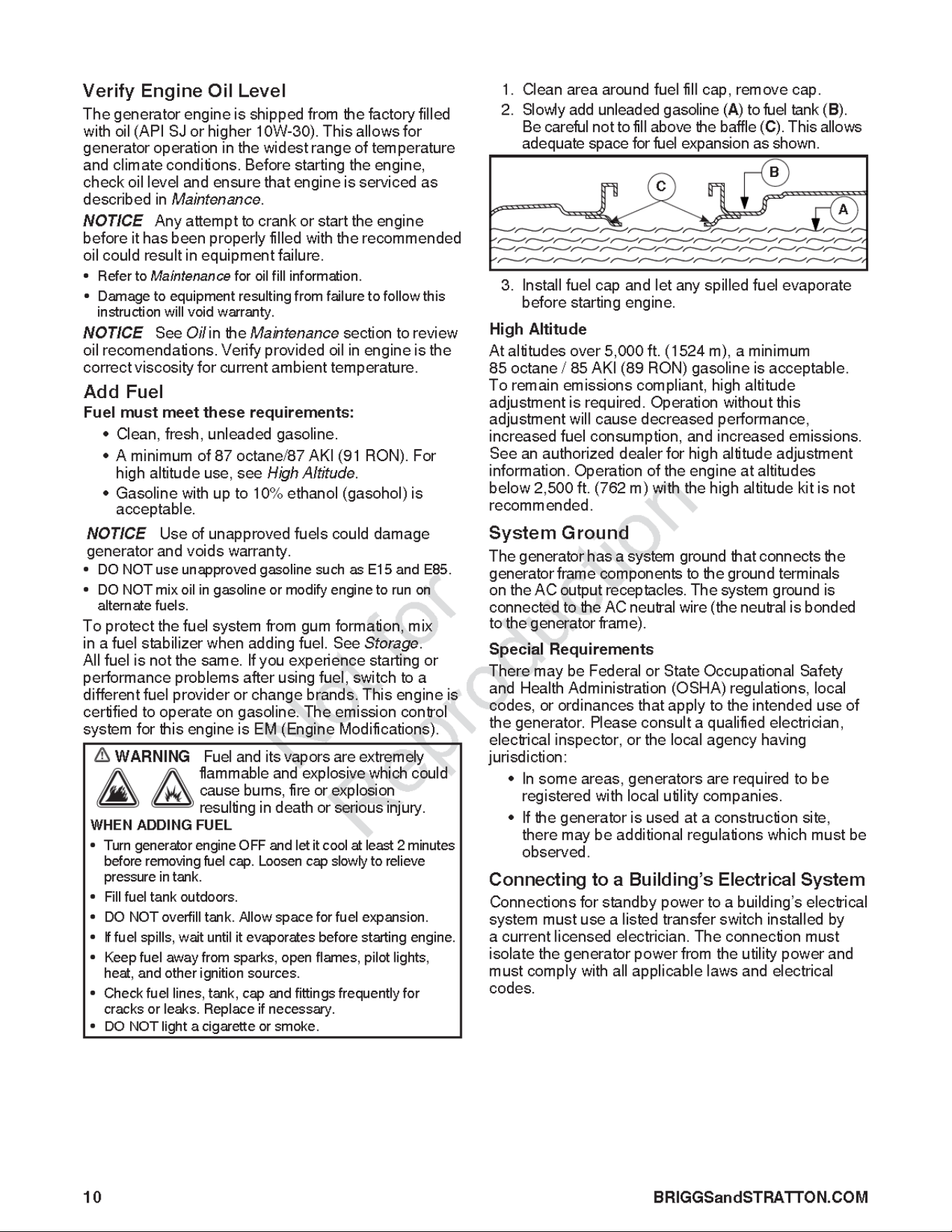

Engine Oil
WARNING!
Battery posts, terminals and related accessories contain lead and lead compounds - chemicals known to the State of
California to cause cancer and reproductive harm. Wash hands after handling.

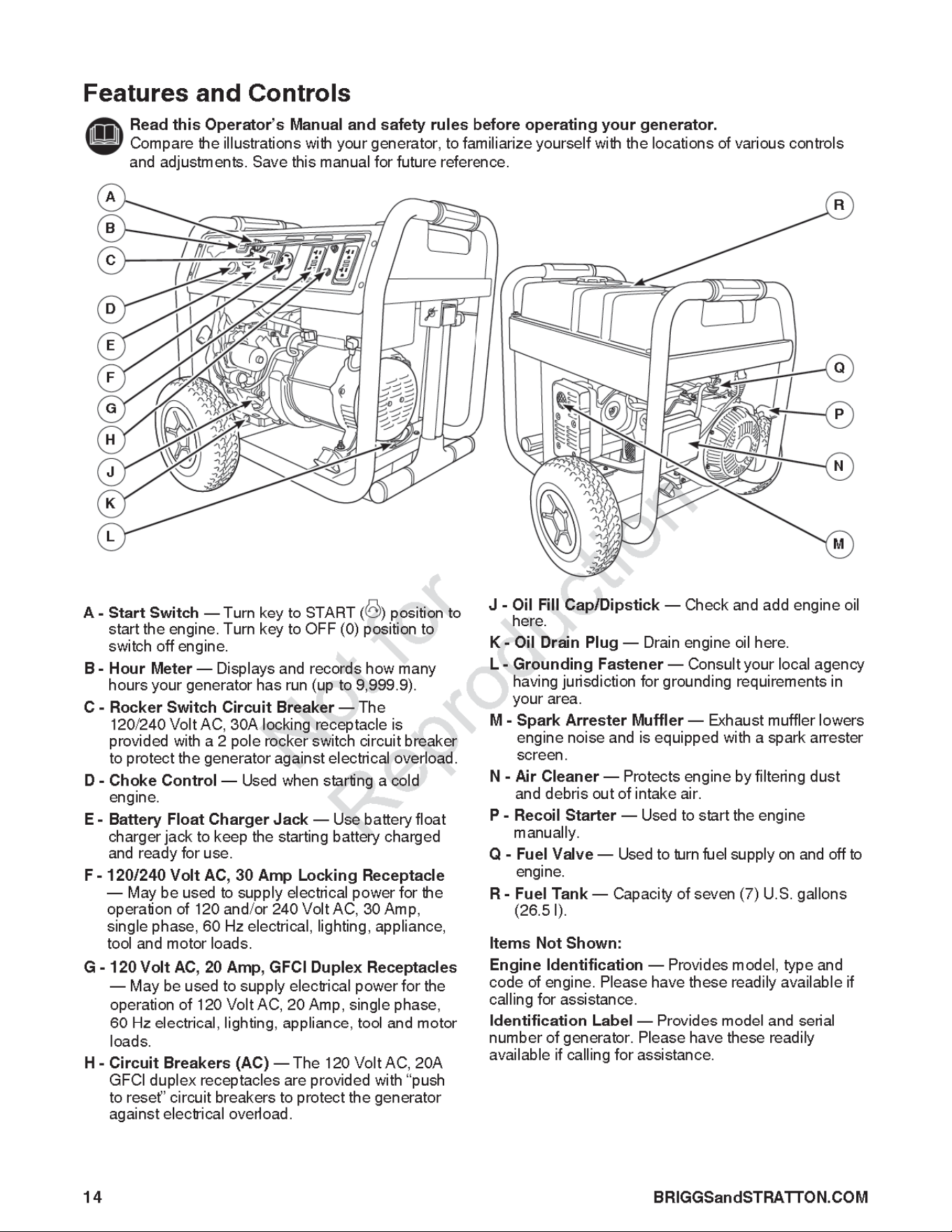

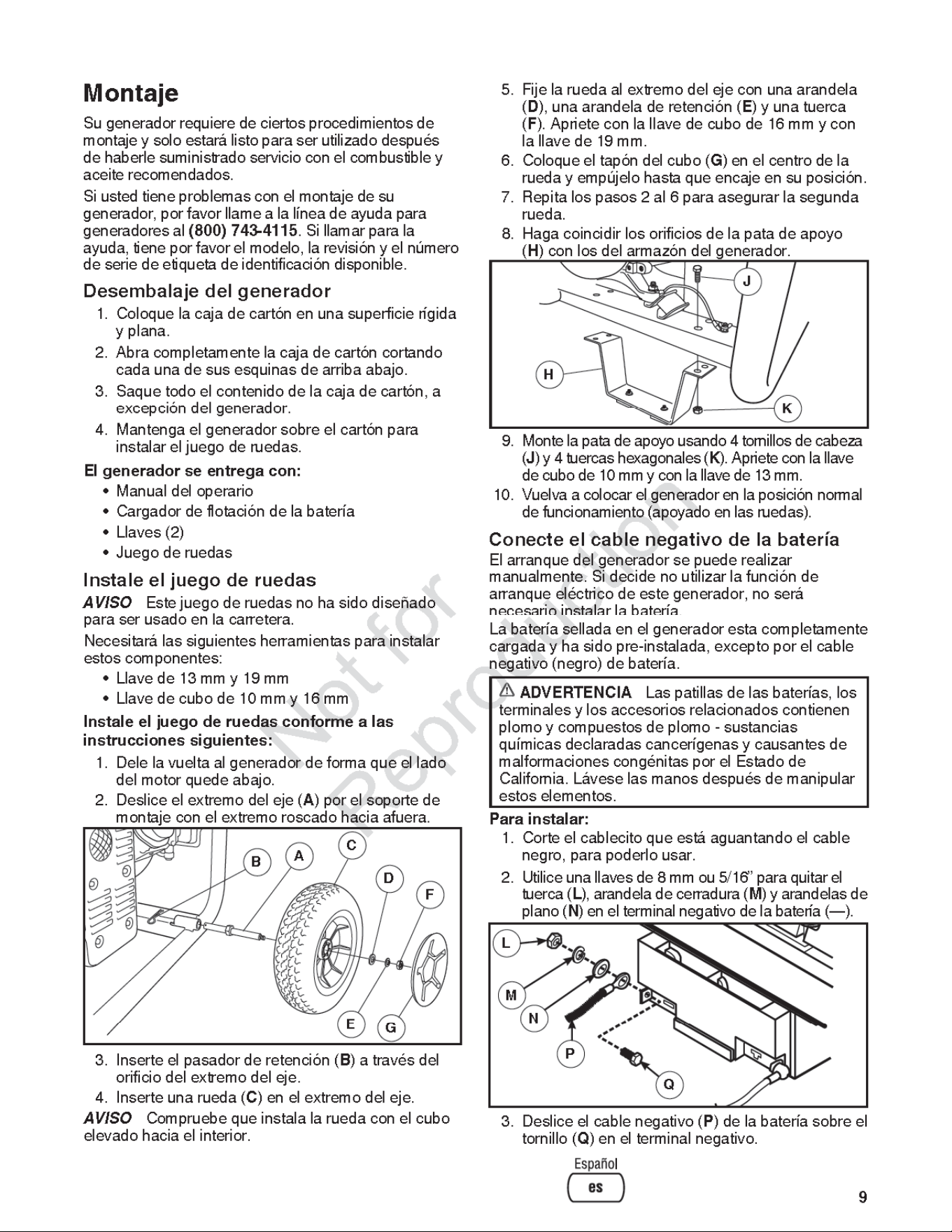

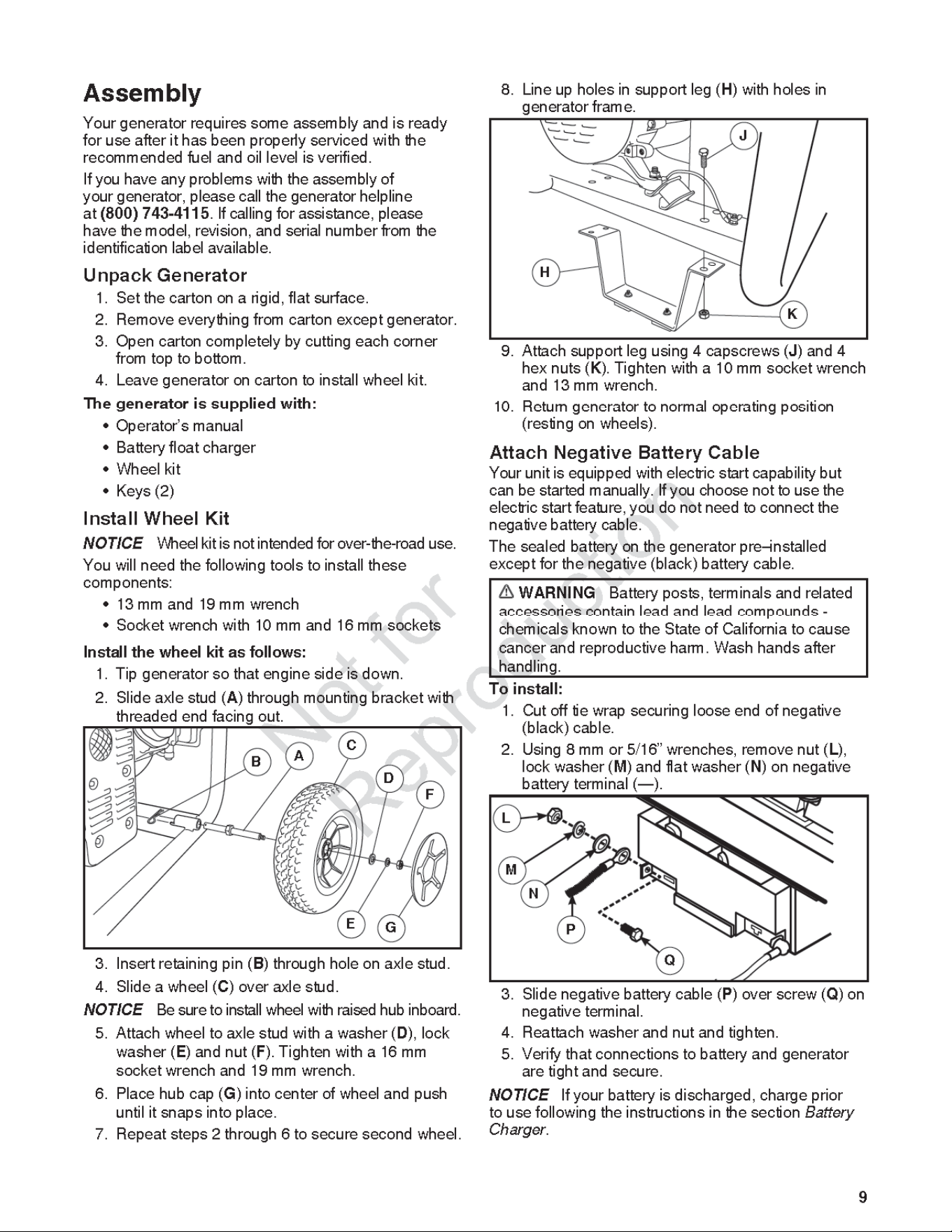

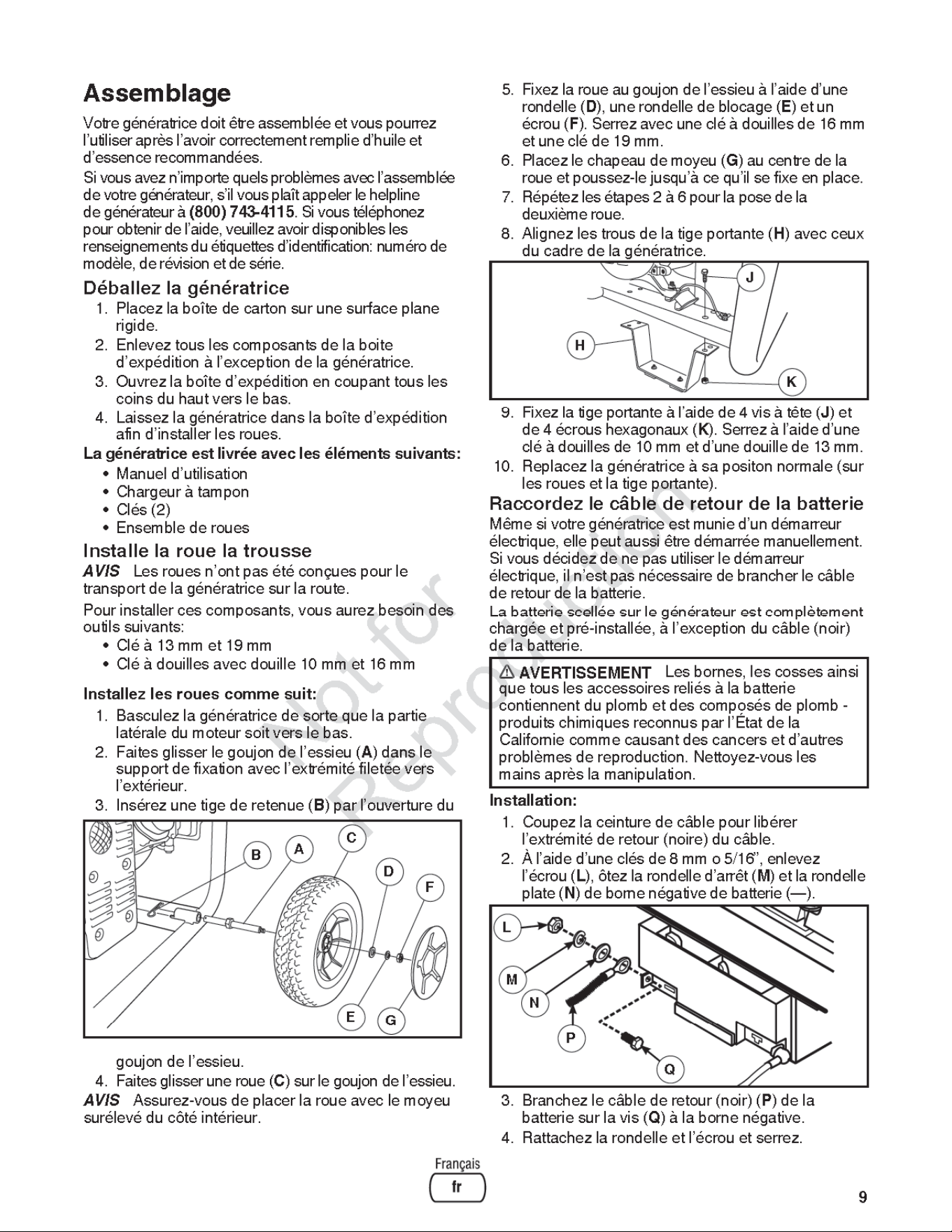

Wheel Kit and Battery AttachmentWheel Kit and Battery Attachment

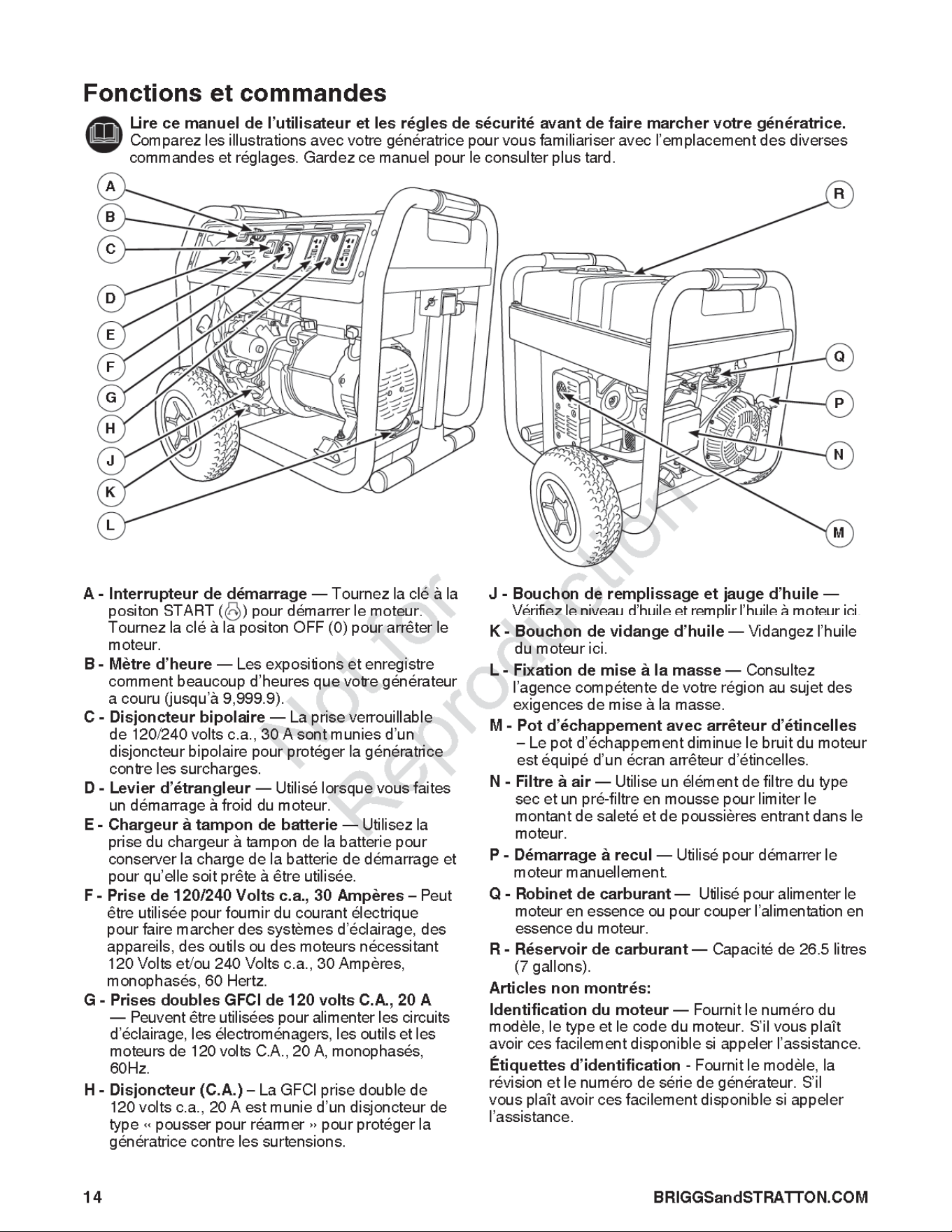

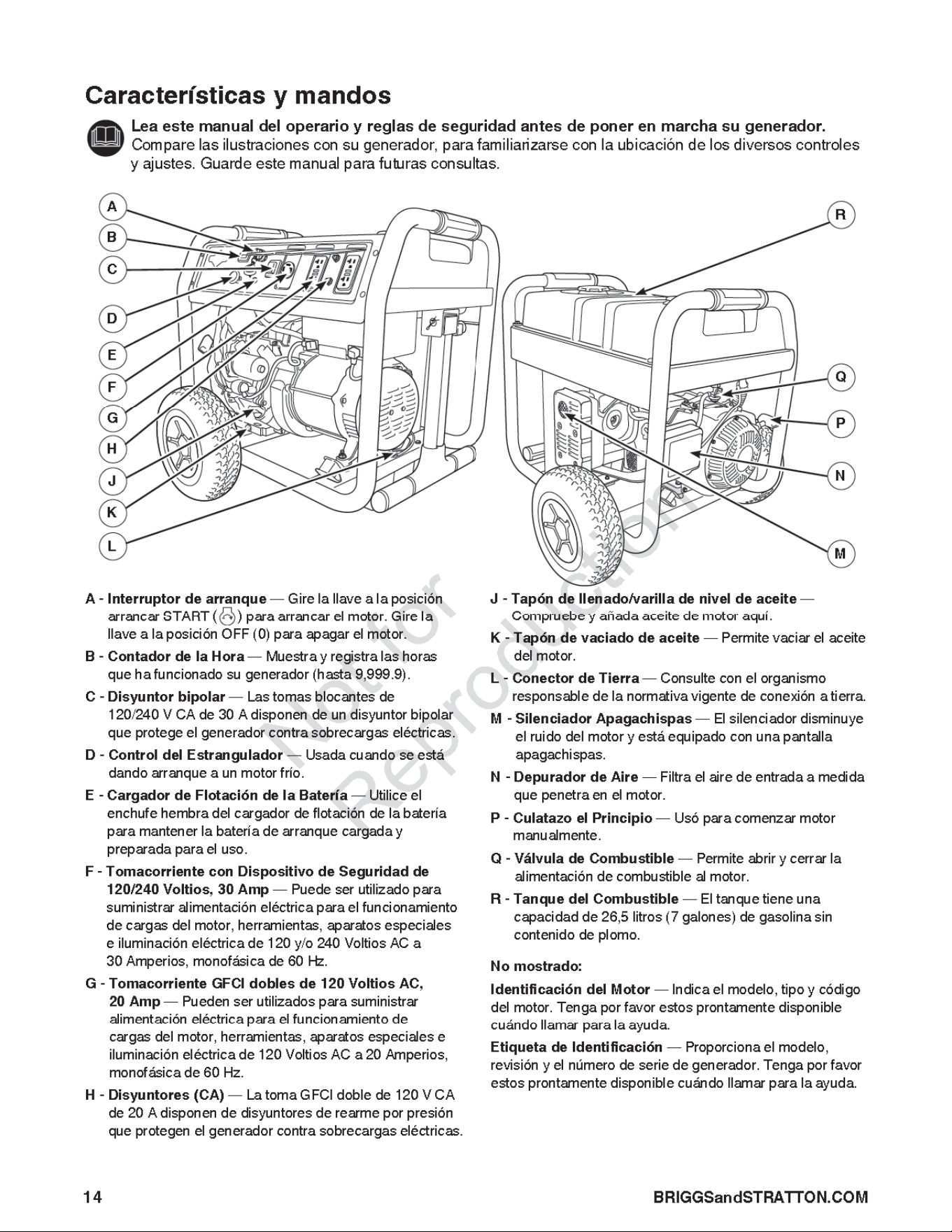

Start Switch
Oil Fill/Dipstick
Receptacles
Fuel Cap
Muffler
Fuel Valve
Battery
Choke Control
