Westinghouse WSE7000SF 700L Side By Side Fridge User Manual

USER MANUAL

Side by Side Refrigerators

WSE7000, WSE6970,

WSE6100, WSE6070

2 section heading

contents 3

General warnings . . . . . . . . . . . . . . . . . 4

WSE7000 features . . . . . . . . . . . . . . . . 6

WSE6970 features . . . . . . . . . . . . . . . . 7

WSE6100 features . . . . . . . . . . . . . . . . 8

WSE6070 features . . . . . . . . . . . . . . . . 9

General installation. . . . . . . . . . . . . . . . 10

Clearances around your refrigerator . . . . . . . 10

Installation . . . . . . . . . . . . . . . . . . 10

Adjusting door alignment . . . . . . . . . . . 11

Internal packaging . . . . . . . . . . . . . . 11

Ice & water installation . . . . . . . . . . . . 12

Ice maker start up . . . . . . . . . . . . . . . 16

Initial start-up . . . . . . . . . . . . . . . . . 16

Using your refrigerator – general

. . . . . . . . . . 17

Using your refrigerator – WSE6100 . . . . . . . . 19

Using your refrigerator – WSE7000 . . . . . . . . 22

Using your refrigerator – WSE6970 & WSE6070 . 25

Ice & Water dispenser . . . . . . . . . . . . . . 29

Care & Maintenance . . . . . . . . . . . . . . . 30

The water connection kit . . . . . . . . . . . . 31

Changing the light bulb . . . . . . . . . . . . 32

Cleaning your refrigerator (exterior) . . . . . . . 33

Cleaning your refrigerator (interior) . . . . . . . 33

Energy consumption . . . . . . . . . . . . . . 33

Helpful hints for storing food . . . . . . . . . . . . 34

Troubleshooting . . . . . . . . . . . . . . . . . 35

Ice & water troubleshooting . . . . . . . . . . . . 36

Notes . . . . . . . . . . . . . . . . . . . . . 37

arranty . . . . . . . . . . . . . . . . . . . . 39

Dear customer,

Congratulations and thank you for choosing our

refrigerator. We are sure you will find your new appliance

a pleasure to use. Before you use the appliance, we

recommend that you read through the entire user manual,

which provides the description of the appliance and its

functions.To avoid the risks that are always present when

you use an electrical appliance, it is important that the

appliance is installed correctly and that you read the safety

instructions carefully to avoid misuse and hazards.

We recommend that you keep this instruction booklet

for future reference and pass it on to any future owners.

After unpacking the appliance, please check that it is not

damaged. If in doubt, do not use the appliance but

contact your local customer care centre.

CONDITIONS OF USE

This appliance is intended to be used in household and

similar applications such as:

• staffkitchenareasinshops,officesandother

working environments.

• farmhouses.

• byclientsinhotels,motelsandotherresidential

type environments.

• bedandbreakfasttypeenvironments

• cateringandsimilarnonretail-applications

TIPS & INFORMATION

IMPORTANT – CHECK FOR ANY DAMAGES OR MARKS

If you find the refrigerator is damaged or marked, you

must report it within 7 days if you wish to claim for damage/

marks

under the manufacturers warranty. This does not affect your

statutory rights.

ENVIRONMENTAL TIPS

INFORMATION ON DISPOSAL FOR USERS

• Mostofthepackingmaterialsarerecyclable.

Please dispose of those materials through your local

recycling depot or by placing them in appropriate

collection containers.

• Ifyouwishtodiscardthisproduct,pleasecontactyour

local authorities and ask for the correct method of

disposal.

BEFORE YOU CALL

Please ensure you read the instruction manual

fully before you call for service, or a full service fee

could be applicable.

CONTENTSCONGRATULATIONS

4 safety

Please read the user manual carefully and store in a

handy place for later reference. Pass the user manual

on to new owners of the refrigerator.

The symbols you will see in this booklet have these

meanings:

WARNING

This symbol indicates information concerning your

personal safety

CAUTION

This symbol indicates information on how to avoid

damaging the refrigerator

TIPS & INFORMATION

This symbol indicates tips and information about use

of the refrigerator

ENVIRONMENTAL TIPS

This symbol indicates tips and information about

economical and ecological use of the refrigerator

WARNING

• Whenyoudisposeofyouroldrefrigeratorsand

freezers, remove any doors. Children can suffocate

if they get trapped inside.

• Thisapplianceisnotintendedforusebypersons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety. Children should be

supervised to ensure that they do not play with

the appliance.

• Don’tuseasteamcleaner.Iflivecomponentscome

into contact with condensing steam, they may short-

circuit or cause an electric shock.

• Donotusemechanicaldevicesorothermeansto

accelerate the defrosting process other than those

recommended by the manufacturer

• Thisappliancecontainsinsulationformedwith

ﬂammable blowing gases. Avoid safety hazards

bycarefullydisposingofthisappliance’.

R600A REFRIGERANT WARNING

• ThisappliancemaycontainammableR600a

refrigerant. Avoid safety hazards by carefully installing,

handling, servicing and disposing of this appliance.

IfyourappliancecontainsR600aitwillbeindicated

on the rating plate inside the appliance.

• Ensurethatthetubingoftherefrigerantcircuitisnot

damaged during transportation and installation.

• Intheeventanydamageaccidentallyoccurs,keepthe

appliance away from open ﬁres and any devices that

produce sparks or arcs and luminaries during normal

or abnormal operation, and unplug the appliance at

the power point. Call authorised service for necessary

action and advice.

• Leakingrefrigerantmayigniteventareaifleakoccurs.

• Theroomforinstallingappliancemustbeatleast1m

per 8g of refrigerant. The amount and type of refrigerant

in the appliance can be found on the

rating plate inside the appliance.

It is hazardous for anyone other than an authorised

service person to service this appliance. In Queensland

the authorised service person MUST hold a gas work

authorisation for hydrocarbon refrigerants to carry out

servicing or repairs which involve the removal of covers.

GENERAL WARNINGS

safety 5

Readthefollowingcarefullytoavoiddamageorinjury

THIS SYMBOL INDICATES NEVER TO DO THIS

THIS SYMBOL INDICATES ALWAYS DO THIS

It is important to use your refrigerator safely. Check these

safety points before using your refrigerator.

The appliance must be plugged into its own

dedicated 220-240V, 50Hz AC electrical outlet.

Ensure that the electric outlet is properly earthed

to ground. Consult a qualified electrician if you

are unsure.

If the power cord is damaged, it must be replaced

bythemanufacturer,it’sserviceagentorsimilarly

qualiﬁed persons in order to avoid a hazard.

Check the power cord can reach the power point.

Don’tplugyourrefrigeratorintoanextensioncord

or double adaptor.

Unplug the appliance before cleaning and before

changing the light bulb to avoid electric shock.

Choose a location that is not too cold – the ambient

temperature should be above 10°C.

Put the refrigerator in a dry place avoiding areas of

high moisture or humidity.

Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of

obstruction.

It is recommended that the plug to the appliance should

be accessible when the unit is in the installed position.

Never unplug the appliance by pulling on the power

cord. Always grip the plug firmly, and pull straight out

of the receptacle to prevent damaging the power cord.

Don’tplugyourrefrigeratorintoatimerttedto

the power point.

Do not put the refrigerator in frosty or unprotected

areas, for example in a garage or on a veranda.

Do not put the refrigerator in direct sunlight, near

stoves, fires or heaters.

Do not put the refrigerator on an uneven surface.

Do not store explosive substances such as aerosol

cans with a flammable propellant in this appliance.

Do not use electrical appliances inside the food

storage compartments of the appliance, unless they

are of the type recommended by the manufacturer.

Never store ﬁzzy drinks in the freezer compartment.

Never try to repair the refrigerator yourself, only use

a qualiﬁed or authorised service person for repairs.

Never use electric heaters or dryers to defrost the

freezer because you can receive an electric shock.

Do not damage the refrigerant circuit.

GENERAL WARNINGS

FOR ICE & WATER MODELS ONLY

Check for water leaks at all water connection

points in the ﬁrst two or three hours after installation.

Re-checkafter24hourstoensureconnectionis

watertight. If the connection is leaking, contact a

licensed plumber.

Do not use with water that is microbiologically

unsafe or with water of unknown quality without

adequate disinfection.

Never connect the appliance to a hot water supply.

Never install the water filter in an area of the wall

where there may be electrical wires and/or water

supply pipes.

Never install the water filter in an area of

direct sunlight.

NOTE: You must read these warnings carefully before

installing or using the refrigerator. If you need assistance,

contact your Customer Care Department. The manufacturer

will not accept liability, should these instructions or any other

safety instructions incorporated in this book be ignored.

6 WSE7000 features

WSE7000 FEATURES

1 Freezer light

2 Twist ice & serve

3 Ice cube storage bin

4 Freezer door storage bins

5 Wine rack

6 Temperature sensors

7 Glass shelves

8 Telescopic freezer bins

9 Fridge & freezer temperature

control

10 Lightlens

11 Dairy compartment

12 Storesafe™ bin (lockable)

13 Multiflow duct

(with blue feature lighting)

14 Door storage bins

15 Deli bin

16 Adjustable glass shelves

17 Humidity controls

18 Telescopic crisper bins

19 Bottle bins

20 Adjustable rollers

1 910

Features may vary depending on model. Not all models will have features listed.

WSE6970 features 7

WSE6970 FEATURES

1 Freezer light

2 Ice maker unit

3 Ice bin

4 Multiflow duct

(with blue feature lighting)

5 Air vents

6 Glass shelves

7 Temperature sensors

8 Wine rack

9 Freezer door storage bins

10 Telescopic freezer bins

11 Lightlens

12 Dairy compartment

13 Storesafe™ bin (lockable)

14 Deli bin

15 Door storage bins

16 Humidity controls

17 Telescopic crisper bin

18 Bottle bins

19 Adjustable rollers

Ice & Water Door Dispenser

Features may vary depending on model. Not all models will have features listed.

8 WSE6100 features

WSE6100 FEATURES

1 Freezer light

2 Twist ice & serve

3 Ice cube storage bin

4 Freezer door storage bins

5 Temperature sensors

6 Glass shelves

7 Rolloutbaskets

8 Lightlens

9 Dairy compartment

10 Storesafe™ bin (lockable)

11 Deli bin

12 Adjustable glass shelves

13 Wine rack

14 Door storage bins

15 Humidity controls

16 Crisper bins

17 Bottle bins

18 Adjustable rollers

1 8

Features may vary depending on model. Not all models will have features listed.

WSE6070 features 9

WSE6070 FEATURES

1 Freezer light

2 Ice maker unit

3 Ice bin

4 Wine rack

5 Temperature sensors

6 Glass shelves

7 Freezer door storage bins

8 Rolloutbaskets

9 Lightlens

10 Dairy compartment

11 Storesafe™ bin (lockable)

12 Deli bin

13 Adjustable glass shelves

14 Door storage bins

15 Humidity controls

16 Crisper bins

17 Bottle bins

18 Adjustable rollers

Ice & Water Door Dispenser

Features may vary depending on model. Not all models will have features listed.

10 installation

GENERAL INSTALLATION

When correctly installed, your refrigerator should:

• Haveadequateclearancetotheback,sidesand

top for air circulation

• Bealignedtothesurroundingcupboards

• Havedoorsthatwillselfclosefromapartially

open position

CLEARANCES AROUND YOUR REFRIGERATOR

Your Side by Side refrigerator can be installed between

cupboards or fixtures but you must allow for the following

spaces around the cabinet.

• Allowaminimumof5millimetresclearanceonboth

sides (see diagram 1)

• Allowaminimumof5millimetresclearanceabove

hinge covers (see diagram 1)

• Allow10millimetresclearanceatthebackofthe

refrigerator (see diagram 1)

Diagram 1

Recommended

minimum airspace

CABINET

5mm

10mm

10mm 35mm

5mm

DOORS

• Allowa250to350millimetreminimumclearanceon

the hinge side of the doors, if you place the refrigerator

next to the wall. This will make cleaning easier (refer to

diagram 2).

• Makesurethatcupboardsorfixturesdonotstickout

further than the refrigerator cabinet (refer to diagram 2).

INSTALLATION

The refrigerator should arrive with the front rollers wound

down. We recommend that the appliance be tilted

backwards by about 10 to 15 millimetres, this will allow

the doors to self close providing a consistent door seal.

To do this follow the instructions below.

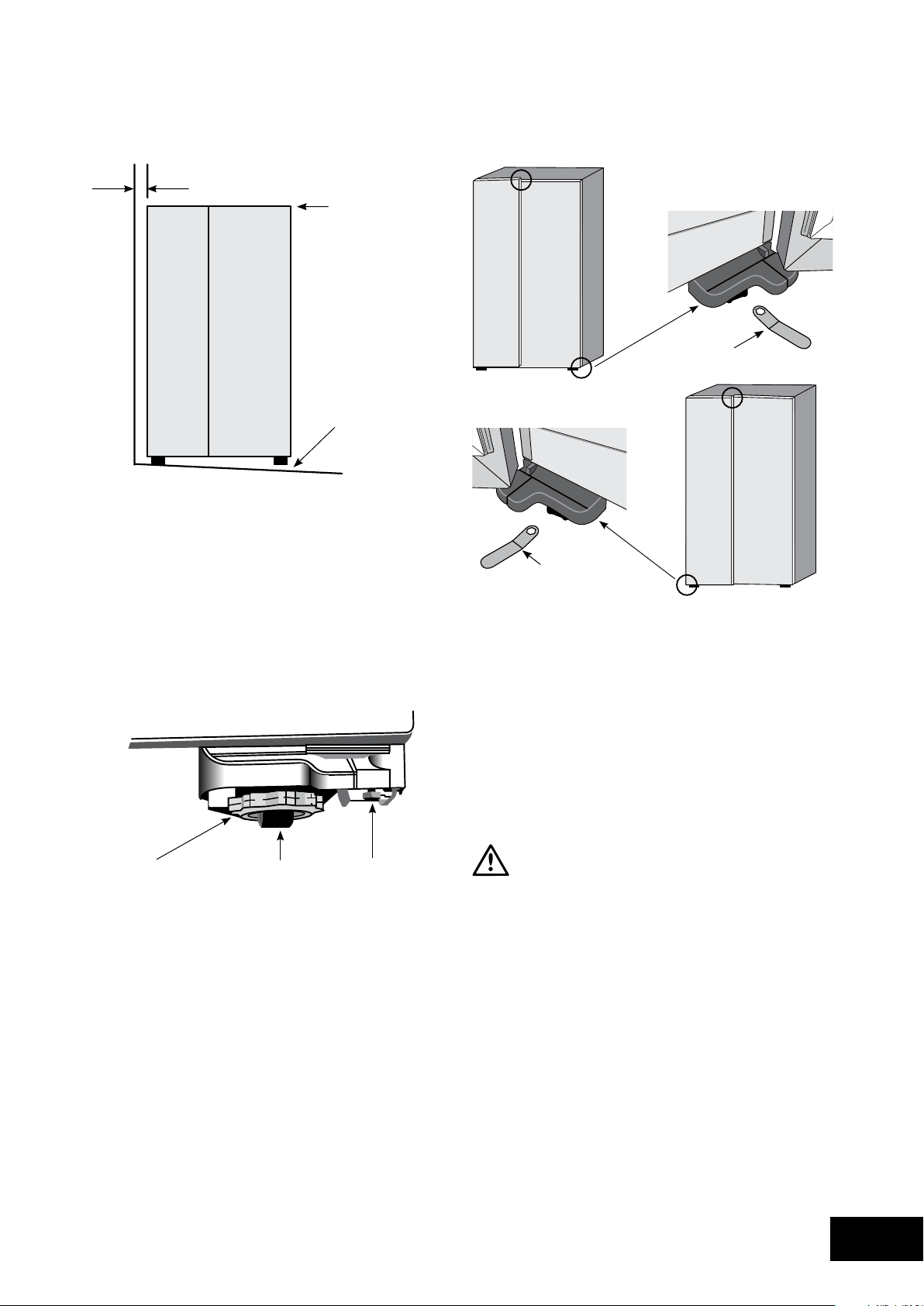

Height adjustable

front rollers

Fixed rear rollers

10 -15mm

When you want to install your appliance, take the

following steps.

1. Rolltherefrigeratorintoit’sfinalposition.

WARNING

The rollers are designed for forward or backward

movement only. They are not castors. Moving the

refrigerator sideways may damage your floor and

the rollers.

2. If the refrigerator is not tilted back you can adjust the

two front rollers by adjusting the large plastic roller

nut (refer page 11). You may need two people, one

to adjust rollers and one to tilt the refrigerator slightly

back to take the weight of the appliance off the front

rollers. This will increase or decrease the height of the

rollers. One turn of the nut will change the tilt of the

refrigerator by approximately 5mm.

3. If the cabinet is level, then the side walls should be

plumb or vertical. If the cabinet is built in or partly built

in check the alignment of the cabinet side against

the cupboard.

Diagram 2

250mm

350mm

maximum

cupboard depth

installation 11

GENERAL INSTALLATION

Aligned to cupboard –

even gap

Top of refrigerator

is level – horizontal

Adjust front rollers for

unevenness of floor. e.g.

adjust this roller down.

Packing may be required

underneath the rear roller

to ensure stability.

4. If the appliance now rocks from one corner to the

opposite rear corner, this means that the floor is

uneven; you will need to put some packing under one

of the rear rollers.

5. You may now need to fine-tune the installation by

adjusting the front rollers once again.

ADJUSTING DOOR ALIGNMENT

Each door is independently adjustable in the vertical

direction by turning the adjustable bolts under the hinges

using the spanner provided.

Largeplasticrollernut

Front roller

Adjusting bolt

The doors can be adjusted up or down. Depending on the

amount of adjustment required it may be sufficient to adjust

only one door (refer to following diagrams).

NOTE: When the height of the rollers and adjusting bolts

are correctly adjusted the refrigerator will stand firmly on

the floor and the doors will be in line with one another.

Spanner

INTERNAL PACKAGING

1. Please remove all internal packaging material before

use. Any glue or tape residue or the like should be

removed with a solution of mild detergent and water.

2. Clean your appliance thoroughly following the

instructions on page 32 and wipe off any dust that has

accumulated during shipping.

3. It is recommended that the refrigerator is kept upright at

all times. However if for any reason the refrigerator is laid

down, let it stand for a minimum of 1 hour before

turning on.

WARNING

Beforecleaning:Removethepowercordfromthepower

socket. This will make sure there is no chance of getting

an electric shock.

4. Install accessories such as the egg tray. The

accessories are packed together to prevent damage

during delivery.

5. Plug your appliance into the power point.

6. We recommend that you let your refrigerator run for

two to three hours before you put any food in it. This

will allow you to check that it is operating properly

and that enough cool air is circulating.

12 installation

BEFORE BEGINNING INSTALLATION, PLEASE READ:ICE & WATER INSTALLATION

THE EXTERNAL WATER FILTER KIT

An external water filter and connection kit has been

supplied for use with your Ice & Water refrigerator. The external

filter design allows more space within the refrigerator and

provides double the life of previous filters reducing the cost

of replacement.

The filter is designed to significantly reduce chlorine,

taste, odour, heavy metals, turbidity (cloudiness) and scale

build up. The included plastic water tube allows quick

connection to the filter and is designed for high durability

and kink resistance.

This filter is designed only to be used with a potable water

supply. It should not be used on water that is micro

biologically unsafe or with water of unknown quality. The

filter should be replaced every 12 months. The service life of

the filter may be reduced in water supplies that contain an

excessofparticlesorotherimpurities.Reducedflowrateisan

indication that a new filter is required. Failure to replace the

filter when required can affect the function of the ice maker.

Service calls caused by a failure to replace the filter are not

covered by warranty.

CONTENTS OF KIT –INSTALL KIT WITH PRESSURE

REDUCING VALVE.

DATE FITTED___/___/___

1 x water filter with push fit connections

DATE FITTED___/___/___

2 x mounting brackets and screws

4 + 1 metres of water tubing

1 x ½" tap fitting

2 x circlips

The water connection to your ice and water product can

be self-installed. It is recommended that you seek advice

from a licensed plumber (if necessary) before commencing

the installation.

CAUTION

Your warranty may be voided by an incorrect installation

Water Supply and Plumbing

Adrinkablewatersupplytosuita½’tapfittingisrequired

adjacent to the refrigerator. It is recommended that a

licensed plumber install a new water supply outlet nearer

to the appliance should the tubing supplied not be

long enough. It is not recommended that the tubing be

extended as this could adversely affect the flow of water

to the ice maker or water dispenser.

The water dispenser and automatic ice maker require a

drinkable water supply with a pressure range of between

206kPa and 689kPa (30PSI and 100PSI). If the water

supply pressure is below 206kPa (30PSI) then a separate

pump will need to be installed.

ItisrecommendedthataNoiseReductionValvealso

be fitted in the water supply line. This will reduce water

hammer and its effects from quick action house hold taps

and fast acting valves on appliances. The refrigerator

water valve is pre-fitted with a push-fit connector for

inserting the water tube. Where the tap connection is other

than1/2’,adapterscanbepurchasedfromplumbing

supply stores or good hardware stores.

Water Filter

Locatethewaterfilterwithin1metreofthewatersupply

tap, in a vertical orientation where possible. The filter

will need to be replaced every 12 months to prevent

excess filtered micro-organism build-up, and thus ensure

continuous purified water and ice supply for you and

yourfamily.Replacementwaterfiltersareavailablefrom

Electrolux Home Products Spare Parts Centres and can be

posted to you for your convenience (refer to back page for

contact details).

WARNING

If the appliance is not connected to a water supply ensure

that the ice maker is switched off (refer to STEP 1 overleaf).

Ifyoudon’tdothisaloudbuzzingnoisewillbeheard

intermittently. The new hose-sets supplied with the appliance

must be used and old hose-sets should not be reused. Do

not use with water that is microbiologically unsafe or with

water of unknown quality without adequate disinfection.

Never connect the appliance to a hot water supply.

Never install the water filter in an area of the wall where

there may be electrical wires and/or water supply pipes.

Never install the water filter in an area of direct sunlight.

DATE FITTED___/___/___

installation 13

Check for water leaks at all water connection points in the

first 2 to 3 hours after installation, and correct it in case of

anywaterleak.Recheckafter24hours;ifleakstilloccurs,

it is recommended to contact a licensed plumber for advice.

INSTALLATION

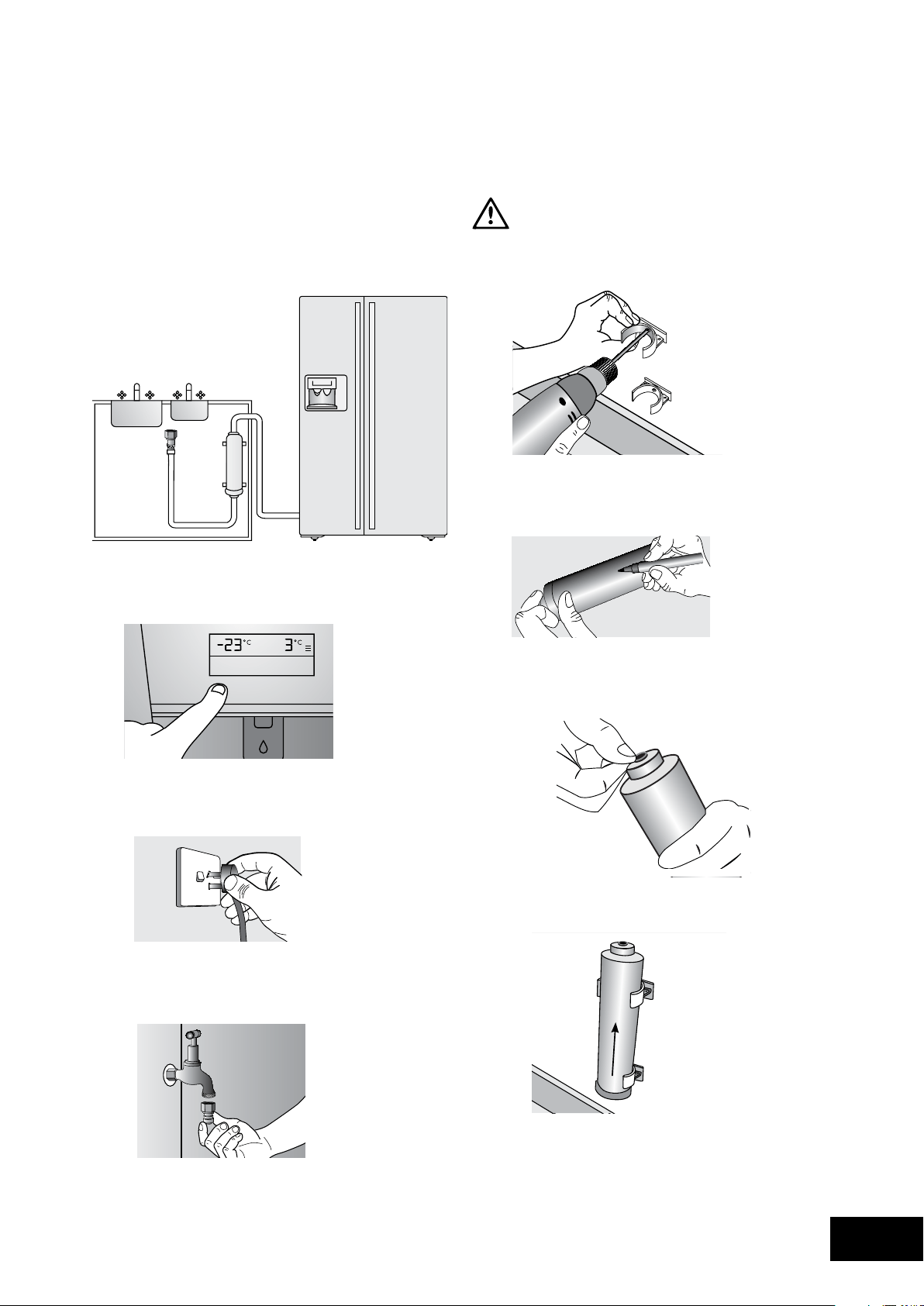

Water is to be connected as per diagram below.

sink

brackets

mains

water

inlet

kitchen

cupboard

½" tap

ﬁtting

ﬁlter

Step 1.

Ensure that the Ice Maker is switched OFF.

Icemaker off

hold off

freezer

temp

fridge

temp.

eco/

holiday

quick

freeze

display

lock

drinks

chill

Step 2.

Disconnect refrigerator from power supply.

Step 3.

Connect tap fitting to water supply tap. Tap must be close

to the refrigerator.

Step 4.

Install brackets for filter within 1 metre of tap.

WARNING

Do not screw the brackets into the refrigerator as this

may void your warranty and permanently damage

the refrigerator.

Step 5.

Write date on filter. The filter will need to be replaced

every 12 months.

date fitted 1

Step 6.

Extend the red collar and clip a circlip around the collar

at both ends of the filter.

Step 7.

Fit filter to brackets with water flow arrow pointing up.

water

flow

direction

INSTALLING YOUR ICE & WATER FILTER

14 installation

ICE & WATER INSTALLATION

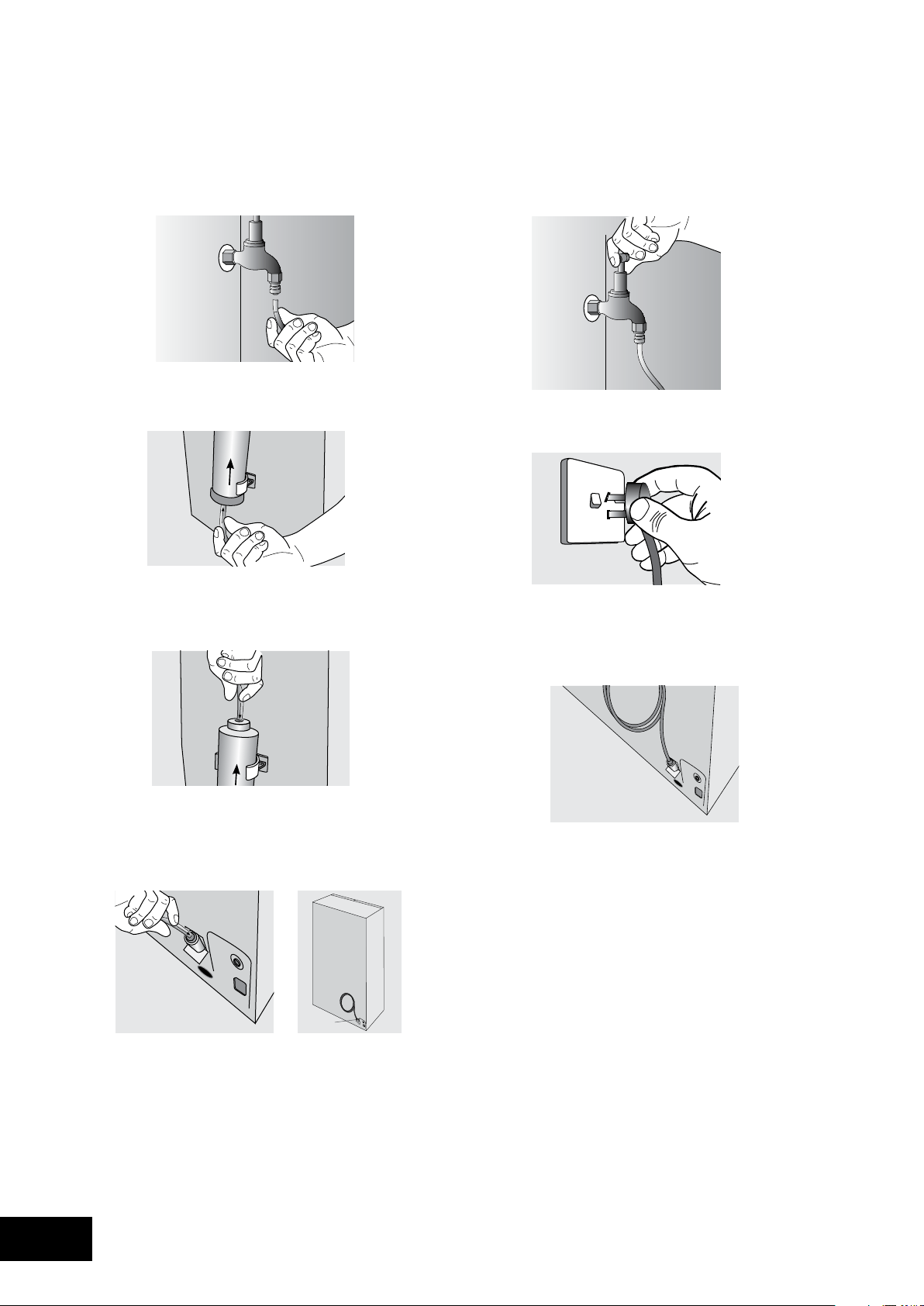

Step 8.

Push shorter tube into tap fitting past insertion mark.

Step 9.

Push other end into filter inlet.

water

flow

direction

Step 10.

Connect remaining tube length to filter outlet.

Step 11.

Connect other end of remaining tube length to inlet on

bottom right hand side of refrigerator back.

inlet

location

Ensure black circlip is fitted to the valve on the rear of the

fridge when making this connection.

Step 12.

Turn on water and check all joints and tubes for leaks.

Step 13.

Reconnectthepower.

Step 14.

Move the refrigerator back into place being careful not to

kink or split the tubing.

installation 15

ICE & WATER INSTALLATION

Step 15.

Using a large container run the water dispenser to clear air

from lines. This may take a few minutes. Purge and dispense

a minimum of 2 litres of water or until the water runs clear.

Initial water may be black in colour. This is residual carbon

dust from the filter and is non-toxic. If the water is slow to

shut off or the dispenser is dripping, air may still be in the

lines. Either purge more water through the system to remove

this air or allow some time for the air to be removed over

subsequent dispensing.

Step 16.

Switch ON Ice Maker, touch and hold ‘cubed/crushed

ice’buttonfor5seconds.

freezer

temp

fridge

temp.

eco/

holiday

quick

freeze

display

lock

drinks

chill

Step 17.

After 24 hours remove ice bin and dispose of first few

batches of ice to ensure that impurities have been flushed

from the system.

Tips and Useful Information

Ensure that taps are turned off when replacing

andfittingfilters.Remembertoturnthetapsback

on when filter fitting is complete.

Alwaysfitfilteraspermanufacturer’sinstructions,

paying special attention to water flow direction.

If you need to replace water tube, only use

approved water quality piping that meets the

pressure requirements.

Do not allow the water tubing to become kinked

or trapped under the refrigerator when moving the

refrigerator back into position.

Make sure your refrigerator is level to avoid uneven

or oversize cubes. Uneven ice cubes may lead to

the dispenser chute becoming blocked.

After installation, run the water dispenser for a few

minutes to ensure that all air bubbles have been

purged from the tubing. Dripping may occur if air

bubbles remain in the tube.

Replacelteratsuggestedintervalstoavoid

water/ice reduction and irregularities in taste.

Removeandcleanicebinonceamonth,

discarding unused ice cubes. This will ensure fresh,

clean ice and smooth operation of your ice maker.

Clean and empty the dispenser drip tray regularly

to avoid overﬂow.

As the water/ice cut off is not instant, leave glass

under dispenser brieﬂy until water or ice has

stopped ﬂowing to avoid spills.

Always place ice in glass before ﬁlling with water

to avoid splashing.

When dispensing ice hold the container close to

the chute to avoid spray or spills.

If you are using your refrigerator for the first time, or if you

have not used the dispenser for some time:

• Discardthefirstsevenoreightcupsofwater

• Discardanyicethattheicemakerproducesinthe

first 24 hours (contaminants could have settled in the

water pipes)

16 installation

ICE & WATER INSTALLATION

WARNING

Connect to potable water supply only. Do not put fingers into

ice crusher. Surfaces there may be sharp.



REFRIGERATOR/FREEZER OPERATION

A light frosting will occasionally occur on the interior of the

freezer when the door is opened frequently. This is normal

and will disappear after a few days in most climates.

Make sure you fully close the freezer door after you load

or remove food. If the door is left partly open, a heavy

frost will coat the inside of the freezer. If a frost develops,

remove it. Take care to properly close the door and the

frost will not reoccur.

Your new energy efficient appliance uses a high-speed

compressor and other energy efficient components which

may produce different noises to your old appliance.

These sounds are normal and include:

• Compressorrunningnoise.

• Airmovementnoisefromthesmallfanmotor.

• Occasionalgurgling,similartowaterboiling.

• Apoppingnoise,heardduringautomaticdefrosting.

• Aclickingnoise,justpriortothecompressorstartingup.

• Amotorisedairbaffleusedtoadjustairflow.

These noises are normal and not cause for alarm.

It is normal for the rear, sides and centre divider of the

appliance to feel warm. These areas are warm because

the appliance transfers heat from the food placed inside

to the outside air.

There is a cooling coil located behind the rear wall of

the freezer section. This coil cools and removes moisture

from the air. A fan at the rear of the freezer section then

circulates cold, dry air throughout the refrigerator. The air

circulation means that foods are refrigerated far more quickly

than in refrigerators where there is less air circulation.

Avoid placing food against air outlets as this will affect

air circulation.

INITIAL START-UP

using your refrigerator 17

ENVIRONMENTAL TIPS

Eco and holiday modes minimise defrosting to save energy,

while maintaining your temperature settings.

OTHER ELECTRONIC FEATURES

Your refrigerator:

• Controlsthecompressorandfanindependently

to provide the best performance

• Providesextracoolingdependingonthenumber

of door openings

• Automaticallydefrostsduringperiodswhenthedoor

is not being opened frequently

TIPS & INFORMATION

If you find that the display malfunctions, this may be due to

brief power supply interruptions. If this is the problem, you

simply need to turn the refrigerator off at the power point

and wait 5 minutes, then turn the refrigerator on again at

the power point.

FOOD COMPARTMENT FEATURES

Door storage bins

Both the refrigerator and freezer have door storage bins.

You can adjust the door bins to meet different storage needs.

All the door bins can be removed for cleaning.

To remove a fridge or freezer bin, lift it up from the support

lugs on the inner door panel. Push the bin down over the

support lugs to lock it in place.

Dairy compartment

Use the dairy compartment to store foods like butter,

margarine and cheeses. The compartment is slightly warmer

than the rest of the refrigerator compartment, while the lid

provides protection against odours.

Store safe compartment (where fitted)

The store safe compartment is a coin-lockable compartment.

To lock, rotate the coin slot anti-clockwise until the slot is

horizontal. To unlock, turn the coin slot clockwise until the

slot is vertical.

To open the drawer, push the tab down with your thumb

and pull the drawer forward.

coin slot

lift bin to remove

store safe compartment

TEMPERATURE SENSORS

Avoid loading food against your freezer temperature sensor.

Doing so may adversely affect freezer temperatures. If warm

food is inadvertently loaded against the sensor, it may also

set off the freezer temperature alarm for up to 50 minutes

after the food is loaded against the sensor.

NOTE: Product illustrations demonstrate features that

may not be completely in line with all current products.

USING YOUR REFRIGERATOR – GENERAL

18 using your refrigerator

Deli compartment

The deli compartment is an ideal place to keep deli items,

such as cold meats. Additional cold air is directed into the deli

compartment, keeping the contents fresher for longer. It can

also be used for faster chilling of food or drinks. To remove the

deli compartment, pull forward, then up and forward.

deli compartment

Slide out glass shelves

To make access to your food easier, both the refrigerator

and freezer compartments are fitted with glass shelves.

To remove the shelves

1. Gently pull them forward until the shelf comes to a stop.

2. Lifttheshelfslightlytoclearthestop.

3. Continue pulling the shelf forward.

To return the shelf, make sure there is nothing behind it that may

obstruct movement and gently push the shelf into the cabinet. It

should slide back over the stops into its original position.

Freezer baskets (where fitted)

Freezer baskets and freezer shelves are fitted to freezer

compartments. Wire baskets are used to provide easy

visibility of the contents. All the baskets and the shelves pull

out for easy access and have a stop to prevent the baskets

and shelves being pulled out too far.

To remove the basket, pull it out until it hits the stop then lift

the front to unhook the stop while continuing to pull forward,

until the basket is free of the runners under the shelf.

Easy Glide (telescopic) crispers and freezer bins (where fitted)

Easy Glide (telescopic) crispers and freezer bins can be

replaced as follows:

1. With the telescopic slides pushed in all the way.

2. Slide the drawer into place over the slides and push the

bin in until it stops. The bin will not be closed all the way.

3. Open the bin to access the finger tabs at the ends of

the telescopic slides, on each side of the bin. Using

your thumb and forefinger, lift the bin over the end of

the slide and clip in place. If the drawer is not fully

engagedontheslide,it’spossiblethedrawerwon’t

stay on the slide if fully extended.

The end of slide must

be clipped into place

4. Fully close the bin. When replacing the drawers after

cleaning, we recommend fitting the lower drawer first.

CAUTION

Never close the door while the telescopic slides are

extended. It may damage the slide and/or the refrigerator

or cause the slide to become disengaged from the

refrigerator.

CAUTION

To clean a crisper cover with telescopic extension slides,

simply wipe with a damp cloth and warm soapy water.

Never immerse the cover in water, as this could affect the

operation of the slide.

Crisper bin(s)

• Storingvegetables:

You can use the crisper bin to store vegetables, fruit

or smallgoods. The humidity inside the bin can be

changed by sliding the humidity control.

Humidity control

• Storingfruit&smallgoods:

You can also store fruit & smallgoods in the crisper

bin remembering to set the humidity control to less

humid (open).

USING YOUR REFRIGERATOR – GENERAL

using your refrigerator 19

TWIST ICE & SERVE

To use, remove the tray, fill with water and place back in

the freezer. Once ice has formed (approximately 3 hours)

simply twist the knob at the front clockwise until the ice

drops into the bin below.

ICE & WATER DISPENSER FEATURES

The ice and water dispenser conveniently dispenses cool,

filtered water and ice cubes or crushed ice. To operate the

ice dispenser, select an ice option using the electronic

display and press glass against ice dispensing paddle.

To stop dispensing ice, pull the glass away from the ice

dispensingpaddle.Removetheglassfromthedispenser

paddle when it is approximately half full. Ice already in the

chute may cause the glass to overflow or back up into the

chute and cause a blockage (refer to troubleshooting guide

on how to unblock the ice chute).

ice paddle

water paddle

drip tray

To operate the water dispenser, press a glass against the

dispensing paddle. To stop dispensing water, pull the

glass away from the water dispensing paddle. As the

ice and water cut-off is not instant, leave glass under the

dispenser until the ice and water has completely stopped

to avoid spills. A drip tray located at the base of the

dispenser (see diagram above) will catch small spills and

allow them to evaporate. The drip tray is removable and

dishwasher safe. Opening the freezer door will de-activate

the ice dispenser.

CAUTION

Do not pour water or excess cubes into the drip tray

because it is not connected to a drain.

WARNING

Do not use fragile glass for dispensing water or ice – risk of

injury from broken glass.

BOTTLE FILLING FUNCTION

The Aqua Direct bottle filling function facilitates the flow

of water directly into the mouth of a bottle, minimising

splashing and spillage. Water flows from the water

dispensing nozzle located on the underside of the ice

and water dispenser

water

dispenser

To use this function, place the mouth of the bottle over the

water dispensing nozzle.

Once the mouth of the bottle is completely over the water

dispensing nozzle (see diagram below) gently push bottle

up to dispense water and fill bottle. Once the bottle

is full, remove the bottle and the flow of water will

stop automatically

ICE & WATER FEATURES (WHERE FITTED)

20 using your refrigerator

Changing Celcius or Farenheit display

The display temperature can be switched from °C to °F

or°Fto°Cbytouchingandholdingthe‘freezertemp’&

‘eco/holiday’buttonsfor2seconds.

DEGREE FAHRENHEIT

Freezer (°F) Fridge (°F)

8 45

6 43

4 41

2 39

0 37

–2 35

–4 33

–6 31

–8

–10

DEGREE CELCIUS

Freezer (°C) Fridge (°C)

–14 7

–15 6

–16 5

–17 4

–18 3

–19 2

–20 1

–21 0

–22

–23

ELECTRONIC DISPLAY PANEL

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

Turning the clock on and off

Press the clock button to turn the clock display on or off.

NOTE: The clock still works while the display is off.

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

Setting the clock

1. Press and hold the clock button for two seconds.

Hours and minutes will then appear on the display.

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

2. While holding down the clock button, press the

freezer button to advance the hours. Hold the freezer

button down for continuous and fast advance. After

the first 12 hours the pm indicator will appear.

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

USING YOUR REFRIGERATOR – WSE6100

using your refrigerator 21

3. While holding down the clock button, press the fridge

button to advance the minutes. Hold the fridge button

down for continuous and fast advance.

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

4. When the correct time is displayed release the

clock button.

Controlling the temperature

The default temperature for the refrigerator is 3°C and -18°C

for the freezer. If you want to change the temperature, follow

the instructions below. Make only small adjustments and

wait24hourstoseeifit’scorrect.Checkingthesoftness

of ice cream is a good indication of whether your freezer

is at the correct temperature, while feeling the coldness of

water kept in your refrigerator is a good way of checking the

temperature of the food compartment.

NOTE: The set temperature for the refrigerator is an

average temperature for the whole refrigerator cabinet.

Temperatures inside each compartment may vary

depending on how much food you store and where you

place it. High or low room temperature may also affect

the actual temperature inside the refrigerator.

Changing the freezer temperature

Press the freezer button to make the freezer colder in 1ºC

steps. Once –23ºC is reached the display will return to

–14ºCwiththenextbuttonpress.You’llnoticethatthebar

graph gets smaller with colder freezer settings.

Changing the refrigerator temperature

Press the fridge button to make the fridge colder in 1ºC

steps. Once 0ºC is reached the display will return to 7ºC

with the next button press. The bar graph gets smaller with

colder freezer settings.

Quick freeze function

Use the quick freeze function when you add a large

amount of food to the freezer compartment. This freezes

the food quickly but does not affect the temperature in

the refrigerator compartment. To use this function, press

the quick freeze button once. An animated icon above

the button will light up. The quick freeze function will

now operate for 90 minutes or until -25°C is reached. If

you want to turn the quick freeze function off before 90

minutes have passed, simply press the quick freeze button

again. The icon will disappear and the refrigerator will return

to normal operation.

Freezer temperature alarm

If the freezer becomes too warm, a buzzer will sound

andtheiconabovetheAlarmResetbutton,thefreezer

temperature and the bar graph will flash until the Alarm

Resetbuttonispressed.AftertheAlarmResetbuttonhas

been pressed the freezer temperature setting and the bar

graph will flash until normal operating temperatures are

reached. Check that the freezer door has not been left

open or warm food has not been placed too close to the

temperature sensor in the freezer. See diagram on page

8 for the sensor location. If the freezer is still too warm

the alarm will sound again in 50 minutes, indicating that

something may be wrong with your refrigerator.

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

NOTE: The freezer temperature alarm can be reset for

12 hours by pressing and holding the alarm reset button

for 10 seconds.

Door alarm

If the refrigerator door is left open for longer than two

minutes a buzzer will sound and the icon above the alarm

reset button will flash. The refrigerator temperature settings

and bar graph will also flash. If you want to leave the door

open while you load the fridge, you can turn the alarm off

for 8 minutes by pressing the alarm reset button.

If the alarm is sounding for no apparent reason, check

whether anything is holding the door open. Closing the

door resets the alarm for a further 2 minutes.

QUICK

FREEZE

ALARM

RESET FREEZER CLOCK FRIDGE

HOLIDAY

MODE

DRINKS

CHILL

USING YOUR REFRIGERATOR – WSE6100

22 using your refrigerator

Drinks chill timer

The drinks chill timer is used to quickly chill a bottle. Place

the bottle in the freezer and the timer can be set for a

minimum of 5 minutes to a maximum of 30 minutes. To

set, simply press the drinks chill button repeatedly for the

number of minutes (in 5-minute intervals). Once set, an

animated icon appears above the drinks chill button,

with a timer that counts down one minute at a time. You

can change the time or turn the timer off even after the

countdown has started. A buzzer will tell you when the

time is finished and the icon will flash until the alarm reset

button is pressed.

If your drink is not cold enough, reset the drinks chill

function (remembering the drink is already partially

chilled).Suggested chilling times:

•10minutesforcansofdrink

•20minutesforbottlesofwine

•30minutesforbottlesofsoftdrink.

CAUTION

Care should be taken to ensure bottles are not left in

freezer for longer periods as they may freeze and break.

ENERGY EFFICIENCY

Your appliance has been designed to be energy efficient

and can operate in any of two modes (normal and

holiday), depending on the level of efficiency sought.

• Normal mode

This is the mode which is entered automatically when

the appliance is first turned on. Normal mode is

the mode most suitable when the refrigerator door is

opened often.

• Holiday mode

Holiday mode is designed for maximum energy

efficiency when you are away from your appliance

for an extended period. The refrigerator minimises

defrosting to save energy, but maintains temperature

settings. To take advantage of maximum efficiency

press the holiday button just before you leave – do this

while in normal mode. The appliance will then enter

holiday mode, as indicated by the umbrella symbol.

Pressholidaybuttonagaintoreturnto‘normal’mode.

Holiday mode is exited automatically once the

refrigerator door is opened and normal mode resumes.

NOTE: Opening the freezer door won’t effect the

operation of Holiday mode.

ELECTRONIC DISPLAY PANEL

TheLCDpanelhasabluebacklightand6touchbuttons.

It also contains an infrared light sensor, which turns the

lights in the fresh food section on and off. When the

power is first turned on, you will see the default settings,

with the backlighting on.

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

Controlling the temperature

The default temperature for the refrigerator is 3°C and -18°C

for the freezer. If you want to change the temperature, follow

the instructions below. Make only small adjustments and

wait24hourstoseeifit’scorrect.Checkingthesoftness

of ice cream is a good indication of whether your freezer

is at the correct temperature, while feeling the coldness of

water kept in your refrigerator is a good way of checking the

temperature of the food compartment.

NOTE: The set temperature for the refrigerator is an

average temperature for the whole refrigerator cabinet.

Temperatures inside each compartment may vary

depending on how much food you store and where you

place it. High or low room temperature may also affect

the actual temperature inside the refrigerator.

Changing the freezer temperature

Press the freezer button to make the

freezer colder in 1°C steps. Once the

maximum of -23°C is reached, the

display will return to -14°C with the next

press of the button. The bar graph gets smaller with colder

freezer settings.

Changing the refrigerator temperature

Press the fridge button to make the

refrigerator colder in 1°C steps. Once

0°C is reached, the display will return to

7°C with the next button press. The bar

graph gets smaller with colder refrigerator settings.

NOTE: Testing ice cream is a good way to check the

freezer. Testing drinking water is a good way to check the

refrigerator compartment temperature.

USING YOUR REFRIGERATOR – WSE6100 USING YOUR REFRIGERATOR – WSE7000

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

using your refrigerator 23

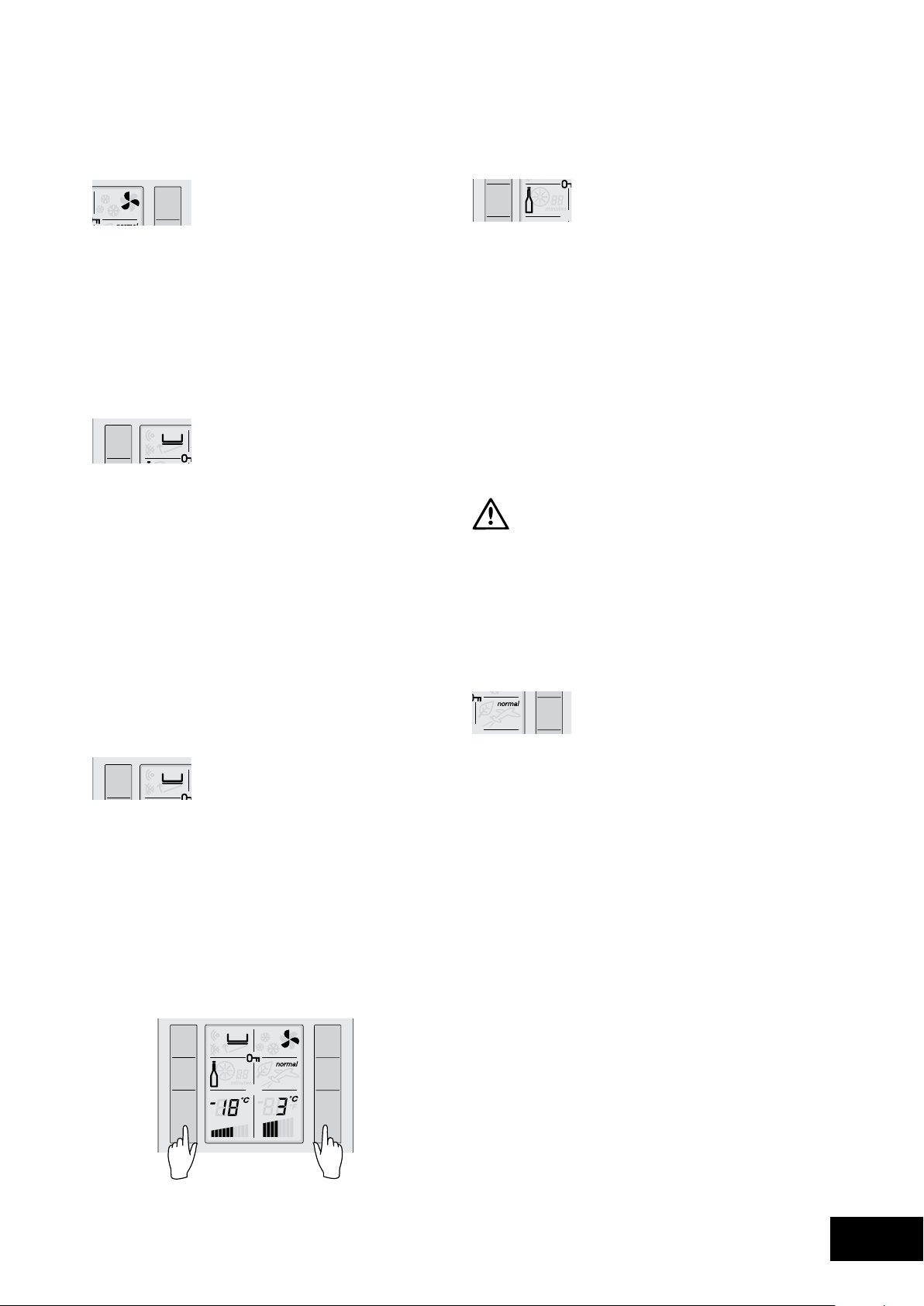

USING YOUR REFRIGERATOR – WSE7000

Quick freeze function

Use the quick freeze function when

you add a large amount of food to the

freezer compartment. This freezes the

food quickly but does not affect the temperature in the

refrigerator compartment.

To use this function, press the quick freeze button once. An

animated icon will light up. The quick freeze function will

now operate for 90 minutes or until -25°C is reached. If

you want to turn the quick freeze function off before 90

minutes have passed, simply press the quick freeze button

again. The icon will disappear and the freezer will return

to normal operation.

Freezer temperature alarm

If the freezer becomes too warm a buzzer

will sound and the icon adjacent to the

alarm reset, the freezer set temperature

and the bar graph will all flash. The alarm will continue

until the alarm reset button is pressed.

After the alarm reset button has been pressed, the alarm

disable icon adjacent to the alarm button will illuminate for

50 minutes, or until the temperature drops to an acceptable

level. Check that the freezer door has not been left

open or warm food has not been placed too close to the

temperature sensor in the freezer.

If the freezer is still too warm after 50 minutes, the alarm

will sound again, indicating that something may be wrong

with the refrigerator.

NOTE: The freezer temperature alarm can be reset for 12

hours by pressing the alarm reset button continuously for

10 seconds.

Door alarm

If the fridge door is left open for more

than two minutes, the alarm will buzz and

an arrow pointing to an open door will

flash, along with the temperature setting and bar graph.

If you want to leave the door open while you load the

refrigerator, you can turn the alarm off for 8 minutes by

pressing the alarm reset button.

Child Lock

Press and hold the freezer and fridge buttons together

to activate the child lock. This will disable the display to

prevent accidental changes to settings. To turn the child lock

off, press and hold the freezer and fridge buttons together.

Drinks chill timer

The drinks chill timer is used to quickly

chill a bottle. Place the bottle in the

freezer and the timer can be set for a

minimum of 5 minutes to a maximum of 30 minutes. To set,

simply press the drinks chill button repeatedly for the number

of minutes (in 5-minute intervals). Once set, an animated

icon appears beside the drinks chill button, with a timer that

counts down one minute at a time.

You can change the time or turn the timer off even after the

countdown has started. A buzzer will tell you when the time

is finished and the icon will flash until the alarm reset button

is pressed.

If your drink is not cold enough, reset the drinks chill

function (remembering the drink is already partially chilled).

Suggested chilling times:

•10minutesforcansofdrink

•20minutesforbottlesofwine

•30minutesforbottlesofsoftdrink.

CAUTION

Care should be taken to ensure bottles are not left in freezer

for longer periods as they could freeze and break.

ENERGY EFFICIENCY

Your appliance has been designed to be energy efficient

and can operate in any of three modes (normal, eco,

holiday), depending on the level of efficiency sought.

Normal mode

This is the mode which is entered

automatically when the appliance is first

turned on. Normal mode is the mode

most suitable when the refrigerator door is opened often.

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

24 using your refrigerator

ELECTRONIC DISPLAY PANEL

When the power is first turned on the default settings are

-18°C,3°Cwiththe‘Icemakeroff’.Ifpoweristurned

off, all previous settings will be retained in memory. The

first touch of any button will activate the display but no

changes to the setting will be made until the button is

touched again.

Controlling the temperature

The default temperature for the refrigerator is 3°C

and -18°C for the freezer. If you want to change the

temperature, follow the instructions below. Make only

smalladjustmentsandwait24hourstoseeifit’scorrect.

Checking the softness of ice cream is a good indication

of whether your freezer is at the correct temperature, while

feeling the coldness of water kept in your refrigerator

is a good way of checking the temperature of the food

compartment.

NOTE: The set temperature for the refrigerator is an

average temperature for the whole refrigerator cabinet.

Temperatures inside each compartment may vary

depending on how much food you store and where you

place it. High or low temperature may also affect the

actual temperature inside the refrigerator.

• Changing the freezer temperature

Touchthe‘freezertemp.’buttontwicetochangethefreezer

temperature in 1°C decrements from -14°C to -23°C.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Changing the refrigerator temperature

 Touchthe‘fridgetemp.’buttontwicetochangethe

refrigerator temperature in 1°C steps from 0° to +7°C.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

NOTE: Testing ice cream is a good way to check the

freezer. Testing drinking water is a good way to check the

refrigerator compartment temperature.

USING YOUR REFRIGERATOR – WSE6970 & WSE6070

Eco mode

Eco mode is a more efficient mode

than normal mode and will activate

automatically or can also be manually

activated. When activated the leaf icon will appear on

the display.

Automatically: eco mode is automatically activated if

the freezer door and the fridge door have not been

opened for 30 hours. If eco mode is entered

automatically, the appliance will revert back to normal

mode when the refrigerator door is opened.

Manually:Touchingthe‘eco/holiday’buttononce

will activate eco mode. If eco mode is entered manually,

door openings will not cause the display to revert to

normalmode.Toexitecomode,touchthe‘eco/holiday’

button twice (or until no leaf icon is displayed).

CAUTION

Eco mode is designed to operate with minimum door

opening (e.g. if used as a long term storage fridge).

Ifturnedonmanually,itwon’tswitchoffautomaticallyand

frequent door opening in eco mode could lead to food

spoilage. If frequent door opening is likely to occur switch

back to normal mode.

Holiday mode

Holiday mode is designed for maximum

energy efficiency when you are away

from your appliance for an extended

period. The refrigerator minimises defrosting to save

energy, but maintains temperature settings. To put the

refrigerator into holiday mode, press the eco/holiday

mode button until the aeroplane icon appears. The holiday

mode will operate until the button is pressed again or the

refrigerator door is opened.

NOTE: Opening the freezer door won’t effect the

operation of either Eco or Holiday modes.

USING YOUR REFRIGERATOR – WSE7000

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

eco

alarm

reset

drinks

chill

freezer

quick

freeze

eco/

holiday

fridge

sensor

holiday

using your refrigerator 25

• Freezer temperature alarm

If the freezer becomes too warm, a buzzer will sound,

andthe‘Temp.’icon,freezersettemperatureandbar

graph will flash until the alarm is reset by pressing the

‘lock’button.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

Once pressed the alarm is muted for 50 minutes but the

‘Temp’iconwillcontinuetoflashuntilthetemperature

reaches an acceptable level.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

Check that the freezer door has not been left open

or warm food has not been placed too close to the

temperature sensor in the freezer. See diagrams on page

7 & 9 for the sensor location. If the freezer is still too warm

the alarm will sound again in 50 minutes, indicating that

something may be wrong with your refrigerator.

The over temperature alarm can be silenced for 24 hours

by touching and holding the lock button for 3 seconds

whenasecondbeepwillsound.The‘Temp’iconwill

continue to flash and the alarm icon will remain on.

• Quick freeze

Use the quick freeze function when you add a large

amount of food to the freezer compartment. This freezes

the food quickly but does not affect the temperature

in the refrigerator compartment. To use this function,

touchthe‘quickfreeze’buttontwice.Threeanimated

snowflake icons will light up. The quick freeze function

will now operate for 90 minutes (or until -25°C is

reached). If you want to turn the quick freeze function off

before 90 minutes has passed, simply touch the ‘quick

freeze’buttonagain.Theiconwilldisappearandthe

freezer will return to normal operation.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Door alarm

If the Freezer or Fridge door is left open for longer

than 2 minutes a buzzer will sound and icon will flash.

Close door to deactivate alarm. If you want to leave

the door open while you load the fridge, the alarm can

bemutedfor8minutesbypressingthe‘lock’button.

The

icon indicates the food door is open.

The

icon indicates the freezer door is open.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

USING YOUR REFRIGERATOR – WSE6970 & WSE6070

26 using your refrigerator

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

ENERGY EFFICIENCY

Your appliance has been designed with energy efficiency

in mind and can operate in any of three modes (normal,

eco, holiday) depending on the level of efficiency sought.

• Normal mode

This is the mode which is entered automatically when

the appliance is first turned on. Normal mode is the

mode most suitable when the refrigerator door is

opened often.

• Eco mode

Eco mode is a more efficient mode than normal mode

and will activate automatically or can also be manually

activated. When activated the leaf icon will appear

on the display.

Automatically: eco mode is automatically activated

if the freezer door and the fridge door have not

been opened for 30 hours. If eco mode is entered

automatically, the appliance will revert back to normal

mode when the refrigerator door is opened.

Manually: Touchingthe‘eco/holiday’buttononcewill

activate eco mode. If eco mode is entered manually,

door openings will not cause the display to revert

to normal mode. To exit eco mode, touch the ‘eco/

holiday’buttontwice(oruntilnoiconisdisplayed).

CAUTION

Eco mode is designed to operate with minimum door

opening (e.g. if used as a long term storage fridge). If

turnedonmanually,itwon’tswitchoffautomaticallyand

frequent door opening in eco mode could lead to food

spoilage. If frequent door opening is likely to occur switch

back to normal mode.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Drinks chill timer

 TousetheDrinksChilltimer,touchthe‘drinkschill’button

twice. Each additional button touch will add 5 minutes

to the chill time up to a maximum of 30 minutes.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

Suggested chilling times:

•10minutesforcansofdrink

•20minutesforbottlesofwine

•30minutesforbottlesofsoftdrink.

Once the set time has elapsed, the drinks chill timer will

sound an alarm to remind you that you have left drinks in

your freezer for quick chilling. The timer will count down in

1 minute decrements. You can change the time or turn the

timer off even after the countdown has started. Touch the

drinks chill button to stop or cancel the alarm.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

CAUTION

Care should be taken to ensure bottles are not left in

freezer for longer periods as freezing and breakage could

occur.

• Display (child) lock

 ToactivatetheDisplayLockfunction,touchandhold

the‘lock’buttonfor5seconds.Thiswilldisable

and lock the display and disables ice and water

dispensing. The padlock icon will appear on the

electronicdisplaywhenDisplayLockisactivated.To

turn off the lock, activate display and then touch and

holdthe‘lock’buttonfor5seconds.

USING YOUR REFRIGERATOR – WSE6970 & WSE6070

using your refrigerator 27

• Holiday mode

Holiday Mode is designed for maximum energy

efficiency when you will be away from your appliance

for an extended period. The refrigerator minimises

defrosting to save energy, but maintains temperature

settings. Holiday mode can be activated by touching

the‘eco/holiday’buttontwicewhileinnormalmode

and the appliance will enter Holiday Mode, as

indicated by the suitcase symbol. Holiday mode is

exited automatically when the freezer door or fridge

door is opened.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Icemaker off

The automatic ice maker can be turned on and off by

touchingandholdingthe‘cubed/crushedice’button

for5seconds.The‘IcemakerOff’iconwillappear

on the electronic display when the ice maker is off (A

period of time after ice maker has been turned off, the

ice maker will empty the ice tray but it will stop making

more ice). To turn on the ice maker simply touch the ice

maker cubed/crushed button again for 5 seconds. The

‘IcemakerOff’iconwilldisappear.Icecancontinueto

be dispensed when ice maker has been turned off.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Adjusting Ice cube size

Ice cube size will vary slightly with water pressure. Ice

cube size can be adjusted using the settings below.

As a guide ten ice cubes should weigh between 80

and 110 grams. After adjusting, wait 48 hours before

checking ice cube size.

CUBE SIZE

ICON

SETTING SITUATION

Medium

(Default)

normal water pressure

50 –100 psi

Large

low water pressures

30 – 50 psi

Extra

Large

very low water pressure – under

30 psi (Note that this is under the

recommended water pressure range)

Small

very high water pressure – over

100 psi (Note that this is over

the recommended water pressure

range and a pressure reducer

should be fitted)

To activate the Ice Cube Size Adjustment screen press

‘cubed/crushed’and‘eco/holiday’buttonstogetherfor3

seconds.The‘cubesize’iconand‘cubedice’iconwillflash

whileadjusting.Usethe‘fridgetemp.’buttontochangethe

icecubesizefromMedium,Large,ExtraLarge,Smallwith

each button press. The display will return to Medium with

the next button touch. To confirm or OK the setting press

‘lock’button,thendisplayreturnstonormaltemperature

display. After 30 seconds of inactivity, display will return to

normal temperature display and setting stays as previously

set. Changes must be confirmed to save new setting.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Cubed/crushed ice

The ice dispenser can deliver both cubed and crushed ice.

If the

icon is highlighted, cubed ice will be dispensed.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

If the icon is highlighted, crushed ice will be

dispensed. Switch to Cubed Ice or Crushed Ice by

touching the Cubed/Crushed Ice button. When

switching between dispensing cubed and crushed ice

the dispenser may still contain whole ice cubes or

pieces of ice cube. These will be dispensed the next

time ice is taken.

USING YOUR REFRIGERATOR – WSE6970 & WSE6070

28 using your refrigerator

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Ice bin removed

If the ice bin has been removed or not located properly

inthecorrectposition,theicon‘icebin’willappear

on the display. With the ice bin removed the automatic

ice maker will stop harvesting ice and the ice dispenser

systemwillstop.IftheIceLeverispressedtheconsole

LEDlightswillflash3timestoindicatethattheicebinis

not in place.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

• Water filter replacement

Water conditions vary throughout the world, but

changing the water filter every 12 months will ensure

the highest possible water quality. The electronics in the

refrigerator will determine that the filter has been used

for12months.After12monthofusethe‘Replace

waterfilter’wordsandfiltericonwillappearandalarm

will sound to advise the filter should be replaced.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

You can choose whether to:

Remind me later

Touchthe‘quickfreeze’button,the‘Replacewaterfilter’

wordwilldisappearbutthe‘Filtericon’willstayonand

alarm sound will stop for 1 week.

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

Ice bin

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

Replace water filter

Remind me later

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

Cancel door alarm

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

min

Drinks chill finished

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

freezer

temp

fridge

temp

cubed/

crushed ice

drinks

chill

lock

hold - off

quick

freeze

eco/

holiday

Replace filter

Ifyouchoose‘OK’,resetfiltertimerbypressing‘lock’button.

Thealarmwillstop,‘Replacewaterfilter’andfiltericon

will disappear.

USING YOUR REFRIGERATOR – WSE6970 & WSE6070

care & maintenance 29

ICE & WATER DISPENSER

HOW THE WATER DISPENSER WORKS

The water dispenser water tank is located behind the

upper crisper bin in the refrigerator compartment.

After the refrigerator is connected to water fill the water tank

by holding a large container against the dispenser paddle

to run the water and clear air from lines. This may take a

few minutes. Purge and dispense a minimum of 2 litres of

water. Initial water may be black in colour. This is residual

carbon dust from the filter and is non toxic. If the water is

slow to shut off or the dispenser is dripping air may still be

in the lines. Either purge more water through the system to

remove the air or allow some time for the air to be removed

over subsequent dispensing. The tank will automatically refill

as you dispense water.

CAUTION

Remember,donotdrinkthispurgedwaterasitmay

contain impurities!

TIPS & INFORMATION

The water connection to your ice and water product

should only be done by a licensed refrigeration mechanic,

plumber or electrician.

Normal Operation — For cool water, add ice.

To provide the convenience of filtered water in the same

location as the ice dispenser, it is necessary to route the

tubes from the refrigerator compartment. This means the first

half glass of water will not be quite as cold as the following

3 or 4 glasses. If you require cool water from the first glass,

we recommend that you first add crushed or cubed ice to

your glass then the water. In times of high use, water may

be dispensed before it has time to cool. Once this occurs,

the dispensed water temperature will be similar to that of

your normal tap water until the tank has had a chance to

re-cool. The addition of cubed or crushed ice will allow

you to still enjoy cool water should this occur.

CAUTION

Chemicals from a malfunctioning softener can damage

the ice maker. If the ice maker is connected to soft water,

ensure that the softener is maintained and working properly.

HOW THE ICE DISPENSER WORKS

The ice maker is located in the top section of the freezer

compartment. After installation, switch the ice maker on at

the controls on the door to begin making ice. A full tray of

ice may not be created for the first few batches, due to air

intherefrigerator’snewplumbinglines.Thefirstbatches

of ice cubes may be discoloured or have an odd flavour,

duetotherefrigerator’snewplumbingconnections.Discard

this ice until batches are free of discolouration or taste

problems. The ice maker turns off automatically when the

ice container is full. To stop ice production, turn the ice

maker off at the electronic display on the door.

NOTE: During the normal operation of the icemaker, the ice

detecting arm is lowered to detect the level of ice in the bin

(see diagram above). At times, this may be visible when the

door is open.

TIPS & INFORMATION

• Icecubesstoredtoolongmaydevelopanoddflavour.

Removetheicecontaineranddiscardtheicecubes.

• Occasionallyshaketheicecontainertokeep

ice separated.

• Afteryoutakedeliveryoftherefrigerator,keeptheice

maker switched off at the controls on the door until the

refrigerator is connected to the water supply. The switch

should also be kept in the OFF position whenever the

water supply is turned off.

CAUTION

If the dispensing paddle is pushed for an extended period

the dispenser motor may overload and stop. The overload

protector will reset automatically after it has cooled down

sufficiently.

• Ifalargequantityoficeisneededatonetime,itisbest

to remove cubes directly from the ice cube container

• Whentheicemakerisoperating,itisnormaltohear

the sound of:

– The motor running.

– Ice dropping into the ice container.

– The water valve opening or closing.

– Ice loosening in the tray.

–Runningwater.

30 care & maintenance

CLEANING THE ICE DISPENSER

Clean the dispenser and ice container at regular intervals,

particularly before you take a holiday or move, also clean

the dispenser if it sticks.

To clean the dispenser:

1. Removetheicecontainerbyliftingitupandout.

Empty and carefully clean the container with mild

detergent.Rinsecarefullyensuringnotracesof

detergent remain. Do not use harsh or abrasive

cleaners. Allow the ice container to dry completely

before replacing it in the freezer. If ice has accumulated

on the surface, remove with a warm, damp cloth

or allow to defrost. Do not use sharp instruments to

remove ice.

2. Removeicechipsfromtheshelfandchutethatsupport

the ice container; clean these areas.

3. Replacetheicecontainer.

WARNING

Do not put fingers up the ice chute. Surfaces there may

be sharp.



CAUTION

When removing or replacing the ice bin do not rotate

the ice stirrer in the ice bin. If the ice stirrer is accidentally

turned, you may need to realign the ice stirrer until the ice

bin fits into place with the drive mechanism.

When refitting the ice bin make sure it is fully seated on the

door panel.



Remove and empty the ice storage bin if:

1. An extended power failure (one hour or longer) causes

ice cubes in the ice storage bin to melt and freeze

together and jam the dispenser mechanism.

2. If the ice dispenser is not used frequently, ice cubes

will freeze together in the bin and jam the dispenser

mechanism. If this happens remove the ice storage bin

and dispose of the ice.

CAUTION

NEVERuseanicepickorsimilarsharpinstrumenttobreak

up the ice. This could damage the ice storage bin and

dispenser mechanism.

ICE & WATER DISPENSER

care & maintenance 31

CHANGING THE LIGHT BULBTHE WATER CONNECTION KIT

THE EXTERNAL WATER FILTER KIT

An external water filter and connection kit has been supplied

for use with your Ice & Water refrigerator. The external filter design

allows more space within the refrigerator and provides double

the life of previous filters reducing the cost of replacement.

The filter is designed to significantly reduce chlorine, taste,

odour, heavy metals, turbidity (cloudiness) and scale build up.

The included water tube allows quick connection to the filter

and is designed for high durability and kink resistance. This

filter is designed only to be used with a potable water supply. It

should not be used on water that is micro biologically unsafe

or with water of unknown quality. The filter should be replaced

every 12 months. The service life of the filter may be reduced

in water supplies that contain an excess of particles or other

impurities.Reducedflowrateisanindicationthatanewfilter

is required. Failure to replace the filter when required can

affect the function of the ice maker. Service calls caused by

a failure to replace the filter are not covered by warranty.

Toinstallrefertopagethe‘WaterFilterKitInstallation’

Instructions.

CAUTION

Follow installation instructions supplied with new filter or

thoseprovidedinthe‘Changingthewaterfilter’section.

REFRIGERATOR LIGHT

1. Switch off the power at the power point and remove

therefrigerator’spowercordfromthepowerpoint.

Check the temperature settings and write them down.

diagram A diagram B

2. Unclip the light lens by inserting your fingers at

point 1 in diagram A.

3. Liftthelightlensuntilitisclearofthehousingand

unscrew the light bulb.

4. Unscrew the light bulb and replace it with a bulb that is

the same as the original. If, when you remove the light

bulbthesmallrubber‘O’ringcomesoutwiththebulb,

fitthe‘O’ringoverthenewbulbandscrewbulbinto

the socket (see diagram at the right of the page).

WARNING

Never insert your finger into the light bulb socket to check

forthepresenceofthe‘O’ring.

5. Replacethelightlensbyinsertingthetabonthelens

at point 2 and pushing in the lens with both hands at

point 3, see diagram B.

6. Turn the refrigerator back on.

32 care & maintenance

FREEZER LIGHT (WHERE FITTED)

1. Switch off the power at the power point and remove

therefrigerator’spowercordfromthepowerpoint.

2. Carefully unclip the light cover by pulling the light cover

tab at the rear, towards you. Unclip the light cover by

pressing side tabs on both sides and pulling the light

cover away from you (Ice & Water models).

Models WSE7000 & WSE6100

Models WSE6970 & WSE6070

3. Unscrew the light bulb and replace it with a new bulb

of the same type and wattage. If, when you remove the

lightbulbthesmallrubber‘O’ringcomesoutwiththe

bulb,fitthe‘O’ringoverthenewbulbandscrewbulb

into the socket (see diagram at bottom of page).

WARNING

Never insert your finger into the light bulb socket to

checkforthepresenceofthe‘O’ring.

4. Replacethelightcoverbyhookingthelightcoverlugs

into the front of the housing and pressing the rear of the

cover up until it clips in.

5. Wait 5 minutes to ensure pressures in the refrigeration

system are equalised before turning the refrigerator on

at the power point.

WARNING

Ensure the ‘O’ ring is in place before replacing the bulb.

Lightbulb ‘O’ring Lightsocket

CLEANING THE EXTERIOR

WARNING

BEFORECLEANING:Turntherefrigeratoroffatthe

power point and unplug the cord to prevent any chance

of electrocution.

Cabinet & painted doors – An occasional wipe over with

a clean, damp cloth will help remove finger marks. You

should only clean the doors with lukewarm, soapy water

andasoftcloth.Rinsewithcleanwaterandthenwipe

the surface with a soft, clean cloth to remove any

soapy residue.

Note: Only wash plastic parts or decorative trim with warm

(not hot) water using an unscented detergent.

Stainless Steel doors –Your stainless steel appliance is

manufactured from a mark resistant stainless steel. This stainless

steel has a special advanced protective coating that helps

ease the removal of marks such as finger prints or water spots.

To keep your stainless steel refrigerator looking its best, you

should clean it regularly. You should only clean the stainless

steeldoorswithlukewarmsoapywaterandasoftcloth.Rinse

with clean water and then wipe the surface with clean water

and a soft, clean cloth to remove any soap residue.

CAUTION

Do not use abrasive pads or other cleaners as they are

likely to scratch the surface. Damage to this product after

installation is not covered by your warranty.

Note: It is important to wipe in the direction of the grain of

the stainless steel to avoid any undue marking of the surface.

Drip tray

Water may accumulate in the sump located under the drip

tray. If this occurs the sump can be sponged out to prevent

water overflowing down the front of the door.

For cleaning, remove the tray as described below:

1. Press down at the back of the drip tray with the tips

of your fingers.

2. Pull the tray forward.

3. To refit, slide the drip tray back into position and

push into place (see Diagram below).

1. Push down

2. Slide out

CHANGING THE LIGHT BULB CLEANING YOUR REFRIGERATOR

care & maintenance 33

CLEANING THE INTERIOR

You should clean the refrigerator interior regularly. It will

be easiest to clean when the food supply is low. Wash

the interior with a soft cloth and use an unscented mild

soap with lukewarm water. Thoroughly dry all surfaces

and removable parts. Avoid getting water on refrigerator

controls. If you have taken out any removable parts,

replace them and switch the power on before restocking

the refrigerator with food. You should keep the interior

of your refrigerator hygienic by promptly and thoroughly

wiping up any food spills.

Keep door seals clean

Take care to keep door seals clean. Sticky food and drink

can cause seals to stick to the cabinet and tear when you

open the door. Wash the seal with a mild detergent and

warmwater.Rinsethoroughlywithcleanwateranddr y.

CAUTION

Never use hot water, solvents, commercial kitchen cleaners,

aerosol cleaners, metal polishes, caustic or abrasive cleaners,

or scourers to clean your refrigerator. Many commercially

available cleaning products and detergents contain solvents

that will damage your refrigerator. Use only a soft cloth with

an unscented mild soap and lukewarm water.

If your refrigerator has telescopic extension slides, simply wipe

them with a damp cloth to clean them and never immerse

them in water.

ENERGY CONSUMPTION (ELECTRICITY COSTS)

The following guide will help you reduce the running cost

of your new refrigerator. This will save you money and help

conserve our valuable energy resources.

• Ifyoukeepyouroldrefrigerator,savepowerby

switching it off when not in use.

• Donotsetyourfreezertemperaturetoolow.After24hours,

ice cream should be firm but able to be scooped out

with a spoon without bending the handle. If ice cream

is firmer than this (or too soft), adjust the freezer

temperature controls.

• Ensurethattherefrigeratordoorssealproperlyasyou

close them.

• Beforeyouopentherefrigeratordoors,decidewhat

you want to put in or take out. This will minimize the

time you have the doors open.

• Itisbesttohavetherefrigeratorinaplacethatisout

of direct sunlight and away from heating appliances

of any kind. For example, do not place the refrigerator

next to a cooker, stove or dishwasher.

• Allowhotfoodstocooltoroomtemperaturebeforeyou

put them in your freezer.

• Thawfrozenfoodintherefrigeratorsection.

• Ifyoukeepthefreezercompartmentfilledtocapacity,

your food mass will help maintain the freezer

temperature when you open the door.

• Donotblockairvents.Doingsomaycausethe

refrigerator to run longer and use more energy.

SWITCHING OFF YOUR REFRIGERATOR

If you switch your refrigerator off for an extended period,

follow these steps to reduce the chances of mould:

1. Take all the food out of the refrigerator and

freezer compartments.

2. Switch off the refrigerator and remove

the electric cord from the power point.

3. Clean the inside.

4. Leavethedoorsopen.Thispreventsbacteriafrom

growing and causing smells in the refrigerator.

POWER FAILURE

If there is a power failure in your area, keep the door to the

freezer closed. Most foods in your freezer will stay frozen

for 24 hours.

SAFETY

It is important to use your appliance safely. This means you

need to supervise young children and infirm persons when

they use it. You need to make sure that young children do

not play with the appliance. Follow the tips below.

ALWAYS DO THIS

Check the power point is properly earthed – if you are not

sure get an electrician to check it.

Switch off and unplug the refrigerator at the power point

before you clean or move it.

If the power supply cord is damaged, have it replaced

by the manufacturer, service agent or similarly qualified

person.

NEVER DO THIS

Never let children play with the refrigerator.

Never store spray cans, explosive fluids or flammable

liquids in the refrigerator.

Never store fizzy drinks in the freezer compartment.

Never lick icy foods when they first come out of the freezer.

This can burn your lips and mouth.

Never try to repair the refrigerator yourself.

Never use electric heaters, dryers or other mechanical

devices to defrost the freezer because you can receive an

electric shock.

Never use electrical appliances inside the food storage areas.

This appliance contains insulation formed with flammable

blowinggasesandflammableR600arefrigerant.For

safety reasons, take care when you dispose of it.

Do not damage the appliance circuit.

WARNING

When you dispose of your old refrigerator or freezer remove

any doors. Children can suffocate if they get trapped inside.

CLEANING YOUR REFRIGERATOR

34 helpful hints

HELPFUL HINTS

HELPFUL HINTS FOR STORING FOOD

ALWAYS DO THIS

Buy the freshest, best quality food and put it in the

refrigerator as soon as possible.

Cover food with plastic wrap or foil to stop it drying out

and to help prevent bad smells.

Rinseandwrapfishandpoultrybeforeyouputthem

in the refrigerator.

Minimise bacteria by removing stuffing from poultry

before you put it in the refrigerator.

When you store eggs in the refrigerator compartment,

store them with the pointed end down.

NEVER DO THIS

Store bananas, avocados or mangoes in the refrigerator.

This can cause them to go black or to go soft.

Put hot or warm food in the refrigerator. Allow it to cool first.

HELPFUL HINTS FOR FREEZING FOOD

You can use the freezer to store food which you buy in bulk

when prices are low. You can also cook extra food and

freeze it for later use.

ALWAYS DO THIS

Buy the freshest, best quality food and put it in the freezer

as soon as possible.

Place food in plastic bags or plastic wrap before you put it

in the freezer.

Squeeze the air out of plastic bags as this prevents frost.

When you buy frozen foods in the supermarket, keep them

in their packaging when you store them.

Defrost food, especially chicken and fish, in the refrigerator

compartment. This stops bacteria from growing.

Leavefoodinitswrappingwhileitdefrosts.

Use defrosted food immediately.

NEVER DO THIS

Never refreeze defrosted food.

troubleshooting 35

TROUBLESHOOTING

If you think something may be wrong with your refrigerator, you can carry out some easy checks before calling for

service. You may locate the problem, sparing yourself any inconvenience and saving time and money.

PROBLEM SOLUTION

When your appliance is

not operating

•Checkthatthepowercordispluggedintothepoweroutletproperlyandthattheoutletisswitched‘ON’.

•Tryrunninganotherappliancefromthepoweroutlet.Ifnopoweriscomingfromtheoutletyoumayhave

blown a fuse or tripped a circuit of your household power supply.

•Tryadjustingthetemperaturecontroltoaslightly‘colder’position.

•ItisnormalforthefreezerfanNOTtooperateduringtheautomaticdefrostcycle,orforashorttimeafter

the appliance is switched on.

When there is

refrigerator/freezer noise

Modern refrigerators/freezers with increased storage capacity use high speed compressors. These can

provide a seemingly high level of sound which is quite normal. Normal operational sounds include:

•Occasionalgurgling,similartowaterboiling.

•Airflownoise(aircirculatesbecauseofasmallfan).

•Apoppingnoiseheardduringautomaticdefrost.

•Aclickingnoiseheardjustbeforethecompressorstarts(thisismerelytheautomaticswitchingactionofthe

temperature control, turning the compressor on or off).

Other strange sounds may mean that you need to check and take action.

For example, noises may mean that:

•Thecabinetisnotlevel.

•Thefloorisunevenorweak.

•Bottlesarebadlyplacedandrattling.

•Therearevibrationsfromanobjectontopoforbehindorbesidetherefrigerator.

•Thebackoftherefrigeratorcabinetistouchingthewall.

Rememberitisquitenormalfornoisetoseemlouderjustaftertherefrigeratorstartsoperatingandatnighttime.

If there are odours inside

the appliance

•Theinteriormayneedcleaning.

•Somefoodsproduceodours.

•

Somecontainersandwrappingcancauseodours.

•Didtheodourbeginaboutthesametimeyoustartedstoringsomethingunusualorwithastrongsmell?

When the motor seems to

run more than expected

Your new appliance provides you with large capacities in both the refrigerator section and the separate

freezer. It is normal for the motor to operate frequently.

However, to keep operation to a minimum, check the following:

•Aredoorskeptopentoolongortoooften?

•Arecontrolssettoocold?Referto‘Controllingthetemperature’.

•Havelargeamountsofwarmfoodjustrecentlybeenstored?Summer,festiveseasonsandholidaysusually

mean a lot more work for your appliance.

•Ifthedayishotortheroomisverywarm,theappliancewillneedtorunmorethannormal.

•Theappliancewillrunmorethannormaljustafteryouinstallitorwhenithasbeenturnedoffforalongtime.

If the temperature

in the refrigerator

is too warm

•Checkthattheappliancehasenoughclearanceatthesides,backandtop.Refertotheinstallation

Instructions at the front of this booklet.

•Referto‘Controllingthetemperature’.

•Youmayhavekeptthedooropentoolongortoofrequently.

•Foodcontainersorpackagingmaybeholdingadooropen.

If the temperature in the

refrigerator is too cold

•Referto‘Controllingthetemperature’.

•Increasethetemperaturetoavoidhighenergyconsumption.

If heavy frosting occurs in

the freezer

•Makesureyoufullyclosethefreezerandfridgedoors.Ifthedoorsareleftpartlyopenaheavyfrostwill

coat the inside of the freezer. If a frost develops, remove it. Take care to properly close the doors and the

frost will not reoccur.

•Doorsshouldcloseautomaticallyfrom45°open,ifnotadjustcabinetry(refertocabinetalignment).

If water drips on the floor •Thedefrostwatertray,(locatedatthebackorunderneathofthecabinet),maynotbeproperlypositioned,

or the drain tube may not be properly positioned to direct water into this tray. You may need to pull the

refrigerator away from the wall to check the tray and tube.

•Adoormayhavebeenleftopen,checkthatthedoorsareclosedcorrectly.

Fridge does not exit

vacation mode

Turnapplianceoffatthepowerpoint.Leaveoffforfive(5)minutesforthememorytoclear,thenturnbackon.

If your electronic display

does not respond

If no buttons have been pressed for approximately 60 seconds there may be a delay of up to 2 seconds

before the display reacts. This is normal and is to prevent accidental changes to the settings.

Door opens when other

is closed

It is normal for a freezer or fridge door to momentarily pop open when the other door is closed, if the

cabinet is adjusted properly the door will re-close quickly.

36 troubleshooting

ICE + WATER TROUBLESHOOTING

PROBLEM POSSIBLE CAUSES SOLUTION

automatic ice-maker

The ice maker

is not making

any ice

•IcemakerisintheOFFposition •SeeIcemakersectioninusermanual:turnswitchto

ON position.

•Watertapisturnedoff •Turnonthewatertap

•Thefreezerisnotcoldenough •SeetheProblemsection:‘Ifthetemperatureinthe

refrigeratoristoowarm’

•Thewaterdispensermaynotbedispensingwater •Ifitisn’t,theice&waterfiltercartridgemaybeclogged

or restricted by foreign material, and will need to

be replaced

•Filtermaybeblocked •Checkand/orchangefilter

The ice-maker

is not making

enough ice

•Theicemakerisproducinglessicethanyouexpect •Theicemakershouldproduceapproximately

0.5-1 kilogram of ice every 24 hours

•Thefreezerisnotcoldenough •Seesection‘Controllingtemperatures’

•Householdwatertapisnotopen •Openthehouseholdwatertap

•Thewaterdispenserisdispensingslowerthannormal •Replacethewaterfiltercartridge

Ice cubes are too

small or too big

•Restrictedwaterflowtotheicemaker

•Waterpressuremaybetoolow

•Waterpressuremaybetoohigh

•Appliancenotlevelledcorrectly

•Replacethefiltercartridge,asthewaterfiltercartridge

may be clogged

•Checkwatersupplyhoseforkinks

•Checkwaterpressuremeetsminimumandmaximum

requirement (see install instructions)

•IfalloftheaboveisOKadjusticecubesize(referto

‘Adjusting ice cube size on page 27)

The ice has a

bad odour and

taste

•Theicehaspickedupodourorflavourfrom

strongly flavoured food stored in the refrigerator or

freezer

•Coverfoodstightly

.Discardstaleice.Theicemakerwill

produce a fresh supply

•Changeicemonthly

•Thewaterrunningintotheicemakerhaspoor

taste or colour

•Addorreplacewaterfiltertowatersupply.Consulta

water purifying company

•Icenotusedfrequentlyenough •Discardstaleicemonthly

ICE DISPENSER

The dispenser

will not

dispense ice

•Theicestoragecontainerisempty

•Theicechuteisblocked

•Refer‘theicemakerisnotmakinganyice’sectionabove.

•Thefirstsupplyoficemaytakeupto4hoursafterpower

up, try the dispenser after ice is made

•Removeicebintogainaccesstochuteunderneathand

remove any ice causing the blockage. Dry the surface of

the chute with a paper towel or similar and replace the

ice bin ensuring it is fully seated on the door.

The ice

dispenser

is jammed

•Icehasmeltedandfrozenaroundthestirreror

in the crusher due to infrequent use, temperature

fluctuations and/or power outages.

•Removetheicebinandemptyitscontents.Usewarm

watertomeltanyiceinthebinandcrusher.Leavetodry

completely so water does not refreeze in the bin causing

a further blockage and refit. Make sure the bin is fully

seated on the door. When new ice is made the dispenser

should operate.

•Icecubesareholloworsmallerthannormal •Thewaterfiltercartridgecouldbeclogged.

Cartridge may need replacing.

Water leaking

from ice

dispenser

•Icetrappedandmeltinginicechute

•Icecubestoosmallandfallingintoicedispenser

•Clearicechuteofice

•Checkicecubesize(refertothe‘Adjustingicecube

size’section)

The flap on the

ice dispenser

does not close

properly

•Icecubesarepreventingtheflapfrom

closing properly

•Removeicebintogainaccesstotheicechuteand

remove ice cubes from chute.

IF YOU STILL REQUIRE SERVICE

If you have a problem, and the problem persists after you have made the checks mentioned above, contact your

nearest Electrolux approved Service Centre or dealer from whom you bought the refrigerator. Be ready to quote the

model number and 8-digit serial number, which is stated on the label inside the refrigerator compartment.

notes 37

NOTES

38 notes

NOTES

This document sets out the terms and conditions of the product

warranties for Electrolux Appliances. It is an important document.

Please keep it with your proof of purchase documents in a safe place

for future reference should you require service for your Appliance.

1. In this warranty

(a) ‘acceptable quality’ as referred to in clause 10 of this warranty has

the same meaning referred to in the ACL;

(b) ‘ACL’ means Trade Practices Amendment (Australian Consumer

Law) Act (No.2) 2010;

accompanied by this document;

(d) ‘ASC’ means Electrolux’ authorised serviced centres;

(e) ‘Electrolux’ means Electrolux Home Products Pty Ltd of 163

O’Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in

respect of Appliances purchased in Australia and Electrolux (NZ)

Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect

of Appliances purchased in New Zealand;

(f) ‘major failure’ as referred to in clause 10 of this warranty has the

same meaning referred to in the ACL and includes a situation when

an Appliance cannot be repaired or it is uneconomic for Electrolux,

at its discretion, to repair an Appliance during the Warranty Period;

(g) ‘Warranty Period’ means:

(i) where the Appliance is used for personal, domestic or household

use (i.e. normal single family use) as set out in the instruction

manual, the Appliance is warranted against manufacturing

defects in Australia and New Zealand for 24 months and for the

Appliance’s compressor, condenser, evaporator and drier, an

additional 36 months parts only warranty applies, following the

date of original purchase of the Appliance;

(ii) where the Appliance is used for commercial purposes (including

being used to directly assist a business or where the Appliance is

used in a multi-family communal or share type environment), the

Appliance will then be warranted against manufacturing defects

in Australia for 3 months and in New Zealand for 3 months,

following the date of original purchase of the Appliance.

(h) ‘you’ means the purchaser of the Appliance not having purchased

the Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. This warranty only applies to Appliances purchased and used in Australia

or New Zealand and is in addition to (and does not exclude, restrict, or

modify in any way) any non-excludable statutory warranties in Australia

or New Zealand.

3. During the Warranty Period Electrolux or its ASC will, at no extra charge

if your Appliance is readily accessible for service, without special

equipment and subject to these terms and conditions, repair or replace

any parts which it considers to be defective. Electrolux or its ASC may

use remanufactured parts to repair your Appliance. You agree that

any replaced Appliances or parts become the property of Electrolux.

This warranty does not apply to light globes, batteries, lters or similar

perishable parts.

4. Parts and Appliances not supplied by Electrolux are not covered by

this warranty.

5. You will bear the cost of transportation, travel and delivery of the

Appliance to and from Electrolux or its ASC. If you reside outside of the

service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux

or its ASC,

In all instances, unless the Appliance is transported by Electrolux or an

Electrolux authorised representative, the Appliance is transported at the

owner’s cost and risk while in transit to and from Electrolux or its ASC.

6. Proof of purchase is required before you can make a claim under

this warranty.

7. You may not make a claim under this warranty unless the defect claimed

is due to faulty or defective parts or workmanship. Electrolux is not liable

in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident

(ii) misuse or abuse, including failure to properly maintain or service

(iii) normal wear and tear

(iv) power surges, electrical storm damage or incorrect power supply

(v) incomplete or improper installation

(vi) incorrect, improper or inappropriate operation

(vii) insect or vermin infestation

(viii) failure to comply with any additional instructions supplied with

the Appliance;

(b) the Appliance is modied without authority from Electrolux in writing;

or defaced;

(d) the Appliance was serviced or repaired by anyone other than

Electrolux, an authorised repairer or ASC.

8. This warranty, the contract to which it relates and the relationship

between you and Electrolux are governed by the law applicable where

the Appliance was purchased. Where the Appliance was purchased in

New Zealand for business purposes the Consumer Guarantee Act does

not apply.

9. To the extent permitted by law, Electrolux excludes all warranties and

liabilities (other than as contained in this document) including liability for

any loss or damage whether direct or indirect arising from your purchase,

use or non use of the Appliance.

10. For Appliances and services provided by Electrolux in Australia,

the Appliances come with a guarantee by Electrolux that cannot be

excluded under the Australian Consumer Law. You are entitled to a

replacement or refund for a major failure and for compensation for any

other reasonably foreseeable loss or damage. You are also entitled to

have the Appliance repaired or replaced if the Appliance fails to be of

acceptable quality and the failure does not amount to a major failure.

The benets to you given by this warranty are in addition to your other

rights and remedies under a law in relation to the Appliances or services

to which the warranty relates.

11. At all times during the Warranty Period, Electrolux shall, at its discretion,

determine whether repair, replacement or refund will apply if an

Appliance has a valid warranty claim applicable to it.

12. For Appliances and services provided by Electrolux in New Zealand,

the Appliances come with a guarantee by Electrolux pursuant to the

provisions of the Consumer Guarantees Act, the Sale of Goods Act and

the Fair Trading Act.

13. To enquire about claiming under this warranty, please follow these steps:

(a) carefully check the operating instructions, user manual and the terms

of this warranty;

(b) have the model and serial number of the Appliance available;

(d) telephone the numbers shown below.

14. You accept that if you make a warranty claim, Electrolux and its ASC

may exchange information in relation to you to enable Electrolux to meet

its obligations under this warranty.

Warranty

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: REFRIGERATION

Important Notice

Before calling for service, please ensure that the steps listed in point 13 above have been followed.

FOR SERVICE

or to nd the address of your nearest

state service centre in Australia

PLEASE CALL 13 13 49

For the cost of a local call (Australia only)

SERVICE AUSTRALIA

ELECTROLUX HOME PRODUCTS

www.electrolux.com.au

FOR SPARE PARTS

or to nd the address of your nearest

state spare parts centre in Australia

PLEASE CALL 13 13 50

For the cost of a local call (Australia only)

FOR SERVICE

or to nd the address of your nearest

authorised service centre in New Zealand

FREE CALL 0800 10 66 10

(New Zealand only)

SERVICE NEW ZEALAND

ELECTROLUX HOME PRODUCTS

www.electrolux.co.nz

FOR SPARE PARTS

or to nd the address of your nearest

state spare parts centre in New Zealand

FREE CALL 0800 10 66 20

(New Zealand only)

GFR_Warr_Apr11

Printcode:WM AN _REFSXS_ Jan12

Part number: 1457272

TOP SERVICE

Top Service encompasses the after sales service

provided by The Electrolux Group to consumers

including delivery, home service and spare parts.

AUSTRALIA

phone: 1300 363 640

fax: 1800 350 067

email: customercare@electrolux.com.au

web: www.westinghouse.com.au

NEW ZEALAND

phone: 09 573 2384

fax: 0800 363 600

email: customercare@electrolux.co.nz

web: www.westinghouse.co.nz

Westinghouse. We are part of the Electrolux family.

Share more of our thinking at www.electrolux.com.au

For more information on all Westinghouse appliances,

or for dimension and installation information, call into your retailer,

phone or email our customer care team or visit our website:

Westinghouse WSE7000SF 700L Side By Side Fridge

Product's Documents

USER MANUAL

Specifications

Westinghouse WSE7000SF Questions and Answers
