READ AND SAVE THESE INSTRUCTIONS P!. 241_9ssoo(o_o_)
Congratuiations on your purchase of a new beverage center!
We here at Electrolux Home Products, inc. are very proud of
our product and we are compIetely committed to providing you
with the best service possible. Your satisfaction is our #1
priority.
Please read this Use & Care Manual very carefuiIy. It contains
valuable information on how to properly maintain your new
beverage center.
We know you'll enjoy your new beverage center and Thank
You for choosing our product. We hope you consider us for
future purchases.
PLEASE READ AND SAVETNESE INSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your beverage center only as
instructed in this manual. These instructions are not meant to
cover every possible condition and situation that may occur.
Common sense and caution must be practiced when instailing,
operating and maintaining any appliance.
Pmease record your modeB and serial numbers below for
future reference.This information is found on your seriaB
plate located inside the refrigerator compartment.
Model Number:
Seriai Number:
Purchase Date:
ii o
i ! i ! ! i i i i! i ii!i i!i! ! i i ii ! i!i i! iiiiiiiiiiiiiiiiiii!i i !i!ii!i !i!!!!!i! i!!i!!!i!i ! !!!!i! !i! i!ii iiiiiiiiiiiiiiiiiiiiiiii i
PLEASE COMPLETE AND MAIL IN THE
PRODUCT REGISTRATION CARD
INCLUDEDWFHYOUR BEVERAGE CENTER,
Questions?
1-800-944-9044
(United States)
1-800-285-8352
(Canada)
Extend Your Warranty Protection
With An
Extended Service Contract
CALL 1-800-944-9044
To Enjoy These Benefits:
o
o
TotaJ freedom from repair bills so
unexpected repairs won't upset your budget,
Fast, convenient toll-free service is just a
phone call away,
Top-quaJity repairs by factory-trained experts,
Quick access to genuine replacement parts
so you can rest assured your Beverage Center
is repaired with the proper components,
Please atta cn sales receLpl
he,e for future reference.
FORYOURSAFETY
,, Donotstoreorusegasoline,orotherflammableliquids
inthevicinityofthisoranyotherappliance.Readproduct
labelsforwarningsregardingflammabilityandother
hazards.
+ Donotoperatethebeveragecenterinthepresenseof
explosivefumes.
+ Avoidcontactwithanymovingpartsoftheautomaticice
maker.(somemodels)
CHILDSAFETY
Destroyorrecyciethecarton,plasticbags,andanyexterior
wrappingmaterialimmediatelyafterthisbeveragecenteris
unpacked.ChildrenshouldNEVERusetheseitemstoplay
with.Cartonscoveredwithrugs,bedspreads,plasticsheetsor
stretchwrapmaybecomeairtightchambers,andcanquickly
causesuffocation.
PROPER DISPOSAL OFYOUR BEVERAGE CENTER
Risk of child entrapment
Child entrapment and
suffocation are not probiems of
the past. Junked or abandoned
refrigerators or freezers are stt
dangerous - even if they will sit
for "just a few days." If you are
getting rid of your oId refrigeralor
or freezer, please foiIow the
instructions below to help
prevent accidents.
Before you throw away your
omdrefrigerator/freezer:
. Remove doors.
®
Leave shelves in place so children may not easily climb
inside+
Nave refrigerant removed by a qualified service
technician.
ELECTRICAL INFORMATION
+ The beverage center must be plugged into its own
dedicated 115 Vomt,60 Bz. AC only electric outmet, The
power cord of the appliance is equipped with a three-
prong grounding ptug for your protection against electrical
shock hazards+ It must be pIugged directly into a properly
grounded three-prong receptacle+ The receptacle must be
installed in accordance with Iocal codes and ordinances.
ConsuIt a quatified electrician+ Do not use an extension
cord or adapter pBug,
+ If the power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk+
+ Never unpiug this beverage center by pulling on the
power cord+ Always grip the plug firmiy_ and pull straight
out from the receptacle to prevent damaging the power
cord+
,, UnpIug this beverage center before cieaning and before
replacing a light bulb to avoid electrical shock+
+ Performance may be affected if the voltage varies by 10%
or more+ Operating this beverage center with insufficient
power can damage the compressor. Such damage is not
covered under your warranty+
,, Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent this beverage center from
being turned off accidentalIy+
,, Avoid connecting this beverage center to a Ground Fault
Interruptor (GFI) circuit+
ThisUse&CareManualprovidesspecificoperating
instructionsforyourmodel.Usethisbeveragecenteronlyas
instructedinthisUse&CareManual.Beforestartingthis
beveragecenter,followtheseimportantfirststeps.
LOCATION
, Choosea placethatisnearagroundedelectricaloutlet.
DoNotuseanextensioncordoranadapterplug.
o Ifpossible,placethisbeveragecenteroutofdirect
sunlightandawayfromtherange,dishwasherorother
heatsources.
o Thisbeveragecentermustbeinstalledonafloorthatis
levelandstrongenoughtosupportafullyloaded
beveragecenter.
, Considerwatersupplyavailabilityformodelsequipped
withanautomaticicemaker.
LEVELING
All four corners of your beverage center must rest firmly on a
solid floor. Your beverage center is equipped with adjustable
leveling screws to help level your unit.
To Leve! Your
Beverage Center:
1. Remove toe grille.
2. Use adjustable wrench to adjust leveling screws.
INSTALLATION
Installation Clearances
Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
DOOR OPENING
Your beverage center should be positioned to allow easy
access to a counter when removing food. To make this
possible, the direction in which the doors open can be
reversed. See Door Removal & Reversal Instructions.
Before lnstaHingTheWater Supply Line,You Will Need
,' Basic Tooms: adjustabIe wrench, flat-blade screwdriver,
and Phillipd rMscrewdriver
,, Access to a household cold water line with water pressure
between 30 and 100 psi=
* A water supply line made of ¼ inch (6=4 mm) OD, copper
tubing= To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker
inlet valve at the back of the beverage center to your cotd
water pipe= Then add approximately 7 feet (2=1 meters), so
the beverage center can be moved out for cleaning (as
shown).
* A shutoff valve to connect the water supply line to your
household water system= DO NOT use a self-piercing type
shutoff valve=
,, A compression nut and ferrule (sleeve) for connecting the
water supply line to the ice maker inlet valve.
To Connect Water Supply LineTo ice Maker inJet VaJve
1= Disconnect beverage center from electric power source=
2= Place end of water supply line into sink or bucket. Turn ON
water supply and flush supply line until water is clear= Turn
OFF water supply at shutoff valve=
3= Unscrew plastic cap from water valve inlet and discard
cap.
4= Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown=
5= Push water supply line into water valve inlet as far as it
will go (¼ inch)= Slide ferrule (sleeve) into valve inlet and
finger tighten compression nut onto valve= Tighten another
half turn with a wrench; DO NOT over tighten=
6= With stee! clamp and screw, secure water supply line to
rear panel of beverage center as shown=
7= Coil excess water supply line (about 2½ turns) behind
beverage center as shown and arrange coils so they do
not vibrate or wear against any other surface=
8= Turn ON water supply at shutoff valve and tighten any
connections that leak=
9= Reconnect beverage center to electrical power source=
10= To turn ice maker on, lower wire signal arm (see ice
maker front cover for ON/OFF position of arm).
Plastic Water
Tubing to _ce Make{
Brass
Comeressior
er Valv6
Bracket
from household water supply
qndude enough tubing in oop to a_bw
mown_ refrigerator out for cleaning v
DoorStop Tools Necessary;
Phillips"head
oF
Quadrex head
screwdi[ver
Socket Adjustable
Wrench Set Wrench
Awl
DOOR REMOVAL AND REVERSAL INSTRUCTIONS:
Cabinet
Hole Plugs
Hinge
Hole Plug
Door Stop
Screw
Pin
iL f
Center
Iinge
H01ePlugs
Door Stop
Screw- (
1. Remove toe grille.
2. Remove top hinge with 3/8" hex driver and lift freezer door off of center
hinge pin. Set door aside.
3. Unscrew center hinge pin using adjustable wrench and save for
reassembly. Ensure plastic washer stays on hinge pin.
4. Lift refrigerator door off of bottom hinge and set aside.
5. Remove center hinge and shim by removing inside screw and
loosening two outside screws enough to allow hinge and shim to slide out.
Tighten screws.
6. Loosen two outside screws on opposite side of refrigerator, remove inside
screw and install center hinge.
7. Remove two screws on bottom hinge with 3/8" socket wrench.
8. InstalI bottom hinge on opposite side with the two screws removed from
step 7.
9. Unscrew bottom hinge pin using adjustable wrench. Move hinge pin to
other hole in hinge and tighten with adjustable wrench.
10. Move beverage center door stops to opposite side. Before starting screws,
use an awl to puncture the foam.
11. Position beverage center door onto bottom hinge pin and screw center
hinge pin through center hinge into top of door. Close beverage center
door to help align hinge hole.
12. Tighten center hinge pin with adjustable wrench.
13. Remove cabinet and hinge hole plugs and move to opposite side.
14. Lower freezer door onto center hinge pin.
15. Close freezer door. Have an assistant lift up on opposite side of door while
tightening screws to install top hinge.
16. Replace toe grille.
17. Plug in electrical power cord and turn beverage center temperature
control to the "5" position. Adjust setting as necessary.
Ice Maker
ice BtJcket
Features may vary
according to model
Air Flow Control
Temperature
Control --
Shelf --
Shelf rower--
Keg Support.
Shelf
Slide Out--
Baskets
Opening
COOL DOWN PERIOD
To ensure safe food storage, allow the beverage center to
operate with the doors closed for at least 12 hours before
loading it with food and beverages.
BEVERAGE CENTER CONTROLS
Temperature Control
This rotary control is the primary control for the refrigerated
compartment temperature. If the beverage center is too warm,
adjust this control in the "Colder" direction, if the beverage
center is too cold, adjust this control in the "Cold" direction.

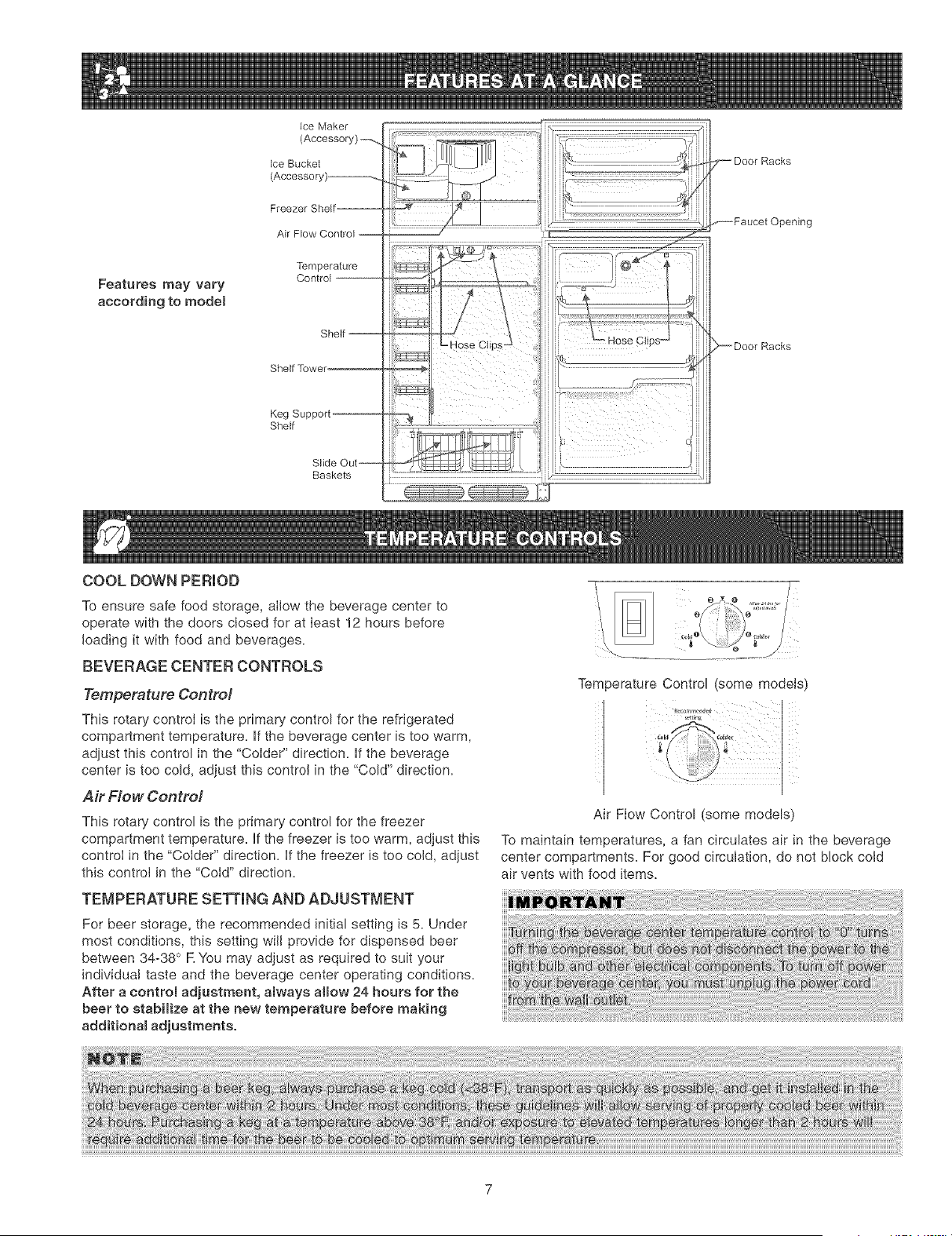

Air Ftow Control
This rotary control is the primary control for the freezer
compartment temperature. If the freezer is too warm, adjust this
control in the "Colder" direction. If the freezer is too cold, adjust
this control in the "Cold" direction.
TEMPERATURE SETTING AND ADJUSTMENT
For beer storage, the recommended initial setting is 5. Under
most conditions, this setting will provide for dispensed beer
between 34-38 ° R You may adjust as required to suit your
individual taste and the beverage center operating conditions.
After a controm adjustment, aBways allow 24 hours for the
beer to stabilize at the new temperature before making
additionam adjustments.
Tern )erature Control (some models)
Air Flow Control (some models)
To maintain temperatures, a fan circulates air in the beverage
center compartments. For good circulation, do not block cold
air vents with food items.
ThisUseandCareManualprovidesspecificassembly,
operatingandmaintenanceinstructionsforyourmodeI.Use
thebeveragecenteronlyasinstructedinthisUseandCare
Manua!.Beforestartingthebeveragecenter,followthese
importantfirststeps.

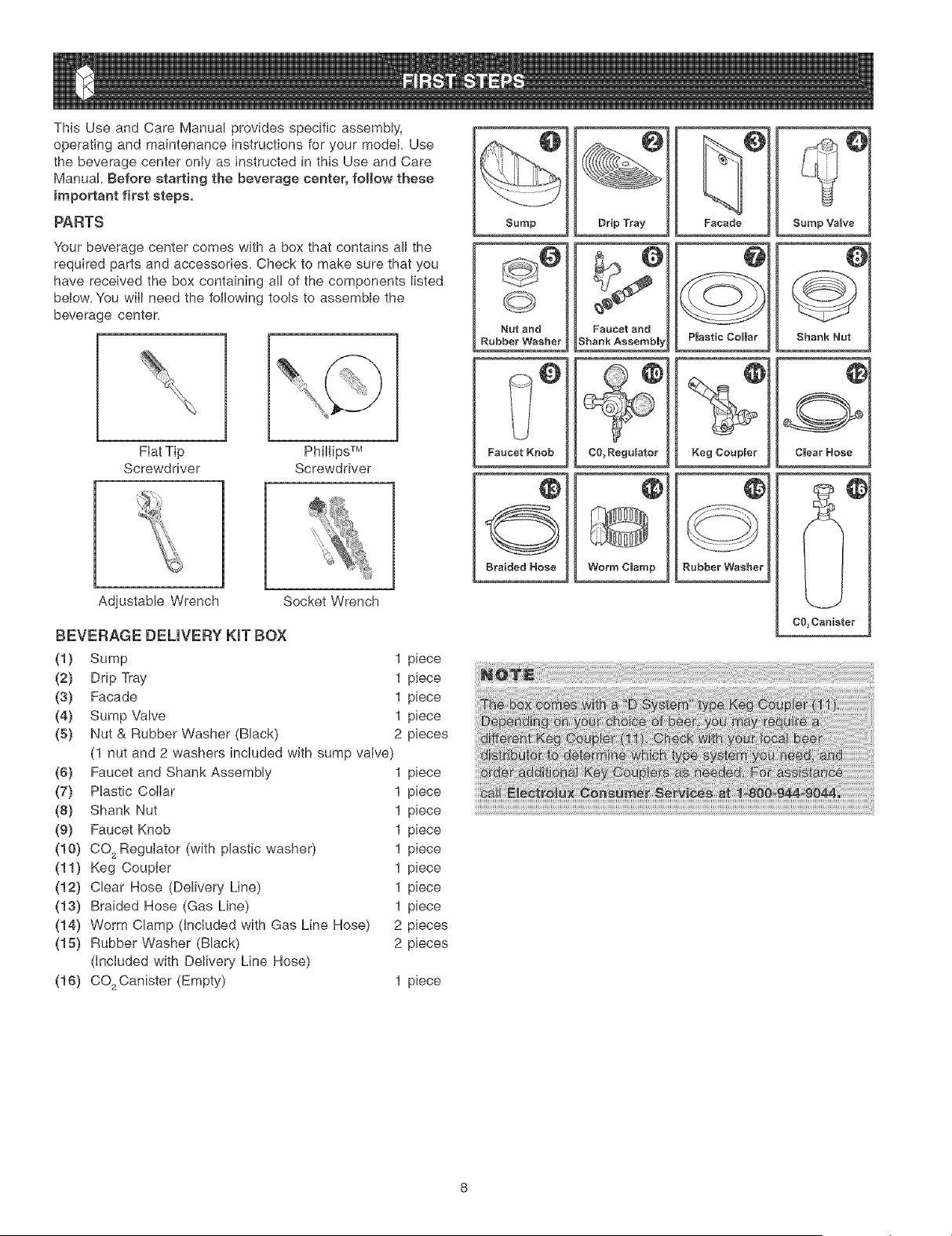

PARTS
Yourbeveragecentercomeswitha boxthatcontainsallthe
requiredpartsandaccessories.Checktomakesurethatyou
havereceivedtheboxcontainingallofthecomponentslisted
betow.YouwiIIneedthefollowingtoolstoassemblethe
beveragecenter.
FiatTip PhillipsTM
Screwdriver Screwdriver
Adjustable Wrench Socket Wrench
BEVERAGE DELIVERY KIT BOX
(1) Sump 1 piece
(2) Drip Tray 1 piece
(3) Facade 1 piece
(4) Sump 'valve 1 piece
(5) Nut & Rubber Washer (Black) 2 pieces
(1 nut and 2 washers included with sump valve)
Faucet and Shank Assembly 1 piece
Plastic Collar 1 piece
(6)
(7)
(8) Shank Nut 1
(9) Faucet Knob 1
(10) CO 2Reguiator (with plastic washer) 1
(11) Keg CoupIer 1
(12) Clear Hose (Delivery Line) 1
(13) Braided Hose (Gas Line) 1
(14) Worm Clamp dnciuded with Gas Line Hose) 2
(15) Rubber Washer (Black) 2
(Included with Delivery Line Hose)
(16) CO_ Canister (Empty) 1
piece
piece
piece
piece
piece
piece
pieces
pieces
piece
Nut and
Rubber Washer
C)
Faucet Knob
@
Braided Hose
Drip Tray
si
@
C02Canister

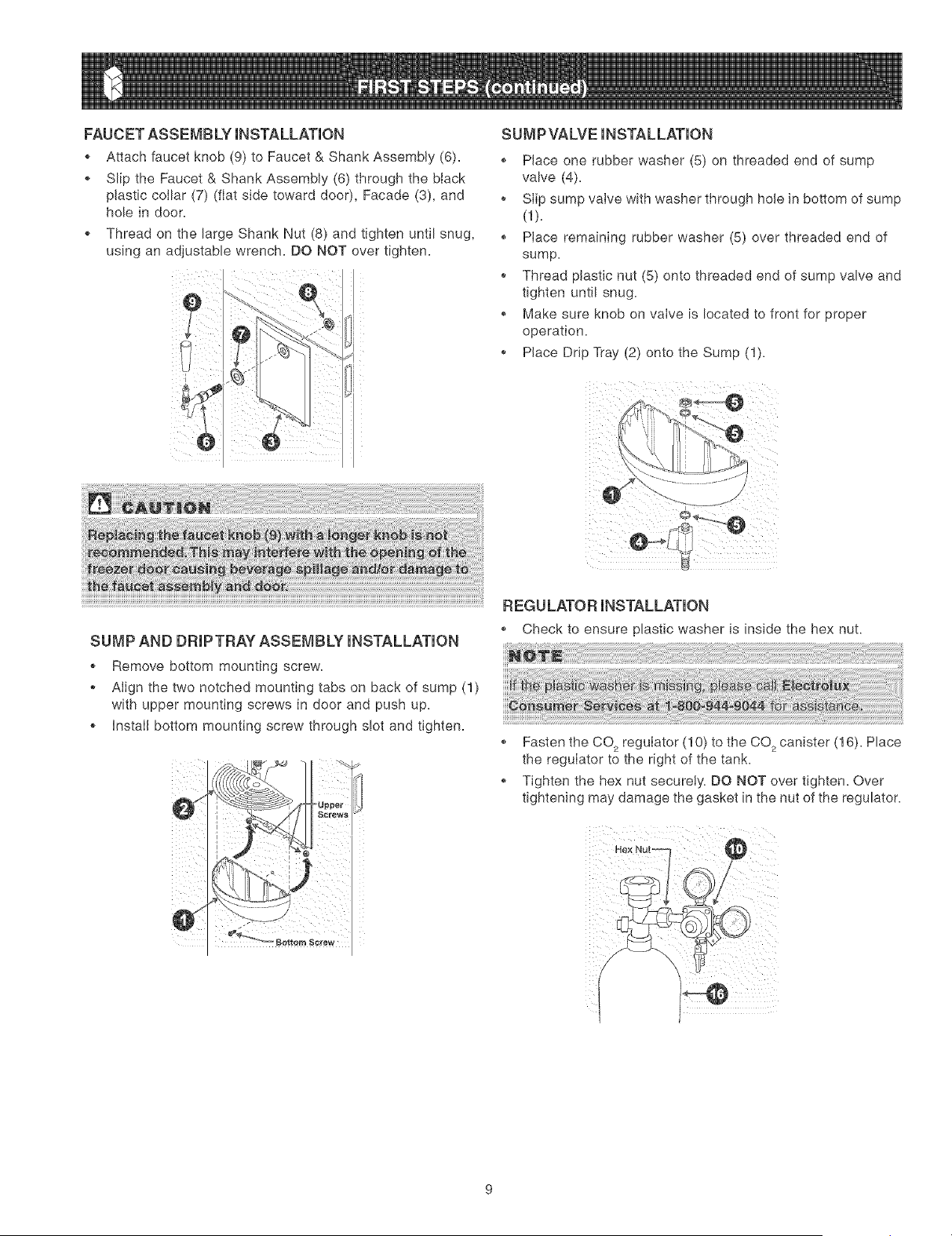

FAUCET ASSEMBLY iNSTALLATiON
,, Attach faucet knob (9) to Faucet & Shank Assembly (6)_
,, Slip the Faucet & Shank Assembly (6) through the black
plastic coIlar (7) (fiat side toward door), Facade (3), and
hole in door.
,, Thread on the large Shank Nut (8) and tighten until snug,
using an adjustable wrench. DO NOT over tighten.
SUMPVALVE INSTALLATION
,, Place one rubber washer (5) on threaded end of sump
valve (4).
o Slip sump valve with washer through hole in bottom of sump
(1).
,, Place remaining rubber washer (5) over threaded end of
sump.
o Thread plastic nut (5) onto threaded end of sump valve and
tighten until snug.
,, Make sure knob on valve is located to front for proper
operation.
o Place Drip Tray (2) onto the Sump (1).
REGULATOR iNSTALLATiON
SUMP AND DRIPTRAY ASSEMBLY INSTALLATION
,, Remove bottom mounting screw.
,, Align the two notched mounting tabs on back of sump (1)
with upper mounting screws in door and push up.
,, install bottom mounting screw through slot and tighten.
,, Check to ensure plastic washer is inside the hex nut.
,, Fasten the CO 2 regulator (10) to the CO 2canister (16). Place
the regulator to the right of the tank.
,, Tighten the hex nut securely. DO NOT over tighten. Over
t_ghtening may damage _ne gasket Ln[ne nut of the regulator.

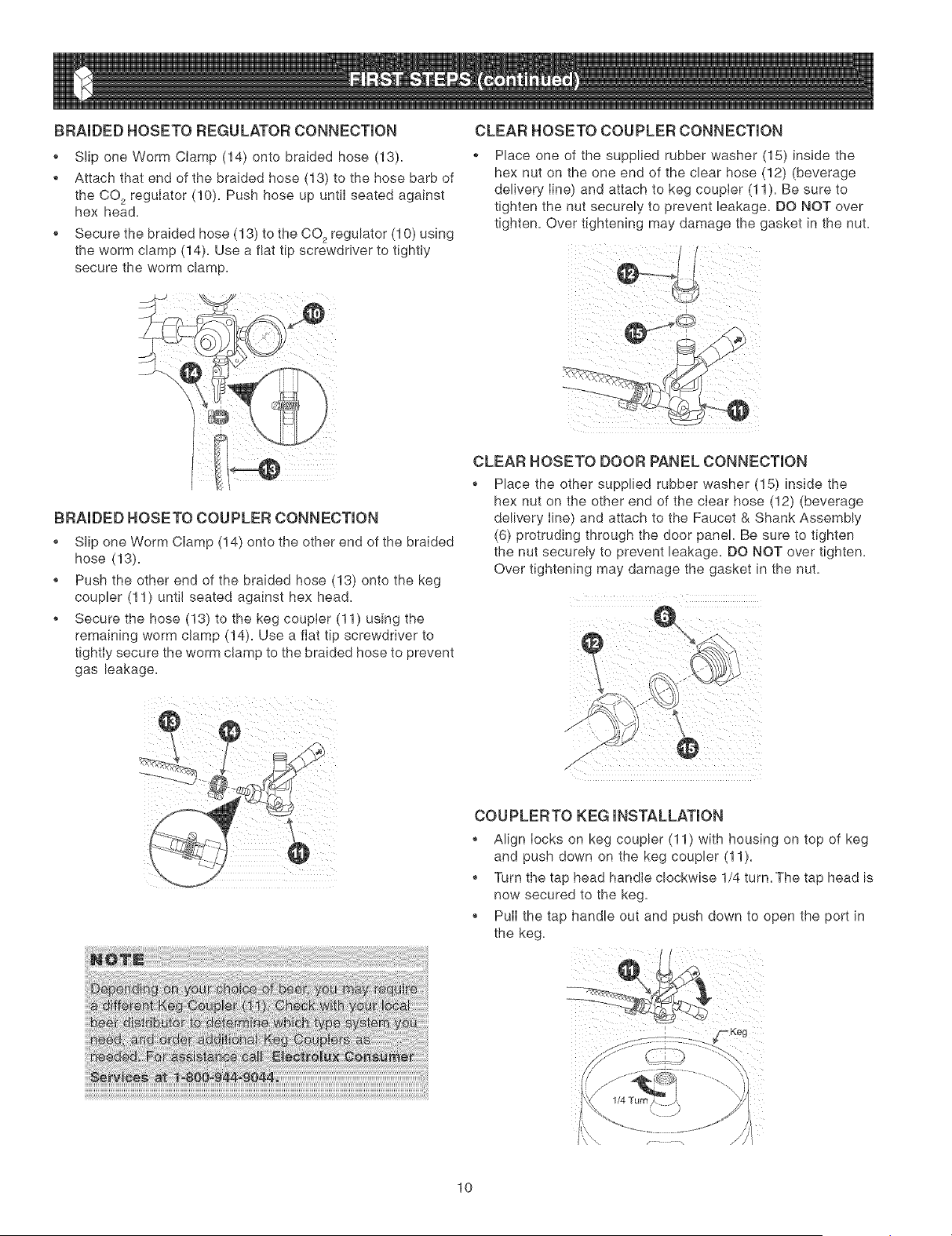

BRAmDED HOSETO REGULATOR CONNECTmON
Slip one Worm Clamp (14) onto braided hose (13).
Attach that end of the braided hose (13) to the hose barb of
the CO 2 regulator (10). Push hose up until seated against
hex head.
Secure the braided hose (13) to the CO 2 regulator (10) using
the worm clamp (14). Use a flat tip screwdriver to tightly
secure the worm clamp.
CLEAR HOSETO COUPLER CONNECTION
o Place one of the supplied rubber washer (15) inside the
hex nut on the one end of the clear hose (12) (beverage
delivery line) and attach to keg coupler (11). Be sure to
tighten the nut securely to prevent leakage. DO NOT over
tighten. Over tightening may damage the gasket in the nut.
BRAIDED HOSETO COUPLER CONNECTION
,, Slip one Worm Clamp (14) onto the other end of the braided
hose (13).
_, Push the other end of the braided hose (13) onto the keg
coupler (11) until seated against hex head.
,, Secure the hose (13) to the keg coupler (11) using the
remaining worm clamp (14). Use a fiat tip screwdriver to
tightly secure the worm clamp to the braided hose to prevent
gas leakage.
CLEAR HOSETO DOOR PANEL CONNECTION
,, Place the other supplied rubber washer (15) inside the
hex nut on the other end of the clear hose (12) (beverage
delivery line) and attach to the Faucet & Shank Assembly
(6) protruding through the door panel. Be sure to tighten
the nut securely to prevent leakage. DO NOT over tighten.
Over tightening may damage the gasket in the nut.
COUPLERTO KEG INSTALLATION
,, AHgn Iocks on keg coupler (11) with housing on top of keg
and push down on the keg coupler (11)_
,, Turn the tap head handle clockwise 1/4 turn. The tap head is
now secured to the keg.
_, PulI the tap handle out and push down to open the port in
the keg.
10

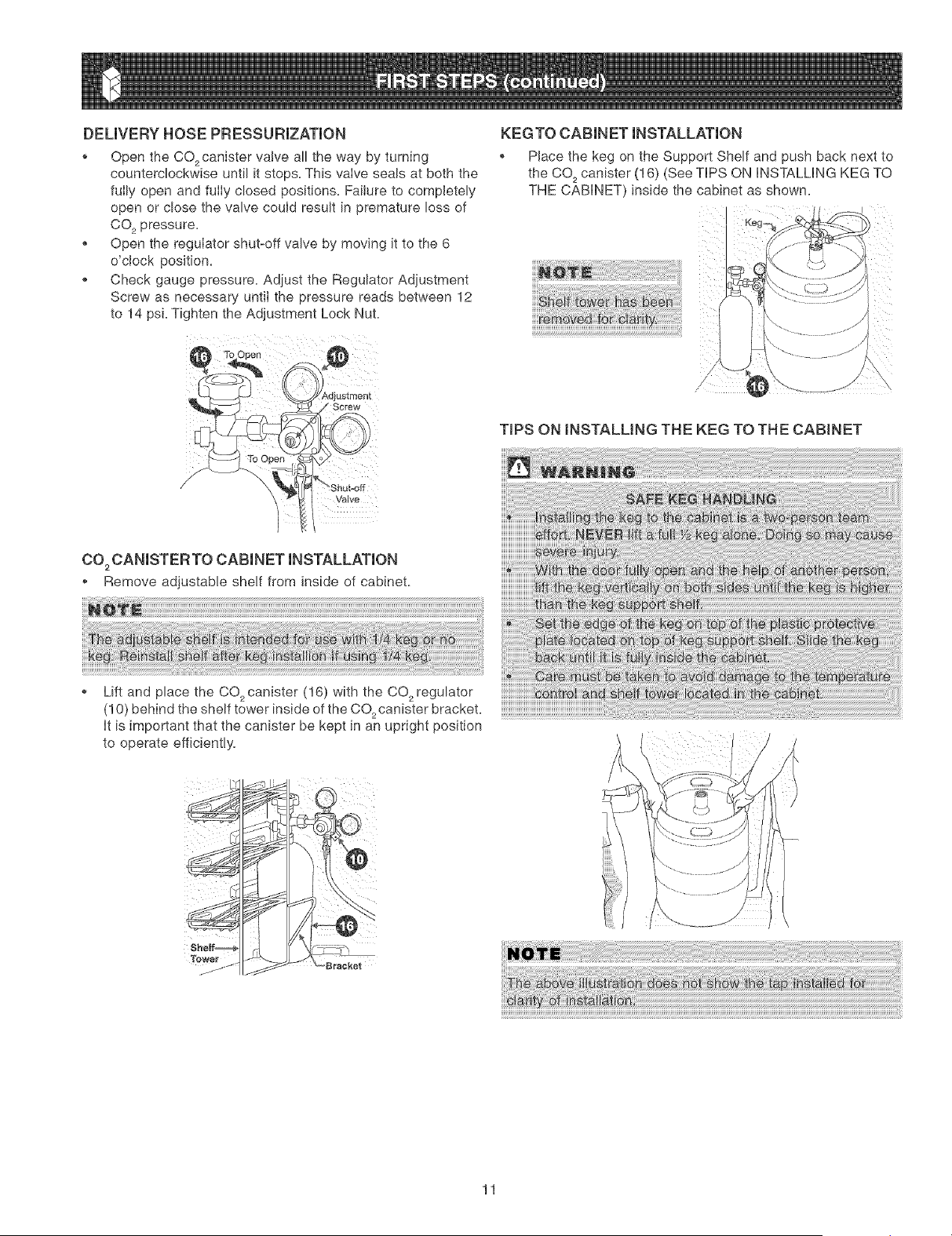

DELHVERYHOSEPRESSURHZATHON
,, OpentheCO2canistervalveallthewaybyturning
counterclockwiseuntilitstops.Thisvalvesealsatboththe
fuIlyopenandfuIIyclosedpositions.Failuretocompletely
openorclosethevalvecouldresult'_orema_urelossof
CO2pressure.
,, Opentheregulatorshut-offvalvebymovingittothe6
o'clockpositron.
,, Checkgaugeoressure.Ad_us_theRegulatorAdjustment
Screwasnecessaryuntilthe9ressurereausbetween12
to14psi.TightentheAdjustmentLockNut.
]boOpen
'_\'Shut-off
v_lv_
CO2CANISTER TO CABINET INSTALLATION
,, Remove adjustable shelf from inside of cabinet.
KEGTO CABINET INSTALLATION
_, Place the keg on the Support Shelf and push back next to
the CO 2 canister (16) (See TIPS ON INSTALUNG KEG TO
THE CABINET) inside the cabinet as shown.
TIPS ON INSTALUNG THE KEG TO THE CABINET
Lift and place the CO 2canister (16) with the CO 2regulator
(10) behind the shelf tower inside of the CO2canister bracket.
It is important that the canister be kept in an upright position
to operate efficiently.
$he(_
Tower
_Jf
11

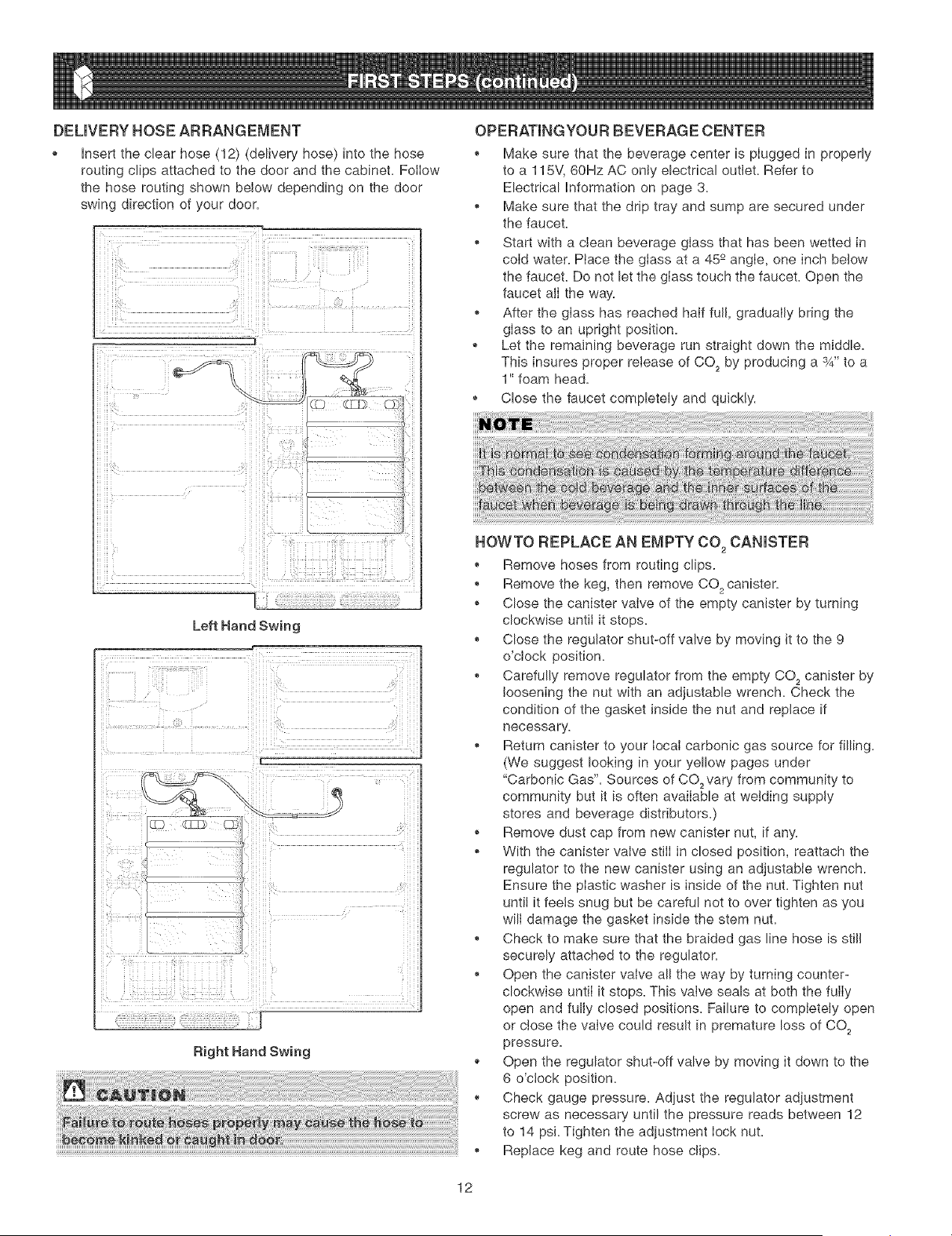

DELIVERYHOSEARRANGEMENT
,, Inserttheclearhose(12)(deliveryhose)intothehose
routingclipsattachedtothedoorandthecabinet.Foilow
thehoseroutingshownbelowdependingonthedoor
swingdirectionofyourdoor.
]Li '_ii!iiiiii!iii!i!i!iiiiii!ii!!ii_;ii!;!iiiiiiiii_i!;!ii:_',iiiii!ii!iiiiii_iii!iiiiii!ii!!ii_;ii!;!iiiiiiiii_i!;!ili
Left Hand Swing
i!iiii iiii
Hight Hand Swing
OPERATINGYOUR BEVERAGE CENTER
,, Make sure that the beverage center is plugged in properly
to a 115V, 60Hz AC onty electrical outlet. Refer to
Electrical Information on page 3.
,, Make sure that the drip tray and sump are secured under
the faucet.
,, Start with a clean beverage glass that has been wetted in
cold water. Piace the gtass at a 45 ° angle, one inch below
the faucet. Do not let the glass touch the faucet. Open the
faucet alI the way.
,, After the glass has reached half full, gradually bring the
glass to an upright position.
,, Let the remaining beverage run straight down the middle.
This insures proper release of CO 2 by producing a 3A" to a
1" foam head.
,, Close the faucet completely and quickly.
HOWTO REPLACE AN EMPTY CO 2 CANISTER
" Remove hoses from routing clips.
,, Remove the keg, then remove CO 2canister=
,, Close the canister vaIve of the empty canister by turning
clockwise untii it stops=
,, Close the regulator shut-off valve by moving it to the 9
o'clock position.
,, Carefully remove regulator from the empty CO 2 canister by
loosening the nut with an adjustable wrench. Check the
condition of the gasket inside the nut and replace if
necessary.
,, Return canister to your local carbonic gas source for filling.
(We suggest looking in your yellow pages under
"Carbonic Gas". Sources of CO2vary from community to
community but it is often available at welding supply
stores and beverage distributors.)
,, Remove dust cap from new canister nut, if any.
,, With the canister valve still in closed position, reattach the
regulator to the new canister using an adjustable wrench.
Ensure the plastic washer is inside of the nut. Tighten nut
until it feels snug but be careful not to over tighten as you
will damage the gasket inside the stem nut.
,, Check to make sure that the braided gas line hose is still
securely attached to the regulator.
,, Open the canister valve all the way by turning counter-
clockwise until it stops. This valve seals at both the fully
open and fully closed positions. Failure to completely open
or close the valve could result in premature loss of CO 2
pressure.
,, Open the regulator shut-off valve by moving it down to the
6 o'clock position.
,, Check gauge pressure. Adjust the regulator adjustment
screw as necessary until the pressure reads between 12
to 14 psi. Tighten the adjustment Iock nut.
,, Replace keg and route hose clips.
12

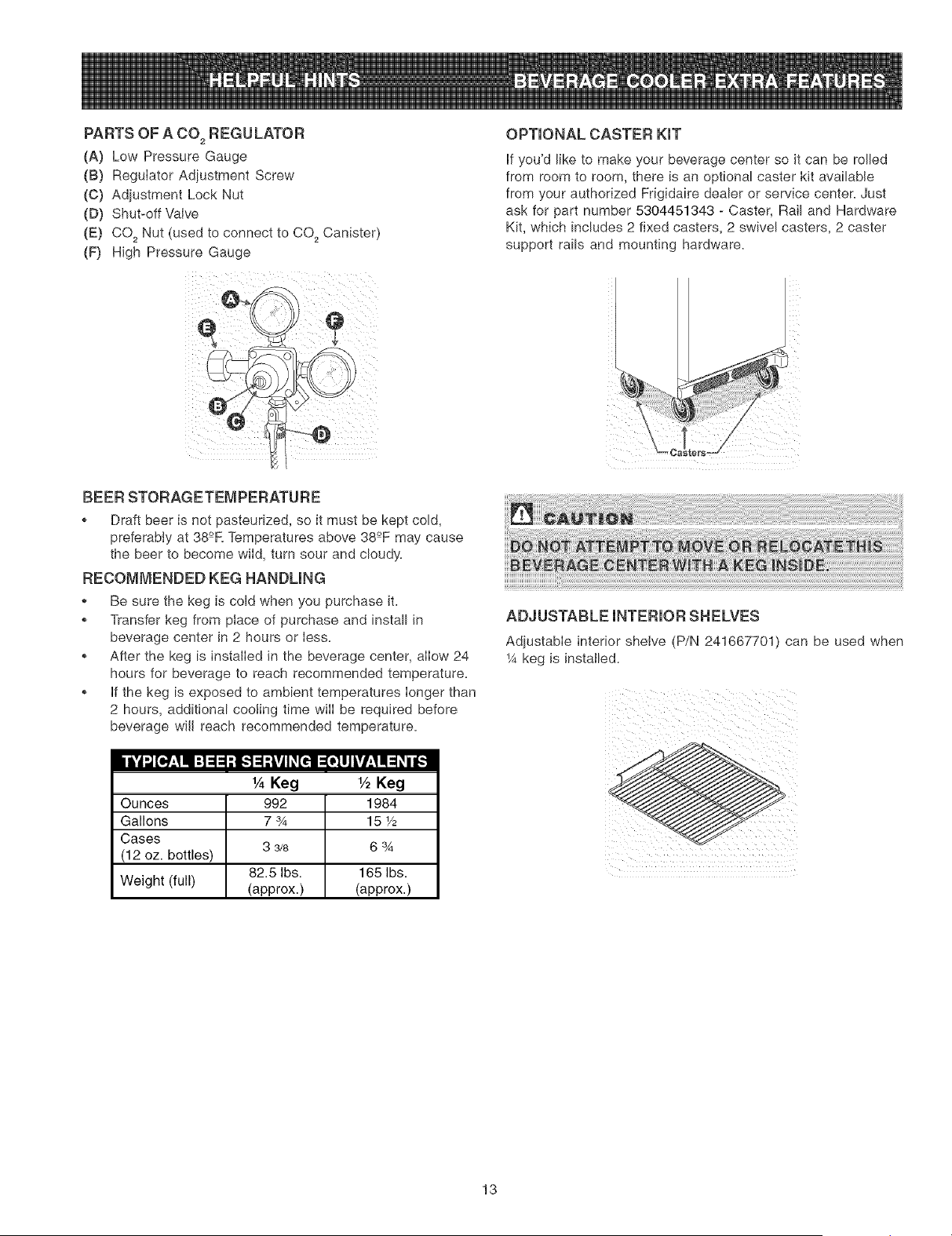

PARTSOFACO2REGULATOR
(A) LowPressureGauge
(B) RegulatorAdjustmentScrew
(C)AdjustmentLockNut
(D)Shut-offValve
(E) CO2Nut(usedtoconnecttoCO2Canister)
(F) HighPressureGauge
OPTIONAL CASTER KIT
If you'd like to make your beverage center so it can be rolled
from room to room, there is an optional caster kit available
from your authorized Frigidaire dealer or service center. Just
ask for part number 5304451343 - Caster, Rail and Hardware
Kit, which includes 2 fixed casters, 2 swivel casters, 2 caster
support rails and mounting hardware.
BEER STORAGETEMPERATURE
,, Draft beer is not pasteurized, so it must be kept cold,
preferably at 38°R Temperatures above 38°F may cause
the beer to become wild, turn sour and cloudy.
RECOMMENDED KEG HANDLING
,, Be sure the keg is cold when you purchase it.
,, Transfer keg from place of purchase and install in
beverage center in 2 hours or less.
,, After the keg is installed in the beverage center, allow 24
hours for beverage to reach recommended temperature.
,, If the keg is exposed to ambient temperatures longer than
2 hours, additional cooling time wilI be required before
beverage will reach recommended temperature.
_A Keg 1/2Keg
Ounces 992 1984
Gallons 7 3A 15 Y2
Cases
3 3/8 6 3A
(12 oz. bottles)
82.5 Ibs. 165 Ibs.
Weight (full) (approx.) (approx.)
ADJUSTABLE INTERIOR SHELVES
Adjustable interior shelve (P/N 241667701) can be used when
¼ keg is installed.
i iii_ iii_ _i iiI i_i_ L I i
i i i i
13

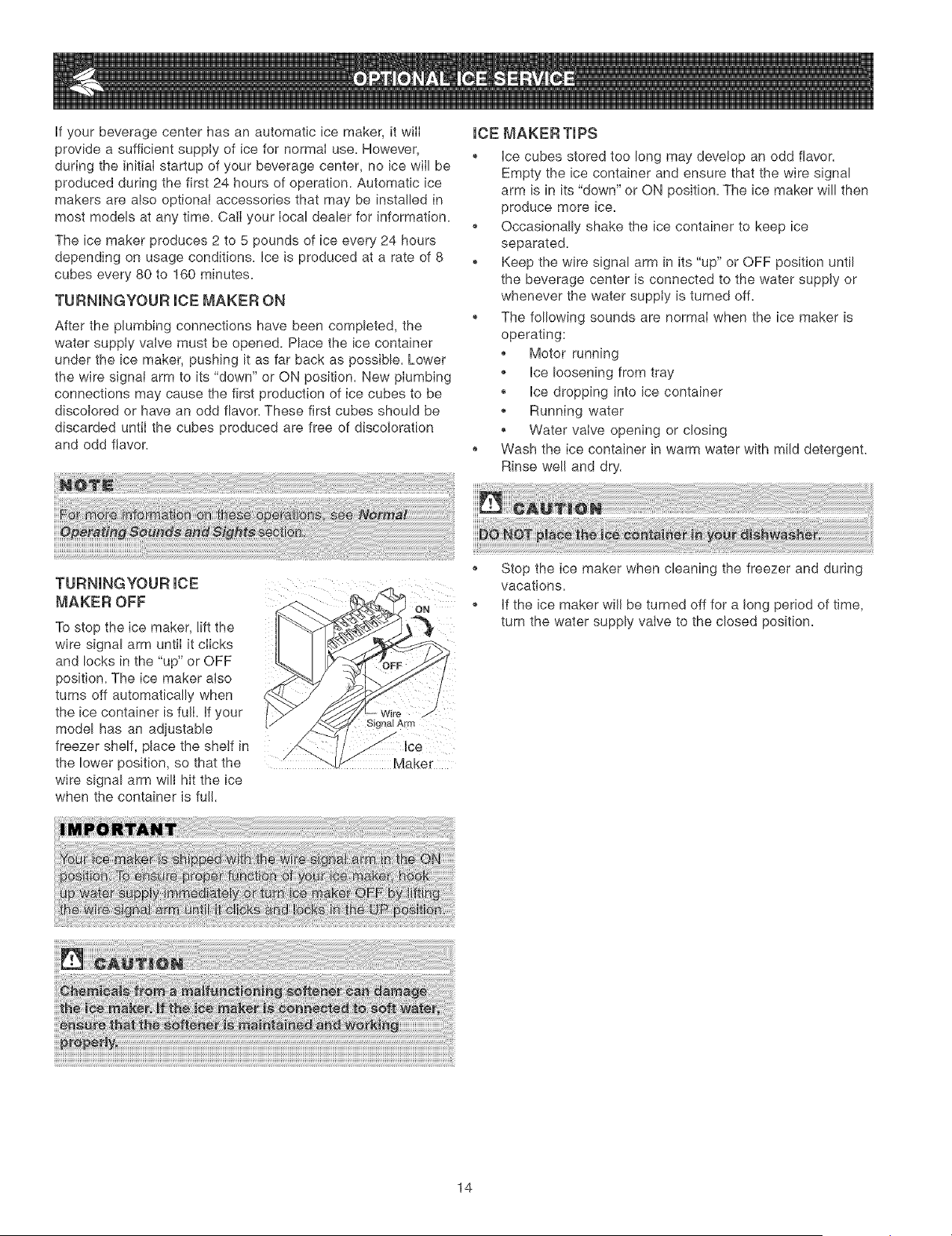

Ifyourbeveragecenterhasanautomaticicemaker,itwilI
providea sufficientsupplyoficefornormaIuse.However,
duringtheinitialstartupofyourbeveragecenter,noicewilIbe
producedduringthefirst24hoursofoperation.Automaticice
makersareaisooptionalaccessoriesthatmaybeinstalledin
mostmodelsatanytime.CalIyourlocaldealerforinformation.
Theicemakerproduces2to5poundsoficeevery24hours
dependingonusageconditions.Iceisproducedatarateof8
cubesevery80to160minutes.
TURNINGYOURiCE MAKER ON
After the plumbing connections have been completed, the
water suppiy valve must be opened. Place the ice container
under the ice maker, pushing it as far back as possible. Lower
the wire signai arm to its "down" or ON position. New plumbing
connections may cause the first production of ice cubes to be
discolored or have an odd flavor. These first cubes should be
discarded until the cubes produced are free of discoloration
and odd flavor.
ICE MAKER TiPS
_, Ice cubes stored too long may develop an odd flavor.
Empty the ice container and ensure that the wife signal
arm is in its "down" or ON position. The ice maker will then
produce more ice.
,, Occasionally shake the ice container to keep ice
separated.
_, Keep the wire signal arm in its "up" or OFF position until
the beverage center is connected to the water supply or
whenever the water supply is turned off.
_, The following sounds are normaI when the ice maker is
operating:
- Motor running
- Ice loosening from tray
, Ice dropping into ice container
, Running water
,, Water valve opening or closing
,, Wash the ice container in warm water with mild detergent.
Rinse well and dry.
TURNINGYOUR ICE
MAKER OFF
To stop the ice maker, lift the
wire signal arm until it clicks
and locks in the "up" or OFF
position. The ice maker also
turns off automatically when
the ice container is full. If your
model has an adjustable
freezer shelf, place the shelf in
the lower position, so that the
wire signal arm will hit the ice
when the container is fu!!.
Signal A[rn
Maker
,, Stop the ice maker when cleaning the freezer and during
vacations.
_, If the ice maker will be turned off for a long period of time,
turn the water supply valve to the closed position.
14

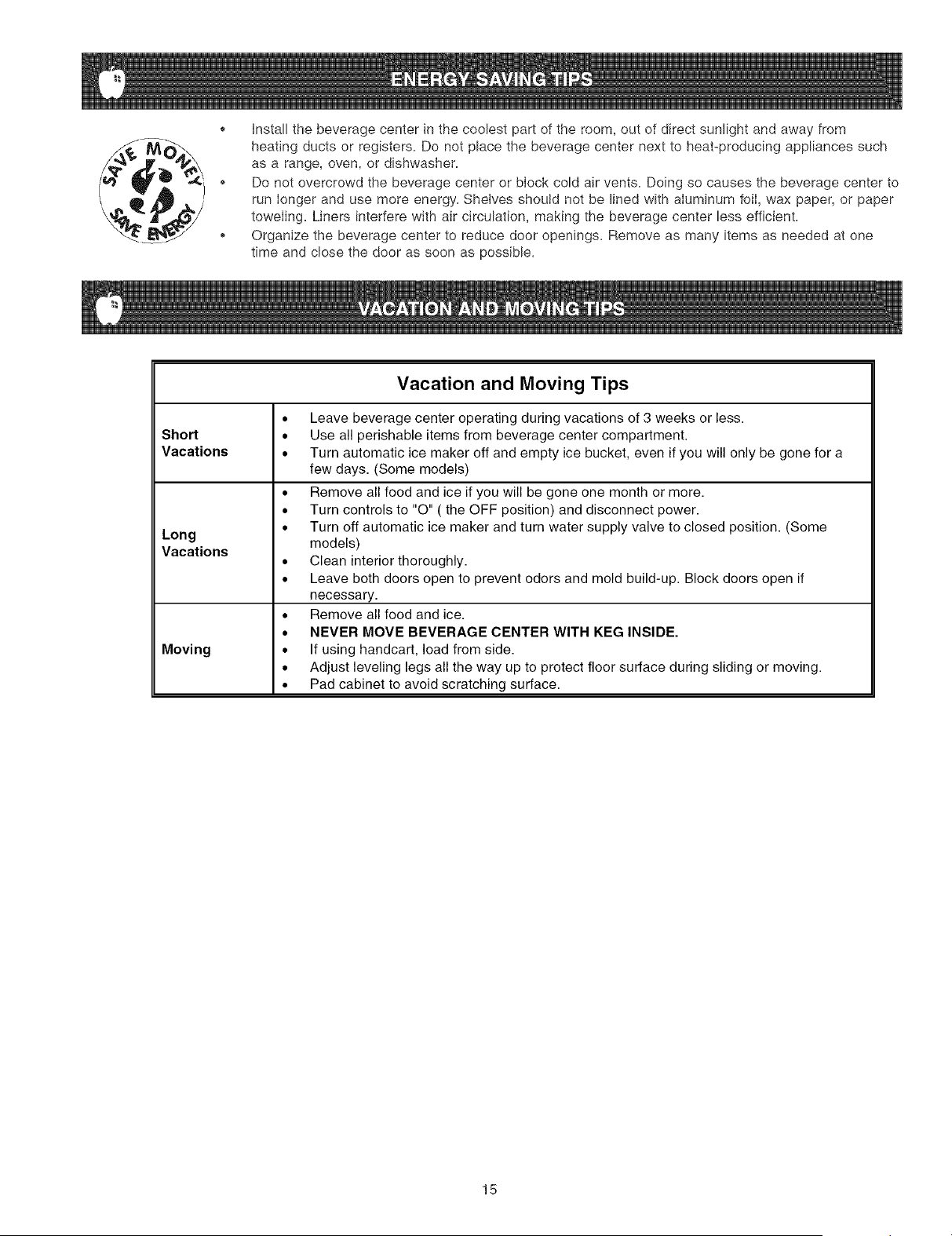

,, Installthebeveragecenterinthecoolestpartoftheroom,outofdirectsunlightandawayfrom
heatingductsorregisters.Donotplacethebeveragecenternexttoheat-producingappliancessuch
asa range,oven,ordishwasher.
,, Donotovercrowdthebeveragecenterorblockcoldairvents.Doingsocausesthebeveragecenterto
runlongerandusemoreenergy.Shelvesshouldnotbelinedwithaluminumfoil,waxpaper,orpaper
toweling.Linersinterferewithaircirculation,makingthebeveragecenterlessefficient.
,, Organizethebeveragecentertoreducedooropenings.Removeasmanyitemsasneededatone
timeandclosethedoorassoonaspossible.
Vacation and Moving Tips
Short •
Vacations •
Long
Vacations
Moving •
Leave beverage center operating during vacations of 3 weeks or less.
Use all perishable items from beverage center compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be gone for a
few days. (Some models)
Remove all food and ice if you will be gone one month or more.
Turn controls to "O" ( the OFF position) and disconnect power.
Turn off automatic ice maker and turn water supply valve to closed position. (Some
models)
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
Remove all food and ice.
NEVER MOVE BEVERAGE CENTER WITH KEG INSIDE.
If using handcart, load from side.
Adjust leveling legs all the way up to protect floor surface during sliding or moving.
Pad cabinet to avoid scratching surface.
15

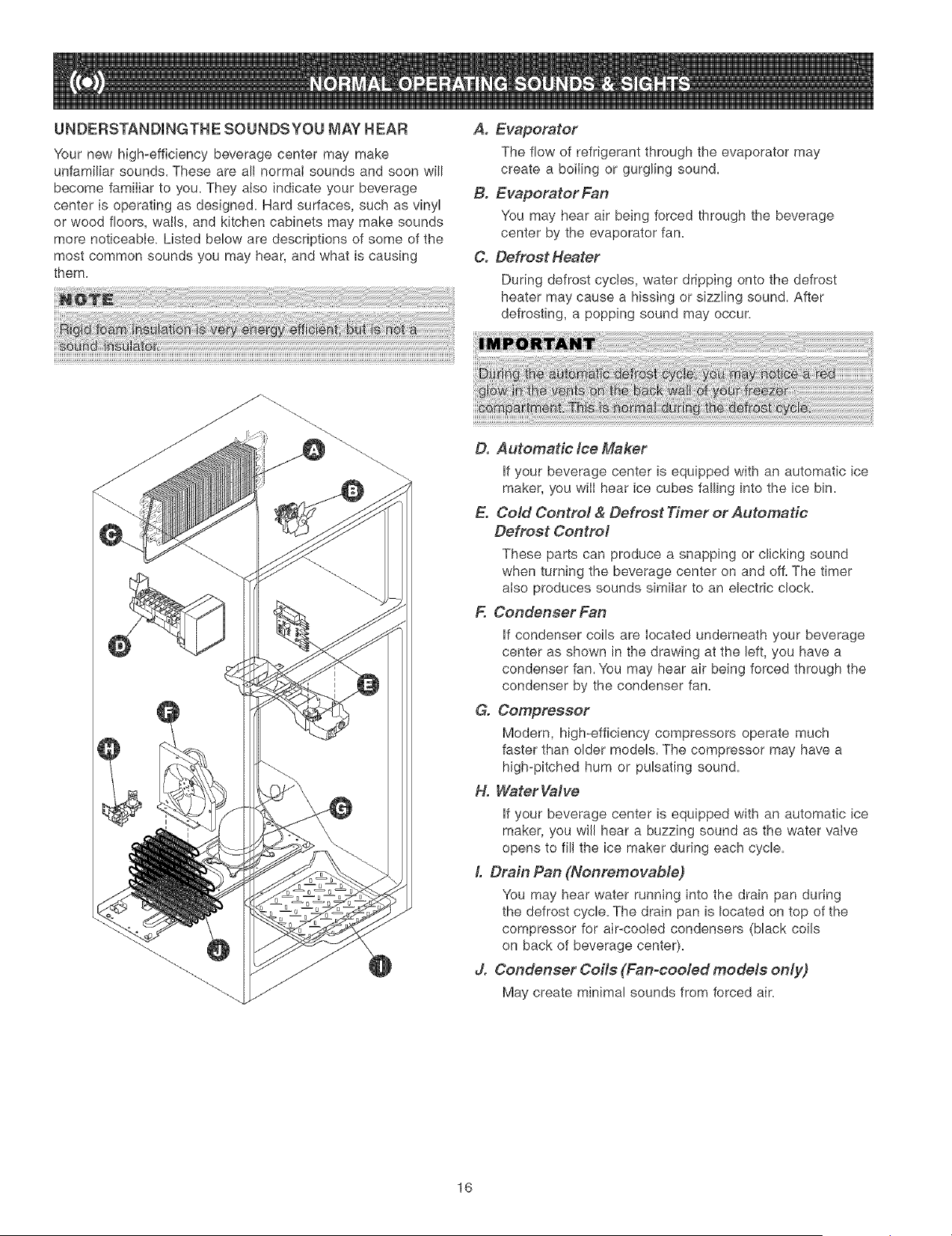

UNDERSTANDINGTHE SOUNDSYOU MAY HEAR
A. Evaporator
Your new high-efficiency beverage center may make
unfamiliar sounds. These are all normal sounds and soon will
become familiar to you. They also indicate your beverage B.
center is operating as designed. Hard surfaces, such as vinyl
or wood floors, walls, and kitchen cabinets may make sounds
more noticeable. Listed below are descriptions of some of the
most common sounds you may hear, and what is causing C.
them.
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
Evaporator Fan
You may hear air being forced through the beverage
center by the evaporator fan.
Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
D. Automatic Ice Maker
If your beverage center is equipped with an automatic ice
maker, you wiII hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the beverage center on and off. The timer
also produces sounds simiiar to an electric clock.
F. Condenser Fan
If condenser coils are located underneath your beverage
center as shown in the drawing at the left, you have a
condenser fan. You may hear air being forced through the
condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than eider models. The compressor may have a
high-pitched hum or pulsating sound.
H. WaterValve
If your beverage center is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan is located on top of the
compressor for air-cooled condensers (black coils
on back of beverage center).
J. Condenser Coils (Fan-cooled models only)
May create minimal sounds from forced air.
16
Keepyourbeveragecentercleantopreventodorbuild-up.Wipeupanyspillsimmediatelyandcleanbothsectionsatleasttwice
ayear.Neveruseanytypeofscouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonanysurface.Donot
washanyremovablepartsinadishwasher.Always unplug the electrical power cord from the wall oudet before cleaning,

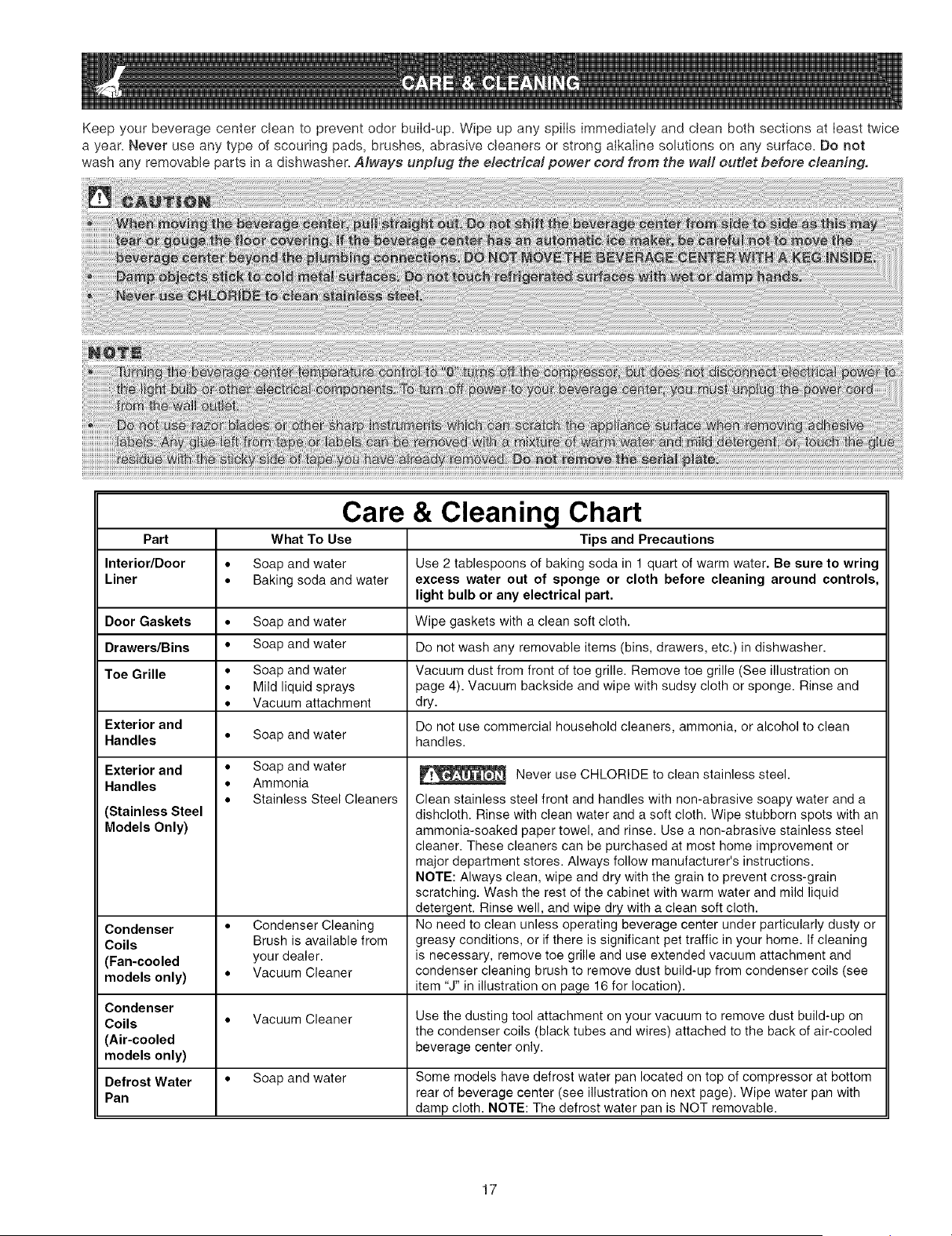

Care & Cleaning Chart
Part What To Use Tips and Precautions
Interior/Door ,, Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring
Liner ,, Baking soda and water excess water out of sponge or cloth before cleaning around controls,
light bulb or any electrical part.
Door Gaskets ,, Soap and water Wipe gaskets with a clean soft cloth.
Drawers/Bins ,, Soap and water Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Toe Grille • Soap and water Vacuum dust from front of toe grille. Remove toe grille (See illustration on
• Mild liquid sprays page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and
• Vacuum attachment dry.
Exterior and Do not use commercial household cleaners, ammonia, or alcohol to clean
Handles • Soap and water handles.
Exterior and
Handles
• Soap and water
• Ammonia
• Stainless Steel Cleaners
(Stainless Steel
Models Only)
Condenser • Condenser Cleaning
Coils Brush is available from
(Fan-cooled your dealer.
models only) • Vacuum Cleaner
Condenser
Coils • Vacuum Cleaner Use the dusting tool attachment on your vacuum to remove dust build-up on
(Air-cooled the condenser coils (black tubes and wires) attached to the back of air-cooled
models only) beverage center only.
Defrost Water • Soap and water Some models have defrost water pan located on top of compressor at bottom
Pan rear of beverage center (see illustration on next page). Wipe water pan with
damp cloth. NOTE: The defrost water pan is NOT removable.
Never use CHLORIDE to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
No need to clean unless operating beverage center under particularly dusty or
greasy conditions, or if there is significant pet traffic in your home. If cleaning
is necessary, remove toe grille and use extended vacuum attachment and
condenser cleaning brush to remove dust build-up from condenser coils (see
item "J" in illustration on page 16 for location).
17

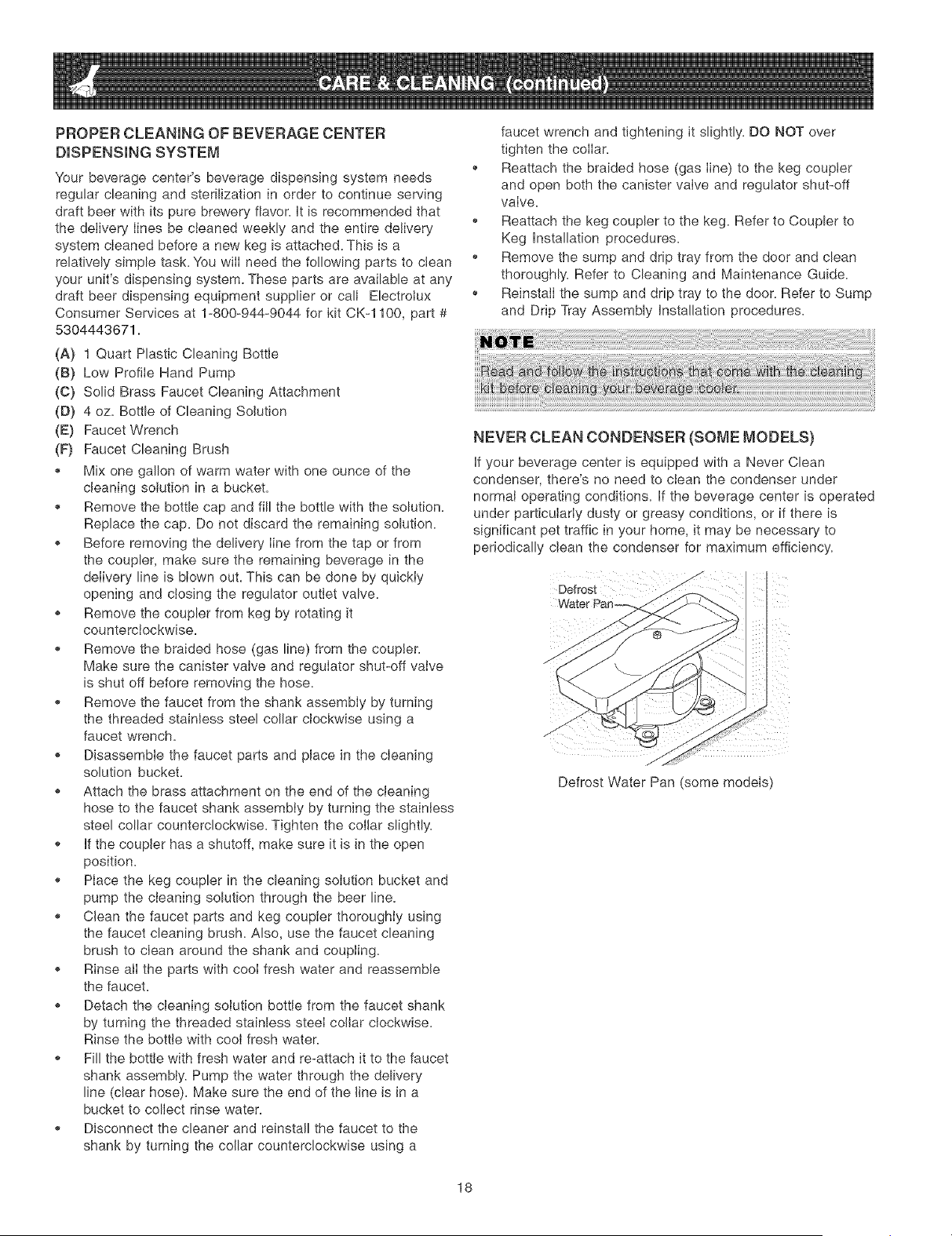

PROPER CLEANmNG OF BEVERAGE CENTER
DmSPENSmNGSYSTEM
Your beverage center's beverage dispensing system needs
regular cleaning and sterilization in order to continue serving
draft beer with its pure brewery flavor. It is recommended that
the delivery lines be cleaned weekly and the entire delivery
system cleaned before a new keg is attached. This is a
relatively simple task. You wiII need the fo!lowing parts to clean
your unit's dispensing system. These parts are available at any
draft beer dispensing equipment supplier or call Electrotux
Consumer Services at 1-800-944-9044 for kit CK-1100, part #
5304443671.
(A) 1 Quart Plastic Cleaning Bottle
(B) Low Profile Hand Pump
(C) Solid Brass Faucet Cleaning Attachment
(D) 4 oz. Bottle of Cleaning Solution
(E) Faucet Wrench
(F) Faucet Cleaning Brush
,_ Mix one gallon of warm water with one ounce of the
cleaning solution in a bucket.
,_ Remove the bottle cap and fill the bottle with the solution.
Replace the cap. Do not discard the remaining solution.
,_ Before removing the delivery Iine from the tap or from
the coupler, make sure the remaining beverage in the
delivery line is blown out. This can be done by quickly
opening and closing the regulator outlet valve.
,_ Remove the coupler from keg by rotating it
counterclockwise.
,_ Remove the braided hose (gas line) from the coupler.
Make sure the canister valve and regulator shut-off valve
is shut off before removing the hose.
,_ Remove the faucet from the shank assembly by turning
the threaded stainless steel collar clockwise using a
faucet wrench.
,_ Disassemble the faucet parts and place in the cleaning
solution bucket.
,_ Attach the brass attachment on the end of the cleaning
hose to the faucet shank assembly by turning the stainless
steel collar counterclockwise. Tighten the collar slightly.
,_ If the coupler has a shutoff, make sure it is in the open
position.
,_ Place the keg coupler in the cleaning solution bucket and
pump the cieaning solution through the beer line.
,_ Clean the faucet parts and keg coupier thoroughly using
the faucet cleaning brush. Also, use the faucet cleaning
brush to clean around the shank and coupling.
,_ Rinse aII the parts with cooI fresh water and reassemble
the faucet.
,_ Detach the cleaning solution bottle from the faucet shank
by turning the threaded stainless steel collar clockwise.
Rinse the bottle with cooI fresh water.
,_ Fill the bottle with fresh water and re-attach it to the faucet
shank assembly. Pump the water through the delivery
line (clear hose). Make sure the end of the line is in a
bucket to collect rinse water.
,_ Disconnect the cleaner and reinstall the faucet to the
shank by turning the collar counterclockwise using a
faucet wrench and tightening it slightly. DO NOT over
tighten the collar.
- Reattach the braided hose (gas line) to the keg coupler
and open both the canister valve and regulator shut-off
valve.
- Reattach the keg coupler to the keg. Refer to Coupler to
Keg Installation procedures.
- Remove the sump and drip tray from the door and clean
thoroughly. Refer to Cleaning and Maintenance Guide.
- ReinstaiI the sump and drip tray to the door. Refer to Sump
and Drip Tray Assembly Installation procedures.
NEVER CLEAN CONDENSER (SOME MODELS}
If your beverage center is equipped with a Never Clean
condenser, there's no need to clean the condenser under
normal operating conditions. If the beverage center is operated
under particularly dusty or greasy conditions, or if there is
significant pet traffic in your home, it may be necessary to
periodically clean the condenser for maximum efficiency.
Defrost
Defrost Water Pan (some models)
18

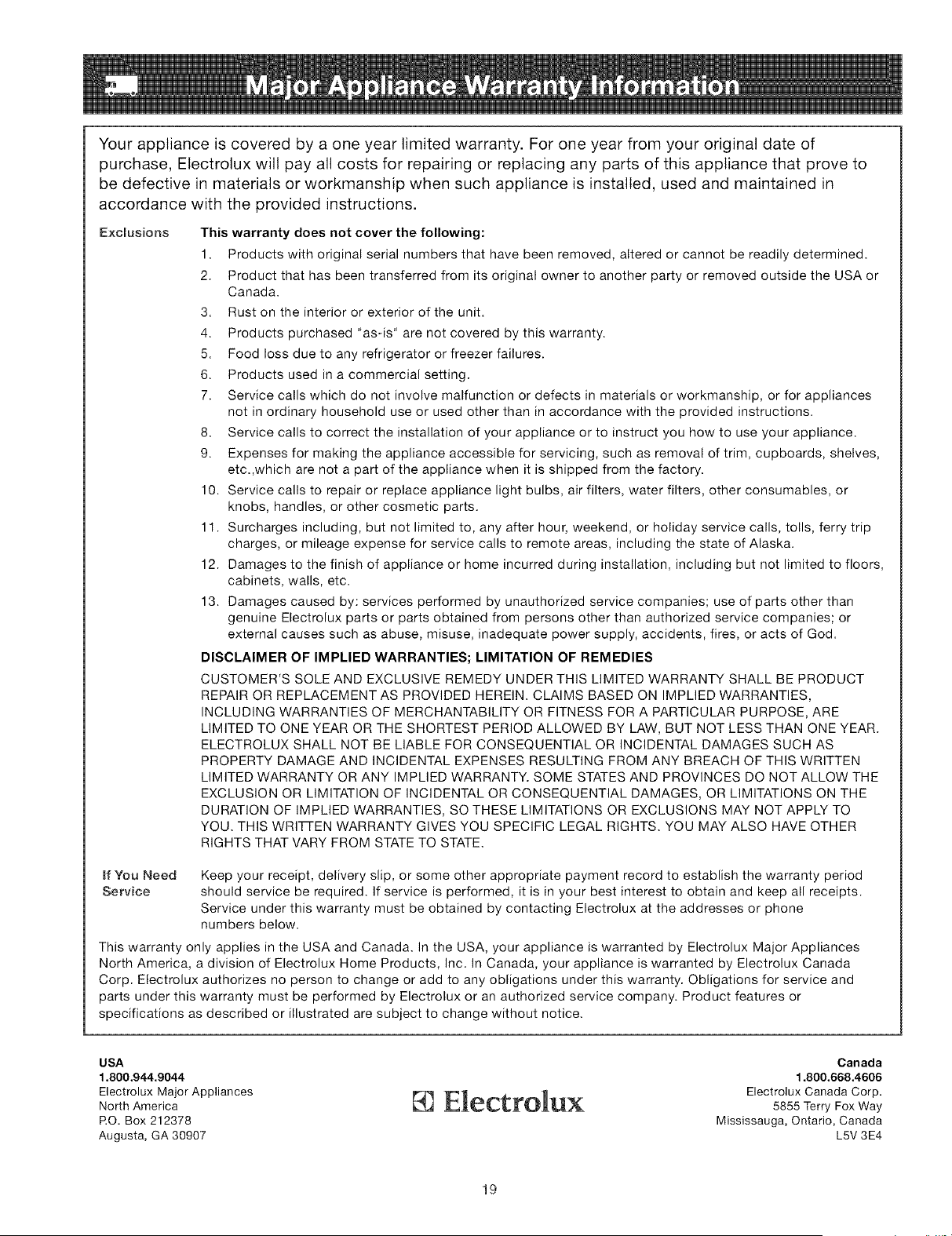

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Etectrolux wilt pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
E×c[usions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
1 1. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRI]-i-EN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Electrolu×
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
19

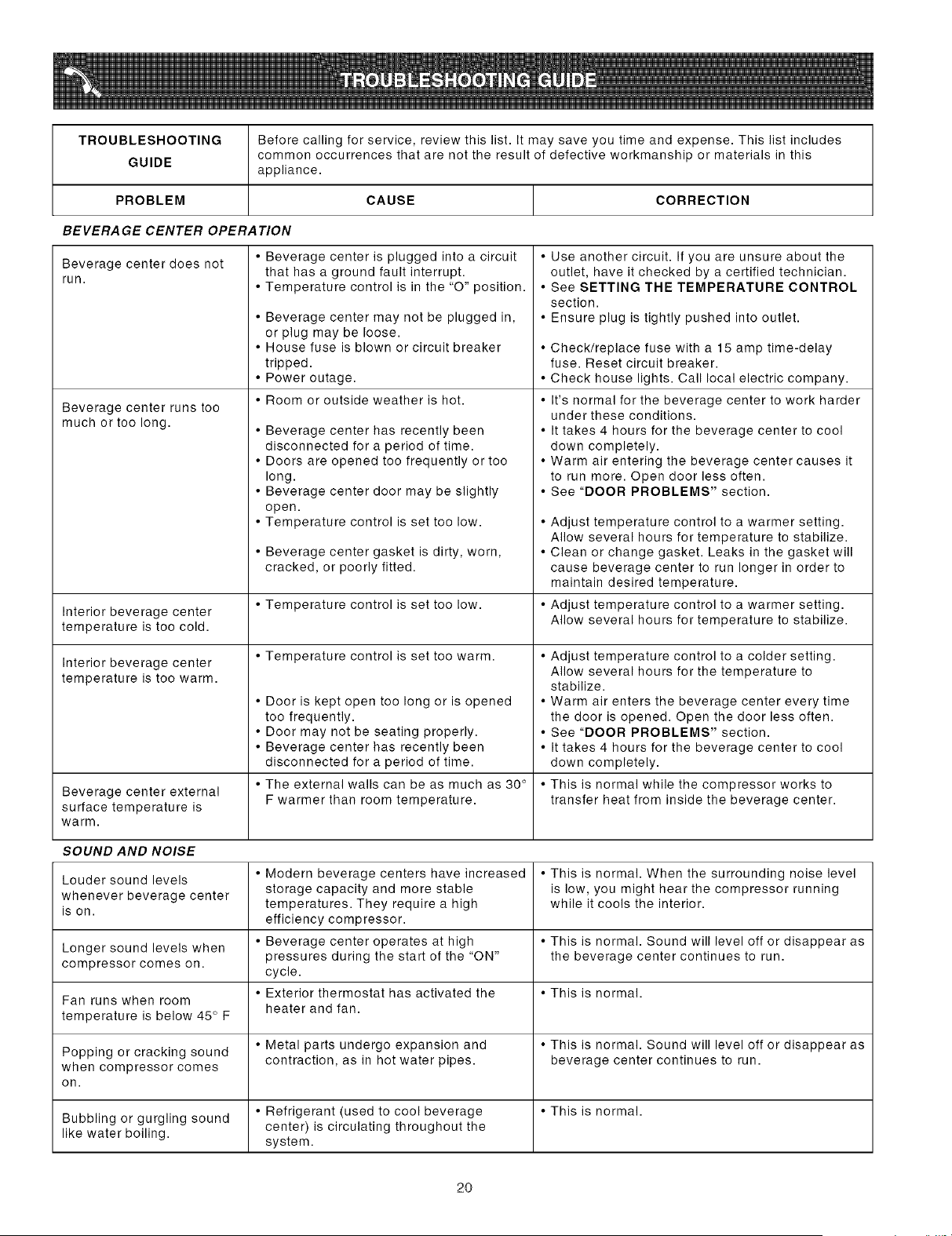

TROUBLESHOOTING Before calling for service, review this list. It may save you time and expense. This list includes
common occurrences that are not the result of defective workmanship or materials in this
GUIDE
appliance.
PROBLEM CAUSE CORRECTION
BEVERAGE CENTER OPERATION
Beverage center does not
run.
Beverage center runs too
much or too long.
• Beverage center is plugged into a circuit
that has a ground fault interrupt.
• Temperature control is in the "O" position.
• Beverage center may not be plugged in,
or plug may be loose.
• House fuse is blown or circuit breaker
tripped.
• Power outage.
• Room or outside weather is hot.
• Beverage center has recently been
disconnected for a period of time.
• Doors are opened too frequently or too
long.
• Beverage center door may be slightly
open.
• Temperature control is set too low.
• Beverage center gasket is dirty, worn,
cracked, or poorly fitted.
Interior beverage center • Temperature control is set too low.
temperature is too cold.
• Temperature control is set too warm.
Interior beverage center
temperature is too warm.
• Door is kept open too long or is opened
too frequently.
• Door may not be seating properly.
• Beverage center has recently been
disconnected for a period of time.
• The external walls can be as much as 30 °
F warmer than room temperature.
• Use another circuit. If you are unsure about the
outlet, have it checked by a certified technician.
• See SETTING THE TEMPERATURE CONTROL
section.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay
fuse. Reset circuit breaker.
• Check house lights. Call local electric company.
• It's normal for the beverage center to work harder
under these conditions.
• It takes 4 hours for the beverage center to cool
down completely.
• Warm air entering the beverage center causes it
to run more. Open door less often.
• See "DOOR PROBLEMS" section.
• Adjust temperature control to a warmer setting.
Allow several hours for temperature to stabilize.
• Clean or change gasket. Leaks in the gasket will
cause beverage center to run longer in order to
maintain desired temperature.
• Adjust temperature control to a warmer setting.
Allow several hours for temperature to stabilize.
• Adjust temperature control to a colder setting.
Allow several hours for the temperature to
stabilize.
• Warm air enters the beverage center every time
the door is opened. Open the door less often.
• See "DOOR PROBLEMS" section.
• It takes 4 hours for the beverage center to cool
down completely.
• This is normal while the compressor works to
transfer heat from inside the beverage center.
Beverage center external
surface temperature is
warm.
SOUND AND NOISE
Louder sound levels • Modern beverage centers have increased • This is normal. When the surrounding noise level
whenever beverage center storage capacity and more stable is low, you might hear the compressor running
is on. temperatures. They require a high while it cools the interior.
efficiency compressor.
Longer sound levels when • Beverage center operates at high • This is normal. Sound will level off or disappear as
pressures during the start of the "ON" the beverage center continues to run.
compressor comes on. cycle.
• Exterior thermostat has activated the • This is normal.
Fan runs when room
heater and fan.
temperature is below 45 ° F
Popping or cracking sound • Metal parts undergo expansion and • This is normal. Sound will level off or disappear as
contraction, as in hot water pipes, beverage center continues to run.
when compressor comes
On.
• Refrigerant (used to cool beverage • This is normal.
Bubbling or gurgling sound center) is circulating throughout the
like water boiling, system.
2O

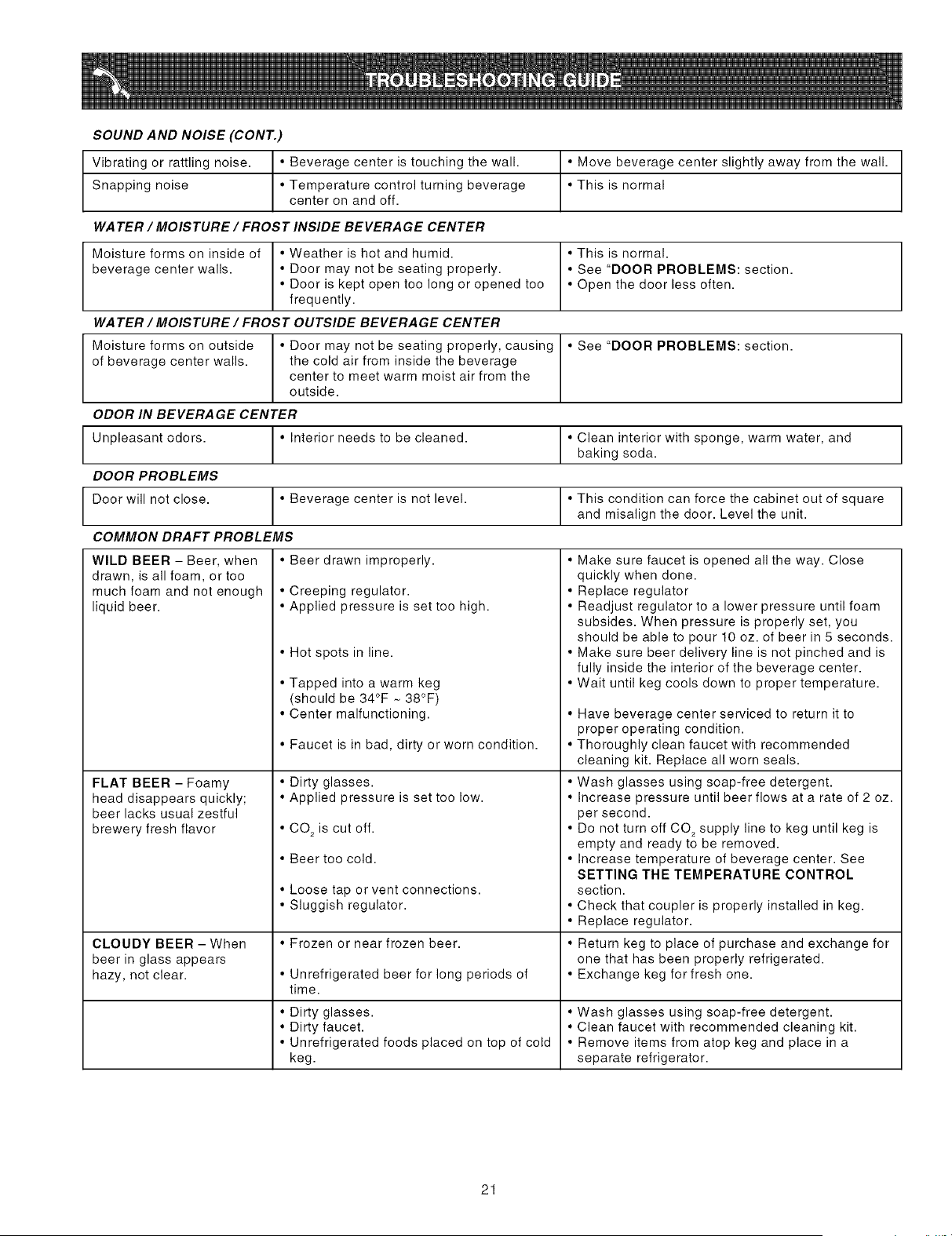

SOUND AND NOISE (CONT.)
Vibrating or rattling noise. • Beverage center is touching the wall. • Move beverage center slightly away from the wall.
Snapping noise • Temperature control turning beverage • This is normal
center on and off.
WATER / MOISTURE / FROST INSIDE BEVERAGE CENTER
Moisture forms on inside of • Weather is hot and humid. • This is normal.
beverage center walls. • Door may not be seating properly. • See "DOOR PROBLEMS: section.
• Door is kept open too long or opened too • Open the door less often.
frequently.
WATER / MOISTURE / FROST OUTSIDE BEVERAGE CENTER
Moisture forms on outside • Door may not be seating properly, causing o See "DOOR PROBLEMS: section.
of beverage center walls, the cold air from inside the beverage
center to meet warm moist air from the
outside.
ODOR IN BEVERAGE CENTER
Unpleasant odors. • Interior needs to be cleaned. • Clean interior with sponge, warm water, and
baking soda.
DOOR PROBLEMS
Door will not close. • Beverage center is not level. • This condition can force the cabinet out of square
and misalign the door. Level the unit.
COMMON DRAFT PROBLEMS
WILD BEER - Beer, when
drawn, is all foam, or too
much foam and not enough
liquid beer.
FLAT BEER - Foamy
head disappears quickly;
beer lacks usual zestful
brewery fresh flavor
CLOUDY BEER - When
beer in glass appears
hazy, not clear.
• Beer drawn improperly.
• Creeping regulator.
• Applied pressure is set too high.
• Hot spots in line.
• Tapped into a warm keg
(should be 34°F - 38°F)
• Center malfunctioning.
• Faucet is in bad, dirty or worn condition.
• Dirty glasses.
• Applied pressure is set too low.
• CO 2 is cut off.
• Beer too cold.
• Loose tap or vent connections.
• Sluggish regulator.
• Frozen or near frozen beer.
• Unrefrigerated beer for long periods of
time.
• Dirty glasses.
• Dirty faucet.
• Unrefrigerated foods placed on top of cold
keg.
• Make sure faucet is opened all the way. Close
quickly when done.
• Replace regulator
• Readjust regulator to a lower pressure until foam
subsides. When pressure is properly set, you
should be able to pour 10 oz. of beer in 5 seconds.
• Make sure beer delivery line is not pinched and is
fully inside the interior of the beverage center.
• Wait until keg cools down to proper temperature.
• Have beverage center serviced to return it to
proper operating condition.
• Thoroughly clean faucet with recommended
cleaning kit. Replace all worn seals.
• Wash glasses using soap-free detergent.
• Increase pressure until beer flows at a rate of 2 oz.
per second.
• Do not turn off CO 2 supply line to keg until keg is
empty and ready to be removed.
• Increase temperature of beverage center. See
SETTING THE TEMPERATURE CONTROL
section.
• Check that coupler is properly installed in keg.
• Replace regulator.
• Return keg to place of purchase and exchange for
one that has been properly refrigerated.
• Exchange keg for fresh one.
• Wash glasses using soap-free detergent.
• Clean faucet with recommended cleaning kit.
• Remove items from atop keg and place in a
separate refrigerator.
21
To Properly install Your Beverage Center
See
See
"installation" Section On Pages 4-5
OR
To Reverse The Doors
"Door Removal & Reversal" Section On Page 6

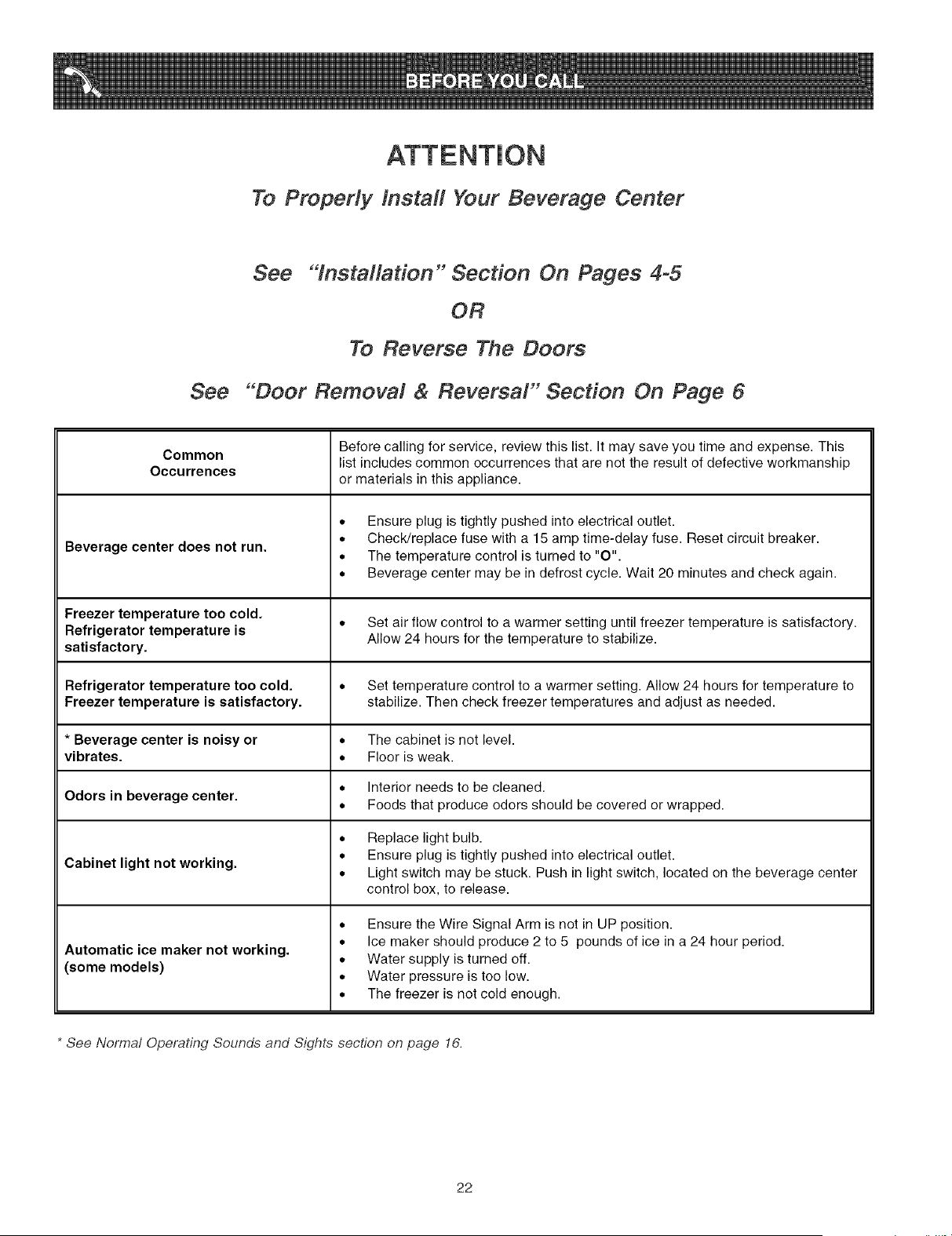

Before calling for service, review this list. It may save you time and expense. This
Common
list includes common occurrences that are not the result of defective workmanship
Occurrences
or materials in this appliance.
Beverage center does not run.
• Ensure plug is tightly pushed into electrical outlet.
• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit breaker.
• The temperature control is turned to "O".
• Beverage center may be in defrost cycle. Wait 20 minutes and check again.
Freezer temperature too cold.
. Set air flow control to a warmer setting until freezer temperature is satisfactory.
Refrigerator temperature is Allow 24 hours for the temperature to stabilize.
satisfactory.
Refrigerator temperature too cold. • Set temperature control to a warmer setting. Allow 24 hours for temperature to
Freezer temperature is satisfactory, stabilize. Then check freezer temperatures and adjust as needed.
* Beverage center is noisy or ° The cabinet is not level.
vibrates. . Floor is weak.
. Interior needs to be cleaned.
Odors in beverage center.
. Foods that produce odors should be covered or wrapped.
° Replace light bulb.
. Ensure plug is tightly pushed into electrical outlet.
Cabinet light not working.
° Light switch may be stuck. Push in light switch, located on the beverage center
control box, to release.
Automatic ice maker not working.
(some models)
• Ensure the Wire Signal Arm is not in UP position.
• Ice maker should produce 2 to 5 pounds of ice in a 24 hour period.
• Water supply is turned off.
• Water pressure is too low.
• The freezer is not cold enough.
* See Norma/Operating Sounds and Sights section on page 16.
22
