Top Moul#t
Refrigerator
Welcome ....................... 2
Safety instructions .... : ....... 3
Installation -- _.c_udesCo..ect_ng
Optional ice MakerTo Water Supply ..... 4 = 5
Door Removal ................ 6

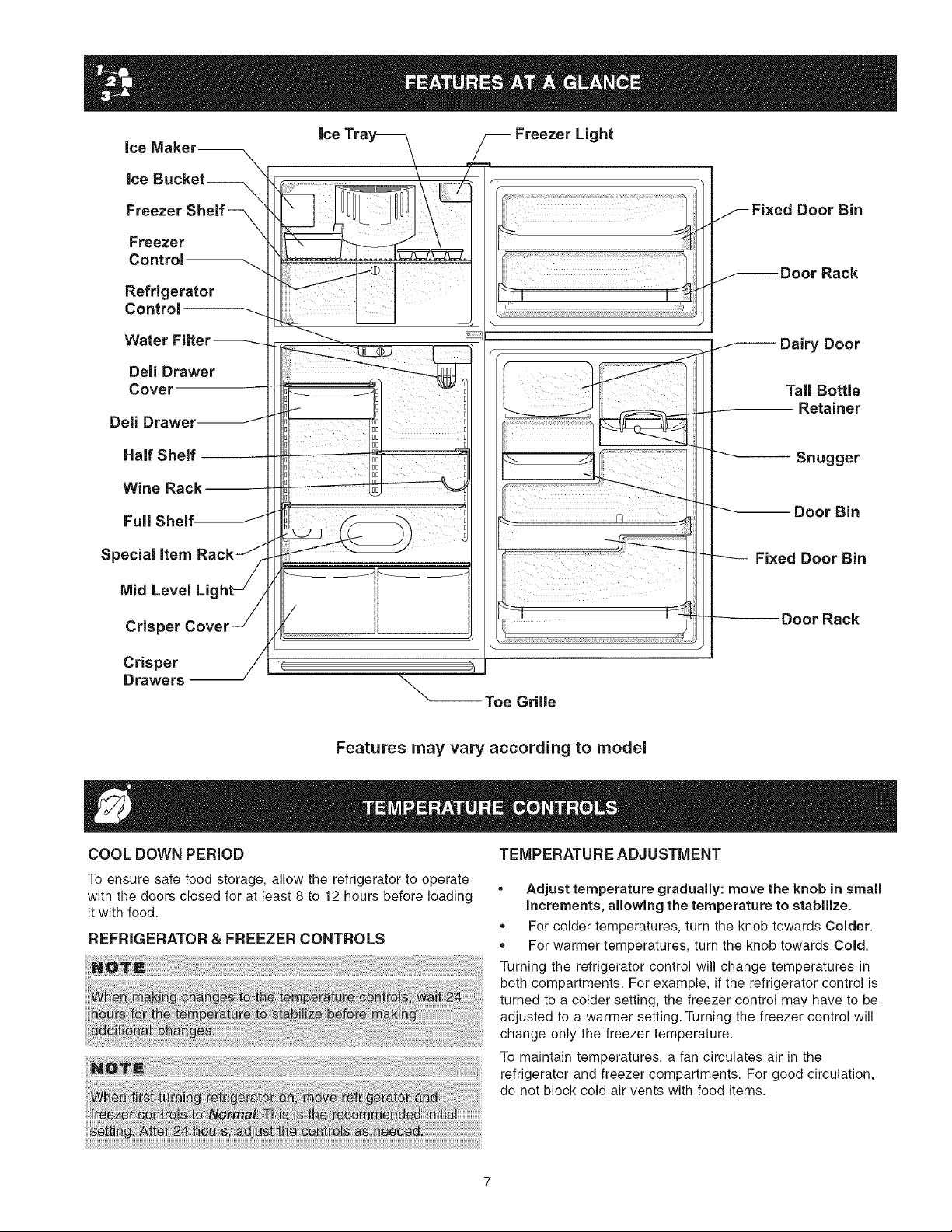

Features at a Glance ......... 7
Temperature Controls .... 7 = 8

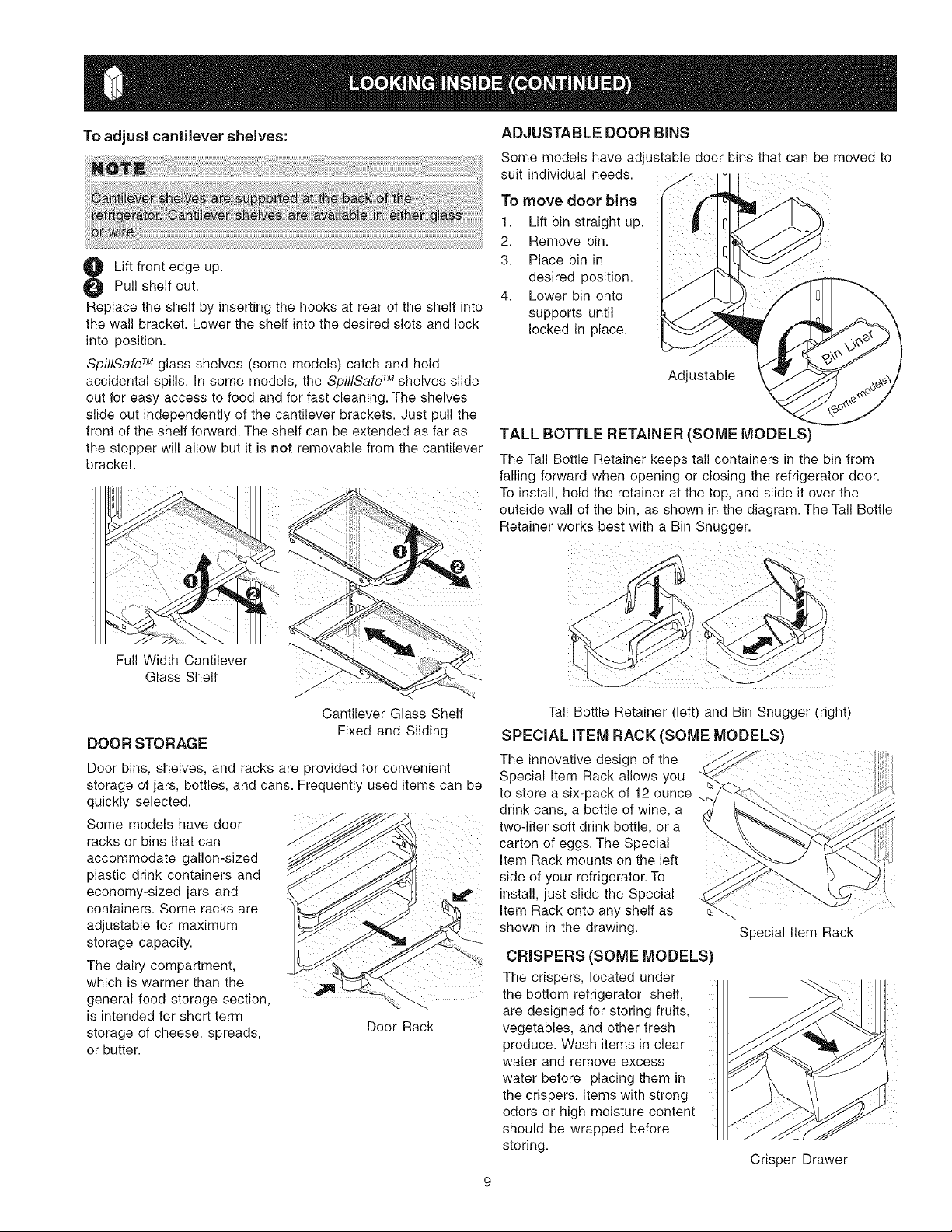

Looking Inside .......... 8 = 10

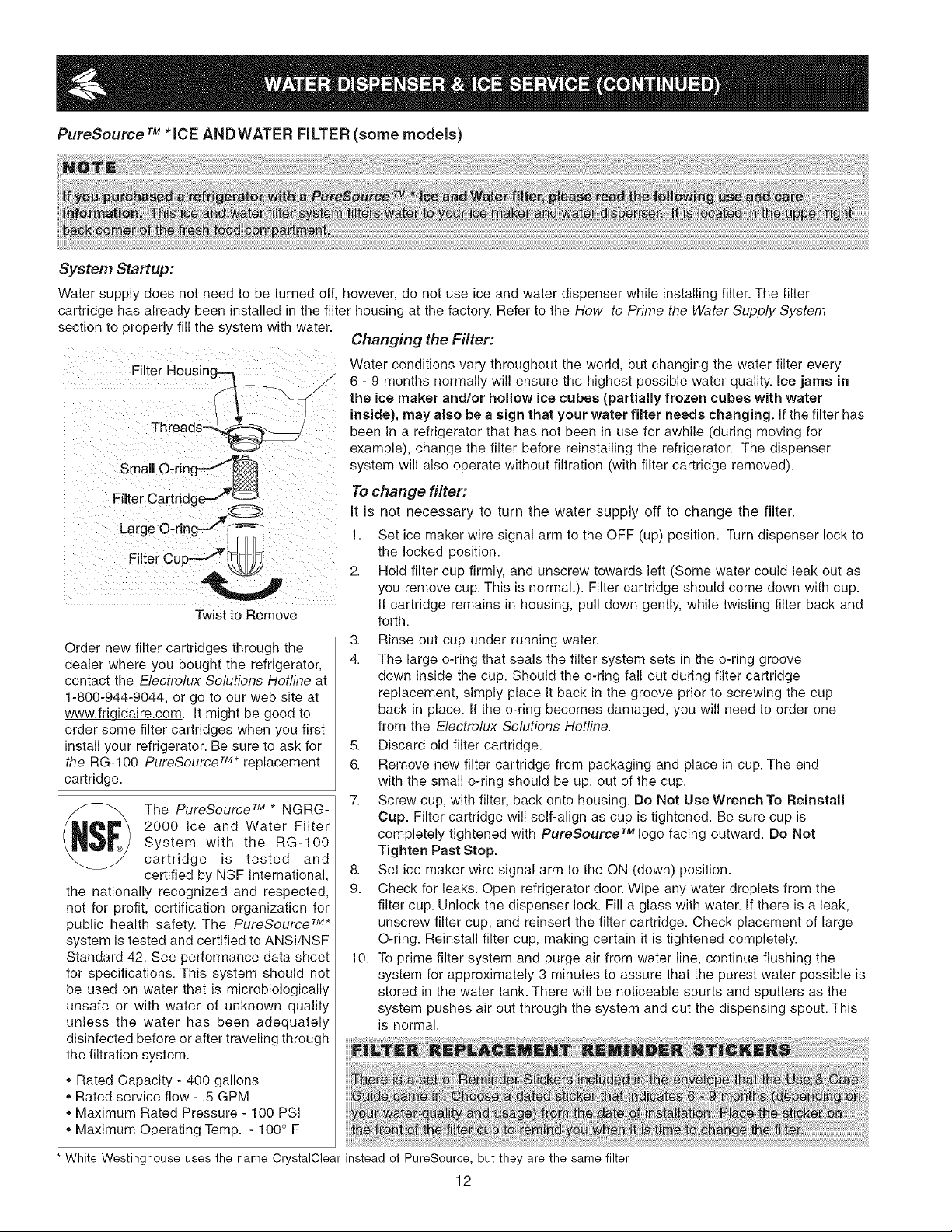

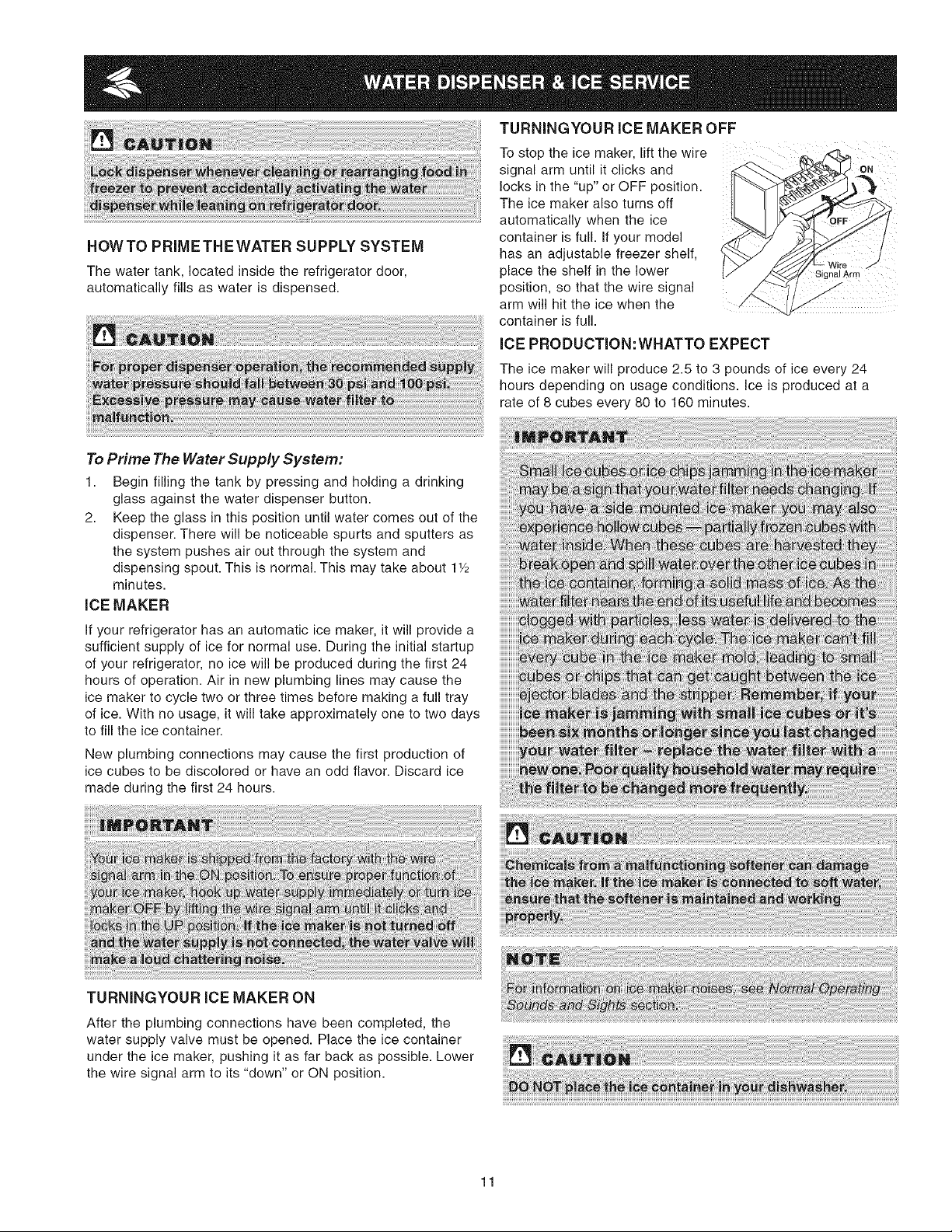

Water Dispenser
& Ice Service ........... 10 = 12

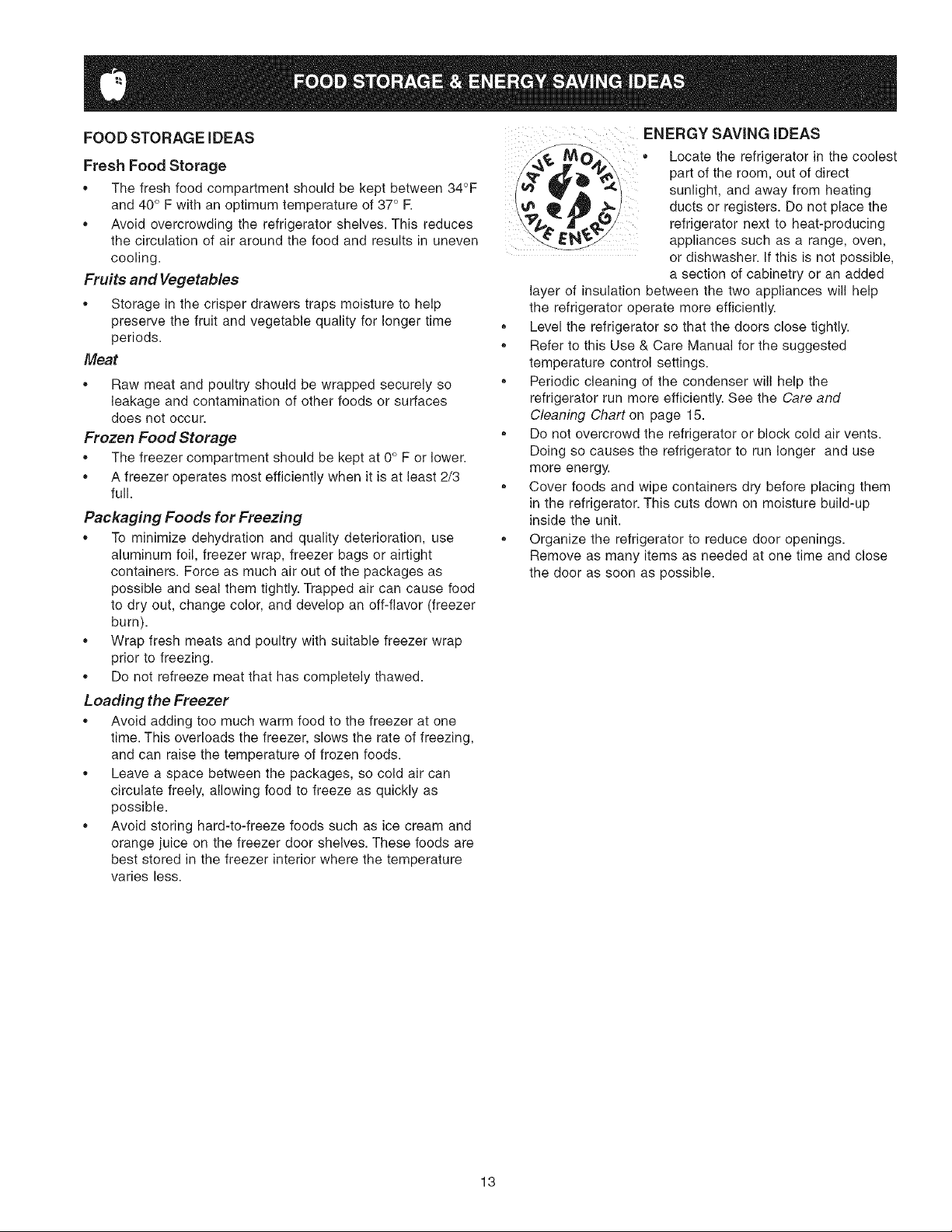

Food Storage
& Energy Saving Tips ....... 13

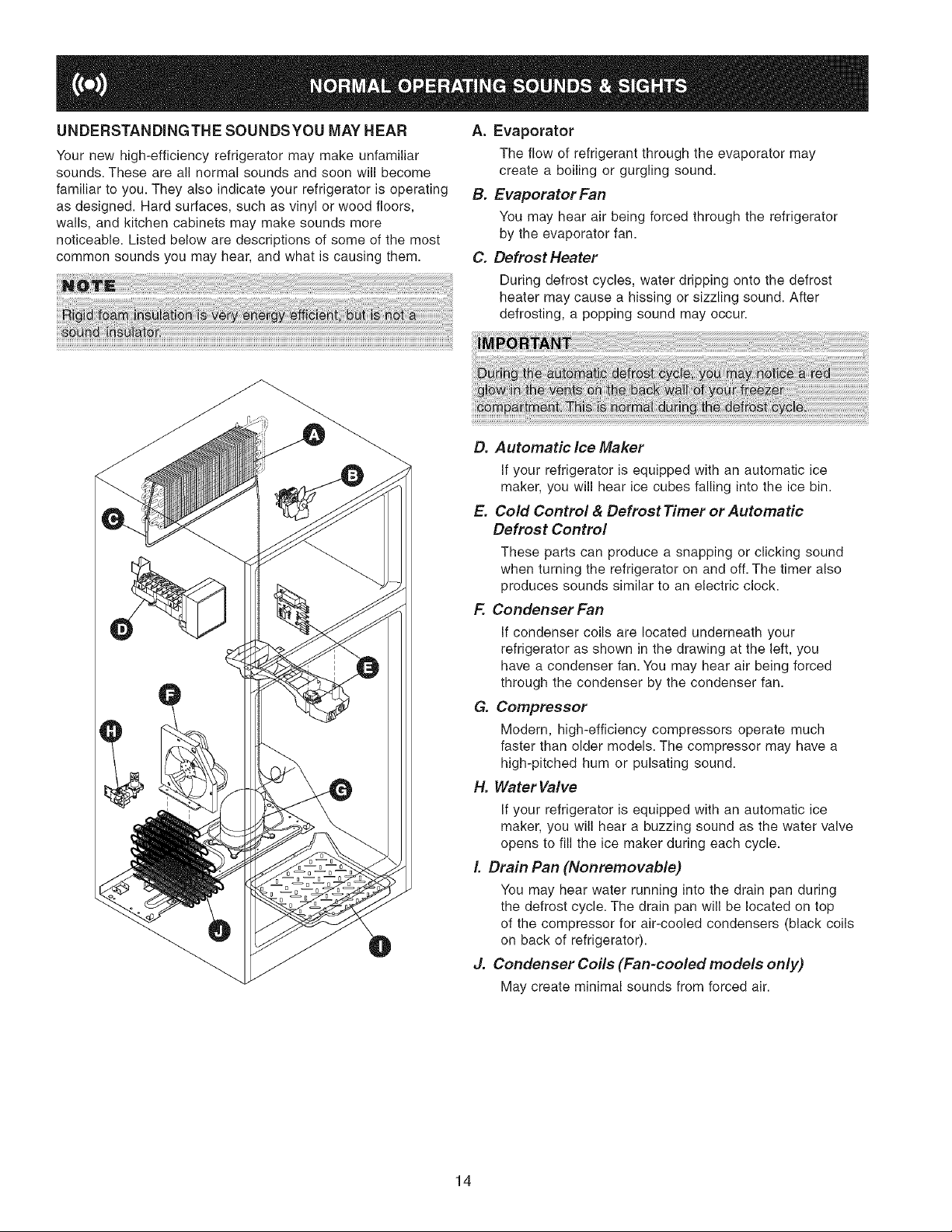

Normal Operating Sounds..14

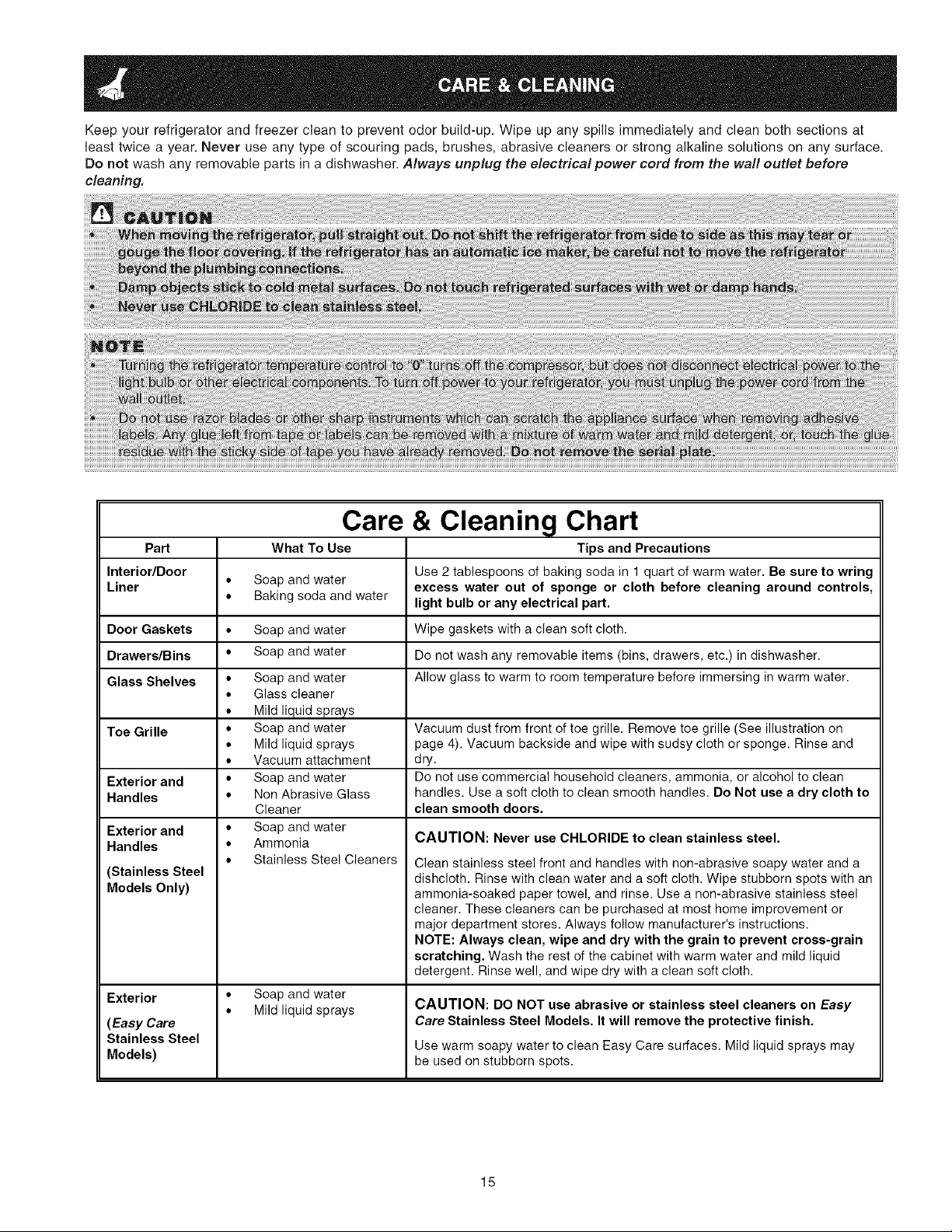

Care & Cleaning ......... 15 =16

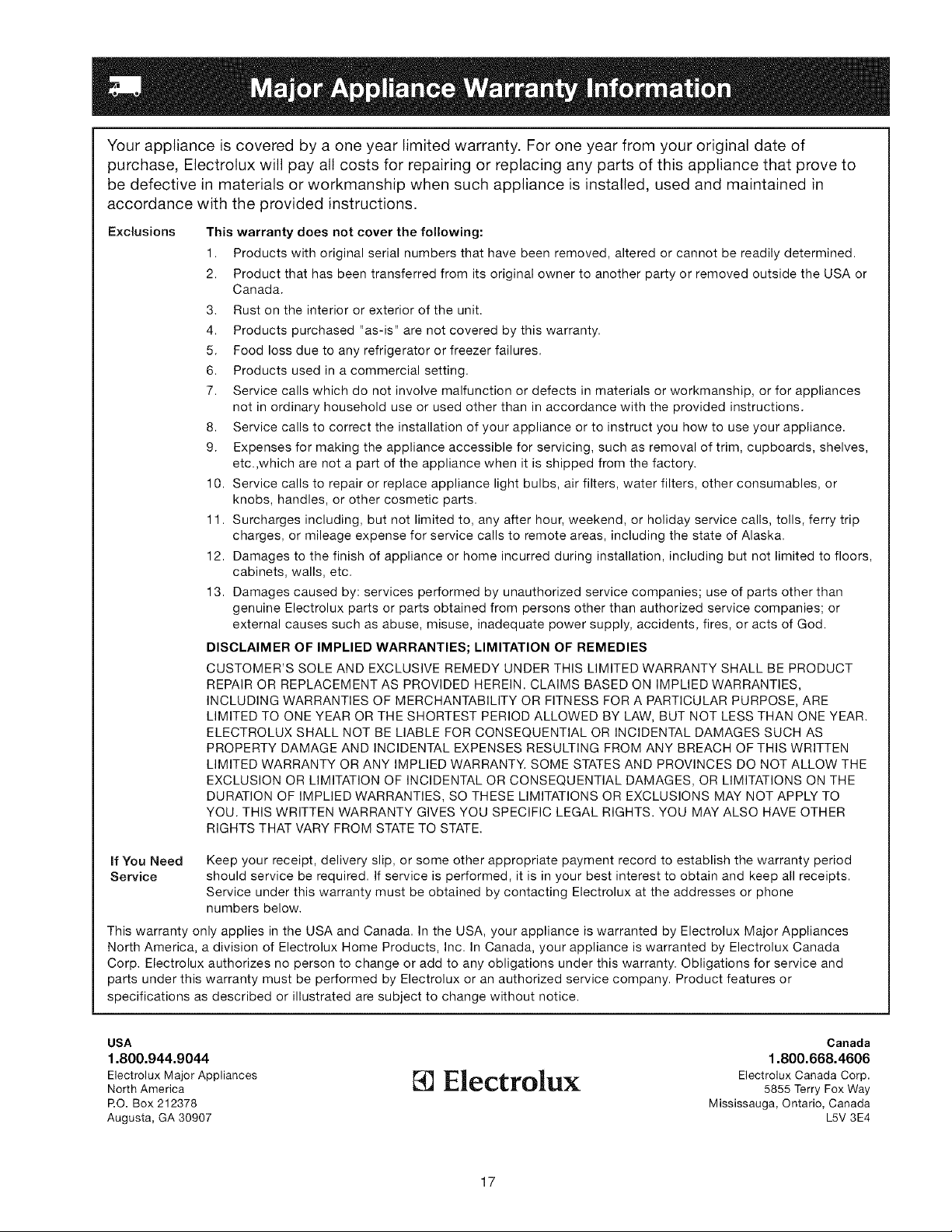

Warranty ...................... 17

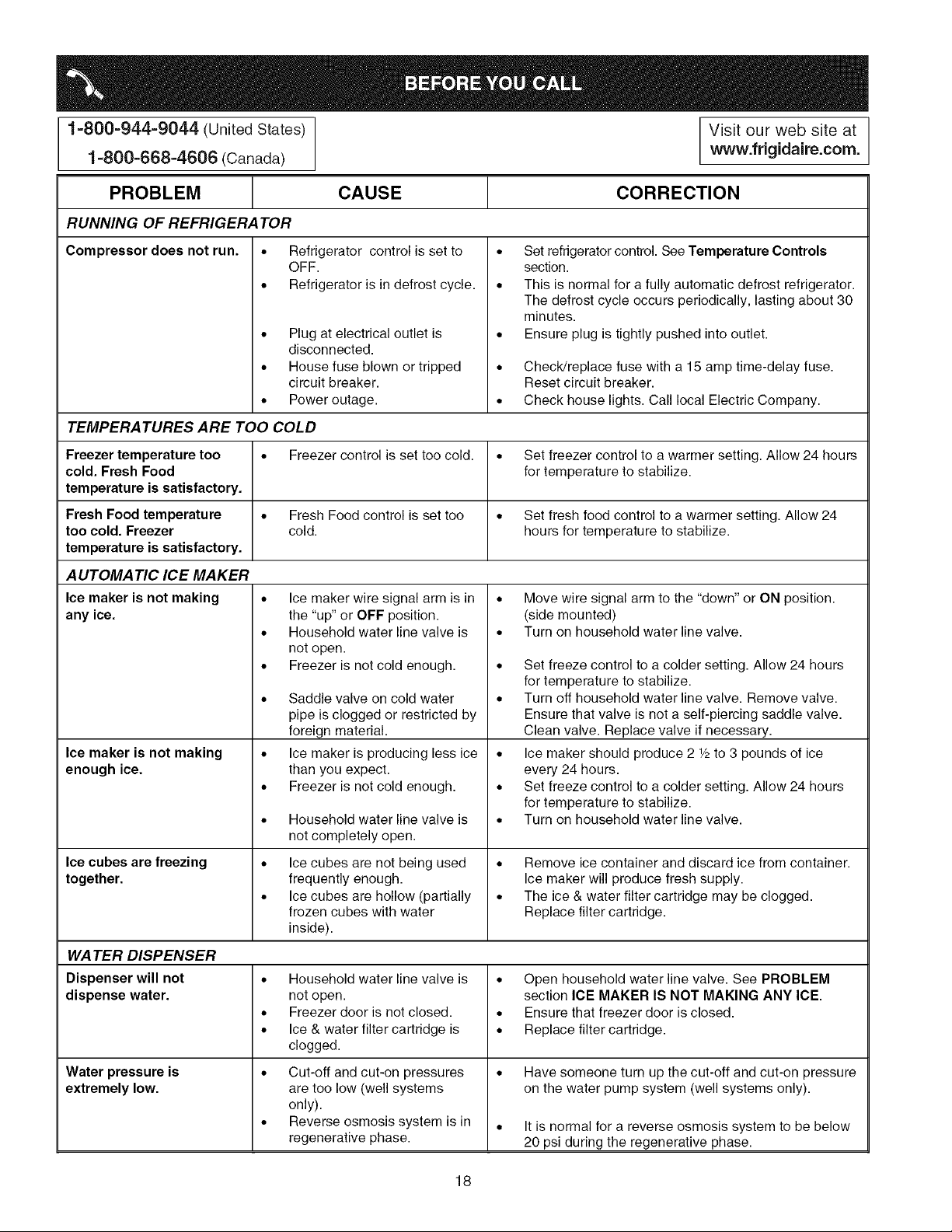

Before You Call ............... 18
READ AND SAVE THESE INSTRUCTIONS pIN241815000(Jan 2007)

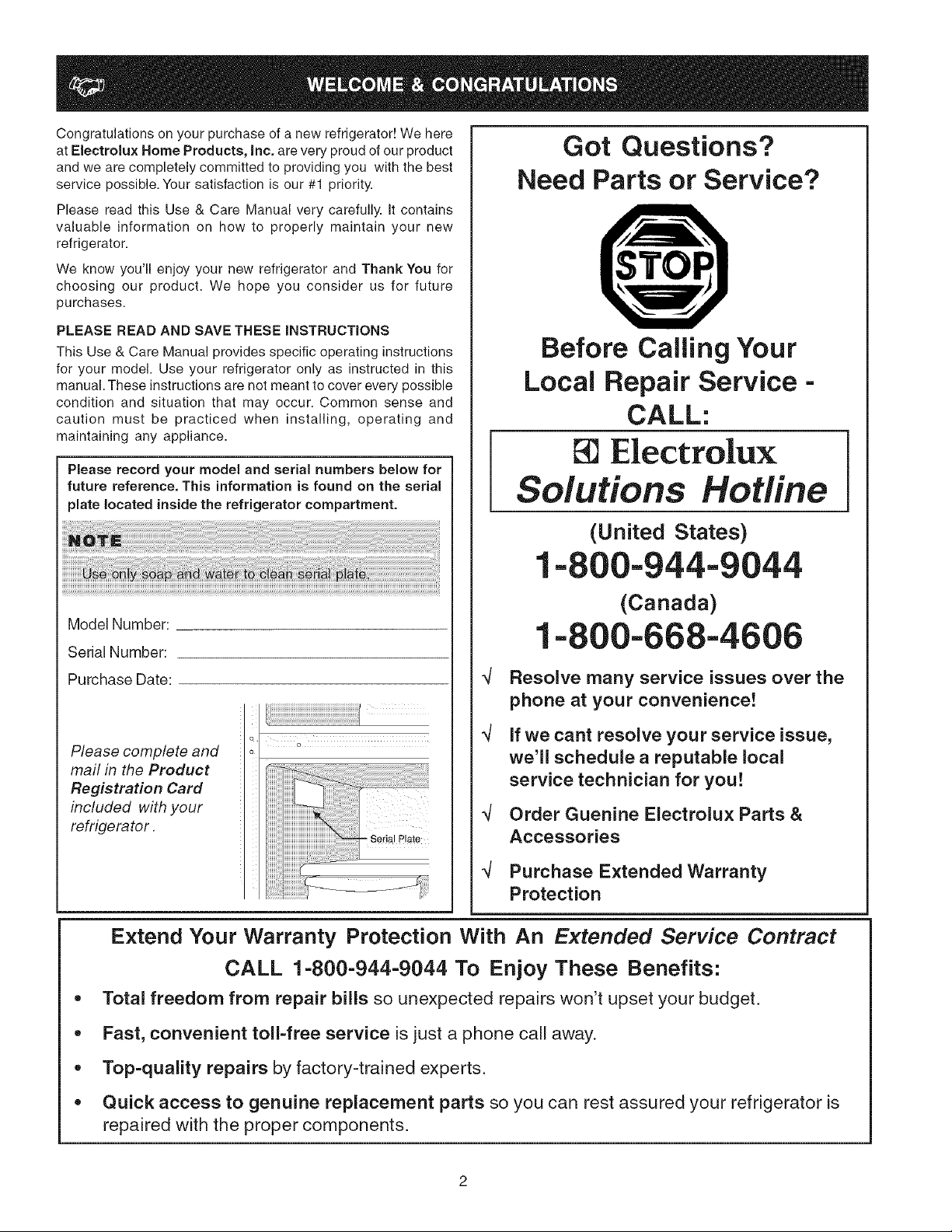

Congratulations on your purchase of a new refrigerator! We here
at Electrolux Home Products, Inc, are very proud of our product
and we are completely committed to providing you with the best
service possible. Your satisfaction is our #1 priority.
Please read this Use & Care Manual very carefully. It contains
valuable information on how to properly maintain your new
refrigerator.
We know you'll enjoy your new refrigerator and Thank You for
choosing our product. We hope you consider us for future
purchases.
PLEASE READ AND SAVE THESE INSTRUCTIONS
This Use & Care Manual provides specific operating instructions
for your model. Use your refrigerator only as instructed in this
manual. These instructions are not meant to cover every possible
condition and situation that may occur. Common sense and
caution must be practiced when installing, operating and
maintaining any appliance.
Please record your model and serial numbers below for
future reference, This information is found on the serial
plate located inside the refrigerator compartment.
Model Number:
Serial Number:
Purchase Date:
Please complete and
mail in the Product
Registration Card
included with your
refrigerator.
o
4
4
4
4
Got Questions?
Need Parts or Service?
@
Before Calling Your
Local Repair Service -
CALL:
Electrolux
Solutions Hotline
(United States)
1-800-944-9044
(Canada)
1-800-668-4606
Resolve many service issues over the
phone at your convenience!
If we cant resolve your service issue,
we'll schedule a reputable local
service technician for you!
Order Guenine Electrolux Parts &
Accessories
Purchase Extended Warranty
Protection
Extend Your Warranty Protection With An Extended Service Contract
CALL 1-800=944-9044 To Enjoy These Benefits:
- Total freedom from repair bills so unexpected repairs won't upset your budget.
- Fast, convenient toll=free service is just a phone call away.
• Top=quality repairs by factory-trained experts.
- Quick access to genuine replacement parts so you can rest assured your refrigerator is
repaired with the proper components,

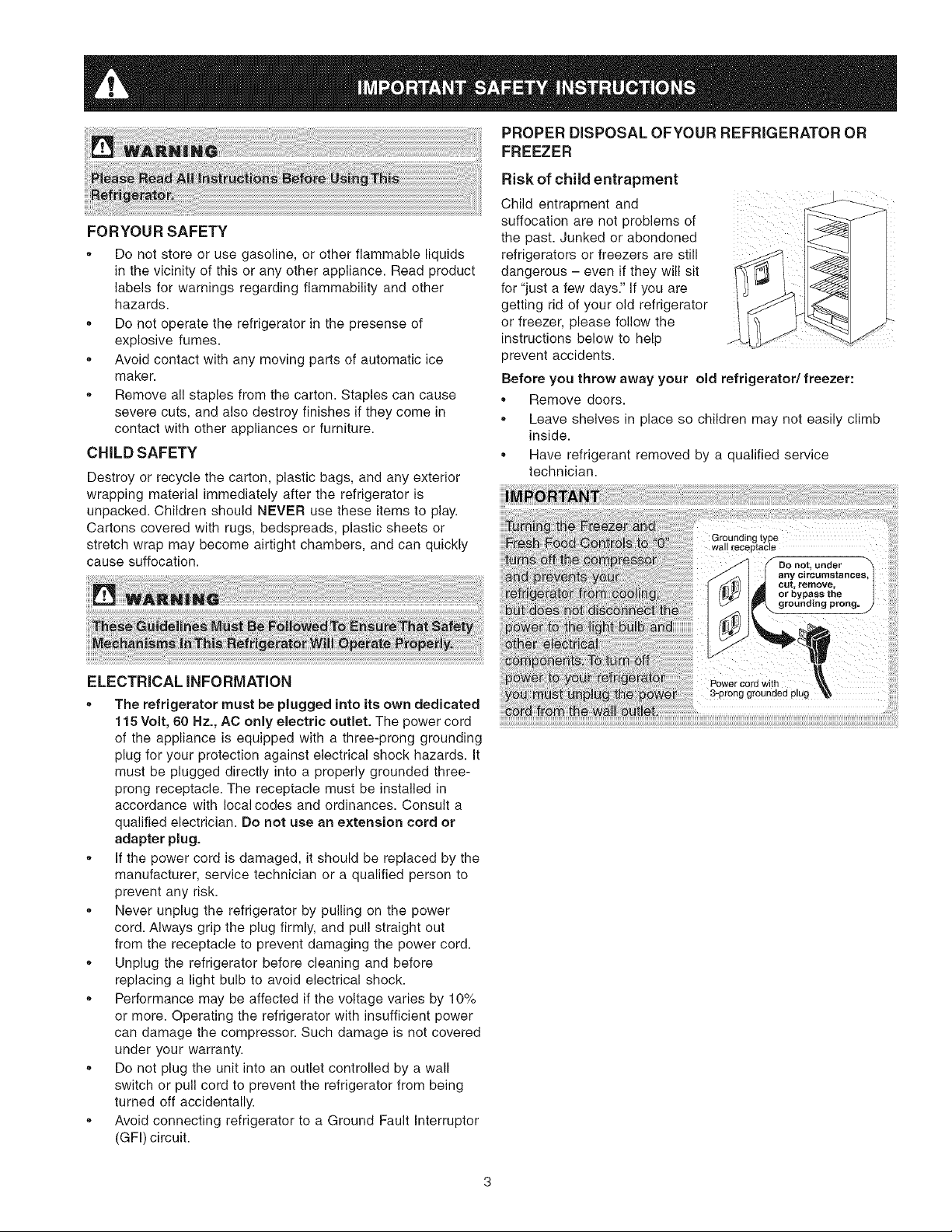

FORYOUR SAFETY
,, Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance. Read product
labels for warnings regarding flammability and other
hazards.
,, Do not operate the refrigerator in the presense of
explosive fumes.
,, Avoid contact with any moving parts of automatic ice
maker.
,, Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can quickly
cause suffocation.
ELECTRICAL iNFORMATiON
, The refrigerator must be plugged into its own dedicated
115 Volt, 60 Nz., AC only electric outlet. The power cord
of the appliance is equipped with a three-prong grounding
plug for your protection against electrical shock hazards. It
must be plugged directly into a properly grounded three-
prong receptacle. The receptacle must be installed in
accordance with local codes and ordinances. Consult a
qualified electrician. Do not use an extension cord or
adapter plug.
,, If the power cord is damaged, it should be replaced by the
manufacturer, service technician or a qualified person to
prevent any risk.
,, Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging the power cord.
,, Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
,, Performance may be affected if the voltage varies by 10%
or more. Operating the refrigerator with insufficient power
can damage the compressor. Such damage is not covered
under your warranty.
,, Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
,, Avoid connecting refrigerator to a Ground Fault Interruptor
(GFI) circuit.
PROPER DISPOSAL OFYOUR REFRIGERATOR OR
FREEZER
Risk of child entrapment
Child entrapment and
suffocation are not problems of
the past. Junked or abondoned
refrigerators or freezers are still
dangerous - even if they will sit
for "just a few days." If you are
getting rid of your old refrigerator
or freezer, please follow the
instructions below to help
prevent accidents.
Before you throw away your old refrigerator/freezer:
,, Remove doors.
,, Leave shelves in place so children may not easily climb
inside.
,, Have refrigerant removed by a qualified service
technician.
iiiiiiiiiiiii;
any circumstances

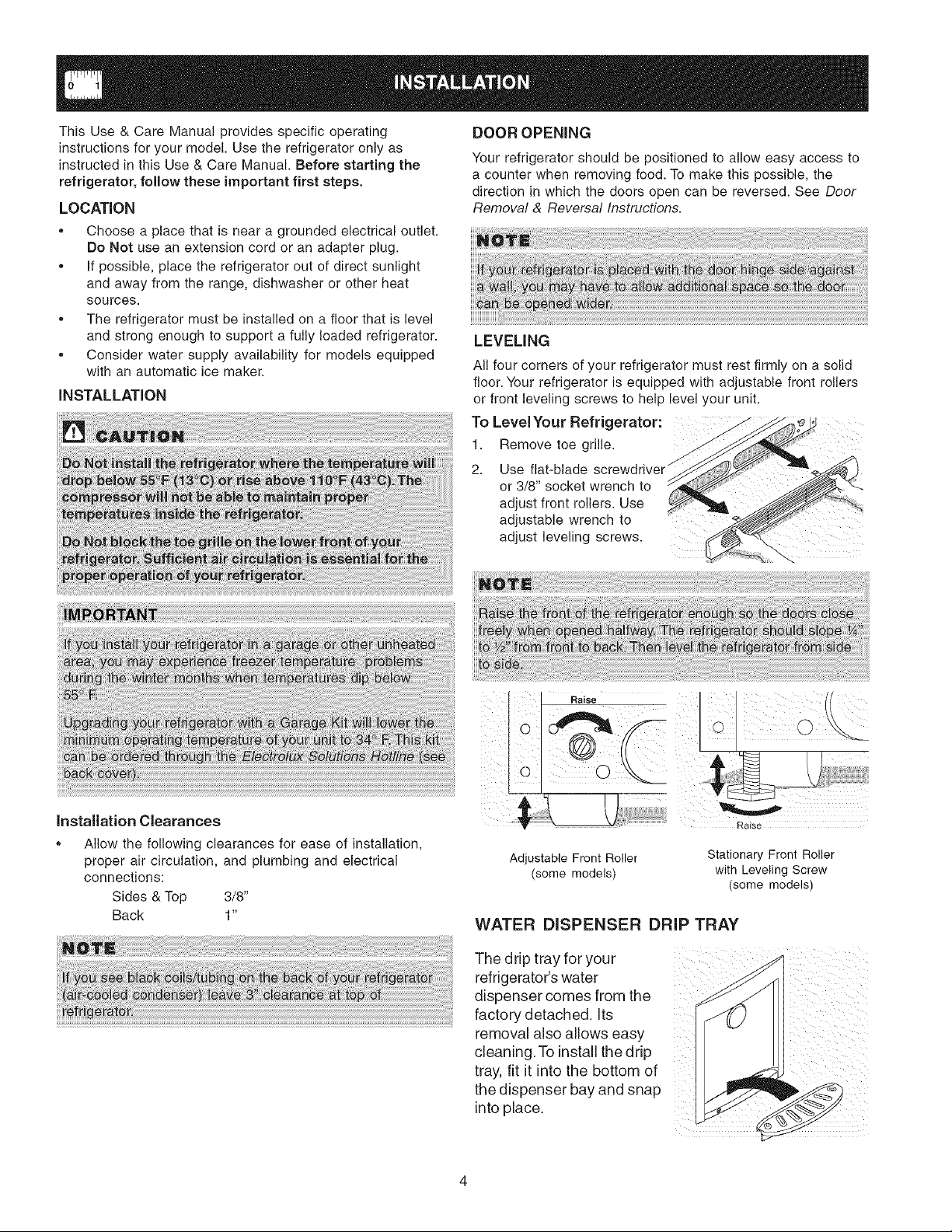

This Use & Care Manual provides specific operating
instructions for your model. Use the refrigerator only as
instructed in this Use & Care Manual. Before starting the
refrigerator, follow these important first steps.
LOCATION
, Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
, If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
o The refrigerator must be installed on a floor that is level
and strong enough to support a fully loaded refrigerator.
o Consider water supply availability for models equipped
with an automatic ice maker.
INSTALLATION
DOOR OPENING
Your refrigerator should be positioned to allow easy access to
a counter when removing food. To make this possible, the
direction in which the doors open can be reversed. See Door
Removal & Reversal Instructions.
LEVELING
All four corners of your refrigerator must rest firmly on a solid
floor. Your refrigerator is equipped with adjustable front rollers
or front leveling screws to help level your unit.
To LevelYour Refrigerator:
1. Removetoegri,e.
2. U;s3/_!a:-obIc_dt s c:e :d rt_ e r
adjust front rollers. Use
adjustable wrench to
adjust leveling screws.
Installation Clearances
,, Allow the following clearances for ease of installation,
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
Raise
Adjustable Front Roller
(some models)
Stationary Front Roller
with Leveling Screw
(some models)
WATER DISPENSER DRiP TRAY
The drip tray for your
refrigerator's water
dispenser comes from the
factory detached. Its
removal also allows easy
c,ean,ngTo,nsta,,thedr,p
tray, fit it into the bottom of
theintodispenserplace, bay and snap
Before Installing TheWater Supply Line,You Will Need
', Basic Tools: adjustable wrench, flat-blade screwdriver,
and Phillips TM screwdriver
,, Access to a household cold water line with water pressure
between 30 and 100 psi.
,, A water supply line made of ¼ inch (6.4 mm) OD, copper
tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker
inlet valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning (as shown).
,, A shutoff valve to connect the water supply line to your
household water system. DO NOT use a self-piercing type
shutoff valve.
,, A compression nut and ferrule (sleeve) for connecting the
water supply line to the ice maker inlet valve.
To Connect Water Supply LineTo ice Maker Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON
water supply and flush supply line until water is clear. Turn
OFF water supply at shutoff valve.
3. Unscrew plastic cap from water valve inlet and discard
cap.
4. Slide brass compression nut, then ferrule (sleeve) onto
water supply line, as shown.
5. Push water supply line into water valve inlet as far as it
will go (¼ inch). Slide ferrule (sleeve) into valve inlet and
finger tighten compression nut onto valve. Tighten another
half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to
rear panel of refrigerator as shown.
7. Coil excess water supply line (about 2Y2 turns) behind
refrigerator as shown and arrange coils so they do not
vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any
connections that leak.
9. Reconnect refrigerator to electrical power source.
10. To turn ice maker on, lower wire signal arm (see ice
maker front cover for ON/OFF position of arm).
Plasti€ Water Tul0!ng
to Ice Maker
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
_'_--Copper
water line
er Valve
Bracket
_-*Valve inlet
from household water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)

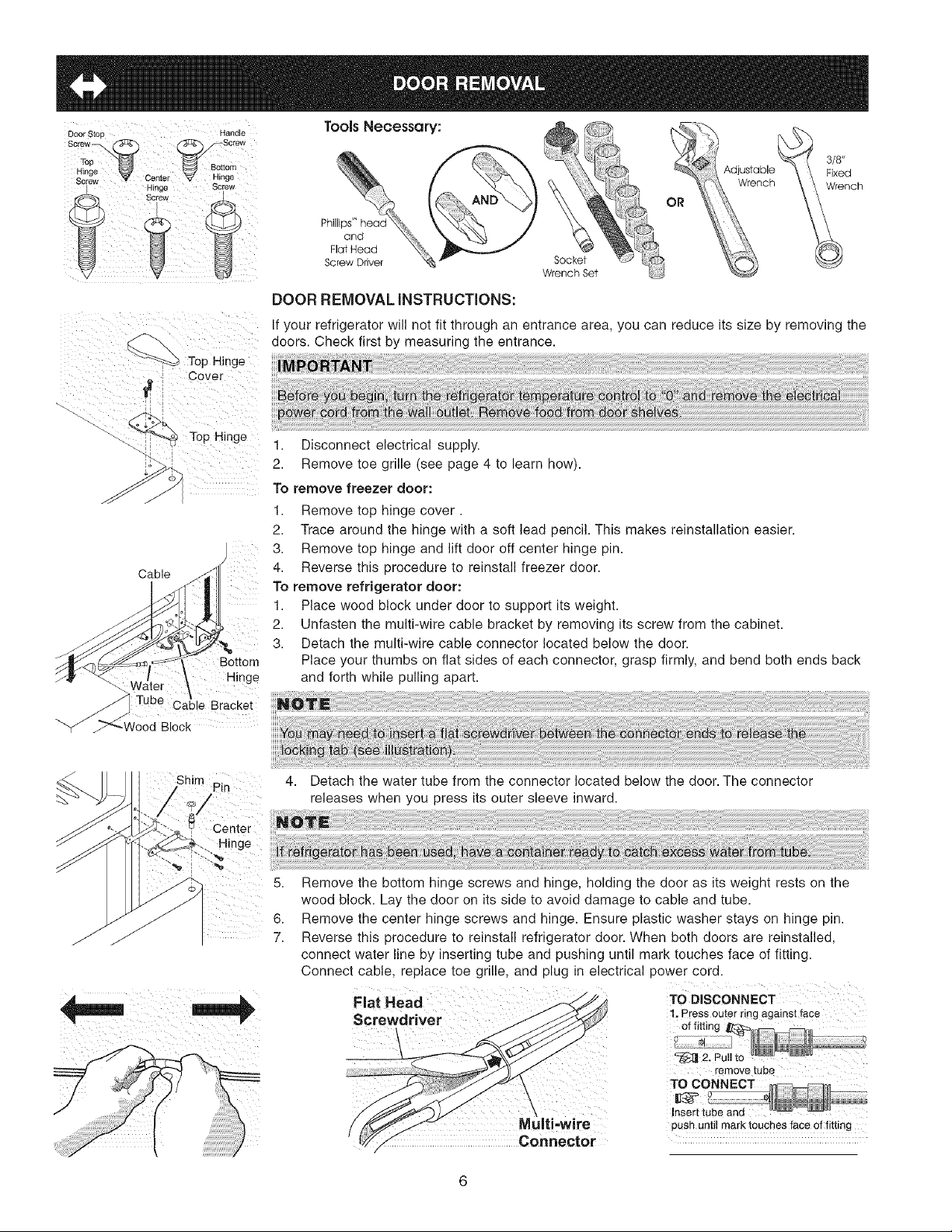

Door Stop Handle
2X o oooom
n r n8
bcrew Hinge Screw
ToolsNecessary:
Philli
and
Flat Head
Screw Driver
3/8"
Fixed
Wrench
__?_ottorn
DOOR REMOVAL INSTRUCTIONS:
If your refrigerator will not fit through an entrance area, you can reduce its size by removing the
doors. Check first by measuring the entrance.
i
1. Disconnect electrical supply.
2. Remove toe grille (see page 4 to learn how).
To remove freezer door:
1. Remove top hinge cover.
2. Trace around the hinge with a soft lead pencil. This makes reinstallation easier.
3. Remove top hinge and lift door off center hinge pin.
4. Reverse this procedure to reinstall freezer door.
To remove refrigerator door:
1. Place wood block under door to support its weight.
2. Unfasten the multi-wire cable bracket by removing its screw from the cabinet.
3. Detach the multi-wire cable connector located below the door.
Place your thumbs on flat sides of each connector, grasp firmly, and bend both ends back
and forth while pulling apart.
Center
Hinge
' 5.
6.
7.
4, Detach the water tube from the connector located below the door. The connector
releases when you press its outer sleeve inward.
Remove the bottom hinge screws and hinge, holding the door as its weight rests on the
wood block. Lay the door on its side to avoid damage to cable and tube.
Remove the center hinge screws and hinge. Ensure plastic washer stays on hinge pin.
Reverse this procedure to reinstall refrigerator door. When both doors are reinstalled,
connect water line by inserting tube and pushing until mark touches face of fitting.
Connect cable, replace toe grille, and plug in electrical power cord.
Flat Head _ TO DISCONNECT
1. Press outer ring against face
of fitting _
'=_ 2. pull to ......
remove tube
TO co_
push until mark touches face of fitting
ice Maker_
ice Bucket_
Freezer Shelf
Freezer
Control
Refrigerator
Control
Water Filter
Dell Drawer
Cover
Deli Drawer _
Half Shelf
Wine Rack
Full Shelf _
Special item Rack -j
Mid Level Light _//
Crisg
Crisper /
Drawers
_ Freezer Light
I I_
_ToeGrille
_Fixed Door Bin
_Door Rack
y Door
Tall Bottle
Retainer
Snugger
Door Bin
Fixed Door Bin
Door Rack
Features may vary according to model
COOL DOWN PERIOD TEMPERATURE ADJUSTMENT
To ensure safe food storage, allow the refrigerator to operate
with the doors closed for at least 8 to 12 hours before loading
it with food.
REFRIGERATOR & FREEZER CONTROLS
• Adjust temperature gradually: move the knob in small
increments, allowing the temperature to stabilize.
, For colder temperatures, turn the knob towards Colder.
, For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control will change temperatures in
both compartments. For example, if the refrigerator control is
turned to a colder setting, the freezer control may have to be
adjusted to a warmer setting. Turning the freezer control will
change only the freezer temperature.
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments. For good circulation,
do not block cold air vents with food items.
FreezerControl(somemodels)
told £older Cold £oldef
OR
\
Refrigerator & Freezer Control (some models)
OR
Refrigerator Control (some models)
TEMPERATURE ADJUSTMENT GUIDE
if Refrigerator compartment is Too Warm Turn Refrigerator Control Slightly Towards Colder.
If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.
If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.
If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold,
* To Turn Refrigerator Off Turn Refrigerator Control To 0.
SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual needs. Before adjusting the shelves, remove all food.
To adjust sliding shelves:
Remove shelf by pulling forward to stop position.
Lift front edge up and pull out.
Replace the shelf on any pair of rails by reversing this procedure.
=
-- Sliding Glass Shelf
Sliding Wire Shelf
Freezer Tilt Out Door Rack
To adjust cantilever shelves:
O edge up.
Lift front
O Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into
the wall bracket. Lower the shelf into the desired slots and lock
into position.
SpillSafe 7Mglass shelves (some models) catch and hold
accidental spills. In some models, the SpillSafe TMshelves slide
out for easy access to food and for fast cleaning. The shelves
slide out independently of the cantilever brackets. Just pull the
front of the shelf forward. The shelf can be extended as far as
the stopper will allow but it is not removable from the cantilever
bracket.
ADJUSTABLE DOOR BiNS
Some models have adjustable door bins that can be moved to
suit individual needs.
To move door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in
desired position.
4. Lower bin onto
supports until
locked in place.
)
Adjustable
TALL BOTTLE RETAINER (SOME MODELS)
The Tall Bottle Retainer keeps tall containers in the bin from
falling forward when opening or closing the refrigerator door.
To install, hold the retainer at the top, and sltde it over the
outside wall of the bin as shown in the diagram. The Tall Bottle
Retainer works best with a Bin Snugger
Full Width Cantilever
Glass Shelf
Cantilever Glass Shelf
Fixed and Sliding
DOOR STORAGE
Door bins, shelves, and racks are provided for convenient
storage of jars, bottles, and cans. Frequently used items can be
quickly selected.
Some models have door J_
racks or bins that can
accommodate gallon-sized
plastic drink containers and
economy-sized jars and _XJ _J_
containers. Some racks are
adjustable for maximum
storage capacity.
The dairy compartment,
which is warmer than the
general food storage section,
is intended for short term
storage of cheese, spreads,
or butter.
Door Rack
Tall Bottle Retainer (left) and Bin Snugger (right)
SPECIAL iTEM RACK (SOME MODELS)
The innovative design of the
Special Item Rack allows you
to store a six-pack of 12 ounce
drink cans, a bottle of wine, a
two-liter soft drink bottle, or a
carton of eggs. The Special
Item Rack mounts on the left
side of your refrigerator. To
install, just slide the Special
Item Rack onto any shelf as
shown in the drawing.
CRISPERS (SOME MODELS)
The crispers, located under
the bottom refrigerator shelf,
are designed for storing fruits,
vegetables, and other fresh
produce. Wash items in clear
water and remove excess
water before placing them in
the crispers. Items with strong
odors or high moisture content
should be wrapped before
storing.
Special Item Rack
Crisper Drawer
HUMiDiTYCONTROL
(SOME MODELS)
The Humidity Control,
present on some models
with crisper drawers, allows
you to adjust the humidity
within the crisper. This can
extend the life of fresh
vegetables that keep best in
high humidity.
Low
Humidit
High
Humidib
Crisper Humidity Control
DELl DRAWER (SOME
MODELS)
Some models are equipped
with a Dell Drawer for storage
of luncheon meats, spreads,
cheeses, and other dell items.
WiNE RACK (SOME
MODELS)
The Wine Rack stores bottles
of wine, or single two-liter
plastic bottles of juice or soda
pop. To install, slide the Wine
Rack onto the shelf with the
curve facing in. To remove,
slide the Wine Rack out.
Install on either side of shelf.
_Del! Drawer
WATER DISPENSER
Your refrigerator includes an automatic water dispenser on the
front of the refrigerator door. The dispenser is designed to
accommodate containers up to 7Y2 inches high.
DisPensing
Button
Dispensing
)out
-,,.Dispenser
Drip Tray Lock
DiSPENSiNG WATER
To operate the water dispenser, press a drinking glass against
the dispensing button. Hold the glass as far up as possible,
ensuring that the water dispensing spout is inside the lip of the
glass.
To stop dispensing water, pull the glass away from the
dispensing button. Dispensed water is not cold. For colder
water, first add ice to your drinking glass.
DRIPTRAY
DISPENSER LOCK
The water dispenser includes a switch that allows you to
disable the water dispenser. You can use this lock to prevent
accidental spills, such as those caused by children pressing
the dispensing button without a glass. The switch is located
below the locked/unlocked symbols on the dispenser face
plate.
I
Dispenser Lock Z
The drip tray located at the base of the dispenser catches
small spills and allows them to evaporate. This tray is
removable for easy cleaning.
10
HOWTOPRIMETHEWATERSUPPLY SYSTEM
The water tank, located inside the refrigerator door,
automatically fills as water is dispensed.
TURNINGYOUR iCE MAKER OFF
To stop the ice maker, lift the wire
signal arm until it clicks and
locks in the "up" or OFF position.
The ice maker also turns off
automatically when the ice
container is full. If your model
has an adjustable freezer shelf,
place the shelf in the lower
position, so that the wire signal
arm will hit the ice when the
container is full.
iCE PRODUCTION: WHATTO EXPECT
The ice maker will produce 2.5 to 3 pounds of ice every 24
hours depending on usage conditions. Ice is produced at a
rate of 8 cubes every 80 to 160 minutes.
To Prime The Water Supply System:
1. Begin filling the tank by pressing and holding a drinking
glass against the water dispenser button.
2. Keep the glass in this position until water comes out of the
dispenser. There will be noticeable spurts and sputters as
the system pushes air out through the system and
dispensing spout. This is normal. This may take about 1V2
minutes.
ICE MAKER
If your refrigerator has an automatic ice maker, it will provide a
sufficient supply of ice for normal use. During the initial startup
of your refrigerator, no ice will be produced during the first 24
hours of operation. Air in new plumbing lines may cause the
ice maker to cycle two or three times before making a full tray
of ice. With no usage, it will take approximately one to two days
to fill the ice container.
New plumbing connections may cause the first production of
ice cubes to be discolored or have an odd flavor. Discard ice
made during the first 24 hours.
iiiiiiiiiiiiiii
TURNINGYOUR iCE MAKER ON
After the plumbing connections have been completed, the
water supply valve must be opened. Place the ice container
under the ice maker, pushing it as far back as possible. Lower
the wire signal arm to its "down" or ON position.
11
PureSource TM*ICE ANDWATER FILTER (some models)
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the factory. Refer to the How to Prime the Water Supply System
section to properly fill the system with water.
Filter Housing//
Threads__
Small O-rin_
Filter Cartridge -/_
Large O-ring.J_
Filter Cup__!
Twist to Remove
Order new filter cartridges through the
dealer where you bought the refrigerator,
contact the Electrolux Solutions Hotline at
1-800-944-9044, or go to our web site at
www.friaidaire.com. It might be good to
order some filter cartridges when you first
install your refrigerator. Be sure to ask for
the RG-100 PureSource TM*replacement
cartridge.
The PureSource TM * NGRG-
2000 Ice and Water Filter
System with the RG-100
cartridge is tested and
certified by NSF International,
the nationally recognized and respected,
not for profit, certification organization for
3ublic health safety. The PureSource TM*
system is tested and certified to ANSl/NSF
Standard 42. See performance data sheet
for specifications. This system should not
be used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
,, Rated Capacity - 400 gallons
,, Rated service flow - .5 GPM
,, Maximum Rated Pressure - 100 PSI
,, Maximum Operating Temp. - 100 ° F
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality. Ice jams in
the ice maker and/or hollow ice cubes (partially frozen cubes with water
inside), may also be a sign that your water filter needs changing. If the filter has
been in a refrigerator that has not been in use for awhile (during moving for
example), change the filter before reinstalling the refrigerator. The dispenser
system will also operate without filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
Set ice maker wire signal arm to the OFF (up) position. Turn dispenser lock to
the locked position.
2. Hold filter cup firmly, and unscrew towards left (Some water could leak out as
you remove cup. This is normal.). Filter cartridge should come down with cup.
If cartridge remains in housing, pull down gently, while twisting filter back and
forth.
3. Rinse out cup under running water.
4. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place. If the o-ring becomes damaged, you will need to order one
from the Electrolux Solutions Hotline.
5. Discard old filter cartridge.
6. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
7. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall
Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is
completely tightened with PureSource TM logo facing outward. Do Not
Tighten Past Stop.
8. Set ice maker wire signal arm to the ON (down) position.
9. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Unlock the dispenser lock. Fill a glass with water. If there is a leak,
unscrew filter cup, and reinsert the filter cartridge. Check placement of large
O-ring. Reinstall filter cup, making certain it is tightened completely.
0. To prime filter system and purge air from water line, continue flushing the
system for approximately 3 minutes to assure that the purest water possible is
stored in the water tank. There will be noticeable spurts and sputters as the
system pushes air out through the system and out the dispensing spout. This
is normal.
White Westinghouse uses the name CrystalClear instead of PureSource, but they are the same filter
12
FOOD STORAGE IDEAS
Fresh Food Storage _ ;fM-_.,_ •
and 40 F with an optimum temperature of 37 F. /_ a _ __,,/
,, Avoid overcrowding the refrigerator shelves. This reduces \_ _'_E_ _
the circulation of air around the food and results in uneven ' _
cooling.
Fruits and Vegetables
,, Storage in the crisper drawers traps moisture to help
preserve the fruit and vegetable quality for longer time ,,
periods. ,,
Meat
,, Raw meat and poultry should be wrapped securely so "
leakage and contamination of other foods or surfaces
does not occur.
Frozen Food Storage "
,, The freezer compartment should be kept at 0° F or lower.
,, A freezer operates most efficiently when it is at least 2/3
full. "
Packaging Foods for Freezing
,, To minimize dehydration and quality deterioration, use ,,
aluminum foil, freezer wrap, freezer bags or airtight
containers. Force as much air out of the packages as
possible and seal them tightly. Trapped air can cause food
to dry out, change color, and develop an off-flavor (freezer
burn).
,, Wrap fresh meats and poultry with suitable freezer wrap
prior to freezing.
,, Do not refreeze meat that has completely thawed.
ENERGY SAVING iDEAS
Locate the refrigerator in the coolest
part of the room, out of direct
sunlight, and away from heating
ducts or registers. Do not place the
refrigerator next to heat-producing
appliances such as a range, oven,
or dishwasher. If this is not possible,
a section of cabinetry or an added
layer of insulation between the two appliances will help
the refrigerator operate more efficiently.
Level the refrigerator so that the doors close tightly.
Refer to this Use & Care Manual for the suggested
temperature control settings.
Periodic cleaning of the condenser will help the
refrigerator run more efficiently. See the Care and
Cleaning Chart on page 15.
Do not overcrowd the refrigerator or block cold air vents.
Doing so causes the refrigerator to run longer and use
more energy.
Cover foods and wipe containers dry before placing them
in the refrigerator. This cuts down on moisture build-up
inside the unit.
Organize the refrigerator to reduce door openings.
Remove as many items as needed at one time and close
the door as soon as possible.
Loading the Freezer
,, Avoid adding too much warm food to the freezer at one
time. This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
,, Leave a space between the packages, so cold air can
circulate freely, allowing food to freeze as quickly as
possible.
,, Avoid storing hard-to-freeze foods such as ice cream and
orange juice on the freezer door shelves. These foods are
best stored in the freezer interior where the temperature
varies less.
13
UNDERSTANDINGTHE SOUNDSYOU MAY HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds. These are all normal sounds and soon will become
familiar to you. They also indicate your refrigerator is operating
as designed. Hard surfaces, such as vinyl or wood floors,
walls, and kitchen cabinets may make sounds more
noticeable. Listed below are descriptions of some of the most
common sounds you may hear, and what is causing them.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Neater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
D. Automatic lce Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Condenser Fan
if condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
N. WaterValve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle. The drain pan will be located on top
of the compressor for air-cooled condensers (black coils
on back of refrigerator).
J. Condenser Coils (Fan-cooled models only)
May create minimal sounds from forced air.
14
Keep your refrigerator and freezer clean to prevent odor build-up. Wipe up any spills immediately and clean both sections at
least twice a year. Never use any type of scouring pads, brushes, abrasive cleaners or strong alkaline solutions on any surface.
Do not wash any removable parts in a dishwasher. Always unplug the electrical power cord from the wall outlet before
cleaning.
Part
Interior/Door
Liner
Door Gaskets
Drawers/Bins
Glass Shelves
Toe Grille
Care & Cleaning Chart
What To Use Tips and Precautions
• Soap and water
• Baking soda and water
• Soap and water
• Soap and water
Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring
excess water out of sponge or cloth before cleaning around controls,
light bulb or any electrical part.
Wipe gaskets with a clean soft cloth.
Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Allow glass to warm to room temperature before immersing in warm water.• Soap and water
• Glass cleaner
• Mild liquid sprays
• Soap and water
• Mild liquid sprays
• Vacuum attachment
• Soap and water
• Non Abrasive Glass
Cleaner
• Soap and water
• Arnmonia
• Stainless Steel Cleaners
Exterior and
Handles
Exterior and CAUTION: Never use CHLORIDE to clean stainless steel.
Handles
(Stainless Steel
Models Only)
Vacuum dust from front of toe grille. Remove toe grille (See illustration on
page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and
dry.
Do not use commercial household cleaners, ammonia, or alcohol to clean
handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to
clean smooth doors.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
Exterior • Soap and water
CAUTION: DO NOT use abrasive or stainless steel cleaners on Easy
• Mild liquid sprays
(Easy Care Care Stainless Steel Models. It will remove the protective finish.
Stainless Steel Use warm soapy water to clean Easy Care surfaces. Mild liquid sprays may
Models) be used on stubborn spots.
15

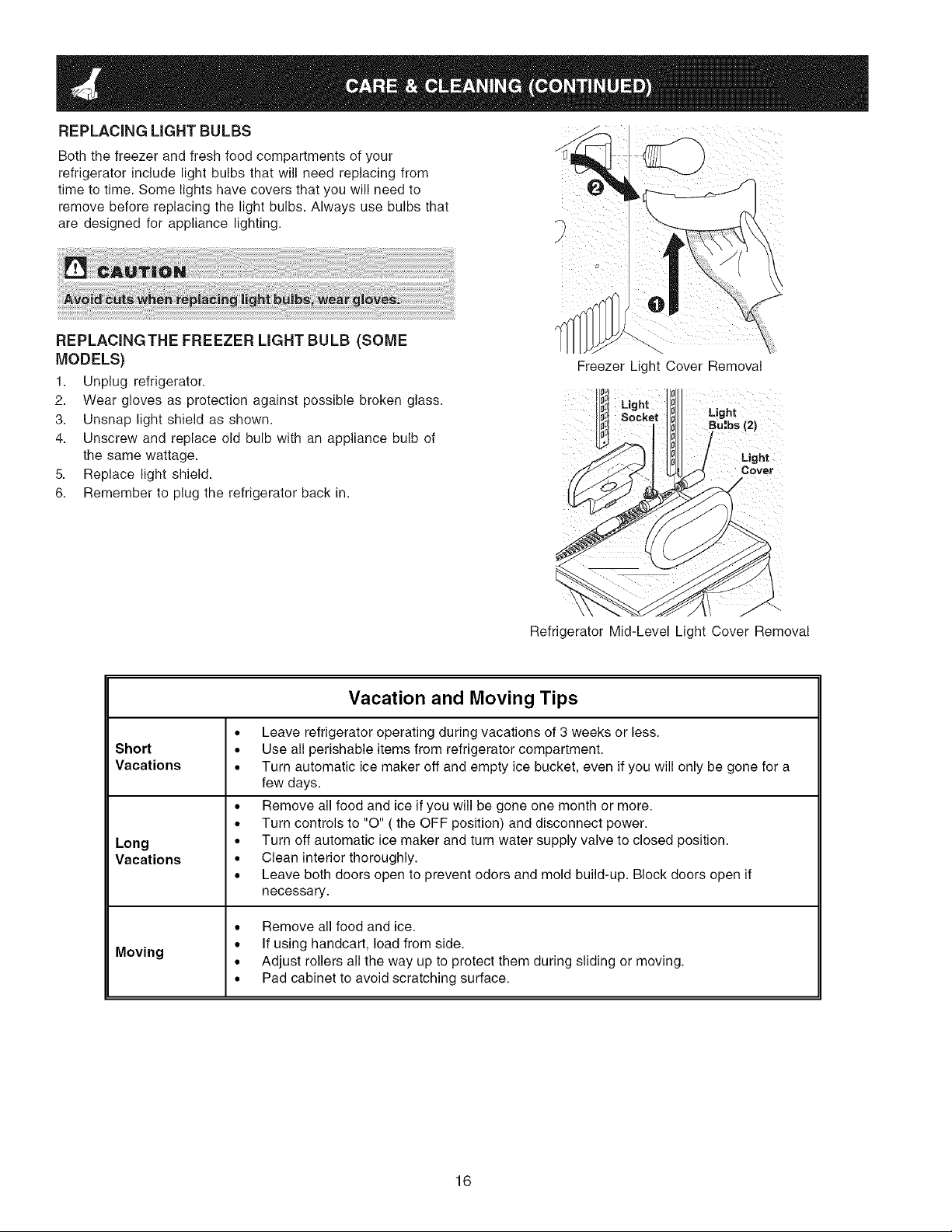

REPLACING MGHT BULBS
Both the freezer and fresh food compartments of your
refrigerator include light bulbs that will need replacing from
time to time. Some lights have covers that you will need to
remove before replacing the light bulbs. Always use bulbs that
are designed for appliance lighting.
REPLACINGTHE FREEZER LIGHT BULB (SOME
MODELS)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken glass.
3. Unsnap light shield as shown.
4. Unscrew and replace old bulb with an appliance bulb of
the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
Freezer Light Cover Removal
Light
'2)
Light
Cover
Refrigerator Mid-Level Light Cover Removal
Vacation and Moving Tips
Short •
Vacations •
Long
Vacations
Leave refrigerator operating during vacations of 3 weeks or less.
Use all perishable items from refrigerator compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be gone for a
few days.
Remove all food and ice if you will be gone one month or more.
Turn controls to "O" ( the OFF position) and disconnect power.
Turn off automatic ice maker and turn water supply valve to closed position.
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
• Remove all food and ice.
• If using handcart, load from side.
Moving
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
16
Yourapplianceis coveredbya oneyearlimitedwarranty.Foroneyearfromyouroriginaldateof
purchase,Electroluxwill payallcostsfor repairingorreplacinganypartsof this appliancethat proveto
bedefectivein materialsorworkmanshipwhensuchapplianceisinstalled,usedandmaintainedin
accordancewith the providedinstructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
mfYou Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Electrolux
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
17
1=800-944-9044 (United States)
1-800=668-4606 (Canada)
PROBLEM [
RUNNING OF REFRIGERATOR
CAUSE
l
Visit our web site at
www.frigidaire.com.
CORRECTION
Compressor does not run. • Refrigerator control is set to
OFF.
• Refrigerator is in defrost cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or tripped
circuit breaker.
• Power outage.
Set refrigerator control. See Temperature Controls
section.
This is normal for a fully automatic defrost refrigerator.
The defrost cycle occurs periodically, lasting about 30
minutes.
Ensure plug is tightly pushed into outlet.
Check/replace fuse with a 15 amp time-delay fuse.
Reset circuit breaker.
Check house lights. Call local Electric Company.
TEMPERATURES ARE TOO COLD
Freezer temperature too • Freezer control is set too cold. • Set freezer control to a warmer setting. Allow 24 hours
cold. Fresh Food for temperature to stabilize.
temperature is satisfactory.
Fresh Food temperature • Fresh Food control is set too • Set fresh food control to a warmer setting. Allow 24
too cold. Freezer cold. hours for temperature to stabilize.
temperature is satisfactory.
AUTOMATIC ICE MAKER
Ice maker is not making
any ice.
Ice maker is not making
enough ice.
• Ice maker wire signal arm is in
the "up" or OFF position.
• Household water line valve is
not open.
• Freezer is not cold enough.
Saddle valve on cold water
pipe is clogged or restricted by
foreign material.
Ice maker is producing less ice
than you expect.
Freezer is not cold enough.
• Move wire signal arm to the "down" or ON position.
(side mounted)
• Turn on household water line valve.
Set freeze control to a colder setting. Allow 24 hours
for temperature to stabilize.
Turn off household water line valve. Remove valve.
Ensure that valve is not a self-piercing saddle valve.
Clean valve. Replace valve if necessary.
Ice maker should produce 2 Yzto 3 pounds of ice
every 24 hours.
Set freeze control to a colder setting. Allow 24 hours
for temperature to stabilize.
Turn on household water line valve.Household water line valve is
not completely open.
Ice cubes are freezing Ice cubes are not being used Remove ice container and discard ice from container.
together, frequently enough. Ice maker will produce fresh supply.
Ice cubes are hollow (partially The ice & water filter cartridge may be clogged.
frozen cubes with water Replace filter cartridge.
inside).
WATER DISPENSER
Dispenser will not • Household water line valve is • Open household water line valve. See PROBLEM
dispense water, not open. section ICE MAKER IS NOT MAKING ANY ICE.
• Freezer door is not closed. • Ensure that freezer door is closed.
• Ice & water filter cartridge is • Replace filter cartridge.
clogged.
Water pressure is • Cut-off and cut-on pressures • Have someone turn up the cut-off and cut-on pressure
extremely low. are too low (well systems on the water pump system (well systems only).
only).
• Reverse osmosis system is in • It is normal for a reverse osmosis system to be below
regenerative phase. 20 psi during the regenerative phase.
18
