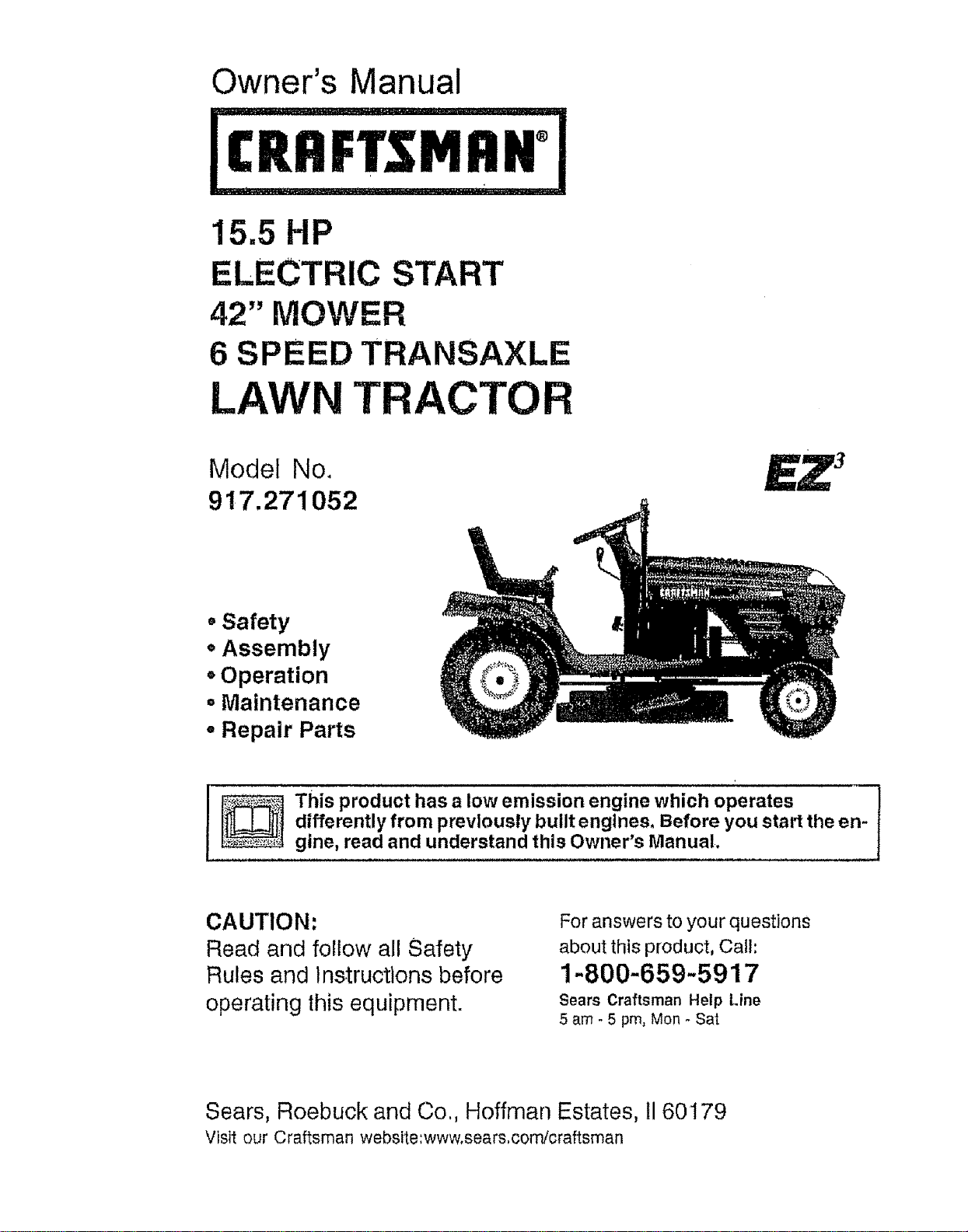

Craftsman 917271052 tractor User Manual

Owner's Manual

15.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Model No.

917.271052

oSafety

,,Assembly

, Operation

oMaintenance

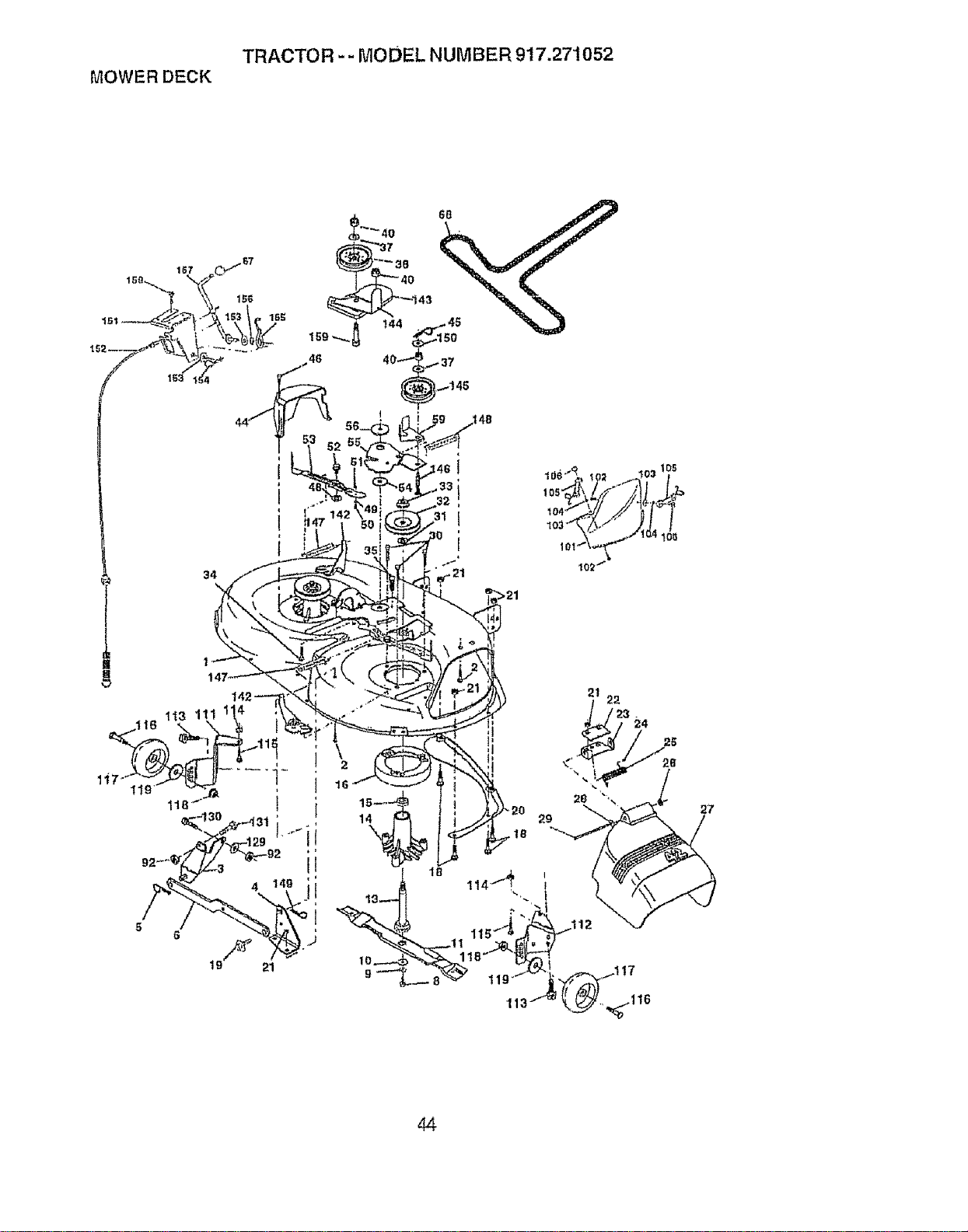

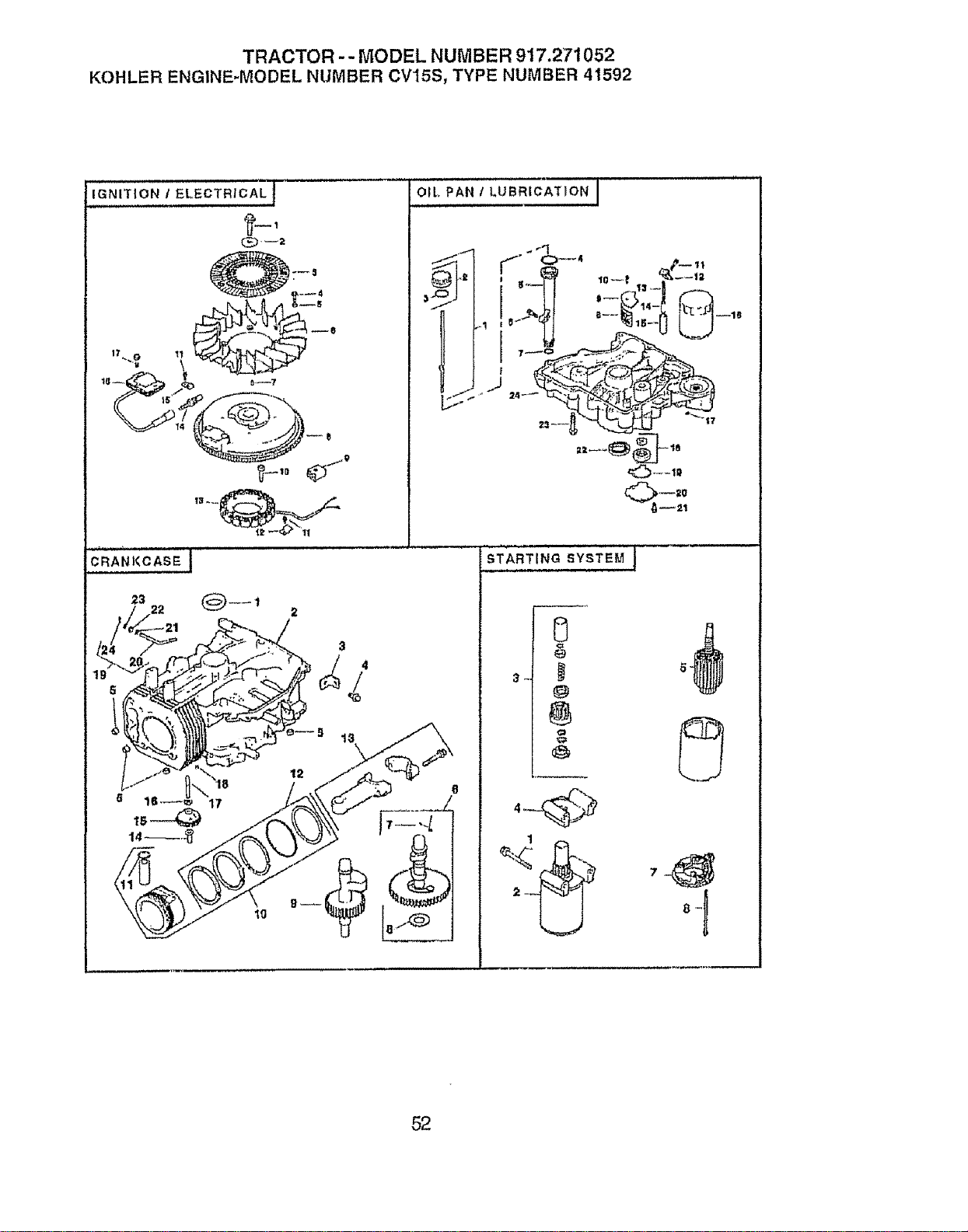

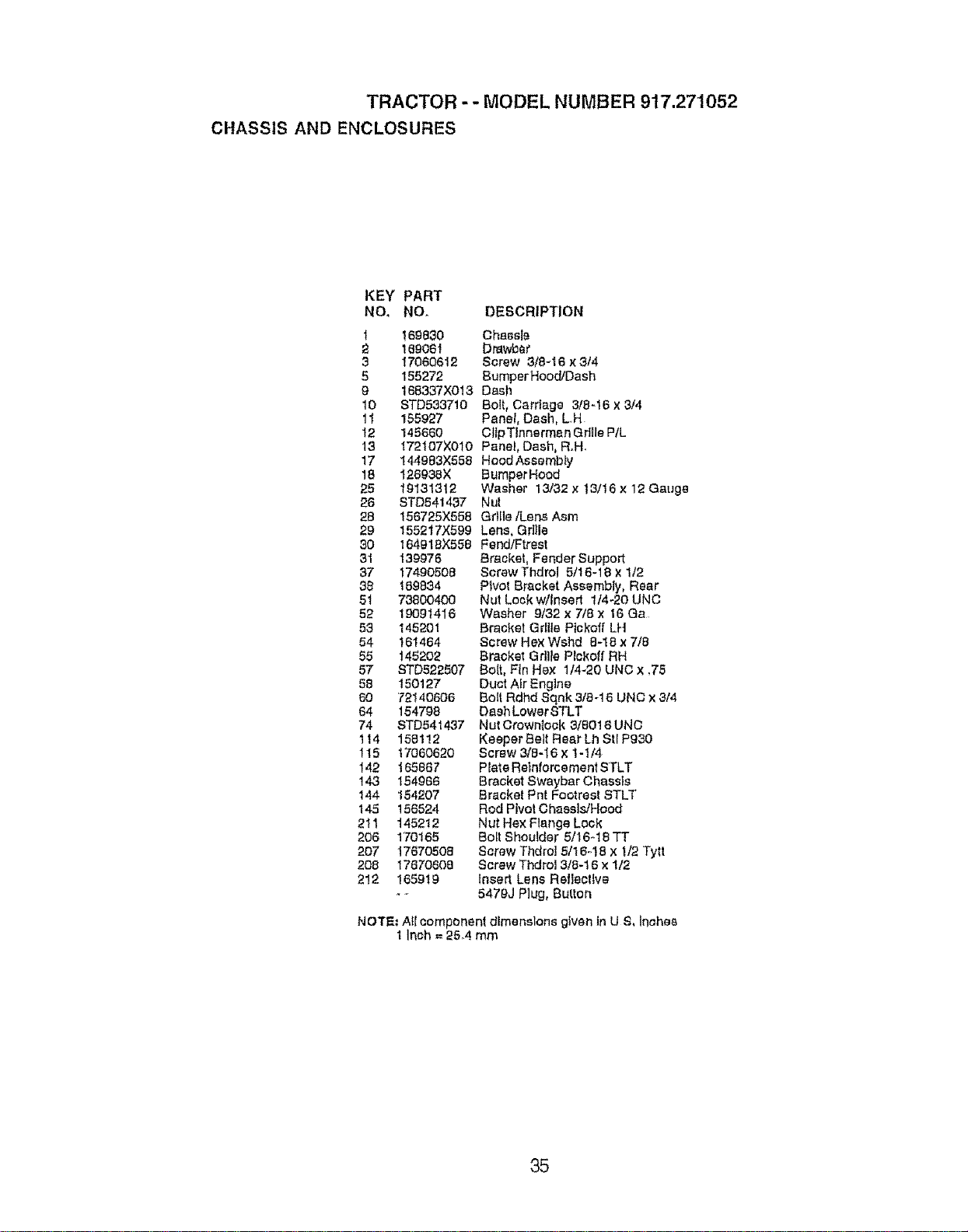

o Repair Parts

]_ This product has a low emission engine which operates ]

differently from previously built engtnes, Before you start the en- |

gine, read and understand this Owner's Manual. l

CAUTION:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am - 5 pm, Mon - Sat

Sears, Roebuck and Co., Hoffman Estates, tl 60179

Visit our Craftsman website:www,sears,com!craftsman

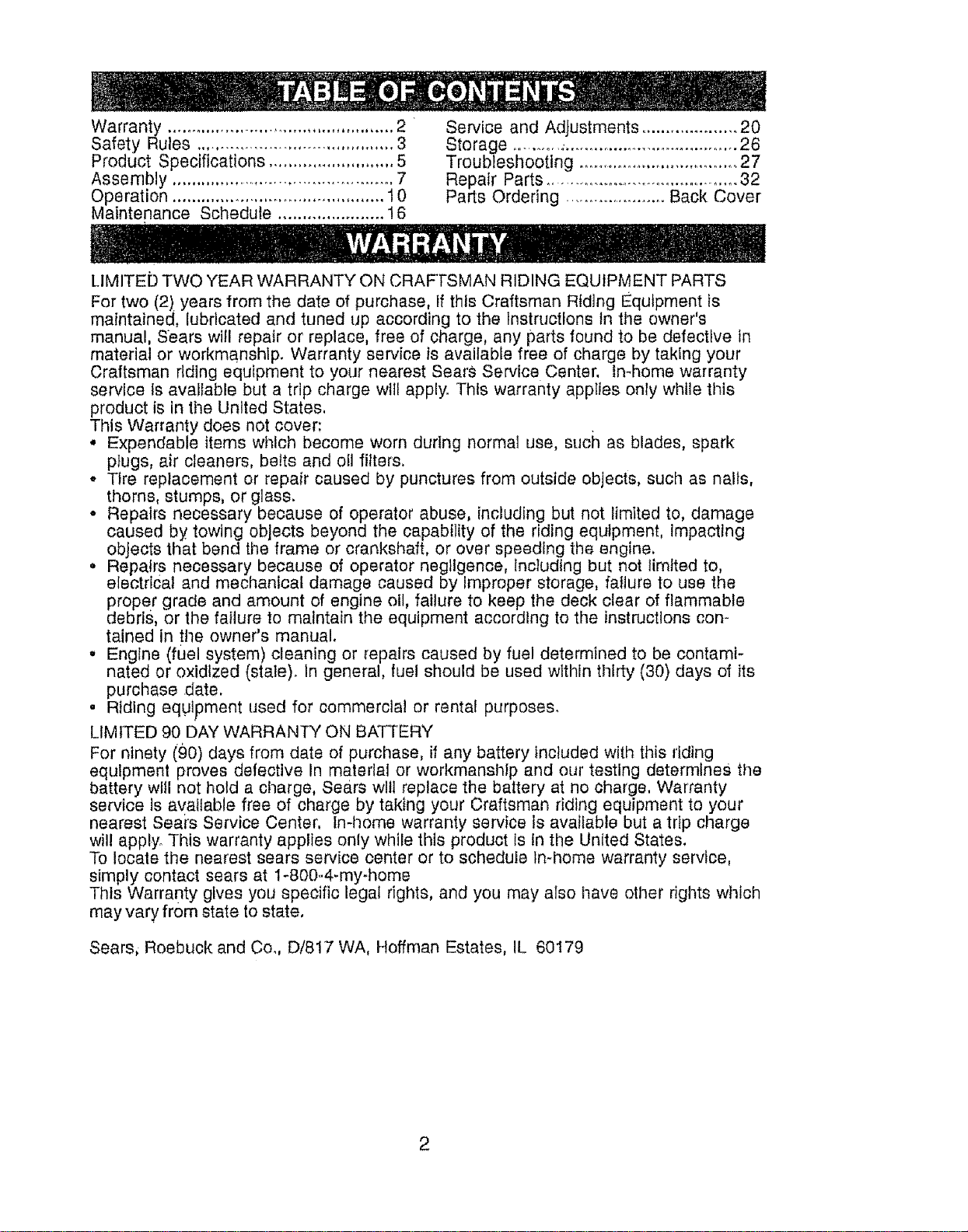

Warranty ............................................... 2 Service and Adjustments ..................... 20

Safety Rules ......................................... 3 Storage .......... _..................................... 26

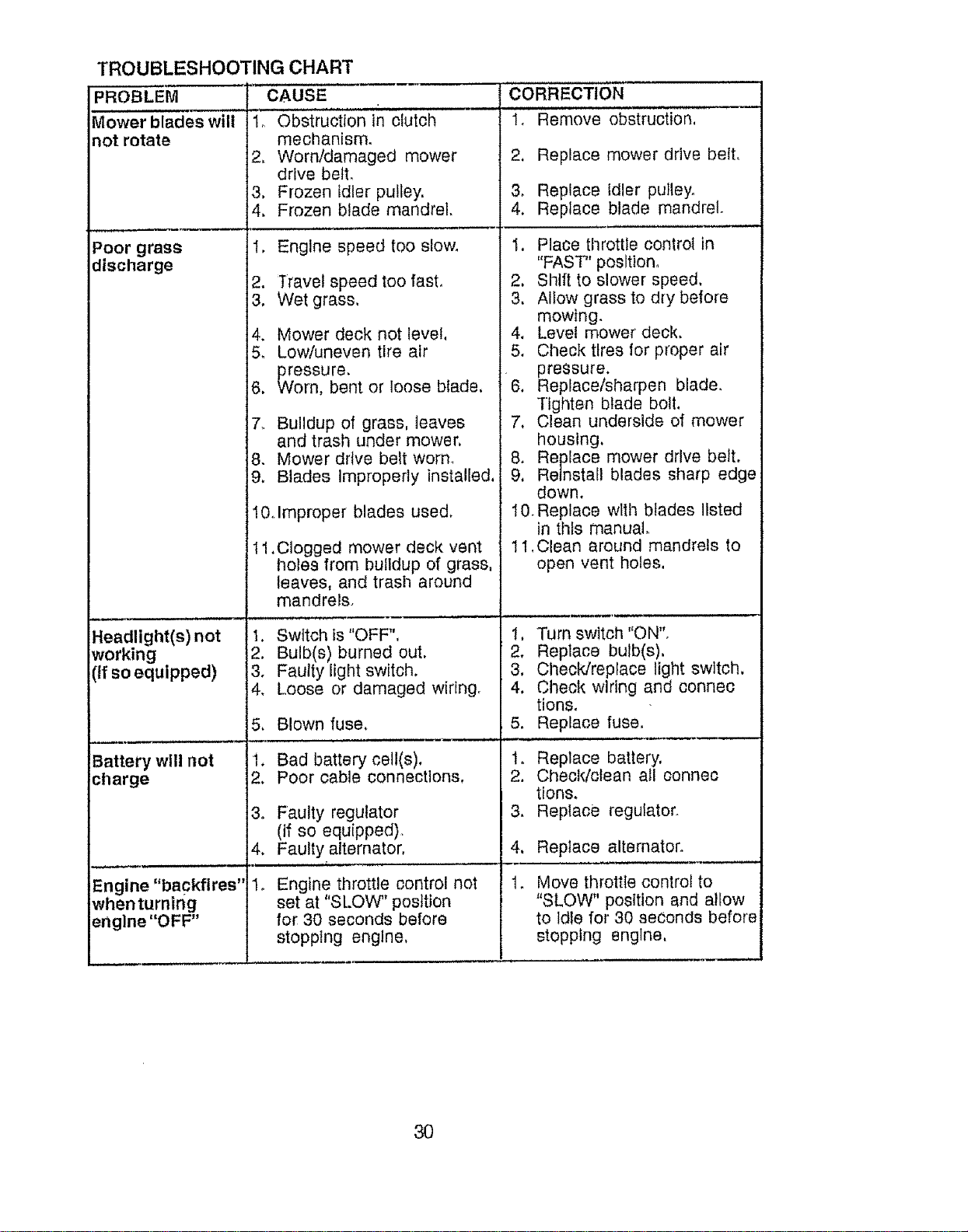

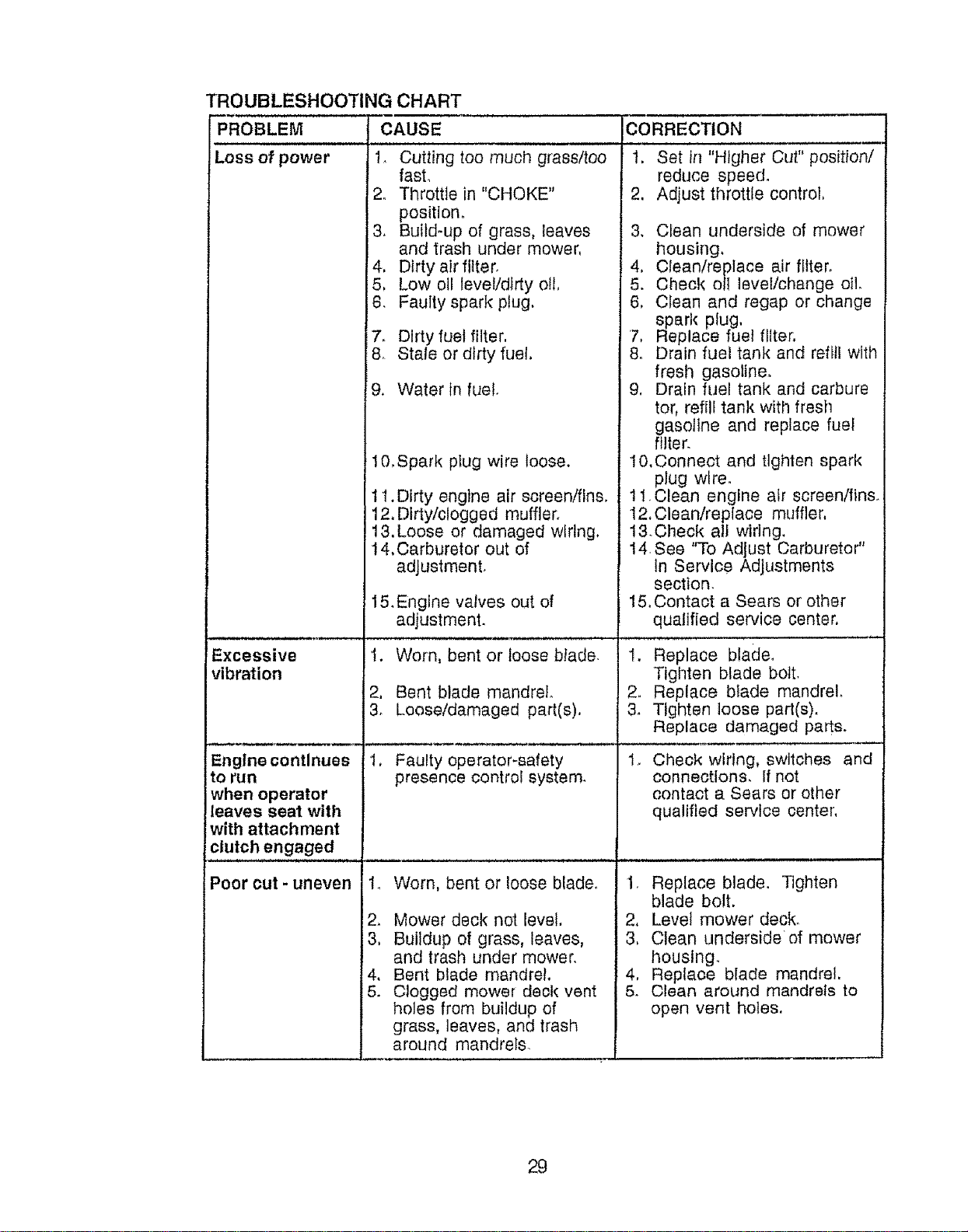

Product Specifications .......................... 5 Troubleshooting ......................................27

Assembly ................................................. 7 Repair Parts ............................................32

Operation ............................................. 10 Parts Ordering ........................Back Cover

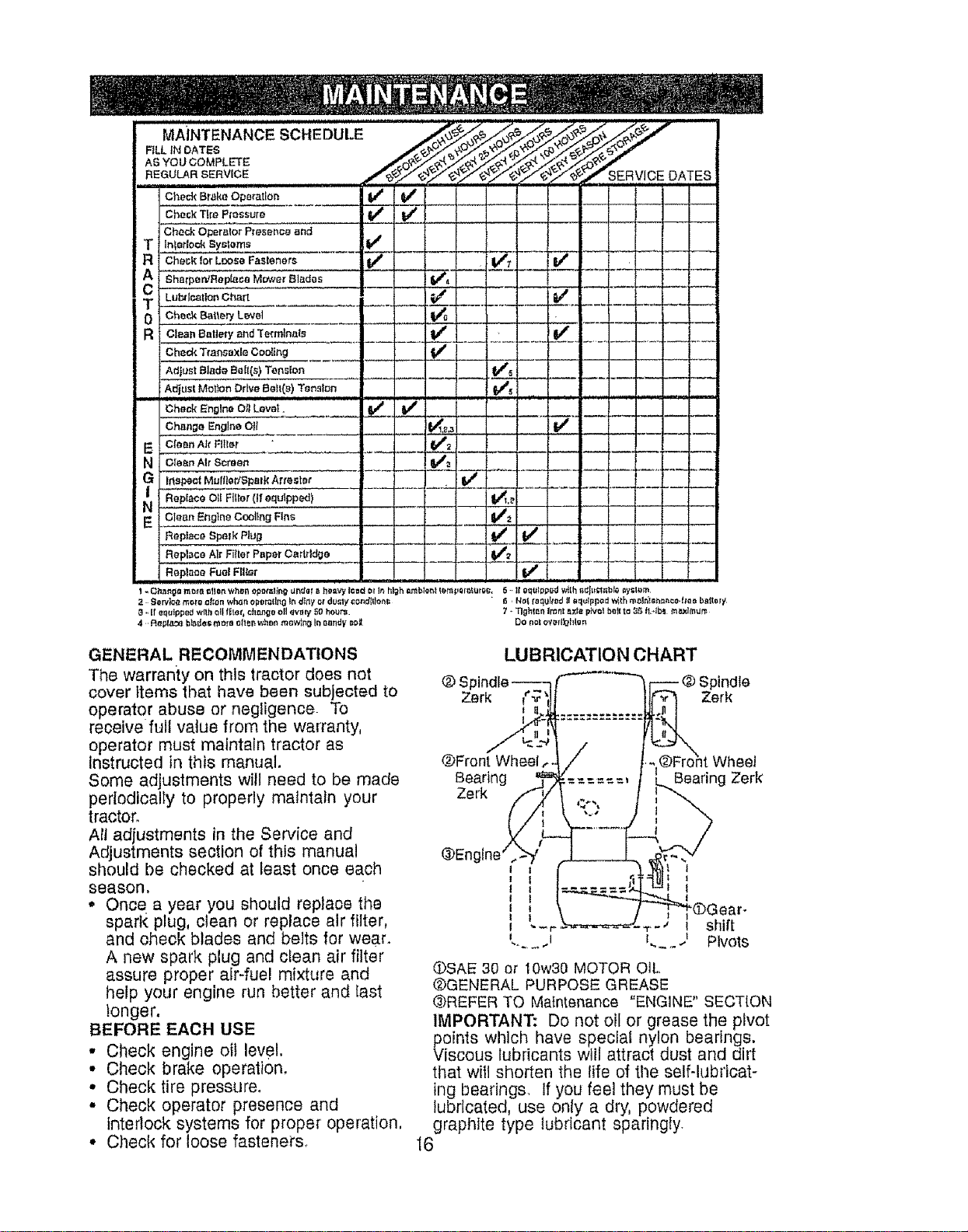

Maintenance Schedule ...................... 16

LIMITED TWO YEAR VVARRANTY ON CRAFTSMAN RIDING EQUIPMENT PARTS

For two (2} years from the date of purchase, If this Craftsman Rtd]ng Equipment is

maintained, lubricated and tuned up according to the Instructions tn the owner's

manual, Sears will repair or replace, free of charge, any parts found to be defective in

material or workmanship. Warranty service Is available free of charge by taking your

Craftsman rldlng equipment to your nearest Sears Service Center. in-home warranty

service is available but a trip charge wlll apply. This warranty applies only while this

product is in tile United States,

This Warranty does not cover:

• Expendable items which become worn during normal use, such as blades, spark

plugs, air cleaners, belts and oil filters.

, Tfre replacement or repair caused by punctures from outside objects, such as nalts,

thorns, stumps, or glass.

° Repalrs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over speeding the engine,

• Repairs necessary because of operator negligence, Including but not limited to,

electrical and mechanical damage caused by Improper storage, failure to use the

proper grade and amount of engine otl, failure to keep the deck clear of flammable

debris, or the failure to maintain the equipment according to the instructions con-

tained in ttle owner's manual.

° Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). in general, fuel should be used within thirty (30) days of its

purchase date.

, Riding equipment used for eommercta! or rental purposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (§0) days from date of purchase, if any battery included with this riding

equipment proves defective In material or workmanship and our testing determines the

battery will not hold a charge, Sears will replace the battery at no charge. Warranty

service Is available free of charge by taking your Craftsman riding equipment to your

nearest Seai's Service Center, In-llome warranty service is available but a trip charge

wil! apply. This warranty applies only while this product ls tn the United States,

To locate the nearest sears service center or to schedule In-home warranty service,

simply contact sears at 1-800-4-my-home

Thts WarrantY gives you specific legal rights, and you may also have other rights which

may vary from state to state,

Sears, Roebuck and Co., D/817 WA, Hoffman Estates, IL 60179

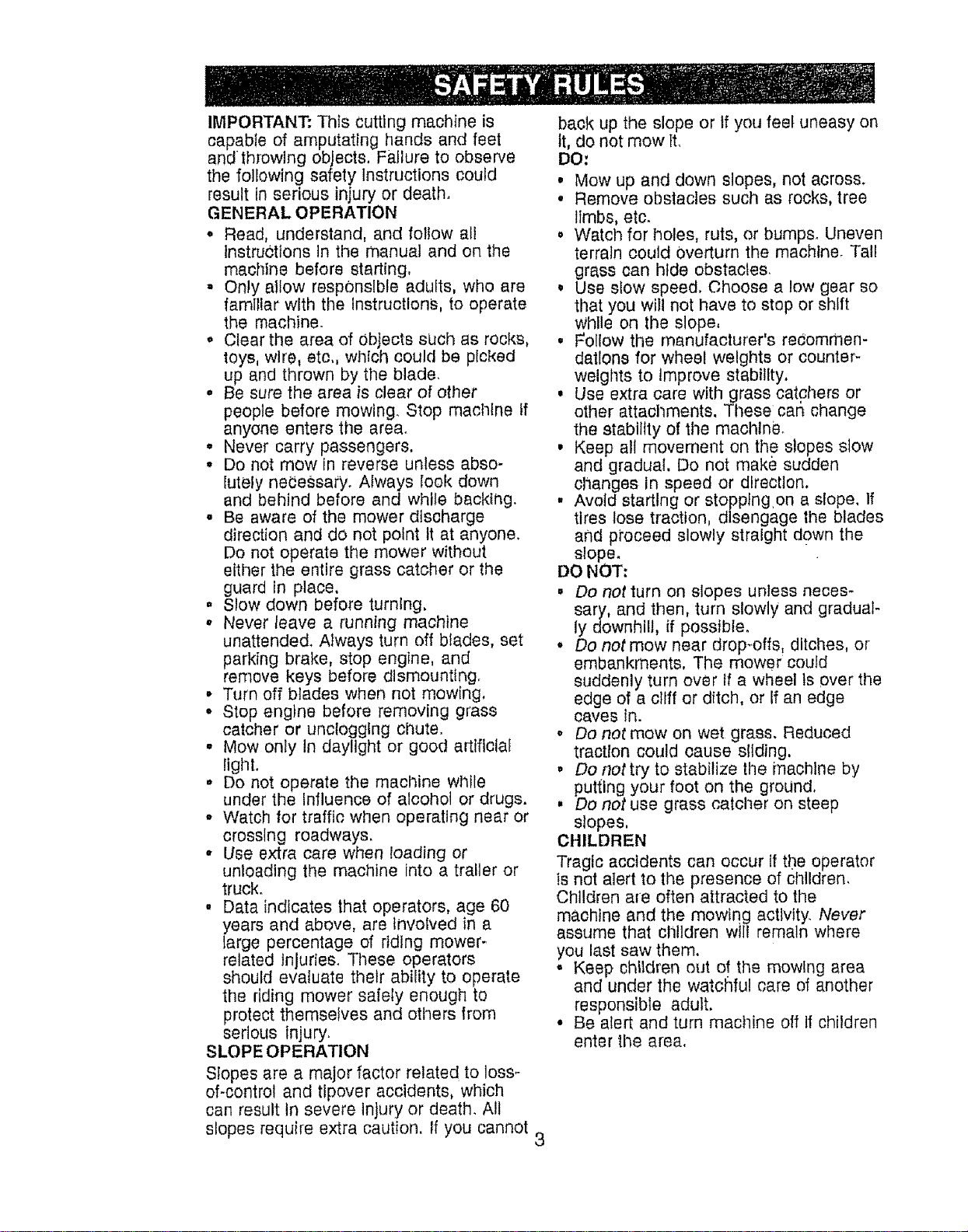

IMPORTANT: This cutting machine is

capabfe of amputating hands and feet

and throwing ob)ects. Failure to observe

the following safety instructions could

result in serious injury or death.

GENERAL OPERATION

• Read, understand, and foliow all

InstruCtions In the manual and on the

machine before starting,

• Only allow respOnsible adults, who are

familiar with the Instructions, to operate

the machine.

° Clear the area of objects such as rocks,

toys, wlre_ eto,, which could be picked

up and thrown by the blade,

° Be sure the area is clear of other

people before mowing. Stop mact]lne If

anyone enters the area.

° Never carry passengers.

° Do not mow In reverse unless abso-

lutely ne0eSsary. Always look down

and behind before and while backing.

° Be aware of the mower discharge

direction and do not point It at anyone.

Do not operate the mower without

either the entire grass catcher or the

guard In place.

. Slow down before turning,

• Never leave a running machine

unattended, Always turn off blades, set

parking brake, stop engine, and

remove keys before dismounting.

° Turn off blades when not mowing,

° Stop engine before removing grass

catcher or unclogging chute,

• Mow only In daylight or good artiflclaf

light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near or

crossing roadways.

• Use extra care when loading or

unloading the machine into a trailer or

truck.

, Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-

related Injuries. Ttlese operators

should evaluate their abiiity to operate

the riding mower safely enough to

protect themselves and ott_ers from

serious injury.

SLOPE OPERATION

Slopes are a major factor related to loss-

of-control and tlpover accidents, which

can result in severe Injury or death. All

slopes require extra caution. If you cannot

back up the slope or tf you fee[ uneasy on

it, do not mow It.

DO:

• Mow up and down slopes, not across.

° Remove obstacles such as rocks, tree

limbs, etc.

o Watch for holes, ruts, or bumps° Uneven

terrain could Overturn the machine. Tall

grass can hide obstacles.

, Use slow speed, Choose a low gear so

that you will not have to stop or shift

while on Ihe slope,

° Follow the manufacturer's reOommen-

datlons for wheel weights or counter-

weights to Improve stability,

, Use extra care with grass catghers or

other attacllments. These can change

the stability of the macl_Ine.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction.

• Avoid starting or stopping on a slope. If

tires lose traction, disengage the blades

and pi'oceed slowly straight down the

slope.

DO NOT:

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradual-

ly downhill, if possible.

• Do not mow near drop*ells, ditches, or

embankments, The mower could

suddenly turn over tf a wheel Is over the

edge of a cIlff or ditch, or if an edge

caves In.

° De not mow on wet grass. Reduced

traction could cause s{iding.

° Do not try to stabilize the machine by

putting your foot on the ground,

° Do not uee grass catcller on steep

slopes,

CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of ct_lldren,

Children are often attracted to the

machine and the mowing activity. Never

assume that clilldren will remaln where

you last saw them.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

° Be alert and turn macl]ine off if children

enter the area,

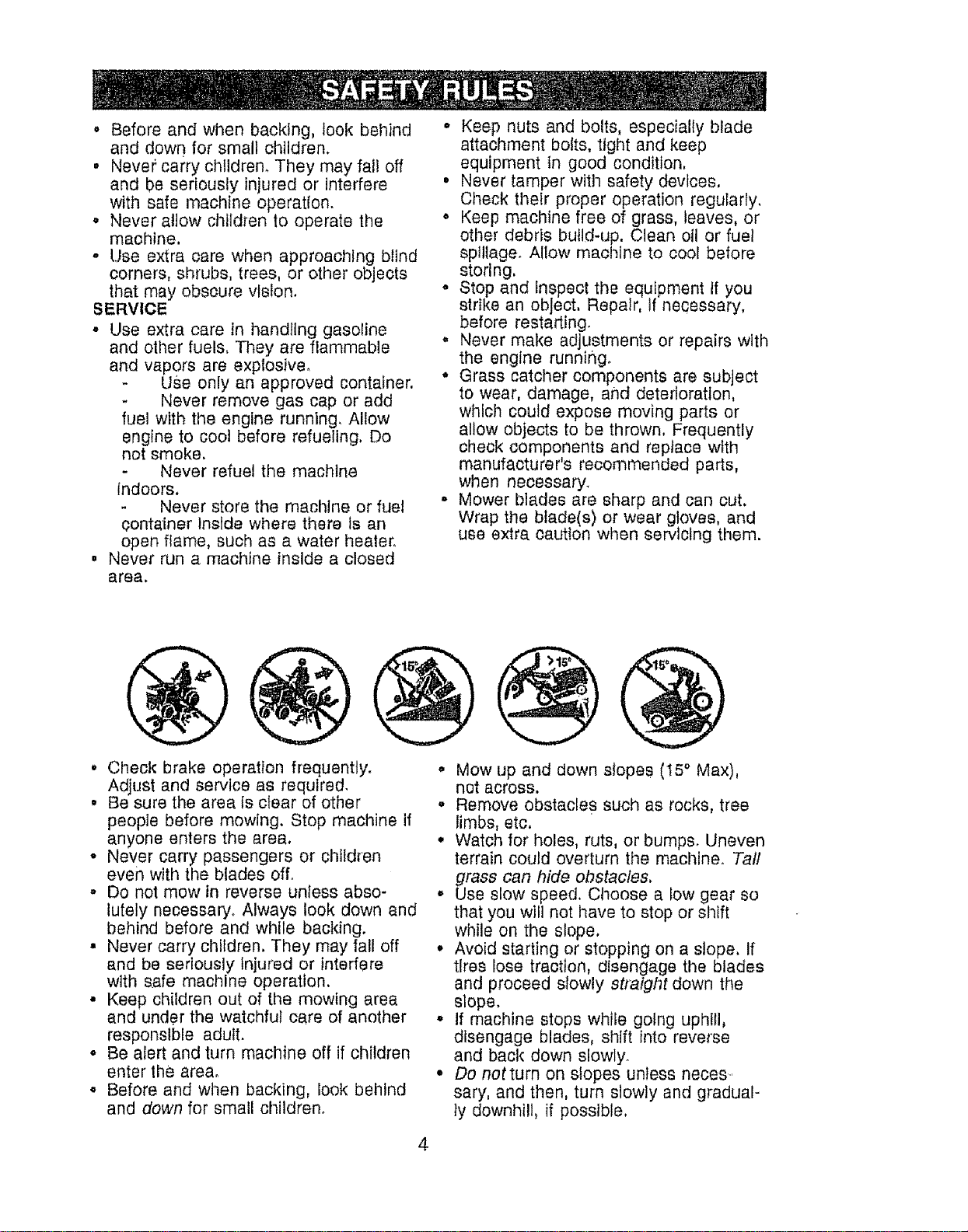

o Beforeand whenbacktng,lookbehind

anddownfor smallchildren.

• Never carry chlidren. They may fall off

and be seriously injured or interfere

wkI1 safe machine operation.

, Never allow children to operate the

machine.

o Use extra care when approachlng blind

corners, shrubs, trees, or other objects

that may obscure vtston.

SERVICE

° Use extra care In handling gasoline

and other fuels, They are flammable

and vapors are explosive,

- Use only an approved container,

Never remove gas cap or add

fuel with the engine running_ Allow

engine to coot before refueling, Do

not smoke.

Never refuel the machine

Indoors.

- Never store the machine or fuel

container inside where there te an

open flame, such as a water healer

. Never run a machine inside a closed

area.

- Keep nuts and bolts, especially blade

attachment bolts, tight and keep

equipment in good condition.

• Never tamper with safety devices.

Check tl_etr proper operation regularly.

, Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage. Allow macl_tne to cool before

storing,

- Stop and inspect the equipment if you

strike an object, Repair if necessary,

before restarting.

• Never make adjustments or repairs with

the engine running°

• Grass catcher components are subject

to wear, damage, and deterioration,

whicll could expose moving parts or

allow objects to be thrown. Frequently

check components and replace with

manufacturer's recommended parts,

when necessary.

o Mower blades are sharp and can cut.

Wrap the blade(s) or wear gloves, and

use extra oautton when servicing them.

* Check brake operation frequently.

Adjust and service as required,

. Be sure the area is clear of other

people before mowing. Stop machine if

anyone enters the area.

- Never carry passengers or children

even with the blades off.

- Do not mow in reverse unless abso-

lutely necessary. Always look down and

behind before and while backing.

. Never carry children. They may fall off

and be seriously injured or interfere

with safe machine operation.

• Keep children out of the mowing area

and under the watchful care of another

responsible adult.

o Be alert and turn machine off if children

enter lhe area.

o Before and when backing, look belllnd

and down for small children_

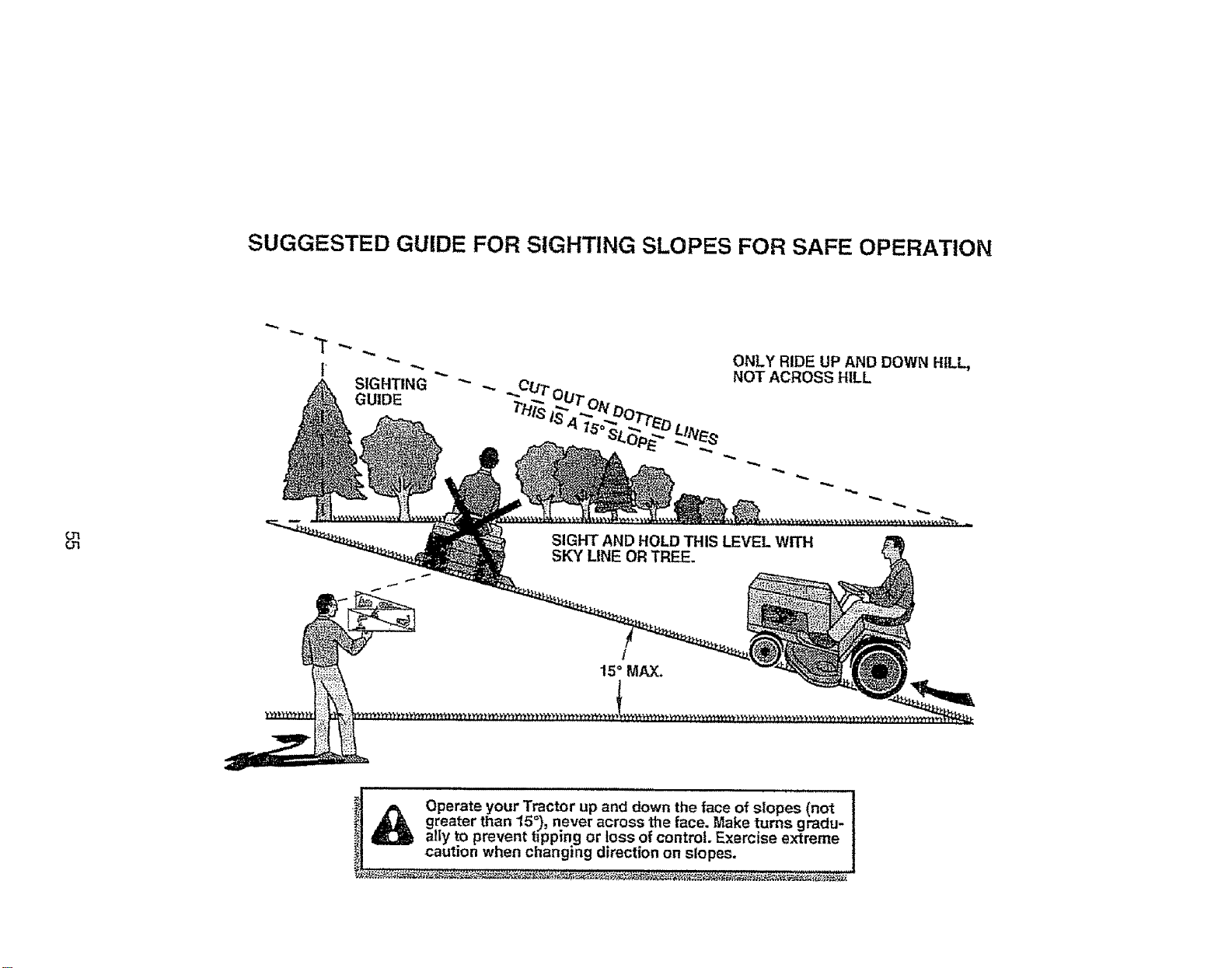

o Mow up and down slopes (15° Max),

not across,

° Remove obstacles such as rocks, tree

limbs, eto,

• Watch for holes, ruts, or bumps. Uneven

terrain could overturn the machlne_ Taft

grass can hide obstacles,

° Use slow speed, Choose a tow gear so

that you will not have to stop or shift

while on the slope,

. Avoid starling or stopping on a slope. If

tires lose traction, disengage tl_e blades

and proceed slowly straight down the

elope,

, If machine stops while uphill,

disengage blades, shlftgl°ttnogreverse

and back down slowly.

• Do nottum on slopes unless neces-.

sary, and then, turn slowly and gradual-

ly downhill, if possible,

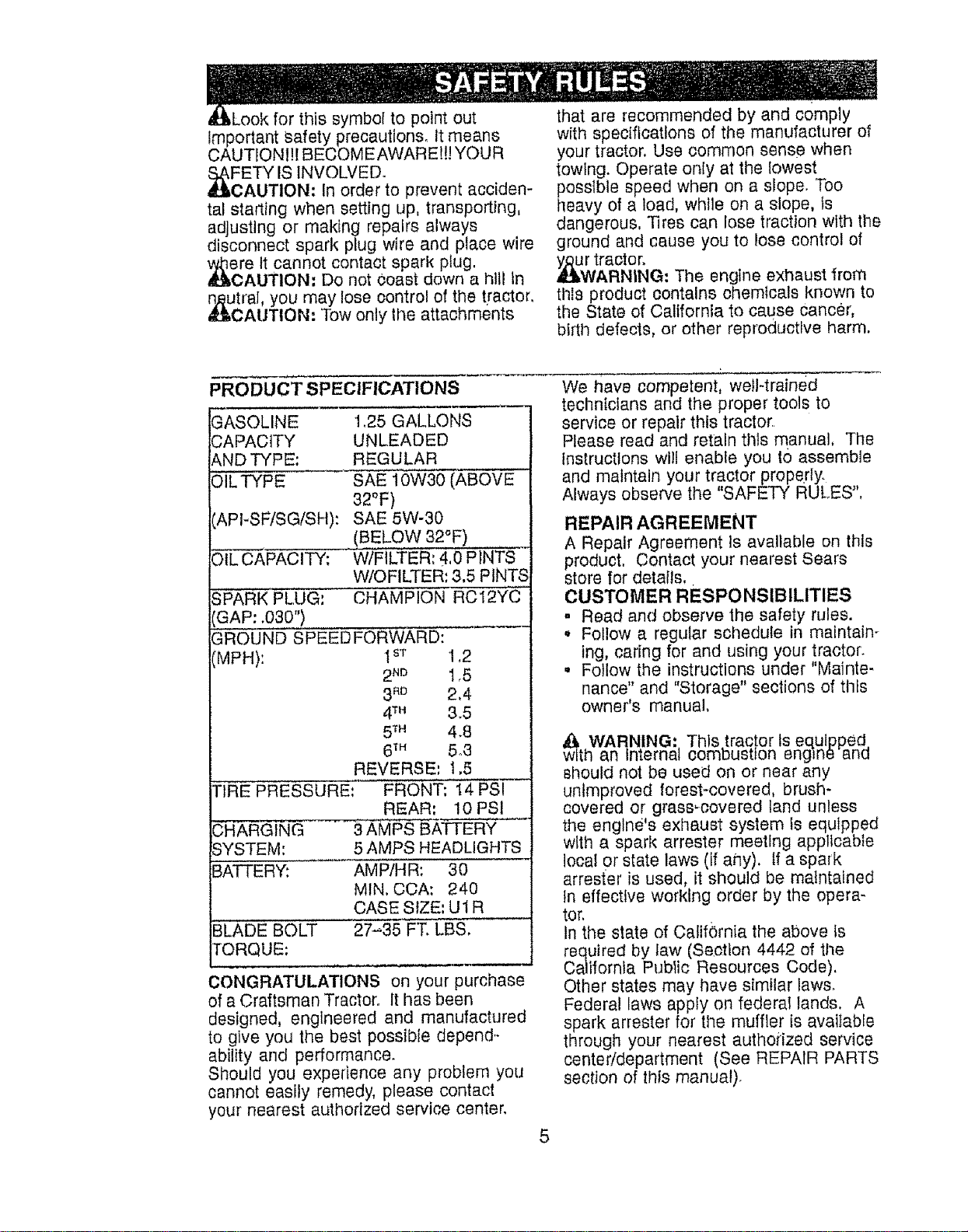

for this symbolto pointout

ImportantSafetyprecautions_it means

CAUTIONI!!BECOMEAWARE!!!YOUR

_FETY ISINVOLVED.

CAUTION:Inorderto preventacciden-

telstartingwhensettingup,transporting,

adjustingor makingrepairsalways

disconnectsparkplugwireandplacewire

_re ItcannotcontactsparkpkJg.

AUTION: Do not 0cast down a hill In

_llUCtrai,you may lose control of the tractor.

AUTION: Tow only lhe attachments

that are recommended by and comply

with specifications of the manufacturer of

your tractor, Use common sense when

towing. Operate only at the lowest

possible speed when on a slope. _bo

heavy of a load, while on a slope, is

dangerous, Tires can lose tractlon with the

ground and cause you to lose control of

y_uwrtractor.

ARNING: The engine exhaust from

tills product contains chemicals known to

the State of California to cause Cancer,

birth defects, or other reproductive harm.

PRODUCT SPECIFICATIONS

GASOLINE 1.25 GALLONS

CAPACITY UNLEAD ED

AND TYPE; REGULAR

OILTYPE SAE 10W30 (ABOVE

32°F)

API-SFiSG/SH): SAE 5W-30

(BELOW 32°F)

)I--LCAPACITY: W/FILTER: 4,0 PINTS

W/OFILTER: 3,5 PINTS

SPARK PLUG: CHAMPION RC12YC

GAP: .030")

GROUND SPEED FORWARD:

MPH): I sT 1.2

2ND 1o5

3a° 2,4

4TM 3.5

5TM 4.8

6TM 5..3

REVERSE', 1,5

TIRE PRESSURE: FRONT: 14 PSI

REAR', 10 PSI

......3 AMPS BATTERY

}YSTEM: 5 AMPS HEADLIGHTS

BATTERY: AMP/HR: 30

MIN, CCA: 240

CASE SIZE', Ut R

BLADE BOLT 27-_35 FT. LBS.

TORQUE:

CONGRATULATIONS on your purchase

of a Craftsman Tractor. It has been

designed, engineered and manufactured

to give you the best possible depend.-

ability and performance.

Should you experience any problem you

cannot easily remedy, please contact

your nearest authorized service center.

We have competent, well-trained

technicians and the proper tools to

service or repalr this tractor

Please read and retain this manual, The

instructions will enable you tO assemble

and maintain your tractor properly.

Always observe the "SAFETY RULES",

REPAIR AGREEMENT

A Repair Agreement is available on this

product, Contact your nearest Sears

store for details,

CUSTOMER RESPONSIBILITIES

. Read and observe the safety rules.

* Follow a regular schedule in maintain-

ing, caring for and using your tractor.

. Follow the instructions under "Mainte-

nance" and "Storage" sections of this

owner's manual,

w_tWARNING: Thls.trac.tor ts equipped,

h an tnternal combustion engine ana

should not be used on or near any

unimproved forest-covered, brush-

covered or grass_covered land unless

the engine's exhaust system is equipped

with a spark arrester meeting applicable

local or state laws (if any). If a spark

arres{er is used, it should be maintained

in effective working order by the opera-

tor.

In the state of CalifOrnia the above Is

required by taw (Section 4442 of tile

California Public Resources Code).

Other states may have similar laws.

Federal laws apply on federal lands. A

spark arrester for the muffler is available

through your nearest authoilzed service

center/department (See REPAIR PARTS

section of this manual),

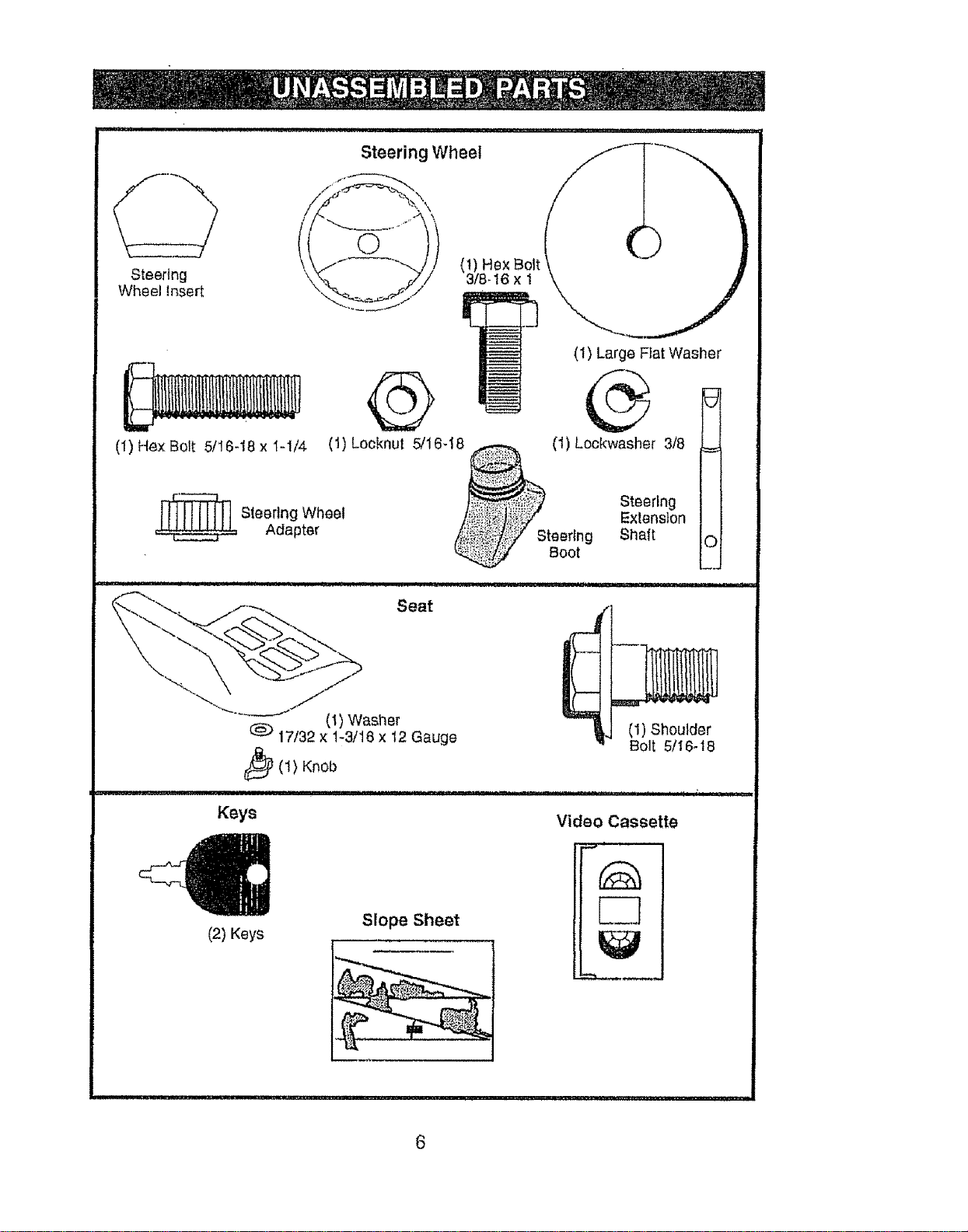

f iii,]1

Steering

Wheel Insert

i,u, ii u

Steering Wheel

(t) Hex Bolt

3/8.16 x 1

(1) Hex Bolt 5/16-18 x l-1/4

F[_'_ Steedng Wheel

Adapter

(!) Locknul 5/16-18

(t) Large Fiat Washer

(1) koekwasher 3/8

Steerlng

Extension

Shaft

.................................. i i i , i f ....... I

Seat

(1) Washer

@ 17/32 × 1-3/16 x 12 Gauge

_(t) Knob

Keys

(2) Keys

Slope Sheet

(1) Shoulder

Bolt 5II6-t8

Video Cassette

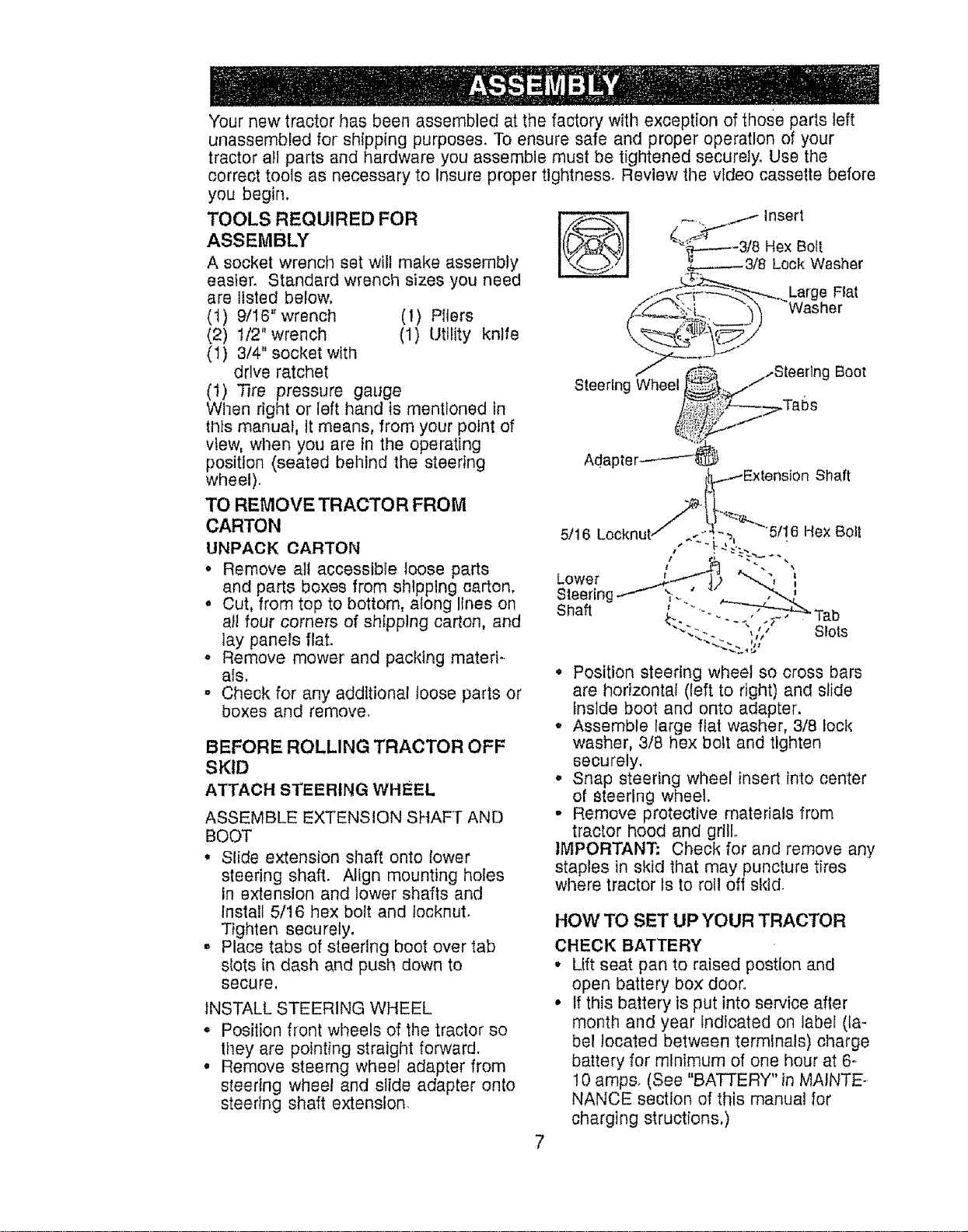

Your new tractor has been assembled at the factory with exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your

tractor at parts and hardware you assemble must be lghtened securely. Use the

correct tools as necessary to Insure proper tightness. Review the video casselte before

you begin.

TOOLS REQUIRED FOR

ASSEMBLY

A socket wrench set will make assembly

easier, Standard wrench sizes you need

are Itsted below,

(1) 9/16"wrench (t) Pliers

(2) 1/2" wrench (1) Utility knife

(1) 3/4" socket with

drive ratchet

(t) Tire pressure gauge

Wllen right or left hand is mentioned in

this manual, It means, from your point of

view, wlten you are in the operating

position (seated behind the steering

wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

• Remove al accessible loose parts

and parts boxes from shipping carton,

° Cut, from top to bottom, along lines on

a/four corners of shipping carton, and

lay panels flat.

• Remove mower and packing mated-

ais.

- Check for any additional loose parts or

boxes and remove.

BEFORE ROLLING TRACTOR OFF

SKID

ATTACH STEERING WHEEL

ASSEMBLE EXTENSION SHAFT AND

BOOT

o Slide extension shaft onto tower

steering shaft. Align mounting holes

in extension and lower shafts and

Install 5/16 hex bolt and locknut.

Tighten securely.

° Place tabs of steering boot over tab

stots in dash and push down to

secure,

INSTALL STEERING WHEEL

• Position front wheels of the tractor so

llley are pointing straight forward.

o Remove steerng wheel adapter from

steering wheel and slide adapter onto

steering shaft extension,

• Position steering wheel so cross bars

are horizontal (left to right) and slide

inside boot and onto adapter.

o Assemble large flat washer, 3/8 lock

washer, 3/8 hex bolt and tighten

securely.

° Snap steering wheel insert into center

of 8teerlng wheel.

• Remove protective materials from

tractor hood and grill

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

wl_ere tractor Is to roll off skld

HOW TO SET UP YOUR TRACTOR

CHECK BATTERY

°Uft seat pan to raised postfon and

open battery box door.

• If this battery is put into service after

month and year Indicated on label (la-

bel located between terminals) charge

battery for mlntmum of one hour at 6-.

10 amps, (See "BATTERY" in MAINTE-,

NANCE section of this manual for

charging struelons.)

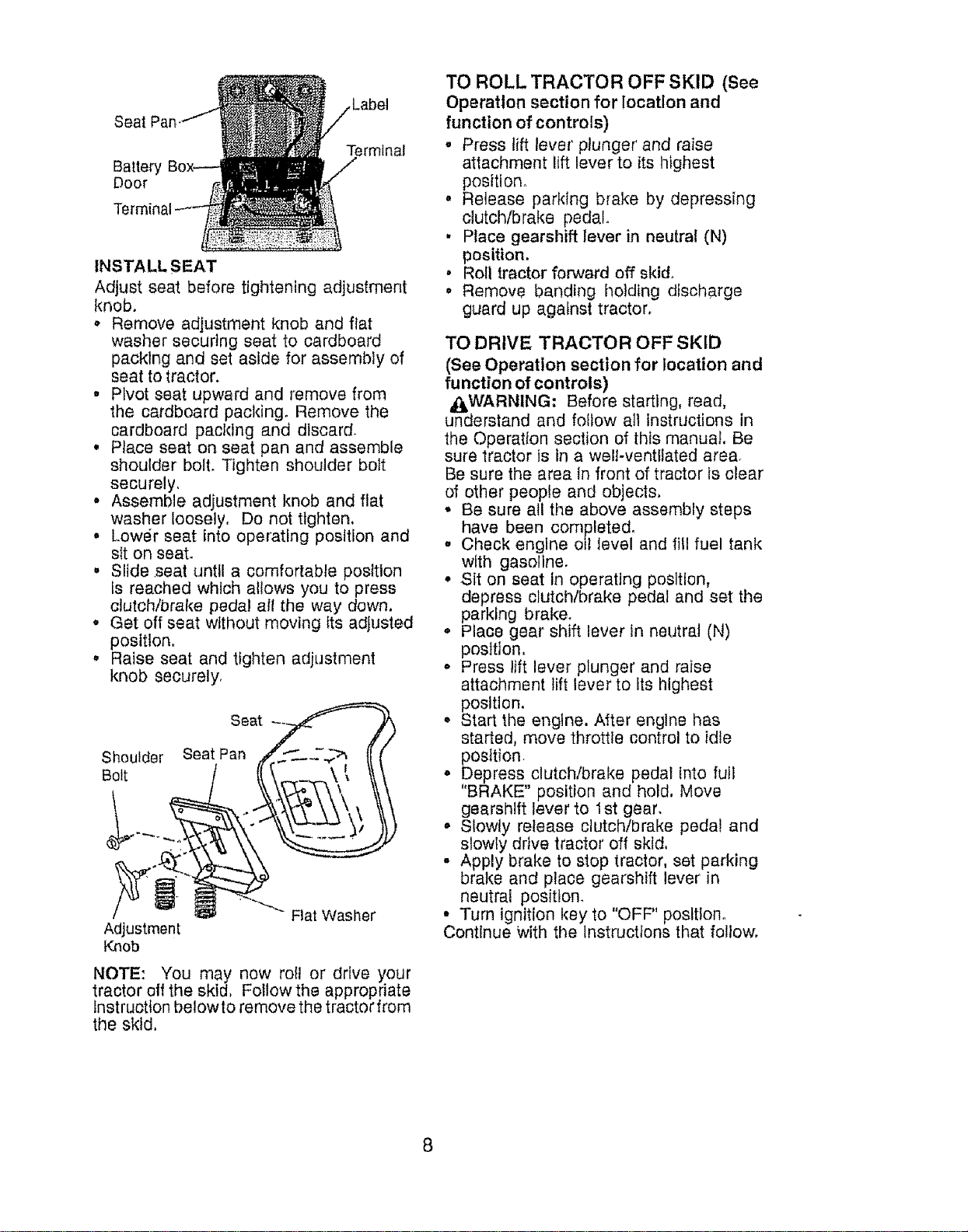

Seat

Battery

Door

Termin_

Terminal

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

° Remove adjustment knob and flat

washer securing seat to cardboard

packlng and set aside for assembly of

seat to tractor.

• Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packlng and discard.

° Place seat on seat pan and assemble

shoulder bolt. Tighten shoulder bolt

securely,

• Assemble adjustment knob and flat

washer toosely, Do not ttghten,

° Lower seat into operating position and

sit on seat.

° Slide seat until a comfortable position

is reached which ailows you to press

clutch/brake pedal all the way down,

° Get off seat without moving its adjusted

position,

° Raise seat and tighten adjustment

knob securely,

Shoulder Seat

Bolt ._

Adjustment

Knob

Seat

" Rat Washer

NOTE: You may now roll or drive your

tractor off the skid, Follow the appropriate

Instruction below to remove the tractor from

the skid,

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

. Press lift lever plunger' and raise

attachment lift lever to its highest

position_

° Release parking brake by depressing

clutch/brake pedal.

, Place gearshift lever in neutral (N)

position.

• Roll tractor forward off skid,

• Remove banding holding discharge

guard up against tractor.

TO DRIVE TRACTOR OFF SKID

(See Operation section for location and

function of controls)

_LWARNING: Before starting, read,

understand and follow all instructions In

the Operation section of this manual Be

sure tractor is in a well-ventilated area.

Be sure the area in front of tractor Is clear

of other people and objects.

• Be sure all the above assembly steps

have been completed°

. Clleck engine oil Ievel and fill fuel tank

with gasoline.

° Sit on seat In operating position,

depress clutch/brake pedal and set the

parking brake.

• Place gear shift lever In neutral (N)

position,

o Press lift lever plunger and raise

attachment lift lever to Its highest

position.

• Start the engine, After engine has

started, move throttle control to idle

position

o Depress clutch/brake pedal into full

"BRAKE" position and hold, Move

gearshift lever to 1st gear.

• Slowly release clutch/brake pedal and

slowly drive tractor off skid,

- Apply brake to stop tractor, set perking

brake and place gearshift lever in

neutral position.

• Turn ignition key to "OFF" position.

Continue With tl_e instructions that follow,

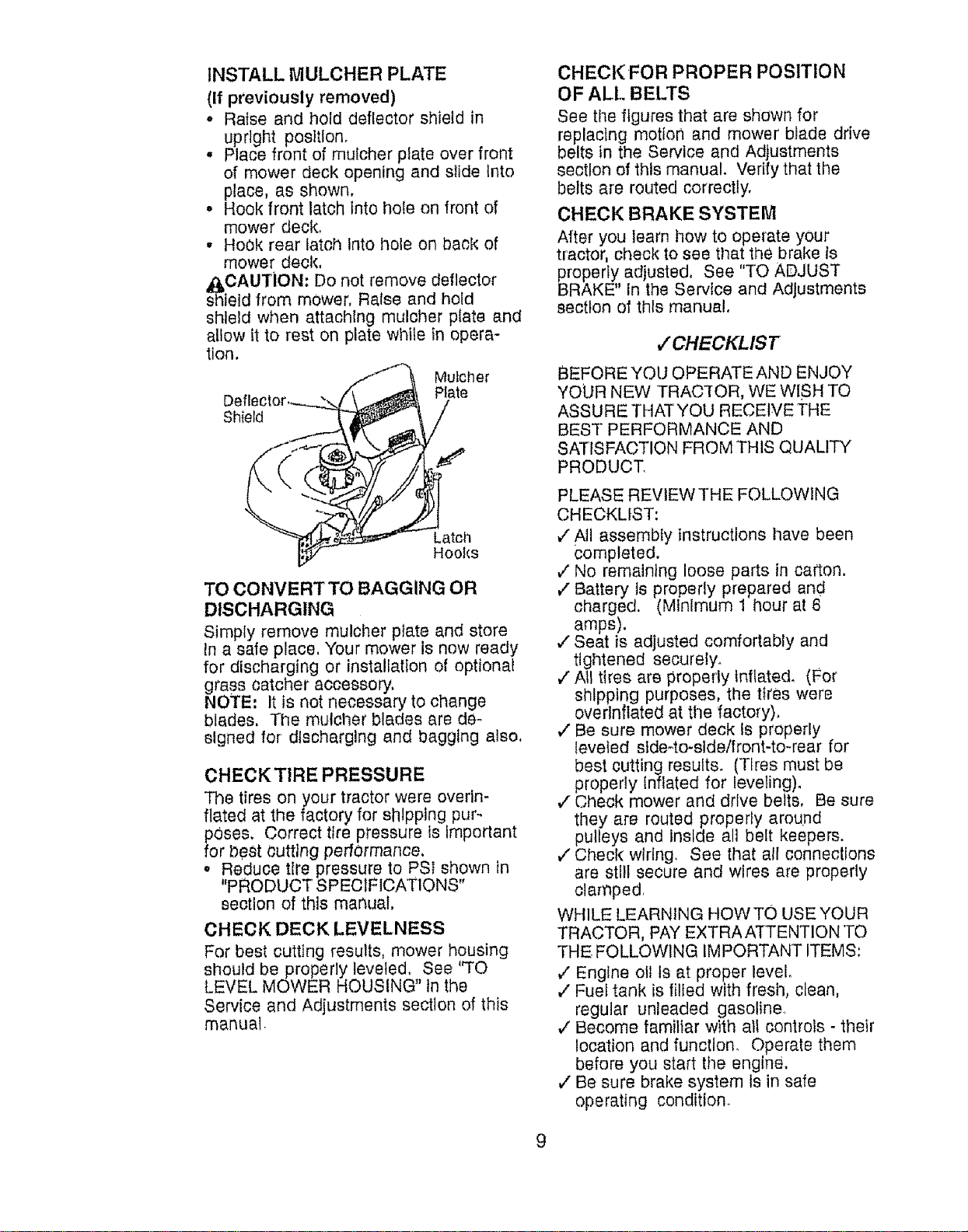

INSTALL MULCHER PLATE

(If previously removed)

- Raise and hold deflector shield in

upright posltlon.

• Place front of mulcher plate over front

of mower deck opening and sllde Into

place, as shown.

• Hook front latch into hole on front of

mower deck.

• Hook rear latch Into hole on back of

mower deck,

s_CAUTJON: Do not remove deflector

ield from mower, Raise and hold

shleld when attaching mulcher plate and

allow it to rest on plate wllile in opera-

tion.

Shield

Mutcher

Plate

Latch

Hooks

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store

In a safe place, Your mower is now ready

for discharging or installation of optional

grass catcher accessory,

NOTE: It is not necessary to change

blades, The mulcher blades are de-

signed for discharging end bagging also,

CHECKT1RE PRESSURE

The tires on your tractor were ovedn-

flated at the factory for shlpplng pur-

poses. Correct tlre pressure is important

for best Cutting performance.

• Reduce tire pressure to PSI shown In

"PRODUCT SPECIFICATIONS"

section of this manual,

CHECK DECK LEVELNESS

For best cutting results, mower housing

should be properly leveled. See 'qo

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual

CHECK FOR PROPER POSITION

OF ALL BELTS

See timefigures that ere shown for

replacing motion and mower blade drive

belts in the Service and Adjustments

section of thts manual° Verify that the

belts are routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your

tractor, check to see tlqat the brake ts

properly adjusted, See "TO ADJUST

BRAKE" in the Service and Adjustments

_ectlon of thts manual.

,/CHECKLIS T

BEFORE YOU OPERATE AND ENJOY

YOUR NEW TRAOTOR, WE WISH TO

ASSURE THATYOU RECEIVE THE

BEST PERFORMANCE AND

SATISFACTION FROM THIS QUALITY

PRODUCT,

PLEASE REVIEW THE FOLLOWING

CHECKLIST:

¢"All assembly instructions have been

Completed.

/ No remaining loose parts in carton.

V Battery Is properly prepared and

charged. (Minimum 1 hour at 6

amps).

¢' Seat is adjusted comfortably and

tightened securely.

¢"All tires are properly inflated. (For

shipping purposes, the ttres were

overlnflated at timefactory),

7" Be sure mower deck is properly

leveled slde4o-slde/front-to-rear for

best cutting results. (Tlres must be

properly Inflated for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around

pulleys and inside all belt keepers.

,/Cl_eck wtrlng. See that all connections

are still secure and wires are properly

clamped

WHILE LEARNING HOWTO USE YOUR

TRACTOR, PAY EXTRA ATTENTION TO

THE FOLLOWING IMPORTANT ITEMS:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean,

regular unleaded gasoline.

V"Become familiar with ail controls - their

location and function. Operate them

before you start the engine.

¢"Be sure brake system is in safe

operating condition.

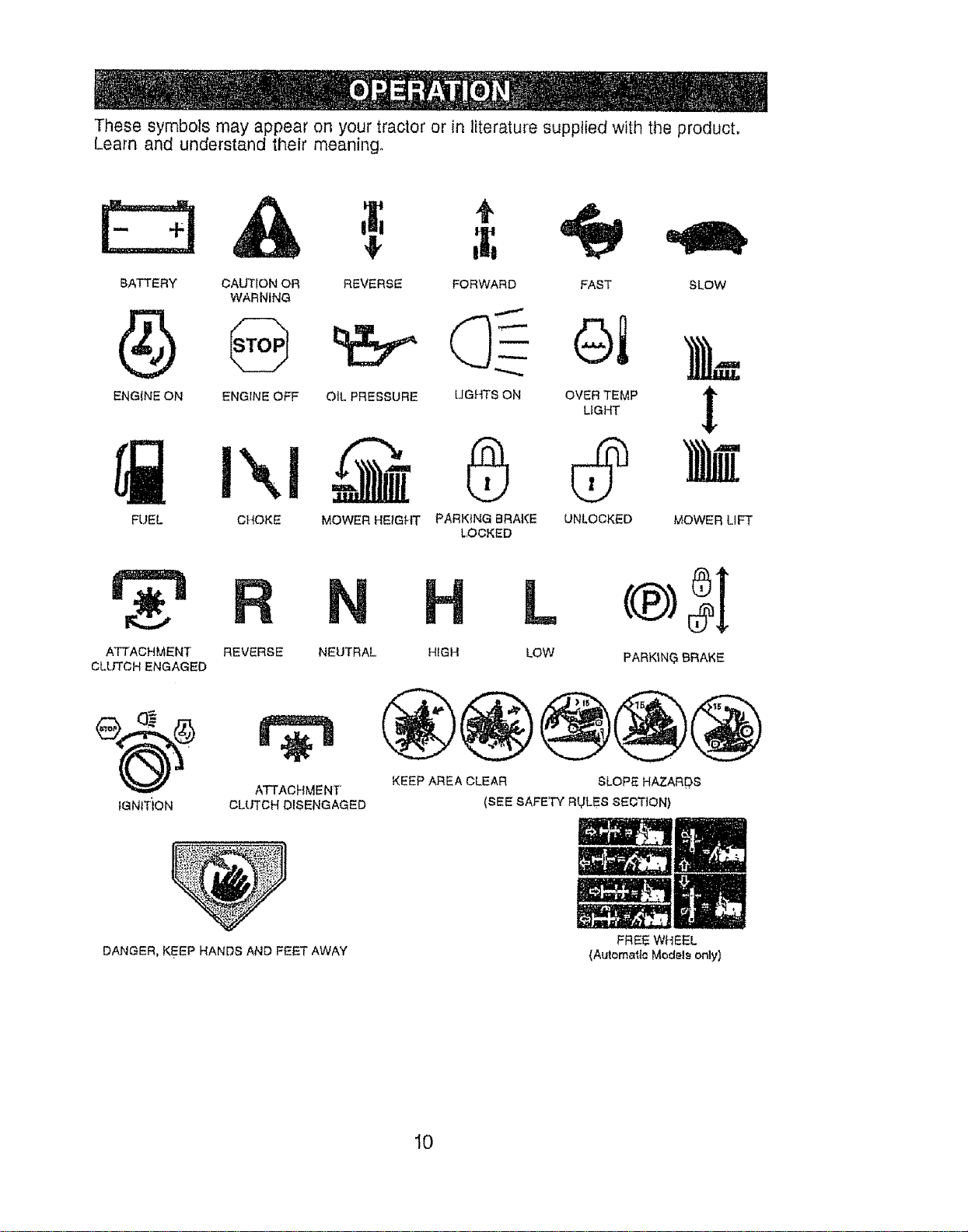

Thesesymbolsmayappearon yourtractororin literaturesuppliedwithtile product.

Learnand understandtheir meaning_

BATTERY CAUTION OR

WARNING

ENGINE O}=F

FORWARD

UGHTS ON

REVERSE SLOW

ENG(NE ON OIL PRESSURE t[ I_

FUEL CHOKE MOWER HEIGHT PARKING BRAKE

LOOKED

FAST

OVER TEMP

LIGHT

UNLOCKED

MOWER LIFT

ATTACHMENT

CLUTCH ENGAGED

IQNITiON

REVERSE NEUTRAL

ATTACHMENT'

CLt,YFCH DISENGAGED

H L

HIGH LOW PARKING BRAKE

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY R_LES SECTION)

DANGER KEEP HANDS AND FEET AWAY

FREE WHEEL

(Automatla Model9 only)

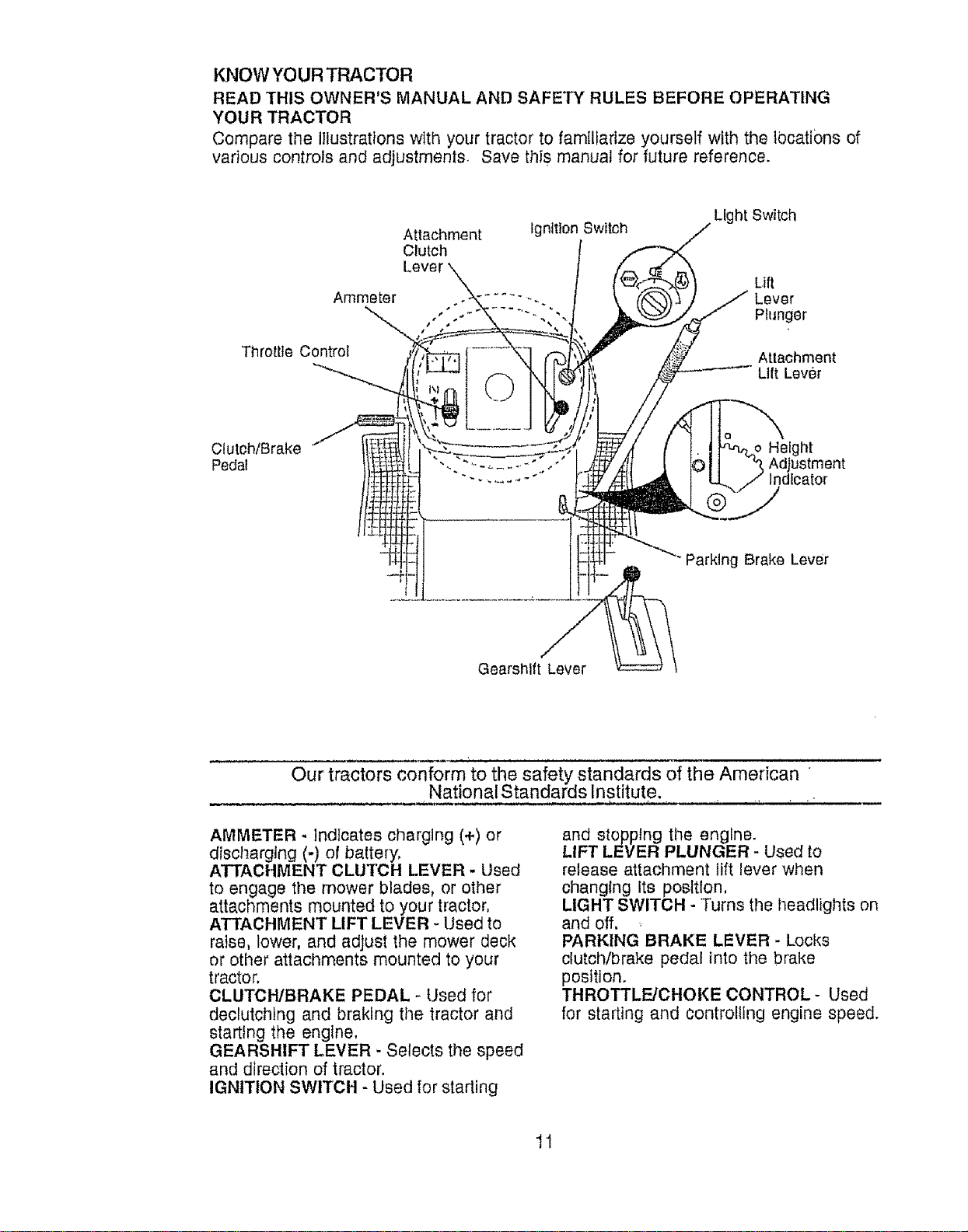

KNOW YO UR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING

YOUR TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the i0cations of

various controls and adjustments. Save tIiS manual for future reference.

Ammeter

Throttle Control

Attachment

Clutch

Lever

Ignition Switch

Light Switch

Attachment

Lift Lever

Clutch/Brake Height

Pedal Adjustment

Indicator

Parking Brake Lever

Gearshift Lever

Our tractors conform to the safety standards of the American "

.................... ..................... Nati0na!StandardS I=nStitute..........

AMMETER - Indicates charging (+) or

discharging (-) of battery,

ATTACHMENT CLUTCH LEVER - Used

to engage the mower blades, or other

attachments mounted to your tractor,

ATTACHMENT LIFT LEVER - Used to

raise, lower, and adjust the mower deck

or other attachments mounted to your

tractor,

CLUTCH/BRAKE PEDAL - Used for

declutchtng and braking the tractor and

starting the engtne,

GEARSHIFT LEVER - Selects the speed

and direction of tractor.

IGNITION SWITCH - Used for starting

and stopptng file engine.

LIFT LEVER PLUNGER - Used to

release attachment lift lever when

changing Its position,

LIGHT SWITCH - 'Turns the I_eadlights on

and off,

PARKING BRAKE LEVER - Locks

clutch/brake pedal into the brake

position.

THROTTLE/CHOKE CONTROL- Used

for starting and controlling engine speed.

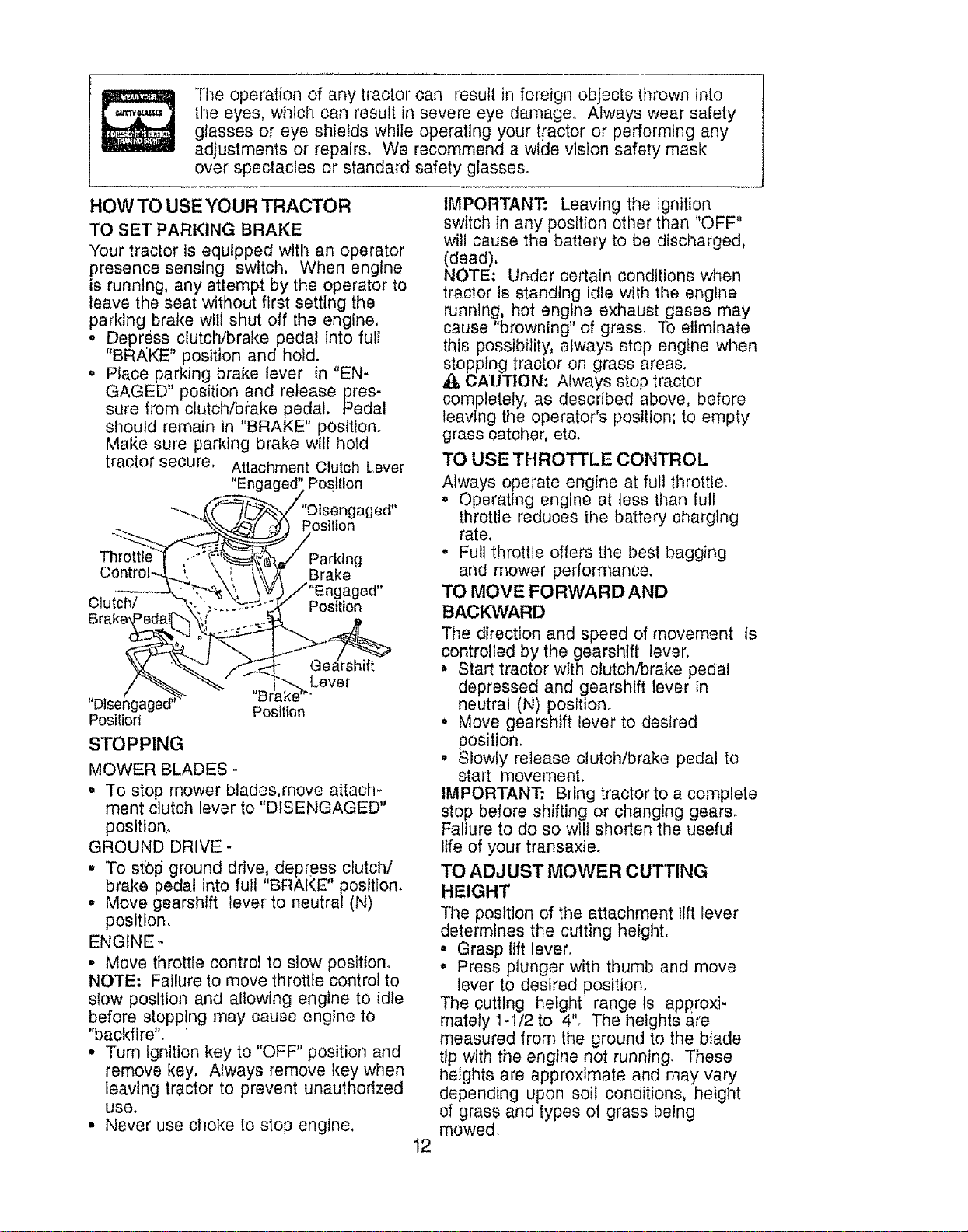

The operation of any tractor can result in foreign objects thrown into

the eyes, which can result in severe eye damage. Always wear safety

glasses or eye shields while operating your tractor or performing any

adjustments or repairs. We recommend a wide vision safety mask

over spectacles or standard safety glasses.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped wttl_ an operator

presence sensing switch, When engine

is running, any attempt by the operator to

leave the seat without first setting the

parking brake will shut off the engine,

• Depress clutch/brake pedal into fult

"BRAKE" position and hoid.

° Place parking brake lever in "EN-

GAGED" position and release pres-

sure from clutch/brake pedal, Pedal

should remain in "BRAKE" position,

MaRe sure parking brake wilt hold

tractor secure, Attachment Clutch Lever

"Engaged" Position

gaged"

Position

Clutch/

Parking

Brake

gad"

Posltlon

Ger_rshift

Lever

Position

"Br

Position

STOPPING

MOWER BLADES -

• To stop mower blades,move attach-

ment clutch lever to "DISENGAGED"

position.

GROUND DRIVE-

, To stop ground drive, depress clutch/

brake pedal into full "BRAKE" posltton,

o Move gearshift lever' to neutral (N)

position.

ENGINE-

* Move throttle control to slow position.

NOTE= Failure to move throttle control to

slow position and allowing engine to idle

before stopping may cause engine to

"backfire".

° Turn Ignition key to "OFF" position and

remove key, Always remove key when

leaving tractor to prevent unauthorized

use,

• Never use choke to stop engine,

IMPORTANT: Leaving the ignition

switch in any position otller than "OFF"

will cause the battery to be dlscllarged,

(dead),

NOTE, Under certain conditions when

tractor ts standing idle with the engine

running, hot engtne exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

.& CAUTION: Always stop tractor

completely, as described above, before

leaving the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate,

-Fult throttle offers the best bagging

and mower performance.

TO MOVE FORWARD AND

BACKWARD

The direction and speed of movement fs

controlled by the gearshift lever.

• Start tractor with clutch/brake pedal

depressed and gearshift lever tn

neutral (N) position.

° Move gearshift lever to desired

position.

• Slowly release clutch/brake pedal to

start movement,

IMPORTANT; Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so wilt shorten the useful

life of your transaxte.

TO ADJ UST MOWER CUTTING

HEIGHT

Tile position of the attachment lift lever

determines the cutting height,

, Grasp lift lever.

° Press plunger with thumb and move

lever to desired position,

The cutting height range ts approxi-

mately 1-1/2 to 4". The heights are

measured from the ground to the blade

tip with the engine not running. These

heights are approximate and may vary

depending upon soil conditions, height

of grass and types of grass being

mowed.

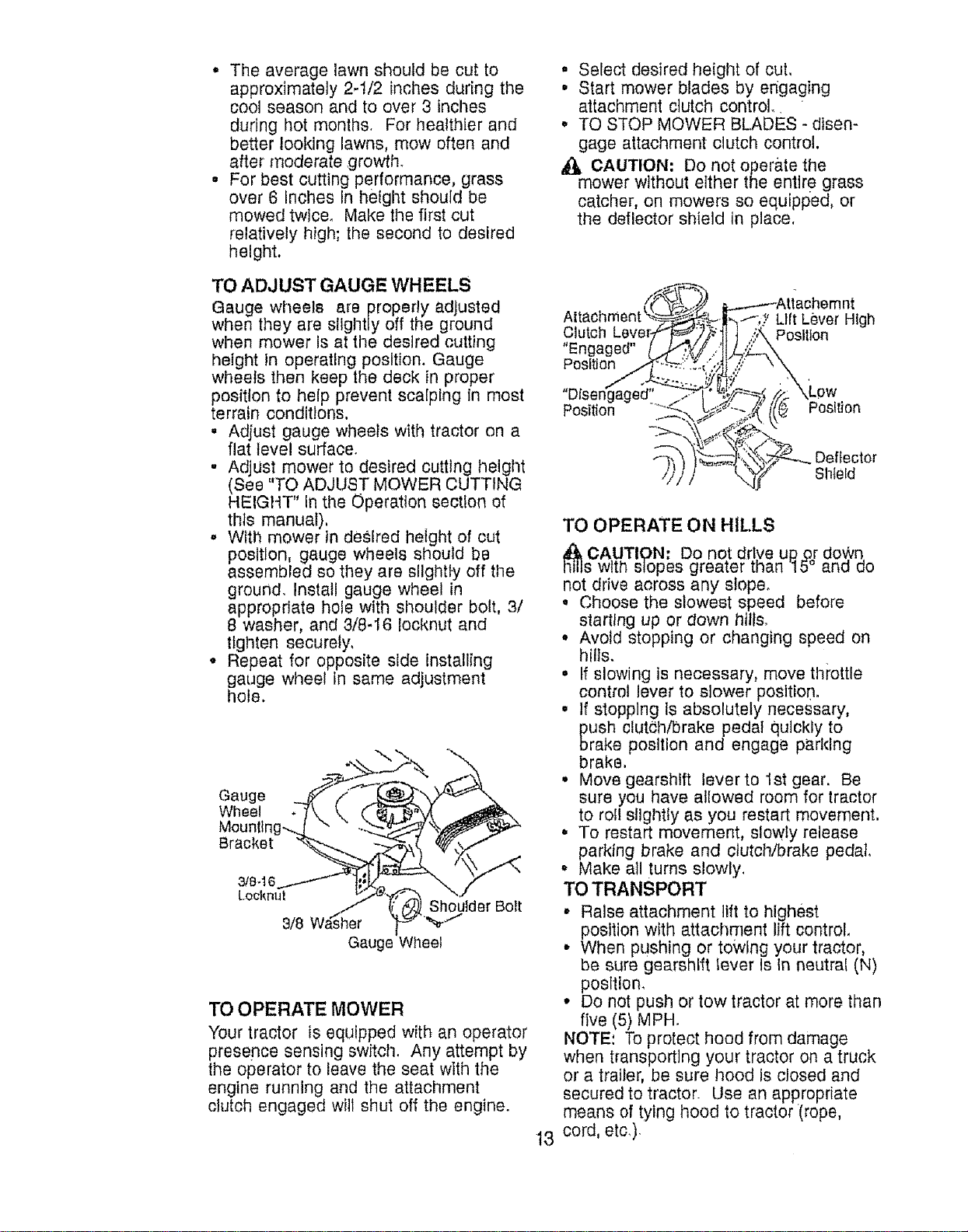

• Theaveragelawnshouldbecut to

approximately2-!/2 inchesduringttle

coolseasonandto over3 inches

duringhotmonths. Forhealthierand

betterlookinglawns,mow oftenand

aftermoderategrowth.

• Forbestcuttingperformance,grass

over6 InchesInheightshouldbe

mowedtwice, Makethefirst cut

relativelyhigh;thesecondto desired

height,

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground

wlqen mower is at the desired cutting

height In operating position. Gauge

wheels then keep the deck in proper

positton to help prevent scalping in most

terrain conditions,

• Adjust gauge wheels with tractor on a

flat level surface.

- Adjust mower to desired cutting helgl_t

(See "TO ADJUST MOWER CUTTING

HEIGHT" In the Operation section of

this manual),

. With mower in desired height of cut

position, gauge wheels should be

assembled so they are slightly off the

ground, Install gauge wheel in

appropriate hole with shoulder bolt, 3/

8 washer, and 3/8-16 focknut and

tighten securely,

o Repeat for opposite side installing

gauge wheel in same adjustment

hole.

Gauge

Wheel

Mountln

Bracket

3/8,16

Locknut

Shoulder Bolt

Gauge Wheel

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt by

the operator to leave the seat with the

engine running and the attachment

clutch engaged will shut off the engine.

. Select desired heigllt of cut,

• Start mower blades by engaging

attachment ciutch control.

° TO STOP MOWER BLADES - disen-

gage attachment clutch control,

_, CAUTION= Do net operate the

mower without either the entire grass

catcher, on mowers so equipped, or

the deflector shield in place.

Posi_on

Deflector

Shfefd

TO OPERATE ON HILLS

CAUTI N: Do not drive up. _ordown

_s with Is_pes greater than l b_ and do

not drive across any slope.

, Choose the slowest speed before

starting up or down hills.

* Avoid stopping or changing speed on

hills.

° tf slowing is necessary, move thi'ottle

control lever to slower positio.n.

, If stopping Is absolutely necessary,

_ush clutol_/brake pedal quickly to

rake position and engage parldng

brake,

, Move gearshift lever to 1st gear. Be

sure you have allowed room for tractor

to rol! sllglltty as you restart movement,

° To restart movement, slowly release

parking brake and clutch/brake pedal.

° Make all turns slowly.

TO TRANSPORT

° Raise attachment lift to highest

position with attachment lift control,

° When PUshing or towing your tractor,

be sure gearshllt lever Is In neutral (N)

position.

° Do not push or tow tractor at more than

five (5) MPH.

NOTE,. To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure I_ood is closed and

secured to tractor Use an appropriate

means of tying hood to tractor (rope,

t3 cord, eta)

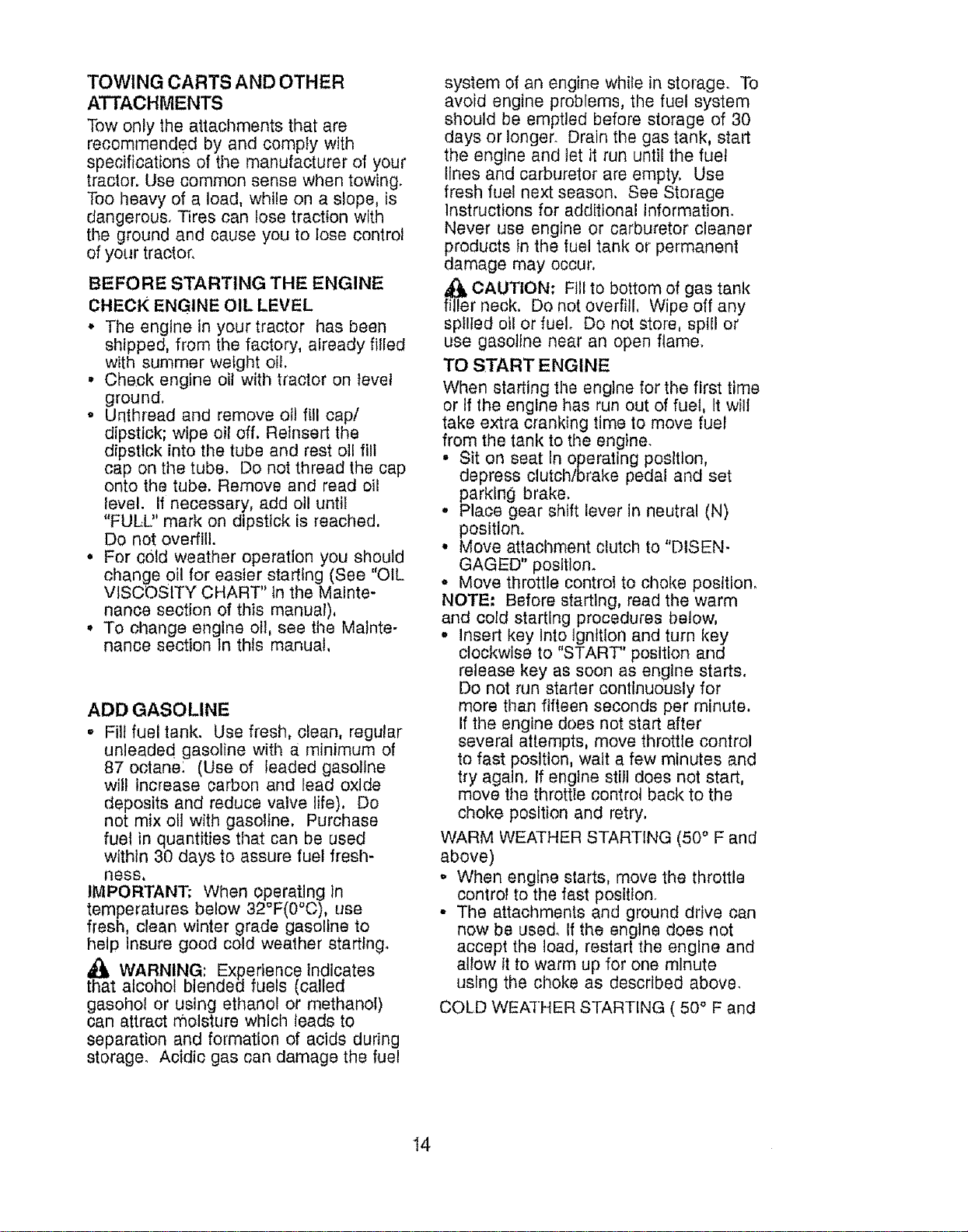

TOWINGCARTS AND OTHER

ATTACHMENTS

Tow only the attacl_ments that are

recommended by and comply with

specifications of tile manufacturer of your

tractor. Use common sense when towing.

Too heavy of a load, while on a slope, is

dangerous, Tires can lose traction with

the ground and cause you to lose control

of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

• The engine in your tractor has been

shipped, from the factory, already fitied

with summer weight oil.

• Check engine oil with tractor on level

ground.

, Unthread and remove oil fill cap/

dipstick; wipe oil off. Reinsert the

dipstick into t!_e tube and rest oll flit

cap on the tube. Do not thread the cap

onto the tube. Remove and read oil

level, it necessary, add otl until

"FULU' mark on dipstick is reached,

Do not overfill.

o For c01d weather operation you should

change 0il for easier starting (See "OIL

VISCOSITY CHART" tn the Mainte-

nance section of this manual),

° To change engine oil, see the Malnte-

nance section In this manual,

ADD GASOLINE

o Fill fuel tank. Use fresh, clean, regular

unleaded gasoline witll a minimum of

B7 octane: (Use of leaded gasoline

will increase carbon and Iead oxide

deposits and reduce valve life), Do

not mix ol] with gasoline, Purchase

fuel in quantities that can be used

within 30 days to assure fuel fresh-

hess,

IMPORTANT; When operating in

temperatures below 32°F(0°C), use

fresh, clean winter grade gasoline to

help Insure good cold weather startlngo

_lb WARNING: Exp.erlence indicates

that alcohol bleneed fuels [callea

gasohol or using ethanol or methanol)

can attract moisture which teads to

separation and formation of acids during

storage. Acidic gas can damage the fuel

system of an engine while in storage. To

avoid engine problems, the fuel system

should be emptied before storage of 30

days or longer. Drain the gas tank, start

the engine and let it run until the fuel

iines and carburetor are empty, Use

fresh fuel next season, See Storage

Instructions for additional information.

Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur,

OAUTION: Fill to bottom of gas tank

filler neck. Do not overfill, Wipe off any

spilled oil or fuelo Do not store, spill or

use gasoline near an open flame.

TO START ENGINE

When starting timeenglne for the first time

or If the engine has run out of fuel, It will

take extra cranking time to move fuel

from the tank to the engine.

• Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

• Place gear shift lever in neutral (N)

position.

° Move attachment clutch to "DISEN-

GAGED" posltlon_

° Move throttle control to choke position.

NOTE." Before starting, read the warm

and cold starting procedures below,

° Insert key Into lgnltton and turn key

clockwise to "START" position and

release key as soon as engine starts.

DO not run starter continuously for

more than fifteen seconds per minute.

If tile engine does not start after

several attempts, move throttle control

to fast position, wait a few minutes and

try again, If engine still does not start,

move the throttle control back to the

choke position and retry,

WARM WEATHER STARTING (50° F and

above)

o When engine starts, move the throttle

control to the fast position.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow It to warm up for one minute

using the choke as described above.

COLD WEATHER STARTING ( 50° F and

below)

. When engine starts, allow engine to

run with the tllrottle control in the

choke position until the engine runs

roughly, then move throttle control to

fast position, Tl_is may require an

engine warm-up period from severat

seconds to several mtnutes, depend-

ing on the temperature,

• The attachments can also be used

during the engine warm-up period.

NOTE.' If at a tllgh altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance,

See "TO ADJUST CARBURETOR" in the

Service and Adjustments sectton of this

manual.

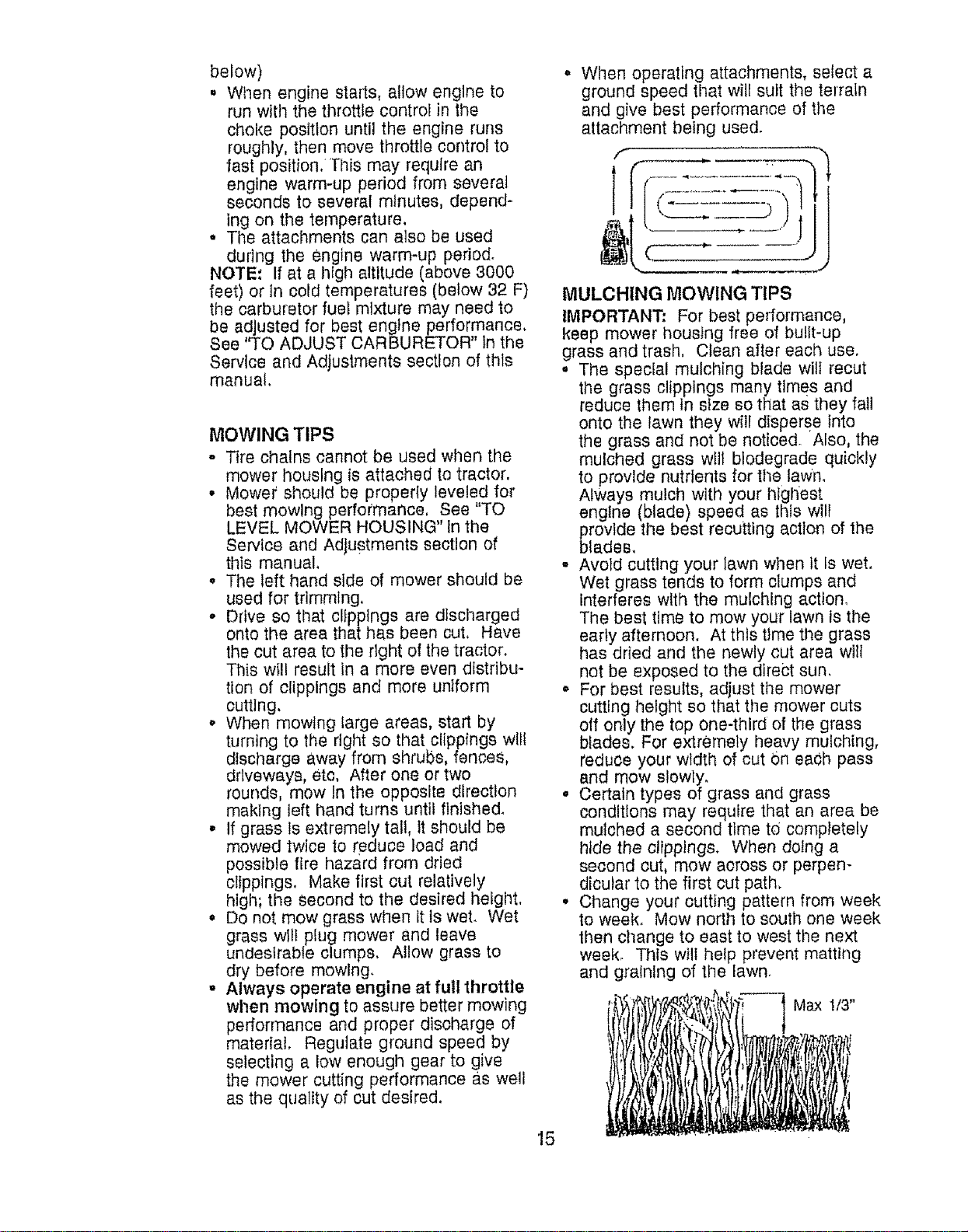

MOWING TIPS

- Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance, See "TO

LEVEL MOWER HOUSING" In the

Service and Adjustments section of

this manual,

° The left hand side of mower should be

used for trimming,

• Drive so tllat clippings are discharged

onto the area thathas been cut, Have

the cut area to the right of the tractor°

This will result in a more even distribu-

tion of clippings and more uniform

cutting.

o When mowlng large areas, start by

turning to the right so that clippings wllf

dtscllarge away from shrubs, fenceS,

driveways, eto, After one or two

rounds, mow In the opposite direction

maklng left hand turns until finished.

° If grass ls extremely tall, it should be

mowed twice to reduce load and

possible fire hazard from dried

clippings. Make first cut relatively

htglt; the second to the desired height,

• Do not mow grass when It Is wet. Wet

grass will plug mower and leave

undesirable clumps, Allow grass to

dry before mowlng.

- Always operate engine at full throttle

wllen mowing to assure better mowing

performance and proper discharge of

material, Regulate ground speed by

selecting a low enough gear to give

the mower cutting performance as well

as the quality of cut desired,

° When operating attachments, select a

ground speed tlqat will suit the terrain

and give best performance of the

attachment being used.

f -,,

MULCHING MOWING TIPS

IMPORTANT: For best performance,

keep mower housing free of built-up

grass and trash, Clean after each use_

• The special mulching blade wilt recut

the grass clippings many times and

reduce them tn size so that as they fall

onto the lawn they will disperse into

the grass and not be noticed. Also, the

mulched grass will blodegrade quickly

to provide nutrients for tl_e lawn,

Always mulch with your highest

engtne (blade) speed as this will

provide tile best recuttlng action of the

blades,

• Avold cutttng your lawn when It Is wet.

Wet grass tends to form clumps and

interferes with the mulching action,

The best time to mow your lawn is the

early afternoon. At this t}me the grass

has dried and the newly cut area will

not be exposed to the dlrebt sun,

° For best results, adjust the mower

cutting helght so that the mower cuts

otf only the top One-third of the grass

blades. For extremely heavy mulching,

reduce your wldtll of out on each pass

and mow slowly.

° Certain types of grass and grass

conditions may require that an area be

mulched a second time td completely

hide the clippings. When doing a

second cut, mow across or perpen-

dicular to the first cut path.

• Change your cutting pattern from week

to week° Mow north to south one week

then change to east to west tile next

week. This will help prevent matting

and gralnlng of the lawn.

Max !/3"

AS YOU COMPLETE .,___,_'q. _,_._R_.'_,?._,S"

REGULARSERVICE _,_, _'_/ _¢:/_"¢;/_y_'fe_Z_Y .... SERVICE DATES

Check Brake Operation _

Check TirePressure V' I_

Check Operelor Presence and

T tnfatlock By_lerns

R Check lot Loose Feataners _ _Jl

0 che_ _tte_ Lev_ .....

R Clean Battery andTerminaIa ........ _ .................. !__ ............................

Check Transaxle Ceogng

Adjust Blade Belt(s) Tension _5

A_uat Motion Drive Boil(a) Tension !_'_ ....

__J _ULU_. _ ' I I I ,I _ i

Check Engine Oil Level. _.

•¢hen_Ee_JnooU. . _,_ .V ..........

E Clean Air Miler ..... _2 ....

N Glean Air Screen _=

ln_o( Mul(lory'apalk Arresla(" I_

ReplaceOil Filter(If equipped) _,_ .....

N Glean Engine Cooling Fins V'=

Replace Spelk Plug ,---- V _

'Replace Air Filler Paper Cartridge "_"

Replaea Fuel Filler ..... _

_. _)_a mole o(_n what_opomt!(tOilld#1_m"dully_@n_{Itorl(; " l_,Ht_t(a_uIt_d IIeIlulpp(;I)_th mo)_,i_e _,b_((oi_,

e.,l( elulppOd wile)oil ((lot, chmlgo oil tlvltrf 50 hob'_. 7 _Tlgh(_n Iront _xle p]vot bQ)lto ._,_€1."(_ _J_I_ur_

4, Rop(_ bbde_ more oftenv.4__n mo_ng Ineandy co) Do nol ov_rlbhlg_

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover Items that have been subjected to

operator abuse or negligence. To

receive full value from the warranty,

operator must maintain tractor as

Instructed in this manual.

Some adjustments will need to be made

periodically to properly matntaln your

tractor.

Art adjustments in the Service and

Adjustments section of this manual

should be checked at least once each

season.

* Once a year you should replace the

spark plug, clean or replace air fUter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fue! mi_ure and

help your engine run better and Iast

longer.

BEFORE EACH USE

- Check engine oU level,

° Check brake operation.

° Check tire pressure.

. Check operator presence and

interlock systems for proper operation,

e Check for loose fastenets_

LUBRICATION CHART

@ S_ Spindle

Zerk t%7' Zerk

@Front Wheel ,--

Bearing Bearing Zerk

Zerk

@Engine_

r_-_ shift

• ..i ( J Pivots

_SAE 30 or 10w30 MOTOR OiL,

@GENERAL PURPOSE GREASE

@REFER TO Maintenance "ENGINE" SECTION

IMPORTANT: Do not oil or grease the pivot

_?ints which have special nylon bearings.

scous lubricants will attract dust and dirt

that witl sho_en the life of tl_e self-lubricat-

ing bearings, If you feel they must be

lubricated, use only a dry, powdered

graphite type lubricant sparingly.

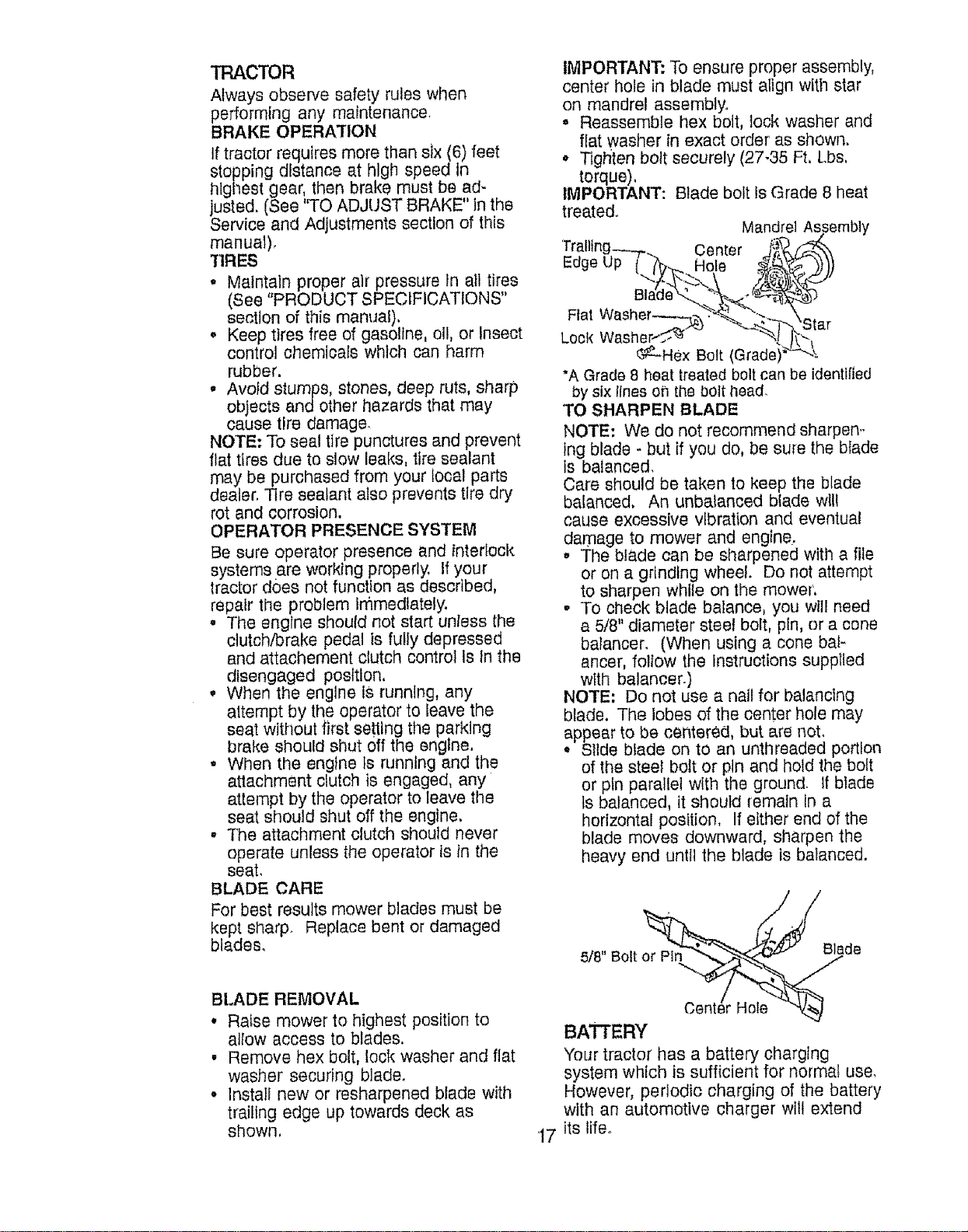

TRACTOR

Alwaysobservesafetyruleswhen

performinganymaintenance.

BRAKE OPERATION

If tractor requires more than six (6) feet

stopping distance at hlgh speed In

highest gear, then brake must be adz

justed. (See "TO ADJUST BRAKE" Inthe

Service and Adjustments section of this

manual),

I]RES

• Maintain proper air pressure In all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual),

° Keep tires free of gasoline, oli, or Insect

control chemicals which can harm

rubber.

• Avoid stumps, stones, deep ruts, sharp

objects andother hazards that may

cause tire damage.

NOTE= To seal tire punctures and prevent

flat tires due to slow leaks, 1iresealant

may be purchased from your local parts

dealer. Tire sealant also prevents tlre dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM

Be sure operator presence and intertock

systems are working properly, If your

tractor does not function as described,

repair the problem Immediately.

• The engine should not start unless the

clutch/brake pedal is fuliy depressed

and attachement clutch control ls In the

disengaged position,

° When the engine is running, any

altempt by the operator to leave the

seat w thout first se'ding timeparking

brake should shut off the engine,

• When the engine Is running and the

attachment clutch is engaged, any

attempt by the operator to leave the

seat should shut off the engine,

- 1"heattachment clutch should never

operate unless the operator is In the

seat.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

IMPORTANT'. To ensure proper assembly,

center hole in blade must align wittqstar

on mandrel assembly.

° Reassemble hex bolt, lock washer and

flat washer in exact order as shown.

° Tighten bolt securely (27-35 Ft, Lbs,

torque),

IMPORTANT: Blade bolt is Grade 8 heat

treated,.

Mandrel

Center

Edge Up HoLe

Flat Washer---_-._.

Lock Washer--'>"1_

¢_P--HexBolt (Grade)

*A Grade 8 heat treated bolt can be identified

by six lines oh the bOtthead,

TO SHARPEN BLADE

NOTE= We do not recommend sharpen..

ing blade - but if you do, be sure the blade

ts balanced.

Care should be taken to keep the blade

balanced, An unbalanced btade will

cause excessive vibration and eventual

damage to mower and engine,

° The blade can be sharpened with a file

or on a gdndlng wheel. Do not attempt

to sharpen while on the mower',

. To check blade balance, you wil! need

a 5/8" diameter steel bolt, pin, or a cone

batancer. (When using a cone bal-

ancer, follow the Instructions supplied

with balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

* Stlde blade on to an unthreaded portion

of the steel bolt or pin and hold the bolt

or pin parallel wtth the ground. If blade

ts balanced, it should remain In a

horizontal position, If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

5/8" Bolt or Pin

Blade

BLADE REMOVAL

° Raise mower to highest position to

allow access to blades,

• Remove hex bolt, lock washer and flat

washer securing blade.

• Install new or resharpened blade with

trailing edge up towards deck as

shown,

Ce Hole

BATTERY

Your tractor has a battery charging

system which is sufficient for normal use.

However, periodic charging of the battery

with an automotive charger wilt extend

17 its life.

- Keep battery and terminals clean.

• Keep battery bolts tight,

o Keep small vent holes open.

° Recharge at 640 amperes for I hour.

NOTE: The original equipment battery on

your tractor" ts maintenance freer Do not

attempt to open or remove caps or covers.

Adding or checking revel of electroly_e Is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and

terminals can cause the battery to "leak"

power,

o Open battery box door,

° Disconnect BLACK batlery cable first

then RED battery cable and remove

battery from tractor,

o Rinse the battery with plain water and

dry.

° Clean tem_lnals and battery cable ends

with wire brush until bright,

• Coat terminals with grease or petro-

leum jelly.

o Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND

ADJUSTMENTS section of this

manual),

V-BELTS

Check V-bells for deterioration and wear

after 100 hours of operation and replace if

necessary, The belts are not adjustable.

Replace belts if riley begin to slfp from

wear,

TRANSAXLE COOLING

Keep transaxie free from build-up of dirt

and chaff which can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API servlce classification SF, SG, or

SH. Select the oil's SAE viscosity grade

according to your expected operating

temperature.

Change the oll alter every 50 hours of

operation or at least once a year if the

tractor Is not used for 50 hours in one

year,

Check tlle crankcase oil level before

starting tl_e engine and after each eight

(8) Ilours of operation. Tighten ofl fil! cap/

dipstick securely each time you check the

oll level

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SF, SG or SH,

° Be sure tractor is on level surface,

° Oil will drain more freely when warm.

• Catch oil in a Suitable container,

• Remove oll fill oap/dfpstlck. Be careful

not to allow dirt to enter the engine

when changing oil.

, Remove draln plug.

° After oil has drained completely,

replace olt drain plug and tighten

securely.

, Refill engfne with otl through oll fill

dipstick tube. Pour slowly, Do not

overfill. For approximate capacity see

"PRODUCT SPECI FICATION S" section

of this manual,

° Use gauge on oil fill cap/dipstick for

checking level, Insert dipstick Into the

tube and rest the oll fill cap on the tube,

Do not thread the cap onto the tube

when taking reading. Keep oil at

FULU' line on dipstick, Tighten cap

onto the tube securely when finished.

Knob

Air Cleaner Nut

Cover %bber

Grommet

Pre-

Cleaner!

Alr

ir Cleaner

Paper Cartridge

Cleaner

Base

Cap/

Dipstick

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and

stubborn dried gum fibers.

CLEAN AIR INTAKE/COOLING

AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other

external surfaces of the engine are kept

clean at all times,

Every t00 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins

and external surfaces as necessary,

Make sure the cooling shrouds are

reinstalled.

NOTE: Operating the englne with a

blocked grass screen, dirty or plugged

cooling fins, arid/or cool!ng shrouds

removed will cause engrne damage due

to overheatfng.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Glean the foam pre-

cleaner after every 25 hours of operation

or every season. Service paper car.-

tridge every t00 hours of operation or

every season, whichever occurs first,

Service air cleaner more often under

dusty conditions.

• Remove knob and cover.

o Remove wing nut and air cleaner from

base.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

° Waeh tt in Ifqutd detergent and water,

° Squeeze It dry In a clean cloth. Allow

it to dry.

o Saturate It in engine oil. Wrap it In

clean, absorbent cloth and squeeze to

remove excess olt.

TO SERVICE CARTRIDGE

o Replace a dirty, bent, or damaged

cartridge,

NOTE; Do not wash the l_aper cartridge

or use pressurized air, as this will

damage the cartridge.

• Reinstall the pre-cleaner (cleaned

and oiled) over the paper cartridge.

,, Reassemble air cleaner, wing nut,

cover and tighten knob securely.

ENGINE OIL FILTER

Replace the engine oil filter every

season or every other oil change tf the

tractor is used more than 10o hours in

one year,

. Drain oil from engine crankcase (See

"TO CHANGE ENGINE OIL" tn this

section of this manual, through step

remove drain plug),

° Remove oil filter and wipe off filter

adapter.

• Apply a tWn coating of new engine oil

to the rubber gasket on replaoement

oil filter°

,, Install replacement otl filter on filter

adapter. Turn oil filter clockwise until

rubber gasket contacts the filter

adapter, tt3en tighten filter an addi-

tional 1/2 turn.

° Fill crankcase with new oil (See "TO

CHANGE ENGINE OIL" In this section

of tfTls manual). For approximate

capacity see "PRODUCT SPECIFICA-

TIONS" section of this manual.

° Start the engine end 0hack for Oil

leaks, Correct any leaks before placing

engine into full operation.

MUFFLER

Inspect and replace corroded muffler

and spark arrester (if equipped) as It

could create a flre hazard and/or

damage.

SPARK PLUGS

Replace spark plugs at tile beginning of

each mowing season or after every 100

hours of operation, whicl]ever occurs

first° Spark plug type and gap setting are,

shown in "PRODUCT SPECIFICATIONS

section of this manual,

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season, If fuel filter becomes

clogged, obstructing fuel flow to carbure..

tor, replacement is required°

° With engine cool, remove filter and

plug fuel line sections,

• Place new fuel filter In position in fuel

line with arrow pointing towards

carburetor.

° Be sure there are no fuel line leaks

and clamps are properly positioned.

° immediately wipe up any spltled

gasoline.

CLEANING

• Cleanengine,battery,seat,flntsh,etc.

of all foreignmatter,

• Keepfinishedsurfacesand wheels

freeof allgasoline,olt,etc.

• Protectpaintedsurfaceswithautomo-

tivetypewax.

Wedo notrecommendusinga garden

hoseto cleanyourtractorunlessthe

electricalsystem,muffler;airfilterand

carburetorarecoveredtokeepwaterout.

Waterin enginecanresultina short-

enedenginelife.

,_CAUTION: Before performing any service or adjustments:

Depress clutch/brake pedal fully and set parking brake.

Place gearshift lever in neutral (N) position.

• Place attachment clutch n "D SENGAGED" pos tlon.

: Turn Ignition key "OFF" and remove key.

Make sure the blades and all moving parts have completely stopped.

• Disconnect spark plug wire from spark plug and place wlre where It cannot

come In contact with plug.

TRACTOR

TO REMOVE MOWER

Mower will be easier to remove from the

right side of tractor,

• Place attachment clutch in "DISEN-

GAGED" posltfon.

• Move attachment lift lever forward to

bower mower to its lowest position.

- Roll belt off engine pulley,

° Remove small retainer spring, and lift

clutch spring off pulley boll

o Remove large retainer spring, slide

collar off and push housing guide out

of bracket.

• Disconnect antFswaybar from chassis

bracket by removing retainer spring,

• Disconnect suspension arms from rear

deck brackets by removing retainer

springs,

Small Retainer Spring

Clutch S

• Disconnect front links from deck by

removing retainer sprtngs.

o Raise lift lever to raise suspension

arms. Slide mower out from under

tractor.

IMPORTANT: If an attachment other than

the mower deck is to be mounted on tl3e

tractor, remove the front links and hook

the clutch spring onto square hole in

frame,

TO INSTALL MOWER

• Raise attachment lift lever to Its

highest position.

• Slide mower under tractor with

discharge guard to right side of tractor.

• Lower lift lever to its lowest posltlon.

• Install mower in reverse order of

removal instructions.

÷_

Square Hole

Engina Pulley

Relainer Spring

Anli-Sway

Link

Retainer Springs

(8olh Sldes)

Housing Guide

Large Spring

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires areproperfy Inflated (See "PROD-

UCT SPECIFICATIONS" section of this

manual). If tires are over or

underinflated, you will not properly

adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

° At the midpoint of both sides of mower,

measure height from bottom edge of

mower to ground, Distance "A" on

bolt1 sides of mower should be the

same or within 1/4" of each other,

• If adjustment Is necessary, make

adjustment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side,

° To lower one side of mower, loosen lift

link adjustment nut on tllat side.

NOTE,' Each full turn Of adjustment nut

will change mower helgltt about I/8",

° Recheck measurements after adjust-

lng,

FRONT-TO- BACK ADJUSTM ENT

Bottom edge of Bottom edge of

mower to _ mower to

ground \_ _/ground

/.,_ Suspension Arm

--..._ /

Lilt Link --.__

Adjustment

IMPORTANT; Deck must be level side-to

side. tf the following front-to-back

adjustment Is necessary, be sure to

adjust both front links equally so mower

will stay level side-to-side.

To obtain tile best cutting results, the

mower housing should be adjusted so

that tile front is approximately t/8" to 1/2"

lower than the rear when the mower Is In

its highest position,

Check adjustment on rtghl side of tractor.

Measure distance "D" directly in front

and behind the mandrel at bottom edge

of mower housing as shown.

° Before making any necessary adjust-

ments, check that both front links are

equal In length. Both links should be

approximately 10-3/8",

, If links are not equal in length, adjust

one link to same length as other link,

• To lower front of mower loosen nut "E"

on both front links an equal number of

turns.

• When distance "D" is I/8" to 1/2" lower

at front than rear, tighten nuts "F"

against trunnton on both front Itnks.

• To raise front of mower, loosen nut "F"

from trunnion on both front links,

Tighten nut "E" on both front links an

equal number of turns.

° When distance "D" is 1/8" to i/2" lower

at front than rear, tighten nut "F"

against trunnion on both front links.

, RechecN side4o-slde adjustment.

Mandrel

'D" "D"

Both Front Links Should be Equal In Length

Nut "F"

Nut "E"

Front Links

TO REPLACE MOWER BLADE

DRIVE BELT

The mower blade drive belt may be

replaced without tools, Park the tractor

on level surface. Engage parking brake°

BELT REMOVAL -

• Remove mower from tractor (See "TO

REMOVE MOWER" in this section of

this manual),

° Work belt off both mandrel pulleys and

idler pulleys,

• Pull belt away from mower.

BELT INSTALLATION -

° Install new belt in reverse order of

removal.

° Make sure belt is In all pulley grooves

and inside all belt guides,

° Install mower tn reverse order of

removal instructions.

Mandrel

Idler

Pulley

TO ADJUST BRAKE

Your tractor Is equipped with an adjust-

able brake system which Is mounted on

the right side of the transaxle,

If tractor requires more than sl× (6) feet

stopplng distance at hlgll speed in

higllest gear, then brake must be

adjusted.

• Depress clutch/brake pedal and

engage parking brake.

° Measure distance between brake

operating arm and nut "A" on brake

rod.

• If distance is other than 1-t/2", loosen

jam nut and turn nut "A" until distance

becomes I-1/2", Rettghten Jam nut

against nut "A".

° Road test tractor for proper stopping

distance as stated above, Readjust if

necessary. If stopping distance is still

greater than six (6) feet in highest

gear, further maintenance is neces-

sary. Contact your nearest authorized

service center/department.

With Parking Brake "Engaged"

"''_Jl Nut "A"

Jam Nut

,_q .,--'1-_Operating

Aim

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface, Engage

_arklng brake, For assistance, there is a

elt Installation guide decal on bottom

side of left footrest,

= Remove mower (See "TO REMOVE

MOWER" In this section of this

manuaL)

o Remove belt from stationary idler and

clutching Idler.

= Pull belt slack toward rear of tractor.

Remove belt upwards from transaxle

pulley by deflecting belt keepers,

• Pull belt toward front of tractor and

remove downwards from around

engine pulley,

- Install new belt by reversing above

procedure:

Engine

Otutchln

Transaxle

TRANSAXLE GEAR SHIFT LEVER

NEUTRAL ADJUSTMENT

The transaxle should be in neutral when

the gear shift lever is in neutral (N) (lock

gate) position, The adjustment is preset

at the factory; however, if adjustment is

needed, proceed as follows:

- Make sure transaxle Is tn neutral (N).

NOTE_ When the tractor rear wheels

move freely, rite transaxle ls In neutral-

. Loosen adjustment bolt tn front of the

right rear wheel,

• Posltton the gear shift lever in the

neutral (N) position,

Ttghten adjustment bolt securely.

NOTE: If additional clearance ts needed

to get to adjustment bolt, move mower

deck height to the lowest position.

Gearshift Lever Neutral Lock Gate

Adjustment Bolt

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward_ remove

steering wheat and reassemble per

Instructions in the Assembly section of

this manual

FRONT WHEEL TOE-IN/CAMBER

The front wtleel toe-In and camber are

not adjustable on your tractor, If damage

has occurred to affect the front wheel

toe-in or camber, contact your nearest

authorized service center/department,

TO REMOVE WHEEL FOR REPAIRS

, Block up axle securely,

• Remove axle cove[, retaining ring and

washers to allow wheel removal (rear

wlTee[ contains a square key - Do not

lose).

° Repair tire and reassemble,

° On rear wheels only: align grooves In

rear wheel hub and axle. Insert

square key,

= Replace washers and snap retaining

ring securely in axle groove.

o Replace axle cover,

NOTE: To seal tire punctures and

prevent flat tires due to slow leaks, tire

sealant may be purchased from your

local parts dealer. Tire sealant also

prevents tire dry rot and corrosion.

Washer

Ratalnlng

Ring'

Axle

Cover

Square Key __

(Rear Wheel Only)

TO START ENGINE WITH AWEAK

BATTERY

_OAU'I'ION, Lead-acid batteries

generate explosive gases. Keep sparks,

flame and smoking materials away from

batteries. Always wear eye protection

when around batteries.

If your battery Is too weak to stari the

engine, It should be rechalged. (See

"BATTERY" in the MAINTENANCE

section of this manual).

If "jumper cabres" are used for e_er-

gency starting, follow t!tls procedure:

IMPORTANT' Your tractor ls equipped

with a 12 volt negative grounded system,

The other vehicle must also be a 12 volt

negative grounded system. Do r_ot use

your tractor battery to start Other vehicles.

TO ATTACH JUMPER CABLES -

° Connect each end of the RED cable to

the POSITIVE (+) terminal of each

battery, taking care not to short against

chassis,

• Connect one end of the BLACK cable

to the NEGATIVE (-) terminal of fully

charged battery,

• Connect the other end of the BLACK

cable to good CHASSIS GROUND,

away from fuel tank and battery,

TO REMOVE CABLES, REVERSE

ORDER _

° BLACK cable first from chassis and

then from the fully charged battery.

• RED cable last from both batteries

Positive Terminal

Negative Terminal

Hex

Bolt

god

Battery

Positive Terminal

Negative Terminal

REPLACING BATTERY

_, CAUTION; DO not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same ttme. Before connecting battery,

remove metal bracelets, wristwatch

bands,rings,etc.

Positive terminal must be connected first

to prevent sparldng from accidental

grounding.

• Uft seat pan to raised position and

open battery box door.

o Disconnect BLACK battery cable first

then RED battery cable and carefully

remove battery from tractor.

o Install new battery with terminals In

same position as old battery.

, First connect RED battery cable to

posltive (÷) terminal with l_ex bolt and

nut as shown, Tighten securely,

• Connect BLACK grounding cable to

negative (-) terminal with remaining

hex bolt and nut. Tighten securely.

o Close battery box door.

Seat

Battery

Door

Box

Positive (Red) Cable

Negative (Black)

Oable

TO REPLACE HEADLIGHT BULB

* Raise hood,

, Pull bulb holder out of the hole In the

backside of the grill.

o Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

° Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to rut'} POOrly,stop running, or

prevent it from starting.

- Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 15 amp automotive-type

plug-in fuse, 'The fuse holder is located

behind the dash,

TO REMOVE HOOD AND GRILL

ASSEMBLY

o Raise hood.

, Unsnap headlight wire connector,

° Stand In front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor,

• To replace, reverse above procedure.

Maintenance, repair,or replacement of

the emisslon control devices and

systems, which are being done at the

customers expense, may be performed

by any non-road engine repair establish-

ment or individual, Warranty repairs must

be performed by an authorized engtne

manufacturer's service outlet,

ENGINE

TO ADJUST THRO'iq'LE CONTROL

CABLE

The throttle control has been preset at

the factory and adjustment sl_outd not be

necessary. Check adjustment as

described below before loosening cable,

If adjustment is necessary, proceed as

follows'.

o With engine not running, move throttle

control lever from slow to choke

posttlono Slowly move lever from

choke to fast position.

• Check to see If hole in throttle lever

and hole in speed controt bracket are

alfgned,

• If holes are not aligned, loosen cable

clamp screw and align the holes by

inserting a pencil or a 1/4" drill bit

through both holes.

• Pufl throttle cable up to remove slack

and tighten cable clamp screw.

Remove alignment pencil or drill btt,

TO ADJUST CARBURETOR

Cable

Screw

Speed Control

Bracket

T e

Lever

The carburetor has been preset at the

factory and adjustment should not be

necessary. However, minor adjustment

may be required to compensate for

differences in fuel, temperature, altitude

or toad, If the carburetor does need

adjustment, proceed as follows:

In general, turning the adjusting needtes

In (clockwise) decreases the supply of

fuel to the engine giving a leaner fuel/air

mixture, Turning tile adjusting needles

out (counterc!octqMse) increases the

supply of fuel to the engine giving a

richer fue!/air mixture.

IMPORTANT: Damage to the needles

and the seats in carburetor may result if

needle Is turned In too tight;

NOTE: The carburetOr on this engine Is

low emiSSion. It is equipped with an idle

fuel adjusting needle with a timiter cap,

which allows some adjustment wttl_ln

the llmlts allowed by the cap, Do not

attempt to remove the tlmiter cap. The

llmlter cap cannot be removed without

breaking the adjusting needle,

° Be sure you have a clean air filter and

the throttle control cable iS adjusted

properly (see above),

• Start engine and allow to warm for five

minutes, Make adjustments wf_h

engine running and shift/motion

control lever In neutral (N) position.

• _e #peed settln.g- With throttle

control lever in slow position, engine

should Idle at 1750 RPM, tf engine

Idles too slow or fast, turn idle speed

adjusting screw In or out unttl correct

idle is attained.

• Idle [uel needle sett!o_g- With throttle

control lever in slow position, turn Idle

fuel adjustment needle in (clockwise)

until engine begins to die and then

turn out (counterclockwlse) until

engine runs rough. Turn needle to a

point midway between tl3ose two

positions.

o Recheck idle speed. Readjust if

necessary.

ACCELERATION TEST-

, Move throttle control lever from stow to

fast position. If engine hesitates or

dles, turn Idle fuel adjusting needle

out (counterclockwise) 1/8 turn.

Repeat test and continue to adjust, if

necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. DO

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which ts factory set for

proper engine speed. Overspeedtng the

engine above the factory high speed

setting can be dangerous, If you think the

englne.,governed high speed needs

adjusting, contact your nearest AUTHO-

RIZED service center/department, which

has proper equipment and experience to

make any necessary adjustments.

Idle Speed

Adjusting

Screw

Idle Fuel

Adjusting

Needle

Immediately prepare your tractor for

storage at the end of the season or if the

tractor Will not be used for 30 days or

more.

_. CAUTION: Never store the tractor

with gasoline In the tank inside a

building wllere fumes may reach an

open flame or spark, Allow the engine to

cool before stonng in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for

a period of time, clean it thoroughly,

remove all dirt, grease, leaves, etc, Store

in a clean, dry area,

• Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

, Inspect and replace belts, if necessary

(See belt replacement lnstructtons in

the Service and Adjustments section of

this manual),

• Lubricate as shown in the Mainte-

nance section of this manual,

• Be sure that all nuts, bolts and screws

are securely fastened, fnepect moving

parts for damage, breakage and wear,

Replace if necessary.

o Touch up all rusted or chipped paint

surfaces; sand tightly before palntlng,

BATTERY

• Fully charge the battery for storage.

• After a period of time In storage,

battery may require recharging.

° To help prevent c0rroslon and power

leakage during tong periods of

storage, battery cables should be

disconnected aqd battery cleaned

thoroughly (see TO CLEAN BATTERY

AND TERMINALS" in the Maintenance

section of this manual).

° After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals,

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

filter, fuel hose, or tank during storage.

Also experience lndtcates that alcohol

blended fuels 9called gasoho or using

ethanol or metl_anol) can attract moisture

which leads to separation and formation

of acids during storage. Acidic gas can

damage tile fuel system of an engine

while in storage,

, Drain the fuel tank.

, Start the englne and let it run until the

fuel lines and carburetor are empty.

* Never use engine or carburetor

cleaner products in the fuel tank or

permanent damage may occur,

, Use fresh fuel next season°

NOTE; Fuel stabilizer Is an acceptable

alternative In minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline In fuel tank or

storage contalnero Always follow the mix

ratio found on stabilizer container, Run

engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reacll

the carburetor. Do not drain the gas tank

and carburetor if using fuel stabilizer.

ENGINE OIL

Drain otl (with engine warm) and replace

with clean engine o11, (See "ENGINE" in

the Maintenance section of this manual),

CYLINDER(S)

. Remove spark plug(s),

o Pour one ounce of otEthrough spark

plug hole(s) Into cylinder(s).

, Turn Ignition key to "START" position

for a few seconds to distribute ott.

o Replace with new spark plug(s).

OTHER

, Do not store gasoline from one season

to another.

° ReplaCe your gasoline can If your can

starts to rust, Rust and/or dirt in your

gasoline wilt cause problems.

° If possible, store your tractor Indoors

and cover It to give protection from

dust and dirt,

, Cover your tractor wfth a Suitable

protective cover that does not retain

moisture. Do not use plastic. Plastic

cannot breatile which allows conden-

sation to form and will cause your

tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still

warm.

TROUBLESHOOTING CHART

PROBLEM

Will not start

Hard to start

Enginewilt not

turn over

Engine clicks but

will not start

CAUSE

1, Out of fuel_

2, Engine not "CHOKED"

properly_

3, Engine flooded,

4, Bad spark plug,

5, Dirty alr filter,

6, Dirty fuel filter.

7 Water In fuel,

8. Loose or damaged wiring.

9, Carburetor out of adjustment.

CORRECTION

I. Fill fuel tank,

2, See "TO START ENGINE"

in Operation section,

3, Wait several minutes

before attempting to start,

4. Replace spark plug,

5, Clean/replace air fliter,

6. Replace fuel filter.

7, Drain fuel tank and

carburetor, refill tarik wlth

fresh gasoline and replace

fuel filter,

& Check all wiring.

9- See "To Adjust Carburetor"

in Service Adjustments

sectton

10,Contact a Sears or other

qualified service center,

1, Clean/replace air filter,

2. Replace spark plug,

3. Recharge or replace

battery.

4. Replace fuel filter

5, Drain fuel tank and refill

with fresh gasoline,

6, Check all wiring,

7, See "To Adjust Carburetor"

In Service Adjustments

section.

8, Contact a Sears or other

qualified service center,

I0, Engine valves out of

adjustment,

1. Dirty air filter°

2. Bad spark plug.

3, Weak or dead battery,

4, Dirty fuel filter.

5. Stale or dirty fuel.

6, Loose or damaged wiring,

7_ Carburetor out of adjustment,

8. Engine valves out of

adjustment,

1. Clutch/brake pedal not

depressed,

2_ Attachment clutch is

engaged.

3, Weak or dead battery,

4. Blown fuse,

5. Corroded battery terminals.

6, Loose or damaged wiring.

7_ Faulty ]gnltlon switch.

8o Faulty solenoid or starter.

9. Faulty operator presence

switch(as).

t, Weak or dead battery,

2. Corroded battery terminals,

3. Loose or damaged wiring.

4_ Faulty solenoid or starter,

1, Depress clutch/brake

pedal,

2, Disengage attachrnent

clutch.

3. Recharge or replace

battery,

4. Replace fuse.

5. Clean battery terminals.

6. Check al! wiring,

7, Check!replace ignition

switcl_.

8, Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center,

_. Recharge or replace battery.

. Clean battery terminals.

3, Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART

PROBLEM CAUSE CORRECTION

Loss0fpower.........ill cuttiogtoomu ,hgrassltoo1.Setit,"H gherCut"positlon/

7. Dirty fuel filter,

8, State or dirty fuel,

F9. Water in fuel.

fasL

Throttle in "CHOKE" 2,

position.

Build-up of grass, leaves 3,

and trash under mower,

Dirty air fittero 4,

Low otl level/dfrty otl, 5.

Faulty spark plug. 6,

'7,

' 10,Spark plug wire loose.

11.Dirty engine air screen/fins,

12.Dirty/clogged muffler.

13.Loose or damaged wiring,

14.Carburetor out of

adjustment.

reduce speed.

Adjust throttle control,

Clean underside of mower

housing,

Clean/replace air filter.

Check oll level/change otl.

Clean and regap or change

spark plug,

Replace fuel filter;

Draln fuel tank and refill with

fresh gasoline.

Drain fuel tank and carbure

tor, refill tank with frestl

gasoline and replace fuel

filter.

t0,Connect and tighten spark

plug wire.

15.Engine valves out of

adjustment.

Excessive 1. Worn, bent or loose blade.

11.Clean engine air screen/fin&

12.Clean/replace muffler,

13.Check all wiring,

14 See "To Adjust Carburetor"

in Service Adjustments

section.

15,Contact a Sears or other

qualified service center,

1. Replace blade_

vibration Tighten

Engine continues

to run

when operator

leaves seat with

with attachment

clutch engaged

Poor cut - uneven

2, Bent blade mandrel

3. Loose/damaged part(s),

Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck no1 level,

Buildup of grass, leaves,

and trash under mower,

Bent blade mandrel,

Clogged mower deck vent

holes from buildup of

grass, leaves, and trash

around mandrels.

blade bolt.

Replace blade mandrel.

Tighten loose part(s).

Replace damaged parts.

Check wiring, switches and

connections, If not

contact a Sears or other

qualified service center,

1, Replace blade, Tighten

blade bolt.

2, Level mower deck.

3, Clean underside of mower

houslng.

, Replace blade mandrel,

o Clean around mandrels to

open vent holes,

TROUBLESHOOTING CHART

PROBLEM

_ . i uu,JiL,

Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

If so equipped)

!Battery will not

charge

Engine "backfires"

whenturning

engine "OFF"

CAUSE

1_ Obstruction in c{utch

mechanism.

2, Worn/damaged mower

drive belt,

3, Frozen idler pulley,

4, Frozen blade mandrel.

I, Engine speed too slow.

2. ]ravel speed too fast,

3, Wet grass,

4. Mower deck not level,

5. Low/uneven tire air

pressure.

6. Worn, bent or loose blade,

7,, Bulldup of grass, leaves

and trash under mower,

8. Mower drive belt worn_

9. Blades improperly lnstal!ed.

10..Improper blades used.

11.Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels°

1. Swttch is "OFF".

2. Bulb(s) burned out.

3, Faulty light switch,

4, Loose or damaged widng.

5. B!own fuse.

1, Bad battery cell(s).

2. Poor cable connections,

3. Faulty regulator

(if so equipped),

4. Faulty alternator,

Engine throttle control not

set at "SLOW" position

fo_ 30 seconds before

stopping engine,

CORRECTION

1_ Remove obstruction,

2. Replace mower drive be{t,

& Replace Idler pulley°

4. Replace blade mandrel.

1. Place tllrottle control in

"FAST" position,

2, Shift to slower speed,

3. Allow grass to dry before

mowing.

4. Level mower deck,

5. Check tires for proper air

pressure.

6. Replace/sharpen blade,

Tighten blade bolt.

7, Clean underside of mower

housing.

9 Replace mower drive belt.

[ Reinstall blades sharp edge

down,

10. Replace with blades listed

in this manual,

t 1.Clean around mandrels to

open vent holes.

1, Turn switch "ON".

2. Replace bulb(s),

3, Checldrep!ace light switch.

4. Check wiring and conneo

tions.

5. Replace fuse,

1,, Replace battery,

2. Check/clean all connec

tions.

3. Replace regulator..

4, Replace alternator.

. Move throttle control to

"SLOW" position and allow

to Idle for 30 se0onds before

stopping engine,

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.271052

............... BATTERY

l_.clJ£

IGNITION SWITCH

i I

80LENOID

REMOVABLE

cONNECT'ONS _-_

NON.REMOVABLE

CONNECTIONS RELAY

WIllING INSULATED OLIP_

WITH A SPECIAL ALTERNATOR

SYSTEM. 'THE UGHTS ARE NOT

CONNECTED TO THE BATTERY,

BUT HAVE THEIR OWN

ELECTRICAL SOURCE,

BECAUSE OFTH{S THE BRIGHT-

NESSOF THE LIGHTS W LL

CHANGE WITH ENGINE SPEED

AT IDLE THE LIGHTS WiLL DIM,

AS THE ENGINE IS SPEEDED UP,

THE LIGHTS WILLBECOME

THEIR BRIGHTEST.

NOTE: IFWIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHQULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING

ELECTRICAL

TRACTOR-- MODEL NUMBER 917.271052

ELECTRICAL

TRACTOR -- MODEL NUMBER 917.271052

KEY PART

NO, NO, DESCRIPTION

1 163485 Battery

2 74760412 Bolt Hex Hd t14-20unc x 3/4

8 '_56417 Case Battery

16 181343 Switch, Interlock

21 166182 Harness Asm Light W/4152J

22 4t 52J Bulb Light 4I 156

24 4789J Cable Battery 6 Ge 11" red

25 146147 Cabte Batter,] 6 Ga w/16 wlre red

26 166180 Fuse15 AMP

27 73510400 Nut Keps Hex 1/4-20 Uric

28 4207J Cable Ground 6 Ga 12" black

29 160784 Swltch Plunger Normal Op Olive

30 163868 Switch tgn

33 140403 Key tgn

40 170219 Harness Ign

4t 7t 110408 Bolt Bltt. Fin Hex 1/4-20 Unc x 112

42 131563 OoverTermlnal Red

43 145673 Solenoid

45 121433X Ammeter Rectangular 6 Amp

52 141840 Protection Wire Loop

70 170249 Harness Engine

8t t09748X Re_ay Asm

NOTE; All componentdimensions given In US, _nches

1 Inch --25-4 mm

TRACTOR - - MODEL NUMBER 917.271052

CHASSIS AND ENCLOSURES

_9 -3 60 II:Tz- "_.._.2'JA..Y

_ _'<t_7£B_:¢,_l_ _ 1

5 _

2O8

TRACTOR -- MODEL NUMBER 917.271052

CHASSIS AND ENCLOSURES

KEY PART

NO_ NOr DESCRIPTION

t 169830 Chsasle

169061 Dr_wbat

3 17060612 Screw 3/8q 6 x 3/4

5 155272 BumperHood/Dash

9 168337X013 Dash

10 STD533710 edit, Carriage 3/8-16 x 3/4

11 155927 Panet, Dash, L.H

12 145660 Cflp Tlnnerman Gdlle P/L

13 172107X010 Panel, Dash, R.H.

17 144983X558 Hood Assembly

18 t26938X BumperHood

25 19131312 Washer 13/32 x 13/16 x 12 Gauge

26 STD641437 Nul

28 156725X558 Grille/Lens Asm

29 155217.',(599 Lens, Gdtle

30 164918X558 FendiFtrest

31 139976 Bracket, Fender Support

37 17490508 SorewThdro! 5/16-18 x 112

38 169834 P_vot Bracket Assembly, Rear

51 73800400 Nut Look w/Insert 1/4-20 UNC

52 19091416 Washer 9/32 x 7/8 x 16 Ga

53 145201 Bracket Grille Pickoff LH

54 161464 Screw Hex Wshd 8-18 x 7/8

55 145202 Bracket Gr]lte Plckoff RH

57 STD522507 Bolt, Fin Hex 1/4-20 UNO x ,75

58 150127 Duct Air Engine

60 72140606 BoltRdhdSqnk3/8-16UNC×3/4

64 154798 DashLowerSTLT

74 STD54t 437 Nut Orownleek 3/8016 UNO

t14 158112 KeeperBelt RearLh StlP930

116 17060620 Screw 3/8-I6 X 1-1/4

142 165867 PEateRetnforcementSTLT

143 154966 Bracket Swaybar Chassis

144 154207 Bracket Pnt Footrest STLT

145 156524 Rod Pivot Chase]s/Hood

211 145212 Nut Hex Flange Lock

206 170165 Bolt Shoulder 5/16qBTT

207 17670508 Screw Thdro] 5/t6q8 x I/2 Tytt

208 I7670608 Screw Thdro] 3/8-16 x 1/2

212 165919 Insert Lens Reflective

- - 5479J Plug0 Button

NOTE: Atl component dimensions given in U S, In_he_

I Inch = 2&4 mm

TRACTOR - - MODEL NUMBER 917,271052

GROUND DRIVE

TRACTOR -- MODEL NUMBER 917.271052

GROUND DRIVE

KEY PART KEY PART

NO+ NO. DESCRIPTION NO, NO.

I ........ Transaxle (See Breakdown) 61 17060612

Peedess206+545C 62 8883R

2 146682 Spring, Re_urn, Bpake 63 140186

3 123666X PuJtey, Transa×le 64 71170'764

4 12000028 Ring, Retainer 65 STD551143

5 121620X Strap, Torque 66 154778

6 17060512 S_rew 5ll e-t 8 x 3/4 70 134663

8 185866 Rod Shtfter Fender STLT 72 19132012

10 STD861210 Pin, Cotter 74 137057

11 105'701X Washer, Shtft Plale 75 121749X

13 74550412 Bolt 1/4-28 UNF W/Patch Gr 8 76 STD58tO75

14 10040400 Washer Lock Hvy Het_cai 77 123583X

!6 BTD541431 Nut Lock Hx W/Ins 5116q8 x Gr.5 76 121'748X

!8 STD523710 BoR Fin Hex 316-16uric x 1 Gr. 6 79 STD580025

19 STD54t4-37 Nut 80 145090

21 !06933X Knob 61 165592

22 130804 Red, Brake 82 165711

24 STD54t237 Nut 83 19171216

25 106888X Spring, Brake Rod 84 166231

26 STD5510,37 Washer 85 150360

27 8TD561210 Pin 89

28 145204 Rcd, Perk+ng Brake 90 124346X

29 71673 Cap, Parking Brake 96 STD624003

30 168592 Bracket, Transexle 112 19091210

32 STD523107 Bolt t13 127288X

34 155071 Shaft Assembly, Foot Pedal 1t6 72110610

35 t20183X Bearlng, Nyfon 145 74490540

36 STD551062 Washer t 50 165880

37 STD571810 Rolt Pin 151 19133210

38 131494 Pulley, Idter, Flat 156 166002

39 $TD533727 Boft 158 166589

40 4470J Spacer, Spilt.395 x 59 159 165494

41 165838 Keeper, Belt, Idler 161 72140406

42 19131312 Washer 13132x 13116 x 12Ga.. 162 73680400

47 127783 Pulley, idler, V-Groove, Plastic 163 74780416

48 154407 Betlcrank Ctufeh Gad Dr,." SII 164 19091010

49 123205X Retainer, Belt 165 165623

50 STD523715 Bo+t 166 166880

51 STD5414.37 Nut Crown Lock 3/8-16 UNC 168 165492

52 STD541431 Nut Qrown LockS/t6-18 UNO 169 165580

53 105710X Link, Clutch 170 165849

55 105709X Spdng, Clutch Return 197 169613

56 STD523712 Bolt Fin Hex 3/8-t6 x t+1/4 198 169593

57 130801 V-Bert, Ground Drive 202 72110612

59 168691 Keeper, Belt, CenterBpan 204 17080516

DESCRIPTION

Screw 3/8-16 x 3/4

Cover, Pedal

Pulley, Engine

Bolt, I..fex 7t16-20 x 4 Grade 5

Washer

Keeper, Belt, Engine, Fool Proof

Guide, Mower Drive Bait, R,]'-],

Washer 't3/32 x 1-1/4 x 12 Ga

Spacer, Axle

Washer 25/32 x 1+1/4 x 16 Ga

E-Ring

Key, Square 2,O x .1845/1865

Washer 25/32 X 1-5/8 x 16 Ge

Key Woodruff

Arm, Sh+ft

Shant Asm Cross Tapered 650 20

Spring, Torsion

Washer 17/32 x 3/4 x 16 Ga+

Unk Transaxfe

Nu!, Nylcck

t5839tX428 Console, Shift, STLT

Nut, Self-Thdlng, Wsh Hd 1/4

Retainer Bpdng 1"

Washer 9132 x 3/4 x 10 Ga

Strap Torque 90 D agrees

Bolt Rdhd Sqneck 3/8+16 x ! .25

8o1!, Hex Flghd 5/18-18 Gr 5

Bushing Bellcrank Grd+ Drive

Washer 13/32 x 2 x t0 Ga+

Washer Srded 5/16JD x 1.125

Bracket Shift Mount

Hub Tapered Flange Sh+ft Lt

Bolt Rdhd Sqnk 1/4+20 x 3/4 Gr.5

Nu_ CrownIock 1/4+20 Unc

Bolt Flex Fin 1/4+20une x I Gr 5

Washer 5/8 x .281 x t0 Ga

Bracket Pivot Lever

Screw 5/16-18 x 5/8

Bo_t Shoulder 5/16+19 x +561

Plate Fastening LI

Kee#er Belt Transex_e Gear

NylinerSnap+ln

Washer Nyltner

Bolt Cart. SH 3/6+16 x t-1/2 Gr- 5

Screw 5/16+18 x t SMGML.

NOTE: AtEcomponent dimensions given In U. S.

incllee 1 inch = 25 4 turn

TRACTOR -- MODEL NUMBER 917.271052

STEERING ASSEMBLY

/#+ \ 'l

i:t!

3T.... _t

TRACTOR -- MODEL NUMBER 917.271052

STEERING ASSEMBLY

KEY PART

NO. NO, DESCRIPTION

1 139768

2 164427

3 189840

4 169839

S 6266H

8 121746X

7 18272016

8 12000029

9 3366R

t0 169832

ll STD551137

13 136516

15 145212

17 156546

18 57079

19 160395

22 165857

23 165851

25 154406

26 128647X

27 138874

28 19131416

29 17060612

80 STD561210

32 130465

36 155099

37 162827

38 139769

39 19133812

40 STD541537

41 1007tlL

42 145054×428

43 121749X

44 153720

46 121232X

47 6855M

5t STD54!431

54 74780520

62 167902

63 STD523710

65 160367

66 154404

67 72140618

68 169829

79 19132012

60 74950612

82 169835

85 133835

Steering Wheel

Axle Aesembty STMP Dropped STL

Spindle Assembly, LH,

Spindle Assembly, R,H.

Bearing, Race, Thrust, Hardened

Wa_her 25/32 × 1-5/8 x t6 GaUge

Washer 27/32 × t-1/4 × 16 Gauge

Ring, Kltp

Bearing, Steering Column

Dragtfak

Washer, Lock

Spacer Bearing Axle Front

Nut, He× Flange Lock

Shaft Assembly, Steering

Washer, Thrust .515 x .760 x 033

Support, Shaft

Screw, Hex Wsh Hd Torx

Plttman Shaft Assembly

Brackel, Steedng

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x !6 Gauge

Screw 3/8-I 6 x 3/4

Pin Colter

Rod, Tie

Bush{ng, Steering

Screw

{nsert,Steering Whee_

Washer 13/32 x 2-3/8 x 12 Gauge

NL_tLock Center 3/8-24 Unf

Adaptor, Steering Wheel

Boot, Steedng Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LR-LT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/ins 5/t6-18 UNC

Belt Fin Hex 5/t 6-18 UNC x 1-1/4

Kit Steering Asm Serv{ee

Bolt, Ftn Hex 3/8-18 UNC x 1Gr 5

Spacer Brace Axle

Bearing Arm Ptttman

So{t ROHD Sqnk 3/8-16 x 2-1/4

Axle, Brace

Washer 13/32 x t-1/4 x 12 Go.

Bolt Hex Nylon 3/8-16 x 3/4

Bracket Susp Chassis Front

Fastener ChdstmasTree

NOTE; All component dimensions given In U,S, Inches

1 Inch = 25,4 mm

ENGINE

TRACTOR - - MODEL NUMBER 917.271052

OPTIONAL EQUIPMENT

Spark AtteSter

60_..

KEY PART KEY

NO, NO, DESCRIPTION NO.

I 162156 Control,rhrottie 33

2 17720410 Screw, Hex Head, Thread ,37

Culting 1/4-20 x 5/8 38

3 ...... Engine, (See _reakdown)

KohlerMOde] CV15-4__;92 40

4 159420 Mutf_er 44-

13 124341433 Gasket

14 13200328 Nipple, Pipe 3/8 NPTx 3-1t2 45

15 13200300 Elbow_ Standard 90°, 3/8-18 NPT 46

16 STD551237 Washer 77

23 169837 SNeld Brn/Dbr Guard 80

29 137180 Arrestor, Spark B1

31 109202X Tank, Fuel 101

32 158990 Cap Assembly, Fuel Seers, Vented 105

PART

NO.

123487X

137040

124028X

17490412

17000612

19091416

19101216

7476O5O8

7351040o

M7303080o

17120616

DESCRIPTION

Clamp, Hose

Line, Fuel

Plug, O1fDrain [See Engine

Breakdown)

Bt;,shlng,Snap, Fuel Ltne

Screw, Hex Washer Head,

Thd, RotL 1t4-20 × 3!4

Screw Hxwsh Thdr 3/8-16 x 314

Washer 9t32 x 7/8 x 16 Ga

Washer 5/16 x 3f4 × 16 Ga,

Bolt Hex Hd 5/16-t8 Unc x I/2

Nut Keps Hex I14-20 Unc

Nut Flange M8-1,25 Non-LkZinc

Screw 31B-16x I

NOTE: All component dimensions given tnU.& inches

1 Inch = 25,4 mm

TRACTOR -- MODEL NUMBER 917.271052

SEAT ASSEMBLY

KEY PART

NO. NO.

1 140122

2 140551

3 71110616

4. 19131610

6 145006

6 STD5,_1437

7 124181X

8 17000616

9 19131614

! 0 155925

! 1 166369

12 121246X

DESCRIPTION

Seat 3350 B_k/bfkCraftsman

Bracket Pnt Pivot Seat (b_k}

Bolt Fin Hex 3/8-16unc X 1

Washer 13/32 X 3f4,X 10 Ga

CIlp Push in Hinged

Nut He× Look wtfns 3/8-16 Unc

Spring Seat Cprsn 2 250 Blk Zt

Screw 316-16 X 1

Washer !3/32 X 1 X 14 Ga

Pan Pnt Seat (blk)

Knob Seat AdJWingnut

Bracket Pnt Mounting Switch

KEY PART

NO, NO.

13 121248X

14 720604,12

15 134300

16 12!25OX

'_7 123976X

21 171852

22 STD54t431

24 19171912

25 127018X

DESCRIPTION

Bushing Snap Btk Nyi 50 ld

Bott Rdhd Sht Nk t/4_20xt-tt2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 BIk Pnt

Nut Look 1/4 Lge Fig Gr 5 Ztnc

Boft Shoulder 5tl 6-18 Unc-2A

Nut Hex Lock w/Ins 5/164 8

Washer 17/32 X 1,-3/I6 X12Ga,

Boft Shoulder 5tt 6-18 X 62

NOTE: All component dimensions given in U S Inches

1 Inch = 264 mm

DECALS

TRACTOR -- MODEL NUMBER 917.27t052

13 6 3 4- 2 I3 li

KEY PART

NO. NO.

1 156368

2 17t762

3 171699

4 171699

5 136047

6 133644

7 169427

6 166887

9 163204

10 156439

KEY PART

DESCRIPTION NO, NO, DESCRIPTION

Decal, Opel lnstr. 12 148046

Decal, Replacement 13 16326'1

Decal Hood, R H.. 14 160396

Der._, Hood, LH 20 149516

Oecat, Battery 21 163207

Decat, Customer Maintenance -- 138311

Decal, HP Engine .. 16.5800X426

Decal, Deck Mower EZ - - 165799X428

Decal, Fender, Craltsman - - 174392

Decal, Fender Danger - - 174393

Decal, V-Belt Drive Schematic

Decat, Dash Panel

Decal, V-Belt Schematic

Decai Battery DngrlPsn Eng

Decal, Fender Sd, Wht

Decat, Lift HandIe

Pad Footrest LH STLT

Pad Footrest RHSTLT

Owners Manual, English

Owner's Manual, Spanish

WHEELS & TIRES

4JO

KEY PART

NO, NO,

1 59192

2 65139

3 106222X

4 59904

5 !06732X427

6 27BH

7 9040H

8 106108X427

9 122082X

10 7152J

tt 104757X

* - _44.._4

DESCRIPTION

Cap Value Tire

StemVelue

T|re F Ts 15 X 6 0 - 6 Service

Tube Inner Front _135060

Rim Asm 6"front White Service

Fitting Grease

Bearing FIange

Rim Asm 8"rear Wrtlte Service

Tire i_ Te 20 X t0.,6 Service

Tube Rear 9 5X 8 Service

Cap Axle Blk 1 50 X 1 00

Seelanf, Tire (10 oz tube)

NO'f Et All component dimensions given in U3. Inches

f Inch = 25,4 mm

LIFTASSEMBLY

TRACTOR --MODEL NUMBER 917.271052

! t

! J

! i

KEY PART

NO, NO,

W/Plunger

NOTE_32

DESCRIPTION

169460 Washer Asm Inner Spring

159471 Shall Asm Lift

105767X Pin Groove

12000002 E Ring #5133-62

10211621 Washer 21/32 x 1 x 21 Ga.

120183X Bearing Nyiorig

125631X Grip Handle Ftuted

122386X Bufton Plunger Read

138865 Link Aem Lift LH

139868 Link Asm Lift R,H

STD624008 Retainer Spring

173288 Link Front

73350800 Nut Jam Hex 1/2-t3 Uric

130171 Trunnion BIk Zinc

73800800 Nul Loci( w/Wsh 1/2-13 Unc

139868 Arm Suspension Mower

163552 Retainer Spring

140302 Bearing, PvL LIlt, Spherical

7, 40 0 ow £c 3/8

_c4o_onentNd_i_%,_ls _}ven'_4U S inches

1Inch =25 4 mm

MOWER DECK

TRACTOR -- MODEL NUMBER 917.271052

.112

MOWER DECK

TRACTOR -- MODEL NUMBER 917,271052

KEY PART

NO, NO°

1 165892

2 STD533107

3 1380t7

4 165460

5 STO624008

6 130632

5 650657

9 S_'D551137

10 140296

11 134149

12 129895

I3 137645

14 128774

15 110485X

t6 140329

18 72140505

19 132827

26 159770

21 STD5414OI

22 134763

23 131267

24 105304X

25 123713X

28 110452X

27 130968X428

26 19111O16

29 131491

30 157722

3t 129963

32 153535

33 137266.

34 STD533717

35 133835

36 131494

37 STD55tO37

4O STD541437

44 140088

45 STD524003

46 137729

48 133944

49 155066

50 131340

51 STD541410

52 139888

53 131845

54 133943

55 155046

86 165723

59 141043

67 149845

68 144959

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Mower Deck Assembly, 42" 92 STD541437

Bell 10I 136420

Bracket Assembly,Sway Bar, 102 71161010

Front 103 19061216

Bracket Sway Bar 38/42" Deck 104 STD551110

RetalnerSprtng 105 160793

Arm, Suspension, Rear 106 2029J

Bolt, He× a18-24 x 1.25 Gro 8 1II 155197

Washer, Lock 112 I5.5198

Washer, Hardened 113 17060512

Blade, Mulching 114 73510500

Beadng, Ball 1!5 72110504

Shaft Assembly, Mandrel, Venled 116 4898H

(fncludes Key Number12) 117 165746

Houstng, Mandret, Venled t18 73930600

Bearing, Ball, Mandrel 119 19121414

Stripper, Vented Mower Deck 121 !43723

Bolt, Carrtage 5116-18 x 518 128 153390

Bolt, Shoulder t29 19131312

Baffle, Vortex 130 STD523710

Nut Crowntock 5116-18 UNC 131 STD5337tO

Stiffener' Bracket 142 165690

Bracket, Oeflecter 143 157109

Cap, Sleeve 144 158634

Spring, Torsion, Deflector 145 165888

Nut, Push 146 165691

Shleld, Deflector 147 131335

Washer 11/32 x 518 x t6 Ga. 148 I69022

Rod.Hinge 149 165898

£erew Thdrol Washer Head 150 19091216

Washer, Spacer 151 169670

Puiley, Mandrel 152 169676

Nut, Toplock, Flanged t53 169674

SoFt 154 169675

Fastner, Christmas Tree t55 16967t

Pulley, tdlar, Flat 156 169672

Washer 13132x 13t16x16Ga. 157 169869

Nut Crownlock3/8-16 UNO I58 17720410

Guard, Mandrel, LH. 159 72140614

Retainer - * 130794

Screw, Thd. Roll 1t4-20 x 5/8

Washer, Hardened - - 169583

RoIler Assembly, Cam Follows r

Bolt, Shoulder #10-24 Grade 5

Lecknut

Bolt, Shbulder 5/16-18 UNO

Arm Assembly, Pad, Brake

Washer, HardenEd

Arm, Idler

Spacer, Retalnsr

Guard, TUV Id!sr

Knob Custom Ovef

V-Belt

Nut

Mu}oherCover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld

Bracket Gauge Whee_ Lh

Bracket GaUge Wheel Rh

Screw 5/16-18 x 3t4

Nut Keps 5116-18 Unc

Bolt Carr 5/16-Unc × 1/2

Bolt Shoulder

Wheel Gauge Std

Nut Centetlock 3t8-I 6 Unc

Washer 3t8 x 7/8 x 4 Ga.

Bracket Extruded Gauge Wheel

Washer Felt

Washer 13/32 x 13/16 x 12Ga.

Boil, Fin Hex 3/8-16 UNC x I Gr. 5

Bolt, Rdhd Sqnk 3/8q 6UNC xl

Ann Spring Brake Mower

Bracket Arm Idler 42"

Keeper Bell 42" Clutch Cable

Pul{ey ldter Fiat

Boll Carriage Idler

Spring Exlens_on

Spdng Return Idler

Retainer Spring Yellow Zinc

Washer 9/32 x 3/4 x 18 Ga.

Bracket Clutch

Cable Clutch 42 In

Wasller Flat 3/8" Type B

Spring Retainer

Spring Retention Lever

Spacer

Rod C_utch

Screw Hex Thd Cul 1/4-20 x 5/8

Bolt Rdhd Sqn 3/8-I 6 Unc x 314

Mandret Assembly (Inclddes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Comptete (Standard

Deck, Order Separately Mulchsr

Ptale and Gauge Wheel

Components, Key Nes. tO1-t06

and111-12!)

NOTE; All component dimensions given In U S.

Inches1 Inch =25.4 mm

TRACTOR - - MODEL NUMBER 917.271052

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

35A

TRACTOR -- MODEL NUMBER 917.271052

PEERLESS TRANSAXLE - - MODEL NUMBER 206-545C

REF PART REF PART

NO. NO, DESCRIPTION NO, NO,

1 772147 TransaxieOover 41A 790079

2 780086A Needle Bearing 8t8" 42 792073A

3 770128 Transax_e Case 42A 792085A

4 776395 Countershaft 43 792075

5 776409 Output Shaft 44 790025

5 778364 spur Gear (38 teelh) 45 "766066

6A 776369 Spur Gear (15 teelh) 46 786088

7 778330 Spur Gear (1 t teeth) 47 774690

8 792180 Shill Key 48 774691

8A 792047 Woodruff Key #9 49 778356

9 784352 Shift Ootlar 58 778338

10 784378 Shirt Rod & Fork 51 778354

t 1 778334 Bevel Gear (80 teeth) 52 778352

12 778309 Input Bevel Pinion (!3 teeth) 53 778350

13 778368 Bevel Gear (13 teeth) 54 778346

(include, 14) 66 778355

14 779368 Bevel Pinion (13 teeth) 57 778387

(tnalude. 13) 58 778353

15 778370 Ring G ear (43 teeth) 58 778351

17 786188 Drtve Pin 60 778349

18 786102 Spacer 1.130 X ,695 61 778345

20 792077A Bali 8116" die 65 760169

21 792078 Set Screw 3/8 - 10 x 3/6" 66 776422

22 792079 Sprtng _310 OD x ,,625 L 67 776396

28 792073A Screw !/4 - 20 x 1-ti4" 69 792170

25A 7921 Z7 Screw 1/4-20 x l-3/6" 70 796187

26 792125 Retaining Ring (pkg of 2) 7I 786069

27 792035 Retaining Rtng 71B 786092

28 768040 RetafntngRtng 76 780090

29 780072 Thrust Washer .627 tD xO31W 77 788078A

29A 780160 Thrusl Washer 762 ID x.O31W 79 792144

298 780051 Thrust Washer,762 IDx.O31W 92 778333

280 760199 AntbRotattonWasher.632 83 778338

30 780108 Cup Washer 1.127 ID x ,032W 85 792154

31 780001 Fiat Washer .750 ID x O56W 87 788089A

(UseAsNeeded) 150 788093A

31A 780195 Fiat Washer.750 ID x,06fiW 187 788088A

32 788083 Oii Seal 8f8" t80 730229A

34 780194 Bushing .563 900 794712

35 780193 Flanged Bushing 5 / 8" ID

35A 780197 FiangedBushfng 751

36 790075 Brake Disk

37 790007 Brake Pad Plate

38 798021 Brake Pad (pkg el 2)

39 786026 Dowel Pin

40 792076A Flat Washer ,312 ID x ,059W

DESCRIPTION

Brake Lever

Screw 1/4 - 20 x lq/4"

Screw 1/4 ,-20 x 2 1/4"

Locknut 5 / 16 --24

Brake PaUHolder

Spacer .2625 x 1,0

Brake Lever Bracket

Axis (11-I5/16' Long)

Axle (16 - 1l 2" long)

Spur Gear (29 leeth)

Spur Gear (27 teeth)

Spur Gear [23 teeth)

Spur Gear (t9 teeth)

Spur Gear (t6 teeth)

Spur Gear (t5 teeth)

Spur Gear (11 teeth)

Spur Gear (13 teeth)

Spur Gear (t7 teeth)

Spur Gear (2t teeth)

Spur Gear (24 teeth)

Spur Gear (25 teeth)

Fiat Waahe_" 583 fD x .O62W

Input Shalt

Shifter & Brake Shaft

Retaining Ring

Spacer .890

Square Cut Ring

"O" Ring

FIat Washer t. 128 IDx 058W

Inverted Retaining Ring

Spdng .430 OD x .5000 L

Bevel & Spur Gear (30 & 13 1seth)

Spur Gear (27 teelh)

0tl Fill Plug

Oil Seal 9/16"

Liquid Gasket RTV Silicone

OII Seal 3/4"

Gear Oil 8OW90

Replacement, MS] o208-545C

Transax/e

NOTE; Aftcomponent dimensions given {nU S

Inches1 Inch = 25,4 mm

TRACTOR -- MODEL NUMBER 917.271052

KOHLER ENGINE-MODEL NUMBER OV15S, TYPE NUMBER 41592

BLOWER HOUSING AND BAFFLES t

_LLLL _o4

EXHAUST !

TRACTOR -- MODEL NUMBER 917.271052

KOHLER ENGINE-MODEL NUMBER CV15S, TYPE NUMBER 41592

AIR INTAKE

KEY PART

NO. NO.

1 12-743-05

25-341-02

12"°096"24

12-083- 08

12-t00-01

X-25-63

t 2-083-05

t2-3t3-04

12-094-12

12-072-05

12-086-0t

12-041-02

DESCRIPTION

Kit, Air Cleaner

(includes Key Numbers 2

thru 12)

Knob, Air Cleaner Cover

Covet, Air Cleaner

Precleaner Element

Wing Nut

Washer, Plain 1/4

Elernent, Air Cleaner

(Includes #7)

Grommet

Base, Air Cleaner

(includes Key Numbers g

and 10)

Stud, Mounting Plate M6 x

10x 66

Screw, #10 Hi-Lo Thread

Forming (2}

Gasket, Air Cleaner

NOT ILLUSTRATED

•- 12-113-63 Decal, Air Cleaner

CRANKSHAFT

KEY PART

NO. NO, DESCRIPTION

t 12-014-37 Crankshaft

2 12-139-0t Plug, Cup

BLOWER HOUSING AND BAFFLES

KEY PART

NO. NO. DESCRIPTION

1 M-0545010 Screw, He:< Flange

M5 x 0.8 x 10 (8)

2 24-468-10 Washer, Plain 1/4

3 12-146-07 Plate, Blower Housing

4 M-0645020 Screw, Hex Flange M6 x 1,0

x 20

6 24-096-06 Cover, Pinion

7 12-027-32 Houslng, Blower

8 12-096-28 Cover

9 12-t41-01 Ring, Retafner (2)

10 25-t54-02 Clip, Mounting (3)

11 M-0545020 Screw, Hex Flange M5 x ,8

x 20 (3)

!2 12_063-05 Baffle, Intake Side

13 M-0645016 Screw, Hex Flange

M6x 1Ox 16 (2)

14 t2-063-08 Baffle, Cylinder Head

15 12-063-0t Baffle, Cylinder

NOT ILLUS3"RA3rED

-- t2-!13-64 Decal, Horsepower

ENGINE CONTROLS

KEY PART

NO. NO, DESCRIPTION

1 12_079-07 Linkage, Cl]oke

2 12-237-01 Clamp, Cable

3 M..0664020 Screw, Locked Socket

M6 x 1.0 x 20 (2)

4 M-0545016 Screw, Hex Flange M5x.8x16

5 12_536-09 Control, Speed Assembly

(Includes Key Numbers 6

through 9)

6 M-0443020 Screw, Pan Head M4xO,Tx20

7 SM-0443025 Screw, Pan Head M4x07

x 25

8 !2-089-11 Spring, Choke Ad}ust (2)

g 12-089-23 Spring, Choke Return

10 12-089-24 Spring, Governor

1t M-0641060 Nut, He× Flange M6 x 1.0

12 SM-0642025 Screw, Hex Flange

M6 x t-0 x 25

13 12-090-08 Lever, Governor

14 25,,158ql Bushing, Throttle Linkage

15 t2-079-0t Unkage, Throttle

16 25-158-08 Bushing, Linkage Retaining

EXHAUST

KEY PART

NO. NO, DESCRIPTION

1 M_0829033 Gtlld, M8 X 1,25 x 33 (2)

2 12-041-03 Gasket, Exhaust Manifold

3 M-0841080 Nut, Hex Flange M8 x 1.25 (2)

4 12-126-11 Bracket, Muffler

5 12_445-06 Strap, Lifting

6 M-0645025 Screw, Hex Flange

M6x 1_0x25(2)

NOTtt.LUSTRATED

KEY PAn

NO. NO. DESCRIPTION

-- 12-522-18 Short Block

-- 12o.755-59 Gasket Set

RPM Settings:

RPM Settings;

Low Speed; 1500-2000

High Speed: 3200-3400

NOTE: All component dimensions given in U.S.

inches 1 Inch = 25.4 mm

TRACTOR -- MODEL NUMBER 917.271052

KOHLER ENGINE-MODEL NUMBER CV15S, TYPE NUMBER 41592

FUEL SYSTEM J

3t I

<Io 2,_.Y

_t4 23

CYLINDER HEAD, VALVE AND BREATHER ]"

25__

14 t

TRACTOR -- MODEL NUMBER 917.271052

KOHLER ENGINE-MODEL NUMBER CV15S, TYPE NUMBER 41592

FUEL SYSTEM

KEY PART"

NO. NO. DESCRIPTION KEY

1 12_853_56 Kit, Carburetor (Includes #2 NO.

thru 6) 1

2 12-04t-02 Gasket, Air Cteaner 2

3 12-053.56 Carburetor Assembly 3

(For Information Only - Net 4

Available Separately) 5

(includes Key Numbers t2

thru 27) 6

4 12..041-01 Gasket, Carburetor (2)

5 12-089-23 Spring, Choke Return

6 12-079-07 Linkage, Choke 7

7 12-265-04 Deflector, Heat 8

8 X-426-9 Clamp, Hose (2) 9

9 25o353-10 Line, Fuel, 9"

10 25-050,02 Filter, Fuel 10

1t 47-t54-01 Clip, Cable

12 12-086-07 Screw, Hex Cap 8-32 x 3/8 11

t3 12.431-01 Sleeve, insulating 12

I4 12.-368-05 Needle, Idle, Fuel Adjust 13

15 12-089-09 Spring, Idle Fuel t4

16 12-086_04 Screw, Idle Speed Adjust 15

t7 12-089-09 Spring, Idle Speed 16

t8 12-148-03 Plate, Throttle

t 9 25-O86-27 Screw, Throttle Plate (2)

20 12-i44-0g Shaft, Throttle wlth Lever

and Seal

2t 12-144-08 Shaft, Choke

22 12-089-10 Spring, Choke

23 t2-146-02 Plate, Choke

24 12-337-03 Jet, Main

2 5 12W57-02 Kit, Float

26 12-041-05 Gasket_ Bowl

27 12-104_01 Bow!, Fuel

2 8 12-757-09 Kit, Solenoid Assembly

(includes Key Number 29)

29 12-041-06 Gasket, Bowl Retainer Screw

30 M-0641060 Nut, Hex Flange M6 x 10

(2)

31 X-25-63 Washer, Plain 1/4

32 X-22-11 Washer, Lock 1/4

33 M-0629122 Stud, M6 x 1.0 x 122 (2)

NOT ILLUSTRATED

-- 12-041-01 Gasket, Carburetor

*- 12-757-03 Kit, Carburetor Repair

-- 12.518-05 Lead, Solenoid, Black, 5",

14 Gauge, Uninsulaled

Push-On Tabs

_- 41-518-34 Lead, Ground, Green, 5% 18

Gauge Insulated Grip Barref

Eyelets

- - 277563 Connector

** 12-454-03 Tie, Cable

CYLINDER HEAD, VALVE AND BREATHER

PART

NO.

12.35t .01

12-755-60

12-411-01

12-041 -10

12.017-0t

12-017-02

12-016°01

t 2-0t 6-02

t2-146-13

12-468-06

12-t12-!3

12-086..15

12-08g-01

12-173-01

12W55-03

X-426-9

12_326-03

DESCRIPTION

Lifter, Valve (2)

Kit, Cylinder Head

Rod, Push (2)

Gasket, Cylinder Head

Valve, intake, Sta¢_dard Size

Valve, Intake, .25" Oversize

Valve, Exhaust, Standard

Valve, Exhaust, 25"

Oversize

Plate, Guide

Washer, Plain t3/32

Spacer, Head Belt Exhaust

Port

Screw, Hex Flange

Mt0 x t.5 x 81 (5)

Spring, VaIve (2)

Cap, Valve Spring (2)

Kit, Retainer (2)

Clamp, Hose (2)

Hose, Breather

M-0645020 Screw, Hex Flange

M8 x 1.0 x 20 (5)

17 12-0g6-07 Cover, Valve with Nipple

18 235011 Retainer, Spring

19 24-632-05 Seal, Valve Stem

20 M-0640034 Screw, Hex Flange M6 x t x

34 (2)

21 24-194-01 Pivot, Rocker Arm (2)

22 24-186-03 Arm, Rocker (2)

23 M-0545010 Screw, Hex Flange

M5 x 0.8 x t0

24 12-018-01 Retainer, Breather Reed

25 12-402-02 Reed, Breather

26 12-318-09 Head, Cylinder

27 X-75-23 Plug, Pipe, Allen Head 1/8

NOTE= All component dimensions given in US,

inches

1 Inch = 25,4 mm

TRACTOR--MODEL NUMBER 917.271052

KOHLER ENGINE-MODEL NUMBER CV15S, TYPE NUMBER 41592

i,l,,

OIL PAN / LUBRICATION J

TRACTOR -- MODEL NUMBER 917,271052

KOHLER ENGINE-MODEL NUMBER CVISS, TYPE NUMBER 41592

IGNITION / ELECTRICAL

CRANKCASE

KEY PART KEY PART'

NOo NO. DESCRIPTION NO. NO,

1 12-086-14 Screw, Hex Flange

Mr0 x 1 5 x 46 1 12-032-03

2 12,,468-03 Washer, Plain 3/8 2 12-522-18

3 24_162..03 Screen, Grass 3 12-445-02

4 M-0639016 Screw, Hex Flange M6 x t x

16 (4) 4 M-0839025

5 12-lt2.01 Spacer, Fan (4) 5 12-380-03

6 12-167.-02 Fan 6 12-755-49

7 X-42-t5 Key

8 t2-026-37 FLywheel Assembly 7 12-089-18

9 12-155-02 Connector (4 Contact) 8 12-422-08

I0 M_0548025 Screw, Hex Cap

M5 x 08 x 28 (2) 12-422-0g

I2-422-10

11 M.0545010 Screw, Hex Flange 12-422-tl

M5 x 0,8 x 10 (2) 12-422-12

12 12-t54-02 Cllp, Stator Harness 12-422-13

13 12-085-08 Stator Assembly 12-422-07

14 12-132-02 Spark Plug

15 X-728-1 Clip, Cable 9 12-144-27

16 12-584-01 Module, Ignition 10 12-874-07

17 M-0545020 Screw, He× Flange 12-874-08

M5 x 08 x 20 (2) 12-874-09

NOT ILLUSTRATED ! 1 12-018.02

-- 12-518ql Lead, White, Ground 'To Kilt t2 12-108-07

(19", 18 Gauge, Futly 12-108-08

Insulated Push-on 'Tab and

Uninsulated Push-on "f_b 12-108-09

Terminals) 13 12-067-05

12.067- 06

OIL PAN t LUBRICAI"]ON 14 12-380-01

15 t2-043-05

KEY PART 16 M-0631005

NO, NO. DESCRIPTION t7 12-144-02

1 12=038-0! Dipstick Assembly 18 52-13g-09

(Includes Key Numbers 2 and |9 I2-755-64

2 28-755-13 Kit, Oil Fi!} Cap (Includes Key

#3) 20 12-144-24

3 12-453-03 O-Ring, Dipstick

4 t2-153-02 O-Ring, Upper Oil Fill Tube 2f X-25-!02

5 12-123-04 Tube, OI! Filt 22 12-032-01

6 M-O545020 Screw, Hex F_ange M5 x 0,8 24

x 20

7 12-153-01 O-Ring, Lower Oil Ftil Tube STARTING SYSTEM

8 25-162-07 Screen, Oil Pick-up

g 12-096-03 Cover, Oit Pick.up Screen

10 M-0545016 Screw, He× Flange M5 x 0..8 x KEY PAR]'

NO. NO.

16 1 M-0839070

t t M-1039025 Screw, Hex FIange M10 x 1.5

x 25

12 12-126-02 Bracket, Oil Pump Relief 2 25.,098-03

Valve

13 12-089-03 Spring, Oil Pump Relief Valve 3 12-755-54

14 12-462-01 Piston, Oil Pump Relief Valve 4 12-227_06

15 12.208-01 Body_ Oil Pump Relief Valve 5 45-'E70-03

t8 12-050-01 Filter, Oil

t 7 X-75-t0 Plug, Square Head, Solid 3/8 7 12.227-11

t8 12-393-01 O1tPump Assembly 8 12-086-25

t9 12-032-04 O-Ring, Otl Pump Cover

20 12-096-02 Cover, OII Pump

21 M-0545016 Screw, Hex Flange

M5 x 0,8 x 16 (3)

22 12-032-03 Seal, Oil (PT, O End)

23 SM-0839045 Screw, Hex Flange

M8x 1,25 x 45 (12)

24 t2-19g-30 Pan, Oil

DESCRIPTION

Seal, Crankshaft

Block, Cylinder (Use Short

Block)

Strap, Lifting

Screw, Hex Flange M8 x

1.25 x 25

Dowel, Locating (4)

Kit, Canlshaft (includes Key

pnng; Actuating

Shim, Camshaft, Blue

Shim, Camshaft, Red (A.R.)

Shim, Camshaft, Yellow (A,R)

Shim, Camshaft, Green (A.R,)

Shim, Camshaft, Grey (A.R.)

Shlm, Camsbalt, Black (A.R)

Shim, Camshalt, White (A.R)

Shaft, Balance

Piston w/Ring Set, Standard

Piston w!Ring Set .25"

Oversize

Piston w/Ring Set 50"

Oversize

Retainer, Piston Pin (2)

Ring Set, Standard

.25"

Ring Set Oversize

Ring Set .50" Oversize

Connecting Rod, Standard

Connecting Rod 25"

Oversize

Pin, Governor Regulating

Gear, Governor Assembly

Washer, Plain, 6ram

Shaft, Governor Gear

Plug, Cup

Kit, Shaft, Governor Cross,

with Clip (includes Key #20

and 24)

Shaft, Governor Cross

Washer, Plain t/4

Seal, Governor Cross Shaft

8M-O631015 Washer, Plain, 6mm

t2-154-.05 Clip, Hitch Pin

DESCRIPTION

Screw, Hex Flange

M8x 125x 10(2)

Starter Assembly

(includes Key Numbers 3 thru

Kit, Drive End

Cap, Drive End

Armature

End Cap, Commutator

Screw, Hex Ffange

1/4-20 x 4-518 (2)

NOTE: All component dimensions given in U.S

inches 1 inch = 25 4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

SIGHTING

GUIDE

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

SIGHT AND HOLD THIS LEVEL WITH

SKY LINE OR TREE.

•_ _ Operate your T_ctor up and down the face of slopes (not

_! ,ilt_j_. greater than 15 _, never across the face. Make turns gradu-

al _ ally to prevent tipping or loss of control. Exercise extreme

_! caution when changing direction on slopes.

Your Home

For repair -- in your home - of all major brand appliances,

lawn and garden equipment, or heating and cooling systems,

no matter who made it, no matter who sold it!

For the replacement parts, accessorfes and

owner's manuals that you need to doqt-yourself.

For Sears professional installation of home appliances

and items Itke garage door openers and water heaters.

1-800-4-MY.-HOM E@ Anytime, day or night

(1-800-469-4663) (U.SoA, and Canada)

www.seare,com www.aears,ca

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U3,A, o_ly)

www._earsocorn

To purchase a protection agreement on a product serviced by Sears',

1-800-827-6655 (USA) !-800-361-6665 (Canada)

Pars pedir servtcio de reparacl6n

a domicilio, y pars ordenar piezas:

1-888-SU-HOGAR SM

(1-888-784-6427)

Au Canada pour service en franq_ais:

1-800-LE-FOYER _c

(1-800-533-6937)

www sears,ca

® Registered Trademark / TMTrademark / s_ Service Mark of Sear_, Roebuck and Co.

Marca Reg|_trada t "t_.:.Maroa de F_ibrloa ( s_ Matca de Servle_d_de Sears, Roebuck and Co,

MCM_.rque de commerce t _,_oMarque d&pos_e de Seare, Roebuck and Co.

174392 Rev. 3 8o09.02 MH/rad Printed in U.S.A.

Craftsman 917271052 tractor

Product's Documents

User Manual

Specifications

Craftsman 917271052 Questions and Answers
