AUTOMATIC
DRYERS
Electric Model
LE5200XT
and
Gas Model
LG5201XT
I
i
rs Clolhez Dryera, Freezers, Refrigerator-Fraezers, Ice Makers, Dishwasher, Built-in Ovens and Sudace Units, Ranges, Microwave Ovens, Trash Compact!

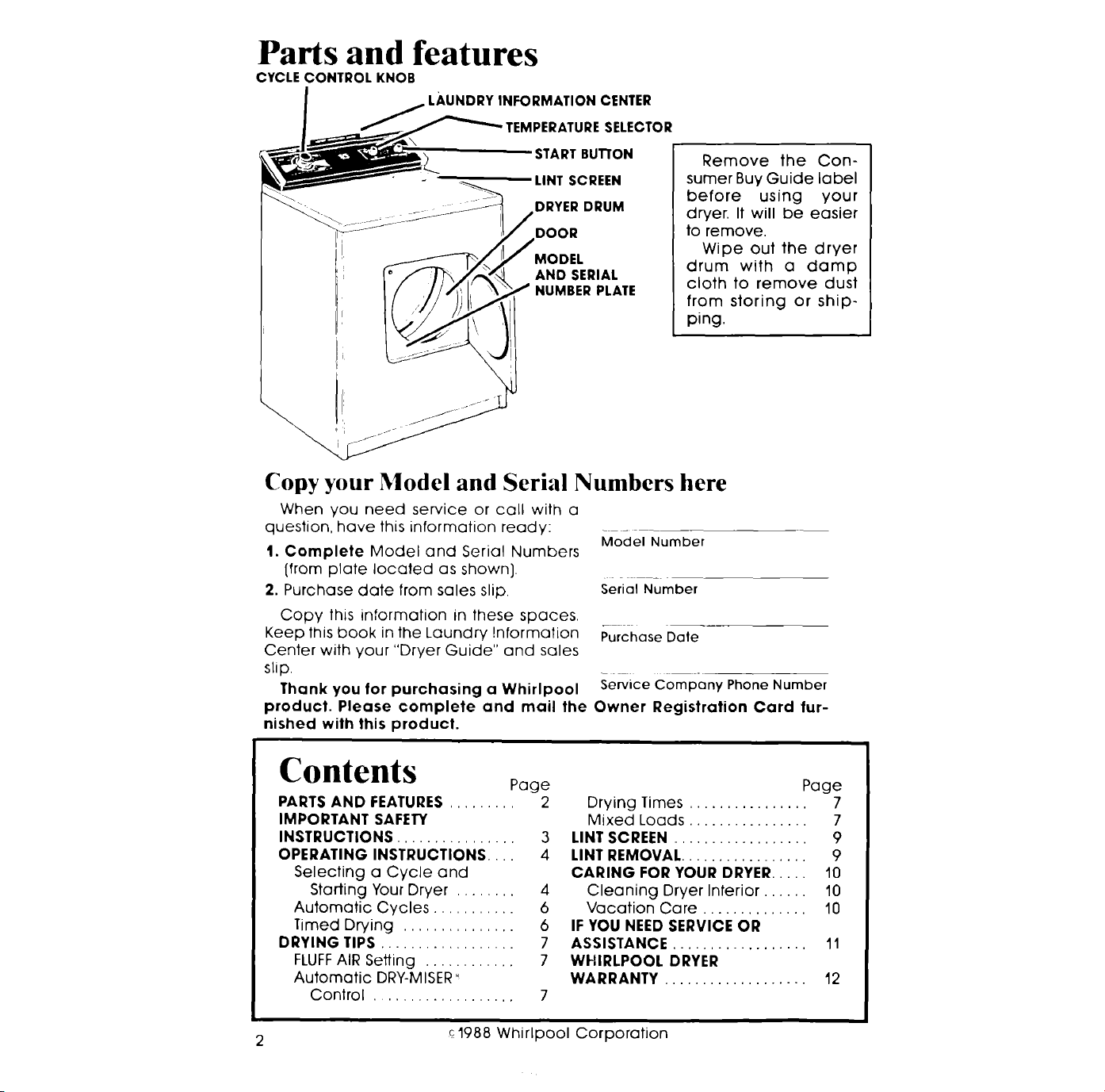

Parts and features
CYCLE CONTROL KNOB
LAUNDRY INFORMATION CENTER
tEMPERATURE SELECTOR
START BUT(ON
LINT SCREEN
DRYER DRUM
DOOR
MODEL
AND SERIAL
NUMBER PLATE
Remove the Con-
sumer Buy Guide label
before using your
dryer. It will be easier
to remove.
Wipe out the dryer
drum with a damp
cloth to remove dust
from storing or ship-
ping.
Copy your Model and Serial Numbers here
When you need service or call with a
question, have this information ready:
Model Number
1. Complete Model and Serial Numbers
(from plate located as shown}.
2. Purchase date from sales slip. Serial Number
Copy this information in these spaces.
Keep this book in the Laundry !nformafion Purchase Date
Center with your "Dryer Guide" and sales
slip.
Thank you for purchasing a Whirlpool Service Company PhoneNumber
product. Please complete and mail the Owner Registration Card fur-
nished with this product.
Contents Poge
PARTS AND FEATURES ......... 2
IMPORTANT SAFETY
INSTRUCTIONS ................ 3
OPERATING INSTRUCTIONS .... 4
Selecting a Cycle and
Starting Your Dryer ........ 4
Automatic Cycles ........... 6
Timed Drying ............... 6
DRYING TIPS .................. 7
FLUFFAIR Setting ............ 7
Automatic DRY-MISER_
Control ................... 7
Page
Drying Times ................ 7
Mixed Loads ................ 7
LINT SCREEN .................. 9
LINT REMOVAL ................. 9
CARING FOR YOUR DRYER..... 10
Cleaning Dryer Interior ...... 10
Vacation Care .............. 10
IF YOU NEED SERVICE OR
ASSISTANCE .................. 11
WHIRLPOOL DRYER
WARRANTY ................... 12
1988 Whirlpool Corporation

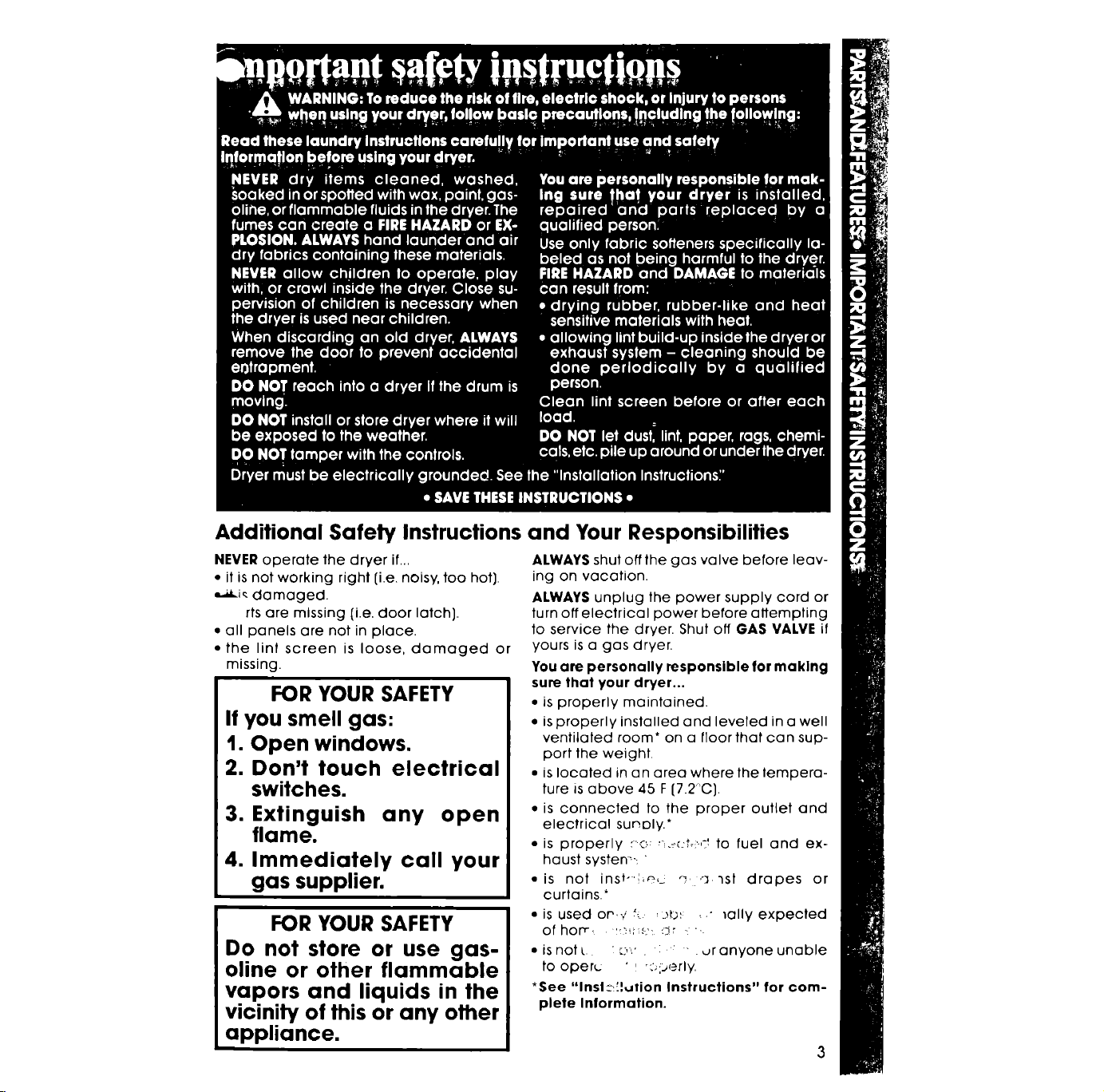

Additional Safety Instructions and Your Responsibilities
NEVER operate the dryer if,.,
• it is not working right (i.e. noisy, too hot).
•,.,_i _ damaged.
rts are missing (i.e. door latch].
• all panels are not in place.
• the lint screen is loose, damaged or
missing.
FOR YOUR SAFETY
If you smell gas:
I. Open windows.
2. Don't touch electrical
switches.
3. Extinguish any open
flame.
4. Immediately call your
gas supplier.
FOR YOUR SAFETY
Do not store or use gas-
oline or other flammable
vapors and liquids in the
vicinity of this or any other
appliance.
ALWAYS shut offthe gas valve before leav-
ing on vacation.
ALWAYS unplug the power supply cord or
turn off electrical power before attempting
to service the dryer. Shut of/GAS VALVE it
yours is a gas dryer.
You are personally responsible for making
sure that your dryer...
• is properly maintained.
• is properly installed and leveled in a well
ventilated room* on a floor that can sup-
port the weight.
• is located in an area where the lempera-
lure is above 45 F (7.2'C}.
• is connected to the proper outlet and
electrical SUnDly.*
• is properly :o: ,_,.:,__-t_._,_'_to fuel and ex-
haust system.: "
• is not inst,,i_,,j q, ,_ "1st drapes or
curtains."
• is used or'.;, '_ ,:._b,,: ,. _ally expected
of hon-, :_:_,: _._r _ -.
• isnotL :_;,,,' . : .uranyoneunable
to operc ' ! '_._i._erly.
*See "Insl_!h.Jlion Instructions" for com-
plete Information.

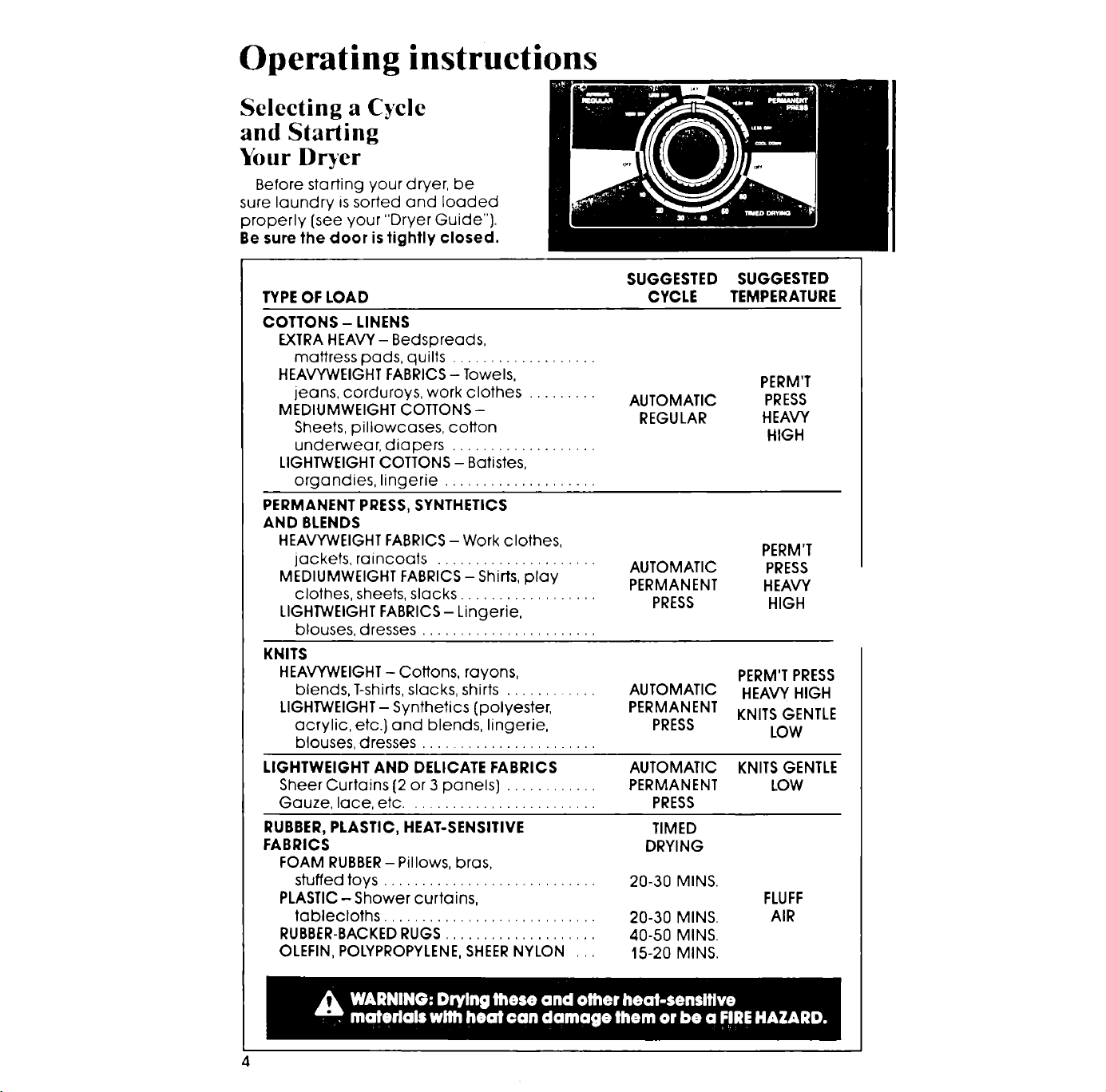

Operating instructions
Selecting a Cycle
and Starling
Your Dryer
Before starting your dryer, be
sure laundry is sorted and loaded
properly (see your "Dryer Guide"].
Be sure the door is tightly closed.
TYPEOF LOAD
COTTONS - LINENS
EXTRAHEAVY- Bedspreads,
mattress pads, quilts ...................
HEAVYWEIGHTFABRICS- Towels,
jeans, corduroys, work clothes .........
MEDIU MWEIGHT COTrONS -
Sheets, pillowcases, cotton
underwea r,diapers ...................
LIGHTWEIGHTCOTTONS - Batistes,
organdies, lingerie ....................
PERMANENT PRESS, SYNTHETICS
AND BLENDS
HEAVYWEIGHTFABRICS - Work clothes,
jackets, raincoats .....................
MEDIUMWEIGHT FABRICS - Shirts, play
clothes, sheets, slacks ..................
LIGHTWEIGHT FABRICS - Lingerie,
blouses, dresses .......................
KNITS
HEAVYWEIGHT- Cottons, rayons,
blends, T-shirts,slacks, shirts ...........
LIGHTWEIGHT- Synthetics (polyester,
acrylic, etc.) and blends, lingerie,
blouses, dresses ......................
LIGHTWEIGHT AND DELICATE FABRICS
Sheer Curtains (2 or 3 panels] ............
Gauze, lace, etc ........................
RUBBER,PLASTIC, HEAT-SENSITIVE
FABRICS
FOAM RUBBER- Pillows, bras,
stuffed toys ............................
PLASTIC- Shower curtains,
tablecloths ............................
RUBBER-BACKEDRUGS ....................
OLEFIN, POLYPROPYLENE,SHEERNYLON ...
SUGGESTED SUGGESTED
CYCLE TEMPERATURE
PERM'T
AUTOMATIC PRESS
REGULAR HEAVY
HIGH
PERM'T
AUTOMATIC PRESS
PERMANENT HEAVY
PRESS HIGH
PERM'TPRESS
AUTOMATIC HEAVY HIGH
PERMANENT KNITSGENTLE
PRESS LOW
AUTOMATIC KNITS GENTLE
PERMANENT LOW
PRESS
TIMED
DRYING
20-30 MINS.
20-30 MINS.
40-50 MINS.
15-20 MINS.
FLUFF
AIR
4
. Select a CYCLE
Set
2.TEMPERATURE SELECTOR
Turn the Control Knob either way to
point to the cycle and setting you
want. See page 6 for information on
the cycles.
_. Push the START Button
Turn the Temperature Selector to the
needed drying temperature.
To stop and restart
the dryer
The dryer will start tumbling when you
push the STARTButton.
To stor- me c_:_e,. -,:_s;, the door (or
turn the C..n_x._: !'.nob to OFF).
To restart :::e dryer, close the door,
select cycle, it necessary, and push
START.
The Cycle Control Knob should point to OFF when the dryer is not in use.
If the dryer is stopped before the cycle is finished, turn the Cycle Control
Knob to OFF.

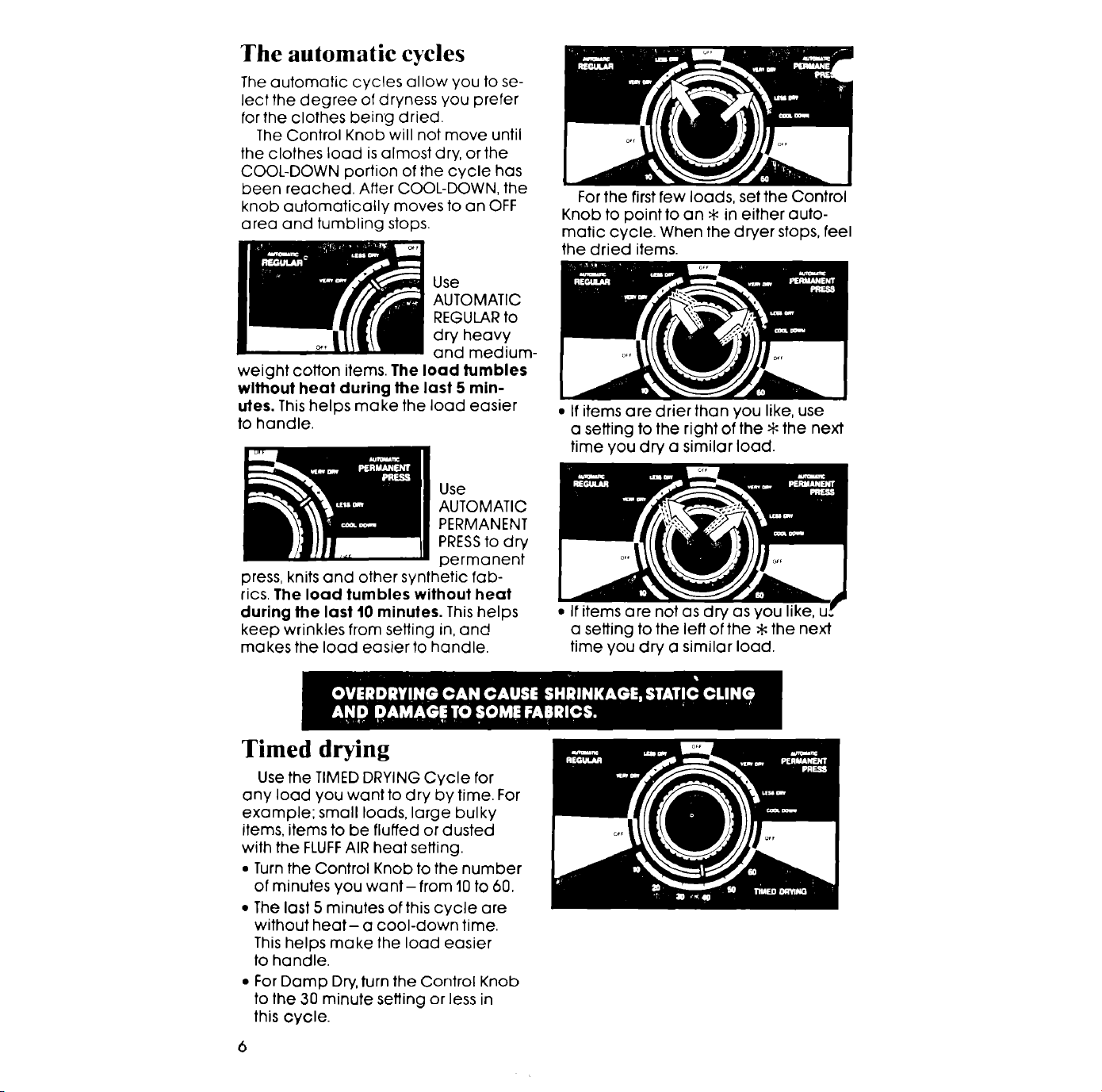

The automatic cycles
The automatic cycles allow you to se-
lect the degree of dryness you prefer
for the clothes bein'g dried.
The Control Knob will not move until
the clothes load is almost dry, orthe
COOL-DOWN portion of the cycle has
been reached. After COOL-DOWN, the
knob automatically moves to an OFF
area and tumbling stops.
Use
AUTOMATIC
REGULAR to
dry heavy
and medium-
weight cotton items. The load tumbles
without heat during the last 5 min-
utes. Thishelps make the load easier
to handle.
Use
AUTOMATIC
PERMANENT
PRESSto dry
permanent
press, knits and other synthetic fab-
rics, The load tumbles without heat
during the last t0 minutes. This helps
keep wrinkles from setting in, and
makes the load easier to handle.
For the first few loads, set the Control
Knob to point to an _ in either auto-
matic cycle. When the dryer stops, feel
the dried items.
• If items are drier than you like, use
a setting to the right of the _ the next
time you dry a similar load.
• If items are not as dry as you like, u:
Timed drying
Use the TIMED DRYING Cycle for
any load you want to dry by time. For
example; small loads, large bulky
items, items to be fluffed or dusted
with the FLUFFAIR heat setting.
• Turnthe Control Knob to the number
of minutes you want- from 10to 60,
• The last 5 minutes of this cycle are
without heat- a cool-down time.
This helps make the load easier
to handle.
• For Damp Dry, turn the Control Knob
to the 30 minute setting or less in
this cycle.
a setting to the left ofthe :_the next
time you dry a similar load.
rying tips
The dryer does not heat when the
Temperature Selector is set on FLUFF
AIR. This setting can be used to fluff
bedding, plastic tablecloths, foam
rubber pillows, stuffed toys, sneakers,
etc.
t. Turn the Temperature Selector to
FLUFFAIR.
Automat,,. : !_ _-MISER _
Control
The ther'_(,_-.!u _ _ " I ' _ _ ne air
tempera+ _r,_ .:..... :-_,II Jutomatically
shuts c ::._,__,_._:_"._. _÷.:_._led dryness
is reac,_: _d
Turn the Control Knob to the number
of minutes you want in the TIMED
DRYING Cycle.
3. Push the STARTButton.
Drying times Mixed loads
Drying times will vary depending on:
• amount of moisture in the c_othes.
• type and weight of the fabric.
• size ofthe load.
• room temperature around the dryer.
• temperature of the wash rinse water.
• amount of lint in the lint screen.
• dryer temperature selection.
See your "Dryer Guide" for more
information.
When drying a load with different
kinds and weights of fabrics, use the
cycle suggested for the lightest fab-
rics. When the dryer stops, remove dry
items and reset the control.
To reduce wrinkling, take the load
from dryer as soon as tumbling stops.
This is important for permanent press,
knits and synthetic fabrics.

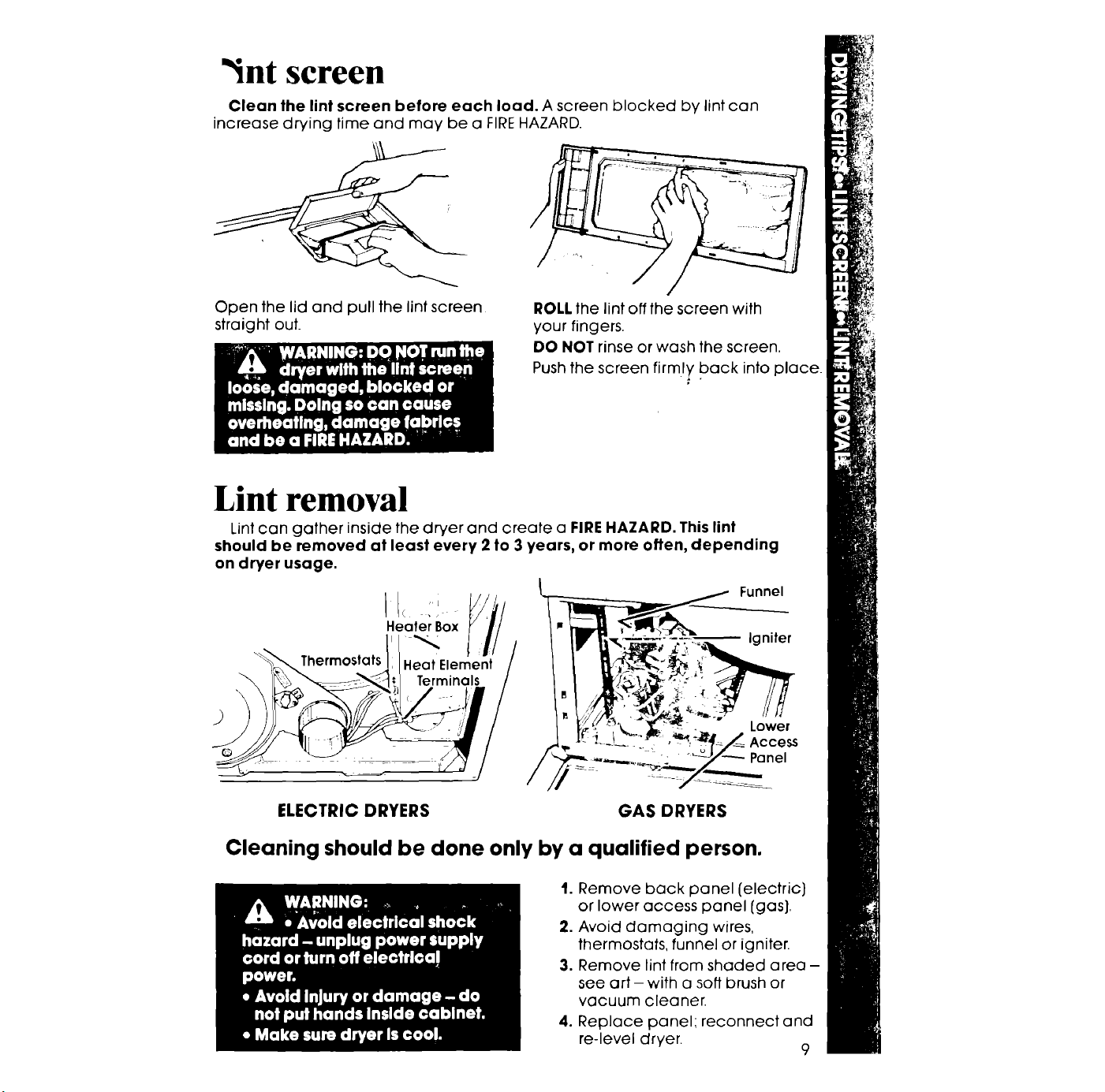

"int screen
Clean the lint screen before each load. A screen blocked by lint can
increase drying time and may be a FIREHAZARD.
Open the lid and pull the lint screen
straight out.
ROLL the lint off the screen with
your fingers.
DO NOT rinse or wash the screen.
Push the screen firmly back into place.
w ,
Lint removal
Lint can gather inside the dryer and create a FIRE HAZARD. This lint
should be removed at least every 2 to 3 years, or more often, depending
on dryer usage.
Thermostats
Heat Element
/
ELECTRIC DRYERS GAS DRYERS
Cleaning should be done only by a qualified person.
1. Remove back panel [electric]
or lower access panel [gas].
2. Avoid damaging wires,
thermostats, funnel or igniter.
3. Remove lint from shaded area -
see art- with a soft brush or
vacuum cleaner.
4. Replace panel; reconnect and
re-level dryer. 9
Caring for your dryer
Remove loose and sharp objects
from pockets and cuffs before drying -
pins, buckles, etc. Close metal
zippers.
Some pretreatment products can
damage dials, consoles and finish.
Do not use these products on or near
your dryer.
Cleaning dryer interior
Wipe off all spills with a damp, soft
cloth. Spills allowed to remain may
dull or damage the finish.
Never leave wet or damp laundry
in your dryer.
Sharp or heavy objects should
never be puton or in the dryer.
Check pockets for bolts, nuts etc.
10
Garments which contain unstable
dyes, such as denim blue jeans o_i
brightly colored coMon items, ma_,
discolor the dryer interior. If the
interior is discolored, clean with
one of the following methods to
avoid staining later load items.
Powdered laundry detergent and
very warm water
Make a paste with detergent and
very warm water. Apply paste to
a soft cloth and scrub area until
all excess dye is removed. Wipe
thoroughly with a damp cloth.
Tumble a load of rags.-OR-
Liquid spray household cleaner
Spray on stained area. Rub with
a cloth until all excess dye is
removed, Tumble a load of rags.
Vacation care
• Unplug power cord or turn off
electrical power.
• For gas dryers, close gas valve.
• Clean lint screen.

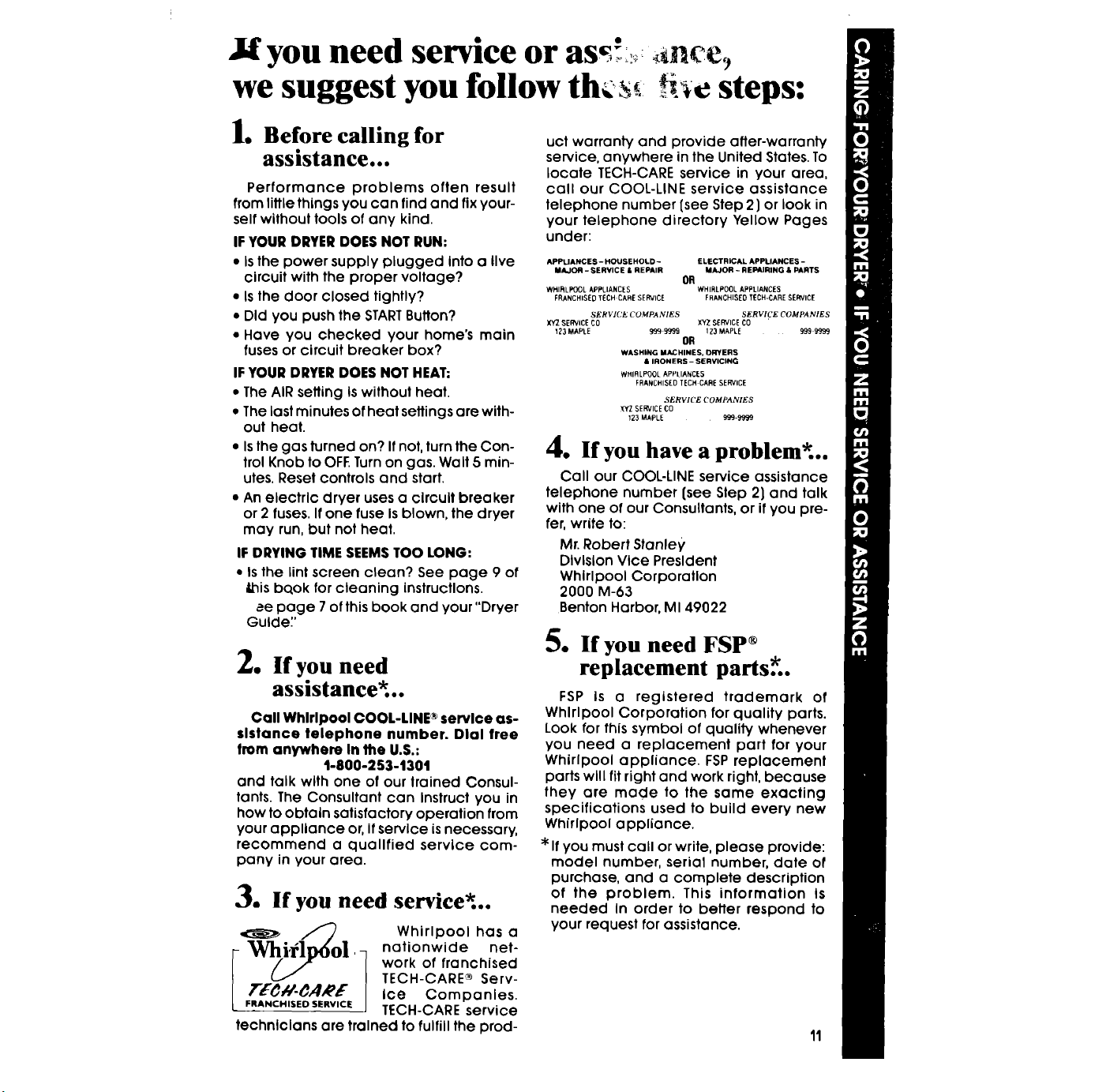

you need service or as "
we suggest you follow steps:
L Before calling for
assistance...
Performance problems often result
from little things you can find and fix your-
self without tools of any kind.
IF YOUR DRYER DOES NOT RUN:
• Is the power supply plugged Into a live
circuit with the proper voltage?
• Is the door closed tightly?
• Did you push the STARTButton?
• Have you checked your home's main
fuses or circuit breaker box?
IF YOUR DRYER DOES NOT HEAT:
• The AIR setting is without heat.
• The last minutes of heat settings are with-
out heat.
• Is the gas turned on? If not. turn the Con-
trol Knob to OFE Turn on gas. Wait 5 min-
utes. Reset controls and start.
• An electric dryer uses a circuit breaker
or 2 fuses. If one fuse is blown, the dryer
may run. but not heat.
IF DRYING TIME SEEMS TOO LONG:
• Is the lint screen clean? See page 9 of
this bQok for cleaning instructions.
_e page 7 of this book and your "Dryer
Guide?
2. If you need
assistance*...
Call Whirlpool COOL-LINE ®service as-
sistance telephone number. Dial free
from anywhere In the U.S.:
1-800-253-1301
and talk with one of our trained Consul-
tants. The Consultant can instruct you in
how to obtain satisfactory operation from
your appliance or, ifservice is necessary,
recommend a qualified service com-
pany in your area.
3. If you need service*...
"_-li,rl_o 1 Whirlpool has a
i 1, nationwide net-
work of franchised
TECH-CARE ® Serv-
7-E_,gP-_,4XTE | ice Companies.
FRANCHISED SERVICE l TECH-CARE service
technicians are trained to fulfill the prod-
uct warranty and provide after-warranty
service, anywhere in the United States. To
locate TECH-CARE service in your area,
call our COOL-LINE service assistance
telephone number (see Step 2) or look in
your telephone directory Yellow Pages
under:
APPLJANCES - HOUSEHOLD - ELECTRICAL APPUANCES -
MAJOR - SERVICE & REPAIR MAJOR - REPAIRING & PARTS
OR
WHIRLPOOL APPLIANCES WHIRLPOOL APPLIANCE5
FRANCHISED TECH CARE SERVICE FRANCHISED TECH-CARE SERVICE
SERVICE COMPANIES SERVI(.'E COMPANIES
XYZSERVICECO XYZSERVICECO
123 MAPLE 999 9999 I Z3 MAPLE 999 9999
OR
WASHING MACHINES, ORYERS
• IRONERS - SERVICING
WHIRLPOOL APPLIANCES
FRANCHISED TECH CARE SERVICE
SERVICE COMPANIES
XYZSERVICECO
123 MAPLE 999-9999
4. If you have a problem*..
Call our COOL-LINE service assistance
telephone number (see Step 2} and talk
with one of our Consultants, or if you pre-
fer, write to:
Mr. Robert Stanley
Division Vice President
Whirlpool Corporation
2000 M-63
Benton Harbor, M149022
5. If you need FSP _
replacement parts*..
FSP Is a registered trademark of
Whirlpool Corporation for quality parts.
Look for this symbol of quality whenever
you need a replacement part for your
Whirlpool appliance. FSP replacement
parts will fit right and work right, because
they are macle to the same exacting
specifications used to build every new
Whirlpool appliance.
* If you must call or write, please provide:
model number, serial number, date of
purchase, and a complete description
of the problem. This information Is
needed In order to beffer respond to
your request for assistance.
11
WItlRLPOOU DRYER
WARRANTY
DROOl
LENGTH OF WARRANTY WHIRLPOOL WILL PAY FOR
FULLONE-YEAR FSP_ replacement parts and repair labor to
WARRANTY correct defects in materials or workmanship.
From Date of Purchase Service must be provided by a franchised
TECH-CARE" service company.
WHIRLPOOL WILL NOT PAY FOR
A. Service calls to:
t. Correct the installation of the dryer.
2. Instruct you how to use the dryer.
3. Replace house fuses or correct house wiring or plumbing.
4. Replace light bulbs.
Repairs when dryer is used in other than normal, single-family
household use.
Pick up and delivery. This product is designed to be repaired in
the home.
Damage to dryer caused by accident, misuse, fire, flood, acts
of God or use of products not approved by Whirlpool.
B.
C.
D.
WHIRLPOOL CORPORATION SHALL NOT BELIABLE FOR INCIDENTAL OR CONSE-
QUENTIAL DAMAGES. Some states do not allow the exclusion or limitation of
incidental or consequential damages so this limitation or exclusion may
not apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Outside the United States, a different warranty may apply. For details, please
contact your franchised Whirlpool distributor or military exchange.
Whirlpool
Part No 3390215
c 1988 Whirlpool Corporation
Printed in U.S.A.
_akers, Dizhwasher_, Built-In Ovens and Surlace UNJI$,Ranges, Microwave Ovens, Trash Compaclors, Room Air Condilionerz, Dehumidifiei"_, Aulomatlc Wa
