Instruction Manual

This is the main product document for model THPD80.

The file format is pdf, 20 pages, you can download this manual here .

background
Instruction
Manual
8kg Heat Pump
Dryer
Model/s:
THPD80
ENGLISH V 1.1
background
THPD80 2THPD80 2
Welcome
Congratulations on purchasing your new dryer!
The Teka brand is proudly distributed within
Australia by Residentia Group Pty Ltd.
Please refer to the warranty card at the rear
of this manual for information regarding your
product’s parts and labour warranty, or visit us
online at
www.residentia.group
At Residentia Group, we are customer obsessed
and our Support Team are there to ensure you get
the most out of your appliance. Should you want
to learn more about your model's features, and
importantly taking care of your appliance when
cleaning, our Support Team are here to help.
You can use our online Support Centre at anytime
by visiting http://support.residentiagroup.com.au
Alternatively, you can contact us via calling our
support team on: 1300 11 HELP (4357).
It is important that you read through the
following use and care manual thoroughly to
familiarise yourself with the installation and
operation requirements of your appliance to
ensure optimum performance.
Again, thank you for choosing a Teka appliance
and we look forward to being of service to you.
Kind regards,
The Residentia Group
Residentia Group
Head Office.
165 Barkly Ave
Burnley
Victoria 3121
Australia
—
ACN.
600 546 656
—
Online.
residentia.group
—
Teka
www.teka.com
teka.au
background
Instruction Manual 3Instruction Manual 3
Customer
Care
Contents
Safety Notes 04

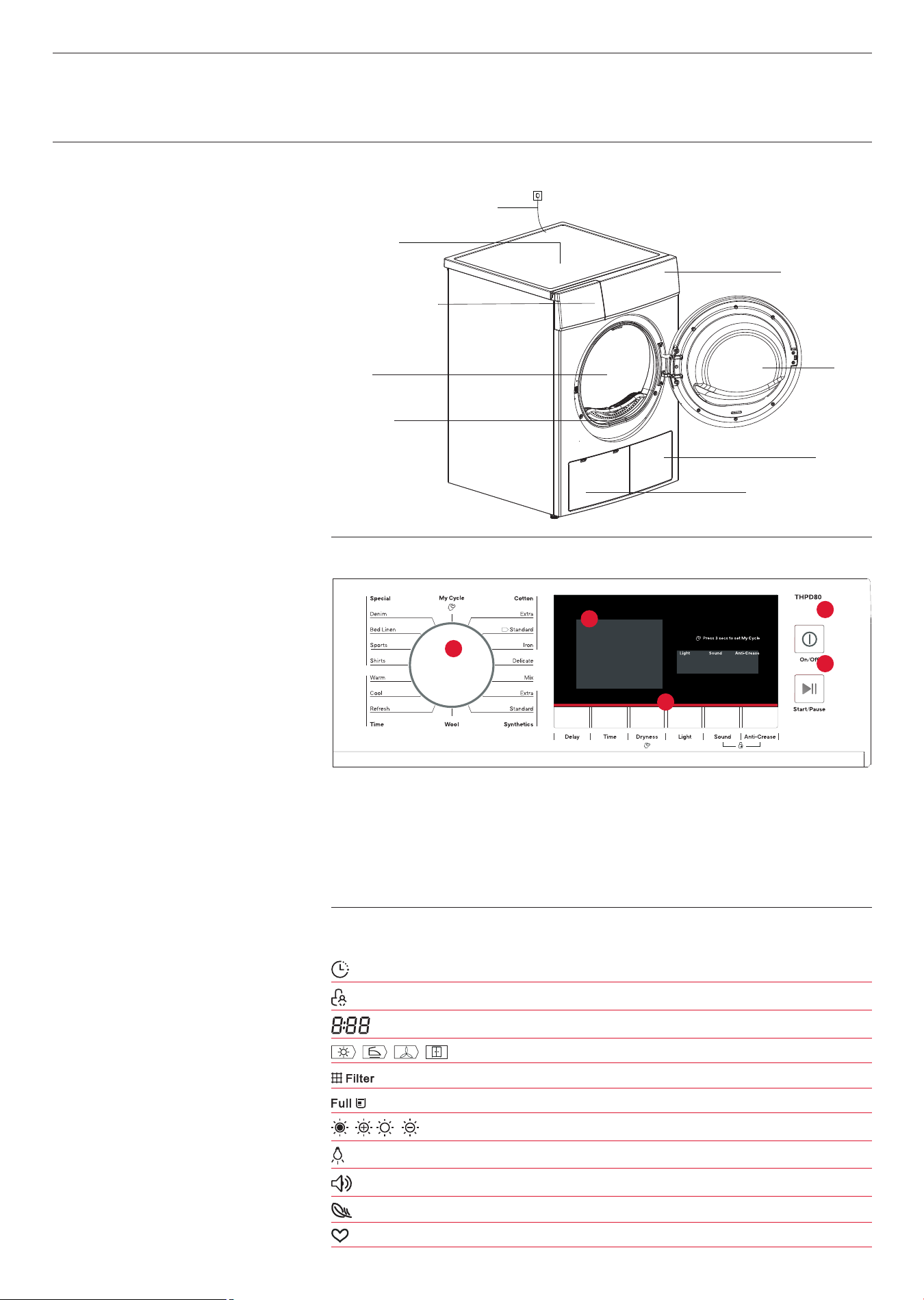

Your Appliance 07
Operating Instructions 08

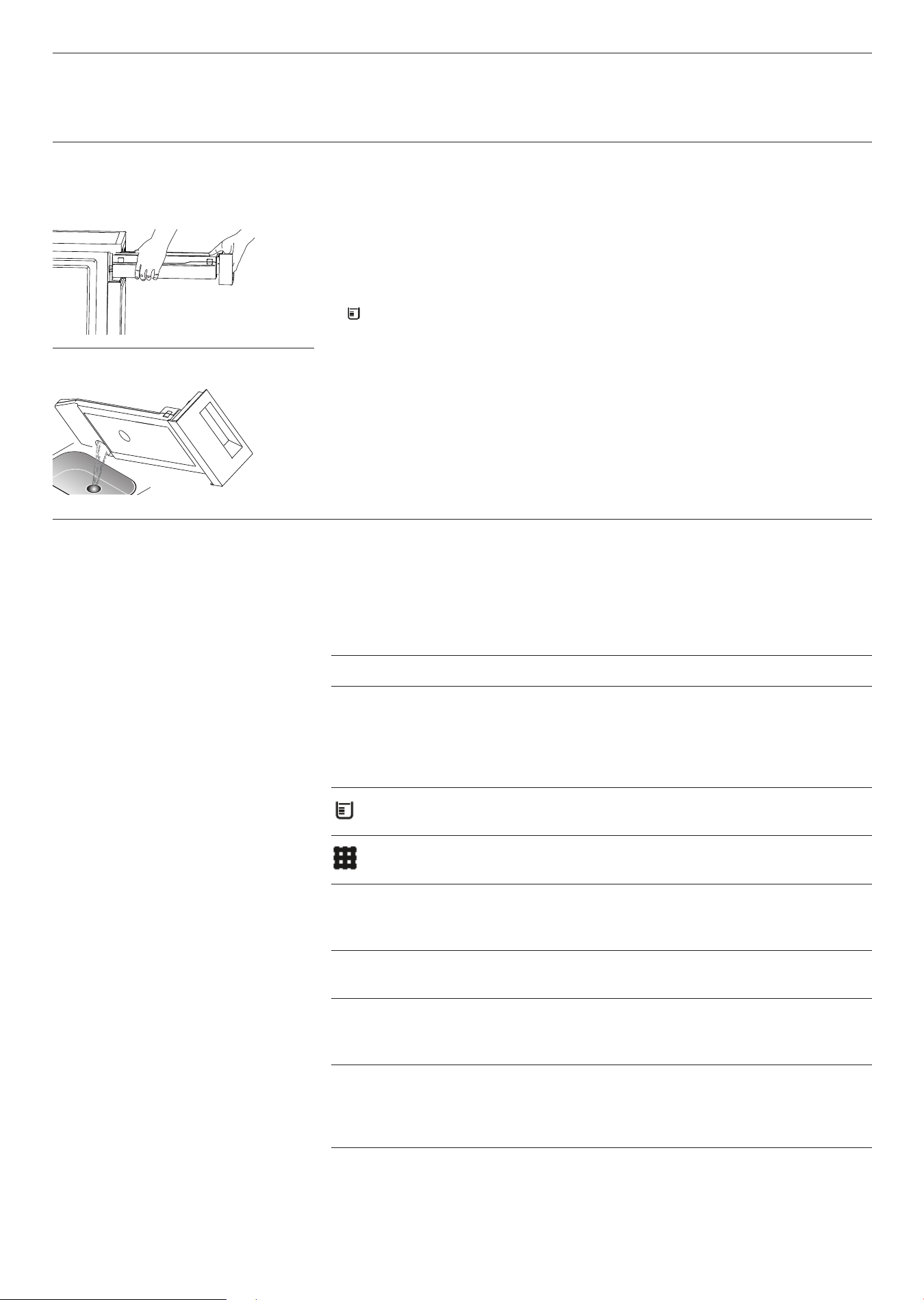

Cleaning and Maintenance 11
Troubleshooting 12
Technical Data 13
Purchase Details 15
Warranty 16
Teka recommends the use of original spare parts.
When contacting our customer service team, please ensure that you have the following
information at hand (which can be found on your appliances’ rating plate or manual).
— Model Number; and,
— Serial Number.
P . 1300 11 4357
E. support@residentiagroup.com.au
background
THPD80 4
1. Conditions of use
This appliance is intended to be used in household and similar applications such as farm
houses or by clients in serviced apartments, holiday apartments and other residential
type environments.
2. Safety instructions
Before the installation and use of the appliance, carefully read the supplied instructions.
The manufacturer is not responsible if an incorrect installation and use causes injuries
and damages. Always keep the instructions with your appliance for future reference.
Warning! To prevent any damages to your and others’ life or property, you have to
follow the safety notes.
Warning! Caution,riskofre!
2.1 Children & vulnerable people safety
Warning! Riskofsuocation,injuryorpermanentdisability.
— This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction for the operation of the
appliance by a person who is responsible for their safety.
— Do not let children play with the appliance.
— Keep all packaging away from children.
— Keep all detergents away from children.
— Keep children and pets away from the appliance door when it is open.
— Cleaning and user maintenance shall not be made by children without supervision.
2.2 Installation
— Remove all the packaging.
— Do not install or use a damaged appliance.
— Obey the installation instruction supplied with the appliance.
— Makesurethattheoorwhereyouinstalltheapplianceisat,stable,heatresistant
and clean.
— Do not install or use the appliance where the temperature is less than 5°C or higher
than 35°C, or a humid environment.
— Do not install the appliance behind a lockable door, a sliding door or a door with a
hinge on the opposite side, where the appliance door can not be fully opened.
— Always be careful when you move the appliance because it is heavy.
Always wear safety gloves.
— Always move the appliance vertically.
— The rear surface of the appliance must be put against the wall.
— Makesurethatthereisaircirculationbetweentheapplianceandtheoor.
— Make sure the carpet does not obstruct the ventilation openings in the base of the
appliance (if applicable).
— Exhaustairmustnotbedischargedintoauewhichisusedforexhaustingfumes
from appliances burning gas or other fuels.
— If the tumble dryer is put on top of a washing machine, use a stacking kit. The
stacking kit, available from your authorized vendor, can be used only with the
appliancespeciedintheinstructions,suppliedwiththeaccessory.Readitcarefully
before installation.
— Ensureyouhavegoodventilationintheinstallationroomtoavoidthebackowof
gasesintotheroomfromappliancesburningotherfuels,includingopenres.
— The appliance can be installed as freestanding or below the kitchen counter with a
minimum clearance of 30mm between any adjacent walls and above the dryer.
— When the appliance is put in its permanent position, check if it is fully level with the
aid of a spirit level. If it is not, adjust the feet until it is.
Safety Notes
background
Instruction Manual 5
Electrical Connection
Warning! Riskofreandelectricalshock.
— The appliance must be earthed.
— Make sure that the electrical information on the rating plate agrees with the power
supply. If not, contact an electrician.
— Always use a correctly installed shockproof socket.
— Do not use multi-plug adapters and extension cables.
— Make sure not to cause damage to the mains plug and to the mains cable. Should the
appliance power supply cable need to be replaced, this must be carried out by our
Service Centre.
— Connect the mains plug to the mains socket only at the end of the installation. Make
sure that there is access to the mains plug after the installation. Do not connect the
appliance plug with a power connection board.
— Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
— Do not touch the mains cable or the mains plug with wet hands.
— This appliance complies with the E.E.C. Directives.
2.3 Appliance use
Warning! Riskofre,explosion,electricshockordamagetotheappliance.
Warning! Beforerstuse,leavethedryertostandfor2hoursaftertransporting.
— Use this appliance in a household only.
— Donotchangethespecicationofthisappliance.
— Thenalpartofthedryingcycleoccurswithoutheat(cooldowncycle)toensurethat
the items will not be damaged. If you stop the appliance before the end of the drying
cycle, immediately remove and spread out all items, so that the heat can dissipate.
— If you use fabric softener or similar products, obey the instructions on the packaging.
— Donotruntheappliancewithoutalter.Cleanthelintlterbeforeoraftereachuse.
— Wipe away lint that has accumulated around the appliance.
— Donotdrythedamageditemswhichcontainpaddingorllings.
— Do not dry items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubberbackedarticlesandclothesorpillowsttedwithfoamrubberpads.
— Before drying items that have been in contact with substances such as cooking
oil, acetone, alcohol , petrol, kerosene, spot removers, turpentine, waxes and wax
removers, wash them in hot water with an extra amount of detergent.
— Do not dry items in the appliance if industrial chemicals have been used for cleaning.
— Make sure that no gas lighters or matches left in the pockets of the clothing.
— Only dry fabrics which are applicable to dry in the tumble dryer. Follow the
instructions on the fabric label.
— Do not dry not washed items in the appliance.
— If you have washed your laundry with a stain remover start an extra rinse cycle
before you start the dryer.
— Do not drink or prepare food with the condensed water. It can cause health problems
to people and pets.
— Do not sit or stand on the open door.
— Obey the maximum load volume of 8kg (refer to the “Programme table” chapter).
— Do not dry dripping wet clothes in the tumble dryer.
— Oil-aecteditemscanignitespontaneously,especiallywhenexposedtoheat
sources such as in a tumble dryer. The items become warm, causing an oxidation
reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can
becomehotenoughtocatchre.Piling,stackingorstoringoilaecteditemscan
preventheatfromescapingandcreatearehazard.
— If it is unavoidable that fabrics that contain vegetable or cooking oil or have been
contaminatedbyhaircareproductsbeplacedinatumbledryertheyshouldrstbe
washed in hot water with extra detergent- this will reduce, but not eliminate, the
hazard.
— Ensure all objects are removed from clothing pockets such as lighters and matches.
— Beforerstuse,cleantheinsideofthedrumwithasoftfabricclothandrunthe
“Refresh”programmewithsomecleanragsinside.Afternishingthecycle,please
cleanthelintlteraspertheinstructionswithinthisusermanual.
Safety Notes Continued
background
THPD80 6
Dry care symbols
Please pay attention to use the drying machine if the materials of your clothes can not
be dried by it or contain the symbols as follows:
14
OPERATION
• Do not dry dripping wet laundry. The dryer might get damaged
• Do not put more load than rated.
Note!
The reference weight of dry clothes (weight per item)
Sweater
(mixed 800g)
Jacket
( 800g ) cotton
Jeans
(800g)
Bath Towel
( 900g )cotton
Single bedsheet
( 600g )cotton
T-Shirt
( 180g )cotton
Work clothes
( 1120g)
Underwear
(cotton 70g )
Pyjamas
( 200g)
Socks
( 50g )mixed-weave
Shirt
( 300g )cotton
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Suitable for tumble drying
Normal drying process: Drying in the tumbler is possible under normal load and
temperature 80°.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
Do not tumble dry: Articles unsuitable for drying in the tumbler.
Suitable for tumble drying
14
OPERATION
• Do not dry dripping wet laundry. The dryer might get damaged
• Do not put more load than rated.
Note!
The reference weight of dry clothes (weight per item)
Sweater
(mixed 800g)
Jacket
( 800g ) cotton
Jeans
(800g)
Bath Towel
( 900g )cotton
Single bedsheet
( 600g )cotton
T-Shirt
( 180g )cotton
Work clothes
( 1120g)
Underwear
(cotton 70g )
Pyjamas
( 200g)
Socks
( 50g )mixed-weave
Shirt
( 300g )cotton
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Suitable for tumble drying
Normal drying process: Drying in the tumbler is possible under normal load and
temperature 80°.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
Do not tumble dry: Articles unsuitable for drying in the tumbler.
Normal drying process:
Drying in the tumbler is possible under normal load and temperature 80°.
14
OPERATION
• Do not dry dripping wet laundry. The dryer might get damaged
• Do not put more load than rated.
Note!
The reference weight of dry clothes (weight per item)
Sweater
(mixed 800g)
Jacket
( 800g ) cotton
Jeans
(800g)
Bath Towel
( 900g )cotton
Single bedsheet
( 600g )cotton
T-Shirt
( 180g )cotton
Work clothes
( 1120g)
Underwear
(cotton 70g )
Pyjamas
( 200g)
Socks
( 50g )mixed-weave
Shirt
( 300g )cotton
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Suitable for tumble drying
Normal drying process: Drying in the tumbler is possible under normal load and
temperature 80°.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
Do not tumble dry: Articles unsuitable for drying in the tumbler.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
14
OPERATION
• Do not dry dripping wet laundry. The dryer might get damaged
• Do not put more load than rated.
Note!
The reference weight of dry clothes (weight per item)
Sweater
(mixed 800g)
Jacket
( 800g ) cotton
Jeans
(800g)
Bath Towel
( 900g )cotton
Single bedsheet
( 600g )cotton
T-Shirt
( 180g )cotton
Work clothes
( 1120g)
Underwear
(cotton 70g )
Pyjamas
( 200g)
Socks
( 50g )mixed-weave
Shirt
( 300g )cotton
Only dry laundry suitable for tumble drying. Regard the laundry care labels:
Suitable for tumble drying
Normal drying process: Drying in the tumbler is possible under normal load and
temperature 80°.
Mild drying process: Caution is appropriate when tumble drying. Select mild
process with reduced thermal action.
Do not tumble dry: Articles unsuitable for drying in the tumbler.
Do not tumble dry: Articles unsuitable for drying in the tumbler.
2.4 Care and Cleaning
Warning! Risk of injury or damage to the appliance.
— Before maintenance, deactivate the appliance and disconnect the mains plug from
the mains socket.
— Do not use water spray and steam to clean the appliance.
— Clean the appliance with a moist soft cloth. Only use neutral detergents.
— Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
2.5 Product Disposal
Warning! Riskofinjuryorsuocation.
— Disconnect the appliance from the mains supply.
— Cutothemainscableanddiscardit.
— Remove the door catch to prevent children and pets to get closed in the appliance.
2.6 Transport
Always move the appliance cautiously. Do not use the machine door or the handle of the
water container, to lift the appliance.
2.7 Installation Positioning
— Ensurethatyourapplianceisinstalledonsolidandatground,inalevelposition.
— Pleasedonotplacetheapplianceonaslope,softcarpetorwoodenoor.
— Your appliance should only be installed within an internal environment.
Do not install the appliance outdoors.
Level Adjusting
— Iftheoorisobviouslyuneven,yourappliancefeetneedtobeadjusted.Ifyour
appliance isn’t level, it will cause your appliance to vibrate, and potentially move from
its position.
— Use a screwdriver to adjust the height of four machine legs to adjust the level of your
clothes dryer.

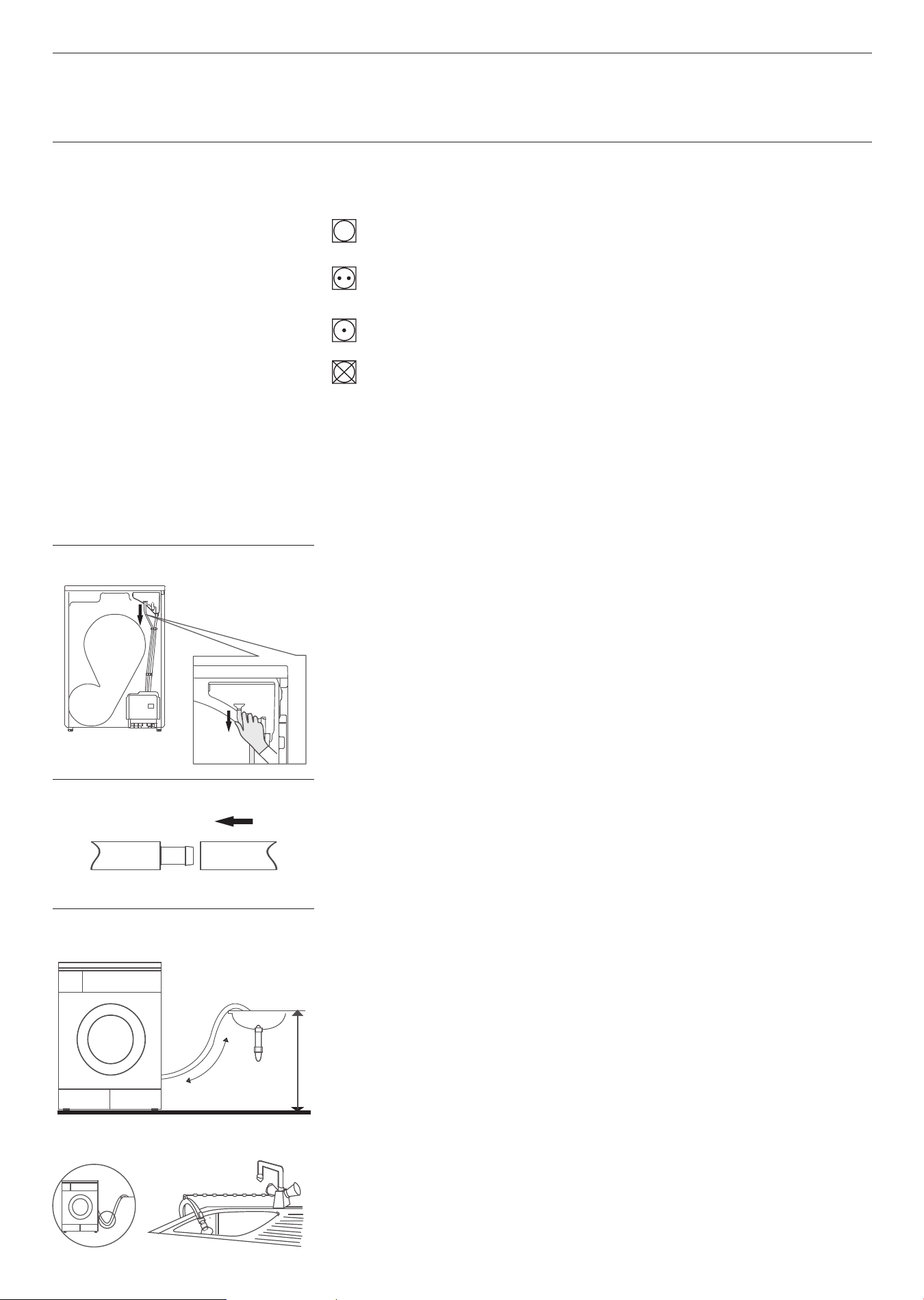

2.8 Installing the Optional Bypass Hose
1. Remove the drain hose from the housing drawer.
2. Insert the drain hose and the external drainage hose into the connector.
3. Put the hose holder in the washing basin or any other sink.
2.8—Step 1
2.8—Step 2
2.8—Step 3
Safety Notes Continued
INSTALLATION
9
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Remove the drain hose
from the housing drawer.
Product Description
Put the hose holder in the washing
basin or any other sink.
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Base filter
Maintenance cover
Drum
Top board
Insert the drain
hose and the
external drainage
hose into the
connector.
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Max 120cm.
200cm
xx
Connector
INSTALLATION
9
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Remove the drain hose
from the housing drawer.
Product Description
Put the hose holder in the washing
basin or any other sink.
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Base filter
Maintenance cover
Drum
Top board
Insert the drain
hose and the
external drainage
hose into the
connector.
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Max 120cm.
200cm
xx
Connector
INSTALLATION
9
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Remove the drain hose
from the housing drawer.
Product Description
Put the hose holder in the washing
basin or any other sink.
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Base filter
Maintenance cover
Drum
Top board
Insert the drain
hose and the
external drainage
hose into the
connector.
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Max 120cm.
200cm
xx
Connector
INSTALLATION
9
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Remove the drain hose
from the housing drawer.
Product Description
Put the hose holder in the washing
basin or any other sink.
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Base filter
Maintenance cover
Drum
Top board
Insert the drain
hose and the
external drainage
hose into the
connector.
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Max 120cm.
200cm
x
x
Connector
INSTALLATION
9
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves to them
as per the instruction below .
install
Remove the drain hose
from the housing drawer.
Product Description
Put the hose holder in the washing
basin or any other sink.
Power cord
Door filter
Water container
Door
Control panel
Air inlet
Base filter
Maintenance cover
Drum
Top board
Insert the drain
hose and the
external drainage
hose into the
connector.
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Max 120cm.
200cm
xx
Connector
background
Instruction Manual 7
Your
Appliance
3. Product Components
4. Control Panel
1 Program selection dial
2 Display
3 Speciality function buttons
4 Start/Pause button
5 On/Obutton
5. Display Icons
Delay
Child lock
Remaining time display / Error message
Cycle phase status
Cleanlterindicator
Empty water container indicator
Dryness intensity (four grades)
Drum light indicator
Sound
Anti-Crease
My Cycle
INSTALLATION
9
Accessories
Product Description
Note: The actual model you purchased might differ. Please see the product you purchased in kind prevail.
Installation
Connector
Hose holder
Drain hose joint
Pull up the drain
hose joint
Pull up the upper drain hose Connect the external
drain hose to the water
pump
Put the external drain hose
into the floor drain
(be careful not to bend the
external drain hose)
Power cord
Door filter
W
ater container
Door
Control panel
Air inlet
Maintenance cover
Drum
T
op board
The following parts are necessary for this model to avoid the question of the housing drawer
is easy to fill full.
Please wear gloves to install them as per the instruction below.
Air inlet
Door
Maintenance cover
Control panel
Top board
Power cord
Drum
Water container
Lintlter
1
2
3
4
5
background
THPD80 8
6 Quick Start
Follow the procedure below to operate your dryer.
1. Plug the power cord
2. Open the door and load the laundry
3. Close the machine door
4. PresstheOn/Obutton
5. Turn the dial to select your desired program
6. Select any additional functions using the speciality function buttons
7. Press the Start/Pause button
8. Take out your laundry when the cycle is complete
9. Cleanthelintlterandemptythecontainer
10. PresstheOn/Obutton
11. Unplug the power cord
6.1 Clothing Weight Reference
The table below provides a weight reference for typical clothing items.
Sweater (mixed 800g)
Jacket (cotton 800g)
Jeans (800g)
Bath Towels (cotton 900g)
Single Bedsheets (cotton 600g)
Pyjamas (cotton 200g)
Shirt (cotton 300g)
T-Shirt (cotton 180g)
Underwear (cotton 70g)
Socks (mixed-weave 50g)
Operating
Instructions
background
Instruction Manual 9
7 Programme Table
Programmes Load Max Application Delay / Time
Cotton These program options are designed for use with cotton or linen fabrics.
Extra 8.0kg To dry cotton clothing. Drying level: Extra Dry Y / N
Standard 8.0kg To dry cotton clothing. Drying level: Cupboard Dry Y / N
Iron 8.0kg To dry cotton clothing. Drying level: Applicable for Ironing Y / N
Delicate Delicate 1.0kg To dry delicate laundry that is suitable for drying, or clothing
which is advised to be hand-washed at a lower temperature.
Y / N
Mix Mix 3.5kg To dry mixed cotton or synthetic fabrics. Y / N
Synthetics These program options are designed for use with synthetic and blended fabrics.
Extra 3.5kg To dry thick or multi-layered synthetic fabrics.
Drying level: Extra Dry
Y / N
Standard 3.5kg To dry thin synthetic fabrics which are not ironed (i.e. easy care
shirts, table linen, baby clothes, socks, etc).
Y / N
Wool Wool 1.0kg Use with uy and fresh wool clothing to start the drying
process. Once the program is complete, remove the clothes and
allow them to nish the drying process by air-drying.
Y / N
Special Denim 4.0kg To dry denim or heavy fabrics such as jeans or leisure clothes
that are spun at high speeds within the washing machine.
Y / N
Bed Linen 4.0kg Designed to dry bed linen, bed sheets and other large
or bulky items.
Y / N
Sports 3.0kg To dry sportswear, thin fabrics and polyester items which are not
to be ironed.
Y / N
Shirts 1.0kg To dry easy care clothes such as shirts and blouses. Use with the
anti-crease option for minimum ironing eort. Once dried, hang
your items on a clothes hanger.
Y / N
My Cycle My Cycle - Dene and save your favourite program settings. Y / -
Time With these program options, you can use manual timing option and set your desired
program duration.
Warm - To warm clothes from a minimum of 10 minutes to a maximum of
120 minutes. (10 minute increments)
Y / Y
Cool - To air clothes without blowing hot air from a minimum of 10
minutes to a maximum of 30 minutes.
(10 minute increments)
Y / Y
Refresh 1.0kg To refresh textiles that were in storage from a minimum of 20
minutes to a maximum of 150 minutes.
(10 minute increments)
Y / Y
Note:
1 The Maximum Weights refer to dry items.
2 Energy labeling program: Cotton Extra is the program used for the AS/NZS 2442 MEPS energy rating.
3 The programs aboves are only recommendations and users can choose the appropriate program according
to their personal requirements and habits. Thick fabrics (i.e. bed linen, jeans, jackets, etc) are not easy to dry
and the Denim drying program along with the strongest dryness intensity is strongly recommended.
background
THPD80 10
8 Speciality Functions
8.1 Delay Function
Use this delay function to delay the drying program from 0 to 24 hours. The delay time
means the program will start after X hours. When the delay program starts, the time
starts to decrease on the display and the “clock” icon blinks on your appliance display.
To activate the delay function:
— Load your clothing articles into your appliance and close the door.
— PresstheOn/Obuttonandusetheprogramselectordialtoselectyourdesired
drying program.
— You can select the “Anti-Crease” or “Sound” functions by pressing the corresponding
buttons, according to your needs.
— Now press the “Delay” button.
— Continue to press the “Delay” button to set your desired delay time.
— Once your desired delay time is displayed, simply press the “Start/Pause” button and
the dryer will automatically begin your selected drying program at the completion of
your set delay period.
— If you press the “Start/Pause” button once again, the delay function will be paused.
Tocancelthedelayfunction,pressthe“On/O”button.
8.2 Time Function
When the Warm, Cool or Refresh drying programs are selected, the Time button can be
used to adjust the drying time. Each press of the “Time” button will adjust the drying
time in 10 minute increments.
8.3 Dryness Function
Your appliance features a drying intensity control, allowing you to adjust the dryness
level of your laundry. The Dryness function has four levels, indicated by the icons below.
— The drying time increase by 3 minutes with each level.
— The Dryness function can only be activated before the drying program is started.
— Press the Dryness button repeatedly to select the desired intensity (and drying time).
— The Dryness function can be used for all programs except Cotton Iron, Delicate, Wool,
Warm, Cool and Refresh.
8.4 My Cycle Function
TheMyCyclefunctioncanbeusedtodeneandsaveyourfavouritedryingprogramfor
easier selection in the future (i.e. Use this function to save your most frequently used
drying settings).
To set your My Cycle function:
— Use the program selector dial to select your required program and select any other
drying functions.
— Pressandholdthe“Dryness”buttonfor3secondsuntilthedisplayashes,indicating
that your desired
program has been saved.
— To use your preset My Cycle, simply turn the program selector dial to the My Cycle
position and press the “Start/Pause” button to begin.
— If you wish to change your My Cycle settings, simply repeat the steps above at any
time.
8.5 Light Function
— Your Heat Pump Dryer has an integrated light inside the drum to assist with viewing
your clothing.
— Press the “Light” button to activate the internal light for 3 minutes when the door is
closed or the dryer is in operation, or 1 minute when the door is open.
Operating Instructions Continued
background
Instruction Manual 11
8.6 Sound Function
Thisfunctionallowsyoutoturntheaudibletoneonoro,toindicatethatyourdrying
program is complete. By default the audible sound is set to On.
When the Sound function is on, your appliance will make an audible tone when:
— The extra function buttons are pressed (i.e. Delay, Anti-Crease, etc).
— If the dryer is operating and the program selector knob is turned, the appliance will
make an audible tone to alert the user that an invalid choice has been made.
— At the completion of a drying program, an audible tone will sound.
8.7 Anti-Crease Function
At the end of a drying program, the anti-crease operation time is 30 minutes (by default)
or 120 minutes (if selected).
The “Anti-Crease” indicator will display hen the function is selected. This function
helps to prevent the laundry from creases. The laundry can be removed during the
anti-crease phase. All programs have the ability to use this function, except for Cool,
Refresh and Wool.
8.8 Child Lock
Your appliance features a child lock, preventing children from pressing keys or changing
the dryers operation.
To activate the child lock:
— When the appliance is in operation, press and hold the “Anti-Crease” and “Sound”
buttons simultaneously for 3 seconds. Once activated, the display will show the Child
Lock icon.
— WhilsttheChildLockisactivated,pressingofbuttonswon’teectthedryer.
— To deactivate the Child Lock, simply press and hold the “Anti-Crease” and “Sound”
buttonssimultaneouslyfor3seconds.TheChildLockindicatoriconwillswitcho
the display.
9. Cleaning Procedures

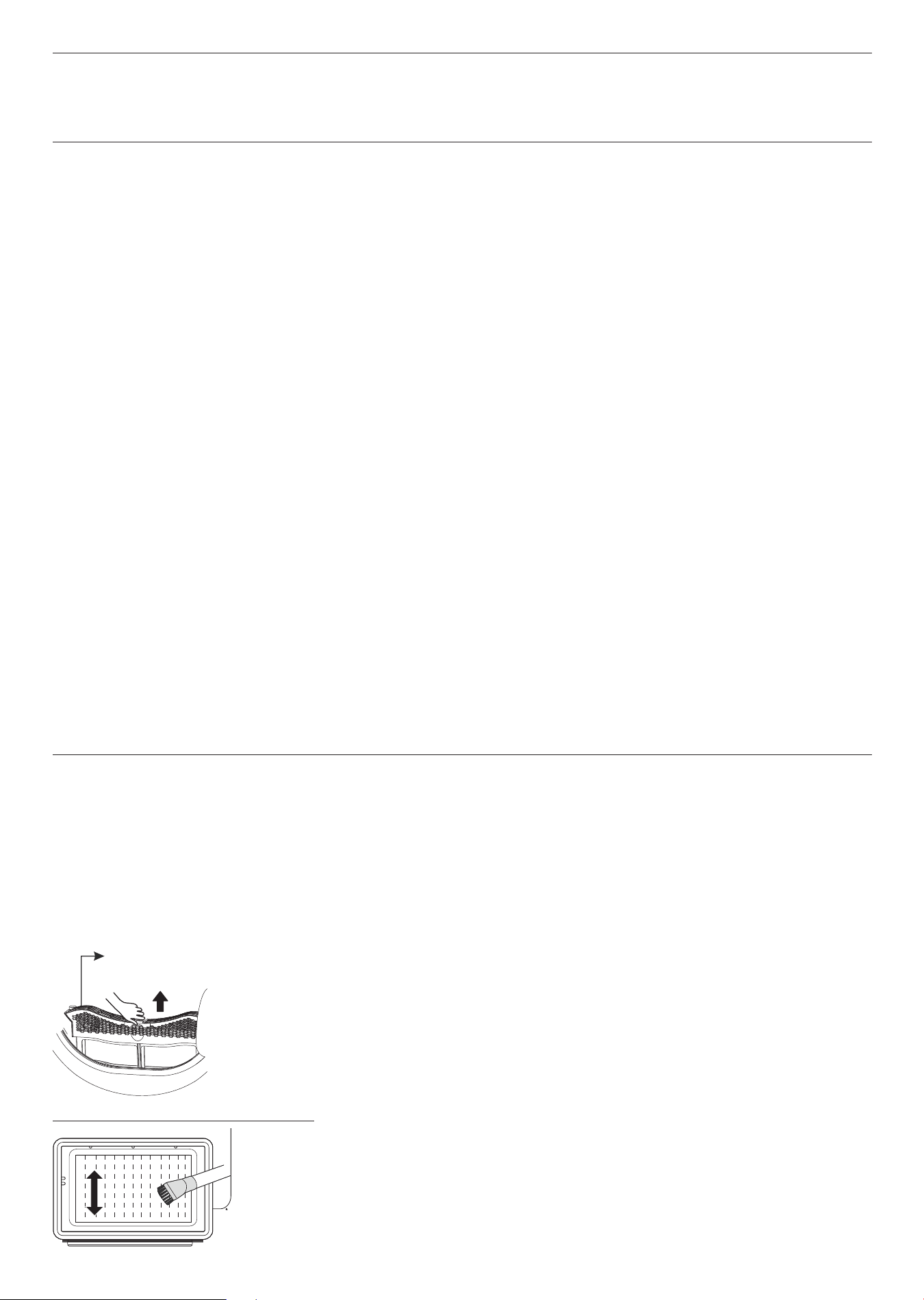

9.1 Door Lint Filter
Aswithallclothesdryers,yourlintltershouldbecleanedaftereachuse.
Note:
— Lintaccumulatesonthelintlterandwillblocktheaircirculation.Thiseectsthe
performance of your clothes dryer and will extend the required drying time.
— Always disconnect the power cord before cleaning!
— Donotoperatethedryerwithoutthelintlterinstalled!
— Cleanthelintlteraftereachuse.
Tocleanthelintlter:
— Ensure the dryer has cooled down after any recent operation.
— Unplug the appliance.
— Open the appliance door.
— Takeoutthelintlterandwipeoanyaccumulatedlintandbreswithyourhand,
orrinsethelterwithwateranddrythoroughly.
— Re-installthelintlter.
9.2 Cleaning the Heat Exchanger
Warning! Do not touch the heat exchanger with your hand as it may cause injury.
Asnecessaryorevery6months,removetheufromtheheatexchangerlocated
behind the maintenance cover using a vacuum cleaner with a dusting brush attached.
Clean the heat exchanger without applying any pressure. Otherwise the heat exchanger
couldbedamaged.Thedryerwillnotdryifthecoolingnsaredamagedorbent.
Cleaning
and Maintenance
MAINTENANCE
22
regularly will increase drying time and energy consumption.
• Disconnect the power cord before cleaning!
• Do not operate the dryer without the filter!
• The fluff accumulated on the filter will block the air circulation. Not cleaning the filter
Note!
As necessary, approx. once every 6 months, remove the fluff from the heat
exchanger using a vacuum cleaner with a dusting brush attached.
Clean the heat exchanger without applying any pressure. Otherwise the heat
exchanger could be damaged. The dryer will not dry
if the cooling fins are damaged or bent.
•
•
Clean the heat exchanger
Warning!
！！
Do not touch the heat exchanger with your hand,
which may cause an injury.
MAINTENANCE
21
Empty the water container
Clean the filter door
1. Pull out and hold the water container
with two hands.
2. Tilt the water container, pour out the
condensate water into the basin.
3. Install the
water container.
Clean the filters
Cleaning and Care
This dryer has a primary door lint filter and a base filter in front of the heat exchanger
for additional protection. Make sure you clean the door filter after each cycle.
The base filter need to be cleaned after each fifth drying programme.
1. Open the door.
2. Take out the filter.
3. Open the filter and remove the fluff on
the filter, You can clean it in water.
4. Dry the filter thoroughly before
installing it back.
door
running
door
• Take notice of the correct orientation
before to insert the door filter.
Note!
Door Filter
• Empty the water container after each use. Once the water container is filled
completely, the programme will be paused and the " " icon will light. After
the container is emptied, the dryer can be restarted by pressing
【Start/Pause】button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.
Warning!
！！
Doorlter
Operating Instructions Continued
background
THPD80 12
9.3 Empty the water container
Warning! After each use, the water container should be emptied.
1. Hold and pull out the water container using two hands.
2. Tilt the water container, pouring out the condensed water in to a sink.
3. Re-insert the water container into the appliance.
Note:
If the container requires emptying during operation, the program will pause and the “Full
&
”iconwillashonthedisplay.Followtheprocessabovetoemptythecontainer
and restart the program by pressing the “Start/Pause” button.
Warning!
— Do not drink the condenser water.
— Do not operate the dryer without the water container in place.
Cleaning and Maintenance Continued
MAINTENANCE
21
Empty the water container
Clean the filter door
1. Pull out and hold the water container
with two hands.
2. Tilt the water container, pour out the
condensate water into the basin.
3. Install the
water container.
Clean the filters
Cleaning and Care
This dryer has a primary door lint filter and a base filter in front of the heat exchanger
for additional protection. Make sure you clean the door filter after each cycle.
The base filter need to be cleaned after each fifth drying programme.
1. Open the door.
2. Take out the filter.
3. Open the filter and remove the fluff on
the filter, You can clean it in water.
4. Dry the filter thoroughly before
installing it back.
door
running
door
• Take notice of the correct orientation
before to insert the door filter.
Note!
Door Filter
• Empty the water container after each use. Once the water container is filled
completely, the programme will be paused and the "Full& " icon will light.
After the container is emptied, the dryer can be restarted by pressing
【Start/Pause】button.
• Do not drink the condensate water.
• Do not use the dryer without the water container.
Warning!
！！
9.3—Step 1
9.3—Step 2
10. Troubleshooting
Warning! Only authorised technicians can carry out repairs.
Before contacting our customer service team, please refer to the table below to see if
yourfaultcanbexedbyyourself.Shouldaservicetechnicianvisitbearrangedandits
found there are no faults with the appliance, a call out charge will apply.
Problem Solution
Display isn’t turning on. — Check that the mains plug is inserted and switched on
at the power point.
— Check that a programme is selected on the programme
selection dial.
— Check that the relevant fuse hasn’t blown.
indicatorisashing
— Empty the water container as per the steps in
9.3 within this user manual.
indicatorisashing
— Cleanlintlterasperthestepsin9.1withinthis
user manual.
Dryer doesn’t start — Check the start button has selected.
— Check the appliance door has closed.
— Check that the programme has been set.
Water is running out of
the dryer
— Align dryer horizontally.
— Clear air condenser and door seals.
Door is opening by itself — Press the door closed until it “clicks” into position.
— Ensure that the dryer hasn’t been overloaded with too
much laundry.
Degree of dryness was
not reached or drying
time too long.
— Cleanthelintlterandwashthecondenser.
— Empty the water container.
— Clean the moisture sensors.
— Try using a higher drying programme next time.
Note:
If the above steps don’t resolve your issue or you cannot resolve the fault by yourself:
— Pressthe“On/O”button,
— Switchotheapplianceatthepoweroutletandremovetheplug,
— Call our customer service team.
Troubleshooting
background
Instruction Manual 13
Troubleshooting Continued
10.1 Error Displays
Display Program Solution
FULL +
The water collection tank is
full and needs to be emptied.
Check whether the water collection
tank is full and empty waste water.
Water pump or water level
sensor failure.
Please contact our customer service
team for assistance.
“E32” Humidity sensor failure.
Please contact our customer service
team for assistance.
“E33” Temperature sensor failure.
Please contact our customer service
team for assistance.
“E82” PCB communication error.
Please contact our customer service
team for assistance.
11.TechnicalSpecications
Model THPD80
Power supply 220-240V ~50Hz
Rated Power 800W
Refrigerant R290
Ambient temperature +5°C - +35°C
Dimensions 595 × 650 × 845 mm
Rated drying capacity 8.0kg
Net Weight 49kg
GWP 3
CO2 - eq 0.00t
Quantity of refrigerant 150g
Note:
— ContainsuorinatedgreenhousegasescoveredbytheKyotoProtocol.
Hermetically sealed.
— The rated capacity is the maximum capacity of dry clothes. Refer to the Programmes
Tableformaximumloadingsspecictoeachprogram.
— Do not install the dryer in a room where there is a risk of a frost occurring.
At temperatures around freezing point, the dryer may not be able to operate properly.
— There is a risk of damage if the condensed water is allowed to freeze in the pump,
or water container.
12. RCM Mark
The RCM Mark (Regulatory Compliance Mark) indicates that the product complies with
the relevant guidelines of the ACMA as well as corresponding government requirements
for the safety of electrical devices
Technical Data
background
THPD80 14
THIS PAGE IS INTENTIONALLY LEFT BLANK
background
Instruction Manual 15
For future reference, please record the following information which can be found on the rating
plate and the date of purchase which can be found on your sales invoice.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
Attach your receipt to this page
Purchase Details
background
THPD80 16
Warranty
WARRANTY TERMS & CONDITIONS
LAUNDRY APPLIANCES
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is an
important document. Please keep it with your proof of purchase
documents in a safe place for future reference should you
require service for your Appliance.
1. IN THIS WARRANTY
a. ‘acceptable quality’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL;
b. ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
c. ‘Appliance’ means any Residentia Group product purchased
by you accompanied by this document;
d. ‘ASR’ means Residentia Group authorised service
representative;
e. ‘Residentia Group’ means Residentia Group Pty Ltd
of 165 Barkly Ave, Burnley VIC 3121, ACN 600 546 656 in
respect of Appliances purchased in Australia;
f. ‘major failure’ as referred to in clause 10 of this warranty
has the same meaning referred to in the ACL and includes
a situation when an Appliance cannot be repaired or it is
uneconomic for Residentia Group, at its discretion, to repair
an Appliance during the Warranty Period;
g. ‘Warranty Period’ means:
i. where the Appliance is used for personal, domestic or
household use (i.e. normal single family use) as set out
in the instruction manual, the Appliance is warranted
against manufacturing defects for 24 months, following
the date of original purchase of the Appliance;
h. ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased and
used in Australia and is in addition to (and does not exclude,
restrict, or modify in any way) any non-excludable statutory
warranties in Australia.
3. During the Warranty Period Residentia Group or its ASR will,
at no extra charge if your Appliance is readily accessible
for service, without special equipment and subject to these
terms and conditions, repair or replace any parts which it
considers to be defective. Residentia Group or its ASR may
use remanufactured parts to repair your Appliance. You agree
that any replaced Appliances or parts become the property of
Residentia Group. This warranty does not apply to light globes,
batteries,lters,sealsorsimilarperishableparts.
4. Parts and Appliances not supplied by Residentia Group are not
covered by this warranty.
background
Instruction Manual 17
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and
for compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure.
The Australian Consumer Law requires
the inclusion of the following statement
with this warranty:
Warranty Continued
5. You will bear the cost of transportation, travel and delivery of
the Appliance to and from Residentia Group or its ASR. If you
reside outside of the service area, you will bear the cost of:
a. travel of an authorised representative;
b. transportation and delivery of the Appliance to and from
Residentia Group or its ASR, in all instances, unless the
Appliance is transported by Residentia Group or its ASR, the
Appliance is transported at the owner’s cost and risk while
in transit to and from Residentia Group or its ASR.
6. Proof of purchase is required before you can make a claim
under this warranty.
7. You may not make a claim under this warranty unless
the defect claimed is due to faulty or defective parts or
workmanship. Residentia Group is not liable in the following
situations (which are not exhaustive):
a. the Appliance is damaged by:
i. accident
ii. misuse or abuse, including failure to properly maintain
or service
iii. normal wear and tear
iv. power surges, electrical storm damage or incorrect
power supply
v. incomplete or improper installation
vi. incorrect, improper or inappropriate operation
vii. insect or vermin infestation
viii. failure to comply with any additional instructions
supplied with the Appliance;
b. theApplianceismodiedwithoutauthorityfromResidentia
Group in writing;
c. the Appliance’s serial number or warranty seal has been
removed or defaced;
d. the Appliance was serviced or repaired by anyone other
than Residentia Group, an authorised repairer
or ASR.
8. This warranty, the contract to which it relates and the
relationship between you and Residentia Group are governed
by the law applicable where the Appliance was purchased.
9. To the extent permitted by law, Residentia Group excludes
all warranties and liabilities (other than as contained in this
document) including liability for any loss or damage whether
direct or indirect arising from your purchase, use or non use of
the Appliance.
10. For Appliances and services provided by Residentia Group in
Australia, the Appliances come with a guarantee by Residentia
Group that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major
failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have
the Appliance repaired or replaced if the Appliance fails to be
of acceptable quality and the failure does not amount to a
majorfailure.Thebenetstoyougivenbythiswarrantyare
in addition to your other rights and remedies under a law in
relation to the Appliances or services to which the warranty
relates.
11. At all times during the Warranty Period, Residentia Group
shall, at its discretion, determine whether repair, replacement
or refund will apply if an Appliance has a valid warranty claim
applicable to it.
12. Missing parts are not covered by warranty. Residentia Group
reserves the right to assess each request for missing parts in
a case by case basis. Any parts that are not reported missing
intherstweekafterpurchasewillnotprovidefreeofcharge.
13. To enquire about claiming under this warranty, please follow
these steps:
a. carefully check the operating instructions, user manual and
the terms of this warranty;
b. have the model and serial number of the Appliance
available;
c. have the proof of purchase (e.g. an invoice) available;
d. telephone the numbers shown below.
14. You accept that if you make a warranty claim, Residentia
Group and its ASR may exchange information in relation to you
to enable Residentia Group to meet its obligations under this
warranty.
IMPORTANT
Before calling for service, please ensure that the steps
in point 13 have been followed.
— Service: Please call 1300 11 HELP (4357)
background
THPD80 18
THIS PAGE IS INTENTIONALLY LEFT BLANK
background
Instruction Manual 19
THIS PAGE IS INTENTIONALLY LEFT BLANK
background
Teka is proudly distributed in Australia by Residentia Group Pty Ltd
www.residentia.group | 1300 11 4357 | [email protected]

Specifications

Indexed Terms: Heat Pump Dryer

Teka THPD80 Questions and Answers

Find answers or ask new question.
See other models: TFLW10 TCD70 TFL10D70 NFM620X TFLW75
Questions and Answers
