SAFETY PRECAUTIONS:
LED OUTDOOR
LIGHTING
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL OUTLET BOX.
4. NOT FOR USE IN LUMINAIRES CONTROLLED BY A DIMMER.
INSTALLATION:
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
the Canadian
Electrical Code
and/or the
Quebec
Electrical code
Star
Washer
Weather
Resistant
Caulking
(not included)
LOL-2
08/15
Cap Nut
QUESTIONS OR CONCERNS CONTACT CANARM AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
L
I
G
H
T
I
N
G
&
F
A
N
S
E
C
L
A
I
R
A
G
E
S
&
V
E
N
T
I
L
A
T
E
U
R
S
NOTE: Product May Not Look Exactly As Shown In Figures.
Imported By: CANARM LTD., 2157 Parkedale Ave., Brockville, Ontario, K6V 5V6, Tel: (613) 342-5424, Fax: (800) 263-4598
Mounting
Bracket
Outlet
Box
Outlet
Box Screws
(not included)
Studs
White
Black
House supply
Ground wire
Fixture
Ground wire

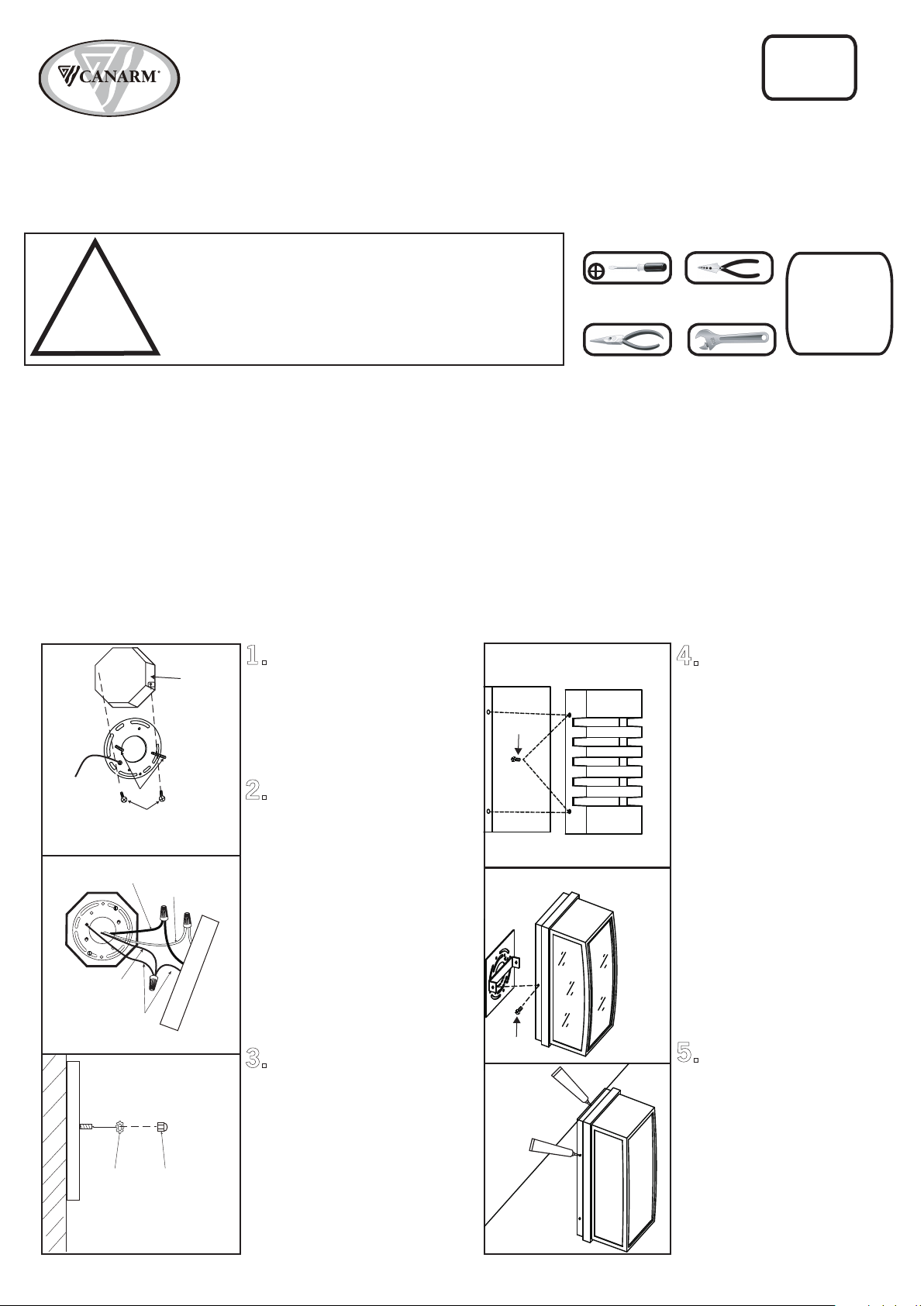

1. Mount the mounting
bracket to outlet box using outlet
box screws (not included). Make
sure the studs on the mounting
bracket are facing out from the
outlet box.
2. Connect the ground wires
(bare copper or green) from your
fixture to the ground wire (bare
copper or green) or ground
screw in the electrical outlet box.
Connect black wire from fixture
to black wire in outlet box and
connect the white wire from
fixture to white wire in outlet
box.
NOTE: Do not disconnect any
pre-wired connections.
3. Once connections of wires
are completed, carefully tuck
wires and wire nuts into the
outlet box making sure no bare
wire is visible at the wire nuts.
Install the light fixture to the wall
by aligning the hole(s) in the
fixture with the studs on the
mounting bracket. Secure in
place with cap nut(s) and star
washer (s).
4. Note: Refer to the style of
assembly that matches the style
of your fixture.
Style #1
Attached fixture to
mounting bracket by
tightening the 4 screws.
Style #2
Attached fixture to
mounting bracket by
tightening the 2 screws.
5. After Installation, seal around
the top and side perimeter
between the fixture and the wall
surface with weather resistant
caulking. The bottom should be
left un-caulked to prevent
moisture build-up. Apply a small
amount of weather resistant
caulking around the side
perimeter between the cap nut
and mounting plate.
Style #1
Style #2
Screws
Screws
