Frigidaire FRT18S6JB0 refrigerator

User Manual - Transcript

• Page 1 - English - : Local Repal Electrolux Solutions Hotline United States 18009449044 Canada 18006684606 Resolve many service issues over the phone at your convenience If we cant resolve your service issue well schedule a reputable local service technician for you Order Genuine Electrolux Parts amp Accessories Purchase Extended Warranty Protection important Safety Instructions 2 Installation 3 Connecting Water Supply 4 Door Removal Instructions 5 Temperature Controls 8 Ice Service 9 Normal Operating Sounds amp Sights 10 Care and Cleaning 10 Warranty 12 Before you Call 13 READ AND SAVE THESE INSTRUCTIONS PN2418s72ol sept200z

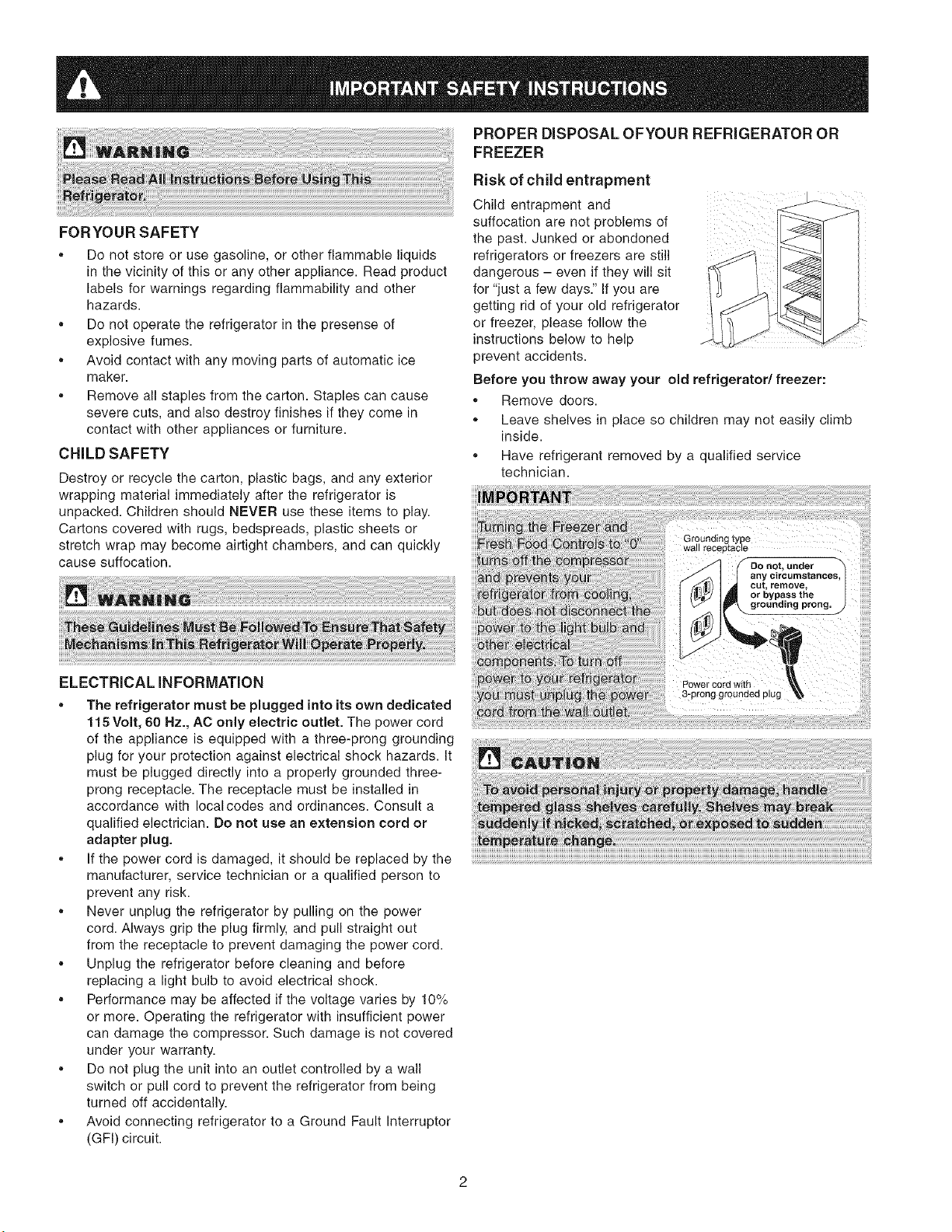

• Page 2 - English - : PROPER DISPOSAL OFYOUR REFRIGERATOR OR FREEZER FORYOUR SAFETY Do not store or use gasoline or other flammable liquids in the vicinity of this or any other appliance Read product labels for warnings regarding flammability and other hazards Do not operate the refrigerator in the presense of explosive fumes Avoid contact with any moving parts of automatic ice maker Remove all staples from the carton Staples can cause severe cuts and also destroy finishes if they come in contact with other appliances or furniture CHILD SAFETY Destroy or recycle the carton plastic bags and any exterior wrapping material immediately after the refrigerator is unpacked Children should NEVER use these items to play Cartons covered with rugs bedspreads plastic sheets or stretch wrap may become airtight chambers and can quickly cause suffocation ELECTRICAL iNFORMATiON The refrigerator must be plugged into its own dedicated 115 Volt 60 Nz AC only electric outlet The power cord of the appliance is equipped with a threeprong grounding plug for your protection against electrical shock hazards It must be plugged directly into a properly grounded three prong receptacle The receptacle must be installed in accordance with Iocalcodes and ordinances Consult a qualified electrician Do not use an extension cord or adapter plug If the power cord is damaged it should be replaced by the manufacturer service technician or a qualified person to prevent any risk Never unplug the refrigerator by pulling on the power cord Always grip the plug firmly and pull straight out from the receptacle to prevent damaging the power cord Unplug the refrigerator before cleaning and before replacing a light bulb to avoid electrical shock Performance may be affected if the voltage varies by 10 or more Operating the refrigerator with insufficient power can damage the compressor Such damage is not covered under your warranty Do not plug the unit into an outlet controlled by a wall switch or pull cord to prevent the refrigerator from being turned off accidentally Avoid connecting refrigerator to a Ground Fault Interrupter GFI circuit Risk of child entrapment Child entrapment and suffocation are not problems of the past Junked or abondoned refrigerators or freezers are still dangerous even if they will sit for quotjust a few daysquot If you are getting rid of your old refrigerator or freezer please follow the instructions below to help prevent accidents Before you throw away your old refrigeratorfreezer quot Remove doors Leave shelves in place so children may not easily climb inside Have refrigerant removed by a qualified service technician iiiiiiii cut remove orbypassthe iiiiiiiiiiiiiii iiiiiiiiiiiiii iiiiiiil iiiiiiil iiiiiii iiiiiiil

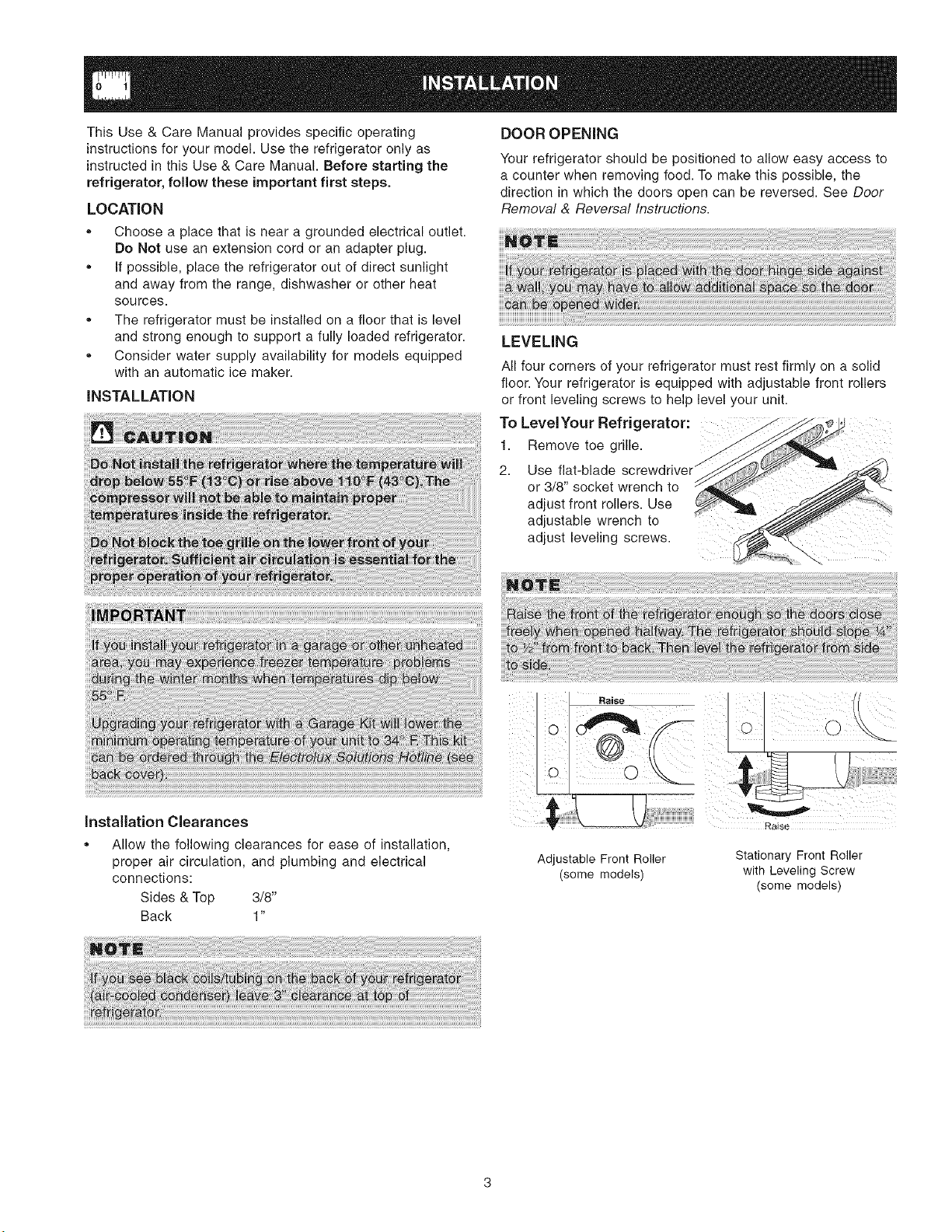

• Page 3 - English - : This Use amp Care Manual provides specific operating instructions for your model Use the refrigerator only as instructed in this Use amp Care Manual Before starting the refrigerator follow these important first steps LOCATION o Choose a place that is near a grounded electrical outlet Do Not use an extension cord or an adapter plug o If possible place the refrigerator out of direct sunlight and away from the range dishwasher or other heat sources o The refrigerator must be installed on a floor that is level and strong enough to support a fully loaded refrigerator o Consider water supply availability for models equipped with an automatic ice maker iNSTALLATiON DOOR OPENING Your refrigerator should be positioned to allow easy access to a counter when removing food To make this possible the direction in which the doors open can be reversed See Door Removal amp Reversal Instructions LEVELING All four corners of your refrigerator must rest firmly on a solid floor Your refrigerator is equipped with adjustable front rollers or front leveling screws to help level your unit To LevelYour Refrigerator 1 Remove toe grille 2 Use flatblade screwdriver or 38quot socket wrench to adjust front rollers Use adjustable wrench o adjust leveling screws installation Clearances o Allow the following clearances for ease of installation proper air circulation and plumbing and electrical connections Sides amp Top 38quot Back 1quot Raise Raise Adjustable Front Roller some models Stationary Front Roller with Leveling Screw some models

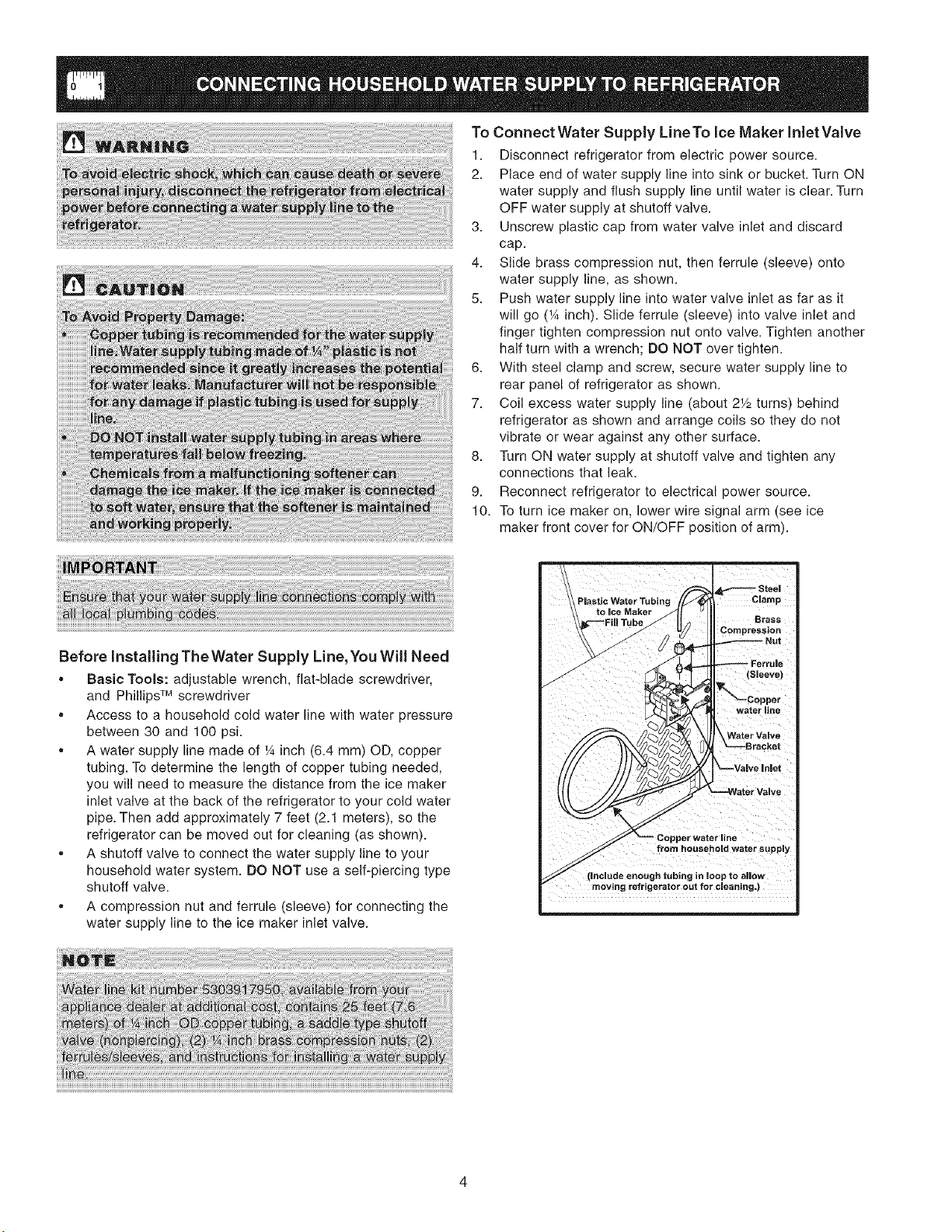

• Page 4 - English - : To Connect Water Supply LineTo ice Maker Inlet Valve 1 Disconnect refrigerator from electric power source 2 Place end of water supply line into sink or bucket Turn ON water supply and flush supply line until water is clear Turn OFF water supply at shutoff valve 3 Unscrew plastic cap from water valve inlet and discard cap 4 Slide brass compression nut then ferrule sleeve onto water supply line as shown 5 Push water supply line into water valve inlet as far as it will go ¼ inch Slide ferrule sleeve into valve inlet and finger tighten compression nut onto valve Tighten another half turn with a wrench DO NOT over tighten 6 With steel clamp and screw secure water supply line to rear panel of refrigerator as shown 7 Coil excess water supply line about 2V2 turns behind refrigerator as shown and arrange coils so they do not vibrate or wear against any other surface 8 Turn ON water supply at shutoff valve and tighten any connections that leak 9 Reconnect refrigerator to electrical power source 10 To turn ice maker on lower wire signal arm see ice maker front cover for ONOFF position of arm Before Installing The Water Supply Line You Will Need Basic Tools adjustable wrench flatblade screwdriver and Phillips TM screwdriver Access to a household cold water line with water pressure between 30 and 100 psi A water supply line made of ¼ inch 64 mm OD copper tubing To determine the length of copper tubing needed you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water pipe Then add approximately 7 feet 21 meters so the refrigerator can be moved out for cleaning as shown A shutoff valve to connect the water supply line to your household water system DO NOT use a selfpiercing type shutoff valve A compression nut and ferrule sleeve for connecting the water supply line to the ice maker inlet valve Copper water line from household water supply Include enough tubing in loop to allow g refrigerator out for cleaning

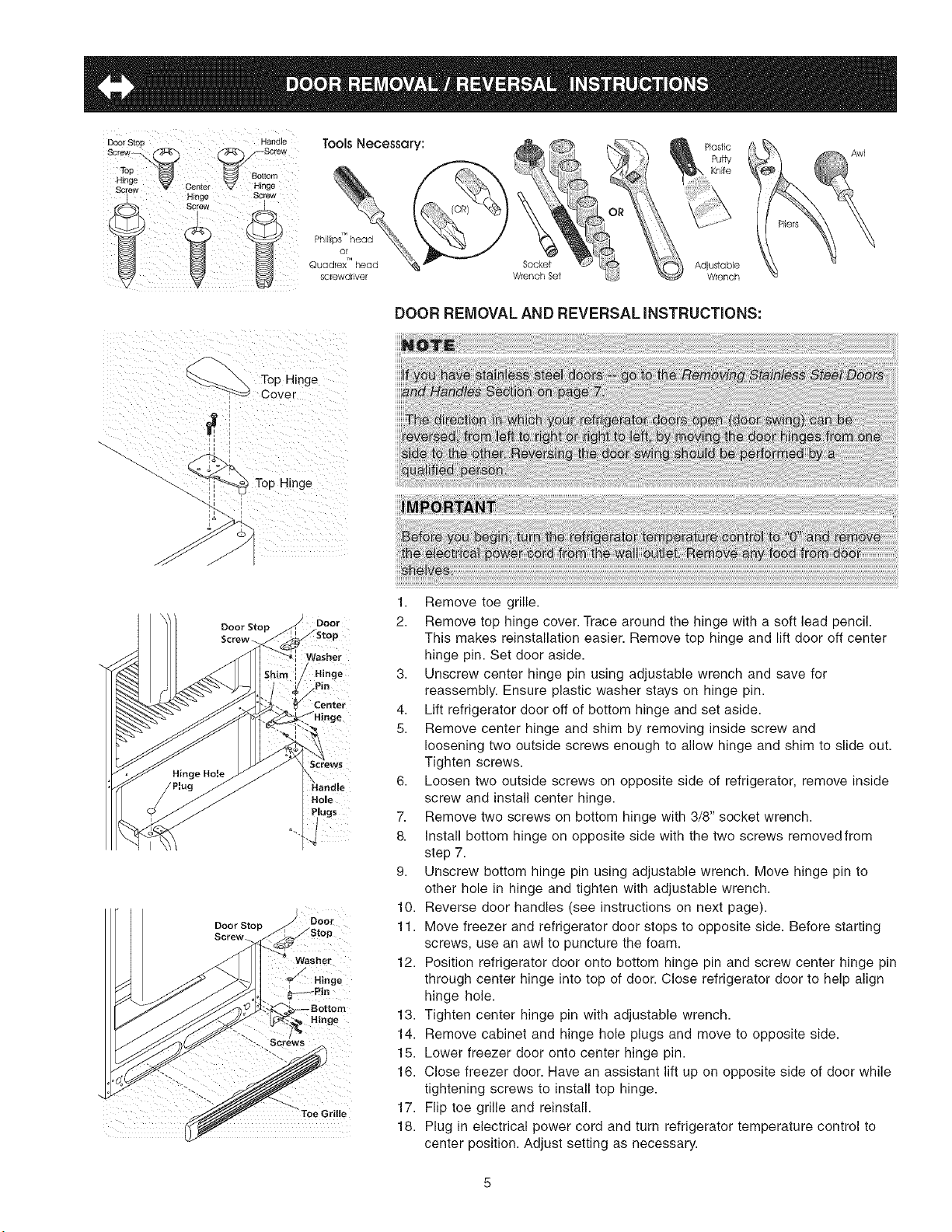

• Page 5 - English - : Door Stop Handle 2 Boom Scr Center ge Hinge Screw Scre Tools Necessary Phillips rMhead Quadrexquot head screwdriver Socket AdiustabEe Wrench Set Wrench Awl DOOR REMOVAL AND REVERSAL INSTRUCTIONS Top Hinge 3vet Top Hinge Door Stop Screw 1 Remove toe grille 2 Remove top hinge cover Trace around the hinge with a soft lead pencil This makes reinstallation easier Remove top hinge and lift door off center hinge pin Set door aside 3 Unscrew center hinge pin using adjustable wrench and save for reassembly Ensure plastic washer stays on hinge pin 4 Lift refrigerator door off of bottom hinge and set aside 5 Remove center hinge and shim by removing inside screw and loosening two outside screws enough to allow hinge and shim to slide out Tighten screws 6 Loosen two outside screws on opposite side of refrigerator remove inside screw and install center hinge 7 Remove two screws on bottom hinge with 38quot socket wrench 8 Install bottom hinge on opposite side with the two screws removed from step 7 9 Unscrew bottom hinge pin using adjustable wrench Move hinge pin to other hole in hinge and tighten with adjustable wrench 10 Reverse door handles see instructions on next page 11 Move freezer and refrigerator door stops to opposite side Before starting screws use an awl to puncture the foam 12 Position refrigerator door onto bottom hinge pin and screw center hinge pin through center hinge into top of door Close refrigerator door to help align hinge hole 13 Tighten center hinge pin with adjustable wrench 14 Remove cabinet and hinge hole plugs and move to opposite side 15 Lower freezer door onto center hinge pin 16 Close freezer door Have an assistant lift up on opposite side of door while tightening screws to install top hinge 17 Flip toe grille and reinstall 18 Plug in electrical power cord and turn refrigerator temperature control to center position Adjust setting as necessary

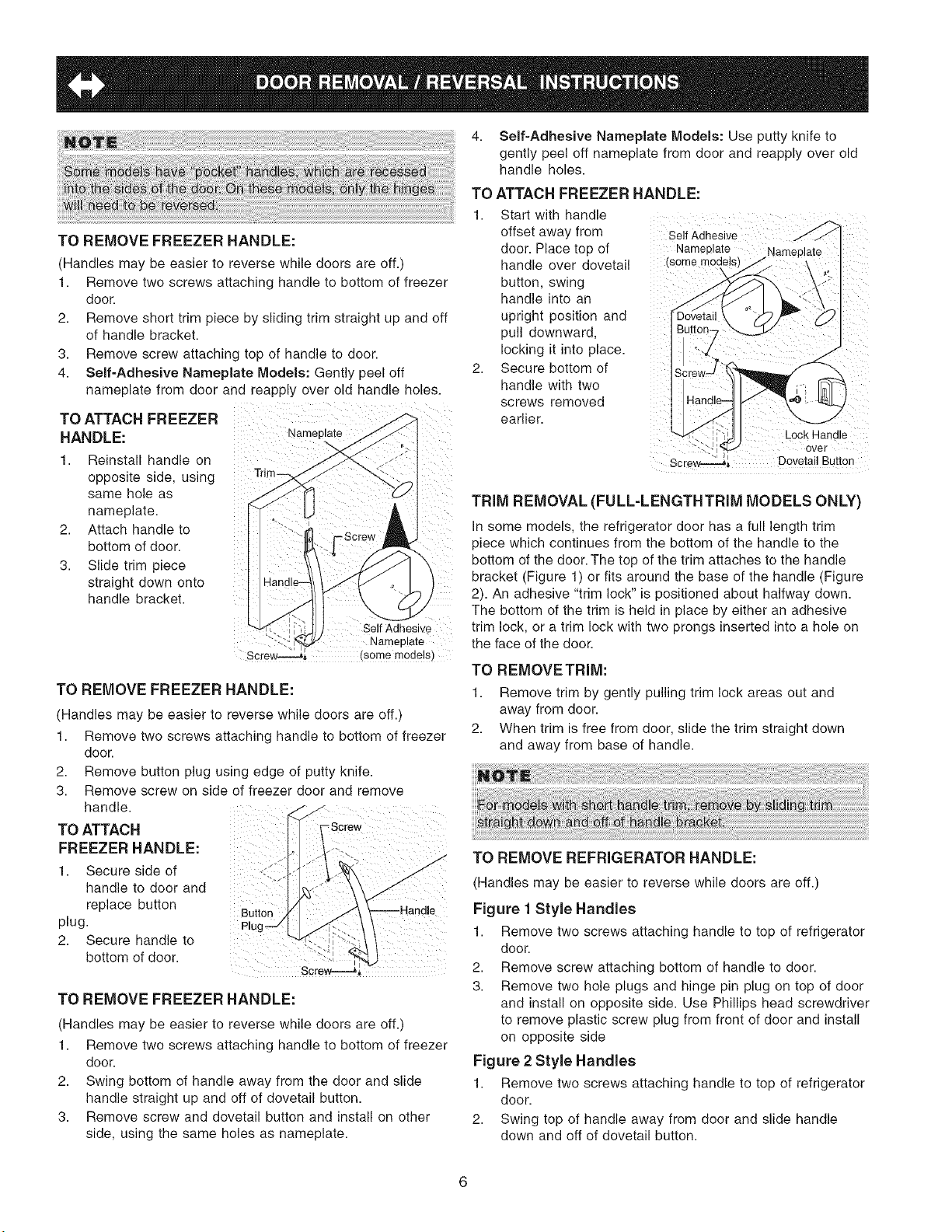

• Page 6 - English - : TO REMOVE FREEZER HANDLE Handles may be easier to reverse wMe doors are off 1 Remove two screws attaching qandle to bottom of freezer door 2 Remove short trim piece by sliding tnm straight up and off of handle bracket 3 Remove screw attaching top of handle to door 4 SelfAdhesive Nameplate Models Gently peel off nameplate from door and reapply over old handle holes TO ATTACH FREEZER HANDLE 1 Reinstall handle on opposite side using same hole as nameplate 2 Attach handle to bottom of door 3 Slide trim piece straight down onto handle bracket Nam Self Adhesive Nameolae some models TO REMOVE FREEZER HANDLE Handles may be easier to reverse while doors are off 1 Remove two screws attaching handle to bottom of freezer door 2 Remove button plug using edge of putty knife 3 Remove screw on side of freezer door and remove handle TO ATTACH FREEZER HANDLE t Secure side of z handle to door and replace button Button plug PI 2 Secure handle to bottom of door TO REMOVE FREEZER HANDLE Handles may be easier to reverse while doors are off 1 Remove two screws attaching handle to bottom of freezer door 2 Swing bottom of handle away from the door and slide handle straight up and off of dovetail button 3 Remove screw and dovetail button and install on other side using the same holes as nameplate 4 SelfAdhesive Nameplate Models Use putty knife to gently peel off nameplate from door and reapply over old handle holes TO ATTACH FREEZER HANDLE 2 Start with handle offset away from self Adhesive door Place top of Nameplate NamePlate handle over dovetail button swing handle into an upright position and pull downward locking it into place e Secure bottom of handle with two screwsremoved earlier JJ LockHandle quot over Sciev DovetailButton TRIM REMOVAL FULLLENGTHTRIM MODELS ONLY In some models the refrigerator door has a full length trim piece which continues from the bottom of the handle to the bottom of the door The top of the trim attaches to the handle bracket Figure 1 or fits around the base of the handle Figure 2 An adhesive quottrim lockquot is positioned about halfway down The bottom of the trim is held in place by either an adhesive trim lock or a trim lock with two prongs inserted into a hole on the face of the door TO REMOVETRIM t Remove trim by gently pulling trim lock areas out and away from door 2 When trim is free from door slide the trim straight down and away from base of handle TO REMOVE REFRIGERATOR HANDLE Handles may be easier to reverse while doors are off Figure 1 Style Handles 1 Remove two screws attaching handle to top of refrigerator door 2 Remove screw attaching bottom of handle to door 3 Remove two hole plugs and hinge pin plug on top of door and install on opposite side Use Phillips head screwdriver to remove plastic screw plug from front of door and install on opposite side Figure 2 Style Handles 1 Remove two screws attaching handle to top of refrigerator door 2 Swing top of handle away from door and slide handle down and off of dovetail button

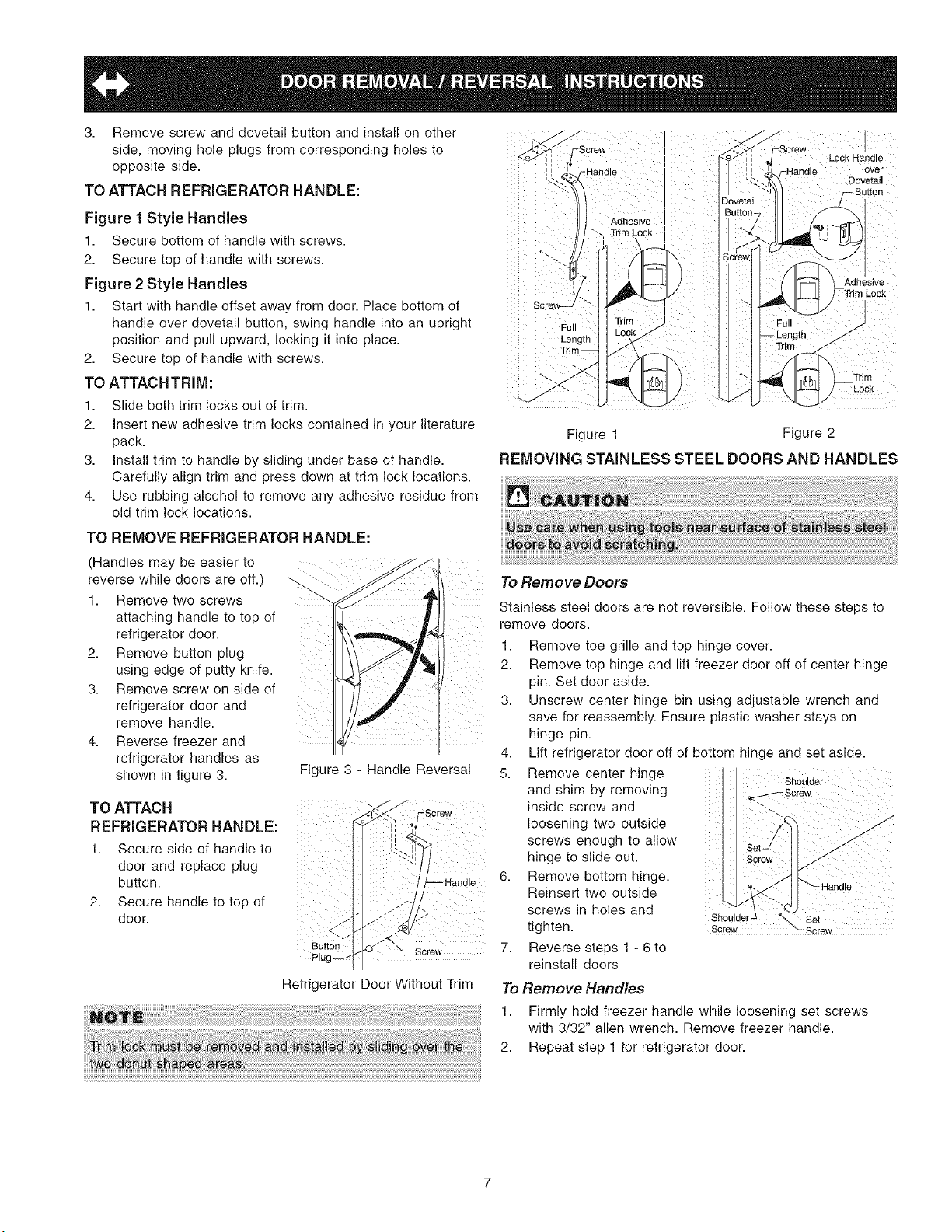

• Page 7 - English - : 3 Removescrewanddovetailbuttonandinstallonother sidemovingholeplugsfromcorrespondingholesto oppositeside TO ATTACH REFRIGERATOR HANDLE Figure 1 Style Handles 1 Secure bottom of handle with screws 2 Secure top of handle with screws Figure 2 Style Handles 1 Start with handle offset away from door Place bottom of handle over dovetail button swing handle into an upright position and pull upward locking it into place 2 Secure top of handle with screws TO ATTACHTRIM 1 Slide both trim locks out of trim 2 Insert new adhesive trim locks contained in your literature pack 3 Install trim to handle by sliding under base of handle Carefully align trim and press down at trim lock locations 4 Use rubbing alcohol to remove any adhesive residue from old trim lock locations Lock Handle over Dovetail Adhesive i Full Figure 1 Figure 2 REMOVING STAINLESS STEEL DOORS AND HANDLES TO REMOVE REFRIGERATOR HANDLE Handles may be easier to reverse while doors are off 1 Remove two screws attaching handle to top of refrigerator door 2 Remove button plug using edge of putty knife 3 Remove screw on side of refrigerator door and remove handle 4 Reverse freezer and refrigerator handles as shown in figure 3 Figure 3 Handle Reversal TO ATTACH REFRIGERATOR HANDLE 1 Secure side of handle to door and replace plug button tie 2 Secure handle to top of door Buttofl Refrigerator Door Without Trim ToRemove Doors Stainless steel doors are not reversible Follow these steps to remove doors 1 Remove toe grille and top hinge cover 2 Remove top hinge and lift freezer door off of center hinge pin Set door aside 3 Unscrew center hinge bin using adjustable wrench and save for reassembly Ensure plastic washer stays on hinge pin 4 Lift refrigerator door off of bottom hinge and set aside 5 Remove center hinge Shoulder and shim by removing inside screw and loosening two outside screws enough to allow hinge to slide out 6 Remove bottom hinge Reinsert two outside screws in holes and Shoulder Set tighten Screw Screw 7 Reverse steps 1 6to reinstall doors To Remove Handles 1 Firmly hold freezer handle while loosening set screws with 332quot allen wrench Remove freezer handle 2 Repeat step 1 for refrigerator door

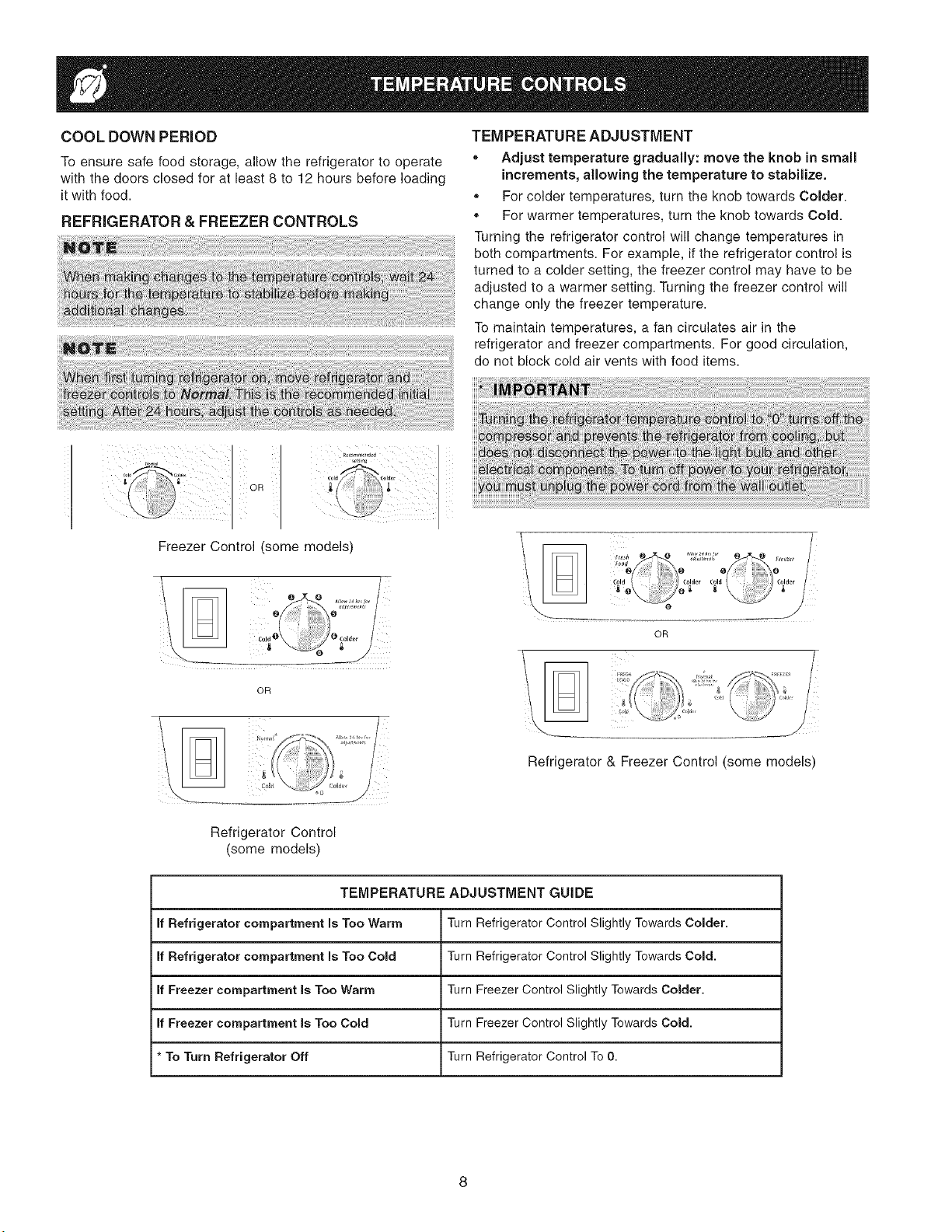

• Page 8 - English - : COOL DOWN PERIOD To ensure safe food storage allow the refrigerator to operate with the doors closed for at least 8 to 12 hours before loading it with food REFRIGERATOR amp FREEZER CONTROLS TEMPERATURE ADJUSTMENT Adjust temperature gradually move the knob in small increments allowing the temperature to stabilize For colder temperatures turn the knob towards Colder For warmer temperatures turn the knob towards Cold Turning the refrigerator control will change temperatures in both compartments For example if the refrigerator control is turned to a colder setting the freezer control may have to be adjusted to a warmer setting Turning the freezer control will change only the freezer temperature To maintain temperatures a fan circulates air in the refrigerator and freezer compartments For good circulation do not block cold air vents with food items Freezer Control some models OR Refrigerator Control some models OR Refrigerator amp Freezer Control some models TEMPERATURE ADJUSTMENT GUIDE If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder if Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold if Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder if Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold To Turn Refrigerator Off Turn Refrigerator Control To 0
• Page 9 - English - : If your refrigerator has an automatic ice maker it will provide a sufficient supply of ice for normal use During the initial startup of your refrigerator no ice will be produced during the first 24 hours of operation Air in new plumbing lines may cause the ice maker to cycle two or three times before making a full tray of ice With no usage it will take approximately one to two days to fill the ice container New plumbing connections may cause the first production of ice cubes to be discolored or have an odd flavor Discard ice made during the first 24 hours TURNINGYOUR iCE MAKER ON ICE PRODUCTIONWHATTO EXPECT The ice maker will produce 25 to 3 pounds of ice every 24 hours depending on usage conditions Ice is produced at a rate of 8 cubes every 80 to 160 minutes After the plumbing connections have been completed the water supply valve must be opened Place the ice container under the ice maker pushing it as far back as possible Lower the wire signal arm to its quotdownquot or ON position TURNINGYOUR ICE MAKER OFF To stop the ice maker lift the wire signal arm until it clicks and locks in the quotupquot or OFF position The ice maker also turns off automatically when the ice container is full If your model has an adjustable freezer shelf place the shelf in the lower position so that the wire signal arm will hit the ice when the container is full Wire S Signal Arm

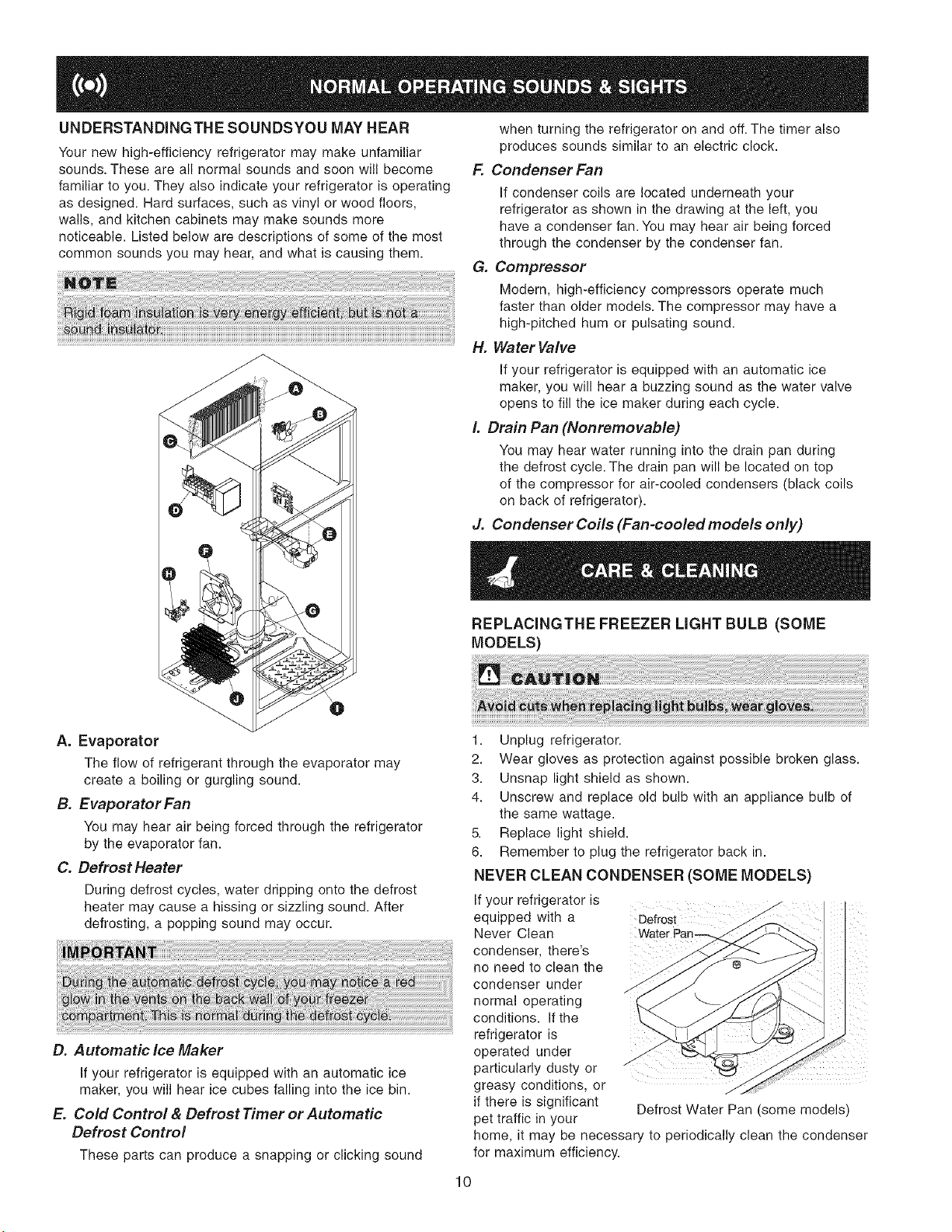

• Page 10 - English - : UNDERSTANDINGTHE SOUNDSYOU MAY HEAR Your new highefficiency refrigerator may make unfamiliar sounds These are all normal sounds and soon will become familiar to you They also indicate your refrigerator is operating as designed Hard surfaces such as vinyl or wood floors walls and kitchen cabinets may make sounds more noticeable Listed below are descriptions of some of the most common sounds you may hear and what is causing them when turning the refrigerator on and off The timer also produces sounds similar to an electric clock F Condenser Fan If condenser coils are located underneath your refrigerator as shown in the drawing at the left you have a condenser fan You may hear air being forced through the condenser by the condenser fan G Compressor Modern highefficiency compressors operate much faster than older models The compressor may have a highpitched hum or pulsating sound 14Water Valve If your refrigerator is equipped with an automatic ice maker you will hear a buzzing sound as the water valve opens to fill the ice maker during each cycle L Drain Pan Nonremovable You may hear water running into the drain pan during the defrost cycle The drain pan will be located on top of the compressor for aircooled condensers black coils on back of refrigerator J Condenser Coils Fancooled models only REPLACINGTHE FREEZER LIGHT BULB SOME MODELS A Evaporator The flow of refrigerant through the evaporator may create a boiling or gurgling sound B Evaporator Fan You may hear air being forced through the refrigerator by the evaporator fan C Defrost Neater During defrost cycles water dripping onto the defrost heater may cause a hissing or sizzling sound After defrosting a popping sound may occur D Automatic Ice Maker If your refrigerator is equipped with an automatic ice makeryou will hear ice cubes falling into the ice bin E Cold Control amp Defrost Timer or Automatic Defrost Control These parts can produce a snapping or clicking sound 1 Unplug refrigerator 2 Wear gloves as protection against possible broken glass 3 Unsnap light shield as shown 4 Unscrew and replace old bulb with an appliance bulb of the same wattage 5 Replace light shield 6 Remember to plug the refrigerator back in NEVER CLEAN CONDENSER SOME MODELS If your refrigerator is equipped with a Defrost Never Clean WaterPan condenser theres no need to clean the condenser under normal operating conditions If the refrigerator is operated under particularly dusty or greasy conditions or if there is significant Defrost Water Pan some models pet traffic in your home it may be necessary to periodically clean the condenser for maximum efficiency

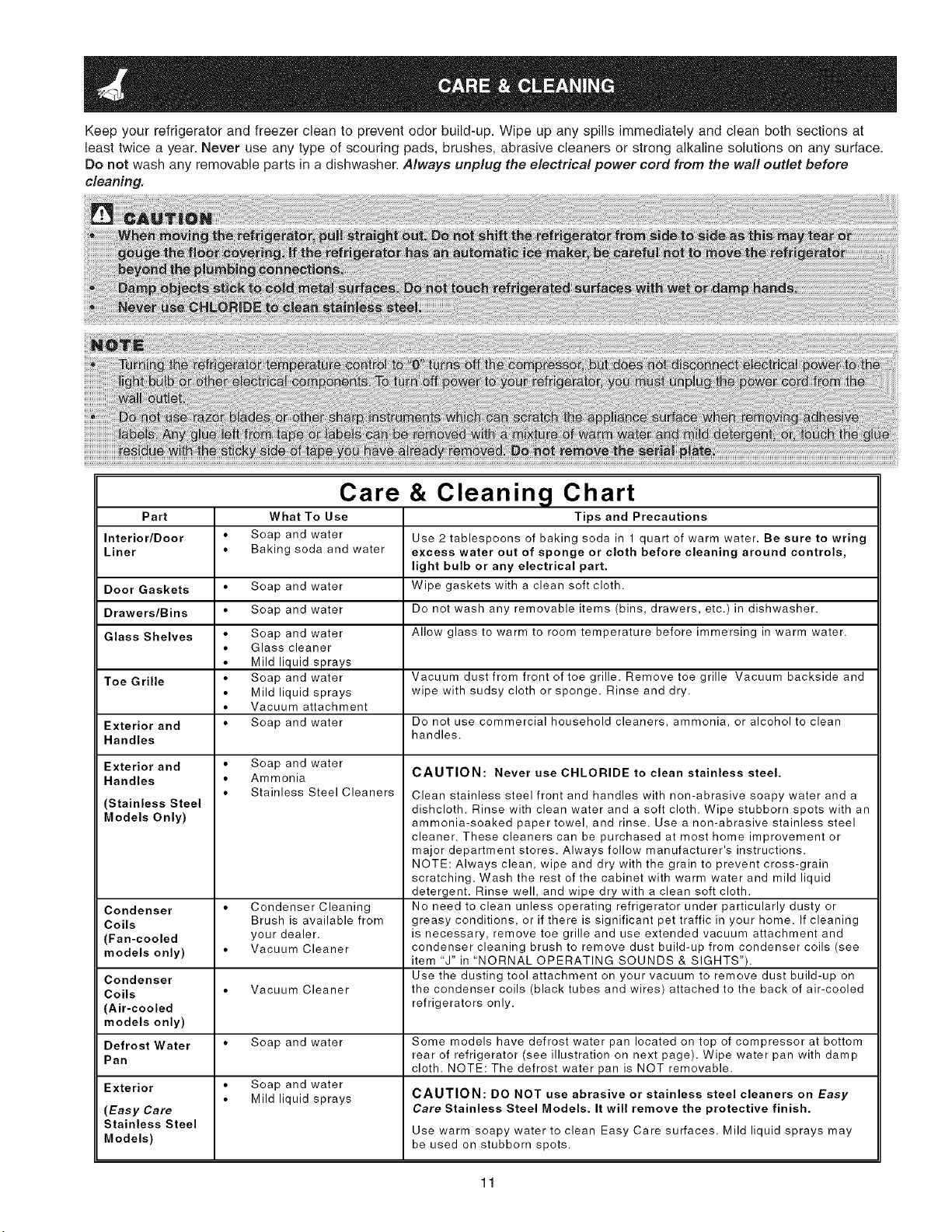

• Page 11 - English - : Keep your refrigerator and freezer clean to prevent odor buildup Wipe up any spills immediately and clean both sections at least twice a year Never use any type of scouring pads brushes abrasive cleaners or strong alkaline solutions on any surface Do not wash any removable parts in a dishwasher Always unplug the electrical power cord from the wall outlet before cleaning Care amp Cleaning Chart Part What To Use Tips and Precautions InteriorDoor Soap and water Use 2 tablespoons of baking soda in 1 quart of warm water Be sure to wring Liner Baking soda and water excess water out of sponge or cloth before cleaning around controls light bulb or any electrical part Door Gaskets Soap and water Wipe gaskets with a clean soft cloth DrawersBins Soap and water Do not wash any removable items bins drawers etc in dishwasher Glass Shelves Soap and water Allow glass to warm to room temperature before immersing in warm water Glass cleaner Mild liquid sprays Toe Grille Soap and water Vacuum dust from front of toe grille Remove toe grille Vacuum backside and Mild liquid sprays wipe with sudsy cloth or sponge Rinse and dry Vacuum attachment Exterior and Soap and water Do not use commercial household cleaners ammonia or alcohol to clean Handles handles CAUTION Never use CHLORIDE to clean stainless steel Soap and water Ammonia Stainless Steel Cleaners Exterior and Handles Stainless Steel Models Only Condenser Condenser Cleaning Coils Brush is available from Fancooled your dealer models only Vacuum Cleaner Condenser Coils Vacuum Cleaner Aircooled models only Clean stainless steel front and handles with nonabrasive soapy water and a dishcloth Rinse with clean water and a soft cloth Wipe stubborn spots with an ammoniasoaked paper towel and rinse Use a nonabrasive stainless steel cleaner These cleaners can be purchased at most home improvement or major department stores Always follow manufacturers instructions NOTE Always clean wipe and dry with the grain to prevent crossgrain scratching Wash the rest of the cabinet with warm water and mild liquid detergent Rinse well and wipe dry with a clean soft cloth No need to clean unless operating refrigerator under particularly dusty or greasy conditions or if there is significant pet traffic in your home If cleaning is necessary remove toe grille and use extended vacuum attachment and condenser cleaning brush to remove dust buildup from condenser coils see item quotJquot in quotNORNAL OPERATING SOUNDS amp SIGHTSquot Use the dusting tool attachment on your vacuum to remove dust buildup on the condenser coils black tubes and wires attached to the back of aircooled refrigerators only Defrost Water Soap and water Some models have defrost water pan located on top of compressor at bottom rear of refrigerator see illustration on next page Wipe water pan with damp Pan cloth NOTE The defrost water pan is NOT removable Exterior Soap and water CAUTION DO NOT use abrasive or stainless steel cleaners on Easy Mild liquid sprays Easy Care Care Stainless Steel Models It will remove the protective finish Stainless Steel Use warm soapy water to clean Easy Care surfaces Mild liquid sprays may Models be used on stubborn spots

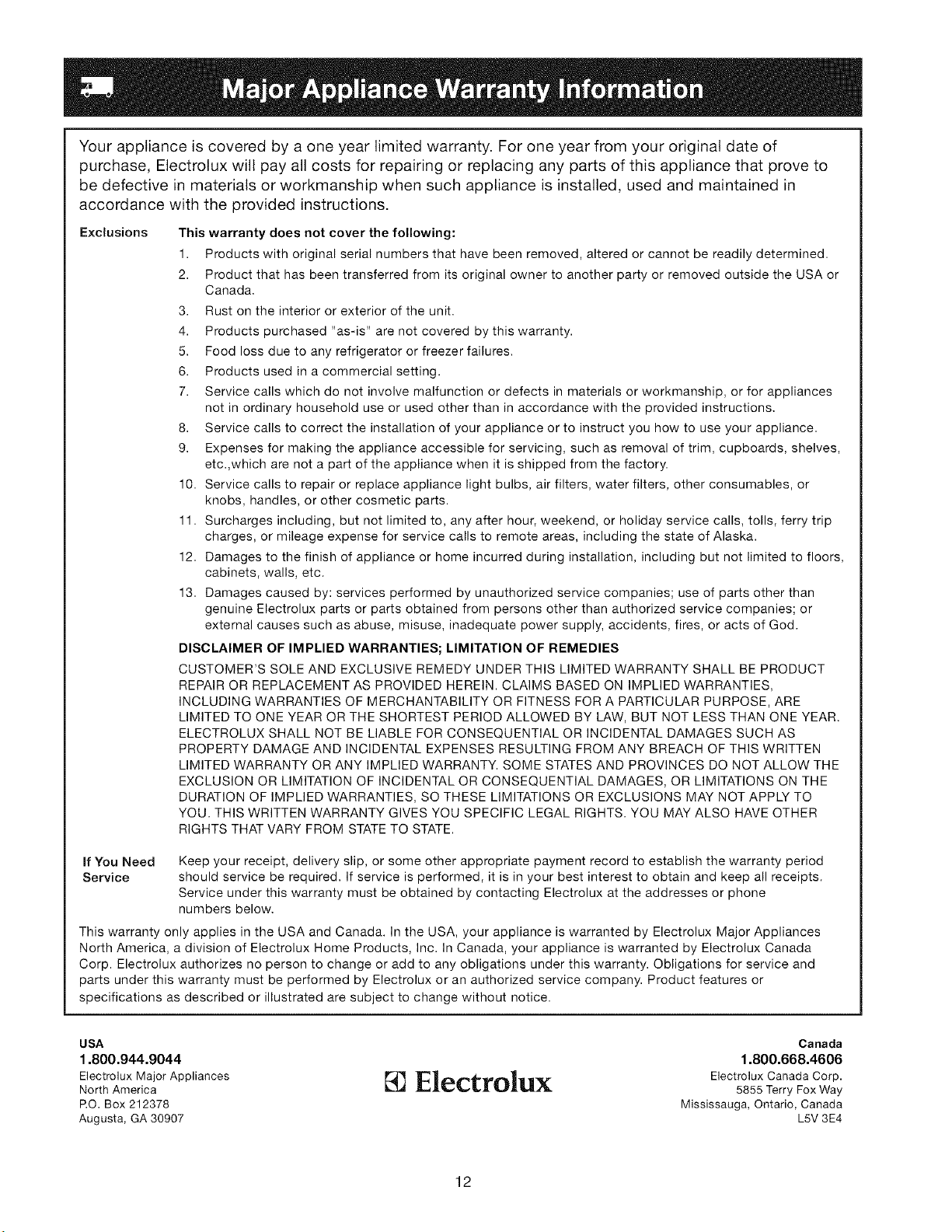

• Page 12 - English - : Your appliance is covered by a one year limited warranty For one year from your original date of purchase Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed used and maintained in accordance with the provided instructions Exclusions This warranty does not cover the following 1 Products with original serial numbers that have been removed altered or cannot be readily determined 2 Product that has been transferred from its original owner to another party or removed outside the USA or Canada 3 Rust on the interior or exterior of the unit 4 Products purchased quotasisquot are not covered by this warranty 5 Food loss due to any refrigerator or freezer failures 6 Products used in a commercial setting 7 Service calls which do not involve malfunction or defects in materials or workmanship or for appliances not in ordinary household use or used other than in accordance with the provided instructions 8 Service calls to correct the installation of your appliance or to instruct you how to use your appliance 9 Expenses for making the appliance accessible for servicing such as removal of trim cupboards shelves etcwhich are not a part of the appliance when it is shipped from the factory 10 Service calls to repair or replace appliance light bulbs air filters water filters other consumables or knobs handles or other cosmetic parts 11 Surcharges including but not limited to any after hour weekend or holiday service calls tolls ferry trip charges or mileage expense for service calls to remote areas including the state of Alaska 12 Damages to the finish of appliance or home incurred during installation including but not limited to floors cabinets walls etc 13 Damages caused by services performed by unauthorized service companies use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies or external causes such as abuse misuse inadequate power supply accidents fires or acts of God DISCLAIMER OF IMPLIED WARRANTIES LIMITATION OF REMEDIES CUSTOMERS SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN CLAIMS BASED ON IMPLIED WARRANTIES INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW BUT NOT LESS THAN ONE YEAR ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE mfYou Need Keep your receipt delivery slip or some other appropriate payment record to establish the warranty period Service should service be required If service is performed it is in your best interest to obtain and keep all receipts Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below This warranty only applies in the USA and Canada In the USA your appliance is warranted by Electrolux Major Appliances North America a division of Electrolux Home Products Inc In Canada your appliance is warranted by Electrolux Canada Corp Electrolux authorizes no person to change or add to any obligations under this warranty Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company Product features or specifications as described or illustrated are subject to change without notice USA 18009449044 Electrolux Major Appliances North America RO Box 212378 Augusta GA 30907 Electrolux Canada 18006684606 Electrolux Canada Corp 5855 Terry Fox Way Mississauga Ontario Canada L5V 3E4
• Page 13 - English - : 18009449044 United States Visit our web site at 18006684606 Canada wwwfrigidairecom Common Occurrences Before calling for service review this list It may save you time and expense This list includes common occurrences that are not the result of defective workmanship or materials in this appliance Ensure plug is tightly pushed into electrical outlet Checkreplace fuse with a 15 amp timedelay fuse Reset circuit breaker Refrigerator does not run The temperature control is turned to quotOquot Refrigerator may be in defrost cycle Wait 20 minutes and check again Freezer temperature too cold Refrigerator temperature is Set freezer control to a warmer setting until freezer temperature is satisfactory satisfactory Allow 24 hours for the temperature to stabilize Refrigerator temperature too cold Set refrigerator control to a warmer setting Allow 24 hours for temperature to Freezer temperature is satisfactory stabilize Then check freezer temperatures and adjust as needed The cabinet is not level Refrigerator is noisy or vibrates Floor is weak See Normal Operating Sounds and Sights section Interior needs to be cleaned Odors in refrigerator Foods that produce odors should be covered or wrapped Replace light bulb Ensure plug is tightly pushed into electrical outlet Cabinet light not working Light switch may be stuck Push in light switch located on the refrigerator control box to release Automatic ice maker not working some models Ensure the Wire Signal Arm is not in UP position Ice maker should produce 25 to 3 pounds of ice in a 24 hour period Water supply is turned off Water pressure is too low The freezer is not cold enough
