D-Pad
ZL Button
HomeSelect
L Button
Analog Stick
R Button
Start
ZR Button
B Button
A Button
C
C
C
C
D-Pad
Bouton ZL
AccueilSélectionner
Bouton L
Manette
analogique
Bouton R
Démarrer
Bouton ZR
Bouton B
Bouton A
C
C
C
C
ZL ButtonZR Button
L Button
R Button
Bouton ZLBouton ZR
Bouton L
Bouton R
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
GUIDE D’UTILISATION
Retro-Bit® is a registered trademark of Kool Brands, LLC. PS3® is a trademark registered trademark of Sony Computer
Entertainment Inc. Mac® is a trademark registered trademark of Apple Inc. Steam® is a trademark registered trademark of
Valve Corporation. Nintendo Switch® is a trademark registered trademark of Nintendo of America Inc. All other mentioned
trademarks are either trademarks or registered trademarks of their respective owners. All rights reserved. This product is
not endorsed, manufactured, produced, sponsored or licensed by Sony Computer Entertainment Inc., Apple Inc., Valve
Corporation, or Nintendo of America Inc. ©2012 Kool Brands, LLC.
Includes controller, USB-C® cable,
N64® receiver, USB® receiver, and
instruction manual.
Comprend un contrôleur, un câble
USB-C
MD
, un récepteur N64
MD
, un
récepteur USB
MD
et un manuel
d’instructions.
For the latest updates and support,
please visit
www.retro-bit.com/support
For questions or concerns please contact
info@retro-bit.com
Controller N64® D-Input X-Input
Switch
Default
Mode
Switch
Legacy
Mode
Switch
All Star
Mode
DPad DPad DPad DPad DPad DPad DPad
Analog Stick Analog Stick Left Analog Left Analog Left Analog Left Analog Left Analog
A A 3 1 B A A
B B 2 2 Y B X
C ↑ C ↑ 12 10 LS RS RS Up
C → C → 11 9 RS LS RS Right
C ↓ C ↓ 4 3 A X RS Down
C ← C ← 1 4 X Y RS Left
L L 5 5 L L L
R R 6 6 R R R
ZL Z 7 Z+ ZL ZL ZL
ZR Z 8 Z- ZR ZR ZR
Home 13 Home Home Home Home
Select 9 7 - - -
Start Start 10 8 + + +
LED 1 1 1&2 3&4 4 2-4
Connection
N64
®
Receiver
USB
®
Receiver
Mode Held Input Description
Input Switch Start + B for 5 sec
Switch between D-Input and X-Input.
Some consoles and programs require
X-Input.
Default Mode Start + Up
Sets the controller back to its default
mode.
Legacy Mode Start + Left Sets the controller to Legacy Mode.
All Star Mode Start + Right for 5 sec Sets the controller to All Star Mode.
Swap AB/XY Start + Down for 5 sec
Switches the A & B buttons with the X
& Y buttons. Repeat input to reverse.
Swap L/ZL L + ZL for 5 seconds
Switches the L & ZR buttons. Repeat
input to reverse.
Swap R/ZR R + RL for 5 seconds
Switches the R and ZR buttons.
Repeat input to reverse.
N64® Receiver
• Before beginning, select either Rumble or Memory mode on the N64® receiver.
It is at this time you are able to connect a Controller Pak (aka Memory Pak) to
the receiver safely. This can only be done when the console is off. If the mode
is changed while the console is running with the receiver connected, you may
experience errors.
• Connect the N64® receiver to the console.
• Power on the console and the LED on the receiver should start to blink slowly.
• Press and hold the pairing button on the receiver until it begins to blink rapidly.
• Press Start on the controller to power it on. If it does not connect automatically, you
may need to press Start again to force the connection.
• Only Controller Paks (aka Memory Paks) are compatible with the N64® receiver. Any
other accessories should not be attached.
USB® Receiver
• Connect the USB® receiver to the console.
• Power on the console and the LED on the receiver should start to blink slowly.
• Press and hold the pairing button on the receiver until it begins to blink rapidly.
• Press Start on the controller to power it on. If it does not connect automatically, you
may need to press Start again to force the connection.
• Some consoles will require the controller to be set to X-Input in order to function.
See Macros for more information.
Factory Reset
• Should you encounter issues with the controller, use a thin, hard item like an unbent
paper clip and insert it into the hole on the back of the controller. The controller
will begin to blink as if it turned on.
Power Issues
• On a full charge, you will get 15-20 hours of gameplay with rumble, up to 30 hours
without rumble. To charge the controller, connect the USB-C® cable into the
controller and the USB® end into a powered available port. When plugged into a
power source that is not a PC, the controller will fast charge and may fully recharge
within 2 hours.
• The N64® receiver is powered by the console. DO NOT connect a powered Micro
USB® cable into the receiver as this may damage your console or receiver.
• When connected to a power source, LED1 on the controller will blink and then
remain solid once fully charged.
Firmware Updates
• Visit www.retro-bit.com/support to view any available rmware updates.
• Do not install non-ofcial programs or updates. This may damage your product or
affect the performance negatively.
Features
• Retro-Bit 2.4 GHz Wireless N64® Receiver is compatible with original N64®
consoles.
• Retro-Bit 2.4 GHz Wireless USB® Receiver compatible with PC, Mac®, Steam®,
PS3®, Android®, and Nintendo Switch®.
• Retro-Bit Tribute64 2.4 GHz Wireless controller is equiped with a rechargeable 500
mAh Li-ion battery.
• USB-C® cable for charging and rmware updates
• Up to 30ft / 10m wireless gaming range.
• Sleep mode after 5 minutes of inactivity.
• Includes instruction manual, receivers, and charge cable.
Caractéristiques
• Le récepteur sans l N64
MD
Retro-Bit 2.4 GHz est compatible avec les consoles
N64
MD
d’origine.
• Récepteur USB
MD
sans l Retro-Bit 2.4 GHz compatible avec PC, Mac
MD
, Steam
MD
,
PS3
MD
, Android
MD
et Nintendo Switch
MD
.
• Le contrôleur sans l Retro-Bit Tribute64 2.4 GHz est équipé d’une pile Li-ion
rechargeable de 500 mAh.
• Un câble USB-C
MD
pour le chargement et les mises à jour de micrologiciel.
• Jusqu’à 10 mètres de portée de jeu sans l.
• Mode veille après 5 minutes d’inactivité.
• Comprend un manuel d’instructions, des récepteurs et un câble de charge.

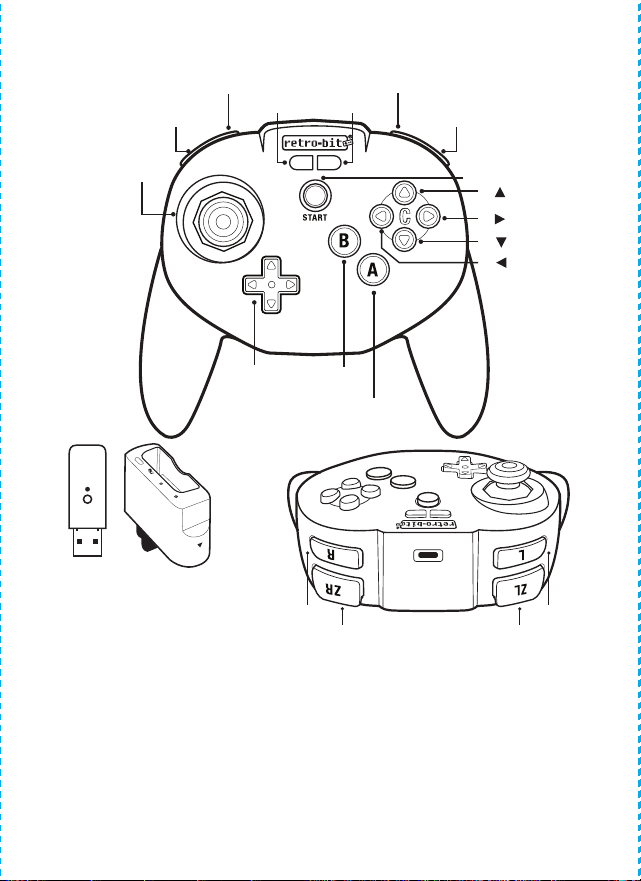

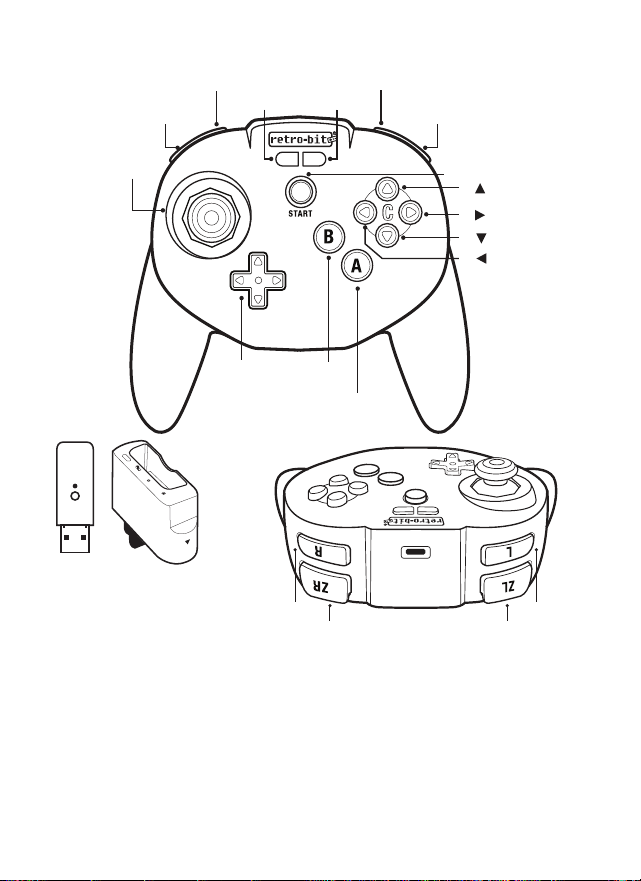

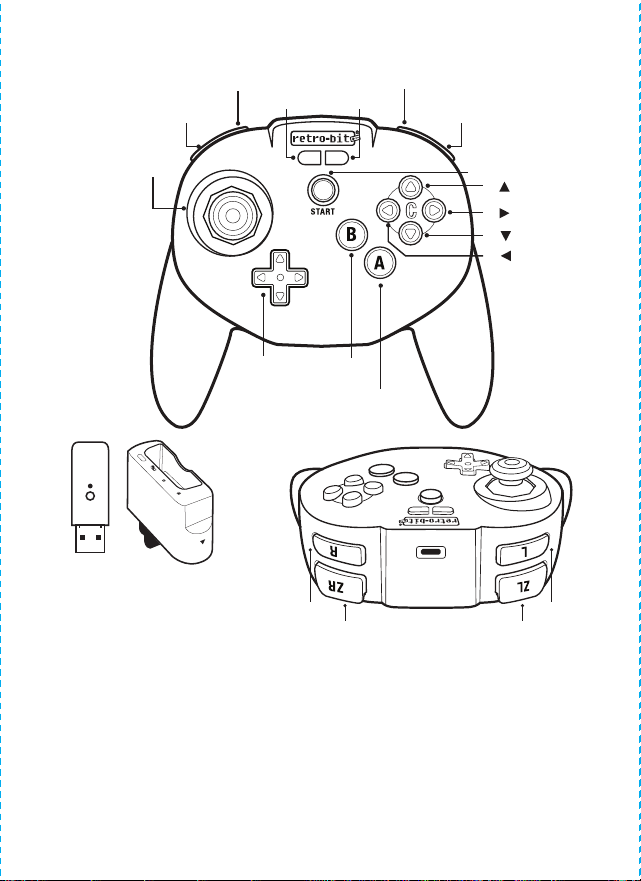

1) Layout Diagram 1) Schéma de la dispositionDefault Button Inputs
Macros
Pairing
Troubleshooting
English Français
English
