CMA Dishmachines
CMA Dishmachines CMA180VL User Manual
CMA180VL CMA Dishmachines
User Manual
For CMA180VL.
PDF File Manual
,
15 pages
,
Read Online
|
Download pdf file
1. Parts Manual

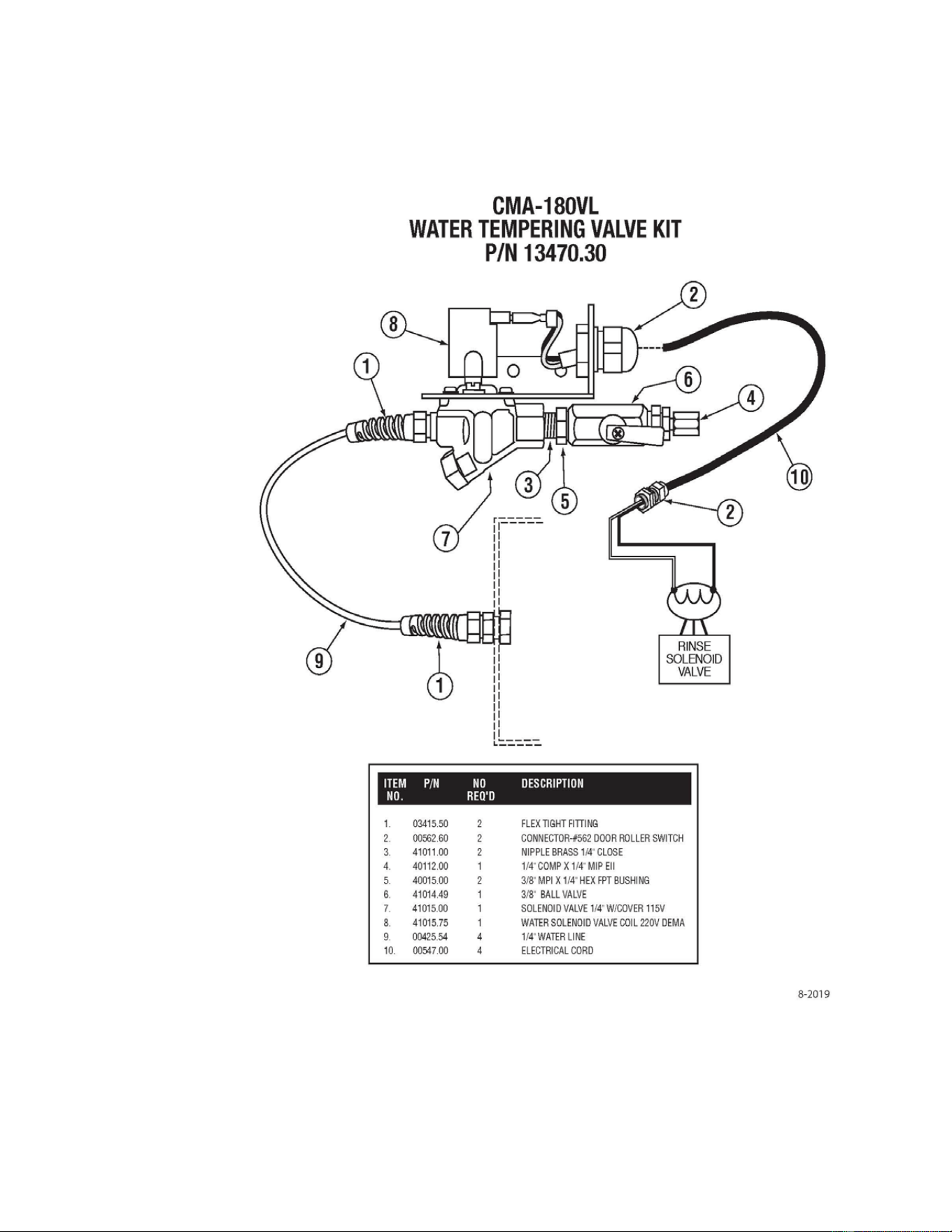

1.1. Exploded View Drawings
1.1.1 Straight Frame System Assembly

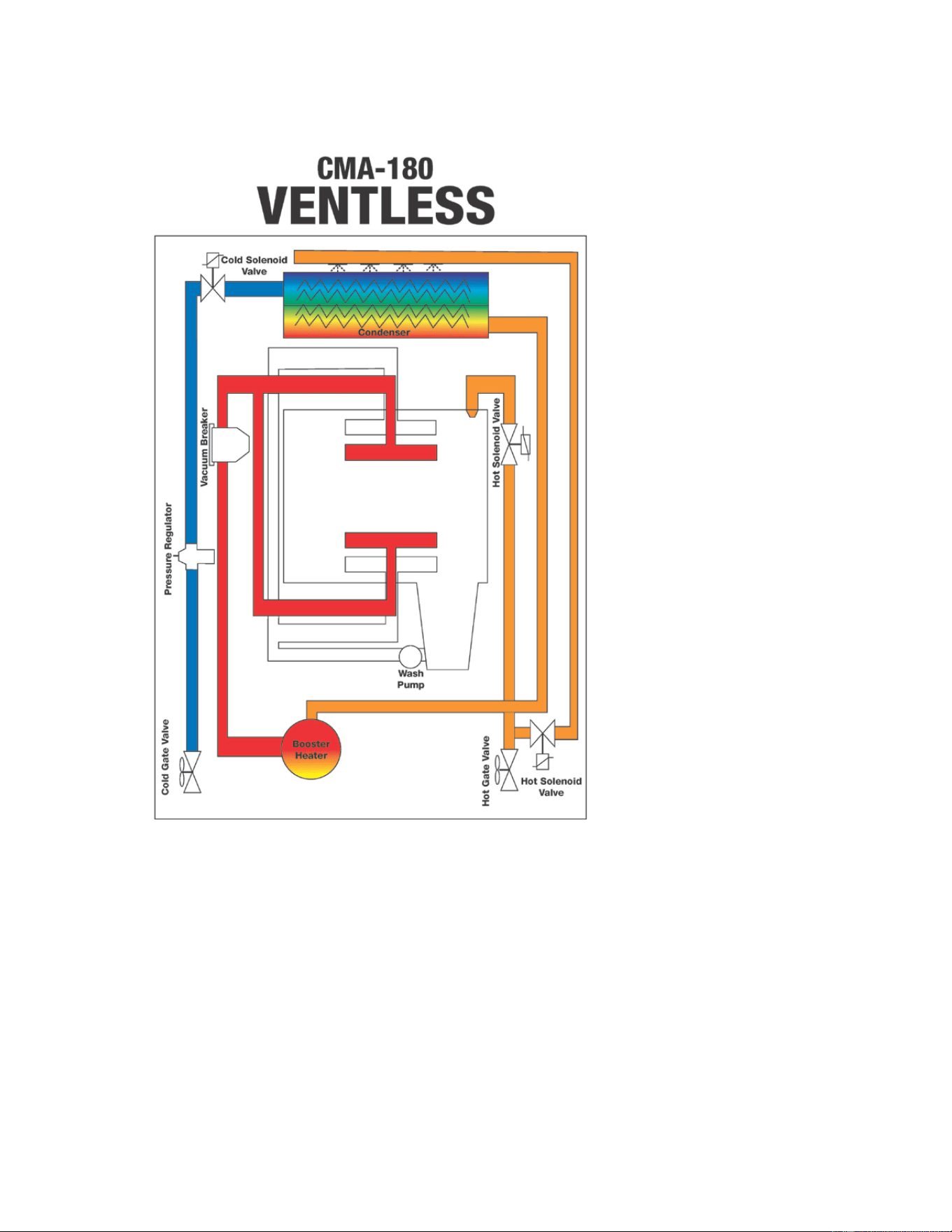

1.1.2 Heat Recovery System
1.1.3 Drain System Assembly
1.1.4 Plumbing System Assembly
1.1.5 Wash Spray System
1.1.6 Final Rinse System Assembly
1.1.7 Door Handle Assembly
1.1.8 Pump System Assembly

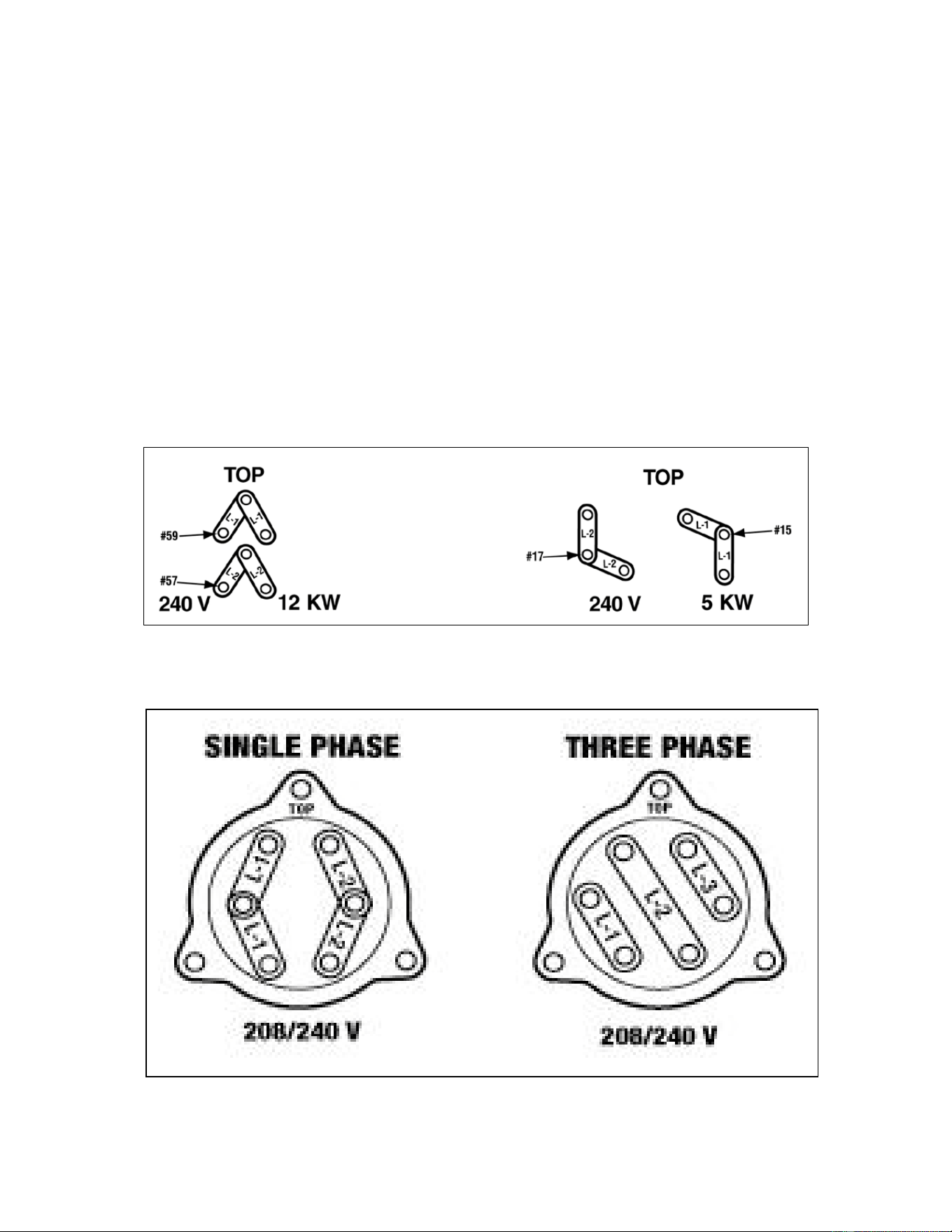

1.1.9 Wash Tank Heater (Triangular Flange)
1.1.10 Booster Tank Heater (Triangular Flange)

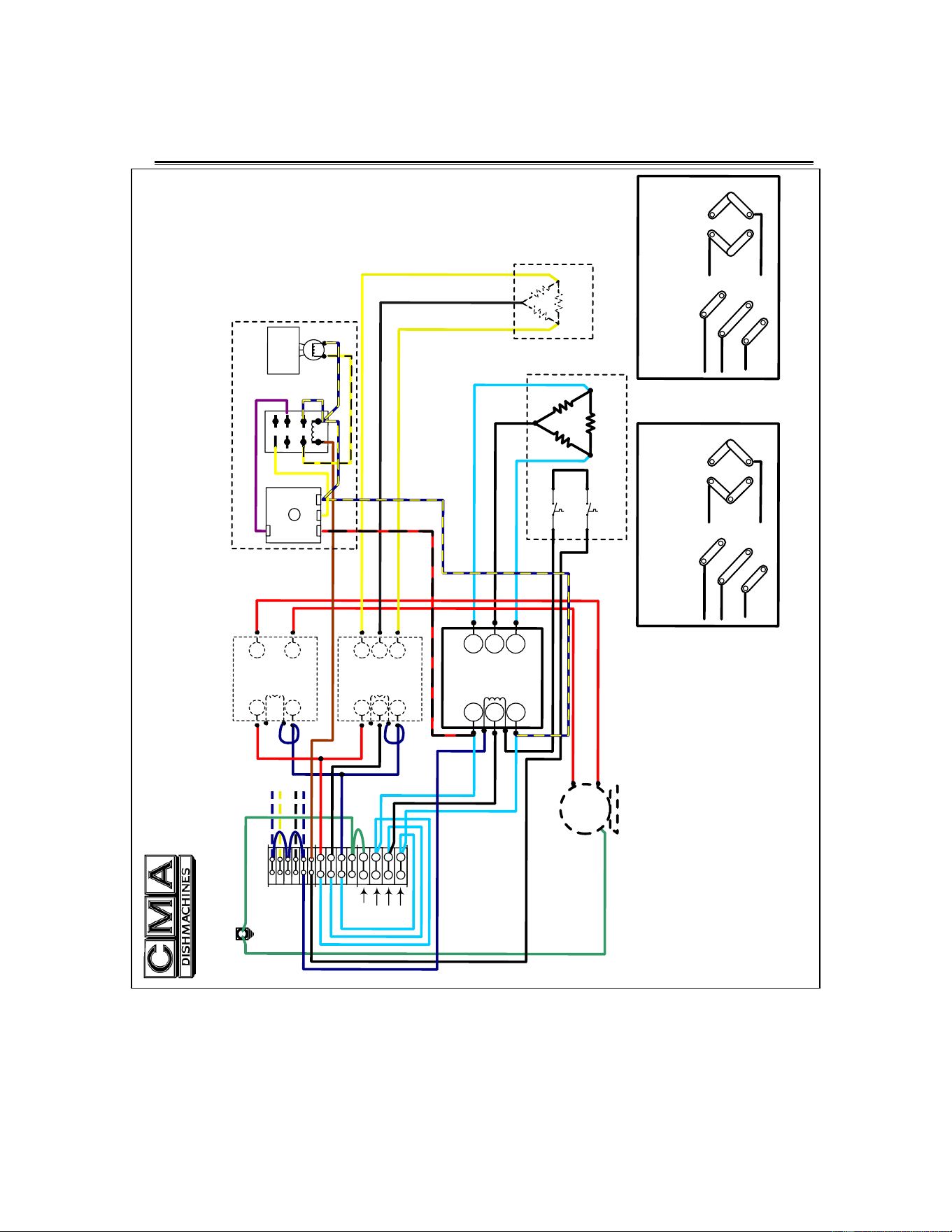

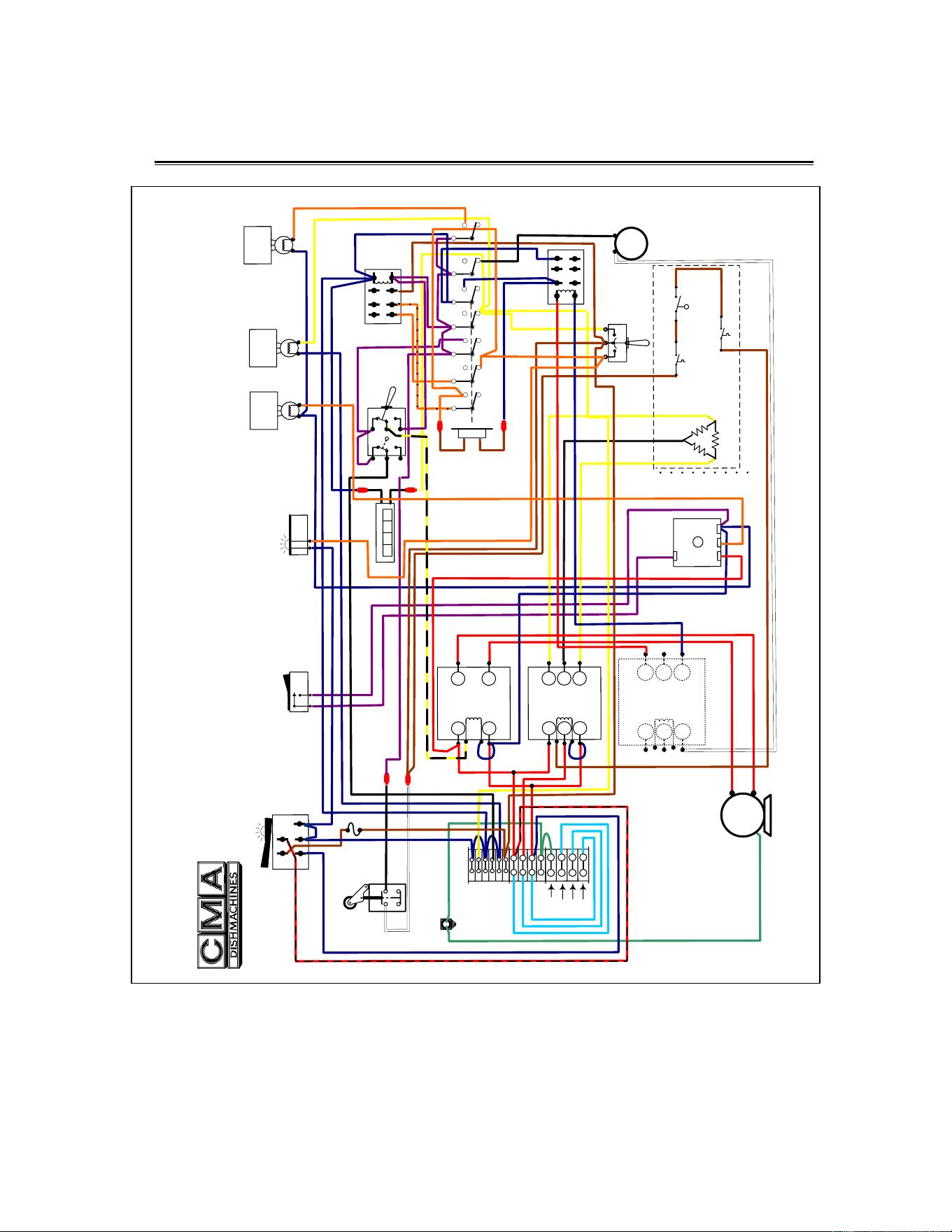

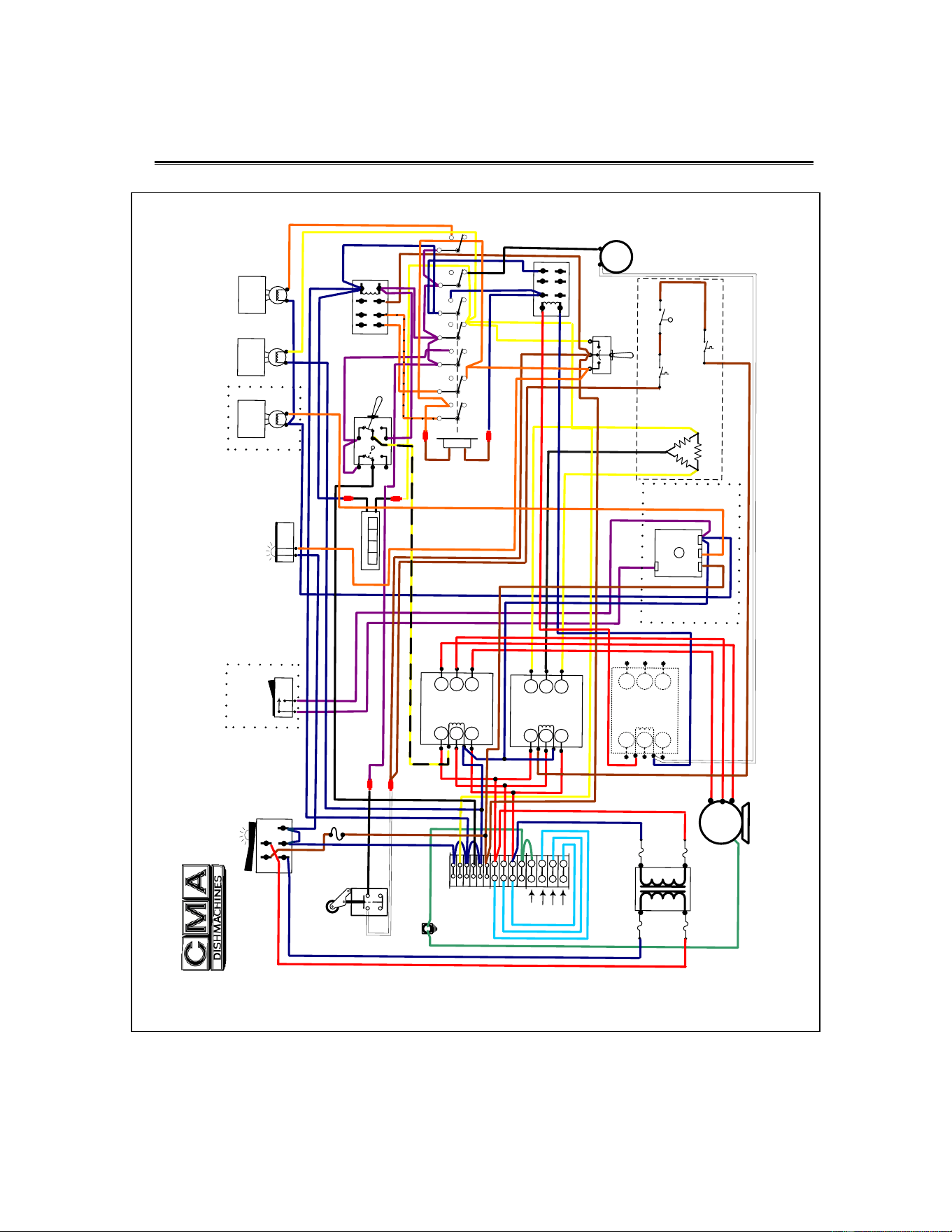

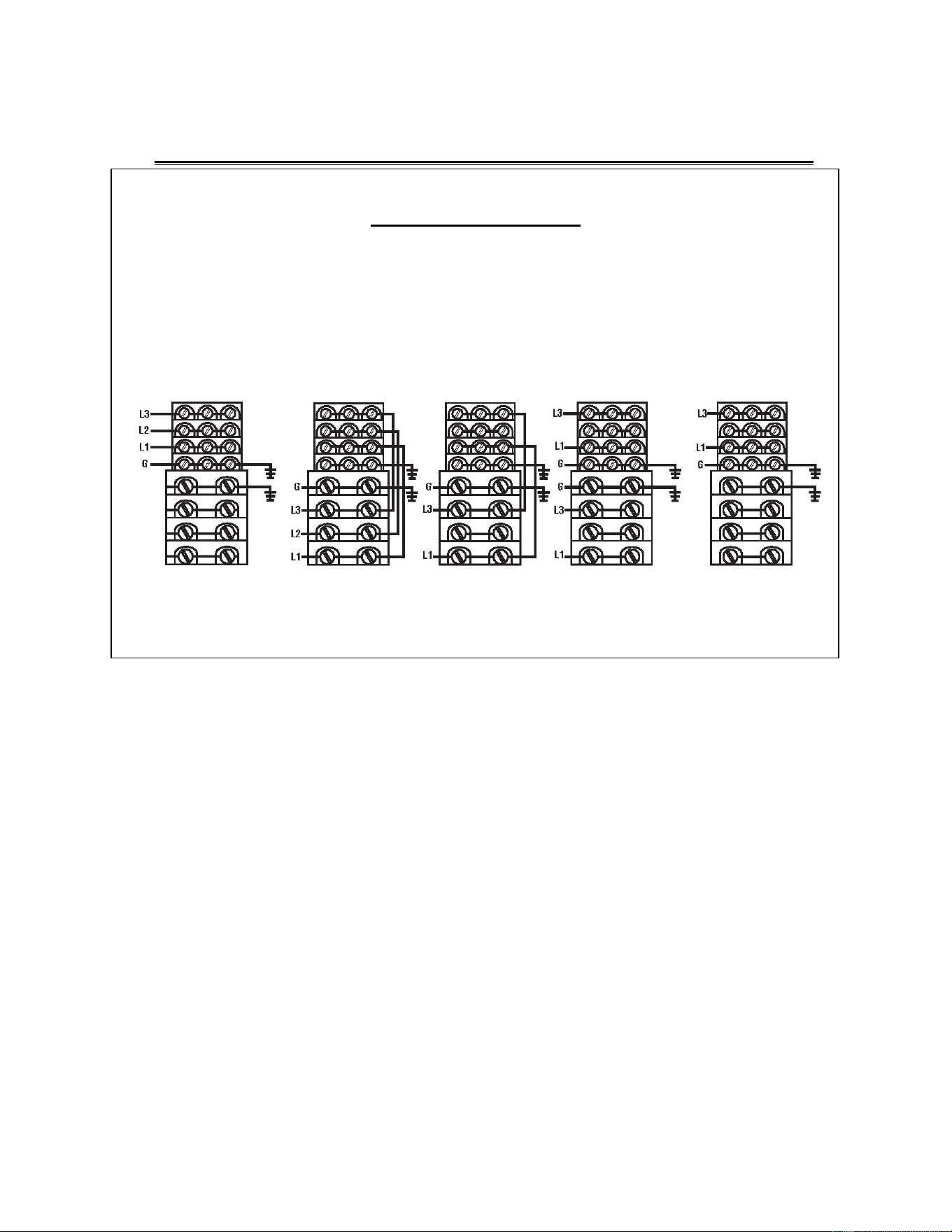

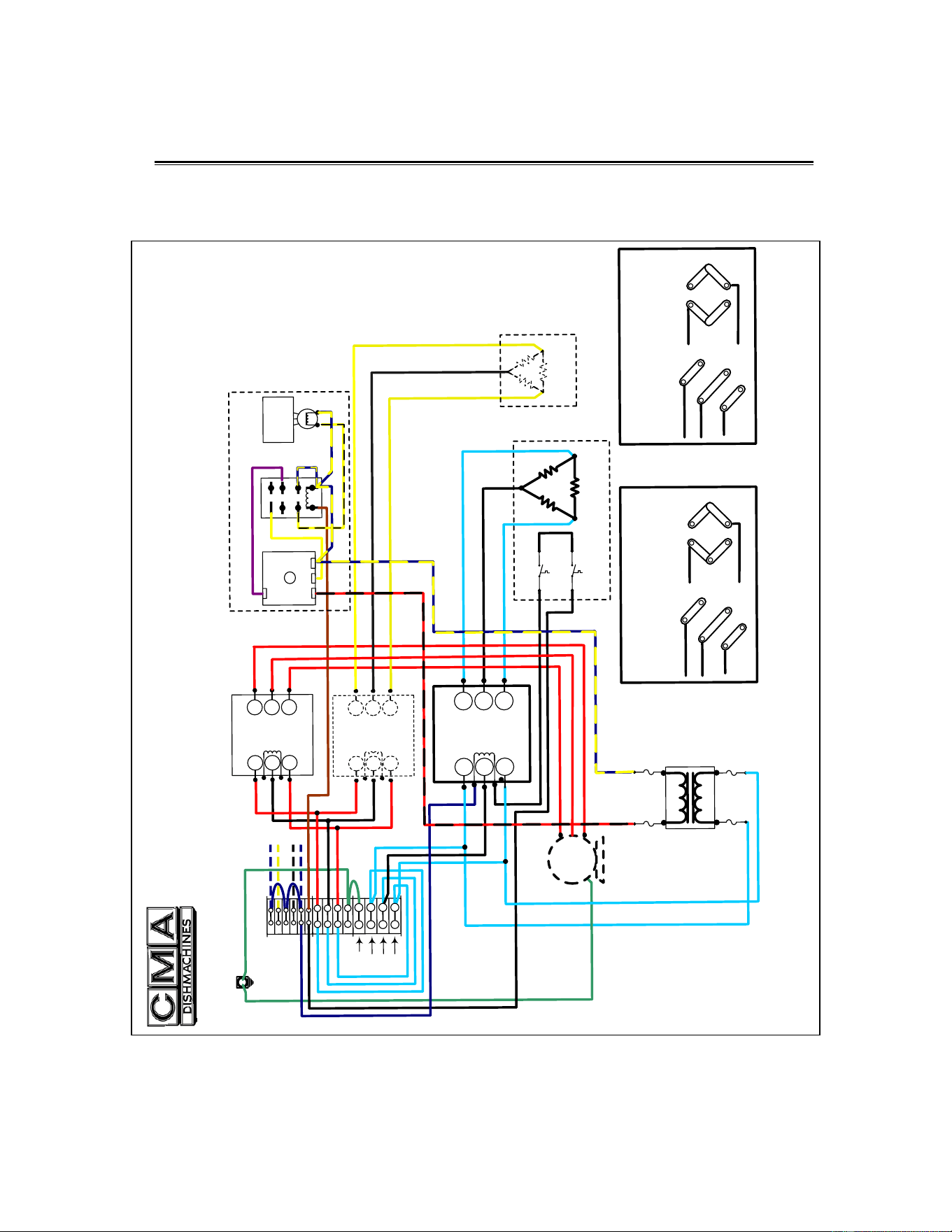

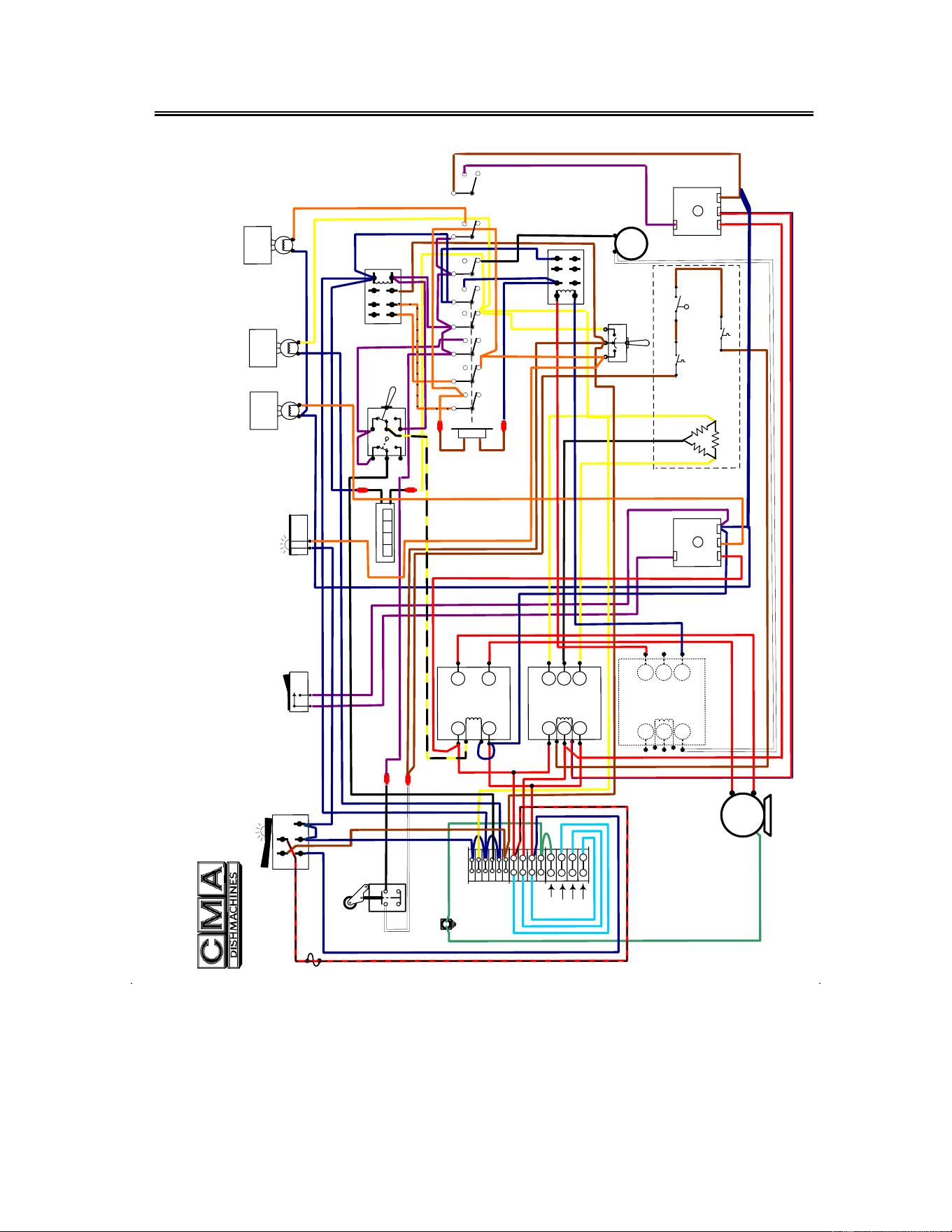

1.1.11 Control Box Assembly
1.1.12 Heat Recovery System Control Box

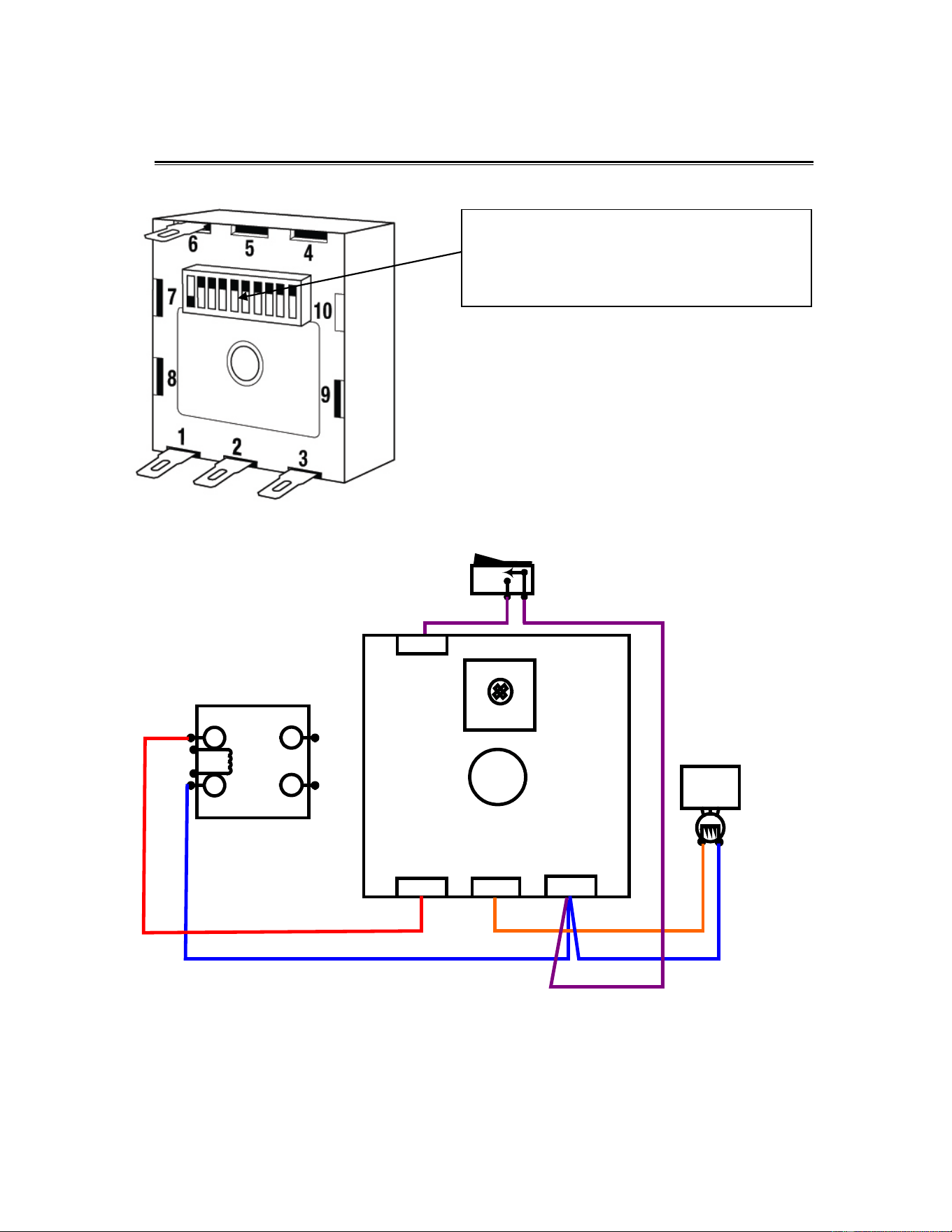

1.1.13 Door Safety Interlock (DSI) Assembly P/N 17711.80
