Sole R92-2013 exercise cycle User Manual

TALEOF T TS

Product Registration 1

Important Safety Instruction_ 2

Important Electrical Information 3

Important Operation Instructions 3

B94 Assembly Instructions 5

R92 Assembly Instructions 11

Fitness Bike Features 15

Operation of Your New Fitness Bike 16

Programmable Features 19

Using Heart Rate Monitor 24

General Maintenance 26

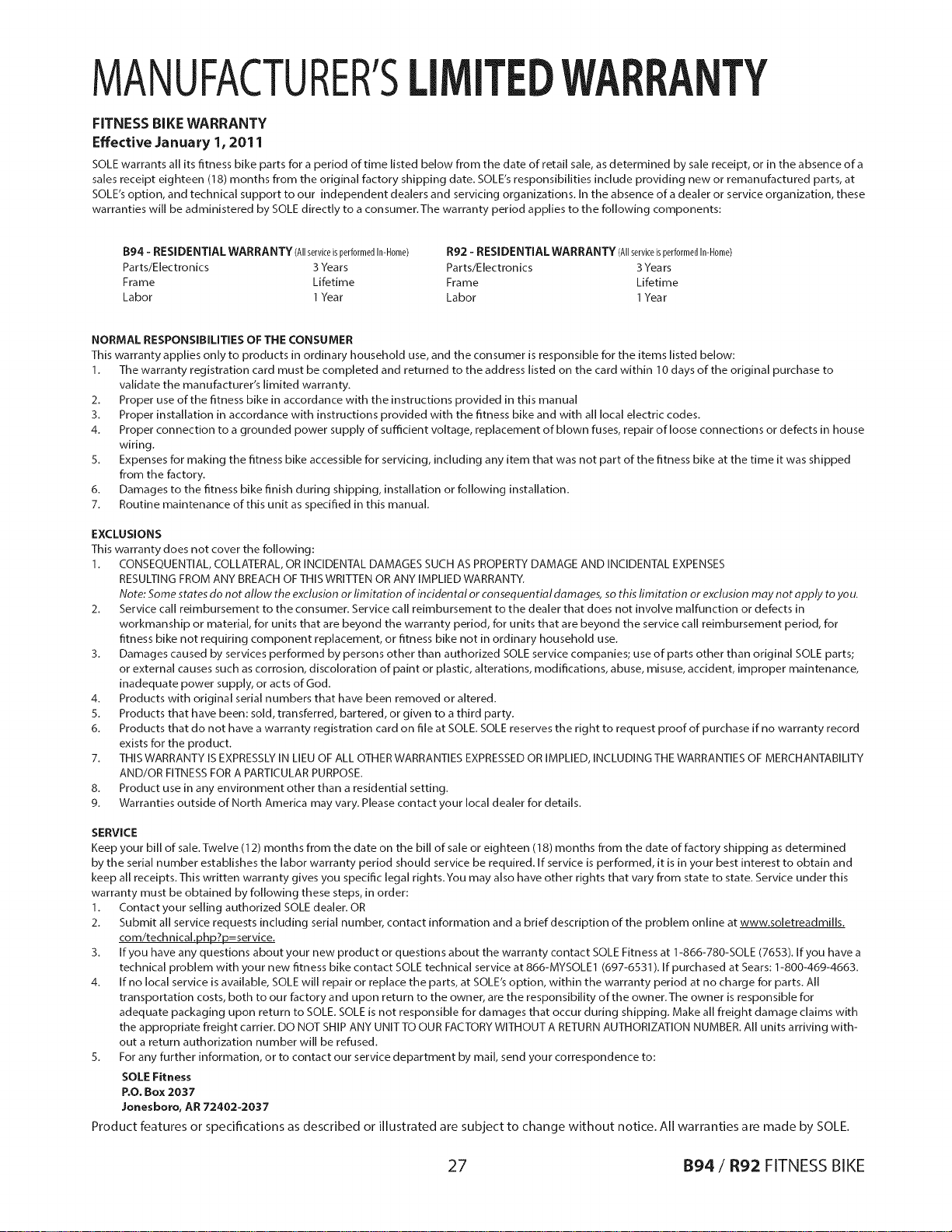

Manufacturer's Limited Warrant_ 27

ATTENTION

THIS FITNESSBIKEISINTENDED FORRESIDENTIAL USE ONLY AND ISWARRANTED FOR

THEAPPLICATION. ANY OTHERAPPLICATION VOIDS THIS WARRANTY IN ITSENTIRETY.

FITNESS

CONGRATULATIONS ON YOUR NEW FITNESS BIKE AND WELCOME TO THE SOLE FAMILW

Thank you for your purchase of this quality fitness bike from SOLE. Your new fitness bike has been

manufactured by one of the leading fitness manufacturers in the world and is backed by one of the

most comprehensive warranties available. SOLE will do all we can to make your ownership

experience as pleasant as possible for many years to come.

If you have any questions about your new product or questions about the warranty contact SOLE

Fitness at 1=866=780=SOLE (7653). If you have a technical problem with your new fitness bike

contact SOLE technical service at 866=MYSOLE1 (697=6531).

If you purchased this fitness product from Sears,they will be your contact for all service needs. Please see the

last page in this manual for detailed information about Sears service.To contact Sears for any service issues

call 1-800-4-MY-HOME(1-800-469-4663).

Please take a moment at this time to record below the name of the dealer, their telephone number,

and the date of purchase for easy contact in the future. We appreciate your confidence in SOLE and

we will always remember that you are the reason that we are in business. Please complete and mail

your registration card today and enjoy your new fitness bike.

Yours in Health,

SOLE Fitness

Name of Dealer

Telephone Number of Dealer

Purchase Date

PRODUCT ST

RECORD YOUR SERIAL NUMBER

Please record the Serial Number of this fitness product

in the space provided below.

SerJaLNul_

The self-addressed product registration card must be completed in full and returned to SOLE.

You can also go to wwwosoletreadmiiisocom under the support tab to register online.

B94_R92_20120925

I B94 / R92 FITNESS BIKE

IMPORTANT TYI ST UCTI

WARNING - Read all instructions before using this appliance.

II Do not operate fitness bike on deeply padded, plush or shag carpet. Damage to both carpet

and fitness bike may result.

II Keep children away from the fitness bike.There are obvious pinch points and other caution

areas that can cause harm.

II Keep hands away from all moving parts.

II Never operate the fitness bike if it has a damaged cord or plug. If the fitness bike is not work-

ing properly, call your dealer.

II Keep the cord away from heated surfaces.

II Never drop or insert any object into any openings.

II Do not use outdoors.

II To disconnect, turn all controls to the off position, remove tether cord, then remove the plug

from the outlet.

II Do not attempt to use your fitness bike for any purpose other than for the purpose it is

intended.

II The hand pulse sensors are not medical devices.Various factors, including the user's move-

ment, may affect the accuracy of heart rate readings.The pulse sensors are intended only as

exercise aids in determining heart rate trends in general.

II Wear proper shoes. High heels, dress shoes, sandals or bare feet are not suitable for use on

your fitness bike. Quality athletic shoes are recommended to avoid leg fatigue or injury.

SAVE THESE INSTRUCTIONS - THINK SAFETY!

B94/R92 FITNESS BIKE 2

IMPORTANTELECTCALl T UCTI

WARMNG!

NEVER remove any cover without first disconnecting AC power.

If voltage varies by ten percent (10%) or more, the performance of your fitness bike may be

affected. Such conditions are not covered under your warranty. If you suspect the voltage is

low, contact your local power company or a licensed electrician for proper testing.

NEVER expose this fitness bike to rain or moisture.This product is NOT designed for use out-

doors, near a pool or spa, or in any other high humidity environment.The operating tempera-

ture specification is 40 to 120 degrees Fahrenheit, and humidity is 95% non-condensing

(no water drops forming on surfaces).

IMPORTANTOPERATIONINSTRUCTIONS

II NEVER operate this fitness bike without reading and completely understanding the results

of any operational change you request from the computer.

II NEVER use your fitness bike during an electrical storm. Surges may occur in your household

power supply that could damage fitness bike components. Unplug the fitness bike during

an electrical storm as a precaution.

II Do not use excessive pressure on console control keys.They are precision set to function

properly with little finger pressure. If you feel the buttons are not functioning properly with

normal pressure contact your SOLE dealer.

3 B94/R92 FITNESS BIKE

#50.3/8"x 2-1/4"

HexHeadBolt(2pcs)

PACKCHECKLIST

#58. M5 x 12mm

Phillips Head Screw (2 pcs)

#71.3/8"x 25mm x 2T

Flat Washer (2 pcs)

#51.5/16"x 5/8"

Hex Head Bolt (7 pcs)

#72.5/16"x 18mm x 1.5T

Flat Washer (6 pcs)

#99.5/16"x 19mm x 1.5T

Curved Washer (1 pc)

#72.5/16"x 18mm x 1.5T

Flat Washer (2 pcs)

#51.5/16" x 5/8"

Hex Head Bolt (2 pcs)

#103.5/16"x 1.5T

Split Washer (2 pcs)

#58. M5 x 12mm

Phillips Head Screw (6 pcs)

894/R92 FITNESS BIKE 4

#92.13/I 5mmWrench

#9:3.PhillipsHeadScrewdriver

#100.12/14mmWrench

ASSEMLYINSTRUCTIONS

PRE-ASSEMBLY

1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along

the dotted Line. Lift Box over the unit and unpack.

2. Carefully remove all parts from carton and inspect for any damage or missing

parts. If damaged parts are found, or parts are missing, contact your dealer

immediately.

3. Locate the hardware package. Remove the tools first. Remove the hardware

for each step as needed to avoid confusion. The numbers in the instructions

that are in parenthesis (#) are the item number from the assembly drawing

for reference.

5 B94/R92 FITNESS BIKE

Attach the Rear Stabilizer Cover (41) to the Rear Stabilizer (5) with two

Phillips Head Screws (58). Tighten with the Phillips Head Screw Driver (93).

Attach the Rear Stabilizer (5) to the Main Frame (1) by sliding two Flat

Washers (71) onto two Hex Head Bolts (.50); insert the bolts through the Rear

Stabilizer Attachment Plate (131), then into the rear stabilizer.Tighten using

the 12/14 mm Wrench (100).

| i

#50.3/8"x 2-1/4"

Hex Head Bolt (2 pcs)

#58. M5 x 12ram Phillips

Head Screw (2 pcs)

#71.3/8"x 25ram x 2T

FlatWasher (2 pcs)

CONSOLEMAST

#51.5/16"x 5/8"

Hex Head Bolt (7 pcs)

#72.5/16"x 18ram x 1.ST

FlatWasher (6 pcs)

#99.5/16"x 19ram x 1.ST

Curved Washer (1 pc)

1. Unravel the Computer Cable (29) and pull the twist tie wire through the

Console Mast Cover (:38) (see illustration for the correct orientation of the

cover)and the Console Mast (:2)until the cable connector comes out the top

opening of the Console Mast.

2. Attach the Console Mast (:2)onto the Main Frame (1) with the seven Hex

Head bolts (51). Place six Flat Washers (72) on the side bolts and one Curved

Washer (99) on the front bolt. Tighten using the 12/14mm Wrench (100).

B94/R92 FITNESS BIKE 6

HANDLEBAR

#51.5/16"x 5/8"

Hex Head Bolt (2 pcs)

#72.5/16"x 18ram x 1.ST

FlatWasher (2 pcs)

#10:3.5/16"x 1.ST

Split Washer (2 pcs)

1. Remove the plastic tie from the center of the handlebar (:3).Insert the two

hand pulse cables (:26) through the opening of the handlebar mounting

bracket on the front side of the console mast tube (2). Pull the cables through

the opening of the console mounting bracket at the rear of the console mast

tube

2. Attach the Handle Bar (3) to the Front Console Mast (:2)with the two Hex

Head bolts (51), two Flat Washers (7:2) and two Split Washers (103).Tighten

using the 12/14mm Wrench (100). Be careful not to pinch the cables when

fastening.

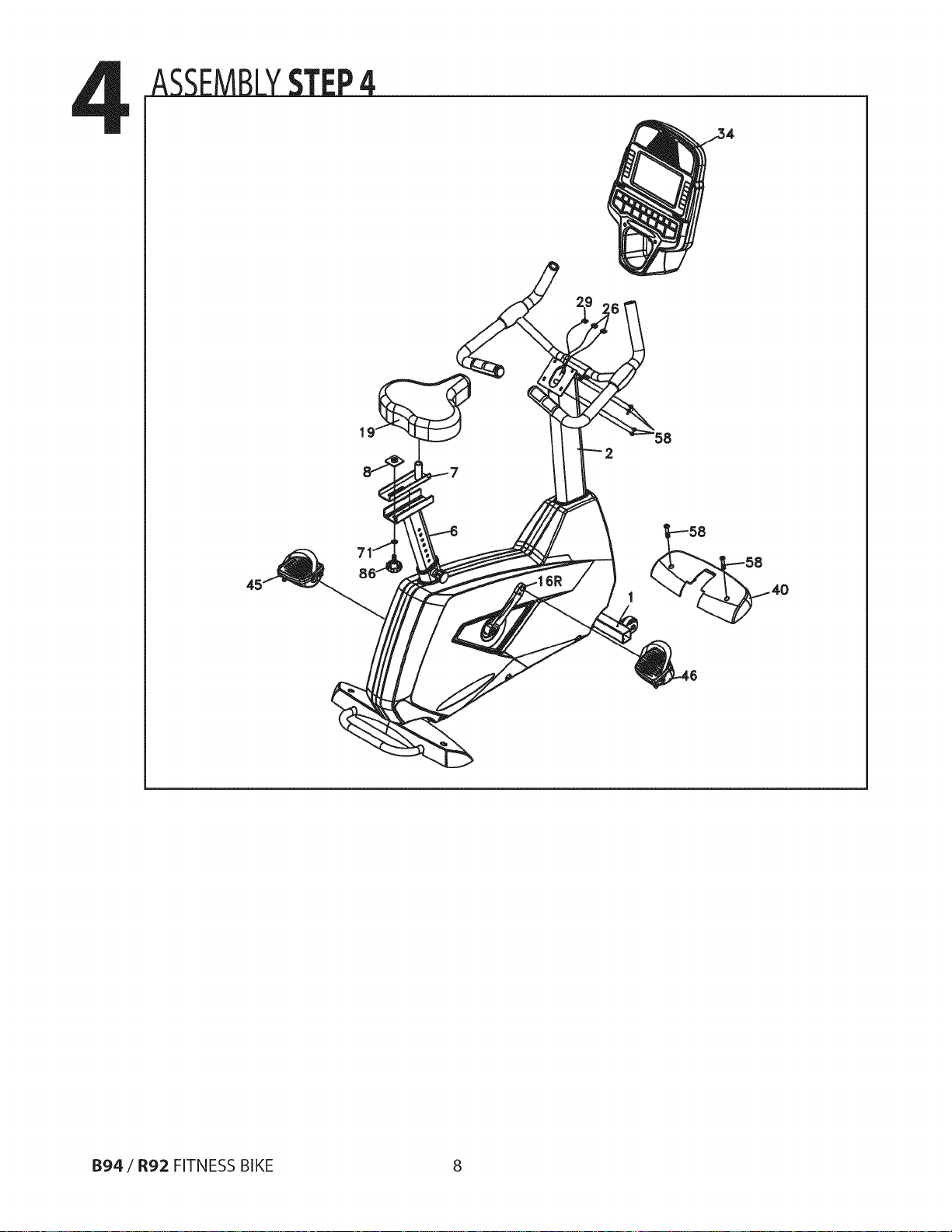

PLASTIC '

Seepage 8 for illustration

1. Insert the Computer Cable (29) and two Hand pulse cables (:26) into the

connectors in the back of the Console (34).

2. Attach the Console (34) onto the Console Mast (2) with four Phillips Head

Screws (58). Be careful not to pinch the cables when fastening.

3. Attach the Front Stabilizer Cover (40) to the Main Frame (1) with two Phillips

Head Screws (S8).Tighten with the Phillips Head Screw Driver (93).

4. Install the Pedals (45 L,46 R)onto the Cranks by using the 13/15mm Wrench

(92). Remember that the left pedal has a reverse thread and will be screwed

into the crank in the opposite rotation from normal threads. There is an L

stamped into the end of the threaded post of the left pedal and an Ron the

end of the right post. Make sure to tighten the pedals as much asyou

possibly can. It may be necessary to re-tighten the pedals if you feel a

thumping while pedaling the bike. A clicking noise or thumping feeling is

usually caused by loose pedals.

5. Install the Seat mount slide (7) onto the track on top of the seat tube with the

seat post facing forward. Place the nut plate (8) onto the seat slide behind the

seat post. Place the fiat washer (71) onto the fore/aft adjustment knob (86)

and thread it into the nut plate from underneath the seat tube track. Attach

the seat (19) to the seat post using the 12/14mm Wrench (100).

/ •

#58. M5 x 12rnm Phillips

Head Screw(6 pcs)

7 B94/R92 FITNESS BIKE

B94/R92 FITNESS BIKE 8

PACKCHECKLIST

#65.3/8" x 2-1/4"

Hex Head Bolt (4 pcs)

#77.3/8"x 19mm x 1.ST

Flat Washer (6 pcs)

#84.3/8"x 25mm x 2T

Flat Washer (4 pcs)

#176.3/8"x 3/4"

Hex Head Bolt (6 pcs)

HARDWAEE. EE2

#71.3/8"x 1-3/4"

Hex Head Bolt (2 pcs)

#77.3/8"x 19mm x 1.5T

Flat Washer (4 pcs)

#89.3/8"x 7T

Nyloc Nut (4 pcs)

#175.3/8"x 2-3/4"

Hex Head Bolt (2 pcs)

9 B94/R92 FITNESS BIKE

H JlW L EP3

#68.5/16"x 5/8"

Hex Head Bolt (8 pcs)

#76.5/16"x 18mm x 1.ST

Flat Washer (6 pcs)

#82.5/16"x 1.ST

Split Washer (2 pcs)

#83.5/16"x 19mm x 1.ST

Curved Washer (2 pcs)

#98. M6x 15mm

Phillips Head Screw (4 pcs)

#99. M5 x 12mm

Phillips Head Screw (8 pcs)

#105.04 x 16mm

Sheet Metal Screw (4 pcs)

B94 / R92 FITNESS BIKE 10

#112.12/14mmWrench

#114.PhillipsHeadScrewdriver

#1:32.14/15mmWrench

ASSEMBLYINSTRUCTIONS

PRE-ASSEMBLY

1. Using a razor knife (Box Cutter) cut the outside, bottom, edge of box along

the dotted Line. Lift Box over the unit and unpack.

2. Carefully remove all parts from carton and inspect for any damage or missing

parts. If damaged parts are found, or parts are missing, contact your dealer

immediately.

3. Locate the hardware package. Remove the tools first. Remove the hardware

for each step as needed to avoid confusion. The numbers in the instructions

that are in parenthesis (#) are the item number from the assembly drawing

for reference.

11 B94/R92 FITNESS BIKE

REARSTABiLiZER&SEATBACK

1767777_

• i

#65.3/8"x 2-1/4"

Hex Head Bolt (4 pcs)

#77.3/8"x 19mm x 1.ST

FlatWasher (6 pcs)

#84.3/8"x 25ram x 2T

FlatWasher (4 pcs)

#176. 3/8"x 3/4"

Hex Head Bolt (6 pcs)

1. Attach the Rear Stabilizer (7) onto the Main Frame (1) with four Hex Head

Bolts (65) and four Flat Washers (84) using the 12/14mm Wrench (112).

2. Attach the Seat Back Bracket (5) onto the Seat Carriage (4) with six Hex Head

Bolts (176) and six Flat Washers (77) using the 12/14mm Wrench (112).

• i

#71.3/8"x 1-3/4"

Hex Head Bolt (2 pcs)

#77.3/8"x 19ram x 1.ST

FlatWasher (4 pcs)

#89.3/8"x 7T

Nyloc Nut (4 pcs)

#175.3/8"x 2-3/4"

Hex Head Bolt (2 pcs)

1. Install the Seat Handle Bar (6) onto the Seat Carriage (4) with two vertical Hex

Head Bolts (71), two horizontal Hex Head Bolts (175), four Flat Washers (77)

and four Nyloc Nuts (89) using the 12/14mm Wrench (112) and 14/15mm

Wrench (132).

2. Plug the two Hand pulse Cables (21) & (27) into the rear two ports (26)

located on the left side rear cover, just under the seat (see inset illustration).

B94 / R92 FITNESS BIKE 12

CONSOLEMAS

• i

#68.5/16"x 5/8"

Hex Head Bolt (8 pcs)

#76.5/16"x 18ram x 1.ST

FlatWasher (6 pcs)

#82.5/16"x 1.ST

Split Washer (2 pcs)

#83.5/16"x 19ram x 1.ST

Curved Washer (2 pcs)

1. Install the Console Mast Cover (31) onto the Console Mast (2). Make sure the

plastic cover is in the correct orientation

2. Feed the twist tie that is attached to the Computer Cable (44) and Hand pulse

Cable (45) through the bottom of the Console Mast Tube (2) and out through

the opening at the top.

3. Install the Console MastTube (2) into the receiving tube (pull gently upwards

on the cable ends to prevent pinching the cables because damage to the

electronics could occur) of the Main Frame (1) with six Hex Head Bolts (68),

four Flat Washers (76) on the sides of the tube and two Curved Washers (83)

on the front of the tube by using the 12/14mm Wrench (11:2).

4. Remove the white Styrofoam pad (factory installed to prevent bolts from

being accidentally dropped into the Bike).

5. Remove the plastic tie from the center of the handlebar (:3).Install the Mast

Handle bar Assembly (3) onto the Console Mast (:2)with two Hex Head Bolts

(68), two Flat Washers (76) and two Split Washers (82) using the 12/14mm

Wrench (112).

13 B94/R92 FITNESS BIKE

SEAT/PEDAL&PLASTICPARTS

#98. M6 x 15ram Phillips

Head Screw(4 pcs)

#99. M5 x 12mm Phillips

Head Screw(8 pcs)

#105. D4 x 16ram Sheet

Metal Screw (4 pcs)

1. Install the Seat (61) on the Seat Carriage (4) with the four Phillips Head Screws

(98) using the Phillips Head Screw Driver (114).

2. Install the Front Stabilizer Cover (32) and the Rear Stabilizer Cover (37) on the

Main Frame (1) with four Phillips Head Screws (99) using the Phillips Head

Screw Driver(114).

3. Plug in the Computer Cable (44) and Hand pulse Cable (45) into the connector

in the back of the Console Assembly (19). Install the console onto the

mounting plate with four Phillips Head Screws (99) using the Phillips Head

Screw Driver (114). Be careful not to pinch the cables between the console and

the mounting plate. This could short the cables and damage the electronics.

4. Install the Drink Bottle Holders (39 L, 38 R)onto left and right sides of the

Seat Handle Bar (6) with four Sheet Metal Screws (105) using the Phillips Head

Screw Driver(114).

5. Install the Pedals (l16 L, 117 R)in the Pedal Cranks using the14/15mm

Wrench (132). Keep in mind that the Pedal (116 L) has a reverse thread and

will be screwed into the crank in the opposite rotational pattern right hand

threads. There is an "L" stamped into the end of the threaded post of the left

pedal and an "R" in the right. Make sure to tighten the pedals as firmly as you

possibly can. It may be necessary to re-tighten the pedals if you notice a

thumping sound when pedaling the bike. A clicking noise, or thumping sound

during pedaling is usually caused by the pedals being loose.

B94/R92 FITNESS BIKE 14

FITNESSBIKE

FOOT PEDALS

Through research performed with a leading sports scientist and physical rehabilitation expert,

Sole engineering has developed a breakthrough in pedal design.Typical stationary exercise

bikes are wider than a normal road bike.The reason is to allow for the braking mechanism,

pulleys, drive components and plastic covers. Since the bike is wider, so is the distance between

the pedals; this width between the pedals is called the Q factor.

Sole has designed our pedal system so the Q factor is the smallest in the industry, but we did

not stop there. We have also custom designed and tooled a new pedal that provides a two

degree inward tilt to compensate for the Q factor not being perfect. Having a small Q factor in

addition to the two-degree inward tilt of the pedals puts the user into a biomechanical neutral

alignment.This means that your feet, ankles, knees and hips are lined up properly ensuring a

comfortable workout.

SEAT ADJUSTMENT

You are able to adjust the seat position while seated. Pull up on the lever located in front of the

seat and slide the carriage forward or backwards.The correct position is when there is a slight

bend in your knee when the pedal is at its farthest position forward (3 o'clock position when

looking from the right side of the bike). Release the lever and you are ready to begin.

PEDAL STRAP ADJUSTMENT

Adjust each pedal strap so that they are snug around your feet. You have the option of adjusting

the hole location on one or both sides of the pedal.

15 B94/R92 FITNESS BIKE

OPERATIONOFYOU IT

GETTING FAMILIAR WITH THE CONTROL PANEL

CONSOLE

COOLINGFAN

_SPEAKER

PROGRAM

(Manual,Hill,FatBurn,

Cardio,Strength,Interval,

2User,2HR)

CONTROLKEYS.

AUDIOINJACI_

(MP3,CD,OR

SMARTPHONE)

DATADISPLAY

DOTMATRIX

(ProgramProfiles)

MESSAGEWlNDOW

(Laps,Speed,Level,Watts,

SegmentTime)

,FANPOWERSWITCH

COOLINGFAN

R92CONSOLE

PROGRAM

(Manual,Hill,FatBurn,

Cardio,Strength,Interval,

2User,2HR)

(MP3,CD,OR

SMARTPHONE)

DISPLAY

DOTMATRIXDISPLAY

(ProgramProfiles)

(Laps,Speed,Level,Watts,

SegmentTime)

POWERSWITCH

_HEADPHONE JACK

B94 / R92 FITNESS BIKE 16

POWER UP

When power is connected to the fitness bike the console will automatically power up. These models operate on

12V/1 .SA DC which is supplied by the power pack that is connected to 115 VAC. There is a power switch located

where the line cord plugs into the unit on the front of the bike.

When it isfirst powered on, the console will perform an internal self-test. During this time all the lights will turn on.

When the lights go off, the Message Window will show a software version (i.e.:VER 1.0) and the Distance window

will display an odometer reading. The odometer reading displays how many virtual miles the fitness bike has gone.

The Time window displays how many hours the fitness bike has been used.

The odometer and time will remain displayed for only a few seconds then the console will go to the start-up dis-

play. The dot matrix display will be scrolling through the different workout profiles and the Message Window will

scroll the start-up message. You may now begin to use the console.

!!ATTENTION

Your new fitness bike console may come configured in an in-store 'display mode' of operation, where the console

will remain powered on unless the main power switch isturned off. To exit the display mode, for normal operation,

press and hold the Stop, Enter and Display keys for five seconds; the display will show: Display Mode - ON. Use

the speed Up key to change the setting to OFF then press Enter.

CONSOLEOPERATION

QUICK START

This is the quickest way to start a workout. After the console

powers up you just press the Start key to begin, this will

initiate the Quick Start mode. In Quick Start the time will count

up from zero and the workload/resistance may be adjusted

manually by pressing the Level A/T buttons.The dot matrix

display will be showing a track with a blinking dot

indicating your progress as it travels around the track.

BASIC INFORMATION

The Message Window will initially display Laps completed. Each time the Display button is

pressed the next set of information will appear.The order of information displayed will be:

Speed (in mph), Level, Watts, Segment Time and Data Scan mode. In Data Scan mode, the

displayed information will change every 4 seconds in the Message Window.

The fitness bike has a built in heart rate monitoring system. Simply grasping the Contact Heart

Rate Sensors on the handle bars or wearing the chest strap transmitter will start the heart (see

Heart Rate Programs) Icon blinking (this may take a few seconds). The Pulse Window will

display your heart rate in beats per minute and the HR bar graph will show your current % in

relation to projected heart rate maximum.The chest strap is a more accurate and reliable

method of heart rate reading.The hand pulse sensors are subject to false readings depending

on user physiology and workout habits including how one grips the sensors or how sweaty

their hands are.

17 B94/R92 FITNESS BIKE

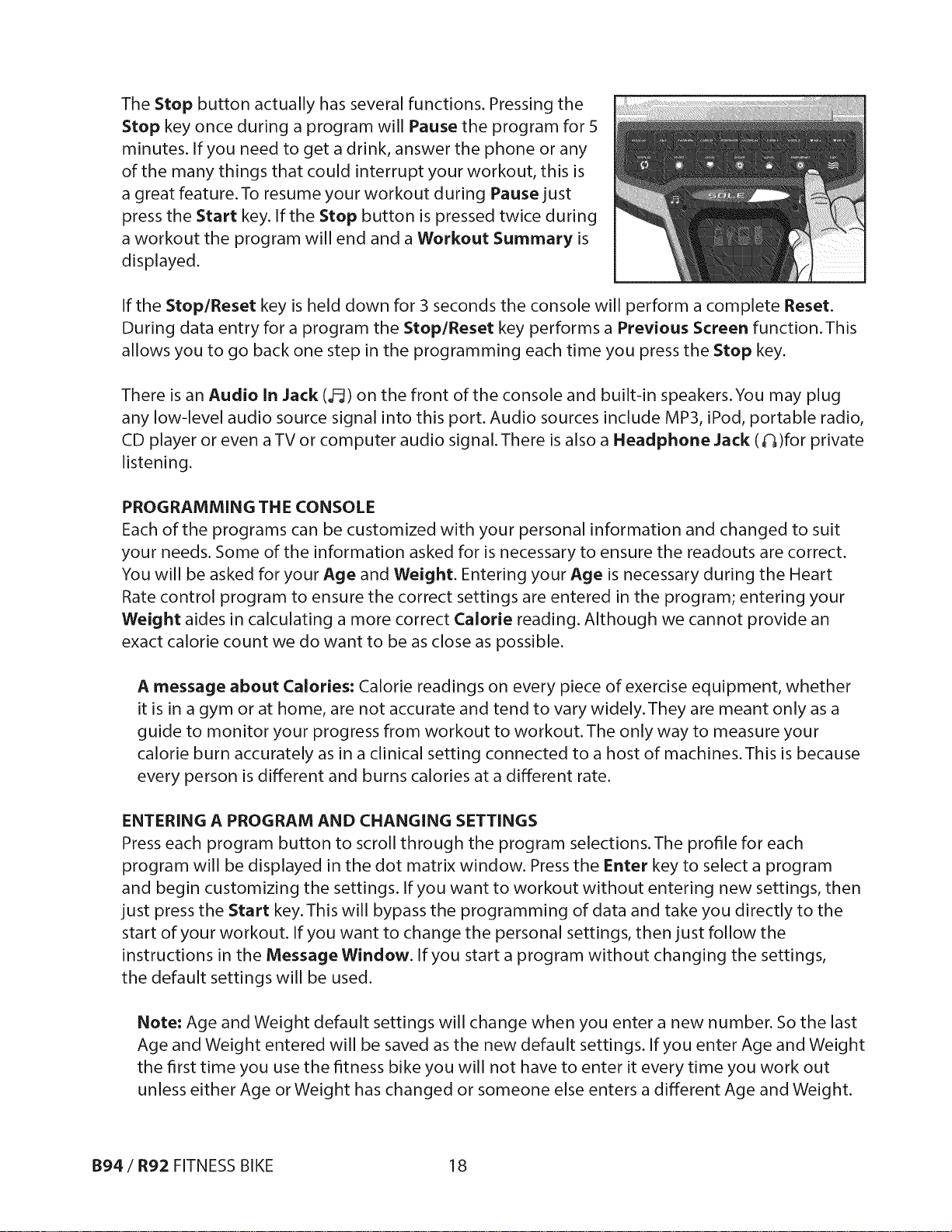

TheStop button actually has several functions. Pressing the

Stop key once during a program will Pause the program for 5

minutes. If you need to get a drink, answer the phone or any

of the many things that could interrupt your workout, this is

a great feature.To resume your workout during Pause just

press the Start key. If the Stop button is pressed twice during

a workout the program will end and a Workout Summary is

displayed.

If the Stop/Reset key is held down for 3 seconds the console will perform a complete Reset.

During data entry for a program the Stop/Reset key performs a Previous Screen function.This

allows you to go back one step in the programming each time you press the Stop key.

There is an Audio In Jack (_) on the front of the console and built-in speakers.You may plug

any low-level audio source signal into this port. Audio sources include MP3, iPod, portable radio,

CD player or even a TV or computer audio signal. There is also a Headphone Jack (G)for private

listening.

PROGRAMMING THE CONSOLE

Each of the programs can be customized with your personal information and changed to suit

your needs. Some of the information asked for is necessary to ensure the readouts are correct.

You will be asked for your Age and Weight. Entering your Age is necessary during the Heart

Rate control program to ensure the correct settings are entered in the program; entering your

Weight aides in calculating a more correct Calorie reading. Although we cannot provide an

exact calorie count we do want to be as close as possible.

A message about Calories: Calorie readings on every piece of exercise equipment, whether

it is in a gym or at home, are not accurate and tend to vary widely.They are meant only as a

guide to monitor your progress from workout to workout.The only way to measure your

calorie burn accurately as in a clinical setting connected to a host of machines.This is because

every person is different and burns calories at a different rate.

ENTERING A PROGRAM AND CHANGING SETTINGS

Press each program button to scroll through the program selections.The profile for each

program will be displayed in the dot matrix window. Press the Enter key to select a program

and begin customizing the settings. If you want to workout without entering new settings, then

just press the Start key.This will bypass the programming of data and take you directly to the

start of your workout. If you want to change the personal settings, then just follow the

instructions in the Message Window. If you start a program without changing the settings,

the default settings will be used.

Note: Age and Weight default settings will change when you enter a new number. So the last

Age and Weight entered will be saved as the new default settings. If you enter Age and Weight

the first time you use the fitness bike you will not have to enter it every time you work out

unless either Age or Weight has changed or someone else enters a different Age and Weight.

B94 / R92 FITNESS BIKE 18

PROGRAMMALE

MANUAL PROGRAM

The Manual program works as the name implies, manually.This means that you control the

workload yourself and not the computer.

1. Press the Manual program button then press the Enter key.

2. The Message Window will ask you to enter your Age. You may adjust the age

setting using the Level A/T keys, then press the Enter key to accept the new number

and proceed on to the next screen.

3. You are now asked to enter your Weight. You may adjust your weight setting using the

Level A/,,, keys, then press Enter to continue.

4. Next is the Time.You may adjust the length of Time by pressing the Level A/T keys,

then press Enter to continue.

5. Now you are finished editing the settings and can begin your workout by pressing the

Start key. You can also go back and modify your settings by pressing the Stop key to go

back one level of the programming screen.

6. Once the program starts the fitness bike will be set to level one.This is the easiest level

and it is a good idea to stay at level one for a while to warm up. If you want to increase the

work load at any time press the Level _ key; the Level T key will decrease the workload.

7. During the Manual program you will be able to scroll through the data in the Message

Window by pressing the Display key.

8. When the program ends the Message Window will show a summary of your workout.

The summary will be displayed for a short time then the console will return to the start-

up display.

19 B94 / R92 FITNESS BIKE

PRESET PROGRAMS

The fitness bike has Eve different programs that have been designed for a variety of workouts.

These Eve programs have factory preset work level profiles for achieving different goals.

Hill

The Hill program simulates going up and down a hill.The resistance in the pedals will

steadily increase and then decrease during the program.

B94/R92W0RK

Fat Burn

The Fat Burn program is designed, asthe name implies, to maximize the burning of fat.There are many schools

of thought on the best way to burn fat but most experts agree that a lower exertion level that stays at a steady

workload is the best. The absolute best way to burn fat is to keep your heart rate at around 60% to 70% of its

maximum potential. This program does not use heart rate but simulates a lower, steady exertion workout.

B94/R92WORK

Carclio

The Cardio program ts designed to increase your cardiovascular function and endurance.This is exercise for

your heart and lungs. It will build up your heart muscle and increase blood flow and lung capacity.This is

achieved by incorporating a higher level of exertion with slight fluctuations in work.

B94/R92WORK

Strength

The Strength program isdesigned to increase muscular strength in your lower body. This program will steadily

increase in resistance to a high level and forces you to sustain it. This isdesigned to strengthen and tone your

legs and glutes (muscles of the butt).

B94/R92WORK

Interval

The Interval program takes you through high levels of intensity followed by periods of low intensity. This

program increases your endurance by depleting your oxygen level followed by periods of recovery to replenish

oxygen. Your cardiovascular system gets programmed to use oxygen more efficiently this way. This program

also forces your body to become more efficient due to spikes in heart rate, between recovery periods. This aids

in heart rate recovery from intense activities.

B94/R92WORK

B94/R92 FITNESS BIKE 20

PROGRAMMING PRESET BUTTONS

Press the desired program button then press the Enter key.

The Message Window will ask you to enter your Age. You may adjust the age setting, us-

ing the Level A/-- keys, then press the Enter key to accept the new number and proceed

on to the next screen.

You are now asked to enter your Weight. You may adjust the weight number using the

Level A/-- keys then press Enter to continue.

Next is Time. You may adjust the Time and press Enter to continue.

Now you are asked to adjust the Max Level. This is the peak exertion level you will

experience during the program (the highest colored segment/box of the program profile).

Adjust the level and then press Enter.

Now you are finished editing the settings and can begin your workout by pressing the Start key. You can also go back

and modify your settings by pressing the Stop key to go back one level, or screen.

During the program you will be able to scroll through the data in the Message Window by pressing the Display key.

When the program ends the Message Window will show a summary of your workout. The summary will be displayed

for a short time then the console will return to the start-up display.

CUSTOM USER DEFINED PROGRAMS

The customizable User programs allow you to build and save your own workout. You can build

your own custom program by following the instructions below.

1. Select the User program (User 1 or User 2) then press Enter. If you have already saved a program to either User 1 or

User 2, it will be displayed and you are ready to begin. If not, you will have the option of inputing a username. In the

Message Window, the letter'A"will be blinking. Use the Level buttons to select the appropriate first letter of your

name (pressing the Up button will switch to the letter"B"; pressing the Down button will switch to letter"Z"). Press

Enter when the desired letter is displayed. Repeat this process until all of the characters of your name have been pro-

grammed (maximum 7 characters). When finished press Stop.

2. If there is a program already stored in User when you press the key, you will have an option to run the program as it is

or delete the program and build a new one. At the welcome message screen, when pressing Start or Enter you will be

prompted: Run Program? Use the Level _/-- to select Yes or No. If you select No, you will then be asked if you want to

delete the currently saved program. It is necessary to delete the current program if you want to build a new one.

3. The Message Window will ask you to enter your Age. You may enter your age using the Level _/-- keys, then press

the Enter key to accept the new number and proceed on to the next screen.

4. You are now asked to enter your Weight. You may adjust the weight number using the Level _/-- keys, then press

Enter to continue.

5. Next is Time. You may adjust the Time using the Level _/-- keys and press Enter to continue.

6. Now the first column will be blinking and you are asked to adjust the level for the first segment of the workout. When

you finish adjusting the first segment, or if you don't want to change, then press Enter to continue to the next segment.

The next segment will show the same level as the previously adjusted segment. Repeat the same process as the last

segment then press Enter. Continue this process until all twenty segments have been set.

7. The Message Window will then tell you to start to begin (and save the program) or Enter to modify the

program. Pressing Stop will exit to the start up screen.

8. If you want to increase or decrease the workload at any time during the program press the Level -/-- key. This will

only affect the Level for the present column in the profile. When the profile changes to the next column it will return to

the preset work level.

9. During the User 1 or User 2 program you will be able to scroll through the data in the Message Window by pressing

the Display key.

10. When the program ends the Message Window will show a summary of your workout. The summary will be displayed

for a short time then the console will return to the start-up display.

21 B94/R92 FITNESS BIKE

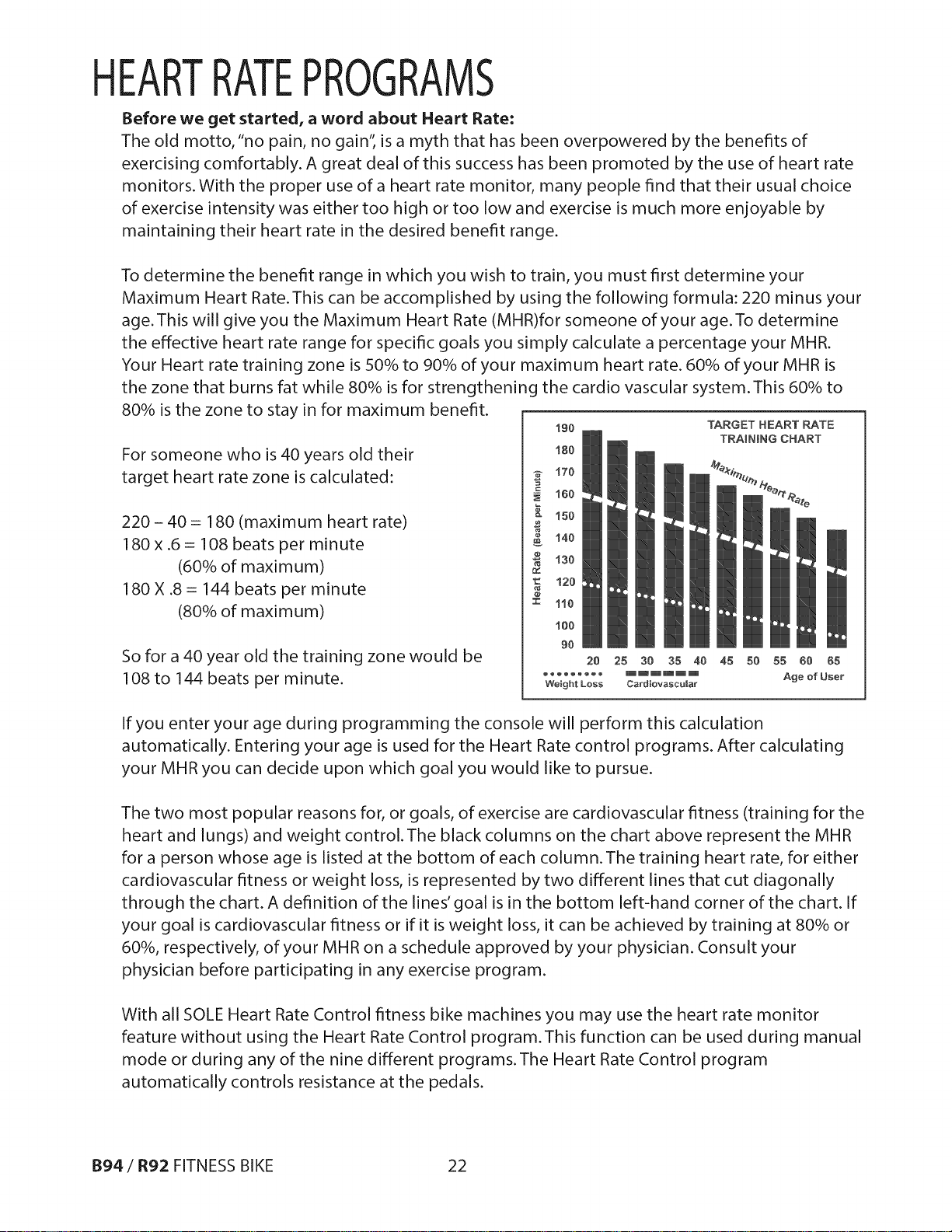

HEARTRATEPROGRAMS

Before we get started, a word about Heart Rate:

The old motto, "no pain, no gain", is a myth that has been overpowered by the benefits of

exercising comfortably. A great deal of this success has been promoted by the use of heart rate

monitors. With the proper use of a heart rate monitor, many people find that their usual choice

of exercise intensity was either too high or too low and exercise is much more enjoyable by

maintaining their heart rate in the desired benefit range.

To determine the benefit range in which you wish to train, you must first determine your

Maximum Heart Rate.This can be accomplished by using the following formula: 220 minus your

age.This will give you the Maximum Heart Rate (MHR)for someone of your age.To determine

the effective heart rate range for specific goals you simply calculate a percentage your MHR.

Your Heart rate training zone is 50% to 90% of your maximum heart rate. 60% of your MHR is

the zone that burns fat while 80% is for strengthening the cardio vascular system.This 60% to

80% is the zone to stay in for maximum benefit.

TARGET HEART _TE

TRAINING CHART

For someone who is 40 years old their

target heart rate zone is calculated:

220 - 40 = 180 (maximum heart rate)

180x.6= 108 beats per minute

(60% of maximum)

180 X.8= 144 beats per minute

(80% of maximum)

So for a 40 year old the training zone would be _0 45 so 55 80

108 to 144 beats per minute, wo,g,tLo,, Cardiovascular

2g 25 35 40 65

If you enter your age during programming the console will perform this calculation

automatically. Entering your age is used for the Heart Rate control programs. After calculating

your MHR you can decide upon which goal you would like to pursue.

The two most popular reasons for, or goals, of exercise are cardiovascular fitness (training for the

heart and lungs) and weight control.The black columns on the chart above represent the MHR

for a person whose age is listed at the bottom of each column.The training heart rate, for either

cardiovascular fitness or weight loss, is represented by two different lines that cut diagonally

through the chart. A definition of the lines'goal is in the bottom left-hand corner of the chart. If

your goal is cardiovascular fitness or if it is weight loss, it can be achieved by training at 80% or

60%, respectively, of your MHR on a schedule approved by your physician. Consult your

physician before participating in any exercise program.

With all SOLE Heart Rate Control fitness bike machines you may use the heart rate monitor

feature without using the Heart Rate Control program.This function can be used during manual

mode or during any of the nine different programs. The Heart Rate Control program

automatically controls resistance at the pedals.

B94/R92 FITNESS BIKE 22

RATE OF PERCEIVED EXERTION

Heart rate is important but listening to your body also has a lot of advantages.There are more

variables involved in how hard you should workout than just heart rate. Your stress level,

physical health, emotional health, temperature, humidity, the time of day, the last time you ate

and what you ate, all contribute to the intensity at which you should workout. If you listen to

your body, it will tell you all of these things.

The rate of perceived exertion (RPE), also know as the Borg scale, was developed by Swedish

physiologist G.A.V. Borg.This scale rates exercise intensity from 6 to 20 depending upon how

you feel or the perception of your effort.

The scale is as follows:

Rating Perception of Effort

6 Minimal

7 Very, very light

8 Very, very light +

9Very light

10 Very light +

11 Fairly light

12 Comfortable

13 Somewhat hard

14 Somewhat hard +

15 Hard

16 Hard +

17 Very hard

18 Very hard +

19 Very, very hard

20 Maximal

You can get an approximate heart rate level for each rating by simply adding a zero to each

rating. For example a rating of 12 will result in an approximate heart rate of 120 beats per

minute.Your RPE will vary depending up the factors discussed earlier.That is the major benefit

of this type of training. If your body is strong and rested, you will feel strong and your pace will

feel easier.When your body is in this condition, you are able to train harder and the RPE will

support this. If you are feeling tired and sluggish, it is because your body needs a break. In this

condition, your pace will feel harder. Again, this will show up in your RPEand you will train at

the proper level for that day.

23 B94/R92 FITNESS BIKE

USING T f T TT

How to wear your wireless chest strap transmitter:

Attach the transmitter to the elastic strap using the locking parts.

Adjust the strap as tightly as possible as long as the strap is not too

tight to remain comfortable.

Position the transmitter with the logo centered in the middle of your

body facing away from your chest (some people must

position the transmitter slightly left of center). Attach the final end

of the elastic strap by inserting the round end and, using the

locking parts, secure the transmitter and strap around your chest.

Position the transmitter immediately below the pectoral muscles.

Sweat is the best conductor to measure very minute heart beat electrical signals.

However, plain water can also be used to pre-wet the electrodes (2 ribbed oval areas on

the reverse side of the belt and both sides of the transmitter). It's also recommended that

you wear the transmitter strap a few minutes before your work out. Some users, because

of body chemistry, have a more difficult time in achieving a strong, steady signal at the

beginning. After "warming up", this problem lessens. As noted, wearing clothing over the

transmitter/strap doesn't affect performance.

Your workout must be within range - distance between transmitter/receiver - to achieve

a strong steady signal.The length of range may vary somewhat but generally stay close

enough to the console to maintain good, strong, reliable readings. Wearing the

transmitter immediately against bare skin assures you of proper operation. If you wish,

you may wear the transmitter over a shirt.To do so, moisten the areas of the shirt that the

electrodes will rest upon.

/Vote: The transmitter isautomatically activated when it detects activity from the user's heart. Additionally, it

automatically deactivates when it does not receive any activity. Although the transmitter is water resistant,

moisture can have the effect of creating false signals, so you should take precautions to completely dry the

transmitter after use to prolong battery life (estimated transmitter battery life is 2500 hours). The replacement

battery is Panasonic CR2032.

ERRATIC OPERATION

Caution! Do not use this fitness bike for Heart Rate Control unless a steady, solid Actual Heart

Rate value is being displayed. High, wild, random numbers being displayed indicate a problem.

Areas

to look for interference which may cause erratic heart rate:

1. Microwave ovens, TV's, small appliances, etc.

2. Fluorescent lights.

3. Some household security systems.

4. Perimeter fence fora pet.

5. Some people have problems with the transmitter picking up a signal from their skin. If you have problems

try wearing the transmitter upside down. Normally the transmitter will be oriented so the logo is right side

up.

6. The antenna that picks up your heart rate is very sensitive. If there is an outside noise source, turning the

whole machine 90 degrees may de-tune the interference.

7. Another Individual wearing a transmitter within 3'of your machine's console.

If you continue to experience problems contact your dealer.

B94 / R92 FITNESS BIKE 24

HEART RATE CONTROL PROGRAM OPERATION

Both programs operate the same, the only difference isthat HR1 is set to 60% and HR2 is set to

80% of the maximum heart rate.They both are programmed the same way.

To start an HRC program follow the instructions below or just select the HR1 or HR2 program,

then the Enter button and follow the directions in the Message Window.

1. Press the HR1 or HR2 key then press the Enter key.

2. The Message Window will ask you to enter your Age. You may enter your Age, using the

A/T keys, then press the Enter key to accept the new number and proceed on to the

next screen.

3. You are now asked to enter your Weight. You may adjust the Weight number using the

/T keys, then press Enter to continue.

4. Next is Time.You may adjust the Time and press Enter to continue.

5. Now you are asked to adjust your Target Heart Rate.This is the heart rate level you will

strive to reach and maintain during the program. Adjust the level and then press Enter.

NOTE: The heart rate that appears is based on the % you accepted in Step 1.Ifyou change this number it will

either increase or decrease the % from Step 1.

6. Now you are finished editing the settings and can begin your workout by pressing the

Start key. You can also go back and modify your settings by pressing the Enter key.

NOTE: At any time during the editing of Data you can press the Stop key to go back one level, or screen.

7. If you want to increase or decrease the workload at any time during the program press

the A/T key.This will allow you to change your target heart rate at any time

during the program.

8. During the HR1 or HR2 programs you will be able to scroll through the data in the

Message Window by pressing the adjacent Display key.

9. When the program ends you may press Start to begin the same program again or Stop

to exit the program.

25 B94/R92 FITNESS BIKE

GENERAL I T

Wipe down all areas in the sweat path with a damp cloth after each workout.

If a squeak, thump, clicking or rough feeling develops the main cause is most likely one of

two reasons:

I. The hardware was not sufficiently tightened during assembly. All bolts that were

installed during assembly need to be tightened as much as possible. It may be

necessary to use a larger wrench than the one provided if you cannot tighten the bolts

sufficiently. Ninety percent of calls to the service department for noise issues can be

traced to loose hardware.

II. The crank arm nut needs to be retightened

III. If squeaks or other noises persist, check that the unit is properly leveled.There are 2

leveling pads on the bottom of the rear stabilizer, use a 14mm wrench (or adjustable

wrench) to adjust the levelers.

MAINTENANCE MENU IN CONSOLE SOFTWARE

The console has built in maintenance/diagnostic software.The software will allow you to

change the console settings from English to Metric and turn off the beeping of the speaker

when a key is pressed for example.To enter the Maintenance Menu (may be called

Engineering mode, depending on version) press and hold down the Start, Stop and Enter keys

Keep holding the keys down for about 5 seconds and the Message Window will display

"Engineering mode". Press the Enter button to access the menu below. Press the Level A/T

keys to navigate the menu.

A. Key Test

B. Display Test

C. Functions

I. ODO Reset - Resets the odometer reading to zero

II. Units- Choose from English(Imperial) or Metric display readings

III. Display Mode -Turn off to have the console power down automatically after 30 minutes of inactivity

IV. MotorTest - Continually runs the tensioning gear motor

V. Manual - Allows stepping of the gear motor

Vl. Pause Mode-Turn on to allow 5 minutes of pause, turn offto have console pause inde_nitely

VII. Key Tone -Turn on or off the beep sound when a key is pressed

D. Security

E. Factory Settings- For Factory use only

F. Exit

B94/R92 FITNESS BIKE 26

MANUFACTURER'SLI IT TY

FITNESSBIKEWARRANTY

Effective January 1,2011

SOLE warrants all its fitness bike parts for a period of time listed below from the date of retail sale, as determined by sale receipt, or in the absence of a

sales receipt eighteen (]8) months from the original factory shipping date. SOLE's responsibilities include providing new or remanufactured parts, at

SOLE's option, and technical support to our independent dealers and servicing organizations. In the absence of a dealer or service organization, these

warranties will be administered by SOLE directly to a consumer.The warranty period applies to the following components:

B94 - RESIDENTIAL WARRANTY (AllserviceisperformedIn-H0me) R92 - RESIDENTIAL WARRANTY (AllserviceisperformedIn-H0me)

Parts/Electronics 3 Years Parts/Electronics 3 Years

Frame Lifetime Frame Lifetime

Labor 1 Year Labor 1 Year

NORMAL RESPONSIBILITIES OF THE CONSUMER

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. The warranty registration card must be completed and returned to the address listed on the card within 10 days of the original purchase to

validate the manufacturer's limited warranty.

2. Proper use of the fitness bike in accordance with the instructions provided in this manual

3. Proper installation in accordance with instructions provided with the fitness bike and with all local electric codes.

4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house

wiring.

5. Expenses for making the fitness bike accessible for servicing, including any item that was not part of the fitness bike at the time it was shipped

from the factory.

6. Damages to the fitness bike finish during shipping, installation or following installation.

7. Routine maintenance of this unit as specified in this manual.

EXCLUSIONS

This warranty does not cover the following:

1. CONSEQUENTIAL, COLLATERAL, OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES

RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

2. Service call reimbursement to the consumer. Service call reimbursement to the dealer that does not involve malfunction or defects in

workmanship or material, for units that are beyond the warranty period, for units that are beyond the service call reimbursement period, for

fitness bike not requiring component replacement, or fitness bike not in ordinary household use.

3. Damages caused by services performed by persons other than authorized SOLE service companies; use of parts other than original SOLE parts;

or external causes such as corrosion, discoloration of paint or plastic, alterations, modifications, abuse, misuse, accident, improper maintenance,

inadequate power supply, or acts of God.

4. Products with original serial numbers that have been removed or altered.

5. Products that have been: sold, transferred, bartered, or given to a third party.

6. Products that do not have a warranty registration card on file at SOLE. SOLE reserves the right to request proof of purchase if no warranty record

exists for the product.

7. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY

AND/OR FITNESS FOR A PARTICULAR PURPOSE.

8. Product use in any environment other than a residential setting.

9. Warranties outside of North America may vary. Please contact your local dealer for details.

SERVICE

Keep your bill of sale. Twelve (12) months from the date on the bill of sale or eighteen (18) months from the date of factory shipping as determined

by the serial number establishes the labor warranty period should service be required. If service is performed, it is in your best interest to obtain and

keep all receipts.This written warranty gives you specific legal rights.You may also have other rights that vary from state to state. Service under this

warranty must be obtained by following these steps, in order:

1. Contact your selling authorized SOLE dealer. OR

2. Submit all service requests including serial number, contact information and a brief description of the problem online at www.soletreadmills.

co m/tech nical.j_l!_o? = set vice.

3. If you have any questions about your new product or questions about the warranty contact SOLE Fitness at 1-866-780-SOLE (7653). If you have a

technical problem with your new fitness bike contact SOLE technical service at 866-MYSOLE] (697-6531). If purchased at Sears: 1-800-469-4663.

4. If no local service is available, SOLE will repair or replace the parts, at SOLE's option, within the warranty period at no charge for parts. All

transportation costs, both to our factory and upon return to the owner, are the responsibility of the owner.The owner is responsible for

adequate packaging upon return to SOLE. SOLE is not responsible for damages that occur during shipping. Make all freight damage claims with

the appropriate freight carrier. DO NOT SHIP ANY UNIT TO OUR FACTORY WITHOUT A RETURN AUTHORIZATION NUMBER. All units arriving with-

out a return authorization number will be refused.

5. For any further information, or to contact our service department by mail, send your correspondence to:

SOLE Fitness

P.O. Box 2037

]onesboro, AR 72402-2037

Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by SOLE.

27 B94/R92 FITNESS BIKE

iiiiiiiiiiiiiiiii

iiiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiii_

iiiiiiiiiiiiiiiii

iiiiiiiiiiiiiii_,

iiiiiiiiiiiiiiiiii

Your Home

® Registered Trademark / TMTrademark / SMService Mark of Sears Brands, LLC

® Marca Registrada / Marca de F&brica / SMMarca de Servicio de Sears Brands, LLC

1 YEAR FULL WARRANTY

If this Sears/Sole exercise equipment fails due to a defect in material or workmanship within 1 year

of the date of purchase, call 1-800-4-MY-HOME _(1-800-469-4663) to arrange for free or repair

(or replacement if repair proves impossible).

Please see full Sole warranty page in the owner's manual for complete warranty details.

This warranty does not apply when the Exercise product is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to

state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

B94/R92 FITNESS BIKE 28

Sole R92-2013 exercise cycle

Product's Documents

Owner'S Manual

Specifications

Sole R92-2013 Questions and Answers
