BRT5350 / BRT6530
OWNER’S MANUAL
This product is intended for indoor, home use only and is not to be used in a commercial setting.
U.S. Patent US9474925B1
BRT5350 / BRT6530 Page
1
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE.
DO NOT DISCARD.
WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS
ARE NOT FOLLOWED.

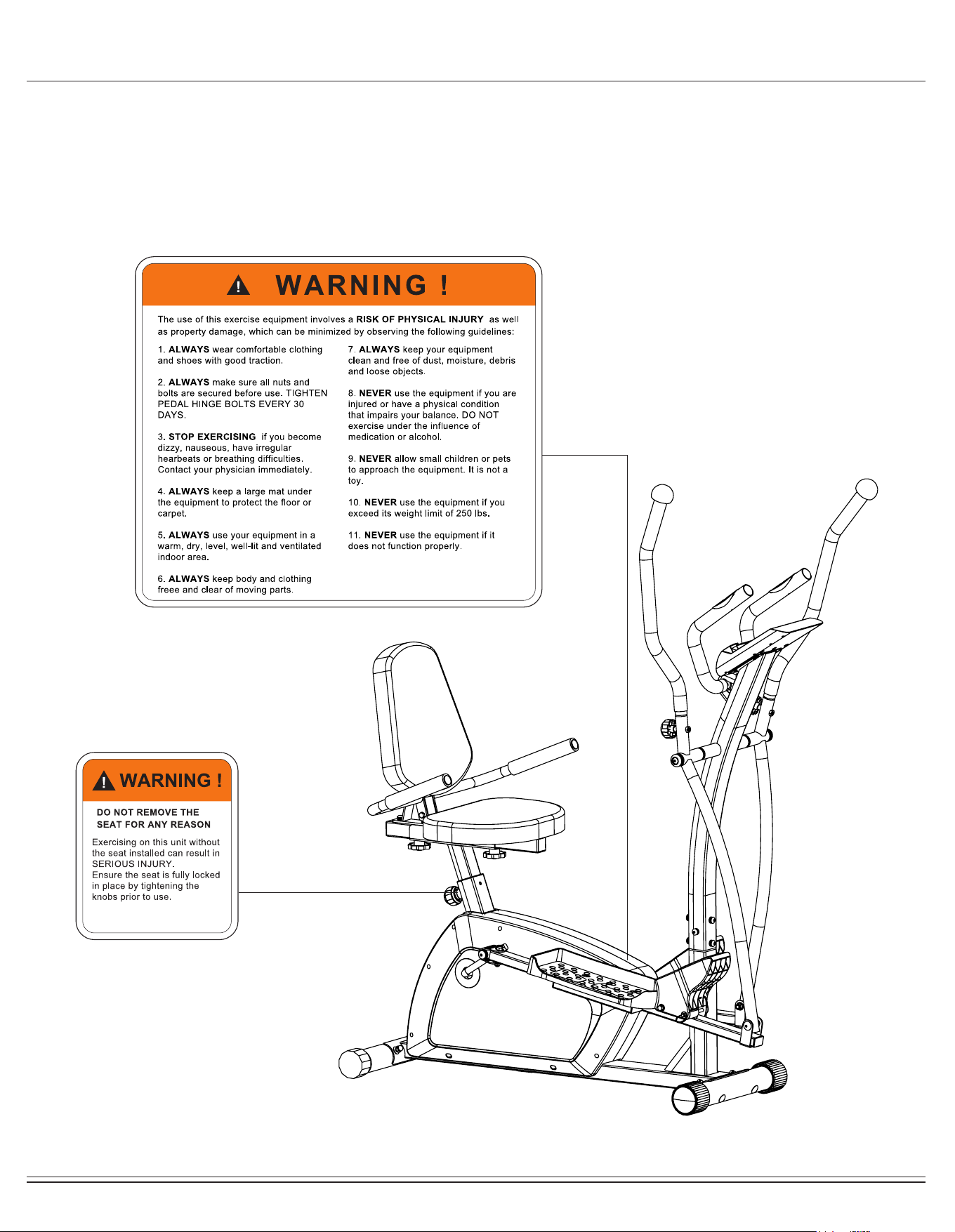

The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
Please ensure any user of the unit familiarizes themselves with this Safety and Warning guidelines before use.
Page
2
Before you undertake any exercise program, please be sure to
consult with your doctor.
Frequent strenuous exercise should be approved by your
doctor and proper use of your product is essential.
Excessive or incorrect training may result in health injuries.
Please read this manual carefully before commencing the
assembly of your product or starting to exercise.
• Please keep all children away from this item when in use.
Do not allow children to climb or play on this item when it
is not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there are at least
3 feet of free space in all directions around your product
while you are exercising.
•
securely tightened. Periodically check all moving parts for
obvious signs of wear or damage.
• Any adjustment devices that could interfere with the user’s
movement of this unit should not be left projecting.
• Clean only with a damp cloth, do not use solvent
cleaners. Lubricate the moving parts of your unit every 30
days with a silicone-based grease or product.
If you are in any doubt, do not use your product; contact
CUSTOMER SUPPORT.
• Before use, always ensure that your product is positioned
• Do not place on carpet. If necessary, use a rubber mat
underneath to reduce the possibility of slipping.
• Always wear appropriate clothing and footwear such as
training shoes when exercising. Do not wear loose clothing
that could become caught in moving parts during exercise.
• Do not use this unit if it is not functioning properly or if it is
not fully assembled.
• Do not use this unit for commercial purposes. This unit is
for home use only.
• Before use, you must read and understand all instructions
& warnings stated in this Owner’s Manual as well as
posted on the equipment.
• It is the facility owner’s responsibility to properly instruct
users on the proper operation of the equipment and to
warn them of the potential hazards.
• If at any time during exercise you feel faint, dizzy or
experience pain, stop and consult your physician.
Your product is intended for use in clean dry conditions. You
should avoid storage in excessively cold or damp places as
this may lead to corrosion and other related problems.
If you have any questions concerning the assembly of your
item or if any parts are missing, please DO NOT RETURN
THE ITEM TO THE STORE OR CONTACT THE
RETAILER.
any questions you may have regarding the assembly of this
unit and can also mail you replacement parts.
Time) Monday through Friday.
Please contact us by any of the following means :
Body Flex Sports, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: 1 (888) 266 - 6789
Fax: 1 (909) 598 - 6707
Email: [email protected]
Body Flex Sport warrants your product is free of any defects in
workmanship and materials for a period of 1 year for the frame
and 90 days on all parts if the item is used for the
intended purpose, properly maintained and not used
commercially.
Any alterations or incorrect assembly of the product will void
this warranty.
Proof of purchase must be presented for any warranty
validation (no exceptions). This warranty applies to the original
purchaser only and is not transferable.
This warranty covers parts damaged due to defect in work-
manship and materials; it does not cover abuse or damages
caused during use, storage or assembly. During the warranty
period, Body Flex Sport reserves the right to:
1.
repair the item.
2. repair the product returned to our warehouse
(at purchaser’s cost).
3. replace the product if neither of the two previously
- Ruler with both Metric and English measurements
- 2 x Adjustable Wrenches
- 1 x Philips (”Crosshead”) Screw Driver
Your product is suitable for users weighing:
250 pounds or less
General Information
Safety Storage and Use
Questions
Customer Support
Warranty
Assembling Tools
Weight Limit
BRT5350 / BRT6530
BRT5350 / BRT6530 Page
3
Before Assembly
1. Take a few minutes to familiarize yourself with the parts and hardware included with your product.
2. The assembly may require two people.
3. Check the frame for any damage and check any wiring (if present) for rips or tears. If you detect damage, rips, or
tears, please contact our Customer Support Team before beginning any assembly.
4. Make sure all the hardware needed is included.
5. It is very important to follow the assembly instructions correctly and to make sure all parts are attached correctly and
rmly tightened when the assembly process is complete.
6. Parts that are not tightened correctly will seem loose and can cause irritating noises and will cause damage to the
equipment.
1. It is only necessary to tighten the bolts and nuts to “nger tight” during the assembly process. This will make it
easier to complete certain steps by allowing more tolerance for all the parts to t properly.
2. Do not tighten all the nuts onto the bolts securely until after you have completed assembly of your product.
3. Use wrenches, pliers, or ratchet and sockets to tighten the bolts and nuts.
4. The Nylon Nut should thread onto the Hex Bolt until the end of the Hex Bolt has passed through the Nylon insert
inside the Nut. Please follow this guideline every time you see this Nylon Nut icon throughout the assembly steps.
Nylon Lock Safety Nuts
Tools Required For Assembly
WARNING
PLEASE NOTE : Many of the parts and hardwares listed on the parts list are already pre-assembled or
installed on the unit.
Tool Description/Purpose
Ruler (with both Metric and English measurements)
QTY: 1
Use to measure the length or size of hardware including
bolts to ensure you are using the correct part.
Adjustable or at wrenches
QTY: 2
Use to securely install parts including nuts and bolts.
BRT5350 / BRT6530 Page
4
Part Listing
The following parts list describes all of the parts illustrated in the exploded diagram on the following page.
PLEASE NOTE: most of these parts are already pre-assembled on your unit.
# Description
01 Main Frame
02 Center Post
03 Left Pedal Tube
04 Right Pedal Tube
05 Left Coupler Bar
06 Right Coupler Bar
07 Pedal Connect Joint
08 Seat Post
09 Seat Cushion Frame
10 Backrest Chion Frameu
11 Left Rear Handle Bar
12 Right Rear Handle Bar
13 Pulse Handle Bar
14 U Bracket
15 Left Handle Bar
16 Right Handle Bar
17 Front Stabilizer
18 Rear Stabilizer
19 Axle
20 Crank
21 Hex Bolt (M8x40 mm)
22 Hex Bolt (M8x45 mm)
23 Hex Bolt (M8x60 mm)
24 Hex Bolt (M8x105 mm)
25 Bolt (M8x15 mm)
26 Bolt (M8x20 mm)
27 Bolt (M8x45 mm)
28 Bolt (M10x58 mm)
29 Bolt (M8x30 mm)
30 Carriage Bolt (M8x70 mm)
31 Pedal Hinge Bolt (1/2"x97 mm)
32 Screw (M5x12 mm)
33 Washer (M8)
34 Washer (M10)
35 Wavy Washer (Ø16 mm)
36 Wavy Washer (Ø19 mm)
37 D Shape Washer
38 Spring Washer (M8)
39 Arc Washer (M8)
40 Nylon Nut (M8)
68 Foam Grip for Handle Bar
69 Monitor
70 Hand Pulse
71 Main Sensor Wire (Upper)
72 Main Sensor Wire (Lower)
73 Left Foot Pedal
74 Right Foot Pedal
75 Mat
76 Tool 1
77 Tool 2
78 Adapter
79 Screw
80 Big Washer (M8)
Washer (M10)
81
# Description
41 Nylon Nut (M10)
42 Nylon Nut (1/2")
43 Cap Nut (M8)
44 Bushing
45 Left Pedal
46 Right Pedal
47 Rectangular End Cap (25x40 mm)
48 Rectangular End Cap (25x50 mm)
49 Square End Cap (38 mm)
50 Round Cap (22 mm)
51 Round Cap (25 mm)
52 Round Cap (30 mm)
53 Spring Loaded Knob (M16)
54 Knob Bolt (M8)
55 Lock Knob (M10)
56 Pop-pin (Ø8)
57 Round Cap
58 Sleeve
59 Plastic Bushing (Ø25 mm)
60 Plastic Bushing (Ø32 mm)
61 Pulse Handle Bar Cover
62 End Cap for Front Stabilizer
63 End Cap for Rear Stabilizer
64 Seat Cushion
65 Backrest Cushion
66 Foam Grip for Pulse Handle Bar
67 Foam Grip for Rear Handle Bar
Page
5

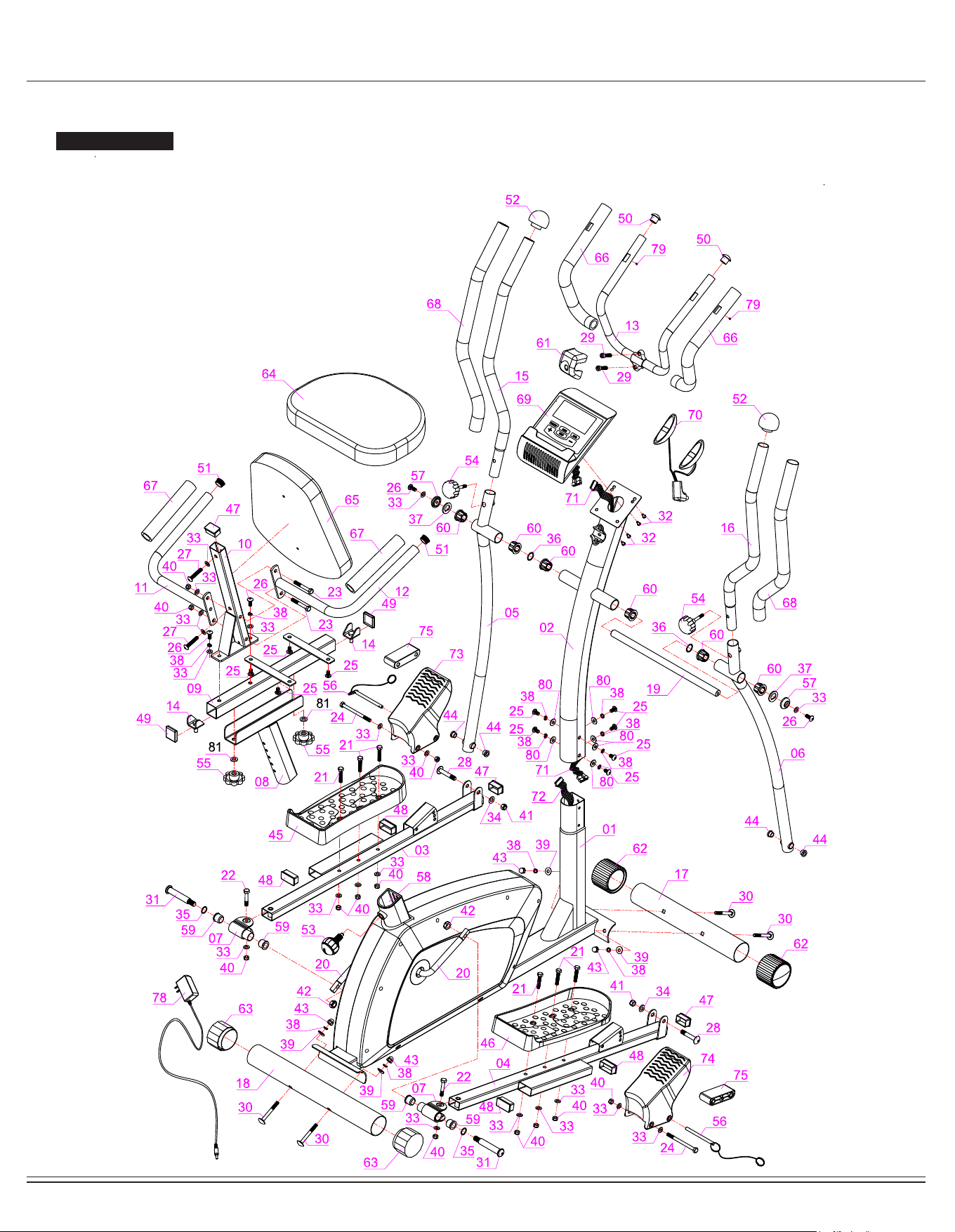

Exploded View
The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the
assembly process.
: : Not all of the parts and hardware you see here will be used while you are assembling the machine
because some of these items are already pre-installed. Please use this page only as a reference guide for parts and
hardware.
PLEASE NOTE
BRT5350 / BRT6530
BRT5350 / BRT6530 Page
6

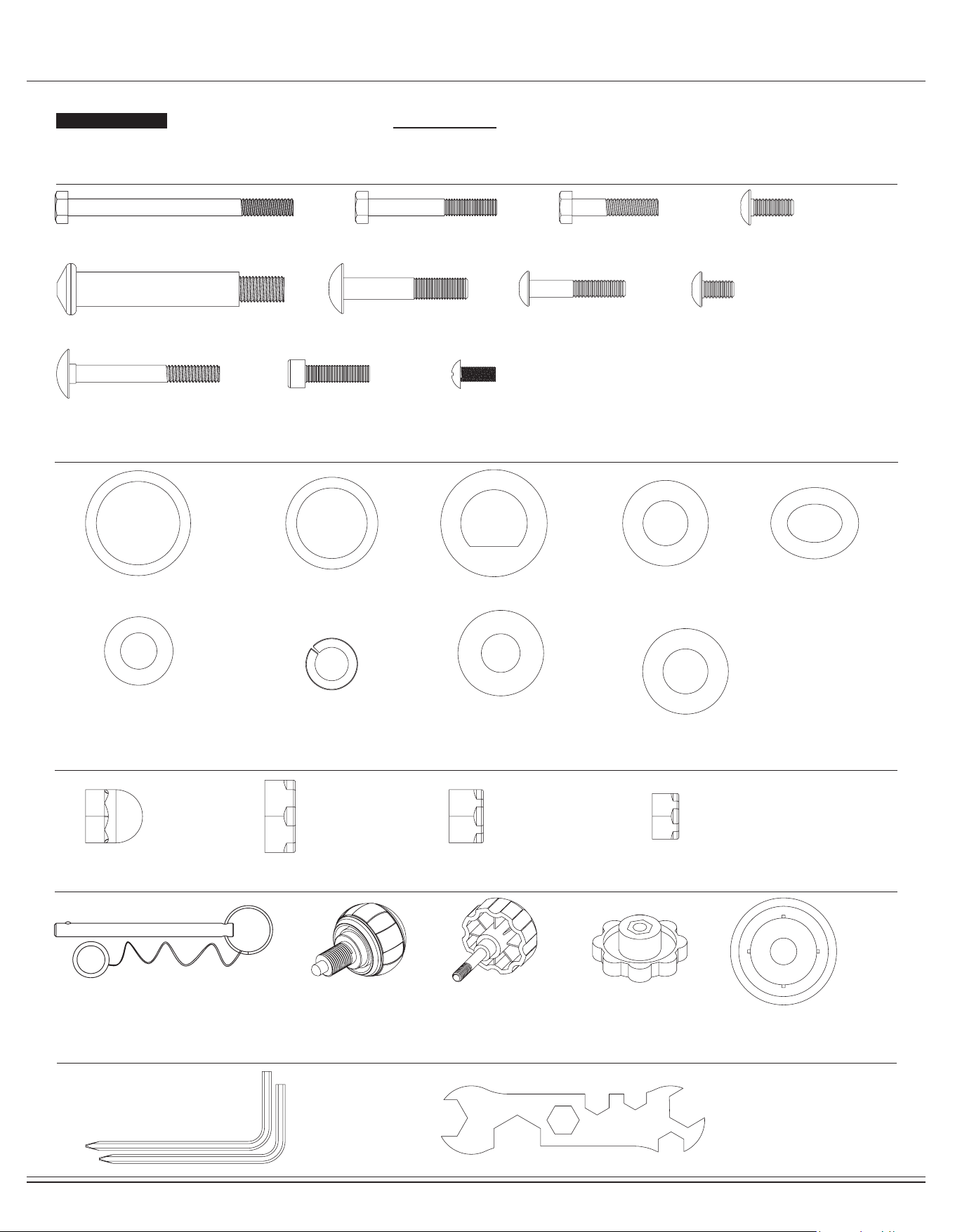

Hardware and Tool List
The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items.
PLEASE NOTE: Most of these parts are already pre-assembled on your unit. Do not be alarmed if you see parts on this
page that are not included in your hardware packet.
Washers
#38 Spring Washer (M8)
[12 pieces]
[6 pieces pre-assembled]
#36 Wavy Washer (Ø19mm)
[2 pieces]
#35 Wavy Washer (Ø16mm)
[2 pieces]
#37 D Shape Washer (19mm)
[2 pieces]
#34 Washer (M10)
[2 pieces]
#33 Washer (M8)
[20 pieces]
[2 pieces pre-assembled]
#39 Arc Washer (M8)
[4 pieces]
[4 pieces pre-assembled]
#80 Big Washer (M8)
[6 pieces]
[6 pieces pre-assembled]
Nuts
#81 Washer (M10)
[2 pieces]
[2 pieces pre-assembled]
Bolts
Others
Tools (Included)
#24 Hex Bolt (M8x105mm)
[2 pieces]
#31 Pedal Hinge Bolt (1/2"x97mm)
[2 pieces]
#30 Carriage Bolt (M8x70mm)
[4 pieces]
#43 Cap Nut
[4 pieces]
#77 Tool 2 (5mm)
[2 pieces]
#76 Tool 1
[2 pieces]
#56 Pop-pin
[2 pieces]
#53 Spring Loaded Knob
(M16)
[1 piece pre-assembled]
#54 Knob (M8)
[2 pieces pre-assembled]
#55 Lock Knob (M10)
[2 pieces pre-assembled]
#57Axle Cover
[2 pieces]
#42 Nylon Nut (1/2")
[2 pieces]
#41 Nylon Nut (M10)
[2 pieces]
#40 Nylon Nut (M8)
[12 pieces]
[2 pieces pre-assembled]
#29 Bolt (M8x30mm)
[2 pieces]
#32 Screw (M5x12mm)
[4 pieces]
#28 Bolt (M10x58mm)
[2 pieces]
#27 Bolt (M8x45mm)
[2 pieces]
#26 Bolt (M8x20mm)
[4 pieces]
#25 Bolt (M8x15mm)
[10 pieces]
[6 pieces pre-assembled]
#23 Hex Bolt (M8x60mm)
[2 pieces]
#21 Hex Bolt (M8x40mm)
[6 pieces]
BRT5350 / BRT6530 Page
7

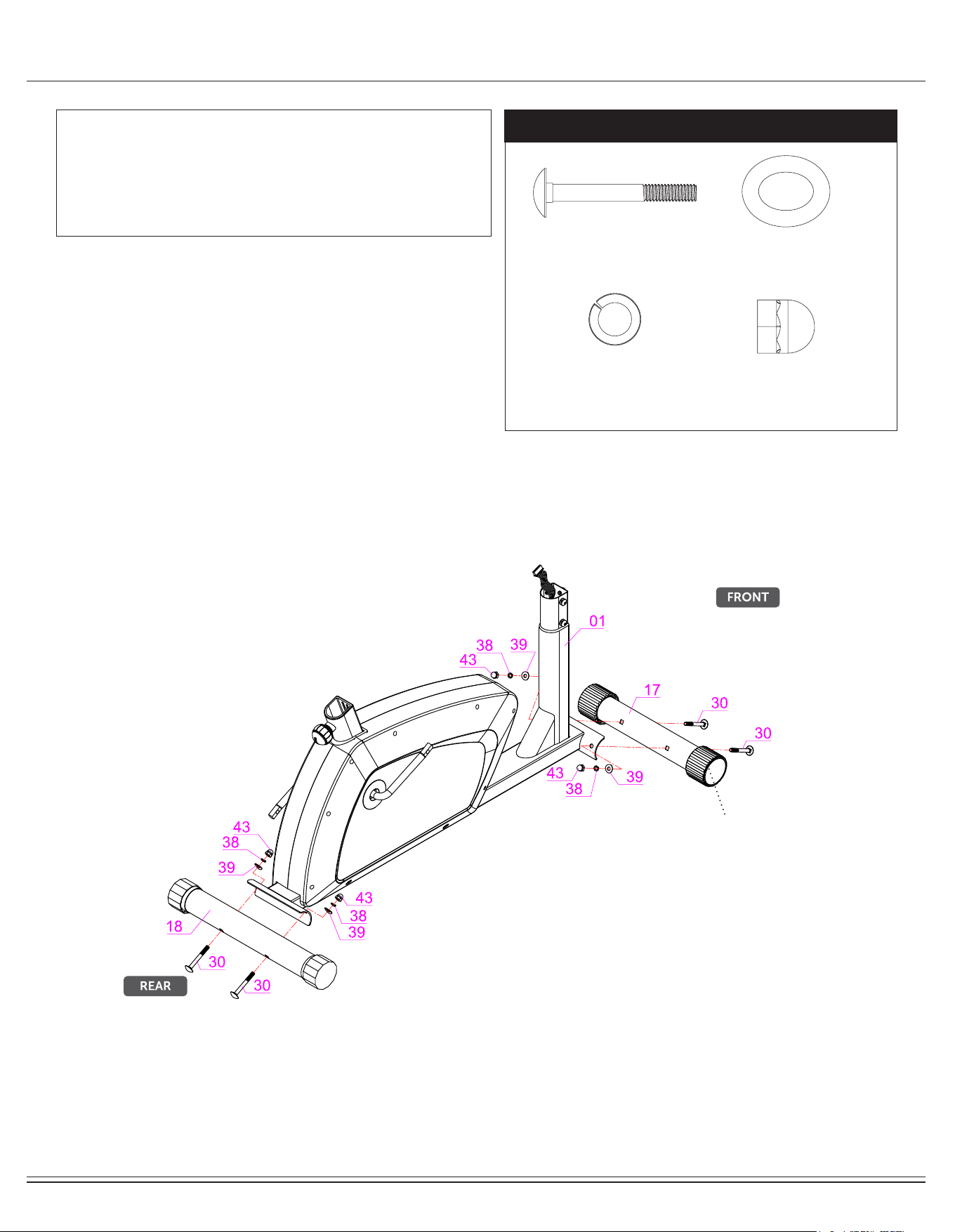

Assembly STEP 1
Secure the Rear Stabilizer (#18) to the Main Frame (#01)
using two Carriage Bolts (#30) followed by two Arc Washers
(#39), two Spring Washers (#38), and two Cap Nuts (#43).
FRONT STABILIZER ASSEMBLY
Secure the Front Stabilizer (#17) to the Main Frame (#01)
using two Carriage Bolts (#30) followed by two Arc Washers
(#39), two Spring Washers (#38), and two Cap Nuts (#43).
Note:
Please Note that the Front Stabilizer (#15) has end caps that
spin for ease of relocating the unit.
REAR STABILIZER ASSEMBLY
Hardware Required
Front Roller
NOTE BEFORE STARTING THE ASSEMBLY PROCESS :
To avoid misalignment due to over-tightening, please do not use a
wrench and use only hand-tightening for now to ensure
easy assembly.
Wrench-tightening should be performed after all parts are assembled
to ensure all nuts, bolts, and parts are tightly secured before use.
#30 Carriage Bolt (M8x70mm)
[4 pieces]
#38 Spring Washer (M8)
[4 pieces]
#43 Cap Nut
[4 pieces]
#39 Arc Washer (M8)
[4 pieces]
BRT5350 / BRT6530 Page
8

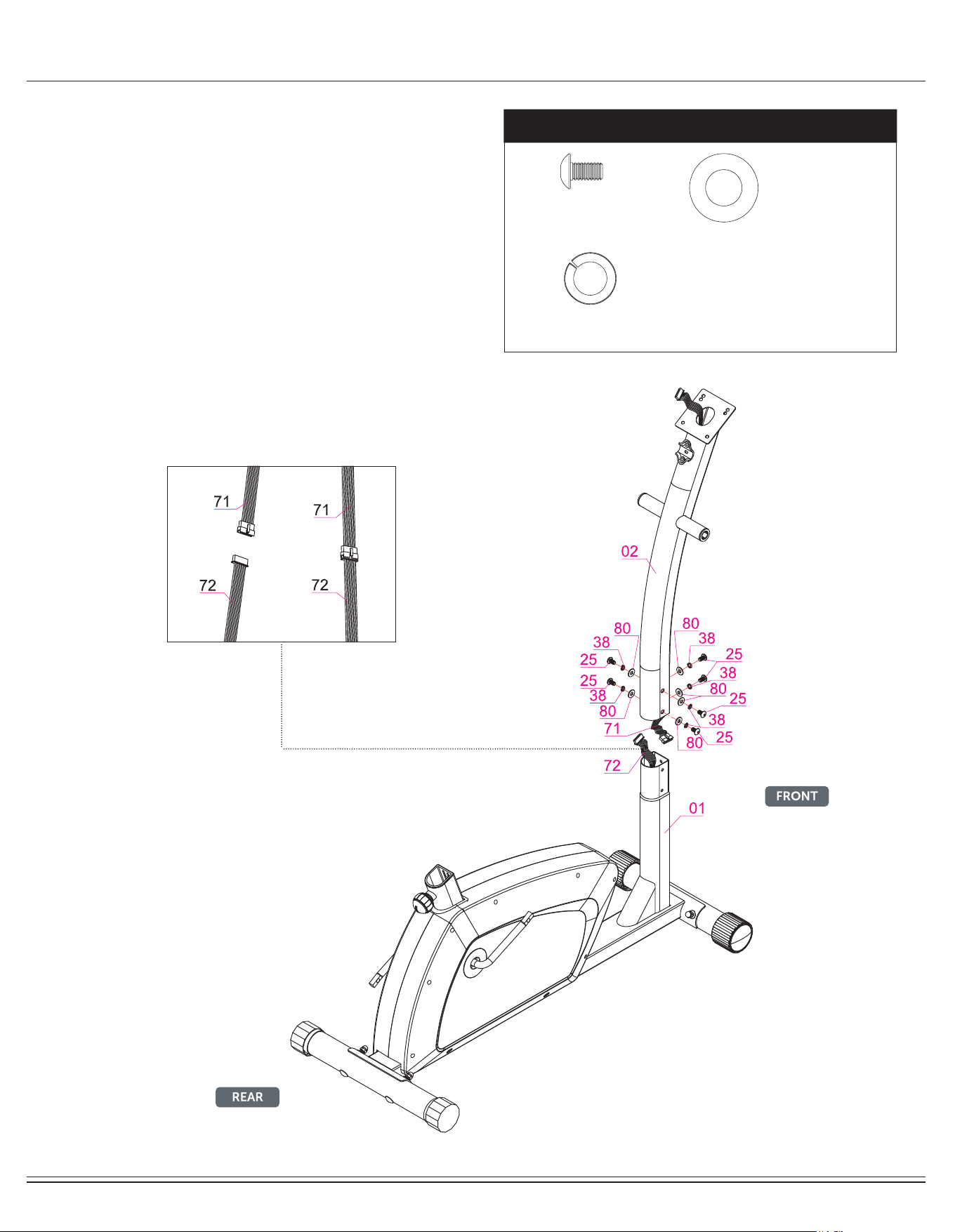

Assembly STEP 2
Connect the Main Sensor Wire (Lower)(#72) to the Main
Sensor Wire (Upper) (#71).
Remove the Bolts (#25), Spring Washers (#38) and Big
Washers (#80) that are pre-assembled on the Main Frame
(#01) and set them aside as they will be used later in this step.
Being careful not to pinch any wires, slide the Center Post
(#02) onto the Main Frame (#01) and secure it using the
previously removed six Bolts (#25), six Spring Washers (#38),
and six Big Washers (#80) as shown in drawing below.
Hardware Required
#25 Bolt (M8x15mm)
[6 pieces]
#38 Spring Washer (M8)
[6 pieces]
#80 Big Washer (M8)
[6 pieces]
BRT5350 / BRT6530 Page
9
Assembly STEP 3
Hardware Required

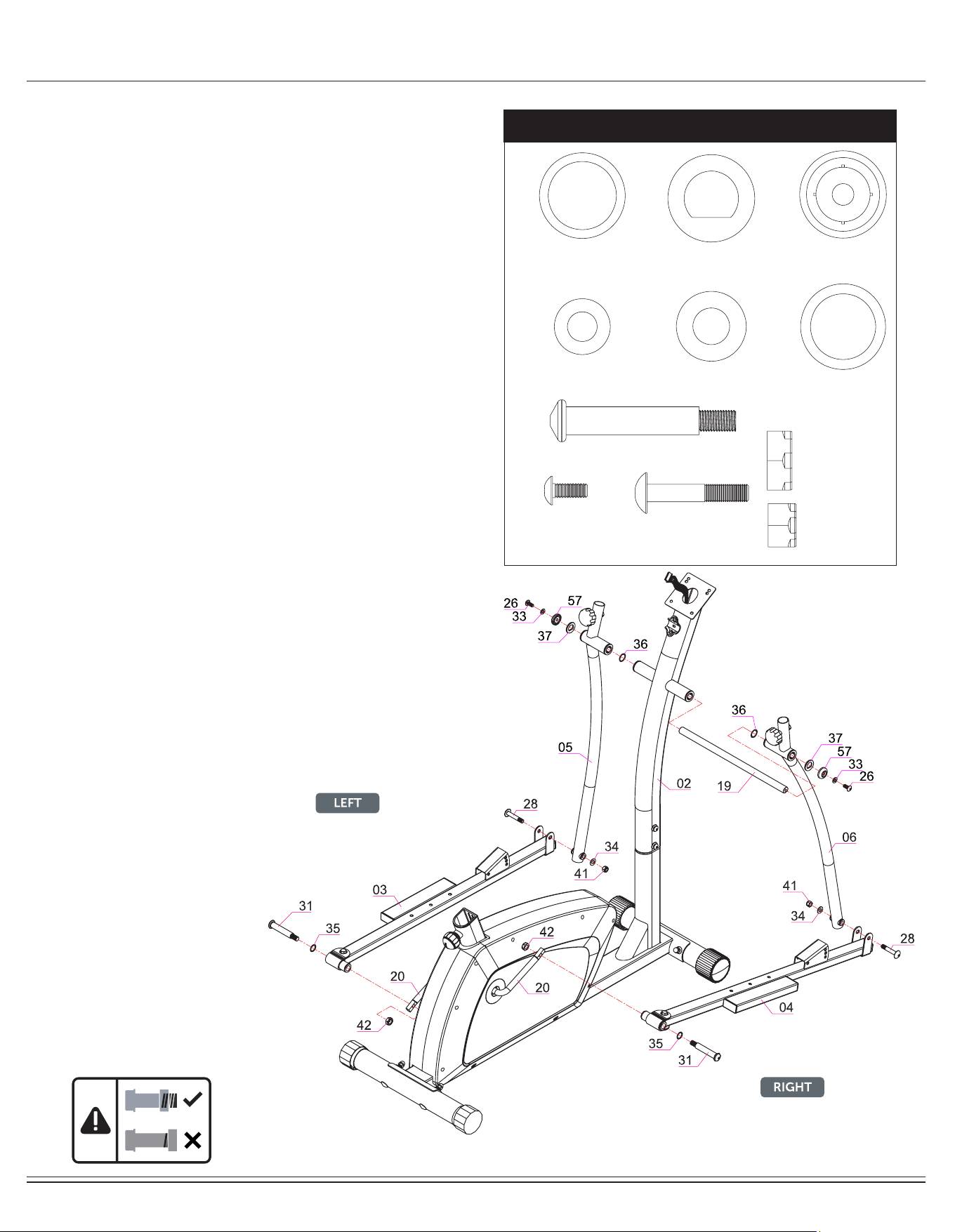

Referring to the drawing below, insert the Axle (#19) through the
horizontal stems on the Center Post (#02). Then, on the left side of
the Axle (#19) -- in the following order, slide on: one Wavy Washer
(#36) followed by the Left Coupler Bar (#05), one D Shape Washer
(#37), one Round Cap (#57), one Washer (#33), and secure using
one Bolt (#26).
On the opposite side of the Axle (#19), assemble -- in the following
order: one Wavy Washer (#36) followed by the Right Coupler Bar
(#06), one D Shape Washer (#37), one Round Cap (#57),
one Washer (#33), and secure using one Bolt (#26).
Attach the Right Pedal Tube (#04) onto the Crank (#20) as
illustrated and secure by inserting from the outer edge of the Right
Pedal Tube (#04), one Pedal Hinge Bolt (#31) and one Wavy Washer
(#35). Secure from the inner edge (behind the Crank(#20)) with one
Nylon Nut (#42).
*** PLEASE DO NOT tighten the hardwares until steps below has
been completed. This will allow you to align the holes for proper
and smooth assembly.***
Repeat this process on the other side using the Left Pedal Tube (#03).
Using the drawings as a reference, attach the free end of the bottom
of the Right Coupler Bar (#06) to the front of the Right Pedal Tube
(#04) by aligning the holes. After the holes are aligned, insert one Bolt
(#28) through the Right Pedal Tube (#04), the Right Coupler
Bar (#06) and secure using one Washer (#34) followed by
one Nylon Nut (#41).
Repeat this process on the other side using Left Coupler Bar (#05)
and Left Pedal Tube (#03).
***NOW, you may tighten the hardwares on both sides.***
#36 Wavy Washer
(Ø19mm)
[2 pieces]
#37 D Shape Washer
(19mm)
[2 pieces]
#57Axle Cover
[2 pieces]
#33 Washer (M8)
[2 pieces]
#26 Bolt (M8x20mm)
[2 pieces]
#42 Nylon Nut
(1/2")
[2 pieces]
#41 Nylon Nut
(M10)
[2 pieces]
#34 Washer (M10)
[2 pieces]
#31 Bolt (1/2"x97mm)
[2 pieces]
#28 Bolt (M10x58mm)
[2 pieces]
#35 Wavy Washer
(Ø16mm)
[2 pieces]
BRT5350 / BRT6530 Page
10
Assembly STEP 4
Hardware Required

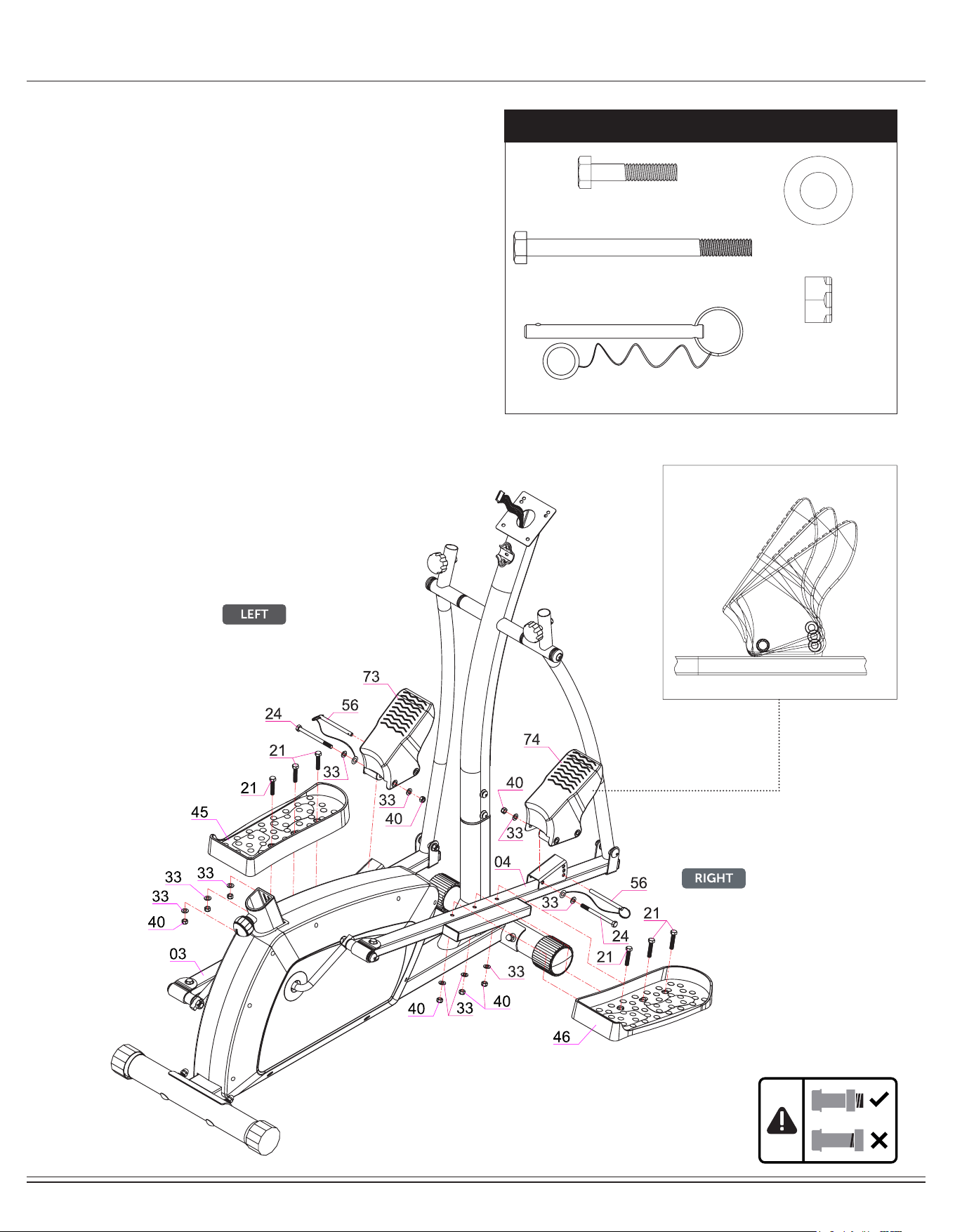

Attach the Left/Right Pedals (#45/#46) onto the Left/Right
Pedal Tubes (#03/#04) as shown in the drawing below using a
total of six Hex Bolts (#21), six Washers (#33), and six Nylon
Nuts (#40).
On the left side, attach the Left Foot Pedal (#73) to the front of
Left Pedal Tube (#03) using one Hex Bolt (#24) through one
Washer (#33) and Pop-pin (#56) safety ring and secure with
one Washers (#33) and one Nylon Nut (#40).
Then insert a Pop-pin (#56) into the front hole of the Left Foot
Pedal (#73).
Repeat this process on the other side.
Note: Care should be used when mounting or dismounting the machine.
Before mounting or dismounting, move the pedal on the mounting or
dismounting side to its lowest position and bring the machine to a
complete stop. This unit is not equipped with a free-wheel. Pedal speed
should be reduced in a controlled manner.
Front Foot Pedal with 3 settings
#21 Hex Bolt (M8x40mm)
[6 pieces]
#33 Washer (M8)
[10 pieces]
#40 Nylon Nut (M8)
[8 pieces]
#24 Hex Bolt (M8x105mm)
[2 pieces]
#56 Pop-pin
[2 pieces]
BRT5350 / BRT6530 Page
11

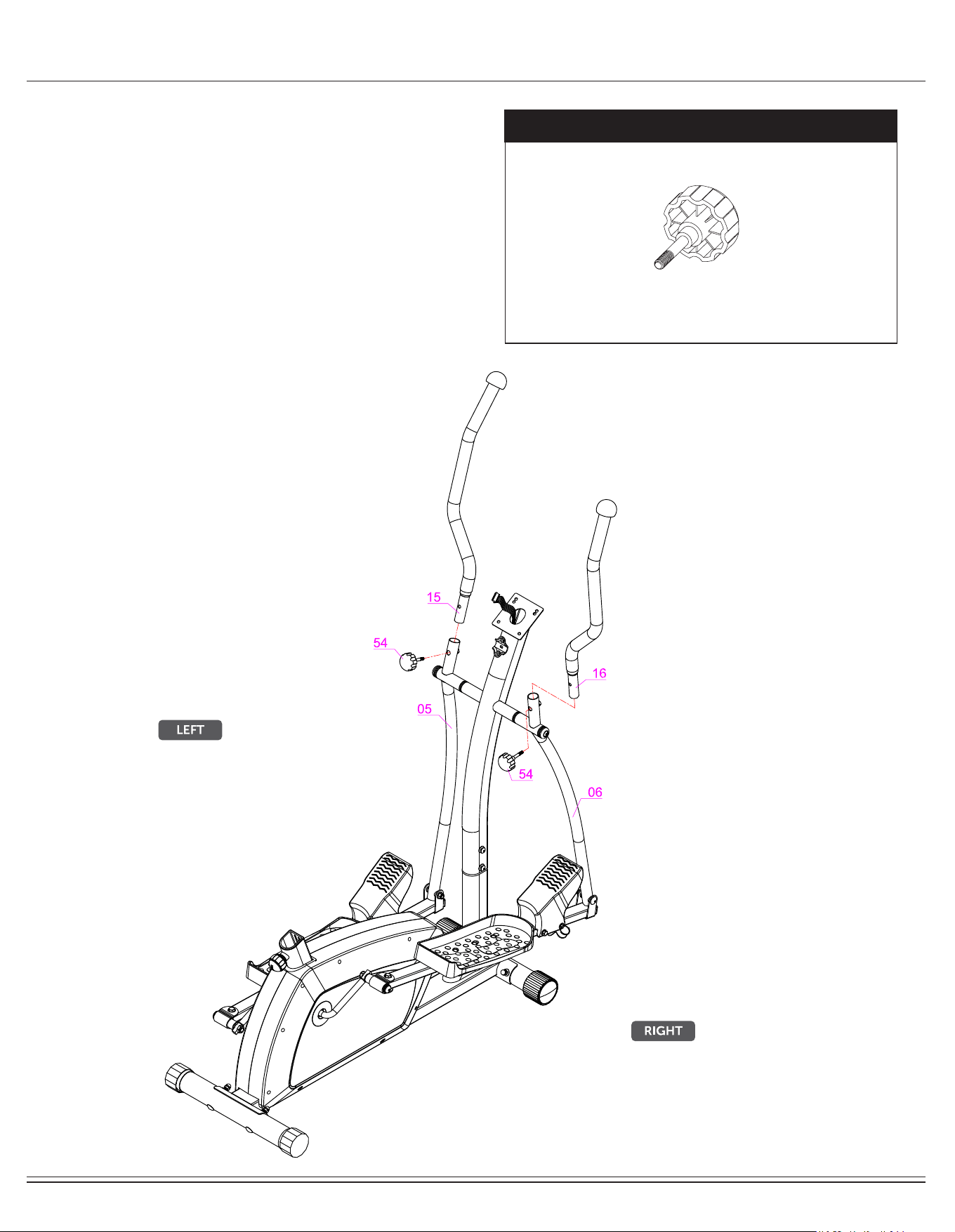

Assembly STEP 5
Hardware Required
Please remove the two Knob Bolts (#54) that are pre-assembled
on the Left/Right Coupler Bars (#05/#06).
On the left side, insert Left Handle Bar (#15) into the opening at
the tip of Left Coupler Bar (#05). Align the holes of the Left Handle
Bar (#15) and Left Coupler Bar (#05) and secure by using one
Knob Bolt (#54) through.
Repeat this process on the other side using Right Handle Bar
(#16) and Right Coupler Bar (#06).
#54 Knob (M8)
[2 pieces]
BRT5350 / BRT6530 Page
12

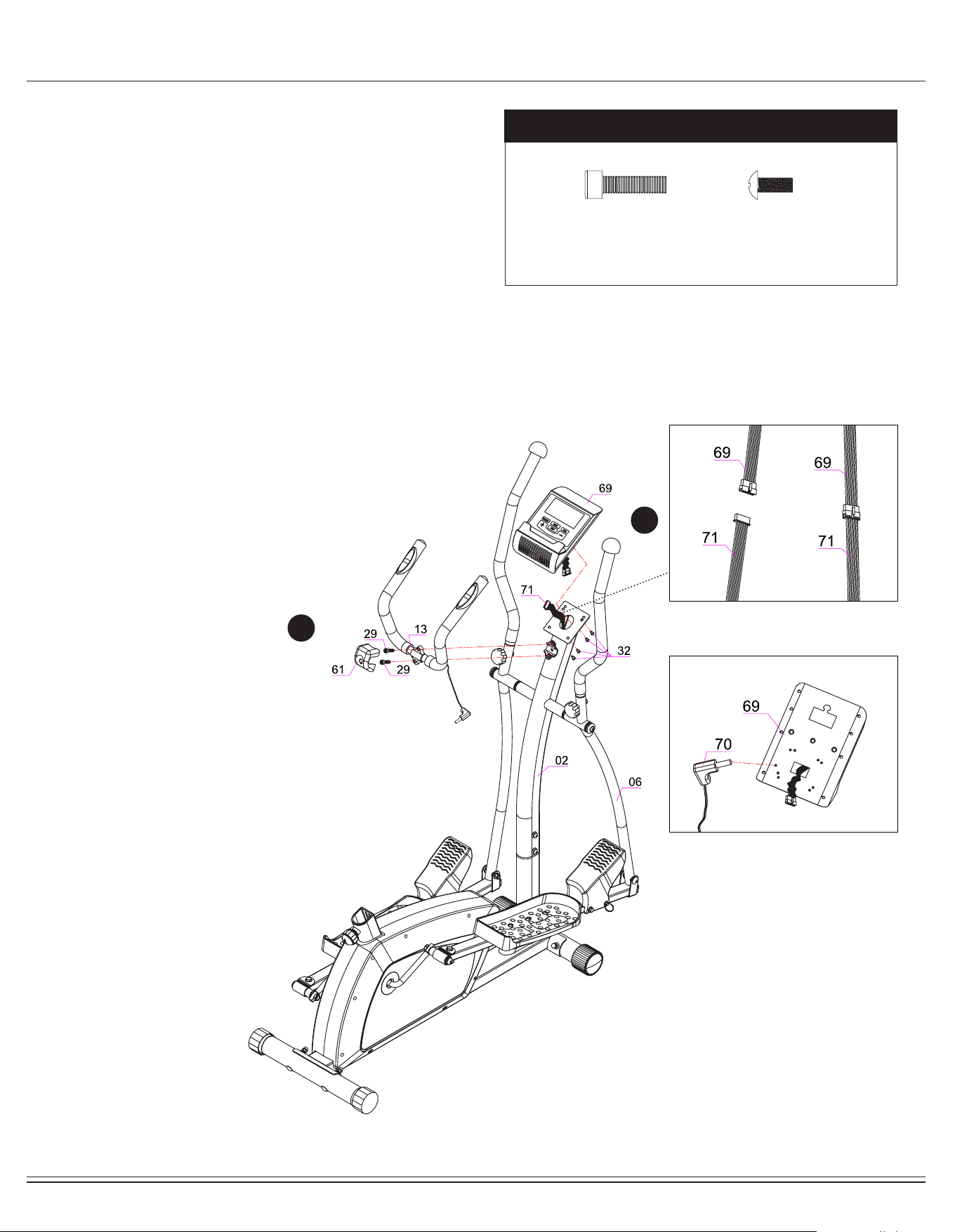

Assembly STEP 6
Hardware Required
A. PULSE HANDLEBAR
Install the Pulse Handle Bar (#13) onto the rear side of the Center
Post (#02) as shown in the illustration below using two Bolts (#29).
Please ensure the wire of the Handle Pulse (#70) is free and clear,
avoiding pinching it during this assembly step. You will need to
connect this wire to the Monitor (#69) later.
B. COMPUTER
Remove the four Screws (#32) that are pre-assembled on the
Monitor (#69). Set them aside as they will be used later in this
process. With the help of an assistant, connect the Main Sensor Wire
(#71) to the corresponding wire on the Monitor (#69)(diagram A).
Connect the end of Hand Pulse (#70) to the Monitor (#69) by inserting
it into the back socket as illustrated below (diagram B).Being careful
not to pinch/damage any of the wires, attach the Monitor (#69) to the
bracket on the Center Post (#02) by using the four Screws (#32) that
were previously removed.
I
II
A.
B.
#29 Bolt (M8x30mm)
[2 pieces]
#32 Screw (M5x12mm)
[4 pieces]
BRT5350 / BRT6530 Page
13
Assembly STEP 7
Hardware Required

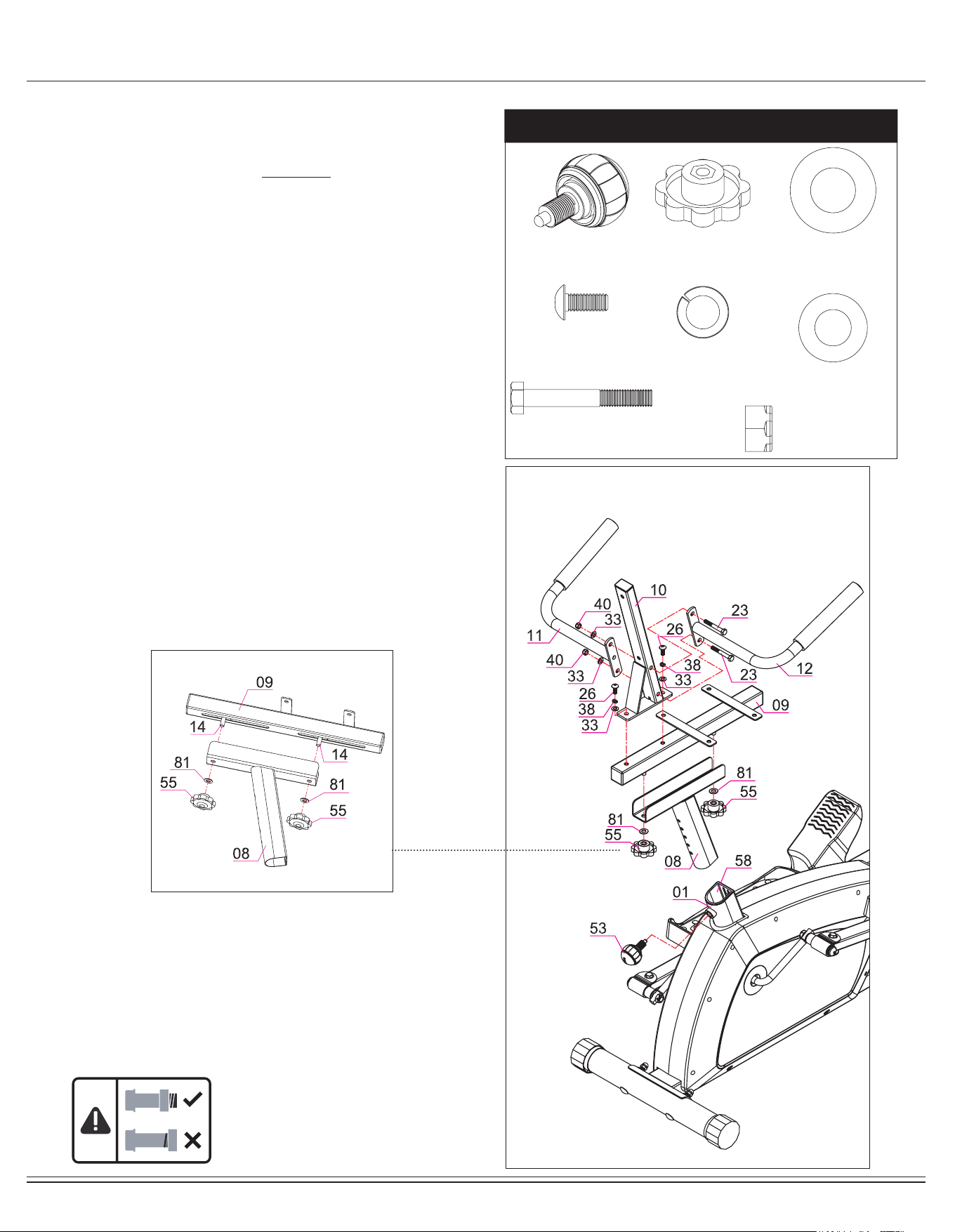

Start wih loosen the pre-assembled Spring Loaded Knob (#53) and
pull back slightly on it so that you may proceed to insert the Seat Post
(#08) into the opening of the post that is protruding from the Main
Frame (#01) down a minimum of four inches so that the corresponding
holes can engage. Screw in the Spring Loaded Knob (#53) through the
Main Frame (#01) and then through any one of the holes located on
the Seat Post (#08).
Note:
The Spring Loaded Knob (#53) has a safety feature that allows you to
loosen it by turning it counter-clockwise three times as you pull it out-
ward. This knob can be loosened to adjust the seat height. Adjust the seat
height and then release the knob back in. Tighten the knob by turning
clockwise.
Slide the Seat Cushion Frame (#09) onto the trough of the Seat Post
(#08) as shown below. Secure using two Lock Knobs (#55) through
two Washers (#81).
Attach Backrest Cushion Frame (#10) to the Seat Cushion Frame
(#09) and secure by using two Bolts (#26), two Spring Washers (#38),
two Washers (#33).
With the help of an assistant, align the four of the Left Rear
Handle Bar (#11) and Right Rear Handle Bar (#12) to the holes on the
Backrest Cushion Frame (#10) and secure all using the two Hex Bolts
(#23), followed by two Washers (#33), and two Nylon Nuts (#40).
#55 Lock Knob (M10)
[2 pieces]
#81 Washer (M10)
[2 pieces]
#53 Spring Loaded Knob
(M16)
[1 piece]
#26 Bolt (M8x20mm)
[2 pieces]
#38 Spring Washer (M8)
[2 pieces]
#33 Washer (M8)
[4 pieces]
#23 Hex Bolt (M8x60mm)
[2 pieces]
#40 Nylon Nut (M8)
[2 pieces]
Page
14
Assembly STEP 8
Hardware Required

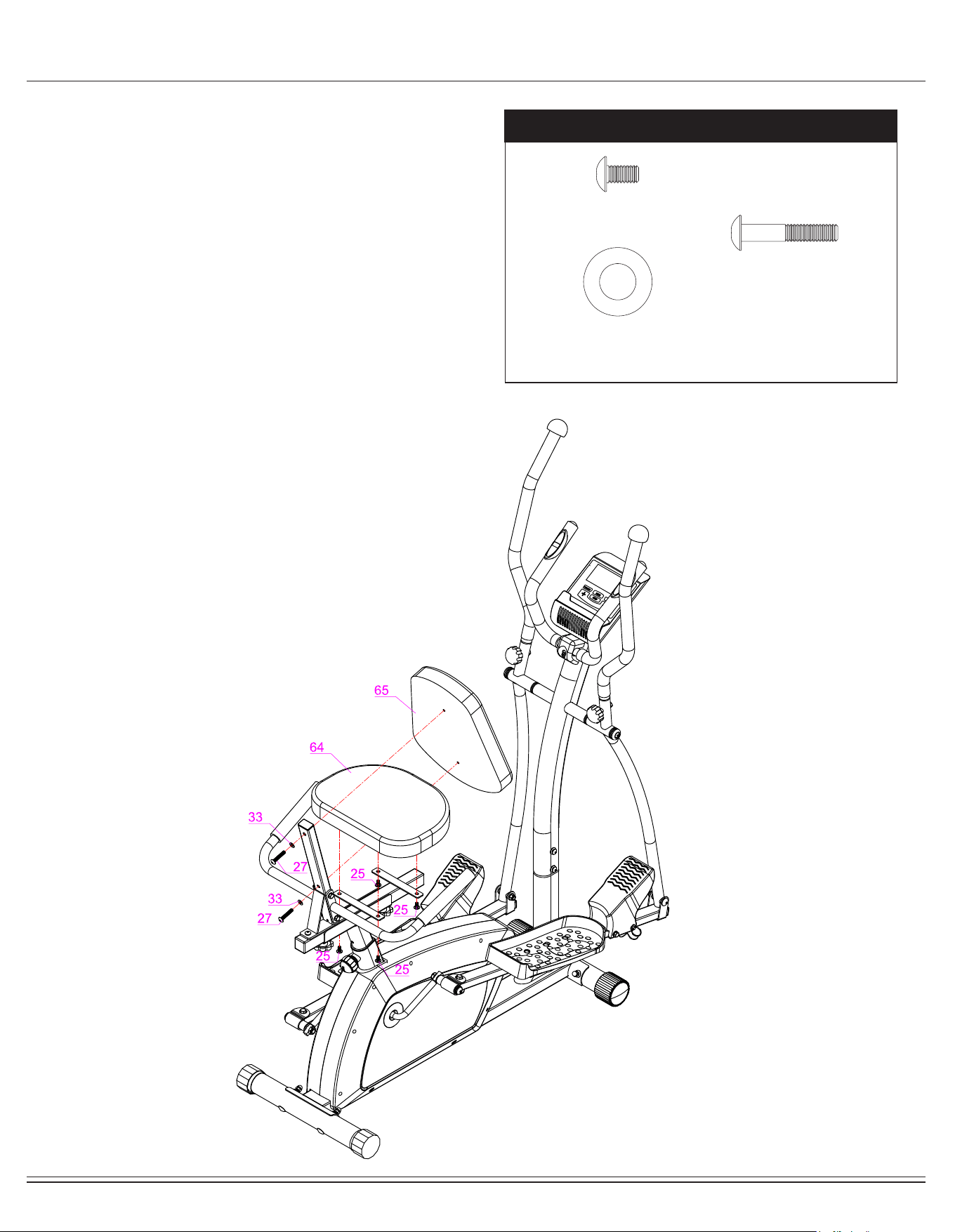

Attach the Seat Cushion (#64) to the horizontal bar of the
Seat Cushion Frame (#09) and secure from the bottom using
four Bolts (#25).Then, attach the Backrest Cushion (#65)
to the Backrest Cushion Frame (#10) and secure using two
Bolts (#27) through two Washers (#33).
#33 Washer (M8)
[2 pieces]
#25 Bolt (M8x15mm)
[4 pieces]
#27 Bolt (M8x45mm)
[2 pieces]
BRT5350 / BRT6530
Page
15

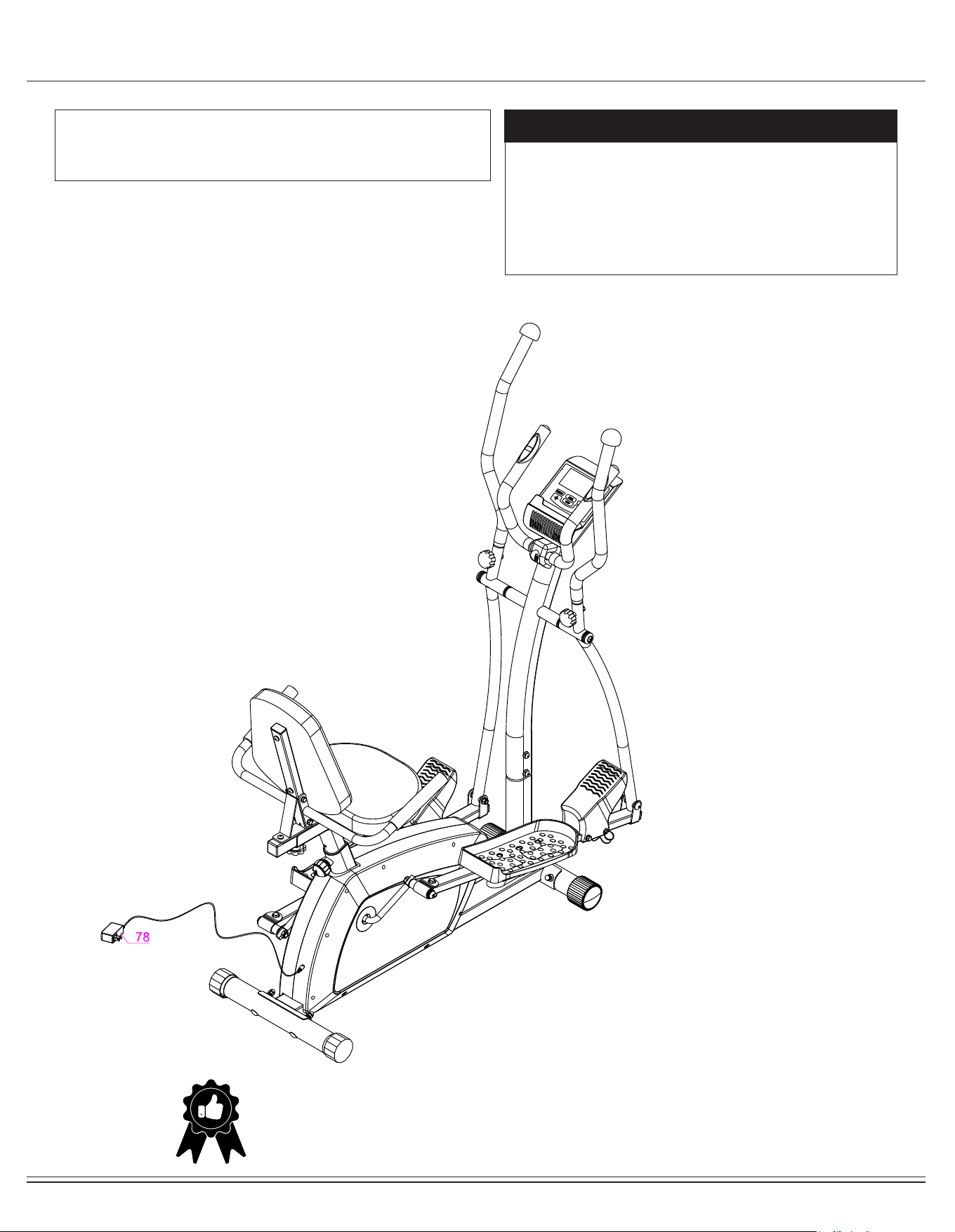

Assembly STEP 9
Hardware Required
THE ASSEMBLY PROCESS IS NOW COMPLETE.
However, for your own safety, please make sure to read this entire Owner’s Manual which
includes safety instructions and warnings, as well as any safety/warning labels axed to the
product before use. For your safety , please visually and functionally inspect and test the unit
after assembly is complete.
Plug in the Adapter (#76) male plug into the female socket
located at the rear end of the shroud and then plug in the
Adapter (#76) to the electrical outlet to start your workout.
No Hardware Required
NOTE :
Please wrench-tightened all parts now that assembly is completed to
ensure all nuts, bolts, and parts are tightly secured before use.
BRT5350 / BRT6530

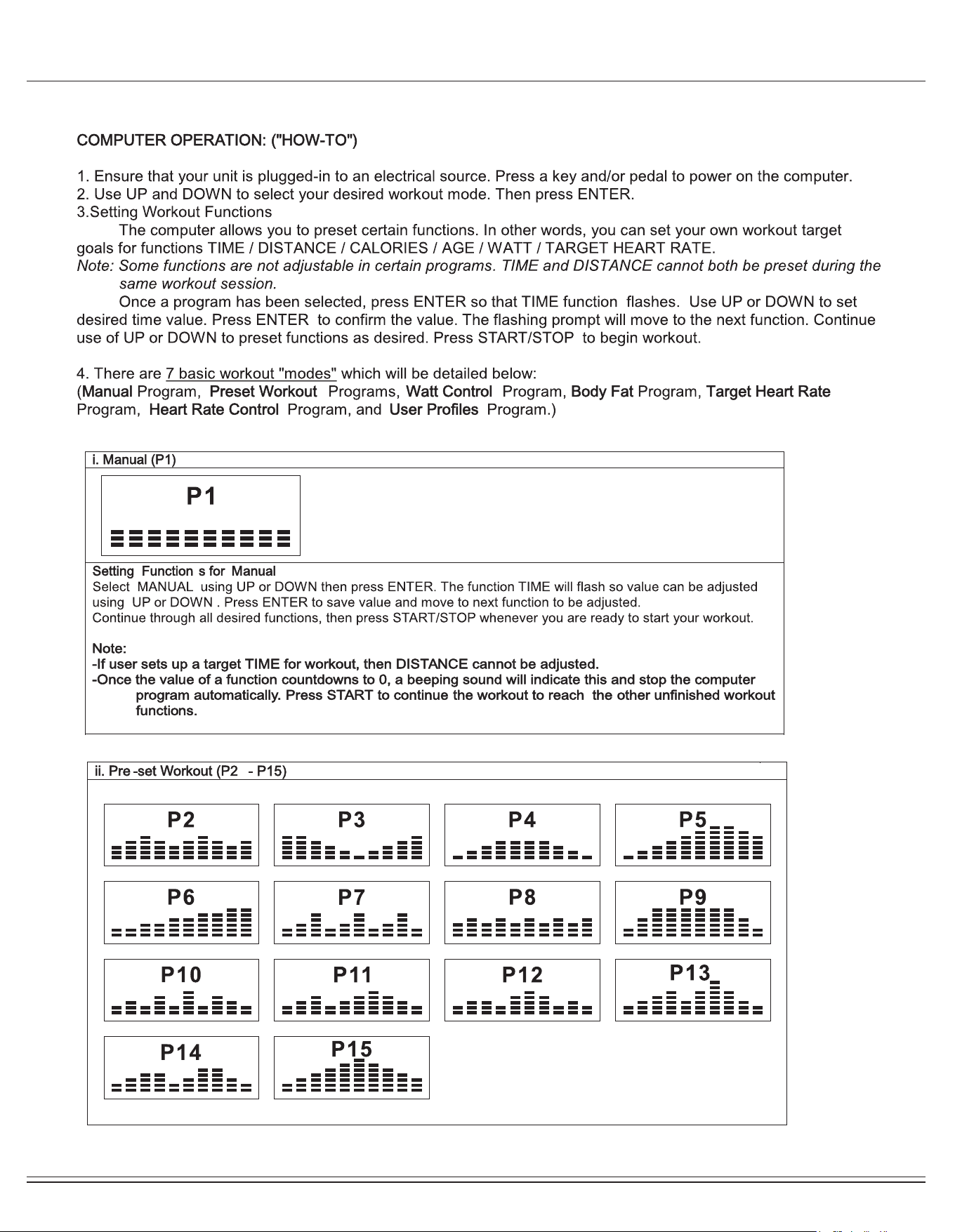

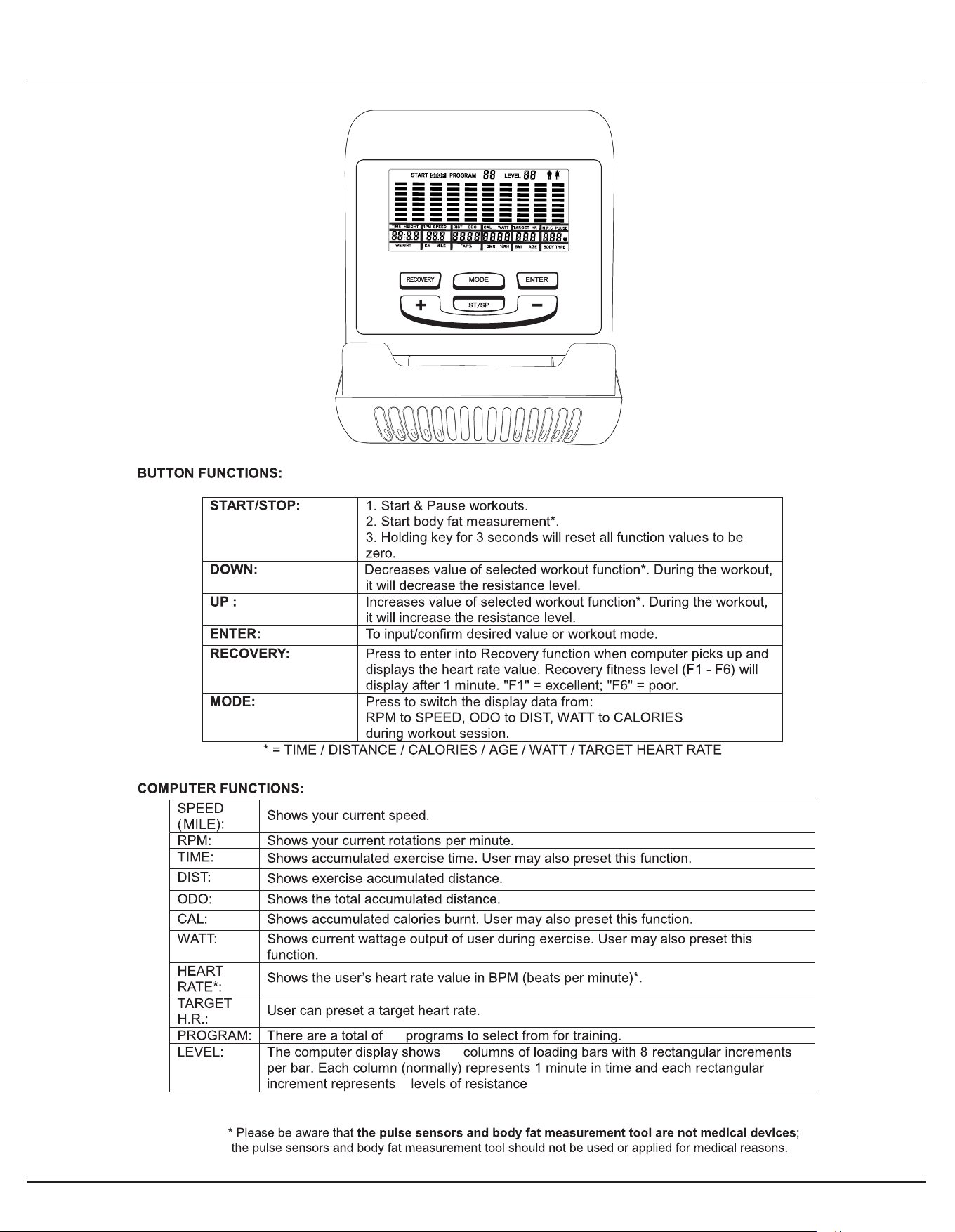

Computer Operation
26
10
3
for a total of 24 resistance levels.
Page BRT5350 / BRT6530 16
Computer Operation
PageBRT5350 / BRT6530 17

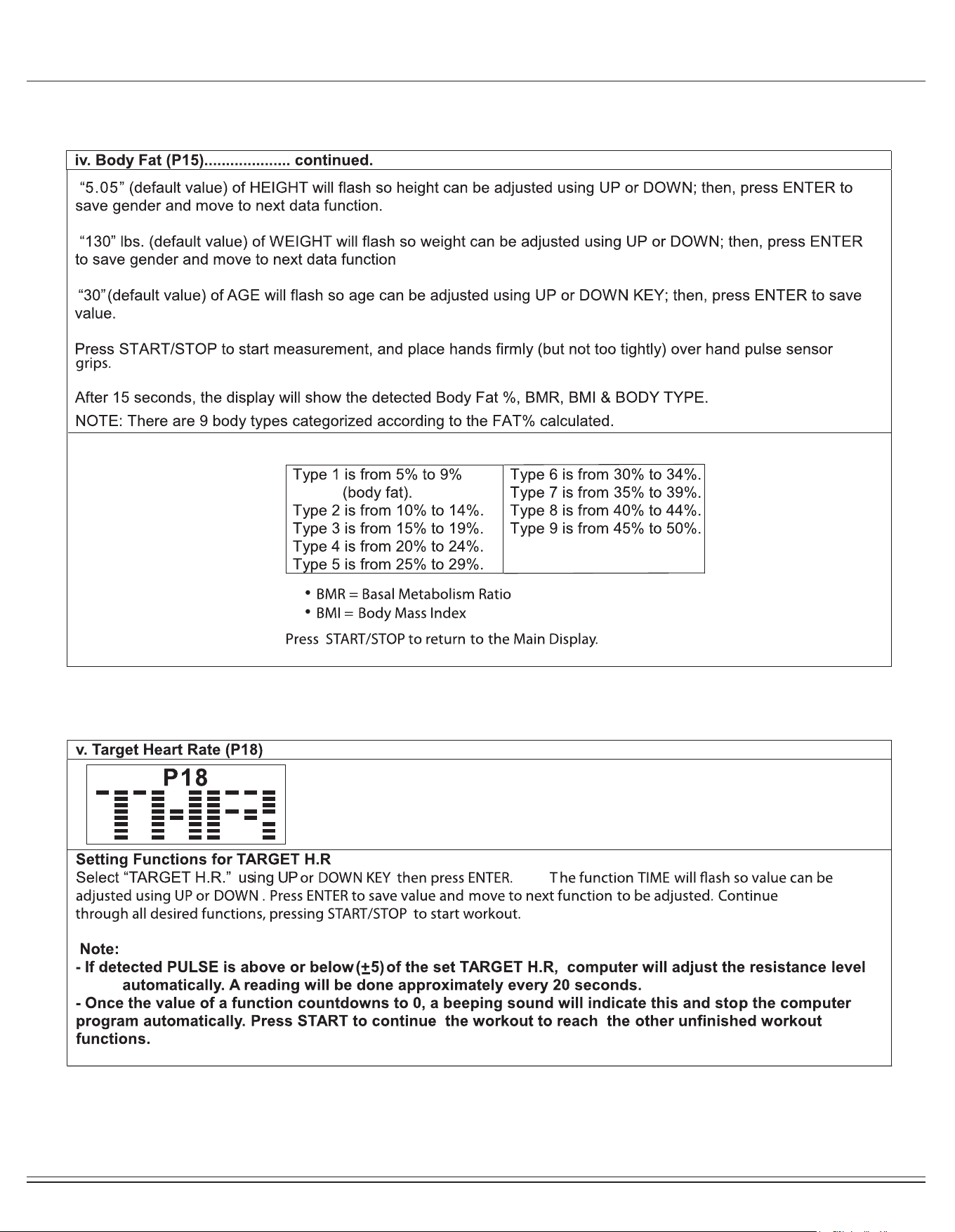

Computer Operation
14
PageBRT5350 / BRT6530 18
Computer Operation
PageBRT5350 / BRT6530 19

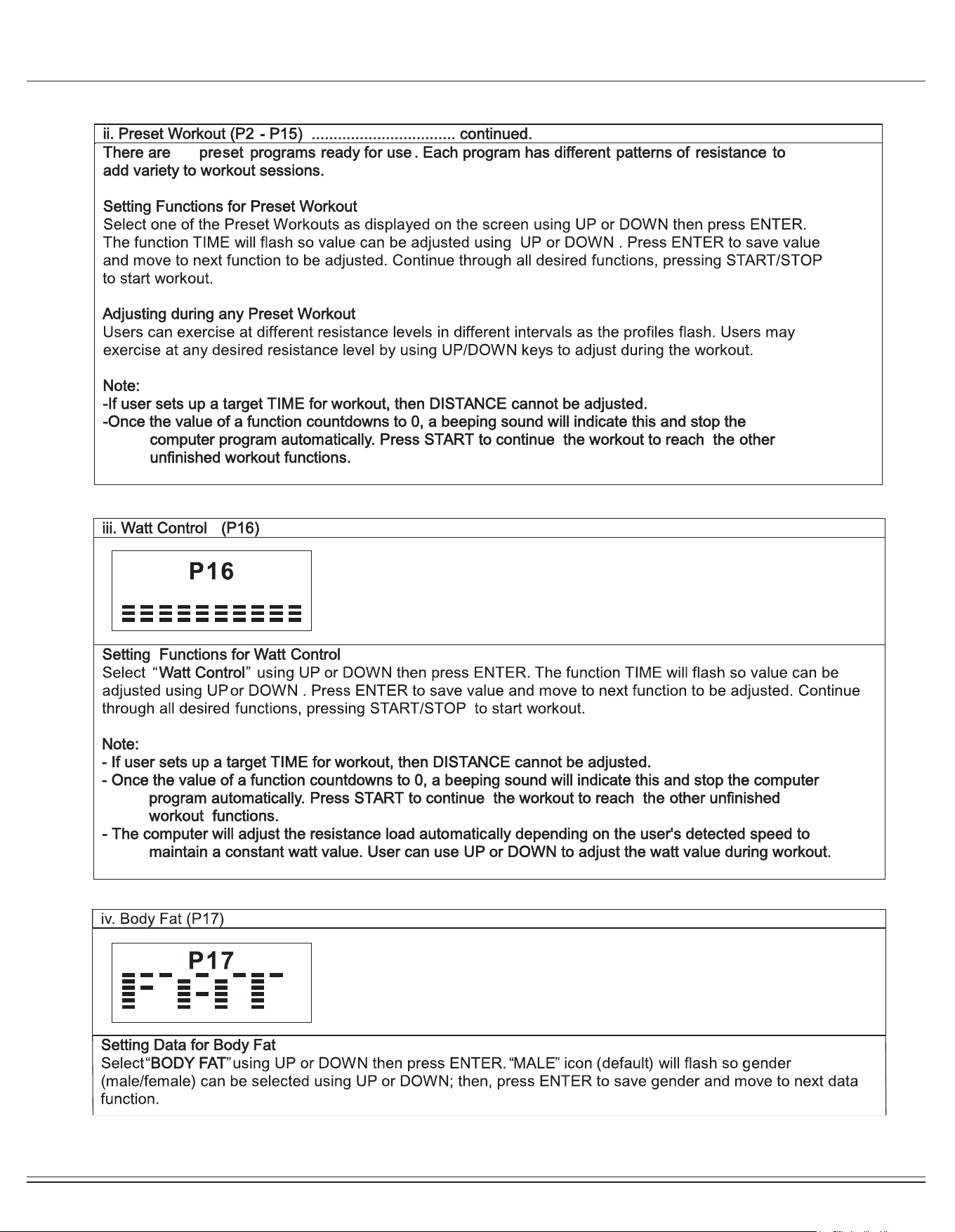

Computer Operation
RESISTANCE LEVEL
There are 24 level units that you can set to achieve the desired resistance level to create your own training
program. Press UP, DOWN buttons to adjust resistance level of the first profile unit. Each bar represents 3 resistance
level (3 x 8 bars = 24 levels). The resistance level is also display on the top right on the screen.
During adjustment, you will see the display changes when you press UP or DOWN buttons twice.
Press MODE button to move to the next profile unit. Then, use UP and DOWN buttons again to set the desired
resistance level until you've completed program profile.
You may also adjust resistance during training. Note that the computer will save the last program set for each user.

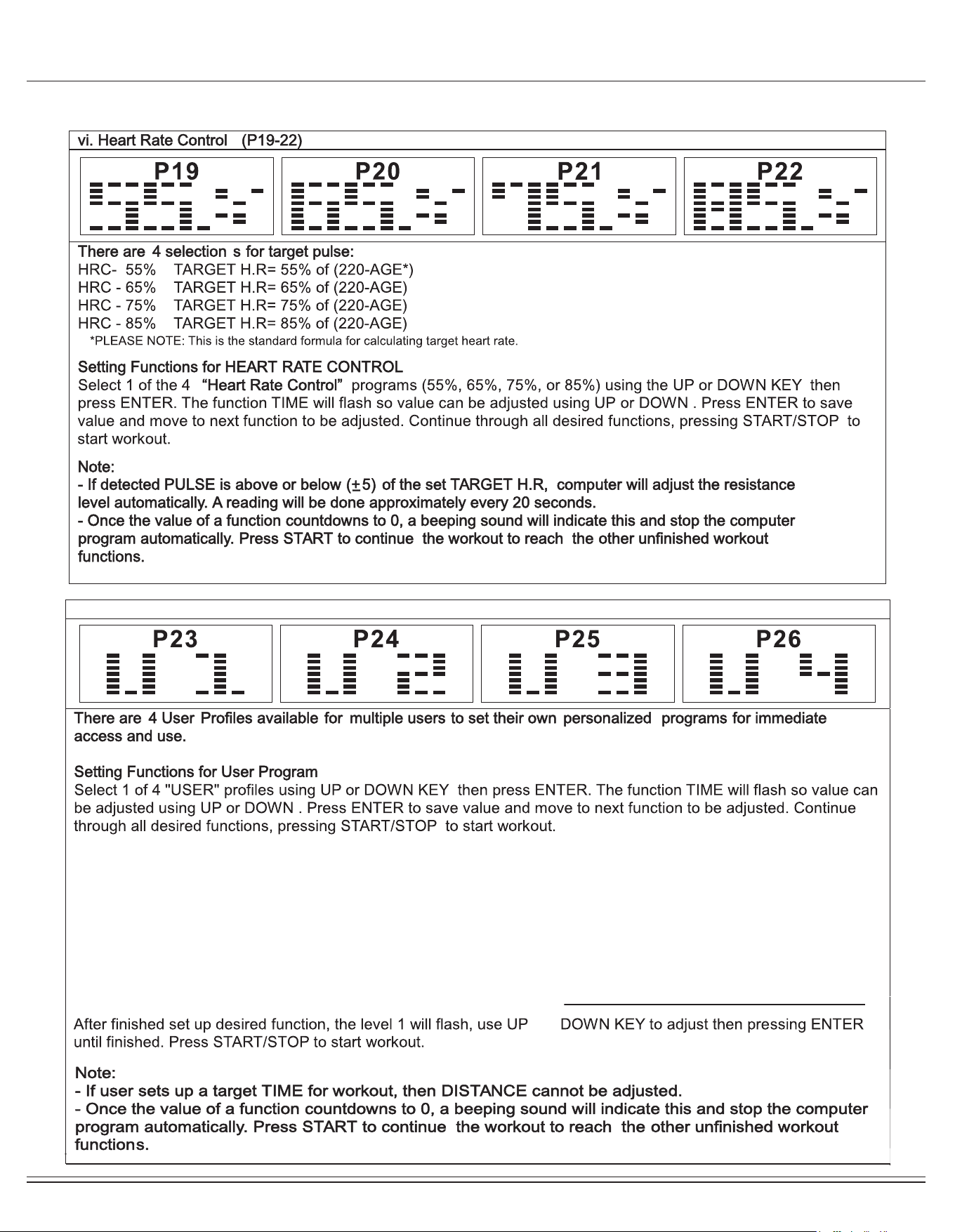

vii. User Custom Workout (P23-P26)
or
PageBRT5350 / BRT6530 20
BRT5350 / BRT6530 Page
21
Safety and Maintenance
• Make sure all nuts, bolts, and screws are tightened prior to use.
• Be sure that all adjustment locking devices and safety devices are properly engaged prior to use!
• Never over-tighten the above-mentioned devices and parts to avoid damage to the unit.
• Check for loose parts and components and make proper adjustments prior to use.
• Check to see if there are any tears or bends in the welding or metal prior to use. If tears or bends are found,
DO NOT use the unit and contact our CUSTOMER SUPPORT.
• Extreme care must be taken to not allow your feet, ngers, hair, clothing, and/or any loose items to be snagged into
any portion of the bike when the unit is in motion. Failure to follow these instructions could result in serious injury,
including the loss of ngers.
• Always wait for the pedals and other moving parts (which can gain great momentum during riding) to come to a
complete stop before dismounting the unit to avoid serious injury.
NOTE: Always wait for the pedals and/or any other moving parts (which can gain great momentum during riding)
to come to a complete stop before dismounting the unit to avoid serious injury.
• To reduce speed on the bike, you may use the combinations of your feet on the Left/Right Pedals (#45/#46) and your
hands on the Left/Right Handlebars (#15/#16) to gently and safely apply counter-momentum.
• Wait for the pedals to come to a complete stop.
• Now you may safely dismount the unit
NOTE:
To safely move, transport, and/or store the unit, please seek the help of capable assistants (minimum of 2 people).
The unit has integrated Front Rollers purposely intended to help ease this process.
• Position one person on each side at the front of the bike toward the handle Bar
(one person on the left, and one on the right).
• Have each person use both hands to grip the corresponding Pulse Handle Bar (#13).
(These are the safest areas to avoid injury during this process.)
• Have both people simultaneously lift the rear end of the unit, leaving the weight and pressure into the front of the unit
and onto the Front Rollers to move/transport the unit to the desired area.
• Please review all safety instructions and warnings in this entire Owner’s Manual, as well as any safety/warning labels
axed to the product before use.
• Do not use solvent cleaners. If you are in any doubt, do not use your cleansing product; contact
CUSTOMER SUPPORT.
• The specic parts on your unit which may see possible signs of wear after prolonged use are listed as follows
(please check these parts before each use):
Foot Pedals (#73/#74); Left/Right Handlebars (#15/#16).
• For any replacement warning labels, please contact our CUSTOMER SUPPORT at
1 (888) 266-6789 or 1 (909) 598-9876, or mail in a written request to:
Body Flex Sports, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 2 of the
Owner’s Manual under the “CUSTOMER SUPPORT” section.
Safety & Warning
How To (Emergency) Stop
How To Move/Transport The Bike For
Maintenance & Care
BRT5350 / BRT6530 Page
22
Troubleshooting
If the computer is not displaying the CALORIES/DISTANCE/TIME/(ETC.)
functions (or you are getting inaccurate readings), please adjust
the following:
1. Check to ensure all computer sensor wires are properly
connected and are not damaged.
2. You may need to refer to installation/assembly directions for the sensor
wires in this manual.
If the computer display is blank & not displaying any data (or does not
appear to power on), please adjust the following:
1. Check to ensure all sensor wires are all properly connected and are not
damaged.
2. Check to ensure the AC Adapter* or Batteries* are properly plugged in or
fully charged.
3. Check your product manual to determine if your model uses either AC
Adapter or batteries to power your unit.
If the computer is not picking up your hand pulse signal (or you are getting
inaccurate readings), please adjust the following:
1. Slightly moisten/dampen the palms with water so the sensors can detect
a pulse signal.
2. Do not grip the sensors too tightly. Only moderate pressure need be
applied.
3. Gripping the sensors too tightly restricts and seizes detection of your
pulse.
4. Remove any rings or jewelry to prevent interference.
5. Check to ensure all pulse sensor wires are properly connected and are
not dam-aged.
6. You may need to refer to installation/assembly directions for the pulse
sensor wires in this manual.
(AFTER COMPLETE ASSEMBLY)
Troubleshoot Area
Calories/Distance/
Time (Etc.)
Computer Display
Hand Pulse Signal
Solution
BRT5350 / BRT6530 Page
23
Warm-Up Instructions
1. Sit with your knees exed and
soles of feet together.
2. Hold your ankles and bend
at your hips (keep your back
straight) as you press your
knees toward the oor with your
elbows.
1. Lie on your back and raise
your right leg as you clasp both
hands under the back of the
knee. Keep your left leg straight.
2. Gently pull your right leg toward
your trunk without
raising your upper body. Switch
leg positions and repeat.
1. Sit with your left leg extended
and bend your right leg at the
knee as you place the sole of
your right foot against the inner
thigh of your extended leg.
2. Flex the foot of your extended
leg (toes pointed toward
ceiling) and gently bend forward
from your hips; keep your back
straight.
3. Reach your hands on your
extended leg as far as possible
and then switch legs and repeat.
1. Assume the depicted position on your hands and knees. Stretch your
hands out in front of you and then slowly start to pull them back in toward
your body as you tuck your chin and arch your back upward.
2. Return to the starting position slowly.
1. Sit with your leg extended and
bend your right knee as you
cross your right leg over your
left leg. Your right foot of your
extended leg foot should be at
on the oor alongside your left
knee.
2. Place your left arm on the
outside of your right leg and pull
against that leg while twisting
your trunk as far as possible to
the right. Place your right hand
on the oor behind your but-
tocks. Reverse leg positions and
repeat.
Before use, you must read and understand all instructions & warnings stated in this Owner’s Manual as well as posted
on the equipment. Before beginning any exercise program including the following exibility exercises, please consult with
your physician.
The following exibility exercises are provided to you as a means to prevent injury while you are exercising. A proper
warm-up routine decreases the chance of injuring your muscles while you are exercising. Please take the time to do these
exibility exercises before and after each time you exercise.

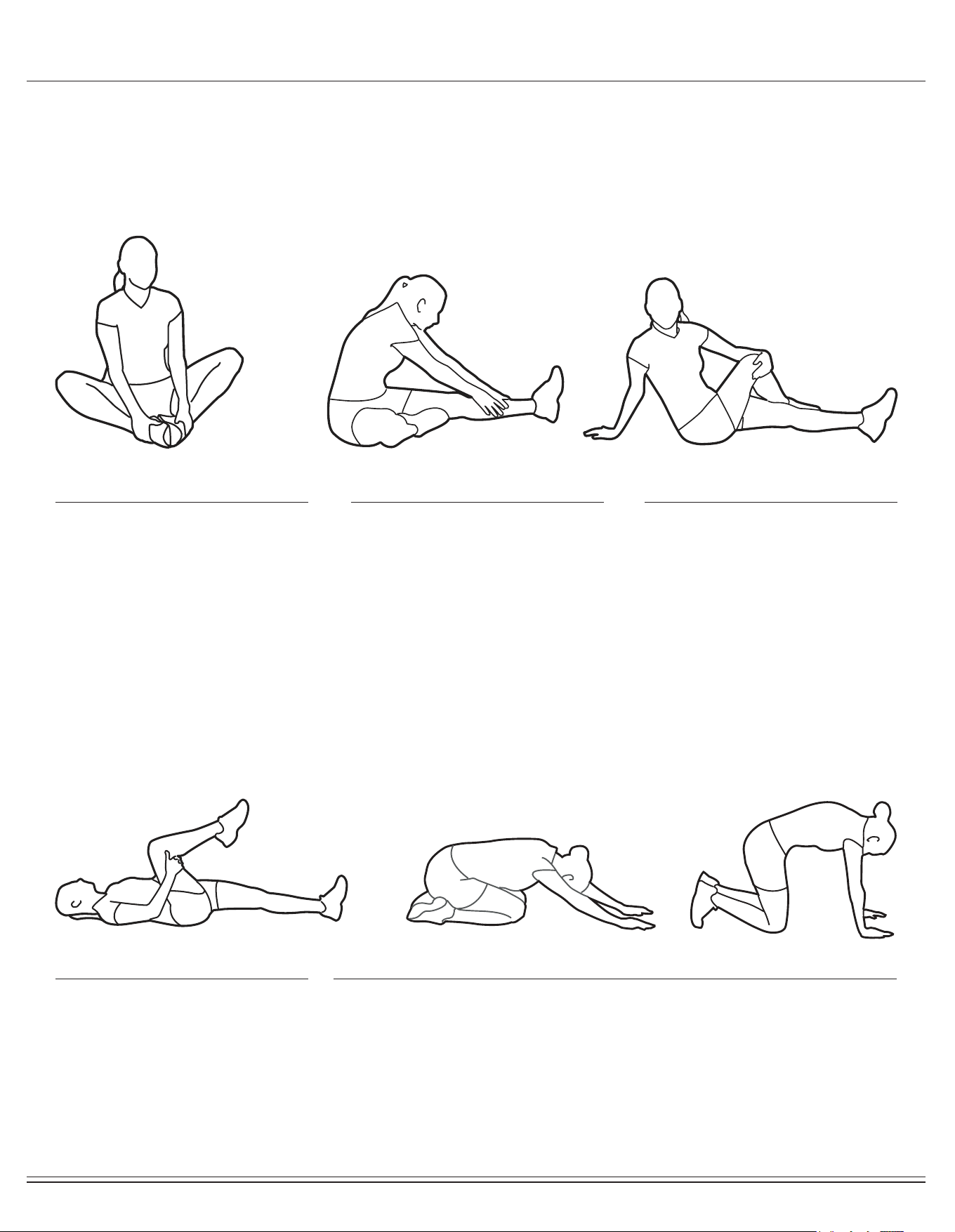

Groin Stretch
Groin Stretch
Hamstring Stretch
Trunk Flexion, Prone
Trunk Twister
BRT5350 / BRT6530 Page
24
Warm-Up Instructions
1. Bring your right hand over your
right shoulder to the
upper back and bring your left
hand under your left shoulder to
the upper back.
2. Try to reach your ngertips. If
you are not able to reach your
ngertips, use a towel as an
extension of your hands and
gently pull one hand toward the
other.
Reverse arm positions and
1. Stand on your left leg and hold
onto a support with your left
hand.
2. Flex your right leg behind you,
grasp your ankle or foot with
your right hand and pull your
foot toward your buttocks. Keep
your back straight and right
knee pointed down.
Repeat on the other leg.
1. Place both hands against a wall
to aid your balance. Press the
ball of your left foot against the
wall and keep the heel of the
same foot rested on the oor
(make sure your left knee is
bent).
2. Slowly start to straighten your
left knee and you will feel the
muscles in your left calf stretch.
Switch leg positions and repeat.

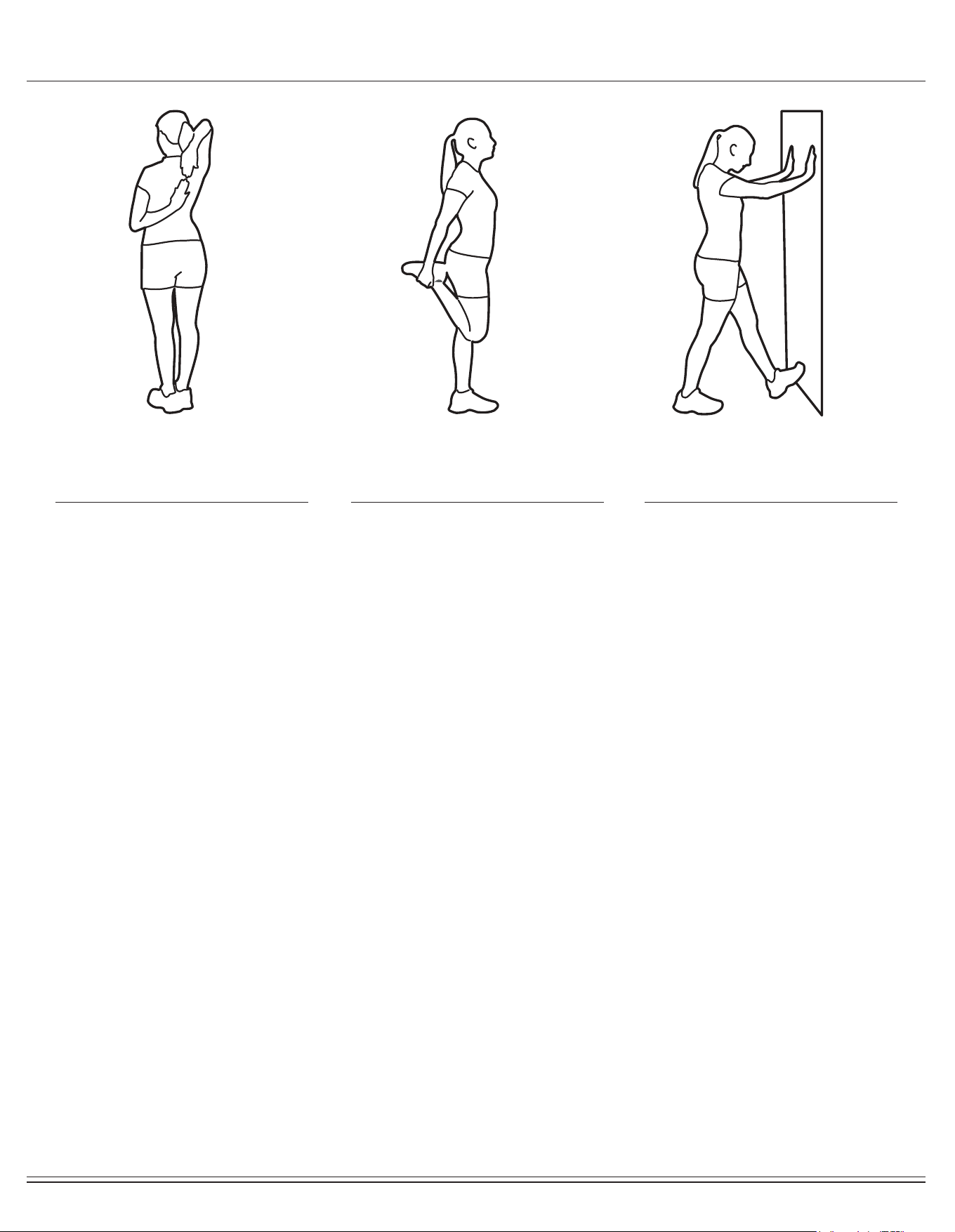

Shoulder Stretch Quadriceps Stretch Calf Twister
THANK YOU FOR YOUR PURCHASE
MODEL NO.: BRT5350 / 6530
Ver. 06/17/2019 Printed in China
along with your sales receipt as proof of purchase.
Serial Number :
Date of Purchase :
Retailer :
Body Flex Sports, Inc.
21717 Ferrero Parkway
Walnut, CA 91789
Phone : 1 (888) 266-6789
Fax : 1 (909) 598-6707
Email
Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyexsports.com
