Welcome ....................... 2
_ ¸¸¸¸¸¸¸9
EspaSol ........... 21
installation o=_,_o_.d_,co..oct_.g
Optional mooMaker To Water Suppty ..... 4 - 5
Door Remova_ ................ 6

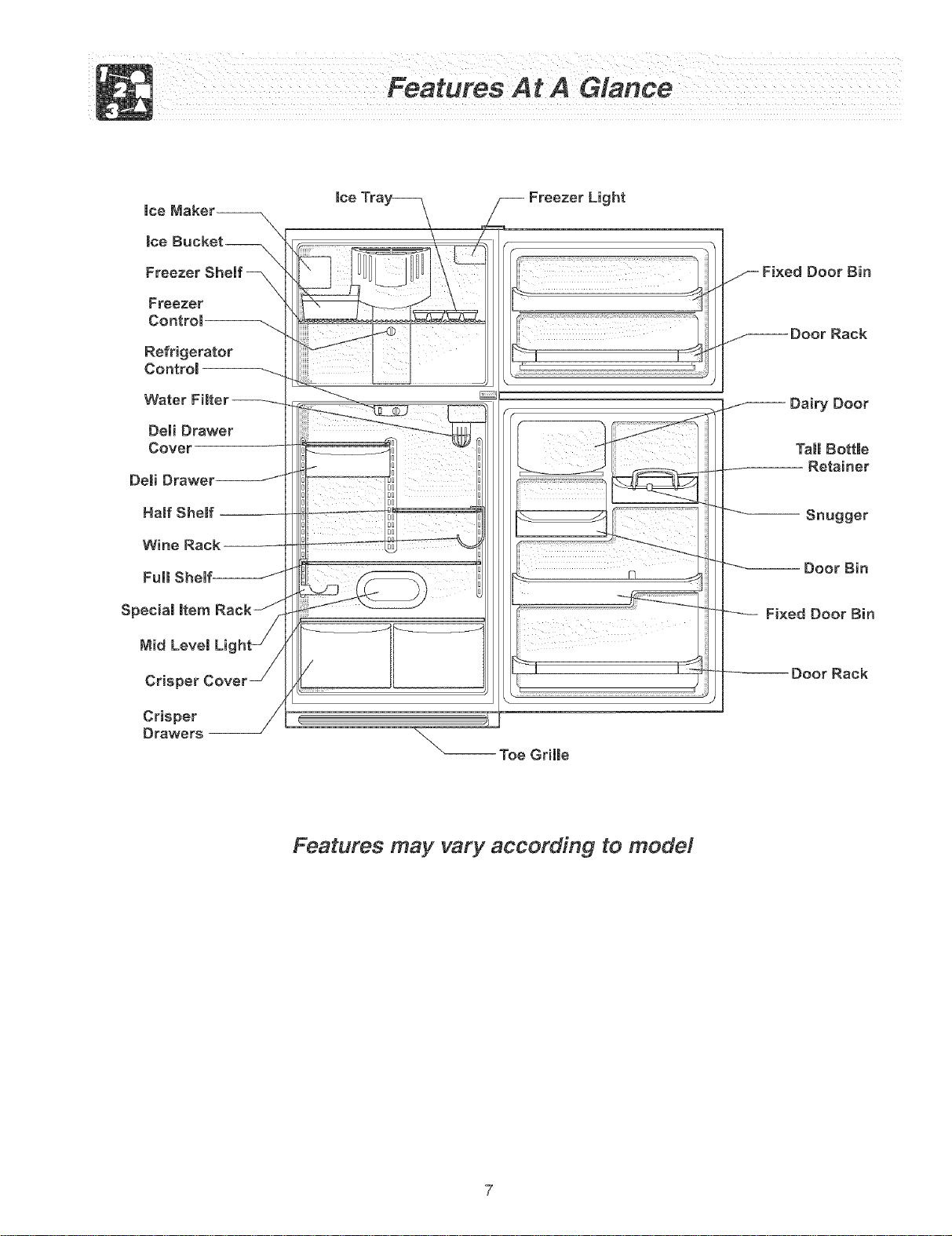

Features at a GUance ......... 7
Temperature Controls ....... 8 ____

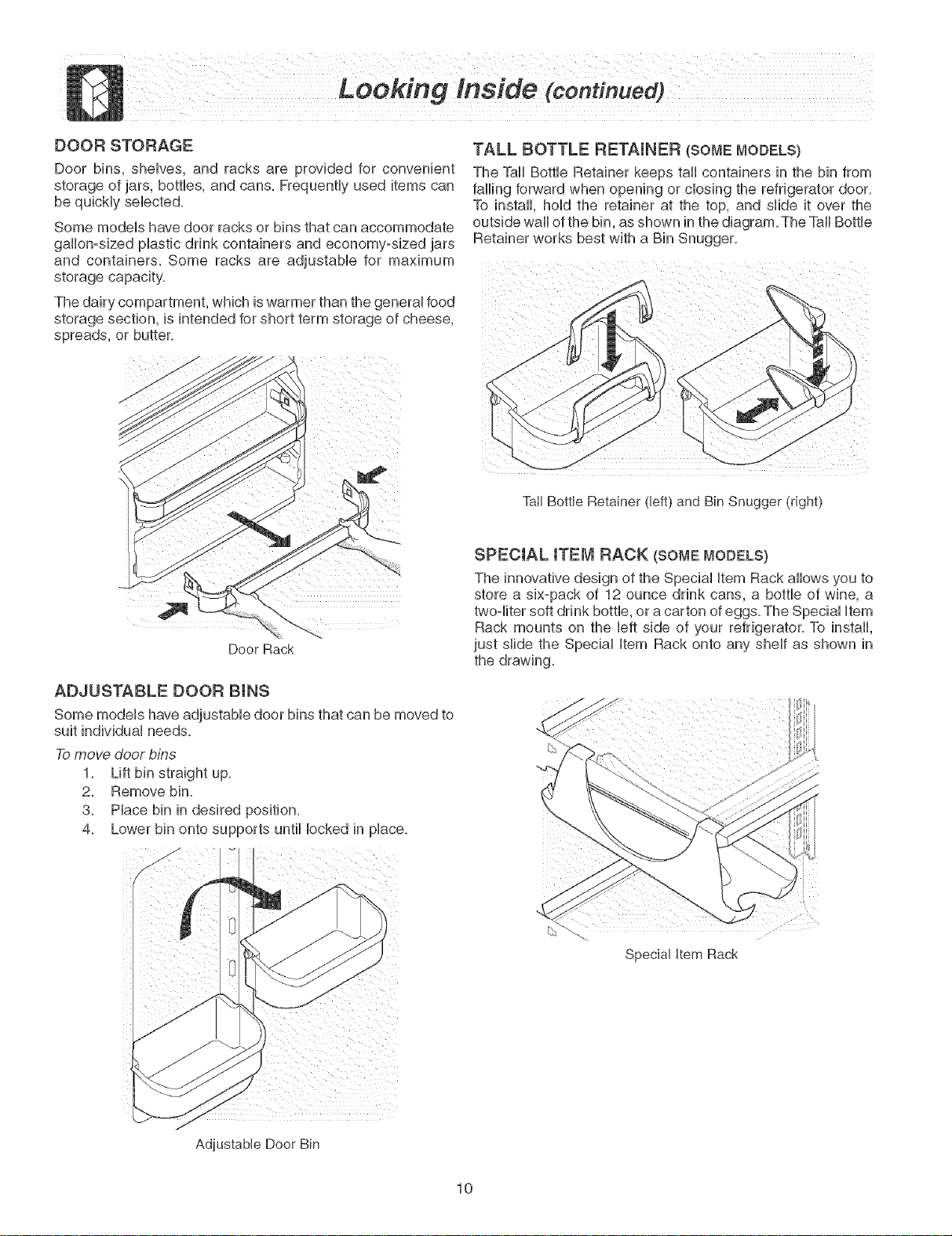

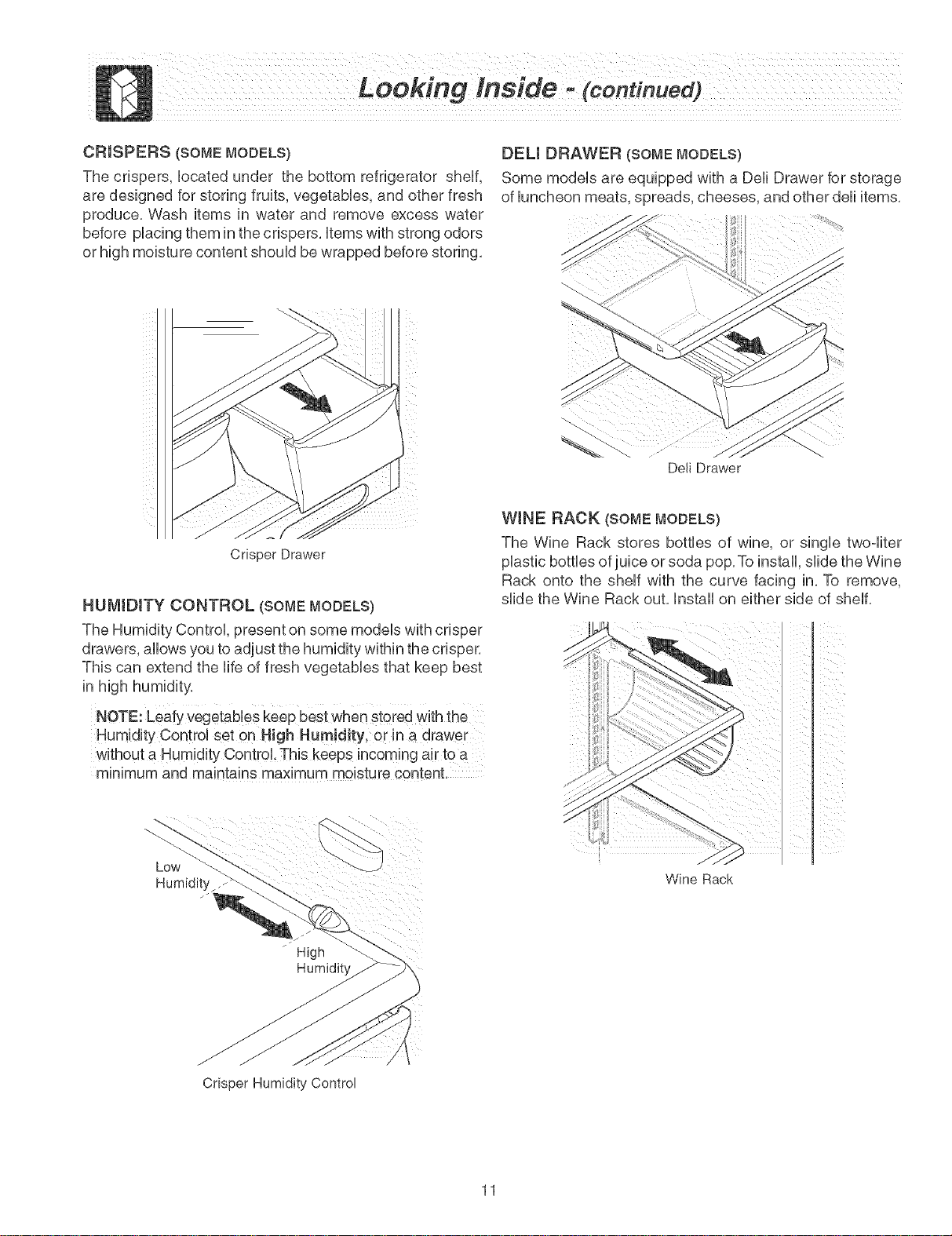

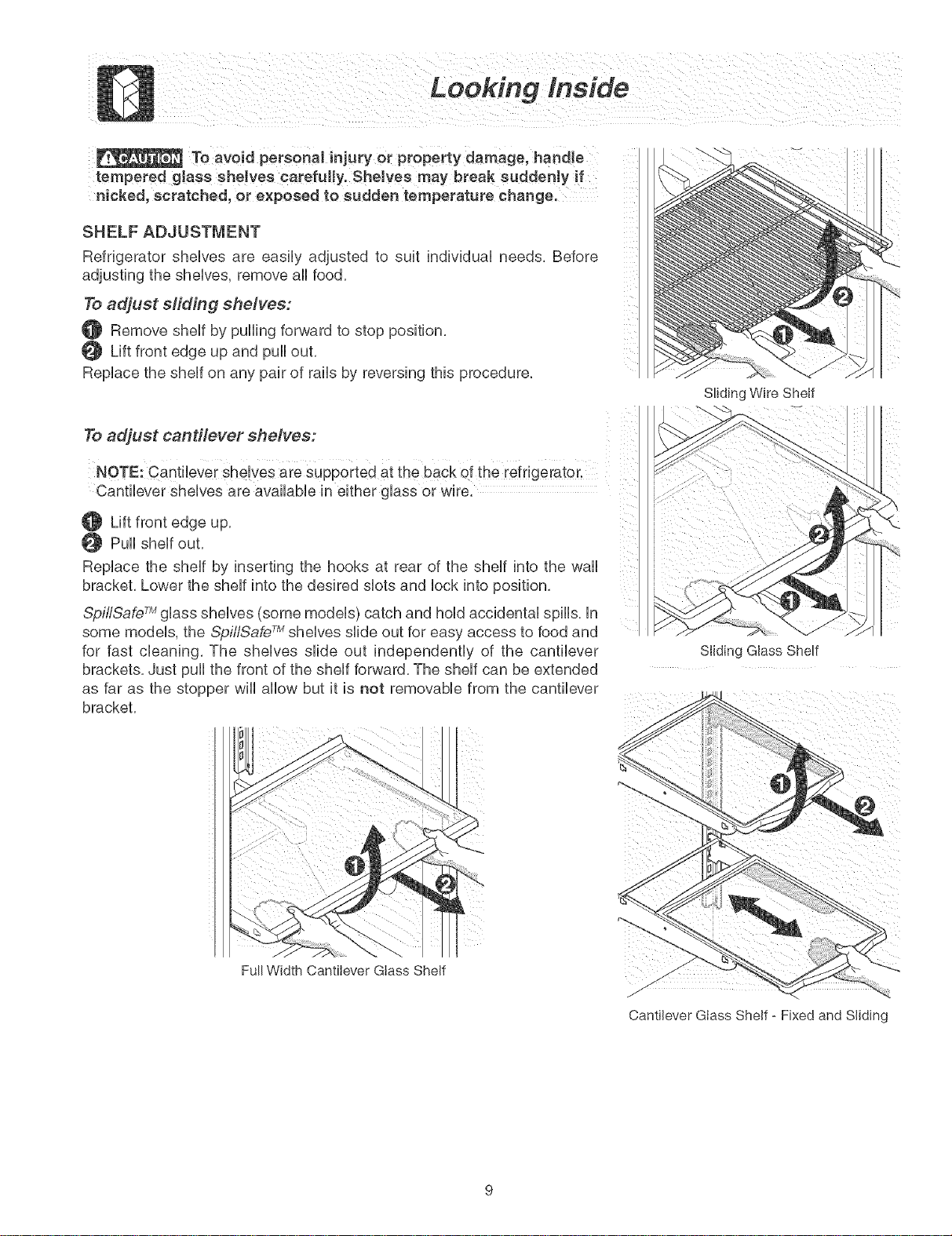

Looking inside .......... 9 - 11

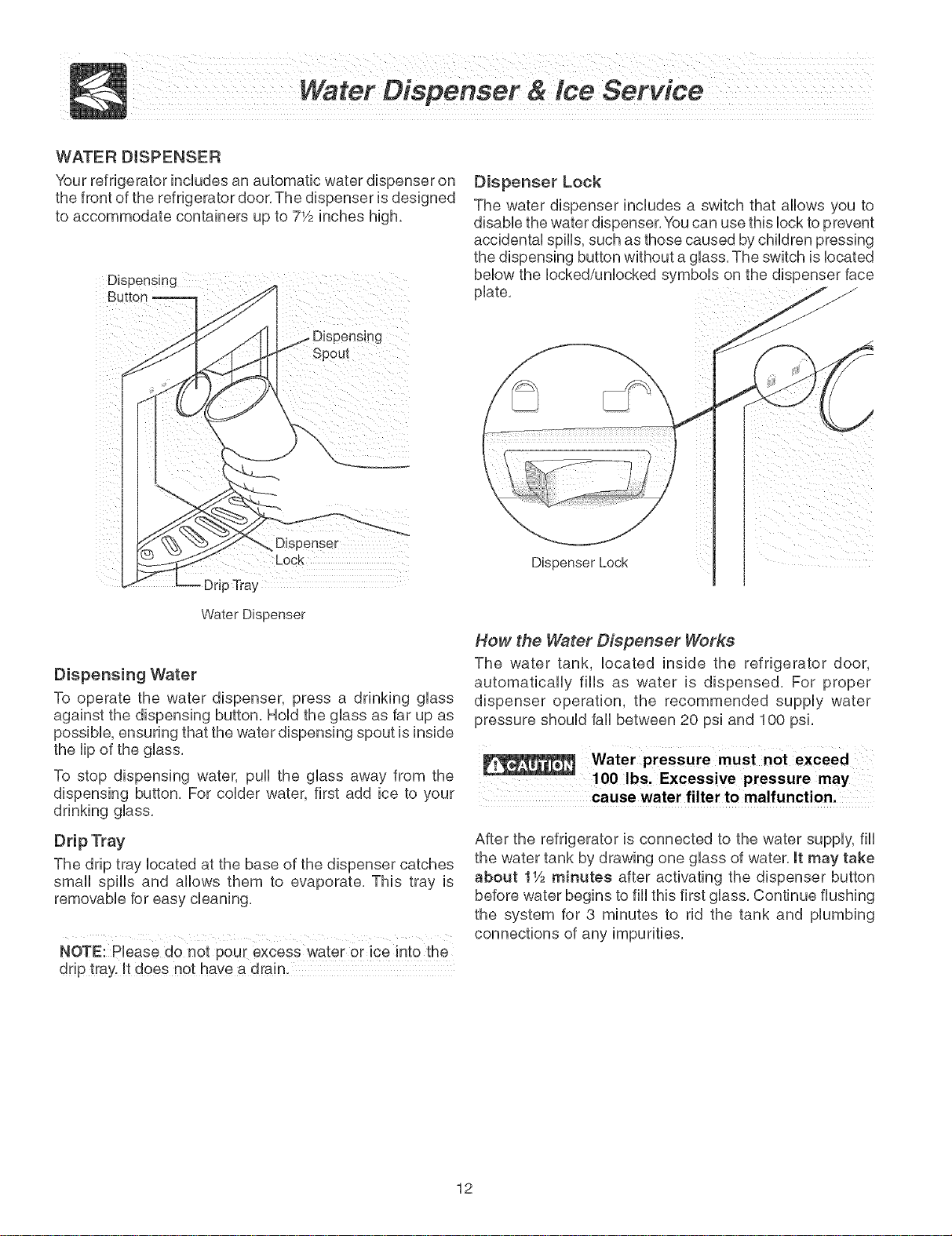

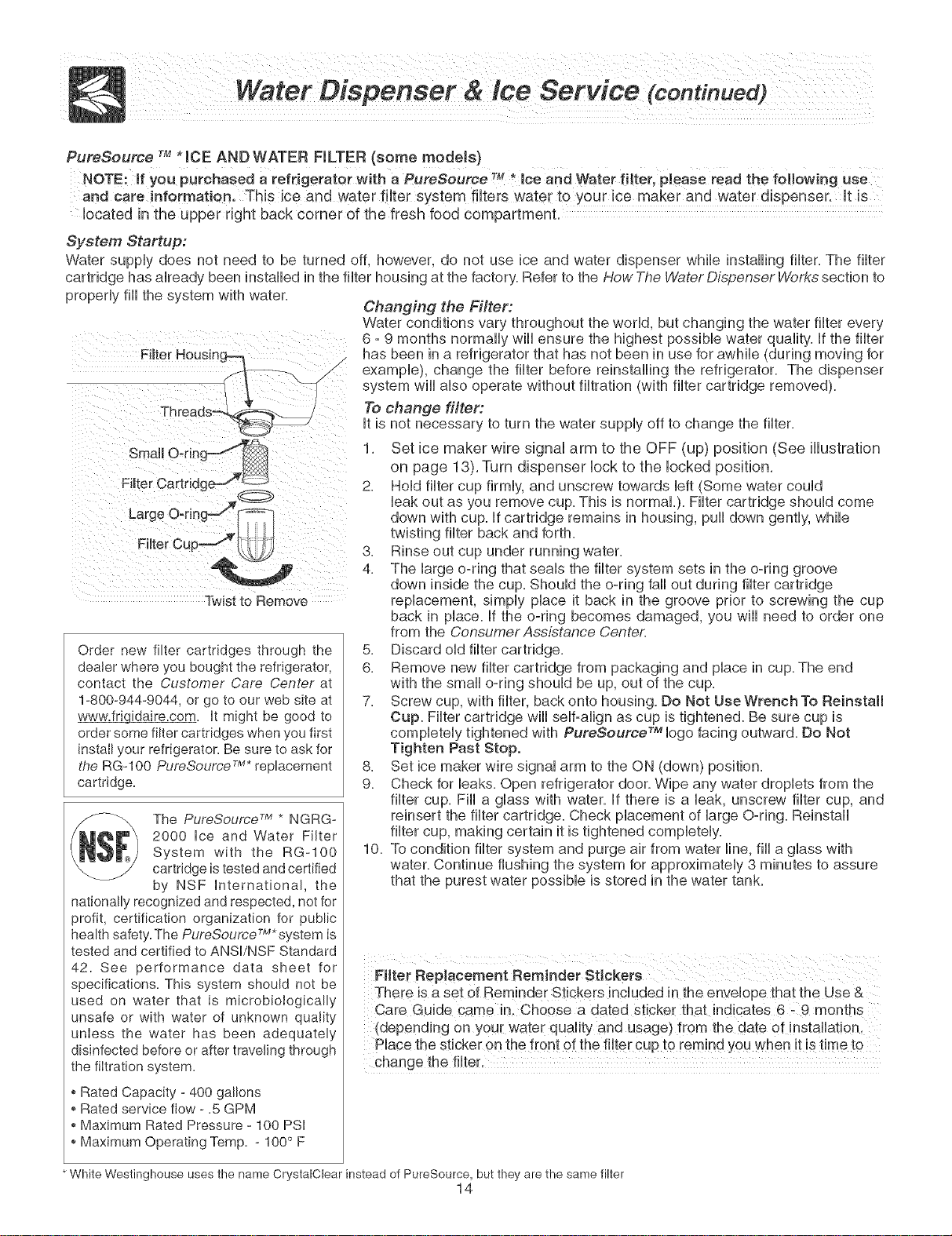

Water Dispenser
& ice Service ........... 12 o 14

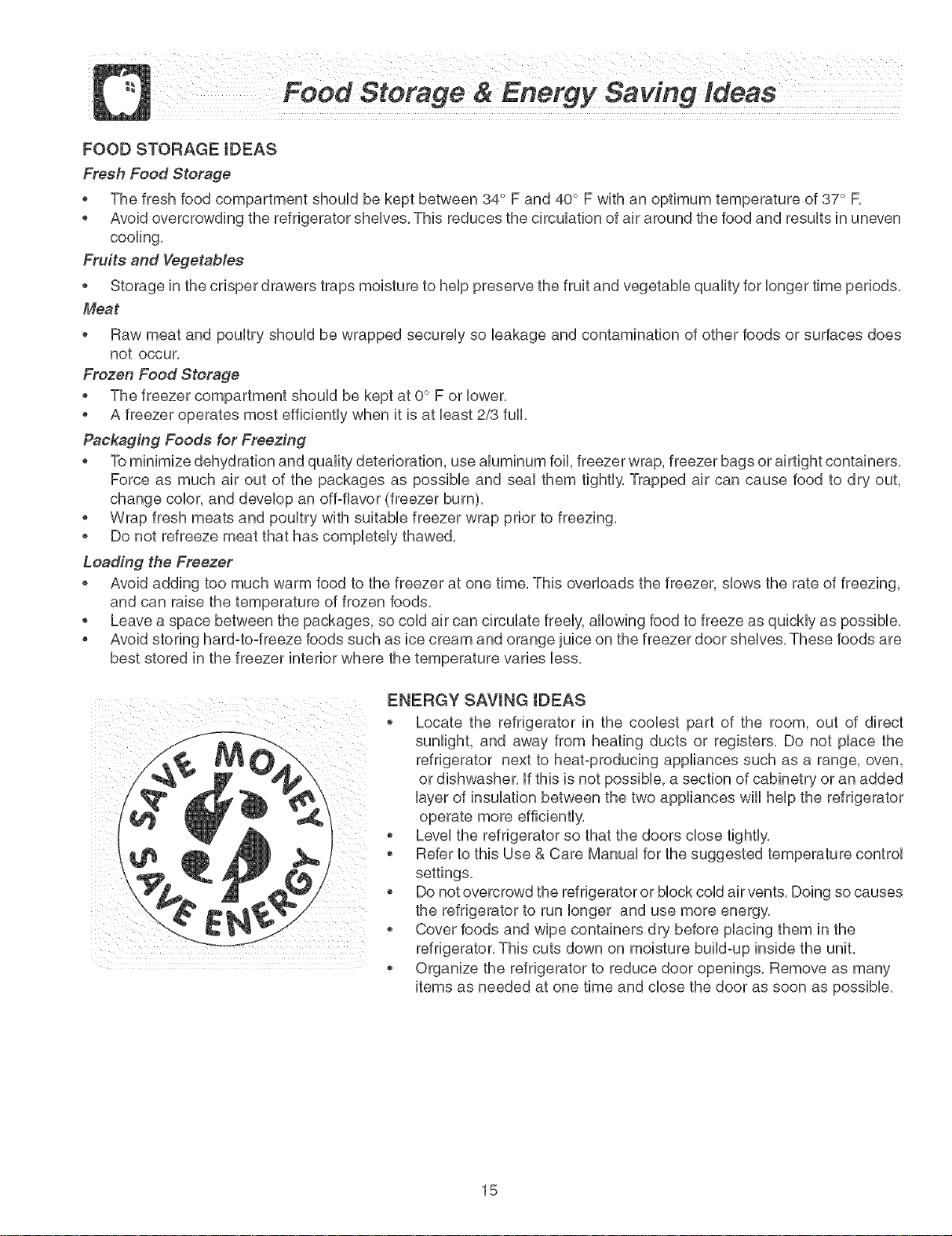

Food Storage
& Energy Saving Tips ....... 15

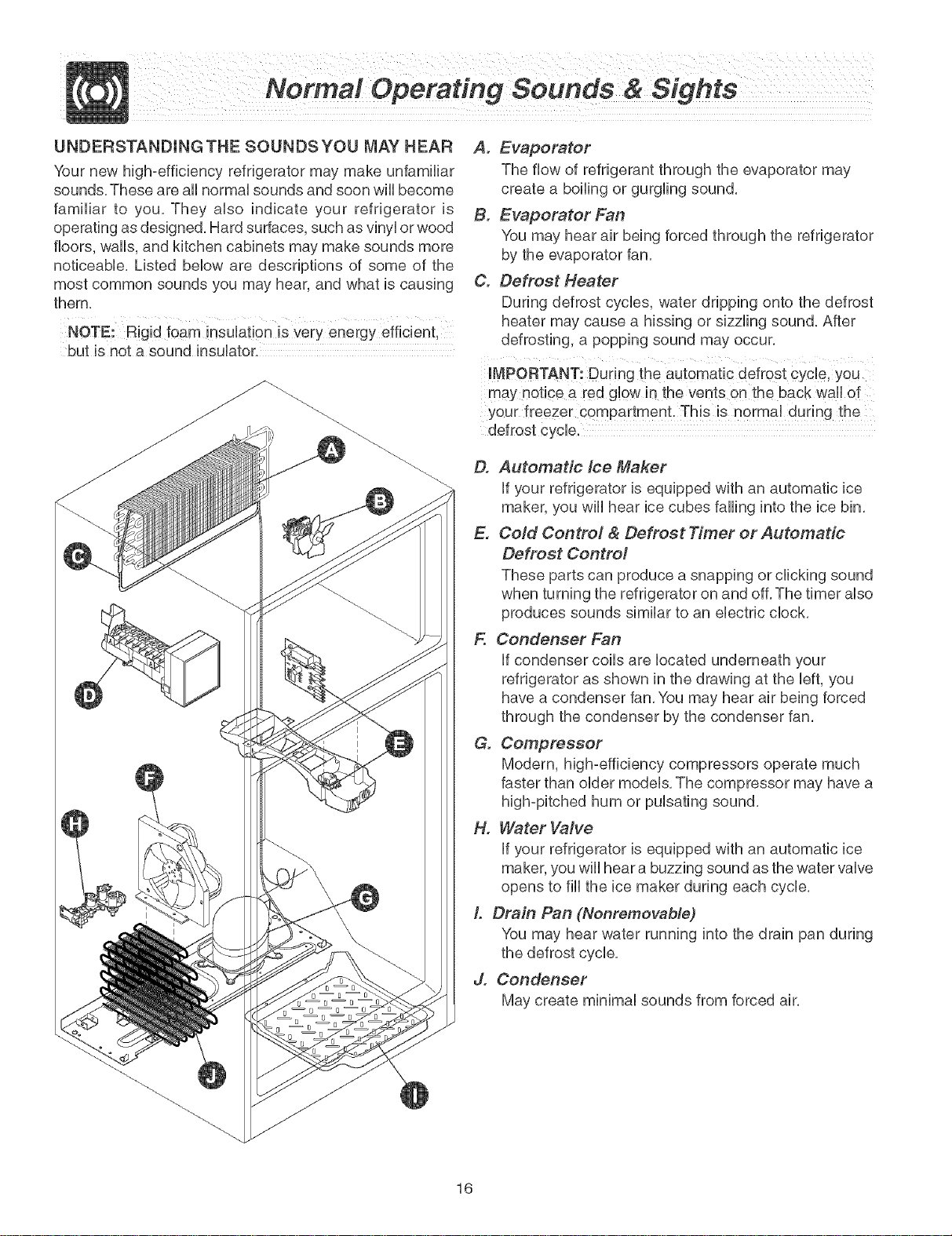

Normam Operating Sounds..16

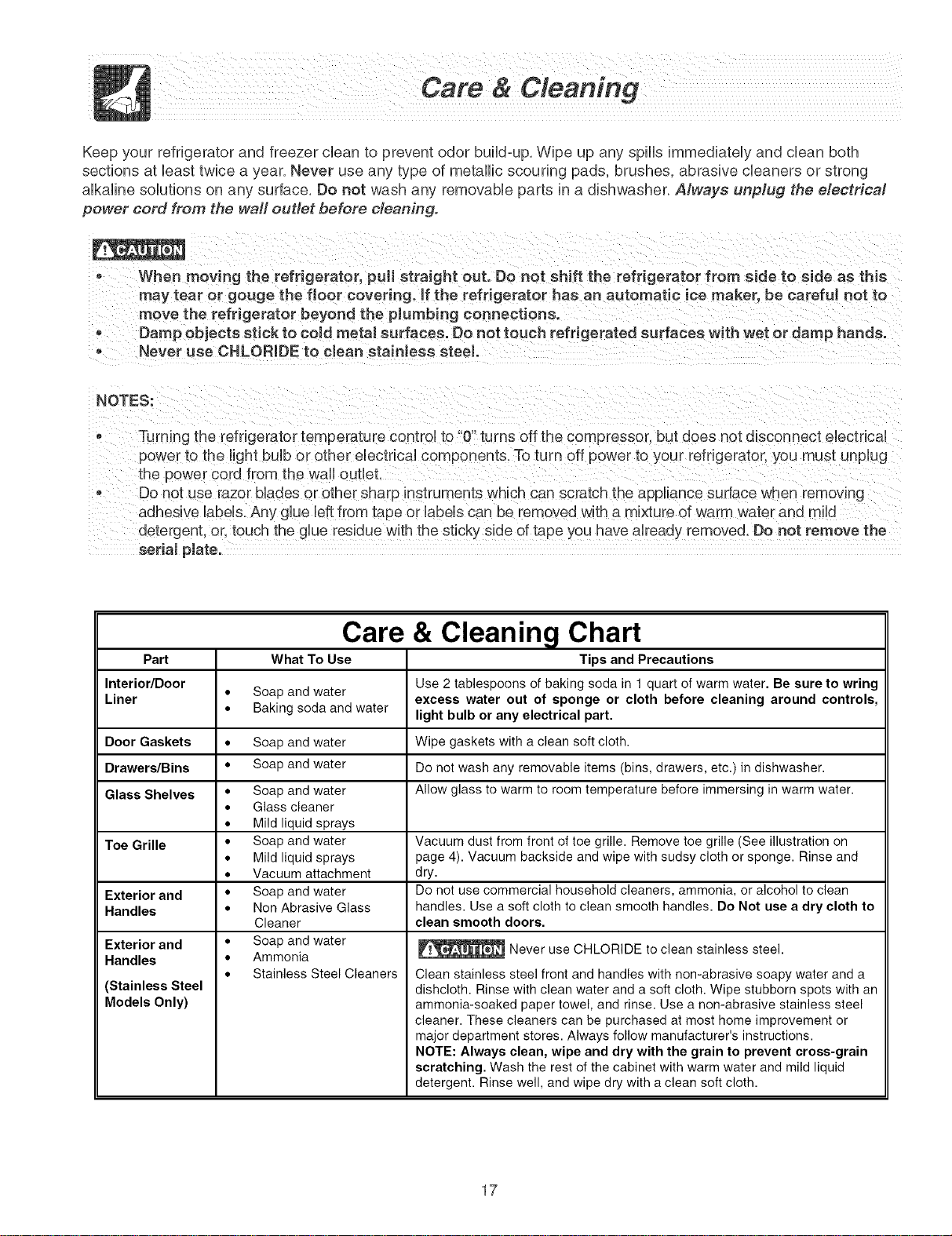

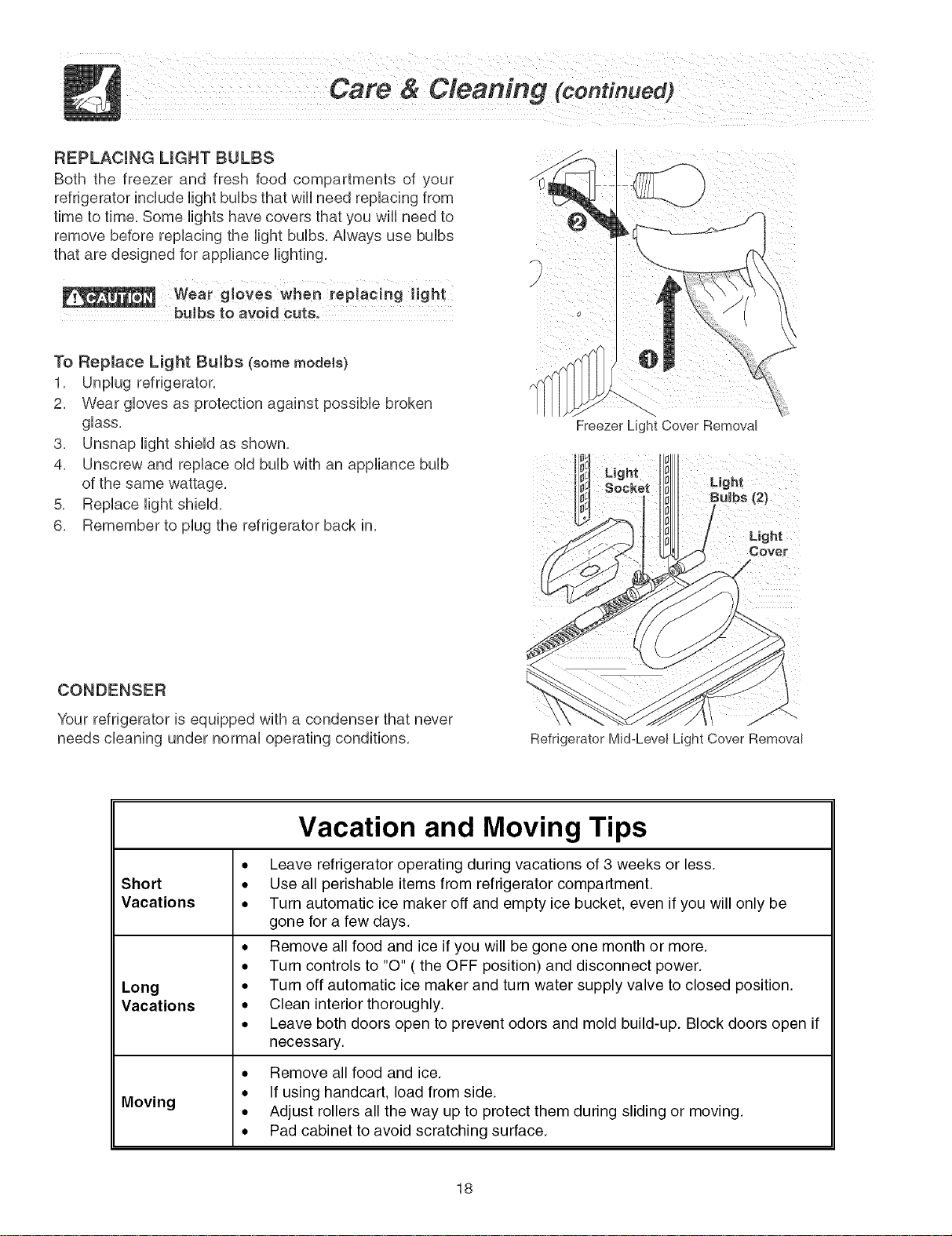

Care & Cleaning .......... 17- 18

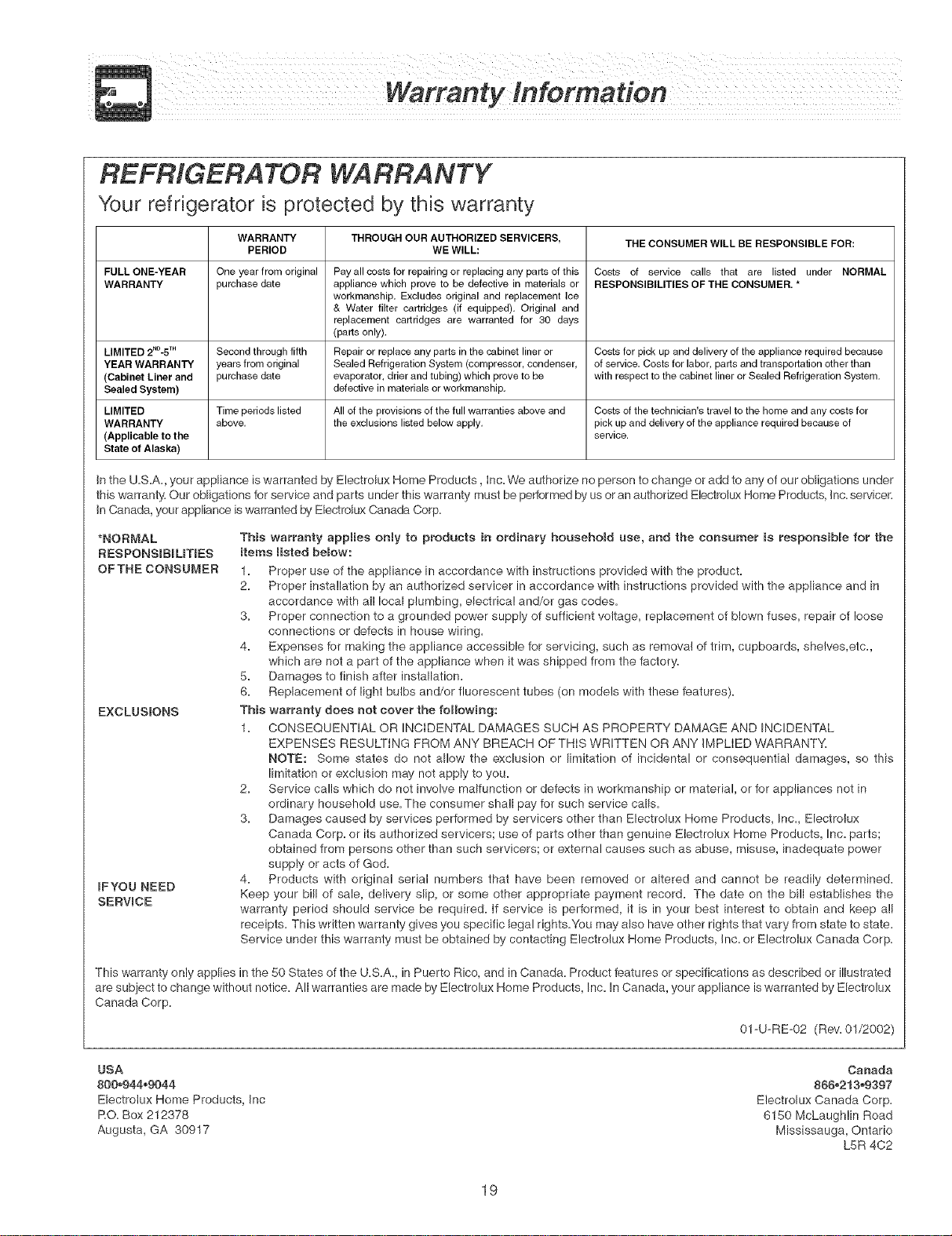

Warranty ...................... 19
Before You Call ............... 20
READ AND SAVE THESE INSTRUCTIONS p_N2415_7802(o8o4)

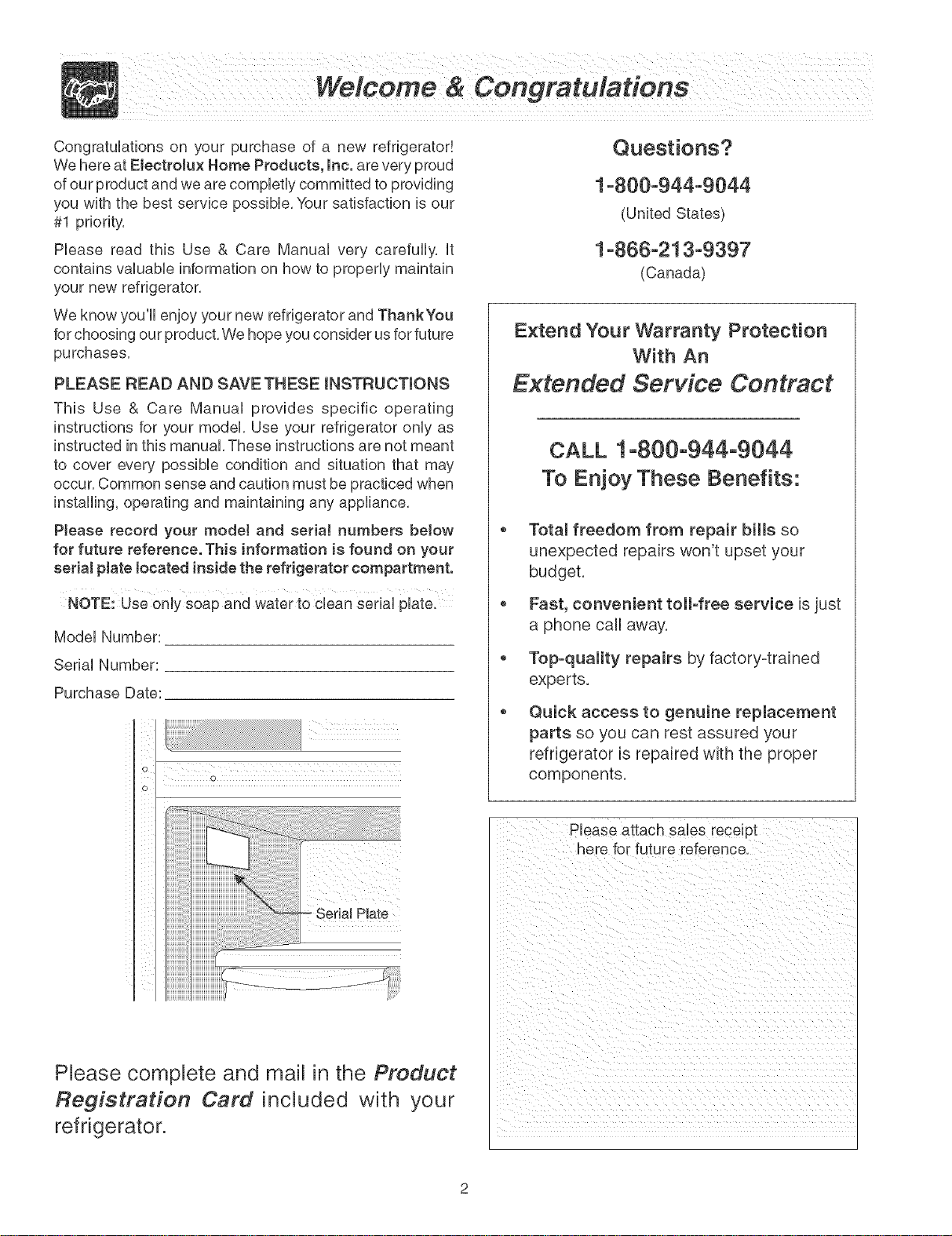

Congratulations on your purchase of a new refrigerator!
We here at Eleetrolux Home Products, lne, are very proud
of our product and we are completly committed to providing
you with the best service possible, Your satisfaction is our
#1 priority,
Please read this Use & Care Manual very carefully, it
contains valuable information on how to properly maintain
your new refrigerator,
We know you'll enjoy your new refrigerator and ThankYou
for choosing our product, We hope you consider us for future
purchases,
PLEASE READ AND SAVETHESE INSTRUCTIONS
This Use & Care blanual provides specific operating
instructions for your model, Use your refrigerator only as
instructed in this manual, These instructions are not meant
to cover every possible condition and situation that may
occur, Common sense and caution must be practiced when
installing, operating and maintaining any appliance,
Please record your model and eeria! numbers below
for future reference. This information is found on your
serial p_ate located inside the refrigerator compartment.
NOTE: Use only soap and water to dean serial plate.
Model Number:
Serial Number:
Purchase Date:
Questions?
1°800°944°9044
(United States)
1-866-2! 3=9397
(Canada)
Extend Your Warranty Protection
With An
Extended Service Contract
CALL t-800-944-9044
To Enjoy These Benefits:
Total freedom from repair bills so
unexpected repairs won't upset your
budget.
Fast, convenient toil-free service is just
a phone call away.
Topoquality repairs by factory=trained
experts.
Quick access to genuine replacement
parts so you can rest assured your
refrigerator is repaired with the proper
components.
Please complete and mail in the Product
Registration Card included with your
refrigerator.
Please attach sales receipl
here for future reference,
_ Pbase Read AH Instructions Before Using This Refrigerator.
FORYOUR SAFETY
Do not store or use gasoline, or other flammabb Hquids
in the vicinity of this or any other appliance, Read pro-
duct UabeUsfor warnings regarding flammability and
other hazards,
o Do not operate the refrigerator in the presence of
o Avoid contact with any moving parts of automatic ice
maker,
Remove aHstapbs from the carton, Stapbs can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture,
CHLD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked, Children should NEVER use these items to play,
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can
quickly cause suffocation.
PROPER DISPOSAL OFYOUR REFRmGERATOR OR
FREEZER
Risk of child entrapment ....
Child entrapment and
suffocation are not problems of
the past, Junked or abandoned
refrigerators or freezers are still
dangerous - even if they will sit
for "just a few days," if you are
getting rid of your old
refrigerator or freezer, please
follow the instructions below to
help prevent accidents,
Before you throw away your old refrigerator/freezer:
o Remove doors,
Leave shelves in place so children may not easily climb
inside,
Have refrigerant removed by a qualified service
technician.
Will Operate Properly.
ELECTRICAL mNFORMATmON
• The refrigerator must be p)ugged into its own
dedicated 115 VoJt, 60 Hz., AC onJy etectric outbt.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards, It must be plugged directly
into a properly grounded three-prong receptacle, The
receptacle must be installed in accordance with local
codes and ordinances, Consult a qualified electrician,
Do not use an extension cord or adapter ptug.
• If the power cord is damaged, it should be replaced by
the manufacturer, service technician or aqualified person
to prevent any risk,
• Never unplug the refrigerator by pulling on the power
cord, Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging power cord,
o Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock,
• Performance may be affected if the voltage varies by
10% or more, Operating the refrigerator with insufficient
power can damage the compressor, Such damage is
not covered under your warranty,
o Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally,
o Avoid connecting refrigerator to a Ground Fault Interrupter
(GFI) circuit,

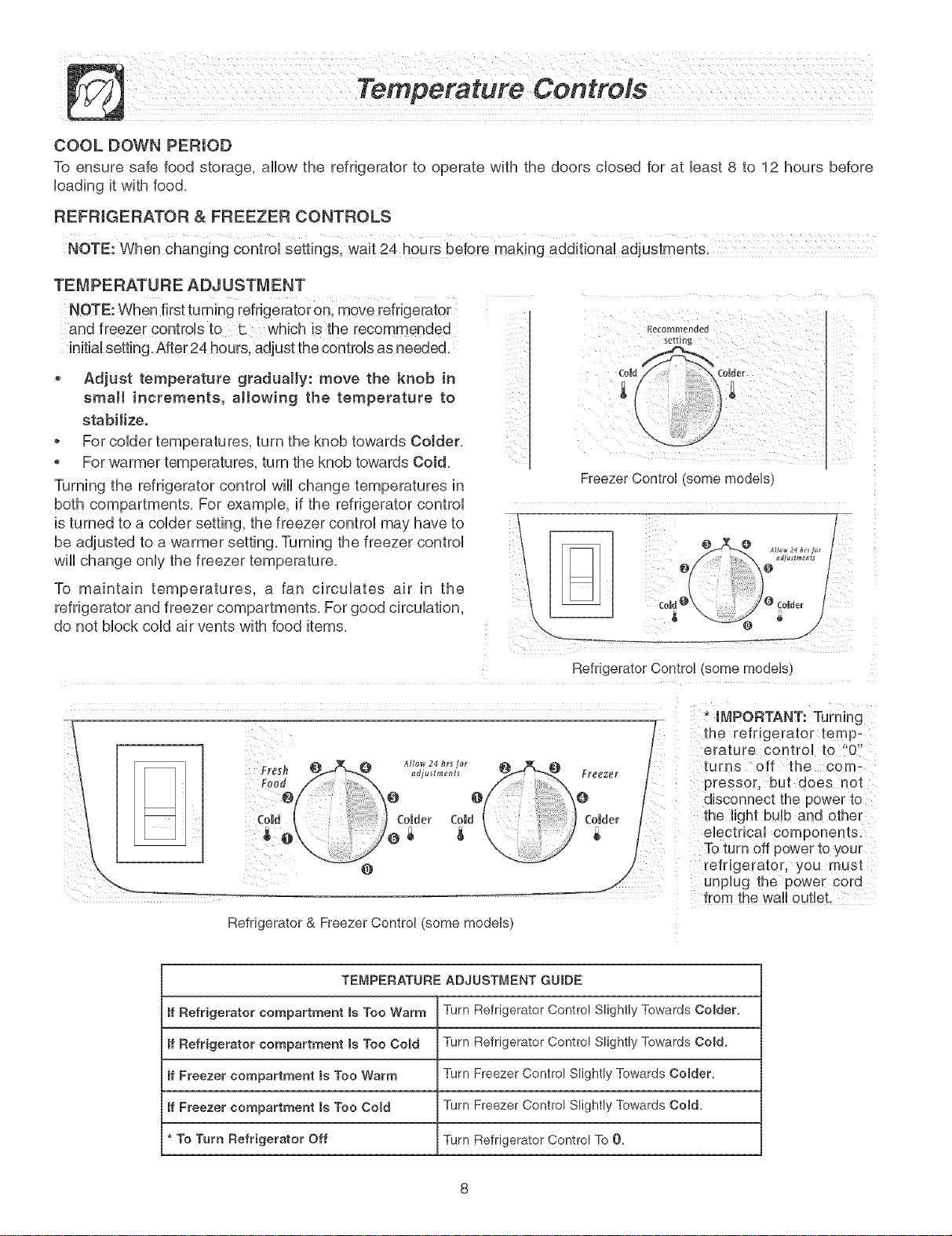

IMPORTANT: Turning the rddgerator temperature
control to"0" turns off the compressor and prevents
your refrigerator from cooling, but does not disconnect
the power to the !ight bulbs and other electrical
COmponents. To turnoff power to your refrigerator
Grounding ty[oe
wall receptacle
Do not, under -"_
any circumstances, I
cut, remove, |
or bypass the |
grou,,dingprongzJ
PowerCordwith
3-prong
ThisUse& CareManuaHprovidesspecificoperating
instructionsforyourmodelUsetherefrigeratoronHyas
instructedinthisUse&CareManualBeforestartingthe
refrigerator,foltowtheseimportantfirststeps.
LOCATION
o Choose a pHacethat is near a grounded eHectricaHoutHet.
Do Not use an extension cord or an adapter pHug.
o HfpossibHe, pHacethe refrigerator out of direct sunHight
and away from the range, dishwasher or other heat
sources.
o The refrigerator must be instaHHedon a floor that is Hovel
and strong enough to support a fuHHyHoadedrefrigerator.
o Consider water suppHyavaiHabiHityfor modeHsequipped
with an automatic ice maker or water dispenser.
mNSTALLATION
_Do Not instaHHthe refrigerator where the
temperature wiHHdrop bellow 55°F (13°C) or rise above
110°F (43_C). The compressor wiHHnot be abHe to
maintain proper temperatures inside the refrigerator.
Do Not block the toe grille or_the
lower front of your refrigerator. Sufficient air
circuJation is essential for the proper operation of
your refrigerator,
installation Clearances
o AHHowthe foHHowingcHearances for ease of instaHHation
proper aur circuHation, and pHumbing and eHectricaH
connections:
Sides & Top 3/8"
Back 1"
DOOR OPENING
NOTE: If your refrigerator is placed with the door hinge
side against a wall, you may have to allo_ additional
space so the door can be opened wider.
Your refrigerator should be positioned to allow easy access
to a counter when removung [cod.
LEVEMNG
AHHfour corners of your refrigerator must rest firmHyon a
soHidfloor.Your refrigerator is equipped with adjustabHefront
rollers to heHpHeveHyour unit.
To Leve/ Your Refrigerator:
1, Remove toe griHHe,
2. Use flat-blade screwdriver or 3/8" socket wrench
to adjust front rollers.
NOTE: Raise the front of the refrigerator enough so
the doors chose freeHy when opened halfway. The
refrigerator shouHd dope W' to W' from front-to-back.
Then leveHthe refrigerator from side to side.
Raise
WATER DmSPENSER DRIP TRAY
The drip tray for
your refrigerator's
water dispenser
comes from the
factory detached. Hts
removaHaHsoaHHows
easy cHeaning To
install the drip tray,
fit it into the bottom
of the dispenser bay
and snap into pHace.

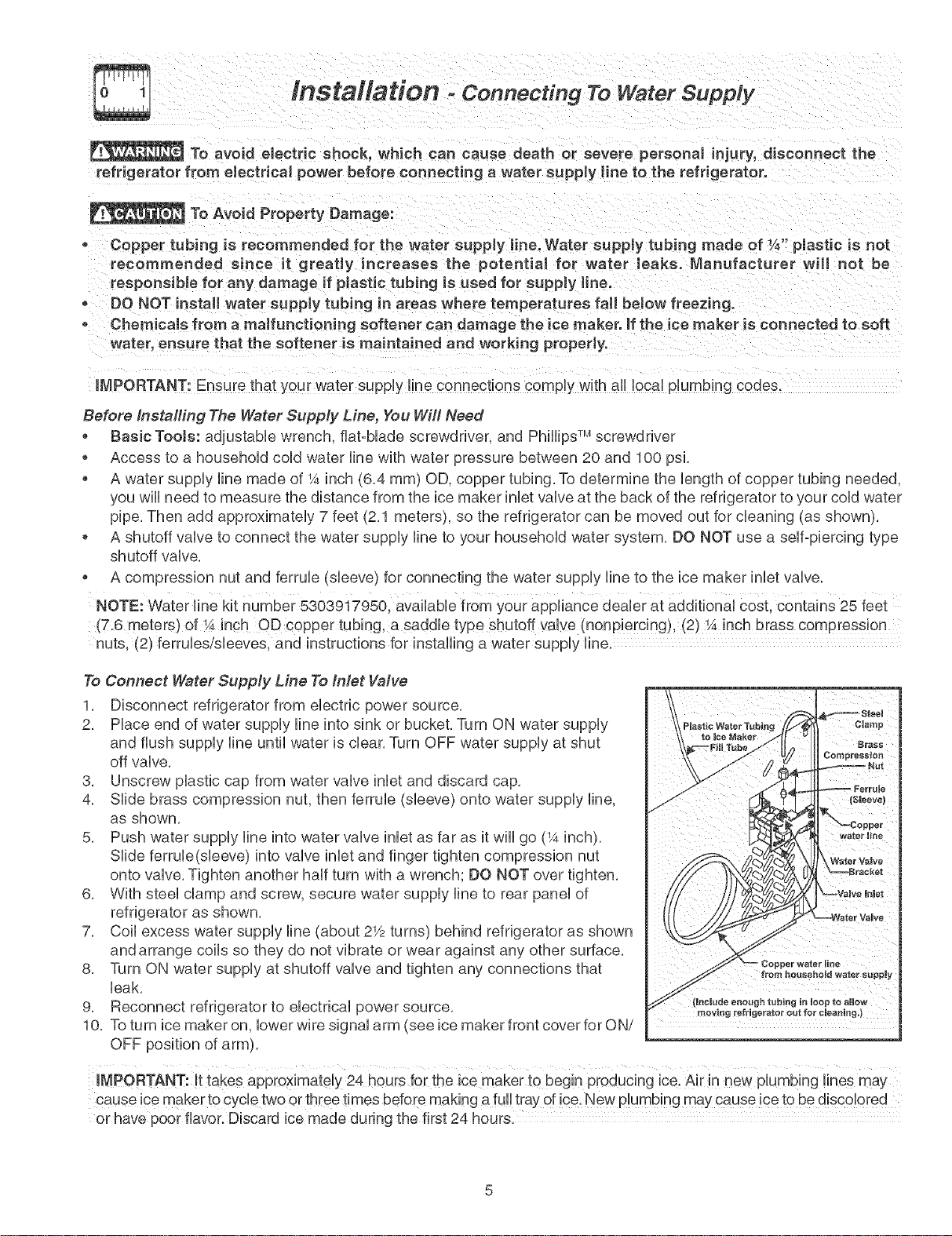

lRstallatioR - Connecting To Water Supply
To avoid electric shock, which can cause death or severe personal injury, disconnect the
refrigerator from electrical power before connecting a water supply line to the refrigerator.
To Avoid Property Damage:
- Copper tubing is recommended for the water supply mine.Water supply tubing made of 1A" plastic is not
recommended since it greatly increases the potential for water leaks. Manufacturer will not be
responsible for any damage if plastic tubing is used for supply line.
• DO NOT install water supply tubing in areas where temperatures fall below freezing.
• Chemicals from a maffunctioning softener can damage the ice maker, if the ice maker is connected to soft
water, ensure that the softener is maintained and working properJy.
IMPORTANT: Ensure that your water supply line connections comply with all Ioca plumbing codes.
Before Installing The Water Supply Line, You Will Need
* Basic Tools: adjustable wrench, flat=blade screwdriver, and Phillips TM screwdriver
. Access to a household cold water line with water pressure between 20 and 100 psi,
* A water supply line made of 14inch (6,4 mm) OD, copper tubing, To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water
pipe, Then add approximately 7 feet (2,1 meters), so the refrigerator can be moved out for cleaning (as shown),
. A shutoff valve to connect the water supply line to your household water system, DO NOT use a self=piercing type
shutoff valve,
* A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve,
NOTE:waterline kit number 5303917950, available from your aPplianCe dealer at additional cost, contains 25 feet
(7:6 meters) of 14inch QDcopper tubing, a saddle type shutoff valve (nonPierc!ng), (2) x !nch brass compression
nuts, (2) ferrules/sleeves, and instructions for installing a water supply line,
To Connect Water Supply Line To Inlet Valve
1, Disconnect refrigerator from electric power source,
2, Place end of water supply line into sink or bucket, Turn ON water supply
and flush supply line until water is clear, Turn OFF water supply at shut
off valve,
3, Unscrew plastic cap from water valve inlet and discard cap,
4, Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown,
5. Push water supply line into water valve inlet as far as it wiii go (1Ainch).
Slide ferrule(sleeve) into valve inlet and finger tighten compression nut
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
With steel clamp and screw, secure water supply line to rear panel of
refrigerator as shown.
Coil excess water supply line (about 2Y2turns) behind refrigerator as shown
6,
7.
8.
B_ss
Compression
and arrange coils so they do not vibrate or wear against any other surface.
Turn ON water supply at shutoff valve and tighten any connections that .copp_w_tor_
from h_Usehold water suppmy
leak.
9. Reconnect refrigerator to electrical power source.
10. Toturn ice maker on, lower wire signal arm (see ice maker front cover for ON/
OFF position of arm).
iMPORTANT: It takes approximately 24 hours foethe ice maker to begin producing ice, Air !n new plumbing !ines may
cause ice maker to cycle two or three t!mes borere making a fuj! tray of ice. New p!umb!ng may cause ice to be d!scolored
or have poor flavor. Discard ice made during the first 24 hours,
Door Removal Instructions
Ir _ottom
,i._de
Screw C_nter "_'-'se
Tools Necessary:
Ph Ilior
_na
Flat Head
Screw Driver
Adlustable
wrY,rich
3/8
Fixed
Wrench
_Top Hinge
Cove[
_Pin
Center
Hinge
DOOR REMOVAL INSTRUCTIONS:
[ your refrigerator wi not fit through an entrance area. you can reduce its size by
removing the doors. Check first by measuring the entrance.
iMPORTANT: Before you begin, turn the refrigerator temperature control to "0" and
remove the electrical power cordfrom the wall outlet. Remove food from door shelves.
1 Disconnect electrical supply
2 Remove toe grille/see page 4 to barn how,
To remove freezer doer:
1 Remove top hinge cover and screws.
2 Trace around the hinge with a soft lead pencil. This makes reinstaiiation easier
3 Remove top hinge and lift door off bottom hinge pin.
4 Reverse this procedure to reinstall freezer door.
To remove refrigerator door:
1 Place wood block under door to support its weight.
2 Unfasten the multi-wire cable bracket by removing its screw from the cabinet.
8, Detach the multi-wire cable connector located belos the door.
Place your thumbs on fiat sides of each connector, grasp firmly, and bend both
ends back and forth while pulling apart,
NOTE: You may need to insert a fiat screwdriver between the connector ends to
release the locking tab (see illustration).
4, Detach the water tube from the connector located below the door. The connector
releases when you press its outer sleeve inward.
NOTE: If refrigerator has been used. have a container ready to catch excess water
from tube.
5 Remove the bottom hinge screws and hinge, holding the door as its weight rests
on the wood block. Lay the door on its side to avoid damage to cable and tube.
6 Remove the center hinge screws and hinge. Ensure plastic washer stays on
7, Reverse this procedure to reinstall refrigerator door. When both doors are
reinstalled, connect water line by inserting tube and pushing until mark touches
face of fitting, Connect cable, replace toe grille, and plug in electrical power cord.
Fiat Head
Screwdriver
TO DISCONNECT
1.Press outer ring againstface
removeIUDe
susn until mark touches face of fitting
Freezer
Control
Refrigerator
Controm
Water
Deii Drawer
Cover
Deli
Half Shelf
Wine Rack
Full
Special item
Mid Level Li
Crisper
Crisper
Drawers --
ice Tray--_ _- Freezer Light
r=
Fixed Door 8in
_-_ Door Rack
Dairy Door
Tamm8ottme
Retainer
Snugger
Door Bin
Fixed Door Bin
Door Rack
Features may vary according to model
COOL DOWN PERmOD
To ensure safe food storage, allow the refrigerator to operate with the doors cUosed for at Ueast8 to 12 hours before
Uoadingit with food,
REFRIGERATOR & FREEZER CONTROLS
TEMPERATURE ADJUSTMENT
NOTE: When first turning refrigerator on. move refogerator
and freezer controls to t which is the recommended
initial setting After 24 hours, adjust the controls as needed,
- Adjust temperature gradually: move the knob in
small increments, allowing the temperature to
stabilize.
o For coUdertemperatures turn the knob towards Colder,
o For warmer temperatures, turn the knob towards Cold.
Turning the refrigerator control will change temperatures in
both compartments. For example, f the refrigerator control
is turned to a colder setting, the freezer control may have to
be adjusted Ioa warmer setting, Turning the freezer control
will change only the freezer temperature,
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments, For good circulation.
do not block cold air vents with food items,
Eecornmended
S(>TTIR_}
Freezer Control, some models,
(omd@
/
ualu,un,,nr_ I
/
. /
Refric era_or Control some models.
Fresh
\\.. 0 ..'/
Refrigerator & Freezer Control ,some models,
/
/
/
/
* IMPORTANT: Turning
erature control to "0"
turns off the com-
pressor, but does not
disconnect the power to
electrical components.
Toturn off po_oerto your
unplug the power cord
from the wall outlet.
TEMPERATURE ADJUSTMENT GUIDE
ff Refrigerator compartment msToo Warm Turn Refrigerator Control Slightly Towards Comder,
if Refrigerator compartment is Too Cored Turn Refrigerator Control Slightly Towards Cored.
ff Freezer compartment msToo Warm Turn Freezer Control Slightly Towards Comder,
ff Freezer compartment msToo Cored Turn Freezer Control Slightly Towards Cored,
* To Turn Refrigerator Off Turn Refrigerator Control To O.
Toavoidpersonali j rVOrpropertydamage,ha.die
tempered glass she!ves carefully. Shelves may break suddenJy if
nicked, scratched, or exposed to sudden temperature change.
SHELF ADJUSTMENT
Refrigerator sheUves are easily adjusted to suit individuaU needs, Before
adjusting the sheUves, remove aHfood,
To adjust sliding shelves:
0 Remove sheff by pulling forward to stop position,
@ Lift front edge up and pull out.
RepUacethe sheff on any pair of rails by reversing this procedure.
To adjust cantilever shelves:
Cantilever shelves are available in either glass or wire.
Lift front edge up.
Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf into the desired slots and lock into position.
SpiflSafe _Mglass shelves (some models) catch and hold accidental spills. In
some models, the SpillSafe TMshelves slide out for easy access to food and
for fast cleaning. The shelves slide out independently of the cantilever
brackets. Just pull the front of the shelf forward. The shelf can be extended
as far as the stopper will allow but it is not removable from the cantilever
bracket.
Full Width Cantilever Glass Shelf
Sliding Wire Shelf
Sliding Glass Shelf
Cantilever Glass Shelf - Fixed and Sliding
DOOR STORAGE
Door bins, shelves, and racks are provided for convenbnt
storage of jars, bottles, and cans. Frequently used items can
be qubkly selected.
Some models have door racks or bins that can accommodate
gallonosized pHastbdnnk containers and economyosized jars
and containers. Some racks are adjustabie for maximum
storage capadty.
The dairy compartment, which is warmer than the general food
storage section, is intended for short term storage of cheese,
spreads, or butter.
TALL BOTTLE RETAINER (SOME MODELS)
The Tali Bottie Retainer keeps tali containers in the bin from
failing forward when opening or ciosing the refrigerator door.
To instali, hoid the retainer at the top, and slide it over the
outside wali of the bin, as shown in the diagram. The TaHHBottHe
Retainer works best with a Bin Snugger.
Door Rack
ADJUSTABLE DOOR BINS
Some modeis have adjustabHedoor bins that can be moved to
suit individual needs.
Tomove door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports untiHlocked in place.
Tail Bottle Retainer (left) and Bin Snugger (right)
SPECIAL toTEM RACK (SOME MODELS)
The innovative design of the Speciai item Rack allows you to
store a sixopack of 12 ounce drink cans, a bottie of wine, a
twoolitersoft drink bottie, or a carton ofeggs. The Speciai item
Rack mounts on the Heftside of your refrigerator. To instali,
just siide the Speciai item Rack onto any she# as shown in
the drawing.
Special item Rack
Adjustable Door Bin
10
CRISPERS(SOMEMODELS)
Thecrispers,Hocatedunderthebottomrefrigeratorsheff,
aredesignedforstoringfruits,vegetaMes,andotherfresh
produce,Washitemsin waterandremoveexcess water
before pHacingthem in the crispers, Htemswith strong odors
or high moisture content shouHdbe wrapped before storing,
Crisper Drawer
HUMIDITY CONTROL (SOME MODELS)
The Humidity Control present on some modemswith crisper
drawers, allows you to adjust the humidity within the crisper,
This can extend the Hfeof fresh vegetaNes that keep best
in high humidity,
NOTE: Leafy vegetaNes keep best when stored with the
Humidity Centrol set on High Humidity, or in a drawer
without a Humidity Control. This keeps incoming airto a
minimum and maintains maximum moisture content,
Low
Humidity ./
DELl DRAWER (SOME MODELS)
Some models are equipped with a DeHiDrawer for storage
of luncheon meats, spreads, cheeses, and other deHiitems,
Deli Drawer
WINE RACK (SOME MODELS)
The Wine Rack stores bottles of wune, or single two-liter
plastic bottles of juice or soda pop. To install, slide the Wine
Rack onto the shelf with the curve facing in. To remove,
slide the Wine Rack out. Install on either side of shelf.
Wine Rack
Crisper Humidity Control
11
Water Dispenser & ice Service
WATER DISPENSER
Your refrigerator includes an automatic water dispenser on
the front of the refrigerator door, The dispenser is designed
to accommodate containers up to 7_ inches high,
Dispensing
Button
Dispenser Lock
The water dispenser [ncUudes a switch that allows you to
disaNe the water dispenser, You can use this bck to prevent
accidenta[ spHUs,such as those caused by children pressing
the dispensing button without a gUass,The switch is bcated
bebw the [ocked/unUocked symbols on the dispenser face
pHate. J
\
}riser
LOCK
DripTray
Water Dispenser
Dispensing Water
To operate the water dispenser, press a drinking glass
against the dispensing button. Hold the glass as far up as
possible, ensuring that the water dispensing spout is inside
the lip of the glass.
To stop dispensing water, pull the glass away from the
dispensing button. For colder water, first add ice to your
drinking glass.
Drip Tray
The drip tray located at the base of the dispenser catches
small spills and allows them to evaporate. This tray is
removable for easy cleaning.
ddp tray. !t does not have a drain.
f
\\ //
Dis 3enser Lock
How the Water Dispenser Works
The water tank, located inside the refrigerator door,
automatically filis as water is dispensed, For proper
dispenser operation, the recommended supply water
pressure should fail between 20 psi and 100 psi,
Water pressure must not exceed
100 Ibs, Excessive pressure may
cause water filter to malfunction.
After the refrigerator is connected to the water supply, fiH
the water tank by drawing one glass of water. It may take
about 11/2minutes after activating the dispenser button
before water begins to fill this first glass. Continue flushing
the system for 3 minutes to rid the tank and plumbing
connections of any impurities.
12
iCEMAKER
ifyourrefrigeratorhasanautomaticicemaker,itwillprovideasufficient
supplyoficefornormaluse,Duringtheinitialstartupofyourrefrigerator,
however,no icewillbeproducedduringthefirst24 hoursofoperation,
Automaticicemakersarealsooptionalaccessoriesthatmaybeinstalledin
mostmodelsatanytime,Callyourlocaldealerforinformation,
Theicemakerproduces2to5poundsoficeevery 24 hours depending on usage
conditions, ice is produced at a rate of 8 cubes every 80 to 160 minutes.
Turning Your ice Maker On
After the plumbing connections have been completed, the water supply valve
must be opened, Place the ice container under the ice maker, pushing it as
far back as possible, Lower the wire signal arm to its "down" or ON position,
New plumbing connections may cause the first production of ice cubes to
be discolored or have an odd flavor, These first cubes should be discarded
until the cubes produced are free of discoloration and taste,
Turning Your ice Maker Off
To stop the ice maker, lift the wire signal arm until it clicks and locks in the
"up" or OFF position, The ice maker also turns off automatically when the ice
container is full, if your model has an adjustable freezer shelf, place the
shelf in the lower position, so that the wire signal arm will hit the ice when
the container is fuji.
ice Maker
IMPORTANT: Your ice maker is shipped with the wire signal arm in the ON position. To ensure proper function of
Chem!cals from a maffunctioning softener can damage the ice maker, if the ice make[ is
connected to soft water, ensure that the softener is maintained and working properly.
ice Maker Tips
o ice cubes stored too long may develop an odd flavor, Empty the ice container and ensure that the wire signal
arm is in its "down" or ON position, The ice maker will then produce more ice,
o Occasionally shake the ice container to keep ice separated,
o Keep the wire signal arm in its "up" or OFF position until the refrigerator is connected to the water supply or
whenever the water supply is turned off,
o The following sounds are normal when the ice maker is operating:
Motor running
ice loosening from tray
o ice dropping into ice container
* Running water
, Water valve opening or closing
NOTE;For more !nformat!on On these operations, see the Normal @erating Sounds andSights section_
DO Not place the iCe Container in your dishwasherl
Wash the ice container in warm water with mild detergent, Rinse well and dry,
Stop the ice maker when cleaning the freezer and during vacations,
o if the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position,
13
PureSource .m. ICE AND WATER FILTER (some models)
NOTE: I_ you p.rchased a refrigerator with a PureSource TM _[ce and WateF filter , p_ease Feadthe following use
and care information. This ice and water filter system filters water to your ice maker and water dispenser. It is
located in the upper right back corner of the fresh food Compartment,
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section to
properly fiii the system with water.
hroa0s
Smaiiolii
Filter caitridg_
Twist to Remove
Order new filter cartridges through the
dealer where you bought the refrigerator,
contact the Customer Care Center at
1-800-944-9044, or go to our web site at
www.friqidaire.com, it might be good to
order some filter cartridges when you first
install your refrigerator. Be sure to ask for
t,_eRG-100 PureSoume TM*replacement
cartridge.
The PureSource TM * NGRG-
2000 ice and Water Filter
System with the RG-100
cartridge istested and certified
by NSF international, the
nationally recognized and respected, not for
profit, certification organization for public
health safety. The PureSoumeTM*system is
tested and certified to ANSl/NSF Standard
42. See performance data sheet for
specifications. This system should not be
used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
oRated Capacity - 400 gallons
Rated service flow - .5 GPM
Maximum Rated Pressure - 100 PSi
oMaximum Operating Temp. - 100° F
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality, if the filter
has been in a refrigerator that has not been in use for awhile (during moving for
example), change the filter before reinstalling the refrigerator. The dispenser
system will also operate without filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Set ice maker wire signal arm to the OFF (up) position (See illustration
on page 13). Turn dispenser lock to the locked position.
2. Hold filter cup firmly, and unscrew towards left (Some water could
leak out as you remove cup. This is normal.). Filter cartridge should come
down with cup. if cartridge remains in housing, pull down gently, while
twisting filter back and forth.
3. Rinse out cup under running water.
4. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fail out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place, if the o-ring becomes damaged, you wiii need to order one
from the Consumer Assistance Cente£
5. Discard old filter cartridge.
6. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
7. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall
Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is
completely tightened with PureSource TM logo facing outward. Do Not
Tighten Paat Stop.
8. Set ice maker wire signal arm to the ON (down) position.
9. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Fill a glass with water, if there is a leak, unscrew filter cup, and
reinsert the filter cartridge. Check placement of large O-ring. Reinstall
filter cup, making certain it is tightened completely.
10. To condition filter system and purge air from water line, fill a glass with
water. Continue flushing the system for approximately 3 minutes to assure
that the purest water possible is stored in the water tank.
There is a set of Reminder Stickers included in the envelope that the Use &
Care Guide came in. Choose a dated Stickerthat indicates 6 4 9 months
(depending on your water quality and usage) from the date of installation,
change the filter,
* WhiteWestinghouse uses the nameCrystalCbar instead of PureSource,but they are the same filter
14
FOOD STORAGE IDEAS
Fresh Food Storage
o The fresh food compartment shouUdbe kept between 34° F and 40° F with an optimum temperature of 37 ° R
o Avoid overcrowding the refrigerator sheUves,This reduces the circulation of air around the food and resuUtsin uneven
cooling,
Fruits and Vegetables
o Storage in the crisper drawers traps moisture to heUppreserve the fruit and vegetabUequality for Uongertime periods,
Meat
o Raw meat and pouUtryshouUdbe wrapped secureUy so Ueakage and contamination of other foods or surfaces does
not Occur,
Frozen Food Storage
* The freezer compartment shouUd be kept at 0° F or Uower,
* A freezer operates most efficientUy when it is at Ueast2/3 full,
Packaging Foods for Freezing
o Tominimize dehydration and quality deterioration, use aUuminumfoil, freezer wrap, freezer bags or airtight containers,
Force as much air out of the packages as possible and seal them tightly, Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer burn),
* Wrap fresh meats and poultry with suitable freezer wrap prior to freezing,
Do not refreeze meat that has completely thawed,
Loading the Freezer
o Avoid adding too much warm food to the freezer at one time, This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods,
Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible,
* Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves, These foods are
best stored in the freezer interior where the temperature varies less,
ENERGY SAVmNG mDEAS
* Locate Ihe refrigerator in the coolest par_ of Ihe room out of direct
sunlight, and away from heating ducts or reg sters, Do not place Ihe
refrigerator next to heat-producing appliances such as a range, oven
or dishwasher, if this is not possible a section of cabinetry or an added
layer of insulation between the two appliances wi help the refrigerator
operate more efficiently,
o Level the refrigerator so that the doors close tightly,
° Refer to this Use & Care Manual for the suggested temperature control
settings,
° Do not overcrowd the refrigerator or block cold air vents, Doino so causes
the refrigerator to run longer and use more energy,
o Cover foods and wipe containers dry before placing them in the
refrigerator, This cuts down on moisture build-up inside the unil
, Organize the refrigerator to reduce door openings, Remove as many
items as needed at one time and close the door as soon as possible,
15
UNDERSTANDINGTHESOUNDSYOUMAYHEAR
Yournewhigh-efficbncyrefrigeratormaymakeunfamiliar
sounds.TheseareaHnormaUsoundsandsoonwHUbecome
familiarto you.TheyaUsoindicateyour refrigeratoris
operatingasdesigned.Hardsurfaces,suchasvinyUorwood
floors,walls,andkitchencabinetsmaymakesoundsmore
notbeaMe.Listedbebwaredescriptionsofsomeof the
mostcommonsoundsyoumayhear,andwhatiscausing
them.
NOTE:RigidfoaminsuUat!onisveryenergyefficbnt,
but isnotasoundinsulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C, Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
iMPORTANT: During the automatic defros t cycle, you
may notice a red g!ow in the vents on the back wal! of
your freezer compartment: Th!s !s n0rmal dur!ng the
defrost cycie,
Do Automatic ice Maker
if your refrigerator is equipped with an automatic ice
maker, you wiii hear ice cubes failing into the ice bin.
E. Cold Cot)trol & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Cot)dot)set Fat)
if condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
He Water Valve
if your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drait) Part (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle.
Jo Cot)dot)set
May create minimal sounds from forced air.
16
KeepyourrefrigeratorandfreezercUeantopreventodorbuild-up.WipeupanyspHUsimmediateUyanddeanboth
sectionsatUeasttwiceayear.Neveruseanytypeofmetallicscouringpads,brushes,abrasivecleanersorstrong
aUkaHnesoUutionsonanysurface.DonotwashanyremovaMepartsinadishwasher.Always unplug the electrical
power cord from the wall outlet before cleaning.
* When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this
may tear or gouge the floor covering. Jfthe refrigerator has an automatic ice maker, be careful not to
move the refrigerator beyond the pJumbing connections.
- Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
o Never use CHLORIDE to cJean stainless steel
NOTES:
Turning the refrigerator temperature control to "0" turns off the compressor, but does not disconnect electrical
power to the light bulb or othe _electrical components. Toturn off power to your refrigerator, you must unplug
the power cord from the wall outlet
Do not use razor oiades or other sharp instruments which can scratch the appliance surface when removing
adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild
detergent, or. touch the glue residue with the stick'/side of tape you have already removed. Do not remove the
serial pJate.
Part
Interior/Door
Liner
Door Gaskets •
Drawers/Bins •
Glass Shelves •
Toe Grille •
Exterior and •
Handles •
Exterior and •
Handles •
(Stainless Steel
Models Only)
Care & Cleaning Chart
What To Use Tips and Precautions
Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring
Soap and water
excess water out of sponge or cloth before cleaning around controls,
Baking soda and water
light bulb or any electrical part.
Soap and water Wipe gaskets with a clean soft cloth.
Soap and water Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Allow glass to warm to room temperature before immersing in warm water.
Soap and water
Glass cleaner
Mild liquid sprays
Soap and water
Mild liquid sprays
Vacuum attachment
Soap and water
Non Abrasive Glass
Cleaner
Soap and water
Ammonia
Stainless Steel Cleaners
Vacuum dust from front of toe grille. Remove toe grille (See illustration on
page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and
dry.
Do not use commercial household cleaners, ammonia, or alcohol to clean
handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to
clean smooth doors.
Never use CHLORIDE to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
17
REPLACINGUGHTBULBS
Both the freezer and fresh food compartments of your
refrigerator include Hght buUbsthat wHUneed repUacing from
time to time. Some Hghts have covers that you wHUneed to
remove before repUacing the HghtbuUbs.AUways use bulbs
that are designed for appliance lighting.
W a'g oWswh'"r pi,C!ng,gh
bulbs to avoid cuts.
To Replace Light Bulbs (some modems)
1. UnpUug refrigerator.
2. Wear gbves as protection against possibb broken
gUass.
3. Unsnap Hght shbUd as shown.
4. Unscrew and replace old bulb with an appliance bulb
of the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
CONDENSER
Your refrigerator is equipped with a condenser that never
needs cleaning under normal operating conditions,
Freezer Light Cover Removal
Light
Refrigerator Mid-Level Light Cover Removal
Vacation and Moving Tips
Short •
Vacations •
Long
Vacations
Leave refrigerator operating during vacations of 3 weeks or less.
Use all perishable items from refrigerator compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be
gone for a few days.
Remove all food and ice if you will be gone one month or more.
Turn controls to "0" ( the OFF position) and disconnect power.
Turn off automatic ice maker and turn water supply valve to closed position.
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
• Remove all food and ice.
• If using handcart, load from side.
Moving
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
18
REFRIGERATOR WARRA NTY
Your refrigerator is protected by this warranty
WARRANTY THROUGH OUR AUTHORIZED SERVICERS, THE CONSUMER WILL BE RESPONSIBLE FOR:
PERIOD WE WILL:
FULL ONE-YEAR One year from original Pay all costs for repairing or replacing any parts of this Costs of service calls that are listed under NORMAL
WARRANTY purchase date appliance which prove to be defective in materials or RESPONS]BlUTIES OF THE CONSUMER. *
workmanship, Excludes original and replacement ice
& Water filter cartridges (if equipped). Original and
replacement cartridges are warranted for 30 days
(parts only),
LIMITED 2"_-5 TM Second through fifth Repair or replace any parts in the cabinet liner or Costs for pick up and delivery of the appliance required because
YEAR WARRANTY years from original Sealed Refrigeration System (compressor, condenser, of service Costs for labor, parts and transportation other than
(Cabinet Liner and purchase date evaporator, drier and tubing) which prove to be with respect to the cabinet liner or Sealed Refrigeration System,
Sealed System) defective in materials or workmanship.
LIMITED Time periods listed All of the provisions of the full warranties above and Costs of the technician's travel to the home and any costs for
WARRANTY above, the exclusions listed below apply, pick up and delivery of the appliance required because of
(Applicable to the service,
Stateof Alaska)
In the U.S.A., your appliance is warranted by Electrolux Home Products, Inc. We authorize no person to change or add to any of our obligations under
this warranty. Our obligations for service and parts under this warranty must be performed by us or an authorized Electrolux Home Products, Inc. servicer.
In Canada, your appliance is warranted by Electrolux Canada Corp.
*NORMAL
RESPONSiBILITiES
OF THE CONSUMER
EXCLUSIONS
IFYOU NEED
SERVICE
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed beBow:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as remova! of trim cupboards, shelves,etc.
which are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
8. Replacement of light bulbs and/or fluorescent tubes (on models with these features
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL
EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
limitation or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in
ordinary household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Electrolux Home Products, Inc. Electrolux
Canada Corp. or its authorized servicers; use of parts other than genuine Electrolux Home Products, Inc. parts;
obtained from persons other than such servicers; or external causes such as abuse, misuse, inadequate power
supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the
warranty period should service be required, if service is performed, it is in your best interest to obtain and keep a!l
receipts. This written warranty gives you specific legal rights.You may also have other rights that vary from state to state.
Service under this warranty must be obtained by contacting Electrolux Home Products, Inc. or Electrolux Canada Corp.
This warranty only applies in the 50 States of the U.S.A. in Puerto Rico, and in Canada. Product features or specifications as described or illustrated
are subiect to change without notice. All warranties are made by Electrolux Home Products, Inc. In Canada, your appliance iswarranted by Electrolux
Canada Corp.
01-U-RE-02 (Rev. 01/2002)
USA
800.944_9044
Electrolux Home Products, lnc
RO. Box 212378
Augusta, GA 30917
Canada
866,.213,,9397
Electrolux Canada Corp.
8180 McLaughlin Road
Mississauga, Ontario
LSR 4C2
19
To Properly Instal! Your Refrigerator
"Installation" Section On Pages 4-5
Common Before calling for service, review this list, It may save you time and
expense. This list includes common occurrences that are not the result of
Occurrences defective workmanship or materials in this appliance,
• Ensure plug is tightly pushed into electrical outlet,
• Check/replace fuse with a 15 amp time-delay fuse, Reset circuit
Refrigerator does not run. breaker.
• The temperature control is turned to "O".
• Refrigerator may be in defrost cycle. Wait 20 minutes and check again,
Freezer temperature too cold. • Set freezer control to a warmer setting until freezer temperature is
Refrigerator temperature is satisfactory, Allow 24 hours for the temperature to stabilize,
satisfactory.
Refrigerator temperature too cold. • Set refrigerator control to a warmer setting, Allow 24 hours for
Freezer temperature is temperature to stabilize, Then check freezer temperatures and adjust
satisfactory, as needed,
• The cabinet is not level,
* Refrigerator is noisy or vibrates.
• Floor is weak,
• Interior needs to be cleaned,
Odors in refrigerator.
• Foods that produce odors should be covered or wrapped.
Cabinet light not working.
Automatic ice maker not working.
(some models)
Replace light bulb,
Ensure plug is tightly pushed into electrical outlet,
Light switch may be stuck. Push in light switch, located on the
refrigerator control box, to release.
Ensure the Wire Signal Arm is not in UP position,
Ice maker should produce 4 to 5 pounds of ice in a 24 hour period.
Water supply is turned off,
Water pressure is too low.
The freezer is not cold enough,
*See Normal Operating Sounds and Sights.
2O
