Operating and Installation Instructions
Ventilation Hood
To prevent accidents and damage to the appliance, you must read
these instructions before installing the appliance and using it for the first
time.
en-US M.-Nr. 10 545 850
Contents
2
IMPORTANT SAFETY INSTRUCTIONS ................................................................ 4
Caring for the environment ................................................................................ 13
Description of functions ..................................................................................... 14
Con@ctivity 2.0 function........................................................................................ 15
Guide to the appliance........................................................................................ 16
Operation (Automatic mode).............................................................................. 18
Cooking with Con@ctivity 2.0 (Automatic mode) .................................................. 18
Temporarily exiting Automatic mode..................................................................... 20
Resuming Automatic mode................................................................................... 20
Operation (Manual mode) ................................................................................... 21
Cooking without Con@ctivity 2.0 (Manual mode) ................................................. 21
Turning on the blower............................................................................................ 21
Selecting the power level ...................................................................................... 21
Selecting the Delayed shut down time.................................................................. 21
Turning off the blower............................................................................................ 21
Turning the overhead lighting on/off...................................................................... 21
Power management .............................................................................................. 22
Operation (Automatic and Manual modes) ....................................................... 23
Glass feature lighting: switching on, off and dimming .......................................... 23
Filter saturation indicator....................................................................................... 23
Adjusting the filter saturation indicator for the grease filter..............................23
Activating/changing the charcoal filter saturation indicator .............................24
Checking the filter saturation indicator.............................................................24
Energy-saving tips...............................................................................................25
Cleaning and care ............................................................................................... 26
Stainless steel housing.......................................................................................... 26
Special instructions for glass surfaces.............................................................26
Grease filters and edge extraction panel............................................................... 27
OdorFree Charcoal Filter ....................................................................................... 30
Resetting the operating hours counter for the OdorFree Charcoal Filter ......... 30
Installation............................................................................................................ 31
Before installation.................................................................................................. 31
Installation Instructions ......................................................................................... 31
Installation parts .................................................................................................... 32
Appliance dimensions ........................................................................................... 34
Distance between cooktop and ventilation hood (S)............................................. 35
Contents
3
Installation recommendations ............................................................................... 36
Drilling diagram for wall mounting......................................................................... 36
Plywood backing ................................................................................................. 37
To install a plywood backing ............................................................................. 37
Air venting ............................................................................................................ 38
Condensate trap.................................................................................................... 39
Reducing Collar .................................................................................................... 39
Electrical connection .......................................................................................... 40
Activating Con@ctivity 2.0 .................................................................................. 41
Installation of the Con@ctivity 2.0 stick................................................................. 41
Activating the Con@ctivity 2.0 function................................................................. 41
Activating the ventilation hood.........................................................................41
Activating the cooktop ..................................................................................... 42
Activation failed................................................................................................ 42
Deactivating Con@ctivity 2.0................................................................................. 42
Service and warranty .......................................................................................... 43
Location of the data plate ..................................................................................... 43
MieleCare .............................................................................................................. 43
Technical data..................................................................................................... 44
IMPORTANT SAFETY INSTRUCTIONS
4
READ AND SAVE THESE INSTRUCTIONS
This appliance complies with current safety requirements.
Improper use of the appliance can lead to personal injury and
material damage.
Read all instructions before installing or using the appliance for the
first time. Only use the appliance for its intended purpose.
Keep these operating instructions in a safe place and pass them
on to any future user.
Use
CAUTION: For General Ventilating Use Only. Do Not Use To
Exhaust Hazardous Or Explosive Materials And Vapors.
This appliance is intended for residential use only. Use only as
described in these operating instructions.
This ventilation hood is not intended for outdoor use.
It must only be used to extract and clean vapors produced during
cooking. Any other use occurs at the owner's own risk.
This appliance is suitable for installation above gas or electric
cooking surfaces.
Persons who lack physical, sensory or mental abilities, or
experience with the appliance should not use it without supervision
or instruction by a responsible person.
IMPORTANT SAFETY INSTRUCTIONS
5
Children
As with any appliance, close supervision is necessary when used
by children.
Please supervise children in the vicinity of the hood and do not let
them play with it.
Danger of suffocation! Ensure that any plastic wrappings, bags,
etc. are disposed of safely and kept out of the reach of children.
Technical safety
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– Use this appliance only in the manner intended by the
manufacturer. If you have questions, contact Miele.
– Before servicing or cleaning the appliance, switch power off at the
service panel and lock the service disconnecting means to
prevent power from being switched on accidentally. If the service
disconnecting means cannot be locked, securely fasten a
prominent warning device, such as a tag, to the service panel.
Installation, repair and maintenance work should be performed by
a Miele authorized service technician in accordance with national
and local safety regulations and the provided installation
instructions. Contact Miele’s Technical Service Department for
examination, repair or adjustment. Repairs and other work by
unauthorized persons could be dangerous and may void the
warranty.
A damaged ventilation hood can be dangerous. Always check for
visible signs of damage. Never use a damaged ventilation hood.
IMPORTANT SAFETY INSTRUCTIONS
6
Be certain your appliance is properly installed and grounded by a
qualified technician. To guarantee the electrical safety of this
appliance, continuity must exist between the appliance and an
effective grounding system. It is imperative that this basic safety
requirement be met. If there is any doubt, have the electrical system
of the house checked by a qualified electrician.
Reliable and safe operation of this hood can only be guaranteed if
it has been connected to the electrical supply.
To avoid damaging the ventilation hood, make sure that the
connection data (voltage and frequency) on the data plate
correspond to the building's power supply before connecting the
appliance. When in doubt, consult a qualified electrician.
Do not use a power bar or extension cord to connect the
ventilation hood to electricity. These are a fire hazard and do not
guarantee the required level of appliance safety.
To ensure safe operation, only use the ventilation hood after it has
been properly installed.
This ventilation hood may not be used in non-stationary locations
(e.g. on a ship).
Adequate ventilation must be provided when the hood is operated
simultaneously with devices that burn gas or other fuels.
Only open the housing as described in the enclosed "Installation
diagram" and in the "Cleaning and care" section of this manual.
Under no circumstances should any other parts of the housing be
opened.
Tampering with electrical connections or components and
mechanical parts is highly dangerous to the user and can cause
operation faults.
Defective components should be replaced by Miele original parts
only. Only with these parts can the manufacturer guarantee the
safety of the appliance.
IMPORTANT SAFETY INSTRUCTIONS
7
If the power cord is damaged, it must only be replaced by a
qualified service technician.
During installation, maintenance, and repair work, the ventilation
hood must be disconnected from the electrical supply. It is only
completely isolated from the electricity supply if one of the following
applies:
– The circuit breakers on the electrical service panel are tripped.
– The screw-type fuses on the electrical service panel have been
removed.
– The power cable (if present) has been unplugged from the socket
(pull the plug not the cord).
Proper use
WARNING: TO REDUCE THE RISK OF A COOKTOP GREASE
FIRE:
– a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers may ignite. Heat oils slowly
on low or medium settings.
– b) Always turn the hood on when cooking at a high heat.
– c) Clean the ventilation hood frequently. Grease should not be
allowed to accumulate on the fan or filter.
– d) Use the proper pan size. Always use cookware appropriate for
the size of the cooking area.
Never use an open flame beneath the ventilation hood.
To avoid the risk of fire, do not flambé or grill over an open flame.
When turned on, the ventilation hood will draw any flames into the
filter. Fat deposits may ignite.
IMPORTANT SAFETY INSTRUCTIONS
8
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A COOKTOP GREASE FIRE, OBSERVE THE
FOLLOWING*:
– a) SMOTHER FLAMES with a close fitting lid, cookie sheet, or
metal tray then turn off the burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE AND
CALL THE FIRE DEPARTMENT.
– b) NEVER PICK UP A FLAMING PAN - You may be burned.
– c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
– d) Use a fire extinguisher ONLY if:
– 1) You have a class ABC extinguisher, and you know how to operate it.
– 2) The fire is small and contained in the area where it started.
– 3) The fire department is being called.
– 4) You can fight the fire with your back to an exit.
*Based on "Kitchen Firesafety Tips" published by NFPA.
The ventilation hood may become damaged if exposed to
excessive heat from a gas cooktop.
– When using the ventilation hood over a gas cooktop, ensure that
any burners in use are always covered by cookware. Turn burners
off when removing the cookware, even if doing so for just a short
time.
– Select cookware that is suitable for the size of the burner.
– Adjust the flame so that it never extends up the sides of the
cookware.
– Avoid overheating the cookware (e.g., when cooking with a wok).
Always turn the ventilation hood on whenever a burner is in use to
prevent damage from condensation.
IMPORTANT SAFETY INSTRUCTIONS
9
Overheated oils and fats can ignite and set the ventilation hood on
fire.
When cooking with oils or fats, do not leave pots, pans or fryers
unattended. Never leave an electric grill unattended when grilling.
Fat and debris deposits impair the proper functioning of the
ventilation hood.
To ensure that cooking vapors are properly cleaned, never use the
ventilation hood without the grease filters in place.
There is a risk of fire if cleaning is not completed according to the
instructions in this manual.
Please note that the heat rising from the stovetop during cooking
can cause the ventilation hood to become very hot.
Do not touch the housing or the grease filters until the ventilation
hood has cooled down.
IMPORTANT SAFETY INSTRUCTIONS
10
Proper installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
– a) Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-rated construction.
– b) Sufficient air is needed for combustion and exhausting of gases
through the flue (chimney of fuel burning equipment to prevent
back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
– c) When cutting or drilling into the wall or ceiling, do not damage
electrical wiring and other hidden utilities.
– d) Ducted hoods must always be vented to the outdoors.
– e) Do not use this hood with any solid-state speed control device.
To determine whether a ventilation hood may be operated above
your cooking appliance, please refer to the information provided by
the appliance's manufacturer.
Safety regulations prohibit the installation of a ventilation hood
above solid fuel stoves.
Insufficient distance between the cooking appliance and the
ventilation hood can result in damage to the hood.
The minimum safety distances between the appliance and the
bottom of the ventilation hood specified in the "Installation" section
must be maintained, unless the appliance's manufacturer has
indicated that a greater distance is required.
If more than one cooking appliance is used beneath the ventilation
hood, and if different minimum safety distances apply for these
appliances, you should use the greater distance.
IMPORTANT SAFETY INSTRUCTIONS
11
Be sure to observe the information contained in the "Installation"
section when mounting the ventilation hood.
Metal parts can have sharp edges which may cause injury.
Wear gloves to protect your hands from being cut.
When installing the exhaust duct, only use pipes or tubes made of
non-flammable material. These can be obtained from your Miele
dealer or from Miele Technical Service.
Exhaust air should not be vented into a chimney or vent flue which
is otherwise in use and should not be channeled into ducting which
ventilates rooms with fuel-burning installations.
If exhaust air is to be extracted into a chimney or vent flue no
longer used for other purposes, be sure to comply with all applicable
regulations.
WARNING: TO REDUCE THE RISK OF FIRE USE ONLY METAL
DUCTWORK.
Cleaning and care
Never use a steam cleaner to clean the ventilation hood.
The steam can reach the electrical components and cause a short
circuit.
Accessories
Use only genuine original Miele parts. If parts or accessories from
other manufacturers are used, the warranty will become void.
IMPORTANT SAFETY INSTRUCTIONS
12
FCC Declaration of Conformity
These devices comply with FCC Rules Part 15. This equipment
has been tested and found to be in compliance with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules of
Operation and is subject to the following conditions:
These devices may not cause harmful interference.
These devices must accept any interference received, including
interference that may cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 8" (20 cm) between
the radiator and your body.
Industry Canada Statement
This digital apparatus does not exceed the Class B limits for
Radio Noise Emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of
Communications.
Complies with Canadian ICES-003 Class B specifications.
Caring for the environment
13
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Do not dispose of this appliance with
your household waste.
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
ensure that it presents no danger to
children while being stored for disposal.
Unplug it from the outlet, cut off its
power cord and remove any doors to
prevent hazards.
Description of functions
14
The following functions are available on
your ventilation hood, depending on the
model:
Vented mode
Air entering through the intake is
cleaned by the grease filters and
conducted out of the building.
Non-return flap
A non-return flap in the ducting
prevents the exchange of inside and
outside air from occurring when the
ventilation hood is not in use.
The flap is closed when the ventilation
hood is turned off.
When the ventilation hood is turned on,
the non-return flap opens so that the
exhaust air can be transported outside
without any obstruction.
A non-return flap has been provided
with the hood in case your ducting does
not have one. It is inserted into the
outlet duct collar of the fan.
Recirculation mode
(Recirculation mode ventilation hoods
require charcoal filters. These are
available as optional accessories: see
"Technical Data")
Air entering through the intake is first
cleaned by the grease filters and then
by a charcoal filter. The cleaned air is
then recirculated back into the kitchen.
Description of functions
15
Con@ctivity 2.0 function
Automatic control
This hood features a communication
function which enables the automatic
control of the hood based on the
operational status of a Miele induction
cooktop.
To enable the communication function,
the cooktop must be equipped with the
corresponding Con@ctivity 2.0 stick .
Please refer to the installation
instructions for the Con@ctivity 2.0
stick to determine whether connection
to your cooktop is possible.
There must be radio contact between
the cooktop and the hood for you to be
able to use the Con@ctivity 2.0 function
(see "Activating Con@ctivity 2.0").
The cooktop transmits information
about its operational status to the hood
using a radio signal.
– When a burner is turned on, the
cooktop lighting on the hood turns on
automatically. After a brief delay, the
ventilation hood fan also comes on.
– During cooking, the hood
automatically selects the fan level
based on the number of burners in
operation and their power levels.
– Once you have turned off the
cooktop, the fan and the lighting will
turn off automatically after a
predetermined delay.
Detailed information about this function
can be found under "Operation."
Guide to the appliance
16
Guide to the appliance
17
a
Canopy
b
DADC 6000 canopy
Available as an optional accessory for concealing ducting to the ceiling.
c
Charcoal filter
Optional accessory for recirculation mode
d
Glass feature lighting (dimmable)
e
Overhead cooktop lighting
f
Grease collecting tray
g
Grease filter
h
Edge extraction panel
i
Exhaust air connection
Extraction ducting can be directed through the back of the ventilation hood or
upwards to the ceiling.
j
Control panel
k
On/Off button for the glass feature lighting
l
On/Off button for the overhead lighting
m
On/Off button for blower
n
Buttons for setting the blower power
o
Delayed shutdown button
p
Filter saturation indicator
q
Dimmer button for the glass feature lighting
Operation (Automatic mode)
18
When Con@ctivity 2.0 is active, the
hood always operates in Automatic
mode (see "Activating Con@ctivity
2.0").
See "Cooking without Con@ctivity 2.0"
for information on manually operating
the hood.
Cooking with Con@ctivity 2.0
(Automatic mode)
Turn on a burner to the desired power
setting.
Overhead cooktop lighting.
After a few seconds, the fan will come
on, briefly operating at power level 2
before immediately switching to level 1.
The hood selects the fan level
automatically during cooking.
This level is determined by the total
output of the cooktop, i.e. the number
of burners in operation and the power
settings selected.
If you select a higher power setting
on the cooktop or switch on multiple
burners, the hood will switch to a
higher fan level.
If you select a lower power setting on
the cooktop or turn off a burner, the
hood will accordingly switch to a
lower fan level.
Examples for fan levels 1 to 4
Reaction time
Changing the power setting on the
cooktop does not lead to an immediate
increase or decrease in cooking vapors.
For this reason, the hood reacts with a
slight delay.
Delays can also result from the fact that
the cooktop transmits the information to
the hood in intervals.
The reaction time can vary from a few
seconds to a couple of minutes.
Operation (Automatic mode)
19
Cooking process
If, for example, you switch on a
burner at the highest power setting to
heat cookware in preparation for
searing and then reduce the power
level after approx. 60 to 90 seconds,
a cooking process is recognized.
The hood turns on automatically and,
after the cooktop power level has been
reduced, switches back to fan level 3,
where it remains for approx. 5 minutes.
After this, the fan level is once again
determined by the Con@ctivity function.
You can also manually select a
different fan level before then.
Deactivation
Turn off all burners.
Over the next few minutes, the
ventilation hood fan setting will
decrease one level at a time until the
hood eventually turns off.
This helps to neutralize any lingering
vapors and odors in the air.
– From the intensive setting, the fan
immediately switches to level 3.
– If the fan is operating at level 3, it will
switch to level 2 after approx. 1
minute.
– From level 2, the fan switches to level
1 after 2 minutes.
– After 2 minutes at level 1, the fan
automatically turns off.
– After another 30 seconds, the
overhead cooktop lighting turns off.
The cooking process is now finished.
Operation (Automatic mode)
20
Temporarily exiting Automatic
mode
To temporarily exit the Automatic mode
when cooking:
Manually select a different fan level,
or
Manually turn the hood off, or
Activate the Delayed shut down
function on the ventilation hood.
The fan turns off after the delay time
selected, and the lighting will remain
on.
The ventilation hood functions can now
be operated manually (see "Cooking
without Con@ctivity 2.0").
Resuming Automatic mode
The ventilation hood resumes
Automatic mode:
If the ventilation hood has not been
used for a period of approx. 5
minutes after the manual selection of
a fan level, or
If the manually selected fan level
once again matches the automatic
setting, or
If the ventilation hood fan and the
cooktop have been turned off for at
least 30 seconds.
Automatic mode will resume the next
time the cooktop is turned on.
If you wish to manually operate the
ventilation hood for a complete
cooking process, turn on the
ventilation hood fan before turning
on the cooktop.
If the ventilation hood and the
cooktop have been turned off for at
least 30 seconds after you have
finished cooking, Automatic mode
will resume the next time the cooktop
is turned on.
Operation (Manual mode)
21
Cooking without Con@ctivity
2.0 (Manual mode)
The hood can be operated manually if:
– The Con@ctivity 2.0 function is not
activated.
– You have temporarily deactivated the
Con@ctivity 2.0 function (see
"Temporarily exiting Automatic
mode").
Turning on the blower
Press the On/Off button .
The blower turns on at level 2. The
symbol and 2 will light up in the blower
level display.
Selecting the power level
Power levels 1 to 3 can be used for light
to heavy cooking vapors and odors.
For strong vapors and odors that are
temporarily produced when cooking,
e.g., during searing, select the B
booster level.
Press the "" button for a lower
power level or the "" button to
select a higher level.
Reducing power of the booster level
If power management is activated
(default setting), the fan automatically
switches back to level 3 after 5 minutes.
Selecting the Delayed shut
down time
It is a good idea to let the fan run for a
few more minutes after cooking in order
to neutralize any lingering vapors and
odors in the air.
With the Delayed shut down function, it
is possible to have the fan automatically
shut off after a predetermined period of
time.
After you have finished cooking,
press the Delayed shut down button
5 15
– Once: fan turns off after 5 minutes (5
lights up).
– Twice: fan turns off after 15 minutes
(15 lights up).
– If you press the Delayed shut down
button 515 again, the fan remains
turned on (515 goes out).
Turning off the blower
Press the On/Off button to turn the
blower off.
The symbol will go out.
Turning the overhead lighting
on/off
The overhead lighting can be turned on
and off separately from the fan.
To do so, press the button.
The symbol is lit when the overhead
lighting is turned on.
Operation (Manual mode)
22
Power management
The ventilation hood features a power
management system to help save
energy. The blower power level is
reduced and the lighting is turned off
automatically.
– If the booster level is selected, the
blower automatically switches to
level 3 after 5 minutes.
– If the blower is set to level 3, 2 or 1, it
switches back one blower setting
after 2 hours and then in 30-minute
intervals until the blower eventually
switches off.
– If the overhead lighting is on, it will
switch off automatically after 12
hours.
Turning power management on/off
You can deactivate the power
management.
This can result in increased energy
consumption.
Turn off the blower and the lighting.
Press and hold the delayed shutdown
button 515 for approx. 10 seconds
until 1 appears in the blower level
display.
Then, press the following buttons in
succession:
– The lighting button ,
– Followed by the "" button and then
– The lighting button again.
If power management is turned on, the
1 and B indicators will be continuously
lit.
If it is turned off, 1 and B will flash.
Press the "" button to turn power
management off.
The 1 and B indicators flash.
To turn it on, press the "" button.
The 1 and B indicators are constantly
lit.
Confirm the setting by pressing the
delayed shutdown button 515.
All the indicator lights go out.
If the new setting is not confirmed
within 4minutes, the hood reverts to
the previous setting.
Operation (Automatic and Manual modes)
23
Glass feature lighting:
switching on, off and dimming
The glass feature lighting can be
switched on and off or dimmed
independently of the blower.
To switch it on, press theglass
feature lighting button.
The lighting will come on at the
previously selected brightness level.
The button is used for dimming the
glass feature lighting.
With the lighting switched on, press
and hold the button. The
brightness will gradually dim until you
release the button.
Press and hold in the lighting button
again to increase the brightness
to the level required and then release
it.
Press the button to switch the
glass feature lighting off.
Filter saturation indicator
The number of hours the hood has
been in operation is stored in appliance
memory.
The filter saturation indicators show
when the filters need to be cleaned or
changed by lighting up the grease filter
symbol or OdorFree Charcoal Filter
symbol . Additional information on
cleaning and changing the filters and
resetting the filter saturation counters
can be found under "Cleaning and
care."
Adjusting the filter saturation
indicator for the grease filter
You can set the filter saturation
indicator to suit your cooking habits.
The factory default setting is a cleaning
interval of 30 hours.
– Select a shorter interval of 20 hours if
you fry food regularly.
– We also recommend a shorter
cleaning interval if you only cook
occasionally. This will prevent grease
build-up from hardening and making
cleaning more difficult.
– Select a longer cleaning interval of 40
or 50 hours if you use very little fat
when cooking.
Press the On/Off button to turn the
blower off.
Press the delayed shutdown button
515 and the filter saturation button
at the same time.
The grease filter symbol on the filter
saturation button and one of the blower
power level indicators will flash.
The indicators 1 to B show the current
time setting:
Indicator 1 .............................. 20 hours
Indicator 2 .............................. 30 hours
Indicator 3 .............................. 40 hours
Indicator B............................... 50 hours
Press the "" symbol for a shorter
operating time, or the "" symbol to
select a longer operating time.
Confirm the selection by pressing the
filter saturation indicator .
Operation (Automatic and Manual modes)
24
All the indicator lights will go out.
If the new setting is not confirmed
within 4minutes, the hood reverts to
the previous setting.
Activating/changing the charcoal
filter saturation indicator
The charcoal filter is required for the
recirculation mode.
The filter saturation indicator for the
charcoal filter must be activated once
and should be set to match your
cooking habits.
Press the On/Off button to turn the
blower off.
Press the "" symbol and the filter
saturation indicator at the same
time.
The charcoal filter symbol and one of
the blower power level indicators will
flash.
The indicators 1 to B show the current
time setting:
Indicator 1 ............................ 120 hours
Indicator 2 ............................ 180 hours
Indicator 3 ............................ 240 hours
Indicator B.......................... deactivated
Press the "" symbol for a shorter
operating time, or the "" symbol to
select a longer operating time.
Confirm the selection by pressing the
filter saturation indicator .
All the indicator lights go out.
If the new setting is not confirmed
within 4minutes, the hood reverts to
the previous setting.
Checking the filter saturation
indicator
Before the set operating time has run
out, you can check what percentage of
the time has elapsed.
Press the On/Off button to turn the
blower on.
Press and hold the filter saturation
indicator :
– Once, to check the grease filter
operating time. The grease filter
symbol lights up.
– Twice, to check the charcoal filter
saturation. The charcoal filter symbol
lights up.
One or more of the blower power level
indicators will flash simultaneously.
The number of flashing indicators
shows the elapsed operating time as a
percentage.
Indicator 1 .................................... 25%
Indicators 1 and 2 ......................... 50%
Indicators 1 to 3 ........................... 75%
Indicators 1 to B ......................... 100%
The elapsed operating time remains
stored in the memory when the
ventilation hood is turned off or in the
event of an interruption to the power
supply.
Energy-saving tips
25
This hood operates in a very efficient
and energy-saving manner. The
following will help you to save even
more energy when using it:
– Ensure that there is sufficient
ventilation in the kitchen when
cooking. If there is insufficient air flow
during vented mode, the hood
cannot operate efficiently, causing
increased operating noise levels.
– Always cook with the lowest possible
setting. This produces fewer cooking
vapors so that you can use a lower
hood power level and therefore
benefit from reduced energy
consumption.
– Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
– Use the Con@ctivity function. The
ventilation hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
– If you are operating the ventilation
hood manually, please note the
following:
– Check the power level selected on
the hood. A lower power level is
generally sufficient for the majority
of cooking. Only use the booster
level when necessary.
– When a large volume of cooking
vapors are being produced, switch
to a high power level in good time.
This is more efficient than
operating the hood for longer to try
to capture cooking vapors that
have already been distributed
throughout the kitchen.
– Make sure that you switch the
ventilation hood off after use.
If cooking vapors and odors still
need to be removed from the
kitchen air after cooking, use the
coast-down function. The fan will
switch off automatically after the
selected coast-down time.
Cleaning and care
26
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
Before cleaning or servicing the
hood, disconnect it from the power
supply, see "IMPORTANT SAFETY
INSTRUCTIONS".
Stainless steel housing
General information
The surfaces and control buttons are
susceptible to scratching and
chipping.
Observe the following cleaning
instructions.
Clean all surfaces and control buttons
using warm water and liquid dish
soap. Apply with a sponge cloth.
Make sure that no water gets into the
interior of the hood.
Only use a damp cloth to clean the
hood, especially in the control panel
area.
After cleaning, dry the surfaces with a
soft cloth.
Avoid the following:
– Cleaners containing soda, acid or
chloride, or cleaners containing
solvents
– Abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
Special instructions for RAL color
finish housing
Observe the general cleaning
instructions contained in this chapter.
It is very difficult to clean this type of
surface without causing minor marks
to the surface material. This can
become particularly noticeable if there
is halogen lighting in the kitchen.
Special instructions for glass
surfaces
Glass surfaces can be cleaned using
a cleaning agent specifically
designed for glass.
Cleaning and care
27
Grease filters and edge
extraction panel
The edge extraction panel and the re-
usable metal grease filter in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapors, preventing soiling of the
ventilation hood.
A dirty filter is a fire hazard!
Cleaning intervals
Grease which has collected in the
ventilation hood hardens over time and
makes cleaning more difficult. It is
therefore recommended that the edge
extraction panel and the grease filter be
cleaned regularly (at least every 3–4
weeks) to avoid a build-up of grease.
Clean the edge extraction panels and
grease filter immediately if the grease
filter symbol on the filter saturation
indicator lights up.
You can adjust the interval for the
filter saturation indicator to match
your cooking habits (see
"Operation").
Removing the panel and grease
filters
The panel and grease filter can fall
out when you are handling them.
This can result in damage.
Make sure you hold the panel and
the grease filters securely at all times
when handling them.
Pull the panel out of the holder at the
bottom, press it back a little at the
top, then unhook it and carefully lift it
out.
Release the locking clip on the
grease filter, allow it to swing out
towards you slightly, then unhook it
and take it out.
Cleaning and care
28
Removing the drip tray
Condensate collects in the drip tray
underneath the grease filter. This tray
can be removed for cleaning.
After taking the grease filter out, hold
the drip tray in the middle and pull it
slightly upwards and then carefully
pull it out towards you.
Pour any condensate away.
Cleaning the panel by hand
Follow the instructions under
"Housing."
Cleaning the grease filter and the
drip tray by hand
Clean the grease filter and the drip
tray with a soft nylon brush in a mild
solution of hot water and a little liquid
hand soap. Do not use undiluted
liquid hand soap.
Unsuitable cleaning agents
Unsuitable cleaners can cause damage
to the filter surfaces if used regularly.
Do not use any of the following:
– Lime removers
– Abrasive powders or abrasive liquids
– Aggressive all-purpose cleaners and
degreaser sprays
– Oven sprays
Cleaning the grease filter and the
drip tray in a dishwasher
Place the grease filter and the drip
tray upright or slightly inclined in the
lower basket, ensuring the spray arm
is not obstructed.
Use a commonly available household
dishwashing detergent.
Select a program with a wash
temperature between 120°F (50°C)
and 150°F (65°C).
Depending on the cleaning agent
used, cleaning the grease filter in a
dishwasher can cause permanent
discoloration to the surface. However,
this will not affect the functioning of
the filter in any way.
Cleaning and care
29
After cleaning
After cleaning, leave the filters on an
absorbent surface to dry.
When removing the panel and grease
filter for cleaning, also clean off any
residues of oil or fat from the now
accessible parts of the casing to
prevent the risk of these catching fire.
Replace the drip tray.
Replace the grease filter, making sure
that the locking clip is facing
outward.
If the filter has been installed
incorrectly, you can insert a small
screwdriver into the slit to disengage
the locking clip.
Hook the panel in at the top and then
push it into position at the bottom.
Resetting the filter saturation
indicator for the grease filter
Once cleaning is complete, the filter
saturation indicator must be reset.
While the fan is turned on, press the
grease filter button for approx. 3
seconds, until only the 1 is flashing.
The grease filter symbol goes out.
When cleaning the grease filters before
the full operating time has elapsed:
Press the grease filter button for
approx. 6 seconds, until only the 1 is
flashing.
Cleaning and care
30
OdorFree Charcoal Filter
Recirculation ventilation hoods must be
fitted with a charcoal filter in addition to
the grease filter. This is designed to
absorb cooking odors.
It is fitted in the top of the ventilation
hood.
How to install/replace the charcoal
filter
Remove the charcoal filter from its
packaging.
Fit the charcoal filter into the holder in
the top of the ventilation hood.
When installing the filter for the first
time, activate the filter saturation
counter (see "Operation").
When to change the OdorFree
Charcoal Filter
Always replace the OdorFree
Charcoal Filter whenever it no longer
absorbs kitchen odors effectively.
Replace the filter at least once every
6 months.
The OdorFree Charcoal Filter saturation
counter will light up to remind you to
change the charcoal filter regularly.
The OdorFree Charcoal Filter
saturation counter requires one-time
activation before use (see the
"Operation" chapter).
Resetting the operating hours
counter for the OdorFree Charcoal
Filter
If the operating hours counter is
activated, it must be reset each time the
filter is changed.
Press the OdorFree Charcoal Filter
button for approx. 3 seconds with
the ventilation hood switched on until
only the indicator light for level 1 is
flashing.
The OdorFree Charcoal Filter symbol
will go out.
If you replace the OdorFree Charcoal
Filter before the full operating time
elapses:
Press the OdorFree Charcoal Filter
button for approx. 6 seconds until
only the indicator light for level 1 is
flashing.
Disposing of the OdorFree Charcoal
Filter
Used OdorFree Charcoal Filters can
be disposed of with normal
household waste.
Charcoal filters are available to order via
the Miele website or from your Miele
dealer.
The charcoal filters are listed under
"Technical data" at the back of this
booklet.
Installation
31
Before installation
Before installing the appliance,
read all of the information contained
in this chapter and also in the
"IMPORTANT SAFETY
INSTRUCTIONS" section.
Installation Instructions
Please refer to the accompanying
installation sheet for instructions on
how to install the appliance.
Installation
32

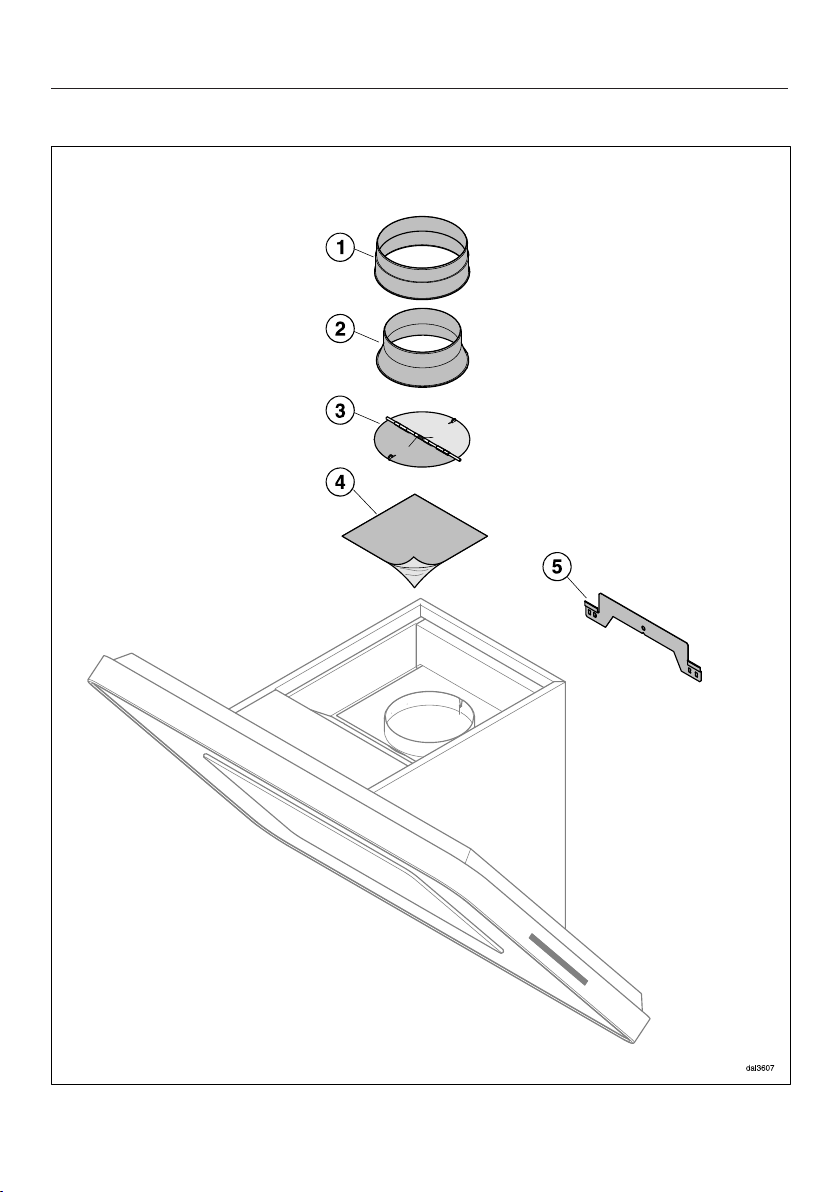

Installation parts
Installation
33
a
1 vent collar
for an exhaust duct 6" (150mm).
b
1 reducing collar
for an exhaust duct 5" (125 mm).
c
1 non-return flap
for installation in the outlet duct
collar of the motor unit (not for
recirculation mode). Depending on
the device version, the non-return
flap is already mounted.
d
Cover foil
for use when changing extraction
ducting direction
e
Wall bracket
for securing the ventilation hood on
the wall.
5 screws ³/₁₆" x 2 ³/₈" (5 x 60mm)
and
5 plugs ⁵/₁₆" x 2" (8 x 50mm)
3 washers ¹/₄" (6.4 mm)
for attaching to the wall. Plugs not for
use in USA / CDN.
The screws and plugs are designed
for use in solid walls only.
Use different fasteners for other wall
construction types.
Make sure that the wall can support
the load.
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation instructions
Installation
34
Appliance dimensions
The drawing is not to scale.
a

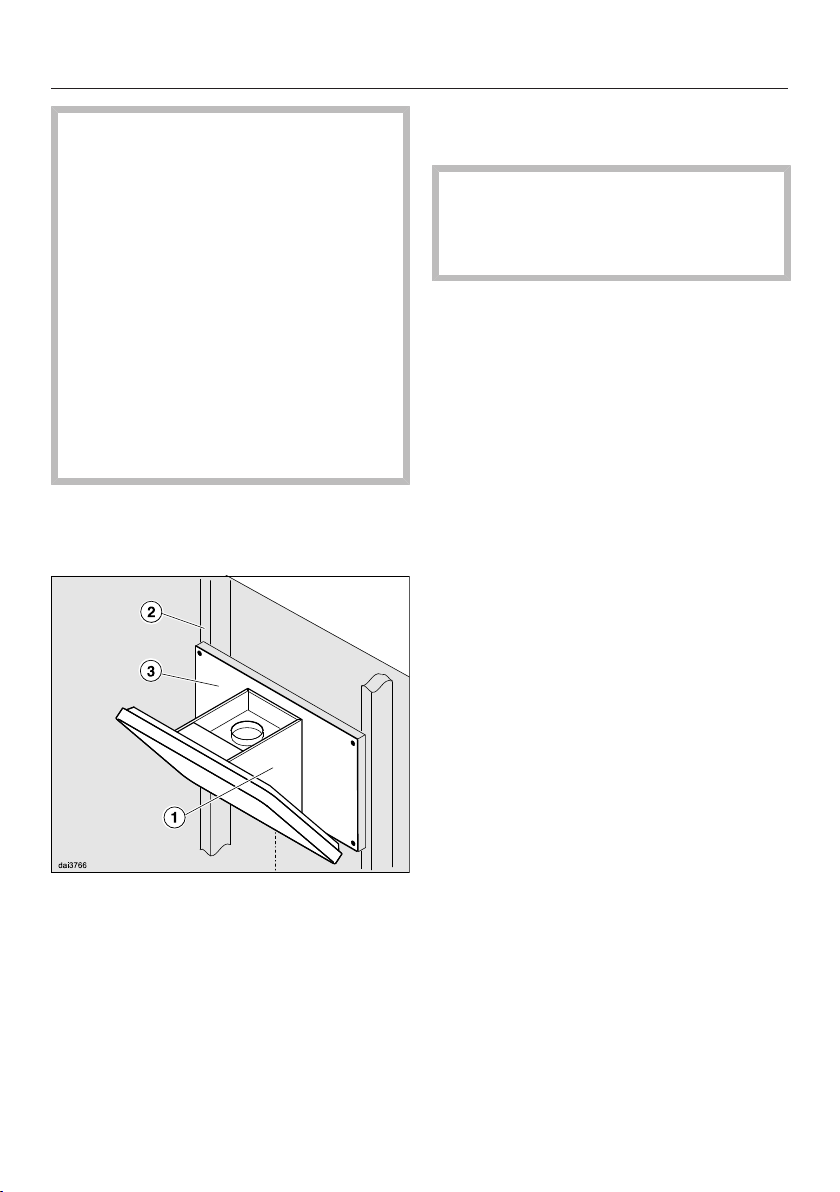

Extraction ducting upwards or to the rear.
b
Cut-out for ventilation hoods with hard-wired connection rather than a plug.
c
7 7/8" (200 mm)cut-out ensures sufficient space through the wall for the
extraction ducting to flex.
Installation
35
d
Ventilation outlet for recirculation mode. A gap of at least 11 11/16" (300 mm)
must be maintained between the top of the ventilation hood and the ceiling or
any furniture above it.
Vent collar 6" (150mm), with adapter 5" (125mm).
Please observe installation positions for the socket and for the ducting outlet
shown on the relevant drawings when using the DADC 6000 canopy.
Distance between cooktop and ventilation hood (S)
Provided a larger distance is not given by the manufacturer of the cooktop,
follow the minimum safety distances between a cooktop and the bottom of the
hood.
Please also observe the information contained in the "IMPORTANT SAFETY
INSTRUCTIONS" section.
Minimum distance S
Cooking appliance Miele
appliance
Non-Miele
appliance
Electric Cooktops 24" (610 mm)
Electric Barbeques and Fryers 26" (660 mm)
Multiburner Gas Cooktops
≤ 43,000 BTU/hr (12.6kW),
no burner > 15,000 BTU/hr (4.5 kW).
26" (660 mm) 30" (760 mm)
Multiburner Gas Cooktops
≤ 73,800 BTU/hr (21.6kW),
no burner > 16,500 BTU/hr (4.8 kW)
30" (760 mm)
Multiburner Gas Cooktops
> 73,800 BTU/hr (21.6kW),
or one of the burners > 16,500 BTU/hr (4.8 kW)
Not possible
Single Burner Gas Cooktops
≤ 20,500 BTU/hr (6 kW)
26" (660 mm) 30" (760 mm)
Single Burner Gas Cooktops
> 20,500 BTU/hr (6 kW)
≤ 27,600 BTU/hr (8.1 kW)
30" (760 mm)
Single Burner Gas Cooktops
> 27,600 BTU/hr (8.1 kW)
Not possible
Installation
36
Installation recommendations
– When selecting an installation height,
always take the user height into
consideration. Users should have
ample space to work comfortably on
the cooktop and reach the ventilation
hood controls with ease.
– Please note that the greater the
distance from the cooktop, the less
effective the hood is at drawing in the
cooking vapors.
– To achieve optimal vapor extraction,
make sure that the hood covers the
cooktop. The hood should be
positioned centrally over the cooktop,
not to the side or rear.
– The cooktop should be no wider than
the hood. Preferably, it should be
narrower for better extraction.
– The mounting area must be easily
accessible. The ventilation hood
should be easy to reach and
disassemble in case a service call is
necessary. This should be taken into
consideration when planning the
position of cabinetry, shelves,
ceilings or decorative elements in the
vicinity of the ventilation hood.
Drilling diagram for wall
mounting
When drilling, please follow the
directions contained on the
accompanying installation sheet.
When installing a custom back wall
with pre-drilled holes, please refer to
the drilling distances in the drawing
above (screws ³/₁₆" (5mm)).
Plywood backing
37
The majority of the weight of the
installed ventilation system will be
supported by the lower retaining
plate. It must be firmly attached to
the stud framing behind the drywall.
If studs are not available in the
required locations, a plywood
backing (min. ½" (13 mm) thick)
spanning at least two studs must be
installed.
Failure to adequately support the
weight as stated may result in the
ventilation system falling off the wall,
causing personal injury and property
damage.
If plywood backing is not needed,
proceed to the included "Installation
diagram".
Determine and mark the location for
the canopy as outlined in
"Appliance dimensions".
Make a cutting line 3" (76 mm) above
and 3" (76 mm) below the outline of
the canopy.
Find the studs to the left and right
of the mounting location by tapping
the wall or using a stud finder.
Mark a vertical cutting line along the
center of each stud.
CAUTION: When cutting or drilling
into the wall or ceiling, do not
damage electrical wiring and other
hidden utilities.
Remove the drywall between the
cutting lines and replace it with
plywood of a matching thickness
(min. ½" (13 mm) thick). Tape the
joints and refinish the wall.
Proceed to the enclosed "Installation
diagram" to complete the installation.
Air venting
38
WARNING: Danger of toxic fumes.
Gas cooking appliances release
carbon monoxide that can be
harmful or fatal if inhaled.
To reduce the risk of fire and to
properly exhaust air, the exhaust
gases extracted by the hood should
be vented outside of the building
only.
Do not vent exhaust air into spaces
within walls or ceilings or in attics,
crawl spaces or garages.
To reduce the risk of fire, only use
metal ductwork.
Please read and follow the
"IMPORTANT SAFETY
INSTRUCTIONS" to reduce the risk
of personal injury. Follow all local
building codes when installing the
hood.
Only use smooth pipes or flexible
duct hoses made from non-
combustible materials for exhaust
ductwork.
To achieve the greatest possible air
extraction with the lowest noise levels,
please note the following:
– The diameter of the exhaust duct
should not be less than 6" (150mm).
– If flat exhaust ducts are used, the
cross section should not be smaller
than that of the exhaust connector.
– The exhaust duct should be as short
and straight as possible.
– If elbows are needed, make sure they
have a large radius.
– The exhaust duct itself must not be
kinked or compressed.
– Make sure that all connections are
secure and airtight.
Remember that any constriction of
the airflow will reduce extraction
performance and increase operating
noise.
If the exhaust duct is to be routed
through an outside wall, we
recommend installing a telescopic
wall vent or a rooftop vent (available
as an optional accessory).
If the exhaust air is conveyed into an
exhaust air chimney, the inlet
connector must face the flow
direction.
When installing the exhaust duct
horizontally, a minimum slope of
1/8inch per foot must be maintained
to prevent condensate from flowing
into the ventilation hood.
If the exhaust duct is to be routed
through cool rooms, ceilings, etc., the
temperatures in these different areas
may differ greatly. Therefore water
condensation must be considered
and the exhaust duct will need to be
insulated.
Air venting
39
Condensate trap
In addition to insulating the exhaust
duct, we recommend installing a
condensate trap to collect and
evaporate any condensate which might
accumulate.
Condensate traps are available for
exhaust ducts with a diameter of
5" (125 mm) or 6" (150 mm).
A condensate trap can only be fitted in
extraction ducting which is directed
upwards out of the ventilation hood.
When installing a condensate trap,
make sure that it is positioned
vertically and, if possible, directly
above the hood outlet duct collar.
The arrow on the housing indicates
the direction of airflow.
Reducing Collar
(optional accessory)
If you would like to reduce the
environmental impact of your ventilation
system by limiting the CFM output the
Reducing Collar can be installed. It
reduces the air flow to less than
400CFM. Check local building codes
for max. CFM requirements.
Push the Reducing Collar on the
exhaust port of the blower.
Push the exhaust hose over it.
Secure both with a hose clamp.
Electrical connection
40
WARNING: TO REDUCE THE RISK
OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
All electrical work should be
performed by a qualified electrician
in strict accordance with national
regulations (for USA: ANSI-NFPA 70)
and local safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous.
Ensure that power to the appliance is
OFF while installation or repair work
is performed.
Verify that the voltage, load and
circuit rating information found on
the data plate (located behind the
baffle filters), match the household
electrical supply before installing the
hood.
Use only with ventilation hood cord-
connection kits that have been
investigated and found acceptable
for use with this model hood.
If there is any question concerning
the electrical connection of this
appliance to your power supply,
please consult a licensed electrician
or call Miele’s Technical Service
Department.
WARNING: THIS APPLIANCE MUST
BE GROUNDED
Grounding Instructions
WARNING - Improper grounding can
result in a risk of electric shock.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of electric
shock by providing a path of least
resistance. This appliance is equipped
with a cord having a grounding wire
with a grounding plug.
If there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
Do not use an extension cord. If the
power supply cord is too short, have a
qualified electrician install an outlet near
the appliance.
The plug must be plugged into an
outlet that is properly installed and
grounded.
WARNING - Grounding instructions
(Canada)
The grounding-type attachment plug
shall be connected to a grounding-
type receptacle installed in
accordance with CSA C22.1-12,
Canadian Electrical Code, Part I.
Alternatively, the hood can be hard-
wired accordingly:
Black/Red wire: connect to L1 (live)
White wire: connect to N (neutral)
Green wire: connect to GND (ground)
Activating Con@ctivity 2.0
41
Installation of the Con@ctivity
2.0 stick
In order for you to be able to use the
Con@ctivity 2.0 function, the cooktop
must be equipped with a Con@ctivity
2.0 stick.
See the relevant installation
instructions of the Con@ctivity 2.0
stick.
Activating the Con@ctivity 2.0
function
To use the Con@ctivity 2.0 function, the
radio link between the cooktop and the
ventilation hood must be activated.
Both appliances must be installed and
operational.
Wireless connection must be activated
on the ventilation hood and the cooktop
at the same time. Activation on the
ventilation hood is described below.
Activation on the cooktop is described
in the relevant operating and installation
instructions. Please refer to the
operating instructions before starting.
Activate the ventilation hood first, then
the cooktop.
Activating the ventilation hood
The cooktop and ventilation hood
must be turned off.
Press and hold the delayed shutdown
button 515 for approx. 10 seconds
until the 1 indicator appears in the fan
level display.
Then, press the following buttons in
order:
– The button
– Followed by the button
– And then the lighting button .
The hood is in log on / log off mode.
If the wireless connection is activated, 2
and 3 will light up at the same time.
If there is no wireless connection, 2 and
3 will flash constantly (Con@ctivity 2.0
is already activated or a remote control
is logged on).
To activate Con@ctivity 2.0, press the
"" button.
The search for a wireless connection
will start.
As this is happening, activate the
cooktop.
Activating Con@ctivity 2.0
42
Activating the cooktop
While the ventilation hood is
searching for a wireless connection,
start activation on the cooktop.
More information can be found in the
operating instructions for the
cooktop.
When the cooktop registers that
connection has been established,
confirm activation on the ventilation
hood with the delayed shut-down
button 515. All indicators will go
out.
Confirm activation on the cooktop.
The Con@ctivity 2.0 function is now
ready for use.
If you do not confirm within 4 minutes,
activation will be canceled.
You only need to carry out the
activation procedure once. If the
appliances are disconnected from the
electricity supply, for example during a
loss of power, they will still remain
activated.
Activation failed
If a wireless connection cannot be
established despite activation of the
Con@ctivity function on the
ventilation hood and cooktop, the
function must first be deactivated and
then reactivated on both appliances.
Deactivating Con@ctivity 2.0
Deactivation on the ventilation hood
is carried out in the same way as
activation, by selecting instead of
.
To deactivate the burner, please refer
to the corresponding operating
instructions.
Please keep in mind that disabling the
connection will also disable any
remote control function being used.
The remote control must then be
reactivated.
Service and warranty
43
For faults that you cannot resolve on
your own, please contact your Miele
dealer or Miele Technical Service.
The telephone number for Miele is listed
at the back of these instructions.
When contacting Miele, please state the
model and serial number of your
ventilation hood.
These can be found on the data plate.
Location of the data plate
The data plate is visible once you have
removed the grease filters.
Warranty
For further information, please refer to
your warranty booklet.
MieleCare
This service is available in USA only.
MieleCare, our Extended Service
Contract program, gives you the
assurance of knowing that your
appliance investment is covered by
5years of worry free ownership.
MieleCare is the only Extended Service
Contract in the industry that guarantees
repairs by a Miele Authorized Service
Provider using genuine Miele parts.
Only genuine Miele parts installed by
factory trained professionals can
guarantee the safety, reliability, and
longevity of your Miele appliance.
Please note that unless expressly
approved in writing by Miele’s Service
department, Extended Service
Contracts offered by other providers for
Miele products will not be recognized
by Miele. Our goal is to prevent
unauthorized (and untrained) service
personnel from working on your Miele
products, possibly doing further
damage to them, you and/or your
home.
To learn more about MieleCare
Extended Service Contracts, please
contact your appliance dealer or visit us
online at:
www.mieleusa.com
Technical data
44
Blower motor 350 W
Overhead cooktop lighting 9.7 W
Glass feature lighting 12.8 W
Total connected load 372.5 W
Supply voltage, frequency 120 V AC, 60 Hz
Fuse 15 A
Power cord length 2.5 ft (0.75 m)
Weight 61.6 lbs (28 kg)
Optional accessory for recirculation mode
Charcoal filter DKF25-900.
Contains
FCC ID: 2ACUWEI8800
IC: 5669C-EI8800
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause
undesired operation.
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Technical Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 545 850 / 00en-US
DA 6996 W
