Whirlpool IFR42001 Washer User Manual

WASHER

For assistance, installation or service,

call: 1-800-807-6777

or visit our website at...

www, inglis.ca

LAVEUSE

Pour assistance, installation ou service,

composez le 1-800-807-6777

ou visitez notre site web

www, inglis.ca

Table of Contents/Table des matieres ............... 2

8578920A

TABLEOFCONTENTS

WASHER SAFETY .......................................................................... 3

INSTALLATION REQUIREMENTS ................................................ 4

Tools and Parts ............................................................................ 4

Options ......................................................................................... 4

Location Requirements ................................................................ 5

Electrical Requirements ............................................................... 6

INSTALLATION INSTRUCTIONS .................................................. 6

Before You Start ........................................................................... 6

Remove Transport System .......................................................... 6

Drain System ................................................................................ 7

Connect Drain Hose ..................................................................... 7

Connect the Inlet Hoses ............................................................... 8

Secure Drain Hose ....................................................................... 9

Level the Washer .......................................................................... 9

Complete Installation ................................................................... 9

WASHER USE............................................................................... 10

Starting Your Washer ................................................................. 10

Using the Proper Detergent ....................................................... 10

Using the Dispenser ................................................................... 11

Controls ...................................................................................... 12

Cycles ......................................................................................... 13

LAUNDRY TIPS ............................................................................ 13

Loading ....................................................................................... 14

WASHER CARE ............................................................................ 14

Cleaning Your Washer ............................................................... 14

Water Inlet Hoses ....................................................................... 15

Vacation, Storage, and Moving Care ......................................... 15

TROUBLESHOOTING .................................................................. 16

ASSISTANCE OR SERVICE ......................................................... 18

WAR RAN TY .................................................................................. 1g

TABLEDESMATIERES

SI_CURITI_ DE LA LAVEUSE ........................................................ 21

EXIGENCES D'INSTALLATION ................................................... 22

Outillage et pieces ...................................................................... 22

Options ....................................................................................... 22

Exigences d'emplacement ......................................................... 23

Specifications electriques .......................................................... 24

INSTRUCTIONS D'INSTALLATION ............................................. 25

Avant de commencer ................................................................. 25

Elimination des accessoires de transport .................................. 25

Systeme de vidange ................................................................... 25

Raccordement du tuyau d'evacuation ....................................... 26

Raccordement des tuyaux d'alimentation ................................. 27

Immobilisation du tuyau de vidange .......................................... 28

Reglage de I'aplomb de la laveuse ............................................ 28

Achever I'installation .................................................................. 28

UTILISATION BE LA LAVEUSE ................................................... 29

Mise en marche de la laveuse .................................................... 29

Utilisation du detergent approprie ............................................. 29

Utilisation du distributeur ........................................................... 30

Commandes ............................................................................... 31

Programmes ............................................................................... 32

CONSEILS DE LESSIVAGE .......................................................... 33

Chargement ................................................................................ 33

ENTRETIEN BE LA LAVEUSE ..................................................... 34

Nettoyage de la laveuse ............................................................. 34

Robinets d'arrivee d'eau ............................................................ 35

Precautions a prendre avant les vacances,

un entreposage ou un dem6nagement ...................................... 35

DI:!:PANNAGE................................................................................. 36

ASSISTANCE OU SERVICE ......................................................... 38

GARANTIE ..................................................................................... 39

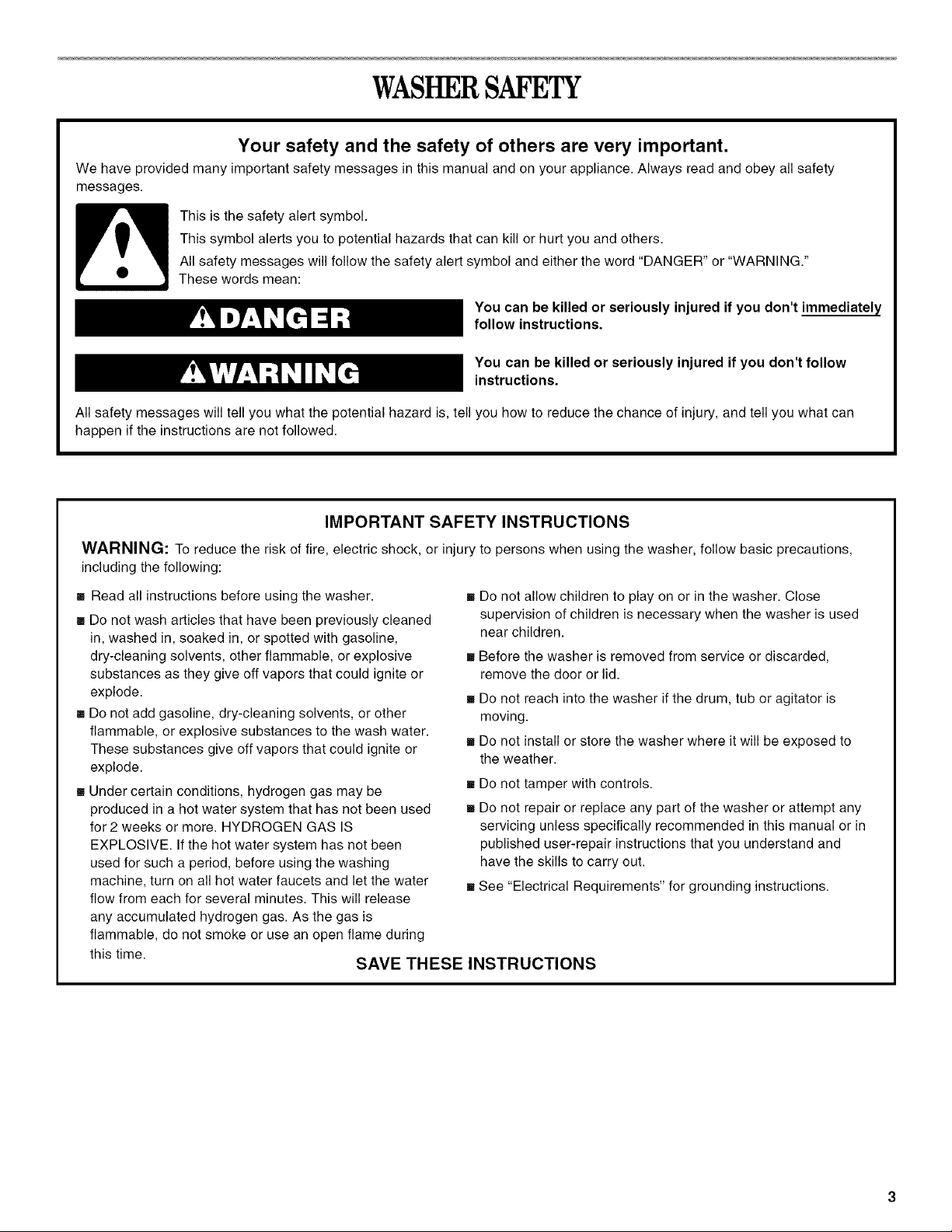

WASHERSAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

You can be killed or seriously injured if you don't immediately

follow instructions.

You can be killed or seriously injured if you don't follow

instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer follow basic precautions,

including the following:

[] Read all instructions before using the washer.

[] Do not wash articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, other flammable, or explosive

substances as they give off vapors that could ignite or

explode.

[] Do not add gasoline, dry-cleaning solvents, or other

flammable, or explosive substances to the wash water.

These substances give off vapors that could ignite or

explode.

[] Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been used

for 2 weeks or more. HYDROGEN GAS IS

EXPLOSIVE. Ifthe hot water system has not been

used for such a period, before using the washing

machine, turn on all hot water faucets and let the water

flow from each for several minutes. This will release

any accumulated hydrogen gas. As the gas is

flammable, do not smoke or use an open flame during

[] Do not allow children to play on or in the washer. Close

supervision of children is necessary when the washer is used

near children.

[] Before the washer is removed from service or discarded,

remove the door or lid.

[] Do not reach into the washer if the drum, tub or agitator is

moving.

[] Do not install or store the washer where it will be exposed to

the weather.

[] Do not tamper with controls.

[] Do not repair or replace any part of the washer or attempt any

servicing unless specifically recommended in this manual or in

published user-repair instructions that you understand and

have the skills to carry out.

[] See "Electrical Requirements" for grounding instructions.

this time.

SAVE THESE INSTRUCTIONS

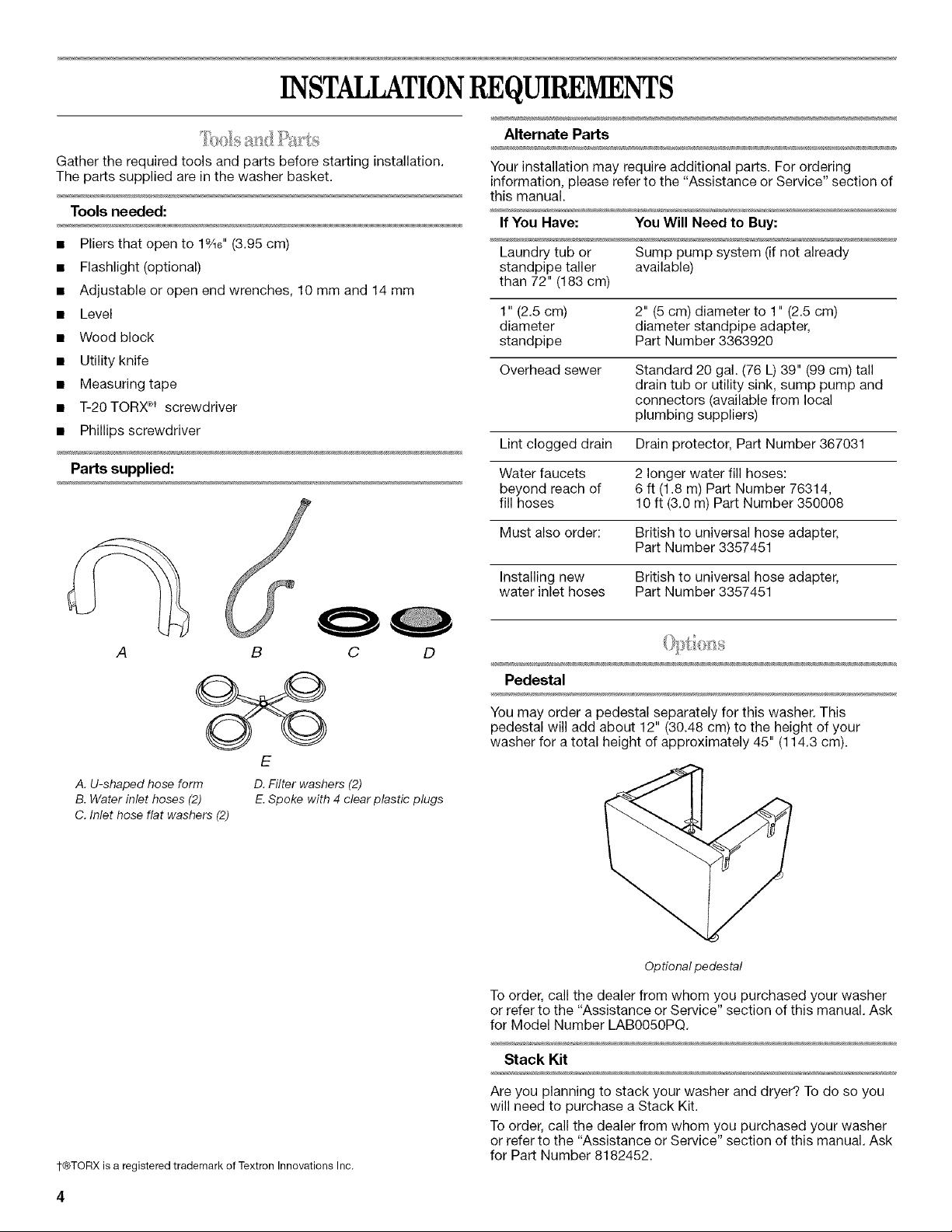

INSTALLATIONREQUIREMENTS

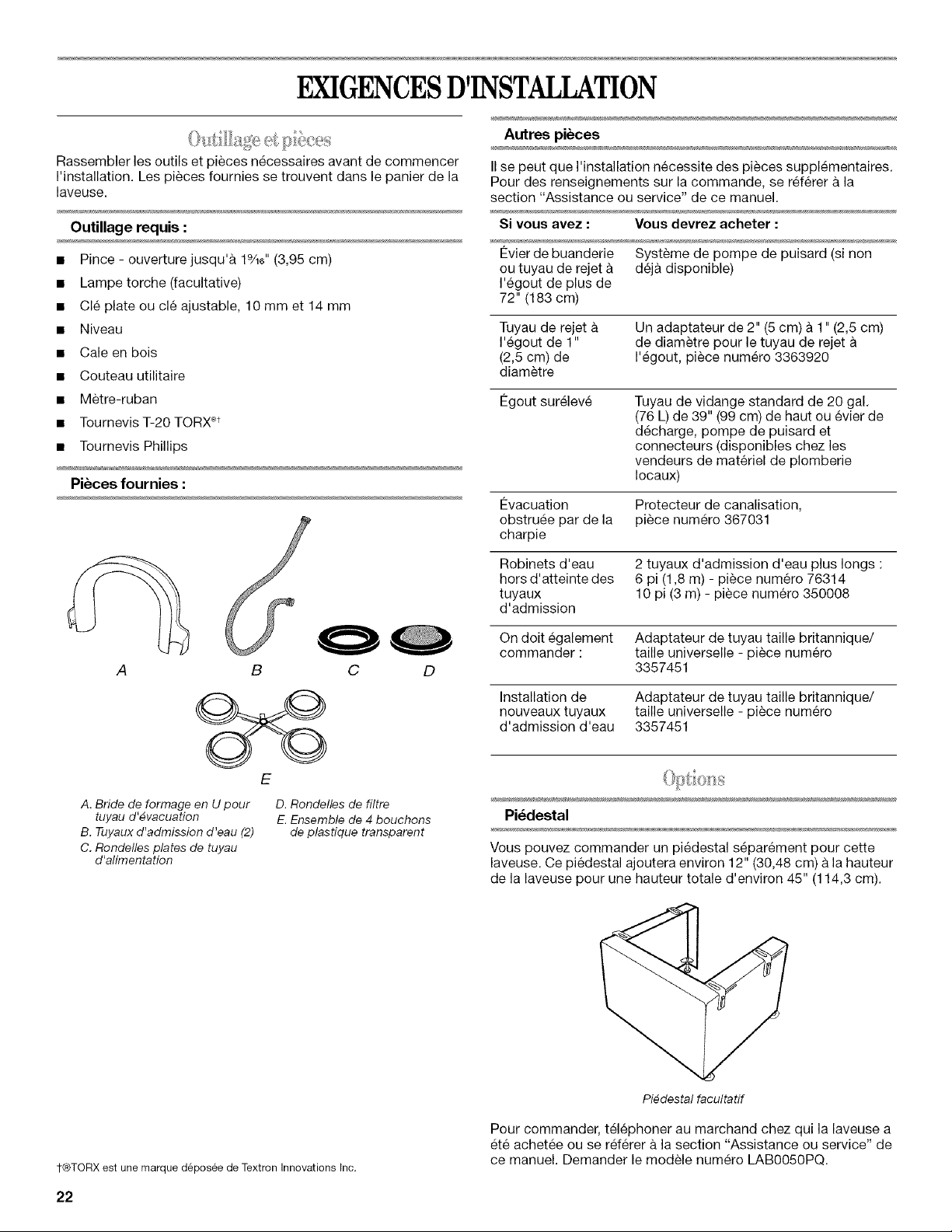

Gather the required tools and parts before starting installation.

The parts supplied are in the washer basket.

Tools needed:

• Pliers that open to 1%6" (3.95 cm)

• Flashlight (optional)

• Adjustable or open end wrenches, 10 mm and 14 mm

• Level

• Wood block

• Utility knife

• Measuring tape

• T-20 TORX®t screwdriver

• Phillips screwdriver

Parts supplied:

C D

A. U-shapedhose form D.Filter washers (2)

B.Water inlet hoses (2)

C.Inlet hose flat washers (2)

E.Spoke with 4 clear plastic plugs

Alternate Parts

Your installation may require additional parts. For ordering

information, please refer to the "Assistance or Service" section of

this manual.

If You Have: You Will Need to Buy:

Laundry tub or Sump pump system (if not already

standpipe taller available)

than 72" (183 cm)

1" (2.5 cm) 2" (5 cm) diameter to 1" (2.5 cm)

diameter diameter standpipe adapter,

standpipe Part Number 3363920

Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall

drain tub or utility sink, sump pump and

connectors (available from local

plumbing suppliers)

Lint clogged drain Drain protector, Part Number 367031

Water faucets 2 longer water fill hoses:

beyond reach of 6 ft (1.8 m) Part Number 76314,

fill hoses 10 ft (3.0 m) Part Number 350008

Must also order: British to universal hose adapter,

Part Number 3357451

Installing new British to universal hose adapter,

water inlet hoses Part Number 3357451

Pedestal

You may order a pedestal separately for this washer. This

pedestal will add about 12" (30.48 cm) to the height of your

washer for a total height of approximately 45" (114.3 cm).

1-®TORX is a registered trademark of Textron Innovations Inc.

Optional pedestal

To order, call the dealer from whom you purchased your washer

or refer to the "Assistance or Service" section of this manual. Ask

for Model Number LAB0050PQ.

Stack Kit

Are you planning to stack your washer and dryer? To do so you

will need to purchase a Stack Kit.

To order, call the dealer from whom you purchased your washer

or refer to the "Assistance or Service" section of this manual. Ask

for Part Number 8182452.

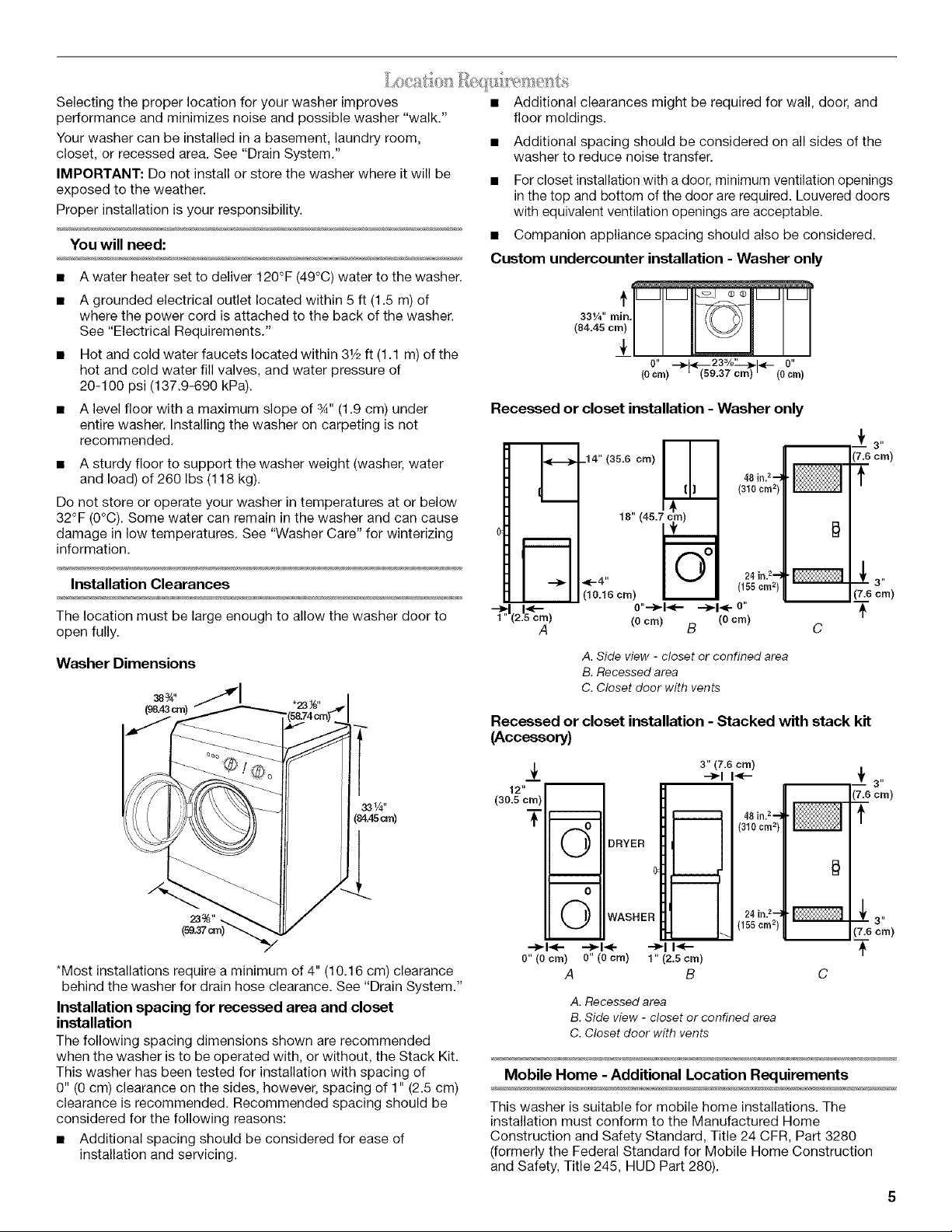

Selectingtheproperlocationforyourwasherimproves

performanceandminimizesnoiseandpossiblewasher"walk."

Yourwashercanbeinstalledinabasement,laundryroom,

closet,orrecessedarea.See"DrainSystem."

IMPORTANT:Donotinstallorstorethewasherwhereitwillbe

exposedtotheweather.

Properinstallationisyourresponsibility.

You will need:

• A water heater set to deliver 120°F (49°C) water to the washer.

• A grounded electrical outlet located within 5 ft (1.5 m) of

where the power cord is attached to the back of the washer.

See "Electrical Requirements."

• Hot and cold water faucets located within 31/2ft (1.1 m) of the

hot and cold water fill valves, and water pressure of

20-100 psi (137.9-690 kPa).

• A level floor with a maximum slope of 3A"(1.9 cm) under

entire washer. Installing the washer on carpeting is not

recommended.

• A sturdy floor to support the washer weight (washer, water

and load) of 260 Ibs (118 kg).

Do not store or operate your washer in temperatures at or below

32°F (0°C). Some water can remain in the washer and can cause

damage in low temperatures. See "Washer Care" for winterizing

information.

Installation Clearances

The location must be large enough to allow the washer door to

open fully.

Washer Dimensions

*Most installations require a minimum of 4" (10.16 cm) clearance

behind the washer for drain hose clearance. See "Drain System."

Installation spacing for recessed area and closet

installation

The following spacing dimensions shown are recommended

when the washer is to be operated with, or without, the Stack Kit.

This washer has been tested for installation with spacing of

0" (0 cm) clearance on the sides, however, spacing of 1" (2.5 cm)

clearance is recommended. Recommended spacing should be

considered for the following reasons:

• Additional spacing should be considered for ease of

installation and servicing.

• Additional clearances might be required for wall, door, and

floor moldings.

• Additional spacing should be considered on all sides of the

washer to reduce noise transfer.

• For closet installation with a door, minimum ventilation openings

in the top and bottom of the door are required. Louvered doors

with equivalent ventilation openings are acceptable.

• Companion appliance spacing should also be considered.

Custom undercounter installation - Washer only

33%" rain.

(84.45 cm)

0" --_23%_t--_1.<-- 0"

(0 cm) ' (59.37 cm) -- (0 cm)

Recessed or closet installation - Washer only

_ ---_ 3"

I _ (310 crn

18"(4s. _}

I_C_I ,1,,ore=,(

o..÷,.- o..

(0 cm) (0cm)

A B C

A. Side view - closet or confined area

B. Recessed area

C. Closet door with vents

Recessed or closet installation - Stacked with stack kit

(Accessory)

12"

(30.5 cm)

3" (7.6 cm)

--_1 I-<--

DRYER

WASHER

---_1<- --_1+ --_1 I<--

0" (0 cm) 0" (0 cm) 1" (2.5 cm)

A B

48 in? "_

(310cm2)

24 in.2"_

(155crn2)

_ --_-_3"

(7.6 cm)

_ 3"

(7.6 era)

A. Recessed area

B. Side view - closet or confined area

C. Closet door with vents

Mobile Home - Additional Location Requirements

This washer is suitable for mobile home installations. The

installation must conform to the Manufactured Home

Construction and Safety Standard, Title 24 CFR, Part 3280

(formerly the Federal Standard for Mobile Home Construction

and Safety, Title 245, HUD Part 280).

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter,

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical

supply is required. A time-delay fuse or circuit breaker is

recommended. It is recommended that a separate circuit

serving only this appliance be provided.

This washer is equipped with a power supply cord having a

3 prong grounding plug.

To minimize possible shock hazard, the cord must be

plugged into a mating, 3 prong, grounding-type outlet,

grounded in accordance with local codes and ordinances. If a

mating outlet is not available, it is the personal responsibility

and obligation of the customer to have the properly grounded

outlet installed by a qualified electrician.

If codes permit and a separate ground wire is used, it is

recommended that a qualified electrician determine that the

ground path is adequate.

• Do not ground to a gas pipe.

• Check with a qualified electrician if you are not sure the

washer is properly grounded.

• Do not have a fuse in the neutral or ground circuit.

GROUNDING INSTRUCTIONS

For a grounded, cord=connected washer:

This washer must be grounded. In the event of a malfunction

or breakdown, grounding will reduce the risk of electrical

shock by providing a path of least resistance for electric

current. This washer is equipped with a cord having an

equipment-grounding conductor and a grounding plug. The

plug must be plugged into an appropriate outlet that is

properly installed and grounded in accordance with all local

codes and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or serviceman if you are in

doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance - if it will

not fit the outlet, have a proper outlet installed by a qualified

electrician.

For a permanently connected washer:

This washer must be connected to a grounded metal,

permanent wiring system, or an equipment grounding

conductor must be run with the circuit conductors and

connected to the equipment-grounding terminal or lead on

the appliance.

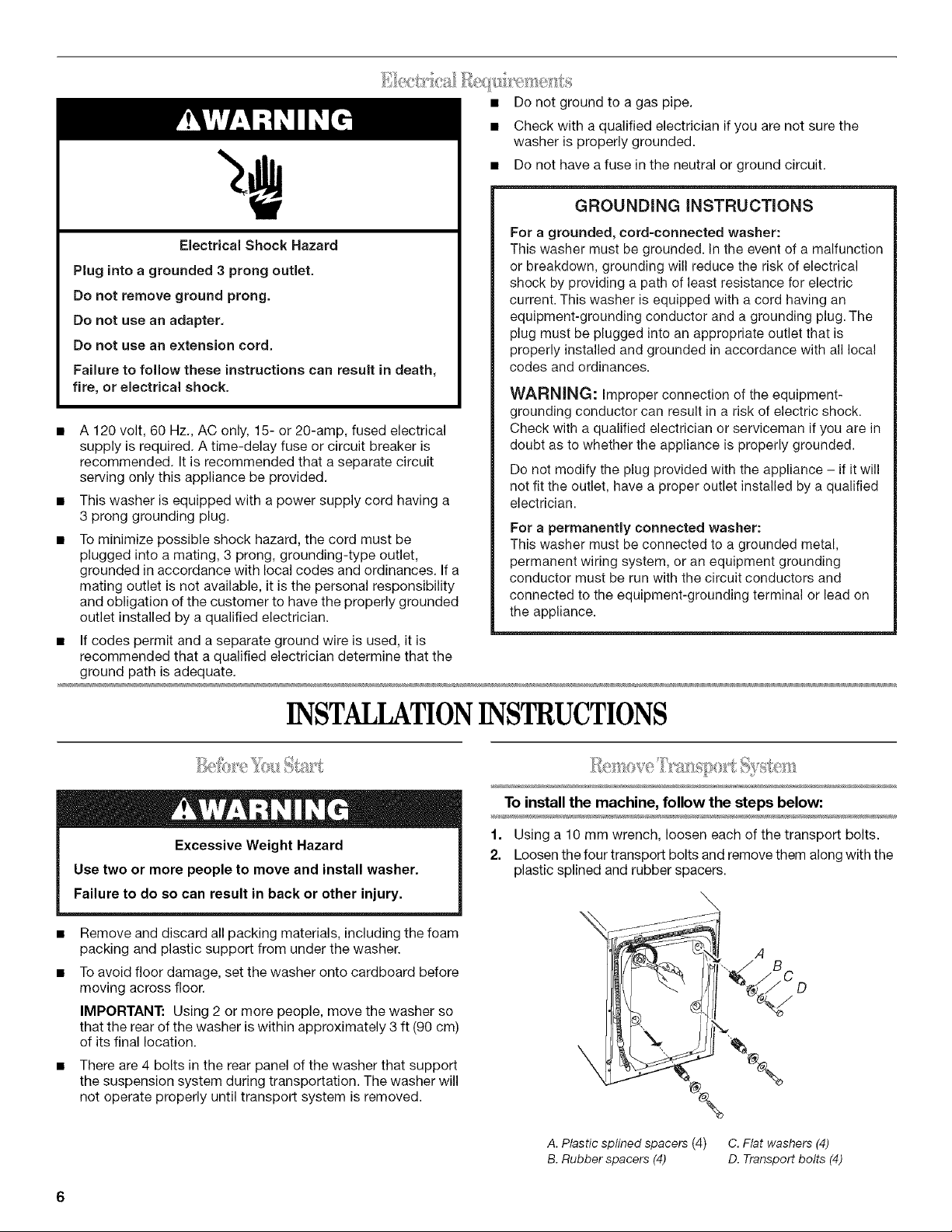

INSTALLATIONINSTRUCTIONS

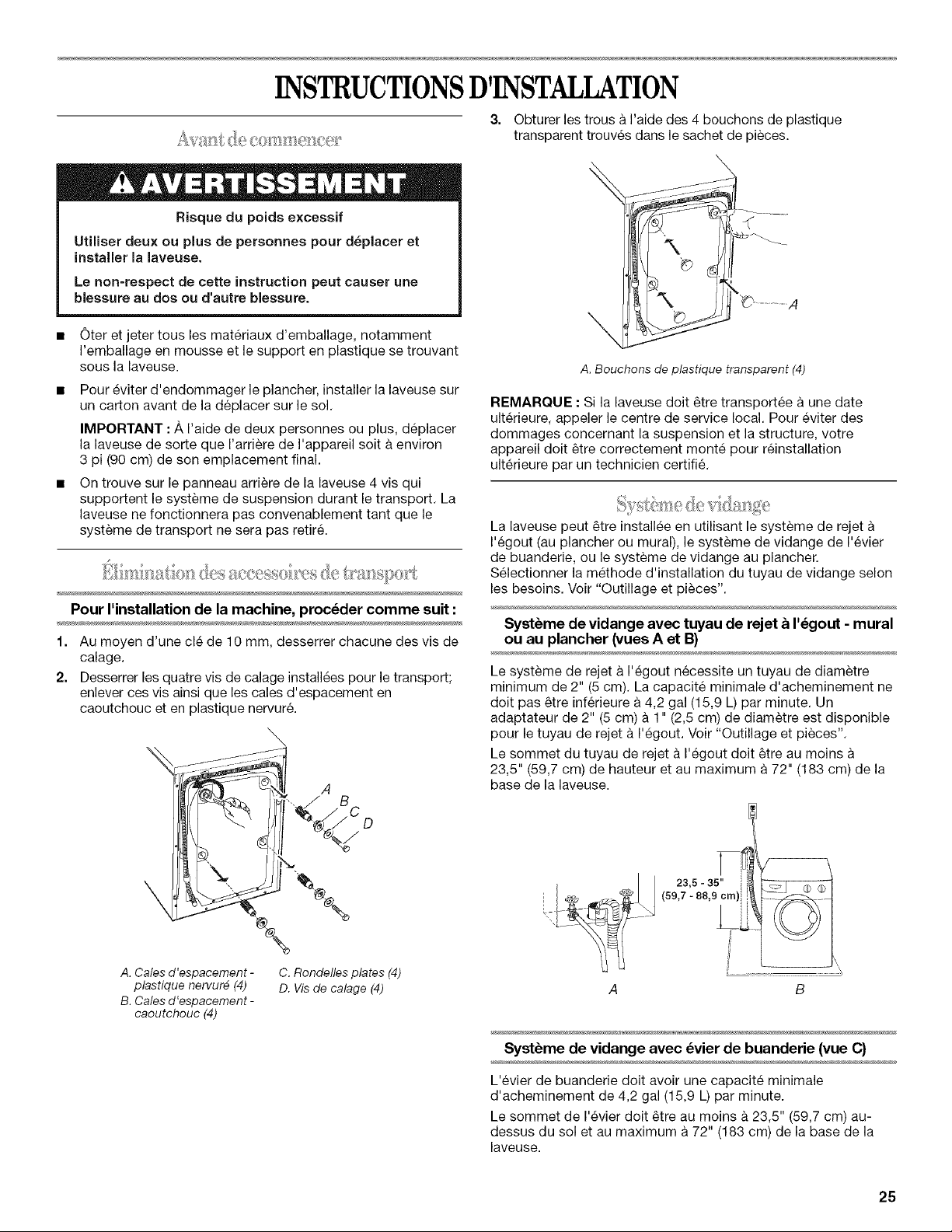

Excessive Weight Hazard

Use two or more people to move and install washer.

Failure to do so can result in back or other injury.

Remove and discard all packing materials, including the foam

packing and plastic support from under the washer.

To avoid floor damage, set the washer onto cardboard before

moving across floor.

IMPORTANT: Using 2 or more people, move the washer so

that the rear of the washer is within approximately 3 ft (90 cm)

of its final location.

There are 4 bolts in the rear panel of the washer that support

the suspension system during transportation. The washer will

not operate properly until transport system is removed.

To install the machine, follow the steps below:

1. Using a 10 mm wrench, loosen each of the transport bolts.

2. Loosen the four transport bolts and remove them along with the

plastic splined and rubber spacers.

A. Plastic splined spacers (4)

B. Rubber spacers (4)

C. Flat washers (4)

D. Transport bolts (4)

3. Plug the holes with the 4 clear plastic plugs packed inside the

parts bag.

A. Clear plastic plugs (4)

NOTE: If the washer is to be transported at a later date, call your

local service center. To avoid suspension and structural damage,

your machine must be properly set up for relocation by acertified

technician.

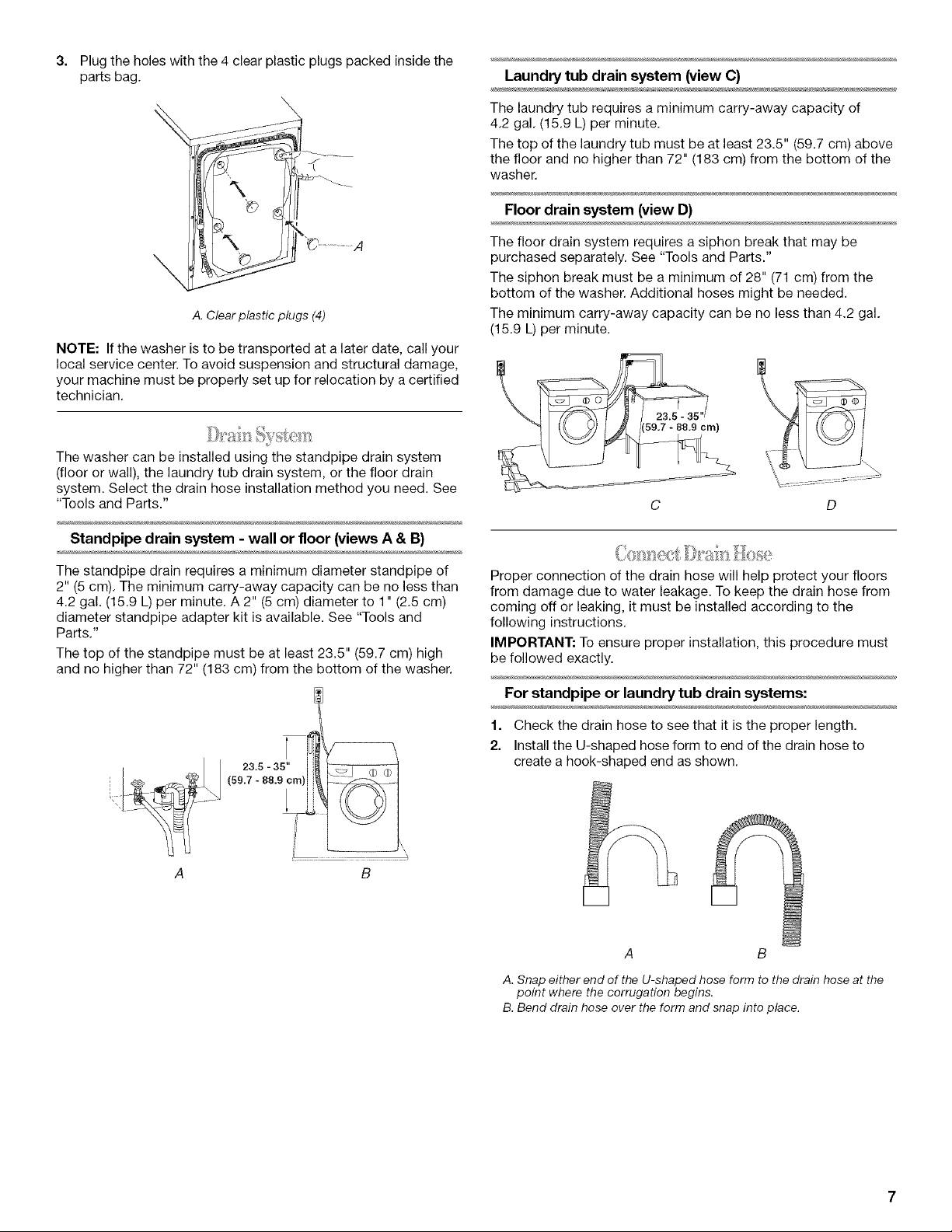

The washer can be installed using the standpipe drain system

(floor or wall), the laundry tub drain system, or the floor drain

system. Select the drain hose installation method you need. See

"Tools and Parts."

Standpipe drain system - wall or floor (views A & B)

The standpipe drain requires a minimum diameter standpipe of

2" (5 cm). The minimum carry-away capacity can be no less than

4.2 gal. (15.9 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm)

diameter standpipe adapter kit is available. See "Tools and

Parts."

The top of the standpipe must be at least 23.5" (59.7 cm) high

and no higher than 72" (183 cm) from the bottom of the washer.

23.5 - 35" ---1

(59.7 - 88.9 cm) @ @

Laundry tub drain system (view C)

The laundry tub requires a minimum carry-away capacity of

4.2 gal. (15.9 L) per minute.

The top of the laundry tub must be at least 23.5" (59.7 cm) above

the floor and no higher than 72" (183 cm) from the bottom of the

washer.

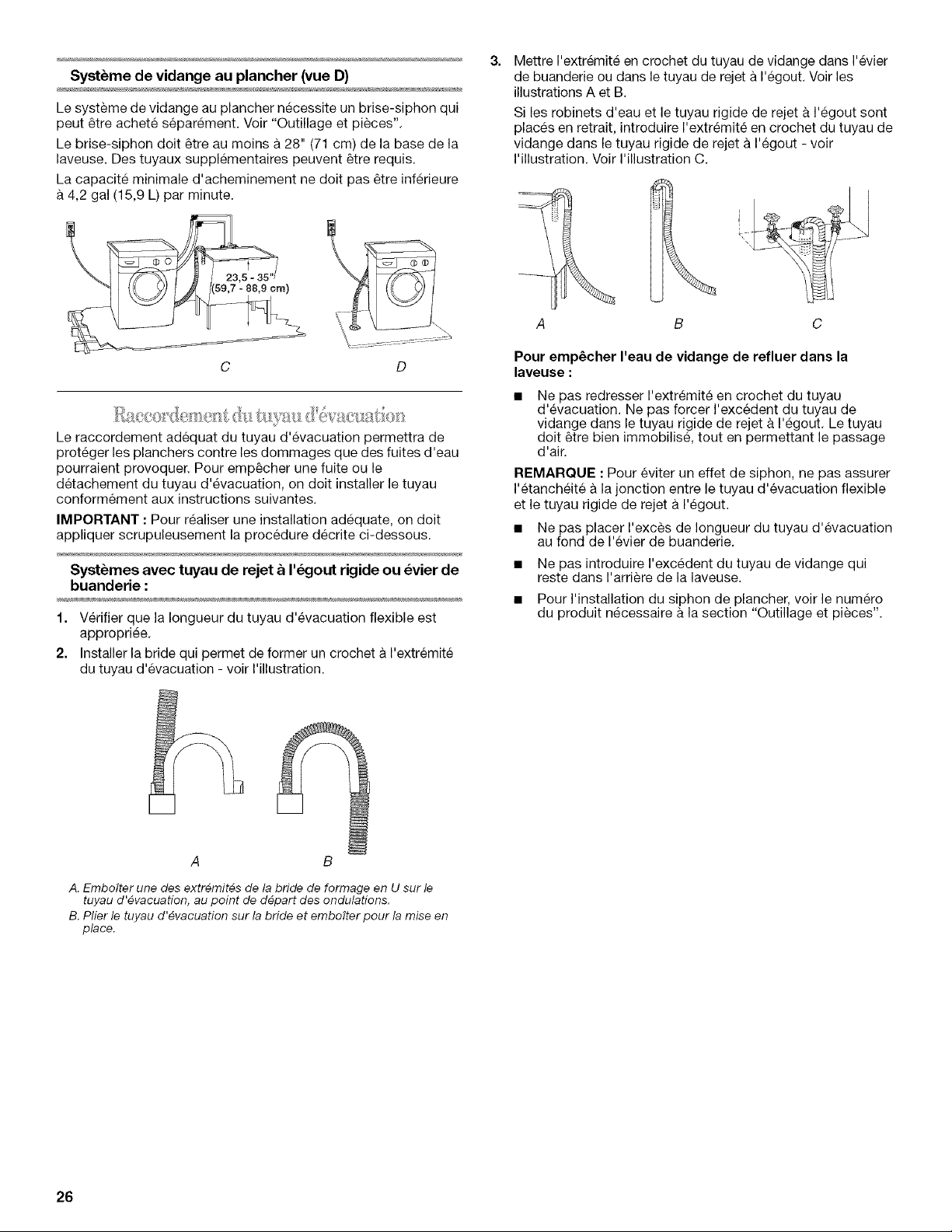

Floor drain system (view D)

The floor drain system requires a siphon break that may be

purchased separately. See "Tools and Parts."

The siphon break must be a minimum of 28" (71 cm) from the

bottom of the washer. Additional hoses might be needed.

The minimum carry-away capacity can be no less than 4.2 gal.

(15.9 L) per minute.

C D

Proper connection of the drain hose will help protect your floors

from damage due to water leakage. To keep the drain hose from

coming off or leaking, it must be installed according to the

following instructions.

IMPORTANT: To ensure proper installation, this procedure must

be followed exactly.

For standpipe or laundry tub drain systems:

1. Check the drain hose to see that it is the proper length.

2. Install the U-shaped hose form to end of the drain hose to

create a hook-shaped end as shown.

A B

A. Snap either end of the U-shaped hose form to the drain hose at the

point where the corrugation begins.

B. Bend drain hose over the form and snap into place.

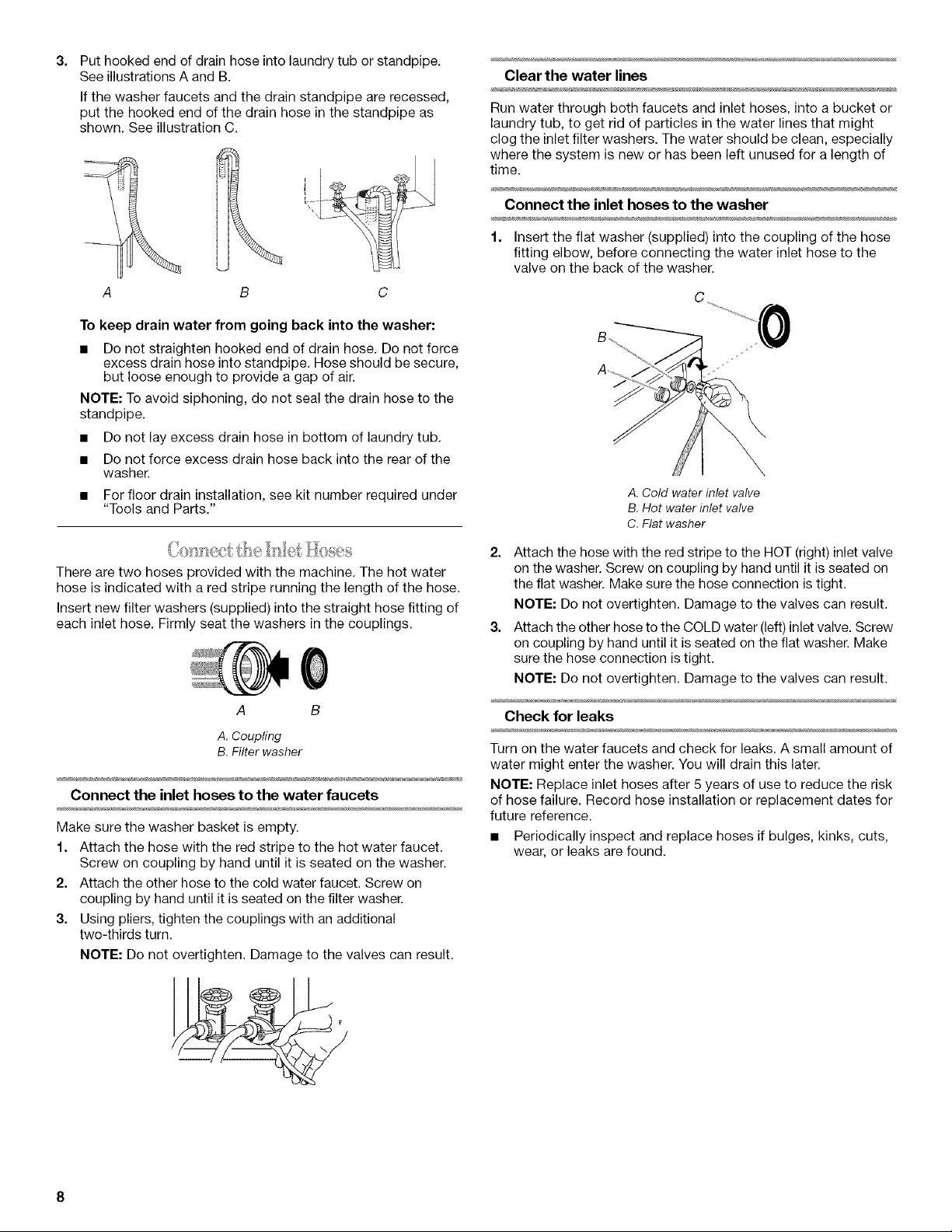

Put hooked end of drain hose into laundry tub or standpipe.

See illustrations A and B.

If the washer faucets and the drain standpipe are recessed,

put the hooked end of the drain hose in the standpipe as

shown. See illustration C.

To keep drain water from going back into the washer:

• Do not straighten hooked end of drain hose. Do not force

excess drain hose into standpipe. Hose should be secure,

but loose enough to provide a gap of air.

NOTE: To avoid siphoning, do not seal the drain hose to the

standpipe.

• Do not lay excess drain hose in bottom of laundry tub.

• Do not force excess drain hose back into the rear of the

washer.

• For floor drain installation, see kit number required under

"Tools and Parts."

, ...... '[

There are two hoses provided with the machine. The hot water

hose is indicated with a red stripe running the length of the hose.

Insert new filter washers (supplied) into the straight hose fitting of

each inlet hose. Firmly seat the washers in the couplings. 3.

A B

A. Coupling

B. Filter washer

Connect the inlet hoses to the water faucets

Make sure the washer basket is empty.

1. Attach the hose with the red stripe to the hot water faucet.

Screw on coupling by hand until it is seated on the washer.

2. Attach the other hose to the cold water faucet. Screw on

coupling by hand until it is seated on the filter washer.

3. Using pliers, tighten the couplings with an additional

two-thirds turn.

NOTE: Do not overtighten. Damage to the valves can result.

Clear the water lines

Run water through both faucets and inlet hoses, into a bucket or

laundry tub, to get rid of particles in the water lines that might

clog the inlet filter washers. The water should be clean, especially

where the system is new or has been left unused for a length of

time.

Connect the inlet hoses to the washer

1. Insert the flat washer (supplied) into the coupling of the hose

fitting elbow, before connecting the water inlet hose to the

valve on the back of the washer.

A. Cold water inlet valve

B. Hot water inlet valve

C. Fiat washer

Attach the hose with the red stripe to the HOT (right) inlet valve

on the washer. Screw on coupling by hand until it is seated on

the flat washer. Make sure the hose connection is tight.

NOTE: Do not overtighten. Damage to the valves can result.

Attach the other hose to the COLD water (left) inlet valve. Screw

on coupling by hand until it is seated on the flat washer. Make

sure the hose connection is tight.

NOTE: Do not overtighten. Damage to the valves can result.

Check for leaks

Turn on the water faucets and check for leaks. A small amount of

water might enter the washer. You will drain this later.

NOTE: Replace inlet hoses after 5 years of use to reduce the risk

of hose failure. Record hose installation or replacement dates for

future reference.

• Periodically inspect and replace hoses if bulges, kinks, cuts,

wear, or leaks are found.

1. Drapethepowercordovertheconsole.

2. Movethewashertoitsfinallocationandremoveanycardboard

usedtomovewasher.

3. Placethedrainhoseinthelaundrytuborstandpipeasshown.

SeeillustrationsAandB.

4. If the washer faucets and the drain standpipe are recessed, put

the hooked end of the drain hose in the standpipe as shown.

See illustration C.

NOTE:

• Do not force excess drain hose back into the rear of the

washer.

• To avoid siphoning, do not seal the drain hose into the

standpipe.

Properly leveling your washer avoids excessive noise and

vibration.

1. Drape the power cord over the console.

2. Move washer to its final location. Remove any cardboard used

to move washer.

3. Check that the washer is level.

• Check side to side and back to front by lining up the level

as shown in the following illustration.

If the washer is not level, prop up the front of the washer with

the wood block and adjust the feet up or down as necessary. If

the washer is against a wall, move the washer out slightly

before tipping back. Repeat this step until washer is level.

1. Check the electrical requirements. Be sure that you have the

correct electrical supply and the recommended grounding

method. See "Electrical Requirements."

2. Check that all parts are now installed. Ifthere is an extra part,

go back through the steps to see which step was skipped.

3. Check that you have all of your tools.

4. Dispose of/recycle all packaging materials. Keep the shipping

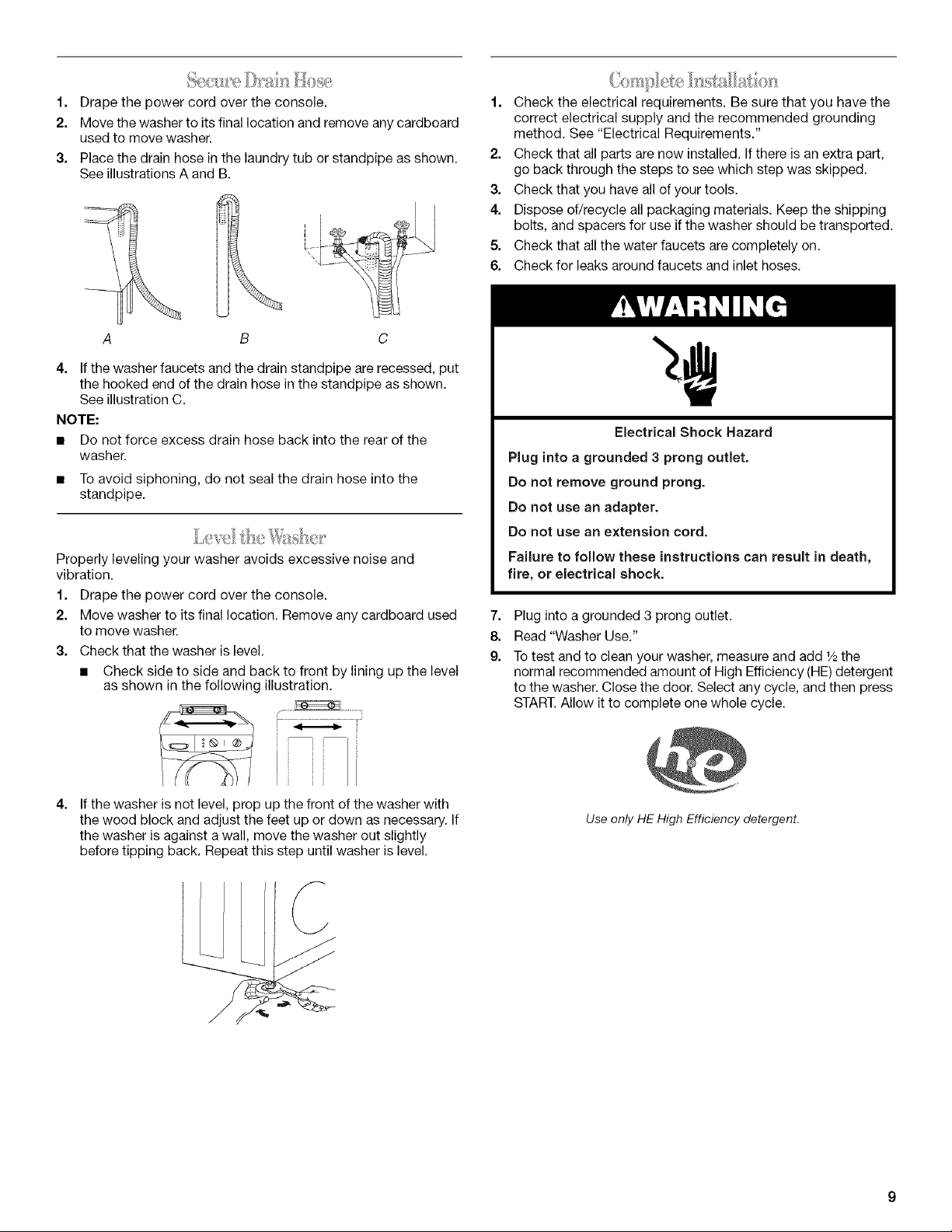

bolts, and spacers for use if the washer should be transported.

5. Check that all the water faucets are completely on.

6. Check for leaks around faucets and inlet hoses.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord,

Failure to follow these instructions can result in death,

fire, or electrical shock.

7. Plug into a grounded 3 prong outlet.

8. Read "Washer Use."

9. Totest and to clean your washer, measure and add 1/2the

normal recommended amount of High Efficiency (HE) detergent

to the washer. Close the door. Select any cycle, and then press

START.Allow it to complete one whole cycle.

Use only HE High Efficiency detergent.

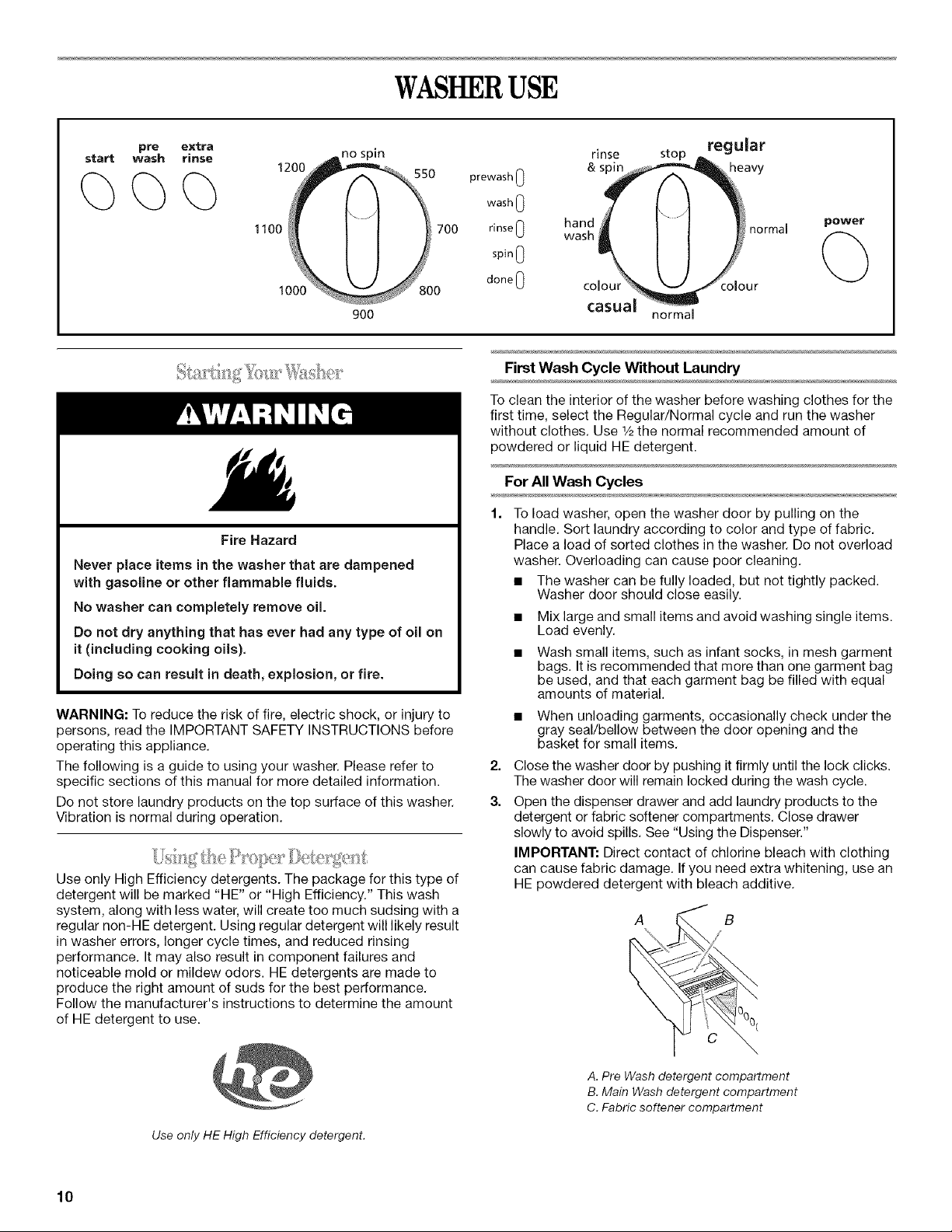

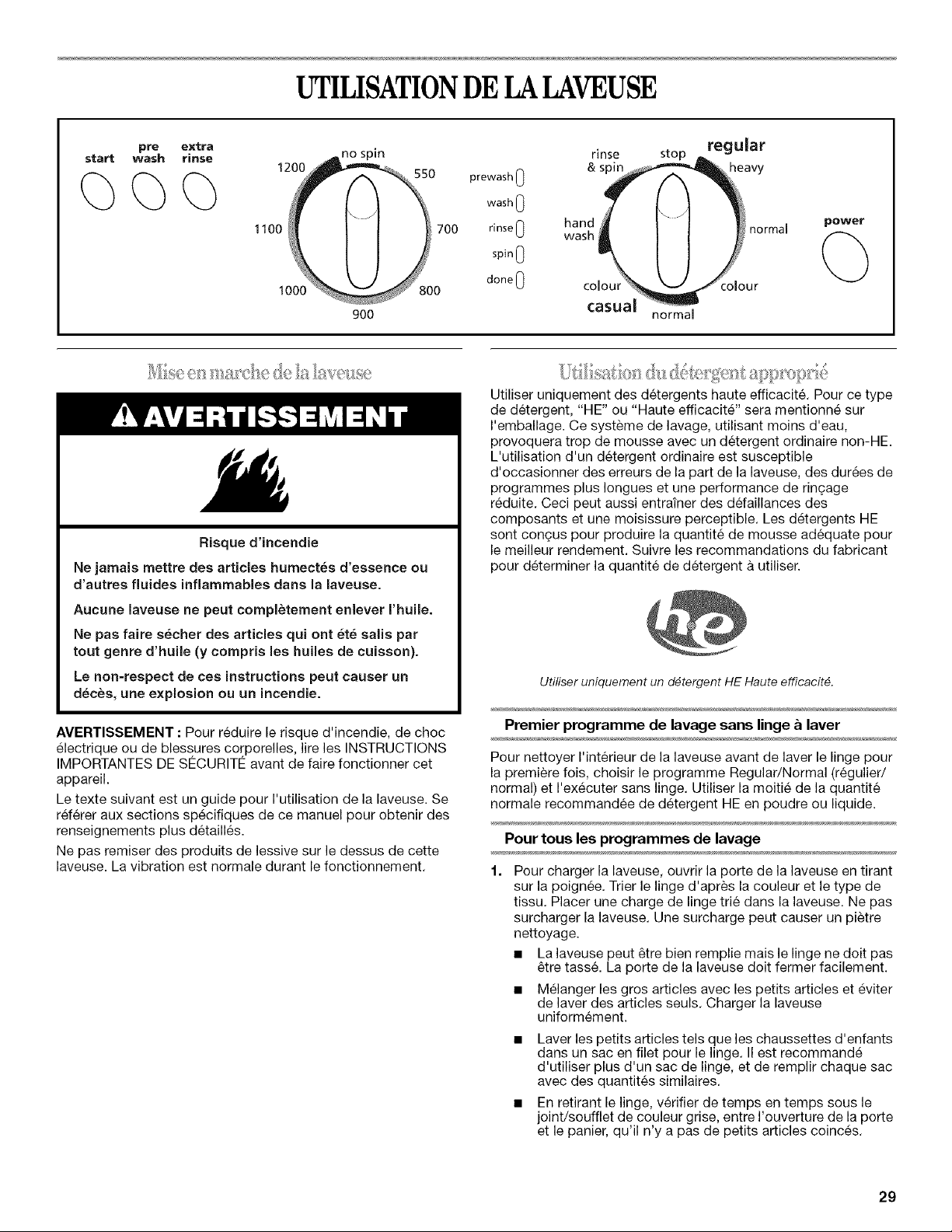

WASHERUSE

start

pre regular

wash no spin rinse stop

& spin heavy

extra

rinse

1100 k

1ooo"_

prewash 0

wash 0

rinse 0

spin 0

done 0

hand normal power

wash

casual

900 normal

colour

Fire Hazard

Never place items in the washer that are dampened

with gasoline or other flammable fluids.

No washer can completely remove oil.

Do not dry anything that has ever had any type of oil on

it (including cooking oils),

Doing so can result in death, explosion, or fire.

WARNING: To reduce the risk of fire, electric shock, or injury to

persons, read the IMPORTANT SAFETY INSTRUCTIONS before

operating this appliance.

The following is a guide to using your washer. Please refer to

specific sections of this manual for more detailed information.

Do not store laundry products on the top surface of this washer.

Vibration is normal during operation.

Use only High Efficiency detergents. The package for this type of

detergent will be marked "HE" or "High Efficiency." This wash

system, along with less water, will create too much sudsing with a

regular non-HE detergent. Using regular detergent will likely result

in washer errors, longer cycle times, and reduced rinsing

performance. It may also result in component failures and

noticeable mold or mildew odors. HE detergents are made to

produce the right amount of suds for the best performance.

Follow the manufacturer's instructions to determine the amount

of HE detergent to use.

First Wash Cycle Without Laundry

To clean the interior of the washer before washing clothes for the

first time, select the Regular/Normal cycle and run the washer

without clothes. Use 1/2the normal recommended amount of

powdered or liquid HE detergent.

For All Wash Cycles

To load washer, open the washer door by pulling on the

handle. Sort laundry according to color and type of fabric.

Place a load of sorted clothes in the washer. Do not overload

washer. Overloading can cause poor cleaning.

• The washer can be fully loaded, but not tightly packed.

Washer door should close easily.

• Mix large and small items and avoid washing single items.

Load evenly.

• Wash small items, such as infant socks, in mesh garment

bags. It is recommended that more than one garment bag

be used, and that each garment bag be filled with equal

amounts of material.

• When unloading garments, occasionally check under the

gray seal/bellow between the door opening and the

basket for small items.

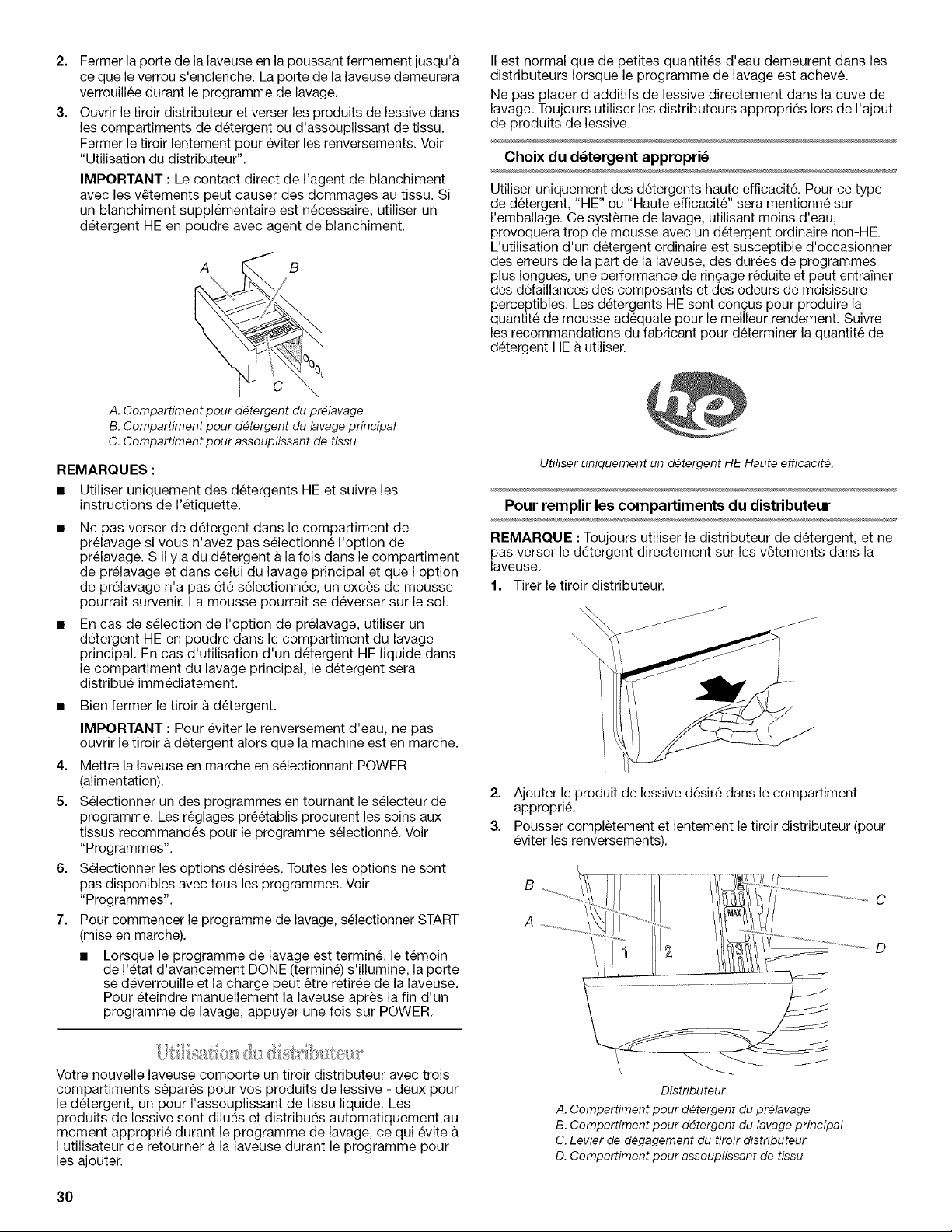

Close the washer door by pushing it firmly until the lock clicks.

The washer door will remain locked during the wash cycle.

Open the dispenser drawer and add laundry products to the

detergent or fabric softener compartments. Close drawer

slowly to avoid spills. See "Using the Dispenser."

IMPORTANT: Direct contact of chlorine bleach with clothing

can cause fabric damage. Ifyou need extra whitening, use an

HE powdered detergent with bleach additive.

A B

Use only HE High Efficiency detergent.

A. Pre Wash detergent compartment

B. Main Wash detergent compartment

C. Fabric softener compartment

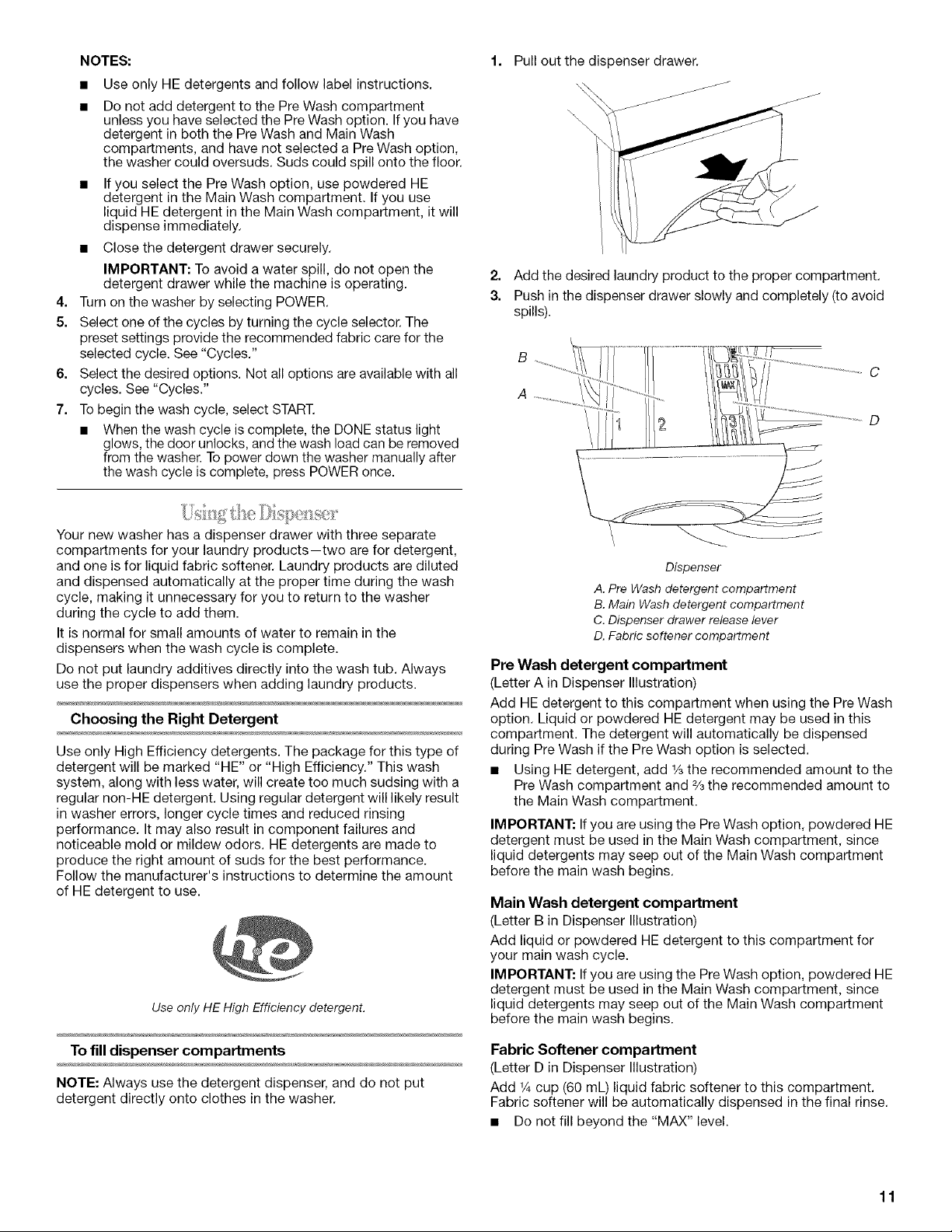

NOTES:

• Use only HE detergents and follow label instructions.

• Do not add detergent to the Pre Wash compartment

unless you have selected the Pre Wash option. If you have

detergent in both the Pre Wash and Main Wash

compartments, and have not selected a Pre Wash option,

the washer could oversuds. Suds could spill onto the floor.

• Ifyou select the Pre Wash option, use powdered HE

detergent in the Main Wash compartment. If you use

liquid HE detergent in the Main Wash compartment, it will

dispense immediately.

• Close the detergent drawer securely.

IMPORTANT: To avoid a water spill, do not open the

detergent drawer while the machine is operating.

Turn on the washer by selecting POWER.

Select one of the cycles by turning the cycle selector. The

preset settings provide the recommended fabric care for the

selected cycle. See "Cycles."

Select the desired options. Not all options are available with all

cycles. See "Cycles."

To begin the wash cycle, select START.

• When the wash cycle is complete, the DONE status light

glows, the door unlocks, and the wash load can be removed

from the washer. To power down the washer manually after

the wash cycle is complete, press POWER once.

Your new washer has a dispenser drawer with three separate

compartments for your laundry products--two are for detergent,

and one is for liquid fabric softener. Laundry products are diluted

and dispensed automatically at the proper time during the wash

cycle, making it unnecessary for you to return to the washer

during the cycle to add them.

It is normal for small amounts of water to remain in the

dispensers when the wash cycle is complete.

Do not put laundry additives directly into the wash tub. Always

use the proper dispensers when adding laundry products.

Choosing the Right Detergent

Use only High Efficiency detergents. The package for this type of

detergent will be marked "HE" or "High Efficiency." This wash

system, along with less water, will create too much sudsing with a

regular non-HE detergent. Using regular detergent will likely result

in washer errors, longer cycle times and reduced rinsing

performance. It may also result in component failures and

noticeable mold or mildew odors. HE detergents are made to

produce the right amount of suds for the best performance.

Follow the manufacturer's instructions to determine the amount

of HE detergent to use.

Use only HE High Efficiency detergent.

To fill dispenser compartments

NOTE: Always use the detergent dispenser, and do not put

detergent directly onto clothes in the washer.

1. Pull out the dispenser drawer.

2. Add the desired laundry product to the proper compartment.

3. Push in the dispenser drawer slowly and completely (to avoid

spills).

....................................................HIr

A !4/

....................i/i _i ..................................................D

Dispenser

A. Pre Wash detergent compartment

B. Main Wash detergent compartment

C. Dispenser drawer release lever

D. Fabric softener compartment

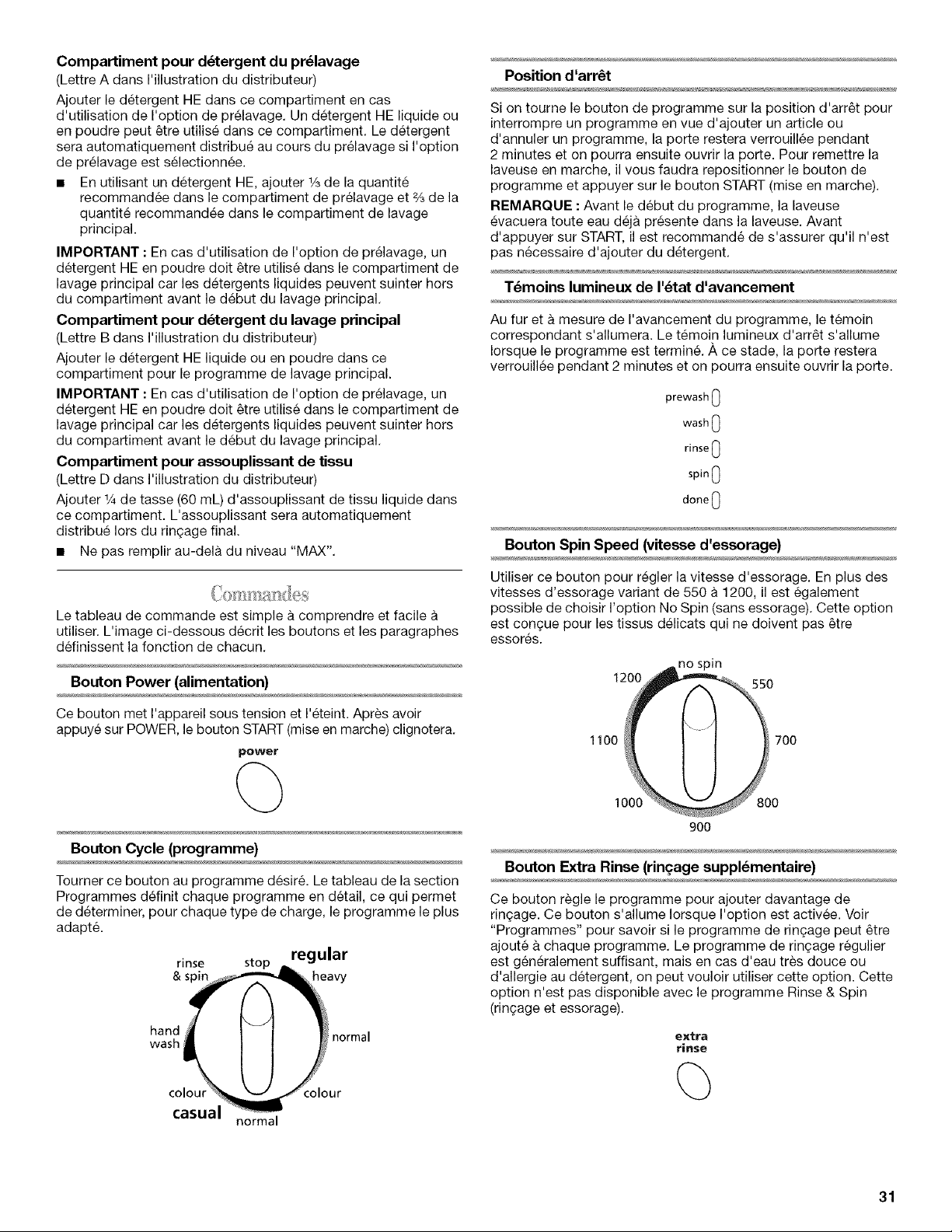

Pre Wash detergent compartment

(Letter A in Dispenser Illustration)

Add HE detergent to this compartment when using the Pre Wash

option. Liquid or powdered HE detergent may be used in this

compartment. The detergent will automatically be dispensed

during Pre Wash if the Pre Wash option is selected.

• Using HE detergent, add 1/3the recommended amount to the

Pre Wash compartment and ¾ the recommended amount to

the Main Wash compartment.

IMPORTANT: If you are using the Pre Wash option, powdered HE

detergent must be used in the Main Wash compartment, since

liquid detergents may seep out of the Main Wash compartment

before the main wash begins.

Main Wash detergent compartment

(Letter B in Dispenser Illustration)

Add liquid or powdered HE detergent to this compartment for

your main wash cycle.

IMPORTANT: If you are using the Pre Wash option, powdered HE

detergent must be used in the Main Wash compartment, since

liquid detergents may seep out of the Main Wash compartment

before the main wash begins.

Fabric Softener compartment

(Letter D in Dispenser Illustration)

Add 1/4cup (60 mL) liquid fabric softener to this compartment.

Fabric softener will be automatically dispensed in the final rinse.

• Do not fill beyond the "MAX" level.

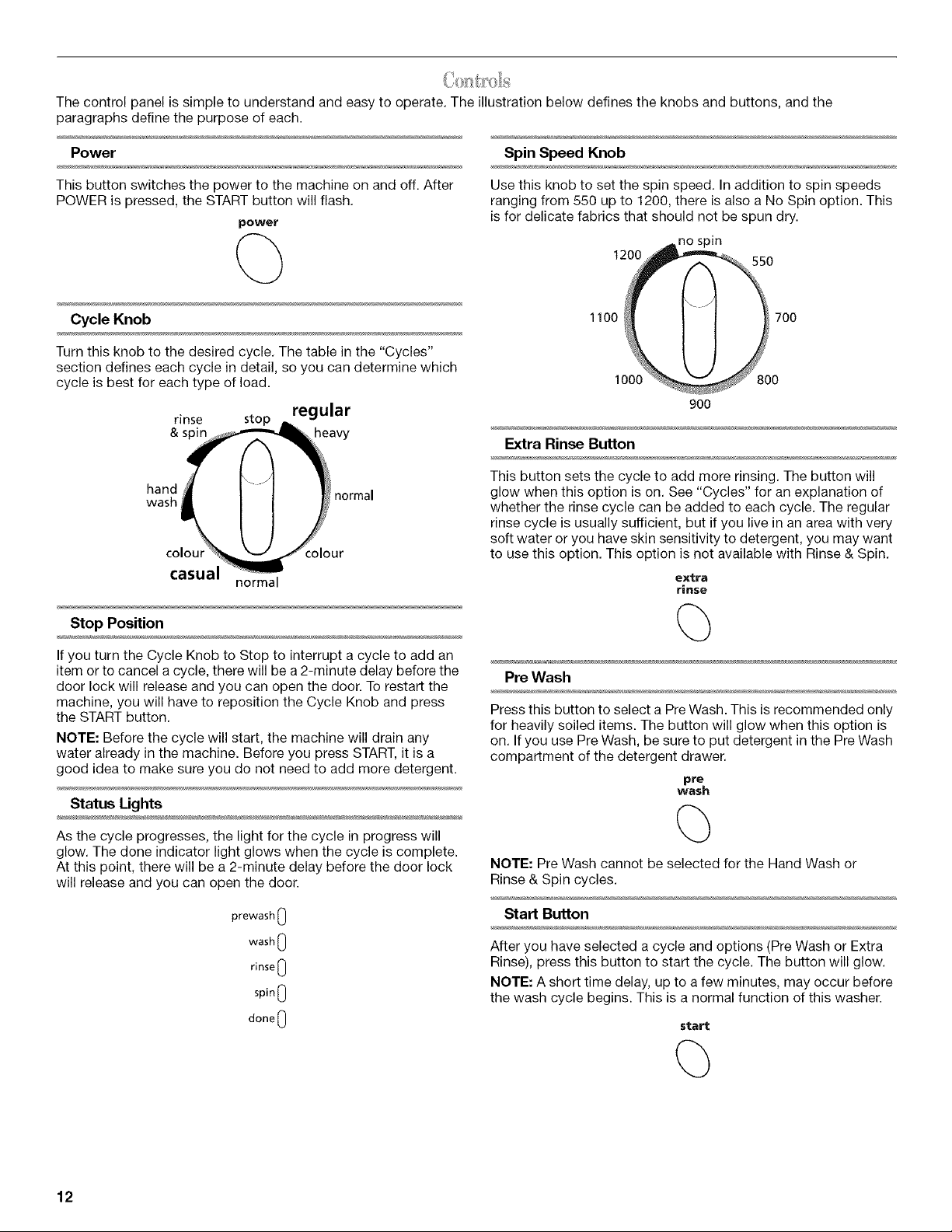

The control panel is simple to understand and easy to operate. The illustration below defines the knobs and buttons, and the

paragraphs define the purpose of each.

Power Spin Speed Knob

This button switches the power to the machine on and off. After

POWER is pressed, the START button will flash.

power

Use this knob to set the spin speed. In addition to spin speeds

ranging from 550 up to 1200, there is also a No Spin option. This

is for delicate fabrics that should not be spun dry.

no spin

t200 550

Cycle Knob

Turn this knob to the desired cycle. The table in the "Cycles"

section defines each cycle in detail, so you can determine which

cycle is best for each type of load.

rinse stop regular

Stop Position

If you turn the Cycle Knob to Stop to interrupt a cycle to add an

item or to cancel a cycle, there will be a 2-minute delay before the

door lock will release and you can open the door. To restart the

machine, you will have to reposition the Cycle Knob and press

the START button.

NOTE: Before the cycle will start, the machine will drain any

water already in the machine. Before you press START, it is a

good idea to make sure you do not need to add more detergent.

Status Lights

As the cycle progresses, the light for the cycle in progress will

glow. The done indicator light glows when the cycle is complete.

At this point, there will be a 2-minute delay before the door lock

will release and you can open the door.

prewash 0

wash 0

rinse 0

spin 0

done 0

1100 700

1000 800

900

Extra Rinse Button

This button sets the cycle to add more rinsing. The button will

glow when this option is on. See "Cycles" for an explanation of

whether the rinse cycle can be added to each cycle. The regular

rinse cycle is usually sufficient, but if you live in an area with very

soft water or you have skin sensitivity to detergent, you may want

to use this option. This option is not available with Rinse & Spin.

extra

rinse

Pre Wash

Press this button to select a Pre Wash. This is recommended only

for heavily soiled items. The button will glow when this option is

on. If you use Pre Wash, be sure to put detergent in the Pre Wash

compartment of the detergent drawer.

pre

wash

NOTE: Pre Wash cannot be selected for the Hand Wash or

Rinse & Spin cycles.

Start Button

After you have selected a cycle and options (Pre Wash or Extra

Rinse), press this button to start the cycle. The button will glow.

NOTE: A short time delay, up to a few minutes, may occur before

the wash cycle begins. This is a normal function of this washer.

start

The table below defines each wash cycle in detail to help you determine which cycle is best for each type of load.

Options Available

Maximum

Soil Spin Pre Extra

Cycles Temp Level Fabrics Cycle Descriptions Speed (1) Wash Rinse

REGULAR

Heavy Hot Heavy Cottons, linens, Main wash, 3 rinses, 1200 Yes Yes

blends, synthetics Drain & Spin

Normal Warm Heavy Cottons, linens, Main wash, 2 rinses, 1200 Yes Yes

blends, synthetics Drain & Spin

Colour Cold Light Cottons, linens, Main wash, 2 rinses, 1200 Yes Yes

blends, synthetics Drain & Spin

CASUAL

Normal Warm Light Cottons, linens, Main wash, 2 rinses, 1200 Yes Yes

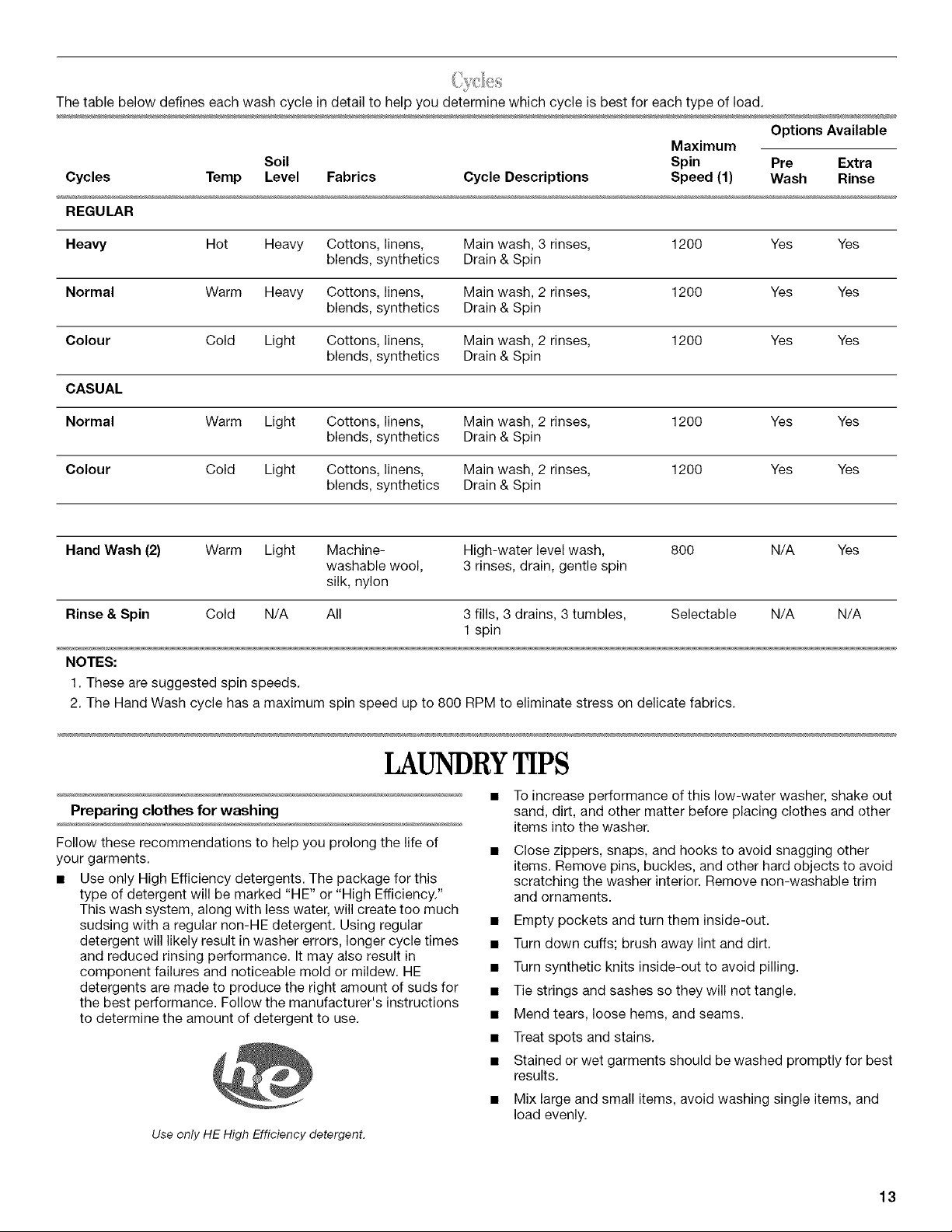

blends, synthetics Drain & Spin

Colour Cold Light Cottons, linens, Main wash, 2 rinses, 1200 Yes Yes

blends, synthetics Drain & Spin

Hand Wash (2) Warm Light Machine- High-water level wash, 800 N/A Yes

washable wool, 3 rinses, drain, gentle spin

silk, nylon

Rinse & Spin Cold N/A All 3 fills, 3 drains, 3 tumbles, Selectable N/A N/A

1 spin

NOTES:

1. These are suggested spin speeds.

2. The Hand Wash cycle has a maximum spin speed up to 800 RPM to eliminate stress on delicate fabrics.

LAUNDRYTIPS

Preparing clothes for washing

Follow these recommendations to help you prolong the life of

your garments.

• Use only High Efficiency detergents. The package for this

type of detergent will be marked "HE" or "High Efficiency."

This wash system, along with less water, will create too much

sudsing with a regular non-HE detergent. Using regular

detergent will likely result in washer errors, longer cycle times

and reduced rinsing performance. It may also result in

component failures and noticeable mold or mildew. HE

detergents are made to produce the right amount of suds for

the best performance. Follow the manufacturer's instructions

to determine the amount of detergent to use.

Use only HE High Efficiency detergent.

• To increase performance of this low-water washer, shake out

sand, dirt, and other matter before placing clothes and other

items into the washer.

• Close zippers, snaps, and hooks to avoid snagging other

items. Remove pins, buckles, and other hard objects to avoid

scratching the washer interior. Remove non-washable trim

and ornaments.

• Empty pockets and turn them inside-out.

• Turn down cuffs; brush away lint and dirt.

• Turn synthetic knits inside-out to avoid pilling.

• Tie strings and sashes so they will not tangle.

• Mend tears, loose hems, and seams.

• Treat spots and stains.

• Stained or wet garments should be washed promptly for best

results.

• Mix large and small items, avoid washing single items, and

load evenly.

Use mesh garment bags to wash undergarments such as

underwire bras, items with strings, and small items such as

infant socks. It is recommended that more than one garment

bag be used, and that each garment bag be filled with equal

amounts of material.

Sorting

Separate heavily soiled items from lightly soiled ones, even if

they would normally be washed together. Separate lint-givers

(towels, chenille) from lint-takers (corduroy, synthetics,

permanent press). When possible, turn lint-givers inside-out.

Separate dark colors from light colors, colorfast items from

noncolorfast items.

Sort by fabric and construction (sturdy cottons, knits, delicate

items).

Unloading

• Remove clothes from washer after the cycle is completed.

Metal objects such as zippers, snaps, and buckles may rust if

left in the washer basket for a long time.

• When unloading garments, occasionally check under the gray

seal/bellow between the door opening and the basket for

small items.

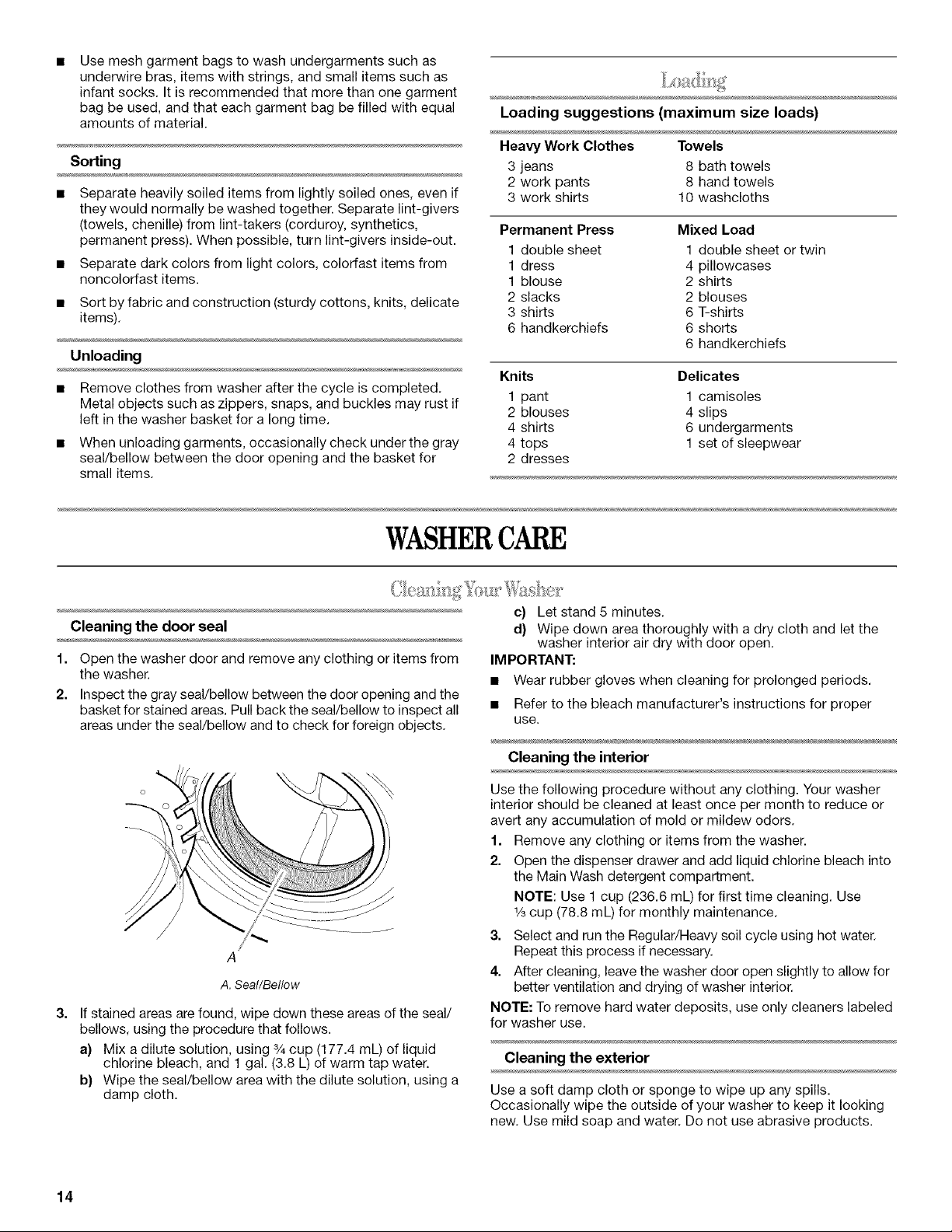

Loading suggestions (maximum size loads)

Heavy Work Clothes Towels

3 jeans 8 bath towels

2 work pants 8 hand towels

3 work shirts 10 washcloths

Permanent Press Mixed Load

1 double sheet 1 double sheet or twin

1 dress 4 pillowcases

1 blouse 2 shirts

2 slacks 2 blouses

3 shirts 6 T-shirts

6 handkerchiefs 6 shorts

6 handkerchiefs

Knits Delicates

1 pant 1 camisoles

2 blouses 4 slips

4 shirts 6 undergarments

4 tops 1 set of sleepwear

2 dresses

WASHERCARE

Cleaning the door seal

1. Open the washer door and remove any clothing or items from

the washer.

2. Inspect the gray seal/bellow between the door opening and the

basket for stained areas. Pull back the seal/bellow to inspect all

areas under the seal/bellow and to check for foreign objects.

A. Seal/Bellow

If stained areas are found, wipe down these areas of the seal/

bellows, using the procedure that follows.

a} Mix a dilute solution, using ¾ cup (177.4 mL) of liquid

chlorine bleach, and 1 gal. (3.8 L) of warm tap water.

b} Wipe the seal/bellow area with the dilute solution, using a

damp cloth.

c) Let stand 5 minutes.

d) Wipe down area thoroughly with a dry cloth and let the

washer interior air dry with door open.

IMPORTANT:

• Wear rubber gloves when cleaning for prolonged periods.

• Refer to the bleach manufacturer's instructions for proper

use.

Cleaning the interior

Use the following procedure without any clothing. Your washer

interior should be cleaned at least once per month to reduce or

avert any accumulation of mold or mildew odors.

1. Remove any clothing or items from the washer.

2. Open the dispenser drawer and add liquid chlorine bleach into

the Main Wash detergent compartment.

NOTE: Use I cup (236.6 mL) for first time cleaning. Use

1/3cup (78.8 mL) for monthly maintenance.

3. Select and run the Regular/Heavy soil cycle using hot water.

Repeat this process if necessary.

4. After cleaning, leave the washer door open slightly to allow for

better ventilation and drying of washer interior.

NOTE: To remove hard water deposits, use only cleaners labeled

for washer use.

Cleaning the exterior

Use a soft damp cloth or sponge to wipe up any spills.

Occasionally wipe the outside of your washer to keep it looking

new. Use mild soap and water. Do not use abrasive products.

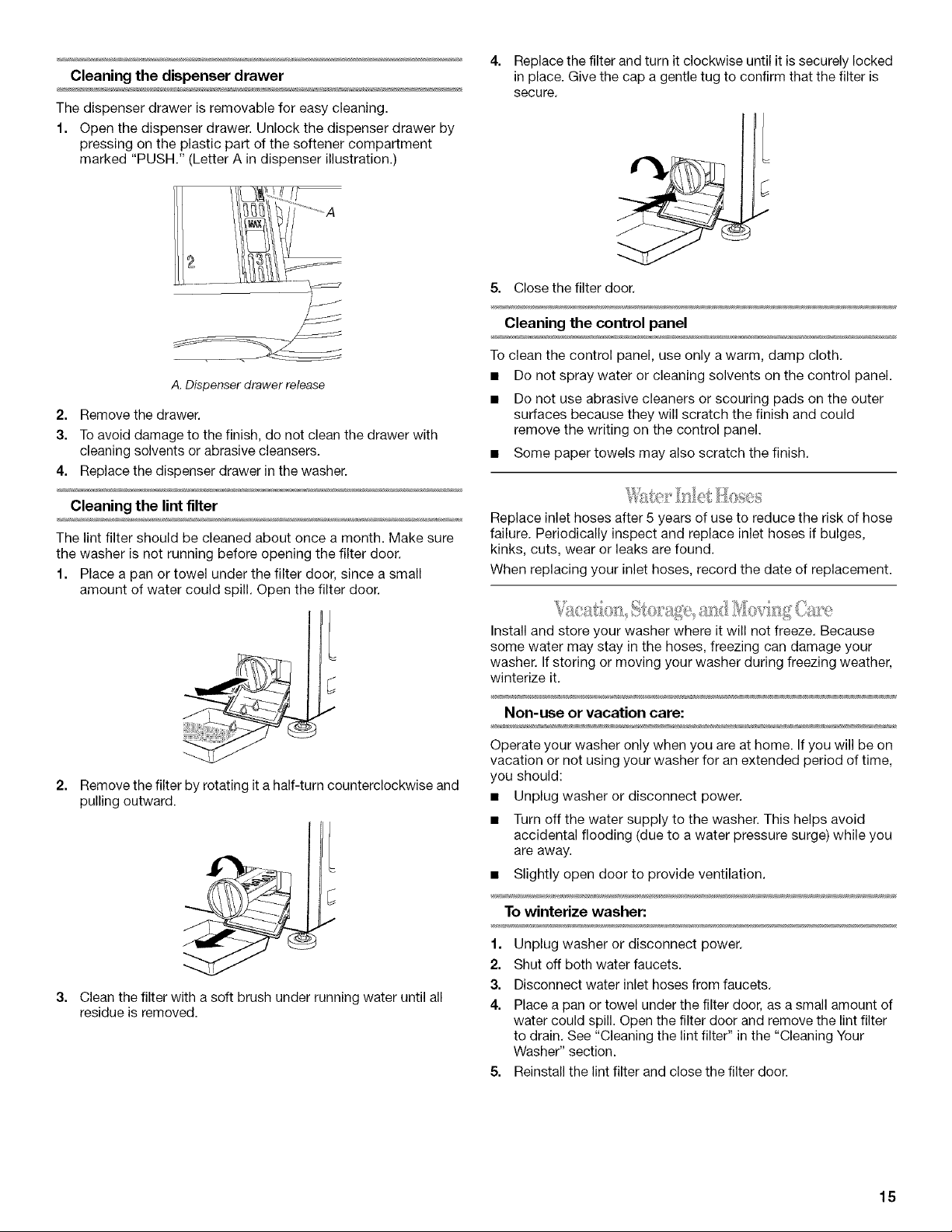

Cleaning the dispenser drawer

The dispenser drawer is removable for easy cleaning.

1. Open the dispenser drawer. Unlock the dispenser drawer by

pressing on the plastic part of the softener compartment

marked "PUSH." (Letter A in dispenser illustration.)

4. Replace the filter and turn it clockwise until it is securely locked

in place. Give the cap a gentle tug to confirm that the filter is

secure.

A. Dispenser drawer release

2. Remove the drawer.

3. Toavoid damage to the finish, do not clean the drawer with

cleaning solvents or abrasive cleansers.

4. Replace the dispenser drawer in the washer.

Cleaning the lint filter

The lint filter should be cleaned about once a month. Make sure

the washer is not running before opening the filter door.

1. Place a pan or towel under the filter door, since a small

amount of water could spill. Open the filter door.

Remove the filter by rotating it a half-turn counterclockwise and

pulling outward.

(

Clean the filter with a soft brush under running water until all

residue is removed.

5. Close the filter door.

Cleaning the control panel

To clean the control panel, use only a warm, damp cloth.

• Do not spray water or cleaning solvents on the control panel.

• Do not use abrasive cleaners or scouring pads on the outer

surfaces because they will scratch the finish and could

remove the writing on the control panel.

• Some paper towels may also scratch the finish.

Replace inlet hoses after 5 years of use to reduce the risk of hose

failure. Periodically inspect and replace inlet hoses if bulges,

kinks, cuts, wear or leaks are found.

When replacing your inlet hoses, record the date of replacement.

Install and store your washer where it will not freeze. Because

some water may stay in the hoses, freezing can damage your

washer. If storing or moving your washer during freezing weather,

winterize it.

Non-use or vacation care:

Operate your washer only when you are at home. If you will be on

vacation or not using your washer for an extended period of time,

you should:

• Unplug washer or disconnect power.

• Turn off the water supply to the washer. This helps avoid

accidental flooding (due to a water pressure surge) while you

are away.

• Slightly open door to provide ventilation.

To winterize washer:

1. Unplug washer or disconnect power.

2. Shut off both water faucets.

3. Disconnect water inlet hoses from faucets.

4. Place a pan or towel under the filter door, as a small amount of

water could spill. Open the filter door and remove the lint filter

to drain. See "Cleaning the lint filter" in the "Cleaning Your

Washer" section.

5. Reinstall the lint filter and close the filter door.

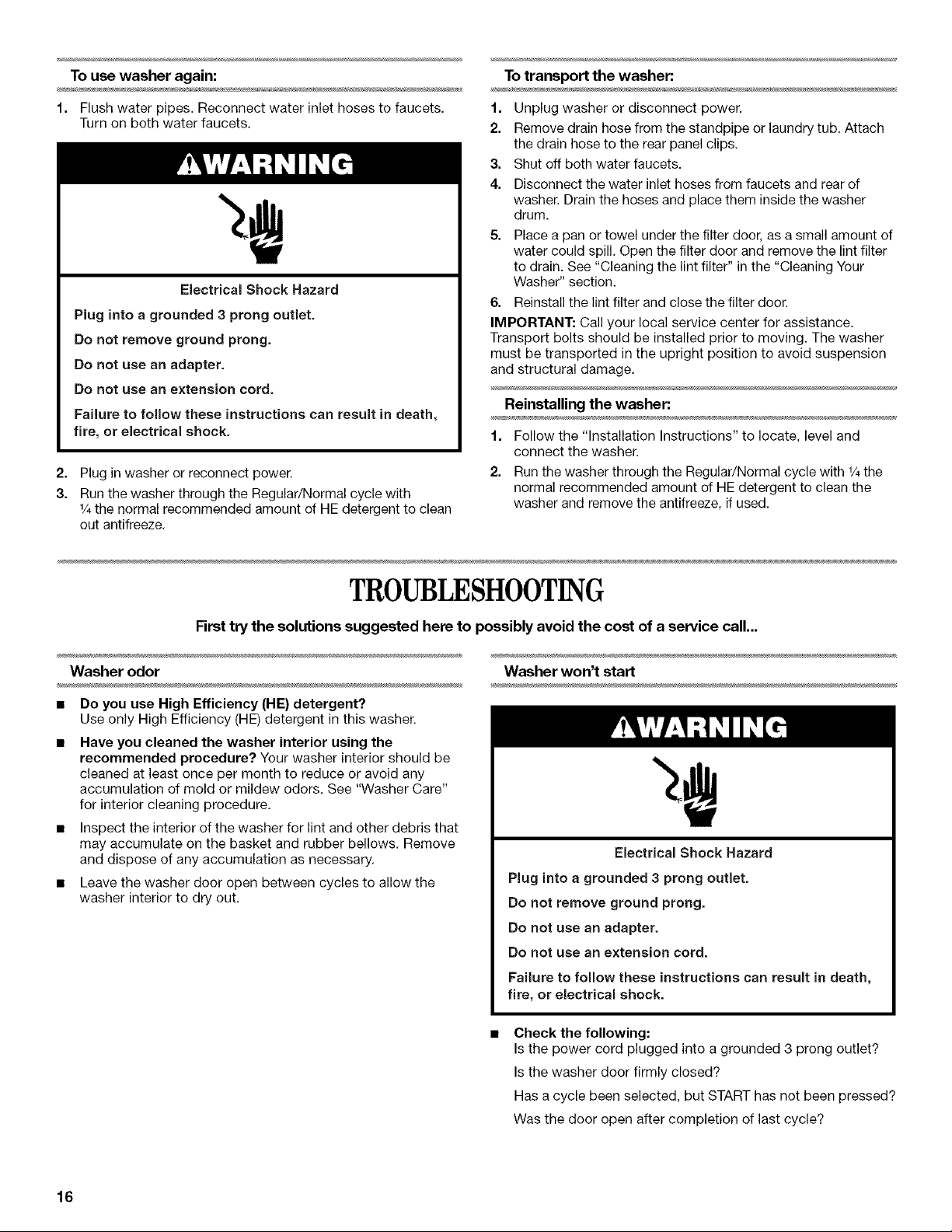

To use washer again:

1. Flush water pipes. Reconnect water inlet hoses to faucets.

Turn on both water faucets.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

2. Plug in washer or reconnect power.

3. Run the washer through the Regular/Normal cycle with

1/4the normal recommended amount of HE detergent to clean

out antifreeze.

To transport the washer:

1. Unplug washer or disconnect power.

2. Remove drain hose from the standpipe or laundry tub. Attach

the drain hose to the rear panel clips.

3. Shut off both water faucets.

4. Disconnect the water inlet hoses from faucets and rear of

washer. Drain the hoses and place them inside the washer

drum.

5. Place a pan or towel under the filter door, as a small amount of

water could spill. Open the filter door and remove the lint filter

to drain. See "Cleaning the lint filter" in the "Cleaning Your

Washer" section.

6. Reinstall the lint filter and close the filter door.

IMPORTANT: Call your local service center for assistance.

Transport bolts should be installed prior to moving. The washer

must be transported in the upright position to avoid suspension

and structural damage.

Reinstalling the washer:

1. Follow the "Installation Instructions" to locate, level and

connect the washer.

2. Run the washer through the Regular/Normal cycle with 1/4the

normal recommended amount of HE detergent to clean the

washer and remove the antifreeze, if used.

TROUBLESHOOTING

Firsttry the solutions suggested hers to possibly avoid the cost of a service call...

Washer odor

• Do you use High Efficiency (HE) detergent?

Use only High Efficiency (HE) detergent in this washer.

Have you cleaned the washer interior using the

recommended procedure? Your washer interior should be

cleaned at least once per month to reduce or avoid any

accumulation of mold or mildew odors. See "Washer Care"

for interior cleaning procedure.

• Inspect the interior of the washer for lint and other debris that

may accumulate on the basket and rubber bellows. Remove

and dispose of any accumulation as necessary.

• Leave the washer door open between cycles to allow the

washer interior to dry out.

Washer won't start

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

Check the following:

Is the power cord plugged into a grounded 3 prong outlet?

Is the washer door firmly closed?

Has a cycle been selected, but START has not been pressed?

Was the door open after completion of last cycle?

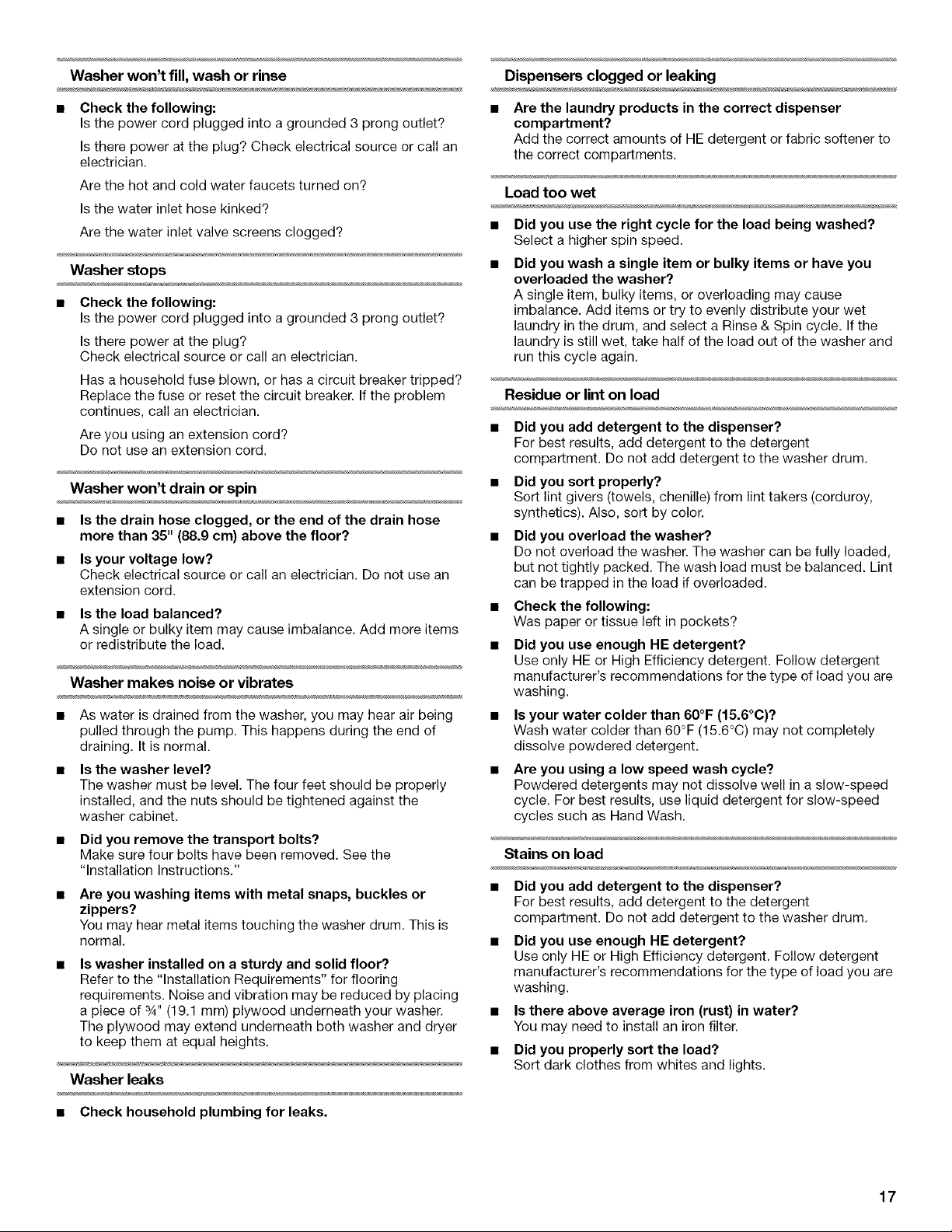

Washer won't fill, wash or rinse

• Check the following:

Is the power cord plugged into a grounded 3 prong outlet?

Is there power at the plug? Check electrical source or call an

electrician.

Are the hot and cold water faucets turned on?

Is the water inlet hose kinked?

Are the water inlet valve screens clogged?

Washer stops

• Checkthe following:

Is the power cord plugged into a grounded 3 prong outlet?

Is there power at the plug?

Check electrical source or call an electrician.

Has a household fuse blown, or has a circuit breaker tripped?

Replace the fuse or reset the circuit breaker. Ifthe problem

continues, call an electrician.

Are you using an extension cord?

Do not use an extension cord.

Dispensers clogged or leaking

Are the laundry products in the correct dispenser

compartment?

Add the correct amounts of HE detergent or fabric softener to

the correct compartments.

Load too wet

• Did you use the right cycle for the load being washed?

Select a higher spin speed.

Did you wash a single item or bulky items or have you

overloaded the washer?

A single item, bulky items, or overloading may cause

imbalance. Add items or try to evenly distribute your wet

laundry in the drum, and select a Rinse & Spin cycle. If the

laundry is still wet, take half of the load out of the washer and

run this cycle again.

Residue or lint on load

• Did you add detergent to the dispenser?

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.

Washer won't drain or spin

• Is the drain hose clogged, or the end of the drain hose

more than 35" (88.9 cm) above the floor? •

• Is your voltage low?

Check electrical source or call an electrician. Do not use an

extension cord.

• Is the load balanced?

A single or bulky item may cause imbalance. Add more items

or redistribute the load. •

Washer makes noise or vibrates

• As water is drained from the washer, you may hear air being

pulled through the pump. This happens during the end of

draining. It is normal.

Is the washer level?

The washer must be level. The four feet should be properly

installed, and the nuts should be tightened against the

washer cabinet.

Did you remove the transport bolts?

Make sure four bolts have been removed. See the

"Installation Instructions."

Are you washing items with metal snaps, buckles or

zippers?

You may hear metal items touching the washer drum. This is

normal.

Is washer installed on a sturdy and solid floor?

Refer to the "Installation Requirements" for flooring

requirements. Noise and vibration may be reduced by placing

a piece of 3A"(19.1 mm) plywood underneath your washer.

The plywood may extend underneath both washer and dryer

to keep them at equal heights.

Washerleaks

• Check household plumbing for leaks.

• Did you sort properly?

Sort lint givers (towels, chenille) from lint takers (corduroy,

synthetics). Also, sort by color.

Did you overload the washer?

Do not overload the washer. The washer can be fully loaded,

but not tightly packed. The wash load must be balanced. Lint

can be trapped in the load if overloaded.

• Check the following:

Was paper or tissue left in pockets?

Did you use enough HE detergent?

Use only HE or High Efficiency detergent. Follow detergent

manufacturer's recommendations for the type of load you are

washing.

• Is your water colder than 60°F (15.6°C)?

Wash water colder than 60°F (15.6°C) may not completely

dissolve powdered detergent.

Are you using a low speed wash cycle?

Powdered detergents may not dissolve well in a slow-speed

cycle. For best results, use liquid detergent for slow-speed

cycles such as Hand Wash.

Stains on load

• Did you add detergent to the dispenser?

For best results, add detergent to the detergent

compartment. Do not add detergent to the washer drum.

Did you use enough HE detergent?

Use only HE or High Efficiency detergent. Follow detergent

manufacturer's recommendations for the type of load you are

washing.

• Is there above average iron (rust) in water?

You may need to install an iron filter.

• Did you properly sort the load?

Sort dark clothes from whites and lights.

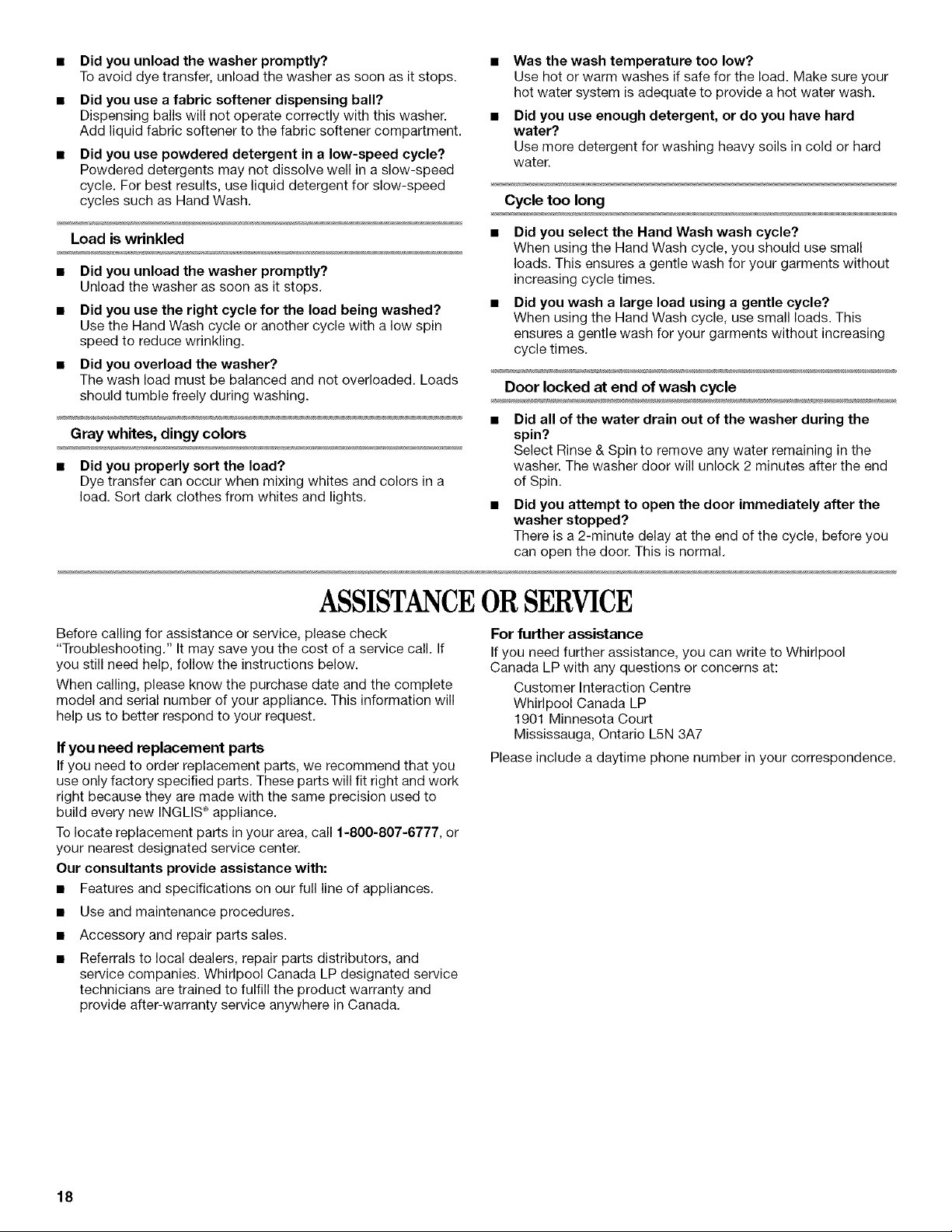

• Did you unload the washer promptly?

To avoid dye transfer, unload the washer as soon as it stops.

• Did you use a fabric softener dispensing ball?

Dispensing balls will not operate correctly with this washer.

Add liquid fabric softener to the fabric softener compartment.

Did you use powdered detergent in a low-speed cycle?

Powdered detergents may not dissolve well in a slow-speed

cycle. For best results, use liquid detergent for slow-speed

cycles such as Hand Wash.

Load is wrinkled

• Did you unload the washer promptly?

Unload the washer as soon as it stops.

• Did you use the right cycle for the load being washed?

Use the Hand Wash cycle or another cycle with a low spin

speed to reduce wrinkling.

• Did you overload the washer?

The wash load must be balanced and not overloaded. Loads

should tumble freely during washing.

Gray whites, dingy colors

• Did you properly sort the load?

Dye transfer can occur when mixing whites and colors in a

load. Sort dark clothes from whites and lights.

Was the wash temperature too low?

Use hot or warm washes if safe for the load. Make sure your

hot water system is adequate to provide a hot water wash.

Did you use enough detergent, or do you have hard

water?

Use more detergent for washing heavy soils in cold or hard

water.

Cycle too long

Did you select the Hand Wash wash cycle?

When using the Hand Wash cycle, you should use small

loads. This ensures a gentle wash for your garments without

increasing cycle times.

Did you wash a large load using a gentle cycle?

When using the Hand Wash cycle, use small loads. This

ensures a gentle wash for your garments without increasing

cycle times.

Door locked at end of wash cycle

Did all of the water drain out of the washer during the

spin?

Select Rinse & Spin to remove any water remaining in the

washer. The washer door will unlock 2 minutes after the end

of Spin.

Did you attempt to open the door immediately after the

washer stopped?

There is a 2-minute delay at the end of the cycle, before you

can open the door. This is normal.

ASSISTANCEORSERVICE

Before calling for assistance or service, please check

"Troubleshooting." It may save you the cost of a service call. If

you still need help, follow the instructions below.

When calling, please know the purchase date and the complete

model and serial number of your appliance. This information will

help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you

use only factory specified parts. These parts will fit right and work

right because they are made with the same precision used to

build every new INGLIS ®appliance.

To locate replacement parts in your area, call 1-800-807-6777, or

your nearest designated service center.

Our consultants provide assistance with:

• Features and specifications on our full line of appliances.

• Use and maintenance procedures.

• Accessory and repair parts sales.

Referrals to local dealers, repair parts distributors, and

service companies. Whirlpool Canada LP designated service

technicians are trained to fulfill the product warranty and

provide after-warranty service anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool

Canada LP with any questions or concerns at:

Customer Interaction Centre

Whirlpool Canada LP

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

INGLIS®MAJORAPPLIANCEWARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or

furnished with the product, Whirlpool Canada LP (hereafter "Whirlpool") will pay for factory specification replacement parts and repair

labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company.

ITEMS WHIRLPOOL WILL NOT PAY FOR

1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair

house fuses or to correct house wiring or plumbing.

2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty

coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in

accordance with electrical or plumbing codes, or use of products not approved by Whirlpool.

5. Any food loss due to refrigerator or freezer product failures.

6. Replacement parts or repair labor costs for units operated outside Canada.

7. Pickup and delivery. This major appliance is designed to be repaired in the home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service in remote locations.

10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with

published installation instructions.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED

HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,

ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES

YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM PROVINCE TO PROVINCE.

Outside Canada, this warranty does not apply. Contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the "Troubleshooting" section of the Use & Care Guide. After checking "Troubleshooting," additional help

can be found by checking the "Assistance or Service" section or by calling Whirlpool at 1-800-807-6777. 8/05

Keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

Write down the following information about your major appliance

to better help you obtain assistance or service if you ever need it.

You will need to know your complete model number and serial

number. You can find this information on the model and serial

number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

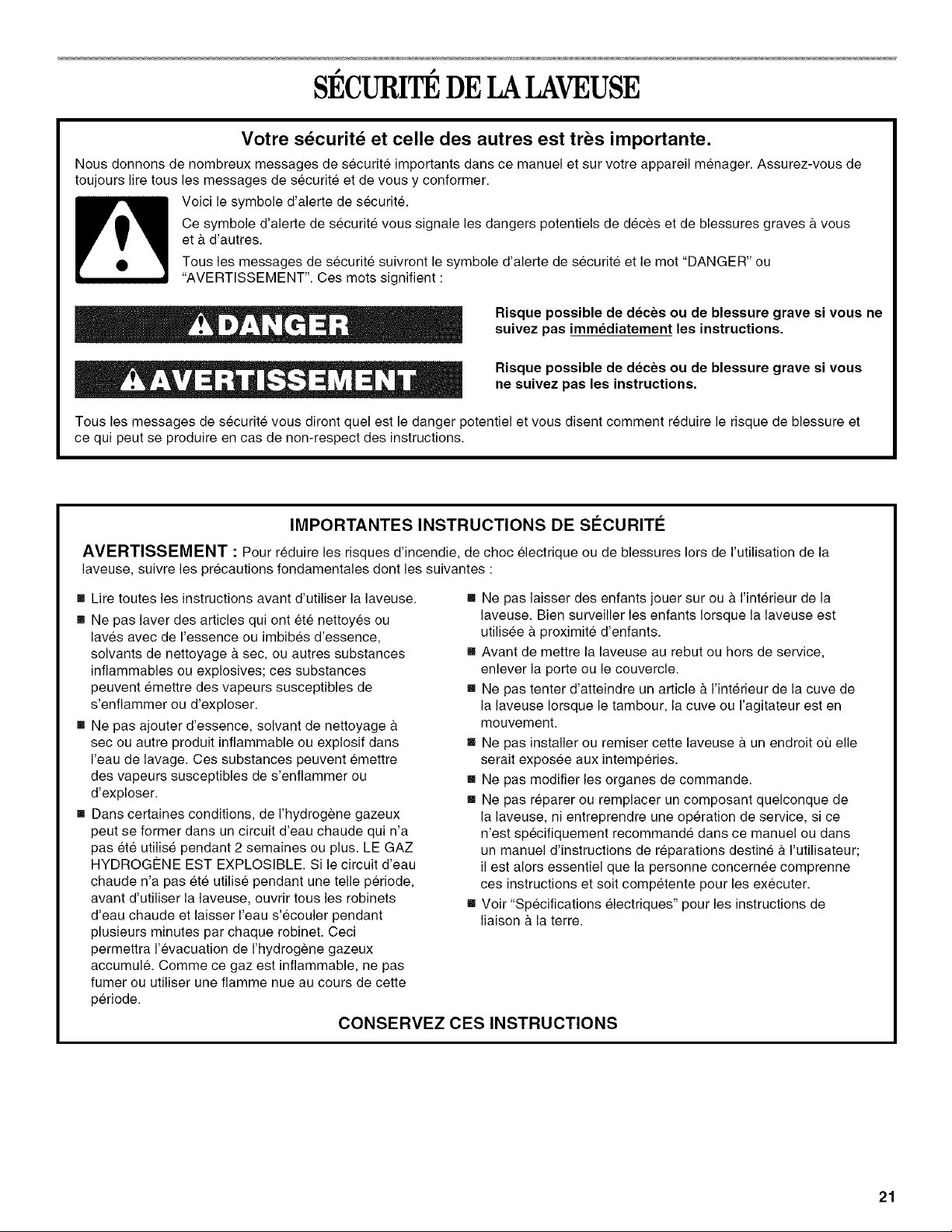

SECURITEDELALAVEUSE

Votre s_curit_ et celle des autres est tres importante.

Nous donnons de nombreux messages de securite importants dans ce manuel et sur votre appareil menager. Assurez-vous de

toujours lire tousles messages de securite et de vous y conformer.

Voici le symbole d'alerte de securit6.

Ce symbole d'alerte de securite vous signale les dangers potentiels de deces et de blessures graves h vous

et h d'autres.

Tousles messages de securite suivront le symbole d'alerte de securite et le mot "DANGER" ou

"AVERTISSEMENT". Ces roots signifient :

Risque possible de deces ou de blessure grave si vous ne

euivez pas immediatement lee instructions.

Risque possible de deces ou de blessure grave si vous

ne euivez pas lee instructions.

Tousles messages de securite vous diront quel est le danger potentiel et vous disent comment reduire le risque de blessure et

ce qui peut se produire en cas de non-respect des instructions.

IMPORTANTES INSTRUCTIONS DE SleCURITle

AVERTISSEMENT : Pour reduire les risques d'incendie, de choc electrique ou de blessures Iors de I'utilisation de la

laveuse, suivre les precautions fondamentales dent les suivantes :

[] Lire toutes les instructions avant d'utiliser la laveuse.

[] Ne pas laver des articles qui ont et6 nettoyes ou

laves avec de I'essence ou imbibes d'essence,

solvants de nettoyage a sec, ou autres substances

inflammables ou explosives; ces substances

peuvent emettre des vapeurs susceptibles de

s'enflammer ou d'exploser.

[] Ne pas ajouter d'essence, solvant de nettoyage

sec ou autre produit inflammable ou explosif dans

I'eau de lavage. Ces substances peuvent emettre

des vapeurs susceptibles de s'enflammer ou

d'exploser.

[] Dans certaines conditions, de I'hydrogene gazeux

peut se former dans un circuit d'eau chaude qui n'a

pas et6 utilise pendant 2 semaines ou plus. LE GAZ

HYDROGENE EST EXPLOSlBLE. Si le circuit d'eau

chaude n'a pas ete utilise pendant une telle periode,

avant d'utiliser la laveuse, ouvrir tousles robinets

d'eau chaude et laisser I'eau s'ecouler pendant

plusieurs minutes par chaque robinet. Ceci

permettra I'evacuation de I'hydrogene gazeux

accumule. Comme ce gaz est inflammable, ne pas

fumer ou utiliser une flamme nue au cours de cette

periode.

[] Ne pas laisser des enfants jouer sur ou h I'interieur de la

laveuse. Bien surveiller les enfants Iorsque la laveuse est

utilisee h proximite d'enfants.

[] Avant de mettre la laveuse au rebut ou hers de service,

enlever la porte ou le couvercle.

[] Ne pas tenter d'atteindre un article a I'interieur de la cuve de

la laveuse Iorsque le tambour, la cuve ou I'agitateur est en

mouvement.

[] Ne pas installer ou remiser cette laveuse a un endroit ou elle

serait exposee aux intemperies.

[] Ne pas modifier les organes de commande.

[] Ne pas reparer ou remplacer un composant quelconque de

la laveuse, ni entreprendre une operation de service, si ce

n'est specifiquement recommande dans ce manuel ou dans

un manuel d'instructions de reparations destine a I'utilisateur;

il est alors essentiel que la personne concernee comprenne

ces instructions et soit competente pour les executer.

[] Voir "Specifications electriques" pour les instructions de

liaison a la terre.

CONSERVEZ CES INSTRUCTIONS

EKIGENCESD'INSTALLATION

Rassembler les outils et pieces necessaires avant de commencer

I'installation. Les pieces fournies se trouvent dans le panier de la

laveuse.

Outillage requis :

• Pince - ouverture jusqu'a 19/16'' (3,95 cm)

• Lampetorche (facultative)

• Cle plate ou cle ajustable, 10 mm et 14 mm

• Niveau

• Cale en bois

• Couteau utilitaire

• Metre-ruban

• TournevisT-20 TORX®t

• Tournevis Phillips

Pi_ces fournies :

Autres pi_ces

IIse peut que I'installation necessite des pieces supplementaires.

Pour des renseignements sur la commande, se referer a la

section "Assistance ou service" de ce manuel.

Si vous avez : Vous devrez acheter :

Evier de buanderie Syst_me de pompe de puisard (si non

ou tuyau de rejet a deja disponible)

I'egout de plus de

72" (183 cm)

Tuyau de rejet

I'egout de 1"

(2,5 cm) de

diam_tre

Un adaptateur de 2" (5 cm) a 1" (2,5 cm)

de diametre pour le tuyau de rejet

I'egout, piece num@o 3363920

12goutsureleve Tuyau de vidange standard de 20 gal.

(76 L) de 39" (99 cm) de haut ou evier de

d_charge, pompe de puisard et

connecteurs (disponibles chez les

vendeurs de materiel de plomberie

Iocaux)

Evacuation Protecteur de canalisation,

obstruee par de la piece num@o 367031

charpie

Robinets d'eau 2 tuyaux d'admission d'eau plus longs :

hors d'atteinte des 6 pi (1,8 m) - piece numero 76314

tuyaux 10 pi (3 m) - piece num@o 350008

d'admission

On dolt egalement Adaptateur de tuyau taille britannique/

commander : taille universelle - piece numero

3357451

Installation de Adaptateur de tuyau taille britannique/

nouveaux tuyaux taille universelle - piece numero

d'admission d'eau 3357451

C D

A. Bride de formage en U pour

tuyau d'_vacuation

B. Tuyaux d'admission d'eau (2)

C. Rondelles plates de tuyau

d'alimentation

D. Rondelles de filtre

E. Ensemble de 4 bouchons

de plastique transparent

Pi_destal

Vous pouvez commander un piedestal separement pour cette

laveuse. Ce piedestal ajoutera environ 12" (30,48 cm) a la hauteur

de la laveuse pour une hauteur totale d'environ 45" (114,3 cm).

t®TORX est une marque depos6e de Textron Innovations Inc.

Pi_destal facultatif

Pour commander, telephoner au marchand chez qui la laveuse a

ete achetee ou se referer a la section "Assistance ou service" de

ce manuel. Demander le modele num@o LAB0050PQ.

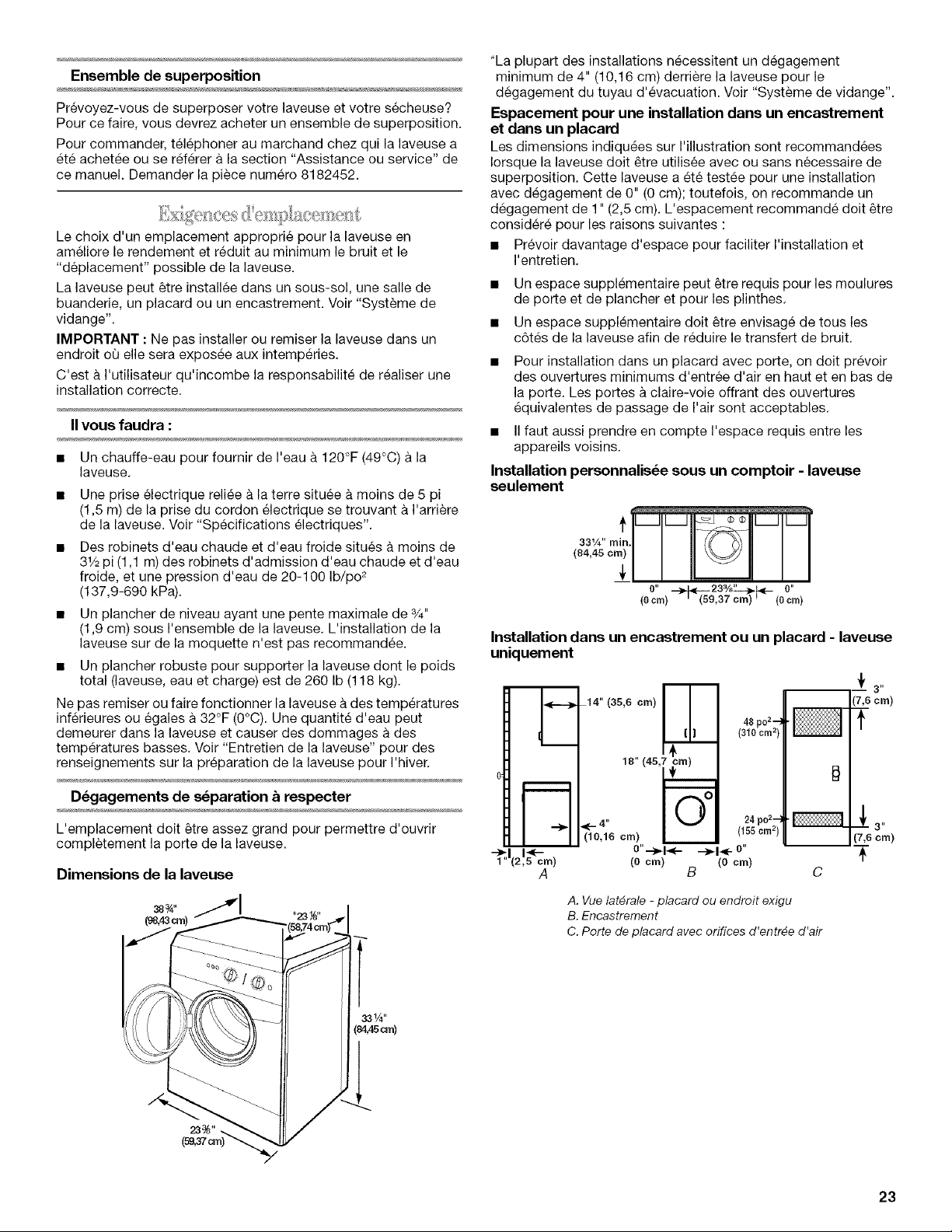

Ensemble de superposition

Prevoyez-vous de superposer votre laveuse et votre secheuse?

Pour ce faire, vous devrez acheter un ensemble de superposition.

Pour commander, telephoner au marchand chez qui la laveuse a

ete achet_e ou se referer a la section "Assistance ou service" de

ce manuel. Demander la piece numero 8182452.

Le choix d'un emplacement approprie pour la laveuse en

ameliore le rendement et reduit au minimum le bruit et le

"deplacement" possible de la laveuse.

La laveuse peut 6tre installee dans un sous-sol, une salle de

buanderie, un placard ou un encastrement. Voir "Syst_me de

vidange".

IMPORTANT : Ne pas installer ou remiser la laveuse dans un

endroit ou elle sera exposee aux intemperies.

C'est a I'utilisateur qu'incombe la responsabilite de realiser une

installation correcte.

II vous faudra :

• Un chauffe-eau pour fournir de I'eau a 120°F (49°C) a la

laveuse.

• Une prise electrique reliee & la terre situee & moins de 5 pi

(1,5 m) de la prise du cordon electrique se trouvant a I'arriere

de la laveuse. Voir "Specifications electriques".

• Des robinets d'eau chaude et d'eau froide situes a moins de

31/2pi (1,1 m) des robinets d'admission d'eau chaude et d'eau

froide, et une pression d'eau de 20-100 Ib/po =

(137,9-690 kPa).

• Un plancher de niveau ayant une pente maximale de 3/4"

(1,9 cm) sous I'ensemble de la laveuse. L'installation de la

laveuse sur de la moquette n'est pas recommandee.

• Un plancher robuste pour supporter la laveuse dont le poids

total (laveuse, eau et charge) est de 260 Ib (118 kg).

Ne pas remiser ou faire fonctionner la laveuse a des temperatures

inferieures ou egales a 32°F (0°C). Une quantite d'eau peut

demeurer dans la laveuse et causer des dommages a des

temperatures basses. Voir "Entretien de la laveuse" pour des

renseignements sur la preparation de la laveuse pour I'hiver.

D_gagements de s_paration _ respecter

L'emplacement dolt _tre assez grand pour permettre d'ouvrir

completement la porte de la laveuse.

Dimensions de la laveuse

*La plupart des installations necessitent un degagement

minimum de 4" (10,16 cm) derriere la laveuse pour le

degagement du tuyau d'evacuation. Voir "Systeme de vidange".

Espacement pour une installation dans un encastrement

et darts un placard

Les dimensions indiquees sur I'illustration sont recommandees

Iorsque la laveuse dolt _tre utilisee avec ou sans necessaire de

superposition. Cette laveuse a ete testee pour une installation

avec degagement de 0" (0 cm); toutefois, on recommande un

degagement de 1" (2,5 cm). L'espacement recommande dolt _tre

considere pour les raisons suivantes :

• Prevoir davantage d'espace pour faciliter I'installation et

I'entretien.

• Un espace supplementaire peut _tre requis pour les moulures

de porte et de plancher et pour les plinthes.

• Un espace supplementaire dolt _tre envisage de tousles

c6tes de la laveuse afin de reduire le transfert de bruit.

Pour installation dans un placard avec porte, on dolt prevoir

des ouvertures minimums d'entree d'air en haut et en bas de

la porte. Les portes & claire-vole offrant des ouvertures

equivalentes de passage de I'air sont acceptables.

• IIfaut aussi prendre en compte I'espace requis entre les

appareils voisins.

Installation personnalis_e sous un comptoir - laveuse

seulement

33%" rain.

(84,45 crn)

o" .-_1_, 28vo_.._- o"

(0 cm) (59,37 cm) (0 cm)

Installation dans un encastrement ou un placard - laveuse

uniquement

-- ---_ 3"

I [_ (3/0 cm

18"(4s, _}

_ 4" 24 po2"-'_ 3"

['_10,16 cm) _ (155crn2) ! (7_ cm)

•-_1 I_.- o".--_1_-- .-._1_--o" --

1" (2,5 cm) (0 cm) (O cm)

A B C

A. Vue /at_ra/e - placard ou endroit exigu

B. Encastrement

C. Porte de placard avec orifices d'entr_e d'air

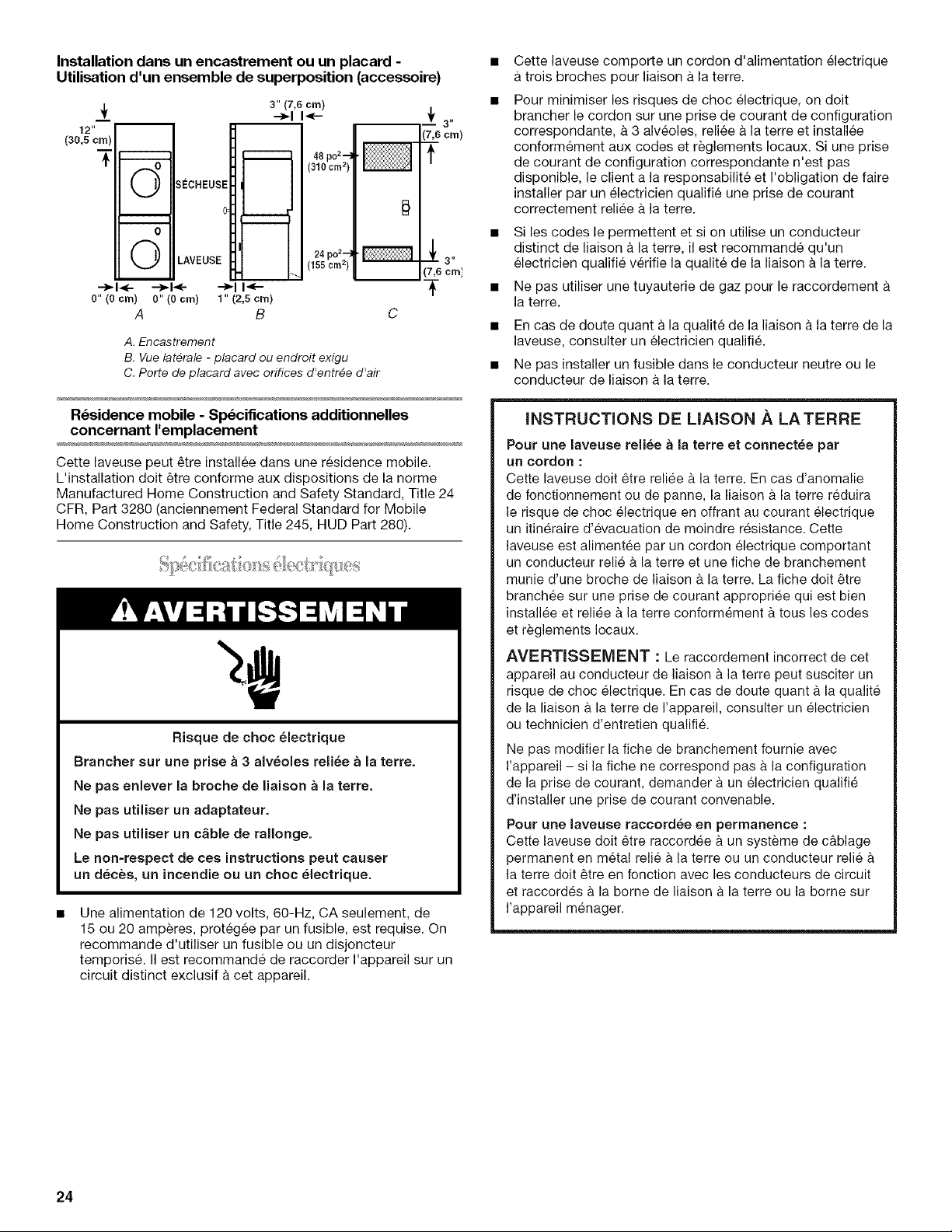

Installationdansunencastrementouunplacard-

Utilisation d'un ensemble de superposition (accessoire)

.L 31' (7,6 cm)

__• .--_1I_-

12"

(30,5 cm)

SECHEUSE

LAVEUSE

•-._ I_.- .-_ I_- ---_1I_-

0" (0 cm) 0" (0 cm) 1" (2,5 cm)

A B

48poz

(310 cm 2)

24 po2-}

(155crn2)

A. Encastrement

B. Vue lat_rale - placard ou endroit exigu

C. Porte de placard avec orifices d'entr_e d'air

R_sidence mobile - Specifications additionnelles

concernant I'emplacement

Cette laveuse peut _tre installee dans une residence mobile.

L'installation dolt _tre conforme aux dispositions de la norme

Manufactured Home Construction and Safety Standard, Title 24

CFR, Part 3280 (anciennement Federal Standard for Mobile

Home Construction and Safety, Title 245, HUD Part 280).

Risque de choc electrique

Brancher sur une prise a 3 alveoies reii_e a la terre.

Ne pas enlever la broche de liaison a la terre.

Ne pas utiliser un adaptateur.

Ne pas utiliser un cable de railonge,

Le non-respect de ces instructions peut causer

un deces, un incendie ou un choc eiectrique.

Une alimentation de 120 volts, 60-Hz, CA seulement, de

15 ou 20 amperes, protegee par un fusible, est requise. On

recommande d'utiliser un fusible ou un disjoncteur

temporis& II est recommande de raccorder I'appareil sur un

circuit distinct exclusif a cet appareil.

Cette laveuse comporte un cordon d'alimentation electrique

trois broches pour liaison a la terre.

Pour minimiser les risques de choc electrique, on dolt

brancher le cordon sur une prise de courant de configuration

correspondante, & 3 alveoles, reliee & la terre et installee

conformement aux codes et reglements Iocaux. Si une prise

de courant de configuration correspondante n'est pas

disponible, le client a la responsabilite et I'obligation de faire

installer par un electricien qualifie une prise de courant

correctement reliee a la terre.

Si les codes le permettent et si on utilise un conducteur

distinct de liaison a la terre, il est recommande qu'un

electricien qualifie v@ifie la qualite de la liaison a la terre.

Ne pas utiliser une tuyauterie de gaz pour le raccordement

la terre.

En cas de doute quanta la qualite de la liaison a la terre de la

laveuse, consulter un electricien qualifi&

Ne pas installer un fusible dans le conducteur neutre ou le

conducteur de liaison a la terre.

INSTRUCTIONS DE LIAISON A LATERRE

Pour une laveuse reliee a la terre et connectee par

un cordon :

Cette laveuse dolt _tre reliee &la terre. En cas d'anomalie

de fonctionnement ou de panne, la liaison & la terre reduira

le risque de choc electrique en offrant au courant electrique

un itin@aire d'evacuation de moindre resistance. Cette

laveuse est alimentee par un cordon electrique comportant

un conducteur relie & la terre et une fiche de branchement

munie d'une broche de liaison & la terre. La fiche dolt _tre

branchee sur une prise de courant appropriee qui est bien

installee et reliee b,la terre conformement & tousles codes

et reglements Iocaux.

AVERTISSEMENT : Le raccordement incorrect de cet

appareil au conducteur de liaison & la terre peut susciter un

risque de choc electrique. En cas de doute quant & la qualite

de la liaison & la terre de I'appareil, consulter un electricien

ou technicien d'entretien qualifi&

Ne pas modifier la fiche de branchement fournie avec

I'appareil - si la fiche ne correspond pas b,la configuration

de la prise de courant, demander & un electricien qualifie

d'installer une prise de courant convenable.

Pour une laveuse raccordee en permanence :

Cette laveuse dolt _tre raccordee &un systeme de c&blage

permanent en metal relie & la terre ou un conducteur relie &

la terre dolt _tre en fonction avec les conducteurs de circuit

et raccordes b,la borne de liaison & la terre ou la borne sur

I'appareil menager.

INSTRUCTIONSD'INSTALLATION

3. Obturer les trous & I'aide des 4 bouchons de plastique

transparent trouves dans le sachet de pieces.

Risque du poids exceseif

Utilieer deux ou plus de pereonnes pour d_placer et

installer la laveuee.

Le non-respect de cette instruction peut causer une

blessure au dos ou d'autre blessure.

Oter et jeter tousles materiaux d'emballage, notamment

I'emballage en mousse et le support en plastique se trouvant

sous la laveuse.

Pour eviter d'endommager le plancher, installer la laveuse sur

un carton avant de la deplacer sur le sol.

IMPORTANT : ,&,I'aide de deux personnes ou plus, deplacer

la laveuse de sorte que I'arriere de I'appareil soit &environ

3 pi (90 cm) de son emplacement final.

On trouve sur le panneau arriere de la laveuse 4 vis qui

supportent le systeme de suspension durant le transport. La

laveuse ne fonctionnera pas convenablement tant que le

systeme de transport ne sera pas retir&

Pour I'installation de la machine, proc_der comme suit :

1. Au moyen d'une cle de 10 mm, desserrer chacune des vis de

calage.

2. Desserrer les quatre vis de calage installees pour le transport;

enlever ces vis ainsi que les cales d'espacement en

caoutchouc et en plastique nervur&

A. Cales d'espacement -

plastique nervure (4)

B. Cales d'espacement -

caoutchouc (4)

C. Rondelles plates (4)

D. Vis de calage (4)

A. Bouchons de plastique transparent (4)

REMARQUE : Si la laveuse dolt _tre transportee a une date

ulterieure, appeler le centre de service local. Pour eviter des

dommages concernant la suspension et la structure, votre

appareil dolt _tre correctement monte pour reinstallation

ulterieure par un technicien certifi&

La laveuse peut _tre installee en utilisant le systeme de rejet &

I%gout (au plancher ou mural), le systeme de vidange de I%vier

de buanderie, ou le systeme de vidange au plancher.

Selectionner la methode d'installation du tuyau de vidange selon

les besoins. Voir "Outillage et pieces".

Syst_me de vidange avec tuyau de rejet & I'_gout - mural

ou au plancher (vues A et 13}

Le systeme de rejet &I'egout necessite un tuyau de diametre

minimum de 2" (5 cm). La capacite minimale d'acheminement ne

dolt pas _tre inferieure a 4,2 gal (15,9 L) par minute. Un

adaptateur de 2" (5 cm) a 1" (2,5 cm) de diametre est disponible

pour le tuyau de rejet a I'egout. Voir "Outillage et pieces".

Le sommet du tuyau de rejet a I'egout dolt _tre au moins

23,5" (59,7 cm) de hauteur et au maximum a 72" (183 cm) de la

base de la laveuse.

A B

Syst_me de vidange avec _vier de buanderie (vue C)

L%vier de buanderie dolt avoir une capacite minimale

d'acheminement de 4,2 gal (15,9 L) par minute.

Le sommet de I'evier dolt _tre au moins a 23,5" (59,7 cm) au-

dessus du sol et au maximum a 72" (183 cm) de la base de la

laveuse.

Syst_me de vidange au plancher (vue D)

Le systeme de vidange au plancher necessite un brise-siphon qui

peut _tre achete separement. Voir "Outillage et pieces".

Le brise-siphon dolt _tre au moins a 28" (71 cm) de la base de la

laveuse. Des tuyaux supplementaires peuvent _tre requis.

La capacite minimale d'acheminement ne dolt pas _tre inferieure

4,2 gal (15,9 L) par minute.

C D

Le raccordement adequat du tuyau d'evacuation permettra de

proteger les planchers centre les dommages que des fuites d'eau

pourraient provoquer. Pour emp_cher une fuite ou le

detachement du tuyau d'evacuation, on dolt installer le tuyau

conformement aux instructions suivantes.

IMPORTANT : Pour realiser une installation adequate, on dolt

appliquer scrupuleusement la procedure decrite ci-dessous.

Syst_mes avec tuyau de rejet & I'_jout rigide ou _vier de

buanderie :

1. Verifier que la Iongueur du tuyau d'evacuation flexible est

appropriee.

2. Installer la bride qui permet de former un crochet a I'extremit6

du tuyau d'evacuation - voir I'illustration.

Mettre I'extremite en crochet du tuyau de vidange dans I'evier

de buanderie ou dans le tuyau de rejet a I'egout. Voir les

illustrations A et B.

Si les robinets d'eau et le tuyau rigide de rejet & I'egout sent

places en retrait, introduire I'extr_mite en crochet du tuyau de

vidange dans le tuyau rigide de rejet a I'egout - voir

I'illustration. Voir I'illustration C.

Pour emp6cher I'eau de vidange de refluer darts la

laveuse :

Ne pas redresser I'extremite en crochet du tuyau

d'evacuation. Ne pas forcer I'excedent du tuyau de

vidange dans le tuyau rigide de rejet & I'egout. Le tuyau

dolt 6tre bien immobilis& tout en permettant le passage

d'air.

REMARQUE : Pour eviter un effet de siphon, ne pas assurer

I'etancheite a la jonction entre le tuyau d'evacuation flexible

et le tuyau rigide de rejet a I'egout.

• Ne pas placer I'exces de Iongueur du tuyau d'evacuation

au fond de I'evier de buanderie.

• Ne pas introduire I'excedent du tuyau de vidange qui

reste darts I'arriere de la laveuse.

• Pour I'installation du siphon de plancher, voir le numero

du produit necessaire a la section "Outillage et pieces".

A B

A. Embotter une des extr#mit_s de la bride de fermage en U sur le

tuyau d'#vacuation, au point de d_part des ondulations.

B. Plier le tuyau d'_vacuation sur la bride et embo_ter pour la raise en

place.

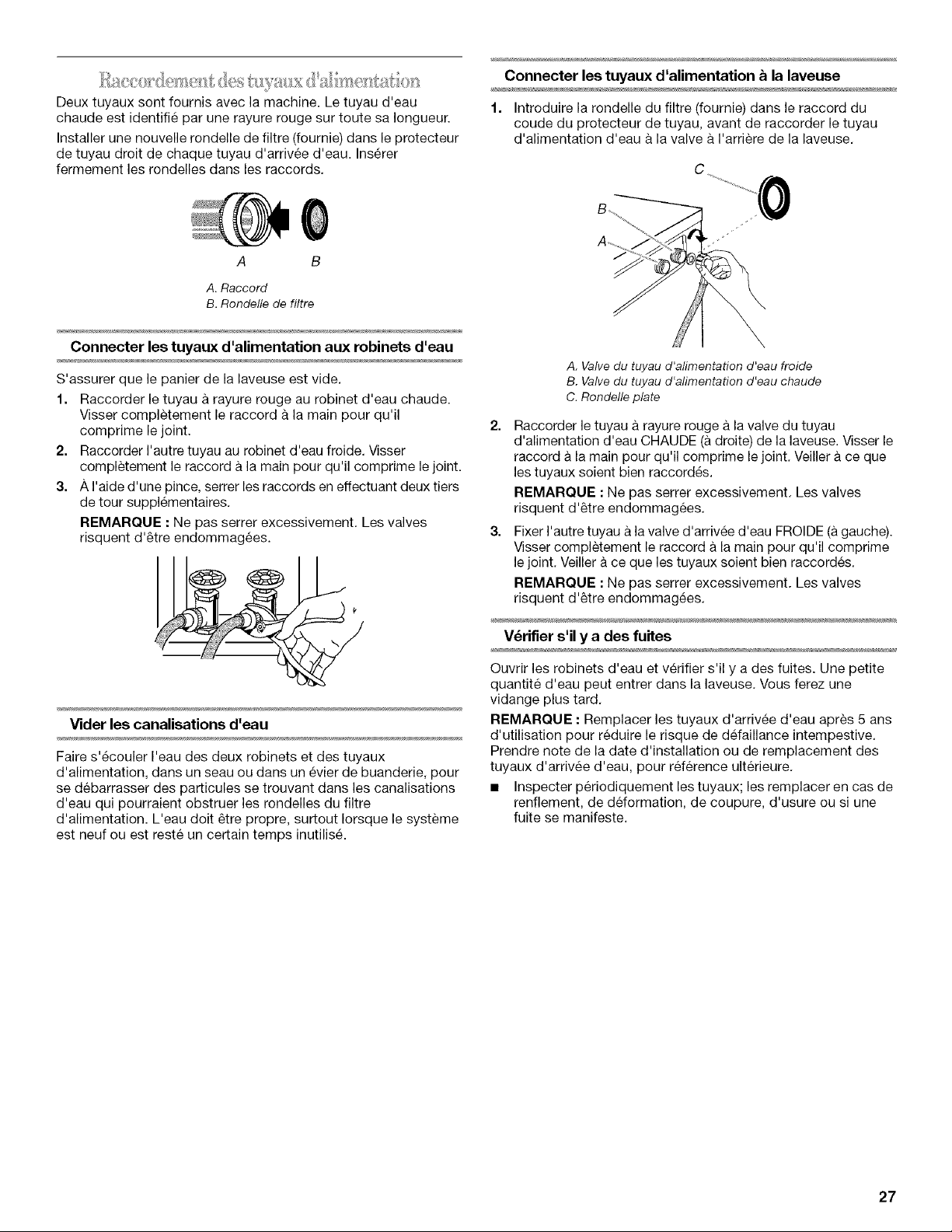

Deux tuyaux sent fournis avec la machine. Le tuyau d'eau

chaude est identifie par une rayure rouge sur toute sa Iongueur.

Installer une nouvelle rondelle de filtre (fournie) dans le protecteur

de tuyau droit de chaque tuyau d'arrivee d'eau. Inserer

fermement les rondelles dans les raccords.

A B

A. Raccord

B. Rondelle de filtre

I I

Connecter les tuyaux d alimentation aux robinets d eau

S'assurer que le panier de la laveuse est vide.

1. Raccorder le tuyau a rayure rouge au robinet d'eau chaude.

Visser completement le raccord a la main pour qu'il

comprime le joint. 2.

2. Raccorder I'autre tuyau au robinet d'eau froide. Visser

completement le raccord a la main pour qu'il comprime le joint.

3. A I'aide d'une pince, serrer les raccords en effectuant deux tiers

de tour supplementaires.

REMARQUE : Ne pas serrer excessivement. Les valves

risquent d'etre endommagees. 3.

Vider les canalisations d'eau

Faire s'ecouler I'eau des deux robinets et des tuyaux

d'alimentation, dans un seau ou dans un evier de buanderie, pour

se debarrasser des particules se trouvant dans les canalisations

d'eau qui pourraient obstruer les rondelles du filtre

d'alimentation. L'eau dolt 6tre propre, surtout Iorsque le systeme

est neuf ou est reste un certain temps inutilise.

Connecter les tuyaux d'alimentation a la laveuse

1. Introduire la rondelle du filtre (fournie) dans le raccord du

coude du protecteur de tuyau, avant de raccorder le tuyau

d'alimentation d'eau a la valve a I'arriere de la laveuse.

A. Valve du tuyau d'alimentation d'eau froide

B. Valve du tuyau d'alimentation d'eau chaude

C. Rondelle plate

Raccorder le tuyau a rayure rouge a la valve du tuyau

d'alimentation d'eau CHAUDE (a droite) de la laveuse. Visser le

raccord a la main pour qu'il comprime le joint. Veiller ace que

les tuyaux soient bien raccordes.

REMARQUE : Ne pas serrer excessivement. Les valves

risquent d'6tre endommagees.

Fixer I'autre tuyau a la valve d'arrivee d'eau FROIDE (a gauche).

Visser completement le raccord a la main pour qu'il comprime

le joint. Veiller ace que les tuyaux soient bien raccordes.

REMAROUE : Ne pas serrer excessivement. Les valves

risquent d'etre endommagees.

V_rifier s'il y a des fuites

Ouvrir les robinets d'eau et verifier s'il y a des fuites. Une petite

quantite d'eau peut entrer dans la laveuse. Vous ferez une

vidange plus tard.

REMARQUE : Remplacer les tuyaux d'arrivee d'eau apres 5 ans

d'utilisation pour reduire le risque de defaillance intempestive.

Prendre note de la date d'installation ou de remplacement des

tuyaux d'arrivee d'eau, pour reference ulterieure.

• Inspecter periodiquement les tuyaux; les remplacer en cas de

renflement, de ddormation, de coupure, d'usure ou si une

fuite se manifeste.

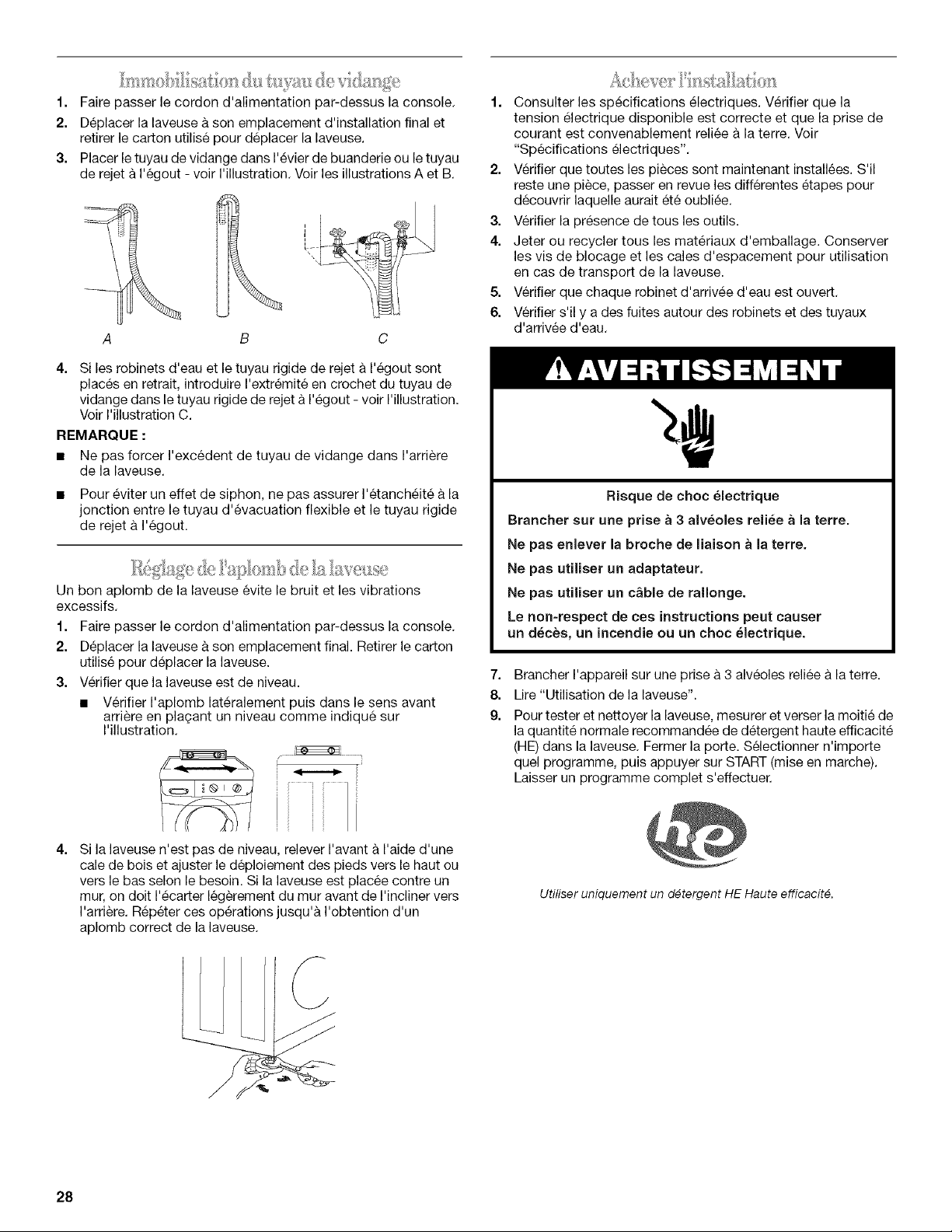

1. Faire passer le cordon d'alimentation par-dessus la console.

2. Deplacer la laveuse a son emplacement d'installation final et

retirer le carton utilise pour deplacer la laveuse.

3. Placer le tuyau de vidange dans I'evier de buanderie ou le tuyau

de rejet a I'egout - voir I'illustration. Voir les illustrations A et B.

Si les robinets d'eau et le tuyau rigide de rejet a I'egout sont

places en retrait, introduire I'extremite en crochet du tuyau de

vidange dans le tuyau rigide de rejet a I'egout -voir I'illustration.

Voir I'illustration C.

REMARQUE :

• Ne pas forcer I'excedent de tuyau de vidange dans I'arriere

de la laveuse.

• Pour eviter un effet de siphon, ne pas assurer I'etancheite a la

jonction entre le tuyau d'evacuation flexible et le tuyau rigide

de rejet a I'egout.

In Ion aplomb de la laveuse 6vite le bruit et les vibrations

excessifs.

1. Faire passer le cordon d'alimentation par-dessus la console.

2. Deplacer la laveuse a son emplacement final. Retirer le carton

utilise pour deplacer la laveuse.

3. Verifier que la laveuse est de niveau.

• Verifier I'aplomb lateralement puis dans le sens avant

arriere en plagant un niveau comme indique sur

I'illustration.

Si la laveuse n'est pas de niveau, relever I'avant a I'aide d'une

cale de bois et ajuster le deploiement des pieds vers le haut ou

vers le bas selon le besoin. Si la laveuse est placee contre un

mur, on dolt 1'6carter legerement du mur avant de I'incliner vers

I'arriere. Rep6ter ces operations jusqu'a I'obtention d'un

aplomb correct de la laveuse.

1. Consulter les specifications electriques. Verifier que la

tension electrique disponible est correcte et que la prise de

courant est convenablement reliee a la terre. Voir

"Specifications electriques".

2. Verifier que toutes les pieces sont maintenant installees. S'il

reste une piece, passer en revue les differentes etapes pour

decouvrir laquelle aurait ete oubliee.

3. Verifier lapresence de tousles outils.

4. Jeter ou recycler tous les materiaux d'emballage. Conserver

les vis de blocage et les cales d'espacement pour utilisation

en cas de transport de la laveuse.

5. Verifier que chaque robinet d'arrivee d'eau est ouvert.

6. Verifier s'il y a des fuites autour des robinets et des tuyaux

d'arrivee d'eau.

Risque de choc 61ectrique

Brancher sur une prise a 3 alveoles reli6e a la terre.

Ne pas enlever la broche de liaison a la terre.

Ne pas utiliser un adaptateur,

Ne pas utiliser un cable de rallonge.

Le non-respect de ces instructions peut causer

un d6ces, un incendie ou un choc 61ectrique.

Brancher I'appareil sur une prise & 3 alveoles reliee a la terre.

Lire "Utilisation de la laveuse".

Pour tester et nettoyer la laveuse, mesurer et verser la moitie de

la quantite normale recommandee de detergent haute efficacite

(HE) dans la laveuse. Fermer la porte. Selectionner n'importe

quel programme, puis appuyer sur START (mise en marche).

Laisser un programme complet s'effectuer.

Utiliser uniquement un detergent HE Haute efficacit_.

UTILISATIONDELALAVEUSE

start

pre regular

wash no spin rinse stop

& spin heavy

extra

rinse

1100 k

1ooo_

prewash 0

wash 0

rinse 0

spin 0

done 0

hand normal power

wash

casual

900 normal

colour

Risque d'incendie

Ne jamais mettre des articles humect_s d'essence ou

d'autres fluides inflammables clans la laveuse.

Aucune laveuse ne peut completement enlever rhuile.

Ne pas faire secher des articles qui ont ere sails par

tout genre d'huile (y compris les huiles de cuisson).

Le non=respect de ces instructions peut causer un

deces_ une explosion ou un incendie.

AVERTISSEMENT : Pour reduire le risque d'incendie, de choc

electrique ou de blessures corporelles, lire les INSTRUCTIONS

IMPORTANTES DE SI2CURIT¢ avant de faire fonctionner cet

appareil.

Le texte suivant est un guide pour I'utilisation de la laveuse. Se

ref6rer aux sections specifiques de ce manuel pour obtenir des

renseignements plus detailles.

Ne pas remiser des produits de lessive sur le dessus de cette

laveuse. La vibration est normale durant le fonctionnement.

Utiliser uniquement des detergents haute efficacit& Pour ce type

de detergent, **HE"ou "Haute efficacite" sera mentionne sur

I'emballage. Ce systeme de lavage, utilisant moins d'eau,

provoquera trop de mousse avec un detergent ordinaire non-HE.

L'utilisation d'un detergent ordinaire est susceptible

d'occasionner des erreurs de la part de la laveuse, des durees de

programmes plus Iongues et une performance de rin(_age

reduite. Ceci peut aussi entrainer des defaillances des

composants et une moisissure perceptible. Les detergents HE

sont con(_us pour produire la quantite de mousse adequate pour

le meilleur rendement. Suivre les recommandations du fabricant

pour determiner la quantite de detergent a utiliser.

Utifiser uniquement un d_tergent HE Haute efficacit&

Premier programme de lavage sans linge h laver

Pour nettoyer I'interieur de la laveuse avant de laver le linge pour

la premiere fois, choisir le programme Regular/Normal (regulieri

normal) et I'executer sans linge. Utiliser la moitie de la quantite

normale recommandee de detergent HE en poudre ou liquide.

Pour tous les programmes de lavage

Pour charger la laveuse, ouvrir la porte de la laveuse en tirant

sur la poignee. Trier le linge d'apres la couleur et le type de

tissu. Placer une charge de linge trie dans la laveuse. Ne pas

surcharger la laveuse. Une surcharge peut causer un pi_tre

nettoyage.

• La laveuse peut _tre bien remplie mais le linge ne dolt pas

_tre tass& La porte de la laveuse dolt fermer facilement.

• Melanger les gros articles avec les petits articles et eviter

de laver des articles seuls. Charger la laveuse

uniformement.

• Laver les petits articles tels que les chaussettes d'enfants

dans un sac en filet pour le linge. II est recommande

d'utiliser plus d'un sac de linge, et de remplir chaque sac

avec des quantites similaires.

• En retirant le linge, verifier de temps en temps sous le

joint/soufflet de couleur grise, entre I'ouverture de la porte

et le panier, qu'il n'y a pas de petits articles coinces.

Fermer la porte de la laveuse en la poussant fermement jusqu'&

ce que le verrou s'enclenche. La porte de la laveuse demeurera

verrouillee durant le programme de lavage.

Ouvrir le tiroir distributeur et verser les produits de lessive dans

les compartiments de detergent ou d'assouplissant de tissu.

Fermer le tiroir lentement pour eviter les renversements. Voir

"Utilisation du distributeur".

IMPORTANT : Le contact direct de I'agent de blanchiment

avec les v_tements peut causer des dommages au tissu. Si

un blanchiment supplementaire est necessaire, utiliser un

detergent HE en poudre avec agent de blanchiment.

A B

A. Compartiment pour d_tergent du pr_lavage

B. Compartiment pour d_tergent du lavage principal

C. Cornpartiment pour assouplissant de tissu

REMARQUES :

• Utiliser uniquement des detergents HE et suivre les

instructions de I'etiquette.

• Ne pas verser de detergent darts le compartiment de

prelavage si vous n'avez pas selectionne I'option de

prelavage. S'il y a du detergent a la fois dans le compartiment

de prelavage et dans celui du lavage principal et que I'option

de prelavage n'a pas 6te selectionnee, un exc_s de mousse

pourrait survenir. La mousse pourrait se deverser sur le sol.

• En cas de selection de I'option de prelavage, utiliser un

detergent HE en poudre darts le compartiment du lavage

principal. En cas d'utilisation d'un detergent HE liquide dans

le compartiment du lavage principal, le detergent sera

distribue immediatement.

• Bien fermer le tiroir a detergent.

IMPORTANT : Pour eviter le renversement d'eau, ne pas

ouvrir le tiroir a detergent alors que la machine est en marche.

4. Mettre la laveuse en marche en selectionnant POWER

(alimentation).

5. Selectionner un des programmes en tournant le selecteur de

programme. Les reglages pr_6tablis procurent les soins aux

tissus recommandes pour le programme selectionn& Voir

"Programmes".

6. Selectionner les options desirees. Toutes les options ne sont

pas disponibles avec tous les programmes. Voir

"Programmes".

7. Pour commencer le programme de lavage, selectionner START

(mise en marche).

• Lorsque le programme de lavage est termine, le temoin

de I'etat d'avancement DONE (termine) s'illumine, la porte

se deverrouille et la charge peut _tre retiree de la laveuse.

Pour eteindre manuellement la laveuse apres la fin d'un

programme de lavage, appuyer une fois sur POWER.

Votre nouvelle laveuse comporte un tiroir distributeur avec trois

compartiments separes pour vos produits de lessive - deux pour

le detergent, un pour I'assouplissant de tissu liquide. Les

produits de lessive sent dilues et distribues automatiquement au

moment approprie durant le programme de lavage, ce qui evite

I'utilisateur de retourner a la laveuse durant le programme pour

les ajouter.

II est normal que de petites quantites d'eau demeurent dans les

distributeurs Iorsque le programme de lavage est achev&

Ne pas placer d'additifs de lessive directement dans la cuve de

lavage. Toujours utiliser les distributeurs appropries Iors de I'ajout

de produits de lessive.

Choix du d_tergent appropri_

Utiliser uniquement des detergents haute efficacit& Pour ce type

de detergent, "HE" ou "Haute efficacite" sera mentionne sur

I'emballage. Ce systeme de lavage, utilisant moins d'eau,

provoquera trop de mousse avec un detergent ordinaire non-HE.

L'utilisation d'un detergent ordinaire est susceptible d'occasionner

des erreurs de la part de la laveuse, des durees de programmes

plus Iongues, une performance de rin(_age reduite et peut entra_ner

des defaillances des composants et des odeurs de moisissure

perceptibles. Les detergents HE sent congus pour produire la

quantite de mousse adequate pour le meilleur rendement. Suivre

les recommandations du fabricant pour determiner la quantite de

detergent HE & utiliser.

Utiliser uniquement un d_tergent HE Haute efficacit&

Pour remplir les compartiments du distributeur

REMARQUE :Toujours utiliser le distributeur de detergent, et ne

pas verser le detergent directement sur les v_tements dans la

laveuse.

1. Tirer le tiroir distributeur.

2. Ajouter le produit de lessive desire dans le compartiment

appropri&

3. Pousser completement et lentement le tiroir distributeur (pour

eviter les renversements).

_ ..............................................._._ !_!::_1/_[_//! t/ ....... .......... DC

Distributeur

A.Cornpartiment pour d_tergent dupr_lavage

B.Cornpartiment pour d_tergent du lavageprincipal

C.Levier de d#gagement du tiroir distributeur

D.Cornpartiment pour assouplissantde tissu

Compartiment pour d_tergent du pr_lavage

(Lettre A dans I'illustration du distributeur)

Ajouter le detergent HE dans ce compartiment en cas

d'utilisation de I'option de prelavage. Un detergent HE liquide ou

en poudre peut _tre utilise dans ce compartiment. Le detergent

sera automatiquement distribue au cours du prelavage si I'option

de prelavage est selectionn6e.

• En utilisant un detergent HE, ajouter ½ de la quantite

recommandee dans le compartiment de prelavage et 2/3de la

quantite recommandee dans le compartiment de lavage

principal.

IMPORTANT : En cas d'utilisation de I'option de prelavage, un

detergent HE en poudre dolt _tre utilise dans le compartiment de

lavage principal car les detergents liquides peuvent suinter hors

du compartiment avant le debut du lavage principal.

Compartiment pour d_tergent du lavage principal

(Lettre B dans I'illustration du distributeur)

Ajouter le detergent HE liquide ou en poudre dans ce

compartiment pour le programme de lavage principal.

IMPORTANT : En cas d'utilisation de I'option de prelavage, un

detergent HE en poudre dolt _tre utilise dans le compartiment de

lavage principal car les detergents liquides peuvent suinter hors

du compartiment avant le debut du lavage principal.

Compartiment pour assouplissant de tissu

(Lettre D dans I'illustration du distributeur)

Ajouter 1/4de tasse (60 mL) d'assouplissant de tissu liquide dans

ce compartiment. L'assouplissant sera automatiquement

distribue Iors du ringage final.

• Ne pas remplir au-del& du niveau "MAX".

Le tableau de commande est simple & comprendre et facile

utiliser. L'image ci-dessous decrit les boutons et les paragraphes

definissent la fonction de chacun.

Bouton Power (alimentation)

Ce bouton met I'appareil sous tension et I'eteint. Apres avoir

appuye sur POWER, le bouton START (mise en marche) clignotera.

power

Position d'arr_t

Si on tourne le bouton de programme sur la position d'arr_t pour

interrompre un programme en vue d'ajouter un article ou

d'annuler un programme, la porte restera verrouillee pendant

2 minutes et on pourra ensuite ouvrir la porte. Pour remettre la

laveuse en marche, il vous faudra repositionner le bouton de

programme et appuyer sur le bouton START (mise en marche).

REMARQUE : Avant le debut du programme, la laveuse

evacuera toute eau deja presente dans la laveuse. Avant

d'appuyer sur START, il est recommande de s'assurer qu'il n'est

pas necessaire d'ajouter du detergent.

T6moins lumineux de 1'6tat d'avancement

Au fur et & mesure de I'avancement du programme, le temoin

correspondant s'allumera. Le t6moin lumineux d'arr_t s'allume

Iorsque le programme est termin& ,&,ce stade, la porte restera

verrouillee pendant 2 minutes et on pourra ensuite ouvrir la porte.

prewash 0

wash 0

rinse 0

spin 0

done 0

Bouton Spin Speed (vitesse d'essorage)

Utiliser ce bouton pour regler la vitesse d'essorage. En plus des

vitesses d'essorage variant de 550 a 1200, il est egalement

possible de choisir I'option No Spin (sans essorage). Cette option

est congue pour les tissus delicats qui ne doivent pas _tre

essores.

no spin

Bouton Cycle (programme)

Tourner ce bouton au programme d6sire. Le tableau de la section

Programmes definit chaque programme en detail, ce qui permet

de determiner, pour chaque type de charge, le programme le plus

adapt&

rinse stop regular

& spin heavy

hand

wash

normal

900

Bouton Extra Rinse (ringage suppl_mentaire)

Ce bouton regle le programme pour ajouter davantage de

rin9age. Ce bouton s'allume Iorsque I'option est activee. Voir

"Programmes" pour savoir si le programme de ringage peut 6tre

ajoute & chaque programme. Le programme de rint_age regulier

est generalement suffisant, mais en cas d'eau tr_s douce ou

d'allergie au detergent, on peut vouloir utiliser cette option. Cette

option n'est pas disponible avec le programme Rinse & Spin

(ringage et essorage).

extra

rinse

colour :olour

casual normal

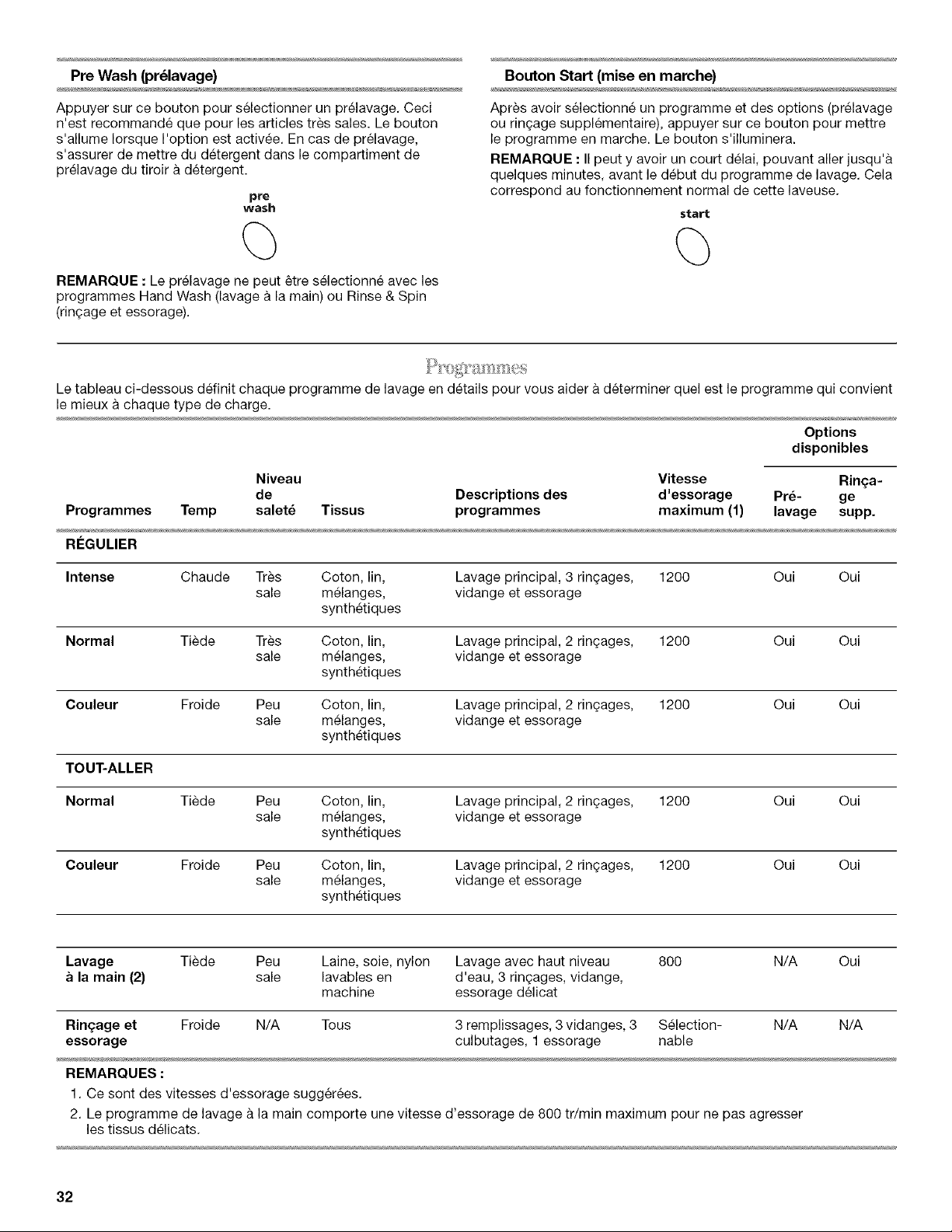

Pre Wash (pr_lavage)

Appuyer sur ce bouton pour selectionner un prelavage. Ceci

n'est recommande que pour les articles tres sales. Le bouton

s'allume Iorsque I'option est activee. En cas de prelavage,

s'assurer de mettre du detergent dans le compartiment de

prelavage du tiroir a detergent.

pre

wash

Bouton Start (mise en marche)

Apres avoir selectionne un programme et des options (prelavage

ou ringage supplementaire), appuyer sur ce bouton pour mettre

le programme en marche. Le bouton s'illuminera.

REMARQUE : II peut y avoir un court delai, pouvant aller jusqu'a

quelques minutes, avant le debut du programme de lavage. Cela

correspond au fonctionnement normal de cette laveuse.

start

REMARQUE : Le prelavage ne peut _tre selectionne avec les

programmes Hand Wash (lavage a la main) ou Rinse & Spin

(ringage et essorage).

Le tableau ci-dessous definit chaque programme de lavage en details pour vous aider a determiner quel est le programme qui convient

le mieux a chaque type de charge.

Options

disponibles

Niveau Vitesse Rin9a-

de Descriptions des d'essorage Pr_- ge

Programmes Temp salet_ Tissus programmes maximum (1) lavage supp.

REGULIER

Intense Chaude Tres Coton, lin, Lavage principal, 3 ringages, 1200 Oui Oui
