LED OUTDOOR
LIGHTING
Weather Resistant
Caulking
(not included)
LOL534
10/20
Tel: (613) 342-5424, Fax: (800) 263-4598

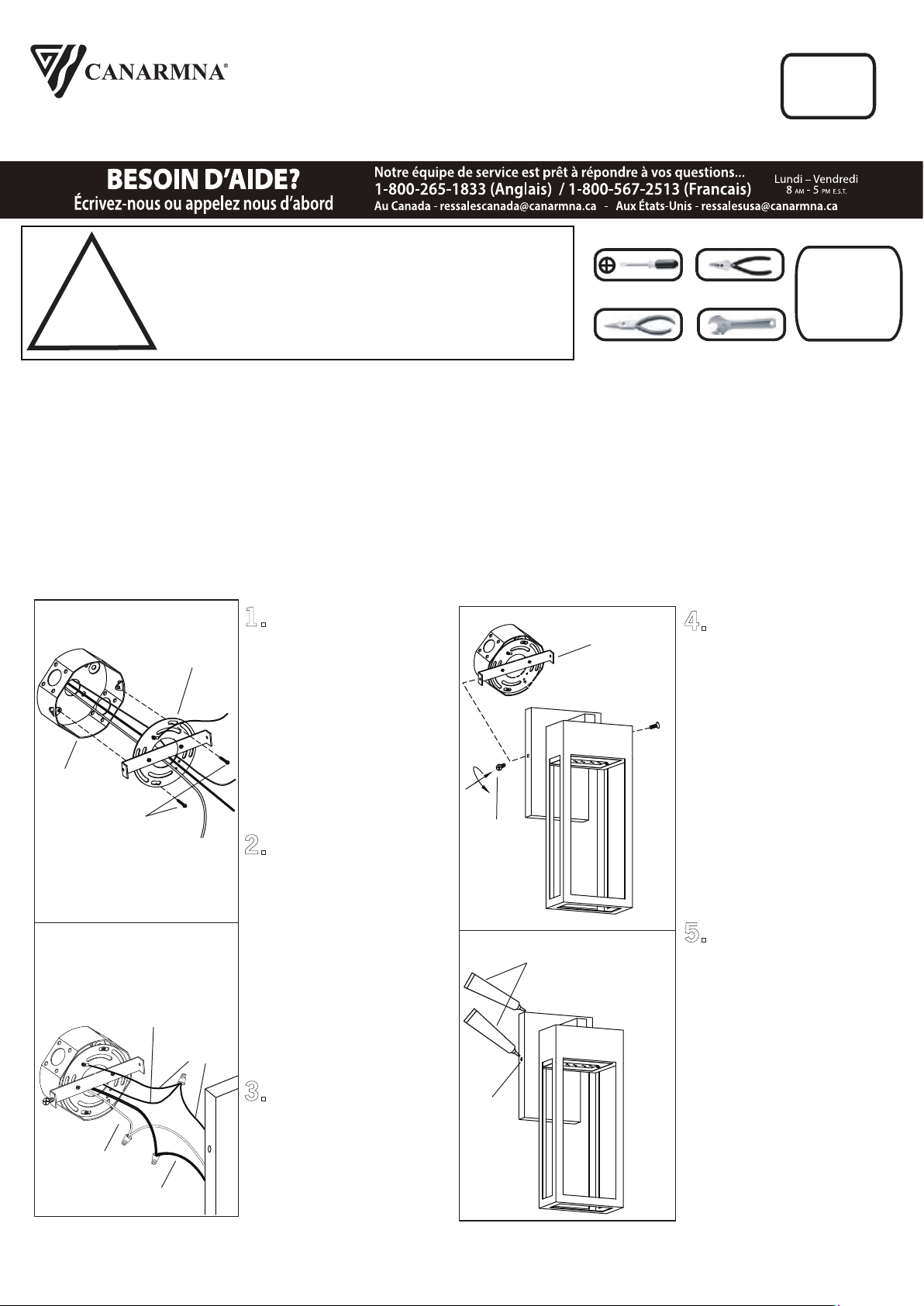

1. Mount the mounting
bracket to electrica
l box using
electrica
l box screws (not
included).
2. Connect the ground
wires (bare copper or green)
from your fixture to the
ground wire (bare copper or
green) or ground screw in
the electrical outlet box.
Connect black wire from
fixture to black wire in outlet
box and connect the white
wire from fixture to white
wire in outlet box.
NOTE: Do not disconnect
any pre-wired connections.
3. Once connections of
wires are completed,
carefully tuck wires and wire
nuts into the outlet box
making sure no bare wire is
visible at the wire nuts.
Mounting
Bracket
Mounting
Bracket
4. Attach fixture to
mounting bracket by
tightening the 2 screws.
5. After Installation, seal
around the top and side
perimeter between the
fixture and the wall surface
with weather resistant
caulking. The bottom should
be left un-caulked to prevent
moisture build-up. Apply a
small amount of weather
resistant caulking around the
side perimeter between the
screw and mounting plate.
Screw
Screw
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
local electrical
code
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE
BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRES (BARE COPPER OR GREEN) FROM YOUR FIXTURE TO THE GROUND
WIRE (BARE COPPER OR GREEN) OR GROUND SCREW IN THE ELECTRICAL BOX.
4. NOT FOR USE IN LUMINAIRES CONTROLLED BY A DIMMER.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
Electrical
Box
Electrical Box Screws
(not included)
White
Black
House supply
Ground wire
Fixture
Ground
wire
INSTALLATION:
SAFETY PRECAUTIONS:
TOOLS AND MATERIALS REQUIRED:
Fixture
