LED OUTDOOR
LIGHTING
INSTALLATION:
LOL391
03/19
Tel: (613) 342-5424, Fax: (800) 263-4598

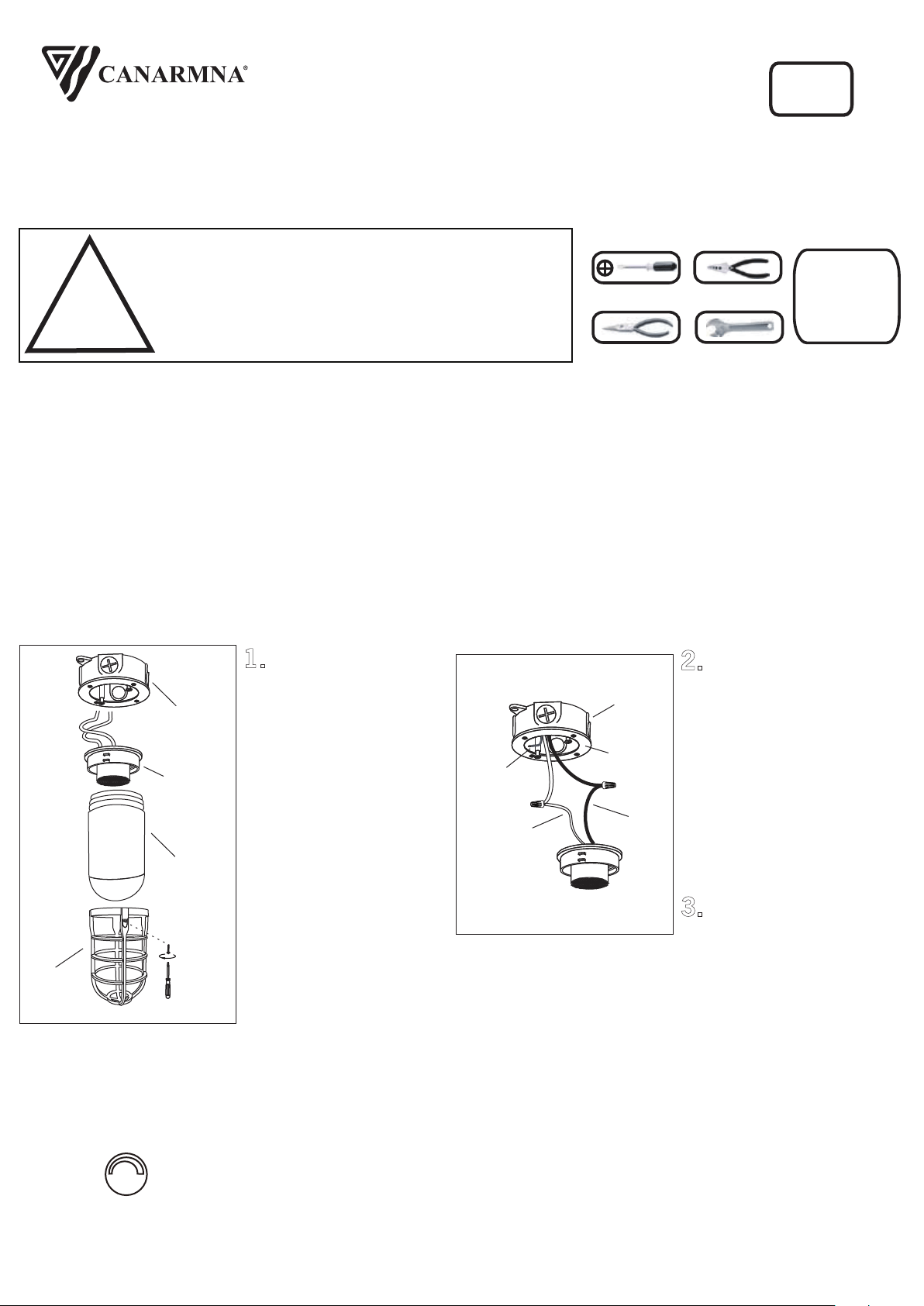

1. Unscrew the glass
cylinder and guard. Unscrew
the wiring box cover.
Attach the wiring box to the
mounting surface.
Select the screw hole to
remove the big screw on
wiring box.
Attach conduit to the hole that
the big screw is removed and
pull the supply lead wires to
wiring box.
Seal around the conduit
according to NEC / CEC
procedures.
Make sure to close the open
hole tightly by using the big
screw removed.
2. Connect the ground
wire (bare copper or green)
from supply lead wire to the
ground screw in the wiring
box. Connect black wire from
fixture to black supply wire
and connect the white wire
from fixture to white supply
wire.
NOTE: Ensure the gasket is
properly installed while
tightening the fixture.
3. Reverse the process of
step1 to install the
wiring
box cover,
glass
cylinder and
guard.
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wire Cutters
Pliers Wrench
Wiring supplies
as required by
local electrical
code
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
2. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION
CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND
THE HAZARDS INVOLVED.
3. CONNECT THE GROUND WIRE (BARE COPPER OR GREEN) FROM SUPPLY LEAD WIRE TO THE GROUND
SCREW IN THE WIRING BOX.
4. NOT FOR USE IN LUMINAIRES CONTROLLED BY A DIMMER.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
6. MOUNT FIXTURE TO SURFACE AT LEAST 4 FEET (1.2 m) ABOVE THE GROUND. FIXTURE MUST BE USED
WITH GLASS GLOBE.
NOTE: Product may not look exactly as shown in figures.
Glass
Wiring Box
Guard
Wiring Box
Cover
Wiring
Box
White Wire
Black
Wire
House Supply
Ground Wire
Gasket
dimmable
This LED light is suitable to be dimmed by
LEVITON# 742-6672-HLW, 722-6674-PDW MAX 150 W, Lutron # SCL-153PH-WH MAX 150 W.
The MAX rated wattage of this model is 13 W
