Sound Bar
Operating Instructions
HT-S400
5-034-775-11 (2)
WARNING
Do not install the speaker system in a
confined space, such as a bookcase or
built-in cabinet.
To reduce the risk of fire, do not cover the
ventilation opening of the speaker system
with newspapers, tablecloths, curtains, etc.
Do not expose the speaker system to naked
flame sources (for example, lighted candles).
To reduce the risk of fire or electric shock, do
not expose this speaker system to dripping
or splashing, and do not place objects filled
with liquids, such as vases, on the speaker
system.
The speaker system is not disconnected
from the mains as long as it is connected to
the AC outlet, even if the speaker system
itself has been turned off.
As the mains plug is used to disconnect the
speaker system from the mains, connect the
speaker system to an easily accessible AC
outlet. Should you notice an abnormality in
the speaker system, disconnect the mains
plug from the AC outlet immediately.
CAUTION
Risk of explosion if the battery is replaced by
an incorrect type.
Do not expose batteries or appliances with
battery-installed to excessive heat, such as
sunshine and fire.
Do not place this product close to
medical devices.
This product (including accessories) has
magnet(s) which may interfere with
pacemakers, programmable shunt valves for
hydrocephalus treatment, or other medical
devices. Do not place this product close to
persons who use such medical devices.
Consult your doctor before using this
product if you use any such medical device.
Indoor use only.
Recommended cables
Properly shielded and grounded cables and
connectors must be used for connection to
host computers and/or peripherals.
For the bar speaker
The nameplate is located on the bottom
of the bar speaker.
This equipment has been tested and found
to comply with the limits set out in the EMC
regulation using a connection cable shorter
than 3 meters.
For customers in Europe
Notice for customers: the
following information is only
applicable to equipment sold in
countries applying EU directives
and/or UK applying relevant
statutory requirements
This product has been manufactured by or
on behalf of Sony Corporation.
EU and UK Importer: Sony Europe B.V.
Inquiries to the EU Importer or related to
product compliance in Europe should be
sent to the manufacturer’s authorized
representative, Sony Belgium, bijkantoor van
Sony Europe B.V., Da Vincilaan 7-D1, 1930
Zaventem, Belgium.
Inquiries to the UK Importer or related to
product compliance in the UK should be sent
to the manufacturer’s authorized
representative, Sony Europe B.V., The
Heights, Brooklands, Weybridge, Surrey KT13
0XW, United Kingdom.
Hereby, Sony Corporation declares that this
equipment is in compliance with Directive
2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address:
https://compliance.sony.eu
Hereby, Sony Corporation declares that this
equipment is in compliance with the UK
relevant statutory requirements.
The full text of the declaration of conformity
is available at the following internet address:
https://compliance.sony.co.uk
This radio equipment is intended to be used
with the approved version(s) of software that
are indicated in the Declaration of
Conformity. The software loaded on this
radio equipment is verified to comply with
the essential requirements of the Radio
Equipment Regulations.
The software version can be found by
following procedure.
1 Press and hold SOUND FIELD on the remote
control for more than 5 seconds.
The stream information appears in the front
panel display.
2 Press (volume) +/– on the remote control
to display the software version in the front
panel display.
Disposal of waste
batteries and electrical
and electronic equipment
(applicable in the
European Union and
other countries with
separate collection systems)
This symbol on the product, the battery or on the
packaging indicates that the product and the
battery shall not be treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol. The
chemical symbol for lead (Pb) is added if the
battery contains more than 0.004% lead. By
ensuring that these products and batteries are
disposed of correctly, you will help to prevent
potentially negative consequences for the
environment and human health which could be
caused by inappropriate waste handling. The
recycling of the materials will help to conserve
natural resources. In case of products that for
safety, performance or data integrity reasons
require a permanent connection with an
incorporated battery, this battery should be
replaced by qualified service staff only. To ensure
that the battery and the electrical and electronic
equipment will be treated properly, hand over
these products at end-of-life to the appropriate
collection point for the recycling of electrical and
electronic equipment. For all other batteries,
please view the section on how to remove the
battery from the product safely. Hand the battery
over to the appropriate collection point for the
recycling of waste batteries. For more detailed
information about recycling of this product or
battery, please contact your local Civic Office, your
household waste disposal service or the shop
where you purchased the product or battery.
This equipment should be installed and operated
keeping the radiator over 20 cm away from
person’s body.
For customers in Australia
Disposal of old electrical
& electronic equipment
(applicable in the
European Union and
other countries with
separate collection
systems)
For customers in Australia or New
Zealand
It should be installed and operated with at least
20 cm and more between the radiator and
person’s body (excluding extremities: hands,
wrists, feet and ankles).
Precautions
On safety
• Should any solid object or liquid fall into the
speaker system, unplug the speaker system and
have it checked by qualified personnel before
operating it any further.
• Do not climb on the speaker system, as you may
fall down and injure yourself, or speaker system
damage may result.
On power sources
• Before operating the speaker system, check that
the operating voltage is identical to your local
power supply. The operating voltage is indicated
on the nameplate on the bottom of the bar
speaker.
• If you are not going to use the speaker system
for a long time, be sure to disconnect the
speaker system from the wall outlet (mains). To
disconnect the AC power cord (mains lead),
grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for
the purpose of safety and will fit into the wall
outlet (mains) only one way. If you are unable to
insert the plug fully into the outlet, contact your
dealer.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the speaker system heats up during
operation, this is not a malfunction.
If you continuously use this speaker system at
high volume, the speaker system temperature at
the rear and bottom rises considerably. To avoid
burning yourself, do not touch the speaker
system.
On placement
• Place the speaker system in a location with
adequate ventilation to prevent heat buildup
and prolong the life of the speaker system.
• Do not place the speaker system near heat
sources or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on the top of the bar
speaker.
• If the speaker system is being used in
combination with a TV, VCR, or tape deck, noise
may result and picture quality may suffer. In
such a case, place the speaker system away
from the TV, VCR, or tape deck.
• Use caution when placing the speaker system
on a surface that has been specially treated
(with wax, oil, polish, etc.), as staining or
discoloration of the surface may result.
• Take care to avoid any possible injury from the
corners of the bar speaker.
On operation
Before connecting other equipment, be sure to
turn off and unplug the speaker system.
If you encounter color irregularity on a
nearby TV screen
Color irregularities may be observed on certain
types of TV.
• If color irregularity is observed...
Turn off the TV, then turn it on again after 15 to
30 minutes.
• If color irregularity is observed again...
Place the speaker system further away from the
TV.
On cleaning
• Clean the speaker system with a soft, dry cloth.
Do not use any type of abrasive pad, scouring
powder, or solvent such as alcohol or benzine.
If you have any questions or problems concerning
your speaker system, please consult your nearest
Sony dealer.
About These Operating
Instructions
• The instructions in these Operating Instructions
describe the controls on the remote control.
• Some illustrations are presented as conceptual
drawings, and may be different from the actual
products.
• Characters in brackets [ ] appear in the front
panel display.
Installation and
Connection
Connecting a TV with an HDMI
Cable and/or Optical Cable
Refer to Startup Guide (separate document).

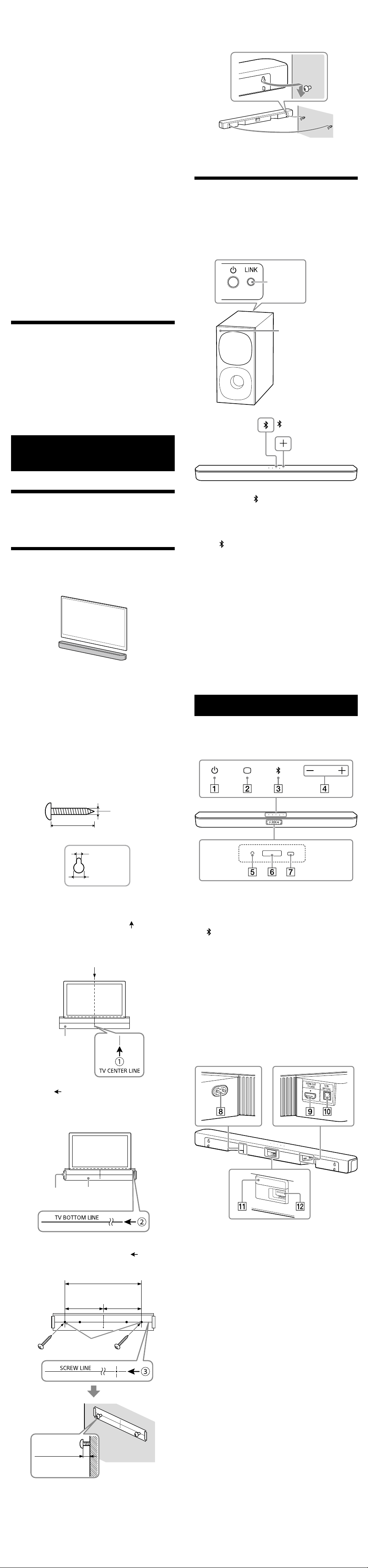

Mounting the Bar Speaker on a
Wall
You can mount the bar speaker on a wall.
Notes
• Prepare screws (not supplied) that are suitable for the wall
material and strength. As a plasterboard wall is especially
fragile, attach the screws securely in the wall beam. Install
the bar speaker horizontally, hung by screws in studs in a
continuous flat section of the wall.
• Have the installation done by a Sony dealer or licensed
contractor and pay special attention to safety during the
installation.
• If using a cable with a large plug, it may not be possible to
mount the bar speaker on a wall.
• Sony shall not be held responsible for accidents or damage
caused by improper installation, insufficient wall strength,
improper screw installation, natural disasters, etc.
1 Prepare two screws (not supplied) that are
suitable for the wall mount holes on the rear
of the bar speaker.
4 mm
30 mm or more
5.1 mm
10 mm
Hole on the rear of
the bar speaker
2 Align the vertical line above the “ TV
CENTER LINE” printed on the WALL MOUNT
TEMPLATE (supplied) with the center of the
width of your TV.
Center of the TV
WALL MOUNT
TEMPLATE
3 Align the “ TV BOTTOM LINE” printed on
the WALL MOUNT TEMPLATE with the bottom
of your TV, then adhere the WALL MOUNT
TEMPLATE on the wall with a commercially
available adhesive tape, etc.
Adhesive
tape, etc.
WALL MOUNT
TEMPLATE
4 Fasten the screws prepared in step 1 securely
into the screw marks () on the “
SCREW
LINE” printed on the WALL MOUNT TEMPLATE.
368.5 mm 368.5 mm
10.5 mm to
11.5 mm
Screws
Marks ()
737 mm
5 Remove the WALL MOUNT TEMPLATE.
6 Hang the bar speaker on the screws.
Align the holes on the rear of the bar speaker
with the screws, then hang the bar speaker on
the two screws.
Note
When sticking WALL MOUNT TEMPLATE, smooth it out fully.
Connecting the Subwoofer
Manually
If you cannot connect the subwoofer to the
speaker system, or you use multiple wireless
products and want to specify the wireless
connection to link the speaker system to the
subwoofer, perform the manual connection.
Power indicator
LINK
(BLUETOOTH) button
+ (volume) button
1 Press and hold (BLUETOOTH) and + (volume)
on the bar speaker for more than 5 seconds.
[SECURE LINK] appears, then[LINK] flashes in
the front panel display.
To cancel the manual connection, press and
hold
(BLUETOOTH) and + (volume) on the bar
speaker for more than 5 seconds again.
2 Press LINK on the subwoofer.
The manual connection starts.
The power indicator of the subwoofer flashes
in amber.
3 Make sure that [DONE] appears in the front
panel display.
The manual connection is established and the
power indicator of the subwoofer lights in
amber.
Note
If [ERROR] appears in the front panel display, the connection
of the subwoofer has not been established. Perform the
manual connection again.

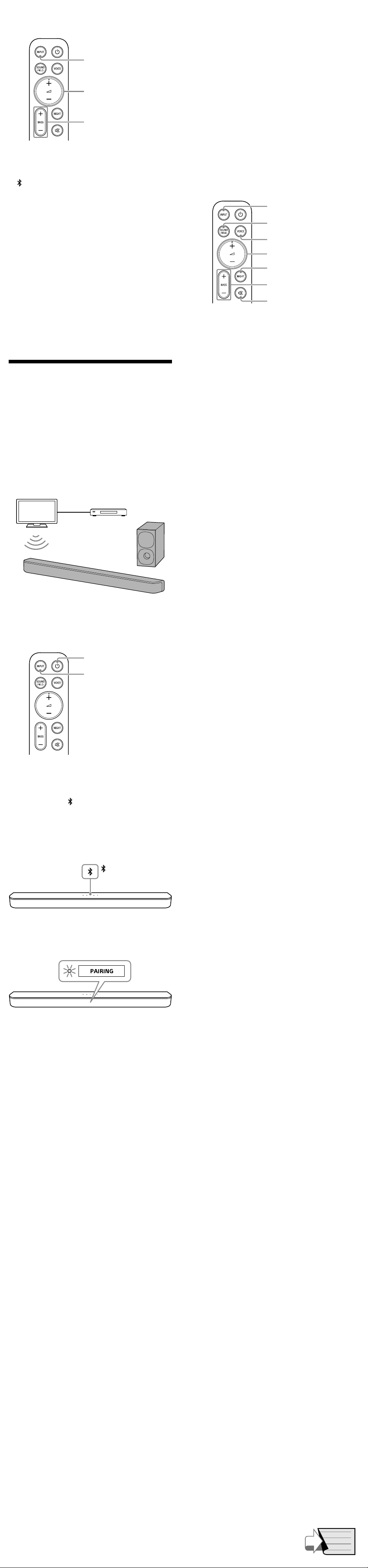

Parts and Controls
Bar Speaker
Front
(power) button
Turns on the speaker system or sets it to
standby mode.
(TV) button
(BLUETOOTH) button
+/– (volume) buttons
BLUETOOTH indicator
— Flashes twice in blue: During pairing
standby status
— Flashes in blue: BLUETOOTH connection is
being attempted.
— Lights in blue: BLUETOOTH connection has
been established.
Front panel display
Remote control sensor
Point the remote control at the remote control
sensor to operate the speaker system.
Rear
AC inlet
HDMI OUT (TV (ARC)) jack
Connect a TV that has an HDMI input jack with
an HDMI cable. The speaker system is
compatible with Audio Return Channel (ARC).
ARC is the function that sends TV sound to an
AV device such as the speaker system from
the TV’s HDMI jack.
TV IN (OPTICAL) jack
IR repeater
Transmits the remote signal of the TV remote
control to the TV.
UPDATE port
Connect the USB memory when updating the
speaker system.

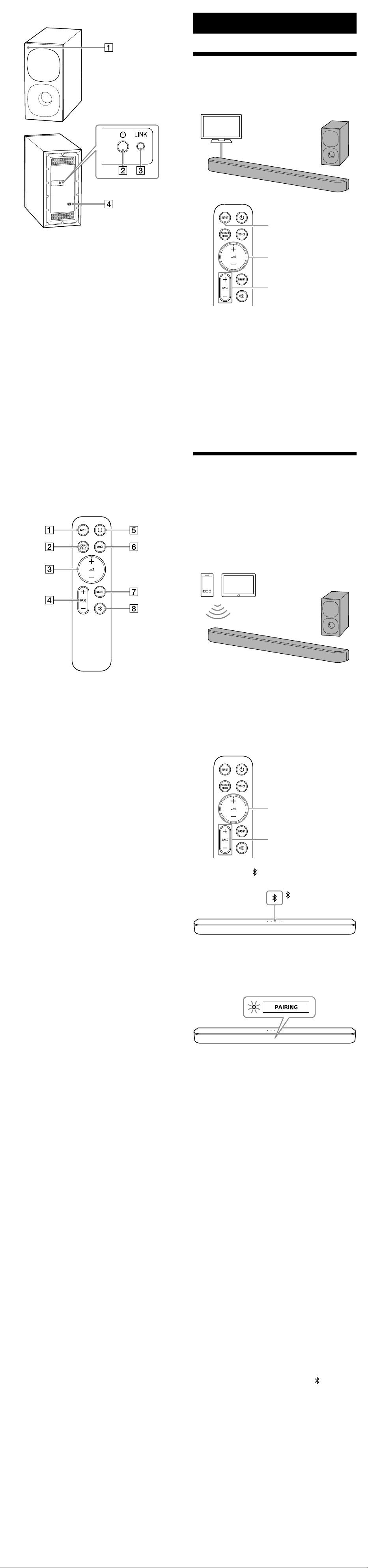

Subwoofer
Power indicator
— Lights in green: The subwoofer is connected
to the speaker system.
— Lights in red: The subwoofer is in standby
mode.
— Lights in amber: The subwoofer is
connected to the speaker system with the
manual connection.
— Flashes slowly in green: The subwoofer is
attempting to connect to the speaker
system.
— Flashes slowly in amber: The subwoofer is
attempting to connect to the speaker
system with the manual connection.
— Flashes twice in amber: The subwoofer is in
pairing standby status with the manual
connection.
— Flashes quickly in amber: The software is
updating.
— Turns off: The subwoofer is turned off.
(power) button
Turns on or off the subwoofer.
LINK button
AC inlet
Remote Control
Some buttons function differently depending on
how long the button is pressed. This section
explains the functions when pressed shortly.
For details about other functions, refer to
“Changing the Settings” on the back page.
INPUT
Selects the input for playback on the speaker
system.
Each time you press INPUT, the input source
toggles between the TV and BLUETOOTH
input.
SOUND FIELD
Turns on/off the surround effect.
(volume) +*/–
Adjusts the volume.
BASS +/–
Adjusts the subwoofer volume.
(power)
Turns on the speaker system or sets it to
standby mode.
VOICE
Turns on/off the voice mode.
NIGHT
Turns on/off the night mode.
(muting)
Mutes the sound temporarily.
* The (volume) + button has a tactile dot. Use it as a
guide during operation.
About the replacement of batteries for the
remote control
When the speaker system does not respond by
operating with the remote control, replace two
batteries with new batteries.
Use R03 (size AAA) manganese batteries for
replacement.

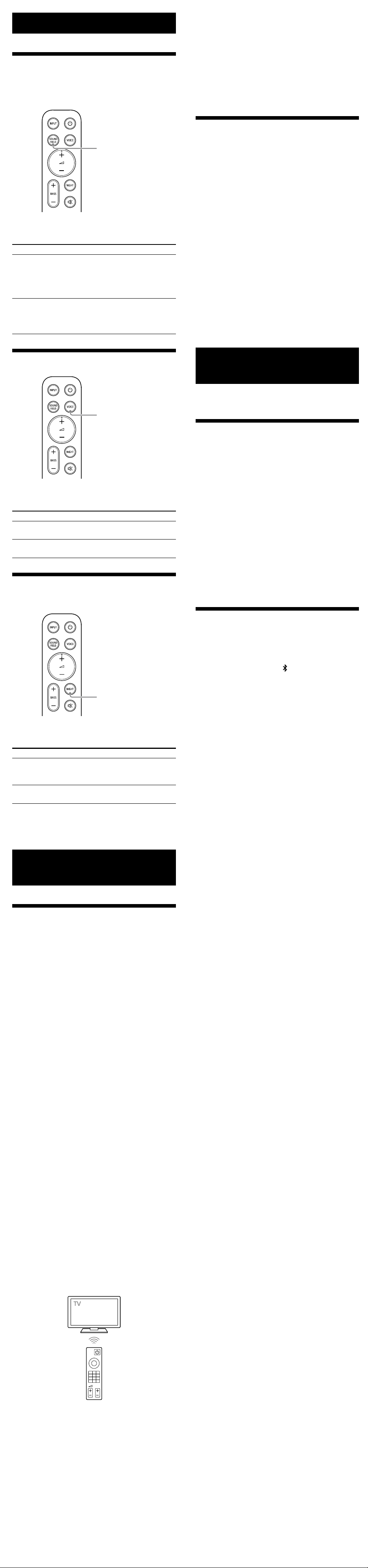

Listening to Music/Sound
Listening to a TV Connected with
an HDMI Cable (ARC) or Optical
Digital Cable
You can listen to TV sound on the speaker system.
INPUT
(volume) +/–
BASS +/–
1 Press INPUT repeatedly to select [TV] in the
front panel display.
2 Adjust the volume.
• Adjust the volume by pressing (volume)
+/– on the remote control.
• Adjust the subwoofer volume by pressing
BASS +/– on the remote control.
Note
When you connect the TV to both the HDMI OUT (TV (ARC))
and TV IN (OPTICAL) jacks, the jack for audio input is selected
depending on which audio signal is input first.
Tip
You can also select the input by pressing (TV) on the bar
speaker.
Listening to Music from a Mobile
Device with the BLUETOOTH®
Function
You can listen to music stored on a mobile device
such as a smartphone or tablet via wireless
connection by connecting the speaker system and
the mobile device with the BLUETOOTH function.
When connecting to the mobile device with the
BLUETOOTH function, you can perform operations
simply through the speaker system without
turning the TV on.
Listening to Music by Pairing with a
Mobile Device
You need to perform pairing of the speaker
system and mobile device by using the
BLUETOOTH function.
Pairing is the process required to mutually register
the information on BLUETOOTH devices to be
connected wirelessly in advance.
(volume) +/–
BASS +/–
1 Press and hold (BLUETOOTH) on the bar
speaker for 2 seconds.
(BLUETOOTH)
button
2 Make sure that the BLUETOOTH indicator on
the bar speaker flashes twice repeatedly in
blue and [PAIRING] appears in the front panel
display.
The speaker system enters the pairing mode.
3 On the mobile device, search for the speaker
system by performing the pairing operation.
The list of the BLUETOOTH devices that are
detected appears on the screen of the mobile
device.
For the operation method to pair the
BLUETOOTH device to the mobile device, refer
to the operating instructions of the mobile
device.
4 Pair the speaker system and mobile device by
selecting “HT-S400” from the list on the screen
of the mobile device.
If a passkey is requested, enter “0000.”
5 Make sure that the BLUETOOTH indicator on
the bar speaker lights in blue and [BT] appears
in the front panel display.
A connection between the speaker system and
mobile device has been established.
6 Start audio playback with the music app on
the connected mobile device.
Sound is output from the speaker system.
7 Adjust the volume.
• Adjust the volume by pressing (volume)
+/– on the remote control.
• Adjust the subwoofer volume by pressing
BASS +/– on the remote control.
Notes
• You can pair up to 9 BLUETOOTH devices. If a 10th
BLUETOOTH device is paired, the oldest connected device
will be replaced by the new one.
• Perform pairing for the second and subsequent mobile
devices.
Tips
• You can check the connection status of the BLUETOOTH
function by checking the BLUETOOTH indicator status.
• While the BLUETOOTH input is being selected, the speaker
system enters the pairing mode by pressing
(BLUETOOTH)
on the bar speaker shortly.
Listening to Music from the Paired
Mobile Device
INPUT
(volume) +/–
BASS +/–
1 Turn the BLUETOOTH function of the mobile
device on.
2 Press INPUT repeatedly to select [BT] or press
(BLUETOOTH) on the bar speaker shortly.
The BLUETOOTH indicator flashes and the
speaker system automatically reconnects to the
BLUETOOTH device it was most recently
connected to.
3 Make sure that the BLUETOOTH indicator on
the bar speaker lights in blue and [BT] appears
in the front panel display.
A connection between the speaker system and
mobile device has been established.
4 Start audio playback with the music app on
the connected mobile device.
Sound is output from the speaker system.
5 Adjust the volume.
• Adjust the volume by pressing (volume)
+/– on the remote control.
• Adjust the subwoofer volume by pressing
BASS +/– on the remote control.
Listening to Sony TV Sound with
the BLUETOOTH Function
What You Can Do by Connecting a TV
with the BLUETOOTH Function
When using Sony TV* with the BLUETOOTH
function, you can listen to sound of the TV or
device that is connected to the TV by connecting
the speaker system and TV wirelessly.
* The TV needs to be compatible with A2DP (Advanced
Audio Distribution Profile) of the BLUETOOTH profile.
Blu-ray Disc player,
set-top box, gaming
console, etc.
Sony TV
Listening to TV Sound by Connecting
the Speaker System and TV Wirelessly
You need to perform pairing of the speaker
system and TV by using the BLUETOOTH function.
INPUT
(power)
1 Turn on the TV.
2 Press (power) to turn on the speaker
system.
3 Press and hold (BLUETOOTH) on the bar
speaker and INPUT on the remote control
simultaneously for 5 seconds.
The speaker system enters the BLUETOOTH
pairing mode.
[TV-BT] and [ON] appears in order in the front
panel display.
(BLUETOOTH)
button
4 Make sure that the BLUETOOTH indicator on
the bar speaker flashes twice repeatedly in
blue and [PAIRING] appears in the front panel
display.
5 On the TV, search for the speaker system by
performing the pairing operation.
The list of the BLUETOOTH devices that are
detected appears on the TV screen.
For the operation method to pair the
BLUETOOTH device to the TV, refer to the
operating instructions of the TV.
6 Pair the speaker system and TV by selecting
“HT-S400” from the list on the TV screen.
7 Make sure that the BLUETOOTH indicator on
the bar speaker lights in blue and [TV-BT]
appears in the front panel display.
A connection between the speaker system and
TV has been established.
8 Select the program or input of the device by
using the TV remote control.
The sound of the displayed image on the TV
screen is output from the speaker system.
9 Adjust the volume of the speaker system by
using the TV remote control.
When pressing the muting button on the TV
remote control, the sound is muted temporarily.
Notes
• If the TV sound is not output from the speaker system, press
INPUT to select the TV input and check the status of the
front panel display and indicators on the bar speaker.
— [TV-BT] appears in the front panel display: The speaker
system and TV are connected, and TV sound is output
from the speaker system.
— The BLUETOOTH indicator flashes twice repeatedly and
[PAIRING] appears in the front panel display: Perform
pairing on the TV.
— [TV] appears in the front panel display: Perform steps
from the start.
• When you connect the speaker system and TV with an
HDMI cable, the BLUETOOTH connection is canceled. To
connect the speaker system and TV with the BLUETOOTH
function again, disconnect the HDMI cable, then perform
the connecting operation from the start.
Listening to Sound of the Paired TV
1 Turn on the TV with the TV remote control.
The speaker system is turned on by interlocking
with the TV power and TV sound is output from
the speaker system.
2 Select the program or input of the device by
using the TV remote control.
The sound of the displayed image on the TV
screen is output from the speaker system.
3 Adjust the volume of the speaker system by
using the TV remote control.
When pressing the muting button on the TV
remote control, the sound is muted temporarily.
Tip
When the TV is turned off, the speaker system is also turned
off by interlocking with the TV power.
About operations with the remote control
that is supplied with the speaker system
You can use the following buttons.
SOUND FIELD
(volume) +/–
BASS +/–
INPUT
VOICE
NIGHT
(muting)
Note
If you select the BLUETOOTH input on the remote control
supplied with the speaker system, the TV sound is not output
from the speaker system. To output the TV sound, press
INPUT on the remote control to change to the TV input.
Continued on back page
Loading ...
Loading ...
Loading ...
