CRRFTSMRH
FEATURES
For use with any Security+ garage door openers having an
orange "learn" button.
Personalized Password: Up to 10,000 possible
combinations. Password can be easily changed if desired.
Temporary password: Can be added for visitors or service
persons. This temporary password can be limited to a
programmable number of hours or a programmable number
of entries.
Rolling Code: While your password remains constant until
you change it, the code between the Keyless Entry and the
receiver changes with each use, randomly accessing over
100 billion new codes.
Operation: Opener activates when 4-digit password and
Enter button is pressed.
If wrong numbers are accidentally pressed, correction can be
made immediately. The Enter button will transmit only the
last four digits.
The Keypad will blink for 15 seconds after the password is
transmitted. During that time the Enter button can be used to
stop or reverse the door travel.
The Lock feature on openers with premium door controls is
designed to prevent operation of the door from portable
transmitters. However, the door will open and close from the
door control push button and the Keyless Entry.
Model 139.53684 Security+
Keyless Entry
USER INSTRUCTIONS
TopreventpossibleSERIOUSINJURYor DEATHfroma moving
gate or garage door:
• ALWAYS keepremote controls out of reach of children. NEVER
permitchildren to operate,or playwith remote control
transmitters.
• Activate gateor door ONLY when it can be seen clearly,is
properlyadjusted,and there are no obstructions to door travel.
• ALWAYS keepgateor garage door in sightuntilcompletely
closed. NEVER permitanyone to cross pathof movinggate
or door.
NOTICE:Tocomply with FCCand or Industry Canada(IC)rules, adjustmentor modificationsof
this receiverand/or transmitter are prohibited,exceptfor changingthe codesettingor replacing
the battery.THEREARENOOTHERUSERSERVICEABLEPARTS.
Testedto Comply with FOCStandardsFORHOMEOROFFICEUSE.Operationis subjectto the
following two conditions:(1) this devicemay not causeharmful interference,and(2) this device
must acceptanyinterference received,including interferencethat may causeundesired
operation.
SETTING THE PERSONAL ENTRY PASSWORD
We recommend that you program your password now, before you install the Keyless Entry. Then you can test the reception
at the mounting location before you proceed further.
USING THE PREMIUM CONTROL CONSOLE USING THE "LEARN" BUTTON
1. Enter a four digit personal identification
number (PIN) of your choice on the keypad.
Then press and hold ENTER.
2. While holding the ENTER button, press and
hold the LIGHT button on the Premium
Control Console.
3. Continue holding the ENTER and LIGHT
buttons while you press the push bar on the
Premium Control Console (all three buttons
are held).
4. Release buttons when the motor unit lights
blink. It has learned the code. If light bulbs
are not installed, two clicks will be heard.
)
1. Press and release the "learn" button on motor _l ][_,
unit. The learn indicator light will glow
steadily for 30 seconds.
2. Within 30 seconds, enter a four digit personal
identification number (PIN) of your choice on
the keypad. Then press and hold the ENTER
button.
3. Release the button when the motor unit lights
blink. It has learned the code. If light bulbs are ( "(_ /
not installed, two clicks will be heard. _ /_ \/

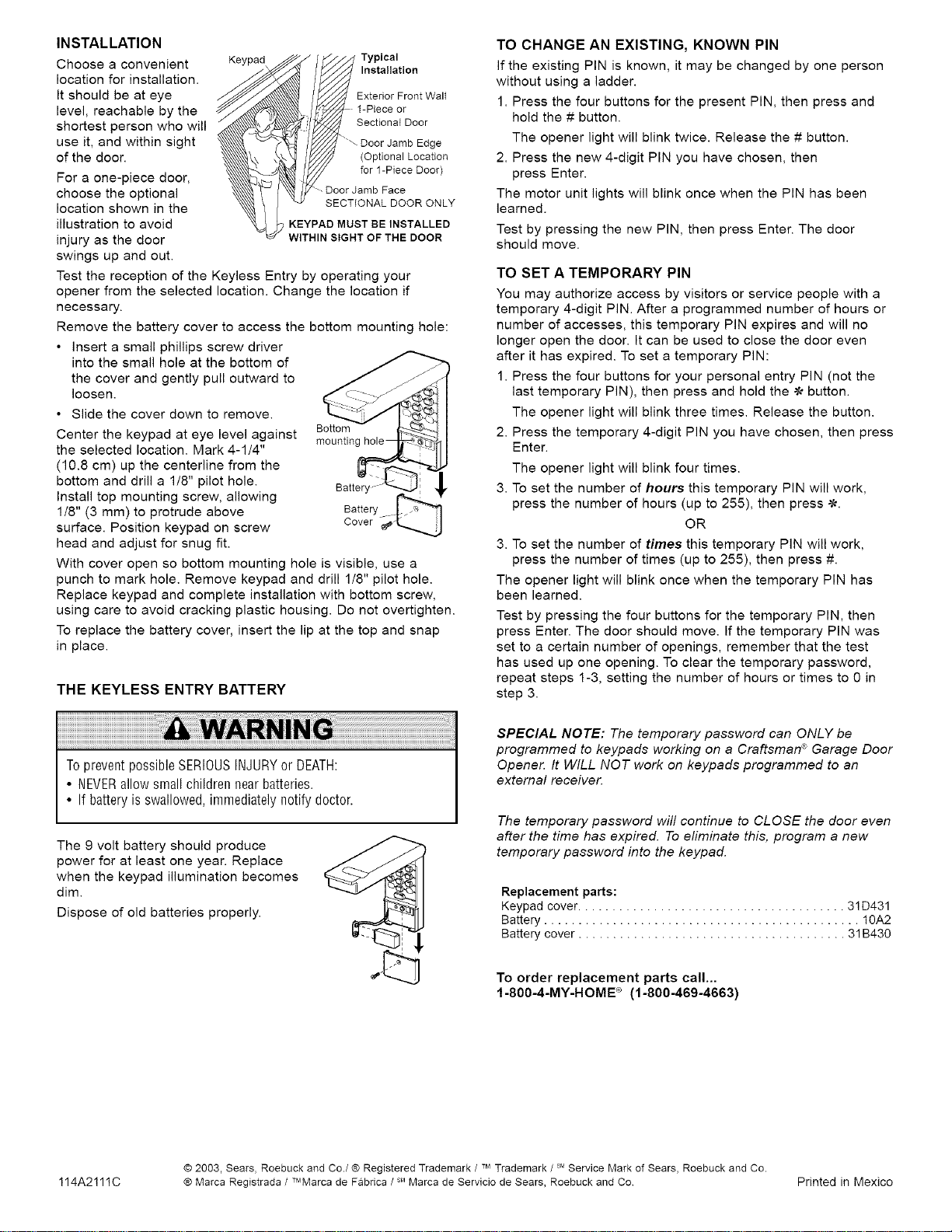

Side two contains instructions for installing the Keyless
Entry, changing the personal entry password and setting a
temporary password.
