7080 013-00 506
Gebrauchsanleitung
Weinklimaschrank
Seite 2
Operating Instructions
Wine storage refrigerator
Page 16
Gebruiksaanwijzing
Wijnbewaarkast
Pagina 30
Mode d'emploi
Armoire de climatisation des vins
Page 44
Instrucciones de manejo
Frigorífico bodeguero
Página 58
Istruzione d'uso
Frigorifero climatizzator per vini
Pagina 72
16
Many thanks for your trust.
Congratulations on your purchase of this wine storage refrigerator. In buying this product,
which is distinguished by its perfect user-friendliness, impeccable reliability and high qual-
ity, you have chosen a top class appliance. We wish you a lot of pleasure with your new
wine storage refrigerator – and a lot of enjoyment from your wines.
The right environment for your wines.
A vine is an extremely sensitive plant. From the time it is planted to its maturing period
and the time the grapes are harvested and the wine is made, it is dependent on three fac-
tors: light, air humidity and ambient temperature. This sensitivity continues even once
the wine is bottled. To allow the flavour of the wine to fully develop or to preserve the
excellent aroma, the wine has to be stored perfectly – and your wine storage refrigerator
offers the best conditions for this.
The fewer the grapes produced in an area, the
better the wine.
Poor, well-drained soils are best for good wines. The properties of the soil influence the
vitality of the vine, which in turn affects the quality of the grape. Climate is another
factor that is important for wine. Because light and air humidity are important for the
development of the flavour of the wine.
17
Contents Page
Setting up ............................................................................................................................ 18
Dimensions ......................................................................................................................... 18
Electrical requirement ........................................................................................................ 18
Operating and control elements ........................................................................................ 18
Switching the appliance on and off .................................................................................. 19
Setting the temperature ..................................................................................................... 19
Fan switch ........................................................................................................................... 19
Additional functions .......................................................................................................... 20
Audible warning signal ..................................................................................................... 21
Interior light ........................................................................................................................ 21
Equipment ........................................................................................................................... 22
Storage diagrams for 750 ml Bordeaux bottles ................................................................ 23
Defrosting ............................................................................................................................ 24
Cleaning .............................................................................................................................. 24
Malfunctions ....................................................................................................................... 25
Shutting your appliance down .......................................................................................... 25

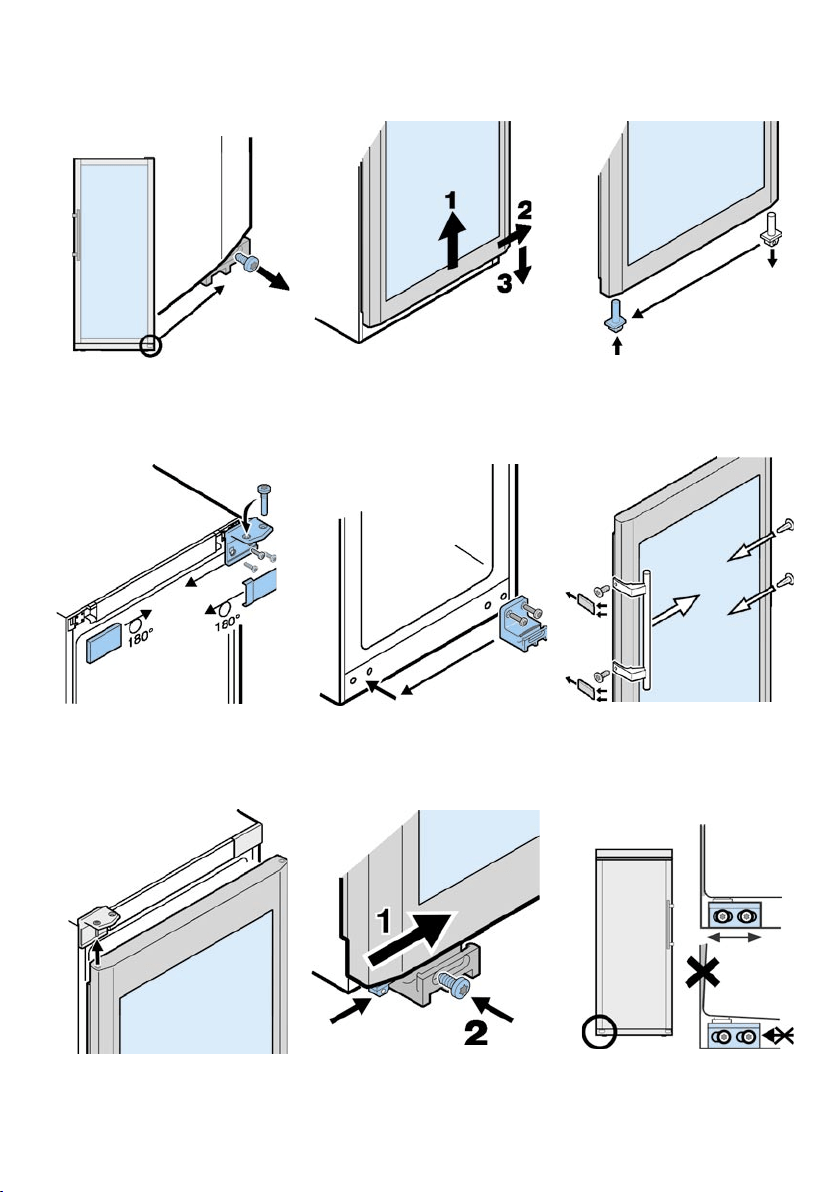

Changing over door hinges ................................................................................................ 26
Safety instructions and warnings ...................................................................................... 28
General information ........................................................................................................... 28
Disposal notes ..................................................................................................................... 29
GB

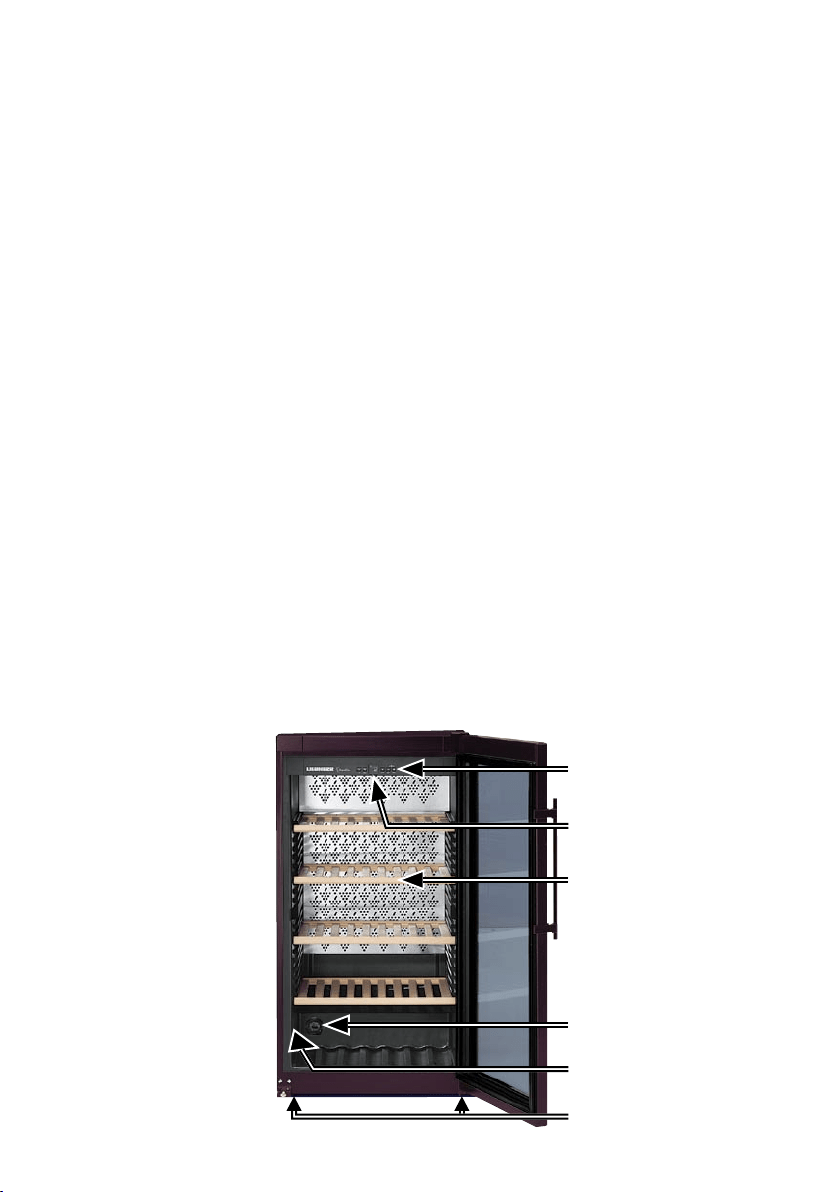

Description of appliance and equipment
Activated carbon filter
Adjustable- height feet
Operating and
control elements
Bottle grid
Interior light
Type plate
18
Setting up
• Avoid locating it in direct sunlight or near heat sources such as an oven or a radiator.
• The floor should be level and even. You can compensate for an uneven floor by ad-
justing the adjustable feet.
• Please make sure the appliance is properly ventilated.
• Standard EN 378 specifies that the room in which you install your appliance must
have a volume of 1 m
3
per 8 g of R 600a refrigerant used in the appliance, so as to
avoid the formation of inflammable gas/air mixtures in the room where the appliance
is located in the event of a leak in the refrigerant circuit. The quantity of refrigerant
used in your appliance is indicated on the type plate on the inside of the appliance.
• The appliance is set to operate within specific ambient temperature limits according
to its climate rating. These temperature limits should not be exceeded. The correct
climate rating for your appliance is indicated on the type plate.
SN - ST = +10°C to +38°C
SN - T = +8°C to +43°C
Dimensions
WK 2977: height: 1264 mm, width: 660 mm, depth: 671 mm
WK 4177: height: 1658 mm, width: 660 mm, depth: 671 mm
WK 4677: height: 1855 mm, width: 660 mm, depth: 671 mm
Electrical requirement
Power supply (AC) and voltage at the operating point must comply with the details on
the type plate. The type plate is located on the top left-hand side on the inside of the
appliance. The socket must be fused with a 10 A fuse or higher, it must be away from
the rear of the appliance and must be easily accessible.

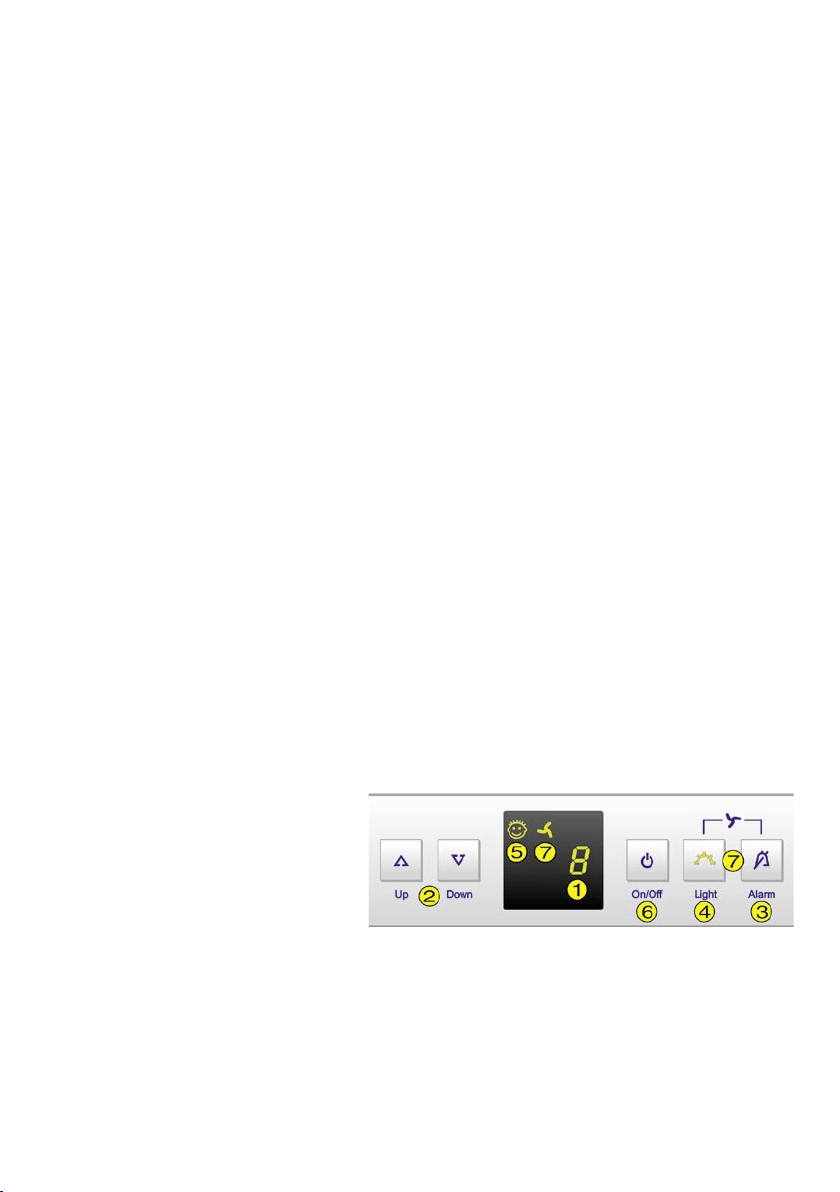

Operating and control elements
Temperature display
Temperature setting buttons
Audible warning on/off button
Interior light on/off button
Child-proof lock
On/off button
Fan switch
19
GB

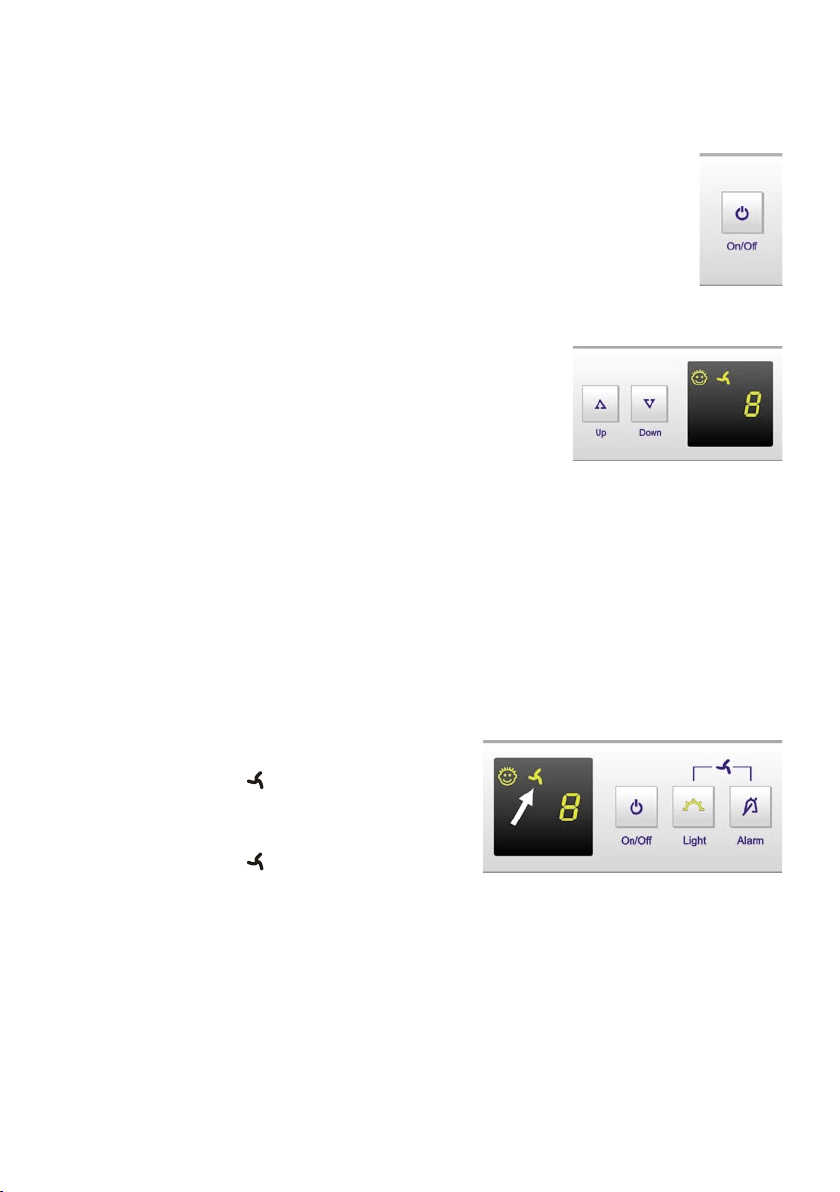

Switching the appliance on and off
You are recommended to clean the appliance before switching it on for the first time
(see "Cleaning"). Connect the appliance to the mains - the appliance is switched on.
• To switch the appliance off: Keep the "ON / OFF" button pressed for 3 sec.
so that the temperature display goes out.
• To switch the appliance on:
Press the "ON / OFF" button until the Display
lights up.
Setting the temperature
To reduce the temperature: Press the DOWN button;
To increase the temperature: Press the UP button.
- While you are entering the temperature, the set tempera
-
ture will flash on the display.
- You can change the settings in increments of 1°C briefly
pressing the button again.
- The electronic controls will switch over automatically about 5 seconds after the last
time you pressed the button, and the actual temperature will be displayed.
If F1 appears in the display, the appliance has a fault. Consult your nearest customer
service point.
Fan switch
Thereby a climate which corresponds to that of a wine cellar is achieved inside the
wine cooler. Corks are prevented from drying out due to an increased level of humidity.
To switch on:
Hold down the Alarm button and then press the
Light button. The LED will come on.
To switch off:
Hold down the Alarm button and then press the
Light button. The LED goes dark.
20

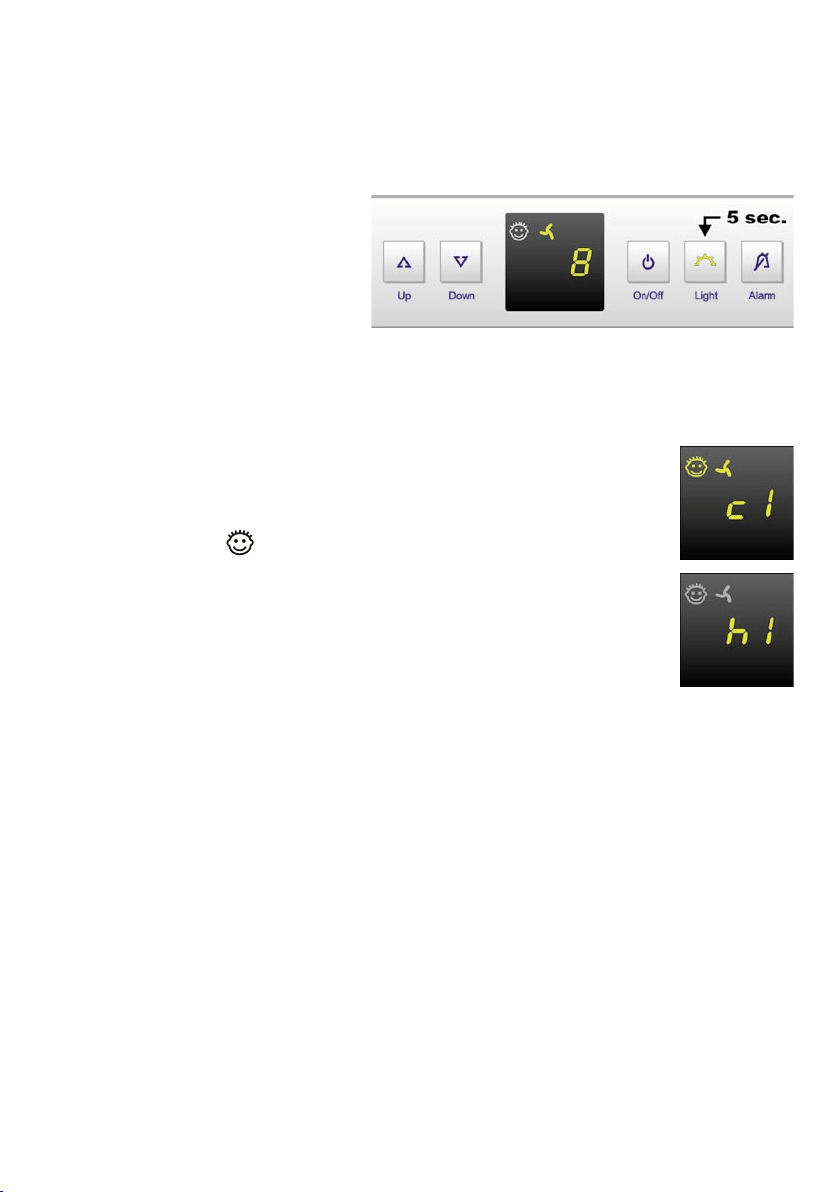

Additional functions
In set-up mode you can set the child-proof lock and adjust the brightness of the dis-
play. The child-proof lock is designed to protect the appliance from being switched off
accidentally by children.
Activating set-up mode:
• Press
Light button for approx. 5
secs - the Light button flashes -
the display shows c for child-proof
lock.
Note: the value to be altered
flashes.
• Select the required function by pressing the Up/Down button:
c = child-proof lock, h = brightness of the display
• Now select/acknowledge function by pressing Light button briefly:
> For
c = child-proof lock,
press the Up/Down button to select
c1 = child-proof lock on or
c0 = child-proof lock off and acknowledge with the Light button.
When the symbol is lit, the child-proof lock is activated.
> For h = brightness,
press Up/Down button to select
h1= minimum to
h5 = maximum brightness and acknowledge with Light button.
Exit set-up mode:
• Exit the set-up mode by pressing the On/Off button; after 2 min. the electronic sys-
tem switches over automatically. The normal operating mode is activated again.
21
GB

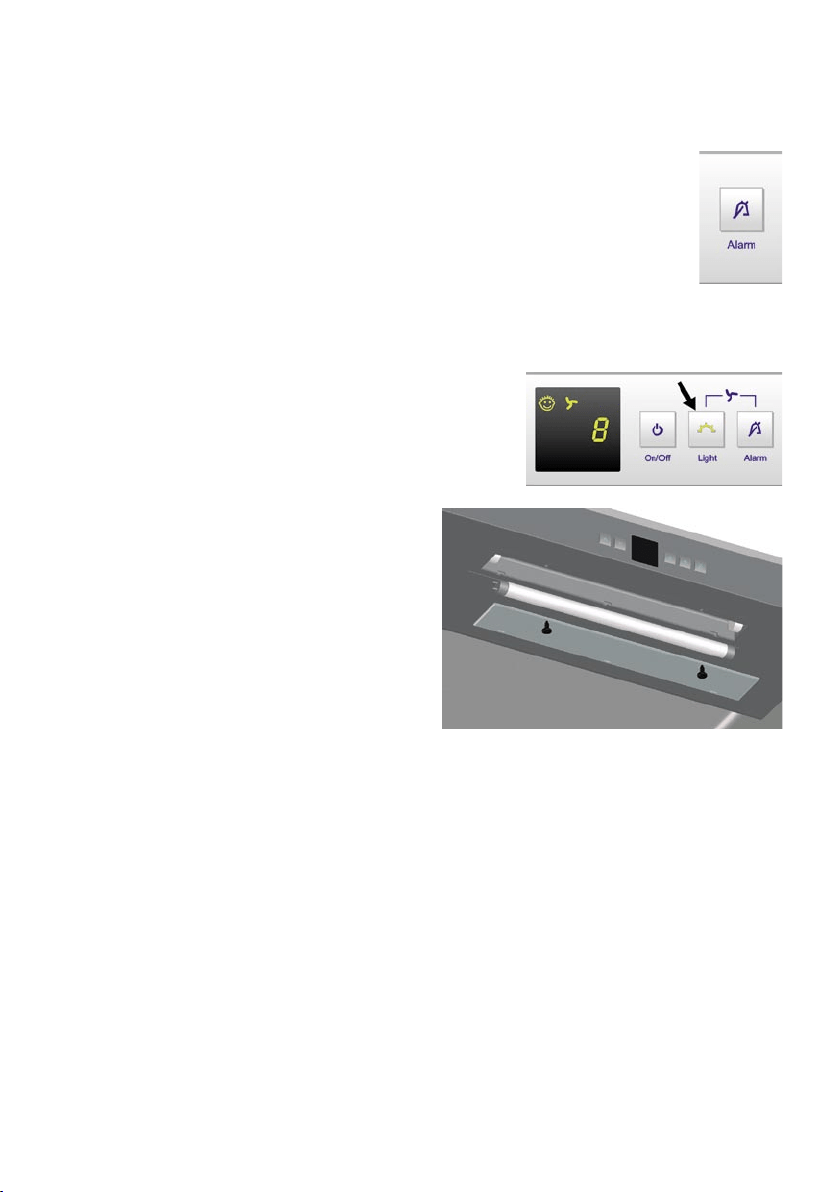

Interior light
The interior light is fitted on the inside at the top.
The interior light can be switched on and off using the
"Light" button.
To change the tube
Pull out the mains plug or remove/unscrew
the fuse.
• Unscrew the cover panel.
• Change the fluorescent tube.
• Replace cover panel and screw into place.
Audible warning signal
The audible warning signal helps to protect your wines against excessive temperature
fluctuations.
- It sounds when the door has been left open for longer than about 60 sec-
onds. The audible warning device is switched off by pressing the Alarm
button.
- It sounds when the interior gets too warm or too cold. The temperature
display will also flash. The audible warning device is switched off by
pressing the Alarm button. The temperature display will continue to flash
until the cause of the alarm has been rectified.
22

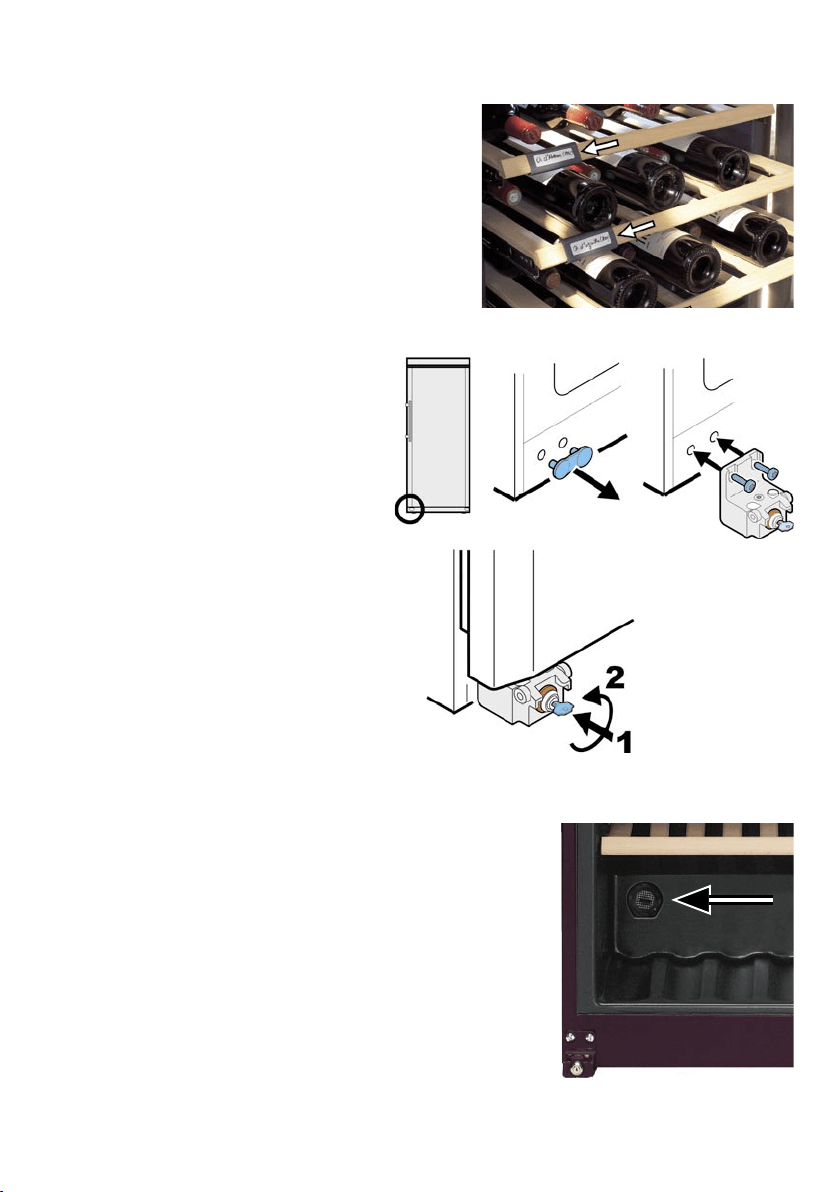

Air exchange with activated carbon filter
The way in which wines continue to mature depends on
the ambient conditions. The quality of the air is therefore
decisive for preserving the wine. An activated carbon
filter has been fitted in the lower area of the rear wall of
the appliance to ensure that the air throughput remains
at an optimum quality.
We recommend that you replace the filter once a year.
Filters can be obtained from your dealer.
Changing the filter: Take the filter by the handle. Turn it
90° to the left or right and remove.
Inserting the filter:
Insert with the handle in a vertical
position. Turn it 90° to the left or right until it clicks into place.
Labels
The appliance is supplied with a label holder
with labels for each shelf. Use these to label the
type of wine stored on each shelf. Additional
labels can be obtained from your dealer.
Installation:
Click the label holder into place
and slide the label in from the side.

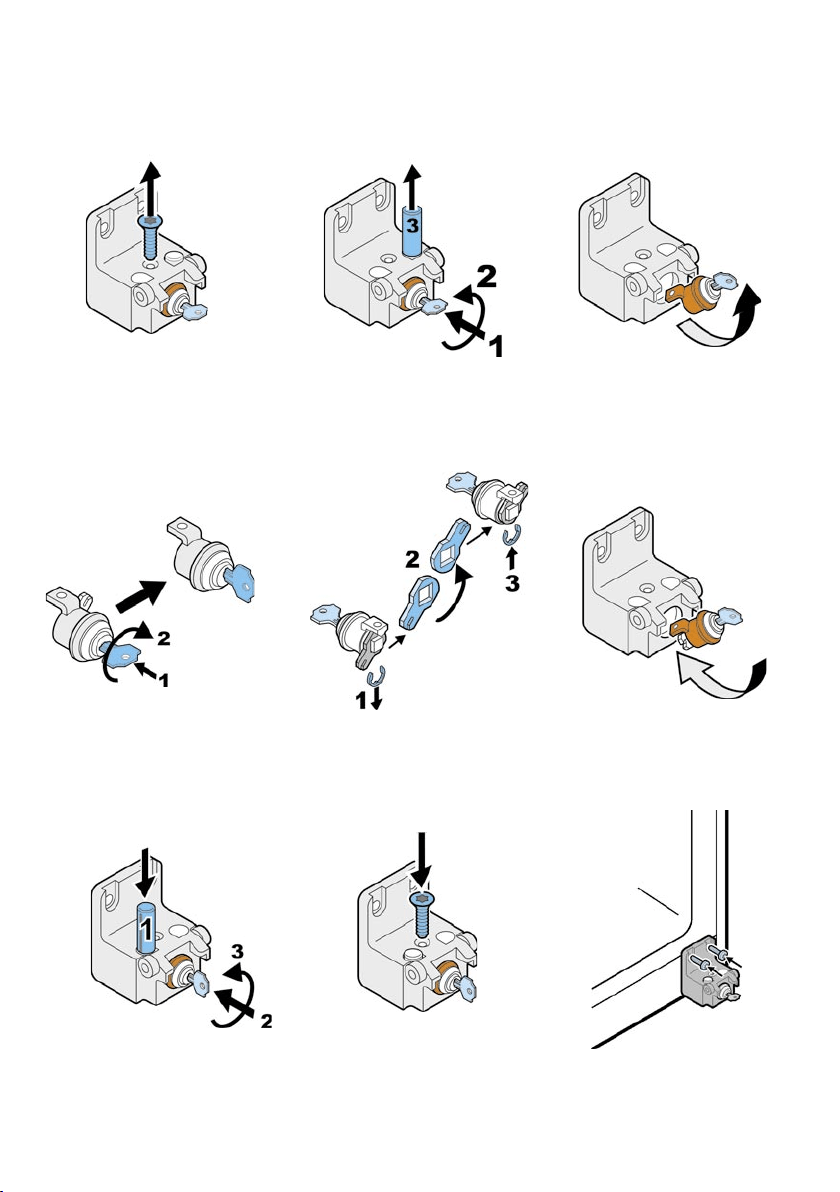

Lock
If required, the enclosed lock can be
fitted.
Equipment
Locking the appliance:
• Insert the key as shown by arrow 1.
• Turn the key 90°.
To unlock the appliance, the same proce
-
dure must be repeated in the same order.
23
GB

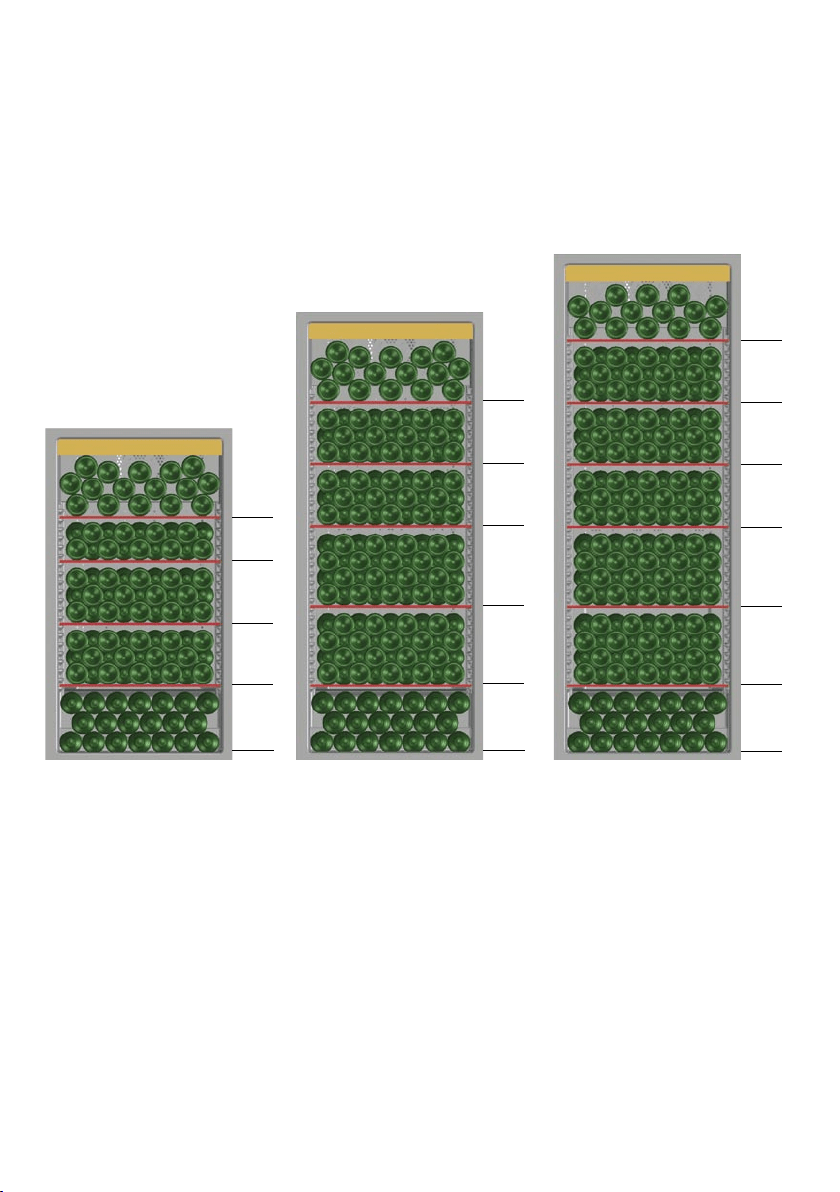

Storage diagrams
for 750 ml Bordeaux bottles
The loading pattern illustrated is only an example: the appliance can be loaded with
different quantities depending on how the shelves are arranged.
WK 2977
108 bottles
WK 4177
162 bottles
WK 4677
187 bottles
210
mm
210
mm
270
mm
270
mm
230
mm
150
mm
210
mm
210
mm
230
mm
210
mm
210
mm
270
mm
270
mm
230
mm
210
mm
24
Defrosting
The appliance defrosts automatically. The water that forms on the rear wall drains
into a reservoir at the back of the appliance and evaporates automatically through the
compressor heat.
Cleaning
Before cleaning always switch off the appliance. Pull out the mains plug or remove/
unscrew the fuse.
Never use abrasive or acidic cleaning agents or chemical solvents. We recommend the
use of an all-purpose cleaner with neutral pH.
Do not use steam cleaners because of the risk of injury and damage.
• Do not use abrasive sponges or scourers, do not use concentrated cleaning agents and
never use cleaning agents containing sand, chloride or acid or chemical solvents, as
these would damage the surfaces and could cause corrosion.
• Use a glass cleaner to clean the glass surfaces and a commercially available stainless-
steel cleaning agent for the stainless-steel surfaces.
• Clean the inside and equipment with lukewarm water and a little detergent, with the
exception of the wooden trims on the grid shelves.
• Ensure that no cleaning water penetrates into the electrical components.
• Dry all parts well with a cloth.

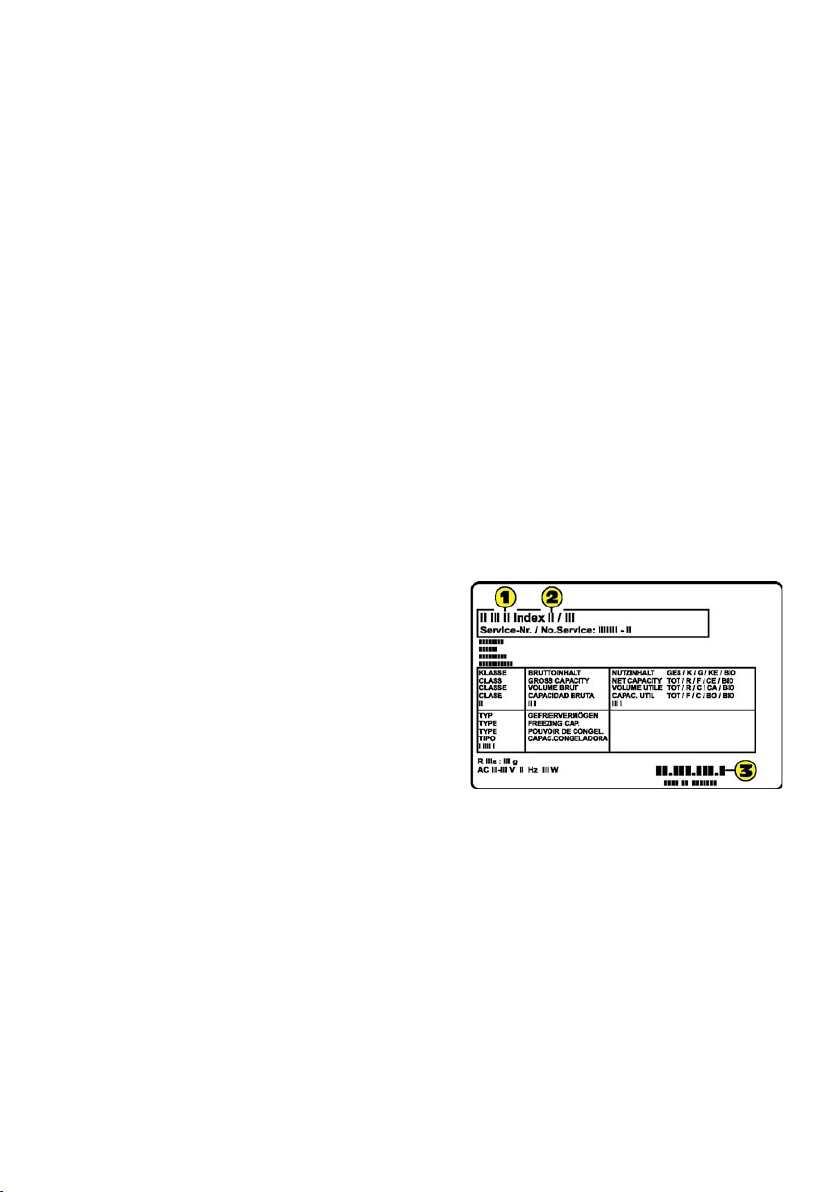

• Do not remove the type plate from the inside of the appliance; it is important for
after-sales servicing.
25
Malfunctions
Your appliance is designed and manufactured for a lengthy, reliable operating life with
no malfunctions. If a malfunction nonetheless occurs during operation, check whether
it is due to an operating error. Please note that even during the warranty period the
resultant servicing costs in this case will have to be borne by the owner.
You may be able to rectify the following faults by checking the possible causes your
-
self:
• Appliance does not function:
- Check that the appliance is properly connected to the mains.
- Is the socket fuse intact?
• Loud running noise:
- Check that the appliance is standing firmly on the ground.
Please note that it is im-
possible to avoid flowing noises in the refrigeration circuit.
• The temperature inside your wine storage refrigerator is too warm: Check the set-
ting in accordance with the section Storing wine.
- Does the separately installed thermometer show the correct reading?
- Is the air extraction working properly?
- Is the wine storage refrigerator too close to a heat source?
• Please note that, as can happen with other forms of storage, slight mould may form
depending on the type of adhesive on the labels. This can be rectified by carefully
cleaning any adhesive residues off the bottles.
If none of the above causes apply and you can
-
not rectify the fault yourself, contact the nearest
customer service department stating the type
of appliance, index and appliance number
as indicated on the type plate.
The type plate is located on the left-hand inside
wall.
Shutting your appliance down
If your appliance is to be shut down for any length of time, switch it off and disconnect
the plug or remove the fuse. Clean the appliance and leave the door open in order to
prevent unpleasant smells.
GB
26
Remove screw from lower
hinge bracket.
Lift door
1, tilt to the right 2
and remove 3.
Transfer pin to the opposite
side of the door.
Transfer upper hinge
components to the op
-
posite side.
Transfer lower hinge bracket to
the opposite side.
Locate door on upper pin. Tilt door inwards from the left 1.
Secure hinge pin with screw 2.
Transfer handle to the
opposite side.
Changing over door hinges
1 2 3
4 5 6
7 8 9
If the door is not flush with
the body of the appliance,
adjust it using the slots on
the hinge bracket.
27
10 11 12
13 14 15
16 17 18
GB
Screw on lock bracket.
Remove screw. Insert key
1, turn 2, and
remove pin 3.
Remove lock.
Insert key 1 and turn 2. Remove door latch 1, turn
over 2 and reassemble 3.
Insert lock.
Insert pin
1, insert key
2 and turn 3.
Insert screw.
If required, the enclosed lock can be fitted.
With the door hinges being on the left-hand side, the lock has to be adapted accordingly.
28
Safety instructions and warnings
• To prevent injury or damage to the unit, the appliance should be unpacked and set
up by two people.
• In the event that the appliance is damaged on delivery, contact the supplier immedi-
ately before connecting to the mains.
• To guarantee safe operation, ensure that the appliance is set up and connected as
described in these operating instructions.
• Disconnect the appliance from the mains if any fault occurs. Pull out the plug,
switch off or remove the fuse.
• When disconnecting the appliance, pull on the plug, not on the cable.
• Any repairs and work on the appliance should only be carried out by the customer
service department, as unauthorised work could prove highly dangerous for the
user. The same applies to changing the mains power cable.
• Do not stand on the plinth, drawers or doors or use them to support anything else.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities or lack of experience and knowledge unless
they have been given initial supervision or instruction concerning use of the appli-
ance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
• Avoid prolonged skin contact with cold surfaces or chilled/frozen food. This could
cause pain, numbness and frostbite. In the case of prolonged skin contact, protective
measures should be taken, e.g. gloves should be worn.
• If you have a lockable appliance, do not keep the key near the appliance or within
reach of children.
• Do not use electrical appliances inside the appliance.
• Do not damage the refrigerant circuit pipes.
• Do not allow naked flames or ignition sources to enter the appliance. When trans-
porting and cleaning the appliance ensure that the refrigerant circuit is not dam-
aged. In the event of damage, make sure that there are no ignition sources nearby
and keep the room well ventilated.
General information
The refrigerant circuit has been tested for leaks.
The appliance is radio-suppressed to EN 55014 and thus complies with EC Directive
87/308/EEC.
All types and models are subject to continuous improvement and the manufacturer
therefore reserves the right to make modifications to the shape, equipment and tech-
nology.
29
GB
Disposal notes
The packaging is made of recyclable materials.
- Corrugated board/board
- EPS moulded parts
- Polythene sheets
- Polypropylene straps
• Keep packaging materials away from children - polythene sheets and bags can suf-
focate!
• Please return the packaging material to an official collection point.
Your old appliance: This contains some reusable materials and should be
disposed of properly - not simply with unsorted household refuse.
• Disable discarded appliances by removing the plug and cutting through
the connection cable. Render the catch unusable so that children cannot
become trapped inside.
• Ensure that the refrigerant circuit is not damaged when the appliance that is no
longer needed is taken away for disposal.
• Details of the refrigerant used can be found on the type plate.
• Appliances which are no longer needed must be disposed of in a professional and
appropriate way, in accordance with the current local regulations and laws.
