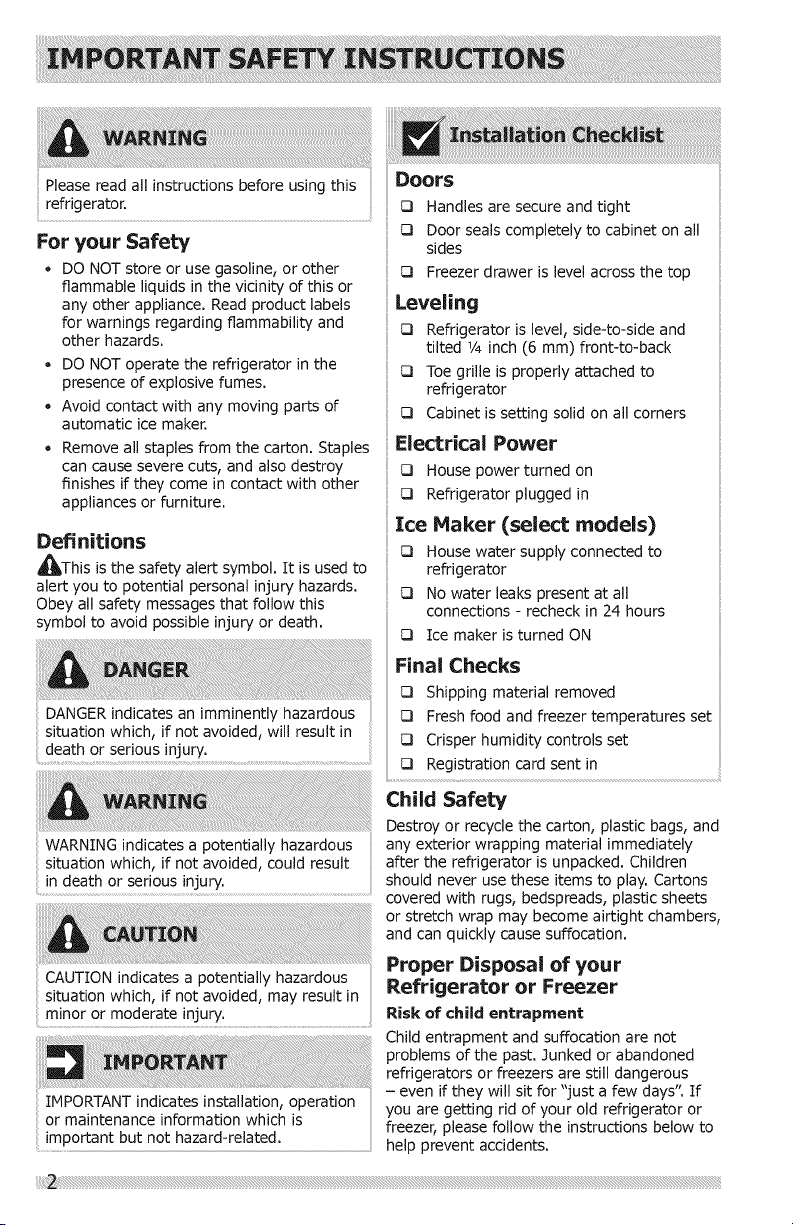

For your Safety
* DO NOT store or use gasoline, or other
flammable liquids in the vicinity of this or
any other appliance. Read product labels
for warnings regarding flammability and
other hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
finishes if they come in contact with other
appliances or furniture.
Definitions
_This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT indicates installation, operation
or maintenance information which is
important but not hazard-related.
Doors
[] Handles are secure and tight
[] Door seals completely to cabinet on all
sides
[] Freezer drawer is level across the top
Leveling
[] Refrigerator is level, side-to-side and
tilted 1/4 inch (6 mm) front-to-back
[] Toe grille is properly attached to
refrigerator
[] Cabinet is setting solid on all corners
Electrical Power
[] House power turned on
[] Refrigerator plugged in
:Ice Maker (select models)
[] House water supply connected to
refrigerator
[] No water leaks present at all
connections - recheck in 24 hours
[] Ice maker is turned ON
Final Checks
[] Shipping material removed
[] Fresh food and freezer temperatures set
[] Crisper humidity controls set
[] Registration card sent in
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the refrigerator is unpacked. Children
should never use these items to play. Cartons
covered with rugs, bedspreads, plastic sheets
or stretch wrap may become airtight chambers,
and can quickly cause suffocation.

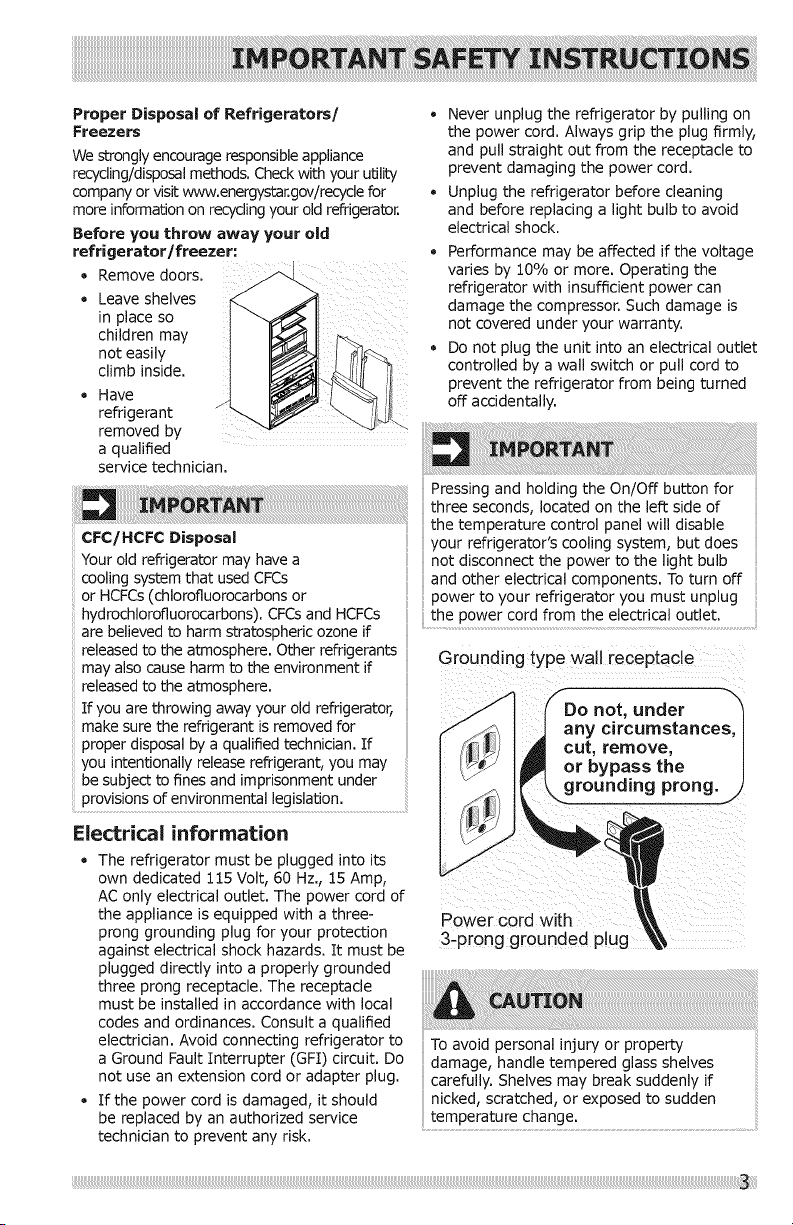

Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous
- even if they will sit for "just a few days". If
you are getting rid of your old refrigerator or
freezer, please follow the instructions below to
help prevent accidents.
Proper Disposal of Refrigerators/
Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your old
refrigerator/freezer:
Remove doors.
Leave shelves
in place so
children may
not easily
climb inside.
Have
refrigerant
removed by
a qualified
service technician.
Never unplug the refrigerator by pulling on
the power cord. Always grip the plug firmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
Unplug the refrigerator before cleaning
and before replacing a light bulb to avoid
electrical shock.
• Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigerator with insufficient power can
damage the compressor. Such damage is
not covered under your warranty.
Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to
prevent the refrigerator from being turned
off accidentally.
CFC/HCFC Disposal
Your old refrigerator may have a
cooling system that used CFCs
or HCFCs (chlorofluorocarbons or
hydrochlorofluorocarbons). CFCs and HCFCs
are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants
may also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrigerator,
make sure the refrigerant is removed for
proper disposal by a qualified technician. If
you intentionally release refrigerant, you may
be subject to fines and imprisonment under
provisions of environmental legislation.
Electrical information
The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp,
AC only electrical outlet. The power cord of
the appliance is equipped with a three-
prong grounding plug for your protection
against electrical shock hazards. It must be
plugged directly into a properly grounded
three prong receptacle. The receptacle
must be installed in accordance with local
codes and ordinances. Consult a qualified
electrician. Avoid connecting refrigerator to
a Ground Fault Interrupter (GFI) circuit. Do
not use an extension cord or adapter plug.
If the power cord is damaged, it should
be replaced by an authorized service
technician to prevent any risk.
Pressing and holding the On/Off button for
three seconds, located on the left side of
; the temperature control panel will disable
your refrigerator's cooling system, but does
not disconnect the power to the light bulb
and other electrical components. To turn off
power to your refrigerator you must unplug
the power cord from the electrical outlet.
Grounding type Wa!! receptacle
_'_Do not, under "_
f _ l_any circumstances,
_cut, remove,
I I_ t_1_ or bypass the
Power cord with
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly if
nicked, scratched, or exposed to sudden
temperature change.

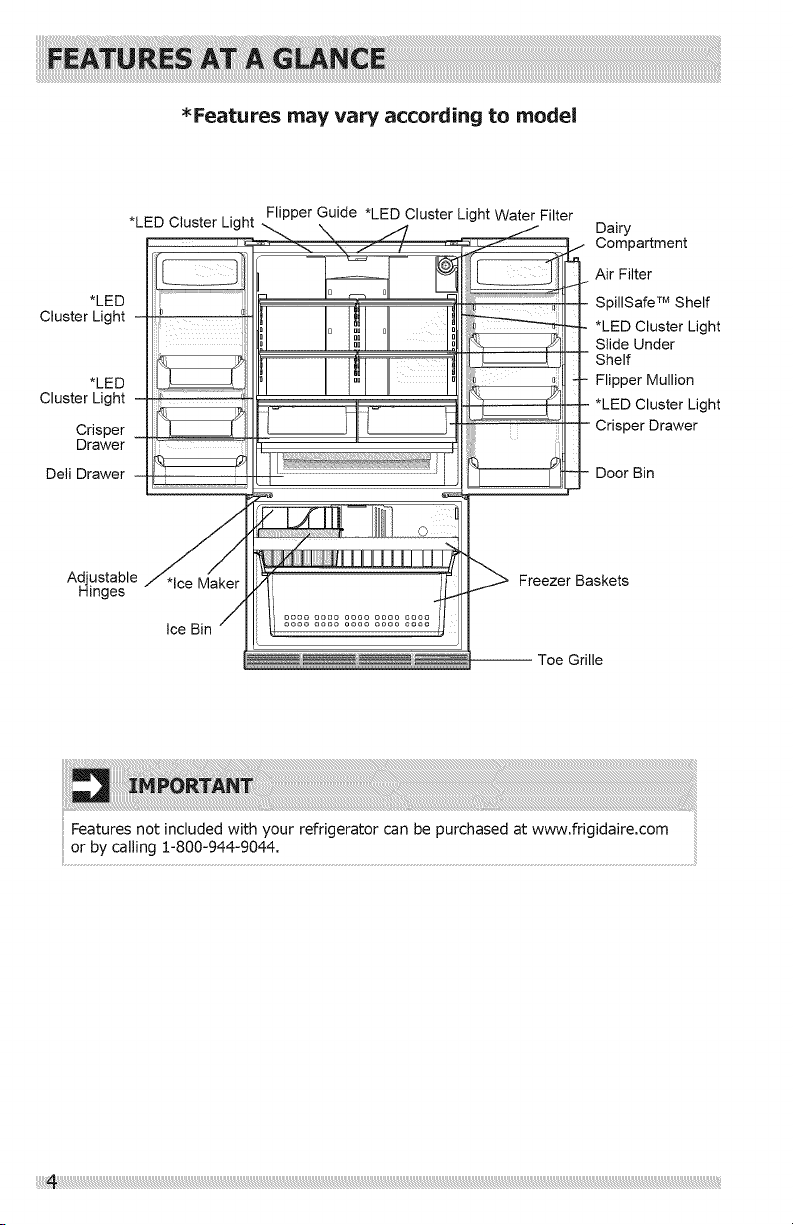

• Features may vary according to model
, .......... Flipper Guide *LED Cluster Light Water Filter
LP.::UUlUS_er ugr_t _ _, _ _ ua[ry
__ -. ". /_ ./ Compartment
_ Air Filter
.... ......... ; = ,_ _= °........... _ _L s_ SafeT_Shelf
_-_ i '
Cluster Light- _ ]- D !F u ! _ ¢ *LED Cluster Light
| I t_[ t_ _' Z Sde Under
_ _ q Shelf
.... I I I I I_!1 I I_ J_ Flipper Mullion
r_t ! I I°1 ! J 4 _.
Cluste g - _ _ LED Cluster Light
_. _ 1- HI J- _ _ _ Crisper Drawer
unsper _ _, , , j_, '
Drawer IDell Drawer -- _ / -_- Door Bin
Adiustable /*Ice Maker
Hinges
Ice Bin
Freezer Baskets
-- Toe Grille
Features not included with your refrigerator can be purchased at www.ffigidaire.com
or by calJJng 1-800-944-9044,
Required Tools
You will need the following tools:
Tools Necessary:
Phillips Head
or
#2 Square
Drive Head
Socket
Wrench Set
Components Provided:

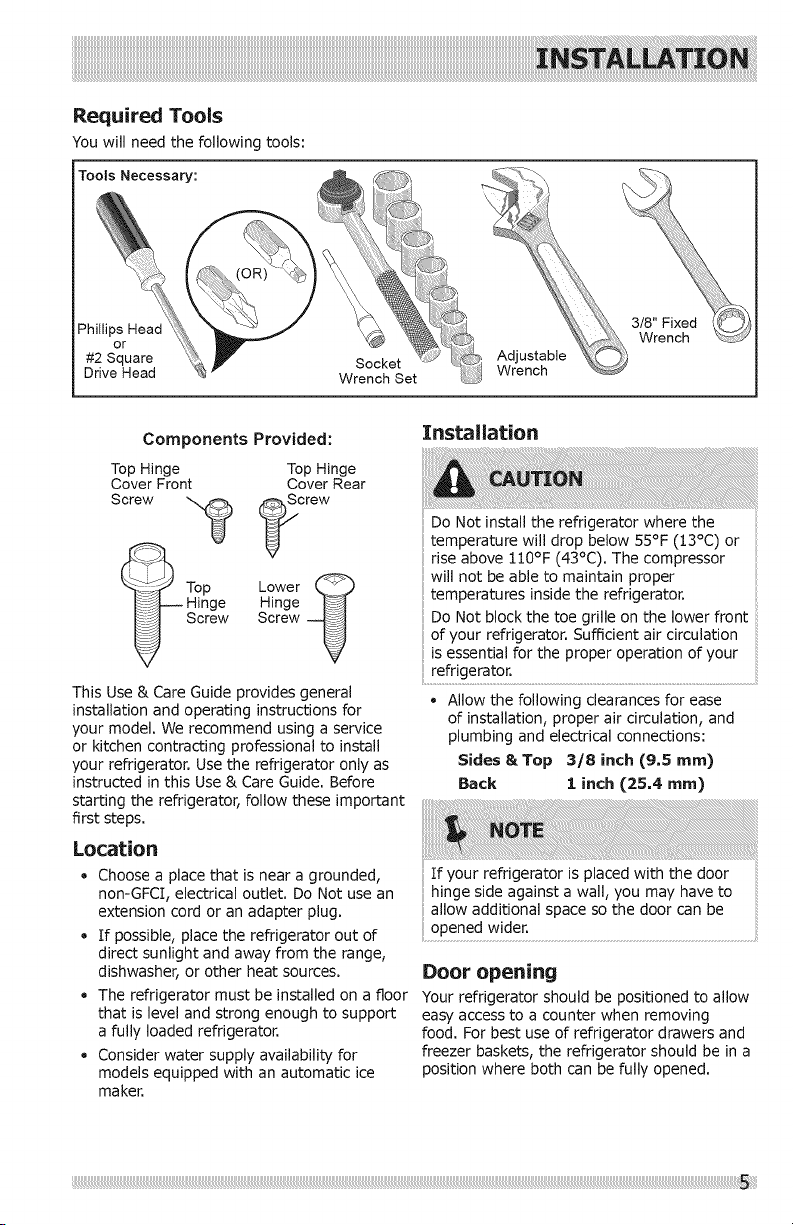

Installation
Top Hinge Top Hinge
Cover Front Cover Rear
Screw _ _crew
Top Lower
This Use & Care Guide provides general
installation and operating instructions for
your model. We recommend using a service
or kitchen contracting professional to install
your refrigerator. Use the refrigerator only as
instructed in this Use & Care Guide. Before
starting the refrigerator, follow these important
first steps.
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper
temperatures inside the refrigerator.
Do Not block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator.
Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top 3/8 inch (9.5 ram)
Back 1 inch (25,4 rnm)
Location
If your refrigerator is placed with the door
Choose a place that is near a grounded,
non-GFC]:, electrical outlet. Do Not use an hinge side against a wall, you may have to
extension cord or an adapter plug. allow additional space so the door can be
If possible, place the refrigerator out of opened wider.
direct sunlight and away from the range,
dishwasher, or other heat sources. Door opening
The refrigerator must be installed on a floor Your refrigerator should be positioned to allow
that is level and strong enough to support easy access to a counter when removing
a fully loaded refrigerator, food. For best use of refrigerator drawers and
Consider water supply availability for freezer baskets, the refrigerator should be in a
models equipped with an automatic ice position where both can be fully opened.
maker.
Leveling Freezer Drawer
(if necessary)
1 Check gasket seal around top, bottom,
and sides of freezer drawer.
2 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
3 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not
to rotate the drawer.
Remove Hex Remove Hex
Head Drawer Head Drawer
Screw
Screw
4 Tighten four drawer screws.
5 Recheck gasket seal.
Push
Against
Freezer
Drawer
Remove Hex
Head Drawer
Screw
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your
refrigerator:
• All four corners of the cabinet must rest
firmly on the floor.
• The sides should tilt 1/4inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
• Doors should align with each other and be
level.
Most of these conditions can be met by raising
or lowering the adjustable front rollers.
To level the cabinet using the front
rollers (select models):
I Slightly open freezer drawer. Lift the
toe grille and gently pull forward (see
illustration).
2 You can raise or lower each door. Use a 3/8
inch socket wrench to turn the adjustment
screws (one per side).
_Toe Grille Must_
/ _II \ Fit in Slot on / IL,<_ \
/ I-_'_ )Anti-tip Bracket(_ f_ _ I }
\ ,J!_J ]_ Screw/Washer _l _/_Lk,, /
"_ Assembly \_ /
_, -_((3) Retaihing Cl___s_ _
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.
After unit is leveled, lower anti-tip leg until
it contacts the floor.
t
°" Door
o
o
Door °
5 [nstall the toe grille by fitting into place.

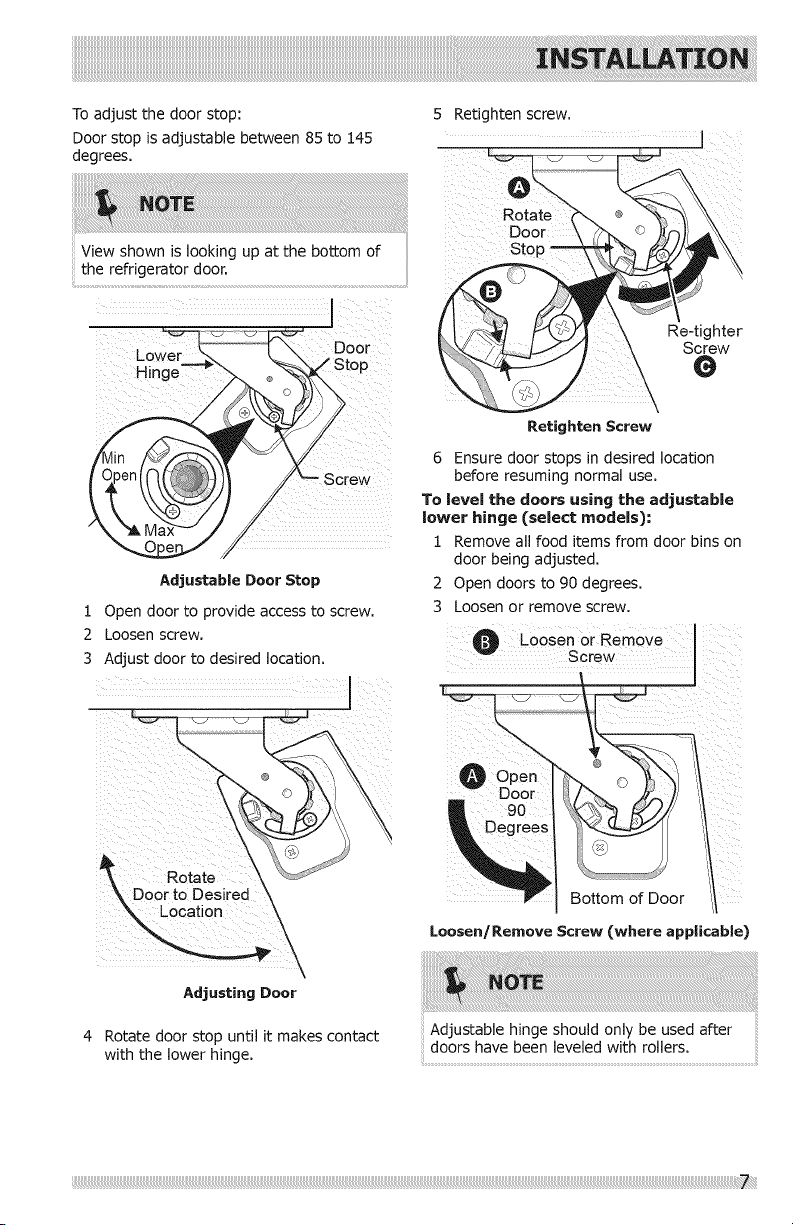

Toadjustthedoorstop:
Doorstopis adjustable between 85 to 145
degrees.
View shown is looking up at the bottom of
the refrigerator door.
Door
Hin_ o
1
2
3
Adjustable Door Stop
Open door to provide access to screw.
Loosen screw.
Adjust door to desired location
Rotate
Door to Desired \
\
Adjusting Door
Rotate door stop until it makes contact
with the lower hinge.
5 Retighten screw.
Rotate
Door
Stol
Re-tighter
Screw
0
Retighten Screw
6 Ensure door stops in desired location
before resuming normal use.
To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins on
door being adjusted.
2 Open doors to 90 degrees.
3 Loosenorremovescrew.
O Loosen or Remove I
S rew
O Open
Door
90
Bottom of Door
Loosen/Remove Screw (where applicable)
Adjustable hinge should only be used after
doors have been leveled with rollers.

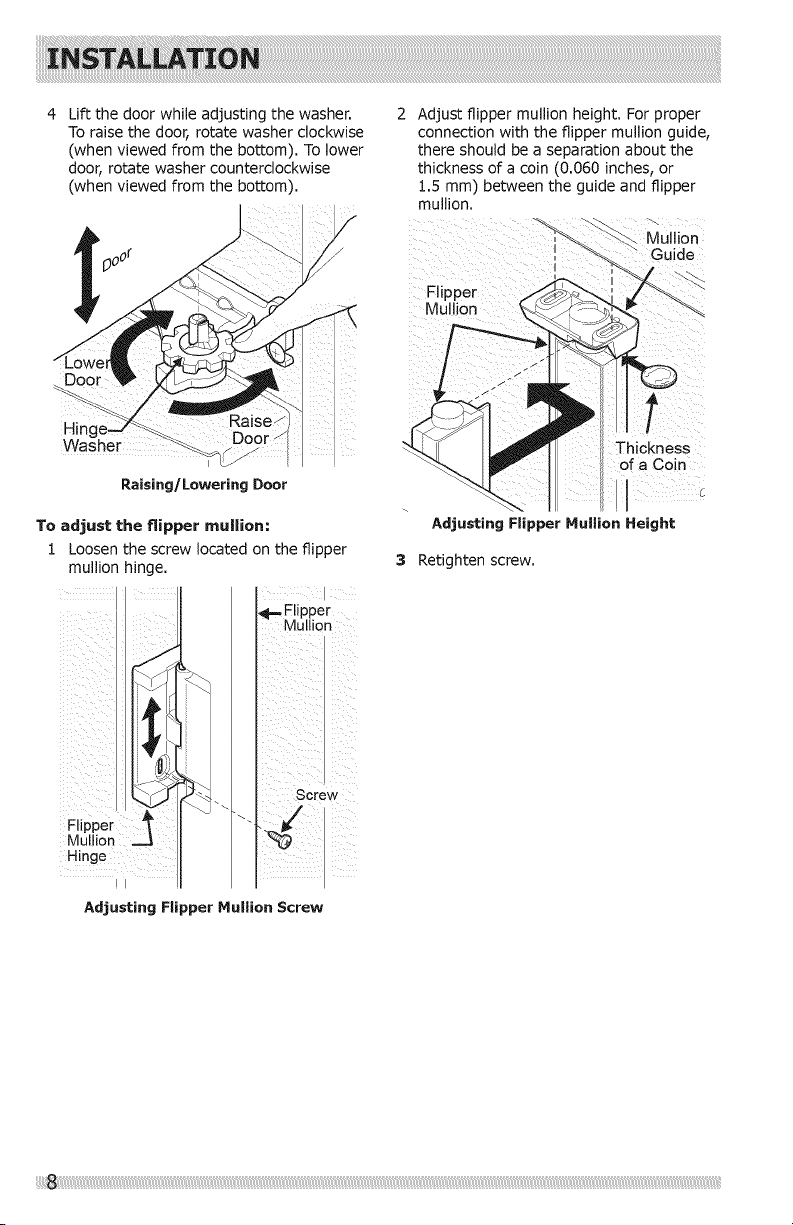

Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counterclockwise
(when viewed from the bottom).
Hin_
Raising/Lowering Door
2 Adjust flipper mullion height. For proper
connection with the flipper mullion guide,
there should be a separation about the
thickness of a coin (0.060 inches, or
1.5 mm) between the guide and flipper
mullion.
Mullion
iuide
I
Flipper
Mullion
Thickness
of a Coin
To adjust the flipper mullion:
1 Loosen the screw located on the flipper
mullion hinge.
Flipper _"
Mu
Adjusting Flipper Mullion Screw
Adjusting Flipper Mullion Height
3 Retighten screw.
Getting through narrow spaces
If your refrigerator will not fit through an
entrance area, you can remove the doors.
Check first by measuring the entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open the freezer drawer and remove the
toe grille (see "Installation" section).
3 Remove an'/food from the door shelves
and close the doors.

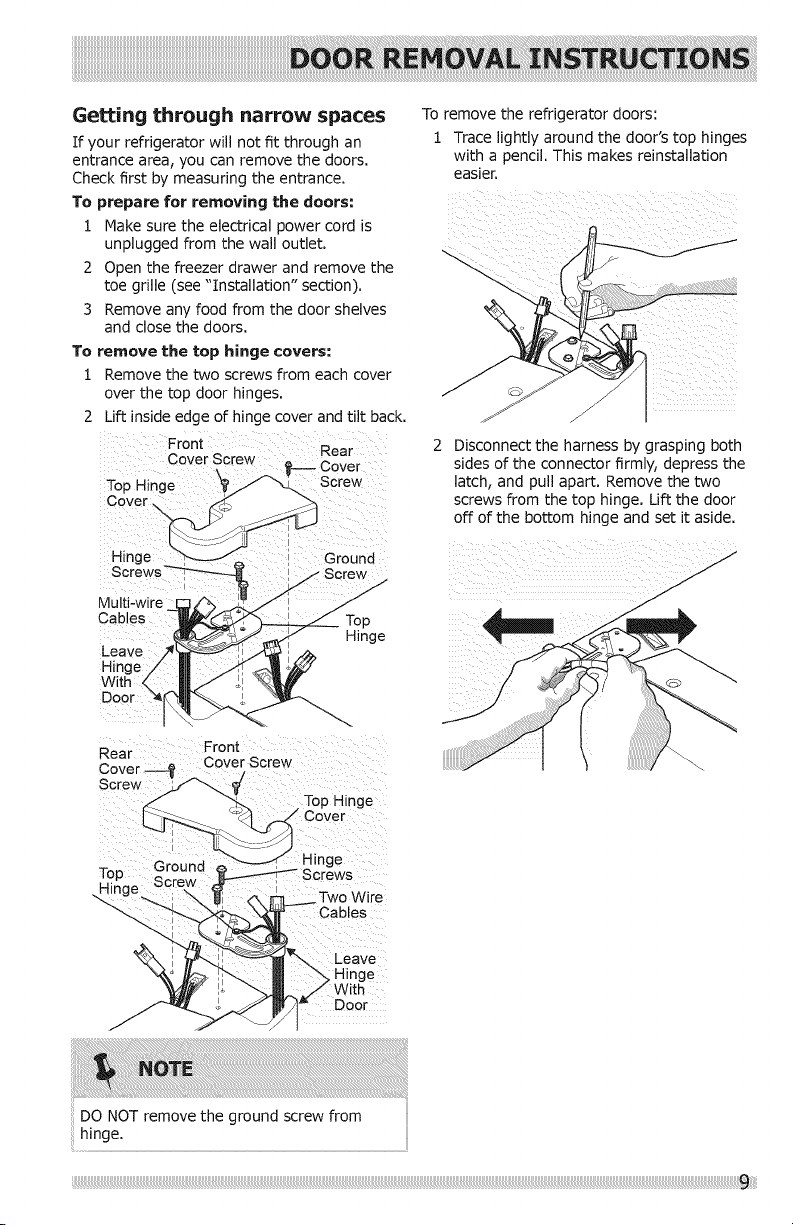

To remove the top hinge covers:
1 Remove the two screws from each cover
over the top door hinges,
2 Lift inside edge of hinge cover and tilt back.
Front Rear
Cover Cover
Screw
Top Hing{
Cover _
Hinge Ground
Screws
Multi-wire
Cables
Hinge
Hinge
Rear Front
Cover -_ Cover Screw
Screw f"
,</ _ Top Hinge
Cover
Ground _ Hinge
Top _ Screws
Hint
Two Wire
_bles
To remove the refrigerator doors:
1 Trace lightly around the door's top hinges
with a pencil. This makes reinstallation
easier.
Disconnect the harness by grasping both
sides of the connector firmly, depress the
latch, and pull apart. Remove the two
screws from the top hinge. Lift the door
off of the bottom hinge and set it aside.
Leave
e
With
Door
DO NOT remove the ground screw from
hinge.
Youwillbepullingapproximatelythree
feetofwatertubefromthebackofthe
refrigerator.
4 Unscrewthethreelowerhingescrewsand
hingeifnecessary.
Toreinstalltherightdoor,reversetheabove
steps.
Lower Hinge Removal
Once both doors are in place, ensure they are
aligned with each other and level (Please see
the "Installation" section for more details), and
replace the top hinge cover.
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury, or damage to the doors or
handles,
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left
sides (two screws on each side).
I_ Remove Hex
Head Drawe_" Head D_'awer
Screw Screw
Remove Hex
Head Drawer
Screw
Drawer is heavy. Use caution when lifting.
3 Lift drawer up and out to remove.
:Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each
side are fully inserted into slots on each side.
Fully Extend
Drawer Slid 9s
SIo_ Cabinet
2 Reinstall four drawer screws (two per
side), tighten down, and close drawer (C).
(2) Each Sidi
J
3 Check gasket seal around top, bottom,
and sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not
to rotate the drawer.
Puo. [
Argeaeins tr :
Drawer
2
A
6 Tighten four drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
Door Handle Hounting
Instructions for
Frigidaire
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end caps over upper and
lower pre-installed shoulder
bolts (A) that are fastened
into door, ensuring the holes
for the set screws are facing
towards the opposite door.
3 While holding handle firmly
against door, fasten upper
and lower Allen set screws
(13)with supplied Allen
wrench.
Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards
the first door.
5 Position freezer handle end
caps over left and right
pre-installed shoulder bolts
that are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle firmly
against door, loosely tighten
right Allen set screw (B) with
supplied Allen wrench until
there is no gap between
handle and door.
7 Still holding the handle firmly
to the door, firmly tighten
left Allen set screw (B) with
supplied Allen wrench.
8 Return to the right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
Hounting Refrigerator Handles
Mounting Freezer Handle
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.
Wear gloves and safety goggles. Use extreme CAUTIONwhen installingthese handles.
Door Handle Mounting
Instructions for
Frigidaire Gallery®
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end over upper and lower
preqnstalled shoulder bolts
(A) that are fastened into
door, ensuring the holes for
the set screws are facing
towards the opposite door.
3 While holding handle firmly
against door, fasten upper
and lower Allen set screws
(13)with supplied Allen
wrench.
Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards
the first door.
5 Position freezer handle end
over left and right pre-
installed handle mounts that
are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle firmly
against door, loosely tighten far
right Allen set screw (13)with
supplied Allen wrench until
there is no gap between handle
and door,
7 Still holding the handle firmly to
the door, firmly tighten far left
Allen set screw (B) with supplied
Allen wrench.
8 Rebamto the far right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
Mounting Refrigerator Handles
I //// / O_l
Mounting Freezer Handle
d
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

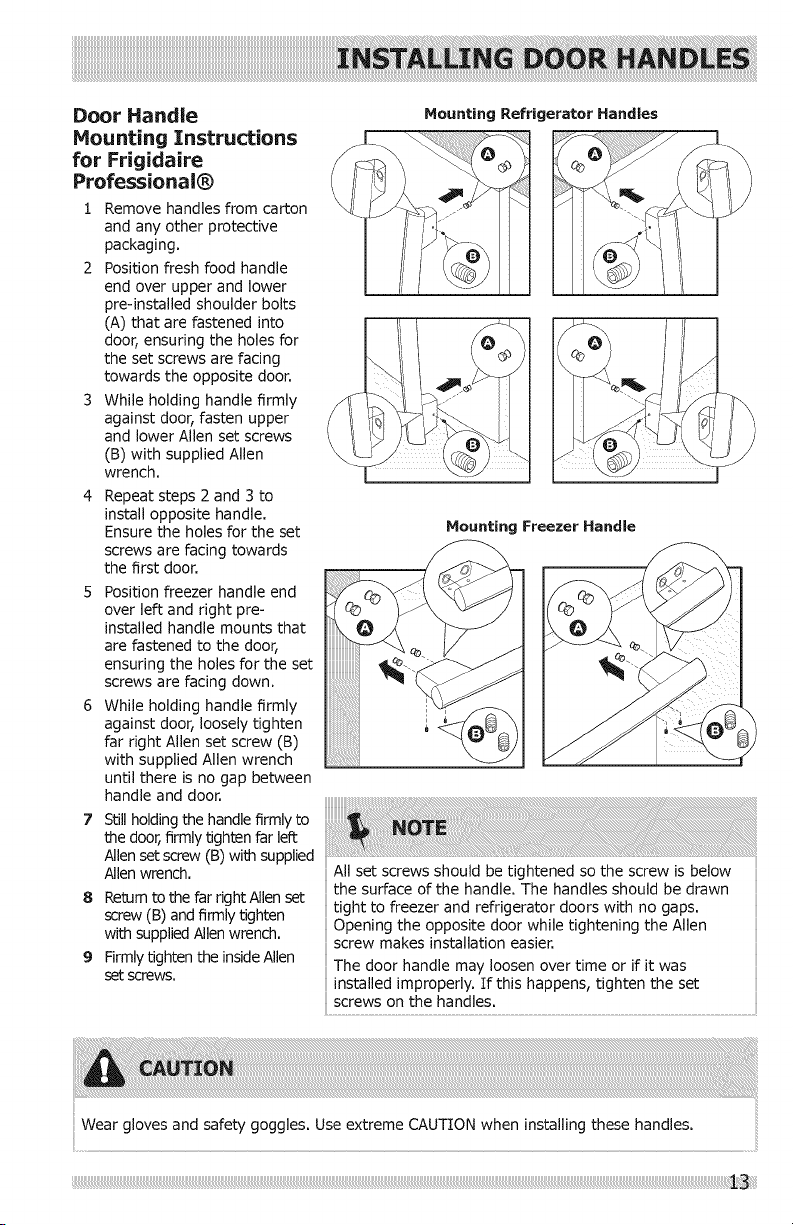

Door Handle
Hounting Instructions
for Frigidaire
Professional®
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end over upper and lower
pre-installed shoulder bolts
(A) that are fastened into
door, ensuring the holes for
the set screws are facing
towards the opposite door.
3 While holding handle firmly
against door, fasten upper
and lower Allen set screws
(B) with supplied Allen
wrench.
Repeat steps 2 and 3 to
install opposite handle.
Ensure the holes for the set
screws are facing towards
the first door.
5 Position freezer handle end
over left and right pre-
installed handle mounts that
are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle firmly
against door, loosely tighten
far right Allen set screw (B)
with supplied Allen wrench
until there is no gap between
handle and door.
Still holding the handle firmly to
the door, firmly tighten far left
Allen set screw (B) with supplied
Allen wrench.
8 Re,am to the far right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
9 Firmly tighten the inside Allen
set: screws.
Mounting Refrigerator Handles
Mounting Freezer Handle
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. If this happens, tighten the set
screws on the handles.
Wear gloves and safety goggles. Use extreme CAUTIONwhen installingthese handles.
Door Handle Hounting
Instructions for
Frigidaire Professional ®

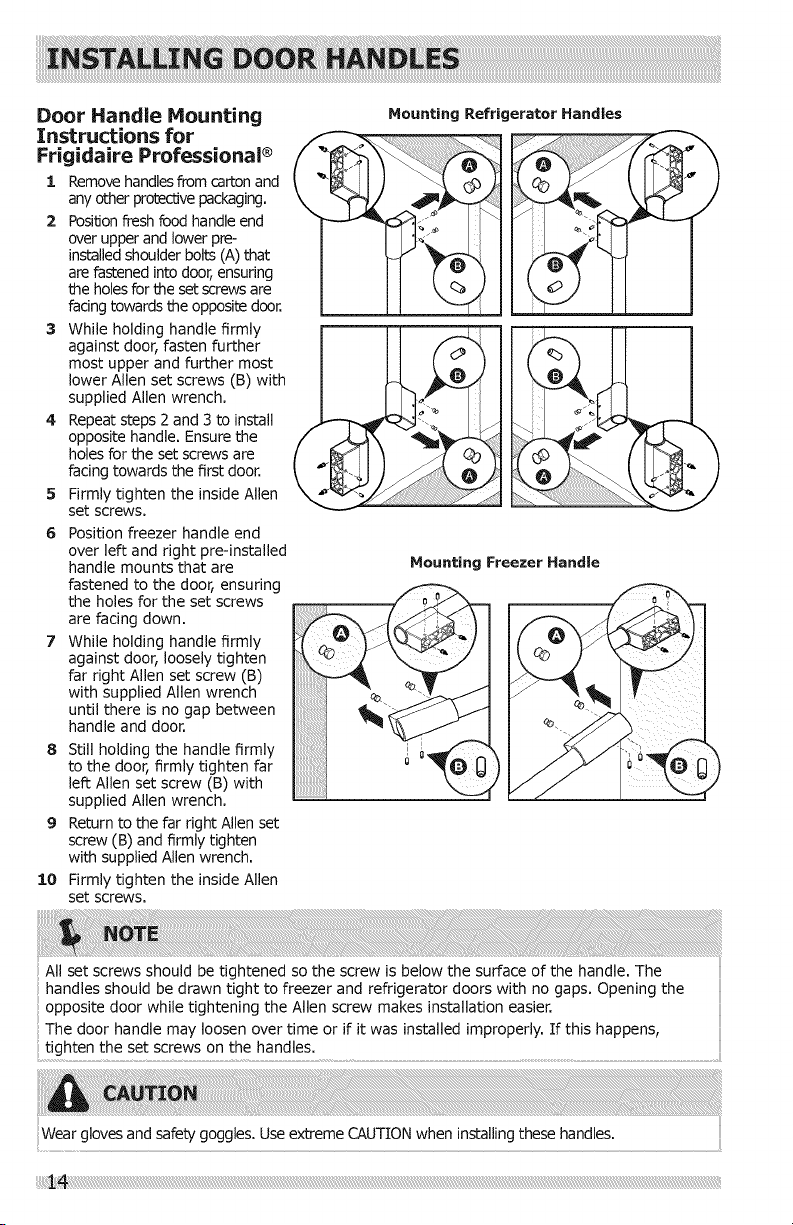

1 Remove handles from carton and
any other prote_ve packaging.
2 Position fresh food handle end
over upper and lower pre-
installed shoulder bolts (A) that
are fastened into door, ensuring
the holes for the set screws are
facing towards the opposite door.
3 While holding handle firmly
against door, fasten further
most upper and further most
lower Allen set screws (B) with
supplied Allen wrench.
4 Repeat steps 2 and 3 to install
opposite handle. Ensure the
holes for the set screws are
facing towards the first door.
5 Firmly tighten the inside Allen
set screws.
6 Position freezer handle end
over left and right pre-installed
handle mounts that are
fastened to the door, ensuring
the holes for the set screws
are facing down.
7 While holding handle firmly
against door, loosely tighten
far right Allen set screw (B)
with supplied Allen wrench
until there is no gap between
handle and door.
8 Still holding the handle firmly
to the door, firmly tighten far
left Allen set screw (B) with
supplied Allen wrench.
9 Return to the far right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
10 Firmly tighten the inside Allen
set screws.
Mounting Refrigerator Handles
Mounting Freezer Handle
/
All set screws should be tightened so the screw is below the surface of the handle. The
handles should be drawn tight to freezer and refrigerator doors with no gaps. Opening the
opposite door while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens,
Wear gloves and safety goggles. Use extreme CAUTION when installingthese handles.
Toavoidelectricshock,whichcancause
deathorseverepersonalinjury,disconnect
therefrigeratorfromelectricalpowerbefore
connectingawatersupplylinetothe
refrigerator.
• Ashutoffvalvetoconnectthewatersupply
linetoyourhouseholdwatersystem.DO
NOTuseaself-piercingtypeshutoffvalve.
Donotreusecompressionfittingoruse
threadsealtape.
Acompressionnutandferrule(sleeve)for
connectingacopperwatersupplylinetothe
icemakerinletvalve.
ToAvoidPropertyDamage:
CopperorStainlessSteelbraidedtubing
isrecommendedforthewatersupply
line.Watersupplytubingmadeof1/4 ....
inchplasticisnotrecommendedtobe
used.Plastictubinggreatlyincreases ....
thepotentialforwaterleaks,andthe
manufacturerwillnotberesponsiblefor
anydamageifplastictubingisusedfor
thesupplyline.
DONOTinstallwatersupplytubingin
areaswheretemperaturesfallbelow
freezing.
Chemicalsfromamalfunctioningsoftener
candamagetheicemaker.Iftheice
makerisconnectedtosoftwater,ensure
thatthesoftenerismaintainedand
Checkwithyourlocalbuildingauthority
forrecommendationsonwaterlinesand
associatedmaterialspriortoinstallingyour
newrefrigerator.Dependingonyourlocal/
statebuildingcodes,Frigidairerecommends
forhomeswithexistingvalvesitsSmart
Choice®waterlinekit5305513409(with
a6ft.StainlessSteelWaterLine)andfor
homeswithoutanexistingvalve,Frigidaire
recommendsitsSmart Choice ® water line
kit 5305510264 (with a 20 ft. Copper Water
Line with self-tapping saddle valve). Please
refer to www.frigidaire.com/store for more
information.
working properly.
Ensure that your water supply line
connections comply with all local plumbing
codes. ....
Before Ins_lling The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench, fiat-blade
screwdriver, and PhillipsTM screwdriver
Access to a household cold water line with
water pressure between 30 and 100 psi.
A water supply line made of 1/4inch (6 mm)
OD, copper or stainless steel tubing. To
determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator
to your cold water pipe. Then add
approximately 7 feet (2.1 meters), so the
refrigerator can be moved out for cleaning
(as shown).

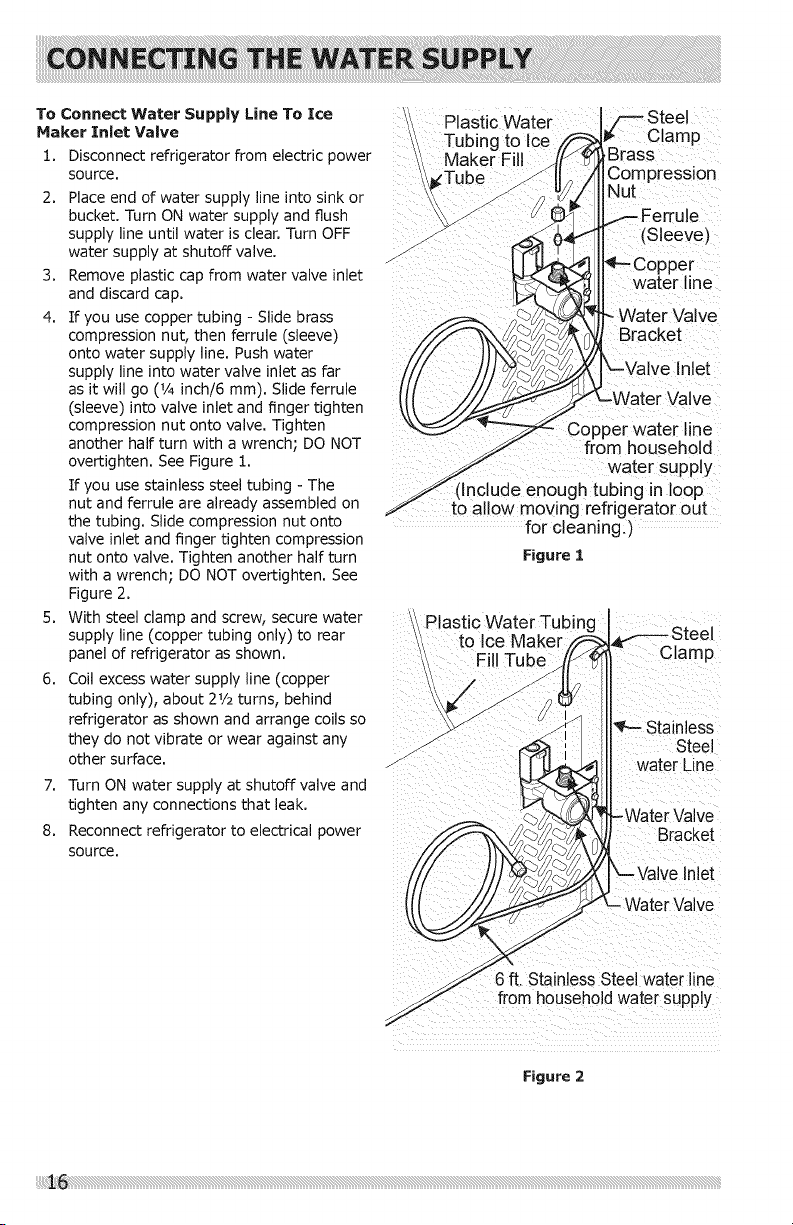

To Connect Water Supply Line To Ice
Maker Inlet Valve
1. Disconnect refrigerator from electric power
source.
2. Place end of water supply line into sink or
bucket. Turn ON water supply and flush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
3. Remove plastic cap from water valve inlet
and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water
supply line into water valve inlet as far
as it will go (1/4 inch/6 mm). Slide ferrule
(sleeve) into valve inlet and finger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO NOT
overtighten. See Figure 1.
If you use stainless steel tubing - The
nut and ferrule are already assembled on
the tubing. Slide compression nut onto
valve inlet and finger tighten compression
nut onto valve. Tighten another half turn
with a wrench; DO NOT overtighten. See
Figure 2.
5. With steel clamp and screw, secure water
supply line (copper tubing only) to rear
panel of refrigerator as shown.
6. Coil excess water supply line (copper
1
tubing only), about 2/2 turns, behind
refrigerator as shown and arrange coils so
they do not vibrate or wear against any
other surface.
7. Turn ON water supply at shutoff valve and
tighten any connections that leak.
8. Reconnect refrigerator to electrical power
source.
Plastic water _Stee!
Tubing to Ice _C!amp
i Maker Fill ,Brass
Compression
Nut
Copper water line
from household
water supply
_(Include en0ugh tubing in loop
_nallf to allow moving refrigerator out
...... for cleaning:)
Figure 1
Plas_ic Wa t_ar Tub in_
Fill Tube I_
Steel
Clamp
Stainless
Steel
water Line
-Water Valve
Bracket
X--Valve Inlet
- Water Valve
dnless Steel water line
from household water supply
Figure 2

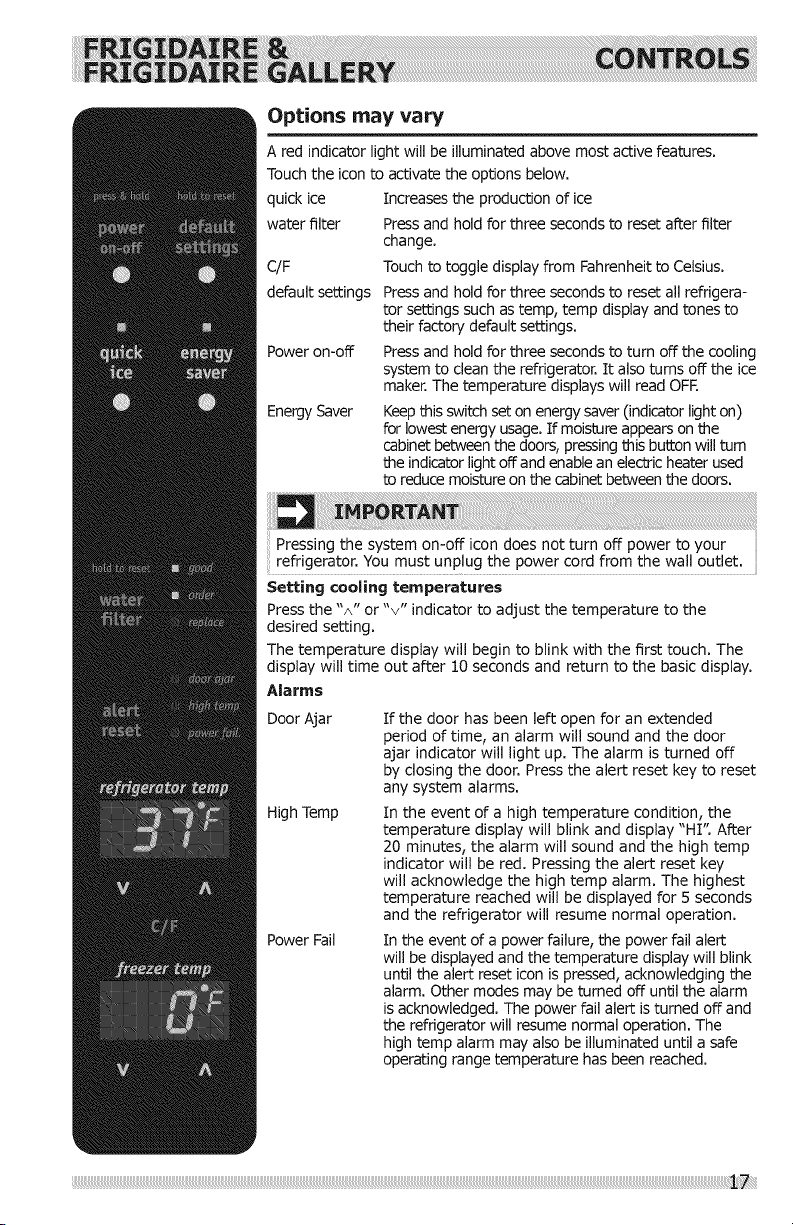

Options may vary
A red indicator light will be illuminated above most active features.
Touch the icon to activate the options below.
quick ice Increases the production of ice
water filter Press and hold for three seconds to reset after filter
change.
C/F Touch to toggle display from Fahrenheit to Celsius.
default settings Press and hold for three seconds to reset all refrigera-
tor settings such as temp, temp display and tones to
their factory default settings.
Power on-off Press and hold for three seconds to turn off the cooling
system to clean the refrigerator. It also turns off the ice
maker. The temperature displays will read OFF.
Energy Saver Keep this switch set on energy saver (indicator light on)
for lowest energy usage. If moisture appears on the
cabinet between the doors, pressing this button will turn
the indicator light off and enable an electric heater used
to reduce moisture on the cabinet between the doors.
Pressing the system on-off icon does not turn off power to your
refrigerator. You must unplug the power cord from the wall outlet.
Setting cooling temperatures
Press the "/_" or "v" indicator to adjust the temperature to the
desired setting.
The temperature display will begin to blink with the first touch. The
display will time out after 10 seconds and return to the basic display.
Alarms
Door Ajar
High Temp
Power Fail
If the door has been left open for an extended
period of time, an alarm will sound and the door
ajar indicator will light up. The alarm is turned off
by closing the door. Press the alert reset key to reset
any system alarms.
In the event of a high temperature condition, the
temperature display will blink and display "HI" After
20 minutes, the alarm will sound and the high temp
indicator will be red. Pressing the alert reset key
will acknowledge the high temp alarm. The highest
temperature reached will be displayed for 5 seconds
and the refrigerator will resume normal operation.
In the event of a power failure, the power fail alert
will be displayed and the temperature display will blink
until the alert reset icon is pressed, acknowledging the
alarm. Other modes may be turned off until the alarm
is acknowledged. The power fail alert is turned off and
the refrigerator will resume normal operation. The
high temp alarm may also be illuminated until a safe
operating range temperature has been reached.

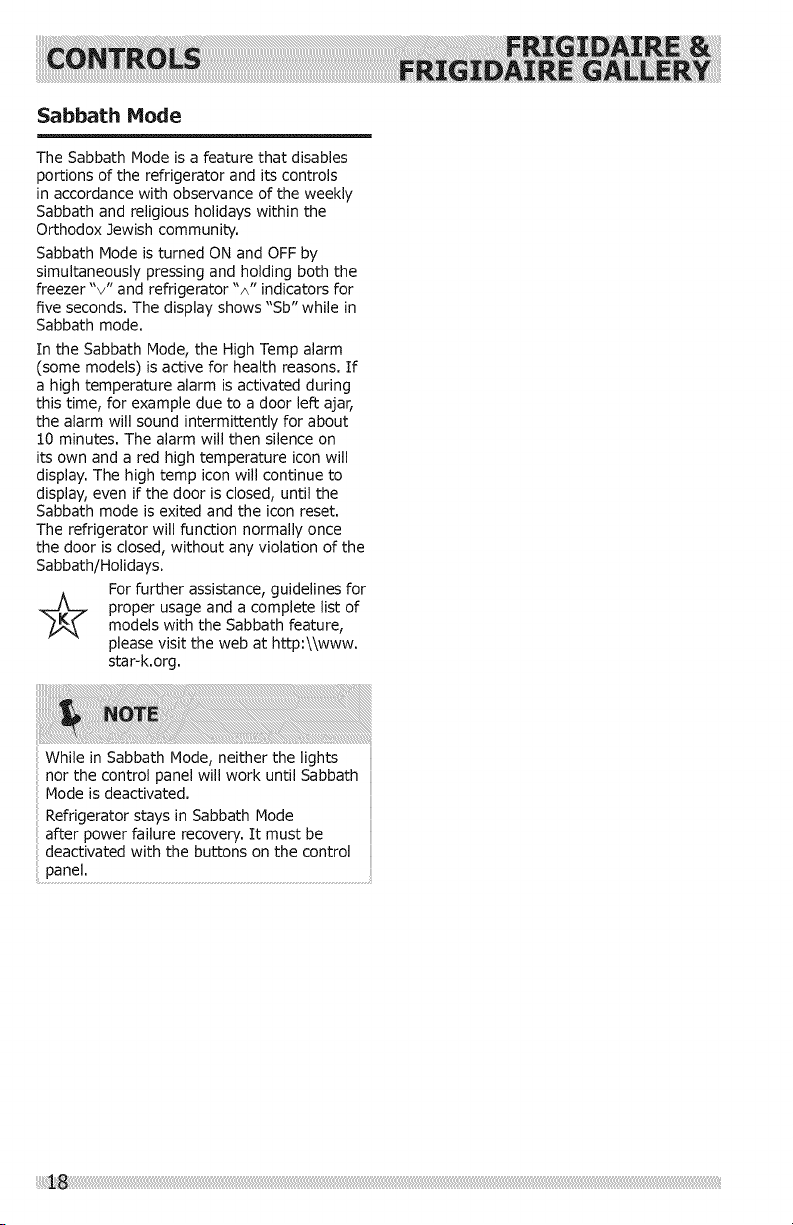

Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both the
freezer "v" and refrigerator "A" indicators for
five seconds. The display shows "Sb" while in
Sabbath mode.
In the Sabbath Mode, the High Temp alarm
(some models) is active for health reasons. If
a high temperature alarm is activated during
this time, for example due to a door left ajar,
the alarm will sound intermittently for about
10 minutes. The alarm will then silence on
its own and a red high temperature icon will
display. The high temp icon will continue to
display, even if the door is closed, until the
Sabbath mode is exited and the icon reset.
The refrigerator will function normally once
the door is closed, without any violation of the
Sabbath/Holidays.
For further assistance, guidelines for
_, proper usage and a complete list of
models with the Sabbath feature,
please visit the web at http:\\www.
star-k.org.
While in Sabbath Mode, neither the lights
nor the control panel will work until Sabbath
Node is deactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the control
panel.
User Interface In=Door Controls (options may vary)
A blue indicator light will be illuminated above most active features.
Touch the icon to activate the options below.
water filter Press and hold for three seconds to reset after
filter change.
C/F Touch to toggle display from Fahrenheit to
Celsius.
default settings
powerplus freeze
power on-off
ice maker on-off
Press and hold for three seconds to reset all
refrigerator settings such as temp, temp dis-
play and tones to their factory default settings.
Activates a faster rate for freezing food.
Press and hold for three seconds to turn off
the cooling system to clean the refrigerator. It
also turns off the ice maker. The temperature
displays will read OFF.
Click: Turns ice maker on and off. Click and
hold for 3 seconds gets into the ice cube size
selection menu.
Pressing the system on-off icon does not turn off power to
your refrigerator. You must unplug the power cord from the
wall outlet.
Setting cooling temperatures
Press the "+" or "-" indicator to adjust the temperature to the
desired setting.
The temperature display will begin to blink with the first touch.
The display will time out after 10 seconds and return to the basic
display.
Alarms
Door Ajar
High Temp
Power Fail
If the door has been left open for an extended
period of time, an alarm will sound and the door
ajar indicator will light up. The alarm is turned
off by closing the door. Press the mute alarm key
to reset any system alarms.
In the event of a high temperature condition,
the temperature display will blink and display
"HI" After 20 minutes, the alarm will sound and
the high temp indicator will be red. Pressing the
mute alarm key will acknowledge the high temp
alarm. The highest temperature reached will be
displayed for 5 seconds and the refrigerator will
resume normal operation.
In the event of a power failure, the power fail
alert will be displayed and the temperature display
will blink until the mute alarm icon is pressed,
acknowledging the alarm. Other modes may be
turned off until the alarm is acknowledged. The
power fail alert is turned off and the refrigera-
tor will resume normal operation. The high temp
alarm may also be illuminated until a safe operat-
ing range temperature has been reached.

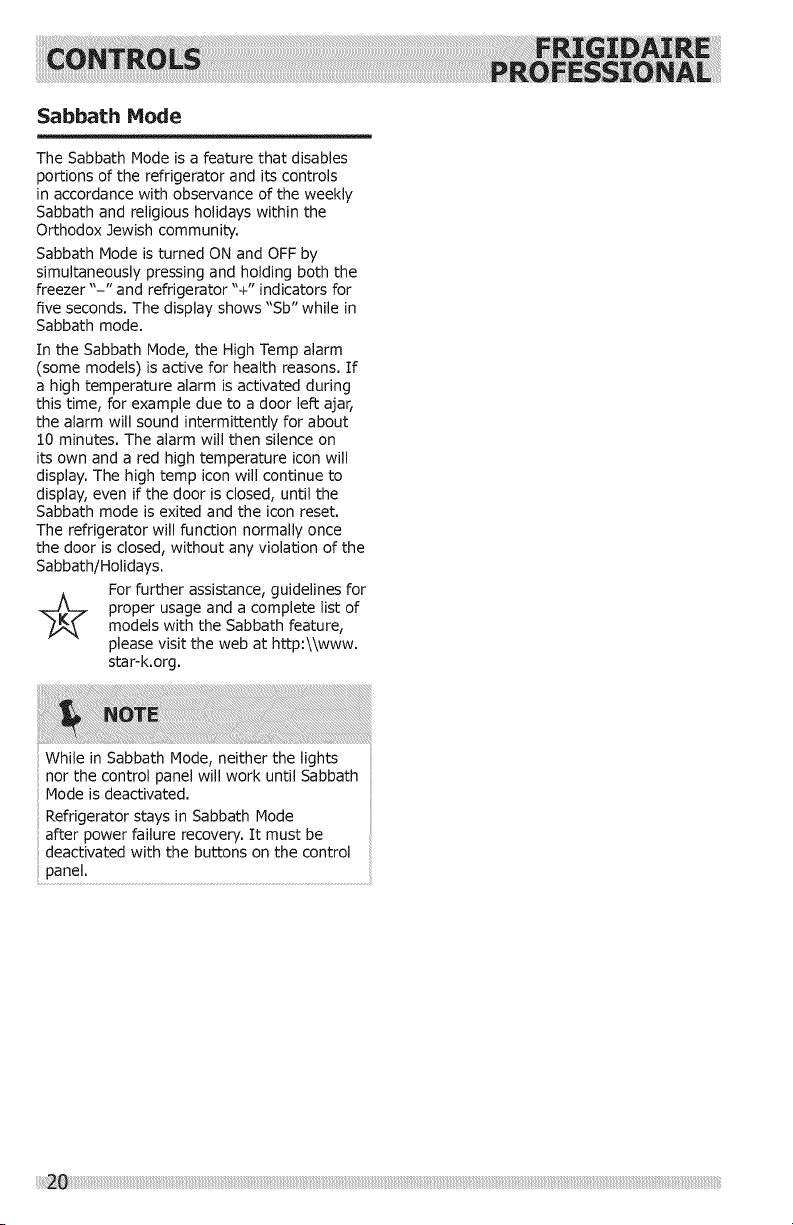

Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by
simultaneously pressing and holding both the
freezer "-" and refrigerator "+" indicators for
five seconds. The display shows "Sb" while in
Sabbath mode.
In the Sabbath Mode, the High Temp alarm
(some models) is active for health reasons. If
a high temperature alarm is activated during
this time, for example due to a door left ajar,
the alarm will sound intermittently for about
10 minutes. The alarm will then silence on
its own and a red high temperature icon will
display. The high temp icon will continue to
display, even if the door is closed, until the
Sabbath mode is exited and the icon reset.
The refrigerator will function normally once
the door is closed, without any violation of the
Sabbath/Holidays.
For further assistance, guidelines for
_:_ proper usage and a complete list of
models with the Sabbath feature,
please visit the web at http:\\www.
star-k.org.
While in Sabbath Mode, neither the lights
nor the control panel will work until Sabbath
Modeisdeactivated.
Refrigerator stays in Sabbath Mode
after power failure recovery. It must be
deactivated with the buttons on the control
panel.
_!!!!_!_!120i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_

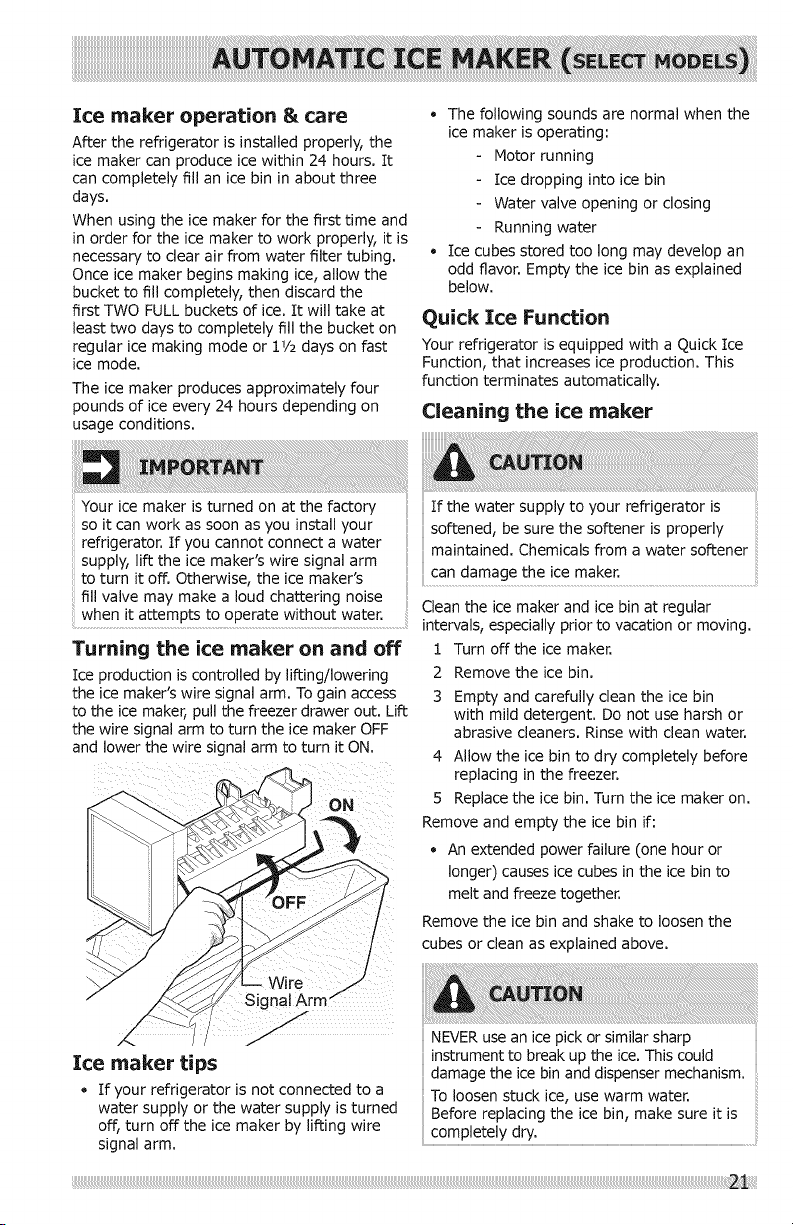

Ice maker operation & care
After the refrigerator is installed properly, the
ice maker can produce ice within 24 hours. It
can completely fill an ice bin in about three
days.
When using the ice maker for the first time and
in order for the ice maker to work properly, it is
necessary to clear air from water filter tubing.
Once ice maker begins making ice, allow the
bucket to fill completely, then discard the
first TWO FULL buckets of ice. It will take at
least two days to completely fill the bucket on
regular ice making mode or 11/2days on fast
ice mode.
The ice maker produces approximately four
pounds of ice every 24 hours depending on
usage conditions.
The following sounds are normal when the
ice maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
Ice cubes stored too long may develop an
odd flavor. Empty the ice bin as explained
below.
Quick Ice Function
Your refrigerator is equipped with a Quick Ice
Function, that increases ice production. This
function terminates automatically.
Cleaning the ice maker
Your ice maker is turned on at the factory If the water supply to your refrigerator is
so it can work as soon as you install your softened, be sure the softener is properly
refrigerator. If you cannot connect a water
supply, lift the ice maker's wire signal arm .... maintained. Chemicals from a water softener
to turn it off. Otherwise, the ice maker's can damage the ice maker.
fill valve may make a loud chattering noise
when it attempts to operate without water. Clean the ice maker and ice bin at regular
intervals, especially prior to vacation or moving.
Turning the ice maker on and off
Ice production is controlled by lifting/lowering
the ice maker's wire signal arm. To gain access
to the ice maker, pull the freezer drawer out. Lift
the wire signal arm to turn the ice maker OFF
and lower the wire signal arm to turn it ON.
Ice maker tips
If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn off the ice maker by lifting wire
signal arm.
1 Turn off the ice maker.
2 Remove the ice bin.
3 Empty and carefully clean the ice bin
with mild detergent. Do not use harsh or
abrasive cleaners. Rinse with clean water.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if:
An extended power failure (one hour or
longer) causes ice cubes in the ice bin to
melt and freeze together.
Remove the ice bin and shake to loosen the
cubes or clean as explained above.
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water.
Before replacing the ice bin, make sure it is
completely dry.

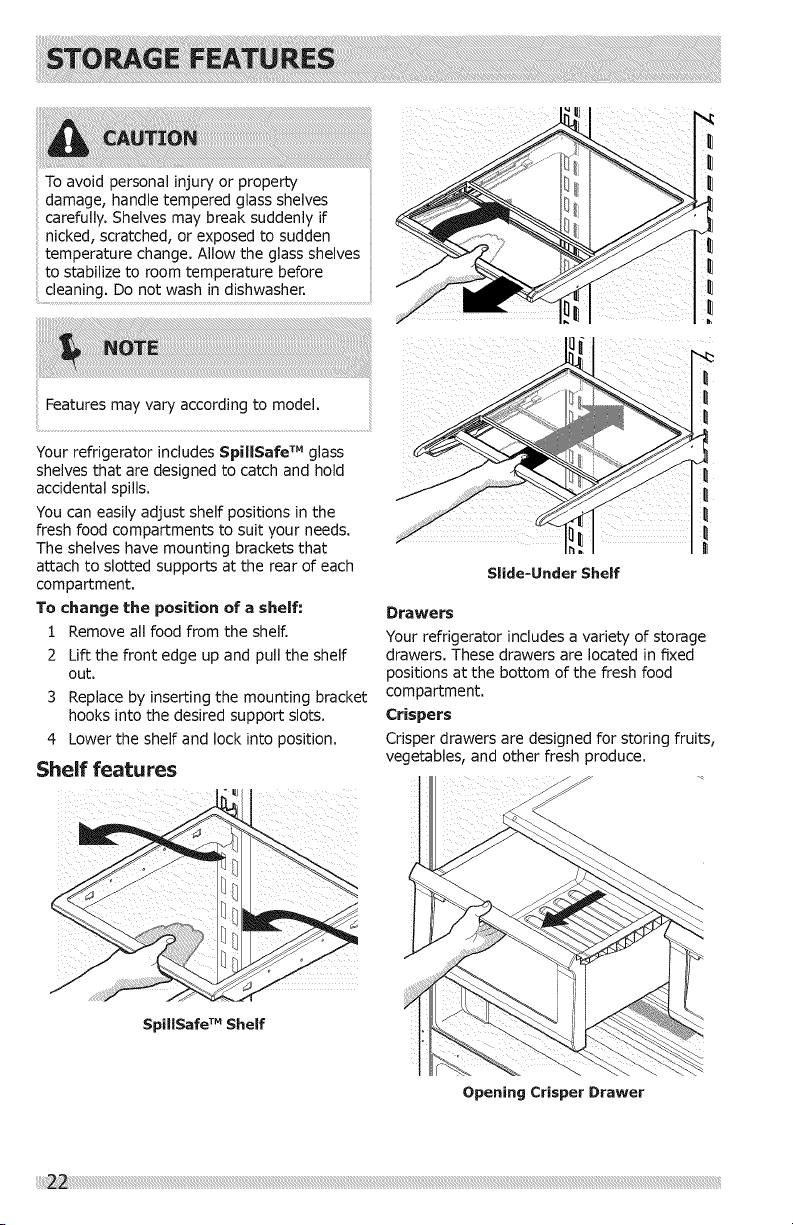

Toavoidpersonalinjuryorproperty
damage,handletemperedglassshelves
carefully.Shelvesmaybreaksuddenlyif
nicked,scratched,orexposedtosudden
temperaturechange.Allowtheglassshelves
tostabilizetoroomtemperaturebefore
cleaning.Donotwashindishwasher.
YourrefrigeratorincludesSpillSafeTM glass
shelves that are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the
fresh food compartments to suit your needs.
The shelves have mounting brackets that
attach to slotted supports at the rear of each
compartment.
To change the position of a shelf:
1 Remove all food from the shelf.
2 Lift the front edge up and pull the shelf
out.
3 Replace by inserting the mounting bracket
hooks into the desired support slots.
4 Lower the shelf and lock into position.
Shelf features
SpilISafe TM Shelf
Slide-Under Shelf
Drawers
Your refrigerator includes a variety of storage
drawers. These drawers are located in fixed
positions at the bottom of the fresh food
compartment.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
Opening Crisper Drawer
2 ....

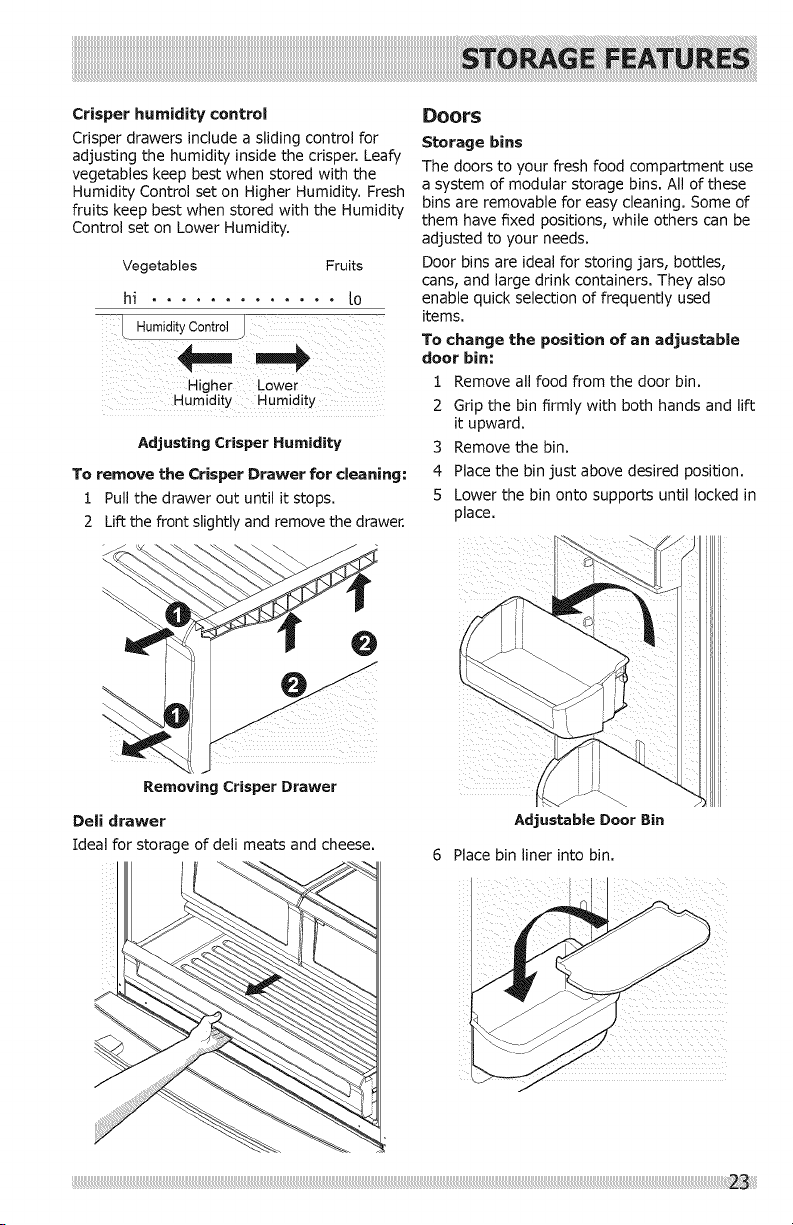

Crisper humidity control
Crisper drawers include a sliding control for
adjusting the humidity inside the crisper. Leafy
vegetables keep best when stored with the
Humidity Control set on Higher Humidity. Fresh
fruits keep best when stored with the Humidity
Control set on Lower Humidity.
Vegetables Fruits
hi ............. [o
I HumidityContro] J
.g
Humidity Humidity
Adjusting Crisper Humidity
To remove the Crisper Drawer for cleaning;
1 Pull the drawer out until it stops.
2 Lift the front slightly and remove the drawer.
Doors
Storage bins
The doors to your fresh food compartment use
a system of modular storage bins. All of these
bins are removable for easy cleaning. Some of
them have fixed positions, while others can be
adjusted to your needs.
Door bins are ideal for storing jars, bottles,
cans, and large drink containers. They also
enable quick selection of frequently used
items.
To change the position of an adjustable
door bin:
1 Remove all food from the door bin.
2 Grip the bin firmly with both hands and lift
it upward.
3 Remove the bin.
4 Place the bin just above desired position.
5 Lower the bin onto supports until locked in
place.
Removing Crisper Drawer
Dell drawer
Ideal for storage of dell meats and cheese.
Adjustable Door Bin
Place bin liner into bin.
! [
/

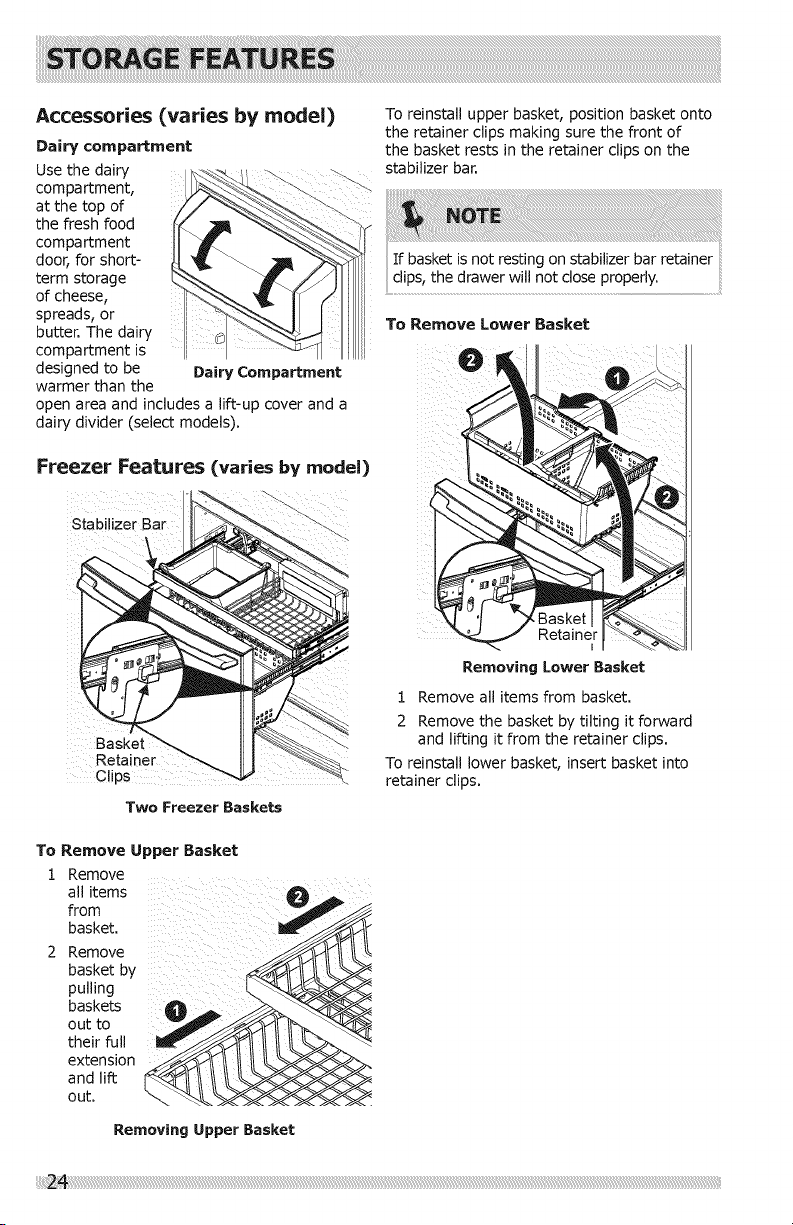

Accessories (varies by model)
Dairy compartment
Use the dairy
compartment,
at the top of
the fresh food
compartment
door, for short-
term storage
of cheese,
spreads, or
butter. The dairy
compartment is
designed to be
warmer than the
Dairy Compartment
open area and includes a lift-up cover and a
dairy divider (select models).
--L
Freezer Features (varies by model)
To reinstall upper basket, position basket onto
the retainer clips making sure the front of
the basket rests in the retainer clips on the
stabilizer bar.
If basket is not resting on stabilizer bar retainer
clips, the drawer will not close properly.
To Remove Lower Basket
Stabilizer Bar
Retah
Clips
Two Freezer Baskets
To Remove Upper Basket
1allRem°veitems
from
basket.
2Remove
basket by
pulling
baskets
out to
their full
extension
and lift
out.
Removing Upper Basket
Removing Lower Basket
1 Remove all items from basket.
2 Remove the basket by tilting it forward
and lifting it from the retainer clips.
To reinstall lower basket, insert basket into
retainer clips.
DividersRemoval
Liftuponthefrontofthemiddledividerand
pullout.
BasketDivider
N,
Stabilizer
Bar
Middle Basket Divider
Lift up on the rear of the lower divider and pull
out.
Lower BaSket
Lower Basket Divider & Spill Guard Tray
Spill Guard Trayshould be hand washed in
warm water.

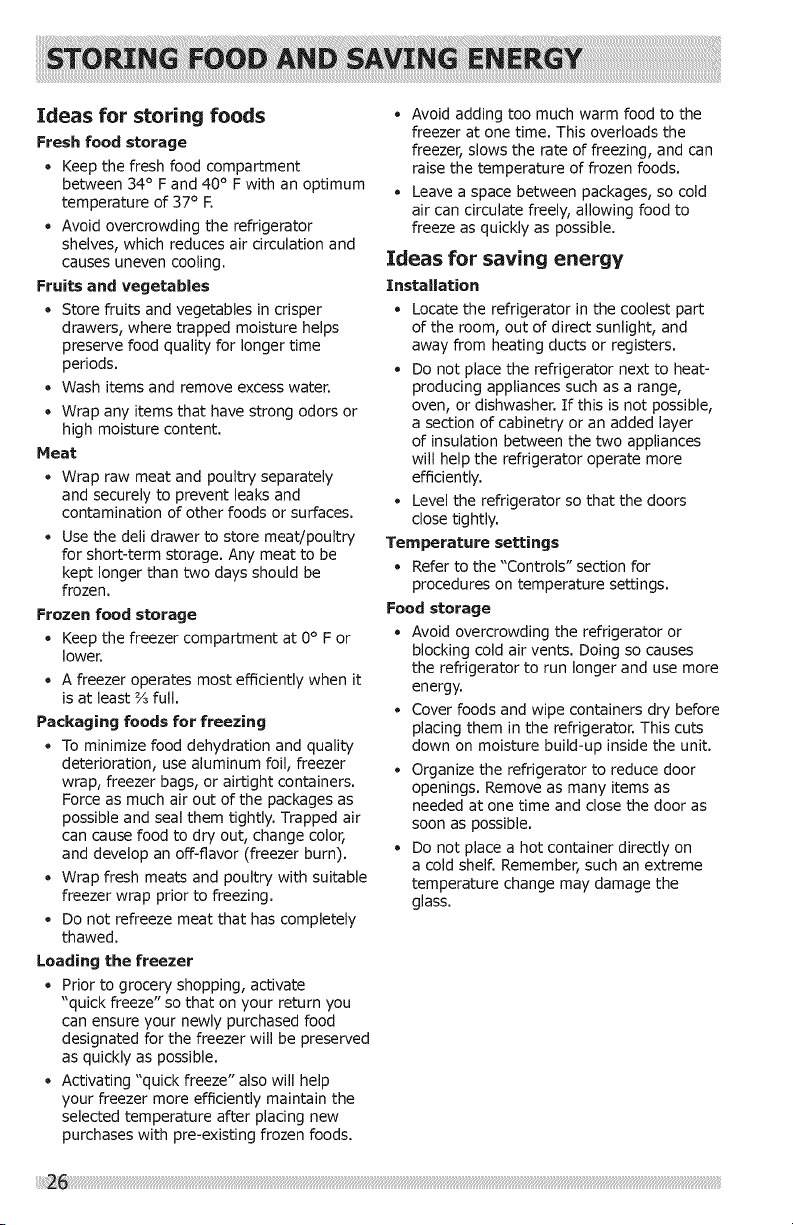

Ideas for storing foods
Fresh food storage
,, Keep the fresh food compartment
between 34 ° F and 40 ° F with an optimum
temperature of 37 ° F.
• Avoid overcrowding the refrigerator
shelves, which reduces air circulation and
causes uneven cooling.
Fruits and vegetables
• Store fruits and vegetables in crisper
drawers, where trapped moisture helps
preserve food quality for longer time
periods.
• Wash items and remove excess water.
• Wrap any items that have strong odors or
high moisture content.
Meat
• Wrap raw meat and poultry separately
and securely to prevent leaks and
contamination of other foods or surfaces.
• Use the deli drawer to store meat/poultry
for short-term storage. Any meat to be
kept longer than two days should be
frozen.
Frozen food storage
• Keep the freezer compartment at 0 ° F or
lower.
• A freezer operates most efficiently when it
is at least _ full.
Packaging foods for freezing
,, To minimize food dehydration and quality
deterioration, use aluminum foil, freezer
wrap, freezer bags, or airtight containers.
Force as much air out of the packages as
possible and seal them tightly. Trapped air
can cause food to dry out, change color,
and develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
Do not refreeze meat that has completely
thawed.
Loading the freezer
• Prior to grocery shopping, activate
"quick freeze" so that on your return you
can ensure your newly purchased food
designated for the freezer will be preserved
as quickly as possible.
• Activating "quick freeze" also will help
your freezer more efficiently maintain the
selected temperature after placing new
purchases with pre-existing frozen foods.
• Avoid adding too much warm food to the
freezer at one time. This overloads the
freezer, slows the rate of freezing, and can
raise the temperature of frozen foods.
• Leave a space between packages, so cold
air can circulate freely, allowing food to
freeze as quickly as possible.
Ideas for saving energy
[nstallation
• Locate the refrigerator in the coolest part
of the room, out of direct sunlight, and
away from heating ducts or registers.
• Do not place the refrigerator next to heat-
producing appliances such as a range,
oven, or dishwasher. If this is not possible,
a section of cabinetry or an added layer
of insulation between the two appliances
will help the refrigerator operate more
efficiently.
• Level the refrigerator so that the doors
close tightly.
Temperature settings
,, Refer to the "Controls" section for
procedures on temperature settings.
Food storage
• Avoid overcrowding the refrigerator or
blocking cold air vents. Doing so causes
the refrigerator to run longer and use more
energy.
• Cover foods and wipe containers dry before
placing them in the refrigerator. This cuts
down on moisture build-up inside the unit.
• Organize the refrigerator to reduce door
openings. Remove as many items as
needed at one time and close the door as
soon as possible.
• Do not place a hot container directly on
a cold shelf. Remember, such an extreme
temperature change may damage the
glass.

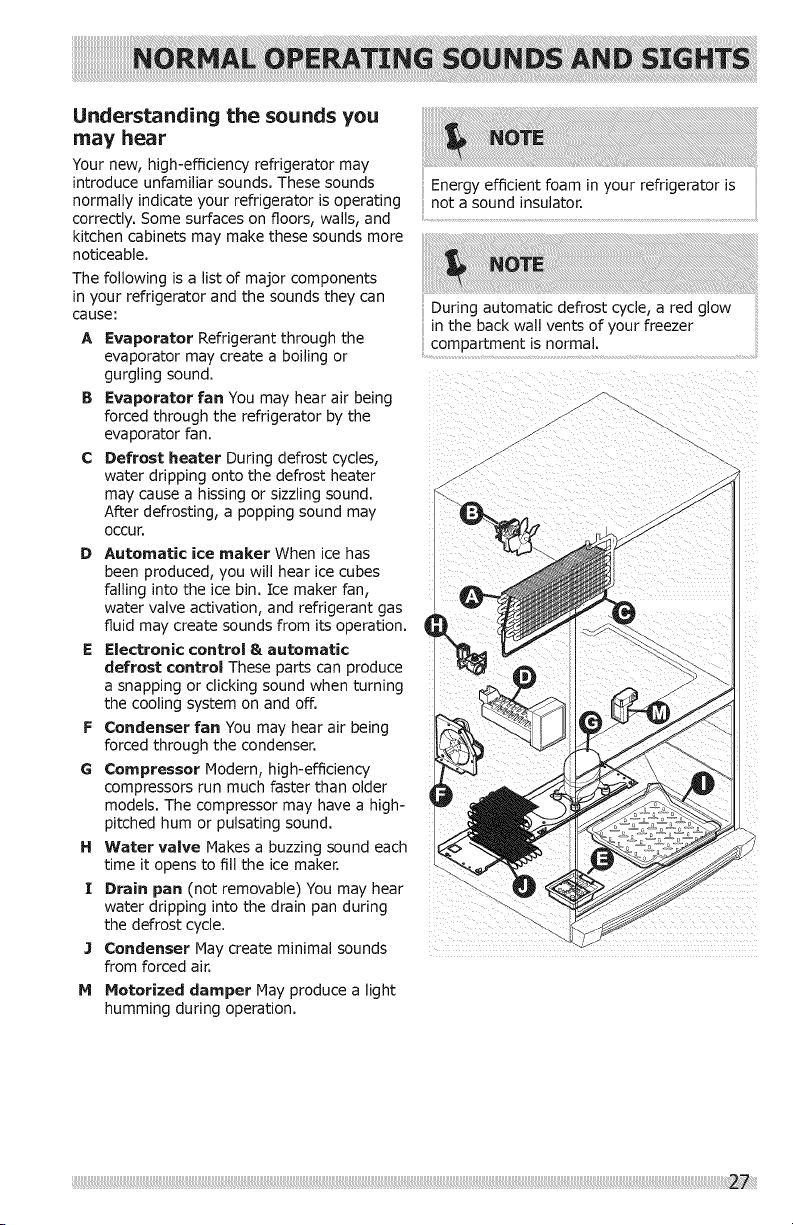

Understanding the sounds you
may hear
Your new, high-efficiency refrigerator may
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is operating
correctly. Some surfaces on floors, walls, and
kitchen cabinets may make these sounds more
noticeable.
The following is a list of major components
in your refrigerator and the sounds they can
cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear air being
forced through the refrigerator by the
evaporator fan.
C Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound.
After defrosting, a popping sound may
OCCUr.
D Automatic ice maker When ice has
been produced, you will hear ice cubes
falling into the ice bin. Ice maker fan,
water valve activation, and refrigerant gas
fluid may create sounds from its operation.
E Electronic control & automatic
defrost control These parts can produce
a snapping or clicking sound when turning
the cooling system on and off.
F Condenser fan You may hear air being
forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than older
models. The compressor may have a high-
pitched hum or pulsating sound.
H Water valve Makes a buzzing sound each
time it opens to fill the ice maker.
I Drain pan (not removable) You may hear
water dripping into the drain pan during
the defrost cycle.
J Condenser May create minimal sounds
from forced air.
H Hotorized damper Nay produce a light
humming during operation.
Energy efficient foam in your refrigerator is
not a sound insulator,
During automatic defrost cycle, a red glow
in the back wall vents of your freezer
compartment is normal.
_!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!;!__i!i_2;iTiii:!!!iii
Locating the Filters
Your refrigerator is equipped with water
filtering system. The water filter system filters
all dispensed drinking water, as well as the
water used to produce ice.
Water Filter
The water filter is located at the top right side
of the fresh food compartment.
Replacing the Water Filter
In general, you should change the water
filter every six months to ensure the highest
possible water quality. The Water Filter
Status light on the user interface prompts you
to replace the filter after a standard amount of
water (200 gallons/757 liters for PureSource
Ultra TM) has flowed through the system. The
water filter status light on this model is not
performance tested or certified by NSF.
]:f your refrigerator has not been used for a
period of time (during moving for example),
change the filter before reinstalling the
refrigerator.
Filter Cartrid(
Ordering Replacement Filters
To order your replacement filters, please visit
our online store at www.frigidaire.com/store,
by calling toll-free at 877-808-4195, or by
visiting the dealer where you purchased your
refrigerator. Frigidaire recommends that you
order extra filters when you first install your
refrigerator, and that you replace your filters at
least once every six months.
Here is the product number to request when
ordering:
PureSeurce Ultra TM Water Filter
Part #ULTRAWF
More about your Advanced
Water Filter
_S_ The PureSource Ultra TM ice
and water filter system is tested
and certified to NSF/ANS]:
Standards 42 and 53 for the
reduction of claims specified on
the performance data sheet.
Do not use with water t_at is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certified for cyst redu_on may be used on
disinfected waters that may contain filterable cysts.
Test & certification results:
* Rated Capacity - 200 gallons/757 liters for
PureSource Ultra TM ice and water filter
* Rated service flow - .50 gallons per minute
Operating Temp.: Min. 33 ° F, Max. 100° F
Maximum Rated Pressure - 100 pounds per
square inch
Recommended Minimum Operating Pressure:
30 pounds per square inch
To replace your PureSource Ultra TM
water filter:
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the filter
replacement.
1 Turn Off the ice maker by raising the wire
signal arm.
2 Remove the filter by pushing on the end/
face of the filter.
3 Slide the old water filter cartridge straight
out of the housing and discard it.
4 Unpackage the new filter cartridge. Using
the alignment guide, slide it gently into the
filter housing until it stops against the snap-in
connector at the back of the housing.
5 Push firmly until the cartridge snaps into
place (you should hear a click as the
cartridge engages the snap-in connector).
6 Turn On the ice maker by lowering the wire
signal arm.
7 Press and hold the Water Filter button on the
Ice & Water Dispenser control panel for three
seconds. When the display changes from Red
to Green, the status has been reset.
8 After replacing the water filter and in order for
the ice maker to work properly, it is necessary
to clear air from water filter tubing. Once ice
maker begins making ice, allow the bucket to
fill completely, then discard the first TWO FULL
buckets of ice. It will take at least two days
to completely fill the bucket on regular ice
making mode or 11/2days on fast ice mode.
2 8

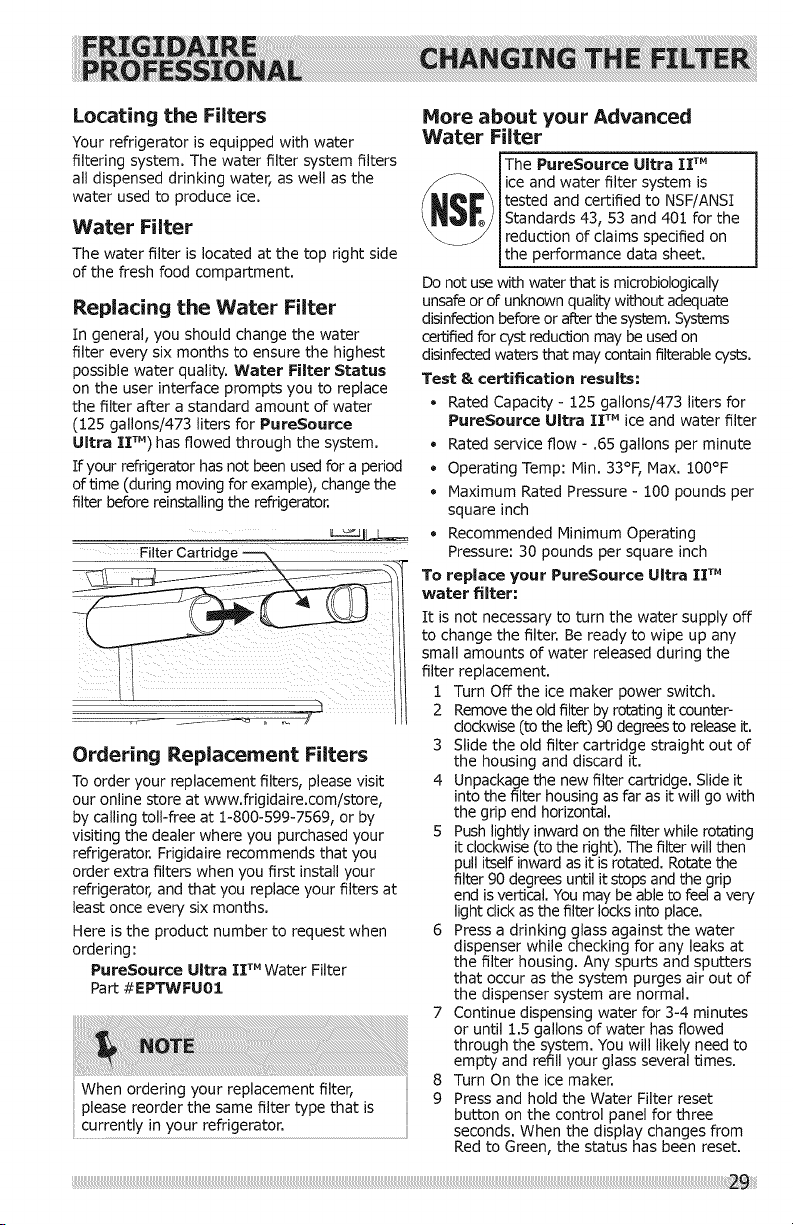

Locating the Filters
Your refrigerator is equipped with water
filtering system. The water filter system filters
all dispensed drinking water, as well as the
water used to produce ice.
Water Filter
The water filter is located at the top right side
of the fresh food compartment.
Replacing the Water Filter
In general, you should change the water
filter every six months to ensure the highest
possible water quality. Water Filter Status
on the user interface prompts you to replace
the filter after a standard amount of water
(125 gallons/473 liters for PureSource
Ultra l:]g M)has flowed through the system.
]:f your refrigerator has not been used for a period
of time (during moving for example), change the
filter before reinstalling the refrigerator.
Ordering Replacement Filters
To order your replacement filters, please visit
our online store at www.frigidaire.com/store,
by calling toll-free at 1-800-599-7569, or by
visiting the dealer where you purchased your
refrigerator. Frigidaire recommends that you
order extra filters when you first install your
refrigerator, and that you replace your filters at
least once every six months.
Here is the product number to request when
ordering:
PureSource Ultra II TM Water Filter
Part #EPTWFUO1
When ordering your replacement filter,
please reorder the same filter type that is
currently in your refrigerator.
More about your Advanced
Water Filter
___ [The PureSource Ultra ][I TM
_ lice and water filter system is
/_lti_ _1 tested and certified to NSF/ANS:I:
\III_F_/IStandards 43, 53 and 401 for the
_._ I reduction of claims specified on
|the performance data sheet.
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
Test & certification results:
* Rated Capacity - 125 gallons/473 liters for
PureSource Ultra II TM ice and water filter
o Rated service flow - .65 gallons per minute
* Operating Temp: Min. 33°1=,Max. 100°F
* Maximum Rated Pressure - 100 pounds per
square inch
* Recommended Minimum Operating
Pressure: 30 pounds per square inch
To replace your PureSource Ultra I1 TM
water filter:
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the
filter replacement.
I Turn Off the ice maker power switch.
2 Remove _heold filter by rotating it counter-
clockwise (to the left) 90 degrees to release it.
3 Slide the old filter cartridge straight out of
the housing and discard it.
4 Unpackage the new filter cartridge. Slide it
into the filter housing as far as it will go with
the grip end horizontal.
5 Push lightly inward on the filter while rotating
it clockwise (to the right). The filter will then
pull itself inward as it is rotated. Rotate the
filter 90 degrees until it stops and the grip
end is vertical. You may be able to feel a very
light click as the filter locks into place.
6 Press a drinking glass against the water
dispenser while checking for any leaks at
the filter housing. Any spurts and sputters
that occur as the system purges air out of
the dispenser system are normal.
7 Continue dispensing water for 3-4 minutes
or until 1.5 gallons of water has flowed
through the system. You will likely need to
empty and refill your glass several times.
8 Turn On the ice maker.
9 Press and hold the Water Filter reset
button on the control panel for three
seconds. When the display changes from
Red to Green, the status has been reset.

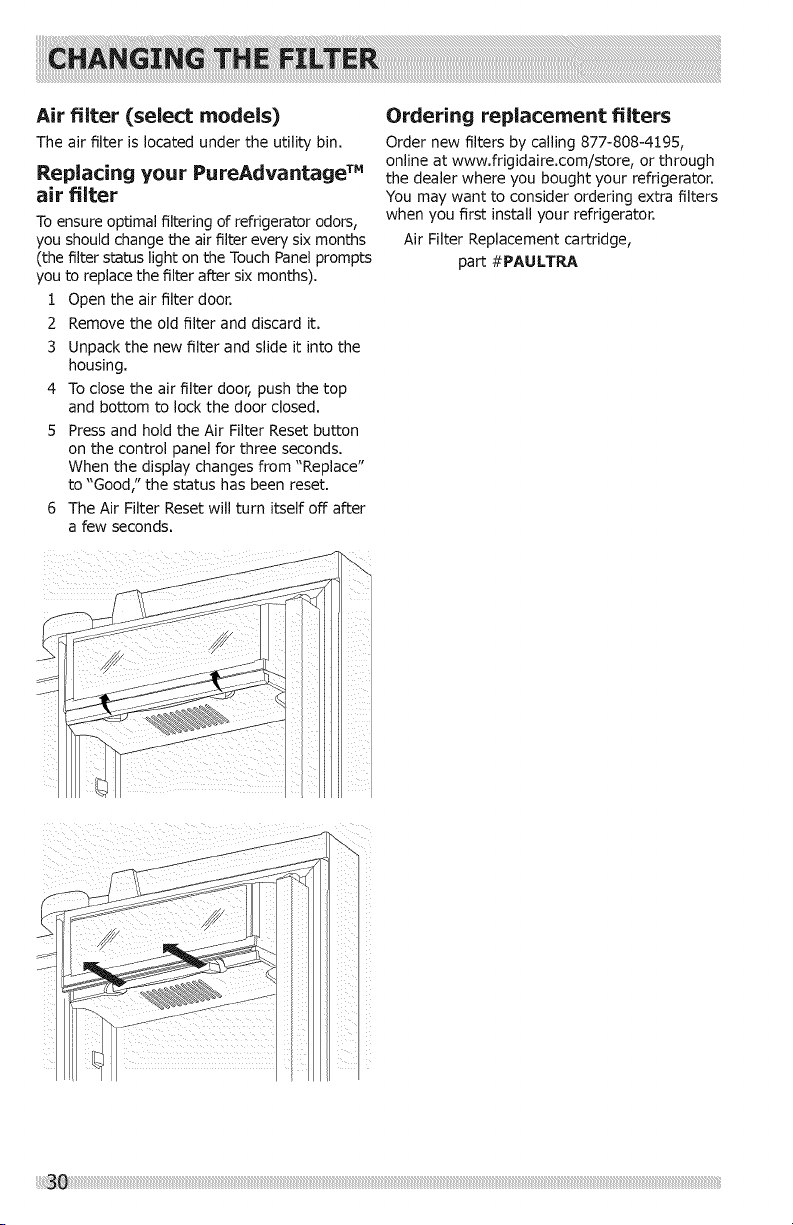

Air filter (select models)
The air filter is located under the utility bin.
Replacing your PureAdvantage TM
air filter
To ensure optimal filtering of refrigerator odors,
you should change the air filter every six months
(the filter status light on the Touch Panel prompts
you to replace the filter after six months).
1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into the
housing.
4 To close the air filter door, push the top
and bottom to lock the door closed.
5 Press and hold the Air Filter Reset button
on the control panel for three seconds.
When the display changes from "Replace"
to "Good," the status has been reset.
6 The Air Filter Reset will turn itself off after
a few seconds.
Ordering replacement filters
Order new filters by calling 877-808-4195,
online at www.frigidaire.com/store, or through
the dealer where you bought your refrigerator.
You may want to consider ordering extra filters
when you first install your refrigerator.
Air Filter Replacement cartridge,
part #PAULTRA
........ / _1_

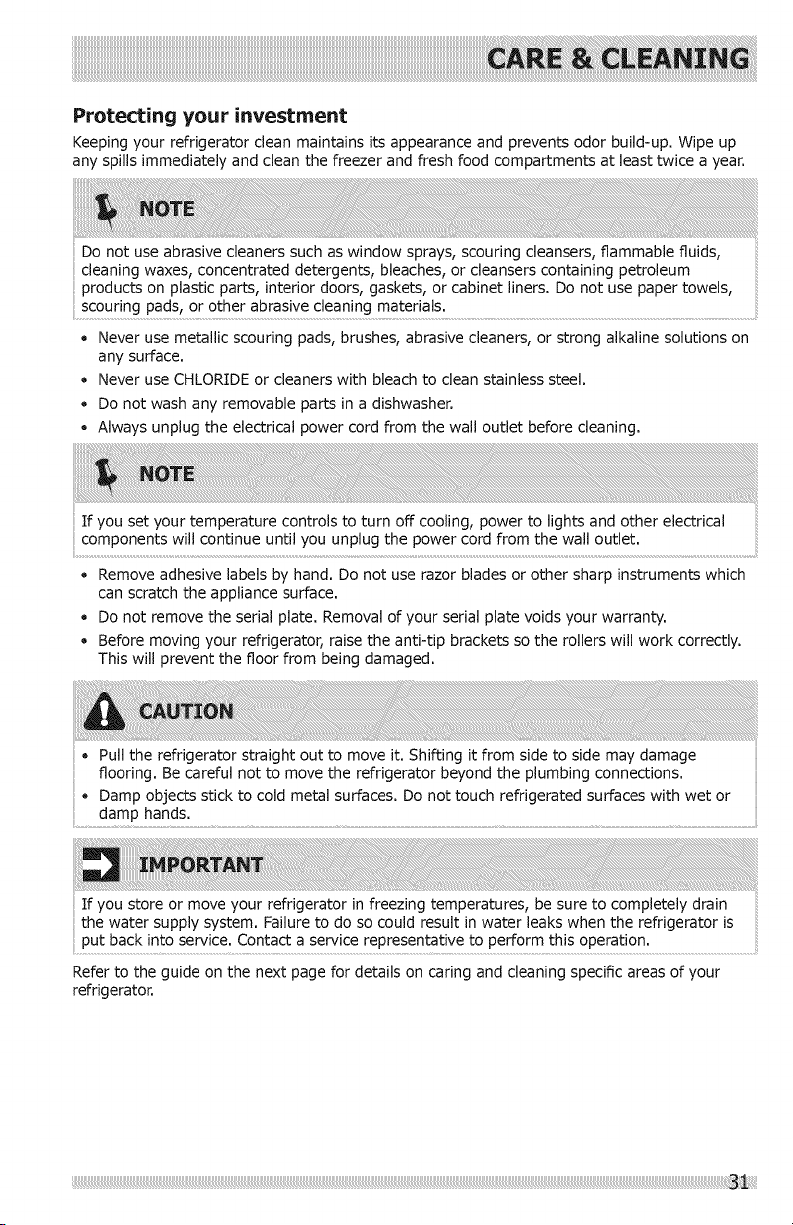

Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up
any spills immediately and clean the freezer and fresh food compartments at least twice a year.
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids,
cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum
products on plastic parts, interior doors, gaskets, or cabinet liners. Do not use paper towels,
scouring pads, or other abras!ve c!ean!ng mater!a!s: .......................................................................................................................................................................................................................
Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on
any surface.
Never use CHLORIDE or cleaners with bleach to clean stainless steel.
Do not wash any removable parts in a dishwasher.
Always unplug the electrical power cord from the wall outlet before cleaning.
If you set your temperature controls to turn off cooling, power to lights and other electrical
€omponents W!!l continu e unp!ug the powe! €o!d [!om the wa!! °utlet. ...............................................
Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which
can scratch the appliance surface.
Do not remove the serial plate. Removal of your serial plate voids your warranty.
Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly.
This will prevent the floor from being damaged.
Pull the refrigerator straight out to move it. Shifting it from side to side may damage
flooring. Be careful not to move the refrigerator beyond the plumbing connections.
Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or
...............d mp ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................
If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator is
put back into service. Contact a service representative to perform this operation.
Refer to the guide on the next page for details on caring and cleaning specific areas of your
refrigerator.

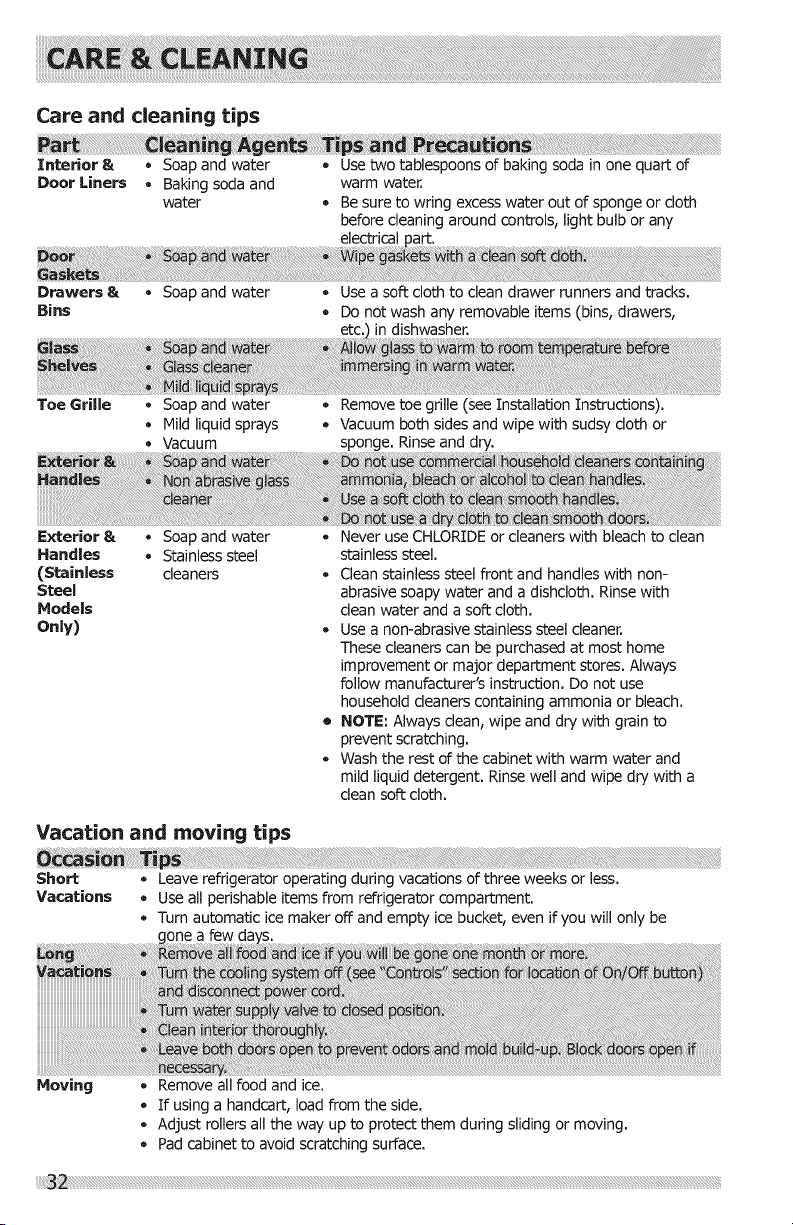

Care and cleaning tips
Interior & * Soap and water * Use two tablespoons of baking soda in one quart of
Door Liners • Baking soda and warm water.
water • Be sure to wring excess water out of sponge or cloth
before cleaning around controls, light bulb or any
electrical
Drawers & • Soap and water
Bins
Use a soft cloth to clean drawer runners and tracks.
Do not wash any removable items (bins, drawers,
etc. in dishwasher.
Toe GriUe
• Soap and water
• Mild liquid sprays
Vacuum
• Remove toe grille (see Installation Instructions).
• Vacuum both sides and wipe with sudsy cloth or
sponge. Rinse and dry.
Exterior & • Soap and water
Handles • Stainless steel
(Stainless cleaners
Steel
Models
Only)
• Never use CHLORIDE or cleaners with bleach to clean
stainless steel.
• Clean stainless steel front and handles with non-
abrasive soapy water and a dishcloth. Rinse with
clean water and a soft cloth.
• Use a non-abrasive stainless steel cleaner.
These cleaners can be purchased at most home
improvement or major department stores. Always
follow manufacturer's instruction. Do not use
household cleaners containing ammonia or bleach.
• NOTE: Always clean, wipe and dry with grain to
prevent scratching.
• Wash the rest of the cabinet with warm water and
mild liquid detergent. Rinse well and wipe dry with a
clean soft cloth.
Vacation and moving tips
Short • Leave refrigerator operating during vacations of three weeks or less.
Vacations • Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will only be
one a few
Moving
• Remove all food and ice.
, If using a handcart, load from the side.
• Adjust rollers all the way up to protect them during sliding or moving.
Pad cabinet to avoid scratching surface.

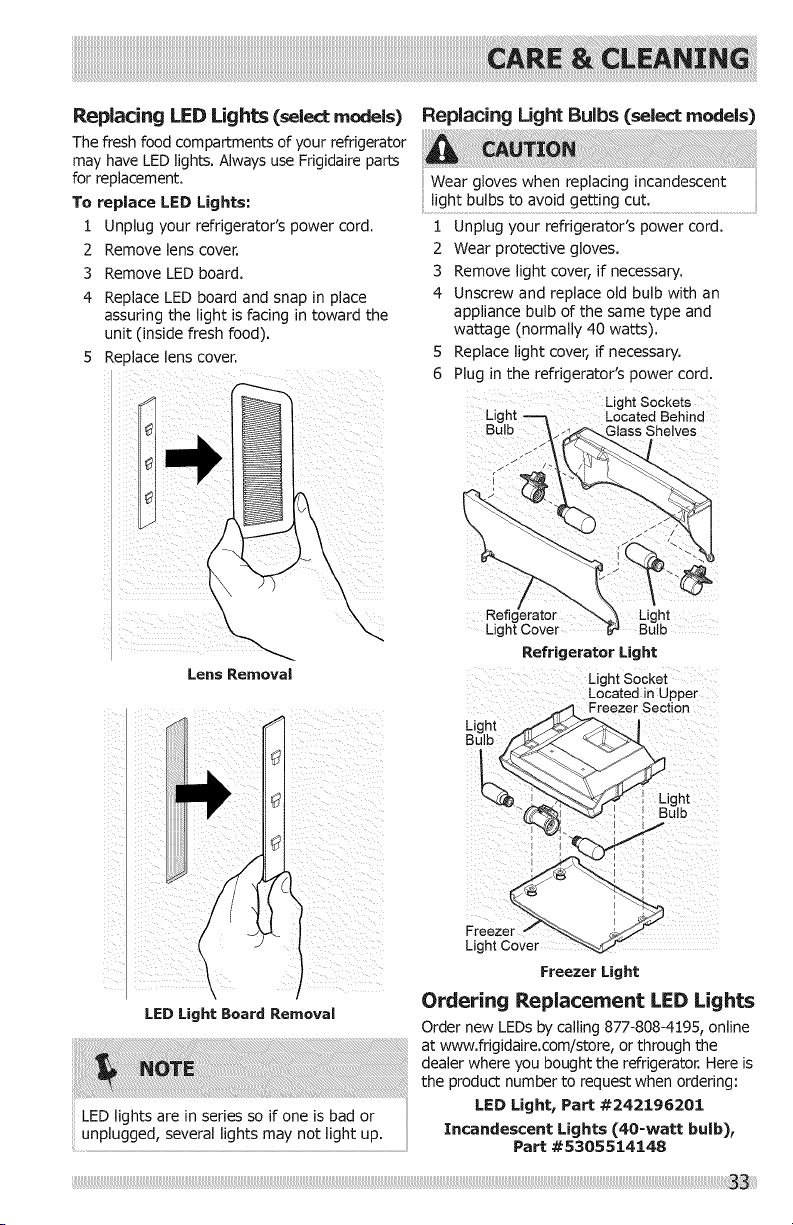

Replacing LED Lights (select models)
The fresh food compartments of your refrigerator
may have LED lights. Always use Frigidaire parts
for replacement.
To replace LED Lights:
1 Unplug your refrigerator's power cord.
2 Remove lens cover.
3 Remove LED board.
4 Replace LED board and snap in place
assuring the light is facing in toward the
unit (inside flesh food).
5 Replace lens cover.
Lens Removal
\
LED Light Board Removal
LED lights are in series so if one is bad or
unplugged, several lights may not light up.
Replacing Light Bulbs (select models)
Wear gloves when replacing incandescent
light bulbs to avoid getting cut. ............
1 Unplug your refrigerator's power cord.
2 Wear protective gloves.
3 Remove light cover, if necessary.
4 Unscrew and replace old bulb with an
appliance bulb of the same type and
wattage (normally 40 watts).
5 Replace light cover, if necessary.
6 Plug in the refrigerator's power cord.
Light Sockets
Light--_ Located Behind
Bulb _ Shelves
Refi Light
Light Cover Bulb
Refrigerator Light
Light SoCket
Located in Uppe[
LC':'IAFreezer Section
Light J_-_._
Bulb
_'_i_'_"_ _ Bulb
Freeze
Light Cover
Freezer Light
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online
at www.fligidaire.com/store, or through the
dealer where you bought the refrigerator. Here is
the product number to request when ordering:
LED Light, Part #242196201
Incandescent Lights (40-watt bulb),
Part #5305514148
1-800=944=9044 (United States) 1
1=800=265=8352 (Canada)
J
i Visit our web site at
www,frigidaire.com
CONCERN POTENTIAL CAUSE COMMON SOLUTION
AUTOMATIC ICE MAKER
Ice maker is not • Ice maker power switch
making any ice. is Off.
• Ice maker has small
cube caught in
mechanism.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
Ice maker is not maker iS producing
• Turn power switch to On ("I") position.
• Remove small cube from ice maker. The ice
and water filter cartridge may be clogged.
Replace filter cartridge.
• Turn off household water line valve. Remove
valve. Ensure that valve is not a self-piercing
saddle valve. Clean valve. Replace valve if
necessary.
The ice maker produces approximately four
making enough less ice than you expect, pounds of ice every 24 hours depending on
ice. Usage conditions.
| i
, Check to see if water , If it is, rep ace the ice and water fi ter
dispenser s dispensing cartridge
_ slower than normal
Freezer control is set _ Set freezer control tO colder Setting to
' too warm (freezer ice improve performance of the ice maker
maker). ' (freezer ice maker). Allow 24 hours for
temperature to stabilize.
:Ice maker will • Ice maker wire signal arm • Move item and release wire signal arm.
not stop making is being held down by Remove any ice cubes that are frozen
ice. some item in the freezer, together over the wire signal arm.
:Ice cubes _ Ice cubes are n0t being ; Remove ice container and discard ice from
are freezing used frequently enough: containe r.ice maker wil! produce fresh supply.
together o ce
I cubes are hollow i The ice and water fi ter cartridge may be
(partially frozen cubes clogged. Replace filter cartr!dge.
with water inside).
, _ Freezer contro! !Sset too , Set freezer control to colder setting. Allow
warm. 24 hours for temperature to stabilize.
OPEN:ING/CLOS:ING OF DOORS/DRAWERS
Door(s) will not ,
close, hard, causing other
door to 0Pen slightlY:
, Refrigerator is not level: , Ensure floor iS!evel and solid, and can
It r0cks on the flo0r adequately support _e refrigerator. Contact a
when moved slightlY, carpenter t0 €0_ a sagging 0r sloping floor.
, Refrigerator is touching Ensure floor is level and solid, and can
• a wal! or cabinet, adequately support the refrigerator.
, , Contact a carpenter to correct a sagging or
• " sloping floor.
Drawers are • Food is touching shelf • Remove top layer of items in drawer.
difficult to on top of drawer.
move, • Track that drawers slide • Ensure drawer is properly installedon track.
on is dirty. • Clean drawer, rollers, and track. See Care
& Cleaning.

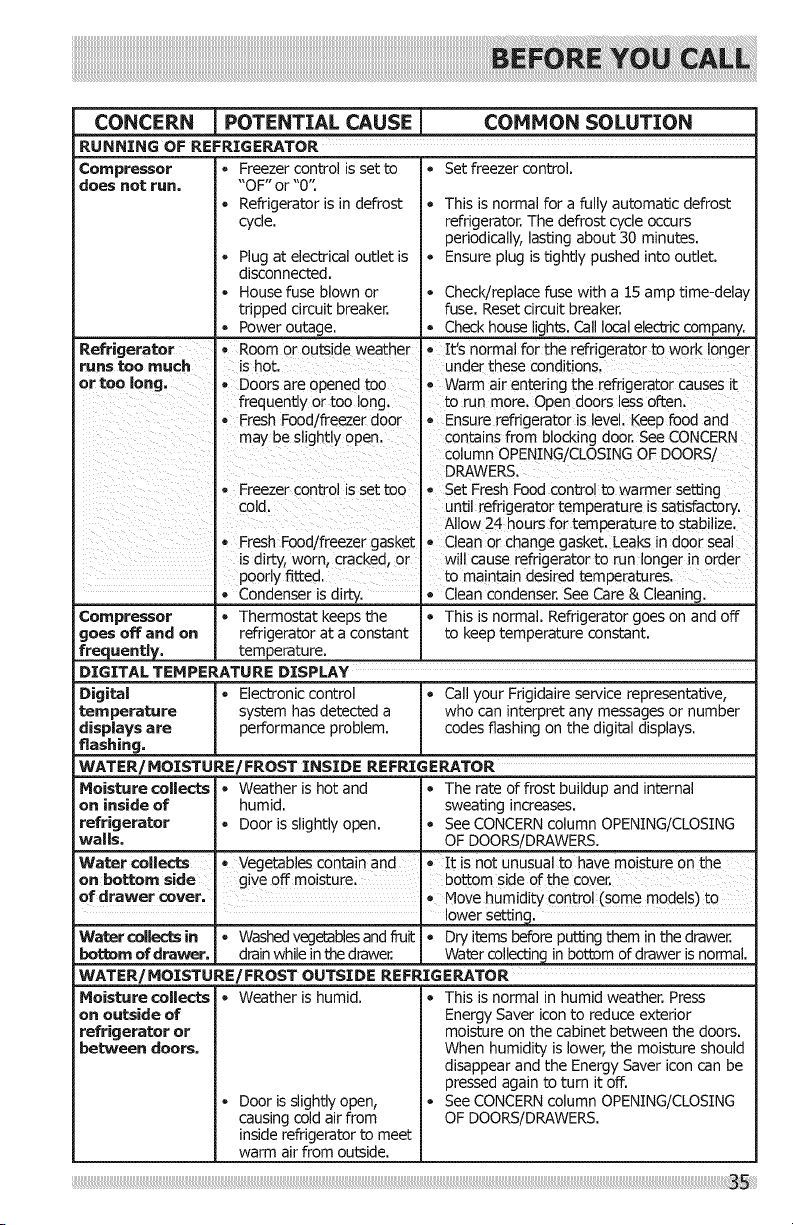

CONCERN POTENTIAL CAUSE COHHON SOLUTION
RUNNING OF REFRIGERATOR
• Setfreezercontrol.
Compressor
does not run,
• Freezer control is set to
"OF" or "0':
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet is
disconnected.
• House fuse blown or
tripped circuit breaker.
, Power outage.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs
periodically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay
fuse. Reset circuit breaker.
, Check house lights. Call local electric company.
Refrigerator - Room or outside weather - It's normal for the refrigerator to work longer
runstoo much is hot. _ under these conditions.
or too long, • Doors are opened too - Warm air entering the refrigerator causes it
frequently or too long. to run more. Open doors less often.
- Fresh Food/freezer door - Ensure refrigerator is evel. Keep food and
may be slightly open. ' contains from blocking door. See CONCERN
column OPENING/CLOSING OF DOORS/
DRAWERS.
° Freezer control is set too - Set Fresh Food control to warmer setting
i cold. until refrigerator temperature is satisfactory.
Allow 24 hours for temperature to stabilize.
• Fresh Food/freezer gasket - Clean or change gasket. Leaks in door seal
is dirty, worn, cracked, or will cause refrigerator to run longer in order
" poorly fitted. . to maintain desired temperatures.
• Condenser is dirty. • Clean condenser.See Care & Cleaning.
Compressor * Thermostat keeps the * This is normal. Refrigerator goes on and off
goes off and on refrigerator at a constant to keep temperature constant.
frequently, temperature.
DIGITAL TEMPERATURE DISPLAY
Digital • Electronic control • Call your Frigidaire service representative,
temperature system has detected a who can interpret any messages or number
displays are performance problem, codesflashing on the digital displays.
flashing,
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture collects • Weather is hot and • The rate of frost buildup and internal
on inside of humid, sweating increases.
refrigerator • Door is slightly open. • See CONCERN column OPENING/CLOSING
walls, OF DOORS/DRAWERS.
Water collects • Vegetables contain and I ° It is not unusual to have moisture on the
on bottom side give off moisture, bottom side of the cover.
of drawer cover.. ,, Move humidity control (some models) to
" " lower setting.
Water collects in • Washed vegetables and fruit • Dry items before putting them in the drawer.
Ix_ttDm of drawer, drain while in t_e drawer, Water collecting in bottom of drawer is normal.
WATERIMOISTUREIFROST OUTSIDE REFRIGERATOR
Moisture collects • Weather is humid. • This is normal in humid weather. Press
on outside of Energy Saver icon to reduce exterior
refrigerator or moisture on the cabinet between the doors.
between doors. When humidity is lower, the moisture should
disappear and the Energy Saver icon can be
pressed again to turn it off.
• See CONCERN column OPENING/CLOSING
OF DOORS/DRAWERS.
• Door is slightly open,
causing cold air from
inside refrigerator to meet
warm air from outside.
Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateof
purchase,Electroluxwillpayallcostsforrepairingorreplacinganypartsofthisappliancethatprove
tobedefectiveinmaterialsorworkmanshipwhensuchapplianceisinstalled,usedandmaintained
inaccordancewiththeprovidedinstructions.
Exclusions
This warranty does not cover the following:
1. Productswith original serial numbersthat have been removed, alteredor cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service callswhich do not involve malfunction or defects in materials or workmanship,or for appliances
not in ordinaryhousehold useor used other than in accordancewith the provided instructions.
8. Servicecalls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expensesfor making the appliance accessiblefor servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday servicecalls, tolls, ferry
trip charges, or mileageexpense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not
limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized servicecompanies; or
external causes such asabuse, misuse, inadequate power supply,accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRI-I-rEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRI-N-EN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the
addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In
Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to
change or add to any obligations under this warranty. Obligations for service and parts under this
warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Electrolux
Canada
1.800.265.8352
Etectrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
