INSTALLATION:
IFM561B15
09/18
SAFETY PRECAUTIONS:
EASY CONNECT®
INSTALLATION INSTRUCTIONS
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
NOTE: Product may not look exactly as shown in figures.

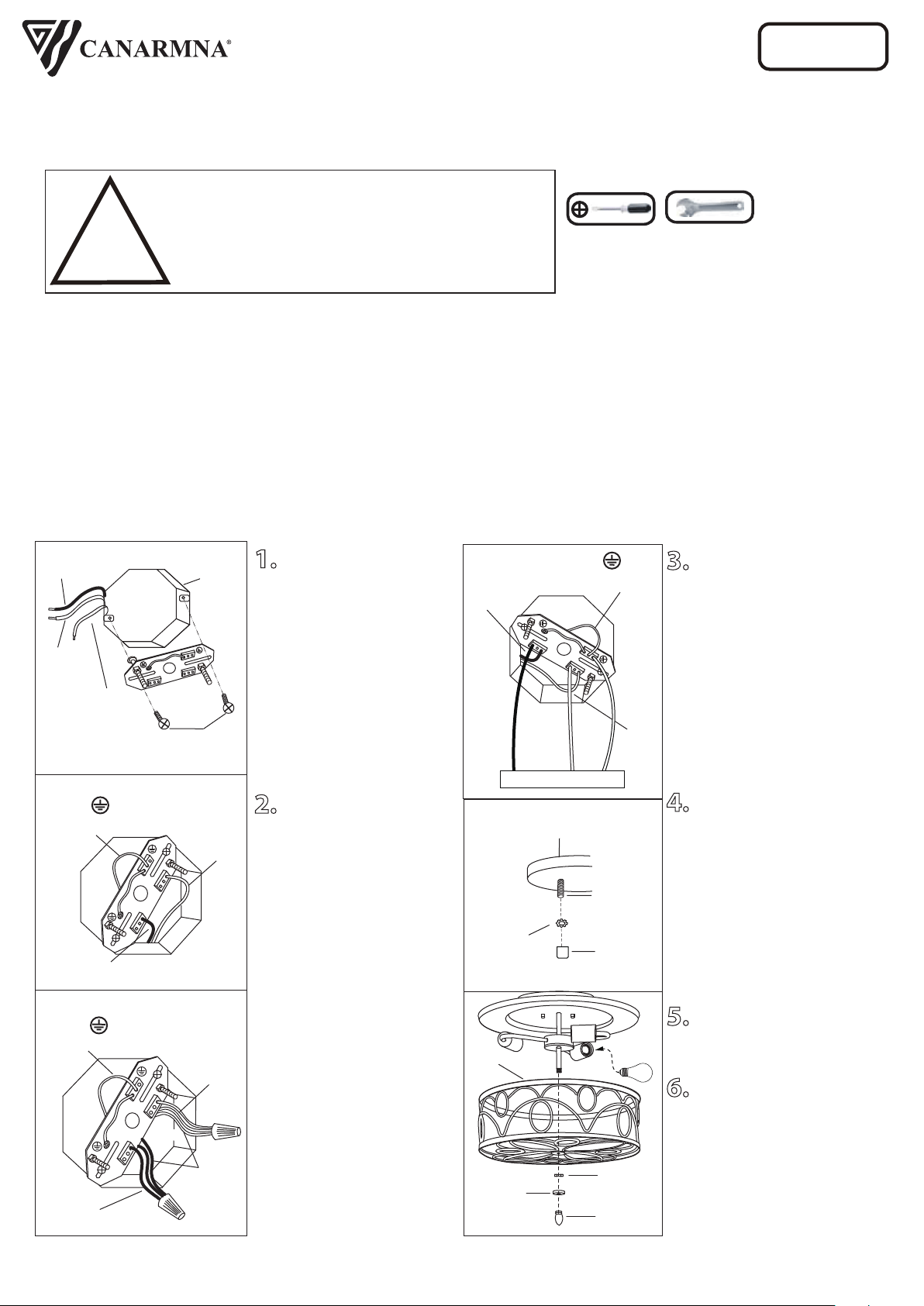

1. Attach easy connect
mounting bracket to electrical
box with electrical box screws
(not included).
2. Option 1: Connect (push)
electrical wires from electric box
(house wiring) into correct
inserts.
Option 2: For multiple black
(live) & white (neutral) wires
joined in the electrical box
(house wiring), attach a single
“black” and “white” jumper wire
before connecting. Strip 7mm
from the 6” jumper wires (AWG
12-24) supplied. Then connect
(push) wires into correct inserts.
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Tuck electrical wires into
electrical box and position
fixture over studs on mounting
bracket assembly. Secure
fixture in place with star
washers and cap nuts.
5. Install proper bulb type
and wattage (not included).
6. Secure the shade in place
using the hex nut, decorative
cap and finial.
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
DO NOT REMOVE INSULATION FROM FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. CAUTION – RISK OF FIRE. CONSULT A QUALIFIED ELECTRICIAN TO ENSURE CORRECT BRANCH CIRCUIT
CONDUCTOR.
5. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598
Star
Washer
Cap
Nut
Fixture
Stud
Electrical
Box
Electrical box
screws
(L)
Black (Live)
(N)
White
(Neutral)
Green
(Ground)
L
(L)
Black (Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Jumper
Wire
L
N
L
N
Option 1
Option 2
L
N
(L)
Black
(Live)
(N)
White
(Neutral)
Green
(Ground)
Fixture
Hex
Nut
Decorative
Cap
Finial
Shade
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Wrench
