INSTALLATION:
SAFETY PRECAUTIONS:
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF LIGHT FIXTURE.
DO NOT REMOVE INSULATION FROM FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY
A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND WIPE THE FIXTURE WITH
A CLEAN, SOFT CLOTH.
NOTE: Product may not look exactly as shown in figures.
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) / 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
Tel: (613) 342-5424, Fax: (800) 263-4598

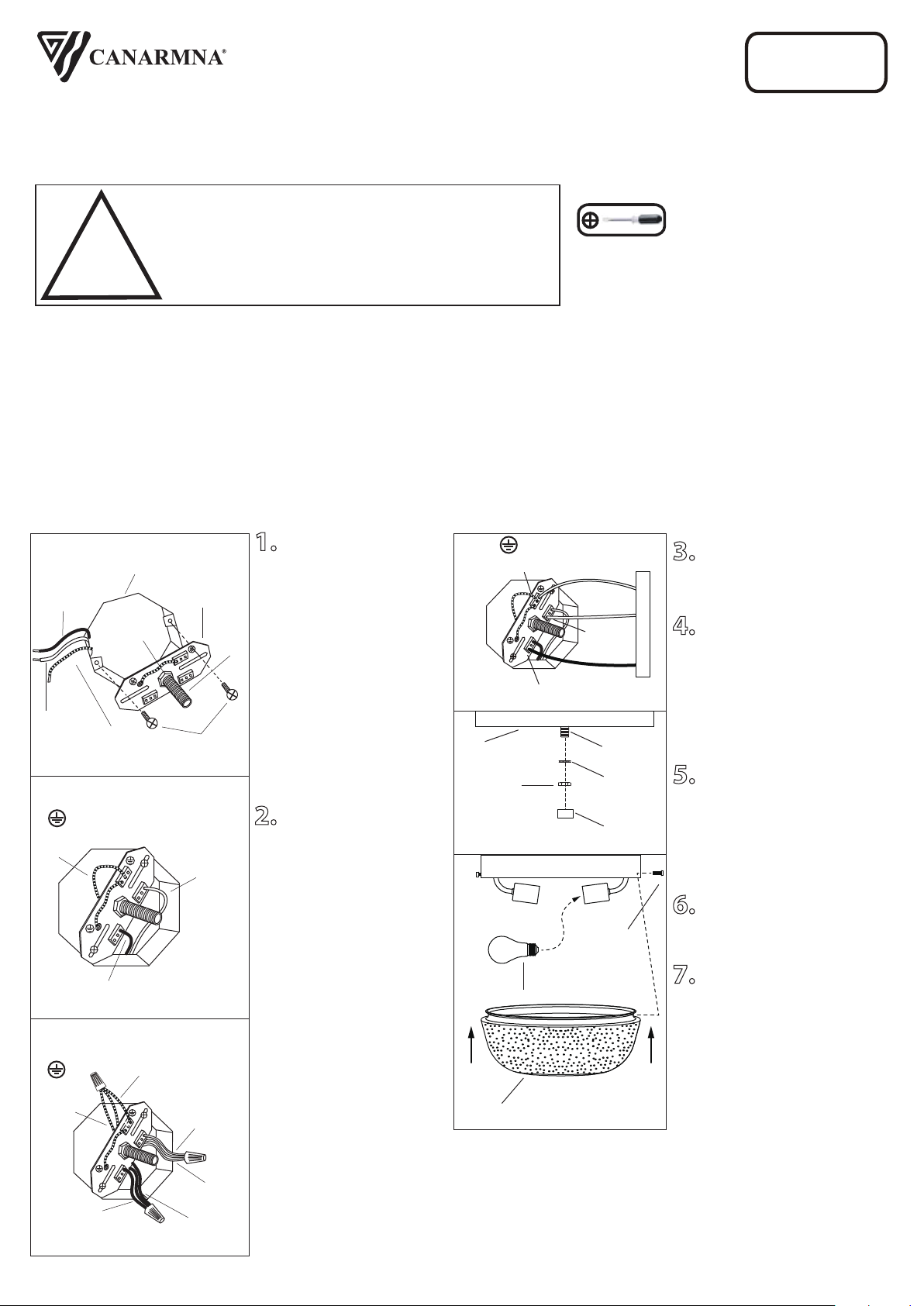

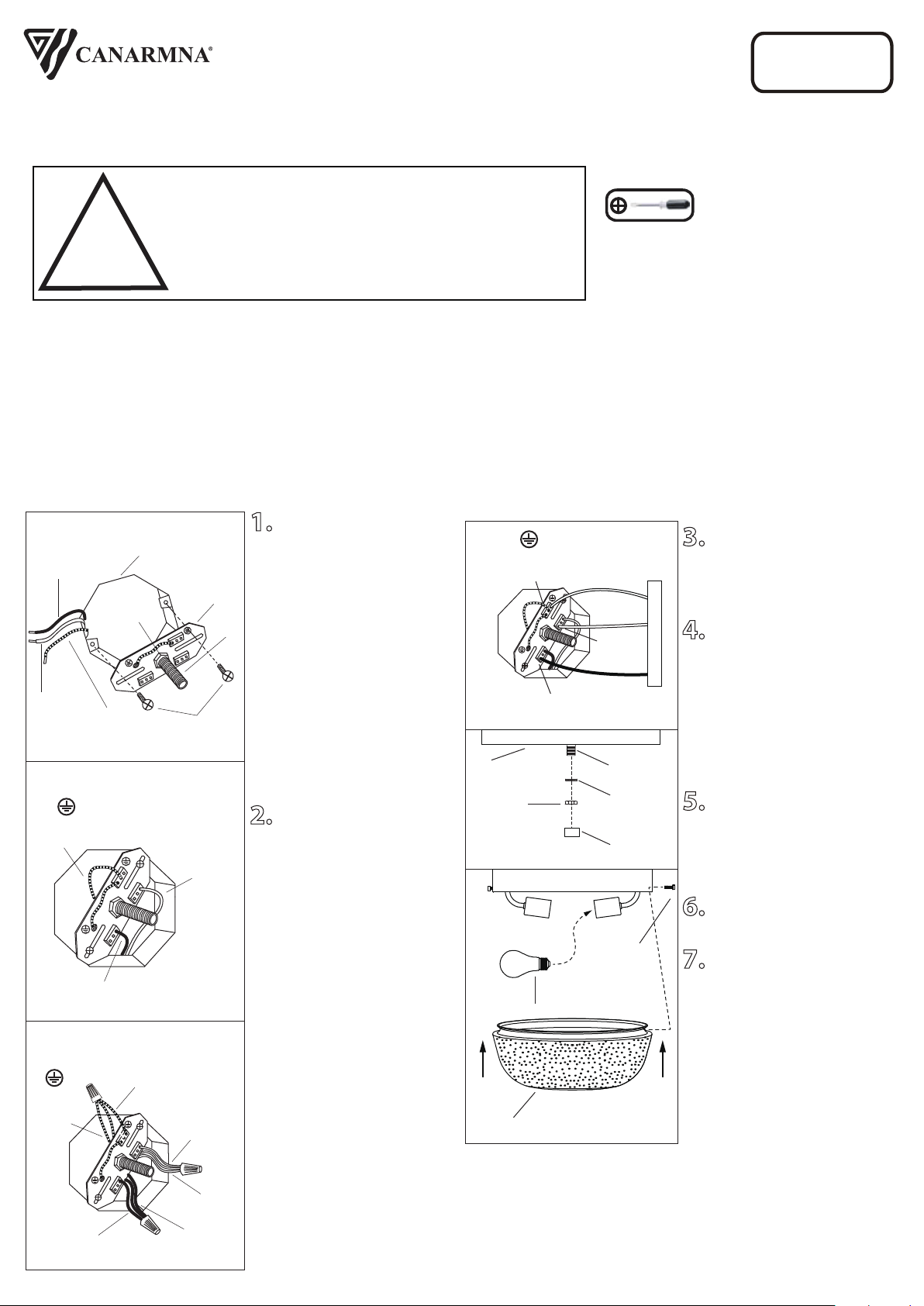

1. Attach nipple to
mounting bracket. Adjust
so it will clear hole in back
of fixture and then lock
nipple in place with hex
nut. Attach mounting
bracket to electrical box
with electrical box screws
(not included).
2. Option 1: Connect
(push) electrical wires from
electric box (house wiring)
into correct inserts.
Option 2: For multiple
green (ground), black (live)
and white (neutral) wires
joined in the electrical box
(house wiring), attach a
single “green”, “black” and
“white” jumper wire before
connecting. Strip 7mm
from a 6 in. jumper wires
supplied. Then connect
(push) wires into the
correct inserts.
Green
(Ground)
Green
(Ground)
Option 1
Option 2
Green (Ground)
3. Connect (push) electrical
wires from fixture into correct
inserts.
4. Once connections of
wires are completed, carefully
tuck wires and wire nuts into
the electrical box making sure
no bare wire (on the black and
white) is visible at the wire
nuts.
5. Secure the pan to the
nipple tightening by star
washer and hex nut. Screw the
finial to the nipple.
6. Install proper bulb type
and wattage (not included).
7. Remove the thumb
screws that are already on
your fixture. Attach the glass
shade to the fixture using the
thumb screws (tighten with
fingers only).
IFM1013A14
09/19
Black
(Live)
White
(Neutral)
Green
(Ground)
Electrical
Box
Electrical box
screws
L
N
Hex nut
Nipple
(L)
Black (Live)
(N)
White
(Neutral)
L
N
(L)
Black (Live)
(N)
White
(Neutral)
Jumper
Wire
Jumper Wire
Jumper
Wire
L
N
(L)
Black (Live)
(N)
White
(Neutral)
L
N
Fixture
EASY CONNECT
INSTALLATION INSTRUCTIONS
TM
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
TOOLS AND MATERIALS REQUIRED:
Phillips
Screwdriver
Easy Connect
mounting
bracket
TM
Nipple
Hex Nut
Finial
Pan
Star
Washer
Bulb
Thumb
Screw
Shade
