Owner’s Manual
1
VR-Bracket for Rowers
To see in
FULL COLOR
& additional information,
scan this QR code.

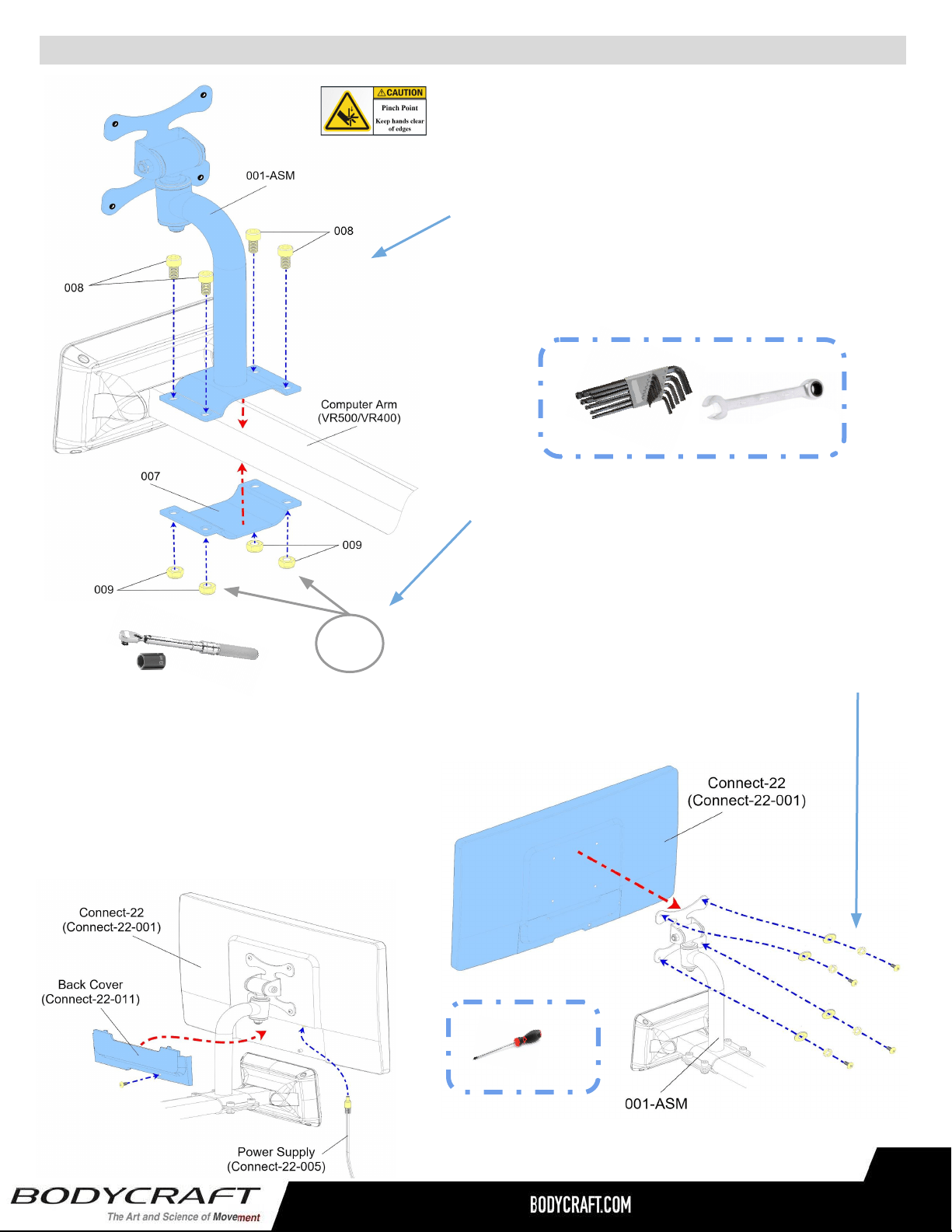

Assembled Parts List - VR Bracket
VR-Bracket v1.3
ALLEN WRENCH
6mm
PHILLIPS SCREWDRIVER #2
w/ Magnetic TIP
TORQUE WRENCH 3/8 DRIVE
w/ 13mm SOCKET
THE FOLLOWING TOOLS ARE RECOMMENDED FOR ASSEMBLY:
WRENCH 13mm
Part # Assembly Parts List QTY
VR-Bracket-001-ASM Main Frame Assembly 1
VP-Bracket-007 Support Bracket, Bottom 1
VP-Bracket-008 Bolt, Allen Head, M8 x 20mm L 4
VP-Bracket-009 Nut, Nylon Lock, M8 x 1.25 P 4
VR-Bracket-010 Cable Clip Mount 5
