Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Audio cable
Quick Start Guide
CD-ROM
(Owner’s Manual)
Safety Instructions
R03/AAA batteries
Cautions on Using Batteries
Remote control unit
(RC-1234)
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

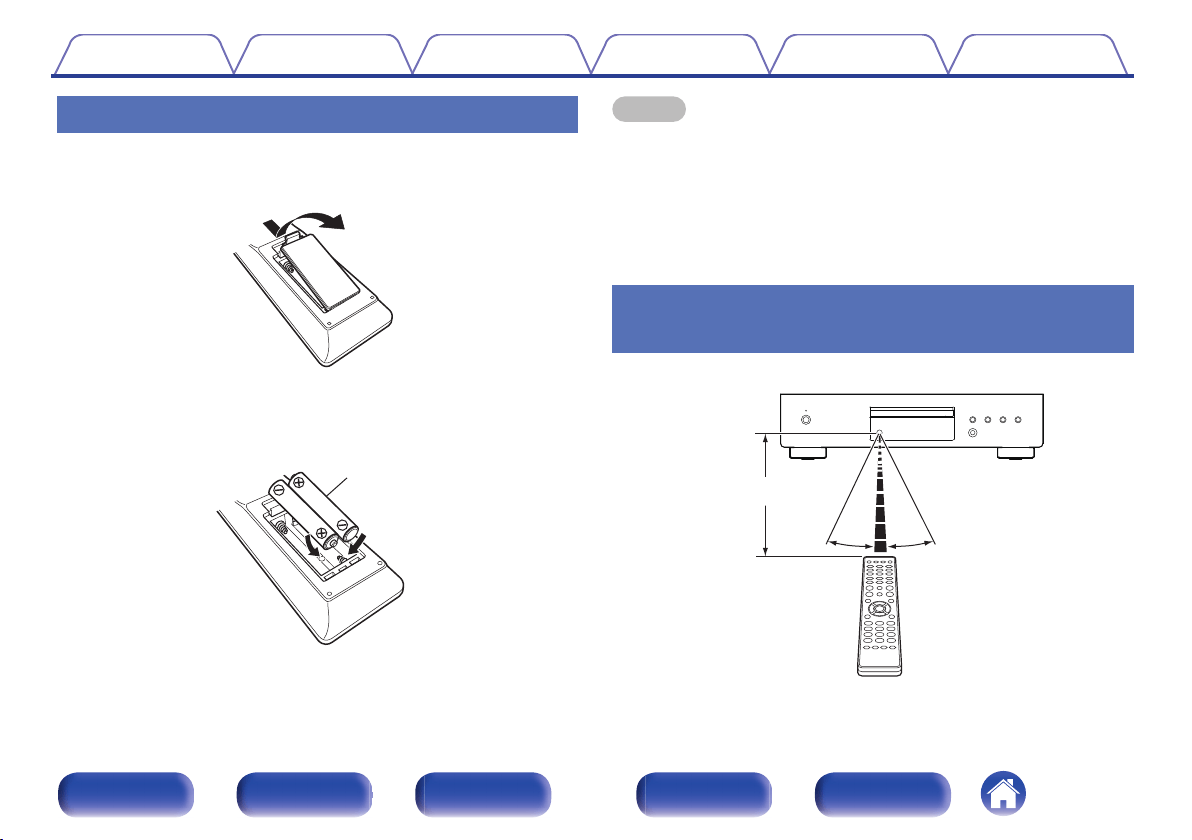

Inserting the batteries
1
Remove the rear lid in the direction of the arrow and
remove it.
.
2
Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3
Put the rear cover back on.
NOTE
0
To prevent damage or leakage of battery fluid:
0
Do not use a new battery together with an old one.
0
Do not use two different types of batteries.
0
Remove the batteries from the remote control unit if it will not be in use for long
periods.
0
If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
Approx. 7 m
30°30°
Contents
Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index
Features
High quality sound
0
AL32 Processing and high precision 32 bit / 192 kHz D/A
converter
Equipped with AL32 Processing, Denon’s own analog waveform
reproduction technology. The reproducibility of weak signals is
enhanced by expanding 16 bit digital data to 32 bit. Additionally, the unit
is equipped with a 32 bit/192 kHz-bit compatible high-accuracy D/A
converter for converting the digital data expanded by AL32 Processing
into analog signals.
High performance
0
Supports MP3 and WMA file playback (v p. 28)
MP3 and WMA files that have been recorded onto CD-R or CD-RW
discs can be played back on this CD player.
0
Reduced power consumption during standby
The power consumption in standby mode has been reduced to below
0.3 W in consideration of the environment.
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index
.
r t y ue
oQ
0
i
wq
A
Power operation button (X)
This turns the power on/off. (v p. 23)
B
Power indicator
This is lit as follows according to the power status:
0
Power on : Green
0
Standby : Off
0
Power off : Off
C
Disc tray
Used to insert a disc.
D
Play/pause button (1/3)
Plays the track/Pauses the track.
E
Stop button (2)
Stops playback.
F
Reverse-skip button (8)
Returns to the start of the currently playing track.
G
Forward-skip button (9)
Plays the next track.
H
Remote control sensor
This receives signals from the remote control unit. (v p. 5)
I
Display
Various information is displayed here. (v p. 9)
J
Disc tray open/close button (5)
Used to open/close the disc tray.
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index
Display
.
wq
t
u
er
y
A
Information display
Displays various information or playback elapsed time and so on of the
disc.
B
Playback mode indicators
1 : Lights up during playback.
3 : Lights up during pause.
C
TOTAL indicator
Lights when the total number of tracks and total time of the CD are
displayed.
D
RANDOM indicator
Lights during random playback.
E
Repeat mode indicators
Lights to match the repeat mode settings.
F
Folder mode indicator
Lights up when the folder mode is set in the CD-R/CD-RW playback
range. (v p. 30)
G
Remote control signal reception indicator
Lights when a signal is received from the remote control.
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index
Rear panel
.
rq w e
A
AUDIO OUT connectors
Used to connect devices equipped with analog audio inputs connectors
or an external power amplifier. (v p. 18)
B
DIGITAL AUDIO OUT connector
Used to connect an AV receiver or D/A converter that has a digital input
connectors. (v p. 19)
C
IR CONTROL connectors
Used to connect Denon network audio players with an IR controller.
D

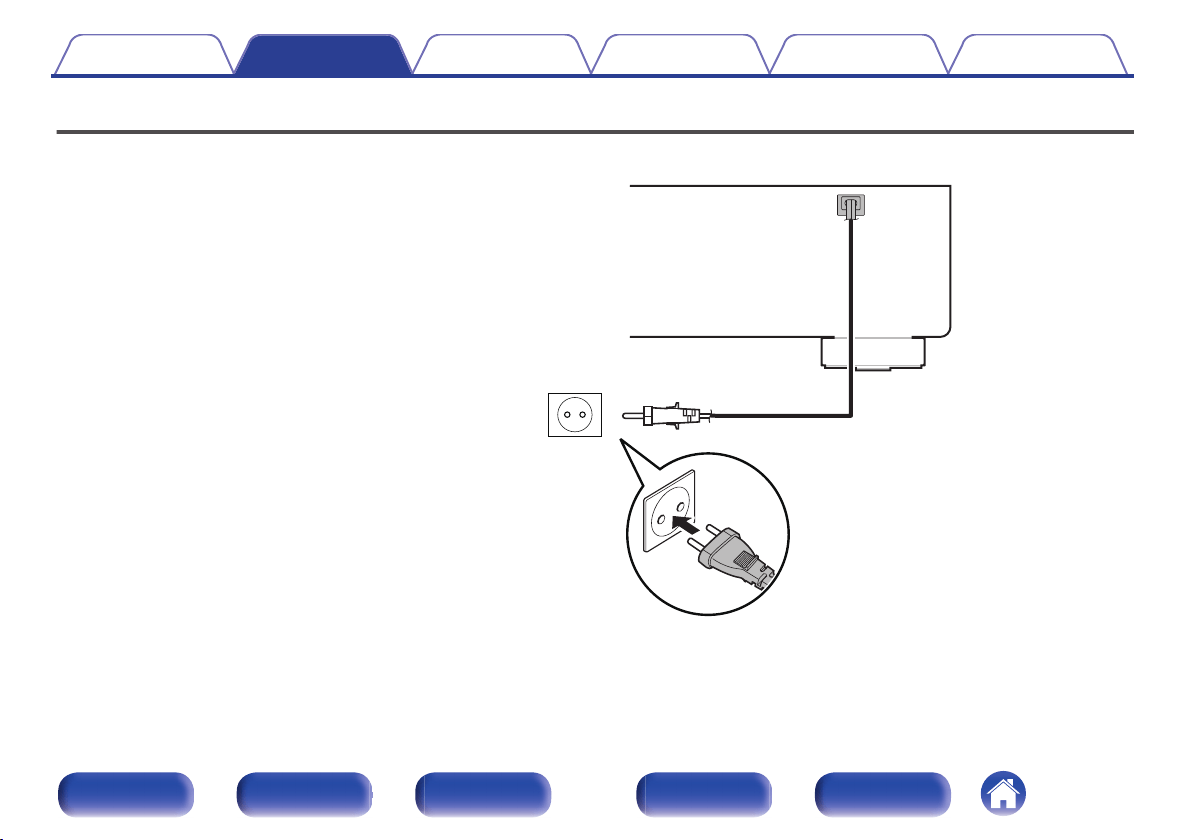

Power cord (v p. 21)
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index
Remote control unit
e
r
w
q
t

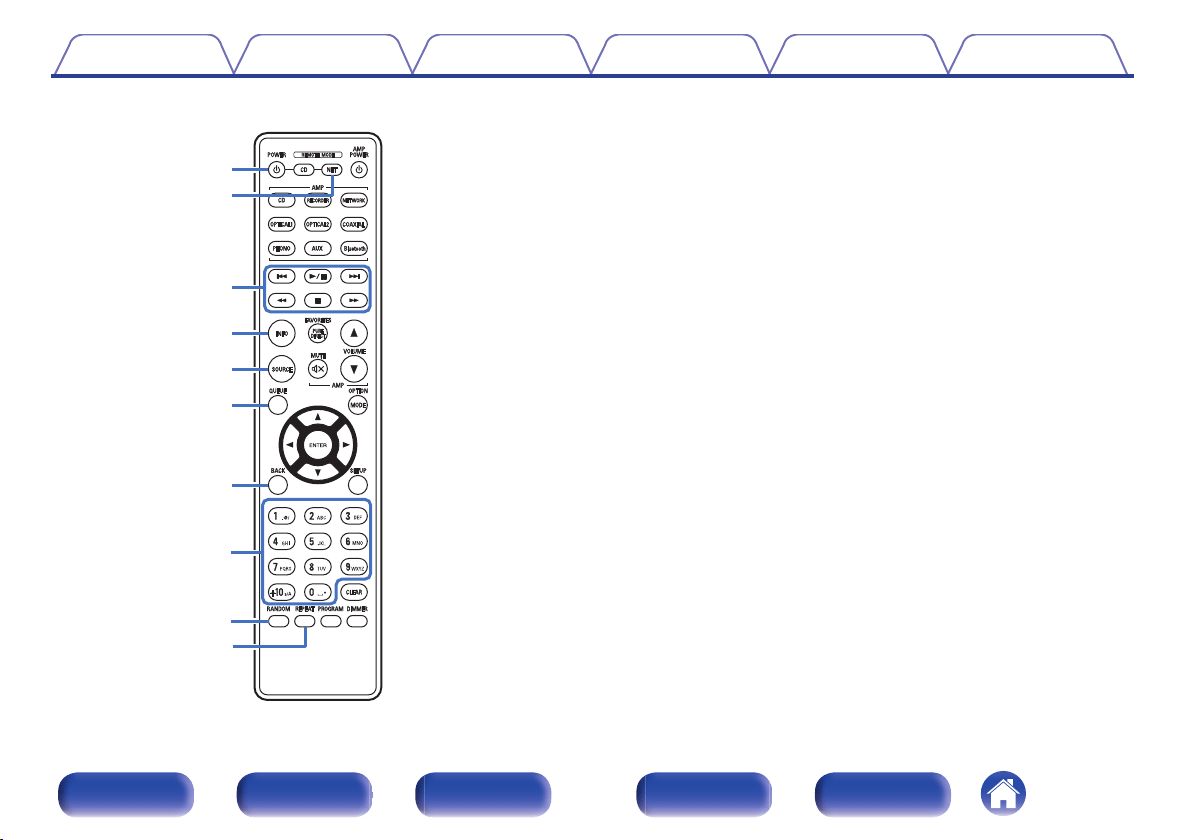

The remote control provided with this unit can control a network audio
player in addition to a Denon amplifier.
0
“Amplifier operations” (v p. 14)
0
“Network audio player operations” (v p. 15)
o
Operating this unit
To operate CD player, press REMOTE MODE CD button to switch the
remote control to the CD player operation mode.
A
Remote control signal transmitter
This transmits signals from the remote control unit. (v p. 5)
B
Power operation button (POWER X)
This turns the power on/off (standby). (v p. 23)
C
Remote mode select button
(REMOTE MODE CD)
This switches the remote control operating mode to CD player.
D
System buttons
These perform playback related operations.
E
Information button (INFO)
This switches the track information shown in the display during
playback.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index
o
Q0
Q1
u
y
i
F

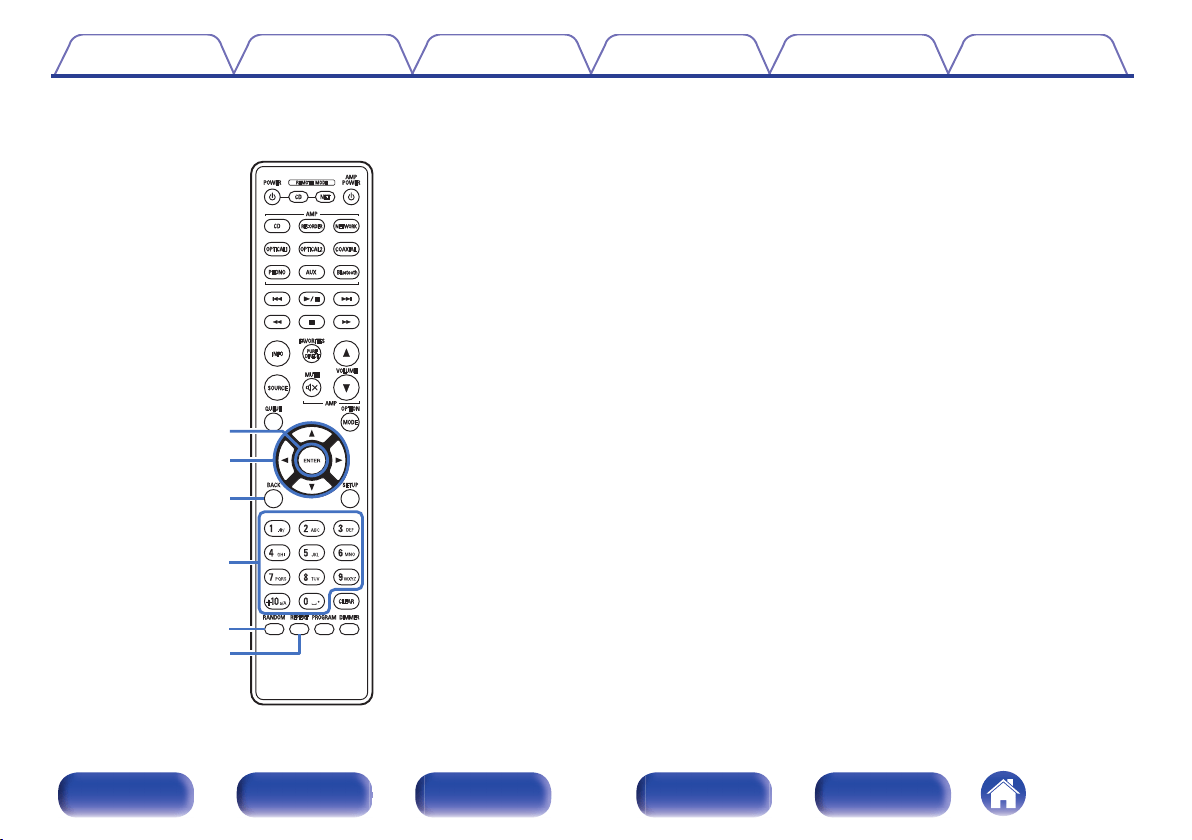

ENTER button
This determines the selection.
G
Cursor buttons (uio p)
These select items.
H
BACK button
Returns to the previous item.
I
Number buttons (0 – 9, +10)
These enter letters or numbers into the unit.
J
RANDOM button
Switches the random playback.
K
REPEAT button
Switches to the repeat playback.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index
Q3
Q5
Q6
Q2
Q4
L
PURE DIRECT button
Switches the Pure Direct mode. (v p. 24)
M
MODE button
Selects the playback range of the data CD. (v p. 30)
N
CLEAR button
This clears the program registration. (v p. 27)
O
DIMMER button
This switches the brightness of the display. (v p. 24)
P
PROGRAM button
This sets program playback. (v p. 27)
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index
q
w
e
r
o
Amplifier operations
A Denon amplifier can be operated.
A
Input source select buttons
B
MUTE button (:)
C
Power operation button (AMP POWER X)
D
VOLUME buttons (df)
0
The remote control may not operate some products.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index
o
Q0
w
e
q
t
y
r
u
i
o
Network audio player operations
You can operate a Denon network audio player.
To operate a Denon network audio player, press the REMOTE MODE
NET button to switch the remote control to the network audio player
operation mode.
A
Power operation button (POWER X)
B
Remote mode select button
(REMOTE MODE NET)
C
System buttons
D
Information button (INFO)
E
SOURCE button
F
QUEUE button
G
BACK button
H
Number/letter buttons (0 – 9, +10)
I
RANDOM button
J
REPEAT button
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index
o
Contents
Connecting an amplifier
18
Connecting to a device with digital audio input connectors
19
Connecting the timer device
20
Connecting the power cord
21
NOTE
0
Do not plug in the power cord until all connections have been completed.
0
Do not bundle power cords together with connection cables. Doing so can result in
humming or noise.
o
Cables used for connections
Provide necessary cables according to the devices you want to
connect.
Audio cable
(supplied)
.
R
L
R
L
Optical cable
.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index
Connecting to a device with digital audio input connectors

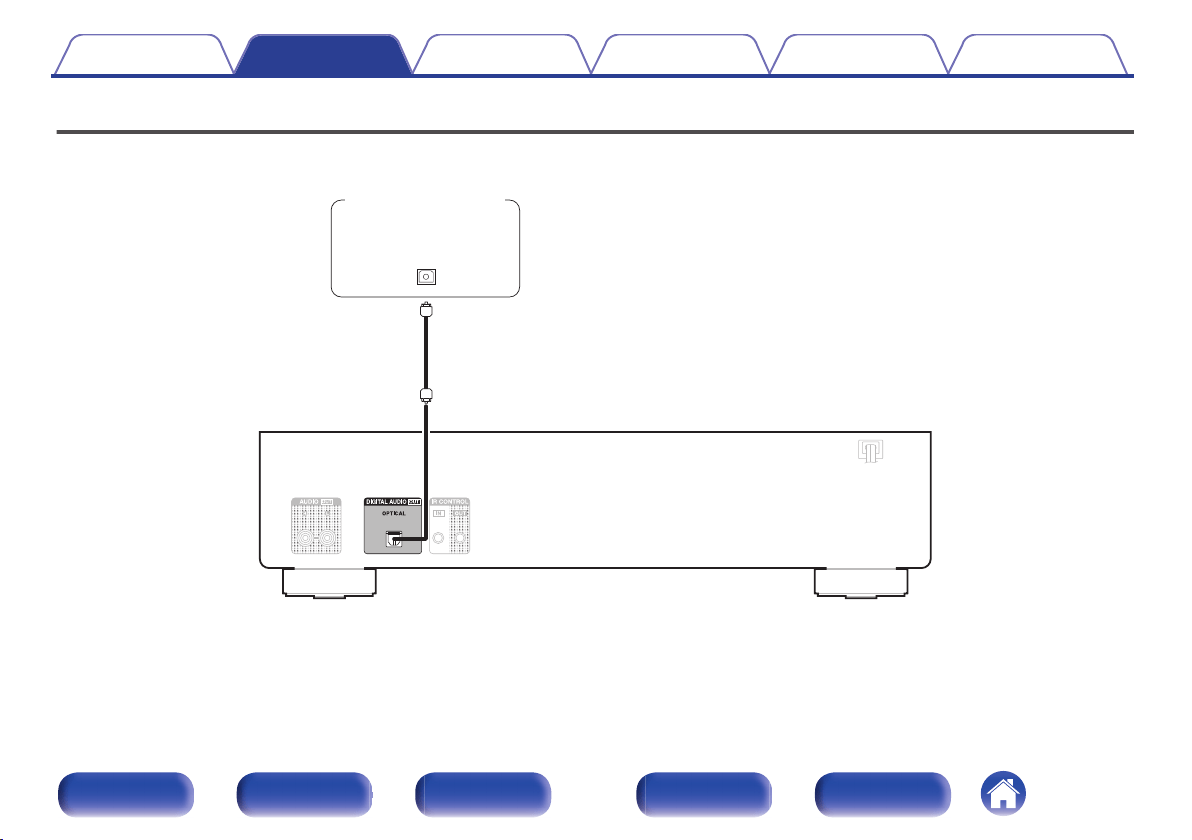

You can enjoy digital audio playback by connecting an amplifier or D/A converter that has a digital audio connector to this unit.
.
OPTICAL
IN
Amplifier /
D/A converter
Contents
Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index
Connecting the timer device
This unit can perform timer play when an amplifier and timer device are connected to this unit. (“Using the timer play function” (v p. 31))
.
This unit
Amplifier
To household power outlet
(AC 230V, 50/60Hz)
Timer device
Contents
Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
Basic operation
.
PURE DIRECT
DIMMER
POWER
X
Turning the power on

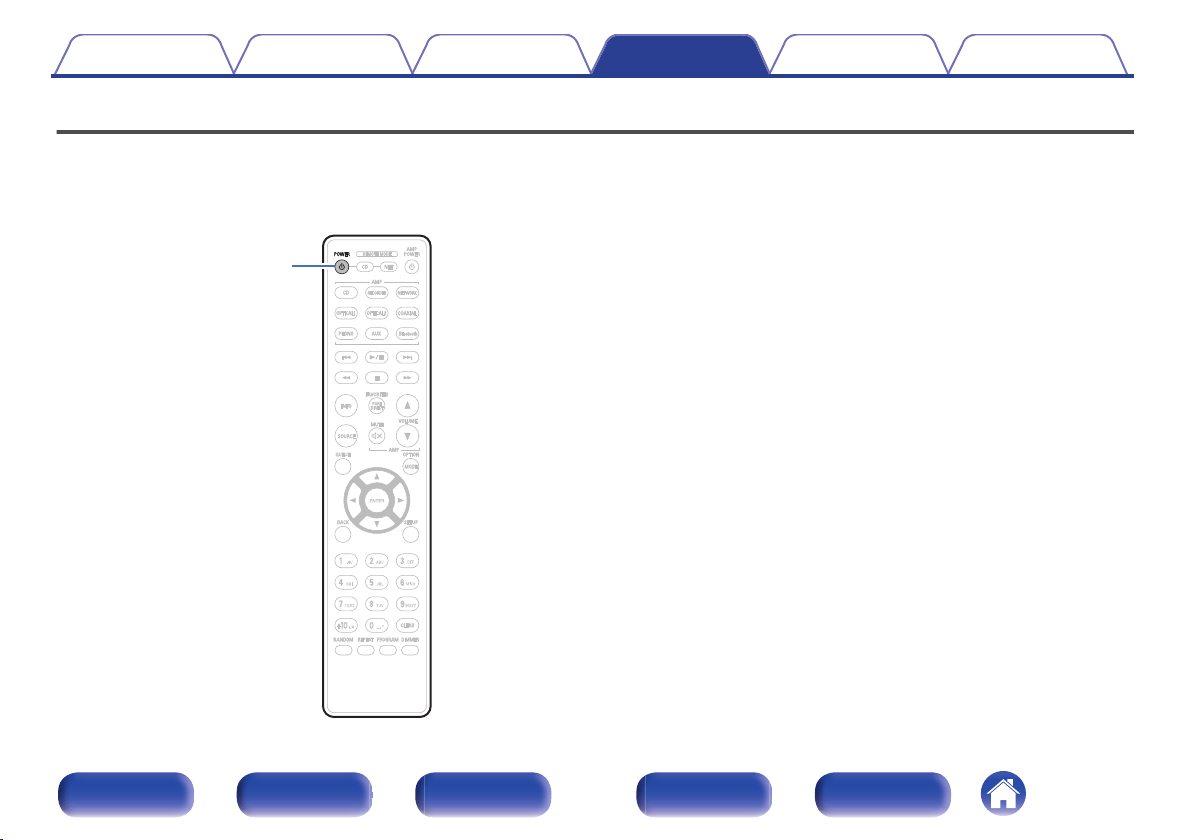

1
Press X on the main unit to turn the power on.
The power indicator lights green.
0
Press POWER X on the remote control unit to turn on power from standby mode.
Switching the power to standby
1
Press POWER X.
The unit switches to standby mode.
NOTE
0
Power continues to be supplied to some of the circuitry even when the power is in
the standby mode. When leaving home for long periods of time or when going on
vacation, either press X on the main unit to turn off the power, or unplug the power
cord from the power outlet.
Contents Connections Playback Settings Tips Appendix
23
Front panel Display Rear panel Remote Index
Switching the display’s brightness
The display brightness can be adjusted between four levels. Switching the
display off reduces a source of noise that affects sound quality, enabling
higher sound quality playback.
1
Press DIMMER.
0
The brightness of the display switches each time the button is
pressed.
0
The display brightness is set to most brightly by default.
0
Press and hold DIMMER for more than 2 seconds to return the display brightness
to the default setting.
Switching the Pure Direct mode
In Pure Direct mode, the display turns off and digital audio output stops.
This reduces the source of noise that can adversely affect sound quality,
enabling high quality playback.
1
Press PURE DIRECT.
The display turned off, and Pure Direct playback begins.
0
Switches the Pure Direct mode each time the button is pressed.
PURE DIRECT ON
MODE1:
Turns off the display and outputs digital
audio.
PURE DIRECT ON
MODE2:
Turns off the display and stops output of
digital audio.
PURE DIRECT OFF
(Default):
Disables Pure Direct mode.
0
The display brightness cannot be changed in Pure Direct mode.
0
The display is only turned off during playback.
Contents Connections Playback Settings Tips Appendix
24
Front panel Display Rear panel Remote Index
Playing CDs
.
0 – 9, +10
RANDOM
REPEAT
PROGRAM
CLEAR
INFO
1
/
3
2
8 9
6 7
Playing CDs
1
Insert a disc. (v p. 43)
0
Press 5 on the unit to open/close the disc tray.
2
Press 1/3.
The 1 indicator lights on the display. Playback starts.
NOTE
0
Do not place any foreign objects in the disc tray. Doing so could damage the unit.
0
Do not push the disc tray in by hand when the power is turned off. Doing so could
damage the unit.
Contents
Connections Playback Settings Tips Appendix
25
Front panel Display Rear panel Remote Index
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
6 7
Fast-reverse / Fast-forward
0 - 9, +10 Select the track
RANDOM Random playback
REPEAT
Repeat playback
0
Switching between All-track repeat,
Single-track repeat and Repeat off.
INFO
Time display switching
0
Switching between elapsed time of the
current track, remaining time of the
current track and remaining time of all
tracks.
0
The time displayed on this unit may differ
from this actual time, as it is calculated
by truncating to the nearest 1 second.
o
Discs that can be played back
0
See “About Playing Back Discs”. (v p. 40)
o
Playing a specific track (Direct searching)
1
Use 0 – 9, +10 to select the tracks.
GExampleH
Track 4 :
Press number 4 to select track 4.
Track 12 :
Press numbers +10 and 2 consecutively.
Contents Connections Playback Settings Tips Appendix
26
Front panel Display Rear panel Remote Index
Playing tracks in a specific order
(Program playback)
Up to 25 tracks can be programmed.
1
In the stop mode, press PROGRAM.
“PGM” appears on the display.
2
Use 0 – 9, +10 to select the tracks.
GExampleH
To program tracks 3 and 12 to be played in that order, press 3, +10
and 2 one after the other.
3
Press 1/3.
Playback starts in the programmed order.
0
The program is cleared when the disc tray is opened or the power is turned off.
0
When RANDOM is pressed during program playback, the programmed tracks are
played in random order.
0
When REPEAT is pressed during program playback, the tracks are played
repeatedly in the programmed order.
o
Checking the order of the programmed tracks
In the stop mode, press 9.
The tracks are shown in the programmed order in the display each
time 9 is pressed.
o
To clear the last track programmed
In the stop mode, press CLEAR.
The last track programmed is cleared each time the button is pressed.
0
You can also select a track to be cleared by pressing 9.
o
Clearing the all programmed track
In the stop mode, press PROGRAM.
Contents
Connections Playback Settings Tips Appendix
27
Front panel Display Rear panel Remote Index

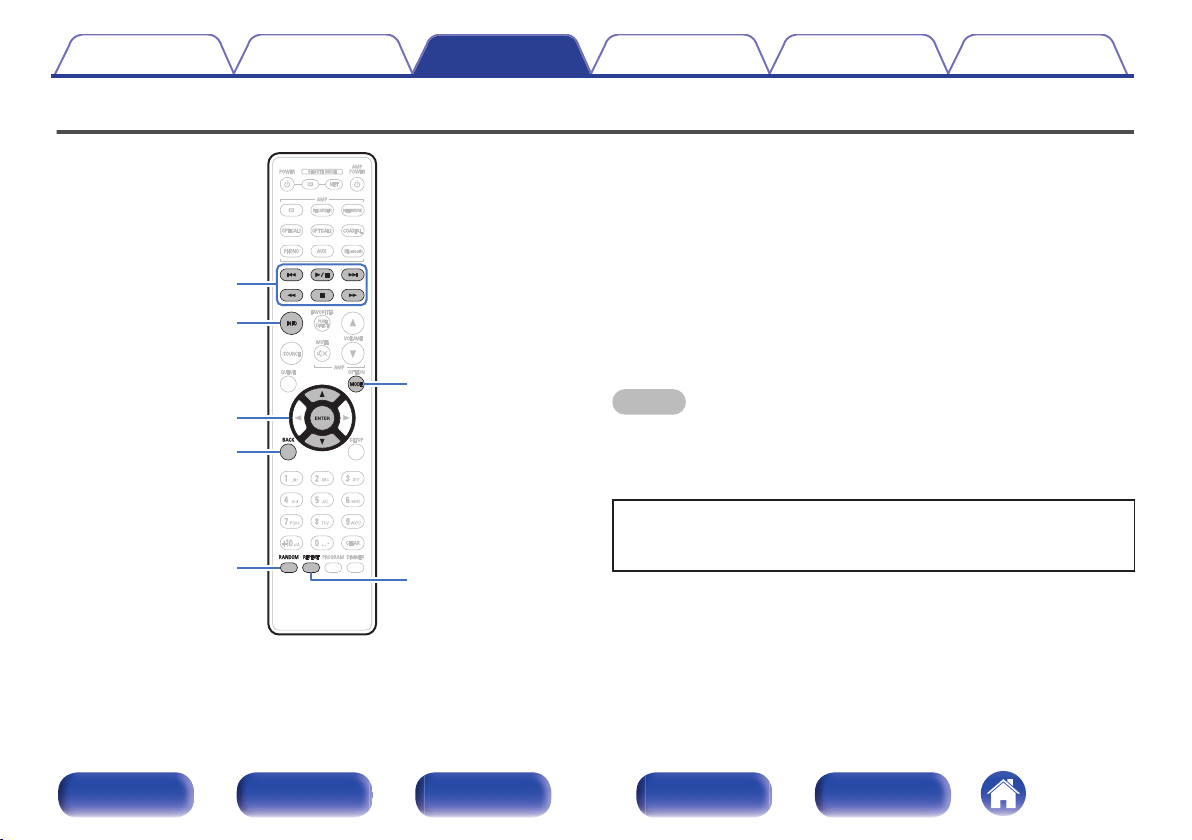

Playing DATA CDs
.
RANDOM
REPEAT
ui
ENTER
INFO
1
/
3
2
8 9
6 7
MODE
BACK
0
This section explains how to playback music files that are recorded onto
a CD-R or CD-RW.
0
There are many music distribution sites on the Internet allowing you to
download music files in MP3 or WMA (Windows Media
®
Audio) format.
The music (files) downloaded from such sites can be stored on CD-R/-
RW discs and played on this unit.
0
The audio format types and specifications supported by this unit for
playback are as follows.
See “Playable files” for details. (v p. 40)
0
MP3
0
WMA
NOTE
0
Copyright-protected files cannot be played.
Note that depending on the software used for burning and other conditions, some
files may not play or display correctly.
“Windows Media” and “Windows” are the trademarks or registered
trademarks of Microsoft Corporation in the United States and other
countries.
Contents
Connections Playback Settings Tips Appendix
28
Front panel Display Rear panel Remote Index
Playing files
1
Load a CD-R/-RW disc containing music files into the
disc tray. (v p. 43)
0
Press 5 on the unit to open/close the disc tray.
2
Use ui to select the music file to be played from the
CD-R/CD-RW music data, then press ENTER.
Playback starts.
Operation buttons
Function
1/3
Playback / Pause
2
Stop
8 9
Skip to previous track / Skip to next track
6 7
Fast-reverse / Fast-forward
BACK Moving up a level in the folder tree
u i
Select the item
ENTER Enter the selected item / Playback
MODE Select the playback range
RANDOM Random playback
REPEAT
Repeat playback
0
Switching between All-track repeat,
Single-track repeat and Repeat off.
INFO
Switches the display between Title name /
Artist name, Title name / Album name and
File name.
0
To start playing another file during playback of a CD-R/CD-RW, first press BACK
to display the file tree. Next, use ui to select the file to be played and press
ENTER.
Contents Connections Playback Settings Tips Appendix
29
Front panel Display Rear panel Remote Index
o
Switching the display
During playback, press INFO.
0
Switches the display between Title name / Artist name, Title name /
Album name and File name.
0
If a file does not support text information or no track information is
recorded, the file name is displayed.
0
The player can display the following characters:
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
0123456789
! ” # $ % & : ; < > ? @ ＼ [ ] _ ` l { } ~ ^ ’( ) * + , - . / = space
0
Any characters that cannot be displayed are replaced with “.”
(period).
0
The folder and file numbers are set automatically when the disc is
loaded.
o
Switching the playback range
In the stop mode, press MODE.
0
The playback range of a track can be set.
Folder mode:
All the files in the selected folder are
played. The “FLD” indicator on the
display lights at this time.
All mode: All the files in the disc are played.
Contents Connections Playback Settings Tips Appendix
30
Front panel Display Rear panel Remote Index
Using the timer play function
1
Turn on the power of the connected components.
(v p. 20)
2
Switch the amplifier’s function to input from the
connected unit.
3
Load a disc.
4
Set the audio timer for the desired times.
0
Refer also to the owner’s manual of the audio timer.
5
Turn the timer “On”.
0
The power of the components connected to the timer turns off.
0
When the set time is reached, the power of the different
components automatically turns on and playback starts from the
first track.
0
The timer play does not support the random playback or program playback.
Contents Connections Playback Settings Tips Appendix
31
Front panel Display Rear panel Remote Index
Setting the Auto Standby mode
When Auto Standby mode is set to On, if the unit remains in the stopped
state and no operations are performed for approximately 30 minutes, the
unit automatically switches to standby mode.
Auto Standby mode is set to on by default.
.
POWER
X
1
Press and hold POWER X for 5 seconds or more to
switch it on and off.
The display changes as follows each time it is switched on and off.
0
When auto standby mode is on: “AUTO STANDBY ON” is
displayed.
0
When auto standby mode is off: “AUTO STANDBY OFF” is
displayed.
Contents Connections Playback Settings Tips Appendix
32
Front panel Display Rear panel Remote Index
o
Contents
Tips
I want to enjoy analog output audio at higher quality 34
I want to playback just the specified folder 34
I want to randomly play back all tracks on a CD-R/CD-RW 34
Troubleshooting
Power does not turn on / Power is turned off 36
Operations cannot be performed through the remote control unit 37
Display on this unit shows nothing 37
No sound comes out 38
Sound is interrupted or noise occurs 38
Cannot playback Discs 39
Contents Connections Playback Settings Tips Appendix
33
Front panel Display Rear panel Remote Index
Tips
I want to enjoy analog output audio at higher quality
0
Switch pure direct mode to “PURE DIRECT ON MODE2”. (v p. 24)
I want to playback just the specified folder
0
Press the MODE button to set the playback mode to folder playback mode. (v p. 30)
I want to randomly play back all tracks on a CD-R/CD-RW
0
Before playback, press the MODE button to set the playback mode to “All Mode”, then press the RANDOM for random playback. (v p. 30)
Contents Connections Playback Settings Tips Appendix
34
Front panel Display Rear panel Remote Index
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the corresponding symptoms in this section.
If the symptoms do not match any of those described here, consult your dealer as it could be due to a fault in this unit. In this case, disconnect the power
immediately and contact the store where you purchased this unit.
Contents Connections Playback Settings Tips Appendix
35
Front panel Display Rear panel Remote Index
Power does not turn on / Power is turned off
Power is not turned on.
0
Check whether the power plug is correctly inserted into the power outlet. (v p. 21)
0
This unit is in standby mode. Press the POWER X button on the remote control. (v p. 23)
Power automatically turns off.
0
The auto standby mode setting is on. The auto standby mode automatically switches the unit to standby if there are no operations for more than 30
minutes. To disable the Auto Standby mode, press and hold the POWER X button on the remote control for more than 5 seconds when the Auto
Standby mode is enabled. (v p. 32)
When the power is turned on, the power indicator flashes in red.
0
The protection circuit has been activated due to an error in the internal power supply. Press the X button on the main unit to turn off the power, and then
turn on the power again.
Contents
Connections Playback Settings Tips Appendix
36
Front panel Display Rear panel Remote Index
Operations cannot be performed through the remote control unit
Operations cannot be performed through the remote control unit.
0
Batteries are worn out. Replace with new batteries. (v p. 5)
0
Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°. (v p. 5)
0
Remove any obstacle between this unit and the remote control unit.
0
Insert the batteries in the proper direction, checking the q and w marks. (v p. 5)
0
The unit’s remote control sensor is exposed to strong light (direct sunlight, inverter type fluorescent bulb light, etc.). Move the set to a place in which the
remote control sensor will not be exposed to strong light.
0
When using a 3D video device, the remote control unit of this unit may not function due to effects of infrared communications between units (such as TV
and glasses for 3D viewing). In this case, adjust the direction of units with the 3D communications function and their distance to ensure they do not
affect operations from the remote control unit of this unit.
Display on this unit shows nothing
Display is off.
0
Press the DIMMER button, and change the setting to anything other than off. (v p. 24)
0
When Pure Direct mode is set to “PURE DIRECT ON MODE1” or “PURE DIRECT ON MODE2”, the display turns off. Press the PURE DIRECT button
on the remote control to set “PURE DIRECT OFF”. (v p. 24)
Contents
Connections Playback Settings Tips Appendix
37
Front panel Display Rear panel Remote Index
No sound comes out
No sound is produced. Or sound is distorted.
0
Check the connections for all devices. (v p. 17)
0
Insert connection cables all the way in.
0
Check that input connectors and output connectors are not reversely connected.
0
Check cables for damage.
0
Check the amplifier’s functions and controls and adjust as necessary.
0
When Pure Direct mode is set to “PURE DIRECT ON MODE2”, digital audio output stops. Set Pure Direct mode to “PURE DIRECT OFF” or “PURE
DIRECT ON MODE1” to output digital audio. (v p. 24)
Sound is interrupted or noise occurs
During playback from the CD-R/CD-RW, sound is occasionally interrupted.
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.
Contents
Connections Playback Settings Tips Appendix
38
Front panel Display Rear panel Remote Index
Cannot playback Discs
Cannot playback when the play button is pressed, or cannot correctly play back a specific part of the disc.
0
The disc is dirty or scratched. Either clean the disc, or insert a different disc. (v p. 44)
Cannot playback CD-R/CD-RW.
0
Discs cannot be played back unless they have been finalized. Use a finalized disc. (v p. 40)
0
This may be caused by poor recording conditions, or the disc itself may be of poor quality. Use a correctly recorded disc.
0
Files are created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 40)
“NO DISC” is displayed.
0
“NO DISC” is displayed if the disc is loaded upside-down or if no disc is loaded.
“SYSTEM ERROR” is displayed.
0
“SYSTEM ERROR” is displayed when an error not caused by disc, format, etc., occurs.
“CAN'T READ DISC” is displayed.
0
“CAN'T READ DISC” is displayed when the inserted disc cannot be read because it is not compatible with this unit or is dirty or scratched.
“WRONG FORMAT” is displayed.
0
“WRONG FORMAT” is displayed for files created in a format that is not supported by this unit. Check the formats supported by this unit. (v p. 40)
Contents
Connections Playback Settings Tips Appendix
39
Front panel Display Rear panel Remote Index
Playing back Discs

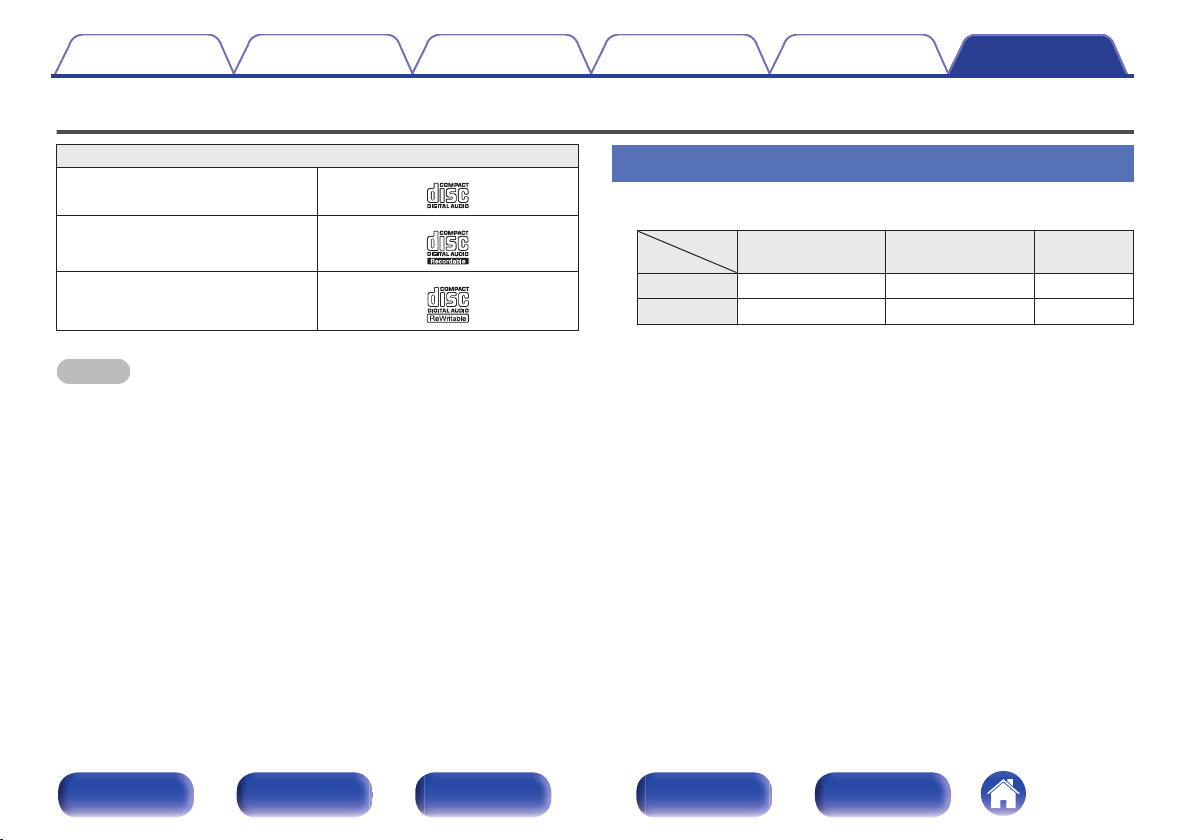

Playable media
CD
.
CD-R
.
CD-RW
.
NOTE
0
Some discs and some recording formats cannot be played.
0
Non-finalized discs cannot be played.
Files
o
Specifications of supported files
Sampling
frequency
Bit rate Extension
MP3 32/44.1/48 kHz 48 – 320 kbps .mp3
WMA 32/44.1/48 kHz 48 – 320 kbps .wma
o
Maximum number of playable files and folders
Maximum number of folders : 256
Total number of folders and files : 512
Contents
Connections Playback Settings Tips Appendix
40
Front panel Display Rear panel Remote Index
NOTE
0
Be sure to give files the extension. Files with any other extensions or files with no
extensions cannot be played.
0
Recordings you have made should only be used for your personal enjoyment, and
as per copyright laws may not be used in other ways without permission of the
copyright holder.
0
Only music files that are not copyright-protected can be played on this unit.
0
Content downloaded from pay sites on the Internet are copyright protected.
Also, files encoded in WMA format when ripped from a CD, etc. on a computer
may be copyright protected, depending on the computer’s settings.
0
The maximum number of files and folders that can be played differs depending on
conditions such as the length of the file name or folder name or the number of
levels in the folder hierarchy.
Contents Connections Playback Settings Tips Appendix
41
Front panel Display Rear panel Remote Index
Playback order of files
When there are multiple folders containing music files, the playback order
of folders is automatically set when this unit reads the media. Files in each
folder are played in alphabetical order of file name.
CD-R/CD-RW
For playback of files on CD-R or CD-RW, files are played in order of layer,
starting with all folders on the first layer, then the second layer, then the
third layer, and so on.
0
The playback order displayed on a PC may differ from the actual playback order.
0
The playback order with a CD-R/CD-RW may differ, depending on the writing
software.

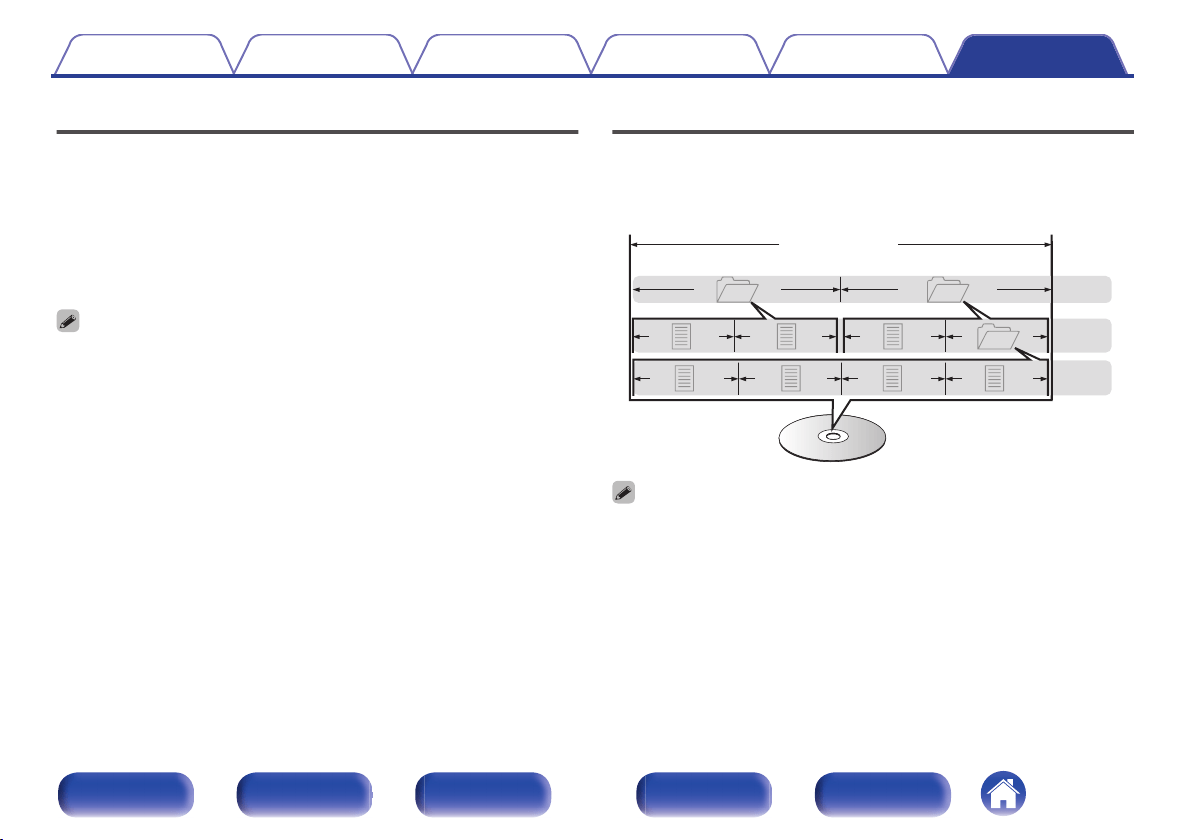

About folders and files
Music files recorded on CD-R/CD-RW are divided into large segments
(folders) and small segments (files).
Files are stored in folders, and folders can be placed for storage in a
hierarchy. The unit can recognize up to 8 levels of folders.
.
3rd level
File 7
File 6
File 5
File 4
2nd level
Folder 3
File 3File 2
File 1
1st level
Folder 1
Folder 2
CD-R/CD-RW
0
When writing music files on a CD-R/-RW disc, set the writing software’s format to
“ISO9660”. The files may not play properly if they are recorded in other formats.
For details, refer to the instructions of your writing software.
Contents Connections Playback Settings Tips Appendix
42
Front panel Display Rear panel Remote Index
Cautions on using media

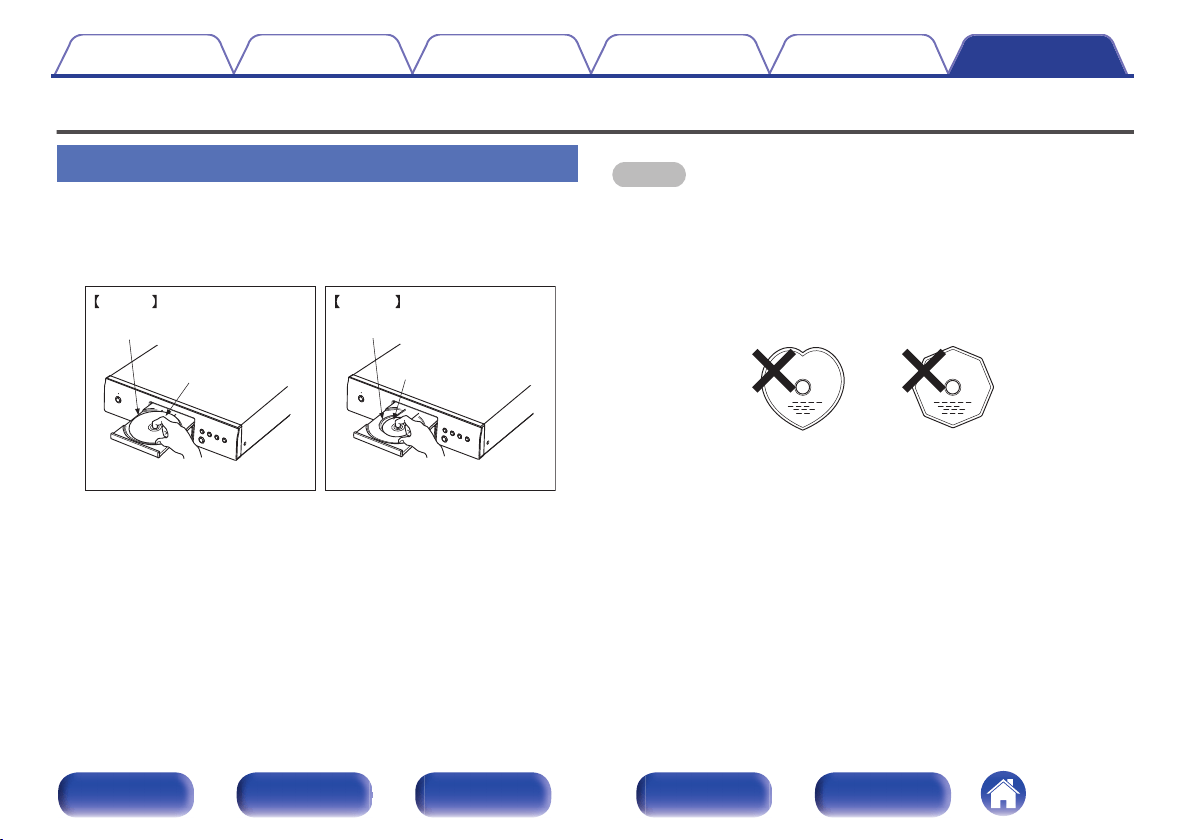

Loading discs
0
Set the disc in the tray label side up.
0
Make sure the disc tray is fully open when inserting the disc.
0
Place the discs flatly, 12 cm discs in the outer tray guide (Figure 1), 8
cm discs in the inner tray guide (Figure 2).
.
Outer tray guide Inner tray guide
12 cm disc
8 cm disc
Figure 2Figure 1
0
Place 8 cm discs in the inner tray guide without using an adapter.
NOTE
0
Only load one disc at a time. Loading two or more discs can damage the unit or
scratch the discs.
0
Do not use cracked or warped discs or discs that have been repaired with
adhesive, etc.
0
Do not use discs on which the sticky part of cellophane tape or labels is exposed
or on which there are traces of where labels have been removed. Such discs can
get caught inside the player and damage it.
0
Do not use discs in special shapes, as they may damage the unit.
.
0
Do not push the disc tray in by hand when the power is off. Doing so could
damage the unit.
0
If the unit is left in a room full of smoke from cigarettes, etc., for long periods of
time, the surface of the optical pickup may get dirty, preventing it from receiving
signals properly.
Contents
Connections Playback Settings Tips Appendix
43
Front panel Display Rear panel Remote Index
How to handle media
0
Do not get fingerprints, oil or dirt on discs.
0
Take special care not to scratch discs when removing them from their
cases.
0
Do not bend or heat discs.
0
Do not enlarge the hole in the center.
0
Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
0
Condensation may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to dry
discs with a hairdryer, etc.
0
Do not store discs in the following places:
1. Places exposed to direct sunlight for long periods of time
2. Dusty or humid places
3. Places exposed to heat from heaters, etc.
Cleaning discs
0
If there are fingerprints or dirt on a disc, wipe them off before using the
disc.
0
Use a commercially available disc cleaning set or a soft cloth to clean
discs.
.
Gently wipe the disc from the
inside towards the outside.
Do not wipe with a circular
motion.
NOTE
0
Do not use record spray, antistatic agents, benzene, thinner or other solvents.
Contents Connections Playback Settings Tips Appendix
44
Front panel Display Rear panel Remote Index
Explanation of terms
AL32 Processing
Equipped with AL32 Processing, Denon’s own analog waveform
reproduction technology.
The reproducibility of weak signals is enhanced by expanding 16 bit digital
data to 32 bit.
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data compression scheme,
using the “MPEG-1” video compression standard. It compresses the data
volume to about one eleventh its original size while maintaining sound
quality equivalent to a music CD.
WMA (Windows Media Audio)
This is audio compression technology developed by Microsoft
Corporation.
WMA data can be encoded using Windows Media
®
Player.
To encode WMA files, only use applications authorized by Microsoft
Corporation. If you use an unauthorized application, the file may not work
properly.
Sampling frequency
Sampling involves taking a reading of a sound wave (analog signal) at
regular intervals and expressing the height of the wave at each reading in
digitized format (producing a digital signal).
The number of readings taken in one second is called the “sampling
frequency”. The larger the value, the closer the reproduced sound is to the
original.
Dynamic range
The difference between the maximum undistorted sound level and the
minimum discernible level above the noise emitted by the device.
Bit rate
This is the amount of audio data recorded on a disc that is read in one
second.
Finalizing
This process enables DVD/CD recorded with a recorder to be played by
other players.
Linear PCM
This is an uncompressed PCM (Pulse Code Modulation) signal. Unlike
lossy compression audio sources such as MP3, no audio quality or
dynamic range deteriorates.
Contents
Connections Playback Settings Tips Appendix
45
Front panel Display Rear panel Remote Index
Specifications
o
Audio section
0
Analog output
Channels: 2-channel
Playable frequency range: 2 Hz – 20 kHz (sampling frequency: 44.1 kHz)
Playable frequency response: 2 Hz – 20 kHz (sampling frequency: 44.1 kHz)
S/N: 112 dB
Dynamic range: 101 dB
Harmonic distortion: 0.003 %
Output level: 2.0 V RMS
Contents Connections Playback Settings Tips Appendix
47
Front panel Display Rear panel Remote Index
0
Optical readout system
Laser: AlGaAs
Wave length: 780 nm
Signal type: 16-bit linear PCM
Sampling frequency: 44.1 kHz
0
Digital output
Optical : -15 – -21 dBm
o
General
Operating temperature: +5 ℃ - +35 ℃
Power supply: AC 230 V, 50/60 Hz
Power consumption: 12 W
Power consumption in standby mode: 0.3 W
For the purpose of improvement, the specifications and design are subject to change without notice.
Contents
Connections Playback Settings Tips Appendix
48
Front panel Display Rear panel Remote Index
Index
v A
Amplifier ................................................... 18, 19
Auto Standby ................................................. 32
v C
CD .................................................................. 25
v D
D/A converter ................................................. 19
DATA CD ....................................................... 28
Display ............................................................. 9
Display’s brightness ....................................... 24
v F
Front panel ....................................................... 7
v P
Program playback .......................................... 27
v R
Rear panel ...................................................... 10
Remote control unit ........................................ 11
v T
Timer device ............................................. 20, 31
Tips ................................................................ 34
Troubleshooting ............................................. 35
Contents
Connections Playback Settings Tips Appendix
50
Front panel Display Rear panel Remote Index
.
www.denon.com
3520 10694 00AD
Copyright © 2019 D&M Holdings Inc. All Rights Reserved.
51
