__-_ Owner's Manual
CRAFTS[MAN+
5.5 HORSEPOWER
20" CAST CONVERTIBLE
ROTARY LAWN MOWER
Model No,
917.387070
• Safety
• Assembly
• Operation
• Maintenance
• Espahol
• Repair Parts
CAUTION:
Read and follow all
Safety Rules and Instructions
before operating this equipment
For answersto your
questionsabout thisproduct:
Call 7 am--7 pm, Mon--Sat;
Sun, 10 am--7 pm
1-800-235-5878
Sears, Roebuck and Co., Hoffman Estates, IL 60179

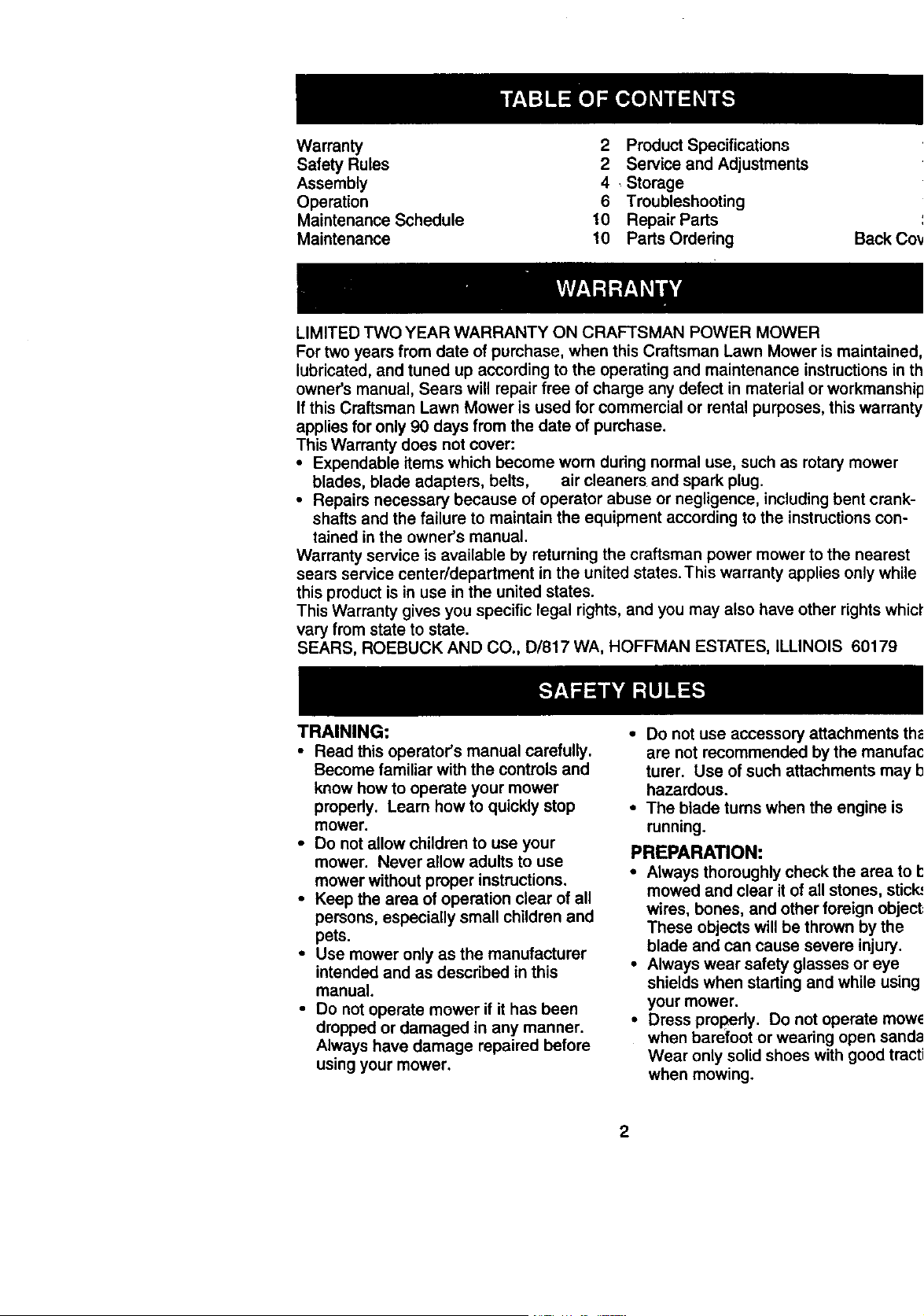

Warranty 2 Product Specifications 1
Safety Rules 2 Service and Adjustments 1
Assembly 4 , Storage 1
Operation 6 Troubleshooting 1
Maintenance Schedule 10 Repair Parts 3
Maintenance 10 Parts Ordering Back Cow
LIMITED TWO YEAR WARRANTY ON CRAFTSMAN POWER MOWER
For two years from date of purchase, when this Craftsman Lawn Mower is maintained,
lubricated, and tuned up according to the operating and maintenance instructions in th_
owner's manual, Sears will repair free of charge any defect in material or workmanship.
If this Craftsman Lawn Mower is used for commercial or rental purposes, this warranty
applies for only 90 days from the date of purchase.
This Warranty does not cover:
• Expendable items which become worn during normal use, such as rotary mower
blades, blade adapters, belts, air cleanem and spark plug.
• Repairs necessary because of operator abuse or negligence, including bent crank-
shafts and the failure to maintain the equipment according to the instructions con-
tained in the owner's manual.
Warranty service is available by returning the craftsman power mower to the nearest
sears service center/department in the united states. This warranty applies only while
this product is in use in the united states.
This Warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, ILLINOIS 60179
TRAINING:
• Read this operator's manual carefully.
Become familiar with the controls and
know how to operate your mower
propedy. Learn how to quickly stop
mower.
• Do not allow children to use your
mower. Never allow adults to use
mower without proper instructions.
• Keep the area of operation clear of all
persons, especially small children and
pets.
• Use mower only as the manufacturer
intended and as described in this
manual.
• Do not operate mower if it has been
dropped or damaged in any manner.
Always have damage repaired before
using your mower.
• Do not use accessory attachments thal
are not recommended by the manufac-
turer. Use of such attachments may b_
hazardous.
• The blade tums when the engine is
running.
PREPARATION:
• Always thoroughly check the area to b_
mowed and clear it of all stones, sticks
wires, bones, and other foreign objects
These objects will be thrown by the
blade and can cause severe injury.
• Always wear safety glasses or eye
shields when starting and while using
your mower,
• Dress propedy. Do not operate mowel
when barefoot or wearing open sandal
Wear only solid shoes with good tractic
when mowing.
2

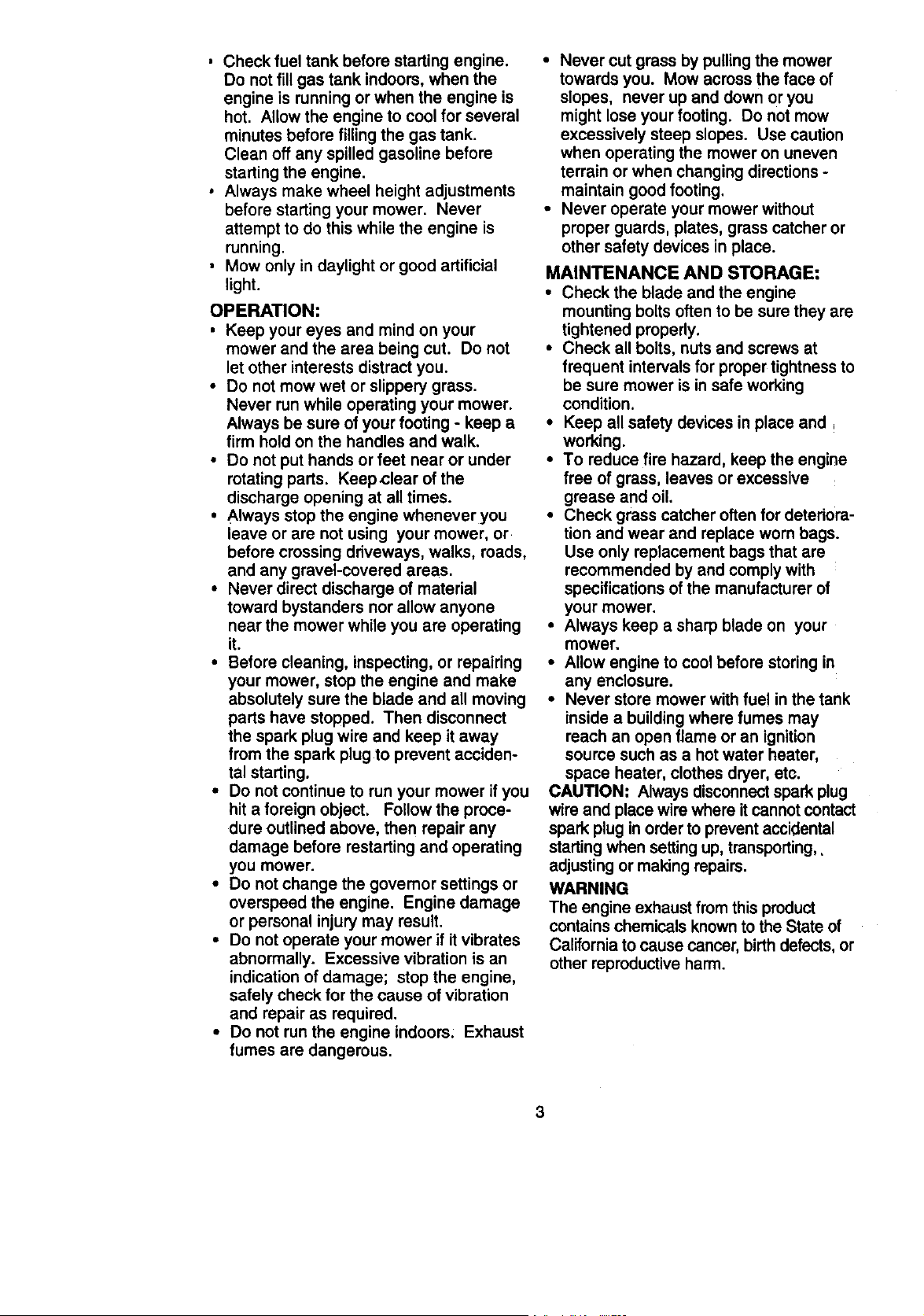

, Checkfueltankbeforestartingengine.
Donotfillgastankindoors,whenthe
engineisrunningorwhentheengineis
hot. Allowtheenginetocoolfor several
minutes before filling the gas tank.
Clean off any spilled gasoline before
starting the engine.
• Always make wheel height adjustments
before starting your mower. Never
attempt to do this while the engine is
running.
• Mow only in daylight or good artificial
light.
OPERATION:
• Keep your eyes and mind on your
mower and the area being cut. Do not
let other interests distract you.
• Do not mow wet or slippery grass.
Never run while operating your mower.
Always be sure of your footing - keep a
firm hold on the handles and walk.
• Do not put hands or feet near or under
rotating parts. Keep,clear of the
discharge opening at all times.
• Always stop the engine wheneveryou
leave or are not using your mower, or
before crossing driveways, walks, roads,
and any gravel-covered areas.
• Never direct discharge of material
toward bystanders nor allow anyone
near the mower while you are operating
it.
• Before cleaning, inspecting, or repairing
your mower, stop the engine and make
absolutely sure the blade and all moving
parts have stopped. Then disconnect
the spark plug wire and keep it away
from the spark plug to prevent acciden-
tal starting.
• Do not continue to run your mower if you
hit a foreign object. Follow the proce-
dure outlined above, then repair any
damage before restarting and operating
you mower.
• Do not change the governor settings or
overspeed the engine. Engine damage
or personal injury may result.
• Do not operate your mower if it vibrates
abnormally. Excessive vibration is an
indication of damage; stop the engine,
safely check for the cause of vibration
and repair as required.
• Do not run the engine indoors: Exhaust
fumes are dangerous.
• Never cut grass by pulling the mower
towards you. Mow across the face of
slopes, never up and down or you
might lose your footing. Do not mow
excessively steep slopes. Use caution
when operating the mower on uneven
terrain or when changing directions -
maintain good footing.
• Never operate your mower without
proper guards, plates, grass catcher or
other safety devices in place.
MAINTENANCE AND STORAGE:
• Check the blade and the engine
mounting bolts often to be sure they are
tightened properly.
• Check all bolts, nuts and screws at
frequent intervals for proper tightness to
be sure mower is in safe working
condition.
• Keep all safety devices in place and
working.
• To reduce fire hazard, keep the engine
free of grass, leaves or excessive
grease and oil.
• Check grass catcher often for deteriora-
tion and wear and replace worn bags.
Use only replacement bags that are
recommended by and comply with
specifications of the manufacturer of
your mower.
• Always keep a sharp blade on your
mower.
• Allow engine to cool before storing in
any enclosure.
• Never store mower with fuel in the tank
inside a building where fumes may
reach an open flame or an ignition
source such as a hot water heater,
space heater, clothes dryer, etc.
CAUTION" Always disconnect spark plug
wire and place wire where it cannot contact
spark plug in order to prevent accidental
starting when setting up, transporting,,
adjusting or making repairs.
WARNING
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects, or
other reproductive harm.
3

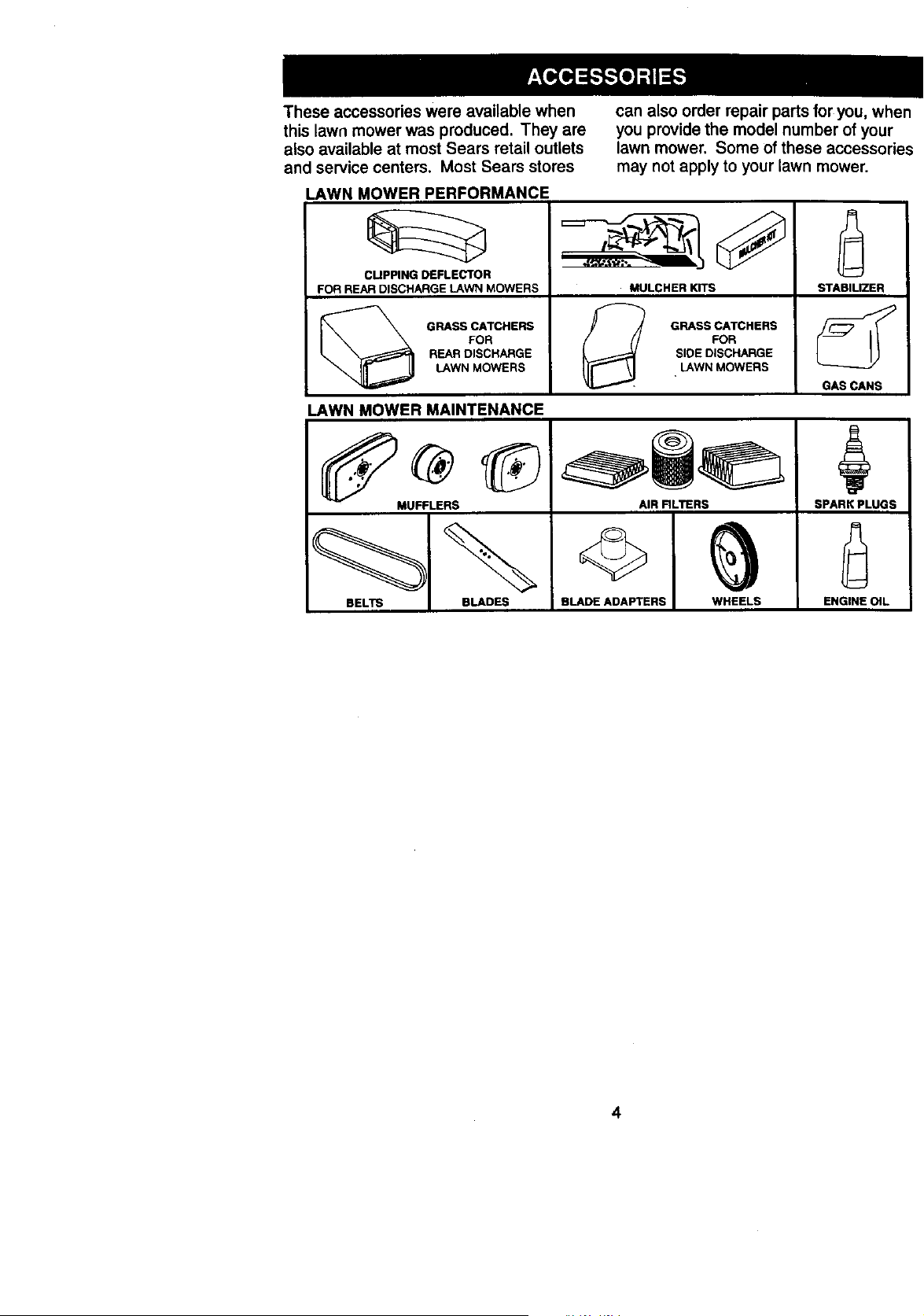

Theseaccessorieswereavailablewhen
thislawnmowerwasproduced.Theyare
also available at most Sears retail outlets
and service centers. Most Sears stores
can also order repair parts for you, when
you provide the model number of your
lawn mower. Some of these accessories
may not apply to your lawn mower.
LAWN MOWER PERFORMANCE
CLIPPING DEFLECTOR
FOR REAR DISCHARGE LAWN MOWERS
GRASS CATCHERS
FOR
REAR DISCHARGE
LAWN MOWERS
MULCHER KffS
1 GRASS CATCHERS
/ FOR
SIDE DISCHARGE
LAWNMOWERS
STABILIZER
GAS CANS
LAWN MOWER MAINTENANCE
MUFFLERS
BELTS BLADES
AIR RLTERS
BLADE ADAPTERS WHEELS
SPARK PLUGS
ENGINE O_L
4

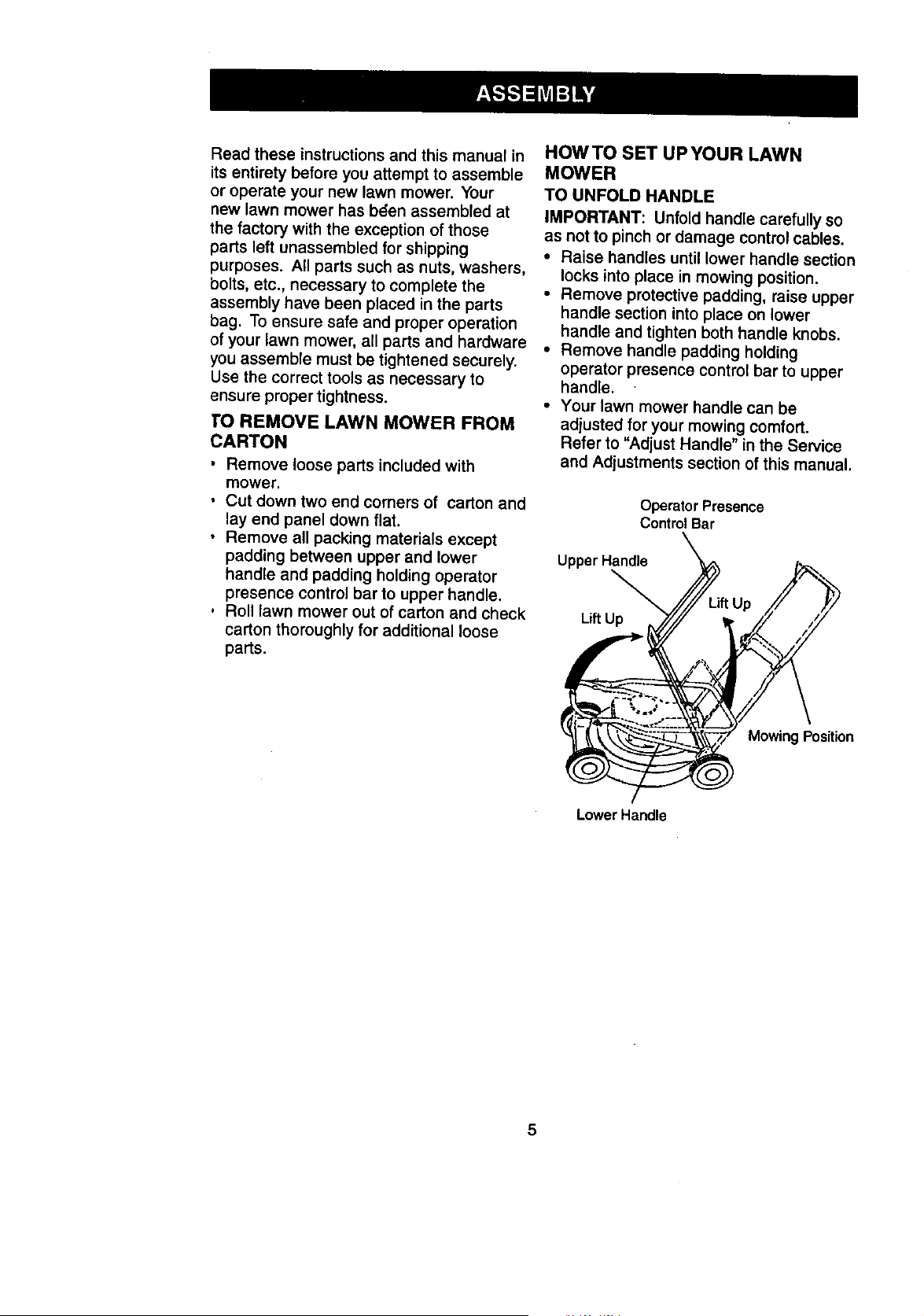

Read these instructions and this manual in
its entirety before you attempt to assemble
or operate your new lawn mower. Your
new lawn mower has bden assembled at
the factory with the exception of those
parts left unassembled for shipping
purposes. All parts such as nuts, washers,
bolts, etc., necessary to complete the
assembly have been placed in the parts
bag. To ensure safe and proper operation
of your lawn mower, all parts and hardware
you assemble must be tightened securely.
Use the correct tools as necessary to
ensure proper tightness.
TO REMOVE LAWN MOWER FROM
CARTON
• Remove loose parts included with
mower.
, Cut down two end corners of carton and
lay end panel down flat.
• Remove all packing materials except
padding between upper and lower
handle and padding holding operator
presence control bar to upper handle.
, Roll lawn mower out of carton and check
carton thoroughly for additional loose
parts.
HOWTO SET UPYOUR LAWN
MOWER
TO UNFOLD HANDLE
IMPORTANT: Unfold handle carefully so
as not to pinch or damage control cables.
• Raise handles until lower handle section
locks into place in mowing position,
• Remove protective padding, raise upper
handle section into place on lower
handle and tighten both handle knobs.
• Remove handle padding holding
operator presence control bar to upper
handle.
• Your lawn mower handle can be
adjusted for your mowing comfort.
Refer to "Adjust Handte" in the Service
and Adjustments section of this manual.
Operator Presence
Control Bar
Upper Handle
Up
LiftUp
MowingPosition
LowerHandle

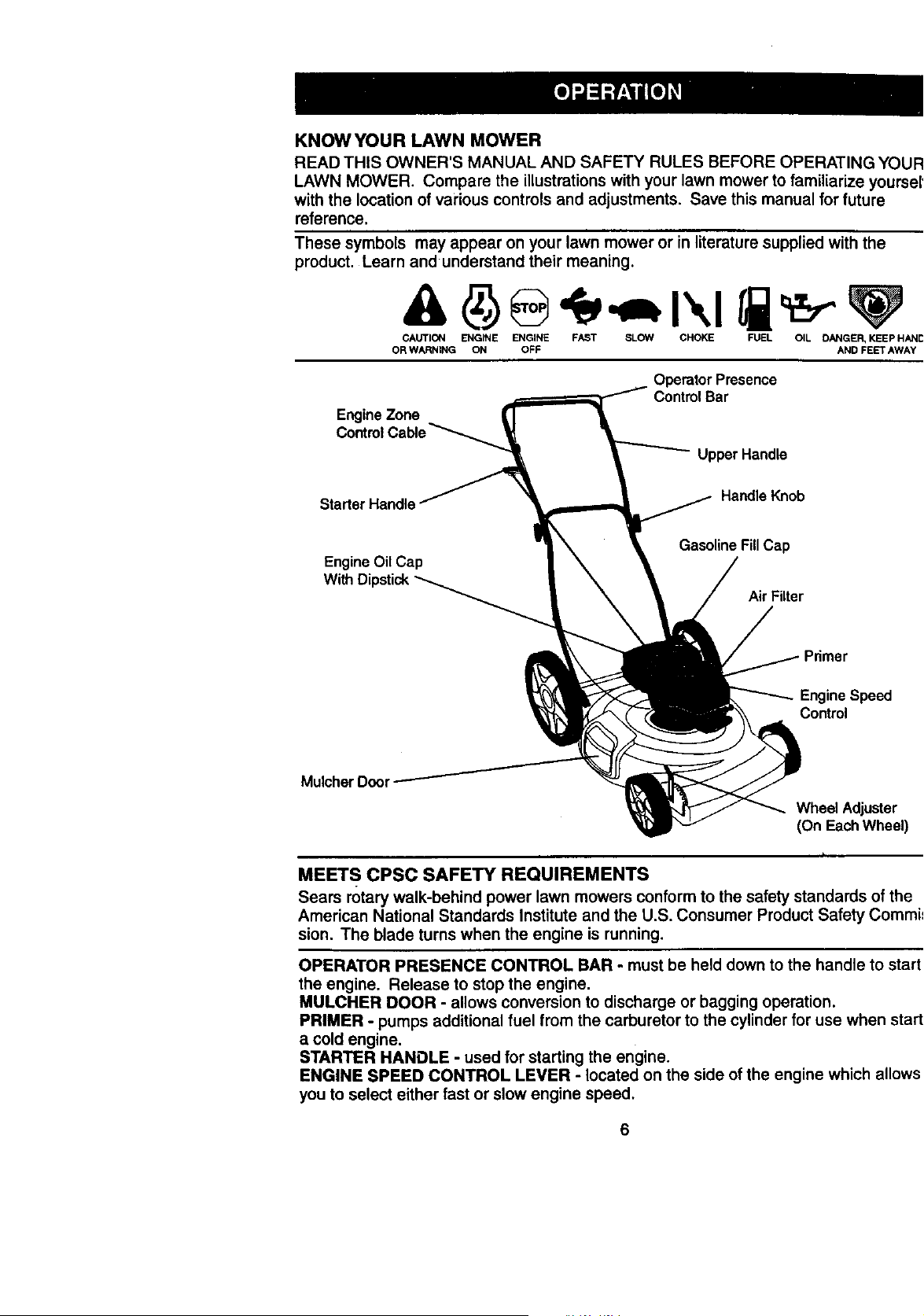

KNOWYOUR LAWN MOWER
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
LAWN MOWER. Compare the illustrations with your lawn mower to familiarize yourself
with the location of various controls and adjustments. Save this manual for future
reference.
These symbols may appear on your lawn mower or in literature supplied with the
product, Learn and understand their meaning.
CAUTION ENGINE ENGINE FAST SLOW CHOKE FUEL OIL DANGER, KEEP HAND_
OR WARNING ON OFF AND FEET AWAY
EngineZone
Operator Presence
ControlBar
UpperHandle
Starter Handle
HandleKnob
EngineOil Cap
With
GasolineFillCap
AirFilter
EngineSpeed
Control
Mulcher Door
Wheel Adjuster
(On EachWheel)
MEETS CPSC SAFETY REQUIREMENTS
Sears rotary walk-behind power lawn mowers conform to the safety standards of the
American National Standards Institute and the U.S. Consumer Product Safety Commis
sion. The blade turns when the engine is running.
OPERATOR PRESENCE CONTROL BAR - must be held down to the handle to start
the engine. Release to stop the engine.
MULCHER DOOR - allows conversion to discharge or bagging operation.
PRIMER - pumps additional fuel from the carburetor to the cylinder for use when startil
a cold engine.
STARTER HANDLE - used for starting the engine.
ENGINE SPEED CONTROL LEVER - located on the side of the engine which allows
you to select either fast or slow engine speed.
_IOWTO USEYOUR LAWN MOWER
ENGINE SPEED CONTROL
lhe engine speed is controlled by a lever
ocated on the side of the engine. Fast
_osition is for starting engine, normal
:utting and better grass bagging. Slow
_osition is for light cutting, trimming and
_ueleconomy.
Engine Speed
Control Lever
ENGINE ZONE CONTROL
CAUTION: Federal regulations require an
,=ngine control to be installed on this lawn
"nower in order to minimize the risk of
3lade contact injury. Do not under any
:ircumstances attempt to defeat the
!unction of the operator control. The blade
turns when the engine is running.
• Your lawn mower is equipped with an
operator presence control bar which
requires the operator to be positioned
behind the lawn mower handle to start
and operate the lawn mower.
TO ADJUST cu'n'ING HEIGHT
• Raise wheels for low cut and lower
wheels for high cut.
• Adjust cutting height to suit your
requirements. Medium position is best
for most lawns.
• To change cutting height, squeeze
adjuster lever toward wheel: Move
wheel up or down to suit your require-
ments. Be sure all wheels are in the
same setting.
NOTE: Adjuster is prepedy positioned
when plate tab inserts into hole in lever.
Also, 9-position adjusters (if so equipped)
allow lever to be positioned between the
plate tabs.
LowerWheels
For HighCut
__ Raise Wheels
ForLowCut
PlateTab
Lever
CAUTION: Do not operate your lawn
mower without mulcher door in locked
position, discharge deflector in place, or
approved grass catcher in place.
NOTE: Your lawn mower has been
shipped ready for mulching operation. TO
convert to discharging operation, you must
install the discharge deflector attachment
included with your mower.
TO INSTALL DISCHARGING DEFLECTOR
• Unlock mulching door by lifting door i
latch as shown.
• Lift door upward on it's hinge until the
deflector frame can be hooked over the
door mounting bracket as shown.
• Release the door to rest against
deflector frame.
• To return to mulching operation, reverse
the above steps and be sure door is in
locked position.
Deflector
7

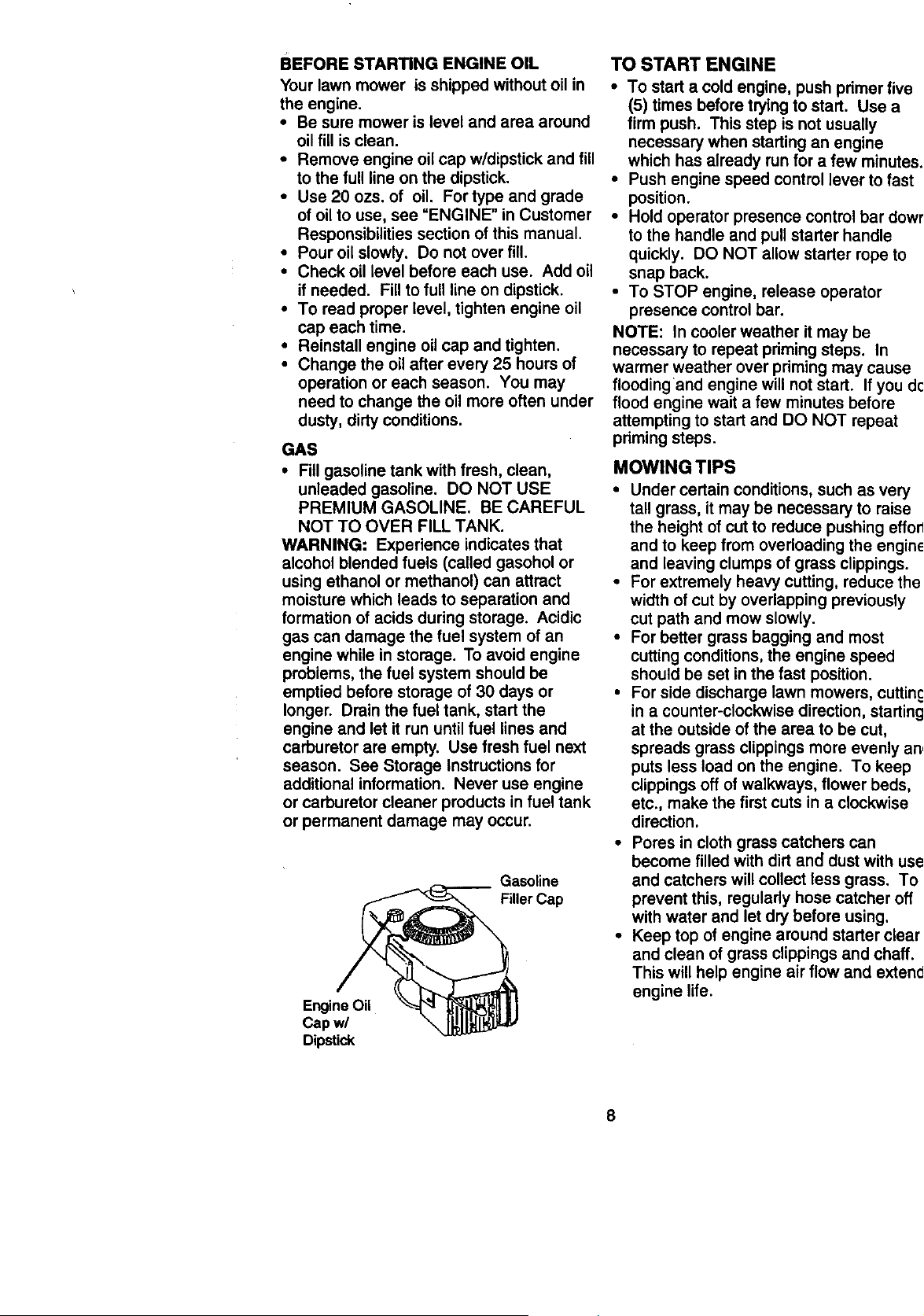

BEFORE STARTING ENGINE OIL
Your lawn mower is shipped without oil in
the engine.
• Be sure mower is level and area around
oil fill is clean.
• Remove engine oil cap w/dipstick and fill
to the full line on the dipstick.
• Use 20 ozs. of oil. For type and grade
of oil to use, see =ENGINE" in Customer
Responsibilities section of this manual.
• Pour oil slowly. Do not over fill.
• Check oil level before each use. Add oil
if needed. Fill to full line on dipstick.
• To read proper level, tighten engine oil
cap each time.
• Reinstall engine oil cap and tighten.
• Change the oil after every 25 hours of
operation or each season. You may
need to change the oil more often under
dusty, dirty conditions.
GAS
• Fill gasoline tank with fresh, clean,
unleaded gasoline. DO NOT USE
PREMIUM GASOLINE. BE CAREFUL
NOT TO OVER FILL TANK.
WARNING: Experience indicates that
alcohol blended fuels (called gasohol or
using ethanol or methanol) can attract
moisture which leads to separation and
formation of acids during storage. Acidic
gas can damage the fuel system of an
engine while in storage. To avoid engine
problems, the fuel system should be
emptied before storage of 30 days or
longer. Drain the fuel tank, start the
engine and let it run until fuel lines and
carburetor are empty. Use fresh fuel next
season. See Storage Instructions for
additional information. Never use engine
or carburetor cleaner products in fuel tank
or permanent damage may occur.
Gasoline
FillerCap
Engine Oil
Capw/
Dipstick
TO START ENGINE
• To start a cold engine, push primer five
(5) times before trying to start. Use a
firm push. This step is not usually
necessary when starting an engine
which has already run for a few minutes.
• Push engine speed control lever to fast
position.
• Hold operator presence control bar down
to the handle and pull starter handle
quickly. DO NOT allow starter rope to
snap back.
• To STOP engine, release operator
presence control bar.
NOTE: In cooler weather it may be
necessary to repeat pdming steps. In
warmer weather over pdming may cause
flooding and engine will not start. If you do
flood engine wait a few minutes before
attempting to start and DO NOT repeat
priming steps.
MOWING TIPS
• Under certain conditions, such as very
tall grass, it may be necessary to raise
the height of cut to reduce pushing effort
and to keep from overloading the engine
and leaving clumps of grass clippings.
• For extremely heavy cutting, reduce the
width of cut by overlapping previously
cut path and mow slowly.
• For better grass bagging and most
cutting conditions, the engine speed
should be set in the fast position.
• For side discharge lawn mowers, cutting
in a counter-clockwise direction, starting
at the outside of the area to be cut,
spreads grass clippings more evenly anc
puts less load on the engine. To keep
clippings oft of walkways, flower beds,
etc., make the first cuts in a clockwise
direction.
• Pores in cloth grass catchers can
become filled with dirt and dust with use
and catchers will collect tess grass. To
prevent this, regularly hose catcher off
with water and let dry before using.
• Keep top of engine around starter clear
and clean of grass clippings and chaff.
This will help engine air flow and extend
engine life.
MULCHINGMOWINGTIPS
IMPORTANT:Forbestperformance,keep
mowerhousingfreeofbuilt-upgrassand
trash.Cleanundersideofmowerhousing
after each use, See "Cleaning" in
Maintenance section of this manual.
• The special mulching blade will recut the
grass clippings many times and reduce
them in size so that as they fall onto the
lawn they will disperse into the grass
and not be noticed. Also, the mulched
grass will biodegrade quickly to provide
nutrients for the lawn. Always mulch
with your highest engine (blade) speed
as this will provide the best recutting
action of the blades.
• Avoid cutting your lawn when it is wet.
Wet grass tends to form clumps and
interferes with the mulching action. The
best time to mow your lawn is the early
afternoon. At this time the grass has
dried and the newly cut area will not be
exposed to the direct sun.
• For best results, adjust the lawn mower
cutting height so that the lawn mower
cuts off only the top one-third of the
grass blades. If the lawn is overgrown it
will be necessary to raise the height of
cut to reduce pushing effort and to keep
from overloading the engine and leaving
clumps of mulched grass. For extremely
heavy mulching, reduce your width of
cut, mow slowly and raise the rear of
the lawn mower one wheel adjuster
setting higher than the front.
Certain types of grass and grass
conditions may require that an area be
mulched a second time to completely
hide the clippings. When doing a
second cut, mow across or perpendicu-
lar to the first cut path.
Change your cutting pattern from week
to week. Mow north to south one week
then change to east to west the
next week. This will help prevent
matting and graining of the lawn.
MAX. 1/3
9

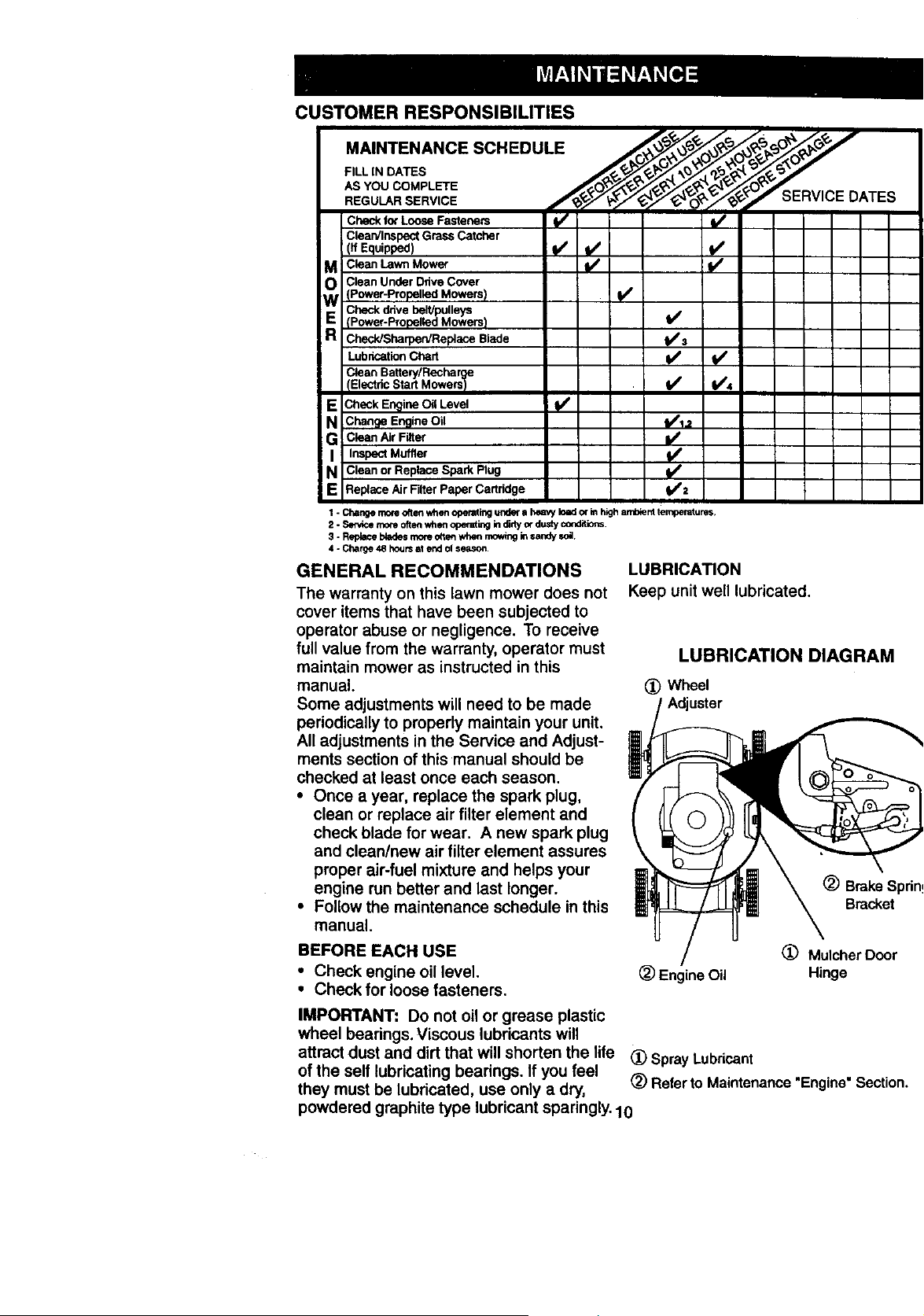

CUSTOMER RESPONSIBILITIES
.AINTENANCESC.EO.'
FILL IN DATES J__(_"_/_#'_
AsYOUCOMPLETE O_ _-_ _'3 _ 0_.
s .v,c
Check for Loose Fasteners I/ i/
Cleardlnspect Grass Catcher
(ff Equipped) t## _ _/_
M CleanLawnMower
O Clean Under Drive Cover(Power-Propelled Mowers)
Check drive belt/pulleys
RE {Power.Prapelled Mowers) I_
Check/Sharpen/R eplace Blade I_ 3
LubricationChert iv4 t/'
Clean Batterj/Recharge
IElectdc Start MowersI li/ I/4
E Check Ers:jineOil Level
N ChangeEngineOil I,/_._
G CleanAirFilter I/
I Inspec_Muffler
i/
N Clean or Replace Spark Plug !/
E Replace Air Filter Paper Cartridge _2
1. Chaflgemoceoften _f:len operatingundera heavyIo•d o_inhighambienttemperatu_,
2 - Set.ice more often wheflope_ding_t dirtyordustyconditiofls.
3 -Replacebladesmoreottenwh*mmow_g insandy t.ca.
4 oCharge 48 hoursat endol season,
GENERAL RECOMMENDATIONS
The warranty on this lawn mower does not
cover items that have been subjected to
operator abuse or negligence. To receive
full value from the warranty, operator must
maintain mower as instructed in this
manual.
Some adjustments will need to be made
periodically to properly maintain your unit.
All adjustments in the Service and Adjust-
ments section of this manual should be
checked at least once each season.
• Once a year, replace the spark plug,
clean or replace air filter element and
check blade for wear. A new spark plug
and clean/new air filter element assures
proper air-fuel mixture and helps your
engine run better and last longer.
• Follow the maintenance schedule in this
manual.
BEFORE EACH USE
• Check engine oil level.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated.
LUBRICATION DIAGRAM
(_) Wheel
Adjuster
(_) BrakeSpring
Bracket
\
(_) Mulcher Door
_) Engine Oil Hinge
IMPORTANT: Do not oil or grease plastic
wheel bearings. Viscous lubricants will
attract dust and dirt that will shorten the life (_) Spray Lubricant
of the self lubricating bearings. If you feel
they must be lubricated, use only a dry, (_) Refer to Maintenance"Engine" Section.
powdered graphite type lubricant sparingly. 10

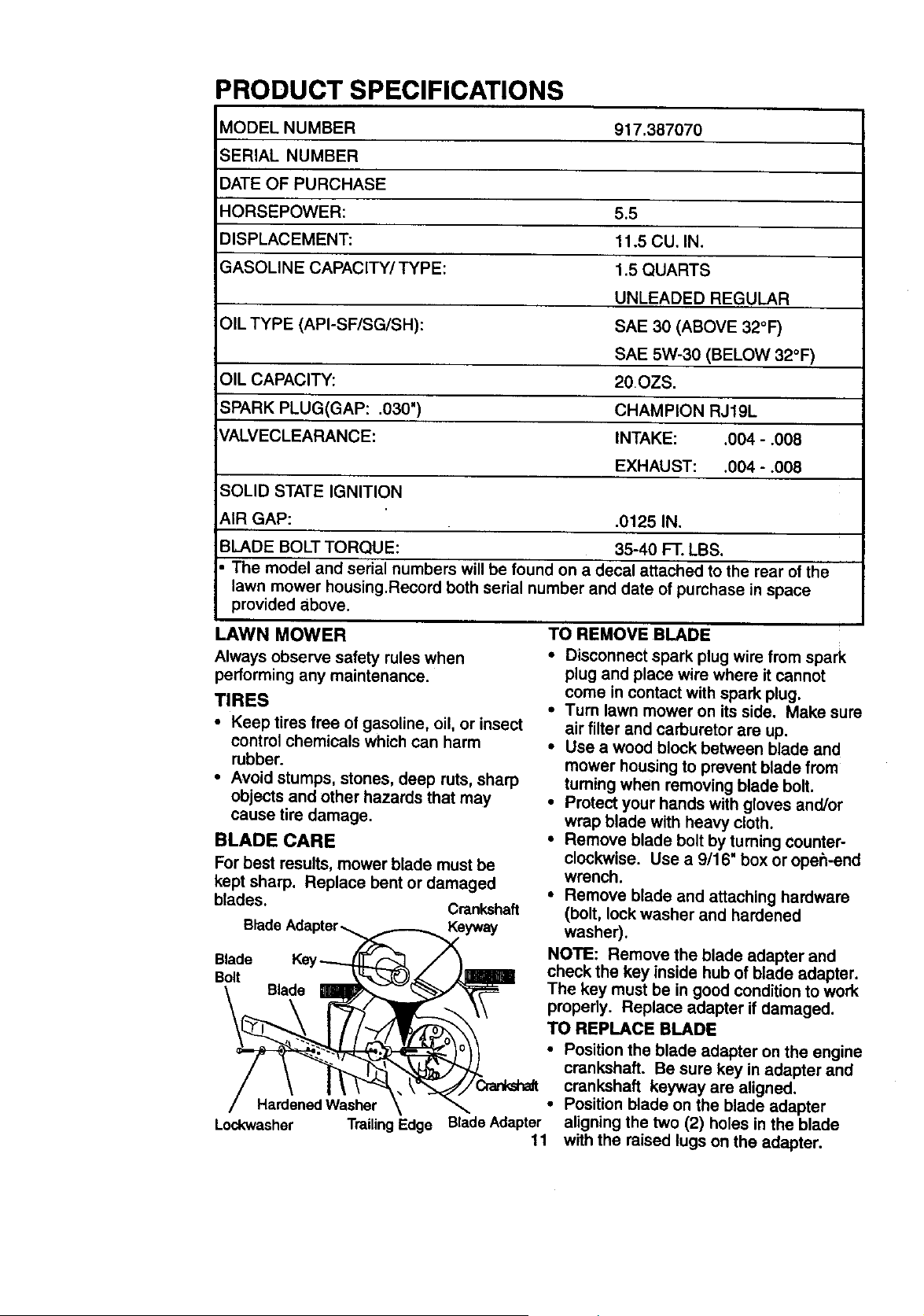

PRODUCT SPECIFICATIONS
MODEL NUMBER 917.387070
SERIAL NUMBER
DATE OF PURCHASE
HORSEPOWER: 5.5
DISPLACEMENT: 11.5 CU, IN,
GASOLINE CAPACITY/TYPE: 1.5 QUARTS
UNLEADED REGULAR
OIL TYPE (API-SF/SG/SH): SAE 30 (ABOVE 32°F)
SAE 5W-30 (BELOW 32°F)
OIL CAPACITY: 20 OZS.
SPARK PLUG(GAP: .030") CHAMPION RJ19L
VALVECLEARANCE: INTAKE: .004 - .008
EXHAUST: .004 - .008
SOLID STATE IGNITION
AIR GAP: .0125 IN.
BLADE BOLT TORQUE: 35-40 FT. LBS.
The model and serial numbers will be found on a decal attached to the rear of the
lawn mower housing.Record both serial number and date of purchase in space
provided above.
LAWN MOWER
Always observe safety rules when
performing any maintenance.
TIRES
• Keep tires free of gasoline, oil, or insect
control chemicals which can harm
rubber.
• Avoid stumps, stones, deep ruts, sharp
objects and other hazards that may
cause tire damage.
BLADE CARE
For best results, mower blade must be
kept sharp. Replace bent or damaged
blades.
Crankshaft
Blade Keyway
Blade
Bolt
Hardened Washer
Lock-washer TrailingEdge
TO REMOVE BLADE
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Turn lawn mower on its side, Make sure
air filter and carburetor are up.
• Use a wood block between blade and
mower housing to prevent blade from
turning when removing blade bolt.
• Protect your hands with gloves and/or
wrap blade with heavy cloth.
• Remove blade bolt by turning counter-
clockwise. Use a 9/16" box or opeh-end
wrench.
• Remove blade and attaching hardware
(bolt, lock washer and hardened
washer).
NOTE: Remove the blade adapter and
check the key inside hub of blade adapter.
The key must be in good condition to work
properly. Replace adapter if damaged.
TO REPLACE BLADE
• Position the blade adapter on the engine
crankshaft. Be sure key in adapter and
crankshaft keyway are aligned.
• Position blade on the blade adapter
BladeAdapter aligning the two (2) holes in the blade
11 with the raised lugs on the adapter.

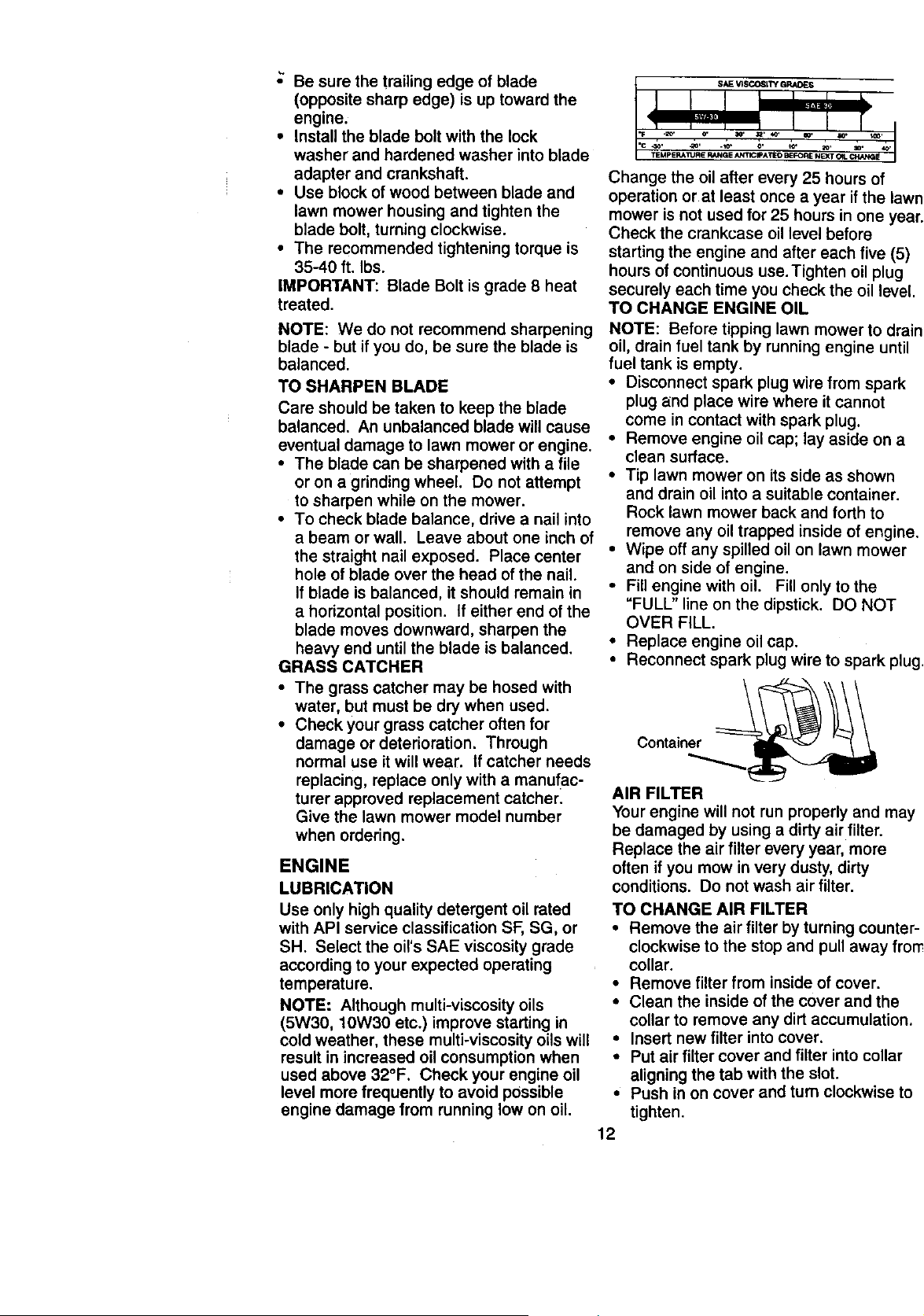

• Be sure the trailing edge of blade
(opposite sharp edge) is up toward the
engine.
• Install the blade bolt with the lock
washer and hardened washer into blade
adapter and crankshaft.
• Use block of wood between blade and
lawn mower housing and tighten the
blade bolt, turning clockwise.
• The recommended tightening torque is
35-40 ft. Ibs.
IMPORTANT: Blade Bolt is grade 8 heat
treated.
NOTE: We do not recommend sharpening
blade - but if you do, be sure the blade is
balanced.
TO SHARPEN BLADE
Care should be taken to keep the blade
balanced. An unbalanced blade will cause
eventual damage to lawn mower or engine,
• The blade can be sharpened with a file
or on a grinding wheel. Do not attempt
to sharpen while on the mower.
• To check blade balance, drive a nail into
a beam or wall. Leave about one inch of
the straight nail exposed. Place center
hole of blade over the head of the nail.
If blade is balanced, it should remain in
a horizontal position. If either end of the
blade moves downward, sharpen the
heavy end until the blade is balanced.
GRASS CATCHER
• The grass catcher may be hosed with
water, but must be dry when used.
• Check your grass catcher often for
damage or deterioration. Through
normal use itwill wear. If catcher needs
replacing, replace only with a manufac-
turer approved replacement catcher.
Give the lawn mower model number
when ordering.
ENGINE
LUBRICATION
Use only high quality detergent oil rated
with API service classification SF, SG, or
SH. Select the oil's SAE viscosity grade
according to your expected operating
temperature.
NOTE: Although multi-viscosity oils
(5W30, 10W30 etc.) improve starting in
cold weather, these multi-viscosity oils wile
result in increased oil consumption when
used above 32°F. Check your engine oil
level more frequently to avoid possible
engine damage from running low on oil.
TEMpERAtURE R_NQI
Change the oil after every 25 hours of
operation or at least once a year ifthe lawn
mower is not used for 25 hours in one year.
Check the crankcase oil level before
starting the engine and after each five (5)
hours of continuous use. Tighten oil plug
securely each time you check the oil level.
TO CHANGE ENGINE OIL
NOTE: Before tipping lawn mower to drain
oil, drain fuel tank by running engine until
fuel tank is empty.
• Disconnect spark plug wire from spark
plug and place wire where it cannot
come in contact with spark plug.
• Remove engine oil cap; lay aside on a
clean surface.
• Tip lawn mower on its side as shown
and drain oil into a suitable container.
Rock lawn mower back and forth to
remove any oil trapped inside of engine.
• Wipe off any spilled oil on lawn mower
and on side of engine.
• Fill engine with oil. Fill only to the
"FULL" line on the dipstick. DO NOT
OVER FILL.
• Replace engine oil cap.
• Reconnect spark plug wire to spark plug.
\
Container
AIR FILTER
Your engine will not run properly and may
be damaged by using a dirty air filter.
Replace the air filter every year, more
often if you mow in very dusty, dirty
conditions. Do not wash air filter.
TO CHANGE AIR FILTER
• Remove the air filter by turning counter-
clockwise to the stop and pull away from
collar.
• Remove filter from inside of cover.
• Clean the inside of the cover and the
collar to remove any dirt accumulation.
• Insert new filter into cover.
• Put air filter cover and filter into collar
aligning the tab with the slot.
• Push in on cover and tum clockwise to
tighten.
12

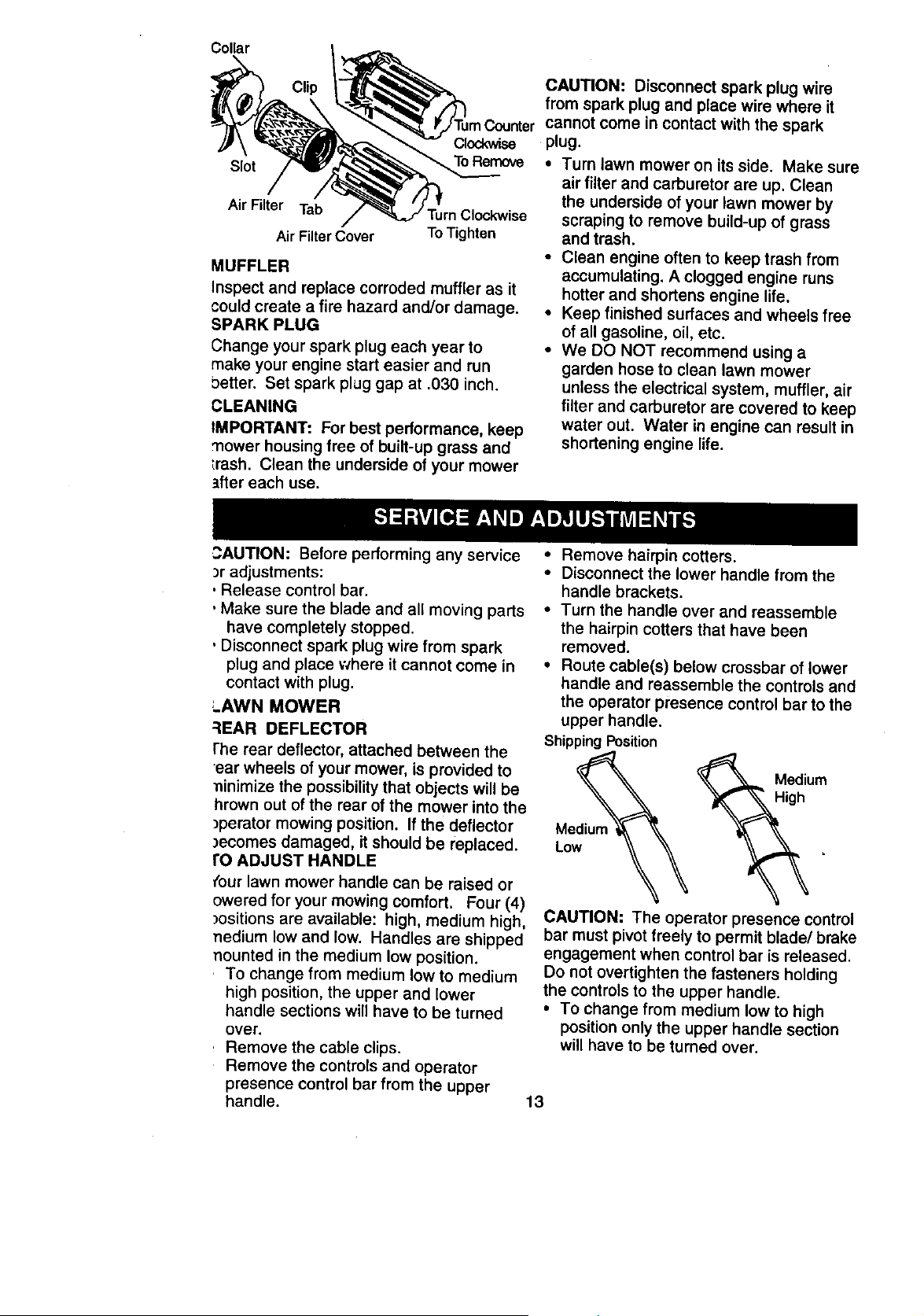

Collar
Clip
Slot
Clockwise
ToRemove
Air Filter Tab
AirFilter Cover
Turn Clockwise
To Tighten
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or damage.
SPARK PLUG
Change your spark plug each year to
make your engine start easier and run
_etter. Set spark plug gap at .030 inch.
CLEANING
IMPORTANT: For best performance, keep
mower housing free of built-up grass and
trash. Clean the underside of your mower
]fter each use.
CAUTION: Disconnect spark plug wire
from spark plug and place wire where it
cannot come in contact with the spark
plug.
• Turn lawn mower on its side. Make sure
air filter and carburetor are up. Clean
the underside of your lawn mower by
scraping to remove build-up of grass
and trash.
• Clean engine often to keep trash from
accumulating, A clogged engine runs
hotter and shortens engine life.
• Keep finished surfaces and wheels free
of all gasoline, oil, etc.
• We DO NOT recommend using a
garden hose to clean lawn mower
unless the electrical system, muffler, air
filter and carburetor are covered to keep
water out. Water in engine can result in
shortening engine life.
3AUTION: Before performing any service
_r adjustments:
, Release control bar.
, Make sure the blade and all moving parts
have completely stopped.
, Disconnect spark plug wire from spark
plug and place where it cannot come in
contact with plug.
LAWN MOWER
:lEAR DEFLECTOR
Ihe rear deflector, attached between the
'ear wheels of your mower, is provided to
"ninimizethe possibility that objects will be
brown out of the rear of the mower into the
)perator mowing position. If the deflector
)ecomes damaged, itshould be replaced.
ro ADJUST HANDLE
Y'ourlawn mower handle can be raised or
owered for your mowing comfort. Four (4)
)ositions are available: high, medium high,
nedium low and low. Handles are shipped
nounted in the medium low position.
To change from medium low to medium
high position, the upper and lower
handle sections will have to be turned
over.
Remove the cable clips.
Remove the controls and operator
presence control bar from the upper
handle.
• Remove hairpin cotters.
• Disconnect the lower handle from the
handle brackets.
• Turn the handle over and reassemble
the hairpin cotters that have been
removed.
• Route cable(s) below crossbar of lower
handle and reassemble the controls and
the operator presence control bar to the
upper handle.
ShippingPosition
Medium
High
Medium
Low _ ,
CAUTION: The operator presence control
bar must pivot freely to permit blade/brake
engagement when control bar is released.
Do not overtighten the fasteners holding
the controls to the upper handle.
• To change from medium low to high
position only the upper handle section
will have to be turned over.
13

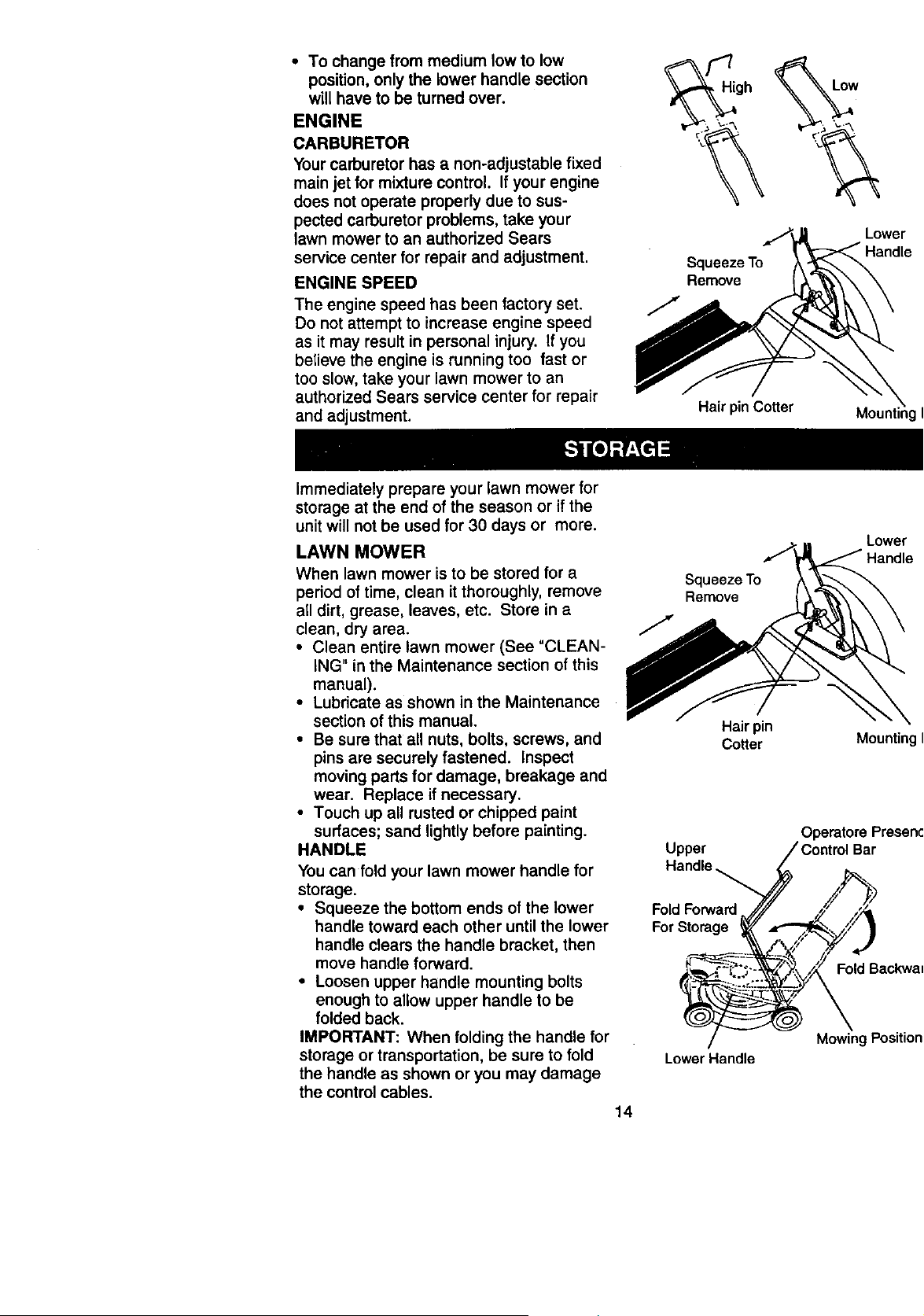

• To change from medium low to low
position, only the lower handle section
will have to be turned over.
ENGINE
CARBURETOR
Your carburetor has a non-adjustable fixed
main jet for mixture control. If your engine
does not operate properly due to sus-
pected carburetor problems, take your
lawn mower to an authorized Sears
service center for repair and adjustment.
ENGINE SPEED
The engine speed has been factory set.
Do not attempt to increase engine speed
as it may result in personal injury. If you
believe the engine is running too fast or
too slow, take your lawn mower to an
authorized Sears service center for repair
and adjustment.
High
SqueezeTo
Remove
Hair pinCotter
Lower
Handle
Immediately prepare your lawn mower for
storage at the end of the season or if the
unit will not be used for 30 days or more.
LAWN MOWER
When lawn mower is to be stored for a
period of time, clean it thoroughly, remove
all dirt, grease, leaves, etc. Store in a
clean, dry area.
• Clean entire lawn mower (See "CLEAN-
ING" in the Maintenance section of this
manual).
• Lubricate as shown in the Maintenance
section of this manual.
• Be sure that all nuts, bolts, screws, and
pins are securely fastened. Inspect
moving parts for damage, breakage and
wear. Replace if necessary.
• Touch up all rusted or chipped paint
surfaces; sand lightly before painting.
HANDLE
You can fold your lawn mower handle for
storage.
• Squeeze the bottom ends of the lower
handle toward each other until the lower
handle clears the handle bracket, then
move handle forward.
• Loosen upper handle mounting bolts
enough to allow upper handle to be
folded back.
IMPORTANT: When folding the handle for
storage or transportation, be sure to fold
the handle as shown or you may damage
the control cables.
14
Squeeze To
Remove
Hair pin
Cotter
Upper
Handle
FoldForward
ForStorage
Lower Handle
Lower
Mounting F
Operatore Prasenc(
Fold Backwar(
Mowing Position

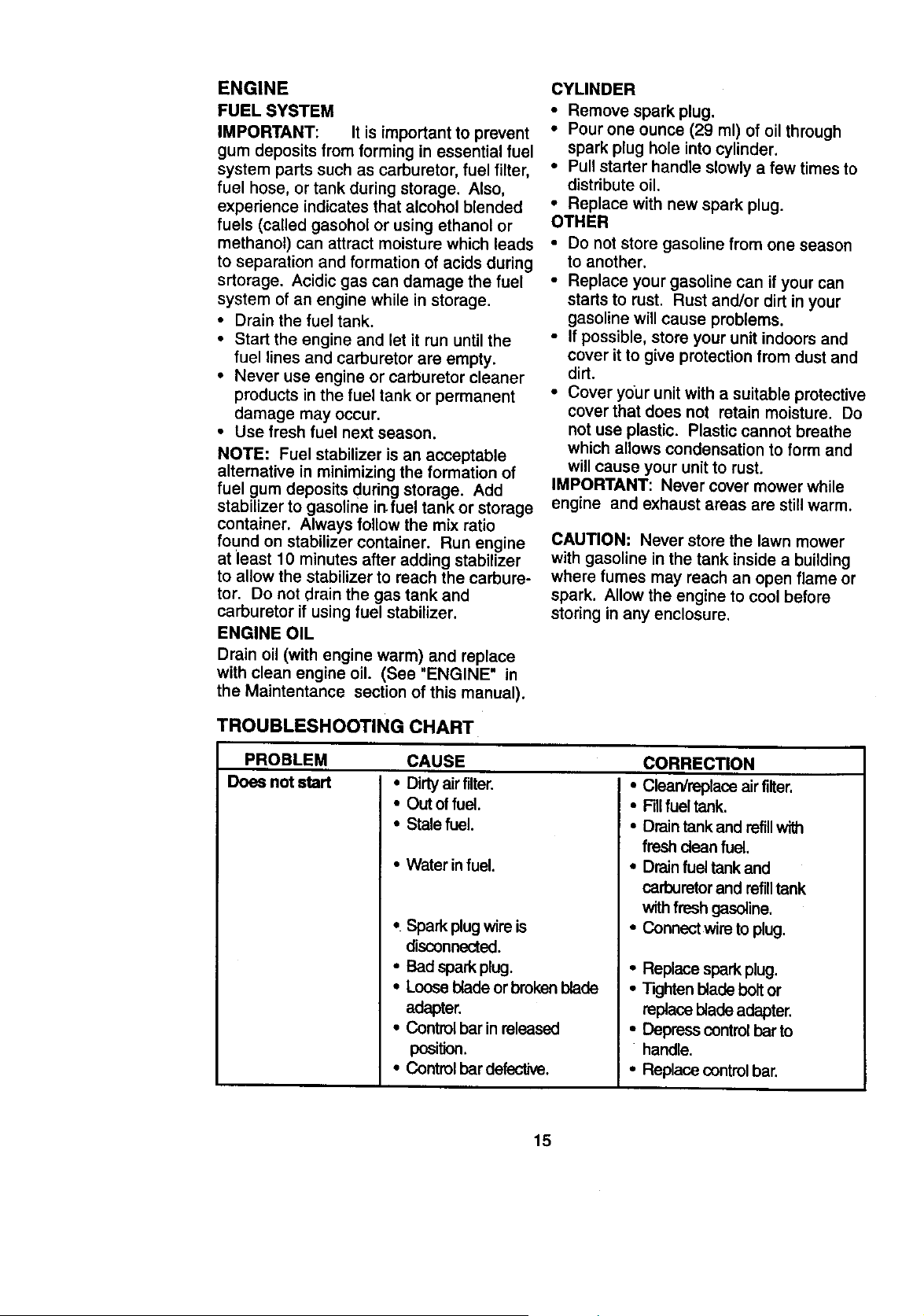

ENGINE
FUEL SYSTEM
iMPORTANT: It is important to prevent
gum deposits from forming in essential fuel
system parts such as carburetor, fuel filter,
fuel hose, or tank during storage. Also,
experience indicates that alcohol blended
fuels (called gasohol or using ethanol or
methanol) can attract moisture which leads
to separation and formation of acids during
srtorage. Acidic gas can damage the fuel
system of an engine while in storage.
• Drain the fueltank.
• Start the engine and let it run until the
fuel lines and carburetor are empty.
• Never use engine or carburetor cleaner
products in the fuel tank or permanent
damage may occur.
• Use fresh fuel next season.
NOTE: Fuel stabilizer is an acceptable
alternative in minimizing the formation of
fuel gum deposits during storage. Add
stabilizer to gasoline in.fuel tank or storage
container. Always follow the m_x ratio
found on stabilizer container. Run engine
at 'least 10 minutes after adding stabilizer
to allow the stabilizer to reach the carbure-
tor. Do not drain the gas tank and
carburetor if using fuel stabilizer.
ENGINE OIL
Drain oil (with engine warm) and replace
with clean engine oil. (See "ENGINE" in
the Maintentance section of this manual).
CYLINDER
• Remove spark plug,
• Pour one ounce (29 ml) of oil through
spark plug hole into cylinder.
• Pull starter handle slowly a few times to
distribute oil.
• Replace with new spark plug.
OTHER
• Do not store gasoline from one season
to another.
• Replace your gasoline can if your can
starts to rust. Rust and/or dirt in your
gasoline will cause problems.
• If possible, store your unit indoors and
cover it to give protection from dust and
dirt.
• Cover your unit with a suitable protective
cover that does not retain moisture. Do
not use plastic. Plastic cannot breathe
which allows condensation to form and
will cause your unit to rust.
IMPORTANT: Never cover mower while
engine and exhaust areas are still warm.
CAUTION: Never store the lawn mower
with gasoline in the tank inside a building
where fumes may reach an open flame or
spark. Allow the engine to cool before
storing in any enclosure.
TROUBLESHOOTING CHART
PROBLEM
Does not start
CAUSE
• Dirty air filter.
• Out of fuel.
• Stale fuel.
• Water in fuel.
• Spark plugwire is
disconnected.
• Bad spark plug.
• Loose blade or broken blade
adapter.
• Control bar in released
position.
• Control bar defective.
CORRECTION
• Clean/replace air filter.
• Fillfuel tank.
• Drain tank and refill with
fresh dean fuel.
• Drain fuel tank and
carburetor and refill tank
with fresh gasoline,
• Connect wire to plug.
• Replace spark plug.
• Tighten blade bolt or
replace blade adapter.
• Depress controlbar to
handle.
• Replace control bar.
15

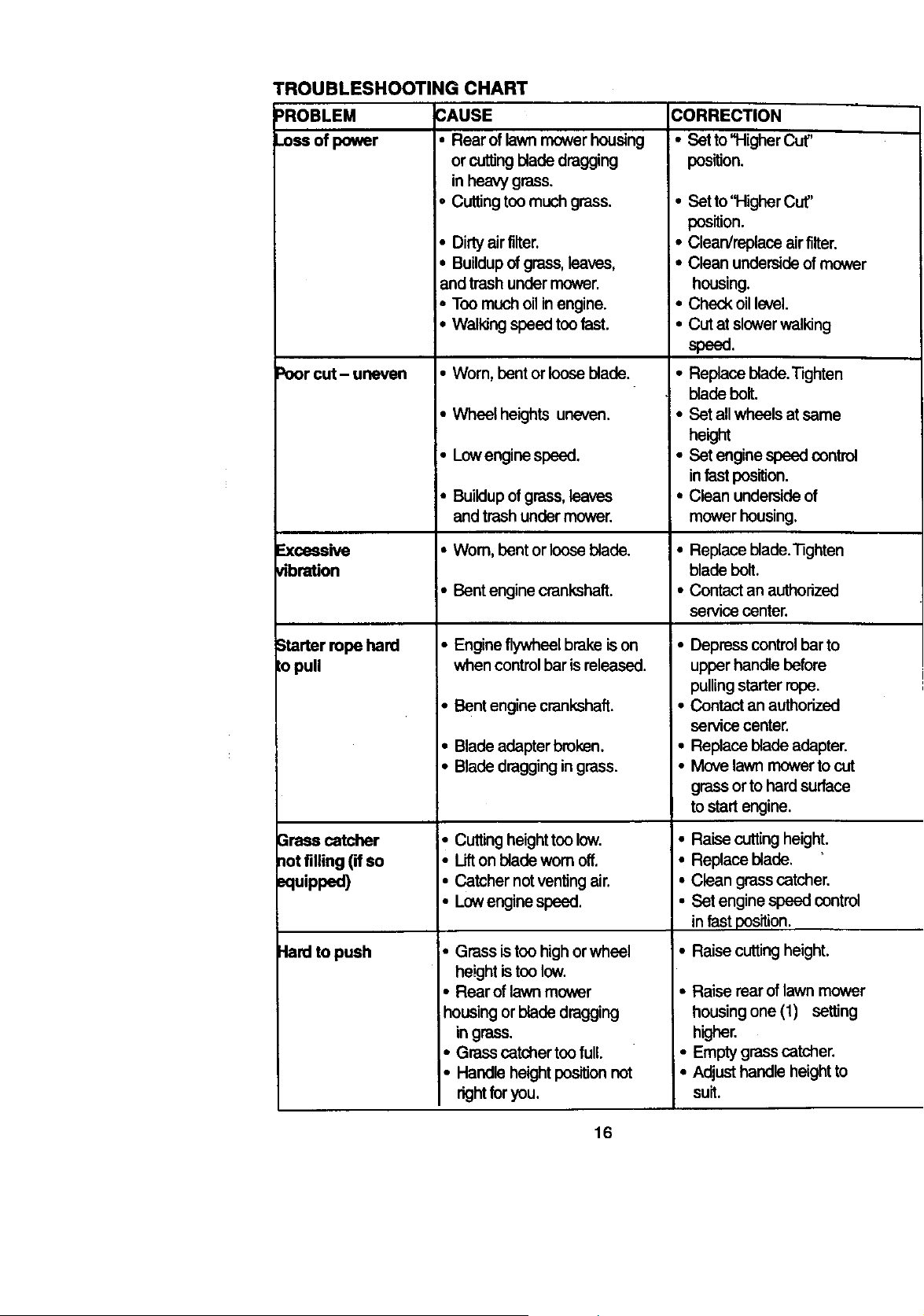

TROUBLESHOOTING CHART
PROBLEM
Lossof power
Poor cut - uneven
Excessive
vibration
;tarter rope hard
o pull
.3rass catcher
lot filling (ff so
)quipped)
-lard to push
.'AUSE
• Rear oflawn mower housing
or cutting blade dragging
in heavy grass.
,, Cutting too much grs.se.
• Dirtyairfilter.
• Buildup of grass,leaves,
md trash under mower.
• Too much oilin engine.
• Walking speed too fast.
• Worn, bent or loose blade.
• Wheel heights uneven.
• Low engine speed.
• Buildup of grass, leaves
and trash under mower.
•Wom, bent or loose blade.
• Bent engine crankshaft.
• Engine flywheel brake ison
when controlbar isreleased.
• Bent engine crankshaft.
• Blade adapter broken.
• Blade dragging ingrass.
• Cutting height too low.
• Lift on blade worn oft.
• Catcher not venting air.
• Lowengine speed.
• Grass is too high or wheel
height is too low.
• Rear of lawn mower
:housingor blade dragging
in grass.
• Grass catcher too full.
• Handle height positionnot
rightfor you.
CORRECTION
• Set to"Higher Cut"
position.
• Set to'l-ligher Cut"
position.
• Clean/replace airfilter.
• Clean undersideof mower
housing.
• Check oillevel.
• Cut at slowerwalking
speed
• Replace blade.Tighten
blade bolt.
• Set all wheels at same
height
• Set engine speed control
in fast position.
• Clean underside of
mower housing.
• Replace blade.Tighten
blade bolt.
• Contact an authorized
service center.
• Depress controlharto
upper handle before
pulling starter rope.
• Contact an authorized
service center.
• Replace blade adapter.
• Move lawn mower to cut
grass orto hard surface
to startengine.
• Raise cuttingheight.
• Replace blade
• Clean grass catcher.
• Set engine speed control
in fast position.
• Raise cuttingheight.
• Raise rear of lawn mower
housing one (1) setting
higher
• Empty grass catcher.
• Adjust handle height to
suit.
16
33

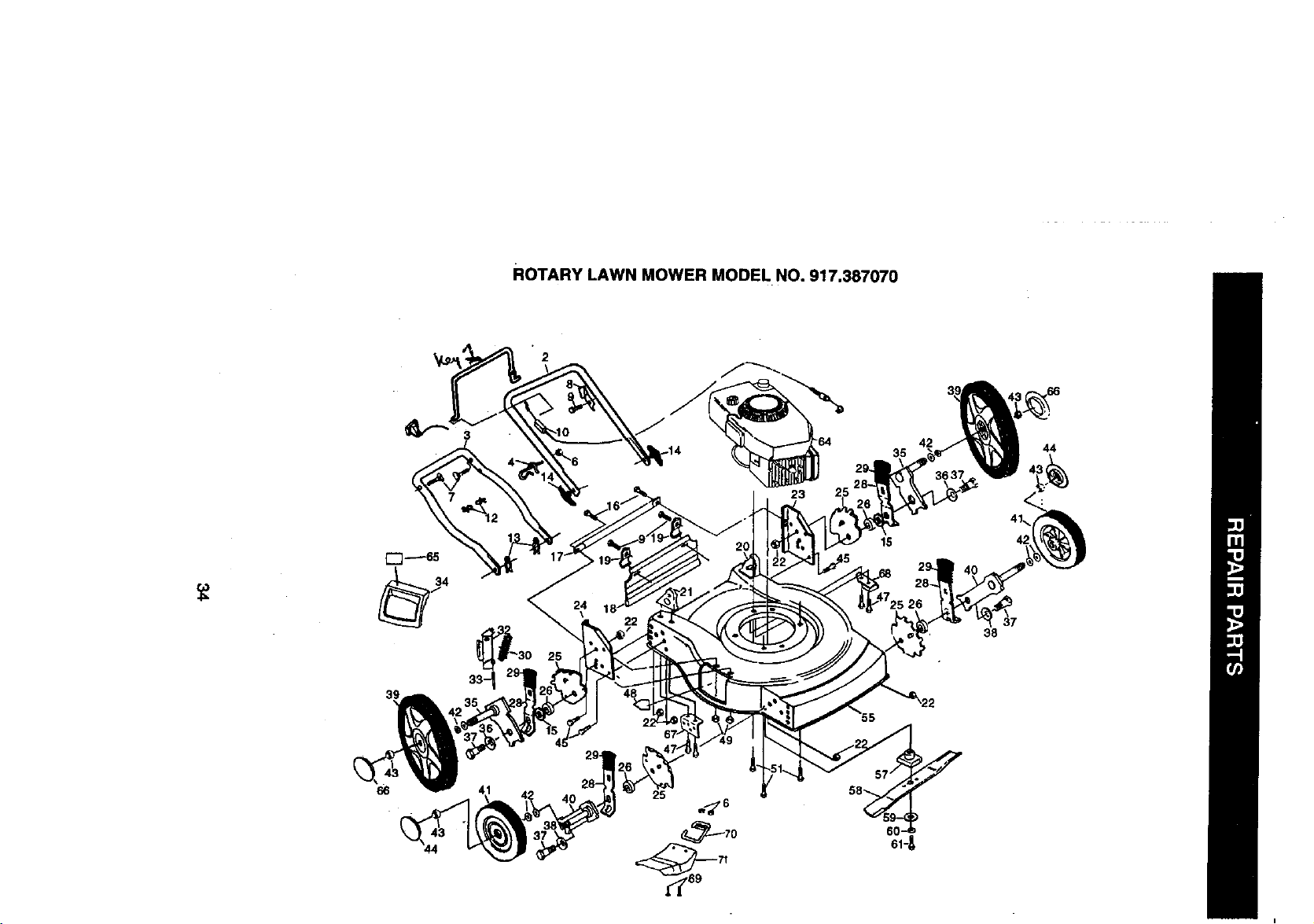

ROTARY LAWN MOWER MODEL NO. 917.387070
2
42
35 44
[] _65
23
41,
421
38
66
25

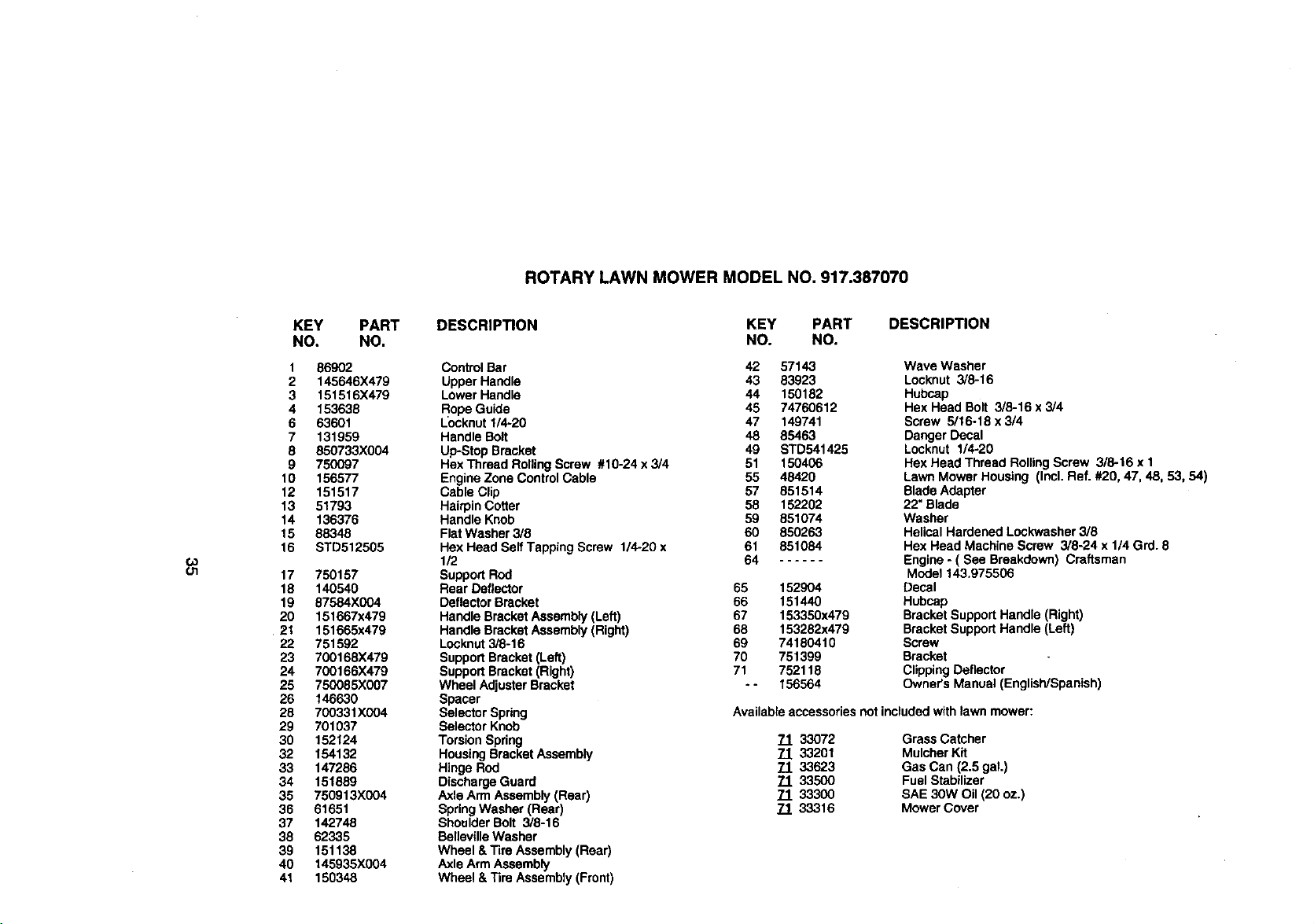

ROTARY LAWN MOWER MODEL NO. 917.387070
¢o
ol
KEY PART
NO. NO.
1 86902
2 145646X479
3 151516X479
4 153638
6 63601
7 131959
8 850733X004
9 750097
10 156577
12 151517
13 51793
14 136376
16 88348
16 STD512505
17 750157
18 140540
19 87584X004
20 151667x479
21 151665x479
22 751592
23 700168X479
24 700166X479
25 750085X007
26 146630
28 700331X004
29 701037
30 152124
32 154132
33 147286
34 151889
35 750913X004
36 61651
37 142748
38 62335
39 151138
40 145935X004
41 150348
DESCRIP_ON
ControlBar
UpperHandle
LowerHandle
Rope Guide
Locknut1/4-20
HandleBolt
Up-StopBracket
HexThread RollingScrew #10-24 x 3/4
EngineZone ControlCable
CableClip
HairpinCotter
HandleKnob
FlatWasher 3/8
Hex HeadSelfTapping Screw 1/4-20 x
112
SupportRod
Rear Deflector
DeflectorBracket
HandleBracketAssembly(Left)
HandleBracketAssembly(Right)
Locknut3/8-16
SupportBracket(Left)
SupportBracket(Right)
WheelAdjusterBracket
Spacer
SelectorSpring
SelectorKnob
TorsionSpring
HousingBracketAssembly
HingeRod
DischargeGuard
AxleArm Assembly(Rear)
SpringWasher (Rear)
ShoulderBolt 3/8-16
BellevilleWasher
Wheel &TireAssembly (Rear)
AxleArmAssembly
Wheel &Tim Assembly(Front)
KEY PART
NO. NO.
DESCRIPTION
42 57143
43 83923
44 150182
45 74760612
47 149741
48 85463
49 STD541425
51 150406
55 48420
57 851514
58 152202
59 851074
60 850263
61 851084
64
65 152904
66 151440
67 153350x479
68 153282x479
69 74180410
70 751399
71 752118
- - 156564
Wave Washer
Locknut 3/8-16
Hubcap
Hex Head Bolt 3/8-16 x 3/4
Screw 5/16-18 x 3/4
Danger Decal
Locknut 1/4-20
Hex Head Thread Rolling Screw 3/8-16 x 1
Lawn Mower Housing (Incl. Ref. #20, 47, 48, 53, 54)
Blade Adapter
22" Blade
Washer
Helical Hardened Lockwasher 3/8
Hex Head Machine Screw 3/8-24 x 1/4 Grd. 8
Engine - ( See Breakdown) Craftsman
Model 143.975506
Decal
Hubcap
Bracket Support Handle (Right)
Bracket Support Handle (Left)
Screw
Bracket
Clipping Deflector
Owner's Manual (English/Spanish)
Available accessories not includod with lawn mower:
71 33072 GrassCatcher
71 33201 MulcherKit
71 33623 Gas Can (2.5 gal.)
71 33500 FuelStabilizer
71 33300 SAE30W Oil(20 oz.)
71 33316 Mower Cover
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.9755_r__
4OO
135
130
126
125
260
_,t370K
,370A
36
CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.975506
KEY PART
NO. NO. DESCRIP_ON
1 36478A
2 26727
6 33734
7 36557
12A 36558
12B 34695
14 28277
15 30589
16 32651
17 31335
18 651018
19 36281
20 32600
30 35996
40 36073
40 36074
40 36075
41 36070
41 36071
41 36O72
42 36O76
42 36O77
42 36O78
43 20381
45 30963B
46 32610A
48 27241
50 35992
52 29914
69 35261
70 34311D
72 36083
75 27897
80 30574A
81 30590A
82 30591
83 30588A
86 650488
89 611004
90 611112
92 650815
93 650816
10034443A
101610118
103651007
11034961
11936477
12036476
12536471
12536472
12629314B
12629315C
1306021A
13535395
15035991
15131673
16927234A
17232755
17430200
17829752
1826201
18426756
18536544
18634337
KEY
NO.
PART
NO.
Cylinder(Incl.2,7,20 & 125) 189650839
Dowel Pin 19136589
BreatherElement 195610973
BreatherAss_/.(Incl.6 & 12A) 20035727
BreatherCover& Tube (Incl. 12B)
BreatherTube Elbow 20236482
Washer 20331342
Govemor Rod (Incl.14) 204650549
Govemor Lever 205650777
Govemor Lever Clamp 20734336
Screw, Torx1"-15,8-32 x 19/64" 20930200
ExtensionSpring 21532410
Oil Seal 223650451
Crankshaft 22434690A
Piston,Pin& RingSet (Std.) 238650932
Piston,Pin& Ring Set (.010" OS) 23934338
Piston,Pin& Ring Set (.020=OS) 24135797
Piston& Pin Ass'y.(Std.) (Incl.43) 24535066
Piston & Pin Ass'y. 25035065
(.010" OS) (Incl.43) 26036915
Piston& Pin Ass'y. 26130200
(.020" OS) (Incl.43) 262650831
RingSet (Std.) 27536473
RingSet (.010" OS) 277650988
RingS_t (.020" OS) 28535000A
PistonPin RetainingRing 287650926
ConnectingRodAss'y. (Incl.46) 29029774
ConnectingRod Bolt 29226460
Valve Lifter 29828763
Camshaft(MCR) 30036916
Oil PumpAss'y. 30136246
MountingFlangeGasket 30535647
MountingFlange(Incl.72 thru83) 30636832
Oil Drain Plug 30735499
Oil Seal 309650562
GovernorShaft 31035648
Washer 31334080
GovernorGear Ass'y. (Incl.81) 370A 36261
GovernorSpool 370B 35167
Screw, 1/4-20 x 1-1/4" 370C 36861
FlywheelKey 370K 36695
Flywheel 380632747
BellevilleWasher 390590694
FlywheelNut 40036481
SolidState Ignition
Spark PlugCover 41636085
Screw, TorxT-15, 10-24x 15/16"
GroundWire 417650760
* CylinderHead Gasket
Cylinder Head
ExhaustValve (Std,)(Incl. 151)
ExhaustValve
(1/32" OS) (IncL151)
IntakeValve (S_I.) (Incl.151)
IntakeValve (1/32"OS) (tncl.151)
Screw, 5/16-18 x 1-1/2"
ResistorSpark Plug (RJ19LM)
Valve Spring
Valve SpringCap
• Valve Cover Gasket
Valve Cover
Screw, 10-24 x 9/16"
Nut & LockWasher, 1/4-28
Screw, 1/4-28 x 7/8"
• CarburetorTo Intake Pipe Gasket
Intake Pipe
GovernorLink
DESCRIPTION
Screw,114-20x3/8"
S.E. Brake Bracket(Incl.195)
Terminal
Control Bracket(Incl.202 thru
206)
Compression Spring
Compression Spring
Screw,5-40 x 7/16"
Screw,6-32 x 21/32"
ThrottleLink
Screw, 10-24x 9/16"
Control Knob
Screw, 1/4-20 x 1"
• Intake PipeGasket
Screw, 10-32x 49/64"
* Air CleanerGasket
Air CleanerCollar
Air Cleaner Filter
Air CleanerCover
BlowerHousing
Screw, 10-24 x g/16"
Screw, 114-20x1/2"
Muffler(Incl.277)
Screw, 1/4-20 x 2-5/16"
StarterCup
Screw,8-32 x21/64"
FuelLine
FuelLineClamp
Screw,10-32 x 35/64"
FuelTank (Incl.292 & 301)
FuelCap
OilFillTube
* "O"-Ring
=O-Ring
Screw,10-32 x 1/2"
Dipstick
Spacer
LubricationDecal
Control Decal
PdmerDecal
StarterDecal
Carburetor(Incl.184)
RewindStarter
GasketSet
(Incl.ItemsMarked* inNotes)
Spark ArrestorKit
(Incl.417)(Optional)
Screw, 8-32 x 3/8" (Optional)
gOO--- Reple,;ementEngine750798,
orderfrom71-999
90G-- Rel_lacementS/B 75067gA,
orderfrom 71-999,
RPM High2900 to3200
RPM Low2450 to 2750
(NOTE: This enginecouldhave been builtwith590737
starter.Refer tothe designof the ropepulleystrength
ribsforpart identification.Individualstarterpartsdo not
interchange.)Incl. Part#'s26756 (1),27234A (1), 33735
(1), 36832 (t) 34338 (1), 34690A (t), 35261 (1),
36477 (1)
NOTE: AllcomponentdimensionsgiveninU.S. inches
1 inch= 25.4 mm
37

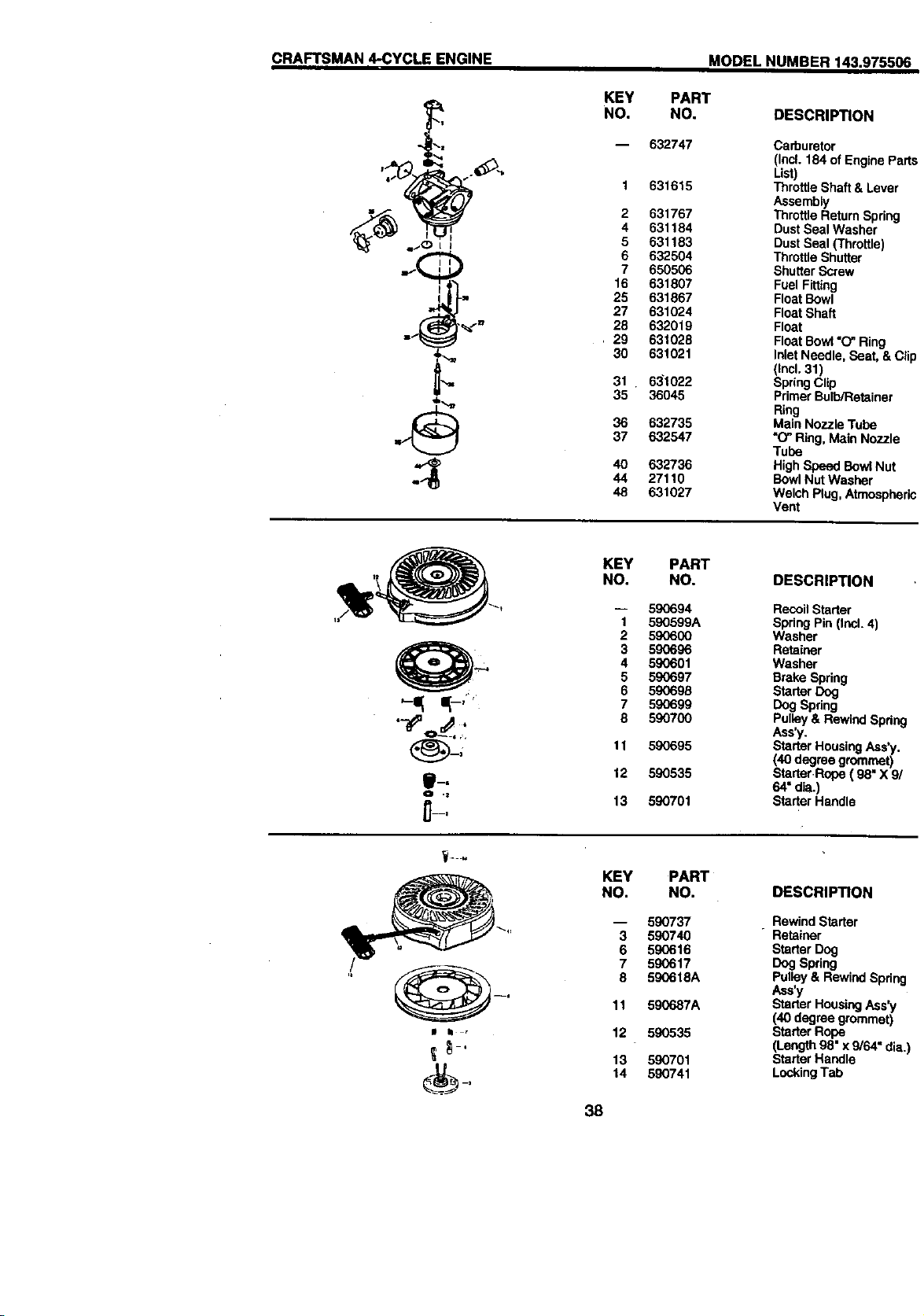

CRAFTSMAN 4-CYCLE ENGINE MODEL NUMBER 143.975506
4,.,_
.I
KEY
NO.
PART
NO. DESCRIPTION
-- 632747
1 631616
2 631767
4 631164
5 631163
6 632504
7 650506
16 631807
25 631867
27 631024
28 632019
, 29 631028
30 631021
31 6_1022
35 36045
36 632735
37 632547
40 632736
44 27110
48 631027
Carburetor
(IocL184 of EngineParts
List)
ThrottleShaft& Lever
Assembly
Throttle ReturnSpring
DustSeal Washer
DustSeal (Throttle)
Throttle Shutter
ShutterScrew
FuelFitting
FloatBowl
FloatShaft
Float
FloatBowl"O"Ring
InletNeedle, Seat, & Clip
(Incl.31)
SpringClip
PrimerBulb/Retainer
Ring
Main Nozzle Tube
"Cr"Ring,Main Nozzle
Tube
HighSpeed BowlNut
BowlNutWasher
WelchPlug,Atmospheric
Vent
- r,
O -t
KEY PART
NO. NO.
-- 590694
1 590599A
2 590600
3 590696
4 590601
5 590697
6 590698
7 590699
8 590700
11 590695
12 590535
13 590701
DESCRIPTION
RecoilStarter
Spring Pin(Incl.4)
Washer
Retainer
Washer
Brake Spring
StarterDog
DogSpring
Pulley& RewindSpring
Ass'y.
StarterHousingAss'y.
(40 degree grommet)
StarterRope ( 98"X 9/
64"dia.)
Starter Handle
KEY PART
NO. NO.
-- 590737
3 590740
6 590616
7 590617
8 590618A
11 590687A
12 590535
13 590701
14 5_741
38
DESCRIPTION
RewindStarter
Retainer
StarterDog
DogSpring
Pulley& RewindSpring
Ass'y
StarterHousingAss',/
(40 degree grommet)
StarterRope
(Length98"x 9/64" dia.)
StarterHandle
LockingTab
39

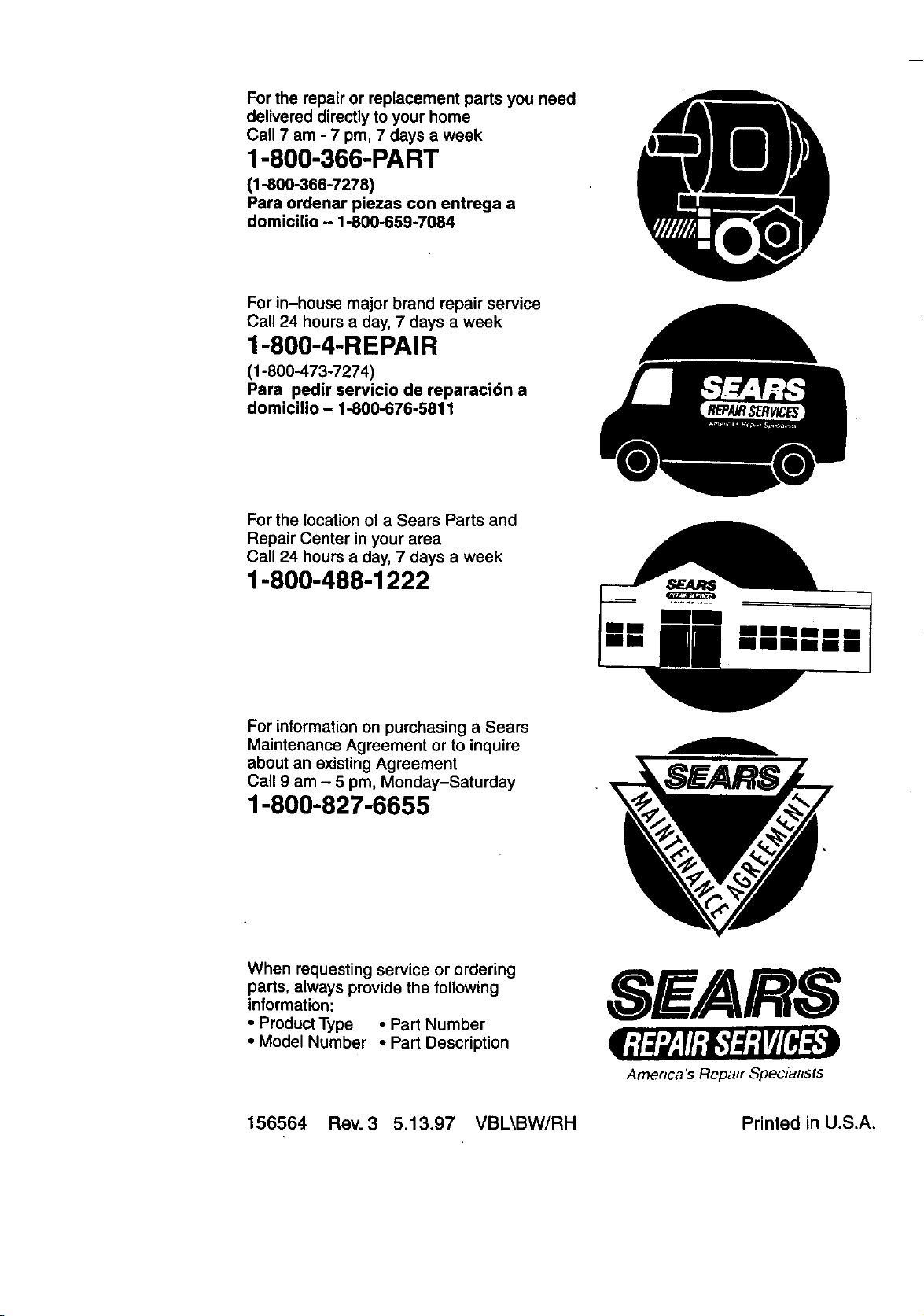

For the repair or replacement parts you need
delivered directly to your home
Call 7 am - 7 pm, 7 days a week
1-800-366-PART
(1-800-366-7278)
Para ordenar piezas con entrega a
domicilio - 1-800-659-7084
For in-house major brand repair service
Call 24 hours a day, 7 days a week
1-800-4-REPAIR
(1-800-473-7274)
Para pedir servicio de reparaci6n a
domicilio - 1-800-676-5811
For the location of a Sears Parts and
Repair Center in your area
Call 24 hours a day, 7 days a week
1-800-488-1222
For information on purchasing a Sears
Maintenance Agreement or to inquire
about an existing Agreement
Call 9 am - 5 prn, Monday-Saturday
1-800-827-6655
When requesting service or ordering
parts, always provide the following
information:
• Product Type • Part Number
• Model Number • Part Description
SEARS
America's Repair Specialists
156564 Rev. 3 5.13.97 VBL\BW/RH Printed in U.S.A.
