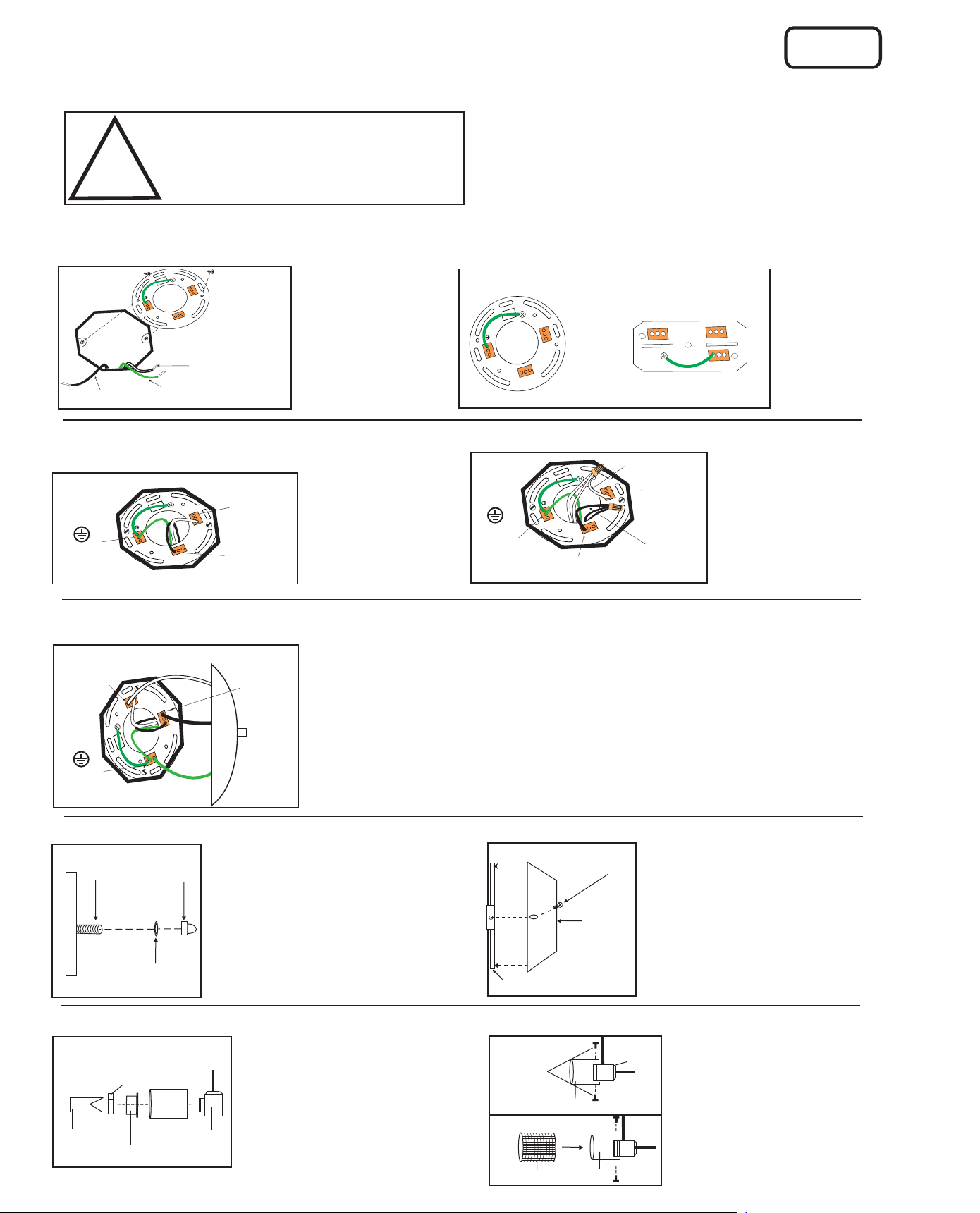

INSTALL EASY CONNECT MOUNTING BRACKET:
Electrical
Box
Black (Live)
White
(Neutral)
Green (Ground)
Attach easy connect
mounting bracket
to electrical box with
electrical box screws
(not included).
Connect (push) electrical
wires from electric box
(house wiring) into correct
inserts. Black (Live),
White (Neutral),
Green (Ground)
Easy Connect
mounting
bracket
STEP 1
Connect (push) electrical wires from fixture into correct inserts.
Black (live), White (neutral), Green (ground)
For multiple black (live) &
white (neutral) wires joined
in the electrical box
(house wiring), attach a single
“black” and “white” Jumper Wire
before connecting. Strip 7mm
from a 6” Jumper Wires (AWG 12-24)
supplied. Then connect (push) wires
into correct inserts.
STEP 2 - Option 1
L
N
Jumper Wire
Jumper
Wire
Option 2 - MULTIPLE ELECTRICAL BOX WIRES
STEP 3
CONNECT LIGHT FIXTURE
CONNECT HOUSE WIRES
ET-1
10/16
STEP 4
STYLE#1- Tuck electrical wires into
outlet box and position fixture over
studs or nipple on mounting bracket
assembly. Secure fixture in place with
star washer(s) and cap nut(s).
Note: If required, assemble body and
spread the arms of the fixture out
evenly.
Star
Washer
Stud
Or
Nipple
Cap
Nut
Fixture
STYLE#1
STYLE#2
STYLE #2 - Attached fixture to mounting
bracket by tightening the 2 screws.
STEP 5 - Optional for some models (
Note: Refer to the style of assembly that matches the style of your fixture.)
Tel: (613) 342-5424, Fax: (800) 263-4598
Glass
(Optional)
Spinner Nut
Fixture
Socket
Special
Tool
STYLE#1
Style#1
-
Remove spinner nut from
the socket. Place the glass onto the
fixture socket. Use the special tool
that comes with your fixture to
tighten the spinner nut onto the
socket to secure the glass in place.
L
N
STYLE #1
STYLE #2
STYLE#2
Fixture
Socket
Glass
Shade
Or
Finishing
Screws
Glass
Style#2
- Install proper bulb type
and wattage. Remove the finishing
screws that are already on your
fixture. Position glass in place and
secure with finishing screws.
L
N
Light
Fixture
Fixture
Bracket
Screw
QUESTIONS OR CONCERNS CONTACT AT:
1-800-265-1833 (English) • 1-800-567-2513 (French)
Monday through Friday 8:00 AM to 5:00 PM E.S.T.
EASY CONNECT®
INSTALLATION INSTRUCTIONS
(L)
Black
(Live)
(L)
Black
(Live)
(L)
Black (Live)
(N)
White
(Neutral)
(N)
White
(Neutral)
(N)
White
(Neutral)
Green
(Ground)
Green
(Ground)
Green
(Ground)
SAFETY PRECAUTIONS:
!
INSTRUCTIONS PERTAINING TO RISK OF FIRE OR INJURY TO PERSONS
READ ALL INSTRUCTIONS
IMPORTANT SAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
NOTE: Product may not look exactly as shown in figures.
1. TURN OFF ELECTRICAL POWER BEFORE STARTING INSTALLATION OF
LIGHT FIXTURE.
2. WIRING SUPPLIES AS REQUIRED BY LOCAL ELECTRICAL CODE.
3. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
4. TO CLEAN THE FIXTURE, TURN OFF THE POWER, WAIT FOR IT TO COOL, AND
WIPE THE FIXTURE WITH A CLEAN, SOFT CLOTH.
