MX-ST90B
FULL MANUAL
Imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at www.samsung.com/register
ENG - ii
SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Refer to the table below for an explanation of
symbols which may be on your Samsung product.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
This symbol indicates that high voltage
is present inside. It is dangerous to
make any kind of contact with any
internal part of this product.
This symbol indicates that this product
comes with important literature
concerning operation and maintenance.
Class II product : This symbol indicates
that a safety connection to electrical
earth (ground) is not required.
If this symbol is not present on a
product with a power cord, the product
MUST have a reliable connection to
protective earth (ground).
AC voltage : Rated voltage marked
with this symbol is AC voltage.
DC voltage : Rated voltage marked
with this symbol is DC voltage.
Caution. Consult Instructions for use :
This symbol instructs the user to
consult the user manual for further
safety related information.
WARNING
•
not expose this appliance to rain or moisture.
• This product contains chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
CAUTION
• Do not expose this apparatus to dripping or
liquids, such as vases, on the apparatus.
• To turn this apparatus off completely, you
must pull the power plug out of the wall
socket. Consequently, the power plug must
be easily and readily accessible at all times.
Wiring the Main Power Supply
Plug (UK Only)
IMPORTANT NOTICE
The mains lead on this equipment is supplied with
a moulded plug incorporating a fuse. The value of
the fuse is indicated on the pin face of the plug
and if it requires replacing, a fuse approved to
BS1362 of the same rating must be used.
Never use the plug with the fuse cover removed.
If the cover is detachable and a replacement is
required, it must be of the same colour as the fuse
suitable for the power points in your house or the
cable is not long enough to reach a power point,
you should obtain a suitable safety approved
extension lead or consult your dealer for assistance.
However, if there is no alternative to cutting off the
plug, remove the fuse and then safely dispose of
the plug. Do not connect the plug to a mains
socket as there is a risk of shock hazard from the
ENG - iii
wires directly into a mains socket. A plug and fuse
must be used at all times.
IMPORTANT
The wires in the mains lead are coloured in
accordance with the following code:– BLUE =
NEUTRAL BROWN = LIVE As these colours may not
correspond to the coloured markings identifying
the terminals in your plug, proceed as follows:– The
wire coloured BLUE must be connected to the
terminal marked with the letter N or coloured
BLUE or BLACK. The wire coloured BROWN must
be connected to the terminal marked with the
letter L or coloured BROWN or RED.
WARNING : DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E OR BY THE EARTH SYMBOL ,
OR COLOURED GREEN OR GREEN AND YELLOW.
To avoid deterioration of water resistant
Check the following and use the unit correctly.
• Deformation or damage from dropping the
unit or subjecting it to mechanical shock may
cause deterioration of the water resistant.
• This unit does not have a design that is
resistant to water pressure. Use of the unit in
a location where high water pressure is
applied, such as in the shower, may cause a
malfunction.
• Do not pour high-temperature water or blow
hot air from a hair dryer or any other
applicance on the unit directly. Also never use
the unit in a place subject to high
temperatures, such as in a sauna or near a
heat source.
• Handle the cap with care. Port cover and AC
plug cover plays a very important role in
maintenance of the water resistant. When
using the unit, make sure that the cap is
closed completely. When closing the cap, be
careful not to allow foreign objects inside. If
the cap is not closed completely the water
resistant may deteriorate and may cause a
malfunction of the unit as a result of water
entering the unit.
• The product cannot be dumped to ensure it is
water resistant.
• IPX5 cannot be met when any JACK is
plugged in.
• In a state of electricity, IPX5 can be met when
the power cord passes through the cover
power slot and the cover power is completely
closed, otherwise, it does not.
POWER
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
ENG - iv
PRECAUTIONS
1. Ensure that the AC power supply in your
house complies with the power
sticker located on the rear of your product.
Install your product horizontally, on a
suitable base (furniture), with enough space
around it for ventilation (7~10 cm). Make sure
the ventilation slots are not covered. Do not
equipment which may become hot. This unit
is designed for continuous use.
To fully turn off the unit, disconnect the AC
plug from the wall outlet. Unplug the unit if
you intend to leave it unused for a long
period of time.
2. During thunderstorms, disconnect the AC
plug from the wall outlet. Voltage peaks due
to lightning could damage the unit.
3. Do not expose the unit to direct sunlight or
other heat sources. This could lead to
overheating and cause the unit to
malfunction.
4. Protect the product from moisture (i.e.
equipment creating strong magnetic or
the AC wall socket if the unit malfunctions.
Your product is not intended for industrial
use. It is for personal use only. Condensation
may occur if your product has been stored in
cold temperatures. If transporting the unit
during the winter, wait approximately
2 hours until the unit has reached room
temperature before using.
ABOUT THIS MANUAL
The user manual has two parts: this simple paper
USER MANUAL and a detailed FULL MANUAL you
can download.
USER MANUAL
See this manual for safety instructions,
product installation, components,
FULL MANUAL
You can access the FULL MANUAL on
Samsung’s on-line customer support centre by
scanning the QR code on the left. To see the
manual on your PC or mobile device, download
the manual in document format from
Samsung’s website.
(https://www.samsung.com/us/support/
downloads/)
without prior notice.
ENG - v
CONTENTS
01 Checking the Components 2
Inserting Batteries before using the Remote Control
(AAA batteries X 2) ------------------------- 4
02 Product Overview 5
Top Panel of the Sound Tower ------------------------- 5
Rear Panel of the Sound Tower ------------------------- 6
03 Connecting the Sound Tower 8
Connecting Electrical Power
-------------------------
8
Connecting Group Play Mode
-------------------------
9
04 Connecting an External Device 16
Connecting an External Device via Analogue Audio Cable
-------------------------
16
Connecting a mobile device via Bluetooth
-------------------------
17
Connecting a Samsung TV via Bluetooth
-------------------------
20
05 Connecting a USB Storage Device 22
Software Update
-------------------------
23
Connecting an Optional Microphone
-------------------------
24
06 Using the Remote Control 25
How to Use the Remote Control
-------------------------
25
How to use Sound Mode
-------------------------
28
How to use DJ Effect
-------------------------
29
ENG - vi
07 Using the Samsung Sound Tower App 30
Install Samsung Sound Tower App
-------------------------
30
Using the Samsung Sound Tower App
-------------------------
30
What you can do with Samsung Sound Tower App:
-------------------------
31
08 Trouble shooting 32
09 LICENCE 35
10 Open Source Licence Notice 36
11 Important Notes About Service 36
12 SpecicationsandGuide 37
-------------------------
37
ENG - 2

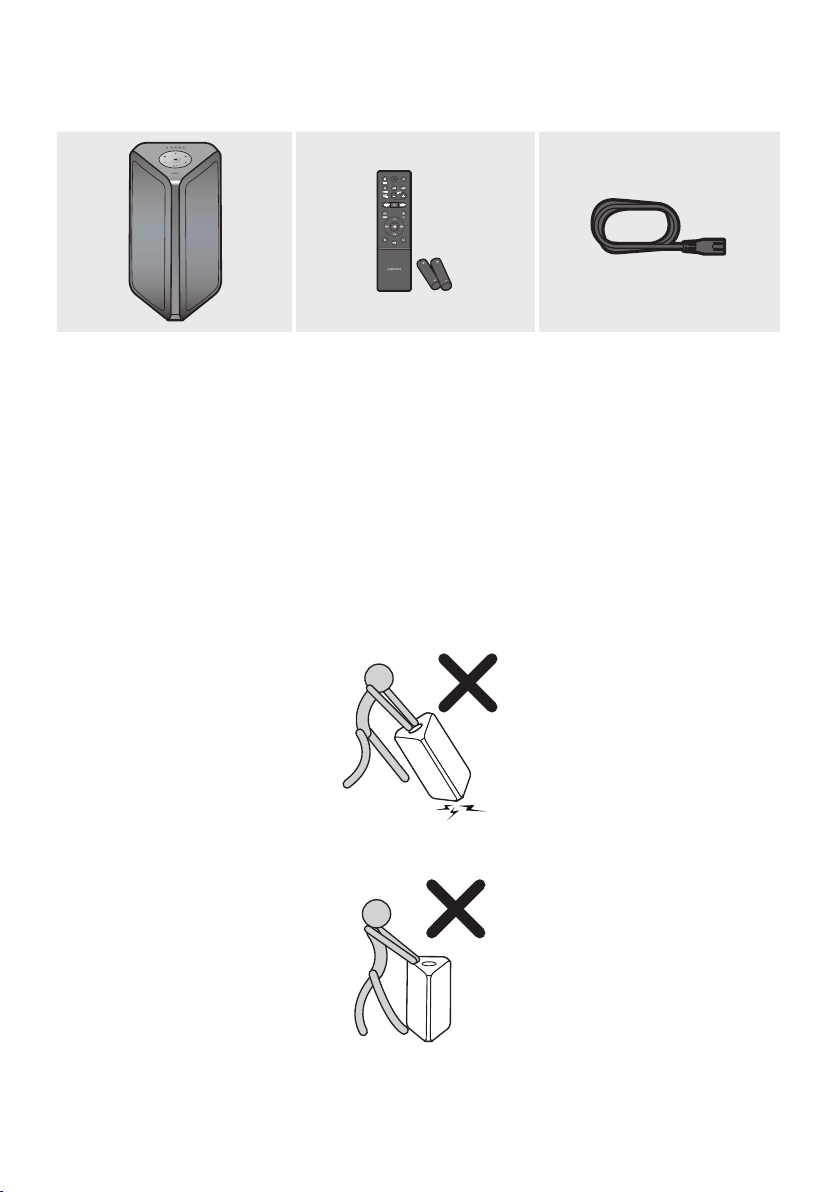

01 CHECKING THE COMPONENTS
Sound Tower Main Unit Remote Control /
Batteries (AAA batteries x 2)
Power Cord
(AH81-15587A)
• For more information about the power supply and power consumption, refer to the label attached
to the product. (Label: Rear of the Sound Tower Main Unit)
• To purchase additional components or optional cables, contact a Samsung Service Centre or
Samsung Customer Care.
Carry the system
When moving the product, in order to avoid personal injury and/ or property damage, and achieve
water resistance, please see the illustrations below.
1. When moving the product, do not drag or pull the product from the ground without the wheels
sticking out.
2. Do not lift the set to prevent the set from injuring your feet.
ENG - 3

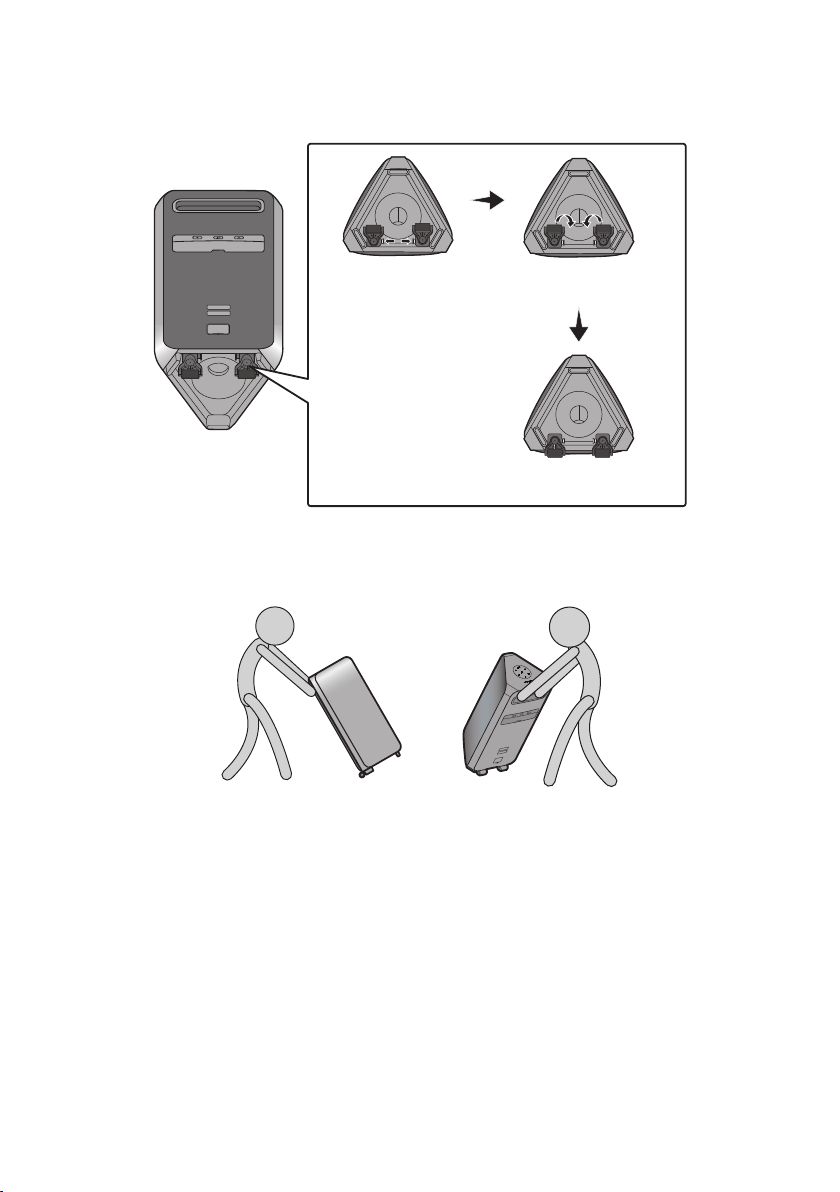

3. To move the set, perform the following steps.
• Press the self-locking switch of the wheels respectively to rotate the two wheels out of the
bottom of the set. When it clicks, it means that the wheels are adjusted in place.
POWER
Press the self-locking
switch
Rotate the wheels 180
degrees
The wheels were
adjusted to the front
• Use two hands to grab the handle on the back of the set and move it using the wheels as shown
below
Warning:
Use caution when moving the sound tower on an uneven surface to avoid injury or damage to the
unit or the surrounding environment.
ENG - 4
• After the set is moved, press the self-locking switch of the two wheels respectively to rotate
the wheels to the bottom of the set. When it clicks, it means that the wheels are adjusted in
place.
POWER
Press the self-locking
switch
Rotate the wheels 180
degrees
The wheel was rotated back
to the bottom of the set
4. The product should not be knocked over to ensure it keeps it’s water resistance.

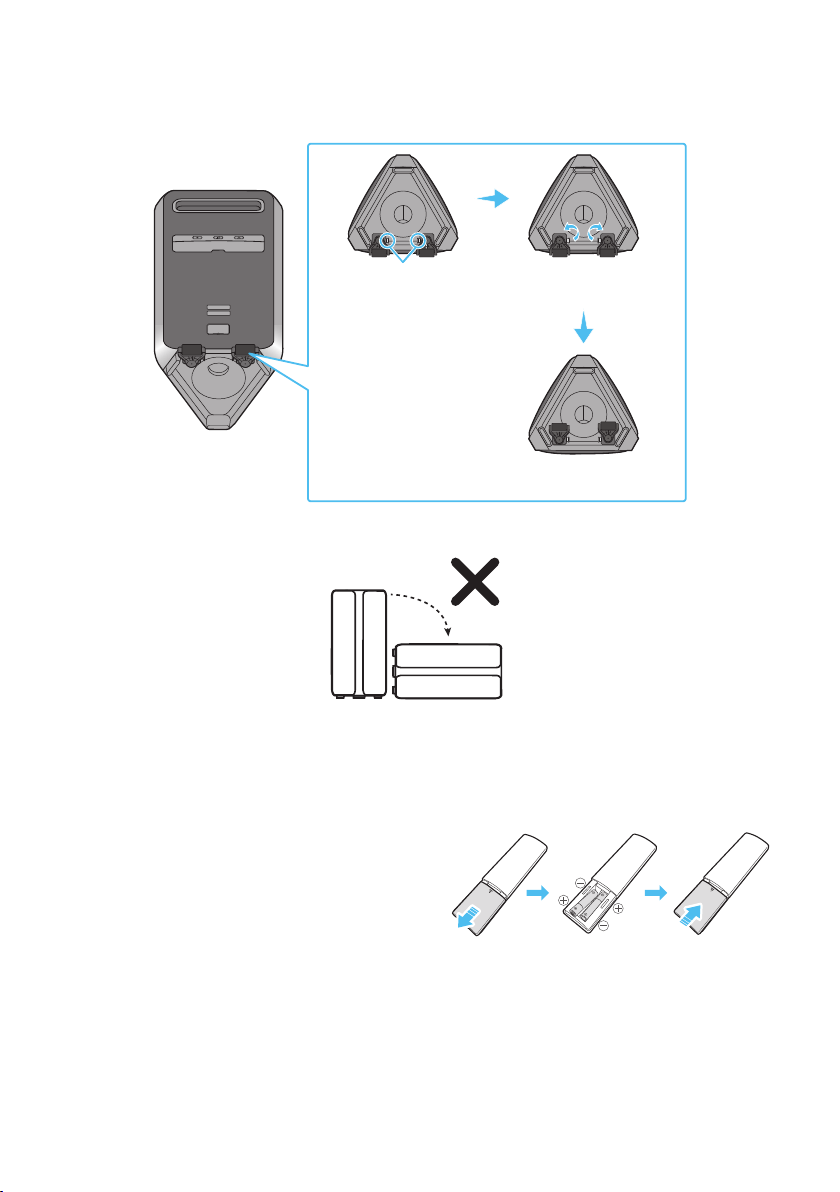

Inserting Batteries before using the Remote Control
(AAA batteries X 2)
Slide the battery cover in the direction of the arrow
until it is completely removed. Insert 2 AAA
batteries (1.5V) oriented so that their polarity is
correct. Slide the battery cover back into position.
(the remote control does not support IPX5)
ENG - 5
02 PRODUCT OVERVIEW

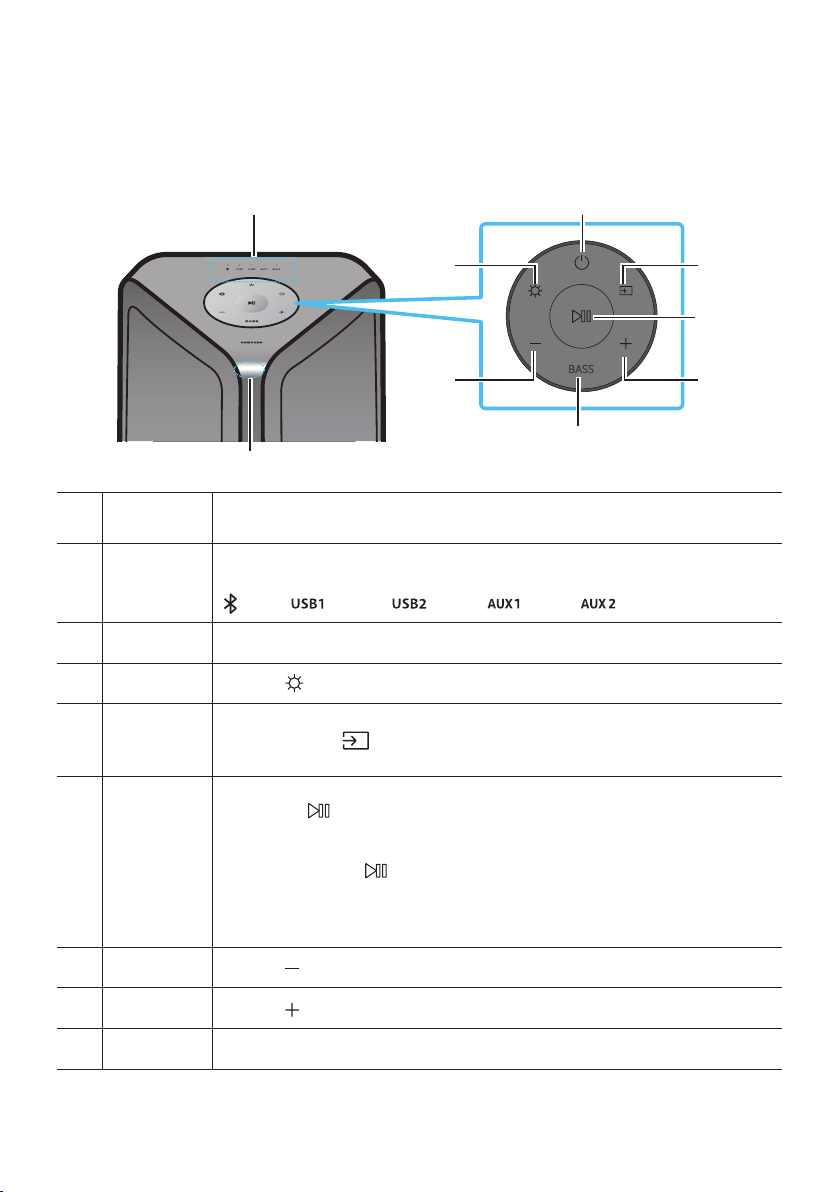

Top Panel of the Sound Tower
BASS
Remote
Sensor
When operating the Sound Tower system, please aim the front of the remote control at
the remote sensor.
LED
indicator
Displays operating messages or current status of the Sound Tower system.
The information sources represented by each LED are as follows:
(BT)
(USB1)
(USB2)
(AUX1)
(AUX2)
Power Turns the Sound Tower on and off.
Light
Press the
(Light) button to turn the Lighting Mode on.
Source
Press to select a source connected to the Sound Tower.
Press and hold the (Source)
button for more than 5 seconds
to enter the
“SEARCHING TV” mode.
Play/Pause
• Play/Pause
Press the
• Demo play
Press and hold the
button for more than 5 seconds to start the Demo play while
the system is turned on.
90 seconds.
– Please be careful as it may play louder than the set volume.
Volume down Press the (Volume down) button to lower the volume.
Volume up
Press the (Volume up) button to raise the volume.
BASS Press the BASS button to use the bass boost.
ENG - 6

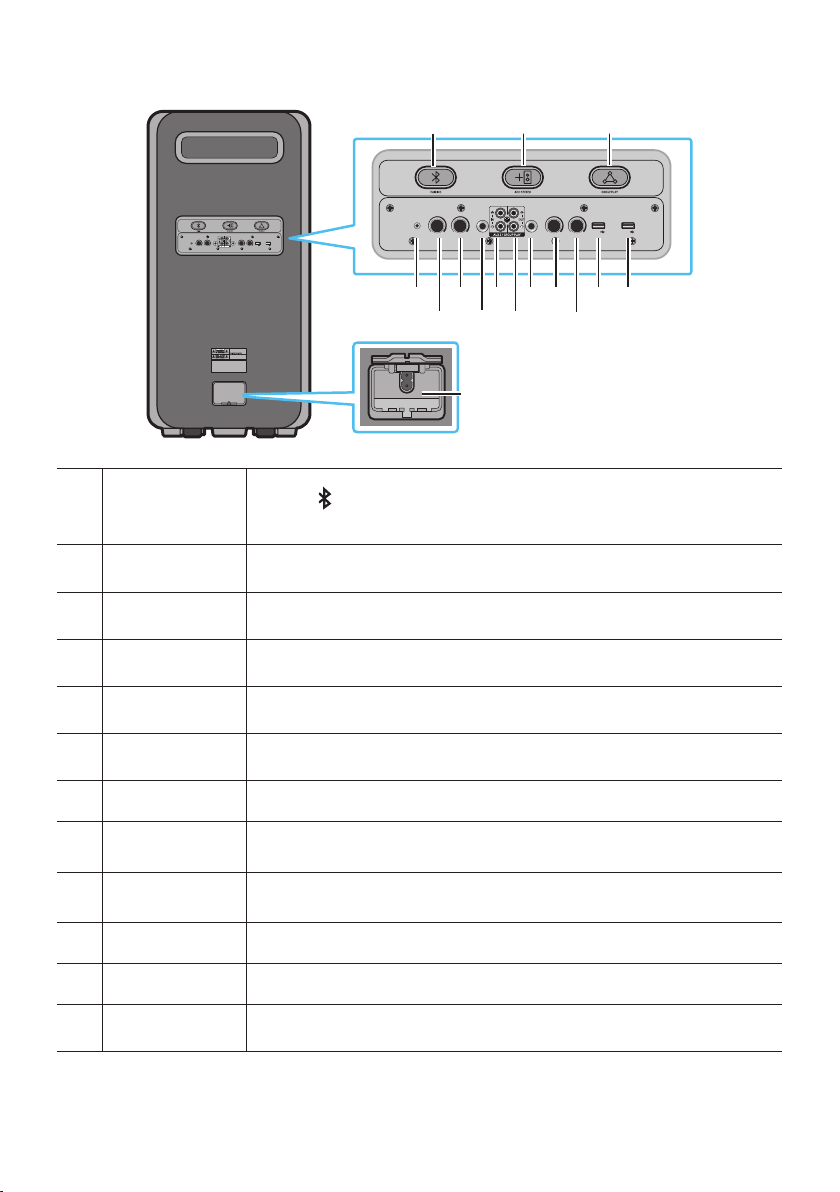

Rear Panel of the Sound Tower
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1

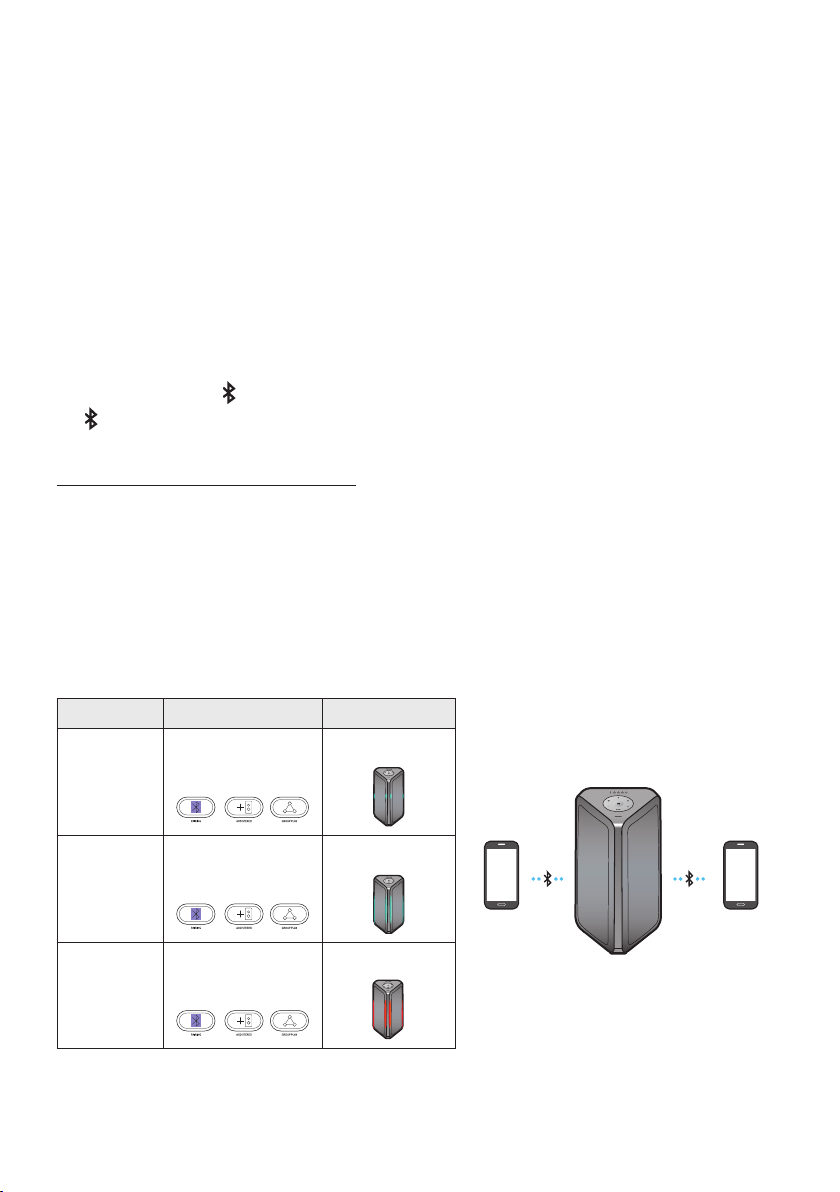

Bluetooth
PAIRING
Press the PAIRING button to enter pairing mode, "PAIRING" LED on the rear
plane will blink quickly.

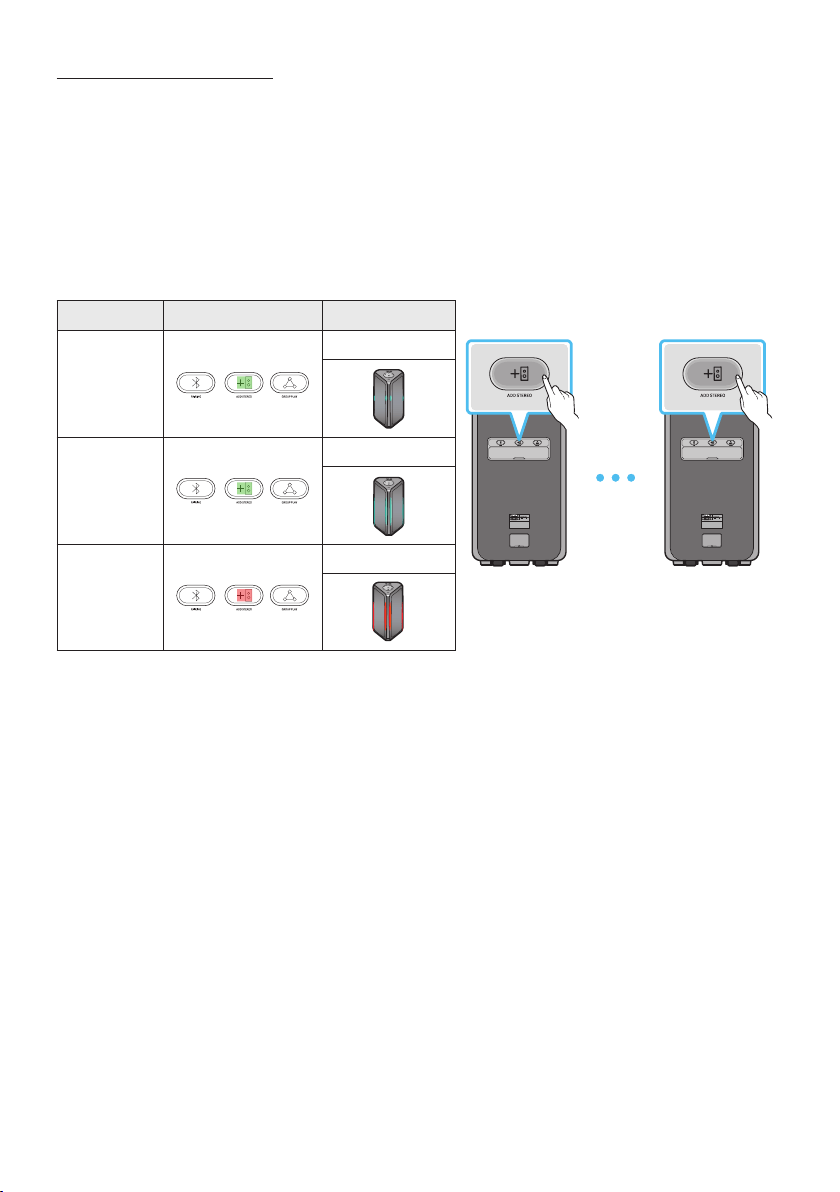

ADD STEREO
Press the ADD STEREO button to connect to another same model Sound Tower
wirelessly.

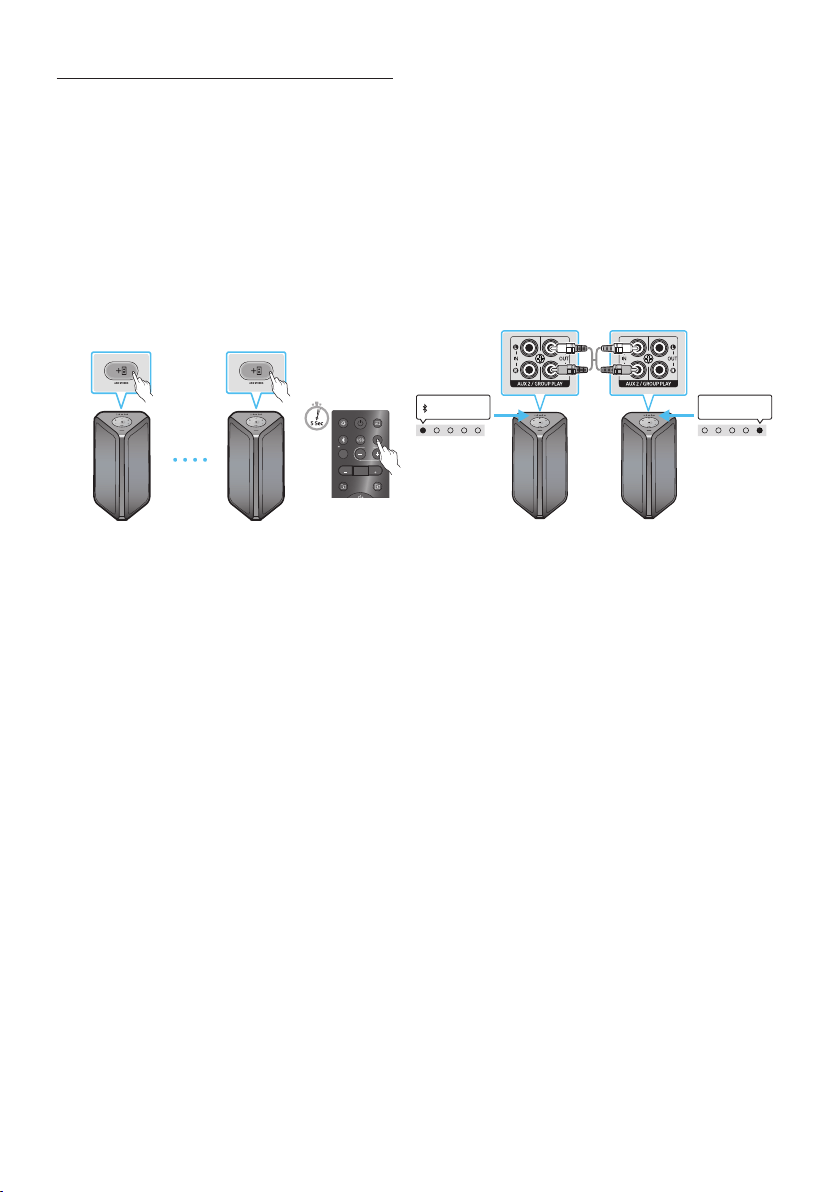

GROUP PLAY
Press the GROUP PLAY button to connect up to ten Sound Tower systems
wirelessly.
AUX1

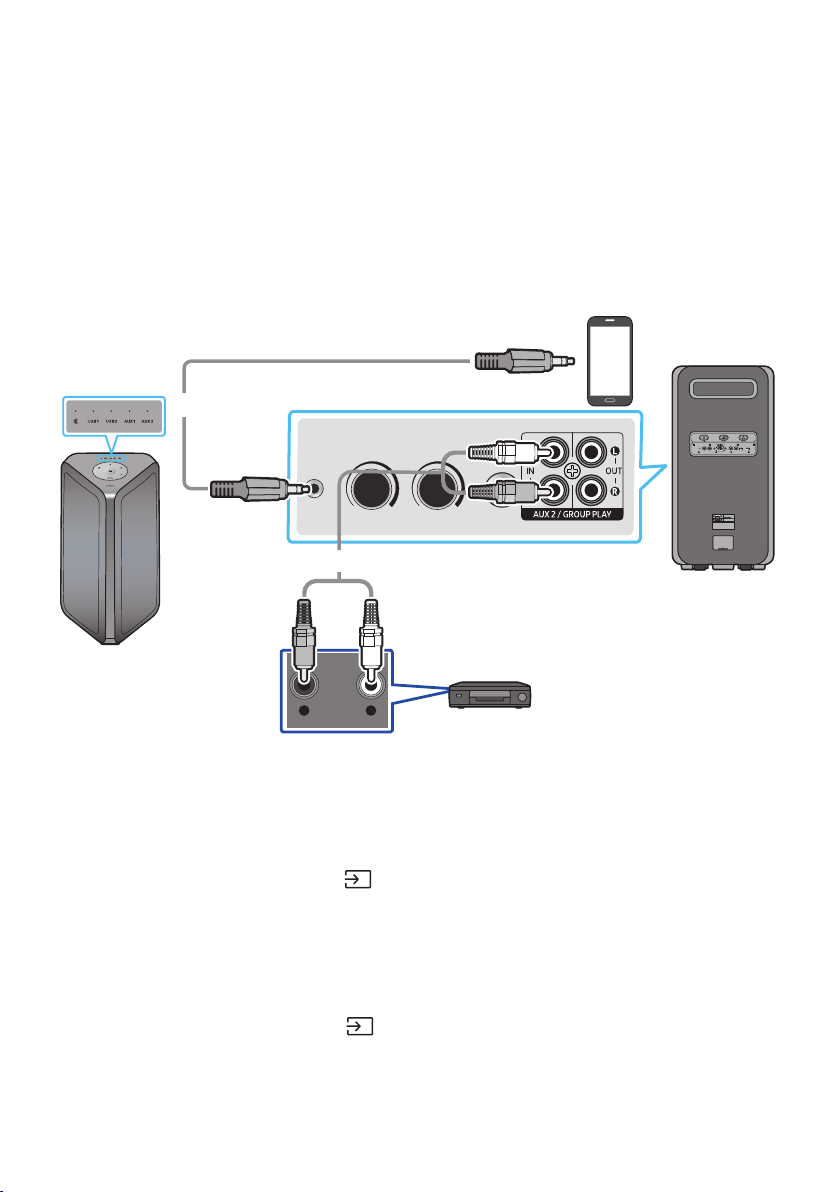

Use an Audio (AUX) Cable (not supplied) to connect AUX1 jack on the main unit to
Audio Out on an external device.
ECHO1
You can give an echo effect to the sound from a connected microphone (MIC1) by
adjusting the ECHO1 knob.
VOL1
Use the VOL1 knob on the main unit to adjust the volume of a connected
microphone (MIC1).
MIC1 Connect your microphone to the MIC1 jack.
GROUP PLAY IN
Terminals
Use an Audio Cable (not supplied) to connect AUX2 (IN) terminals on the main unit
to Audio Out on an external analogue output device.
GROUP PLAY OUT
Terminals
Use an Audio Cable (not supplied) to connect GROUP PLAY (OUT) terminals on the
main unit to GROUP PLAY(IN) on another Sound Tower.

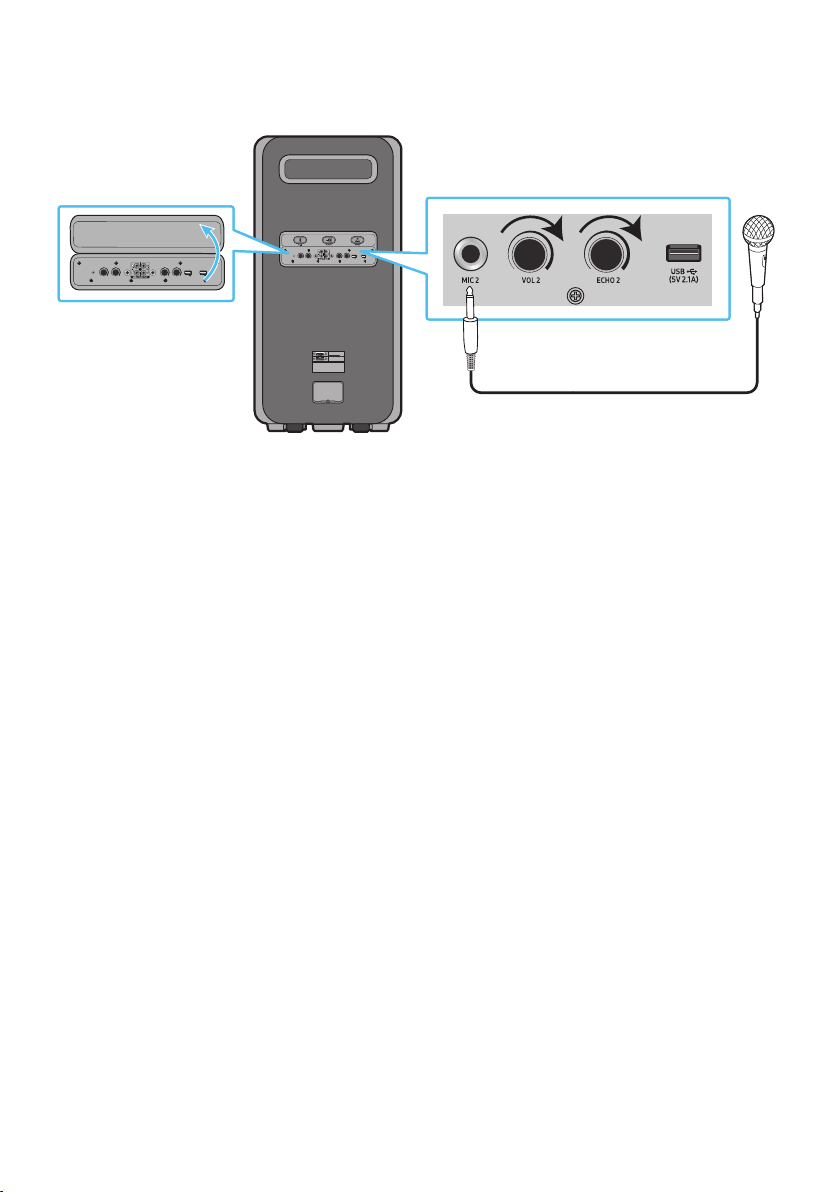

MIC2 Connect your microphone to the MIC2 jack.
VOL2 Use the VOL2 knob to adjust the volume of a connected microphone (MIC2).
ECHO2
You can give an echo effect to the sound from a connected microphone (MIC2) by
adjusting the ECHO2 knob.
ENG - 7
USB1

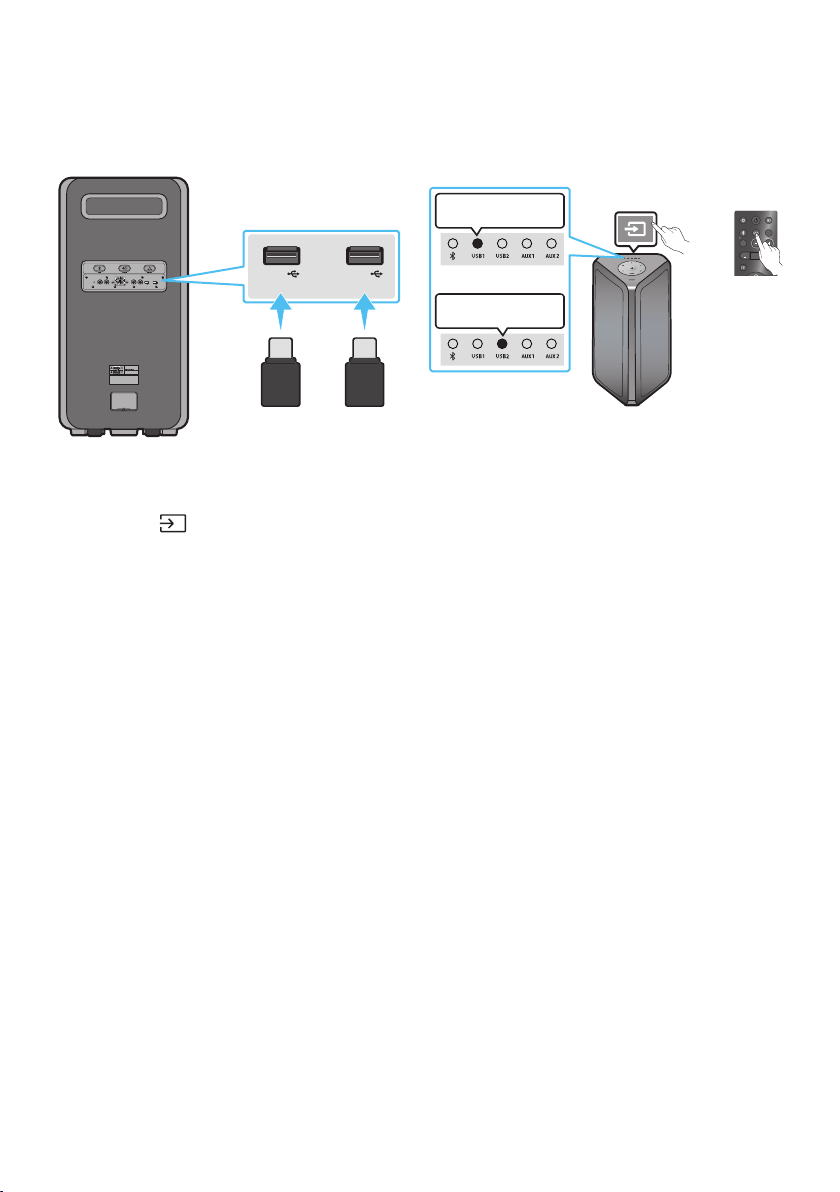

Connect a USB device to the USB1 or USB2 ports on the main unit.
If you connect your cell phone to the USB1 port, you can charge it.
• Press the (Source) button to select USB1 or USB2.
USB2
Power
Connect the power cord to the Power jack and connect the other end of the power
cord to a wall socket to supply electrical power to the Sound Tower.
ENG - 8
03 CONNECTING THE SOUND TOWER
Connecting Electrical Power
Use the power cord to connect the Sound Tower to an electrical outlet in the following order:
Connect the power cord to the Sound Tower and then to a wall socket.
See the illustrations below.
• For more information about the required electrical power and power consumption, refer to the
label attached to the product. (Label: Rear of the Sound Tower)
• Water resistance can be met when the AC power cord is plugged in, but make sure that the cap is
completely closed. Laying the Sound Tower on its side may damage internal components and keep
the unit from being water resistant.
Connecting
Electrical Power
Rear of Sound Tower
POWER
ENG - 9
Connecting Group Play Mode
You can connect multiple audio systems in a wired group play mode to create a more interesting party
environment and to produce higher sound output.
Connecting the wired Group Play mode
1st
Sound Tower HOST
2nd
Sound Tower
Last
Sound Tower
AUX2 white LED on AUX2 white LED on
Continue these steps
to connect Sound
Towers until the last
one is connected.
RCA cable
(not supplied)

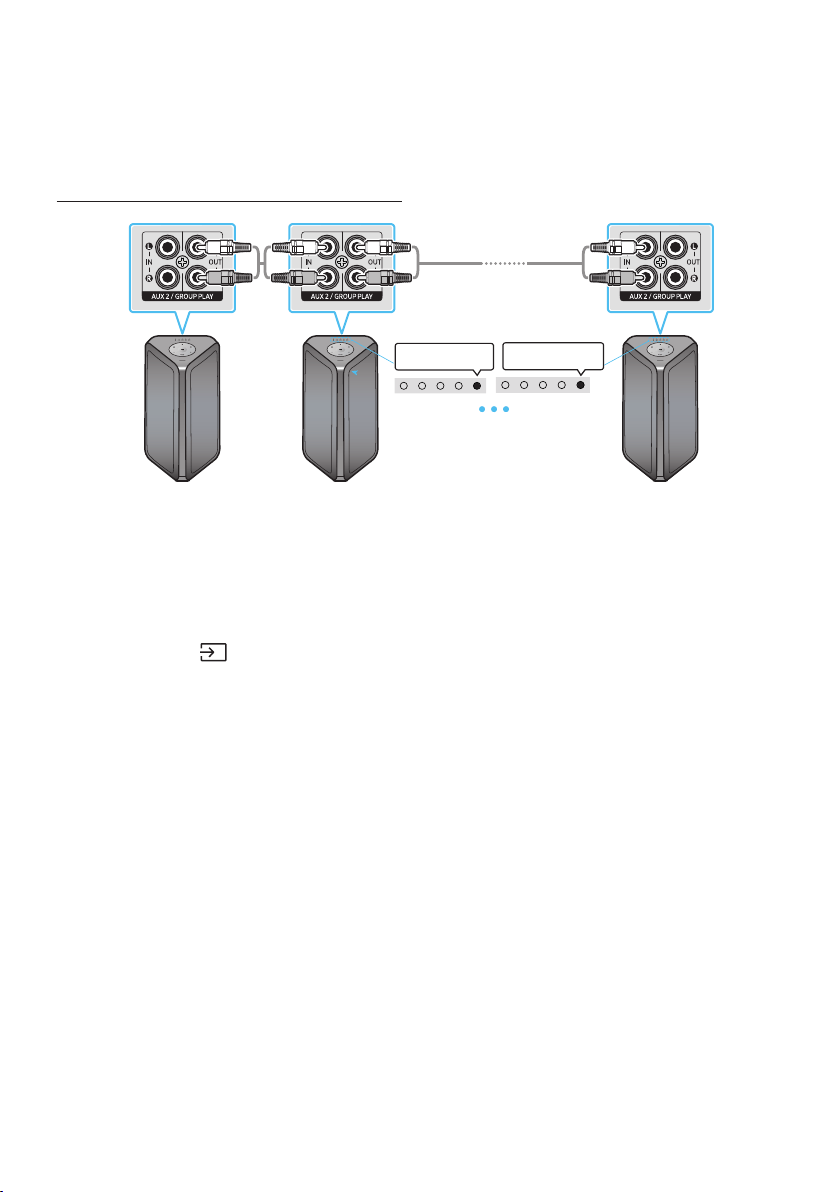

Connect the analogue audio cable to the OUT(Group Play) of the HOST.
Connect the analogue audio cable to the IN(AUX2) of 2nd Sound Tower and Set the source to AUX2.
Set up Group Play by connecting all the systems using analogue audio cables.
Use the AUX or (Source) button to change the source to AUX2 for every Sound Tower except
the Sound Tower HOST.
• Set one Sound Tower as the HOST and any music played on it will be shared among any other
Sound Tower in the Audio group.
NOTES
• Analogue audio cables are not supplied.
• Depending on the length or characteristics of the cable, there may be a difference in operating
distance.
• Be sure to select the Audio In function on the last system.
•
• To stop Wired Group Play:
– Remove analogue audio cable from the HOST
– Change to a source other than AUX2 on any Sound Tower in the group besides the HOST
– Turn off the HOST
• If the Wired Group Play function does not start:
– Check the connections.
– Ensure the audio cables are connected correctly.
ENG - 10
– Make sure that the HOST is turned on, and has a music source connected to it, and the volume
is not muted.
• Wired Group Play function does not work properly:
– Turn off the system. Then, turn it back on again to activate the function.
• When a microphone is connected to the HOST and being used, the MIC sound is output to all the
connected Sound Towers in the group.
Connecting wireless Group Play mode
You can connect multiple audio systems in a wireless group play mode to create a more interesting
party environment and to produce higher sound output.
Precondition
• When connecting a Sound Tower, make sure it is within 1m distance.
• Cannot set the mode to Group Play mode when sound tower is connected to a TV.
• Before using Group Play mode, any sound towers should be taken out of Stereo mode.
POWER POWER POWER
SUB 1
Sound Tower
Continue these
steps to
connect Sound
Towers until the
last one is
connected.
LED Blinks Slow(15s)
Waiting to enter
pairing mode
LED Blinks Fast(30s)
SUB Connection
available
HOST
Sound Tower
Last(SUB)
Sound Tower
Press the GROUP PLAY button on the HOST Sound Tower and wait until the “GROUP PLAY” LED
switches from blinking slowly to blinking quickly. This Sound Tower will become the Sound Tower
HOST.
Group Play LED will blink quickly immediately.
Press the GROUP PLAY button on the SUB Sound Tower, and it will begin searching for the HOST
while the “GROUP PLAY” LED blinks, and the LED will turn solid and the speaker will beep after
connecting to the HOST.
If less than 20 minutes have passed since Group Play button was pressed, refer to Step 2 to
connect additional SUB. If 20 minutes have passed since Group Play was pressed, repeat steps 1
and 2 to connect additional SUB.
• Play music on the HOST Sound Tower. Sound outputs from all the connected systems.
ENG - 11
NOTES
• All the Sound Tower models can connect in Group Play mode.
• When “HOST” Sound Tower connects to a Samsung TV, the Group play mode will automatically
disconnect.
• Environmental conditions or other factors with connected devices may have an effect on playback
quality.
• If the light bar blinks pink and the speaker outputs a beeping sound, an error has occurred in the
Group Play mode connection. Try Step 1 and 2 again.
• The ADD STEREO button and PAIRING button on the SUB Sound Tower systems are not available
while in wireless Group Play mode.
• The ADD STEREO button on the HOST Sound Tower is not available while in wireless Group Play
mode.
• Bluetooth devices can search and connect with the HOST Sound Tower only, but the SUB cannot
connect to any Bluetooth device.
• If you power off or select any source other than BT on a SUB unit, the Group Play mode is
disconnected.
• This product does not support aptX audio stream with Wireless Group Play mode.
•
• If Wireless Group Play does not work properly:
– Turn off the system. Then, turn it back on again to activate the function.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
• When using the wireless Group Play mode function, sound from a connected microphone is only
output from the system to which the microphone is connected.
Disconnecting the wireless Group Play mode
1. Press and hold the GROUP PLAY button over 5 seconds (HOST or SUB).
• The speaker will beep and the Group Play LED will turn off.
2. If you select any source other than BT on the SUB units or turn off the HOST Sound Tower, the
Group Play mode is disconnected.
LED Indications
LED STATE Description
Green
Blink Waiting for a wireless Group Play connection.
Solid The wireless Group Play connection was successful.
Red Solid There is an error with the wireless Group Play connection.
ENG - 12
Connecting Stereo Mode

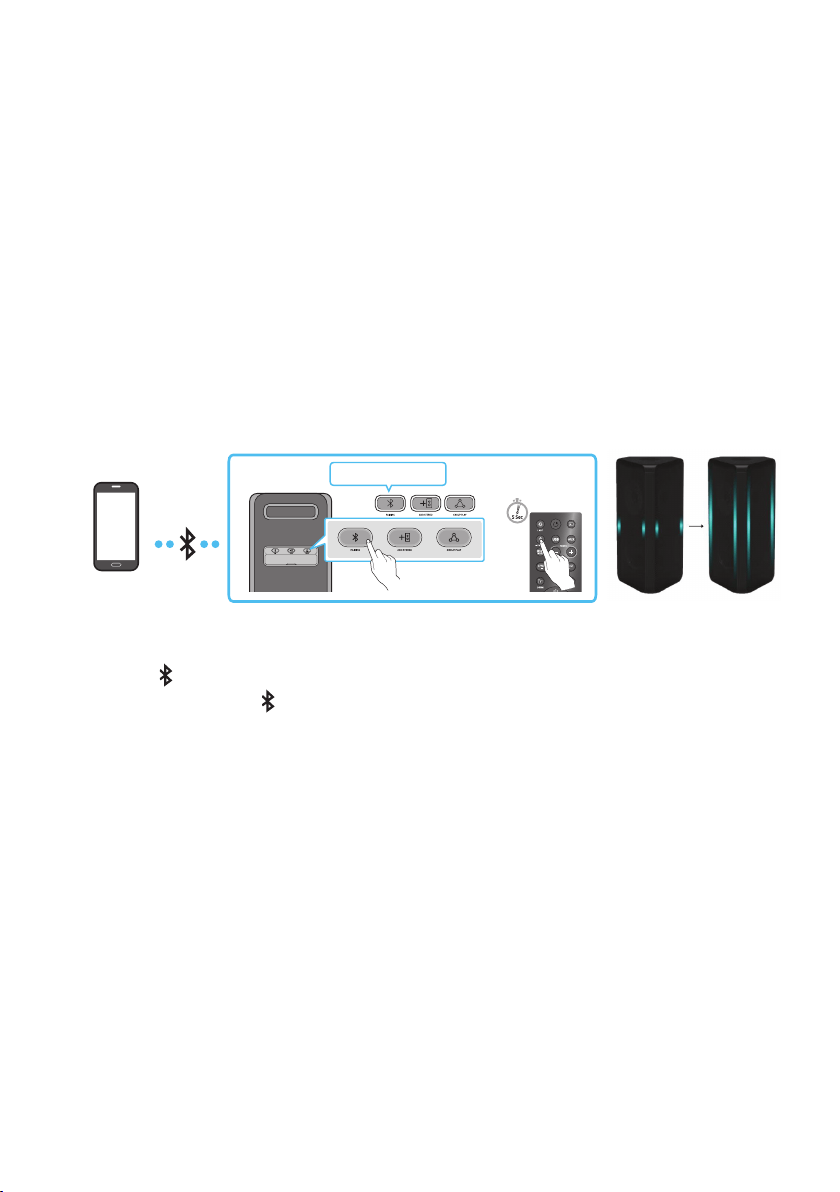

Connect two Sound Tower and use them with a mobile device to enjoy stereo mode, to make a larger
listening area or to hear greater left and right audio separation.
Precondition
• To use the Stereo mode, both Sound Tower systems must be the same model.
• When connecting a Sound Tower, make sure it is within 1m distance.
• If the sound tower is in Group Play mode, need to exit it before using Stereo mode.
• Cannot set the mode to Stereo mode when sound tower is connected to a TV.
Description LED Indicator Light Bar
POWER POWER
Left Speaker
MAIN Sound Tower
Right Speaker
SUB Sound Tower
Connecting
Cyan blink
Connected
Cyan blink once
Failed
Pink blink once
The initial connection
• After the initial connection is complete, if the ADD STEREO button is pressed on the MAIN or SUB
Sound Tower, the Left and Right Speaker are swapped.
1. Press the ADD STEREO buttons of the two Sound Towers. The LED blinks on the ADD STEREO
button.
2. When the connection is complete, each speaker beeps and the ADD STEREO LED turns solid. MAIN
• The MAIN Sound Tower outputs left channel sound and the SUB Sound Tower outputs right
channel sound.
• Play music by connecting your mobile device to the MAIN Sound Tower via Bluetooth. Sound is
output from both Sound Tower.
ENG - 13
NOTES
• Environmental conditions or other factors with connected devices may have an effect on playback
quality.
• If the ADD STEREO LED is solid red an error has occurred in the Stereo Group connection. Try steps
1 and 2 again.
• Remote Controller, BT PAIRING, GROUP PLAY and Source buttons on the SUB Sound Tower are
disabled while in Stereo Group mode.
• The GROUP PLAY button on the MAIN Sound Tower is not available while in Stereo Group mode.
• In any mode other than “BT” (ex. USB, AUX mode), music is played only from the MAIN Sound Tower
and not the SUB Sound Tower.
• The lighting colours between MAIN Sound Tower and SUB Sound Tower may vary.
• This product does not support aptX audio stream with Stereo mode.
• When using the wireless Stereo mode function, sound from a connected microphone is only output
from the system to which the microphone is connected.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
Disconnecting the wireless Stereo mode
Press the ADD STEREO button (MAIN or SUB) for at least 5 seconds while the Stereo Group is
connected.
• The speaker will beep and the ADD STEREO LED will turn off.
ENG - 14
Using Stereo Mode with a Samsung TV
Connect two Sound Towers and use them with a Samsung TV to enjoy stereo mode, to cover a larger
listening area or to hear greater left and right audio separation.
Precondition
• To use the Stereo mode, both Sound Tower systems must be the same model.
• When connecting a Sound Tower or TV, make sure it is within 1m distance.
• Cannot set to Stereo Mode with Samsung TV if the Sound Tower is already connected to a TV via
Bluetooth.
• If the sound tower is in Group Play mode, need to exit it before using Stereo mode.
LIGHT
PAIRING
TEMPO
USB
AUX
EFFECT
DOWN
UP
EFFECT
DJ
SOUND
MODE
Left Sound Tower
(MAIN)
Left Sound Tower
(MAIN)
Right Sound Tower
(SUB)
Right Sound Tower
(SUB)
White LED on
AUX2 white LED on

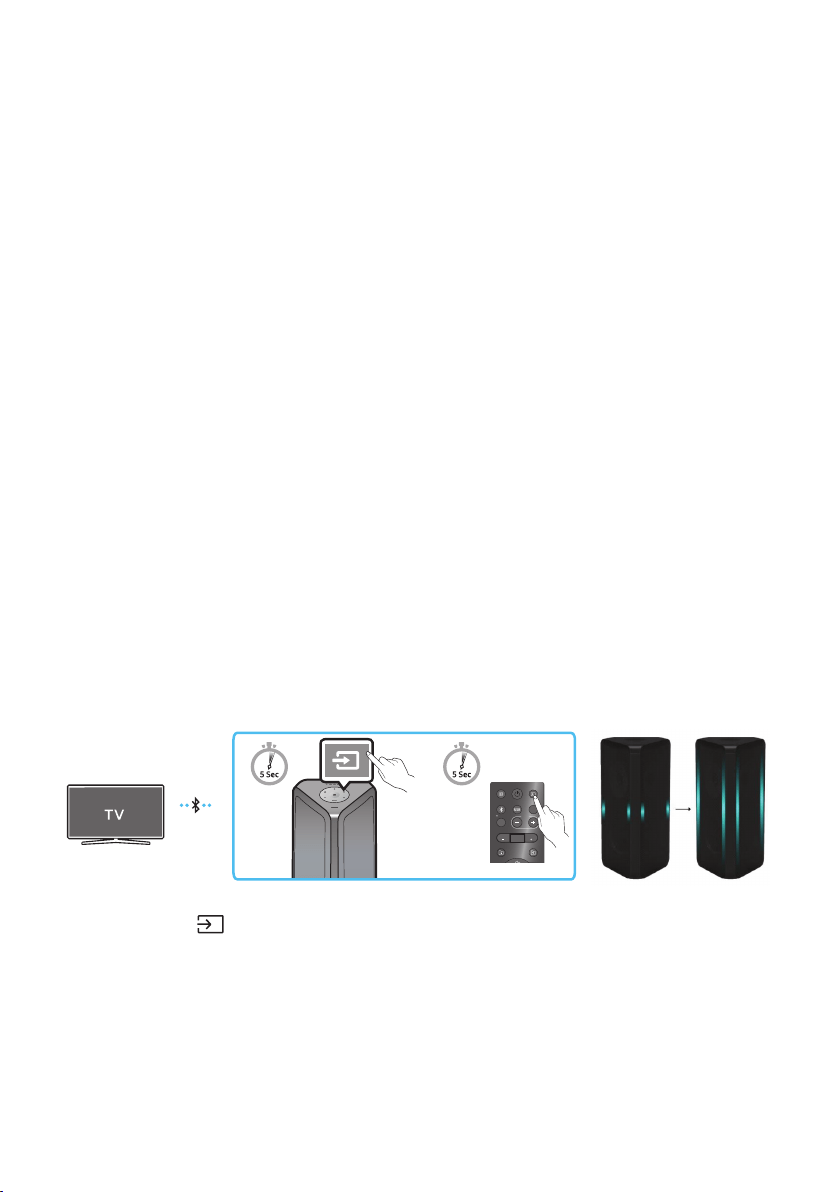

Connect two sound towers via stereo mode by pressing the ADD STEREO button on the two Sound
Towers.
In “BT” mode, press the “AUX” button on the MAIN Sound Tower remote control for at least 5
seconds. The LED blinks on the ADD STEREO button.
Connect a RCA cable to the OUT(Group Play) on the MAIN and AUX2 IN on the SUB as shown.
• When the connection is complete, the “ADD STEREO” LED will stop blinking and turn solid, the
speakers will beep, and the AUX2 LED on the SUB will turn on.
• The MAIN Sound Tower outputs the left channel sound and the SUB Sound Tower outputs the
right channel sound. Press the ADD STEREO button on the MAIN or SUB Sound Tower to swap
them between Left and Right.
• Connect a TV and MAIN Sound Tower via Bluetooth to play audio. Sound is output from both
Sound Towers.
ENG - 15
NOTES
• Analogue audio cables are not supplied.
• If the light bar blinks pink and the speakers beep, an error has occurred in the Stereo mode
connection. Repeat steps 1 through 3.
• In Stereo Group mode, the remote control, BT PAIRING, GROUP PLAY, and Source buttons on the
SUB Sound Tower are disabled.
• The GROUP PLAY button on the MAIN Sound Tower is not available in Stereo Group mode.
• If the Samsung TV supports a simple connection, the connection pop-up is automatically displayed
on the TV, and if you select “Yes”, it connects to the sound tower. If there is a previous connection
history between Samsung TV and Sound Tower, they will be connected without pop-up.
• The lighting colours may vary between the MAIN Sound Tower and the SUB Sound Tower.
• When a microphone is connected to the MAIN and being used, the MIC sound is output to the SUB.
Disconnecting Stereo mode connection
• Press the ADD STEREO button (MAIN or SUB) for at least 5 seconds after the Stereo Group is
connected. Sound tower will beep and the LED on the ADD STEREO button turns off.
ENG - 16
04 CONNECTING AN EXTERNAL DEVICE
Connect to an external device via a wired or wireless network to play the external device’s sound
through the Sound Tower.
Connecting an External Device via Analogue Audio Cable
A phone jack or RCA cable is a physical connection that transfers analogue audio signals.
ECHO 1 VOL 1
AUX 1
MIC 1
- AUDIO -
R L
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
Mobile device / MP3 / PMP
BD / DVD player / Set-top box / Game console
Rear of the Sound Tower
Audio (AUX) Cable (not supplied)
3.5 mm stereo cable (not supplied)
3.5 mm stereo Cable (AUX1)
1. Connect AUX1 jack on the main unit to the AUDIO OUT jack of the Source Device using a
3.5 mm stereo cable.
2. Select “AUX1” mode by pressing the (Source) button on the top panel or on the remote control.
• You can also select a source using AUX button on the remote control.
RCA Cable (AUX2)
1. Connect AUX2 (IN) terminals on the main unit to the AUDIO OUT terminals of the Source Device
using an RCA cable.
2. Select “AUX2” mode by pressing the (Source) button on the top panel or on the remote
control.
• You can also select a source using AUX button on the remote control.
ENG - 17
NOTES
• Analogue audio cables are not supplied.
• Depending on the length or characteristics of the cable, there may be a difference in operating
distance.
• AUX1 and AUX2 does not support wireless Stereo and Group Play mode.
Connecting a mobile device via Bluetooth
When a mobile device is connected using Bluetooth, you can hear stereo sound without the hassle of
cabling.
Precondition
• When connecting to a new BT device, make sure it is within 1m distance.
• Disconnect from any Samsung TV before connecting to a mobile device.
• SUB speaker can’t connect to BT when using Group Play or Stereo mode.
Bluetooth device
Blue Blinks
Pairing
(blinks)
OR
Connected
1. Press the PAIRING button on the rear panel of sound tower.
(OR) Press and hold the PAIRING button on the remote control for more than 5 seconds to enter
the “BT PAIRING” mode.
2. On your device, select “[AV] MX-ST9B Series” from the list that appears.
• After the device is connected. The light bar will all be lit cyan, and the Bluetooth light on the
rear panel is solid.
3.
NOTES
If the device fails to connect
• Sound tower will beep if BT is disconnected.
• If a previously connected Sound Tower listing (e.g. “[AV] MX-ST9B Series”) appears in the list, delete
it.
• Then repeat steps 1 and 2.
Bluetooth connection
• In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the
Sound Tower and the Bluetooth device exceeds 10 meters.
ENG - 18
• The Sound Tower automatically turns off after 20 minutes in the Ready state.
• The Sound Tower may not perform Bluetooth search or connection correctly under the following
circumstances:
–
– If several Bluetooth devices are simultaneously paired with the Sound Tower.
– If the Bluetooth device is turned off, not in place, or malfunctions.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
What is the difference between BT READY and BT PAIRING?
• BT READY : In this mode, you can use the previously connected TV or mobile device to connect to
Sound Tower.
• BT PAIRING : In this mode, you can connect a new device to the Sound Tower.
(Press and hold the PAIRING button on the remote control for more than 5 seconds or press the
PAIRING button on the rear of the Sound Tower to enter the “BT PAIRING” mode.)
Using Bluetooth Multi connection
The Sound Tower can be connected to 2 Bluetooth devices at the same time.
Precondition
• When connecting to a new BT device, make sure it is within 1m distance.
• Disconnect from any Samsung TV before connecting to a mobile device.
• SUB speaker can’t connect to BT when in the Group Play or Stereo mode.
Bluetooth Multi Connection Indicator
Description LED Indicator Light Bar
Bluetooth
device 1
Bluetooth
device 2
Connecting
Blue fast blink
Cyan blink
Connected
Blue solid
Cyan blink once
Failed
Blue blink
Pink blink once
ENG - 19
1. Put the Sound Tower into “BT PAIRING” mode and connect each mobile device.
2. On your device, select “[AV]MX-ST9B Series” from the list that appears.
3. When the Sound Tower is connected to two mobile devices, The light bar will be fully lit in cyan,
and the Bluetooth light on the rear panel will be solid.
How to operate Bluetooth Multi Connection Function
Play music from one of the connected Bluetooth devices while two devices are connected. If music is
played from the Bluetooth device “B” while playing from device “A”, the music starts playing from device
“B” and automatically pauses on device “A”.
NOTES
• When connecting to a Samsung TV, the BT multi connection will automatically disconnect
• If you want to connect the Sound Tower to a third device, you can disconnect the Sound Tower from
one of the two currently connected devices and then connect the Sound Tower to the third device.
• With the Sound Tower and two devices currently connected, when pairing to a new Bluetooth
device, the devices currently connected may be disconnected.
• Environmental conditions or other factors with connected devices may have an effect on playback
quality.
• Electronic devices may cause radio interference. Devices that generate electromagnetic waves
must be kept away from the Sound Tower main unit - e.g., microwaves, wireless LAN devices, etc.
• Bluetooth Multi connection may not be supported depending on the connected device’s
• Removable/detachable Bluetooth devices (Ex: Dongle etc..), windows phone, laptops, TV, etc. do not
support Bluetooth Multi connection.
• After Bluetooth Multi connection pairing, there may be a slight delay before music starts playing
depending on the Bluetooth devices.
•
device, it may take a few minutes to connect other Bluetooth devices. If you turn the Sound Tower
off and back on, you can connect other Bluetooth devices without waiting.
Disconnecting the Sound tower from the Bluetooth device
Press the Source button on the top panel or on the remote control, and then change to any mode
except “BT”.
• Disconnecting takes time because the Bluetooth device must receive a response from the Sound
tower.
• When the Soundtower is disconnected from a Bluetooth device, the sound tower will beep.
ENG - 20
Using Bluetooth Power On
When the Sound Tower is turned off, you can connect your smart device via a Bluetooth connection to
turn it on.
1. Press and hold the BASS button on the remote control or on the top panel to enable the Bluetooth
Power On function. Lighting bar will blink white once.
2. When the Sound Tower is off, connect your smart device via Bluetooth. (For information on
Bluetooth connections, refer to your smart device’s manual.)
3. When the connection is complete, the Sound Tower turns itself on automatically in Bluetooth
mode.
• Select the desired music to play from your smart device.
NOTE
• Each time you press and hold the BASS button for 5 seconds, the LED lighting bar will blink white
once and the status will alternate as follows:
BLUETOOTHPOWER-ON→BLUETOOTHPOWER-OFF
Connecting a Samsung TV via Bluetooth
When a TV is connected using Bluetooth, you can hear TV sound without the hassle of cabling.
(Only one TV can be connected at a time)
Precondition
• When connecting to a new BT device, make sure it is within 1m distance.
• While in wireless Group Play or Stereo mode, the Sound Tower cannot search for a TV via Bluetooth.
• If the Samsung TV doesn’t support “Easy Connection”, ”SEARCHING TV” mode can not connect to a
TV. Set your Sound Tower to “BT PAIRING” mode and connect the Samsung TV.
LIGHT
PAIRING
TEMPO
USB
A
UX
EFFECT EFFECT
DJ
SOUND
MODE
OR
Pairing(blinks) Connected
1. Press and hold (Source) for more than 5 seconds on remote control or top panel then Sound
Tower will start to search for the Samsung TV. Lighting bar will blink white once and then blink
cyan, The “PAIRING” LED will slowly blink.
(Or, when the wired Stereo Group mode connection is complete, the “SEARCHING TV” mode is
automatically activated.)
2. If Samsung TV has connected with Sound Tower before, Samsung TV will be connected without
popup.
ENG - 21
3. Sound from the TV will be heard once the Sound Tower connects via Bluetooth.
•
“SEARCHING TV” mode and turn to “BT PAIRING” mode. If any Samsung TV is found, the Sound
Tower will request connection to the TV.
NOTES
• To stop searching for a Samsung TV, turn off the Sound Tower or press the (Source) or PAIRING
button.
• Sound Tower does not support multi connection if Samsung TV is connected.
• While Samsung TV is connected, Sound mode is PARTY and SOUND MODE button is not available.
• While Samsung TV is connected, Sound Tower APP can not connect with Sound Tower.
• Connection popup may not be displayed according to TV spec, you can try pressing the PAIRING
button on the rear panel of sound tower. On your Samsung TV, select “[AV] MX-ST9B Series” from the
list that appears.
• You can select and connect directly from the Bluetooth speaker list on your TV when the connection
pop-up does not appear on your TV.
• When the Sound Tower is connected to your TV by Bluetooth connection, the video on the TV and
audio from the Sound Tower may not be synchronised because the distance between the Sound
Tower and the TV is too far.
ENG - 22
05 CONNECTING A USB STORAGE DEVICE
LIGHT
PAIRING
TEMPO
USB
AUX
EFFECT EFFECT
DJ
SOUND
MODE
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
USB1
(5V 2.1A)
USB2
(5V 0.5A)
USB storage device
(not supplied)
USB1 white LED on
USB2 white LED on
Rear of the Sound Tower
OR
OR
1. Connect a USB storage device to the USB jacks on your Sound Tower.
2. Press the (Source) button on the top panel or USB button of remote control, and then select
“USB”.
3. The USB
Pause, Skip) on remote control.
CAUTION
• DO NOT connect microphone dongle to the USB port, it may damage the Sound Tower.
NOTES
•
system.
• This product does not support HDD storage or storage on mobile devices.
•
• A maximum of 256 folders can be read via USB storage device.
• The Sound Tower automatically turns off (Auto Power Down) if USB device is not connected,
playback stopped, or there is no input for more than 18 minutes
• USB source does not support wireless Stereo and Group Play mode.
ENG - 23
Supported Audio Formats
File Extension Audio Codec Sampling Rate Bit Rate
*.mp3
MPEG 1 Layer3 32 kHz ~ 48 kHz 32 kbps ~ 320 kbps
MPEG 2 Layer3 16 kHz ~ 24 kHz 8 kbps ~ 160 kbps
MPEG 2.5 Layer3 8 kHz ~ 12 kHz 8 kbps ~ 160 kbps
*.wma WMA7/8/9 8 kHz ~ 48 kHz 32 kbps ~ 320 kbps
*.aac
AAC 8 kHz ~ 96 kHz < 1728 kbps
A AC-LC 8 kHz ~ 96 kHz < 1728 kbps
HE-AAC 8 kHz ~ 96 kHz < 1728 kbps
*.wav
PCM/LPCM/
IMA_ADPCM
8 kHz ~ 192 kHz < 5 Mbps
- 8 kHz ~ 192 kHz < 5 Mbps
NOTES
• This product does not support WMA Professional codec.
• The above table shows supported sampling rates and bit rates. Files in formats that are not
supported will not play.
•
Software Update
SamsungmayofferupdatesfortheSoundTower’ssystemrmwareinthefuture.
update stored on it to the USB2 port on your Sound Tower. For more information about how to
Then, enter or select the model number of your Sound Tower, select the Software & Apps option, and
then Downloads. Note that the option names can vary.
NOTE
• If the upgrade takes more than 10 minutes, it means the upgrade process is stuck, Please unplug
the power cord Wait until the sound tower is powered off and plug it back in again. Next, make sure
the USB device is in the USB2 port. Then, wait 1 minute, and the sound tower will automatically
restart, and then wait until the upgrade is complete.
ENG - 24
Connecting an Optional Microphone
You can output your voice from the system by connecting a dynamic microphone with a normal plug.
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
POWER
MAXMIN
MAXMIN
ECHO 2VOL 2ECHO 1 VOL 1 MIC 2
USB1
(5V 2.1A)
USB2
(5V 0.5A)
AUX 1
MIC 1
Microphone(Not supplied)
1. Open the rear panel cover.
2. Turn the MIC1/2, VOL1/2 & ECHO1/2 knob to MIN to reduce the microphone level.
3. Connect an optional microphone to the MIC jack on the unit.
4. Adjust the volume using the MIC “VOL1/2” knob.
5. Adjust the Effect of the echo using the MIC “ECHO1/2” knob.
6. Speak or sing into the connected microphone.
NOTES
• Microphone is not supplied.
• When using the wireless Group Play or stereo mode function, sound from the microphone is only
output from the system to which the microphone is connected.
• There may be distortion or noise caused by the quality of the microphone that is connected.
ENG - 25
06 USING THE REMOTE CONTROL

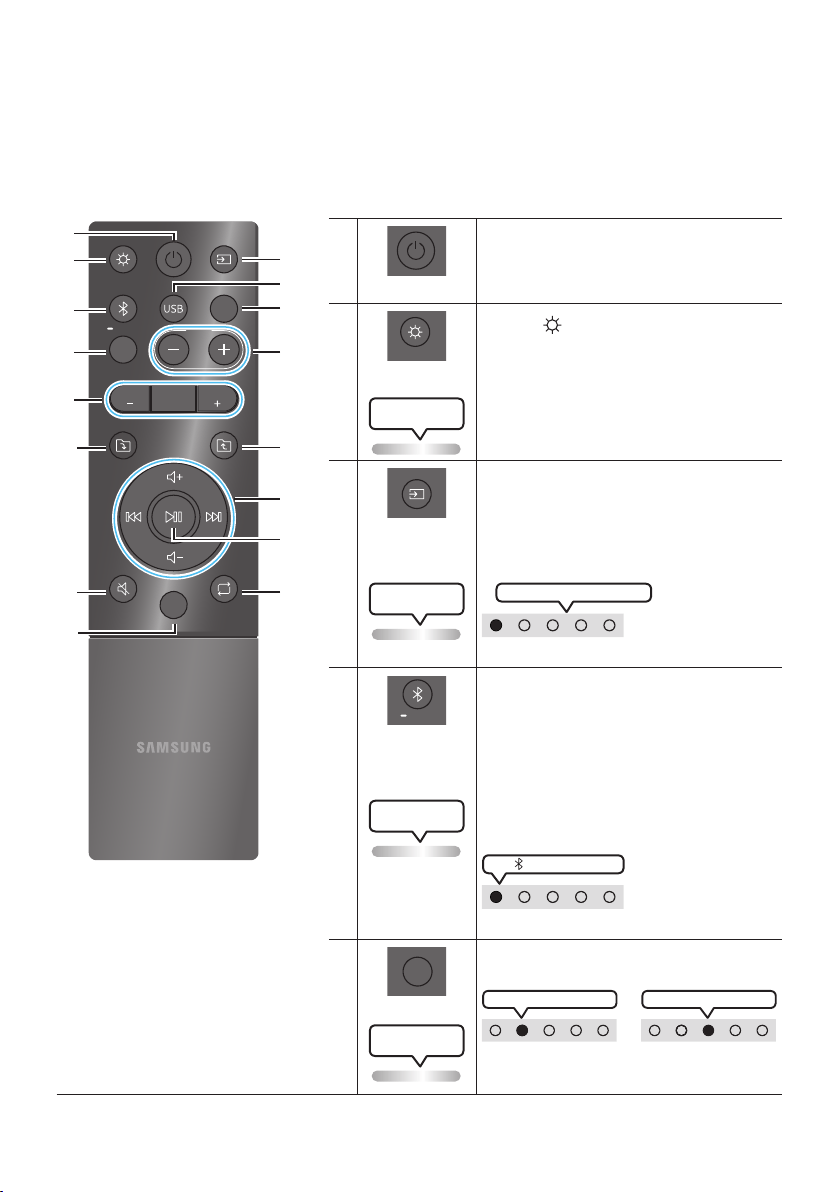

How to Use the Remote Control
LIGHT
PAIRING
TEMPO
USB
AUX
EFFECT
DOWN
UP
BASS
EFFECT
DJ
SOUND
MODE
Power
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Turn the Sound Tower on and off.
LIGHT
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (LIGHT) button to turn the
Lighting Mode on.
(Only active during music playback)
Press the button repeatedly to cycle through
the available light modes: AMBIENT, PARTY,
DANCE, THUNDERBOLT, STAR or OFF.
Lighting LED
white blink x1
Source
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select a source connected to the
Sound Tower.
Press the button repeatedly to cycle through
the available sources: BT, USB1, USB2, AUX1 or
AUX2.
Lighting LED
white blink x1
White LED moves to right on
LED indicator on the top of the product
Bluetooth
PAIRING
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select a source connected directly to
"BT" mode.
Press and hold the button for more than
5 seconds to enter the "BT PAIRING" mode.
You can connect the Sound Tower to a new
Bluetooth device in this mode by selecting the
Sound Tower from the Bluetooth device's
search list.
Lighting LED
Cyan blinks
white LED on
LED indicator on the top of the product
USB
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select the USB1 or USB2 source
connected to the Sound Tower.
USB1 white LED on
OR
USB2 white LED on
LED indicator on the top of the product
Lighting LED
white blink x1
ENG - 26
AUX
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press to select the AUX1 or AUX2 sources connected to the Sound Tower.
AUX2 white LED on
OR
AUX1 white LED on
LED indicator on the top of the product
Lighting LED
white blink x1
SOUND MODE
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the button repeatedly to cycle through the available sound effects: PARTY,
STANDARD, HIPHOP, EDM, ROCK, LATIN, HOUSE or REGGAE.
Lighting LED
white blink x1
TEMPO +, -
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the TEMPO + or TEMPO - buttons to change the tempo of the music up or down.
• This function only works in the USB1 and USB2 mode.
Lighting LED
white blink x1
DJ
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
This function lets you turn on the DJ effect function.
Press the button repeatedly to cycle through the available DJ sound effects:
NOISE, FILTER, CRUSH, CHORUS, WAHWAH or OFF.
• NOISE: Mixing white noise into the original sound.
• FILTER: Filter out the sound of some frequencies.
• CRUSH: Make the original sound sharp.
• CHORUS: Separate the original sound into several track and delay them
separately,then mix again. Create a chorus effect.
• WAHWAH
original sound.
Lighting LED
white blink x1
EFFECT +, -
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the EFFECT + or EFFECT - buttons to change the level of each DJ sound effect
up or down.
Lighting LED
white blink x1
Folder DOWN
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (DOWN) button to move to the next folder in the USB device.
Lighting LED
white blink x1
ENG - 27
Folder UP
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (UP) button to move to the previous folder in the USB device.
Lighting LED
white blink x1

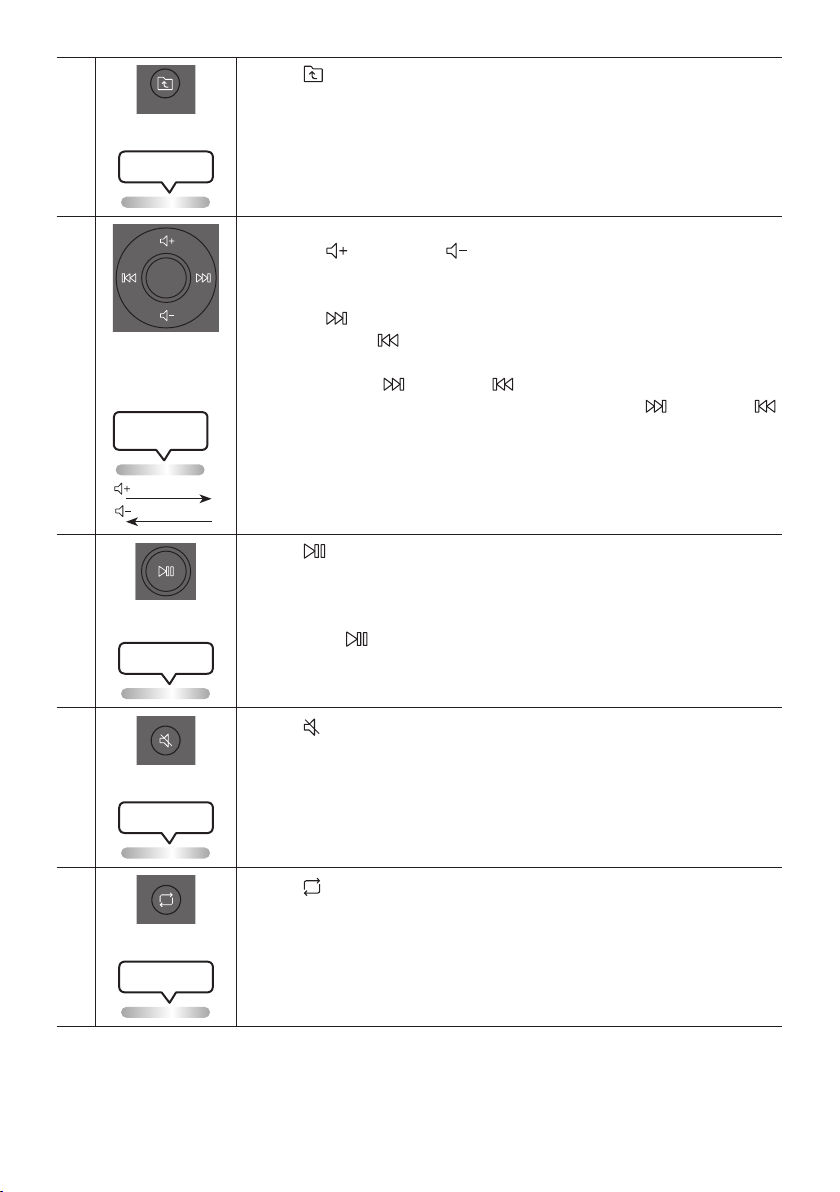

Volume up,
Volume down /
Skip
• Volume up, Volume down
Press the (Volume up) or (Volume down) to adjust the volume level up or
down.
• Music Skip
Press the
than 3s, press the
same track over.
Press and hold the button or the button for more than 3 seconds in USB
play mode to Fast Foward or Fast reverse. Press and hold the button or the
button for more than 3 seconds again to get back to normal play.
Lighting LED
White blink x1
From down to up
From top to bottom
Play / Pause
Press the
• Auto Power Down Function
To turn off Auto Power Down function while the unit is in AUX1, AUX2 mode, press
and hold the button for more than 5 seconds. Lighting bar will blink white
once.
Lighting LED
white blink x1
Mute
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (Mute) button to mute the sound.
Press it again to unmute the sound.
Lighting LED
white blink x1
Repeat
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the (Repeat) button to use the Repeat function in “USB1” and “USB2” mode.
Press the button repeatedly to cycle through the available repeat functions:
ONE, FOLDER, ALL, RANDOM or OFF.
Lighting LED
white blink x1
ENG - 28
BASS
DOWN
UP
BASS
EFFECT
EFFECT
DJ
LIGHT
PAIRING
TEMPO
USB
AUX
SOUND
MODE
Press the BASS button to use the bass boost.
Press it again to return to the normal sound.
Press and hold the BASS button for more than 5 seconds to turn on or off the
BLUETOOTH POWER function.
Lighting LED
white blink x1
※
Not available
Lighting LED
Pink blink x1
From middle to end
The remote control button function is not available in the current source.
How to use Sound Mode
genres.
1. Press the SOUND MODE button on the Remote control.
2. Each time you press the SOUND MODE button, the Sound Tower cycles through the available
sound effects: PARTY, STANDARD, HIPHOP, EDM, ROCK, LATIN, HOUSE or REGGAE.
NOTES
• Default sound mode is PARTY.
• When turned off, press and hold the button on product or remote control for more than 5 seconds
to turn on in the default Sound Mode setting.
ENG - 29
How to use DJ Effect
The DJ Effect function lets you add DJ sound effects to your music. The level of each effect is
adjustable.
1. Press the DJ button on the Remote control.
2. Each time you press the DJ button, the Sound Tower cycles through the available DJ Effects:
• NOISE
• FILTER : Creates an effect similar to the sound of only treble or bass.
• CRUSH: Creates an effect that makes the original sound sharper.
• CHORUS : Creates an effect similar to a singing chorus.
• WAHWAH : Creates a ‘Wah~ Wah~’ effect.
• DJ EFFECT OFF : Turns off the DJ Effect.
3. Press the EFFECT + or EFFECT - buttons to raise or lower the level of each of the DJ sound effects
NOTE
• When turned off, press and hold the button on product or remote control for more than 5
seconds to turn on in the default DJ Effect setting.
ENG - 30
07 USING THE SAMSUNG SOUND TOWER
APP
Install Samsung Sound Tower App
To control this product with your Smart Device and the Samsung Sound Tower app, download the
Samsung Sound Tower App from the Google Play Store or Apple App Store, and install it on your Smart
Device.
Using the Samsung Sound Tower App
Precondition
• This function may not be supported, depending on the mobile device.
• App cannot be used when connecting with Samsung TV.
• This function is compatible with Apple mobile devices running iOS 11.0 or later.
• This function is compatible with Android mobile phone devices running Android OS 8.0.
• App cannot be used when using Bluetooth multi connection.
Market search : Samsung Sound Tower
Samsung
Multiroom
Samsung Sound Tower
Samsung Sound Tower
1. Download the Samsung Sound Tower App from the Google Play Store or Apple App Store, and
install it on your Smart Device.
2. Turn on the Sound Tower app on your mobile device.
3. A connection is established between the mobile device and Sound tower via Bluetooth.
4. Play audio from the mobile device through the Sound tower
ENG - 31
What you can do with Samsung Sound Tower App:
• Balance the sound using preset EQs or custom EQs.
• Change the sound effect using DJ EFFECT.
•
• Change the light effect by preset or custom.
• Adjust the Volume.
• Switch source
NOTES
• To use this function, update the Sound tower app to the latest version. The function may not be
supported, depending on the app version.
• The Sound tower app may not work if there are devices near the Sound tower that cause radio
interference such as electric devices. Make sure devices that may cause radio interference are
• If the sound tower app doesn‘t work:
– Reboot the mobile device.
– Update the Sound Tower app to the latest version.
– Reinstall the Sound Tower app after uninstalling.
– Update the phone system version.
ENG - 32
08 TROUBLE SHOOTING
Refer to the table below if this product does not function properly.
Sound Tower does not turn on.
; Power cannot be turned on via remote
control or mobile Party Audio App, Remove
the power plug, after a while plug it in
again, Press the POWER button to turn on
the Sound Tower.
Sound Tower works erratically.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
; Power cycle the external device and try
again.
; If there is no signal, the Sound Tower
automatically turns off after a certain
period of time. Press the POWER button to
turn on the Sound Tower.
If the remote control does not work.
; Point the remote directly at the Sound
Tower.
; Replace the batteries with new ones.
Sound Tower does not output any sound via
Bluetooth.
; The volume of the Sound Tower is too low
or muted.
Press the volume up button to increase the
volume.
; When any external device (STB, Bluetooth
device, mobile device, etc.) is connected,
Increase the volume of the external device.
; For sound output of the TV, select Sound
; Remove the power plug, after a while plug
it in again, Press the POWER button to turn
on the Sound Tower.
; When connecting a new device, switch to
“BT PAIRING” for connection. (Press and
hold the PAIRING button on the remote
control for more than 5 seconds to enter
the “BT PAIRING” mode, or single-click the
PAIRING button on the rear panel.)
Sound Tower does not connect via
Bluetooth.
; If the Sound Tower is connected to another
switch the device.
; Enable the Bluetooth pairing function of
the Bluetooth device and Sound Tower.
; It is recommended to move the Sound
Tower closer to your Bluetooth device
within 1 meter.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
Sound drops out when connected via
Bluetooth.
; Some devices can cause radio interference
if they are located too close to the sound
tower. e. g. microwaves, wireless routers,
etc.
; If your device that is connected via
Bluetooth moves too far away from the
Sound Tower. Move the device closer to the
Sound Tower.
ENG - 33
; If there are obstacles between the Sound
Tower and your Bluetooth device, remove
or avoid the obstacles.
; There may be sound drop when connected
to Samsung TV, please refer to page15
“Using Stereo Mode of Samsung TV” steps
to reconnect the Samsung TV.
; The recommended operating distance
between Sound Tower and the BT device is
less than 10 meters
There is severe hum, noise, or distorted
sound when connected via Bluetooth.
; If there are obstacles between the Sound
tower and your Bluetooth device, remove
or avoid the obstacles.
; Some devices can cause radio interference
if they are located too close to the sound
tower. e. g. microwaves, wireless routers,
etc.
The PAIRING button is not working.
; Try again after disconnecting the wireless
Group Play or Stereo mode connection.
The USB device is not recognized.
; Switch the source to USB1/USB2 by
pressing the source button, plug-in the
USB device to correct port(USB1/USB2).
; Turn off the sound tower, turn on the sound
tower, reconnect the USB device.
; You may be using an unsupported USB
device. The USB storage device must be
formatted in FAT or FAT32.
Files in USB device cannot be played back.
; Switch the source to USB1/USB2 by
pressing the source button, plug-in the
USB device to correct port(USB1/USB2).
; You may using an unsupported USB device.
The USB storage device must be formatted
in FAT or FAT32.
;
tower only supports MP3,WMA,AAC,WAV
; Turn off the sound tower ,turn on the sound
tower, reconnect the USB device.
; Files that are encrypted or protected by
passwords cannot be played back.
The connected USB device cannot be
charged.
; USB port is only for USB storage device
playback.
Sound Tower does not output any sound via
AUX.
; Make sure the external device is in AUX
output mode, and make sure sound tower
switch to AUX1 or AUX2 source.
; Make sure the AUX cable is connected to
AUX1 or AUX2 securely.
; The volume of the Sound Tower is too low
or muted. Adjust the volume.
; When any external device (STB, Bluetooth
device, mobile device, etc.) is connected,
adjust the volume of the external device.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
ENG - 34
Stereo mode connection is not working.
; The Add Stereo button does not work in
Group Play mode, disconnect the wireless
Group Play mode and try Stereo mode
connection again.
I want to switch the HOST (MAIN) system to
the other in wireless Group Play or Stereo
Group connection.
; Disconnect Group Play mode, select the
Speaker which you want make to HOST
connect the other speakers.
;
You can not change other sound towers to
MAIN.
I can’t connect a SUB to Group play.
; After 1 hour, the HOST will block any
additional SUB from being added. Press the
GROUP PLAY button on HOST, the SUB can
be reconnected.
I cannot make a “Wireless/ Wired Group/
Add Stereo/ Bluetooth” connection.
; It is recommended to make a “Wireless/
Wired Group/ Add Stereo/ Bluetooth”
pairing within 1 meter from the system.
; Sound Tower can not connect to Samsung
TV when using Wireless add Stereo mode.
MIC is not working?
; Adjust the VOL knob of the rear panel.
; MIC only works on the connected sound
tower in the group mode, does not work on
both sound towers.
; Try disconnecting and reconnecting the
Microphone again.
BT power on not working.
; Remove the power plug, after a while
plug-in it again, Press the POWER button to
turn on the Sound Tower.
How to use the water resistant function?
; Water resistance can be met when AC
power cord is plugged-in, but make sure
that the caps are closed completely.
Product cannot knocked over to ensure it is
water resistant.
I cannot change wireless Stereo mode to
wired Stereo mode.
; Make sure the HOST(main) system is in
Bluetooth source.
I cannot change the source.
; The SUB can’t change the source in Stereo
mode.
If the sound tower app doesn‘t work.
; Reboot the mobile device.
; Update the Sound Tower app to the latest
system version.
; This function is compatible with Apple
mobile devices running iOS 11.0 or later.
; This function is compatible with Android
mobile phone devices running Android OS
8.0 or later.
ENG - 35
09 LICENCE
The Bluetooth® word mark and logos are
registered trademarks owned by the Bluetooth
SIG, Inc. and any use of such marks by Samsung
Electronics Co., Ltd. is under license. Other
trademarks and trade names are those of their
respective owners.
Qualcomm aptX is a product of Qualcomm
Technologies, Inc. and/or its subsidiaries.
Qualcomm is a trademark of Qualcomm
Incorporated, registered in the United States and
other countries. aptX is a trademark of Qualcomm
Technologies International, Ltd., registered in the
United States and other countries.
[ENERGY STAR]
ENERGYSTARqualiedmodelonly
– Your Samsung product is ENERGY STAR
Change to certain features, settings and
functionality in this product can change the
power consumption, possibly beyond the
limits required for ENERGY STAR
– Environmental Protection Agency and
Department of Energy. ENERGY STAR is a
joint program of the Government agencies,
products and practices.
Refer to www.energystar.gov for more
information of the ENERGY STAR Program.
ENERGYSTARqualiedmodelonly
(Applicable to Thin Client models only)
As an ENERGY STAR® Partner, SAMSUNG has
determined that this product meets the
ENERGY STAR® guidelines for energy
– The ENERGY STAR Program has been to
reduced greenhouse gas emissions and
save energy through voluntary labeling.
– Power management setting of this product
have been enabled by default, and have
various timing setting from 1 minutes to 5
hours.
– The product can wake with a button press
on the chassis from sleep mode.
ENERGYSTARqualiedmodelonly(Theother
models)
– As an ENERGY STAR Partner, Samsung has
determined that this product or product
models meets the ENERGY STAR guideline
ENG - 36
10 OPEN SOURCE
LICENCE NOTICE
To send inquiries and requests regarding open
sources, contact Samsung via Email
(oss.request@samsung.com).
11 IMPORTANT
NOTES ABOUT
SERVICE
• Figures and illustrations in this User Manual
are provided for reference only and may differ
from actual product appearance.
• An administration fee may be charged if either:
a. An engineer is called out to your home at
your request and there is no defect in the
product.
b. You bring the unit to a repair centre and
there is no defect in the product.
• You will be advised of the amount of the
administration fee before any work is done or
a home visit is made.
ENG - 37
12 SPECIFICATIONS AND GUIDE
Specications
Model Name MX-ST90B
USB1/USB2
Weight 24.5kg
Dimensions (W x H x D) 424 x 861 x 383mm
Operating Temperature Range
Operating Humidity Range 10 % ~ 75 %
AMPLIFIER
Rated Output power
1700 W
Overall Power Consumption 150W
WIRELESS DEVICE OUTPUT POWER
BT max transmitter power
100 mW at 2,4 GHz - 2,4835 GHz
Overall Standby Power Consumption (W) 2.0W
Bluetooth
Port deactivation method
Press and hold the BASS button for more than 5
seconds to turn off Bluetooth Power function.
NOTES
•
• Weight and dimensions are approximate.
Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/EU and the
relevant UK statutory requirements.
The full text of the declaration of conformity is available at the following internet address:
http://www.samsung.com go to Support and enter the model name.
This equipment may be operated in all EU countries and in the UK.
[Correct disposal of batteries in this product]
(Applicable in countries with separate collection systems)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical
symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference
levels in EC Directive 2006/66.
If batteries are not properly disposed of, these substances can cause harm to human health or the
environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of
waste and recycle them through your local, free battery return system.
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic
accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the
end of their working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
e.g. REACH, WEEE, Batteries, visit:
www.samsung.com/uk/aboutsamsung/sustainability/environment/our-commitment/data/
This Samsung product is warranted for the period of
twelve (12) months from the original date of purchase,
against defective materials and workmanship. In the
event that warranty service is required, you should return
the product to the retailer from whom it was purchased.
However, Samsung Authorised Dealers and Authorised
Service Centres in other EC Countries will comply with
the warranty on the terms issued to purchasers in the
Authorised Service Centres are available from:
Samsung Electronics U.K. Ltd
Samsung Customer Support Centre
Selectapost38,Shefeld,S973FJ
United Kingdom
United Kingdom
Tel : 0333 000 0333
www.samsung.com/uk/support
EIRE
Tel : 0818 717100
www.samsung.com/ie/support
@ WARRANTY CONDITIONS
1. The warranty is only valid if, when warranty service
is required, the warranty card is fully and properly
completed and is presented with the original invoice
on the product has not been defaced.
2. Samsung’s obligations are limited to the repair or, at
its discretion, replacement of the product or the
defective part. Repaired or replaced products may
include new and or refurbished components and
equipment.
3. Warranty repairs must be carried out by Authorised
Samsung Dealers or Authorised Service Centres. No
re-imbursement will be made for repairs carried out
by non Samsung Dealers and, any such repair work
and damage to the products caused by such repair
work will not be covered by this warranty.
4. This product is not considered to be defective in
materials nor workmanship by reason that it
requires adaptation in order to conform to national
or local technical or safety standards in force in any
Country other than the one for which the product
was originally designed and manufactured. This
warranty will not cover, and no re-imbursement will
be made for such adaptation nor any damage which
may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or
replacement of parts due to normal wear and
tear.
b) Cost relating to transport, removal or installation
of the product.
c) Misuse, including the failure to use this product for
its normal purposes or incorrect installation.
d) Damage caused by Lightning, Water, Fire, Acts of
God, War, Public Disturbances, incorrect mains
voltage, improper ventilation or any other cause
beyond the control of Samsung.
6. This warranty is valid for any person who legally
acquired possession of the product during the
warranty period.
7. The consumers’ statutory rights in any applicable
national legislation whether against the retailer
arising from the purchase contract or otherwise are
not affected by this warranty. Unless there is
national legislation to the contrary, the rights under
this warranty are the consumers’ sole rights and
Samsung, its subsidiaries and distributors shall not
be liable for indirect or consequential loss or any
damage to disc based media, removable memory or
any other related equipment or material.
8. Samsung shall honour warranties for all EU
within the following European countries listed.
– UK, Republic of Ireland, Germany, France,
Italy, Malta, Spain, Portugal, The
Netherlands, Belgium, Luxembourg,
Denmark, Sweden, Finland, Poland,
Hungary, Czech Republic, Slovakia, Austria,
Slovenia, Croatia, Estonia, Latvia, Lithuania,
Greece, Cyprus, Romania, Bulgaria,
Switzerland, Norway, Lichtenstein and
Iceland.
SAMSUNG ELECTRONICS (U.K.) LTD.
-2-
UNITED KINGDOM
EIRE
This Samsung product is warranted for the period of twelve (12) months from the origi-
nal date of purchase, against defective materials and workmanship. In the event that
warranty service is required, you should return the product to the retailer from whom it
was purchased. However, Samsung Authorised Dealers and Authorised Service Centres
in other EC Countries will comply with the warranty on the terms issued to purchasers in
the country concerned. In case of difficulty, details of our Authorised Service Centres are
available from:
Samsung Electronics U.K. Ltd. Customer Care CentrePO Box 479
GATESHEAD NE9 9BJ United Kingdom
United Kingdom
Tel : 0330 SAMSUNG (7267864)
Fax: 03307260001
www.samsung.com
Eire
Tel : 0818 717100
Fax: +44 117 915 6736
www.samsung.com
■WARRANTY CONDITIONS
1.
The warranty is only valid if, when warranty service is required, the warranty card is fully
and properly completed and is presented with the original invoice or sales slip or confir-
mation, and the serial number on the product has not been defaced.
2.
Samsung’s obligations are limited to the repair or, at its discretion, replacement of
the product or the defective part.
3. Warranty repairs must be carried out by Authorised Samsung Dealers or
Authorised Service Centres. No re-imbursement will be made for repairs carried
out by non Samsung Dealers and, any such repair work and damage to the prod-
ucts caused by such repair work will not be covered by this warranty.
4.
This product is not considered to be defective in materials nor workmanship by
reason that it requires adaptation in order to conform to national or local technical
or safety standards in force in any Country other than the one for which the product
was originally designed and manufactured. This warranty will not cover, and no re-
imbursement will be made for such adaptation nor any damage which may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or replacement of parts due to
normal wear and tear.
b)
Cost relating to transport, removal or installation of the product.
c)
Misuse, including the faiure to use this product for its normal
purposes or incorrect installation.
d)
Damage caused by Lightning, Water, Fire, Acts of God, War, Public
Disturbances, incorrect mains voltage, improper ventilation or any other cause
beyond the control of Samsung.
6. This warranty is valid for any person who legally acquired
possession of the product during the warranty period.
7.
The consumers statutory rights in any applicable national legislation
whether against
the retailer arising from the purchase contract or otherwise are not affected by this
warranty. Unless there is national legislation to the contrary, the rights under this
warranty are the
consumers sole rights and Samsung, its subsidiaries and distribu-
tors shall not be liable for indirect or consequential loss or any damage to records,
compact discs, videos or audio taper or any other related equipment or material
.
SAMSUNG ELECTRONICS (U.K.) LTD.
-2-
UNITED KINGDOM
EIRE
This Samsung product is warranted for the period of twelve (12) months from the origi-
nal date of purchase, against defective materials and workmanship. In the event that
warranty service is required, you should return the product to the retailer from whom it
was purchased. However, Samsung Authorised Dealers and Authorised Service Centres
in other EC Countries will comply with the warranty on the terms issued to purchasers in
the country concerned. In case of difficulty, details of our Authorised Service Centres are
available from:
Samsung Electronics U.K. Ltd. Customer Care CentrePO Box 479
GATESHEAD NE9 9BJ United Kingdom
United Kingdom
Tel : 0330 SAMSUNG (7267864)
Fax: 03307260001
www.samsung.com
Eire
Tel : 0818 717100
Fax: +44 117 915 6736
www.samsung.com
■WARRANTY CONDITIONS
1.
The warranty is only valid if, when warranty service is required, the warranty card is fully
and properly completed and is presented with the original invoice or sales slip or confir-
mation, and the serial number on the product has not been defaced.
2.
Samsung’s obligations are limited to the repair or, at its discretion, replacement of
the product or the defective part.
3. Warranty repairs must be carried out by Authorised Samsung Dealers or
Authorised Service Centres. No re-imbursement will be made for repairs carried
out by non Samsung Dealers and, any such repair work and damage to the prod-
ucts caused by such repair work will not be covered by this warranty.
4.
This product is not considered to be defective in materials nor workmanship by
reason that it requires adaptation in order to conform to national or local technical
or safety standards in force in any Country other than the one for which the product
was originally designed and manufactured. This warranty will not cover, and no re-
imbursement will be made for such adaptation nor any damage which may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or replacement of parts due to
normal wear and tear.
b)
Cost relating to transport, removal or installation of the product.
c)
Misuse, including the faiure to use this product for its normal
purposes or incorrect installation.
d)
Damage caused by Lightning, Water, Fire, Acts of God, War, Public
Disturbances, incorrect mains voltage, improper ventilation or any other cause
beyond the control of Samsung.
6. This warranty is valid for any person who legally acquired
possession of the product during the warranty period.
7.
The consumers statutory rights in any applicable national legislation
whether against
the retailer arising from the purchase contract or otherwise are not affected by this
warranty. Unless there is national legislation to the contrary, the rights under this
warranty are the
consumers sole rights and Samsung, its subsidiaries and distribu-
tors shall not be liable for indirect or consequential loss or any damage to records,
compact discs, videos or audio taper or any other related equipment or material
.
SAMSUNG ELECTRONICS (U.K.) LTD.
-2-
UNITED KINGDOM
EIRE
This Samsung product is warranted for the period of twelve (12) months from the origi-
nal date of purchase, against defective materials and workmanship. In the event that
warranty service is required, you should return the product to the retailer from whom it
was purchased. However, Samsung Authorised Dealers and Authorised Service Centres
in other EC Countries will comply with the warranty on the terms issued to purchasers in
the country concerned. In case of difficulty, details of our Authorised Service Centres are
available from:
Samsung Electronics U.K. Ltd. Customer Care CentrePO Box 479
GATESHEAD NE9 9BJ United Kingdom
United Kingdom
Tel : 0330 SAMSUNG (7267864)
Fax: 03307260001
www.samsung.com
Eire
Tel : 0818 717100
Fax: +44 117 915 6736
www.samsung.com
■WARRANTY CONDITIONS
1.
The warranty is only valid if, when warranty service is required, the warranty card is fully
and properly completed and is presented with the original invoice or sales slip or confir-
mation, and the serial number on the product has not been defaced.
2.
Samsung’s obligations are limited to the repair or, at its discretion, replacement of
the product or the defective part.
3. Warranty repairs must be carried out by Authorised Samsung Dealers or
Authorised Service Centres. No re-imbursement will be made for repairs carried
out by non Samsung Dealers and, any such repair work and damage to the prod-
ucts caused by such repair work will not be covered by this warranty.
4.
This product is not considered to be defective in materials nor workmanship by
reason that it requires adaptation in order to conform to national or local technical
or safety standards in force in any Country other than the one for which the product
was originally designed and manufactured. This warranty will not cover, and no re-
imbursement will be made for such adaptation nor any damage which may result.
5. This warranty covers none of the following:
a) Periodic check ups, maintenance and repair or replacement of parts due to
normal wear and tear.
b)
Cost relating to transport, removal or installation of the product.
c)
Misuse, including the faiure to use this product for its normal
purposes or incorrect installation.
d)
Damage caused by Lightning, Water, Fire, Acts of God, War, Public
Disturbances, incorrect mains voltage, improper ventilation or any other cause
beyond the control of Samsung.
6. This warranty is valid for any person who legally acquired
possession of the product during the warranty period.
7.
The consumers statutory rights in any applicable national legislation
whether against
the retailer arising from the purchase contract or otherwise are not affected by this
warranty. Unless there is national legislation to the contrary, the rights under this
warranty are the
consumers sole rights and Samsung, its subsidiaries and distribu-
tors shall not be liable for indirect or consequential loss or any damage to records,
compact discs, videos or audio taper or any other related equipment or material
.
SAMSUNG ELECTRONICS (U.K.) LTD.
© 2022 Samsung Electronics Co., Ltd. All rights reserved.
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer
care Centre.
Country
Samsung Service Centre
Web Site
`
Europe
UK 0333 000 0333
www.samsung.com/uk/
support
IRELAND (EIRE) 0818 717100
www.samsung.com/ie/
support
GERMANY 06196 77 555 77
www.samsung.com/de/
support
FRANCE 01 48 63 00 00
www.samsung.com/fr/
support
ITALIA 800-SAMSUNG (800.7267864)
www.samsung.com/it/
support
SPAIN 91 175 00 15
www.samsung.com/es/
support
PORTUGAL
210 608 098
Dias úteis das 9h às 20h
www.samsung.com/pt/
support
LUXEMBURG 261 03 710
www.samsung.com/be_
fr/support
NETHERLANDS 088 90 90 100
www.samsung.com/nl/
support
BELGIUM 02-201-24-18
www.samsung.com/be/
support (Dutch)
www.samsung.com/
be_fr/support (French)
NORWAY 21629099
www.samsung.com/no/
support
DENMARK 707 019 70
www.samsung.com/dk/
support
FINLAND 030-6227 515
support
SWEDEN 0771-400 300
www.samsung.com/se/
support
POLAND
801-172-678* lub +48 22 607-93-33*
pl/support/
HUNGARY 0680SAMSUNG (0680-726-7864)
www.samsung.com/hu/
support
AUSTRIA 0800 72 67 864 (0800-SAMSUNG)
www.samsung.com/at/
support
SWITZERLAND 0800 726 786
www.samsung.com/ch/
support (German)
www.samsung.com/
ch_fr/support (French)
Country
Samsung Service Centre
Web Site
CZECH 800 - SAMSUNG (800-726786)
www.samsung.com/cz/
support
SLOVAKIA 0800 - SAMSUNG (0800-726 786)
www.samsung.com/sk/
support
CROATIA 072 726 786
www.samsung.com/hr/
support
BOSNIA 055 233 999
www.samsung.com/
support
NORTH
MACEDONIA
023 207 777
www.samsung.com/mk/
support
MONTENEGRO 020 405 888
www.samsung.com/
support
SLOVENIA
www.samsung.com/si/
support
SERBIA 011 321 6899
www.samsung.com/rs/
support
KOSOVO 038 40 30 90
www.samsung.com/
support
ALBANIA 045 620 202
www.samsung.com/al/
support
BULGARIA
www.samsung.com/bg/
support
ROMANIA
0800872678 - Apel gratuit
www.samsung.com/ro/
support
CYPRUS
8009 4000 only from landline, toll
free
www.samsung.com/gr/
support
GREECE
80111-SAMSUNG (80111 726 7864) only
from land line
(+30) 210 6897691 from mobile and
land line
LITHUANIA 8-800-77777
www.samsung.com/lt/
support
LATVIA 8000-7267
www.samsung.com/lv/
support
ESTONIA 800-7267
www.samsung.com/ee/
support
