Stock No.
33199
Preparing Corner
Floor Cabinet
Item Description
Quan-
tity
1 Left Back Panel 1
2 Right Back Panel 1
3 Left Side Panel 1
4 Right Side Panel 1
5 Door 1
6 Bottom Panel 1
7 Connecting Beam 1
8 Front Kick Panel 1
9 Side Kick Panel 2
10 Shelf Panel 1
11 Foot Holder 3
12 Front Foot Holder 2
13 Leg Leveller 5
14 M8 x 16mm bolt 20
15 M6 x 16mm bolt 12
To make assembly easier we recommend having
two persons aid one another in assembly.
1
7
3
5
2
4
9
12
13
6
8
10
11
14
15
16

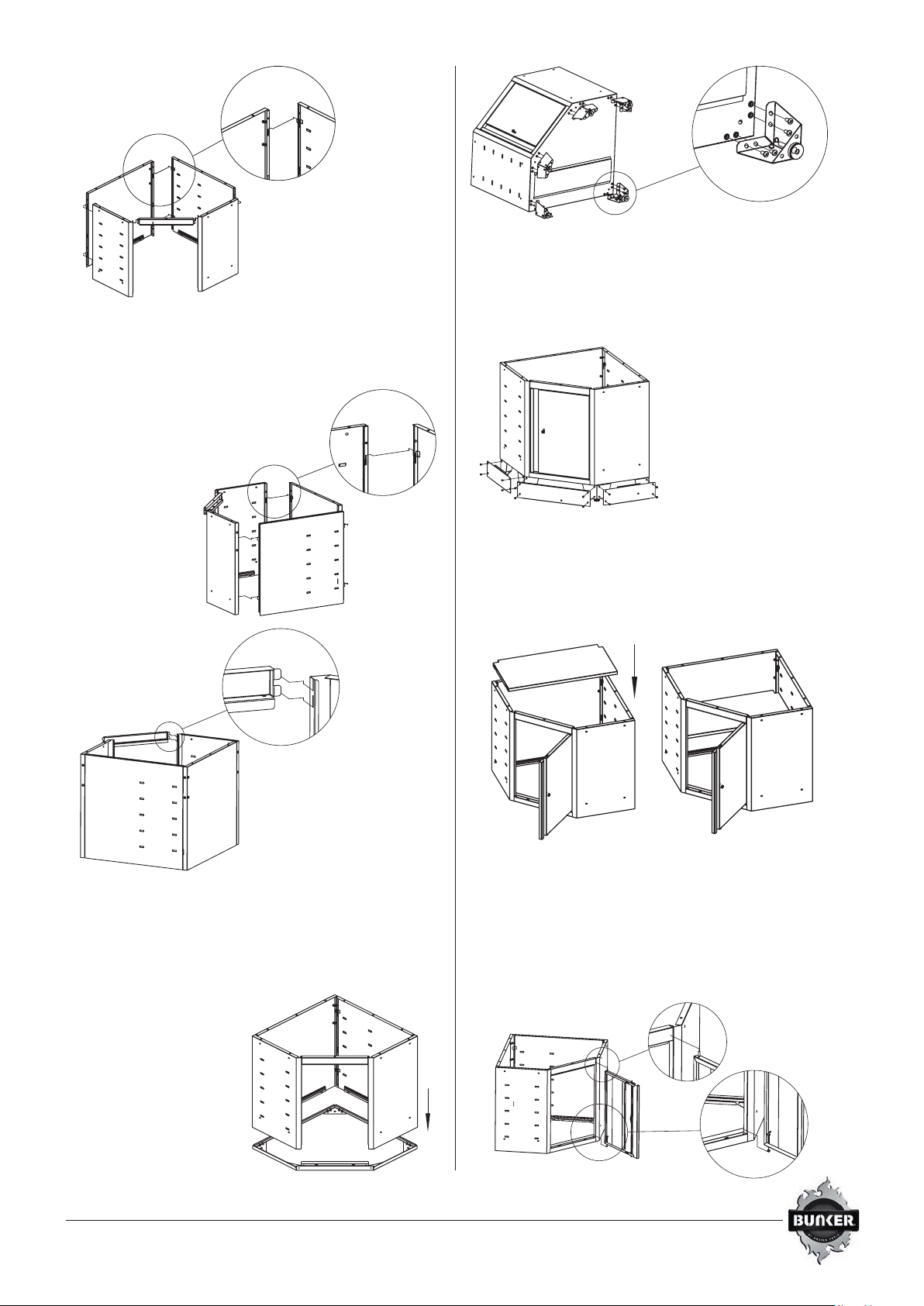

CABINET CONNECTION
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with phillips screwdriver
(not included).
Note: remove the drawers and open the
doors before cabinet connection.
