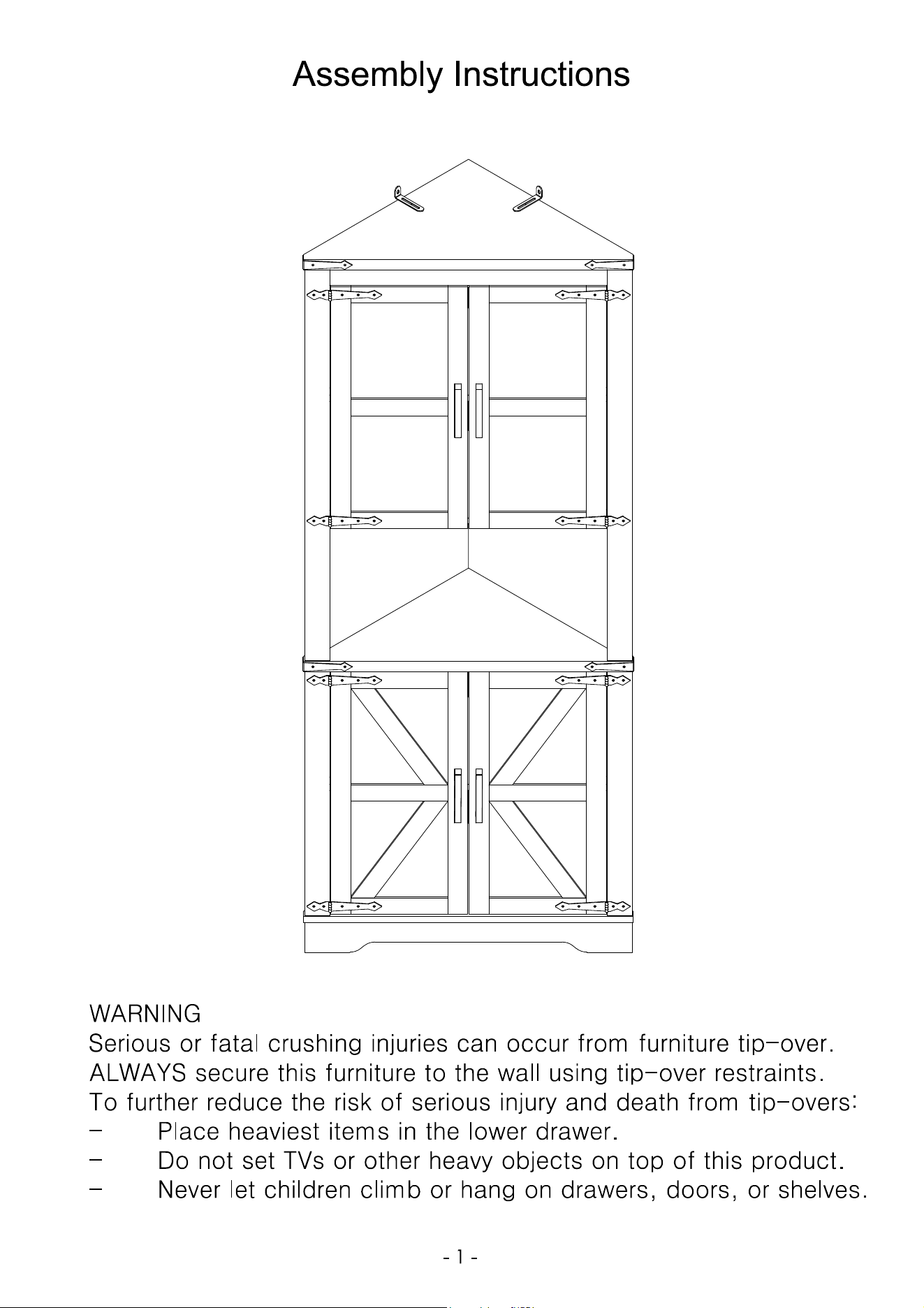

Assembly Instructions

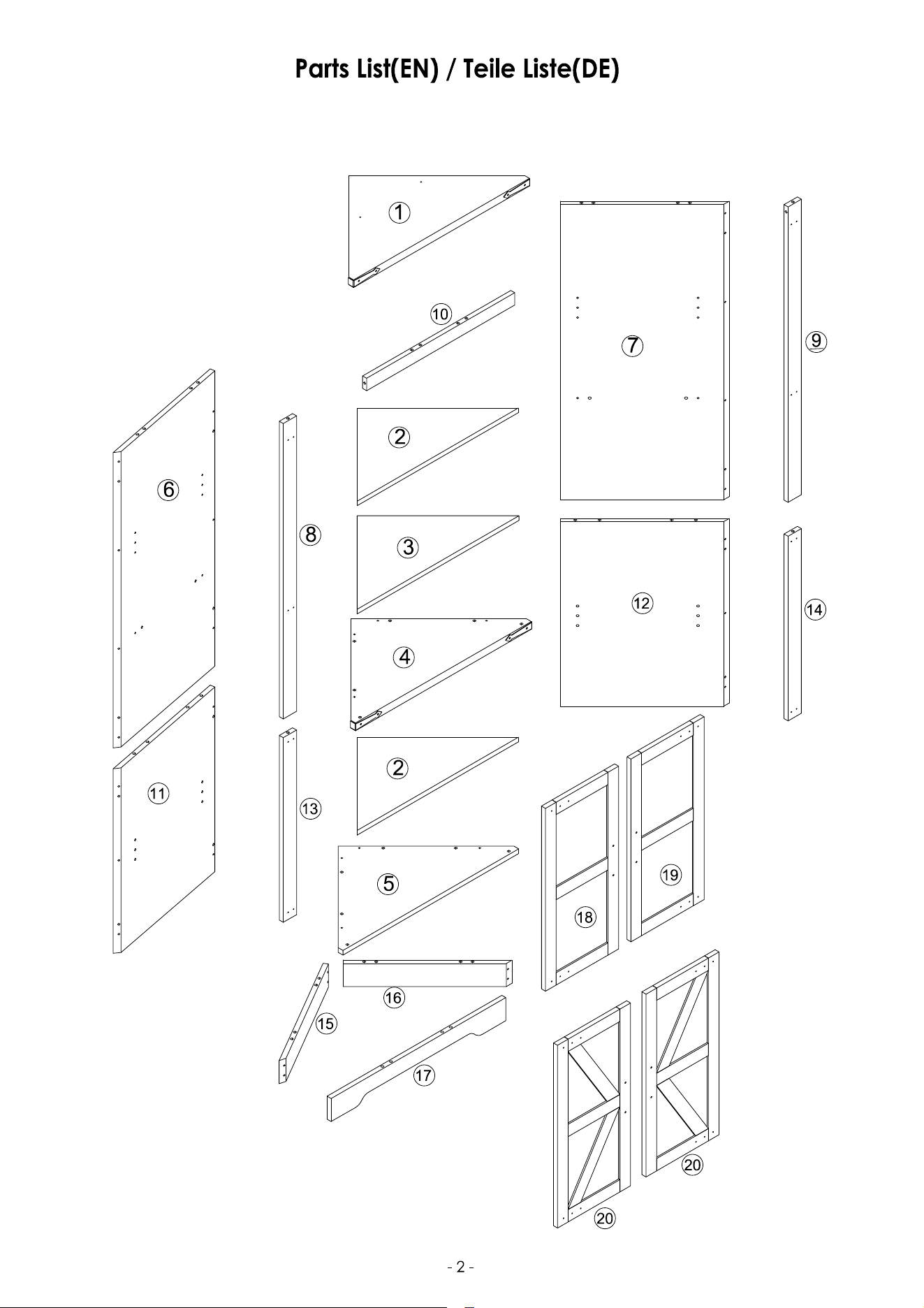

Parts List(EN) / Teile Liste(DE)
- 2 -
1
10
2
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
20
1 2 3

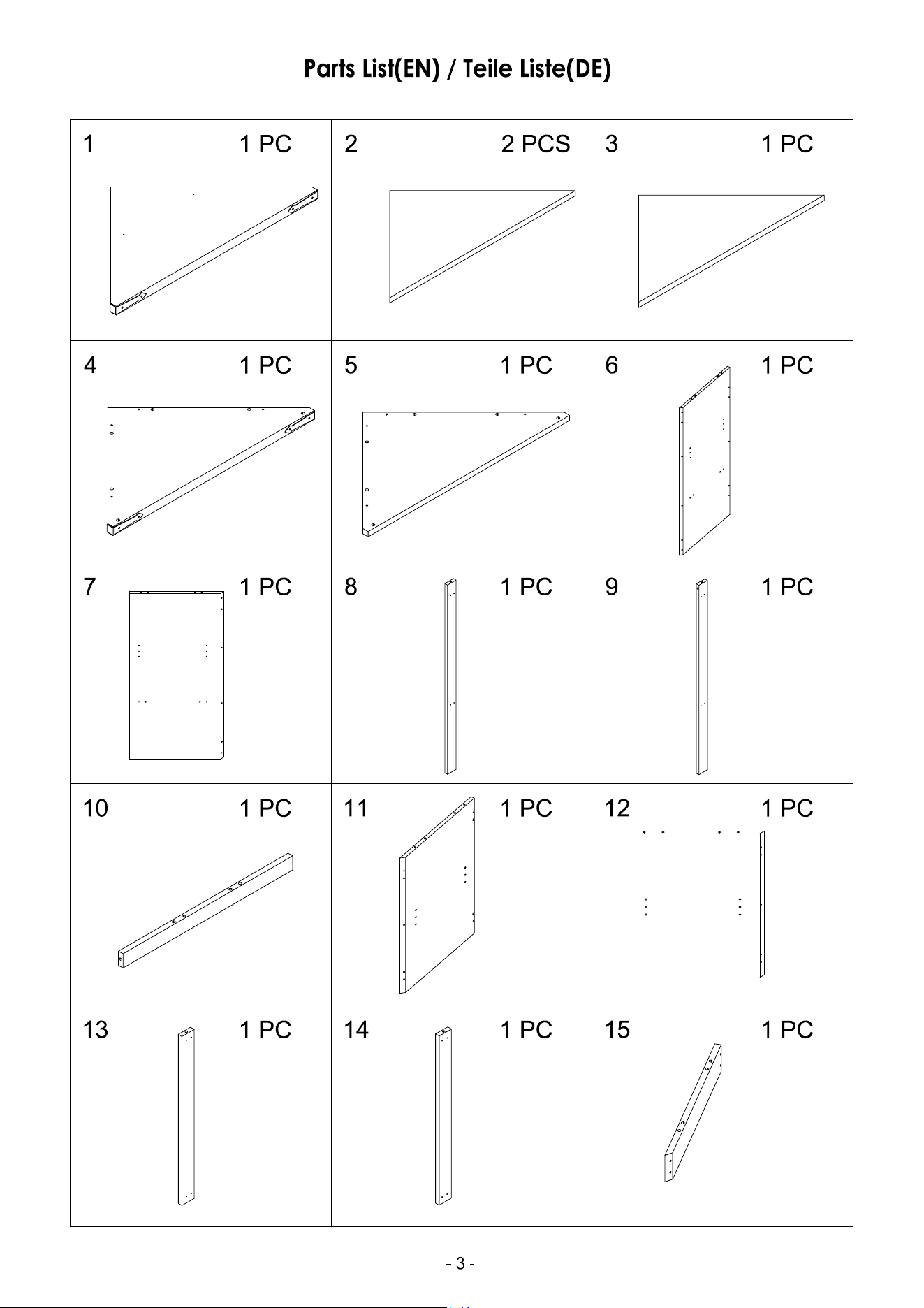

Parts List(EN) / Teile Liste(DE)
- 3 -
1 PC 2 PCS 1 PC
4 5
6
1 PC 1 PC 1 PC
7 8 9
1 PC 1 PC 1 PC
10 11 12
1 PC 1 PC 1 PC
13 14 15
1 PC 1 PC 1 PC
16 17 18

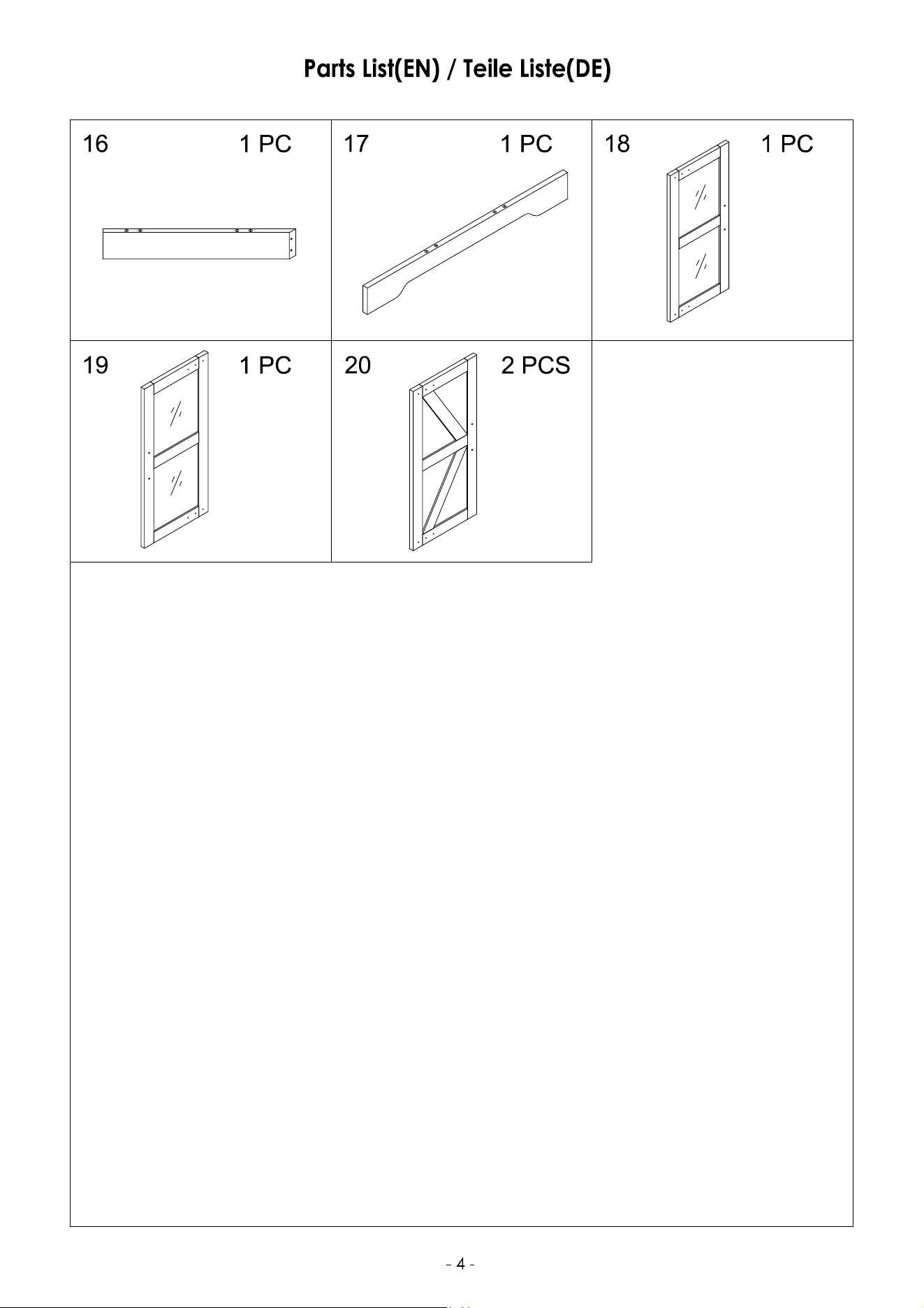

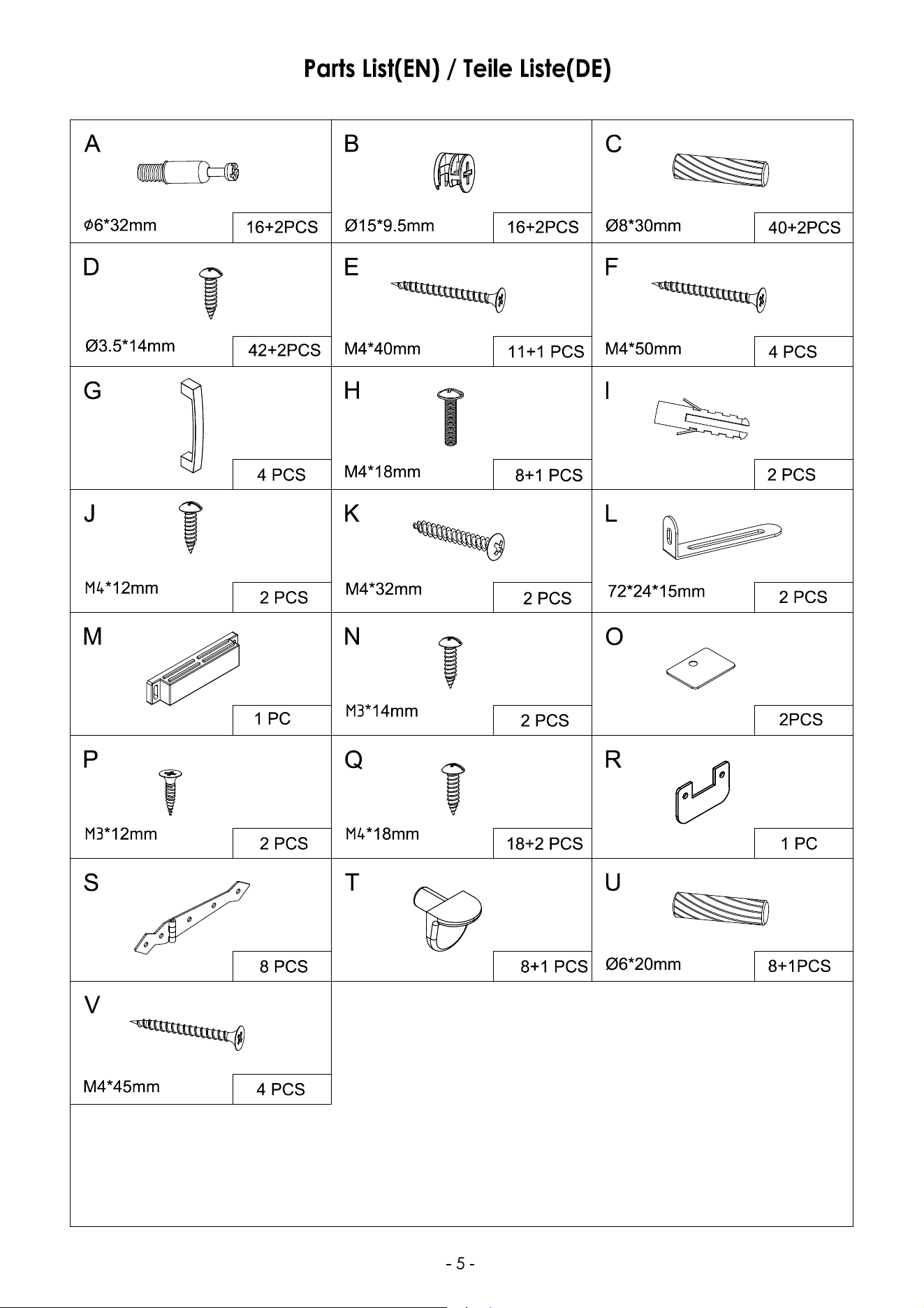

Parts List(EN) / Teile Liste(DE)
- 4 -
1 PC 1 PC 1 PC
19 20
1 PC 2 PCS
A B
C
∅6*32mm
16+2PCS
Ø15*9.5mm
16+2PCS
Ø8*30mm
40+2PCS
4 PCS
11+1 PCS
8+1 PCS
2 PCS
L
M
4 PCS
1 PC
Parts List(EN) / Teile Liste(DE)
- 5 -
N
J
D E F
G
H I
K
O
42+2PCS
Ø3.5*14mm
2PCS
M4*50mm
M4*18mm
2 PCS
2 PCS
72*24*15mm
M4*12mm
M4*32mm
2 PCS
P
2 PCS
M4*40mm
18+2 PCS
S
8 PCS
2 PCS
M3*14mm
M3*12mm
Q
R
1 PC
T
8+1 PCS
M4*18mm
Ø6*20mm
8+1PCS
U
4 PCS
V
M4*45mm
- 6 -

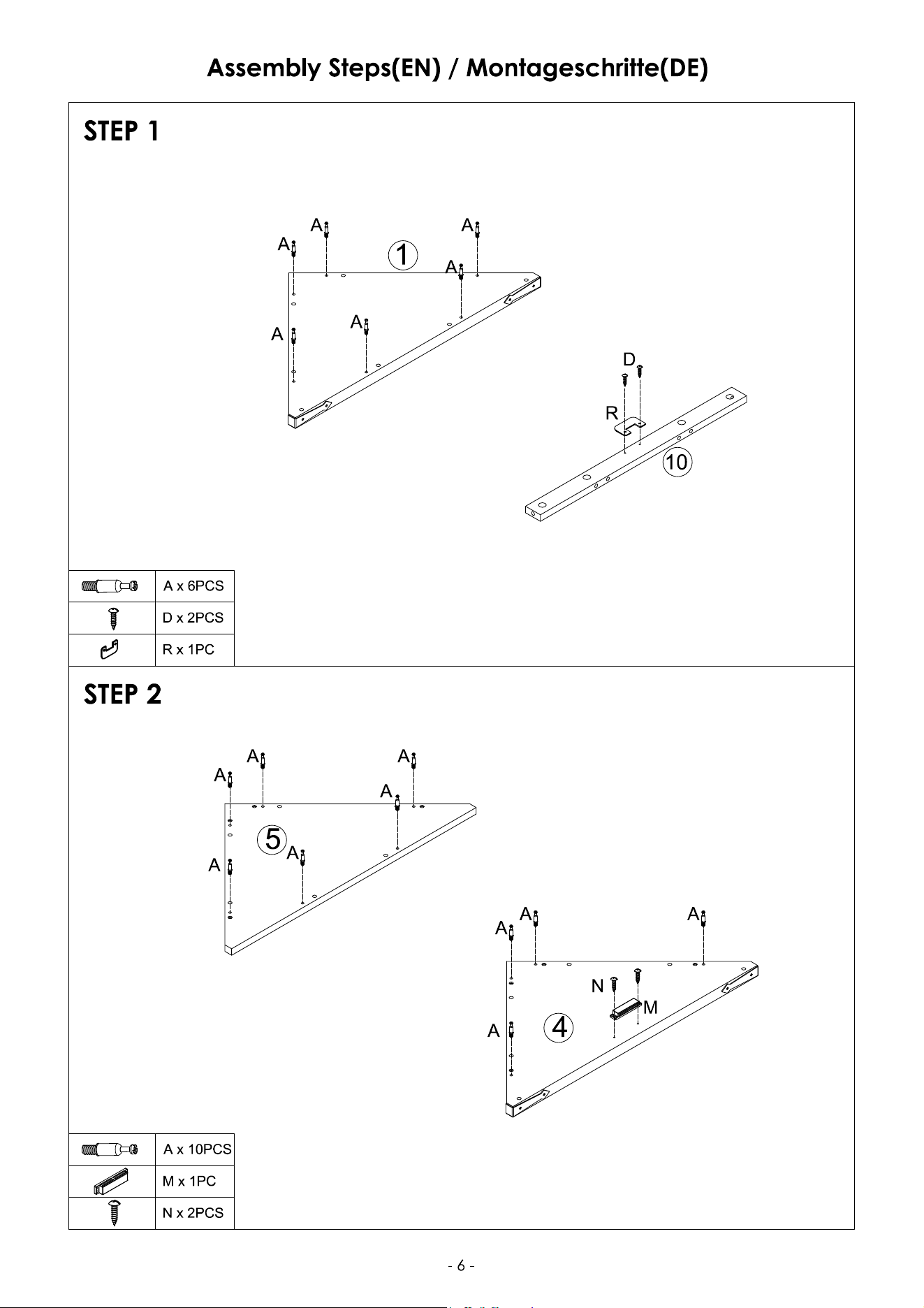

STEP 1
Assembly Steps(EN) / Montageschritte(DE)
STEP 2
N x 2PCS
D x 2PCS
A x 6PCS
R x 1PC
M x 1PC
A x 10PCS
4
A A
A
A
M
N
5
A A
A
A
A
A
1
A
A A
A
A
A
10
D
R

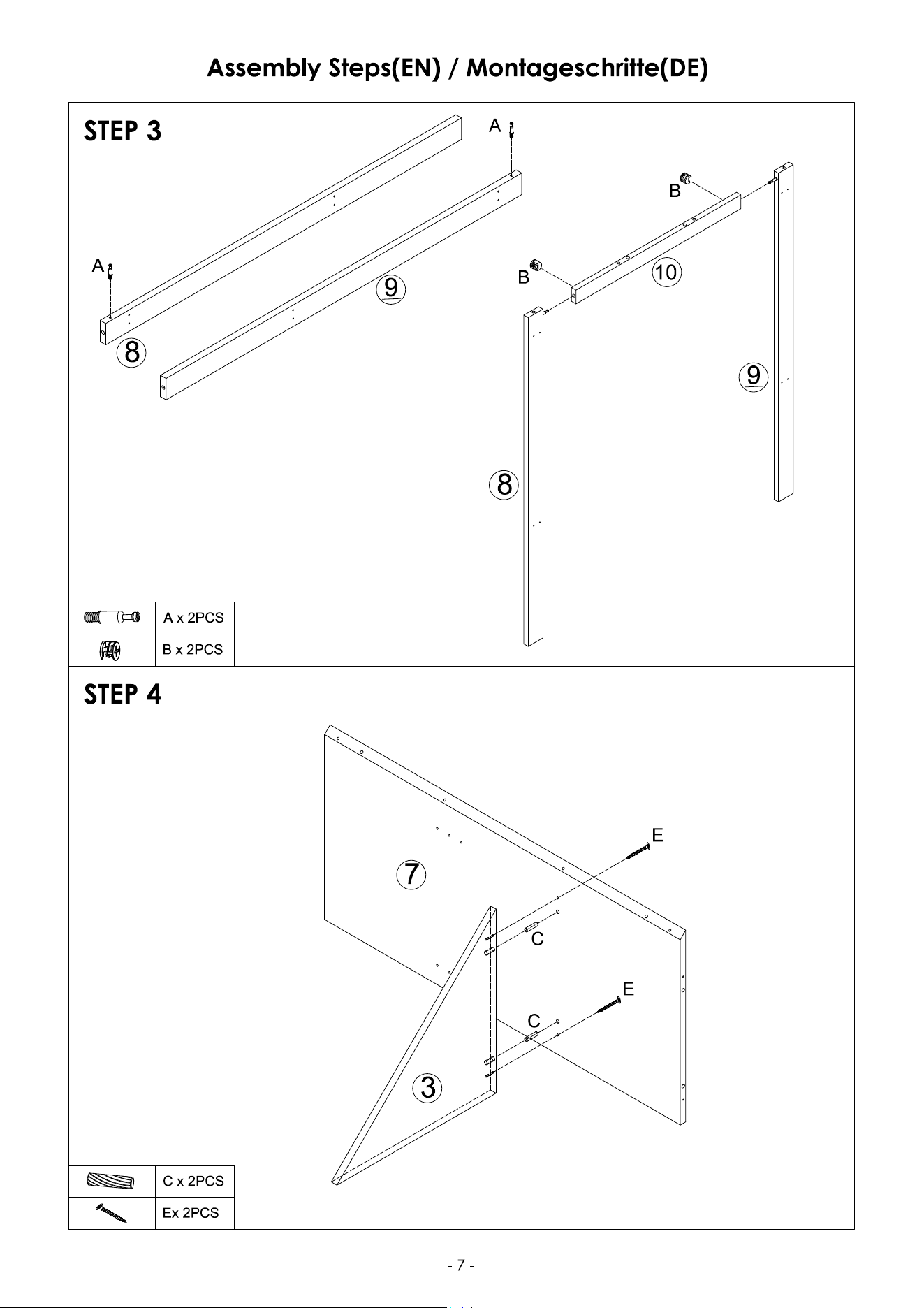

STEP 3
Assembly Steps(EN) / Montageschritte(DE)
STEP 4
Ex 2PCS
C x 2PCS
B x 2PCS
- 7 -
7
3
E
E
C
C
8
9
A
A
B
B
8
9
10
A x 2PCS
U x 4PCS
Q x 8PCS

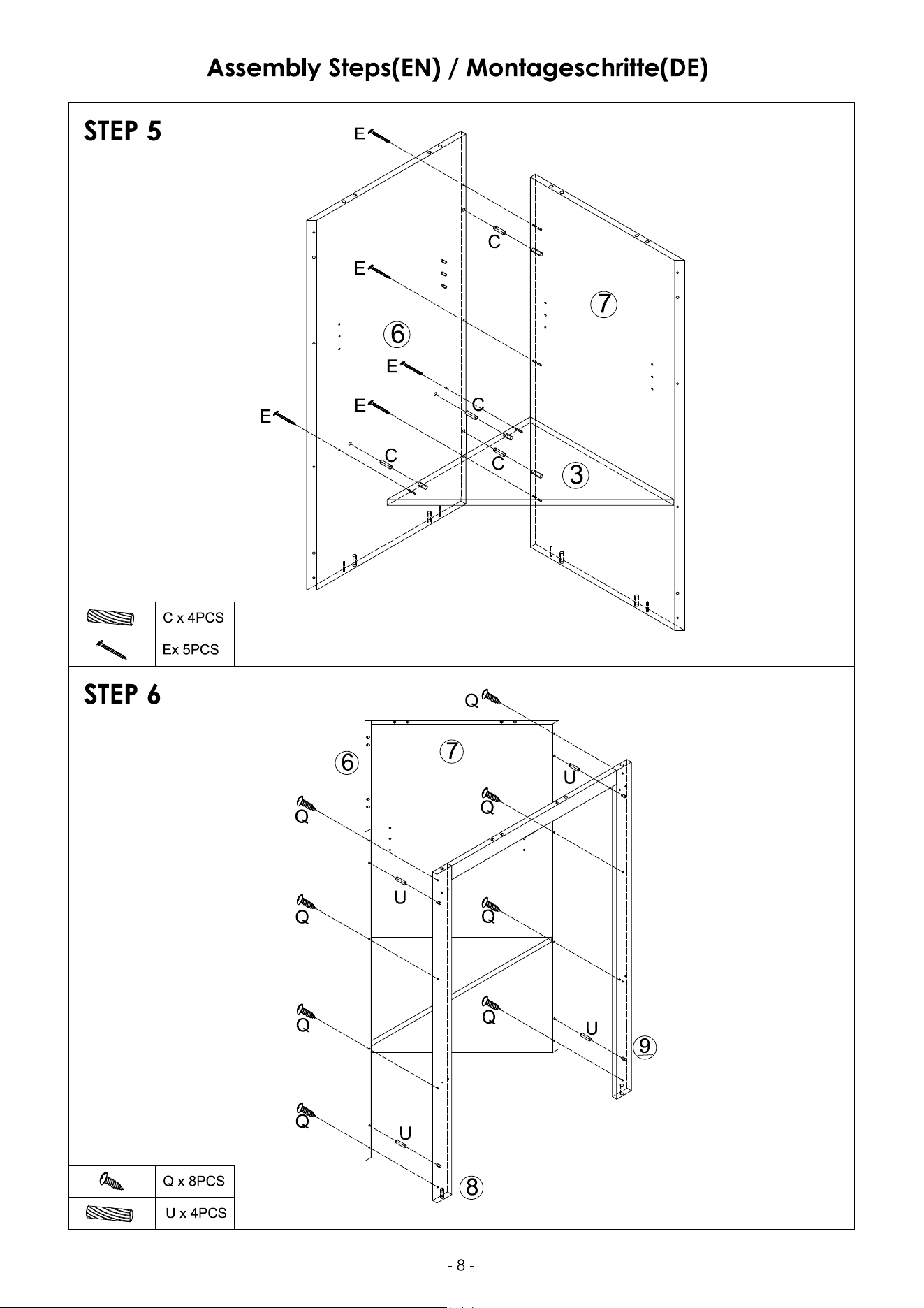

STEP 5
Assembly Steps(EN) / Montageschritte(DE)
STEP 6
Ex 5PCS
C x 4PCS
- 8 -
6
7
E
E
E
C
C
U
Q
Q
Q
Q
Q
Q
Q
Q
U
U
U
7
6
8
9
3
E
E
C
C

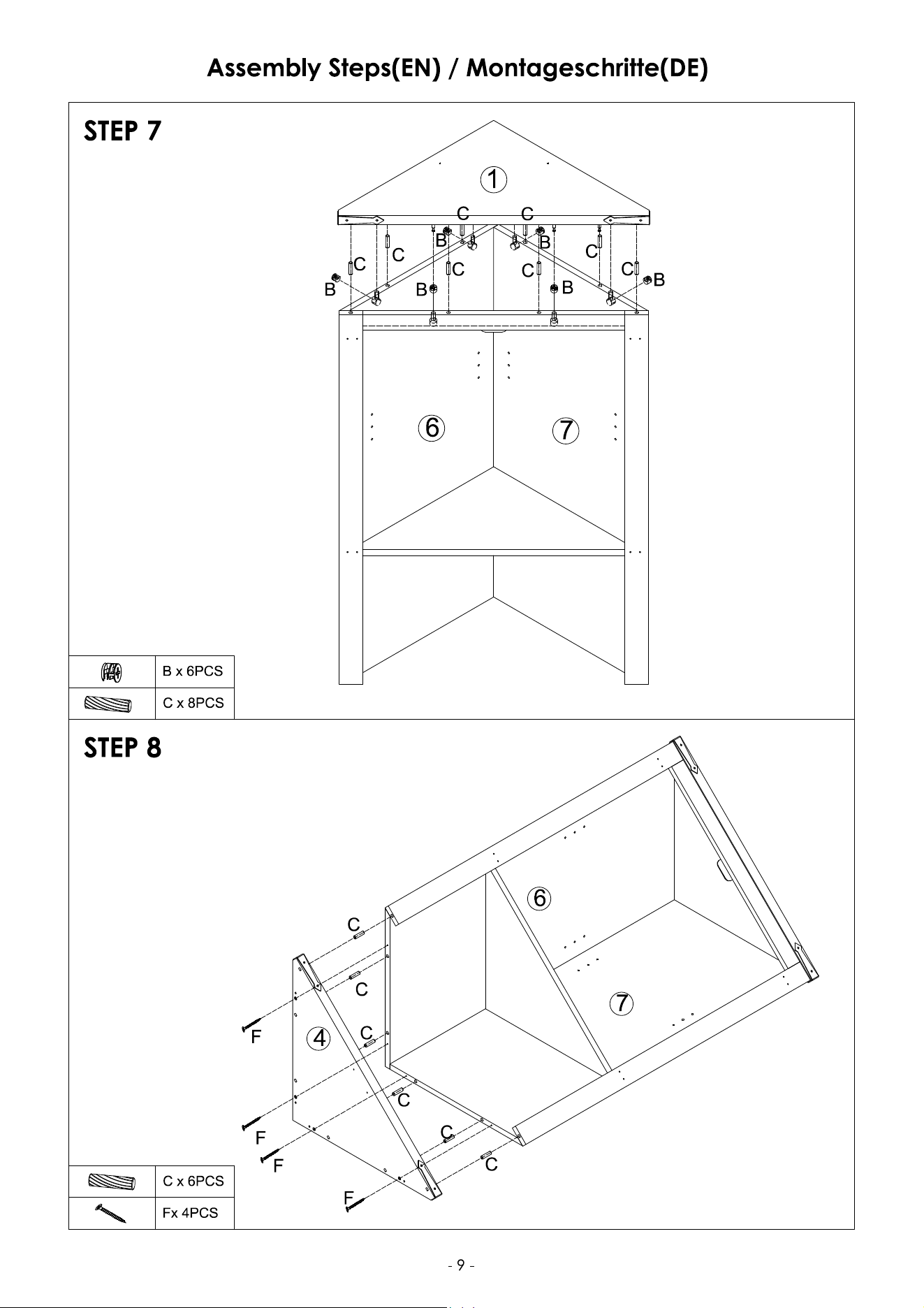

STEP 7
Assembly Steps(EN) / Montageschritte(DE)
STEP 8
C x 8PCS
B x 6PCS
- 9 -
Fx 4PCS
C x 6PCS
F
F
F
F
C
C
C
C
C
C
4
6
7
C
C
1
B
B
6
7
B
B
B
B
C
C
C
C
C
C

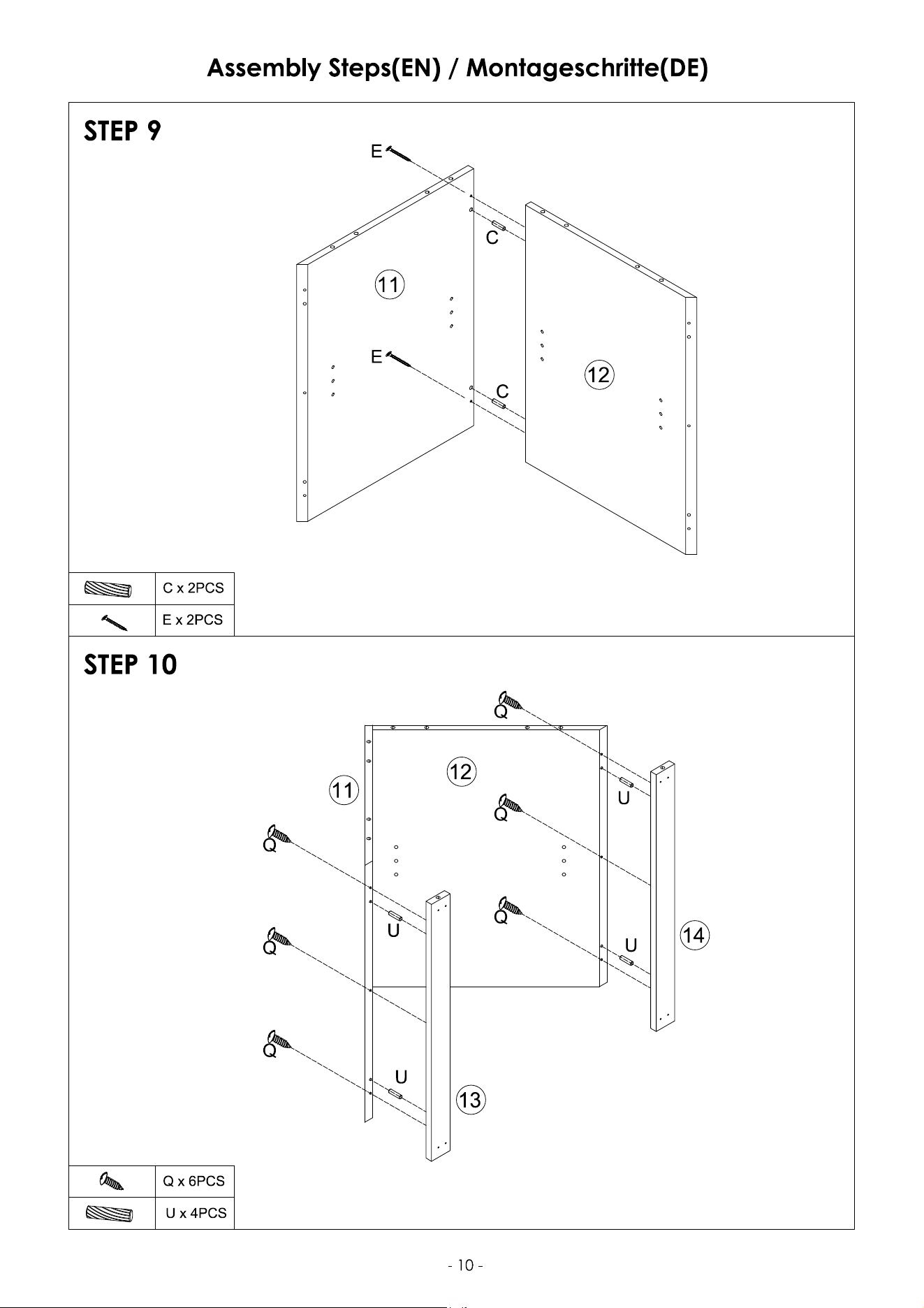

STEP 9
Assembly Steps(EN) / Montageschritte(DE)
STEP 10
E x 2PCS
C x 2PCS
- 10 -
11
12
E
C
C
E
U
U
U
U
Q
Q
Q
Q
Q
Q
11
12
13
14
U x 4PCS
Q x 6PCS

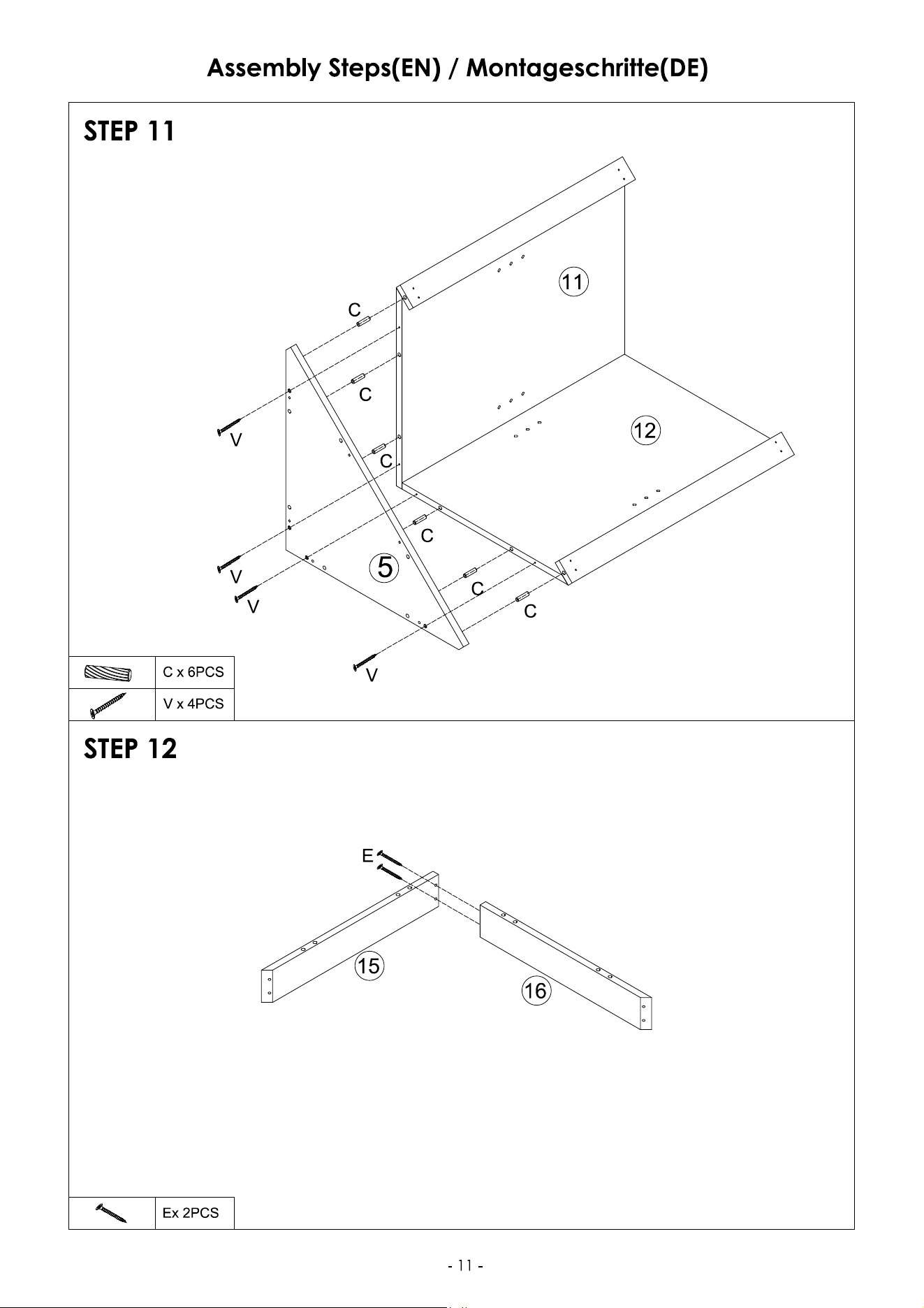

STEP 11
Assembly Steps(EN) / Montageschritte(DE)
STEP 12
V x 4PCS
C x 6PCS
- 11 -
11
12
V
V
V
V
C
C
C
C
5
15
16
E
C
C
Ex 2PCS

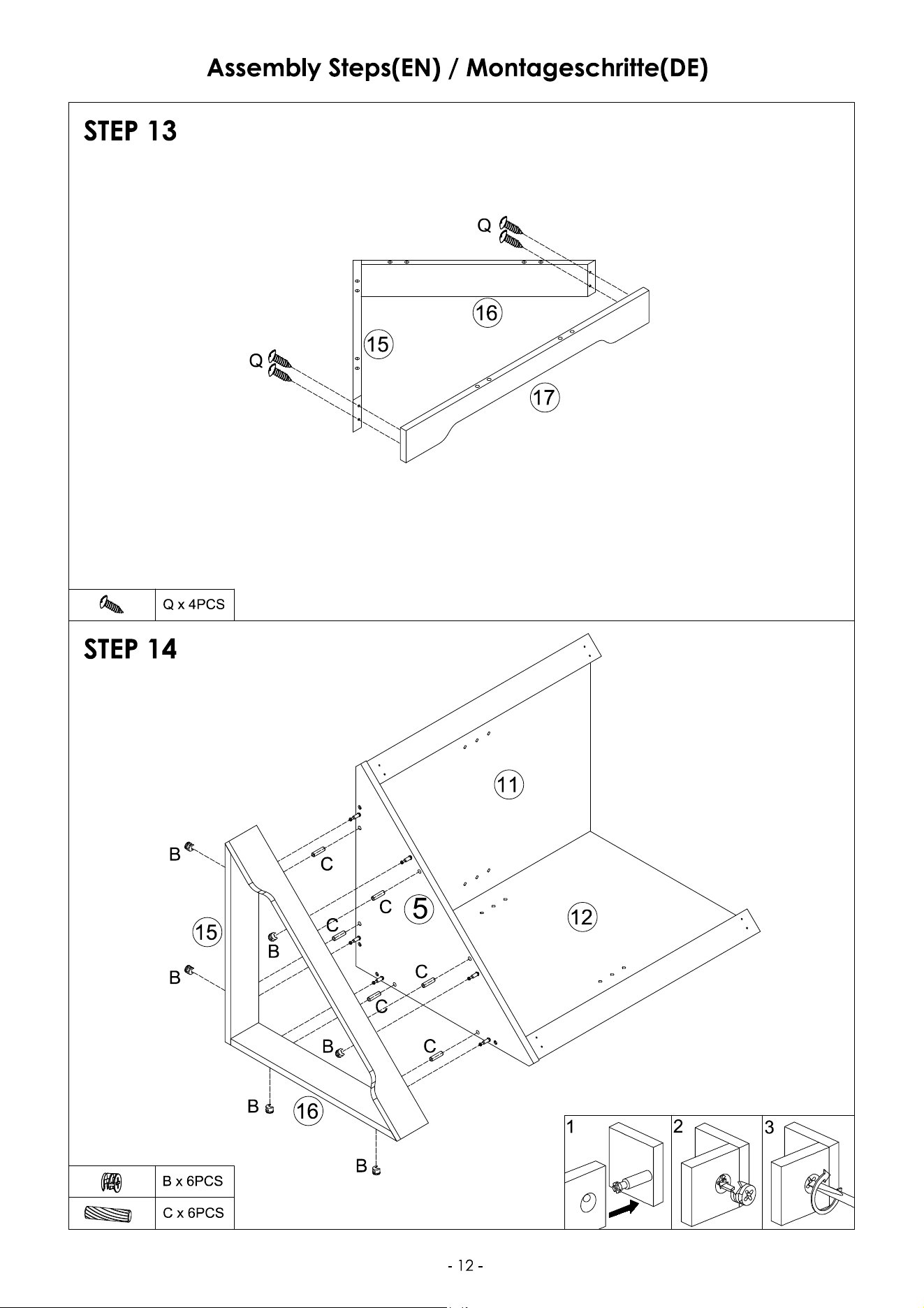

STEP 13
Assembly Steps(EN) / Montageschritte(DE)
STEP 14
C x 6PCS
B x 6PCS
- 12 -
17
15
16
Q
Q
Q x 4PCS
11
12
5
15
16
B
B
B
B
B
B
C
C
C
C
C
C

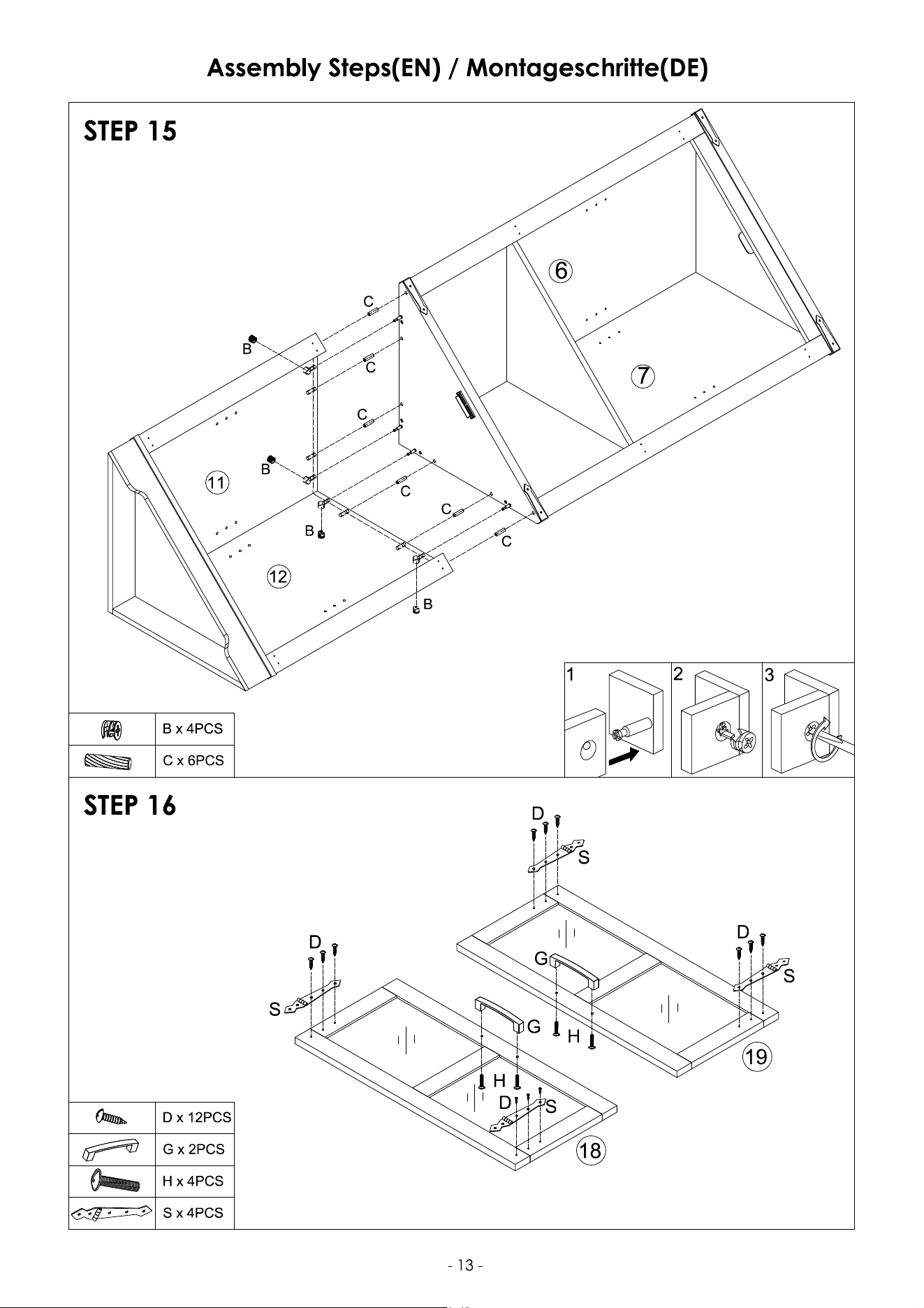

STEP 15
Assembly Steps(EN) / Montageschritte(DE)
STEP 16
S x 4PCS
H x 4PCS
G x 2PCS
- 13 -
C x 6PCS
B x 4PCS
18
19
D
S
D
S
D
S
D
S
G
H
H
D x 12PCS
G
6
7
C
C
C
C
B
B
B
B
11
12
C
C

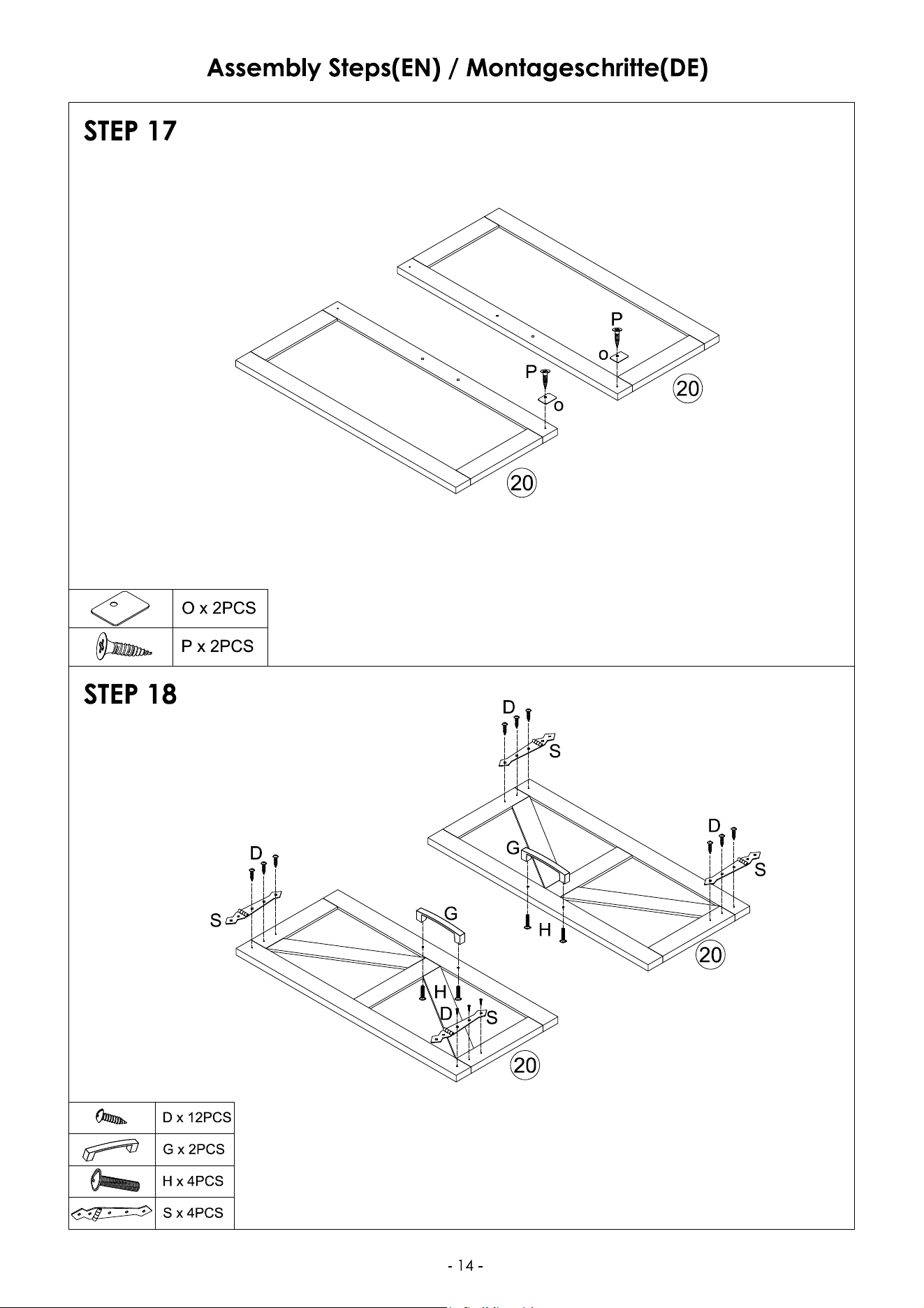

STEP 17
Assembly Steps(EN) / Montageschritte(DE)
STEP 18
- 14 -
S x 4PCS
H x 4PCS
G x 2PCS
D x 12PCS
20
20
D
S
D
S
G
H
D
S
D
S
H
G
P
o
P
o
20
20
P x 2PCS
O x 2PCS
T x 8PCS

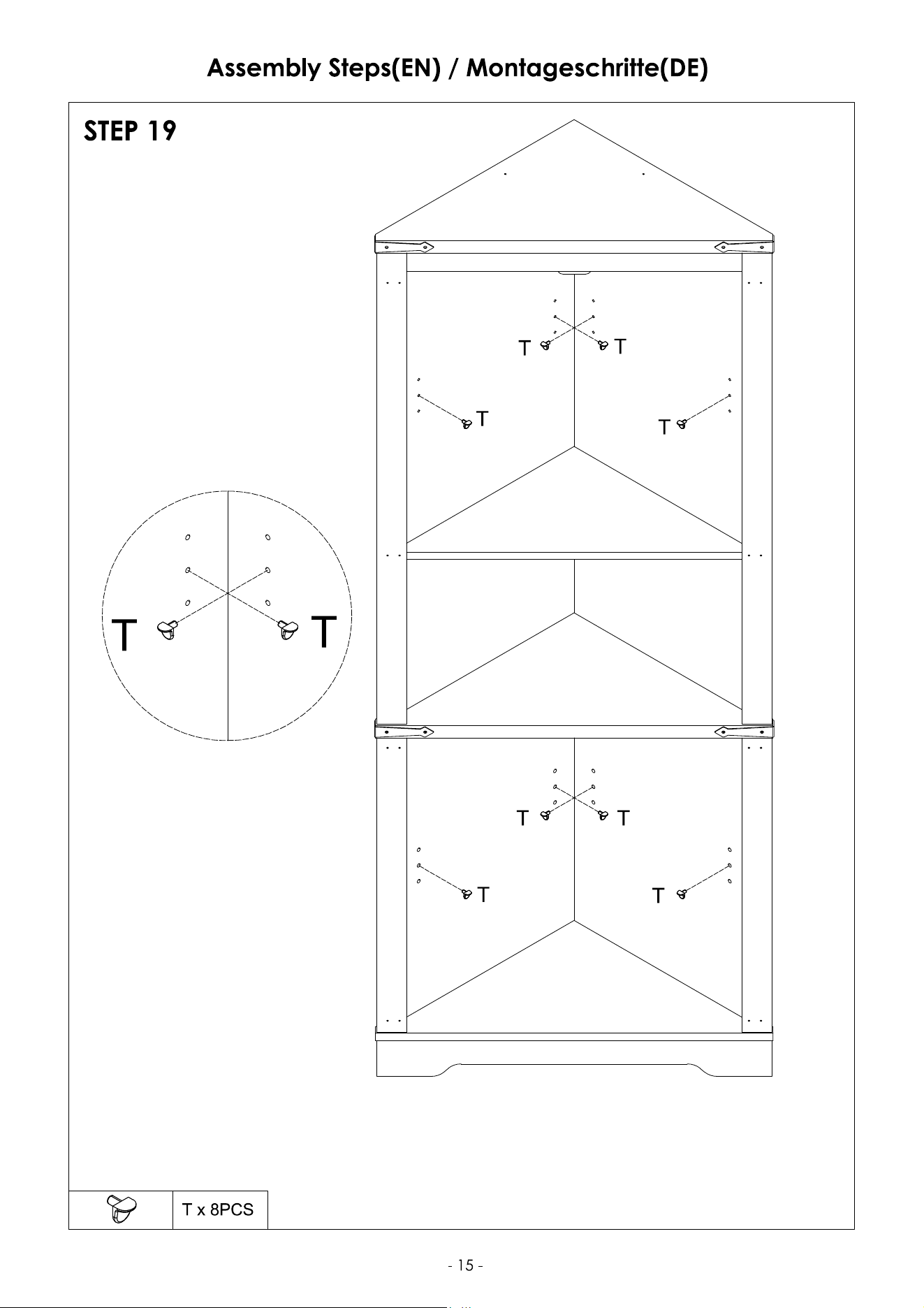

STEP 19
Assembly Steps(EN) / Montageschritte(DE)
- 15 -
T
T
T
T
T
T
T
T
T T

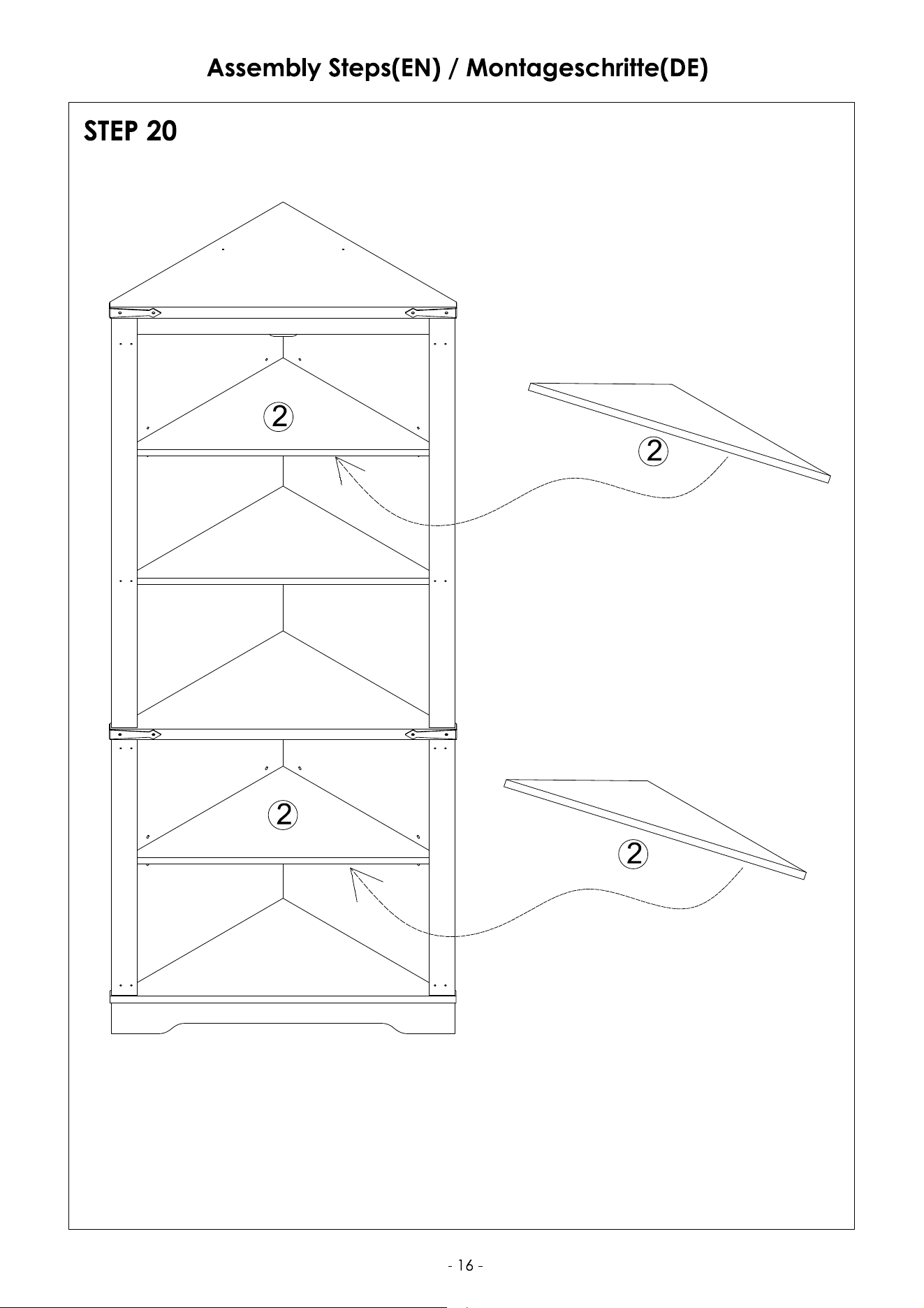

STEP 20
Assembly Steps(EN) / Montageschritte(DE)
- 16 -
2
2
2
2

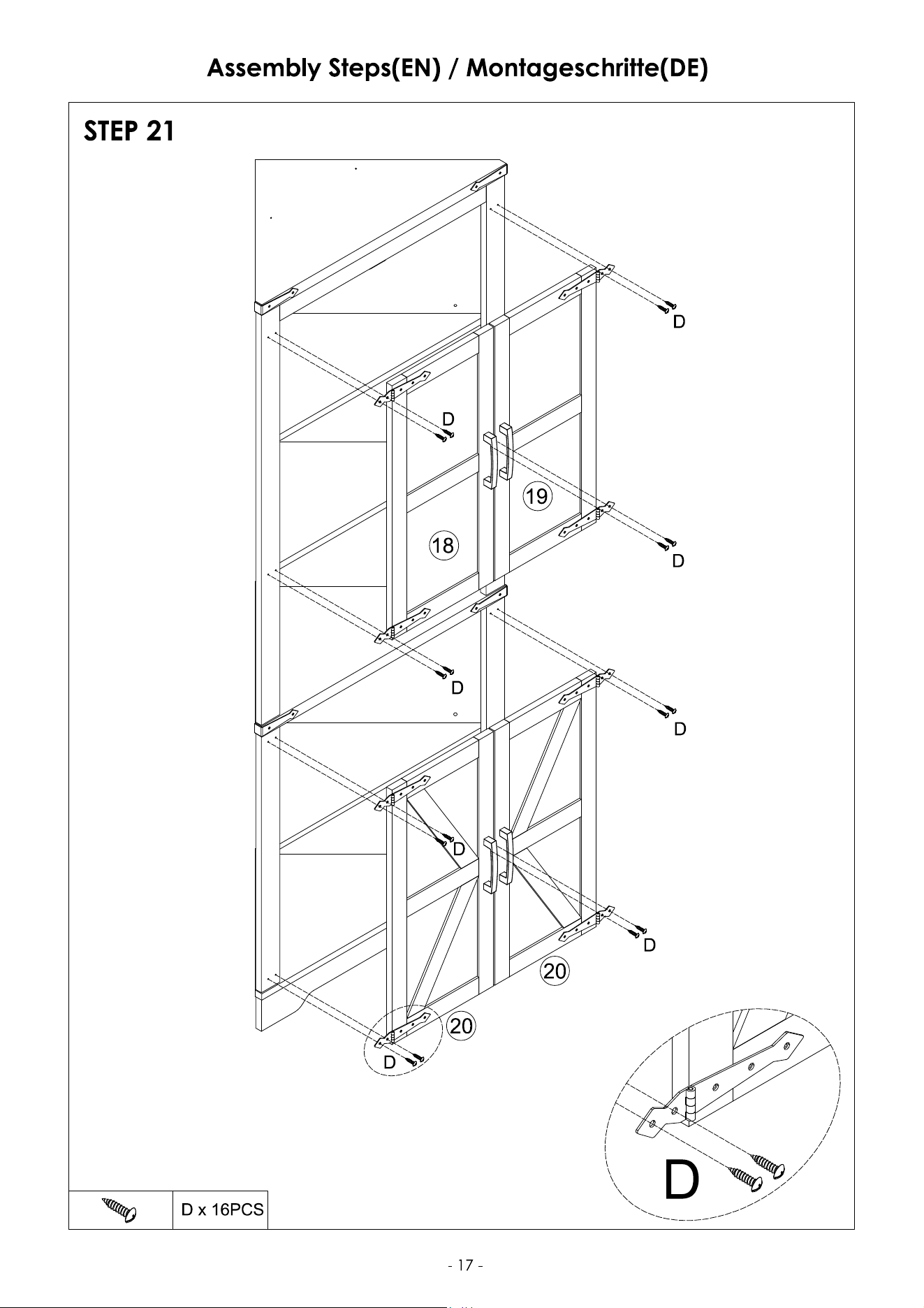

STEP 21
Assembly Steps(EN) / Montageschritte(DE)
D x 16PCS
- 17 -
18
19
20
20
D
D
D
D
D
D
D
D
D

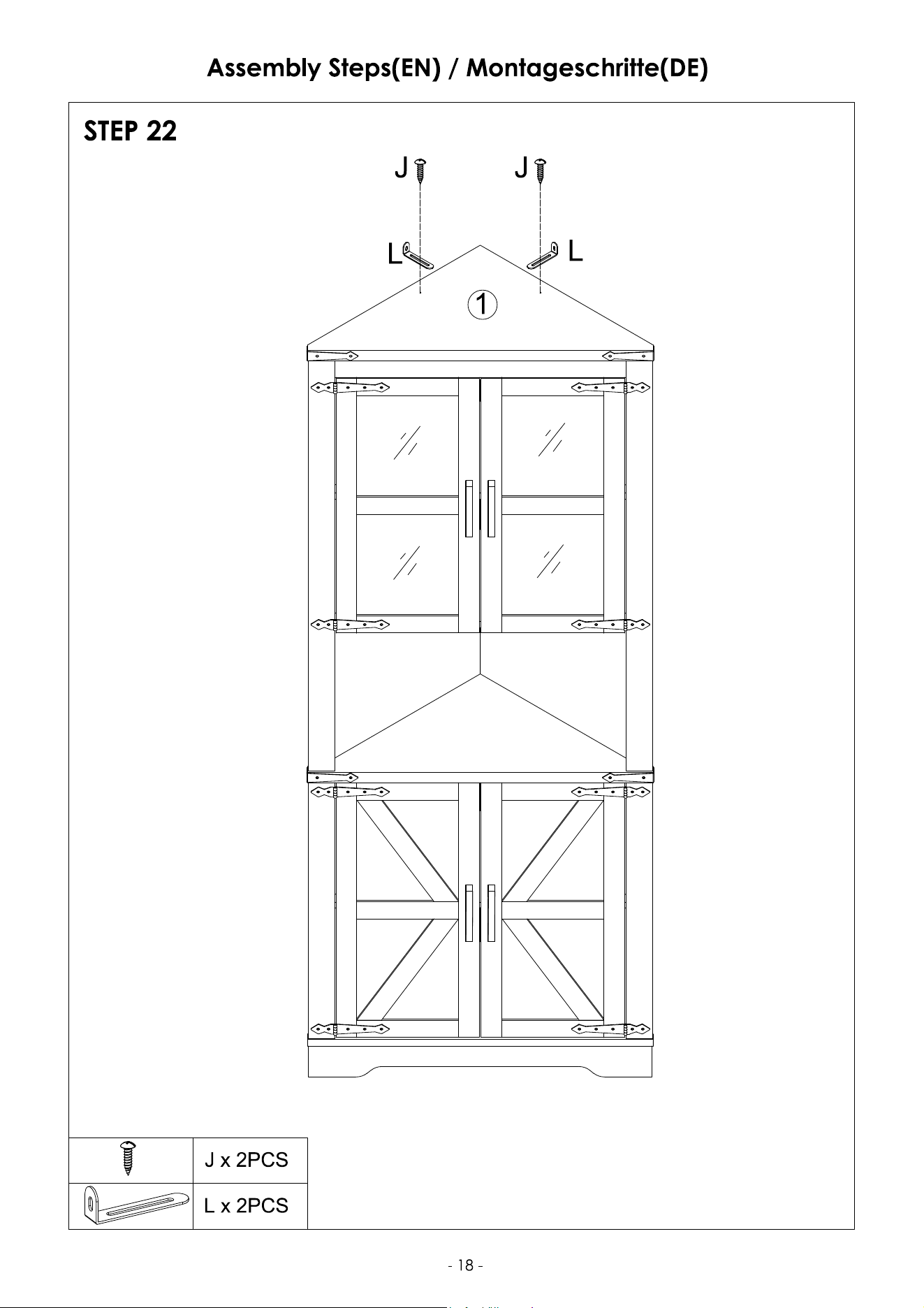

STEP 22
Assembly Steps(EN) / Montageschritte(DE)
- 18 -
J x 2PCS
L x 2PCS
L
J J
L
1
WALL
Drill 2 holes on the wall at the required position
for anti-falling device installation.
I

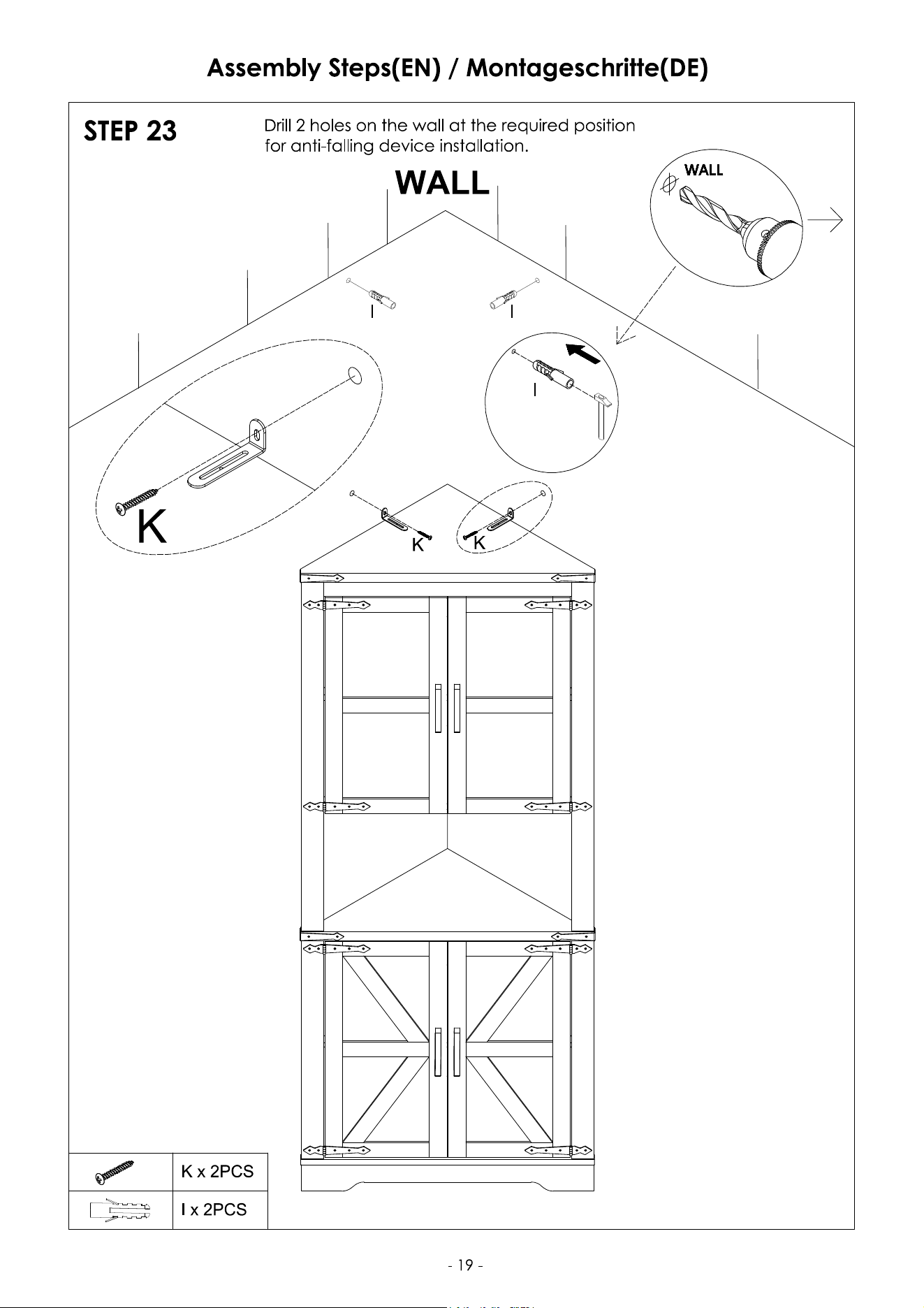

STEP 23
Assembly Steps(EN) / Montageschritte(DE)
- 19 -
II
K
K
I x 2PCS
K x 2PCS
K
