LiftMaster RSW12ULMC 12VDC Residential/Light Commercial User Manual

Model RSW12UL

• THIS PRODUCT IS TO BE INSTALLED AND

SERVICED BY A TRAINED GATE SYSTEMS

TECHNICIAN ONLY.

• This model is for use on vehicular passage

gates ONLY and not intended for use on

pedestrian passage gates.

• This model is intended for use in Class I and II

vehicular swing gate applications.

• Visit LiftMaster.com to locate a professional

installing dealer in your area.

• This gate operator is compatible with MyQ

and Security+ 2.0

accessories.

LiftMaster

300 Windsor Drive

Oak Brook, IL 60523

RESIDENTIAL DC

VEHICULAR SWING GATE OPERATOR

INSTALLATION MANUAL

Access installation and technical support

guides or register this product

Send it in by texting the

photo to 71403.

Take a photo of the camera

icon including the points ( ).

•

Acce

RSW12ULTECH

SAFETY 2

Safety Symbol and Signal Word Review ...................................................2

Usage Class ...............................................................................................3

UL325 Entrapment Protection Requirements ............................................3

Safety Installation Information ...................................................................4

Gate Construction Information ...................................................................5

INTRODUCTION 6

Carton Inventory ........................................................................................6

Operator Specifications ..............................................................................7

Site Preparation .........................................................................................8

Check Your Gate ........................................................................................8

INSTALLATION 9

Step 1 Determine Location for Concrete Pad and Operator .......................9

Step 2 Concrete Pad and Operator Attachment .......................................11

Step 3 Position the Gate Bracket .............................................................12

Step 4 Adjust the Operator Arm Length ...................................................12

Step 5 Secure the Operator Arm ..............................................................13

Step 6 Install Entrapment Protection .......................................................14

Step 7 Earth Ground Rod .........................................................................16

Step 8 Power Wiring ................................................................................16

Step 9 Dual Gate Setup ............................................................................18

Step 10 Install the Cover .........................................................................20

ADJUSTMENT 21

Limit and Force Adjustment .....................................................................21

Obstruction Test ......................................................................................22

PROGRAMMING 23

Remote Controls (Not Provided) .............................................................23

LiftMaster Internet Gateway (not provided) .............................................24

Erase All Codes ........................................................................................24

Erase Limits .............................................................................................24

Constant Pressure Override (CPO) ..........................................................24

Gate Hold Open Feature ...........................................................................24

To Remove and Erase Monitored Entrapment Protection Devices ...........24

OPERATION 25

Control Board Overview ...........................................................................25

Manual Disconnect ..................................................................................26

Reset Switch ............................................................................................26

Operator Alarm .......................................................................................26

Remote Control ........................................................................................26

ACCESSORY WIRING 27

External Control Devices ..........................................................................27

Locks .......................................................................................................28

Miscellaneous Wiring ...............................................................................28

MAINTENANCE 29

Important Safety Information ...................................................................29

Maintenance Chart ...................................................................................29

Batteries ................................................................................................... 30

TROUBLESHOOTING 31

Diagnostic Codes .....................................................................................31

Diagnostic Codes Table ...........................................................................32

Control Board LEDs .................................................................................34

Troubleshooting Chart .............................................................................35

APPENDIX 38

Dual Gate Settings ...................................................................................38

Types of Installations ...............................................................................38

Step 1 Determine Location for Concrete Pad and Operator .....................39

Step 2 Concrete Pad and Operator Attachment .......................................39

Step 3 Shorten the Operator Arm ............................................................40

Step 4 Position the Gate Bracket .............................................................40

Step 8 Solar Panel(s) ...............................................................................41

Limit Setup with a Remote Control ..........................................................45

WIRING DIAGRAM 46

REPAIR PARTS 47

ACCESSORIES 48

WARRANTY 50

WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects

or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

When you see these Safety Symbols and Signal Words on the following pages, they will alert

you to the possibility of Serious Injury or Death if you do not comply with the warnings that

accompany them. The hazard may come from something mechanical or from electric shock.

Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of

damage to your gate and/or the gate operator if you do not comply with the cautionary

statements that accompany it. Read them carefully.

IMPORTANT NOTE:

• BEFORE attempting to install, operate or maintain the operator, you must read and fully

understand this manual and follow all safety instructions.

• DO NOT attempt repair or service of your gate operator unless you are an Authorized

Service Technician.

MECHANICAL

ELECTRICAL

TABLE OF CONTENTS

SAFETY

Safety Symbol and Signal Word Review

Usage Class

Class I - Residential Vehicular Gate Operator

A vehicular gate operator (or system) intended for use in garages or

parking areas associated with a residence of one-to four single families.

Class II - Commercial/General Access Vehicular

Gate

A vehicular gate operator (or system) intended for use in a commercial

location or building such as a multi-family housing unit (five or more

single family units), hotel, garages, retail store, or other buildings

accessible by or servicing the general public.

Class III - Industrial/Limited Access Vehicular

Gate

A vehicular gate operator (or system) intended for use in an industrial

location or building such as a factory or loading dock area or other

locations not accessible by or intended to service the general public.

Class IV - Restricted Access Vehicular Gate

Operator

A vehicular gate operator (or system) intended for use in a guarded

industrial location or building such as an airport security area or other

restricted access locations not servicing the general public, in which

unauthorized access is prevented via supervision by security personnel.

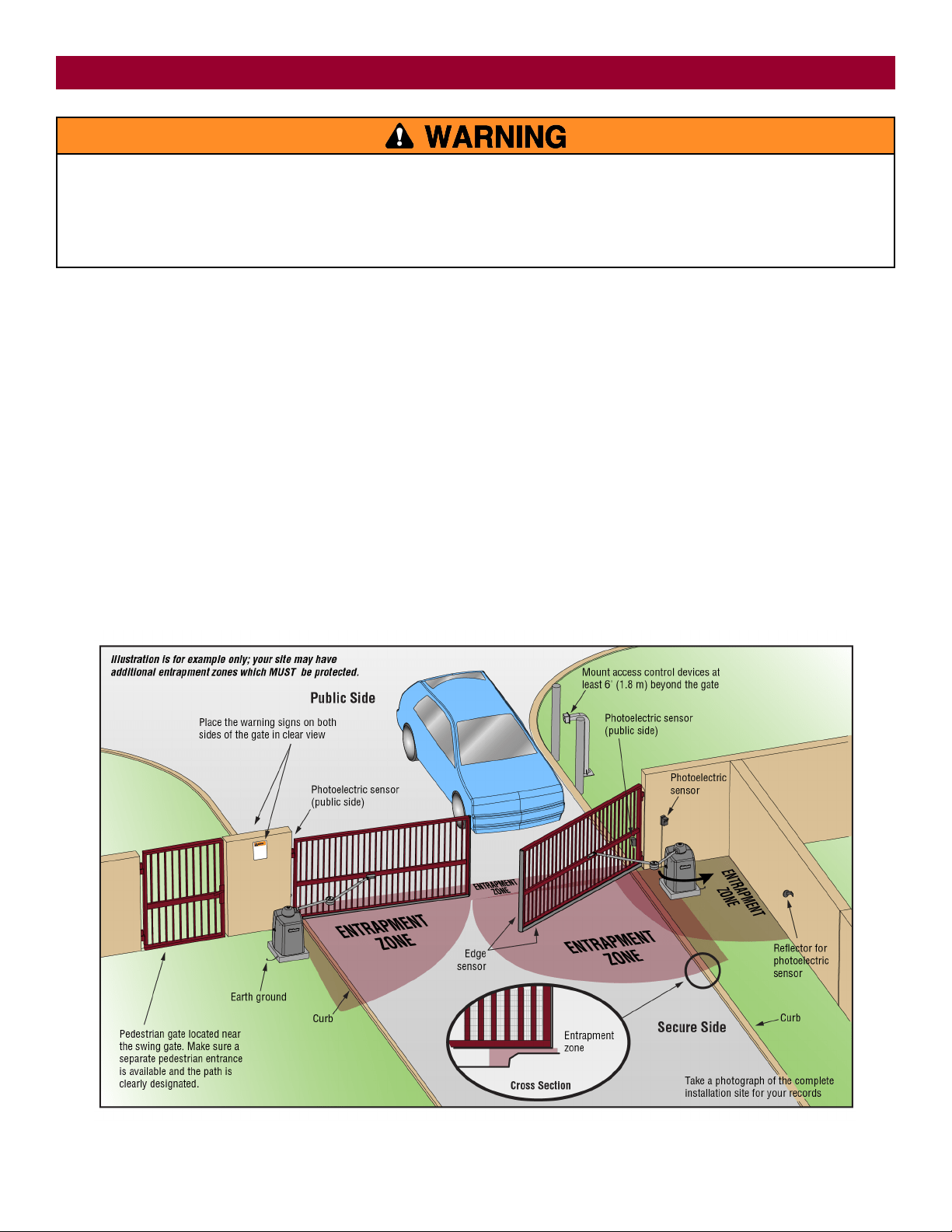

UL325 Entrapment Protection Requirements

A minimum of two independent* monitored entrapment protection

devices are required to be installed at each entrapment zone

l Every installation is unique. It is the responsibility of the installer to

install external monitored entrapment protection devices in each

entrapment zone

l This vehicular swing gate operator will operate only after installation

of a minimum of two independent* monitored entrapment protection

devices in either the open or close direction. If no entrapment zone

exists in the other direction of gate travel, then the inherent (built into

the operator) is all that is required in that direction.

l Entrapment protection device types include inherent (built into the

operator), monitored external photoelectric sensors or monitored

external edge sensors

l This operator is provided with an inherent entrapment protection

device built into the operator that serves as one of the two

independent devices

* Independent - the same type of device shall NOT be used for both

entrapment protection devices.

IMPORTANT SAFETY

INSTRUCTIONS

To reduce the risk of INJURY or DEATH:

l READ AND FOLLOW ALL INSTRUCTIONS.

l NEVER let children operate or play with gate controls. Keep the

remote control away from children.

l ALWAYS keep people and objects away from the gate. NO ONE

SHOULD CROSS THE PATH OF THE MOVING GATE.

l Test the gate operator monthly. The gate MUST reverse on contact

with an object or reverse when an object activates the noncontact

sensors. After adjusting the force or the limit of travel, retest the

gate operator. Failure to adjust and retest the gate operator properly

can increase the risk of INJURY or DEATH.

l Use the emergency release ONLY when the gate is not moving.

l KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual.

Have a qualified service person make repairs to gate hardware.

l The entrance is for vehicles ONLY. Pedestrians MUST use separate

entrance.

l SAVE THESE

INSTRUCTIONS.

SAFETY

Safety Installation Information

1. Vehicular gate systems provide convenience and security. Gate systems

are comprised of many component parts. The gate operator is only one

component. Each gate system is specifically designed for an individual

application.

2. Gate operating system designers, installers and users must take into

account the possible hazards associated with each individual

application. Improperly designed, installed or maintained systems can

create risks for the user as well as the bystander. Gate systems design

and installation must reduce public exposure to potential hazards.

3. A gate operator can create high levels of force in its function as a

component part of a gate system. Therefore, safety features must be

incorporated into every design. Specific safety features include:

l Edges Sensors (contact)

l Photoelectric Sensors

l Vertical Posts

l Instructional and Precautionary Signage

4. Install the gate operator only when:

a. The operator is appropriate for the construction and the usage

class of the gate.

b. All exposed pinch points are eliminated or guarded, and guarding

is supplied for exposed rollers.

5. The operator is intended for installation only on gates used for

vehicles. Pedestrians must be supplied with a separate access opening.

The pedestrian access opening shall be designed to promote pedestrian

usage. Locate the gate such that persons will not come in contact with

the vehicular gate during the entire path of travel of the vehicular gate.

6. The gate must be installed in a location so that enough clearance is

supplied between the gate and adjacent structures when opening and

closing to reduce the risk of entrapment. Swinging gates shall not open

into public access areas.

7. The gate must be properly installed and work freely in both directions

prior to the installation of the gate operator.

8. Permanently mounted access controls intended for users to activate,

must be located at least 6 feet (1.8m) away from any moving part of

the gate and where the user is prevented from reaching over, under,

around or through the gate to operate the controls. Outdoor or easily

accessible controls shall have a security feature to prevent unauthorized

use. Exception: Emergency access controls only accessible by

authorized personnel (e.g. fire, police) may be placed at any location in

the line-of-sight of the gate.

9. The Stop and/or Reset (if provided separately) must be located in the

line-of-sight of the gate. Activation of the reset control shall not cause

the operator to start.

10. A minimum of two (2) WARNING SIGNS shall be installed in the area

of the gate. Each placard is to be visible by persons located on the side

of the gate on which the placard is installed.

11. For a gate operator utilizing a non-contact sensor:

a. Reference owner’s manual regarding placement of non-contact

sensor for each type of application. See Install Entrapment

Protection section.

b. Care shall be exercised to reduce the risk of nuisance tripping,

such as when a vehicle trips the sensor while the gate is still

moving.

c. One or more non-contact sensors shall be located where the risk of

entrapment or obstruction exists, such as the perimeter reachable

by a moving gate or barrier.

12. For a gate operator utilizing a contact sensor such as an edge sensor:

a. One or more contact sensors shall be located where the risk of

entrapment or obstruction exists.

b. A hard wired contact sensor shall be located and its wiring

arranged so the communication between the sensor and the gate

operator is not subject to mechanical damage.

c. A wireless device such as one that transmits radio frequency (RF)

signals to the gate operator for entrapment protection functions

shall be located where the transmission of the signals are not

obstructed or impeded by building structures, natural landscaping

or similar obstruction. A wireless device shall function under the

intended end-use conditions.

d. One or more contact sensors shall be located on the inside and

outside leading edge of a swing gate. Additionally, if the bottom

edge of a swing gate is greater than 4 inches (10.1 cm) but less

than 16 inches (406 mm) above the ground at any point in its arc

of travel, one or more contact sensors shall be located on the

bottom edge.

SAFETY

Gate Construction Information

Vehicular gates should be installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction. For a copy,

contact ASTM directly at 610-832-9585 or www.astm.org.

1. General Requirements

1.1 Gates shall be constructed in accordance with the provisions

given for the appropriate gate type listed, refer to ASTM F2200

for additional gate types.

1.2 Gates shall be designed, constructed and installed to not fall

over more than 45 degrees from the vertical plane, when a

gate is detached from the supporting hardware.

1.3 Gates shall have smooth bottom edges, with vertical bottom

edged protrusions not exceeding 0.50inches (12.7 mm) when

other than the exceptions listed in ASTM F2200.

1.4 The minimum height for barbed tape shall not be less than 8

feet (2.44m) above grade and for barbed wire shall not be

less than 6 feet (1.83m) above grade.

1.5 An existing gate latch shall be disabled when a manually

operated gate is retrofitted with a powered gate operator.

1.6 A gate latch shall not be installed on an automatically operated

gate.

1.7 Protrusions shall not be permitted on any gate, refer to ASTM

F2200 for Exceptions.

1.8 Gates shall be designed, constructed and installed such that

their movement shall not be initiated by gravity when an

automatic operator is disconnected, in accordance with the

following.

1.8.1 Vehicular horizontal swing gate. Shall not result in

continuous, unimpeded movement in either direction along

the arc of its path of travel.

1.9 For pedestrian access in the vicinity of an automated vehicular

gate, a separate pedestrian gate shall be provided. The

pedestrian gate shall be installed in a location such that a

pedestrian shall not come in contact with a moving vehicular

access gate. A pedestrian gate shall not be incorporated into

an automated vehicular gate panel.

2. Specific Applications

2.1 Any non-automated gate that is to be automated shall be

upgraded to conform to the provisions of this specification.

2.2 This specification shall not apply to gates generally used for

pedestrian access and to vehicular gates not to be automated.

2.3 When the gate operator requires replacement, the existing gate

shall be upgraded to conform to the provisions of this

specification.

2.4 When the gate of an automated gate system requires

replacement, the new gate shall conform to the provisions of

this specification.

3. Vehicular Horizontal Swing Gate

3.1 The following provisions shall apply to Class I, Class II and Class III

vehicular horizontal swing gates:

3.1.1 Gates shall be designed, constructed and installed so as not to

create an entrapment area between the gate and the supporting

structure or other fixed object when the gate moves toward the fully

open position, subject to the provisions in 3.1.1.1 and 3.1.1.2

3.1.1.1 The width of an object (such as a wall, pillar or column) covered by

a swing gate when in the open position shall not exceed 4inches

(102mm), measured from the center line of the pivot point of the

gate. Exception: For a gate not in compliance with this provision,

the defined area must be provided with entrapment protection per

UL325.

3.1.1.2 Except for the zone specified in Section 3.1.1.1, the distance

between a fixed object such as a wall, pillar or column, and a swing

gate when in the open position shall not be less than 16inches

(406mm). Exception: For a gate not in compliance with this

provision, the defined area must be provided with entrapment

protection per UL325.

3.2 Class IV vehicular horizontal swing gates shall be designed,

constructed and installed in accordance with security related

parameters specific to the application in question.

SAFETY

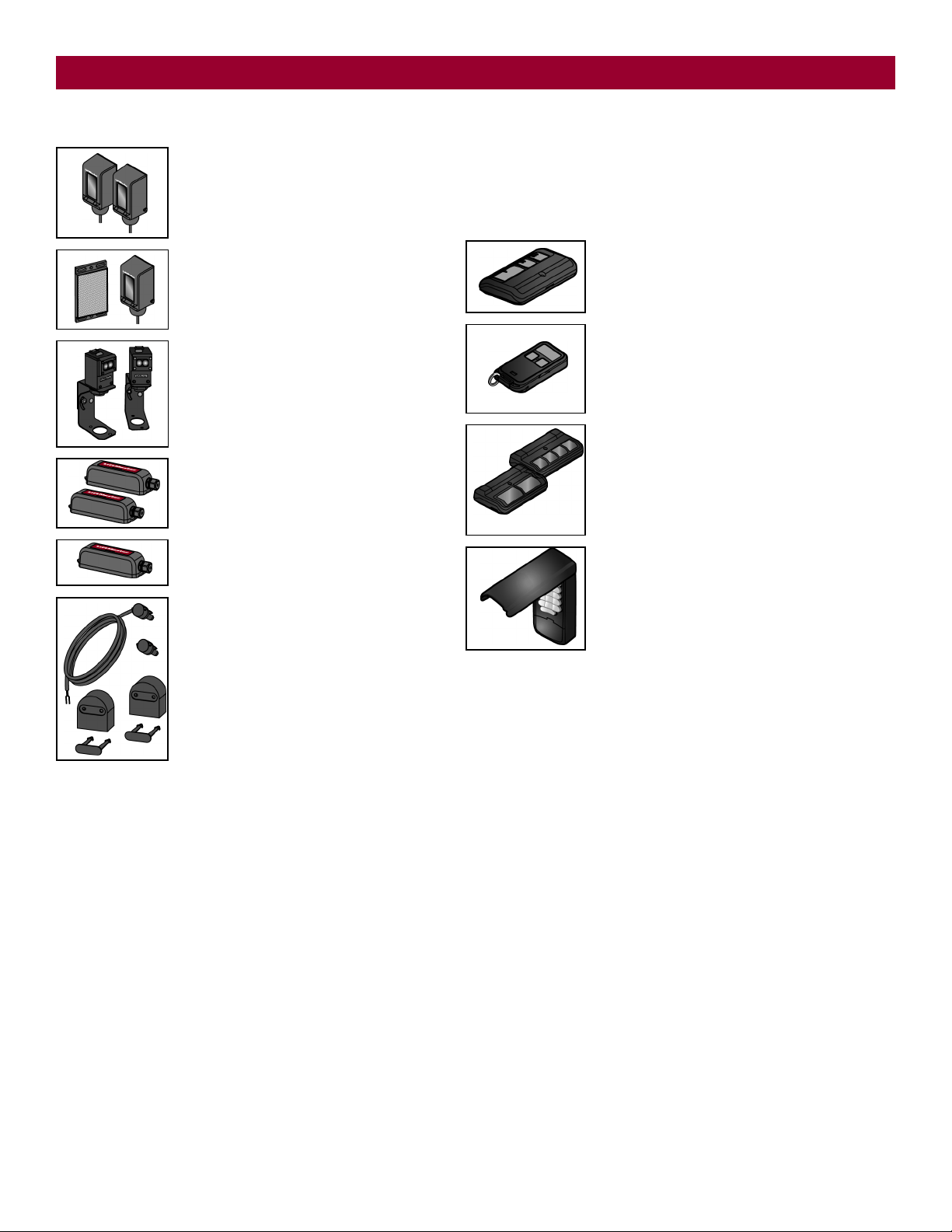

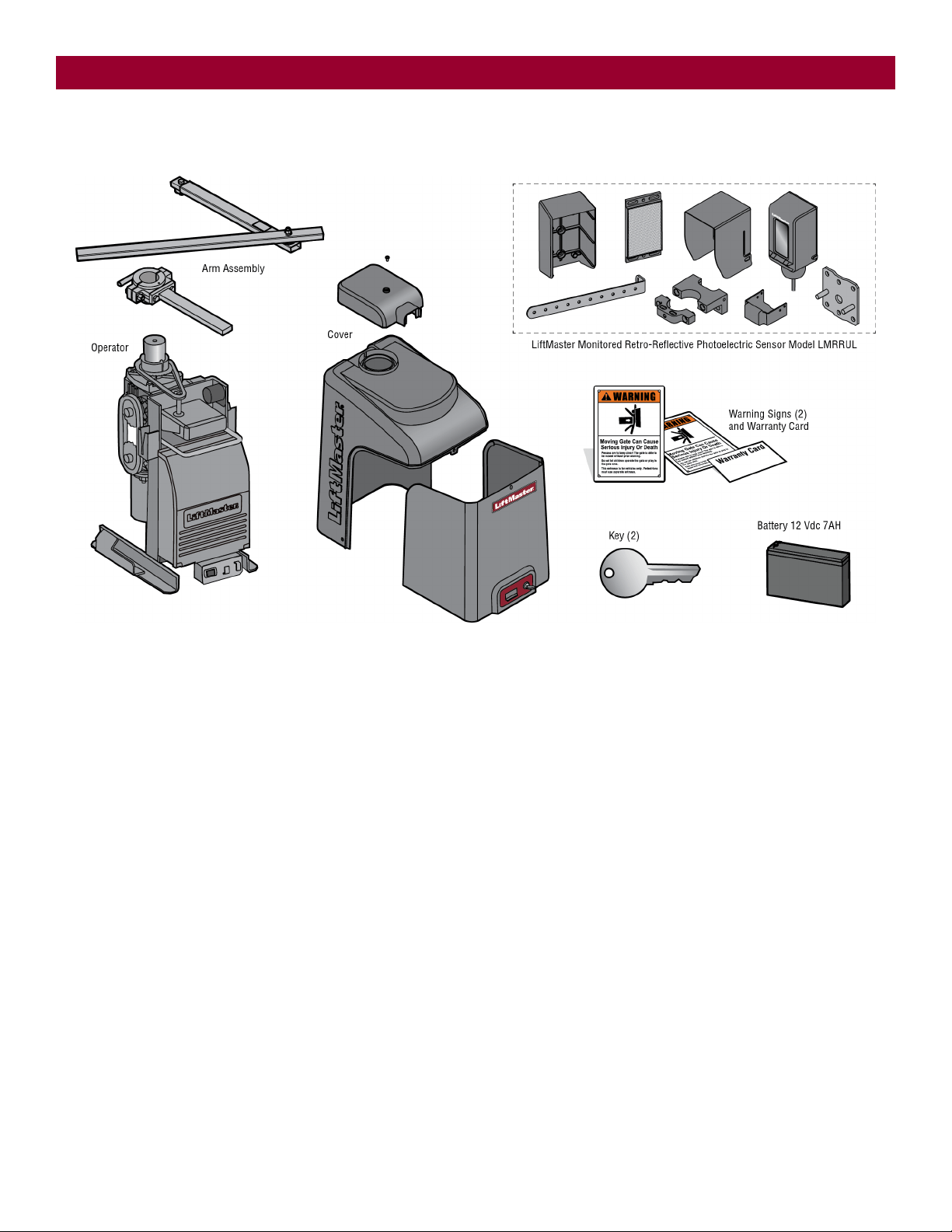

Carton Inventory

NOT SHOWN: Documentation packet and hardware bag

INTRODUCTION

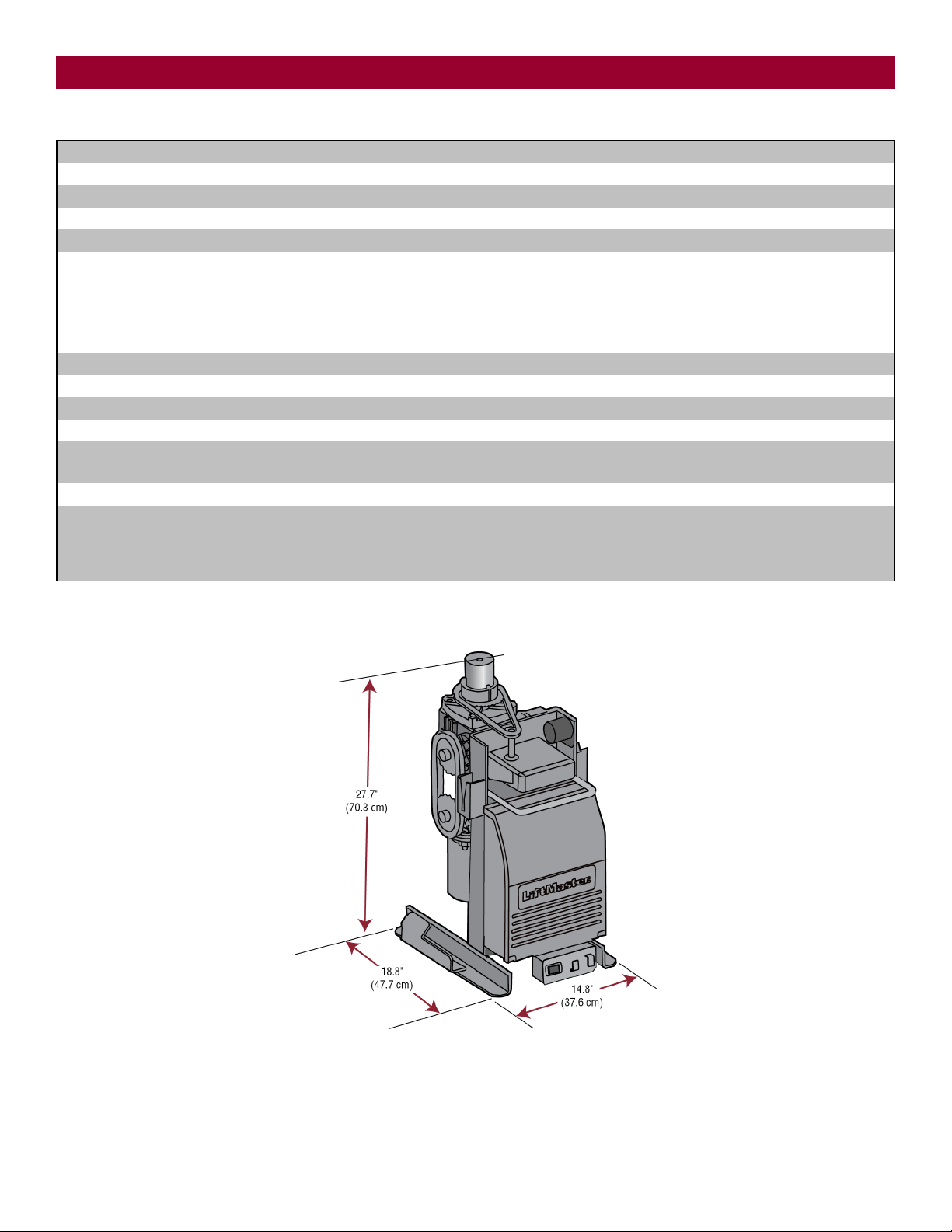

Operator Specifications

Usage Classification

Class I & II

Main AC Supply

120 Vac, .5 Amps (6.5 Amps including Accessory Outlets)

System Operating Voltage

12 Vdc Battery Run / Battery Backup

Accessory Power

12 Vdc, 500mA max. for ON + SW (switched)

Solar Power Max

12 Vdc at 30 watts max.

Maximum Gate Weight/Length

400 lbs. (181.4 kg)/16 ft. (4.9 m)

600 lbs. (272.2 kg)/12 ft. (3.7 m)

700 lbs. (317.5 kg)/10 ft. (3 m)

800 lbs. (362.9 kg)/8 ft. (2.4 m)

1000 lbs. (543.5 kg)/6 ft. (1.8 m)

90 Degree Travel Time*

< 17 seconds

Maximum Travel Range*

115 degrees

Maximum Daily Cycle Rate

250 cycles/day

Maximum Duty Cycle

Continuous

Operating Temperature

Without Heater: -20°C to 60°C (-4°F to 140°F)

With Optional Heater: -40°C to 60°C (-40°F to 140°F)

Expansion Board

Optional

External Entrapment Protection Device Inputs (non-contact

and/or contact)

Main board - up to 2 close entrapment protection devices and 1 open entrapment

protection device.

Expansion board - up to 3 entrapment protection devices configurable to either close or

open and up to 4 edge sensors using wireless edge sensor kit model LMWEKITU .

*Travel time and range are affected by A and B mounting dimensions, see INSTALLATION.

INTRODUCTION

Site Preparation

Check the national and local building codes BEFORE installation.

Gate

Gate must be constructed and installed according to ASTM F2200

standards (refer to page 4). Gate must fit specifications of operator (refer

to specifications).

Conduit and Concrete Pad

Trench and install conduit. Before trenching, contact underground utility

locating companies. Conduit must be UL approved for low and high

voltage. Consider the operator placement BEFORE installing the pad or

post.

Safety

Entrapment protection devices are required to protect against any

entrapment or safety conditions encountered in your gate application.

Install a warning sign (two provided) on the inside and outside of the

property, where easily visible.

Additional Accessories

The vehicle loops allow the gate to stay open when vehicles are

obstructing the gate path. Suggested for vehicles 14 feet (4.27 m) or

longer. Vehicle loops are not required but are recommended. Before

installing your Access Control Device(s) be sure to complete a site survey

and determine the best device for your site needs.

Check your gate

Gate MUST be level. Gate and gate

post MUST be plumb. Gate MUST

have a smooth bottom edge, no

protrusions should exist.

Remove ANY/ALL wheels from the

bottom of gate.

Gate MUST NOT hit or drag across

ground

Gate MUST swing freely and be

supported entirely by its hinges.

INTRODUCTION

l To AVOID damaging gas, power or other underground utility lines,

contact underground utility locating companies BEFORE digging more

than 18 inches (46 cm) deep.

l ALWAYS wear protective gloves and eye protection when changing

the battery or working around the battery compartment.

Step 1 Determine Location for Concrete Pad and Operator

For compact installation refer to the Appendix for installation steps 1-4, page 39.

DO NOT run the operator until instructed.

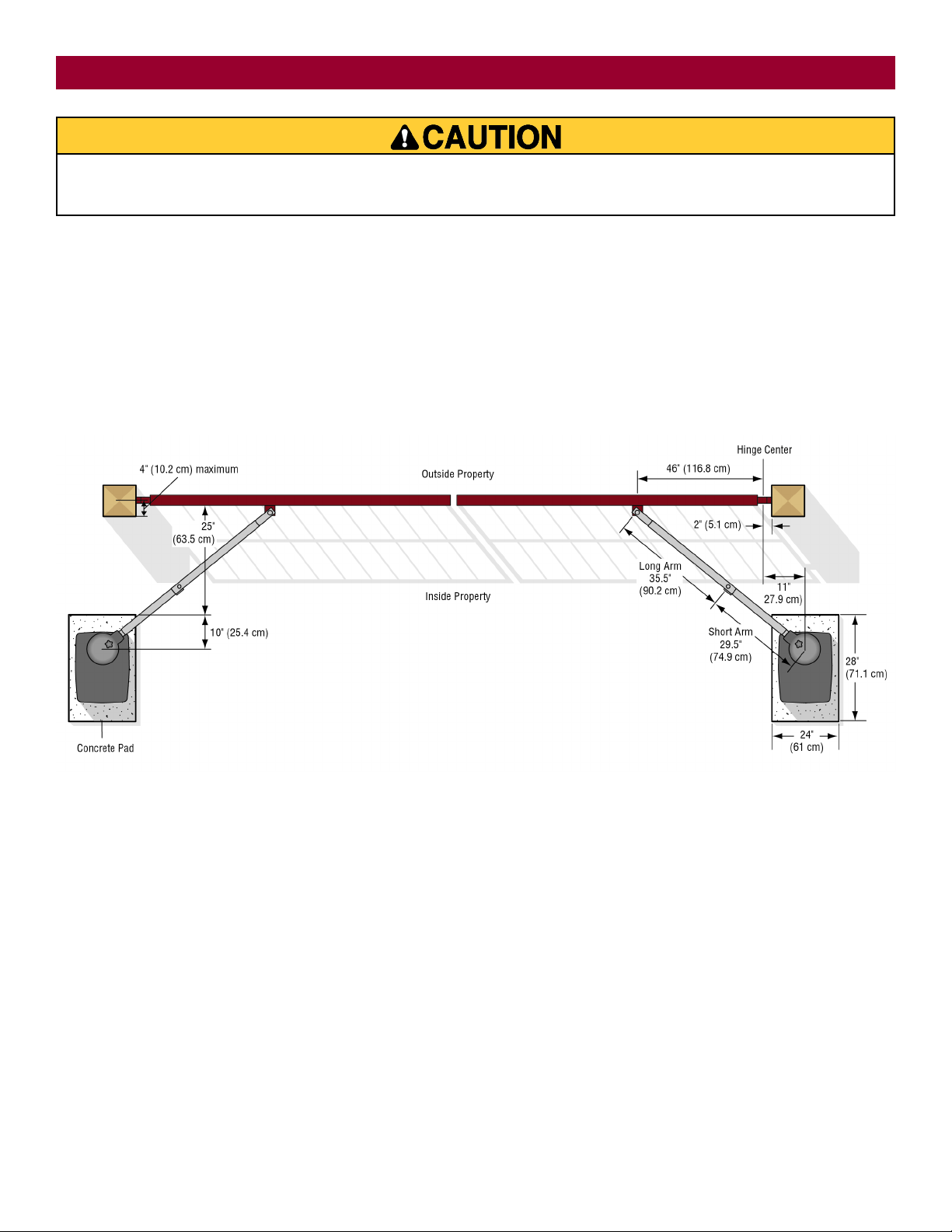

The illustration below shows the recommended dimensions for a standard installation. If these dimensions are not applicable for your installation refer to

the chart on the following page for alternate dimensions.

Standard Installation

Refer to the illustration to determine the measurements and location of the concrete pad.

NOTE: There should only be a maximum of 4" (10.2 cm) from the center of the hinge to the edge of the post or column. If the distance is greater than 4"

(10.2 cm) entrapment protection for this area is required.

INSTALLATION

Chart Installation

Refer to the illustration to determine the measurements and location of the concrete pad.

Dimension (A) thru (E) are from the center of one pivot point to the center of another pivot point.

Caution: If the gate is longer than 18 feet (5.5 m), follow CHART A: A-2.

Suggestion: The dimensions between the gate and the concrete pad is always 10 inches (25.4 cm) less than the dimension D.

Example: D = 42" (106.7 cm), if the dimensions between the gate and the concrete pad is 32" (81.3 cm).

Chart A

A B C D E DISTANCE

46"

(116.8

cm)

35.5"

(90.2 cm)

29.5"

(74.9

cm)

35"

(90.2 cm)

11"

(27.9

cm)

45"

(114.3

cm)

46.8"

(118.8

cm)

35.5"

(90.2 cm)

33.5"

(85.1

cm)

42"

(106.7

cm)

11"

(27.9

cm)

37"

(94 cm)

46.8"

(118.8

cm)

37"

(94 cm)

31.5"

(80 cm)

40"

(101.6

cm)

11"

(27.9

cm)

41"

(104.1

cm)

47.3"

(120 cm)

37.3"

(94.6 cm)

30"

(76.2

cm)

37"

(94 cm)

11"

(27.9

cm)

45"

(114.3

cm)

47"

(119.4

cm)

35"

(90.2 cm)

29.5"

(74.9

cm)

32"

(81.3 cm)

11"

(27.9

cm)

45"

(114.3

cm)

42.5"

(108 cm)

33"

(116.8

cm)

26.5"

(67.3

cm)

28.5"

(72.4 cm)

11"

(27.9

cm)

41"

(104.1

cm)

Chart B

A B C D E DISTANCE

34.5"

(87.6 cm)

34.8"

(88.3

cm)

29.5"

(74.9

cm)

35"

(90.2 cm)

14"

(35.6

cm)

43"

(109.2 cm)

44"

(111.8

cm)

36.5"

(92.7

cm)

32.5"

(82.6

cm)

42"

(106.7

cm)

14"

(35.6

cm)

32"

(81.3 cm)

44"

(111.8

cm)

37"

(94 cm)

30.5"

(77.5

cm)

40"

(101.6

cm)

14"

(35.6

cm)

40"

(101.6 cm)

45"

(114.3

cm)

37"

(94 cm)

30.5"

(77.5

cm)

37"

(94 cm)

14"

(35.6

cm)

43"

(109.2 cm)

44.8"

(113.7

cm)

35.8"

(90.8

cm)

29.5"

(74.9

cm)

32"

(81.3 cm)

14"

(35.6

cm)

44"

(111.8 cm)

41"

(104.1

cm)

39"

(99.1

cm)

27.5"

(69.9

cm)

28.5"

(72.4 cm)

14"

(35.6

cm)

41"

(104.1 cm)

INSTALLATION

Step 2 Concrete Pad and Operator Attachment

CHECK the national and local building codes before installation.

NOTE: When lifting the operator use the handle to avoid damaging the

operator

1. Install the electrical conduit.

2. Pour a concrete pad (reinforced concrete is recommended). The

concrete pad should be 6 inches (15.2 cm) above the ground and

deeper than the frost line. Ensure the pad is tall enough to avoid

possible flooding.

3. Secure the operator to the concrete pad with appropriate fasteners.

NOTE: An alternative to a concrete pad is to post mount the operator, see

Accessories.

INSTALLATION

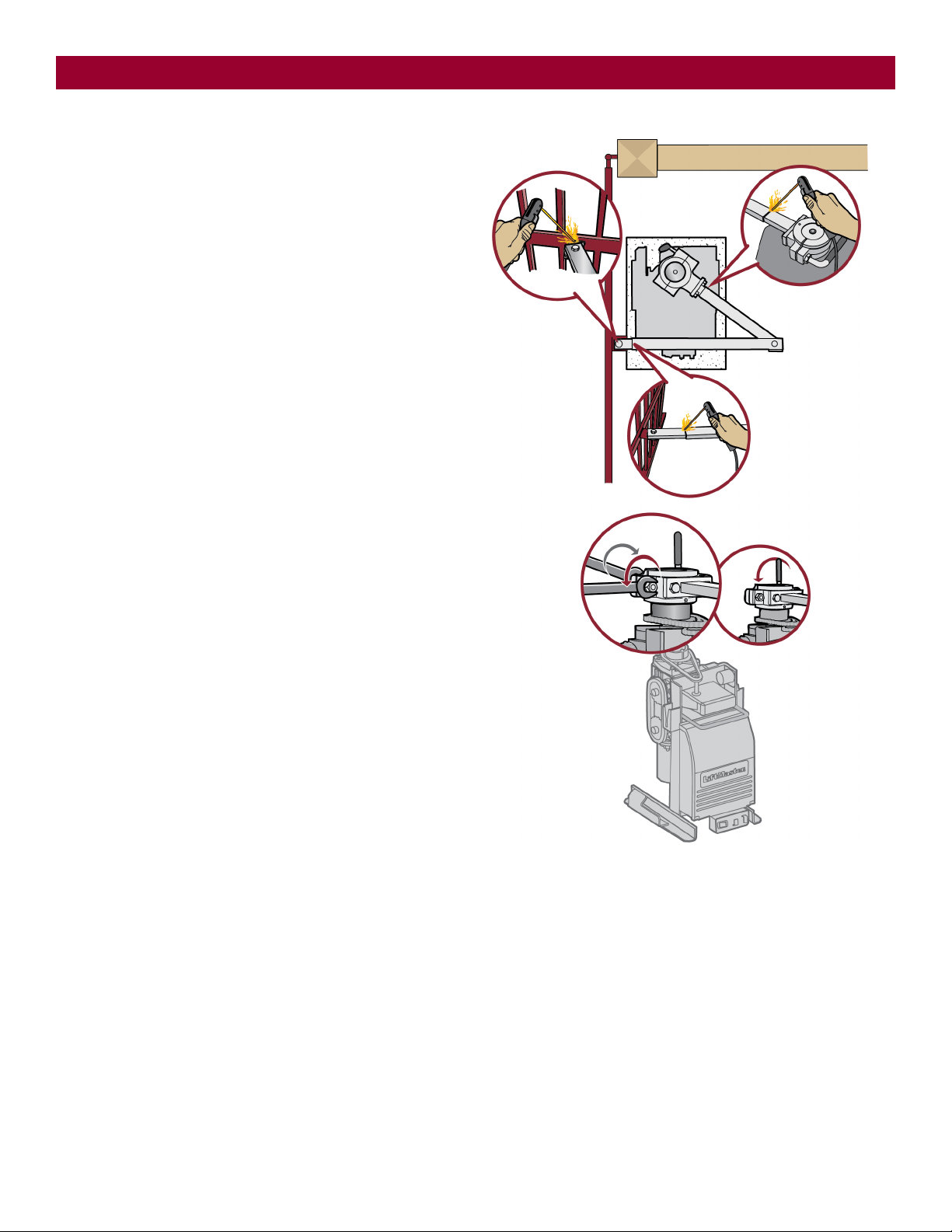

Step 3 Position the Gate Bracket

NOTE: It may be necessary to attach horizontal reinforcement to the gate before attaching the gate bracket.

1. Position the operator arm onto the output shaft so that the pin slides into the slot.

2. Measure 46" (116.8 cm) along the gate length from the gate hinge center.

3. Measure 27.5" (69.9 cm) up from the concrete pad to the gate hinge position on the gate as shown.

4. Make sure the operator arm is level and tack weld the gate bracket in this position. Use the set screws on the arm to temporarily hold the arm in place

while determining the correct measurements.

Step 4 Adjust the Operator Arm

Length

NOTE: The length of the arm can be adjusted if necessary. If adjusting the

length, ensure that both sections of the arm are adjusted proportionally.

Use the set screws on the arm to temporarily hold the arm in place while

determining the correct measurements.

1. Close the gate and measure the distance of the operator arm from the

gate bracket to the output shaft center. This distance is E.

2. Open the gate 90° (do not allow arms to scissor when open).

Measure both sections of the arm (D and C). The arm lengths are

correct as long as C+D=E (arm should be perpendicular to the gate

in the open position as shown).

INSTALLATION

Step 5 Secure the Operator Arm

Once the operator arm measurements are verified:

1. Weld the gate bracket to the gate.

2. Weld the short arm section.

3. Weld the long arm section.

Remove the set screws from the arm. NOTE: Completely weld around

the outer tubing and bracket.

5. Adjust the nuts on the operator arm so the operator arm fits snug on

the output shaft yet still allows enough room to swivel (the handle

must be in a 90° position).

6. Tighten the handle by pushing it down. Test to make sure the

operator arm does not slip on the output shaft.

INSTALLATION

To prevent SERIOUS INJURY or DEATH from a moving gate:

l ALL gate operator systems REQUIRE two independent entrapment

protection systems for each entrapment zone.

l Entrapment protection devices MUST be installed to protect anyone

who may come near a moving gate.

l Locate entrapment protection devices to protect in BOTH the open and

close gate cycles.

l Locate entrapment protection devices to protect between moving gate

and RIGID objects, such as posts, walls, pillars, columns, or operator

itself.

Step 6 Install Entrapment Protection

Entrapment protection MUST be installed according to the following UL

325 requirements:

l Swing gate operators require the installation of the first external

monitored entrapment protection device to function.

l Every installation is unique. It is the responsibility of the installer to

ensure that ALL entrapment zones are protected with an external

monitored entrapment protection device, protecting both the open

and close gate cycles.

l LiftMaster monitored external entrapment protection devices MUST

be used with LiftMaster operators to meet UL325 requirements,

see Accessories.

l Test ALL entrapment protection devices after completing installation

of the operator. For testing instructions, refer to the manual provided

with your entrapment protection device.

Definitions

ENTRAPMENT: The condition when a person is caught or held in a

position that increases the risk of injury.

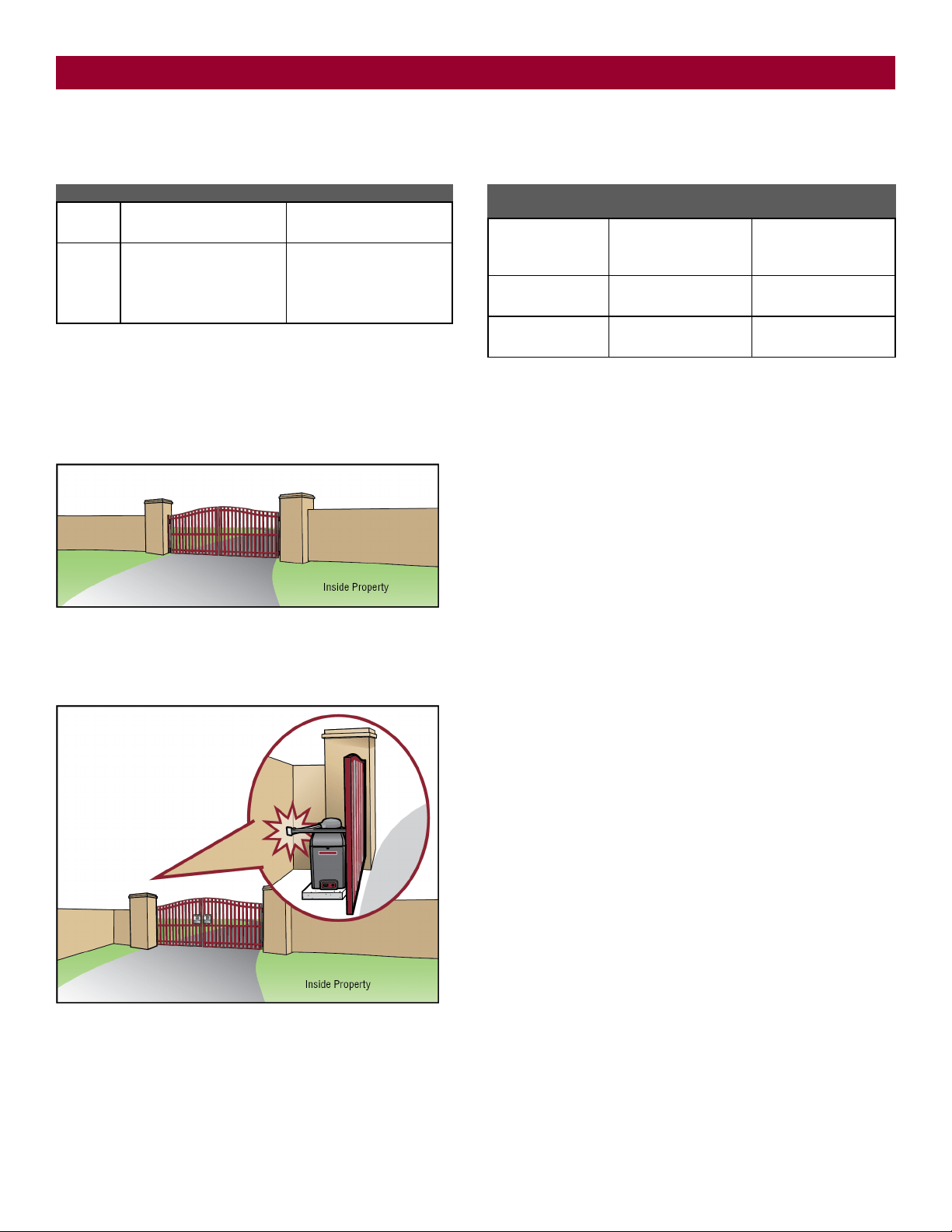

SWING GATE ENTRAPMENT ZONE: Locations between a moving gate or

moving, exposed operator components and a counter opposing edge or

surface where entrapment is possible up to 1.8 m (6 ft) above grade. Such

locations occur if during any point in travel:

a. The gap between the bottom of a moving gate and the ground is

greater than 101.6 mm (4 in) and less than 406 mm (16 in); or

b. The distance between the center line of the pivot and the end of the

wall, pillar, or column to which it is mounted when in the open or

closed position exceeds 101.6 mm (4 in). Any other gap between a

moving gate and fixed counter opposing edges or surfaces or other

fixed objects is less than 406 mm (16 in) (examples are walls, curbs,

berms or other immovable objects).

Illustrations provided by DASMA Gate Systems Safety Guide

INSTALLATION

Wire Entrapment Protection Devices

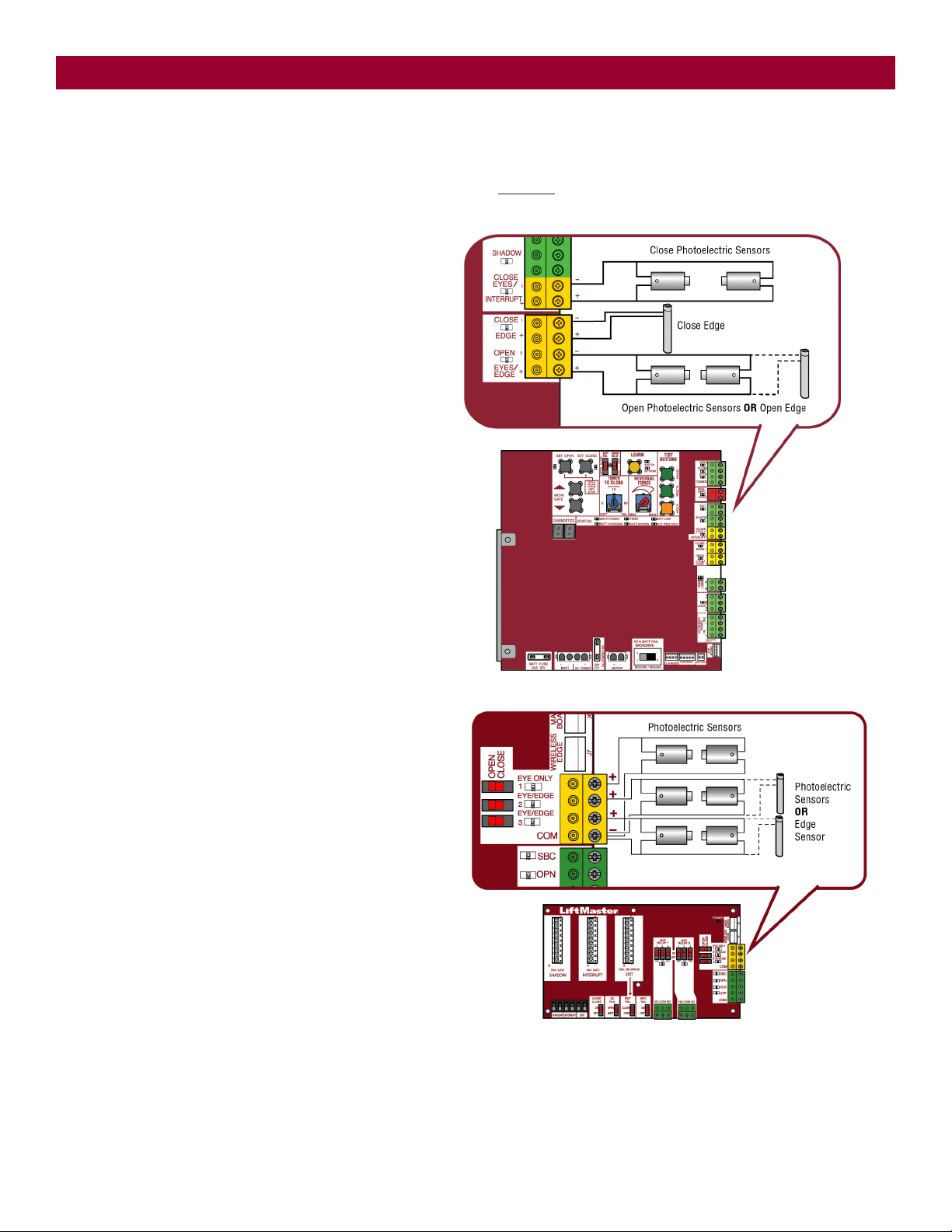

There are three options for wiring the entrapment protection devices depending on the specific device and how the device will function. Refer to the specific

entrapment protection device manual for more information. These entrapment protection device inputs are for monitored devices, which include pulsed

photoelectric sensors, resistive edge sensors, and pulsed edge sensors. Only one monitored entrapment protection device may be wired to each input.

Additional entrapment protection devices may be wired to the expansion board.

Control Board

CLOSES EYES/INTERRUPT

(2 Terminals) The CLOSE EYES/INTERRUPT input is for photoelectric

sensor entrapment protection for the close direction. When an

obstruction is sensed during gate closing the gate will open to the full

open position and resets the Timer-to-Close. This input will be

disregarded during gate opening.

CLOSE EDGE

(2 Terminals) The CLOSE EDGE input is for edge sensor entrapment

protection for the close direction. When an obstruction is sensed during

gate closing the gate will reverse to the full open position, disengaging

the Timer-to-Close. This input will be disregarded during gate opening.

OPEN EYES/EDGE

(2 Terminals) The OPEN EYES/EDGE input is for photoelectric sensor or

edge sensor entrapment protection for the open direction. When an

obstruction is sensed during gate opening the gate will reverse for 4

seconds then stop. This input will be disregarded during gate closing.

Expansion Board (not provided)

EYE ONLY and COM

Open or Close Direction Photoelectric Sensors, the functionality is based

on the switch settings (located next to the terminals)

Switch set to CLOSE: gate reverses fully when an obstruction is sensed

Switch set to OPEN: gate reverses 4 seconds when an obstruction is

sensed

EYE/EDGE and COM

Open or Close Direction Photoelectric Sensors or Edge Sensor, the

functionality is based on the switch settings (located next to the

terminals)

Switch set to CLOSE: gate reverses fully when an obstruction is sensed

Switch set to OPEN: gate reverses 4 seconds when an obstruction is

sensed

INSTALLATION

Step 7 Earth Ground Rod

Use the proper earth ground rod for your local area. The ground wire

must be a single, whole piece of wire. Never splice two wires for the

ground wire. If you should cut the ground wire too short, break it, or

destroy its integrity, replace it with a single wire length.

1. Install the earth ground rod within 3 feet (.9 m) of the operator.

2. Run wire from the earth ground rod to the operator.

NOTE: If the operator is not grounded properly the range of the remote

controls will be reduced and the operator will be more susceptible to

lightning and surge damage.

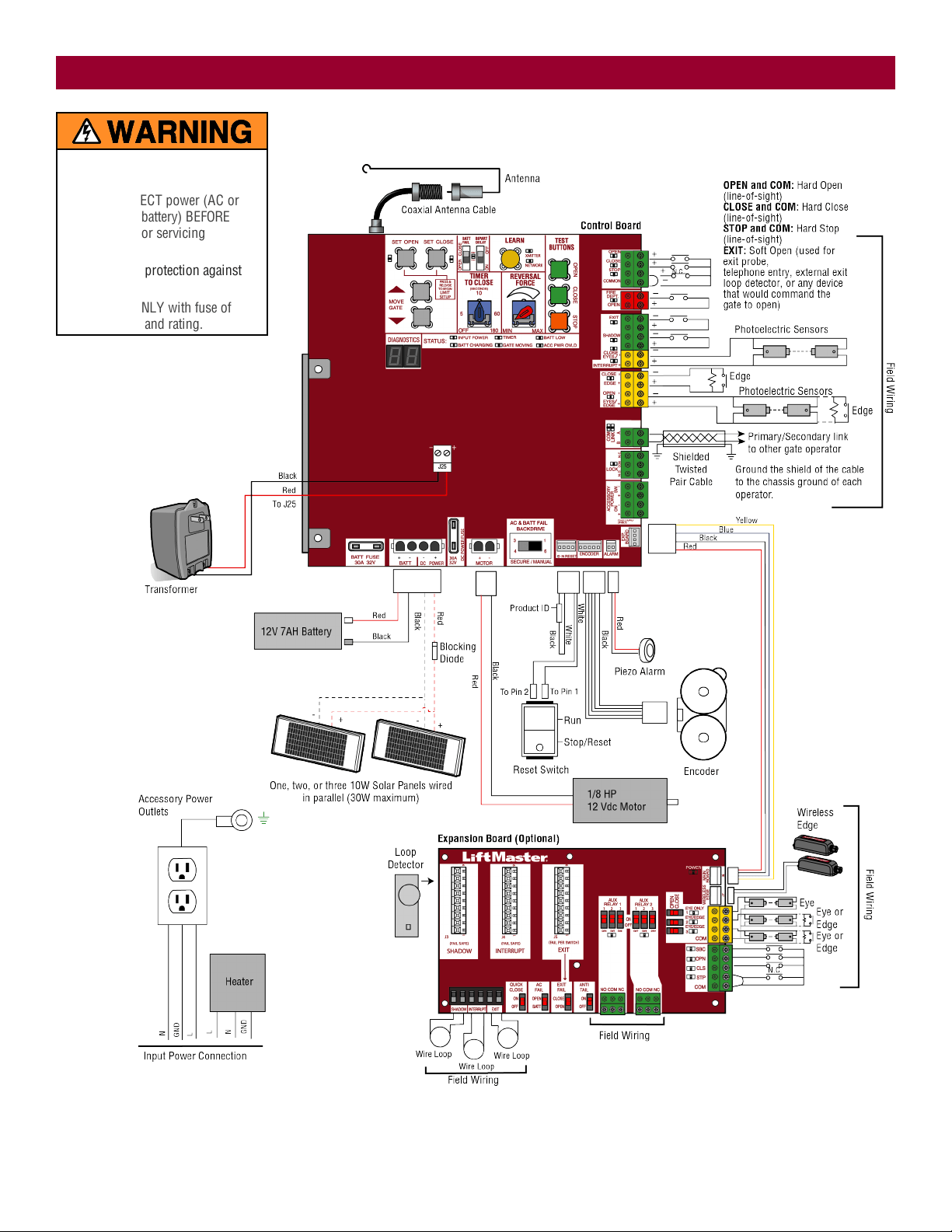

Step 8 Power Wiring

To reduce the risk of SEVERE INJURY or DEATH:

l ANY maintenance to the operator or in the area near the operator

MUST NOT be performed until disconnecting the electrical power (AC

or solar and battery) and locking-out the power via the operator power

switch. Upon completion of maintenance the area MUST be cleared

and secured, at that time the unit may be returned to service.

l Disconnect power at the fuse box BEFORE proceeding. Operator

MUST be properly grounded and connected in accordance with

national and local electrical codes. NOTE: The operator should be on a

separate fused line of adequate capacity.

l ALL electrical connections MUST be made by a qualified individual.

l DO NOT install ANY wiring or attempt to run the operator without

consulting the wiring diagram.

l ALL power wiring should be on a dedicated circuit and well protected.

The location of the power disconnect should be visible and clearly

labeled.

l ALL power and control wiring MUST be run in separate conduit.

The operator can be wired for either 120 Vac or a solar panel (not provided). Follow the directions according to your application. The battery is

charged in the circuit by the integrated transformer. The operator requires one 7AH battery (provided) or one 33AH battery. The 33AH application

requires the 33AH wire harness (Model K94-37236).

For dual gate applications, power will have to be connected to each operator. Main power supply and control wiring MUST be run in separate

conduits.

All control wiring used to connect external devices to Class 2 circuits of the operator must be (QPTZ) Power-Limited Circuit Cables, Type CL2, CL2P,

CL2R, or CL2X or other cable with equivalent or better electrical, mechanical, and flammability ratings.

SOLAR APPLICATIONS: For solar applications refer to Solar Panels section in the Appendix. Follow the directions according to your application.

MAXIMUM WIRE LENGTH

AMERICAN WIRE GAUGE

(AWG)

DIRECT PLUG-IN TRANSFORMER (120 VAC) EXTERNAL PLUG-IN TRANSFORMER (24 VAC)

150 feet (46 m)

250 feet (76 m)

1150 feet (351 m) 400 feet (122 m)

1850 feet (564 m) 600 feet (183 m)

2950 feet (899 m) 1,000 feet (305 m)

NOTE: Use copper conductors ONLY.

INSTALLATION

Power wiring

1. Turn off the AC power from the main power source circuit breaker.

2. Run the AC power wires to the operator.

3. Unplug the transformer.

4. Remove the junction box cover.

5. Run the AC power wires through the knockout in the bottom of the

electrical box.

6. Connect the green wire to the earth ground rod and AC ground

using a wire nut. NOTE: The earth ground rod can be grounded to

the chassis.

7. Connect the white wire to NEUTRAL using a wire nut.

8. Connect the black wire to HOT using a wire nut.

9. Replace the junction box cover. Ensure the wires are not pinched.

10. Plug in the transformer.

11. Turn ON AC power to the operator.

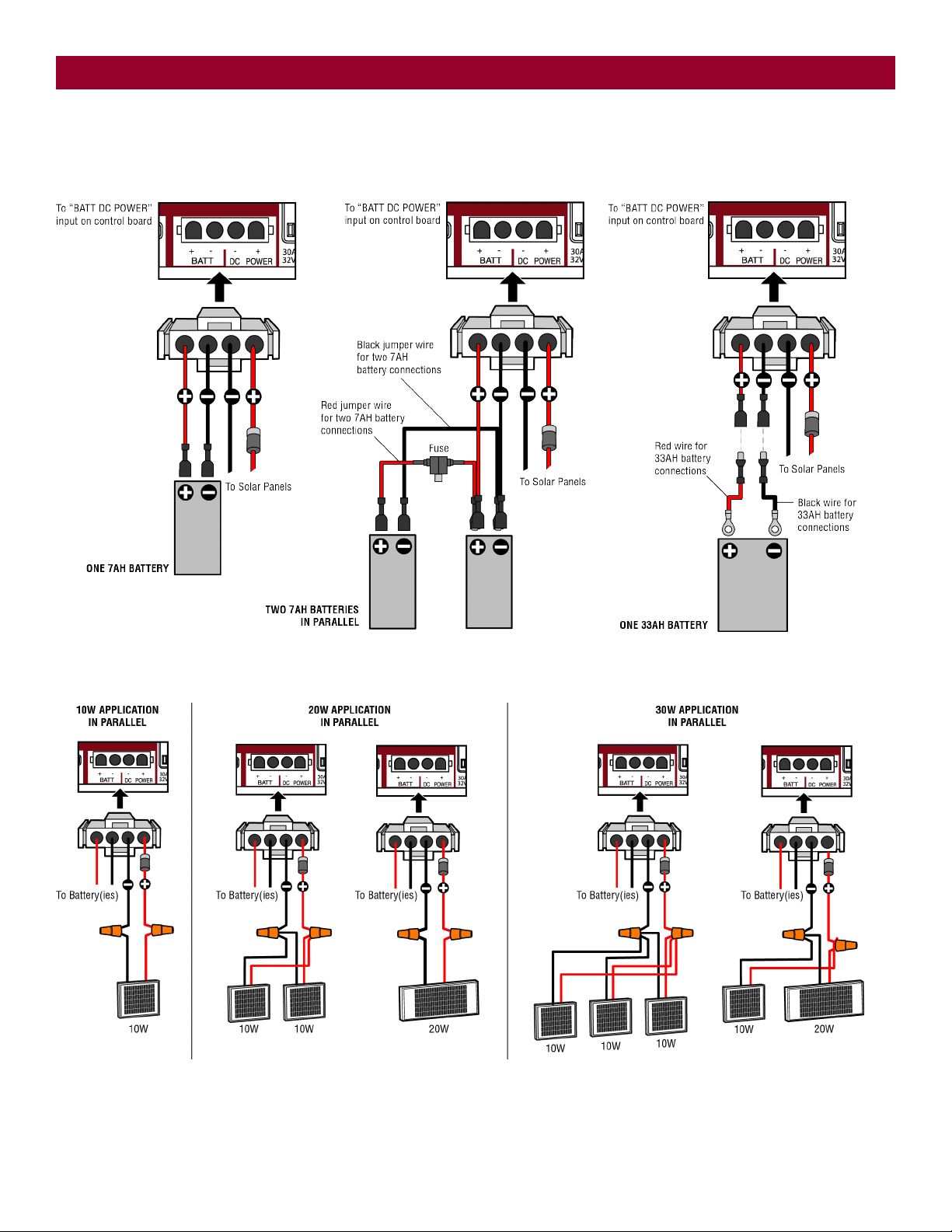

33AH battery

To use a 33AH battery in place of the 7AH battery, follow the

instructions below. The 33AH application requires the 33AH wire

harness (Model K94-37236).

1. Unplug the transformer.

2. Unplug the J15 plug labeled BATT on the control board by

squeezing the plug and pulling it from the control board. This

disconnects the ac/dc power to the control board. Discard this J15

plug and harness.

3. Connect one end of the red (+) wire from the new 33AH wire

harness kit to the red wire from the new J15 plug as shown. Connect

the other end of the red (+) wire to the positive (+) terminal on the

battery as shown.

4. Connect one end of the black (-) wire from the new 33AH wire

harness kit to the black wire from the new J15 plug as shown.

Connect the other end of the black (-) wire to the negative (-)

terminal on the battery as shown.

Reconnect the new J15 plug to the control board. NOTE: You may

see a small spark when plugging the J15 plug into the board.

6. Plug in the transformer.

INSTALLATION

Step 9 Dual Gate Setup

There are two options for dual gate communication: wired or wireless. Follow the directions according to your application. Do not use wired and

wireless communication simultaneously. Wired dual gate applications will have a longer battery standby time than wireless applications.

Wireless setup

To activate the wireless feature:

Choose an operator to be the network primary operator. All wireless accessories will need to be programmed to the primary operator. NOTE: We

recommend that all accessories and board configurations are set on the primary operator.

Press and release the LEARN button on the primary operator. The green XMITTER LED will light. NOTE: The operator will time out of programming

mode after 180 seconds.

3. Press and release the LEARN button again on the primary operator. The yellow NETWORK LED will light.

4. Press and release the OPEN test button to assign this operator as network primary.

5. Press and release the LEARN button on the second operator. The green XMITTER LED will light.

6. Press and release the LEARN button again on the second operator. The yellow NETWORK LED will light.

7. Press and release the CLOSE test button to assign this operator as network second.

Both operators will beep and the yellow NETWORK LEDs will turn off indicating programming is successful.

To deactivate the wireless feature:

1. Press and release the LEARN button on either operator. The green XMITTER LED will light.

2. Press and release the LEARN button again on the same operator. The yellow NETWORK LED will light.

3. Press and hold the LEARN button for 5 seconds. The yellow NETWORK LED will blink (operator will beep) then turn off indicating successful

deactivation.

4. Repeat the steps for the other operator.

INSTALLATION

Wired setup

Before digging, contact local underground utility locating companies. Use

PVC conduit to prevent damage to cables.

1. Disconnect ALL power to the operator and unplug the J15 plug from

the control board.

2. Trench across driveway to bury the shielded twisted pair cable.

3. Connect the wires from the shielded twisted pair cable to the Com Link

terminals on the primary gate operator control board. NOTE: We

recommend that all accessories and board configurations are set on

the primary operator.

4. Route the shielded twisted pair cable to the secondary gate operator's

control board.

5. Connect the wires from the shielded twisted pair cable to the Com Link

terminals on the secondary control board (Com Link A to Com Link A

and Com Link B to Com Link B). Ground the shield of the cable to the

chassis ground of one operator.

6. Connect ALL power to the operator and plug the J15 plug into the

control board.

DUAL GATE WIRE TYPE (SHIELDED TWISTED PAIR CABLE)

22AWG up to 200feet (61m) 18AWG - 200-1000feet (61-305m)

Wire must be rated at 30 Volt minimum

Bipart delay/synchronized close

The LOCK/BIPART DELAY switch is used only with dual gate

applications and serves two functions:

BIPART DELAY

SWING GATE APPLICATIONS: The BIPART DELAY is used in

applications where a mag-lock, solenoid lock, or decorative overlay

would require one gate to close before the other. The operator with

the LOCK/BIPART DELAY switch ON will delay from the close limit

when opening and be the first to close from the open limit.

SLIDE GATE APPLICATIONS: Not applicable, set to OFF.

SYNCHRONIZED CLOSE

The BIPART DELAY is also used in applications where one gate

travels a longer distance than the other. To synchronize the closing of

the gates, set the LOCK/BIPART DELAY switch to ON for both

operators.

INSTALLATION

Step 10 Install the cover

Before installing the cover, follow the instructions in the Adjustment

section to adjust the limits and force.

The operator cover consists of two pieces: a rear cover and a front cover.

The front cover can easily be removed to access the electrical box. To

access the reset switch slide the access door up. The front cover and

access door can be locked with the key.

1. Remove the operator arm from the output shaft by releasing the

handle.

2. Align the tabs on the rear cover with the slots on the chassis and

place the cover over the operator.

3. Secure both sides of the rear cover to the chassis with two 5/16-18

lead in screws.

4. Reattach the operator arm to the output shaft (making sure the pin

fits into the slot) and secure by pushing the handle down.

5. Place the operator arm cover over the operator arm and secure.

6. Align the front cover with the back cover, making sure the grooves

line up.

7. Secure the front cover to the chassis with two 5/16-18 lead in

screws.

8. Secure the front cover to the rear cover using the 5/16-18 lead in

screw.

To Lock the Access Door

From the factory the access door for the reset switch will not be locked.

To lock the access door follow the steps below:

1. Locate the lock tab on the back of the front cover and remove the

screw securing the tab to the cover.

2. Turn the tab 180 degrees, then secure with the screw. The access

door can now be locked.

The basic installation is complete.

INSTALLATION

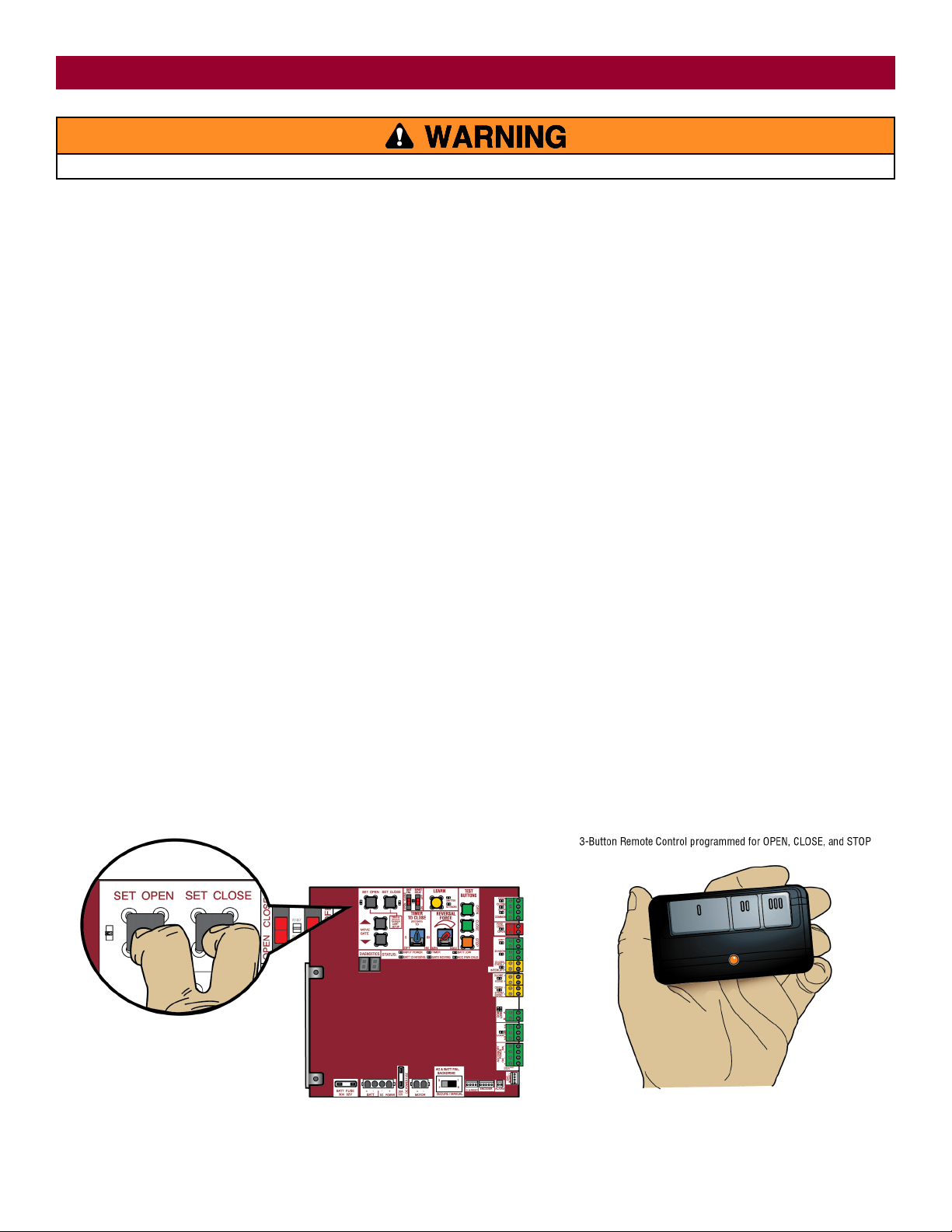

Limit and Force Adjustment

To reduce the risk of SEVERE INJURY or DEATH:

l Without a properly installed safety reversal system, persons

(particularly small children) could be SERIOUSLY INJURED or

KILLED by a moving gate.

l Too much force on gate will interfere with proper operation of safety

reversal system.

l NEVER increase force beyond minimum amount required to move

gate.

l NEVER use force adjustments to compensate for a binding or sticking

gate.

l If one control (force or travel limits) is adjusted, the other control

may also need adjustment.

l After ANY adjustments are made, the safety reversal system MUST be

tested. Gate MUST reverse on contact with an object.

Introduction

Your operator is designed with electronic controls to make travel limit

and force adjustments easy. The adjustments allow you to program

where the gate will stop in the open and close position. The electronic

controls sense the amount of force required to open and close the gate.

The force is adjusted automatically when you program the limits but

should be fine tuned using the REVERSAL FORCE dial on the control

board (refer to Fine Tune the Force section) to compensate for

environmental changes. The limit setup LEDs (located next to the SET

OPEN and SET CLOSE buttons) indicate the status of the limits, refer to

the table to the right.

The limits can be set using the control board (below) or a remote control

(refer to Limit Setup with a Remote Control in the Appendix). Setting the

limits with a remote control requires a 3-button remote control

programmed to OPEN, CLOSE, and STOP.

NOTE: The TEST buttons on the control board will not work until the

limits have been set and the required entrapment protection devices are

installed.

LIMIT SETUP LEDS

SET

OPEN

LED

SET

LED

OPERATOR

MODE

EXPLANATION

OFF OFF NORMAL MODE Limits are set

BLINKING BLINKING LIMIT SETTING

MODE

Limits are not set

BLINKING ON LIMIT SETTING

MODE

Open limit is not set

ON BLINKING LIMIT SETTING

MODE

Close limit is not set

ON ON LIMIT SETTING

MODE

Limits are set

Initial Limits and Force Adjustment

For dual gate applications the limits will have to be set for each

operator. The gate MUST be attached to the operator before setting

the limits and force.

1. Press and release the SET OPEN and SET CLOSE buttons

simultaneously to enter limit setting mode.

2. Press and hold one of the MOVE GATE buttons to move the gate to

the open or close limit.

3. Press and release the SET CLOSE or SET OPEN button depending

on which limit is being set.

4. Press and hold one of the MOVE GATE button to move the gate to

the other limit.

5. Press and release the SET CLOSE or SET OPEN button depending

on which limit is being set.

6. Cycle the gate open and close. This automatically sets the force.

When limits are set properly the operator will automatically exit limit

setting mode.

ADJUSTMENT

Fine Tune the Force

Once the initial limits have been set, the REVERSAL FORCE DIAL on the

control board is used for fine tuning the force where wind or

environmental changes may affect the gate travel. The REVERSAL FORCE

DIAL is set to minimum at the factory.

Based on the length and weight of the gate it may be necessary to make

additional force adjustments. The force setting should be high enough

that the gate will not reverse by itself nor cause nuisance interruptions,

but low enough to prevent serious injury to a person. The force setting is

the same for both the open and close gate directions.

1. Open and close the gate with the TEST BUTTONS.

2. If the gate stops or reverses before reaching the fully open or closed

position, increase the force by turning the force control slightly

clockwise.

3. Perform the “Obstruction Test” after every limit and force setting

adjustment (see below).

Adjust the Limits

After both limits are set and the operator is ready to run, one limit can be

adjusted independently from the other by following steps 1-3 of the

Initial Limit and Force Adjustment section.

Obstruction Test

The operator is equipped with an inherent (built in to the operator)

obstruction sensing device. If the gate encounters an obstruction during

motion, the operator will reverse direction of the gate and then stop. The

following procedure will test ONLY the inherent (built in to the operator)

obstruction sensing device:

1. Open and close the gate with the TEST BUTTONS, ensuring that the

gate is stopping at the proper open and close limit positions.

2. Place an object between the open gate and a rigid structure. Make

sure that any external entrapment protection devices will NOT be

activated by the object.

3. Run the gate in the close direction. The gate should stop and reverse

upon contact with the object. If the gate does not reverse off the

object, reduce the force setting by turning the force control slightly

counter-clockwise. The gate should have enough force to reach both

the open and close limits, but MUST reverse after contact with an

object.

4. Repeat the test for the open direction.

Test the operator after any adjustments are made.

ADJUSTMENT

Remote Controls (Not Provided)

A total of 50 Security+ 2.0

remote controls or KPW250 keypads and 2

keyless entries (1 PIN for each keyless entry) can be programmed to the

operator. When programming a third keyless entry to the operator, the

first keyless entry will be erased to allow the third keyless entry to be

programmed. When the operator’s memory is full it will exit the

programming mode and the remote control will not be programmed. The

memory will need to be erased before programming any additional

remote controls. NOTE: If installing an 86LM to extend the range of the

remote controls DO NOT straighten the antenna.

There are 3 different options for programming the remote control depending on how you would like the remote control to function. Choose a

programming option:

OPTION DESCRIPTION PROGRAMMING STEPS

Single button as OPEN

only

Program a single button on the remote

control for open only. The Timer-to-Close

can be set to close the gate.

1. Press and release the LEARN button (operator will beep and green

XMITTER LED will light). NOTE: The operator will time out of

programming mode after 30 seconds.

2. Press the OPEN button.

3. Press the remote control button that you would like to program.

Single button (SBC) as

OPEN, CLOSE, and STOP

Program one remote control button as an

open, close, and stop.

1. Press and release the LEARN button (operator will beep and green

XMITTER LED will light). NOTE: The operator will time out of

programming mode after 30 seconds.

2. Press the remote control button that you would like to program.

Three separate buttons as

OPEN, CLOSE, and STOP

Program each remote control button as an

open, close, and stop.

1. Press and release the LEARN button (operator will beep and green

XMITTER LED will light). NOTE: The operator will time out of

programming mode after 30 seconds.

2. Press the OPEN, CLOSE, or STOP button, depending on the desired

function.

3. Press the remote control button that you would like to program.

The operator will automatically exit learn mode (operator will beep and green XMITTER LED will go out) if programming is successful. To program

additional Security+ 2.0

remote controls or remote control buttons, repeat the programming steps above.

Entering programming mode using external reset button or 3-button control station:

1. Make sure gate/door is closed.

2. Give the operator an OPEN command.

3. Within 30 seconds, when the gate/door is at the open limit press and release the RESET/STOP button twice to put the operator into programming

mode. NOTE: The operator will time out of programming mode after 30 seconds.

NOTICE: This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device must be installed to ensure a minimum 20 cm (8 in.) distance is maintained between users/bystanders and device.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules and Industry Canada ICES standard. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

PROGRAMMING

LiftMaster Internet Gateway (not

provided)

To program the operator to the LiftMaster Internet Gateway:

Using the learn button on the opertaor's control

board

1. Connect the ethernet cable to the LiftMaster Internet Gateway and the

router.

2. Connect power to the LiftMaster Internet Gateway.

3. Create an online account by visiting www.myliftmaster.com.

4. Register the LiftMaster Internet Gateway.

5. Use an internet enabled computer or smartphone to add devices. The

LiftMaster Internet Gateway will stay in learn mode for three minutes.

6. Press the Learn button twice on the primary operator (the operator will

beep as it enters learn mode). The LiftMaster Internet Gateway will pair

to the operator if it is within range and the operator will beep if

programming is successful.

Using the reset button on the operator

1. Connect the ethernet cable to the LiftMaster Internet Gateway and the

router.

2. Connect power to the LiftMaster Internet Gateway.

3. Create an online account by visiting www.myliftmaster.com.

4. Register the LiftMaster Internet Gateway.

5. Use an internet enabled computer or smartphone to add devices. The

LiftMaster Internet Gateway will stay in learn mode for three minutes.

6. Ensure gate is closed.

7. Give the operator an OPEN command.

8. Within 30 seconds, when the gate is at the open limit press and release

the reset button 3 times (on primary gate) to put primary operator into

High Band Learn Mode (the operator will beep as it enters learn mode).

The LiftMaster Internet Gateway will pair to the operator if it is within

range and the operator will beep if programming is successful.

The status as shown by the LiftMaster Internet Gateway app will be either

“open” or “closed”. The gate operator can then be controlled through the

LiftMaster Internet Gateway app.

Erase All Codes

1. Press and release the LEARN button (operator will beep and green

XMITTER LED will light).

2. Press and hold the LEARN button again until the green XMITTER LED

flashes and then release the button (approximately 6 seconds). All

remote control codes are now erased.

Erase Limits

1. To erase the limits, press and hold the SET OPEN and SET CLOSE

buttons simultaneously (5 seconds) until both the SET OPEN and SET

CLOSE LEDs blink rapidly and the operator beeps.

2. Release the buttons and the SET OPEN and SET CLOSE LEDs will blink

slowly indicating the limits will need to be set.

Constant Pressure Override (CPO)

Constant Pressure Override is for use with KPW5 and KPW250 keypads

(not provided). The KPW5/KPW250 wireless commercial keypads are

security keypads and can only be programmed to ONE gate operator (see

the KPW5/KPW250 manual for complete programming instructions).

The Constant Pressure Override feature is intended to temporarily override a

fault in the entrapment protection system, in order to operate the gate until

the external entrapment protection device is realigned or repaired. Use the

feature only in line of sight of the gate when no obstructions to travel are

present. External entrapment protection devices include LiftMaster

monitored photoelectric sensors and LiftMaster monitored wired and

wireless edge sensors. Be sure to repair or replace these devices promptly if

they are not working properly.

To use Constant Pressure Override:

1. Enter a valid 4-digit PIN.

2. Press and hold # for 5 seconds to enter CPO. Continue to hold # to

keep the operator in motion. A continuous tone will sound until limit is

met and/or # is released.

3. The operator will stop when either the operator reaches a limit or the

user releases #.

Gate Hold Open Feature

The gate hold open feature will disable the timer and keep the gate at the

open limit. The gate hold open feature can be activated through the Reset

Button as described on page 26 or through the KPW5 and KPW250

keypads (not provided).

To use the gate hold open feature:

1. Enter a valid 4-digit PIN when the gate is at the Open Limit and the

timer is running

2. The Operator will chirp indicating the timer is canceled.

To restart the gate:

1. Re-enter the 4-digit PIN

2. Activate a Hard input or a programmed remote

To Remove and Erase Monitored

Entrapment Protection Devices

1. Remove the entrapment protection device wires from the terminal

block.

2. Press and release the SET OPEN and SET CLOSE buttons

simultaneously. The SET OPEN and SET CLOSE LEDs will turn on

(entering learn limit mode).

3. Press and release both SET OPEN and SET CLOSE buttons again to

turn off the SET OPEN and SET CLOSE LEDs (exiting learn limit

mode).

PROGRAMMING

Control Board Overview

1 SET OPEN Button: The SET OPEN button sets the OPEN limit. See Adjust Limits section.

2 SET CLOSE Button: The SET CLOSE button sets the CLOSE limit. See Adjust Limits section.

3 MOVE GATE Buttons: The MOVE GATE buttons will either open or close the gate when the operator is in Limit setting mode. See Adjust Limits section.

4 BATT FAIL:

l When AC power is OFF and battery voltage is critically low the gate will latch at a limit until AC power is restored or batteries voltage increases.

l Option select switch set to OPEN forces gate to automatically open and then latch at the OPEN limit until AC power is restored or battery voltage

increases.

l Option select switch set to CLOSE forces gate to latch at CLOSE limit if at CLOSE limit or on next CLOSE command until AC power restored or battery

voltage increases.

l Constant pressure on a hard command input overrides to open or close the gate.

l Critically low battery is less than 11.5 V

5 BIPART DELAY Switch: The LOCK/BIPART DELAY switch is used only for dual gates. See Bipart Delay section.

6 LEARN Button: The LEARN button is for programming remote controls and the network.

7 TIMER-TO-CLOSE dial: The TIMER-TO-CLOSE (TTC) dial can be set to automatically close the gate after a specified time period. The TTC is factory set to

OFF. If the TTC is set to the OFF position, then the gate will remain open until the operator receives another command from a control. Rotate the TIMER-TO-

CLOSE dial to the desired setting. The range is 0 to 180 seconds, 0 seconds is OFF. NOTE: Any radio command, single button control, or CLOSE command

on the control board prior to the TTC expiring will close the gate. The TTC is reset by any signals from the open controls, loops, close edges, and close

photoelectric sensors (IR’s).

8 REVERSAL FORCE dial: The REVERSAL FORCE dial fine tunes the force. See Force Adjustment section.

9 TEST BUTTONS: The TEST BUTTONS will operate the gate (OPEN, STOP and CLOSE).

10 STATUS LEDs: The STATUS LEDs indicate the status of the operator. See Status LED Chart in the Troubleshooting section.

11 DIAGNOSTICS Display: The diagnostics display will show the operator type, firmware version, and codes. The operator type will display as "SG"

followed by a "12" which indicates the operator type as RSW12UL. The firmware version will show after the operator type, example "1.2".

12 BACKDRIVE Switch: Set to MANUAL will allow the gate to be manually pushed open or closed if there is a loss of AC and battery power. Set to

SECURE makes the gate difficult to push open or closed if there is a loss of AC and battery power.

OPERATION

Manual Disconnect

Press the reset switch to RESET/DISCONNECT. Release the handle on the

operator arm to allow the gate to be opened and closed manually. On a

dual gate application the handle must be released on both operators. To

resume normal function tighten the handle by pushing it down.

Reset Switch

The reset switch is located on the front of the operator and serves several

functions.

Toggling the reset switch will stop a moving gate during a normal open/

close cycle, like a stop button. The operator does not need to be reset

after doing this. The reset switch will disable the gate in the present

position and will energize the solenoid lock for two minutes and disable

the maglock for two minutes.

Operator Alarm

If a contact sensor detects an obstruction twice consecutively the alarm

will sound (up to 5 minutes) and the operator will need to be reset.

When the inherent force of the operator (RPM/current sensor) detects the

following (twice consecutively) the alarm will sound (up to 5 minutes)

and the operator will need to be reset.

A. The operator arm or gate is incorrectly installed.

B. The gate does not meet specifications.

C. Gate hinges are too tight or broken and the gate is not moving freely.

D. The gate is moving and a car pushes the gate.

E. A foreign object is on the gate frame while the gate is moving.

F. The gate hits the driveway or curb and gets stuck or bent in an

awkward position.

Remove any obstructions. Press the reset button to shut off the alarm and

reset the operator. After the operator is reset, normal functions will

resume.

The operator alarm will beep 3 times with a command if the battery is

low.

Remote control

Single Button Control (SBC) Functionality

Once the remote control has been programmed the operator will operate as follows:

When gate is in the closed position, activation of the remote control button will open the gate. During the open cycle another activation of the remote

control will stop the gate and the next activation of the remote control will close the gate.

When the gate is in the open position, activation of the remote control button will close the gate. If the remote control is activated while the gate is closing,

the gate will stop and the next activation will open the gate.

OPERATION

All control wiring used to connect external devices to Class 2 circuits of the operator must be (QPTZ) Power-Limited Circuit Cables, Type CL2, CL2P,

CL2R, or CL2X or other cable with equivalent or better electrical, mechanical, and flammability ratings.

External control devices

EXIT (2 Terminals)

This input is a soft open command (maintained switch does not override

external safeties and does not reset alarm condition). Used for exit probe,

telephone entry, external exit loop detector, or any device that would

command the gate to open.

l Opens a closing gate and holds open an open gate, if maintained,

pauses Timer-to-Close at OPEN limit.

SHADOW (2 Terminals)

This input is used for external shadow loop detector when loop is

positioned under the swing of the gate.

l Holds open gate at open limit

l Only active when the gate is at the OPEN limit, disregarded at all

other times

l Pauses Timer-to-Close at OPEN limit

INTERRUPT (2 Terminals)

This input is used for photoelectric sensors and external interrupt loop

detector when loop is on the outside of the gate.

l Holds open gate at open limit

l Stops and reverses a closing gate to open limit

l Pauses Timer-to-Close at OPEN limit, activates quick close and anti-

tailgate features when enabled on the expansion board

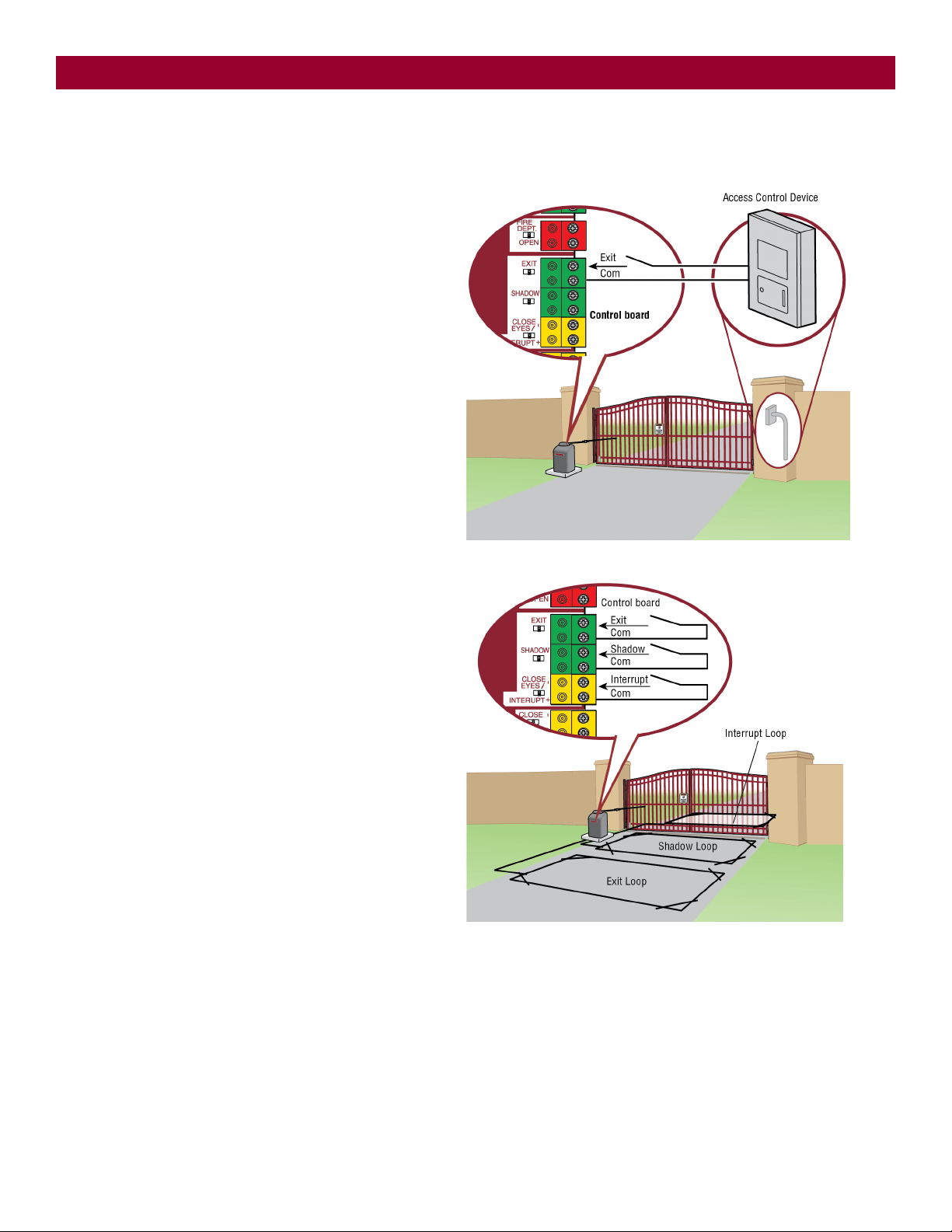

Access control device wiring

Loop wiring

ACCESSORY WIRING

Locks

Maglock (2 Terminals, N.C. and COM)

Relay contact output, Normally - closed (N.C.) output for maglocks.

Relay activates prior to motor activation and during motor run. Relay is

off when motor is off.

Miscellaneous wiring

Three button control station (4 Terminals)

l OPEN and COM: Opens a closed gate. Hard open (maintained switch

overrides external safeties and resets alarm condition). If maintained, pauses

Timer-to-Close at OPEN limit. Opens a closing gate and holds open an open

gate (within line-of-sight).

l CLOSE and COM: Closes an open gate. Hard close (maintained switch

overrides external safeties and resets alarm condition within line-of-sight)

l STOP and COM: Stops a moving gate. Hard stop (maintained switch

overrides Open and Close commands and resets alarm condition). If

maintained, pauses Timer-to-Close at OPEN limit. Overrides Open and Close

commands (within line-of-sight).

Fire department input (2 Terminals)

Acts as hard open.

Maintained input overrides (ignores) external safeties (photoelectric sensor and

edge), pauses Timer-to-Close momentary input logic as single button control

and safeties remain active, re-enables Timer-to-Close.

Accessory power 12 VDC, max 500 mA (4 Terminals)

l SWITCHED: Switched ON with gate motion and at the open limit when

Timer-to-Close is active. Turns off 5 seconds after motion.

l UNSWITCHED: 12 Vdc voltage out to power accessories, always ON.

ACCESSORY WIRING

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

l READ AND FOLLOW ALL INSTRUCTIONS.

l ANY maintenance to the operator or in the area near the operator

MUST NOT be performed until disconnecting the electrical power

(AC or solar and battery) and locking-out the power via the operator

power switch. Upon completion of maintenance the area MUST be

cleared and secured, at that time the unit may be returned to service.

l Disconnect power at the fuse box BEFORE proceeding. Operator

MUST be properly grounded and connected in accordance with

national and local electrical codes. NOTE: The operator should be on

a separate fused line of adequate capacity.

l NEVER let children operate or play with gate controls. Keep the

remote control away from children.

l ALWAYS keep people and objects away from the gate. NO ONE

SHOULD CROSS THE PATH OF THE MOVING GATE.

l The entrance is for vehicles ONLY. Pedestrians MUST use separate

entrance.

l Test the gate operator monthly. The gate MUST reverse on contact

with an object or reverse when an object activates the noncontact

sensors. After adjusting the force or the limit of travel, retest the gate

operator. Failure to adjust and retest the gate operator properly can

increase the risk of INJURY or DEATH.

l Use the manual disconnect release ONLY when the gate is NOT

moving.

l KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual.

Have a qualified service person make repairs to gate hardware.

l ALL maintenance MUST be performed by a LiftMaster professional.

l Activate gate ONLY when it can be seen clearly, is properly adjusted

and there are no obstructions to gate travel.

l To reduce the risk of FIRE or INJURY to persons use ONLY LiftMaster

part 29-NP712 for replacement batteries.

l SAVE THESE INSTRUCTIONS.

l ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

Maintenance Chart

Disconnect all power (AC, solar, battery) to the operator before servicing. The operator's AC Power switch ONLY turns off AC power to the control

board and DOES NOT turn off battery power. ALWAYS disconnect the batteries to service the operator.

DESCRIPTION TASK CHECK AT LEAST ONCE EVERY

MONTH 6 MONTHS 3 YEARS

Entrapment Protection Devices

Check and test inherent (built into the operator) and external devices for

proper operation

Warning Signs

Make sure they are present and replace if worn or broken, see Accessories

Manual Disconnect Check and test for proper operation X

Sprockets and Chains Check for excessive slack and lubricate X

Gate Inspect for wear or damage; ensure it still complies with ASTM F2200, see

page 5

Accessories Check all for proper operation X

Electrical Inspect all wire connections X

Chassis Mounting Bolts Check for tightness X

Operator Inspect for wear or damage X

Batteries Replace

NOTES:

l Severe or high cycle usage will require more frequent maintenance checks.

l It is suggested that while at the site voltage readings be taken at the operator. Using a digital voltmeter, verify that the incoming voltage to the operator

is within ten percent of the operator’s rating.

MAINTENANCE

Batteries

Batteries will degrade over time depending on temperature and usage. The operator alarm will beep 3 times with a command if the battery is low. Batteries

do not perform well in extremely cold temperatures. For best performance, the batteries should be replaced every 3 years. Use only LiftMaster part

29-NP712 for replacement batteries. The batteries contain lead and need to be disposed of properly.

The operator comes with one 7AH battery. One 33AH Battery (A12330SGLPK), 33AH Battery Harness (K94-37236) with additional battery tray (K10-

36183) may be used in place of the 7AH battery.

MAINTENANCE

To protect against fire and electrocution:

l DISCONNECT power (AC or solar and battery) BEFORE installing or

servicing operator.

For continued protection against fire:

l Replace ONLY with fuse of same type and rating.

Diagnostic Codes

NOTE: When cycling or disconnecting power (ac/dc) to the control board, it is recommended that you unplug the J15 plug.

To View the Codes

The codes will show on the diagnostic display.

The operator will show the code sequence number followed by the code

number:

To Scroll Through the Saved Codes

The operator will only keep track of up to 20 codes, then will start saving

over the oldest codes as new codes occur.

To Exit

Press and release the STOP button to exit. The display will also time out

after two minutes of inactivity.

To Reset the Code History

1. Press and hold the STOP button for six seconds. The display will

show "Er" then "CL" alternately for six seconds.

2. Release the STOP button. The code history has now been reset and the

display will show "- -" until a new code occurs.

3. Press and release the STOP button to exit.

TROUBLESHOOTING

Diagnostic Codes Table

Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear.

LiftMaster System Installed System Informational

External Entrapment

Protection

Inherent Entrapment

Protection

Code Meaning Solution Saved

Main control board has experienced an internal

failure.

Disconnect all power, wait 15 seconds, then reconnect power (reboot). If

issue continues, replace main control board.

Absolute Position Encoder Error, not getting

position information from encoder

Check APE assembly and wiring connections. Replace the APE assembly

if necessary.

YES

Max-Run-Time Exceeded Error Check for an obstruction, then reprogram the limits. YES

Product ID Error Was the control board just replaced? If so, erase limits, enter limit setup

mode and set limits. If not, disconnect all power, wait 15 seconds, then

reconnect power before changing product ID harness.

YES

Product ID Failure Unplug product ID harness then plug back in. Disconnect all power, wait

15 seconds, then reconnect power before replacing product ID harness.

YES

Hard Stop Limit (Arm 1) Limit may be set too tightly against a non-resilient hard stop (re-adjust

limit). Operator may be at end of travel (re-adjust mounting).

Battery overvoltage Too much voltage on the battery. Check harness. Make sure there is NOT a

24V battery on a 12V system.

YES

Battery overcurrent Possible short of the battery charge harness. Check harness. Make sure

you do NOT have a 12V battery on a 24V system.

YES

No battery at boot up Check battery connections and installation. Replace batteries if depleted to

less than 20V on a 24V system or less than 10V on a 12V system. Make

sure there is NOT a single 12V battery on a 24V system.

YES

Exit Loop Error Failure or missing loop (SHORT or OPEN - LiftMaster Plug-in Loop

Detector only) Check loop wiring throughout connection. May be a short

in the loop, or an open connection in the loop.

YES

Shadow Loop Error

Interrupt Loop Error

Wireless edge battery low Replace batteries in wireless edge. YES

Run-Distance Error The limits are less than the minimum requirement or longer than what

was learned. Check limit positions and proper switch function. Run-

distance can be re-learned by setting the handing again.

YES

Brownout occurred

AC/DC board supply dipped below allowable level. Review power supply

and wiring. If rebooting, ensure enough time for discharge of power to

force a fresh boot.

YES

Wireless Second Operator Communication Error

Check the second operator for power. If OFF, restore power and try to run

the system. If powered, deactivate the wireless feature and then re-learn

the second operator.

YES

Minimum number of monitored entrapment

protection devices not installed.

Review monitored entrapment protection device connections. This swing

gate operator will operate only after installation of a minimum of one

external safety device in either the open or close direction.

CLOSE EYE/INTERRUPT held more than 3 minutes

Check wired input on main control board; check for alignment or

obstruction.

YES

CLOSE EDGE held more than 3 minutes

OPEN EYE/EDGE held more than 3 minutes

CLOSE EYE/INTERRUPT held more than 3 minutes

Check wired input on expansion board; check for alignment or

obstruction.

YES

CLOSE EYE/EDGE held more than 3 minutes

OPEN EYE/EDGE held more than 3 minutes

Wireless edge triggered more than 3 minutes Check wired input for wiring issue or obstruction. YES

Wireless edge loss of monitoring Check wireless edge inputs. YES

TROUBLESHOOTING

Code Meaning Solution Saved

Wireless edge triggered

IF an obstruction occurred, no action required. If an obstruction did NOT

occur, check inputs and wiring.

CLOSE EYE/INTERRUPT triggered, causing

reversal, preventing close, or resetting TTC

IF an obstruction occurred, no action required. If an obstruction did NOT

occur, check alignment, inputs, and wiring on main control board

CLOSE EDGE triggered, causing reversal, NO

preventing close, or canceling TTC

OPEN EYE/EDGE triggered, causing reversal or

preventing opening

CLOSE EYE/INTERRUPT triggered, causing

reversal, preventing close, or resetting TTC

IF an obstruction occurred, no action required. If an obstruction did NOT

occur, check alignment, inputs, and wiring on expansion board.

CLOSE EYE/EDGE triggered, causing reversal and

preventing close or canceling TTC

OPEN EYE/EDGE triggered, causing reversal or

preventing opening

Close input (EYE/EDGE) communication fault from

other operator

Check inputs and communication method between operators, either wired

bus or radio. Ensure operator is powered. May have to erase the wireless

communication and reprogram the two operators.

YES

Open input (EYE/EDGE) communication fault from

other operator

Close input (EYE/EDGE) communication fault

(expansion board)

Check the connections between the main board and the expansion board. YES

Open input (EYE/EDGE) communication fault

(expansion board)

Non-monitored device detected on the wireless

safety system

Non-monitored contact closure devices are not supported. Make sure

connected devices are monitored. Check edges for proper orientation and

resistive end cap connection.

YES

Force Reversal (Operator 1)

Check for obstruction. If no obstruction, check that the mechanical

assembly is engaged and free to move. See section on Limit and Force

Adjustment, and Obstruction Test.

YES

RPM / STALL Reversal (Operator 1)

Check for obstruction. If no obstruction, check the operator wiring and

that the mechanical assembly is engaged and free to move. Replace APE

assembly.

YES

99 Normal Operation No action required YES

TROUBLESHOOTING

Control Board LEDs

STATUS LEDS

INPUT

POWER

OFF OFF state

ON AC charger or Solar power

available

BATT

CHARGING

OFF Not charging

ON Three stage battery charging

TIMER

OFF The timer is disabled

ON The timer is enabled

MEDIUM BLINK (1

blink per second)

The timer is running

FAST BLINK (2

blinks per second)

The timer is paused

FASTEST BLINK (8

blinks per second)

The timer is canceled

GATE

MOVING

OFF The gate is stopped

ON The gate is opening or closing

MEDIUM BLINK (1

blink per second)

Operator is in E1 (single

entrapment)

FASTEST BLINK (8

blinks per second)

The operator is in E2 (double

entrapment)

BATT LOW

OFF No battery error

ON Battery low

MEDIUM BLINK (1

blink per second)

Battery critically low

ACC PWR

OVLD

OFF Accessory power is okay

ON Accessory overload protector

opened

INPUT LEDS

OPEN, CLOSE,

STOP INPUT

OFF Input inactive

ON Input active
