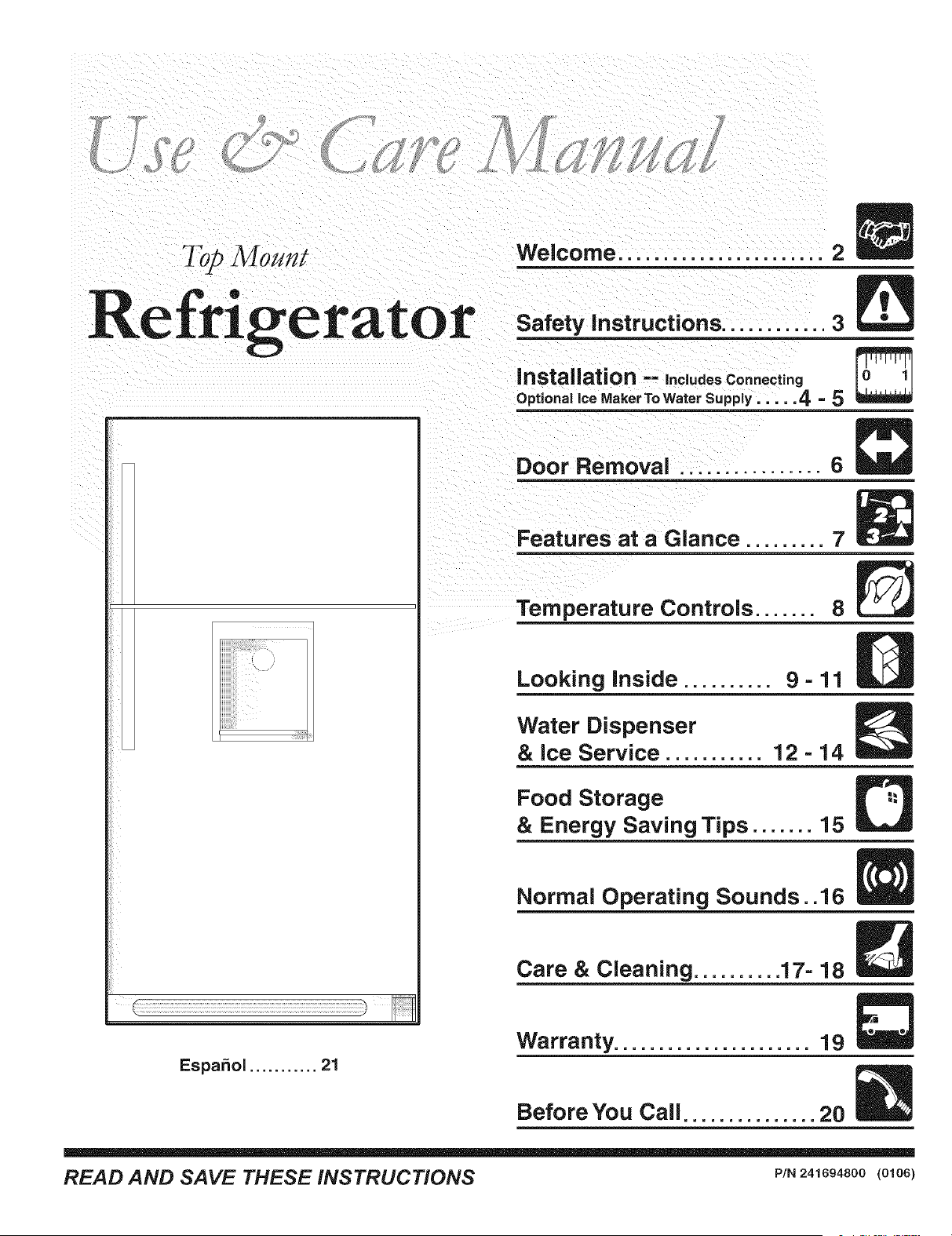

Tog Mount
Refrigerator
i!171
Espafiol ........... 21
Welcome ....................... 2
Safety instructions ............ 3
nsta_lation -= includes Connecting
Optional Ice MakerToWater Supply ..... 4 = 5
Door Removal ................ 6

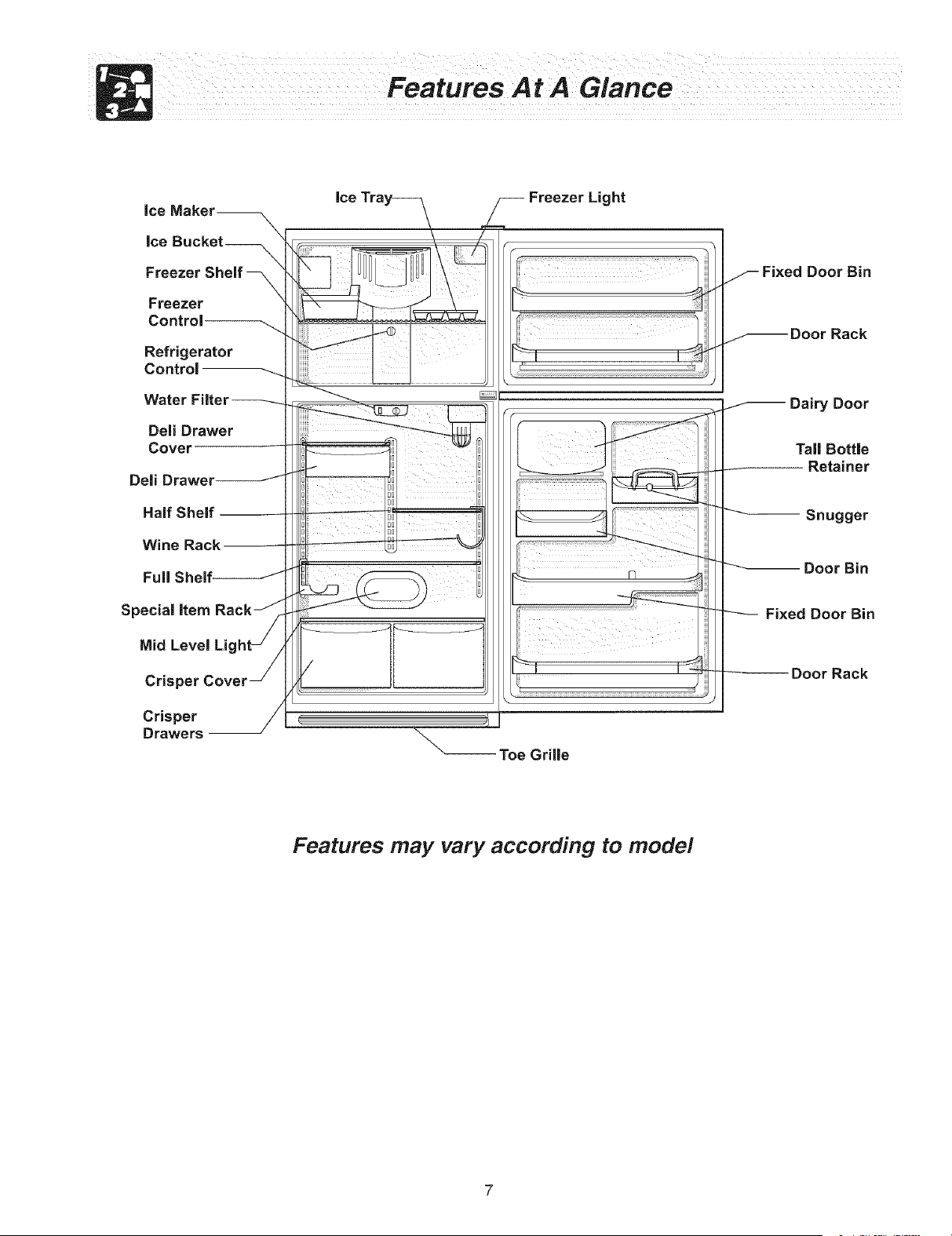

Features at a Glance ......... 7

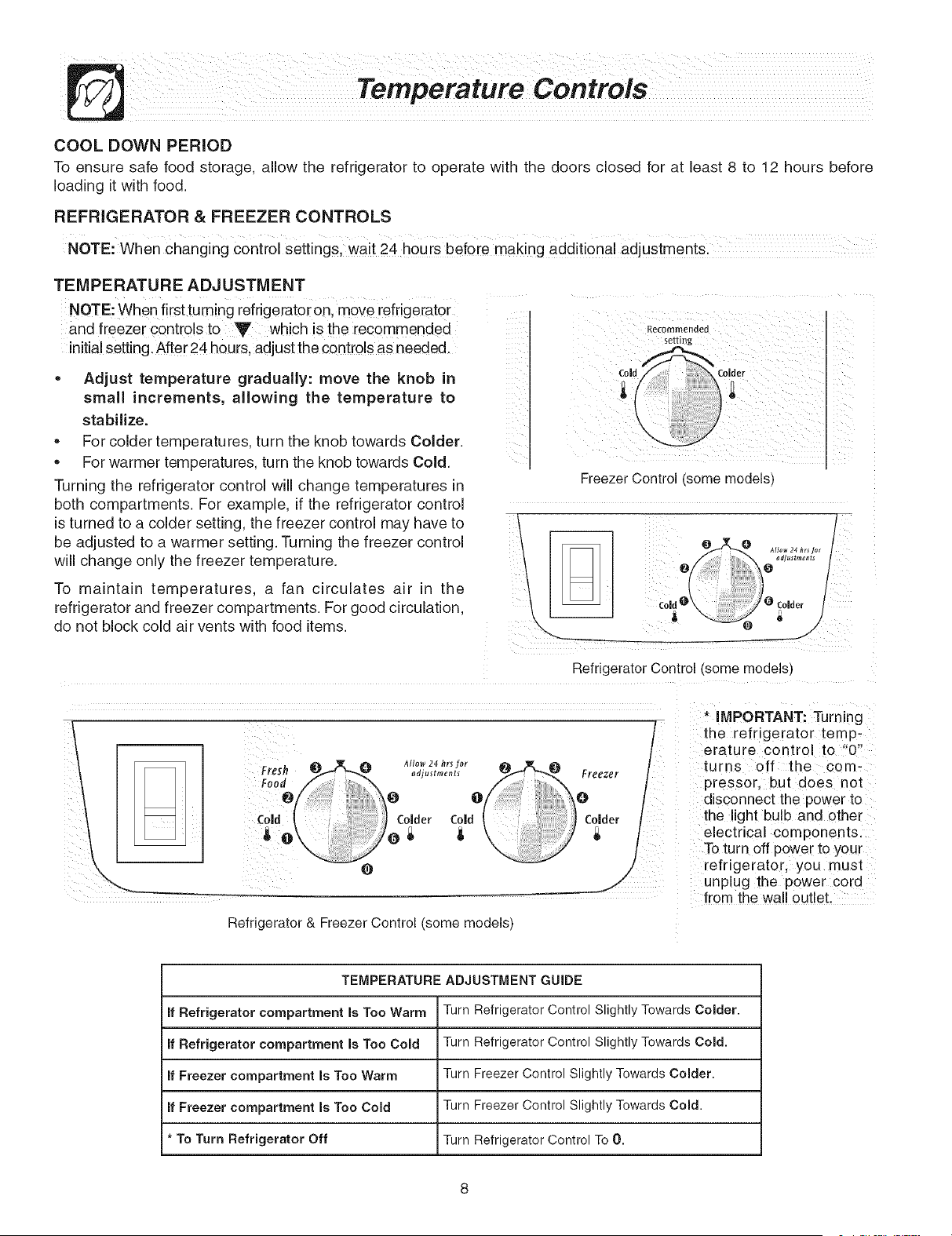

Temperature Controls ....... 8

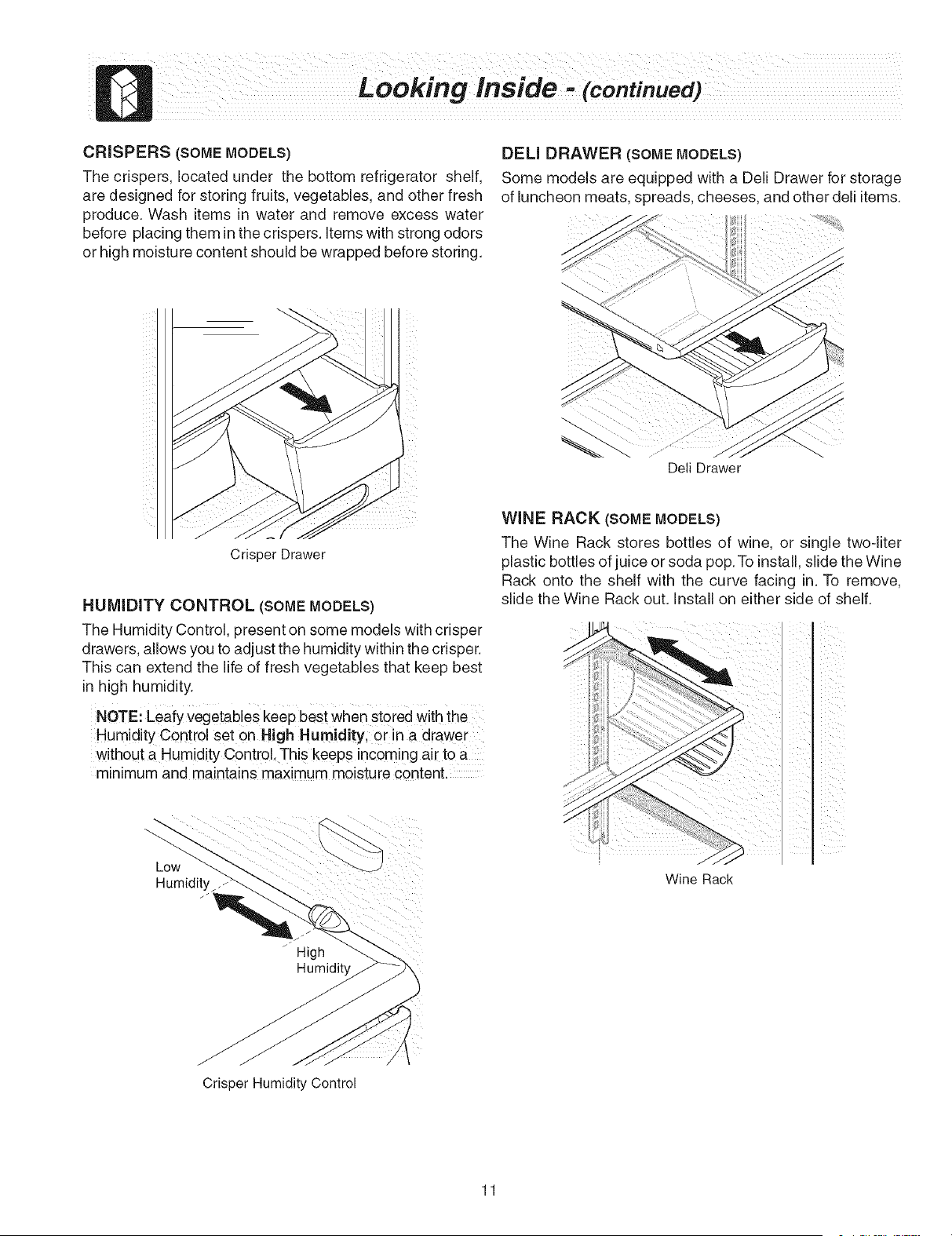

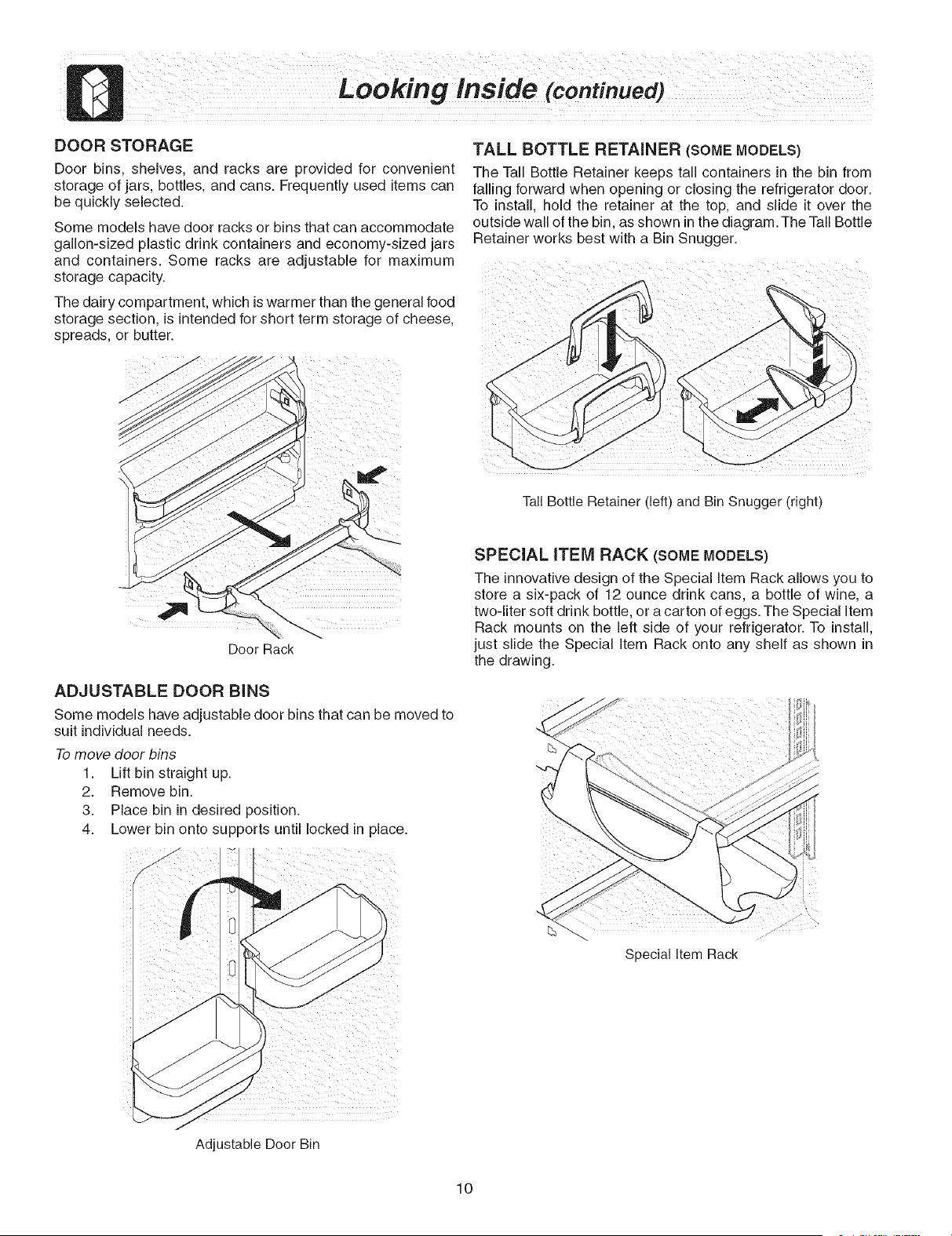

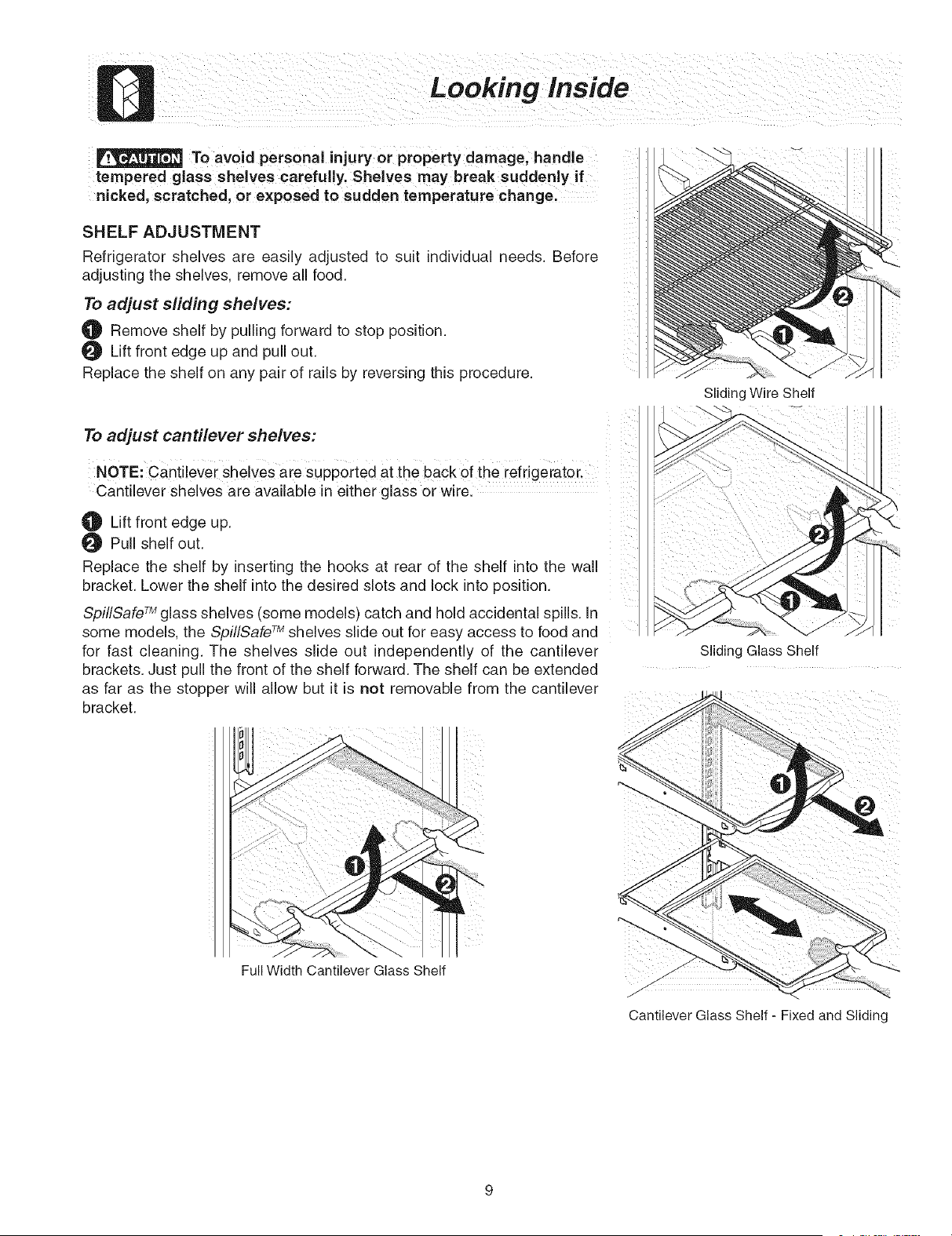

Looking inside .......... 9 - 11

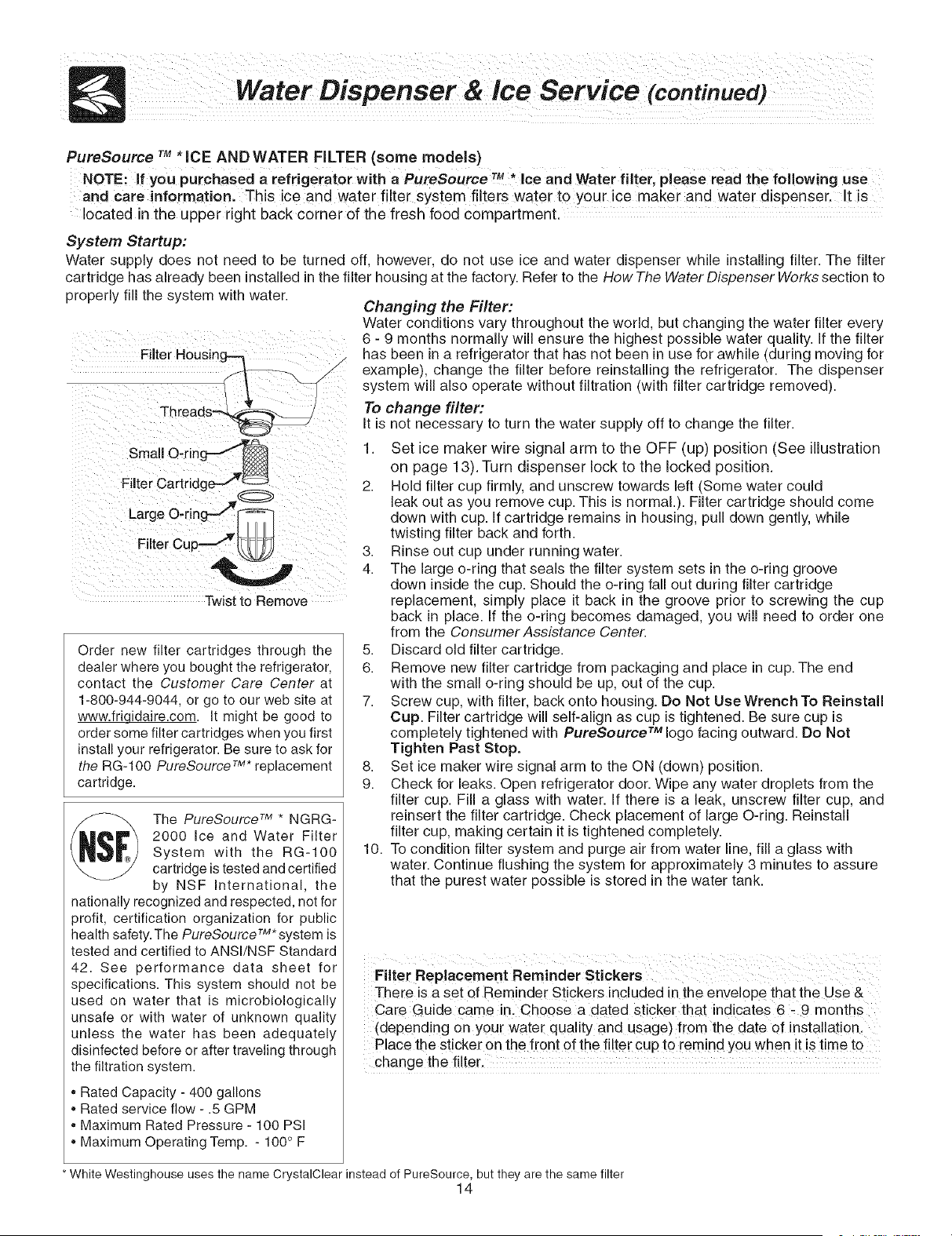

Water Dispenser
& ice Service ........... 12 - 14

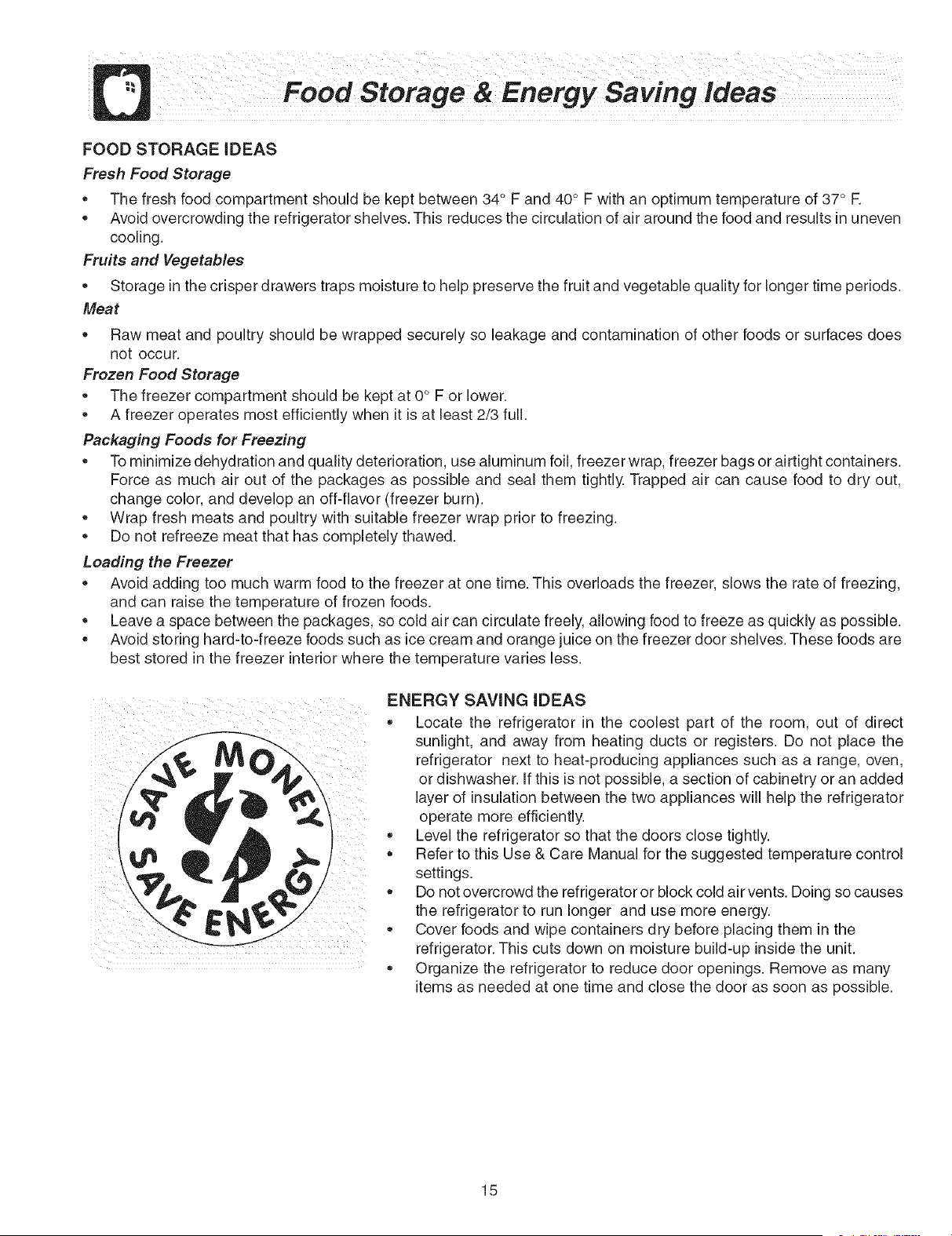

Food Storage
& Energy Saving Tips ....... 15

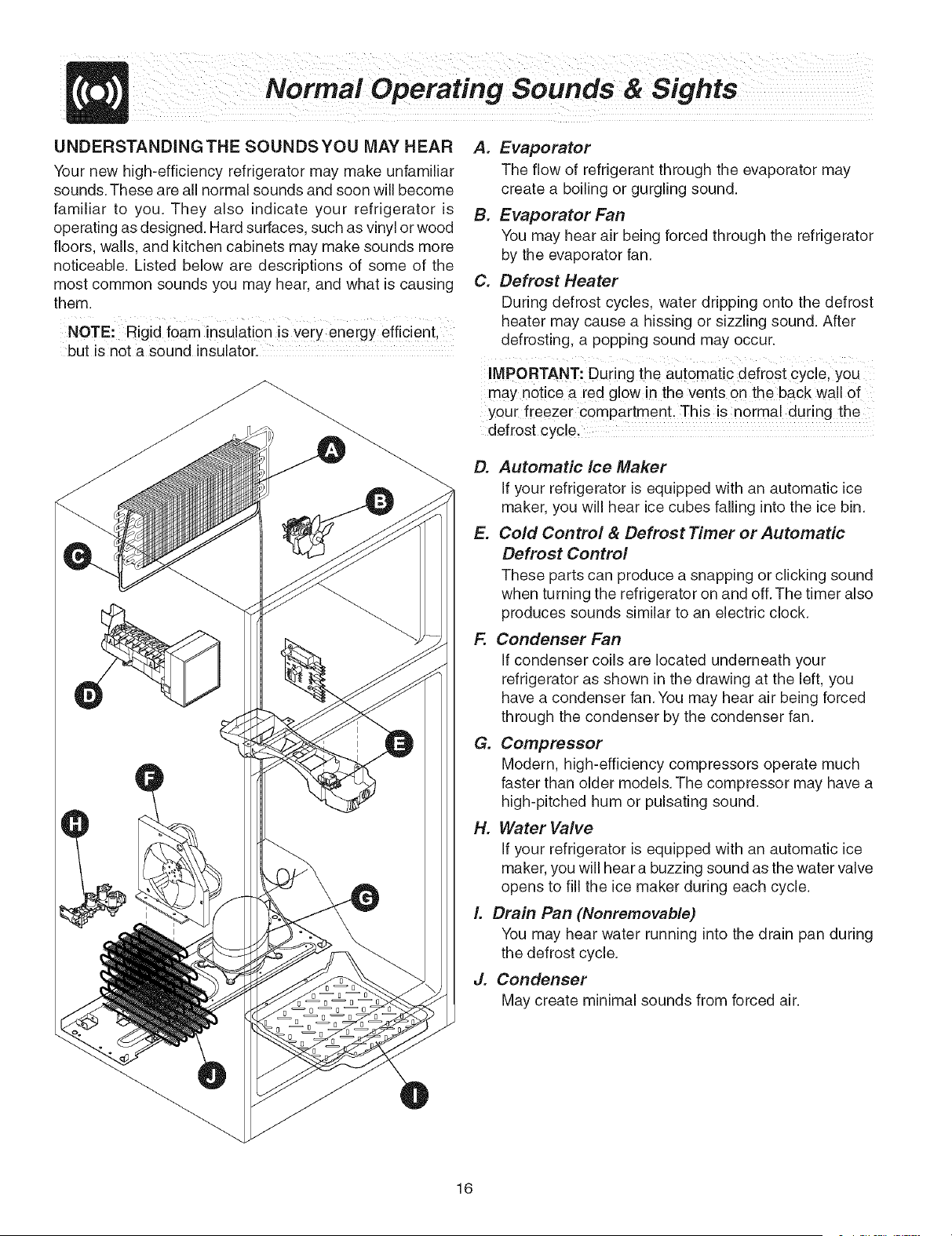

Normal Operating Sounds..16

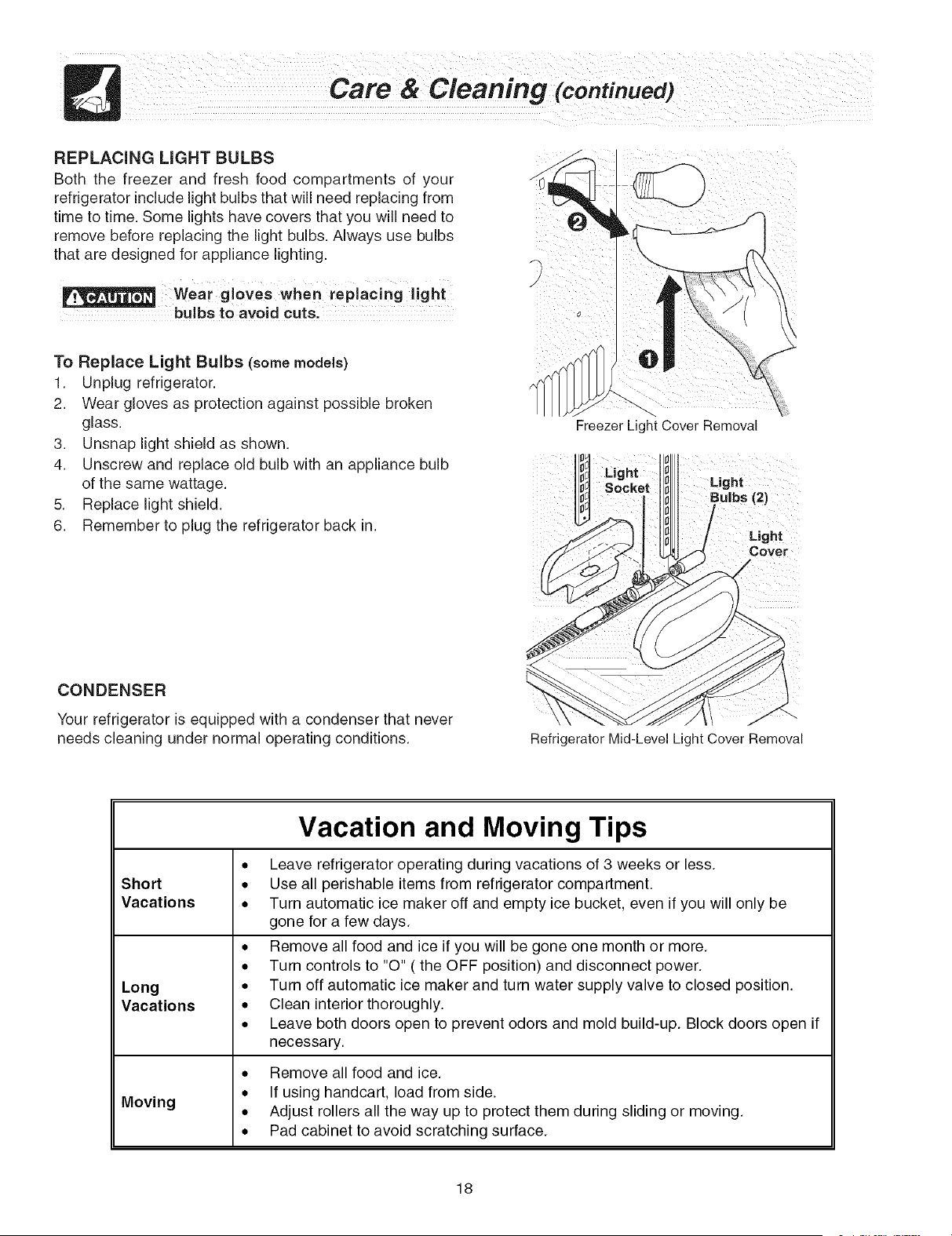

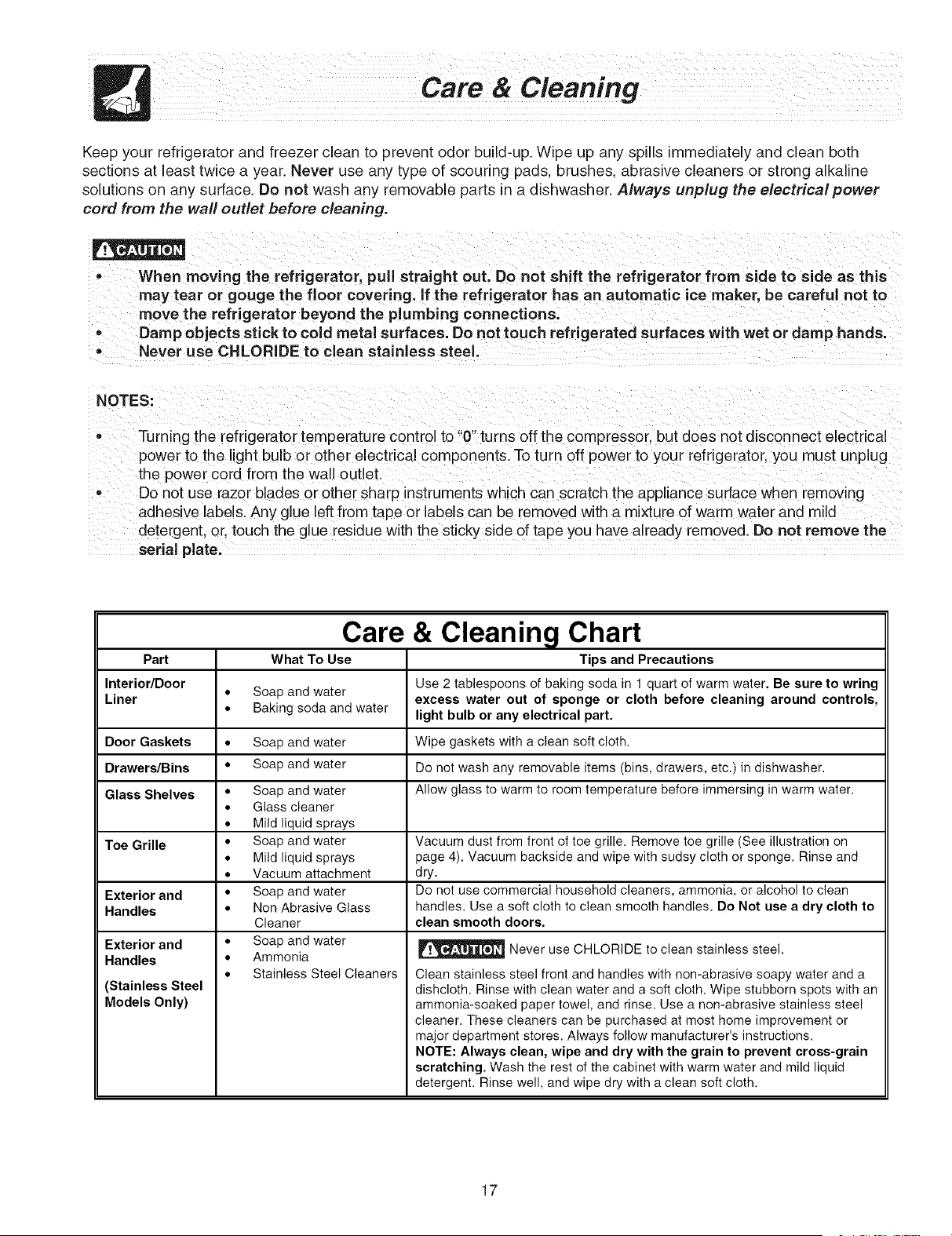

Care & Cleaning .......... 17- 18

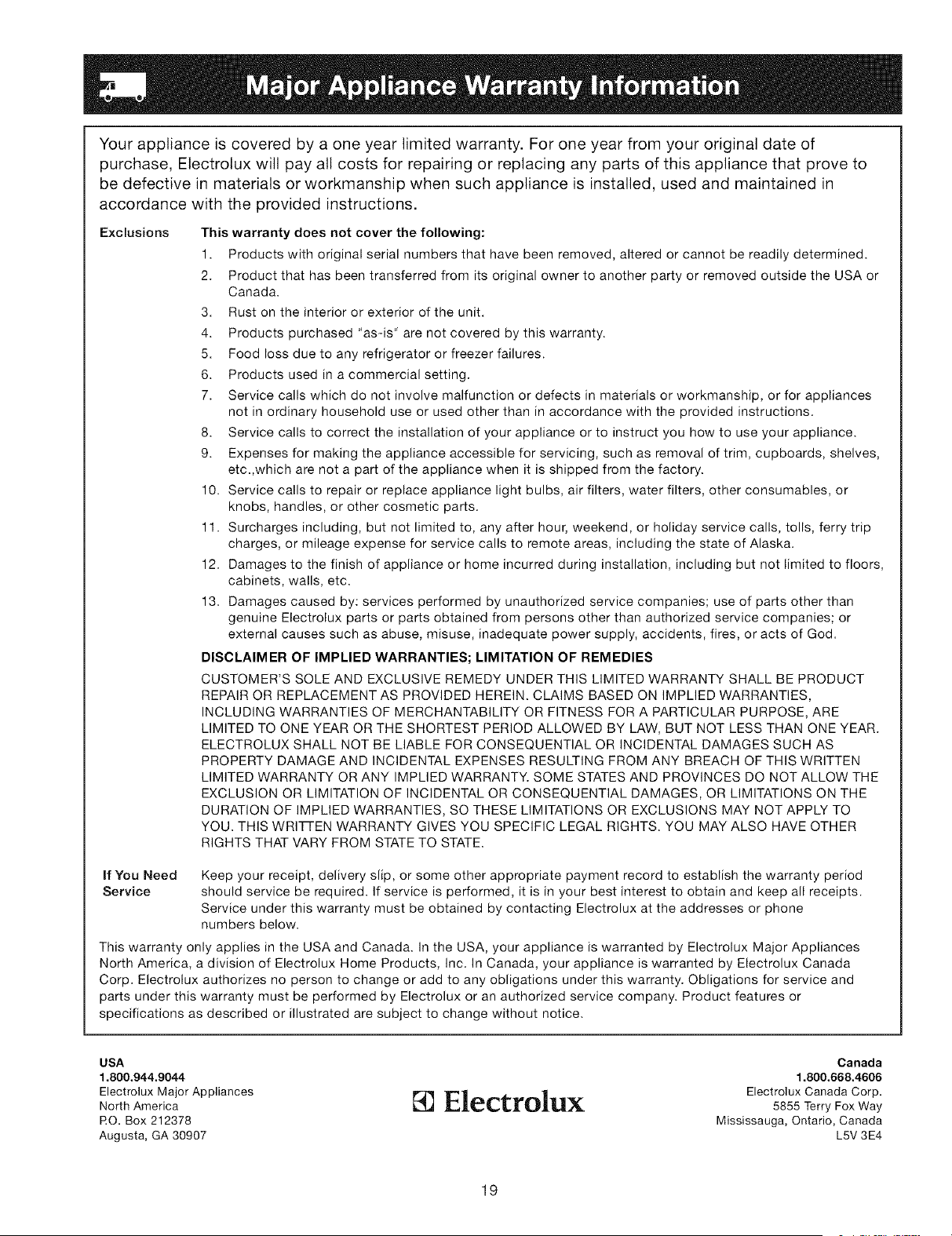

Warranty ...................... 19

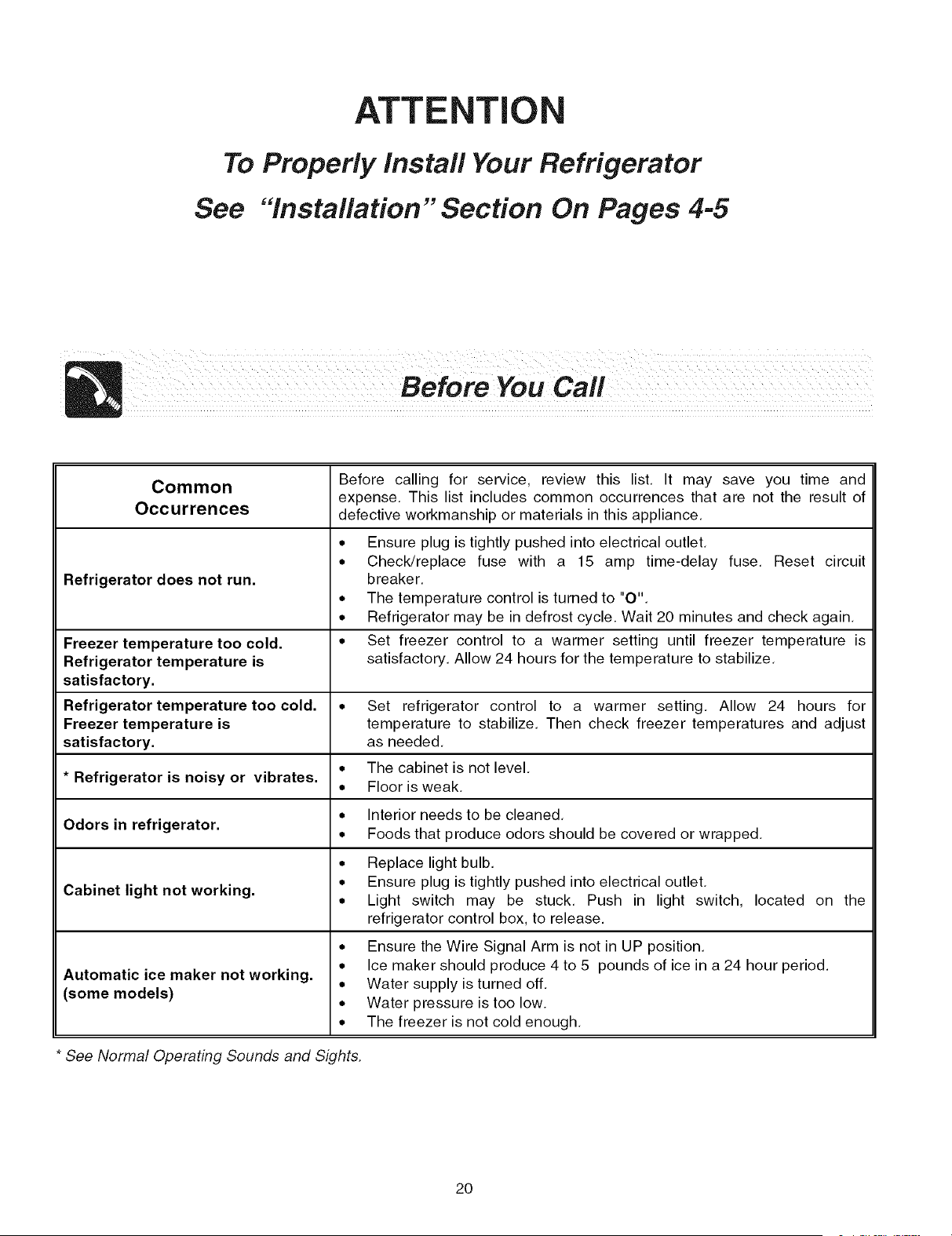

Before You Call ............... 20
READ AND SAVE THESE INSTRUCTIONS P_N241_948oo(o_9_)

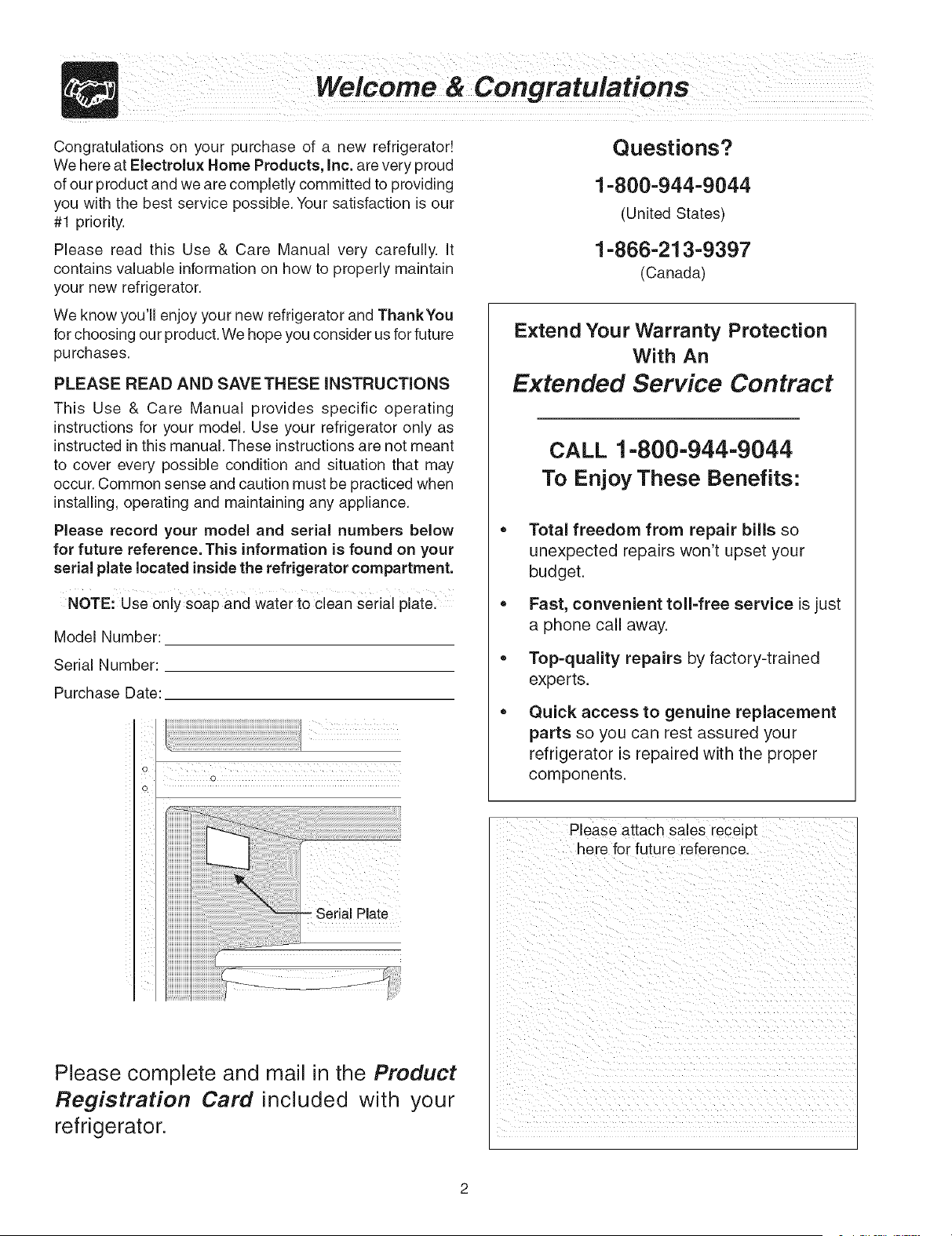

Congratulations on your purchase of a new refrigerator!
We here at Electrolux Home Products, Inc. are very proud
of our product and we are completly committed to providing
you with the best service possible. Your satisfaction is our
#1 priority.
Please read this Use & Care Manual very carefully. It
contains valuable information on how to properly maintain
your new refrigerator.
We know you'll enjoy your new refrigerator and ThankYou
for choosing our product. We hope you consider us for future
purchases.
PLEASE READ AND SAVETHESE iNSTRUCTIONS
This Use & Care Manual provides specific operating
instructions for your model. Use your refrigerator only as
instructed in this manual. These instructions are not meant
to cover every possible condition and situation that may
occur. Common sense and caution must be practiced when
installing, operating and maintaining any appliance.
Please record your model and serial numbers below
for future reference. This information is found on your
serial plate located inside the refrigerator compartment.
NOTE: Use only soap and water to clean serial plate,
Model Number:
Serial Number:
Purchase Date:
i i _ i_ iiiiiiiiiiiiiii
o
Please complete and mail in the Product
Registration Card included with your
refrigerator.
Questions?
1-800-944-9044
(United States)
1-866-213-9397
(Canada)
Extend Your Warranty Protection
With An
Extended Service Contract
CALL 1-800-944-9044
To Enjoy These Benefits:
Total freedom from repair bills so
unexpected repairs won't upset your
budget.
Fast, convenient toll-free service is just
a phone call away.
Top-quality repairs by factory-trained
experts.
Quick access to genuine replacement
parts so you can rest assured your
refrigerator is repaired with the proper
components.
Please attach sales receipt
here for future reference.

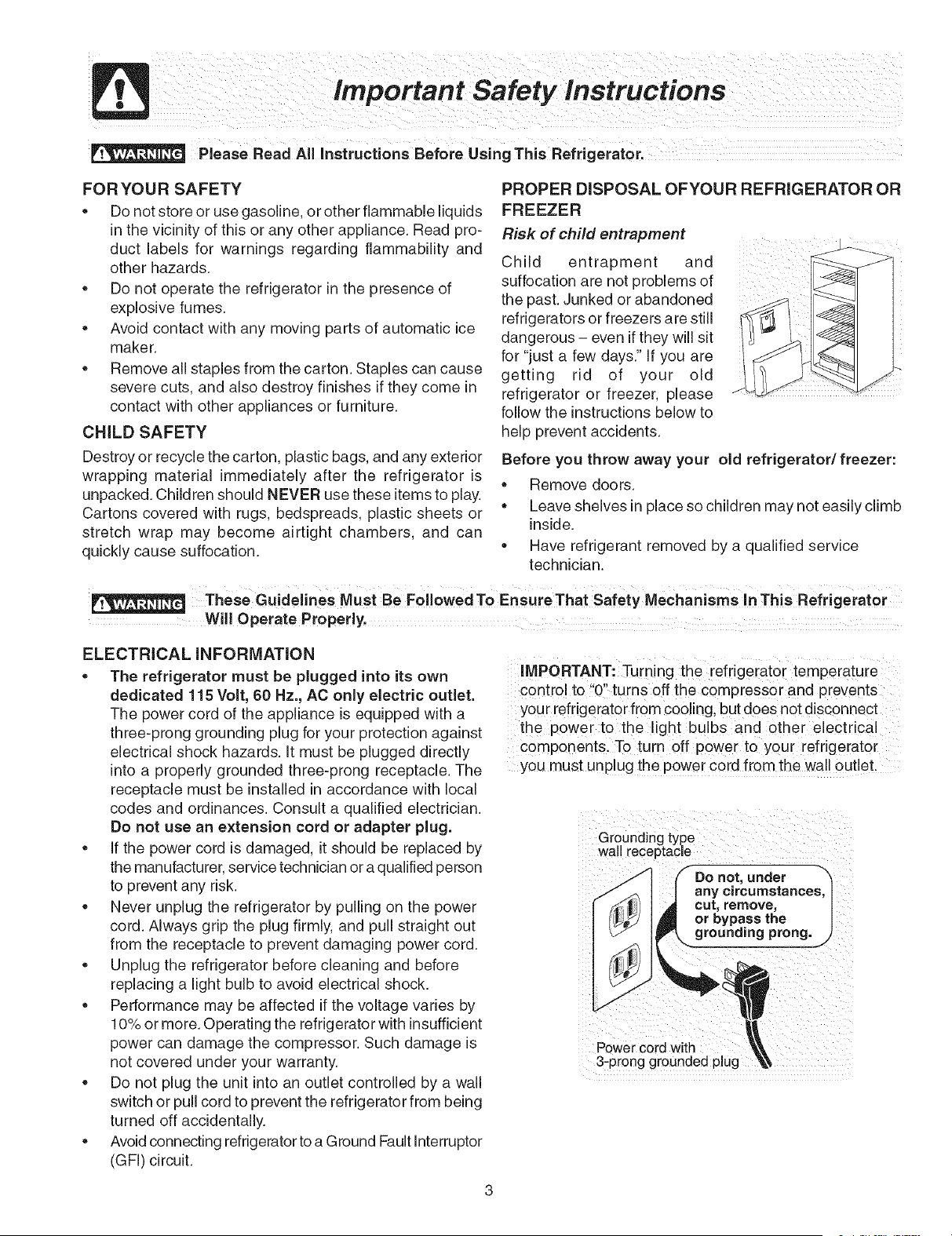

_Please Read All instructions Before Using This Refrigerator.
FORYOUR SAFETY
• Do not store or use gasoline, or other flammable liquids
in the vicinity of this or any other appliance. Read pro-
duct labels for warnings regarding flammability and
other hazards.
• Do not operate the refrigerator in the presence of
explosive fumes.
• Avoid contact with any moving parts of automatic ice
maker.
• Remove all staples from the carton. Staples can cause
severe cuts, and also destroy finishes if they come in
contact with other appliances or furniture.
CHILD SAFETY
Destroy or recycle the carton, plastic bags, and any exterior
wrapping material immediately after the refrigerator is
unpacked. Children should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic sheets or
stretch wrap may become airtight chambers, and can
quickly cause suffocation.
PROPER DISPOSAL OFYOUR REFRIGERATOR OR
FREEZER
Risk of child entrapment
Child entrapment and
suffocation are not problems of
the past. Junked or abandoned
refrigerators or freezers are still
dangerous - even if they will sit
for "just a few days." If you are
getting rid of your old
refrigerator or freezer, please
follow the instructions below to
help prevent accidents.
Before you throw away your old refrigerator/freezer:
• Remove doors.
Leave shelves in place so children may not easily climb
inside.
Have refrigerant removed by a qualified service
technician.
These Guidelines Must Be Followed To Ensure That safety Mechanisms In This Refrigerator
Will Operate Properly,
ELECTRICAL INFORMATION
• The refrigerator must be plugged into its own
dedicated 115 Volt, 60 Hz., AC only electric outlet.
The power cord of the appliance is equipped with a
three-prong grounding plug for your protection against
electrical shock hazards, it must be plugged directly
into a properly grounded three-prong receptacle. The
receptacle must be installed in accordance with local
codes and ordinances. Consult a qualified electrician.
Do not use an extension cord or adapter plug.
• If the power cord is damaged, it should be replaced by
the manufacturer, service technician or a qualified person
to prevent any risk.
• Never unplug the refrigerator by pulling on the power
cord. Always grip the plug firmly, and pull straight out
from the receptacle to prevent damaging power cord.
• Unplug the refrigerator before cleaning and before
replacing a light bulb to avoid electrical shock.
• Performance may be affected if the voltage varies by
10% or more. Operating the refrigerator with insufficient
power can damage the compressor. Such damage is
not covered under your warranty.
• Do not plug the unit into an outlet controlled by a wall
switch or pull cord to prevent the refrigerator from being
turned off accidentally.
• Avoid connecting refrigerator to aGround Fault Interruptor
(GFI) circuit.
IMPORTANT: Turning the refrigerator tempeiature
control to "o" turns off the compressor and prevents
your refrigerator from cooling, but does not disconnect
the power to the light bulbs and other electrical
Components. To turn off power to your refrigerator
you must unplug the power cord from the wall outlet.
Grounding type
wa!!receptacle
]
cut, remove,
or bypass the
ThisUse& CareManualprovidesspecificoperating
instructionsforyourmodel.Usetherefrigeratoronlyas
instructedinthisUse&CareManual.Beforestartingthe
refrigerator,followtheseimportant first steps.

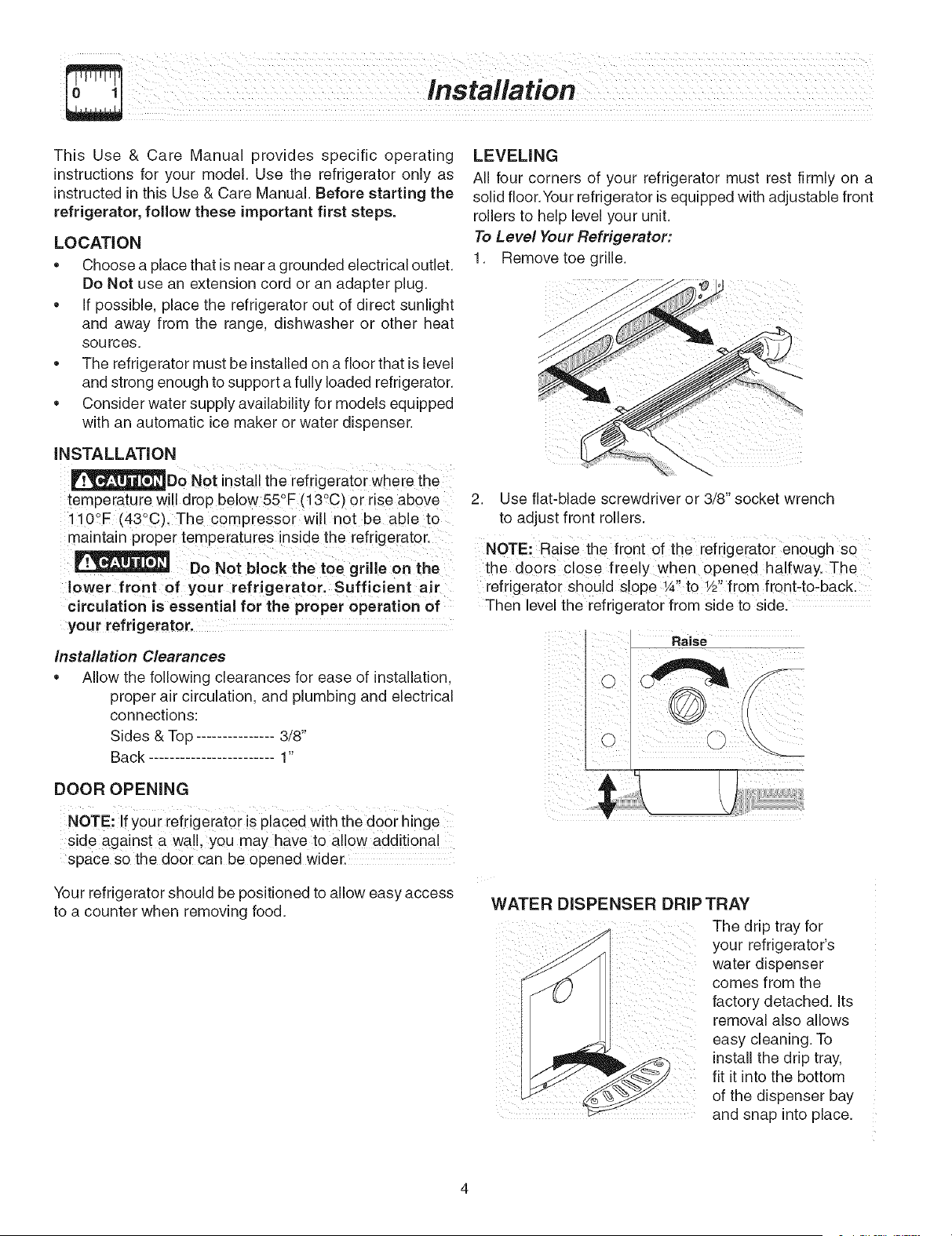

LOCATION
• Choose a place that is near a grounded electrical outlet.
Do Not use an extension cord or an adapter plug.
• If possible, place the refrigerator out of direct sunlight
and away from the range, dishwasher or other heat
sources.
• The refrigerator must be installed on a floor that is level
and strong enough to support a fully loaded refrigerator.
• Consider water supply availability for models equipped
with an automatic ice maker or water dispenser.
INSTALLATION
_Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or rise above
110°F (43°C). The compressor will not be able to
maintain proper temperatures inside the refrigerator.
Do Not block the toe grille on the
lower front of your refrigerator. Sufficient air
circulation is essential for the proper operation of
your refrigerator,
Installation Clearances
• Allow the following clearances for ease of installation.
proper air circulation, and plumbing and electrical
connections:
Sides & Top 3/8"
Back 1"
DOOR OPENING
NOTE: If your refrigerator is placed with the door hinge
side against a wall. you may have to allow additional
space so the door can be opened wider.
Your refrigerator should be positioned to allow easy access
to a counter when removing food.
LEVELING
All four corners of your refrigerator must rest firmly on a
solid floor.Your refrigerator is equipped with adjustable front
rollers to help level your unit.
To Level Your Refrigerator:
1. Remove toe grille.
2. Use flat-blade screwdriver or 3/8" socket wrench
to adjust front rollers.
NOTE: Raise the front of the refrigerator enough so
the doors close freely when opened halfway. The
refrigerator should slope _4"to W' from front-to-back.
Then level the "efrigerator from side to side.
Raise

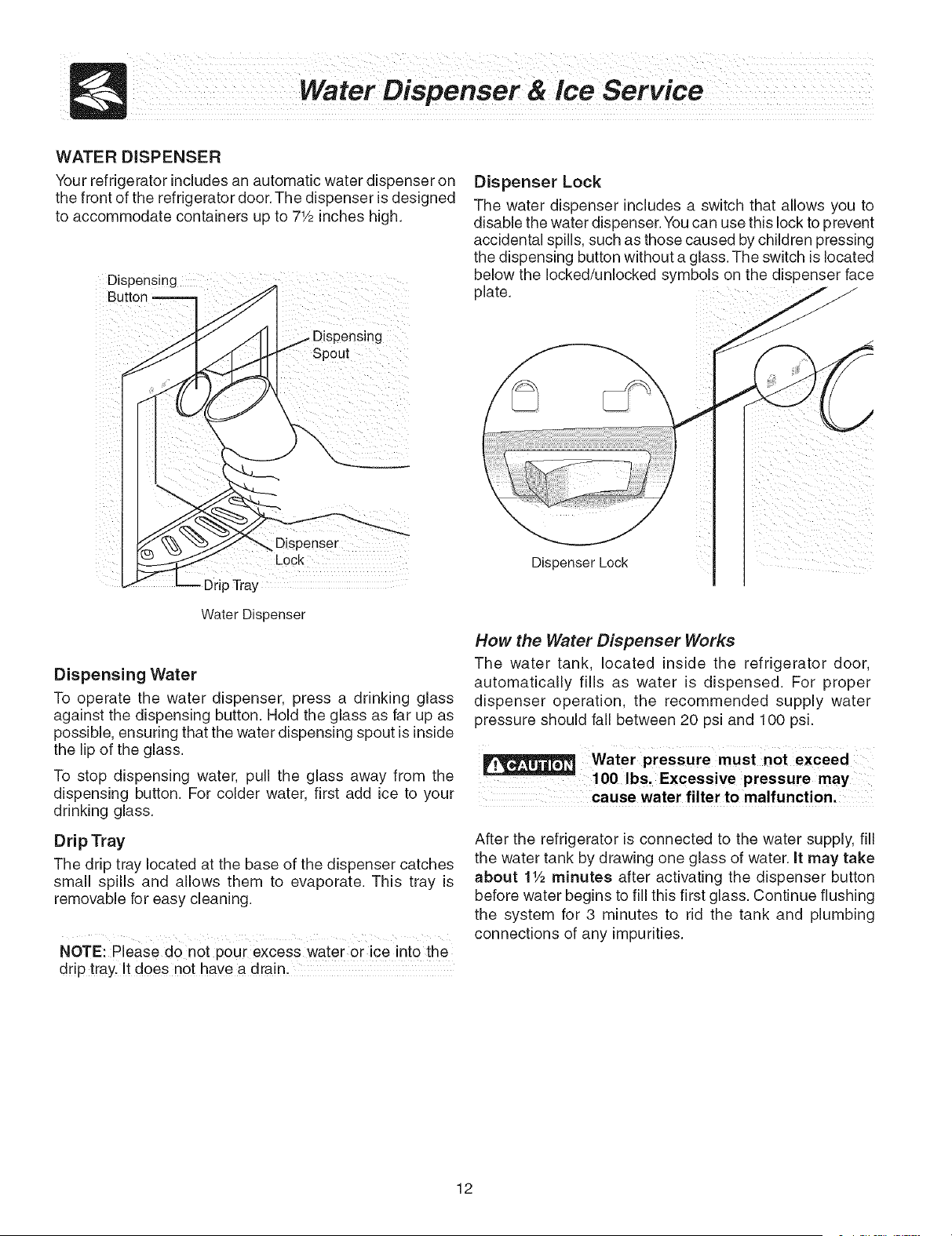

WATER DISPENSER DRIP TRAY
The drip tray for
your refrigerator's
water dispenser
comes from the
factory detached. Its
removal also allows
easy cleaning To
install the drip tray,
fit it into the bottom
of the dispenser bay
and snap into place.

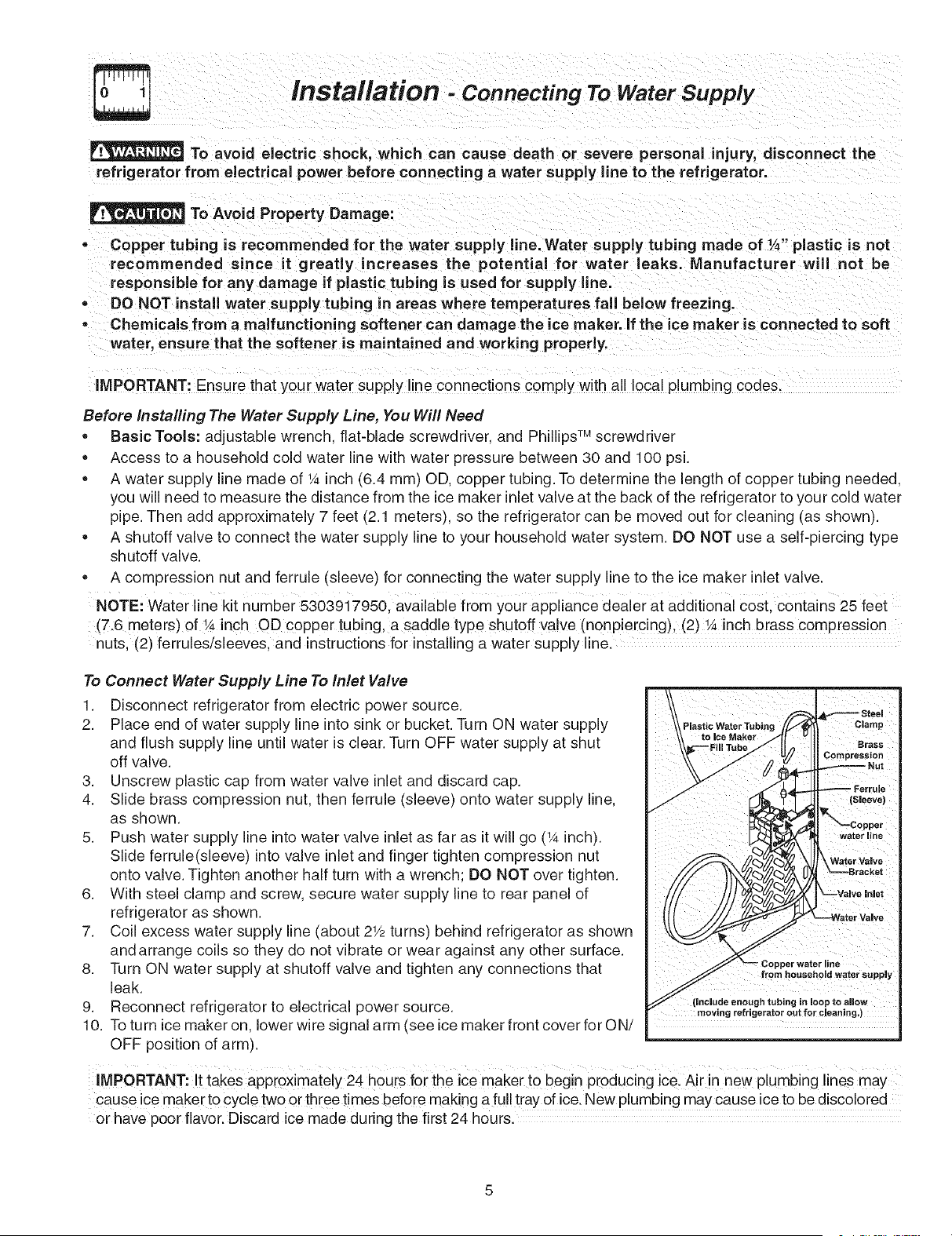

- Connecting To Water Supply
Installation
To avoid electric shock, which can cause death or severe personal injury, disconnect the
refrig orator from electrical power before connecting a water supply line to the refrigerator.
To Avoid Property Damage:
- Copper tubing is recommended for the water supply line. Water supply tubing made of W' plastic is not
recommended since it greatly increases the potential for water leaks. Manufacturer will not be
responsible for any damage if plastic tubing is used for supply line.
• DO NOT install water supply tubing in areas where temperatures fall below freezing.
- Chemicals from a malfunctioning softener can damage the ice maker, if the ice maker is connected to soft
water, ensure that the softener is maintained and working properly.
IMPORTANT: Ensure that your water suDply line connections comply with all ocal plumbing codes.
Before Instafling The Water Supply Line, You Will Need
• Basic Tools: adjustable wrench, flat-blade screwdriver, and Phillips TM screwdriver
• Access to a household cold water line with water pressure between 30 and 100 psi.
• A water supply line made of 1Ainch (6.4 mm) OD, copper tubing. To determine the length of copper tubing needed,
you will need to measure the distance from the ice maker inlet valve at the back of the refrigerator to your cold water
pipe. Then add approximately 7 feet (2.1 meters), so the refrigerator can be moved out for cleaning (as shown).
• A shutoff valve to connect the water supply line to your household water system. DO NOT use a self-piercing type
shutoff valve.
• A compression nut and ferrule (sleeve) for connecting the water supply line to the ice maker inlet valve.
NOTE: waterline kit number 53o39i795o, available from your appliance deai0r at additional cost, contains 25 feet
(7:6 meters) of 1Ainch OD Copper tubing, a saddle type shutoff valve (nonpiercing), (2)1A inch brass compression
nuts, (2) ferrules/sleeves, and instructions for installing a water supply line.
To Connect Water Supply Line To Inlet Valve
1. Disconnect refrigerator from electric power source.
2. Place end of water supply line into sink or bucket. Turn ON water supply
and flush supply line until water is clear. Turn OFF water supply at shut
off valve.
3. Unscrew plastic cap from water valve inlet and discard cap.
4. Slide brass compression nut, then ferrule (sleeve) onto water supply line,
as shown.
5. Push water supply line into water valve inlet as far as it will go (1Ainch).
Slide ferrule(sleeve) into valve inlet and finger tighten compression nut
onto valve. Tighten another half turn with a wrench; DO NOT over tighten.
6. With steel clamp and screw, secure water supply line to rear panel of
refrigerator as shown.
7. Coil excess water supply line (about 21/2turns) behind refrigerator as shown
and arrange coils so they do not vibrate or wear against any other surface.
8. Turn ON water supply at shutoff valve and tighten any connections that
leak.
9. Reconnect refrigerator to electrical power source.

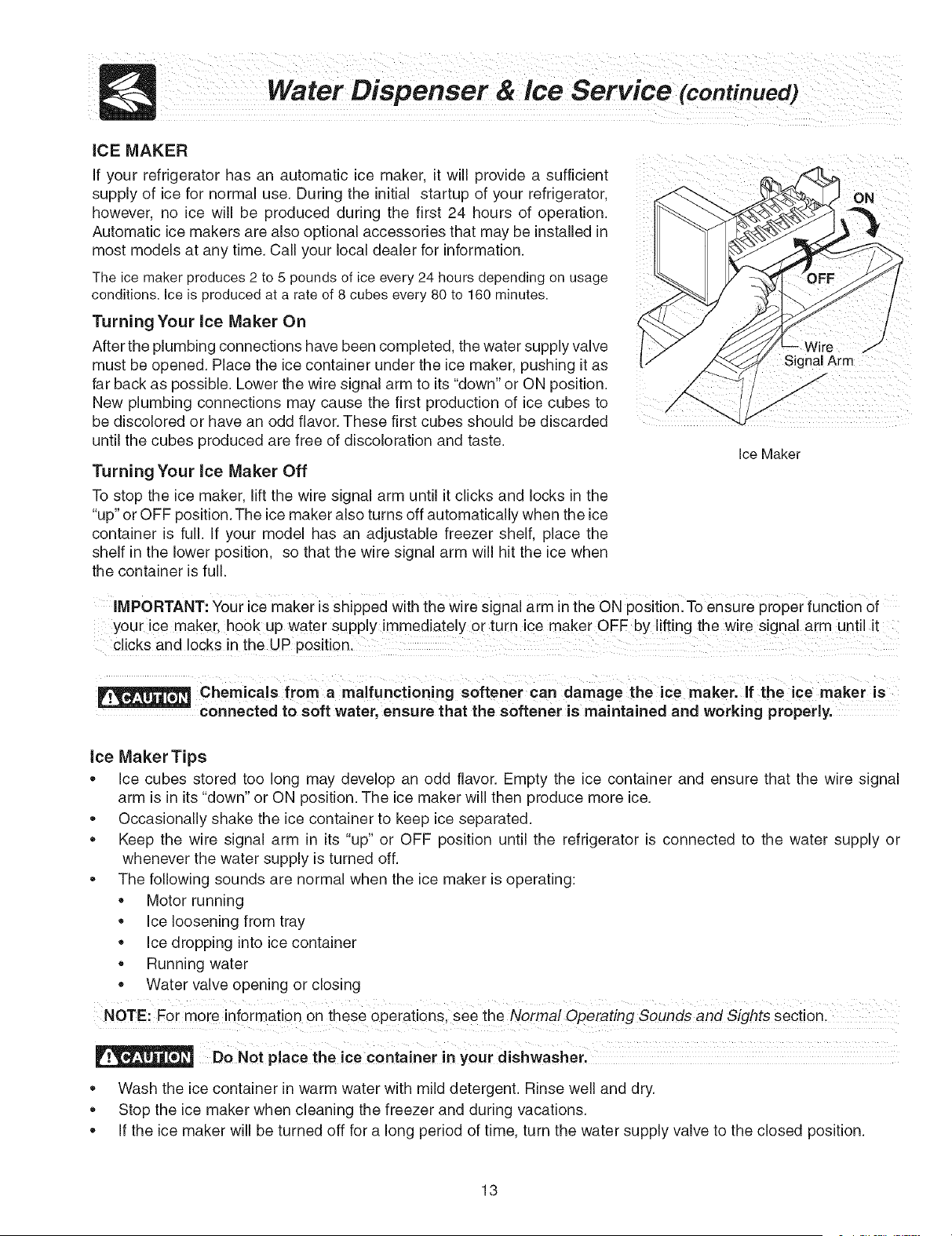

10. Toturn ice maker on, lower wire signal arm (see ice maker front cover for ON/
OFF position of arm).
IMPORTANT: It takes approximately 24 hours for the ice maker to begin producing ice. Air in new plumbing lines may
cause ice maker tOcycle two or three t!mes before making afu!! tray of ice. New plumbing may cause ice to be discolored
or have poor flavor. Discard ice made during the first 24 hours.

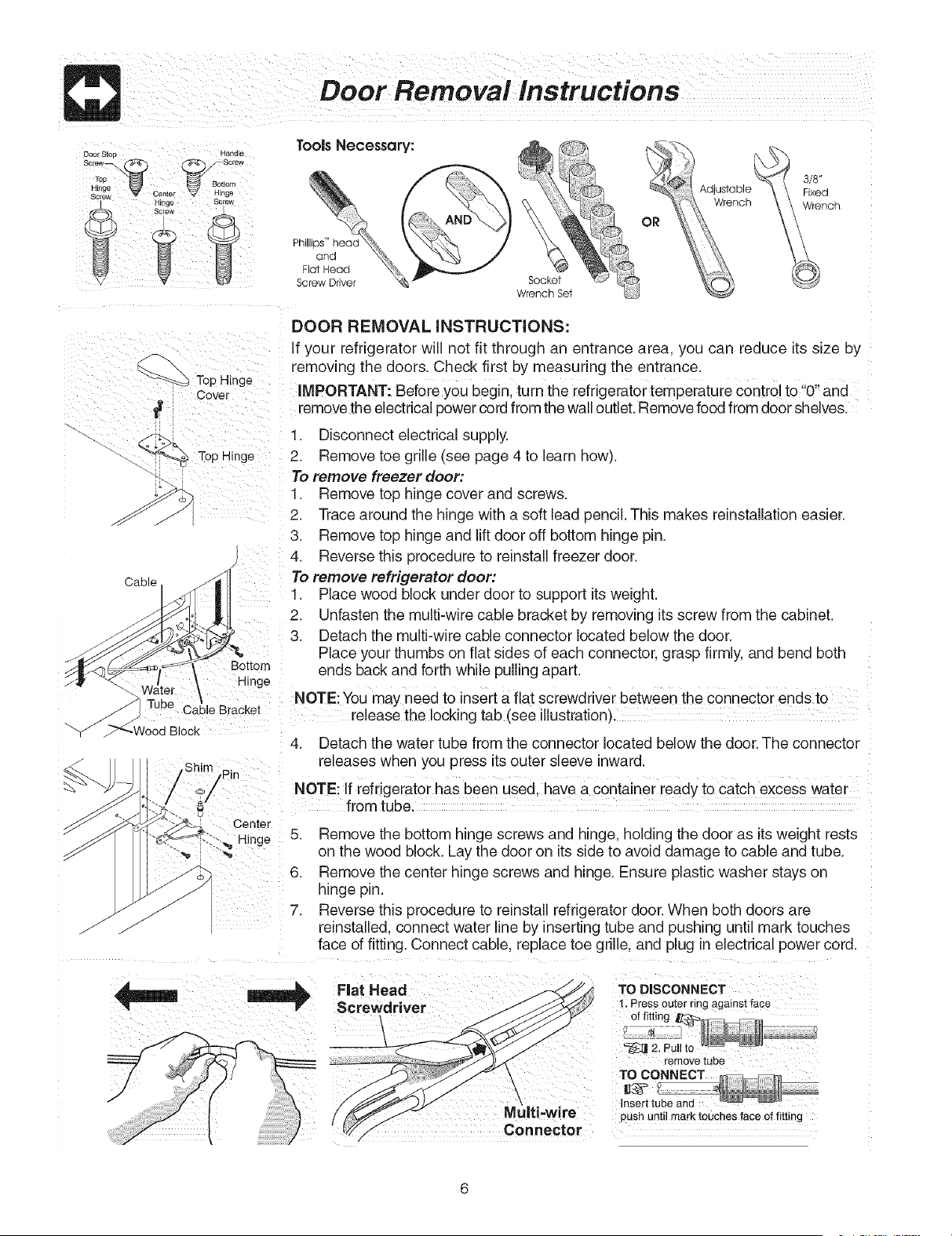

Door Removal instructions
Tools Necessary:
Phillips
3ha
FIef Head
Screw Dfive_
3/8
Fixed
wrench
Cable
Cove[
Top Hinge
Bottom
Hinge
Block
tPin
Center
nge
DOOR REMOVAL INSTRUCTIONS:
f your refrigerator will not fit through an entrance area. you can reduce its size by
"emoving the doors. Check first by measuring the entrance.
IMPORTANT: Before you begin, turn the refrigerator temperature control to "0" and
remove the electrical power cordfrom the wall outlet. Remove food from door shelves.
1 Disconnect electrical supply.
2 Remove toe grille (see page 4 to learn howl
To remove freezer door:
1 Remove top hinge cover and screws.
2 Tracearound the hinge with a soft lead pencil. This makes reinstallation easier
3 Remove top hinge and lift door off bottom hinge pin.
4 Reverse this procedure to reinstall freezer door.
To remove refrigerator door:
1 Place wood block under door to support itsweight.
2 Unfasten the multi-wire cable bracket by removing itsscrew from the cabinet.
3 Detach the multi-wire cable connector located below the door.
Place your thumbs on flat sides of each connector, grasp firmly, and bend both
ends back and forth while pulling apart
NOTE: You may need to insert a flat screwdriver between the connector ends to
release the locking tab (see illustration).
4 Detach the water tube from the connector located below the door. The connector
releases when you press itsouter sleeve inward.
NOTE: If refrigerator has been used. have a container ready to catch excess water
from tube.
5 Remove the bottom hinge screws and hinge, holding the door as its weight rests
on the wood block. Lay the door on its side to avoid damage to cable and tube.
6 Remove the center hinge screws and hinge. Ensure plastic washer stays on
hinge pin.
7. Reverse this procedure to reinstall refrigerator door. When both doors are
reinstalled, connect water line by inserting tube and pushing until mark touches
face of fitting Connect cable, replace toe grille, and plug in electrical power cord.
Connector
push until mark touches face of fitting
Ice
ice Bucket_
Freezer Shelf
Freezer
Control \
Refrigerator
Control
Water
Dell Drawer
Cover
Dell
Half Shelf
Wine Rack
Full She
Special item
Mid Level Li
Crisper
Crisper
Drawers --
Freezer Light
Door Bin
y Door
Tail Bottle
Retainer
Snugger
Door Bin
Fixed Door Bin
Door Rack
Features may vary according to model
COOL DOWN PERIOD
To ensure safe food storage, allow the refrigerator to operate with the doors closed for at least 8 to t 2 hours before
loading it with food.
REFRIGERATOR & FREEZER CONTROLS
NOTE: when changing control settings, wait 24 hours before making additiona! adjustments.
TEMPERATURE ADJUSTMENT
NOTE: When first turning refrigerator on. move refrigerator
and freezer controls to _r' which is the recommended
initial setting After 24 hours, adjust the controls as needed.
- Adjust temperature gradually: move the knob in
small increments, allowing the temperature to
stabilize.
- For colder temperatures turn the knob towards Colder.
- For warmer temperatures, turn the knob towards Cold
Turning the refrigerator control will change temperatures in
both compartments. For example, if the refrigerator control
is turned to a colder setting, the freezer control may have to
be adjusted to a warmer setting. Turning the freezer control
will change only the freezer temperature.
To maintain temperatures, a fan circulates air in the
refrigerator and freezer compartments. For good circulation.
do not block cold air vents with food items.
Recommel_ded
setting
Freezer Control _some models,
/
Refrigerator Control some models,
C ,do( 0 O
Colder Cold Colder /
/
/-
* IMPORTANT: Turning
the refrigerator temp-
erature control to "0"
turns off the com-
oressor, but does not
disconnect the power to
the light bulb and other
electrical components.
To turn off power to your
refrigerator, you must
unplug the power cord
from the wall outlet.
Refrigerator & Freezer Control _some models_
TEMPERATURE ADJUSTMENT GUIDE
If Refrigerator compartment Is Too Warm Turn Refrigerator Control Slightly Towards Colder.
If Refrigerator compartment Is Too Cold Turn Refrigerator Control Slightly Towards Cold.
If Freezer compartment Is Too Warm Turn Freezer Control Slightly Towards Colder.
If Freezer compartment Is Too Cold Turn Freezer Control Slightly Towards Cold.
* To Turn Refrigerator Off Turn Refrigerator Control To 0.
Toavoid ersonalinjuryorProPertydamage,handle
tempered glass shelves carefully, Shelves may break suddenly if
nicked, scratched, or exposed to sudden temperature change.
SHELF ADJUSTMENT
Refrigerator shelves are easily adjusted to suit individual needs. Before
adjusting the shelves, remove all food.
To adjust sliding shelves:
O Remove shelf by pulling forward to stop position.
O Lift front edge up and pull out.
Replace the shelf on any pair of rails by reversing this procedure.
Sliding Wire Shelf
To adjust cantilever shelves:
NOTE: Cantilever shelves are supported at the back of the refrigerator.
Cantilever shelves are available in either glass or wire.
Lift front edge up.
Pull shelf out.
Replace the shelf by inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf into the desired slots and lock into position.
SpillSafe TMglass shelves (some models) catch and hold accidental spills. In
some models, the SpillSafe 7Mshelves slide out for easy access to food and
for fast cleaning. The shelves slide out independently of the cantilever
brackets. Just pull the front of the shelf forward. The shelf can be extended
as far as the stopper will allow but it is not removable from the cantilever
bracket.
Sliding Glass Shelf
Full Width Cantilever Glass Shelf
Cantilever Glass Shelf - Fixed and Sliding
DOOR STORAGE
Door bins, shelves, and racks are provided for convenient
storage of jars, bottles, and cans. Frequently used items can
be quickly selected.
Some models have door racks or bins that can accommodate
gallon-sized plastic drink containers and economy-sized jars
TALL BOTTLE RETAINER (SOME MODELS)
The Tall Bottle Retainer keeps tail containers in the bin from
falling forward when opening or closing the refrigerator door.
To install, hold the retainer at the top, and slide it over the
outside wall of the bin, as shown in the diagram. The TallBottle
Retainer works best with a Bin Snugger.
and containers. Some racks are adjustable for maximum
storage capacity.
The dairy compartment, which is warmer than the general food
storage section, is intended for short term storage of cheese,
spreads, or butter.
Door Rack
Tall Bottle Retainer (left) and Bin Snugger (right)
SPECIAL ITEM RACK (SOME MODELS)
The innovative design of the Special item Rack allows you to
store a six-pack of 12 ounce drink cans, a bottle of wine, a
two-liter soft drink bottle, or a carton of eggs. The Special item
Rack mounts on the left side of your refrigerator. To install,
just slide the Special item Rack onto any shelf as shown in
the drawing.
ADJUSTABLE DOOR BINS
Some models have adjustable door bins that can be moved to
suit individual needs.
Tomove door bins
1. Lift bin straight up.
2. Remove bin.
3. Place bin in desired position.
4. Lower bin onto supports until locked in place.
Adjustable Door Bin
10
CRISPERS(SOMEMODELS)
The crispers, located under the bottom refrigerator shelf,
are designed for storing fruits, vegetables, and other fresh
produce. Wash items in water and remove excess water
before placing them in the crispers. Items with strong odors
or high moisture content should be wrapped before storing.
Crisper Drawer
HUMiDiTY CONTROL (SOME MODELS)
The Humidity Control, present on some models with crisper
drawers, allows you to adjust the humidity within the crisper.
This can extend the life of fresh vegetables that keep best
in high humidity.
NOTE: Leafy vegetables keep best when stored Withthe
Humidity Control set on High Humidity; or in a drawer
without a Humidity COntrol This keeps incoming air to a
minimum and maintains maximum moisture content.
Low
Humidity/._
High
Humidit
DELl DRAWER (SOME MODELS)
Some models are equipped with a Deli Drawer for storage
of luncheon meats, spreads, cheeses, and other deli items.
Dell Drawer
WiNE RACK (SOME MODELS)
The Wine Rack stores bottles of wine, or single two-liter
plastic bottles of juice or soda pop. To install, slide the Wine
Rack onto the shelf with the curve facing in. To remove,
slide the Wine Rack out. Install on either side of shelf.
ii _ii
Wine Rack
Crisper Humidity Control
11
Water Dispenser & Ice Service
WATER DISPENSER
Your refrigerator includes an automatic water dispenser on
the front of the refrigerator door. The dispenser is designed
to accommodate containers up to 71/2inches high.
Dispensing
Dispenser Lock
The water dispenser includes a switch that allows you to
disable the water dispenser. Youcan use this lock to prevent
accidental spills, such as those caused by children pressing
the dispensing button without a glass. The switch is located
below the locked/unlocked symbols on the dispenser face
plate. /
/
1set
Lock
Drip Tray
Water Dispenser
Dispensing Water
To operate the water dispenser, press a drinking glass
against the dispensing button. Hold the glass as far up as
possible, ensuring that the water dispensing spout is inside
the lip of the glass.
To stop dispensing water, pull the glass away from the
dispensing button. For colder water, first add ice to your
drinking glass.
Drip Tray
The drip tray located at the base of the dispenser catches
small spills and allows them to evaporate. This tray is
removable for easy cleaning.
NOTE: Please de not pour excess wate r or ice into the
drip tray. !t does not have a drain.
\ /
Dispenser Lock
How the Water Dispenser Works
The water tank, located inside the refrigerator door,
automatically fills as water is dispensed. For proper
dispenser operation, the recommended supply water
pressure should fall between 20 psi and 100 psi.
Water pressure must not exceed
100 Ibs, Excessive pressure may
cause water filter to malfunction.
After the refrigerator is connected to the water supply, fill
the water tank by drawing one glass of water. It may take
about 11/2minutes after activating the dispenser button
before water begins to fill this first glass. Continue flushing
the system for 3 minutes to rid the tank and plumbing
connections of any impurities.
12
iCEMAKER
Ifyourrefrigeratorhasanautomaticicemaker,itwillprovideasufficient
supplyoficefornormaluse.Duringtheinitialstartupofyourrefrigerator,
however,no icewillbeproducedduringthefirst24hoursofoperation.
Automaticicemakersarealsooptionalaccessoriesthatmaybeinstalledin
mostmodelsatanytime.Callyourlocaldealerforinformation.
Theicemakerproduces2 to 5pounds of ice every 24 hours depending on usage
conditions. Ice is produced at a rate of 8 cubes every 80 to 160 minutes.
TurningYour Ice Maker On
After the plumbing connections have been completed, the water supply valve
must be opened. Place the ice container under the ice maker, pushing it as
far back as possible. Lower the wire signal arm to its "down" or ON position.
New plumbing connections may cause the first production of ice cubes to
be discolored or have an odd flavor. These first cubes should be discarded
until the cubes produced are free of discoloration and taste.
Turning Your ice Maker Off
To stop the ice maker, liftthe wire signal arm until it clicks and locks in the
"up" or OFF position. The ice maker also turns off automatically when the ice
container is full. If your model has an adjustable freezer shelf, place the
shelf in the lower position, so that the wire signal arm will hit the ice when
the container is full.
Signal Arm
Ice Maker
IMPORTANT: Your ice makei is shipped with the wire signal arm in the ON poSition:To ensure proper function of
your ice maker hook up water supply immediately or turn ice maker OFF by lifting the wire signal arm until it
clicks and locks inthe UP positionl
Chemicals from a malfunction!rig softener can damage the ice maker. If the ice maker is
connected to soft water, ensure that the softener is maintained and working properly.
ice Maker Tips
• Ice cubes stored too long may develop an odd flavor. Empty the ice container and ensure that the wire signal
arm is in its "down" or ON position. The ice maker will then produce more ice.
• Occasionally shake the ice container to keep ice separated.
• Keep the wire signal arm in its "up" or OFF position until the refrigerator is connected to the water supply or
whenever the water supply is turned off.
• The following sounds are normal when the ice maker is operating:
• Motor running
• Ice loosening from tray
Ice dropping into ice container
o Running water
Water valve opening or closing
NOTE: For mote information on these operations, see the Normal Operating Sounds and Sights section,
Do Not place the ice container in your dishwasher'
• Wash the ice container in warm water with mild detergent. Rinse well and dry.
• Stop the ice maker when cleaning the freezer and during vacations.
• If the ice maker will be turned off for a long period of time, turn the water supply valve to the closed position.
13
PureSource TM*ICE AND WATER FILTER (some models)
NOTE: If you purchased a refrigerator with a PureSo.rce TM* Ice and water filter, please read the following use
and care information. This ice and water filter system filters water to your ice maker and water dispenser. It is
located in the upper right back corner of the fresh food compartment.
System Startup:
Water supply does not need to be turned off, however, do not use ice and water dispenser while installing filter. The filter
cartridge has already been installed in the filter housing at the factory. Refer to the How The Water Dispenser Works section to
properly fill the system with water.
Twist to Remove
Order new filter cartridges through the
dealer where you bought the refrigerator,
contact the Customer Care Center at
1-800-944-9044, or go to our web site at
www.friaidaire.com. It might be good to
order some filter cartridges when you first
install your refrigerator. Be sure to ask for
the RG-100 PureSource TM*replacement
cartridge.
The PureSource TM * NGRG-
2000 Ice and Water Filter
System with the RG-100
cartridge is tested and certified
by NSF International, the
nationally recognized and respected, not for
profit, certification organization for public
health safety. The PureSoume TM*system is
tested and certified to ANSi/NSF Standard
42. See performance data sheet for
specifications. This system should not be
used on water that is microbiologically
unsafe or with water of unknown quality
unless the water has been adequately
disinfected before or after traveling through
the filtration system.
,,Rated Capacity - 400 gallons
,,Rated service flow - .5 GPM
,,Maximum Rated Pressure - 100 PSI
,,Maximum Operating Temp. - 100° F
Changing the Filter:
Water conditions vary throughout the world, but changing the water filter every
6 - 9 months normally will ensure the highest possible water quality, if the filter
has been in a refrigerator that has not been in use for awhile (during moving for
example), change the filter before reinstalling the refrigerator. The dispenser
system will also operate without filtration (with filter cartridge removed).
To change filter:
It is not necessary to turn the water supply off to change the filter.
1. Set ice maker wire signal arm to the OFF (up) position (See illustration
on page 13). Turn dispenser lock to the locked position.
2. Hold filter cup firmly, and unscrew towards left (Some water could
leak out as you remove cup. This is normal.). Filter cartridge should come
down with cup. If cartridge remains in housing, pull down gently, while
twisting filter back and forth.
3. Rinse out cup under running water.
4. The large o-ring that seals the filter system sets in the o-ring groove
down inside the cup. Should the o-ring fall out during filter cartridge
replacement, simply place it back in the groove prior to screwing the cup
back in place. If the o-ring becomes damaged, you will need to order one
from the Consumer Assistance Center.
5. Discard old filter cartridge.
6. Remove new filter cartridge from packaging and place in cup. The end
with the small o-ring should be up, out of the cup.
7. Screw cup, with filter, back onto housing. Do Not Use Wrench To Reinstall
Cup. Filter cartridge will self-align as cup is tightened. Be sure cup is
completely tightened with PureSource TM logo facing outward. Do Not
Tighten Past Stop.
8. Set ice maker wire signal arm to the ON (down) position.
9. Check for leaks. Open refrigerator door. Wipe any water droplets from the
filter cup. Fill a glass with water, if there is a leak, unscrew filter cup, and
reinsert the filter cartridge. Check placement of large O-ring. Reinstall
filter cup, making certain it is tightened completely.
10. To condition filter system and purge air from water line, fill a glass with
water. Continue flushing the system for approximately 3 minutes to assure
that the purest water possible is stored in the water tank.
Filter Replacement Reminder Stickers
There is a set of Reminder Stickers included in the envelope that the Use&
Care Guide came in. Choose a dated sticker that indicates 6- 9 months
(depending on your water quality and usage) from the date of installation.
Place the sticker on the trent of the filter cup to remind you when it is time to
change the filter,
* WhiteWestinghouse uses the nameCrystalClear instead of PureSource, but they are the same filter
14
FOOD STORAGE iDEAS
Fresh Food Storage
• The fresh food compartment should be kept between 34° F and 40° F with an optimum temperature of 37 ° E
• Avoid overcrowding the refrigerator shelves. This reduces the circulation of air around the food and results in uneven
cooling.
Fruits and Vegetables
• Storage in the crisper drawers traps moisture to help preserve the fruit and vegetable quality for longer time periods.
Meat
• Raw meat and poultry should be wrapped securely so leakage and contamination of other foods or surfaces does
not occur.
Frozen Food Storage
• The freezer compartment should be kept at 0° F or lower.
• A freezer operates most efficiently when it is at least 2/3 full.
Packaging Foods for Freezing
• Tominimize dehydration and quality deterioration, use aluminum foil, freezer wrap, freezer bags or airtight containers.
Force as much air out of the packages as possible and seal them tightly. Trapped air can cause food to dry out,
change color, and develop an off-flavor (freezer burn).
• Wrap fresh meats and poultry with suitable freezer wrap prior to freezing.
• Do not refreeze meat that has completely thawed.
Loading the Freezer
• Avoid adding too much warm food to the freezer at one time. This overloads the freezer, slows the rate of freezing,
and can raise the temperature of frozen foods.
Leave a space between the packages, so cold air can circulate freely, allowing food to freeze as quickly as possible.
• Avoid storing hard-to-freeze foods such as ice cream and orange juice on the freezer door shelves. These foods are
best stored in the freezer interior where the temperature varies less.
(
\
ENERGY SAVING iDEAS
- Locate the refrigerator in the coolest part of the room out of direct
sunlight, and away from heating ducts or registers. Do not place the
refrigerator next to heat-producing appliances such as a range, oven,
or dishwasher, if this is not possible, a section of cabinetry or an added
layer of insulation between the two appliances will help the refrigerator
operate more efficiently.
- Level the refrigerator so that the doors close tightly.
- Refer to this Use & Care Manual for the suggested temperature control
settings.
- Do not overcrowd the refrigerator or block cold air vents. Doing so causes
the refrigerator to run longer and use more energy.
* Cover foods and wipe containers dry before placing them in the
refrigerator. This cuts down on moisture build-up inside the unil
- Organize the refrigerator to reduce door openings. Remove as many
items as needed at one time and close the door as soon as possible.
15
UNDERSTANDINGTHESOUNDSYOUMAY HEAR
Your new high-efficiency refrigerator may make unfamiliar
sounds. These are all normal sounds and soon will become
familiar to you. They also indicate your refrigerator is
operating as designed. Hard surfaces, such as vinyl or wood
floors, walls, and kitchen cabinets may make sounds more
noticeable. Listed below are descriptions of some of the
most common sounds you may hear, and what is causing
them.
NOTE: Rigid foam insulation is very energy efficient_
but is not a sound insulator.
A. Evaporator
The flow of refrigerant through the evaporator may
create a boiling or gurgling sound.
B. Evaporator Fan
You may hear air being forced through the refrigerator
by the evaporator fan.
C. Defrost Heater
During defrost cycles, water dripping onto the defrost
heater may cause a hissing or sizzling sound. After
defrosting, a popping sound may occur.
IMPORTANT: During the automatic defrost cycle, you
maY notice a red g!ow in the vents on the back wa!l of
your freezer compartment This is norma ! during the
defrost cycle,
D. Automatic Ice Maker
If your refrigerator is equipped with an automatic ice
maker, you will hear ice cubes falling into the ice bin.
E. Cold Control & Defrost Timer or Automatic
Defrost Control
These parts can produce a snapping or clicking sound
when turning the refrigerator on and off. The timer also
produces sounds similar to an electric clock.
F. Condenser Fan
If condenser coils are located underneath your
refrigerator as shown in the drawing at the left, you
have a condenser fan. You may hear air being forced
through the condenser by the condenser fan.
G. Compressor
Modern, high-efficiency compressors operate much
faster than older models. The compressor may have a
high-pitched hum or pulsating sound.
H. Water Valve
If your refrigerator is equipped with an automatic ice
maker, you will hear a buzzing sound as the water valve
opens to fill the ice maker during each cycle.
L Drain Pan (Nonremovable)
You may hear water running into the drain pan during
the defrost cycle.
J. Condenser
May create minimal sounds from forced air.
16
Keepyourrefrigeratorandfreezercleantopreventodorbuild-up.Wipeupanyspillsimmediatelyandcleanboth
sectionsatleasttwicea year.Neveruseanytypeofscouringpads,brushes,abrasivecleanersorstrongalkaline
solutionsonanysurface.Donotwashanyremovablepartsinadishwasher.Always unplug the e/ectrica/power
cord from the wall outlet before cleaning.
- When moving the refrigerator, pull straight out. Do not shift the refrigerator from side to side as this
may tear or gouge the floor covering, if the refrigerator has an automatic ice maker, be careful not to
move the refrigerator beyond the plumbing connections.
Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or damp hands.
• Never use CHLORIDE to clean stainless steel,
NOTES:
Turning the refrigerator temperature control to "0" turns off the compressor, but does not disconnect electrical
power to the lignt bulb or other electrical components. To turn off power to your refrigerator, you must unplug
the power cord from the wall outlet.
Do not use razor olades or other sharp nstruments which can scratch the appliance surface when removing
adhesive labels. Any glue left from tape or labels can be removed with a mixture of warm water and mild
detergent, or, touch the glue residue with the sticky side of tape you have already removed. Do not remove the
serial plate.
Part
Interior/Door
Liner
Door Gaskets •
Drawers/Bins •
Glass Shelves •
Toe Grille •
Exterior and •
Handles •
Exterior and •
Handles •
(Stainless Steel
Models Only)
Care & Cleaning Chart
What To Use Tips and Precautions
Use 2 tablespoons of baking soda in 1 quart of warm water. Be sure to wring
Soap and water
excess water out of sponge or cloth before cleaning around controls,
Baking soda and water
light bulb or any electrical part.
Soap and water Wipe gaskets with a clean soft cloth.
Soap and water Do not wash any removable items (bins, drawers, etc.) in dishwasher.
Allow glass to warm to room temperature before immersing in warm water.
Soap and water
Glass cleaner
Mild liquid sprays
Soap and water
Mild liquid sprays
Vacuum attachment
Soap and water
Non Abrasive Glass
Cleaner
Soap and water
Ammonia
Stainless Steel Cleaners
Vacuum dust from front of toe grille. Remove toe grille (See illustration on
page 4). Vacuum backside and wipe with sudsy cloth or sponge. Rinse and
dry.
Do not use commercial household cleaners, ammonia, or alcohol to clean
handles. Use a soft cloth to clean smooth handles. Do Not use a dry cloth to
clean smooth doors.
Never use CHLORIDE to clean stainless steel.
Clean stainless steel front and handles with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a soft cloth. Wipe stubborn spots with an
ammonia-soaked paper towel, and rinse. Use a non-abrasive stainless steel
cleaner. These cleaners can be purchased at most home improvement or
major department stores. Always follow manufacturer's instructions.
NOTE: Always clean, wipe and dry with the grain to prevent cross-grain
scratching. Wash the rest of the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a clean soft cloth.
17
Care cleani'ng
REPLACING LIGHT BULBS
Both the freezer and fresh food compartments of your
refrigerator include light bulbs that will need replacing from
time to time. Some lights have covers that you will need to
remove before replacing the light bulbs. Always use bulbs
that are designed for appliance lighting.
wear gloves when replacing light
bulbs to avoid cuts.
To Replace Light Bulbs (some models)
1. Unplug refrigerator.
2. Wear gloves as protection against possible broken
glass.
3. Unsnap light shield as shown.
4. Unscrew and replace old bulb with an appliance bulb
of the same wattage.
5. Replace light shield.
6. Remember to plug the refrigerator back in.
CONDENSER
Your refrigerator is equipped with a condenser that never
needs cleaning under normal operating conditions.
0
Freezer Light Cover Removal
Light
Light
Bulbs (2)
Light
Cover
Refrigerator Mid-Level Light Cover Removal
Vacation and Moving Tips
Short
Vacations •
Long
Vacations
Leave refrigerator operating during vacations of 3 weeks or less.
Use all perishable items from refrigerator compartment.
Turn automatic ice maker off and empty ice bucket, even if you will only be
gone for a few days.
Remove all food and ice if you will be gone one month or more.
Turn controls to "0" ( the OFF position) and disconnect power.
Turn off automatic ice maker and turn water supply valve to closed position.
Clean interior thoroughly.
Leave both doors open to prevent odors and mold build-up. Block doors open if
necessary.
• Remove all food and ice.
• If using handcart, load from side.
Moving
• Adjust rollers all the way up to protect them during sliding or moving.
• Pad cabinet to avoid scratching surface.
18
Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateof
purchase,Electrotuxwillpayallcostsfor repairingorreplacinganypartsofthisappliancethatproveto
bedefectivein materialsorworkmanshipwhensuchapplianceisinstalled,usedandmaintainedin
accordancewiththeprovidedinstructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRI]-i-EN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Electrolux
Canada
1.800.668.4606
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
19
ATTENTION
To Properly Install Your Refrigerator
See "installation" Section On Pages 4-5
Before You Call
Common Before calling for service, review this list. It may save you time and
expense. This list includes common occurrences that are not the result of
Occurrences defective workmanship or materials in this appliance.
• Ensure plug is tightly pushed into electrical outlet.
• Check/replace fuse with a 15 amp time-delay fuse. Reset circuit
Refrigerator does not run. breaker.
• The temperature control is turned to "O".
• Refrigerator may be in defrost cycle. Wait 20 minutes and check again.
Freezer temperature too cold. • Set freezer control to a warmer setting until freezer temperature is
Refrigerator temperature is satisfactory. Allow 24 hours for the temperature to stabilize.
satisfactory.
Refrigerator temperature too cold. • Set refrigerator control to a warmer setting. Allow 24 hours for
Freezer temperature is temperature to stabilize. Then check freezer temperatures and adjust
satisfactory, as needed.
• The cabinet is not level.
* Refrigerator is noisy or vibrates.
• Floor is weak.
• Interior needs to be cleaned.
Odors in refrigerator.
• Foods that produce odors should be covered or wrapped.
Cabinet light not working.
Automatic ice maker not working.
(some models)
Replace light bulb,
Ensure plug is tightly pushed into electrical outlet,
Light switch may be stuck. Push in light switch, located on the
refrigerator control box, to release.
Ensure the Wire Signal Arm is not in UP position,
Ice maker should produce 4 to 5 pounds of ice in a 24 hour period.
Water supply is turned off,
Water pressure is too low.
The freezer is not cold enough,
*See Normal Operating Sounds and Sights.
2O
