Stock No.
33165
Preparing 1 Door
Tall Cabinet

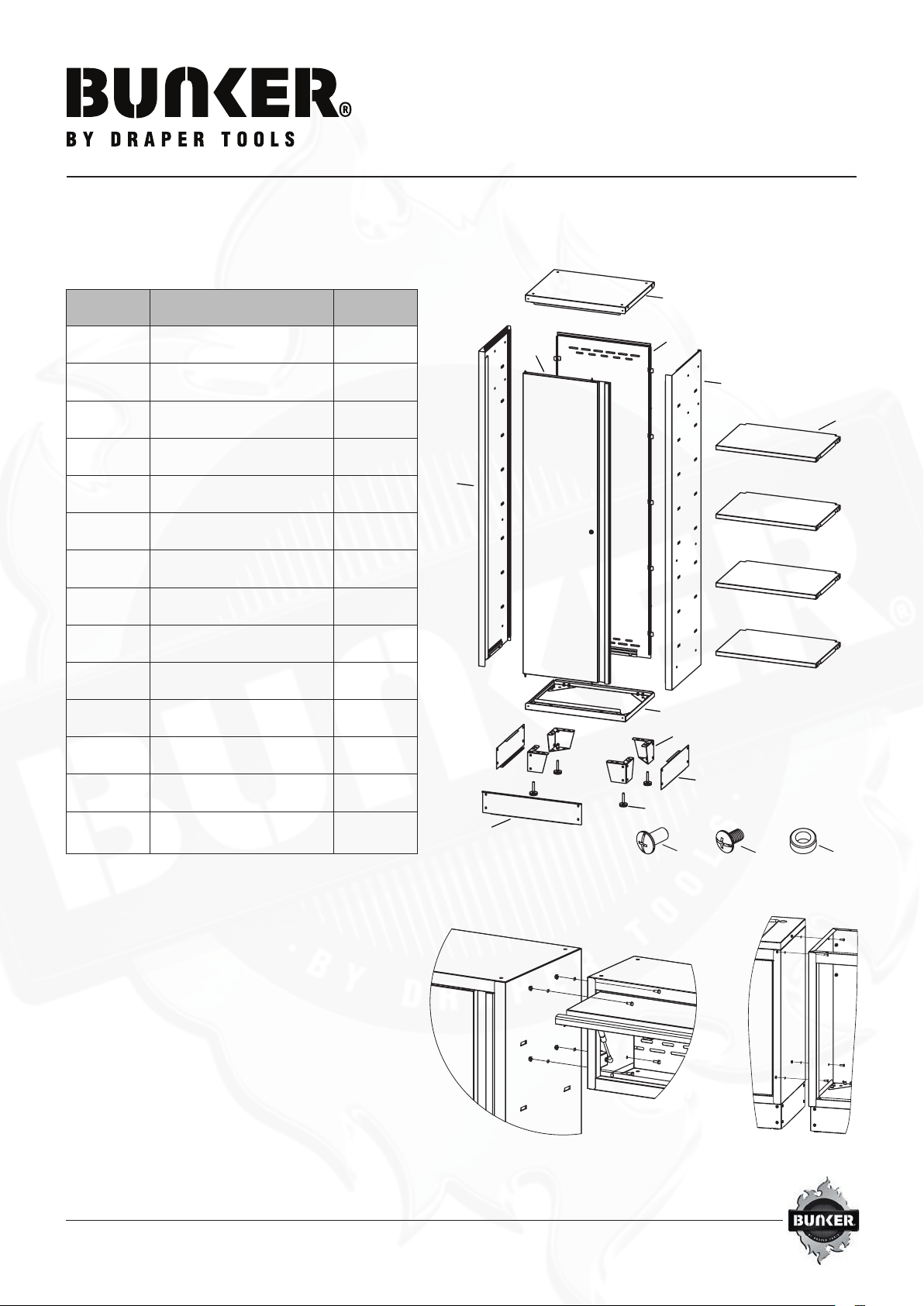

Item Description Quantity
1 Top Panel 1
2 Bottom Panel 1
3 Left Side Panel 1
4 Right Side Panel 1
5 Back Panel 1
6 Door 1
7 Front Kick Panel 1
8 Side Kick Panel 2
9 Shelf Panel 4
10 Foot Holder 4
11 Leg Leveller 4
12 M8 x 16mm bolt 16
13 M6 x 16mm bolt 12
14
12 x 7 x 5mm
Flat Washer
1
1
2
3
4
5
6
7
8
10
9
11
12
13
14
CABINET CONNECTION
Connect the side panels of two cabinets
with (4) bolt M6 x 16mm and nut M6,
and tighten with phillips screwdriver
(not included).
Note: remove the drawers and open the
doors before cabinet connection.
To make assembly easier we recommend having two
persons aid one another in assembly.

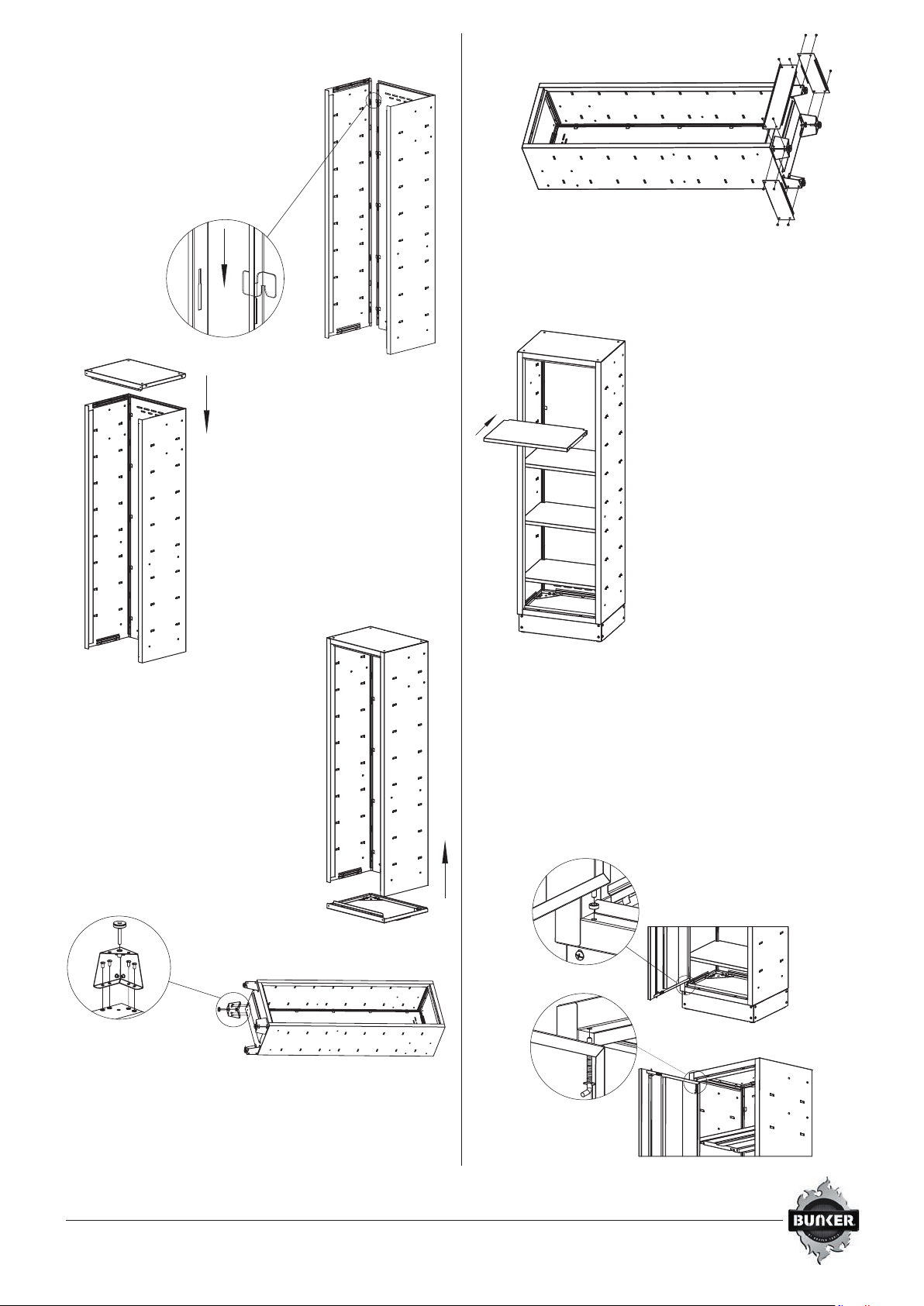

STEP 1:
Attach back panel (item 5)
to left and right side panels
(item 3 and 4) by engaging the
holes on the left and right side
panels with the corresponding
hooks on back panel.
STEP 2:
Insert the top panel (item 1)
into the side and back panels.
Lay the cabinet at on the ground if
necessary.
STEP 3:
Insert the bottom panel
(item 2) into the side and back
panels. Lay the cabinet at on
the ground if necessary.
STEP 4:
Use packaging material to protect the unit. Attach
the leg leveller (item 11) to foot holder (item 10).
Insert bolt M8 x 16mm (item 12) through the foot holder
into the cabinet.
STEP 5:
Attach the front and side kick panel (item 7 and 8)
to foot holder with bolt M6 x 16mm (item 13).
STEP 6:
Obliquely place the four shelf
panels (item 9) in the cabinet,
secure the shlef panels at four
desired heights by carefully
inserting the shelf edges into
the anges on left and right
side panels. Make sure each
shelf is level.
STEP 7:
Place the at washer (item 14) into the hinge pin, algin
the hinge pin on the bottom of the door with the hole on
bottom panel, slowly and carefully insert the hinge pin
into the hole. Algin the hinge pin on the top of the door
with the hole on top panel, slowly and carefully insert the
hinge pin into the hole.
