Craftsman 917259567 tractor User Manual

917.259567

• Assembly

Operation

Customer Responsibilities

Service and Adjustments

• Repair Parts

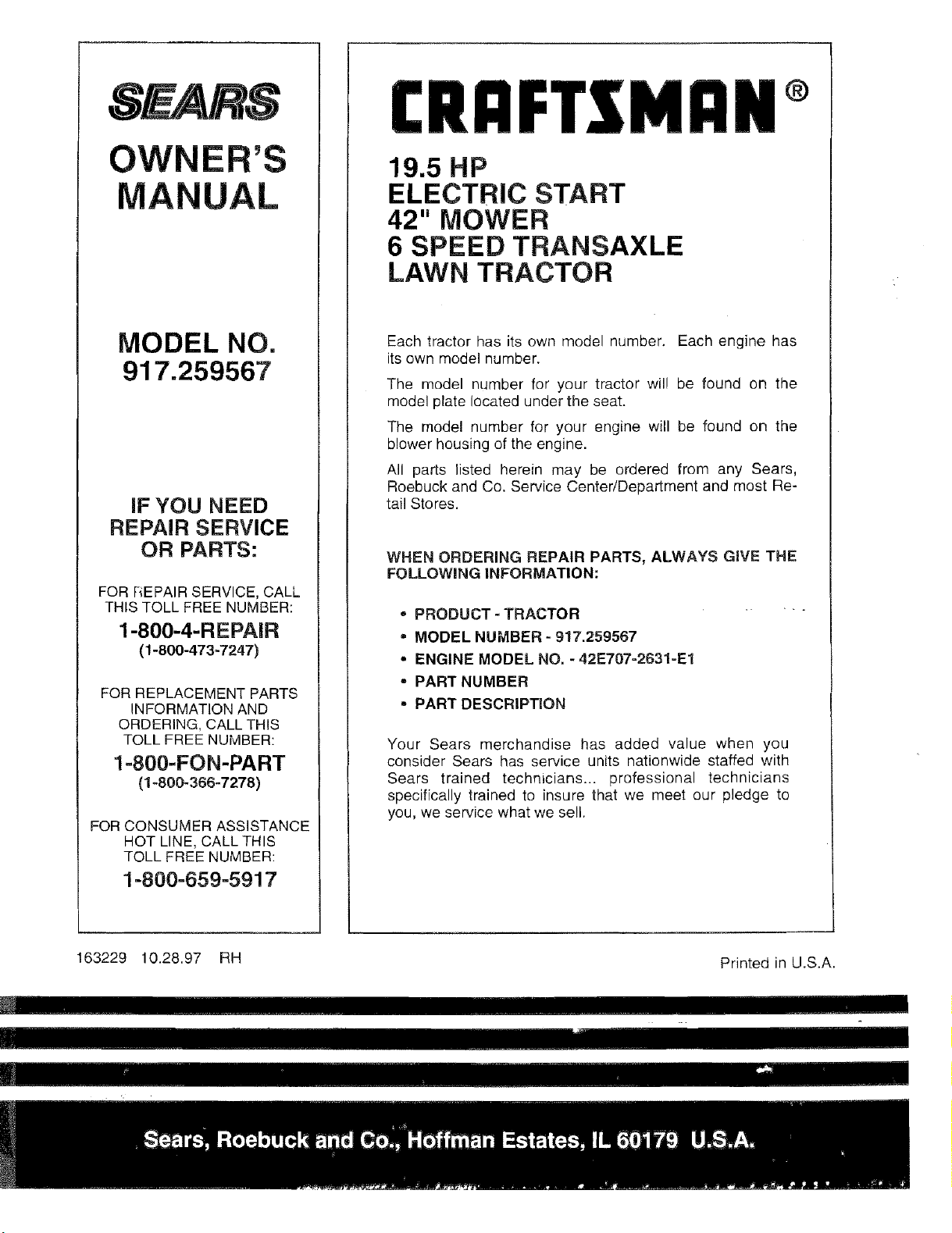

OWNER'S MANUAL

For answers to your questions

about this product, Call:

1-800=659=5917

Sears Craftsman Help Line

5 am- 5 pro, Mon- Sat

CAUTION: Read and follow all safety rules and instructions before operating this equipment.

.............................. _ .............. -ii_i.... i-w

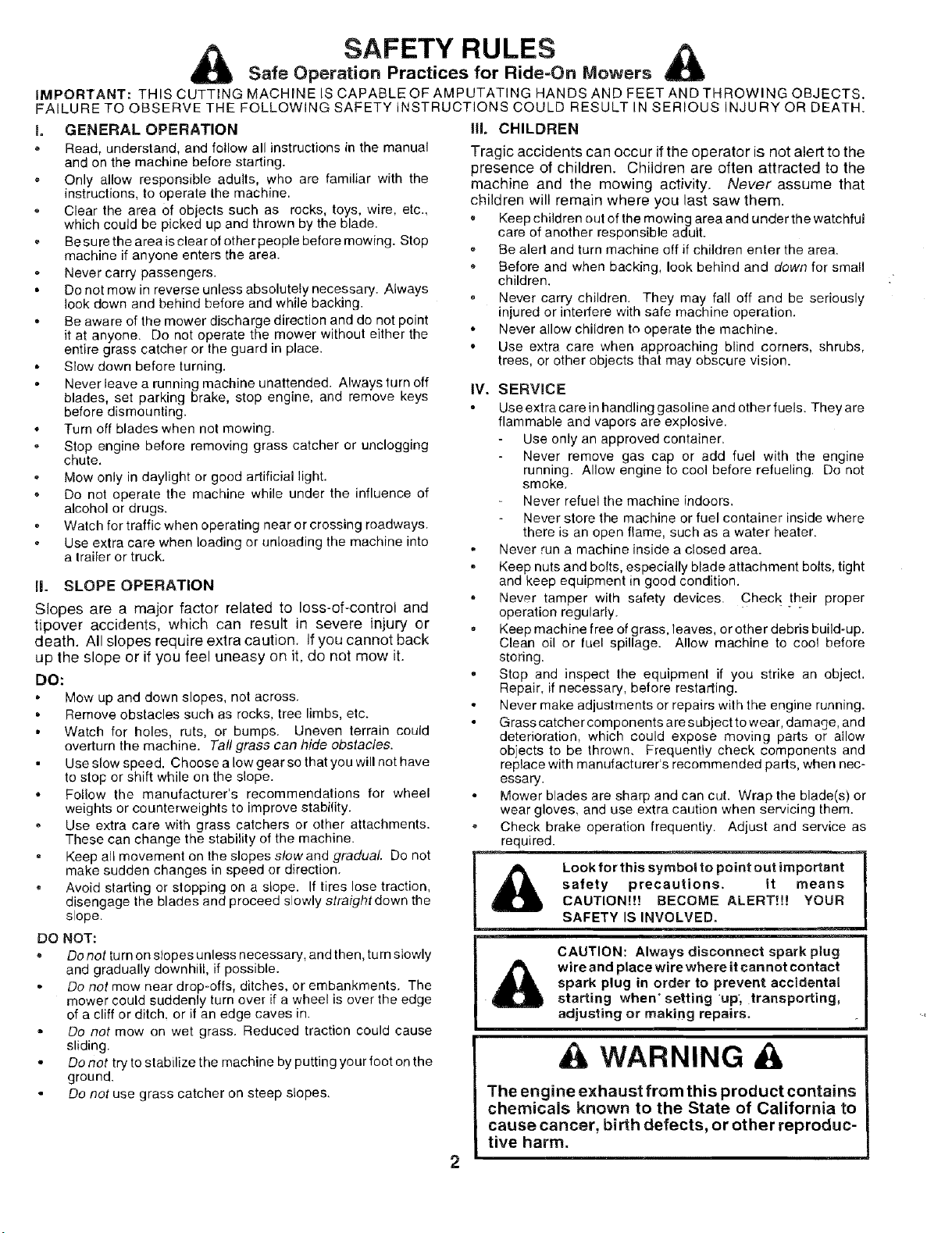

SAFETY RULES

Safe Operation Practices for Ride=On Mowers

iMPORTANT: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROWING OBJECTS.

FAILURE TO OBSERVE THE FOLLOWING SAFETY iNSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.

I. GENERAL OPERATION

Read, understand, and follow all instructions in the manual

and on the machine before starting.

, Only allow responsible adults, who are familiar with the

instructions, to operate the machine.

, Clear the area of objecls such as rocks, toys, wire, etc.,

which could be picked up and thrown by the blade.

• Be sure the area is clear of other people before mowing. Stop

machine if anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless absolutely necessary. Always

look down and behind before and while backing.

• Be aware of the mower discharge direction and do not point

it at anyone. Do not operate the mower without either the

entire grass catcher or the guard in place.

• SFowdown before turning.

• Never leave a running machine unattended. Always turn off

blades, set parking brake, stop engine, and remove keys

before dismounting.

• Turn off blades when net mowing.

• Stop engine before removing grass catcher or unclogging

chute.

• Mow only in daylight or good artificial light.

Do not operate the machine while under the influence of

alcohol or drugs.

• Watch for traffic when operating near or crossing roadways.

• Use extra care when loading or unloading the machine into

a lrailer or truck.

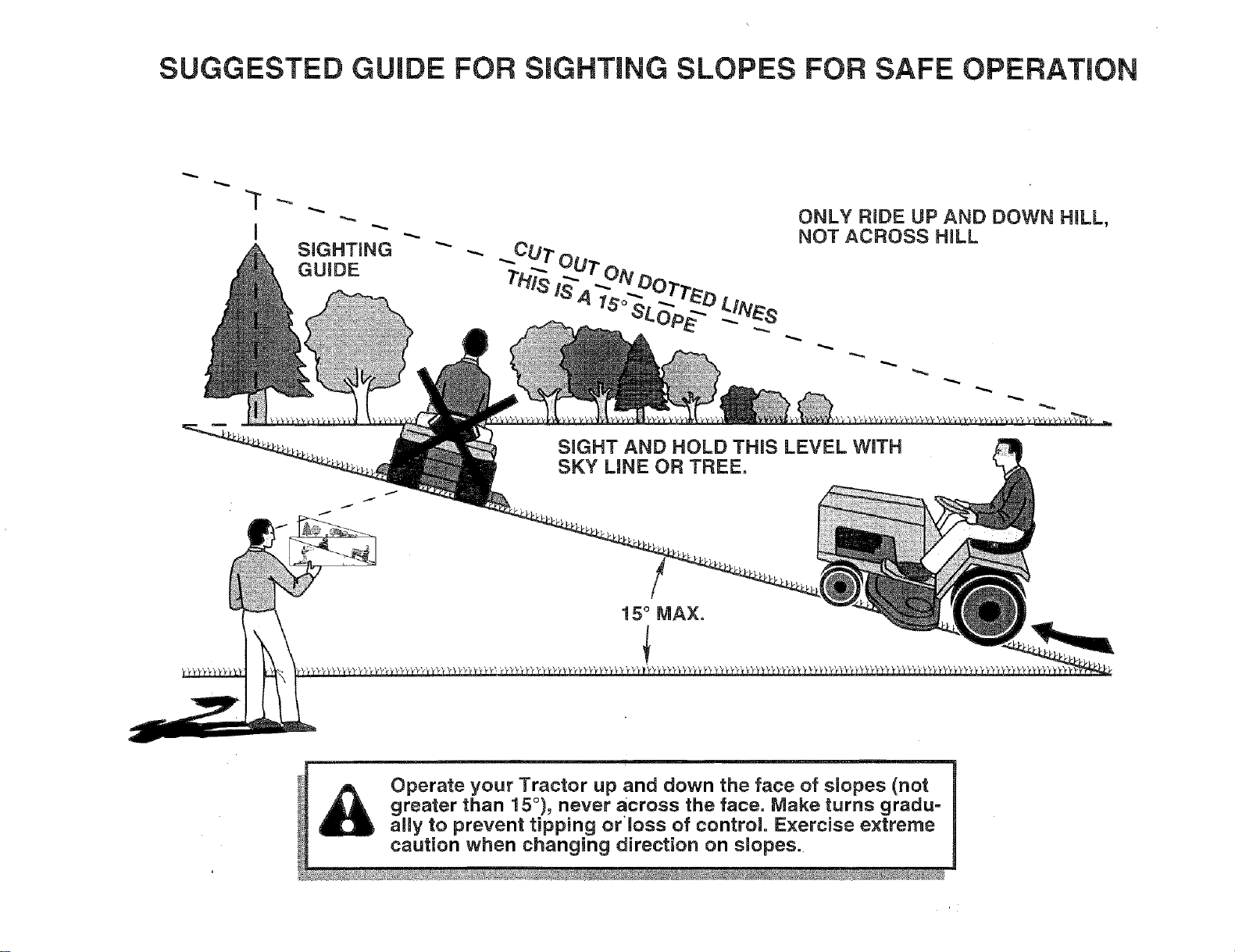

II. SLOPE OPERATION

Slopes are a major factor related to loss-of-control and

tipover accidents, which can result in severe injury or

death. All slopes require extra caution. If you cannot back

up the slope or if you feel uneasy on it, do not mow it.

DO:

• Mow up and down slopes, not across.

o Remove obstacles such as rocks, tree limbs, etc.

• Watch for holes, ruts, or bumps. Uneven terrain could

overturn the machine. Taft grass can hide obstacles.

• Use slow speed. Choose a low gear so that you will not have

to stop or shift while on the slope.

- Follow the manufacturer's recommendations for wheel

weights or counterweights to improve stability.

,, Use extra care with grass catchers or other attachments.

These can change the stabiJity of the machine.

• Keep all movement on the slopes slow and gradual. Do not

make sudden changes in speed or direction.

• Avoid starting or slopping on a slope. If tires lose traction,

disengage the blades and proceed slowly straight down the

slope.

DO NOT:

® Do not turn on slopes unless necessary, and then, turn slowly

and gradually downhill, if possible.

o Do not mow near drop-otis, ditches, or embankments, The

mower could suddenly turn over if a wheel is over the edge

of a cliff or ditch, or if an edge caves in.

. Do not mow on wet grass. Reduced traction could cause

sliding.

,, Do not try to stabilize the machine by putting your foot on the

ground.

Do not use grass catcher on steep slopes.

III. CHILDREN

Tragic accidents can occur if the operator is not alert to the

presence of children. Children are often attracted to the

machine and the mowing activity. Never assume that

children will remain where you last saw them.

o Keep children out of the mowing area and under the watchful

care of another responsible adult.

,, Be alert and turn machine off if children enter the area.

,, Before and when backing, look behind and down for small

children.

, Never carry children. They may fall off and be seriously

injured or interfere with safe machine operation.

,, Never allow children to operate the machine.

° Use extra care when approaching blind corners, shrubs,

trees, or other objects that may obscure vision.

IV.

SERVICE

Use extra care in handling gasoline and other fuels. They are

flammable and vapors are explosive.

Use only an approved container.

Never remove gas cap or add fuel with the engine

running. Allow engine to cool before refueling. Do not

smoke,

Never refuel the machine indoors.

Never store the machine or fuel container inside where

there is an open flame, such as a water heater.

Never run a machine inside a dosed area.

Keep nuts and bolts, especially blade attachment bolts, tight

and keep equipment in good condition.

Never tamper with safety devices. Check their proper

operation regularly.

Keep machine free of grass, leaves, or other debris build-up.

Clean oil or fuel spillage. Allow machine to cool before

storing.

Stop and inspect the equipment if you strike an object.

Repair, if necessary, before restarting.

Never make adjustments or repairs with the engine running.

Grass catcher components are subject to wear, damage, and

deterioration, which could expose moving parts or allow

obiects to be thrown. Frequently check components and

replace with manufactureCs recommended parts, when nec-

essary.

Mower blades are sharp and can cut. Wrap the blade(s) or

wear gloves, and use extra caution when servicing them.

Check brake operation frequently. Adjust and service as

required.

Look for this symbol to point out important

safety precautions, it means

CAUTION!!! BECOME ALERT!!! YOUR

SAFETY IS INVOLVED.

CAUTION: Always disconnect spark plug

wire and place wire where it cannot contact

spark plug in order to prevent accidental

starting when" setting up; transporting,

adjusting or making repairs.

WARNING

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other reproduc-

tive harm.

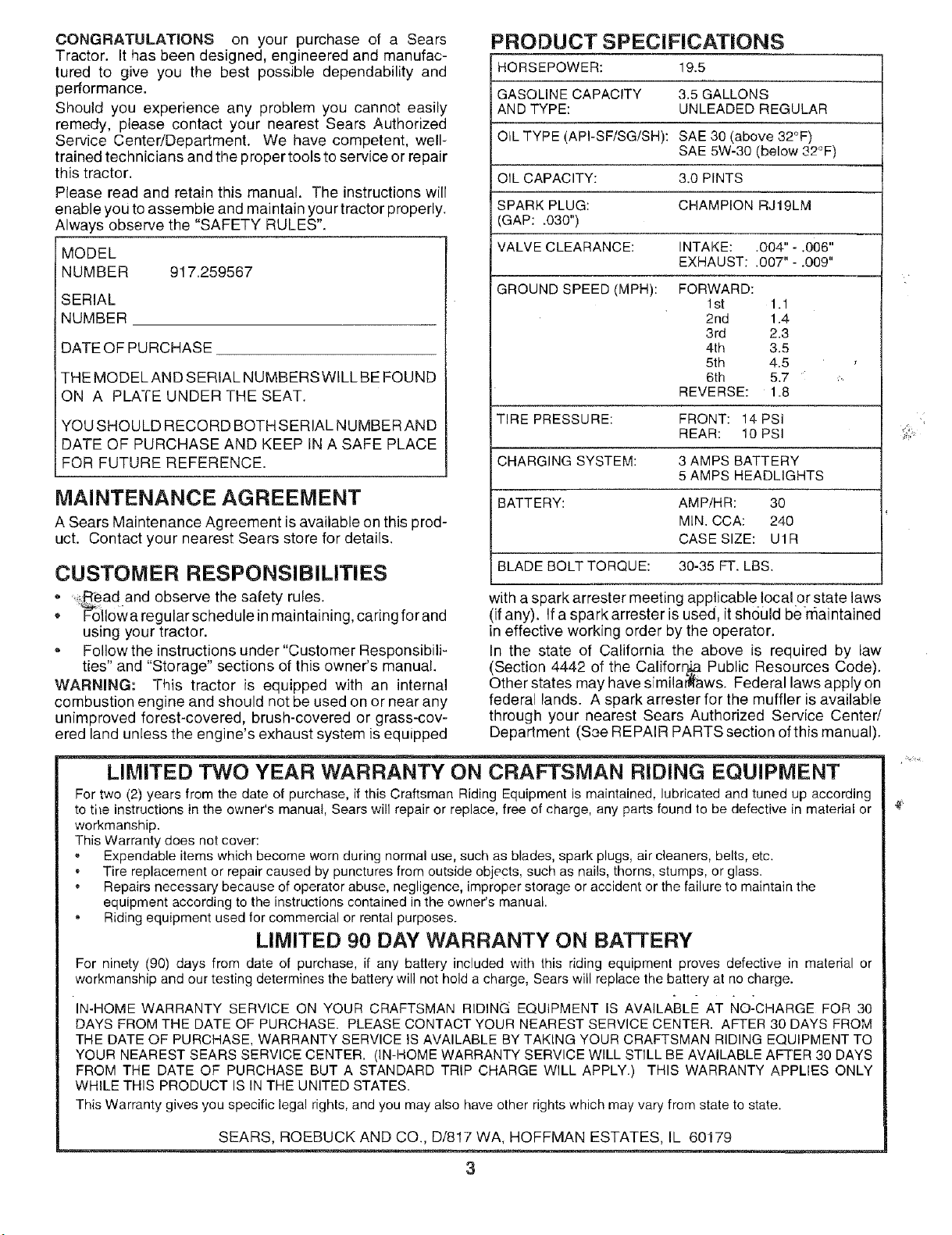

CONGRATULATIONS on your purchase of a Sears

Tractor. it has been designed, engineered and manufac-

tured to give you the best possible dependability and

performance.

Should you experience any problem you cannot easily

remedy, please contact your nearest Sears Authorized

Service Center/Department. We have competent, weft-

trained technicians and the proper tools to service or repair

this tractor.

Please read and retain this manual. The instructions will

enable you to assemble and maintain your tractor properly.

Always observe the "SAFETY RULES".

MODEL

NUMBER 917.259567

SERIAL

NUMBER

DATEOFPURCHASE

THE MODEL AND SERIAL NUMBERS WILL BE FOUND

ON A PLATE UNDER I-HE SEAT.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND

DATE OF PURCHASE AND KEEP IN A SAFE PLACE

FOR FUTURE REFERENCE.

MAINTENANCE AGREEMENT

A Sears Maintenance Agreement is available on this prod-

uct. Contact your nearest Sears store for details.

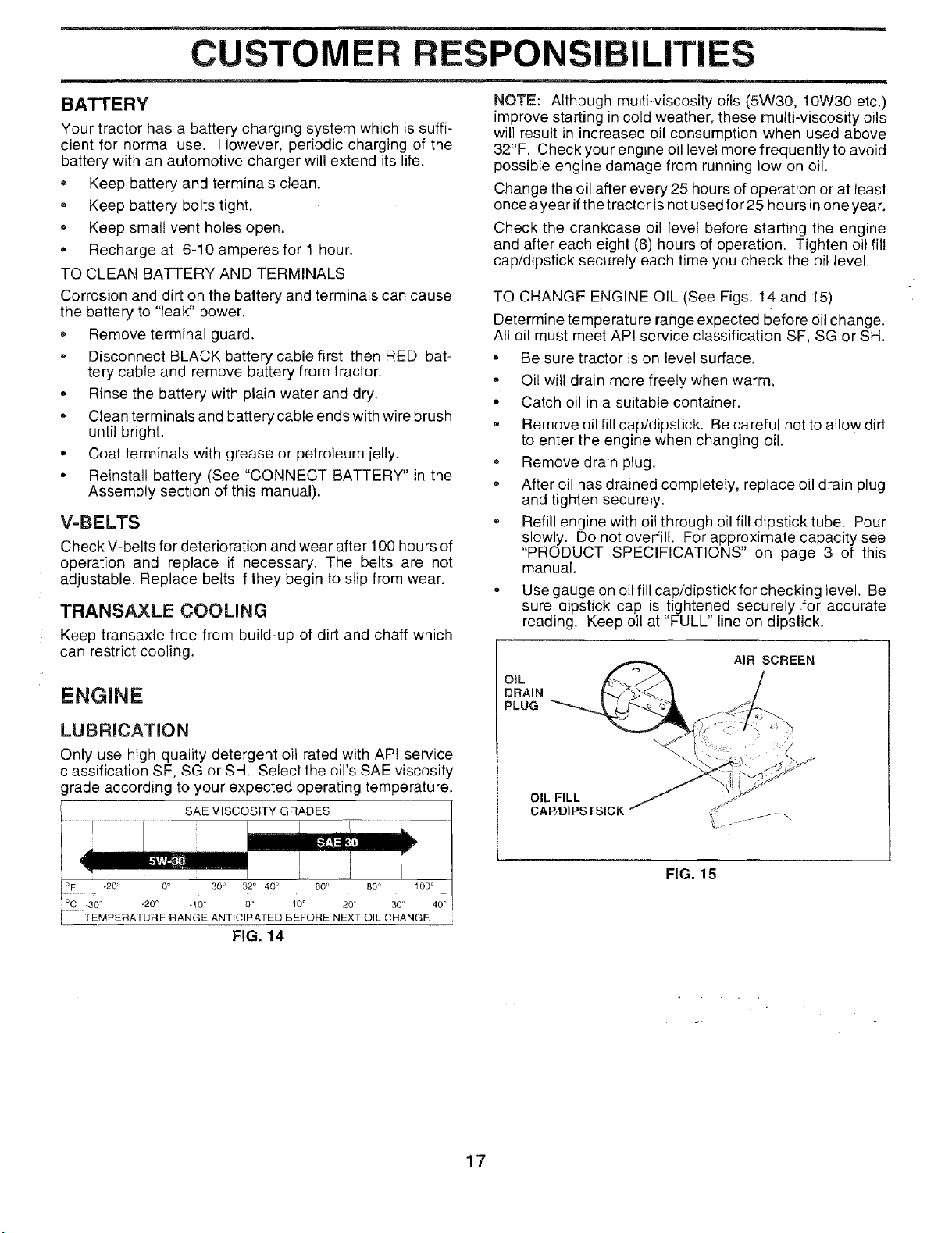

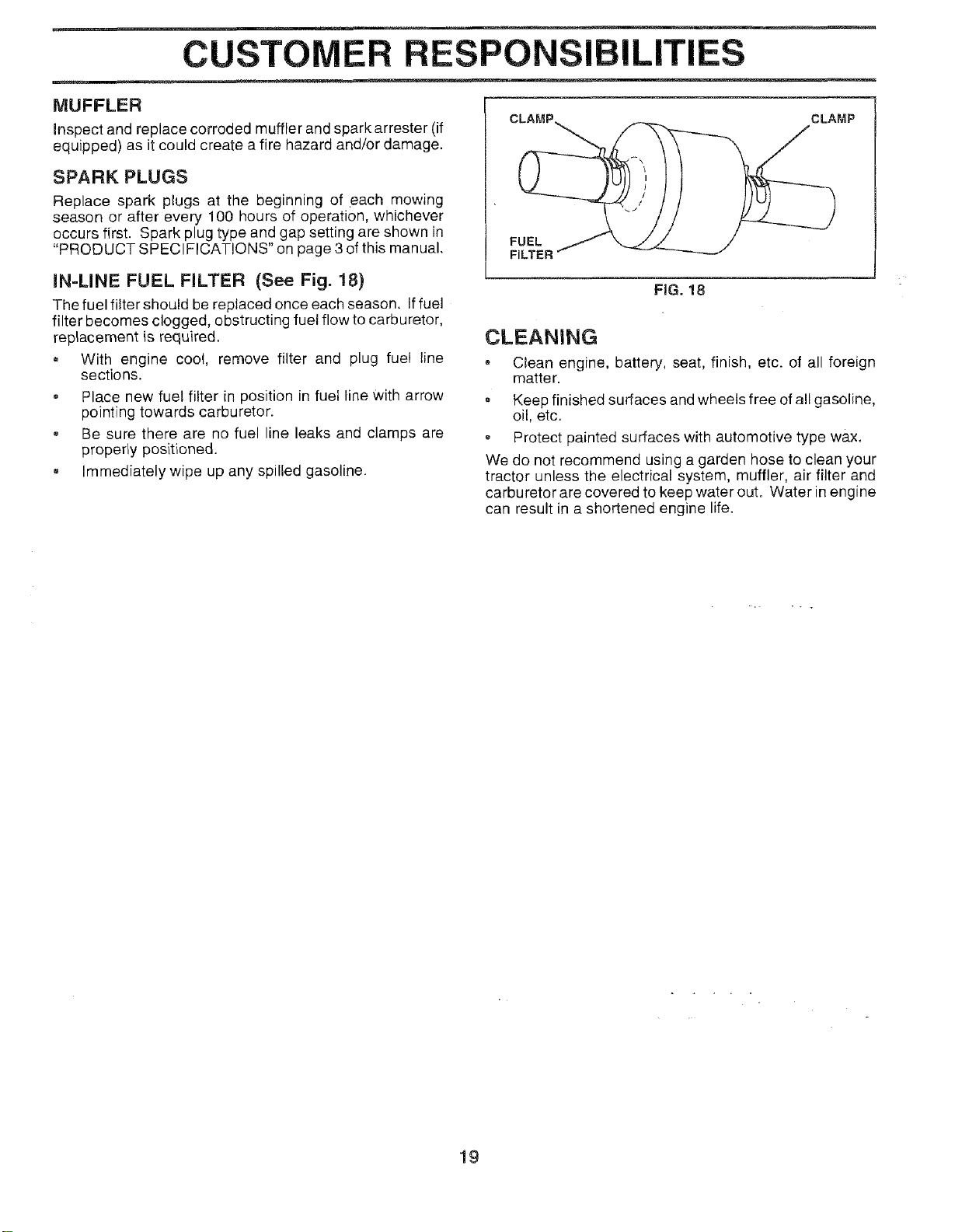

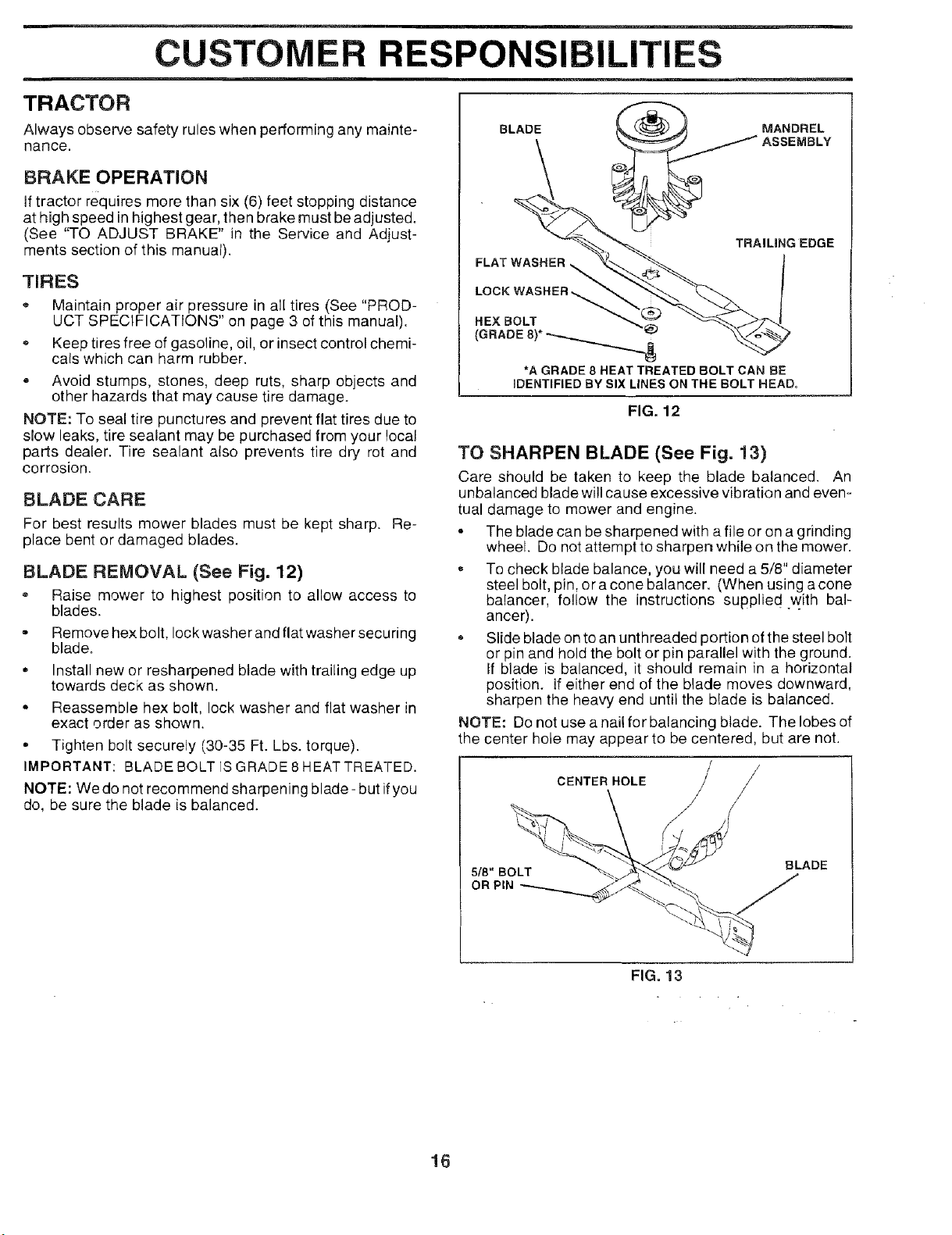

CUSTOMER RESPONSIBILITIES

o _:_ead and observe the safety rules.

, "_oilowa regular schedule inmaintaining, caring for and

using your tractor.

- Follow the instructionsunder "Customer Responsibili-

ties" and "Storage" sections of this owner's manual.

WARNING: This tractor is equipped with an internal

combustion engine and should not be used on or near any

unimproved forest-covered, brush-covered or grass-cov-

ered land unless the engine's exhaust system is equipped

PRODUCT SPECIFICATIONS

HORSEPOWER: 19.5

GASOLINE CAPACITY 3.5 GALLONS

AND TYPE: UNLEADED REGULAR

OIL TYPE (API-SF/SG/SH): SAE 30 (above 32°F)

SAE 5W-30 (below 32°F)

OIL CAPACITY: 3.0 PINTS

SPARK PLUG: CHAMPION RJ19LM

(GAP: .030")

VALVE CLEARANCE: INTAKE: .004" - .006"

EXHAUST: .007" - .009"

GROUND SPEED (MPH): FORWARD:

1st 1.1

2nd 1.4

3rd 2_3

4th 3.5

5th 4.5

6th 5.7 -

REVERSE: 1.8

TIRE PRESSURE: FRONT: 14PSi

REAR: 10 PSi

CHARGING SYSTEM: 3 AMPS BATTERY

5 AMPS HEADLIGHTS

3ATTERY: AMP/HR: 30

MIN. CCA: 240

CASE SIZE: U1R

BLADEBOLT TORQUE: 30-35 FT.LBS.

with a spark arrester meeting applicable local or state laws

(if any). If a spark arrester is used, it should berfiaintained

in effective working order by the operator.

In the state of California the above is required by law

(Section 4442 of the Califorr_. Public Resources Code).

Other states may have simila_ws. Federal laws apply on

federal lands. A spark arrester for the muffler is available

through your nearest Sears Authorized Service Center!

Department (Soe REPAIR PARTS section ofthis manual).

LIMITED TWO YEAR WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

Fortwo (2) years from the date of purchase,if this Craftsman RidingEquipment is maintained,lubricated and tuned up according

to the instructionsinthe owner's manual, Searswill repair or replace, free of charge, any parts foundto be defective in material or

workmanship.

This Warranty does not cover:

Expendableitems whichbecomeworn duringnormaluse,such as blades, spark plugs, air cleaners,belts,etc.

• Tire replacementor repaircaused by puncturesfrom outsideobjects, such as nails, thorns,stumps,or glass.

• Repairs necessary because of operatorabuse, negligence,improperstorageor accidentor the failureto maintain the

equipment according totheinstructionscontained inthe owner'smanual.

Ridingequipment usedfor commercial or rentalpurposes.

LIMITED 90 DAY WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equipment proves defective in material or

workmanship and our testing determinesthe batterywillnot hold a charge, Searswill replacethe battery at nocharge.

IN-HOME WARRANTY SERVICE ON YOUR CRAFTSMAN RIDING EQUIPMENT IS AVAILABLE AT NO-CHARGE FOR 30

DAYS FROM THE DATE OF PURCHASE. PLEASE CONTACT YOUR NEAREST SERVICE CENTER. AFTER 30 DAYS FROM

THE DATE OF PURCHASE, WARRANTY SERVICEIS AVAILABLEBY TAKING YOUR CRAFTSMAN RIDINGEQUIPMENTTO

YOUR NEARESTSEARS SERVICECENTER. (IN-HOMEWARRANTY SERVICEWILL STILL BE AVAILABLEAFTER 30 DAYS

FROM THE DATE OF PURCHASE BUT A STANDARD TRIP CHARGE WILL APPLY.) THIS WARRANTY APPLIES ONLY

WHILETHIS PRODUCT IS INTHE UNITEDSTATES.

This Warranty gives you specific legal rights,and you may also haveother rightswhich may vary from stateto state.

SEARS, ROEBUCK AND CO., D/817 WA, HOFFMAN ESTATES, IL 60179

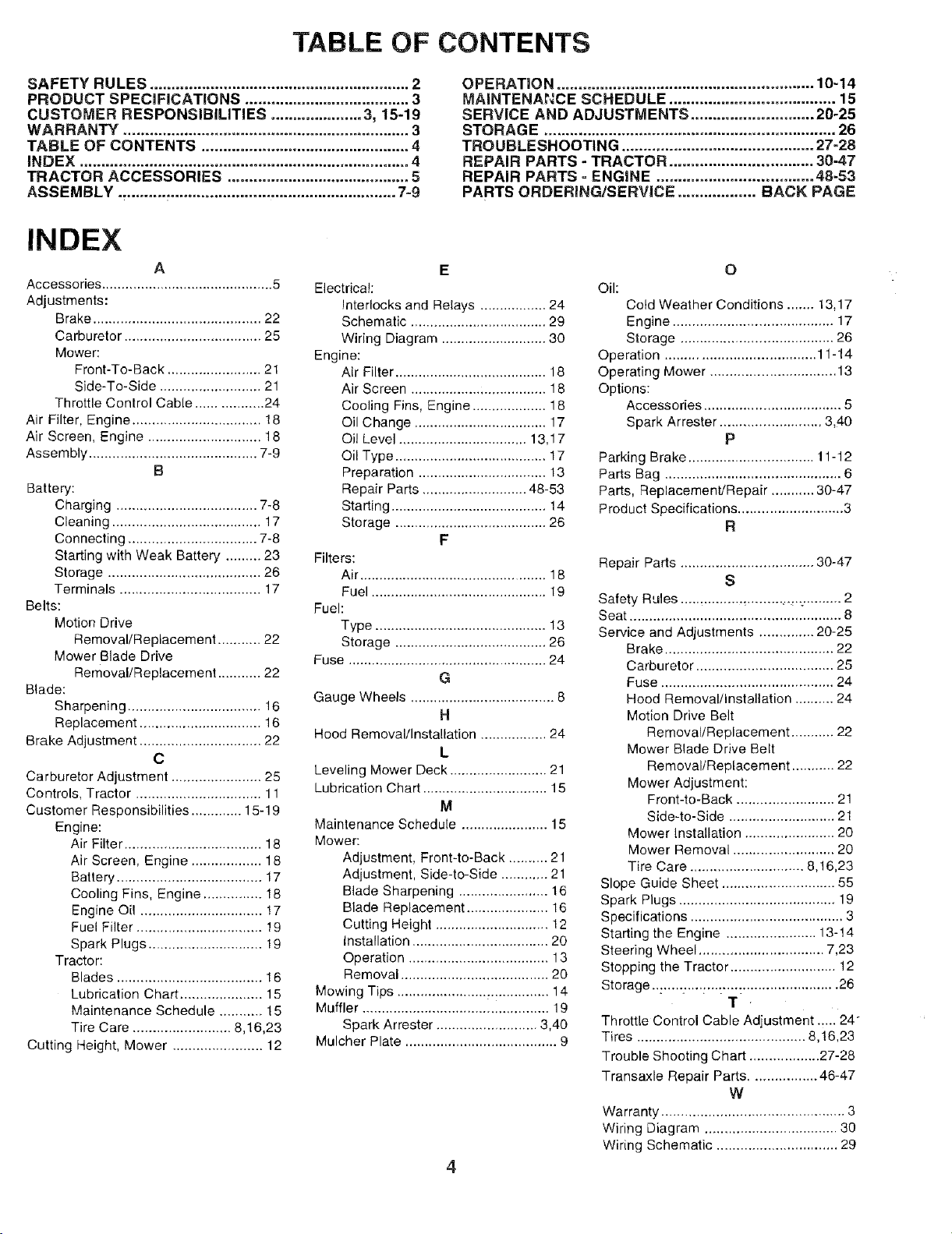

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ...................................... 3

CUSTOMER RESPONSIBILITIES ..................... 3, 15-19

WARRANTY. ................................................................. 3

TABLE OF CONTENTS ................................................ 4

INDEX ............................................................................ 4

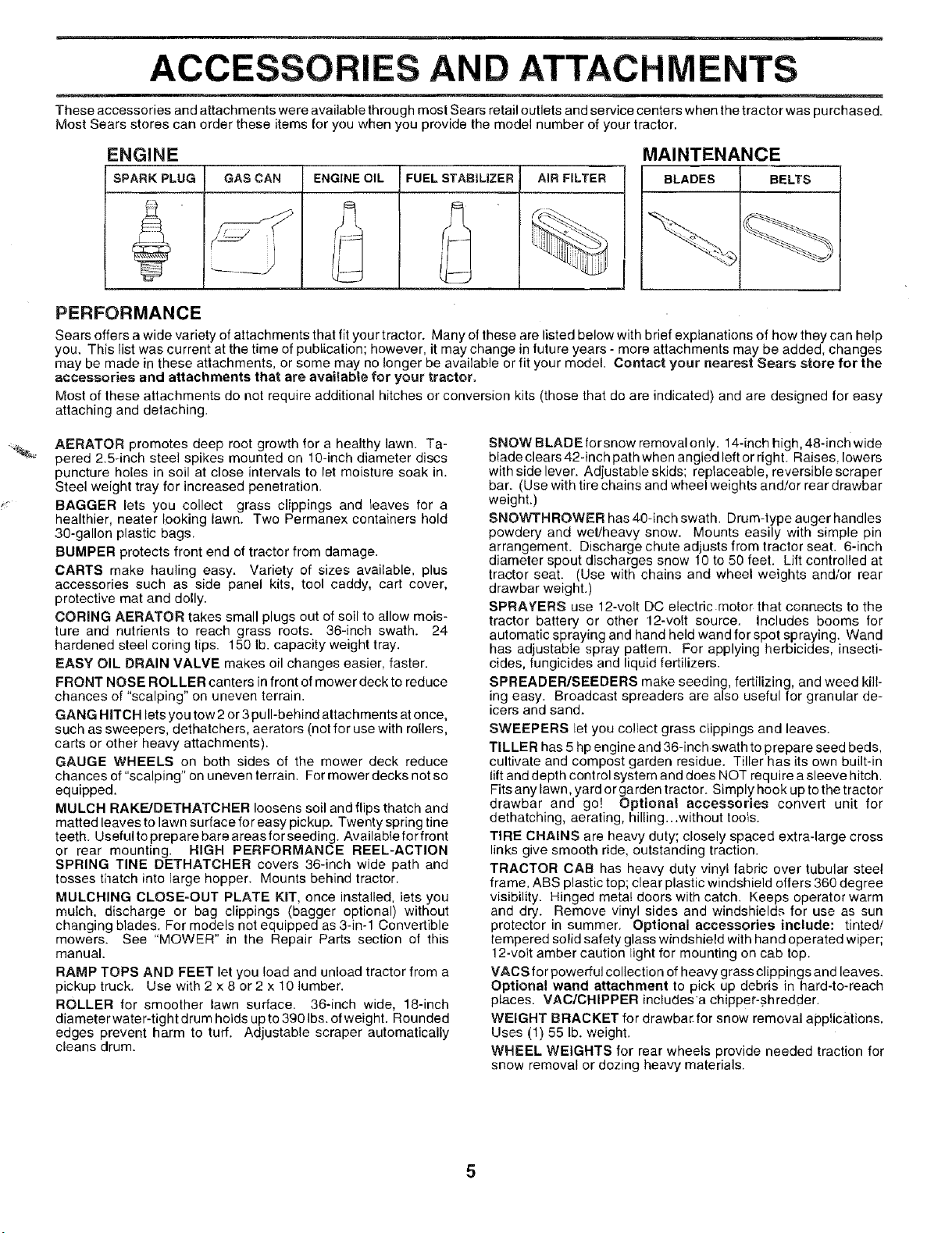

TRACTOR ACCESSORIES .......................................... 5

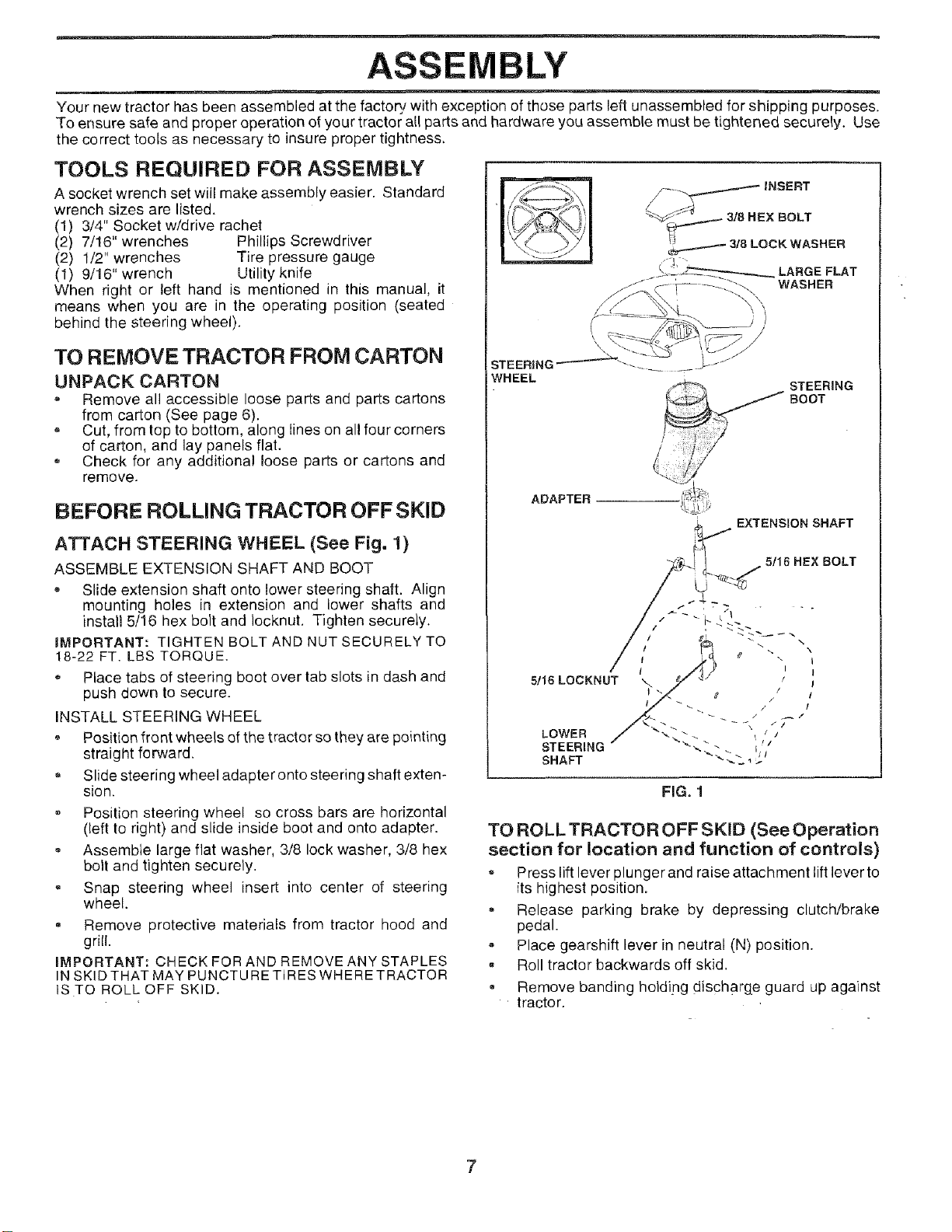

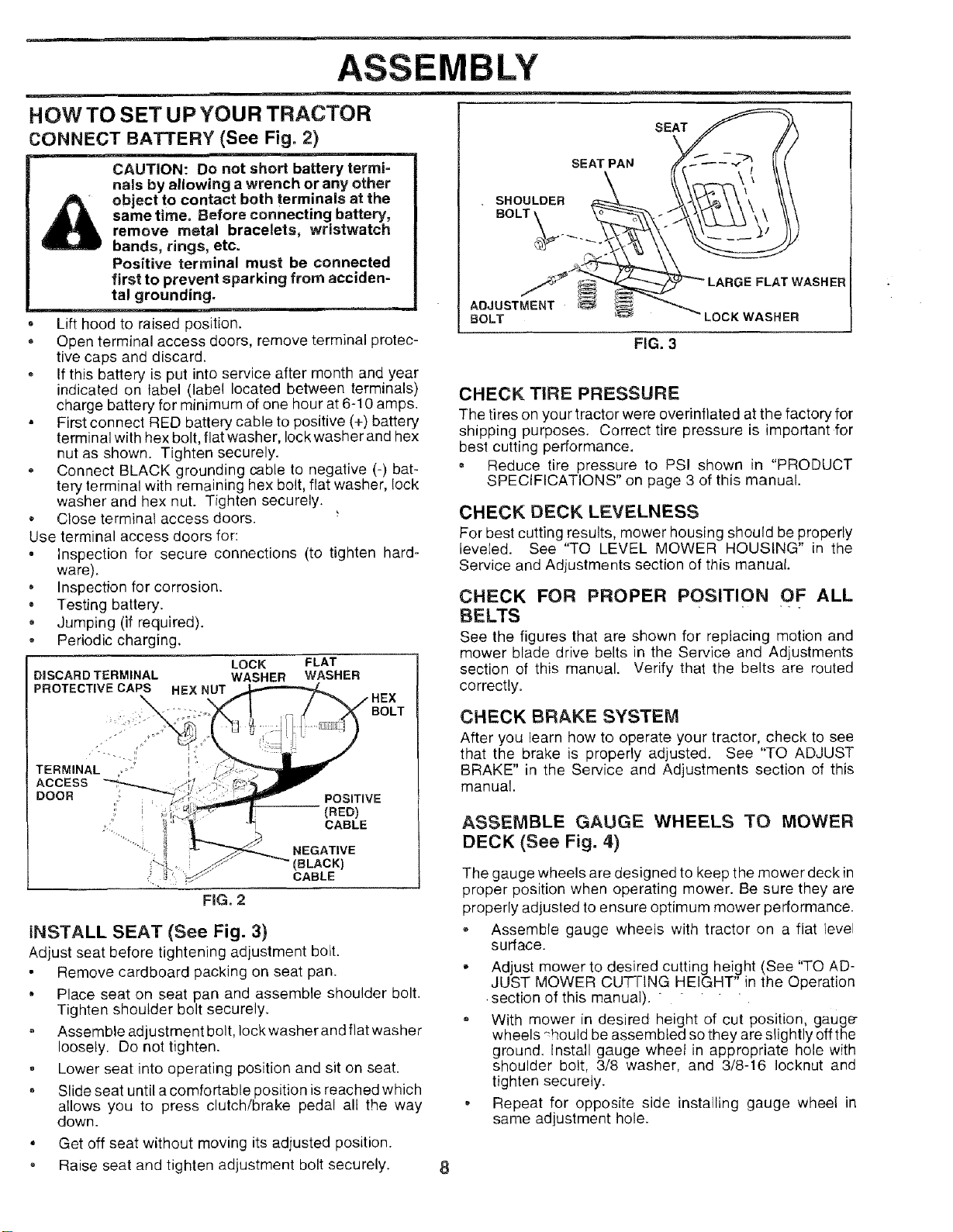

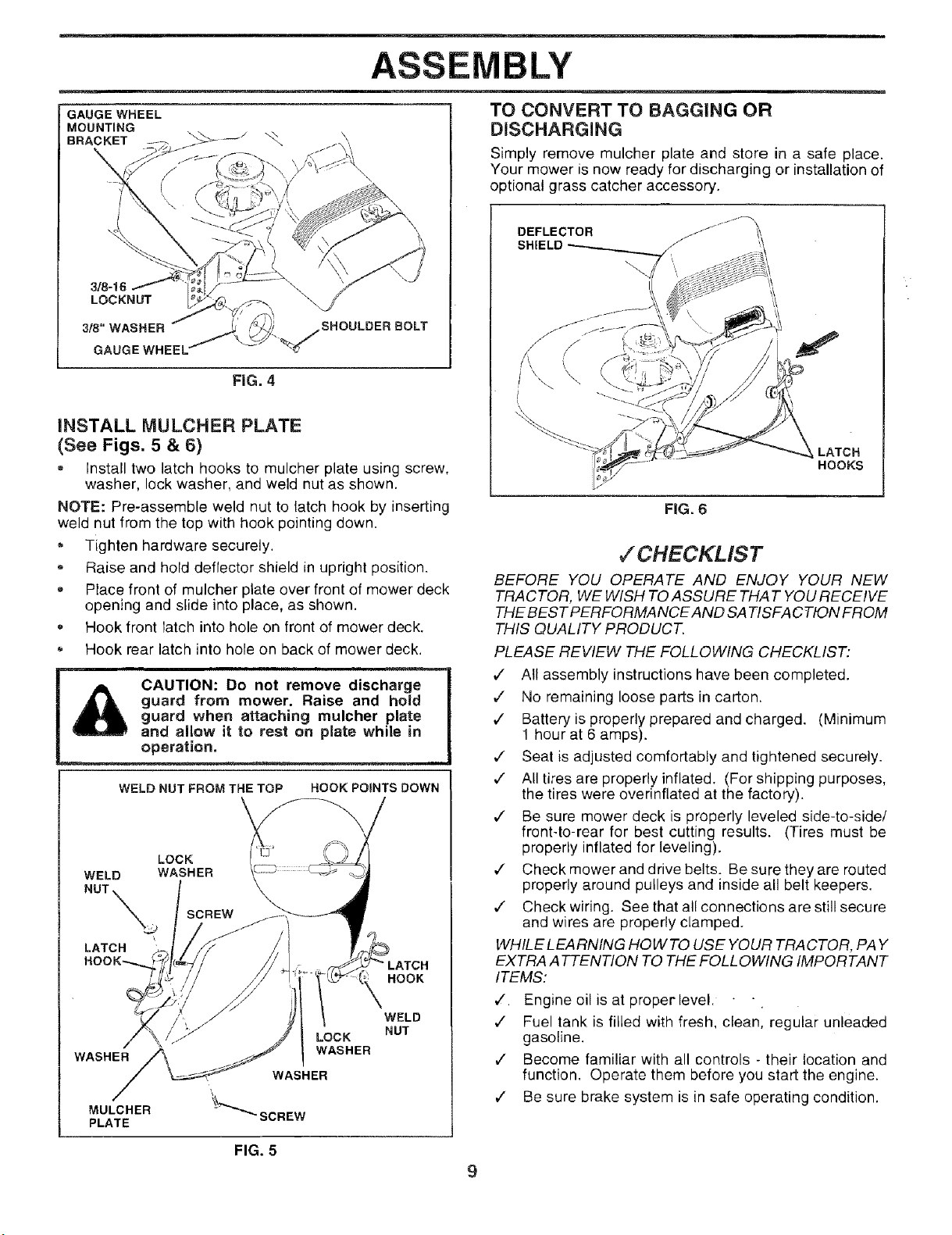

ASSEMBLY ................................................................ 7=9

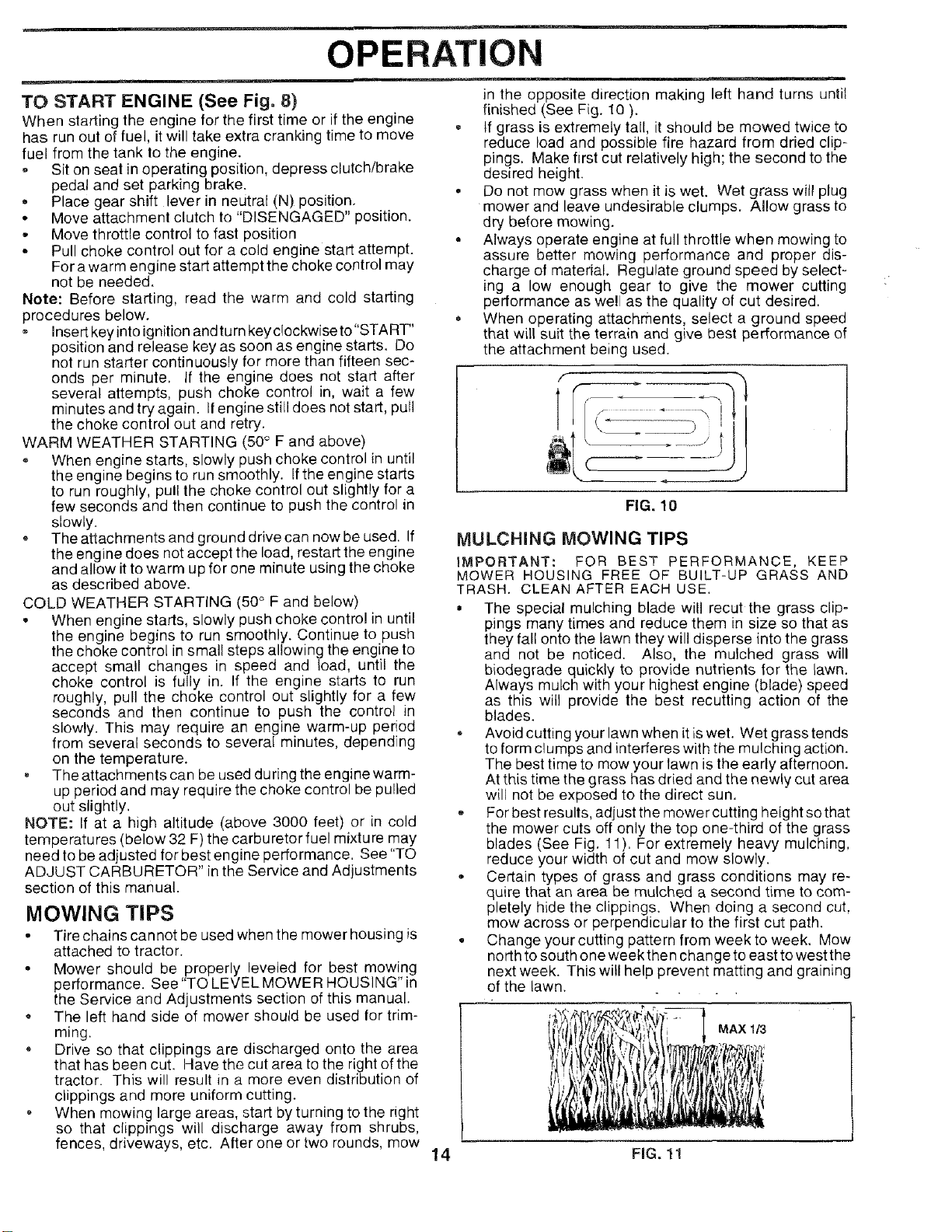

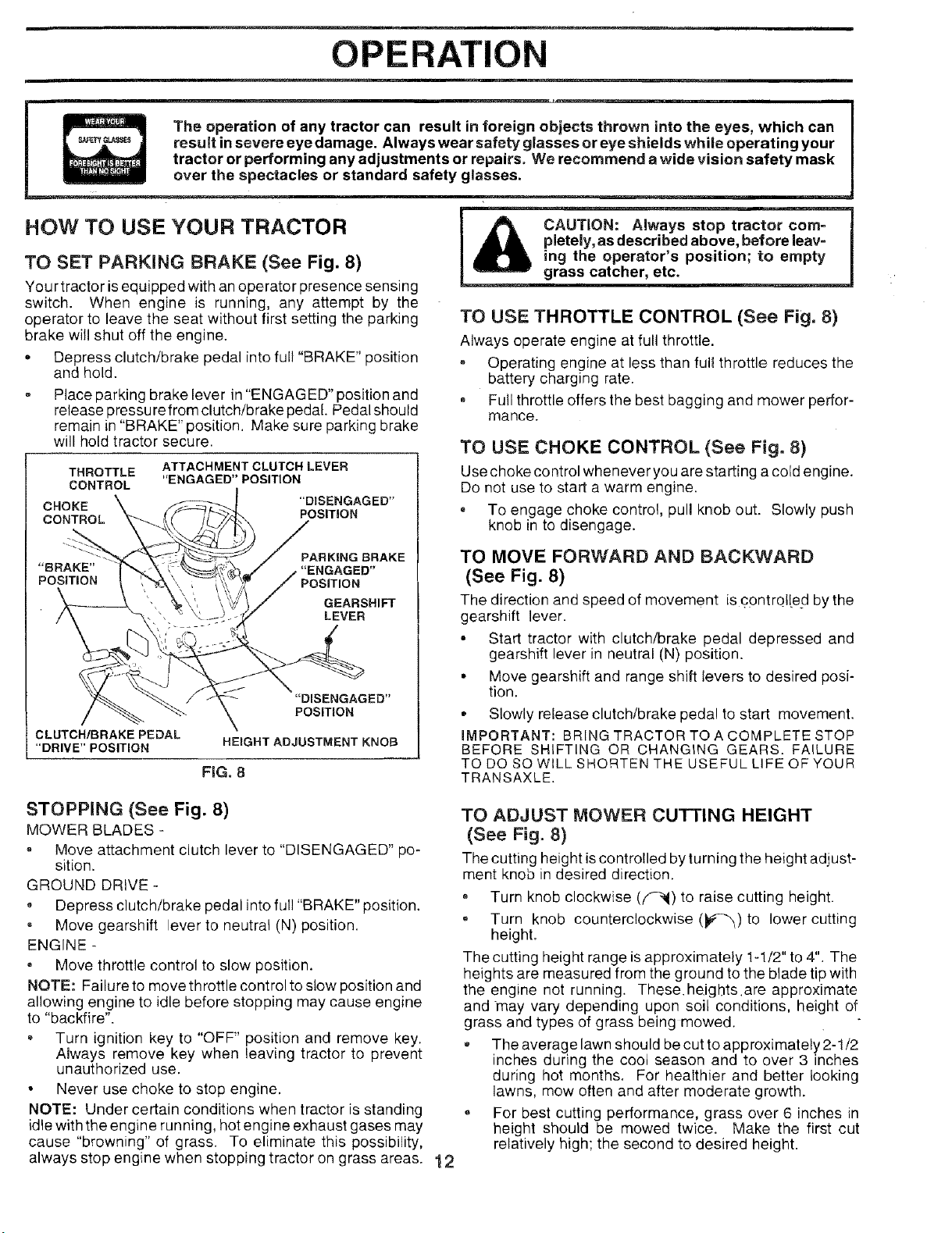

OPERATION ........................................................... 10-14

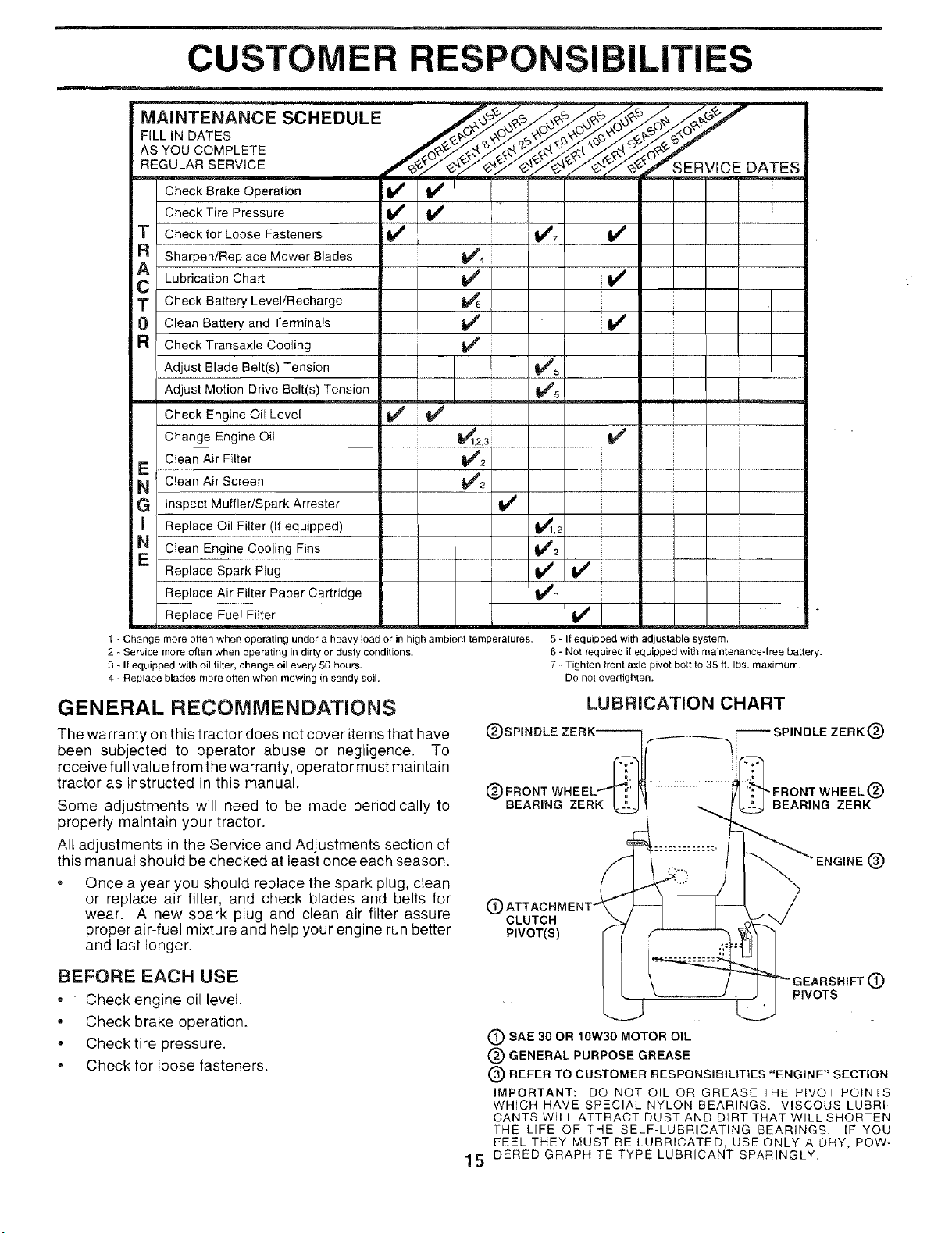

MAINTENA_ICE SCHEDULE ...................................... 15

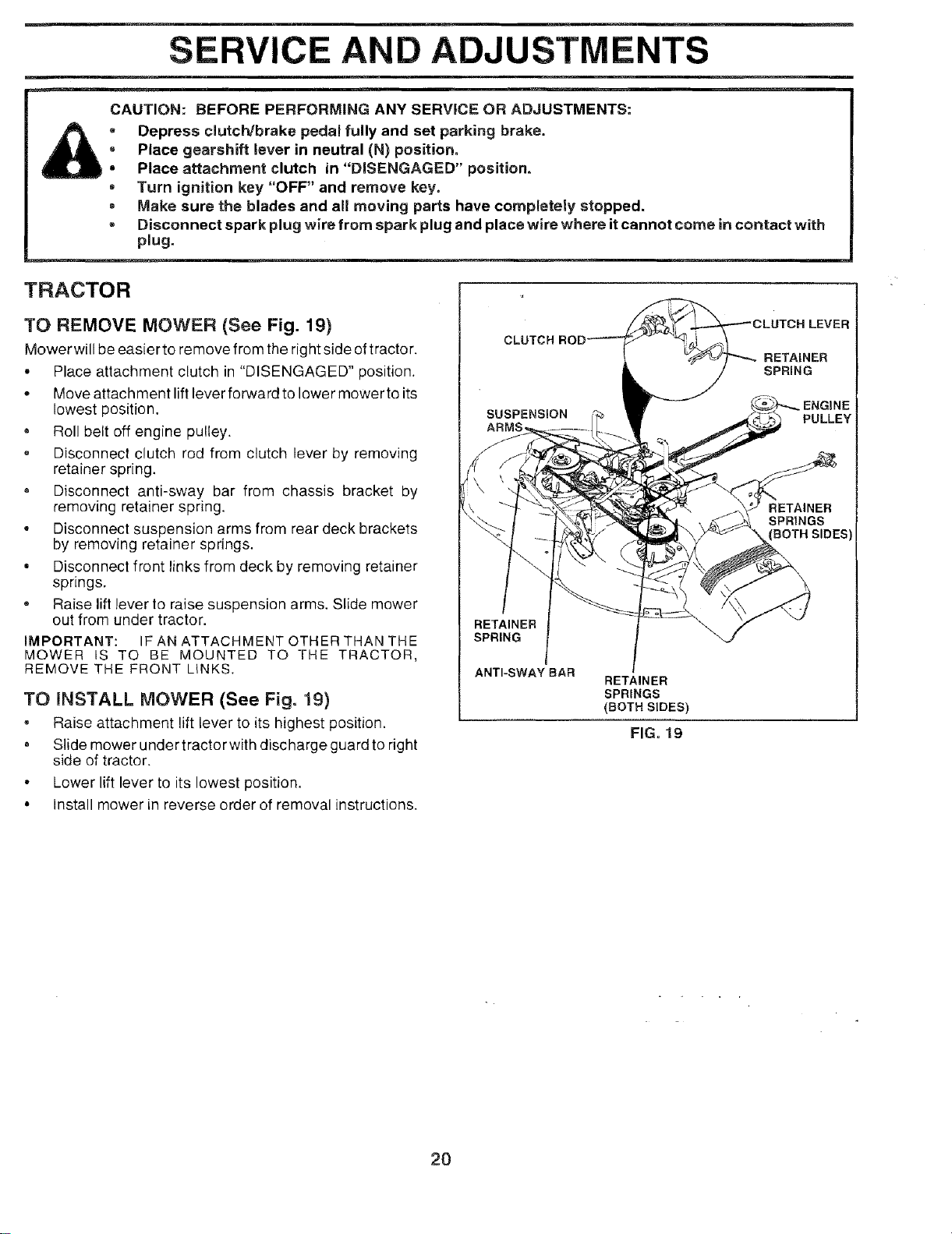

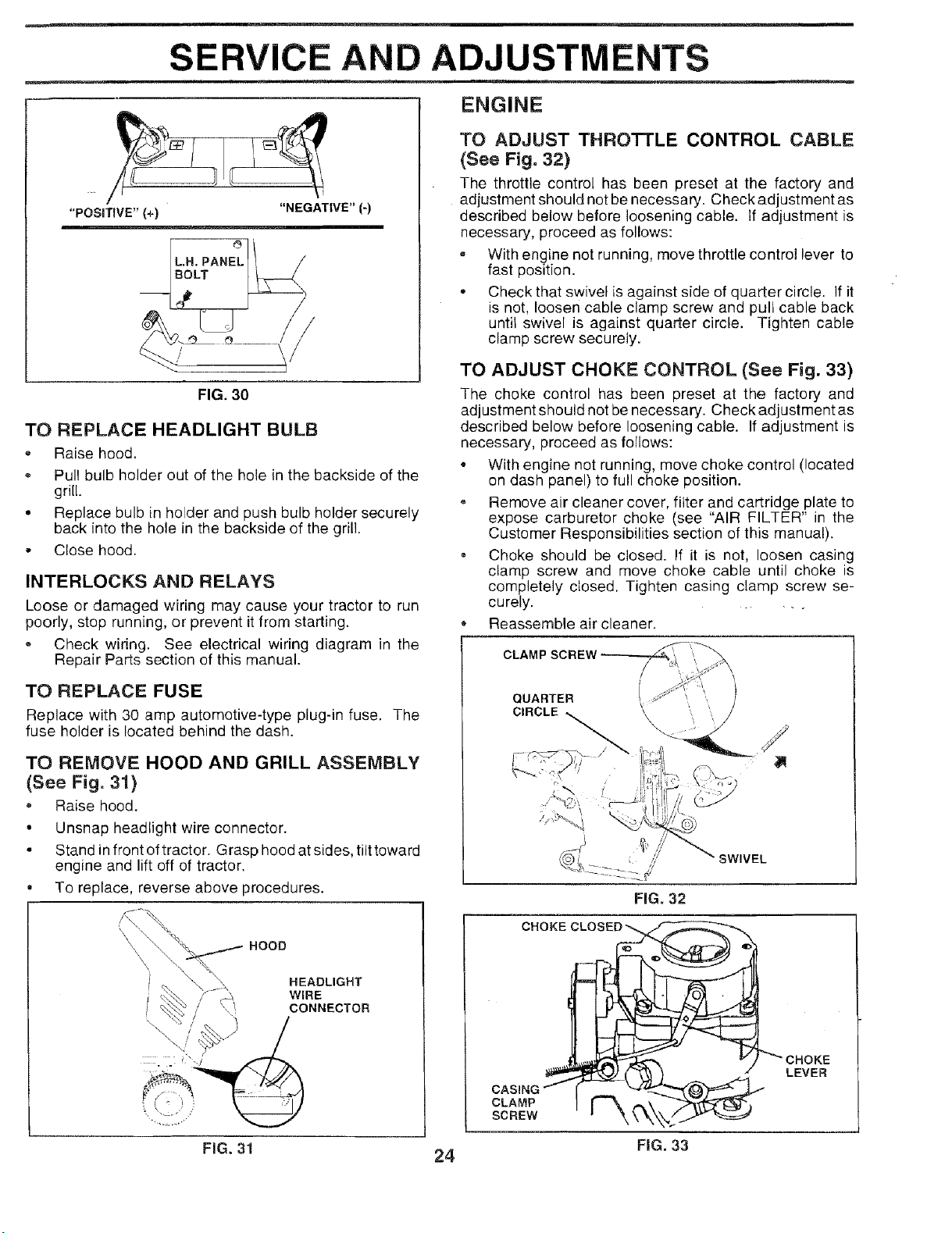

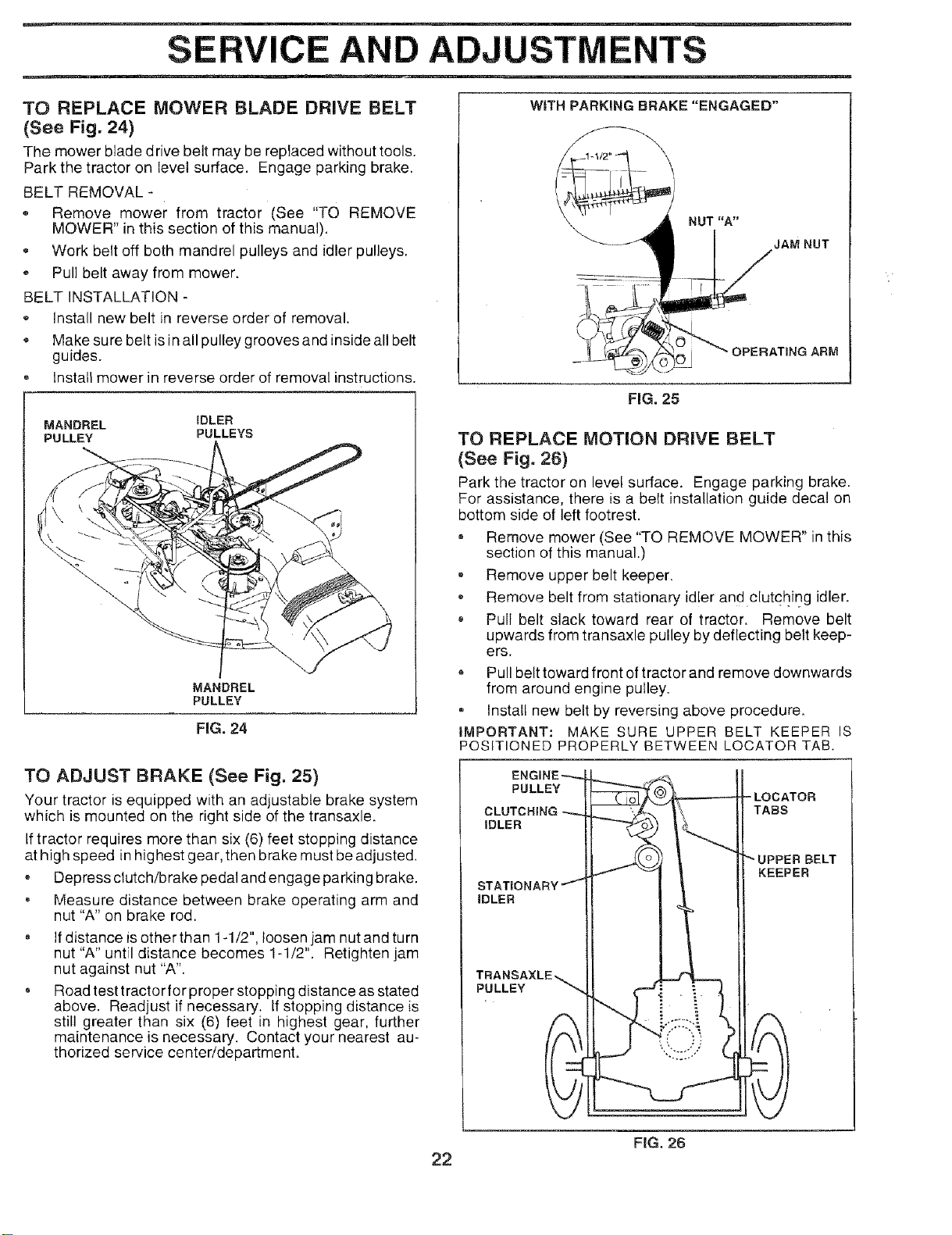

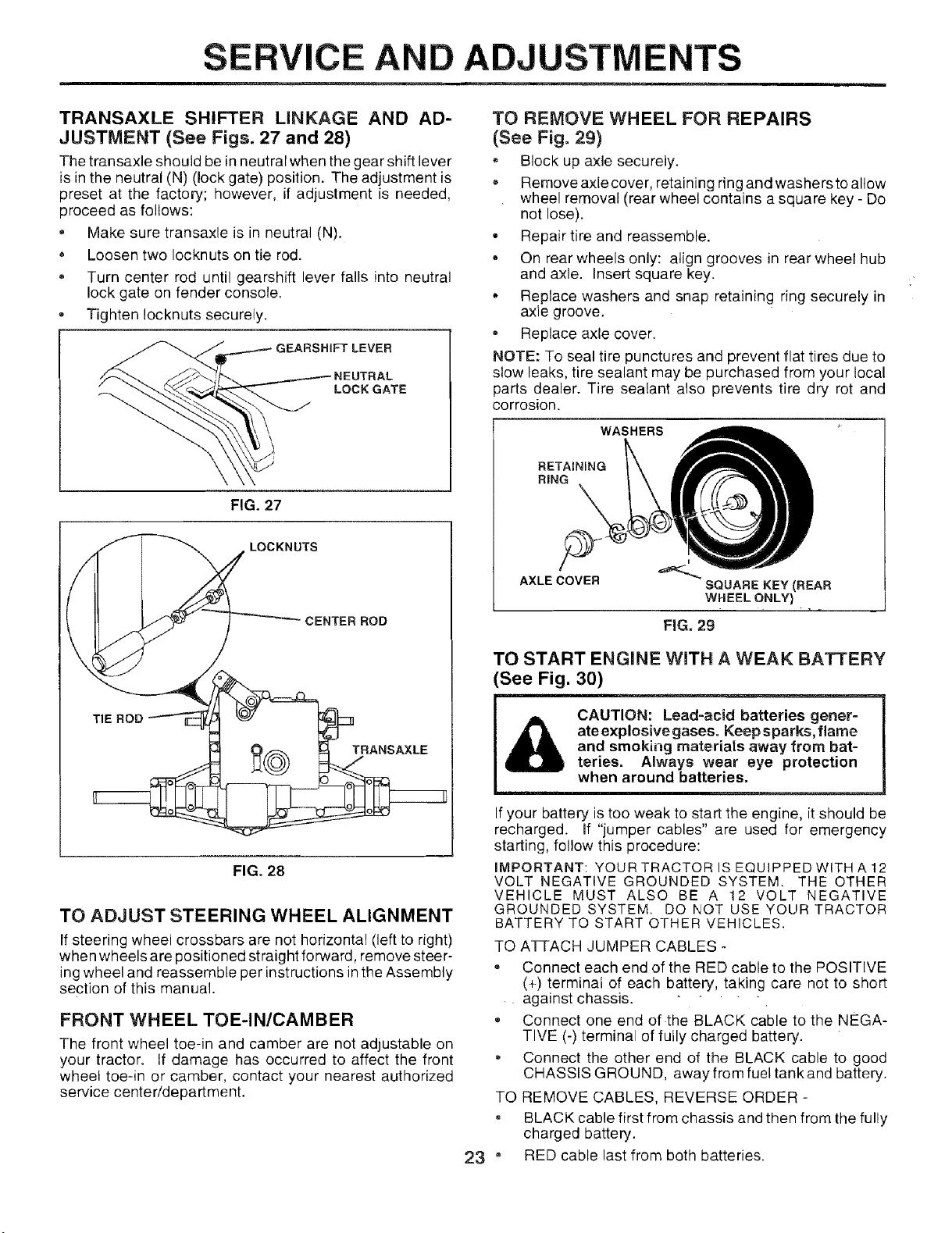

SERVICE AND ADJUSTMENTS ............................ 20-25

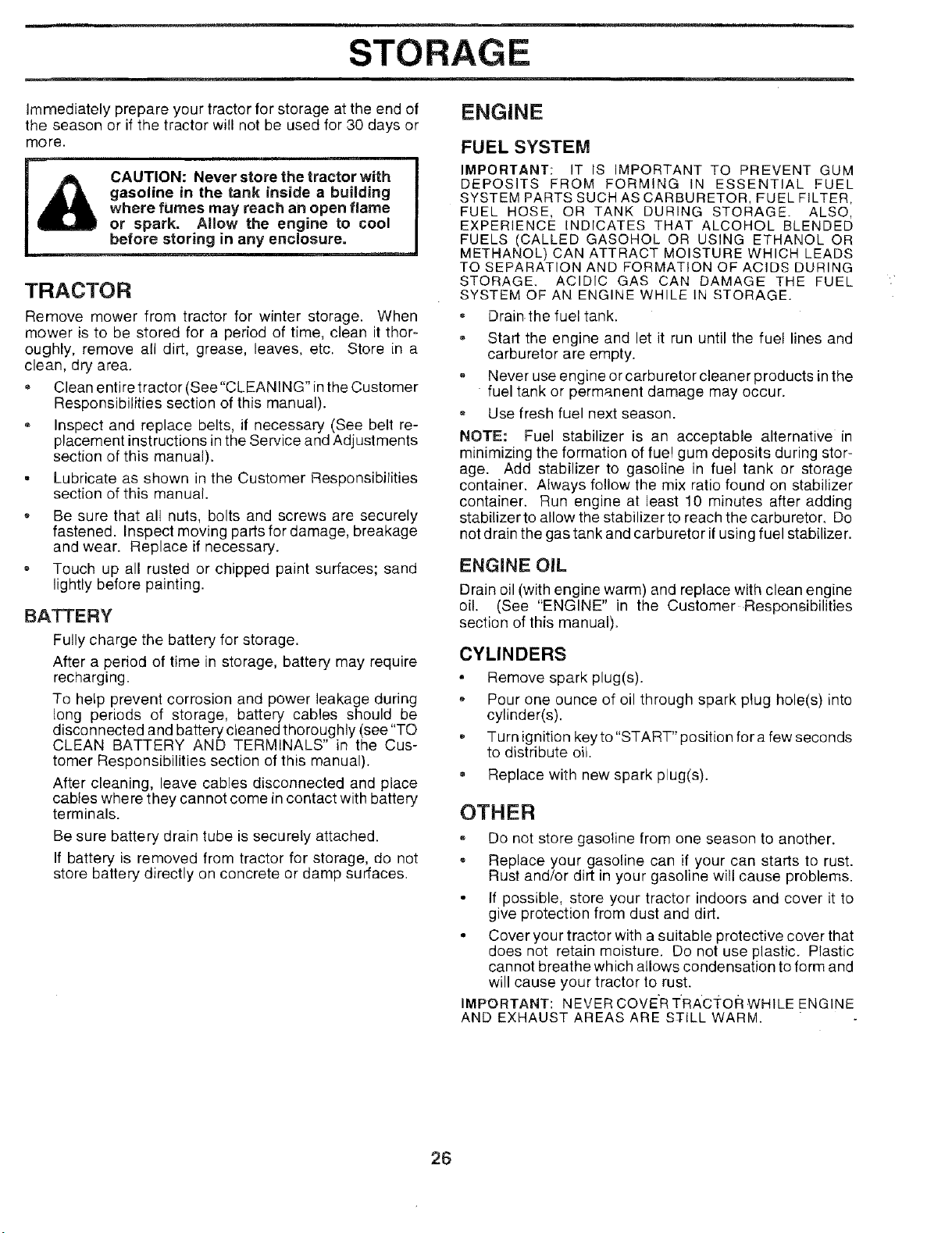

STORAGE ................................................................... 26

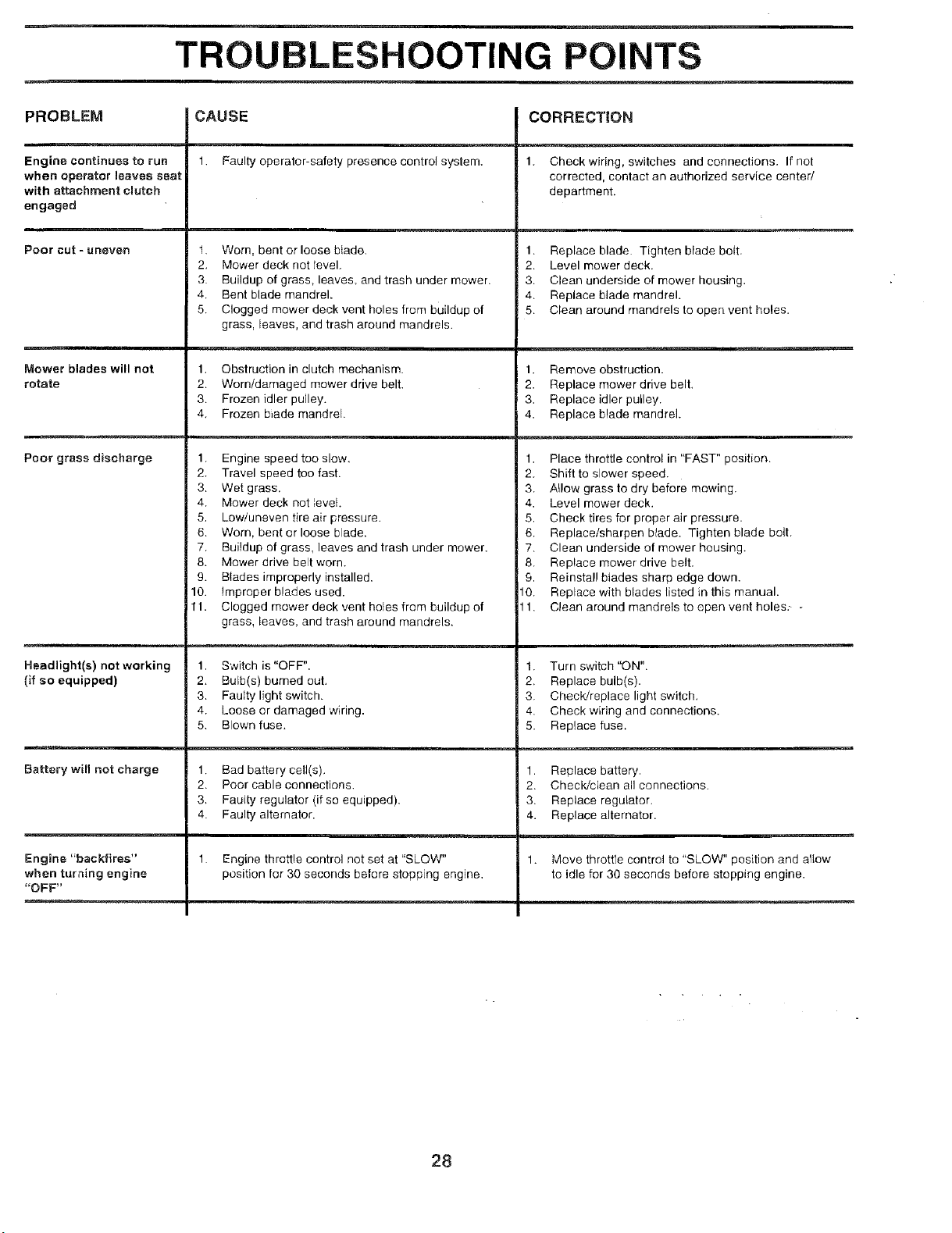

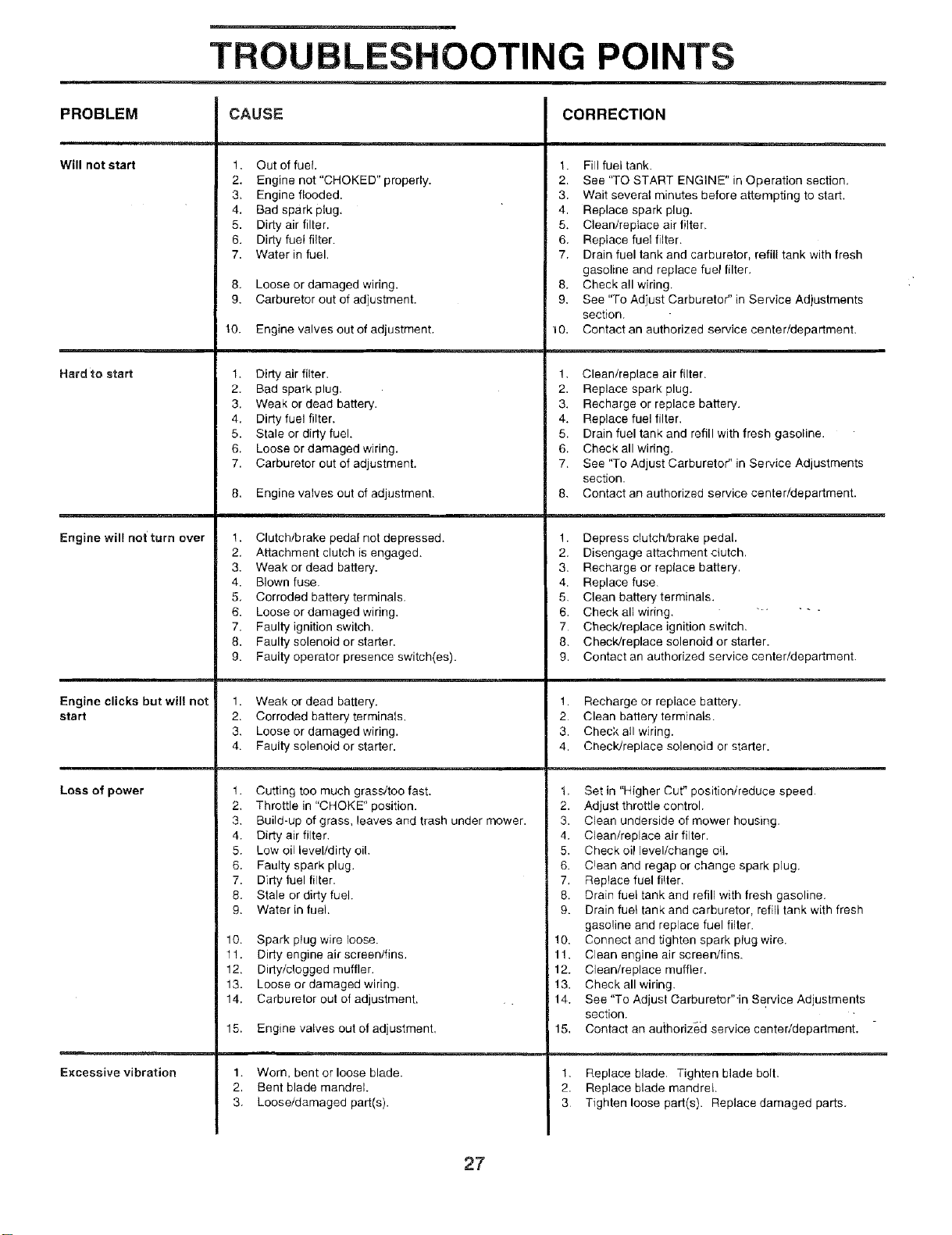

TROUBLESHOOTING ............................................ 27-28

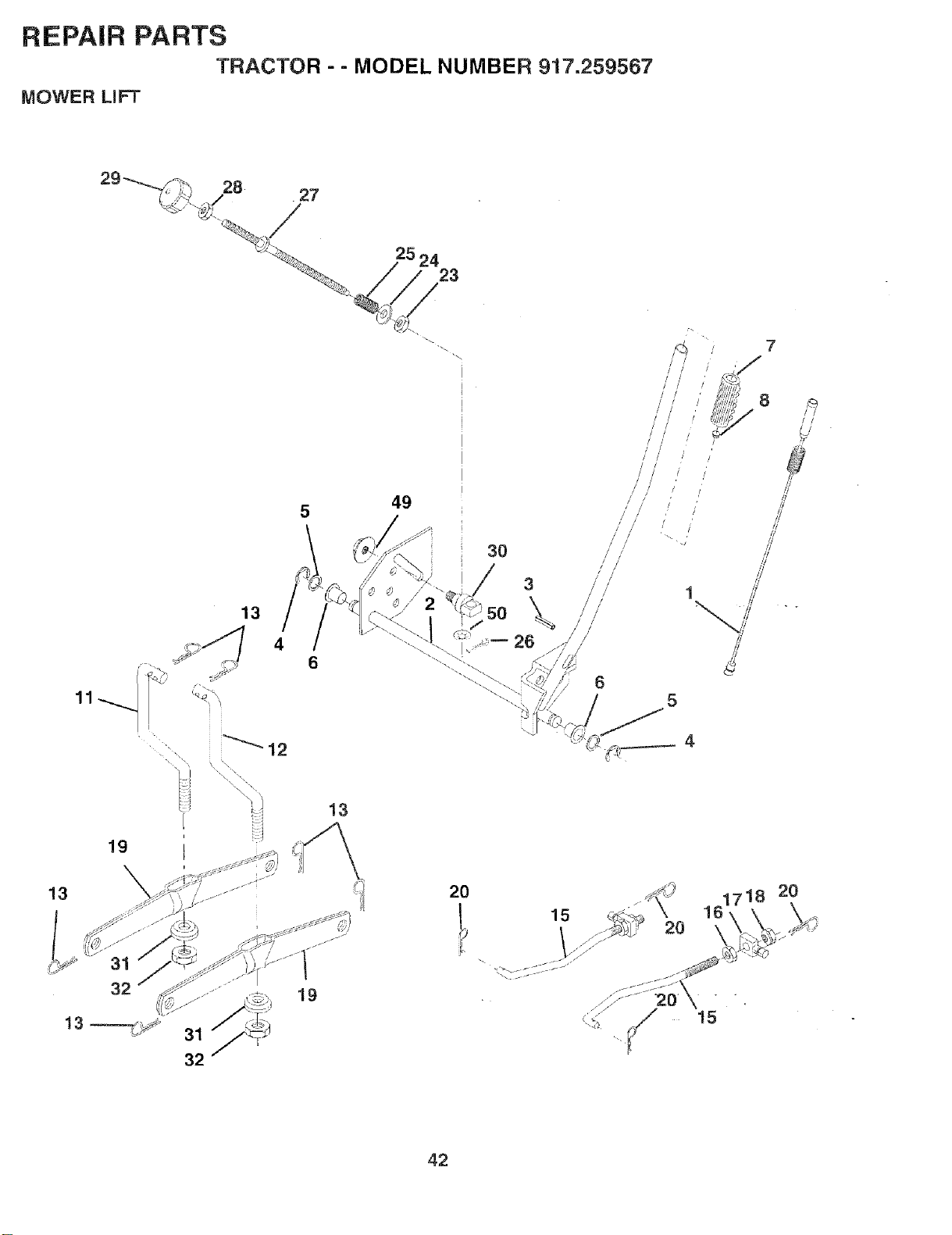

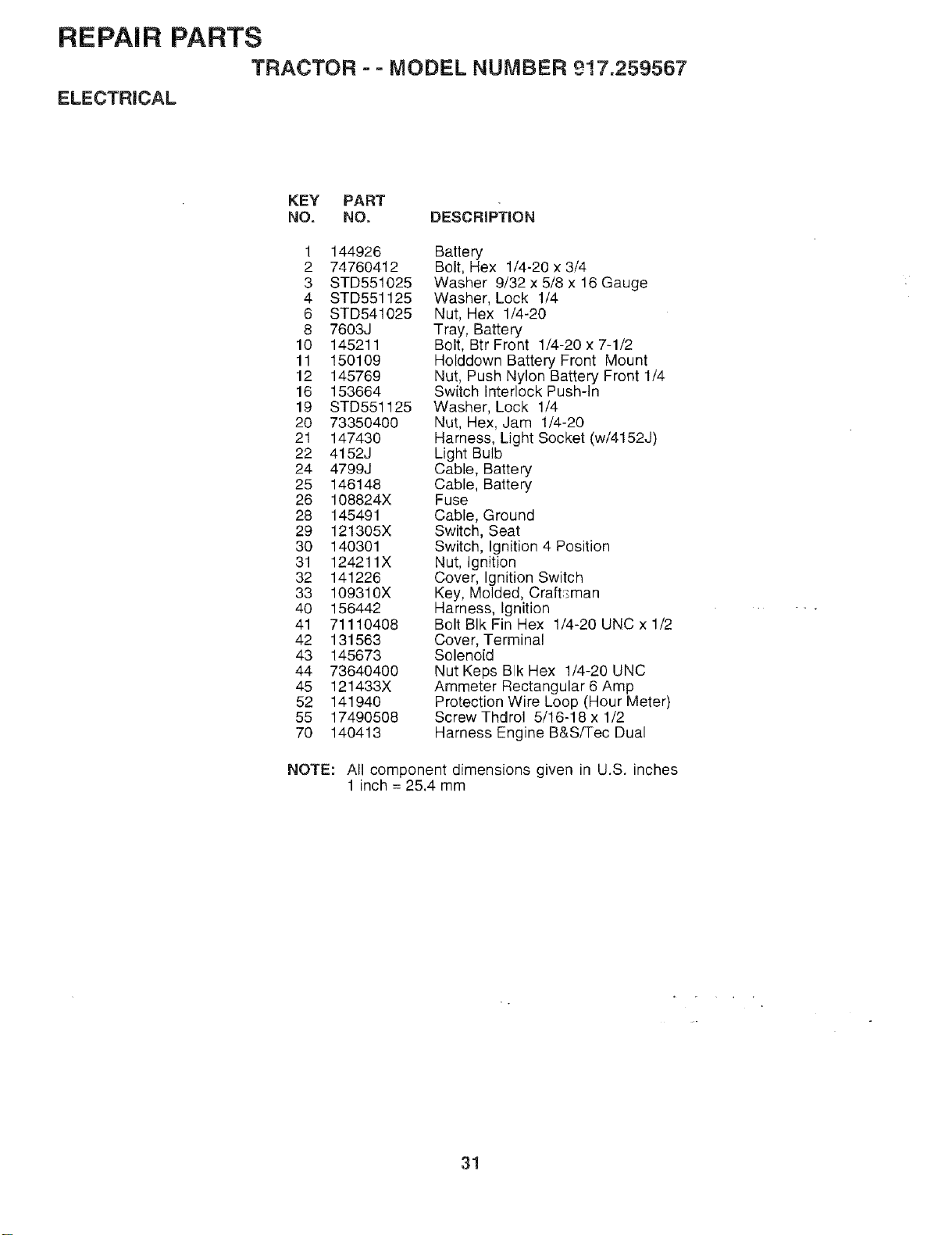

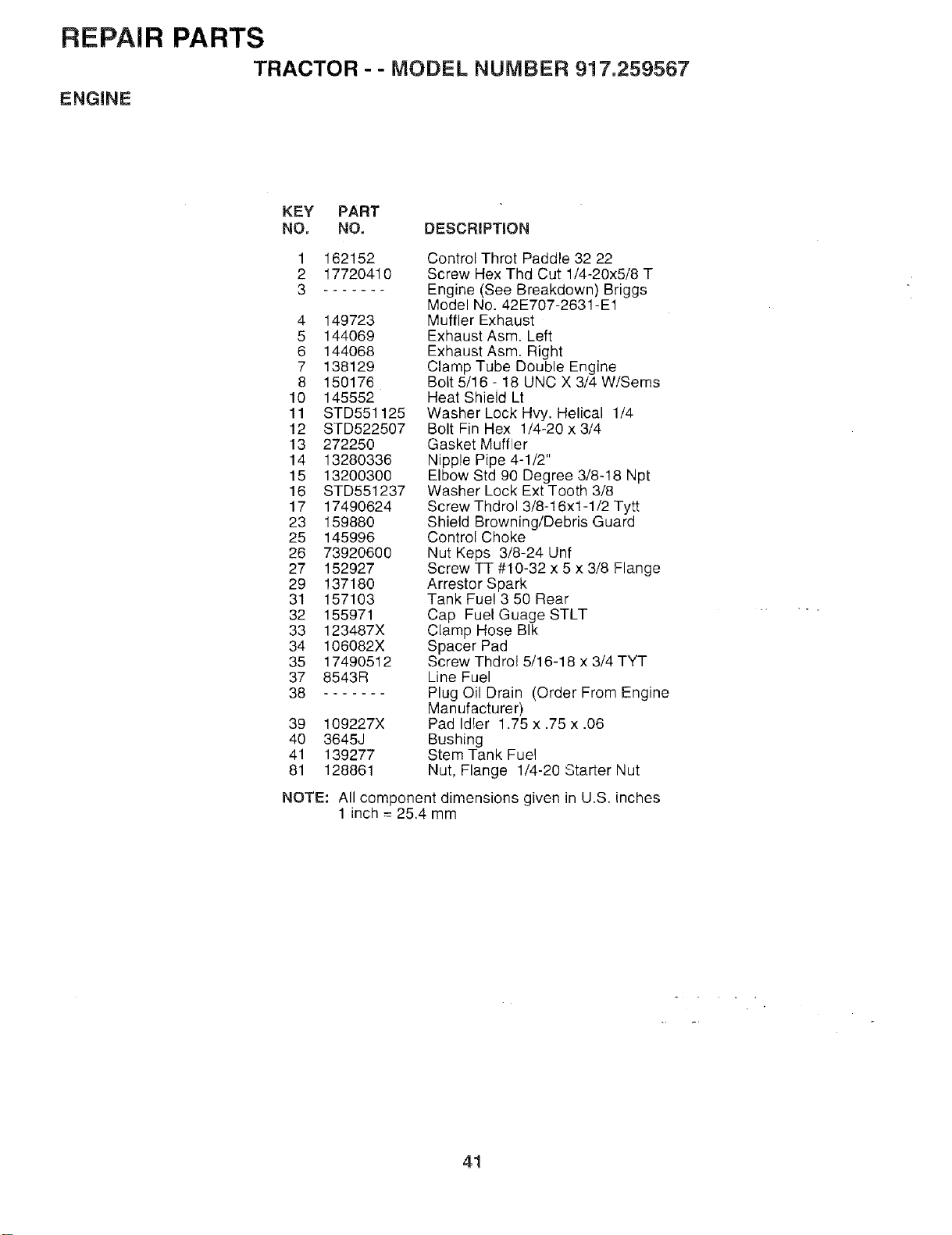

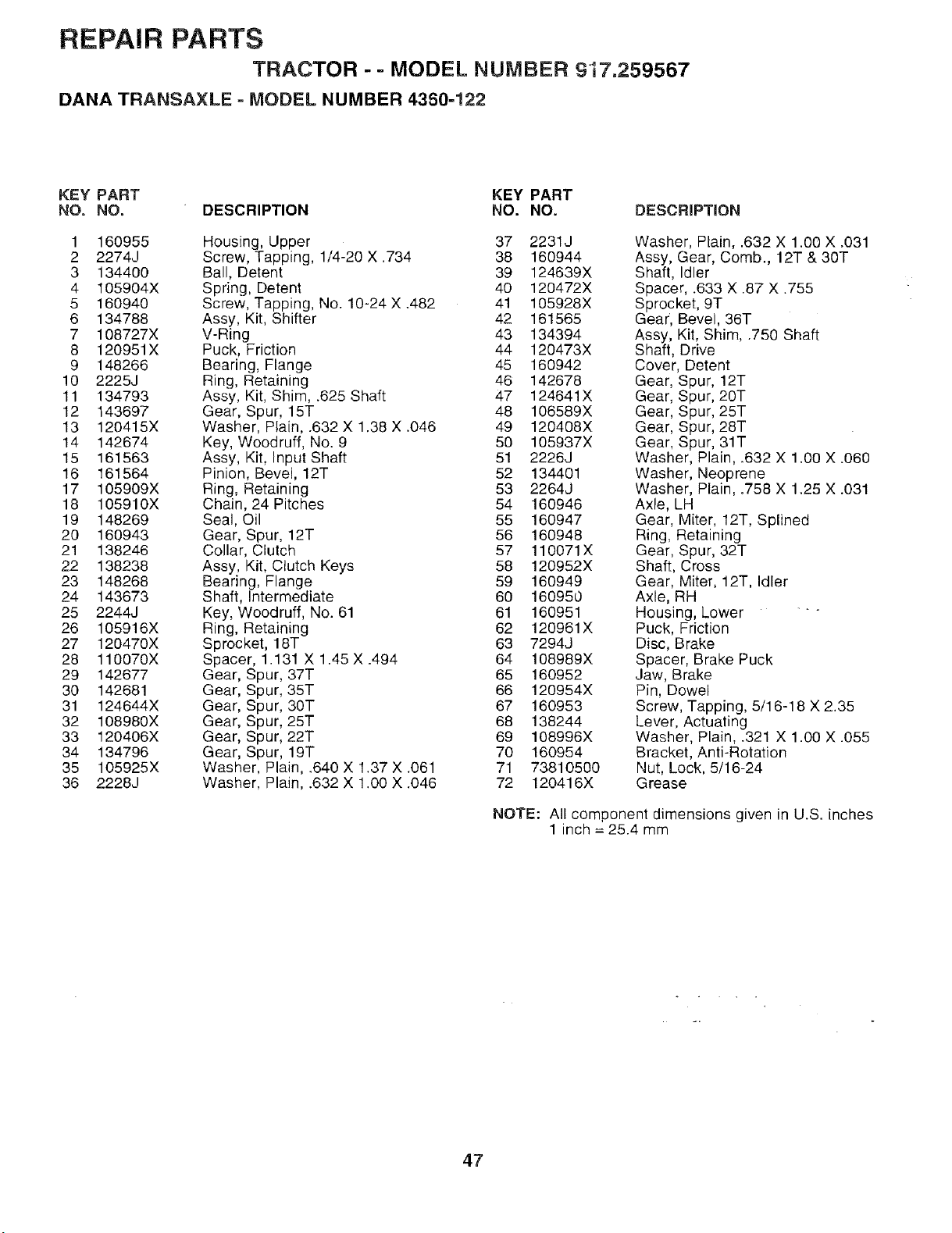

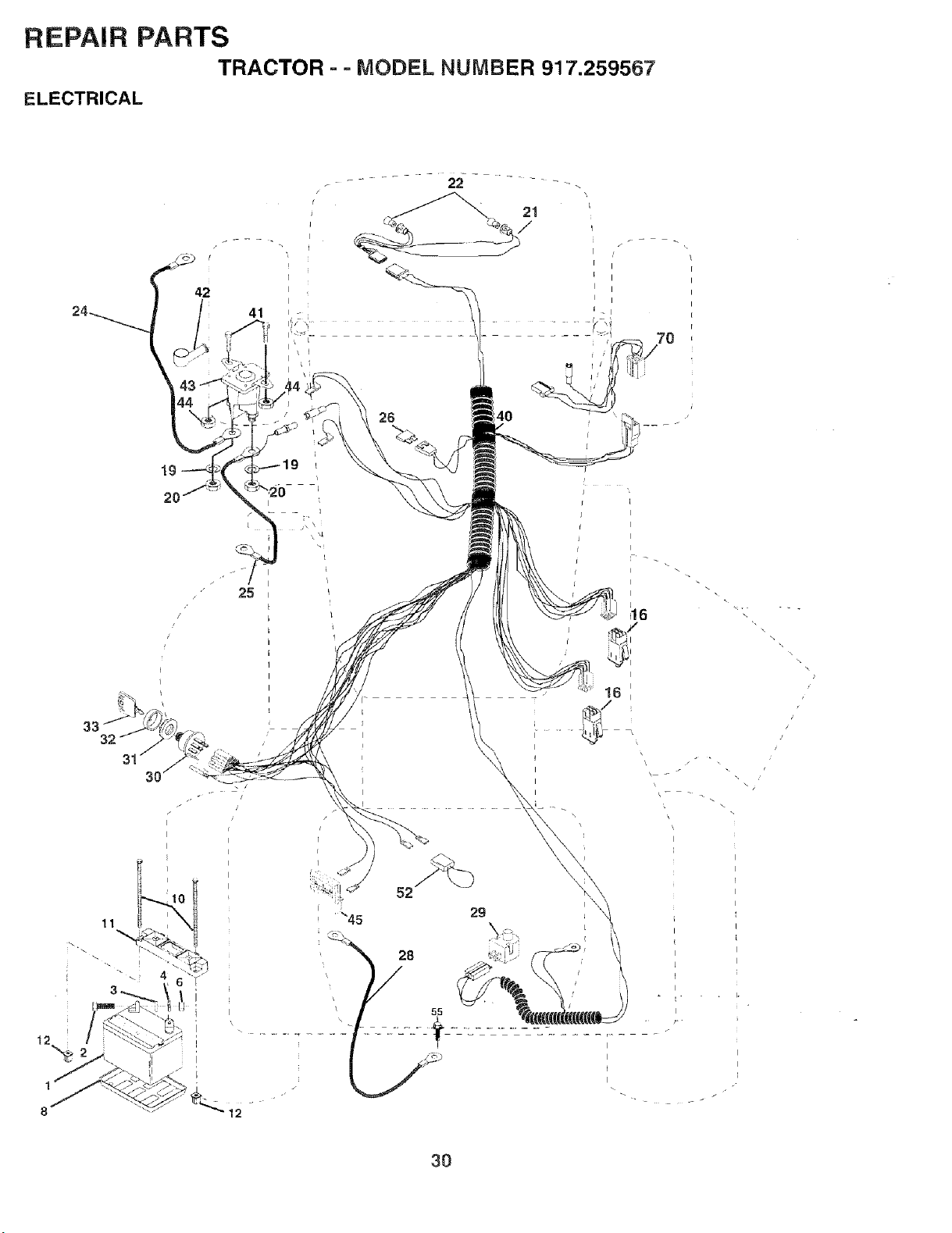

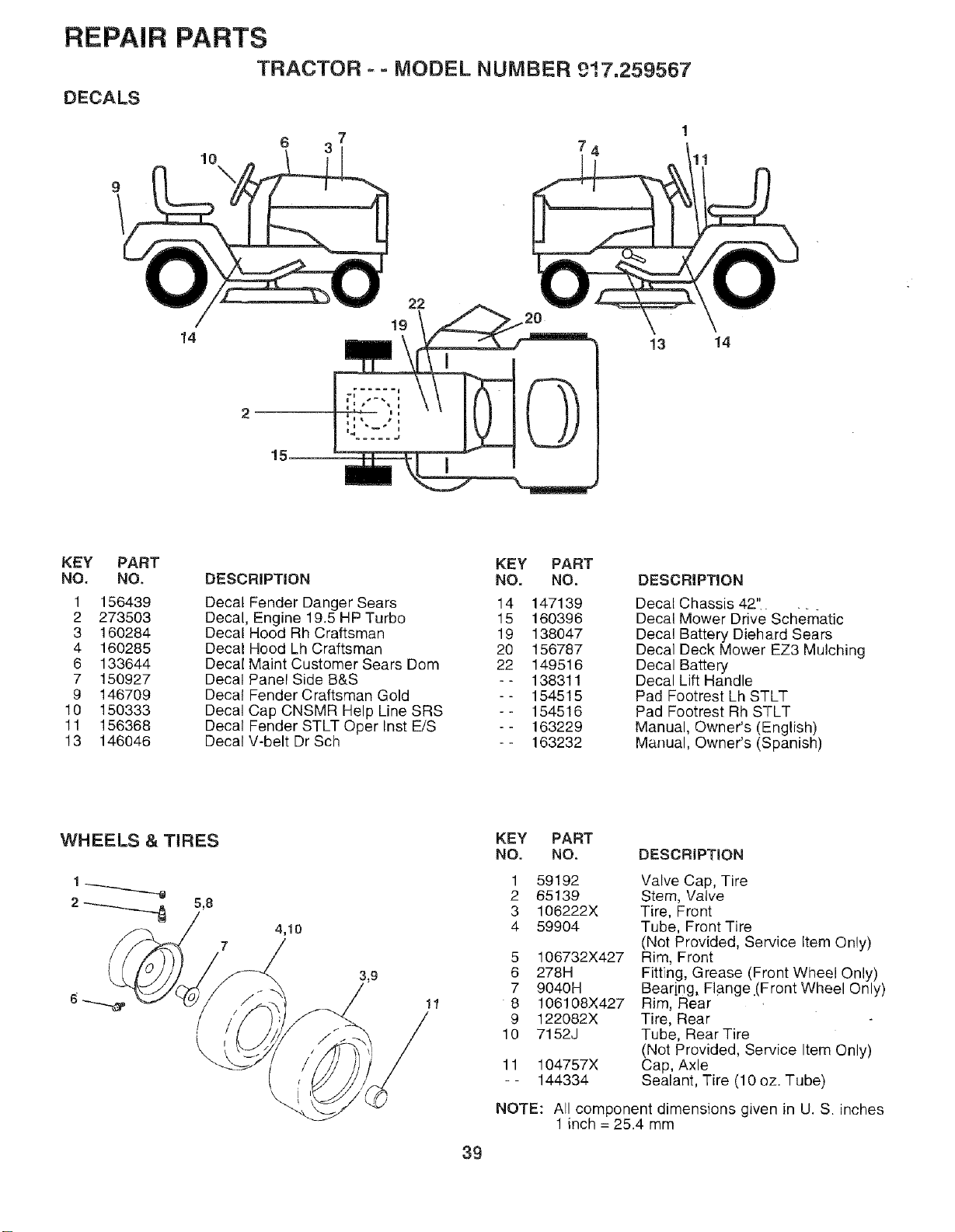

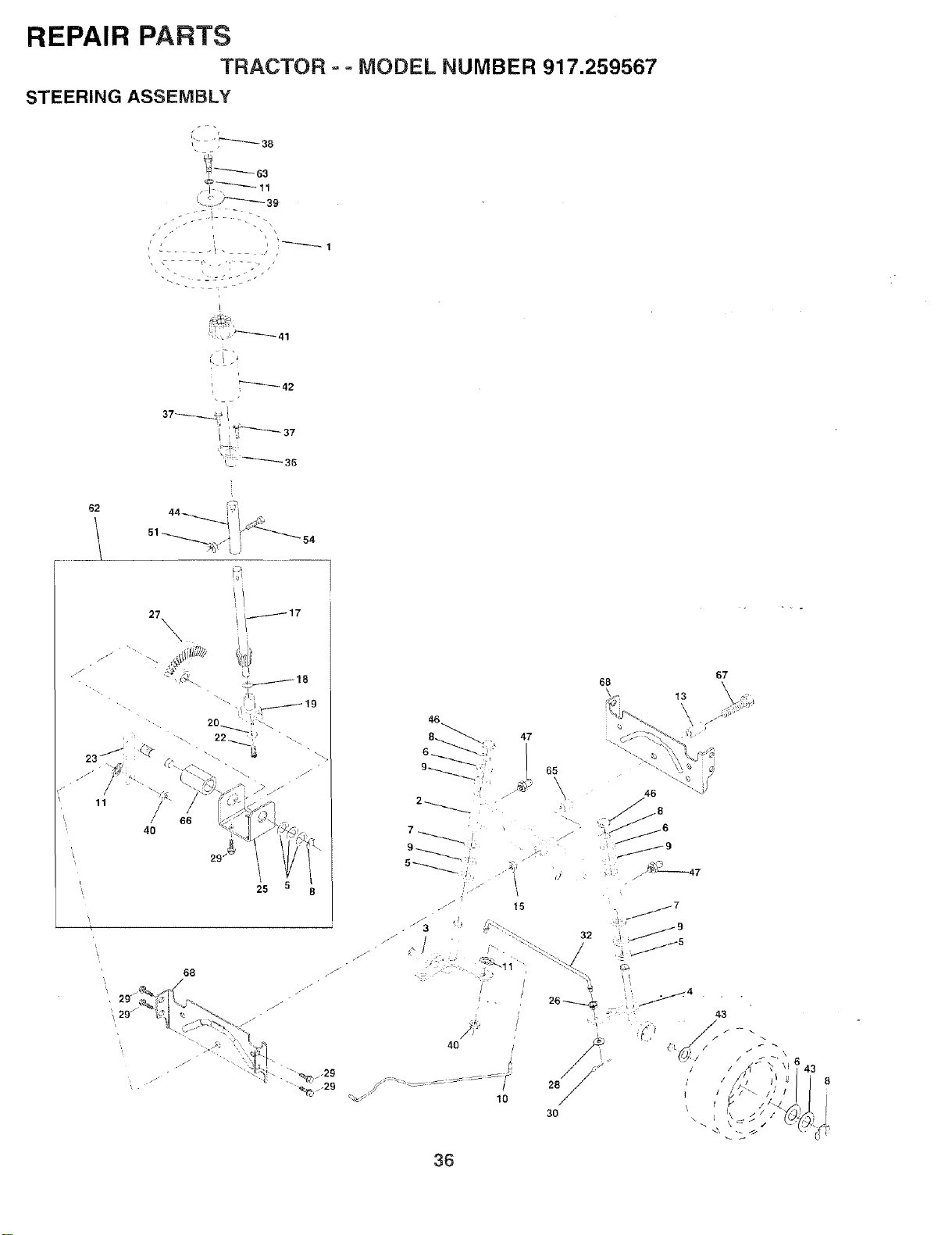

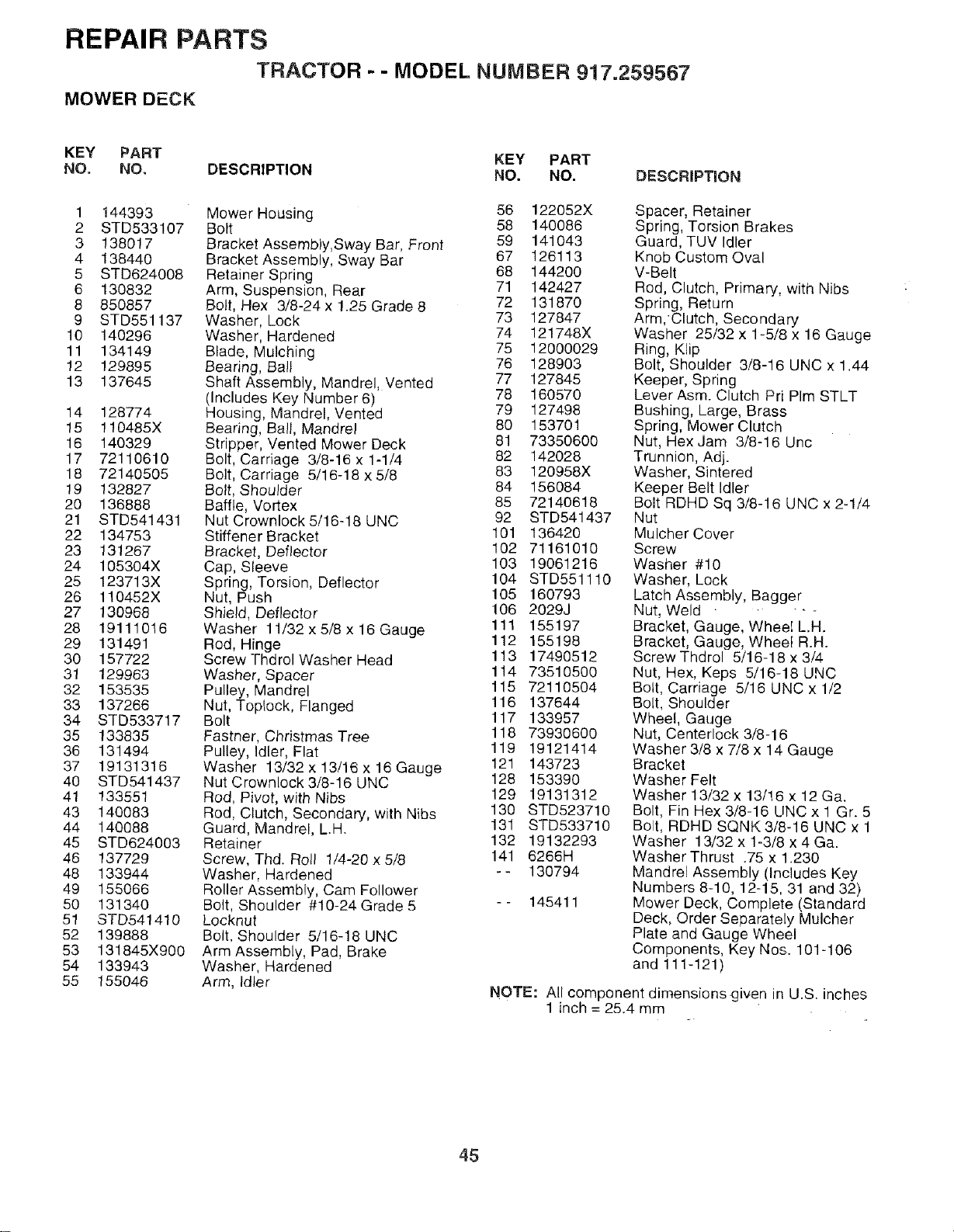

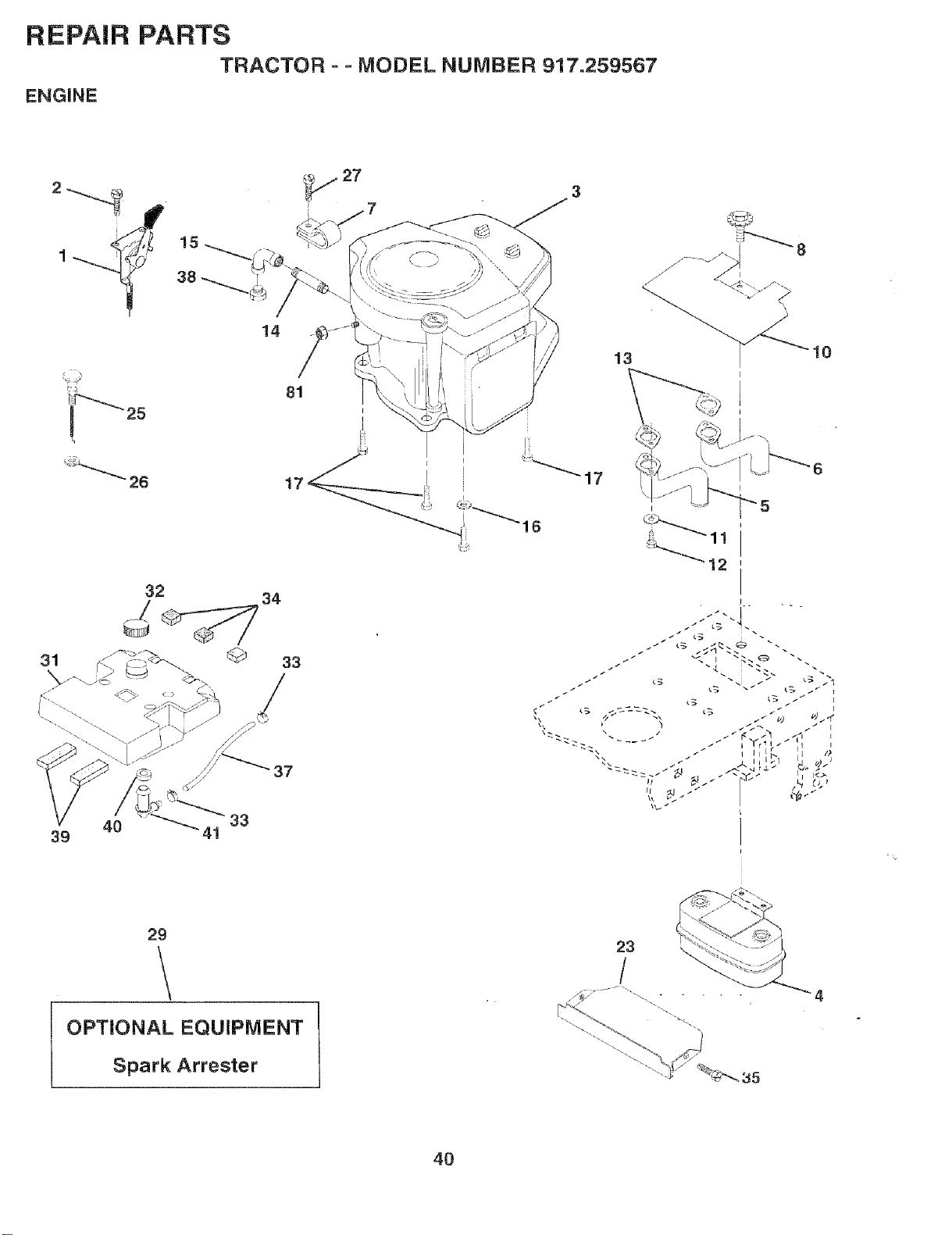

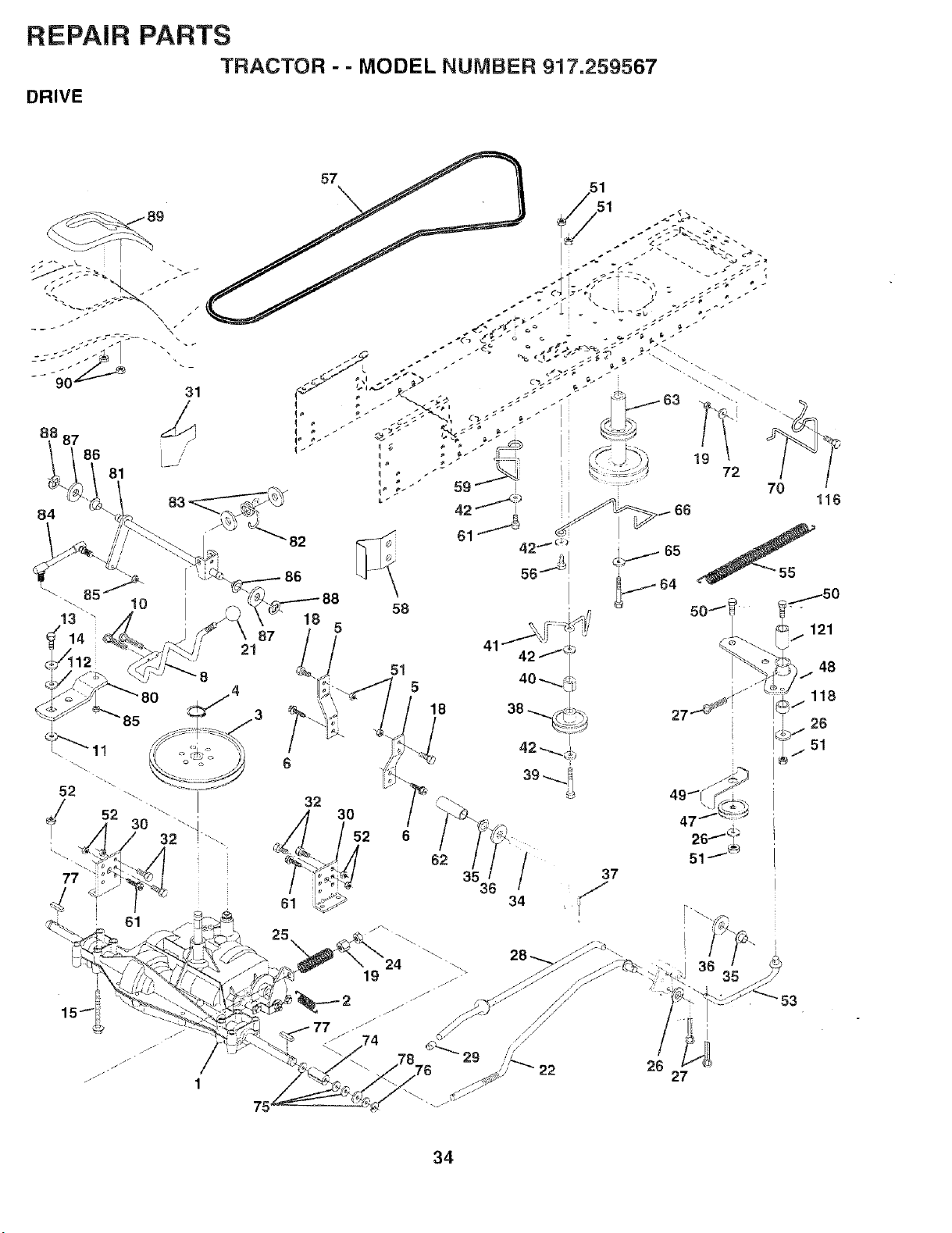

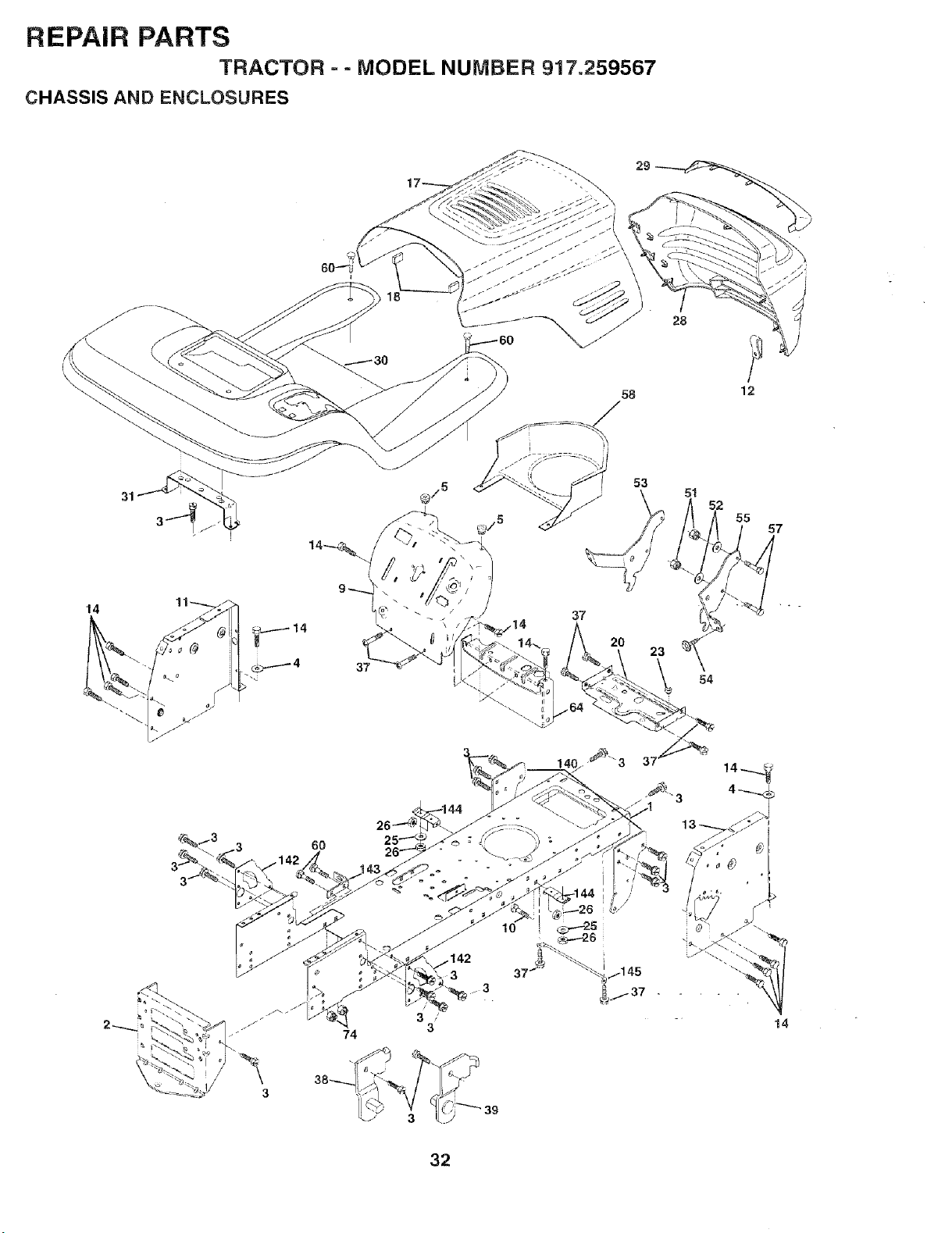

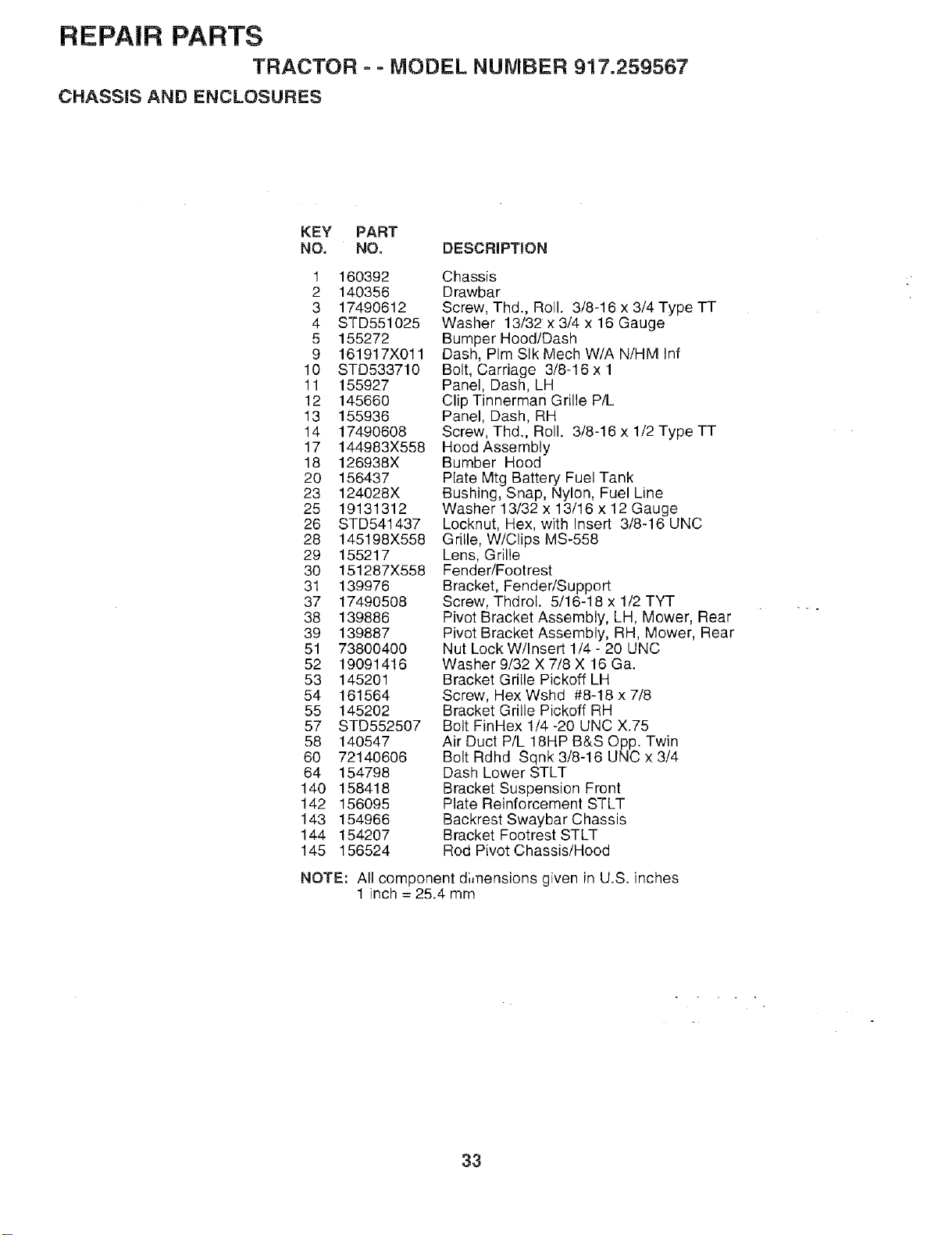

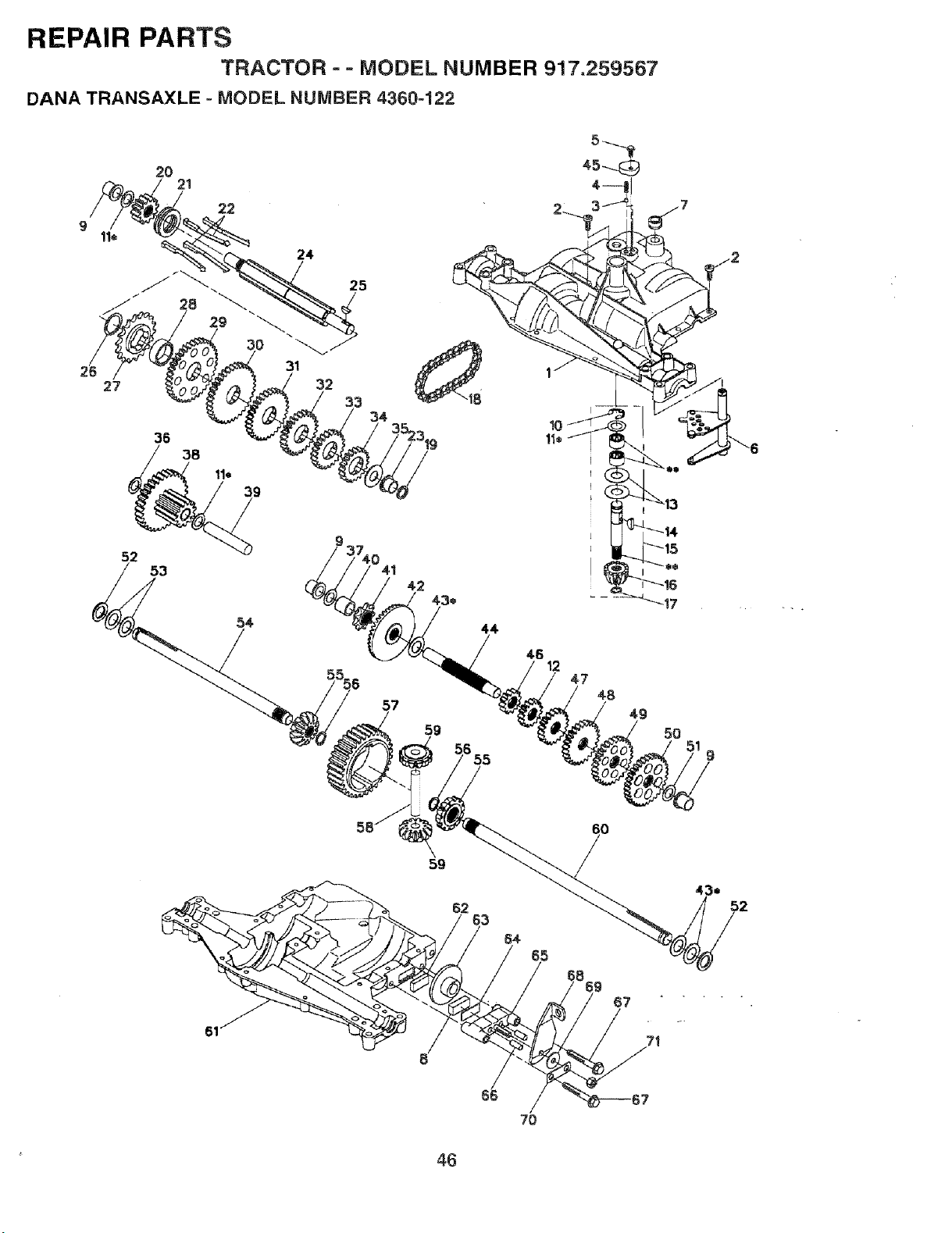

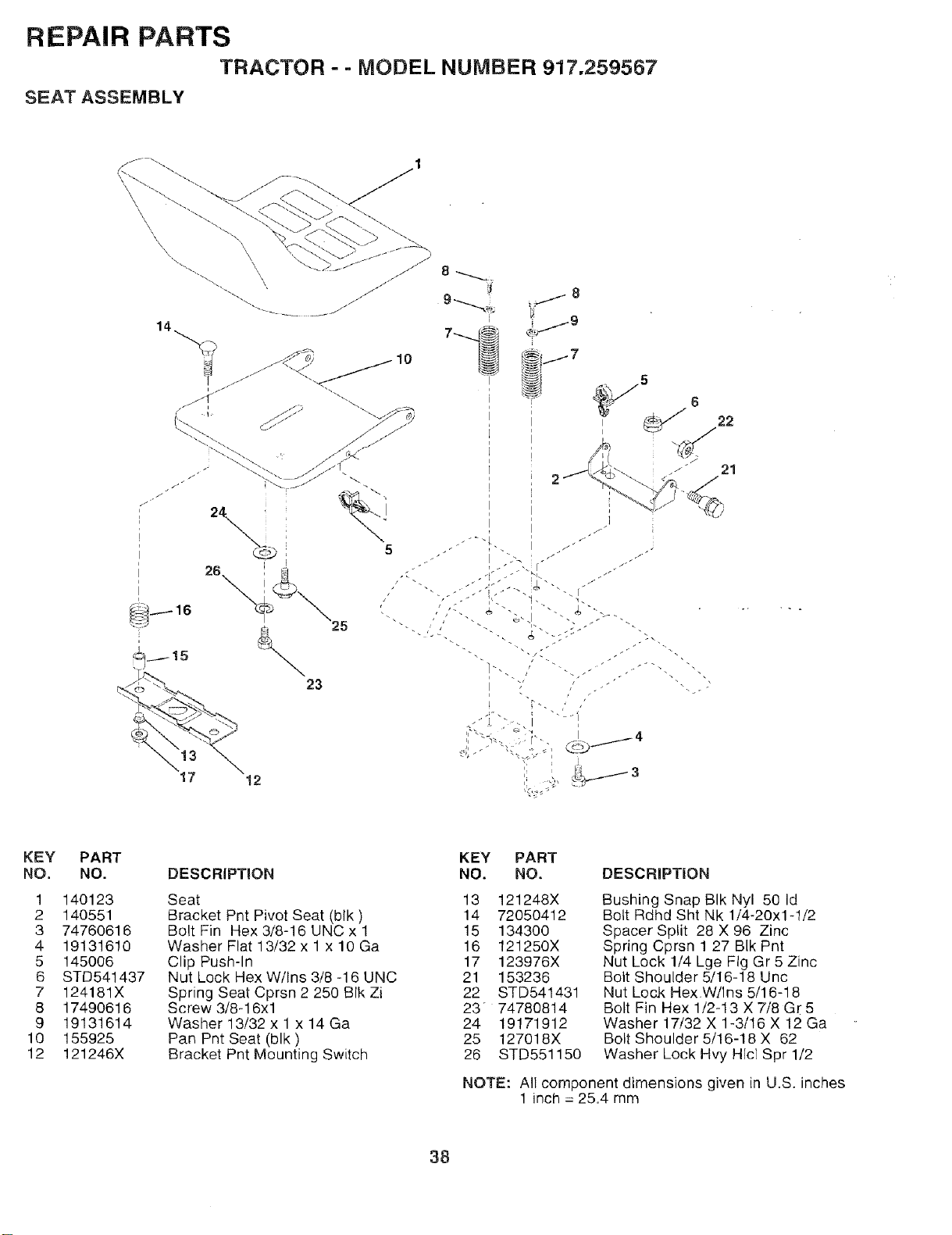

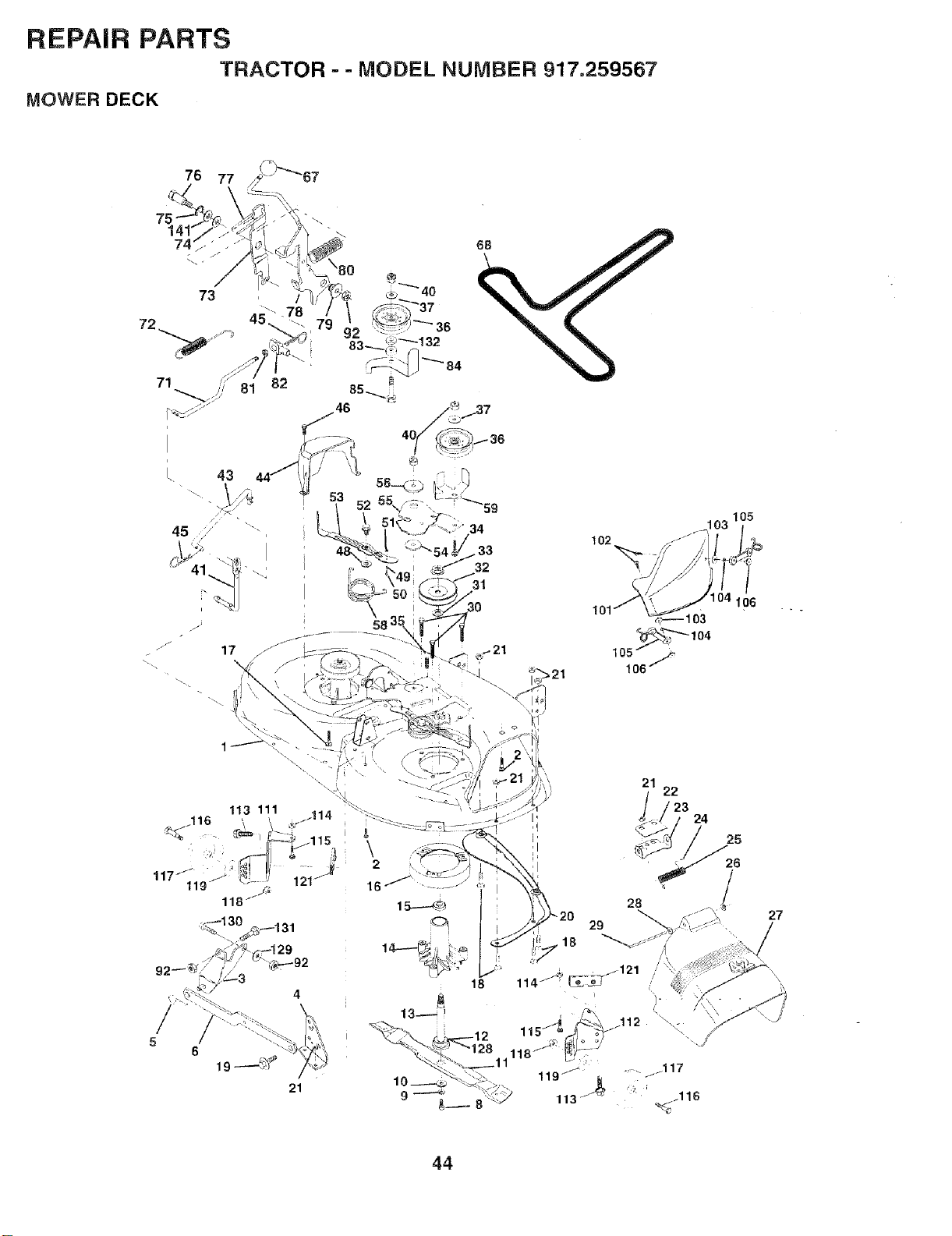

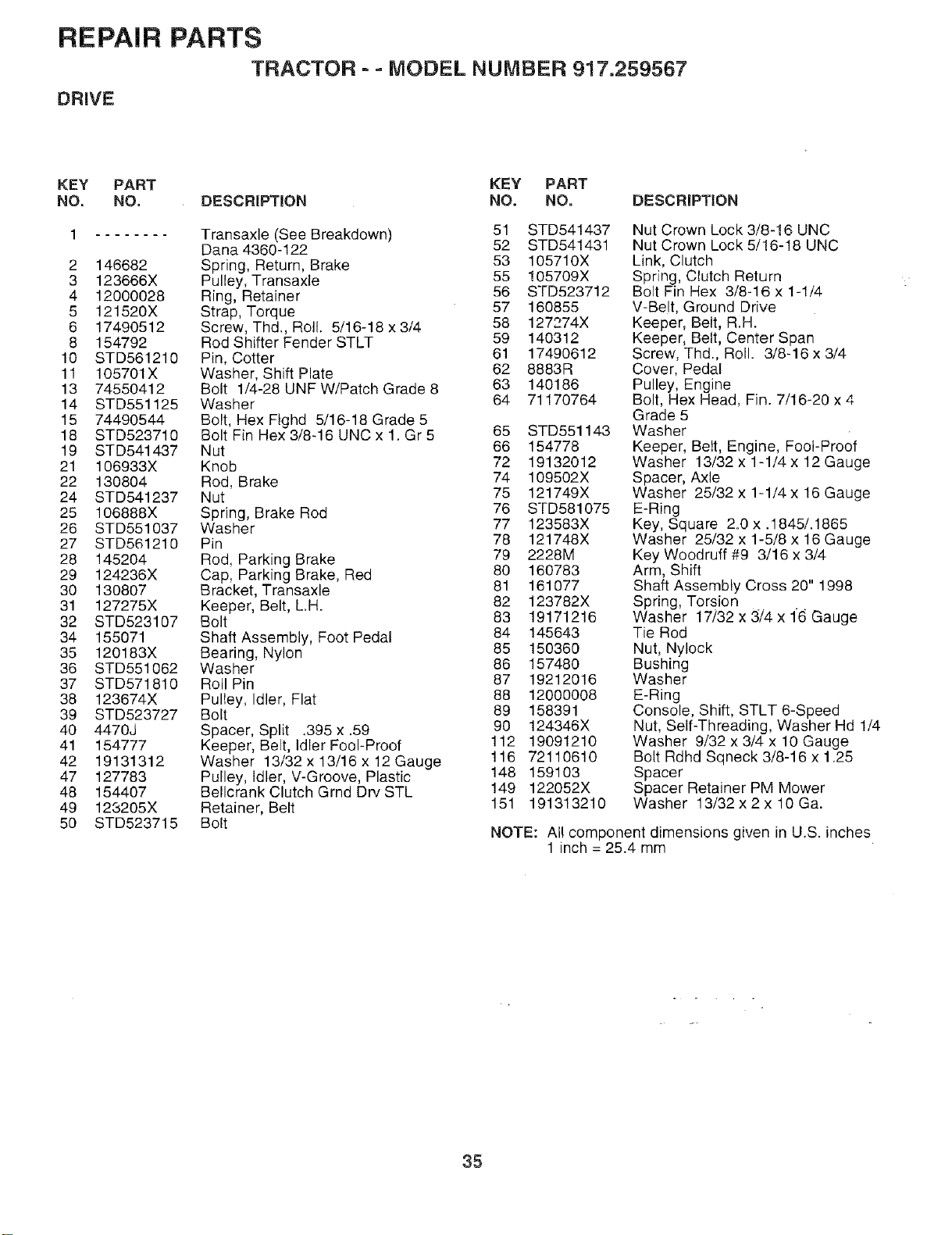

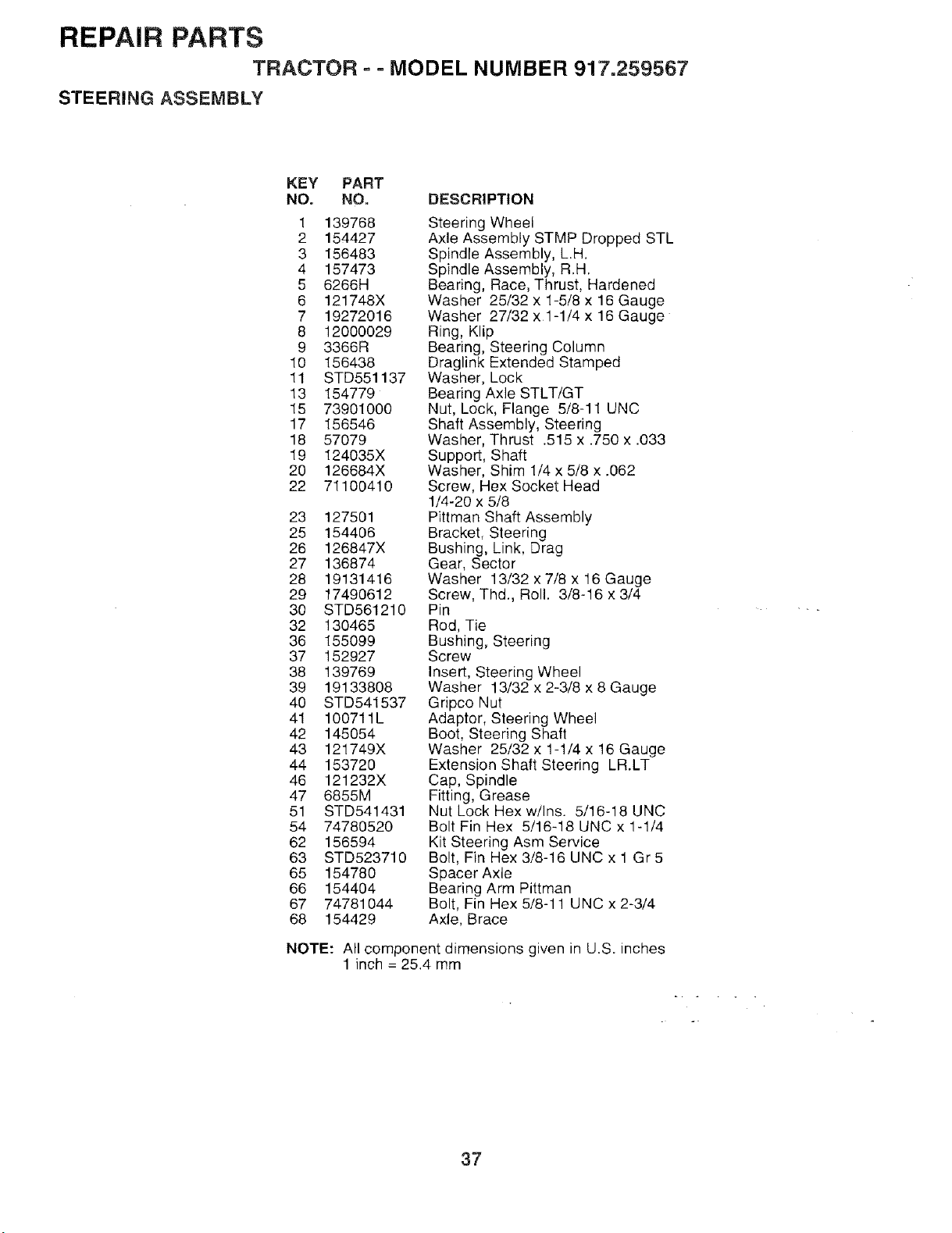

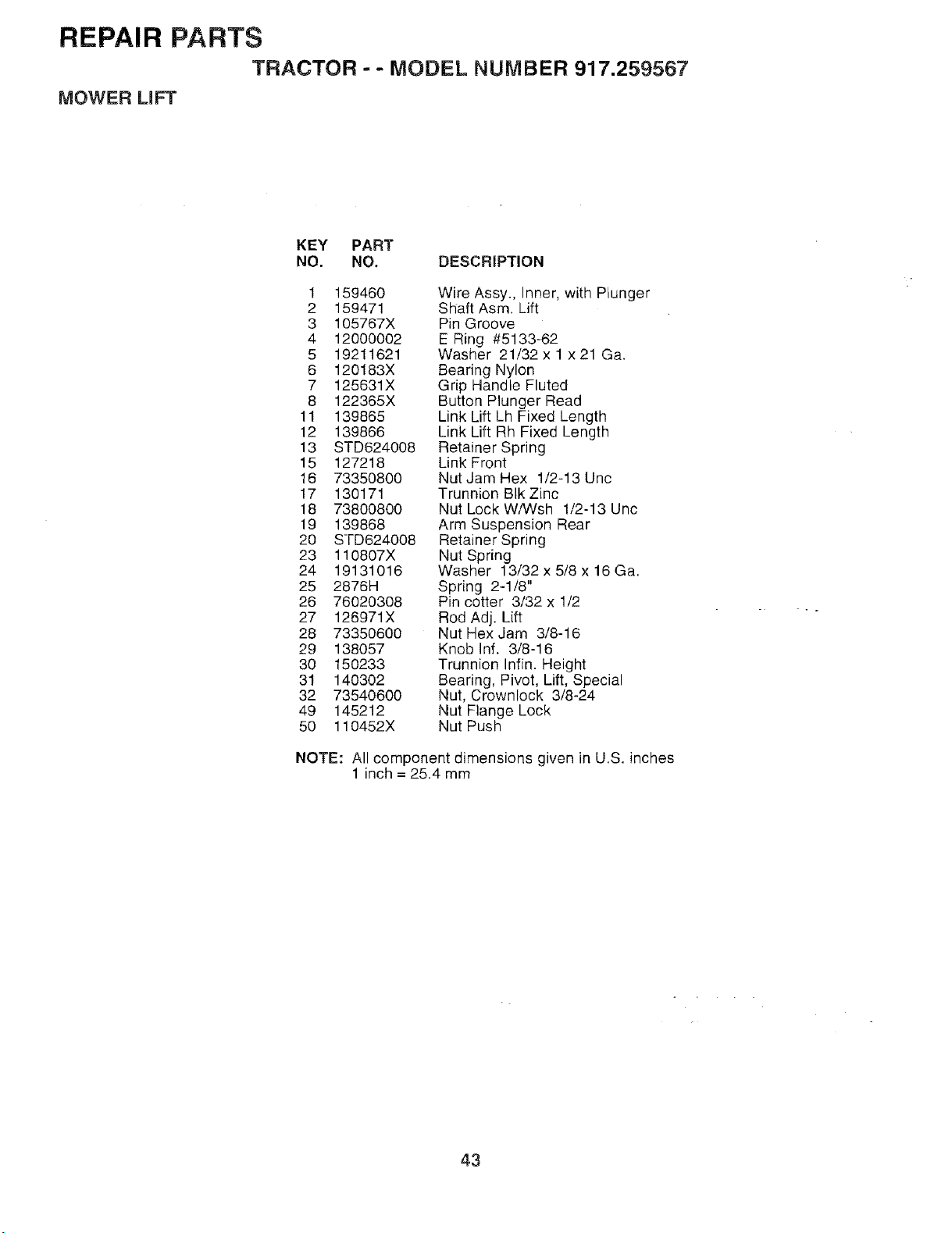

REPAIR PARTS - TRACTOR ................................. 30-47

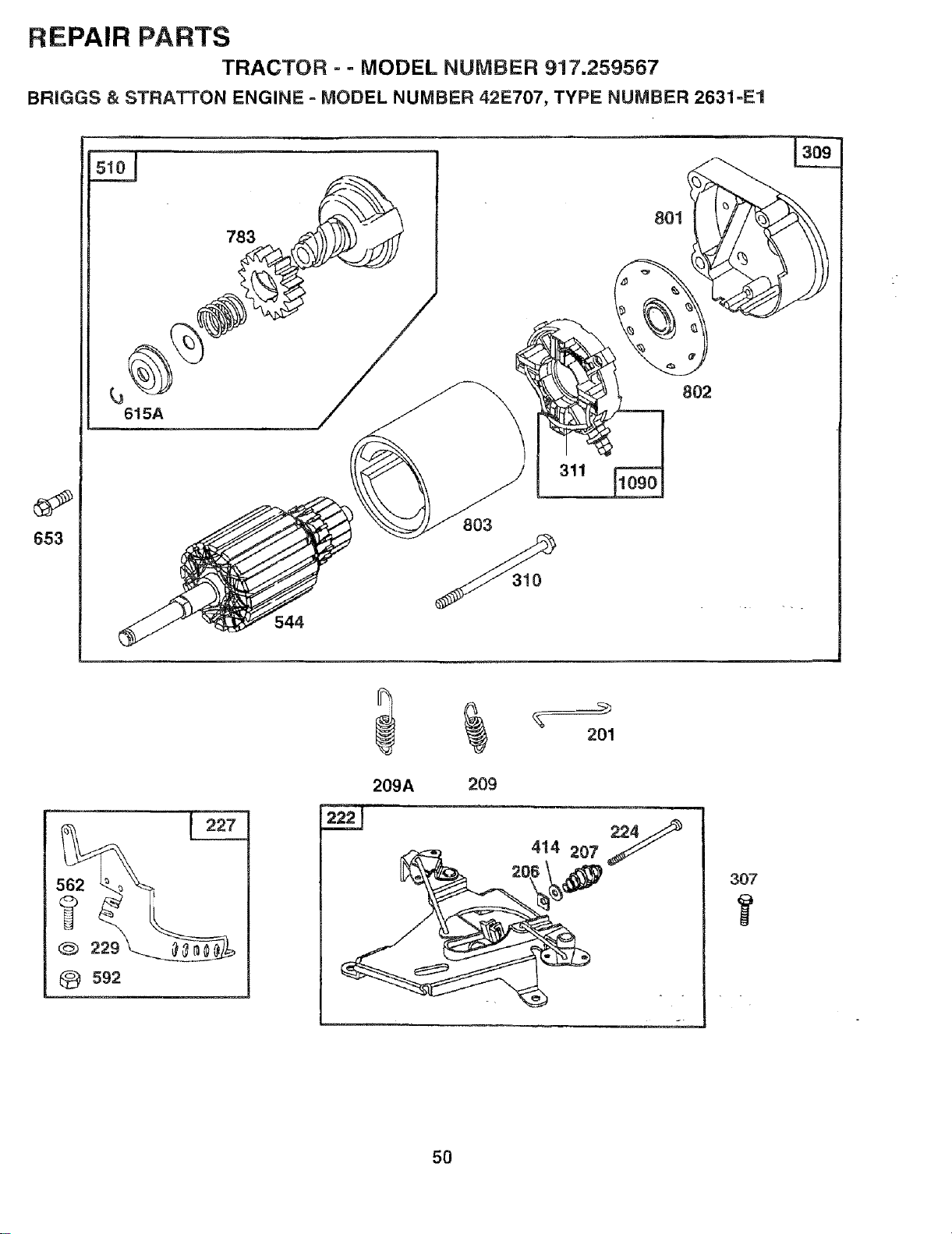

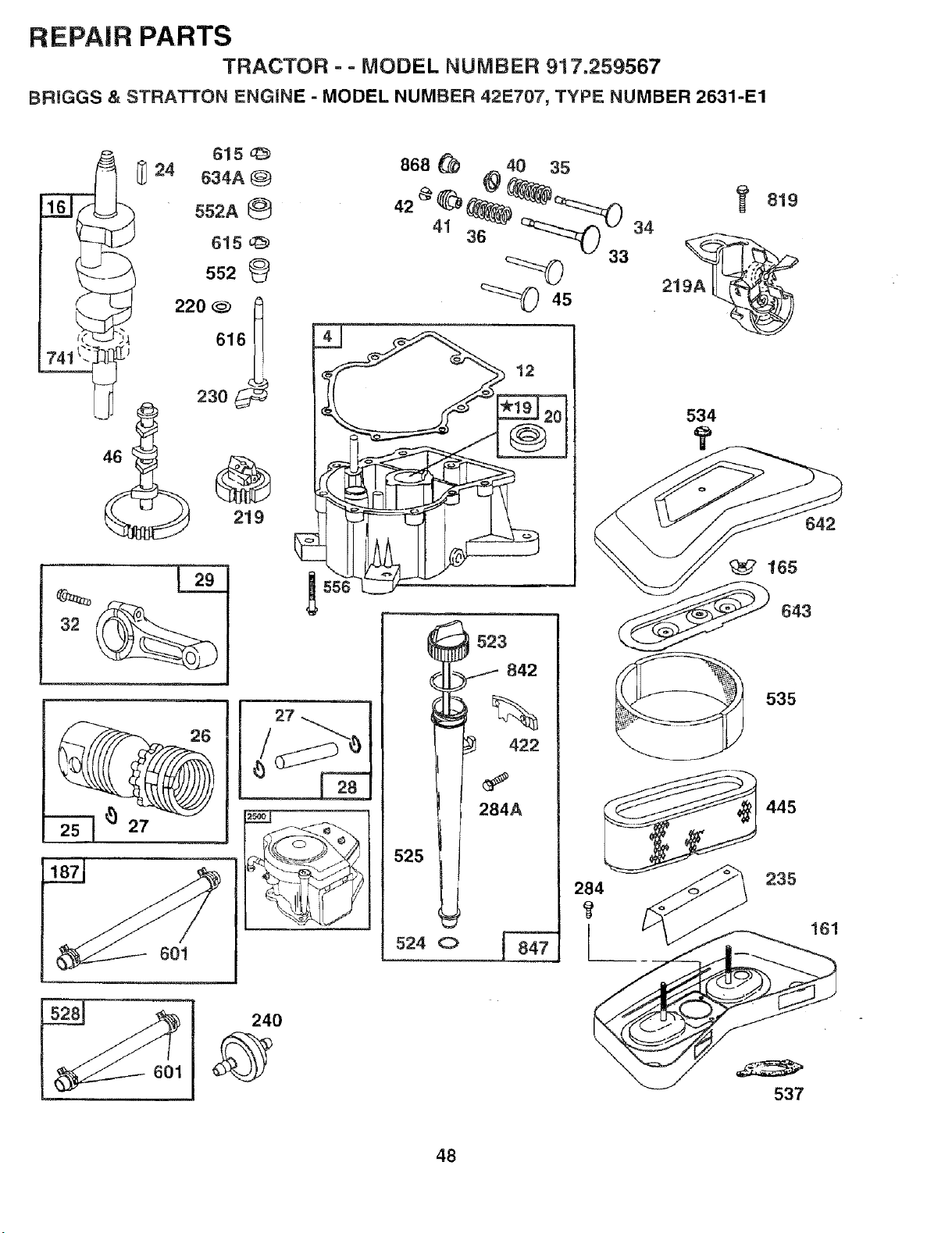

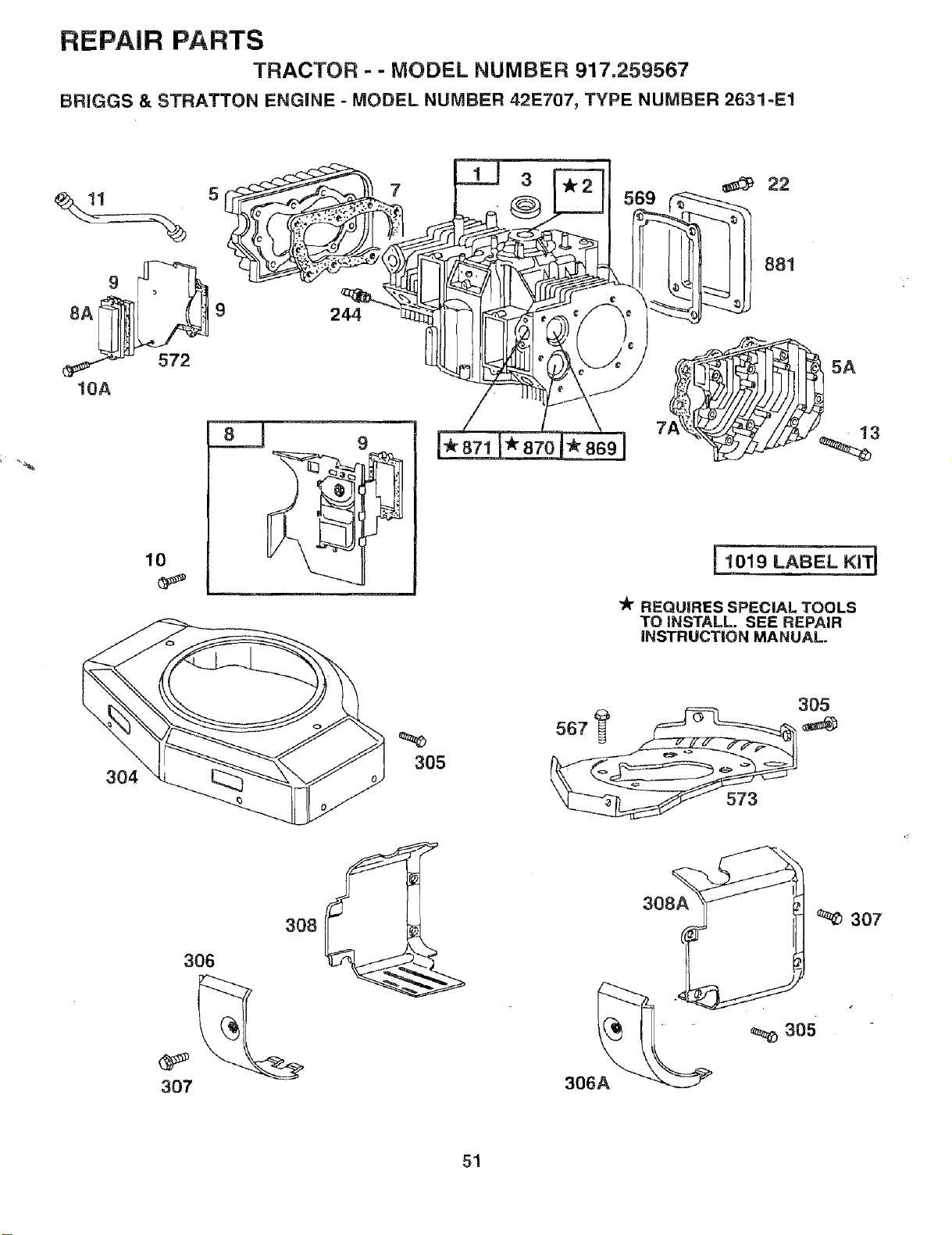

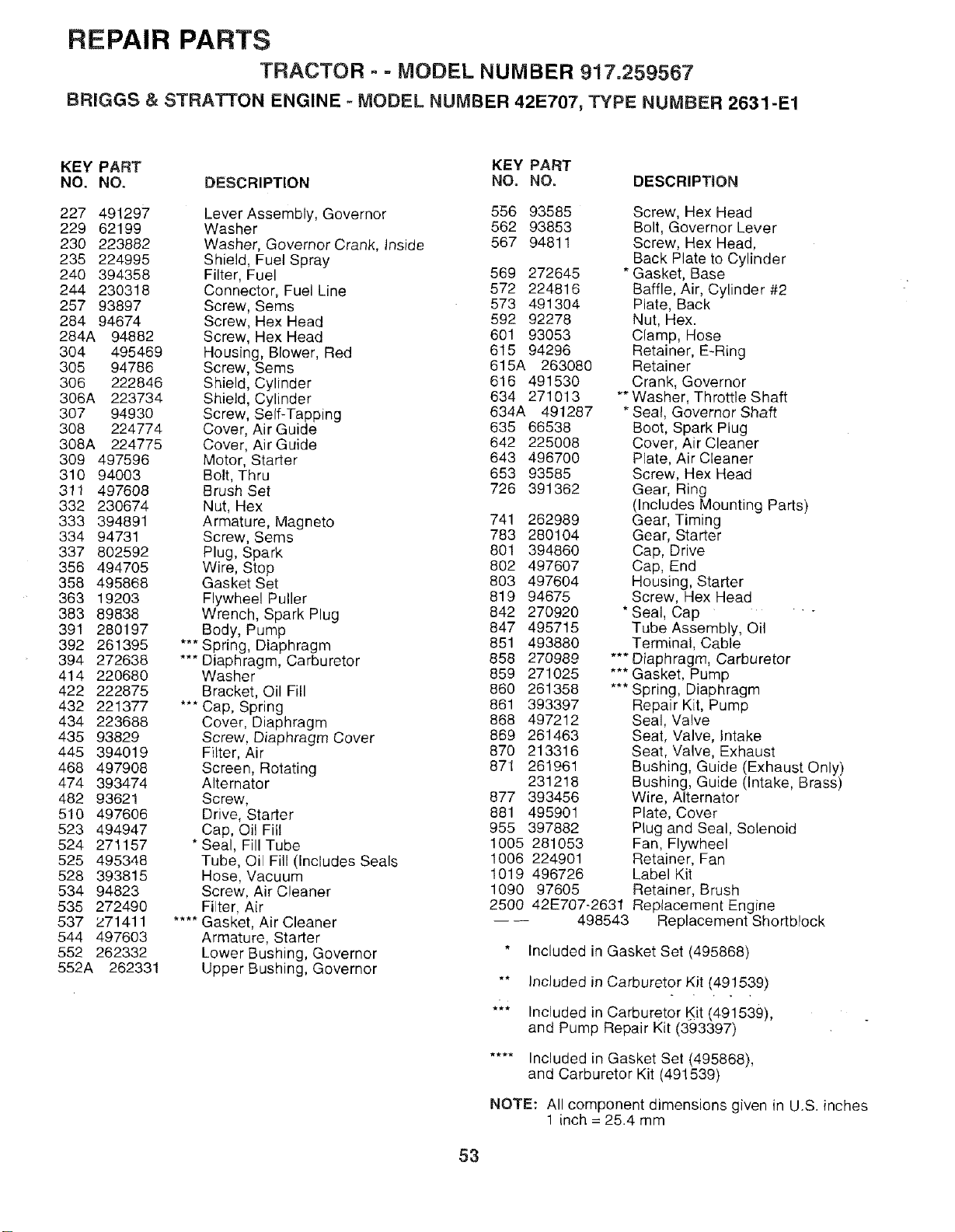

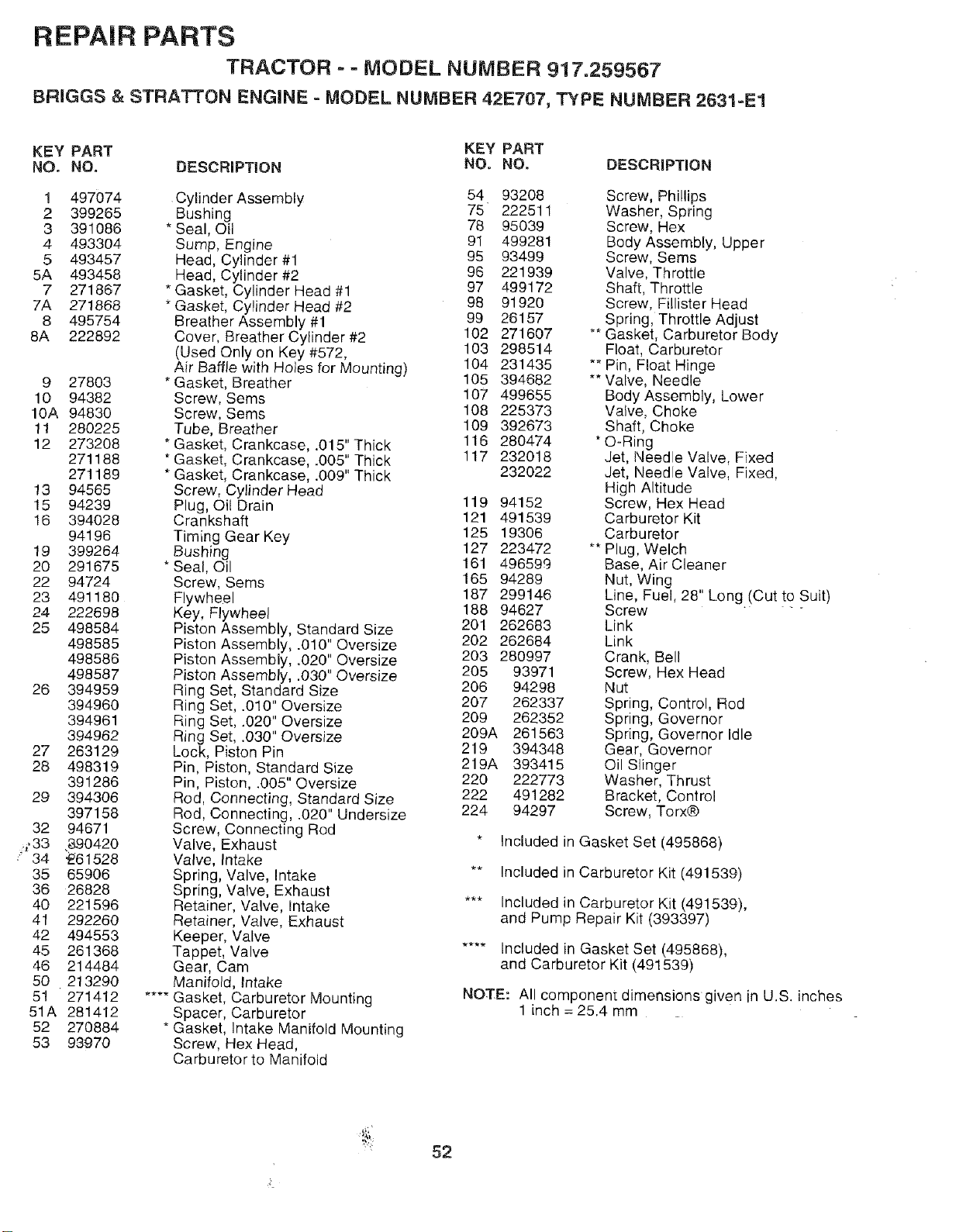

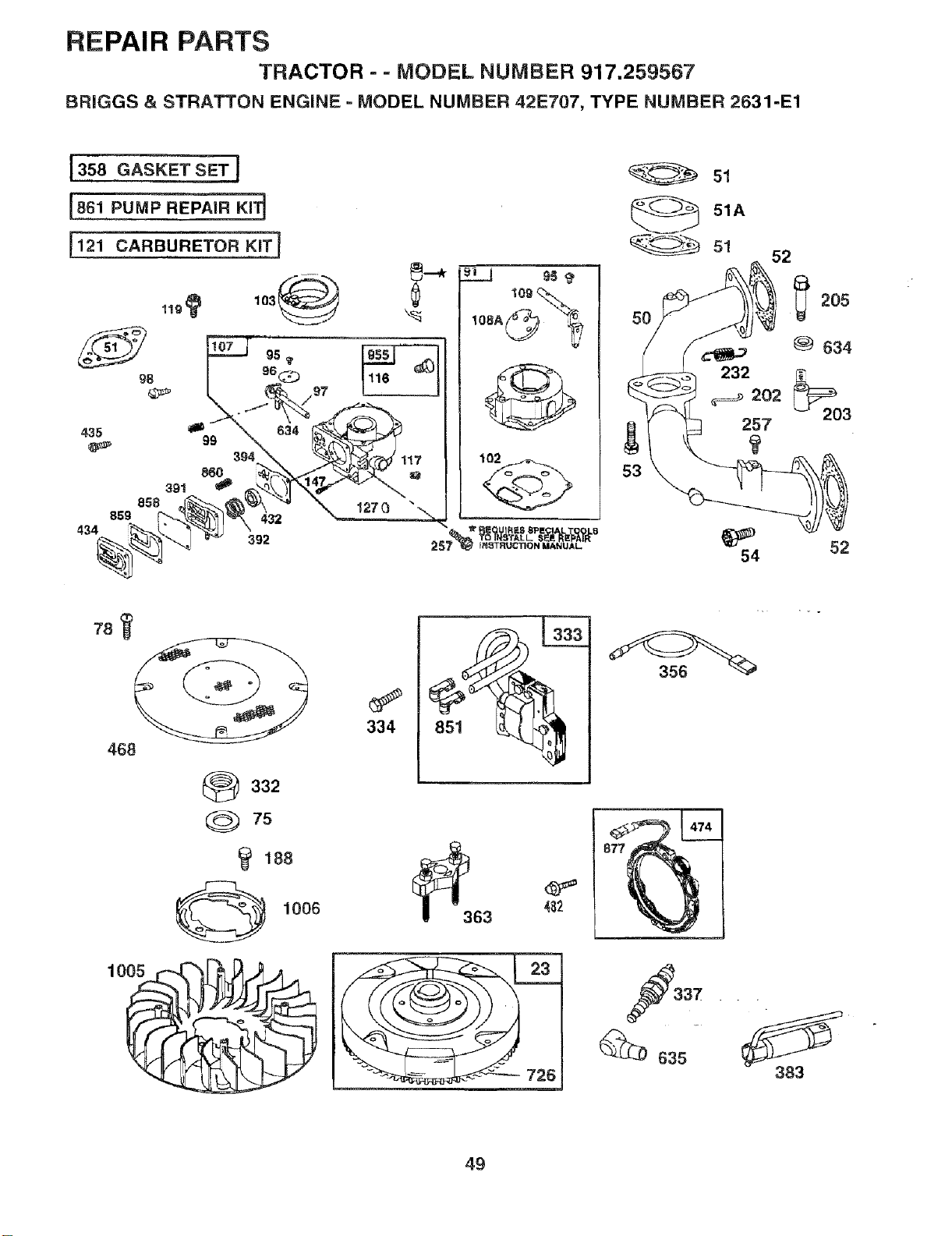

REPAIR PARTS =ENGINE .................................... 48-53

PARTS ORDERING/SERVIICE .................. BACK PAGE

INDEX

Accessories ............................................ 5

Adjustments:

Brake ........................................... 22

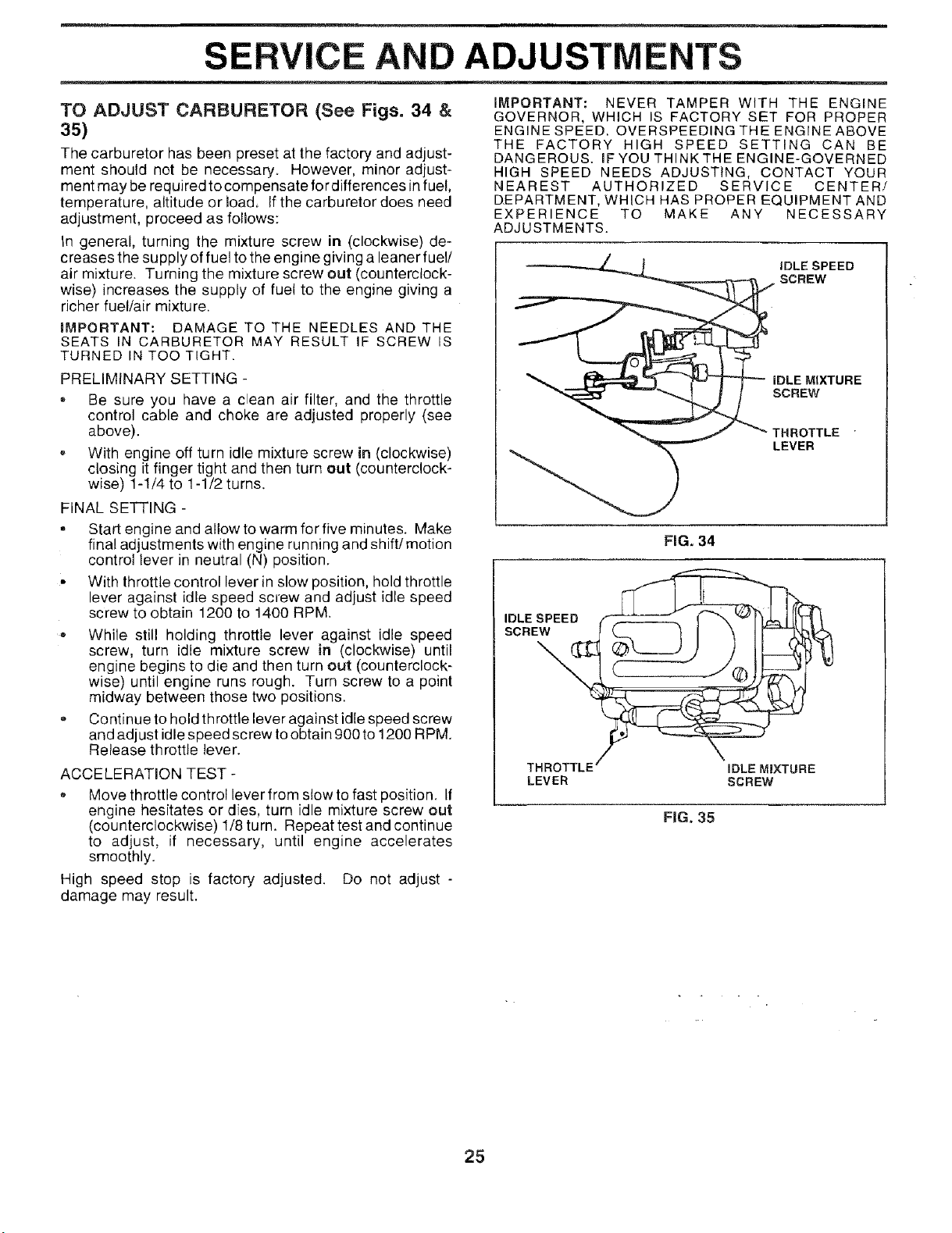

Carburetor ................................... 25

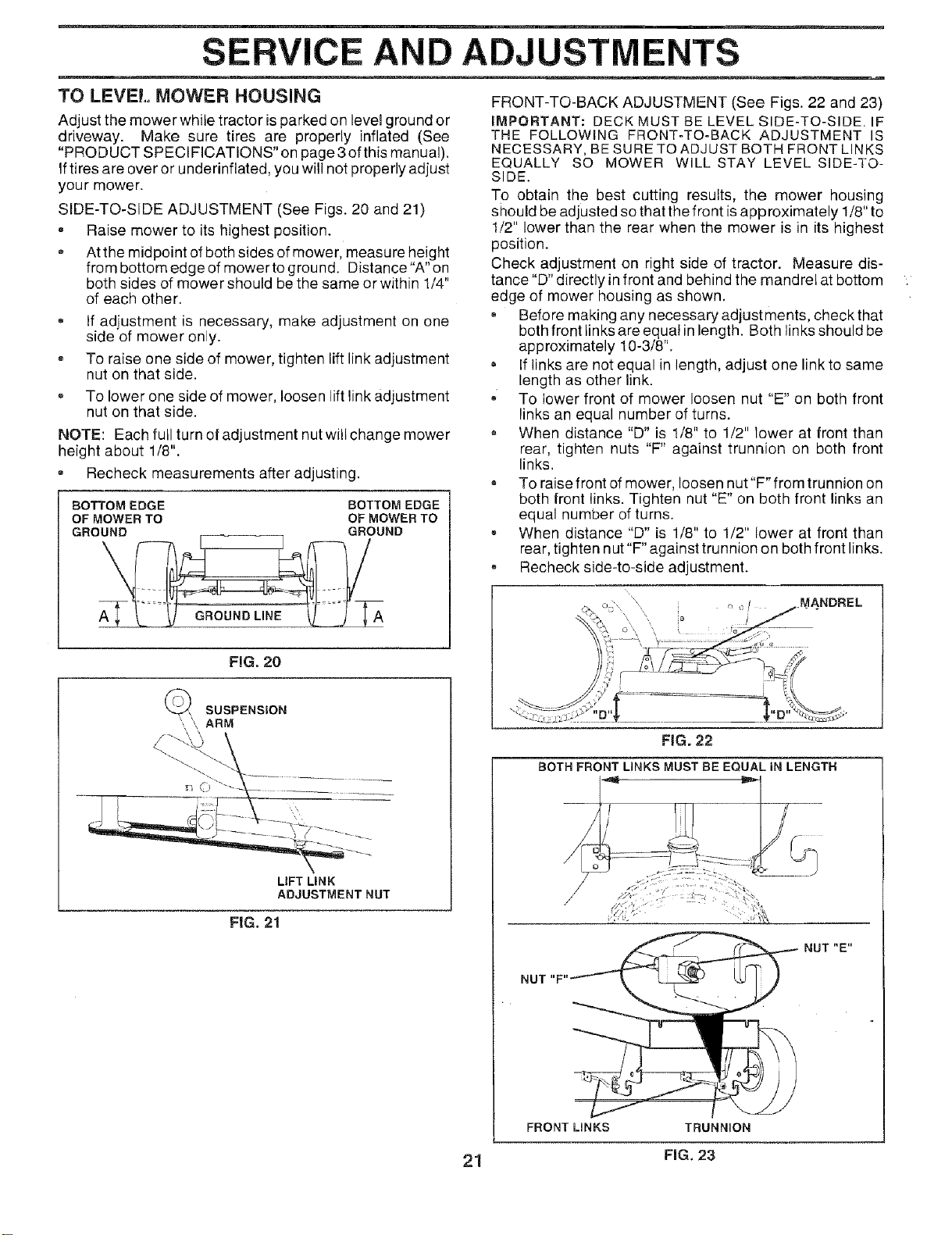

Mower:

Front-To-Back ........................ 21

Side-To-Side .......................... 21

Throttle Control Cable ................. 24

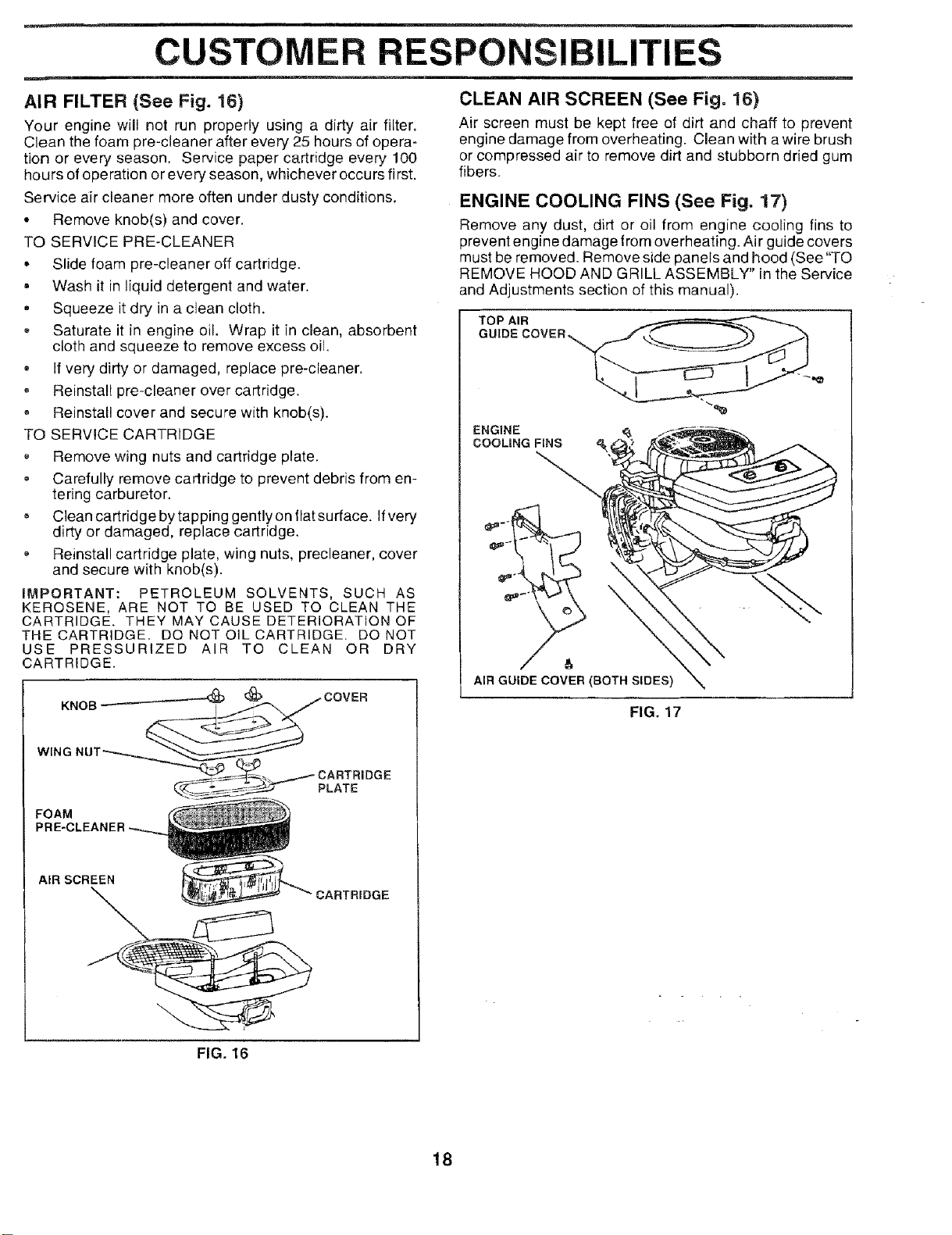

Air Filter, Engine ................................. 18

Air Screen, Engine ............................. 18

Assembly ........................................... 7-g

Battery:

Charging .................................... 7-8

Cleaning ...................................... 17

Connecting ................................. 7-8

Starting with Weak Battery ......... 23

Storage ....................................... 26

Terminals .................................... 17

Belts:

Motion Drive

Removal/Replacement ........... 22

Mower Blade Drive

Removal/Replacement ........... 22

Blade:

Sharpening .................................. 16

Replacement ............................... 16

Brake Adjustment ............................... 22

Carburetor Adjustment ....................... 25

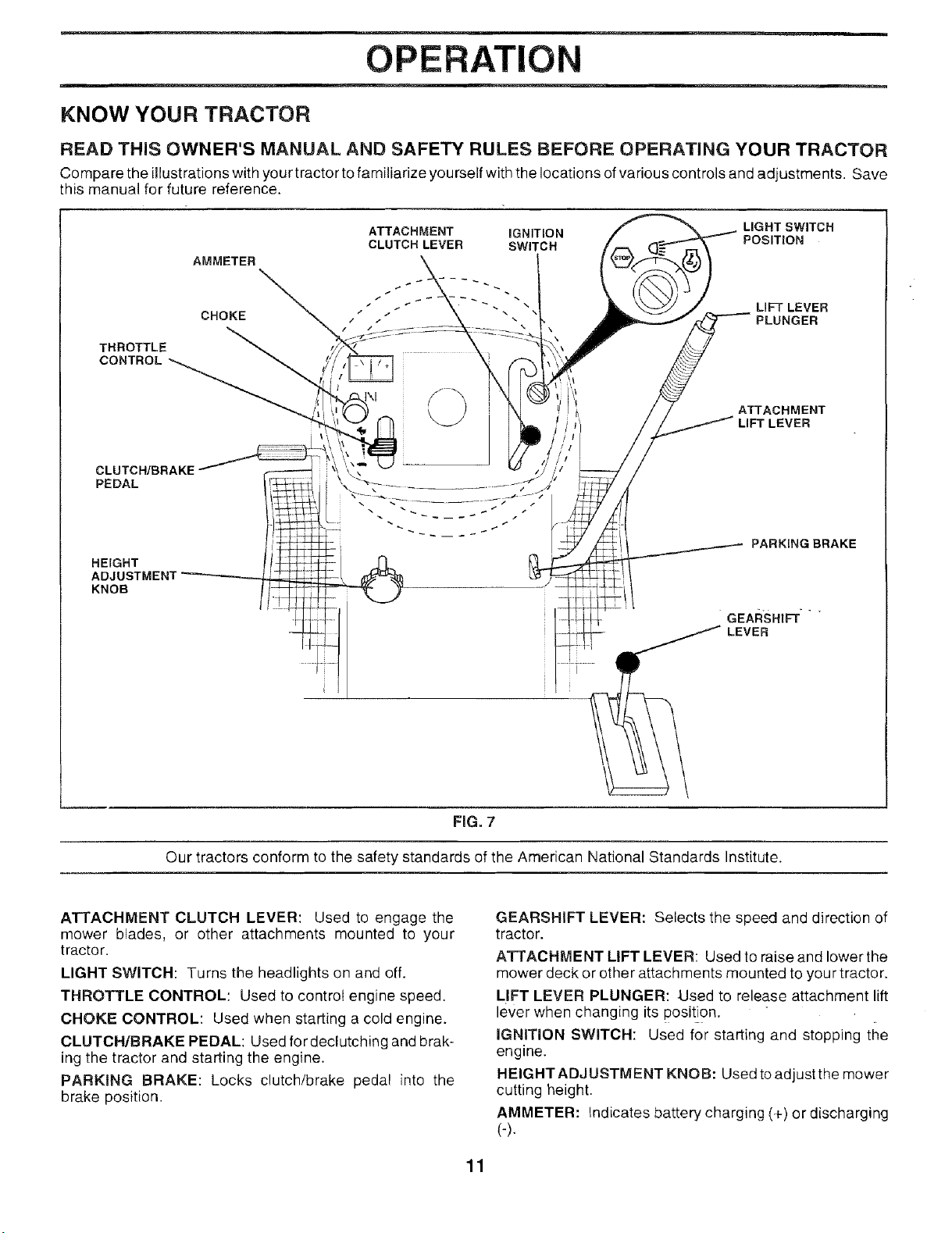

Controls, Tractor ................................ 11

Customer Responsibilities ............. 15-19

Engine:

Air Filter ................................... 18

Air Screen, Engine .................. 18

Battery ..................................... 17

Cooling Fins, Engine ............... 18

Engine Oil ............................... 17

Fuel Filter ................................ 19

Spark Plugs ............................. 19

Tractor:

Blades ..................................... 16

Lubrication Chart ..................... 15

Maintenance Schedule ........... 15

Tire Care ......................... 8,16,23

Cutting Height, Mower ....................... 12

Electrical:

Interlocks and Relays ................. 24

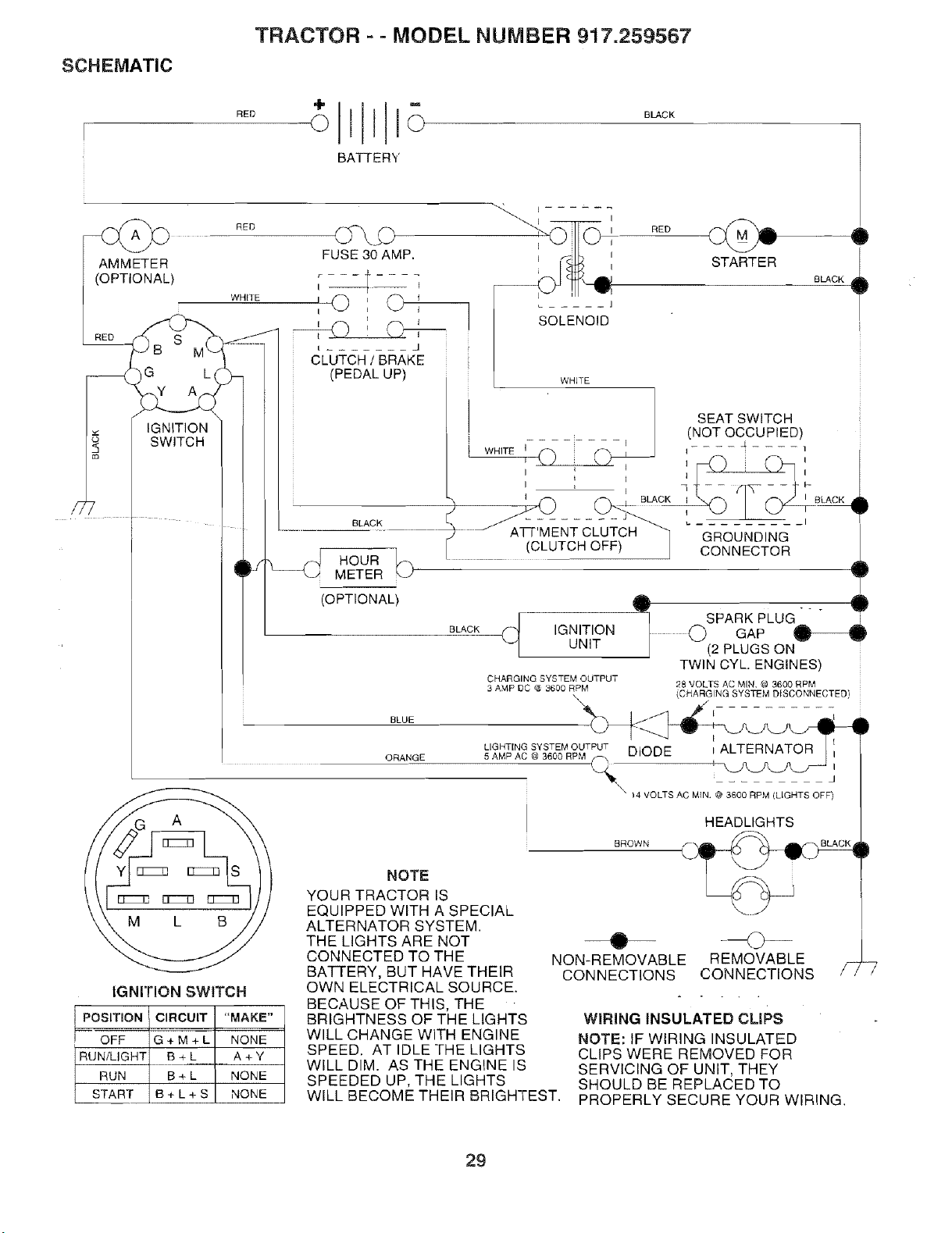

Schematic ................................... 29

Wiring Diagram ........................... 30

Engine:

Air Filter ....................................... 18

Air Screen ................................... 18

Cooling Fins, Engine ................... 18

Oil Change .................................. 17

Oi! Level ................................. 13,17

Oil Type ....................................... 17

Preparation ................................. t 3

Repair Parts ........................... 48-53

Starting ........................................ 14

Storage ....................................... 26

Filters:

Air ................................................ 18

Fuel ............................................. 19

Fuel:

Type ............................................ 13

Storage ....................................... 26

Fuse ................................................... 24

Gauge Wheels ..................................... 8

Hood Removal/Installation ................. 24

Leveling Mower Deck ......................... 21

Lubrication Chart ................................ 15

Maintenance Schedule ...................... 15

Mower:

Adjustment, Front-to-Back .......... 21

Adjustment, Side-to-Side ............ 21

Blade Sharpening ....................... 16

Blade Replacement ..................... 16

Cutting Height ............................. 12

installation ................................... 20

Operation .................................... 13

Removal ...................................... 20

Mowing Tips ....................... _............... 14

Muffler ................................................ 19

Spark Arrester .......................... 3,40

Mulcher Plate ....................................... 9

Oil:

Cold Weather Conditions ....... 13,17

Engine ......................................... 17

Storage ....................................... 26

Operation ...................................... 11-14

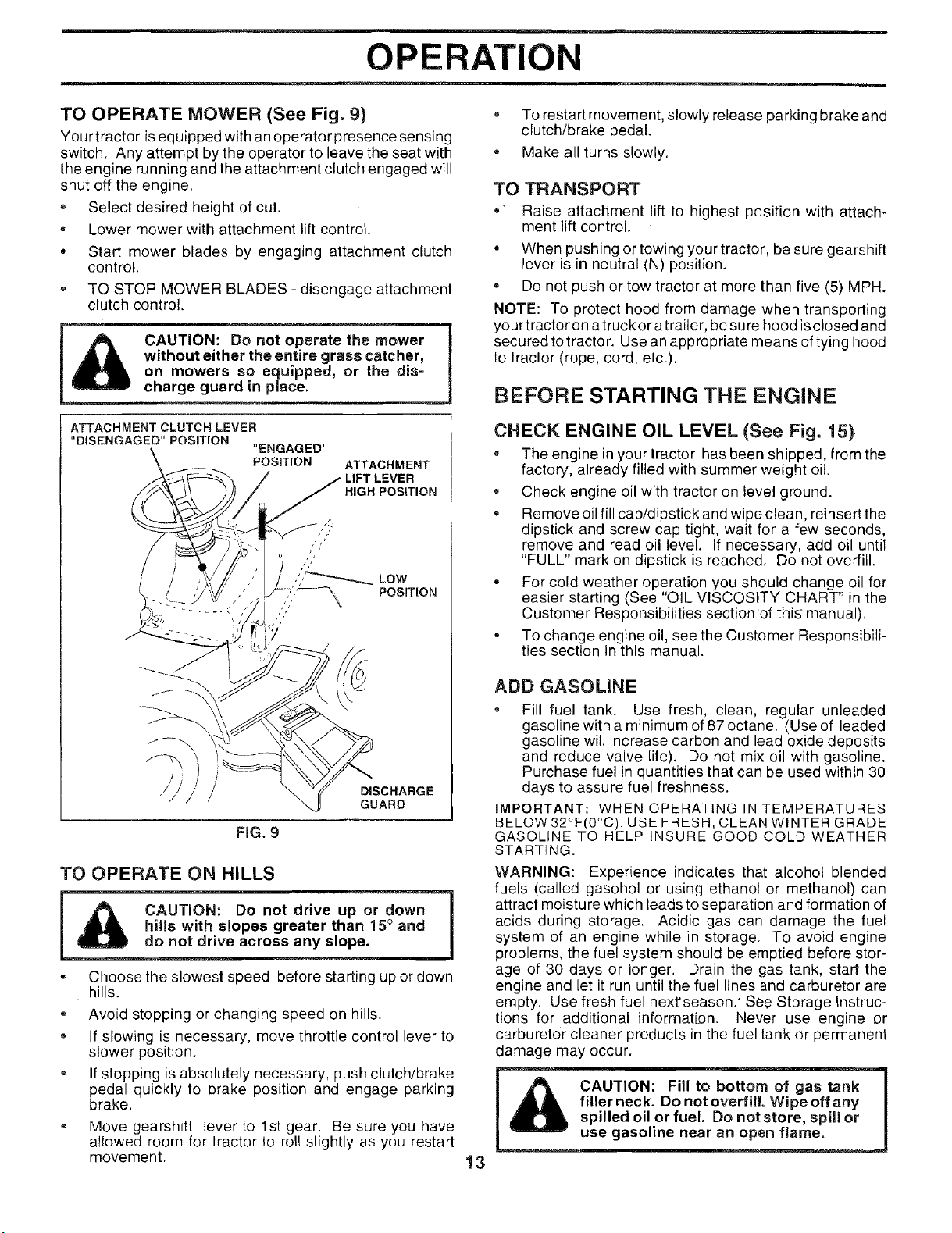

Operating Mower ................................ 13

Options:

Accessories ................................... 5

Spark Arrester .......................... 3,40

Parking Brake ................................ 11-12

Parts Bag ............................................. 6

Parts, ReplacemenlJRepair ........... 30-47

Product Specifications ........................... 3

Repair Parts .................................. 30-47

Safety Rules ..... ,.......... ,............ .............. 2

Seat ...................................................... 8

Service and Adjustments .............. 20-25

Brake ........................................... 22

Carburetor ................................... 25

Fuse ............................................ 24

Hood Removal/Installation .......... 24

Motion Drive Belt

Removal/Replacement ........... 22

Mower Blade Drive Belt

RemovallReplacement ........... 22

Mower Adjustment:

Front-to-Back ......................... 21

Side-to-Side ........................... 21

Mower installation ....................... 20

Mower Removal .......................... 20

Tire Care ............................. 8,16,23

Slope Guide Sheet ............................. 55

Spark Plugs ........................................ 19

Specifications ....................................... 3

Starting the Engine ....................... 13-14

Steering Wheel ................................ 7,23

Stopping the Tractor ........................... 12

Storage..:..........:,..:....: ........................ 26

Throttle Control Cable Adjustment ..... 24

Tires ........................................... 8,t6,23

Trouble Shooting Chart .................. 27-28

Transaxle Repair Parts ................. 46-47

Warranty ............................................... 3

Wiring Diagram .................................. 30

Wiring Schematic ............................... 29

AND ATTAq ENTS

These accessories and attachments were available through most Sears retail outlets and service centers when thetractor was purchased.

Most Sears stores can order these items for you when you provide the model number of your tractor.

ENGINE MAINTENANCE

SPARK PLUG GAS CAN ENGINEOIL FUELSTABiLiZER AIR FILTER BLADES BELTS

PERFORMANCE

Sears offers a wide variety of attachments that fit your tractor. Many of these are listed below with brief explanations of how they can help

you. This list was current at the time of publication; however, it may change in future years - more attachments may be added, changes

may be made in these attachments, or some may no longer be available or fit your model. Contact your nearest Sears store for the

accessories and attachments that are available for your tractor.

Most of these attachments do not require additional hitches or conversion kits (those that do are indicated) and are designed for easy

attaching and detaching.

AERATOR promotes deep root growth for a healthy lawn. Ta-

pered 2.5-inch steel spikes mounted on 10-inch diameter discs

puncture holes in soil at close intervals to let moisture soak in.

Steel weight tray for increased penetration.

BAGGER lets you collect grass clippings and leaves for a

healthier, neater looking lawn. Two Permanex containers hold

30-gallen plastic bags.

BUMPER protects front end of tractor from damage.

CARTS make hauling easy. Variety of sizes available, plus

accessories such as side panel kits, tool caddy, cart cover,

protective mat and dolly.

CORING AERATOR takes small plugs out of soil to allow mois-

ture and nutrients to reach grass roots. 36-inch swath. 24

hardened steel coring tips. 150 lb. capacity weight tray.

EASY OIL DRAIN VALVE makes oil changes easier, faster.

FRONT NOSE ROLLER canters in front of mower deck to reduce

chances of "scalping" on uneven terrain.

GANG HITCH lets you tow 2or 3pull-behind attachments atonce,

such as sweepers, dethatchers, aerators (not for use with rollers,

carts or other heavy attachments).

GAUGE WHEELS on both sides of the mower deck reduce

chances of "scalping" on uneven terrain. For mower decks not so

equipped,

MULCH RAKE/DETHATCHER loosens soil and flips thatch and

matted leaves to lawn surface for easy pickup. Twenty spring line

teeth. Usefultepreparebareareasforseeding. Availabteforfront

or rear mounting. HiGH PERFORMANCE REEL-ACTION

SPRING TINE DETHATCHER covers 36-inch wide path and

tosses thatch into large hopper. Mounts behind tractor.

MULCHING CLOSE-OUT PLATE KIT, once installed, lets you

mulch, discharge or bag clippings (bagger optional) without

changing blades. For models not equipped as 3-in-1 Convertible

mowers. See "MOWER" in the Repair Parts section of this

manual.

RAMP TOPS AND FEET let you load and unload tractor from a

pickup truck. Use with 2 x 8 or 2 x 10 lumber.

ROLLER for smoother lawn surface. 36-inch wide, 18-inch

diameter water-tight drum holds up to 390 Ibs. of weight. Rounded

edges prevent harm to turf. Adjustable scraper automatically

cleans drum.

SNOW BLADEforsnow removalonly. 14-inch high,48-inch wide

blade clears 42-inch path when angled left or right. Raises, lowers

with side lever, Adjustable skids; replaceable, reversible scraper

bar. (Use with tire chains and wheel weights and/or rear drawbar

weight.)

SNOWTHROWER has 40-inch swath. Drum-type auger handles

powdery and wet!heavy snow. Mounts easily with simple pin

arrangement. Discharge chute adjusts from tractor seat. 6-inch

diameter spout discharges snow 10 to 50 feet. Lift controlled at

tractor seat. (Use with chains and wheel weights and/or rear

drawbar weight.)

SPRAYERS use 12-volt DC electric motor that connects to the

tractor battery or ether 12-volt source. Includes booms for

automatic spraying and hand held wand for spot spraying. Wand

has adjustable spray pattern. For applying herbicides, insecti-

cides, fungicides and liquid fertilizers.

SPREADER/SEEDERS make seeding, fertilizing, and weed kill-

ing easy. Broadcast spreaders are also useful for granular de-

icers and sand.

SWEEPERS let you collect grass clippings and leaves.

TILLER has 5 hp engine and 36-inch swath to prepare seed beds,

cultivate and compost garden residue. Tiller has its own built-in

fift and depth control system and does NOT require a sleeve hitch.

Fits any lawn, yard or garden tractor. Simply hook up tothe tractor

drawbar and go! Optional accessories convert unit for

dethatching, aerating, hilling...without toois.

TIRE CHAINS are heavy duty; closely spaced extra-large cross

links give smooth ride, outstanding traction.

TRACTOR CAB has heavy duty vinyl fabric over tubular steel

frame, ABS plastic top; clear plastic windshield offers 360 degree

visibility. Hinged metal doors with catch. Keeps operator warm

and dry. Remove vinyl sides and windshields for use as sun

protector in summer. Optional accessories include: tinted/

tempered solid safety glass windshield with hand operated wiper;

12-volt amber caution light for mounting on cab top.

VACS for powerful collection of heavy grass clippings and leaves.

Optional wand attachment to pick up debris in hard-to-reach

p_ces. VACICHIPPER includesa chipper-shredder.

WEIGHT BRACKET for drawba_ for snow removal applications.

Uses (1) 55 lb. weight.

WHEEL WEIGHTS for rear wheels provide needed traction for

snow removal or dozing heavy materials.

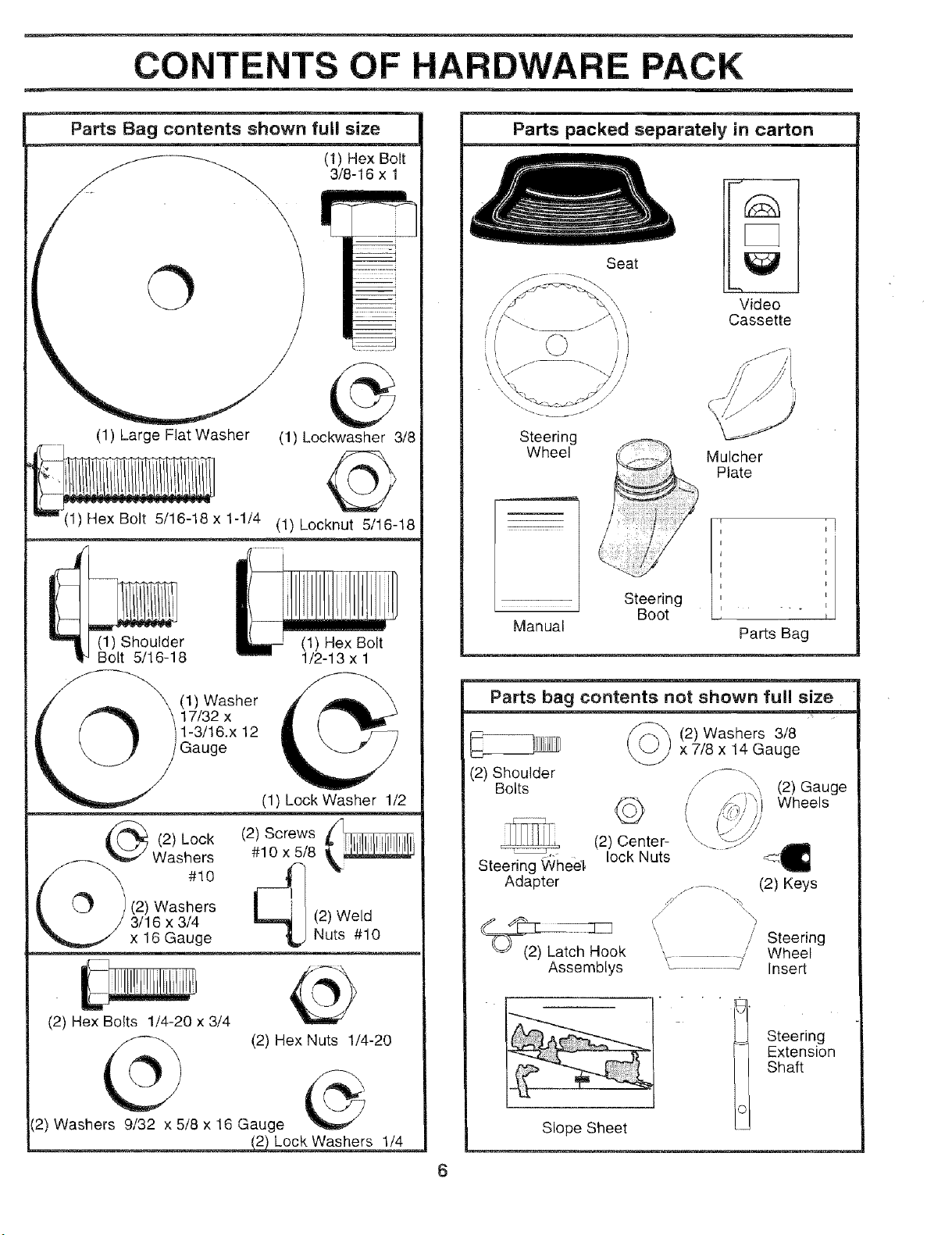

CONTENTS OF RDWARE PACK

Parts Bag contents shown full size

(1) Hex Bolt

3/8-16 x 1

(1) Large Flat Washer

(1) Hex Bolt 5/16-18 x 1-1/4 (1) Locknut 5/16-18

(1) Lockwasher 3/8

_4 Bolt 5/16-18

1) Washer

17/32 x

1-3/16.x 12

Gauge

(1) Hex Bolt

1/2-13 x 1

(1) Lock Washer 1/2

(2) Screws __

Washers #10 x 5/8

(2) Lock

#1o

(2) Washers

3/16 x 3/4 (2) Weld

x 16 Gauge Nuts #10

(2) Hex Bofts 1/4-20 x 3/4

(2) Hex Nuts 1/4-20

(2) Washers 9/32 x 5/8 x 16 Gauge

_ 2 kockWashers 1/4

Parts packed separately in carton

Seat

Video

Cassette

Steering

Wheel

Manual

Steering

Boot

Mulcher

Plate

Parts Bag

Parts bag contents not shown full size

(2) Washers 3/8

x 7/8 x 14 Gauge

(2) Center-

...... lock Nuts

Steering Wheel,

Adapter

(2) Gauge

Wheels

.y ..... -. (2) Keys

/ Steering

ch Hook \_ _____ _ Wheel

Assemblys '- ........................_ Insert

Steering

Extension

Shaft

Slope Sheet

ASSEMBLY

Your new tractor has been assembled at the factoq! with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use

the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard

wrench sizes are listed.

(1) 3/4" Socket w/drive rachet

(2) 7/16" wrenches Phillips Screwdriver

(2) 1/2" wrenches Tire pressure gauge

(1) 9/16" wrench Utility knife

When right or left hand is mentioned in this manual, it

means when you are in the operating position (seated

behind the steering wheel).

TO REMOVE TRACTOR FROM CARTON

UNPACK CARTON

Remove all accessible loose parts and parts cartons

from carton (See page 6).

, Cut, from top to bottom, along lines on all four corners

of carton, and lay panels flat.

Check for any additional loose parts or cartons and

remove.

BEFORE ROLLING TRACTOR OFF SKID

ATTACH STEERING WHEEL (See Fig. 1)

ASSEMBLE EXTENSION SHAFT AND BOOT

® Slide extension shaft onto lower steering shaft. Align

mounting holes in extension and lower shafts and

instal} 5116 hex bolt and Iocknut. Tighten securely.

IMPORTANT: TIGHTEN BOLT AND NUT SECURELY TO

18-22 FT. LBS TORQUE.

Place tabs of steering boot over tab slots in dash and

push down to secure.

INSTALL STEERING WHEEL

o Position front wheels of the tractor so they are pointing

straight forward.

o Slide steering wheel adapter onto steering shaft exten-

sion.

, Position steering wheel so cross bars are horizontal

(left to right) and slide inside boot and onto adapter.

o Assemble large flat washer, 3/8 lock washer, 3/8 hex

bo}t and tighten securely.

- Snap steering wheel insert into center of steering

wheel.

• Remove protective materials from tractor hood and

grill.

iMPORTANT: CHECK FOR AND REMOVE ANY STAPLES

IN SKIDTHAT MAY PUNCTLIRETIRESWHERETRACTOR

IS TO ROLL OFF SKID.

_-_._ _.._--.,-_INSERT

__ 318 HEX BOLT

LARGE FLAT

WASHER

STEERIN

WHEEL

\ /

STEERING

BOOT

FIG. 1

TO ROLL TRACTOR OFF SKID (See Operation

section for location and function of controls)

Press lift lever plunger and raise attachment lift lever to

its highest position.

- Release parking brake by depressing clutch!brake

pedal.

- Place gearshift lever in neutral (N) position.

. Roll tractor backwards off skid.

, Remove banding holding discharge guard up against

tractor.

ASSE LY

HOW TO SET UP YOUR TRACTOR

CONNECT BATTERY (See Fig. 2)

CAUTION: Do not short battery termi=

rials by allowing a wrench or any other

object to contact both terminals at the

same time. Before connecting battery,

remove metal bracelets, wristwatch

bands, rings, etc.

Positive terminal must be connected

first to prevent sparking from acciden-

tal grounding.

Lift hood to raised position.

• Open terminal access doors, remove terminal protec-

tive caps and discard.

• If this battery is put into service after month and year

indicated on label (label located between terminals)

charge battery for minimum of one hour at 6-10 amps.

, First connect RED battery cable to positive (+) battery

terminal with hex bolt, flat washer, lock washer and hex

nut as shown. Tighten securely.

• Connect BLACK grounding cable to negative (-) bat-

tery terminal with remaining hex bolt, flat washer, lock

washer and hex nut. Tighten securely.

• Close terminal access doors.

Use terminal access doors for:

• inspection for secure connections (to tighten hard-

ware).

• Inspection for corrosion.

• Testing battery.

, Jumping (if required).

, Periodic charging.

LOCK FLAT

DISCARD TERMINAL WASHER WASHER

PROTECTIVE CAPS HEX NUT

• .... _ _ ii

TERMINAL

ACCESS

DOOR

POSiTiVE

(RED)

CABLE

HEX

BOLT

NEGATIVE

(BLACK)

CABLE

INSTALL SEAT (See Fig. 3)

Adjust seat before tightening adjustment bolt.

• Remove cardboard packing on seat pan.

• Place seat on seat pan and assemble shoulder bolt.

Tighten shoulder bolt securely.

Assemble adjustment bolt, lock washer and fiat washer

loosely. Do not tighten.

, Lower seat into operating position and sit on seat.

- Slide seat until a comfortable position is reached which

allows you to press clutch/brake pedal all the way

down.

• Get off seat without moving its adjusted position.

o Raise seat and tighten adjustment bolt securely.

SEAT

SEAT PAN

SHOULDER

BOLT \

3E FLAT WASHER

ADJUSTMENT

BOLT LOCK WASHER

FiG. 3

CHECK TiRE PRESSURE

The tires on your tractor were overinflated at the factory for

shipping purposes. Correct tire pressure is important for

best cutting performance.

Reduce tire pressure to PSI shown in "PRODUCT

SPECIFICATIONS" on page 3 of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower housing should be properly

leveled. See "TO LEVEL MOWER HOUSING" in the

Service and Adjustments section of this manual.

CHECK FOR PROPER POSITION OF ALL

BELTS

See the figures that are shown for replacing motion and

mower blade drive belts in the Service and Adjustments

section of this manual. Verify that the belts are routed

correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your tractor, check to see

that the brake is properly adjusted. See "TO ADJUST

BRAKE" in the Service and Adjustments section of this

manual.

ASSEMBLE GAUGE WHEELS TO MOWER

DECK (See Fig. 4)

The gauge wheels are designed to keep the mower deck in

proper position when operating mower. Be sure they are

properly adjusted to ensure optimum mower performance.

* Assemble gauge wheels with tractor on a flat Ievel

surface.

, Adjust mower to desired cutting height (See 'q'O AD-

JUST MOWER CUTTING HEIGHT" in the Operation

•section of this manual). " ....

- With mower in desired height of cut position, gauge-

wheels *hould be assembled so they are slightly off the

ground. Install gauge wheel in appropriate hole with

shoulder bolt, 3/8 washer, and 3/8-16 Iocknut and

tighten securely.

, Repeat for opposite side installing gauge wheel in

same adjustment hole.

BLY

GAUGE WHEEL

MOUNTING

BRACKET _ _

318-16 \

LOCKNUT \

318" WASHER

GAUGE WHEEL"

SHOULDERBOLT

FiG. 4

iNSTALL MULCHER PLATE

(See Figs. 5 & 6)

Install two latch hooks to mulcher plate using screw,

washer, lock washer, and weld nut as shown.

NOTE: Pre-assemble weld nut to latch hook by inserting

weld nut from the top with hook pointing down.

Tighten hardware securely.

Raise and hold deflector shield in upright position.

• Place front of mulcher plate over front of mower deck

opening and slide into place, as shown.

• Hook front latch into hole on front of mower deck.

Hook rear latch into hole on back of mower deck.

CAUTION: Do not remove discharge

guard from mower. Raise and hold

guard when attaching mulcher plate

and allow it to rest on plate while in

operation.

WELD NUT FROM THE TOP

LOCK

WELD WASHER

NUT. SCREW

LATCH

HOOK POINTS DOWN

HOOK

WASHER

MULCHER

PLATE

LOCK

WASHER

FIG. 5

WELD

NUT

TO CONVERT TO BAGGING OR

DISCHARGING

Simply remove mulcher plate and store in a safe place.

Your mower is now ready for discharging or installation of

optional grass catcher accessory.

LATCH

HOOKS

FIG. 6

,/CHECKLIST

BEFORE YOU OPERATE AND ENJOY YOUR NEW

TRACTOR, WE WISH TOASSURE THAT YOU RECEIVE

THE BESTPERFORMANCEAND SATISFACTtON FROM

THIS QUALITY PRODUCT.

PLEASE REVIEW THE FOLLOWING CHECKLIST:

,/ Al! assembly instructions have been completed.

,/ No remaining loose parts in carton.

,/ Battery is properly prepared and charged. (Minimum

1 hour at 6 amps).

,z Seat is adjusted comfortably and tightened securely.

,/ All tires are properly inflated. (For shipping purposes,

the tires were overinflated at the factory).

,/ Be sure mower deck is properly leveled side-to-side/

front-to-rear for best cutting results. (Tires must be

properly inflated for leveling).

,z Check mower and drive belts. Be sure they are routed

properly around pulleys and inside all belt keepers.

,/ Check wiring. See that all connections are still secure

and wires are properly clamped.

WHILE LEARNING HOW TO USE YOUR TRACTOR, PAY

EXTRA ATTENTION TO THE FOLLOWING IMPORTANT

ITEMS:

,/. Engine oil is at properlevel. -

¢" Fuel tank is filled with fresh, clean, regular unleaded

gasoline.

,/ Become familiar with all controls - their location and

function. Operate them before you start the engine.

,/ Be sure brake system is in safe operating condition.

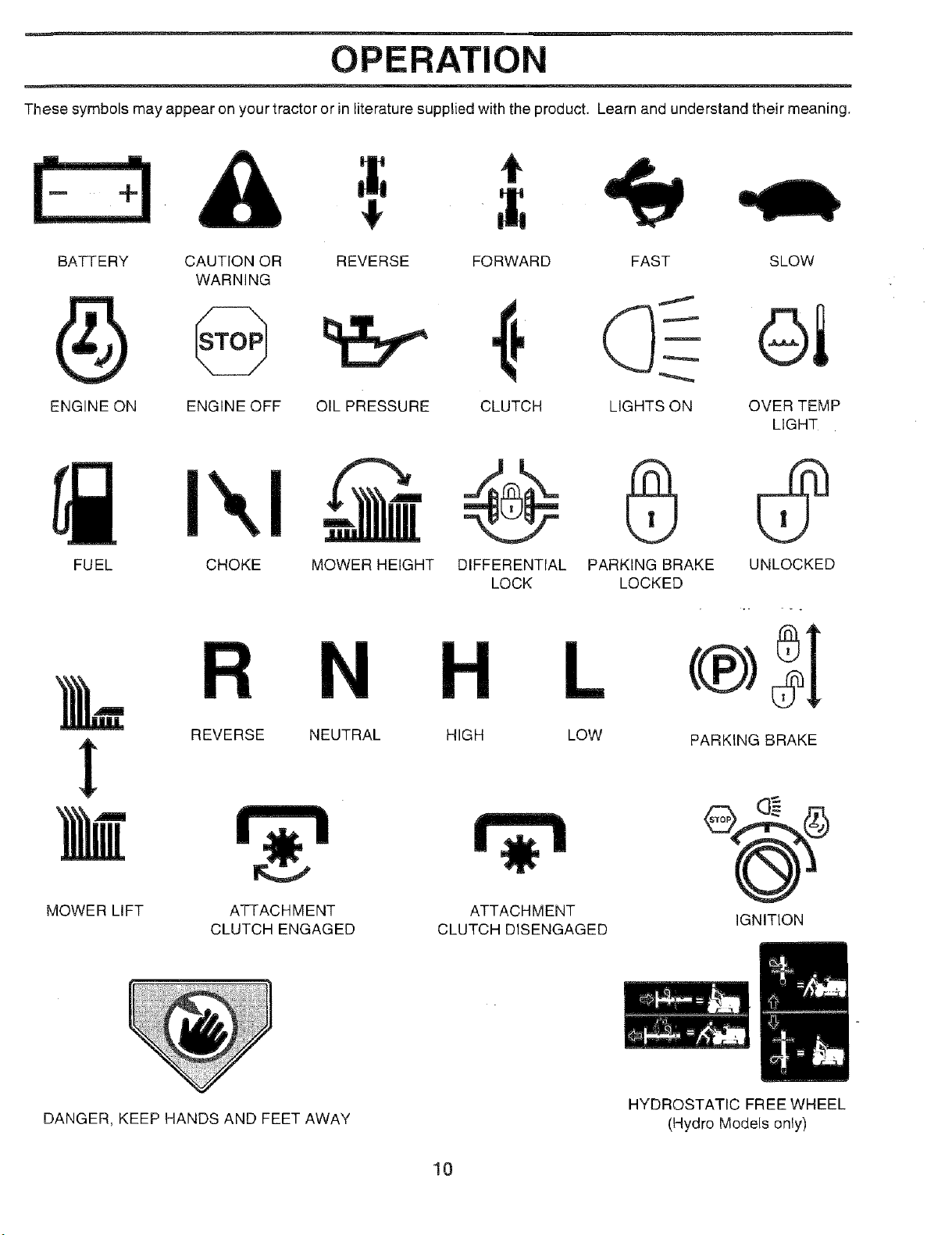

OPERATION

These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning.

BATTERY

ENGINE ON

4!,

CAUTION OR REVERSE FORWARD

WARNING

ENGINE OFF OIL PRESSURE CLUTCH

CHOKE MOWER HEIGHTFUEL

REVERSE NEUTRAL

ATTACHMENT

CLUTCH ENGAGED

MOWER LIFT

FAST SLOW

LIGHTS ON OVER TEMP

LIGHT

PARKING BRAKE UNLOCKED

LOCKED

PARKING BRAKE

DIFFERENTIAL

LOCK

HIGH LOW

ATTACHMENT

CLUTCH DISENGAGED

IGNITION

DANGER, KEEP HANDS AND FEETAWAY

HYDROSTATIC FREE WHEEL

(Hydro Models only)

OPERATIC

KNOW YOUR TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR

Compare the illustrations with yourtractortofamiliarizeyourselfwiththelocations ofvariouscontrolsand adjustments. Save

this manual for future reference.

ATTACHMENT iGNITION LIGHT SWITCH

CLUTCH LEVER SWITCH POSITION

" t _ " - " LiFT LEVER

," ," PLUNGER

ATTACHMENT

LiFT LEVER

CLUTCH/BRAKE

PEDAL

HEIGHT

ADJUSTMENT

KNOB

PARKING BRAKE

GEARSHIFT''"

LEVER

FIG. 7

Our tractors conform to the safety standards of the American National Standards Institute.

ATTACHMENT CLUTCH LEVER: Used to engage the

mower blades, or other attachments mounted to your

tractor.

LIGHT SWITCH: Turns the headlights on and off.

THROTTLE CONTROL: Used to control engine speed.

CHOKE CONTROL: Used when starting a cold engine.

CLUTCH/BRAKE PEDAL: Used for declutching and brak-

ing the tractor and starting the engine,

PARKING BRAKE: Locks clutch/brake pedal into the

brake position.

GEARSHIFT LEVER: Selects the speed and direction of

tractor.

ATTACHMENT LIFT LEVER: Used to raise and lower the

mower deck or other attachments mounted to your tractor.

LIFT LEVER PLUNGER: Used to release attachment lift

lever when changing its position,

IGNITION SWITCH: Used for starting and stopping the

engine.

HEIGHT ADJ USTM ENT KNO B: Used toadjust the mower

cutting height.

AMMETER: Indicates battery charging (+) or discharging

(-).

OPERATION

i........ can

_ _="_ J resuitinsevereeyedamage. Alwayswearsafetyglassesoreyeshieidswhileoperatingyour

_ tractor or performing any adjustments or repairs. We recommend a wide vision safety mask

_ s e athe p et cles or standard safety glasses. _ _

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE (See Fig. 8)

Your tractor isequipped with an operator presence sensing

switch. When engine is running, any attempt by the

operator to leave the seat without first setting the parking

brake will shut off the engine.

• Depress clutch/brake pedal into full "BRAKE" position

and hold.

Place parking brake lever in "ENGAGED" position and

release pressu refrom clutch/brake pedal. Pedal should

remain in "BRAKE" position. Make sure parking brake

will hold tractor secure.

THROTTLE

CONTROL

CHOKE

CONTROL

ATTACHMENT CLUTCH LEVER

"ENGAGED"POSITION

"DISENGAGED"

POSITION

"BRAKE"

POSITION

PARKING BRAKE

POSITION

GEARSHIFT

LEVER

CLUTCH/BRAKE PEDAL

"DRIVE" POSITION

"DISENGAGED"

POSITION

HEIGHT ADJUSTMENT KNOB

FIG. 8

CAU'FION: Always stop tractor com-

pletely, as described above, before leavo

ing the operator's position; to empty

grass catcher, etc.

TO USE THROTTLE CONTROL (See Fig. 8)

Always operate engine at full throttle.

Operating engine at less than full throttle reduces the

battery charging rate.

Full throttle offers the best bagging and mower perfor-

mance.

TO USE CHOKE CONTROL (See Fig= 8)

Use choke control whenever you are starting a cold engine.

Do not use to start a warm engine.

To engage choke control, pull knob out. Slowly push

knob in to disengage.

TO MOVE FORWARD AND BACKWARD

(See Fig. 8)

The direction and speed of movement is controtlecl by the

gearshift lever.

= Start tractor with clutch/brake pedal depressed and

gearshift lever in neutral (N) position.

• Move gearshift and range shift levers to desired posi-

tion.

• Slowly release clutch/brake pedal to start movement.

IMPORTANT: BRING TRACTOR TO A COMPLETE STOP

BEFORE SHIFTING OR CHANGING GEARS. FAILURE

TO DO SO WlLL SHORTEN THE USEFUL LIFE OF YOUR

TRANSAXLE.

STOPPING (See Fig. 8)

MOWER BLADES -

= Move attachment clutch lever to "DISENGAGED" po-

sition.

GROUND DRIVE-

• Depress clutch/brake pedal into full "BRAKE" position.

• Move gearshift lever to neutral (N) position.

ENGINE -

• Move throttle control to slow position.

NOTE: Failure to move throttle control to slow position and

allowing engine to idle before stopping may cause engine

to "backfire".

, Turn ignition key to "OFF" position and remove key.

Always remove key when leaving tractor to prevent

unauthorized use.

• Never use choke to stop engine.

NOTE: Under certain conditions when tractor is standing

idle with the engine running, hot engine exhaust gases may

cause "browning" of grass. To eliminate this possibility,

always stop engine when stopping tractor on grass areas.

TO ADJUST MOWER CUTTING HEIGHT

(See Fig. 8)

The cutting height iscontrolled byturning the height adjust-

ment knob in desired direction.

Turn knob clockwise (f-_l) to raise cutting height.

Turn knob counterclockwise (_-'_)to lower cutting

height.

The cutting height range isapproximately 1-1/2" to 4". The

heights are measured from the ground to the blade tip with

the engine not running. These. heigbts are approximate

and may vary depending upon soil conditions, height of

grass and types of grass being mowed.

, The average lawn should be cut to approximately 2-1/2

inches during the cool season and to over 3 inches

during hot months. For healthier and better looking

lawns, mow often and after moderate growth.

For best cutting performance, grass over 6 inches in

height should be mowed twice. Make the first cut

relatively high; the second to desired height.

OPERATION

TO OPERATE MOWER (See Fig. 9)

Your tractor isequipped with an operator presence sensing

switch. Any attempt by the operator to leave the seat with

the engine running and the attachment clutch engaged will

shut off the engine.

Select desired height of cut.

Lower mower with attachment lift control.

Start mower blades by engaging attachment clutch

control.

TO STOP MOWER BLADES - disengage attachment

clutch control.

CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the dis=

charge guard in place.

ATTACHMENT CLUTCH LEVER

"DISENGAGED" POSiTiON

"ENGAGED"

POSITION

ATTACHMENT

LIFT LEVER

POSITION

POSiTiON

DISCHARGE

GUARD

FIG. 9

TO OPERATE ON HILLS

i---A----CAUT-/ON: Do not drive up o_

j_ hitls with slopes greater than 15° and

_onot drive across any slope.

• Choose the slowest speed before starting up or down

hills.

', Avoid stopping or changing speed on hills.

If slowing is necessary, move throttle control lever to

slower position.

If stopping is absolutely necessary, push clutch/brake

pedal quickly to brake position and engage parking

brake.

Move gearshift lever to 1st gear. Be sure you have

allowed room for tractor to rol! slightly as you restart

movement.

,, To restart movement, slowly release parking brake and

clutch/brake pedal.

* Make all turns slowly.

TO TRANSPORT

° Raise attachment lift to highest position with attach-

ment lift control.

• When pushing or towing your tractor, be sure gearshift

!ever is in neutral (N) position.

• Do not push or tow tractor at more than five (5) MPH.

NOTE: To protect hood from damage when transporting

your tractor on atruckor at railer, be sure hood isclosed and

secured to tractor. Use an appropriate means of tying hood

to tractor (rope, cord, etc.).

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 15)

, The engine in your tractor has been shipped, from the

factory, already filled with summer weight oil.

Check engine oil with tractor on level ground.

• Remove oil fill cap/dipstick and wipe clean, reinsert the

dipstick and screw cap tight, wait for a few seconds,

remove and read oil level. If necessary, add oil until

"FULL" mark on dipstick is reached. Do not overfill.

• For cold weather operation you should change oil for

easier starting (See "OIL VISCOSITY CHART' in the

Customer Responsibilities section of this manual).

• To change engine oil, see the Customer Responsibili-

ties section in this manual.

ADD GASOLINE

o Fill fuel tank. Use fresh, clean, regular unleaded

gasoline with a minimum of 87 octane. (Use of leaded

gasoline will increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil with gasoline.

Purchase fuel in quantities that can be used within 30

days to assure fuel freshness.

IMPORTANT: WHEN OPERATING IN TEMPERATURES

BELOW 32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GASOLINE TO HELP INSURE GOOD COLD WEATHER

STARTING.

WARNING: Experience indicates that alcohol blended

fuels (ca!led gasohol or using ethanol or methanol) can

attract moistu re which leads to separation and formation of

acids during storage. Acidic gas can damage the fuel

system of an engine while in storage. To avoid engine

problems, the fuel system should be emptied before stor-

age of 30 days or longer. Drain the gas tank, start the

engine and let it run until the fuel lines and carburetor are

empty. Use fresh fuel next'season. See Storage Instruc-

tions for additional informatLon. Never use engine or

carburetor cleaner products in the fuel tank or permanent

damage may occur.

CAUTION: Fill to bottom of gas tank

filler neck. Do not overfill. Wipe off any

spilled oil or fuel. Do not store, spill or

use gasoline near an open flame.

TO START ENGINE (See Fig. 8)

When starting the engine for the first time or if the engine

has run out of fuel, it will take extra cranking time to move

fuel from the tank to the engine.

o Sit on seat in operating position, depress clutch/brake

pedal and set parking brake.

= Place gear shift lever in neutral (N) position.

• Move attachment clutch to "DISENGAGED" position.

• Move throttle control to fast position

• Pull choke control out for a cold engine start attempt.

For a warm engine start attempt the choke control may

not be needed.

Note: Before starting, read the warm and cold starting

procedures below.

Insert key into ignition and turn keyc!ockwise to"START"

position and release key as soon as engine starts. Do

not run starter continuously for more than fifteen sec-

onds per minute. If the engine does not start after

several attempts, push choke control in, wait a few

minutes and try again. Ifengine still does not start, pull

the choke control out and retry.

WARM WEATHER STARTING (50° F and above)

= When engine starts, slowly push choke control in until

the engine begins to run smoothly. Ifthe engine starts

to run roughly, pull the choke control out slightly for a

few seconds and then continue to push the control in

slowly.

The attachments and ground drive can now be used. If

the engine does not accept the load, restart the engine

and allow itto warm up for one minute using the choke

as described above.

COLD WEATHER STARTING (50° F and below)

• When engine starts, slowly push choke control in until

the engine begins to run smoothly. Continue to push

the choke control in small steps allowing the engine to

accept small changes in speed and load, until the

choke control is fully in. If the engine starts to run

roughly, pull the choke control out slightly for a few

seconds and then continue to push the control in

slowly. This may require an engine warm-up period

from several seconds to several minutes, depending

on the temperature.

, The attachments can be used du ring the engine warm-

up period and may require the choke control be pulled

out slightly,

NOTE: If at a high altitude (above 3000 feet) or in cold

temperatures (below 32 F) the carburetor fuel mixture may

need to be adjusted for best engine performance. See "TO

ADJUST CARBURETOR" in the Service and Adjustments

section of this manual.

MOWING TIPS

• Tire chains can not be used when the mower housing is

attached to tractor.

o Mower should be properly leveled for best mowing

performance. See "TO LEVEL MOWER HOUSING" in

the Service and Adjustments section of this manual.

° The left hand side of mower should be used for trim-

ming.

Drive so that clippings are discharged onto the area

that has been cut. Have the cut area to the right of the

tractor. This will result in a more even distribution of

clippings and more uniform cutting.

• When mowing large areas, start by turning to the right

so that clippings will discharge away from shrubs,

fences, driveways, etc. After one or two rounds, mow

in the opposite direction making left hand turns until

finished (See Fig. 10 ).

, tf grass is extremely tall, it should be mowed twice to

reduce load and possible fire hazard from dried clip-

pings. Make first cut relatively high; the second to the

desired height.

• Do not mow grass when it is wet. Wet grass will plug

mower and leave undesirable clumps. Allow grass to

dry before mowing.

• Always operate engine at full throttle when mowing to

assure better mowing performance and proper dis-

charge of material. Regulate ground speed by select-

ing a low enough gear to give the mower cutting

performance as well as the quality of cut desired.

• When operating attachments, select a ground speed

that will suit the terrain and give best performance of

the attachment being used.

FIG. 10

MULCHING MOWING TIPS

IMPORTANT: FOR BEST PERFORMANCE, KEEP

MOWER HOUSING FREE OF BUILT-UP GRASS AND

TRASH. CLEAN AFTER EACH USE.

• The special mulching blade will recut the grass clip-

pings many times and reduce them in size so that as

they fall onto the lawn they will disperse into the grass

and not be noticed. Also, the mulched grass will

biodegrade quickly to provide nutrients for the lawn.

Always mulch with your highest engine (blade) speed

as this will provide the best recutting action of the

blades.

, Avoid cutting your lawn when it is wet. Wet grass tends

to form clumps and interferes with the mulching action.

The best time to mow your lawn is the early afternoon.

At this time the grass has dried and the newly cut area

will not be exposed to the direct sun.

o For best results, adjust the mower cutting height so that

the mower cuts off only the top one-third of the grass

blades (See Fig. 11). For extremely heavy mulching,

reduce your width of cut and mow slowly.

• Certain types of grass and grass conditions may re-

quire that an area be mulched a second time to com-

pletely hide the clippings. When doing a second cut,

mow across or perpendicular to the first cut path.

• Change your cutting pattern from week to week. Mow

north to south one week then change to east to west the

next week. This will help prevent matting and graining

of the lawn.

MAX 1/3

!fib !

Ill

14 FIG. 11

CUSTOMER ;IBILITIES

MAINTENANCE SCHEDULE

FILL iN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Brake Operation

Check Tire Pressure

Check for Loose Fasteners

AR Sharpen!Replace Mower Blades

C Lubrication Chart

T Check Battery Level/Recharge

0 Clean Battery and Terminals

a Check Transaxle Cooling

Adjust Blade Belt(s) Tension

Adjust Motion Drive Belt(s) Tension

Check Engine Oil Level

Change Engine Oil

CIean Air Filter

N clean Air Screen

G inspect Muffler/Spark Arrester

I Replace Oil Filter (It equipped)

_ CleanEngine Cooling Fins--

Replace Spark Plug

Replace Air Filter Paper Cartridge

Replace Fuel Filter !

i/ i/

, Iv'l

1 -Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

3 - If equipped with oil filter, change oil every 50 hours.

4 - Replace blades more often when mowing in sandy soil.

_ERVICE DATES

5 - If equipped with adjustable system.

6 - Not required if equipped with maintenance-lree battery.

7 - Tighten front axle pivot bolt to 35 ft,qbs, maximum.

Do not overtighten.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not cover items that have

been subjected to operator abuse or negligence. To

receive full value from the warranty, operator must maintain

tractor as instructed in this manual.

Some adjustments will need to be made periodically to

properly maintain your tractor.

All adjustments in the Service and Adjustments section of

this manual should be checked at least once each season.

LUBRICATION CHART

(_) "FRONT WHEEL (_)

BEARING ZERK BEARING ZERK

Once a year you should replace the spark plug, dean

or replace air filter, and check blades and belts for

wear. A new spark plug and clean air filter assure

proper air-fuel mixture and help your engine run better

and last longer.

CLUTCH

PIVOT(S)

ENGINE (_

BEFORE EACH USE

o Check engine oil level.

* Check brake operation.

- Check tire pressure.

- Check for loose fasteners.

PIVOTS

(_) SAE 30 OR 10W30 MOTOR OIL

(_) GENERAL PURPOSE GREASE

G) REFER TO CUSTOMER RESPONSIBILtT_ES

"ENGINE" SECTION

IMPORTANT: DO NOT OIL OR GREASE THE PIVOT POINTS

WHICH HAVE SPECIAL NYLON BEARINGS. VISCOUS LUBRI-

CANTS WiLL ATTRACT DUST AND DiRT THAT WILL SHORTEN

THE LIFE OF THE SELF-LUBRICATING BEARINGS. IF YOU

FEEL THEY MUST BE LUBRICATED, USE ONLY A DRY, POW-

15 DERED GRAPHITE TYPE LUBRICANT SPARINGLY.

CUSTOMER RESPONSIBILITIES

TRACTOR

Always observe safety rules when performing any mainte-

nance.

BRAKE OPERATION

If tractor requires more than six (6) feet stopping distance

at high speed in highest gear, then brake must be adjusted.

(See "TO ADJUST BRAKE" in the Service and Adjust-

ments section of this manual).

TIRES

" Maintain proper air pressure in all tires (See "PROD-

UCT SPECIFICATIONS" on page 3 of this manual).

,, Keep tires free of gasoline, oil, or insect control chemi-

cals which can harm rubber.

• Avoid stumps, stones, deep ruts, sharp objects and

other hazards that may cause tire damage.

NOTE: To seal tire punctures and prevent flat tires due to

slow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

BLADE CARE

For best results mower blades must be kept sharp. Re-

place bent or damaged blades.

BLADE REMOVAL (See Fig. 12)

= Raise mower to highest position to allow access to

blades.

° Remove hex bolt, lock washer and flat washer securing

blade.

° Install new or resharpened blade with trailing edge up

towards deck as shown.

• Reassemble hex bolt, lock washer and fiat washer in

exact order as shown.

• Tighten bolt securely (30-35 Ft. Lbs. torque).

IMPORTANT: BLADE BOLTISGRADE8HEATTREATED.

NOTE: We do not recommend sharpening blade-but ifyou

do, be sure the blade is balanced.

BLADE

FLAT WASHER

_ MANDREL

ASSEMBLY

TRAlUNGEDGE

HEXBOLT

(GRADE8)*-_. "@

*A GRADE 8 HEAT TREATED BOLT CAN BE

iDENTIFIED BY SIX LINES ON THE BOLT HEAD.

FIG. 12

TO SHARPEN BLADE (See Fig. 13)

Care should be taken to keep the blade balanced. An

unbalanced blade will cause excessive vibration and even-

tual damage to mower and engine.

• The blade can be sharpened with a file or on a grinding

wheel. Do not attempt to sharpen while on the mower.

• To check blade balance, you will need a 5/8" diameter

steel bolt, pin, or a cone balancer. (When using a cone

ba[ancer, follow the instructions supplied with bal-

ancer).

Slide blade on to an unthreaded portion of the steel bolt

or pin and hold the bolt or pin parallel with the ground.

If blade is balanced, it should remain in a horizontal

position, if either end of the blade moves downward,

sharpen the heavy end until the blade is balanced.

NOTE: Do not use a nail for balancing blade. The lobes of

the center hole may appear to be centered, but are not.

/ /

CENTER HOLE j

5/8" BOLT

OR PIN

BLADE

FIG. 13

C STOMER RESPON

BATTERY

Your tractor has a battery charging system which is suffi-

cient for normal use. However, periodic charging of the

battery with an automotive charger will extend its life.

Keep battery and terminals clean.

Keep battery bolts tight.

Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and terminals can cause

the battery to "leak" power.

Remove terminal guard.

, Disconnect BLACK battery cable first then RED bat-

tery cable and remove battery from tractor.

• Rinse the battery with plain water and dry.

• Clean terminals and battery cable ends with wire brush

until bright.

. Coal terminals with grease or petroleum jelly.

• Reinstall battery (See "CONNECT BATTERY" in the

Assembly section of this manual).

V=BELTS

Check V-belts for deterioration and wear after 100 hours of

operation and replace if necessary. The belts are not

adjustable. Replace belts if they begin to slip from wear.

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt and chaff which

can restrict cooling.

ENGINE

LUBRICATION

Only use high quality detergent oil rated with API service

classification SF, SG or SH, Select the oil's SAE viscosity

grade according to your expected operating temperature.

SAE VISCOSITY GRADES

[

r I

°F "20 ' 0 ° 30 '/ 32° 40 ° 60" B0 / 100 °

i°C -30 _ "20 ° -10 _ 0' 10° 20 ' 30" 40 °

[- - TEMPERATUt::{E RANGE ANTICIPATE6 BEFORE NEXT OIL CHANGE

FIG. 14

BILITIES

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.)

improve starting in cold weather, these multi-viscosity oils

will result in increased oil consumption when used above

32°F. Check your engine oil level more frequently to avoid

possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least

once ayear ifthe tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine

and after each eight (8) hours of operation. Tighten oil fill

cap/dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 14 and 15)

Determine temperature range expected before oil change.

All oil must meet API service classification SF, SG or SH.

• Be sure tractor is on level surface.

° Oil will drain more freely when warm,

• Catch oil in a suitable container.

Remove oil fill cap/dipstick. Be careful not to allow dirt

to enter the engine when changing oil.

Remove drain plug.

• After oil has drained completely, replace oil drain plug

and tighten securely.

Refill engine with oil through oil fill dipstick tube. Pour

slowly. Do not overfill. For approximate capacity see

"PRODUCT SPECIFICATIONS" on page 3 of this

manual.

• Use gauge on oil fill cap/dipstick for checking level. Be

sure dipstick cap is tightened securely .for. accurate

reading. Keep oil at "FULL" line on dipstick.

OIL

DRAIN

PLUG

AIR SCREEN

OIL FILL

CAPiDIPSTSICK

FIG. 15

ILITIES

AIR FILTER (See Fig. 16)

Your engine will not run properly using a dirty air filter.

Clean the foam pre-cleaner after every 25 hours of opera-

tion or every season. Service paper cartridge every 100

hours of operation or every season, whichever occurs first.

Service air cleaner more often under dusty conditions.

• Remove knob(s) and cover.

TO SERVICE PRE-CLEANER

• Slide foam pre-cleaner off cartridge.

• Wash it in liquid detergent and water.

• Squeeze it dry in a clean cloth.

Saturate it in engine oil. Wrap it in clean, absorbent

cloth and squeeze to remove excess oil.

• If very dirty or damaged, replace pre-cleaner.

. Reinstall pre-cleaner over cartridge.

, Reinstall cover and secure with knob(s).

TO SERVICE CARTRIDGE

Remove wing nuts and cartridge plate.

• Carefully remove cartridge to prevent debris from en-

tering carburetor.

, Clean cartridge by tapping gently on flat surface. Ifvery

dirty or damaged, replace cartridge.

, Reinstall cartridge plate, wing nuts, precleaner, cover

and secure with knob(s).

IMPORTANT: PETROLEUM SOLVENTS, SUCH AS

KEROSENE, ARE NOT TO BE USED TO CLEAN THE

CARTRIDGE. THEY MAY CAUSE DETERIORATION OF

THE CARTRIDGE. DO NOT OIL CARTRIDGE. DO NOT

CLEAN AIR SCREEN (See Fig. 16)

Air screen must be kept free of dirt and chaff to prevent

engine damage from overheating. Clean with a wire brush

or compressed air to remove dirt and stubborn dried gum

fibers.

ENGINE COOLING FINS (See Fig. 17)

Remove any dust, dirt or oil from engine cooling fins to

prevent engine damage from overheating. Air guide covers

must be removed. Remove side panels and hood (See "TO

REMOVE HOOD AND GRILL ASSEMBLY" in the Service

and Adjustments section of this manual).

TOP AIR

GUIDE COVER,

ENGINE

COOLING FINS

USE PRESSURIZED AIR TO CLEAN OR DRY

CARTRIDGE.

FOAM

PRE-CLEANER -_.

AIR SCREEN

CARTRIDGE

AIR GUIDECOVER (BOTH SIDES)

FIG. 17

FIG. 16

C ER RESPO ;IBILITIE

MUFFLER

inspect and replace corroded muffler and spark arrester (if

equipped) as it could create a fire hazard and/or damage.

SPARK PLUGS

Replace spark plugs at the beginning of each mowing

season or after every 100 hours of operation, whichever

occurs first. Spark plug type and gap setting are shown in

"PRODUCT SPECIFICATIONS" on page 3 of this manual.

CLAMP, CLAMP

FUEL

IN-LINE FUEL FILTER (See Fig. 18)

The fuel filter should be replaced once each season. If fuel

filter becomes clogged, obstructing fuel flow to carburetor,

replacement is required.

- With engine cool, remove filter and plug fuel line

sections.

= Place new fuel filter in position in fuel line with arrow

pointing towards carburetor.

- Be sure there are no fuel line leaks and clamps are

properly positioned.

, Immediately wipe up any spilled gasoline.

FIG. 18

CLEANING

Clean engine, battery, seat, finish, etc. of all foreign

matter.

Keep finished surfaces and wheels free of all gasoline,

oil, etc.

• Protect painted surfaces with automotive type wax.

We do not recommend using a garden hose to clean your

tractor unless the electrical system, muffler, air filter and

carburetor are covered to keep water out. Water in engine

can result in a shortened engine life.

SERVICE AND ADJUSTMENTS

CAUTION: BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS:

Depress ciutcWbrake pedal fully and set parking brake.

Place gearshift lever in neutral (N) position.

• Place attachment clutch in "DISENGAGED" position.

, Turn ignition key "OFF" and remove key.

= Make sure the blades and all moving parts have completely stopped.

- Disconnect spark plug wire from spark plug and place wire where itcannot come in contact with

plug.

TRACTOR

TO REMOVE MOWER (See Fig. 19)

Mower will be easier to remove from the right side of tractor.

• Place attachment clutch in "DISENGAGED" position.

• Move attachment lift lever forward to lower mower to its

lowest position.

• Roll belt off engine pulley.

, Disconnect clutch rod from clutch lever by removing

retainer spring.

® Disconnect anti-sway bar from chassis bracket by

removing retainer spring.

° Disconnect suspension arms from rear deck brackets

by removing retainer springs.

= Disconnect front links from deck by removing retainer

springs,

Raise lift lever to raise suspension arms. Slide mower

out from under tractor.

IMPORTANT: IF AN ATTACHMENT OTHER THAN THE

MOWER IS TO BE MOUNTED TO THE TRACTOR,

REMOVE THE FRONT LINKS.

TO iNSTALL MOWER (See Fig. 19)

® Raise attachment lift lever to its highest position.

• Slide mower under tractor with discharge guard to right

side of tractor.

- Lower lift lever to its lowest position.

• Install mower in reverse order of removal instructions.

LEVER

RETAINER

SPRING

SUSPENSION

PULLEY

RETAINER

SPRINGS

BOTH SIDES

RETAINER

SPRING

ANTI-SWAY BAR

RETAINER

SPRINGS

(BOTH SIDES)

FIG. 19

SERVICE AN ADJUSTMENTS

TO LEVEL MOWER HOUSING

Adjust the mower white tractor is parked on level ground or

driveway. Make sure tires are properly inflated (See

"PRODUCT SPEOIFICATIONS"on page 3 ofthis manual).

Iftires are over or underinflated, you will not properly adjust

your mower.

SIDE-TO-SIDE ADJUSTMENT (See Figs. 20 and 21)

, Raise mower to its highest position.

o Atthe midpoint of both sides of mower, measure height

from bottom edge of mower to ground. Distance"A" on

both sides of mower should be the same or within 1/4"

of each other.

If adjustment is necessary, make adjustment on one

side of mower only.

- To raise one side of mower, tighten lift link adjustment

nut on that side.

To lower one side of mower, loosen lift link adjustment

nut on that side.

NOTE: Each full turn of adjustment nut will change mower

height about 1/8".

= Recheck measurements after adjusting.

BOTTOM EDGE BOTTOM EDGE

OF MOWER TO OF MOWER TO

GROUND GROUND

GROUND LiNE A

FRONT-TO-BACK ADJUSTMENT (See Figs. 22 and 23)

IMPORTANT: DECK MUST BE LEVEL SIDE-TO-SIDE. IF

THE FOLLOWING FRONT-TO-BACK ADJUSTMENT IS

NECESSARY, BESURE TO ADJUST BOTH FRONT LINKS

EQUALLY SO MOWER WiLL STAY LEVEL SIDE-TO-

SIDE.

To obtain the best cutting results, the mower housing

should be adjusted so that the front is approximately 1/8" to

1/2" lower than the rear when the mower is in its highest

position.

Check adjustment on right side of tractor. Measure dis-

tance"D" directly in front and behind the mandrel at bottom

edge of mower housing as shown.

° Before making any necessary adjust ments, check that

both front linksare equal in length. Both links should be

approximately 10-3/8".

If links are not equal in length, adjust one link to same

length as other link.

- To lower front of mower loosen nut "E" on both front

links an equal number of turns.

= When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nuts "F" against trunnion on both front

links.

- To raise front of mower, loosen nut"F" from trunnion on

both front links. Tighten nut "E" on both front links an

equal number of turns.

- When distance "D" is 1/8" to 1/2" lower at front than

rear, tighten nut"F" against trunnion on both front links.

o Recheck side-to-side adjustment.

FiG. 20

_,, SUSPENSION

\ ARM

LIFT LINK

ADJUSTMENT NUT

FIG, 21

FIG. 22

BOTH FRONT LINKS MUST BE EQUAL IN LENGTH

NUT "F"_

FRONT LINKS TRUNNION

NUT "E"

21 FIG. 23

ERVICE AND ADJUSTMENTS

TO REPLACE MOWER BLADE DRIVE BELT

(See Fig. 24)

The mower blade drive belt may be replaced without tools.

Park the tractor on level surface. Engage parking brake.

BELT REMOVAL

® Remove mower from tractor (See "TO REMOVE

MOWER" inthis section of this manual).

= Work belt off both mandrel pulleys and idler pulleys.

® Pull belt away from mower.

BELT INSTALLATION -

Install new belt in reverse order of removal.

Make sure bett isin all pulley grooves and inside all belt

guides.

Install mower in reverse order of removal instructions.

MANDREL IDLER

PULLEY PULLEYS

MANDREL

PULLEY

FiG. 24

TO ADJUST BRAKE (See Fig. 25)

Your tractor is equipped with an adjustable brake system

which is mounted on the right side of the transaxle.

if tractor requires more than six (6) feet stopping distance

athigh speed in highest gear, then brake must be adjusted.

o Depress clutch/brake pedal and engage parking brake.

Measure distance between brake operating arm and

nut "A" on brake rod.

• If distance isother than 1-1/2", loosen jam nut and turn

nut "A" until distance becomes 1-1/2". Retighten jam

nut against nut "A'.

Road test tractor for proper stopping distance as stated

above. Readjust if necessary. Ifstopping distance is

still greater than six (6) feet in highest gear, further

maintenance is necessary. Contact your nearest au-

thorized service center/department.

WiTH PARKmNG BRAKE "ENGAGED"

NUT "A"

JAM NUT

ATmNGARM

FiG. 25

TO REPLACE MOTION DRIVE BELT

(See Fig. 26)

Park the tractor on level surface. Engage parking brake.

For assistance, there is a belt installation guide decal on

bottom side of left footrest.

= Remove mower (See "TO REMOVE MOWER" in this

section of this manual.)

, Remove upper belt keeper.

= Remove belt from stationary idler and clutching idler.

Pull belt slack toward rear of tractor. Remove belt

upwards from transaxle pulley by deflecting belt keep-

ers.

o Pull belt toward front of tractor and remove downwards

from around engine pulley.

. Install new belt by reversing above procedure.

iMPORTANT: MAKE SURE UPPER BELT KEEPER IS

POSITIONED PROPERLY BETWEEN LOCATOR TAB.

PULLEY

_CATOR

CLUTCHING TABS

iDLER

IDLER

JPPER BELT

KEEPER

TRANSAXLE_

PULLEY

FIG, 26

SERVICE AND ADJ STMENTS

TRANSAXLE SHIFTER LINKAGE AND AD-

JUSTMENT (See Figs. 27 and 28)

The transaxle should be inneutral when the gear shift lever

is in the neutral (N) (lock gate) position. The adjustment is

preset at the factory; however, if adjustment is needed,

proceed as follows:

• Make sure transaxle is in neutral (N).

Loosen two Iocknuts on tie rod.

o Turn center rod until gearshift lever falls into neutral

lock gate on fender console.

Tighten Iocknuts securely.

NEUTRAL

LOCK GATE

FIG. 27

LOCKNUTS

CENTER ROD

TIE ROD

FIG. 28

TO ADJUST STEERING WHEEL ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, remove steer-

ing wheel and reassemble per instructions in the Assembly

section of this manual.

FRONT WHEEL TOE-IN/CAMBER

The front wheel toe-in and camber are not adjustable on

your tractor. If damage has occurred to affect the front

wheel toe-in or camber, contact your nearest authorized

service center/department.

TO REMOVE WHEEL FOR REPAIRS

(See Fig. 29)

Block up axle securely.

= Remove axle cover, retaining ring and washers to allow

wheel removal (rear wheel contains asquare key - Do

not lose).

• Repair tire and reassemble.

• On rear wheels only: align grooves in rear wheel hub

and axle. Insert square key.

• Replace washers and snap retaining ring securely in

axle groove.

Replace axle cover.

NOTE: To seal tire punctures and prevent flat tires due to

stow leaks, tire sealant may be purchased from your local

parts dealer. Tire sealant also prevents tire dry rot and

corrosion.

WASHERS

RETAINING

RiNG

23"

AXLE COVER

SQUARE KEY (REAR

WHEEL ONLY}

FIG, 29

TO START ENGINE WITH A WEAK BATTERY

See Fig. 30)

CAUTION: Lead-acid batteries gener-

ate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection

when around batteries.

If your battery is too weak to start the engine, it should be

recharged. If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: YOUR TRACTOR IS EQUIPPED WITH A 12

VOLT NEGATIVE GROUNDED SYSTEM. THE OTHER

VEHICLE MUST ALSO BE A 12 VOLT NEGATIVE

GROUNDED SYSTEM. DO NOT USE YOUR TRACTOR

BATTERY TO START OTHER VEHICLES.

TO ATI-ACH JUMPER CABLES -

* Connect each end of the RED cable to the POSITIVE

(+) terminal of each battery, taking care not to short

against chassis. " ....

, Connect one end of the BLACK cable to the NEGA-

TIVE (-) terminal of fully charged battery.

Connect the other end of the BLACK cable to good

CHASSIS GROUND, away from fuel tank and battery.

REMOVE CABLES, REVERSE ORDER -

BLACK cable first from chassis and then from the fully

charged battery.

RED cable last from both batteries.

;ERVICE AND ADJUSTMENTS

"POSITIVE" (+)

"NEGATIVE" (-)

L.H. PANE_ t /

FIG.30

TO REPLACE HEADLIGHT BULB

Raise hood.

- Pull bulb holder out of the hole in the backside of the

grill.

• Replace bulb in holder and push bulb holder securely

back into the hole in the backside of the grill.

o Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause your tractor to run

poorly, stop running, or prevent itfrom starting.

Check wiring. See electrical wiring diagram in the

Repair Parts section of this manual.

TO REPLACE FUSE

Replace with 30 amp automotive-type p{ug-in fuse. The

fuse holder is located behind the dash.

TO REMOVE HOOD AND GRILL ASSEMBLY

(See Fig, 31)

® Raise hood.

• Unsnap headlight wire connector.

- Stand in front of tractor. Grasp hood at sides, tilt toward

engine and lift off of tractor.

• To replace, reverse above procedures.

ENGINE

TO ADJUST THROTTLE CONTROL CABLE

{See Fig. 32)

The throttle control has been preset at the factory and

adjustment should not be necessary. Check adjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

, With engine not running, move throttle control lever to

fast position.

• Check that swivel is against side of quarter circle. If it

is not, loosen cable clamp screw and pult cable back

until swivel is against quarter circle. Tighten cable

clamp screw securely.

TO ADJUST CHOKE CONTROL (See Fig. 33)

The choke control has been preset at the factory and

adjustment should not be necessary. Checkadjustment as

described below before loosening cable. If adjustment is

necessary, proceed as follows:

* With engine not running, move choke control (located

on dash panel) to full choke position.

• Remove air cleaner cover, fitter and cartridge plate to

expose carburetor choke (see "AIR FILTER" in the

Customer Responsibilities section of this manual).

, Choke should be closed. If it is not, loosen casing

clamp screw and move choke cable until choke is

completely closed. Tighten casing clamp screw se-

curely .....

Reassemble air cleaner.

CLAMP

QUARTER

CIRCLE _ _\

SWIVEL

FIG. 32

HOOD

HEADLIGHT

WIRE

CONNECTOR

CHOKE CLOSED'_ _,,,.._,-_

CH KE

_ X LEVER

CASING'I"

FIG, 33

FIG. 31 24

ERVICE AND ADJUSTMENTS

TO ADJUST CARBURETOR (See Figs. 34 &

35)

The carburetor has been preset at the factory and adjust-

ment should not be necessary. However, minor adjust-

ment may be required to compensate for differences in fuel,

temperature, altitude or load, If the carburetor does need

adjustment, proceed as follows:

In general, turning the mixture screw in (clockwise) de-

creases the supply of fuel to the engine giving a leaner fuel/

air mixture. Turning the mixture screw out (counterclock-

wise) increases the supply of fuel to the engine giving a

richer fuel/air mixture.

iMPORTANT: DAMAGE TO THE NEEDLES AND THE

SEATS IN CARBURETOR MAY RESULT IF SCREW IS

TURNED IN TOO TIGHT.

PRELIMINARY SETTING -

Be sure you have a clean air filter, and the throttle

control cable and choke are adjusted properly (see

above).

With engine off turn idle mixture screw in (clockwise)

closing it finger tight and then turn out (counterclock-

wise) 1-1/4 to 1-1/2 turns.

FINAL SETTING -

- Start engine and allow to warm for five minutes. Make

final adjustments with engine running and shift/motion

control lever in neutral (N) position.

• With throttle control lever in slow position, hold throttle

lever against idle speed screw and adjust idle speed

screw to obtain 1200 to 1400 RPM

= While still holding throttle lever against idle speed

screw, turn idle mixture screw in (clockwise) until

engine begins to die and then turn out (counterclock-

wise) until engine runs rough. Turn screw to a point

midway between those two positions.

o Continue to hold throttle lever against idle speed screw

and adjust idle speed screw to obtain 900 to 1200 RPM.

Release throttle lever.

ACCELERATION TEST -

Move throttle control lever from slow to fast position. If

engine hesitates or dies, turn idle mixture screw out

(counterclockwise) 1/8 turn. Repeat test and continue

to adjust, if necessary, until engine accelerates

smoothly.

High speed stop is factory adjusted. Do not adjust -

damage may result.

IMPORTANT: NEVER TAMPER WITH THE ENGINE

GOVERNOR, WHICH IS FACTORY SET FOR PROPER

ENGINE SPEED. OVERSPEEDING THE ENGINE ABOVE

THE FACTORY HIGH SPEED SETTING CAN BE

DANGEROUS. IFYOU THINKTHE ENGINE-GOVERNED

HIGH SPEED NEEDS ADJUSTING, CONTACT YOUR

NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS PROPER EQUIPMENT AND

EXPERIENCE TO MAKE ANY NECESSARY

ADJUSTMENTS.

IDLE SPEED

SCREW

iDLE MIXTURE

SCREW

THROTTLE

LEVER

FIG, 34

IDLE SPEED '_

SCREW _J 1--. t I \

LEVER

iDLE MIXTURE

SCREW

FIG, 35

Immediately prepare your tractor for storage at the end of

the season or if the tractor will not be used for 30 days or

more.

F° _ CAUTION: Never store the tra_

A, A gasoline in the tank inside a building

I _ where fumes may reach an open flame

I M or spark. Allow the engine to cool

before Storing in any enclosure. _

TRACTOR

Remove mower from tractor for winter storage. When

mower is to be stored for a period of time, clean it thor-

oughly, remove all dirt, grease, leaves, etc. Store in a

clean, dry area.

Clean entire tractor (See"CLEANING"in the Customer

Responsibilities section of this manual).

• Inspect and replace belts, if necessary (See belt re-

placement instructions in the Service and Adjustments

section of this manual).

Lubricate as shown in the Customer Responsibilities

section of this manual.

Be sure that all nuts, bolts and screws are securely

fastened. Inspect moving parts for damage, breakage

and wear. Replace if necessary.

Touch up all rusted or chipped paint surfaces; sand

lightly before painting.

BATTERY

Fully charge the battery for storage.

After a period of time in storage, battery may require

recharging.

To help prevent corrosion and power leakage during

long periods of storage, battery cables should be

disconnected and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in the Cus-

tomer Responsibilities section of this manual).

After cleaning, leave cables disconnected and place

cables where they cannot come in contact with battery

terminals.

Be sure battery drain tube is securety attached.

If battery is removed from tractor for storage, do not

store battery directly on concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: IT IS IMPORTANT TO PREVENT GUM

DEPOSITS FROM FORMING IN ESSENTIAL FUEL

SYSTEM PARTS SUCH AS CARBURETOR, FUEL FILTER,

FUEL HOSE, OR TANK DURING STORAGE. ALSO,

EXPERIENCE INDICATES THAT ALCOHOL BLENDED

FUELS (CALLED GASOHOL OR USING ETHANOL OR

METHANOL) CAN ATTRACT MOISTURE WHICH LEADS

TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE, ACIDIC GAS CAN DAMAGE THE FUEL

SYSTEM OF AN ENGINE WHILE IN STORAGE.

- Drain the fuel tank.

Start the engine and let it run until the fuel lines and

carburetor are empty.

- Never use engine or carburetor cleaner products in the

fuel tank or permanent damage may occur.

= Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in

minimizing the formation of fue! gum deposits during stor-

age. Add stabilizer to gasoline in fuel tank or storage

container. Always follow the mix ratio found on stabilizer

container. Run engine at least 10 minutes after adding

stabilizer to allow the stabilizer to reach the carburetor. Do

not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine

oil. (See "ENGINE" in the Customer .Responsibilities

section of this manual).

CYLINDERS

• Remove spark plug(s).

Pour one ounce of oil through spark plug hole(s) into

cylinder(s).

, Turn ignitionkey to"START" position for a few seconds

to distribute oil.

- Replace with new spark plug(s).

OTHER

Do not store gasoline from one season to another.

o Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your tractor indoors and cover it to

give protection from dust and dirt.

• Cover your tractor with a suitable protective cover that

does not retain moisture. Do not use plastic. Plastic

cannot breathe which allows condensation to form and

will cause your tractor to rust.

IMPORTANT: NEVER COVER TRACTOR WHILE ENGINE

AND EXHAUST AREAS ARE STILL WARM.

TROUBLESHOOTING POINTS

PROBLEM

Will not start

Hard to start

Engine will not turn over

CAUSE

!, Out of fuel

2. Engine not "CHOKED" properly.

3. Engine flooded.

4. Bad spark plug,

5. Dirty air filter.

6. Dirty fuel filter.

7. Water in fuel,

8, Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of adjustment.

1, Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4, Dirty fuel filter.

5. Stale or dirly fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8, Engine valves out of adjustment,

!. Clutch/brake pedal not depressed.

2. Attachment clutch is engaged.

3. Weak or dead battery.

4. Blown fuse.

5, Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch,

8. Faulty solenoid or starter.

g. Faulty operator presence switch(es).

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE" in Operation section.

3. Wait several minutes before attempting to start.

4. Replace spark plug.

5, Clean/replace air filter,

6. Replace fuel filter.

7. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter,

8. Check all wiring.

9, See "To Adjust Carburetor" in Service Adjustments

section,

10. Contact an authorized service center/department.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace battery.

4. Replace fuel filter.

5. Drain fuel tank and refill with fresh gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor" in Service Adjustments

section.

8. Contact an authorized service center/department.

1. Depress clutch/brake pedal.

2. Disengage attachment clutch,

3, Recharge or replace battery,

4. Replace fuse.

5_ Clean battery terminals.

6. Check all wiring, ......

7 Check/replace ignition switch.

8, Check/replace solenoid or starter.

9, Contact an authorized service center/department.

Engine clicks but will not

start

Loss of power

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

Cutting too much grass/too fast.

Throttle in "CHOKE" position.

Build-up of grass, leaves and trash under mower.

!. Recharge or replace battery.

2 Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or starter.

1. Set in "Higher Cut" position/reduce speed.

2. Adjust throttle control.

3. Clean underside of mower housing.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel tilter.

8. Stale or dirty fuel.

9. Water in fuel.

10. Spark plug wire loose.

1!. Dirty engine air screenfins.

12. Dirty/clogged muffler.

13. Loose or damaged wiring.

4. Clean/replace air filter.

5. Check oil level/change off.

6. C!ean and regap or change spark plug.

7. Replace fuel filter.

8, Drain fuel tank and refill with fresh gasoline.

9. Drain fuel tank and carburetor, refill tank with fresh

gasoline and replace fuel filter.

10. Connect and tighten spark plug wire.

11, Clean engine air screen/fins.

12. Clean/replace muffler.

13. Check all wiring.

Excessive vibration

14. Carburetor out ot adjustment.

15. Engine valves out of adjustment,

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loosetdamaged part(s).

14. See "To Adjust Oarburetor"in Service Ad ustments

section.

15, Contact an authorized service center/department.

1, Replace blade, Tighten blade bolt.

2. Replace blade mandrel.

3 Tighten loose part(s). Replace damaged parts.

TRO LESHOOTING POINTS

PROBLEM

Engine continues to run

when operator leaves seat

with attachment clutch

engaged

Poor cut - uneven

Mower blades will not

rotate

CAUSE

1. Faulty operator-safety presence control system.

1, Worn, bent or loose blade.

2, Mower deck not level.

3. Buildup of grass, leaves, and trash under mower.

4. Bent blade mandrel.

5. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels.

1, Obstruction in clutch mechanism.

2. Worn/damaged mower drive belt.

3. Frozen idler pulley.

4. Frozen biade mandrel

CORRECTION

1. Check wiring, switches and connections, If not

corrected, contact an authorized service center/

department,

1. Replace blade Tighten blade bolt.

2. Level mower deck.

3. Clean underside of mower housing.

4. Replace blade mandrel.

5. Clean around mandrels to open vent holes,

1. Remove obstruction.

2. Replace mower drive belt,

3, Replace idler pulley.

4. Replace blade mandrel.

Poor grass discharge 1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, beat or loose blade.

1, Place throttle control in "FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before mowing.

4. Level mower deck.

5. Check tires for proper air pressure.

6. Replace/sharpen blade. Tighten blade bolt.

Headlight(s) not working

(if so equipped)

Battery win not charge

Engine "backfires"

when turning engine

"OFF"

7. Buildup of grass, leaves and trash under mower.

8. Mower drive belt worn.

9. BIades improperly installed.

10. Improper blades used.

11. Clogged mower deck vent holes from buildup of

grass, leaves, and trash around mandrels,

1. Switch is "OFF".

2. Bulb(s) burned out.

3. Fautty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator (if so equipped).

4. Faulty alternator.

1 Engine throttle control not set at "SLOW"

position for 30 seconds before stopping engine,

7, Clean underside of mower housing.

8. Replace mower drive belt.

,9, Reinstall btades sharp edge down.

10. Replace with blades listed in this manual.

11. Clean around mandrels to epen vent holes;- -

1. Turn switch "ON".

2, Replace bulb(s).

3. Check/replace light switch,

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery,

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

1. Move throttle control to "SLOW" position and allow

to idle for 30 seconds before stopping engine.

TRACTOR - - MODEL NUMBER 917.259567

SCHEMATIC

RED

÷J II°

BATTERY

BLACK

I _:-i I

..... J

I HC)LENOID

h WHITE

STARTER I

BIJ_,CK

_E _ RED

I (OPTIO/NAL) WHnE

RED _ _=J

=: IGNITION

SWITCH

FUSE 30 AMP.

,0,

I \ J , % / I

....... J

CLUTCH / BRAKE

(PEDAL UP)

BLACK

_J METER LJ

(OPTIONAL)

SEAT SWITCH

/ (NOT OCCUPIED)

WH,TE'--_'_ --- --f\_ ,-- -- -- -- _ .... ,

I _ _ qt-- /q_- - - 1-_-

....... _ ....... I IF

NT C GROUNDING

I (CLUTCH OFF) CONNECTOR

BLACK J IGNITIONUNIT

BLUE

ORANGE

CHARGING SYSTEM OUTPUT

3 AMP DC @ 3600 RPM

SPARK PLUG I

(2PLUGS ON

TWIN CYL. ENGINES)

28 VOLTS AC MIN, @ 3600 RPM

(CHARGING SYSTEM DFSCONNECTED)

LIGHTING SYSTEM OUTPUT DIODE ALTERNATOR

5 AMP AC @ 3600 RPM t_

\ 14 VOLTS AC MIN @ 3600 RPM (LIGHTS OFF)

HEADLIGHTS

BROWN

IGNrrlON SWITCH

POSITION CIRCUIT "MAKE"

OFF G + M + L NONE

RUN/LIGHT B + L A + Y

RUN B 4-L NONE

START B + L + S NONE

NOTE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE LIGHTS ARE NOT

CONNECTED TO THE

BATTERY, BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WiTH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

A Q

NON-REMOVABLE REMOVABLE

CONNECTIONS CONNEC'I-IONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED

CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY

SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

ELECTRICAL

28 i4o

31 /

3£

REPAIR PARTS

TRACTOR =- MODEL NUMBER £17.259567

ELECTRICAL

KEY PART

NO. NO. DESCRiPTiON

1 144926

2 74760412

3 STD551025

4 STD551125

6 STD541025

8 7603J

10 145211

11 150109

12 145769

16 153664

19 STD551125

20 73350400

21 147430

22 4152J

24 4799J

25 146148

26 108824X

28 145491

29 121305X

30 140301

31 124211X

32 141226

33 109310X

40 156442

41 71110408

42 131563

43 145673

44 73640400

45 121433X

52 141940

55 17490508

70 140413

Battery

Bolt, Hex 1/4-20 x 3/4

Washer 9/32 x 5/8 x 16 Gauge

Washer, Lock 1/4

Nut, Hex 1/4-20

Tray, Battery

Bolt, Btr Front 1/4-20 x 7-1/2

Holddown Battery Front Mount

Nut, Push Nylon Battery Front 1/4

Switch Interlock Pushqn

Washer, Lock 1/4

Nut, Hex, Jam 1/4-20

Harness, Light Socket (w/4152J)

Light Bulb

Cable, Battery

Fuse

Cable, Ground

Switch, Seat

Switch, Ignition 4 Position

Nut, Ignition

Cover, Ignition Switch

Key, Molded, Craft;man

Harness, Ignition

Bolt BIk Fin Hex 1/4-20 UNC x 1/2

Cover, Terminal

Solenoid

Nut Keps BIk Hex 1/4-20 UNC

Ammeter Rectangular 6 Amp

Protection Wire Loop (Hour Meter)

Screw Thdrol 5/16-18 x 1/2

Harness Engine B&S/Tec Dual

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR = = MODEL NUMBER 917o259567

CHASSIS AND ENCLOSURES

,14

REPAIR PARTS

TRACTOR =- MODEL NUMBER 917.259567

CHASSIS AND ENCLOSURES

KEY PART

NO. NO. DESCRMPT!ON

1 160392

2 140356

3 17490612

4 S'FD551025

5 155272

9 161917X011

10 STD533710

11 155927

12 145660

13 155936

14 17490608

17 144983X558

18 126938X

20 156437

23 124028X

25 19131312

26 STD541437

28 145198X558

29 155217

30 151287X558

31 139976

37 17490508

38 139886

39 139887

51 73800400

52 19091416

53 145201

54 161564

55 145202

57 STD552507

58 140547

60 72140606

64 154798

140 158418

142 156095

143 154966

144 154207

145 156524

Chassis

Drawbar

Screw, Thd., Roll. 3/8-16 x 3/4 Type TT

Washer 13/32 x 3/4 x 16 Gauge

Bumper Hood/Dash

Dash, PIm SIk Mech W/A N/HM Inf

Bolt, Carriage 3/8-16 x 1

Panel, Dash, LH

Clip Tinnerman Grille P/L

Panel, Dash, RH

Screw, Thd., Roll. 3/8-16 x 1/2 Type TT

Hood Assembly

Bumber Hood

Plate Mtg Battery Fuel Tank

Bushing, Snap, Nylon, Fuel Line

Washer 13/32 x 13/16 x 12 Gauge

Locknut, Hex, with Insert 3/8-16 UNC

Grille, W!Clips MS-558

Lens, Grille

Fender/Footrest

Bracket, Fender/Support

Screw, Thdrol. 5/16-18 x 1/2 TYT

Pivot Bracket Assembly, LH, Mower, Rear

Pivot Bracket Assembly, RH, Mower, Rear

Nut Lock W/Insert 1/4 - 20 UNC

Washer 9/32 X 7/8 X 16 Ga.

Bracket Grille Pickoff LH

Screw, Hex Wshd #8-18 x 7/8

Bracket Grille Pickoff RH

Bolt FinHex 1/4 -20 UNC X.75

Air Duct P/L 18HP B&S Opp. Twin

Bolt Rdhd Sqnk 3/8-16 UNC x 3/4

Dash Lower STLT

Bracket Suspension Front

Plate Reinforcement STLT

Backrest Swaybar Chassis

Bracket Footrest STLT

Rod Pivot Chassis!Hood

NOTE: All component d;mensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

DRIVE

88 87

. 85

13 "

118

[

REPAIR PARTS

TRACTOR ==MODEL NUMBER 9t7.259567

DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRRPTtON

1 Transaxle (See Breakdown) 51 STD541437

Dana 4360-122 52 STD541431

2 146682 Spring, Return, Brake 53 105710X

3 123666X Pulley, Transaxle 55 105709X

4 12000028 Ring, Retainer 56 STD523712

5 121520X Strap, Torque 57 160855

6 17490512 Screw, Thd., Roll. 5/16-18 x3/4 58 127274X

8 154792 Rod Shifter Fender STLT 59 140312

10 STD561210 Pin, Cotter 61 17490612

11 105701X Washer, Shift Plate 62 8883R

13 74550412 Bolt 1/4-28 UNF W/Patch Grade 8 63 140186

14 STD551125 Washer 64 71170764

15 74490544 Bolt, Hex Ftghd 5/16-18 Grade 5

18 STD523710 Bolt Fin Hex 3/8-16 UNC x 1. Gr 5 65 STD551143

19 STD541437 Nut 66 154778

21 106933X Knob 72 19132012

22 130804 Rod, Brake 74 109502X

24 STD541237 Nut 75 121749X

25 106888X Spring, Brake Rod 76 STD581075

26 STD551037 Washer 77 123583X

27 STD561210 Pin 78 121748X

28 145204 Rod, Parking Brake 79 2228M

29 124236X Cap, Parking Brake, Red 80 160783

30 130807 Bracket, Transaxle 81 161077

31 127275X Keeper, Belt, LH. 82 123782X

32 STD523107 Bolt 83 19171216

34 155071 Shaft Assembly, Foot Pedal 84 145643

35 120183X Bearing, Nylon 85 150360

36 STD551062 Washer 86 157480

37 STD571810 RolIPin 87 19212016

38 123674X Pulley, Idler, Flat 88 12000008

39 STD523727 Bolt 89 158391

40 4470J Spacer, Split .395 x .59 90 124346X

41 154777 Keeper, Belt, Idler Fool-Proof 112 19091210

42 19131312 Washer 13/32 x13/16 x12 Gauge 116 72110610

47 127783 Pulley, Idler, V-Groove, Plastic 148 159103

48 154407 Bellcrank Clutch Grnd Dry STL 149 122052X

49 123205X Retainer, Belt 151 191313210

50 STD523715 Bolt

Nut Crown Lock 3/8-16 UNC

Nut Crown Lock 5/16-18 UNC

Link, Clutch

Spring, Clutch Return

Bolt Fin Hex 3/8-16 x 1-1/4

V-Belt, Ground Drive

Keeper, Belt, R.H.

Keeper, Belt, Center Span

Screw, rhd., Roll. 3/8-16x 3/4

Cover, Pedal

Pulley, Engine

Bolt, Hex Head, Fin. 7/16-20 x 4

Grade 5

Washer

Keeper, Belt, Engine, Fool-Proof

Washer 13/32 x 1-1/4 x 12 Gauge

Spacer, Axle

Washer 25/32 x 1-1/4 x 16 Gauge

E-Ring

Key, Square 2°0 x .1845/.1865

Washer 25/32 x 1-5/8 x 16 Gauge

Key Woodruff #9 3/16 x 3/4

Arm, Shift

Shaft Assembly Cross 20" 1998

Spring, Torsion

Washer 17/32 x 3/4 x 16 Gauge

Tie Rod

Nut, Nylock

Bushing

Washer

E-Ring

Console, Shift, STLT 6-Speed

Nut, Self-Threading, Washer Hd 1/4

Washer 9/32 x 3/4 x 10 Gauge

Bolt Rdhd Sqneck 3/8-16 x 1.25

Spacer

Spacer Retainer PM Mower

Washer 13/32 x 2 x 10 Ga.

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

STEERING ASSEMBLY

z =

• c x. _ ,1 - , ,

_42

37_J I

/i /

//"

//' 15

'43

REPAIR PARTS

TRACTOR = = MODEL NUMBER 917.259567

STEERING ASSEMBLY

KEY PART

NO. NO.

1 139768

2 154427

3 156483

4 157473

5 6266H

6 121748X

7 19272018

8 12000029

9 3366R

10 156438

11 STD551137

13 154779

15 73901000

17 156546

18 57079

19 124035X

20 126684X

22 71100410

23 127501

25 154406

26 126847X

27 136874

28 19131418

29 17490612

30 STD561210

32 130465

36 155099

37 152927

38 139769

39 19133808

4O STD541537

41 100711L

42 145054

43 121749X

44 153720

48 121232X

47 6855M

51 STD541431

54 74780520

62 156594

63 STD523710

65 154780

66 154404

67 74781044

68 154429

DESCRIPTION

Steering Wheel

Axle Assembly STMP Dropped STL

Spindle Assembly, L.H.

Spindle Assembly, R.H.

Bearing, Race, Thrust, Hardened

Washer 25/32 x 1-5/8 x 16 Gauge

Washer 27/32 x 1-1/4 x 16 Gauge

Ring, Klip

Bearing, Steering Column

Draglink Extended Stamped

Washer, Lock

Bearing Axle STLT/GT

Nut, Lock, Flange 5/8-11 UNC

Shaft Assembly, Steering

Washer, Thrust .515 x .750 x .033

Support, Shaft

Washer, Shim 1/4 x 5/8 x .062

Screw, Hex Socket Head

1/4-20 x 5/8

Pittman Shaft Assembly

Bracket, Steering

Bushing, Link, Drag

Gear, Sector

Washer 13/32 x 7/8 x 16 Gauge

Screw, Thd., Roll. 3/8-16 x 3/4

Rod, Tie

Bushing, Steering

Screw

Insert, Steering Wheel

Washer 13/32 x 2-3/8 x 8 Gauge

Gripco Nut

Adaptor, Steering Wheel

Boot, Steering Shaft

Washer 25/32 x 1-1/4 x 16 Gauge

Extension Shaft Steering LR.LT

Cap, Spindle

Fitting, Grease

Nut Lock Hex w/Ins. 5/16-18 UNC

Bolt Fin Hex 5/16-18 UNC x 1-1/4

Kit Steering Asm Service

Bolt, Fin Hex 3/8-16 UNC x 1 Gr 5

Spacer Axle

Bearing Arm Pittman

Bolt, Fin Hex 5/8-11 UNC x 2-3/4

Axle, Brace

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

SEAT ASSEMBLY

17 12

KEY

NO.

PART

NO.

140123

14O551

74760616

19131610

145006

STD541437

124181X

17490616

19131614

155926

121246X

DESCRIPTION

Seat

Bracket Pnt Pivot Seat (blk)

Bolt Fin Hex 3/8-16 UNC x 1

Washer Flat 13/32 x 1 x 10 Ga

Clip Push-In

Nut Lock Hex W/Ins 3/8 -16 UNC

Spring Seat Cprsn 2 250 BIk Zi

Screw 3/8-16xl

Washer 13t32 x 1 x 14 Ga

Pan Pnt Seat (blk)

Bracket Pnt Mounting Switch

KEY PART

NO. NO. DESCRIPTION

13 121248X

14 72050412

15 134300

16 121250X

17 123976X

21 153236

22 STD541431

23 74780814

24 19171912

25 127018X

26 STD551150

Bushing Snap BIk Nyl 50 Id

Bott Rdhd Sht Nk 1/4-20x1-1/2

Spacer Split 28 X 96 Zinc

Spring Cprsn 1 27 Blk Pnt

Nut Lock 1/4 Lge Fig Gr 5 Zinc

Bolt Shoulder 5/16-18 Unc

Nut Lock Hex Wllns 5116-18

Bolt Fin Hex 1/2-13 X 7/8 Gr5

Washer 17/32 X 1-3/16 X 12 Ga

Bolt Shoulder 5/16-18 X 62

Washer Lock Hvy Hlcl Spr 1/2

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR oMODEL NUMBER 917.259567

DECALS

13 14

KEY PART

NO. NO,

1 156439

2 273503

3 160284

4 160285

6 133644

7 150927

9 146709

10 150333

11 156368

13 146O46

KEY PART

DESCRIPTION NO. NO.

Decal Fender Danger Sears 14 147139

Decal, Engine 19.5 HP Turbo 15 160396

Decal Hood Rh Craftsman 19 138047

Decal Hood Lh Craftsman 20 156787

Decal Maint Customer Sears Dom 22 149516

Decal Panel Side B&S - - 138311

Decal Fender Craftsman Gold - - 154515

Decal Cap CNSMR Help Line SRS - - 154516

Decal Fender STLT Oper Inst E!S - - 163229

Decal V-belt Dr Sch - - 163232

DESCRIPTION

Decal Chassis 42".

Decal Mower Drive schematic

Decal Battery Diehard Sears

Decal Deck Mower EZ3 Mulching

Decal Battery'

Decal Lift Handle

Pad Footrest Lh STLT

Pad Footrest Rh STLT

Manual, Owner's (English)

Manual, Owner's (Spanish)

WHEELS & TIRES

4,10

KEY PART

NO. NO. DESCRIPTION

59192

65139

106222X

59904

5 106732X427

6 278H

7 9040H

8 106108X427

9 122082X

10 7152J

11 104757X

-- 144334

Valve Cap, Tire

Stem, Valve

Tire, Front

Tube, Front Tire

(Not Provided, Service Item Only)

Rim, Front

Fitting, Grease (Front Wheel Only)

Bearing, Flange.(Front Wheel Only)

Rim, Rear

Tire, Rear

Tube, Rear Tire

(Not Provided, Service Item Only)

Cap, Axle

Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U. S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - o MODEL NUMBER 917.259567

ENGINE

\\ / I I

OPTIONAL EQUIPMENT

Spark Attester

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917,259567

ENGINE

KEY PART

NO, NO. DESCRIPTION

162152

17720410

4 149723

5 144069

6 144068

7 138129

8 150176

10 145552

11 STD551125

12 STD522507

13 272250

14 13280336

15 13200300

16 STD551237

17 17490624

23 159880

25 145996

26 73920600

27 152927

29 137180

31 157103

32 155971

33 123487X

34 106082X

35 17490512

37 8543R

39 109227X

40 3645J

41 139277

81 128861

Control Throt Paddle 32 22

Screw Hex Thd Cut 1/4-20x5/8 T

Engine (See Breakdown) Briggs

Model No. 42E707-2631-El

Muffler Exhaust

Exhaust Asm. Left

Exhaust Asm. Right

Clamp Tube Double Engine

Bolt 5/16 - 18 UNC X 3/4 W/Seres

Heat Shield Lt

Washer Lock Hvy. Helical 1/4

Bolt Fin Hex 1/4-20 x 3/4

Gasket Muffler

Nipple Pipe 4-1/2"

Elbow Std 90 Degree 3/8-18 Npt

Washer Lock Exf Tooth 3/8

Screw Thdrol 3/8-16xl -1/2 Tytt

Shield Browning/Debris Guard

Control Choke

Nut Keps 3/8-24 Unf

Screw TT #10-32 x 5 x 3/8 Flange

Arrestor Spark

Tank Fuel 3 50 Rear

Cap Fuel Guage STLT

Clamp Hose BIk

Spacer Pad

Screw Thdrol 5/16-18 x 3/4 TYT

Line Fuel

Plug Oil Drain (Order From Engine

Manufacturer)

Pad Idler 1.75 x .75 x .06

Bushing

Stem Tank Fuel

Nut,Flange I/4-20StarterNut

NOTE: All component dimensions given in U.S. inches

1 inch= 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

MOWER LiFT

25 24

30 / i

/ ,

3 I'

/ /

/ / /

! I'

/ ,

j! I i q

I....i' _/

1\ .,}¢_ ..

13 -'-'=_S"

1718 20

REPAIR PARTS

TRACTOR -- MODEL NUMBER 917.259567

MOWER LIFT

KEY PART

NO. NO. DESCRIPTION

1 159460

2 159471

3 105767X

4 12000002

5 19211621

8 120183X

7 125631X

8 122365X

11 139865

12 139866

13 STD624008

15 127218

16 73350800

17 130171

18 73800800

19 139868

20 STD624008

23 110807X

24 19131016

25 2876H

26 76020308

27 126971X

28 73350600

29 138057

30 150233

31 140302

32 73540600

49 145212

50 110452X

Wire Assy., Inner, with Plunger

Shaft Asm. Lift

Pin Groove

E Ring #5133-62

Washer 21/32 x 1 x 21 Ga.

Bearing Nylon

Grip Handle Fluted

Button Plunger Read

Link Lift Lh Fixed Length

Link Lift Rh Fixed Length

Retainer Spring

Link Front

NutJamHex 1/2-13Unc

Trunnion BIk Zinc

Nut Lock W/VVsh 1/2-13 Unc

Arm Suspension Rear

Retainer Spring

Nut Spring

Washer 13/32 x 5/8 x 16 Ga.

Spring 2-1/8"

Pin cotter 3/32 x 1/2

Rod Adj. Lift

Nut Hex Jam 3/8-16

Knob Inf. 3/8-16

Trunnion Infin. Height

Bearing, Pivot, Lift, Special

Nut, Crownlock 3/8-24

Nut Flange Lock

Nut Push

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917,259567

MOWER DECK

103

102

I o5

106

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

1 144393

2 STD533107

3 138017

4 138440

5 STD624008

6 130832

8 850857

9 STD551137

10 140296

11 134149

12 129895

13 137645

14 128774

15 110485X

16 140329

17 72110610

18 72140505

19 132827

20 136888

21 STD541431

22 134753

23 131267

24 105304X

25 123713X

26 110452X

27 130968

28 19111016

29 131491

30 157722

31 129963

32 153535

33 137266

34 STD533717

35 133835

36 131494

37 19131316

40 STD541437

41 133551

43 140083

44 140088

45 STD624003

46 137729

48 133944

49 155066

50 131340

51 STD541410

52 139888

53 131845X900

54 133943

55 155046

Mower Housing 56

Bolt 58

Bracket Assemb)y,Sway Bar, Front 59

Bracket Assembly, Sway Bar 67

Retainer Spring 68

Arm, Suspension, Rear 71

Bolt, Hex 3/8-24 x 1.25 Grade 8 72

Washer, Lock 73

Washer, Hardened 74

Blade, Mulching 75

Bearing, Bali 76

Shaft Assembly, Mandrel, Vented 77

(Includes Key Number 6) 78

Housing, Mandrel, Vented 79

Bearing, Bali, Mandrel 80

Stripper, Vented Mower Deck 81

Bolt, Carriage 3/8-16 x 1-1/4 82

Bolt, Carriage 5/16-18 x 5/8 83

Bolt, Shoulder 84

Baffle, Vortex 85

Nut Crownlock 5/16-18 UNC 92

Stiffener Bracket 101

Bracket, Deflector 102

Cap, Sleeve 103

Spring, Torsion, Deflector 104

Nut, Push 105

Shield, Deflector 106

Washer 11/32 x5/8 x 16 Gauge 111

Rod, Hinge 112

Screw Thdrol Washer Head 113

Washer, Spacer 114

Pulley, Mandrel 115

Nut, Toptock, Flanged 116

Bolt 117

Fastner, Christmas Tree 118

Pulley, Idler, Flat 119

Washer 13/32 x 13/16 x 16 Gauge 121

Nut Crownlock 3/8-16 UNC 128

Rod, Pivot, with Nibs 129

Rod, Clutch, Secondary, with Nibs 130

Guard, Mandrel, L.H. 131

Retainer 132

Screw, Thd. Roll 1/4-20 x 5/8 141

Washer, Hardened --

Roller Assembly, Cam Follower

Bolt, Shoulder #10-24 Grade 5 - -

Locknut

Bolt, Shoulder 5/16-18 UNC

Arm Assembly, Pad, Brake

Washer, Hardened

Arm, Idler

122052X

140086

141043

126113

144200

142427

131870

127847

121748X

12000029

128903

127845

160570

127498

153701

73350600

142028

120958X

156084

72140618

STD541437

136420

71161010

19061216

STD551110

160793

2029J

155197

155198

17490512

73510500

72110504

137644

133957

73930600

19121414

143723

153390

19131312

STD523710

STD533710

19132293

6266H

130794

145411

Spacer, Retainer

Spring, Torsion Brakes

Guard, TUV Idler

Knob Custom Oval

V-Belt

Rod, Clutch, Primary, with Nibs

Spring, Return

Arm,Clutch, Secondary

Washer 25/32 x 1-5/8 x 16 Gauge

Ring, Klip

Bolt, Shoulder 3/8-16 UNC x 1.44

Keeper, Spring

Lever Asm. Clutch Pri PIm STLT

Bushing, Large, Brass

Spring, Mower Clutch

Nut, Hex Jam 3/8-16 Unc

Trunnion, Adj.

Washer, Sintered

Keeper Belt Idler

Bolt RDHD Sq 3/8-16 UNC x 2-1/4

Nut

Mulcher Cover

Screw

Washer #10

Washer, Lock

Latch Assembly, Bagger

Nut, Weld .....

Bracket, Gauge, Wheel LH.

Bracket, Gauge, Wheel R+H.

ScrewThdrol 5/16-18 x 3/4

Nut, Hex, Keps 5/16-18 UNC

Bolt, Carriage 5/16 UNC x 1/2

Bolt, Shoulder

Wheel, Gauge

Nut, Centerlock 3/8-16

Washer 3/8 x 7/8 x 14 Gauge

Bracket

Washer Felt

Washer 13/32 x 13/16 x 12 Ga+

Bolt, Fin Hex 3/8-16 UNC x 1 Gr+5

Bolt, RDHD SQNK 3/8-16 UNC x 1

Washer 13/32 x 1-3/8 x 4 Ga.

Washer Thrust .75 x 1.230

Mandrel Assembly (Includes Key

Numbers 8-10, 12-15, 31 and 32)

Mower Deck, Complete (Standard

Deck, Order Separately Mulcher

Plate and Gauge Wheel

Components, Key Nos. 101-106

and 111-121)

NOTE: All component dimensionsgiven in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917o259567

DANA TRANSAXLE =MODEL NUIVIBER 4360=122

REPAIR PARTS

TRACTOR -- MODEL NUMBER 9i7.259567

DANA TRANSAXLE = MODEL NUMBER 43S0-122

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRUPTION

1 160955 Housing, Upper 37 2231J

2 2274J Screw, Tapping, 1/4-20 X .734 38 160944

3 134400 Ball, Detent 39 124639X

4 105904X Spring, Detent 40 120472X

5 160940 Screw, Tapping, No. 10-24 X .482 41 105928X

6 134788 Assy, Kit, Shifter 42 161565

7 108727X V-Ring 43 134394

8 120951X Puck, Friction 44 120473X

9 148266 Bearing, Flange 45 160942

10 2225J Ring, Retaining 46 142678

11 134793 Assy, Kit, Shim, .625 Shaft 47 124641X

12 143697 Gear, Spur, 15T 48 106589X

13 120415X Washer, Plain, .632 X 1.38 X .046 49 120408X

14 142674 Key, Woodruff, No. 9 50 105937X

15 161563 Assy, Kit, Input Shaft 51 2226J

16 161564 Pinion, Bevel, 12T 52 134401

17 105909X Ring, Retaining 53 2264J

18 105910X Chain, 24 Pitches 54 160946

19 148269 Seal, Oil 55 160947

20 160943 Gear, Spur, 12T 56 160948

21 138246 Collar, Clutch 57 110071X

22 138238 Assy, Kit, Clutch Keys 58 120952X

23 148268 Bearing, Flange 59 160949

24 143673 Shaft, Intermediate 60 160950

25 2244J Key, Woodruff, No. 61 61 160951

26 105916X Ring, Retaining 62 120961X

27 120470X Sprocket, 18T 63 7294J

28 110070X Spacer, 1.131X1.45 X .494 64 108989X

29 142677 Gear, Spur, 37T 65 160952

30 142681 Gear, Spur, 35T 66 120954X

31 124644X Gear, Spur, 30T 67 160953

32 108980X Gear, Spur, 25T 68 138244

33 120406X Gear, Spur, 22T 69 108996X

34 134796 Gear, Spur, 19T 70 160954

35 105925X Washer, Plain, .640 X 1.37 X .061 71 73810500

36 2228J Washer, Plain, .632 X 1.00 X .046 72 120416X

Washer, Piain, .632 X 1.00 X .031

Assy, Gear, Comb., 12T & 30T

Shaft, Idler

Spacer, .633 X .87 X .755

Sprocket, 9T

Gear Bevel, 36T

Assy, Kit, Shim, .750 Shaft

Shaft Drive

Cover Detent

Gear Spur, 12T

Gear Spur, 20T

Gear Spur, 25T

Gear Spur, 28T

Gear Spur, 31T

Washer, Plain, .632 X 1.00 X .060

Washer, Neoprene

Washer, Plain, .758 X 1.25 X .031

Axle, LH

Gear, Miter, 12T, Splined

Ring, Retaining

Gear, Spur, 32T

Shaft, Cross

Gear, Miter, 12T, Idler

Axle, RH

Housing, Lower " " -

Puck, Friction

Disc, Brake

Spacer, Brake Puck

Jaw, Brake

Pin, Dowel

Screw, Tapping, 5/16-18 X 2.35

Lever, Actuating

Washer, Plain, .321 X 1.00 X .055

Bracket, Anti-Rotation

Nut, Lock, 5/16-24

Grease

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

REPAIR PARTS

TRACTOR = = MODEL NUMBER 917.259567

BRIGGS & STRATTON ENGINE - MODEL NUlVlBER 42E707, TYPE NUMBER 2631-E1

615 q_

24 634A@

552A®

615

5520

220 _ l

230

601

24O

27 -._ ._ 1

525

524 0

523

842

422

284A

284

534

535

445

235

537

642

161

REPAIR PARTS

TRACTOR == MODEL NUMBER 917.259567

BRIGGS & STRATTON ENGINE = MODEL NUMBER 42E707, TYPE NUMBER 2631-E1

358 GASKET SET ]

PUMP REPAIR K,'i_

1121 CARBURETOR KIT7

435

432

392

51A

232

202

257

205

634

468

332

188

@ 1006

_)635

383

REPAIR PARTS

TRACTOR == MODEL NUMBER 917.259567

BRIGGS & STRATTON ENGINE =MODEL NUMBER 42E707, TYPE NUMBER 2631-E1

783

615A

544

311

803

801

802

® s92

201

209A 209

414 207

307

REPAIR PARTS

TRACTOR - - MODEL NUMBER 917.259567

BRtGGS & $TRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 2631-E1

10A

9 244

304

305

308

306

3O7

881

1019 LABEL KIT i

REQUIRES SPECIAL TOOLS

TO INSTALL, SEE REPAIR

INSTRUCTION MANUAL.

305

308A

307

305

REPAIR PARTS

TRACTOR == MODEL NUMBER 917.259567

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 2631=E1

KEY PART KEY PART

NO. NO. DESCRiPTiON NO. NO. DESCRiPTiON

1 497074

2 399265

3 391086

4 493304

5 493457

5A 493458

7 271867

7A 271868

8 495754

8A 222892

9 27803

10 94382

10A 94830

11 280225

12 273208

271188

271189

13 94565

15 94239

16 394028

94196

19 399264

20 291676

22 94724

23 491180

24 222698

25 498584

498588

498586

498587

26 394959

394960

394961

394962

27 263129

28 498319

391286

29 394306

397158

32 94671

_,,33 ,890420

?34 _61528

35 65906

36 26828

40 221596

41 292260

42 494553

45 261368

46 214484

50 213290

51 271412

51A 281412

52 270884

53 99970

Cylinder Assembly 54 93208

Bushing 75 222511

* Seal, Oil 78 95039

Sump, Engine 91 499281

Head, Cylinder #1 95 93499

Head, Cylinder #2 96 221939

* Gasket, Cylinder Head #1 97 499172

* Gasket, Cylinder Head #2 98 91920

99 26157

Breather Assembly #1 102 271607

Cover, Breather Cylinder #2 103 298514

(Used Only on Key #572,

Air Baffle with Holes for Mounting) 104 231435

*Gasket, Breather 105 394682

Screw, Sems 107 499655

Screw, Sems 108 225373

Tube, Breather 109 392673

* Gasket, Crankcase, .015" Thick 116 280474

* Gasket, Crankcase, .005" Thick 117 232018

* Gasket, Crankcase, .009" Thick 232022

Screw, Cylinder Head

Plug, Oil Drain 119 94152

Crankshaft 121 491539

Timing Gear Key 125 19306

Bushing 127 223472

* Seal, Oil 161 496599

Screw, Sems 165 94289

187 299146

Flywheel

Key, Flywheel 188 94627

Piston Assembly, Standard Size 201 262683

Piston Assembly, .010" Oversize 202 262684

Piston Assembly, .020" Oversize 203 280997

Piston Assembly, .030" Oversize 205 93971

Ring Set, Standard Size 206 94298

Ring Set, .010" Oversize 207 262337

Ring Set, .020" Oversize 209 262352

Ring Set, .030" Oversize 209A 261563

Lock, Piston Pin 219 394348

Pin, Piston, Standard Size 219A 393415

Pin, Piston, .005" Oversize 220 222773

Red, Connecting, Standard Size 222 491282

Rod, Connecting, .020" Undersize 224 94297

Screw, Connecting Rod

Valve, Exhaust

Valve, Intake

Spring, Valve, Intake

Spring, Valve, Exhaust

Retainer, Valve, Intake

Retainer, Valve, Exhaust

Keeper, Valve

Tappet, Valve

Gear, Cam

Manifold, Intake

.... Gasket, Carburetor Mounting

Spacer, Carburetor

* Gasket, Intake Manifold Mounting

Screw, Hex Head,

Carburetor to Manifold

Screw, Phillips

Washer, Spring

Screw, Hex

Body Assembly, Upper

Screw, Seres

Valve, Throttle

Shaft, Throttle

Screw, Fillister Head

Spring, Throttle Adjust

** Gasket, Carburetor Body

Float, Carburetor

** Pin, Float Hinge

** Valve, Needle

Body Assembly, Lower

Valve, Choke

Shaft, Choke

*O-Ring

Jet, Needle Valve, Fixed

Jet, Needle Valve, Fixed,

High Altitude

Screw, Hex Head

Carburetor Kit

Carburetor

** Plug, Welch

Base, Air Cleaner

Nut, Wing

Line, Fuel, 28" Long (Cut to Suit)

Screw

Link

Crank, Bell

Screw, Hex Head

Nut

Spring, Control, Rod

Spring, Governor

Spring, Governor Idle

Gear, Governor

Oil Slinger

Washer, Thrust

Bracket, Control

Screw, Torx®

* Included in Gasket Set (495868)

** Included in Carburetor Kit (491539)

*** Included in Carburetor Kit (491539),

and Pump Repair Kit (393397)

.... Included in Gasket Set (495868),

and Carburetor Kit (491539)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm _

REPAIR PARTS

TRACTOR o - MODEL NUMBER 917.259567

BRIGGS & STRATTON ENGINE - MODEL NUMBER 42E707, TYPE NUMBER 2631-E1

KEY' PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

227 491297 Lever Assembly, Governor

229 62199 Washer

230 223882 Washer, Governer Crank, inside

235 224995 Shield, Fuel Spray

240 394358 Filter, Fuel

244 230318 Connector, Fuel Line

257 93897 Screw, Sems

284 94674 Screw, Hex Head

284A 94882 Screw, Hex Head

304 495469 Housing, Blower, Red

305 94786 Screw, Sems

306 222846 Shield, Cylinder

306A 223734 Shield, Cylinder

307 94930 Screw, Self-Tapping

308 224774 Cover, Air Guide

308A 224775 Cover, Air Guide

309 497596 Motor, Starter

310 94003 Bolt, Thru

311 497608 Brush Set

332 230674 Nut, Hex

333 394891 Armature, Magneto

334 94731 Screw, Sems

337 802592 Plug, Spark

356 494705 Wire, Stop

358 495868 Gasket Set

363 19203 Flywheel Puller

383 89838 Wrench, Spark Plug

391 280197 Body, Pump

392 261395 ***Spring, Diaphragm

394 272638 *** Diaphragm, Carburetor

414 220680 Washer

422 222875 Bracket, Oil Fill

432 221377 *** Cap, Spring

434 223688 Cover, Diaphragm

435 93829 Screw, Diaphragm Cover

445 394019 Filter, Air

468 497908 Screen, Rotating

474 393474 Alternator

482 93621 Screw,

510 497606 Drive, Starter

523 494947 Cap, Oil Fill

524 271157 * Seal, Fill Tube

525 495348 Tube, Oil Fill (Includes Seals

528 393815 Hose, Vacuum

534 94823 Screw, Air Cleaner

535 272490 Filter, Air

537 _'71411 .... Gasket, Air Cleaner

544 497603 Armature, Starter

552 262332 Lower Bushing, Governor

552A 262331 Upper Bushing, Governor

556 93585

562 93853

567 94811

569 272645

572 224816

573 491304

592 92278

601 93053

615 94296

615A 263080

616 491530

634 271013

634A 491287

635 66538

642 225008

643 496700

653 93585

726 391362

741 262989

783 280104

801 394860

802 497607

803 497604

819 94675

842 270920

847 495715

851 493880

858 270989

859 271025

860 261358

861 393397

868 497212

869 261463

870 213316

871 261961

231218

877 393456

881 495901

955 397882

1005 281053

1006 224901

1019 496726

1090 97605

2500

Screw, Hex Head

Bolt, Governor Lever

Screw, Hex Head,

Back Plate to Cylinder

* Gasket, Base

Baffle, Air, Cylinder #2

PLate, Back

Nut, Hex.

Clamp, Hose

Retainer, E-Ring

Retainer

Crank, Governor

** Washer, Throttle Shaft

* Seal, Governor Shaft

Boot, Spark Plug

Cover, Air Cleaner

Plate, Air Cleaner

Screw, Hex Head

Gear, Ring

(Includes Mounting Parts)

Gear, Timing

Gear, Starter

Cap, Drive

Cap, End

Housing, Starter

Screw, Hex Head

* Seal, Cap

Tube Assembly, Oil

Terminal, Cable

*** Diaphragm, Carburetor

*** Gasket, Pump

*** Spring, Diaphragm

Repair Kit, Pump

Seal, Va!ve

Seat, Valve, Intake

Seat, Valve, Exhaust

Bushing, Guide (Exhaust Only)

Bushing, Guide (intake, Brass)

Wire, Alternator

Plate, Cover

Plug and Seal, Solenoid

Fan, Flywheel

Retainer, Fan

Label Kit

Retainer, Brush

42E707-2631 Replacement Engine

498543 Replacement Shortblock

* Included in Gasket Set (495868)

** Included in Carburetor Kit (491539)

*** Included in Carburetor Kit (491539),

and Pump Repair Kit (393397)

.... Included in Gasket Set (495868),

and Carburetor Kit (491539)

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SERVICE OTES

SUGGESTED GUIDE FOR SIGHTmNG SLOPES FOR SAFE OPERATION

SiGHTiNG

GUIDE

ONLY RmDEUP AND DOWN HILL,

NOT ACROSS HiLL

SIGHT AND HOLD THiS LEVEL WiTH

SKY LiNE OR TREE.

ER'S

MANUAL

MODEL NO.

917.259567

IF YOU NEED

REPAIR SERVICE

OR PARTS:

FOR REPAIR SERVICE, CALL

THIS TOLL FREE NUMBER:

1-800-4-REPAIR

(1-800-473+7247)

FOR REPLACEMENT PARTS

INFORMATION AND

ORDERING, CALL THIS

TOLL FREE NUMBER:

1-800=FON-PART

{1_800-366-7278)

FOR CONSUMER ASSISTANCE

HOT LINE, CALL THIS

TOLL FREE NUMBER:

1-800+659=5917

RFTSMRN®

19.5 HP

ELECTRIC START

42" MOWER

6 SPEED TRANSAXLE

LAWN TRACTOR

Each tractor has its own model number. Each engine has

its own model number.

The model number for your tractor wil! be found on the

model plate located under the seat.

The model number for your engine will be found on the

blower housing of the engine.

All parts listed herein may be ordered from any Sears,

Roebuck and Co. Service Center/Department and most Re-

tail Stores.

WHEN ORDERING REPAIR PARTS, ALWAYS GiVE THE

FOLLOWING INFORMATION:

- PRODUCT- TRACTOR

+ MODEL NUMBER - 917.259567

• ENGINE MODEL NO. - 42E707=2631-E1

• PART NUMBER

. PART DESCRIPTION

Your Sears merchandise has added value when you

consider Sears has service units nationwide staffed with

Sears trained technicians.., professional technicians

specifically trained to insure that we meet our pledge to

you, we service what we sell.

163229 10.28.97 RH

Printed in U.S.A.

Craftsman 917259567 tractor

Product's Documents

User Manual

Specifications

Craftsman 917259567 Questions and Answers
