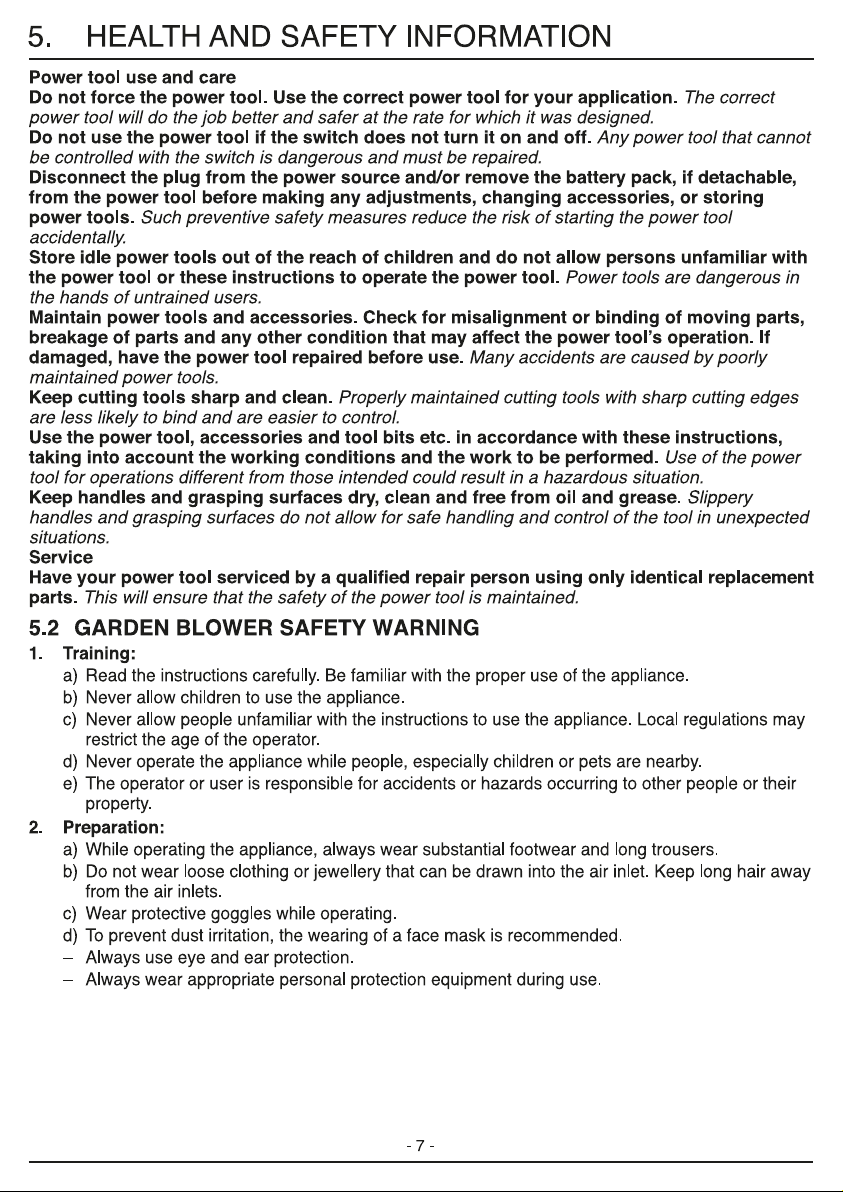

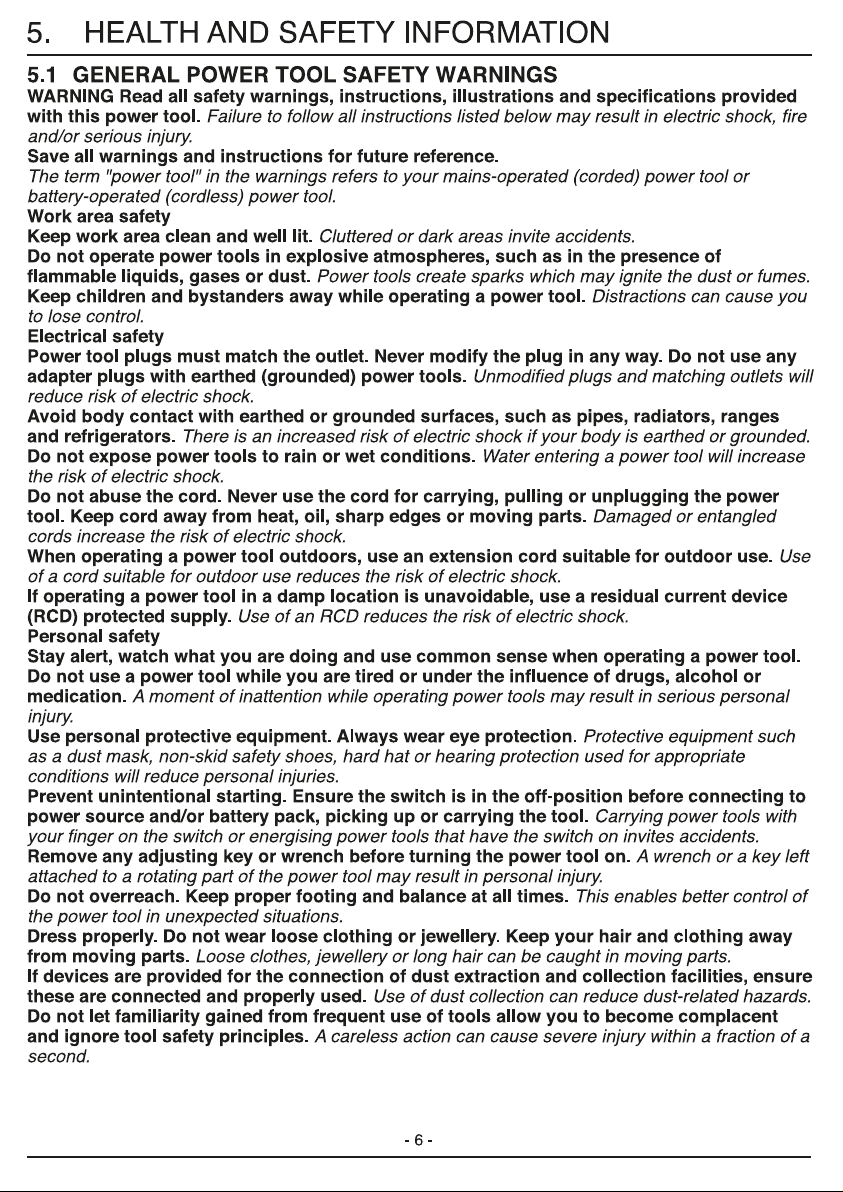

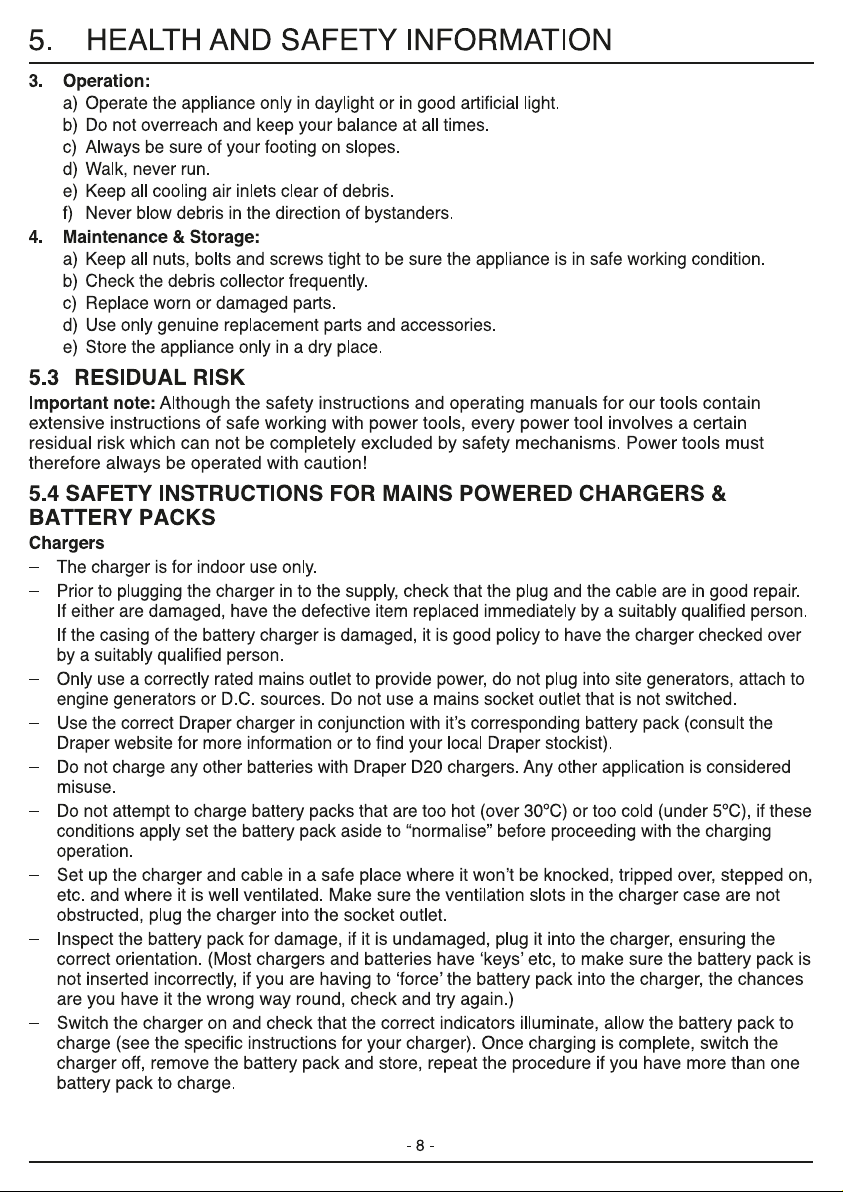

5. HEALTH AND SAFETY INFORMATION
breakage of parts and any other condition that may affect the power tool’s operation. If
- 9 -
Caution: When the battery charger has been continuously used, the battery charger will be hot.
Once the charging has been completed, give 15 minutes rest until the next charge.
– After charging is complete, unplug the charger from the socket outlet by pulling on the plug. Do
not pull on the cable. Store the charger in a dry secure place.
– If, when the charger was switched on, the correct indications did not occur, leave for two or
three minutes to allow the charger to stabilise, if the correct indications occur, allow the
charging cycle to proceed as normal. If no indication appears at all, switch off, remove the
battery pack, unplug the charger, check that the charger contacts and the battery contacts are
clean and repeat the process. If there is still no indication, switch off, remove the battery pack,
unplug the charger and check the fuse. If the fuse is blown, replace and repeat the process. If
the fuse blows again, or if the fuse was intact, attempt no further action. Refer the charger to a
suitably qualified person for repair.
Battery packs
– Before charging, read the instructions.
– For indoor use. Do not expose to rain.
–
Only use Draper D20 battery packs with this product. Consult your Draper stockist for details.
– Do not charge any other manufacturer’s battery packs using Draper chargers. Any other
application is considered misuse.
– The battery must be removed from the appliance before it is recycled.
– The charger must be disconnected from the supply mains when removing the battery.
– The battery is to be disposed of in-line with local authority procedures.
– Do not use any other than the designated Draper batteries/chargers with this product.
– Do not crush, open or burn the battery. Exposure to potentially harmful materials may occur.
– In case of fire use CO2 or dry chemical extinguisher.
– Do not expose to high temperatures >50°C. The battery may degrade at high temperatures.
– Charge battery in conditions between 5°C to 30°C with the specified charger designed for this
battery.
– Do not use battery if it has been stored at 5°C or less. Allow it to “normalise” at room
temperature before usage/charging.
Warning!
● Leaking battery packs
– The electrolyte in battery packs is corrosive. Avoid contact with the skin.
– If contact is made, flush the area with running water, pat dry and seek medical attention and
advice at the earliest opportunity.
– Inform medical personnel that the contaminant is a “high alkaline, corrosive liquid”.
– If electrolyte comes into contact with the eyes, flush with copious amounts of water only.
Seek medical attention immediately, relaying the information above.
- 10 -
5.5 CONNECTION TO THE POWER SUPPLY (CHARGER)
Caution: Risk of electric shock. Do not open.
This appliance is supplied with an approved plug and cable for your safety. The value of the fuse
fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute
is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
ASTA
BSI
The fuse cover is removable with a small plain slot screwdriver. Ensure the fuse cover is replaced
before attempting to connect the plug to an electrical outlet. If the cover is missing, a replacement
must be obtained or the plug replaced with a suitable type.
If a replacement plug is to be fitted this must be carried out by a qualified electrician.
The damaged or incomplete plug, when cut from the cable should be disabled to prevent
connection to a live electrical outlet.
This appliance is Class I
†
and is designed for connection to an earthed power supply matching that
detailed on the rating label and compatible with the plug fitted.
If an extension lead is required, use an approved and compatible lead rated for this appliance.
Follow all the instructions supplied with the extensi
on lead.
Earthed : This product requires an earth connection to protect against electric shock from accessible
conductive parts in the event of a failure of the basic insulation.
IMPORTANT
If using an extension lead, follow the instructions that came with your lead regarding
maximum load while cable is wound. If in doubt, ensure that the entire cable is unwound.
Using a coiled extension lead will generate heat which could melt the lead and cause a fire.
5. HEALTH AND SAFETY INFORMATION
breakage of parts and any other condition that may affect the power tool’s operation. If
- 11 -
6. TECHNICAL DESCRIPTION

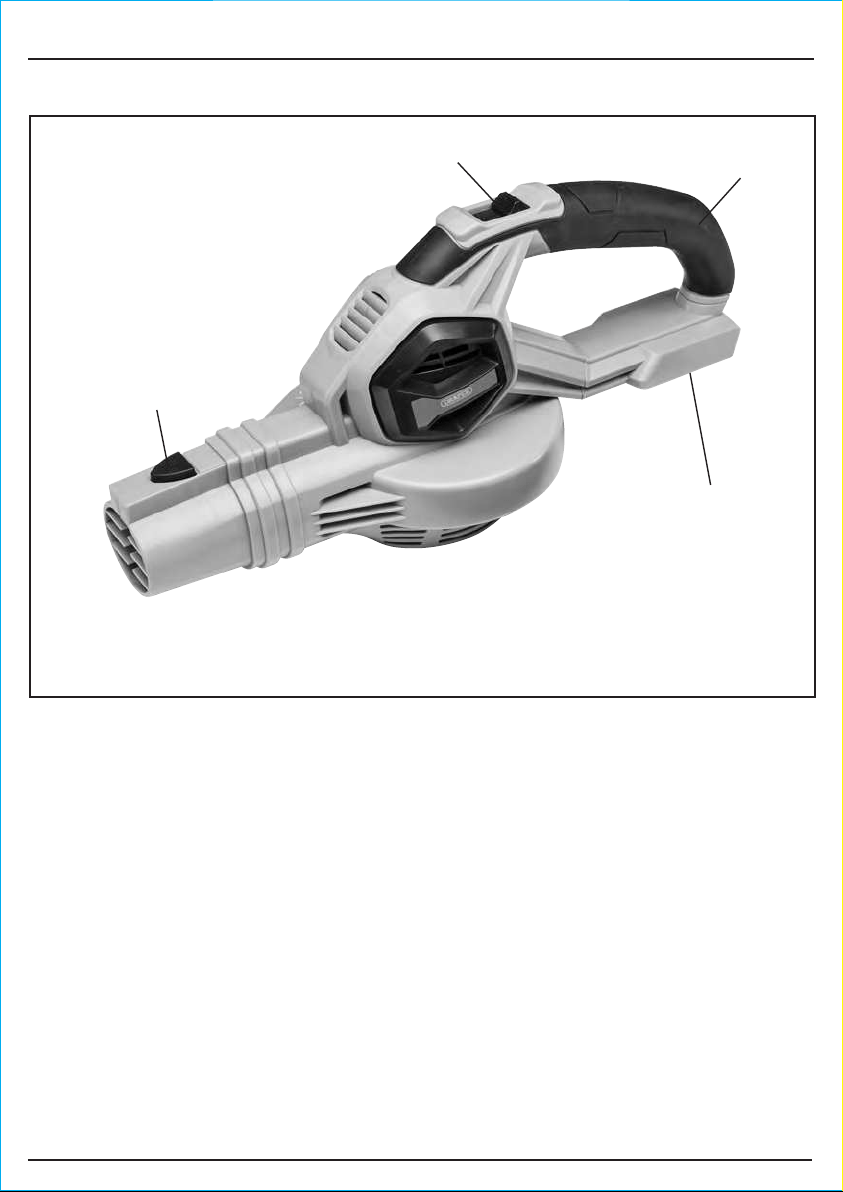

6.1 IDENTIFICATION
(1)
Extension tube lock.
(2)
2 speed / power switch.
(3)
Soft grip.
(4)
Battery slot.
(1)
(2)
(3)
(4)
breakage of parts and any other condition that may affect the power tool’s operation. If
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the product from the packaging and examine it for any sign of damage that may have
happened during shipping. Lay the contents out and check them against the parts shown below. If any
part is damaged or missing, please contact the Draper Help Line (the telephone number appears on
the Title page) and do not attempt to use the product.
The packaging material should be retained at least during the warranty period, in case the machine
needs to be returned for repair.
Warning!
● Some of the packaging materials used may be harmful to children. Do not leave any of these
materials in the reach of children.
● If any of the packaging is to be thrown away, make sure they are disposed of correctly,
according to local regulations.
- 12 -
(5)
(6)
(8)
7.2 D20 MULTI-TOOL INTERCHANGEABLE
BATTERY SYSTEM
The D20 range of tools are a range of tools suitable for
enthusiasts and tradespersons alike, featuring a wide array of
machines all running from the same range of batteries. Many
different capacity batteries are available making sure you can
balance tool weight with longevity and find a battery that meets
your needs. To find out the latest range of accessories including batteries and chargers please consult
the Draper website for more information or to find your local Draper stockist.
MULTI-TOOL BATTERY SYSTEM
7.3 WHAT’S IN THE BOX
As well as the main product, there are
also several other parts not fitted or
attached to it:

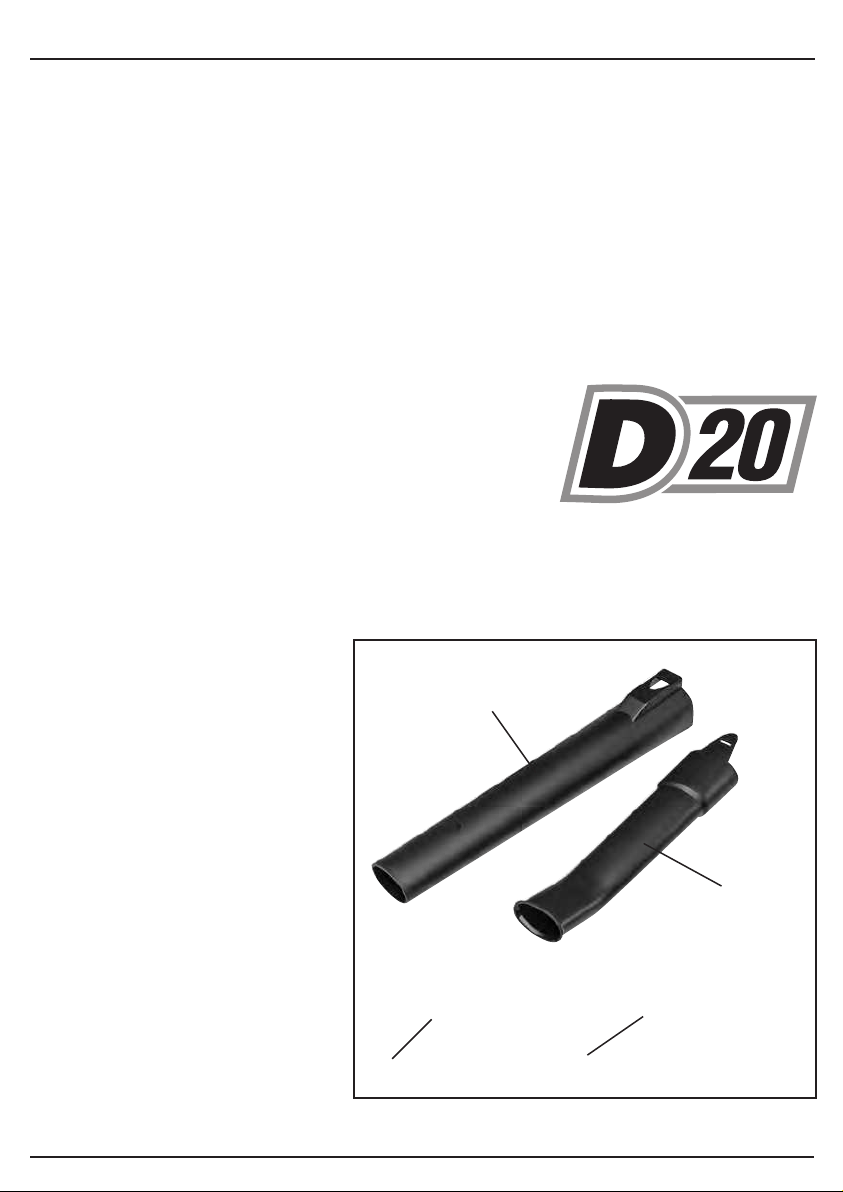

(5)
Detachable flat end extension -
total working length: 930mm.
(6)
Detachable middle end extension -
total working length: 720mm.
(7)
1× 2.0Ah Li-ion battery
(70526 only).
(8)
D20 charger
(70526 only).
(7)
11.DISPOSAL
11.1 DISPOSAL
-
&

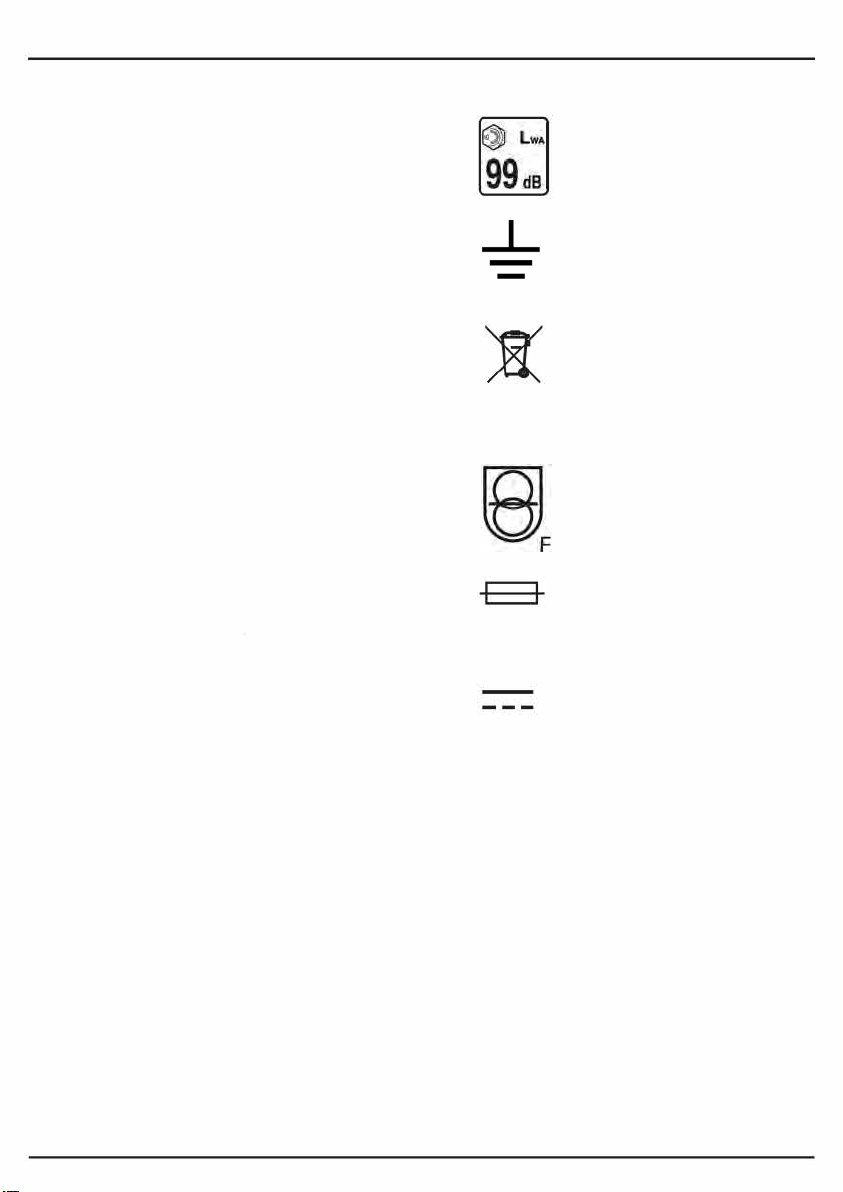

12.EXPLANATION OF SYMBOLS
