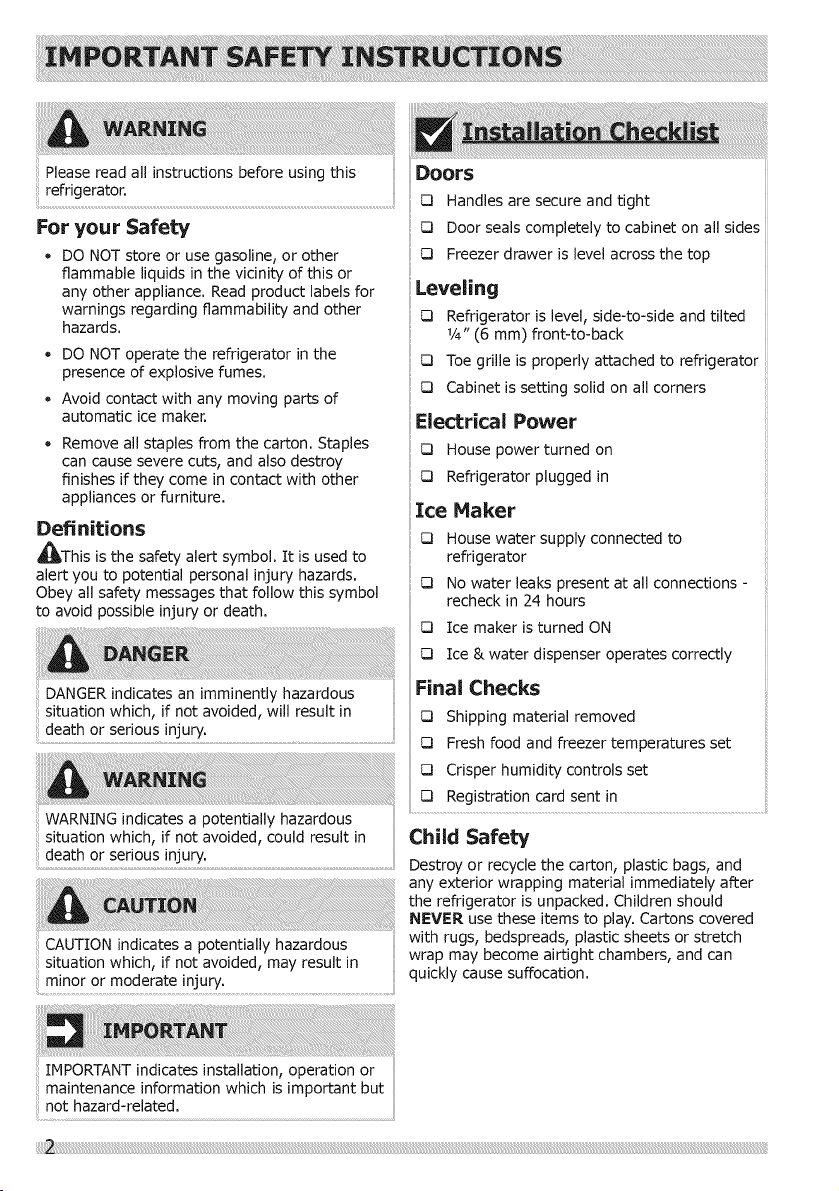

Please read all instructions before using this
refrigerator.
For your Safety
• DO NOT store or use gasoline, or other
flammable liquids in the vicinity of this or
any other appliance. Read product labels for
warnings regarding flammability and other
hazards.
• DO NOToperate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker,
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
finishes if they come in contact with other
appliances or furniture.
Definitions
_lbThis is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol
to avoid possible injury or death.
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
WARNING indicates a potentially hazardous
situation which, if not avoided, could result in
death or serious injury.
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
Doors
[] Handles are secure and tight
[] Door seals completely to cabinet on all sides
El Freezer drawer is level across the top
Leveling
[] Refrigerator is level, side-to-side and tilted
1/4" (6 mm) front-to-back
[] Toe grille is properly attached to refrigerator
[] Cabinet is setting solid on all corners
Electrical Power
[] House power turned on
[] Refrigerator plugged in
Ice Maker
[] House water supply connected to
refrigerator
[] No water leaks present at all connections -
recheck in 24 hours
[] Ice maker is turned ON
[] Ice & water dispenser operates correctly
Final Checks
[] Shipping material removed
[] Fresh food and freezer temperatures set
[] Crisper humidity controls set
[] Registration card sent in
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately after
the refrigerator is unpacked. Children should
NEVER use these items to play. Cartons covered
with rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and can
quickly cause suffocation.
IMPORTANT indicates installation, operation or
normalntenanceinformatiOnhazard_related,which is important but

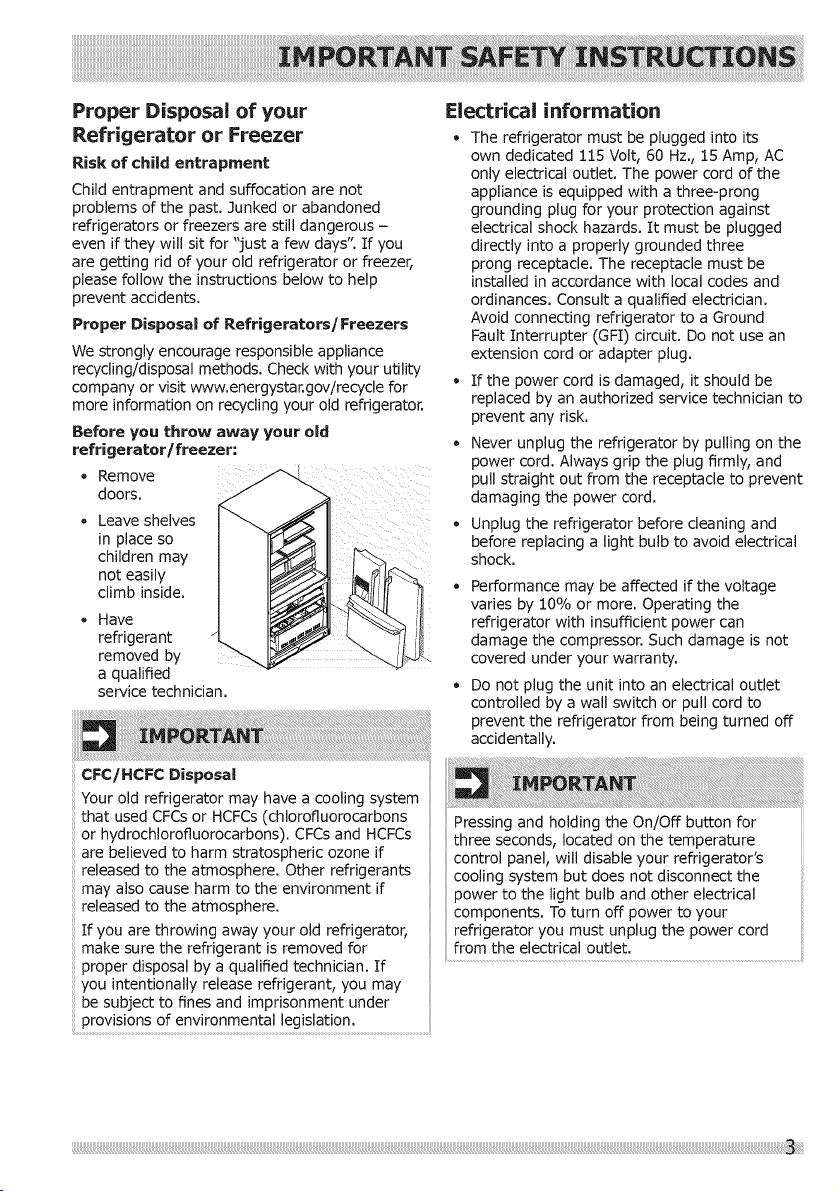

Proper Disposal of your
Refrigerator or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
)roblems of the past. Junked or abandoned
refrigerators or freezers are still dangerous -
even if they will sit for "just a few days". If you
are getting rid of your old refrigerator or freezer,
)lease follow the instructions below to help
)revent accidents.
Proper Disposal of RefrigeratorslFreezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your utility
company or visit www.energystar.gov/recycle for
more information on recycling your old refrigerator.
Before you throw away your old
refrigerator l freezer:
. Remove ....
doors.
* Leave shelves
in place so
children may
not easily
climb inside.
* Have
refrigerant
removed by
a qualified
service technician.
Electrical information
The refrigerator must be plugged into its
own dedicated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power cord of the
appliance is equipped with a three-prong
grounding plug for your protection against
electrical shock hazards. ]:t must be plugged
directly into a properly grounded three
prong receptacle. The receptacle must be
installed in accordance with local codes and
ordinances. Consult a qualified electrician.
Avoid connecting refrigerator to a Ground
Fault Interrupter (GF]:) circuit. Do not use an
extension cord or adapter plug.
If the power cord is damaged, it should be
replaced by an authorized service technician to
prevent any risk.
Never unplug the refrigerator by pulling on the
power cord. Always grip the plug firmly, and
pull straight out from the receptacle to prevent
damaging the power cord.
Unplug the refrigerator before cleaning and
before replacing a light bulb to avoid electrical
shock.
Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigerator with insufficient power can
damage the compressor. Such damage is not
covered under your warranty.
Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to
prevent the refrigerator from being turned off
accidentally.
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorofluorocarbons
or hydrochlorofluorocarbons). CFCs and HCFCs
are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants
may also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrigerator,
make sure the refrigerant is removed for
proper disposal by a qualified technician. If
lOU intentionally release refrigerant, you may
be subject to fines and imprisonment under
3rovisions of environmental legislation.
Pressing and holding the On/Off button for
three seconds, located on the temperature
control panel, will disable your refrigerator's
cooling system but does not disconnect the
power to the light bulb and other electrical
components. To turn off power to your
refrigerator you must unplug the power cord
from the electrical outlet.

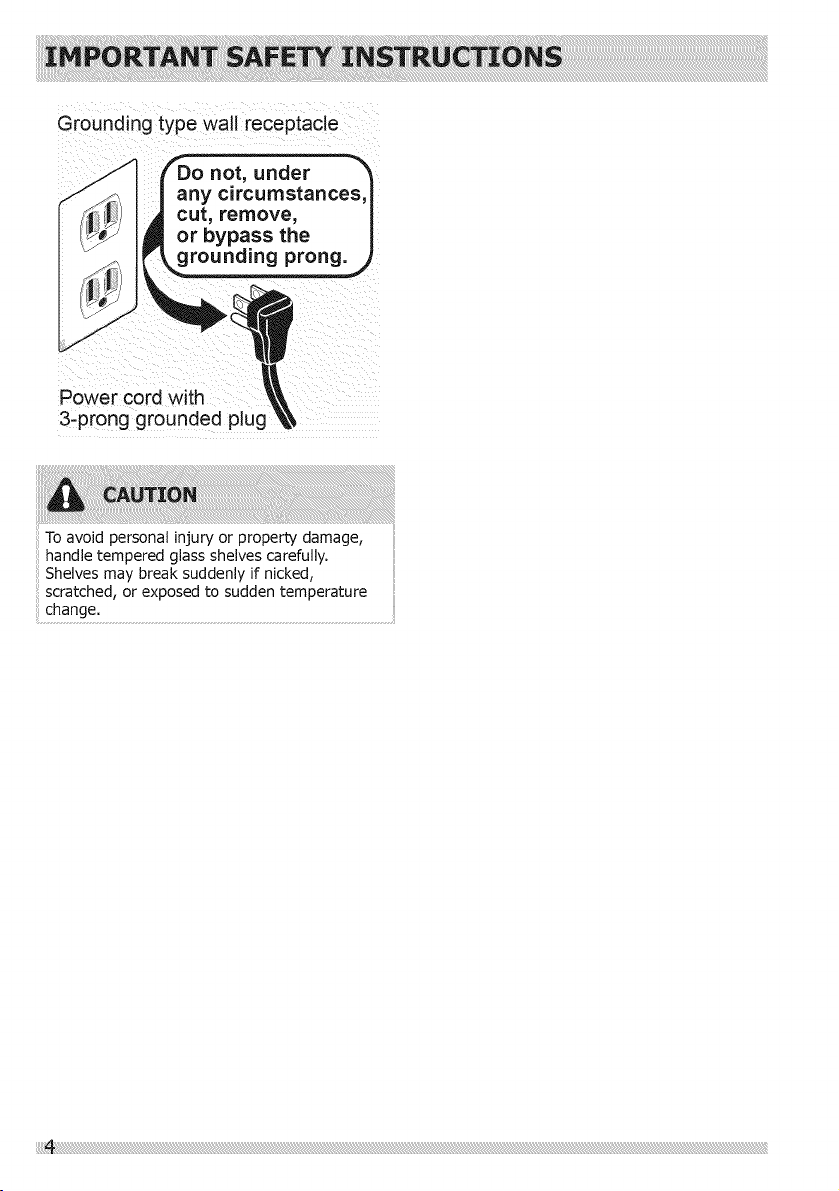

Grounding type wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
groun_
i iii
Power cord with
3-prong grounded plug .....
To avoid personal injury or property damage,
handle tempered glass shelves carefully.
Shelves may break suddenly if nicked,
scratched, or exposed to sudden temperature

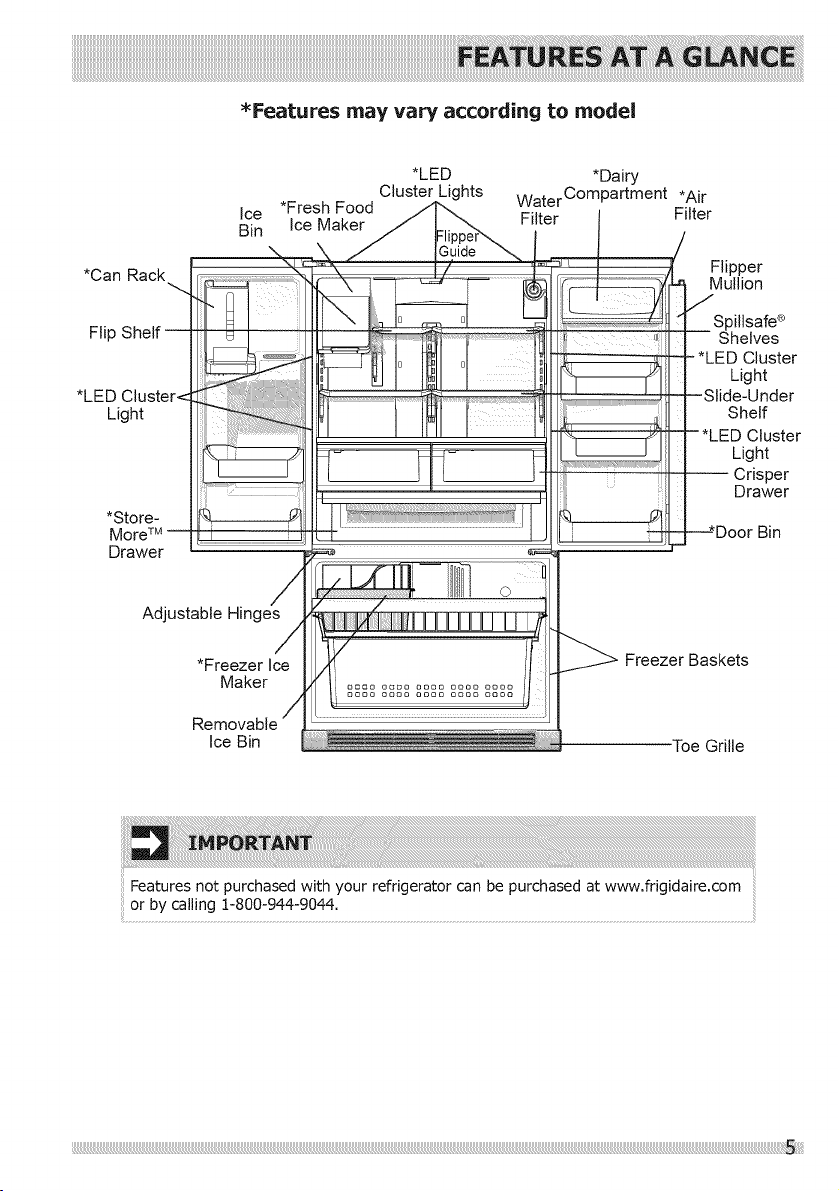

• Features may vary according to model
*Can Rack
Flip
Light
*Store-
Drawer
*LED *Dairy
Cluster Lights WaterComp artment *Air
Ice *Fresh Food
Bin Ice Maker Filter Filter
Flipper
Mullion
Spillsafe ®
Shelves
Cluster
Light
Shelf
Cluster
Light
-- Crisper
Drawer
Bin
Adjustable Hinges
*Freezer Ice
Maker
Freezer Baskets
Ice Bin
Toe Grille
Features not purchased with your refrigerator can be purchased at www.frigidaire.com
or by calling 1-800-944-9044.
ii
iii__iIi_i_I_L_T_:_I _ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii!!iii,!

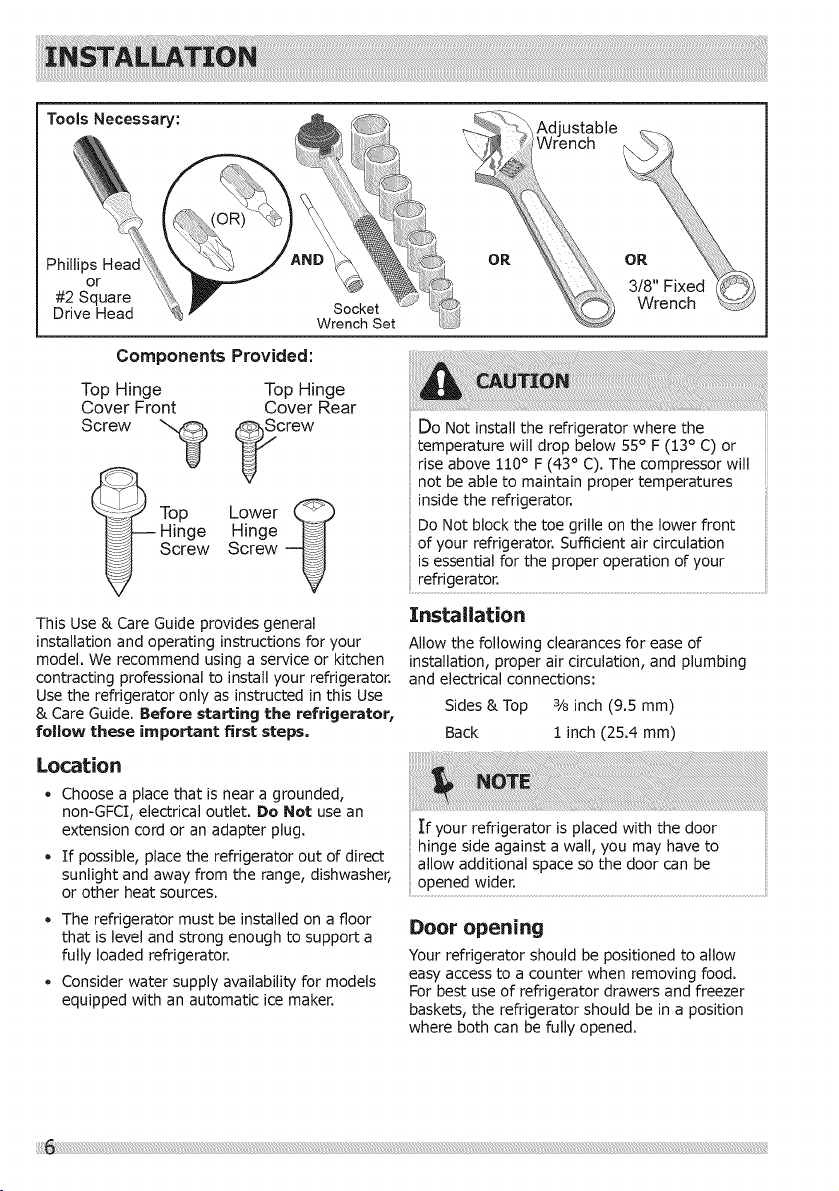

Tools Necessary:
Phillips Heac
or
#2 Square
Drive Head
Socket
Wrench Set
_%_ Adjustable
\/_ i Wrench
OR
Components Provided:
Top Hinge Top Hinge
Cover Front Cover Rear
Screw _ _crew
Top Lower
Hinge
Screw Screw
This Use & Care Guide provides general
installation and operating instructions for your
model. We recommend using a service or kitchen
contracting professional to install your refrigerator.
Use the refrigerator only as instructed in this Use
& Care Guide. Before starting the refrigerator,
follow these important first steps.
Location
Choose a place that is near a grounded,
non-GFCI, electrical outlet. Do Not use an
extension cord or an adapter plug.
If possible, place the refrigerator out of direct
sunlight and away from the range, dishwasher,
or other heat sources.
The refrigerator must be installed on a floor
that is level and strong enough to support a
fully loaded refrigerator.
Consider water supply availability for models
equipped with an automatic ice maker.
Do Not install the refrigerator where the
perature will drop below 55° F (13 ° C) or
rise above 110° F (43 ° C). The compressor will
not be able to maintain proper temperatures
inside the refrigerator.
Do Not block the toe grille on the lower front
of your refrigerator. Sufficient air circulation
is essential for the proper operation of your
refrigerator. ....
Installation
Allow the following clearances for ease of
installation, proper air circulation, and plumbing
and electrical connections:
Sides & Top % inch (9.5 mm)
Back 1 inch (25.4 mm)
_'fyour refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider. ....
Door opening
Your refrigerator should be positioned to allow
easy access to a counter when removing food.
For best use of refrigerator drawers and freezer
baskets, the refrigerator should be in a position
where both can be fully opened.
;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;ll

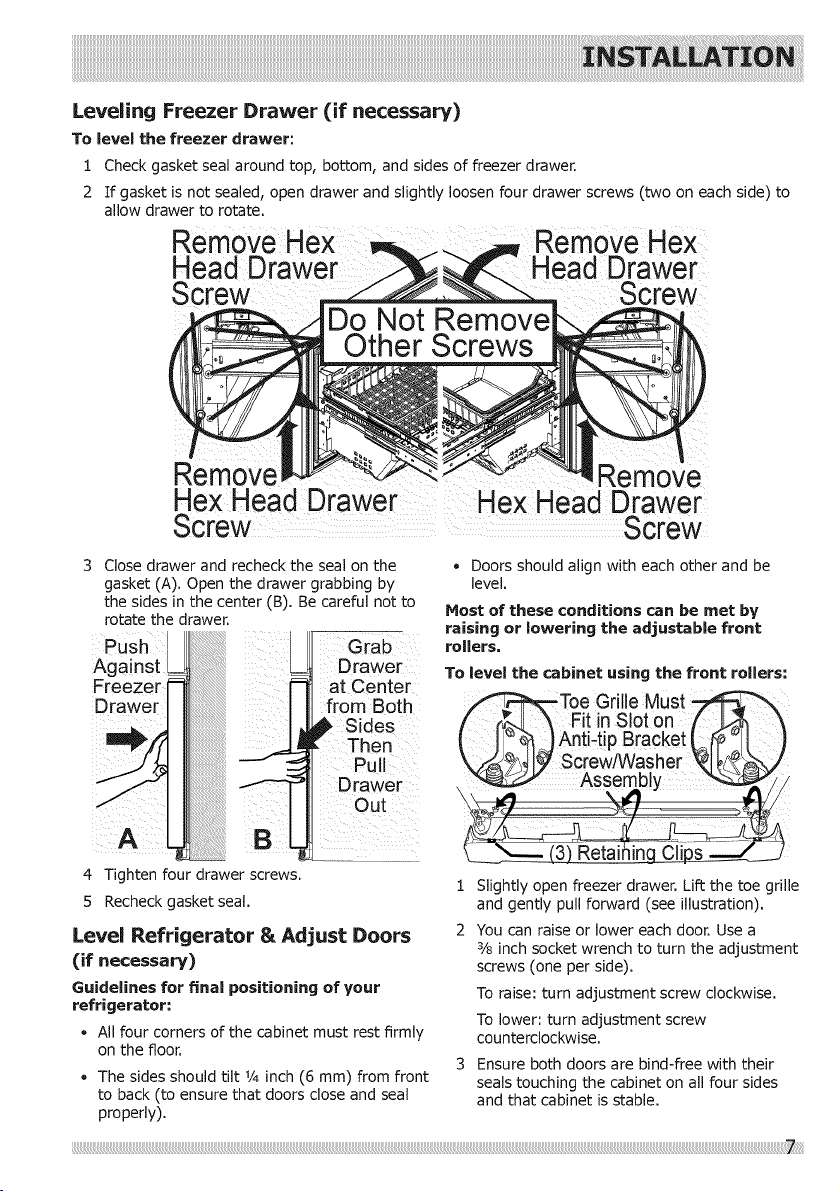

Leveling Freezer Drawer (if necessary)
To level the freezer drawer:
1
2
Check gasket seal around top, bottom, and sides of freezer drawer.
If gasket is not sealed, open drawer and slightly loosen four drawer screws (two on each side) to
allow drawer to rotate.
Remove H,
_,X
Head Drawer _r
Screw Screw
Remove .... Remove
Hex Head Drawer Hex Head Drawer
Screw Screw
3 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer.
Push Grab _
Against Drawer
Freezer at Center
Drawer from Both
Sides
Drawer
Out
4 Tighten four drawer screws.
5 Recheck gasket seal.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your
refrigerator:
All four corners of the cabinet must rest firmly
on the floor.
The sides should tilt 1/4inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
Doors should align with each other and be
level.
Most of these conditions can be met by
raising or lowering the adjustable front
rollers.
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the toe grille
and gently pull forward (see illustration).
2 You can raise or lower each door. Use a
3/8 inch socket wrench to turn the adjustment
screws (one per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw
counterclockwise.
3 Ensure both doors are bind-free with their
seals touching the cabinet on all four sides
and that cabinet is stable.

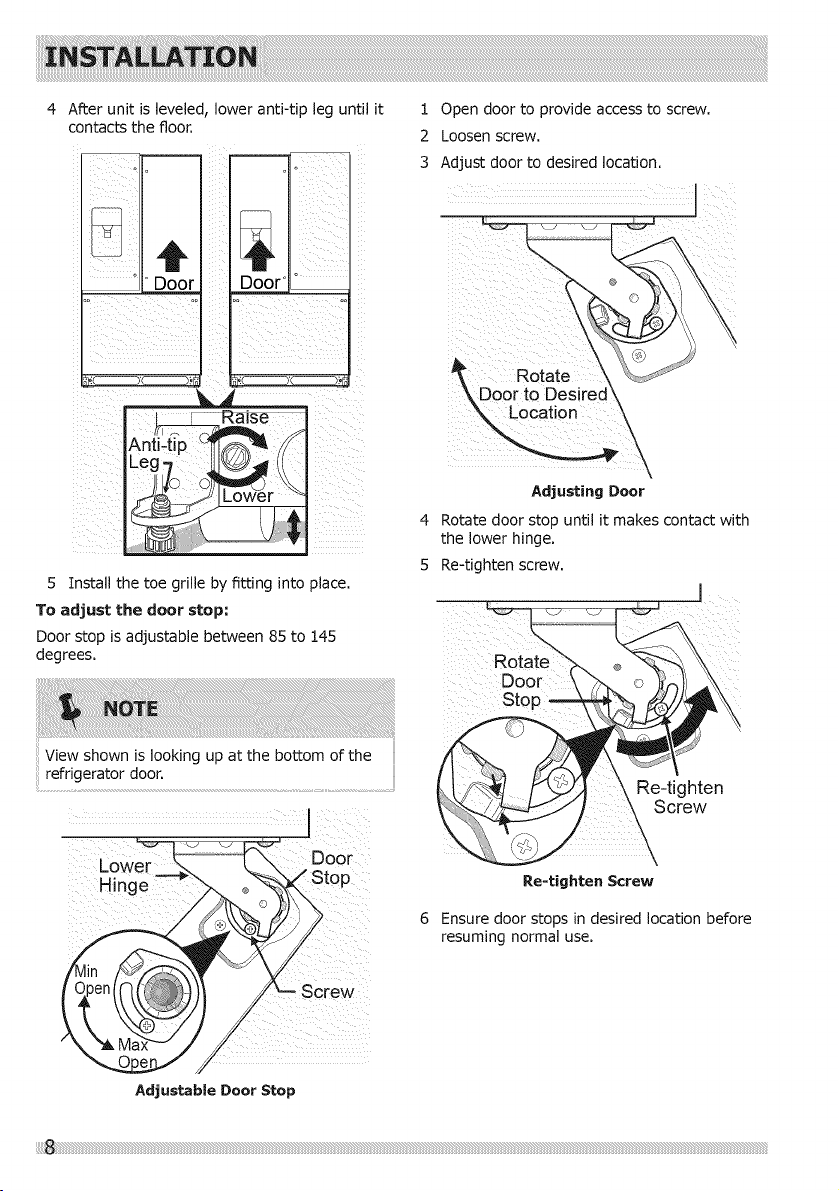

4 Afterunitisleveled,loweranti-tipleguntilit
contactsthefloor.
_Raise
Leg
5 Install the toe grille by fitting into place.
To adjest the door stop:
Door stop is adjustable between 85 to 145
degrees.
View shown is looking up at the bottom of the
refrigeratordoor.
Lower
Hinge
Door
)P
Crew
Adjustable Door Stop
1 Open door to provide access to screw.
2 Loosen screw.
3 Adjust door to desired location.
\Door to Desired
LOcation
Adjusting Door
4 Rotate door stop until it makes contact with
the lower hinge.
5 Re-tighten screw,
Door
©
Re-tighten
Screw
Re=tighten Screw
Ensure door stops in desired location before
resuming normal use.
i!!!!!81iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii::_

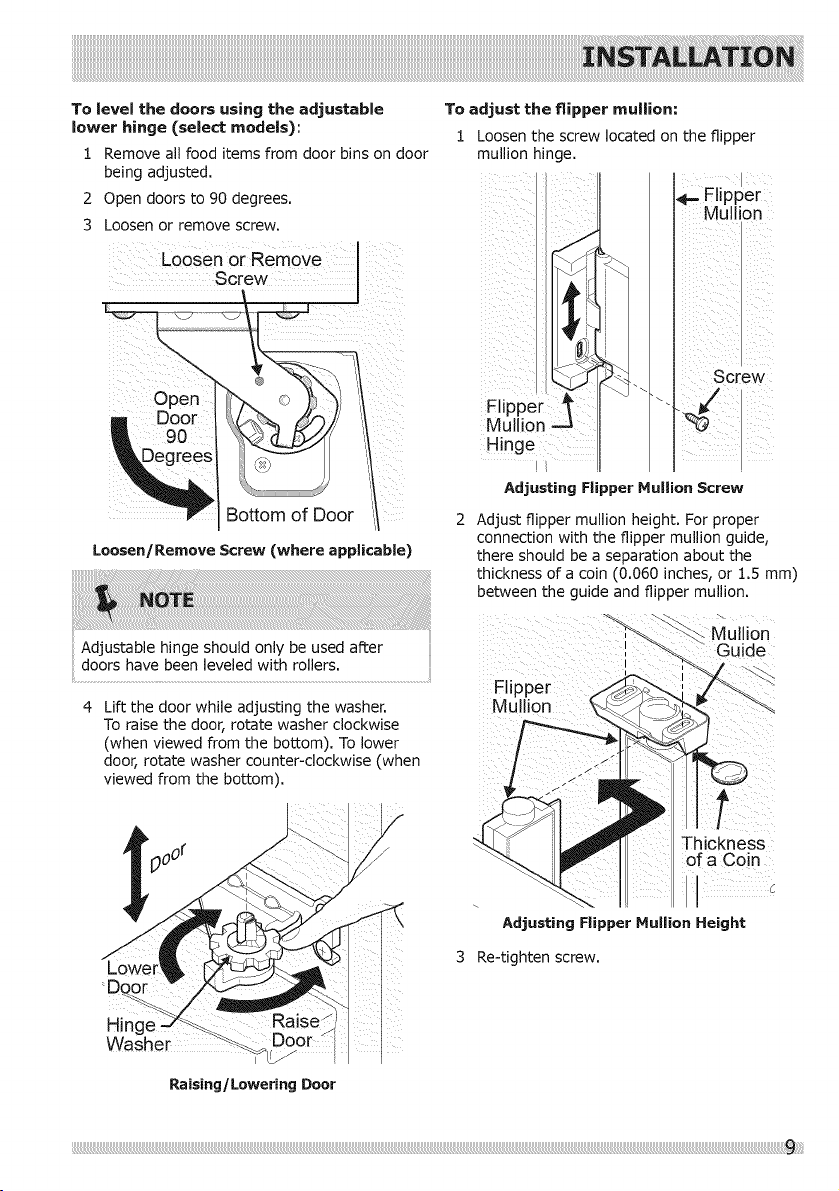

To level the doors using the adjustable
lower hinge (select models):
1 Remove all food items from door bins on door
being adjusted.
2
3
Open doors to 90 degrees.
Loosenor remove screw.
Loosen or Re
Screw
Bottom of Door
Loosen/Remove Screw (where applicable)
Adjustable hinge should only be used after
doors have been leveled with rollers.
Lift the door while adjusting the washer.
To raise the door, rotate washer clockwise
(when viewed from the bottom). To lower
door, rotate washer counter-clockwise (when
viewed from the bottom).
Hin
To adjust the flipper mullion:
1 Loosen the screw located on the flipper
mullion hinge.
....
Hinge
I
Screw
-\
Adjusting Flipper Mullion Screw
Adjust flipper mullion height. For proper
connection with the flipper mullion guide,
there should be a separation about the
thickness of a coin (0.060 inches, or 1.5 mm)
between the guide and flipper mullion.
,, Mullion
I
, dde
I
Flipper
MUllion
Thickness
of a Coin
Adjusting Flipper Mullion Height
3 Re-tighten screw.

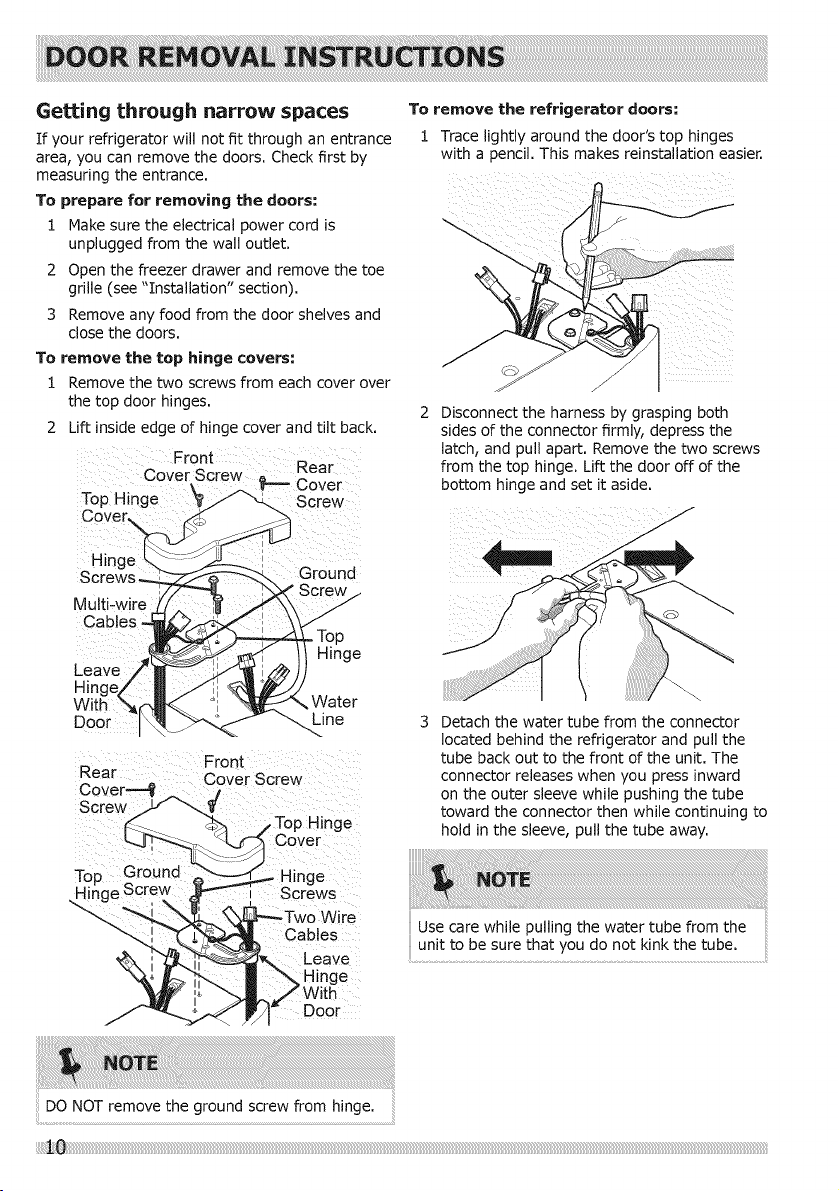

Raising/Lowering Door
Getting through narrow spaces
If your refrigerator will not fit through an entrance
area, you can remove the doors. Check first by
measuring the entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord is
unplugged from the wall outlet.
2 Open the freezer drawer and remove the toe
grille (see "Installation" section).
3 Remove any food from the door shelves and
close the doors.
To remove the top hinge covers:
1 Remove the two screws from each cover over
the top door hinges.
2 Lift inside edge of hinge cover and tilt back.
Front Rea_
_r
TopHi Screw
Hinge
Ground
Mull
.Top
Hinge
Leave
Hing_
Water
Door Line
Front
Rear Cover Screw
Screw
,,Top Hinge
Cover
Top Ground
Hinge
Screws
ire
Cables
Leave
Hinge
With
Door
To remove the refrigerator doors:
1 Trace lightly around the door's top hinges
with a pencil. This makes reinstallation easier.
Disconnect the harness by grasping both
sides of the connector firmly, depress the
latch, and pull apart. Remove the two screws
from the top hinge. Lift the door off of the
bottom hinge and set it aside.
Detach the water tube from the connector
located behind the refrigerator and pull the
tube back out to the front of the unit. The
connector releases when you press inward
on the outer sleeve while pushing the tube
toward the connector then while continuing to
hold in the sleeve, pull the tube away.
Use care while pullingthe water tube from the
unit to be sure that you do not kink the tube.
DO NOT remove the ground screw from hinge.
)roximately
5 feet

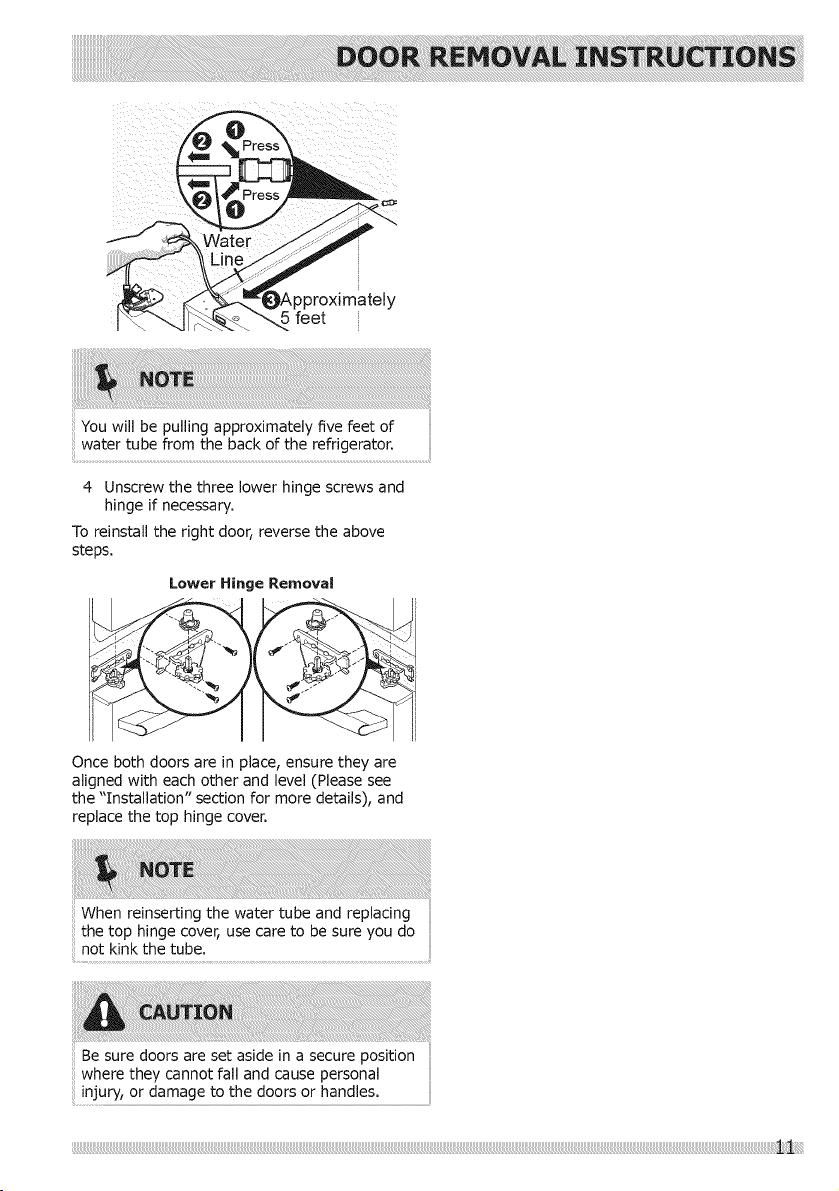

You will be pulling approximately five feet of
water tube from the back of the refrigerator.
4 Unscrew the three lower hinge screws and
hinge if necessary.
To reinstall the right door, reverse the above
steps.
Lower Hinge Removal
Once both doors are in place, ensure they are
aligned with each other and level (Please see
the "Installation" section for more details), and
replace the top hinge cover.
When reinserting the water tube and replacing
the top hinge cover, use care to be sure you do
not kink the tube.
Be sure doors are set aside in a secure position
where they cannot fall and cause personal
injury, or damage to the doors or handles.

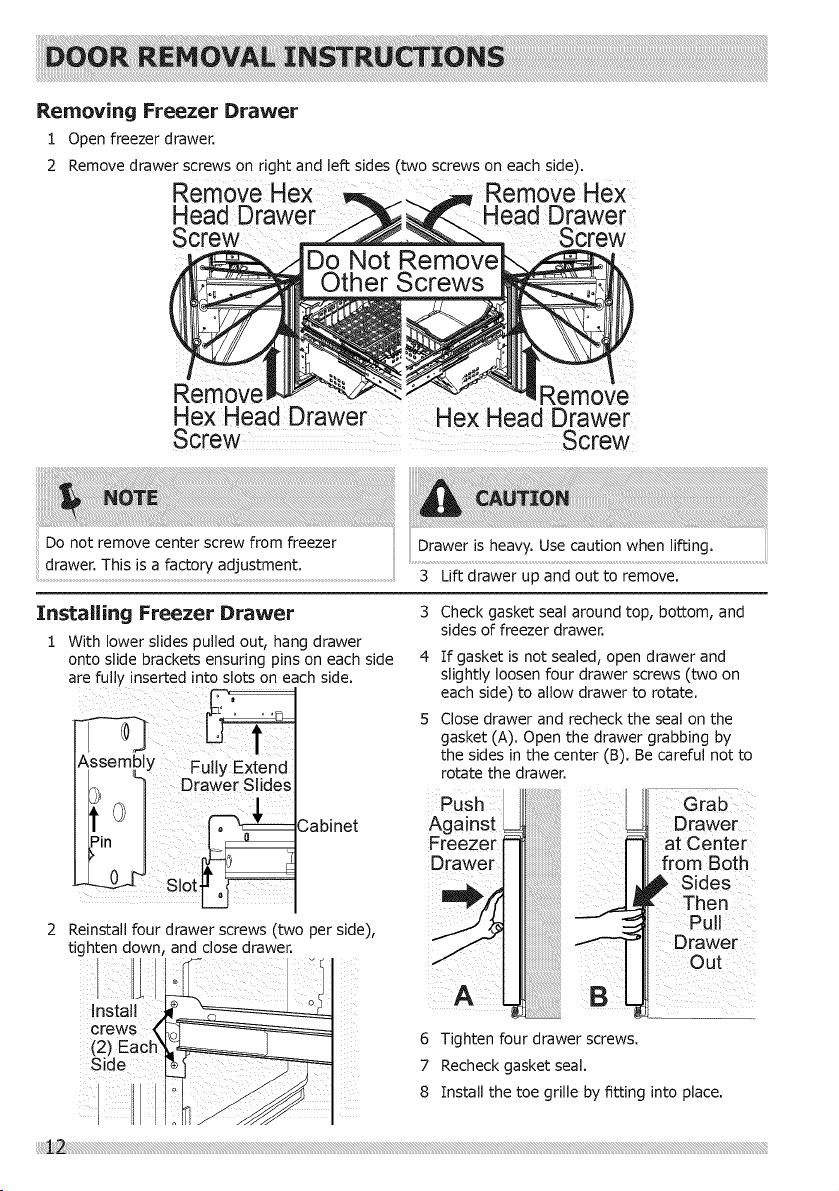

Removing Freezer Drawer
1 Open freezer drawer.
Remove drawer screws on right and left sides (two screws on each side).
Remove Hex i Remove Hex
HeadDrawer
Screw ;crew
Remove . [emove
Hex Head Drawer Hex Head Drawer
Screw Screw
Do not remove center screw from freezer Drawer is heavy. Use caution when lifting.
drawer. This is a factory adjustment. ....................................................................................................................................................................
.........................................................................................................................................................................................................................................................3 Lift drawer up and out to remove.
Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each side
are fully inserted into slots on each side.
Aisembly Fully Extend
Drawer Slides
in _ .Cabinet
slot_
2 Reinstall four drawer screws (two per side),
tighten down, and close drawer.
3 Check gasket seal around top, bottom, and
sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not to
rotate the drawer,
Push
Against
Freezer -
Drawer
A
Grab
Drawer
at Center
from Both
Sides
_" Then
Pull
Drawer
Out
6 Tighten four drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ! i i liii i!i !i!!i!iii!iii!i i i! i!i!iiiiiiii i i ! iii i iii

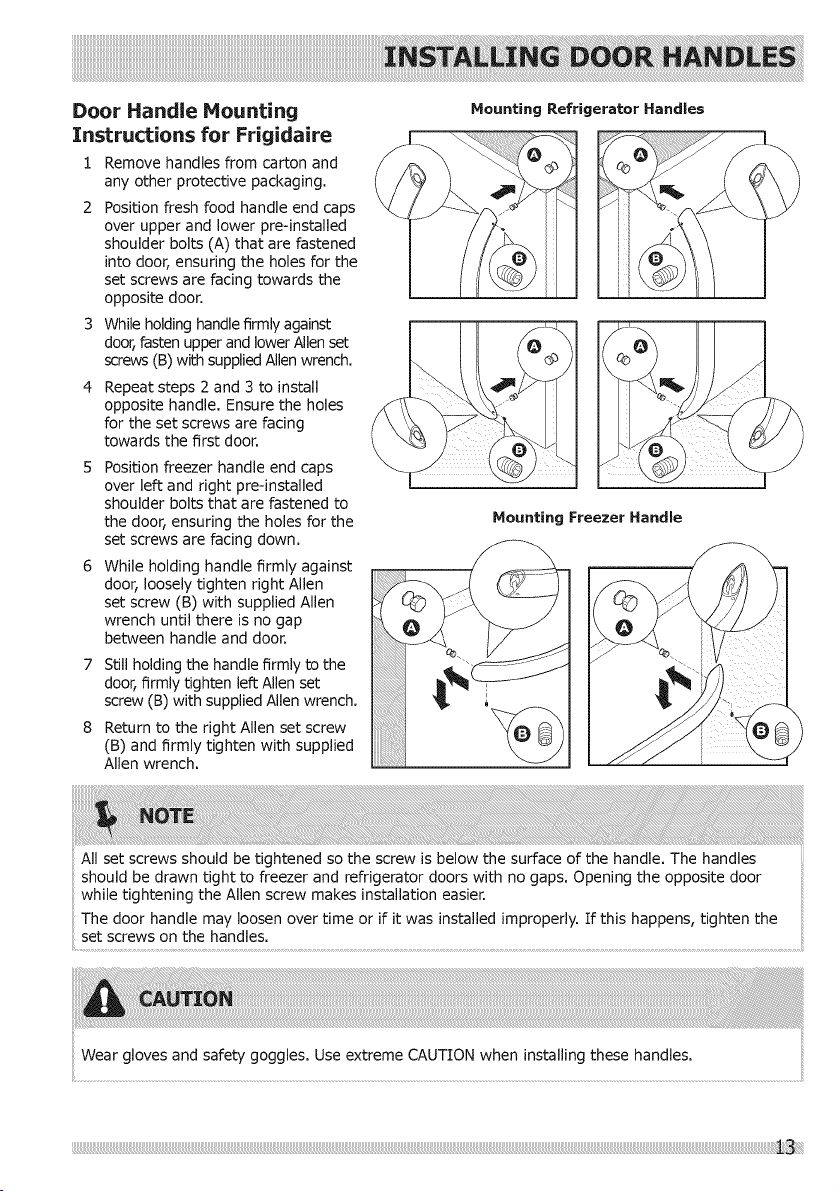

Door Handle Hounting
Instructions for Frigidaire
1 Remove handles from carton and
any other protective packaging.
Position fresh food handle end caps
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
opposite door.
3 While holding handle firmly against
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
Repeat steps 2 and 3 to install
opposite handle. Ensure the holes
for the set screws are facing
towards the first door.
Position freezer handle end caps
over left and right pre-installed
shoulder bolts that are fastened to
the door, ensuring the holes for the
set screws are facing down.
While holding handle firmly against
door, loosely tighten right Allen
set screw (B) with supplied Allen
wrench until there is no gap
between handle and door.
7 Still holding the handle firmly to the
door, firmly tighten left Allen set
screw (B) with supplied Allen wrench.
8 Return to the right Allen set screw
(B) and firmly tighten with supplied
Allen wrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
All set screws should be tightened so the screw is below the surface of the handle. The handles
should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the
set screws on the handles.
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

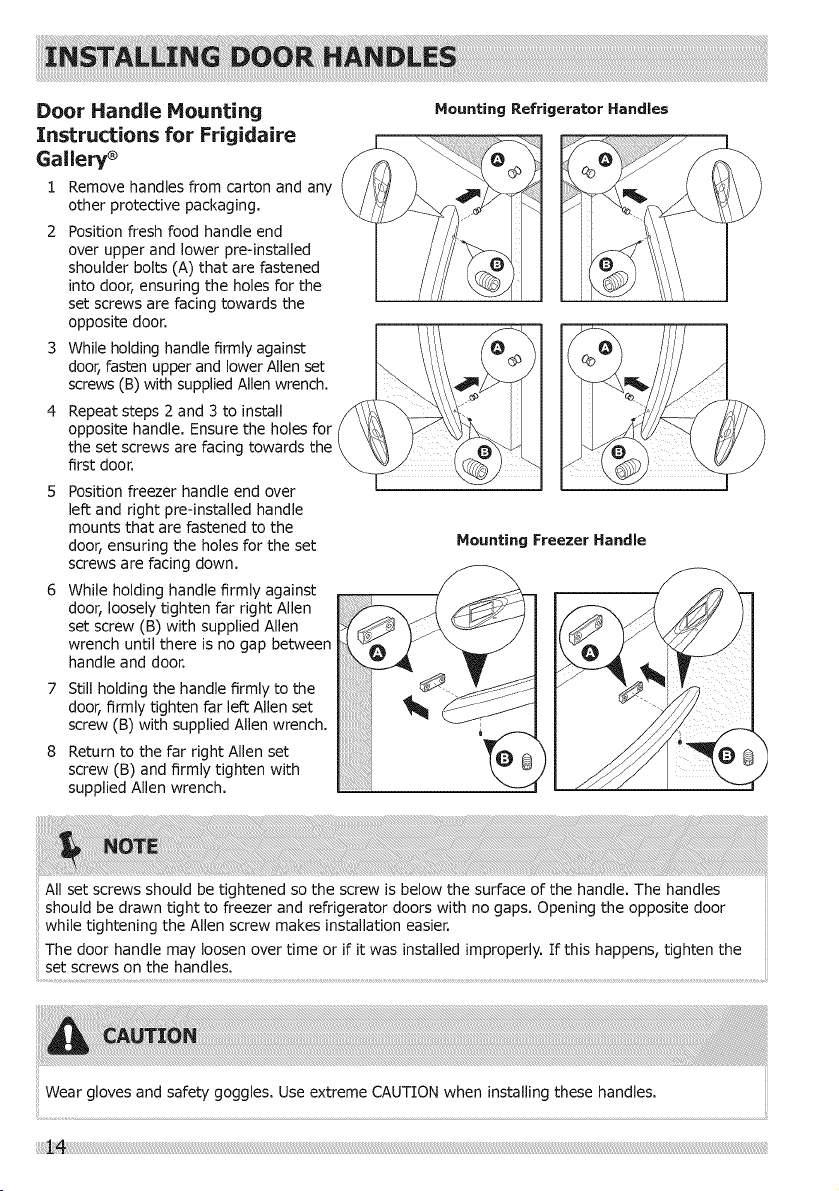

Door Handle Mounting
Instructions for Frigidaire
Gallery ®
1 Remove handles from carton and any
other protective packaging.
Position fresh food handle end
over upper and lower pre-installed
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
opposite door.
3 While holding handle firmly against
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
Repeat steps 2 and 3 to install
opposite handle. Ensure the holes for
the set screws are facing towards the
first door.
Position freezer handle end over
left and right pre-installed handle
mounts that are fastened to the
door, ensuring the holes for the set
screws are facing down.
6 While holding handle firmly against
door, loosely tighten far right Allen
set screw (B) with supplied Allen
wrench until there is no gap between
handle and door.
7 Still holding the handle firmly to the
door, firmly tighten far left Allen set
screw (B) with supplied Allen wrench.
8 Return to the far right Allen set
screw (B) and firmly tighten with
supplied Allen wrench.
Mounting Refrigerator Handles
Mounting Freezer Handle
All set screws should be tightened so the screw is below the surface of the handle. The handles
should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.
1
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii:i ! i i liii i!i !i!!i!iii!iii!i i i! i!i!iiiiiiii i i ! iii i iii

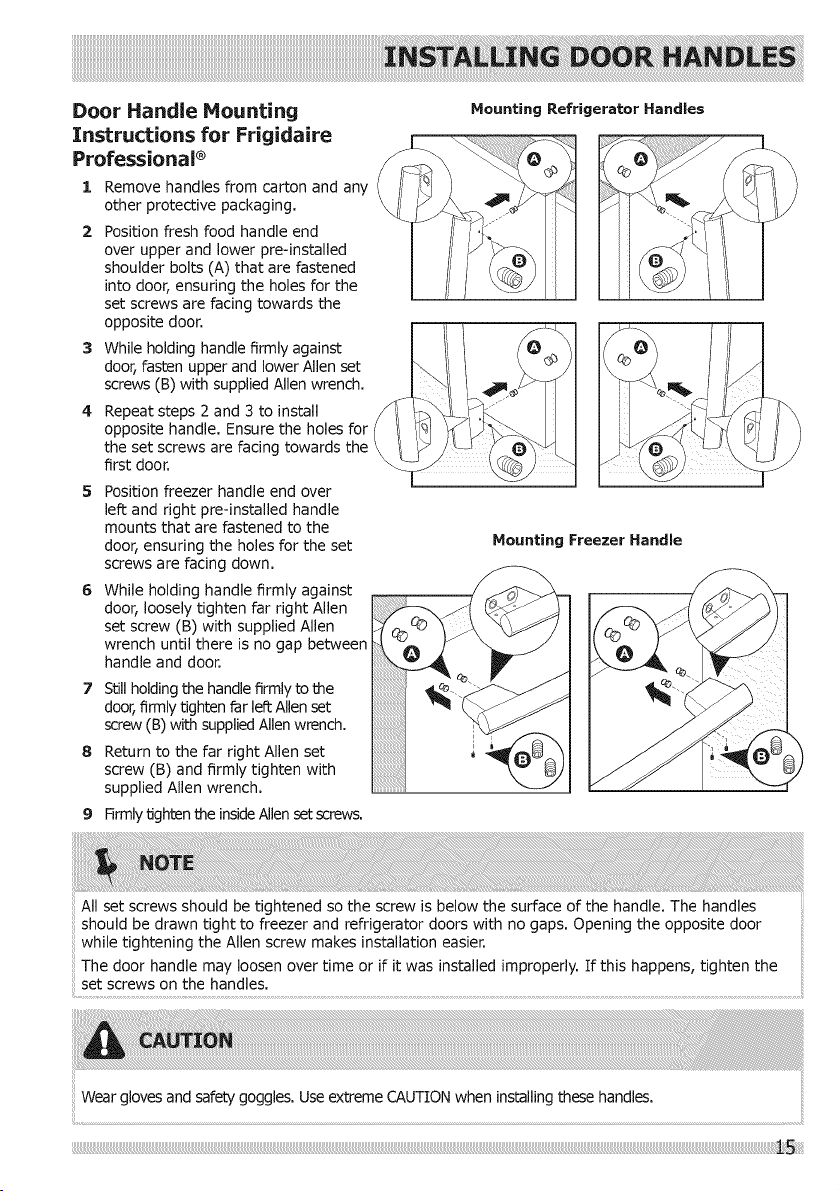

Door Handle Mounting
Instructions for Frigidaire
ProfessionaP
1 Remove handles from carton and any
other protective packaging.
Position fresh food handle end
over upper and lower pre-instalied
shoulder bolts (A) that are fastened
into door, ensuring the holes for the
set screws are facing towards the
opposite door.
3 While holding handle firmly against
door, fasten upper and lower Allen set
screws (B) with supplied Allen wrench.
Repeat steps 2 and 3 to install
opposite handle. Ensure the holes for
the set screws are facing towards the
first door.
Position freezer handle end over
left and right pre-installed handle
mounts that are fastened to the
door, ensuring the holes for the set
screws are facing down.
While holding handle firmly against
door, loosely tighten far right Allen
set screw (B) with supplied Allen
wrench until there is no gap between
handle and door.
7 Still holding the handle firmly to the
door, firmly tighten far IL=:_t:Allen set
screw (B) with supplied Allen wrench.
8 Return to the far right Allen set
screw (B) and firmly tighten with
supplied Allen wrench.
9 Rrmly tighten me insideAllen set screws.
\i
Mounting Refrigerator Handles
.... i
Mounting Freezer Handle
All set screws should be tightened so the screw is below the surface of the handle. The handles
should be drawn tight to freezer and refrigerator doors with no gaps. Opening the opposite door
while tightening the Allen screw makes installation easier.
The door handle may loosen over time or if it was installed improperly. If this happens, tighten the
set screws on the handles.
Wear gloves and safety goggles. Use extreme CAUTION when installing these handles.

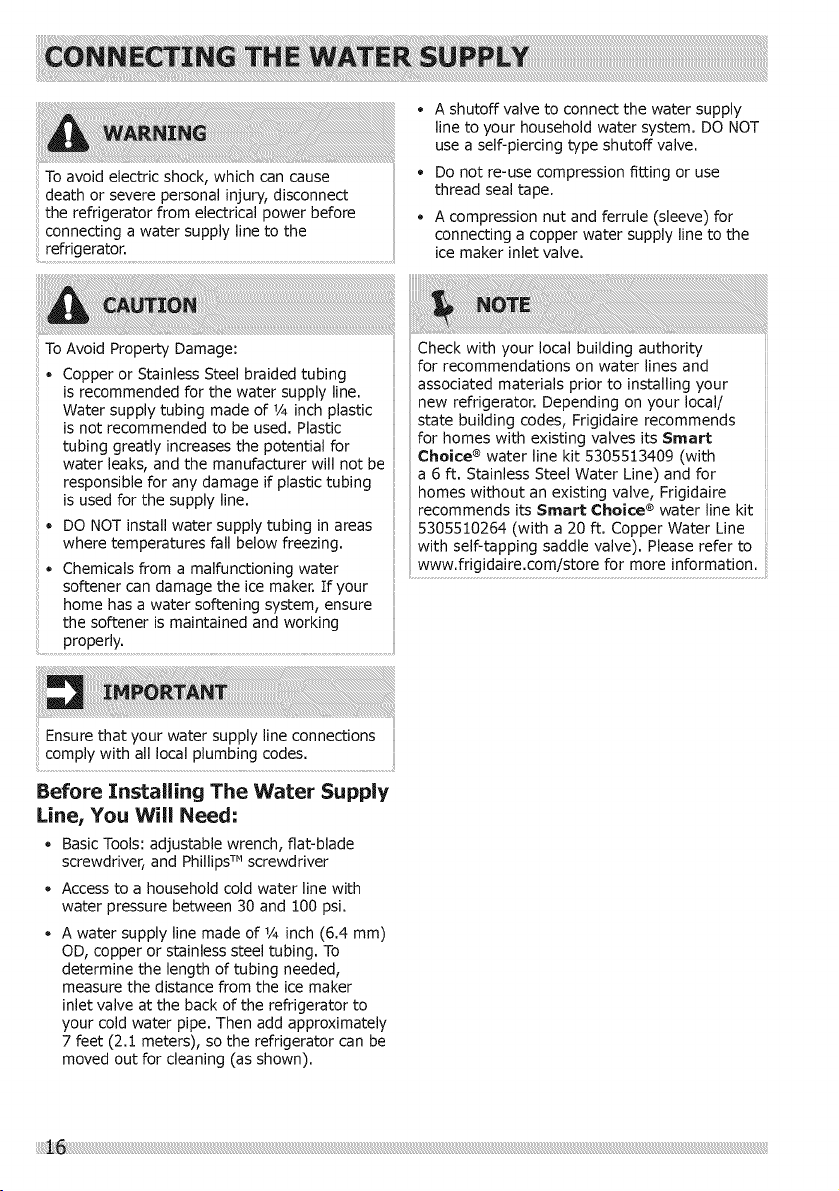

Toavoidelectricshock,whichcancause
deathorseverepersonalinjury,disconnect
therefrigeratorfromelectricalpowerbefore
connectingawatersupplylinetothe
• Ashutoffvalvetoconnectthewatersupply
linetoyourhouseholdwatersystem.DONOT
useaself-piercingtypeshutoffvalve.
• Donotre-usecompressionfittingoruse
threadsealtape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to the
ice maker inlet valve.
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply line.
Water supply tubing made of 1/4inch plastic
is not recommended to be used. Plastic
tubing greatly increases the potential for
water leaks, and the manufacturer will not be
responsible for any damage if plastic tubing
is used for the supply line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing your
new refrigerator. Depending on your local/
state building codes, Frigidaire recommends
for homes with existing valves its Smart
Choice ® water line kit 5305513409 (with
a 6 ft. Stainless Steel Water Line) and for
homes without an existing valve, Frigidaire
recommends its Smart Choice ® water line kit
5305510264 (with a 20 ft. Copper Water Line
with self-tapping saddle valve). Please refer to
Chemicals from a malfunctioning water www.frigidaire.com/store for more information.
softener can damage the ice maker. If your ....
home has a water softening system, ensure
the softener is maintained and working
..........ProPer!Y'.........................................................................................................................................................
Ensure that your water supply line connections
comply with all local plumbing codes.
Before Installing The Water Supply
Line, You Will Need:
• Basic Tools: adjustable wrench, fiat-blade
screwdriver, and PhillipsTM screwdriver
Access to a household cold water line with
water pressure between 30 and 100 psi.
A water supply line made of 1/4 inch (6.4 mm)
OD, copper or stainless steel tubing. To
determine the length of tubing needed,
measure the distance from the ice maker
inlet valve at the back of the refrigerator to
your cold water pipe. Then add approximately
7 feet (2.1 meters), so the refrigerator can be
moved out for cleaning (as shown).

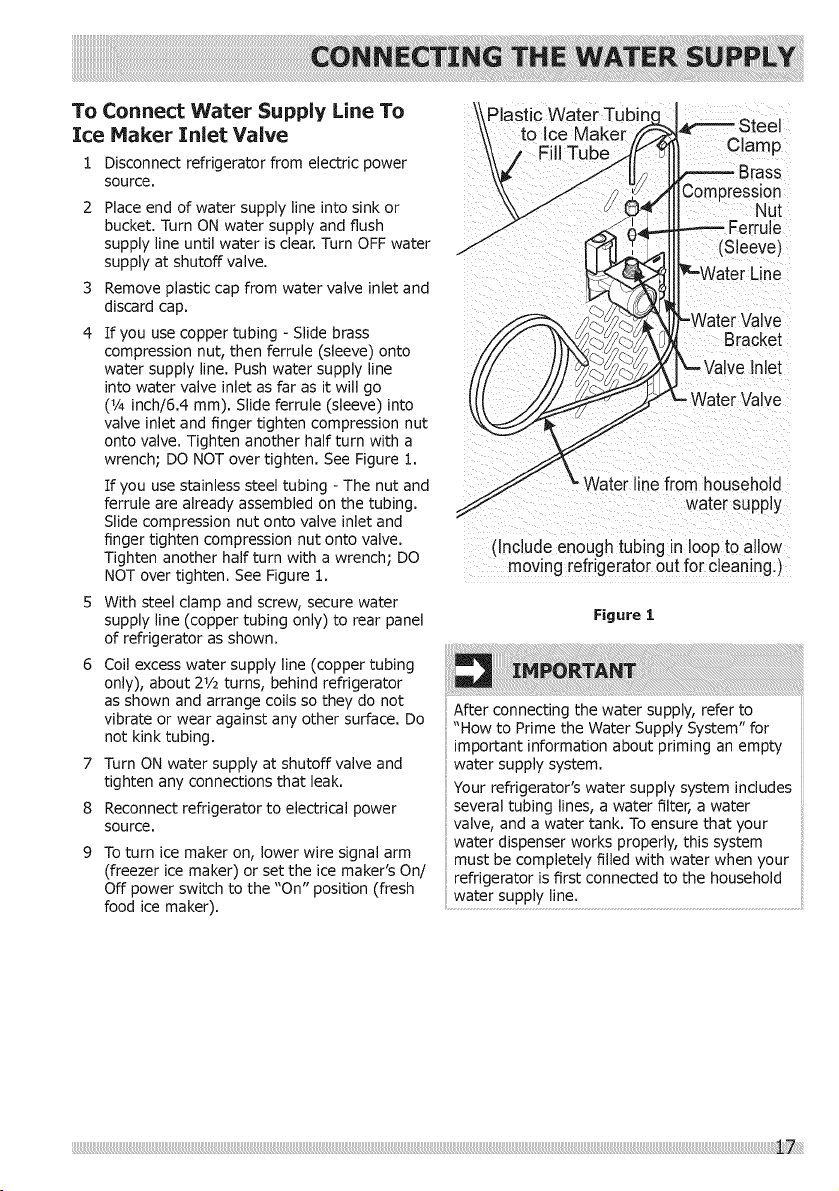

To Connect Water Supply Line To
Ice Haker Inlet Valve
1 Disconnect refrigerator from electric power
source,
Place end of water supply line into sink or
bucket. Turn ON water supply and flush
supply line until water is clear. Turn OFF water
supply at shutoff valve.
3 Remove plastic cap from water valve inlet and
discard cap.
If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve) onto
water supply line. Push water supply line
into water valve inlet as far as it will go
(1/4 inch/6.4 mm). Slide ferrule (sleeve) into
valve inlet and finger tighten compression nut
onto valve. Tighten another half turn with a
wrench; DO NOT over tighten. See Figure 1.
If you use stainless steel tubing - The nut and
ferrule are already assembled on the tubing.
Slide compression nut onto valve inlet and
finger tighten compression nut onto valve.
Tighten another half turn with a wrench; DO
NOT over tighten. See Figure 1.
5 With steel clamp and screw, secure water
supply line (copper tubing only) to rear panel
of refrigerator as shown.
Coil excess water supply line (copper tubing
only), about 21/2 turns, behind refrigerator
as shown and arrange coils so they do not
vibrate or wear against any other surface. Do
not kink tubing.
7 Turn ON water supply at shutoff valve and
tighten any connections that leak.
8 Reconnect refrigerator to electrical power
source.
To turn ice maker on, lower wire signal arm
(freezer ice maker) or set the ice maker's On/
Off power switch to the "On" position (fresh
food ice maker).
Plastic Water Tubin
to Ice Maker
Clamp
Compression
Nut
rule
(Sleeve)
r Line
Ive
Bracket
; Inlet
_ehold
water supply
(Includeenoughtubing in loopto allow
movingrefrigeratoroutfor cleaning.)
Figure 1
After connecting the water supply, refer to
"How to Prime the Water Supply System" for
important information about priming an empty
water supply system.
Your refrigerator's water supply system includes
several tubing lines, a water filter, a water
valve, and a water tank. To ensure that your
water dispenser works properly, this system
must be completely filled with water when your
refrigerator is first connected to the household
water supply line.
'17

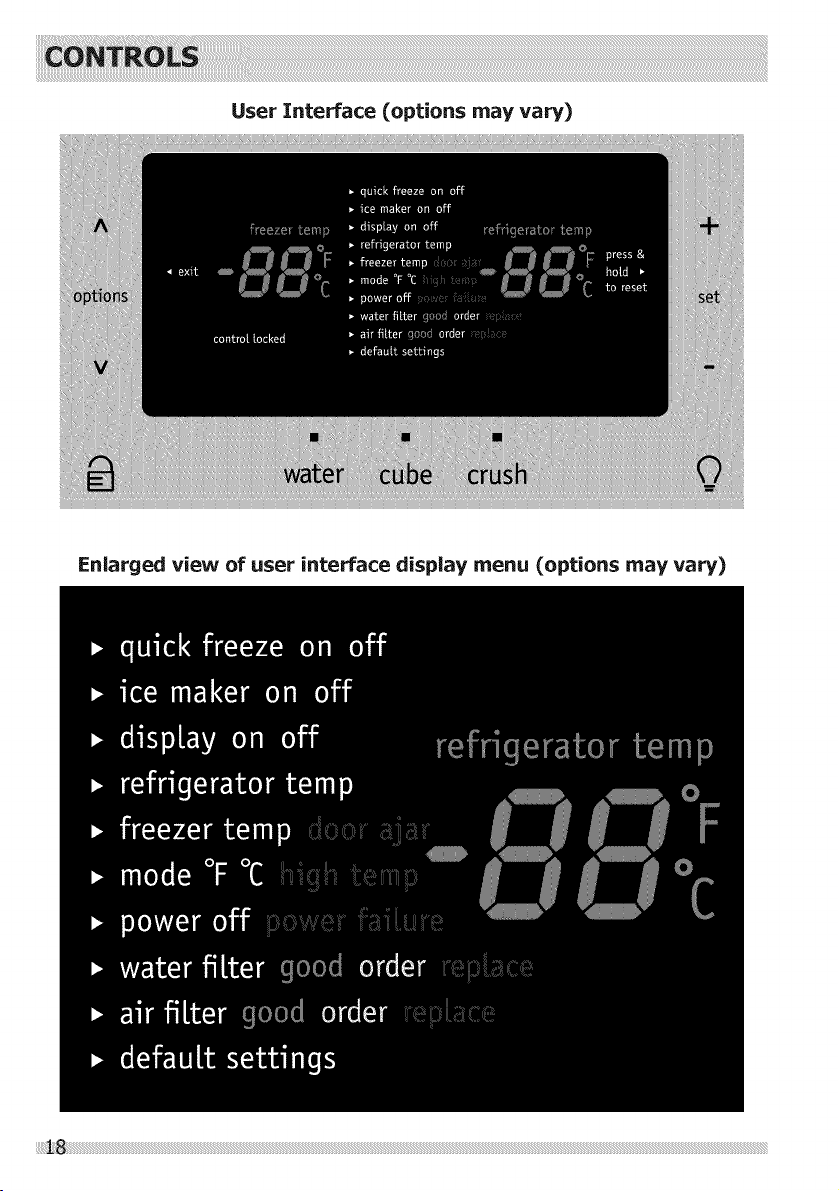

User Interface (options may vary)
Enlarged view of user interface display menu (options may vary)
Options Hay Vary
exit
quick
freeze on
off
Toggles the options and run
modes.
Activates a faster rate for
freezing food and increases
ice production in the freezer.
Deactivates after 12 hours.
default
settings
water
While in the default option,
press and hold the set key
for three seconds to reset all
refrigerator settings to their
factory default settings.
Press the "water" key to select
water. A green indicator light will
be illuminated above the active
feature.
Toggles the temperature
displays On and Off.
crush
Press the "crush" key to select
crushed ice. A green indicator
light will be illuminated above
the active feature.
water filter
Allows the temperature set-
points to be adjusted. Control
temperatures range from -6°F /
-21°C to +6°F / -15°C.
Toggles dispenser light On and
Off.
Displays the current status of
the water filter (Good, Order,
or Replace). To reset the filter
status to "Good', press and hold
the "set" key for three seconds.

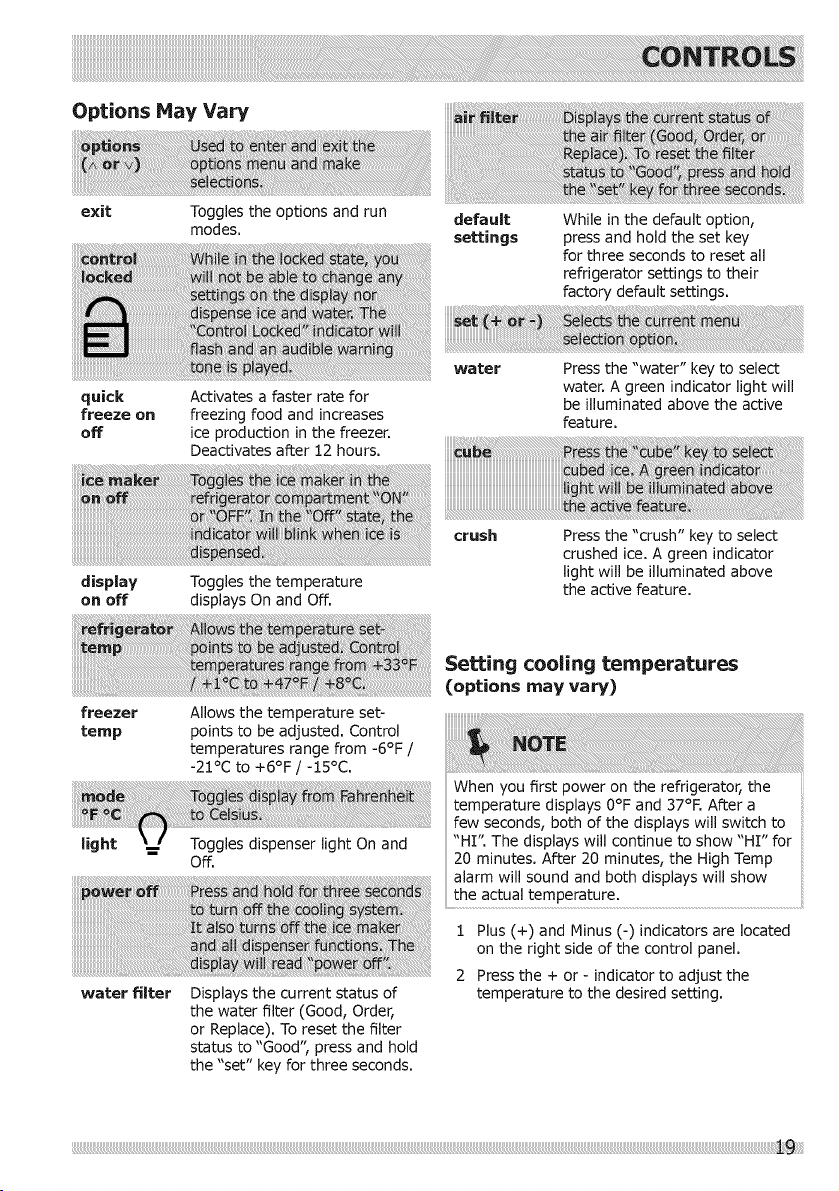

Setting cooling temperatures
(options may vary)
When you first power on the refrigerator, the
temperature displays 0°F and 37°F. After a
few seconds, both of the displays will switch to
"HI': The displays will continue to show "HI" for
20 minutes. After 20 minutes, the High Temp
alarm will sound and both displays will show
.........the actual temperature.
1
2
Plus (+) and Minus (-) indicators are located
on the right side of the control panel.
Press the + or - indicator to adjust the
temperature to the desired setting.
'19

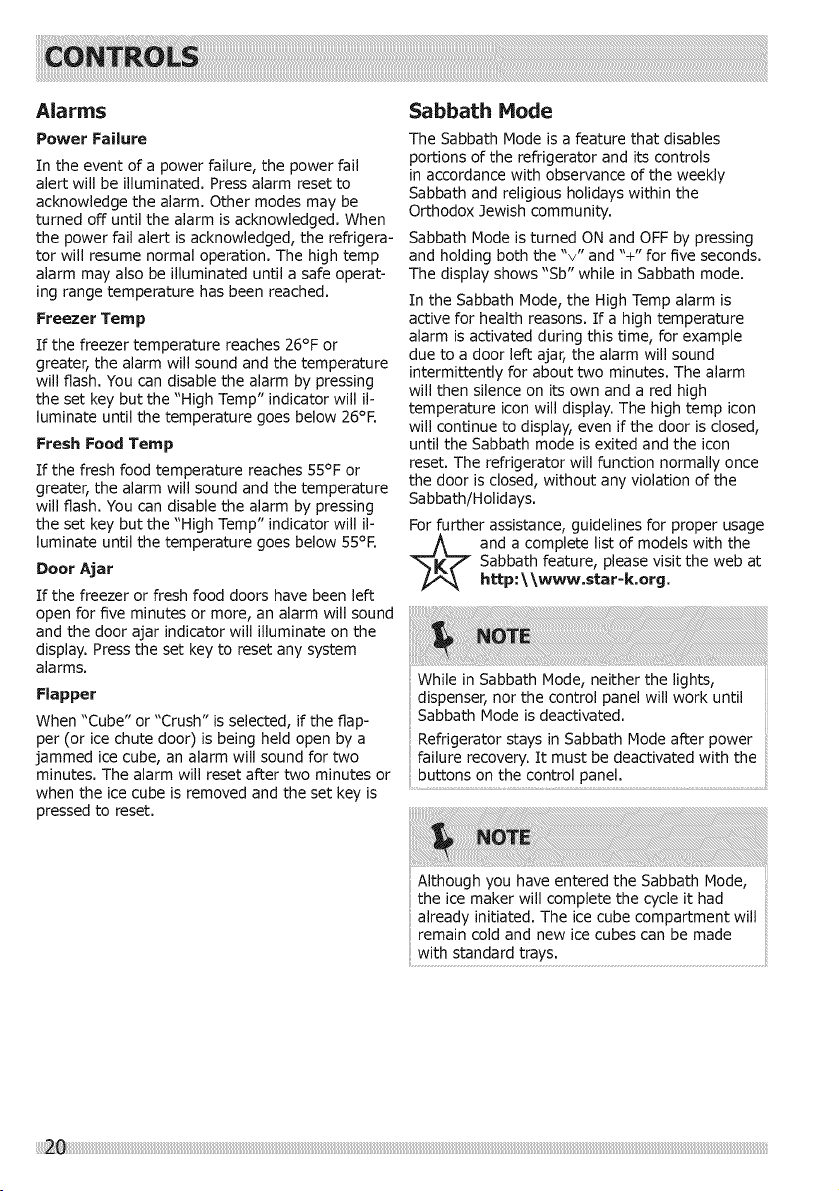

Alarms
Power Failure
Inthe event of a power failure, the power fail
alert will be illuminated. Press alarm reset to
acknowledge the alarm. Other modes may be
turned off until the alarm is acknowledged. When
the power fail alert is acknowledged, the refrigera-
tor will resume normal operation. The high temp
alarm may also be illuminated until a safe operat-
ing range temperature has been reached.
Freezer Temp
If the freezer temperature reaches 26°F or
greater, the alarm will sound and the temperature
will flash. You can disable the alarm by pressing
the set key but the "High Temp" indicator will il-
luminate until the temperature goes below 26°F.
Fresh Food Temp
If the fresh food temperature reaches 55°F or
greater, the alarm will sound and the temperature
will flash. You can disable the alarm by pressing
the set key but the "High Temp" indicator will il-
luminate until the temperature goes below 55°F.
Door Ajar
If the freezer or fresh food doors have been left
open for five minutes or more, an alarm will sound
and the door ajar indicator will illuminate on the
display. Press the set key to reset any system
alarms.
Flapper
When "Cube" or "Crush" is selected, if the flap-
per (or ice chute door) is being held open by a
jammed ice cube, an alarm will sound for two
minutes. The alarm will reset after two minutes or
when the ice cube is removed and the set key is
pressed to reset.
Sabbath Mode
The Sabbath Mode is a feature that disables
portions of the refrigerator and its controls
in accordance with observance of the weekly
Sabbath and religious holidays within the
Orthodox Jewish community.
Sabbath Mode is turned ON and OFF by pressing
and holding both the "v" and "+" for five seconds.
The display shows "Sb" while in Sabbath mode.
In the Sabbath Mode, the High Temp alarm is
active for health reasons. If a high temperature
alarm is activated during this time, for example
due to a door left ajar, the alarm will sound
intermittently for about two minutes. The alarm
will then silence on its own and a red high
temperature icon will display. The high temp icon
will continue to display, even if the door is closed,
until the Sabbath mode is exited and the icon
reset. The refrigerator will function normally once
the door is closed, without any violation of the
Sabbath/Holidays.
For further assistance, guidelines for proper usage
and a complete list of models with the
Sabbath feature, please visit the web at
http:\ \www.star-k.org.
While in Sabbath Mode, neither the lights,
dispenser, nor the control panel will work until
Sabbath Mode is deactivated.
Refrigerator stays in Sabbath Mode after power
failure recovery. It must be deactivated with the
bu_°ns °n the c°ntr°! pane!: ...............................................
Although you have entered the Sabbath Mode,
the ice maker will complete the cycle it had
already initiated. The ice cube compartment will
remain cold and new ice cubes can be made
with standard trays.
2 0

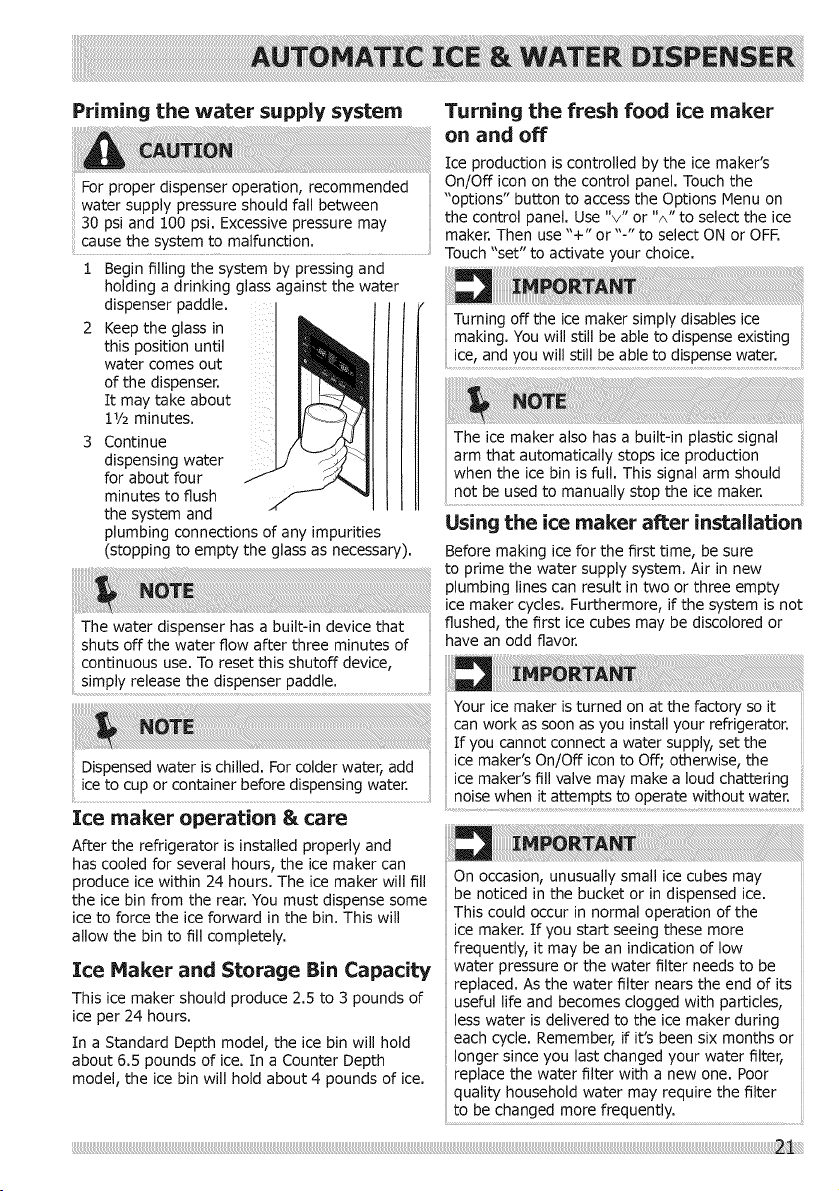

Priming the water supply system
For proper dispenser operation, recommended
water supply pressure should fall between
30 psi and 100 psi. Excessive pressure may
Turning the fresh food ice maker
on and off
cause the system to malfunction.
Ice production is controlled by the ice maker's
On/Off icon on the control panel. Touch the
"options" button to access the Options Menu on
the control panel. Use "v" or "A" to select the ice
maker. Then use "+" or "-" to select ON or OFF.
.......................................... Touch "set" to activate your choice.
Begin filling the system by pressing and
holding a drinking glass against the water
dispenser paddle.
Keep the glass in
this position until
water comes out
of the dispenser.
It may take about
11/2 minutes.
Continue
dispensing water
for about four
minutes to flush
the system and
plumbing connections of any impurities
(stopping to empty the glass as necessary).
The water dispenser has a built-in device that
shuts off the water flow after three minutes of
continuous use. To reset this shutoff device,
simply release the dispenser paddle.
Dispensed water is chilled. For colder water, add
ice to cup or container before dispensing water.
Turning off the ice maker simply disables ice
making. You will still be able to dispense existing
ice, and you will still be able to dispense water.
The ice maker also has a built-in plastic signal
arm that automatically stops ice production
when the ice bin is full. This signal arm should
Using the ice maker after installation
Before making ice for the first time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three empty
ice maker cycles. Furthermore, if the system is not
flushed, the first ice cubes may be discolored or
have an odd flavor.
Your ice maker is turned on at the factory so it
can work as soon as you install your refrigerator.
If you cannot connect a water supply, set the
ice maker's On/Off icon to Off; otherwise, the
ice maker's fill valve may make a loud chattering
........ noise when it attempts to operate without water.
Ice maker operation & care
After the refrigerator is installed properly and
has cooled for several hours, the ice maker can
produce ice within 24 hours. The ice maker will fill
the ice bin from the rear. You must dispense some
ice to force the ice forward in the bin. This will
allow the bin to fill completely.
Ice Maker and Storage Bin Capacity
This ice maker should produce 2.5 to 3 pounds of
ice per 24 hours.
In a Standard Depth model, the ice bin will hold
about 6.5 pounds of ice. In a Counter Depth
model, the ice bin will hold about 4 pounds of ice.
On occasion, unusually small ice cubes may
be noticed in the bucket or in dispensed ice.
This could occur in normal operation of the
ice maker. If you start seeing these more
frequently, it may be an indication of low
water pressure or the water filter needs to be
replaced. As the water filter nears the end of its
useful life and becomes clogged with particles,
less water is delivered to the ice maker during
each cycle. Remember, if it's been six months or
longer since you last changed your water filter,
replace the water filter with a new one. Poor
quality household water may require the filter
to be changed more frequently.

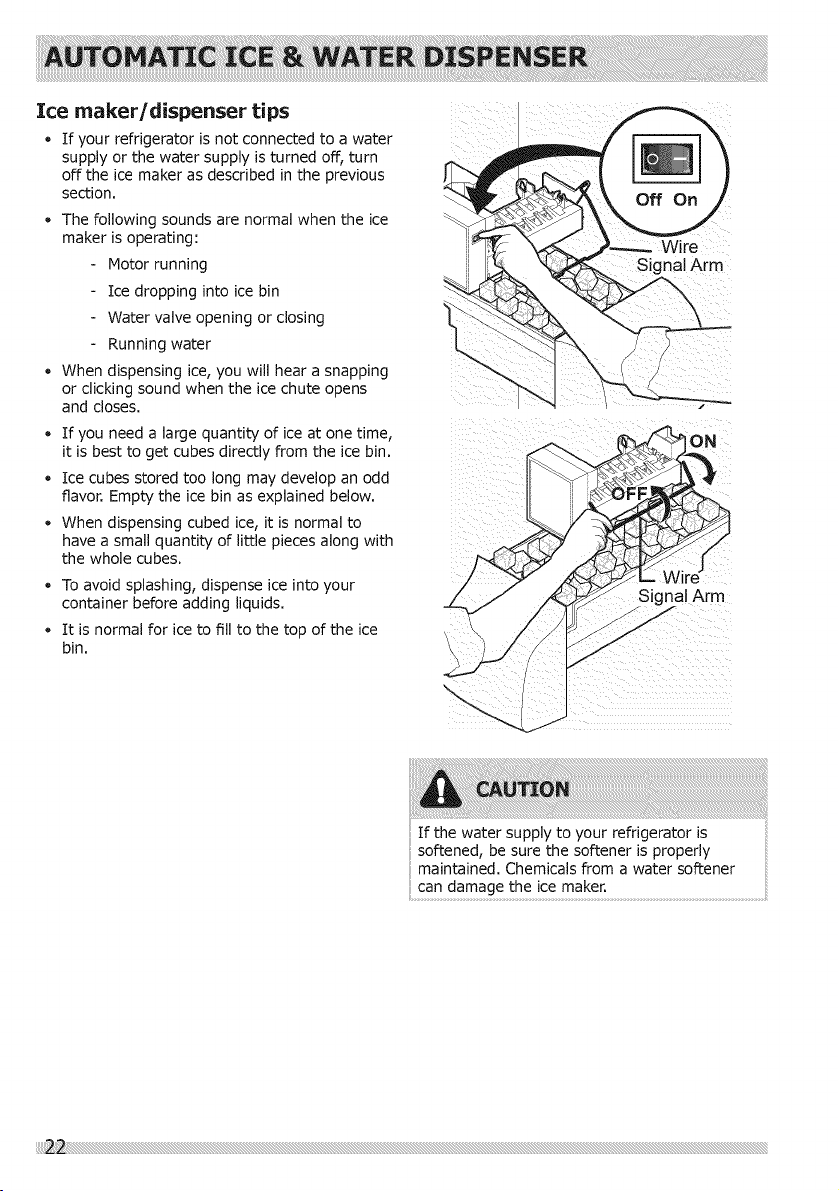

Ice maker/dispenser tips
,, If your refrigerator is not connected to a water
supply or the water supply is turned off, turn
off the ice maker as described in the previous
section.
• The following sounds are normal when the ice
maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
When dispensing ice, you will hear a snapping
or clicking sound when the ice chute opens
and closes.
If you need a large quantity of ice at one time,
it is best to get cubes directly from the ice bin.
Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
When dispensing cubed ice, it is normal to
have a small quantity of little pieces along with
the whole cubes.
To avoid splashing, dispense ice into your
container before adding liquids.
It is normal for ice to fill to the top of the ice
bin.
rire
ON
Signal Arm
If the water supply to your refrigerator is
softened, be sure the softener is properly
maintained. Chemicals from a water softener
can damage the ice maker.

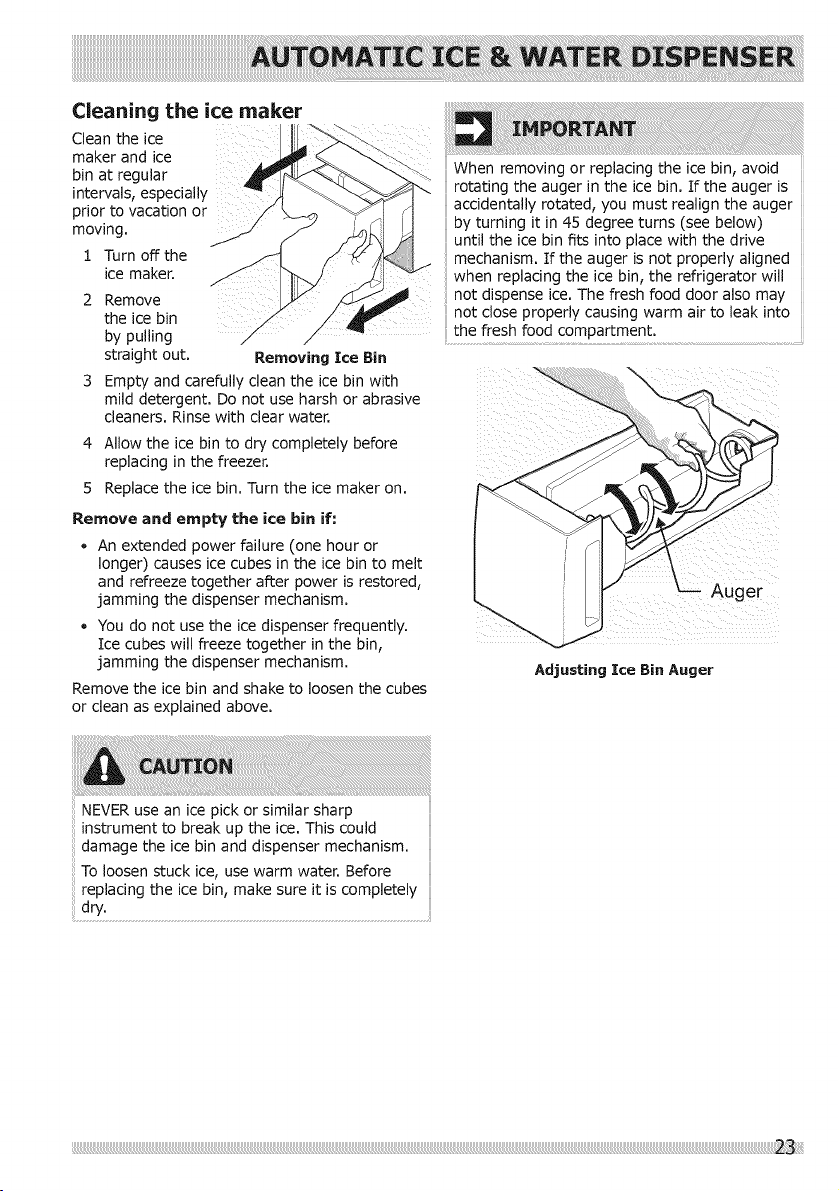

Cleaning the ice maker
Clean the ice
maker and ice ..........
bin at regular
intervals, especially
prior to vacation or
moving.
1 Turn off the
ice maker.
Remove
the ice bin
by pulling
straight out.
Removing Ice Bin
When removing or replacing the ice bin, avoid
rotating the auger in the ice bin. If the auger is
accidentally rotated, you must realign the auger
by turning it in 45 degree turns (see below)
until the ice bin fits into place with the drive
mechanism. If the auger is not properly aligned
when replacing the ice bin, the refrigerator will
not dispense ice. The fresh food door also may
not close properly causing warm air to leak into
the fresh food compartment.
Empty and carefully clean the ice bin with
mild detergent. Do not use harsh or abrasive
cleaners. Rinse with clear water.
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if =
An extended power failure (one hour or
longer) causes ice cubes in the ice bin to melt
and refreeze together after power is restored,
jamming the dispenser mechanism.
You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice bin and shake to loosen the cubes
or clean as explained above.
Auger
Adjusting Ice Bin Auger
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin and dispenser mechanism.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely
dry. ................................................................................................................................................................................................................................

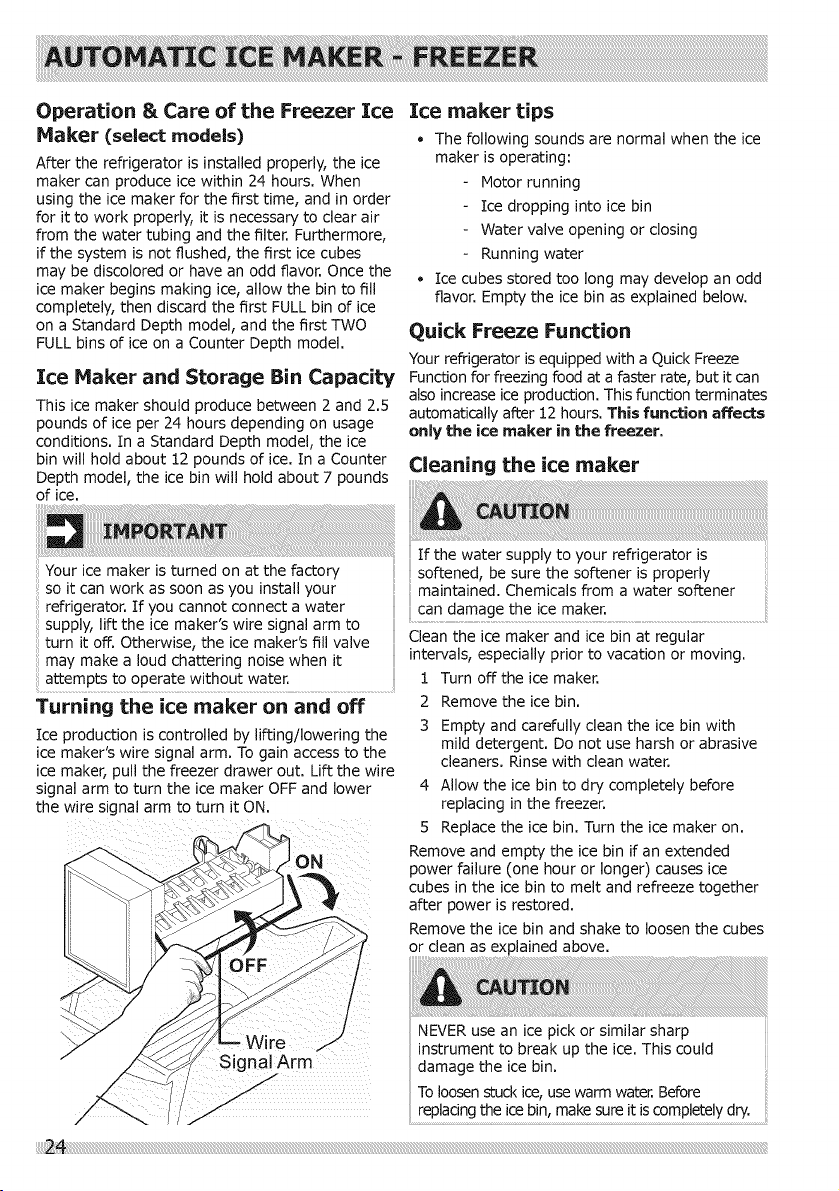

Operation 8=Care of the Freezer Ice
Maker (select models)
After the refrigerator is installed properly, the ice
maker can produce ice within 24 hours. When
using the ice maker for the first time, and in order
for it to work properly, it is necessary to clear air
from the water tubing and the filter. Furthermore,
if the system is not flushed, the first ice cubes
may be discolored or have an odd flavor. Once the
ice maker begins making ice, allow the bin to fill
completely, then discard the first FULL bin of ice
on a Standard Depth model, and the first TWO
FULL bins of ice on a Counter Depth model.
Ice Maker and Storage Bin Capacity
This ice maker should produce between 2 and 2.5
pounds of ice per 24 hours depending on usage
conditions. In a Standard Depth model, the ice
bin will hold about 12 pounds of ice. In a Counter
Depth model, the ice bin will hold about 7 pounds
of ice.
Ice maker tips
= The following sounds are normal when the ice
maker is operating:
Motor running
Ice dropping into ice bin
Water valve opening or closing
Running water
Ice cubes stored too long may develop an odd
flavor. Empty the ice bin as explained below.
Quick Freeze Function
Your refrigerator is equipped with a Quick Freeze
Function for freezing food at a faster rate, but it can
also increase ice production. This function terminates
automatically after 12 hours. This function affects
only the ice maker in the freezer.
Cleaning the ice maker
If the
water supply to
your
refrigerator
is
Your ice maker is turned on at the factory softened, be sure the softener is properly
so it can work as soon as you install your maintained. Chemicals from a water softener
refrigerator. If you cannot connect a water can damage the ice maker.
supply, lift the ice maker's wire signal arm to ....................................................
turn it off. Otherwise, the ice maker's fill valve Clean the ice maker and ice bin at regular
may make a loud chattering noise when it ,ntervals, espedally prior to vacation or moving.
attempts to operate without water. 1 Turn off the ice maker.
Turning the ice maker on and off 2 Remove the ice bin.
3 Empty and carefully clean the ice bin with
mild detergent. Do not use harsh or abrasive
cleaners. Rinse with clean water.
Ice production is controlled by lifting/lowering the
ice maker's wire signal arm. To gain access to the
ice maker, pull the freezer drawer out. Lift the wire
signal arm to turn the ice maker OFF and lower
the wire signal arm to turn it ON.
ignal Arm
4 Allow the ice bin to dry completely before
replacing in the freezer.
5 Replace the ice bin. Turn the ice maker on.
Remove and empty the ice bin if an extended
power failure (one hour or longer) causes ice
cubes in the ice bin to melt and refreeze together
after power is restored.
Remove the ice bin and shake to loosen the cubes
or clean as explained above.
NEVER use an ice pick or similar sharp
instrument to break up the ice. This could
damage the ice bin.
To loosen stuck ice, use warm water. Before
replacing the ice bin, make sure it is completely dry.

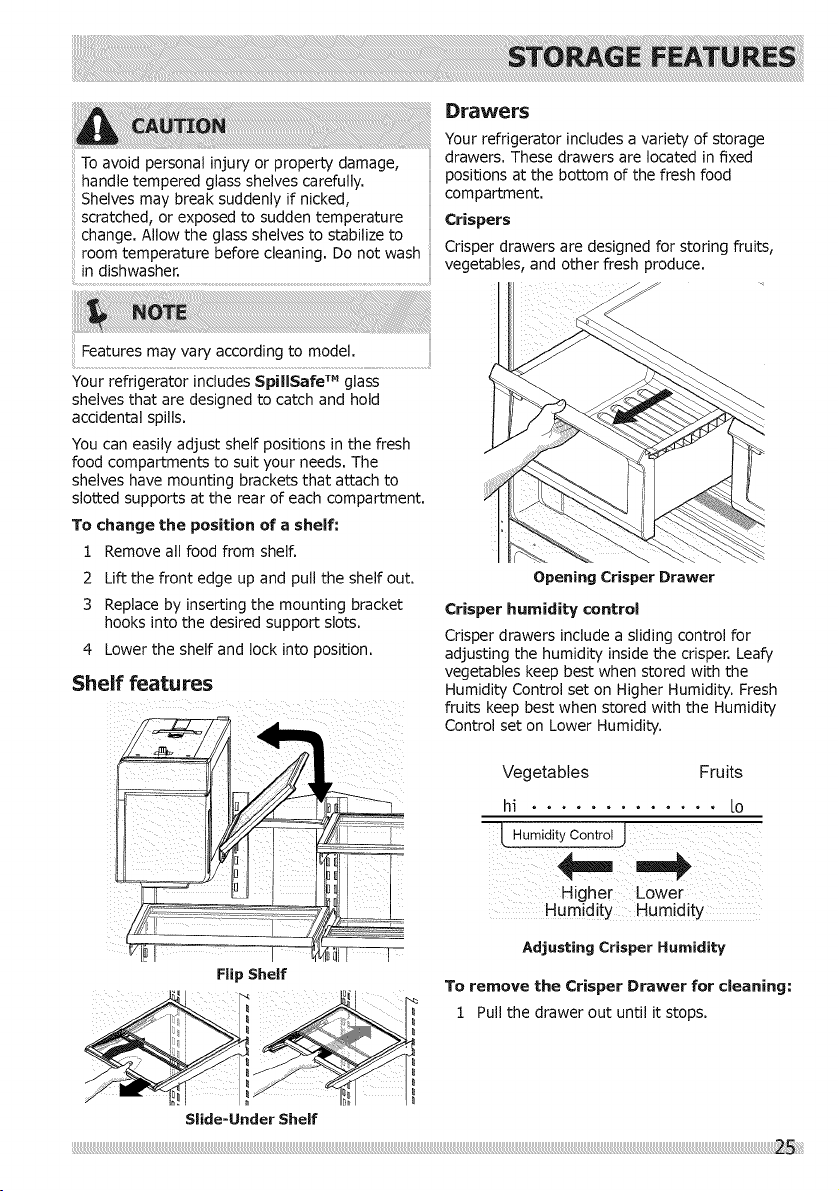

Toavoidpersonalinjuryorpropertydamage,
handletemperedglassshelvescarefully.
Shelvesmaybreaksuddenlyifnicked,
scratched,orexposedtosuddentemperature
change.Allowtheglassshelvestostabilizeto
roomtemperaturebeforecleaning.Donotwash
indishwasher.
Drawers
Your refrigerator includes a variety of storage
drawers. These drawers are located in fixed
positions at the bottom of the fresh food
compartment.
Crispers
Crisper drawers are designed for storing fruits,
vegetables, and other fresh produce.
Features may vary according to model.
Your refrigerator includes SpillSafe TM glass
shelves that are designed to catch and hold
accidental spills.
You can easily adjust shelf positions in the fresh
food compartments to suit your needs. The
shelves have mounting brackets that attach to
slotted supports at the rear of each compartment.
To change the position of a shelf:
1 Remove all food from shelf.
2 Lift the front edge up and pull the shelf out.
3 Replace by inserting the mounting bracket
hooks into the desired support slots.
4 Lower the shelf and lock into position.
Shelf features
Flip Shelf
Opening Crisper Drawer
Crisper humidity control
Crisper drawers include a sliding control for
adjusting the humidity inside the crisper, Leafy
vegetables keep best when stored with the
Humidity Control set on Higher Humidity. Fresh
fruits keep best when stored with the Humidity
Control set on Lower Humidity.
Vegetables Fruits
hi ............. Lo
[ HumidityControl J
Higher Lower
Humidity Humidity
Adjusting Crisper Humidity
To remove the Crisper Drawer for cleaning"
1 Pull the drawer out until it stops.
Slide=Under Shelf
2 Lift the front slightly and remove the drawer.

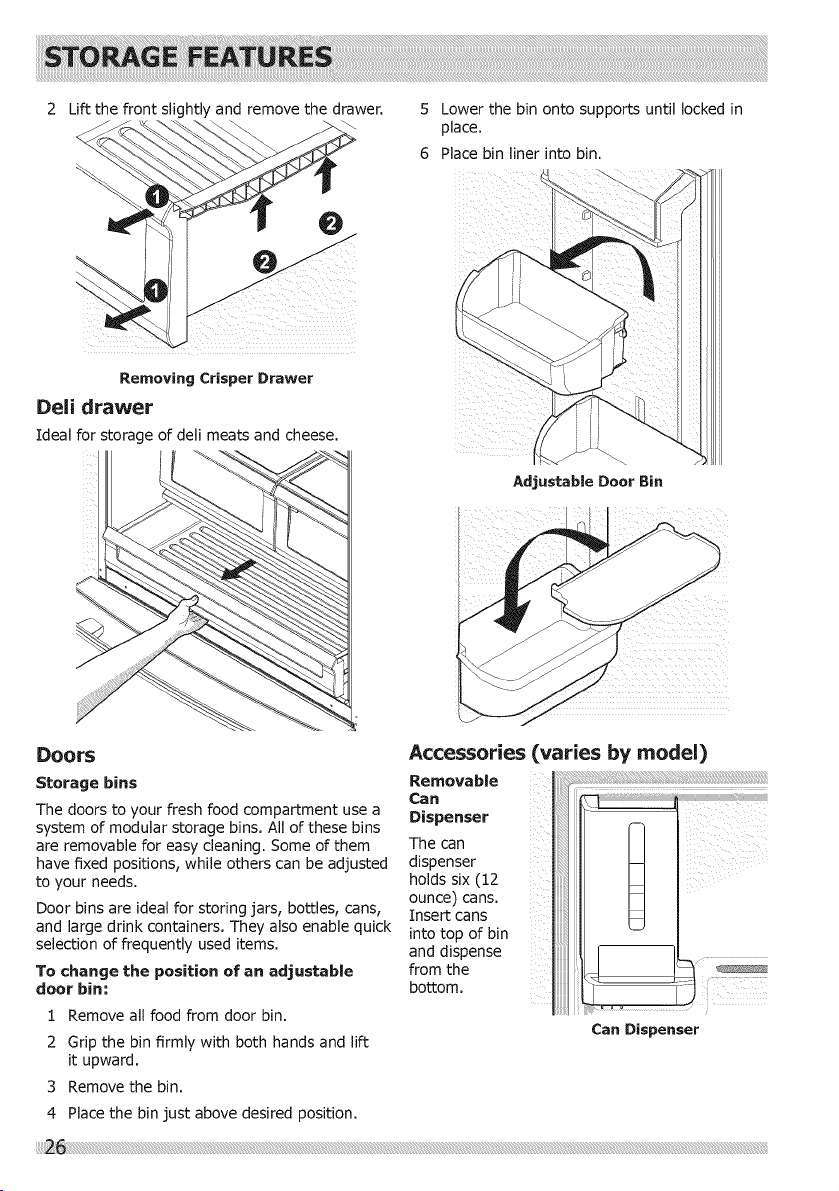

Removing Crisper Drawer
DeE drawer
Ideal for storage of deli meats and cheese.
\
5
6
Lower the bin onto supports until locked in
place.
Place bin liner into bin.
Adjustable Door Bin
Doors
Storage bins
The doors to your fresh food compartment use a
system of modular storage bins. All of these bins
are removable for easy cleaning. Some of them
have fixed positions, while others can be adjusted
to your needs.
Door bins are ideal for storing jars, bottles, cans,
and large drink containers. They also enable quick
selection of frequently used items.
To change the position of an adjustable
door bin:
1 Remove all food from door bin.
2 Grip the bin firmly with both hands and lift
it upward.
3 Remove the bin.
4 Place the bin just above desired position.
Accessories (varies by model)
Removable
Can
Dispenser
t
Thedispensercan
holds six (12
ounce) cans.
Insert cans
into top of bin
and dispense
from the
bottom.
Can Dispenser

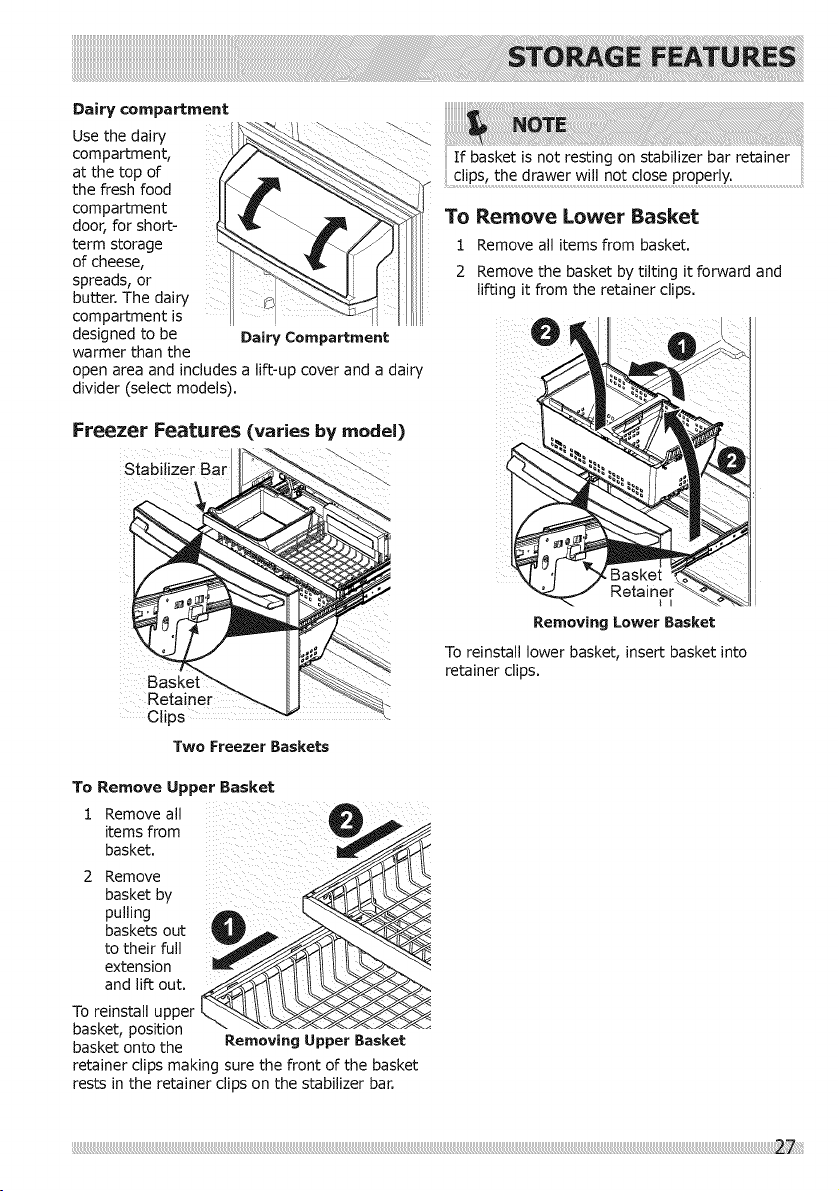

Dairycompartment
Use the dairy
compartment,
at the top of
the fresh food
compartment
door, for short-
term storage
ofcheese,
spreads, or
butter. The dairy
compartment is
designed to be Dairy Compartment
warmer than the
open area and includes a lift-up cover and a dairy
divider [select models).
Freezer Features (varies by model)
Stabilizer Bar
If basket is not resting on stabilizer bar retainer
.......c!ips, the drawer wi!! not c!ose Pr0Per!y:..................................................
To Remove Lower Basket
1 Remove all items from basket.
2 Remove the basket by tilting it forward and
lifting it from the retainer clips.
Ret_
CIips
Two Freezer Baskets
To Remove Upper Basket
1 Remove all
items from
basket.
2 Remove
basket by
pulling
baskets out
to their full
extension
and lift out.
To reinstall upper
basket, position
basket onto the
retainer clips making sure the front of the basket
rests in the retainer clips on the stabilizer bar.
Removing Upper Basket
Removing Lower Basket
To reinstall lower basket, insert basket into
retainer clips.

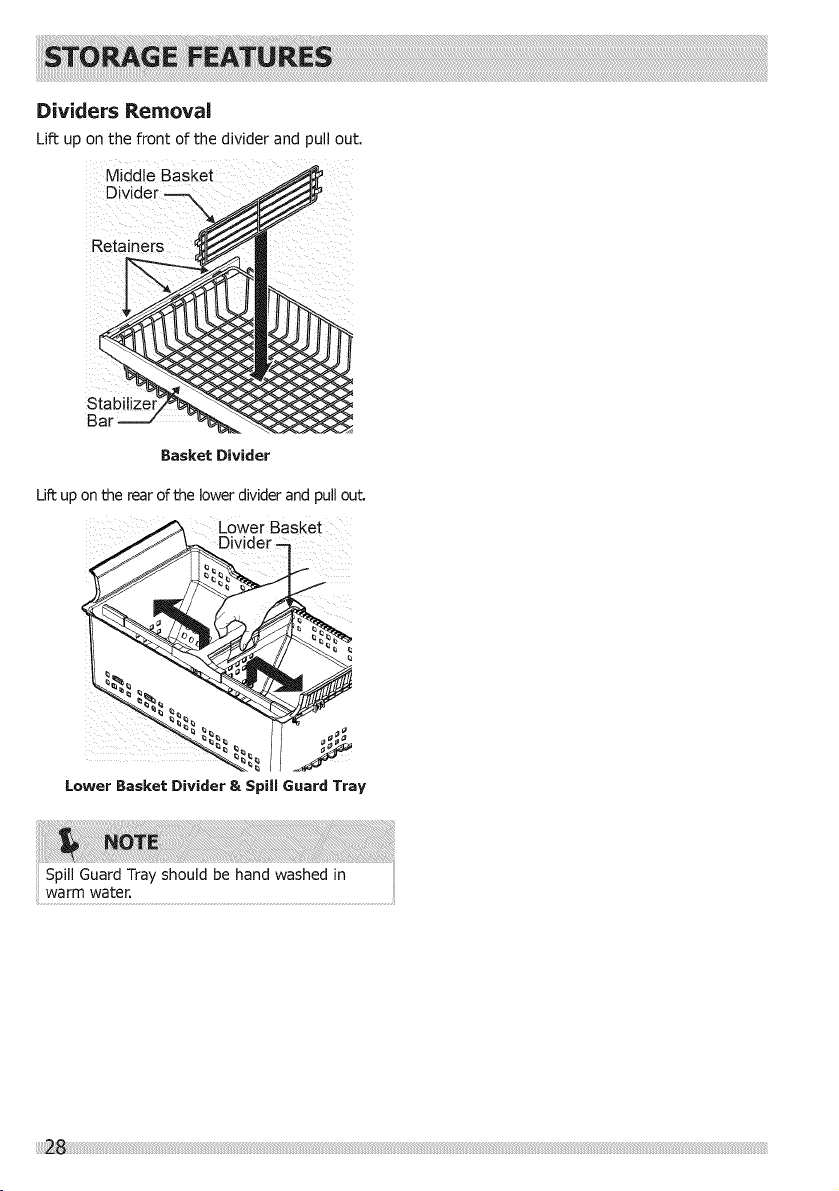

Dividers Removal
Lift up on the front of the divider and pull out.
Middle Basket
D
Retain_
Stabilize
Bar
Basket Divider
Lift up on the rear of the lower divider and pull out.
Lower Basket
Divider
Lower Basket Divider & Spill Guard Tray
Spill Guard Tray should be hand washed in
warm water,
8

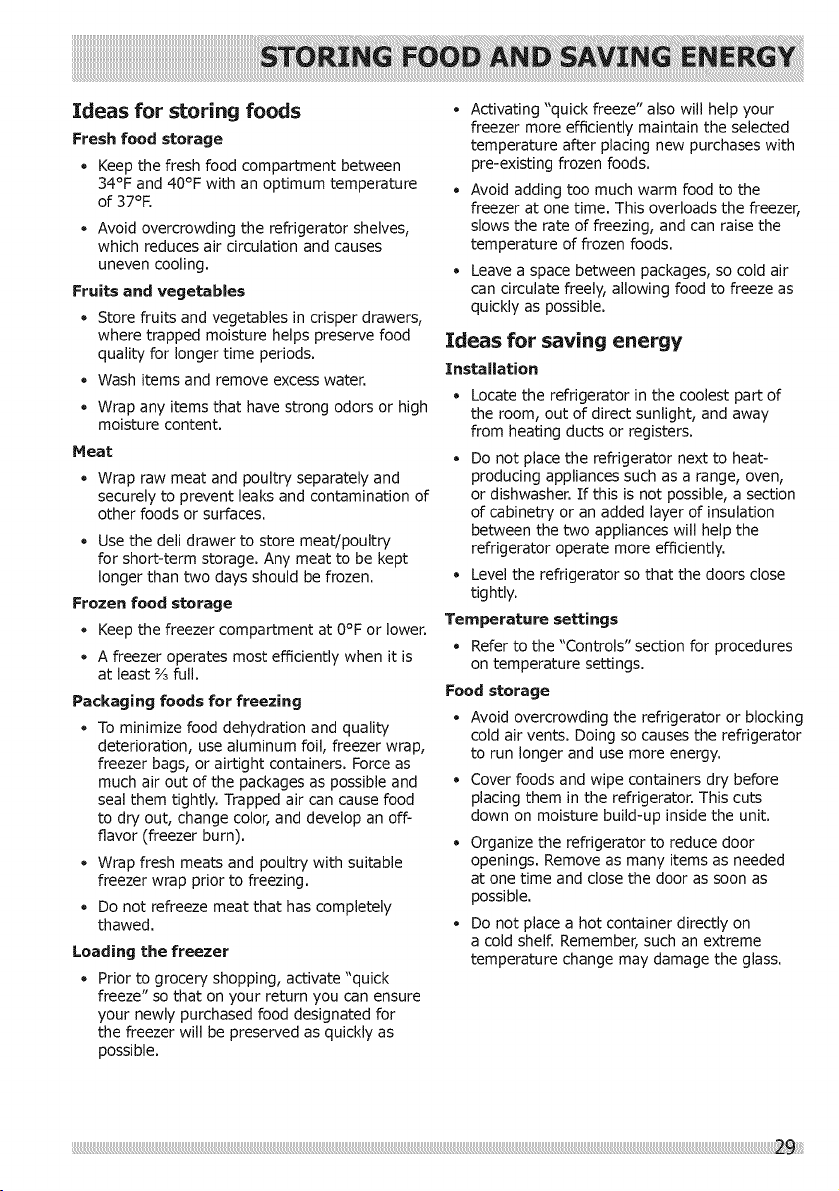

Ideas for storing foods
Fresh food storage
• Keep the fresh food compartment between
34°F and 40°F with an optimum temperature
of 37°F.
Avoid overcrowding the refrigerator shelves,
which reduces air circulation and causes
uneven cooling.
Fruits and vegetables
Store fruits and vegetables in crisper drawers,
where trapped moisture helps preserve food
quality for longer time periods.
Wash items and remove excess water.
Wrap any items that have strong odors or high
moisture content.
Meat
Wrap raw meat and poultry separately and
securely to prevent leaks and contamination of
other foods or surfaces.
• Use the dell drawer to store meat/poultry
for short-term storage. Any meat to be kept
longer than two days should be frozen.
Frozen food storage
• Keep the freezer compartment at 0°F or lower.
• A freezer operates most efficiently when it is
at least % full.
Packaging foods for freezing
To minimize food dehydration and quality
deterioration, use aluminum foil, freezer wrap,
freezer bags, or airtight containers. Force as
much air out of the packages as possible and
seal them tightly. Trapped air can cause food
to dry out, change color, and develop an off-
flavor (freezer burn).
• Wrap fresh meats and poultry with suitable
freezer wrap prior to freezing.
Do not refreeze meat that has completely
thawed.
Loading the freezer
Prior to grocery shopping, activate "quick
freeze" so that on your return you can ensure
your newly purchased food designated for
the freezer will be preserved as quickly as
possible.
Activating "quick freeze" also will help your
freezer more efficiently maintain the selected
temperature after placing new purchases with
pre-existing frozen foods.
Avoid adding too much warm food to the
freezer at one time. This overloads the freezer,
slows the rate of freezing, and can raise the
temperature of frozen foods.
Leave a space between packages, so cold air
can circulate freely, allowing food to freeze as
quickly as possible.
Ideas for saving energy
Installation
Locate the refrigerator in the coolest part of
the room, out of direct sunlight, and away
from heating ducts or registers.
Do not place the refrigerator next to heat-
producing appliances such as a range, oven,
or dishwasher. If this is not possible, a section
of cabinetry or an added layer of insulation
between the two appliances will help the
refrigerator operate more efficiently.
Level the refrigerator so that the doors close
tightly.
Temperature settings
• Refer to the "Controls" section for procedures
on temperature settings.
Food storage
• Avoid overcrowding the refrigerator or blocking
cold air vents. Doing so causes the refrigerator
to run longer and use more energy.
• Cover foods and wipe containers dry before
placing them in the refrigerator, This cuts
down on moisture build-up inside the unit.
Organize the refrigerator to reduce door
openings. Remove as many items as needed
at one time and close the door as soon as
possible.
• Do not place a hot container directly on
a cold shelf. Remember, such an extreme
temperature change may damage the glass.

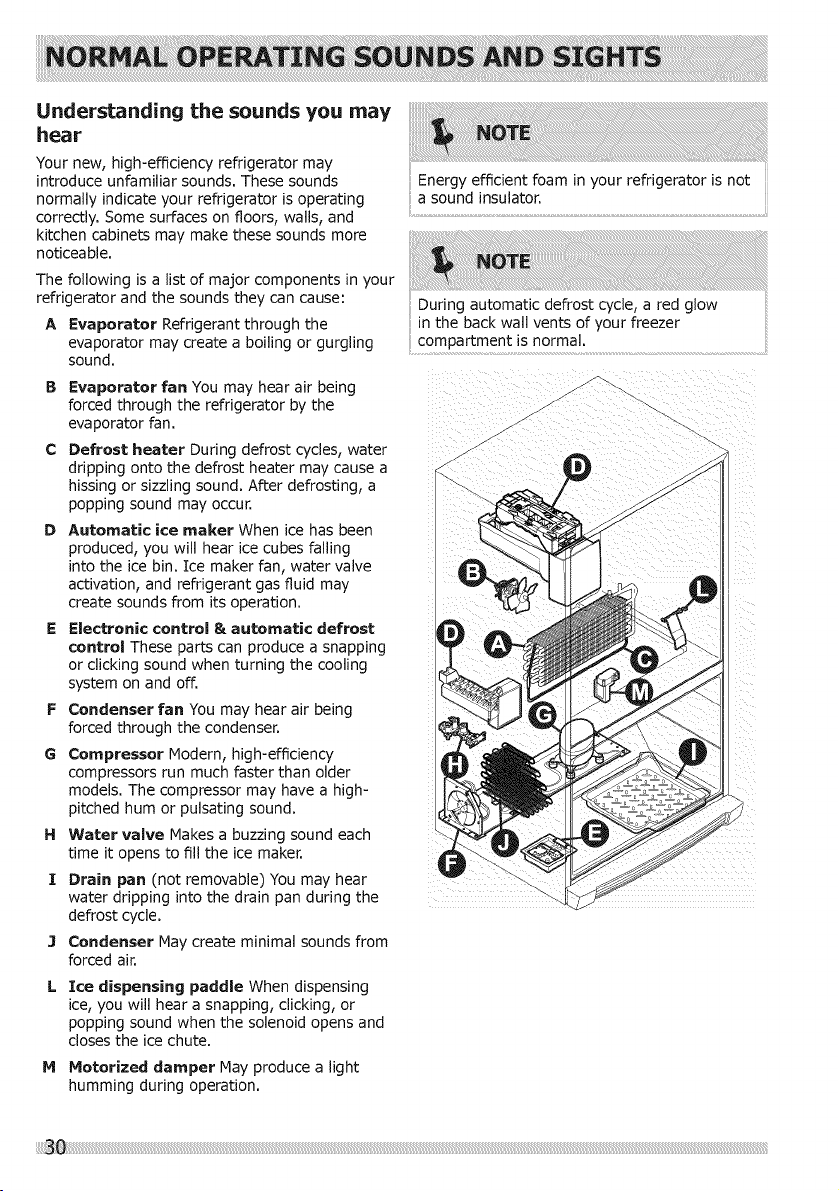

Understanding the sounds you may
hear
Your new, high-efficiency refrigerator may
introduce unfamiliar sounds. These sounds
normally indicate your refrigerator is operating
correctly. Some surfaces on floors, walls, and
kitchen cabinets may make these sounds more
noticeable.
The following is a list of major components in your
refrigerator and the sounds they can cause:
A Evaporator Refrigerant through the
evaporator may create a boiling or gurgling
sound.
C
Evaporator fan You may hear air being
forced through the refrigerator by the
evaporator fan.
Defrost heater During defrost cycles, water
dripping onto the defrost heater may cause a
hissing or sizzling sound. After defrosting, a
popping sound may occur.
D Automatic ice maker When ice has been
produced, you will hear ice cubes falling
into the ice bin. Ice maker fan, water valve
activation, and refrigerant gas fluid may
create sounds from its operation.
Electronic control & automatic defrost
control These parts can produce a snapping
or clicking sound when turning the cooling
system on and off.
F Condenser fan You may hear air being
forced through the condenser.
G Compressor Modern, high-efficiency
compressors run much faster than older
models. The compressor may have a high-
pitched hum or pulsating sound.
H Water valve Makes a buzzing sound each
time it opens to fill the ice maker.
I Drain pan (not removable) You may hear
water dripping into the drain pan during the
defrost cycle.
J Condenser May create minimal sounds from
forced air.
L Ice dispensing paddle When dispensing
ice, you wiii hear a snapping, clicking, or
popping sound when the solenoid opens and
closes the ice chute.
M Motorized damper May produce a light
humming during operation.
Energy efficient foam in your refrigerator is not
During automatic defrost cycle, a red glow
in the back wall vents of your freezer
compartmentisnormal
J
_J
i i i ilili !

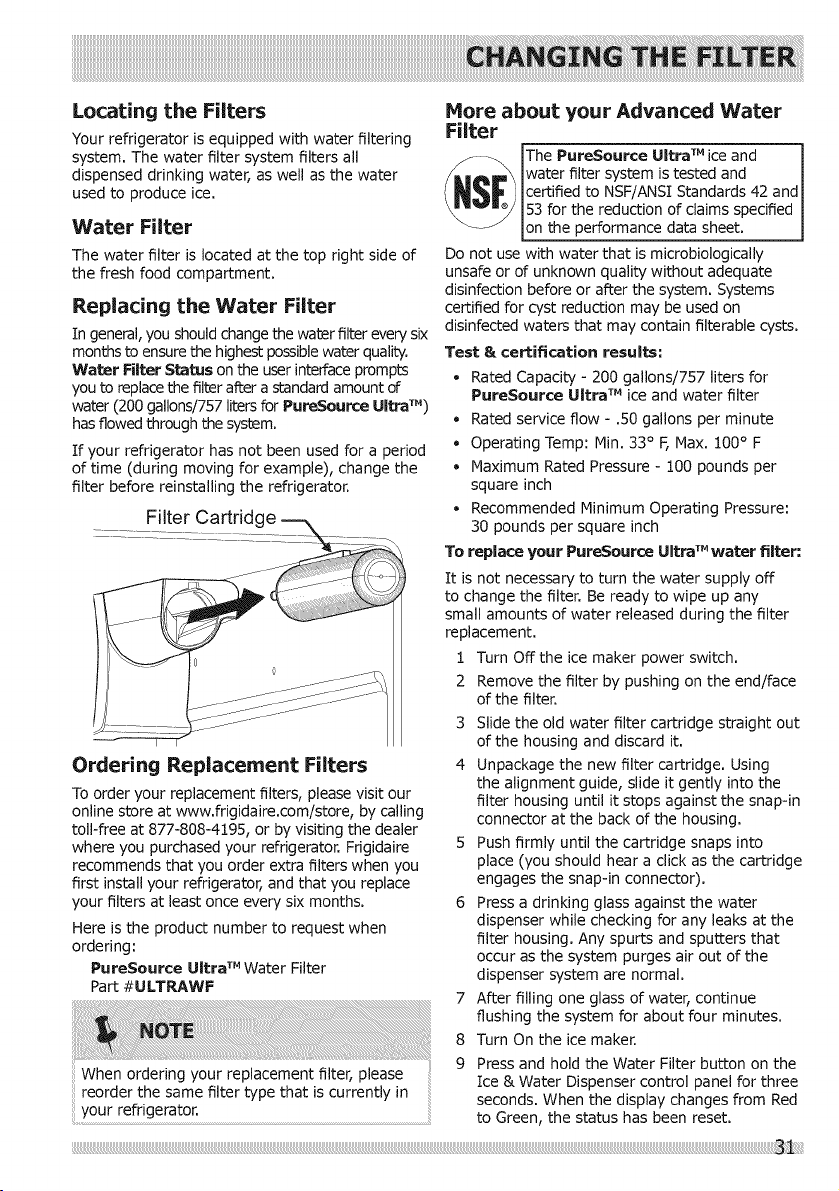

Locating the Filters
Your refrigerator is equipped with water filtering
system. The water filter system filters all
dispensed drinking water, as well as the water
used to produce ice.
Water Filter
The water filter is located at the top right side of
the fresh food compartment.
Replacing the Water Filter
In general, you should change the water filter every six
months to ensure the highest possible water quality.
Water Filter Status on the user interface prompts
you to replace the filter after a standard amount of
water (200 gallons/757 liters for PureSource Ultra TM)
has flowed through the system.
If your refrigerator has not been used for a period
of time (during moving for example), change the
filter before reinstalling the refrigerator.
Filter Cartridge
More about your Advanced Water
Filter
_--_ I-The PureSource Ultra TM ice and 1
fl_ll_l_ll_'\ I water filter system is tested and |
I _,_ )1certified to NSF/ANSI Standards 42 and|
_!,,_=_ 153 for the reduction of claims specified I
"_- J |on the performance data sheet, j
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certified for cyst reduction may be used on
disinfected waters that may contain filterable cysts.
Test & certification results:
* Rated Capacity - 200 gallons/757 liters for
PureSource I.Iltra TM ice and water filter
• Rated service flow - .50 gallons per minute
• Operating Temp: Min. 33 ° F, Max. 100 ° F
• Maximum Rated Pressure - 100 pounds per
square inch
• Recommended Minimum Operating Pressure:
30 pounds per square inch
To replace your PureSource Ultra TM water filter:
It is not necessary to turn the water supply off
to change the filter. Be ready to wipe up any
small amounts of water released during the filter
replacement.
1 Turn Off the ice maker power switch.
2 Remove the filter by pushing on the end/face
of the filter.
Ordering Replacement Filters
To order your replacement filters, please visit our
online store at www.frigidaire.com/store, by calling
toll-free at 877-808-4195, or by visiting the dealer
where you purchased your refrigerator. Frigidaire
recommends that you order extra filters when you
first install your refrigerator, and that you replace
your filters at least once every six months.
Here is the product number to request when
ordering:
PureSource Ultra TM Water Filter
Part #ULTRAWF
When ordering your replacement filter, please
reorder the same filter type that is currently in
your refrigerator.
3 Slide the old water filter cartridge straight out
of the housing and discard it.
4 Unpackage the new filter cartridge. Using
the alignment guide, slide it gently into the
filter housing until it stops against the snap-in
connector at the back of the housing.
5 Push firmly until the cartridge snaps into
place (you should hear a click as the cartridge
engages the snap-in connector).
6 Press a drinking glass against the water
dispenser while checking for any leaks at the
filter housing. Any spurts and sputters that
occur as the system purges air out of the
dispenser system are normal.
7 After filling one glass of water, continue
flushing the system for about four minutes.
8 Turn On the ice maker.
9 Press and hold the Water Filter button on the
Ice & Water Dispenser control panel for three
seconds. When the display changes from Red
to Green, the status has been reset.
31

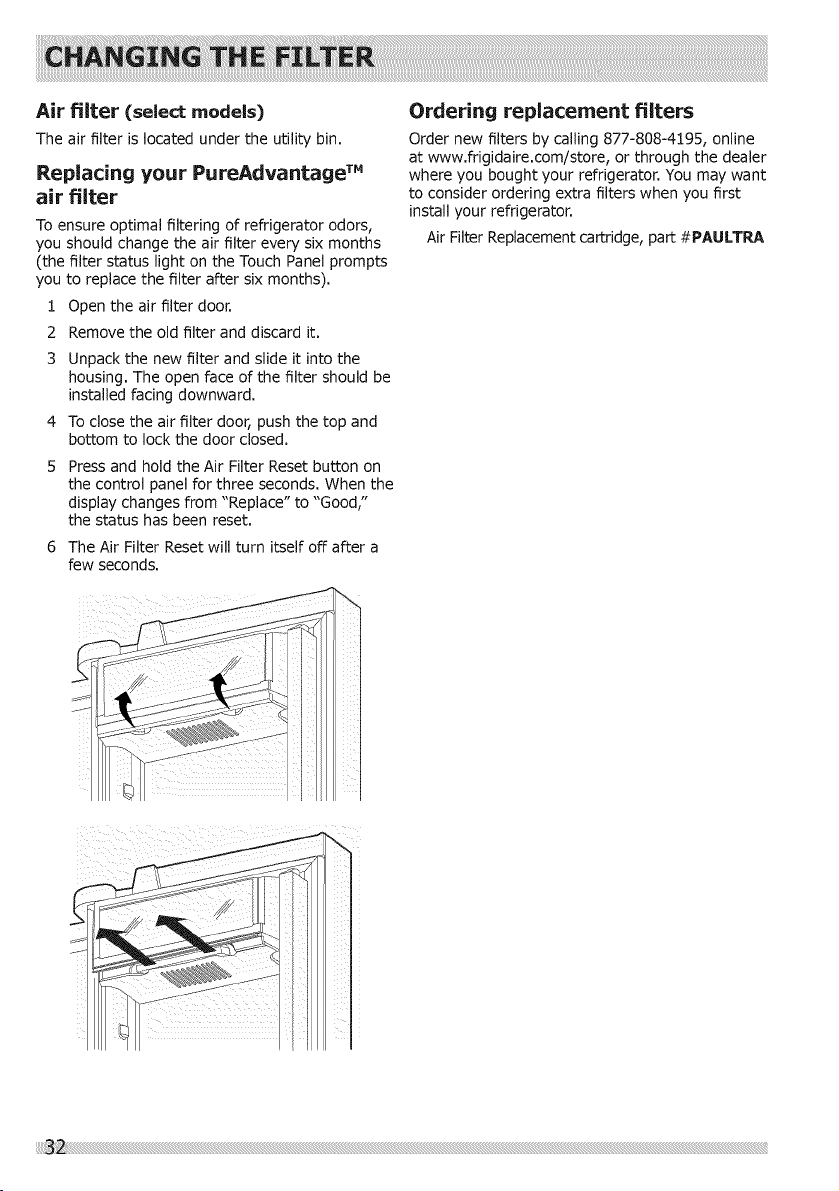

Air filter (select models)
The air filter is located under the utility bin.
Replacing your PureAdvantage TM
air filter
To ensure optimal filtering of refrigerator odors,
you should change the air filter every six months
(the filter status light on the Touch Panel prompts
you to replace the filter after six months).
1 Open the air filter door.
2 Remove the old filter and discard it.
3 Unpack the new filter and slide it into the
housing. The open face of the filter should be
installed facing downward.
4 To close the air filter door, push the top and
bottom to lock the door closed.
Press and hold the Air Filter Reset button on
the control panel for three seconds. When the
display changes from "Replace" to "Good,"
the status has been reset.
6 The Air Filter Reset will turn itself off after a
few seconds.
Ordering replacement filters
Order new filters by calling 877-808-4195, online
at www.frigidaire.com/store, or through the dealer
where you bought your refrigerator. You may want
to consider ordering extra filters when you first
install your refrigerator.
Air Filter Replacement cartridge, part #PAULTRA

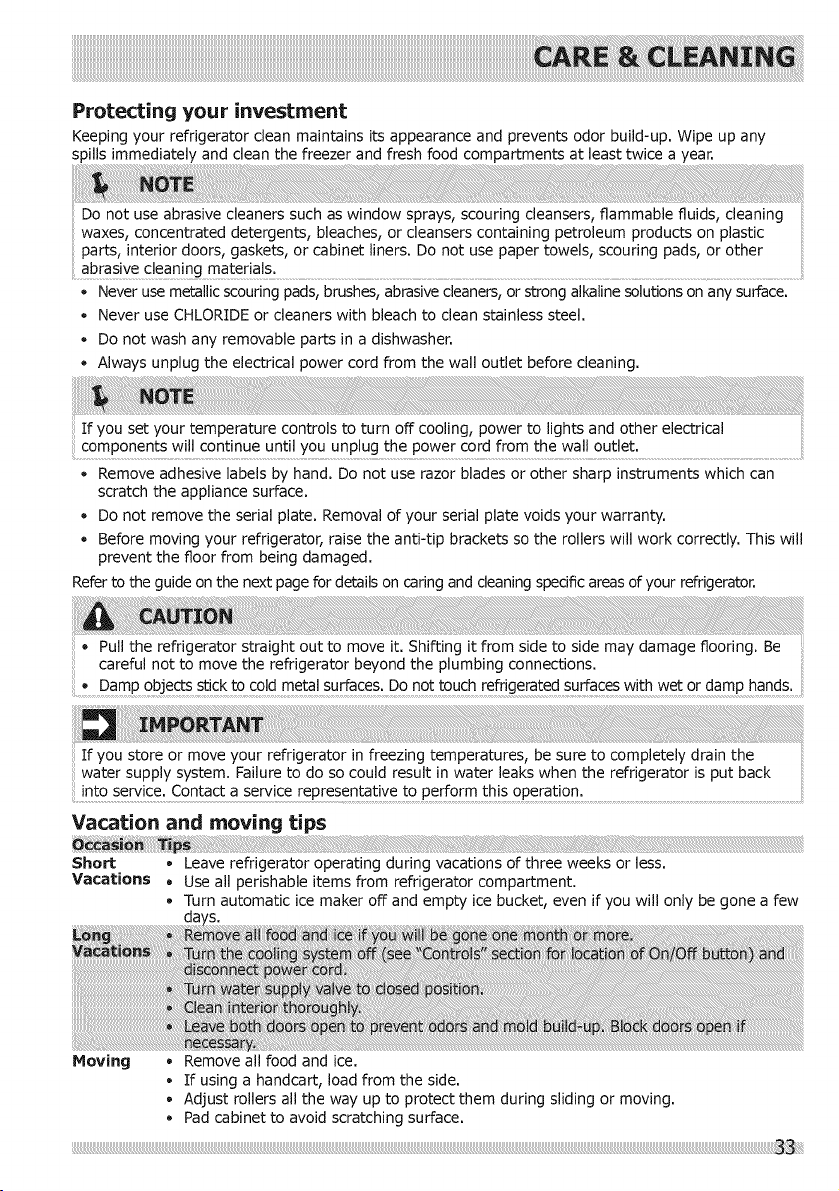

Protecting your investment
Keeping your refrigerator clean maintains its appearance and prevents odor build-up. Wipe up any
spills immediately and clean the freezer and fresh food compartments at least twice a year.
Do not use abrasive cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning
waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic
parts, interior doors, gaskets, or cabinet liners. Do not use paper towels, scouring pads, or other
abrasive cleaning materials: ......................................................................
* Never use metallic scouring pads, brushes, abrasive cleaners, or strong alkaline solutions on any surface.
Never use CHLORIDE or cleaners with bleach to clean stainless steel.
Do not wash any removable parts in a dishwasher.
Always unplug the electrical power cord from the wall outlet before cleaning.
If you set your temperature controls to turn off cooling, power to lights and other electrical
components will continue until you unplug the power cord from the wall outlet.
Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which can
scratch the appliance surface.
Do not remove the serial plate. Removal of your serial plate voids your warranty.
Before moving your refrigerator, raise the anti-tip brackets so the rollers will work correctly. This will
prevent the floor from being damaged.
Refer to the guide on the next page for details on caring and cleaning specific areas of your refrigerator.
Pull the refrigerator straight out to move it. Shifting it from side to side may damage flooring. Be
careful not to move the refrigerator beyond the plumbing connections.
°bJe_s tO €o!d tQUChrefrigerated surfaces with w_o r damp
If you store or move your refrigerator in freezing temperatures, be sure to completely drain the
water supply system. Failure to do so could result in water leaks when the refrigerator is put back
!nto serv!ce. Contact a service
Vacation and moving tips
Short * Leave refrigerator operating during vacations of three weeks or less.
Vacations . Use all perishable items from refrigerator compartment.
• Turn automatic ice maker off and empty ice bucket, even if you will only be gone a few
Moving , Remove all food and ice.
If using a handcart, load from the side.
Adjust rollers all the way up to protect them during sliding or moving.
Pad cabinet to avoid scratching surface.
33

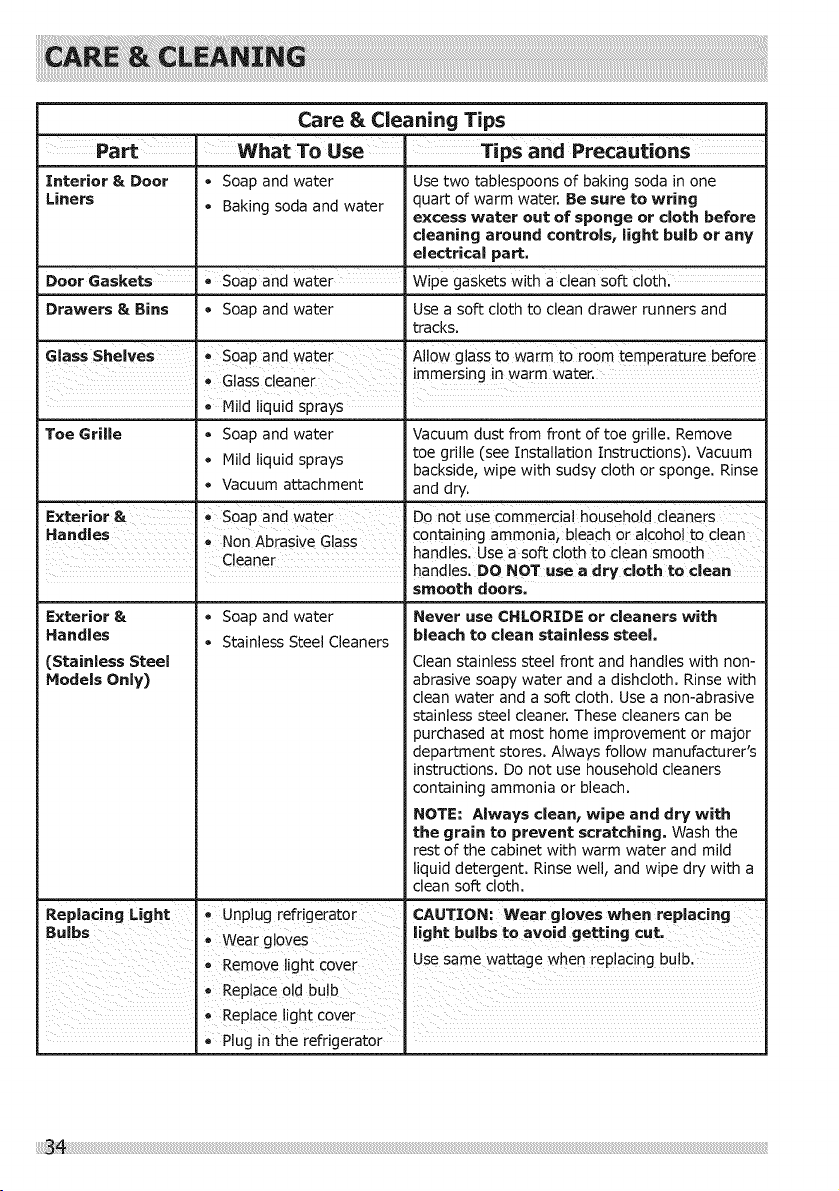

Care & Cleaning Tips
Part What To Use' Tips and Precautions
Interior & Door * Soap and water Use two tablespoons of baking soda in one
Liners • Baking soda and water quart of warm water. Be sure to wring
excess water out of sponge or cloth before
cleaning around controls, light bulb or any
electrical part.
Door Gaskets , Soap and water wipe gaskets with a clean soft cloth:
Drawers & Bins • Soap and water Use a soft cloth to clean drawer runners and
tracks.
Glass Shelves ', Soap and water Allow glass to warm to room temperature before
' - Mild liquid sprays -
Toe Grille • Soap and water Vacuum dust from front of toe grille. Remove
• Mild liquid sprays toe grille (see Installation Instructions). Vacuum
backside, wipe with sudsy cloth or sponge. Rinse
• Vacuum attachment and dry.
Exterior & , Soap and water Do not use commercial household cleaners
Handles i* NonAbrasive Glass containing ammonia, bleach or alcoho! to clean
Cleaner handles. Use a soft cloth to dean smooth
, ,handles. DONOTuseadryclothtoclean
" smooth doors,
Exterior & * Soap and water Never use CHLORIDE or cleaners with
Handles • Stainless Steel Cleaners bleach to clean stainless steel.
(Stainless Steel Clean stainless steel front and handles with non-
Models Only) abrasive soapy water and a dishcloth. Rinse with
clean water and a soft cloth. Use a non-abrasive
stainless steel cleaner. These cleaners can be
purchased at most home improvement or major
department stores. Always follow manufacturer's
instructions. Do not use household cleaners
containing ammonia or bleach.
NOTE: Always clean, wipe and dry with
the grain to prevent scratching. Wash the
rest of the cabinet with warm water and mild
liquid detergent. Rinse well, and wipe dry with a
clean soft cloth.
Replacing Light Unplug refrigeiat0r CAUTION: Wear gloves when replacing
Bulbs ,wear lo es .ghtbulbstoavoidgeeingcut
g =
' Remove !gh t Cover Use same wa_age when replacing bu!b:
' Rep!ace 0!d bu!b I
' Replace Ight cover I
" _ Plug in the refrigerator

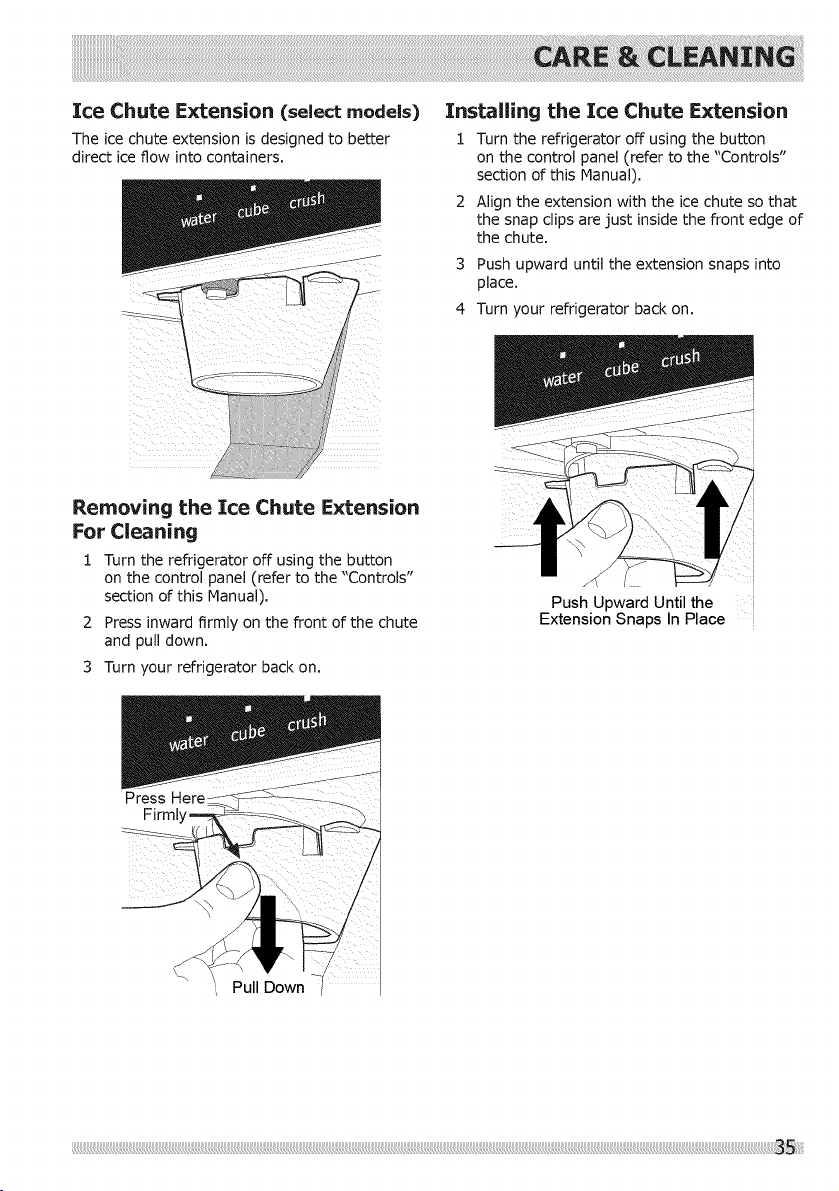

Ice Chute Extension (select models)
The ice chute extension is designed to better
direct ice flow into containers.
/
Removing the Ice Chute Extension
For Cleaning
1 Turn the refrigerator off using the button
on the control panel (refer to the "Controls"
section of this Manual).
2 Press inward firmly on the front of the chute
and pull down.
3 Turn your refrigerator back on.
Press
Firml'
Installing the Ice Chute Extension
1 Turn the refrigerator off using the button
on the control panel (refer to the "Controls"
section of this Manual).
2 Align the extension with the ice chute so that
the snap clips are just inside the front edge of
the chute.
3 Push upward until the extension snaps into
place.
4 Turn your refrigerator back on.
Push Upward Until the
Extension Snaps In Place
Pull Down

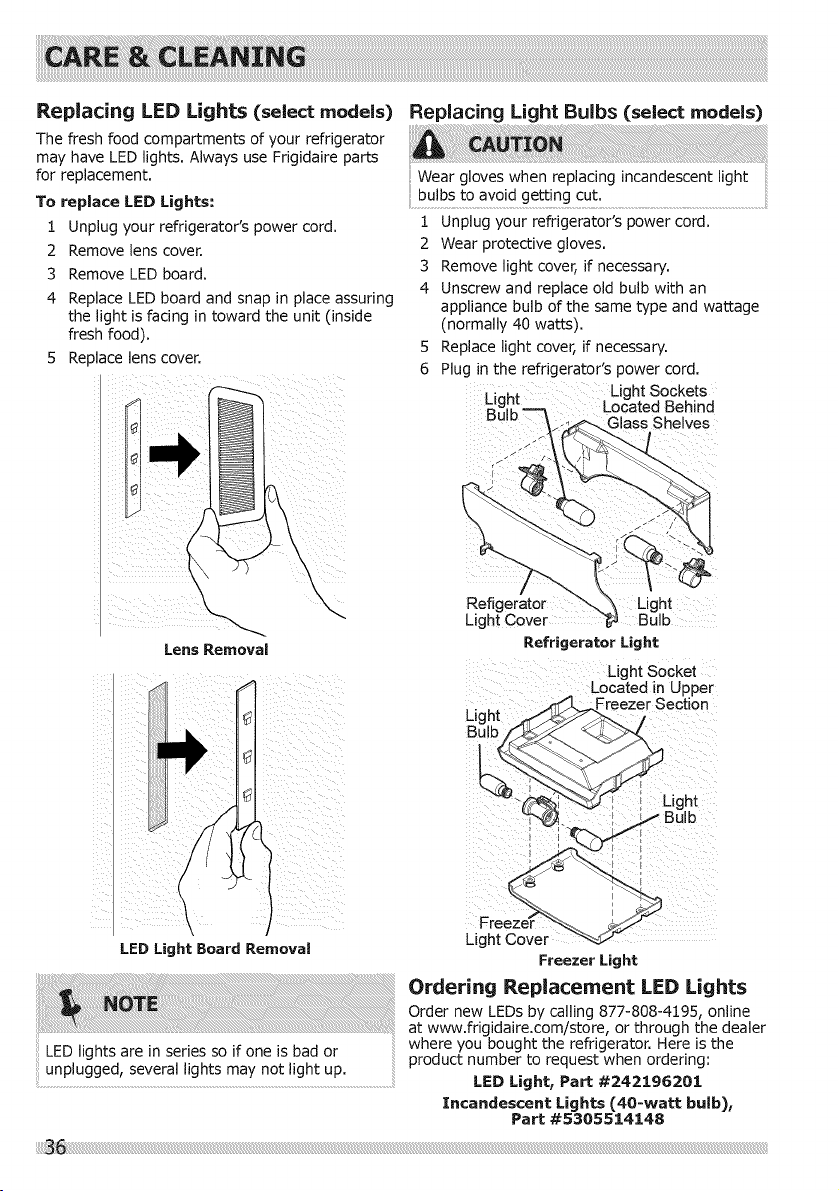

Replacing LED Lights (select models)
The fresh food compartments of your refrigerator
may have LED lights. Always use Frigidaire parts
for replacement.
To replace LED Lights:
1 Unplug your refrigerator's power cord.
2 Remove lens cover.
3 Remove LED board.
4 Replace LED board and snap in place assuring
the light is facing in toward the unit (inside
fresh food).
5 Replace lens cover.
Replacing Light Bulbs (select models)
Wear gloves when replacing incandescent light
bulbs to avoid getting cut.
1 Unplug your refrigerator's power cord.
2 Wear protective gloves.
3 Remove light cover, if necessary.
4 Unscrew and replace old bulb with an
appliance bulb of the same type and wattage
(normally 40 watts).
5 Replace light cover, if necessary.
6 Plug in the refrigerator's power cord.
Light Sockets
Lic ht Located Behind
;helves
Lens Removal
LED Light Board Removal
LED lights are in series so if one is bad or
unplugged,severallightsmaynotlightup.
/
Refigerator Light
Light Cover
Refrigerator Light
Light Socket
Located in Upper
_l _Freezer Section
Light J_:_... /
_'L ht
_ -d?_"--.W_ I g
_. _ Bulb
' i
Fre
Light Cover _
Freezer Light
Ordering Replacement LED Lights
Order new LEDs by calling 877-808-4195, online
at www.frigidaire.com/store, or through the dealer
where you bought the refrigerator. Here is the
product number to request when ordering:
LED Light, Part #242196201
Incandescent Lights (40-watt bulb),
Part #53055::[4148
I
1-800-944-9044(United States) I Visit our web site at
1-800-265-8352 (Canada) I www.frigldalre.corn

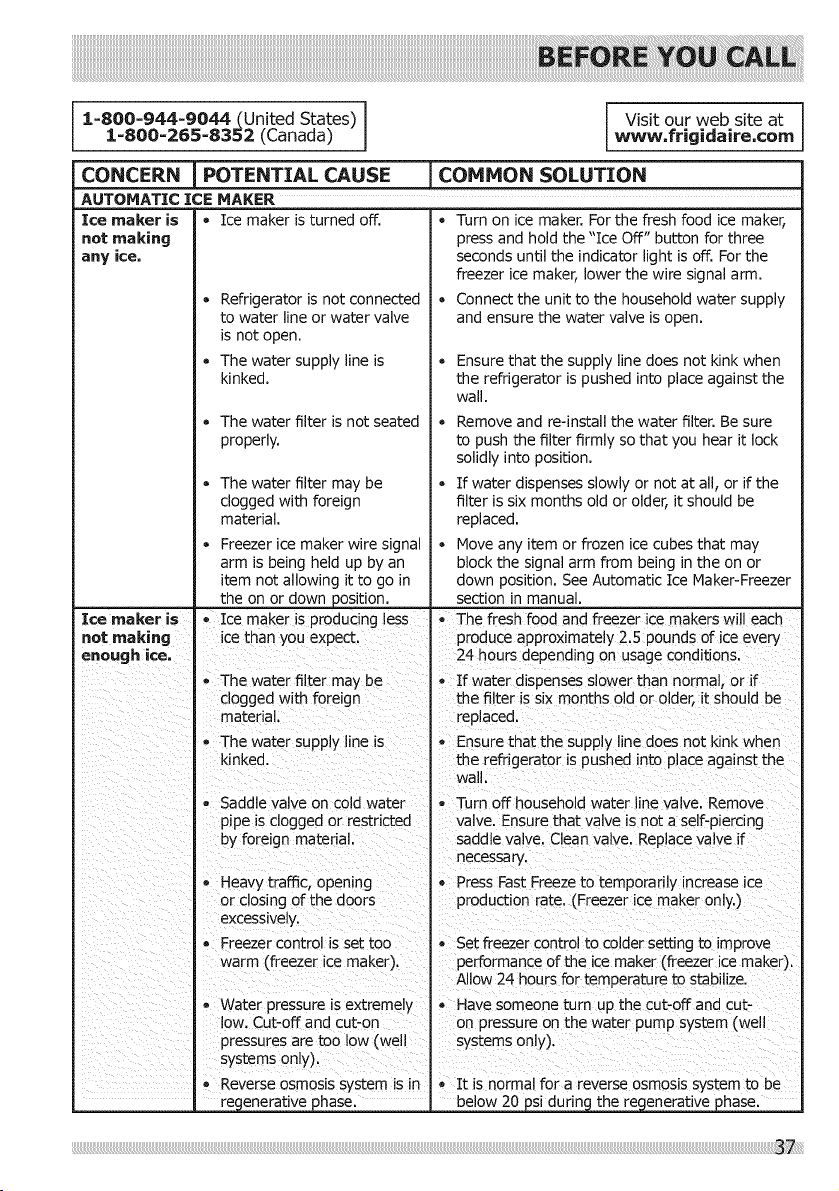

CONCERN ! POTENTIAL CAUSE | COMMON SOLUTION
AUTOMAT:IC :ICE MAKER
:Ice maker is * Ice maker is turned off. * Turn on ice maker. For the fresh food ice maker,
:Ice maker is
not making
enough ice.
* Refrigerator is not connected
to water line or water valve
is not open.
The water supply line is
kinked.
The water filter is not seated
properly.
* The water filter may be
clogged with foreign
material.
* Freezer ice maker wire signal
arm is being held up by an
item not allowing it to go in
__ the on or down position.
, Ice maker is producing less
ice than you expect.
• The water filter may be
clogged with foreign
material.
The water supply line is
kinked.
• Saddle valve on cold water
pipe is clogged or restricted
by foreign material.
, Heavy traffic, opening
or closing of the doors
excessively.
, Freezer control is set too
warm (freezer ice maker).
, Water pressure is extremely
low. Cut-off and cut-on
pressures are too low (well
systems only).
• Reverse osmosis system is in
regenerative phase.
press and hold the "Ice Off" button for three
seconds until the indicator light is off. For the
freezer ice maker, lower the wire signal arm.
Connect the unit to the household water supply
and ensure the water valve is open.
Ensure that the supply line does not kink when
the refrigerator is pushed into place against the
wall.
* Remove and re-install the water filter. Be sure
to push the filter firmly so that you hear it lock
solidly into position.
* ]:f water dispenses slowly or not at all, or if the
filter is six months old or older, it should be
replaced.
* Move any item or frozen ice cubes that may
block the signal arm from being in the on or
down position. See Automatic ]:ce Maker-Freezer
section in manual.
- The fresh food and freezer ice makers will each
produce approximately 2.5 pounds of ice every
24 hours depending on usage conditions.
, :l:fwater dispenses slower than normal, or if
the filter is six months old or older, it should be
replaced.
- Ensure that the supply line does not kink when
the refrigerator is pushed into place against the
wall.
• Turn off household water line valve. Remove
valve. Ensure that valve is not a self-piercing
saddle valve. Clean valve. Replace valve if
necessary.
, Press Fast Freeze to temporarily ncrease _ce
production rate. (Freezer ice maker only.)
• Set freezer control to colder setting to improve
performance of the ice maker (freezer ice maker).
Allow 24 hours for temperature to stabilize.
° Have someone turn up the cut-off and cut-
on pressure on the water pump system (well
systems only).
• It is normal for a reverse osmosissystemto be
below 20 psi during the regenerativephase.
not stop
making
ice (seled:
models),
Ice cubes
are freezing
together.

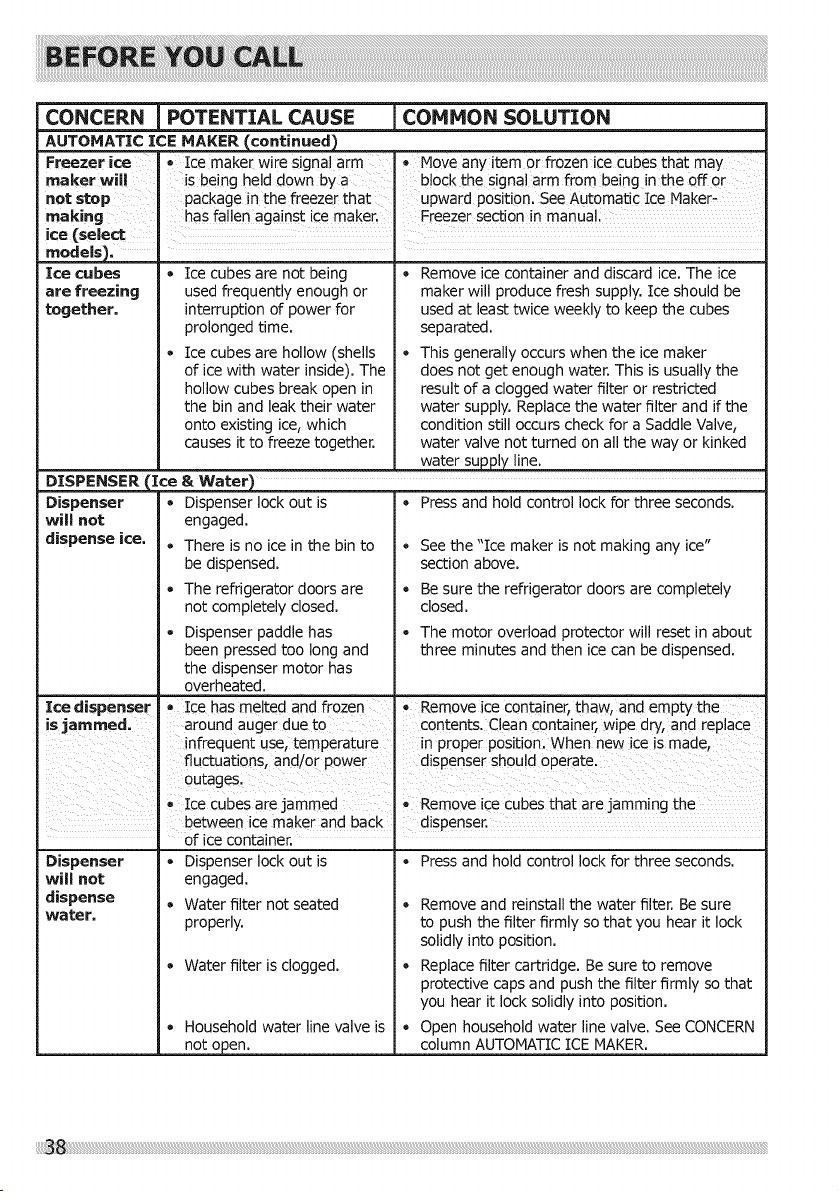

CONCERN i POTENTZAL CAUSE i COHHON SOLUTZON
AUTOHATIC ICE HAKER continued
Freezer ice _ Ice maker wire signal arm _ Move any item or frozen ice cubes that may
maker will is being held down bya block the signal arm from being in the off 0r
package in the freezer that upward position. See Automatic Ice Maker-
has fallen against ice maker. Freezer section in manual.
I
DISPENSER (Ice
Dispenser *
will not
dispense ice.
e
e
Ice dispenser
isjammed.
Dispenser
will not
dispense
water.
Ice cubes are not being
used frequently enough or
interruption of power for
prolonged time.
Ice cubes are hollow (shells
of ice with water inside). The
hollow cubes break open in
the bin and leak their water
onto existing ice, which
causes it to freeze together.
Remove ice container and discard ice. The ice
maker will produce fresh supply. Ice should be
used at least twice weekly to keep the cubes
separated.
This generally occurs when the ice maker
does not get enough water. This is usually the
result of a clogged water filter or restricted
water supply. Replace the water filter and if the
condition still occurs check for a Saddle Valve,
water valve not turned on all the way or kinked
water supply line.
& Water)
Dispenser lock out is * Press and hold control lock for three seconds.
engaged.
There is no ice in the bin to * See the "Ice maker is not making any ice"
be dispensed, section above.
The refrigerator doors are * Be sure the refrigerator doors are completely
not completely closed, closed.
Dispenser paddle has * The motor overload protector will reset in about
been pressed too long and three minutes and then ice can be dispensed.
the dispenser motor has
overheated.
_Ice has melted and frozen _ Remove ice container, thaw, and emp_
around auger due to contents. Clean container, wipe dry, and replace
infrequent use, temperature in proper positionl When nev_ ice is made,
fluctuations, and/or power dispenser shou!d operate.
outagesl
Ice CUbes are jammed _ Remove ice Cubes that are jamming
between ice maker and back dispenser.
Of ice container,
Dispenser lock out is * Press and hold control lock for three seconds.
engaged.
* Water filter not seated
properly.
* Water filter is clogged.
* Household water line valve is
not open.
* Remove and reinstall the water filter. Be sure
to push the filter firmly so that you hear it lock
solidly into position.
Replace filter cartridge. Be sure to remove
protective caps and push the filter firmly so that
you hear it lock solidly into position.
* Open household water line valve. See CONCERN
column AUTOMATIC ICE MAKER.

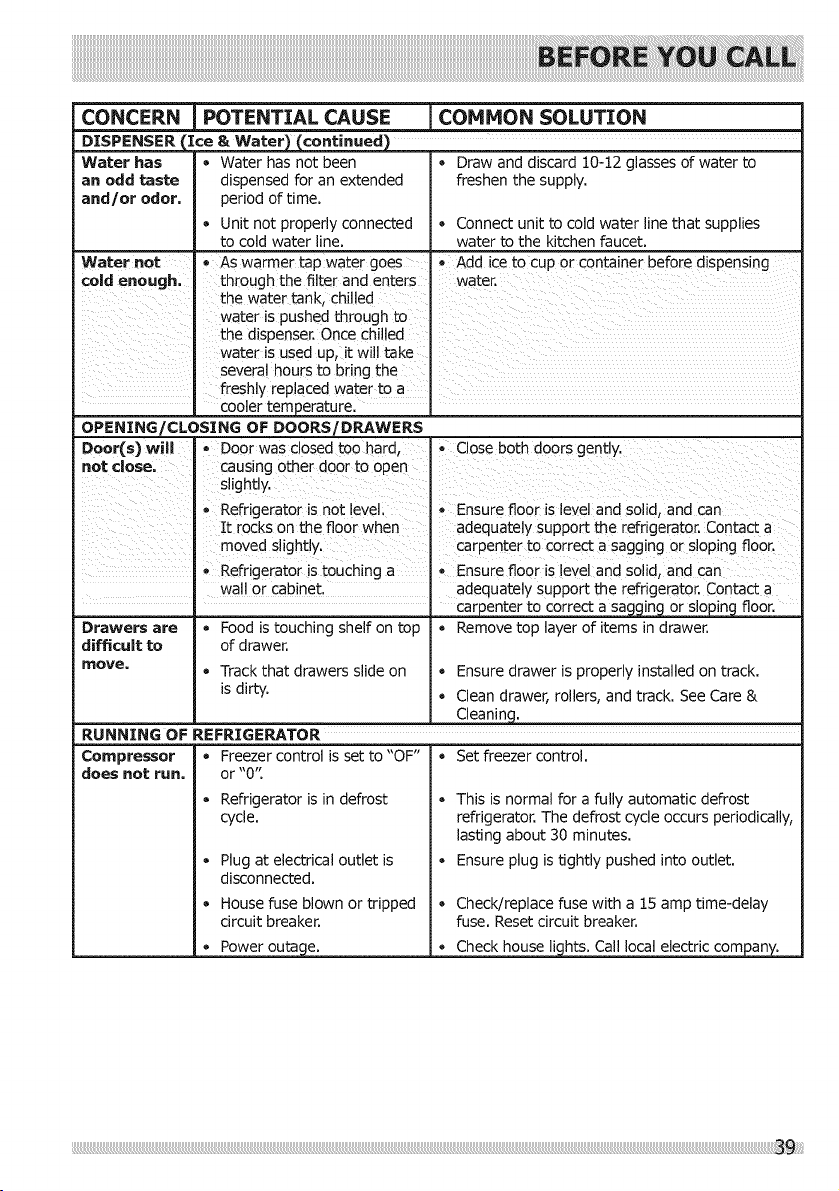

CONCERN j POTENTIAL CAUSE i COHHON SOLUTION
DISPENSER (Ice 8= Water) (continued) -
• Draw and discard 10-12 glasses of water to
freshen the supply.
• Connect unit to cold water line that supplies
water to the kitchen faucet.
Add ice tocup or container before dispensing
Water has • Water has not been
an odd taste dispensed for an extended
and/or odor. period of time.
Unit not properly connected
to cold water line.
Water not - As warmer tap water goes
cold enough, through the filter and enters
the water tank, chilled
water is pushed through to
the dispenser. Once (:hilled
water is used up, it will take
several hours to bring the
freshly replaced water to a
_ cooler temperature.
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will ® Door was closed too hard,
not close, causing other door to open
slightly.
• Refrigerator is not level.
It rocks on the floor when
moved slightly.
• Refrigerator is touching a
wall or cabinet.
Drawers are • Food is touching shelf on top
difficult to of drawer.
move, • Track that drawers slide on
is dirty.
* Close both doors gently.
* Ensure floor is level and solid, and can
adequately support the refrigerator. Contact a
carpenter to correct a sagging or sloping floor.
Ensure floor is level and solid, and can
adequately support the refrigerator, Contact a
carpenter to correct a sagging or sloping floor.
, Remove top layer of items in drawer.
* Ensure drawer is properly installed on track.
, Clean drawer, rollers, and track. See Care &
Cleaning.
RUNNING OF REFRIGERATOR
Compressor
does not run.
e
Freezer control is set to "OF"
or "0"
Refrigerator is in defrost
cycle.
* Plug at electrical outlet is
disconnected.
* House fuse blown or tripped
circuit breaker.
* Power outage.
* Set freezer control.
* This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs periodically,
lasting about 30 minutes.
Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-delay
fuse. Reset circuit breaker.
* Check house lights. Call local electric company.

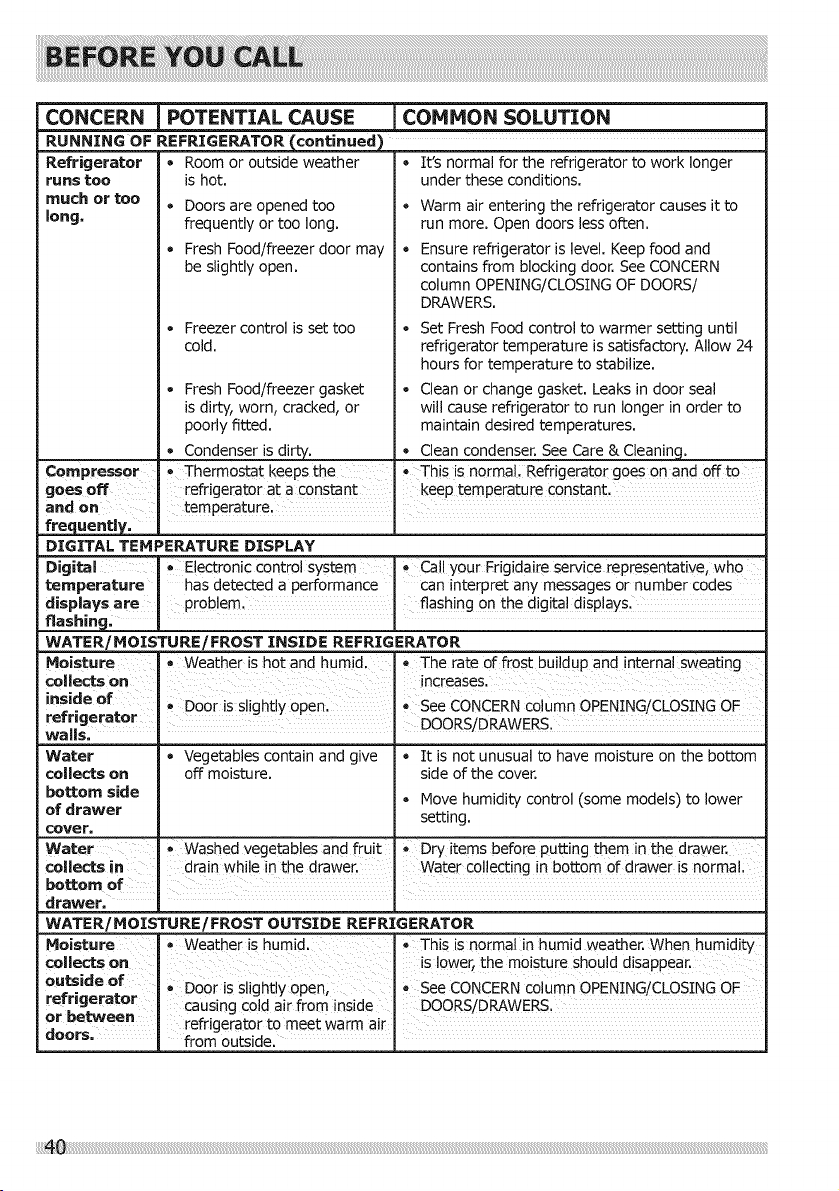

CONCERN ] POTENTIAL CAUSE i COHHON SOLUTION
RUNNING OF REFRIGERATOR (continued)
• Room or outside weather • It's normal for the refrigerator to work longerRefrigerator
runs tOO
much or too
long,
m
Compressor
goesoff
and on
frequently,
is hot.
* Doors are opened too
frequently or too long.
* Fresh Food/freezer door may
be slightly open.
* Freezer control is set too
cold.
* Fresh Food/freezer gasket
is dirty, worn, cracked, or
poorly fitted.
, Condenser is dir._
, Thermostat keeps the
refrigerator at a constant
e
e
under these conditions.
Warm air entering the refrigerator causes it to
run more. Open doors less often.
Ensure refrigerator is level. Keep food and
contains from blocking door. See CONCERN
column OPENING/CLOSING OF DOORS/
DRAWERS.
* Set Fresh Food control to warmer setting until
refrigerator temperature is satisfactory. Allow 24
hours for temperature to stabilize.
. Clean or change gasket. Leaks in door seal
will cause refrigerator to run longer in order to
maintain desired temperatures.
. Clean condenser. See Care & Cleanin .ck_
, :This is normal; Refrigerator goes on and offto
keep temperature constant.
temperature,
DIGITAL TEHPERATURE DISPLAY
Digital I Electronic control system I _Call your Frigidaire service representative, who
temperature I has detected a performance I can interPret any messages or numbe r codes
flashing,displaysare II PrOb em: flashing on the digita disp
WATER/HOISTURE/FROST INSTDE REFRIGERATOR
Hoisture • Weather ishot and humid. , The rate of frOSt buildup and !nternal sweating
coBects on increases.
inside of 4 D00r is slightly 0pen I
, See CONCERN column OPENING/CLOSING OF
refrigerator DOORS/DRAWERS.
walls,
Water * Vegetables contain and give * It is not unusual to have moisture on the bottom
collects on off moisture, side of the cover.
bottom side * Move humidity control (some models) to lower
of drawer setting.
cover,
Water * Washed vegetables and fruit _ Dry items before putting them in the drawer.
collects in drai n while !nthe drawer., Wa!er ¢o!!ecting !n bottom of drawe[ IS
bosom of
drawer,
WATERIHOISTUREIFROST OUTSIDE REFRIGERATOR
Hoisture I _ weather !s hum id. _ This is normal in humid weather. When humidity
collects on I !s lower, the mo!sture sh0uld disappear.
outside of _ Door is slightly 0pen, _ See CONCERN column OPENING/CLOSING OF
refrigerator causing cold airfrom inside I D°° RS/DRAWERS'
or between
doors, I refrigeratOrfromoutside.t° meet warm air II
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,
Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective
in materials or workmanship when such appliance is installed, used and maintained in accordance with the
provided instructions.
Exclusions
This warranty does not cover the following:
1 Productswith originalserial numbersthat have been removed, altered or cannot be readily determined,
2, Productthat has been transferred from its originalowner to another party or removed outside the
USA or Canada,
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRI'FI'EN LIMITED WARRANTY
OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WRI-FI'EN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT
VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers
below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux
Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is
warranted by Etectrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations
under this warranty. Obligations for service and parts under this warranty must be performed by Etectrolux
or an authorized service company. Product features or specifications as described or illustrated are subject
to change without notice.
USA
1,800.944,9044
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Electrolux
Canada
1,800.265,8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
