Dear Costumer:
Thank you for choosing this EURO MILAN product.
We ask you to read the instructions in this booklet very carefully as this will allow you to get the best
results from using it.
KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.
Always keep the instruction manual handy. If you lend the appliance to someone else give them
the manual as well!
The user manual is also available for download at www.euroappliances.com.au
4
EN
Contents
Safety Information .............................................................................................................................. 5
The advantages of microwaves ....................................................................................................... 10

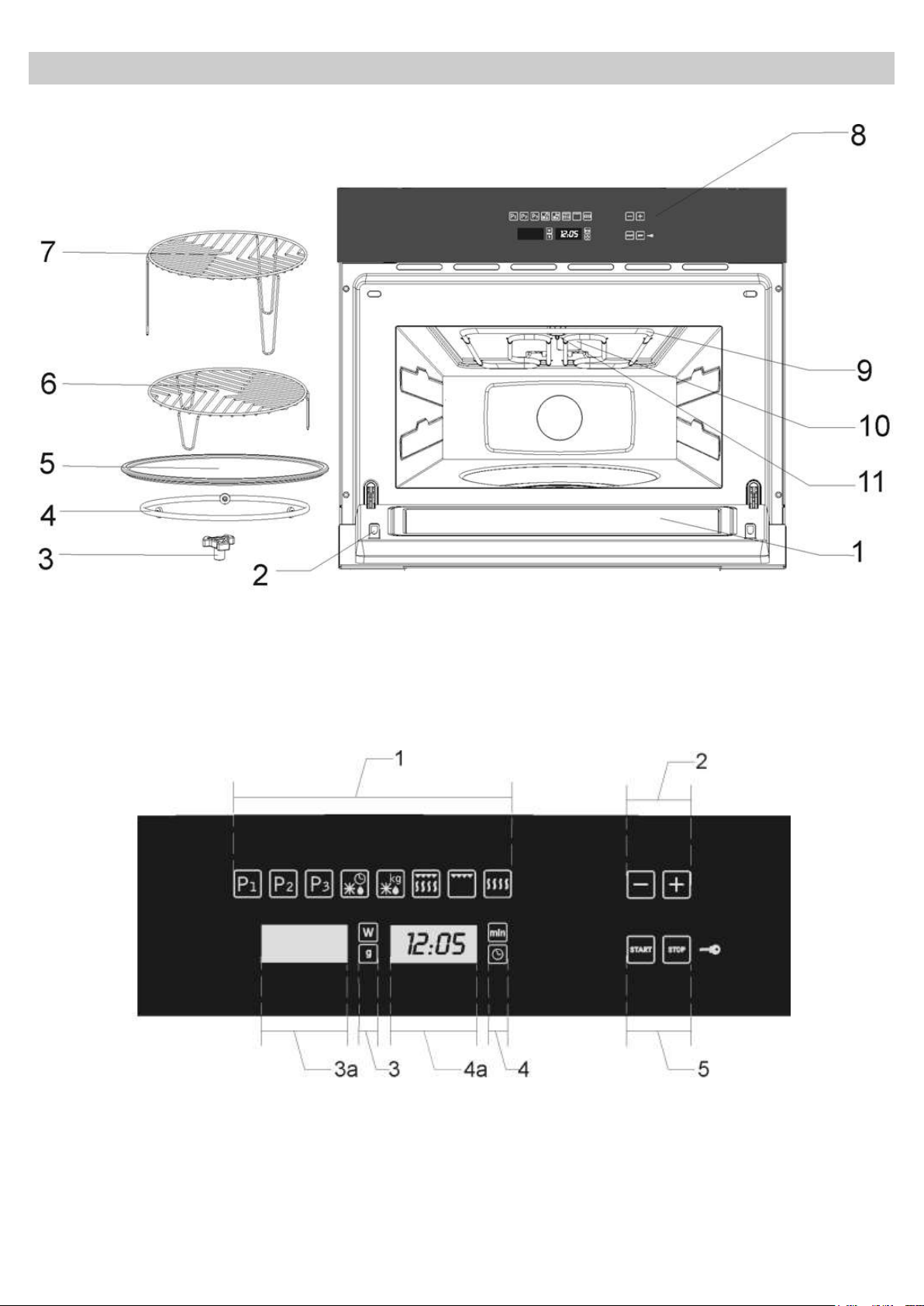

Description of your oven .................................................................................................................. 11
Description of Functions ................................................................................................................. 12
Basic controls ................................................................................................................................... 13
Setting the clock ............................................................................................................................. 13
Safety blocking ............................................................................................................................... 13
Basic Functions ................................................................................................................................ 14
Microwave oven .............................................................................................................................. 14
Microwave oven .............................................................................................................................. 14
Grill ................................................................................................................................................. 15
Microwave + Grill ............................................................................................................................ 15
Defrosting by weight (automatic) .................................................................................................... 16
Defrosting by time (manual) ............................................................................................................ 17
Special functions .............................................................................................................................. 18
Special Function P1: Heating food ................................................................................................. 18
Special Function P2: Cooking ......................................................................................................... 19
Special Function P3: Defrosting & Toasting ................................................................................... 20
When the oven is working... ............................................................................................................. 21
Interrupting a cooking cycle ............................................................................................................ 21
End of a cooking cycle .................................................................................................................... 21
Defrosting .......................................................................................................................................... 22
Cooking with a microwave oven ..................................................................................................... 24
Cooking with the grill ....................................................................................................................... 26
What kind of ovenware can be used? ............................................................................................. 29
Microwave function ......................................................................................................................... 29
Grill function .................................................................................................................................... 29
Microwave + grill function ............................................................................................................... 29
Aluminium containers and foil ......................................................................................................... 29
Lids ................................................................................................................................................. 29
Oven Cleaning and Maintenance ..................................................................................................... 31
Front surface .................................................................................................................................. 31
Oven interior ................................................................................................................................... 31
Oven ceiling .................................................................................................................................... 32
Accessories .................................................................................................................................... 32
What should I do if the oven doesn’t work? ................................................................................... 33
Technical characteristics ................................................................................................................. 34
Specifications ................................................................................................................................. 34

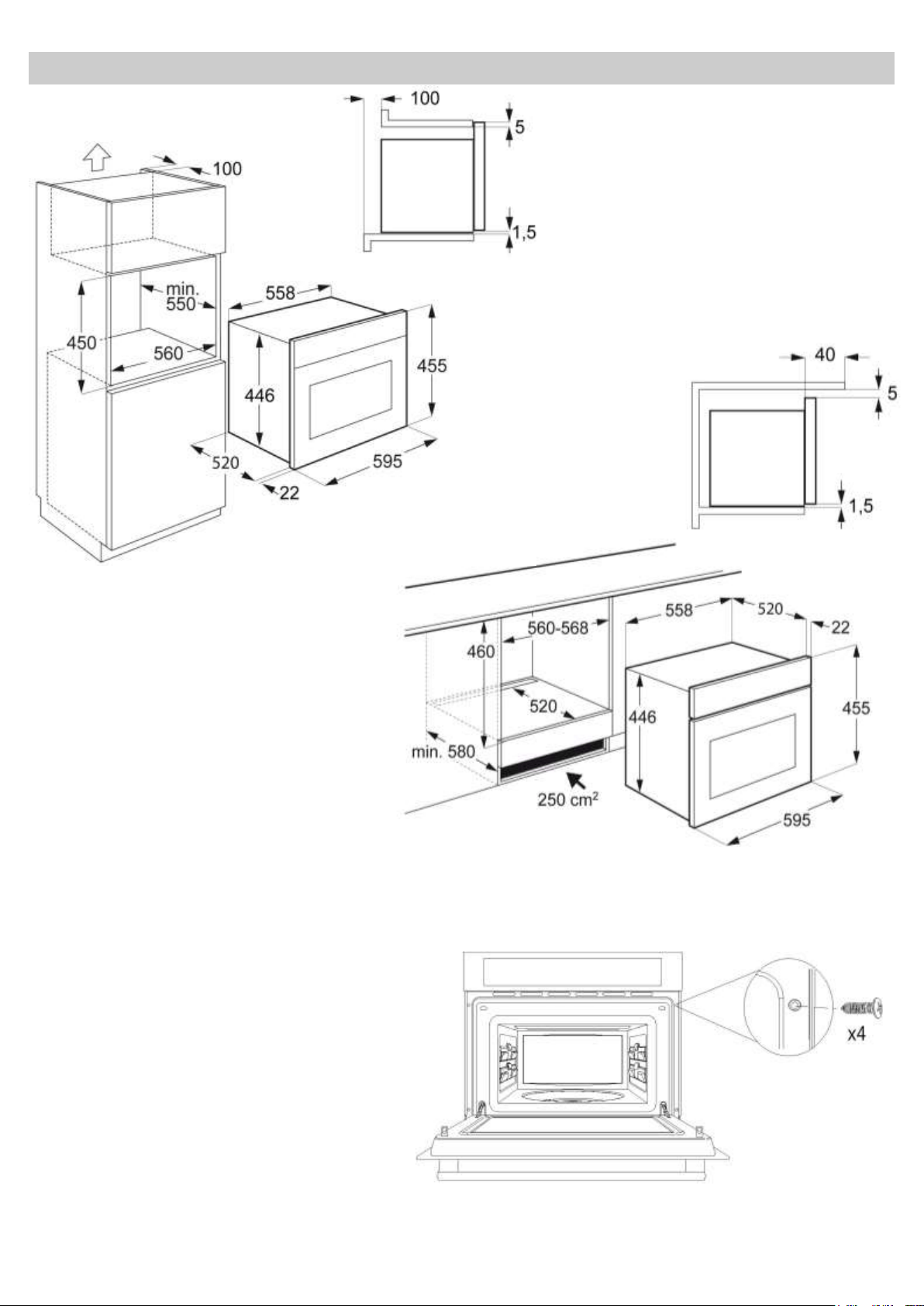

Installation instructions ................................................................................................................... 35
Before installation ........................................................................................................................... 35
After installation .............................................................................................................................. 35
Installation ......................................................................................................................................... 36
5
EN
Safety Information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if an
incorrect installation and use causes injuries and damages. Always
keep the instructions with the appliance for future reference.
CHILDREN AND VULNERABLE PEOPLE SAFETY
Warning! Risk of suffocation, injury or permanent disability.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Keep all packaging away from children.
WARNING: Keep children away from the appliance when it
operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, we recommend that
you activate it. Children must not be left unsupervised in the
vicinity of the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
GENERAL SAFETY
This appliance is intended to be used in household and similar
applications such as:
– staff kitchen areas in shops, offices and other working
environments;
– farm houses;
– by clients in hotels, motels and other residential environments;
– bed and breakfast type environments.
Internally the appliance becomes hot when in operation. Do not
touch the heating elements that are in the appliance. Always use
oven gloves to remove or put in accessories or ovenware.
WARNING: Do not heat liquids and other foods in sealed
containers. They are liable to explode.
6
EN
Safety Information
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye on
the appliance due to the possibility of ignition.
The appliance is intended for heating food and beverages. Drying
of food or clothing and heating of warming pads, slippers,
sponges, damp cloth and similar may lead to risk of injury,
ignition or fire.
Warning! The oven cannot be used if:
- The door is not closed correctly;
- The door hinges are damaged;
- The surfaces of the contact between the door and the oven front
are damaged;
- The door window glass is damaged;
- There is frequent electrical arcing inside the oven even though
there is no metal object inside.
The oven can only be used again after it has been repaired by a
Technical Assistance Service technician.
If smoke is emitted, switch off or unplug the appliance and keep
the door closed in order to stifle any flames.
Microwave heating of beverages can result in delayed eruptive
boiling. Care must be taken when handling the container.
The contents of feeding bottles and baby food jars shall be stirred
or shaken and the temperature checked before consumption, in
order to avoid burns.
Eggs in their shell and whole hard-boiled eggs should not be
heated in the appliance since they may explode, even after
microwave heating has ended.
Warning! Do not heat pure alcohol or alcoholic drinks in the
microwave. FIRE RISK!
Beware! To avoid food overheating or burning it is very important
not to select long time periods or power levels that are too high
when heating small quantities of food. For example, a bread roll
can burn after 3 minutes if the power selected is too high.
7
EN
Safety Information
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
For toasting, use just the grilling function and watch the oven all
the time. It you use a combined function to toast bread it will
catch fire in a very short time.
Make sure you never catch the power cables of other electrical
appliances in the hot door or the oven. The cable insulation may
melt. Danger of short-circuiting!
Take care when heating liquids!
When liquids (water, coffee, tea, milk, etc.) are nearly at boiling
point inside the oven and are taken out suddenly, they may spurt
out of their containers.
DANGER OF INJURIES AND BURNS!
To avoid that type of situation when heating liquids, put a
teaspoon or glass rod inside the container.
INSTALLATION
The electric system must be equipped with a means for
disconnection, with a contact separation in all poles that provides
full disconnection under overvoltage category III.
If a plug is used for the electric connection, then it must be
accessible after installation.
Protection against electric shock must be provided by the
electrical installation
Warning: The oven must be earthed.
CLEANING
The appliance should be cleaned regularly and any food deposits
removed.
8
EN
Safety Information
Failure to maintain the appliance in a clean condition could lead
to deterioration of the surface that could adversely affect the life
of the appliance and possibly result in a hazardous situation.
Do not use harsh abrasive cleaners or sharp metal scrapers to
clean the glass door since they can scratch the surface, which
may result in shattering of the glass.
Do not use a steam cleaner to clean the appliance.
The door contact surfaces (the front of the cavity and the inside
part of the doors) must be kept very clean in order to ensure the
oven functions correctly.
Please follow the instructions regarding cleaning in the section
"Oven Cleaning and Maintenance".
REPAIRS
WARNING: Before maintenance cut the power supply.
WARNING: Only a competent person can carry out any service or
repair operation that involves the removal of a cover which gives
protection against exposure to microwave energy.
WARNING: If the door or door seals are damaged, the appliance
must not be operated until it has been repaired by a competent
person.
If the power cable is damaged it should be substituted by the
manufacturer, authorized agents or technicians qualified for this
task in order to avoid dangerous situations. Furthermore, special
tools are required for this task.
Repair and maintenance work, especially of current carrying
parts, can only be carried out by technicians authorized by the
manufacturer.
Avoid damaging the oven or other dangerous situations by
following these instructions:
Do not switch on the oven without the turntable support, the
turntable ring and the respective plate being in place.
9
EN
Safety Information
Never switch on the microwave when it is empty. If there is no
food inside there may be an electrical overcharge and the oven
could be damaged. RISK OF DAMAGE!
Do not cover or obstruct the ventilation openings.
For carrying out oven programming tests put a glass of water
inside the oven. The water will absorb the microwaves and the
oven will not be damaged.
Use only dishes suitable for microwaves. Before using dishes and
containers in the microwave, check that these are suitable (see
the section on types of dishes).
Never remove the mica cover on the ceiling of the oven interior!
This cover stops fat and pieces of food damaging the microwave
generator.
Do not keep any inflammable object inside the oven as it may
burn if the oven is switched on.
Do not use the oven as a pantry.
Do not use the oven for frying as it is impossible to control the
temperature of oil heated by microwaves.
Do not lean or sit on the open oven door. This may damage the
oven, especially in the hinge zone. The door can bear a
maximum weight of 8 kg.
The turntable and the grills can bear a maximum load of 8 kg. To
avoid damaging the oven, do not exceed this load.
10
EN
The advantages of microwaves
In conventional ovens, heat radiated by electrical
elements or gas burners slowly penetrates the
food from outside to inside. On account of this
there is a major amount of energy is wasted
heating the air, the oven components and the food
containers.
In a microwave oven, heat is generated by the
food itself and the heat travels from inside to
outside. No heat is lost to the air, the walls of the
oven cavity or the dishes and containers (if these
are suitable for use in microwave oven), in other
words, only the food is heated.
Microwave ovens have the following advantages:
1. Shorter cooking times; in general these are
up to 3/4 less than the time required for
conventional cooking.
2. Ultra-fast food defrosting, thus reducing the
danger of bacterial development.
3. Energy savings.
4. Conservation of the nutritional value of foods
due to the shorter cooking times.
5. Easy to clean.
How a microwave oven works
In a microwave oven there is a high tension valve
called a magnetron which converts electrical
energy into microwave energy. These
electromagnetic waves are channelled to the
interior of the oven through a wave guide and
distributed by a metallic spreader or through a
turntable.
Inside the oven the microwaves propagate in all
directions and are reflected by the metal walls,
uniformly penetrating the food.
Why food heats up
Most foods contain water and water molecules
vibrate when subjected to microwaves.
The friction between molecules produces heat
which raises the temperature of the food, de-
freezing it, cooking it or keeping it hot.
Since the heat arises inside the food:
This can be cooked with little or no liquid or
fats/oils;
De-freezing, heating or cooking in a
microwave oven is quicker than in a
conventional oven;
The vitamins, minerals and nutritional
substances in the food are conserved;
The natural colour and aroma of the food are
unchanged.
Microwaves pass through china, glass, cardboard
or plastic but do not go through metal. For this
reason, metal containers or ones with metal parts
must not be used in a microwave oven.
Microwaves are reflected by metal...
... but go through glass and china...
... and are absorbed by foods.
11
EN
Description of your oven
1. – Door window glass
7. – High grille
2. – Catches
8. – Control panel
3. – Turntable support
9. – Grill
4. – Turntable ring
10. – Mica cover
5. – Turntable plate
11. – Lamp
6. – Low grille

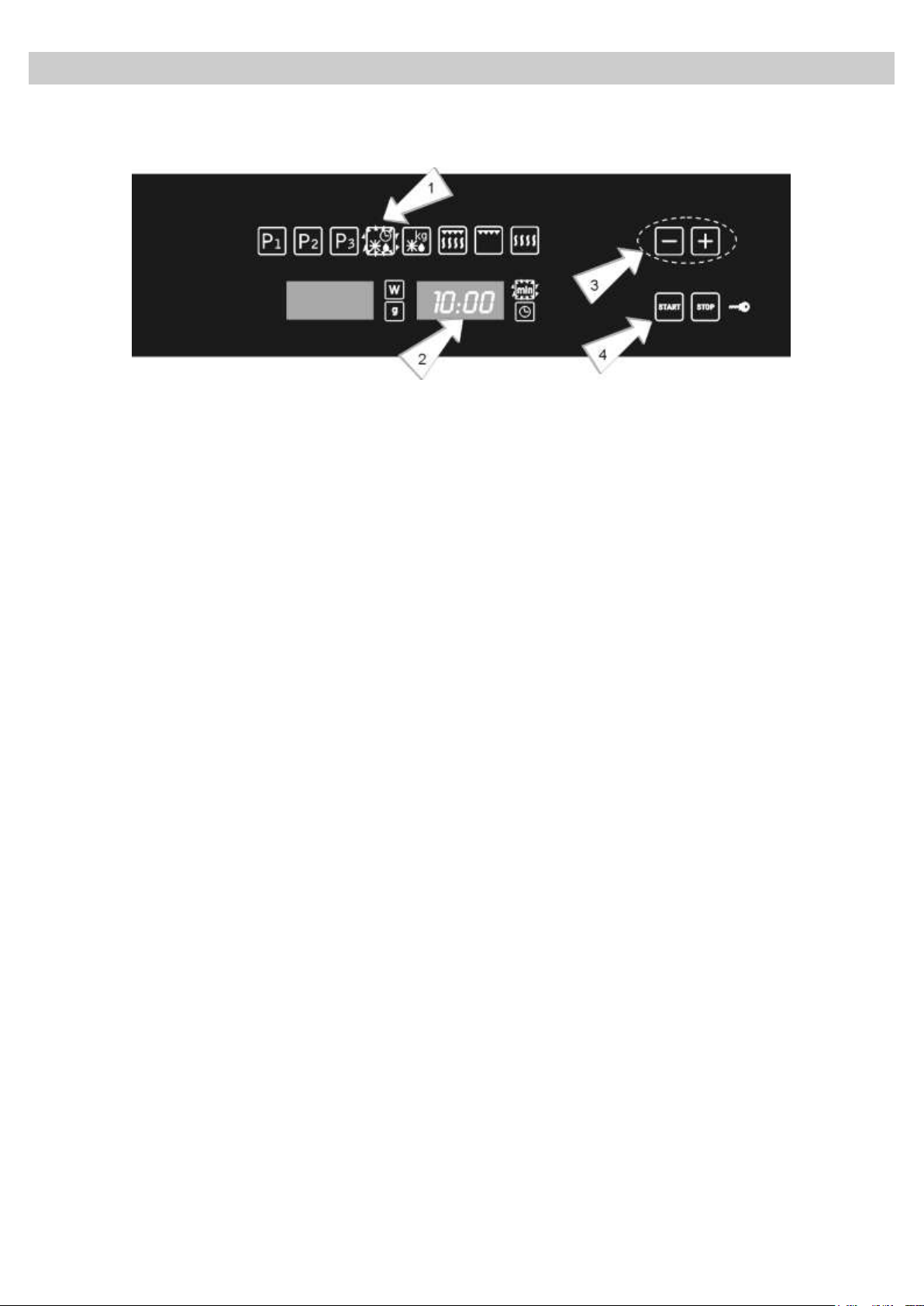

1. – Function keys
4. – Clock/ Time/ Food type lights
2. – Selection keys “–“ and “+”
4a. – Clock/ Time / Food type display and selection key
3. – Power/Weight indication lights
5. –Start and Stop/ Safety blocking keys
3a. – Power/Weight display and selection
key
12
EN
Description of your oven
Description of Functions
Symbol
Function
Microwave
Power Output
Foods
Microwave
200 W
Slow defrosting for delicate foods; keeping food hot
400 W
Cooking with little heat; boiling rice
Rapid defrosting
600 W
Melting butter, keep covered
Heating baby food
800 W
Cooking vegetables and food
Cooking and heating carefully,
Heating and cooking small portions of food
Heating delicate food
1000 W
Cooking and rapidly heating liquids and pre-cooked foods
Microwave
+ Grill
200 W
Toasting food
400 W
Grilling poultry and meat
600 W
Cooking pies and cheese-topped dishes
Grill
Grilling food
13
EN
Basic controls
Setting the clock
After your microwave oven is first plugged in or
after a power failure, the clock display will flash to
indicate that the time shown is not correct. To set
the clock, proceed as follows:
1. Press the Clock key. The hour numbers will
start to flash.
2. Press key “-” and “+”to set the hours.
3. Press again the Clock key to set the minutes.
The minute numbers will start to flash.
4. Press key “-” and “+”to set the minutes.
5. To finish, press the Clock key again.
Hiding/Displaying the Clock
If the clock display disturbs you, you can hide it by
pressing the Clock key for 3 seconds. The dots
that separate the hours and minutes will flash but
the rest of the clock display will be hidden.
If you want to see the clock display again, press
the Clock key again for 3 seconds.
Safety blocking
The oven functioning can be blocked (for
example, to stop it being used by children).
1. To block the oven, press the Stop key for 3
seconds. You will hear a sound signal and the
display will show the word “SAFE”. The oven is
blocked in this state and cannot be used.
2. To unblock the oven, press the Stop key
again for 3 seconds. You will hear a sound
signal and the display will show the time
again.
14
EN
Basic Functions
Microwave oven
Use this function to cook and heat vegetables, potatoes, rice, fish and meat.
1. Press the Microwave function key. The
function key lights up.
2. Press the Power Selection key to change the
microwave power. The respective light will start
to flash. If you do not press this key, the oven
operates at 800 W power.
3. To change the microwave power press key “-
“and “+”.
4. Press the Time Selection key to change the
operating time. The correspondent light will
start to flash.
5. Press key “-“and “+”, to change the function
time (e.g. 1 minute).
6. Press the START key. The oven will start to
operate
NOTE: When 1000 W power is selected, the
operating time is limited to a maximum of 15
minutes.
Microwave oven – Quick Start
Use this function to rapidly heat foods with high water content, such as water, coffee, tea or thin soup.
1. Press the Start key. The oven starts to operate
in the Microwave function at maximum power
for 30 seconds.
2. If you want to increase the operating time press
the Start key again. Each time you press this
key the operating time will be increased by 30
seconds.
NOTE: When 1000 W power is selected, the
operating time is limited to a maximum of 15
minutes.
15
EN
Basic Functions
Grill
Use this function to brown the top of food quickly.
1. Press the function key Grill. The function key
lights up.
2. Press the Time Selection key to change the
operating time. The correspondent light will
start to flash.
3. Press key “-“and “+”, to change the function
time (e.g. 15 minutes).
4. Press the Start key. The oven will start to
operate.
Microwave + Grill
Use this function to cook lasagne, poultry, roast potatoes and toasted foods.
1. Press the function key Microwave + Grill. The
function key lights up.
2. Press the Power Selection key to change the
microwave power. The respective light will
flash. If you do not press this key, the oven
operates at 600 W power.
3. To change the microwave power press key “-“
and “+”.
4. Press the Time Selection key to change the
operating time. The respective light will start to
flash.
5. Press key “-“and “+”, to change the function
time (e.g. 10 minutes).
6. Press the Start key. The oven will start to
operate.
16
EN
Basic Functions
Defrosting by weight (automatic)
Use this function to defrost meat, poultry, fish, fruit and bread quickly.
1. Press the function key Defrosting by
weight. The function key lights up.
2. Press the Food Type selection key to
change the food type. The respective lights
will flash.
3. Press key “-“and “+”, to change the
programme, e.g. “Pr 01” (see following
table).
4. Press the Weight Selection key to define
the food weight. The respective light will
flash.
5. Press key “-“and “+”, to change the weight.
6. Press the Start key. The oven will start to
operate.
The following table shows the defrosting by weight function programmes, indicating weight intervals, and
defrosting and standing times (in order to ensure the food is of a uniform temperature).
Programme
Food
Weight (g)
Time (min)
Standing time (min)
Pr 01
Meat
100 – 2000
2 – 43
20 – 30
Pr 02
Poultry
100 – 2500
2 – 58
20 – 30
Pr 03
Fish
100 – 2000
2 – 40
20 – 30
Pr 04
Fruit
100 – 500
2 – 13
10 – 20
Pr 05
Bread
100 – 800
2 – 19
10 – 20
Important Note: see “General instructions for defrosting”.
17
EN
Basic Functions
Defrosting by time (manual)
Use this function to defrost any type of food quickly.
1. Press the function key Defrosting by time.
The function key lights up.
2. Press the Time Selection key to change the
function time. The respective light will flash.
3. Press key “-“and “+”, to change the function
time (e.g. 10 minutes).
4. Press the Start key. The oven will start to
operate.
18
EN
Special functions
Special Function P1: Heating food
Use this function to heat various types of food.
1. Press the function key Special function 1.
The function key lights up.
2. Press the Food Type selection key to
change the food type. The respective lights
will flash.
3. Press key “-“and “+”, to change the
programme, e.g. “A 01” (see following table).
4. Press the Weight Selection key to define
the food weight. The respective light will
flash.
5. Press key “-“and “+”, to change the weight.
6. Press the Start key. The oven will start to
operate.
The following table shows the Special Function P1 programmes, indicating weight intervals, and
defrosting and standing times (in order to ensure the food is of a uniform temperature).
Programme
Food
Weight (kg)
Time (min)
Standing time (min)
A 01
Soup
200 – 1500
3 – 15
1 – 2
A 02
Pre-prepared dishes
dense food
200 – 1500
3 – 20
1 – 2
A 03
Pre-prepared dishes
e.g. goulash
200 – 1500
3 – 18
1 – 2
A 04
Vegetables
200 – 1500
2 – 14
1 – 2
Important Notes:
Always use dishes for use in the
microwave oven and a lid or cover to avoid
loss of liquids.
Stir or mix the foods several times during
heating, especially when the oven emits a
beep and the display is flashing as
follows: .
The time required to heat the food will
depend on its initial temperature. Food
taken straight from the fridge will take
longer to heat up than food that is at room
temperature. If the food temperature is not
what is wanted, select a greater or lesser
weight next time you heat up the food.
After heating, stir the food or shake the
container and then leave the food to stand for
some time to allow the temperature to become
uniform throughout the food.
Warning! After heating the container may be very
hot. Although microwaves do not heat up most
containers, these may heat up through heat
transmission from food.
19
EN
Special functions
Special Function P2: Cooking
Use this function to cook fresh food.
1. Press the function key Special function 2.
The function key lights up.
2. Press the Food Type selection key to
change the food type. The respective lights
will flash.
3. Press key “-“and “+”, to change the
programme, e.g. “b 01” (see following table).
4. Press the Weight Selection key to define
the food weight. The respective light will
flash.
5. Press key “-“and “+”, to change the weight.
6. Press the Start key. The oven will start to
operate.
The following table shows the Special Function P2 programmes, indicating weight intervals, and
defrosting and standing times (in order to ensure the food is of a uniform temperature).
Programme
Food
Weight (kg)
Time (min)
b 01
Potatoes
200 – 1000
4 – 17
b 02
Vegetables
200 – 1000
4 – 15
b 03
Rice
200 – 500
13 – 20
b 04
Fish
200 – 1000
4 – 13
Important Notes:
Always use dishes for use in the
microwave oven and a lid or cover to avoid
loss of liquids.
Stir or mix the foods several times during
heating, especially when the oven emits a
beep and the display is flashing as follows
.
Warning! After heating, the container may be
very hot. Although microwaves do not heat up
most containers, these may heat up through
heat transmission from food.
Preparation instructions:
Fish pieces – Add 1 to 3 soup spoons of water
or lemon juice.
Rice – Add water equivalent to twice or three
times the quantity of rice.
Unpeeled potatoes – Use potatoes of the
same size. Wash them and prick the skin
several times. Do not add water.
Peeled potatoes and Fresh vegetables– Cut
into pieces of the same size. Add a soup
spoon of water for every 100 g of vegetables,
and salt to taste.
20
EN
Special functions
Special Function P3: Defrosting & Toasting
Use this function to cook and toast various types of food.
1. Press the function key Special function 3.
The function key lights up.
2. Press the Food Type selection key to
change the food type. The respective lights
will flash.
3. Press key “-“and “+”, to change the
programme, e.g. “C 01” (see following table).
4. Press the Weight Selection key to define
the food weight. The respective light will
flash.
5. Press key “-“and “+”, to change the weight.
6. Press the Start key. The oven will start to
operate.
The following table shows the Special Function P3 programmes, indicating weight intervals, and
defrosting and standing times (in order to ensure the food is of a uniform temperature).
Programme
Food
Weight (kg)
Time (min)
C 01
Pizza
300 – 550
8 – 12
C 02
Deep frozen food
400 – 1000
8 – 14
C 03
Potato dishes, frozen
200 – 450
10 – 12
Important Notes:
Always use dishes for use in the
microwave oven and a lid or cover to avoid
loss of liquids.
Stir or mix the foods several times during
heating, especially when the oven emits a
beep and the display is flashing as follows
.
Warning! After heating, the container may be
very hot. Although microwaves do not heat up
most containers, these may heat up through
heat transmission from food.
Preparation instructions:
Frozen pizza – Use pre-cooked frozen pizzas
and pizzas-rolls.
Deep-frozen food – Use lasagne, cannelloni,
prawn soufflé, all frozen. Keep covered.
Potato dishes, frozen – Chips, potato
croquettes and fried potatoes must be suitable
for preparation in the oven.
21
EN
When the oven is working...
Interrupting a cooking cycle
You can stop the cooking process at any time by
pressing the Stop key once or by opening the
oven door.
In both cases:
Microwave emission is stopped
immediately.
The grill is de-activated but is still very hot.
Danger of burning!
The timer stops and the display shows the
remaining amount of operating time.
If you wish, at this time you can:
1. Turn or stir the food to ensure it will be
evenly cooked.
2. Change the process parameters.
3. Cancel the process by pressing the Stop
key.
To restart the process, close the door and press
the Start key
Altering parameters
The operating parameters (time, weight, power,
etc.) can be altered when the oven is operating or
when the cooking process has been interrupted
by proceeding as follows:
1. To alter the time, press key “-“and “+”. The
new time defined is immediately valid.
2. To alter the power, press the Power
Selection key. The display and respective
light start to flash. Alter the parameter by
pressing the “-“and “+”keys and confirm by
pressing the Power Selection key again.
Cancelling a cooking cycle
If you wish to cancel the cooking process, press
the Stop key for 3 seconds.
You will then hear a beep and the time will appear
on the display.
End of a cooking cycle
At the end of the process you will hear three
beeps and the display will show the word “End”.
The beeps are repeated every 30 seconds until
the door is opened or the Stop key is pressed.
22
EN
Defrosting
The table below shows different defrosting and
standing times (in order to ensure the food
temperature is evenly distributed) for different types
and weights of food, plus recommendations.
Food
Weight (g)
Defrosting time (min)
Standing time
(min)
Recommendation
Portions of meat,
veal, beef, pork
100
2-3
5-10
Turn once
200
4-5
5-10
Turn once
500
10-12
10-15
Turn twice
1000
21-23
20-30
Turn twice
1500
32-34
20-30
Turn twice
2000
43-45
25-35
Turn three times
Goulash
500
8-10
10-15
Turn twice
1000
17-19
20-30
Turn three times
Minced meat
100
2-4
10-15
Turn once
500
10-14
20-30
Turn twice
Sausages
200
4-6
10-15
Turn once
500
9-12
15-20
Turn twice
Poultry (portions)
250
5-6
5-10
Turn once
Chicken
1000
20-24
20-30
Turn twice
Poularde
2500
38-42
25-35
Turn three times
Fish fillet
200
4-5
5-10
Turn once
Trout
250
5-6
5-10
Turn once
Prawns
100
2-3
5-10
Turn once
500
8-11
10-20
Turn twice
Fruit
200
4-5
5-10
Turn once
300
8-9
5-10
Turn once
500
11-14
10-20
Turn twice
Bread
200
4-5
5-10
Turn once
500
10-12
10-15
Turn once
800
15-17
10-20
Turn twice
Butter
250
8-10
10-15
Cream cheese
250
6-8
10-15
Creams
250
7-8
10-15
23
EN
Defrosting
General instructions for defrosting
1. When defrosting, use only dishes that are
appropriate for microwaves (china, glass,
suitable plastic).
2. The defrost function by weight and the tables
refer to the defrosting of raw food.
3. The defrosting time depends on the quantity
and thickness of the food. When freezing
food keep the defrosting process in mind.
Distribute the food evenly in the container.
4. Distribute the food as best as possible inside
the oven. The thickest parts of fish or
chicken drumsticks should be turned towards
the outside. You can protect the most
delicate parts of food with pieces of
aluminium foil. Important: The aluminium
foil must not come into contact with the oven
cavity interior as this can cause electrical
arcing.
5. Thick portions of food should be turned
several times.
6. Distribute the frozen food as evenly as
possible since narrow and thin portions
defrost more quickly than the thicker and
broader parts.
7. Fat-rich foods such as butter, cream cheese
and cream should not be completely
defrosted. If they are kept at room
temperature they will be ready to be served
in a few minutes. With ultra-frozen cream, if
you find small pieces of ice in it, you should
mix these in before serving.
8. Place poultry on an upturned plate so that
the meat juices can run off more easily.
9. Bread should be wrapped in a napkin so that
it does not become too dry.
10. Turn the food whenever the oven lets out a
beep and the display flashes the word:
.
11. Remove frozen food from its wrapping and do
not forget to take off any metal twist-tags. For
containers that are used to keep frozen food
in the freezer and which can also be used for
heating and cooking, all you need to do is
take off the lid. For all other cases you should
put the food into containers that are suitable
for microwave use.
12. The liquid resulting from defrosting, principally
that from poultry, should be discarded. In no
event should such liquids be allowed to come
into contact with other foods.
13. Do not forget that by using the defrosting
function you need to allow for standing time
until the food is completely defrosted.
24
EN
Cooking with a microwave oven
Warning! Read the section “Microwave Safety”
before cooking with your microwave.
Follow these recommendations when cooking with
your microwave:
Before heating or cooking foods with peel or
skin (e.g. apples, tomatoes, potatoes,
sausages) prick them so that they do not
burst. Cut the food up before starting to
prepare it.
Before using a container or dish make sure
that it is suitable for microwave use (see the
section on types of ovenware).
When cooking food with very little moisture
(e.g. defrosting bread, making popcorn,
etc.) evaporation is very quick. The oven
then works as if it was empty and the food
may burn. The oven and the container may
be damaged in such a situation. You should
therefore set just the cooking time necessary
and you must keep a close eye on the
cooking process.
It is not possible to heat large quantities of
oil (frying) in the microwave.
Remove pre-cooked food from the
containers they come in since these are not
always heat resistant. Follow the food
manufacturer’s instructions.
If you have several containers, such as
cups, for example, set them out uniformly on
the turntable plate.
Do not close plastic bags with metal clips.
Use plastic clips instead. Prick the bags
several times so that the steam can escape
easily.
When heating or cooking foods, check that
they reach at least a temperature of 70°C.
During cooking, steam may form on the
oven door window and may start to drip.
This situation is normal and may be more
noticeable if the room temperature is low.
The oven’s safe working is not affected by
this. After you have finished cooking, clean
up the water coming from the condensation
When heating liquids, use containers with
a wide opening, so that the steam can
evaporate easily.
Prepare the foods as per the instructions and
keep in mind the cooking times and power levels
indicated in the tables.
Keep in mind that the figures given are only
indicative and can vary depending on the initial
state, temperature, moisture and type of food. It is
advisable to adjust the times and power levels to
each situation. Depending on the exact
characteristics of the food you may need to
increase or shorten the cooking times or increase
or decrease the power levels.
Cooling with microwaves...
1. The greater the amount of food, the longer the
cooking time. Keep in mind that:
Double the quantity » double the time
Half the quantity » half the time
2. The lower the temperature, the longer the
cooking time.
3. Foods containing a lot of liquid heat up more
quickly.
4. Cooking will be more uniform if the food is
evenly distributed on the turntable. If you put
dense foods on the outside part of the plate and
less dense ones on the centre of the plate, you
can heat up different types of food simultaneously.
5. You can open the oven door at any time. When
you do this the oven switches off automatically.
The microwave will only start working again when
you close the door and press the start key.
6. Foods that are covered require less cooking
time and retain their characteristics better. The
lids used must let microwaves pass through and
have small holes that allow steam to escape.
25
EN
Cooking with a microwave oven
Tables and suggestions – Cooking vegetables
Food
Quantity (g)
Addition of
liquids
Power
(Watt)
Time
(min.)
Standing
Time (min.)
Instructions
Cauliflower
Broccoli
Mushrooms
500
300
250
100ml
50ml
25ml
800
800
800
9-11
6-8
6-8
2-3
2-3
2-3
Cut into slices.
Keep covered
Peas & carrots
Frozen carrots
300
250
100ml
25ml
800
800
7-9
8-10
2-3
2-3
Cut into chunks or
slices. Keep
covered
Potatoes
250
25ml
800
5-7
2-3
Peel and cut into
equal sized pieces.
Keep covered
Paprika
Leek
250
250
25ml
50ml
800
800
5-7
5-7
2-3
2-3
Cut into chunks or
slices Keep covered
Frozen Brussel
sprouts
300
50ml
800
6-8
2-3
Keep covered
Sauerkraut
250
25ml
800
8-10
2-3
Keep covered
Tables and suggestions – Cooking fish
Food
Quantity (g)
Power
(Watt)
Power
Level
Time
(min.)
Standing
Time (min.)
Instructions
Fish fillets
500
600
10-12
3
3
Cook covered over. Turn after
half of cooking time.
Whole fish
800
800
400
2-3
7-9
2-3
2-3
Cook covered over. Turn after
half of cooking time. You may
wish to cover up the small
edges of the fish.
26
EN
Cooking with the grill
For good results with the grill, use the grid iron
supplied with the oven.
Fit the grid iron in such a way that it doesn’t
come into contact with the metal surfaces of
the oven cavity since if it does there is a
danger of electric arcing which may damage
the oven.
IMPORTANT POINTS:
1. When the microwave grill is used for the first
time there will be some smoke and a smell
coming from the oils used during oven
manufacture.
2. The oven door window becomes very hot
when the grill is working. Keep children
away.
3. When the grill is operating, the cavity walls
and the grid iron become very hot. You
should use oven gloves.
4. If the grill is used for extended period of time
it is normal to find that the elements will
switch themselves off temporarily due to the
safety thermostat.
5. Important! When food is to be grilled or
cooked in containers you must check that
the container in question is suitable for
microwave use. See the section on types of
ovenware!
6. When the grill is used it is possible that some
splashes of fat may go onto the elements
and be burnt. This is a normal situation and
does not mean there is any kind of operating
fault.
7. After you have finished cooking, clean the
interior and the accessories so that cooking
remains do not become encrusted.
27
EN
Cooking with the Grill
Tables and suggestions – Grill without microwave
Fish
Quantity (g)
Time (min.)
Instructions
Fish
Bass
Sardines/gurnard
800
6-8 fish.
18-24
15-20
Spread lightly with butter. After half of
cooking time turn and spread with
seasoning.
Meat
Sausages
6-8 units
22-26
Prick after half cooking time and turn.
Frozen hamburgers
3 units
18-20
Turn 2x or 3x
Spare rib (approx. 3 cm thick)
400
25-30
After half of cooking time, baste and turn.
Others
Toast
4 units
1½-3
Watch toasting. Turn
Toasted sandwiches
2 units
5-10
Watch toasting.
Heat up the grill beforehand for 2 minutes. Unless
indicated otherwise, use the grid iron. Place the
grid on a bowl so that the water and the fat can
drop. The times shown are merely indicative and
can vary as a function of the composition and
quantity of the food, as well as the final condition
wished for. Fish and meat taste great if, before
grilling, you brush them with vegetable oil, spices
and herbs and leave to marinate for a few hours.
Only add salt after grilling.
Sausages will not burst if you prick them with a
fork before grilling.
After half the grilling time has passed, check on
how the cooking is going and, if necessary, turn
the food over or brush it with some oil.
The grill is especially suitable for cooking thin
portions of meat and fish. Thin portions of meat
only need to be turned once, but thicker portions
should be turned several times. In the case of fish,
you should join the two ends, putting the tail in its
mouth, and then put the fish on the grid iron.
28
EN
Cooking with the Grill
Tables and suggestions – Microwave + Grill
The microwave + grill function is ideal for cooking
quickly and, at the same time, browning foods.
Furthermore, you can also grill and cook cheese
covered food.
The microwave and the grill work simultaneously.
The microwave cooks and the grill toasts.
Food
Quantity (g)
Dish
Power
(Watt)
Time (min.)
Standing
time (min.)
Cheese topped pasta
500
Low dish
400
12-17
3-5
Cheese topped potatoes
800
Low dish
600
20-22
3-5
Lasagne
approx. 800
Low dish
600
15-20
3-5
Grilled cream cheese
approx. 500
Low dish
400
18-20
3-5
2 fresh chicken legs
(grilled)
200 each
Low dish
400
10-15
3-5
Chicken
approx. 1000
Low and wide dish
400
35-40
3-5
Cheese topped onion
soup
2 x 200 g cups
Soup bowls
400
2-4
3-5
Before using a dish in the microwave oven make
sure that it is suitable for microwave use. Only use
dishes or containers that are suitable for
microwave use.
The dish to be used in the combined function
must be suitable for microwave and grill use. See
the section on types of ovenware!
Keep in mind that the figures given are merely
indicative and can vary as a function of the initial
state, temperature, moisture and type of food.
If the time is not enough to brown the food well,
put it under the grill for another 5 or 10 minutes.
Please follow the standing times and don’t forget
to turn the meat pieces.
Unless indicated to the contrary, use the turntable
plate for cooking.
The values given in the tables are valid when the
oven cavity is cold (it is not necessary to pre-heat
the oven).
29
EN
What kind of ovenware can be used?
Microwave function
For the microwave function, keep in mind that
microwaves are reflected by metal surfaces.
Glass, china, clay, plastic, and paper let
microwaves pass.
For this reason, metal pans and dishes or
containers with metal parts or decorations
cannot be used in the microwave. Glass ware
and clay with metallic decoration or content
(e.g. lead crystal) cannot be used in microwave
ovens.
The ideal materials for use in microwave ovens
are glass, refractory china or clay, or heat
resistant plastic. Very thin, fragile glass or china
should only be used for short period of times (e.g.
heating).
Hot food transmits heat to the dishes which can
become very hot. You should, therefore, always
use an oven glove!
How to test ovenware you want to use
Put the item you want to use in the oven for 20
seconds at maximum microwave power. After that
time, if it is cold and just slightly warm, it is
suitable to use. However, if it heats up a lot or
causes electric arcing it is not suitable for
microwave use.
Grill function
In the case of the grill function, the ovenware must
be resistant to temperature of at least 300°C.
Plastic dishes are not suitable for use in the grill.
Microwave + grill function
In the microwave + grill function, the ovenware
used must be suitable for use in both the
microwave and the grill.
Aluminium containers and foil
Pre-cooked food in aluminium containers or in
aluminium foil can be put in the microwave if the
following aspects are respected:
Keep in mind the manufacturer’s
recommendations written on the packaging.
The aluminium containers cannot be more
than 3 cm high or come in contact with the
cavity walls (minimum distance 3 cm). Any
aluminium lid or top must be removed.
Put the aluminium container directly on top
of the turntable plate. If you use the grid iron,
put the container on a china plate. Never put
the container directly on the grid iron!
The cooking time is longer because the
microwaves only enter the food from the top.
If you have any doubts, it is best to use only
dishes suitable for microwave use.
Aluminium foil can be used to reflect
microwaves during the defrosting process.
Delicate food, such as poultry or minced
meat, can be protected from excessive heat
by covering the respective
extremities/edges.
Important: aluminium foil cannot come into
contact with the cavity walls since this may
cause electrical arcing.
Lids
We recommend you use glass or plastic lids or
cling film since:
1. This will stop excessive evaporation (mainly
during very long cooking times);
2. The cooking times are shorter;
3. The food does not become dry;
4. The aroma is preserved.
The lid should have holes or openings so that no
pressure develops. Plastic bags must also be
opened. Baby feeding bottles or jars with baby
food and similar containers can only be heated
without their tops / lids otherwise they can burst.
30
EN
What kind of ovenware can be used?
Table of Ovenware
The table below gives you a general idea of what type of ovenware is suitable for each situation.
Operating mode
Type of
ovenware
Microwave
Grill
Microwave +
Grill
Defrosting /
heating
Cooking
Glass and china 1)
Home use, not flame resistant, can
be used in dish washer
yes
yes
no
no
Glazed china
Flame resistant glass and china
yes
yes
yes
yes
China, stone ware 2)
Unglazed or glazed without metallic
decorations
yes
yes
no
no
Clay dishes 2)
Glazed
Unglazed
yes
no
yes
no
no
no
no
no
Plastic dishes 2)
Heat resistant to 100°C
Heat resistant to 250°C
yes
yes
no
yes
no
no
no
no
Plastic films 3)
Plastic film for food
Cellophane
no
yes
no
yes
no
no
no
no
Paper, cardboard, parchment 4)
yes
no
no
no
Metal
Aluminium foil
Aluminium wrappings 5)
Accessories
yes
no
yes
no
yes
yes
yes
yes
yes
no
yes
yes
1. Without any gold or silver leaf edging; no
lead crystal.
2. Keep the manufacturer’s instructions in
mind!
3. Do not use metal clips for closing bags.
Make holes in the bags. Use the films only to
cover the food.
4. Do not use paper plates.
5. Only shallow aluminium containers without
lids/tops. The aluminium cannot come into
contact with the cavity walls.
31
EN
Oven Cleaning and Maintenance
Cleaning is the only maintenance normally
required.
Warning! Your microwave oven should be
cleaned regularly, with all food remains being
removed. If the microwave is not kept clean its
surfaces may deteriorate, reducing the oven’s
working life and possibly resulting in a
dangerous situation.
Warning! Cleaning should be done with the
oven power switched off. Take the plug out of
the socket or switch off the oven’s power
circuit.
Do not use aggressive or abrasive cleaning
products, scourers that scratch surfaces or
sharp objects, since stains may appear.
Do not use high pressure or stream jet
cleaning appliances.
Front surface
Normally you just need to clean the oven with a
damp cloth. If it is very dirty, add a few drops of
dishwashing liquid to the cleaning water.
Afterwards, wipe the oven with a dry cloth.
In an oven with an aluminium front, use a glass
cleaning product and a soft cloth that does not
release any fibres or threads. Wipe from side to
side without exerting any pressure on the surface.
Immediately remove lime, fat, starch or egg white
stains. Corrosion can occur under these stains.
Do not let any water get inside the oven.
Oven interior
After each time the oven is used, clean the inside
walls with a damp cloth since this is the easiest
way to remove splashes or spots of food that may
have stuck to the inside.
To remove dirt that is harder to shift, use a non-
aggressive cleaning product. Do not use oven
sprays or other aggressive or abrasive
cleaning products.
Always keep the door and the oven front very
clean to ensure that the door opens and
closes properly.
Make sure water does not enter the microwave
ventilation holes.
Regularly take out the turntable plate and the
respective support and clean the cavity base,
especially after any liquid spillage.
Do not switch on the oven without the
turntable and the respective support being in
place.
If the oven cavity is very dirty, put a glass of water
on the turntable and switch on the microwave
oven for 2 or 3 minutes at maximum power. The
steam released will soften the dirt which can then
be cleaned easily using a soft cloth.
Unpleasant odours (e.g. after cooking fish) can be
eliminated easily. Put a few drops of lemon juice
in a cup with water. Put a spoonful of coffee in the
cup to avoid the water boiling over. Heat the water
for 2 to 3 minutes at maximum microwave power.
32
EN
Oven Cleaning and Maintenance
Oven ceiling
If the oven ceiling is dirty, the grill can be lowered
to make cleaning easier.
To avoid the danger of burning, wait until the
grill is cold before lowering it. Proceed as
follows:
1. Turn the grill support by 90º (1).
2. Lower the grill gently (2). Do not use
excessive force as this may cause
damage.
3. After cleaning the ceiling, put the grill (2)
back in its place, carrying out the previous
operation.
The mica cover (3) located in the ceiling must
always be kept clean. Any food remains that
collect on the mica cover can cause damage or
provoke sparks.
Do not use abrasive cleaning products or
sharp objects.
To avoid any risk, do not remove the mica
cover.
The glass lamp cover (4) is located on the oven
ceiling and can be removed easily for cleaning.
For this you just need to unscrew it and clean it
with water and dishwashing liquid.
Accessories
Clean the accessories after each use. If they are
very dirty, soak them first of all and then use a
brush and sponge. The accessories can be
washed in a dish washing machine.
Make sure that the turntable plate and the
respective support are always clean. Do not
switch on the oven unless the turntable and the
respective support are in place.
33
EN
What should I do if the oven doesn’t work?
WARNING! Any type of repair must only be
done by a specialised technician. Any repair
done by a person not authorised by the
manufacturer is dangerous.
You do not need to contact Technical Assistance
to resolve the following questions:
The display is not showing! Check if:
- The time indication has been switched off
(see section on Basic Settings).
Nothing happens when I press the keys!
Check if:
- The Safety Block is active (see section on
Basic Settings).
The oven does not work! Check if:
- The plug is correctly fitted in the socket.
- The oven’s power is switched on.
- The door is completely closed. The door
should close with an audible click.
- There are any foreign bodies between the
door and the cavity front.
When the oven is operating I can hear
some strange noises! Check if:
- There is any electrical arcing inside the oven
caused by foreign metallic objects (see
section on type of ovenware).
- The ovenware is touching the oven walls.
- There are any loose items of cutlery or
cooking tools inside the oven.
The food doesn’t heat up or heats very
slowly! Check if:
- You have inadvertently used metal
ovenware.
- You have selected the correct operating
times and power level.
- The food you have put inside the oven is a
larger amount or colder than you usually put in.
The food is too hot, dried out or burnt!
Check if you selected the correct operating
time and power level.
I hear some noises after the cooking
process is finished! This is not a problem.
The cooling fan keeps on working for some
time. When the temperature has dropped
sufficiently, the fan will switch itself off.
The oven switches on but the interior
light does not go on! If all the functions
work properly it is probable that the lamp
has blown. You can keep on using the oven.
Substitution of light bulb
To substitute the light bulb, proceed as follows:
- Disconnect the oven from the power supply.
Take the plug out of the socket or switch off
the oven’s power circuit.
- Unscrew and remove the glass light cover
(1).
- Remove the halogen light bulb (2). Warning!
The bulb may be very hot.
- Fit a new 12V / 10W halogen bulb. Warning!
Do not touch the light bulb surface
directly with your fingers because you
may damage the bulb. Follow the lamp
manufacturer’s instructions.
- Screw the glass light cover into place (1).
- Connect the oven again to the power supply.
34
EN
Technical characteristics
Specifications
AC Voltage ...................................................................................... (see characteristics plate)
Power required ................................................................................ 3300 W
Grill power. ...................................................................................... 1500 W
Microwave output power. ................................................................ 1000 W
Microwave frequency… ................................................................... 2450 MHz
Exterior dimensions (WHD). ........................................................ 595 455 520 mm
Interior dimensions (WHD). ......................................................... 420 210 390 mm
Oven capacity. ................................................................................ 32 ltr
Weight ............................................................................................. 32 kg
35
EN
Installation instructions
Before installation
Check that the input voltage indicated on the
characteristics plate is the same as the voltage of
the power outlet you are going to use.
Open the oven door and take out all the
accessories and remove the packing material.
Do not remove the mica cover on the ceiling of
the interior! This cover stops fat and pieces of
food damaging the microwave generator.
Warning! The front surface of the oven may be
wrapped with a protective film. Before using the
oven for the first time, carefully remove this film,
starting on the inside.
Make sure that the oven is not damaged in any
way. Check that the oven door closes correctly
and that the interior of the door and the front of
the oven opening are not damaged. If you find any
damage contact the Technical Assistance
Service.
DO NOT USE THE OVEN if the power cable or
the plug are damaged, if the oven does not
function correctly or if it has been damaged or
dropped. Contact the Technical Assistance
Service.
Put the oven on a flat and stable surface. The
oven must not be put close to any sources of
heat, radios or televisions.
During installation, make sure that the power
cable does not come into contact with any
moisture or objects with sharp edges behind
the oven. High temperatures can damage the
cable.
Warning: after the oven is installed you must
make sure you can access the plug.
After installation
The oven is equipped with a power cable and a
plug for single phase current.
If the oven is to be installed on a permanent
basis it should be installed by a qualified
technician. In such a case, the oven should be
connected to a circuit with an all-pole circuit
breaker with a minimum separation of 3 mm
between contacts.
WARNING: THE OVEN MUST BE EARTHED.
The manufacturer and retailers do not accept
responsibility for any damage that may be
caused to people, animals or property if these
installation instructions are not observed..
The oven only functions when the door is closed
correctly.
After the first use, clean the inside of the oven and
the accessories, following the cleaning
instructions given in the section “Oven cleaning
and maintenance”.
Fit the Turntable support in the centre of the oven
cavity and put the Turntable ring and the
Turntable plate on top, making sure they slot in.
Whenever you use the microwave, the turntable
plate and the respective accessories must be
inside and correctly fitted. The turntable plate
can rotate in both directions.
During installation, follow the instructions supplied separately.
36
DE
Installation
EN
Push oven completely into the
cabinet and centre it.
Open microwave door and
fasten the appliance to the
cabinet using the four screws
provided. Insert the screws
through the front holes.
