• Use foot pump on a flat surface to prevent excessive twisting of frame.
• Unscrew tyre valve cap, push connector firmly onto the tyre valve and
then secure by depressing the thumb lock
• For efficient pumping action, place foot centrally on the foot plate and
use full strokes on the pump.
• Ensure that the air hose is neither stretched nor kinked during pumping.
• After inflation, lift the thumb lock and release the connector quickly
from the tyre valve.
• Replace tyre valve cap.
• Always store with frame clip applied. Store carefully, particularly if
stored in the car.
• Every 3 months lubricate pivot points with light oil and apply a few
drops through the holes in the bottom of the cylinder.
Several pumping strokes will be required
to distribute the oil.
Note: The gauge on this
footpump is intended as
a guide only.
Push connector firmly onto the
tyre valve & then secure by
depressing the thumb lock on
the connector-
(A).
Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire. SO53 1YF UK
SQCH0121
Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355
internet: drapertools.com email: [email protected]

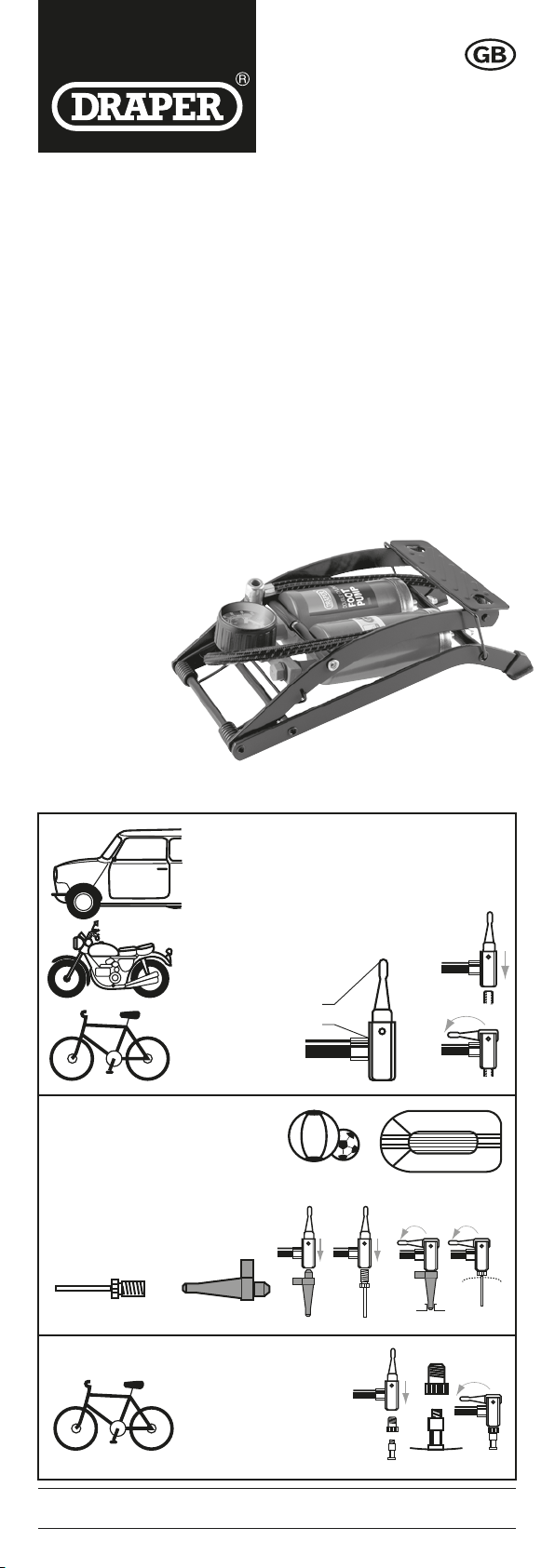

25996 - 4435 INSTRUCTIONS
DOUBLE CYLINDER
FOOT PUMP
(C)
NEEDLE VALVE
PLASTIC ADAPTOR
THUMB LOCK
CONNECTOR
(A)
(B)
CARS, MOTORCYCLES AND
BICYCLES WITH SCHRADER
TYPE VALVES
For inflatables, use the plastic
adaptor; simply press connector onto top of
plastic adaptor and secure by depressing the
thumb lock onto the connector-
(B).
For sports balls, use the
needle valve.
INFLATABLES AND
SPORTS BALLS
For bicycles with Woods
valves, screw adaptor firmly
onto the Woods valve,
then push connector onto
adaptor and secure by
depressing the thumb
lock onto the connector-
(C).
BICYCLES
