Owner's Manual

[RRFTSMIIN°

GARDEN TRACTOR

27.0 HP, 54" Mower

Electric Start

6 Speed Transaxle

Model No.

917.276330

This product has a low emission engine which operates

I_ differently from previously built engines. Before start the

you

engine, read and understand this Owner's Manual,

IMPORTANT:

Read and follow all Safety

Rules and Instructions before

operating this equipment.

For answers to your questions

about this product, Call:

1-800-659-5917

Sears Craftsman Help Line

5 am- 5 pm, Mon- Sat

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179 U.S.A.

Visit our Craftsman website:www.sears.com/craftsman

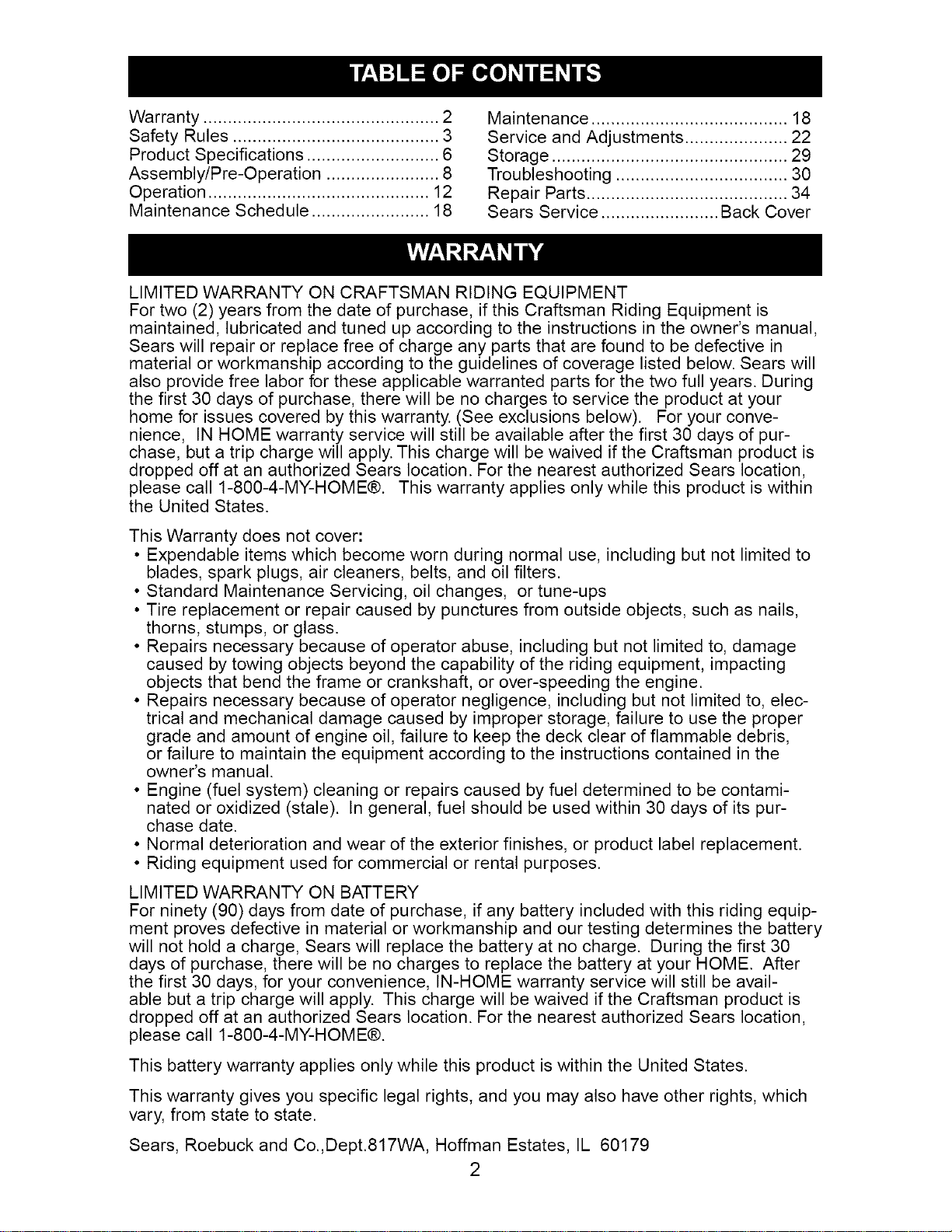

Warranty ................................................ 2

Safety Rules .......................................... 3

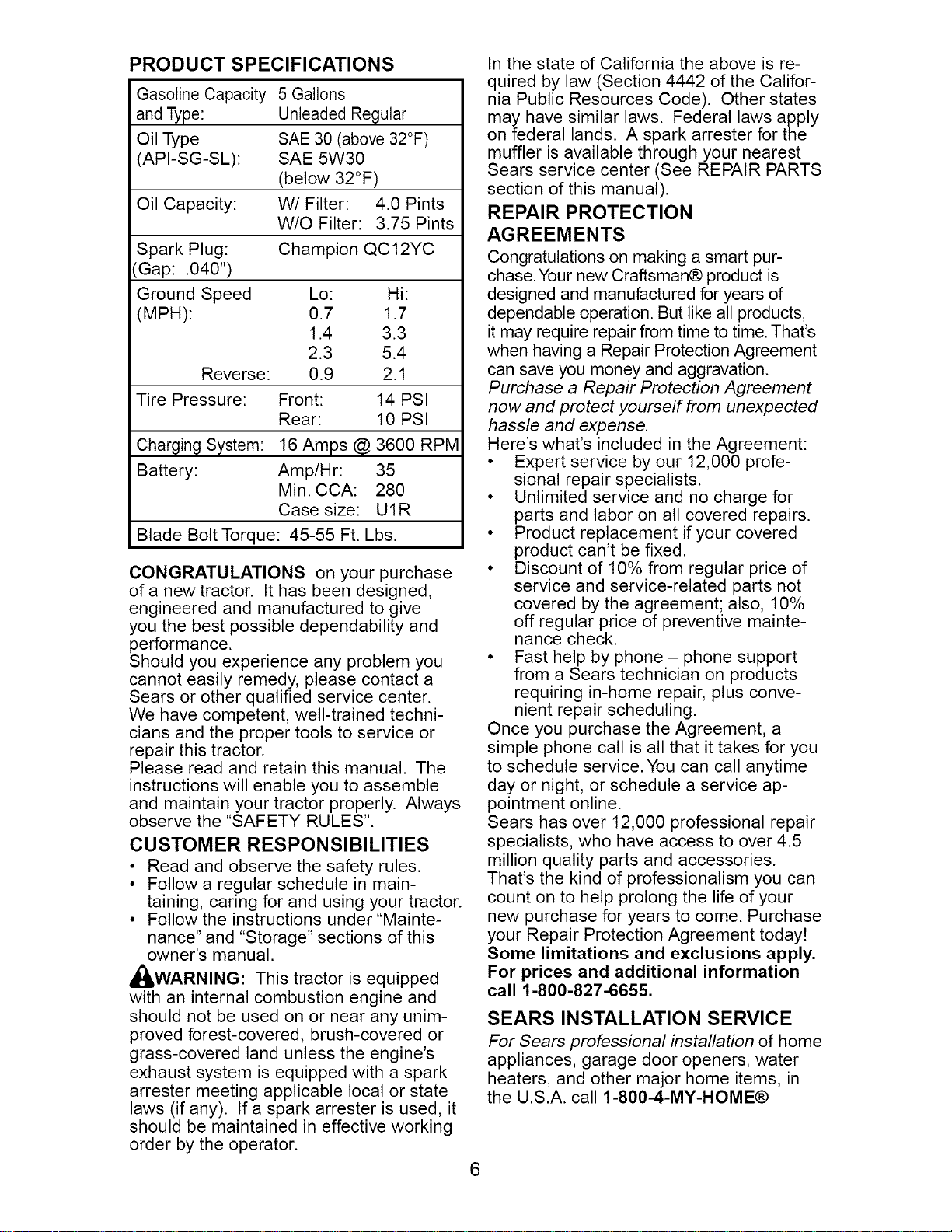

Product Specifications ........................... 6

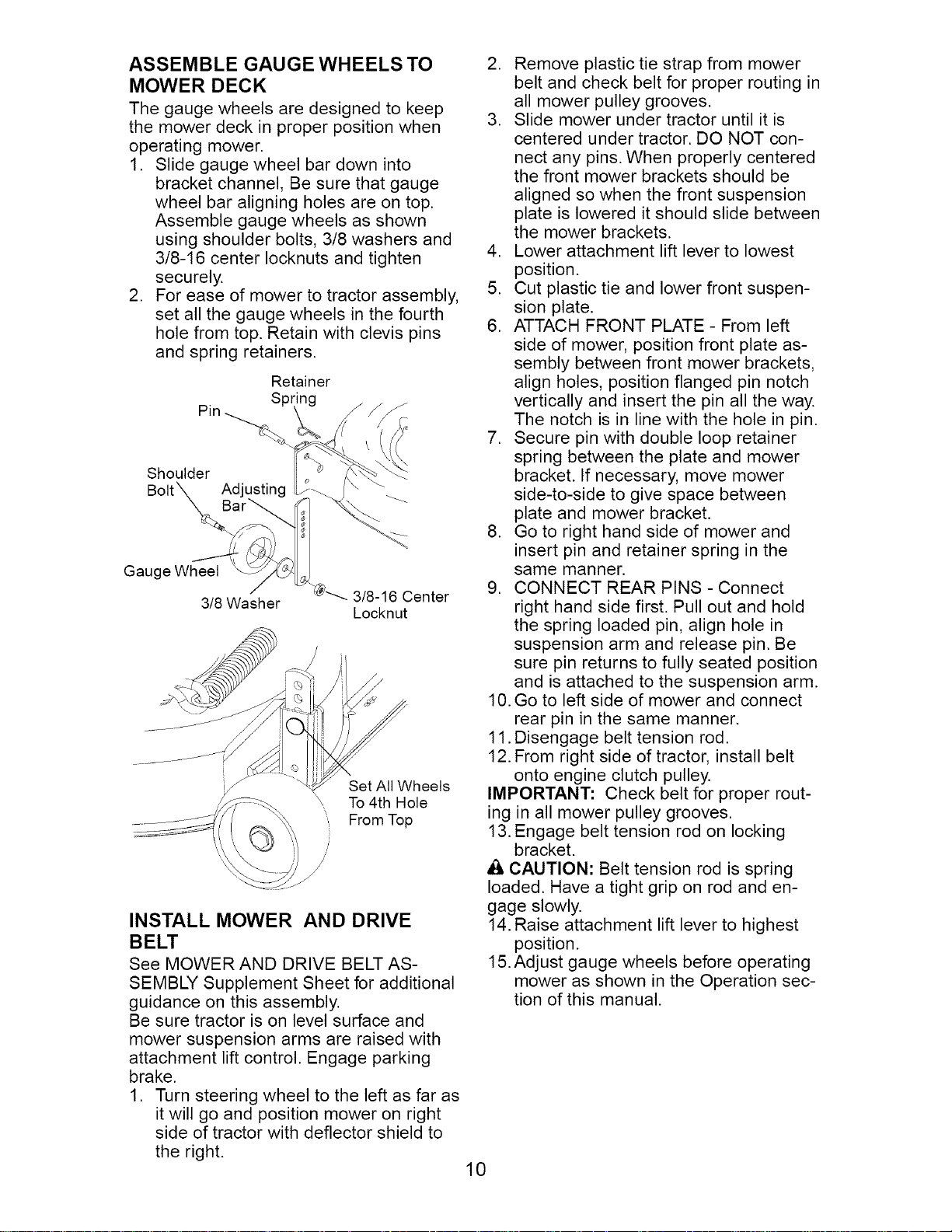

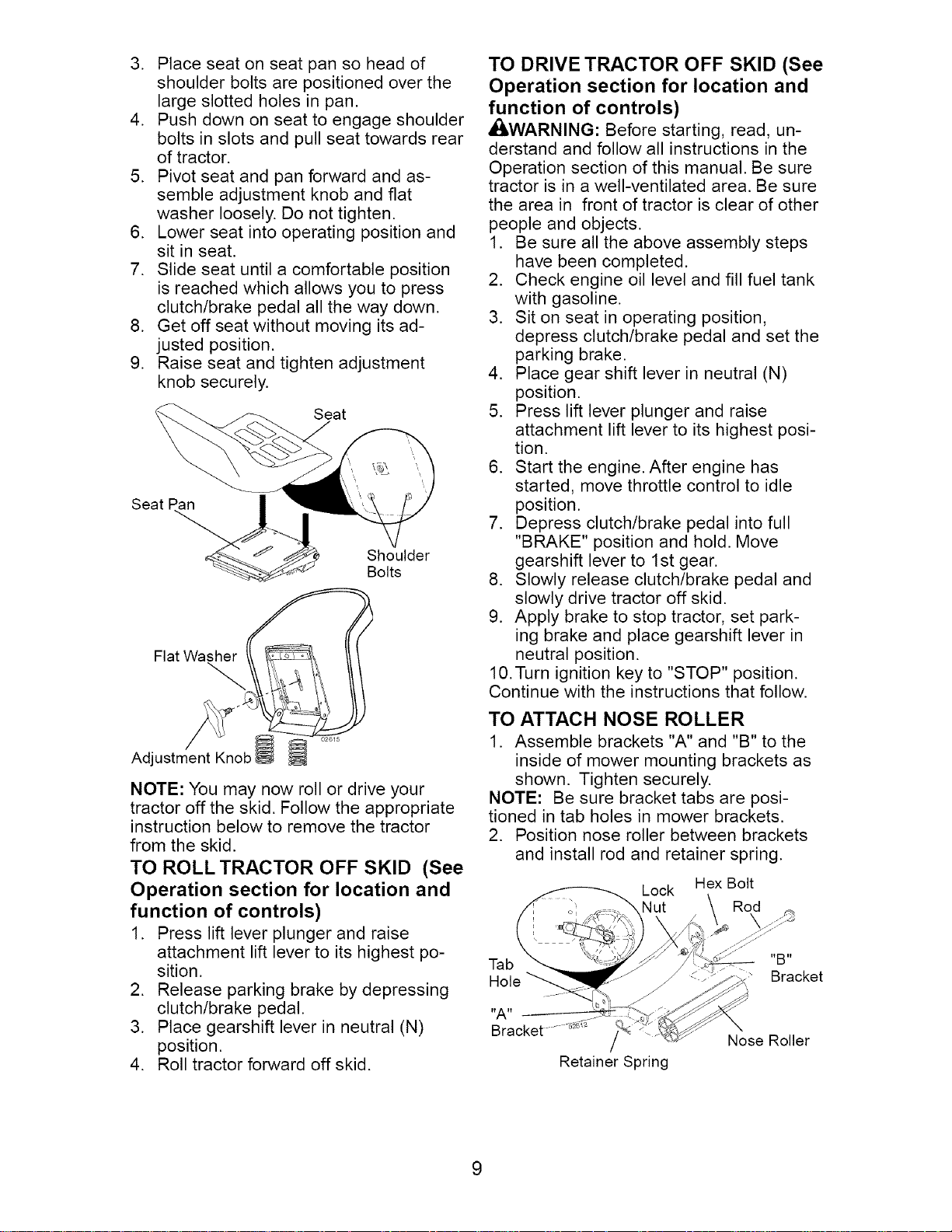

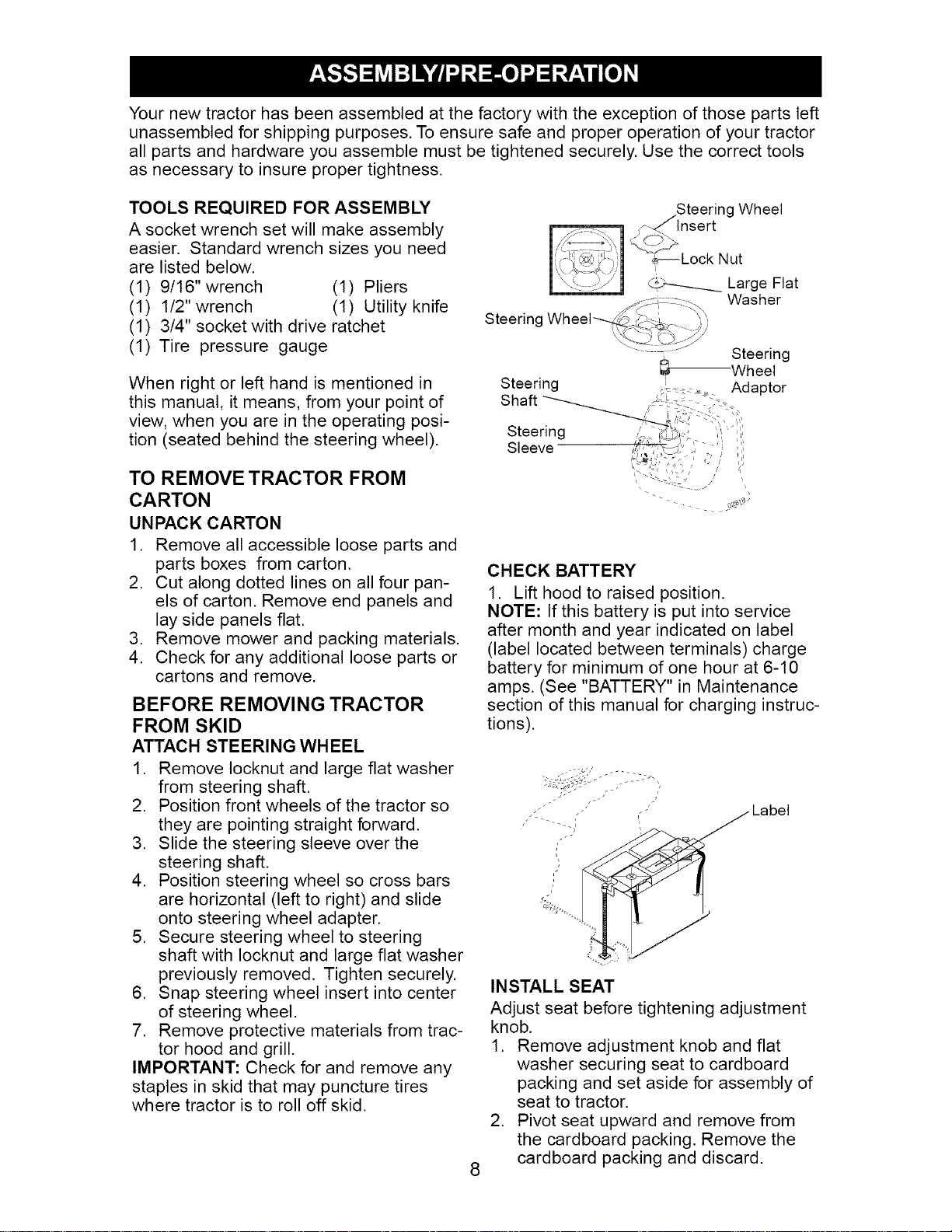

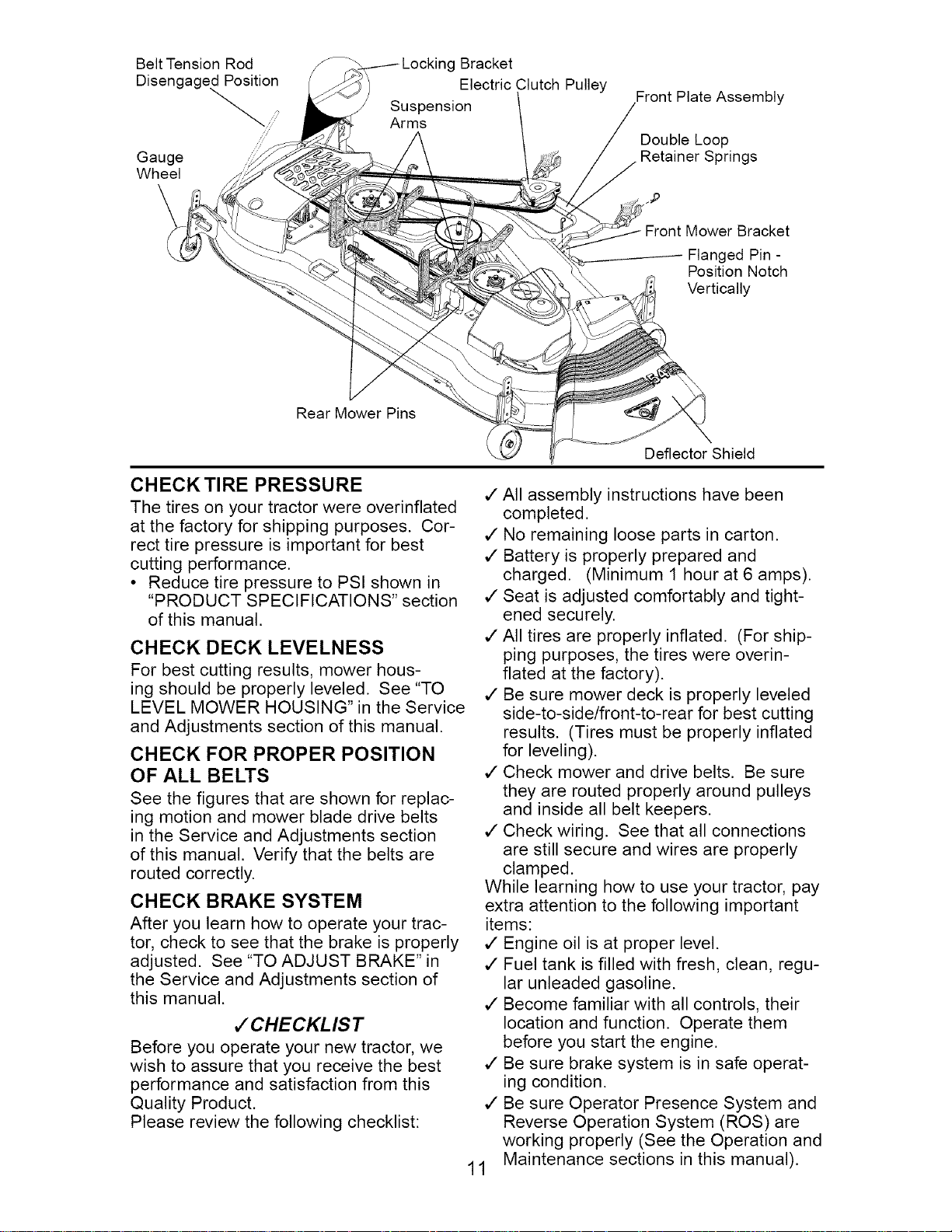

Assembly/Pre-Operation ....................... 8

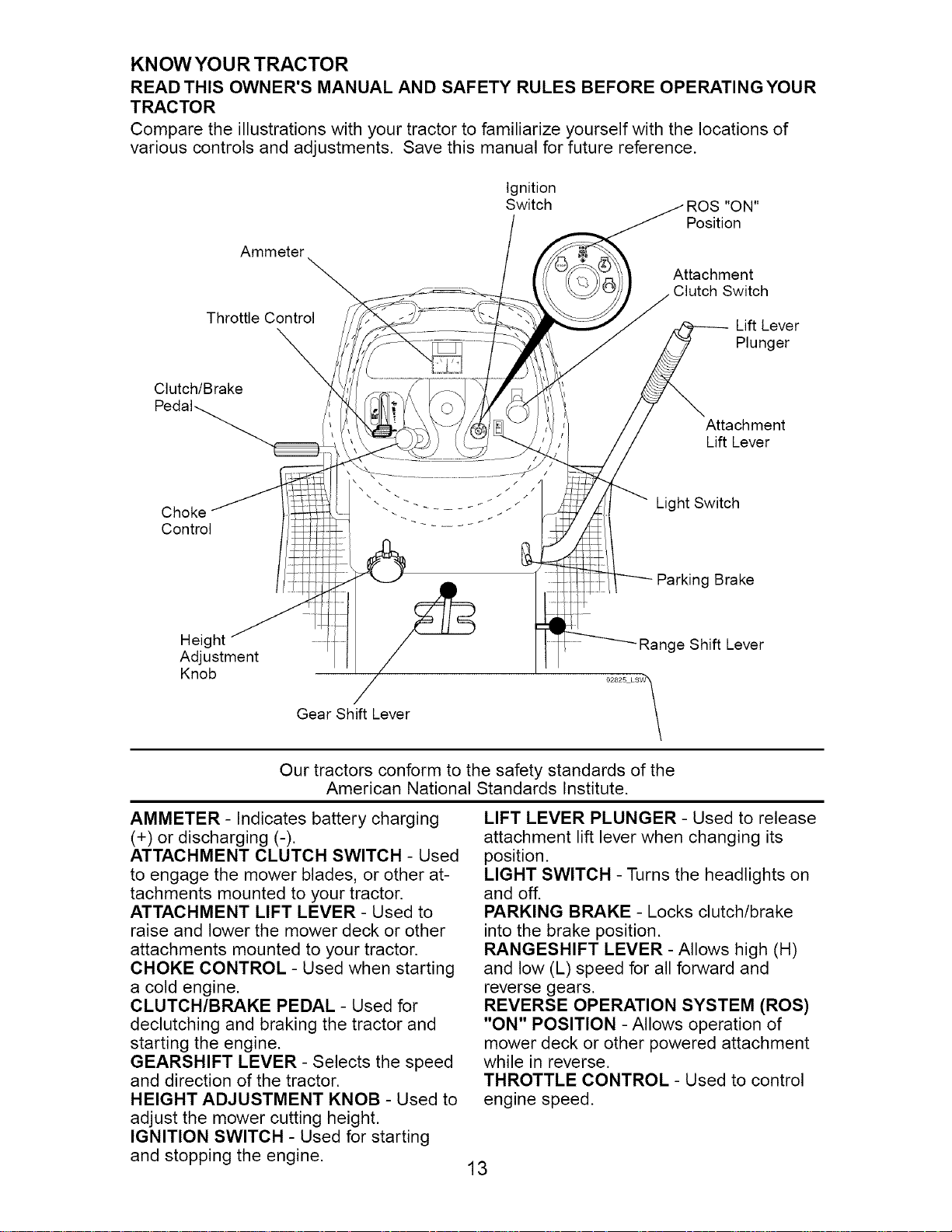

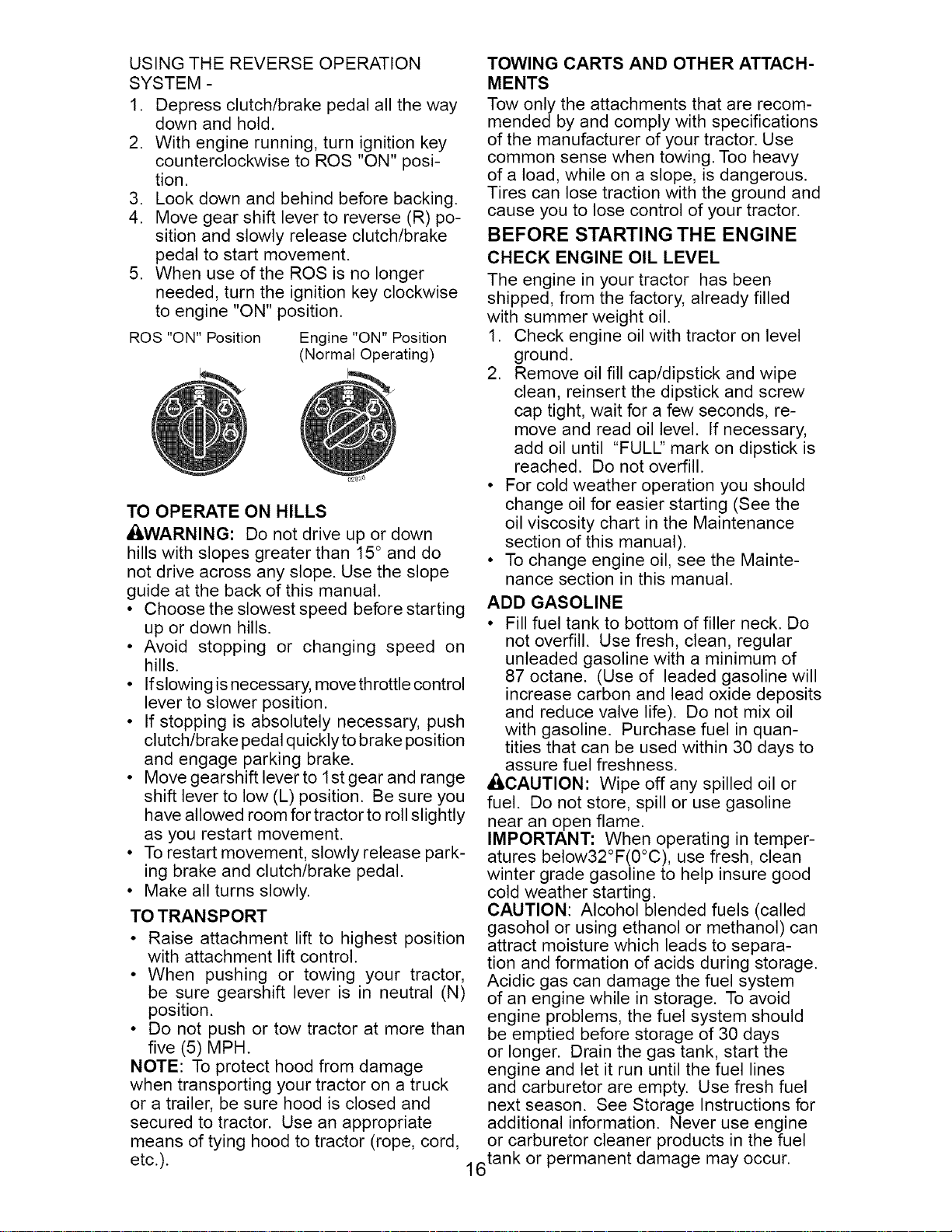

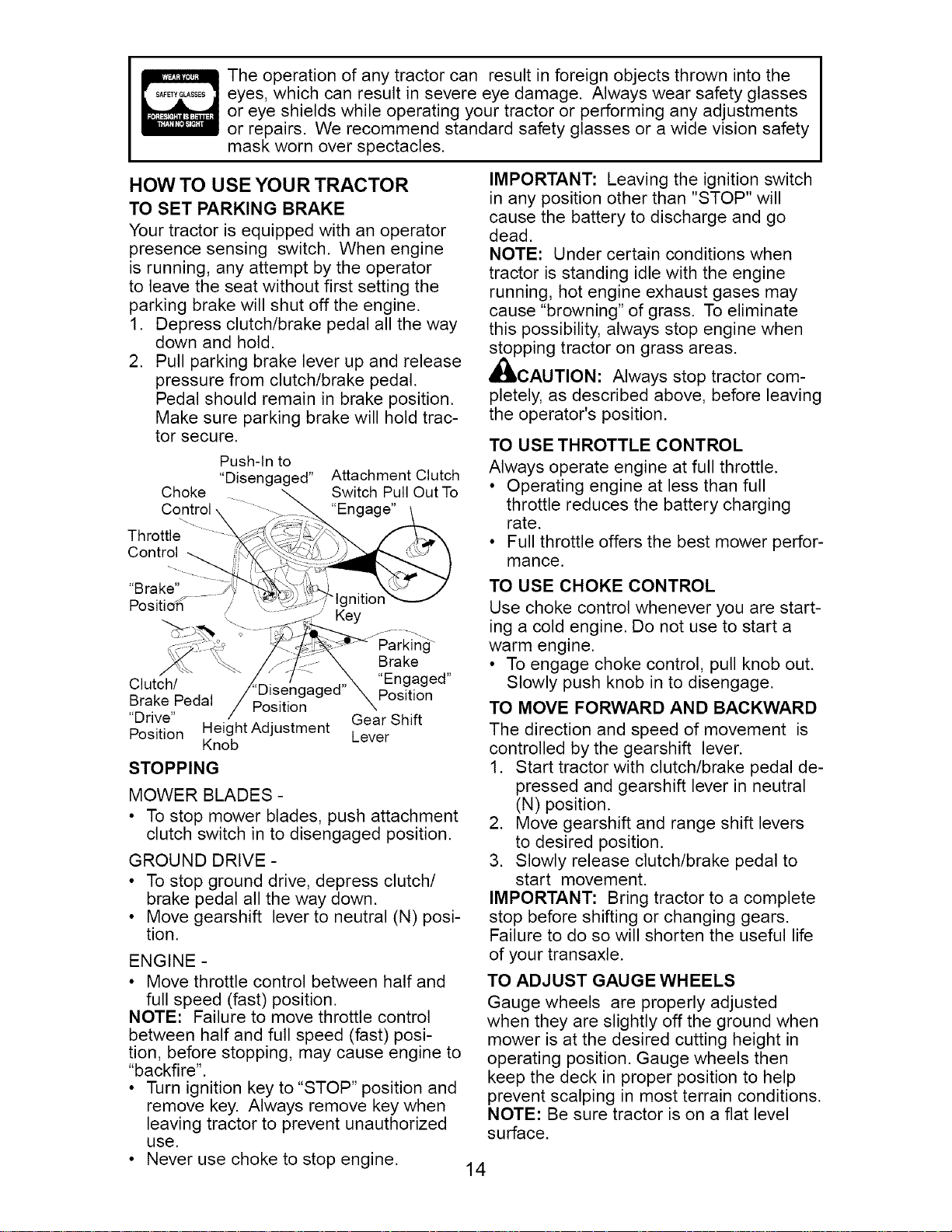

Operation ............................................. 12

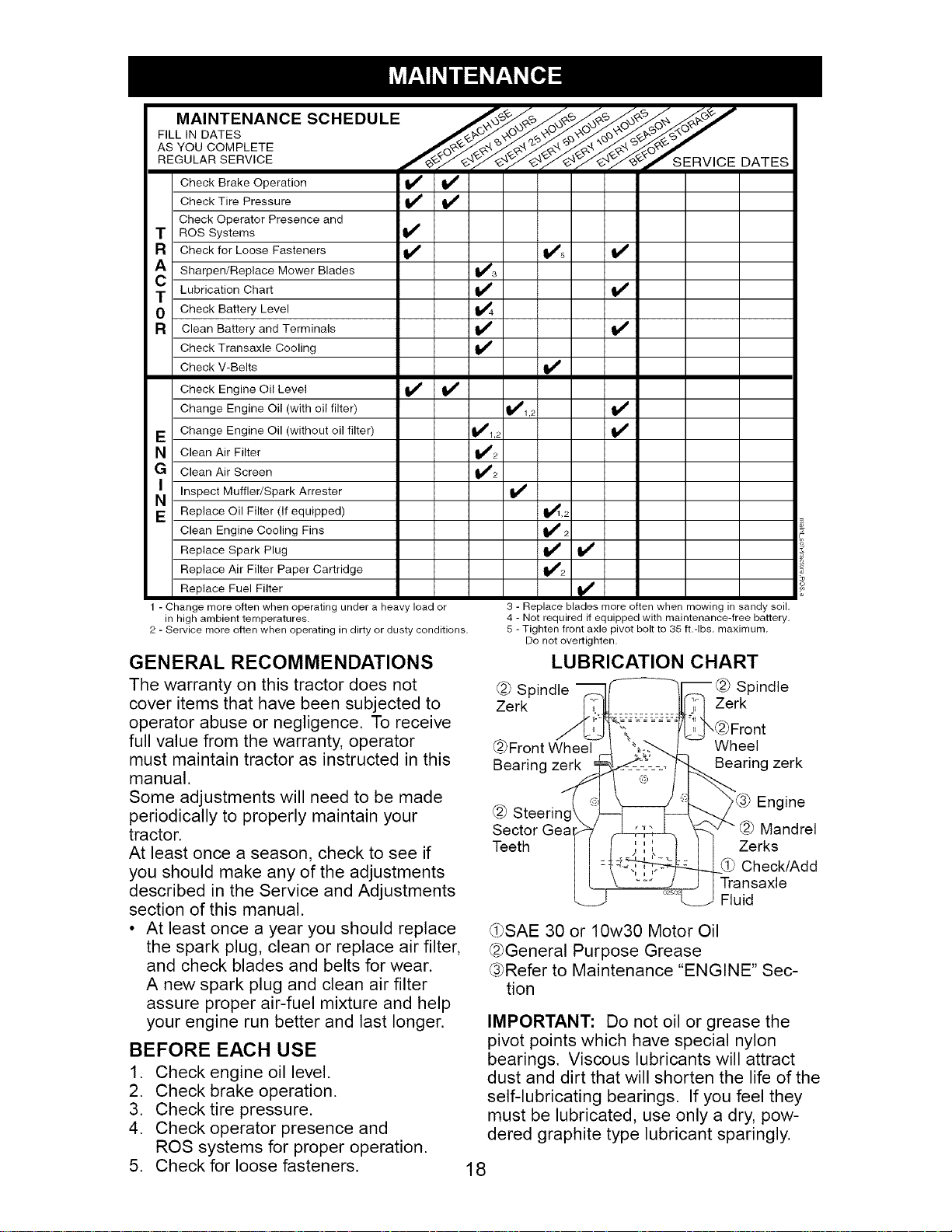

Maintenance Schedule ........................ 18

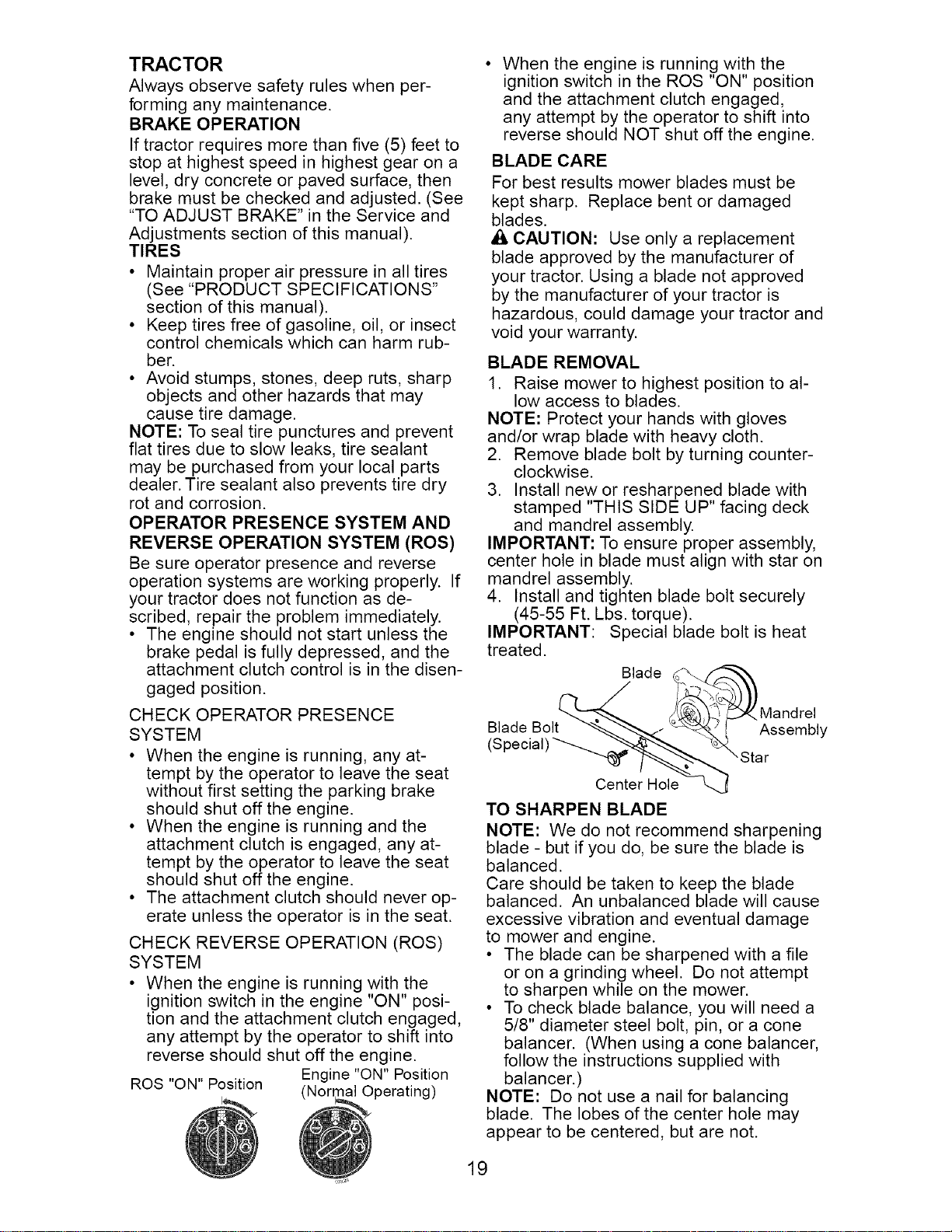

Maintenance ........................................ 18

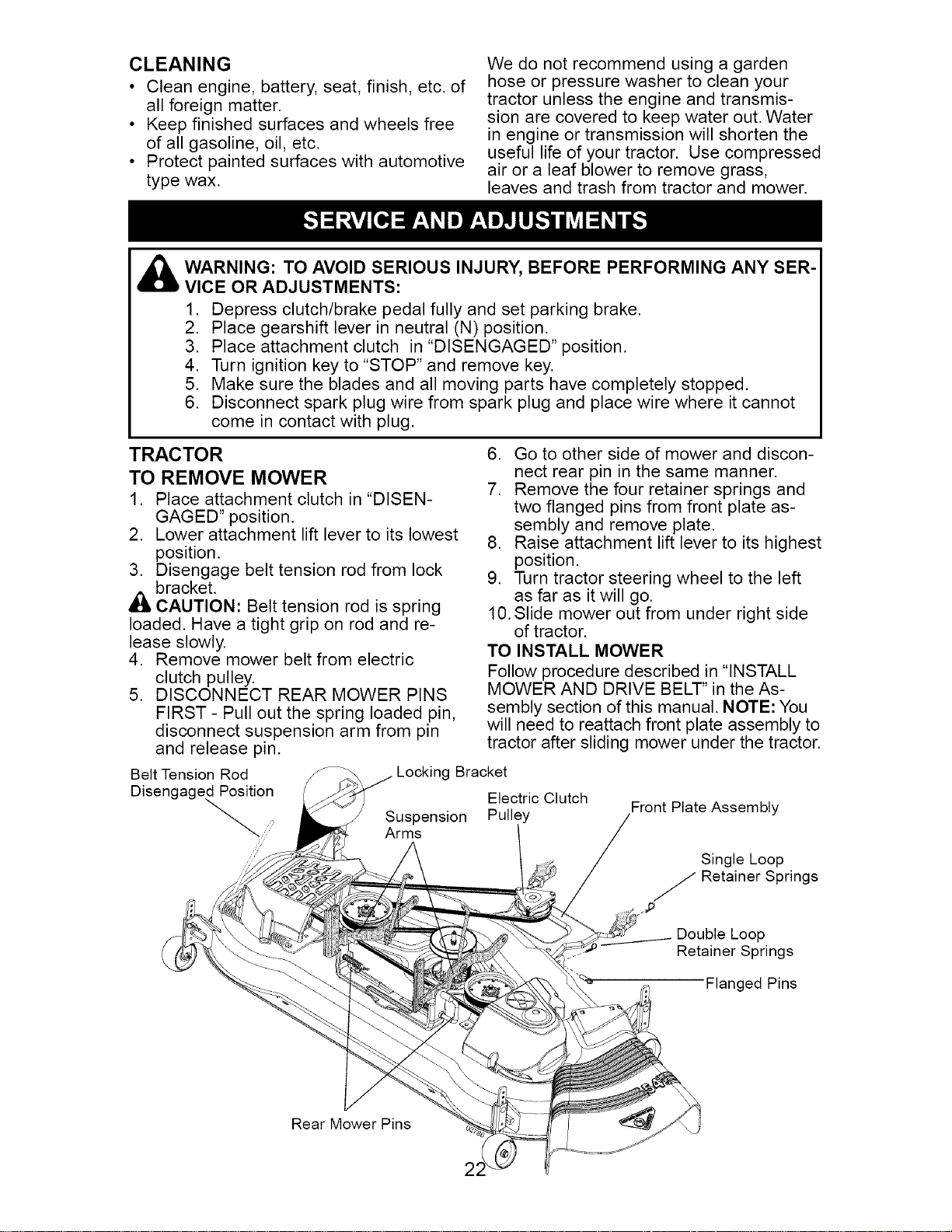

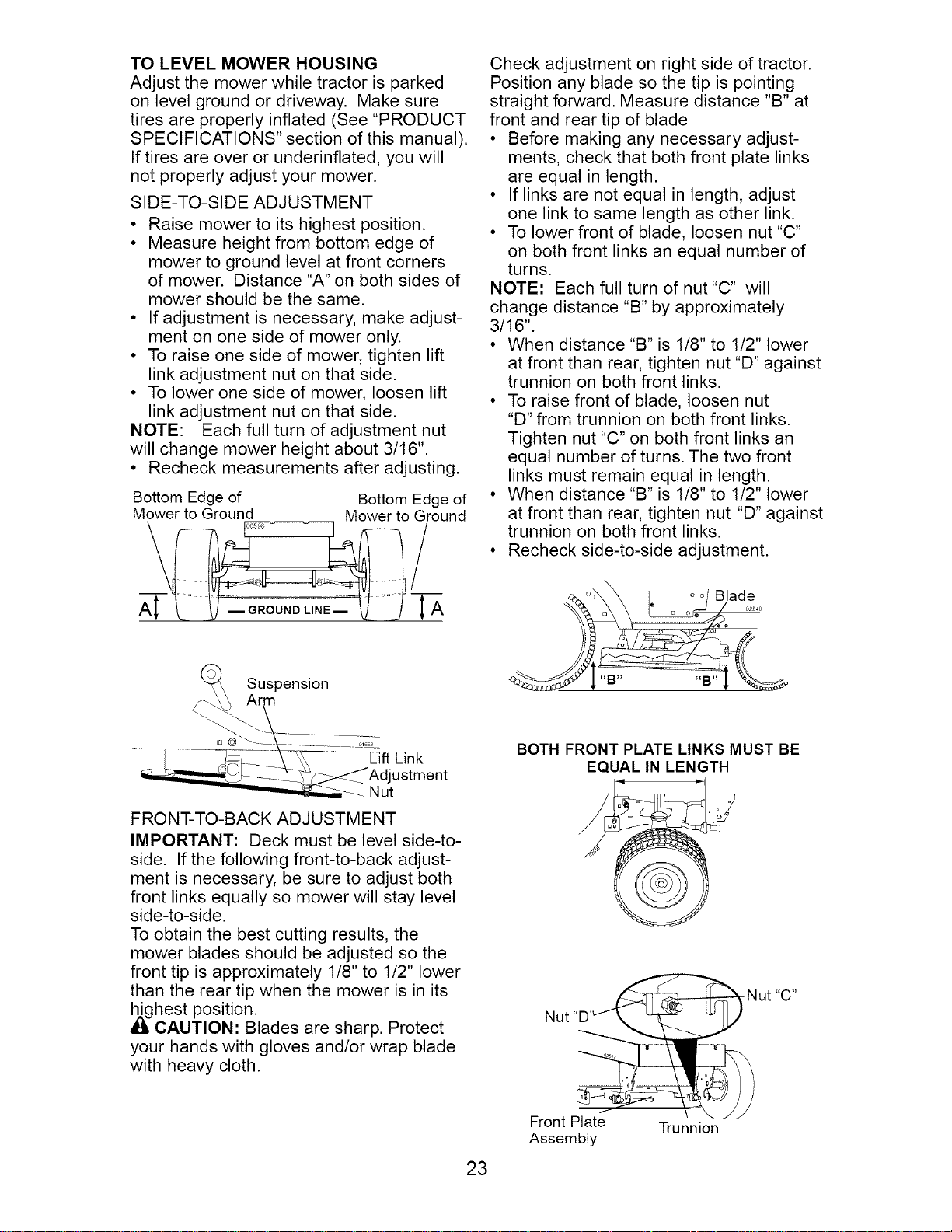

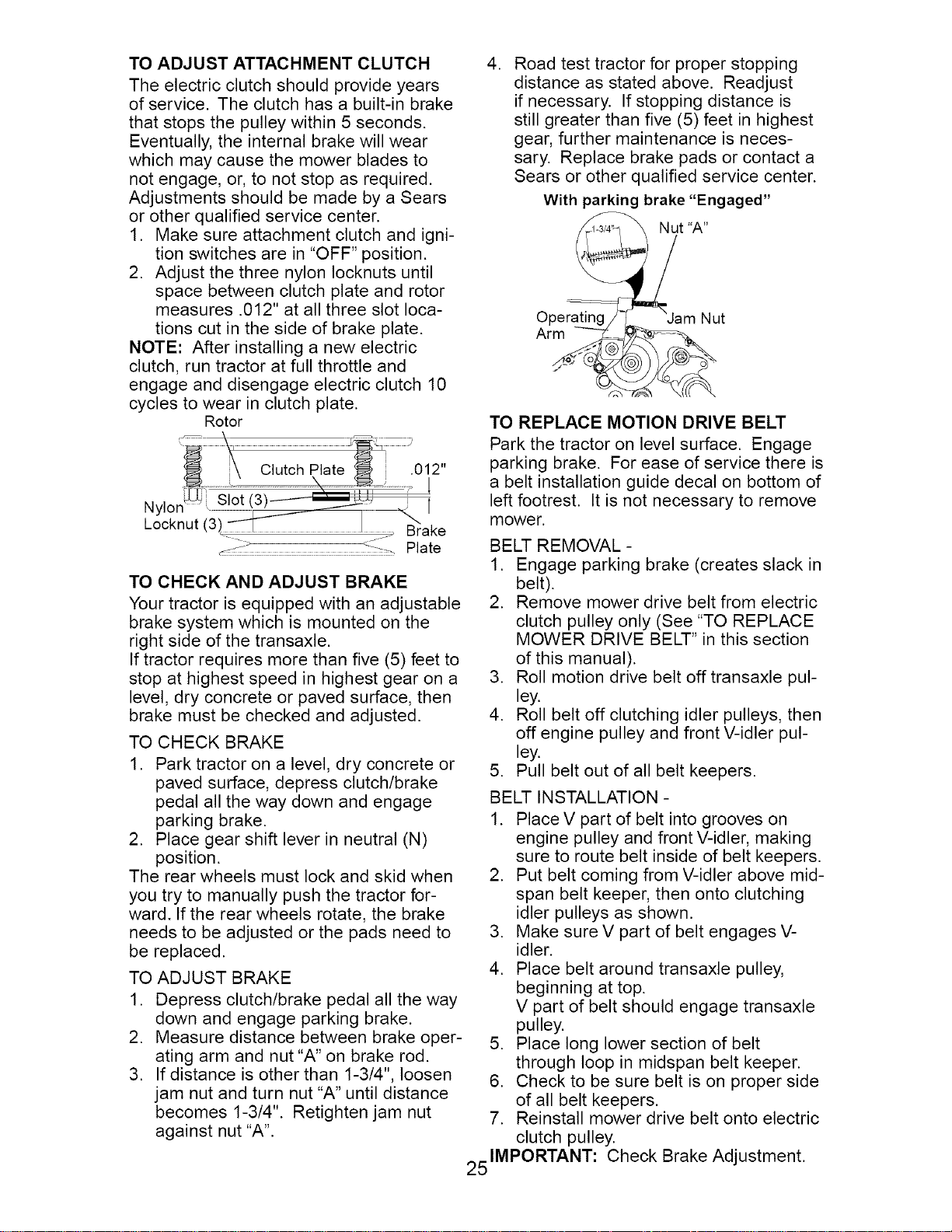

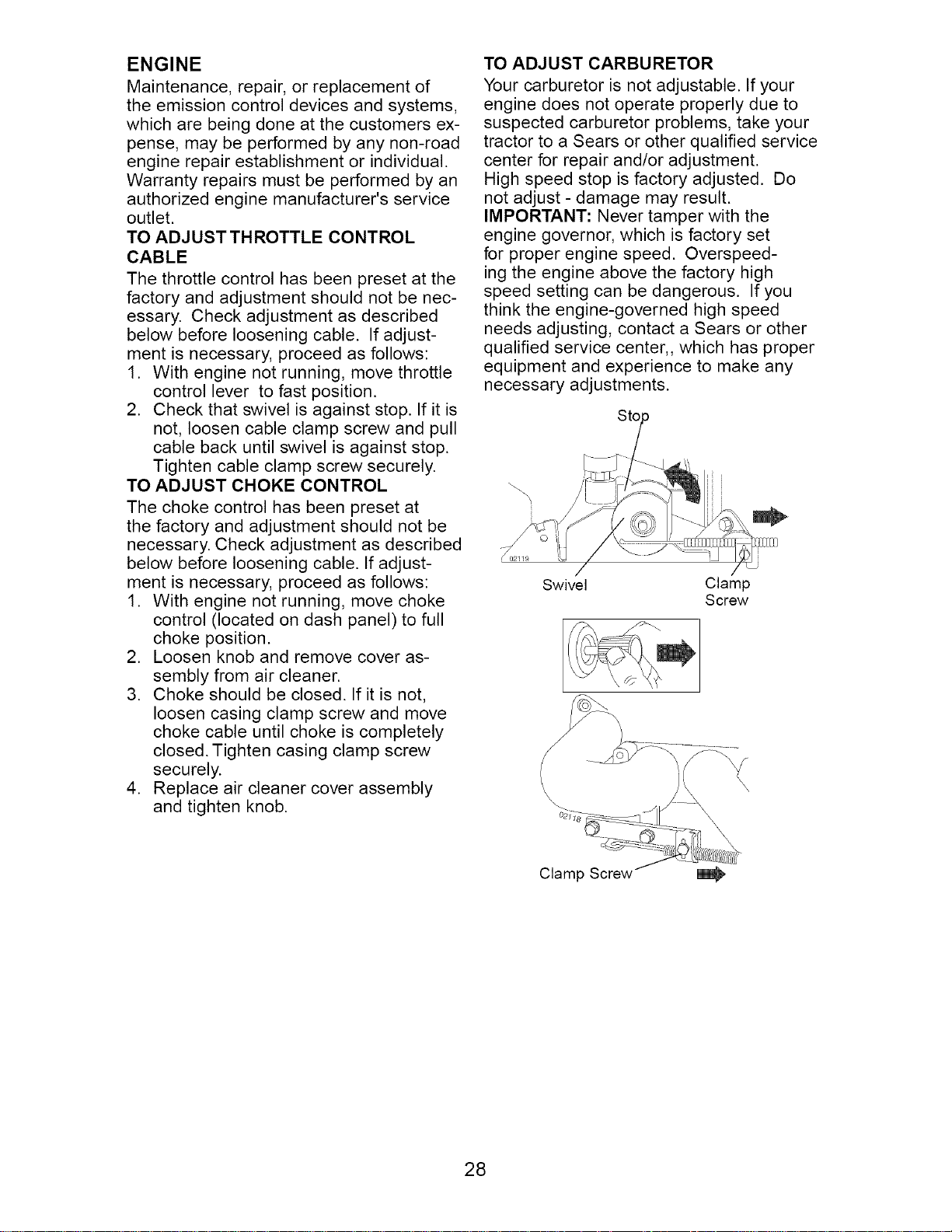

Service and Adjustments ..................... 22

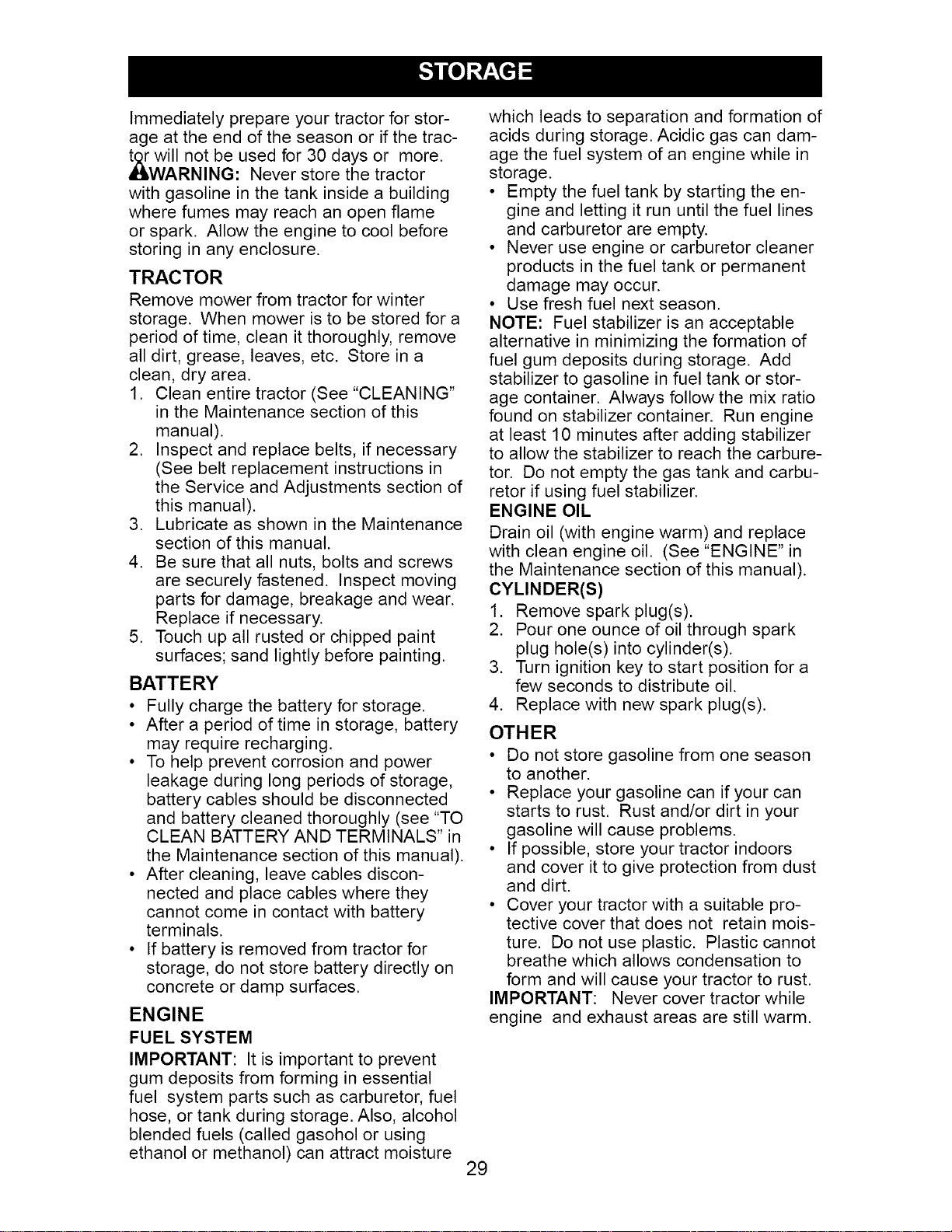

Storage ................................................ 29

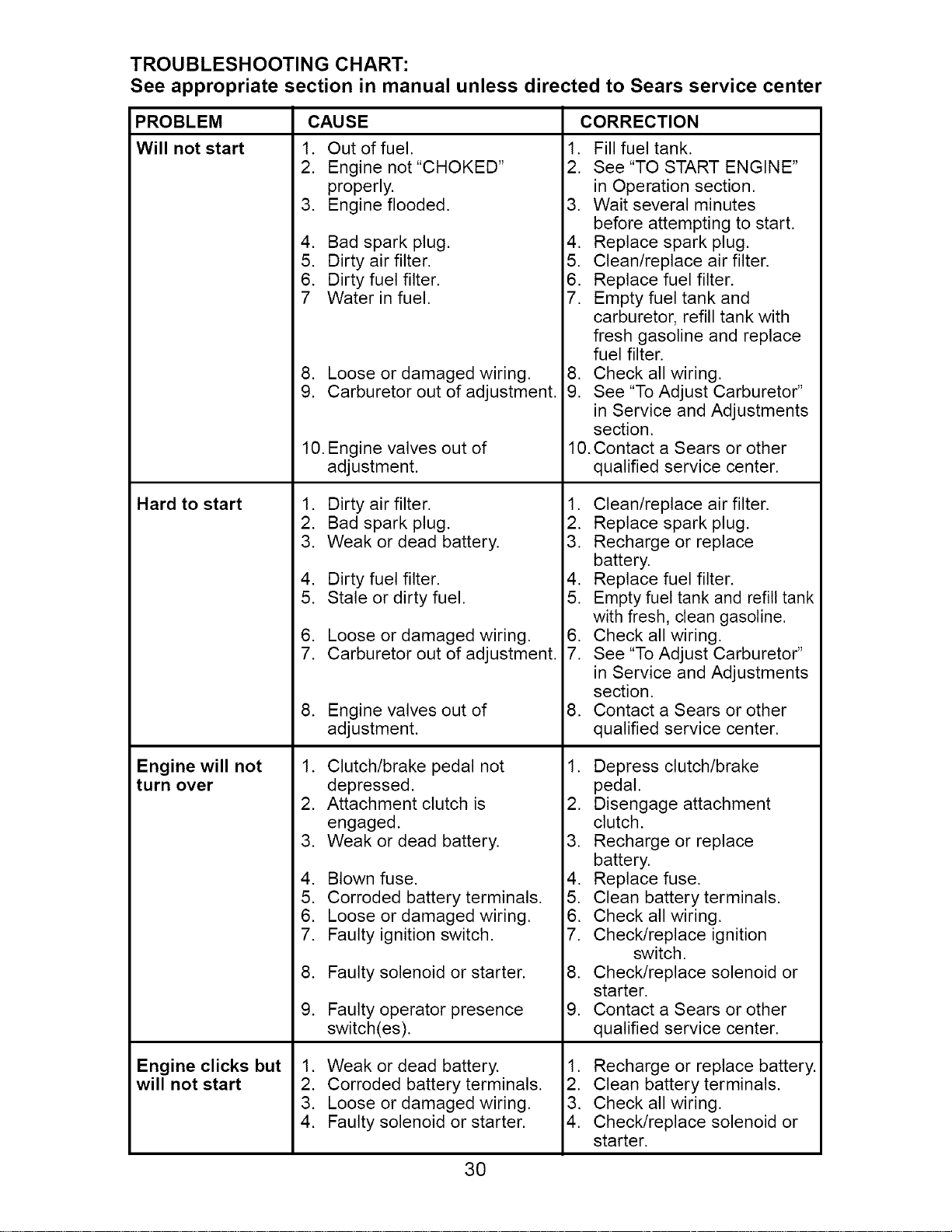

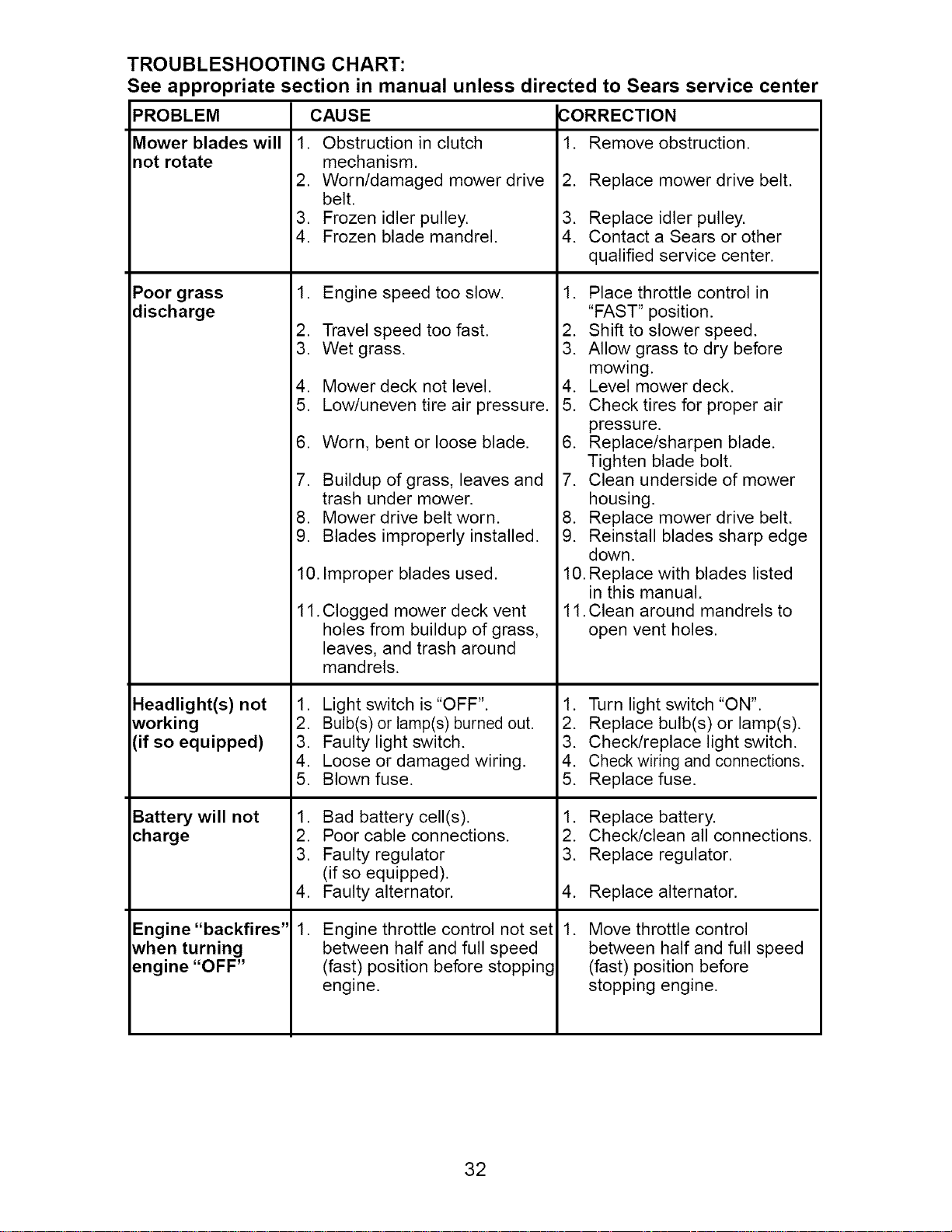

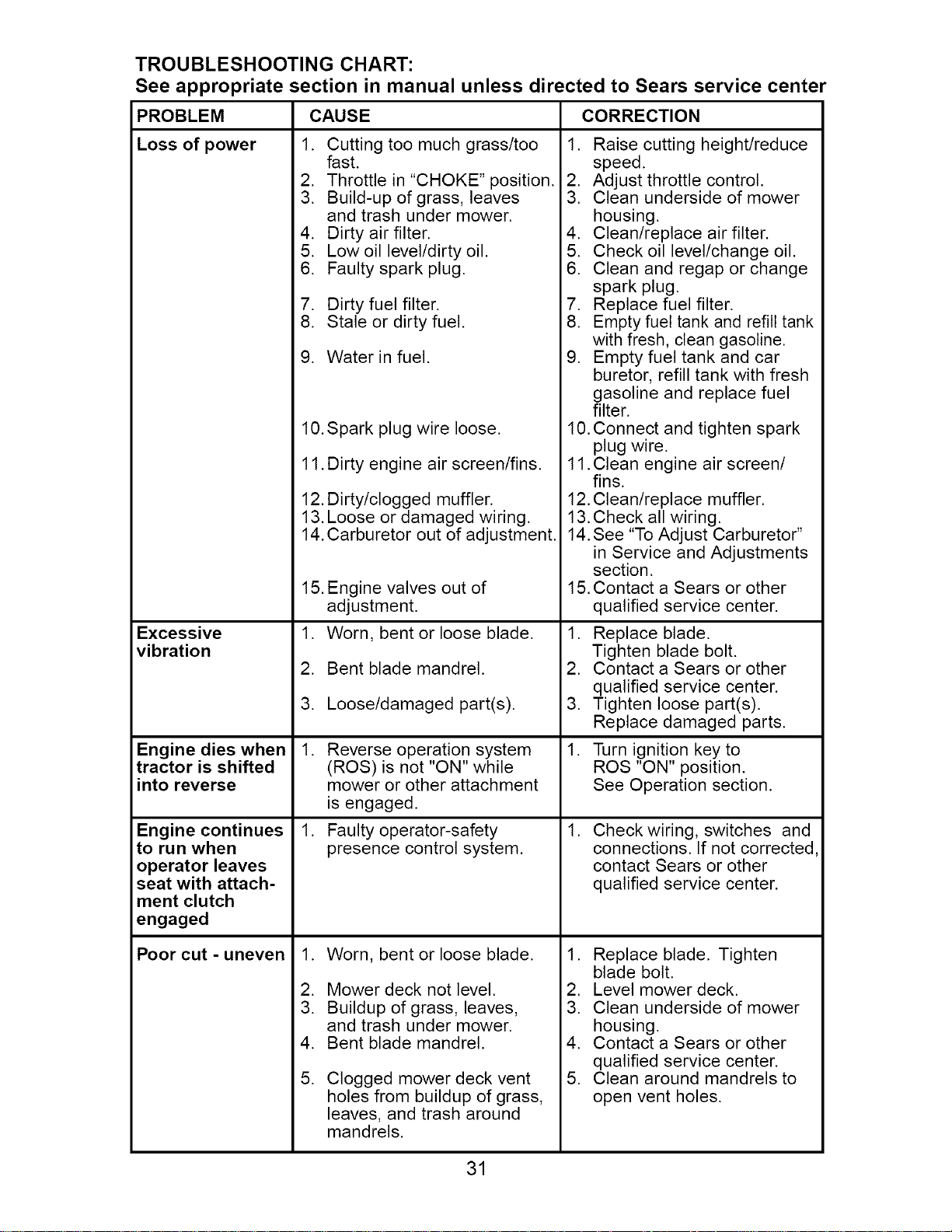

Troubleshooting ................................... 30

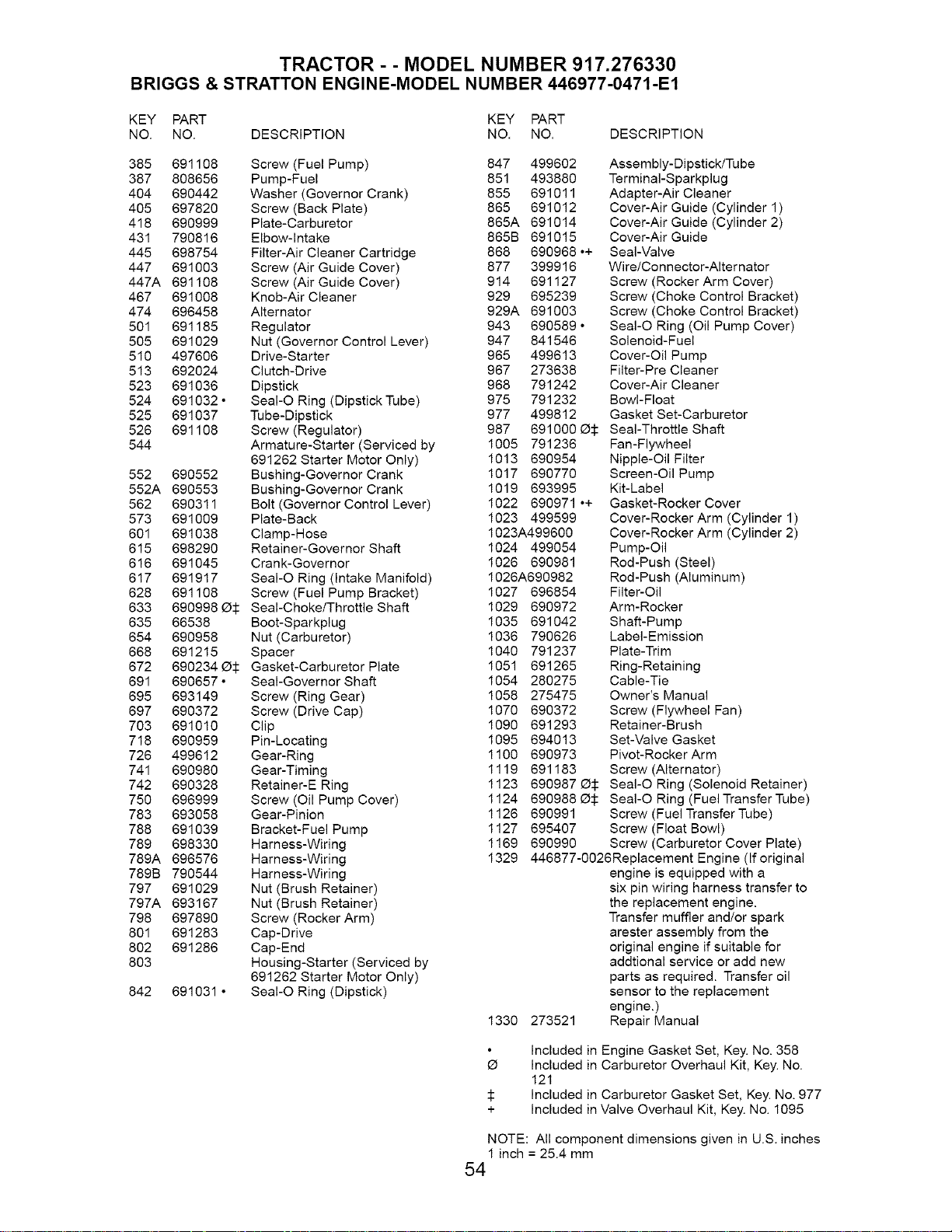

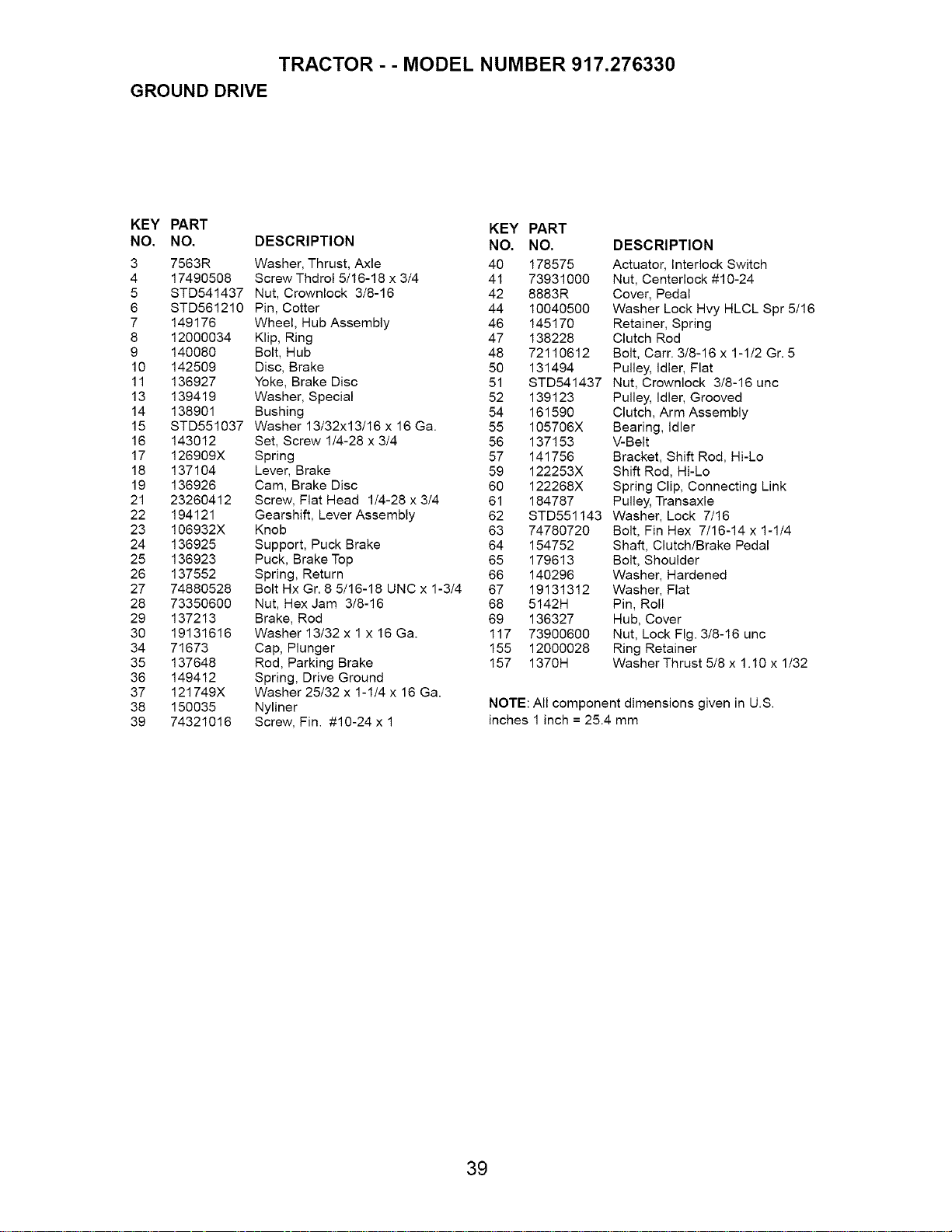

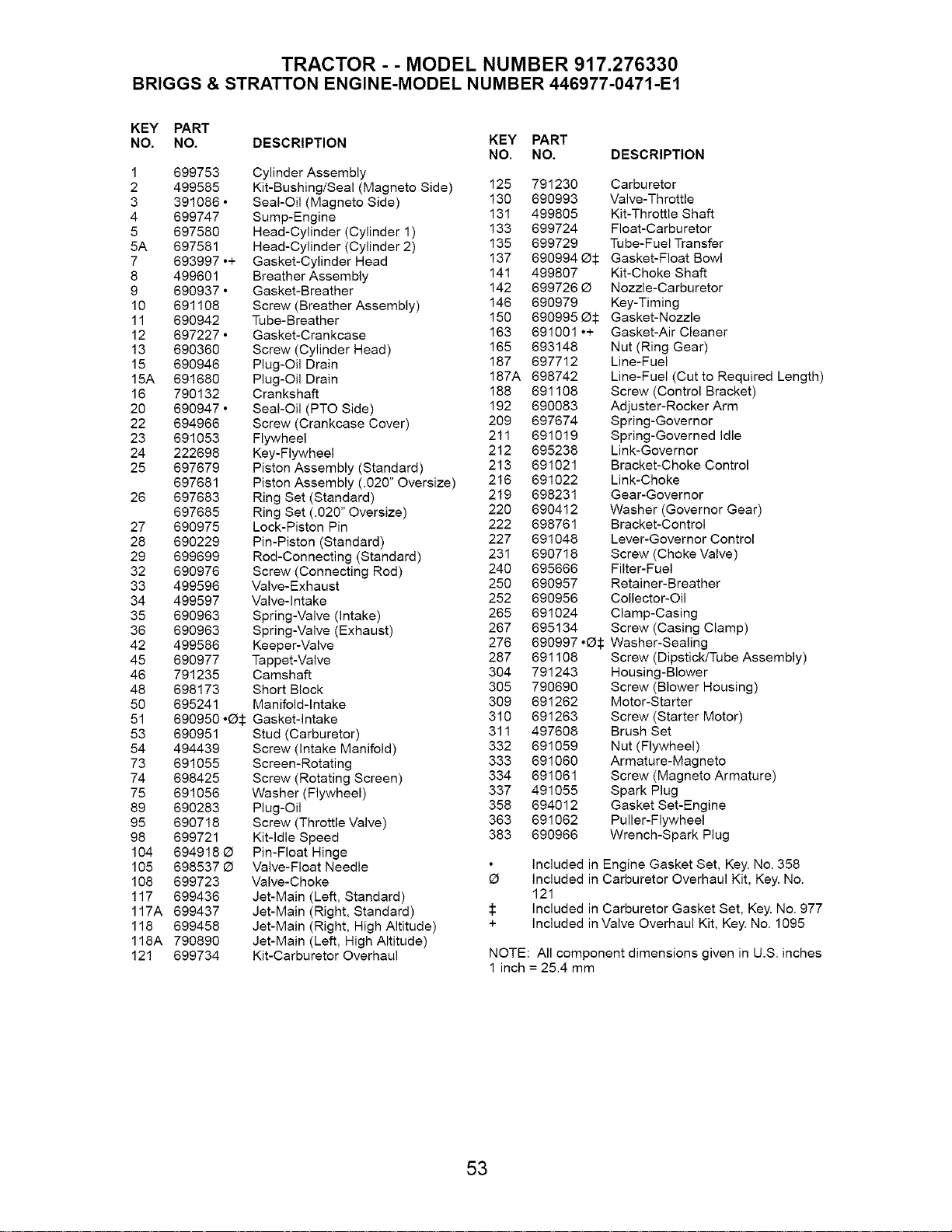

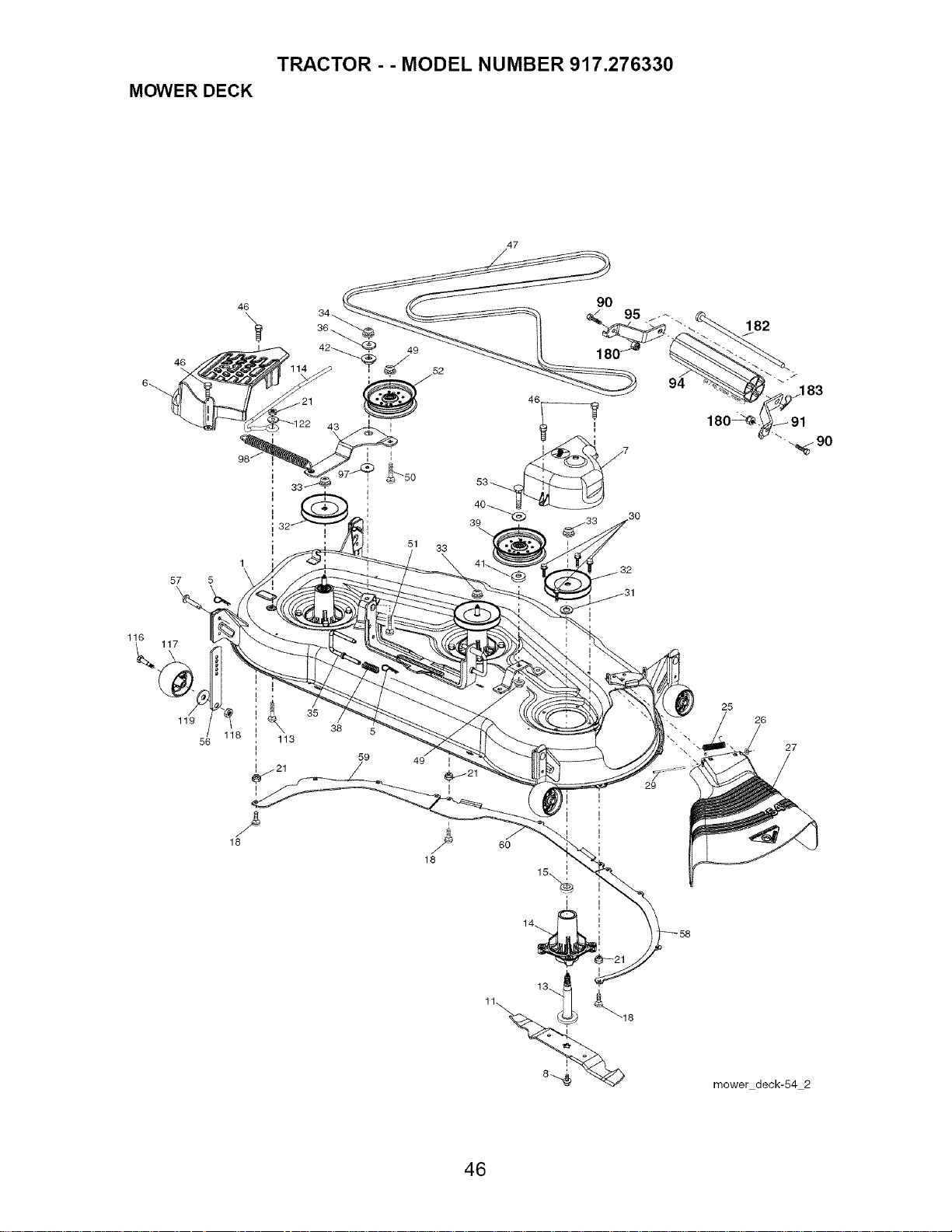

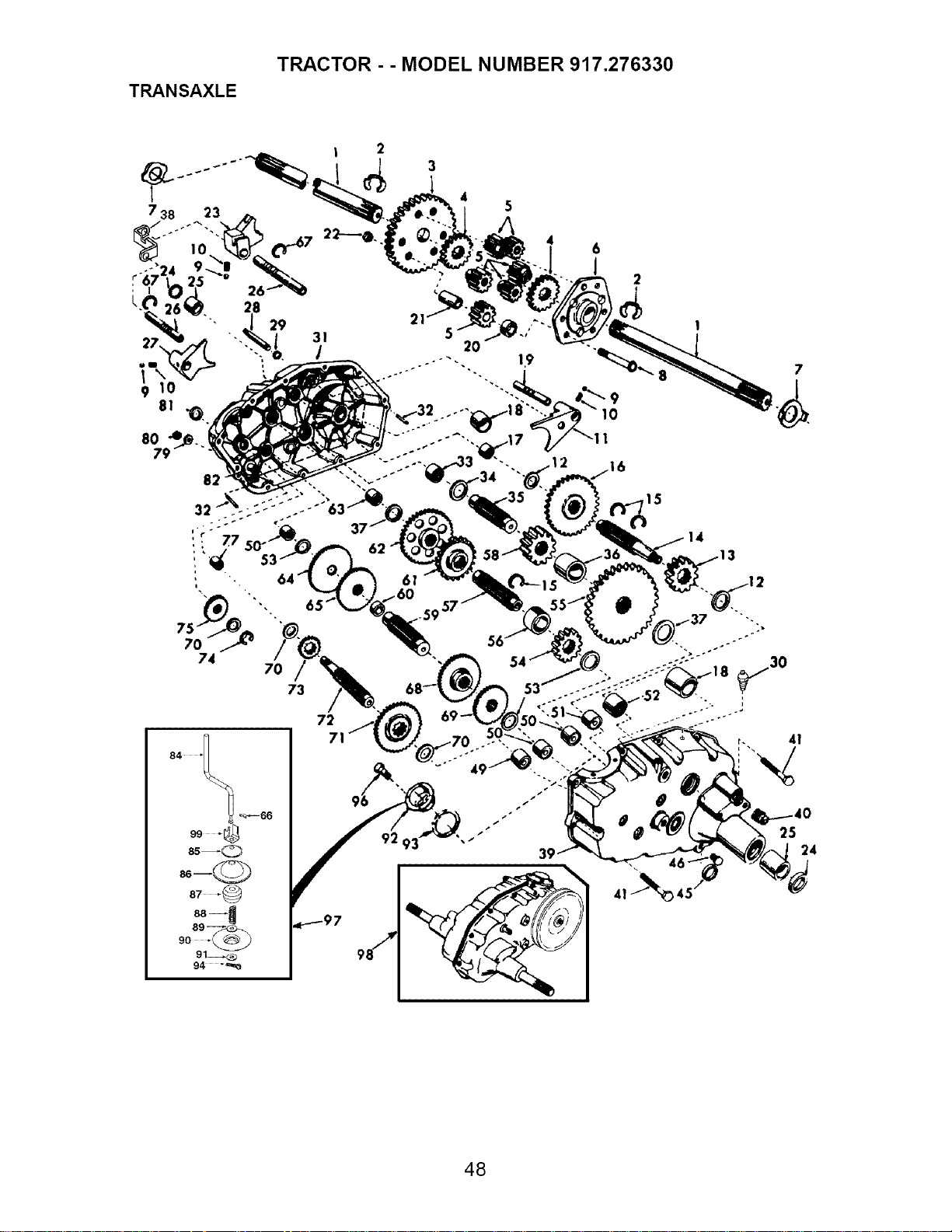

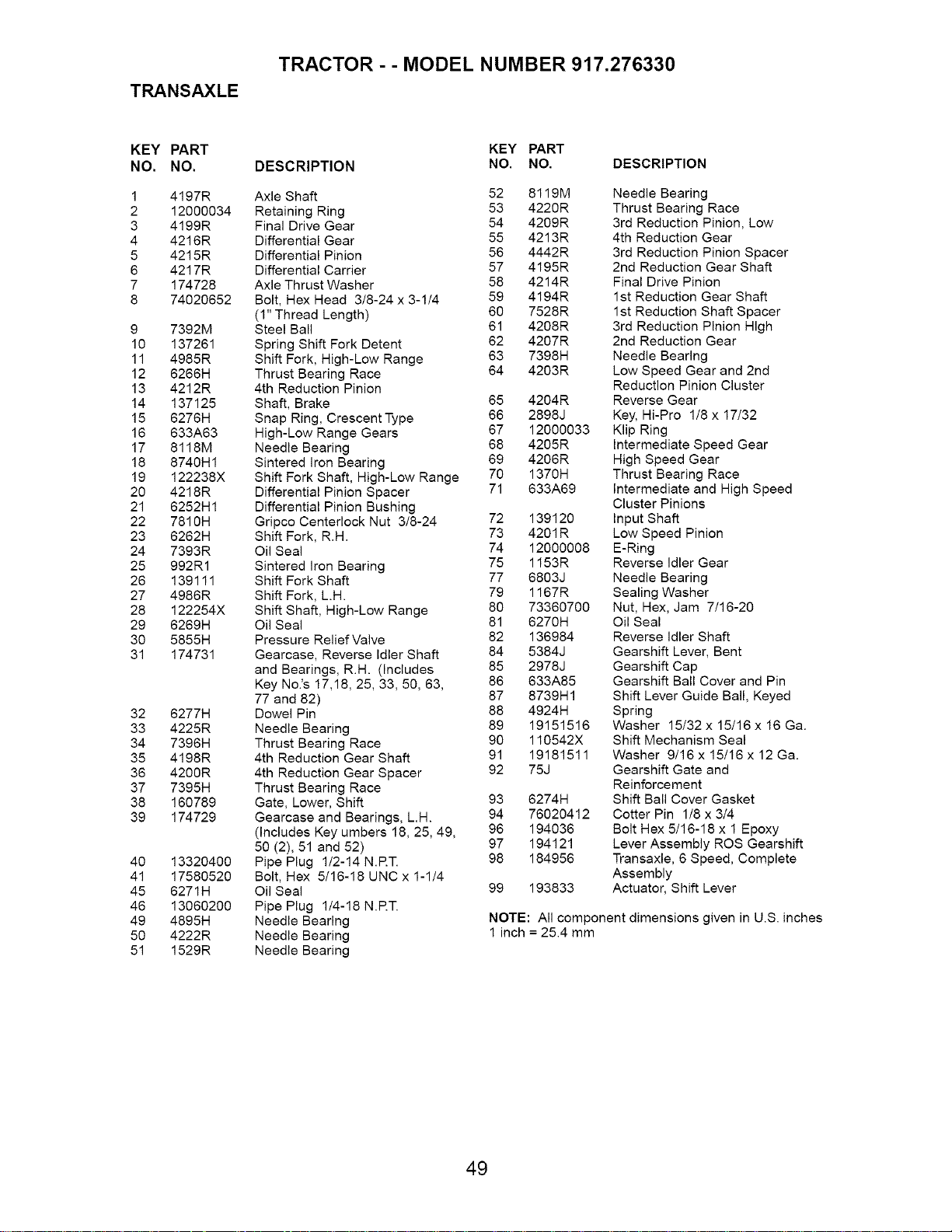

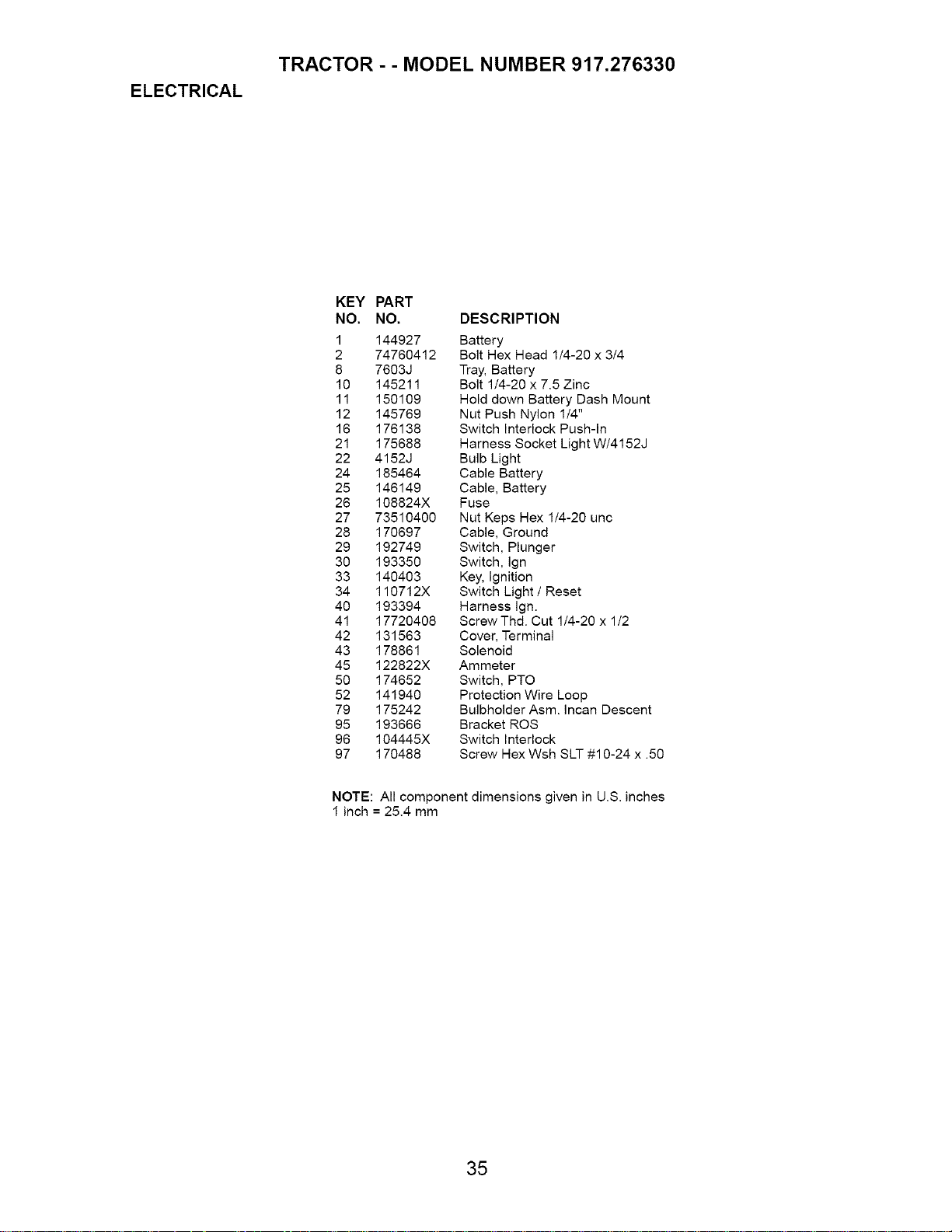

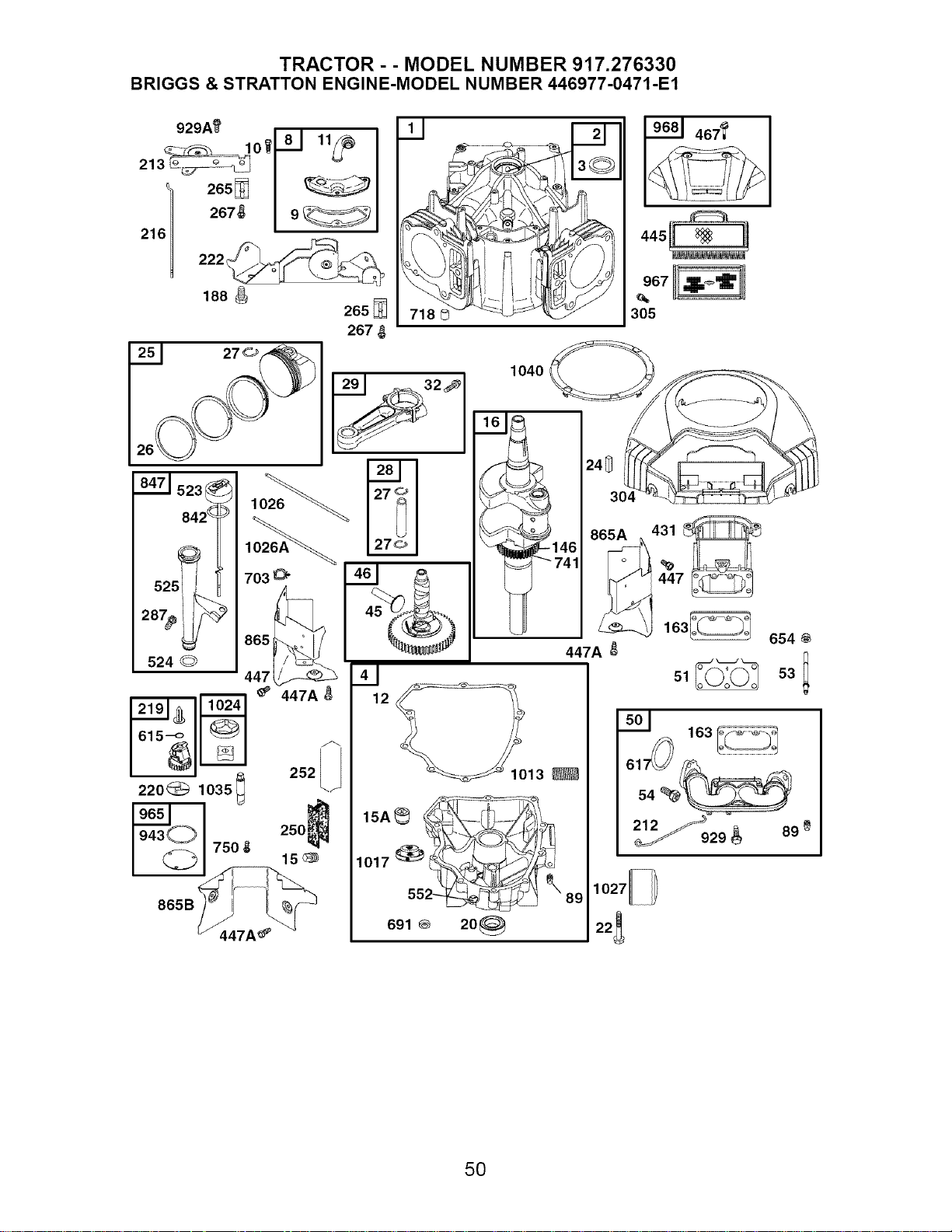

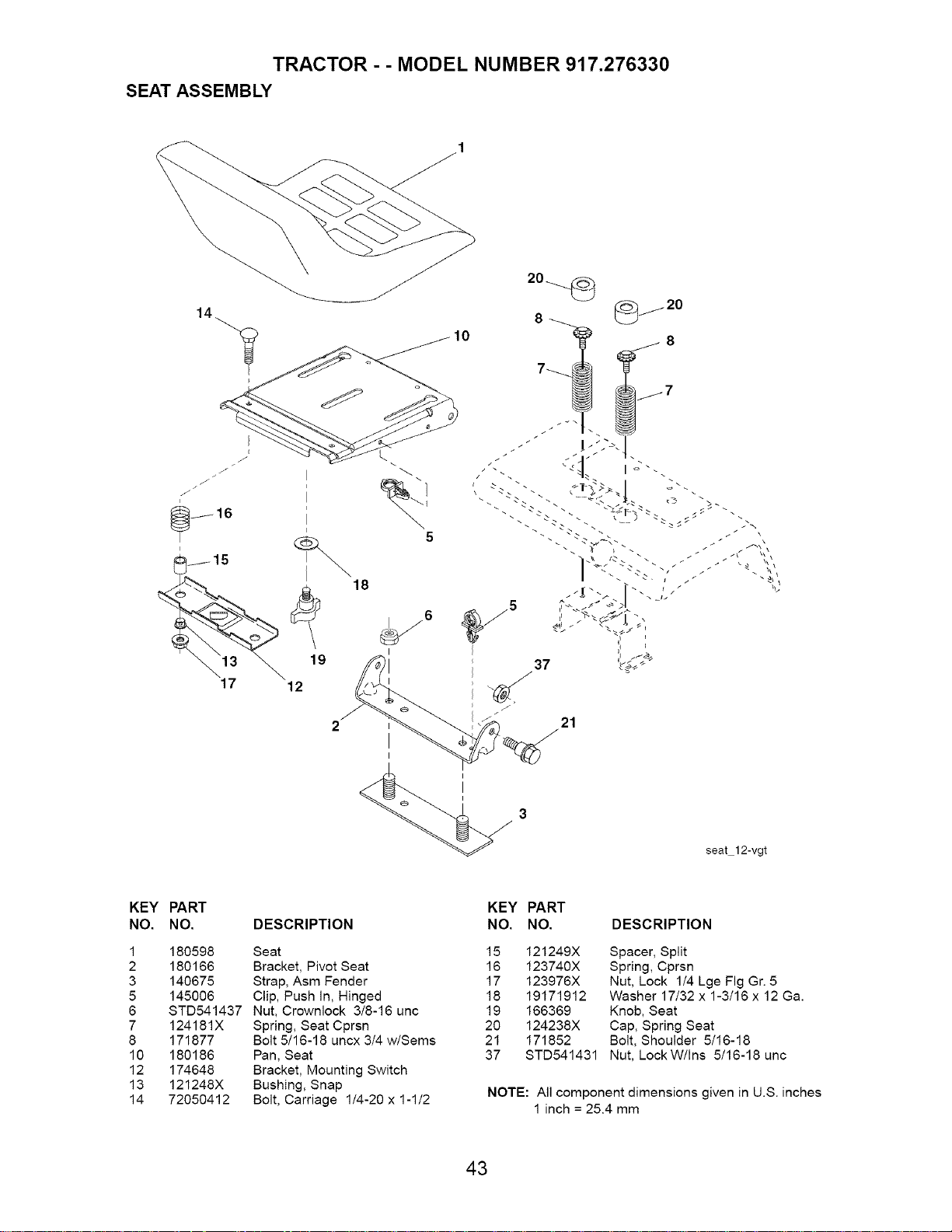

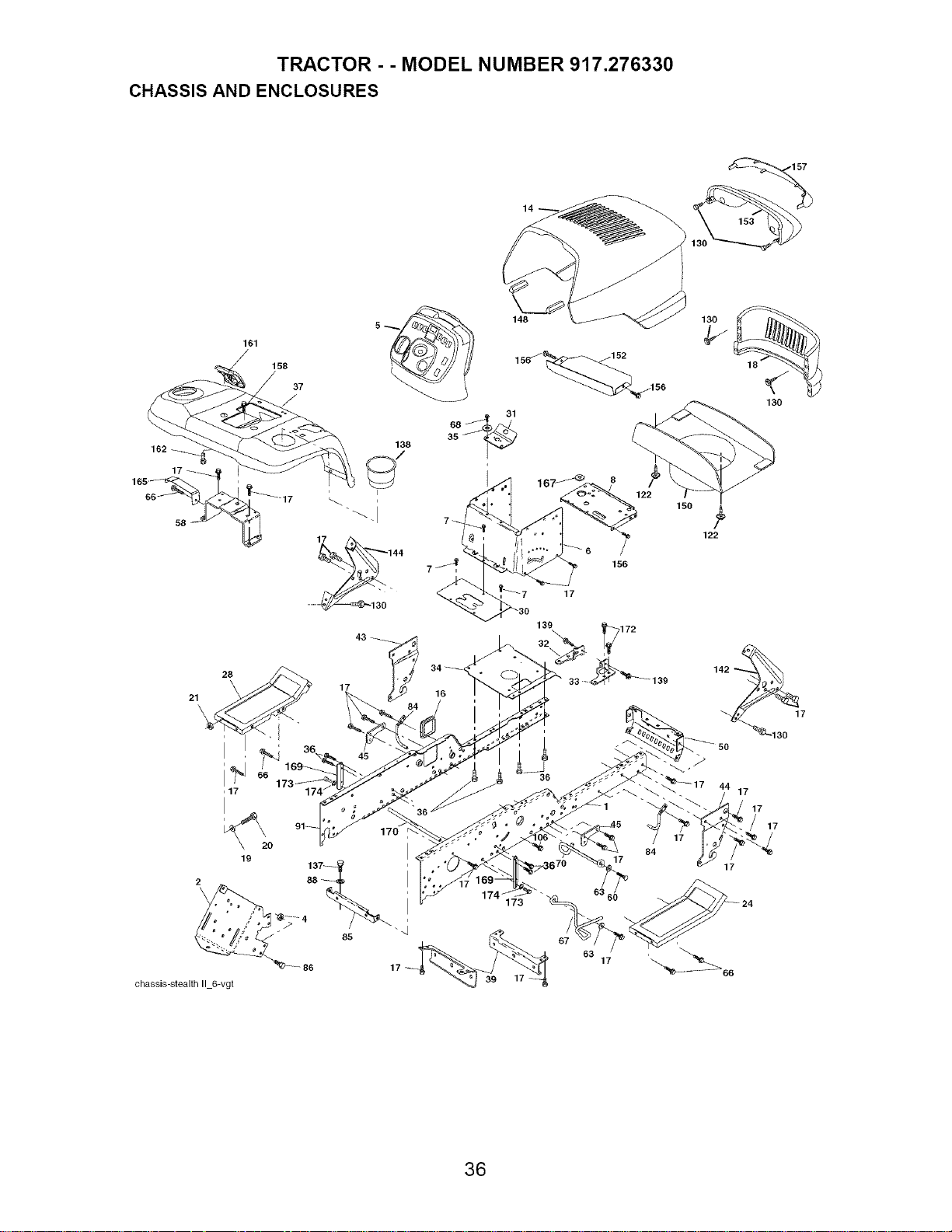

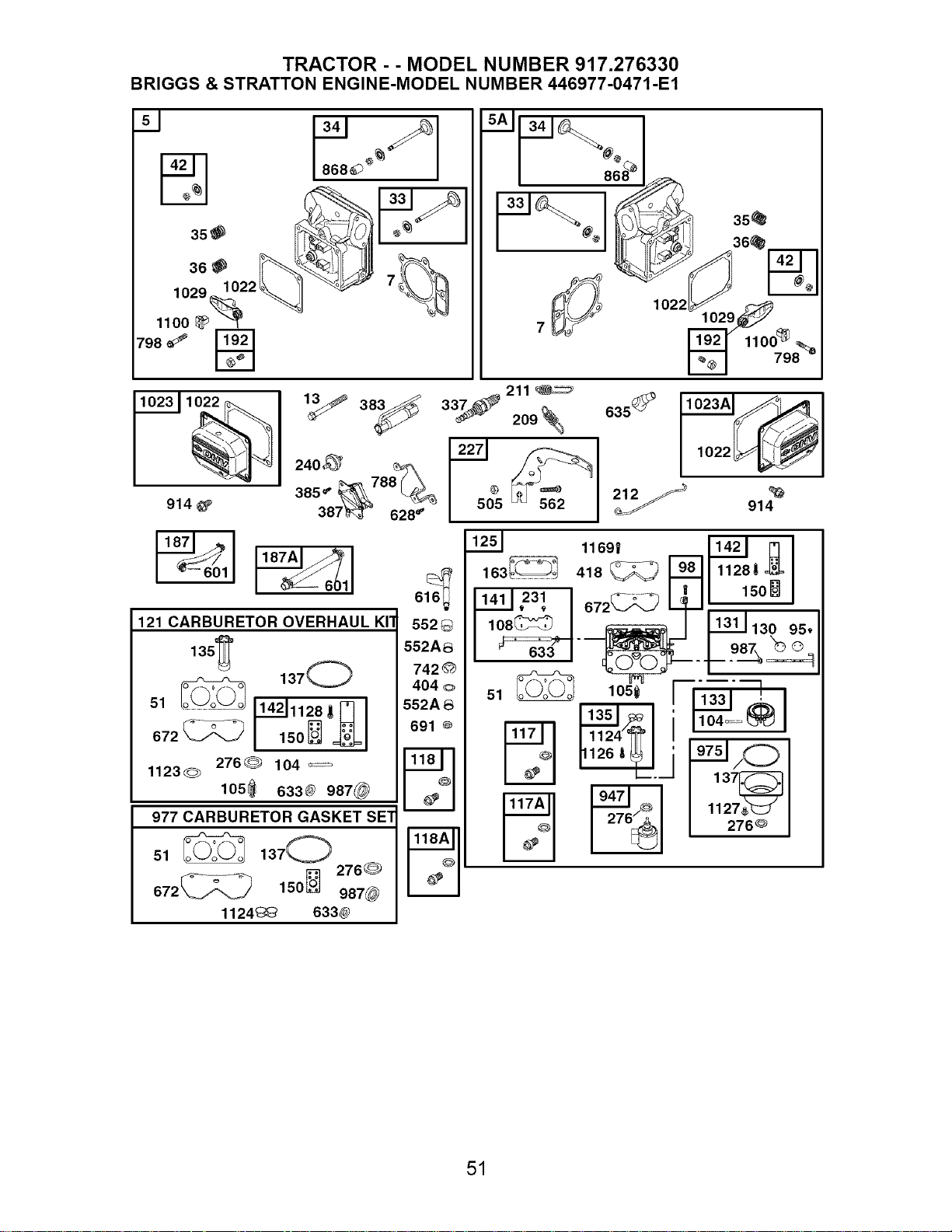

Repair Parts ......................................... 34

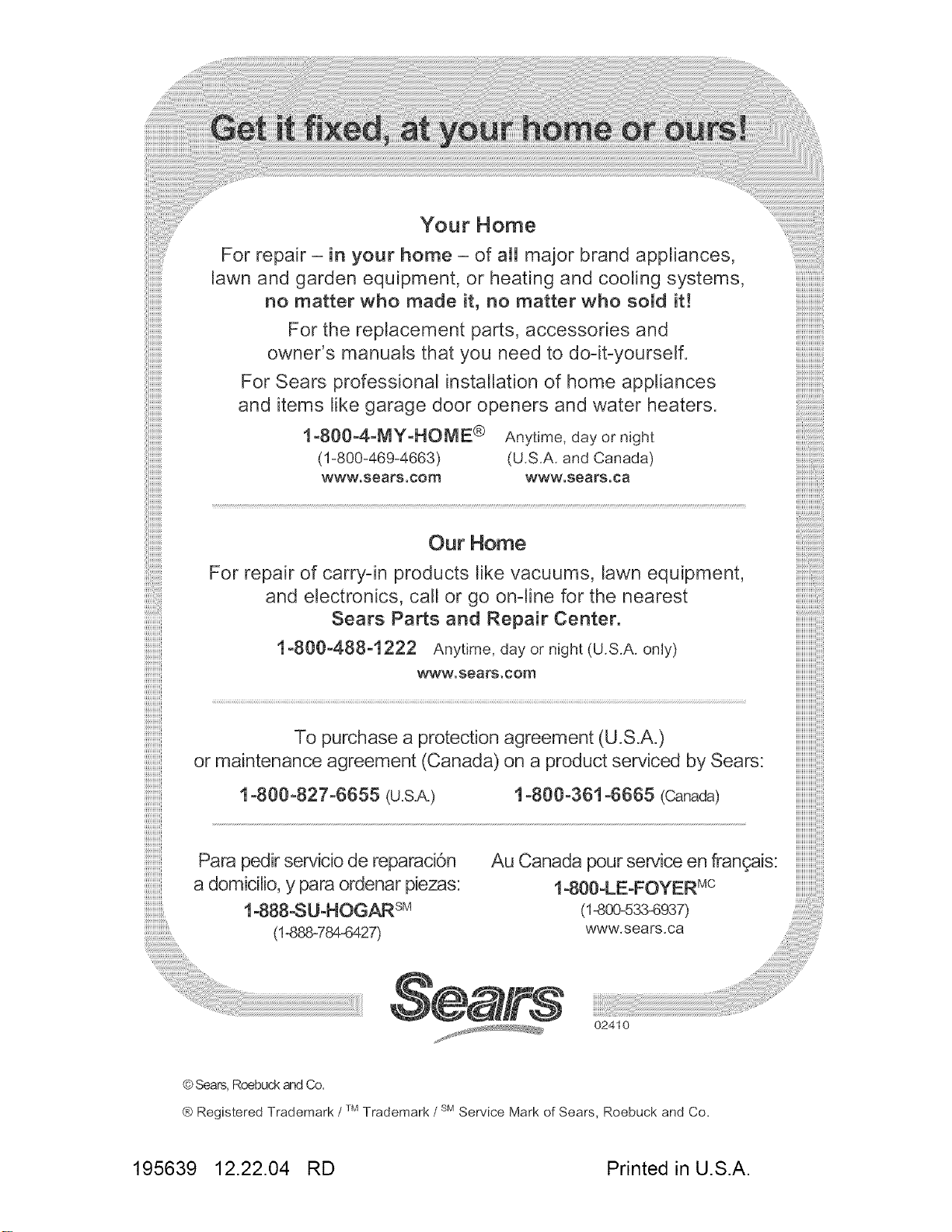

Sears Service ........................ Back Cover

LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT

For two (2) years from the date of purchase, if this Craftsman Riding Equipment is

maintained, lubricated and tuned up according to the instructions in the owner's manual,

Sears will repair or replace free of charge any parts that are found to be defective in

material or workmanship according to the guidelines of coverage listed below. Sears will

also provide free labor for these applicable warranted parts for the two full years. During

the first 30 days of purchase, there will be no charges to service the product at your

home for issues covered by this warranty. (See exclusions below). For your conve-

nience, IN HOME warranty service will still be available after the first 30 days of pur-

chase, but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®. This warranty applies only while this product is within

the United States.

This Warranty does not cover:

• Expendable items which become worn during normal use, including but not limited to

blades, spark plugs, air cleaners, belts, and oil filters.

• Standard Maintenance Servicing, oil changes, or tune-ups

• Tire replacement or repair caused by punctures from outside objects, such as nails,

thorns, stumps, or glass.

• Repairs necessary because of operator abuse, including but not limited to, damage

caused by towing objects beyond the capability of the riding equipment, impacting

objects that bend the frame or crankshaft, or over-speeding the engine.

• Repairs necessary because of operator negligence, including but not limited to, elec-

trical and mechanical damage caused by improper storage, failure to use the proper

grade and amount of engine oil, failure to keep the deck clear of flammable debris,

or failure to maintain the equipment according to the instructions contained in the

owner's manual.

• Engine (fuel system) cleaning or repairs caused by fuel determined to be contami-

nated or oxidized (stale). In general, fuel should be used within 30 days of its pur-

chase date.

• Normal deterioration and wear of the exterior finishes, or product label replacement.

• Riding equipment used for commercial or rental purposes.

LIMITED WARRANTY ON BATTERY

For ninety (90) days from date of purchase, if any battery included with this riding equip-

ment proves defective in material or workmanship and our testing determines the battery

will not hold a charge, Sears will replace the battery at no charge. During the first 30

days of purchase, there will be no charges to replace the battery at your HOME. After

the first 30 days, for your convenience, IN-HOME warranty service will still be avail-

able but a trip charge will apply. This charge will be waived if the Craftsman product is

dropped off at an authorized Sears location. For the nearest authorized Sears location,

please call 1-800-4-MY-HOME®.

This battery warranty applies only while this product is within the United States.

This warranty gives you specific legal rights, and you may also have other rights, which

vary, from state to state.

Sears, Roebuck and Co.,Dept.817WA, Hoffman Estates, IL 60179

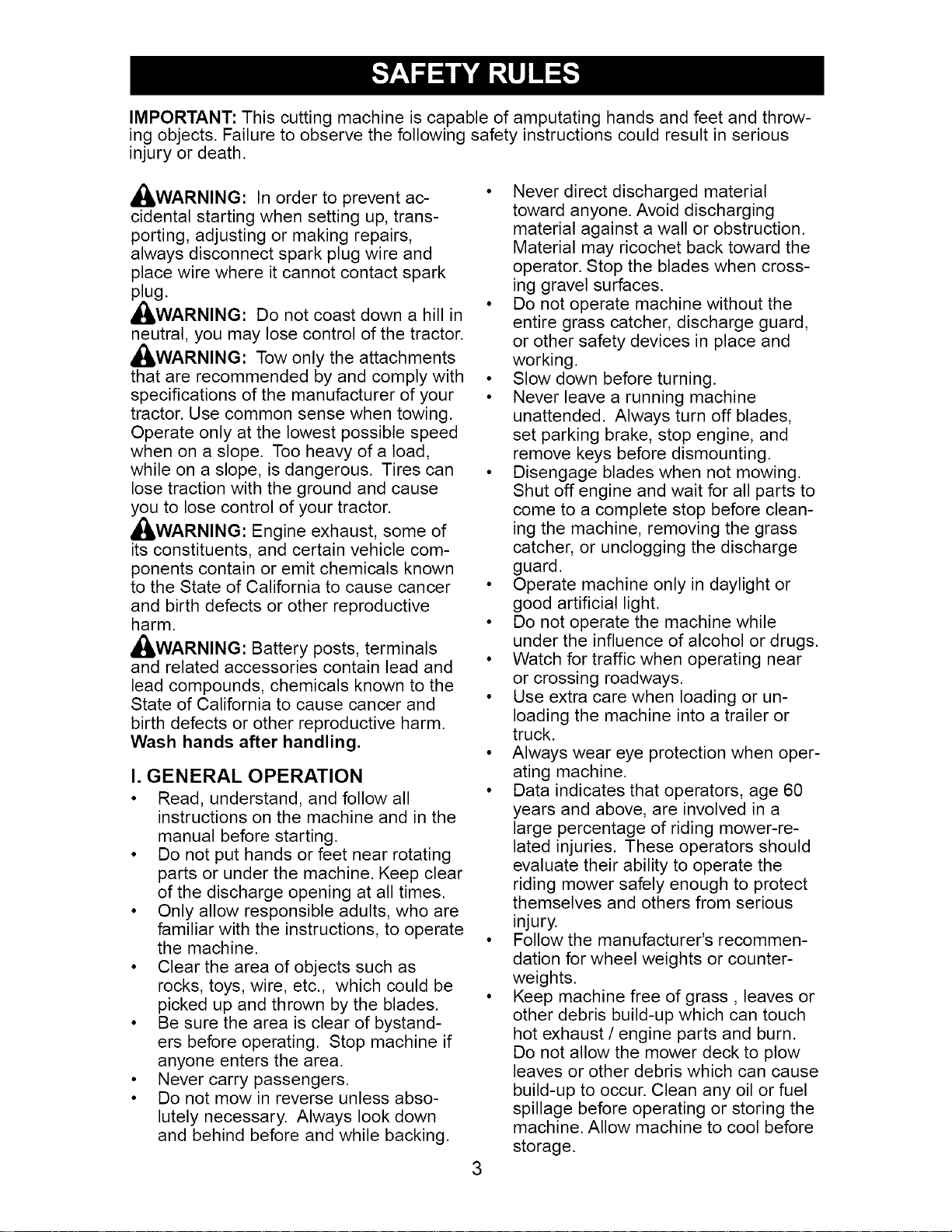

IMPORTANT: This cutting machine is capable of amputating hands and feet and throw-

ing objects. Failure to observe the following safety instructions could result in serious

injury or death.

_IWARNING: In order to prevent ac-

cidental starting when setting up, trans-

porting, adjusting or making repairs,

always disconnect spark plug wire and

place wire where it cannot contact spark

plug.

_I_WARNING: Do not coast down a hill in

neutral, you may lose control of the tractor.

_IWARNING: Tow only the attachments

that are recommended by and comply with

specifications of the manufacturer of your

tractor. Use common sense when towing.

Operate only at the lowest possible speed

when on a slope. Too heavy of a load,

while on a slope, is dangerous. Tires can

lose traction with the ground and cause

you to lose control of your tractor.

_IWARNING: Engine exhaust, some of

its constituents, and certain vehicle com-

ponents contain or emit chemicals known

to the State of California to cause cancer

and birth defects or other reproductive

harm.

_IWARNING: Battery posts, terminals

and related accessories contain lead and

lead compounds, chemicals known to the

State of California to cause cancer and

birth defects or other reproductive harm.

Wash hands after handling.

I. GENERAL OPERATION

• Read, understand, and follow all

instructions on the machine and in the

manual before starting.

• Do not put hands or feet near rotating

parts or under the machine. Keep clear

of the discharge opening at all times.

• Only allow responsible adults, who are

familiar with the instructions, to operate

the machine.

• Clear the area of objects such as

rocks, toys, wire, etc., which could be

picked up and thrown by the blades.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never direct discharged material

toward anyone. Avoid discharging

material against a wall or obstruction.

Material may ricochet back toward the

operator. Stop the blades when cross-

ing gravel surfaces.

• Do not operate machine without the

entire grass catcher, discharge guard,

or other safety devices in place and

working.

• Slow down before turning.

• Never leave a running machine

unattended. Always turn off blades,

set parking brake, stop engine, and

remove keys before dismounting.

• Disengage blades when not mowing.

Shut off engine and wait for all parts to

come to a complete stop before clean-

ing the machine, removing the grass

catcher, or unclogging the discharge

guard.

• Operate machine only in daylight or

good artificial light.

• Do not operate the machine while

under the influence of alcohol or drugs.

• Watch for traffic when operating near

or crossing roadways.

• Use extra care when loading or un-

loading the machine into a trailer or

truck.

• Always wear eye protection when oper-

ating machine.

• Data indicates that operators, age 60

years and above, are involved in a

large percentage of riding mower-re-

lated injuries. These operators should

evaluate their ability to operate the

riding mower safely enough to protect

themselves and others from serious

injury.

• Followthe manufacturer's recommen-

dation for wheel weights or counter-

weights.

• Keep machine free of grass, leaves or

other debris build-up which can touch

hot exhaust / engine parts and burn.

Do not allow the mower deck to plow

leaves or other debris which can cause

build-up to occur. Clean any oil or fuel

spillage before operating or storing the

machine. Allow machine to cool before

storage.

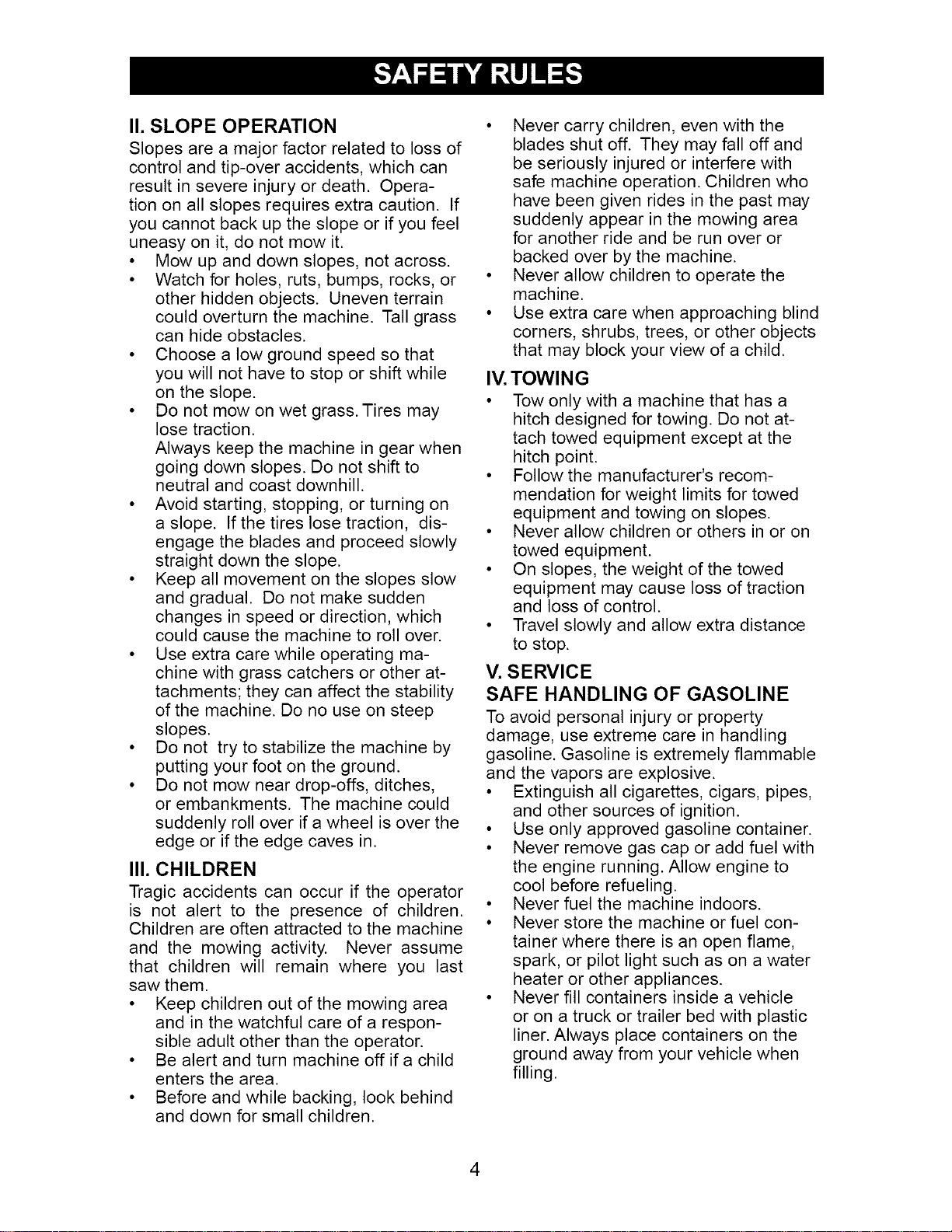

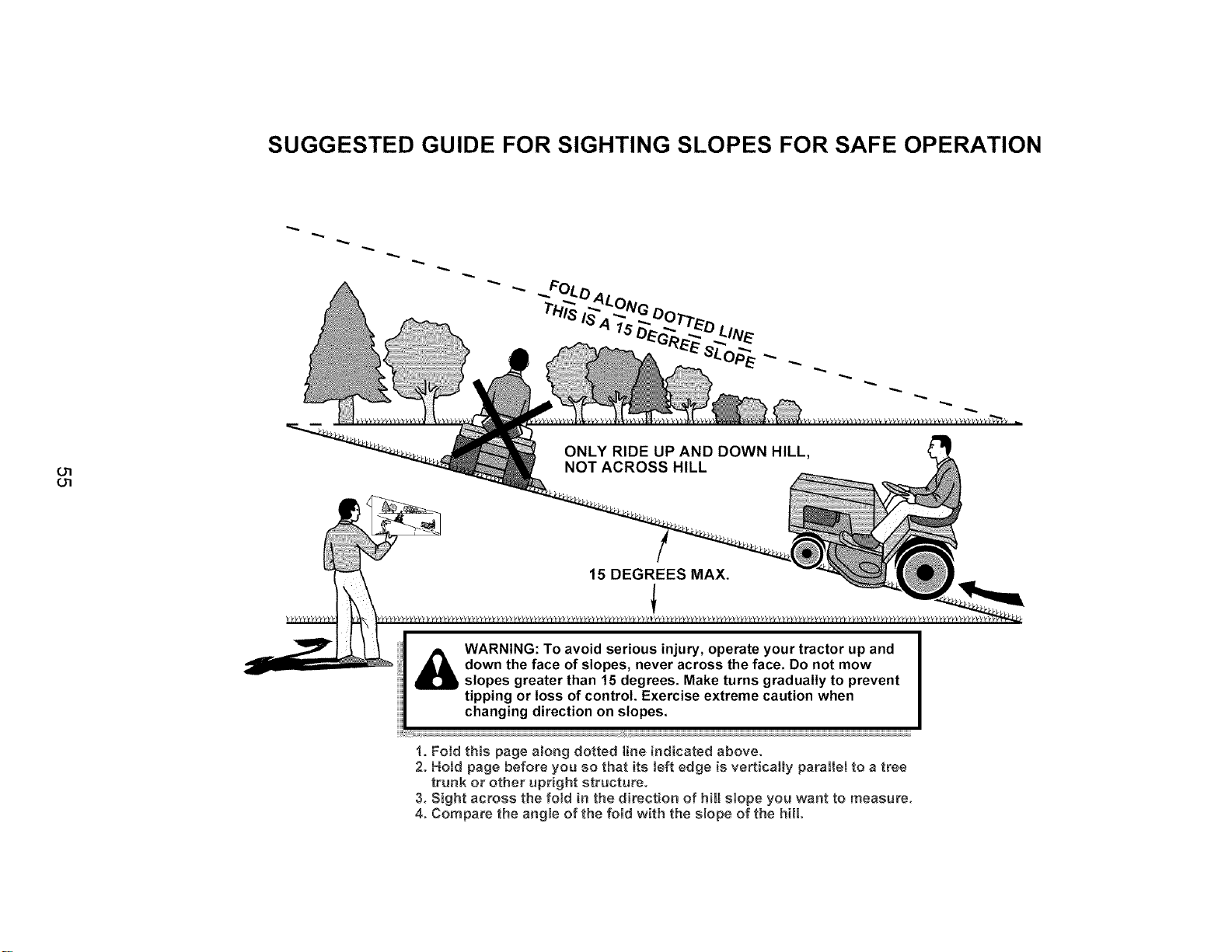

II. SLOPE OPERATION

Slopes are a major factor related to loss of

control and tip-over accidents, which can

result in severe injury or death. Opera-

tion on all slopes requires extra caution. If

you cannot back up the slope or if you feel

uneasy on it, do not mow it.

• Mow up and down slopes, not across.

• Watch for holes, ruts, bumps, rocks, or

other hidden objects. Uneven terrain

could overturn the machine. Tall grass

can hide obstacles.

• Choose a low ground speed so that

you will not have to stop or shift while

on the slope.

• Do not mow on wet grass. Tires may

lose traction.

Always keep the machine in gear when

going down slopes. Do not shift to

neutral and coast downhill.

• Avoid starting, stopping, or turning on

a slope. If the tires lose traction, dis-

engage the blades and proceed slowly

straight down the slope.

• Keep all movement on the slopes slow

and gradual. Do not make sudden

changes in speed or direction, which

could cause the machine to roll over.

• Use extra care while operating ma-

chine with grass catchers or other at-

tachments; they can affect the stability

of the machine. Do no use on steep

slopes.

• Do not try to stabilize the machine by

putting your foot on the ground.

• Do not mow near drop-offs, ditches,

or embankments. The machine could

suddenly roll over if a wheel is over the

edge or if the edge caves in.

II1. CHILDREN

Tragic accidents can occur if the operator

is not alert to the presence of children.

Children are often attracted to the machine

and the mowing activity. Never assume

that children will remain where you last

saw them.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Never allow children to operate the

machine.

• Use extra care when approaching blind

corners, shrubs, trees, or other objects

that may block your view of a child.

IV. TOWING

• Tow only with a machine that has a

hitch designed for towing. Do not at-

tach towed equipment except at the

hitch point.

• Followthe manufacturer's recom-

mendation for weight limits for towed

equipment and towing on slopes.

• Never allow children or others in or on

towed equipment.

• On slopes, the weight of the towed

equipment may cause loss of traction

and loss of control.

• Travel slowly and allow extra distance

to stop.

V. SERVICE

SAFE HANDLING OF GASOLINE

To avoid personal injury or property

damage, use extreme care in handling

gasoline. Gasoline is extremely flammable

and the vapors are explosive.

• Extinguish all cigarettes, cigars, pipes,

and other sources of ignition.

• Use only approved gasoline container.

• Never remove gas cap or add fuel with

the engine running. Allow engine to

cool before refueling.

• Never fuel the machine indoors.

• Never store the machine or fuel con-

tainer where there is an open flame,

spark, or pilot light such as on a water

heater or other appliances.

• Never fill containers inside a vehicle

or on a truck or trailer bed with plastic

liner. Always place containers on the

ground away from your vehicle when

filling.

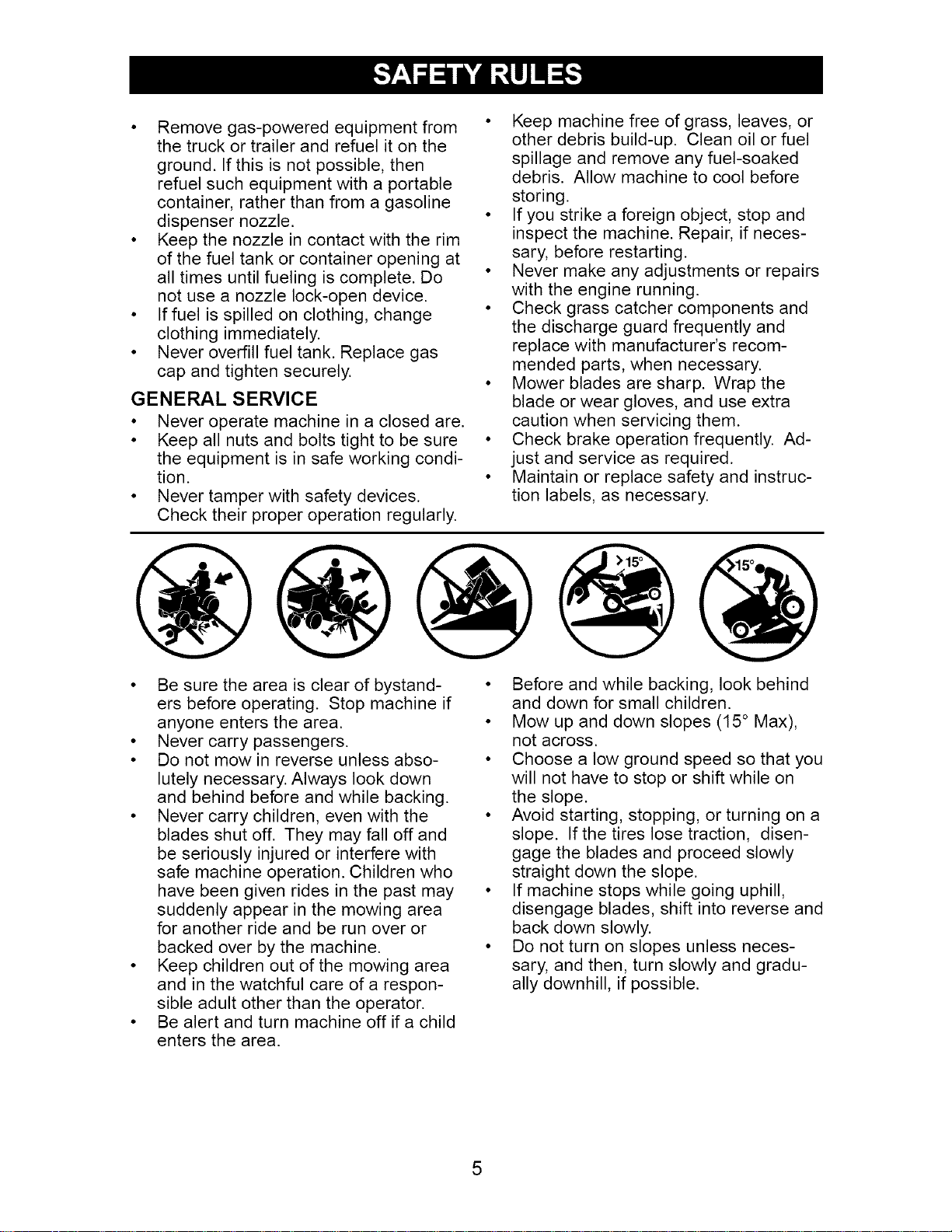

• Remove gas-powered equipment from

the truck or trailer and refuel it on the

ground. If this is not possible, then

refuel such equipment with a portable

container, rather than from a gasoline

dispenser nozzle.

• Keep the nozzle in contact with the rim

of the fuel tank or container opening at

all times until fueling is complete. Do

not use a nozzle lock-open device.

• If fuel is spilled on clothing, change

clothing immediately.

• Never overfill fuel tank. Replace gas

cap and tighten securely.

GENERAL SERVICE

• Never operate machine in a closed are.

• Keep all nuts and bolts tight to be sure

the equipment is in safe working condi-

tion.

• Never tamper with safety devices.

Check their proper operation regularly.

• Keep machine free of grass, leaves, or

other debris build-up. Clean oil or fuel

spillage and remove any fuel-soaked

debris. Allow machine to cool before

storing.

• If you strike a foreign object, stop and

inspect the machine. Repair, if neces-

sary, before restarting.

• Never make any adjustments or repairs

with the engine running.

• Check grass catcher components and

the discharge guard frequently and

replace with manufacturer's recom-

mended parts, when necessary.

• Mower blades are sharp. Wrap the

blade or wear gloves, and use extra

caution when servicing them.

• Check brake operation frequently. Ad-

just and service as required.

• Maintain or replace safety and instruc-

tion labels, as necessary.

• Be sure the area is clear of bystand-

ers before operating. Stop machine if

anyone enters the area.

• Never carry passengers.

• Do not mow in reverse unless abso-

lutely necessary. Always look down

and behind before and while backing.

• Never carry children, even with the

blades shut off. They may fall off and

be seriously injured or interfere with

safe machine operation. Children who

have been given rides in the past may

suddenly appear in the mowing area

for another ride and be run over or

backed over by the machine.

• Keep children out of the mowing area

and in the watchful care of a respon-

sible adult other than the operator.

• Be alert and turn machine off if a child

enters the area.

• Before and while backing, look behind

and down for small children.

• Mow up and down slopes (15 ° Max),

not across.

• Choose a low ground speed so that you

will not have to stop or shift while on

the slope.

• Avoid starting, stopping, or turning on a

slope. If the tires lose traction, disen-

gage the blades and proceed slowly

straight down the slope.

• If machine stops while going uphill,

disengage blades, shift into reverse and

back down slowly.

• Do not turn on slopes unless neces-

sary, and then, turn slowly and gradu-

ally downhill, if possible.

PRODUCT SPECIFICATIONS

Gasoline Capacity 5 Gallons

and Type: Unleaded Regular

Oil Type SAE 30 (above 32°F)

(API-SG-SL): SAE 5W30

(below 32°F)

Oil Capacity: W/Filter: 4.0 Pints

W/O Filter: 3.75 Pints

Spark Plug: Champion QC12YC

(Gap: .040")

Ground Speed

(MPH):

Lo: Hi:

0.7 1.7

1.4 3.3

2.3 5.4

Reverse: 0.9 2.1

Tire Pressure: Front: 14 PSI

Rear: 10 PSI

Charging System: 16 Amps @ 3600 RPM

Battery: Amp/Hr: 35

Min. CCA: 280

Case size: U1R

Blade Bolt Torque: 45-55 Ft. Lbs.

CONGRATULATIONS on your purchase

of a new tractor. It has been designed,

engineered and manufactured to give

you the best possible dependability and

performance.

Should you experience any problem you

cannot easily remedy, please contact a

Sears or other qualified service center.

We have competent, well-trained techni-

cians and the proper tools to service or

repair this tractor.

Please read and retain this manual. The

instructions will enable you to assemble

and maintain your tractor properly. Always

observe the "SAFETY RULES".

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in main-

taining, caring for and using your tractor.

• Follow the instructions under"Mainte-

nance" and "Storage" sections of this

owner's manual.

_L, WARNING: This tractor is equipped

with an internal combustion engine and

should not be used on or near any unim-

proved forest-covered, brush-covered or

grass-covered land unless the engine's

exhaust system is equipped with a spark

arrester meeting applicable local or state

laws (if any). If a spark arrester is used, it

should be maintained in effective working

order by the operator.

In the state of California the above is re-

quired by law (Section 4442 of the Califor-

nia Public Resources Code). Other states

may have similar laws. Federal laws apply

on federal lands. A spark arrester for the

muffler is available through your nearest

Sears service center (See REPAIR PARTS

section of this manual).

REPAIR PROTECTION

AGREEMENTS

Congratulations on making a smart pur-

chase. Your new Craftsman® product is

designed and manufactured for years of

dependable operation. But like all products,

it may require repair from time to time. That's

when having a Repair Protection Agreement

can save you money and aggravation.

Purchase a Repair Protection Agreement

now and protect yourself from unexpected

hassle and expense.

Here's what's included in the Agreement:

• Expert service by our 12,000 profe-

sional repair specialists.

• Unlimited service and no charge for

parts and labor on all covered repairs.

• Product replacement if your covered

product can't be fixed.

• Discount of 10% from regular price of

service and service-related parts not

covered by the agreement; also, 10%

off regular price of preventive mainte-

nance check.

• Fast help by phone- phone support

from a Sears technician on products

requiring in-home repair, plus conve-

nient repair scheduling.

Once you purchase the Agreement, a

simple phone call is all that it takes for you

to schedule service. You can call anytime

day or night, or schedule a service ap-

pointment online.

Sears has over 12,000 professional repair

specialists, who have access to over 4.5

million quality parts and accessories.

That's the kind of professionalism you can

count on to help prolong the life of your

new purchase for years to come. Purchase

your Repair Protection Agreement today!

Some limitations and exclusions apply.

For prices and additional information

call 1-800-827-6655.

SEARS INSTALLATION SERVICE

For Sears professional installation of home

appliances, garage door openers, water

heaters, and other major home items, in

the U.S.A. call 1-800-4-MY-HOME®

Steering Wheel

Steering

Wheel

Insert

Steering

Wheel

Adapter

Steering

Sleeve

Gauge Wheels

(i) Adjusting

Bar

(4) Retainer Springs

(double loop)

(4) Washers

3/8 x 3/4 x 14 Ga.

(4) Locknut 3/8-16

4,whees lO

(4) Clevis Pins

(4) Shoulder Bolt

(1) Washer @

17/32 x 1-3/16 x 12 Gauge

(1) Knob j_

Mower

(2) Retainer Springs

(double loop)

(2)Flanged Pins

(1) Oil Drain Tube

For Future Use Slope Sheet

Keys

(2) Keys

(2) Hex Bolts 5/16-18 x 1

Retainer Spring

Nose Roller

(2) Locknuts

5/16-18

Your new tractor has been assembled at the factory with the exception of those parts left

unassembled for shipping purposes. To ensure safe and proper operation of your tractor

all parts and hardware you assemble must be tightened securely. Use the correct tools

as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly

easier. Standard wrench sizes you need

are listed below.

(1) 9/16" wrench (1) Pliers

(1) 1/2" wrench (1) Utility knife

(1) 3/4" socket with drive ratchet

(1) Tire pressure gauge

When right or left hand is mentioned in

this manual, it means, from your point of

view, when you are in the operating posi-

tion (seated behind the steering wheel).

TO REMOVE TRACTOR FROM

CARTON

UNPACK CARTON

1. Remove all accessible loose parts and

parts boxes from carton.

2. Cut along dotted lines on all four pan-

els of carton. Remove end panels and

lay side panels flat.

3. Remove mower and packing materials.

4. Check for any additional loose parts or

cartons and remove.

BEFORE REMOVING TRACTOR

FROM SKID

ATTACH STEERING WHEEL

1. Remove Iocknut and large flat washer

from steering shaft.

2. Position front wheels of the tractor so

they are pointing straight forward.

3. Slide the steering sleeve over the

steering shaft.

4. Position steering wheel so cross bars

are horizontal (left to right) and slide

onto steering wheel adapter.

5. Secure steering wheel to steering

shaft with Iocknut and large flat washer

previously removed. Tighten securely.

6. Snap steering wheel insert into center

of steering wheel.

7. Remove protective materials from trac-

tor hood and grill.

IMPORTANT: Check for and remove any

staples in skid that may puncture tires

where tractor is to roll off skid.

Steering Wheel

Steering

Nut

__ Large Flat

Washer

Steering

Wheel

Steering Adaptor

Shaft

__,z_o'_"

CHECK BATTERY

1. Lift hood to raised position.

NOTE: If this battery is put into service

after month and year indicated on label

(label located between terminals) charge

battery for minimum of one hour at 6-10

amps. (See "BATTERY" in Maintenance

section of this manual for charging instruc-

tions).

_ ?/_(. ..... ::>.

,- _,,; _ Label

INSTALL SEAT

Adjust seat before tightening adjustment

knob.

1. Remove adjustment knob and flat

washer securing seat to cardboard

packing and set aside for assembly of

seat to tractor.

2. Pivot seat upward and remove from

the cardboard packing. Remove the

cardboard packing and discard.

3. Placeseaton seatpansoheadof

shoulderboltsarepositionedoverthe

largeslottedholesin pan.

4. Pushdownon seattoengageshoulder

boltsin slotsandpullseattowardsrear

oftractor.

5. Pivotseatandpanforwardandas-

sembleadjustmentknobandflat

washerloosely.Donottighten.

6. Lowerseatintooperatingpositionand

sit inseat.

7. Slideseatuntila comfortableposition

isreachedwhichallowsyouto press

clutch/brakepedalallthewaydown.

8. Getoff seatwithout movingitsad-

justedposition.

9. Raiseseatandtightenadjustment

knobsecurely.

Seat

Seat Pa_

Shoulder

Bolts

Flat Washer

Adjustment Knob

NOTE: You may now roll or drive your

tractor off the skid. Follow the appropriate

instruction below to remove the tractor

from the skid.

TO ROLL TRACTOR OFF SKID (See

Operation section for location and

function of controls)

1. Press lift lever plunger and raise

attachment lift lever to its highest po-

sition.

2. Release parking brake by depressing

clutch/brake pedal.

3. Place gearshift lever in neutral (N)

position.

4. Roll tractor forward off skid.

TO DRIVE TRACTOR OFF SKID (See

Operation section for location and

function of controls)

_WARNING: Before starting, read, un-

derstand and follow all instructions in the

Operation section of this manual. Be sure

tractor is in a well-ventilated area. Be sure

the area in front of tractor is clear of other

people and objects.

1. Be sure all the above assembly steps

have been completed.

2. Check engine oil level and fill fuel tank

with gasoline.

3. Sit on seat in operating position,

depress clutch/brake pedal and set the

parking brake.

4. Place gear shift lever in neutral (N)

position.

5. Press lift lever plunger and raise

attachment lift lever to its highest posi-

tion.

6. Start the engine. After engine has

started, move throttle control to idle

position.

7. Depress clutch/brake pedal into full

"BRAKE" position and hold. Move

gearshift lever to 1st gear.

8. Slowly release clutch/brake pedal and

slowly drive tractor off skid.

9. Apply brake to stop tractor, set park-

ing brake and place gearshift lever in

neutral position.

10.Turn ignition key to "STOP" position.

Continue with the instructions that follow.

TO ATTACH NOSE ROLLER

1. Assemble brackets "A" and "B" to the

inside of mower mounting brackets as

shown. Tighten securely.

NOTE: Be sure bracket tabs are posi-

tioned in tab holes in mower brackets.

2. Position nose roller between brackets

and install rod and retainer spring.

Lock Hex Bolt

Nut Rod

Bracket

Nose Roller

ASSEMBLE GAUGE WHEELS TO

MOWER DECK

The gauge wheels are designed to keep

the mower deck in proper )osition when

operating mower.

1. Slide gauge wheel bar down into

bracket channel, Be sure that gauge

wheel bar aligning holes are on top.

Assemble gauge wheels as shown

using shoulder bolts, 3/8 washers and

3/8-16 center Iocknuts and tighten

securely.

2. For ease of mower to tractor assembly,

set all the gauge wheels in the fourth

hole from top. Retain with clevis pins

and spring retainers.

Shoulder

Bolt_ Adjusting

Gauge Wheel

3/8 Washer

_ 3/8-16 Center

Locknut

Set All Wheels

To 4th Hole

From Top

INSTALL MOWER AND DRIVE

BELT

See MOWER AND DRIVE BELT AS-

SEMBLY Supplement Sheet for additional

guidance on this assembly.

Be sure tractor is on level surface and

mower suspension arms are raised with

attachment lift control. Engage parking

brake.

1. Turn steering wheel to the left as far as

it will go and position mower on right

side of tractor with deflector shield to

the right.

2. Remove plastic tie strap from mower

belt and check belt for proper routing in

all mower pulley grooves.

3. Slide mower under tractor until it is

centered under tractor. DO NOT con-

nect any pins. When properly centered

the front mower brackets should be

aligned so when the front suspension

plate is lowered it should slide between

the mower brackets.

4. Lower attachment lift lever to lowest

position.

5. Cut plastic tie and lower front suspen-

sion plate.

6. ATTACH FRONT PLATE - From left

side of mower, position front plate as-

sembly between front mower brackets,

align holes, position flanged pin notch

vertically and insert the pin all the way.

The notch is in line with the hole in pin.

7. Secure pin with double loop retainer

spring between the plate and mower

bracket. If necessary, move mower

side-to-side to give space between

plate and mower bracket.

8. Go to right hand side of mower and

insert pin and retainer spring in the

same manner.

9. CONNECT REAR PINS - Connect

right hand side first. Pull out and hold

the spring loaded pin, align hole in

suspension arm and release pin. Be

sure pin returns to fully seated position

and is attached to the suspension arm.

10. Go to left side of mower and connect

rear pin in the same manner.

11. Disengage belt tension rod.

12. From right side of tractor, install belt

onto engine clutch pulley.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

13. Engage belt tension rod on locking

bracket.

A CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

14. Raise attachment lift lever to highest

position.

15. Adjust gauge wheels before operating

mower as shown in the Operation sec-

tion of this manual.

Belt Tension Rod

Disengaged Position

Gauge

Wheel

_gBracket

Electric Clutch Pulley

Front Plate Assembly

Double Loop

Retainer Springs

..P

Front Mower Bracket

Flanged Pin-

Position Notch

Vertically

Rear Mower Pins

CHECKTIRE PRESSURE

The tires on your tractor were overinflated

at the factory for shipping purposes. Cor-

rect tire pressure is important for best

cutting performance.

• Reduce tire pressure to PSI shown in

"PRODUCT SPECIFICATIONS" section

of this manual.

CHECK DECK LEVELNESS

For best cutting results, mower hous-

ing should be properly leveled. See "TO

LEVEL MOWER HOUSING" in the Service

and Adjustments section of this manual.

CHECK FOR PROPER POSITION

OF ALL BELTS

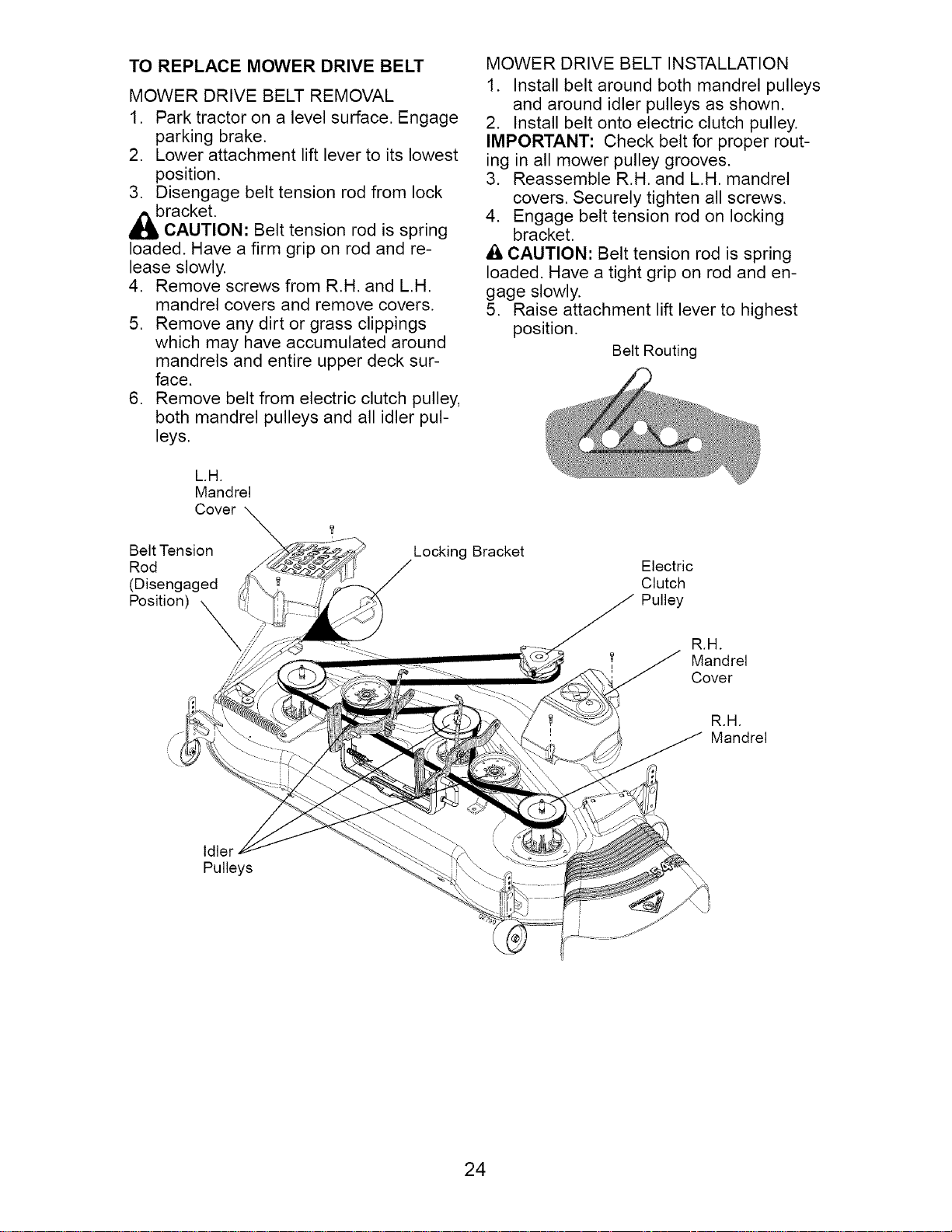

See the figures that are shown for replac-

ing motion and mower blade drive belts

in the Service and Adjustments section

of this manual. Verify that the belts are

routed correctly.

CHECK BRAKE SYSTEM

After you learn how to operate your trac-

tor, check to see that the brake is properly

adjusted. See "TO ADJUST BRAKE" in

the Service and Adjustments section of

this manual.

J CHECKL IS T

Before you operate your new tractor, we

wish to assure that you receive the best

performance and satisfaction from this

Quality Product.

Please review the following checklist:

Deflector Shield

,/All assembly instructions have been

completed.

,/No remaining loose parts in carton.

,/Battery is properly prepared and

charged. (Minimum 1 hour at 6 amps).

,/Seat is adjusted comfortably and tight-

ened securely.

,/All tires are properly inflated. (For ship-

ping purposes, the tires were overin-

flated at the factory).

,/Be sure mower deck is properly leveled

side-to-side/front-to-rear for best cutting

results. (Tires must be properly inflated

for leveling).

,/Check mower and drive belts. Be sure

they are routed properly around pulleys

and inside all belt keepers.

,/Check wiring. See that all connections

are still secure and wires are properly

clamped.

While learning how to use your tractor, pay

extra attention to the following important

items:

,/Engine oil is at proper level.

,/Fuel tank is filled with fresh, clean, regu-

lar unleaded gasoline.

,/Become familiar with all controls, their

location and function. Operate them

before you start the engine.

,/Be sure brake system is in safe operat-

ing condition.

,/Be sure Operator Presence System and

Reverse Operation System (ROS) are

working properly (See the Operation and

Maintenance sections in this manual).

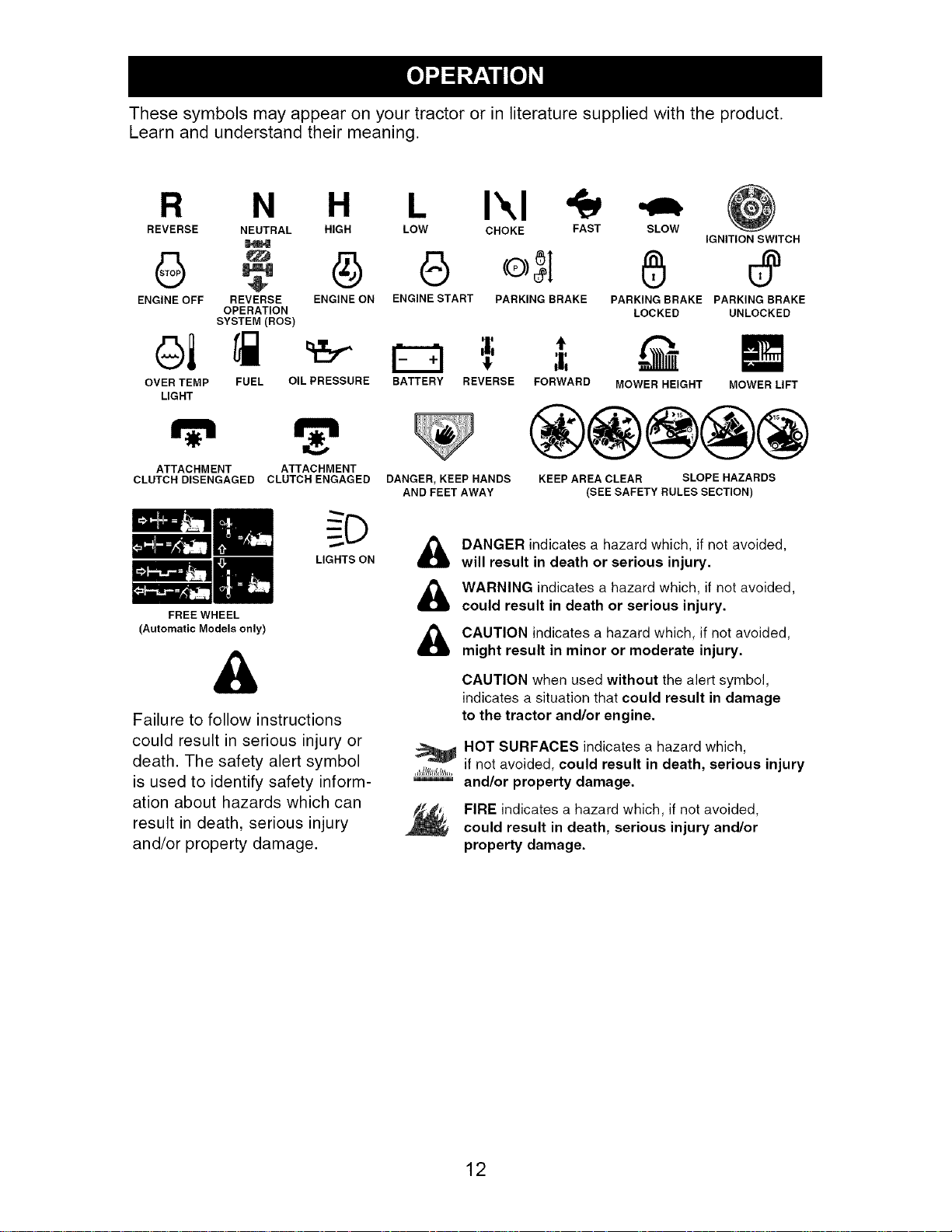

These symbols may appear on your tractor or in literature supplied with the product.

Learn and understand their meaning.

R N H I'.,I

REVERSE NEUTRAL HIGH LOW CHOKE FAST

6 G

ENGINE OFF REVERSE ENGINE ON ENGINE START PARKING BRAKE

OPERATION

SYSTEM (ROS)

OVER TEMP

LIGHT

SLOW

IGNITION SWITCH

PARKING BRAKE PARKING BRAKE

LOCKED UNLOCKED

FUEL OIL PRESSURE BATTERY REVERSE FORWARD MOWER HEIGHT MOWER LIFT

ATTACHMENT ATTACHMENT

CLUTCH DISENGAGED CLUTCH ENGAGED

LIGHTS ON

FREE WHEEL

(Automatic Models only)

Failure to follow instructions

could result in serious injury or

death. The safety alert symbol

is used to identify safety inform-

ation about hazards which can

result in death, serious injury

and/or property damage.

DANGER, KEEP HANDS

AND FEET AWAY

KEEP AREA CLEAR SLOPE HAZARDS

(SEE SAFETY RULES SECTION)

DANGER indicates a hazard which, if not avoided,

will result in death or serious injury.

WARNING indicates a hazard which, if not avoided,

could result in death or serious injury.

CAUTION indicates a hazard which, if not avoided,

might result in minor or moderate injury.

CAUTION when used without the alert symbol,

indicates a situation that could result in damage

to the tractor and/or engine.

HOT SURFACES indicates a hazard which,

if not avoided, could result in death, serious injury

and/or property damage.

FIRE indicates a hazard which, if not avoided,

could result in death, serious injury and/or

property damage.

KN OW YOU R TRACTOR

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATINGYOUR

TRACTOR

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Ammeter

Throttle Control

Ignition

Switch

"ON"

Position

Attachment

Clutch Switch

Lift Lever

Plunger

Clutch/Brake

Attachment

Lift Lever

Choke

Control

Light Switch

Height

Adjustment

Knob

Gear Shift Lever

Parking Brake

Range Shift Lever

02825 LSW_

Our tractors conform to the safety standards of the

American National Standards Institute.

AMMETER - Indicates battery charging

(+) or discharging (-).

ATTACHMENT CLUTCH SWITCH - Used

to engage the mower blades, or other at-

tachments mounted to your tractor.

ATTACHMENT LIFT LEVER - Used to

raise and lower the mower deck or other

attachments mounted to your tractor.

CHOKE CONTROL - Used when starting

a cold engine.

CLUTCH/BRAKE PEDAL - Used for

declutching and braking the tractor and

starting the engine.

GEARSHIFT LEVER - Selects the speed

and direction of the tractor.

HEIGHT ADJUSTMENT KNOB - Used to

adjust the mower cutting height.

IGNITION SWITCH - Used for starting

and stopping the engine.

LIFT LEVER PLUNGER - Used to release

attachment lift lever when changing its

position.

LIGHT SWITCH - Turns the headlights on

and off.

PARKING BRAKE - Locks clutch/brake

into the brake position.

RANGESHIFT LEVER - Allows high (H)

and low (L) speed for all forward and

reverse gears.

REVERSE OPERATION SYSTEM (ROS)

"ON" POSITION - Allows operation of

mower deck or other powered attachment

while in reverse.

THROTTLE CONTROL - Used to control

engine speed.

The operation of any tractor can result in foreign objects thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses

or eye shields while operating your tractor or performing any adjustments

or repairs. We recommend standard safety glasses or a wide vision safety

mask worn over spectacles.

HOW TO USE YOUR TRACTOR

TO SET PARKING BRAKE

Your tractor is equipped with an operator

presence sensing switch. When engine

is running, any attempt by the operator

to leave the seat without first setting the

parking brake will shut off the engine.

1. Depress clutch/brake pedal all the way

down and hold.

2. Pull parking brake lever up and release

pressure from clutch/brake pedal.

Pedal should remain in brake position.

Make sure parking brake will hold trac-

tor secure.

Push-In to

"Disengaged" Attachment Clutch

Choke Switch Pull Out To

Control "Engage"

Throttle

Control

"Brake"

nitior

,- _ _._._ Key

.-_ X_ /J-: i:;:--'X Brake

Clutch/ /D;se/aaaed,,"xx "engaged"

BrakePedal /_'si_ioYn _£1_u X POsItIOn

"Drive" Gear Shift

Position Height Adjustment Lever

Knob

STOPPING

MOWER BLADES -

• To stop mower blades, push attachment

clutch switch in to disengaged position.

GROUND DRIVE -

• To stop ground drive, depress clutch/

brake pedal all the way down.

• Move gearshift lever to neutral (N) posi-

tion.

ENGINE -

• Move throttle control between half and

full speed (fast) position.

NOTE: Failure to move throttle control

between half and full speed (fast) posi-

tion, before stopping, may cause engine to

"backfire".

• Turn ignition key to "STOP" position and

remove key. Always remove key when

leaving tractor to prevent unauthorized

use.

• Never use choke to stop engine.

IMPORTANT: Leaving the ignition switch

in any position other than "STOP" will

cause the battery to discharge and go

dead.

NOTE: Under certain conditions when

tractor is standing idle with the engine

running, hot engine exhaust gases may

cause "browning" of grass. To eliminate

this possibility, always stop engine when

stopping tractor on grass areas.

,_CAUTION: Always stop tractor com-

pletely, as described above, before leaving

the operator's position.

TO USE THROTTLE CONTROL

Always operate engine at full throttle.

• Operating engine at less than full

throttle reduces the battery charging

rate.

• Full throttle offers the best mower perfor-

mance.

TO USE CHOKE CONTROL

Use choke control whenever you are start-

ing a cold engine. Do not use to start a

warm engine.

• To engage choke control, pull knob out.

Slowly push knob in to disengage.

TO MOVE FORWARD AND BACKWARD

The direction and speed of movement is

controlled by the gearshift lever.

1. Start tractor with clutch/brake pedal de-

pressed and gearshift lever in neutral

(N) position.

2. Move gearshift and range shift levers

to desired position.

3. Slowly release clutch/brake pedal to

start movement.

IMPORTANT: Bring tractor to a complete

stop before shifting or changing gears.

Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted

when they are slightly off the ground when

mower is at the desired cutting height in

operating position. Gauge wheels then

keep the deck in proper position to help

prevent scalping in most terrain conditions.

NOTE: Be sure tractor is on a flat level

surface.

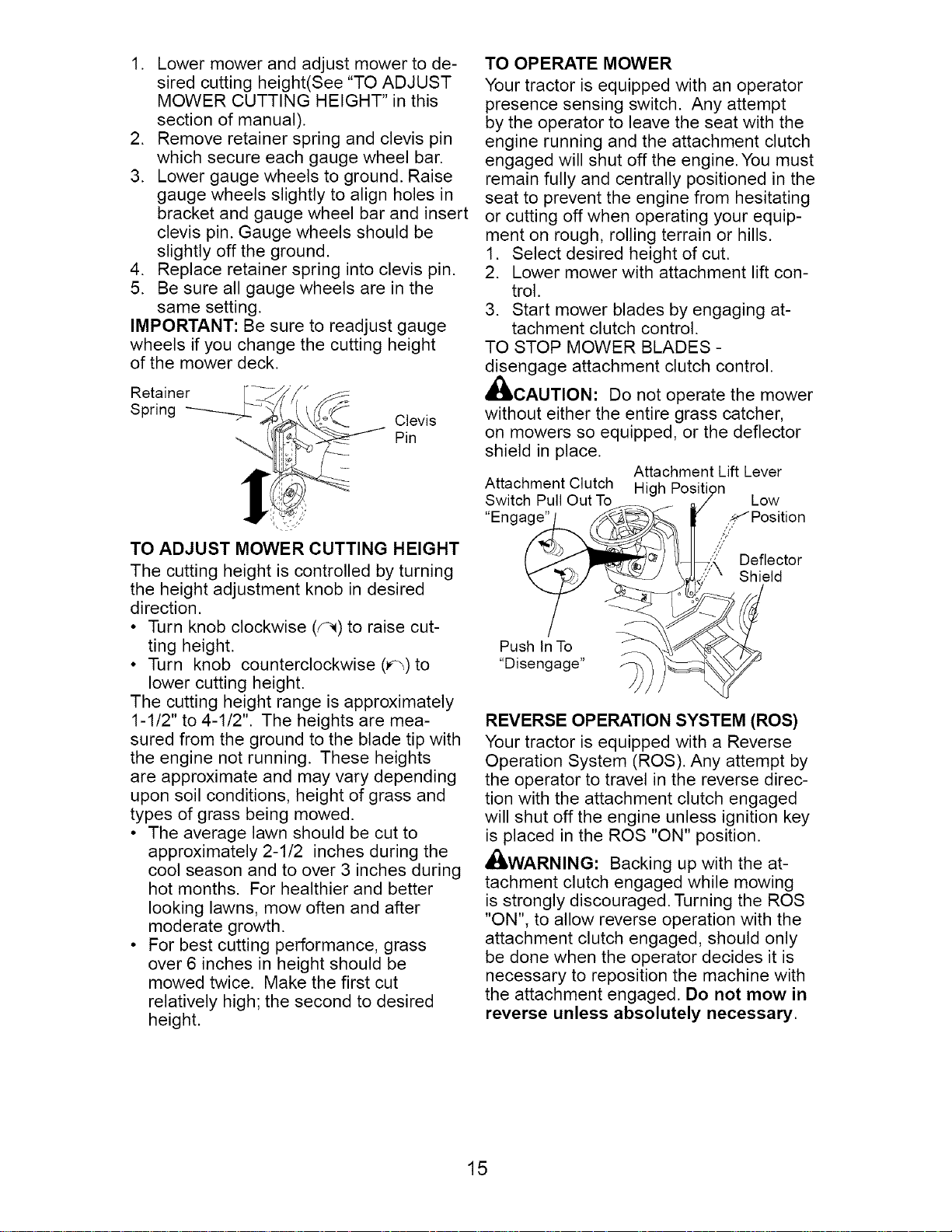

1. Lower mower and adjust mower to de-

sired cutting height(See "TO ADJUST

MOWER CUTTING HEIGHT" in this

section of manual).

2. Remove retainer spring and clevis pin

which secure each gauge wheel bar.

3. Lower gauge wheels to ground. Raise

gauge wheels slightly to align holes in

bracket and gauge wheel bar and insert

clevis pin. Gauge wheels should be

slightly off the ground.

4. Replace retainer spring into clevis pin.

5. Be sure all gauge wheels are in the

same setting.

IMPORTANT: Be sure to readjust gauge

wheels if you change the cutting height

of the mower deck.

Clevis

TO ADJUST MOWER CUTTING HEIGHT

The cutting height is controlled by turning

the height adjustment knob in desired

direction.

• Turn knob clockwise (_) to raise cut-

ting height.

• Turn knob counterclockwise (__) to

lower cutting height.

The cutting height range is approximately

1-1/2" to 4-1/2". The heights are mea-

sured from the ground to the blade tip with

the engine not running. These heights

are approximate and may vary depending

upon soil conditions, height of grass and

types of grass being mowed.

• The average lawn should be cut to

approximately 2-1/2 inches during the

cool season and to over 3 inches during

hot months. For healthier and better

looking lawns, mow often and after

moderate growth.

• For best cutting performance, grass

over 6 inches in height should be

mowed twice. Make the first cut

relatively high; the second to desired

height.

TO OPERATE MOWER

Your tractor is equipped with an operator

presence sensing switch. Any attempt

by the operator to leave the seat with the

engine running and the attachment clutch

engaged will shut off the engine. You must

remain fully and centrally positioned in the

seat to prevent the engine from hesitating

or cutting off when operating your equip-

ment on rough, rolling terrain or hills.

1. Select desired height of cut.

2. Lower mower with attachment lift con-

trol.

3. Start mower blades by engaging at-

tachment clutch control.

TO STOP MOWER BLADES -

disengage attachment clutch control.

_,CAUTION: Do not operate the mower

without either the entire grass catcher,

on mowers so equipped, or the deflector

shield in place.

Attachment Lift Lever

Atta,chmen,tC utch a,gh Pos,t,gn .

"bEWnlgna_P'uHuu, Io !,,,,_y,,_ ;OsWtion

{ _._J, _"]_/ _-_,,:_ Deflector

_'-'tJ_.)J \_ \, <,::'" Shield

o_/

REVERSE OPERATION SYSTEM (ROS)

Your tractor is equipped with a Reverse

Operation System (ROS). Any attempt by

the operator to travel in the reverse direc-

tion with the attachment clutch engaged

will shut off the engine unless ignition key

is placed in the ROS "ON" position.

_,WARNING: Backing up with the at-

tachment clutch engaged while mowing

is strongly discouraged. Turning the ROS

"ON", to allow reverse operation with the

attachment clutch engaged, should only

be done when the operator decides it is

necessary to reposition the machine with

the attachment engaged. Do not mow in

reverse unless absolutely necessary.

USING THE REVERSE OPERATION

SYSTEM -

1. Depress clutch/brake pedal all the way

down and hold.

2. With engine running, turn ignition key

counterclockwise to ROS "ON" posi-

tion.

3. Look down and behind before backing.

4. Move gear shift lever to reverse (R) po-

sition and slowly release clutch/brake

pedal to start movement.

5. When use of the ROS is no longer

needed, turn the ignition key clockwise

to engine "ON" position.

ROS "ON" Position Engine "ON" Position

(Normal Operating)

TO OPERATE ON HILLS

_IbWARNING: Do not drive up or down

hills with slopes greater than 15 ° and do

not drive across any slope. Use the slope

guide at the back of this manual.

• Choose the slowest speed before starting

up or down hills.

• Avoid stopping or changing speed on

hills.

• If slowing is necessary, move throttle control

lever to slower position.

• If stopping is absolutely necessary, push

clutch/brake pedal quickly to brake position

and engage parking brake.

• Move gearshift lever to 1st gear and range

shift lever to low (L) position. Be sure you

have allowed room for tractor to roll slightly

as you restart movement.

• To restart movement, slowly release park-

ing brake and clutch/brake pedal.

• Make all turns slowly.

TO TRANSPORT

• Raise attachment lift to highest position

with attachment lift control.

• When pushing or towing your tractor,

be sure gearshift lever is in neutral (N)

position.

• Do not push or tow tractor at more than

five (5) MPH.

NOTE: To protect hood from damage

when transporting your tractor on a truck

or a trailer, be sure hood is closed and

secured to tractor. Use an appropriate

means of tying hood to tractor (rope, cord,

etc.).

TOWING CARTS AND OTHER ATTACH-

MENTS

Tow only the attachments that are recom-

mended by and comply with specifications

of the manufacturer of your tractor. Use

common sense when towing. Too heavy

of a load, while on a slope, is dangerous.

Tires can lose traction with the ground and

cause you to lose control of your tractor.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL

The engine in your tractor has been

shipped, from the factory, already filled

with summer weight oil.

1. Check engine oil with tractor on level

ground.

2. Remove oil fill cap/dipstick and wipe

clean, reinsert the dipstick and screw

cap tight, wait for a few seconds, re-

move and read oil level. If necessary,

add oil until "FULl" mark on dipstick is

reached. Do not overfill.

• For cold weather operation you should

change oil for easier starting (See the

oil viscosity chart in the Maintenance

section of this manual).

• To change engine oil, see the Mainte-

nance section in this manual.

ADD GASOLINE

• Fill fuel tank to bottom of filler neck. Do

not overfill. Use fresh, clean, regular

unleaded gasoline with a minimum of

87 octane. (Use of leaded gasoline will

increase carbon and lead oxide deposits

and reduce valve life). Do not mix oil

with gasoline. Purchase fuel in quan-

tities that can be used within 30 days to

assure fuel freshness.

_I,CAUTION: Wipe off any spilled oil or

fuel. Do not store, spill or use gasoline

near an open flame.

IMPORTANT: When operating in temper-

atures below32°F(0°C), use fresh, clean

winter grade gasoline to help insure good

cold weather starting.

CAUTION: Alcohol blended fuels (called

gasohol or using ethanol or methanol) can

attract moisture which leads to separa-

tion and formation of acids during storage.

Acidic gas can damage the fuel system

of an engine while in storage. To avoid

engine problems, the fuel system should

be emptied before storage of 30 days

or longer. Drain the gas tank, start the

engine and let it run until the fuel lines

and carburetor are empty. Use fresh fuel

next season. See Storage Instructions for

additional information. Never use engine

or carburetor cleaner products in the fuel

16 tank or permanent damage may occur.

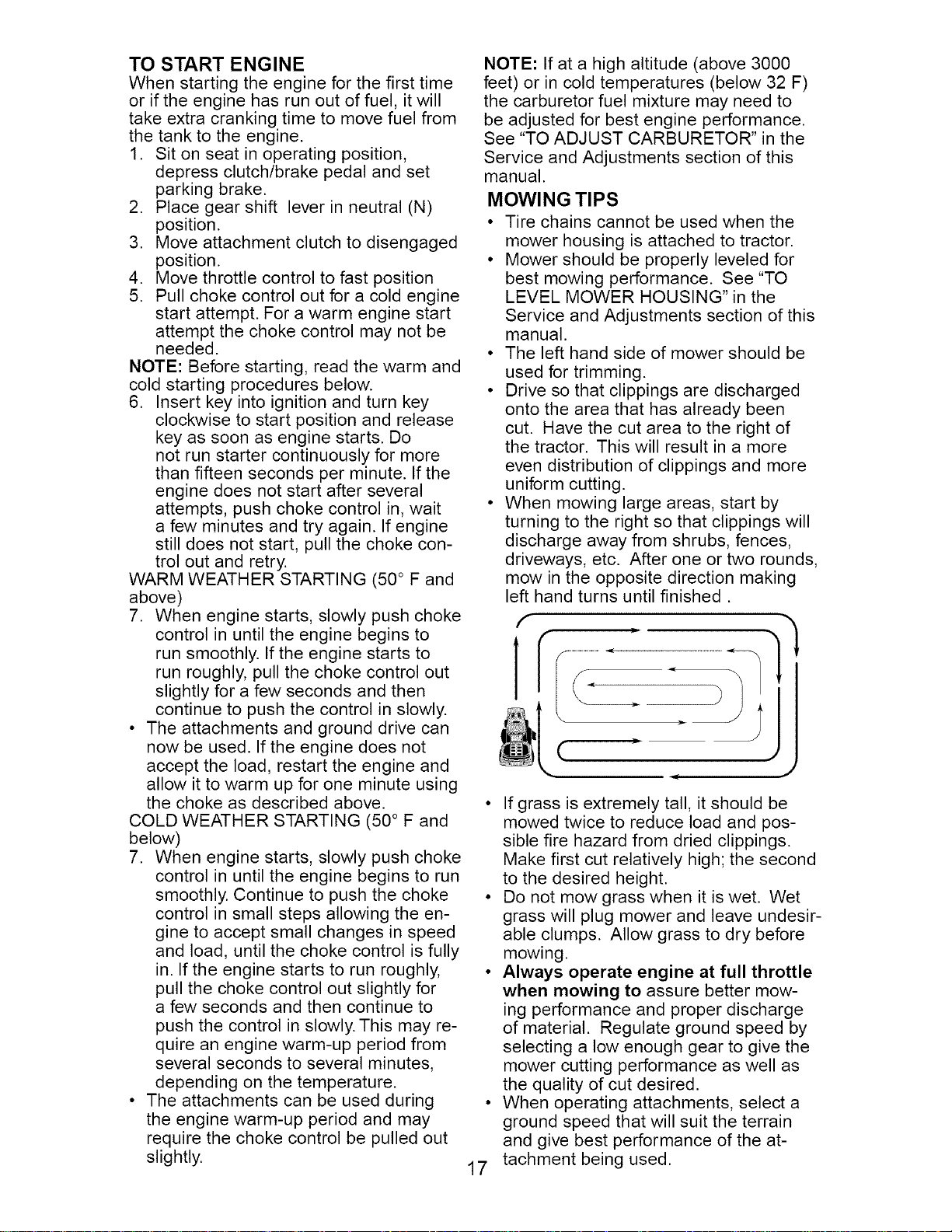

TO START ENGINE

When starting the engine for the first time

or if the engine has run out of fuel, it will

take extra cranking time to move fuel from

the tank to the engine.

1. Sit on seat in operating position,

depress clutch/brake pedal and set

parking brake.

2. Place gear shift lever in neutral (N)

position.

3. Move attachment clutch to disengaged

position.

4. Move throttle control to fast position

5. Pull choke control out for a cold engine

start attempt. For a warm engine start

attempt the choke control may not be

needed.

NOTE: Before starting, read the warm and

cold starting procedures below.

6. Insert key into ignition and turn key

clockwise to start position and release

key as soon as engine starts. Do

not run starter continuously for more

than fifteen seconds per minute. If the

engine does not start after several

attempts, push choke control in, wait

a few minutes and try again. If engine

still does not start, pull the choke con-

trol out and retry.

WARM WEATHER STARTING (50 ° F and

above)

7. When engine starts, slowly push choke

control in until the engine begins to

run smoothly. If the engine starts to

run roughly, pull the choke control out

slightly for a few seconds and then

continue to push the control in slowly.

• The attachments and ground drive can

now be used. If the engine does not

accept the load, restart the engine and

allow it to warm up for one minute using

the choke as described above.

COLD WEATHER STARTING (50 ° F and

below)

7. When engine starts, slowly push choke

control in until the engine begins to run

smoothly. Continue to push the choke

control in small steps allowing the en-

gine to accept small changes in speed

and load, until the choke control is fully

in. If the engine starts to run roughly,

pull the choke control out slightly for

a few seconds and then continue to

push the control in slowly. This may re-

quire an engine warm-up period from

several seconds to several minutes,

depending on the temperature.

• The attachments can be used during

the engine warm-up period and may

require the choke control be pulled out

slightly.

NOTE: If at a high altitude (above 3000

feet) or in cold temperatures (below 32 F)

the carburetor fuel mixture may need to

be adjusted for best engine performance.

See "TO ADJUST CARBURETOR" in the

Service and Adjustments section of this

manual.

MOWING TIPS

• Tire chains cannot be used when the

mower housing is attached to tractor.

• Mower should be properly leveled for

best mowing performance. See "TO

LEVEL MOWER HOUSING" in the

Service and Adjustments section of this

manual.

• The left hand side of mower should be

used for trimming.

• Drive so that clippings are discharged

onto the area that has already been

cut. Have the cut area to the right of

the tractor. This will result in a more

even distribution of clippings and more

uniform cutting.

• When mowing large areas, start by

turning to the right so that clippings will

discharge away from shrubs, fences,

driveways, etc. After one or two rounds,

mow in the opposite direction making

left hand turns until finished.

_, i( J

• If grass is extremely tall, it should be

mowed twice to reduce load and pos-

sible fire hazard from dried clippings.

Make first cut relatively high; the second

to the desired height.

• Do not mow grass when it is wet. Wet

grass will plug mower and leave undesir-

able clumps. Allow grass to dry before

mowing.

• Always operate engine at full throttle

when mowing to assure better mow-

ing performance and proper discharge

of material. Regulate ground speed by

selecting a low enough gear to give the

mower cutting performance as well as

the quality of cut desired.

• When operating attachments, select a

ground speed that will suit the terrain

and give best performance of the at-

tachment being used.

F,LL,NOATES

AS YOU COMPLETE ,_'__/_'_O__O<" _%_ _%_, _%?_ >_%_,_ _%_ ._,O

REGU LARSE RVlCE /_//_v_ ER

VICED A TES

Check Brake Operation _

Check Tire Pressure

Check Operator Presence and

T ROS Systems If

R Check for Loose Fasteners if I_s

A Sharpen/RepLace Mower Blades 1_3

C Lubrication Chart _4

0 Check Battery Level

R Clean Battery and Terminals

Check Transaxle Cooling

Check V-Belts If

Check Engine Oil Level If If

Change Engine Oil (with oil filter) _1,,

E Change Engine Oil (without oil filter) 1_1,2

a Clean Air Filter 1_2

G Clean Air Screen Ill2

NI Inspect Muffler/Spark Arrester if

E Replace Oil Filter (If equipped) 1_1,2

Clean Engine Cooling Fins tf 2

Replace Spark Plug if if

Replace Air Filter Paper Cartridge 1_2

Replace Fuel Filter

1 - Change more often when operating under a heavy load or

in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

GENERAL RECOMMENDATIONS

The warranty on this tractor does not

cover items that have been subjected to

operator abuse or negligence. To receive

full value from the warranty, operator

must maintain tractor as instructed in this

manual.

Some adjustments will need to be made

periodically to properly maintain your

tractor.

At least once a season, check to see if

you should make any of the adjustments

described in the Service and Adjustments

section of this manual.

• At least once a year you should replace

the spark plug, clean or replace air filter,

and check blades and belts for wear.

A new spark plug and clean air filter

assure proper air-fuel mixture and help

your engine run better and last longer.

3 - Replace blades more often when mowing in sandy soil.

4 - Not required if equipped with maintenance-free battery.

5 - Tighten front axle pivot bolt to 35 ft.-Ibs, maximum.

Do not overtighten.

LUBRICATION CHART

@ Spindle Spindle

Zerk Zerk

_Front

@Front Wheel Wheel

Bearing zerk Bearing zerk

Engine

@ Steerim

Sector Geal @ Mandrel

Teeth Zerks

(!_ Check/Add

Transaxle

Fluid

dPSAE 30 or 10w30 Motor Oil

@General Purpose Grease

@Refer to Maintenance "ENGINE" Sec-

tion

IMPORTANT: Do not oil or grease the

BEFORE EACH USE

1. Check engine oil level.

2. Check brake operation.

3. Check tire pressure.

4. Check operator presence and

ROS systems for proper operation.

5. Check for loose fasteners.

pivot points which have special nylon

bearings. Viscous lubricants will attract

dust and dirt that will shorten the life of the

self-lubricating bearings. If you feel they

must be lubricated, use only a dry, pow-

dered graphite type lubricant sparingly.

TRACTOR

AIways observe safety ruleswhen per-

forming any maintenance.

BRAKE OPERATION

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted. (See

"TO ADJUST BRAKE" in the Service and

Adjustments section of this manual).

TIRES

• Maintain proper air pressure in all tires

(See "PRODUCT SPECIFICATIONS"

section of this manual).

• Keep tires free of gasoline, oil, or insect

control chemicals which can harm rub-

ber.

• Avoid stumps, stones, deep ruts, sharp

objects and other hazards that may

cause tire damage.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

OPERATOR PRESENCE SYSTEM AND

REVERSE OPERATION SYSTEM (ROS)

Be sure operator presence and reverse

operation systems are working properly. If

your tractor does not function as de-

scribed, repair the problem immediately.

• The engine should not start unless the

brake pedal is fully depressed, and the

attachment clutch control is in the disen-

gaged position.

CHECK OPERATOR PRESENCE

SYSTEM

• When the engine is running, any at-

tempt by the operator to leave the seat

without first setting the parking brake

should shut off the engine.

• When the engine is running and the

attachment clutch is engaged, any at-

tempt by the operator to leave the seat

should shut off the engine.

• The attachment clutch should never op-

erate unless the operator is in the seat.

CHECK REVERSE OPERATION (ROS)

SYSTEM

• When the engine is running with the

ignition switch in the engine "ON" posi-

tion and the attachment clutch engaged,

any attempt by the operator to shift into

reverse should shut off the engine.

ROS "ON" Position Engine "ON" Position

(Nor_perating)

®s

• When the engine is running with the

ignition switch in the ROS "ON" position

and the attachment clutch engaged,

any attempt by the operator to shift into

reverse should NOT shut off the engine.

BLADE CARE

For best results mower blades must be

kept sharp. Replace bent or damaged

blades.

A CAUTION: Use only a replacement

blade approved by the manufacturer of

your tractor. Using a blade not approved

by the manufacturer of your tractor is

hazardous, could damage your tractor and

void your warranty.

BLADE REMOVAL

1. Raise mower to highest position to al-

low access to blades.

NOTE: Protect your hands with gloves

and/or wrap blade with heavy cloth.

2. Remove blade bolt by turning counter-

clockwise.

3. Install new or resharpened blade with

stamped "THIS SIDE UP" facing deck

and mandrel assembly.

IMPORTANT: To ensure proper assembly,

center hole in blade must align with star on

mandrel assembly.

4. Install and tighten blade bolt securely

(45-55 Ft. Lbs. torque).

IMPORTANT: Special blade bolt is heat

treated.

Blade

Blade Bolt Assembly

(Special)

Center Hole

TO SHARPEN BLADE

NOTE: We do not recommend sharpening

blade - but if you do, be sure the blade is

balanced.

Care should be taken to keep the blade

balanced. An unbalanced blade will cause

excessive vibration and eventual damage

to mower and engine.

• The blade can be sharpened with a file

or on a grinding wheel. Do not attempt

to sharpen while on the mower.

• To check blade balance, you will need a

5/8" diameter steel bolt, pin, or a cone

balancer. (When using a cone balancer,

follow the instructions supplied with

balancer.)

NOTE: Do not use a nail for balancing

blade. The lobes of the center hole may

appear to be centered, but are not.

• Slide blade on to an unthreaded portion

of the steel bolt or pin and hold the

bolt or pin parallel with the ground. If

blade is balanced, it should remain in a

horizontal position. If either end of the

blade moves downward, sharpen the

heavy end until the blade is balanced.

Center Holej /

or Pin _ade

BATTERY

Your tractor has a battery charging system

which is sufficient for normal use. How-

ever, periodic charging of the battery with

an automotive charger will extend its life.

• Keep battery and terminals clean.

• Keep battery bolts tight.

• Keep small vent holes open.

• Recharge at 6-10 amperes for 1 hour.

NOTE: The original equipment battery on

your tractor is maintenance free. Do not

attempt to open or remove caps or covers.

Adding or checking level of electrolyte is

not necessary.

TO CLEAN BATTERY AND TERMINALS

Corrosion and dirt on the battery and termi-

nals can cause the battery to "leak" power.

1. Remove terminal guard.

2. Disconnect BLACK battery cable first

then RED battery cable and remove

battery from tractor.

3. Rinse the battery with plain water and

dry.

4. Clean terminals and battery cable ends

with wire brush until bright.

5. Coat terminals with grease or petro-

leum jelly.

6. Reinstall battery (See "REPLACING

BATTERY" in the SERVICE AND AD-

JUSTMENTS section of this manual).

TRANSAXLE COOLING

Keep transaxle free from build-up of dirt

and chaff which can restrict cooling.

CHECK TRANSAXLE OIL LEVEL

1. Block up rear axle securely.

2. Remove left rear wheel by removing

hub bolts.

3. Remove filler plug from transaxle. Oil

level must be even with plug threads.

If necessary, fill with SAE 30 motor oil,

API SG-SL. Replace filler plug.

4. Reassemble wheel to hub.

_j o_ Transaxle Filler

Plug

V-BELTS

Check V-belts for deterioration and wear

after 100 hours of operation and replace

if necessary. The belts are not adjustable.

Replace belts if they begin to slip from

wear.

ENGINE

LUBRICATION

Only use high quality detergent oil rated

with API service classification SG-SL

Select the oil's SAE viscosity grade

according to your expected operating

temperature.

oilvisccha_tl e

NOTE: Although multi-viscosity oils

(5W30, 10W30 etc.)improve starting in

cold weather, they will result in increased

oil consumption when used above 32°R

Check your engine oil level more frequent-

ly to avoid possible engine damage from

running low on oil.

Change the oil after every 50 hours of op-

eration or at least once a year if the tractor

is not used for 50 hours in one year.

Check the crankcase oil level before start-

ing the engine and after each eight (8)

hours of operation. Tighten oil fill cap/

dipstick securely each time you check the

oil level.

TO CHANGE ENGINE OIL

Determine temperature range expected

before oil change. All oil must meet API

service classification SG-SL.

• Be sure tractor is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

1. Remove oil fill cap/dipstick. Be careful

not to allow dirt to enter the engine

when changing oil.

2. Install the drain tube onto the fitting.

3. Open drain valve by using a 7/16"

(11 mm) wrench turning counterclock-

wise.

Oil Drain Valve

To _ _To Close

DrainTube _

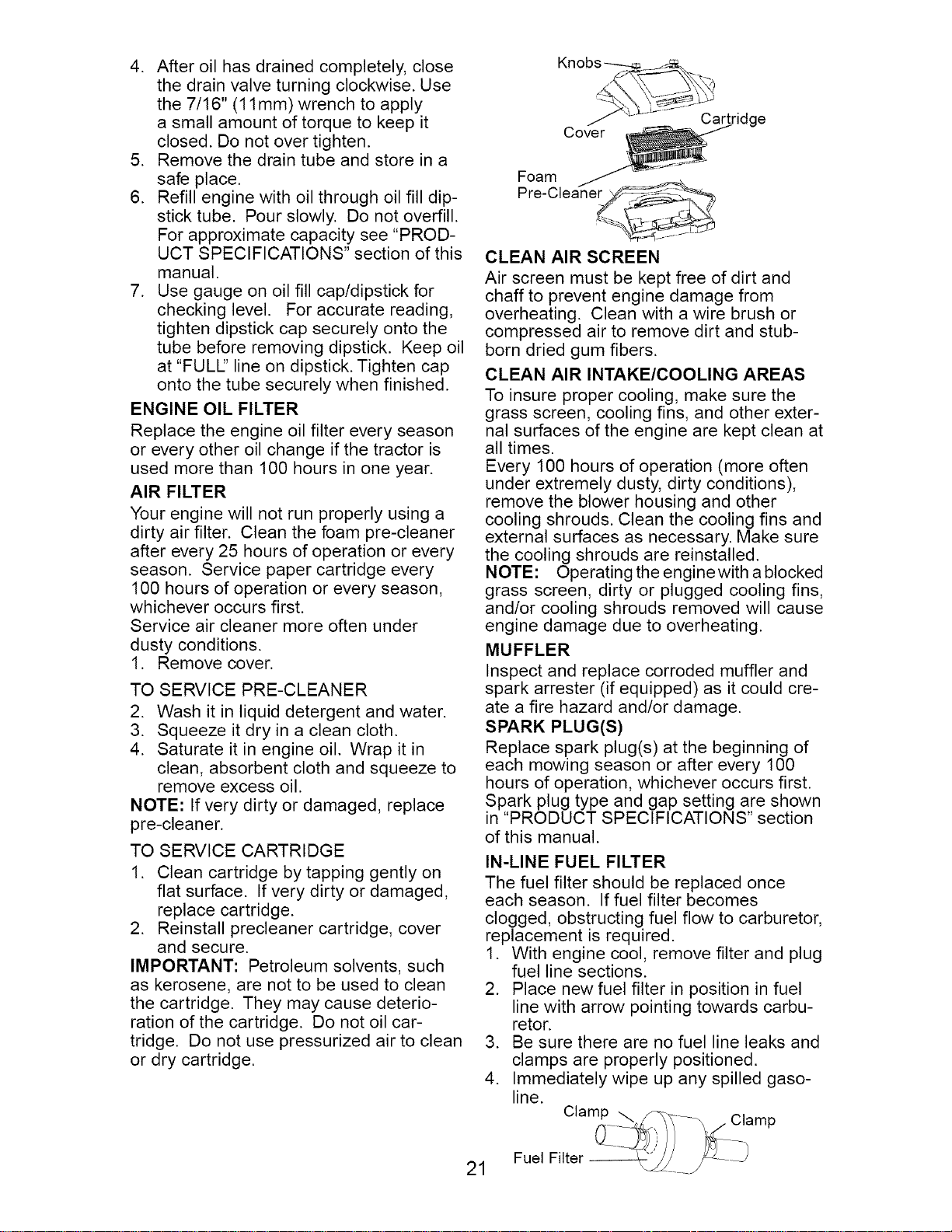

4. After oil has drained completely, close

the drain valve turning clockwise. Use

the 7/16" (11 mm)wrench to apply

a small amount of torque to keep it

closed. Do not over tighten.

5. Remove the drain tube and store in a

safe place.

6. Refill engine with oil through oil fill dip-

stick tube. Pour slowly. Do not overfill.

For approximate capacity see "PROD-

UCT SPECIFICATIONS" section of this

manual.

7. Use gauge on oil fill cap/dipstick for

checking level. For accurate reading,

tighten dipstick cap securely onto the

tube before removing dipstick. Keep oil

at "FULl" line on dipstick. Tighten cap

onto the tube securely when finished.

ENGINE OIL FILTER

Replace the engine oil filter every season

or every other oil change if the tractor is

used more than 100 hours in one year.

AIR FILTER

Your engine will not run properly using a

dirty air filter. Clean the foam pre-cleaner

after every 25 hours of operation or every

season. Service paper cartridge every

100 hours of operation or every season,

whichever occurs first.

Service air cleaner more often under

dusty conditions.

1. Remove cover.

TO SERVICE PRE-CLEANER

2. Wash it in liquid detergent and water.

3. Squeeze it dry in a clean cloth.

4. Saturate it in engine oil. Wrap it in

clean, absorbent cloth and squeeze to

remove excess oil.

NOTE: If very dirty or damaged, replace

pre-cleaner.

TO SERVICE CARTRIDGE

1. Clean cartridge by tapping gently on

flat surface. If very dirty or damaged,

replace cartridge.

2. Reinstall precleaner cartridge, cover

and secure.

IMPORTANT: Petroleum solvents, such

as kerosene, are not to be used to clean

the cartridge. They may cause deterio-

ration of the cartridge. Do not oil car-

tridge. Do not use pressurized air to clean

or dry cartridge.

Cover

Cartridge

Foam

CLEAN AIR SCREEN

Air screen must be kept free of dirt and

chaff to prevent engine damage from

overheating. Clean with a wire brush or

compressed air to remove dirt and stub-

born dried gum fibers.

CLEAN AIR INTAKE/COOLING AREAS

To insure proper cooling, make sure the

grass screen, cooling fins, and other exter-

nal surfaces of the engine are kept clean at

all times.

Every 100 hours of operation (more often

under extremely dusty, dirty conditions),

remove the blower housing and other

cooling shrouds. Clean the cooling fins and

external surfaces as necessary. Make sure

the cooling shrouds are reinstalled.

NOTE: Operating the enginewith a blocked

grass screen, dirty or plugged cooling fins,

and/or cooling shrouds removed will cause

engine damage due to overheating.

MUFFLER

Inspect and replace corroded muffler and

spark arrester (if equipped) as it could cre-

ate a fire hazard and/or damage.

SPARK PLUG(S)

Replace spark plug(s) at the beginning of

each mowing season or after every 100

hours of operation, whichever occurs first.

Spark plug type and gap setting are shown

in "PRODUCT SPECIFICATIONS" section

of this manual.

IN-LINE FUEL FILTER

The fuel filter should be replaced once

each season. If fuel filter becomes

clogged, obstructing fuel flow to carburetor,

replacement is required.

1. With engine cool, remove filter and plug

fuel line sections.

2. Place new fuel filter in position in fuel

line with arrow pointing towards carbu-

retor.

3. Be sure there are no fuel line leaks and

clamps are properly positioned.

4. Immediately wipe up any spilled gaso-

line.

Clamp _ Clamp

Fuel Filter-

CLEANING

• Clean engine, battery, seat, finish, etc. of

all foreign matter.

• Keep finished surfaces and wheels free

of all gasoline, oil, etc.

• Protect painted surfaces with automotive

type wax.

We do not recommend using a garden

hose or pressure washer to clean your

tractor unless the engine and transmis-

sion are covered to keep water out. Water

in engine or transmission will shorten the

useful life of your tractor. Use compressed

air or a leaf blower to remove grass,

leaves and trash from tractor and mower.

,_ WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER-

VICE OR ADJUSTMENTS:

1. Depress clutch/brake pedal fully and set parking brake.

2. Place gearshift lever in neutral (N) position.

3. Place attachment clutch in "DISENGAGED" position.

4. Turn ignition key to "STOP" and remove key.

5. Make sure the blades and all moving parts have completely stopped.

6. Disconnect spark plug wire from spark plug and place wire where it cannot

come in contact with plug.

TRACTOR

TO REMOVE MOWER

1. Place attachment clutch in "DISEN-

GAGED" position.

2. Lower attachment lift lever to its lowest

position.

3. Disengage belt tension rod from lock

_ bracket.

CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and re-

lease slowly.

4. Remove mower belt from electric

clutch pulley.

5. DISCONNECT REAR MOWER PINS

FIRST - Pull out the spring loaded pin,

disconnect suspension arm from pin

and release pin.

Belt Tension Rod

Disengage_on

6. Go to other side of mower and discon-

nect rear pin in the same manner.

7. Remove the four retainer springs and

two flanged pins from front plate as-

sembly and remove plate.

8. Raise attachment lift lever to its highest

position.

9. Turn tractor steering wheel to the left

as far as it will go.

10. Slide mower out from under right side

of tractor.

TO INSTALL MOWER

Follow procedure described in "INSTALL

MOWER AND DRIVE BELT" in the As-

sembly section of this manual. NOTE: You

will need to reattach front plate assembly to

tractor after sliding mower under the tractor.

Bracket

Electric Clutch

Pulley

Front Plate Assembly

Single Loop

_ Retainer Springs

Double Loop

Retainer Springs

Flanged Pins

Rear Mower Pins

TO LEVEL MOWER HOUSING

Adjust the mower while tractor is parked

on level ground or driveway. Make sure

tires are properly inflated (See "PRODUCT

SPECIFICATIONS" section of this manual).

If tires are over or underinflated, you will

not properly adjust your mower.

SIDE-TO-SIDE ADJUSTMENT

• Raise mower to its highest position.

• Measure height from bottom edge of

mower to ground level at front corners

of mower. Distance "A" on both sides of

mower should be the same.

• If adjustment is necessary, make adjust-

ment on one side of mower only.

• To raise one side of mower, tighten lift

link adjustment nut on that side.

• To lower one side of mower, loosen lift

link adjustment nut on that side.

NOTE: Each full turn of adjustment nut

will change mower height about 3/16".

• Recheck measurements after adjusting.

Bottom Edge of Bottom Edge of

Mower to Ground Mower to Ground

Suspension

Arm

Check adjustment on right side of tractor.

Position any blade so the tip is pointing

straight forward. Measure distance "B" at

front and rear tip of blade

• Before making any necessary adjust-

ments, check that both front plate links

are equal in length.

• If links are not equal in length, adjust

one link to same length as other link.

• To lower front of blade, loosen nut "C"

on both front links an equal number of

turns.

NOTE: Each full turn of nut"C" will

change distance "B" by approximately

3/16".

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• To raise front of blade, loosen nut

"D" from trunnion on both front links.

Tighten nut "C" on both front links an

equal number of turns. The two front

links must remain equal in length.

• When distance "B" is 1/8" to 1/2" lower

at front than rear, tighten nut "D" against

trunnion on both front links.

• Recheck side-to-side adjustment.

q_.°o\X I oo/Blade

Eift Link

ustment

Nut

FRONT-TO-BACK ADJUSTMENT

IMPORTANT: Deck must be level side-to-

side. If the following front-to-back adjust-

ment is necessary, be sure to adjust both

front links equally so mower will stay level

side-to-side.

To obtain the best cutting results, the

mower blades should be adjusted so the

front tip is approximately 1/8" to 1/2" lower

than the rear tip when the mower is in its

,_ghest position.

CAUTION: Blades are sharp. Protect

your hands with gloves and/or wrap blade

with heavy cloth.

BOTH FRONT PLATE LINKS MUST BE

EQUAL IN LENGTH

Front Plate

Assembly

Trunnion

TO REPLACE MOWER DRIVE BELT

MOWER DRIVE BELT REMOVAL

1. Park tractor on a level surface. Engage

parking brake.

2. Lower attachment lift lever to its lowest

position.

3. Disengage belt tension rod from lock

_bracket.

CAUTION: Belt tension rod is spring

loaded. Have a firm grip on rod and re-

lease slowly.

4. Remove screws from R.H. and L.H.

mandrel covers and remove covers.

5. Remove any dirt or grass clippings

which may have accumulated around

mandrels and entire upper deck sur-

face.

6. Remove belt from electric clutch pulley,

both mandrel pulleys and all idler pul-

leys.

MOWER DRIVE BELT INSTALLATION

1. Install belt around both mandrel pulleys

and around idler pulleys as shown.

2. Install belt onto electric clutch pulley.

IMPORTANT: Check belt for proper rout-

ing in all mower pulley grooves.

3. Reassemble R.H. and L.H. mandrel

covers. Securely tighten all screws.

4. Engage belt tension rod on locking

bracket.

& CAUTION: Belt tension rod is spring

loaded. Have a tight grip on rod and en-

gage slowly.

5. Raise attachment lift lever to highest

position.

Belt Routing

L.H.

Mandrel

Cover

Belt Tension

Rod

(Disengaged

Position)

Locking Bracket

Electric

Clutch

Pulley

R.H.

Mandrel

Cover

R.H.

Mandrel

Idler

Pulleys

TO ADJUST ATTACHMENT CLUTCH

The electric clutch should provide years

of service. The clutch has a built-in brake

that stops the pulley within 5 seconds.

Eventually, the internal brake will wear

which may cause the mower blades to

not engage, or, to not stop as required.

Adjustments should be made by a Sears

or other qualified service center.

1. Make sure attachment clutch and igni-

tion switches are in "OFF" position.

2. Adjust the three nylon Iocknuts until

space between clutch plate and rotor

measures .012" at all three slot loca-

tions cut in the side of brake plate.

NOTE: After installing a new electric

clutch, run tractor at full throttle and

engage and disengage electric clutch 10

cycles to wear in clutch plate.

Rotor

.012"

TO CHECK AND ADJUST BRAKE

Your tractor is equipped with an adjustable

brake system which is mounted on the

right side of the transaxle.

If tractor requires more than five (5) feet to

stop at highest speed in highest gear on a

level, dry concrete or paved surface, then

brake must be checked and adjusted.

TO CHECK BRAKE

1. Park tractor on a level, dry concrete or

paved surface, depress clutch/brake

pedal all the way down and engage

parking brake.

2. Place gear shift lever in neutral (N)

position.

The rear wheels must lock and skid when

you try to manually push the tractor for-

ward. If the rear wheels rotate, the brake

needs to be adjusted or the pads need to

be replaced.

TO ADJUST BRAKE

1. Depress clutch/brake pedal all the way

down and engage parking brake.

2. Measure distance between brake oper-

ating arm and nut "A" on brake rod.

3. If distance is other than 1-3/4", loosen

jam nut and turn nut "A" until distance

becomes 1-3/4". Retighten jam nut

against nut "A".

Road test tractor for proper stopping

distance as stated above. Readjust

if necessary. If stopping distance is

still greater than five (5) feet in highest

gear, further maintenance is neces-

sary. Replace brake pads or contact a

Sears or other qualified service center.

With parking brake "Engaged"

Ope _t"rating/_.. "Ja_'N at

Ar__

TO REPLACE MOTION DRIVE BELT

Park the tractor on level surface. Engage

parking brake. For ease of service there is

a belt installation guide decal on bottom of

left footrest. It is not necessary to remove

mower.

BELT REMOVAL -

1. Engage parking brake (creates slack in

belt).

2. Remove mower drive belt from electric

clutch pulley only (See "TO REPLACE

MOWER DRIVE BELT" in this section

of this manual).

3. Roll motion drive belt off transaxle pul-

ley.

4. Roll belt off clutching idler pulleys, then

off engine pulley and front V-idler pul-

ley.

5. Pull belt out of all belt keepers.

BELT INSTALLATION -

1. Place V part of belt into grooves on

engine pulley and front V-idler, making

sure to route belt inside of belt keepers.

2. Put belt coming from V-idler above mid-

span belt keeper, then onto clutching

idler pulleys as shown.

3. Make sure V part of belt engages V-

idler.

4. Place belt around transaxle pulley,

beginning at top.

V part of belt should engage transaxle

pulley.

5. Place long lower section of belt

through loop in midspan belt keeper.

6. Check to be sure belt is on proper side

of all belt keepers.

7. Reinstall mower drive belt onto electric

clutch pulley.

25 IMPORTANT: Check Brake Adjustment.

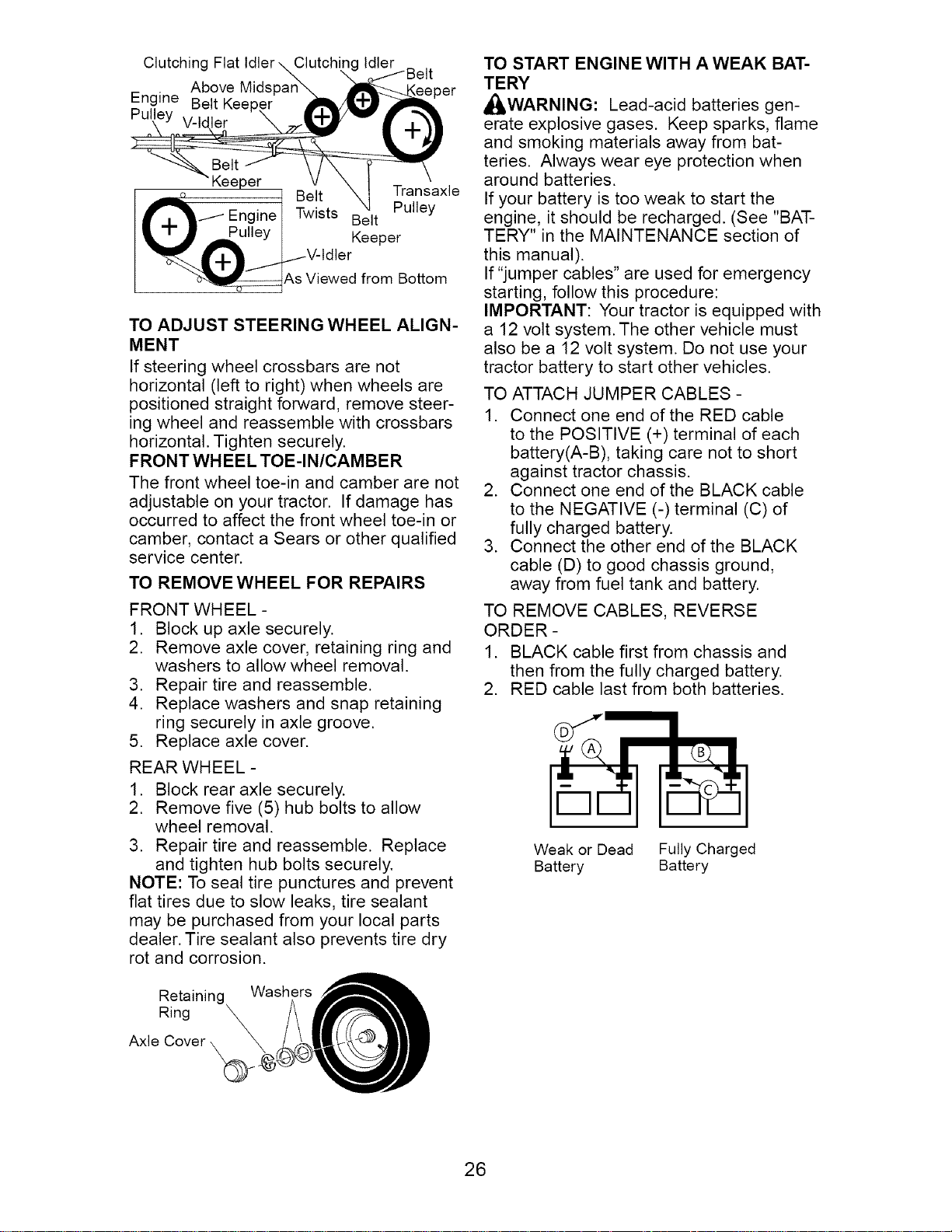

Clutching Flat Clutchin(

Above Mids

Engine Belt

Pulley V-Idler

Keeper _ ,

_o Belt i ransaxle

_±._ Engine I Twists Belt Pulley

,_1_Pulley I Keeper

_As Viewed from Bottom

TO ADJUST STEERING WHEEL ALIGN-

MENT

If steering wheel crossbars are not

horizontal (left to right) when wheels are

positioned straight forward, remove steer-

ing wheel and reassemble with crossbars

horizontal. Tighten securely.

FRONT WHEEL TOE-IN/CAM BER

The front wheel toe-in and camber are not

adjustable on your tractor. If damage has

occurred to affect the front wheel toe-in or

camber, contact a Sears or other qualified

service center.

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL -

1. Block up axle securely.

2. Remove axle cover, retaining ring and

washers to allow wheel removal.

3. Repair tire and reassemble.

4. Replace washers and snap retaining

ring securely in axle groove.

5. Replace axle cover.

REAR WHEEL -

1. Block rear axle securely.

2. Remove five (5) hub bolts to allow

wheel removal.

3. Repair tire and reassemble. Replace

and tighten hub bolts securely.

NOTE: To seal tire punctures and prevent

flat tires due to slow leaks, tire sealant

may be purchased from your local parts

dealer. Tire sealant also prevents tire dry

rot and corrosion.

Retaining Washers

Ring

TO START ENGINE WITH A WEAK BAT-

TERY

_kWARNING: Lead-acid batteries gen-

erate explosive gases. Keep sparks, flame

and smoking materials away from bat-

teries. Always wear eye protection when

around batteries.

If your battery is too weak to start the

engine, it should be recharged. (See "BAT-

TERY" in the MAINTENANCE section of

this manual).

If "jumper cables" are used for emergency

starting, follow this procedure:

IMPORTANT: Your tractor is equipped with

a 12 volt system. The other vehicle must

also be a 12 volt system. Do not use your

tractor battery to start other vehicles.

TO ATTACH JUMPER CABLES -

1. Connect one end of the RED cable

to the POSITIVE (+) terminal of each

battery(A-B), taking care not to short

against tractor chassis.

2. Connect one end of the BLACK cable

to the NEGATIVE (-) terminal (C) of

fully charged battery.

3. Connect the other end of the BLACK

cable (D) to good chassis ground,

away from fuel tank and battery.

TO REMOVE CABLES, REVERSE

ORDER -

1. BLACK cable first from chassis and

then from the fully charged battery.

2. RED cable last from both batteries.

Weak or Dead Fully Charged

Battery Battery

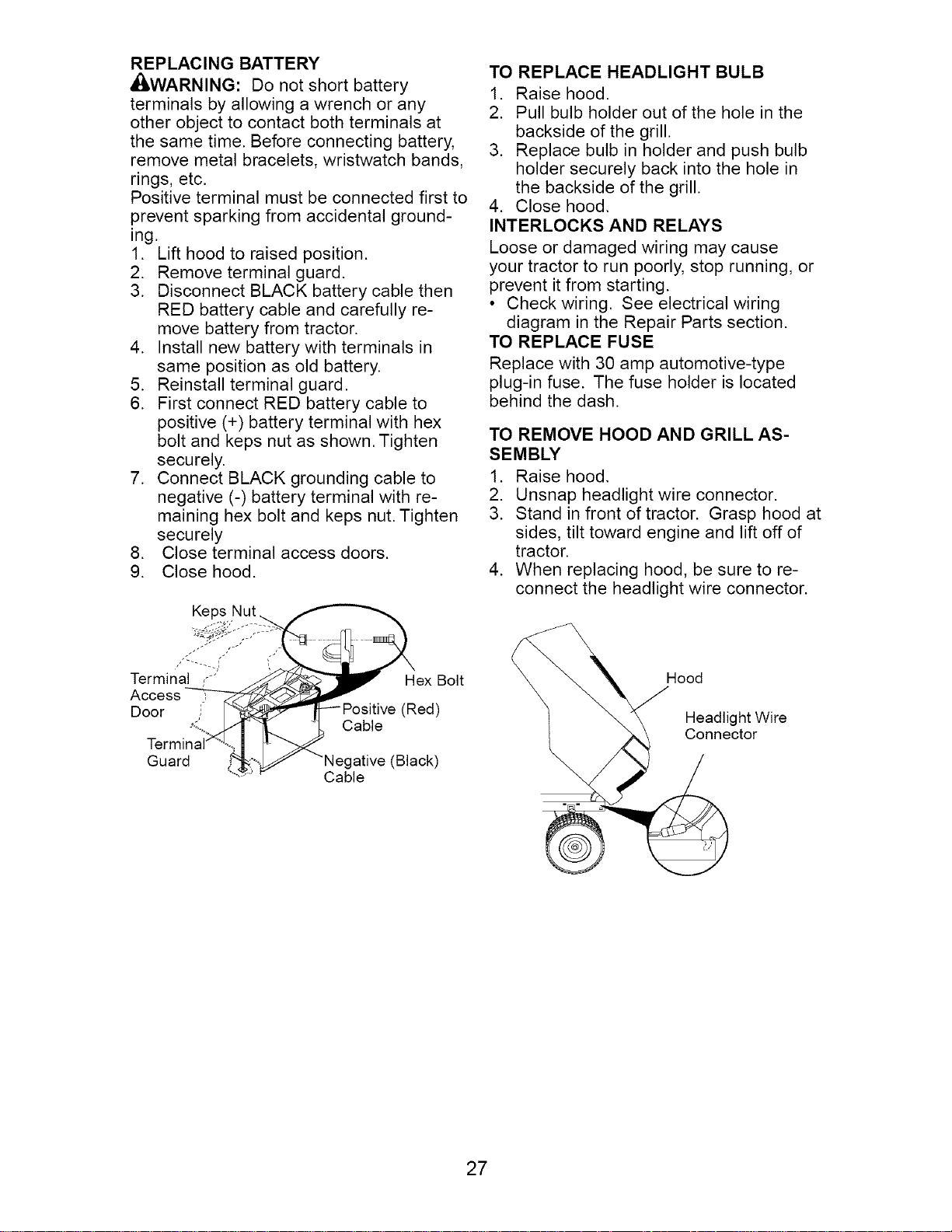

REPLACING BATTERY

_WARNING: Do not short battery

terminals by allowing a wrench or any

other object to contact both terminals at

the same time. Before connecting battery,

remove metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected first to

prevent sparking from accidental ground-

ing.

1. Lift hood to raised position.

2. Remove terminal guard.

3. Disconnect BLACK battery cable then

RED battery cable and carefully re-

move battery from tractor.

4. Install new battery with terminals in

same position as old battery.

5. Reinstall terminal guard.

6. First connect RED battery cable to

positive (+) battery terminal with hex

bolt and keps nut as shown. Tighten

securely.

7. Connect BLACK grounding cable to

negative (-) battery terminal with re-

maining hex bolt and keps nut. Tighten

securely

8. Close terminal access doors.

9. Close hood.

Kep-s,Nut __'b__._

Terminal/

Access_ _ ..ex Bolt

Door ,- "-_ _"]_Positive (Red)

-"::°".-_"r'_ -'_ Cable

(Term_'_! _Negative (Black)

............. Cable

TO REPLACE HEADLIGHT BULB

1. Raise hood.

2. Pull bulb holder out of the hole in the

backside of the grill.

3. Replace bulb in holder and push bulb

holder securely back into the hole in

the backside of the grill.

4. Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

• Check wiring. See electrical wiring

diagram in the Repair Parts section.

TO REPLACE FUSE

Replace with 30 amp automotive-type

plug-in fuse. The fuse holder is located

behind the dash.

TO REMOVE HOOD AND GRILL AS-

SEMBLY

1. Raise hood.

2. Unsnap headlight wire connector.

3. Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of

tractor.

4. When replacing hood, be sure to re-

connect the headlight wire connector.

Hood

Headlight Wire

Connector

ENGINE

Maintenance, repair, or replacement of

the emission control devices and systems,

which are being done at the customers ex-

pense, may be performed by any non-road

engine repair establishment or individual.

Warranty repairs must be performed by an

authorized engine manufacturer's service

outlet.

TO ADJUST THROTTLE CONTROL

CABLE

The throttle control has been preset at the

factory and adjustment should not be nec-

essary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move throttle

control lever to fast position.

2. Check that swivel is against stop. If it is

not, loosen cable clamp screw and pull

cable back until swivel is against stop.

Tighten cable clamp screw securely.

TO ADJUST CHOKE CONTROL

The choke control has been preset at

the factory and adjustment should not be

necessary. Check adjustment as described

below before loosening cable. If adjust-

ment is necessary, proceed as follows:

1. With engine not running, move choke

control (located on dash panel) to full

choke position.

2. Loosen knob and remove cover as-

sembly from air cleaner.

3. Choke should be closed. If it is not,

loosen casing clamp screw and move

choke cable until choke is completely

closed. Tighten casing clamp screw

securely.

4. Replace air cleaner cover assembly

and tighten knob.

TO ADJUST CARBURETOR

Your carburetor is not adjustable. If your

engine does not operate properly due to

suspected carburetor problems, take your

tractor to a Sears or other qualified service

center for repair and/or adjustment.

High speed stop is factory adjusted. Do

not adjust - damage may result.

IMPORTANT: Never tamper with the

engine governor, which is factory set

for proper engine speed. Overspeed-

ing the engine above the factory high

speed setting can be dangerous. If you

think the engine-governed high speed

needs adjusting, contact a Sears or other

qualified service center,, which has proper

equipment and experience to make any

necessary adjustments.

Sto

Swivel Clamp

Screw

Clamp Screw

Immediately prepare your tractor for stor-

age at the end of the season or if the trac-

_91_,wAWillnot be used for 30 days or more.

RNING: Never store the tractor

with gasoline in the tank inside a building

where fumes may reach an open flame

or spark. Allow the engine to cool before

storing in any enclosure.

TRACTOR

Remove mower from tractor for winter

storage. When mower is to be stored for a

period of time, clean it thoroughly, remove

all dirt, grease, leaves, etc. Store in a

clean, dry area.

1. Clean entire tractor (See "CLEANING"

in the Maintenance section of this

manual).

2. Inspect and replace belts, if necessary

(See belt replacement instructions in

the Service and Adjustments section of

this manual).

3. Lubricate as shown in the Maintenance

section of this manual.

4. Be sure that all nuts, bolts and screws

are securely fastened. Inspect moving

parts for damage, breakage and wear.

Replace if necessary.

5. Touch up all rusted or chipped paint

surfaces; sand lightly before painting.

BATTERY

• Fully charge the battery for storage.

• After a period of time in storage, battery

may require recharging.

• To help prevent corrosion and power

leakage during long periods of storage,

battery cables should be disconnected

and battery cleaned thoroughly (see "TO

CLEAN BATTERY AND TERMINALS" in

the Maintenance section of this manual).

• After cleaning, leave cables discon-

nected and place cables where they

cannot come in contact with battery

terminals.

• If battery is removed from tractor for

storage, do not store battery directly on

concrete or damp surfaces.

ENGINE

FUEL SYSTEM

IMPORTANT: It is important to prevent

gum deposits from forming in essential

fuel system parts such as carburetor, fuel

hose, or tank during storage. Also, alcohol

blended fuels (called gasohol or using

ethanol or methanol) can attract moisture

which leads to separation and formation of

acids during storage. Acidic gas can dam-

age the fuel system of an engine while in

storage.

• Empty the fuel tank by starting the en-

gine and letting it run until the fuel lines

and carburetor are empty.

• Never use engine or carburetor cleaner

products in the fuel tank or permanent

damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable

alternative in minimizing the formation of

fuel gum deposits during storage. Add

stabilizer to gasoline in fuel tank or stor-

age container. Always follow the mix ratio

found on stabilizer container. Run engine

at least 10 minutes after adding stabilizer

to allow the stabilizer to reach the carbure-

tor. Do not empty the gas tank and carbu-

retor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace

with clean engine oil. (See "ENGINE" in

the Maintenance section of this manual).

CYLINDER(S)

1. Remove spark plug(s).

2. Pour one ounce of oil through spark

plug hole(s)into cylinder(s).

3. Turn ignition key to start position for a

few seconds to distribute oil.

4. Replace with new spark plug(s).

OTHER

• Do not store gasoline from one season

to another.

• Replace your gasoline can if your can

starts to rust. Rust and/or dirt in your

gasoline will cause problems.

• If possible, store your tractor indoors

and cover it to give protection from dust

and dirt.

• Cover your tractor with a suitable pro-

tective cover that does not retain mois-

ture. Do not use plastic. Plastic cannot

breathe which allows condensation to

form and will cause your tractor to rust.

IMPORTANT: Never cover tractor while

engine and exhaust areas are still warm.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM

Will not start

Hard to start

Engine will not

turn over

Engine clicks but

will not start

CAUSE

1. Out of fuel.

2. Engine not "CHOKED"

properly.

3. Engine flooded.

4. Bad spark plug.

5. Dirty air filter.

6. Dirty fuel filter.

7 Water in fuel.

8. Loose or damaged wiring.

9. Carburetor out of adjustment.

10. Engine valves out of

adjustment.

1. Dirty air filter.

2. Bad spark plug.

3. Weak or dead battery.

4. Dirty fuel filter.

5. Stale or dirty fuel.

6. Loose or damaged wiring.

7. Carburetor out of adjustment.

8. Engine valves out of

adjustment.

1. Clutch/brake pedal not

depressed.

2. Attachment clutch is

engaged.

3. Weak or dead battery.

4. Blown fuse.

5. Corroded battery terminals.

6. Loose or damaged wiring.

7. Faulty ignition switch.

8. Faulty solenoid or starter.

9. Faulty operator presence

switch(es).

1. Weak or dead battery.

2. Corroded battery terminals.

3. Loose or damaged wiring.

4. Faulty solenoid or starter.

CORRECTION

1. Fill fuel tank.

2. See "TO START ENGINE"

in Operation section.

3. Wait several minutes

before attempting to start.

4. Replace spark plug.

5. Clean/replace air filter.

6. Replace fuel filter.

7. Empty fuel tank and

carburetor, refill tank with

fresh gasoline and replace

fuel filter.

8. Check all wiring.

9. See "To Adjust Carburetor"

in Service and Adjustments

section.

10. Contact a Sears or other

qualified service center.

1. Clean/replace air filter.

2. Replace spark plug.

3. Recharge or replace

battery.

4. Replace fuel filter.

5. Empty fuel tank and refill tank

with fresh, clean gasoline.

6. Check all wiring.

7. See "To Adjust Carburetor"

in Service and Adjustments

section.

8. Contact a Sears or other

qualified service center.

1. Depress clutch/brake

pedal.

2. Disengage attachment

clutch.

3. Recharge or replace

battery.

4. Replace fuse.

5. Clean battery terminals.

6. Check all wiring.

7. Check/replace ignition

switch.

8. Check/replace solenoid or

starter.

9. Contact a Sears or other

qualified service center.

1. Recharge or replace battery.

2. Clean battery terminals.

3. Check all wiring.

4. Check/replace solenoid or

starter.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

1. Cutting too much grass/too

fast.

2. Throttle in "CHOKE" position.

3. Build-up of grass, leaves

and trash under mower.

4. Dirty air filter.

5. Low oil level/dirty oil.

6. Faulty spark plug.

7. Dirty fuel filter.

8. Stale or dirty fuel.

Loss of power

Excessive

vibration

Engine dies when

tractor is shifted

into reverse

Engine continues

to run when

operator leaves

seat with attach-

ment clutch

engaged

Poor cut - uneven

9. Water in fuel.

10.Spark plug wire loose.

11. Dirty engine air screen/fins.

12.Dirty/clogged muffler.

13.Loose or damaged wiring.

14.Carburetor out of adjustment.

15.Engine valves out of

adjustment.

1. Worn, bent or loose blade.

2. Bent blade mandrel.

3. Loose/damaged part(s).

Reverse operation system

(ROS) is not "ON" while

mower or other attachment

is engaged.

Faulty operator-safety

presence control system.

Worn, bent or loose blade.

Mower deck not level.

Buildup of grass, leaves,

and trash under mower.

Bent blade mandrel.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Raise cutting height/reduce

speed.

2. Adjust throttle control.

3. Clean underside of mower

housing.

4. Clean/replace air filter.

5. Check oil level/change oil.

6. Clean and regap or change

spark plug.

7. Replace fuel filter.

8. Empty fuel tank and refill tank

with fresh, clean gasoline.

9. Empty fuel tank and car

buretor, refill tank with fresh

gasoline and replace fuel

filter.

10. Connect and tighten spark

plug wire.

11. Clean engine air screen/

fins.

12. Clean/replace muffler.

13. Check all wiring.

14. See "To Adjust Carburetor"

in Service and Adjustments

section.

15. Contact a Sears or other

qualified service center.

1. Replace blade.

Tighten blade bolt.

2. Contact a Sears or other

qualified service center.

3. Tighten loose part(s).

Replace damaged parts.

1. Turn ignition key to

ROS "ON" position.

See Operation section.

1. Check wiring, switches and

connections. If not corrected,

contact Sears or other

qualified service center.

1. Replace blade. Tighten

blade bolt.

2. Level mower deck.

3. Clean underside of mower

housing.

4. Contact a Sears or other

qualified service center.

5. Clean around mandrels to

open vent holes.

TROUBLESHOOTING CHART:

See appropriate section in manual unless directed to Sears service center

PROBLEM CAUSE CORRECTION

1. Remove obstruction.Mower blades will

not rotate

Poor grass

discharge

Headlight(s) not

working

(if so equipped)

Battery will not

charge

Engine "backfires"

when turning

engine "OFF"

1. Obstruction in clutch

mechanism.

2. Worn/damaged mower drive

belt.

3. Frozen idler pulley.

4. Frozen blade mandrel.

1. Engine speed too slow.

2. Travel speed too fast.

3. Wet grass.

4. Mower deck not level.

5. Low/uneven tire air pressure.

6. Worn, bent or loose blade.

7. Buildup of grass, leaves and

trash under mower.

8. Mower drive belt worn.

9. Blades improperly installed.

10.

11.

Improper blades used.

Clogged mower deck vent

holes from buildup of grass,

leaves, and trash around

mandrels.

1. Light switch is "OFF".

2. Bulb(s) or lamp(s) burned out.

3. Faulty light switch.

4. Loose or damaged wiring.

5. Blown fuse.

1. Bad battery cell(s).

2. Poor cable connections.

3. Faulty regulator

(if so equipped).

4. Faulty alternator.

Engine throttle control not set

between half and full speed

(fast) position before stopping

engine.

2. Replace mower drive belt.

3. Replace idler pulley.

4. Contact a Sears or other

qualified service center.

1. Place throttle control in

"FAST" position.

2. Shift to slower speed.

3. Allow grass to dry before

mowing.

4. Level mower deck.

5. Check tires for proper air

pressure.

6. Replace/sharpen blade.

Tighten blade bolt.

7. Clean underside of mower

housing.

8. Replace mower drive belt.

9. Reinstall blades sharp edge

down.

10. Replace with blades listed

in this manual.

11. Clean around mandrels to

open vent holes.

1. Turn light switch "ON".

2. Replace bulb(s) or lamp(s).

3. Check/replace light switch.

4. Check wiring and connections.

5. Replace fuse.

1. Replace battery.

2. Check/clean all connections.

3. Replace regulator.

4. Replace alternator.

. Move throttle control

between half and full speed

(fast) position before

stopping engine.

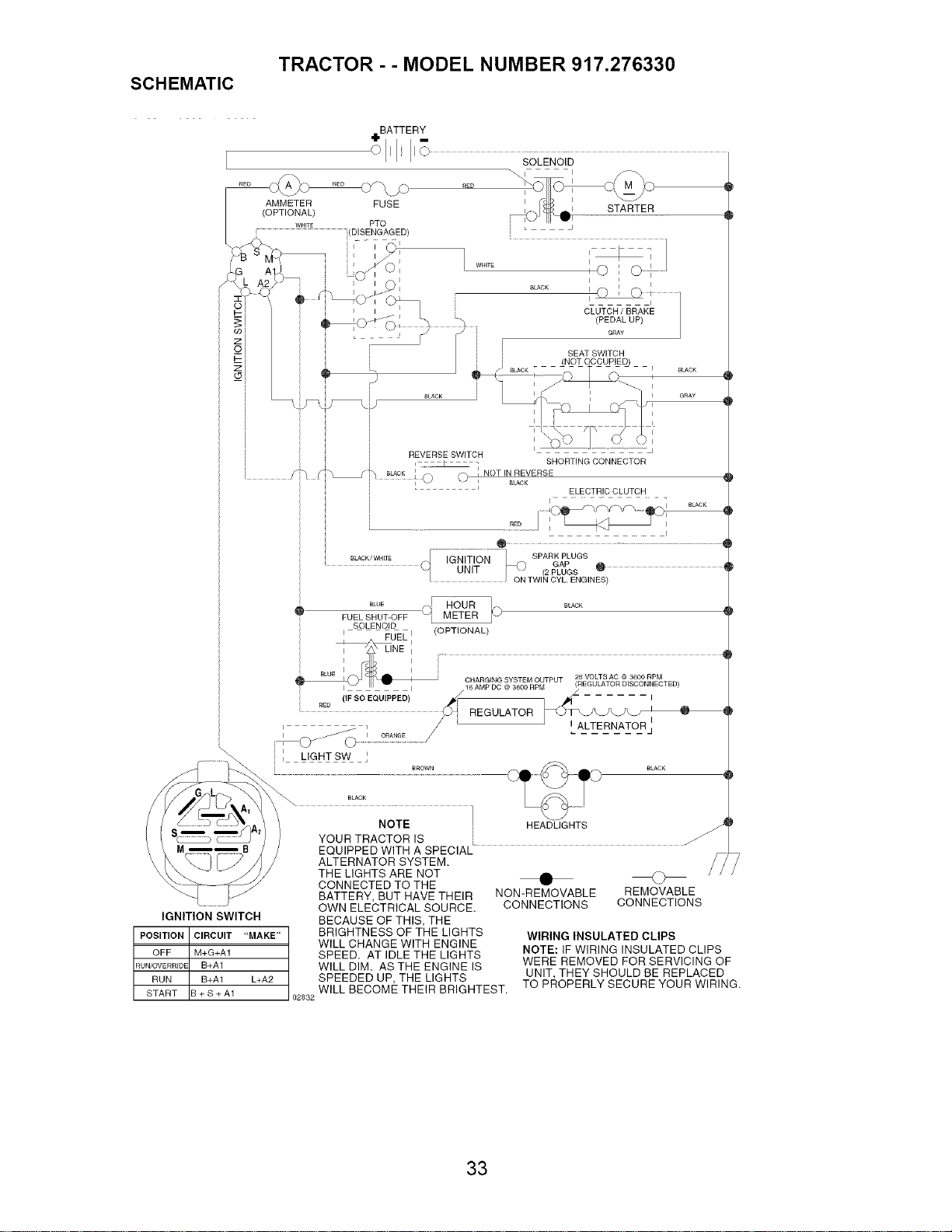

SCHEMATIC

TRACTOR - - MODEL NUMBER 917.276330

SOLENOID

ELECTRIC CLUTCH

£LACK

O .....

+_!_!,0 ,G.iT,o. I. sP,,%%UGS

i ON TWIN CYL. ENGINES)

BLUE F _ BLACK

O FUELSHUT-OFF O_C_

SOLENOID

REGULATOR _T_.j\Jk_ jL_

L A_LT_E_RN_ATO_Rj

I LIGHT SW ]

NOTE ] C I .TS

/ ) YOURTRAOTOR,S h

\ \ m_u / / EQUIPPED WITH A SPECIAL

\ I_ _. I[ _ _ / ALTERNATOR SYSTEM. //

_\_ .... _J/ THE LIGHTS ARE NOT _ _, / /

CONNECTED TO THE .w _

_- _-_ BATTERY, BUT HAVE THEIR NON-REMOVABLE ^REMOVA,BLE

L _ CONNECTIONS UUNI_It:U/IUI_I_

OWN ELECTRICAL SOURCE.

IGNITION SWITCH BECAUSE OF THIS, THE

POSITION CIRCUIT "MAKE" BRIGHTNESS OF THE LIGHTS WIRING INSULATED CLIPS

WILL CHANGE WITH ENGINE

OFF M+G+A1 SPEED. AT IDLE THE LIGHTS NOTE: IF WIRING INSULATED CLIPS

RUN/OVERRIDEB+A1 WILL DIM. AS THE ENGINE IS WERE REMOVED FOR SERVICING OF

RUN B+A1 L+A2 SPEEDED UP, THE LIGHTS UNIT, THEY SHOULD BE REPLACED

START B + S+ A1 02832WILL BECOME THEIR BRIGHTEST. TO PROPERLY SECURE YOUR WIRING.

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.276330

I I t i

I I

ELECTRICAL

TRACTOR - - MODEL NUMBER 917.276330

KEY PART

NO. NO. DESCRIPTION

1 144927 Battery

2 74760412 Bolt Hex Head 1/4-20 x 3/4

8 7603J Tray, Battery

10 145211 Bolt 1/4-20 x 7.5 Zinc

11 150109 Hold down Battery Dash Mount

12 145769 Nut Push Nylon 1/4"

16 176138 Switch Interlock Push-In

21 175688 Harness Socket Light W/4152J

22 4152J Bulb Light

24 185464 Cable Battery

25 146149 Cable, Battery

26 108824X Fuse

27 73510400 Nut Keps Hex 1/4-20 unc

28 170697 Cable, Ground

29 192749 Switch, Plunger

30 193350 Switch, Ign

33 140403 Key, Ignition

34 110712X Switch Light / Reset

40 193394 Harness Ign.

41 17720408 Screw Thd. Cut 1/4-20 x 1/2

42 131563 Cover, Terminal

43 178861 Solenoid

45 122822X Ammeter

50 174652 Switch, PTO

52 141940 Protection Wire Loop

79 175242 Bulbholder Asm. Incan Descent

95 193666 Bracket ROS

96 104445X Switch Interlock

97 170488 Screw Hex Wsh SLT #10-24 x .50

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917,276330

CHASSIS AND ENCLOSURES

153

chassis-stealth II 6-vgt

161

158

L_2o

138

............_i 44

148

17 U 16

170

174 _

139

122

156 /_

122

156

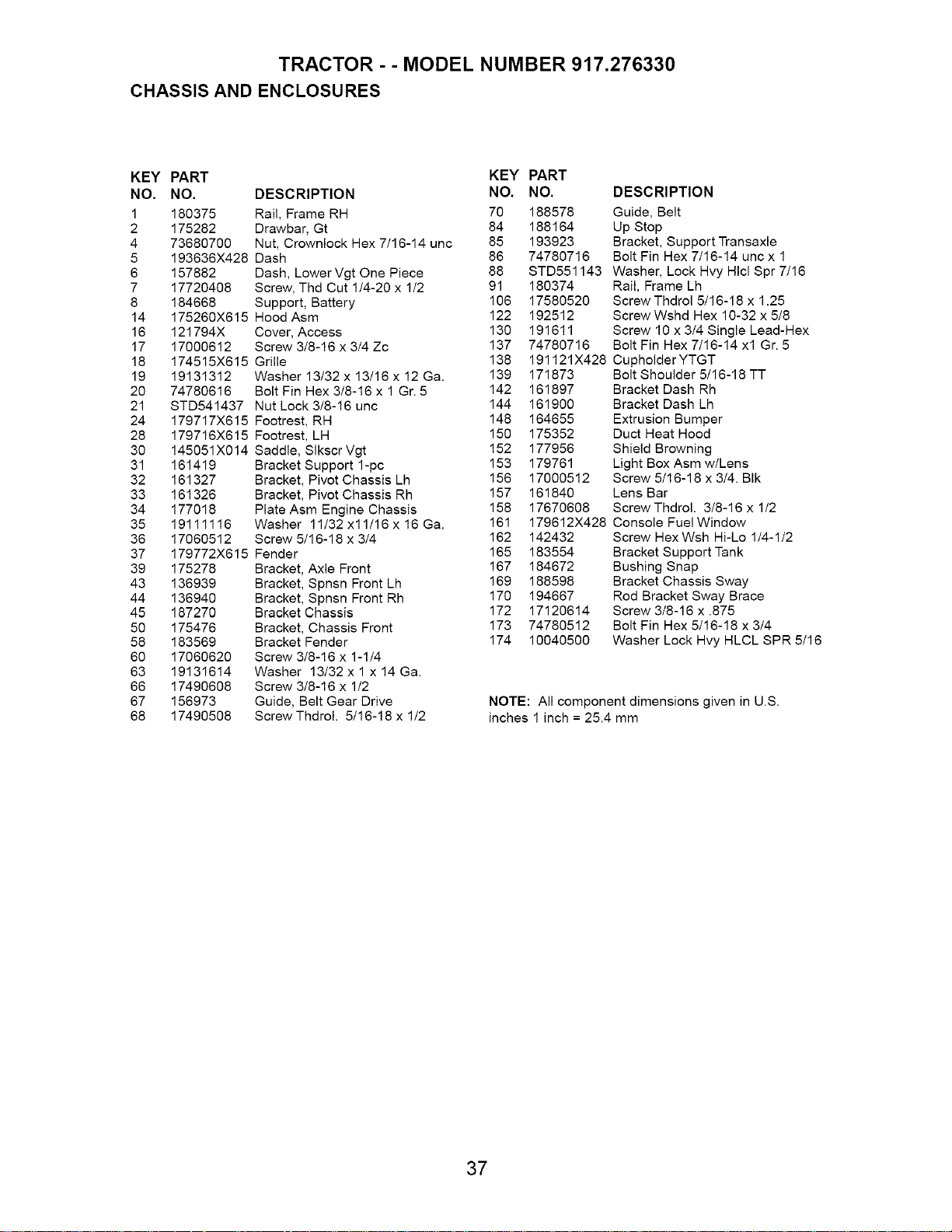

TRACTOR - - MODEL NUMBER 917,276330

CHASSIS AND ENCLOSURES

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 180375 Rail, Frame RH 70 188578

2 175282 Drawbar, Gt 84 188164

4 73680700 Nut, Crownlock Hex 7/16-14 unc 85 193923

5 193636X428 Dash 86 74780716

6 157882 Dash, Lower Vgt One Piece 88 STD551143

7 17720408 Screw, Thd Cut 1/4-20 x 1/2 91 180374

8 184668 Support, Battery 106 17580520

14 175260X615 Hood Asm 122 192512

16 121794X Cover, Access 130 191611

17 17000612 Screw 3/8-16 x 3/4 Zc 137 74780716

18 174515X615 Grille 138

19 19131312 Washer 13/32 x 13/16 x 12 Ga. 139 171873

20 74780616 Bolt Fin Hex 3/8-16 x 1 Gr. 5 142 161897

21 STD541437 Nut Lock 3/8-16 unc 144 161900

24 179717X615 Footrest, RH 148 164655

28 179716X615 Footrest, LH 150 175352

30 145051X014 Saddle, SIkscr Vgt 152 177956

31 161419 Bracket Support 1-pc 153 179761

32 161327 Bracket, Pivot Chassis Lh 156 17000512

33 161326 Bracket, Pivot Chassis Rh 157 161840

34 177018 Plate Asm Engine Chassis 158 17670608

35 19111116 Washer 11/32 x11/16 x 16 Ga. 161

36 17060512 Screw 5/16-18 x 3/4 162 142432

37 179772X615 Fender 165 183554

39 175278 Bracket, Axle Front 167 184672

43 136939 Bracket, Spnsn Front Lh 169 188598

44 136940 Bracket, Spnsn Front Rh 170 194667

45 187270 Bracket Chassis 172 17120614

50 175476 Bracket, Chassis Front 173 74780512

58 183569 Bracket Fender 174 10040500

60 17060620 Screw 3/8-16 x 1-1/4

63 19131614 Washer 13/32 x 1 x 14 Ga.

66 17490608 Screw 3/8-16 x 1/2

67 156973 Guide, Belt Gear Drive

68 17490508 ScrewThdrol. 5/16-18 x 1/2

DESCRIPTION

Guide, Belt

Up Stop

Bracket, Support Transaxle

Bolt Fin Hex 7/16-14 uric x 1

Washer, Lock Hvy HIcl Spr 7/16

Rail, Frame Lh

Screw Thdrol 5/16-18 x 1.25

Screw Wshd Hex 10-32 x 5/8

Screw 10 x 3/4 Single Lead-Hex

Bolt Fin Hex 7/16-14 xl Gr. 5

191121X428 Cupholder YTGT

Bolt Shoulder 5/16-18 TT

Bracket Dash Rh

Bracket Dash Lh

Extrusion Bumper

Duct Heat Hood

Shield Browning

Light Box Asm w/Lens

Screw 5/16-18 x 3/4. BIk

Lens Bar

Screw Thdrol. 3/8-16 x 1/2

179612X428 Console Fuel Window

Screw HexWsh Hi-Lo 1/4-1/2

Bracket Support Tank

Bushing Snap

Bracket Chassis Sway

Rod Bracket Sway Brace

Screw 3/8-16 x .875

Bolt Fin Hex 5/16-18 x 3/4

Washer Lock Hvy HLCL SPR 5/16

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

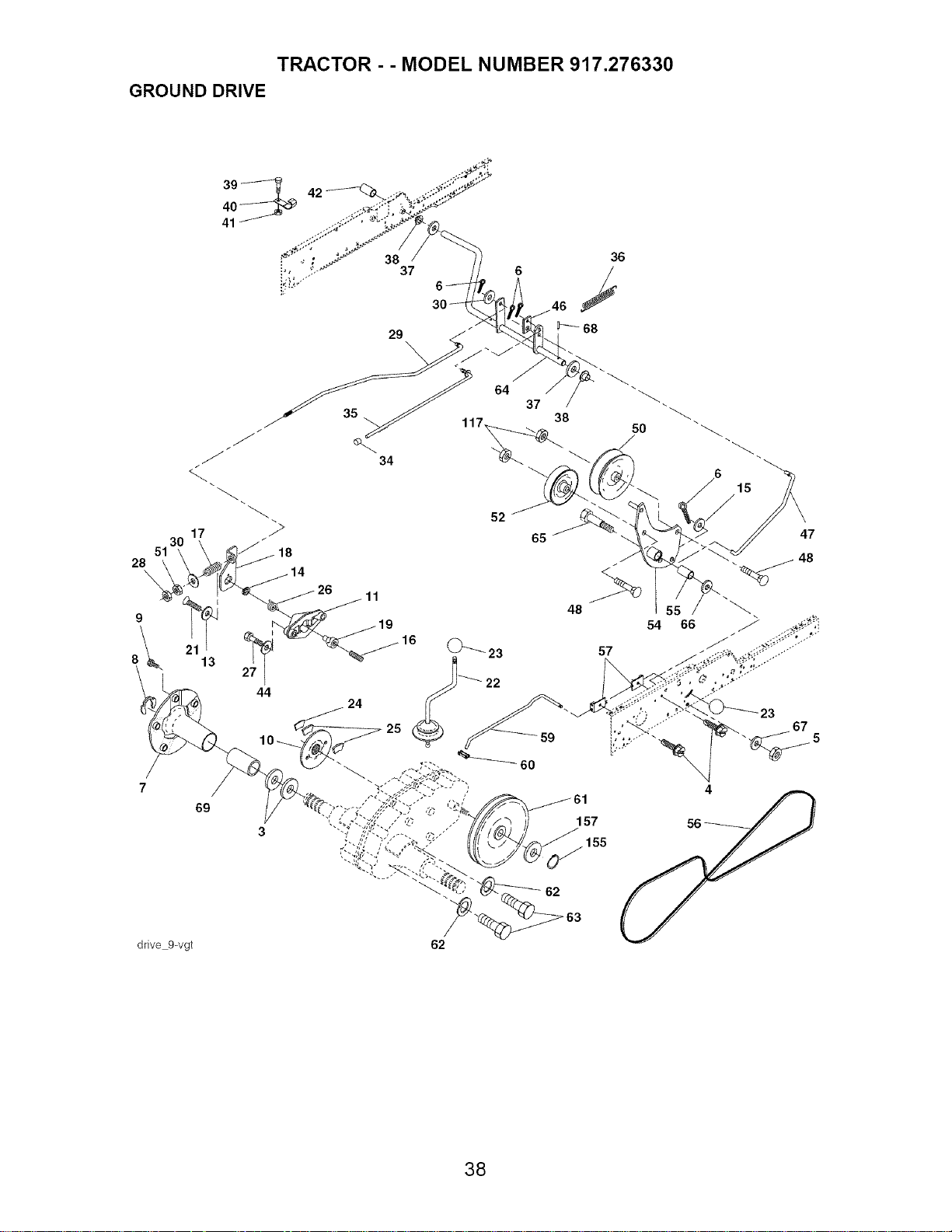

TRACTOR - - MODEL NUMBER 917,276330

GROUND DRIVE

i _ 38 36

29 "

_ 34

_. 52

17 _> 65

_18

_26 11

54 66

157

155

drive 9-vgt

TRACTOR - - MODEL NUMBER 917,276330

GROUND DRIVE

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

3 7563R Washer, Thrust, Axle 40 178575

4 17490508 Screw Thdrol 5/16-18 x 3/4 41 73931000

5 STD541437 Nut, Crownlock 3/8-16 42 8883R

6 STD561210 Pin, Cotter 44 10040500

7 149176 Wheel, Hub Assembly 46 145170

8 12000034 Klip, Ring 47 138228

9 140080 Bolt, Hub 48 72110612

10 142509 Disc, Brake 50 131494

11 136927 Yoke, Brake Disc 51 STD541437

13 139419 Washer, Special 52 139123

14 138901 Bushing 54 161590

15 STD551037 Washer 13/32x13/16 x 16 Ga. 55 105706X

16 143012 Set, Screw 1/4-28 x 3/4 56 137153

17 126909X Spring 57 141756

18 137104 Lever, Brake 59 122253X

19 136926 Cam, Brake Disc 60 122268X

21 23260412 Screw, Flat Head 1/4-28 x 3/4 61 184787

22 194121 Gearshift, Lever Assembly 62 STD551143

23 106932X Knob 63 74780720

24 136925 Support, Puck Brake 64 154752

25 136923 Puck, Brake Top 65 179613

26 137552 Spring, Return 66 140296

27 74880528 Bolt Hx Gr. 8 5/16-18 UNC x 1-3/4 67 19131312

28 73350600 Nut, Hex Jam 3/8-16 68 5142H

29 137213 Brake, Rod 69 136327

30 19131616 Washer 13/32x 1 x 16 Ga. 117 73900600

34 71673 Cap, Plunger 155 12000028

35 137648 Rod, Parking Brake 157 1370H

36 149412 Spring, Drive Ground

37 121749X Washer 25/32 x 1-1/4 x 16 Ga.

38 150035 Nyliner

39 74321016 Screw, Fin. #10-24 x 1

DESCRIPTION

Actuator, Interlock Switch

Nut, Centerlock #10-24

Cover, Pedal

Washer Lock Hvy HLCL Spr 5/16

Retainer, Spring

Clutch Rod

Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5

Pulley, idler, Flat

Nut, Crownlock 3/8-16 uric

Pulley, idler, Grooved

Clutch, Arm Assembly

Bearing, idler

V-Belt

Bracket, Shift Rod, Hi-Lo

Shift Rod, Hi-Lo

Spring Clip, Connecting Link

Pulley, Transaxle

Washer, Lock 7/16

Bolt, Fin Hex 7/16-14 x 1-1/4

Shaft, Clutch/Brake Pedal

Bolt, Shoulder

Washer, Hardened

Washer, Flat

Pin, Roll

Hub, Cover

Nut, Lock Fig. 3/8-16 unc

Ring Retainer

Washer Thrust 5/8 x 1.10 x 1/32

NOTE: All component dimensions given in U.S.

inches 1inch = 25.4 mm

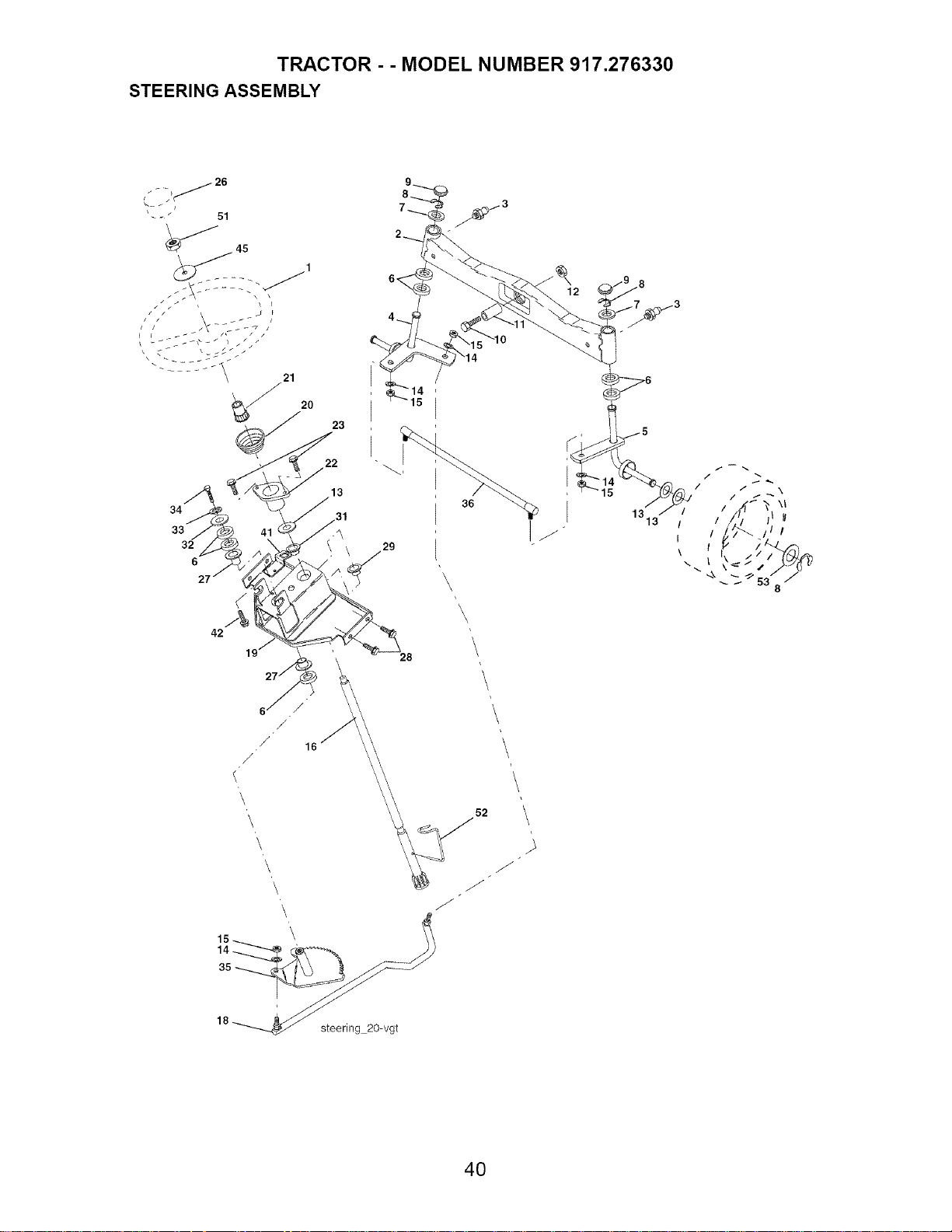

TRACTOR - - MODEL NUMBER 917,276330

STEERING ASSEMBLY

L3?y 26

' _ 51

j i

\\ _ \ _//_//

.31

\ 29

6 /

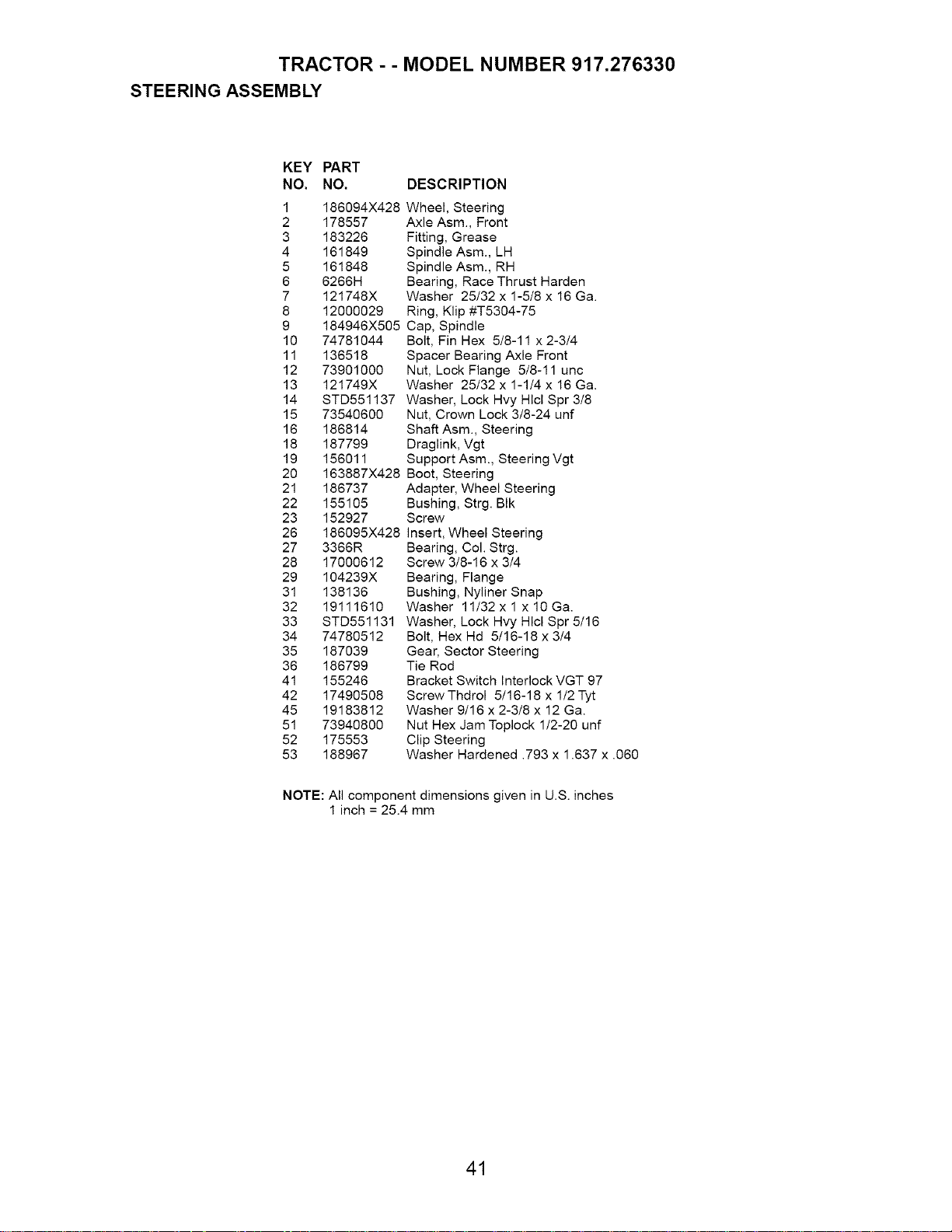

TRACTOR - - MODEL NUMBER 917.276330

STEERING ASSEMBLY

KEY PART

NO. NO.

1 186094X428

2 178557

3 183226

4 161849

5 161848

6 6266H

7 121748X

8 12000029

9 184946X505

10 74781044

11 136518

12 73901000

13 121749X

14 STD551137

15 73540600

16 186814

18 187799

19 156011

20 163887X428

21 186737

22 155105

23 152927

26 186095X428

27 3366R

28 17000612

29 104239X

31 138136

32 19111610

33 STD551131

34 74780512

35 187039

36 186799

41 155246

42 17490508

45 19183812

51 73940800

52 175553

53 188967

DESCRIPTION

Wheel, Steering

Axle Asm., Front

Fitting, Grease

Spindle Asm., LH

Spindle Asm., RH

Bearing, Race Thrust Harden

Washer 25/32 x 1-5/8 x 16 Ga.

Ring, Klip #T5304-75

Cap, Spindle

Bolt, Fin Hex 5/8-11 x 2-3/4

Spacer Bearing Axle Front

Nut, Lock Flange 5/8-11 unc

Washer 25/32 x 1-1/4 x 16 Ga.

Washer, Lock Hvy Hlcl Spr 3/8

Nut, Crown Lock 3/8-24 unf

Shaft Asm., Steering

Draglink, Vgt

Support Asm., Steering Vgt

Boot, Steering

Adapter, Wheel Steering

Bushing, Strg. BIk

Screw

Insert, Wheel Steering

Bearing, Col. Strg.

Screw 3/8-16 x 3/4

Bearing, Flange

Bushing, Nyliner Snap

Washer 11/32 x 1 x 10 Ga.

Washer, Lock Hvy Hlcl Spr 5116

Bolt, Hex Hd 5/16-18 x 3/4

Gear, Sector Steering

Tie Rod

Bracket Switch Interlock VGT 97

ScrewThdrol 5/16-18 x 1/2 Tyt

Washer 9116 x 2-318 x 12 Ga.

Nut Hex Jam Toplock 1/2-20 unf

Clip Steering

Washer Hardened .793 x 1.637 x .060

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

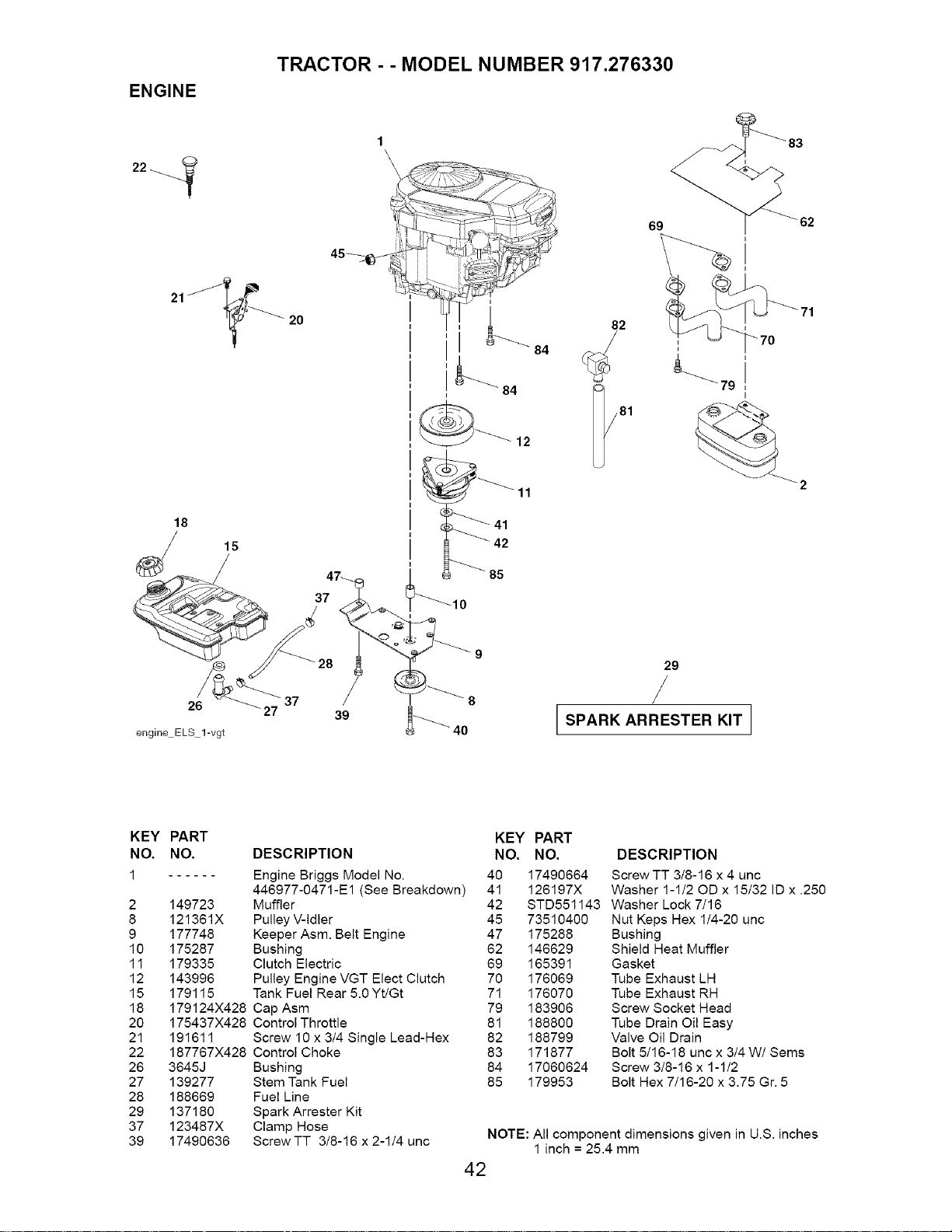

ENGINE

TRACTOR - - MODEL NUMBER 917,276330

47_

engine ELS !-vgt

SPARK ARRESTER KIT J

KEY PART

NO. NO.

2 149723

8 121361X

9 177748

10 175287

11 179335

12 143996

15 179115

18 179124X428

20 175437X428

21 191611

22 187767X428

26 3645J

27 139277

28 188669

29 137180

37 123487X

39 17490636

DESCRIPTION

Engine Briggs Model No.

446977-0471-E1 (See Breakdown)

Muffler

Pulley V-idler

Keeper Asm. Belt Engine

Bushing

Clutch Electric

Pulley Engine VGT Elect Clutch

Tank Fuel Rear 5.0 Yt/Gt

Cap Asm

Control Throttle

Screw 10 x 3/4 Single Lead-Hex

Control Choke

Bushing

Stem Tank Fuel

Fuel Line

Spark Arrester Kit

Clamp Hose

ScrewTT 3/8-16 x 2-1/4 unc

KEY PART

NO. NO. DESCRIPTION

40 17490664 Screw TT 3/8-16 x 4 unc

41 126197X Washer 1-1/20D x 15/32 ID x .250

42 STD551143 Washer Lock 7/16

45 73510400 Nut Keps Hex 1/4-20 uric

47 175288 Bushing

62 146629 Shield Heat Muffler

69 165391 Gasket

70 176069 Tube Exhaust LH

71 176070 Tube Exhaust RH

79 183906 Screw Socket Head

81 188800 Tube Drain Oil Easy

82 188799 Valve Oil Drain

83 171877 Bolt 5/16-18 unc x 3/4 Wi Sems

84 17060624 Screw 3/8-16 x 1-1/2

85 179953 Bolt Hex 7/16-20 x 3.75 Gr. 5

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917,276330

SEAT ASSEMBLY

seat 12-vgt

KEY

NO.

PART

NO.

180598

180166

140675

145006

STD541437

124181X

171877

180186

174648

121248X

72050412

DESCRIPTION

KEY

NO.

PART

NO.

Seat 15 121249X

Bracket, Pivot Seat 16 123740X

Strap, Asm Fender 17 123976X

Clip, Push In, Hinged 18 19171912

Nut, Crownlock 3/8-16 unc 19 166369

Spring, Seat Cprsn 20 124238X

Bolt 5/16-18 uncx 314 w/Sems 21 171852

Pan, Seat 37 STD541431

Bracket, Mounting Switch

Bushing, Snap

Bolt, Carriage 1/4-20 x 1-1/2

DESCRIPTION

Spacer, Split

Spring, Cprsn

Nut, Lock 1/4 Lge Fig Gr. 5

Washer 17/32 x 1-3/16 x 12 Ga.

Knob, Seat

Cap, Spring Seat

Bolt, Shoulder 5/16-18

Nut, LockW/Ins 5/16-18 unc

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

DECALS

TRACTOR - - MODEL NUMBER 917,276330

KEY PART

NO. NO. DESCRIPTION

1 195890 Decal, Dash Panel, Lower

2 178455 Decal, Deck Caution

3 186242 Decal, Hood, RH

4 186243 Decal, Hood, LH

5 186725 Decal, Hood Side Panel

6 133644 Decal, Maintenance

7 193609 Decal Dsh

8 195885 Decal, Engine

9 186572 Decal, Fender

10 156439 Decal, Fender Danger

11 181249 Decal, Clutch/Brake

12 146047 Decal, V-Belt Drive Schematic

19 17

KEY PART

NO. NO. DESCRIPTION

13 178482 Decal, Deck HVYDTY

14 188298 Decal, V-Belt Schematic

15 193596 Decal, Repl Parts

17 149516 Decal, Battery Dnge/Poi

18 164065 Decal, Insert Strg

19 138047 Decal, Battery

20 193114 Decal Mower Upstop

23 106202X Reflector, Taillight

- - 179768X428 Pad, Footrest, LH

- - 179769X428 Pad, Footrest, RH

- - 195639 Manual, Owner's (Eng)

- - 195640 Manual, Owner's (Span)

WHEELS &TIRES

KEY PART

NO. NO. DESCRIPTION

1 59192 Cap, Valve, Tire

2 65139 Stem, Valve

3 106228X624 Rim Assembly, Front

4 8134H Tube, Front (Service Item Only)

5 106230X Tire, Front

6 278H Fitting, Grease (Front Wheel Only)

7 9040H Bearing, Flange (Front Wheel

Only)

8 104757X428 Cap, Axle (FrontWheel Only)

9 105588X Tire, Rear

8 10 7154J Tube, Rear (Service Item Only)

11 106277X624 Rim Assembly, Rear

12 6856M Fitting, Grease

- - 144334 Sealant, Tire (10 oz. Tube)

NOTE: All component dimensions given in U.S.

inches1 inch = 25.4 mm

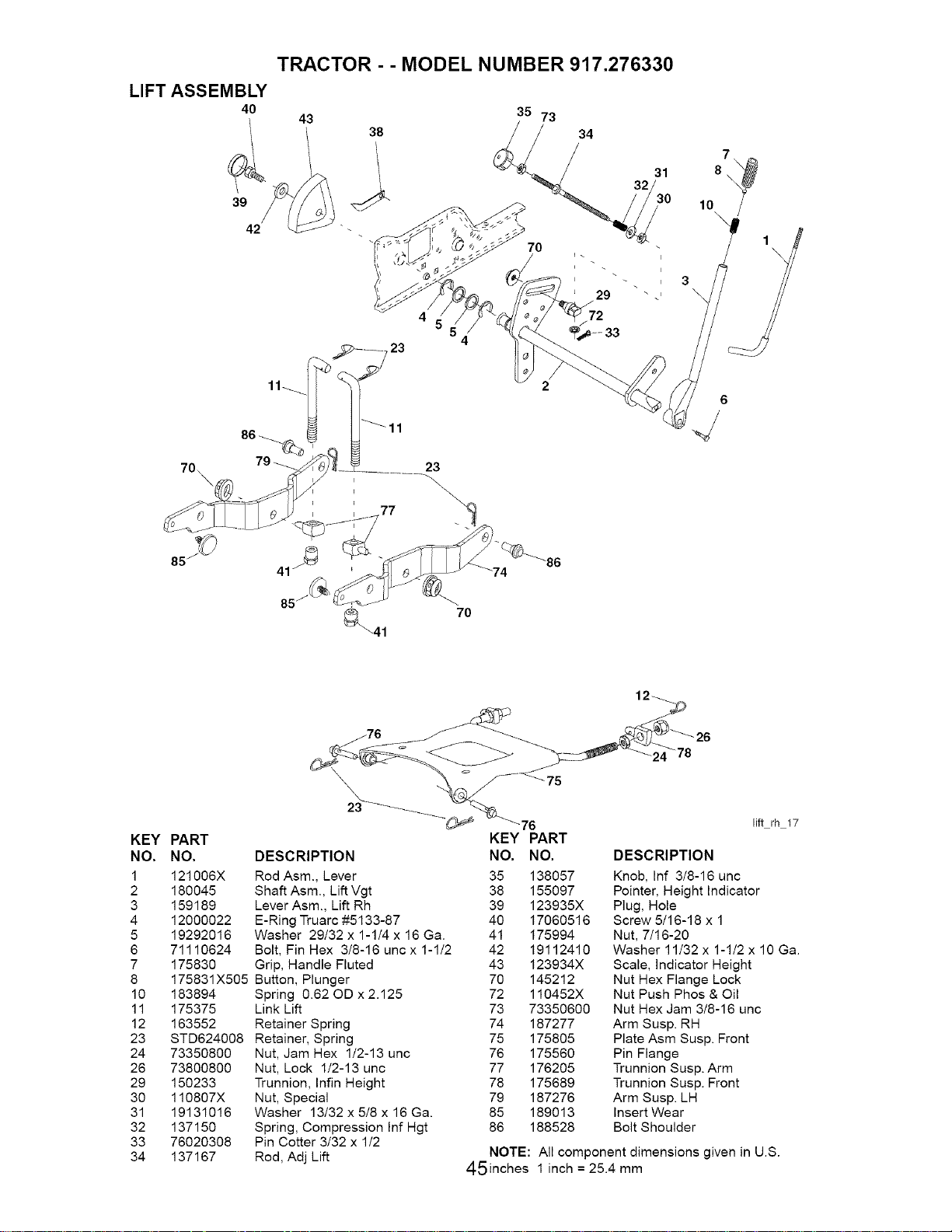

LIFT ASSEMBLY

TRACTOR - - MODEL NUMBER 917,276330

35 73

34 31

70_

\41

KEY PART

NO. NO.

1 121006X

2 180045

3 159189

4 12000022

5 19292016

6 71110624

7 175830

8 175831X505

10 183894

11 175375

12 163552

23 STD624008

24 73350800

26 73800800

29 150233

30 110807X

31 19131016

32 137150

33 76020308

34 137167

12"_.

_76 _ __26

KEY PART

DESCRIPTION NO. NO.

Rod Asm., Lever 35 138057

Shaft Asm., Lift Vgt 38 155097

Lever Asm., Lift Rh 39 123935X

E-Ring Truarc #5133-87 40 17060516

Washer 29/32 x 1-1/4 x 16 Ga. 41 175994

Bolt, Fin Hex 3/8-16 unc x 1-1/2 42 19112410

Grip, Handle Fluted 43 123934X

Button, Plunger 70 145212

Spring 0.62 OD x 2.125 72 110452X

Link Lift 73 73350600

Retainer Spring 74 187277

Retainer, Spring 75 175805

Nut, Jam Hex 1/2-13 uric 76 175560

Nut, Lock 1/2-13 unc 77 176205

Trunnion, Infin Height 78 175689

Nut, Special 79 187276

Washer 13/32 x 518 x 16 Ga. 85 189013

Spring, Compression Inf Hgt 86 188528

Pin Cotter 3/32 x 1/2

Rod, Adj Lift

lift rh 17

DESCRIPTION

Knob, Inf 3/8-16 unc

Pointer, Height Indicator

Plug, Hole

Screw 5/16-18 x 1

Nut, 7/16-20

Washer 11/32 x 1-1/2 x 10 Ga.

Scale, indicator Height

Nut Hex Flange Lock

Nut Push Phos & Oil

Nut Hex Jam 3/8-16 unc

Arm Susp. RH

Plate Asm Susp. Front

Pin Flange

Trunnion Susp. Arm

Trunnion Susp. Front

Arm Susp. LH

Insert Wear

Bolt Shoulder

NOTE: All component dimensions given in U.S.

45inches 1 inch = 25.4 mm

MOWER DECK TRACTOR . . MODEL NUMBER 917.276330

116

, 113

)

14_

mower deck-54 2

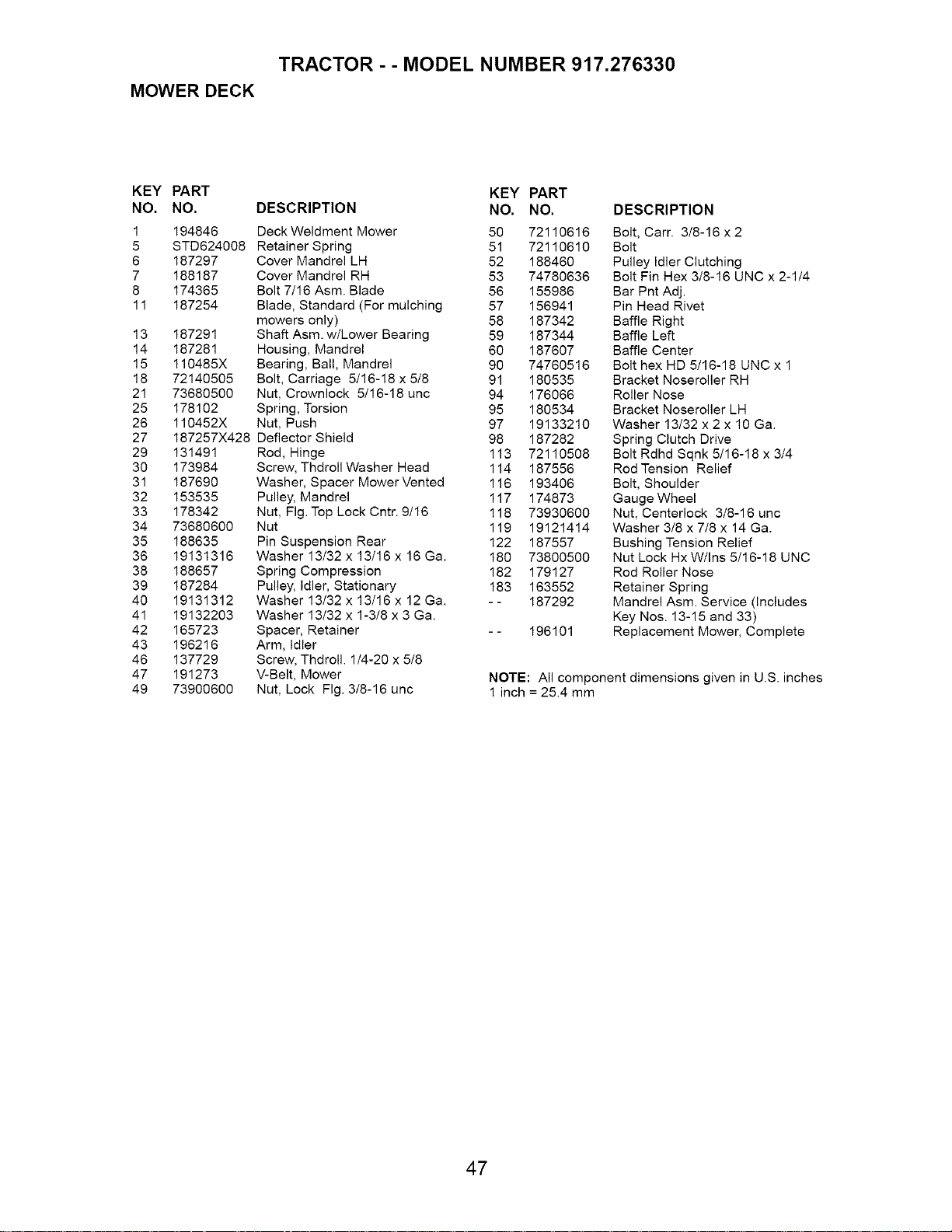

TRACTOR - - MODEL NUMBER 917.276330

MOWER DECK

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO.

1 194846 Deck Weldment Mower 50 72110616

5 STD624008 Retainer Spring 51 72110610

6 187297 Cover Mandrel LH 52 188460

7 188187 Cover Mandrel RH 53 74780636

8 174365 Bolt 7/16 Asm. Blade 56 155986

11 187254 Blade, Standard (For mulching 57 156941

mowers only) 58 187342

13 187291 Shaft Asm. w/Lower Bearing 59 187344

14 187281 Housing, Mandrel 60 187607

15 110485X Bearing, Ball, Mandrel 90 74760516

18 72140505 Bolt, Carriage 5/16-18 x 5/8 91 180535

21 73680500 Nut, Crownlock 5/16-18 uric 94 176066

25 178102 Spring, Torsion 95 180534

26 110452X Nut, Push 97 19133210

27 187257X428 Deflector Shield 98 187282

29 131491 Rod, Hinge 113 72110508

30 173984 Screw, Thdroll Washer Head 114 187556

31 187690 Washer, Spacer Mower Vented 116 193406

32 153535 Pulley, Mandrel 117 174873

33 178342 Nut, Fig. Top Lock Cntr. 9/16 118 73930600

34 73680600 Nut 119 19121414

35 188635 Pin Suspension Rear 122 187557

36 19131316 Washer 13/32 x 13/16 x 16 Ga. 180 73800500

38 188657 Spring Compression 182 179127

39 187284 Pulley, Idler, Stationary 183 163552

40 19131312 Washer 13/32 x 13/16 x 12 Ga. - - 187292

41 19132203 Washer 13t32 x 1-318 x 3 Ga.

42 165723 Spacer, Retainer -- 196101

43 196216 Arm, Idler

46 137729 Screw, Thdroll. 1/4-20 x 5t8

47 191273 V-Belt, Mower

49 73900600 Nut, Lock Fig. 3/8-16 unc

DESCRIPTION

Bolt, Carr. 3/8-16 x 2

Bolt

Pulley Idler Clutching

Bolt Fin Hex 3/8-16 UNC x 2-1/4

Bar Pnt Adj.

Pin Head Rivet

Baffle Right

Baffle Left

Baffle Center

Bolt hex HD 5/16-18 UNC x 1

Bracket Noseroller RH

Roller Nose

Bracket Noseroller LH

Washer 13t32 x 2 x 10 Ga.

Spring Clutch Drive

Bolt Rdhd Sqnk 5/16-18 x 3/4

Rod Tension Relief

Bolt, Shoulder

Gauge Wheel

Nut, Centerlock 3/8-16 unc

Washer 3/8 x 718 x 14 Ga.

Bushing Tension Relief

Nut Lock Hx W!Ins 5/16-18 UNC

Rod Roller Nose

Retainer Spring

Mandrel Asm. Service (Includes

Key Nos. 13-15 and 33)

Replacement Mower, Complete

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRANSAXLE

TRACTOR - - MODEL NUMBER 917,276330

41 _ 45

TRANSAXLE

TRACTOR - - MODEL NUMBER 917,276330

KEY PART

NO. NO.

1 4197R

2 12000034

3 4199R

4 4216R

5 4215R

6 4217R

7 174728

8 74020652

9 7392M

10 137261

11 4985R

12 6266H

13 4212R

14 137125

15 6276H

16 633A63

17 8118M

18 8740H1

19 122238X

20 4218R

21 6252H1

22 7810H

23 6262H

24 7393R

25 992R1

26 139111

27 4986R

28 122254X

29 6269H

30 5855H

31 174731

32 6277H

33 4225R

34 7396H

35 4198R

36 4200R

37 7395H

38 160789

39 174729

40 13320400

41 17580520

45 6271H

46 13060200

49 4895H

50 4222R

51 1529R

KEY PART

DESCRIPTION NO. NO. DESCRIPTION

Axle Shaft 52 8119M

Retaining Ring 53 4220R

Final Drive Gear 54 4209R

Differential Gear 55 4213R

Differential Pinion 56 4442R

Differential Carrier 57 4195R

Axle Thrust Washer 58 4214R

Bolt, Hex Head 3/8-24 x 3-1/4 59 4194R

(1" Thread Length) 60 7528R

Steel Ball 61 4208R

Spring Shift Fork Detent 62 4207R

Shift Fork, High-Low Range 63 7398H

Thrust Bearing Race 64 4203R

4th Reduction Pinion

Shaft, Brake 65 4204R

Snap Ring, Crescent Type 66 2898J

High-Low Range Gears 67 12000033

Needle Bearing 68 4205R

Sintered iron Bearing 69 4206R

Shift Fork Shaft, High-Low Range 70 1370H

Differential Pinion Spacer 71 633A69

Differential Pinion Bushing

Gripco Centerlock Nut 3/8-24 72 139120

Shift Fork, R.H. 73 4201R

Oil Seal 74 12000008

Sintered iron Bearing 75 1153R

Shift Fork Shaft 77 6803J

Shift Fork, L.H. 79 1167R

Shift Shaft, High-Low Range 80 73360700

Oil Seal 81 6270H

Pressure Relief Valve 82 136984

Gearcase, Reverse Idler Shaft 84 5384J

and Bearings, R.H. (Includes 85 2978J

Key No.'s 17,18, 25, 33, 50, 63, 86 633A85

77 and 82) 87 8739H1

Dowel Pin 88 4924H

Needle Bearing 89 19151516

Thrust Bearing Race 90 110542X

4th Reduction Gear Shaft 91 19181511

4th Reduction Gear Spacer 92 75J

Thrust Bearing Race

Gate, Lower, Shift 93 6274H

Gearcase and Bearings, LH. 94 76020412

(Includes Key umbers 18, 25, 49, 96 194036

50 (2), 51 and 52) 97 194121

Pipe Plug 1/2-14 N.RT. 98 184956

Bolt, Hex 5/16-18 UNC x 1-1/4

Oil Seal 99 193833

Pipe Plug 1/4-18 N.RT.

Needle Bearing

Thrust Bearing Race

3rd Reduction Pinion, Low

4th Reduction Gear

3rd Reduction Pinion Spacer

2nd Reduction Gear Shaft

Final Drive Pinion

1st Reduction Gear Shaft

1st Reduction Shaft Spacer

3rd Reduction Pinion High

2nd Reduction Gear

Needle Bearing

Low Speed Gear and 2nd

Reduction Pinion Cluster

Reverse Gear

Key, Hi-Pro 1/8 x 17/32

Klip Ring

Intermediate Speed Gear

High Speed Gear

Thrust Bearing Race

Intermediate and High Speed

Cluster Pinions

Input Shaft

Low Speed Pinion

E-Ring

Reverse Idler Gear

Needle Bearing

Sealing Washer

Nut, Hex, Jam 7/16-20

Oil Seal

Reverse Idler Shaft

Gearshift Lever, Bent

Gearshift Cap

Gearshift Ball Cover and Pin

Shift Lever Guide Ball, Keyed

Spring

Washer 15/32 x 15t16 x 16 Ga.

Shift Mechanism Seal

Washer 9/16 x 15t16 x 12 Ga.

Gearshift Gate and

Reinforcement

Shift Ball Cover Gasket

Cotter Pin 1/8 x 3/4

Bolt Hex 5/16-18 x 1 Epoxy

Lever Assembly ROS Gearshift

Transaxle, 6 Speed, Complete

Assembly

Actuator, Shift Lever

NOTE: All component dimensions given in U.S. inches

1inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.276330

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446977-0471-E1

929A_

213__ 0 _p 1_

2161 2678

188

265

267 _,

7183 - _-_L__-_ ,_

_/_467_

445h_ I]1

305

TRACTOR - - MODEL NUMBER 917.276330

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446977-0471-E1

35_

1029 1022

11oo_...

798 _

1_ 3_ 33y211209\ 63_

35_

36_

1022 1029 _

914_

-___o_11

121 CARBURETOR OVERHAUL KI1

135_

137@

51 _ 1L_._1128 |

o__1 _o_

2760 104

11238

105_ 633@ 987_

977 CARBURETOR GASKET SET

51 _ 1370

F_ 2760

672 _ 150 _J 987@

1124_ 633@

,oo _

385 _" _788 _ [ 505 21_ _ 914

387_r_ 628 _ e_

1169II o 11421_1

616_ 163_ 418 _ 198111128|_1

_1 Io_1_11 _o_1

108_ I t_;_ I 1L!-_ 130 95_

_ -_F_ _ _o

_ _ lO_ i1__

11-_1 __

'""' 1_'11_"_', _

I _ I _--- 137_

[_]] _ 1127__:_J

552

552A_

742

404

552A

691 ®

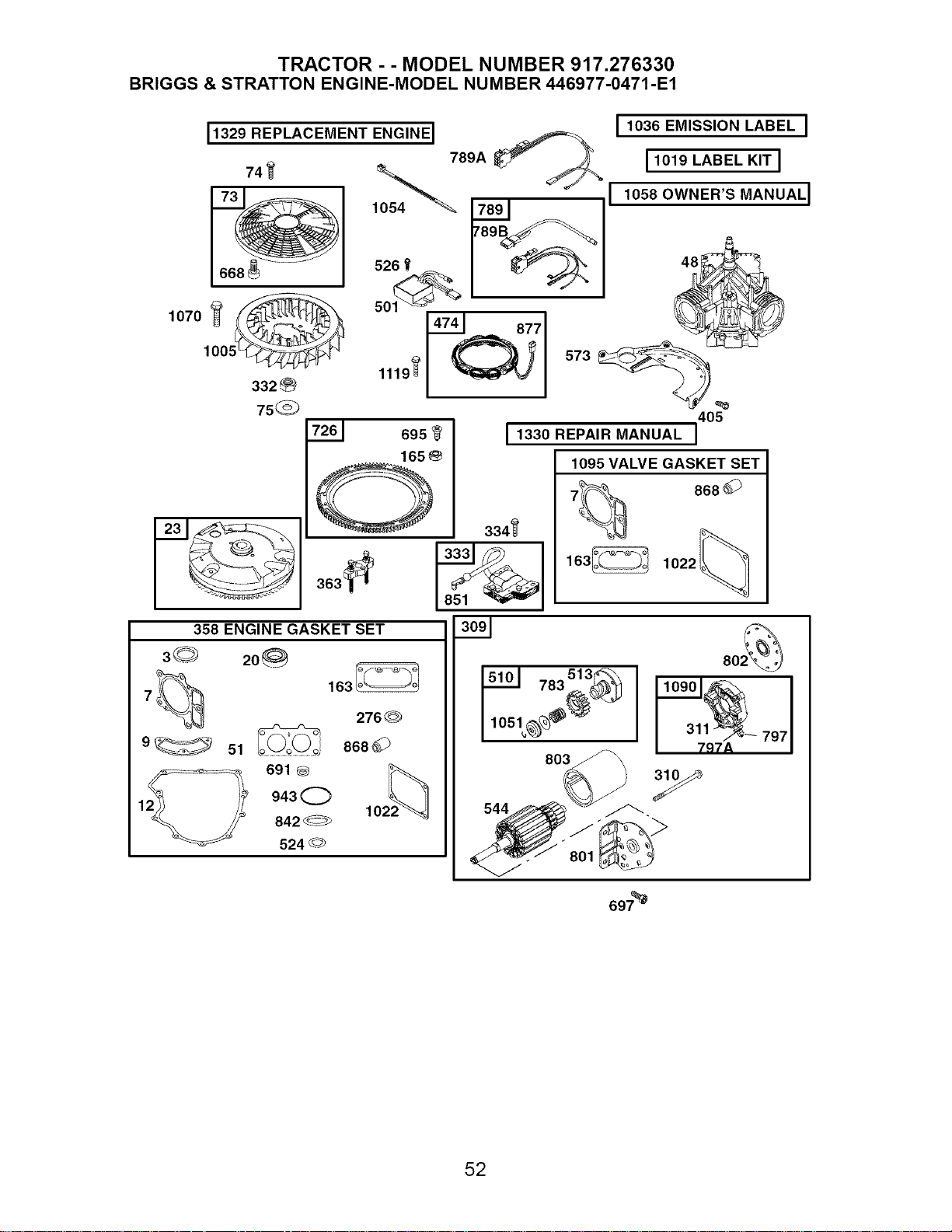

TRACTOR - - MODEL NUMBER 917.276330

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446977-0471-E1

11329 REPLACEMENT ENGINE I

74_

1070

332_

75_

7261 695

165_

363_

358 ENGINE GASKET SET

20@

I 1036 EMISSION LABEL I

2760

868_

691_ 22_

943(_

842__>_ 10

524 _

3C6_

9 _ 51

769A [1019LABELK,TI

lO5_ _ 11058OWNER'SMANUALI

405

I 1330 REPAIR MANUAL I

334_'

3091

1095 VALVE GASKET SET

7_ 868_

163 1022_

783513_'_

603

797

697_

TRACTOR - - MODEL NUMBER 917.276330

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446977-0471-E1

KEY PART

NO. NO. DESCRIPTION

1 699753

2 499585

3 391086,

4 699747

5 697580

5A 697581

7 693997.+

8 499601

9 690937,

10 691108

11 690942

12 697227,

13 690360

15 690946

15A 691680

16 790132

20 690947,

22 694966

23 691053

24 222698

25 697679

697681

26 697683

697685

27 690975

28 690229

29 699699

32 690976

33 499596

34 499597

35 690963

36 690963

42 499586

45 690977

46 791235

48 698173

50 695241

51 690950oO_

53 690951

54 494439

73 691055

74 698425

75 691056

89 690283

95 690718

98 699721

104 694918 O

105 698537 O

108 699723

117 699436

117A 699437

118 699458

118A 790890

121 699734

KEY PART

NO. NO. DESCRIPTION

Cylinder Assembly

Kit-Bushing/Seal (Magneto Side) 125 791230

Seal-Oil (Magneto Side) 130 690993

Sump-Engine 131 499805

Head-Cylinder (Cylinder 1) 133 699724

Head-Cylinder (Cylinder 2) 135 699729

Gasket-Cylinder Head 137 690994

Breather Assembly 141 499807

Gasket-Breather 142 699726

Screw (Breather Assembly) 146 690979

Tube-Breather 150 690995

Gasket-Crankcase 163 691001

Screw (Cylinder Head) 165 693148

Plug-Oil Drain 187 697712

Plug-Oil Drain 187A 698742

Crankshaft 188 691108

Seal-Oil (PTO Side) 192 690083

Screw (Crankcase Cover) 209 697674

Flywheel 211 691019

Key-Flywheel 212 695238

Piston Assembly (Standard) 213 691021

Piston Assembly (.020" Oversize) 216 691022

Ring Set (Standard) 219 698231

Ring Set (.020" Oversize) 220 690412

Lock-Piston Pin 222 698761

Pin-Piston (Standard) 227 691048

Rod-Connecting (Standard) 231 690718

Screw (Connecting Rod) 240 695666

Valve-Exhaust 250 690957

Valve-Intake 252 690956

Spring-Valve (Intake) 265 691024

Spring-Valve (Exhaust) 267 695134

Keeper-Valve 276 690997

Tappet-Valve 287 691108

Camshaft 304 791243

Short Block 305 790690

Manifold-Intake 309 691262

Gasket-Intake 310 691263

Stud (Carburetor) 311 497608

Screw (Intake Manifold) 332 691059

Screen-Rotating 333 691060

Screw (Rotating Screen) 334 691061

Washer (Flywheel) 337 491055

Plug-Oil 358 694012

Screw (Throttle Valve) 363 691062

Kit-Idle Speed 383 690966

Pin-Float Hinge

Valve-Float Needle

Valve-Choke

Jet-Main (Left, Standard)

Jet-Main (Right, Standard)

Jet-Main (Right, High Altitude)

Jet-Main (Left, High Altitude)

Kit-Carburetor Overhaul

Carburetor

Valve-Throttle

Kit-Throttle Shaft

Float-Carburetor

Tube-Fuel Transfer

O:1: Gasket-Float Bowl

Kit-Choke Shaft

O Nozzle-Carburetor

Key-Timing

O:1: Gasket-Nozzle

°+ Gasket-Air Cleaner

Nut (Ring Gear)

Line-Fuel

Line-Fuel (Cut to Required Length)

Screw (Control Bracket)

Adjuster-Rocker Arm

Spring-Governor

Spring-Governed Idle

Link-Governor

Bracket-Choke Control

Link-Choke

Gear-Governor

Washer (Governor Gear)

Bracket-Control

Lever-Governor Control

Screw (Choke Valve)

Filter-Fuel

Retainer-Breather

Collector-Oil

Clamp-Casing

Screw (Casing Clamp)

•O:1: Washer-Sealing

Screw (Dipstick/Tube Assembly)

Housing-Blower

Screw (Blower Housing)

Motor-Starter

Screw (Starter Motor)

Brush Set

Nut (Flywheel)

Armature-Magneto

Screw (Magneto Armature)

Spark Plug

Gasket Set-Engine

Puller-Flywheel

Wrench-Spark Plug

Included in Engine Gasket Set, Key. No. 358

O Included in Carburetor Overhaul Kit, Key. No.

121

included in Carburetor Gasket Set, Key. No. 977

+ included in Valve Overhaul Kit, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

TRACTOR - - MODEL NUMBER 917.276330

BRIGGS & STRATTON ENGINE-MODEL NUMBER 446977-0471-E1

KEY PART KEY PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION

385 691108 Screw (Fuel Pump) 847 499602

387 808656 Pump-Fuel 851 493880

404 690442 Washer (Governor Crank) 855 691011

405 697820 Screw (Back Plate) 865 691012

418 690999 Plate-Carburetor 865A 691014

431 790816 Elbow-Intake 865B 691015

445 698754 Filter-Air Cleaner Cartridge 868 690968 o+

447 691003 Screw (Air Guide Cover) 877 399916

447A 691108 Screw (Air Guide Cover) 914 691127

467 691008 Knob-Air Cleaner 929 695239

474 696458 Alternator 929A 691003

501 691185 Regulator 943 690589 •

505 691029 Nut (Governor Control Lever) 947 841546

510 497606 Drive-Starter 965 499613

513 692024 Clutch-Drive 967 273638

523 691036 Dipstick 968 791242

524 691032 • SeaI-O Ring (Dipstick Tube) 975 791232

525 691037 Tube-Dipstick 977 499812

526 691108 Screw (Regulator) 987 691000 O$

544 Armature-Starter (Serviced by 1005 791236

691262 Starter Motor Only) 1013 690954

552 690552 Bushing-Governor Crank 1017 690770

552A 690553 Bushing-Governor Crank 1019 693995

562 690311 Bolt (Governor Control Lever) 1022 690971 o+

573 691009 Plate-Back 1023 499599

601 691038 Clamp-Hose 1023A499600

615 698290 Retainer-Governor Shaft 1024 499054

616 691045 Crank-Governor 1026 690981

617 691917 SeaI-O Ring (Intake Manifold) 1026A690982

628 691108 Screw (Fuel Pump Bracket) 1027 696854

633 690998 O:1: Seal-ChoketThrottle Shaft 1029 690972

635 66538 Boot-Sparkplug 1035 691042

654 690958 Nut (Carburetor) 1036 790626

668 691215 Spacer 1040 791237

672 690234 O:1: Gasket-Carburetor Plate 1051 691265

691 690657 ° Seal-Governor Shaft 1054 280275

695 693149 Screw (Ring Gear) 1058 275475

697 690372 Screw (Drive Cap) 1070 690372

703 691010 Clip 1090 691293

718 690959 Pin-Locating 1095 694013

726 499612 Gear-Ring 1100 690973

741 690980 Gear-Timing 1119 691183

742 690328 Retainer-E Ring 1123 690987 O$

750 696999 Screw (Oil Pump Cover) 1124 690988 O$

783 693058 Gear-Pinion 1126 690991

788 691039 Bracket-Fuel Pump 1127 695407

789 698330 Harness-Wiring 1169 690990

789A 696576 Harness-Wiring

789B 790544 Harness-Wiring

797 691029 Nut (Brush Retainer)

797A 693167 Nut (Brush Retainer)

798 697890 Screw (Rocker Arm)

801 691283 Cap-Drive

802 691286 Cap-End

803 Housing-Starter (Serviced by

691262 Starter Motor Only)

842 691031 • SeaI-O Ring (Dipstick)

Assem bly-Dipstick/Tu be

Terminal-Sparkplug

Adapter-Air Cleaner

Cover-Air Guide (Cylinder 1)

Cover-Air Guide (Cylinder 2)

Cover-Air Guide

Seal-Valve

Wire/Connector-Alternator

Screw (Rocker Arm Cover)

Screw (Choke Control Bracket)

SeaI-O Ring (Oil Pump Cover)

Solenoid-Fuel

Cover-Oil Pump

Filter-Pre Cleaner

Cover-Air Cleaner

Bowl-Float

Gasket Set-Carburetor

Seal-Throttle Shaft

Fan-Flywheel

Nipple-Oil Filter

Screen-Oil Pump

Kit-Label

Gasket-Rocker Cover

Cover-Rocker Arm (Cylinder 1)

Cover-Rocker Arm (Cylinder 2)

Pump-Oil

Rod-Push (Steel)

Rod-Push (Aluminum)

Filter-Oil

Arm-Rocker

Shaft-Pump

Label-Emission

Plate-Trim

Ring-Retaining

Cable-Tie

Owner's Manual

Screw (Flywheel Fan)

Retainer-Brush

Set-Valve Gasket

Pivot-Rocker Arm

Screw (Alternator)

SeaI-O Ring (Solenoid Retainer)

SeaI-O Ring (Fuel Transfer Tube)

Screw (Fuel Transfer Tube)

Screw (Float Bowl)

Screw (Carburetor Cover Plate)

1329 446877-0026Replacement Engine (If original

engine is equipped with a

six pin wiring harness transfer to

the replacement engine.

Transfer muffler and/or spark

arester assembly from the

original engine if suitable for

addtional service or add new

parts as required. Transfer oil

sensor to the replacement

engine.)

1330 273521 Repair Manual

Included in Engine Gasket Set, Key. No. 358

Included in Carburetor Overhaul Kit, Key. No.

121

Included in Carburetor Gasket Set, Key. No. 977

Included in Valve Overhaul Kit, Key. No. 1095

NOTE: All component dimensions given in U.S. inches

1 inch = 25.4 mm

SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION

O'1

.-=.,..

*=.,..

ONLY RIDE UP AND DOWN HILL,

NOT ACROSS HILL

15 DEGREES MAX.

_b ARNING: To avoid serious injury, operate your tractor up and

down the face of slopes, never across the face. Do not mow

slopes greater than 15 degrees. Make turns gradually to prevent

tipping or loss of control. Exercise extreme caution when

changing direction on slopes.

I,Fotd this page along dotted line indicated above.

2, Ho_d page before you so that its teft edge is vertically parallel to a tree

trunk or other upright structure,

3, Sight across the fold in the direction of hitl slope you want to measure,

4. Compare the angle of the fold with the slope of the hill.

iiiiiiiiiiiii,

iiiiiiiiiiiiiii_

IIIIIIIIIIIIIII;L

Your Home

For repair = in your home = of all major brand appliances,

lawn and garden equipment, or heating and cooling systems, iiiiiiiiiiiiiiiiiiiii

no matter who made it, no matter who sold it! iiiiiiiiiiiiiiiiiiiii

For the replacement parts, accessories and iiiiiiiiiiiiiiiiiiiii

owner's manuals that you need to do-it=yourself, iiiiiiiiiiiiiiiiiiiii

For Sears professional installation of home appliances iiiiiiiiiiiiiiiiiiiii

anditemslikegaragedooropenersandwaterheaters, ilili!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiili

1=800=4=MY=HOME ® Anytime, day or night iiii:iiiiiiii

(1-800-469-4663) (U.S.A. and Canada) iiiii!iiiiii

www.searS.CO m www,sea rs.ca iiiiiiiiiiiiii;:::::::::i

iiiiiiiiiiiiiiil;i:i:i:i

HHHHHHHH,,

Our Home

For repair of carry-in products like vacuums, lawn equipment,

and electronics, call or go on-line for the nearest

Sears Parts and Repair Center.

1-800-488-1222 Anytime, day or night (U.S.A. only)

Www.sears,com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655 (U.S.A.) t o800o361°6665 (Canada)

Para pedir servicio de reparaci6n

a domicilio, y para ordenar piezas:

1-888=SU=HOG._J:_SM

(1-888-754-6427)

Au Canada pour service en frangais:

(1-800-533-6937)

www.sears.ca

02410

® Registered Trademark / TMTrademark / s_ Service Mark of Sears, Roebuck and Co.

195639 12.22.04 RD Printed in U.S.A.

Craftsman 917276330 tractor

Product's Documents

User Manual

Specifications

Craftsman 917276330 Questions and Answers

Related Products

Craftsman 917273631 tractor

Craftsman 917258661 tractor

Craftsman 917252714 Tractor

Craftsman 247273270 tractor

Craftsman 917255981 Tractor

Craftsman 917256710 Tractor
