Important Safety Instructions……………………2
Features At A Glance…………………………………4
Installation…………………………………………………….5
Door Removal Instructions - Style 1………………………7
Door Removal Instructions - Style 2………………………9
Handle Installation………………………………………11
Connecting the Water Supply………………………12
Controls……………………………………………………14
Storage Features……………………………………17
Automatic Ice & Water Dispenser………………18
Changing The Filter…………………………………22
Normal Operating Sounds & Sights……………23
Care & Cleaning………………………………………24
Before You Call……………………………………………26
Major Appliance Warranty…………………………29
2
Doors
Handles are secure and tight
Door seals completely to cabinet on all sides
Freezer door is level across the top
Leveling
Refrigerator is level, side-to-side and tilted
¼” (6mm) front-to-back
Toe grille is properly attached to refrigerator
Cabinet is setting solid on all corners
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker
House water supply connected to refrigerator
No water leaks present at all connections -
recheck in 24 hours
Ice maker is turned ON
Ice & water dispenser operates correctly
Front lter must be ush with lter housing
(select models)
Final Checks
Shipping material removed
Refrigerator and freezer temperatures set
Crisper humidity controls set
Registration card sent in
Installation Checklist
Denitions
This is the safety alert symbol. It is used to
alert you to potential personal injury hazards.
Obey all safety messages that follow this
symbol to avoid possible injury or death.
IMPORTANT SAFETY INSTRUCTIONS
For your Safety
• DO NOT store or use gasoline, or other
ammable liquids in the vicinity of this or
any other appliance. Read product labels
for warnings regarding ammability and
other hazards.
• DO NOT operate the refrigerator in the
presence of explosive fumes.
• Avoid contact with any moving parts of
automatic ice maker.
• Remove all staples from the carton. Staples
can cause severe cuts, and also destroy
nishes if they come in contact with other
appliances or furniture.
Child Safety
Destroy or recycle the carton, plastic bags, and
any exterior wrapping material immediately
after the refrigerator is unpacked. Children
should NEVER use these items to play.
Cartons covered with rugs, bedspreads, plastic
sheets or stretch wrap may become airtight
chambers, and can quickly cause suffocation.
Proper Disposal of your Refrigerator
or Freezer
Risk of child entrapment
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators or freezers are still dangerous
– even if they will sit for “just a few days”. If
you are getting rid of your old refrigerator or
freezer, please follow the instructions below to
help prevent accidents.
WARNING
Please read all instructions before using
this refrigerator.
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided, could result
in death or serious injury.
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided, will result in
death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided, may result in
minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation
or maintenance information which is
important but not hazard-related.
3

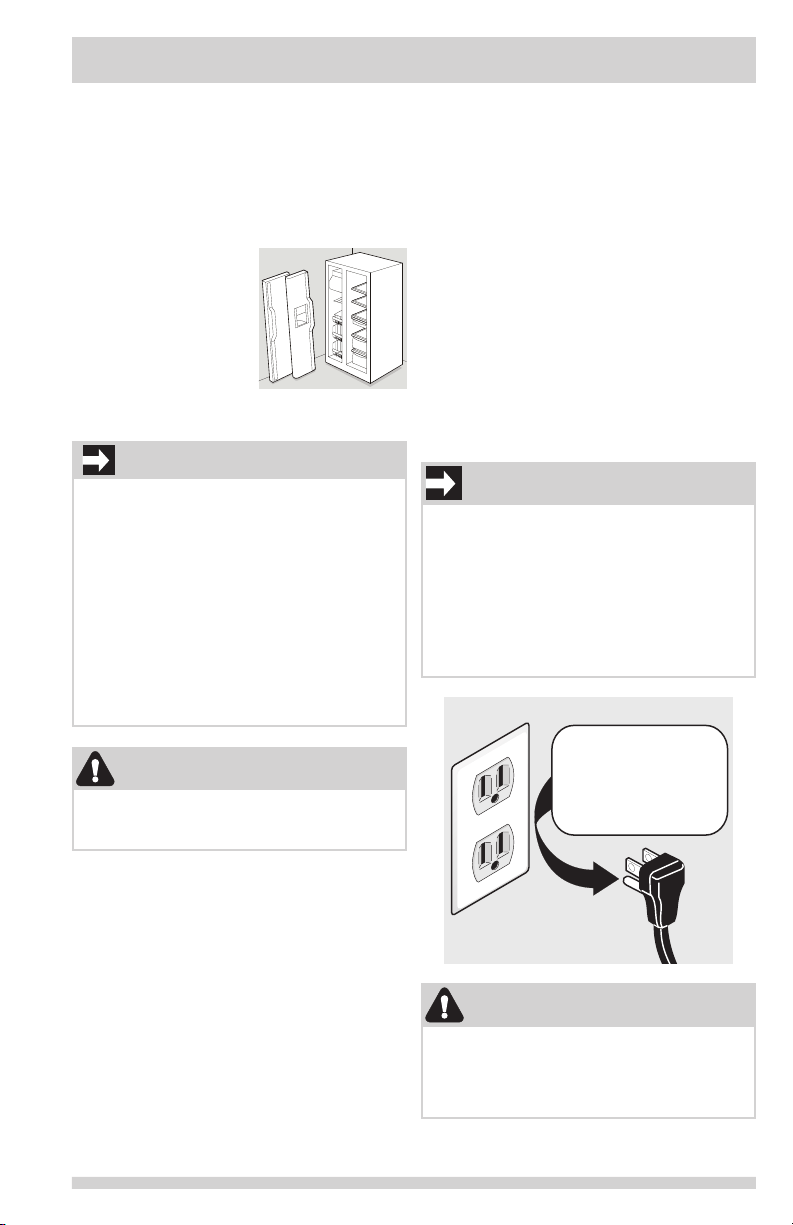

IMPORTANT SAFETY INSTRUCTIONS
Grounding type wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with
3-prong gounded plug
Electrical information
• The refrigerator must be plugged into
its own dedicated 115 Volt, 60 Hz.,
15 Amp, AC only electrical outlet. The
power cord of the appliance is equipped
with a 3-prong grounding plug for your
protection against electrical shock hazards.
It must be plugged directly into a properly
grounded three prong receptacle. The
receptacle must be installed in accordance
with local codes and ordinances. Consult
a qualied electrician. Avoid connecting
refrigerator to a Ground Fault Interrupter
(GFI) circuit. Do not use an extension
cord or adapter plug.
• If the power cord is damaged, it should be
replaced by an authorized service techni-
cian to prevent any risk.
• Never unplug the refrigerator by pulling on
the power cord. Always grip the plug rmly,
and pull straight out from the receptacle to
prevent damaging the power cord.
• Unplug the refrigerator before cleaning
and before replacing a light bulb to avoid
electrical shock.
• Performance may be affected if the voltage
varies by 10% or more. Operating the
refrigerator with insufcient power can
damage the compressor. Such damage is
not covered under your warranty.
• Do not plug the unit into an electrical outlet
controlled by a wall switch or pull cord to
prevent the refrigerator from being turned
off accidentally.
Proper Disposal of Refrigerators/Freezers
We strongly encourage responsible appliance
recycling/disposal methods. Check with your
utility company or visit
www.energystar.gov/recycle for more
information on recycling your old refrigerator.
Before you throw away your old
refrigerator/freezer:
• Remove doors.
• Leave shelves in
place so children
may not easily climb
inside.
• Have refrigerant
removed by a
qualied service
technician.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cooling system
that used CFCs or HCFCs (chlorouorocarbons
or hydrochlorouorocarbons). CFCs and HCFCs
are believed to harm stratospheric ozone if
released to the atmosphere. Other refrigerants
may also cause harm to the environment if
released to the atmosphere.
If you are throwing away your old refrigerator,
make sure the refrigerant is removed for
proper disposal by a qualied technician. If
you intentionally release refrigerant, you may
be subject to nes and imprisonment under
provisions of environmental legislation.
WARNING
These guidelines must be followed to ensure
that safety mechanisms in this refrigerator
will operate properly.
IMPORTANT
Pressing and holding the On/Off button for
three seconds, located on the temperature
control panel (Electronic controls), or
turning the Freezer and Refrigerator controls
to “0” (Mechanical controls) will disable your
refrigerator’s cooling system, but does not
disconnect the power to the LED lighting
and other electrical components. To turn off
power to your refrigerator you must unplug
the power cord from the electrical outlet.
CAUTION
To avoid personal injury or property dam-
age, handle tempered glass shelves care-
fully. Shelves may break suddenly if nicked,
scratched, or exposed to sudden tempera-
ture change.
4

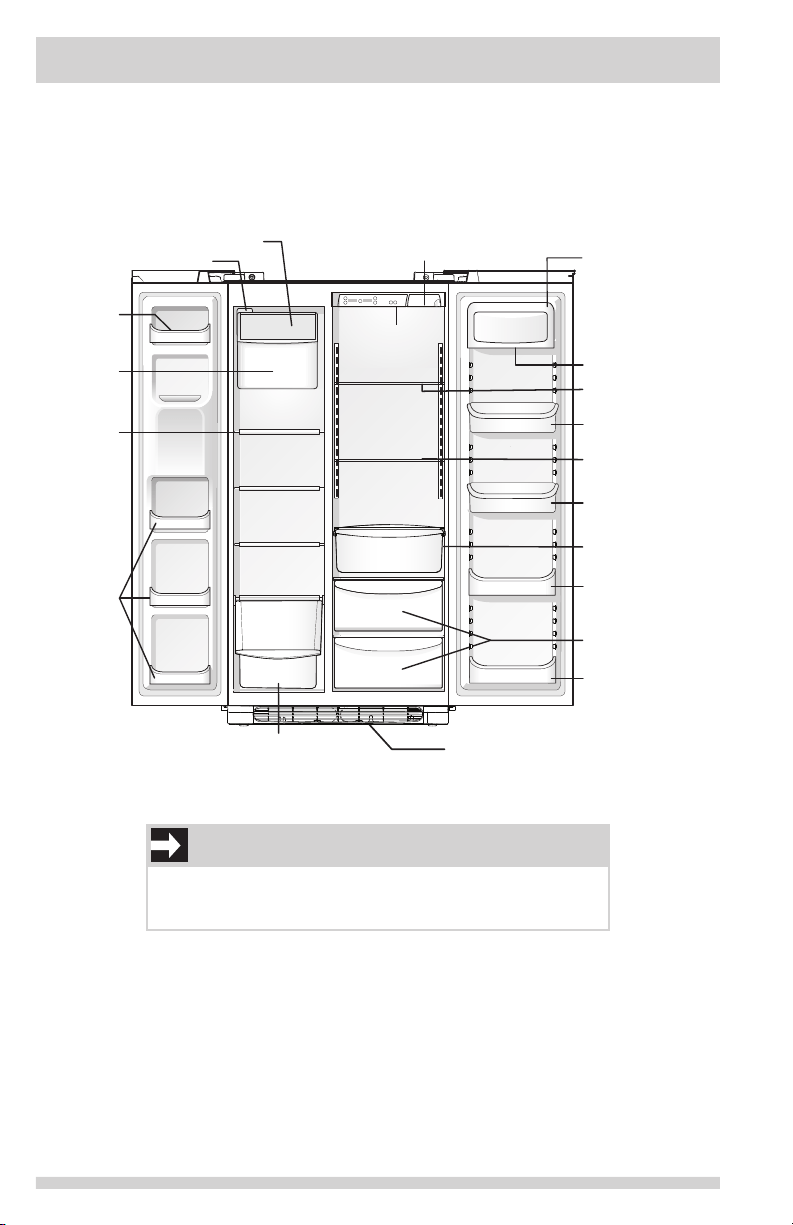

FEATURES AT A GLANCE
Features may vary according to model
CAUTION:
Do Not Remove
Magnet Behind
Dairy
Compartment
Dairy
Compartment
Glass Shelf
Door Bin
Crisper Pan
and Cover
Fixed
Door Bin
Toe Grille
Fixed
Door Bin
Ice
Container
Shelf
Water Filter
(Location varies by model)
Ice Cream Shelf
Ice Maker
Door Bins
Fixed
Door Bin
Slide Out Basket
Door Bin
Glass Shelf
Deli Drawer
LED Lights
IMPORTANT
Features not included with your refrigerator can be purchased
at www.frigidaire.com or by calling 1-800-944-9044.
5

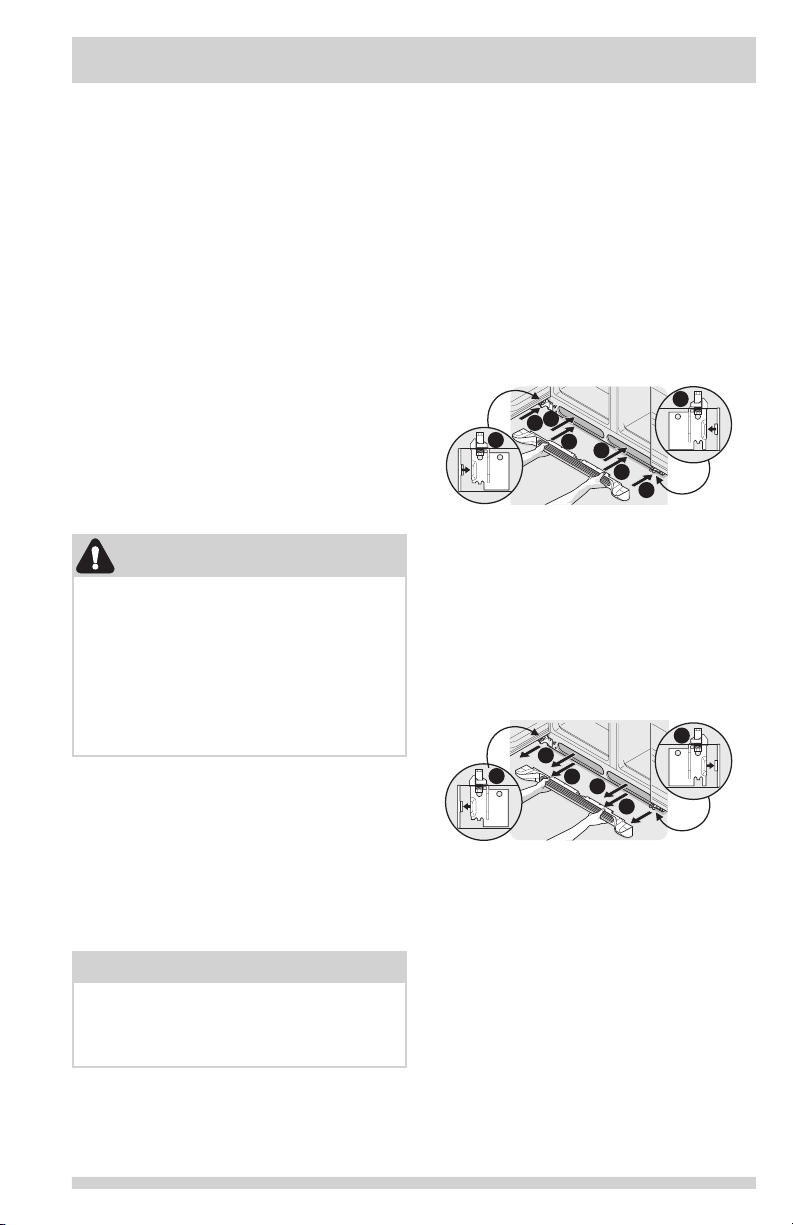

INSTALLATION
This Use & Care Guide provides general
operating instructions for your model. Use the
refrigerator only as instructed in this Use &
Care Guide. Before starting the refrigera-
tor, follow these important rst steps.
Location
• Choose a place that is near a grounded
electrical outlet. Do Not use an extension
cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
• The refrigerator must be installed on a oor
that is level and strong enough to support
a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice
maker. If you do not hook up water to
the refrigerator, remember to turn the ice
maker off.
Installation
Installation clearances
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top
3
/
8
inch
Back 1 inch
Toe Grille Installation and
Removal
To install toe grille
1. Open both doors. Slide left and right sides of
toe grille over lower hinges of refrigerator.
2. While pushing toe grille rmly against
cabinet, fasten bottom clips of toe grille
to cabinet.
3. Fasten top clips to cabinet.
4. Close the doors. Fasten right and left side
clips into groove of bottom hinge.
To remove toe grille
1. With both doors closed, unfasten right
and left side clips of toe grille from bot-
tom hinge groove.
2. Open both doors. Press rmly on top of
toe grille until top of toe grille pops off.
3. Pull toe grille outward toward your body
and off of lower hinges.
1
2
3
2
3
1
4
4
Installing Toe Grille
1
2
3
2
3
1
Removing Toe Grille
CAUTION
Do Not install the refrigerator where the
temperature will drop below 55°F (13°C) or
rise above 110°F (43°C). The compressor
will not be able to maintain proper tempera-
tures inside the refrigerator.
Do Not block the toe grille on the lower
front of your refrigerator. Sufcient air circu-
lation is essential for the proper operation of
your refrigerator.
NOTE
If your refrigerator is placed with the door
hinge side against a wall, you may have to
allow additional space so the door can be
opened wider.
6
INSTALLATION
Raise
Door Opening
Your refrigerator should be positioned to
allow easy access to a counter or table when
removing food. For best use of drawers and
freezer baskets, the refrigerator should be
in a position where both the refrigerator and
freezer doors can be fully opened.
Guidelines for nal positioning of
your refrigerator:
• All 4 corners of the cabinet must rest rmly
on the oor.
• The cabinet should be level at the front
and rear.
• The sides should tilt ¼ inch (6 mm) from
front to back (to ensure that doors close
and seal properly).
• Doors should align with each other and be level.
All of these conditions can be
met by raising or lowering the
adjustable front rollers.
To level the cabinet using the front rollers:
1. Open both doors and remove the toe
grille (see “Toe Grille Installation and
Removal” in the “Installation” section).
2. Close the doors and use a at-blade
screwdriver or
3
/
8
inch socket wrench to
raise or lower the front rollers.
3. Ensure both doors are bind-free with their
seals touching the cabinet on all 4 sides.
Set Screw
(some models)
Hinge
Hinge
Flange
Open Door
7/16" Wrench and
3/32" Hex Key (some models)
Door Stop
Flange
5. Reinstall set screw, locking the door height.
6. Replace the toe grille by tting it into
place (see “Toe Grille Installation and
Removal” in the “Installation” section).
Raise
Door
Door
Raise
Door
Door

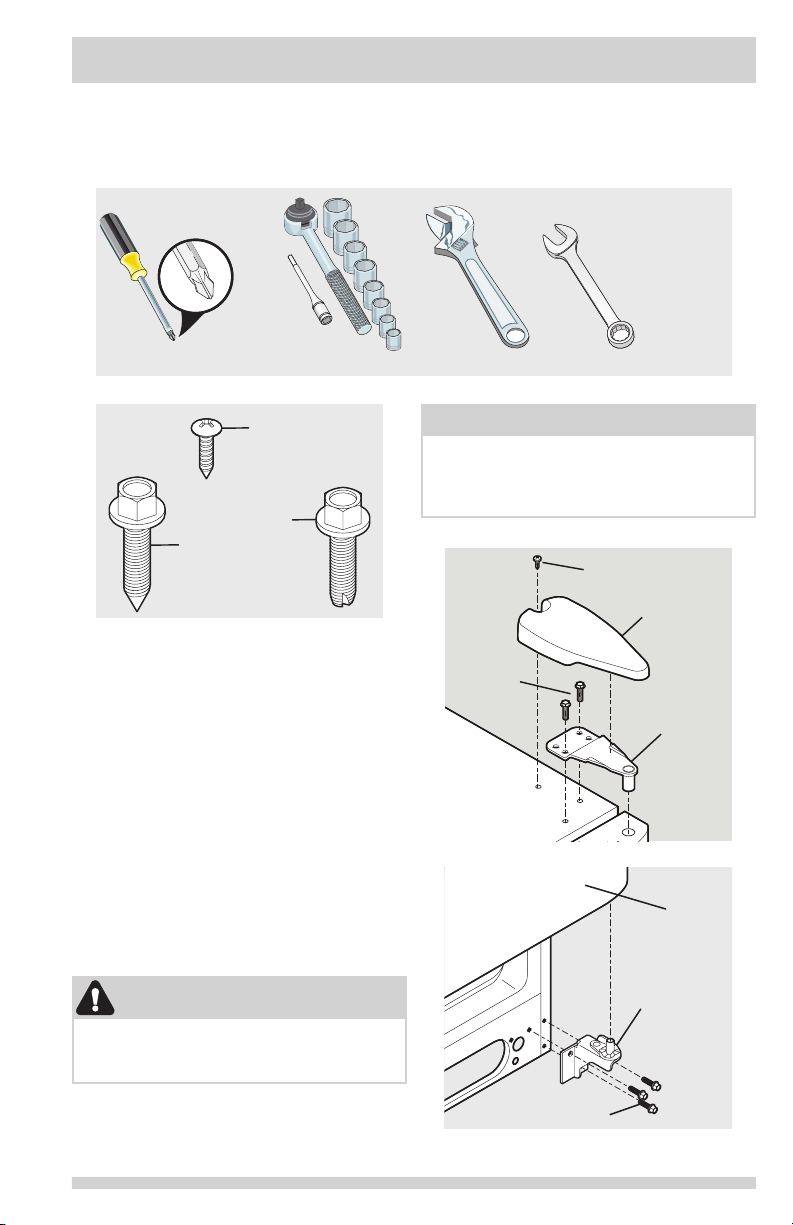

To level the doors using the adjustable
lower hinge:
4. After leveling, verify door stop contacts
lower hinge and top of door does
not contact upper hinge through full
movement of door (from fully closed to
fully open).
1. Before leveling either door, remove set
screw that locks door height into position.
(The door cannot be adjusted without set
screw removed).
2. If the refrigerator door is lower than the
freezer door, raise the refrigerator door by
turning the adjustment screw clockwise
using a
7
/
16
inch wrench. (See illustration.)
3. If the freezer door is lower than the
refrigerator door, raise the freezer door by
turning the adjustment screw clockwise
using a
7
/
16
inch wrench. (See illustration.)
NOTE
The refrigerator doors are designed to shut
by themselves within a 20 degree opening.
NOTE
Some models will not have a set screw. For
those models follow steps 2 through 4.
7

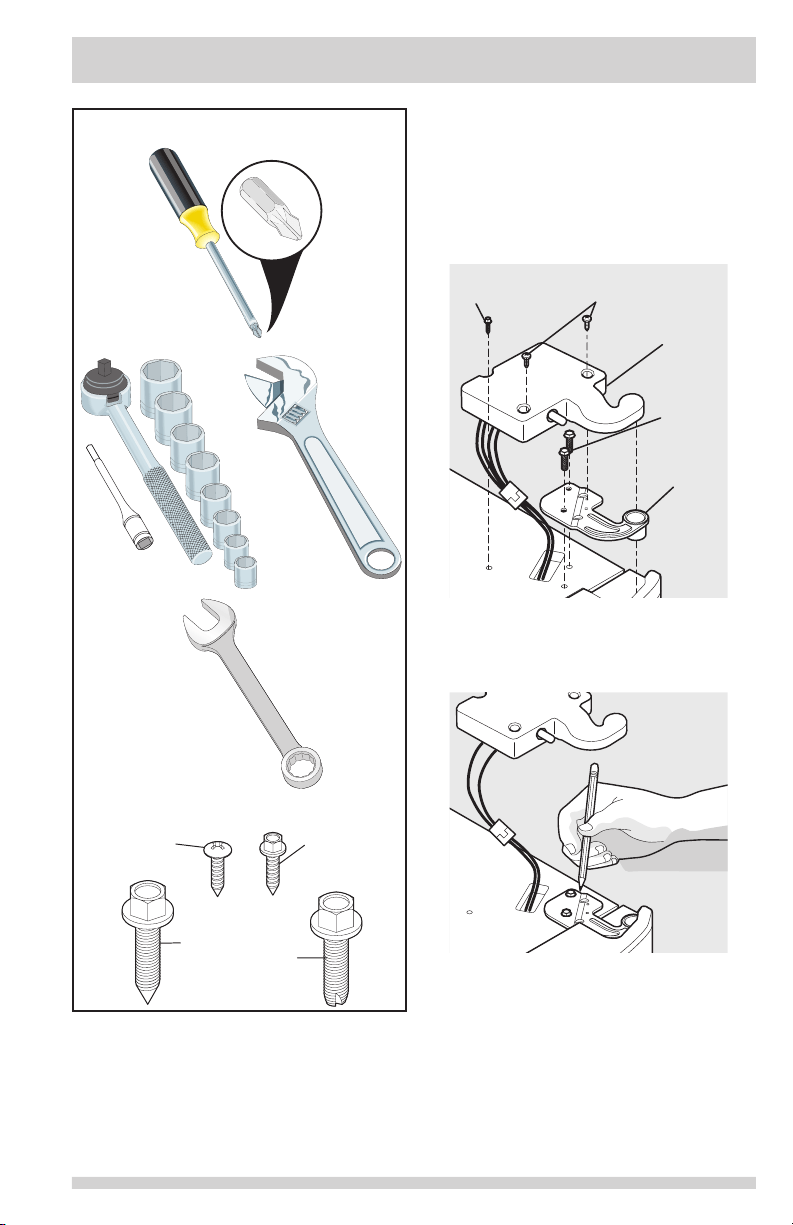

DOOR REMOVAL INSTRUCTIONS - STYLE 1
Socket Wrench Set
OR
OR
Adjustable Wrench 3/8" Fixed Wrench
Tools Necessary:
AND
Phillips
TM
Head
Getting through narrow spaces
If your refrigerator will not t through an entrance area, you can reduce its size by removing the
doors. Check rst by measuring the entrance.
1. Disconnect electrical supply.
2. Open both doors, then remove toe grille.
3. Close doors.
To Remove Refrigerator Door:
1. Remove top hinge cover screw on
refrigerator door and remove cover.
2. Trace around hinge with soft lead pencil.
This will make it easier to realign doors
when they are replaced.
3. Remove top hinge and lift refrigerator
door off bottom hinge pin. Set door aside.
4. Remove bottom hinge, if necessary.
5. Reverse this procedure to reinstall
refrigerator door.
Top Hinge
Cover
Screw
Top
Hinge
Screw
Bottom
Hinge
Screw
Cover Screw
Top
Hinge
Cover
Top
Hinge
Hinge
Screws
Door
Hinge
Assembly
Screws
NOTE
Before you begin, turn Freezer and Refrig-
erator controls to “O” and remove electrical
power cord from wall outlet. Remove any
food from door shelves.
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury.
8
DOOR REMOVAL INSTRUCTIONS - STYLE 1
Door
Water
Line
Tubing
Screws
Hinge
Assembly
To Remove Freezer Door:
1. Disconnect water line coming from lower
hinge of freezer door at connection lo-
cated under front of freezer: Press outer
ring against face of tting, then pull to
remove tube.
2. Remove top hinge cover screw on freezer
door and remove cover.
3. Disconnect wiring harness connector
plug at top hinge: place your thumbs on
at sides of each connector and bend
both parts back and forth, then with rm
grasp, pull both pieces apart.
4. Trace around hinge with soft lead pencil.
This will make it easier to realign doors
when they are replaced.
5. Remove top hinge, allowing wiring har-
ness to pull through hinge and lift freezer
door off of bottom hinge pin. Lay door
down at to avoid kinking water line.
6. Remove bottom hinge, if necessary.
7. Reverse this procedure to reinstall
freezer door.
When both doors have been reinstalled, con-
nect water line by inserting tube and push until
mark touches face of tting, replace toe grille
and plug in electrical power cord. Turn both
temperature controls to center position. Adjust
settings as necessary.
To Disconnect
1. Press outer ring against face of
fitting
2. Pull to
remove tube
Insert tube and push until mark
touches face of fitting
To Connect
9

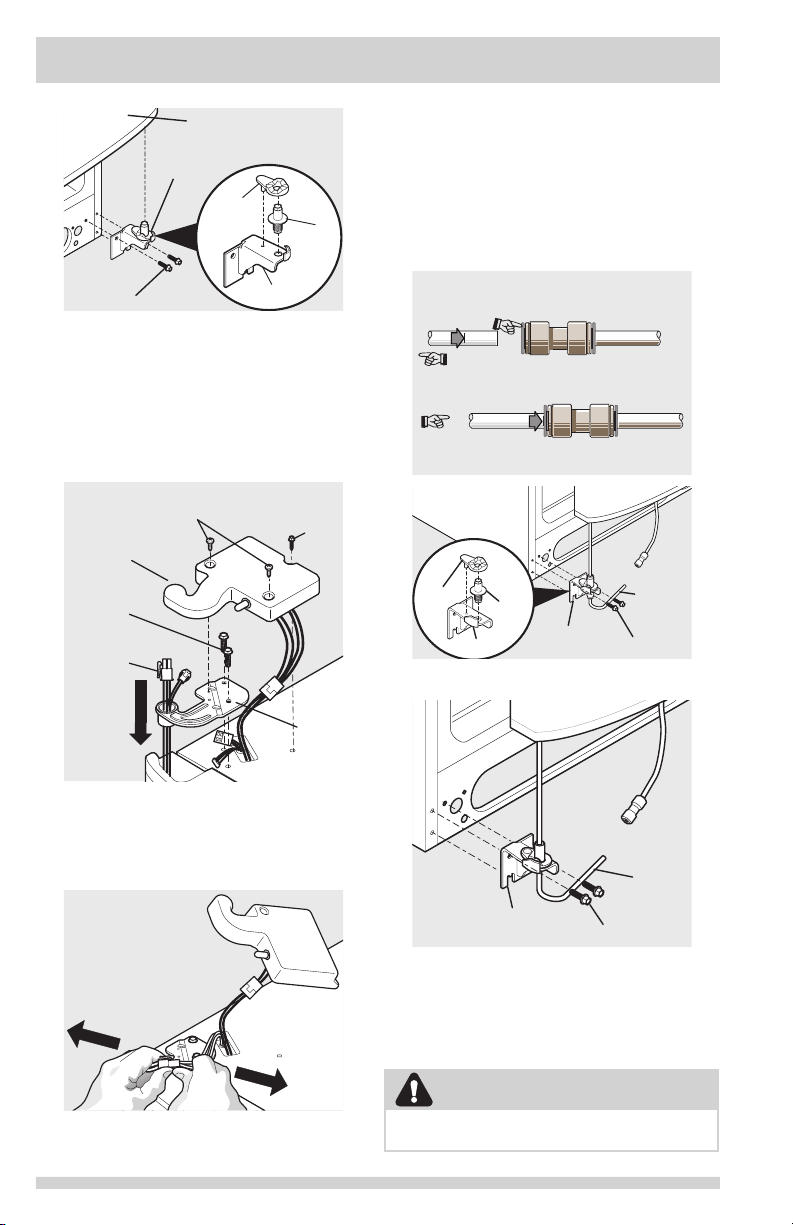

DOOR REMOVAL INSTRUCTIONS - STYLE 2
To prepare for removing the doors:
1. Make sure the electrical power cord is
unplugged from the wall outlet.
2. Open both doors and remove the toe
grille (as explained in the Installation In-
structions that came with your appliance).
Socket
Wrench Set
Adjustable
Wrench
3/8" Fixed
Wrench
Top Hinge
Cover Front
Screw
Top
Hinge
Screw
Bottom
Hinge
Screw
Top Hinge
Cover Rear
Screw
Phillips™
Head
Tools Necessary:
or
or
To remove the refrigerator door:
1. Trace lightly around the door’s top hinge with
a pencil. This makes reinstallation easier.
3. Remove any food from the door shelves.
4. Close the doors.
To remove the refrigerator top hinge cover:
1. Remove the three screws from each cover
over the top door hinges.
2. Lift hinge cover straight up and off.
Rear Cover
Screw
Front Cover
Screws
Top
Hinge
Cover
Hinge
Screws
Top
Hinge
2. Remove the two screws from the top
hinge. Lift the door off of the bottom
hinge and set it aside.
3. Remove the 2 bottom hinge screws and
hinge if necessary.
10
DOOR REMOVAL INSTRUCTIONS - STYLE 2
CAUTION
Be sure doors are set aside in a secure position
where they cannot fall and cause personal injury.
Door
Hinge
Assembly
Screws
Water
Line
Tubing
Non-Adjusting Hinge (some models)
Closer
Pin
Hinge
Door
Water
Line
Tubing
Screws
Hinge
Assembly
Adjustable Hinge (some models)
Front
Cover Screws
Rear
Cover
Screw
Top Hinge
Cover
Hinge
Screws
Multi-Wire
Cable
Top
Hinge
To Disconnect
1. Press outer ring against face of
fitting
2. Pull to
remove tube
Insert tube and push until mark
touches face of fitting
To Connect
Door
Hinge
Assembly
Closer
Pin
Hinge
Screws
Adjustable Hinge
To reinstall the refrigerator door, reverse the
above steps.
To remove the freezer top hinge cover:
1. Remove the 2 screws from each cover
over the top door hinges.
2. Lift hinge cover straight up and off.
To remove the freezer door:
1. Detach the multi-wire cable connector
located above the top hinge. Grasp both
sides of the connector rmly and pull apart.
3. Detach the water tube from the connector
located below the freezer door. The
connector releases when you press its
outer sleeve inward.
4. Remove the screws from the top hinge
and pull the multi-wire cable through it.
Lift the door off of the bottom hinge.
5. Remove the two bottom hinge screws and
hinge if necessary.
6. Lay the door on its side to avoid damage
to the water tube extending from the
bottom hinge.
To reinstall the freezer door, reverse the
above steps.
2. Trace lightly around the hinge with a
pencil. This makes reinstallation easier.
11

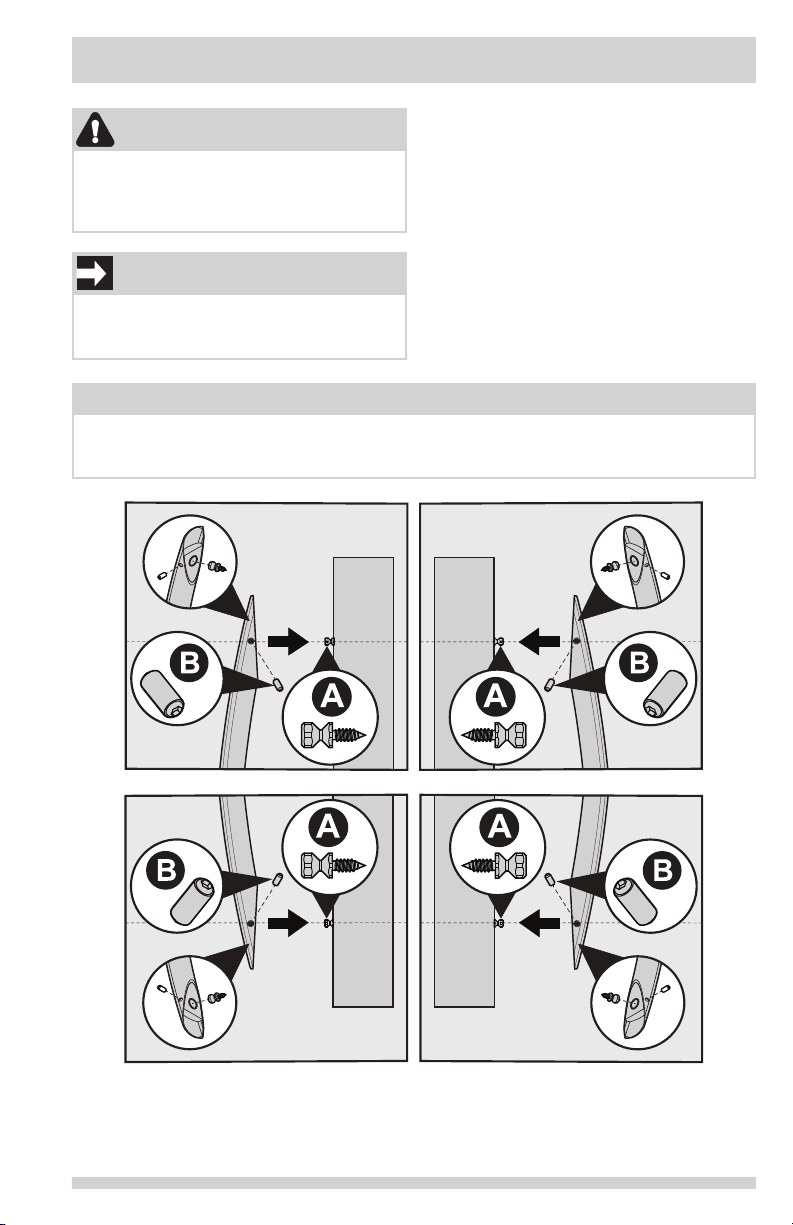

HANDLE INSTALLATION
1. Remove handles from carton and any
other protective packaging.
2. Position freezer handle end caps over
upper and lower pre-installed shoulder
bolts (A) that are fastened into door,
ensuring the holes for the set screws are
facing towards the refrigerator door.
3. While holding handle rmly against door,
fasten upper and lower Allen set screws
(B) with supplied Allen wrench.
4. Repeat steps 2 and 3 to install refrigerator
handle. Ensure the holes for the set screws
are facing towards the freezer door.
Freezer
Upper
End Cap
Door
Refrigerator
Upper
End Cap
Door
Refrigerator
Lower
End Cap
Door
Freezer
Lower
End Cap
Door
Ensure Handle Set Screws are Facing Each Other with Doors Closed
CAUTION
Wear gloves and safety goggles and use
extreme CAUTION when installing these
handles. The rounded end of the handles
may be sharp (some models).
IMPORTANT
To ensure proper installation of handles, please
review these instructions and illustrations
thoroughly prior to installing the handles.
NOTE
All set screws should be tightened and sub-ush (Allen set screw should be seated just below
the surface of the end cap) of handle end cap. The end caps should be drawn tight to freezer
and refrigerator doors with no gaps.
12
CONNECTING THE WATER SUPPLY
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench, at-blade
screwdriver, and Phillips
TM
screwdriver
• Access to a household cold water line with
water pressure between 30 and 100 psi.
• A water supply line made of ¼ inch
(6.4mm) OD, copper or stainless steel
tubing. To determine the length of tubing
needed, measure the distance from the
ice maker inlet valve at the back of the
refrigerator to your cold water pipe. Then
add approximately 7 feet (2.1 meters),
so the refrigerator can be moved out for
cleaning (as shown).
To Connect Water Supply Line To Ice Maker
Inlet Valve
1. Disconnect refrigerator from electric
power source.
2. Place end of water supply line into sink or
bucket. Turn ON water supply and ush
supply line until water is clear. Turn OFF
water supply at shutoff valve.
3. Remove plastic cap from water valve inlet
and discard cap.
4. If you use copper tubing - Slide brass
compression nut, then ferrule (sleeve)
onto water supply line. Push water supply
line into water valve inlet as far as it
will go (¼ inch/6.4 mm). Slide ferrule
(sleeve) into valve inlet and nger tighten
compression nut onto valve. Tighten
another half turn with a wrench; DO NOT
over tighten. See Figure 1.
If you use braided exible stainless steel
tubing - The nut is already assembled on
the tubing. Slide nut onto valve inlet and
nger tighten nut onto valve. Tighten
another half turn with a wrench; DO NOT
overtighten. See Figure 2.
• A shutoff valve to connect the water supply
line to your household water system. DO
NOT use a self-piercing type shutoff valve.
• Do not re-use compression tting or use
thread seal tape.
• A compression nut and ferrule (sleeve) for
connecting a copper water supply line to
the ice maker inlet valve.
WARNING
To avoid electric shock, which can cause death
or severe personal injury, disconnect the
refrigerator from electrical power before con-
necting a water supply line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Copper or Stainless Steel braided tubing
is recommended for the water supply
line. Water supply tubing made of ¼ inch
plastic is not recommended to be used.
Plastic tubing greatly increases the poten-
tial for water leaks, and the manufacturer
will not be responsible for any damage
if plastic tubing is used for the supply line.
• DO NOT install water supply tubing in areas
where temperatures fall below freezing.
• Chemicals from a malfunctioning softener
can damage the ice maker. If the ice
maker is connected to soft water, ensure
that the softener is maintained and work-
ing properly.
IMPORTANT
Ensure that your water supply line connec-
tions comply with all local plumbing codes.
NOTE
Check with your local building authority for
recommendations on water lines and associ-
ated materials prior to installing your new
refrigerator. Depending on your local/state
building codes, Frigidaire recommends for
homes with existing valves its Smart Choice
®
water line kit 5304490728 (with a 6 ft. Stain-
less Steel Water Line) and for homes without
an existing valve, Frigidaire recommends its
Smart Choice
®
water line kit 5304490717
(with a 20 ft. copper water line with self-
tapping saddle valve). Please refer to www.
frigidaire.com/store for more information.
13
Steel
Clamp
Braided
Flexible
Stainless
Steel
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft (1.8 Meters) Braided flexible
stainless steel water line from
household water supply.
Plastic Water Tubing
to Ice Maker
Fill Tube
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)
Figure 2
Figure 1
Plastic Water
Tubing to Ice
Maker Fill
Tube
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper water line
from household
water supply
(Include enough tubing in loop to allow
moving refrigerator out for cleaning.)

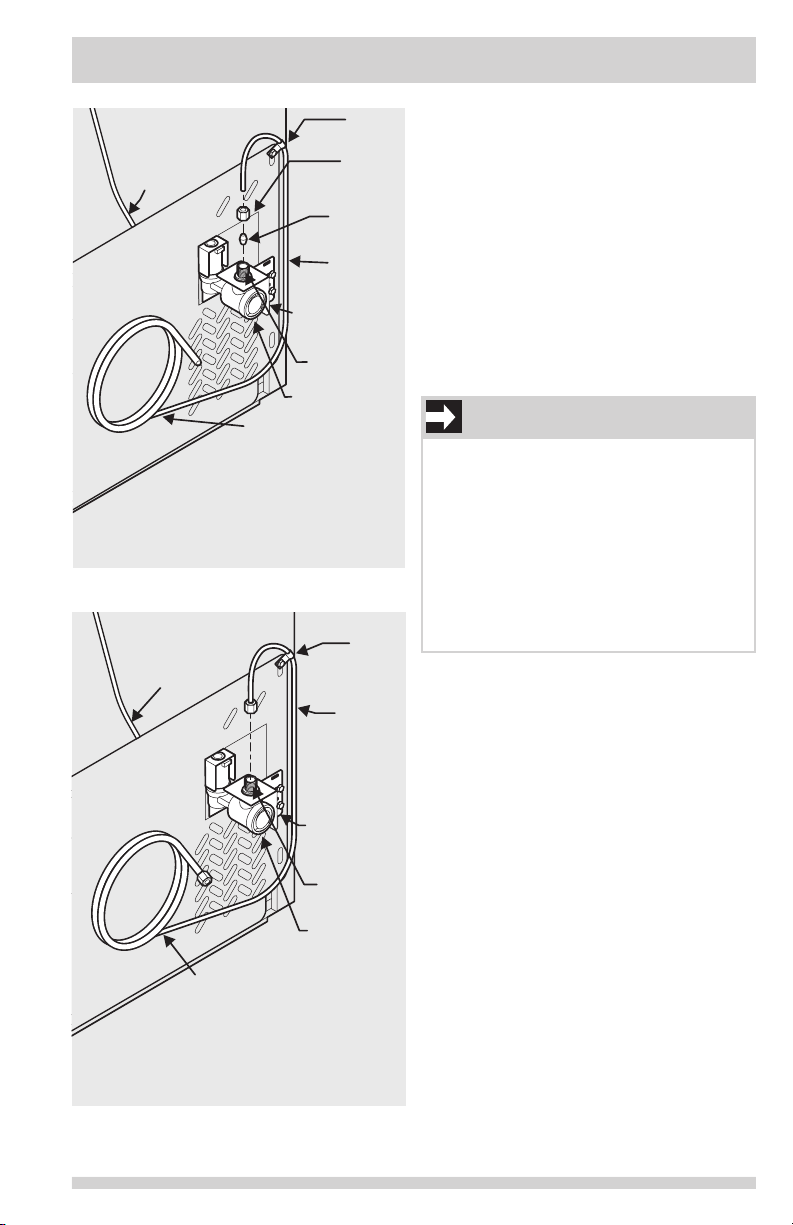

CONNECTING THE WATER SUPPLY
5. With steel clamp and screw, secure water
supply line (copper tubing only) to rear
panel of refrigerator as shown.
6. Coil excess water supply line (copper
tubing only), about 2½ turns, behind
refrigerator as shown and arrange coils so
they do not vibrate or wear against any
other surface.
7. Turn ON water supply at shutoff valve and
tighten any connections that leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, lower wire signal arm.
IMPORTANT
After connecting the water supply, refer to
“How to Prime the Water Supply System”
for important information about priming an
empty water supply system.
Your refrigerator’s water supply system
includes several tubing lines, a water lter,
a water valve, and a water tank. To ensure
that your water dispenser works properly,
this system must be completely lled with
water when your refrigerator is rst con-
nected to the household water supply line.
14
Allowing Cooling Time Before Use
To ensure safe food storage, allow your refrigerator to operate with the doors closed for at least
8 to 12 hours before placing food inside. During this cooling period, you do not need to adjust
the controls, which are preset at the factory.
Setting Cooling Temperatures
(Single Digit Display - Features may vary.)
Temperature Adjustment
To adjust the temperature to a higher or lower setting, press the Up (∧) or Down (∨) button
closest to the display. The rst time you press the button, the display shows current setting you
entered. Each press of the button after that changes the setting by one.
CONTROLS
Your refrigerator comes with a state-of-the-art electronic digital control system. The system’s
control panel is located at the top of the refrigerator compartment.
The 2 digital displays on the left half of the control panel indicate the current settings of your
freezer and refrigerator compartments. Should you desire to see what the current accurate
temperature is, place a separate thermometer inside the freezer or refrigerator compartment in
the desired location.
NOTE
When changing control settings, wait 24 hours for the temperature to stabilize before making
additional changes.
Temperature Adjustment
If refrigerator compartment is too warm Adjust refrigerator control one degree colder by
pressing up (∧) button.
If refrigerator compartment is too cold Adjust refrigerator control one degree warmer by
pressing the down (∨) button.
If Freezer compartment is too warm Adjust Freezer control one degree colder by
pressing up (∧) button.
If Freezer compartment is too cold Adjust Freezer control one degree warmer by
pressing the down (∨) button.
15
Alarms
Power Fail
In the event of a power failure, the ‘power fail’ alarm will sound three times. The ‘power fail’
alarm is an audible alarm only and does not display in the control panel.
High Temperature
When a warm refrigerator is rst powered on, the ‘power fail’ alarm will sound and the current
set points will be displayed for a few seconds. After 20 minutes the ‘high temp’ alarm will sound
if the freezer temperature is above 26°F or if the refrigerator temperature is above 55°F (or both
are above).
If the unit is above the temperatures mentioned in the paragraph above, the affected
compartment temperature display (refrigerator, freezer or both) on the control panel will
display ‘HI’ and an alarm will sound. To disable the alarm press any key on the control panel.
After which the control panel will then show the display temperature. The unit will continue
to monitor the product temperatures for ‘high temp’ condition every 20 minutes. If the ‘high
temp’ condition persists, the alarm will sound again and can be reset again. Contact a customer
service representative if the high temp alarm continues.
The audible portion of the alarm will silence itself once the product temperature is below 26°F
for the freezer temperature and 55°F for the refrigerator temperature. The control panel will still
show ‘HI’ until it is acknowledged by the user by pressing any key on the control panel. After
which the control panel will then show the display temperature.
CONTROLS
If Temperature Displays Flash...
If ever you see “OP” or “SH” ashing, it may indicate that the control system has detected a
performance problem. Call your service representative, who can interpret the ashing message.
To maintain temperatures, a fan circulates air in the refrigerator and freezer compartments. For
good circulation, do not block cold air vents with food items.
NOTE
The advanced electronic control system in your refrigerator includes additional display modes
that service professionals can use to rapidly diagnose performance issues.
Numeric Display
Freezer Refrigerator
Warmest 1 1
Factory Setting 6 6
Coldest 9 9
16
CONTROLS
Turning the Cooling system on and off
You can disable the cooling system in your refrigerator by pressing the On/Off button located
on the left side of the temperature control panel. To ensure that you do not accidentally
turn off the cooling system, the button does not work unless you press and hold it for three
seconds. Once you disable the cooling system, all refrigeration to the freezer and refrigerator
compartments stops. To turn the cooling system back on, you must again press and hold the
On/Off button for three more seconds. Controls will display OF°
F
/OF°
F
when turned off.
NOTE
Pressing the On/Off button on the control panel disables your refrigerator’s cooling system
but does not disconnect power to lights and other electrical components. To turn off power to
your refrigerator you must unplug the power cord from the wall outlet.
Each time you make settings on the control panel, a single audible tone acknowledges your input.
17
STORAGE FEATURES
Glass Shelf
1
2
Glass Shelf Adjustment

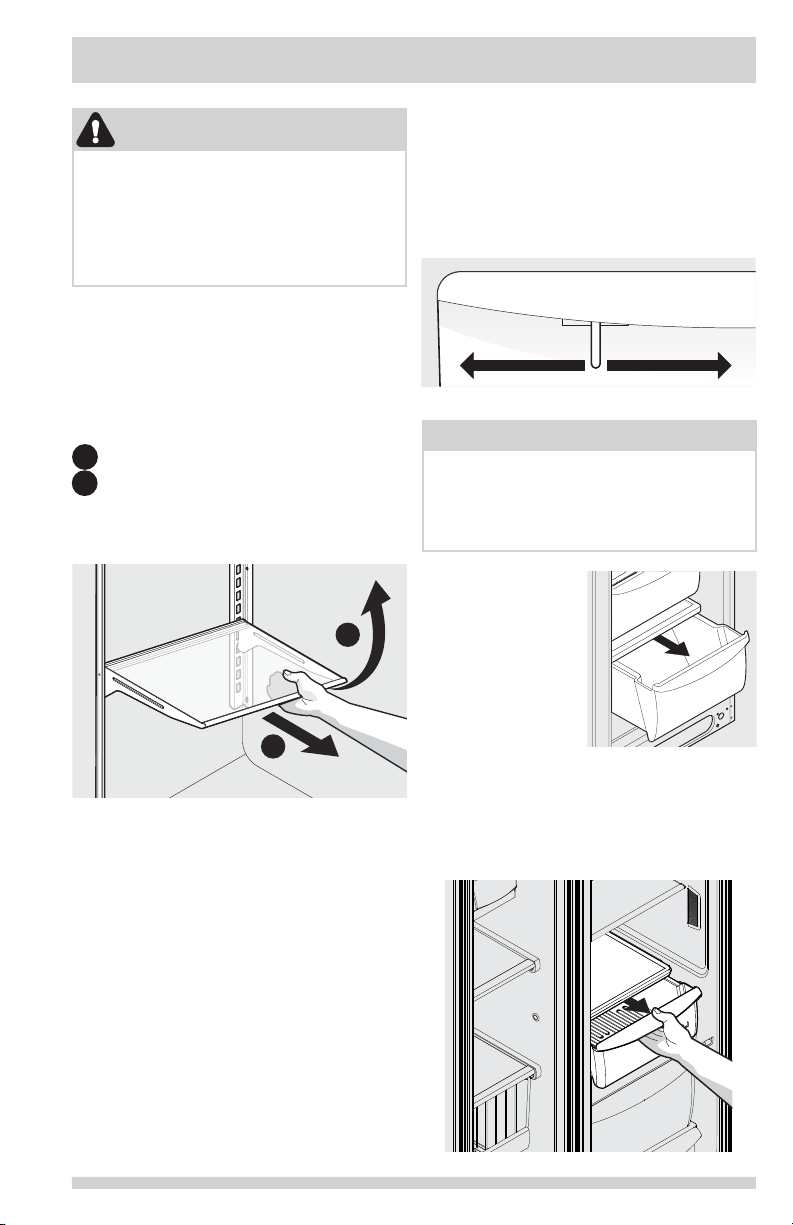

Refrigerator shelves are easily adjusted to suit
individual needs. Before adjusting the shelves,
remove all food. Shelves are supported at the
back of the refrigerator.
To adjust shelves:
1 Lift front edge up.
2 Pull shelf out.
Replace the shelf by inserting the hooks at rear
of the shelf into the wall bracket. Lower the shelf
into the desired slots and lock into position.
Door storage
Door bins and shelves are provided for
convenient storage of jars, bottles, and cans.
Frequently used items can be quickly selected.
Some models have door bins that can
accommodate gallon-sized plastic drink containers
and economy-sized jars and containers. Some
bins are adjustable for maximum storage capacity.
The dairy compartment, which is warmer than
the general food storage section, is intended for
short term storage of cheese, spreads, or butter.
Crisper Humidity Control
Higher Humidity Lower Humidity
Crisper Drawer
Crispers
Crispers allow you
the exibility to
store any manner
of items including
fruits, vegetables,
nuts, etc. Crispers do
not feature humidity
controls.
Fresh Drawers with Humidity
Control (some models)
The fresh drawers, located under the bottom
refrigerator shelf, are designed for storing fruits,
Deli Drawer (some models)
Some models are equipped with a Deli Drawer
for storage of luncheon meats, spreads,
cheeses and other deli items. This drawer does
not have a separate temperature control.
vegetables, and other fresh produce. The fresh
drawers feature humidity control which allows you
to adjust the humidity within the drawer. This can
extend the life of fresh vegetables that keep best
in high humidity. Wash items in clear water and
remove excess water before placing them in the
crispers. Items with strong odors or high moisture
content should be wrapped before storing.
CAUTION
To avoid personal injury or property dam-
age, handle tempered glass shelves care-
fully. Shelves may break suddenly if nicked,
scratched, or exposed to sudden tempera-
ture change. Allow the glass shelves to sta-
bilize to room temperature before cleaning.
Do not wash in dishwasher.
NOTE
Leafy vegetables keep best when stored with
the humidity control set on Higher Humidity,
or in a drawer without a Humidity Control.
This keeps incoming air to a minimum and
maintains maximum moisture content.
18

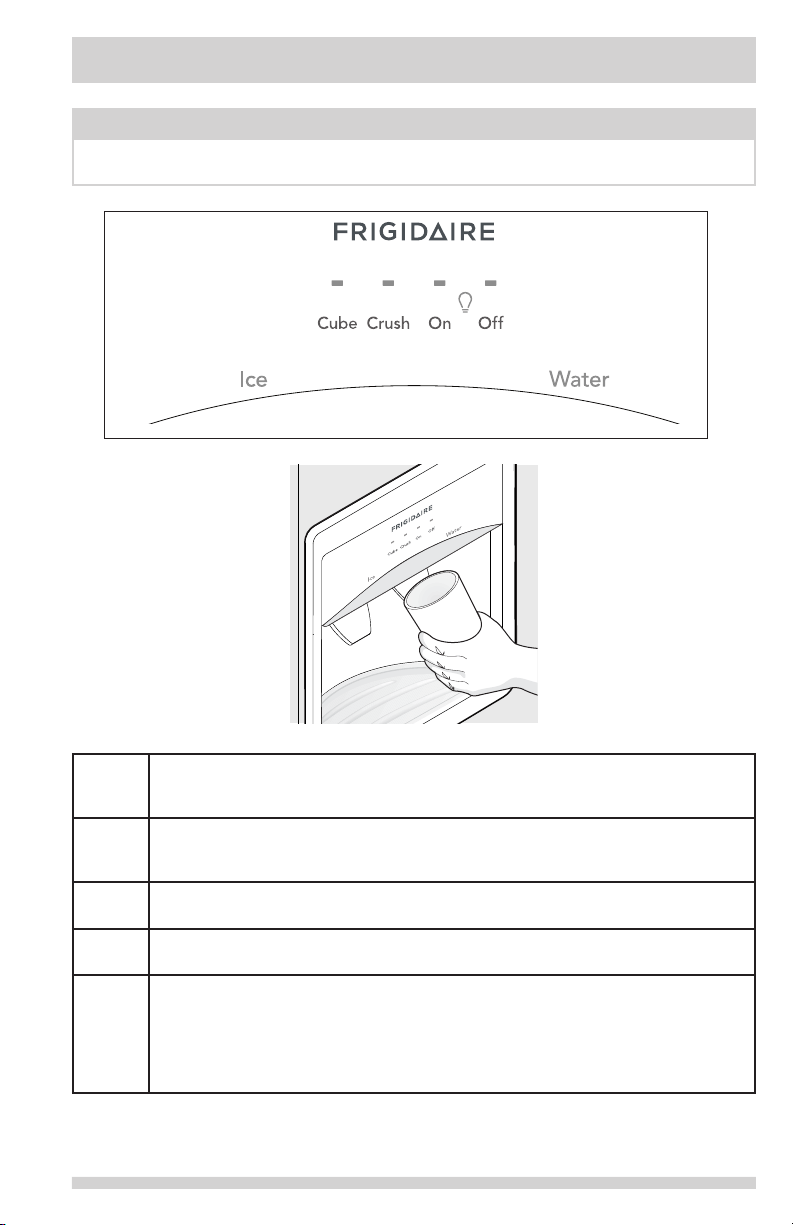

CUBE Press the CUBE Touch Pad to get cubed ice. A green light will appear
above the Touch Pad. Press glass against ICE dispensing paddle as far up
as possible to catch all ice.
CRUSH Press the CRUSH Touch Pad to get crushed ice. A green light will appear
above the Touch Pad. Press glass against ICE dispensing paddle as far up
as possible to catch all ice.
LIGHT Press the LIGHT Touch Pad to turn on dispenser light. Press again to turn
the light off. The light also turns on automatically when ice and/or water is
dispensed. Replace light bulb with an appliance bulb of the same wattage.
FILTER
STATUS
The FILTER STATUS indicator light above the Touch Pad will light up
each time the dispenser is used. The following lter light indications are:
Green The lter is still operating within its specied life cycle.
Amber The lter has reached approximately 80 percent of its useful life.
This is the recommended time to purchase a replacement lter.
Red The lter is 100 percent used up. Change the lter as soon as
possible.
After the lter cartridge has been changed, press and hold the FILTER
RESET Touch Pad for 10-15 seconds.
NOTE: The Green, Amber and Red lights will ash when reset is
completed.
LOCK The Ice & Water Dispenser can be locked out to prevent unwanted use.
To Lock Out Press the LOCK Touch Pad for 3-5 seconds. A red light
will appear above the Touch Pad.
To Unlock Press the LOCK Touch Pad for 3-5 seconds until the
red light above the Touch Pad goes out.
WATER To operate the water dispenser, press a glass against the WATER
dispensing paddle. To stop dispensing water, pull the glass away from
the dispensing paddle. Dispensed water is not cold. For colder water, add
crushed ice or cubes before dispensing water. A drip tray located at the
base of the dispenser catches small spills and allows them to evaporate.
This drip tray is removable and dishwasher safe. Do not pour water and
excess ice in this area because there is no drain.
AUTOMATIC ICE & WATER DISPENSER
NOTE
Your refrigerator may have some or all of the features listed below. Become familiar with these
features and their use and care.
19
AUTOMATIC ICE & WATER DISPENSER
Crush Press the Crush Touch Pad to get crushed ice. A red indicator will appear above
the Touch Pad. Press glass against ICE dispensing paddle as far up as possible to
catch all ice.
Cube Press the Cube Touch Pad to get cubed ice. A red indicator will appear above the
Touch Pad. Press glass against ICE dispensing paddle as far up as possible to catch
all ice.
Light
On
Press the Light On Touch Pad to turn on dispenser light. A red indicator will
appear above the Touch Pad.
Light
Off
Press the Light Off Touch Pad to turn off dispenser light. A red indicator will
appear above the Touch Pad.
Water To operate the water dispenser, press a glass against the WATER dispensing
paddle. To stop dispensing water, pull the glass away from the dispensing paddle.
Dispensed water is not cold. For colder water, add crushed ice or cubes before
dispensing water. A drip tray located at the base of the dispenser catches small
spills and allows them to evaporate. This drip tray is removable and dishwasher
safe. Do not pour water and excess ice in this area because there is no drain.
NOTE
Your refrigerator may have some or all of the features listed below. Become familiar with these
features and their use and care.
IMPORTANT
Your ice maker is shipped from the factory
with the wire signal arm in the ON position.
To ensure proper function of your ice
maker, hook up water supply immediately
or turn ice maker OFF by lifting the wire
signal arm until it clicks and locks in the UP
position (side mounted). If the ice maker is
not turned off and the water supply is not
connected, the water valve will make a loud
chattering noise.
20
AUTOMATIC ICE & WATER DISPENSER
Priming the Water Supply System
Your refrigerator’s water supply system includes
several tubing lines, an advanced water lter,
a distribution valve bank, and a reserve tank
(some models) to ensure ample supply to
the ice and water dispenser at all times. This
system needs to be completely lled with water
when rst connected to an external supply line.
To prime the water supply system:
1. Begin by pressing and holding a drinking
glass against the water dispenser paddle.
2. Keep the glass in this position until water
comes out of the dispenser. It may take
about 1½ minutes.
3. Continue dispensing water for about four
minutes to ush the system and plumbing
connections of any impurities (stopping to
empty the glass as necessary).
Ice Maker Operation & Care
The ice maker, ice bin, and dispenser feeding
mechanism are located in the top of the freezer
compartment. After the refrigerator is installed
properly and has cooled for several hours, the
ice maker can produce ice within 24 hours. It
can completely ll an ice bin in about two days.
Using the Ice Maker after
Installation
Before making ice for the rst time, be sure
to prime the water supply system. Air in new
plumbing lines can result in two or three empty
ice maker cycles. Furthermore, if the system
is not ushed, the rst ice cubes may be
discolored or have an odd avor.
Ice Production: What to Expect
How Much Ice Will a Side Mounted Ice
Maker Produce in 24 Hours?
A side mounted ice maker will produce 4 to 4.5
pounds of ice every 24 hours, depending on
usage conditions. Ice is produced at a rate of 8
cubes every 75 to 90 minutes.

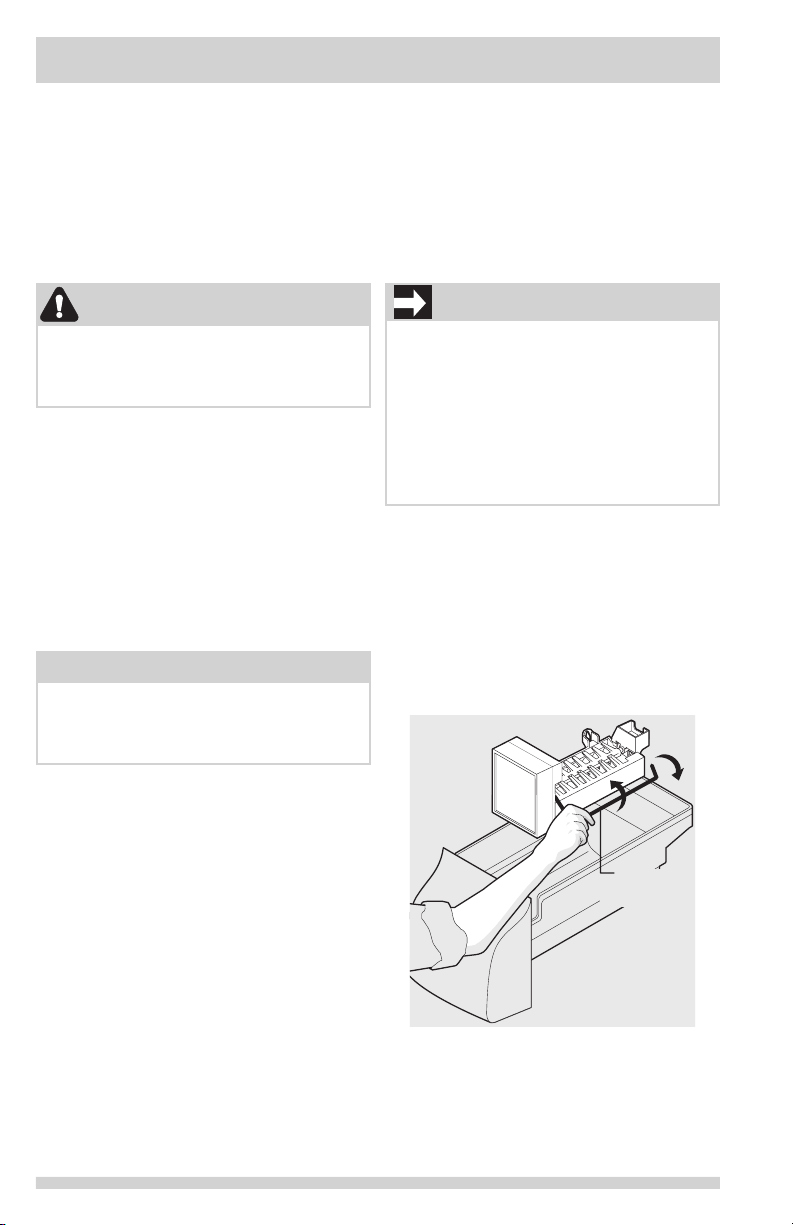

ON
OFF
Wire
Signal Arm
Turning the SIDE MOUNTED Ice
Maker On and Off
To begin ice production, lower the wire signal
arm to the DOWN or ON position. The ice
maker turns off automatically when the ice
container becomes full. To stop the ice maker,
raise the wire signal arm until it clicks and
locks in the UP or OFF position.
CAUTION
For proper dispenser operation, recommended
water supply pressure should fall between 30
psi and 100 psi. Excessive pressure may cause
water lter to malfunction.
NOTE
The water dispenser has a built-in device that
shuts off the water ow after three minutes
of continuous use. To reset this shutoff
device, simply release the dispenser paddle.
IMPORTANT
Small ice cubes or ice chips jamming in the
ice maker may be a sign that your water lter
needs changing. If you have a side mounted
ice maker you may also experience hol-
low cubes partially frozen cubes with water
inside. When these cubes are harvested, they
break open and spill water over the other ice
cubes in the ice container, forming a solid
mass of ice. As the water lter nears the end
of its useful life and becomes clogged with
particles, less water is delivered to the ice
maker during each cycle. The ice maker can’t
ll every cube in the ice maker mold, leading
to small cubes or chips that can get caught
between the ice ejector blades and the strip-
per. Remember, if your ice maker is jamming
with small ice cubes or it’s been six months
or longer since you last changed your water
lter replace the water lter with a new one.
Poor quality household water may require the
lter to be changed more frequently.
21
AUTOMATIC ICE & WATER DISPENSER
Ice Maker/Dispenser Tips
• Ice cubes stored too long may develop
an odd avor. Empty the ice container as
explained below.
• Occasionally shake the ice container to keep
ice separated.
• If your refrigerator is not connected to a
water supply or the water supply is turned
off, turn Off the ice maker.
• If you need a large quantity of ice at one
time, it is best to get cubes directly from the
ice container.
• The following sounds are normal when the
ice maker is operating:
- Motor running
- Ice dropping into ice container
- Water valve opening or closing
- Ice loosening from tray
- Running water
• When dispensing ice, you will hear a
snapping or clicking sound when the ice
chute opens and closes.
• Turn Off the ice maker when cleaning the
freezer and during vacations. If you turn Off
the ice maker for a long period of time, you
should also turn off the water supply valve.
Cleaning the Ice Maker
Clean the ice maker and ice bin at regular
intervals, particularly before you take a
vacation or move.
To clean the ice maker:
1. Turn Off the ice maker.
2. Remove the ice bin by lifting up and out.
3. Empty and carefully clean the ice bin with
mild detergent. Rinse with clear water. Do
not use harsh or abrasive cleaners.
4. Allow the ice bin to dry completely before
replacing in the freezer.
5. Remove ice chips and clean the ice bin
shelf and the freezer door chute.
6. Replace the ice bin. Turn On the ice
maker to resume ice production.
Remove and empty the ice
storage bin if:
• An extended power failure (one hour or
longer) causes ice cubes in the ice storage
bin to melt and freeze together, jamming
the dispenser mechanism.
• You do not use the ice dispenser frequently.
Ice cubes will freeze together in the bin,
jamming the dispenser mechanism.
Remove the ice storage bin and shake to
loosen the cubes or clean as explained above.
CAUTION
Chemicals from a malfunctioning water soft-
ener can damage the ice maker. If the water
supply to your refrigerator is softened, be sure
the softener is maintained to work properly.
CAUTION
NEVER use an ice pick or similar sharp instru-
ment to break up the ice. This could damage
the ice storage bin and dispenser mechanism.
IMPORTANT
When removing or replacing the ice bin,
ensure that the ice bin is fully seated before
closing the freezer door. If the ice bin is not
positioned correctly the refrigerator will not
dispense ice. The freezer door also may not
close properly causing warm air to leak into
the freezer compartment.
22
Locating the Filter
Your refrigerator is equipped with a water ltering
system. The water lter system lters all dispensed
drinking water, as well as the water used to
produce ice.
Water Filter
The water lter is located at the top right side of
the refrigerator compartment.
Do not use with water that is microbiologically
unsafe or of unknown quality without adequate
disinfection before or after the system. Systems
certied for cyst reduction may be used on
disinfected waters that may contain lterable cysts.
Test & certication results:
• Rated Capacity - 200 gallons/757 liters for
PureSource Ultra
TM
and PureSource 3
TM
ice and water lter
• Rated service ow - .50 gallons per minute
• Operating Temp.: Min. 33°F, Max. 100°F
• Maximum Rated Pressure - 100 pounds per
square inch
• Recommended Minimum Operating Pressure:
30 pounds per square inch
To replace your PureSource 3
TM
water lter:
It is not necessary to turn the water supply off
to change the lter. Be ready to wipe up any
small amounts of water released during the
lter replacement.
1. Turn Off the ice maker.
2. Remove the lter by pushing on the end/face
of the lter.
3. Slide the old water lter cartridge straight out
of the housing and discard it.
4. Unpackage the new lter cartridge. Using
the alignment guide, slide it gently into the
lter housing until it stops against the snap-in
connector at the back of the housing.
5. Push rmly until the cartridge
snaps into place (you should hear a
click as the cartridge engages the
snap-in connector).
6. Press a drinking glass against the water
dispenser while checking for any leaks at the
lter housing. Any spurts and sputters that
occur as the system purges air out of the
dispenser system are normal.
7. After lling one glass of water, continue
ushing the system for about four minutes.
8. Turn On the ice maker.
9. Press and hold the Water Filter button on
the Ice & Water Dispenser control panel for
three seconds. When the display changes from
“Red” to “Green,” the status has been reset.
Ordering Replacement Filters
To order your replacement lters, please visit our
online store at www.frigidaire.com/store, by calling
toll-free at 877-808-4195, or by visiting the dealer
where you purchased your refrigerator. Frigidaire
recommends that you order extra lters when you
rst install your refrigerator, and that you replace
your lters at least once every six months.
Here are the product numbers to request when
ordering:
PureSource Ultra
TM
Water Filter
Part# ULTRAWF
PureSource 3
TM
Water Filter
Part #WF3CB
Replacing the Water Filter
In general, you should change the water lter every six
months to ensure the highest possible water quality.
Water Filter Status on the user interface prompts
you to replace the lter after a standard amount of
water (200 gallons/757 liters for PureSource Ultra
TM
and PureSource 3
TM
)
has owed through the system.
If your refrigerator has not been used for a period of
time (during moving for example), change the lter
before reinstalling the refrigerator.
Filter Cartridge
The PureSource 3
TM
ice and water
lter system is tested and certied to
NSF/ANSI Standards 42 and 53 for
the reduction of claims specied on
the performance data sheet.
More about your Advanced Water
Filter
NOTE
If your refrigerator is equipped with a PureSource
3
TM
water lter, it can be replaced with a
PureSource Ultra
TM
water lter. Replacing your
PureSource 3
TM
water lter with a PureSource
Ultra
TM
water lter removes more potential
contaminants as tested by NSF. The contaminants
or other substances removed or reduced by this
water lter are not necessarily in all users’ water.
CHANGING THE FILTER
NOTE
If your refrigerator is equipped with a PureSource
Ultra
TM
water lter, it must be replaced with
PureSource Ultra
TM
water lter ULTRAWF.
The PureSource Ultra
TM
ice and
water lter system is tested and
certied to NSF/ANSI Standards 42 and
53 for the reduction of claims specied
on the performance data sheet.

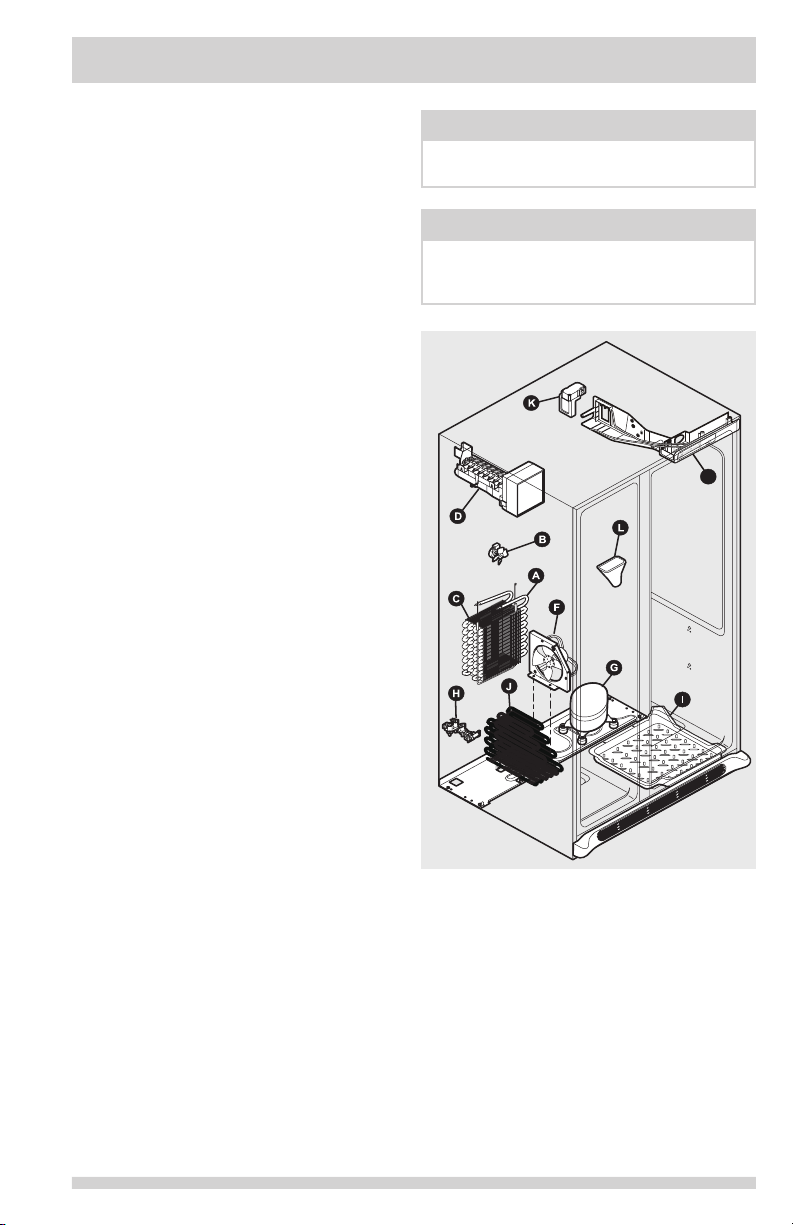

Understanding the Sounds you
may Hear
Your new, high-efciency refrigerator may intro-
duce unfamiliar sounds. These sounds normally
indicate your refrigerator is operating correctly.
Some surfaces on oors, walls, and kitchen cabi-
nets may make these sounds more noticeable.
Following is a list of major components in your
refrigerator and the sounds they can cause:
A. Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B. Evaporator fan You may hear air
being forced through the refrigerator
by the evaporator fan.
C. Defrost heater During defrost cycles,
water dripping onto the defrost heater
may cause a hissing or sizzling sound.
After defrosting, a popping sound may
occur.
D. Automatic ice maker When ice has
been produced, you will hear ice cubes
falling into the ice bin.
E. Automatic defrost control These
parts can produce a snapping or clicking
sound when turning the cooling system
on and off.
F. Condenser fan You may hear air
being forced through the condenser.
G. Compressor Modern, high-efciency
compressors run much faster than in
the past. The compressor may have a
high-pitched hum or pulsating sound.
H. Water valve Makes a buzzing sound
each time it opens to ll the ice maker.
I. Drain pan (not removable) You may
hear water dripping into the drain pan
during the defrost cycle.
J. Condenser May create minimal
sounds from forced air.
K. Motorized damper May produce a
light humming during operation.
L. Ice chute When dispensing ice, you
will hear a snapping or clicking sound
when the solenoid opens and closes the
ice chute.
E
23
NORMAL OPERATING SOUNDS AND SIGHTS
NOTE
Energy efcient foam in your refrigerator is
not a sound insulator.
NOTE
During automatic defrost cycle, a red glow
in the back wall vents of your freezer
compartment is normal.
Protecting your investment
Keeping your refrigerator clean maintains appearance and prevents odor build-up. Wipe up any
spills immediately and clean the freezer and refrigerator compartments at least twice a year.
When cleaning, take the following precautions:
• Never use CHLORIDE or cleaners with bleach to clean stainless steel.
• Do not wash any removable parts in a dishwasher.
• Always unplug the electrical power cord from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do not use razor blades or other sharp instruments which
can scratch the appliance surface.
• Do not remove the serial plate.
Do not use abrasive cleaners such as window sprays, scouring cleansers, brushes, ammable
uids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum
products on plastic parts, interior doors, gaskets or cabinet liners. Do not use paper towels,
metallic scouring pads, or other abrasive cleaning materials or strong alkaline solutions.
24
CARE & CLEANING
NOTE
If you set your temperature controls to turn off cooling, power to lights and other electrical
components will continue until you unplug the power cord from the wall outlet.
CAUTION
• Pull the refrigerator straight out to move it. Shifting it from side to side may damage
ooring. Be careful not to move the refrigerator beyond the plumbing connections.
• Damp objects stick to cold metal surfaces. Do not touch refrigerated surfaces with wet or
damp hands.
• Sudden temperature changes can cause glass breakage.
IMPORTANT
If you store or move your refrigerator in freezing temperatures, be sure to completely drain
the water supply system. Failure to do so could result in water leaks when the refrigerator is
put back into service. Contact a service representative to perform this operation.
25
Care & Cleaning Tips
Part What To Use Tips and Precautions
Interior & Door
Liners
• Soap and water
• Baking soda and water
Use two tablespoons of baking soda in
one quart of warm water. Be sure to
wring excess water out of sponge
or cloth before cleaning around
controls, light bulb or any electri-
cal part.
Door Gaskets • Soap and water Wipe gaskets with a clean soft cloth.
Drawers & Bins • Soap and water Use a soft cloth to clean drawer run-
ners and tracks.
Glass Shelves • Soap and water
• Glass cleaner
• Mild liquid sprays
Allow glass to warm to room tempera-
ture before immersing in warm water.
Toe Grille • Soap and water
• Mild liquid sprays
• Vacuum attachment
Vacuum dust from front of toe grille.
Remove toe grille (see Installation In-
structions). Vacuum backside, wipe with
sudsy cloth or sponge. Rinse and dry.
Exterior &
Handles
• Soap and water
• Non Abrasive Glass Cleaner
Do not use commercial household
cleaners containing ammonia, bleach
or alcohol to clean handles. Use a
soft cloth to clean smooth handles.
DO NOT use a dry cloth to clean
smooth doors.
Exterior &
Handles
(Stainless Steel
Models Only)
• Soap and water
• Stainless Steel Cleaners
Never use CHLORIDE or cleaners
with bleach to clean stainless steel.
Clean stainless steel front and handles
with non-abrasive soapy water and a
dishcloth. Rinse with clean water and a
soft cloth. Use a non-abrasive stainless
steel cleaner. These cleaners can be
purchased at most home improvement
or major department stores. Always
follow manufacturer’s instructions. Do
not use household cleaners containing
ammonia or bleach.
NOTE: Always clean, wipe and dry
with the grain to prevent scratch-
ing. Wash the rest of the cabinet with
warm water and mild liquid detergent.
Rinse well, and wipe dry with a clean
soft cloth.
Replacing LED
Bulbs
• Unplug refrigerator
• Wear gloves
• Remove light cover
• Replace old LED bulb
• Replace light cover
• Plug in the refrigerator
CAUTION: Wear gloves when
replacing LED bulbs to avoid get-
ting cut.
Use same wattage when replacing
LED bulb.
CARE & CLEANING
26
BEFORE YOU CALL
Visit our web site at
www.frigidaire.com
1-800-944-9044 (United States)
1-800-265-8352 (Canada)
CONCERN CAUSE SOLUTION
AUTOMATIC ICE MAKER
Ice maker is
not making any
ice.
• Ice maker wire signal arm is
in the “up” or OFF position.
• Ice maker has small cube
caught in mechanism.
• Saddle valve on cold
water pipe is clogged
or restricted by foreign
material.
• Move wire signal arm to the “down” or ON
position (side mounted).
• Remove small cube from ice maker. The
ice and water lter cartridge may be
clogged. Replace lter cartridge.
• Turn off household water line valve.
Remove valve. Ensure that valve is not
a self-piercing saddle valve. Clean valve.
Replace valve if necessary.
Ice maker is
not making
enough ice.
• Ice maker is producing
less ice than you expect.
• Check to see if water
dispenser is dispensing
slower than normal.
• Freezer control is set too
warm.
• Side mounted ice maker should produce 4
to 4.5 pounds (approximately 4 quarts) of
ice every 24 hours.
• If it is, replace the ice and water lter
cartridge.
• Set freezer control to colder setting to im-
prove performance of the ice maker. Allow
24 hours for temperature to stabilize.
Ice maker will
not stop mak-
ing ice.
• Ice maker wire signal arm
is being held down by
some item in the freezer.
• Move item and release wire signal arm.
Remove any ice cubes that are frozen
together over the wire signal arm.
Ice cubes are
freezing to-
gether.
• Ice cubes are not being
used frequently enough.
• Ice cubes are hollow
(partially frozen cubes
with water inside).
• Freezer control is set too
warm.
• Remove ice container and discard ice from
container. Ice maker will produce fresh supply.
• The ice and water lter cartridge may be
clogged. Replace lter cartridge.
• Set freezer control to colder setting. Allow
24 hours for temperature to stabilize.
DISPENSER (Ice & Water)
Dispenser will
not dispense
ice.
• Dispenser lock out is
engaged.
• There is no ice in the bin
to be dispensed.
• The refrigerator doors are
not completely closed.
• Dispenser paddle has
been pressed too long
and the dispenser motor
has overheated.
• Press and hold control lock for three
seconds.
• See the “Ice maker is not making any ice”
section above.
• Be sure the refrigerator doors are com-
pletely closed.
• The motor overload protector will reset in
about three minutes and then ice can be
dispensed.
Ice dispenser is
jammed.
• Ice has melted and
frozen around auger
due to infrequent use,
temperature uctuations,
and/or power outages.
• Ice cubes are jammed
between ice maker and
back of ice container.
• Remove ice container, thaw, and empty
the contents. Clean container, wipe dry,
and replace in proper position. When new
ice is made, dispenser should operate.
• Remove ice cubes that are jamming the
dispenser.
27
BEFORE YOU CALL
CONCERN CAUSE SOLUTION
DISPENSER (Ice & Water) (Continued)
Dispenser will
not dispense
water.
• Dispenser lock out is
engaged.
• Water lter not seated
properly.
• Water lter is clogged.
• Household water line
valve is not open.
• Press and hold control lock for three
seconds.
• Remove and reinstall the water lter. Be
sure to push the lter rmly so that you
hear it lock solidly into position.
• Replace lter cartridge. Be sure to remove
protective caps and push the lter rmly so
that you hear it lock solidly into position.
• Open household water line valve. See CON-
CERN column AUTOMATIC ICE MAKER.
Water has an
odd taste and/
or odor.
• Water has not been dis-
pensed for an extended
period of time.
• Unit not properly con-
nected to cold water line.
• Draw and discard 10-12 glasses of water
to freshen the supply.
• Connect unit to cold water line that sup-
plies water to the kitchen faucet.
Water pressure
is extremely
low.
• Cut-off and cut-on pres-
sures are too low (well
systems only).
• Reverse osmosis system
is in regenerative phase.
• Have someone turn up the cut-off and
cut-on pressure on the water pump sys-
tem (well systems only).
• It is normal for a reverse osmosis system to be
below 20 psi during the regenerative phase.
Water not cold
enough.
• As warmer tap water goes
through the lter and
enters the water tank the
chilled water is pushed
through to the dispenser.
Once the chilled water is
used up it will take several
hours to bring the freshly
replaced water to a cooler
temperature.
• Some models are
designed without a
water tank, these water
dispensing systms are not
designed to chill water.
• Add ice to cup or container before dis-
pensing water.
• Add ice to cup or container before dis-
pensing water
OPENING/CLOSING OF DOORS/DRAWERS
Door(s) will not
close.
• Door was closed too
hard, causing other door
to open slightly.
• Refrigerator is not level.
It rocks on the oor
when moved slightly.
• Refrigerator is touching a
wall or cabinet.
• Close both doors gently.
• Ensure oor is level and solid, and can
adequately support the refrigerator. Contact a
carpenter to correct a sagging or sloping oor.
• Ensure oor is level and solid, and can
adequately support the refrigerator. Contact a
carpenter to correct a sagging or sloping oor.
Drawers are
difcult to
move.
• Food is touching shelf on
top of drawer.
• Track that drawers slide
on is dirty.
• Remove top layer of items in drawer.
• Ensure drawer is properly installed on
track.
• Clean drawer, rollers, and track. See Care
& Cleaning.
28
BEFORE YOU CALL
CONCERN CAUSE SOLUTION
RUNNING OF REFRIGERATOR
Compressor
does not run.
• Freezer control is set to
“OF” or “0”.
• Refrigerator is in defrost
cycle.
• Plug at electrical outlet
is disconnected.
• House fuse blown or
tripped circuit breaker.
• Power outage.
• Set freezer control.
• This is normal for a fully automatic defrost
refrigerator. The defrost cycle occurs peri-
odically, lasting about 30 minutes.
• Ensure plug is tightly pushed into outlet.
• Check/replace fuse with a 15 amp time-
delay fuse. Reset circuit breaker.
• Check house lights. Call local electric company.
Refrigerator
runs too much
or too long.
• Room or outside
weather is hot.
• Doors are opened too
frequently or too long.
• Refrigerator/freezer door
may be slightly open.
• Freezer control is set
too cold.
• Refrigerator/freezer
gasket is dirty, worn,
cracked, or poorly tted.
• Condenser is dirty.
• It’s normal for the refrigerator to work
longer under these conditions.
• Warm air entering the refrigerator causes
it to run more. Open doors less often.
• Ensure refrigerator is level. Keep food and con-
tains from blocking door. See PROBLEM column
OPENING/CLOSING OF DOORS/DRAWERS.
• Set Refrigerator control to warmer setting
until refrigerator temperature is satisfactory.
Allow 24 hours for temperature to stabilize.
• Clean or change gasket. Leaks in door
seal will cause refrigerator to run longer in
order to maintain desired temperatures.
• Clean condenser. See Care & Cleaning.
Compressor
goes off and on
frequently.
• Thermostat keeps the
refrigerator at a con-
stant temperature.
• This is normal. Refrigerator goes on and
off to keep temperature constant.
DIGITAL TEMPERATURE DISPLAY
Digital temper-
ature displays
are ashing.
• Electronic control system
has detected a perfor-
mance problem.
• Call your Frigidaire service representative,
who can interpret any messages or num-
ber codes ashing on the digital displays.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
Moisture col-
lects on inside
of refrigerator
walls.
• Weather is hot and
humid.
• Door is slightly open.
• The rate of frost buildup and internal
sweating increases.
• See PROBLEM column OPENING/CLOSING
OF DOORS/DRAWERS.
Water collects
on bottom
side of drawer
cover.
• Vegetables contain and
give off moisture.
• It is not unusual to have moisture on the
bottom side of the cover.
• Move humidity control (some models) to
lower setting.
Water collects
in bottom of
drawer.
• Washed vegetables and
fruit drain while in the
drawer.
• Dry items before putting them in the
drawer. Water collecting in bottom of
drawer is normal.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Moisture col-
lects on outside
of refrigerator
or between
doors.
• Weather is humid.
• Door is slightly open,
causing cold air from in-
side refrigerator to meet
warm air from outside.
• This is normal in humid weather. When hu-
midity is lower, the moisture should disappear.
• See PROBLEM column OPENING/CLOSING
OF DOORS/DRAWERS.
29
MAJOR APPLIANCE WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove
to be defective in materials or workmanship when such appliance is installed, used and maintained
in accordance with the provided instructions.
Exclusions
If You Need Service
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside
the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air lters, water lters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the nish of appliance or home incurred during installation, including but not
limited to oors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, res, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH
AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO
NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,
OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted
by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In
Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to
change or add to any obligations under this warranty. Obligations for service and parts under this
warranty must be performed by Electrolux or an authorized service company. Product features or
specications as described or illustrated are subject to change without notice.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty
period should service be required. If service is performed, it is in your best interest to obtain and
keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the
addresses or phone numbers below.
USA
1.800.944.9044
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
