AVR-1613
INTEGRATED NETWORK AV RECEIVER
Owner’s Manual
Basic version
Advanced version
Information
I
n

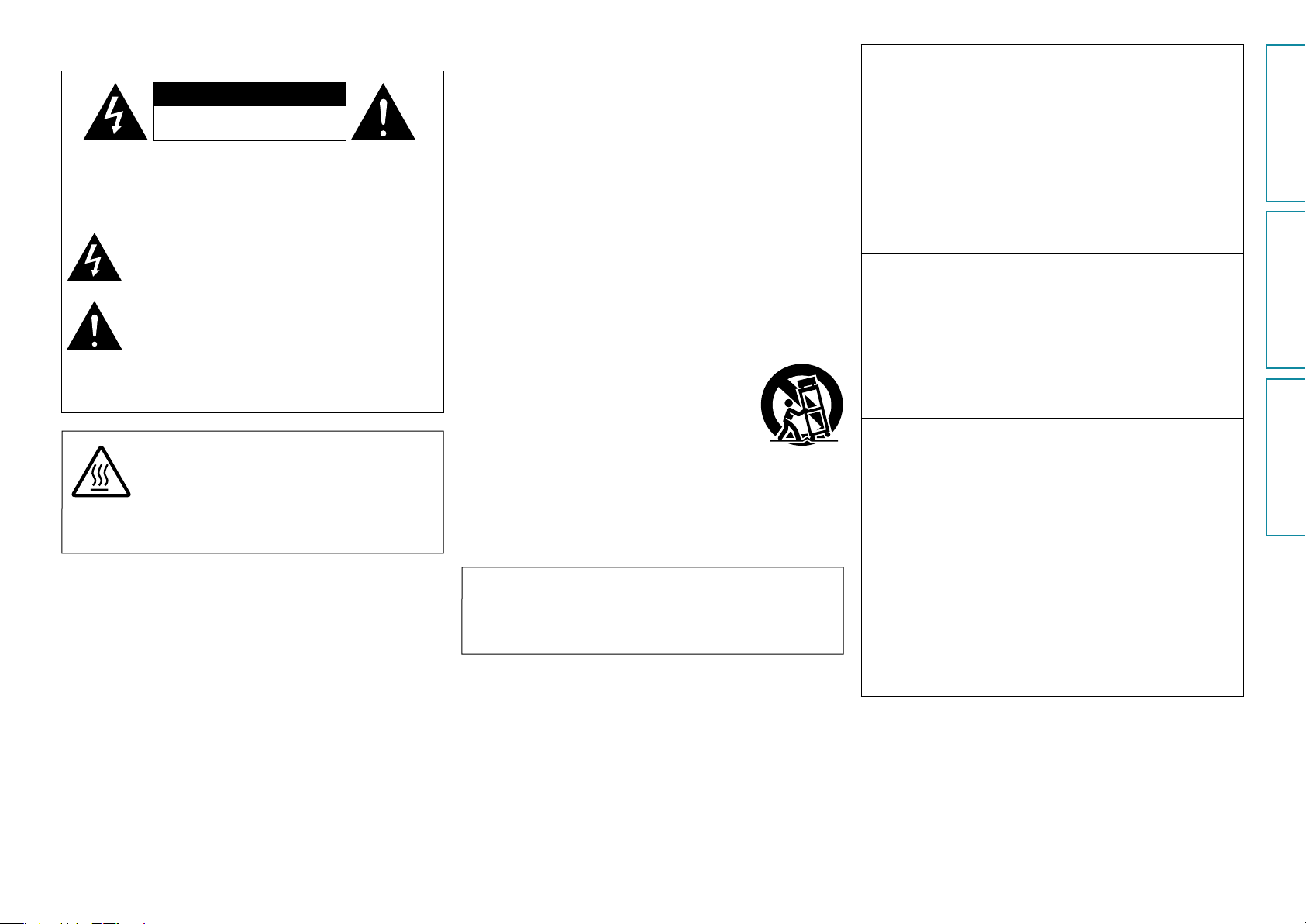

SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug
from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to the unit
and must be within easy access by the user.
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
FCC INFORMATION (For US customers)
1. COMPLIANCE INFORMATION
Product Name: Integrated Network AV Receiver
Model Number: AVR-1613
This product complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this product may not cause harmful
interference, and (2) this product must accept any interference received,
including interference that may cause undesired operation.
Denon Electronics (USA), LLC
(a D&M Holdings Company)
100 Corporate Drive
Mahwah, NJ 07430-2041
Tel. (201) 762-6665
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained
in this manual, meets FCC requirements. Modification not expressly
approved by DENON may void your authority, granted by the FCC, to use
the product.
3. IMPORTANT
When connecting this product to network hub or router, use only a
shielded STP or ScTP LAN cable which is available at retailer.
Follow all installation instructions. Failure to follow instructions could void
your authority, granted by the FCC, to use the product.
4. NOTE
This product has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception,
which can be determined by turning the product OFF and ON, the user
is encouraged to try to correct the interference by one or more of the
following measures:
•Reorientorrelocatethereceivingantenna.
•Increasetheseparationbetweentheequipmentandreceiver.
•Connecttheproductintoanoutletonacircuitdifferentfromthatto
which the receiver is connected.
•Consultthelocalretailerauthorizedtodistributethistypeofproductor
an experienced radio/TV technician for help.
For Canadian customers:
This Class B digital apparatus complies with Canadian ICES-003.
CAUTION:
HOT SURFACE. DO NOT TOUCH.
The top surface over the internal heat sink may become hot
when operating this product continuously.
Do not touch hot areas, especially around the “Hot surface
mark” and the top panel.
Hot
surface
mark
Basic version
Advanced version
Information
II
n
NOTES ON USE
WARNINGS
•Avoid high temperatures.
Allow for sufficient heat dispersion when installed in a rack.
•Handle the power cord carefully.
Hold the plug when unplugging the cord.
•Keep the unit free from moisture, water, and dust.
•Unplug the power cord when not using the unit for long periods of time.
•Do not obstruct the ventilation holes.
•Do not let foreign objects into the unit.
•Do not let insecticides, benzene, and thinner come in contact with the unit.
•Never disassemble or modify the unit in any way.
•Ventilation should not be impeded by covering the ventilation openings
with items, such as newspapers, tablecloths or curtains.
•Naked flame sources such as lighted candles should not be placed on
the unit.
•Observe and follow local regulations regarding battery disposal.
•Do not expose the unit to dripping or splashing fluids.
•Do not place objects filled with liquids, such as vases, on the unit.
•Do not handle the mains cord with wet hands.
•When the switch is in the OFF (STANDBY) position, the equipment is not
completely switched off from MAINS.
•The equipment shall be installed near the power supply so that the power
supply is easily accessible.
n CAUTIONS ON INSTALLATION
z z
z
Wall
z
z For proper heat dispersal, do not install this unit in a confined
space, such as a bookcase or similar enclosure.
•More than 12 in. (0.3 m) is recommended.
•Do not place any other equipment on this unit.
Basic version
Advanced version
Information
1
Thank you for purchasing this DENON product. To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading them, be sure to keep them for future reference.
Getting started
Basic version ············································································4
Connections ··················································································· 5
Important information ··································································· 5
Connecting an HDMI-compatible device ······································7
Connecting an HDMI-incompatible device ·································12
Connecting to a home network (LAN) ········································18
Connecting the power cord ························································19
Settings ························································································ 20
Set up speakers (Audyssey
®
Setup) ··········································20
Making the network settings (Network) ····································· 26
Playback (Basic operation) ·························································27
Important information ································································· 27
Playing a Blu-ray Disc player/DVD player ···································· 28
Playing an iPod············································································29
Playing a USB memory device ····················································32
Listening to FM broadcasts ························································35
Network ·······················································································43
Listening to internet radio ···························································43
Playing back files stored on a PC and NAS ·································46
Using online services ··································································50
Convenient functions ··································································58
AirPlay function ···········································································62
Selecting a listening mode (Sound Mode) ·······························64
Selecting a listening mode··························································64
Advanced version ································································68
Installation/connection of speakers (Advanced)······················69
Speaker installation ·····································································69
Speaker connection ····································································70
Playback (Advanced operation) ·················································73
HDMI control function ································································73
Sleep timer function ···································································74
Quick select function ·································································· 75
Various memory functions ··························································75
How to make detailed settings ··················································76
Menu map ··················································································76
Examples of menu screen displays ············································77
Examples of menu and front display ··········································78
Inputting characters ···································································· 79
Audio···························································································80
Video ···························································································86
Inputs ··························································································89
Speakers ····················································································· 93
Network ······················································································ 97
General ·····················································································101
Information ···········································································106
Part names and functions·························································107
Front panel ················································································107
Display ······················································································108
Rear panel ·················································································109
Remote control unit ·································································· 110
Other information ·····································································112
Trademark information ······························································112
Surround ···················································································113
Relationship between video signals and monitor output ··········116
Explanation of terms ·································································117
Troubleshooting ········································································ 119
Resetting the microprocessor ··················································123
Specifications ············································································124
Getting started ··············································································1
Accessories ··················································································2
Features ························································································2
Cautions on handling ····································································3
Contents
Basic version
Advanced version
Information
2
Features
With a discrete-circuit configuration, the power
amplifier provides identical quality for all 5
channels (120 W x 5ch)
The unit is equipped with a power amplifier that reproduces
highfidelity sound in sound mode with equal quality and power for
all channels, true to the original sound.
The power amplifier circuit adopts a discrete-circuit configuration
that achieves high-quality surround sound reproduction.

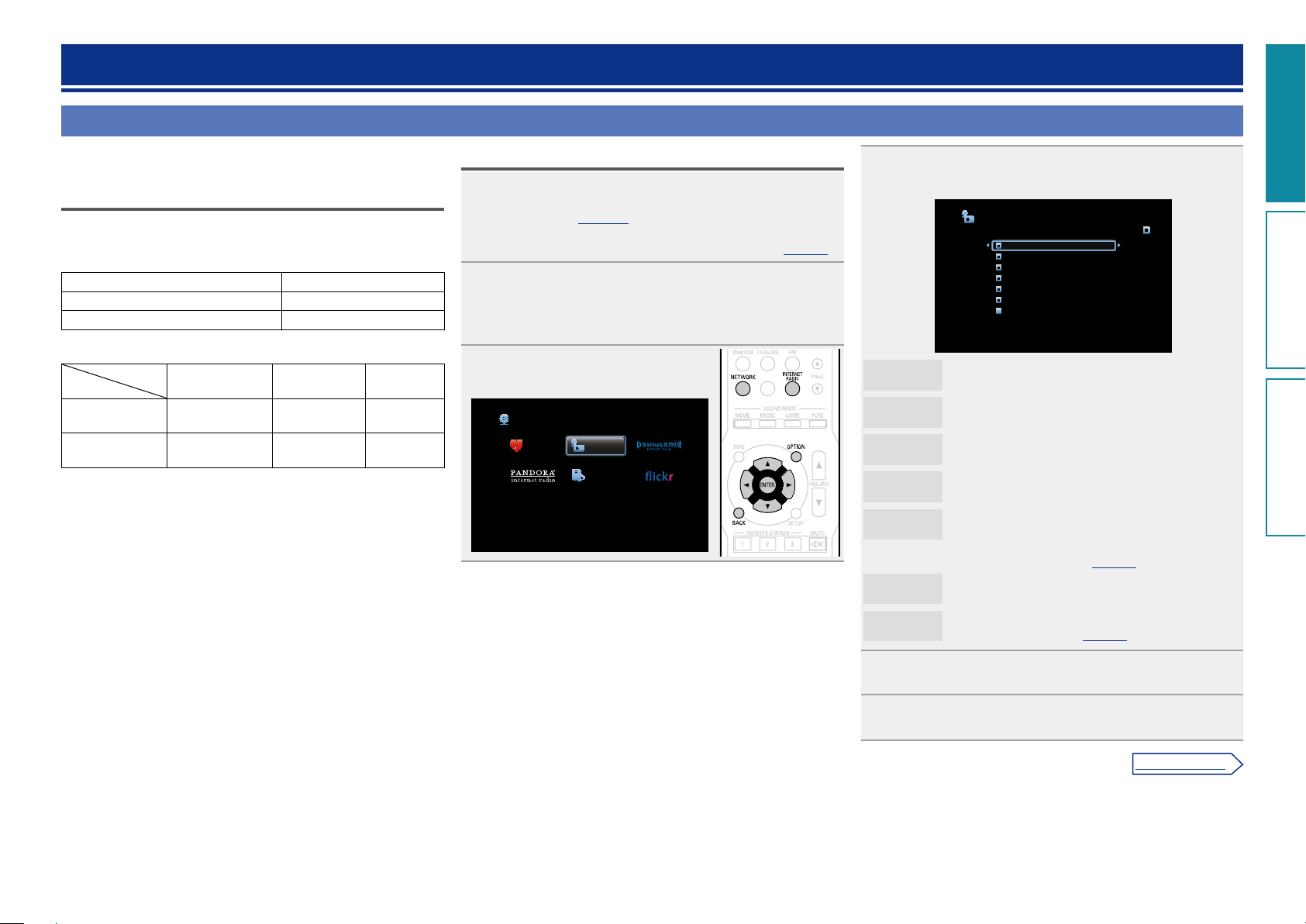

Supports internet radio, music, and photograph
streaming
Supports AirPlay
®
(vpage62)
You can enjoy a wide variety of content, including listening
to Internet radio, playing the audio files stored on your PC, and
displaying on a TV the photographs stored on your PC.
This unit also supports AirPlay that lets you stream your music
library from an iPhone, iPad, iPod touch or iTunes.
Compatible with “Denon Remote App” for
performing basic operations of the unit with an
iPad, iPhone or Android smartphone
z1
“Denon Remote App” is application software that allows you to
perform basic operations with an iPad, iPhone, Android smartphone
or Android tablet such as turning the unit ON/OFF, controlling the
volume, and switching the source.
z1 Download “Denon Remote App” from iTunes
®
App Store.
The unit needs to be connected to a LAN and the iPhone/iPod
touch needs to be connected to the same network by Wi-Fi
(wireless LAN).

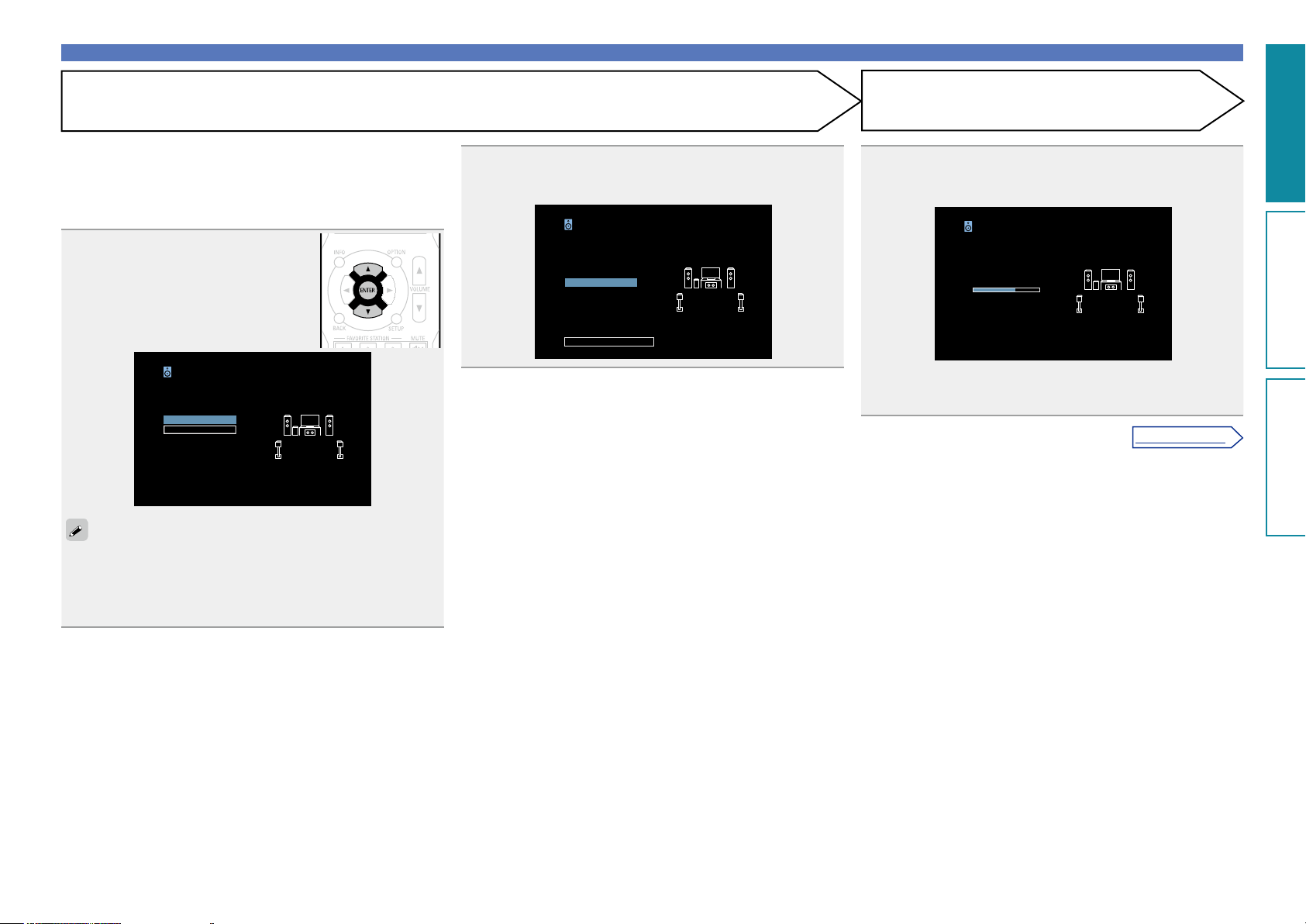

“Setup Assistant”, providing easy-to-follow setup
instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers,
network, etc.
Easy to use, Graphical User Interface
This unit is equipped with an easy to see “Graphical User Interface”
that uses menu displays and levels. The use of level displays
increases operability of the this unit.
HDMI connectors enable connection to various
digital AV devices (input: 5, output: 1)
The unit is equipped with 5 HDMI input connectors for connecting
devices with HDMI connectors, such as a Blu-ray Disc player,
game machine, etc.
Supports HDMI (3D, ARC, Deep Color, “x.v.Color”,
Auto Lip Sync) and HDMI control function
(vpage7)
This unit can output 3D video signals input from a Blu-ray Disc
player to a TV that supports a 3D system. This unit also supports
the ARC (Audio Return Channel) function, which reproduces TV
sound with this unit via an HDMI cable used for connecting the
unit and a TV
z2
.
z2 The TV should support the ARC function.
Direct play for iPod
®
and iPhone
®
via USB
(vpage16)
Music data from an iPod can be played back if you connect the USB
cable supplied with the iPod via the USB port of this unit, and also
an iPod can be controlled with the remote control unit for this unit.

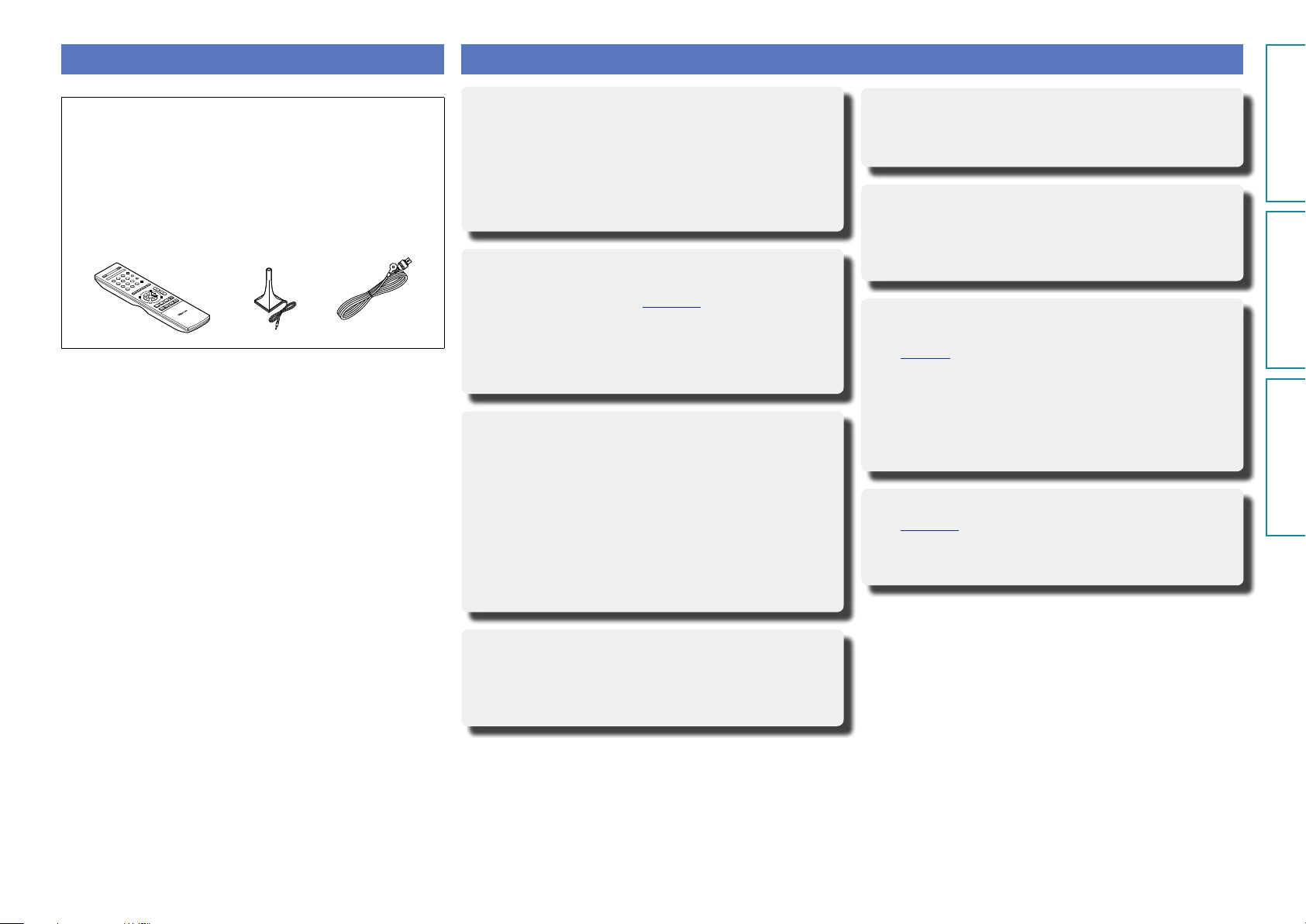

Accessories
Check that the following parts are supplied with the product.
q Getting Started ........................................................................ 1
w CD-ROM (Owner’s manual) .................................................... 1
e Warranty (for North America model only) ................................ 1
r Service network list ................................................................. 1
t Remote control unit (RC-1169) ................................................ 1
y R03/AAA batteries ................................................................... 2

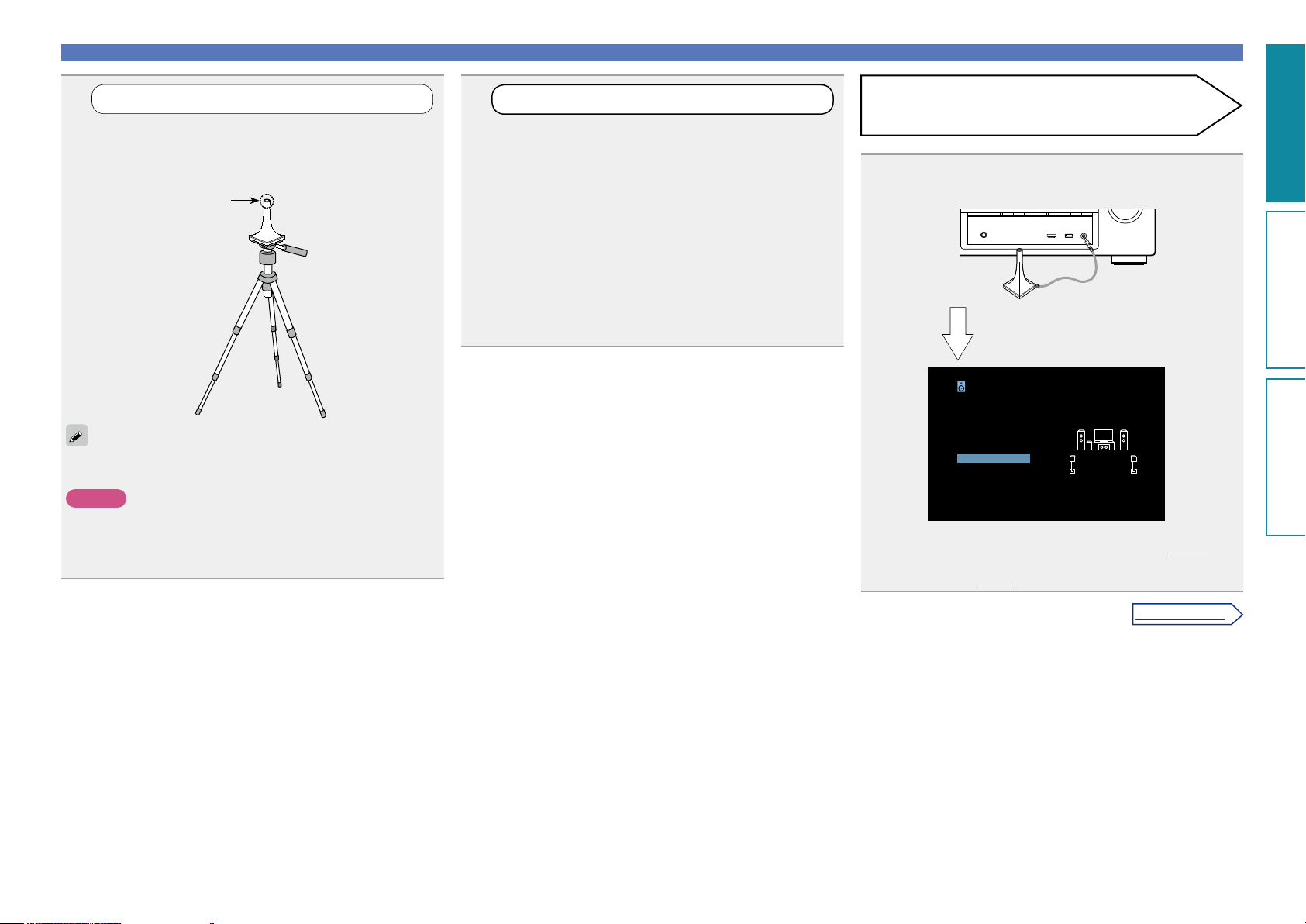

u Setup microphone (ACM1HB) ................................................. 1
i FM indoor antenna .................................................................. 1
t iu
Basic version
Advanced version
Information
3
Cautions on handling
•Before turning the power on
Check once again that all connections are correct and that there are
no problems with the connection cables.
•Power is supplied to some of the circuitry even when the unit is
set to the standby mode. When going on vacation or leaving home
for long periods of time, be sure to unplug the power cord from the
power outlet.
•About condensation
If there is a major difference in temperature between the inside of
the unit and the surroundings, condensation (dew) may form on
the operating parts inside the unit, causing the unit not to operate
properly.
If this happens, let the unit sit for an hour or two with the power
turned off and wait until there is little difference in temperature
before using the unit.
•Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If that
occurs, move the mobile phone away from this unit when it is in use.
•Moving the unit
Turn off the power and unplug the power cord from the power
outlet. Next, disconnect the connection cables to other system units
before moving the unit.
•About care
•Wipe the cabinet and control panel clean with a soft cloth.
•Follow the instructions when using a chemical cleaner.
•Benzene, paint thinner or other organic solvents as well as
insecticide may cause material changes and discoloration if brought
into contact with the unit, and should therefore not be used.
Basic version
Advanced version
Information
5
Important information
Make connections before using this unit.
To create a home theater that can play back higher quality video and audio by fully utilizing the
capabilities of this unit and your video devices, connect this unit to each of your video devices with
HDMI cables.

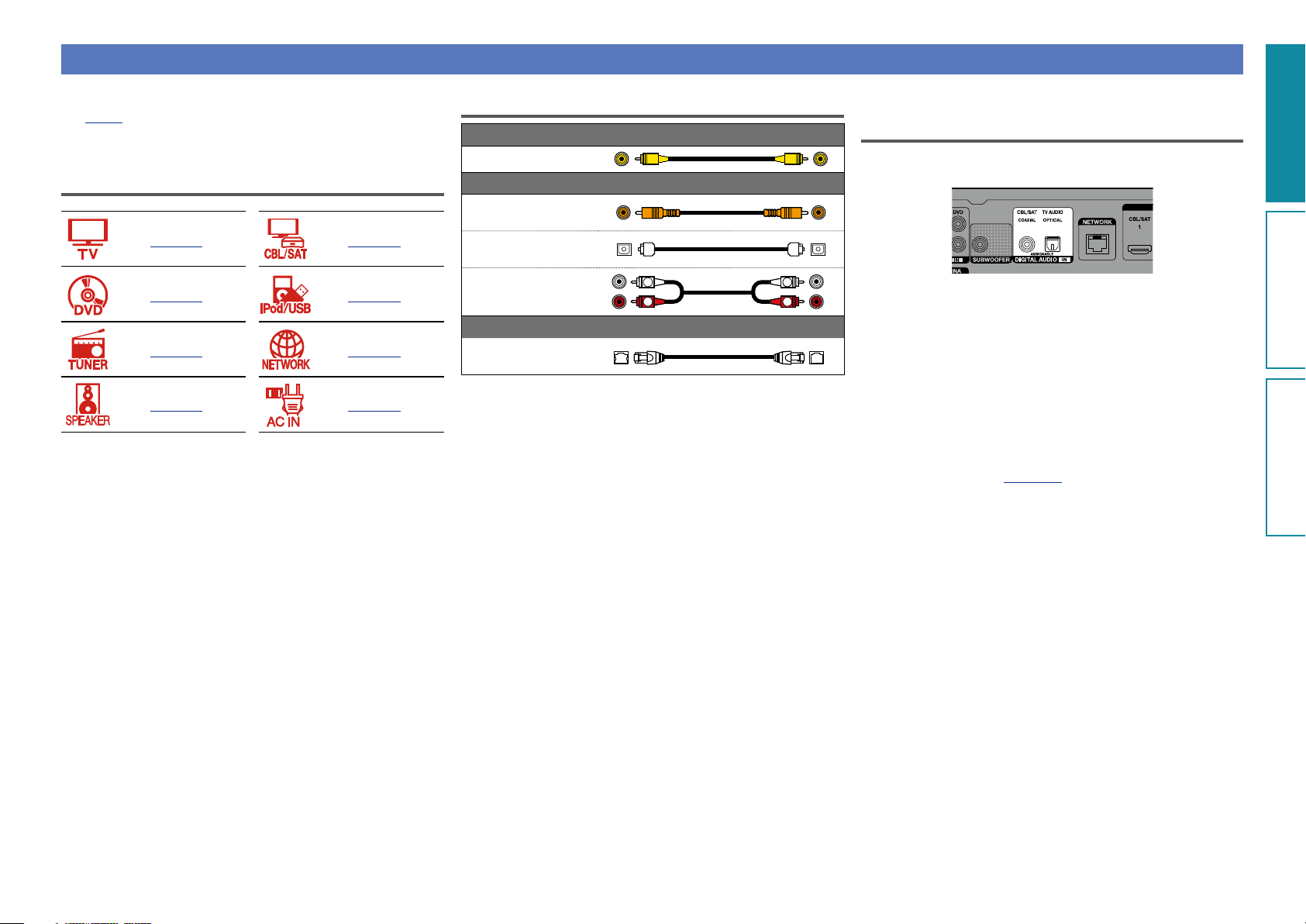

n HDMI-compatible device
If your video device does not support HDMI connections, use the following connection.
n HDMI-incompatible device
This unit can change the source that is assigned to the DIGITAL AUDIO IN connectors.
You can change the source for connectors listed in
Input connector setting within pages that
describe connections for devices.
For details on assigning a source to connectors, see “Changing the source assigned to connectors”
(vpage12). For the setting method, see “Digital Assign” (vpage90).
NOTE
•The menu screen is only displayed on TV connected to this unit via HDMI. If your TV is connected
to this unit via other video output connectors, perform menu operations while seeing the display
on this unit.
•Do not plug in the power cord until all connections have been completed. However, when the “Setup
Assistant” is running, follow the instructions in the “Setup Assistant” (C page 7) screen for making
connections. (During “Setup Assistant” operation, the input/output connectors do not conduct current.)
•When running the “Setup Assistant” (C page 7), turn off the power supply of connected devices.
•When making connections, also refer to the operating instructions of the other devices being connected.
•Be sure to connect the left and right channels properly (left with left, right with right).
•Do not bundle power cords together with connection cables. Doing so can result in noise.
Connections
n HDMI-compatible device
vpage8 vpage10 vpage10
vpage10 vpage10 vpage10
n HDMI-incompatible device
vpage13 vpage14 vpage15
vpage16 vpage17 vpage18
vpage70 vpage19
Basic version
Advanced version
Information
Basic version
6
Important information

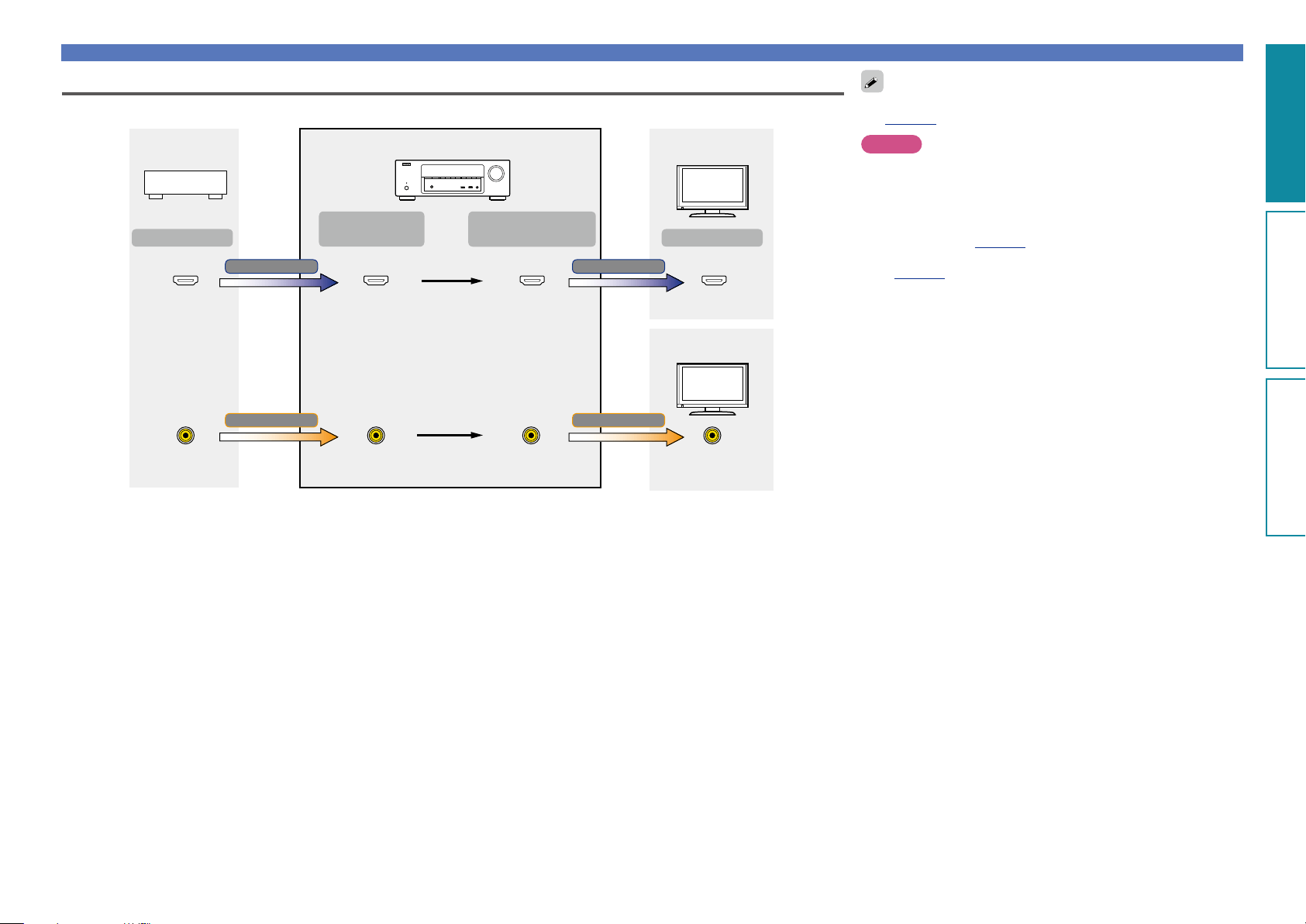

Relationship between video signals and monitor output
GFlow of video signalsH
HDMI connector
HDMI signal HDMI signal
Video signal Video signal
Video connector
HDMI-compatible TV
HDMI-incompatible
TV
HDMI connector
Video connector Video connector
HDMI connectorHDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT)
Input
Resolutions of HDMI-compatible TVs can be checked at “Monitor”
(vpage103).
NOTE
•The menu screen is only displayed on TV connected to this unit
via HDMI. If your TV is connected to this unit via other video
output connectors, perform menu operations while seeing the
display on this unit.
•HDMI signals are digital. HDMI signals cannot be converted into
analog signals (vpage116).
•Analog signals cannot be converted into HDMI signals
(vpage116).
Basic version
Advanced version
Information
Basic version
7
Connecting an HDMI-compatible device
You can connect up to seven HDMI-compatible devices (5-inputs/1-output) to the unit.
If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI
connections. Connections with an HDMI cable offer the following benefits that can not be achieved with
other connection methods.
•High quality playback by transmitting audio and video via digital signals
HDMI connections can transmit high definition video and high quality audio formats adopted by Blu-
ray disc players (Dolby Digital Plus, Dolby TrueHD, dts-HD, dts-HD Master Audio).
HDMI connections also convey information required for playback between devices. The information
is used for copyright protection and TV resolution recognition, the ARC function, the HDMI control
function, etc.
•Transmission of audio and video signals with a single HDMI cable
Previous connections require multiple audio and video cables, but HDMI connections require only a
single HDMI cable to transmit audio and video signals. This allows wires in a home theater system,
which tend to be complicated, to be more organized.
•Mutual control through the HDMI control function (vpage73)
This unit and the HDMI device connected via HDMI can be linked to perform operations such as
power control, volume control, and input source switching.
•Other video and audio functions, such as 3D video playback, Content Type, the ARC function,
are supported (vpage11).
•There is more than one version of HDMI standard. The supported functions and the performance vary
according to the version. This unit complies with the HDMI standard, supporting the ARC and 3D playback
functions. To enjoy these functions, the HDMI device connected to this unit also needs to use the same
version of the standard. For the version of the HDMI standard on the device connected to this unit, see
the device’s manual.
•Some TVs do not support audio input via HDMI connections. For details, see your TV’s manual.
n Before connecting this unit to TV via HDMI connections (vpage8)

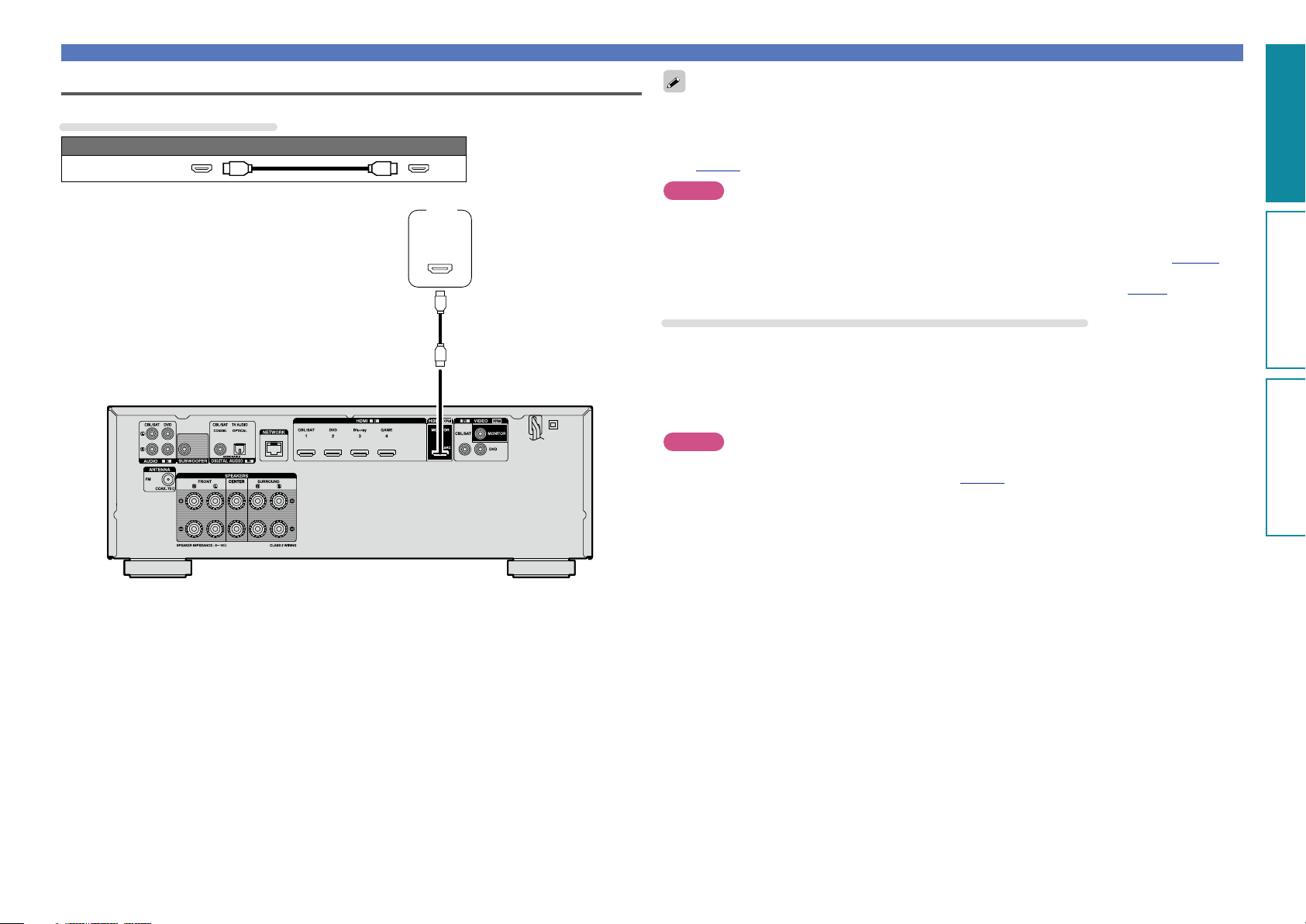

n Connecting this unit to a TV via HDMI connections (
vpage9)

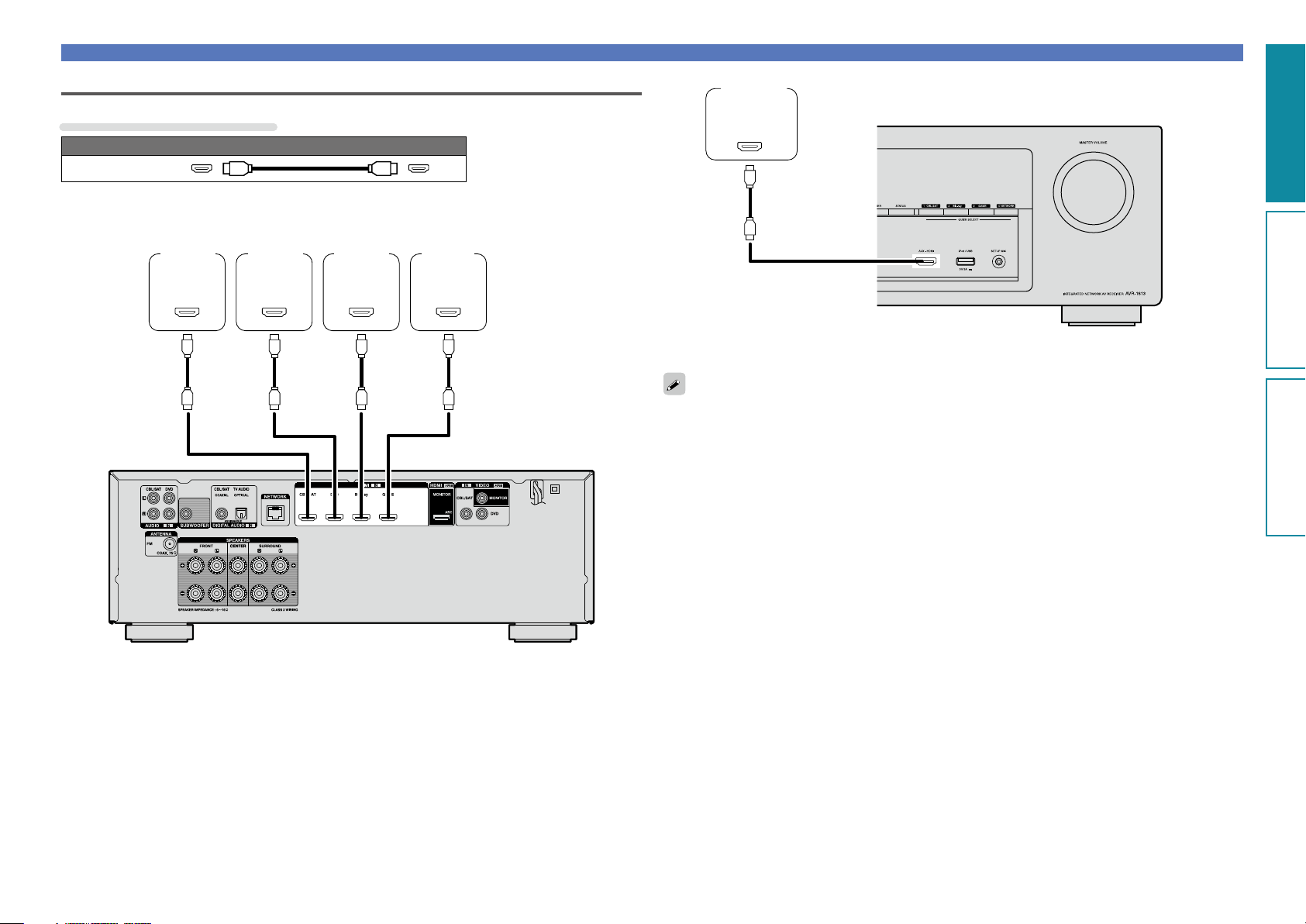

n Connecting this unit to video devices via HDMI connections (vpage10)
n HDMI function (vpage11)
n Settings related to HDMI connections (
vpage11)
Basic version
Advanced version
Information
Basic version
8
Connecting an HDMI-compatible device

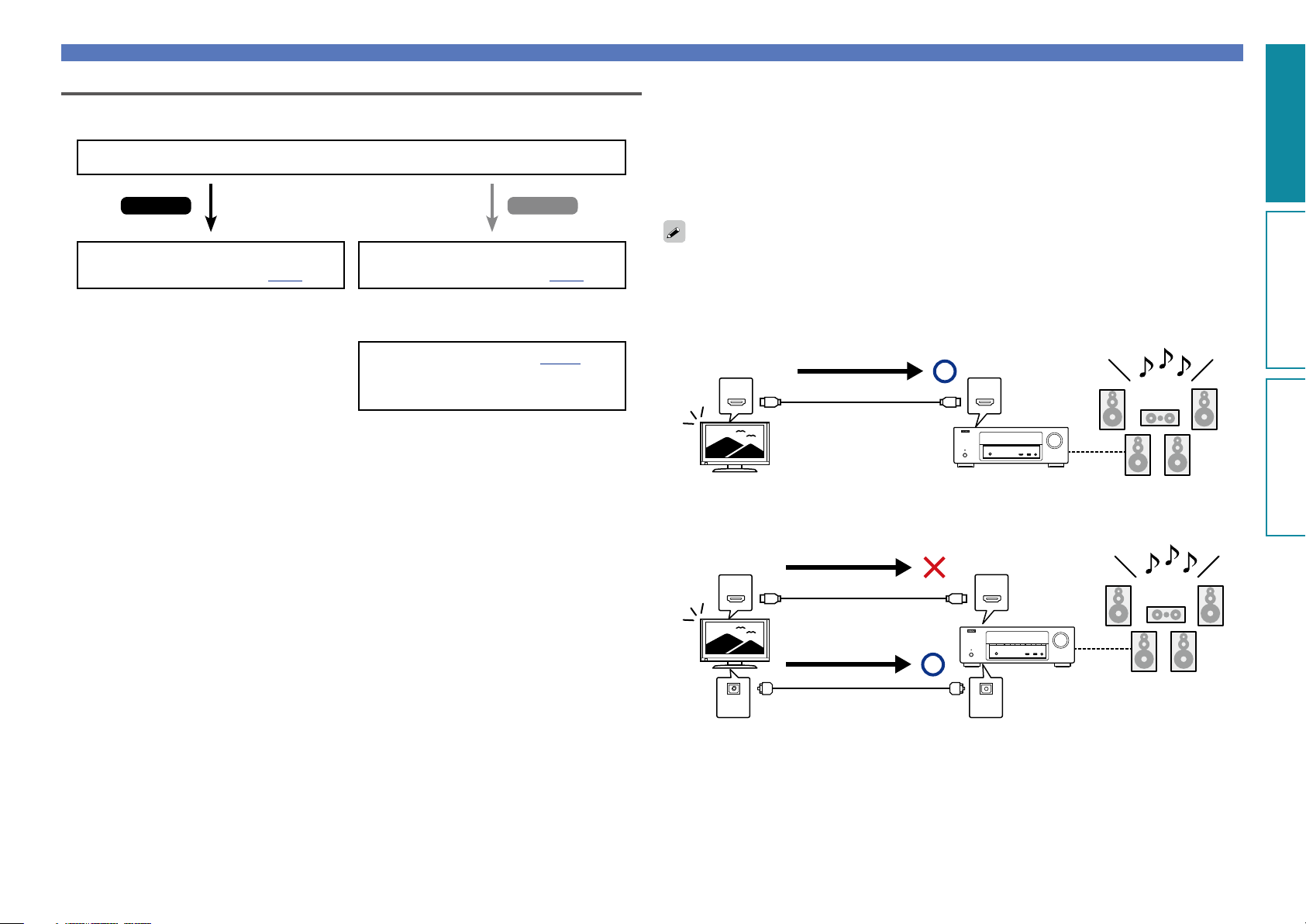

n About ARC (Audio Return Channel) function
This function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.
If a TV without the ARC function is connected via HDMI connections, video signals of the playback
device connected to this unit are transmitted to the TV, but this unit can not play back the audio from
the TV. If you want to enjoy surround audio for TV program, a separate audio cable connection is
required.
In contrast, if a TV with the ARC function is connected via HDMI connections, no audio cable connection
is required. Audio signals from the TV can be input to this unit through the HDMI cable between this
unit and the TV. This function allows you to enjoy surround playback on this unit for the TV.
When the ARC function is used, connect a device with a “Standard HDMI cable with Ethernet” or “High
Speed HDMI cable with Ethernet” for HDMI.
Refer to the owner’s manual for your TV for details about TV connection and settings.
GConnection to a TV with the ARC functionH
IN OUT
Audio signals from the TV
Audio from the TV
This unit SpeakersTV
GConnection to a TV without the ARC functionH
IN OUT
INOUT
Audio signals from the TV
Audio signals from the TV
Optical cable
Audio from the TV
Before connecting this unit to TV via HDMI connections
There are 2 methods to connect HDMI-compatible TV to this unit.
Use the connection method that suits your TV.
Does the TV to be connected to this unit support the ARC function?
Connecting this unit to a TV via
HDMI connections (
vpage9)
Connecting this unit to a TV via
HDMI connections (
vpage9)
Connecting a TV (vpage13)
For audio connections, use a method other
than HDMI connections.
Yes No
+
Basic version
Advanced version
Information
Basic version
9
Connecting an HDMI-compatible device
Connecting this unit to a TV via HDMI connections
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
(ARC)
IN
HDMI
TV
•Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
•When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with
HDMI audio signal playback, only the video signals are output to the monitor. Make audio connections
(vpage13 “Connecting a TV”).
NOTE
•The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
•When connecting a TV that does not support the ARC function, an audio cable connection is
required in addition to the HDMI cable. In this case, refer to “Connecting a TV” (vpage13) for
the connection method.
For the ARC function, see “About ARC (Audio Return Channel) function” (vpage8).
Connecting to a device equipped with a DVI-D connector
The DVI-D (Digital Visual Interface) method is also used for video transmission via digital signals. This is
developed mainly for computers, and some AV devices such as projectors are equipped with this interface.
To output HDMI video signals to a DVI-D video input compatible device, use an HDMI/DVI conversion
cable, which converts HDMI video signals to DVI signals.
The DVI-D connector can transmit high quality digital signals, but the copy guard and other issues may
hinder normal operations for some device combinations.
NOTE
•No sound is output when connected to a device equipped with a DVI-D connector. Make audio
connections as described in “Connecting a TV” (vpage13).
•Signals cannot be output to DVI-D devices that do not support HDCP.
•Depending on the combination of devices, the video signals may not be output.
Basic version
Advanced version
Information
Basic version
10
Connecting an HDMI-compatible device
OUT
HDMI
GFront panelH
Digital
camcorder
•When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an
HDMI cable.
•When connecting a device that supports Deep Color, please use a “High Speed HDMI cable” or “High
Speed HDMI cable with Ethernet”.
•Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
Connecting this unit to video devices via HDMI connections
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
•This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
Blu-ray
Disc
player
DVD
player
Set-top
box
Game
console
GRear panelH
Basic version
Advanced version
Information
Basic version
11
Connecting an HDMI-compatible device
n Deep Color (vpage117)
When a device supporting Deep Color is connected, use a cable compatible with “High Speed HDMI
cable” or “High Speed HDMI cable with Ethernet”.
n Auto Lip Sync (
vpage87, 117)
n “x.v.Color”, sYCC601 color, Adobe RGB color, Adobe YCC601 color
(
vpage117, 118)
n High definition digital audio format
n ARC (Audio Return Channel) (
vpage8)
Copyright protection system
In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both
this unit and TV or the player need to support the copyright protection system known as HDCP (High-
bandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of
data encryption and authentication of the connected AV devices. This unit supports HDCP.
•If a device that does not support HDCP is connected, video and audio are not output correctly. Read
the owner’s manual of your television or player for more information.
Settings related to HDMI connections
Set as necessary. For details, see the respective reference pages.
n HDMI Setup (
vpage87)
Make settings for HDMI video/audio output.
•Auto Lip Sync •HDMI Control •P.Off Control
•HDMI Audio Out •Standby Source
NOTE
The audio signal input from the HDMI input connector can be output as an output signal from the HDMI
output connector by setting the HDMI audio output destination to TV.
Audio signals input via the Analog/Coaxial/Optical input connectors cannot be output from the HDMI
MONITOR output connector.
HDMI function
This unit supports the following HDMI functions:
n About 3D function
This unit supports input and output of 3D (3 dimensional) video signals of HDMI.
To play back 3D video, you need a TV and player that provide support for the HDMI 3D function and a
pair of 3D glasses.
NOTE
•When playing back 3D video, refer to the instructions provided in the manual of your playback device
together with this manual.
•When playing back 3D video content, the menu screen or status display screen can be superimposed
over the image. However, the menu screen or status display screen cannot be superimposed over
certain 3D video content.
•If 3D video with no 3D information is input, the menu screen and status display on this unit are displayed
over the playback video.
•If 2D video is converted to 3D video on the television, the menu screen and status display on this unit
are not displayed correctly. To view the menu screen and status display on this unit correctly, turn the
television setting that converts 2D video to 3D video off.
n HDMI control function (
vpage73)
This function allows you to operate external devices from the unit and operate the unit from external
devices.
NOTE
•The HDMI control function may not work depending on the device it is connected to and its settings.
•You cannot operate a TV or Blu-ray Disc player/DVD player that is not compatible with the HDMI control
function.
n About Content Type
This function was added with the HDMI standard. It automatically makes settings suitable for the video-
output type (content information).
Basic version
Advanced version
Information
Basic version
12
Connecting an HDMI-incompatible device
For high quality video and surround playback, it is recommended to
use an HDMI cable to connect this unit to TV and other video devices
(vpage7 “Connecting an HDMI-compatible device”).
This section describes connections when your device does not
support HDMI connections.

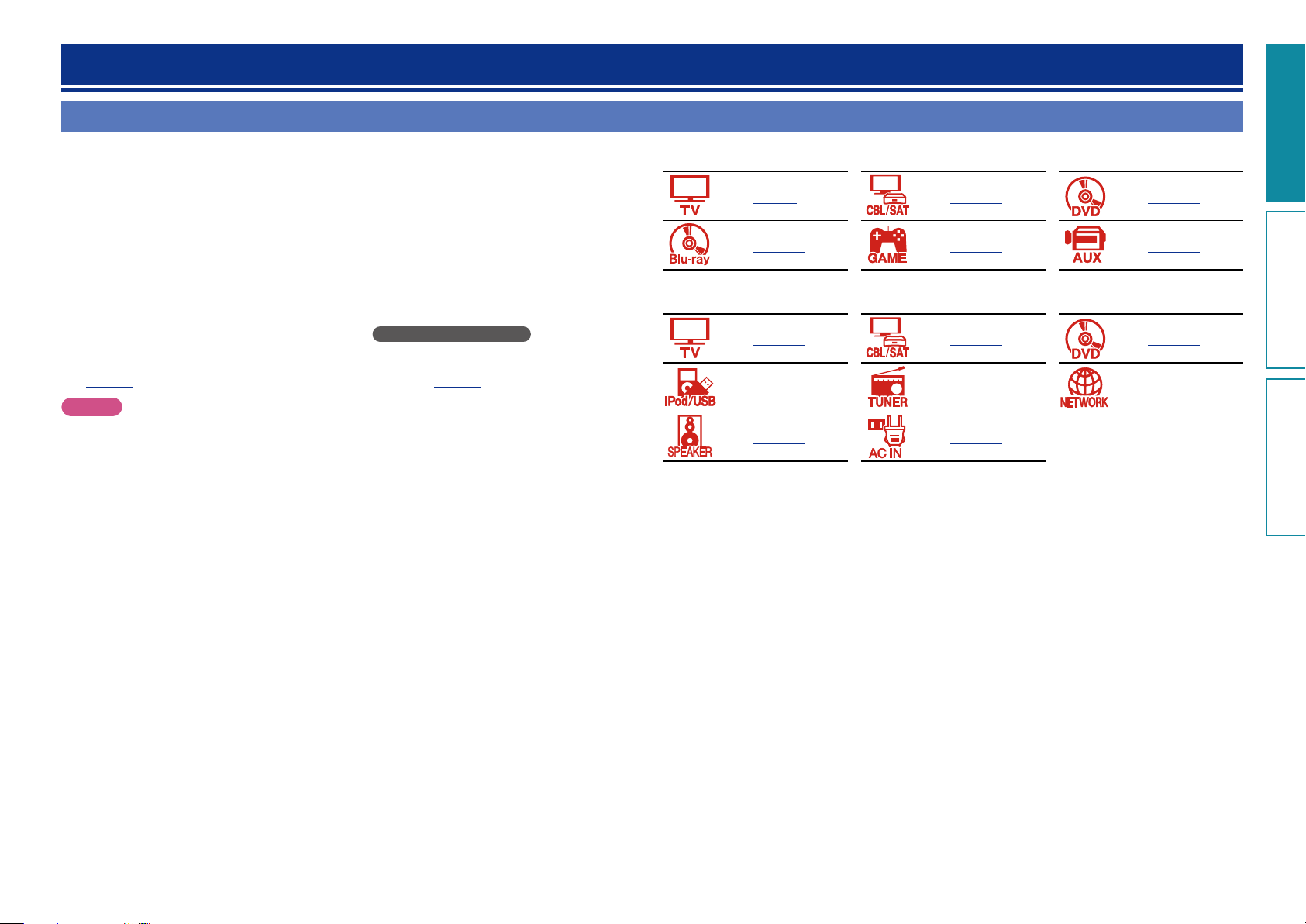

Connection methods for various devices
vpage13 vpage14
vpage15 vpage16
vpage17 vpage18
vpage70 vpage19
Cables used for connections
Video cable (sold separately)
Video cable
Audio cable (sold separately)
Coaxial digital cable
Optical cable
Audio cable
R
L
R
L
Cable (sold separately)
Ethernet cable
Changing the source assigned to
connectors
This unit can change the source that is assigned to the DIGITAL
AUDIO IN connectors.
Here, a connection to the DVD player is taken as an example for
explanation. The rear panel video input and digital audio input
connectors do not have the input connector indication for DVD
players (DVD). However, DIGITAL AUDIO IN connectors have the
“ASSIGNABLE” indication, which means that you can change the
source assigned to these connectors. You can assign DVD players to
these connectors to use them for DVD players. Select “DVD” when
switching functions on this unit to play back the source connected to
these connectors.
n How to change the source assigned to
connectors (
vpage90)
Basic version
Advanced version
Information
Basic version
13

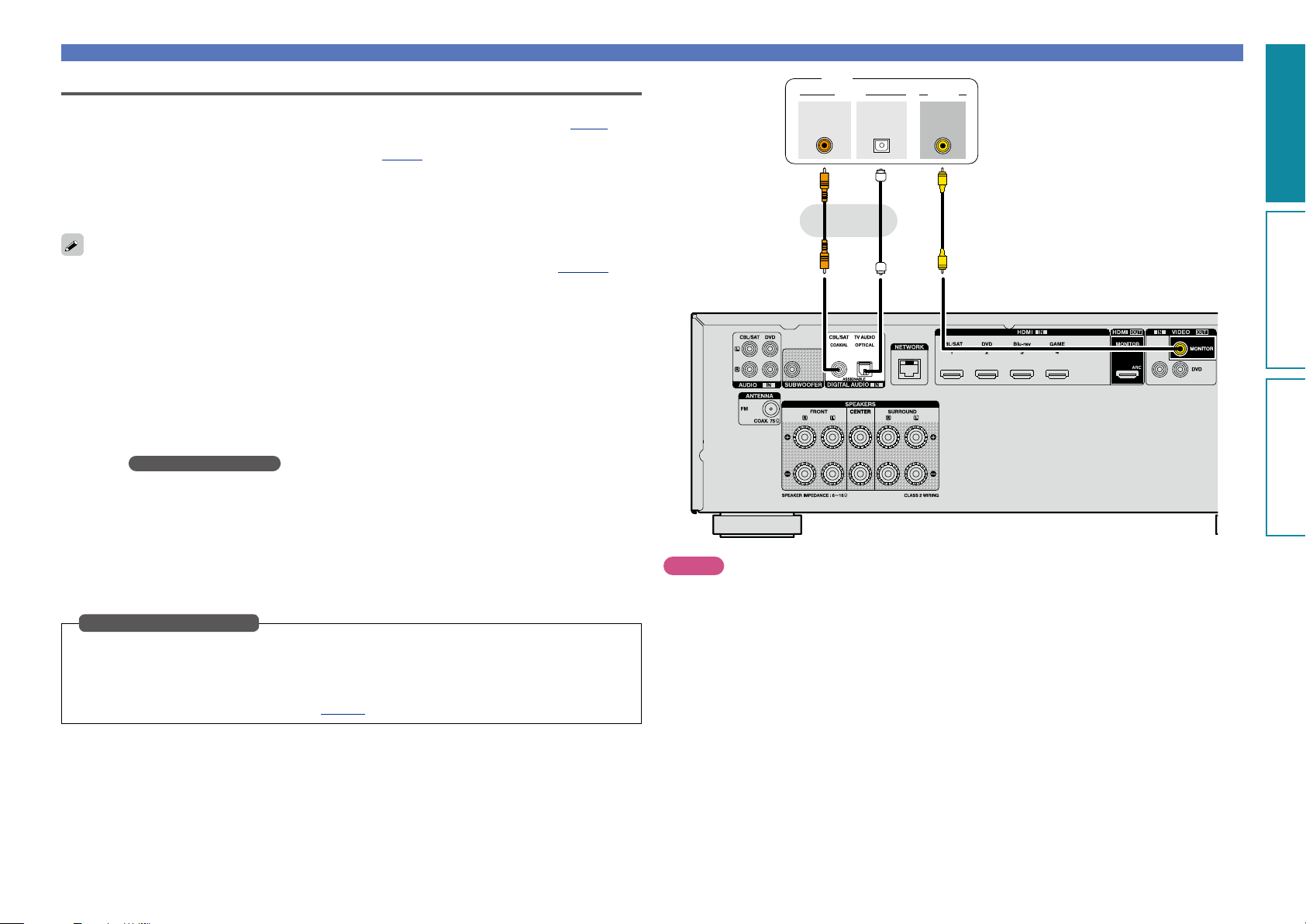

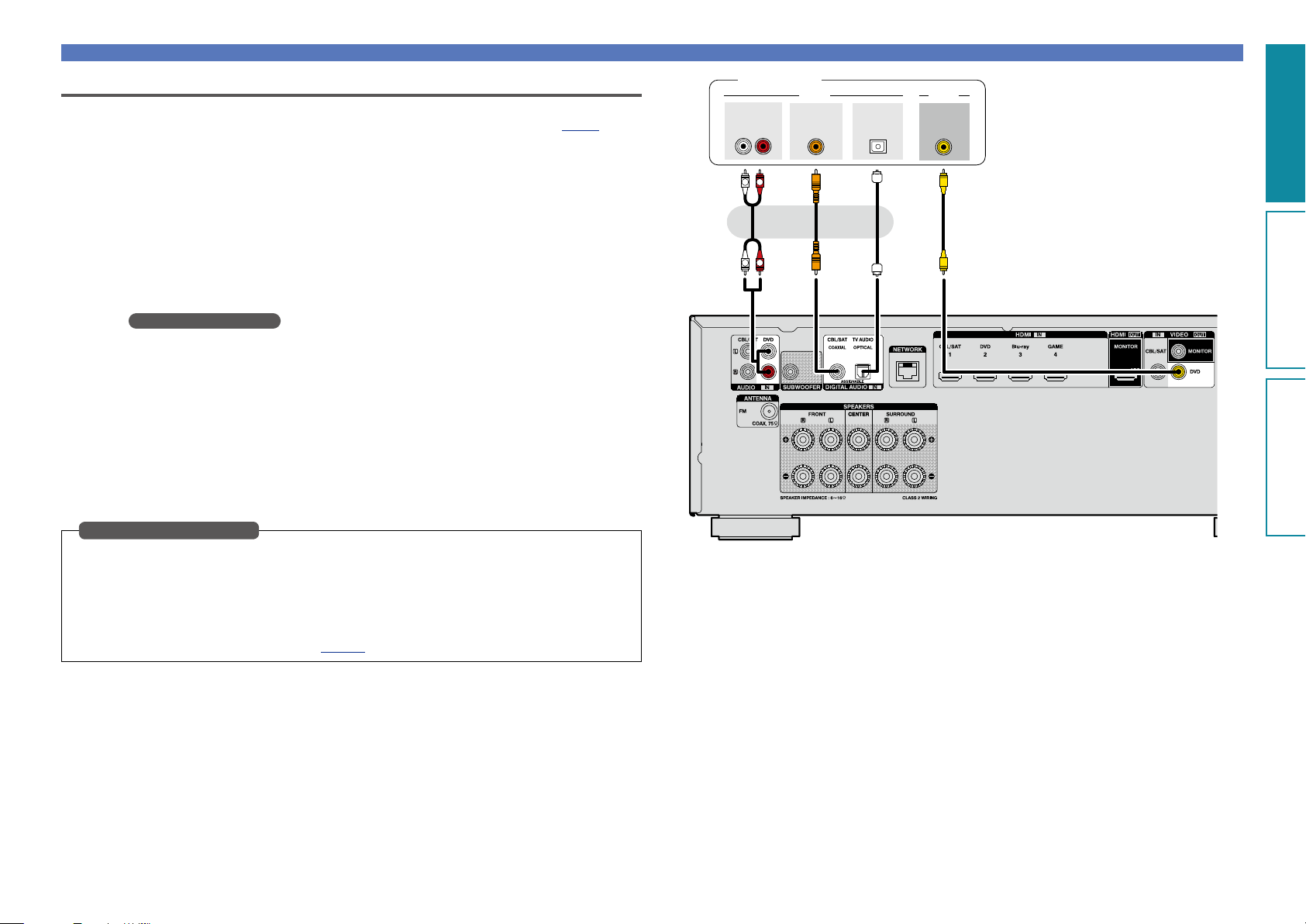

Connecting a TV
•This section describes how to connect when your TV does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (
vpage7).
•If the TV connected to this unit is equipped with an HDMI connector that supports ARC, digital audio
signals from TV can be transmitted to this unit (vpage 8 “About ARC (Audio Return Channel)
function”). The ARC function allows you to enjoy on this unit the audio from TV programs and HDMI
devices directly connected to TV, without having to make a separate audio connection. For the ARC
function, also see your TV’s manual.
•To listen to TV audio through this device, use the optical digital connection.
For video connections, see “Relationship between video signals and monitor output” (vpage116).
n Audio connection
The following methods are available for connecting to this unit. Use either of the methods to make
a connection.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a DIGITAL AUDIO OPTICAL connector
DIGITAL AUDIO COAXIAL connector
z
When a multichannel audio (digital bit stream audio) is input, this unit decodes the audio to play
back surround sound.
z When making this type of connection, you must change the settings on this unit.
(v
Input connector setting )
n Video connection
The following methods are available for connecting to this unit.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a VIDEO OUT (MONITOR) connector
This makes an analog video connection.
When making the following connection, you must change the input connector settings.
a DIGITAL AUDIO COAXIAL connector
Change the default “CBL/SAT” to “TV AUDIO”.
For how to change, see “Digital Assign” (vpage90).
Input connector setting
VIDEOAUDIO
IN
VIDEO
OUT
COAXIAL
OPTICAL
OUT
a a a
TV
or
NOTE
The menu screen is only displayed on TV connected to this unit via HDMI. If your TV is connected
to this unit via other video output connectors, perform menu operations while seeing the display
on this unit.
Connecting an HDMI-incompatible device
Basic version
Advanced version
Information
Basic version
14
a a as
R
L
R
L
VIDEOAUDIO
AUDIO
RL
OUT
OUT
VIDEO
OUT
COAXIAL
OPTICAL
OUT
Satellite tuner/Cable TV
or or

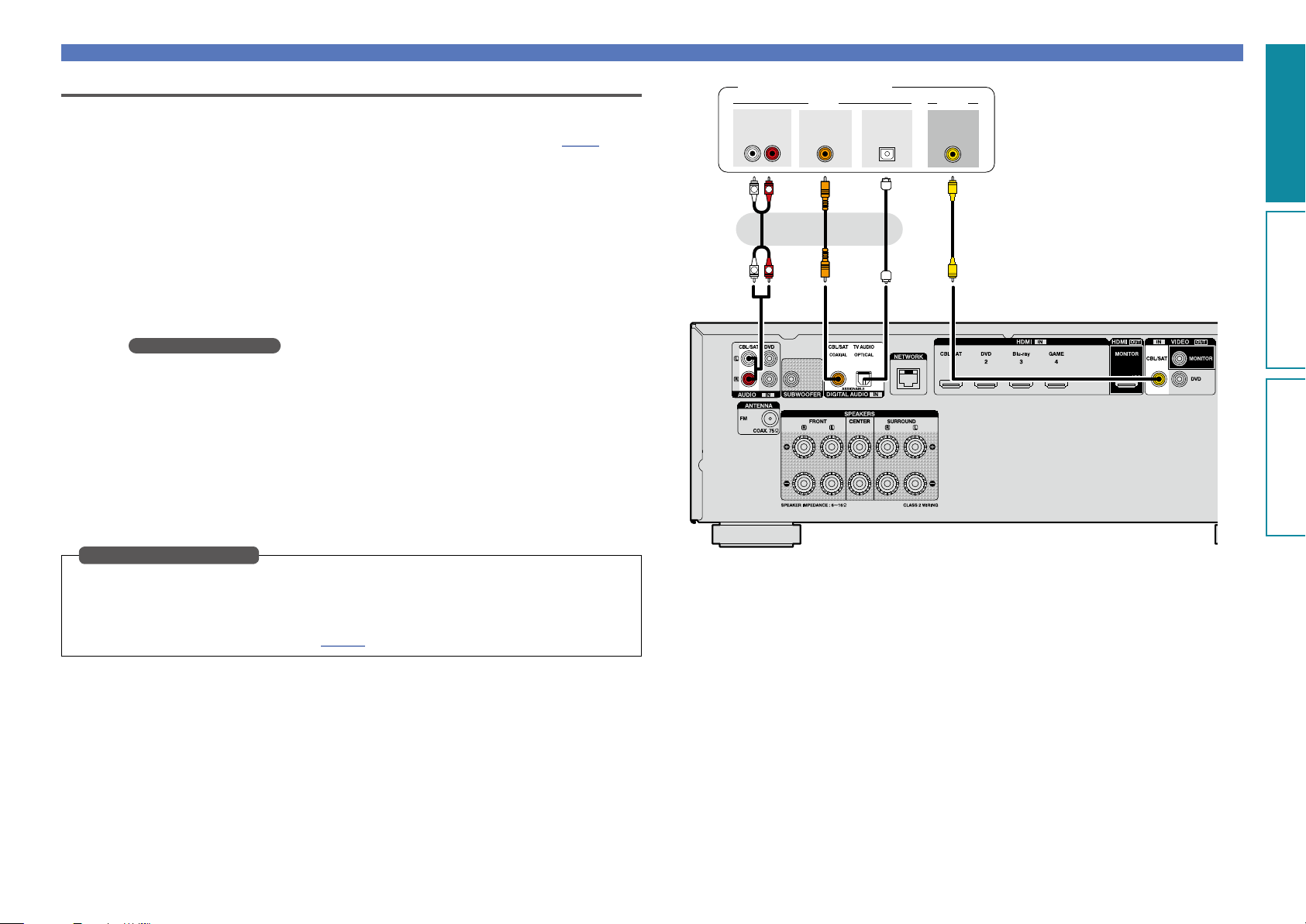

Connecting a set-top box (Satellite tuner/cable TV)
This section describes how to connect when your satellite tuner or cable TV does not support HDMI
connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (
vpage7).
n Audio connection
The following methods are available for connecting to this unit. Use either of the methods to make
a connection.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a DIGITAL AUDIO COAXIAL connector
DIGITAL AUDIO OPTICAL connector
z
When a multichannel audio (digital bit stream audio) is input, this unit decodes the audio to play
back surround sound.
z When making this type of connection, you must change the settings on this unit.
(v
Input connector setting )
s AUDIO IN (CBL/SAT) connector
This makes an analog audio connection. This type of connection converts digital audio to analog
audio, so the output audio may be degraded compared to connections a.
n Video connection
The following methods are available for connecting to this unit.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a VIDEO IN (CBL/SAT) connector
This makes an analog video connection.
When making the following connection, you must change the input connector settings.
a DIGITAL AUDIO OPTICAL connector
Change the default “TV AUDIO” to “CBL/SAT”.
For how to change, see “Digital Assign” (vpage90).
Input connector setting
Connecting an HDMI-incompatible device
Basic version
Advanced version
Information
Basic version
15
Connecting an HDMI-incompatible device
Connecting a DVD player
This section describes how to connect when your DVD player does not support HDMI connections.
For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (
vpage7).
n Audio connection
The following methods are available for connecting to this unit. Use either of the methods to make
a connection.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a DIGITAL AUDIO COAXIAL connector
DIGITAL AUDIO OPTICAL connector
When a multichannel audio (digital bit stream audio) is input, this unit decodes the audio to play
back surround sound.
When making this type of connection, you must change the settings on this unit.
(v
Input connector setting )
s AUDIO IN (DVD) connector
This makes an analog audio connection. This type of connection converts digital audio to analog
audio, so the output audio may be degraded compared to connections a.
n Video connection
The following methods are available for connecting to this unit.
The numbers prefixed with connectors indicate the recommendation order. The smaller the number is,
the higher playback quality is achieved.
a VIDEO IN (DVD) connector
This makes an analog video connection.
When making the following connection, you must change the input connector settings.
a DIGITAL AUDIO COAXIAL connector
Change the default “CBL/SAT” to “DVD”.
DIGITAL AUDIO OPTICAL connector
Change the default “TV AUDIO” to “DVD”.
For how to change, see “Digital Assign” (vpage90).
Input connector setting
a a as
R
L
R
L
VIDEOAUDIO
AUDIO
RL
OUT
OUT
VIDEO
OUT
COAXIAL
OPTICAL
OUT
DVD player
or or
Basic version
Advanced version
Information
Basic version
16

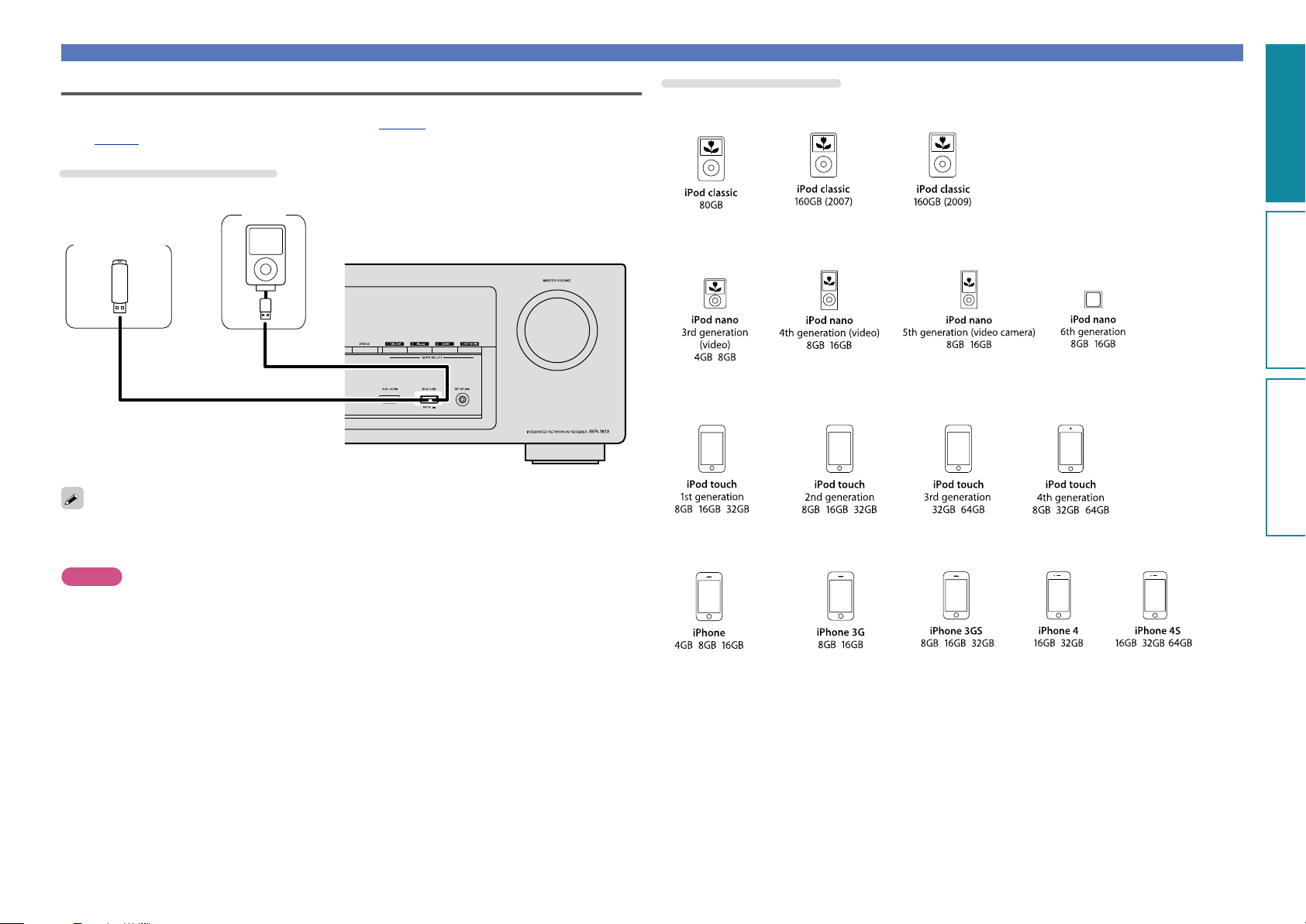

Connecting an iPod or USB memory device to the iPod/USB port
•You can enjoy music stored on an iPod or USB memory device.
•For operating instructions see “Playing an iPod” (
vpage 29) or “Playing a USB memory device”
(vpage32).
Cables used for connections
To connect an iPod to this unit, use the USB cable supplied with the iPod.
USB memory
device
iPod
or
DENON does not guarantee that all USB memory devices will operate or receive power. When using a
portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power,
use the AC adapter.
NOTE
•USB memory devices will not work via a USB hub.
•It is not possible to use this unit by connecting the unit’s iPod/USB port to a PC via a USB cable.
•Do not use an extension cable when connecting a USB memory device. This may cause radio interference
with other devices.
•This unit does not support playback on an iPad. Do not connect an iPad to the unit.
•When connecting an iPhone to this unit, keep the iPhone at least 20 cm away from this unit. If the iPhone
is kept closer to this unit and a telephone call is received by the iPhone, noise may be output from this
device.
•If the iPod is connected using an iPod cable (commercially available) that is longer than 2 m (6.6 ft), sound
may not be played correctly. In this case, use a genuine iPod cable, or a cable that is shorter than 1 m
(3.3 ft).
Connecting an HDMI-incompatible device
Supported iPod models
•iPod / iPod classic
•iPod nano
•iPod touch
•iPhone
(as of March 2012)
Basic version
Advanced version
Information
Basic version
17

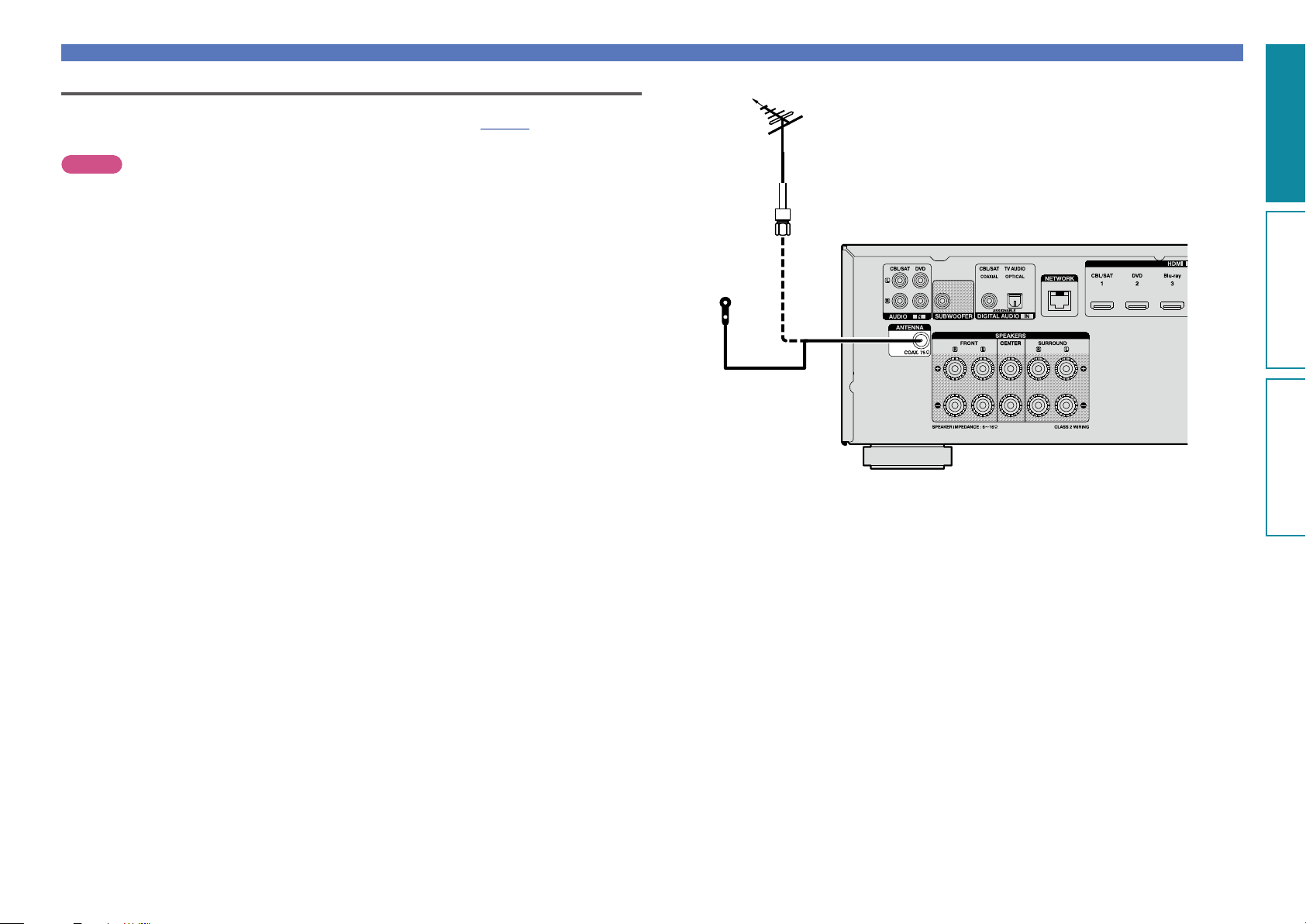

Connecting an FM antenna
•Connect the FM antenna supplied with the unit to enjoy listening to radio broadcasts.
•After connecting the antenna and receiving a broadcast signal (
vpage 35 “Listening to FM
broadcasts”), fix the antenna with tape in a position where the noise level becomes minimal.
NOTE
•Do not connect two FM antennas simultaneously.
•If you are unable to receive a good broadcast signal, we recommend installing an outdoor antenna. For
details, inquire at the retail store where you purchased the unit.
Connecting an HDMI-incompatible device
FM outdoor
antenna
Direction of broadcasting station
75 Ω coaxial
cable
FM indoor antenna
(supplied)
Basic version
Advanced version
Information
Basic version
18

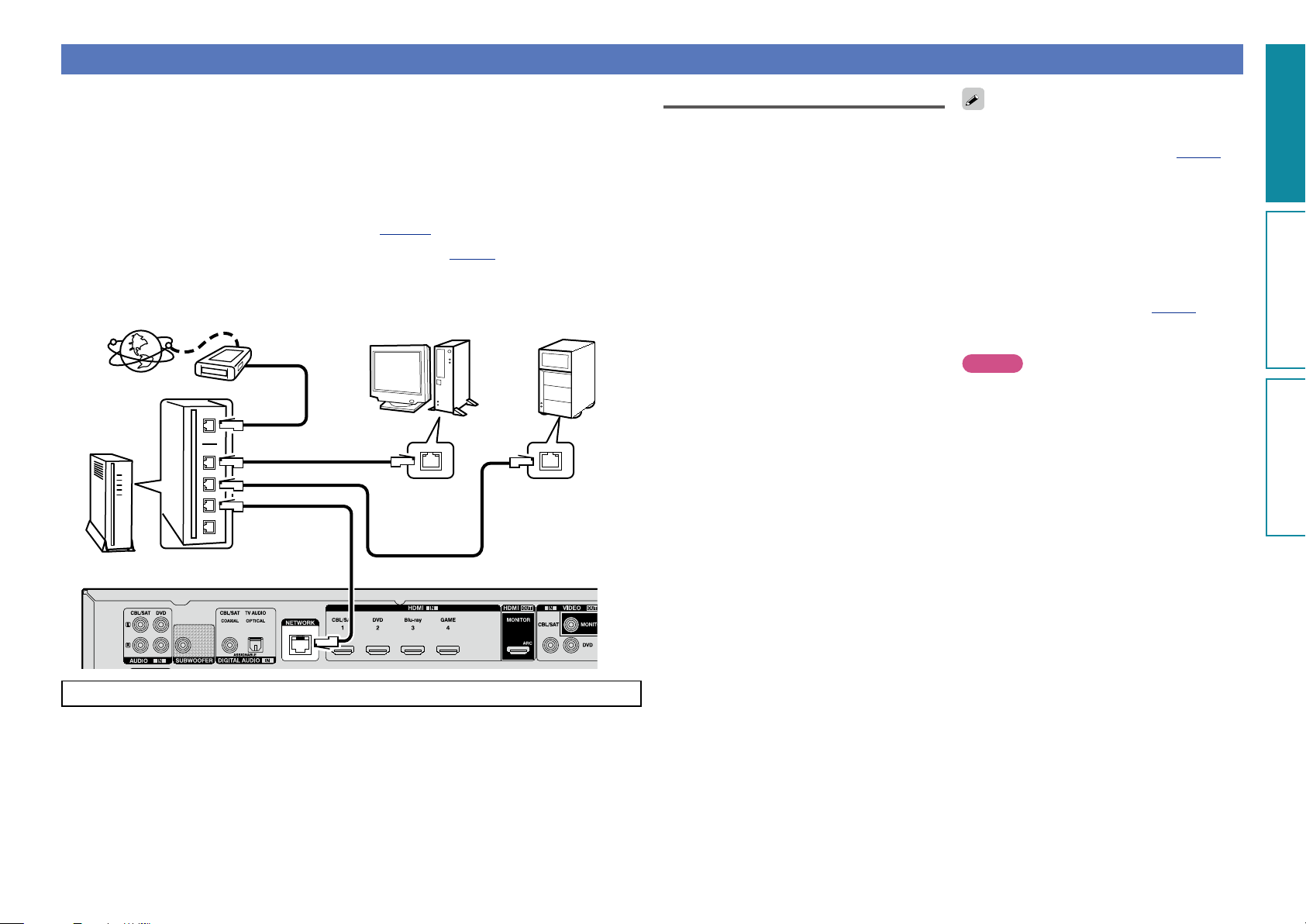

Connecting to a home network (LAN)
You can connect this unit to your home network (LAN) to perform various types of playbacks and operations
as follows. Make network connections for this unit by carefully reading information on this page.
•Playback of network audio such as the Internet radio and music servers
•Playback of music from online services
•AirPlay
•Operations on this unit via the network
In addition, when an updated firmware becomes available for improving this unit, the update information is
delivered from us to this unit over the network. You can then download the latest firmware.
For more information, on the menu, select “Update” (vpage104).
Network settings are necessary. See “Network” on the menu (vpage 97) for more information on
network setting.
Internet
To WAN side
Router
To LAN port
To LAN port
LAN port/
Ethernet
connector
LAN port/
Ethernet
connector
PC
NAS
(Network Attached
Storage)
Modem
For connections to the Internet, contact an ISP (Internet Service Provider) or a computer shop.
Required system
n Broadband internet connection
n Modem
Device that connects to the broadband circuit
and conducts communications on the Internet.
A type that is integrated with a router is also
available.
n Router
When using this unit, we recommend you use
a router equipped with the following functions:
•Built-in DHCP server
This function automatically assigns IP
addresses on the LAN.
•Built-in 100BASE-TX switch
When connecting multiple devices, we
recommend a switching hub with a speed of
100 Mbps or greater.
n Ethernet cable
(CAT-5 or greater recommended)
•Use only a shielded STP or ScTP LAN cable
which is available at retailer.
•The normal shielded-type Ethernet cable
is recommended. If a flat-type cable or
unshielded-type cable is used, other devices
could be affected by noise.
•If you have an Internet provider contract for a line
on which network settings are made manually,
make the settings at “Network” (vpage97).
•With this unit, it is possible to use the DHCP and
Auto IP functions to make the network settings
automatically.
•When using this unit with the broadband router’s
DHCP function enabled, this unit automatically
performs the IP address setting and other
settings.
When using this unit connected to a network with
no DHCP function, make the settings for the IP
address, etc., at “Network” (vpage97).
•When setting manually, check the setting
contents with the network administrator.
NOTE
•A contract with an ISP is required to connect to
the Internet.
No additional contract is needed if you already
have a broadband connection to the Internet.
•The types of routers that can be used depend on
the ISP. Contact an ISP or a computer shop for
details.
•DENON assumes no responsibility whatsoever
for any communication errors or troubles
resulting from customer’s network environment
or connected devices.
•This unit is not compatible with PPPoE. A PPPoE-
compatible router is required if you have a contract
for a type of line set by PPPoE.
•Do not connect an NETWORK connector directly
to the LAN port/ Ethernet connector on your
computer.
•To listen to audio streaming, use a router that
supports audio streaming.
Basic version
Advanced version
Information
Basic version
19

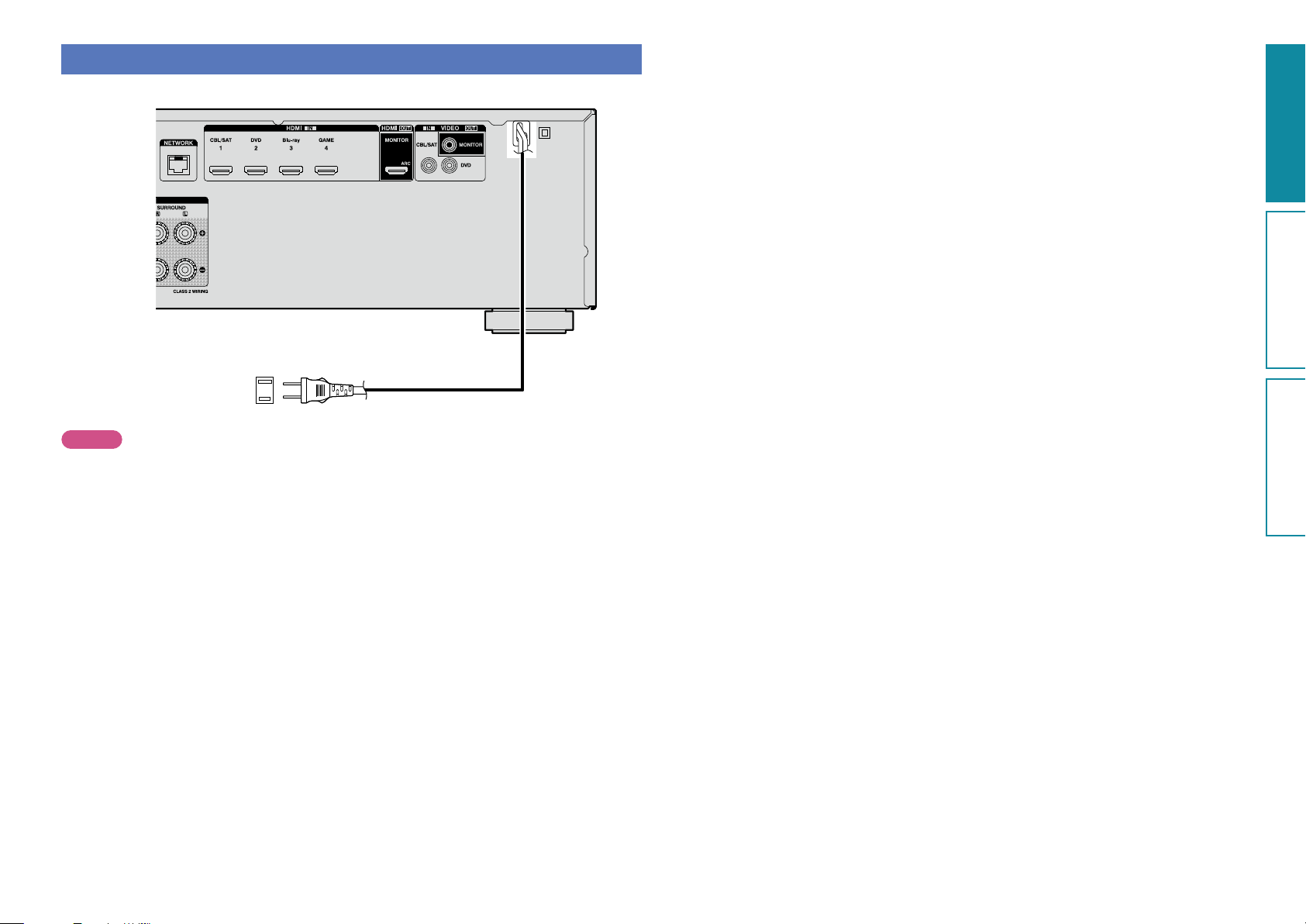

Connecting the power cord
After completing all the connections, insert the power plug into the power outlet.
To household power outlet
(AC 120 V, 60 Hz)
Power cord
NOTE
•Do not plug in the power cord until all connections have been completed.
•Do not bundle power cords together with connection cables. Doing so can result in humming or noise.
Basic version
Advanced version
Information
Basic version
20

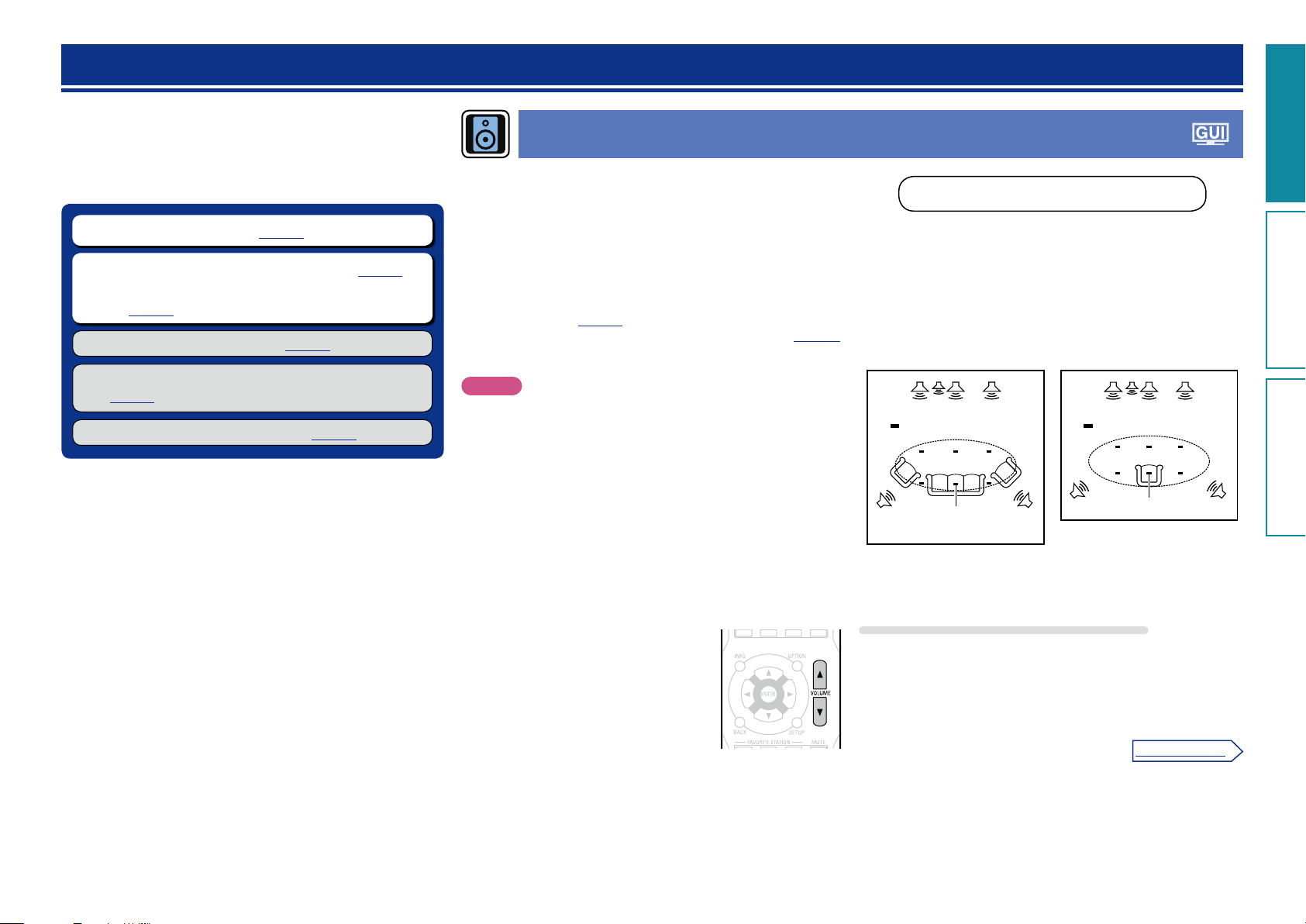

The acoustic characteristics of the connected speakers and
listening room are measured and the optimum settings are made
automatically. This is called “Audyssey
®
Setup”.
To perform measurement, place the setup microphone in
multiple locations all around the listening area. For best results,
we recommend you measure in six positions, as shown in the
illustration (up to six positions).
•When performing Audyssey
®
Setup, Audyssey MultEQ
®
/
Audyssey Dynamic EQ
®
/Audyssey Dynamic Volume
®
functions
become active (vpage84).
•To set up the speakers manually, use “Speakers” (vpage 93)
on the menu.
NOTE
•Make the room as quiet as possible. Background noise can disrupt
the room measurements. Close windows and turn off the power on
electronic devices (TVs, radios, air conditioners, fluorescent lights,
etc.). The measurements could be affected by the sounds emitted
by such devices.
•During the measurement process, place cell phones outside the
listening room. Cell phone signals could disrupt the measurements.
•Do not unplug the setup microphone from the main unit until
Audyssey
®
Setup is completed.
•Do not stand between the speakers and setup microphone or allow
obstacles in the path while the measurements are being made. This
will cause inaccurate readings.
•During the measurement process, loud test sounds may be played,
but this is part of normal operation. If there is background noise in
room, these test signals will increase in volume.
•Operating
VOLUME df on the remote
control unit or MASTER VOLUME on the
main unit during the measurements will
cancel the measurements.
•Measurement cannot be performed when
headphones are connected. Unplug the
headphones before performing Audyssey
®
Setup.
Settings
Here, we explain “Audyssey
®
Setup”, which allows you to
automatically make the optimal settings for your speakers, and
“Network”, which allows you to connect this unit to a home network
(LAN).
This unit lets you play via your home network (LAN) music files stored
on a computer and music content such as that from Internet radio.

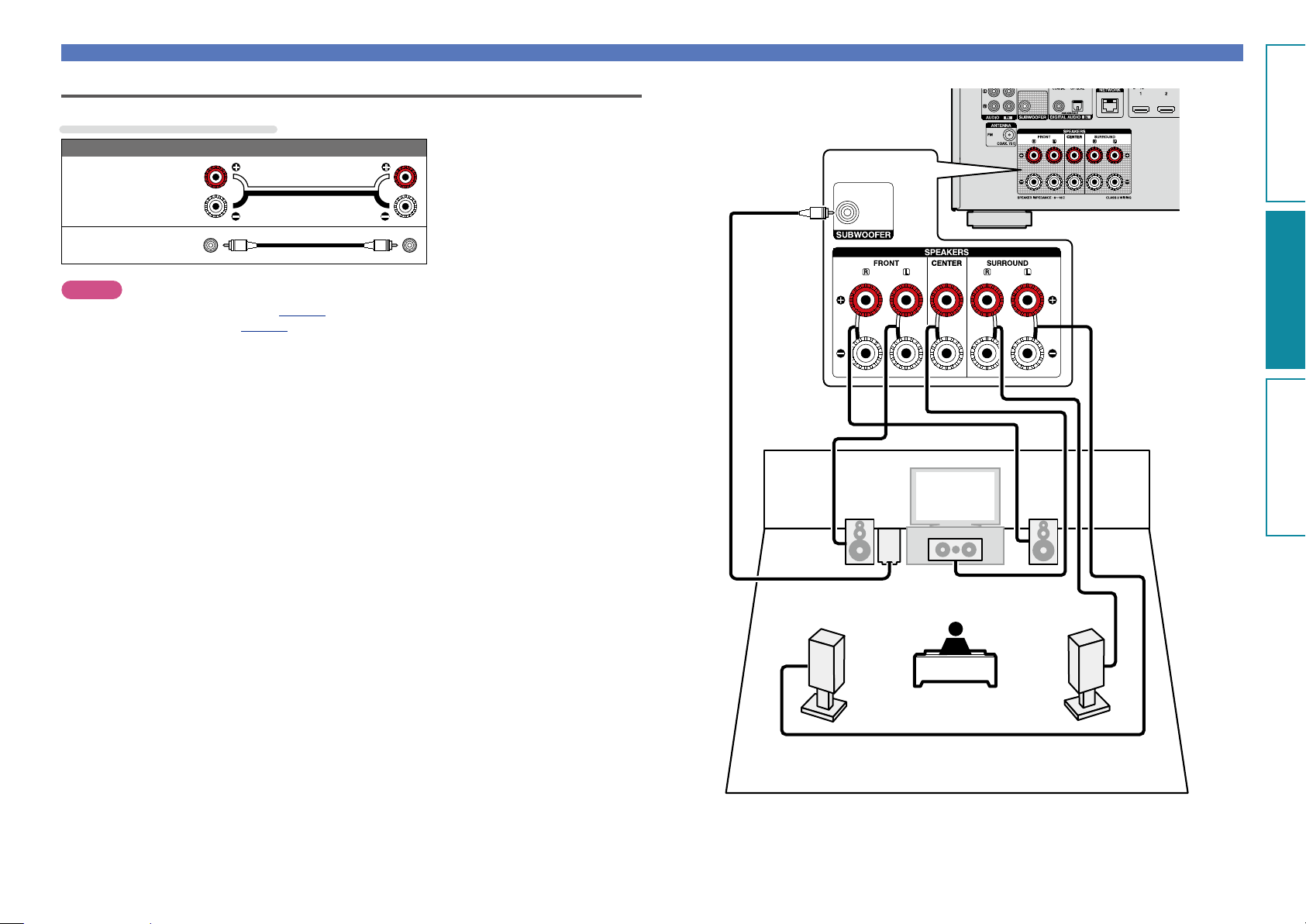

n Speaker connection (vpage70)
n Set up speakers (Audyssey
®
Setup) (vpage20)
n Making the network settings (Network)
(
vpage26)
Playback (Basic operation) (vpage27)
Selecting a listening mode (Sound Mode)
(vpage64)
Playback (Advanced operation) (vpage73)
Set up speakers (Audyssey
®
Setup)

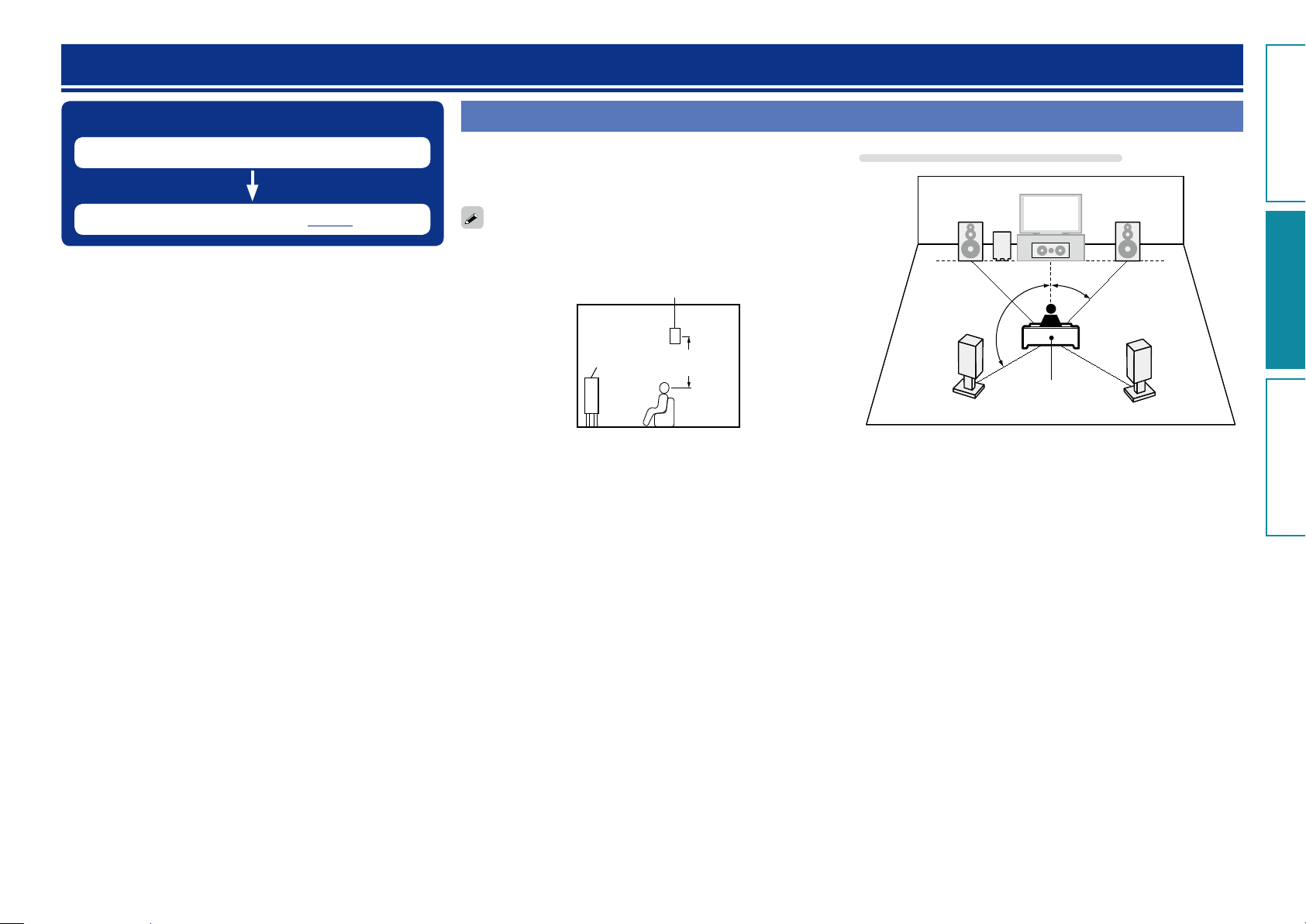

About setup microphone placement
•Measurements are performed by placing the setup microphone
successively at multiple positions throughout the entire listening
area, as shown in GExample qH. For best results, we recommend
you measure in six positions, as shown in the illustration (up to six
positions).
•Even if the listening environment is small as shown in GExample wH,
measuring at multiple points throughout the listening environment
results in more effective correction.
FL SW C FR
SRSL
*
M
FL SW C FR
SRSL
*
M
(
: Measuring positions)
GExample qH GExample wH
(
: Measuring positions)
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
About the main listening position (*M)
The main listening position is the position where listeners would
normally sit or where one would normally sit alone within the listening
environment. Before starting Audyssey
®
Setup, place the setup
microphone in the main listening position. Audyssey MultEQ
®
uses
the measurements from this position to calculate speaker distance,
level, polarity, and the optimum crossover value for the subwoofer.
Basic version
Advanced version
Information
Basic version
v See overleaf
21
2
Set up the subwoofer
If using a subwoofer capable of the following
adjustments, set up the subwoofer as shown below.
For details, see your subwoofer’s manual.
n When using a subwoofer with a direct mode
Set the direct mode to “On” and disable the volume adjustment
and crossover frequency setting.
n When using a subwoofer without a direct mode
Make the following settings:
•Volume : “12 o’clock position”
•Crossover frequency : “Maximum/Highest Frequency”
•Low pass filter : “Off”
•Standby mode : “Off”
1
Prepare the included setup microphone
Mount the setup microphone on a tripod or stand
and place it in the main listening position.
When placing the setup microphone, adjust the height of the
sound receptor to the level of the listener’s ear.
Sound receptor
Setup
microphone
If you do not have a tripod or stand, set up the microphone on, for
example, a seat without a back.
NOTE
•Do not hold the setup microphone in your hand during
measurements.
•Avoid placing the setup microphone close to a seat back or wall as
sound reflections may give inaccurate results.
Set up speakers (Audyssey
®
Setup)
3
Connect the setup microphone to the SETUP MIC
jack of this unit.
Audyssey Setup
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
Start
When the setup microphone is
connected, the following screen is
displayed.
•For information about setting up and connecting the speakers, see
“Installation/connection of speakers (Advanced)” (vpage69).
•For connection to a TV, see “Connecting this unit to a TV via HDMI
connections” (vpage9).
Preparation
Basic version
Advanced version
Information
Basic version
v See overleaf
22

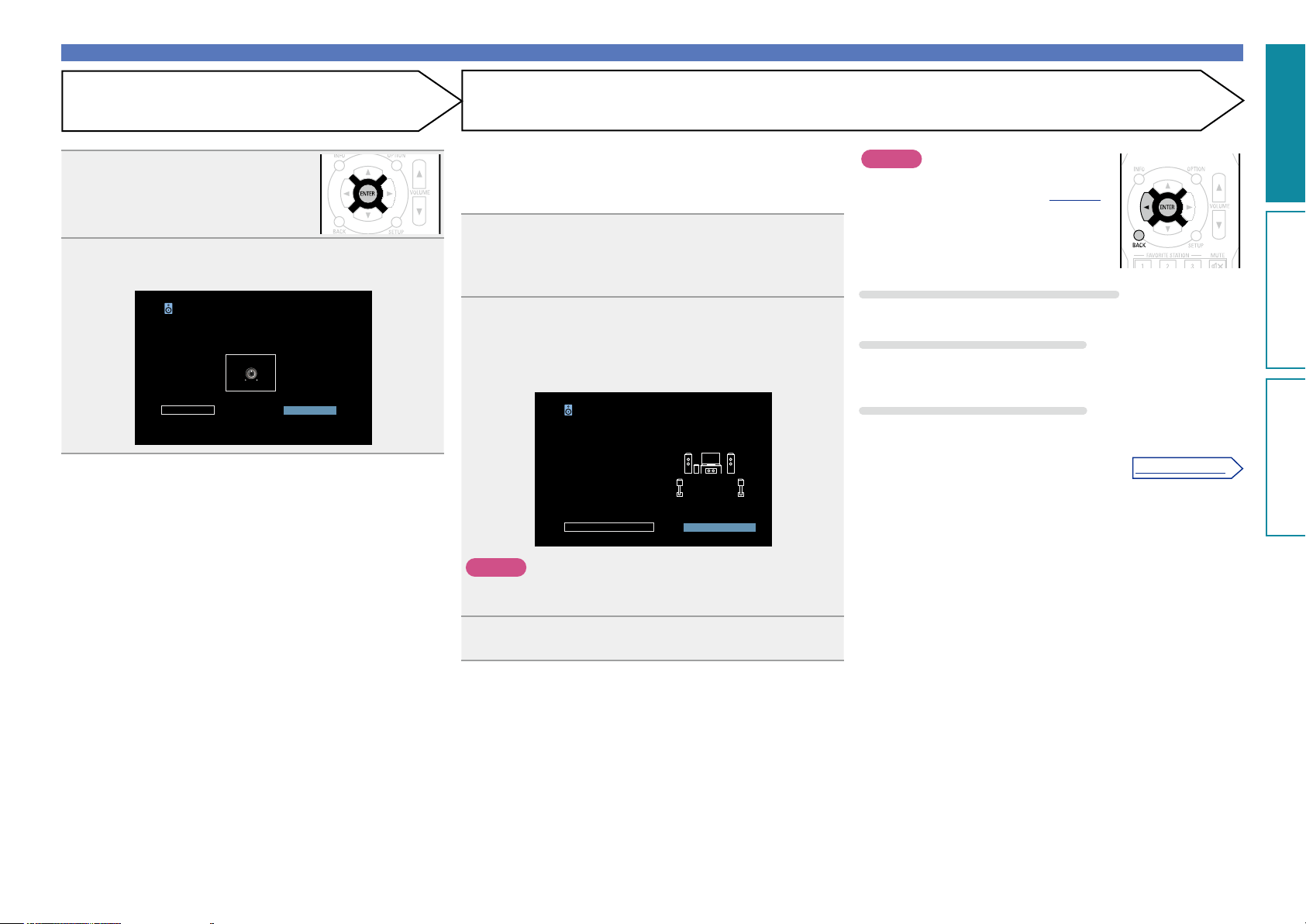

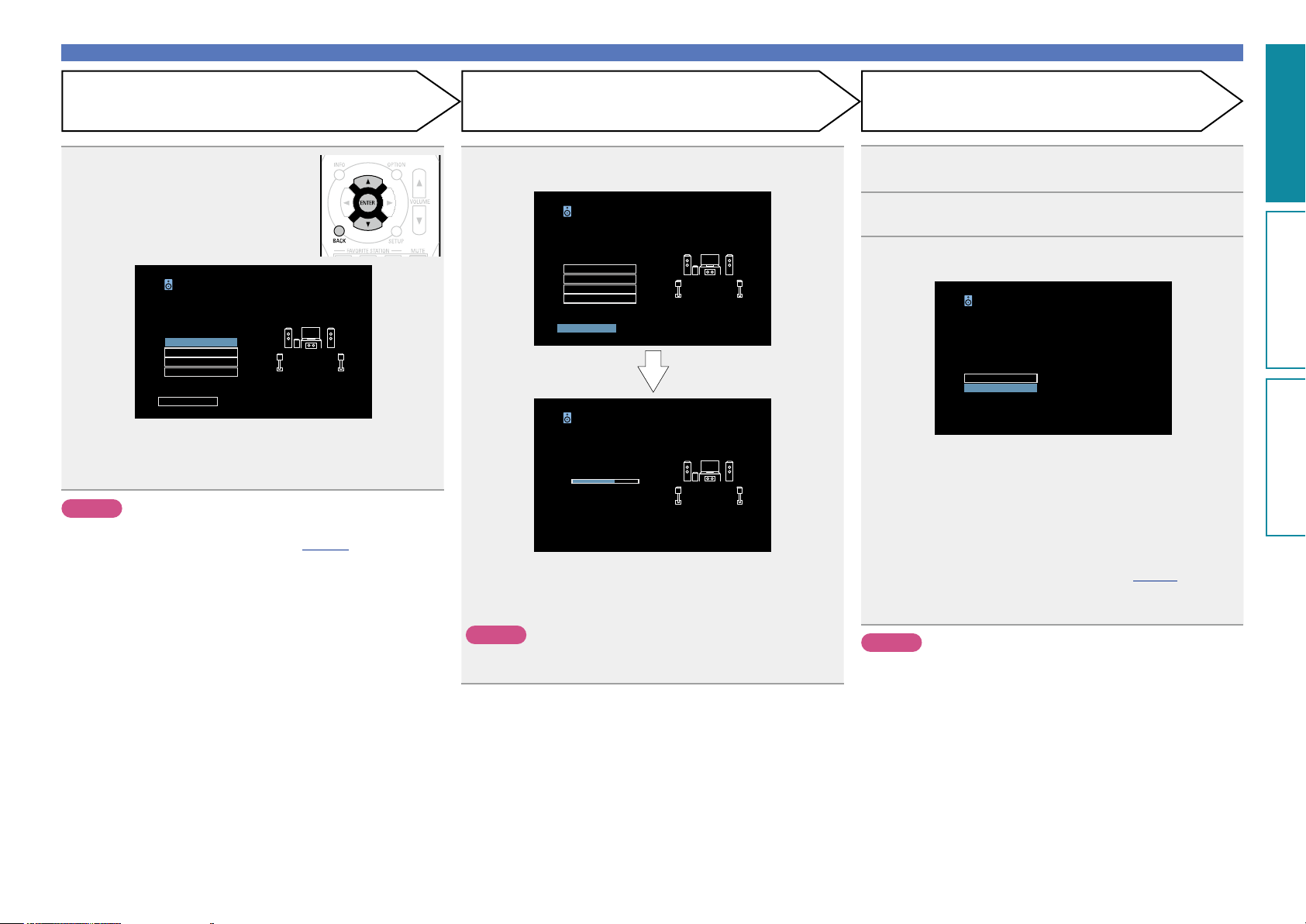

Detection & Measurement (Main)
Set up speakers (Audyssey
®
Setup)
4
Select “Start” and then press
ENTER.
The subwoofer volume setting screen
is displayed.
5
Select “Next” and then press ENTER.
Audyssey Setup
MultEQ
If your subwoofer has a volume control
on it, please set it at 50%...
Back Next
VOLUME
MIN MAX
NOTE
If “Caution!” is displayed on TV screen:
Go to “Error messages” (vpage 25).
Check any related items, and perform the
necessary procedures.
If the problem is resolved, return and restart
“Audyssey
®
Setup”.
Going back to the previous screen
Press o or BACK.
When measuring has stopped
q Press BACK to display the popup screen.
w Press o to select “Yes”, and then press ENTER.
Setting up the speakers again
Repeat the operation from step 3.
•This step automatically checks the speaker configuration and speaker
size, and calculates the channel level, distance, and crossover
frequency.
It also corrects distortion in the listening area.
6
Select “Begin Test” and then press ENTER.
When measuring begins, a test tone is output from each
speaker.
•Measurement requires several minutes.
7
The detected speakers are displayed.
•The illustration below shows an example of when the front
speakers, center speaker, subwoofer and surround speakers have
been detected.
Audyssey Setup
Repeat Last Test Next
Front
Speaker Detection
Center
Subwoofer
Surround
Yes
Yes
Yes
Yes
MultEQ
NOTE
If a connected speaker is not displayed, the speaker may not be
connected correctly. Check the speaker connection.
8
Select “Next” and then press ENTER.
Preparation (Continued)
Basic version
Advanced version
Information
Basic version
v See overleaf
23
Calculation
Set up speakers (Audyssey
®
Setup)
10
Repeat step 9, measuring positions 3 to 6.
When measurement of position 6 is completed, a
“Measurements Complete.” message is displayed.
Audyssey Setup
Measurements Complete.
Calculation
MultEQ
Repeat Last Test
11
Select “Calculation” and then press ENTER.
Measuring results are analyzed, and the frequency response of
each speaker in the listening room is determined.
Audyssey Setup
Calibration complete! Now Calculating...
Please wait...
MultEQ
75%
•Analysis takes several minutes to complete. The more speakers
and measurement positions that there are, the more time it takes
to perform the analysis.
Measurement (2nd – 6th)
•In this step, you will perform measurements at multiple positions
(two to six positions) other than the main listening position.
•Just one position can be measured but measuring multiple positions
increases the accuracy of the correction of acoustic distortion within
the listening area.
9
Move the setup microphone to
position 2, select “Continue”,
and then press ENTER.
The measurement of the second
position starts. Measurements can be
made in up to six positions.
Audyssey Setup
Place the microphone at ear level at 2nd
Listening position.
Continue
Calculation
MultEQ
•To skip measuring the third and subsequent listening position, use
ui to select “Calculation” and press ENTER to proceed to step
12.
•To measure the second position again, use ui to select “Repeat
Last Test” and press ENTER.
Basic version
Advanced version
Information
Basic version
v See overleaf
24
Set up speakers (Audyssey
®
Setup)
13
Select “Store” and then press ENTER.
Save the measurement results.
Audyssey Setup
Now Storing...
please wait...
MultEQ
75%
Audyssey Setup
Check processing result.
To proceed, select “Store”.
Speaker Config.
Distances
Levels
Crossovers
MultEQ
Store
•Saving the results requires about 10 seconds.
•During saving of measurements results, “Now Storing...Please
wait...” is displayed. When saving is completed, “Storing complete.
Audyssey
®
Setup is now finished.” is displayed.
NOTE
During saving of measurement results, be sure not to turn off the
power.
14
Unplug the setup microphone from the unit’s SETUP
MIC jack.
15
Select “Next” and then press ENTER.
16
Set Audyssey Dynamic Volume
®
.
Audyssey Setup
You can set Dynamic Volume function,
which automatically adjusts volume level
for all content.
Do you want to enable?
Yes
No
MultEQ
•This feature adjusts the output volume to the optimal level while
constantly monitoring the level of the audio input to the unit.
Optimal volume control is performed automatically without any
loss in the dynamism and clarity of the sound when, for example,
the volume suddenly increases for commercials shown during
television programs.
n When turning Dynamic Volume
®
on
•Press u to select “Yes”, and then press ENTER.
The unit automatically enters “Medium” (
vpage84) mode.
n When turning Dynamic Volume
®
off
•Press i to select “No”, and then press ENTER.
NOTE
After performing Audyssey
®
Setup, do not change the speaker
connections or subwoofer volume. In event of a change, perform
Audyssey
®
Setup again.
Store FinishCheck
12
Use ui to select the item you
want to check, and then press
ENTER.
Audyssey Setup
Check processing result.
To proceed, select “Store”.
Speaker Config.
Distances
Levels
Crossovers
MultEQ
Store
•Subwoofers may measure a greater reported distance than
the actual distance due to added electrical delay common in
subwoofers.
•If you want to check another item, press BACK.
NOTE
•If the result differs from the actual connection status, or if “Caution!”
is displayed, see “Error messages” (vpage 25). Then carry out
Audyssey
®
Setup again.
• If you change speaker positions or orientation, perform Audyssey
®
Setup again to find the optimal equalizer settings.
Basic version
Advanced version
Information
Basic version
25

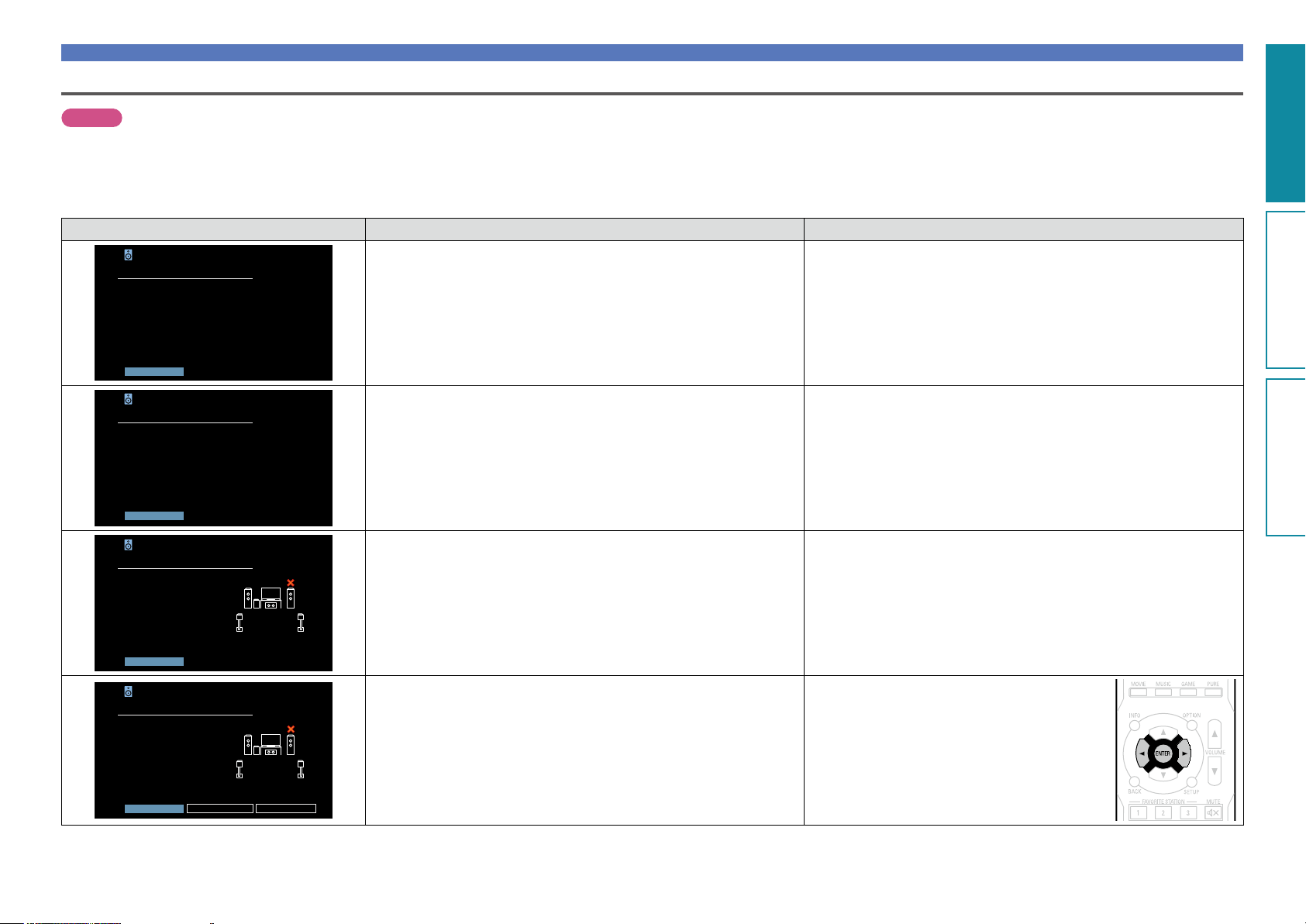

Error messages
NOTE
•An error message is displayed if Audyssey
®
Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the
necessary measures. Then perform Audyssey
®
Setup again.
•If the result still differs from the actual connection status after remeasurement or the error message still appears, it is possible that the speakers are not connected properly. Turn this unit off, check the speaker
connections and repeat the measurement process from the beginning.
•Be sure to turn off the power before checking speaker connections.
Examples Error details Measures
Audyssey Setup
Caution!
Microphone or Speaker is none
Please check the cable connection
and retry.
MultEQ
Retry
•The connected setup microphone is broken, or a device other than the
supplied setup microphone is connected.
•Not all speakers could be detected.
•A front speaker (left) was not properly detected.
•Connect the included setup microphone to the SETUP MIC jack of this unit.
•Check the speaker connections.
Audyssey Setup
Caution!
Ambient noise is too high or level is
too low
MultEQ
Retry
•There is too much noise in the room for accurate measurements to be
made.
•Speaker or subwoofer sound is too low for accurate measurements to be
made.
•Either turn off any device generating noise or move it away.
•Perform again when the surroundings are quieter.
•Check the speaker installation and the direction in which the speakers are
facing.
•Adjust the subwoofer’s volume.
Audyssey Setup
Speaker Not found Error...
Front R
MultEQ
Retry
Please check the cable
connection and retry.
•The displayed speaker could not be detected.
(The screen on the left indicates that the front right speaker cannot be
detected.)
•Check the connections of the displayed speaker.
Audyssey Setup
Speaker Phase Error...
Front R
MultEQ
Retry Phase Info. Skip
Please check the cable
connection and retry.
•The displayed speaker is connected with the polarity reversed.
(The screen on the left indicates that the polarity phases of the front right
speakers are reversed.)
•Check the polarity of the displayed speaker.
•For some speakers, this error message may be
displayed even if the speaker is properly connected.
If you are sure the connection is correct, use o p
to select “Skip”, then press ENTER.
Set up speakers (Audyssey
®
Setup)
Basic version
Advanced version
Information
Basic version
26

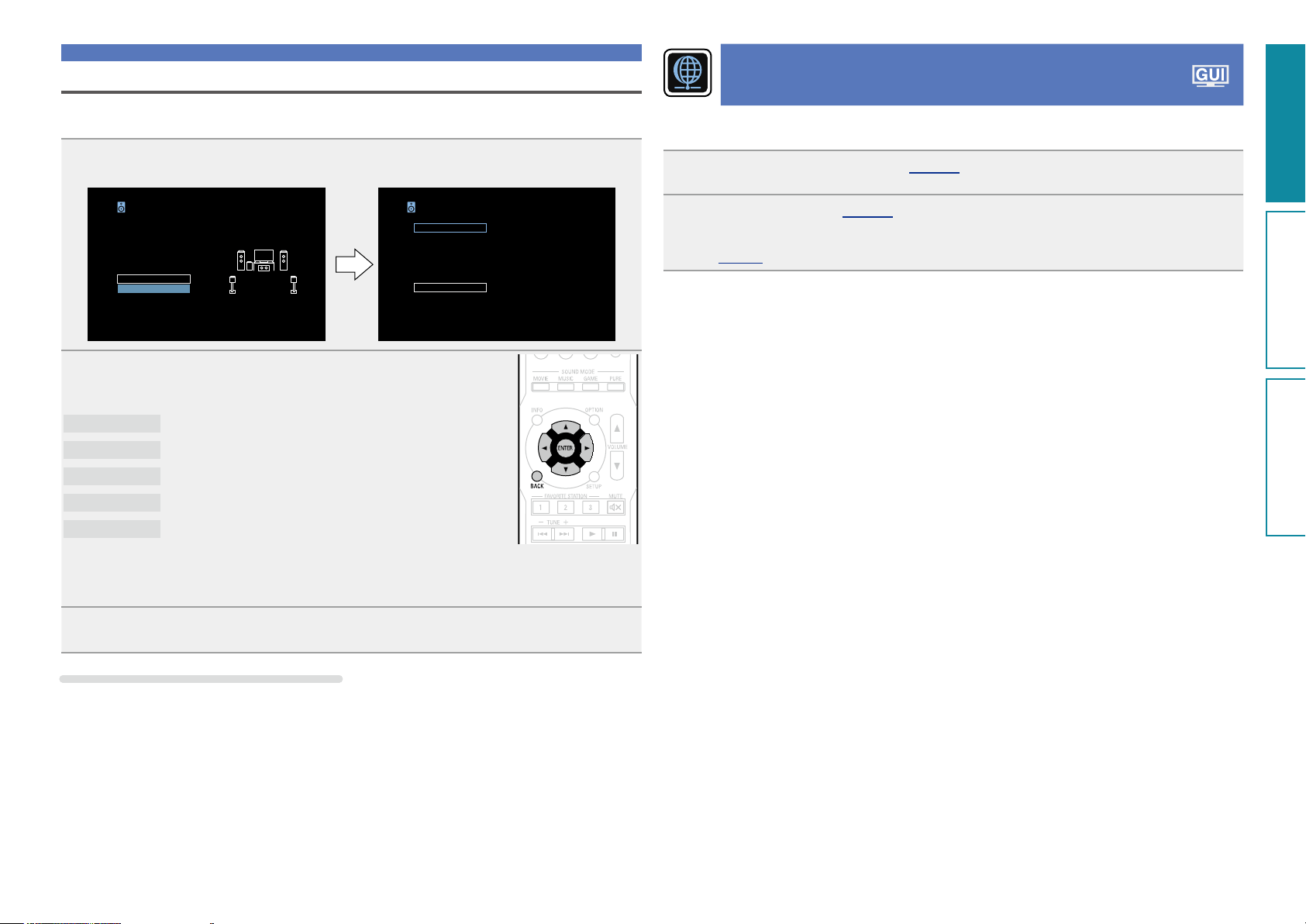

Parameter Check
This function enables you to check the measurement results and equalizer characteristics after Audyssey
®
Setup.
1
Use ui to select “Parameter Check” and then press ENTER.
Audyssey Setup
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
Start
Parameter Check
Parameter Check
Speaker Config.
Distances
Levels
Crossovers
Equalizers
Restore...
2
Use ui to select the item you want to check, then press ENTER
or p.
Measurement results for each speaker are displayed.
Speaker Config.
Check the speaker configuration.
Distances
Check the speaker distance.
Levels
Check the speaker channel level.
Crossovers
Check the speaker crossover frequency.
Equalizers
Check the equalizer.
•If “Equalizers” is selected, press
ui to select equalizing curve (“Audyssey” or “Audyssey Flat”) to
be checked.
Use o p to switch the display between the different speakers.
3
Press BACK.
The confirmation screen reappears. Repeat step 2.
Retrieving Audyssey
®
Setup settings
If you set “Restore...” to “Yes”, you can return to Audyssey
®
Setup measurement result (value calculated
at the start by MultEQ
®
) even when you have changed each setting manually.
Set up speakers (Audyssey
®
Setup)
Making the network settings
(Network)
This unit can be connected to a home network (LAN) to listen to Internet radio or play back music files and
still image (JPEG) files stored on a computer.
1
Connect the Ethernet cable (vpage 18 “Connecting to a home network (LAN)”).
2
Turn on this unit (vpage 27).
This unit performs automatic network setup due to the DHCP function.
When connecting to a network that has no DHCP function, perform the setting in “Settings”
(vpage99).
Basic version
Advanced version
Information
Basic version
27

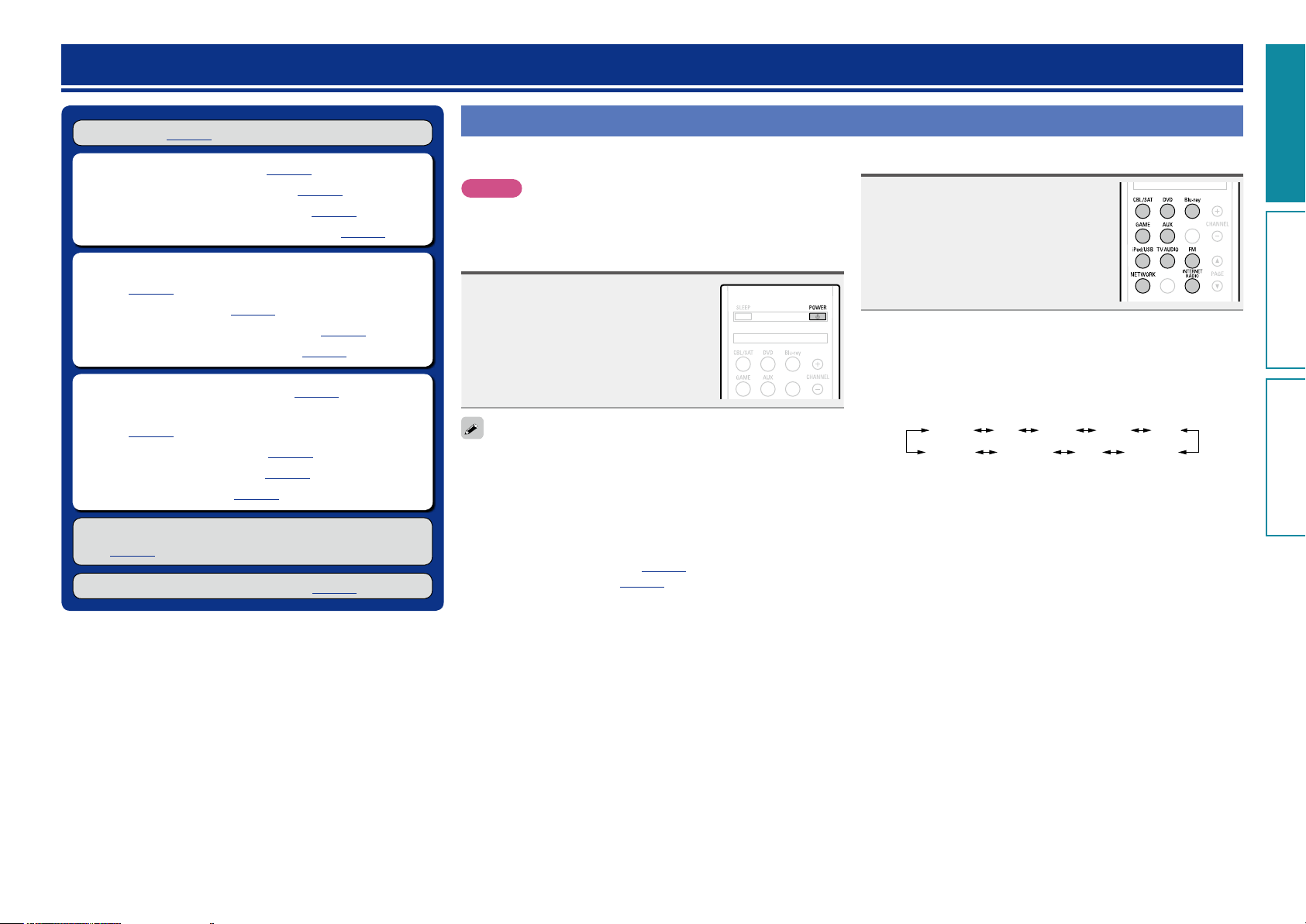

Playback (Basic operation)
Settings (vpage20)
n Turning the power on (vpage27)
n Selecting the input source (
vpage27)
n Adjusting the master volume (
vpage28)
n Turning off the sound temporarily (
vpage28)
n Playing a Blu-ray Disc player/DVD player
(vpage28)
n Playing an iPod (
vpage29)
n Playing a USB memory device (
vpage32)
n Listening to FM broadcasts (
vpage35)
n Listening to internet radio (vpage43)
n Playing back files stored on a PC and NAS
(
vpage46)
n Using online services (
vpage50)
n Convenient functions (
vpage58)
n AirPlay function (
vpage62)
Selecting a listening mode (Sound Mode)
(vpage64)
Playback (Advanced operation) (vpage73)
Important information
Before starting playback, make the connections between the different
devices and the settings on the unit.
NOTE
Also refer to the operating instructions of the connected devices
when playing them.
Turning the power on
Press POWER X to turn on power to
the unit.
The power indicator lights green and the
power turns on.
You can also switch the power to standby by pressing X on the main
unit.
n When power is switched to standby
Press POWER X.
GPower indicator status in standby modeH
•Normal standby : Off
•When “HDMI Control” (
vpage87) is set to “On” : Red
•When “IP Control” (vpage98) is set to “Always On” : Red
Selecting the input source
Press the input source select button
(CBL/SAT, DVD, Blu-ray, GAME,
AUX, iPod/USB, TV AUDIO, FM,
NETWORK or INTERNET RADIO) to
be played back.
The desired input source can be selected
directly.
You can also use the following operation to select an input
source.
n Using the button on the main unit
Use SOURCE SELECT 0 1.
•Using SOURCE SELECT 0 1 switches the input source, as
shown below.
GAME AUX
iPod/USBFMNETWORKTV AUDIO
Blu-rayDVDCBL/SAT
Basic version
Advanced version
Information
Basic version
28

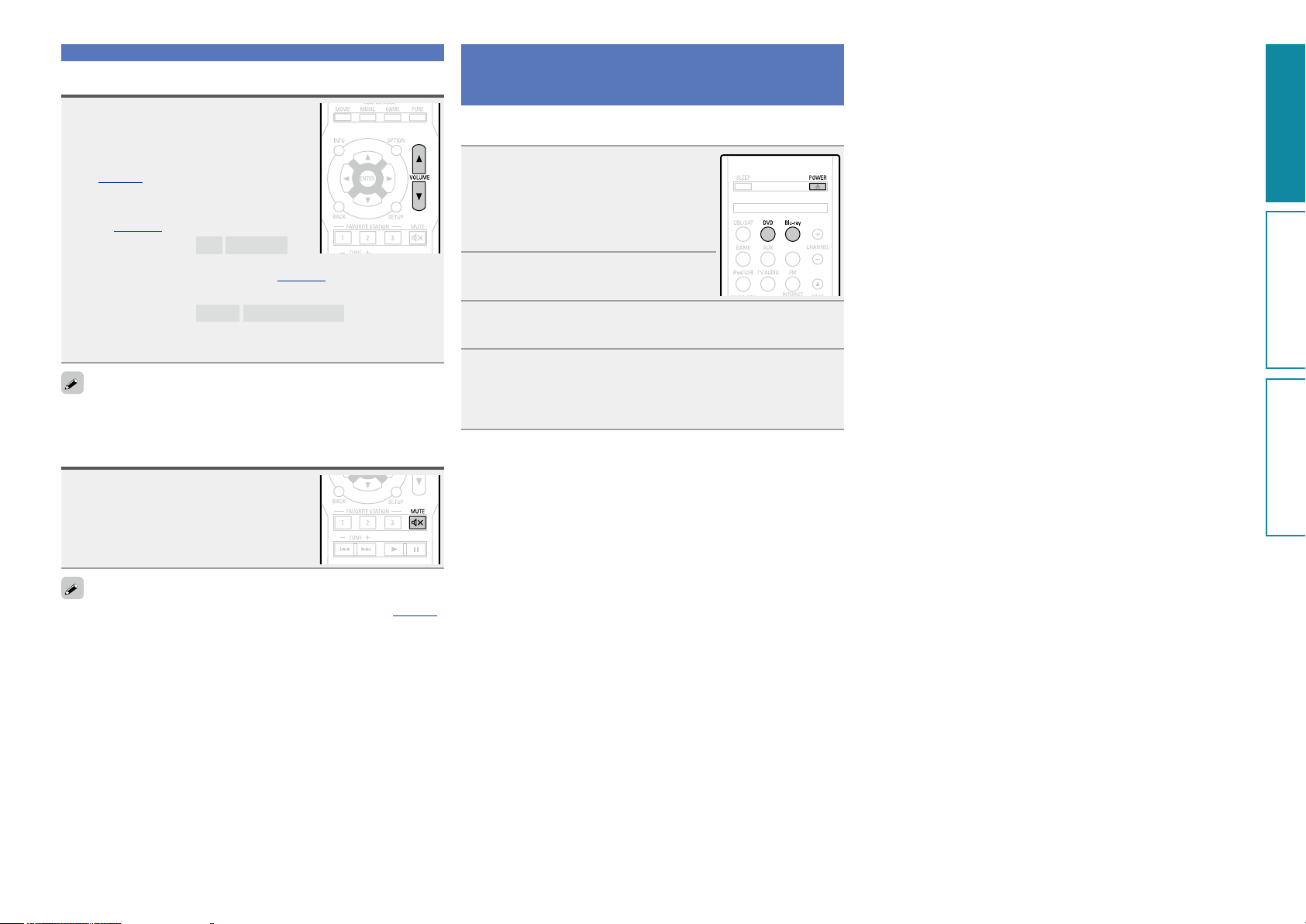

Adjusting the master volume
Use VOLUME df to adjust the
volume.
•The volume display method varies
depending on the “Scale” setting
(vpage83).
n When the “Scale” setting
(
vpage83) is “0 – 98”
GAdjustable rangeH
0.0
0.5 – 98.0
n When the “Scale” setting (vpage83) is “–79.5dB –
18.0dB”
GAdjustable rangeH
– – –.–
–79.5dB – 18.0dB
•The variable range differs according to the input signal and channel
level setting.
You can also adjust the master volume by turning MASTER VOLUME
on the main unit.
Turning off the sound temporarily
Press MUTE :.
•“MUTE” indicator on the display flashes.
•: appears on a TV screen.
•The sound is reduced to the level set at “Mute Level” (vpage83).
•To cancel, press MUTE : again. Muting can also be canceled by
adjusting the master volume.
Important information
Playing a Blu-ray Disc player/DVD
player
The following describes the procedure for playing Blu-ray Disc player/
DVD player.
1
Prepare for playback.
q Turn on the power of the TV,
subwoofer and player.
w Change the TV input to the input of
this unit.
e Load the disc in the player.
2
Press POWER X to turn on power
to the unit.
3
Press Blu-ray or DVD to switch an input source for a
player used for playback.
4
Play the Blu-ray Disc player or DVD player.
•Make the necessary settings on the player (language setting,
subtitles setting, etc.) beforehand.
Basic version
Advanced version
Information
Basic version
29
Playing an iPod
You can use the USB cable provided with the iPod to connect the iPod
with the unit’s iPod/USB port and enjoy music stored on the iPod.
For information on the iPod models that can be played back with this
unit, see “Connecting an iPod or USB memory device to the iPod/USB
port” (vpage16).
NOTE
This unit supports audio playback from the iPod (fifth generation
or later), iPod nano, iPod classic, iPod touch and iPhone (it is not
compatible with iPod shuffle).
Note that Remote Mode is not supported for the 5th generation iPod
or the 1st generation iPod nano.
Listening to music on an iPod
The iPod display modes include “Remote Mode” and “Browse
Mode”.
By default, “Remote Mode”, where you directly operate iPod itself
while seeing the iPod screen, is set.
To change to “Browse Mode”, where you perform operations while
having the iPod information displayed on the TV screen, see “Setting
“Browse Mode” (Operation Mode)” (
vpage30).
1
Using the USB cable provided
with the iPod, connect the
iPod to the iPod/USB port
(vpage 16).
2
Press POWER X to turn on
power to the unit.
3
Press iPod/USB to switch the
input source to “iPod/USB”.
“Remote iPod” is displayed on the
display of this unit.
•Nothing is displayed on the TV screen.
4
Operate iPod itself directly while seeing the iPod
screen to play back music.
n Streaming music stored in iPhone, iPod touch or
iPad directly to the unit (
vpage62)
n Playing iTunes music with this unit
(
vpage62)
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Setting “Browse Mode” (Operation Mode)
(vpage30)
n Performing repeat playback (Repeat)
(vpage31)
n Performing random playback (Random)
(vpage31)
Basic version
Advanced version
Information
Basic version
30
Playing an iPod

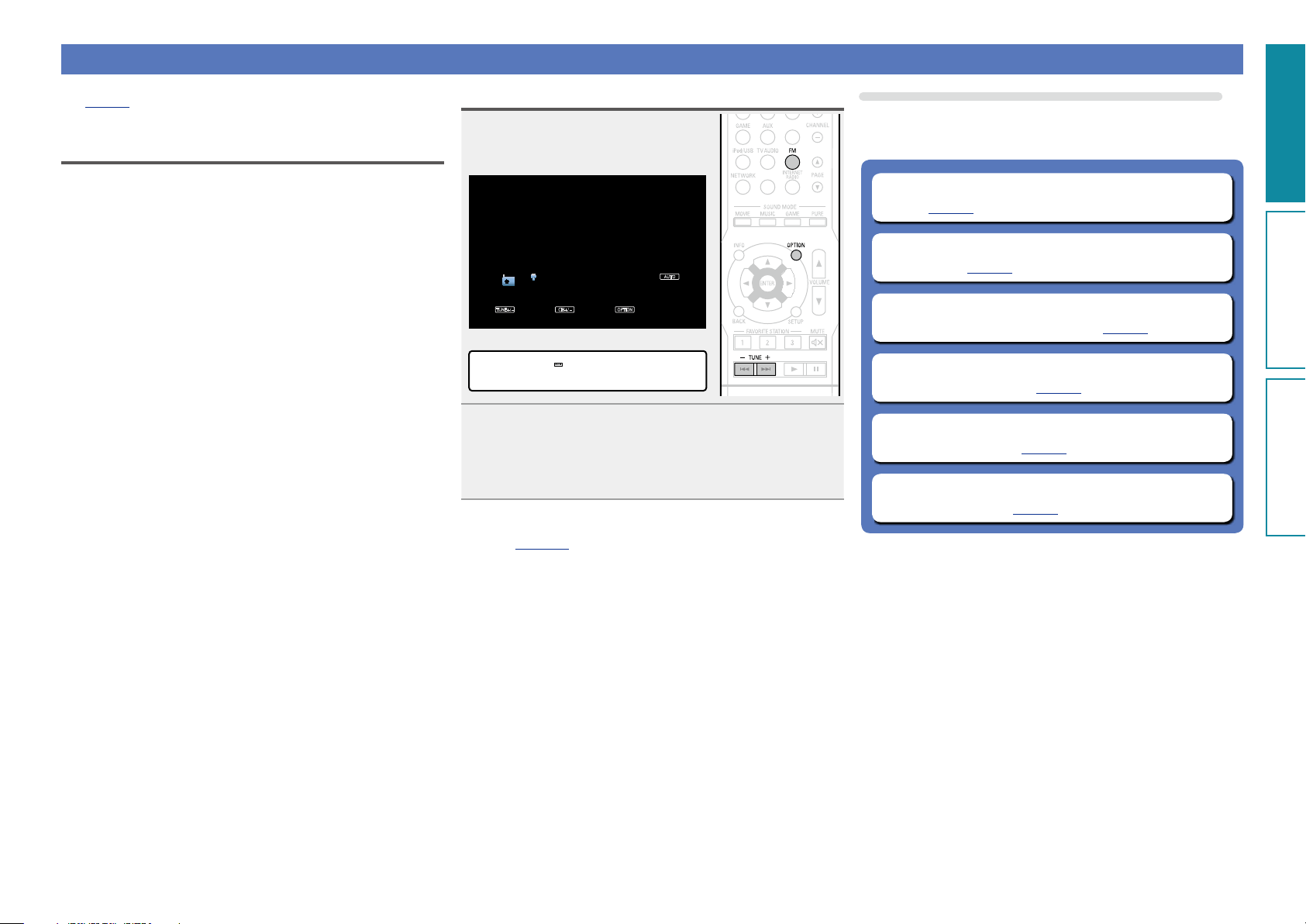

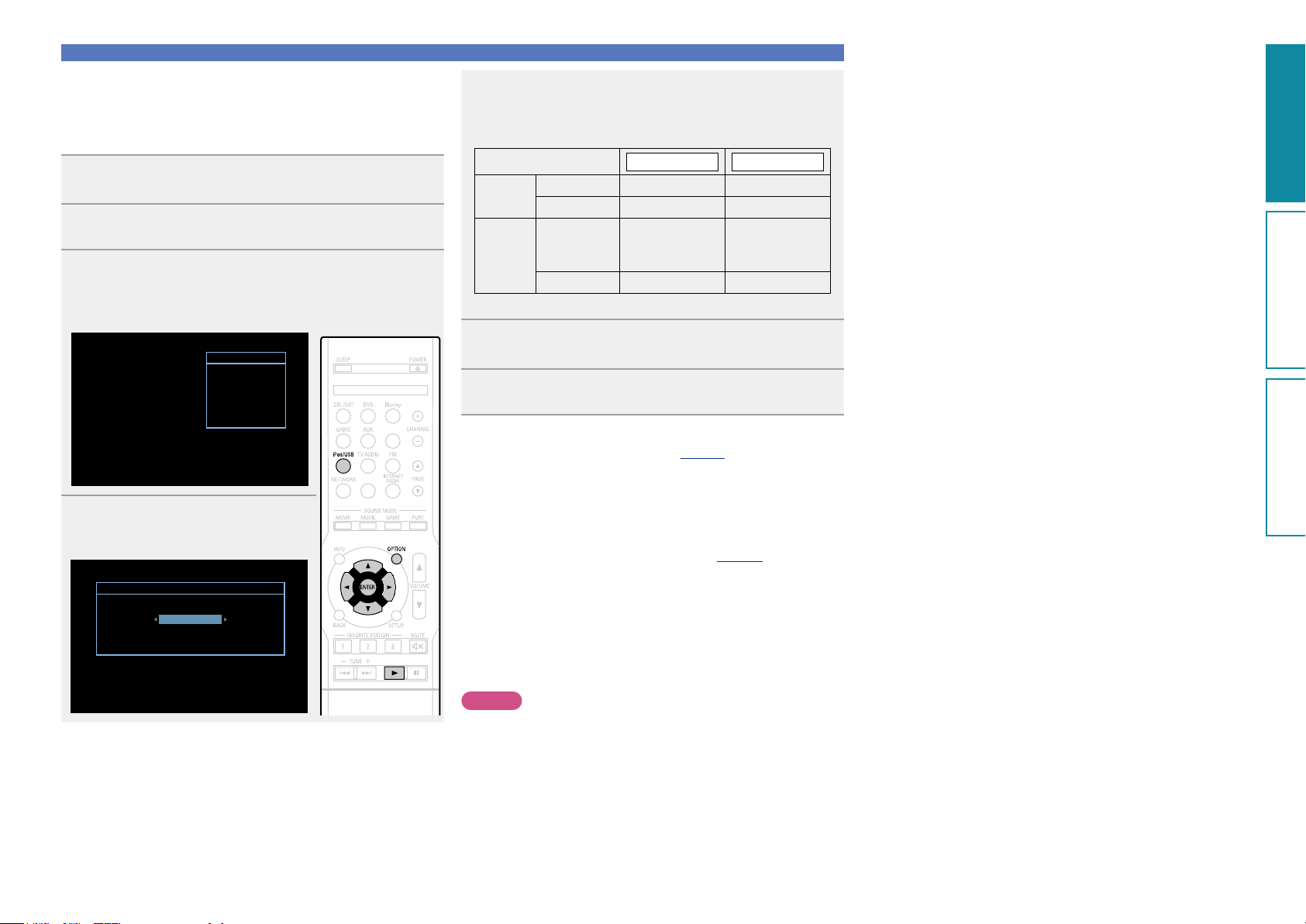

n Setting “Browse Mode” (Operation Mode)
In this mode, various lists and screens during playback on iPod are
displayed on the TV screen.
This section describes the steps up to playing back tracks on iPod
in “Browse Mode”.
1
Press iPod/USB to switch the input source to “iPod/
USB”.
2
Press OPTION.
The option menu screen is displayed.
3
Select “Operation Mode”, then press ENTER.
The “Operation Mode” screen is displayed.
•When you want to switch from “Remote Mode” to “Browse
Mode”, press i to select “Operation Mode”, and press ENTER.
Operation Mode
Option
4
Use o p to select “Browse
Mode”, then press ENTER.
The iPod screen is displayed.
Browse Mode
Operation Mode
•English letters, numbers and certain symbols are displayed.
Incompatible characters are displayed as “.” (period).
•Operations available for “Browse Mode” and “Remote Mode” are
listed below.
Display mode
Remote Mode Browse Mode
Playable
files
Music file
P P
Video file
z
Active
buttons
Remote
control unit
(This unit)
P P
iPod
P
z Only the sound is played.
5
Use ui to select the item, then press ENTER or p to
select the le to be played.
6
Press ENTER, p or 1.
Playback starts.
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (
vpage83) in the menu.
You can use the “Restorer” function to restore to a state close
to the audio before compression while correcting the bass feel to
enjoy a richer playback experience. The default setting is “Mode3
(Low)”.
n Changing the screen display duration
Make this setting at “Audio Display” (
vpage 88) in the menu.
The default setting is “30s”.
Press uio p while the display is off to return to the original
screen.
n Switching the screen display
In Browse Mode, press STATUS on the main unit during playback.
The display switches between track title, artist name, and album
title each time the button is pressed.
NOTE
•Depending on the type of iPod and the software version, some
functions may not operate.
•Note that DENON will accept no responsibility whatsoever for any
problems arising with the data on an iPod when using this unit in
conjunction with the iPod.
Basic version
Advanced version
Information
Basic version
31
Playing an iPod

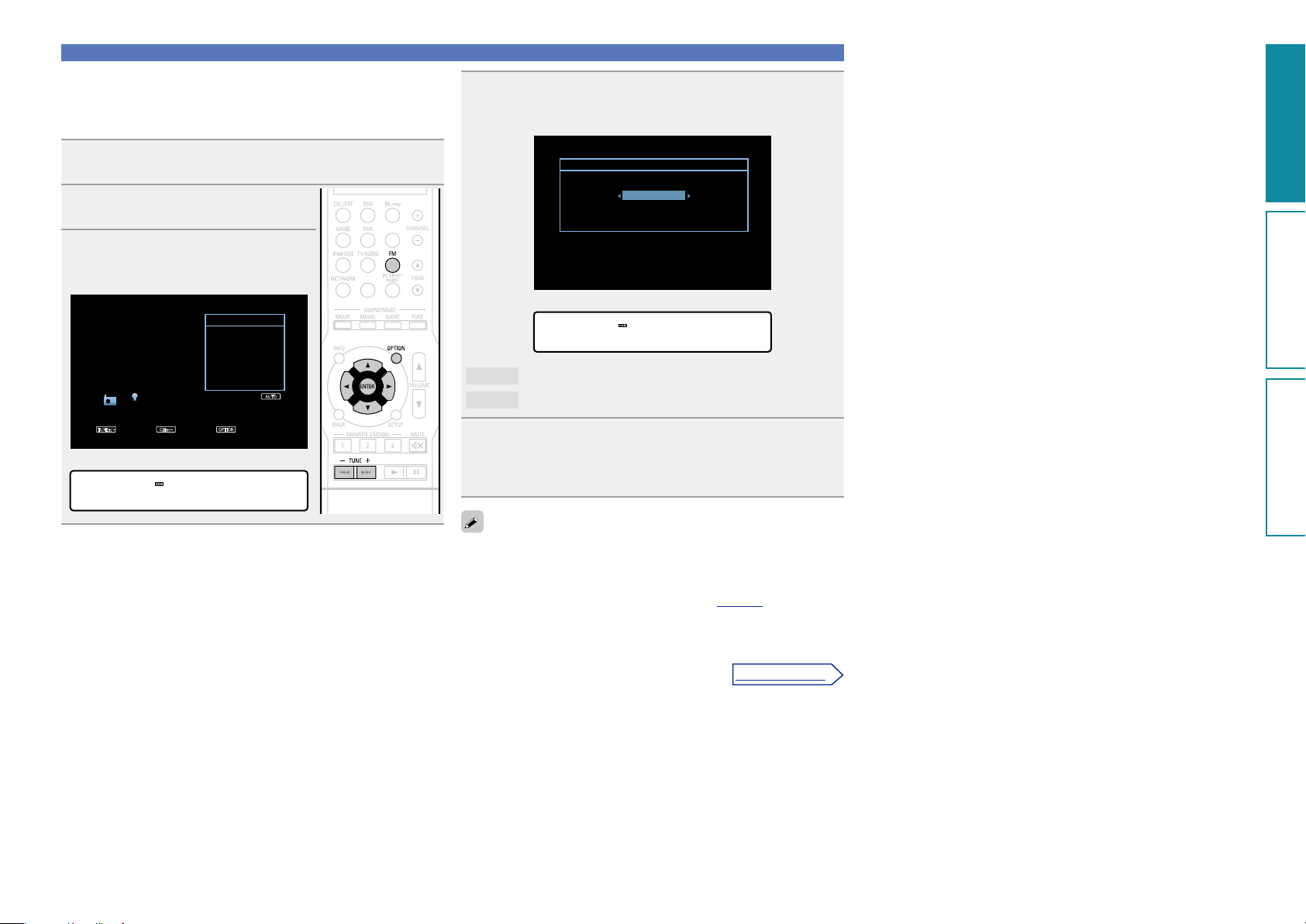

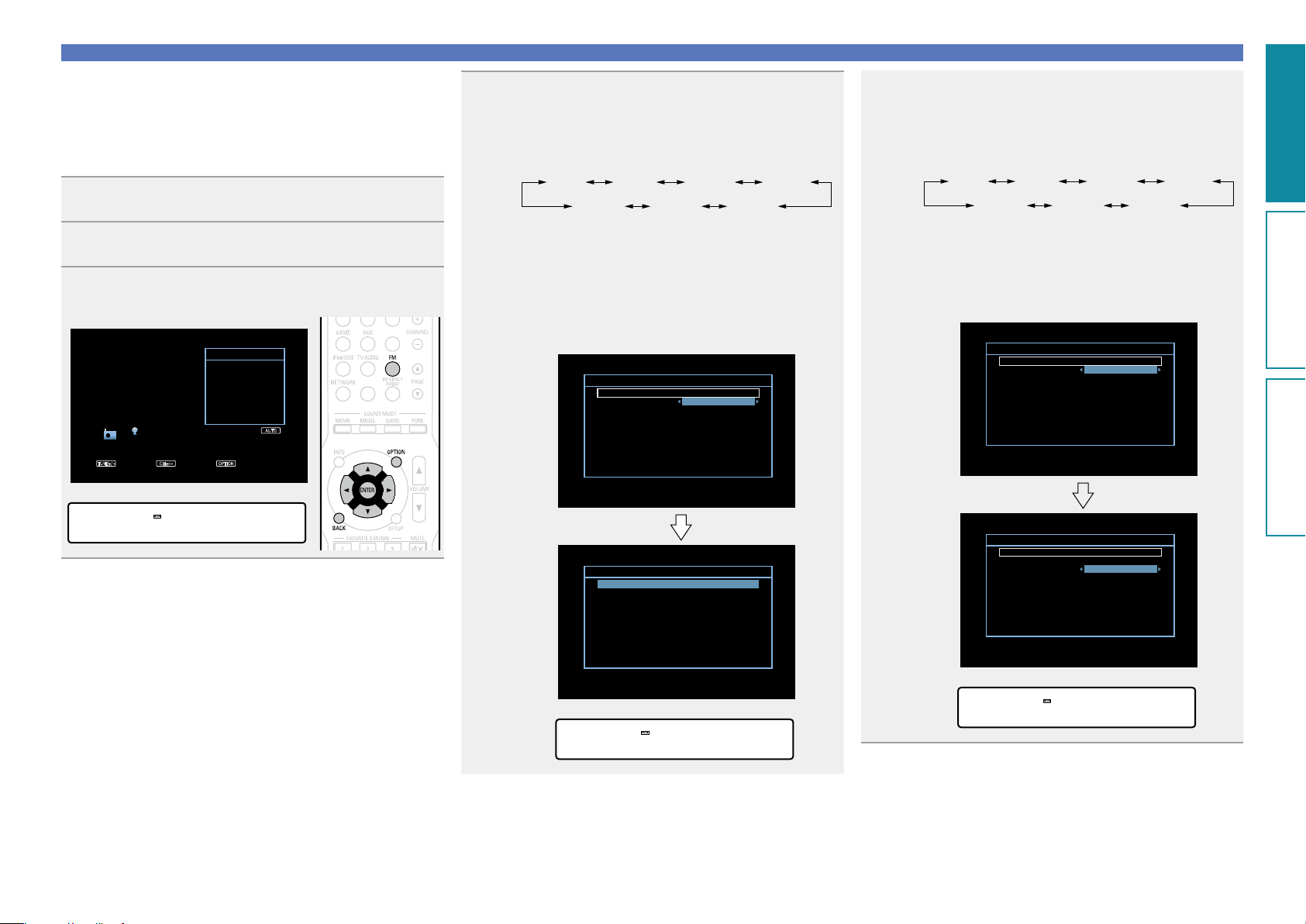

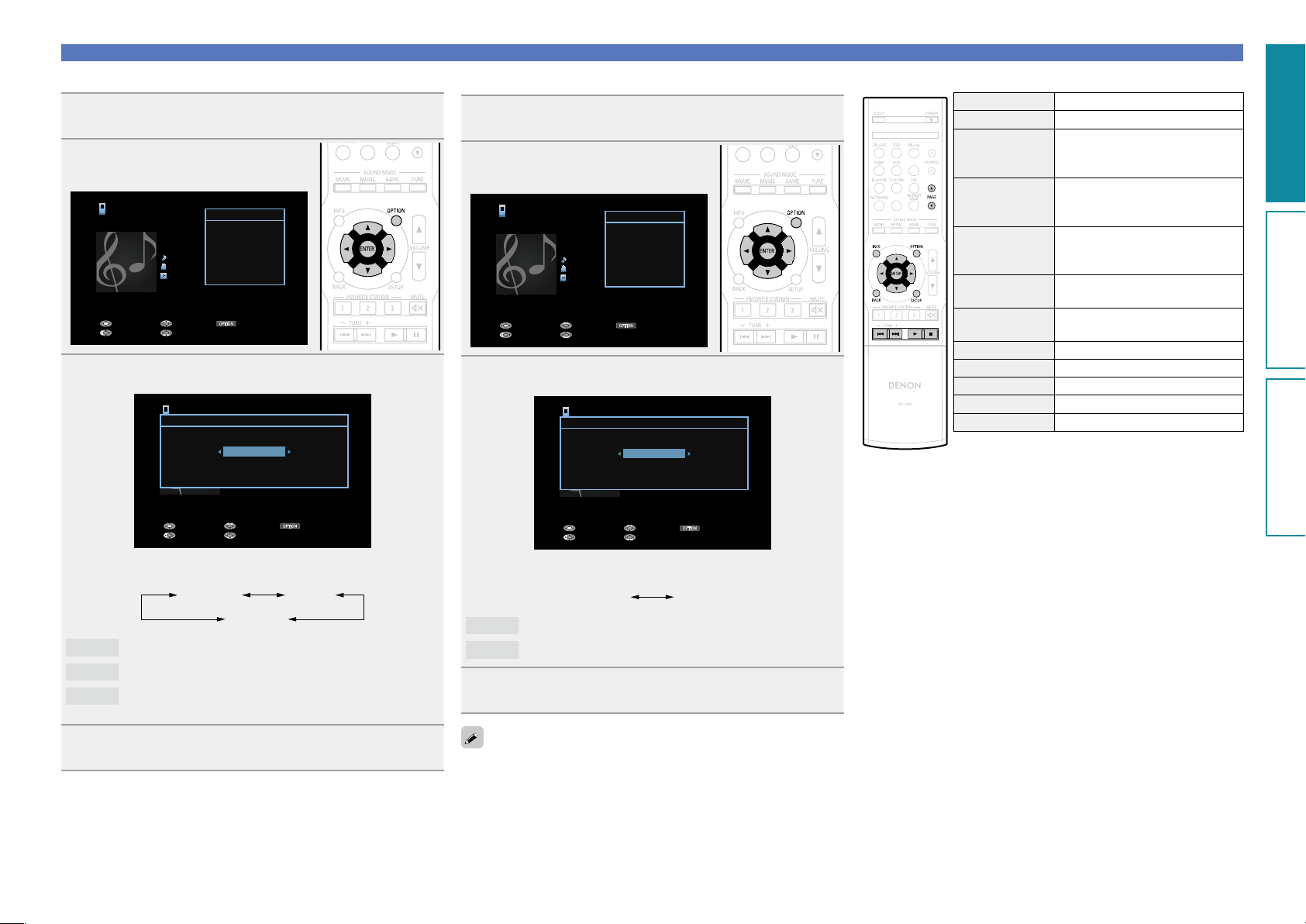

n Performing repeat playback (Repeat)
1
Press OPTION while in Browse Mode.
The option menu screen is displayed.
2
Use ui to select “Repeat”, then
press ENTER.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
Option
Repeat
Random
Operation Mode
3
Use o p to select repeat playback mode.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
All
Repeat
•Each time o p is pressed, the setting is changed as shown below.
Off One
All
Off
Repeat playback mode is canceled.
One
A file being played is played repeatedly.
All
All files in the folder currently being played are played
repeatedly.
4
Press ENTER.
The display returns to the playback screen.
n Performing random playback (Random)
1
Press OPTION while in Browse Mode.
The option menu screen is displayed.
2
Use ui to select “Random”,
then press ENTER.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
Option
Repeat
Random
Operation Mode
3
Use o p to select random playback mode.
OPTION
iPod
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
Off
Random
•Each time o p is pressed, the setting is changed as shown below.
Off On
Off
Disable random playback.
On
Enable random playback.
4
Press ENTER.
The display returns to the playback screen.
The random playback randomly selects a track to play back from all
tracks every time a track ends. Therefore, the same track may be
played back consecutively.

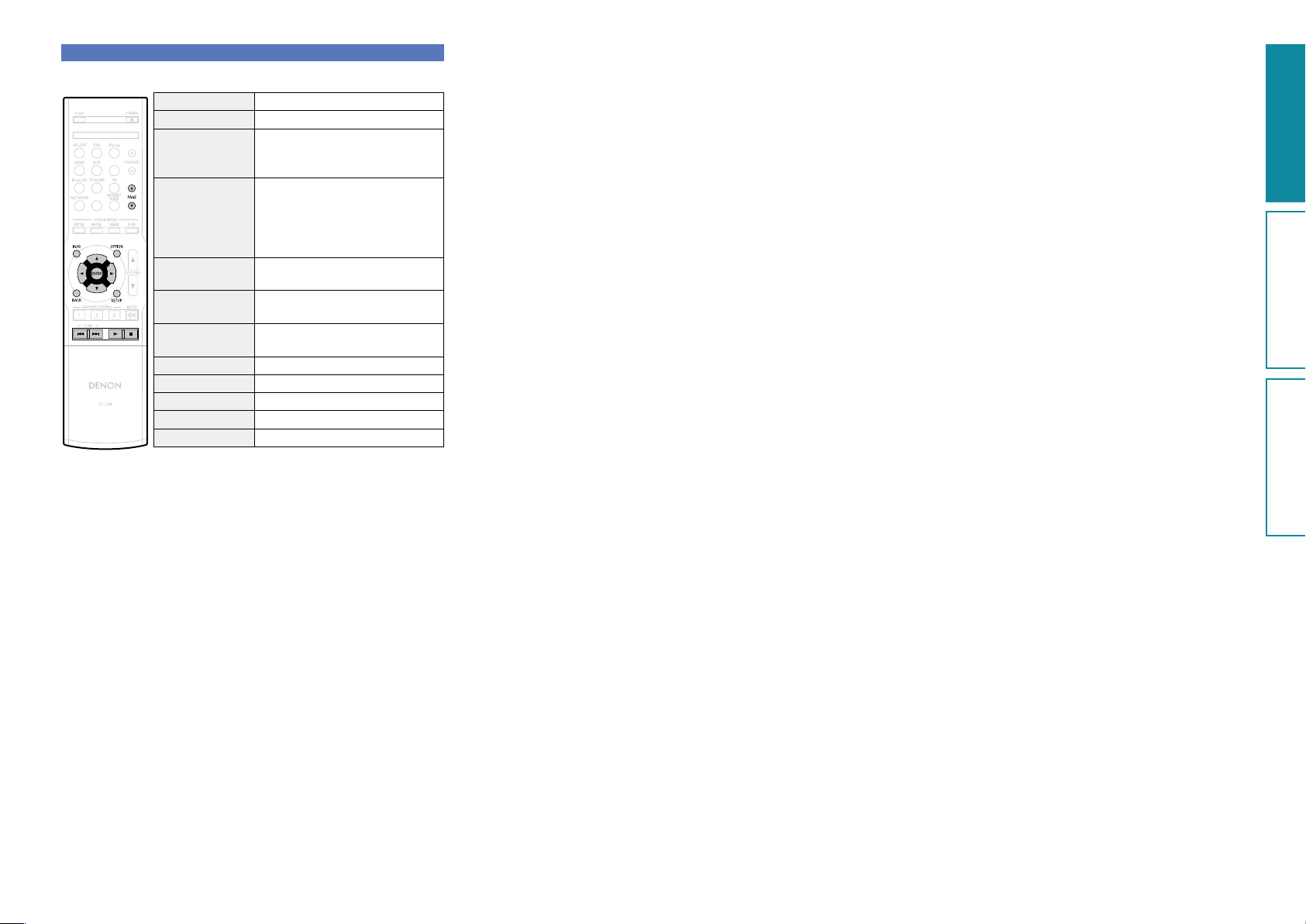

n iPod operation buttons
Operation buttons Function
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Browse / Remote Mode switching /
Repeat playback /
Random playback
uio p
Cursor operation /
Auto search (cue, ui) /
Manual search (Press and hold, ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
8 9
Auto search (cue)
1
Playback
3
Pause
Basic version
Advanced version
Information
Basic version
32
Playing a USB memory device
Playing back music or still picture (JPEG) files recorded on a USB memory device.
Important information
•Only USB memory devices conforming to mass storage class and MTP (Media Transfer Protocol)
standards can be played on this unit.
•This unit is compatible with USB memory devices in “FAT16” or “FAT32” format.
•This unit is compatible with MP3 files conforming to “MPEG-1 Audio Layer-3” standards.
•File types that this unit can play back and specifications are shown below.
GSupported file typesH
Supported file types USB memory devices
z1
WMA (Windows Media Audio)
P
z2
MP3 (MPEG-1 Audio Layer-3)
P
WAV
P
MPEG-4 AAC
P
z3
FLAC (Free Lossless Audio Codec)
P
JPEG
P
z1 USB memory device
•This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
•This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
•This unit is compatible with WMA META tags.
•If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 ×
349 (MPEG-4 AAC), then music may not be played back properly.
z2 Copyright-protected files can be played on certain portable players compatible with MTP.
z3 Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in
WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on
the computer’s settings.
NOTE
File types that this unit does not support are not displayed.
GCompatible formatsH
Sampling frequency Bit rate Extension
WMA (Windows Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1 Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3
WAV 32/44.1/48 kHz – .wav
MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps
.aac/
.m4a/
.mp4
FLAC (Free Lossless Audio Codec) 32/44.1/48/88.2/96 kHz – .flac
n Maximum Number of Playable Files and Folder
The limits on the number of folders and files that can be displayed by this unit are as follows.
Media
Item
USB memory devices
Memory capacity FAT16 : 2 GB, FAT32 : 2 TB
Number of folder directory levels 8 levels
Number of folders FAT16 or FAT32 format
Number of files
z
5000
z The limited number includes the root folder.
Basic version
Advanced version
Information
Basic version
33
Playing files stored on USB memory
devices
1
Connect the USB memory device to the iPod/USB
port (vpage 16).
2
Press iPod/USB to switch the
input source to “iPod/USB”.
D&M1
D&M2
D&M3
Music1
Music2
Music3
Music4
OPTION
USB [1/9]
Option
3
Use ui to select the search item
or folder, then press ENTER or p.
4
Use ui to select the le, then press ENTER, p or 1.
Playback starts.
Playing a USB memory device
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage83) in the menu.
You can use the “Restorer” function to restore to a state close
to the audio before compression while correcting the bass feel to
enjoy a richer playback experience. The default setting is “Mode3
(Low)”.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Audio Display” (
vpage 88) in the menu.
The default setting is “30s”.
Press uio p while the display is off to return to the original
screen.
•When an MP3 music file includes album art data, the album art can
be displayed while playing the file.
•If the USB memory device is divided into multiple partitions, only the
first partition is played back.
NOTE
•Note that DENON will accept no responsibility whatsoever for any
problems arising with the data on a USB memory device when using
this unit in conjunction with the USB memory device.
•USB memory devices will not work via a USB hub.
•DENON does not guarantee that all USB memory devices will
operate or be supplied power. When using a USB portable hard disk
that can draw power from an AC adapter, we recommend using the
AC adapter.
•It is not possible to connect and use a computer via the iPod/USB
port of this unit using a USB cable.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Searching content with keywords
(Text Search) (vpage58)
n Performing repeat playback (Repeat)
(vpage59)
n Performing random playback (Random)
(vpage59)
n Playing back music and a favorite picture at the
same time (Picture View) (vpage61)
n Playing back still images in sequential order
(Slideshow) (vpage61)
Basic version
Advanced version
Information
Basic version
34

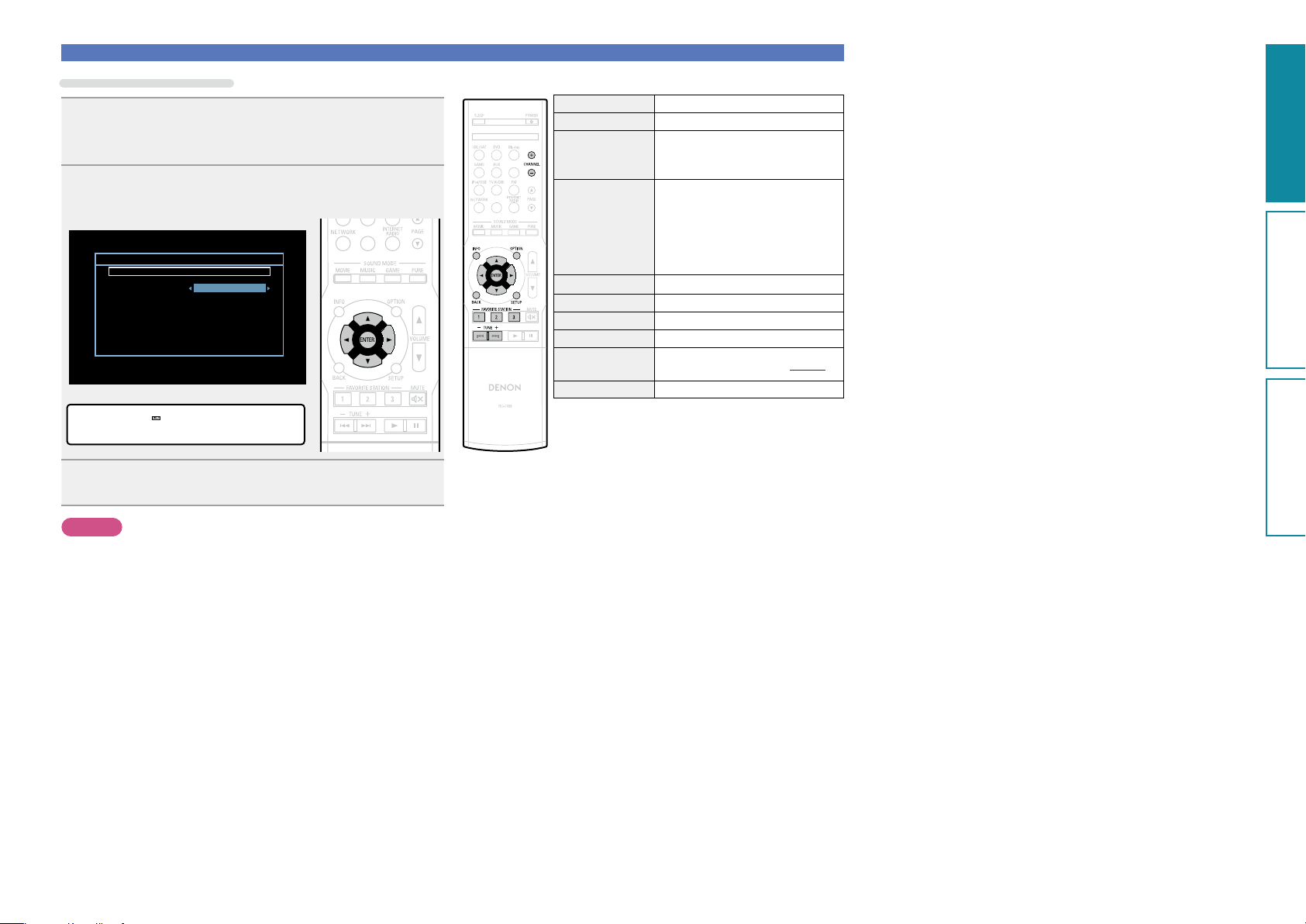

Playing a USB memory device

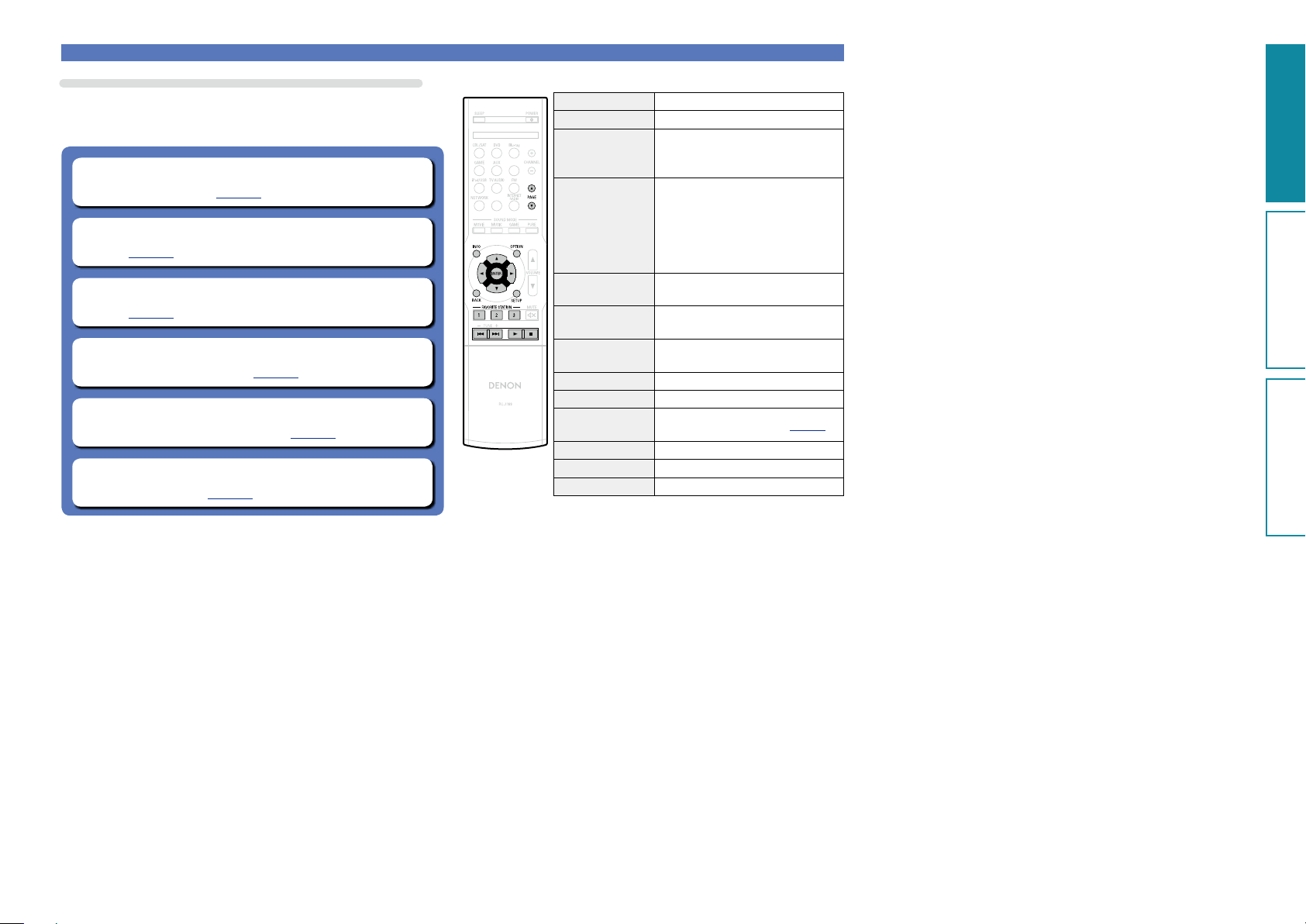

n USB memory device operation buttons
Operation buttons Function
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Text Search /
Repeat playback /
Random playback /
Picture View /
Slideshow
uio p
Cursor operation /
Auto search (cue, ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
8 9
Auto search (cue)
1
Playback
3
Pause
Basic version
Advanced version
Information
Basic version
35
Listening to FM broadcasts
For antenna connections, see “Connecting an FM antenna”
(vpage17).
How to tune in
The modes for receiving FM broadcasts consists of “Auto” mode
that automatically searches available broadcast stations and “Manual”
mode that lets you tune in using buttons to change the frequency. The
default setting is “Auto”. You can also use “Direct Tune” to tune in by
entering the frequency directly.
In “Auto” mode, you cannot tune in to radio stations if the reception is
not good. If this is the case, then use the “Manual” mode or “Direct
Tune” to tune in.
Listening to FM broadcasts
1
Press FM to switch the input
source to “FM”.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
GDisplay of this unitH
01 FM 87.50MHz
2
Press TUNE + or TUNE – to select the station you
want to hear.
Scanning is performed until it finds an available radio station.
When it finds a radio station, it stops the scan automatically
and tunes in.
n Adding to the FAVORITES STATION button
(
vpage60)
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Changing the tuning mode (Tune Mode)
(vpage36)
n Tuning in by entering the radio frequency (Direct
Tune) (vpage37)
n Tuning in to radio stations and presetting them
automatically (Auto Preset) (vpage38)
n Presetting the current broadcast station
(Preset Memory) (vpage39)
n Specify a name for the preset broadcast station
(Preset Name) (vpage40)
n Skipping preset broadcast stations
(Preset Skip) (vpage41)
Basic version
Advanced version
Information
Basic version
36
Listening to FM broadcasts
n Changing the tuning mode (Tune Mode)
You can change the mode for tuning into FM broadcasts. If you
cannot tune in automatically with “Auto” mode, then change the
mode to “Manual” and tune in manually.
1
Press FM to switch the input source to “FM”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Tune Mode”,
then press ENTER.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
Direct Tune
Option
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
GDisplay of this unitH
Tune Mode
4
Use o p to select tuning mode, then press ENTER.
GTV ScreenH
Auto
Tune Mode
GDisplay of this unitH
Mode :• Auto –
Auto
Automatically tune to the station.
Manual
Manually tune to the station.
5
Press TUNE + or TUNE – to select the station you
want to hear.
The frequency changes in steps each time the button is
pressed.
When tuning in stations manually, press and hold TUNE + or TUNE–
to change frequencies continuously.
n Changing the screen display duration
Make this setting at “Audio Display” (vpage 88) in the menu.
The default setting is “30s”.
Press uio p while the display is off to return to the original
screen.
Basic version
Advanced version
Information
Basic version
v See overleaf
37

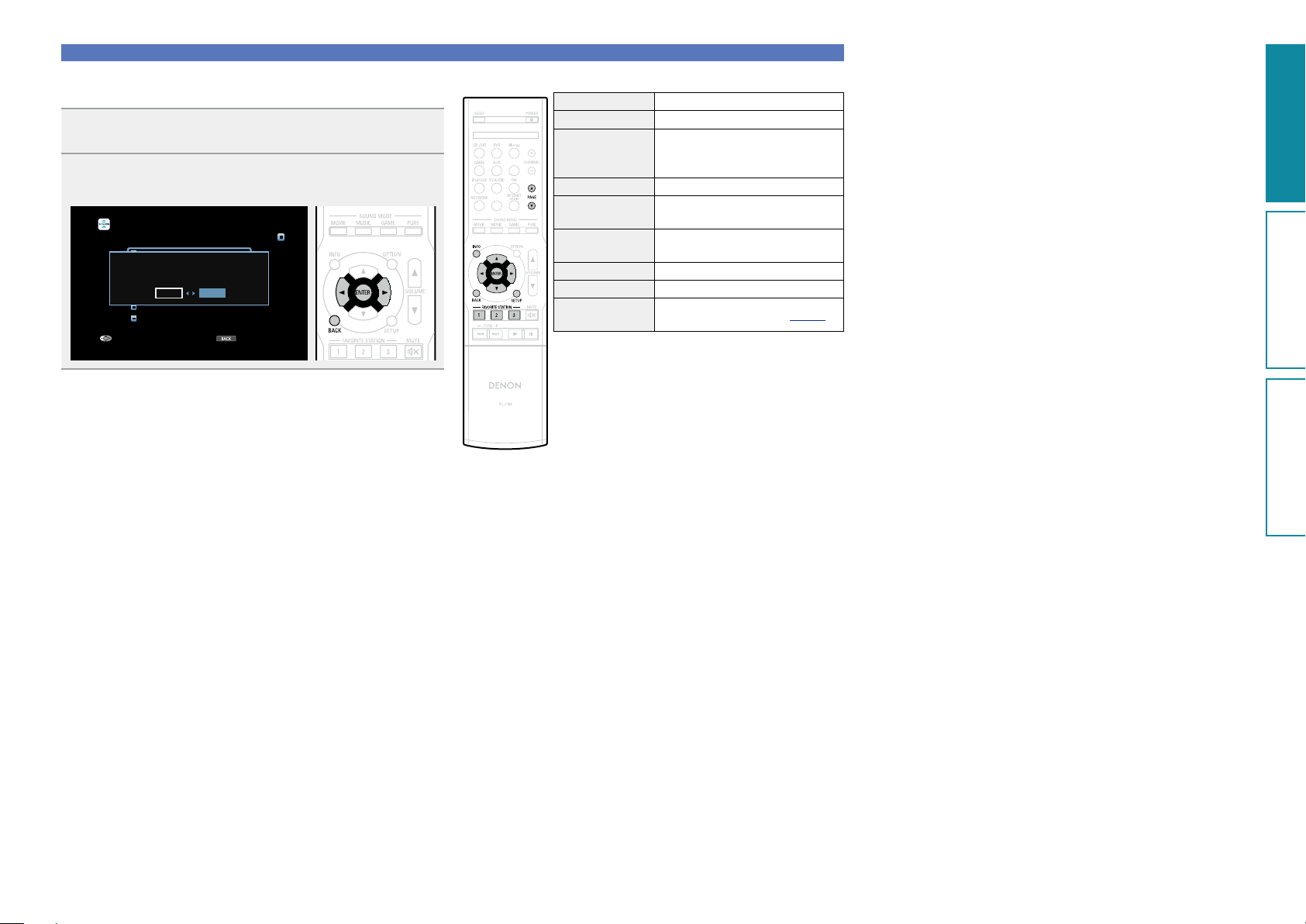

Listening to FM broadcasts

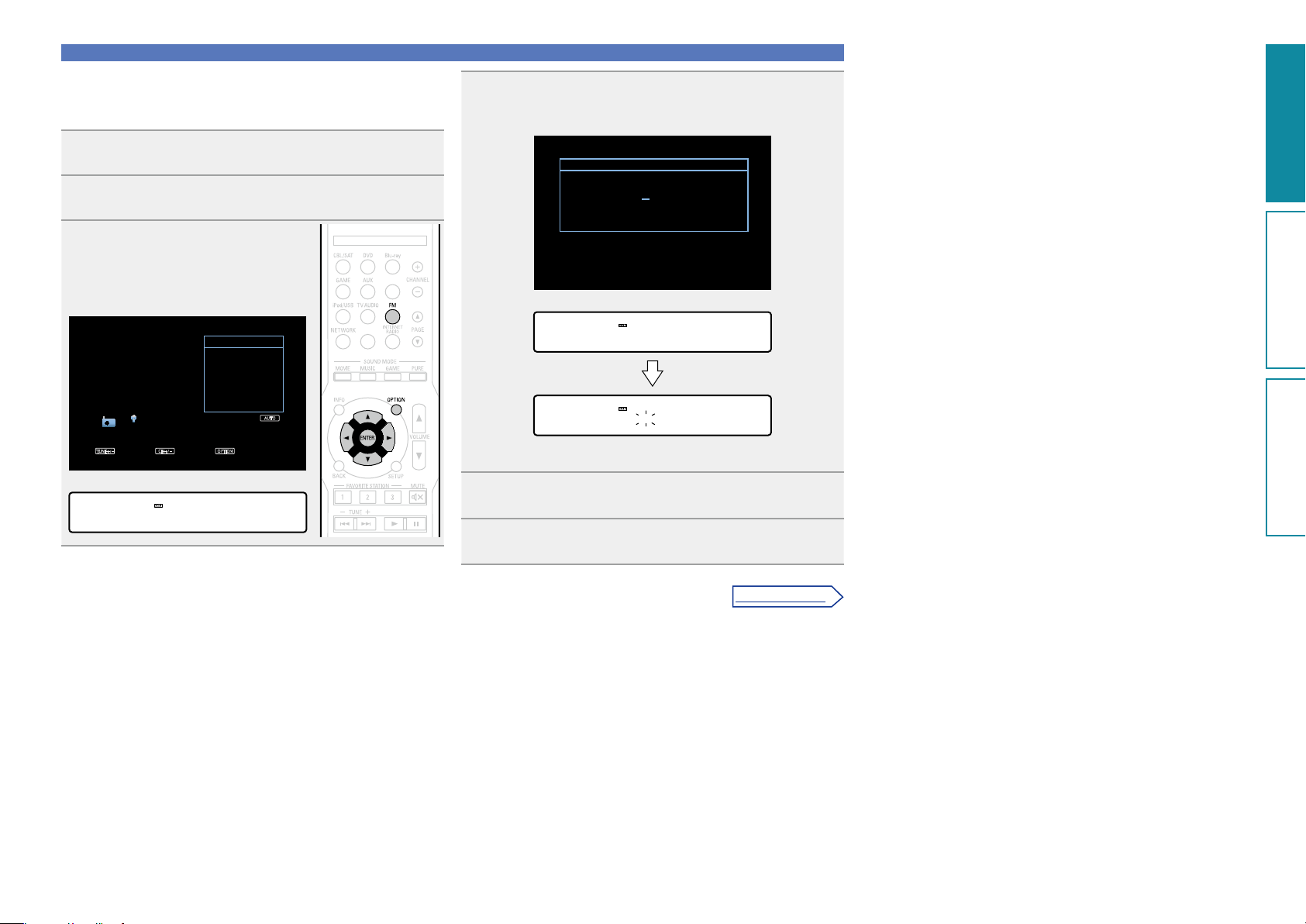

n Tuning in by entering the radio frequency
(Direct Tune)
You can enter the receiving frequency directly to tune in.
1
Press FM to switch the input source to “FM”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Direct Tune”,
then press ENTER.
The direct tuner screen is displayed and
“– –” in the display flashes.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
Direct Tune
Option
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
GDisplay of this unitH
Direct Tune
4
Use ui to select a number and press p.
The screen that lets you enter the frequency is displayed.
GTV ScreenH
FM ---.- MHz
Direct Tune
GDisplay of this unitH
Direct Tune
FM ---.- MHz
•If o is pressed, the immediately preceding input is cancelled.
5
Repeat step 3 and enter the frequency of the radio
station you want to hear.
6
When setting is completed, press ENTER.
The preset frequency is tuned in.
Basic version
Advanced version
Information
Basic version
v See overleaf
38
Listening to FM broadcasts
Presetting broadcast stations
n Tuning in to radio stations and presetting them
automatically (Auto Preset)
Up to 56 stations can be preset.
If “Auto Preset” is performed after performing “Preset Memory”,
the “Preset Memory” settings will be overwritten.
1
Press FM to switch the input source to “FM”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Auto Preset”, then press ENTER.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
Direct Tune
Option
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
GDisplay of this unitH
Auto Preset
4
Press ENTER.
The unit starts to tune in to radio stations automatically and
preset them.
GTV ScreenH
Start
Press ENTER to start Auto Preset
Auto Preset
GDisplay of this unitH
AutoPreset:Start
•When presetting is completed, “Completed” is displayed for about
5 seconds and the option menu screen turns off.
Basic version
Advanced version
Information
Basic version
v See overleaf
39
n Presetting the current broadcast station
(Preset Memory)
Your favorite broadcast stations can be preset so that you can tune
them in easily. Up to 56 stations can be preset.
1
Tune in the broadcast station you want to preset.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Preset Memory”, then press
ENTER.
The list of already preset channels is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
Direct Tune
Option
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
GDisplay of this unitH
Preset Memory
Listening to FM broadcasts
4
Use ui to select the channel you want to preset,
then press ENTER.
The current broadcast station that is preset.
•To preset other stations, repeat steps 1 to 4.
GTV ScreenH
Preset Stored at :
CH 1 FM 87.50MHz
Preset Memory
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM 107.90 MHz
Preset Memory
GDisplay of this unitH
01 FM 87.50MHz
Stored
The channel numbers of broadcast stations set as “Preset Skip”
(vpage41) are grayed out, but these stations can be preset.
When grayed out channel numbers are preset, these are highlighted
and the “Preset Skip” setting changes to “On”.
Channel Default Settings
1 – 8
87.50 / 89.10 / 98.10 / 107.90 / 90.10 / 90.10 / 90.10 /
90.10 MHz
9 – 16
90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 /
90.10 MHz
17 – 24
90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 /
90.10 MHz
25 – 32
90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 /
90.10 MHz
33 – 40
90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 /
90.10 MHz
41 – 48
90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 /
90.10 MHz
49 – 56
90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 / 90.10 /
90.10 MHz
Listening to preset stations
Use CHANNEL +, – to select the
desired preset channel.
GDisplay of this unitH
01 FM 87.50MHz
You can also select preset broadcast stations by pressing TUNER
PRESET CH +
or TUNER PRESET CH – on the unit.
Basic version
Advanced version
Information
Basic version
40

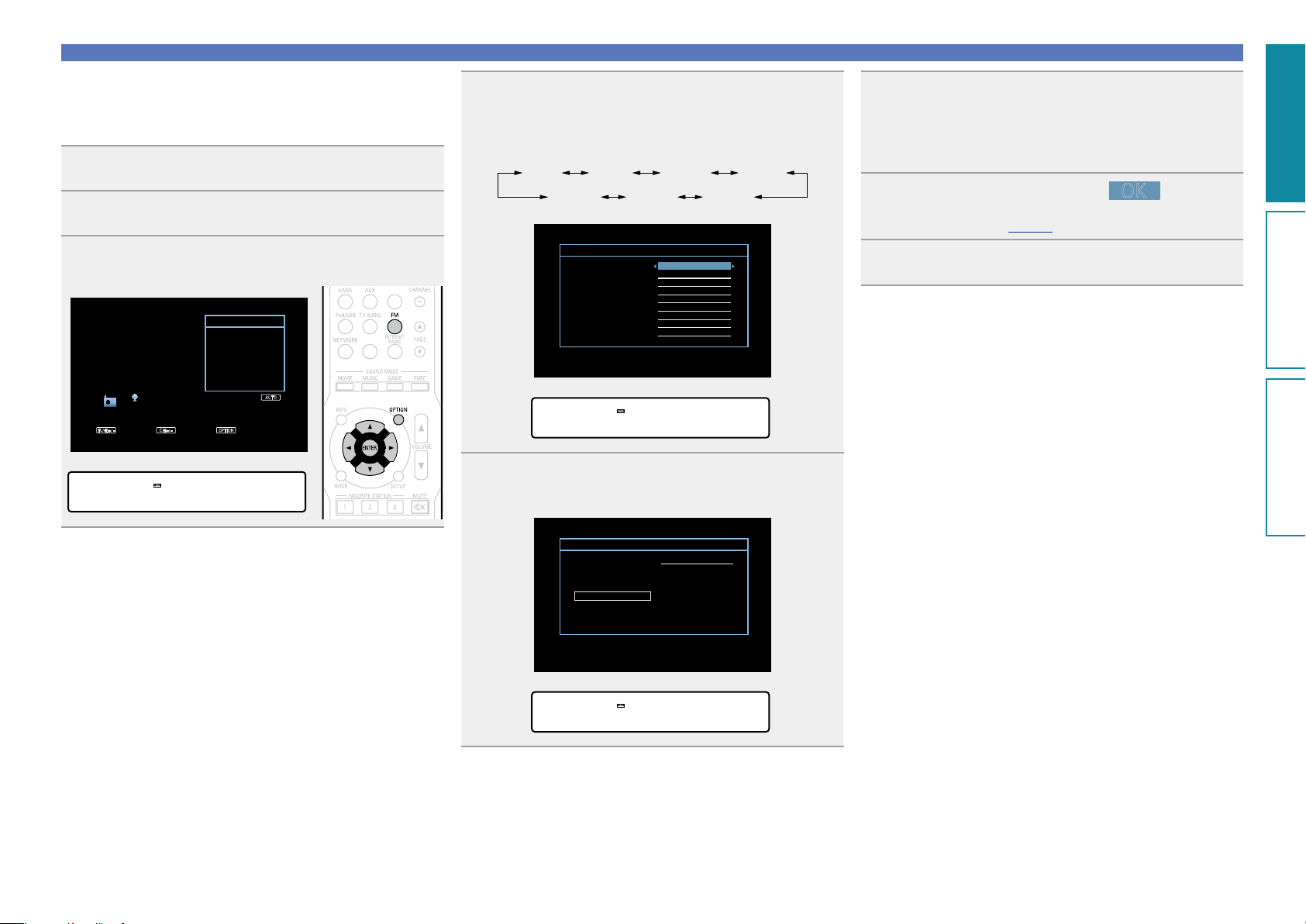

n Specify a name for the preset broadcast station
(Preset Name)
You can set the name to the preset broadcast station or change it.
Up to eight characters can be input.
1
Press FM to switch the input source to “FM”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Preset Name”, then press ENTER.
The Preset Name screen is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
Direct Tune
Option
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
GDisplay of this unitH
Preset Name
Listening to FM broadcasts
4
Use o p to select the group of the broadcast station
you want to name, then press ENTER.
The screen that lets you edit the preset name is displayed.
•Each time
o p is pressed, the setting is changed as shown below.
1 – 8 9 – 16 25 – 3217 – 24
41 – 4849 – 56 33 – 40
GTV ScreenH
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
Preset Group
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM107.90 MHz
Preset Name
1-8
GDisplay of this unitH
Group :• 1- 8–
5
Use ui to select the broadcast station you want to
name, then press ENTER.
GTV ScreenH
Preset Name
CH 1 FM 87.50 MHz
Set Defaults
GDisplay of this unitH
1 FM 87.50MHz
6
Use uio p to select a name label, then press
ENTER.
The screen that lets you edit the preset name is displayed.
•If you select “Set Defaults”, then the unit returns to displaying the
frequency.
7
Enter the characters, then press
OK
.
•For character input, see page79.
8
Press BACK twice.
The display returns to the playback screen.
Basic version
Advanced version
Information
Basic version
41
n Skipping preset broadcast stations
(Preset Skip)
You can set in advance, the stations you do not want to be
displayed when tuning in, by groups or by stations.
The preset skip setting is useful when tuning in, because only your
favorite stations are displayed.
1
Press FM to switch the input source to “FM”.
2
Press OPTION.
The option menu screen is displayed.
3
Use ui to select “Preset Skip”, then press ENTER.
The Preset Skip screen is displayed.
GTV ScreenH
TUNE+/- OPTION
AUTO
CH+/-
FM
CH 1
FM 87.50MHz
Tune Preset Option
Direct Tune
Option
Preset Memory
Tune Mode
Auto Preset
Preset Name
Preset Skip
GDisplay of this unitH
Preset Skip
4-1
GTo set the stations you want to skip by groupsH
q Use o p to select the group of broadcast
stations you want to skip.
•Each time o p is pressed, the setting is changed as
shown below.
1 – 8 9 – 16 25 – 3217 – 24
41 – 4849 – 56 33 – 40
w Press u to select “Set No. z – z to Skip”, then
press ENTER.
All broadcast stations in the group “z – z” you selected
are not displayed.
(z are the selected group numbers)
e Press BACK.
GTV ScreenH
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
Preset Group
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM107.90 MHz
On
On
On
On
On
On
On
On
Preset Skip
1-8
Set No. 1-8 to skip
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM107.90 MHz
On
On
On
On
On
On
On
On
Preset Skip
1-8
GDisplay of this unitH
Set 1- 8to Skip
4-2
GTo set the stations you want to skip by stationsH
q Use o p to select the group of broadcast
stations you want to skip.
•Each time o p is pressed, the setting is changed as
shown below.
1 – 8 9 – 16 25 – 3217 – 24
41 – 4849 – 56 33 – 40
w Use ui to select the broadcast station you
want to skip.
e Use o p to select “Skip”.
The station you selected is not displayed.
GTV ScreenH
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM107.90 MHz
On
On
On
On
On
On
On
Preset Skip
1-8
Skip
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM107.90 MHz
On
On
On
On
On
On
On
On
Preset Skip
1-8
GDisplay of this unitH
1 87.50M:•Skp–
Listening to FM broadcasts
Basic version
Advanced version
Information
Basic version
42

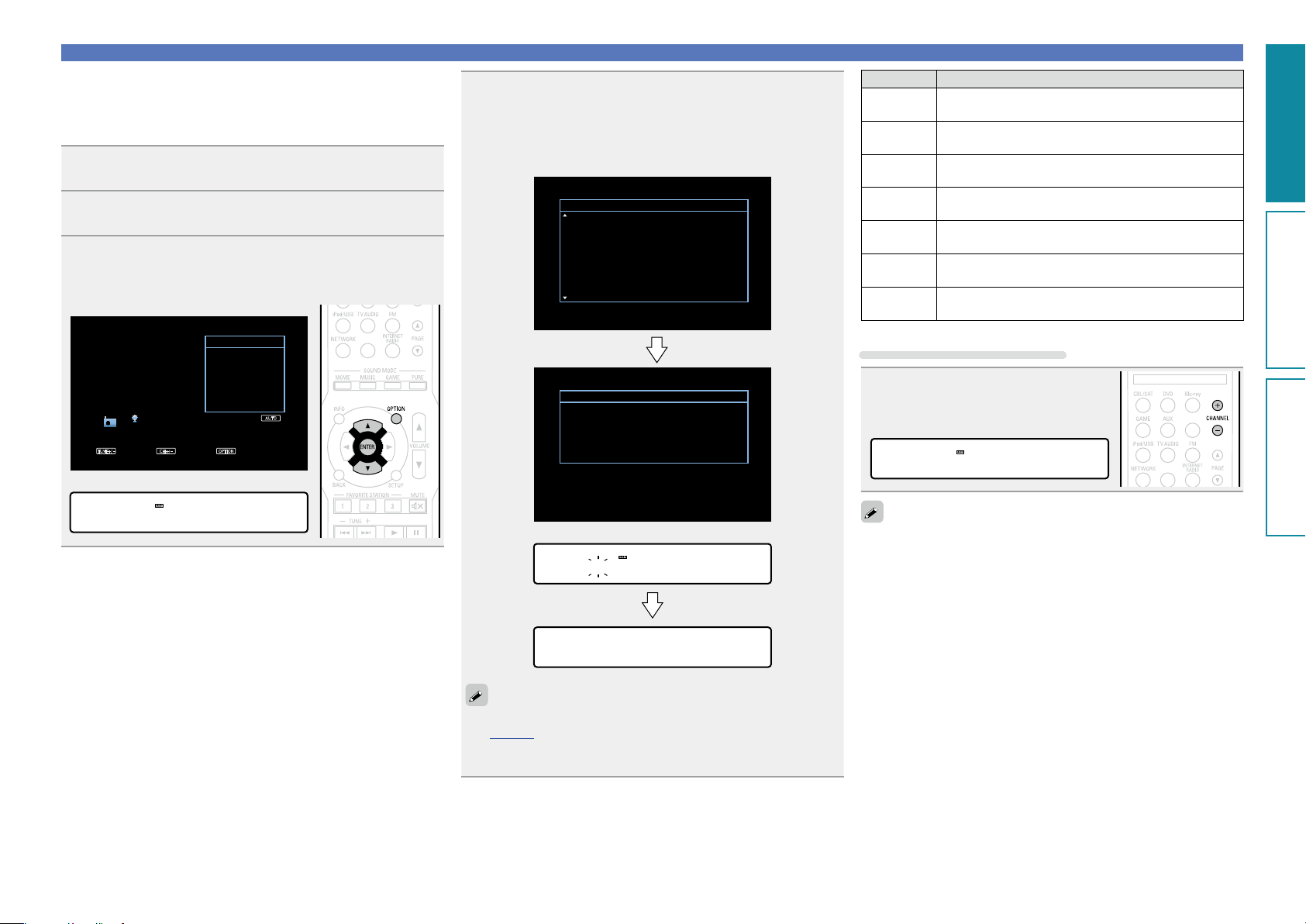

Cancelling preset skip
1
While the Preset Skip screen is displayed, use o p
to select a group containing a broadcast station to
cancel the skip for.
2
Use ui to select a broadcast station to cancel the
skip for.
GTV ScreenH
CH 3 FM 98.10 MHz
CH 2 FM 89.10 MHz
CH 1 FM 87.50 MHz
Preset Group
Set No. 1-8 to skip
CH 6 FM 90.10 MHz
CH 5 FM 90.10 MHz
CH 8 FM 90.10 MHz
CH 7 FM 90.10 MHz
CH 4 FM107.90 MHz
On
On
On
On
On
On
On
Preset Skip
1-8
On
GDisplay of this unitH
1 87.50M:•On –
3
Use o p to select “On”.
The skip is cancelled.
NOTE
You cannot cancel the skip for each group.
Listening to FM broadcasts
n FM operation buttons
Operation buttons Function
CHANNEL +, – Preset channel selection
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Switch tuning modes /
Direct frequency tuning /
Preset Memory /
Auto Preset /
Preset Name /
Preset Skip
uio p
Cursor operation
ENTER Enter
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Add/call up favorites (vpage60)
TUNE +, – Tuning (up/down)
Basic version
Advanced version
Information
Basic version
43
Listening to internet radio
Internet radio refers to radio broadcasts distributed over the Internet.
Internet radio stations from around the world can be received.
Important information
The broad cast station types and specifications supported by this unit
for playback are as follows.
GPlayable broadcast station typesH
Supported file types Internet radio
WMA (Windows Media Audio)
P
MP3 (MPEG-1 Audio Layer-3)
P
GPlayable broadcast station specificationsH
Sampling
frequency
Bit rate Extension
WMA (Windows
Media Audio)
32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1
Audio Layer-3)
32/44.1/48 kHz 32 – 320 kbps .mp3
Listening to internet radio
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage99).
2
Press NETWORK.
•You can also press INTERNET RADIO to select the input source
“Internet Radio” directly.
3
Use uio p to select “Internet
Radio”, then press ENTER.
Favorites Internet Radio
Media Server
Network
4
Use ui to select the item you want to play, then
press ENTER or p.
Internet Radio [1/7]
zzzzz
Search Stations
Search Podcasts
Recommended Stations
radiodenon.com
Recently Played
Search by Keyword
zzzzz
(Country name)
Displays typical Internet radio stations your country.
Search
Stations
Displays all Internet radio stations that this unit can
tune in to.
Search
Podcasts
Displays Internet radio stations in the podcasts that
this unit can tune in to.
Recommended
Stations
Displays recommended Internet radio stations.
radiodenon.
com
Displays Internet radio stations added to favorites in
vTuner. For instructions on how to add to favorites
in vTuner, see “Using vTuner to add Internet radio
stations to favorites” (vpage45).
Recently
Played
Displays recently played Internet radio stations. Up to
20 stations stored in “Recently Played”.
Search by
Keyword
Displays Internet radio stations searched by keyword.
For character input, see page79.
5
Repeat step 4 until the station list is displayed.
The station list is displayed.
6
Use ui to select the station, then press ENTER or p.
Playback starts once buffering reaches “100%”.
Network
Basic version
Advanced version
Information
Basic version
v See overleaf
44
Listening to internet radio
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (vpage83) in the menu.
You can use the “Restorer” function to restore to a state close
to the audio before compression while correcting the bass feel to
enjoy a richer playback experience. The default setting is “Mode3
(Low)”.
n Switching the screen display
Press STATUS on the main unit.
The display switches between track title and radio station name
each time the button is pressed.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Audio Display” (vpage 88) in the menu.
The default setting is “30s”.
Press uio p while the display is off to return to the original
screen.
•There are many Internet radio stations on the Internet, and the
quality of the programs they broadcast as well as the bit rate of the
tracks varies widely.
Generally, the higher the bit rate, the higher the sound quality, but
depending on the communication lines and server traffic, the music
or audio signals being streamed may be interrupted. Inversely, lower
bit rates mean a lower sound quality but less tendency for the sound
to be interrupted.
•“Radio station server full” or “Connection down” is displayed if the
station is busy or not broadcasting.
•On this unit, folder and file names can be displayed as titles. Any
characters that cannot be displayed are replaced with “.” (period).
NOTE
The radio station database service may be suspended without notice.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Searching content with keywords
(Text Search) (vpage58)
n Add to favorites from the Option menu
(Favorites Memory) (vpage60)
n Playing back music and a favorite picture at the
same time (Picture View) (vpage61)
n Playing the last played Internet radio station
This unit memorizes the last played Internet radio station. If you
press INTERNET RADIO to switch to the Internet radio function
from another input source, the last Internet radio station you
listened to is played.
Press INTERNET RADIO.
The source switches to “Internet Radio” and
the last played radio station plays.
Basic version
Advanced version
Information
Basic version
45
Listening to internet radio
n Using vTuner to add Internet radio stations to
favorites
There are many Internet radio stations in the world, and this unit
can tune into these stations. But finding the radio station you want
to hear may be difficult, because there are too many stations. If
this is the case, then please use vTuner, an Internet radio station
search website specifically designed for this unit. You can use your
PC to search Internet radio stations and add them as your favorites.
This unit can play radio stations added to vTuner.
1
Check the MAC address of this unit (vpage 98).
The screen that lets you edit the preset name is displayed.
MAC address:
•The MAC address is necessary when you create an account for
vTuner.
2
Use your PC to access the vTuner website (http://
www.radiodenon.com).
The vTuner login screen is displayed.
3
Enter the MAC address of this unit, then click “Go”.
The account creation screen is displayed.
4
Enter your E-mail address and a password of your
choice.
The account is registered and you can now log in.
5
Enter your account information (E-mail address and
password) and log in.
The top menu of vTuner is displayed.
6
Select the search criteria (genre, region, language,
etc.) of your choice.
The list of radio stations matching the criteria is displayed.
•You can also enter a keyword to search for a station you want to
hear.
7
Select the radio station of your choice from the list,
and then click the Add to Favorites icon.
The screen that lets you create a favorite group is displayed.
8
Enter the name of the favorite group, then click
“Go”.
A new favorite group that includes the selected radio station is
created.
•Internet radio stations added to favorites in vTuner can be played
from “radiodenon.com” (vpage43) with this unit.
n Internet radio operation buttons
Operation buttons Function
INTERNET RADIO Last played internet radio station
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Text Search /
Favorites Memory /
Picture View
uio p
Cursor operation
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Add/call up favorites (vpage60)
Basic version
Advanced version
Information
Basic version
46
Playing back files stored on a PC and NAS
This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached
Storage (NAS) that supports DLNA.
Important information
•The network audio playback function of this unit connects to the server using technologies shown below.
•Windows Media Player Network Sharing Service
•Windows Media DRM10
•File types that this unit can play back and specifications are shown below.
GSupported file typesH
Supported file types Media server
z1
WMA (Windows Media Audio)
P
MP3 (MPEG-1 Audio Layer-3)
P
WAV
P
MPEG-4 AAC
P
z2
FLAC (Free Lossless Audio Codec)
P
JPEG
P
A server or server software compatible with distribution in the corresponding formats is required to play
music files via a network.
z1 Media server
•This unit is compatible with MP3 ID3-Tag (Ver. 2) standard.
•This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4.
•This unit is compatible with WMA META tags.
•If the image size (pixels) of an album artwork exceeds 500 × 500 (WMA/MP3/WAV/FLAC) or 349 ×
349 (MPEG-4 AAC), then music may not be played back properly.
z2 Only files that are not protected by copyright can be played on this unit.
Content downloaded from pay sites on the Internet are copyright protected. Also, files encoded in
WMA format when ripped from a CD, etc. on a computer may be copyright protected, depending on
the computer’s settings.
NOTE
File types that this unit does not support are not displayed.
GSpecifications of supported filesH
Sampling frequency Bit rate Extension
WMA (Windows Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1 Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3
WAV 32/44.1/48 kHz – .wav
MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps
.aac/
.m4a/
.mp4
FLAC (Free Lossless Audio Codec) 32/44.1/48/88.2/96 kHz – .flac
Basic version
Advanced version
Information
Basic version
47
Playing back files stored on a PC and NAS
Applying media sharing settings
Here, we apply the settings to share music files stored on a PC and
NAS on the network.
n Sharing media stored in PC
If you are using a media server, be sure to apply this setting first.
When using Windows Media Player 12
(Windows 7)
NOTE
Perform this procedure after changing the control panel display to
“Category”.
1
In the PC’s “Control Panel”, select “Network
and Internet” - “Choose homegroup and sharing
options”.
2
Select the “Stream my pictures, music, and videos
to all devices on my home network” check box and
select “Choose media streaming options”.
3
Select “Allowed” in the drop-down list for “AVR-
1613”.
4
Select “Allowed” in the drop-down list for “Media
programs on this PC and remote connections...”.
5
Click “OK” to nish.
When using Windows Media Player 11
1
Start up Windows Media Player 11 on the PC.
2
Select “Media Sharing” in the “Library”.
3
Click the “Share my media” check box, select “AVR-
1613”, and then click “Allow”.
4
As you did in step 3, select the icon of the device
(other PCs and mobile devices) you want to use as a
media controller, and then click “Allow”.
5
Click “OK” to nish.
Sharing media stored in NAS
Change settings on the NAS to allow this unit and other devices (PCs
and mobile devices) used as media controllers to access the NAS. For
details, see the owner’s manual that came with the NAS.
Basic version
Advanced version
Information
Basic version
48
Playing back files stored on a PC and NAS
Playing back files stored on a PC and NAS
Use this procedure to play music files, image files or playlists.
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage99).
e Prepare the computer (vComputer’s operating
instructions).
2
Press NETWORK.
3
Use uio p to select “Media
Server”, then press ENTER.
Favorites Internet Radio
Media Server
Network
4
Use uio p to select the server including the le to
be played, then press ENTER or p.
5
Use ui to select the search item or folder, then
press ENTER or p.
6
Repeat step 4 until the le is displayed.
7
Use ui to select the le, then press ENTER or p.
Playback starts once buffering reaches “100%”.
n Adjusting the sound quality (Restorer)
Make this setting at “Restorer” (
vpage83) in the menu.
You can use the “Restorer” function to restore to a state close
to the audio before compression while correcting the bass feel to
enjoy a richer playback experience. The default setting is “Mode3
(Low)”.
n Switching the screen display
Press STATUS on the main unit.
The display switches between track title, artist name, and album
title each time the button is pressed.
n Going back to the previous screen
Press o or BACK.
n Changing the screen display duration
Make this setting at “Audio Display” (vpage 88) in the menu.
The default setting is “30s”.
Press uio p while the display is off to return to the original
screen.
•When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file
includes album art data, the album art can be displayed while the
music files are playing.
•If you use Ver.11 or later of Windows Media Player, the album art for
WMA files can be displayed.
•WMA Lossless files can be played when using a server supporting
transcoding, such as Windows Media Player Ver. 11 or later.
NOTE
•Depending on the size of the still picture (JPEG) file, some time may
be required for the file to be displayed.
•The order in which the tracks/files are displayed depends on
the server specifications. If the tracks/ files are not displayed in
alphabetical order due to the server specifications, searching by the
first letter may not work properly.
Basic version
Advanced version
Information
Basic version
49
Playing back files stored on a PC and NAS
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Searching content with keywords
(Text Search) (vpage58)
n Performing repeat playback (Repeat)
(vpage59)
n Performing random playback (Random)
(vpage59)
n Add to favorites from the Option menu
(Favorites Memory) (vpage60)
n Playing back music and a favorite picture at the
same time (Picture View) (vpage61)
n Playing back still images in sequential order
(Slideshow) (vpage61)
n Media server operation buttons
Operation buttons Function
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION
Text Search /
Repeat playback /
Random playback /
Favorites Memory /
Picture View /
Slideshow
uio p
Cursor operation /
Auto search (cue, ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Add/call up favorites (vpage60)
8 9
Auto search (cue)
1
Playback
3
Pause
Basic version
Advanced version
Information
Basic version
50
Using online services
This unit supports playback of the online services shown below.
n About Flickr (vpage51)
Flickr is an online photograph sharing service that started in 2004. You can use the this
unit to view photographs that have been made public by Flickr users. You do not need
an account to use Flickr. To view photographs that you recorded yourself, you need an
account in order to upload these photographs to the Flickr server. For details, see the
Flickr homepage.
http://www.flickr.com/
n About Pandora (vpage53)
Pandora is an automated music recommendation and Internet radio service created by
the Music Genome Project.
When you first listen to Pandora, it is necessary to subscribe to a Pandora account at the
Pandora homepage by your PC and register this machine. See the Pandora homepage
for details.
http://www.pandora.com/denon
n About SiriusXM (vpage56)
Enjoy anywhere access to the unparalleled content of SiriusXM.
Whether on your computer, smartphone, tablet, Lynx Portable Enjoy anywhere access to
the unparalleled content of SiriusXM.
Whether on your computer, smartphone, tablet, Lynx Portable Radio, or compatible
Internet-connected device, you don’t need to be in your vehicle to enjoy SiriusXM.
For details, see the SiriusXM homepage.
http://www.siriusxm.com
Basic version
Advanced version
Information
Basic version

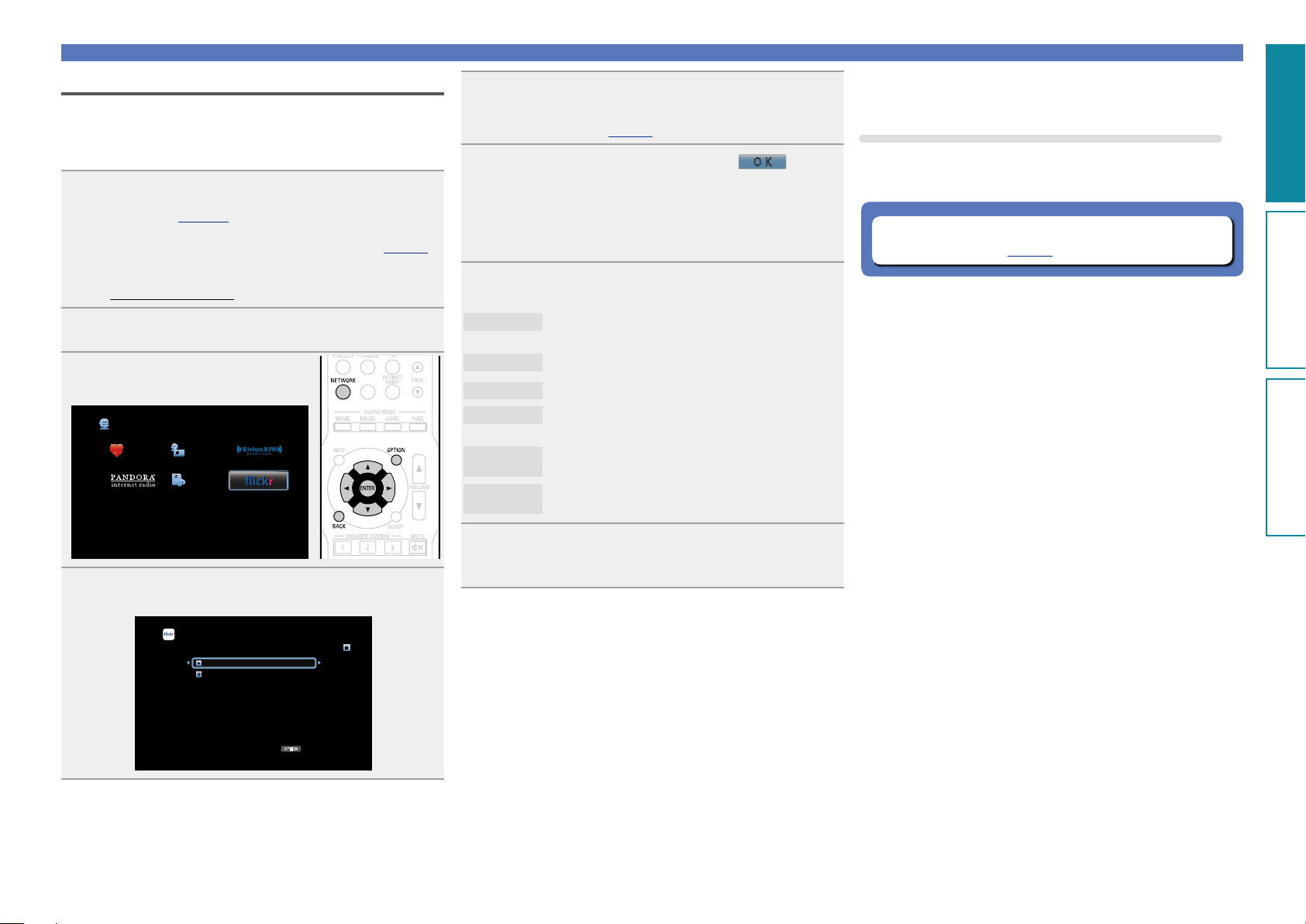

51
Using online services

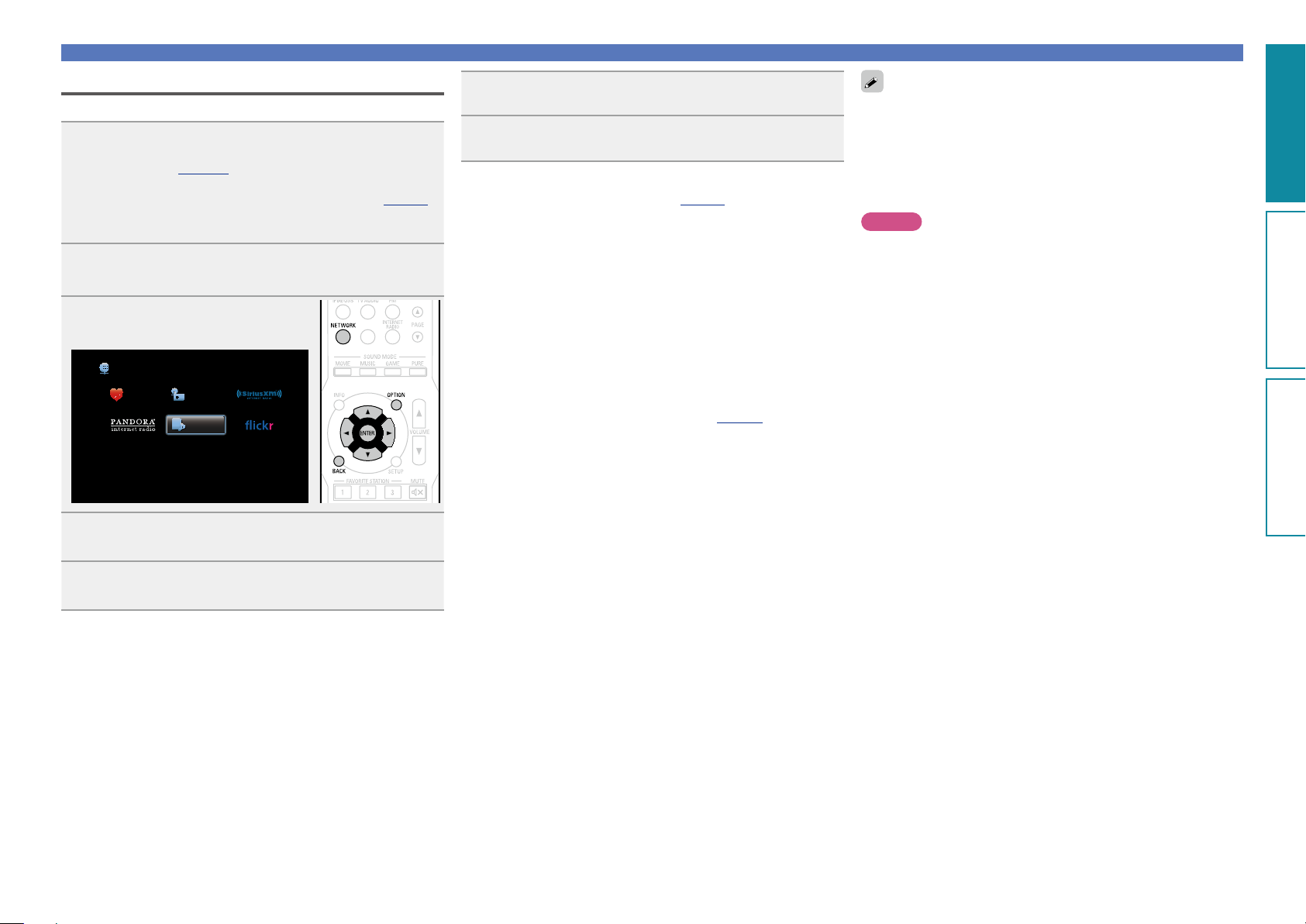

Viewing photographs on the Flickr site
You can view photographs shared by particular users, or all of the
photographs shared on Flickr.
n Viewing photographs shared by particular users
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage99).
e Access the following website from your PC and obtain a
Flickr account.
http://www.flickr.com/
2
Press NETWORK.
3
Use uio p to select “Flickr”,
then press ENTER.
Favorites Internet Radio
Media Server
Network
4
Use ui to select “Add Flickr Contact”, then press
ENTER or p.
OPTION
Flickr [1/2]
Add Flickr Contact
All Content
Option
5
In “Contact”, add the screen name (user name you
want to view) you want to add.
•For character input, see page79.
6
After inputting the “Contact”, press
O K
.
The screen name is added to “Contact”, and the screen name
you entered in Step 5 is displayed on the top screen of Flickr.
•If you enter a screen name that does not exist, “The Flickr Contact
you entered could not be found” is displayed. Check and enter the
correct screen name.
7
Use ui to select the folder, and then press ENTER
or p.
Favorites
Displays the favorite photographs of the specified
user.
Photostream
Displays a list of shared photographs.
PhotoSets
Displays the folder (photograph album) list.
Contacts
Displays the screen name used by the specified user
in Contacts.
Remove this
Contact
Deletes a user from Flickr Contact.
Add this
Contact
Adds a user from Flickr Contact.
8
Use ui to select the le, and then press ENTER or
p.
The selected file is displayed.
n Going back to the previous screen
Press o or BACK.
Operations available through the OPTION button
Press the OPTION button to display a menu of functions that can be
used on the TV screen. Select the function you want to use from this
menu. You can easily find and use the desired function.
n Playing back still images in sequential order
(Slideshow) (vpage61)
Basic version
Advanced version
Information
Basic version
52
Using online services
n Viewing all photographs on Flickr
1
Use ui to select “All Content”,
then press ENTER or p.
OPTION
Flickr [1/2]
Add Flickr Contact
All Content
Option
2
Use ui to select the folder, and then press ENTER
or p.
Interestingness
Displays photographs that are popular from the
number of user comments or number of times they
are added as favorites.
Recent
Displays the most recently added photographs.
Search by text
Search for photographs by keyword.
3
Use ui to select the le, and then press ENTER or
p.
The selected file is displayed.
NOTE
Depending on the file format, some photographs cannot be viewed.
n Flickr operation buttons
Operation buttons Function
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
OPTION Slideshow
uio p
Cursor operation /
Auto search (cue, ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
Basic version
Advanced version
Information
Basic version
53
Using online services

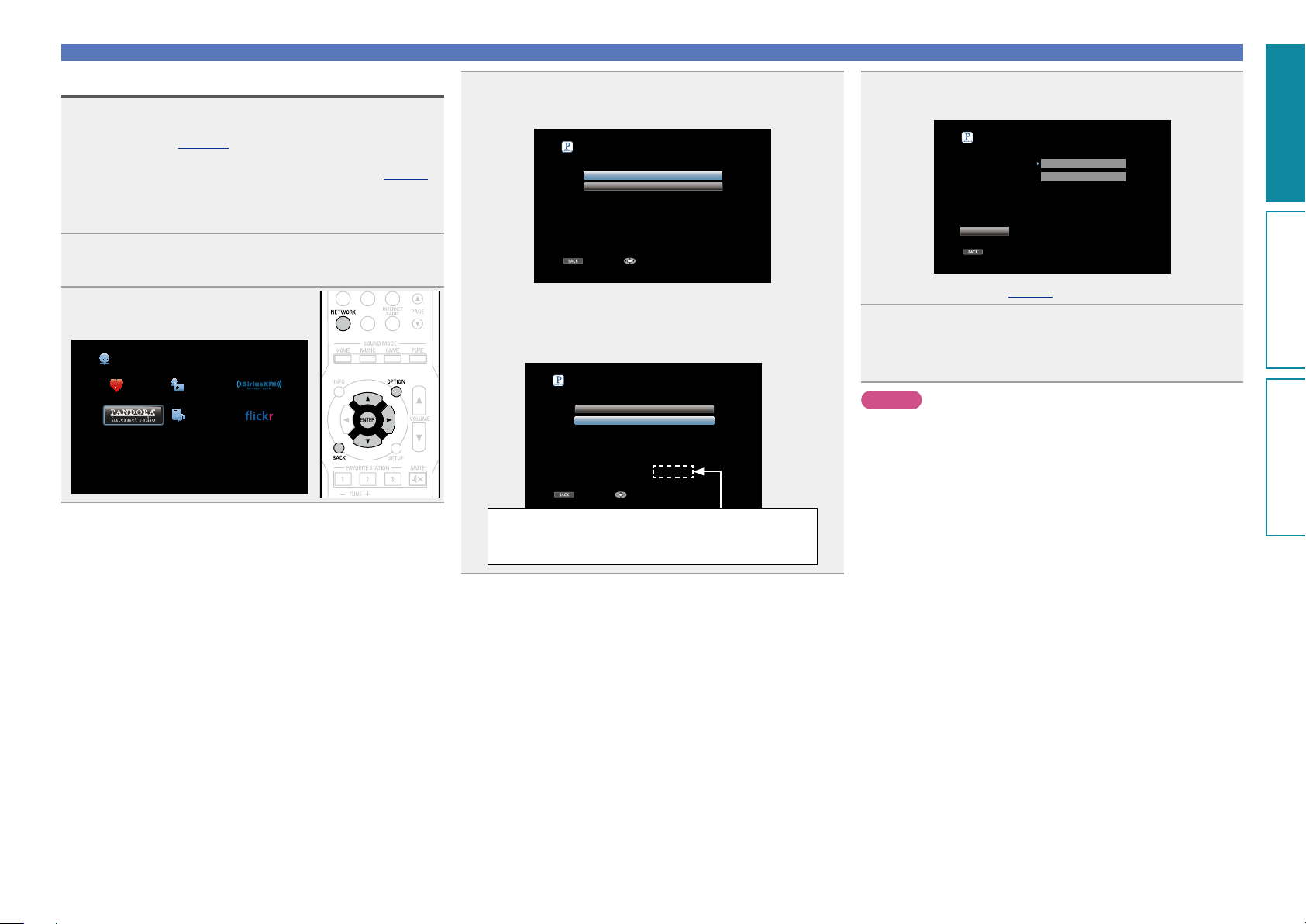

Listening to Pandora
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage99).
e Complete step 4 and obtain a Pandora account.
•If you already have a Pandora account, you do not need to
obtain a new account. Use your existing Pandora account.
2
Press NETWORK.
3
Use uio p to select “Pandora”,
then press ENTER.
Favorites Internet Radio
Media Server
Network
4
If you have a Pandora account, use ui to select “I
have a Pandora account”, then press ENTER or p.
BACK
Pandora Account
I have a Pandora account
I am new to Pandora
Cancel Enter
•If you do not have a Pandora account, press i to select “I am
new to Pandora”. The URL of Pandora and activation code are
displayed. Access the Pandora web page from your PC and register
the displayed activation code and account information. Then press
ENTER.
BACK
Pandora
I have a Pandora account
Please go to
http://www.pandora.com/denon and follow
the instructions there to create a new account.
Your activation code is :
zzzzzz
I am new to Pandora
Cancel Continue
This is an identification code required to register your
purchased product to the Pandora service.
This code is used to obtain your account.
5
Input “Email address” and “Password”.
BACK
Pandora Account
Email address
Password
OK
Enter Email address
Exit
•For character input, see page79.
6
After inputting the “Email address” and “Password”,
select “OK”, then press ENTER.
If the “Email address” and “Password” match, the top menu
for Pandora is displayed.
NOTE
Press BACK to cancel the input. When “Cancel input?” is displayed,
select “Yes”, then press ENTER.
Basic version
Advanced version
Information
Basic version
54
Using online services

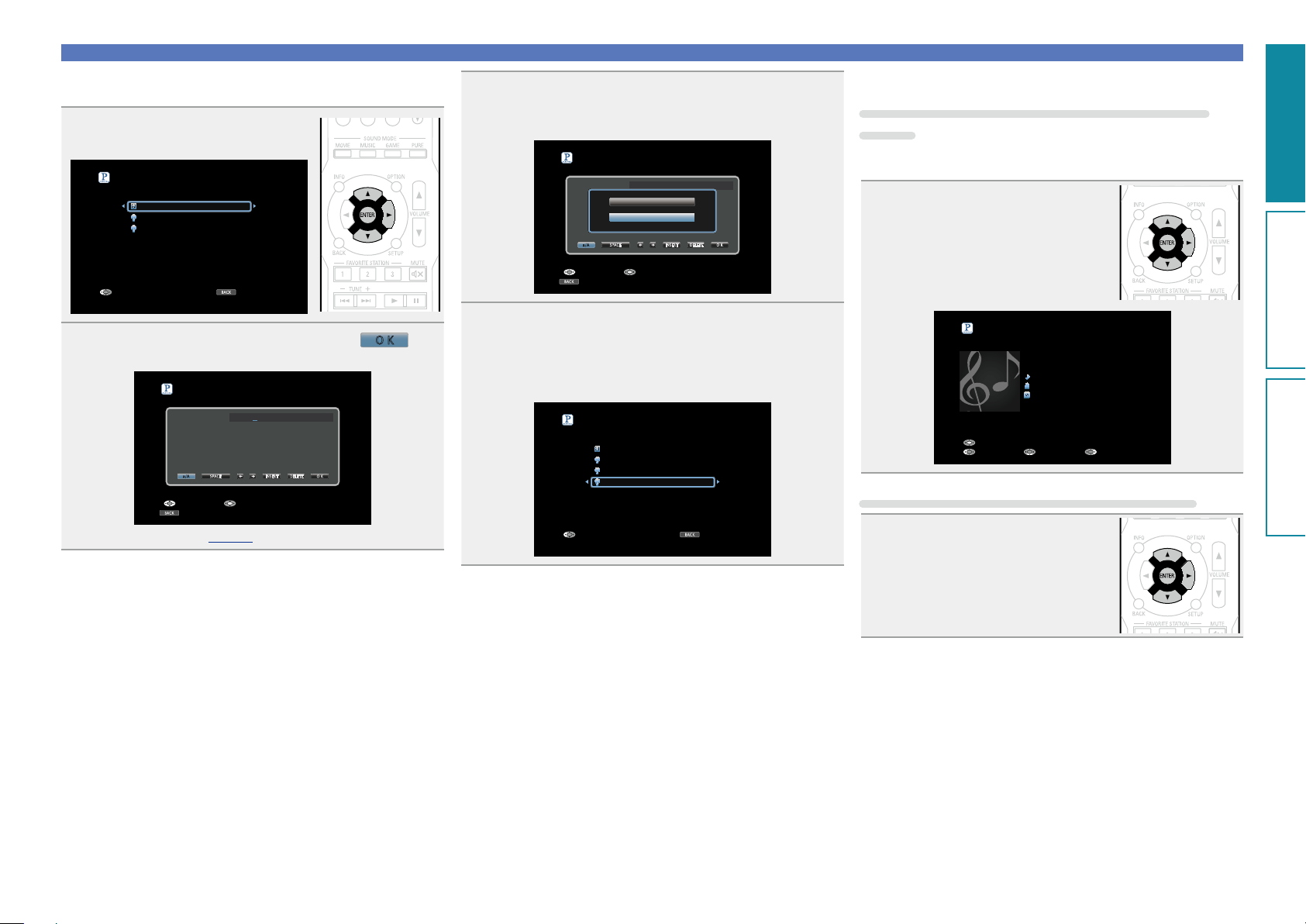

n Creating an original radio station
You can create up to 100 original radio stations.
1
Use ui to select “New Station”,
then press ENTER or p.
BACK
My Station [1/3]
Sign outExit
New Station
Quick Mix
D&M1 Radio
2
Input a track or artist name, then press
O K
.
BACK
New Station
InputSelect
Cancel
Track or Artist
A
N
0
$
B
O
1
%
C
P
2
&
D
Q
3
‘
E
R
4
(
F
S
5
)
G
T
6
*
H
U
7
+
I
V
8
,
J
W
9
;
K
X
!
<
L
Y
“
=
M
Z
#
>
D&M2
a/A SPACE INSERT DELETE O K
•For character input, see page79.
3
Use ui to select “Search by Artist” or “Search by
Track”, then press ENTER.
You can search and display a list by track or artist.
BACK
New Station
InputSelect
Cancel
Track or Artist
A
N
0
$
B
O
1
%
C
P
2
&
D
Q
3
‘
E
R
4
(
F
S
5
)
G
T
6
*
H
U
7
+
I
V
8
,
J
W
9
;
K
X
!
<
L
Y
“
=
M
Z
#
>
D&M2
a/A SPACE INSERT DELETE O K
Search by Artist
Search by Track
4
Press ui, select a le (e.g. D&M2) from the list, and
press ENTER or p.
Selected file is played back.
“Radio” is added to the end of a filename, and your original
radio station is created (e.g. D&M2 Radio).
BACK
My Station [4/4]
Sign outExit
New Station
Quick Mix
D&M1 Radio
D&M2 Radio
n Listening to a created radio station
Listening to a created radio station (e.g. D&M2
Radio)
By specifying your favorite track or artist name, music that has a
similar rhythm or sound is chosen and streamed.
Use ui and select the radio station
(“D&M2 Radio”) that you want to
listen to, and press ENTER or p.
In Pandora, you can search for the track name
or artist name using “D&M2” as a keyword.
When the search is complete, tracks that
have a similar rhythm or sound are streamed.
D&M2 Radio
Title
Now Playing
Artist
Album
00:06 100%
Pause
Next MenuBack
Listening to created radio stations at random
Use ui to select “Quick Mix”, then
press ENTER or p.
Created radio stations are selected at
random, and tracks are streamed.
Basic version
Advanced version
Information
Basic version

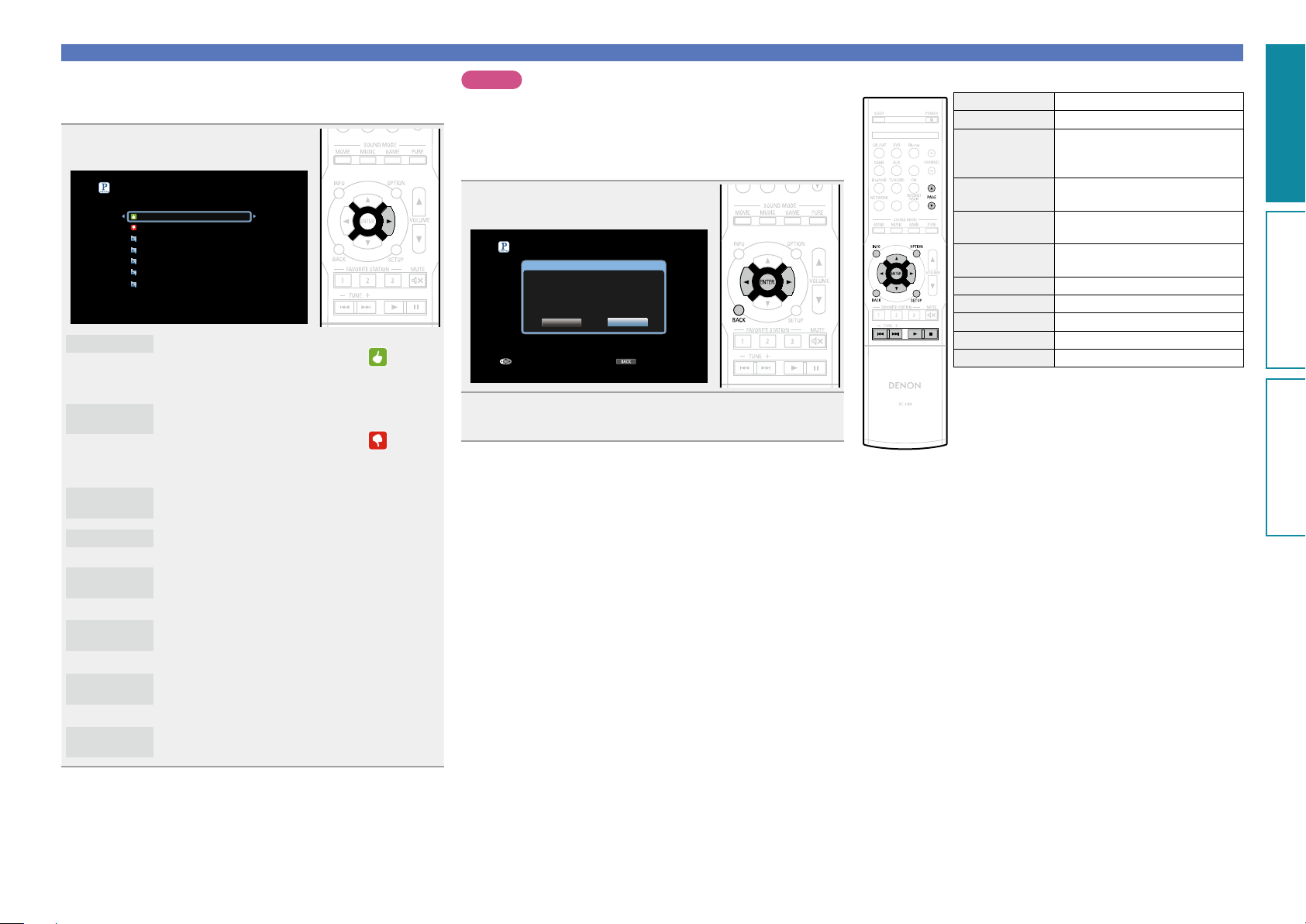

55

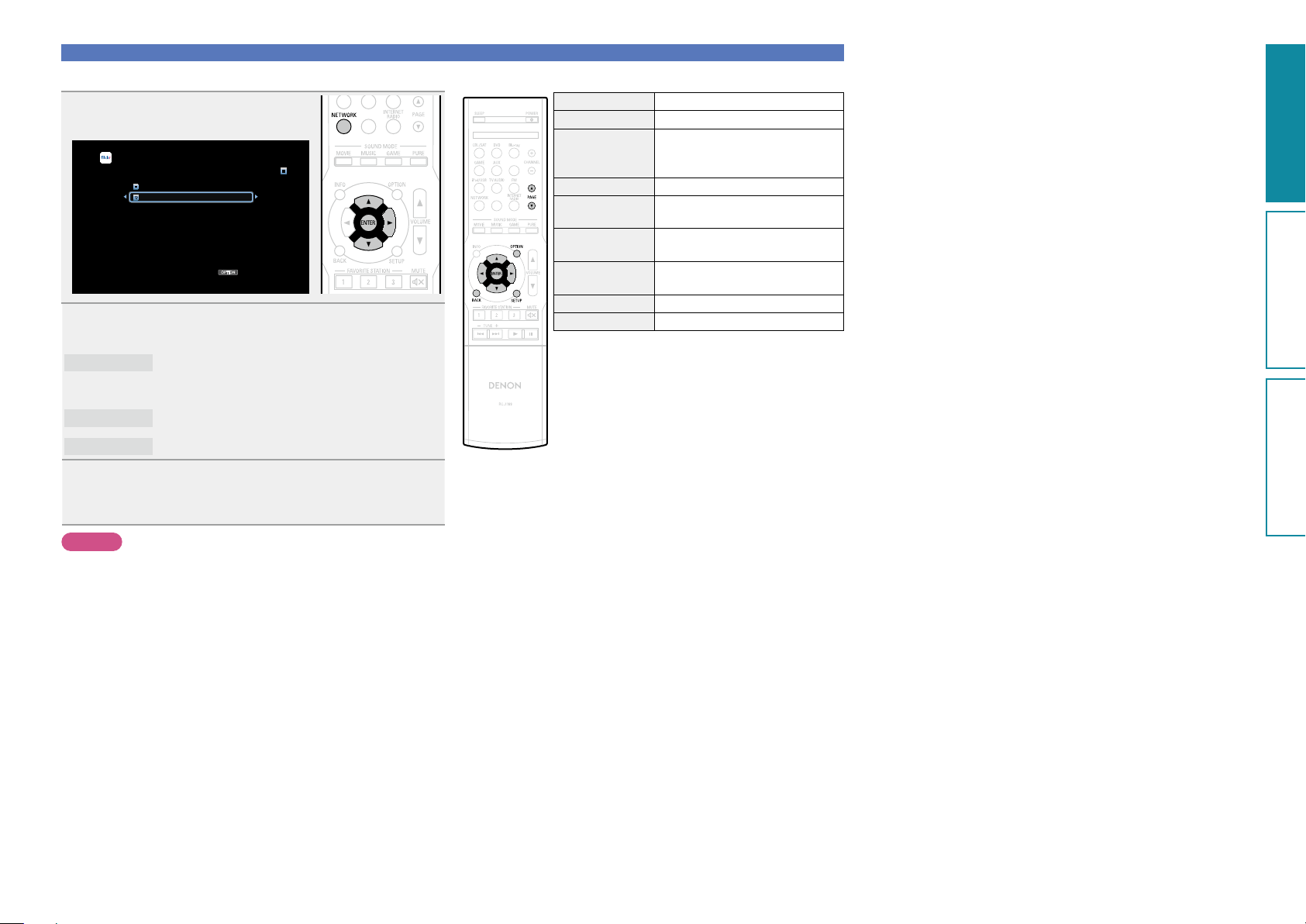

Using online services
n Arranging tracks within radio stations
You can sort tracks by operating the Pandora menu screen while
a track is playing.
Press p while a track is playing.
The Pandora menu screen is displayed.
Menu [1/8]
I like this track
I don’t like this track
Why is this track playing?
Create station
Bookmark this artist
Bookmark this track
I’m tired of this track
I like this track
•Press when you like the track that is being played.
•It will return to the Play Screen. And
(Thumbs
up) icon is displayed. (The icon is not displayed on
the next track.)
I don’t like
this track
•Press when you don’t like the track that is being
played.
•It will return to the Play Screen. And
(Thumbs
down) icon is displayed. (The icon is not displayed
on the next track.)
Why is this
track playing?
•Displays the reason why Pandora selected this
track.
Create station
•Creates a Station for the Track or Artist being
played.
Bookmark
this artist
•Bookmarks the artist currently being played.
•You can check on a computer or iPhone etc.
•For details, see the Pandora web page.
Bookmark
this track
•Bookmarks the track currently being played.
•You can check on a computer or iPhone etc.
•For details, see the Pandora web page.
I’m tired of
this track
•Press when you don’t like the track that is being
played.
•The track will not be played for 1 month.
Delete this
station
•Press when you want to delete the station that is
being played.
NOTE
•You can Skip up to 6 Tracks that are being played back within 1 hour.
•You can create up to 100 New Stations (radio stations).
n Sign out
Disassociate this unit from your Pandora account.
1
While the Pandora top menu is
displayed, press BACK.
BACK
My Station [1/3]
Sign outExit
New Station
Quick Mix
D&M1 Radio
Are you sure you want to sign out
Yes
No
2
When the popup menu appears, use o p to select
“Yes”, then press ENTER.
n Pandora operation buttons
Operation buttons Function
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
uio p
Cursor operation /
Auto search (cue, ui)
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
8 9
Auto search (cue)
1
Playback
3
Pause
Basic version
Advanced version
Information
Basic version

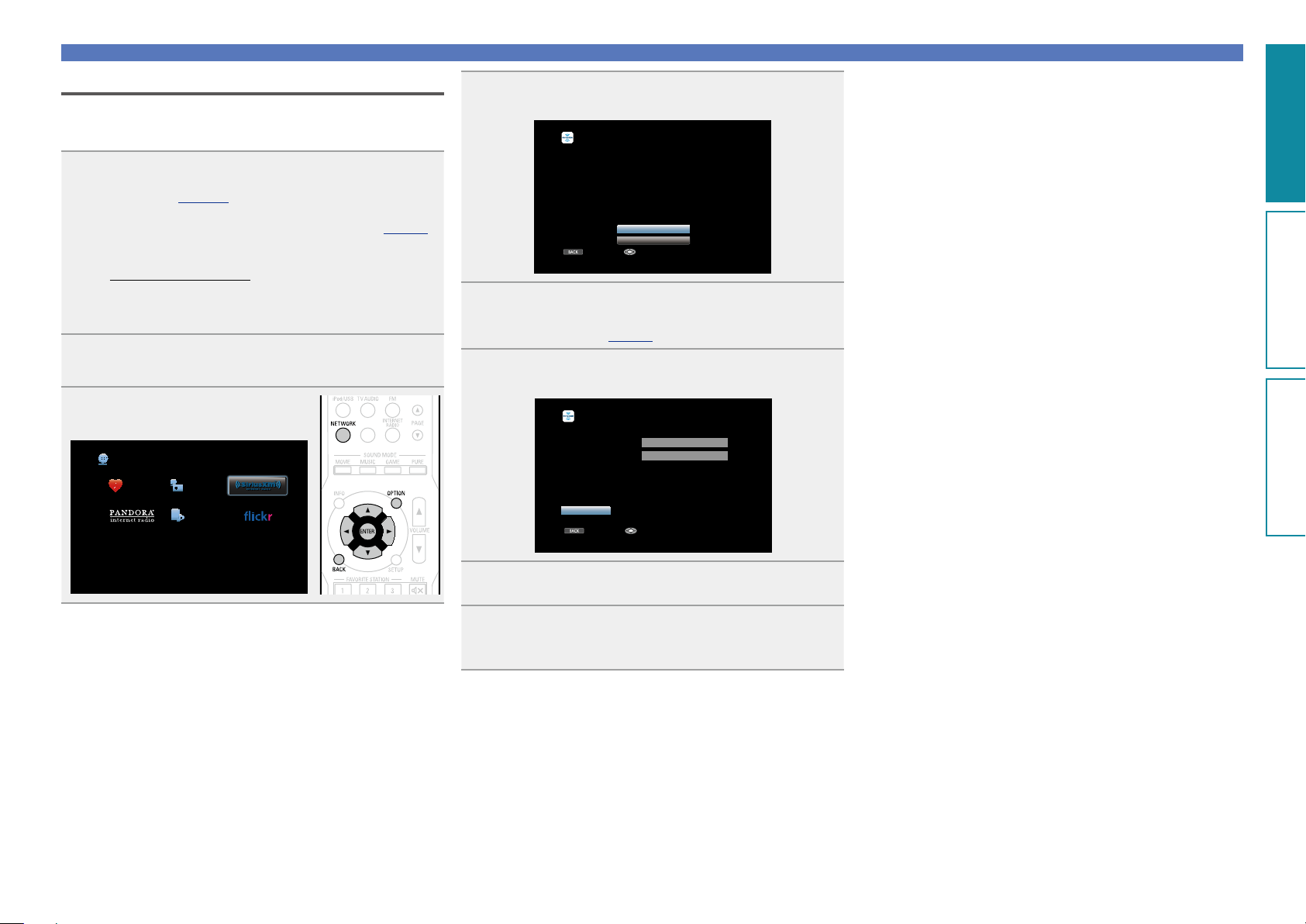

56
Using online services
Listening to SiriusXM Satellite Radio
Over 120 channels of the SiriusXM programming you love, including
commercial-free music plus sports, talk, news and entertainment.
Listen anywhere on your computer or smartphone.
1
Prepare for playback.
q Check the network environment, then turn on this unit’s
power (vpage 18 “Connecting to a home network
(LAN)”).
w If settings are required, make the “Settings” (vpage99).
e Access the following website from your PC and obtain a
SiriusXM account.
http://www.siriusxm.com
•If you already have a SiriusXM account, you do not need to
obtain a new account. Select “Sign in” in step 4, and enter
your existing SiriusXM account.
2
Press NETWORK.
3
Use uio p to select “SiriusXM”,
then press ENTER.
Favorites Internet Radio
Media Server
Network
4
Select “Sign in”, then press ENTER.
BACK
SiriusXM Sign in
Sign in
Start Trial
Please set your SiriusXM username and password.
You can go to www.siriusxm.com to sign up
for an account. Or,select “Start Trial” below
to start the one-time free trial.
Cancel Enter
5
Input the “Username” and “Password”.
•For character input, see page79.
6
Select the “Sign in”, and then press ENTER.
The top menu of SiriusXM is displayed.
BACK
SiriusXM Sign in
Username
Password
zzzzz
zzzzz
Sign in
Exit Enter
7
Use ui to select the genre, then press ENTER or p.
8
Use ui to select the le, and then press ENTER or
p.
The selected file is displayed.
n Going back to the previous screen
Press o or BACK.
Basic version
Advanced version
Information
Basic version
57
Using online services
n Sign out
Disassociate this unit from your SiriusXM account.
1
While the SiriusXM top menu is displayed, press
BACK.
2
When the popup menu appears, use o p to select
“Yes”, then press ENTER.
BACK
SiriusXM [1/20]
Pop
Rock
Dance/Electronic
Hip-Hop/R&B
Country
Chirisitan
Jazz/Standards
Sign OutExit
Are you sure you want to
sign out?
Yes
No
n SiriusXM operation buttons
Operation buttons Function
PAGE df
Page search
INFO
Display of information such as the
source name, volume, and sound mode
name
uio p
Cursor operation
ENTER
(Press and release)
Enter
ENTER
(Press and hold)
Stop
BACK Return
SETUP Setup menu
FAVORITE
STATION 1 – 3
Add/call up favorites (vpage60)
Basic version
Advanced version
Information
Basic version
58
Convenient functions
Here, we explain how to use convenient functions for NETWORK
sources and USB sources. The source names under the titles of each
function’s description are sources that allow use of these functions.
n Searching content with keywords
(Text Search) (vpage58)
n Performing repeat playback (Repeat)
(vpage59)
n Performing random playback (Random)
(vpage59)
n Favorites function (vpage60)
n Playing back music and a favorite picture at the
same time (Picture View) (vpage61)
n Playing back still images in sequential order
(Slideshow) (vpage61)

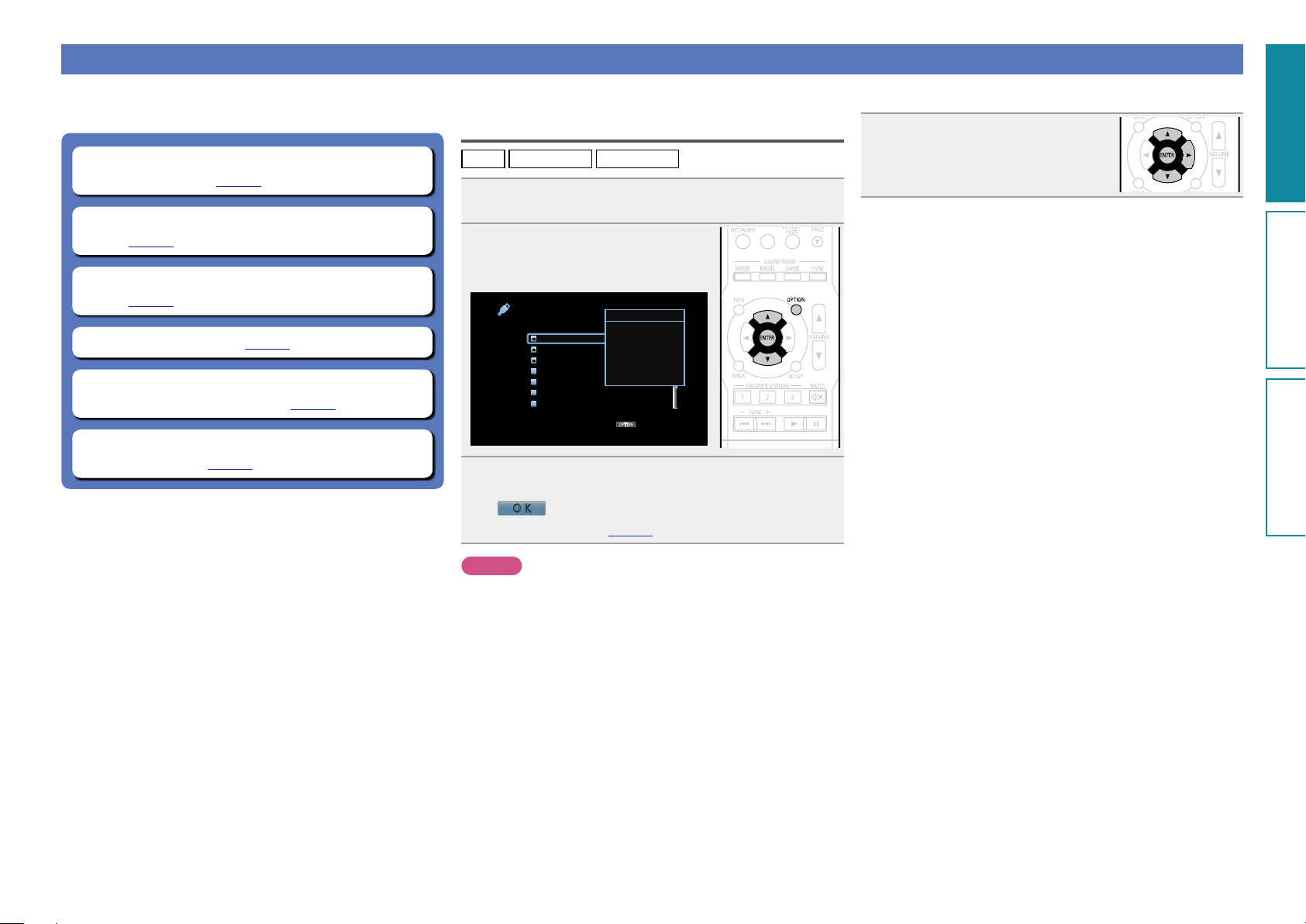

Searching content with keywords
(Text Search)
USB
Internet Radio
Media Server
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Text Search”,
then press ENTER.
The keyboard input screen is displayed.
OPTION
USB [1/9]
D&M1
D&M2
D&M3
Music1
Music2
Music3
Music4
Option
Option
Text Search
Repeat
Random
Slideshow
3
Enter the rst character of the Internet radio
station or le you want to search for, and then press
O K
.
•For character input, see page79.
NOTE
“Text Search” may not work for some lists.
n Playing back a search result content
Use ui to select the content you
want to play, and then press ENTER
or p.
Playback starts.
Basic version
Advanced version
Information
Basic version

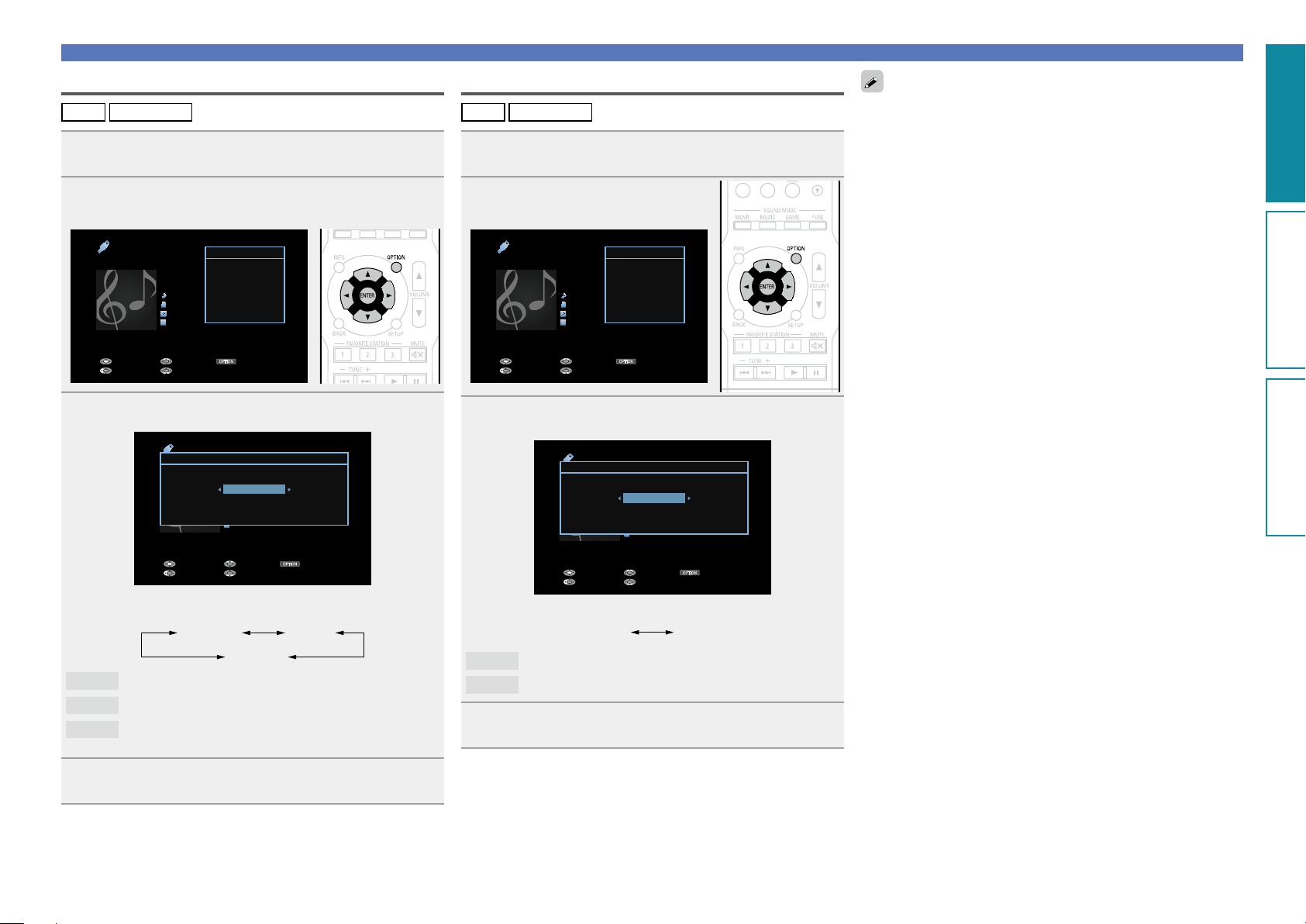

59
Convenient functions
Performing repeat playback (Repeat)
USB
Media Server
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Repeat”, then press ENTER.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Repeat
Option
Random
Picture View
3
Use o p to select repeat playback mode.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Off
Repeat
•Each time o p is pressed, the setting is changed as shown below.
Off One
All
Off
Repeat playback mode is canceled.
One
A file being played is played repeatedly.
All
All files in the folder currently being played are played
repeatedly.
4
Press ENTER.
The display returns to the playback screen.
Performing random playback (Random)
USB
Media Server
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Random”,
then press ENTER.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Repeat
Option
Random
Picture View
3
Use o p to select random playback mode.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Off
Random
•Each time o p is pressed, the setting is changed as shown below.
Off On
Off
Disable random playback.
On
Enable random playback.
4
Press ENTER.
The display returns to the playback screen.
The random playback randomly selects a track to play back from all
tracks every time a track ends. Therefore, the same track may be
played back consecutively.
Basic version
Advanced version
Information
Basic version

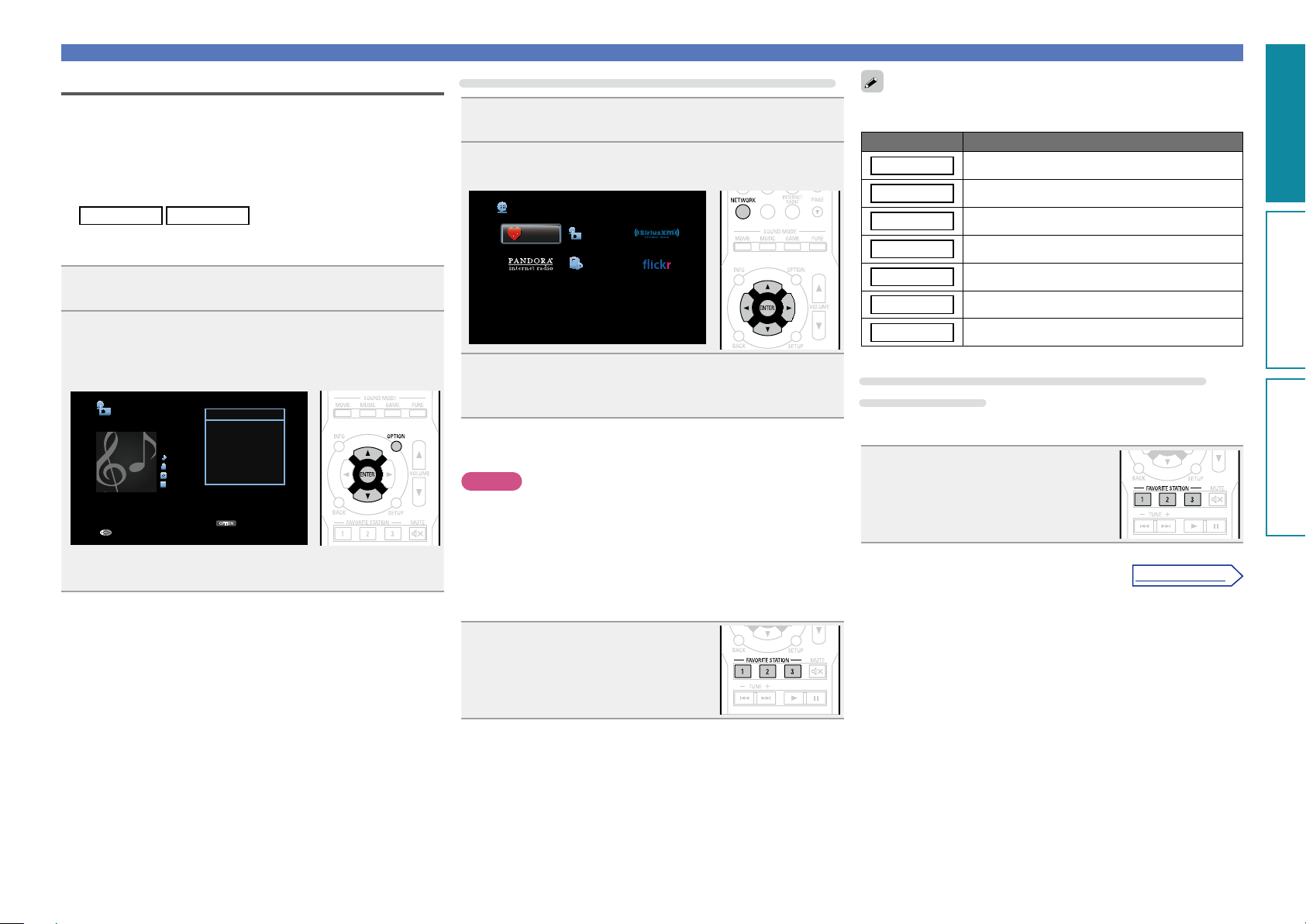

60
Convenient functions
Favorites function
There are two ways to add content to favorites:
q Add to favorites from the Option menu
w Add to the FAVORITE STATION button
n Add to favorites from the Option menu
(Favorites Memory)
Internet Radio
Media Server
You can add up to 100 items as favorites for all sources (Internet
Radio and Media Server).
1
While content is playing, press OPTION.
The option menu screen is displayed.
2
Use ui to select “Favorites Memory”, then press
ENTER.
“Favorites Added” is displayed, and the current content is
added to favorites.
OPTION
Internet Radio
Title
Now Playing
Artist
Album
00:06 100%
Back
MP3 128kbps
Option
Favorites Memory
Option
Picture View
•The display returns to the playback screen when the procedure is
completed.
Playing back content added in “Favorite Memory”
1
Press NETWORK.
2
Use uio p to select “Favorites”, then press ENTER.
Favorites Internet Radio
Media Server
Network
3
Use ui to select the content you want to play, and
then press ENTER or p.
Playback starts.
n Adding to the FAVORITES STATION button
You can add up to three types of content.
NOTE
•Please note that if you add new content to a number that already
contains content, the older content is deleted.
•The following operations update the database on the media server,
which may make the added music files unplayable.
•When you quit the media server and then restart it.
•When music files are deleted or added on the media server.
•When using an ESCIENT server, place “ESCIENT” before the server
name.
While content is playing, press and
hold one of the FAVORITE STATION
1 – 3
buttons for more than 3 seconds.
The content is added to the button you
pressed.
Contents that can be added to the FAVORITE STATION button differ
depending on the input source.
Input source Contents that can be added
FM
Input source / Radio station
Internet Radio
Input source / Internet Radio station
Media Server
Input source / Track
Flickr
Input source
Pandora
Input source
SiriusXM
Input source
Favorites
Input source
Playing back content added to the FAVORITES
STATION button
You can easily call up content by pressing the FAVORITE STATION
button.
Press one of the FAVORITE STATION
1 – 3
buttons that you added content
to.
Playback starts.
Basic version
Advanced version
Information
Basic version
v See overleaf

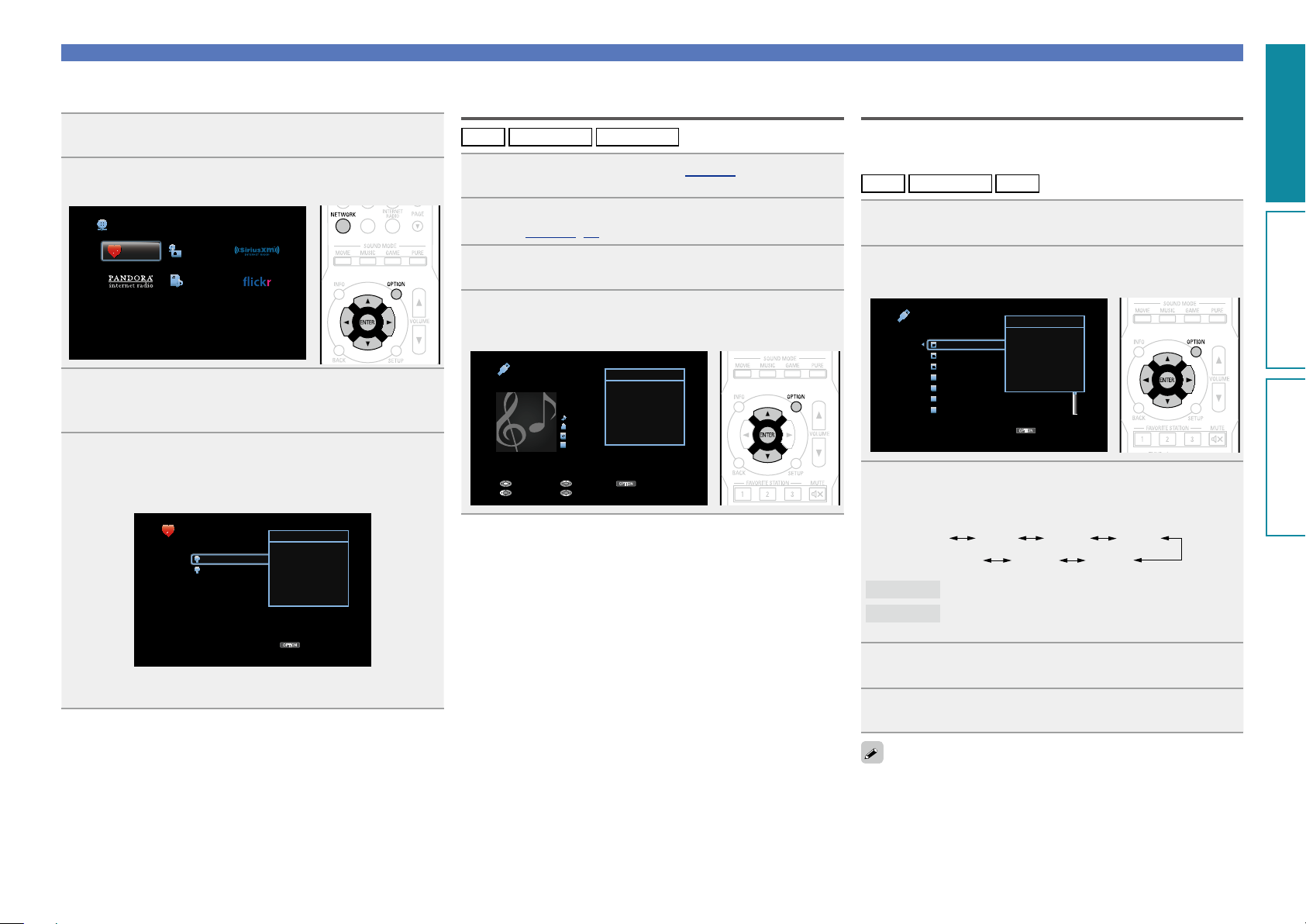

61
Convenient functions
n Deleting content added to favorites
(Remove Favorites)
1
Press NETWORK.
2
Use uio p to select “Favorites”, then press ENTER.
Favorites Internet Radio
Media Server
Network
3
Use ui to select the content you want to delete from
favorites, then press OPTION.
The option menu screen is displayed.
4
Use ui to select “Remove Favorites”, then press
ENTER.
“Favorites removed” is displayed, and the selected content is
deleted from favorites.
OPTION
Favorites
Option
Radio Algerienne Chaine 1
FM West 84.2
Remove Favorites
Option
•The display returns to the original screen when the procedure is
completed.
Playing back music and a favorite picture
at the same time (Picture View)
USB
Internet Radio
Media Server
1
Play back a still picture (vpage 51).
2
Play back a music le or Internet radio station
(vpage 43, 48).
3
Press OPTION.
The option menu screen is displayed.
4
Use ui to select “Picture View”, then press ENTER.
The option menu disappears, and the picture you were viewing
is shown on the screen.
OPTION
USB
Title
Now Playing
Artist
Album
00:06 100%
Previous OptionPause
NextBack
MP3 128kbps
Repeat
Option
Random
Picture View
Playing back still images in sequential
order (Slideshow)
You can play back still image (JPEG) files stored on a USB memory
device or media server and pictures on Flickr website as a slide show.
The display time can also be set.
USB
Media Server
Flickr
1
Press OPTION.
The option menu screen is displayed.
2
Use ui to select “Slideshow”, then press ENTER.
OPTION
USB [1/9]
D&M1
D&M2
D&M3
Music1
Music2
Music3
Music4
Option
Option
Text Search
Repeat
Random
Slideshow
3
Use o p to set the display time.
•Each time o p is pressed, the setting is changed as shown below.
Off 5sec 10sec 15sec
20sec60sec 30sec
Off
The slide show is not played back.
5sec – 60sec
Set the time for displaying a single image when
playing back images in the slide show.
4
Press ENTER.
The slide show is displayed on the screen.
5
Playback an image.
This unit plays back image (JPEG) files in the orientation in which they
are stored in the folder.
Basic version
Advanced version
Information
Basic version
62

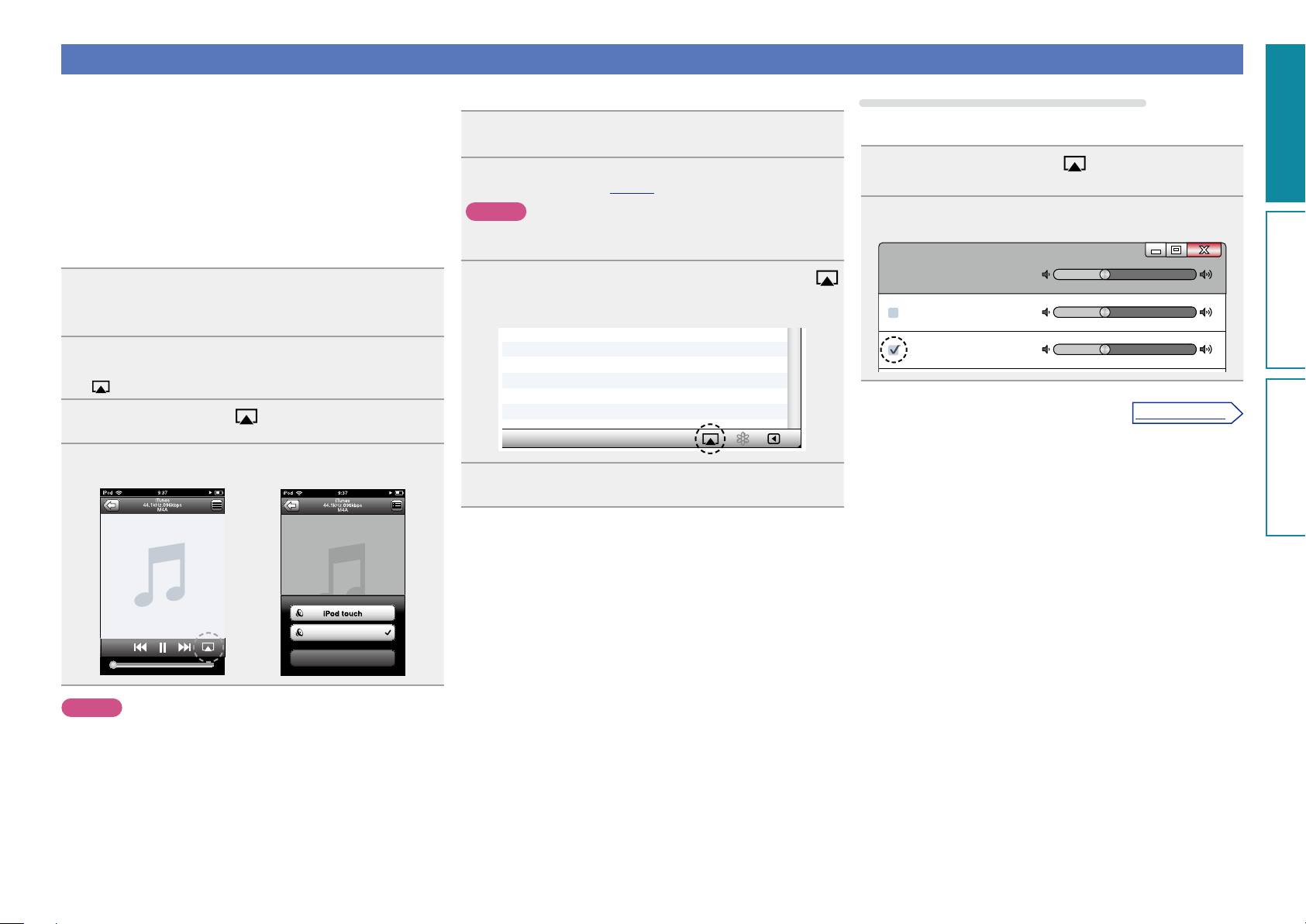

AirPlay function
Enjoy music from your iTunes library with high quality sound anywhere
in your home.
Use the Apple Remote app
z
for iPhone, iPod touch and iPad to control
iTunes from any room in your home.
z Available as a free download from the App Store.
n Streaming music stored in iPhone, iPod touch or
iPad directly to the unit
If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later,
you can stream music stored in your “iPhone/iPod touch/iPad”
directly to this unit.
1
Make the Wi-Fi settings for iPhone, iPod touch, or
iPad.
•For details, see your device’s manual.
2
Startup iPhone, iPod touch, or iPad music or iPod
app.
is displayed on the iPhone, iPod touch or iPad screen.
3
Tap the AirPlay icon
.
4
Select the speaker you want to use.
Cancel
DENON:[AVR-1613]
NOTE
In playback using the AirPlay function, the sound is output at the
iPhone, iPod touch, iPad or iTunes volume setting level.
You should turn down the iPhone, iPod touch, iPad or iTunes volume
prior to playback and then adjust it to a suitable level.
n Playing iTunes music with this unit
1
Install iTunes 10, or later, on a Mac or Windows PC
that is connected to the same network as this unit.
2
Turn this unit ON.
Set “IP Control” (vpage98) to “Always On” for this unit.
NOTE
When “IP Control” is set to “Always On”, the unit consumes more
standby power.
3
Launch iTunes and click the AirPlay icon
displayed in the lower right of the window and select
this unit from the list.
4
Choose a song and click play in iTunes.
The music will stream to this unit.
Selecting multiple speakers (devices)
It is possible to play iTunes songs on your home’s AirPlay compatible
speakers (devices) other than those of this unit.
1
Click the AirPlay icon
and select “Multiple
Speakers” from the list.
2
Check the speakers you want to use.
Master Volume
Multiple Speakers
My Computer
This Computer
DENON:[AVR-1613]
AirPlay Device
Basic version
Advanced version
Information
Basic version
v See overleaf
63

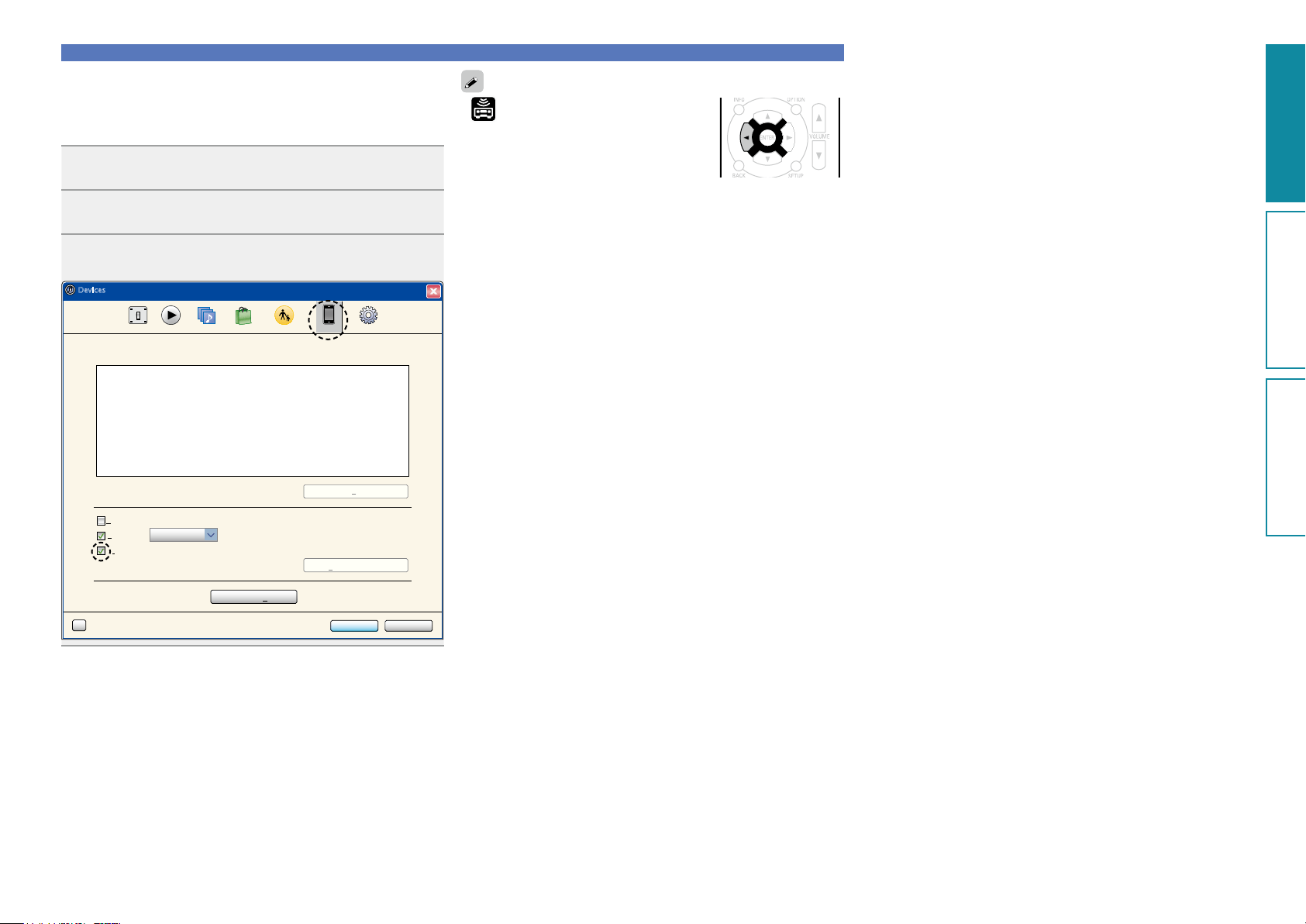

n Perform iTunes playback operations with the
remote control unit of this unit
With this unit’s remote control unit, you can perform iTunes song
play, pause, and auto search (cue) operations.
1
Select “Edit” – “Preferences...” on the menu.
2
Select “Devices” in the iTunes setting window.
3
Check “Allow iTunes control from remote speakers”,
and then click “OK”.
OK Cancel
?
Devices
General Playback Sharing Store Parental Advanced
iTunes is not paired with any Remotes
more than 5%Warn when
Delete Backup ...
Device backups:
Forget All Remotes
Reset Sync History
of the data on this computer will be changed
Prevent iPods, iPhones, and iPads from syncing automatically
Allow iTunes control from remote speakers
Devices
• is displayed on the menu screen while
AirPlay is being operated.
•Source input will be switched to
“NETWORK” when AirPlay playback is
started.
•You can stop AirPlay playback by pressing the o or choosing other
input source.
•To see song and artist names together, press STATUS on the main
unit.
•For information about how to use iTunes, also see the Help for
iTunes.
•The screen may differ depending on the OS and software versions.
AirPlay function
Basic version
Advanced version
Information
Basic version

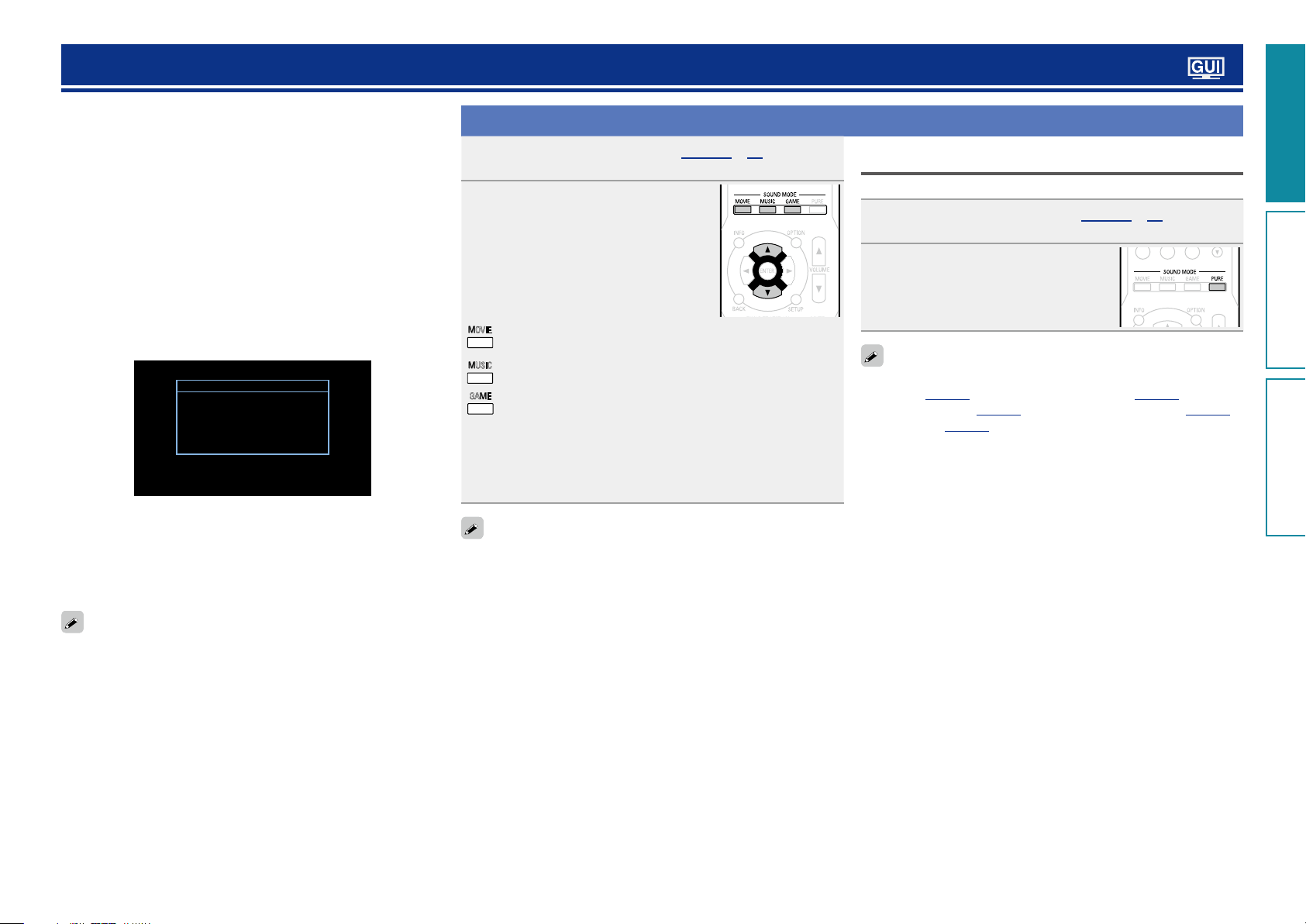

64
Selecting a listening mode (Sound Mode)
This unit allows you to enjoy various kinds of surround and stereo
playbacks.
Multi-channel audio formats are adopted by many of the contents
including Blu-ray disc and DVD as well as digital broadcasting and
Internet-delivered movies and music.
This unit supports playback of almost all of these multi-channel audio
formats. It also supports surround playback of audio formats other
than multi-channel audio such as 2-channel stereo audio.
This unit automatically generates a list of all the playable sound
modes based on the input audio format and the current speaker setup
configuration and displays the list on the screen. Therefore, you can
select a correct surround playback mode even if you are not familiar
with sound mode selection. Try out various surround playback modes
and enjoy surround playback in your favorite mode.
GExampleH When MOVIE is pressed and held
STEREO
MOVIE SOUND
DOLBY PLII Cinema
DOLBY Pro Logic
DTS NEO:6 cinema
MULTI CH STEREO
MONO MOVIE
This unit provides not only sound modes that conform to the formats
recorded in discs such as Dolby and DTS but also “original listening
modes” that create atmosphere of ROCK ARENA and JAZZ CLUB,
etc.
The displayed sound modes include the 2-channel stereo playback
mode.
For audio formats recorded in a disc, see the disc jacket.
Selecting a listening mode
1
Play the selected device (vpage 28 – 32).
2
Press and hold MOVIE, MUSIC or
GAME to select a listening mode.
This unit automatically generates and
displays a list of selectable sound
modes.
•Each time MOVIE, MUSIC or GAME is
pressed, the listening mode is switched.
MOVIE
Switches to the listening mode suitable for enjoying movies
and TV programs.
MUSIC
Switches to the listening mode suitable for enjoying music.
GAME
Switches to the listening mode suitable for enjoying games.
•Pressing
MOVIE, MUSIC or GAME displays a list of the listening
modes that can be selected. Each time you press MOVIE, MUSIC
or GAME, the listening mode changes.
•While the list is displayed, you can also use ui to select a
listening mode.
•The MOVIE, MUSIC, or GAME button memorizes the last sound
mode selected for its button. Pressing MOVIE, MUSIC, or GAME
recalls the same sound mode as the one selected at the previous
playback.
•If the content played back does not support the previously selected
sound mode, the most standard sound mode for the content is
automatically selected.
Direct playback
Sound recorded in source is played as is.
1
Play the selected device (vpage 28 – 32).
2
Press PURE to select “DIRECT”.
Direct playback begins.
In Direct listening mode, the following items cannot be adjusted.
•Tone (vpage82) •MultEQ
®
(vpage84)
•Dynamic EQ
®
(vpage84) •Dynamic Volume
®
(vpage84)
•Restorer (vpage83)
Basic version
Advanced version
Information
Basic version
65
Selecting a listening mode
n Listening mode
•The following listening modes can be selected using the MOVIE, MUSIC, GAME, and PURE buttons.
•Adjust the sound field effect with the menu “Surr.Parameter” (vpage81) to enjoy your favorite sound mode.
Operation
button
Input signal Listening mode
MOVIE
2-channel
z1
STEREO
DOLBY PLg Cinema
z2
DOLBY Pro Logic
z2
DTS NEO:6 Cinema
z2
MULTI CH STEREO
MONO MOVIE
VIRTUAL
Multi-channel
z3
STEREO
Dolby Digital DOLBY DIGITAL
Dolby TrueHD DOLBY TrueHD
Dolby Digital
Plus
DOLBY DIGITAL Plus
DTS
DTS SURROUND
DTS 96/24
DTS-HD /
DTS Express
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM multi-
channel
MULTI CH IN
MULTI CH STEREO
MONO MOVIE
VIRTUAL
Operation
button
Input signal Listening mode
MUSIC
2-channel
z1
STEREO
DOLBY PLg Music
z2
DTS NEO:6 Music
z2
MULTI CH STEREO
ROCK ARENA
JAZZ CLUB
MATRIX
VIRTUAL
Multi-channel
z3
STEREO
Dolby Digital DOLBY DIGITAL
Dolby TrueHD DOLBY TrueHD
Dolby Digital
Plus
DOLBY DIGITAL Plus
DTS
DTS SURROUND
DTS 96/24
DTS-HD /
DTS Express
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM multi-
channel
MULTI CH IN
MULTI CH STEREO
ROCK ARENA
JAZZ CLUB
MATRIX
VIRTUAL
z1 2-channel also includes analog input.
z2 This mode plays back 2-channel source in 5.1-channel playback.
It cannot be selected when headphones are used, or when only
front speakers are used.
z3 Some listening modes cannot be selected, depending on the
audio format or number of channels of the input signal. For
details, see “Types of input signals, and corresponding sound
modes” (vpage115).
Basic version
Advanced version
Information
Basic version
v See overleaf
66
Selecting a listening mode
z1 2-channel also includes analog input.
z2 This mode plays back 2-channel source in 5.1-channel playback.
It cannot be selected when headphones are used, or when only
front speakers are used.
z3 Some listening modes cannot be selected, depending on the
audio format or number of channels of the input signal. For
details, see “Types of input signals, and corresponding sound
modes” (vpage115).
Operation
button
Input signal Listening mode
GAME
2-channel
z1
STEREO
DOLBY PLg Game
z2
MULTI CH STEREO
VIDEO GAME
VIRTUAL
Multi-channel
z3
STEREO
Dolby Digital DOLBY DIGITAL
Dolby TrueHD DOLBY TrueHD
Dolby Digital
Plus
DOLBY DIGITAL Plus
DTS
DTS SURROUND
DTS 96/24
DTS-HD /
DTS Express
DTS-HD HI RES
DTS-HD MSTR
DTS Express
PCM multi-
channel
MULTI CH IN
MULTI CH STEREO
VIDEO GAME
VIRTUAL
PURE
All DIRECT
Views on the TV screen or display
+ DVD
q w
q Shows a decoder to be used.
•A DOLBY DIGITAL Plus decoder is displayed as “ ”.
w Shows the name of the input source being played back.
Basic version
Advanced version
Information
Basic version
67
Selecting a listening mode
n Description of listening mode types
Dolby listening mode
Listening mode type Description
DOLBY PLg This mode can be selected when a Dolby Pro Logic g decoder is used to play
back 2-channel source in 5.1-channel surround sound with a natural, realistic
feel.
DOLBY Pro Logic This mode can be selected when a Dolby Pro Logic decoder is used to play
2-channel source in 4.1-channel surround sound (Left/Center/Right/Surround
Mono).
DOLBY DIGITAL This mode can be selected when playing sources recorded with Dolby Digital.
DOLBY TrueHD This mode can be selected when playing sources recorded in Dolby TrueHD.
DOLBY DIGITAL Plus This mode can be selected when playing sources recorded with Dolby Digital
Plus.
DTS listening mode
Listening mode type Description
DTS NEO:6 This mode can be selected when a DTS NEO:6 decoder is used to play back
2-channel source in 5.1-channel surround sound.
There is a “Cinema” mode optimized for movie playback, and a “Music” mode
optimized for music playback.
DTS SURROUND This mode can be selected when playing sources recorded in DTS.
DTS 96/24 This mode can be selected when playing sources recorded in DTS 96/24.
DTS-HD This mode can be selected when playing sources recorded in DTS-HD.
DTS Express This mode can be selected when playing sources recorded in DTS Express.
PCM multi-channel listening mode
Listening mode type Description
MULTI CH IN This mode can be selected when playing multi-channel PCM sources .
Original listening mode
Listening mode type Description
MULTI CH STEREO This mode is for enjoying stereo sound from all speakers.
The same sound as that from the front speakers (L/R) is played back at the
same level from the surround speakers (L/R).
ROCK ARENA This mode is for enjoying the atmosphere of a live concert in an arena.
JAZZ CLUB This mode is for enjoying the atmosphere of a live concert in a jazz club.
MONO MOVIE This mode is for playing monaural movie sources with surround sound.
When playing sources recorded in monaural in the “MONO MOVIE” mode,
the sound will be off balance with a single channel (left or right), so input to
both channels.
VIDEO GAME This mode is suited for achieving surround sound with video games.
MATRIX This mode lets you add a spacious feel to stereo music sources.
VIRTUAL This mode is for enjoying surround effects using only the front speakers or
headphones.
STEREO listening mode
Listening mode type Description
STEREO This is the mode for playing in stereo. The tone can be adjusted.
•Sound is output from the front left and right speakers and subwoofer.
•If multichannel signals are input, they are mixed down to 2-channel audio and
are played.
Direct listening mode
Listening mode type Description
DIRECT Sound recorded in source is played as is.
Basic version
Advanced version
Information
Basic version
Advanced
version
68
F Installation/connection of speakers (Advanced) vpage69
F Playback (Advanced operation) vpage73
F How to make detailed settings vpage76
Advanced version
Here, we explain functions and operations that let you make better use of this unit.
Basic version
Advanced version
Information
Advanced version
69
Procedure for speaker settings
Speaker installation
Speaker connection (vpage70)
Speaker installation
•Determine the speaker system depending on the number of speakers
you are using and install each speaker and subwoofer in the room.
Here, we explain how to install the speakers using a typical example.
•The speaker impedance should be from 6 to 16 Ω.
Use the illustration below as a guide for how high each speaker should
be installed. The height does not need to be exactly the same.
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front
speaker
When 5.1ch speakers are installed
FL FR
SW
C
SL
SR
z1
z2
Listening position
z1 22˚ – 30˚ z2 120˚
GSpeaker abbreviationsH
FL Front speaker (L) SW Subwoofer
FR Front speaker (R) SL Surround speaker (L)
C Center speaker SR Surround speaker (R)
Installation/connection of speakers (Advanced)
Basic version
Advanced version
Information
Advanced version
70
Speaker connection
Here, we connect the speakers in the room to this unit.
This section explains how to connect them using a typical example.
n Connecting 5.1-channel speakers (vpage71)

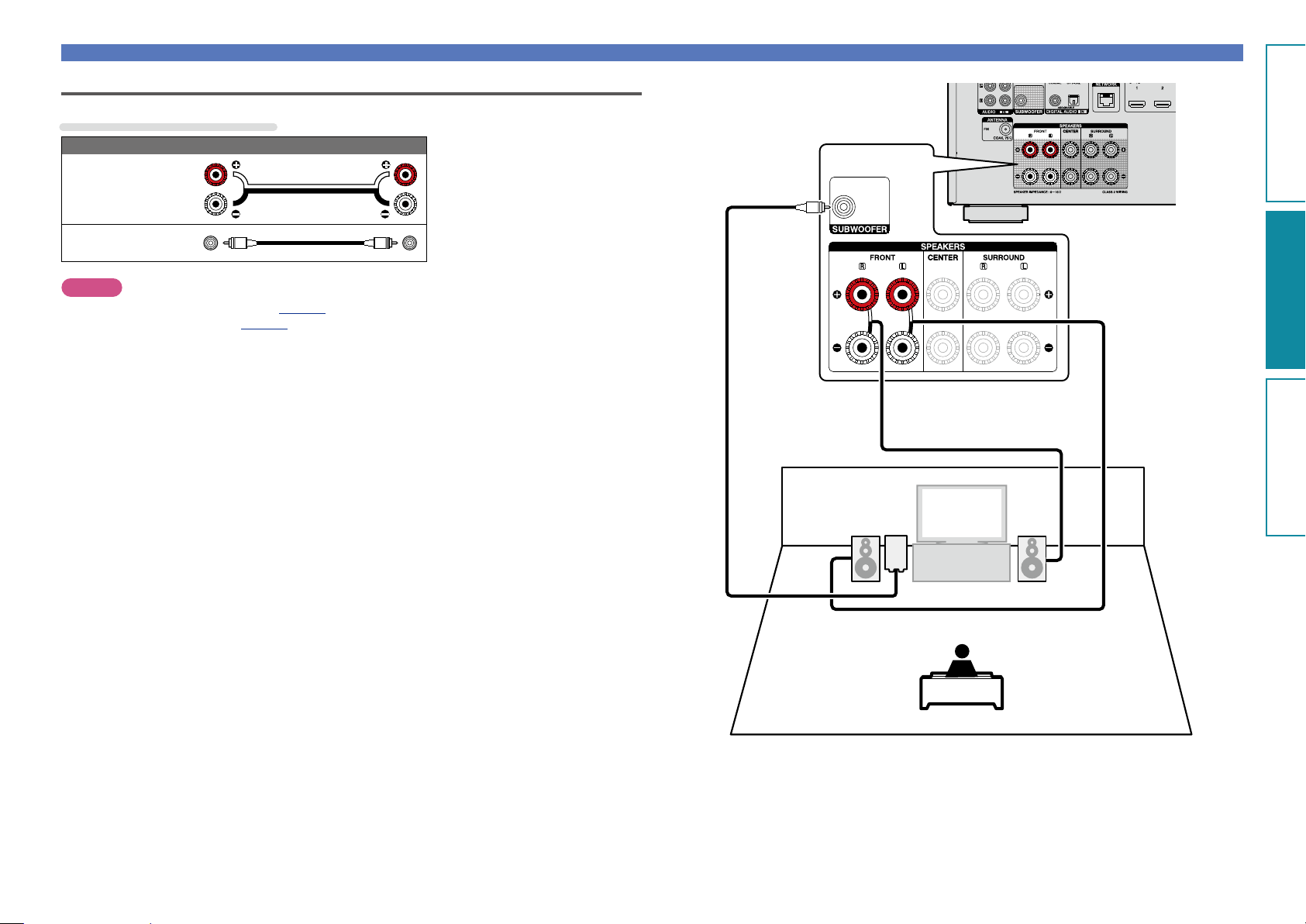

n Connecting 2.1-channel speakers (
vpage72)
NOTE
•Disconnect this unit’s power plug from the power outlet before connecting the speakers. Also,
turn off the subwoofer.
•Connect so that the speaker cable core wires do not protrude from the speaker terminal. The
protection circuit may be activated if the core wires touch the rear panel or if the + and – sides
touch each other (vpage118 “Protection circuit”).
•Never touch the speaker terminals while the power supply is connected. Doing so could result
in electric shock. When the “Setup Assistant” is running, follow the instructions in the “Setup
Assistant” screen for making connections. (Power is not supplied to the speaker terminals while
the “Setup Assistant” is running.)
•Use speakers with the speaker impedances shown below.
Speaker terminals Speaker impedance
FRONT
6 – 16 ΩCENTER
SURROUND

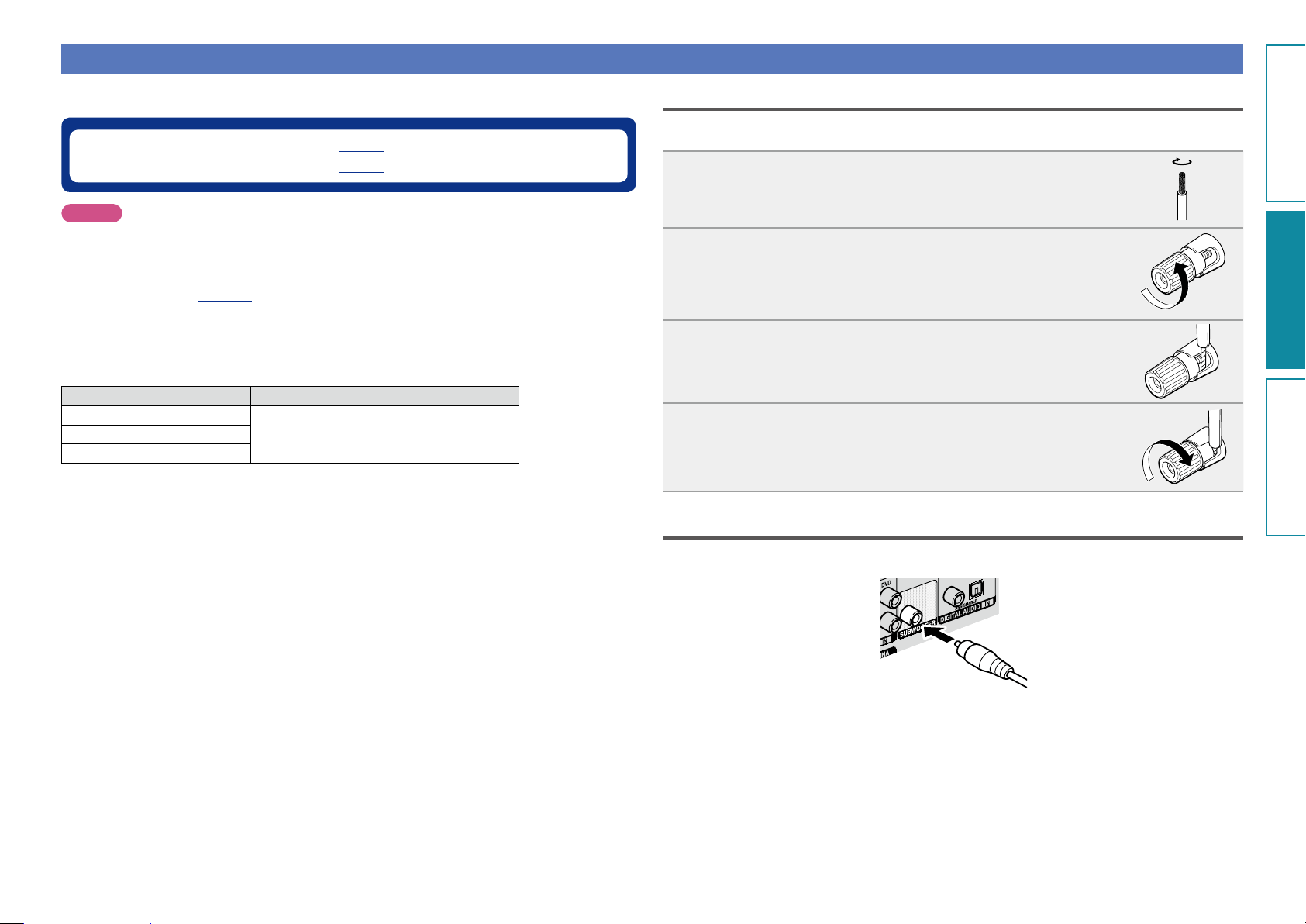

Connecting the speaker cables
Carefully check the left (L) and right (R) channels and + (red) and – (black) polarities on the speakers being
connected to this unit, and be sure to interconnect the channels and polarities correctly.
1
Peel off about 0.03 ft/10 mm of sheathing from the tip of the
speaker cable, then either twist the core wire tightly or terminate
it.
2
Turn the speaker terminal counterclockwise to loosen it.
3
Insert the speaker cable’s core wire to the hilt into the speaker
terminal.
4
Turn the speaker terminal clockwise to tighten it.
Connecting the subwoofer
Use a subwoofer cable to connect the subwoofer.
Basic version
Advanced version
Information
Advanced version
73
Settings (vpage20)
Playback (Basic operation) (vpage27)
Selecting a listening mode (Sound Mode)
(vpage64)
n HDMI control function (vpage73)
n Sleep timer function (
vpage74)
n Quick select function (
vpage75)
n Various memory functions (
vpage75)
Playback (Advanced operation)
HDMI control function
If you connect the unit and an HDMI control function compatible TV or
player with an HDMI cable and then enable the HDMI control function
setting on each device, the devices will be able to control each other.
n Operations possible by HDMI control
•This unit power off can be linked to the TV power off step.
•You can switch audio output devices with a TV operation.
When you set “Output audio from amp” in the TV audio output
setup operation, you can switch the amp power on.
•You can adjust this unit volume in the TV volume adjustment
operation.
•You can switch this unit input sources through linkage to TV
input switching.
•When playing the player, this unit input source switches to the
source for that player.
•If you switch the input source of the unit to “TV AUDIO”, you
can play TV audio with this unit (
vpage 8 “About ARC
(Audio Return Channel) function”).
•When “HDMI Control” (vpage 87) in the menu is set to
“On”, signals input to the HDMI input connector are output to
the television or other device connected to the HDMI output
connector, even if the power of this unit is in standby (pass-
through function).
•To use this unit to play the audio of a TV that does not support
the ARC function, connect the TV with an optical-digital or analog
connection (vpage8).
•To use the pass-through function, connect an HDMI connection
device that is compatible with HDMI control.
n Setting procedure
1
Set the HDMI output connector corresponding with
the HDMI control function.
Set “HDMI Control” (vpage87) to “On”.
2
Turn the power on for all the devices connected by
HDMI cable.
3
Set the HDMI control function for all devices
connected by HDMI cable.
•Please consult the operating instructions for the connected devices
to check the settings.
•Carry out steps 2 and 3 should any of the devices be unplugged.
4
Switch the television input to the HDMI input
connected to this unit.
5
Switch this unit input to the HDMI input source and
check if the picture from the player is ok.
6
When you turn the TV’s power to standby, check
that the power of this unit also goes to standby.
If the HDMI control function does not operate properly, check the
following points.
•Is the TV or player compatible with the HDMI control function?
•Is “HDMI Control” (vpage87) set to “On”?
•Is “P.Off Control” (vpage87) set to “All” or “Video”?
•Are the HDMI control function settings of all devices correct?
Basic version
Advanced version
Information
Advanced version
v See overleaf
74
HDMI control function
NOTE
•When “HDMI Control” is set to “On”, it consumes more standby
power.
•The HDMI control function controls operations of a TV that is
compatible with the HDMI control function. Make sure that the TV
and HDMI are connected when you perform HDMI control.
•Some functions may not operate depending on the connected TV
or player. Check the owner’s manual of each device for details
beforehand.
•When “P.Off Control” on the menu is set to “Off” (vpage87),
this unit is not set to standby even if the connected device is in the
standby mode.
•When connection changes are implemented, such as adding
connections to HDMI devices, linked operations may be initialized.
In this case, you will need to reconfigure the settings.
•Should any of the operations below be performed, the interlocking
function may be reset, in which case, repeat steps 2 and 3.
•There is a change to the connection between the devices and the
HDMI, or an increase in devices.
Sleep timer function
You can have the power automatically switched to standby once a set
time has elapsed. This is convenient for viewing and listening while
going to sleep.
Press SLEEP and display the time you
want to set.
The indicator on the display lights.
•The time switches as shown below each
time SLEEP is pressed.
Off 10 min 20 30 40 50
6080 7090100
110
120
To confirm the countdown time before putting the
unit to sleep
Press SLEEP.
“Sleep : zmin” appears on the display.
z Countdown time
To cancel the sleep timer
Press SLEEP to set “Off”.
The
indicator on the display turns off.
The sleep timer setting is canceled if this unit’s power is set to
standby.
NOTE
The sleep timer function cannot turn off the power of devices
connected to this unit. To turn of the power of those connected
devices, set up sleep timers on the connected devices themselves.
Basic version
Advanced version
Information
Advanced version
75

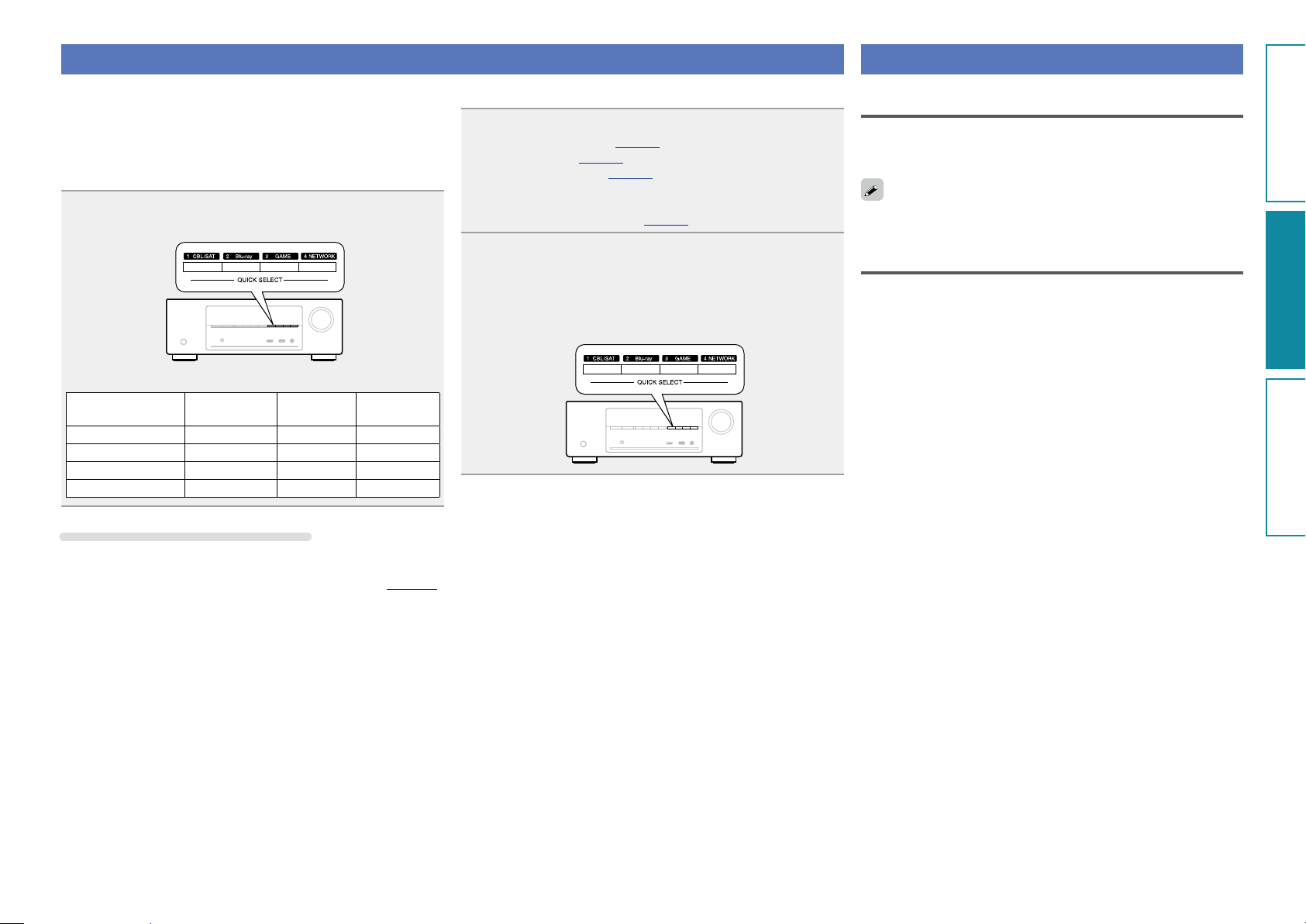

Quick select function
You can save settings such as the input source selection, volume
level, and sound mode at the QUICK SELECT 1 – 4 buttons.
You can simply press one of the set QUICK SELECT buttons for
subsequent playback to switch to various saved settings all at once.
•By saving frequently used settings at the QUICK SELECT 1 – 4
buttons, you will always be able to easily call up the same playback
environment.
Press QUICK SELECT.
The Quick Select settings for the button you pressed are called up.
•The default settings of each QUICK SELECT are as shown below.
Button Input source Volume
Sound
Mode
QUICK SELECT 1 CBL/SAT 40 STEREO
QUICK SELECT 2 Blu-ray 40 STEREO
QUICK SELECT 3 GAME 40 STEREO
QUICK SELECT 4 NETWORK 40 STEREO
Changing the Quick Select Name
On this unit, you can change the Quick Select name displayed on the
menu to the name that you prefer.
For the name change method, see “Quick Sel.Names” (
vpage102).
n Changing the settings
1
Set the items below to the settings you want to save.
q Input source
z
(vpage27)
w Volume (vpage28)
e Sound Mode (vpage64)
r Audyssey
(Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
, Audyssey
Dynamic Volume
®
) (vpage84)
2
Press and hold the desired QUICK SELECT until
“Quickz Memory” appears on the display.
The current settings will be memorized.
z The number for the
QUICK SELECT button you pressed is
displayed.
Various memory functions
Personal memory plus function
This function sets the settings (input mode, sound mode, HDMI
output mode, MultEQ
®
, Dynamic EQ
®
, audio delay etc.) last selected
for the individual input sources.
The surround parameters, tone settings and the volumes of the
different speakers are stored for the individual sound modes.
Last function memory
This function stores the settings which were made before going into
the standby mode.
When the power is turned back on, the settings are restored.
Basic version
Advanced version
Information
Advanced version
76
Menu map
For menu operation, connect a TV to this unit and display the menu on the TV screen. For menu operations, see the following page.
By default, this unit has recommended settings defined. You can customize this unit based on your existing system and your preferences.
How to make detailed settings
Setting items Detailed items Description Page
Audio
Surr.Parameter Adjusts surround sound parameters.
81
Tone Adjusts the tonal quality of the sound.
82
Dialogue Level Sets the output level to clarify the dialogue
output from the center channel.
82
Subwoofer Level Sets the subwoofer on/off and its output level.
83
Restorer Expands the low and high frequency components
of compressed audio to enable richer audio
playback.
83
Audio Delay Compensates for incorrect timing between video
and audio.
83
Volume Set the volume setting.
83
Audyssey Makes Audyssey MultEQ
®
, Audyssey Dynamic
EQ
®
and Audyssey Dynamic Volume
®
settings.
84
Manual EQ Uses the graphic equalizer to adjust the tone of
each speaker.
85
Video
HDMI Setup Makes settings for HDMI video/audio output.
87
Volume Display Sets where to display the master volume level.
87
Info.Display Displays status of operation temporarily when
the sound mode is changed or input source is
switched. You can set whether or not to show
each of these status displays.
88
Audio Display Sets how long each menu is displayed when the
input source is “NETWORK”, “iPod/USB”, or
“FM”.
88
TV Format Set the video signal format to be output for the
TV you are using.
88
Inputs
Digital Assign Changes input connector assignment.
90
Source Rename Changes the display name for this source.
91
Hide Source Remove from the display input sources that are
not used.
91
Source Level Adjusts the playback level of the audio input.
91
Input Select Sets the audio input mode and decode mode.
91
Video Source Video of another input source is played back
combined with the playing audio.
92
Setting items Detailed items Description Page
Speakers
Audyssey
®
Setup The acoustic characteristics of the connected
speakers and listening room are measured and
the optimum settings are made automatically.
20
Manual Setup Perform when setting the speakers manually
or when changing settings made in Audyssey
®
Setup.
94
Network
Information Display network information.
98
IP Control Set the network function on/off during standby.
98
Friendly Name The Friendly Name is the name of this unit
displayed on the network. You can change the
Friendly Name according to your preferences.
98
Settings Make settings for wired LAN.
99
General
Language Sets the language for display the menu on the
TV screen.
102
Quick Sel.Names Change the “Quick Select” display title to one
you prefer.
102
Auto Standby When you do not perform any operation on this
unit with no audio or video input for a specified
time, this unit automatically enters the standby
mode. Before it enters the standby mode, “Auto
Standby” is displayed on the display of this unit
and the menu screen.
102
Front Display Adjust the display brightness of this unit.
102
Information Show information about receiver settings, input
signals, etc.
103
Firmware Set whether or not to check for firmware update,
update the firmware, and display update and
upgrade notifications.
104
Setup Lock Protect settings from inadvertent change.
105
Setup
Assistant
Perform the installation, connection, and setup procedures to prepare the
unit for operation following guidance.
C 7
Basic version
Advanced version
Information
Advanced version
77

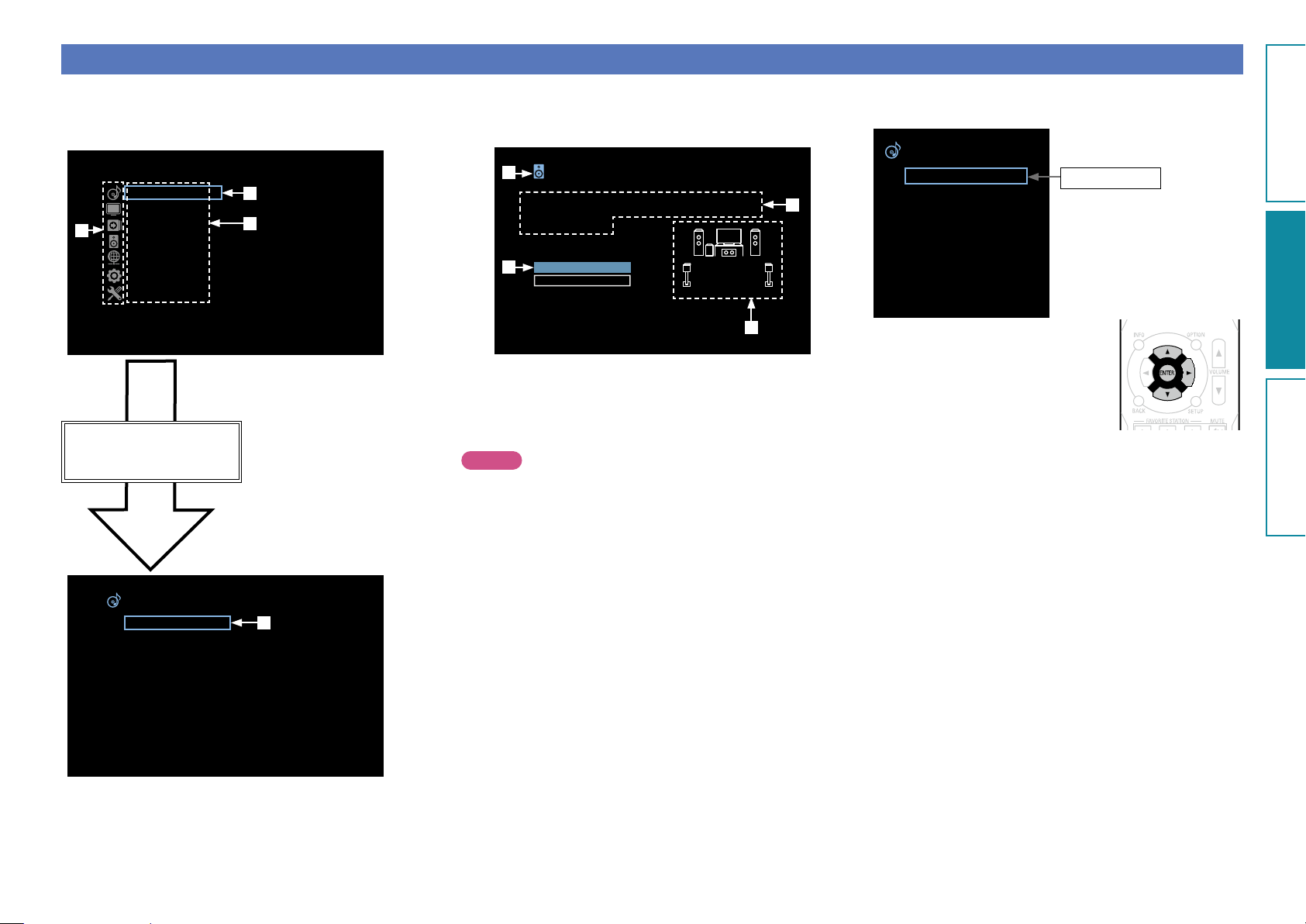

Examples of menu screen displays
Typical examples are described below.
GExample 1H
Menu selection screen (Top menu)
Surr. Parameter
Audio
Tone
Dialogue Level
Subwoofer Level
Restorer
Audio Delay
Volume
Audyssey
Manual EQ
q List of GUI menu setup icons
w Currently selected setup item
e List of GUI menu setup items
Press ui to select “Audio”
and then press p.
(Or press ENTER.)
r
Setup Menu
Audio
Video
Inputs
Speakers
Network
General
Setup Assistant
e
w
q
r Selected setup item
GExample 2H
Audyssey
®
Setup screen (with illustration)
Audyssey Setup
Your AVR can automatically measure the
acoustics of your room and the optimize
your speakers.
Start
Parameter Check
i
u
y
t History icon
y Operation guidance text
u Illustration
i Selected setup item
t
NOTE
When the menu is operated on a computer’s resolution (e.g. VGA)
or during playback of certain 3D video content, the playback image
switches to the menu screen image.
n List
Surr. Parameter
Audio
Tone
Dialogue Level
Subwoofer Level
Restorer
Audio Delay
Volume
Audyssey
Manual EQ
•Switch the selected item
using ui.
Selected item
Basic version
Advanced version
Information
Advanced version
78

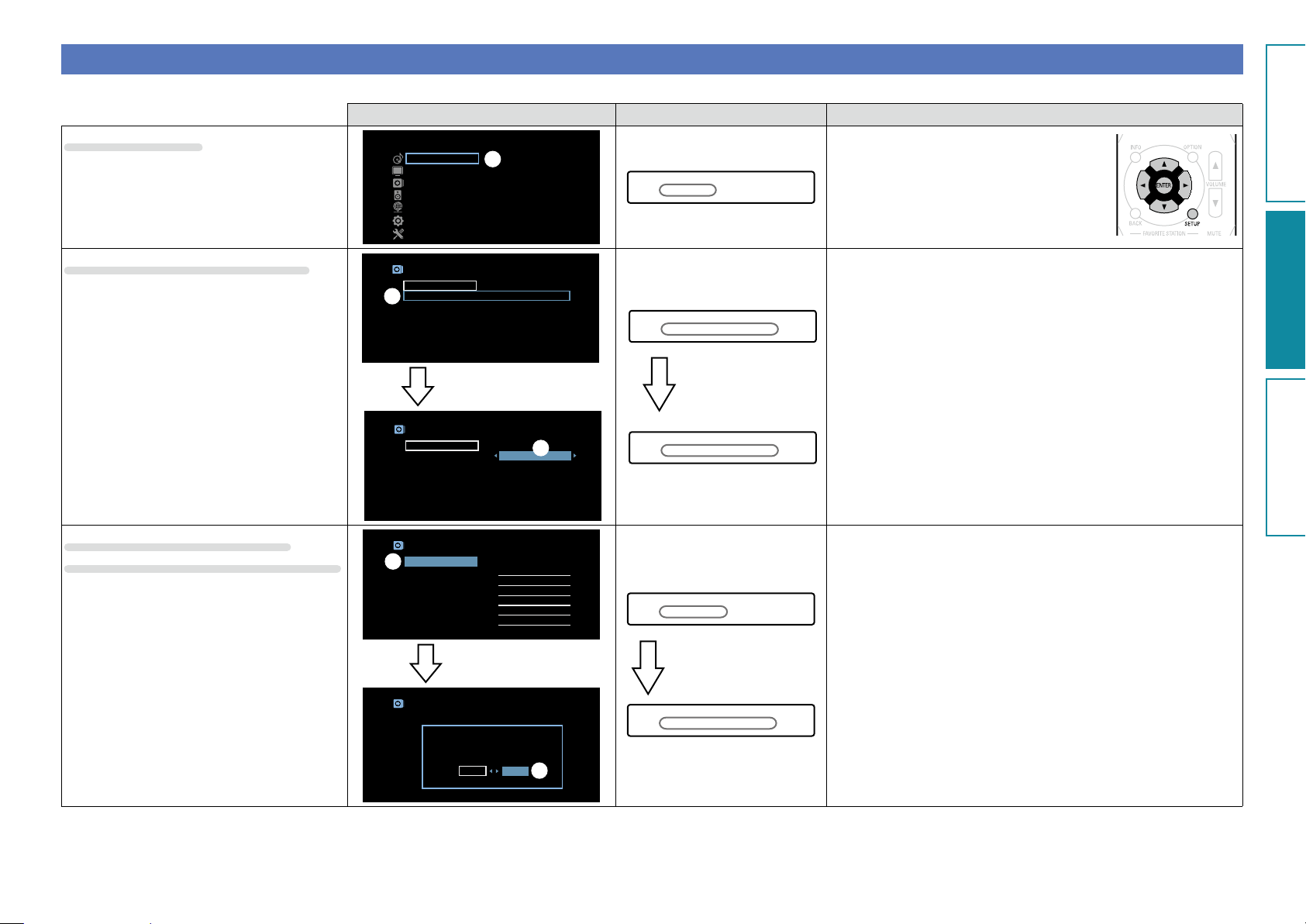

Examples of menu and front display
Below we describe typical examples of displays on the TV screen and on the set’s display window.
Menu display Front display Description
Top menu display
Setup Menu
Audio
Video
Inputs
Speakers
Network
General
Setup Assistant
w
w
Audio
q Press SETUP to display the menu screen.
w TV screen: Displays the selected line.
Display: Displays the selected item.
•Use ui to move to the item you want to set.
Display when changing settings
Set Defaults
Digital Assign
CBL/SAT
DVD
Blu-ray
GAME
TV AUDIO
AUX
COAXIAL
None
None
None
OPTICAL
None
q
Set Defaults
Digital Assign
CBL/SAT
DVD
Blu-ray
GAME
TV AUDIO
AUX
COAXIAL
None
None
None
OPTICAL
None
w
Press ENTER.
q
CBL/SAT COAX
e
CBL/SAT •COAX–
Press ENTER.
q TV screen: Displays the selected line.
Display: Displays the selected item.
•Use
ui to move to the item you want to set.
w Press ENTER to set to the mode in which the setting can be made.
e 0 1 is displayed at the sides of items whose setting can be changed.
Use o p to change to the desired setting.
Display when returning to the
settings in effect at time of purchase
Source Rename
Reset to the default values?
Yes
No
w
Press ENTER.
Set Defaults
Source Rename
CBL/SAT
DVD
Blu-ray
GAME
TV AUDIO
AUX
CBL/SAT
DVD
Blu-ray
GAME
TV AUDIO
AUX
q
w
Default? :•No
q
Default
Press ENTER.
q Press u to select “Set Defaults”, then press ENTER.
w Press o to select “Yes”, then press ENTER.
Basic version
Advanced version
Information
Advanced version
79

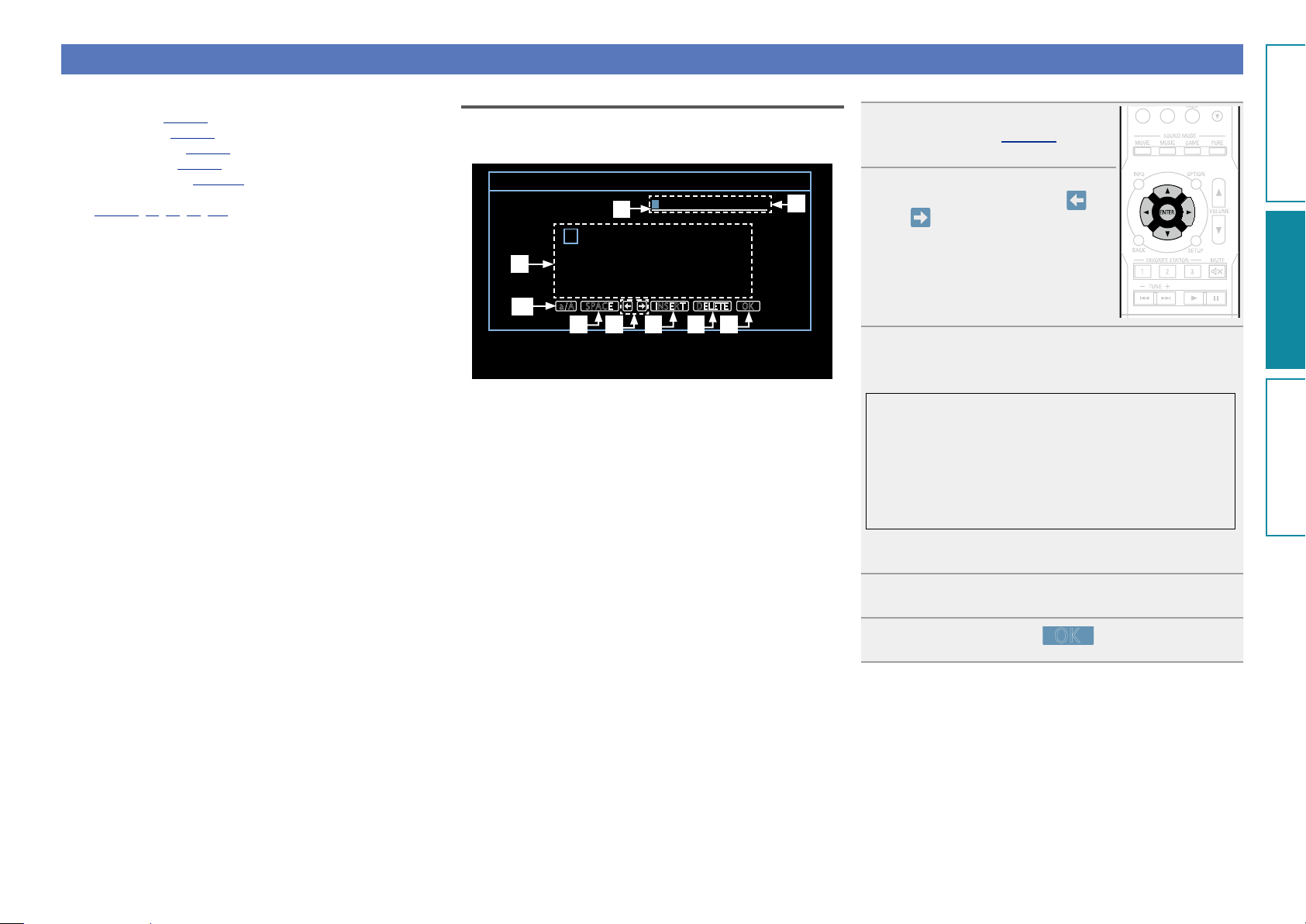

Inputting characters
On this unit, you can change the name displayed on the following
screens to the names that you prefer.
•Text Search (vpage58)
•Preset Name (vpage40)
•Source Rename (vpage91)
•Friendly Name (vpage98)
•Quick Sel.Names (vpage102)
•Character input for the network functions
(vpage43, 51, 53, 56, 100)
Keyboard screen
Select a character on the TV screen to input characters.
n Display of a keyboard input screen
Source Rename
Blu-ray
A
N
0
$
B
O
1
%
C
P
2
&
D
Q
3
‘
E
R
4
(
F
S
5
)
G
T
6
z
H
U
7
+
I
V
8
,
J
W
9
;
K
X
!
<
L
Y
“
=
M
Z
#
>
a/A SPACE INSERT DELETE OK
q
w
e
r
t
y
u oi
q Character input section
w Cursor
e Keyboard section
r Uppercase and lowercase switch key
t Space key
y Cursor keys
u Insert key
i Delete key
o OK key
n Input method
1
Display the screen for inputting
characters (vpage 76 “Menu
map”).
2
Select a character to be changed.
q Use uio p to select or
.
w Press ENTER to place the
cursor at the character to be
changed.
Each time ENTER is pressed, the
cursor moves by one character.
3
Select a character to be input with uio p then
press ENTER.
•The types of characters that can be input are as shown below.
GUpper case characters/Numbers/SymbolsH
ABCDEFGHIJKLMNOPQRSTUVWXYZ
0123456789
! “ # $ % & ’ ( ) z + , ; < = >
GLower case characters/Numbers/SymbolsH
abcdefghijklmnopqrstuvwxyz
0123456789
. @ - _ / : ˜ ? [ \ ] ^ ’ { | }
•When you use
ui while you type in, you can change uppercase
characters to lowercase and vice versa.
4
Repeat steps 2 and 3 to change the name.
5
Use uio p to select
OK
, then press ENTER.
Basic version
Advanced version
Information
Advanced version
80

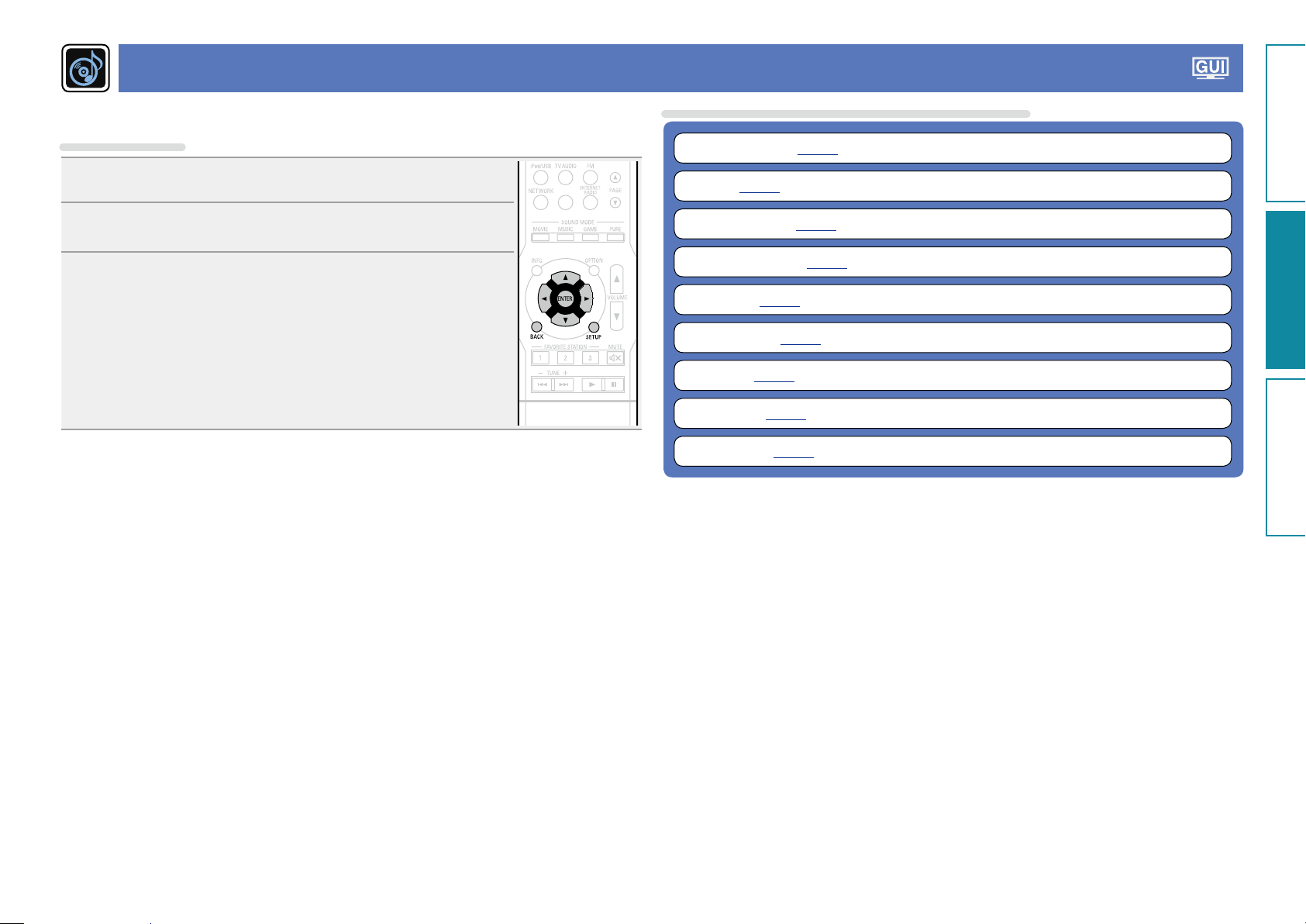

Audio
Make audio-related settings.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Audio” procedure
Surr.Parameter (vpage81)
Tone (vpage82)
Dialogue Level (vpage82)
Subwoofer Level (vpage83)
Restorer (vpage83)
Audio Delay (vpage83)
Volume (vpage83)
Audyssey (vpage84)
Manual EQ (vpage85)
Basic version
Advanced version
Information
Advanced version
81
Setting items Setting details
Center Image
Distributes the dialogue
output from the center
channel to the front left and
right channels and widens
the sound image in the
front. You can set this when
the sound mode is set to
DTS NEO:6 in the “Music”
mode.
0.0 – 1.0 (0.3)
The smaller the value, the more dialogue is concentrated on the center
channel. The larger the value, the more dialogue is distributed to front
left and right channels, and the more the sound image widens in the
front.
Panorama
Assign front L/R signal also
to surround channels for
wider sound. You can set
this when the sound mode
is Dolby PLg in the “Music”
mode.
On : Set.
Off : Do not set.
Dimension
Shift sound image center
to front or rear to adjust
playback balance. You can
set this when the sound
mode is Dolby PLg in the
“Music” mode.
0 – 6 (3)
As you set a smaller number, the surround sound field shifts backward;
as you set a larger number, the surround sound field shifts forward.
Center Width
Distributes the dialogue
output from the center
channel to left and right
channels and widens the
sound image in the front.
You can set this when the
sound mode is Dolby PLg in
the “Music” mode.
0 – 7 (3)
The smaller the value, the more dialogue is concentrated on the center
channel. The larger the value, the more dialogue is distributed to front
left and right channels, and the more the sound image widens in the
front.
Surr.Parameter
Default settings are underlined.
You can adjust the surround audio sound field effects to match your preferences.
The items (parameters) that can be adjusted depend on the signal being input and the currently set
sound mode. For details on the adjustable parameters, see “Sound modes and surround parameters”
(
vpage113).
NOTE
Some setting items cannot be set while playback is stopped. Make the settings during playback.
Setting items Setting details
Cinema EQ
Soften the treble range
of movie soundtracks for
better understanding.
On : “Cinema EQ” is used.
Off : “Cinema EQ” is not used.
Loudness Mngmt
This can be set in the
Dolby TrueHD mode. This
sets whether to output
as specified in “Dynamic
Comp.” or output directly
without compressing the
dynamic range of audio
recorded in the disc.
On : Outputs using the settings made in “Dynamic Comp.”.
Off : “Dynamic Comp.” settings and “Dialogue normalization”
(vpage103) are disabled, and the signals on the disk are output as is.
Dynamic Comp.
Compress dynamic range
(difference between loud
and soft sounds).
Auto : Automatic dynamic range compression on/off control according to
source.
Low / Medium / High : These set the compression level.
Off : Dynamic range compression always off.
You can set “Auto” only for the Dolby TrueHD source.
Low Frequency
Adjust the low-frequency
effects level (LFE).
–10dB – 0dB
For proper playback of the different sources, we recommend setting
to the values below.
•Dolby Digital sources : “0dB”
•DTS movie sources : “0dB”
•DTS music sources : “–10dB”
Audio
Basic version
Advanced version
Information
Advanced version
v See overleaf
82
Tone
Default settings are underlined.
Adjust the tonal quality of the sound.
Setting items Setting details
Tone Control
Set the tone control function
to “On” and “Off”.
On : Allow tone adjustment (bass, treble).
Off : Playback without tone adjustment.
“Tone Control” can be set when “Dynamic EQ
®
” (vpage 84) is
set to “Off”.
NOTE
The tone cannot be adjusted in the “DIRECT” mode.
Bass
Adjust bass.
–6dB – +6dB (0dB)
“Bass” can be set when the menu “Tone Control” setting is “On”.
Treble
Adjust treble.
–6dB – +6dB (0dB)
“Treble” can be set when the menu “Tone Control” setting is “On”.
Dialogue Level
Default settings are underlined.
Sets the output level to clarify the dialogue output from the center channel.
Setting items Setting details
Dialogue
–12dB – +12dB (0dB)
Audio
Setting items Setting details
Delay Time
Adjust the audio delay time
against video to extend the
sound field image. You can
set this when the sound
mode is “MATRIX”.
0ms – 300ms (30ms)
Effect Level
Adjust the sound effect
level. You can set this when
the sound mode is original
listening mode.
1 – 15 (10)
Set to a lower level if the positioning and sense of phase of the
surround signals seems unnatural.
Room Size
Determine size of acoustic
environment. You can set
this when the sound mode
is original listening mode.
Small : Simulate acoustics of a small room.
Medium small : Simulate acoustics of a medium-small room.
Medium : Simulate acoustics of a medium room.
Medium large : Simulate acoustics of a medium-large room.
Large : Simulate acoustics of a large room.
NOTE
“Room Size” does not indicate the size of the room in which sources are
played.
Set Defaults
The “Surr.Parameter”
settings are returned to the
default settings.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset to the default values?”
prompt is displayed. Select either “Yes” or
“No”, and press ENTER.
Basic version
Advanced version
Information
Advanced version
83
Audio Delay
Default settings are underlined.
While viewing video, manually adjust the time to delay audio output.
Setting details
0ms – 200ms
•This item can be set within the range of 0 to 100 ms when “Auto Lip Sync” (vpage87) is set to
“On” and when a TV compatible with Auto Lip Sync is connected.
•Store “Audio Delay” for each input source.
Volume
Default settings are underlined.
Set the volume setting.
Setting items Setting details
Scale
Set how volume is
displayed.
0 – 98 : Display in the range 0.5 (Min) to 98.
–79.5dB – 18.0dB : Display ---dB (Min), in the range –79.5 dB to 18.0 dB.
The “Scale” setting is applied also to the “Limit” and “Power On
Level” display method.
Limit
Make a setting for
maximum volume.
Off : Do not set a maximum volume.
60 (–20dB) / 70 (–10dB) / 80 (0dB)
Power On Level
Define the volume setting
that is active when the
power is turned on.
Last : Use the memorized setting from the last session.
Mute : Always use the muting on condition when power is turned on.
1 – 98 (–79dB – 18dB) : The volume is adjusted to the set level.
Mute Level
Set the amount of
attenuation when muting
is on.
Full : The sound is muted entirely.
–40dB : The sound is attenuated by 40 dB down.
–20dB : The sound is attenuated by 20 dB down.
Audio
Subwoofer Level
Default settings are underlined.
Sets the subwoofer on/off and its output level.
Setting items Setting details
Subwoofer
Turn subwoofer output on
and off.
On : The subwoofer is used.
Off : The subwoofer is not used.
NOTE
This can be set when the sound mode is “DIRECT” (vpage 64) and
the “Subwoofer Mode” (vpage94) is “LFE+Main”.
Subwoofer Level
Set the subwoofer output
level.
–12dB – +12dB (0dB)
Restorer
Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the
amount of data by eliminating signal components that are hard for the human ear to hear. The “Restorer”
function generates the signals eliminated upon compression, restoring the sound to conditions near those
of the original sound before compression. It also corrects the sense of volume of the bass to obtain richer
sound with compressed audio signals.
Setting items Setting details
Restorer
Set the mode for
“Restorer”.
Off : Do not use “Restorer”.
Mode1 (High) : Optimized mode for compressed sources with very weak
highs (64 kbps and under).
Mode2 (Middle) : Apply suitable bass and treble boost for all compressed
sources (96 kbps and under).
Mode3 (Low) : Optimized mode for compressed sources with normal
highs (96 kbps and over).
•This item can be set with analog signals or PCM signal (Sample rate =
44.1/48 kHz) is input.
•“Restorer” settings are stored for each input source.
•This item default setting for “NETWORK” and “iPod/USB” is “Mode3
(Low)”. All others are set to “Off”.
•This cannot be set when the sound mode is set to “DIRECT”.
Basic version
Advanced version
Information
Advanced version
84
Audio
Audyssey
Default settings are underlined.
Set Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
and Audyssey Dynamic Volume
®
. These can be
selected after Audyssey
®
Setup has been performed. For additional information on Audyssey technology,
please see
page117.
NOTE
•If you have not performed Auto Setup, or if you change the speaker settings after performing Auto Setup,
you may not be able to select Dynamic EQ
®
/Dynamic Volume
®
.
In this case, either perform Audyssey
®
Setup over again or perform “Restore...” (vpage 26) to
return to the settings after Audyssey
®
Setup was run.
•When HD Audio for which the sampling frequency exceeds 96 kHz is played back, the “Audyssey”
cannot be set.
Setting items Setting details
MultEQ
®
MultEQ
®
compensates for
both time and frequency
characteristics of the
listening area based on
Audyssey
®
Setup
measurement results.
Selection is done from three
types of compensation
curves. We recommend the
“Audyssey” setting.
MultEQ
®
is the prerequisite
function for Dynamic EQ
®
and Dynamic Volume
®
.
Audyssey : Optimize the frequency response of all speakers.
Audyssey Byp.L/R : Optimize frequency response of speakers except
front L and R speakers.
Audyssey Flat : Optimize frequency response of all speakers to flat
response.
Manual EQ : Apply frequency response set with “Manual EQ”
(vpage85).
Off : Turn “MultEQ
®
” equalizer off.
•“Audyssey”, “Audyssey Byp. L/R” and “Audyssey Flat” can be
selected after Audyssey
®
Setup has been performed. “Audyssey”
is automatically selected after performing Audyssey
®
Setup. When
“Audyssey”, “Audyssey Byp. L/R” or “Audyssey Flat” is selected,
illuminates.
•After running Audyssey
®
Setup, if the Speaker Configuration, Distance,
Channel Level, and Crossover Frequency have changed without
increasing the number of speakers measured, only illuminates.
NOTE
When using headphones, “MultEQ
®
” is automatically set to “Off”.
“MultEQ
®
”, “Dynamic EQ
®
” and “Dynamic Volume
®
” settings are stored for each input source.
Setting items Setting details
Dynamic EQ
®
Solve the problem of
deteriorating sound quality
as volume is decreased
by taking into account
human perception and
room acoustics. Works with
MultEQ
®
.
On : Use Dynamic EQ
®
.
Off : Do not use Dynamic EQ
®
.
is displayed when set to “On”.
NOTE
When the menu “Dynamic EQ
®
” setting is “On”, it is not possible to do
“Tone Control” (vpage82) adjustment.
Reference Offset
Audyssey Dynamic EQ
®
is
referenced to the standard
film mix level. It makes
adjustments to maintain
the reference response
and surround envelopment
when the volume is turned
down from 0 dB. However,
film reference level is not
always used in music or
other non-film content.
Dynamic EQ
®
Reference
Level Offset provides three
offsets from the film level
reference (5 dB, 10 dB, and
15 dB) that can be selected
when the mix level of the
content is not within the
standard. Recommended
setting levels are shown at
right.
0dB (Film Ref) : This is the default setting and should be used when
listening to movies.
5dB : Select this setting for content that has a very wide dynamic range,
such as classical music.
10dB : Select this setting for jazz or other music that has a wider dynamic
range. This setting should also be selected for TV content as that is usually
mixed at 10 dB below film reference.
15dB : Select this setting for pop/rock music or other program material
that is mixed at very high listening levels and has a compressed dynamic
range.
Setting is enabled when “Dynamic EQ
®
” is “On” (vpage84).
Dynamic Volume
®
Solve the problem of large
variations in volume level
between TV, movies and
other content (between
quiet passages and
loud passages, etc.) by
automatically adjusting to
the user’s preferred volume
setting.
Heavy : Most adjustment to softest and loudest sounds.
Medium : Medium adjustment to loudest and softest sound.
Light : Least adjustment to loudest and softest sounds.
Off : Do not use “Dynamic Volume
®
”.
• is displayed when set to “Heavy”, “Medium” or “Light”.
•If “Dynamic Volume
®
” is set to “Yes” in “Audyssey
®
Setup”
(vpage24), the setting is automatically changed to “Medium”.
Basic version
Advanced version
Information
Advanced version
85
Audio
Manual EQ
Default settings are underlined.
Use the graphic equalizer to adjust the tone of each speaker.
“Manual EQ” can be set when “MultEQ
®
” setting (
vpage84) is “Manual EQ”.
Setting items Setting details
Speaker Select
Select whether to adjust
tones for individual speakers
or for all speakers.
All : Adjust the tone of all speakers together.
Left/Right : Adjust the tone of left and right speakers together.
Each : Adjust the tone of each speaker.
Adjust EQ
Adjust tones for each
frequency band. Adjust
the speaker selected in
“Speaker Select”.
q Select the speaker.
w Select the adjustment frequency band.
63Hz / 125Hz / 250Hz / 500Hz / 1kHz / 2kHz / 4kHz / 8kHz / 16kHz
•Select the speakers you want to adjust when “Left/Right” or “Each”
is selected.
e Adjust the level.
–20.0dB – +6.0dB (0.0dB)
Curve Copy
Copy “Audyssey Flat”
(vpage84) curve from
MultEQ
®
.
Yes : Copy.
No : Do not copy.
•“Curve Copy” is displayed after Audyssey
®
Setup has been performed.
•When you select “Curve Copy” and press ENTER, the “Copy “Audyssey
Flat”?” prompt is displayed. Select either “Yes” or “No”, and press
ENTER.
Set Defaults
The “Manual EQ” settings
are returned to the default
settings.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset to the default values?”
prompt is displayed. Select either “Yes” or
“No”, and press ENTER.
Basic version
Advanced version
Information
Advanced version
86

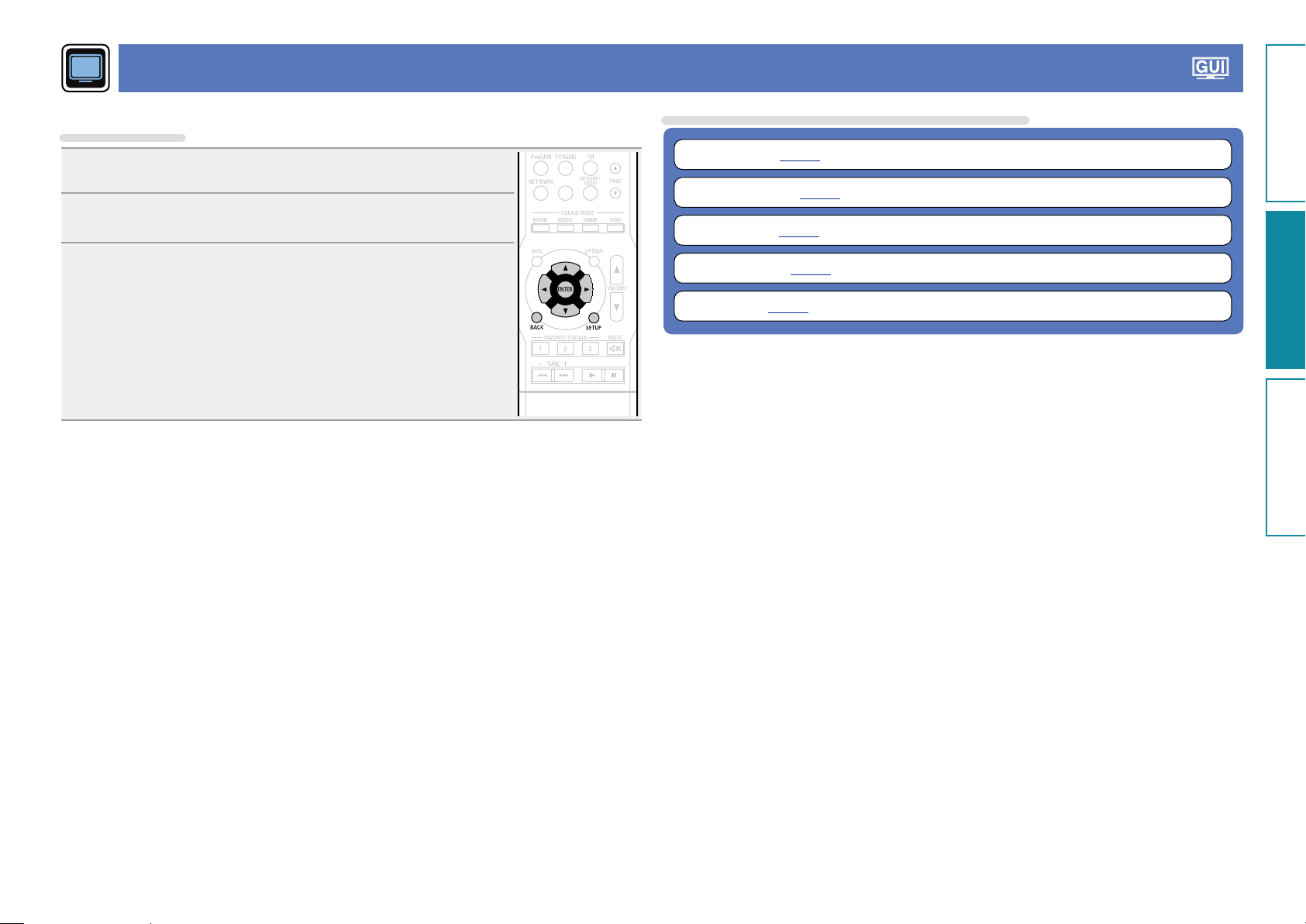

Video
Make video-related settings.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Video” procedure
HDMI Setup (vpage87)
Volume Display (vpage87)
Info.Display (vpage88)
Audio Display (vpage88)
TV Format (vpage88)
Basic version
Advanced version
Information
Advanced version
87
Video
HDMI Setup
Default settings are underlined.
Make settings for HDMI video/audio output.
Setting items Setting details
Auto Lip Sync
Make automatic
compensation for timing
shift in audio and video
output.
On : Compensated.
Off : Not compensated.
HDMI Audio Out
Select HDMI audio output
device.
AVR : Play back through speakers connected to the unit.
TV : Play back through TV connected to the unit.
•The audio signal input from the HDMI input connector can be output as
an output signal from the HDMI output connector by setting the HDMI
audio output destination to TV.
Audio signals input via the Analog/Coaxial/Optical input connectors
cannot be output from the HDMI output connector.
•When the HDMI control function is activated, priority is given to the TV
audio setting (vpage73 “HDMI control function”).
HDMI Control
You can link operations with
devices connected to HDMI
and compatible with HDMI
Control.
On : Use HDMI control function.
Off : Do not use HDMI control function.
•When a device that is not compatible with the HDMI control function is
connected, set “HDMI Control” to “Off”.
•Please consult the operating instructions for each connected device to
check the settings.
•Refer to “HDMI control function” (vpage 73) for more information
about the HDMI control function.
NOTE
•When “HDMI Control” is set to “On”, it consumes more standby
power. If you are not using this unit for an extended period, it is
recommended that you unplug the power cord from the power outlet.
•The HDMI control function controls operations of a TV that is compatible
with the HDMI control function. Make sure that the TV and HDMI are
connected when you perform HDMI control.
•If the “HDMI Control” settings have been changed, always reset the
power to connected devices after the change.
Setting items Setting details
Standby Source
Sets the HDMI input source
to put into standby when
the power is on.
Last : Enters standby with the previously used input source.
CBL/SAT / DVD / Blu-ray / GAME / AUX : Enters standby with each of
the input sources assigned to each input terminal.
“Standby Source” can be set when “HDMI Control” is set to “On”.
P.Off Control
Links the power standby of
this unit to external devices.
All : If power to a connected TV is turned off independently of the input
source, power to this unit is automatically set to standby.
Video : If power to a connected TV is turned off when the input source
is CBL/SAT, DVD, Blu-ray, GAME, AUX power to this unit is automatically
set to standby.
Off : This unit does not link with power to a TV.
“P.Off Control” can be set when “HDMI Control” is set to “On”.
Volume Display
Default settings are underlined.
Sets where to display the master volume level.
Setting items Setting details
Volume
Bottom : Display at the bottom.
Top : Display at the top.
Off : Turn display off.
When the master volume display is hard to see when superimposed
on movie subtitles, set to “Top”.
Basic version
Advanced version
Information
Advanced version
88
Video
Info.Display
Default settings are underlined.
Displays status of operation temporarily when the sound mode is changed or input source is switched. You
can set whether or not to show each of these status displays.
Setting items Setting details
On-Screen Info
On : Turn display on.
Off : Turn display off.
Audio Display
Default settings are underlined.
Sets how long each menu is displayed when the input source is “NETWORK”, “iPod/USB”, or “FM”.
Setting items Setting details
Audio
Always : Show display continuously.
30s : Show display for 30 seconds after operation.
10s : Show display for 10 seconds after operation.
Off : Turn display off.
TV Format
Default settings are underlined.
Set the video signal format to be output for the TV you are using.
Setting items Setting details
Format
NTSC : Select NTSC output.
PAL : Select PAL output.
“Format” can also be set by the following procedure. However, the menu
screen is not displayed.
1. Press and hold the main unit’s TUNER PRESET CH + and STATUS for at
least 3 seconds.
“NTSC” appears on the display.
2. Use the main unit’s SOURCE SELECT 0 1 and set the video signal
format.
3. Press the main unit’s STATUS to complete the setting.
NOTE
When a format other than the video format of the connected TV is set, the
picture will not be displayed properly.
Basic version
Advanced version
Information
Advanced version
89

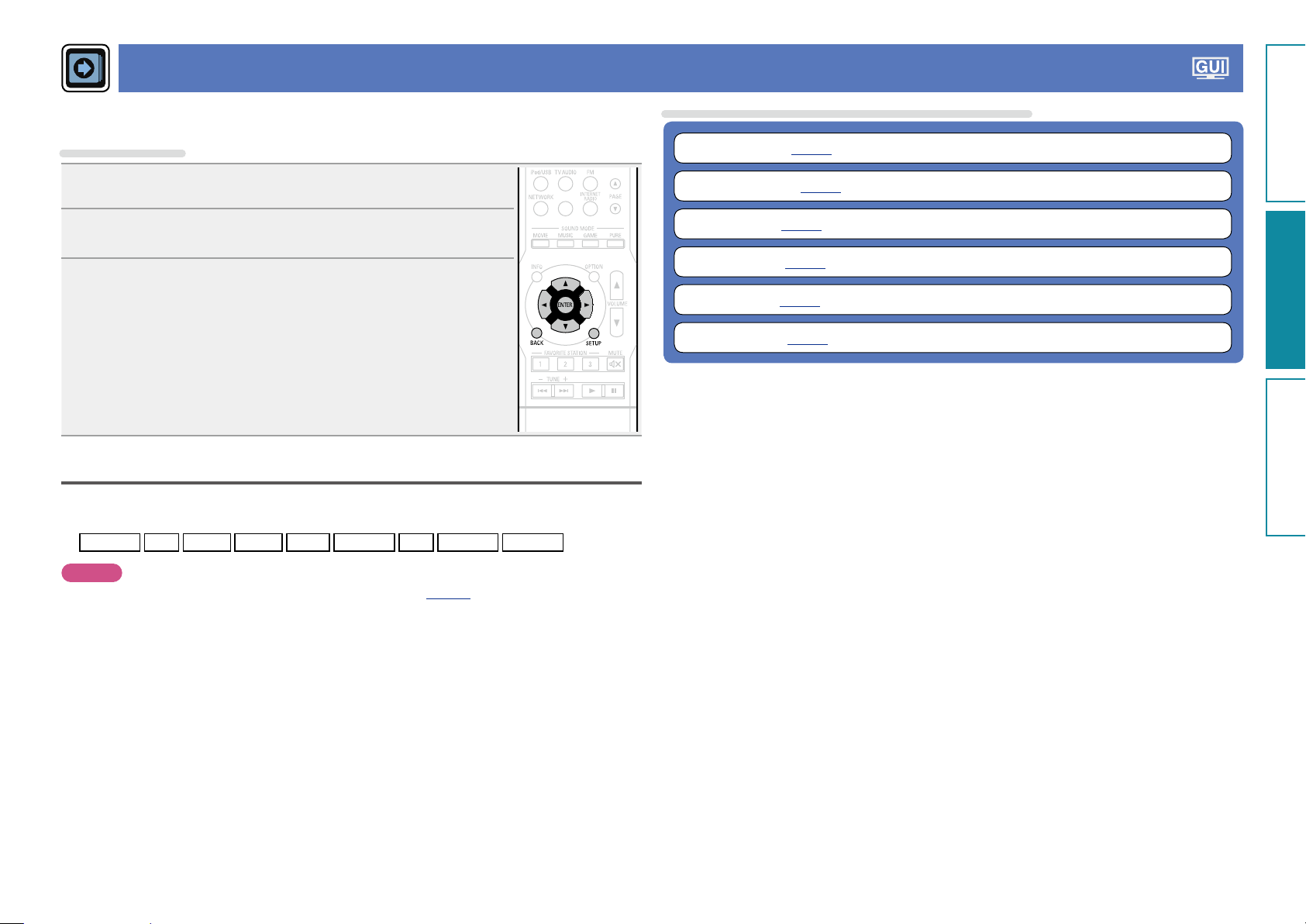

Inputs
Perform settings related to input source playback.
•You do not have to change the settings to use the unit. Make settings when needed.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Important information
n About the display of input sources
In this section, the configurable input sources for each item are shown as follows.
CBL/SAT
DVD
Blu-ray
GAME
AUX
iPod/USB
FM
NETWORK
TV AUDIO
NOTE
Input sources that have been set to “Hide” at “Hide Source” (vpage91) cannot be selected.
Items that can be set with the “Inputs” procedure
Digital Assign (vpage90)
Source Rename (vpage91)
Hide Source (vpage91)
Source Level (vpage91)
Input Select (vpage91)
Video Source (vpage92)
Basic version
Advanced version
Information
Advanced version
90
Setting items Setting details
DIGITAL
Set this to change the digital
input connectors assigned
to the input sources.
CBL/SAT
DVD
Blu-ray
GAME
AUX
TV AUDIO
COAXIAL / OPTICAL : Assign a digital input connector to the selected
input source.
None : Do not assign a digital input connector to the selected input source.
•At time of purchase, the settings of the different input sources are as
shown below.
Input source CBL/SAT DVD Blu-ray
Default setting COAXIAL None None
Input source GAME AUX TV AUDIO
Default setting None None OPTICAL
Set Defaults
The input source name
is returned to the default
setting.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
If you select “Set Defaults” and press ENTER,
the message “Reset to the default values?”
is displayed. Select “Yes” or “No”, and then
press ENTER.
Inputs
Digital Assign
This unit has certain input sources such as “CBL/SAT” assigned to audio and video connectors by default.
By making the default connections, you can simply press an input source select button to play back audio
or video from the connected device with ease.
When making connections other than the default settings, you must change settings in this section.

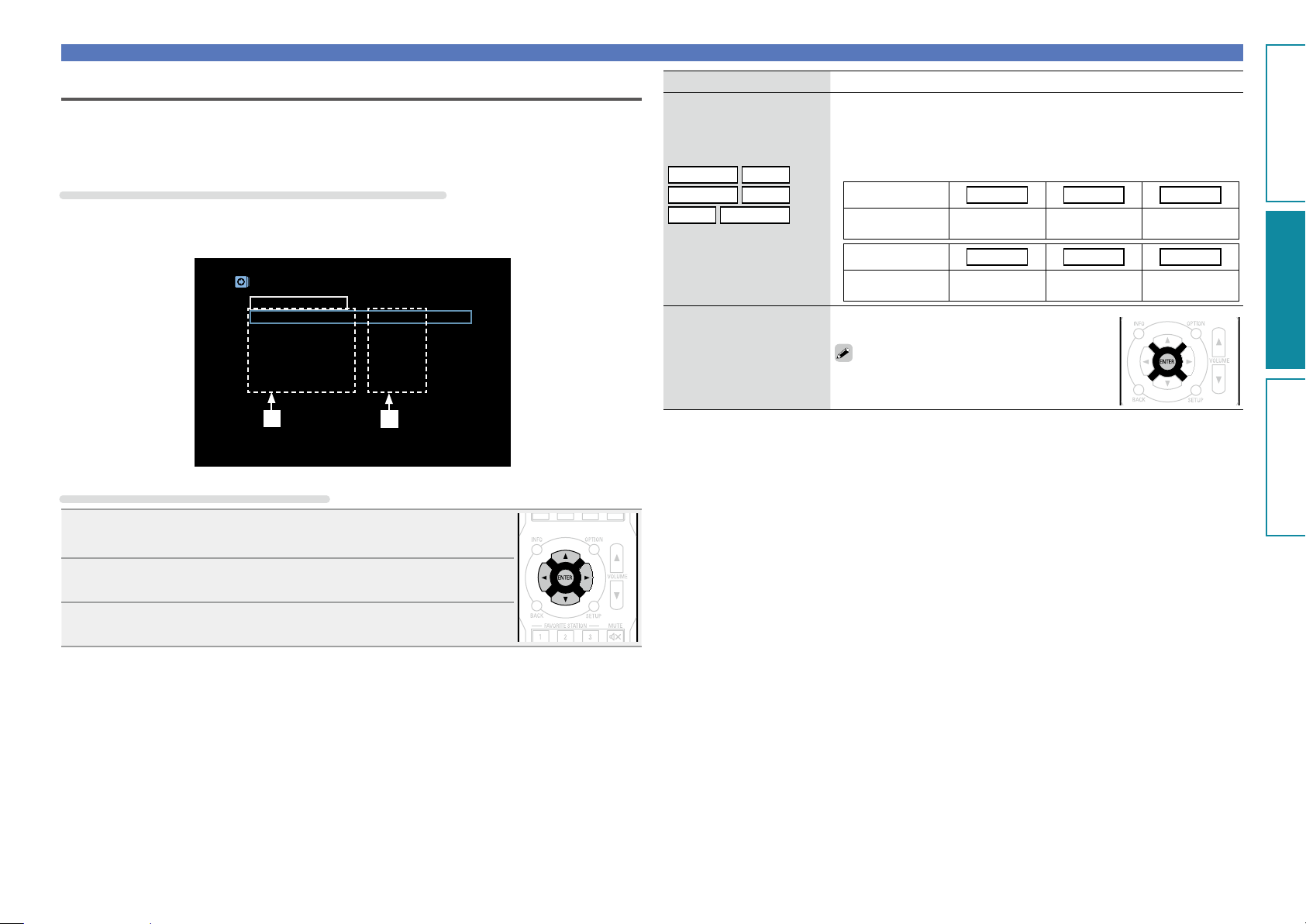

Examples of “Digital Assign” menu screen displays
This screen appears when the “Inputs” – “each input source” – “Digital Assign” menu is selected. Use
the “Digital Assign” menu to change the w Digital input connectors that are assigned to the q input
sources in default settings.
Set Defaults
Digital Assign
CBL/SAT
DVD
Blu-ray
GAME
TV AUDIO
AUX
COAXIAL
None
None
None
OPTICAL
None
w
q
Input assignments menu operations
1
Use uio p to move the cursor to the item you want to set, and
then press ENTER.
2
Use o p to select the input connector to be assigned.
3
Press ENTER to register the setting.
Basic version
Advanced version
Information
Advanced version
91
Source Rename
Change the display name of the selected input source.
This is convenient when the input source name of your device and the input source name of this unit are
different. You can change the name to suit your needs. When the renaming is completed, the name is
displayed on this unit’s display and on the menu screen.
Setting details
CBL/SAT / DVD / Blu-ray / GAME / AUX / TV AUDIO : Change the display name of the selected input
source.
•Up to 12 characters can be input.
•For character input, see page79.
Set Defaults : The input source name is returned to the default setting.
•Yes : Reset to the defaults.
•No : Do not reset to the defaults.
If you select “Set Defaults” and press ENTER, the message “Reset to the
default values?” is displayed. Select “Yes” or “No”, and then press ENTER.
Hide Source
Default settings are underlined.
Remove from the display input sources that are not used.
Setting details
CBL/SAT / DVD / Blu-ray / GAME / AUX / iPod/USB / FM / NETWORK / TV AUDIO : Select input
source that is not used.
•Show : Use this source.
•Hide : Do not use this source.
NOTE
Input sources set to “Hide” cannot be selected using the input source select button.
Inputs
Source Level
Default settings are underlined.
•This function corrects the playback level of the selected input source’s audio input.
•Make this setting if there are differences in the input volume levels between the different sources.
Setting details
–12dB – +12dB (0dB)
The analog input level and digital input level can be adjusted independently for input sources for
which “DIGITAL” is assigned at “Digital Assign” (vpage90).
Input Select
Default settings are underlined.
Set the audio input mode and decode mode of each input source.
The input modes available for selection may vary depending on the input source.
Setting items Setting details
Input Mode
Set the audio input modes
for the different input
sources.
It is normally recommended
to set the audio input mode
to “Auto”.
Auto : Automatically detect input signal and perform playback.
HDMI : Play only signals from HDMI input.
Digital : Play only signals from digital input.
Analog : Play only signals from analog input.
•“Digital” can be set for input sources for which “DIGITAL” is assigned
at “Digital Assign” (vpage90).
•If the input source is set to “CBL/SAT” or “DVD”, it can be set to
“Analog”.
•When digital signals are properly input, the indicator lights on
the display. If the indicator does not light, check “Digital Assign”
(vpage90) and the connections.
•If “HDMI Control” is set to “On” and a TV compatible with the ARC is
connected via the HDMI MONITOR connectors, the input mode whose
input source is “TV” is fixed to ARC.
Basic version
Advanced version
Information
Advanced version
v See overleaf
92
Inputs
Setting items Setting details
Decode Mode
Set the audio decode mode
for input source.
CBL/SAT
DVD
Blu-ray
GAME
AUX
TV AUDIO
Auto : Detect type of digital input signal and decode and play automatically.
PCM : Decode and play only PCM input signals.
DTS : Decode and play only DTS input signals.
•This item can be set for input sources for which “DIGITAL” is assigned
at “Digital Assign” (vpage90).
•Normally set this mode to “Auto”. Set “PCM” and “DTS” when
inputting the corresponding input signal.
Video Source
Default settings are underlined.
Video of another input source is played back combined with the playing audio.
Setting items Setting details
Video Select
Default : Play the picture and sound of the input source.
CBL/SAT / DVD : Select video input source to view. The video of the
selected input source is played along with the audio currently being
played. This can be set for individual input sources.
NOTE
•It is not possible to select HDMI input signals.
•Input sources for which “Hide” is selected at “Hide Source”
(vpage91) cannot be selected.
Basic version
Advanced version
Information
Advanced version
93

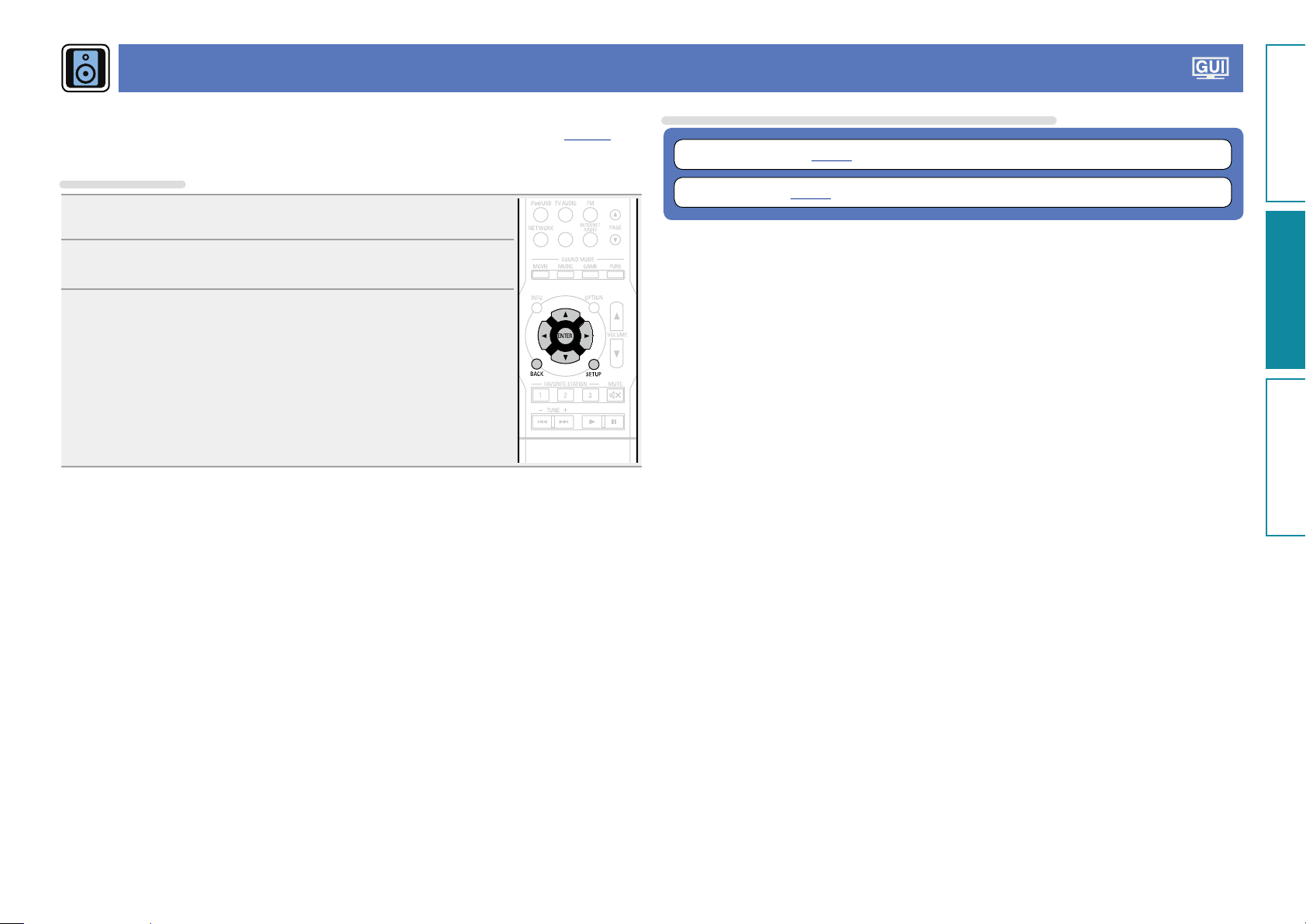

Speakers
Set when changing Audyssey
®
Setup settings.
•If you change the speaker settings after performing Audyssey
®
Setup, it will not be possible to set
Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
and Audyssey Dynamic Volume
®
(vpage84).
•Can be used without changing the settings. Please set if necessary.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Speakers” procedure
Audyssey
®
Setup (vpage20)
Manual Setup (vpage94)
Basic version
Advanced version
Information
Advanced version
94
Manual Setup
Default settings are underlined.
Perform when setting the speakers manually or when changing settings made in Audyssey
®
Setup.
•If you change the speaker settings after performing Audyssey
®
Setup, it will not be possible to select
Audyssey MultEQ
®
, Audyssey Dynamic EQ
®
and Audyssey Dynamic Volume
®
(
vpage84).
•“Manual Setup” can be used without changing the settings. Please set if necessary.
Setting items Setting details
Speaker Config.
Indicate speaker presence
and select speaker size
categories based on bass
reproduction capability.
NOTE
Do not use the outward
shape of the speaker to
determine selection of a
“Large” or “Small” speaker.
Instead, use the frequencies
set in “Crossovers”
(vpage96) as the
standard for determining
bass reproduction capability.
Front : Set the front speaker size.
•Large : Use a large speaker that can adequately play back low
frequencies.
•Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
•When “Subwoofer” is set to “No”, “Front” is automatically set to
“Large”.
•When “Front” is set to “Small”, “Center” and “Surround“ can not be
set to “Large”.
Center : Set the presence and size of the center speaker.
•Large : Use a large speaker that can adequately play back low
frequencies.
•Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
•None : Select when a center speaker is not connected.
“Large” is not displayed when “Front” is set to “Small”.
Subwoofer : Set the presence of a subwoofer.
•Yes : Use a subwoofer.
•No : Select when a subwoofer is not connected.
When “Front” is set to “Small”, “Subwoofer” is automatically set to
“Yes”.
Surround : Set the presence and size of the surround speakers.
•Large : Use a large speaker that can adequately play back low
frequencies.
•Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
•None : Select when the surround speakers are not connected.
Setting items Setting details
Bass
Set subwoofer and LFE
signal range playback.
Subwoofer Mode : Select low range signals to be reproduced by
subwoofer.
•LFE : The low range signal of the channel set to “Small” speaker size is
added to the LFE signal output from the subwoofer.
•LFE+Main : The low range signal of all channels is added to the LFE
signal output from the subwoofer.
•“Subwoofer Mode” can be set when “Speaker Config.” – “Subwoofer”
(vpage94) is set to “Yes”.
•Play music or a movie source and select the mode offering the strongest
bass.
•Select “LFE+Main” if you want the bass signals to always be produced
from the subwoofer.
NOTE
If “Front” and “Center” for “Speaker Config.” are set to “Large”, and
“Subwoofer Mode” is set to “LFE”, no sound may be output from the
subwoofers, depending on the input signal or selected sound mode.
LPF for LFE : Set LFE signal playback range. Set this when you want to
change the playback frequency of the subwoofer.
•80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz
Speakers
Basic version
Advanced version
Information
Advanced version
v See overleaf
95
Setting items Setting details
Levels
Set the volume of the test
tone to be the same when it
is output from each speaker.
Test Tone Start : Output test tone.
•Front L / Center / Front R / Surround R / Surround L / Subwoofer :
Select speaker to output test tone.
•–12.0dB – +12.0dB (0.0dB) : Adjust the volume.
When “Levels” is adjusted, the adjusted values are set for all the sound
modes.
NOTE
•Speakers set to “None” in the “Speaker Config.” (vpage 94)
settings are not displayed.
•When a headphones jack is inserted in the PHONES jack of this unit, the
“Levels” is not displayed.
Set Defaults : The “Levels” settings are returned to the default settings.
•Yes : Reset to the defaults.
•No : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset to the default values?”
prompt is displayed. Select either “Yes” or
“No”, and press ENTER.
Speakers
Setting items Setting details
Distances
Set distance from listening
position to speakers.
Measure beforehand the
distance from the listening
position to each speaker.
Unit : Set the unit of distance.
•Feet / Meters
Step : Set the minimum variable width of the distance.
•1ft / 0.1ft
•0.1m / 0.01m
Set Defaults: The “Distances” settings are returned to the default
settings.
•Yes : Reset to the defaults.
•No : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset to the default values?”
prompt is displayed. Select either “Yes” or
“No”, and press ENTER.
Front L / Front R / Center / Subwoofer / Surround L / Surround R :
Select speaker for distance setting.
•0.0ft – 60.0ft / 0.00m – 18.00m : Set the distance.
•Default settings :
Front L / Front R / Center / Subwoofer : 12.0 ft (3.60 m)
Surround L / Surround R : 10.0 ft (3.00 m)
•Set the difference in the distance between the speakers to less than
20.0 ft (6.00 m).
NOTE
Speakers set to “None” in “Speaker Config.” (vpage 94) are not
displayed.
Basic version
Advanced version
Information
Advanced version
v See overleaf
96
Speakers
Setting items Setting details
Crossovers
Set the maximum frequency
of the bass signal output
from each channel to
the subwoofer. Set the
Crossover Frequency to
suit the bass reproduction
capability of the speaker
being used.
Crossover : Set the crossover frequency.
•40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /
250Hz / Individual : Set the crossover frequency for all speakers. See the
speaker manual for information concerning speaker crossover frequency.
The following settings can be set when the “Crossover” setting is set to
“Individual”.
•Front / Center / Surround : Select speaker for setting of crossover
frequency.
•40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /
250Hz : Set the crossover frequency.
•“Crossovers” can be set when the “Bass” – “Subwoofer Mode”
(vpage94) setting is “LFE+Main”, or when you have a speaker that
is set to “Small”.
•Always set the crossover frequency to “80Hz”. When using small
speakers, however, we recommend setting the crossover frequency to
a higher frequency.
•For speakers set to “Small”, sound below the crossover frequency
is cut from the sound output. The cut bass sound is output from the
subwoofer or front speakers.
•The speakers that can be set when “Individual” is selected differ
depending on to the “Subwoofer Mode” setting (vpage94).
•When “LFE” is selected, speakers set to “Small” at “Speaker Config.”
can be set. If the speakers are set to “Large”, “Full Band” is displayed
and the setting cannot be made.
•If set to “LFE+Main”, this setting can be made regardless of the
speaker size.
Basic version
Advanced version
Information
Advanced version
97

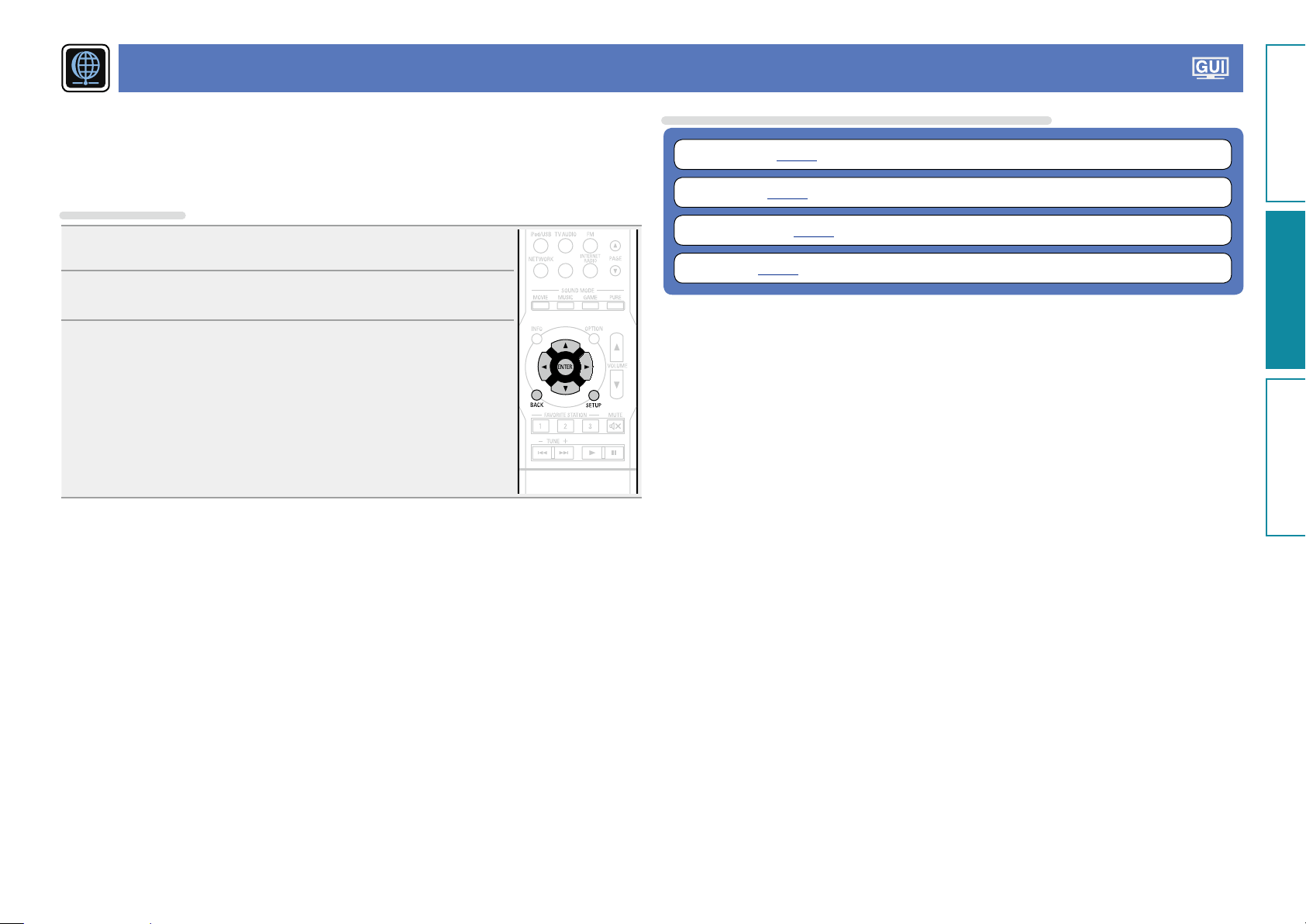

Network
To use this unit by connecting it to a home network (LAN), you must configure network settings.
If you set up your home network (LAN) via DHCP, set “DHCP” to “On” (use the default setting). This
allows this unit to use your home network (LAN).
If you assign an IP address for each device, you must use the “IP Address” setting to assign an IP
address to this unit and enter the information about your home network (LAN) such as the gateway
address and subnet mask.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “Network” procedure
Information (vpage98)
IP Control (vpage98)
Friendly Name (vpage98)
Settings (vpage99)
Basic version
Advanced version
Information
Advanced version
98
Information
Display network information.
Setting details
Friendly Name / DHCP=On or Off / IP Address / MAC Address
MAC Address is required to make a vTuner account.
IP Control
Default settings are underlined.
Set the network function on/off during standby.
Setting details
Always On : Network is on during standby. Main unit operable with a network compatible controller.
Off In Standby : Suspend network function during standby.
NOTE
When “IP Control” is set to “Always On”, it consumes more standby power.
Network
Friendly Name
The Friendly Name is the name of this unit displayed on the network. You can change the Friendly Name
according to your preferences.
Setting items Setting details
Edit Name
Edits Friendly Name.
•The default Friendly Name on first use is “DENON:[AVR-1613]”.
•Up to 63 characters can be input.
•For character input, see page79.
Set Defaults
Restores Friendly Name,
which you had changed, to
the default setting.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
When you select “Set Defaults” and press
ENTER, the “Reset to the default values?”
prompt is displayed. Select either “Yes” or
“No”, and press ENTER.
Basic version
Advanced version
Information
Advanced version
99

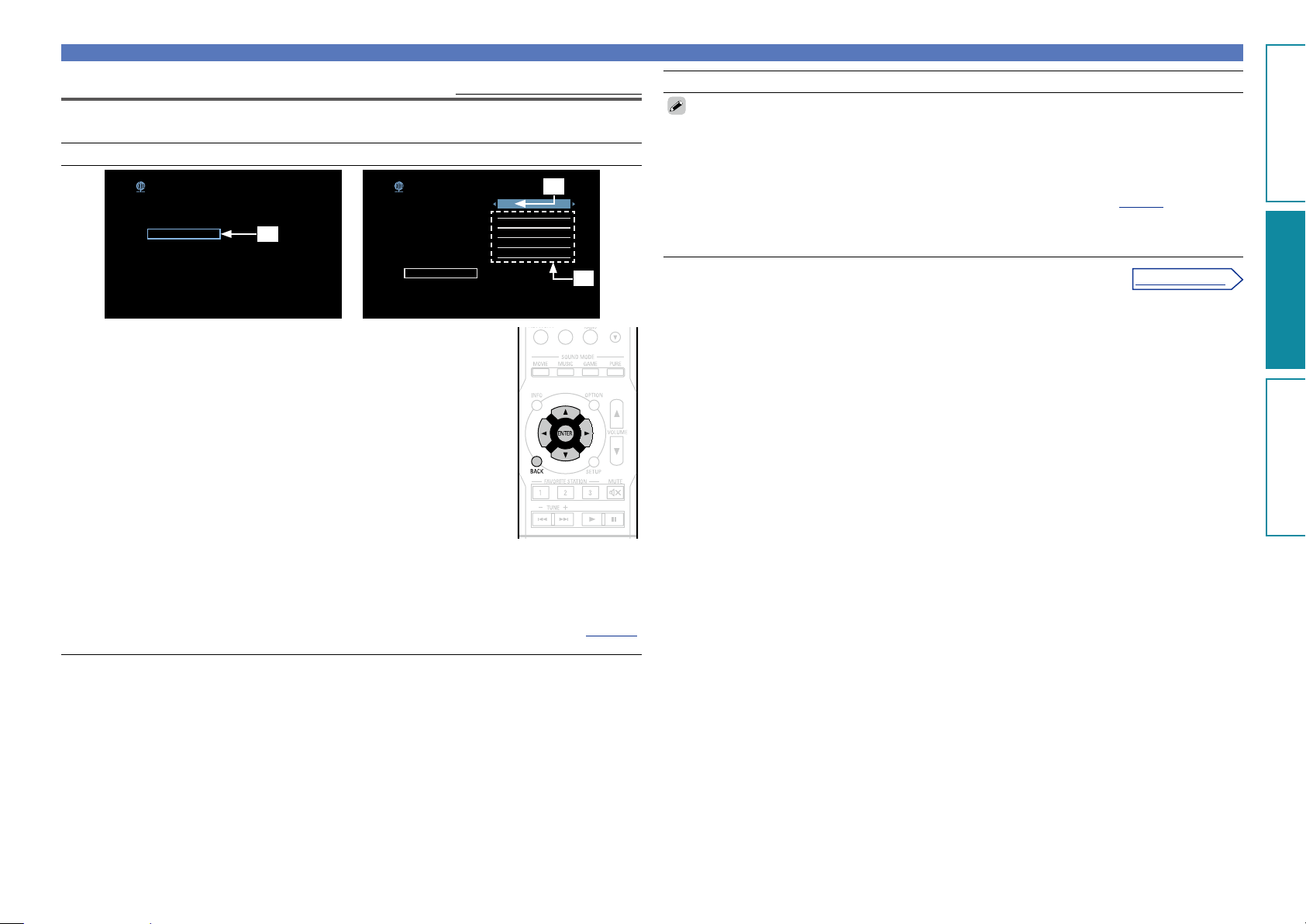

Network
Settings
Default settings are underlined.
Make settings for wired LAN.
Only set “Settings” when connecting to a network without a DHCP function.
Setting details
Information
Network
IP Control
Friendly Name
Settings
q
DHCP
Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS
Secondary DNS
Off
192.
168.
000.
001
255.
255.
255.
000
000.
000.
000.
000
000.
000.
000.
000
000.
000.
000.
000
Proxy
w
e
q On the menu, select “Network” – “Settings” and press
ENTER.
w Use uio p to set “DHCP” to “Off”, then press ENTER.
The DHCP function is disabled.
e Use uio p to input the address and press ENTER.
•IP Address : Set the IP address within the ranges shown below.
The Network Audio function cannot be used if other IP addresses are set.
CLASS A: 10.0.0.1 – 10.255.255.254
CLASS B: 172.16.0.1 – 172.31.255.254
CLASS C: 192.168.0.1 – 192.168.255.254
•Subnet Mask : When connecting an xDSL modem or terminal adapter
directly to this unit, input the subnet mask indicated in the documentation
supplied by your provider. Normally input 255.255.255.0.
•Default Gateway : When connected to a gateway (router), input its IP
address.
•Primary DNS, Secondary DNS : If there is only one DNS address indicated in the documentation
supplied by your provider, input it at “Primary DNS”. If there are two or more DNS addresses, input
the first one at “Secondary DNS”.
r Press BACK.
The display returns to the playback screen.
•When connecting to the network via a Proxy server, select “Proxy” and press ENTER (vpage100
“Proxy settings”).
Setting details
•If you are using a broadband router (DHCP function), there is no need to make the settings at “IP
Address” and “Proxy”, since the DHCP function is set to “On” in this unit’s default settings.
•If this unit is being used connected to a network without the DHCP function, the network settings
must be made. In this case, some knowledge of networks is required. For details, consult a network
administrator.
•If you cannot connect to the Internet, recheck the connections and settings (vpage18).
•If you do not understand about Internet connection, contact your ISP (Internet Service Provider) or the
store from which you purchased your computer.
•When you want to cancel the setting during IP address input, press o or BACK.
Basic version
Advanced version
Information
Advanced version
v See overleaf
100
Network
Setting details

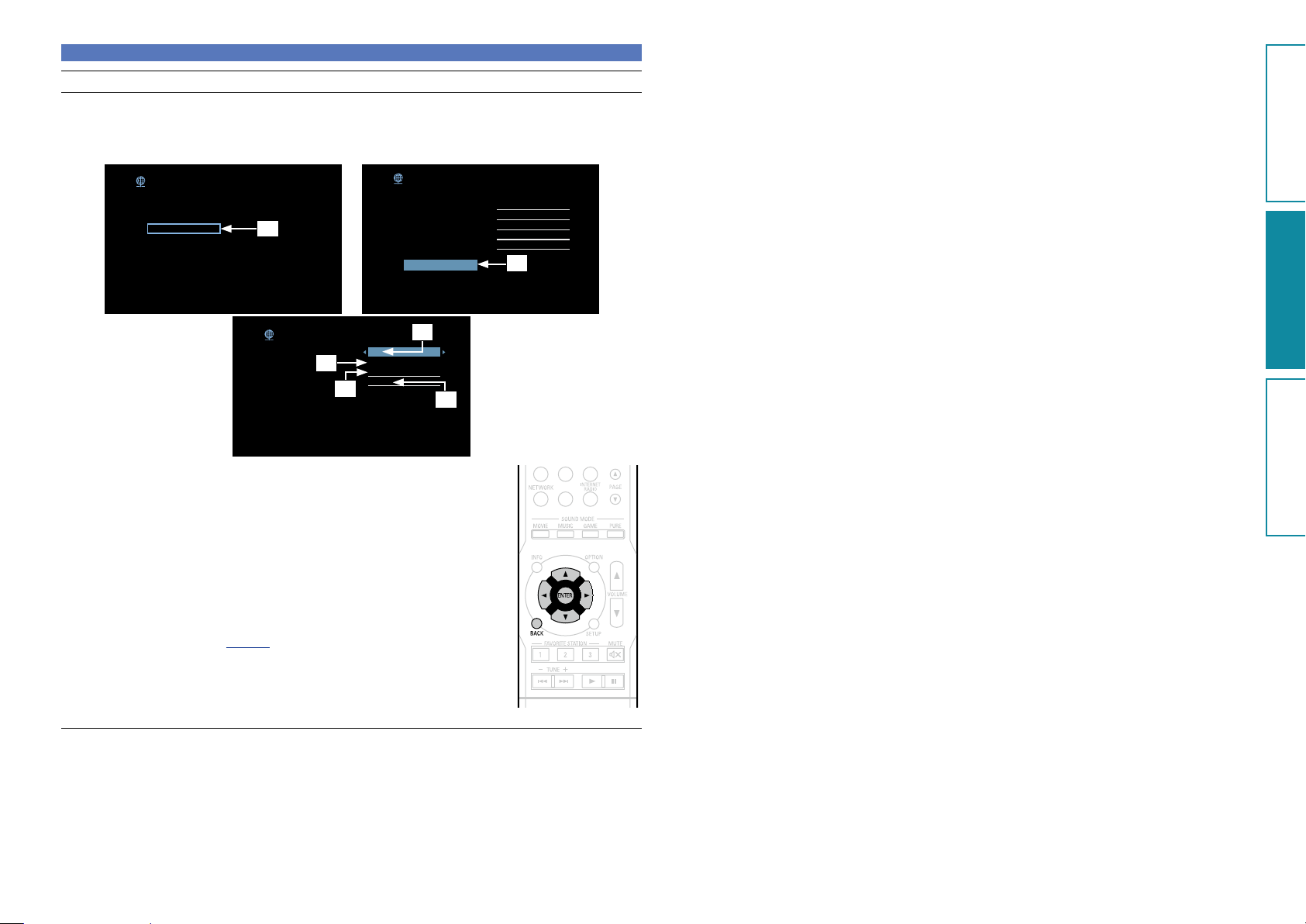

n Proxy settings
Make this setting when connecting to the Internet via a proxy server.
Make the proxy settings only when you connect to the Internet via a proxy server that is on your
internal network or provided by your provider, etc.
Information
Network
IP Control
Friendly Name
Settings
q
DHCP
Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS
Secondary DNS
Off
192.
168.
000.
001
255.
255.
255.
000
000.
000.
000.
000
000.
000.
000.
000
000.
000.
000.
000
Proxy
w
Proxy
Settings
Proxy
Address
Port
On
Address
000.
000.
000.
000
00000
y
e
t
r
q On the menu, select “Network” – “Settings” and press ENTER.
w Use ui to set “Proxy” and press ENTER.
e Use o p to set “Proxy” to “On” and press i.
The proxy server is enabled.
r Use o p to select the proxy server input method, and then press ENTER.
Address : Select when inputting by address.
Name : Select when inputting by domain name.
t Press i and ENTER (select Address or Name). Use uio p to input the
proxy server address or domain name and press ENTER.
When “Address” is selected in step r : Input the address
When“Name” is selected in step r : Input the domain name
•For character input, see page79.
y Press i and ENTER (select Port). Use uio p to input the proxy server port
number and press ENTER.
Setup is complete.
u Press BACK.
The display returns to the playback screen.
Basic version
Advanced version
Information
Advanced version
101

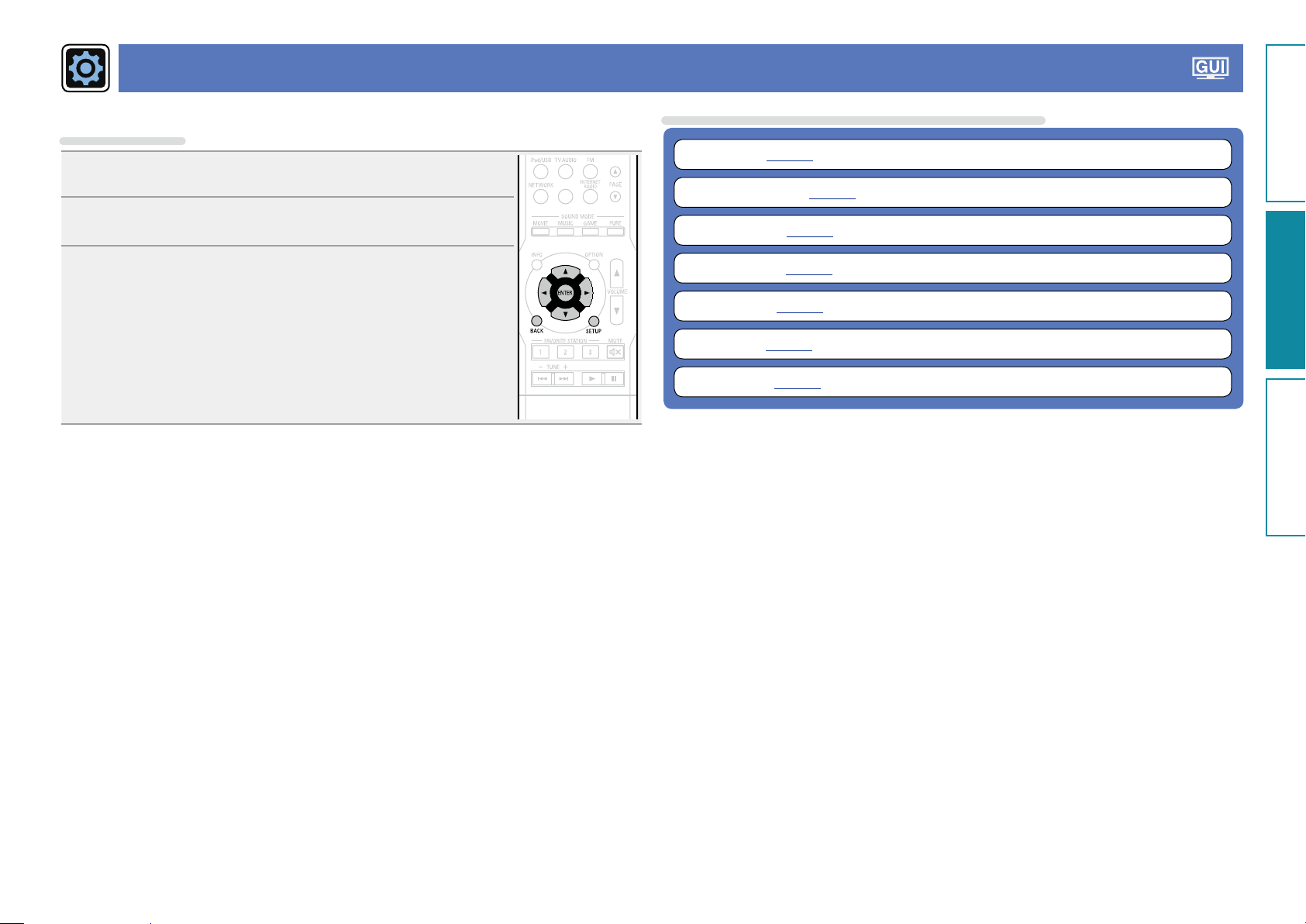

General
Make various other settings.
Menu operation
1
Press SETUP.
The menu is displayed on the TV screen.
2
Use ui to select the menu to be set or operated.
3
Press ENTER or p to enter the setting.
•To return to the previous item, press o or BACK.
•Exiting the Menu, press SETUP while the menu is displayed.
The menu display disappears.
Items that can be set with the “General” procedure
Language (vpage102)
Quick Sel.Names (vpage102)
Auto Standby (vpage102)
Front Display (vpage102)
Information (vpage103)
Firmware (vpage104)
Setup Lock (vpage105)
Basic version
Advanced version
Information
Advanced version
102
General
Language
Default settings are underlined.
Set the language for display on the menu screen.
Setting details
English / Español
“Language” can also be set by the following procedure. However, the menu screen is not displayed.
Following the display content to make the setting.
1. Press and hold the main unit’s TUNER PRESET CH + and STATUS for at least 3 seconds.
“NTSC” appears on the display.
2. Press the main unit’s DIMMER and set “ENGLISH”.
3. Use the main unit’s SOURCE SELECT 0 1 and set the language.
4. Press the main unit’s STATUS to complete the setting.
Quick Sel.Names
Change the “Quick Select” display title to one you prefer.
Setting details
Quick Select 1 / Quick Select 2 / Quick Select 3 / Quick Select 4
•Up to 16 characters can be input.
•For character input, see page79.
Auto Standby
Default settings are underlined.
When you do not perform any operation on this unit with no audio or video input for a specified time,
this unit automatically enters the standby mode. Before it enters the standby mode, “Auto Standby” is
displayed on the display of this unit and the menu screen.
Setting details
30min : The unit goes into standby after 30 minutes.
60min : The unit goes into standby after 60 minutes.
Off : The unit does not go into standby automatically.
Front Display
Default settings are underlined.
Adjust the display brightness of this unit.
Setting items Setting details
Dimmer
Bright : Normal display brightness.
Dim : Reduced display brightness.
Dark : Very low display brightness.
Off : Turns the display off.
Buttons on the main unit can be used for operations.
Each time DIMMER is pressed, the setting is changed as shown
below.
Bright Dim
DarkOff
NOTE
When “Dimmer” is set to “Off”, the display turns off and appears as if
there is no electricity.
Basic version
Advanced version
Information
Advanced version
103

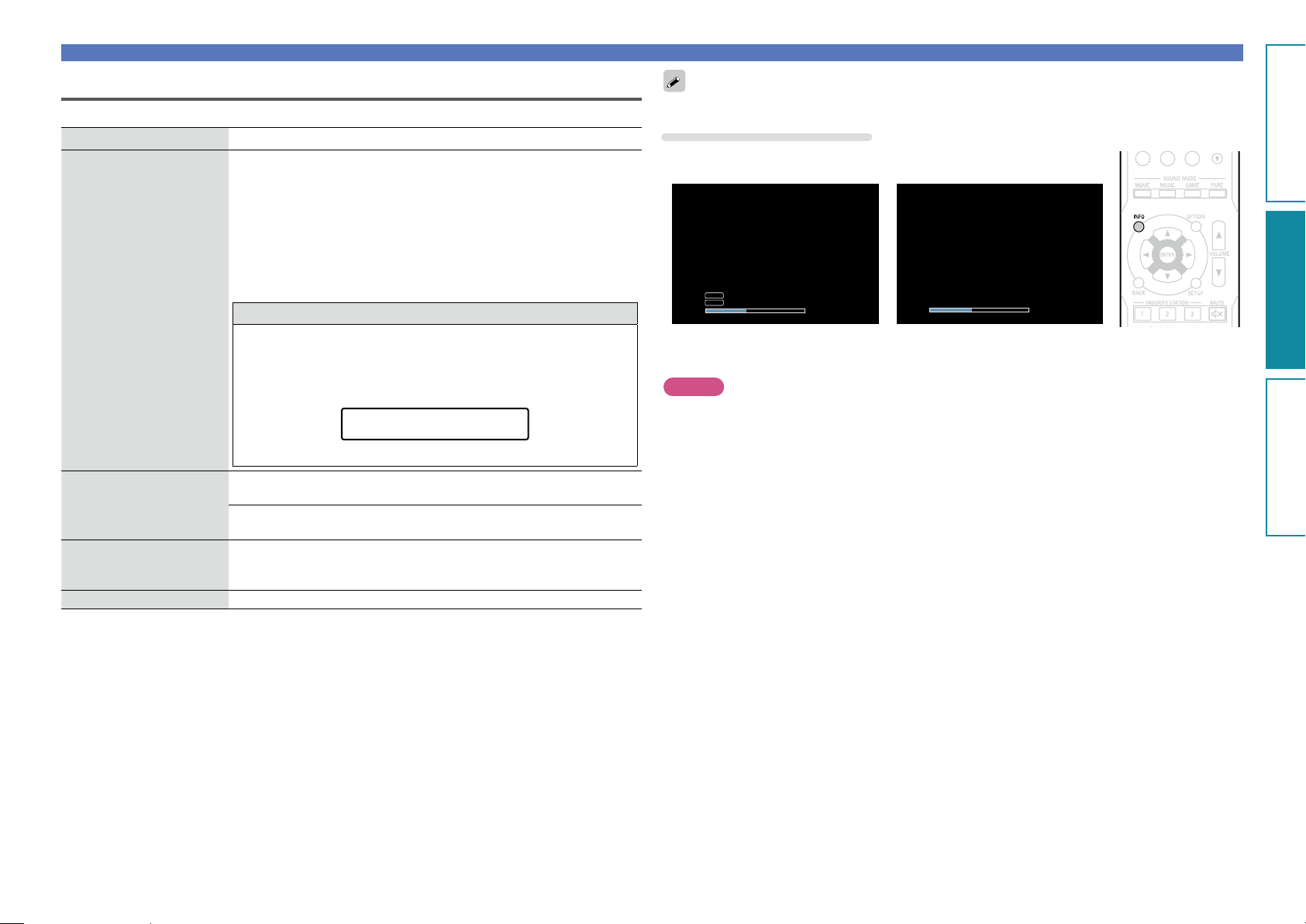

Information
Show information about receiver settings, input signals, etc.
Items Setting details
Audio
Show information about
audio input signals.
Sound Mode : The currently set surround mode.
Signal : The input signal type.
Format : The number of input signal channels (presence of front, surround,
LFE).
Sample rate : The input signal’s sampling frequency.
Offset : The dialogue normalization correction value.
Flag : This is displayed when inputting signals including a surround back
channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix
signals, “DISCRETE” with DTS-ES Discrete signals.
Dialogue normalization function
This function is automatically activated when playing Dolby Digital
sources.
It automatically corrects the standard signal level for individual program
sources.
The correction value can be checked using the
STATUS on the main unit.
Offset: - 4dB
The figure is the corrected value. This cannot be changed.
Video
Show information about
HDMI input/output signals
and monitor.
Signal
•Resolution / Color Space / Pixel Depth
Monitor
•Interface / Resolutions
Status
Show information about
current settings.
The information displayed differs according to the input source.
•Select Source / Name / Sound Mode / Input Mode / Decode Mode /
Digital Assign / Video Select
Firmware Version : Displays information for the current firmware.
Press INFO to display current source name, volume and sound mode name at the bottom of the screen.
Examples of screen display
•Status display screen
When the input source is switched. When the volume is adjusted.
SOURCE
SOUND
Blu-ray
[Auto]
STEREO
39.0
40.0
Status display: The operating status appears briefly on the screen when the input
source is switched or the volume is changed.
NOTE
The status display screen cannot be displayed at a computer’s resolution (e.g. VGA) or while certain 3D
video contents is being played.
General
Basic version
Advanced version
Information
Advanced version
104
Firmware
Default settings are underlined.
Set whether or not to check for firmware update, update the firmware, and display update and upgrade
notifications.
Setting items Setting details
Update
Update the firmware of the
receiver.
NOTE
In cases where it is not
possible to connect to
the network after doing a
firmware update, connect
to the network again using
“Network” (vpage97).
Check for Update : Check for firmware updates. You can also check
approximately how long it will take to complete an update.
Update Start : Execute the update process.
When updating starts, the power indicator becomes red and the menu
screen is shut down. The amount of update time which has elapsed is
displayed.
When updating is complete, the power indicator becomes green and
normal status is resumed.
•If updating fails, the set automatically retries, but if updating is still not
possible, one of the messages shown below is displayed. If the display
reads as shown below, check the settings and network environment,
then update again.
Display Description
Updating fail Updating failed.
Login failed Failure to log into server.
Server is busy Server is busy. Wait a while then try again.
Connection fail Failure in connecting to server.
Download fail Downloading of the firmware has failed.
Setting items Setting details
Notifications
Displays a notification
message on this unit’s
menu screen when the
latest firmware is released
with “Update”.
Display a notification
message on this unit’s
menu screen when
downloadable firmware is
released with “Add New
Feature”.
Update : The notification message is displayed for about 20 seconds when
the power is turned on. Connect to broadband Internet (vpage 18)
when using this function.
•On : Display update message.
•Off : Do not display update message.
•When you press ENTER during display of the
notification message, the “Check for Update”
screen is displayed (Refer to page 104 for
more information on “Update”).
•Press o or BACK to erase the notification
message.
Upgrade : The notification message is displayed for about 20
seconds when the power is turned on. Connect to broadband Internet
(vpage18) when using this function.
•On : Display upgrade message.
•Off : Do not display upgrade message.
•When you press ENTER during display of the notification message, the
“Add New Feature” screen is displayed (Refer to page 105 for more
information on “Add New Feature”).
•Press o or BACK to erase the notification message.
General
Basic version
Advanced version
Information
Advanced version
v See overleaf
105
General
Setting items Setting details
Add New Feature
Display new features that
can be downloaded to
this unit and perform an
upgrade.
NOTE
In cases where it is not
possible to connect to the
network after adding a
new function, connect to
the network again using
“Network” (vpage97).
Upgrade Status : Display a list of the additional functions provided by
the upgrade.
Upgrade : Execute the upgrade process.
When the upgrade starts, the power indicator becomes red and the menu
screen is shut down. During the upgrade, the amount of upgrade time
which has elapsed is displayed.
When upgrading is complete, the power indicator becomes green and
normal status is resumed.
•If the upgrade is not successful, an error message identical to those in
“Firmware Update” will appear on the display. Check the settings and
network environment and then perform the upgrade again.
See the DENON website for details about upgrades.
When the procedure is complete, “Registered” is displayed in this
menu and upgrades can be carried out. If the procedure has not been
carried out, “Not Registered” is displayed.
The ID number shown on this screen is needed when carrying out
the procedure.
The ID number can also be displayed by pressing and holding the main
unit’s SOURCE 0 and SOURCE 1 for at least 3 seconds.
Notes concerning use of “Update” and “Add New Feature”
•In order to use these functions, you must have the correct system requirements and settings for a
broadband Internet connection (vpage18).
•Do not turn off the power until updating or upgrading is completed.
•Even with a broadband connection to the Internet, approximately 1 hour is required for the updating/
upgrading procedure to be completed.
•Once updating/upgrade starts, normal operations on this unit cannot be performed until updating/
upgrading is completed. Furthermore, there may be cases where backup data is reset for the
parameters, etc., set on this unit.
•If the update or upgrade fails, press and hold the X on the main unit for more than 5 seconds, or
remove and re-insert the power cord. “Update retry” appears on the display and update restarts from
the point at which update failed. If the error continues despite this, check the network environment.
•Information regarding the “Update” function and “Add New Feature” will be announced on the DENON
web site each time related plans are defined.
•When usable new firmware is released with “Update” or “Add New Feature”, a notification message
is displayed on the menu screen. When you do not want to be notified, set “Notifications” – “Update”
(vpage104) and “Notifications” – “Upgrade” (vpage104) to “Off”.
Setup Lock
Default settings are underlined.
Protect settings from inadvertent change.
Setting items Setting details
Lock
On : Turn protection on.
Off : Turn protection off.
When canceling the setting, set “Lock” to “Off”.
NOTE
When “Lock” is set to “On”, the settings listed below can no longer be
changed. Also, “SETUP LOCKED!” is displayed if you attempt to operate
related settings.
•Setup menu operations •Levels
Basic version
Advanced version
Information
Advanced version
Information
106
F Part names and functions vpage107
F Other information vpage112
F Troubleshooting vpage119
F Specifications vpage124
F Index vpage125
Information
Here, we list various information related to this unit.
Please refer to this information as needed.
Basic version
Advanced version
InformationInformation
107
Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
Q1 Q5Q2 Q3 Q4
yr teq w
o
iQ0 u
q Power operation button (X) ··················································· (27)
Turns power to this unit on and off (standby).
w Power indicator ······································································· (
27)
GPower indicator statusH
•Power on : Green
•Normal standby : Off
•When “HDMI Control” (vpage87) is set to “On” : Red
•When “IP Control” (vpage98) is set to “Always On” : Red
e Headphones jack (PHONES)
When the headphones are plugged into this jack, audio will no
longer be output from the connected speakers.
NOTE
To prevent hearing loss, do not raise the volume level excessively
when using headphones.
Q1 SOURCE SELECT buttons (0 1) ··································· (27, 123)
Q2 Tuner preset channel buttons (TUNER PRESET CH +, –) ····· (
39)
Q3 DIMMER button ····································································· (
102)
Q4 STATUS button ··················································· (
30, 44, 48, 103)
Q5 QUICK SELECT buttons ·························································· (
75)
r AUX-HDMI connector ····························································· (10)
t iPod/USB port ········································································· (
16)
y SETUP MIC jack ······································································· (
21)
u MASTER VOLUME knob ························································· (
28)
i Master volume indicator
o Display ···················································································· (
108)
Q0 Remote control sensor ························································· (
111)
Part names and functions
Basic version
Advanced version
InformationInformation
108
Display
r etyuioQ0
q w
q Information display
The input source name, sound mode, setting values and other
information are displayed here.
w Input signal indicators
e MUTE indicator
This lights when the mute mode is selected (
vpage28).
r Master volume indicator
t Circle indicator
Circle indicator is displayed when the input source is “NETWORK”
or “iPod/USB” when you are playing back music.
y Sleep timer indicator
This lights when the sleep mode is selected (vpage74).
u Tuner reception mode indicators
These light according to the reception conditions when the input
source is set to “FM”.
STEREO : In FM mode, this lights up when receiving analog stereo
broadcasts.
TUNED : Lights up when the broadcast is properly tuned in.
i Audyssey
®
indicator
This indicator lights when the “MultEQ
®
” (
vpage 84),
“Dynamic EQ
®
” (vpage 84), or “Dynamic Volume
®
”
(vpage84) setting is set to “On”.
o Decoder indicators
These light when Dolby or DTS signals are input or when the Dolby
or DTS decoder is running.
Q0 Input mode indicators
Set the audio input modes for the different input sources
(
vpage91).
Basic version
Advanced version
InformationInformation
109
Rear panel
See the page indicated in parentheses ( ).
q w
t r
ei yuo
q FM antenna terminal (ANTENNA) ········································· (17)
w Speaker terminals (SPEAKERS) ······································· (
71, 72)
e Power cord ··············································································· (
19)
r Video connectors (VIDEO) ·········································· (
13, 14, 15)
t HDMI connectors ································································· (
9, 10)
y Network connector (NETWORK) ··········································· (18)
u Digital audio connectors (DIGITAL AUDIO) ·············· (
13, 14, 15)
i Subwoofer connector (SUBWOOFER) ···························· (
71, 72)
o Analog audio connectors (AUDIO) ·································· (
14, 15)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
Basic version
Advanced version
InformationInformation
110
Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
ENTER
1 2 3
RC-1169
POWER
SLEEP
CHANNEL
PAGE
Blu-ray
INTERNET
RADIO
FM
DVD
AUX
TV AUDIO
NETWORK
CBL/SAT
GAME
iPod/USB
SOUND MODE
PUREMOVIE GAMEMUSIC
SETUP
VOLUME
OPTION
INFO
BACK
TUNE
FAVORITE STATION MUTE
q
w
e
r
t
y
u
o
Q5
Q7
Q3
Q2
Q1
Q4
Q6
Q0
i
q SLEEP button ·············································· (74)
w Input source select buttons ······················· (
27)
e SOUND MODE buttons ······························ (
64)
•MOVIE button
•MUSIC button
•GAME button
•PURE button
r Information button (INFO) ······················· (
103)
t Cursor buttons (uio p)
······························· (
78,80,86,89,93,97,101)
y ENTER button
······························· (
78, 80, 86, 89, 93, 97, 101)
u BACK button
····································· (
80,86,89,93,97,101)
i FAVORITE STATION buttons
(1 – 3) ··························································· (
60)
o System buttons
··················································· (
31, 34, 49, 55)
•Skip buttons (8, 9)
•Play button (1)
•Pause button (3)
Tuning up / Tuning down buttons
(TUNE +, –) ············································ (35, 36)
Q0 Remote control signal transmitter ········· (
111)
Q1 POWER button (X) ····································· (
27)
Q2 CHANNEL buttons (+, –) ···························· (
39)
Q3 PAGE buttons (df)
································· (
31,34,45,49,52,55,57)
Q4 OPTION button
······································· (
29,33,35,44,49,51)
Q5 VOLUME buttons (df) ······························ (
28)
Q6 SETUP button
····································· (
80, 86, 89, 93, 97, 101)
Q7 MUTE button (:) ····································· (
28)
Basic version
Advanced version
InformationInformation
v See overleaf
111
Remote control unit
Inserting the batteries
q Remove the rear lid in the
direction of the arrow and
remove it.
w Load the two batteries properly
as indicated by the marks in the
battery compartment.
R03/AAA
e Put the rear cover back on.
NOTE
•Insert the specified batteries in the remote control unit.
•Replace the batteries with new ones if the set does not operate
even when the remote control unit is operated close to the unit. (The
supplied batteries are only for verifying operation. Replace them
with new batteries at an early date.)
•When inserting the batteries, be sure to do so in the proper direction,
following the q and w marks in the battery compartment.
•To prevent damage or leakage of battery fluid:
•Do not use a new battery together with an old one.
•Do not use two different types of batteries.
•Do not attempt to charge dry batteries.
•Do not short-circuit, disassemble, heat or dispose of batteries in
flames.
•Do not keep the battery in a place exposed to direct sunlight or in
places with extremely high temperatures, such as near a heater.
•If the battery fluid should leak, carefully wipe the fluid off the inside
of the battery compartment and insert new batteries.
•Remove the batteries from the remote control unit if it will not be in
use for long periods.
•Used batteries should be disposed of in accordance with the local
regulations regarding battery disposal.
•The remote control unit may function improperly if rechargeable
batteries are used.
Operating range of the remote control unit
Point the remote control unit at the remote sensor when operating it.
30°30°
Approx. 23 ft/7 m
NOTE
•The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong artificial light from an inverter type fluorescent lamp or
infrared light.
•When using 3D video devices that transmit radio communication
signals (such as infrared signals etc) between the various units (such
as the monitor, 3D glasses, 3D transmitter unit etc), the remote
control unit may not operate due to interference from those radio
communication signals. If this occurs, adjust the direction and
distance of the 3D communication for each unit, and check that the
remote control unit operation is not affected by these signals.
Basic version
Advanced version
InformationInformation
112
Other information
n Trademark information (vpage112)
n Surround (
vpage113)
n Relationship between video signals and monitor
output (
vpage116)
n Explanation of terms (
vpage117)
Trademark information
This product uses the following technologies (Random order):
Manufactured under license from Audyssey Laboratories™. U.S. and
foreign patents pending. Audyssey MultEQ
®
, Audyssey Dynamic
EQ
®
and Audyssey Dynamic Volume
®
are registered trademarks of
Audyssey Laboratories.
Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic” and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674;
5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195;
7,272,567 & other U.S. and worldwide patents issued & pending. DTS-
HD, the Symbol, & DTS-HD and the Symbol together are registered
trademarks of DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
“Made for iPod” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifically to iPod, or
iPhone, respectively, and has been certified by the developer to
meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that
the use of this accessory with iPod, or iPhone, may affect wireless
performance.
AirPlay, the AirPlay logo, iPad, iPhone, iPod, iPod classic, iPod nano,
iPod shuffle and iPod touch are trademarks of Apple Inc., registered
in the U.S. and other countries.
•Individual users are permitted to use iPhone, iPod, iPod classic, iPod
nano, iPod shuffle, and iPod touch for private copy and playback of
non-copyrighted contents and contents whose copy and playback
is permitted by law. Copyright infringement is prohibited by law.
Windows Media and the Windows logo are trademarks or registered
trademarks of Microsoft Corporation in the United States and/or
other countries.
Basic version
Advanced version
InformationInformation
113
Surround
This unit is equipped with a digital signal processing circuit that lets you play program sources in the sound mode to achieve the same sense of presence as in a movie theater.
Sound modes and surround parameters
This table shows the speakers that can be used in each sound mode and the surround parameters adjustable in each sound mode.
Symbols in the table
S This indicates the audio output channels or surround parameters that can be set.
D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.” (
vpage94).
Sound Mode (vpage64)
Channel output
Surr.Parameter (vpage81)
Front
L/R
Center
Surround
L/R
Subwoofer
Cinema EQ
(
vpage81)
Loudness Mngmt
z1
(
vpage81)
Dynamic Comp.
z2
(
vpage81)
Low Frequency
z3
(
vpage81)
Delay Time
(
vpage82)
Effect Level
(
vpage82)
Room Size
(
vpage82)
DIRECT (2channel)
S D
z4
S S
DIRECT (Multi-channel)
S D D D S S S
STEREO
S D S S S
MULTI CH IN
S D D D S
DOLBY PRO LOGIC g S D D D S
z5
S S
DOLBY PRO LOGIC
S D D D S S S
DOLBY DIGITAL
S D D D S S
DOLBY DIGITAL Plus
S D D D S S
DOLBY TrueHD
S D D D S S S
DTS NEO:6
S D D D S
z6
S S
DTS SURROUND
S D D D S S
DTS 96/24
S D D D S S
DTS-HD
S D D D S S
DTS Express
S D D D S S
MULTI CH STEREO
S D D D S S S
ROCK ARENA
S D D D S S S S S
JAZZ CLUB
S D D D S S S S S
MONO MOVIE
S D D D S S S S S
VIDEO GAME
S D D D S S S S S
MATRIX
S D D D S S S S
VIRTUAL
S D S S S
z1 This item can be selected when a Dolby TrueHD signal is played.
z2 This item can be selected when a Dolby Digital or DTS signal is played.
z3 This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.
z4 Only when “Subwoofer Mode” is set to “LFE+Main” (
vpage94), sound is output from the subwoofer.
z5 This setting is possible when the sound mode is “PLg Cinema”.
z6 This setting is possible when the sound mode is “DTS NEO:6 Cinema”.
Basic version
Advanced version
InformationInformation
114
Surround
Sound Mode (vpage64)
Surr.Parameter (vpage81)
Tone
z7
(
vpage82)
Audyssey
z8
(vpage84)
Restorer
z10
(
vpage83)
PRO LOGIC g Music mode only
NEO:6 Music mode
only
Panorama
(
vpage81)
Dimension
(
vpage81)
Center Width
(
vpage81)
Center Image
(
vpage81)
MultEQ
®
(
vpage84)
Dynamic EQ
®
z9
(
vpage84)
Dynamic Volume
®
z9
(
vpage84)
DIRECT (2channel)
DIRECT (Multi-channel)
STEREO
S S S S S
MULTI CH IN
S S S S
DOLBY PRO LOGIC g S S S S S S S S
DOLBY PRO LOGIC
S S S S S S S S
DOLBY DIGITAL
S S S S
DOLBY DIGITAL Plus
S S S S
DOLBY TrueHD
S S S S
DTS NEO:6
S S S S S S
DTS SURROUND
S S S S
DTS 96/24
S S S S
DTS-HD
S S S S
DTS Express
S S S S
MULTI CH STEREO
S S S S S
ROCK ARENA
S
z11
S S S S
JAZZ CLUB
S S S S S
MONO MOVIE
S S S S S
VIDEO GAME
S S S S S
MATRIX
S S S S S
VIRTUAL
S S S S S
z7 This item cannot be set when “Dynamic EQ
®
” (vpage84) is set to “On”.
z8 For HD Audio whose sampling frequency of an input signal is more than 96 kHz, this sound parameter cannot be set.
z9 This item cannot be set when “MultEQ
®
” (
vpage84) is set to “Off” or “Manual EQ”.
z10 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.
z11 In this sound mode, bass is +6 dB, and treble is +4 dB (Default).
Basic version
Advanced version
InformationInformation
115
Surround
n Types of input signals, and corresponding sound modes
This table shows the input signal that can be played in each sound mode. Check the audio signal of the input source then select the sound mode.
Symbols in the table
F This indicates the default sound mode.
S This indicates the selectable sound mode.
Sound Mode (vpage64)
NOTE
Input signal types and formats
ANALOG
PCM DTS-HD DTS DOLBY DOLBY DIGITAL
PCM
(multi ch)
PCM
(2ch)
DTS-HD
Master Audio
DTS-HD High
Resolution
Audio
DTS
EXPRESS
DTS ES
DSCRT
(With Flag)
DTS ES
MTRX
(With Flag)
DTS
(5.1ch)
DTS 96/24
DOLBY
TrueHD
DOLBY
DIGITAL Plus
DOLBY
DIGITAL EX
(With Flag)
DOLBY
DIGITAL EX
(With no
Flag)
DOLBY
DIGITAL
(5.1/5/4/3ch)
DOLBY
DIGITAL
(2ch)
DTS SURROUND
DTS-HD MSTR
F
DTS-HD HI RES
F
DTS SURROUND
S S F
DTS 96/24
F
DTS EXPRESS
F
DTS NEO:6 CINEMA
S S S
DTS NEO:6 MUSIC
S S S
DOLBY SURROUND
DOLBY TrueHD
F
DOLBY DIGITAL+
F
DOLBY DIGITAL
S F F
DOLBY PRO LOGIC g CINEMA S S S
DOLBY PRO LOGIC g MUSIC S S S
DOLBY PRO LOGIC g GAME S S S
DOLBY PRO LOGIC
S S S
MULTI CH IN
MULTI CH IN
F
DIRECT
DIRECT
S S S S S S S S S S S S S S S S
DSP SIMULATION
MULTI CH STEREO
S S S S S S S S S S S S S S S S
ROCK ARENA
S S S S S S S S S S S S S S S S
JAZZ CLUB
S S S S S S S S S S S S S S S S
MONO MOVIE
S S S S S S S S S S S S S S S S
VIDEO GAME
S S S S S S S S S S S S S S S S
MATRIX
S S S S S S S S S S S S S S S S
VIRTUAL
S S S S S S S S S S S S S S S S
STEREO
STEREO
F S F S S S S S S S S S S S S S
Basic version
Advanced version
InformationInformation
116
Relationship between video signals and monitor output
Output
Input
HDMI output Video output
HDMI VIDEO Video Menu Video Menu
A A
A
Only the menu is displayed
A
A
A S S <VIDEO>
S A
S <HDMI> S (HDMI)
A
S S S <VIDEO>
S : Video signal input present
A : No video signal input
S < > : The input signal between the < > marks is output.
A : No video signal output
S ( ) : Superimposed on the picture indicated in ( ).
A ( ) : Only the picture in ( ) is output.
NOTE
•If you operate the menu while playing back 3D video content or computer’s resolution (e.g. VGA), the
playback video is replaced by the menu screen. The playback video is not displayed behind the menu
screen.
•This unit does not show the status display while playing back 3D video content or computer’s resolution
(e.g. VGA).
•The network menu is only output to TVs that support HDMI.
Basic version
Advanced version
InformationInformation
117
Explanation of terms
A
Adobe RGB color, Adobe YCC601 color
The color space defined by Adobe Systems Inc.
Because it is a wider color space than RGB, it can
produce more vivid and natural images.
AirPlay
AirPlay sends (plays) contents recorded in iTunes
or on an iPhone/iPod touch/iPad to a compatible
device via the network.
App Store
App Store is a site that sells application software
for such devices as the iPhone or iPod Touch, and
is operated by Apple Inc.
Audyssey Dynamic EQ
®
Dynamic EQ
®
solves the problem of deteriorating
sound quality as volume is decreased by taking into
account human perception and room acoustics.
Audyssey Dynamic EQ
®
works in tandem with
Audyssey MultEQ
®
to provide well-balanced sound
for every listener at any volume level.
Audyssey Dynamic Volume
®
Dynamic Volume
®
solves the problem of large
variations in volume level between television
programs, commercials, and between the soft and
loud passages of movies. Audyssey Dynamic EQ
®
is integrated into Dynamic Volume
®
so that as
the playback volume is adjusted automatically, the
perceived bass response, tonal balance, surround
impression, and dialog clarity remain the same.
Audyssey MultEQ
®
MultEQ
®
is a room equalization solution that
calibrates any audio system so that it can achieve
optimum performance for every listener in a
large listening area. Based on several room
measurements, MultEQ
®
calculates an equalization
solution that corrects for both time and frequency
response problems in the listening area and also
performs a fully automated surround system setup.
Auto Lip Sync
If you connect the unit to a TV that supports the
Auto Lip Sync function, it can automatically correct
delay between the audio and video.
D
Deep Color
An imaging technology supported by HDMI. Unlike
RGB, which uses 8 bits (256 shades) per color, it can
use 10 bits (1024 shades), 12 bits (4096 shades), or
16 bits (65536 shades) to produce colors in higher
definition.
Both devices linked via HDMI must support Deep
Color.
DLNA
DLNA and DLNA CERTIFIED are trademarks and/
or service marks of Digital Living Network Alliance.
Some contents may not be compatible with other
DLNA CERTIFIED™ products.
Dolby Digital
Dolby Digital is a multi-channel digital signal format
developed by Dolby Laboratories.
A total of 5.1 channels are played: 3 front channels
(“FL”, “FR” and “C”), 2 surround channels
(“SL” and “SR”) and the “LFE” channel for low
frequencies.
Because of this, there is no crosstalk between
channels and a realistic sound field with a “three-
dimensional” feeling (sense of distance, movement
and positioning) is achieved.
A realistic, powerful sense of presence is achieved
when playing movie sources in AV rooms as well.
Dolby Digital Plus
Dolby Digital Plus is an improved Dolby Digital signal
format that is compatible with up to 7.1 channels
of discrete digital sound and also improves sound
quality thanks to extra data bit rate performance.
It is upwardly compatible with conventional Dolby
Digital, so it offers greater flexibility in response to
the source signal and the conditions of the playback
device.
Dolby Pro Logic g
Dolby Pro Logic g is a matrix decoding technology
developed by Dolby Laboratories.
Regular music such as that on CDs is encoded into
5 channels to achieve an excellent surround effect.
The surround channel signals are converted into
stereo and full band signals (with a frequency
response of 20 Hz to 20 kHz or greater) to create
a “three-dimensional” sound image offering a rich
sense of presence for all stereo sources.
Dolby TrueHD
Dolby TrueHD is a high definition audio technology
developed by Dolby Laboratories, using lossless
coding technology to faithfully reproduce the sound
of the studio master.
This format provides the facility to support up to
8 audio channels with a sampling frequency of
96 kHz/24 bit resolution and up to 6 audio channels
with a sampling frequency of 192 kHz/24 bit
resolution. Dolby TrueHD is adopted for applications
that put very high importance on sound quality.
Downmix
This function converts the number of channels of
surround audio to less number of channels and
plays back.
DTS
This is an abbreviation of Digital Theater System,
which is a digital audio system developed by DTS.
When playing back audio by connecting this system
with a device such as DTS amplifier, accurate sound
field position and realistic sound effect as if you are
in a movie theater can be obtained.
DTS 96/24
DTS 96/24 is a digital audio format enabling high
sound quality playback in 5.1 channels with a
sampling frequency of 96 kHz and 24 bit quantization
on DVD-Video.
DTS Digital Surround
DTS Digital Surround is the standard digital surround
format of DTS, Inc., compatible with a sampling
frequency of 44.1 or 48 kHz and up to 5.1 channels
of digital discrete surround sound.
DTS Express
DTS Express is an audio format supporting low bit
rates (max. 5.1 channels, 24 to 256 kbps).
DTS-HD
This audio technology provides higher sound quality
and enhanced functionality than the conventional
DTS and is adopted as an optional audio for Blu-ray
Disc. This technology supports multi-channel, high
data transfer speed, high sampling frequency, and
lossless audio playback. Maximum 7.1-channels are
supported in Blu-ray Disc.
DTS-HD High Resolution Audio
DTS-HD High Resolution Audio is an improved
version of the conventional DTS, DTS-ES and
DTS 96/24 signals formats, compatible with
sampling frequencies of 96 or 48 kHz and up to
7.1 channels of discrete digital sound. High data
bit rate performance provides high quality sound.
This format is fully compatible with conventional
products, including conventional DTS digital
surround 5.1-channel data.
DTS-HD Master Audio
DTS-HD Master Audio is a lossless audio format
created by Digital Theater System (DTS). This
format provides the facility to support up to 8 audio
channels with a sampling frequency of 96 kHz/
24 bit resolution and up to 6 audio channels with
a sampling frequency of 192 kHz/24 bit resolution.
It is fully compatible with conventional products,
including conventional DTS digital surround
5.1-channel data.
DTS NEO:6™ Surround
DTS NEO:6™ is a matrix decoding technology
for achieving 6.1-channel surround playback
with 2-channel sources. It includes “DTS NEO:6
Cinema” suited for playing movies and “DTS
NEO:6 Music” suited for playing music.
Dynamic range
The difference between the maximum undistorted
sound level and the minimum discernible level
above the noise emitted by the device.
Basic version
Advanced version
InformationInformation
118
F
FLAC
FLAC stands for Free lossless Audio Codec, and is a
lossless free audio file format. Lossless means that
the audio is compressed without any loss in quality.
The FLAC license is as shown below.
Copyright (C) 2000,2001,2002,2003,2004,2005,200
6,2007,2008,2009 Josh Coalson
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
•Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
•Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation and/
or other materials provided with the distribution.
•Neither the name of the Xiph.org Foundation nor
the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS “AS
IS” AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE
ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE
FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL
DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR
SERVICES; LOSS OF USE, DATA, OR PROFITS; OR
BUSINESS INTERRUPTION) HOWEVER CAUSED
AND ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
Explanation of terms
H
HDCP
When transmitting digital signals between devices,
this copyright protection technology encrypts
the signals to prevent content from being copied
without authorization.
HDMI
This is an abbreviation of High-Definition Multimedia
Interface, which is an AV digital interface that can
be connected to a TV or amplifier. Video signal and
audio signal can be connected using 1 cable.
I
iTunes
iTunes is the name of the multimedia player
provided by Apple Inc. It enables management
and playback of multimedia contents including
music and movies. iTunes supports many main file
formats including AAC, WAV, and MP3.
L
LFE
This is an abbreviation of Low Frequency Effect,
which is an output channel that emphasizes
low frequency effect sound. Surround audio is
intensified by outputting 20 Hz to 120 Hz deep
bass.
M
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data
compression scheme, using the “MPEG-1” video
compression standard. It compresses the data
volume to about one eleventh its original size while
maintaining sound quality equivalent to a music CD.
MPEG (Moving Picture Experts Group),
MPEG-2, MPEG-4
These are the names for digital compression format
standards used for the encoding of video and audio.
Video standards include “MPEG-1 Video”, “MPEG-
2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2
Audio”, “MPEG-4 AAC”.
P
Progressive (sequential scanning)
This is a scanning system of video signal that
displays 1 frame of video as one image. Compared
to the interlace system, this system provides
images with less flickering and bleeding.
Protection circuit
This is a function to prevent damage to devices
within the power supply when an abnormality
such as an overload, excess voltage occurs or
temperature for any reason.
In this unit, the power indicator blinks and the unit
enters standby mode when an abnormality occurs.
S
Sampling frequency
Sampling involves taking a reading of a sound wave
(analog signal) at regular intervals and expressing
the height of the wave at each reading in digitized
format (producing a digital signal).
The number of readings taken in one second is
called the “sampling frequency”. The larger the
value, the closer the reproduced sound is to the
original.
Speaker impedance
This is an AC resistance value, indicated in Ω
(ohms). Greater power can be obtained with this
value smaller.
sYCC601 color
Like “x.v.Color”, each of these color spaces defines
a palette of available colors that is larger than the
traditional RGB color model.
V
vTuner
This is a free online content server for Internet
radio. Note that usage fees are included in upgrade
costs.
For inquiries about this service, visit the vTuner site
below.
vTuner website: http://www.radiodenon.com
This product is protected by certain intellectual
property rights of Nothing Else Matters Software
and BridgeCo. Use or distribution of such technology
outside of this product is prohibited without a
license from Nothing Else Matters Software and
BridgeCo or an authorized subsidiary.
W
Windows Media DRM
This is a copyright protection technology developed
by Microsoft.
Content providers are using the digital rights
management technology for Windows Media
contained in this device (WM-DRM) to protect
the integrity of their content (Secure Content) so
that their intellectual property, including copyright,
in such content is not misappropriated. This
device uses WM-DRM software to play Secure
Content (WM-DRM Software). If the security of
the WM-DRM Software in this device has been
compromised, owners of Secure Content (Secure
Content Owners) may request that Microsoft
revoke the WM-DRM Software’s right to acquire
new licenses to copy, display and/or play Secure
Content. Revocation does not alter the WM-DRM
Software’s ability to play unprotected content.
A list of revoked WM-DRM Software is sent to
your device whenever you download a license for
Secure Content from the Internet or from a PC.
Microsoft may, in conjunction with such license,
also download revocation list onto your device on
behalf of Secure Content Owners.
Windows Media Player Ver.11 or later
This is a media player distributed free of charge by
Microsoft Corporation.
It can play playlists created with Ver.11 or later of
Windows Media Player, as well as WMA, DRM
WMA, WAV, and other files.
WMA (Windows Media Audio)
This is audio compression technology developed by
Microsoft Corporation.
WMA data can be encoded using Windows
Media
®
Player Ver.7, 7.1, Windows Media
®
Player
for Windows
®
XP and Windows Media
®
Player 9
Series.
To encode WMA files, only use applications
authorized by Microsoft Corporation. If you use
an unauthorized application, the file may not work
properly.
X
x.v.Color
This function lets HDTVs display colors more
accurately. It enables display with natural, vivid
colors. “x.v.Color” is a Sony registered trademark.
Basic version
Advanced version
InformationInformation
119
Troubleshooting
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other devices operating properly?
If this unit does not operate properly, check the items listed in the table below. Should the problem persist,
there may be a malfunction.
In this case, disconnect the power immediately and contact your store of purchase.
GGeneralH
Symptom Cause/Solution Page
Power does not turn
on.
•Check whether the power plug is correctly inserted into the power
outlet.
•The protection circuit is active. Disconnect the power plug from
the electric outlet, wait 5 to 10 seconds and then insert it back
into the outlet.
27
118
Power automatically
switches to standby
mode.
•The sleep timer is set. Turn on the power again, or change the
sleep timer settings.
•“Auto Standby” is triggered when there is no operation for a set
amount of time. To disable “Auto Standby”, set “Auto Standby”
on the menu to “Off”.
74
102
Display is off. •Set “Dimmer” on the menu to something other than “Off”.
102
The power indicator
is blinking red
in intervals of
approximately 2
seconds.
•The protection circuit has been activated by a rise in the humidity
inside the unit. Please turn off power once, and re-apply the power
after the temperature has fallen sufficiently.
•Please re-install this unit in a place having good ventilation.
–
–
The power indicator
is blinking red
in intervals of
approximately 0.5
seconds.
•Please use speakers which have the specified impedance.
•The protection circuit has been activated because the speaker
cable core wires are touching, a core wire has come loose from
the terminal, or a core wire is touching the rear panel of this unit.
After unplugging the power cord, take corrective action such as
firmly re-twisting the core wire or taking care of the terminal, and
then reconnect the wire.
70
70
After turning on the
power, the power
indicator is blinking
red in intervals of
approximately 0.5
seconds.
•This unit amplifier circuit has failed. Turn off the power and please
contact the DENON service adviser.
–
Set does not operate
properly.
•Reset the microprocessor.
123
GHDMIH
Symptom Cause/Solution Page
No audio is
output with HDMI
connection.
•Check the connection of the HDMI connectors.
•When outputting HDMI audio from the speakers, set “HDMI
Audio Out” on the menu to “AVR”.
•When outputting HDMI audio from a TV, set “HDMI Audio Out”
on the menu to “TV”.
10
87
87
No video is
output with HDMI
connection.
•Check the connection of the HDMI connectors.
•Set the input source to match the connected HDMI connector.
•Check whether the TV is compatible with copyright protection
(HDCP). If connected to a device not compatible with HDCP, video
will not be output correctly.
10
10, 27
11
When the following
operations are
performed on
devices compatible
with HDMI control,
the same operations
occur on this unit.
•Power ON/OFF
•Switching audio
output devices
•Adjust volume
•Switch input source
•Set “HDMI Control” in the menu to “Off”.
Furthermore, if you do not want to link the power off operation
with devices compatible with HDMI control, set “P.Off Control”
in the menu to “Off”.
73, 87
GVideoH
Symptom Cause/Solution Page
No picture appears. •Check the connection between the video output terminal of this
unit and the input terminal of the TV.
•Match the input settings to the input terminal of the TV connected
to this unit.
9, 13
–
Basic version
Advanced version
InformationInformation
120
GAudioH
Symptom Cause/Solution Page
Audio is not output. •Check the connections for all devices.
•Check the speaker connections and configurations.
•Check whether the audio device power is turned on.
•Adjust the master volume.
•Cancel the mute mode.
•Check the connection with the playback device and select the
proper input source.
•Match the input mode and the terminal assigned to be the digital
input terminal.
•Disconnect the headphones. No sound is output from the
speakers when headphones are connected.
9,10,13,
14,15,16,
17,18
71, 72
–
28
28
27
91
107
The volume does not
increase.
•The maximum volume is set too low. Set the maximum volume
using “Limit”on the menu.
•Power for external devices connected to the output connectors
of the unit may not be turned on. Check the power of connected
external devices.
83
–
No sound is
produced from
surround speaker.
•Check if the surround speakers are connected to the SURROUND
terminals.
–
No sound is
produced from
subwoofer.
•Check the subwoofer connections.
•Turn on the subwoofer’s power.
•Set “Speaker Config.” – “Subwoofer” on the menu to “Yes”.
•If “Front” and “Center” for “Speaker Config.” are set to “Large”,
and “Subwoofer Mode” is set to “LFE”, no sound may be output
from the subwoofers, depending on the input signal or selected
sound mode.
71, 72
–
94
94
DTS sound is not
output.
•Set “Decode Mode” on the menu to “Auto” or “DTS”.
92
Dolby TrueHD, DTS-
HD, Dolby Digital
Plus audio is not
output.
•Make HDMI connections.
10
Symptom Cause/Solution Page
Dolby PLg mode or
DTS NEO:6 mode
cannot be selected.
•Check that “Speaker Config.” – “Center” or “Surround” is set to
other than “None”. If the speaker system is 2.0/2.1ch, this sound
mode cannot be selected.
•When headphones are used, Dolby PLg or DTS NEO:6 cannot be
selected.
94
–
Audyssey MultEQ
®
,
Audyssey Dynamic
EQ
®
and Audyssey
Dynamic Volume
®
cannot be selected.
•Switch the sound mode to other than “DIRECT”.
•When headphones are used, Audyssey MultEQ
®
, Audyssey
Dynamic EQ
®
and Audyssey Dynamic Volume
®
cannot be
selected.
64
–
Dynamic EQ
®
and
Dynamic Volume
®
cannot be selected.
•Run Audyssey
®
Setup.
20
“Restorer” cannot
be selected.
•Check that an analog signal or PCM signal (Sample rate=44.1/48
kHz) is input. For playback of multichannel signals such as Dolby
Digital or DTS surround, “Restorer” cannot be used.
•Switch the sound mode to other than “DIRECT”.
83
64
GFMH
Symptom Cause/Solution Page
Reception fails, or
there is a lot of noise
or distortion.
•Change the antenna orientation or position.
•Use an FM outdoor antenna.
•Separate the antenna from other connection cables.
17
17
17
Basic version
Advanced version
InformationInformation
121
GiPod / USB memory device / Internet radio / Media server / Flickr / Pandora / SiriusXMH
Symptom Cause/Solution Page
iPod cannot be
played.
•Some iPods do not support being used connected directly to the
iPod/USB port.
16
The file names
are not displayed
properly (“...”, etc.).
•Characters that cannot be displayed are used. This is not a
malfunction. On this unit, characters that cannot be displayed are
replaced with a “.” (period).
•The USB cable connecting the USB memory device and the unit
uses incompatible tags. Use USB memory devices with tags
supported by the unit.
–
32
When a USB
memory device is
connected, “USB” is
not displayed on the
menu.
•The set cannot recognize a USB memory device. Check the
connection.
•This unit supports mass storage class and MTP-compatible USB
memory devices. It will not recognize other USB memory devices.
•A USB memory device that the set cannot recognize is connected.
This is not a malfunction. DENON does not guarantee that all USB
memory devices will operate or receive power.
•USB memory device is connected via USB hub. Connect the USB
memory device directly to the iPod/USB port.
•The unit supports file structures with up to 8 levels and a total
maximum of 5000 subfolders and files per 1 folder. Change the
file structure of the USB memory device if necessary.
16
–
–
–
32
Files on a USB
memory device
cannot be played.
•The USB memory device format should be set to FAT16 or
FAT32. For details, refer to the USB memory device’s operating
instructions.
•If the USB memory device is divided into multiple partitions, only
files in partition one can be played.
•Files are stored in a non-compatible format. Record the files in a
compatible format.
•You are attempting to play a file that is copyright protected. Files
that are copyright protected cannot be played on this unit.
–
–
32
32
Internet radio cannot
be played.
•Ethernet cable is not properly connected or network is
disconnected. Check the connection status.
•Program is being broadcast in non-compatible format. Only
Internet radio programs in MP3 and WMA can be played on this
unit.
•The firewall of the PC or router has been activated. Check the
firewall settings of the connected PC or router.
•Radio station is not currently broadcasting. Choose a radio station
that is currently broadcasting.
•IP address is wrong. Check the set’s IP address.
•Some radio stations may go silent at certain times of the day. In
this case, no audio is output even when a station is received. Try
again later, or switch to another radio station.
18
43
–
43
98
–
Symptom Cause/Solution Page
Files stored on a
computer cannot be
played.
•Files are stored in a non-compatible format. Record in a compatible
format.
•You are attempting to play a file that is copyright protected. Files
that are copyright protected cannot be played on this unit.
•Set and computer are connected by USB cable. The set’s iPod/
USB port cannot be used for connection to a computer.
•Media sharing settings are not correct. Change media sharing
settings so that the unit can access the folders on your computer.
46
46
–
47
Music stored on
a NAS cannot be
played.
•If you use a NAS in conformity with the DLNA standard, enable
the DLNA server function in the NAS setting.
•If you use a NAS that does not conform with the DLNA standard,
play the music via a PC. Set Windows Media Player’s media
sharing function and add NAS to the selected play folder.
•If connection is restricted, set audio equipment as the connection
target.
–
47
–
Server is not found,
or it is not possible
to connect to the
server.
•The computer’s or router’s firewall is activated. Check the
computer’s or router’s firewall settings.
•Computer’s power is not turned on. Turn on the power.
•Server is not running. Launch the server.
•Set’s IP address is wrong. Check the set’s IP address.
–
–
–
98
Cannot connect to
preset or favorite
radio stations.
•Radio station is not currently broadcasting. Wait a while before
trying again.
•Radio station is not currently in service. It is not possible to
connect to radio stations that are no longer in service.
–
–
A list of broadcasting
stations is not
displayed.
•Connection to the network is unstable. Reconnect to the network
or redo the “Network” setting in the menu.
18, 99
For some radio
stations, “Radio
station server full” or
“Connection down”
is displayed and
station cannot be
connected to.
•Station is congested or not currently broadcasting. Wait a while
before trying again.
–
Sound is broken
during playback.
•Network or USB memory device’s signal transfer speed is slow
or communications lines or radio station is congested. This is not
a malfunction. When playing broadcast data with a high bit rate,
the sound may be broken, depending on the communications
conditions.
–
Basic version
Advanced version
InformationInformation
v See overleaf
122
Symptom Cause/Solution Page
Sound quality is poor
or noise is heard
during play.
•File being played has a low bit rate. This is not a malfunction. –
Cannot login to
Pandora. (“Email
address” or
“Password” is
displayed.)
•Login information is incorrect. Check if the “Email address” for
Pandora has been properly entered. Re-enter the “Password”.
(Password is not displayed.)
http://www.pandora.com/denon
53
GAirPlayH
Symptom Cause/Solution Page
The AirPlay icon
is not displayed
in iTunes or on the
iPhone/iPod touch/
iPad.
•This unit and the computer or iPhone/iPod touch/iPad are not
connected to the same network (LAN). Connect the computer or
iPhone/iPod touch/iPad to the same network as this unit.
•iTunes or the iPhone/iPod touch/iPad do not have firmware that
supports AirPlay installed. Update to the latest firmware.
18
104
No sound. •The volume in iTunes or on the iPhone/iPod touch/iPad is set to
the minimum setting. Adjust the volume to the optimum level.
•This unit is not selected in the screen that is displayed when
iTunes or the iPhone/iPod touch/iPad is started. Start iTunes or
switch on the iPhone/iPod touch/iPad, click the AirPlay icon
in
the displayed screen, and select this unit.
•AirPlay playback has not started. Click the 1 button in iTunes or
press the 1 button on the iPhone/iPod touch/iPod.
–
62
–
When using AirPlay
with the iPhone/
iPod touch, the
sound suffers from
intermittent breaks
or AirPlay does not
function.
•Quit the application running in the background of the iPhone/iPod
touch, and then play using AirPlay.
•When playing via a wireless connection, outside conditions may
affect the unit. To remedy this, change the network environment,
e.g. shorten the distance to the wireless LAN access point.
•Update the iPhone/iPod touch application or iTunes to the latest
version.
–
–
–
GRemote control unitH
Symptom Cause/Solution Page
The set cannot be
operated with the
remote control unit.
•Batteries are worn out. Replace with new batteries.
•Operate the remote control unit within a distance of about
23 ft/7 m from this unit and at an angle of within 30°.
•Remove any obstacle between this unit and the remote control
unit.
•Insert the batteries in the proper direction, checking the q and
w marks.
•The set’s remote control sensor is exposed to strong light (direct
sunlight, inverter type fluorescent bulb light, etc.). Move the set
to a place in which the remote control sensor will not be exposed
to strong light.
111
111
111
111
111
Basic version
Advanced version
InformationInformation
123
Resetting the microprocessor
Perform this procedure if the display is abnormal or if operations cannot be performed.
When the microprocessor is reset, all the settings are reset to their default values.
X
SOURCE SELECT 1
SOURCE SELECT 0
1
Turn off the power using X.
2
Press X while simultaneously pressing SOURCE SELECT 0 and SOURCE SELECT
1
.
3
Once the display starts ashing at intervals of about 1 second, release the two
buttons.
If in step 3 the display does not flash at intervals of about 1 second, start over from step 1.
Basic version
Advanced version
InformationInformation
124
Specifications
n Audio section
•Power amplifier
Rated output: Front:
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Center:
75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Surround:
75 W + 75 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
120 W + 120 W (6 Ω, 1 kHz with 0.7 % T.H.D.)
Output connectors: 6 – 16 Ω
•Analog
Input sensitivity/Input impedance: 200 mV/47 kΩ
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N: 98 dB (IHF–A weighted, DIRECT mode)
n Video section
•Standard video connectors
Input/output level and impedance: 1 Vp-p, 75 Ω
Frequency response: 5 Hz – 10 MHz — 0, –3 dB
n Tuner section [FM]
(Note: μV at 75 Ω, 0 dBf = 1 x 10
–15
W)
Receiving Range: 87.5 MHz – 107.9 MHz
Usable Sensitivity: 1.2 μV (12.8 dBf)
50 dB Quieting Sensitivity: MONO 2.8 μV (20.2 dBf)
S/N : MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion: MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
n General
Power supply: AC 120 V, 60 Hz
Power consumption: 360 W
0.1 W (Standby)
0.5 W (CEC standby)
For purposes of improvement, specifications and design are subject to change without notice.
Basic version
Advanced version
InformationInformation
125
v Numerics
2.1-channel ························································· 72
3D ······································································· 11
5.1-channel ··················································· 69, 71
v A
Accessories ·························································· 2
Add New Feature ············································· 105
Adjust EQ ··························································· 85
Adjusting the master volume ····························· 28
Adobe RGB color / Adobe YCC601 color ········· 117
AirPlay ························································ 62, 117
App Store ························································· 117
ARC ······································································ 8
Audio ···························································· 80, 88
Audio Delay ························································ 83
Audio Display ····················································· 88
Audyssey ···························································· 84
Audyssey Dynamic EQ
®
···························· 84, 117
Audyssey Dynamic Volume
®
····················· 84, 117
Audyssey MultEQ
®
··································· 84, 117
Audyssey
®
Setup ·············································· 20
Auto Lip Sync ············································· 87, 117
Auto Preset ························································ 38
Auto Standby ···················································· 102
v B
Bass ····························································· 82, 94
Browse Mode ·············································· 29, 30
v C
Cable
Audio cable ······················································ 12
Coaxial digital cable·········································· 12
Ethernet cable·················································· 12
HDMI cable ·················································· 9, 10
Optical cable ···················································· 12
Speaker cable ············································ 71, 72
Subwoofer cable ········································ 71, 72
Video cable ······················································ 12
Center Image ····················································· 81
Center Width ······················································ 81
Characters ·························································· 79
Cinema EQ ························································· 81
Condensation ······················································· 3
Connection
Blu-ray Disc player ··········································· 10
Cable TV··························································· 14
Digital camcorder ············································· 10
DVD player ················································· 10, 15
FM ··································································· 17
Game console ·················································· 10
HDMI ································································· 7
Home network (LAN) ······································· 18
iPod (USB)························································ 16
Power cord ······················································ 19
Satellite tuner··················································· 14
Set-top box ················································ 10, 14
Speaker ···························································· 70
TV································································· 9, 13
USB memory device ········································ 16
Content Type ······················································ 11
Crossovers ························································· 96
Curve Copy ························································· 85
v D
Decode Mode ···················································· 92
Deep Color ················································· 11, 117
Delay Time ························································· 82
Dialogue ····························································· 82
Dialogue Level ···················································· 82
Digital Assign ····················································· 90
Dimension ·························································· 81
Dimmer ···························································· 102
Direct Tune ························································· 37
Display ······························································ 108
Distances ··························································· 95
DLNA ································································ 117
Dolby
Dolby Digital············································· 67, 117
Dolby Digital Plus ····································· 67, 117
Dolby Pro Logic················································ 67
Dolby Pro Logic II····································· 67, 117
Dolby TrueHD ·········································· 67, 117
Downmix ·························································· 117
DTS ·································································· 117
DTS 96/24 ················································ 67, 117
DTS Digital Surround ····································· 117
DTS Express ············································ 67, 117
DTS-HD ···················································· 67, 117
DTS-HD High Resolution Audio ····················· 117
DTS-HD Master Audio ··································· 117
DTS NEO:6™ Surround ··························· 67, 117
Dynamic Comp. ·················································· 81
Dynamic EQ
®
···················································· 84
Dynamic range ················································· 117
Dynamic Volume
®
············································· 84
v E
Edit Name ·························································· 98
Effect Level ························································ 82
Error messages (Audyssey
®
Setup) ·················· 25
v F
Favorites Memory ·············································· 60
Firmware ·························································· 104
FLAC ································································ 118
Flickr ····························································· 50, 51
FM ······································································ 35
FM indoor antenna ············································· 17
Format ································································ 88
Friendly Name ···················································· 98
Front Display ···················································· 102
Front Panel ······················································· 107
v G
General ····························································· 101
v H
HDCP ························································· 11, 118
HDMI ······················································ 7, 11, 118
HDMI Audio Out ················································ 87
HDMI Control ··············································· 73, 87
HDMI Setup ······················································· 87
Headphones ····················································· 107
Hide Source ························································ 91
v I
Info.Display ························································ 88
Information ················································· 98, 103
Audio······························································ 103
Firmware························································ 103
Status····························································· 103
Video ······························································ 103
Input Mode ························································· 91
Inputs ································································· 89
Input Select ························································ 91
Input signal ······················································· 115
Inputting characters ··········································· 79
IP Control ··························································· 98
iTunes ······························································· 118
v L
Language ·························································· 102
Levels ································································· 95
LFE ··································································· 118
Limit ··································································· 83
Listening mode ·················································· 64
Listening position ··············································· 20
Lock ·································································· 105
Loudness Mngmt ··············································· 81
Low Frequency ·················································· 81
v M
Manual EQ ························································· 85
Manual Setup ····················································· 94
Menu map ·························································· 76
MP3 ·································································· 118
MPEG ······························································· 118
MultEQ
®
···························································· 84
Mute Level ························································· 83
v N
Network ······················································· 26, 97
Notifications ····················································· 104
v O
On-Screen Info ··················································· 88
Operation Mode ················································· 30
v P
Pandora ························································ 50, 53
Panorama ··························································· 81
Parameter Check ················································ 26
Picture View ······················································· 61
Playback
Blu-ray Disc player ··········································· 28
Direct ························································· 64, 67
DVD player ······················································· 28
FLAC ·························································· 32, 46
Flickr ································································ 51
FM ··································································· 35
Internet radio ··················································· 43
iPod (USB)························································ 29
JPEG ·························································· 32, 46
MP3 ····················································· 32, 43, 46
MPEG-4 AAC ············································· 32, 46
NAS·································································· 46
Original listening mode ···································· 67
Pandora ···························································· 53
PC ···································································· 46
SiriusXM ·························································· 56
STEREO ··························································· 67
USB memory device ········································ 32
WAV··························································· 32, 46
WMA ··················································· 32, 43, 46
P.Off Control ······················································ 87
Power On Level ················································· 83
Index
Basic version
Advanced version
InformationInformation
126
Preset Memory ·················································· 39
Preset Name ······················································ 40
Preset Skip ························································· 41
Progressive ······················································ 118
Protection circuit ·············································· 118
v Q
Quick select ······················································· 75
Quick Sel.Names ·············································· 102
v R
Random ························································ 31, 59
Rear panel ························································ 109
Reference Offset ··············································· 84
Remote control unit ········································· 110
Inserting the batteries···································· 111
Remote Mode ·············································· 29, 30
Remove Favorites ·············································· 61
Repeat ·························································· 31, 59
Resetting the microprocessor ·························· 123
Restorer ····························································· 83
Room Size ·························································· 82
v S
Sampling frequency ········································· 118
Scale ··································································· 83
Selecting the input source ································· 27
Settings ······························································ 99
Setup Lock ······················································· 105
SiriusXM ······················································· 50, 56
Sleep timer ························································· 74
Slideshow ··························································· 61
Sound Mode ··············································· 64, 113
Source Level ······················································ 91
Source Rename ·················································· 91
Speaker
Connect ··························································· 70
Install ······························································· 69
Set up ······························································ 20
Speaker Config. ·················································· 94
Speaker impedance ···································· 70, 118
Speakers ···························································· 93
Speaker Select ··················································· 85
Standby Source ·················································· 87
Subwoofer ·························································· 83
Subwoofer Level ················································ 83
Subwoofer setting ·············································· 21
Surr.Parameter ··················································· 81
sYCC601 color ·················································· 118
v T
Text Search ························································ 58
Tone ··································································· 82
Tone Control ······················································· 82
Trademark ························································ 112
Treble ································································· 82
Troubleshooting ··············································· 119
Tune Mode ························································· 36
Turning off the sound temporarily ······················ 28
Turning the power on ········································· 27
TV Format ··························································· 88
v U
Update ······························································ 104
v V
Video ·································································· 86
Video Select ······················································· 92
Video Source ······················································ 92
Volume ························································· 83, 87
Volume Display ·················································· 87
vTuner ························································ 45, 118
v W
Windows Media DRM ······································ 118
Windows Media Player ···································· 118
WMA ································································ 118
v X
x.v.Color ··························································· 118
Basic version
Advanced version
InformationInformation
127
Dimensions
Unit : in. (mm)
11 23/64 (288.5)
12 61/64 (329.0)
7 51/64 (198.0)
1 23/32
(43.5)
1 27/32
(47.0)
19/32 (15.0) 5 23/64 (136.0)
5 15/16 (151.0)
17 3/32 (434.0)
13 35/64 (344.0)
2 23/64
(60.0)
1 49/64
(45.0)
1 49/64
(45.0)
47/64
(18.5)
55/64
(22.0)
Weight : 18 lbs 1 oz (8.2 kg)
Basic version
Advanced version
InformationInformation
D&M Holdings Inc.
3520 10066 00AD
V00
www.denon.com
